Bluetooth stereo headset
User’s manual
Contents
Brief introduction………………………………….…………...…1
1. Bluetooth wireless communication technology…...………….….....1
2. About BTH015………………………………..…….………….…..1
Before use…………………………………………………...……..2
1. Overview……………………………..………………..…………...2
2. Charging the headset………………………….………………....…3
Getting started.……………………………….………….………..3
1. Turning on/off the headset……………….……….……………...…3
2. Pairing the headset with Bluetooth devices…………………..….....4
How to enter pairing mode……………………..……………….....4
Pairing the headset with a Bluetooth cell phone…...............…........4
Pairing the headset with a Bluetooth transmitter..………………....5
Multi-pairing………………………………………………….…....6
3. Re-connecting with a Bluetooth device………………………...…..6
4. Wearing the headset…………………………………………….…..7
5. Making a call with the headset…………………………..………....7
6. Music playback………………………………………..……….…...9
7. LED indicator…………………………………………….………..10
8. Indication tone………………………...………………..…...…..…11
Care and maintenance……………………..……………….….…11
FAQs…………………………………………………..……..….…11
Specifications……………………………………..…….....……....13
Welcome to use this Bluetooth stereo headset, BTH015. Please read this
user’s manual carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range wireless communication technology
that was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With
Bluetooth technology, we can achieve the highest transmission rate among
cell phones, computers, printers, PDAs and other devices. The max
transmission range of class II is 10 meters while the max transmission range
of class I can reach up to 100 meters.
2. About BTH015
BTH015 is a Bluetooth stereo headset. It’s foldable and retractable design is
very easy to take with you. It supports the following Bluetooth profiles:
HSP —— Headset Profile
HFP —— Hands-free Profile
A2DP—— Advanced Audio Distribution Profile
AVRCP——Audio/Video Remote Control Profile
You can enjoy music wirelessly by using BTH015. It has the following
features:
1) Pairing with a Bluetooth cell phone or PDA supporting HFP profile.
Answer a call, end a call and reject a call
Redial last number
Voice dial
Adjust the volume
Call transfer between the headset and your Bluetooth cell phone
Microphone mute
2) Pairing with a Bluetooth music device or Bluetooth transmitter
supporting A2DP profile.
Enjoy music wirelessly
Adjust the volume
Remote control pause/play
Remote control previous/next track
1
3) Easy to switch between the call and music, you will not miss the
incoming call during listening to music.
4) Every time the headset is turned on, it will connect to last connected
device automatically.
Note: Even though the paired device and the headset support the same
Bluetooth profiles, functions may vary due to specification differences of
the paired devices.
Before use

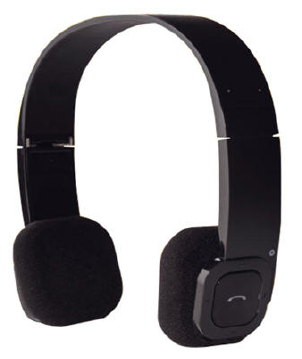

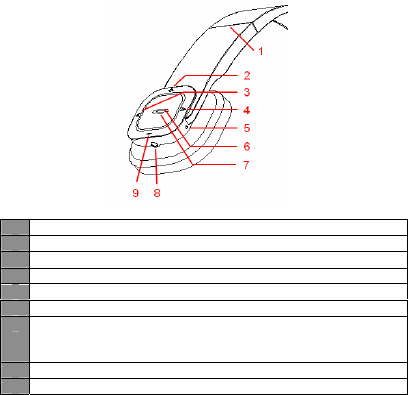

1. Overview
2
1 Foldable and retractable headhand
2 + button: Volume up
3 ﹤button: Previous track
4 ﹥button: Next track
5 Built-in microphone
6 LED indicator
7 Multi-function button (MFB): Power on/power off/answer a
call/end a call/reject a call/microphone mute/call transfer/redial
last number/voice dial/pause/play
8 Charging jack
9 – button: Volume down
2. Charging the headset
The headset comes with a built-in rechargeable battery, prior to using it, it is
recommended to charge the battery fully for the first time.
When the headset is low power, red LED flashes twice and the headset emits
three “Dong” tones every 20 seconds. Please recharge the battery of the
headset.
Connect the USB cable to a computer USB port and the USB cable plug to
the charging jack of the headset. Red LED is on while charging. It takes
about 3 hours to charge the battery fully. When charging has completed, red
LED will be off.
Remarks:
1) The battery is recyclable.
2) Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat place, such as sunshine, fire or the like.
Getting started
1. Turning on/off the headset
Function Operation LED indicator
Power on Press and hold MFB button for
3～5 seconds until blue LED
flashes
Blue LED is on
for 1 second
Power off Press and hold MFB button for
3～5 seconds until red LED
flashes
Red LED is on for
1 second
3
Remark: In order to save power, the headset will turn off automatically if
no devices can be connected after 5 minutes.
2. Pairing the headset with Bluetooth devices
How to enter pairing mode
Function Operation LED
indicator
Entering
pairing
mode
Ensure the headset is turned off,
otherwise turn it off first and then
press and hold MFB button for
6～7 seconds until LED flashes
red and blue alternately
LED flashes
red and blue
alternately
Remark: Pairing mode will last 2 minutes. If no devices can be connected
after 2 minutes, it will return to standby mode automatically .
Pairing the headset with a Bluetooth cell phone
Prior to using the headset for the first time, you have to pair it with a
Bluetooth-enabled cell phone. The pairing procedures are subject to
different models of cell phones. Please refer to your cell phone user’s
manual for further information. The general pairing procedures are as
follows:
1) Place the headset and Bluetooth cell phone where they are easily
viewable by no more than 1 meter apart;
2) Enter the headset’s pairing mode (please refer to “How to enter pairing
mode);
3) Activate your cell phone’s Bluetooth function and set your cell phone to
search for Bluetooth devices within range, and select “BTH015” from the
list of devices shown;
4) According to the indication, enter password or PIN No: “0000”;
5) If prompted by your cell phone to connect, select “Yes” (this will vary
among cell phone models);
6) After successful connecting, blue LED flashes twice or three time every
4 seconds.
You should now be able to make and receive a call using the headset.
Remarks:
If pairing is failed, please turn off the headset first and then re-pair
according to steps 1～6 mentioned above.
4
After pairing is successful, the headset and the cell phone will remember
each other, they will no need to re-pair next time. The headset can
remember 8 paired devices, When the number of paired devices exceeds
8, the first one will be replaced.
Every time the headset is turned on, it will connect to last connected
device automatically. If you want to pair it with other devices, please turn
off the Bluetooth function of last connected devices first and pair the
headset with the new device according to steps 1～6 mentioned above.
Pairing the headset with a Bluetooth transmitter
You can connect the headset to a Bluetooth transmitter to enjoy music
wirelessly. Hereby take BTT010 (Bluetooth transmitter for iPod, not
included) for example. The pairing steps are as follows:
1) Place the headset and the Bluetooth transmitter where they are easily
viewable by no more than 1 meter apart;
2) Enter the headset’s pairing mode (Please refer to “How to enter pairing
mode);
3) Turn on the Bluetooth transmitter. It will search for Bluetooth devices
automatically and send a pairing request;
4) When the headset requests to enter a PIN No., the transmitter will
response “0000” automatically;
5) After successful pairing and connecting, blue LED of the headset will
flash twice every 4 seconds.
Remarks:
The pairing password of the headset is “0000”. So, the headset can only
pair with a Bluetooth transmitter whose pairing password is “0000”.
If pairing still fails after several tries, please refer to the Bluetooth
transmitter’s user’s manual for further information.
5
Multi-pairing
The headset can connect with two devices at most. One is a Bluetooth cell
phone supporting HFP profile, the other one is a Bluetooth music device
supporting A2DP profile. If you want to finish the multi-pairing, please refer
to the following steps:
1) Firstly, pair the headset with a Bluetooth transmitter (refer to “pairing the
headset with a Bluetooth transmitter);
2) Turn off the Bluetooth transmitter;
3) Pair and connect the headset with a Bluetooth cell phone (refer to
“pairing the headset with a Bluetooth cell phone”).
4) Turn on the Bluetooth transmitter, it will connect to the headset
automatically.
Remarks:
After successful multi-pairing, the paired devices will remember each
other. Unless pairing information is deleted because of new pairing, they
will no need to pair next time. If the pairing information is deleted,
please connect the mobile phone with the headset first and then turn on
the Bluetooth transmitter, multi-connecting can be performed.
For the cell phone supporting the HSP and A2DP at the same time. It
may set up HSP and A2DP connection with the headset simultaneously.
At this time, the Bluetooth transmitter may not connect to the headset.
3. Re-connecting with a Bluetooth device
1) Automatic connecting
Every time the headset is turned on, it will connect to last connected
device automatically.
2) Manual connecting
When the headset doesn’t connect to a device supporting HFP, double click
MFB button, it will connect to last connected HFP device.
When the headset doesn’t connect to a device supporting A2DP, short press
MFB button, it will connect to last connected A2DP device.
Remarks:
Before connecting to a Bluetooth device, please turn on the Bluetoth
device’s Bluetooth function.
On some Bluetooth devices, take some Nokia cell phones for example,
you have to allow automatic connecting in the cell phone’s settings.
Please refer to your cell phone’s manual for further information.
6
4. Wearing the headset
The headhand of the headset is foldable and retractable, please adjust
according to the actual use. Logo “L” of the headset represents left ear, Logo
“R” of the headset represents right ear. Please wear the headset according to
the indication of the Logo.
5. Making a call with the headset
1) Basic operation
Function Status of
BTH015 Operation
Cancel calling Calling Short press MFB button
Answer a call Incoming ring Short press MFB button
Reject a call Incoming ring Press and hold MFB button for
2 seconds and release it until
hearing indication tone
End a call During a call Short press MFB button
Volume up During a call
Touch＋button, when touch
＋ button all the time, the
volume will increase
continuously
Volume down During a call
Touch－button, when touch
－button all the time, the
volume will reduce
continuously
Call transfer
(headset to
mobile phone) During a call Press and hold MFB button for
2 seconds and release it until
hearing indication tone
Call transfer
(mobile phone
to headset) During a call Press and hold MFB button for
2 seconds and release it until
hearing indication tone
Microphone
mute During a call Short press MFB button twice
Cancel mute During a call
(microphone
mute) Short press MFB button twice
7
Function Status of
BTH015 Operation
Voice dial Standby mode
and connected
to a device
Simultaneously press and hold
MFB buttons for 2 seconds and
release them until hearing
indication tone
Redial last
number
Standby mode
and connected
to a device Short press MFB button twice
Lock/unloc
k the
buttons Standby mode
Simultaneously press and hold
MFB and＋buttons for 2 seconds
and release them until hearing
indication tone
Clear
pairing list Charging
Firstly press and hold MFB button
and then press and hold －button
for 5 seconds, and release them
until red LED flashes once
2) Three-way call
Function Status of
BTH015 Operation
End current call
and answer a new
incoming call
There is a new
incoming call Short press MFB
button once
Keep current call
and answer a new
incoming call
There is a new
incoming call Short press MFB
button twice
Call transfer During a call（keep
another call） Short press MFB
button twice
End current call
and switch to
reserved call
During a call（keep
another call） Short press MFB
button once
Warning: Excessive pressure from earphones and headphones can cause
hearing loss.
8
Remarks:
Not all cell phones support all functions listed above. Please refer to your
cell phone’s user’s manual for further information.
Certain functions and indication tones maybe vary with different models
of cell phones.
When the volume is adjusted to max. or min., you will hear a indication
tone.
When pressing the answer button on some cell phones, the call will be
transferred to the cell phone. You have to switch the call to the headset
manually then. Please refer to your cell phone’s user’s manual for further
information.
6. Music playback
After connecting the headset to a Bluetooth cell phone or Bluetooth
transmitter supporting A2DP, you can enjoy music with the headset.
Function Status of
BTH015 Operation
Volume up Playing
music
Touch＋button, when touch ＋
button all the time, the volume
will increase continuously
Volume down Playing
music
Touch－button, when touch －
button all the time, the volume
will reduce continuously
Pause Playing
music Short press MFB button
Play Pausing Short press MFB button
Previous track Playing
music Touch ﹤ button
Next track Playing
music Touch ﹥ button
Remarks:
When playing music on some cell phones, the music will be transmitted
to the cell phone’s speaker instead of the headset. You have to select
“transmit the sound via Bluetooth” in the settings menu and then choose
“BTH015” as speaker device. The music will be transmitted to the
headset. Please refer to your cell phone’s user’s manual for further
information.
9
When the volume is adjusted to max. or min., you will hear a indication
tone.
If you want to remote control previous/next track, pause/play, it needs
your Bluetooth cell phone or Bluetooth transmitter paird with the headset
to support AVRCP profile, please refer to the user’s manual of your cell
phone or Bluetooth transmitter for further information.
7. LED indicator
1) When the headset is charging
LED indicator Status of the headset
Red LED is on Charging in progress
Red LED is off Finish charging
2) When the headset connected to a Bluetooth device
LED indicator Status of the headset
LED flashes red and blue alternately Pairing mode
Blue LED flashes once every 3
seconds Not connected to a
Bluetooth device
Blue LED flashes twice every 5
seconds Connected to a HFP device
or A2DP device)
Blue LED flashes 3 times every 5
seconds Simultaneously connected
to a HFP device and A2DP
device
Blue LED flashes twice or 3 times
every 5 seconds Calling
Blue LED flashes twice every 4
seconds Incoming ring
Blue LED flashes once every 5
seconds During a call
Red LED flashes twice every 20
seconds Low power
10
8. Indication tone
Indication tone Status of BTH015
Two short “DU” tones Enter pairing mode
Emits 2 tones every 5 seconds During a call (Microphone
mute)
Emits 3 “Dong” tones every 20
seconds Low power
Care and maintenance
Read the following recommendations before using the headset. Following
these you will be able to enjoy the product for many years.
Do not expose the headset to liquid, moisture or humidity to avoid the
product’s internal circuit being affected.
Don’t use abrasive cleaning solvents to clean the headset.
Do not expose the headset to extremely high or low temperature as this
will shorten the life of electronic devices, destroy the battery or distort
certain plastic parts.
Don’t dispose of the headset in a fire as it will result in an explosion.
Don’t expose the headset to contact with sharp objects as this will cause
scratches and damage.
Don’t let the headset fall down onto the floor. The internal circuit might
get damaged.
Don’t attempt to disassemble the headset as it may get damaged if you
are not professional.
In case the headset doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem.
FAQs
1 Why does red LED flash twice every 20 seconds?
The headset is low power, it needs to be recharged.
2 Why isn’t red LED on when charging?
a) Please make sure the USB charger connects well with the headset;
b) When you didn’t use the headset for a long time, the battery may dry up.
At this time, you have to charge the battery for 30 minutes, and then the
red LED will be on.
11
3 How far is the effective range between the headset and Bluetooth cell
phone?
According to the Bluetooth standard, the max. controllable range of
Class II headset is 10 meters. It varies under different environment.
4 What to do when my cell phone can not search and find the headset?
The cell phone will not find the headset if the headset and cell phone are
not under the pairing mode. Make sure the headset is under the pairing
mode and in the effective working range, and then the headset can be
paired and connected.
5 Why can’t hear the voice from the headset?
a) Make sure the headset is turned on;
b) Ensure the volume of the headset is not too low or mute;
c) Make sure the headset connects well with your cell phone;
d) Ensure the distance between the headset and your cell phone is in the
normal working scope.
6 Why is there no voice when making a call with the headset?
a) Make sure your cell phone is in the strong signal area;
b) Ensure the headset is in the function range.
7 Why can’t I remotely control the pause, play, previous track and
next track functions with the headset when playing music?
The function needs the Bluetooth device paired with the headset to
support AVRCP (Audio/Video Remote Control Profile). Please make
sure your cell phone or Bluetooth transmitter supports AVRCP profile.
12
Specifications
Bluetooth specification Bluetooth V2.1+EDR
Bluetooth profiles HSP, HFP, A2DP and AVRCP
Operating distance 10 meters, Class II
Working time Music: Up to 10 hours
Talk: Up to 11 hours
Standby time 200 hours
Charing input DC 5A 130mA
Charging time About 3 hours
Dimensions 158×156×55mm
Weight 103 g
Notes:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
13
