Zhongshan K mate General Electronics BTH018 Bluetooth Stereo Headset User Manual 1 BTH018 User s Manual
Zhongshan K-mate General Electronics Co., Ltd Bluetooth Stereo Headset 1 BTH018 User s Manual
Users Manual
BTH018
User’s Manual
Content
Brief introduction…………...…………………………..…...1
1. Bluetooth wireless communication technology……...……………..1
2. About BTH018…………………………………………………...1
Before use……………………………………………………..2
1.Overview…………………………………………………………2
2. Charging for Headsets……………………………………………3
Using the headsets……………………………………………4
1. Turn on/off the headsets………………………………………………...4
2. Pairing headsets with Bluetooth devices……………………………….5
1) How to entering pairing mode……………………………………….5
2) Pairing headsets with Bluetooth devices…………………………….5
3) Pairing headsets with Bluetooth transmitter……………………….6
4) Pairing headsets with Multi-devices…………………………..…….7
3. Reconnect the headsets with devices…………………………………...7
4. Wearing the headset………………………………………………….…8
5. Making calls with the headset………………………………………….8
6. Playing music……………………………………………………….….10
7. LED indicator…………………………………………………………..11
8. Indication tone………………………………………………………….12
Care and maintenance…………………………………...………..12
FAQs…………………………………………………………………..13
Specification…………………………………………………..……..14
1
Welcome to use this Water-resistant Bluetooth stereo headset, BTH018.
Please read this user’s manual carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range radio-communication technology that
was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba in May, 1998.
With Bluetooth technology, we can achieve the highest transmission rate
among cell phones, computers, printers, PDAs and other devices. The max
transmission range of class II is 10 meters while the max
radio-communication range of class I can reach up to 100 meters.
2. About BTH018
BTH018 is a Water-resistant Bluetooth stereo headset. It support following
Bluetooth profile:
HSP —— Headset Profile
HFP —— Hands-free Profile
A2DP—— Advanced Audio Distribution Profile
AVRCP——Audio/Video Remote Control Profile
Profile Descri
p
tion
HSP Head
p
hone ear
p
iece
HFP Related o
p
eration of
p
hone call mana
g
ement
A2DP Stereo music
p
la
y
bac
k
AVRCP Remote control music
(p
ause/
p
la
y
/
p
revious track/next track
)
You can enjoy music wirelessly by using the BTH018. Fetures as following:
1) Pairing with the Bluetooth mobile phone and PDA which support HFP.
Answer, end and reject call from the headset
Redial last number
Voice dial
Adjust the volume
Switch the conversation between the headset and the mobile phone
Microphone mute
2
2) Pairing with Bluetooth music devices and Bluetooth transmitter which
support A2DP.
Enjoy music wirelessly
Adjust the volume
Remote control pause/ play
Remote control last/next song
3) Easy to switch between conversation and music, you will not miss the
incoming call during listening to music.
4) Every time the headset is switched on, it will automatically connect to the
last paired device.
Note: Even though the paired device and headset support the same
Bluetooth profiles, the functions may be different due to the specification
difference of the paired devices.
Before use

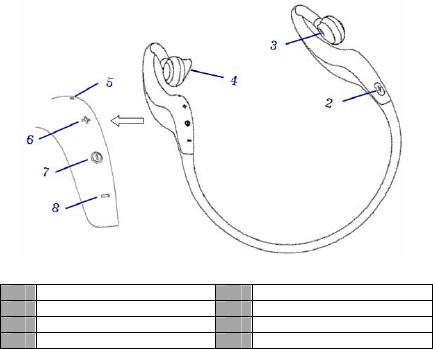

1.Overview
3
1 Status indicator li
g
ht 5Built-in micro
p
hone
2 Char
g
in
g
j
ac
k
6
V
olume u
p
/
p
revious trac
k
3 Left s
p
eake
r
7Multifunction button
4 Ri
g
ht s
p
eake
r
8
V
olume down/next trac
k
2. Charging for Headsets
First time charging：
Before you use this Bluetooth headset, please charge the battery of BTH018
fully.
Low power：
When you hear three “DONG” tones every 20 seconds, at the same time, the
red LED blinks twice. It means the battery is low power and need to be
charged.
4
There are two ways of charging for headset:
Using travel charger:
1. Plug charger into standard AC power socket
2. Plug another side of charger jack into charging port of the headset
RED light on→Charging
RED light off→Finish charging
3. It will take about two hours to finish charging
Using USB cable charger:
1. Plug USB cable into USB port of PC
2. Plug another side of USB cable into charging port of the headset
RED light on→Charging
RED light off→Finish charging
3. It will take about two hours to finish charging
Note: Choosing travel charger or USB cable depends on different countries
or areas and actual demands.
Warning:
2) The battery is recyclable.
3) Do not dispose of the battery in fire, as it may cause explosion.
Using the headsets
1. Turn on/off the headsets
Function O
p
eration Indicator li
g
ht
Turn on Press multifunction button about
3~5seconds and release it till the
b
lue li
g
ht blinks
Blue light on 1
second
Turn off Press multifunction button about
3~5seconds and release it till the
red li
g
ht blinks
Red light on 1
second
5
Note:
The headset will turn off automatically if it can not connect any devices
within 5 minutes after turn on so that it can save power.
2. Pairing headsets with Bluetooth devices
1) How to entering pairing mode
Function Operation Indicator
li
g
ht
Enter pairing
mode Make sure the headset is turned
off, if not,please thrn it off first.
Press multifunction button about
6~7seconds, and release it till blue
light and red light blink
alternatel
y
.
Blue light and
Red light blink
alternately.
Note:
Pairing mode will last 2 minutes, if the headset can not connect any other
devices after 2 minutes, it will switch standby mode automatically.
2) Pairing headsets with Bluetooth devices
Prior to using the headset for the first time, you have to pair it with a
Bluetooth-enabled cell phone. The pairing procedures are subject to
different models of cell phones. Please refer to your cell phone user’s
manual for further information. The general pairing procedures are as
follows:
Please keep the headset and mobile phone within 1 meter when pairing
Make the headsets enter pairing mode(please refer to “How to entering
pairing mode”
Activate your mobile phone’s Bluetooth function and search Bluetooth
devices within available range, and select “BTH018” from the list of
devices shown after search
According to the indication, enter password or PIN No: “0000”, and
6
press “Yes” or “Confirm” button to confirm
After pairing sucessfully, choose “BTH018” from the list of device
shown and connect it
After connect sucessfully, headsets’s blue light blinks twice every 4
seconds or blinks three times every 4 seconds
Note:
If the pairing is not successful, please switch off headset firstly, and then
re-pair according to the steps 1-6 mentioned above.
After pairing is successful, the headset and the mobile phone will
remember each other, they will no need to re-pair next time.The headset
can remember 8 paired devices, when the number of paired devices
exceeds 8, the first one will be replaced.
If you want to pair the headset with other devices, please pair it with the
new device according to steps 1～6 mentioned above.
3) Pairing headset with Bluetooth transmitter
You can pairing headset with Bluetooth transmitter to enjoy wirelessly
music. Hereby take BTT001 (Bluetooth transmitter for iPod, not included)
for example. The pairing steps are as follows:
Keep the Bluetooth transmitter and the headset within 1 meter when
pairing;
Make the headset enter pairing mode (please refer to “How to enter
pairing mode);
Switch on the Bluetooth transmitter, it will search Bluetooth device
automatically and start pairing;
When the headset requests PIN No., the Bluetooth transmitter will
respond “0000” automatically;
After successful pairing and connecting, blue light of the headset blinks
twice every 4 seconds.
7
Note:
The pairing password of the headset is “0000”. So, the headset can only
pair with a Bluetooth transmitter whose pairing password is “0000”.
If pairing still fails after several tries, please refer to the Bluetooth
transmitter’s user’s manual for further information.
4) Pairing headset with Multi-devices
The headset can connect with two devices at most. One is a Bluetooth
mobile phone supporting HFP profile, the other one is a Bluetooth music
device supporting A2DP profile. If you want to finish the multi-pairing,
please refer to the following steps:
Firstly, pair the headset with a Bluetooth transmitter (please refer to
“pairing the headset with a Bluetooth transmitter);
Switch off the Bluetooth transmitter;
Pair and connect the headset with a Bluetooth mobile phone (please refer
to “pairing the headset with a Bluetooth mobile phone”).
Switch on the Bluetooth transmitter, it will connect to the headset
automatically.
Notes:
After successful pairing, the paired devices will remember each other.
Unless pairing information is deleted because of new pairing, they will
no need to pair next time. If the pairing information is deleted, please
connect the mobile phone with the headset first and then switch on the
Bluetooth transmitter, multi-connecting can be performed.
For the mobile phone supporting the HSP and A2DP at the same time. It
may set up HSP and A2DP connection with the headset simultaneously.
At this time, the Bluetooth transmitter may not connect to the headset.
3. Reconnect the headset with devices
1) Connect automatically
After headset is opened, it will try to connect the last connected devices.
2) Artificial connect
When the headset not connect HFP device, please double-click
8
multi-function button, the headset will try to connect the last connected
HFP devices.
When the headset not connect A2DP device, please long press “―” for
two seconds, the headsets will try to connect the last connected A2DP
devices.
4. Wearing the headset

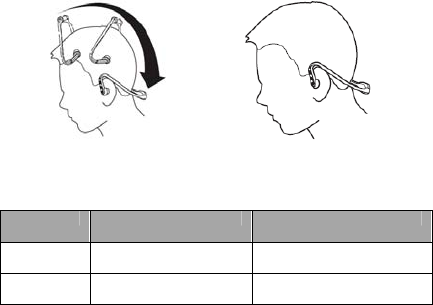

As per the following pictures show, hang the headset on the ears with your
both hands. You must use both hands to put on or take off the headset, don’t
pull or push the headset.
5. Making calls with the headset
1) Basic conversation operation
Function Status of the headset Operation
Cancel call Calling mode Short press multifunction
b
utton one time
Answer call Ringing Short press multifunction
b
utton one time
9
Reject call Ringing Long press multifunction
button for about 2 seconds
and release it till you listen
p
rom
p
t tone
End call Conversation mode Short press multifunction
b
utton one time
V
olume up Conversation mode Short press “+”
b
utton
V
olume
down Conversation mode Short press “―”
b
utton
Call
transfer to
mobile-pho
ne
Conversation mode Long press multifunction
button for 2 seconds
Call
transfer to
ear
p
hone
Conversation mode Long
p
ress multifunction
button for 2 seconds
Microphon
e mute Conversation mode Double-click multifunction
b
utton
Cancel
mute Conversation
mode
(
Micro
p
hone mute
)
Double-click multifunction
b
utton
V
oice dial Standby mode(have
already connect with
device
)
Long press multifunction
button for 2 seconds
Redial last
number Standby mode(have
already connect with
device
)
Double-click multifunction
button
Delete
pairing list Power off Press multifunction button
and “+”button at the same
time for 8 seconds and
release it till blue light and
red light on at the same
time for 1.5 secon
d
10
2) The operation of three-way call
Function Status of the headset Operation
Answer new call
and end current
call
There are second
incoming call Short press
multifunction button
Answer new call
and retain current
call
There are second
incoming call Double-click
multifunction button
Switch call
K
eep conversation Double-click
multifunction button
End current call
and switch retain
call
Keep conversation Short press
multifunction button
Warning: : Excessive pressure form earphones and headphones can
cause hearing loss.
Note:
Not all the mobile phones support all the functions listed above. Please
refer to your mobile phone user’s manual.
Different function and prompt tone according to different mobile phone.
When the volume is adjusted to max or min, you will hear a prompt tone.
When pressing the answer button on some mobile phones, the call will be
transferred to the mobile phone. You can switch the call to the headset by
using the conversation switch button or through operating on the mobile
phone. Please refer to your mobile phone user manual for further
information.
6. Playing music
When the headset connects to a mobile phone or Bluetooth transmitter
which supports A2DP, you can enjoy music wirelessly through the headset.
Function Status of the
headset Operation
V
olume up Palying music Short press “+”
b
utton
V
olume down Pal
y
in
g
music Short
p
ress “―”
b
utton
11
Previous son
g
Pal
y
in
g
music Lon
g
p
ress “+”
b
utton for 2 seconds
Next son
g
Pal
y
in
g
music Lon
g
p
ress “―”
b
utton for 2 seconds
Pause Pal
y
in
g
music Short
p
ress multifunction button
p
la
y
Pausin
g
Short
p
ress multifunction button
Notes:
When playing music on some mobile phones, the music will be
transmitted to the mobile phone’s speaker instead of the headset. You
have to select “transmit the sound via Bluetooth” in the settings menu
and then choose “BTH018” as speaker device. The music will be
transmitted to the headset. Please refer to your mobile phone’s user’s
manual for further information.
When the volume is adjusted to max. or min., you will hear a prompt
tone.
If you want to remote control last/next song, pause/play, it needs your
Bluetooth mobile phone or Bluetooth transmitter paird with the headset
to support AVRCP profile, please refer to the user’s manual of your
mobile phone or Bluetooth transmitter for further information.
7. LED indicator
1) Charging
LED indicator Status of the headset
Red li
g
ht on Char
g
in
g
Red li
g
ht off Finish char
g
in
g
2) Pairing with the Bluetooth device
LED indicator Status of the headset
Red and blue light blink alternatel
y
Pairing mode
Blue light quick blink one time every 2
seconds Not connected to a device
Blue light quick blink twice every 4
seconds Set up HFP or A2DP
connection
Blue light quick blink three times every
4 seconds Set up HFP and A2DP
connection
12
Blue light quick blink continuousl
y
Calling/incoming call
Blue light quick blink one time every 4
seconds Conversation mode
Red light quick blink twice every 30
seconds Low batter
y
8. Indication tone
Indication tone Status of the headset
Continuous two indication tone
ever
y
5 seconds Conversation mode and
micro
p
hone mute
Three “dong” warning tone every
30 seconds Low batter
y
Care and maintenance
Read the following recommendations carefully before using BTH018.
Following these you will be able to enjoy this product for many years.
Keep it dry and don’t put it in the dump place to avoid the product’s
internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem
13
FAQs
1. What does it mean when red LED blink twice every 30 seconds?
Battery is low power, need to be recharged.
2. Why is the red LED off when charging?
a) Please make sure the charging device connect with headset Well;
b) You didn’t use the headset for a long time, the battery may dry up. At this
time, you have to charge the battery for 30 minutes, and then the red
LED will be ON.
3. How far is the effective rang between the headset and mobile phone?
According to the Bluetooth standard, the max. available range of ClassII
headset is 10 meters. It varies under different environment.
4. Why my mobile phone can not search and find the headset?
The mobile phone will not find the headset if headset and mobile phone are
not under the pairing mode. Make sure the headset is under the pairing mode
and in the effective working range, and then the headset can be paired and
connected.
5. Why can not hear the voice?
a) Make sure the headset has been switched on;
b) Make sure the volume is not too low or muted;
c) Make sure the headset connects with the mobile phone correctly;
d) Make sure the distance between the headset and the cell phone is in the
available Bluetooth range.
6. Why is the voice not clear in conversation?
a) Make sure the mobile phone is in the strong signal area;
b) Make sure the headset is in the available range of this product.
7. Why can’t control pause, play, last song and next song when playing
music?
This function needs your Bluetooth device supports AVRCP(Audio/Video
Remote Control profile)
14
Specifications
Bluetooth version Bluetooth V2.1+EDR
Bluetooth profiles Headset, Handsfree, A2DP, AVRCP
Operating distance 10meters
Headset working time Music: up to 7 houurs
Talk: up to 8 hours
Headset standby time Approx 180 hours
Charging input DC5.0V130mA
Headset charging time Approx 2 hours
Dimension 132*134.5*61mm
Weight Approx 35.3g
Notes:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
