Welcome to use this Bluetooth stereo headset, BTH026N. Please read this
user’s manual carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range wireless communication technology
that was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With
Bluetooth technology, we can achieve the highest transmission rate among
cell phones, computers, printers, PDAs and other devices. The max
transmission range of class II is 10 meters while the max transmission
ranges of class I can reach up to 100 meters.
2. About BTH026N
BTH026N is a Bluetooth stereo headset. It supports the following Bluetooth
profiles:
HSP —— Headset Profile
HFP —— Hands-free Profile
A2DP—— Advanced Audio Distribution Profile
AVRCP——Audio/Video Remote Control Profile
You can enjoy music wirelessly by using BTH026N. It has the following
features:
1) Supporting NFC(Near Field Communication) function, it can quickly
connect with Bluetooth cell phone supporting NFC function.
2) Pairing with a Bluetooth cell phone or PDA supporting HFP profile.
Answer a call, end a call and reject a call
Redial last number
Voice dial
Adjust the volume
Call transfer between the headset and your Bluetooth cell phone
Microphone mute
3) Pairing with a Bluetooth cell phone or Bluetooth transmitter supporting
A2DP profile.
Enjoy music wirelessly
Adjust the volume
Remote control pause/play
Remote control previous/next track
1
4) Easy to switch between the call and music, you will not miss the
incoming call during listening to music.
5) Every time the headset is turned on, it will connect to last connected
device automatically.
Note: In order to complete above function, the Bluetooth profiles of paired
device must be same as the headset. And even though the paired device and
the headset support the same Bluetooth profiles, functions may vary due to
specification differences of the paired devices.
Before use
1.

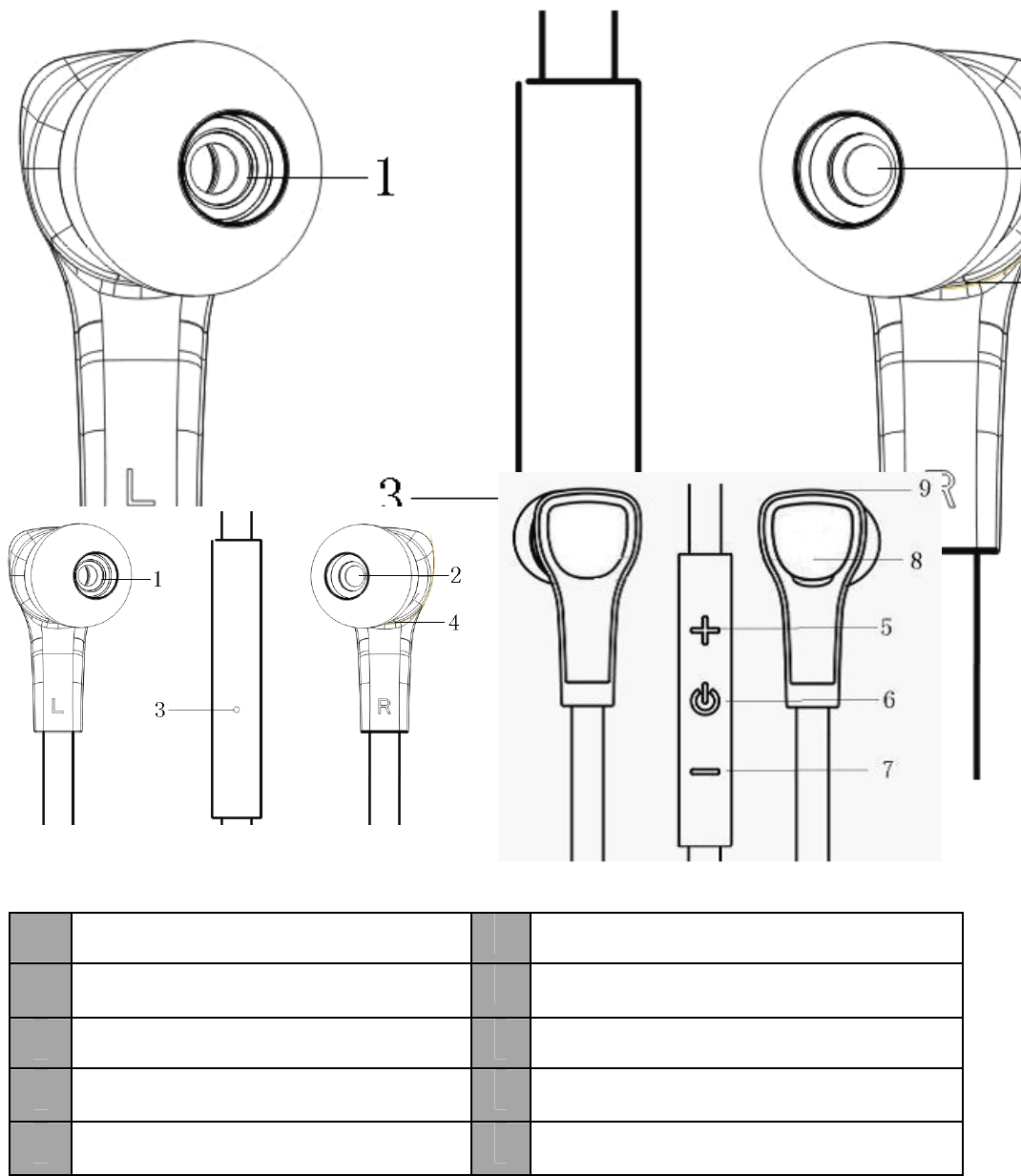

Overview
2
1
Left speaker 6
Multi-functions button (MFB）
2
Right speaker 7
Volume down/next song
3
Built-in microphone 8
Charging jack
4
LED indicator 9
NFC chip
5
Volume up/previous song
2. Charging for headset
The headset comes with a built-in rechargeable battery, prior to using it, it is
recommended to charge the battery fully for the first time.
When the headset is low power, the headset emits “Dong” tones every 5
minutes and the red LED flashes instead of blue LED. Please recharge the
battery of the headset.
The way of charging as following:
Using USB cable
1. Plug the USB charging cable to charging jack of headset
2. Plug another side of cable to the USB port of PC
Red light on: Charging
Red light off: Finish charging
3. It will takes about 2 hours to finish charging
Remarks:
1) The battery is recyclable.
2) Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat place, such as sunshine, fire or the like.
Getting started
1. Turning on/off the headset
Functions Operation LED indicator
Turning on Press and hold MFB button
about 4 seconds until blue
LED flashes
Blue LED on one
second
Turning off Press and hold MFB button
about 4 seconds until red LED
flashes
Red LED on one
second
Remark: In order to save power, the headset will turn off automatically if
no devices can be connected after 5 minutes.
3
2. Pairing the headset with Bluetooth devices
1) How to enter pairing mode
Functions Operation LED indicator
Entering
pairing
mode
Ensure the headset is off,
otherwise please turn it off first.
And then press and hold MFB
button about 8 seconds until red
and blue LED flash alternately
Red and blue LED
flash alternately
Remark: Pairing mode will last 2 minutes. If no devices can be connected
after 2 minutes, it will return to standby mode automatically.
2) Pairing headset with Bluetooth cell phone via Bluetooth
Prior to using the headset for the first time, you have to pair it with a
Bluetooth-enabled cell phone. The pairing procedures are subject to
different models of cell phones. Please refer to your cell phone user’s
manual for further information. The general pairing procedures are as
follows:
1) Keep your headset and phone within 1 meter when pairing;
2) Make the headset enter pairing mode (please refer to “How to enter
pairing mode);
3) Activate your cell phone’s Bluetooth function and set your cell phone to
search for Bluetooth devices within range, and select “BTH026N” from
the list of devices shown;
4) According to the indication, enter password or PIN No: “0000”. (
If the
mobile phone supports Bluetooth V2.1, password is not required.). If
prompted by your cell phone to connect, select “Yes” (this will vary
among cell phone models);
5) After successful paired, choose and connect “BTH026N” from the list of
devices shown on cell phone;
6) After successful connecting, blue LED of headset flashes twice every 4
seconds
Remarks:
If pairing is failed, please turn off the headset first and then re-pair
according to steps 1～6 mentioned above.
4
After pairing is successful, the headset and the cell phone will remember
each other, they will no need to re-pair next time. The headset can
remember 8 paired devices, when the number of paired devices exceeds
8, the first one will be replaced.
Every time the headset is turned on, it will connect to last connected
device automatically. If you want to pair it with other devices, please turn
off the Bluetooth function of last connected devices first and pair the
headset with the new device according to steps 1～6 mentioned above.
3) Pairing headset with a Bluetooth cell phone via NFC
BTH026N support NFC function, it can quickly connect with Bluetooth cell
phone via NFC, hereby take Samsung S3(Android 4.0) (Not included in
accessory) for example.
The general pairing procedures are as follows:
1) Please activate the Bluetooth and NFC function of cell phone;
Please refer to following pictures：

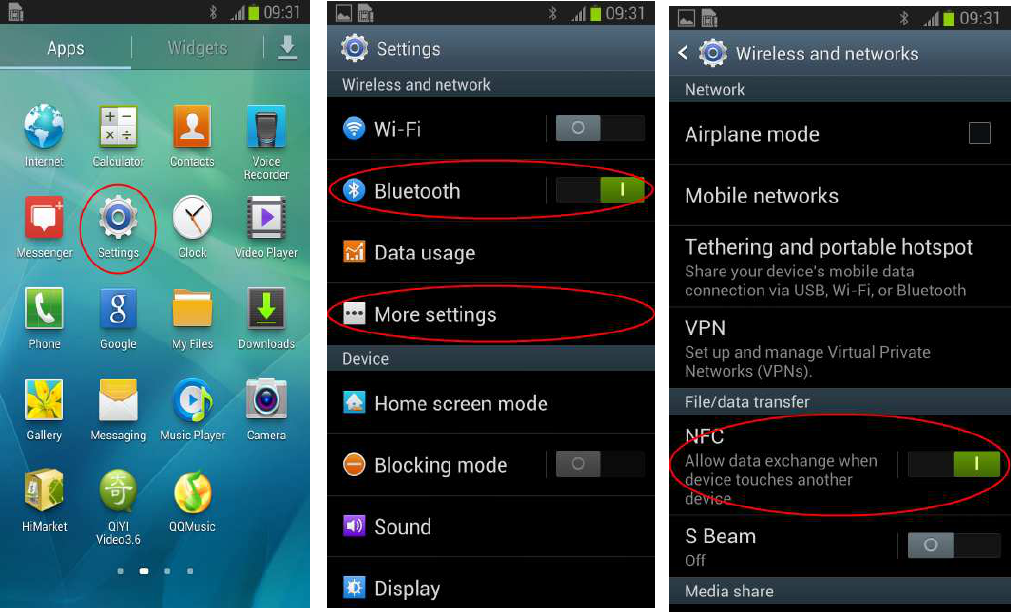

Touch Setting button into setting interface, activate Bluetooth function, then
into More settings interface to activate NFC function.
5

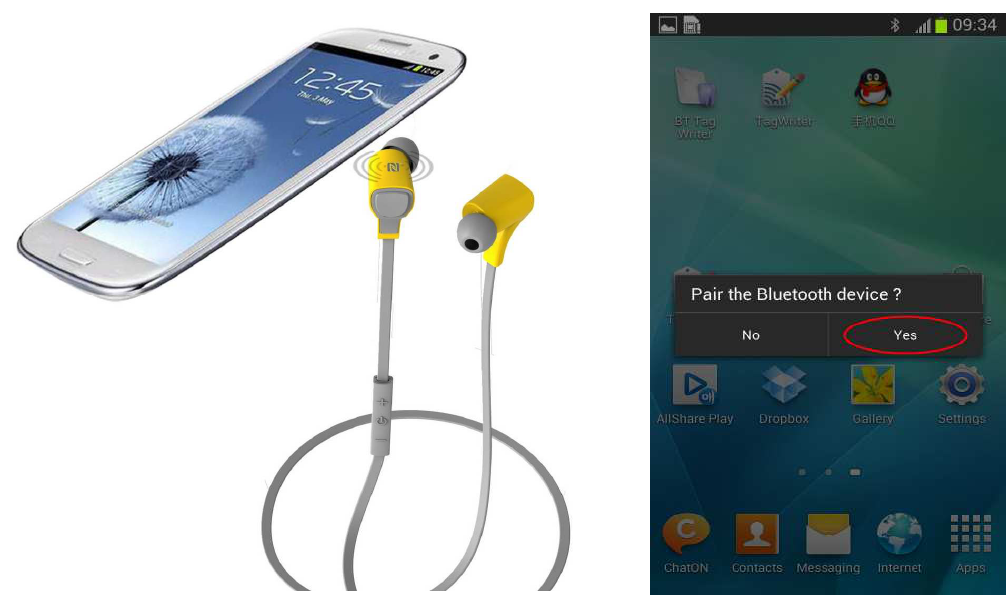

2) Pairing and connecting with cell phone
Please refer to following pictures:
Make the NFC chip of cell phone and headset within 1 centimeter, the
headset will turn on and enter pairing mode automatically, there will be a
request and prompt tone on cell phone “Pair the Bluetooth device”,
according to prompt tone, click “Yes” to confirm. Now, the headset has
already paired and connected with cell phone.
Remarks:
The screen of cellphone must be in unlocked mode during pairing via
NFC
The NFC chip of cell phone and headset must be in 1 centimeter during
pairing
Under the headset’s status of turn off, standby mode(not connect with
device), pairing mode, you can pair it with cell phone via NFC
6
4) Pairing headset with Bluetooth transmitter via Bluetooth
You can connect the headset to a Bluetooth transmitter to enjoy music

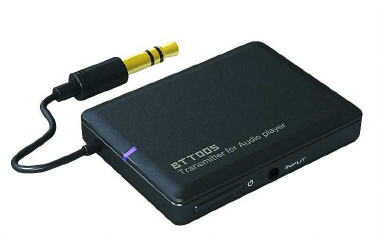

wirelessly. Hereby take BTT005 (Bluetooth transmitter, not included in
accessories) for example. The pairing steps are as follows:
1) Keep your headset and transmitter within
1 meter when pairing;
2) Make the headset enter pairing mode
(Please refer to “How to enter pairing
mode);
3) Turn on the Bluetooth transmitter and
make it enter pairing mode. It will search
for Bluetooth devices automatically and
send a pairing request;
4) When the headset requests to enter a PIN No., the transmitter will
response “0000” automatically;
5) After successful pairing and connecting, blue LED of the headset flashes
twice every 4 seconds.
Remarks:
The pairing password of the headset is “0000”. So, the headset can only
pair with a Bluetooth transmitter whose pairing password is “0000”.
If pairing still fails after several tries, please refer to the Bluetooth
transmitter’s user’s manual for further information.
3. Reconnecting the headset with devices
1) Automatic connecting
Every time the headset is turned on, it will connect to last connected device
automatically.
2) Manual connecting
When the headset is in standby mode and doesn’t connect to a device, short
press MFB button once, it will connect to last connected device.
Remarks:
Before connecting to a Bluetooth device, please activate the Bluetooth
function of Bluetooth device.
On some Bluetooth devices, take some Nokia cell phones for example,
you have to allow automatic connecting in the cell phone’s settings.
Please refer to your cell phone’s manual for further information.
7
4. Making a call with the headset
1) Basic operation
Functions Status of headset Operation
Cancel a call Calling Short press MFB once
Answer a call Incoming call ringing
Short press MFB once
Reject a call Incoming call ringing
Long press MFB about 2
seconds and release it until
listen a tone
End a call During a call Short press MFB once
Volume up During a call Short press + button
Volume down During a call Short press — button
Transfer
conversation to
mobile phone
During a call Long press MFB about 2
seconds
Transfer
conversation to
headset
During a call Long press MFB about 2
seconds
Microphone
mute
During a call Long press volume up “+”
button about 2 seconds
Cancel mute During a call
(microphone mute)
Long press volume up “+”
button about 2 seconds
Voice dial Standby mode
(connected device)
Short press MFB and
volume up “+” button once
simultaneously
Redial the last
number
Standby mode
(connected device)
Double click MFB button
Warning: Excessive pressure from earphones and headphones can
cause hearing loss.
Note:
Not all the mobile phones support all the functions listed above. Please
refer to your mobile phone user’s manual.
8
Different function and prompt tone according to different mobile phone.
When the volume is adjusted to max or min, you will hear one prompt
tone.
When pressing the answer button on some mobile phones, the call will be
transferred to the mobile phone. You can switch the call to the headset by
using the conversation switch button or through operating on the mobile
phone. Please refer to your mobile phone user manual for further
information.
2) Three-ways call operation
Functions Status of headsets Operation
Answer new call and
end current call
There are second
incoming call
Short press MFB
once
Answer new call and
retain current call
There are second
incoming call
Double click MFB
button
Switch calls Keep conversation Double click MFB
button
End current call and
switch retain call
Keep conversation Short press MFB
once
5. Playing music
When the headset connects to a mobile phone or Bluetooth transmitter
which supports A2DP, you can enjoy music wirelessly through the headset.
Functions Status of the
headset Operation
Volume up Playing music Short press “+”button
Volume
down Playing music Short press “―”button
Last song Playing music Long press “+”button
Next song Playing music Long press “―”button
Pause Playing music Short press MFB once
play Pausing Short press MFB once
9
Notes:
When playing music on some mobile phones, the music will be
transmitted to the mobile phone’s speaker instead of the headset. You
have to select “transmit the sound via Bluetooth” in the settings menu
and then choose “BTH026N” as speaker device. The music will be
transmitted to the headset. Please refer to your mobile phone’s user’s
manual for further information.
When the volume is adjusted to max or min., you will hear one prompt
tone.
If you want to remote control last/next song, pause/play, it needs your
Bluetooth mobile phone or Bluetooth transmitter paired with the headset
to support AVRCP profile, please refer to the user’s manual of your
mobile phone or Bluetooth transmitter for further information.
6. LED indicator
1) Charging
LED indicator Status of headset
Red LED on Charging
Red LED off Finish charging
2) Pairing with Bluetooth device
LED indicator Status of headset
Red and blue LED flashes
alternately Pairing mode
Blue LED flashes once every 2
seconds Not connected to device/during a
call
Blue LED flashes twice every 4
seconds Connected to device
Blue LED flashes continuously Calling/incoming call
Red LED flashes instead of blue
LED Low battery
10
7. Indication tone
Indication tone Status of the headset
Two prompt tone every 10
seconds during a call Microphone mute
Five “dong” warning tone every 5
minutes Low battery
8. Factory Reset
In the status of charging, long press volume up “+” button about 4 seconds
and release it until the red and blue LED flashes simultaneously, you will
hear 4 “dong” tone.
Remarks:
After factory reset, the paired list of headset will be deleted. After turn it on
again, the headset will enter pairing mode automatically, and you need to
re-pair and connect with Bluetooth devices.
Care and maintenance
Read the following recommendations carefully before using BTH026N.
Following these you will be able to enjoy this product for many years.
Keep it dry and don’t put it in the dump place to avoid the product’s
internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
Don’t use this product during strenuous exercise. It may get damaged by
sweat.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem
11
FAQs
1. What does it mean when red LED flashes instead of blue LED?
Battery is low power, need to be recharged.
2. Why is the red LED off when charging?
a) Please make sure the charging device connect with headset Well;
b) You didn’t use the headset for a long time, the battery may dry up. At this
time, you have to charge the battery for 30 minutes, and then the red
LED will be ON.
3. How far is the effective rang between the headset and mobile phone?
According to the Bluetooth standard, the max available range of Class II
headset is 10 meters. It varies under different environment.
4. Why my mobile phone can not search and find the headset?
The mobile phone will not find the headset if headset and mobile phone are
not under the pairing mode. Make sure the headset is under the pairing mode
and in the effective working range, and then the headset can be paired and
connected.
5. Why can’t I hear the sound on the headset?
a) Make sure the headset has been switched on;
b) Make sure the volume is not too low or muted;
c) Make sure the headset connects with the mobile phone correctly;
d) Make sure the distance between the headset and the cell phone is in the
available Bluetooth range.
6. Why can’t I hear the sound clearly on the headset?
a) Make sure the mobile phone is in the strong signal area;
b) Make sure the headset is in the available range of this product.
7. Why the pause/play, last/next song not function when playing music?
Make sure your Bluetooth device supports AVRCP (Audio/Video Remote
Control profile)
12
Specifications
Bluetooth version Bluetooth V4.0
Bluetooth profiles Headset, Hands free, A2DP, AVRCP
Operating distance 10meters
Headset music time About 4.5 hours
Headset talk time About 5 hours
Headset charging time About 2 hours
Dimension Headset: 37x16.3x27.7 mm
Cable: about 500mm
Weight About 12.6 g
Notes:
Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions : (1) this device may not cause harmful
interference, and (2) this device must accept any interference received
including interference that may cause undesired operation.
lithium battery：
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS
TO THE INSTRUCTIONS
Headset:
To prevent possible hearing damage,do not listen at high volume levels for
long periods
13
