Welcome to use this Bluetooth stereo headset, BTH070N. Please read this
user’s manual carefully before use.
Brief introduction

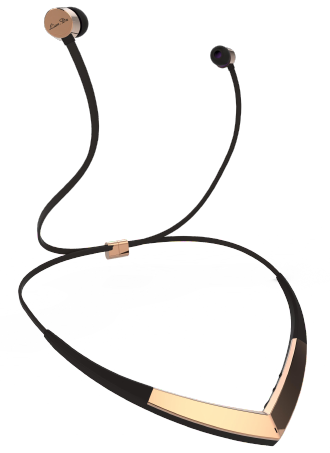

BTH070N is a comfortable and fashion music Bluetooth headset. Nice
necklace design as well as magnet on main body and earbuds are well for
easy carrying or wearing. BTH070N can be used on various environments
because it have passed IPX4-rated sweat-proof. The headset will vibrate
when receivers an incoming call for built-in vibrator so all calling wont be
missing. You can use it to enjoy wireless music and make a call at the same
time.
Before use
1. Overview
1
2. Charging for headset
The headset comes with a built-in rechargeable battery, prior to using it, it is
recommended to charge the battery fully for the first time.
When the headset is low power, the headset emits “Battery low” every 5
minutes and the red LED flashes. Please recharge the battery of the headset.
The way of charging as following:

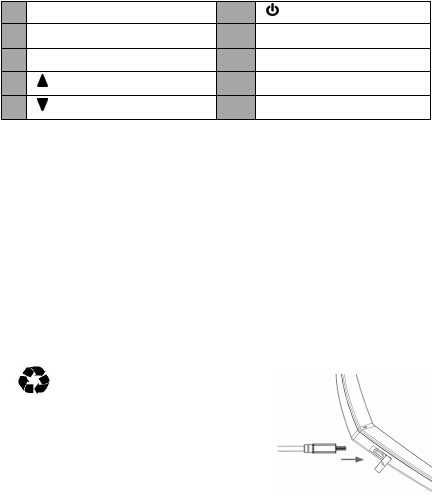

Using USB cable
1. Turn on the cover of charging jack, and plug the USB charging cable
2. Plug another side of cable to the USB port of PC
The headset emits”Charging
Red light on: Charging
Red light off: Finish charging
3. It will takes about 1.5 hours to finish charging
Remarks:
1) The battery is recyclable.
2) Batteries (battery pack or batteries installed)
shall not be exposed to excessive heat place,
such as sunshine, fire or the like.
2
1

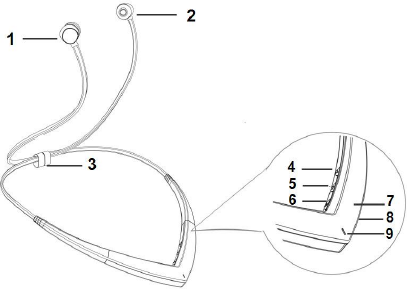

Right ear plug
6
: MFB button
2
Left ear plug
7
NFC zone
3
Magnet button
8
USB charging jack
4
:volume up/previous song
9
Microphone /LED
5
: volume down/next song
Getting started
1. Turning on/off the headset
Functions
Operation
Prompt tone
Turning on
Press and hold about 2.5
seconds until blue LED flashes
Power on
Turning off
Press and hold about 2
seconds until red LED flashes
Power off
Remark: In order to save power, the headset will turn off automatically if
no devices can be connected after long time.

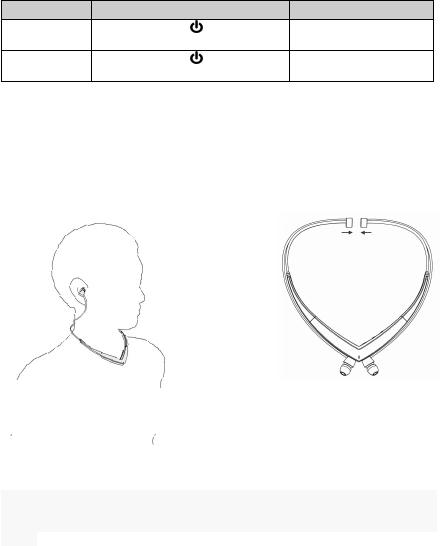

2. Wearing the headset
A.Choose the suitable size earbud according to your ears.
B .Put the headset on your neck and absorb the magnet button,then wear the
Right/Left ear plugs.As below picture shows:
According to above methods adsorption the two magnetic buckle together ,
if feeling not strong enough, can as following way to dislocation two
magnetic buckle , adsorption force will be stronger, and wearing also more
stable.
3
C. Separate magnet button gently if you want to take down the headset from
your neck.

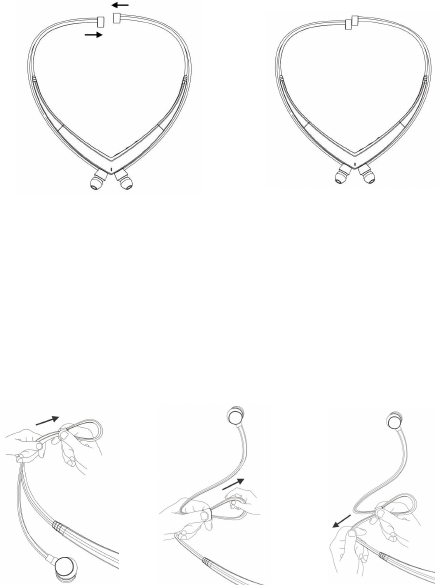

D. The cable length can be adjustable

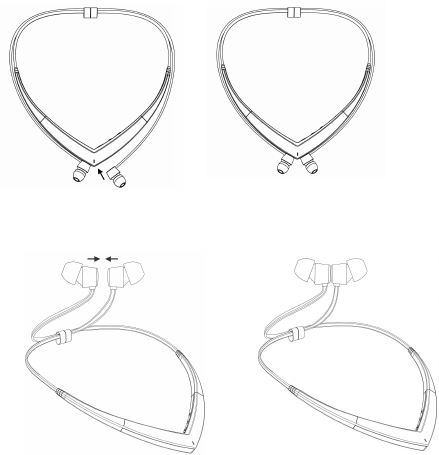

Step 1:Like picture 1 show, one hand hold the magnet button,the other
hand push cable to the magnet button;
Step 2:Like picture 2 show,one hand hold the magnet button,the other hand
pull cable to increase cable length between magnet button,then the necklace
length will shorten.
Step 3 ：Like picture 3 show,one hand hold the magnet button,the other
hand pull cable to decrease cable length between magnet button,then the
necklace length will extended.
Note:Do not too rude in the process or maybe damage the cable.
Step 1 Step 2 Step 3
4
E.Right/Left ear plugs can be fixed on the main body via the magnet
function when no need use of headset, at the same time it becomes a nice
and fashion necklace for you.
The headset also can be connected as below method:
3. Pairing/Connecting
1) Pairing headset with Bluetooth cell phone via Bluetooth
Prior to using the headset for the first time, you have to pair it with a
Bluetooth-enabled cell phone. The pairing procedures are subject to
5
different models of cell phones. Please refer to your cell phone user’s
manual for further information.
The general pairing procedures are as follows:
1) Keep your headset turned off and within 1 meter of phone ;
2) Press and hold about 4 seconds until the red and blue LED flash
alternately, and the headset emits”Pairing”.
3) Activate your cell phone’s Bluetooth function and search for Bluetooth
devices within range, select “BTH070N” from the list of devices shown
(enter password “0000 ” if the headset prompt);
4) After successful connecting, blue LED of headset flashes twice every 4
seconds and emits”Your headset is connected”.
Remarks:
Pairing mode will last 2 minutes, the headset will back to standby mode
if the pairing failure.
Every time the headset is turned on, it will connect to last connected
device automatically.
When the headset is on standby mode short press any button it will
connect with the last connected devices.
The headset will disconnected if out of range with devices.It will
re-connecting automatically if back to effective range within 5
minutes,after 5 minutes it will be on standby mode and turn off
automatically if beyond 10 minutes.

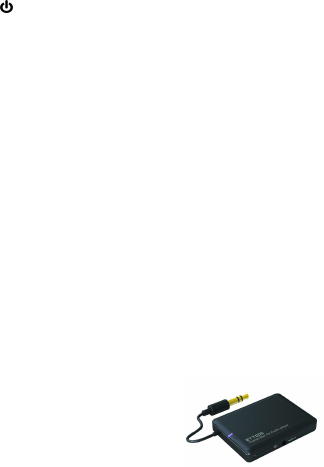

2) Pairing headset with Bluetooth transmitter via Bluetooth
You can connect the headset to a Bluetooth transmitter to enjoy music
wirelessly. Hereby take BTT005 (Bluetooth transmitter, not included in
accessories) for example. The pairing steps are as follows:
1) Keep your headset and transmitter within
1 meter when pairing;
2) Make the headset enter pairing mode
3) Turn on the Bluetooth transmitter and
make it enter paring mode. It will
search for Bluetooth devices automatically
and send a pairing request;
4) After successful pairing and connecting,
5
blue LED of the headset flashes twice every 4 seconds and prompt one
short‘DU”.
6
Remarks:
The pairing password of BTH070N is “0000”. So, the headset can only
pair with a Bluetooth transmitter whose pairing password is “0000”.
If pairing still fails after several tries, please refer to the Bluetooth
transmitter’s user’s manual for further information.

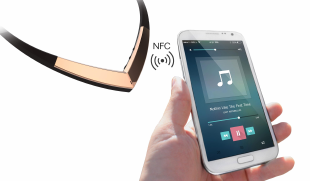

3) Pairing headset with a Bluetooth cell phone via NFC
BTH070N support NFC technology, it can quickly connect with Bluetooth
cell phone via NFC.Please activate the Bluetooth and NFC function of cell
phone,then keep cellphone and headset of NFC zone in touch,BTH070N
will pairing and connecting with cellphone automatically.
5
Remarks:
The screen of cellphone must be in unlocked mode during pairing via
NFC
In the first time of pairing,please not take the cellphone away till
BTH070N enter pairing mode,or it may cause fail.
The NFC chip of cell phone and headset must be in 1 centimeter during
pairing,or it may cause fail.
It can connected via NFC if headset turned on but not connected with
devices; and it can disconnect via NFC if headset already connected with
devices.
7
3) Pairing headset with multi devices via Bluetooth
The headset can connect with two Bluetooth cell phones at the same time.
The general pairing procedures are as follows:
1) Pairing the headset with device one
2) Turn on the headset and make it enter pairing mode again, and pairing it
with device two
3) Operate device one to connect with headset. The headset has already
connected with two devices in this moment
Remarks:
Turn off: In pairing mode or standby mode(not connected),press and
button simultaneous about 3 seconds and release it till hear “Disable
multipoint”
Turn on: In pairing mode or standby mode,press and button
simultaneous about 3 seconds and release it till hear “Enable multipoint”
To improve the stabilization of headset, we suggest you turn off the
multi-pair function when you only connect with one cell phone.
If headset already enable multipoint ,it will connect the last connected
device automatically when power on,and need manual connect the
second devices.
4. Battery display

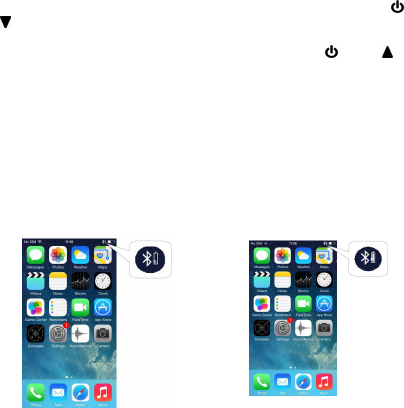

When the headset connected with IOS device, it will display the current
battery of headset on the device. When the headset is in low battery, power
symbol show red, it emits you to charge for your headset
Full charge Low battery
8
5. Making a call with the headset
1) Basic operation
Functions
Status of
headset
Operation
Prompt tone
Calling ring
Calling
Main body
vibrate with
ringing
Cancel a call
Calling
Short press
once
Call
terminated
Answer a call
Incoming call
ringing
Short press
once
Answer
Reject a call
Incoming call
ringing
Long press
about 1 seconds
Reject
End a call
During a call
Short press
once
Call
terminated
Volume up
During a call
Short press
button
Volume down
During a call
Short press
button
Transfer
conversation
to mobile
phone
During a call
Long press
about 1 seconds
Transfer
audio
Transfer
conversation
to headset
During a call
Long press
about 1 seconds
Transfer
audio
Microphone
mute
During a call
Long press
about 1 seconds
Mute on
9
Cancel mute
During a call
(microphone
mute)
Long press
about 1 seconds
Mute off
Voice dial
Standby mode
(connected
device)
Short press
and button
simultaneously
Voice dial
Redial the
last number
Standby mode
(connected
device)
Double click
button
Last number
redial
Warning: Excessive pressure from earphones and headphones can
cause hearing loss.
Note:
When the volume is adjusted to max or min, you will hear one prompt
tone.
When the headset under microphone mute mode, you will hear two
“DUDU” tone every 10 seconds.
When pressing the answer button on some mobile phones, the call will be
transferred to the mobile phone. You can switch the call to the headset by
using the conversation switch button or through operating on the mobile
phone. Please refer to your mobile phone user manual for further
information.
2) Three-ways call operation
Functions
Status of headsets
Operation
Answer new call and
end current call
There are second
incoming call
Short press once
Answer new call and
retain current call
There are second
incoming call
Double click
button
Switch calls
Keep conversation
Double click
button
End current call and
switch retain call
Keep conversation
Short press once
10
3) Connect with two cell phones
Functions
Status of headset
Operation
End phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming
call
Short press once
Retain phone call #1
and answer phone
call #2
During phone call #1,
phone 2 has incoming
call
Double click
button
Switch call
During call, one of
phone call is retained
Double click
button
End current call,
back to retain phone
call
During call, one of
phone call is retained
Short press once
5. Playing music
Functions
Status of the
headset
Operation
Volume up
Playing music
Short press button
Volume
down
Playing music
Short press button
Last song
Playing music
Long press button
Next song
Playing music
Long press button
Pause
Playing music
Short press once
play
Pausing
Short press once
Notes:
When the volume is adjusted to max , you will hear “Maximum
volume”;and one short “DU” to minimum volume.
If you want to remote control last/next song, pause/play, it needs your
Bluetooth mobile phone or Bluetooth transmitter paired with the headset
to support AVRCP profile, please refer to the user’s manual of your
mobile phone or Bluetooth transmitter for further information.
11
6. LED indicator
LED indicator
Status of headset
Red and blue LED flashes
alternately
Pairing mode
Blue LED flashes once every 2
seconds
Not connected to device
Blue LED flashes twice every 4
seconds
Connected to device
Red LED flashes instead of blue
LED
Low battery
7. Factory Reset
In the status of charging, long press button about 3 seconds and release
it until the red and blue LED flashes simultaneously, you will hear “reset
paired”.
Remarks:
After factory reset, the paired list of headset will be deleted. After turn it on
again, the headset will enter pairing mode automatically, and you need to
re-pair and connect with Bluetooth devices.
Care and maintenance
Read the following recommendations carefully before using BTH070N.
Following these you will be able to enjoy this product for many years.
Please note that the cord management clips are optional accessory for
better wearing.
Keep it dry and don’t put it in the dump place to avoid the product’s
internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
12
Don’t scratch the surface with sharp things.
Don’t use this product during strenuous exercise. It may get damaged by
sweat.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem
FAQs
1.What does it mean when red LED flashes instead of blue LED?
Battery is low power, need to be recharged.
2.Why is the red LED off when charging?
a) Please make sure the charging device connect with headset well;
b) The battery may dry up. Please charge the battery for 30 minutes, and
then the red LED will be ON.
3. Why can’t I hear the sound on the headset?
a) Make sure the headset has been switched on;
b) Make sure the volume is not too low or muted;
c) Make sure the headset connects with the mobile phone correctly;
d) Make sure the distance between the headset and the cell phone is in the
available Bluetooth range.
4. Why can’t I hear the sound clearly on the headset?
a) Make sure the mobile phone is in the strong signal area;
b) Make sure the headset is in the available range of this product.
5. Why the pause/play, last/next song not function when playing music?
Make sure your Bluetooth device supports AVRCP (Audio/Video Remote
Control profile)
Specifications
Bluetooth version
Bluetooth V4.1
Bluetooth profiles
HFP,HSP, A2DP, AVRCP
Operating distance
10meters
Headset music time
Up to 7 hours
Headset talk time
Up to 8 hours
Standby time
About 220 hours
Headset charging time
About 1.5 hours
Charging input
DC 5.0V 500mA
Weight
About 27 g
13
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
