Users Manual
BTS002
Mini Bluetooth stereo speaker
User’s manual
Brief introduction…………………………………………2
1. Bluetooth wireless communication technology………………….….2
2. About the speaker………………………………………………….….3
Getting started…………………………………………….3
1. Overview………………………………………………………….…….4
2. Charging the battery of the speaker…………………………….…...4
Using the speaker………………………………………...4
1. Turning on/off the speaker……………………………………………5
2. Pairing the speaker with Bluetooth devices…………………….......5
How to enter pairing mode………………………………………….…5
Pairing the speaker with Bluetooth mobile phone…………………..5
Pairing the speaker with Bluetooth transmitter……………………...6
3. Making a call with the speaker………………………………………..6
4. Music playback…………………………………………………………8
5. Re-connecting with a Bluetooth device………………………………8
6. Auto-off…………………………………………………………………..9
7. Using the speaker with an external device…………………………..9
8. Connecting with a non Bluetooth device……………………………10
9. LED indicator…………………………………………………………..11
10. Indication tone………………………………………………………….11
Care and maintenance……………………………………12
FAQs…………………………………………………………12
Specifications……………………………………………...13
Welcome to use this Bluetooth stereo speaker, BTS002. Please read this
user’s manual carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range radio-communication technology that
was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With Bluetooth
technology, we can achieve the highest transmission rate among cell phones,
computers, printers, PDAs and other devices. The max transmission range of
class II is 10 meters while the max transmission range of class I can reach up
to 100 meters.
2. About the speaker
BTS002 is a Bluetooth stereo speaker. It supports the following profiles:
HFP—Hands-free Profile
A2DP—Advanced Audio Distribution Profile
AVRCP—Audio/Video Remote Control Profile
You can listen to music wirelessly using BTS002. It has the following features:
1) Pairing with a Bluetooth mobile phone or PDA supporting HFP.
Answer a call, end a call and reject a call
Redial last number
Voice dial
Adjust the volume
Three-way calling
Calls transfer
Microphone mute
2) Pairing with a Bluetooth music device or Bluetooth transmitter supporting
A2DP.
Enjoy music wirelessly
Adjust the volume
Remote control pause/play
Remote control previous/next track
3) East to switch between the converstion and music, you will not miss
incoming calls while listening to music.
4) Every time the speaker is tured on, it will connect to the last connected
device automatically.
Remark:
Even though the paired device and the speaker support the same Bluetooth
profiles, functions may vary due to specification differences of the paired
devices.
Getting started

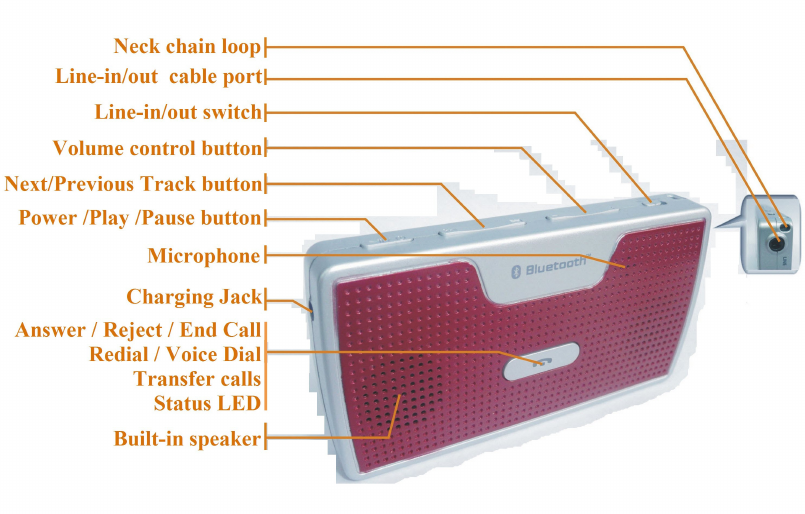

1. Overview
2. Charging the battery of the speaker
The speaker comes with a built-in rechargeable battery, prior to using it, it is
recommendable to charge the battery fully for the first time.
Connect the USB cable to an computer USB port and the USB cable plug to
the charging socket of the speaker. The LED will be red while charging. It takes
about 2.5 hours to charge the battery fully. When charging has completed, the
LED will be off.
When the speaker is on and the battery becomes low, the LED flashes red for
twice and the speaker emits three “Dong” tones every 10 seconds. Please
recharge the battery fully as described above.
Remarks:
1) The battery will dry up if you don’t use the speaker for a long time. If this
happens you have to charge the battery of the speaker for about 30
minutes before the LED indicator will be on.
2) Please don’t attempt to take out the battery from the speaker, as this might
damage it.
Using the speaker
1. Turning on/off the speaker
Functions Operations LED
indicator
Indication
tone
Turning on
the speaker
Press and hold button for about 3 5
seconds untill the LED flashes blue
The LED
flashes blue
A string of
tones
Turning off
the speaker
Press and hold button for about 2 3
seconds until the LED flashes red
The LED
flashes red
A string of
tones
2. Pairing the speaker with Bluetooth devices
How to enter pairing mode
Function Status of the
speaker Operation LED incicator
Entering
pairing mode
Turned on Press and hold
button for 7 8
seconds
The LED flashes red and
blue alternately
Remarks:
1) If the pairing can not be completed within 3 minutes, the speaker will exit
pairing mode.
2) You will hear two “Dong” tones while the speaker enters pairing mode.
3) The speaker will return to pairing mode automatically if it disconnects with
Bluetooth device.
Pairing the speaker with Bluetooth mobile phone
Prior to using the speaker for the first time, you have to pair it with a
Bluetooth-enabled mobile phone. The pairing procedure is subjuct to different
models of mobile phones. Please refer to your mobile phone user’s manual for
details. The general pairing procedure are as follows:
1) Place the speaker and Bluetooth mobile phone where they are easily
viewable by no more than 1 meter apart;
2) Make sure the speaker is off, otherwise switch it off first;
3) Enter the speaker’s pairing mode (please refer to “How to enter pairing
mode);
4) Activate your mobile phone’s Bluetooth function and set your mobile phone
to search for Bluetooth devices. After the search is completed, select
“BTS002” from the Bluetooth device list;
5) According to the indication, enter password or PIN No:”0000” and press ”
Yes” or “confirm”;
6) Go back to your mobile phone’s main menu. For certain mobile phone
models, a speaker icon will be shown on the screen. You should now be
able to listen to music and make calls using the speaker.
Remarks:
If the pairing is failed, please turn off the speaker first and then re-pair
according to steps 1 6 mentioned above.
After pairing is successful, the speaker and the mobile phone will
remember each other, the speaker will not need to re-pair next time. The
speaker can remember 8 paired devices. When the number of paired.
Every time the speaker is turned on, it will connect to the last connected
device automatically. If you want to pair it with other devices, please turn
off the Bluetooth function of the last connected devices first and pair the
speaker with the new device according to steps 1 6 mentioned above.
Pairing the speaker with Bluetooth transmitter
You can connect the speaker to a Bluetooth transmitter to enjoy music

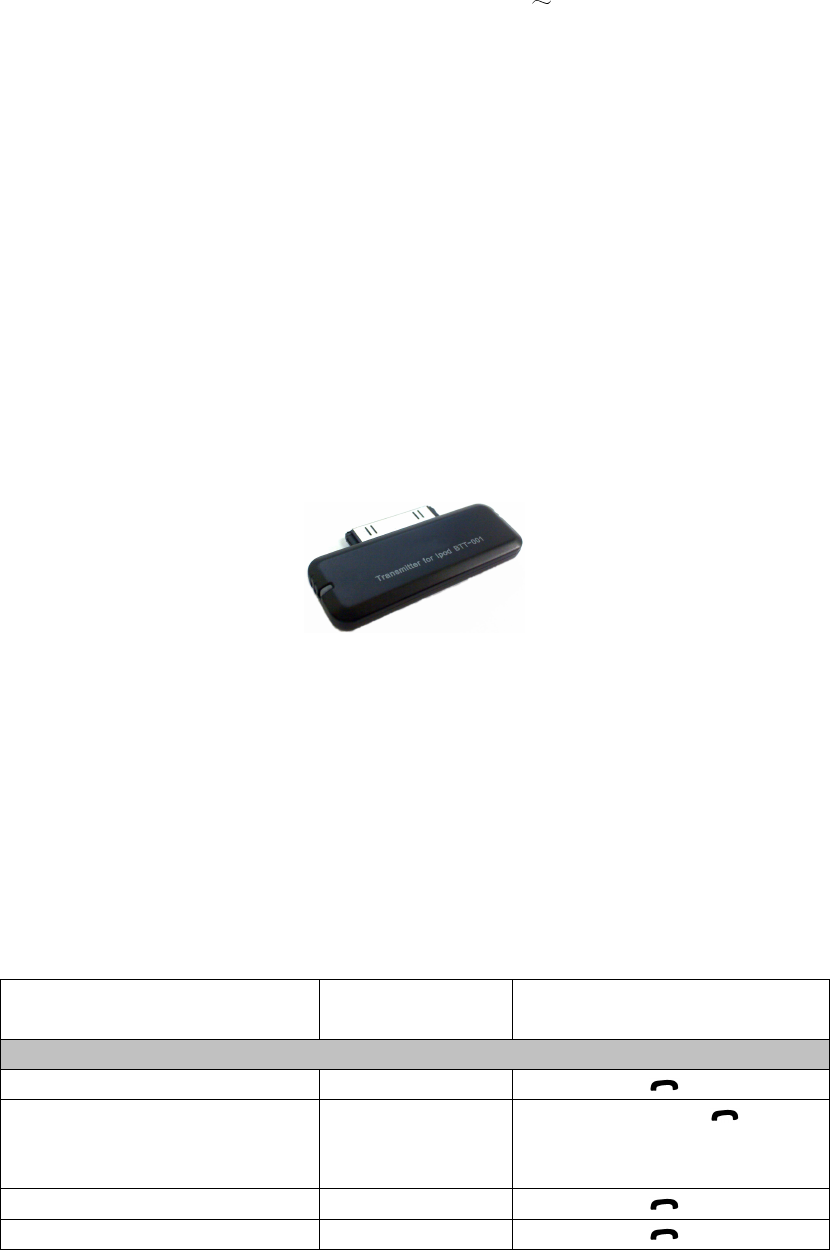

wirelessly. Hereby taken BTT001 iPod Bluetooth transmitter for example. The
pairing procedure are as follows:
1) Place the speaker and Bluetooth transmitter where they are easily
viewable by no more than 1 meter apart;
2) Enter the speaker’s pairing mode (Please refer to “How to enter pairing
mode);
3) Turn on the Bluetooth transmitter. It will search for Bluetooth devices
automatically and send a pairing request;
4) When the speaker requests to enter a PIN No., the transmitter will
response “0000” automatically;
5) After successful pairing and connecting, the LED will flash blue for twice
every 4 seconds.
Remarks:
The pairing password of BTS002 is “0000”. So, BTS002 can only pair with
Bluetooth transmitters whose pairing password is “0000”, too.
If pairing still fails after several tries, refer to the Bluetooth transmitter’s
user’s manual for further information.
3. Making a call with the speaker
Functions Status of the
speaker Operations
Basic conversation functions
Answer a call Incoming ring Short press button once
Reject a cal Incoming ring
Press and hold button
for about 2 seconds untill you
hear indication tone
Cancel calling Calling Short press button once
End a call During a call Short press button once
Adjust the volume During a call Press button to
adjust the volume
Microphone mute During a call Short press button twice
quickly
Cancel mute Microphone
mute
Short press button twice
quickly
Call transfer (speaker to
mobile phone)
During a call
(speaker)
Press and hold button
for about 2 seconds untill you
hear indication tone
Call transfer (mobile phone to
speaker)
During a call
mobile phone
Press and hold button
for about 2 seconds untill you
hear indication tone
Redial last nomber Standby mode
and connected
Press and hold button
once
Voice dial Standby mode
and connected
Short press button
twice quickly
Three-way calling function
Answer a new incoming call
and end current call
There is a new
incoming call
Short press button
Reject a new incoming call
and continue current call
There is a new
incoming call
Press and hold button
Answer a new incoming call
and keep current call
There is a new
incoming call
Short press button
Switch between two calls During a call
(Keeping a call) Short press button
End current call and switch to
the keeping call
During a call
(Keeping a call) Short press button
Remarks:
1) Not all mobile phones support all functions listed above. Please refer to
your mobile phone’s user’s manual for further information.
2) When pressing the answer button on some mobile phones, the call will be
sent to the mobile phone. You have to switch the call to the speaker
manually then. Please refer to your mobile phone’s user’s manual for
further information.
4. Music playback
After connecting the speaker to a Bluetooth mobile phone or Bluetooth
transmitter supporting A2DP, you can enjoy music with the speaker. If you want
to remote control previous/next track, pause/play, it needs the Bluetooth
mobile phone or Bluetooth transmitter paird with the speaker to support
AVRCP.
Functions Status of the
speaker Operation
Adjust the volume Playing music Press button to adjust
the volume
Previous track Playing music Short press button once
Next track Playing music Short press button once
Pause Playing music Short press button once
Play Pausing Short press button once
Remark:When playing music on some mobile phones, the music will be
transmitted to the mobile phone’s speaker instead to the speaker. You have to
select to transmit the sound via Bluetooth in the settings menu then and
choose “BTS002” as speaker device. The music will be transmitted to the
speaker then. Please refer to the your mobile phone’s user manual for further
information.
5. Re-connecting with a Bluetooth device
1)
Automatic connecting
Every time the speaker is turned on, it will connect to the last connected
device automatically.
2) Connecting manually
When the speaker is in standby mode, press MFB button once to connect
the speaker to the last connected device.
Remarks:
Short press button once, the speaker will connect to last connected
HFP device automatically. Short press once, the speaker will connect
to last connected A2DP device.
Before connecting to a Bluetooth device, please switch on the Bluetooth
device’s Bluetooth function.
On some Bluetooth devices, take some Nokia mobile phones for example,
you have to allow automatic connecting in the mobile phone’s settings.
Please refer to the mobile phone’s manual for further information.
6. Auto-off
The speaker will turn off automatically if no devices can be connected after 5
minutes in order to save power.
Remark: When the speaker disconnects with a Bluetooth device, it will return
to pairing mode for 3 minutes then return to standby mode for 5 minutes, at last
it will turn off automatically.
7. Using the speaker with an external device
You can listen to music through your car audio system or home audio system
from your stereo speaker.

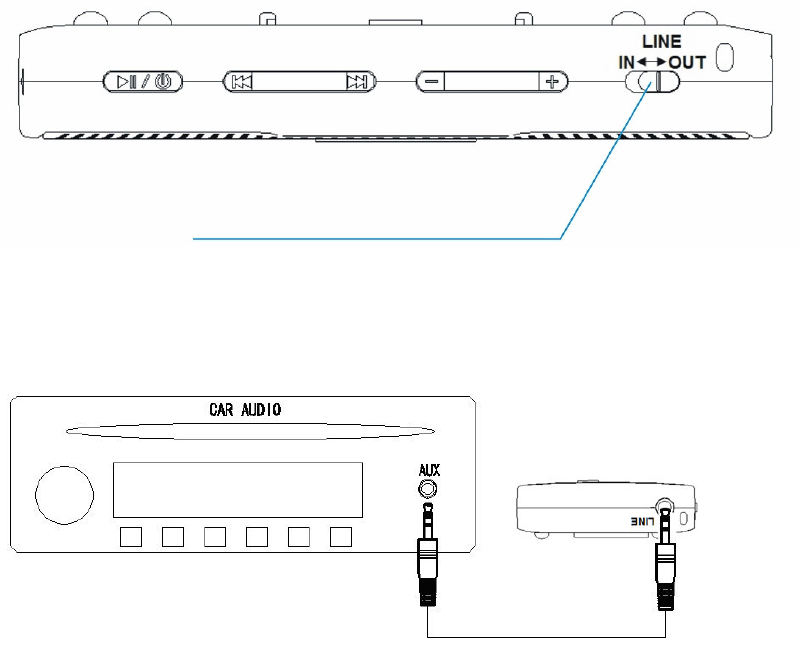

Step 1: Turn LINE IN/OUT button to “OUT” as the following picture shows:
Step 2: Use a Line-out cable to connect the LINE port to your car audio system
or home home system as the following picture shows:
Please read your car audio system’s user manual or home audio system’s user
manual to understand how to activate and use the stereo Line in function.
Turn LINE IN/OUT button to “OUT”
8. Connecting with a non Bluetooth device
You can listen to music through the stereo speaker from an external device
that does not even support the Bluetooth function.

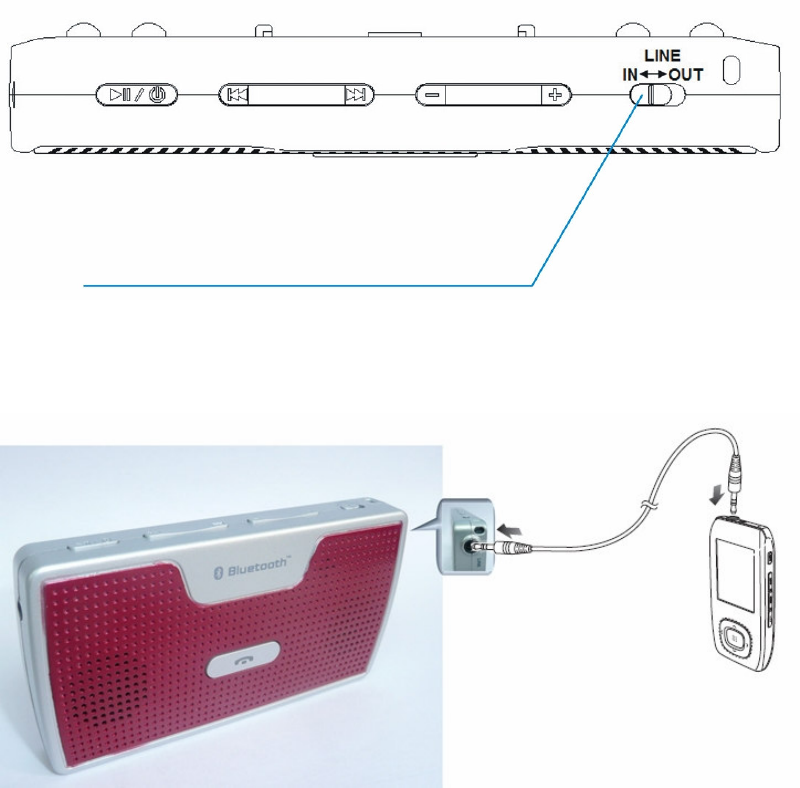

Step 1: Turn LINE IN/OUT button to “IN” as the following picture shows:
Step 2: Use a Line-in cable to connect the Line-out port of the external music
player to the LINE port of the speaker as the following picture shows:
Step 3: Play music from your music player.
Remarks:
1) When using Line-in function, the speaker LED will be red, and the speaker
will not turn off automatically.
2) When using Line-in function, the speaker will disconnect with Bluetooth
device. When unplug the Line-in cable, the speaker will connect to the last
connected device automatically.
Turn LINE IN/OUT button to “IN”
9. LED indicator
While the speaker is charging
LED indicator Status of the speaker
The LED is red Charging in progress
The LED is off Finish charging
While the speaker is not charging
LED indicator Status of the speaker
The LED flashes red and blue
alternately
Pairing mode
The LED flashes blue for twice
every 2 seconds
Not connected
The LED flashes blue for twice
every 5 seconds
Set up HFP connection
The LED flashes blue for twice
every 5 seconds
Set up A2DP connection
The LED flashes blue for 3
times every 2 seconds
Incoming call/calling
The LED flashes blue for once
every 3 seconds
During a call
The LED flsshes red for twice
every 10 seconds
Low power
The LED is red Plug Line-in cable
10. Indication tone
Indication tone Status of the speaker
Emits 2 DU tones every
5seconds Microphone mute
Emits 3 Dong tones every
10 seconds Low power
Care and maintenance
Read the following recommendations before using the speaker. Following
these you will be able to enjoy our product for many years.
Do not expose the speaker to liquid, moisture or humidity to avoid the
product’s internal circuit being affected.
Don’t use abrasive cleaning solvents to clean the speaker.
Do not expose the speaker to extremely high or low temperatures as this
will shorten the life of electronic devices, destroy the battery or distort
certain plastic parts
Don’t dispose of the speaker in a fire as it will result in an explosion
Don’t expose the speaker to contact with sharp objects as this will cause
scratches and damage.
Don’t let it fall down onto the floor. The internal circuit might get damaged.
Don’t attempt to disassemble the product as it may get damaged if you are
not professional.
In case the speaker doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem.
FAQs
1. What to do when my mobile phone can not search the speaker?
a) Make sure the speaker has entered pairing mode;
b) Ensure the speaker is in the effective working range.
2. What to do when the effect of conversation is not satisfactory?
a) Make sure the speaker is in strong-signal area;
b) Ensure the speaker is in the effective working range.
3. How far is the effective range between the speaker and a Bluetooth
mobile phone?
According to the Bluetooth standard, the max. controllable range of Class2
Bluetooth product is 10 meters. It varies with different environments and
paired cell phones.
4. Why is there no sound when making a call with the speaker?
a) Make sure the speaker has connected with the mobile phone;
b) Ensure the volume of the speaker has been adjusted to proper
position.
5. Why is there no sound when playing music with the speaker?
a) Make sure the speaker has connected with Bluetooth device well;
b) Ensure the paired device supports A2DP.
6. Why can’t I remotely control the pause, play, previous track and next
track functions with the speaker when playing music?
The function needs the Bluetooth device paired with the speaker to support
AVRCP (Audio/Video Remote Control Profile). Please make sure your
mobile phone or Bluetooth transmitter supports AVRCP.
Specifications
Bluetooth specification Bluetooth V2.1
Bluetooth profiles HFP, A2DP, and AVRCP
Bluetooth frequency range 2.402GHz 2.480GHz
Operating distance 10 meters
Talk time Up to 6 hours
Music playing time Up to 6 hours
Charing input DC 5V 500 mA
Charging time Approx 2.5 hours
Dimensions 94×50×16mm
Weight 56.2g
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
