Welcome to use this Bluetooth stereo speaker, BTS028. Please read this
user’s manual carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range wireless communication technology
that was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With
Bluetooth technology, we can achieve the highest transmission rate among
cell phones, computers, printers, PDAs and other devices. The max
transmission range of class II is 10 meters while the max transmission
ranges of class I can reach up to 100 meters.
2. About BTS028
BTS028 is a Bluetooth stereo speaker. It supports the following Bluetooth
profiles:
HFP —— Hands-free Profile
A2DP—— Advanced Audio Distribution Profile
AVRCP——Audio/Video Remote Control Profile
You can enjoy music wirelessly by using BTS028. It has the following
features:
1) Pairing with a Bluetooth cell phone or PDA supporting HFP profile.
Answer a call, end a call and reject a call
Redial last number
Voice dial
Adjust the volume
Call transfer between the speaker and your Bluetooth cell phone
Microphone mute
2) Pairing with a Bluetooth cell phone or Bluetooth transmitter supporting
A2DP profile.
Enjoy music wirelessly
Adjust the volume
Remote control pause/play
Remote control previous/next track
Remote control fast forward/rewind
3) Easy to switch between the call and music, you will not miss the
incoming call during listening to music.
1
![](/img.php?id=1924404&img=bg4.png)
4) Every time the speaker is turned on, it will connect to last connected
device automatically.
Note: In order to complete above function, the Bluetooth profiles of paired
device must be same as the speaker. And even though the paired device and
the speaker support the same Bluetooth profiles, functions may vary due to
specification differences of the paired devices.
Before use
1.

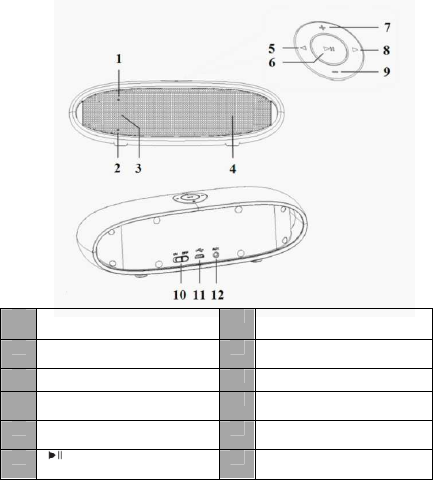

Overview
1
Built-in microphone 7
Volume up
2
LED indicator 8
► button: next song/fast
forward
3
Left speaker 9
Volume down
4
Right speaker 10
ON/OFF button: power
switch
5
◄button: previous song/
fast rewind 11
Charging jack
6
button: Multi-functions
button(MFB) 12
Aux-in jack
2
![](/img.php?id=1924404&img=bg5.png)
2. Charging for speaker
The speaker comes with a built-in rechargeable battery, prior to using it, it is
recommended to charge the battery fully for the first time.
When the speaker is low power, the speaker emits a string of warning tones
every 1 minutes and the red LED flashes. Please recharge the battery of the
speaker.
The way of charging as following:
Using USB cable
1. Plug the USB cable into the USB port of PC
2. Plug another side of cable into the charging jack of speaker
Red light on: Charging
Red light off: Finish charging
3. It will takes about 3 hours to finfish charging
Remarks:
1) The battery is recyclable.
2) Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat place, such as sunshine, fire or the like.
Getting started
1. Turning on/off the speaker
Functions Operation LED indicator
Prompt tone
Turning on Make the power
switch to ON Blue LED on
one second 4 raise tones
Turning off Make the power
switch to OFF Red LED on
one second 4 fall tones
2. Pairing the speaker with Bluetooth devices
1) How to enter pairing mode
Functions Operation LED indicator
Entering
pairing
mode
Ensure the speaker is on,
otherwise please turn it on first.
And then long press
button
about 4~6 seconds until red and
blue LED flash alternately
Red and blue LED
flash alternately
3
![](/img.php?id=1924404&img=bg6.png)
Remark:
Pairing mode will last 2 minutes. If no devices can be connected after 2
minutes, it will return to standby mode automatically.
If the speaker has already connected with a device and it is not playing
music, long press button to enter pairing mode.
You will hear 2 raise tones when the speaker enter pairing mode.
2) Pairing speaker with Bluetooth cell phone
Prior to using the speaker for the first time, you have to pair it with a
Bluetooth-enabled cell phone. The pairing procedures are subject to
different models of cell phones. Please refer to your cell phone user’s
manual for further information. The general pairing procedures are as
follows:
1) Keep your speaker and phone within 1 meter when pairing;
2) Make the speaker enter pairing mode (please refer to “How to enter
pairing mode);
3) Activate your cell phone’s Bluetooth function and set your cell phone to
search for Bluetooth devices within range, and select “BTS028” from the
list of devices shown;
4) According to the indication, enter password or PIN No: “0000”. (If the
mobile phone supports Bluetooth V2.1, password is not required.). If
prompted by your cell phone to connect, select “Yes” (this will vary
among cell phone models);
5) After successful paired, choose and connect “BTS028” from the list of
devices shown on cell phone;
6) After successful connecting, blue LED of speaker will flashes twice
every 4 seconds
Remarks:
If pairing is failed, please turn off the speaker first and then re-pair
according to steps 1~6 mentioned above.
After pairing is successful, the speaker and the cell phone will remember
each other, they will no need to re-pair next time. The speaker can
remember 8 paired devices, when the number of paired devices exceeds
8, the first one will be replaced.
Every time the speaker is turned on, it will connect to last connected
device automatically. If you want to pair it with other devices, please turn
off the Bluetooth function of last connected devices first and pair the
speaker with the new device according to steps 1~6 mentioned above.
4
![](/img.php?id=1924404&img=bg7.png)
3) Pairing speaker with Bluetooth transmitter
You can connect the speaker to a Bluetooth transmitter to enjoy music
wirelessly. Hereby take BTT005 (Bluetooth transmitter, not included in
accessories) for example. The pairing steps are as follows:
1) Keep your speaker and transmitter within
1 meter when pairing;
2) Make the speaker enter pairing mode
(Please refer to “How to enter pairing
mode);
3) Turn on the Bluetooth transmitter and
make it enter pairing mode. It will search
for Bluetooth devices automatically and
send a pairing request;
4) When the speaker requests to enter a PIN No., the transmitter will
response “0000” automatically;
5)
After successful pairing and connecting, blue LED of the speaker flashes
twice every 4 seconds.
Remarks:
The pairing password of the speaker is “0000”. So, the speaker can only
pair with a Bluetooth transmitter whose pairing password is “0000”.
If pairing still fails after several tries, please refer to the Bluetooth
transmitter’s user’s manual for further information.
3. Reconnecting the speaker with devices
1) Automatic connecting
Every time the speaker is turned on, it will connect to last connected device
automatically.
2) Manual connecting
When the speaker is in standby mode and doesn’t connect to a device, short
press button once, it will connect to last connected device.
Remarks:
Before connecting to a Bluetooth device, please turn on the Bluetooth
function of Bluetooth device.
On some Bluetooth devices, take some Nokia cell phones for example,
you have to allow automatic connecting in the cell phone’s settings.
Please refer to your cell phone’s manual for further information.
5
![](/img.php?id=1924404&img=bg8.png)
4. Making a call with the speaker
1) Basic operation
Functions Status of
speaker
Operation Prompt
tone
Cancel call Calling Short press
button once
One short
tone
Answer call Incoming call
ringing
Short press
button once
Two raise
prompt tone
Reject a call
Incoming call
ringing
Long press
about 2 seconds and
release it until listen
a tone
Two fall
prompt tone
End a call During a call Short press
button once
One short
tone
Volume up During a call Short or long press +
button
Volume
down
During a call Short or long press
— button
Transfer
conversation
to mobile
phone
During a call Long press
button about 2
seconds
One short
tone
Transfer
conversation
to speaker
During a call Long press
button about 2
seconds
One short
tone
Microphone
mute
During a call Double click
button
Two fall
tone
Cancel mute
During a call
(microphone
mute)
Double click
button
Two raise
tone
6
![](/img.php?id=1924404&img=bg9.png)
Voice dial Standby mode
(connected
device)
Long press
button about 2 ~3
seconds
One short
tone
Redial the
last number
Standby mode
(connected
device)
Double click
button
One short
tone
2) Three-ways call operation
Functions Status of speakers Operation
Answer new call and
end current call
There are second
incoming call
Short press
button once
Answer new call and
retain current call
There are second
incoming call
Double click
button
Switch calls Keep conversation Double click
button
End current call and
switch retain call
Keep conversation Short press
button once
Warning: Excessive pressure from speaker can cause hearing loss.
Note:
Not all the mobile phones support all the functions listed above. Please
refer to your mobile phone user’s manual.
Different function and prompt tone according to different mobile phone.
When the volume is adjusted to max or min, you will hear one prompt
tone.
When pressing the answer button on some mobile phones, the call will be
transferred to the mobile phone. You can switch the call to the speaker by
using the conversation switch button or through operating on the mobile
phone. Please refer to your mobile phone user manual for further
information.
7
![](/img.php?id=1924404&img=bga.png)
5. Playing music
When the speaker connects to a mobile phone or Bluetooth transmitter
which supports A2DP, you can enjoy music wirelessly through the speaker.
Functions Status of the
speaker Operation
Volume up Playing music Short press “+”button
Volume
down Playing music Short press “―”button
Previous
song Playing music Short press ◄ button
Next song Playing music Short press ►button
Fast
forward Playing music Long press ► button
Fast rewind
Playing music Long press ◄ button
Pause Playing music Short press
button once
play Pausing Short press button once
Line -in
input Turn on Plug 3.5mm audio line into aux-in
jack of speaker
Notes:
When playing music on some mobile phones, the music will be
transmitted to the mobile phone’s speaker instead of the speaker. You
have to select “transmit the sound via Bluetooth” in the settings menu
and then choose “BTS028” as speaker device. The music will be
transmitted to the speaker. Please refer to your mobile phone’s user’s
manual for further information.
When the volume is adjusted to max or min., you will hear one prompt
tone.
If you want to remote control previous/next song, pause/play, it needs
your Bluetooth mobile phone or Bluetooth transmitter paired with the
speaker to support AVRCP profile, please refer to the user’s manual of
your mobile phone or Bluetooth transmitter for further information.
3.5mm audio line-in is not available when speaker connect with
mobile-phone via Bluetooth.
6. LED indicator
1) Charging
LED indicator Status of speaker
Red LED on Charging
Red LED off Finish charging
8
![](/img.php?id=1924404&img=bgb.png)
2) Pairing with Bluetooth device
LED indicator Status of speaker
Red and blue LED flashes
alternately Pairing mode
Blue LED flashes once every 2
seconds Not connect with device
Blue LED flashes twice every 4
seconds Connect with device
Blue LED flashes continuously Calling/incoming call
Blue LED flashes once every 1
seconds During a call
Red LED flashes instead of blue
LED Low battery
7. Indication tone
Indication tone Status of the speaker
Continuous two “du du” tone
every 10 seconds Conversation mode and
microphone mute
A string of warning tone every 1
minutes Low battery
8. Factory Reset
In the status of standby mode, not connect with device, long press and
volume up “+” button simultaneously about 5 seconds and release it until
the red and blue LED flashes simultaneously, you will hear two “du du”
tone.
Remarks:
After factory reset, the paired list of speaker will be deleted. After turn it on
again, the speaker will enter pairing mode automatically, and you need to
re-pair and connect with Bluetooth devices.
Care and maintenance
Read the following recommendations carefully before using BTS028.
Following these you will be able to enjoy this product for many years.
Keep it dry and don’t put it in the dump place to avoid the product’s
internal circuit being affected.
Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the
battery or distort certain plastic parts.
9
Don’t expose the product to cold areas. It may damage the internal circuit
board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal
circuit might get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
In case the product doesn’t function properly, send it to the store you bought
it. The staff will help you to solve the problem
FAQs
1. What does it mean when red LED flashes instead of blue LED?
Battery is low power, need to be recharged.
2. Why is the red LED off when charging?
a) Please make sure the charging device connect with speaker well;
b) You didn’t use the speaker for a long time, the battery may dry up. At this
time, you have to charge the battery for 30 minutes, and then the red
LED will be ON.
3. How far is the effective rang between the speaker and mobile phone?
According to the Bluetooth standard, the max available range of Class II
speaker is 10 meters. It varies under different environment.
4. Why my mobile phone can not search and find the speaker?
The mobile phone will not find the speaker if speaker and mobile phone are
not under the pairing mode. Make sure the speaker is under the pairing mode
and in the effective working range, and then the speaker can be paired and
connected.
5. Why the speaker can not hear the voice?
a) Make sure the speaker has been switched on;
b) Make sure the volume is not too low or muted;
c) Make sure the speaker connects with the mobile phone correctly;
d) Make sure the distance between the speaker and the cell phone is in the
available Bluetooth range.
10
![](/img.php?id=1924404&img=bgd.png)
6. Why the speaker can not hear voice clearly in conversation?
a) Make sure the mobile phone is in the strong signal area;
b) Make sure the speaker is in the available range.
7. Why the speaker can’t control pause, play, last song and next song
when playing music?
This function needs your Bluetooth device supports AVRCP (Audio/Video
Remote Control profile)
Specifications
Bluetooth version Bluetooth V4.0
Bluetooth profiles Hands free, A2DP, AVRCP
Operating distance 10meters
Output power 2W x 2 RMS
Music time About 10 hours
Speaker standby time Approx 800 hours
Charging input DC5.0V 500mA
Charging time About 3 hours
Dimension 200*61*49mm
Weight Approx 341g
Battery capacity 1250mAH
Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radiofrequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
_ Reorient or relocate the receiving antenna.
_ Increase the separation between the equipment and receiver.
_ Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
_ Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions : (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
11
