Zhuhai HiVi Technology M3A High Fidelity Active Speaker User Manual

Zhuhai HiVi Technology co., Ltd. High Fidelity Active Speaker

User Manual

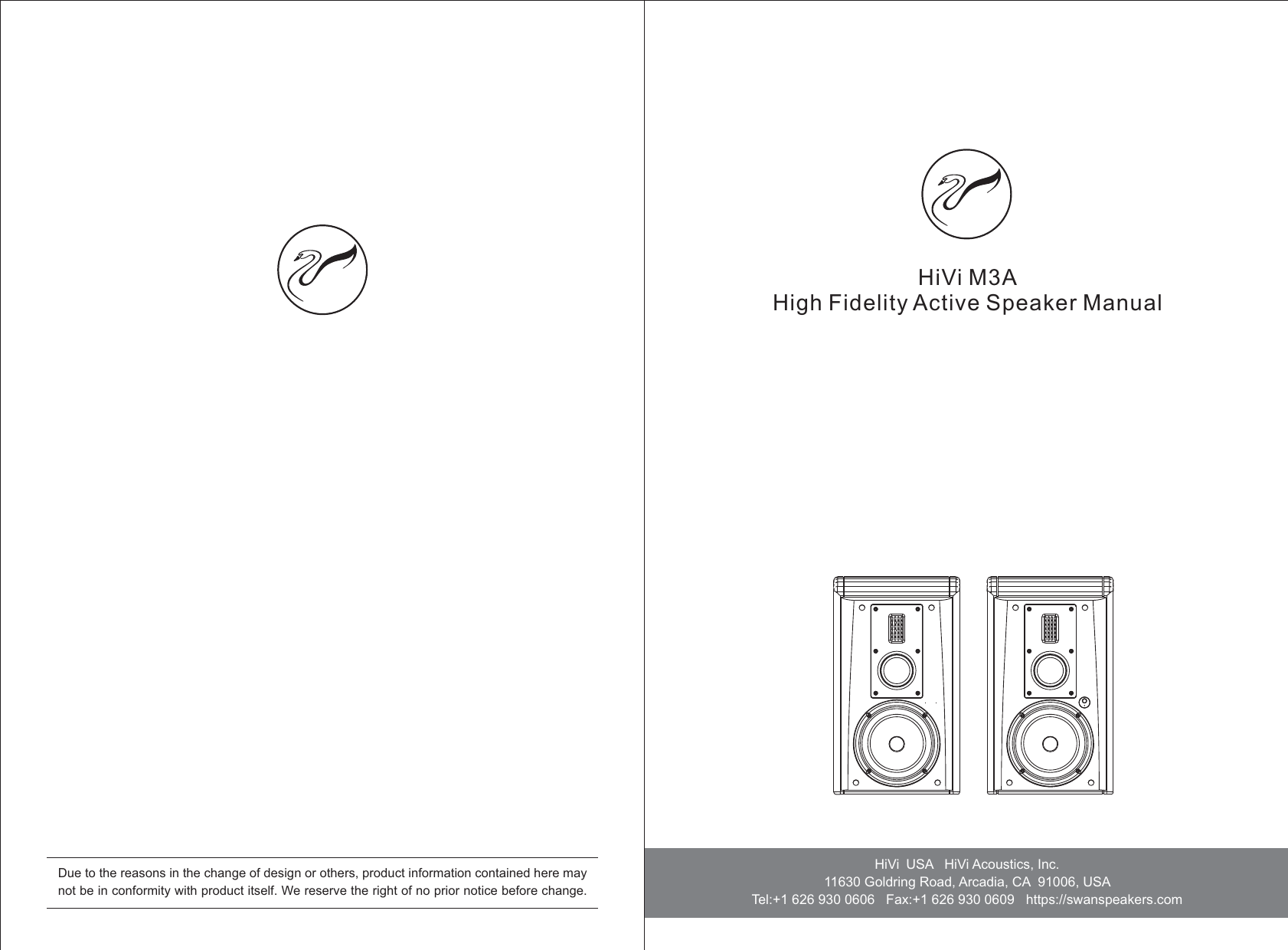

HiVi M3AHigh Fidelity Active Speaker ManualHiVi USA 11630 Goldring Road, Arcadia, CA 91006, USA Tel:+1 626 930 0606 Fax:+1 626 930 0609 https://swanspeakers.comHiVi Acoustics, Inc. Due to the reasons in the change of design or others, product information contained here may not be in conformity with product itself. We reserve the right of no prior notice before change.

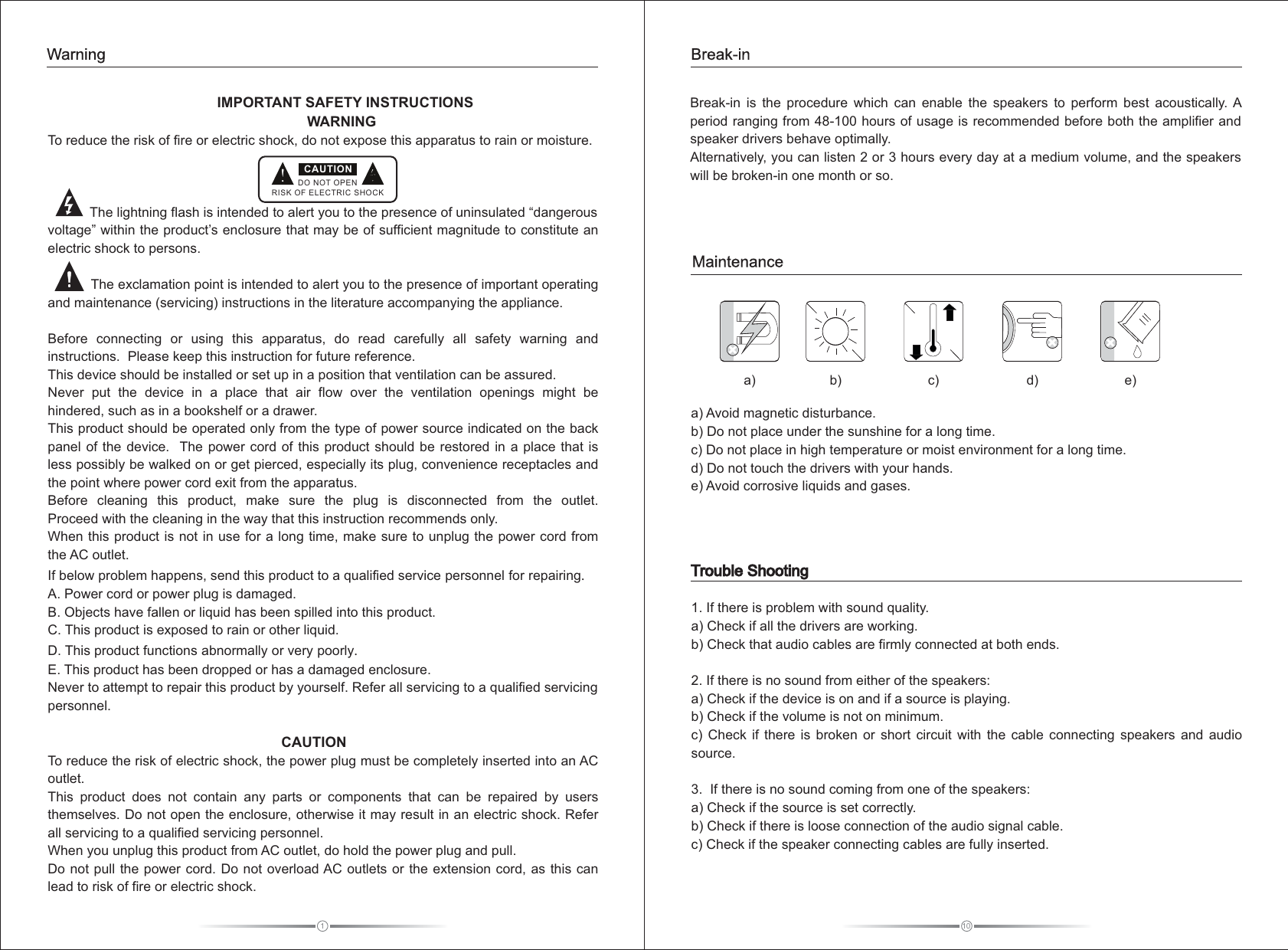

1 IMPORTANT SAFETY INSTRUCTIONS WARNINGTo reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The lightning flash is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock to persons. The exclamation point is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.Before connecting or using this apparatus, do read carefully all safety warning and instructions. Please keep this instruction for future reference.This device should be installed or set up in a position that ventilation can be assured. Never put the device in a place that air flow over the ventilation openings might be hindered, such as in a bookshelf or a drawer.This product should be operated only from the type of power source indicated on the back panel of the device. The power cord of this product should be restored in a place that is less possibly be walked on or get pierced, especially its plug, convenience receptacles and the point where power cord exit from the apparatus.Before cleaning this product, make sure the plug is disconnected from the outlet. Proceed with the cleaning in the way that this instruction recommends only.When this product is not in use for a long time, make sure to unplug the power cord from the AC outlet.If below problem happens, send this product to a qualified service personnel for repairing.A. Power cord or power plug is damaged.B. Objects have fallen or liquid has been spilled into this product.C. This product is exposed to rain or other liquid.D. This product functions abnormally or very poorly.E. This product has been dropped or has a damaged enclosure.Never to attempt to repair this product by yourself. Refer all servicing to a qualified servicing personnel. CAUTIONTo reduce the risk of electric shock, the power plug must be completely inserted into an AC outlet.This product does not contain any parts or components that can be repaired by users themselves. Do not open the enclosure, otherwise it may result in an electric shock. Refer all servicing to a qualified servicing personnel.When you unplug this product from AC outlet, do hold the power plug and pull.Do not pull the power cord. Do not overload AC outlets or the extension cord, as this can lead to risk of fire or electric shock.DO NOT OPENRISK OF ELECTRIC SHOCKCAUTIONWarning10Trouble Shooting1. If there is problem with sound quality. a) Check if all the drivers are working.b Check that audio cables are firmly connected at both ends.2. If there is no sound from either of the speakers:a Check if the device is on and if a source is playing.b Check if the volume is not on minimum.c Check if there is broken or short circuit with the cable connecting speakers and audio source. 3. If there is no sound coming from one of the speakers:a Check if the source is set correctly.b Check if there is loose connection of the audio signal cable.c) Check if the speaker connecting cables are fully inserted. ))))))Break-in is the procedure which can enable the speakers to perform best acoustically. A period ranging from 48-100 hours of usage is recommended before both the amplifier and speaker drivers behave optimally. Alternatively, you can listen 2 or 3 hours every day at a medium volume, and the speakers will be broken-in one month or so. a) Avoid magnetic disturbance. b) Do not place under the sunshine for a long time. c) Do not place in high temperature or moist environment for a long time. d) Do not touch the drivers with your hands. e) Avoid corrosive liquids and gases. a) b) c) d) e) MaintenanceBreak-in

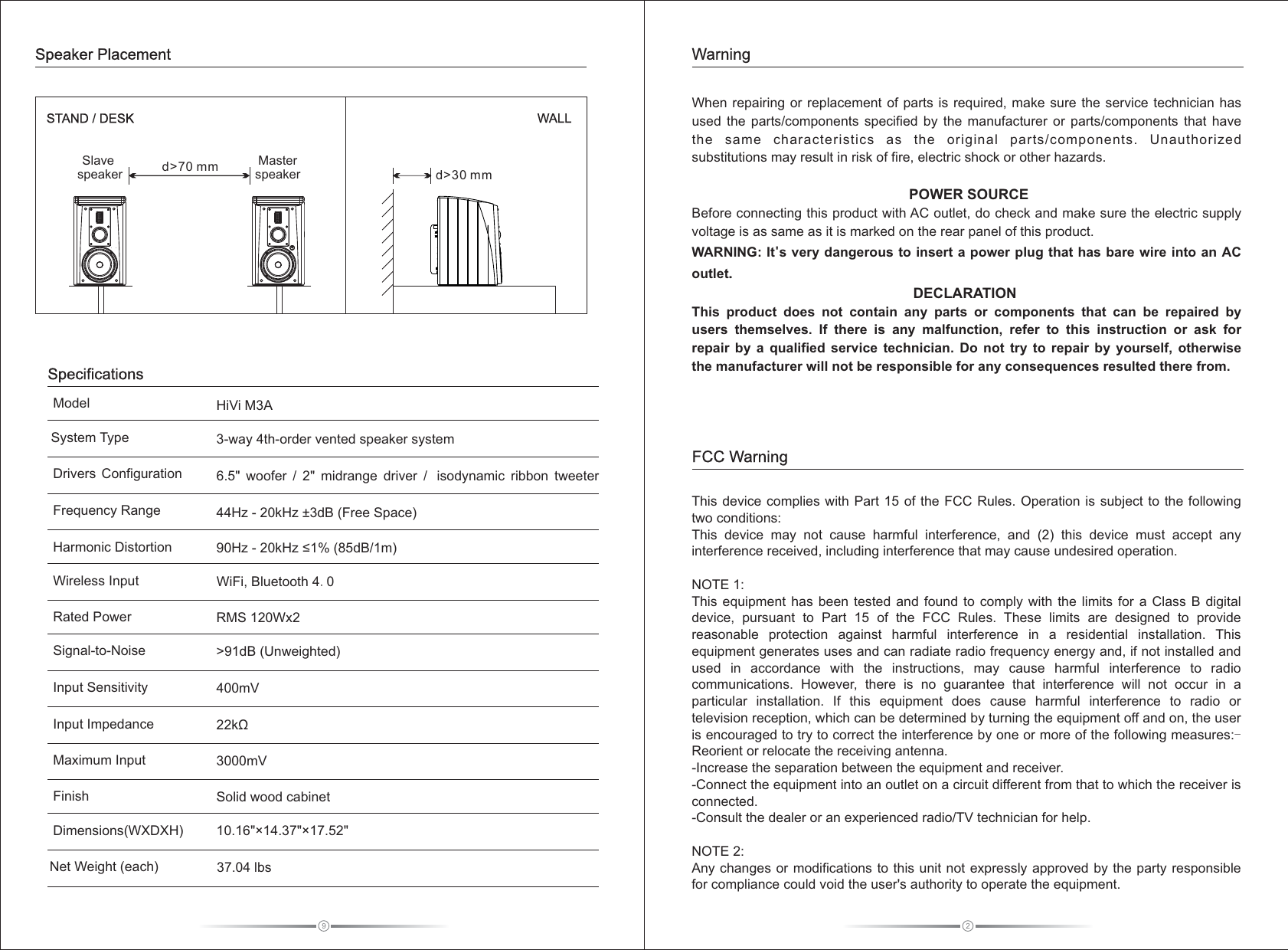

2When repairing or replacement of parts is required, make sure the service technician has used the parts/components specified by the manufacturer or parts/components that have the same characteristics as the original parts/components. Unauthorized substitutions may result in risk of fire, electric shock or other hazards. POWER SOURCEBefore connecting this product with AC outlet, do check and make sure the electric supply voltage is as same as it is marked on the rear panel of this product.WARNING: It's very dangerous to insert a power plug that has bare wire into an AC outlet. DECLARATIONThis product does not contain any parts or components that can be repaired by users themselves. If there is any malfunction, refer to this instruction or ask for repair by a qualified service technician. Do not try to repair by yourself, otherwise the manufacturer will not be responsible for any consequences resulted there from. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.FCC WarningWarning9System TypeFrequency RangeDrivers ConfigurationSignal-to-NoiseInput SensitivityInput ImpedanceFinishDimensions(WXDXH)Net Weight (each)Harmonic DistortionMaximum InputModelWireless Input SpecificationsMaster speakerSlave speaker d>70 mmSTAND / DESK WALLSpeaker Placementd>30 mmRated Power HiVi M3A3-way 4th-order vented speaker system>91dB (Unweighted)400mV22kΩSolid wood cabinet 6.5" woofer / 2" midrange driver / isodynamic ribbon tweeter 3000mV44Hz - 20kHz ±3dB (Free Space)90Hz - 20kHz ≤1% (85dB/1m)WiFi, Bluetooth 4.010.16"×14.37"×17.52" 37.04 lbs RMS 120Wx2

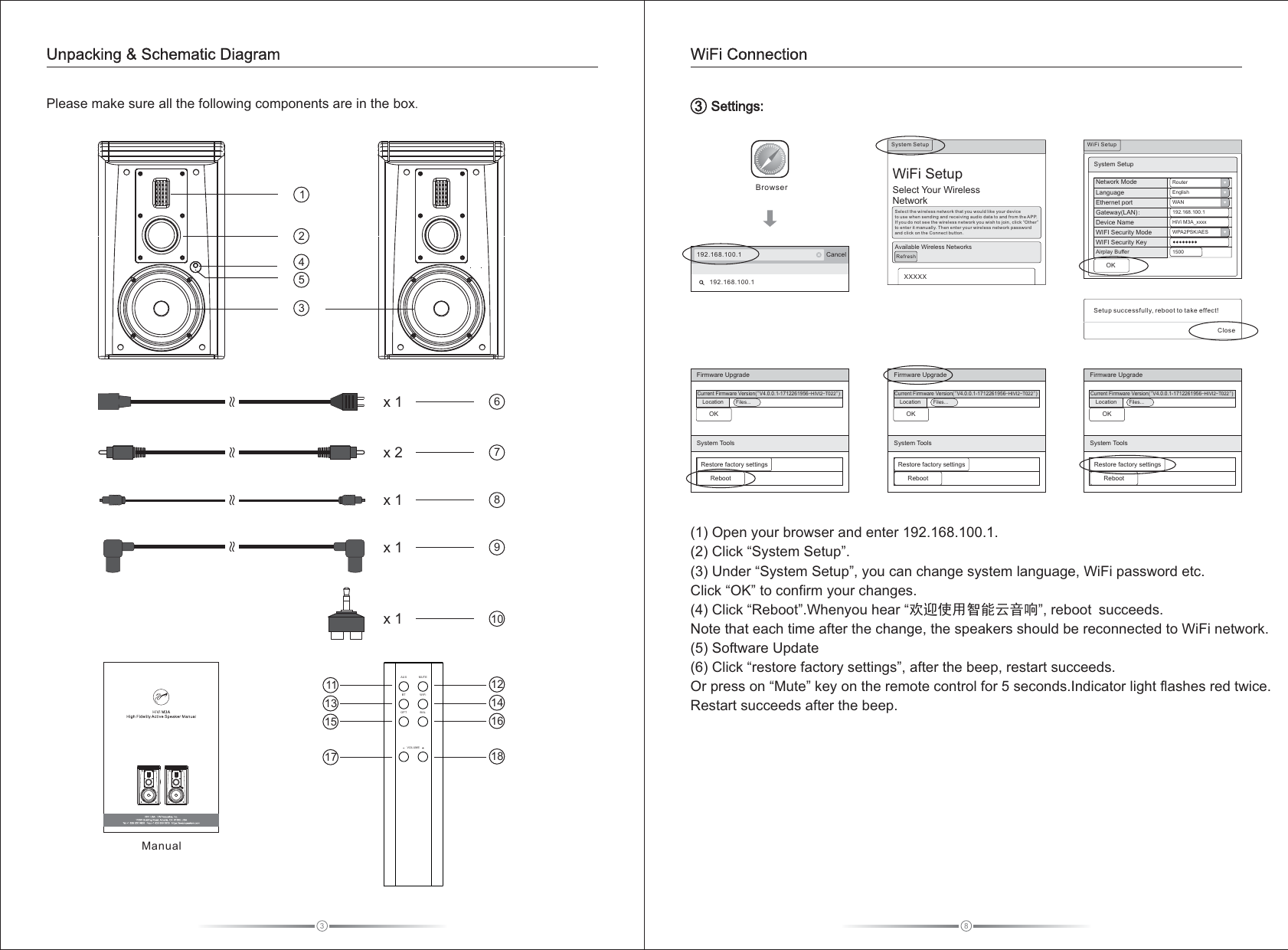

8 Settings:3WiFi Connection3Please make sure all the following components are in the box. Unpacking & Schematic Diagramx 1 678x 2x 110(1) Open your browser and enter 192.168.100.1. (2) Click “System Setup”.(3) Under “System Setup”, you can change system language, WiFi password etc.Click “OK” to confirm your changes.(4) Click “Reboot”.Whenyou hear “欢迎使用智能云音响”, reboot succeeds.Note that each time after the change, the speakers should be reconnected to WiFi network.(5) Software Update(6) Click “restore factory settings”, after the beep, restart succeeds.Or press on “Mute” key on the remote control for 5 seconds.Indicator light flashes red twice.Restart succeeds after the beep. 192.168.100.1 Cancel192.168.100.1BrowserOKFirmware UpgradeOKRestore factory settingsRebootCurrent Firmware Version("V4.0.0.1-1712261956-HIVI2-T022")System ToolsFiles...LocationSetup successfully, reboot to take effect!CloseWiFi SetupSelect Your WirelessNetworkSystem Setup XXXXXSelect the wireless network that you would like your device to use w hen sen ding an d recei vi ng au di o dat a to a nd fr om t he APP. If you do not see the wireless network you wish to join, click “Other” to enter it manually. Then enter your wireless network password and click on the Connect button. Available Wireless NetworksRefreshEnglishWAN192.168.100.1HiVi M3A_xxxxWPA2PSK/AES1500RouterNetwork ModeLanguageEthernet portGateway AN :Device NameWIFI Security ModeAirplay Buffer(L )WIFI Security KeySystem SetupWiFi Setup Firmware UpgradeOKRestore factory settingsRebootCurrent Firmware Version("V4.0.0.1-1712261956-HIVI2-T022")System ToolsFiles...LocationFirmware UpgradeOKRestore factory settingsRebootCurrent Firmware Version("V4.0.0.1-1712261956-HIVI2-T022")System ToolsFiles...Location14532Manual9x 11113151712141618BTAUX MUTEWiFiBALOPTVOLUMEx 1

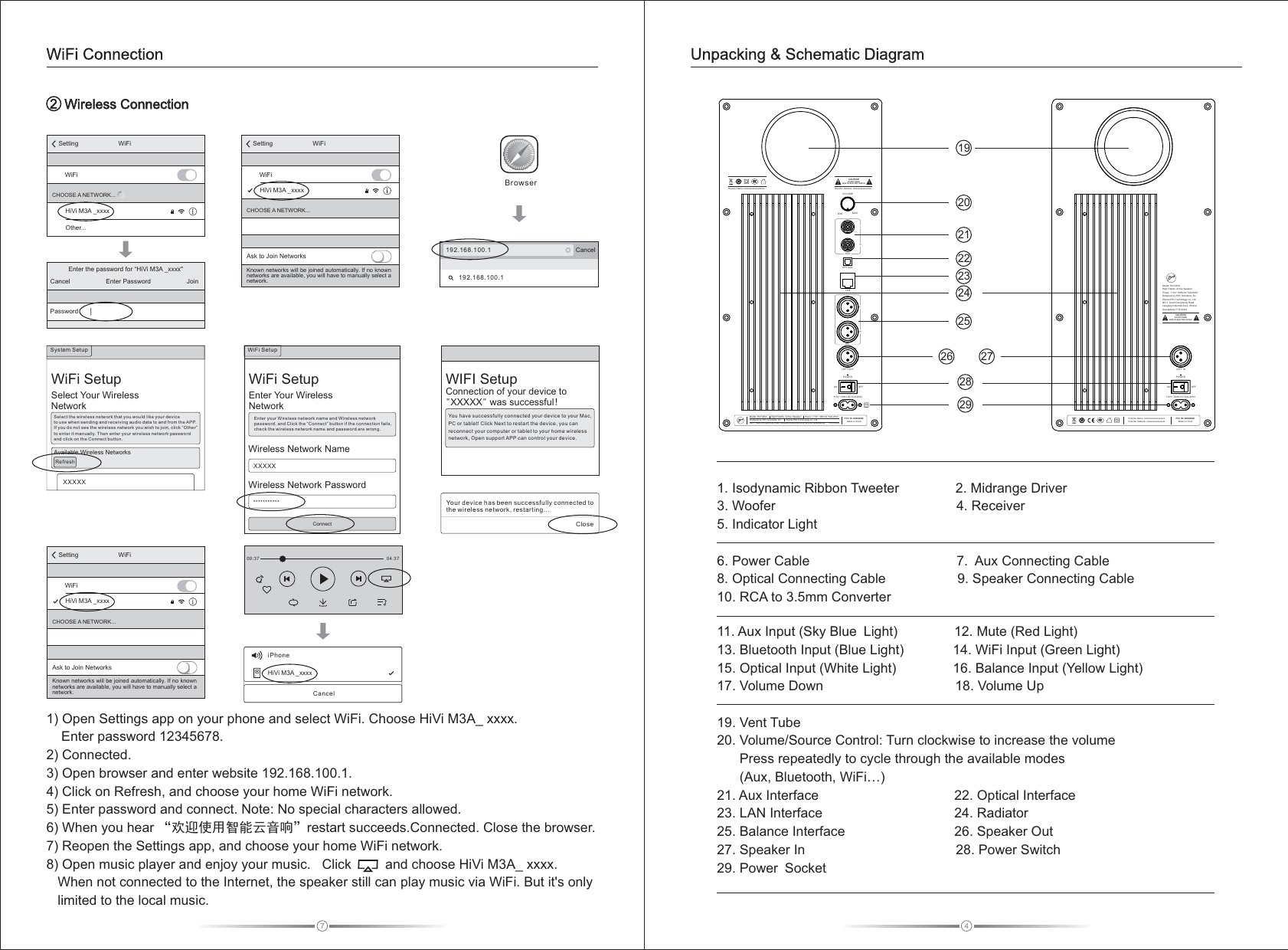

WWireless Connection2WiFi Connection43. Woofer 4. Receiver 5. Indicator Light6. Power Cable 7. Aux Connecting Cable8. Optical Connecting Cable 9. Speaker Connecting Cable 10. RCA to 3.5mm Converter 11. Aux Input (Sky Blue Light) 12. Mute (Red Light) 13. Bluetooth Input (Blue Light) 14. WiFi Input (Green Light) 15. Optical Input (White Light) 16. Balance Input (Yellow Light) 17. Volume Down 18. Volume Up 19. Vent Tube20. Volume/Source Control: Turn clockwise to increase the volume Press repeatedly to cycle through the available modes (Aux, Bluetooth, WiFi…) 21. Aux Interface 22. Optical Interface 23. LAN Interface 24. Radiator 25. Balance Interface 26. Speaker Out 27. Speaker In 28. Power Switch 29. Power Socket 1. Isodynamic Ribbon Tweeter 2. Midrange Driver Unpacking & Schematic Diagram1) Open Settings app on your phone and select WiFi. Choose HiVi M3A_ xxxx. Enter password 12345678.2) Connected.3) Open browser and enter website 192.168.100.1.4) Click on Refresh, and choose your home WiFi network.5) Enter password and connect. Note: No special characters allowed. 6) When you hear “欢迎使用智能云音响”restart succeeds.Connected. Close the browser.7) Reopen the Settings app, and choose your home WiFi network. 8) Open music player and enjoy your music. Click and choose HiVi M3A_ xxxx. When not connected to the Internet, the speaker still can play music via WiFi. But it's only limited to the local music. 7Your device has been succes sfully connected to the wireless network, restarting...CloseWIFI SetupConnection of your device to "XXXXX" was successful!You ha ve successfu lly c onn ect ed your device t o you r Mac , PC or tablet ! Cli ck Ne xt to r estart the dev ice , you c an reconnec t you r com puter or table t to yo ur ho me wi reless network, O pen s upp ort APP can c ont rol y our d evice.00:37 04:37iPhoneHiVi M3A _xxxxCancel192.168.100.1 Cancel192.168.100.1BrowserEnter the password for “HiVi M3A _xxxx"Enter PasswordCancel JoinPasswordSetting WiFiWiFiHiVi M3A _xxxxOther...CHOOSE A NETWORK ...XXXXX***********ConnectWireless Network Name Wireless Network PasswordSetting WiFiWiFiCHOOSE A NETWORK...Ask to Join NetworksKnown networks will be joined automatically. If no known networks are available, you will have to manually select a network. HiVi M3A _xxxx1920212223242526 272829WiFi SetupSelect Your WirelessNetworkSystem Setup XXXXXSelect the wireless network that you would like your device to use w hen sen ding an d recei vi ng au di o dat a to a nd fr om t he APP. If you d o not see t he wire le ss ne tw ork y ou w ish t o jo in, c li ck “Other” to enter it manually. Then enter your wireless network password and cl ick on th e Conne ct butt on . Available Wireless NetworksRefreshSetting WiFiWiFiCHOOSE A NETWORK...Ask to Join NetworksKnown networks will be joined automatically. If no known networks are available, you will have to manually select a network. HiVi M3A _xxxxWiFi SetupEnter Your WirelessNetwork Ente r your Wi reles s ne two rk n ame a nd W ire le ss ne tw ork password, and Click the “Connect” button if the connection fails, chec k the wir eless n etwor k na me an d pa ssw or d are w ro ng.WiFi Setup MAXMINVOLUMEAUXLROPTICALLANBALLRLEFT O UTON OFFPOWERImporter Address: xxxxxxxxxxxxxxxxx DO NOT OPENRISK OF ELECTRIC SHOCKCAUTIONModel: HiVi M3A High Fidelity Active Speaker Power: 1 10V~ 60Hz IN T4AL250VDesigned by HiVi Acoustics, Inc. Zhuhai HiVi Technology co., Ltd. NO.1, South Dongcheng Road, Liangang Industrial Zone, Zhuhai, Guangdong, P.R.ChinaFCC ID: XXXXXXXMade in China 110V~ 6 0Hz IN T4 AL250 VImporter Name: xxxxxxxxxxxxxxxxxxxON OFFPOWERLEFT IN110V~ 6 0Hz IN T4 AL250 VModel: HiVi M3A High Fidelity Active Speaker Power: 110V~ 60Hz IN T4AL250VDesigned by HiVi Acoustics, Inc. Zhuhai HiVi Technology co., Ltd. NO.1, South Dongcheng Road, Liangang Industrial Zone, Zhuhai, Guangdong, P.R.ChinaDO NOT OPENRISK OF ELECTRIC SHOCKCAUTIONFCC ID: XXXXXXXMade in China Importer Name: xxxxxxxxxxxxxxxxxxxImporter Address: xxxxxxxxxxxxxxxxx

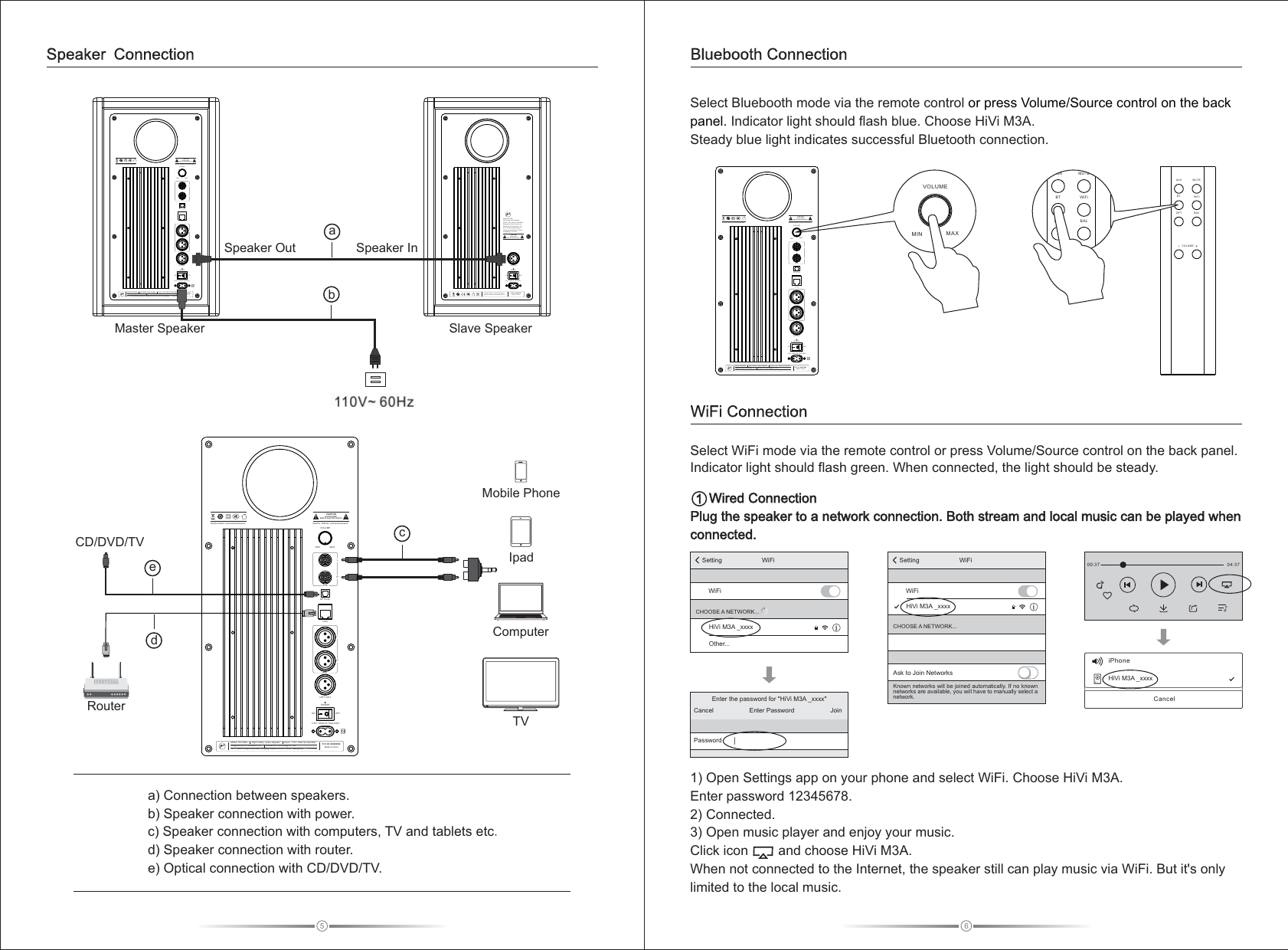

5a) Connection between speakers.b) Speaker connection with power.c) Speaker connection with computers, TV and tablets etc.d) Speaker connection with router.e) Optical connection with CD/DVD/TV.Speaker ConnectionCD/DVD/TV ceMobile PhoneIpadComputerTVRouterd1) Choose HiVi . Enter password 12345678.2) Connected.3) Open music player and enjoy your music. Click icon and choose HiVi M3A.When not connected to the Internet, the speaker still can play music via WiFi. But it's only limited to the local music. Open Settings app on your phone and select WiFi. M3ABluebooth Connection Plug the speaker to a network connection. Both stream and local music can be played when connected. Wired Connection1Select WiFi mode via the remote control or press Volume/Source control on the back panel. Indicator light should flash green. When connected, the light should be steady. 00:37 04:37iPhoneHiVi M3A _xxxxCancelSetting WiFiWiFiCHOOSE A NETWORK...Ask to Join NetworksKnown networks will be joined automatically. If no known networks are available, you will have to manually select a network. HiVi M3A _xxxxEnter the password for "HiVi M3A _xxxx"Enter PasswordCancel JoinPasswordSetting WiFiWiFiHiVi M3A _xxxxOther...CHOOSE A NETWORK ...Select mode via the remote control Indicator light should flash blue. Choose HiVi M3A. Steady blue light indicates successful Bluetooth connection.Bluebooth or press Volume/Source control on the back panel. WiFi Connection6MAXMINVOLUMEAUXLROPTICALLANBALLRLEFT OUTON OFFPOWERImporter Address: xxxxxxxxxxxxxxxxx DO NOT OPENRISK OF ELECTRIC SHOCKCAUTIONModel: HiVi M3A High Fidelity Active Speaker Power: 110V~ 60Hz IN T4AL250VDesigned by HiVi Acoustics, Inc. Zhuhai HiVi Technology co., Ltd. NO.1, South Dongcheng Road, Liangang Industrial Zone, Zhuhai, Guangdong, P.R.ChinaFCC ID: XXXXXXXMade in China 110V~ 6 0Hz IN T4 AL250 VImporter Name: xxxxxxxxxxxxxxxxxxxMAXMINVOLUMEAUXLROPTICALLANBALLRLEFT OUTON OFFPOWERImporter Address: xxxxxxxxxxxxxxxxx DO NOT OPENRISK OF ELECTRIC SHOCKCAUTIONModel: HiVi M3A High Fidelity Active Speaker Power: 110V~ 60Hz IN T4AL250VDesigned by HiVi Acoustics, Inc. Zhuhai HiVi T echnology co., Ltd. NO.1, South Dongcheng Road, Liangang Industrial Zone, Zhuhai, Guangdong, P.R.ChinaFCC ID: XXXXXXXMade in China 110V~ 60Hz IN T4AL250VImporter Name: xxxxxxxxxxxxxxxxxxxON OFFPOWERLEFT IN110V~ 60Hz IN T4AL250VModel: HiVi M3A High Fidelity Active Speaker Power: 110V~ 60Hz IN T4AL250VDesigned by HiVi Acoustics, Inc. Zhuhai HiVi Technology co., Ltd. NO.1, South Dongcheng Road, Liangang Industrial Zone, Zhuhai, Guangdong, P.R.ChinaDO NOT OPENRISK OF ELECTRIC SHOCKCAUTIONFCC ID: XXXXXXXMade in China Importer Name: xxxxxxxxxxxxxxxxxxxImporter Address: xxxxxxxxxxxxxxxxx 220-240V~ 50/60HzS InpeakerSpeaker OutaSlave SpeakerMaster SpeakerbMAXMINVOLUMEBTAUX MUTEWiFiBALOPTVOLUMEBTAUX MUTEWiFiBALOPTMAXMINVOLUMEAUXLROPTICALLANBALLRLEFT OUTON OFFPOWERImporter Address: xxxxxxxxxxxxxxxxx DO NOT OPENRISK OF ELECTRIC SHOCKCAUTIONModel: HiVi M3A High Fidelity Active Speaker Power: 110V~ 60Hz IN T4AL250VDesigned by HiVi Acoustics, Inc. Zhuhai HiVi T echnology co., Ltd. NO.1, South Dongcheng Road, Liangang Industrial Zone, Zhuhai, Guangdong, P.R.ChinaFCC ID: XXXXXXXMade in China 110V~ 60Hz IN T4AL250VImporter Name: xxxxxxxxxxxxxxxxxxx

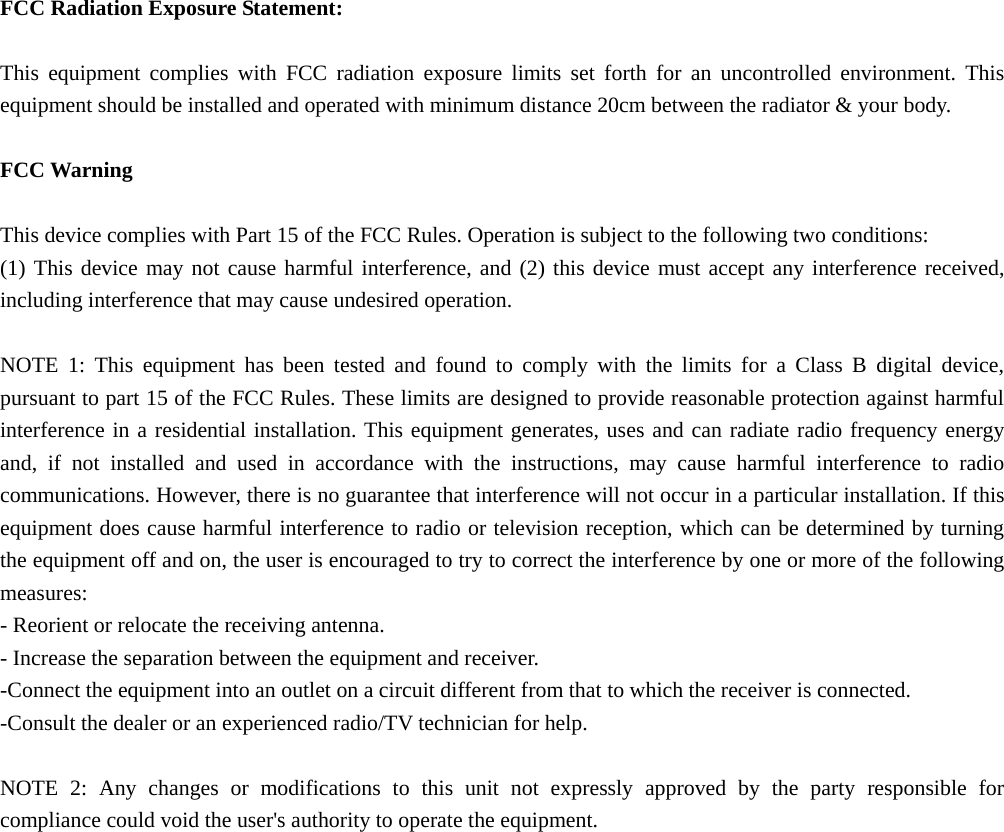

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
