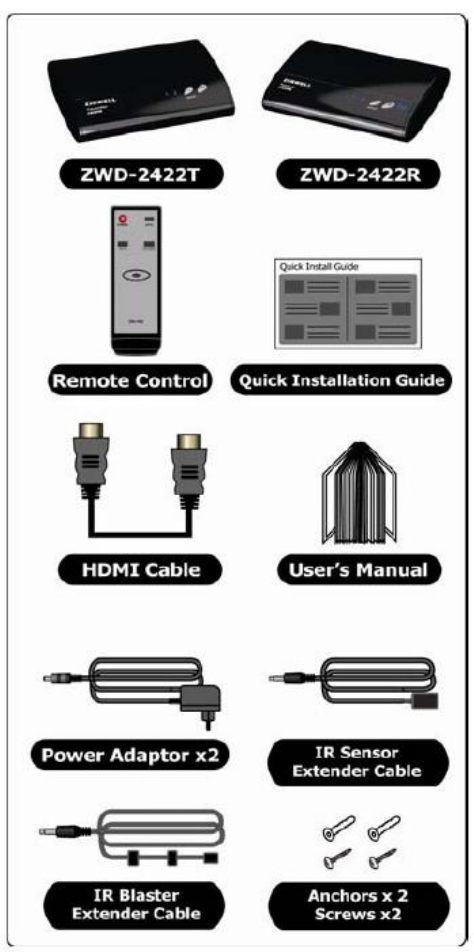

2.1 PACKING CONTENT .................................................................................................... 3

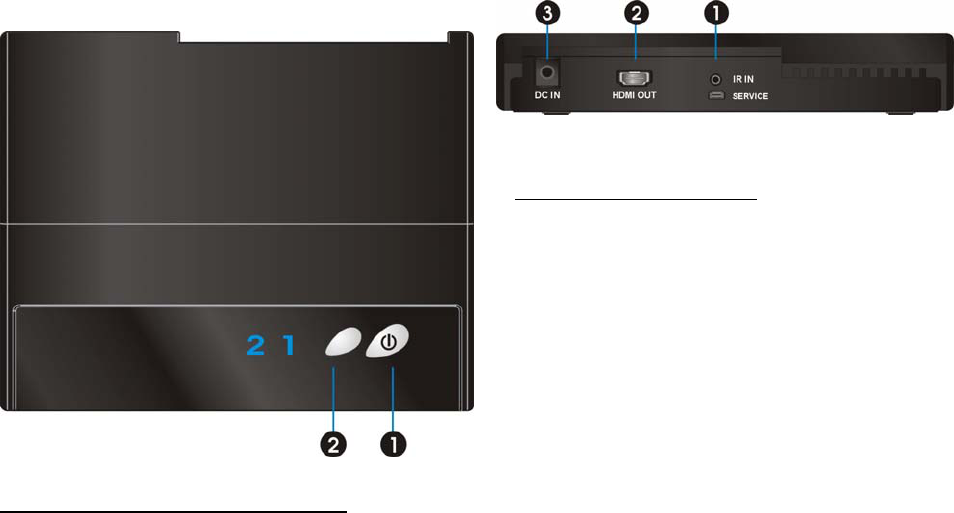

2.2 OVERVIEW ................................................................................................................. 4
3. INSTALLATION............................................................................................................ 10
4. TROUBLESHOOTING ................................................................................................. 21
5. SUPPORTED RESOLUTION....................................................................................... 23
6. AUDIO BIT RATE SUPPORT...................................................................................... 24
7. PRODUCT SPECIFICATION ....................................................................................... 25
2
1. Important Information
Please take the time to read this user manual
before using the ZWD-2422T and
ZWD-2422R.
It contains important information about
operating your Full HD video wireless kit.
Our limited warranty applies when the
product is handled properly for intended use,
in accordance with its operating instruction.
However, the warranty may be void in the
following cases:
 Repair, product modification or
alteration have been performed by
unauthorized service personnel
 Damages caused by accidents,
including but not limited to, lightning,
water, fire, or moisture
 Use of an AC adapter not compatible
with the product and its voltage rating
 The model number on the product has
been altered, deleted, removed or
made illegible.
Safety Precautions
WARNING!
RISK OF
ELECTRICAL
SHOCK
DO NOT OPEN
WARMING:
TO REDUCE THE RISK OF ELECTRICAL
SHOCK
DO NOT REMOVE THE COVER
NO USER-SERVICEABLE PARTS ARE
INSIDE
REFER SERVICING TO QUALIFIED
PERSONNEL
Danger: Be careful with electricity.
 Power to the units must be switched
off before any work is undertaken,
such as any AV device connection or
TV connection.
 Power outlet: To prevent electric
shock, make sure to use the
appropriate AC adapters as power
supply to the transmitter and the
receiver.
 Power cord: Be sure the power cord is
routed so that it will not be stepped on
or pinched by heavy items.
 Power overloading: Avoid
overloading electrical outlets or
extension cords which otherwise could
result in electric shock or fire.
 Lightning: Disconnect the product
from the power source if it is left
unattended for a long period of time,
and to protect the product from
lightning.
 Always disconnect the power cord
from the power outlet when you are
not using your Full HD Video wireless
kit. This reduces the risk of electric
shocks or fire.
Warning
 This product should not be exposed to
dripping or splashing. No object filled
with liquids, such as vases, should be
placed on the product.
 Object Entry: To avoid electric shock,
never stick anything in the slots on the
case or remove the cover.
 Place receiver/transmitter on a flat,
hard and stable surface
 Ventilation: Do not block the
ventilation slots on the
receiver/transmitter or place any heavy
object on the top cover.
Blocking the air flow could damage the
receiver. Arrange components so that
air can flow freely around the receiver.
Ensure that there is adequate
ventilation if the receiver is placed in a
stand.
Put the receiver/transmitter in a
3
property ventilated area, away from
direct sunlight or any source of heat.
 Water Exposure: To reduce the risk of
fire or electric shock, do not expose
the receiver/transmitter to rain or
moisture.
 This is indoor solution.
 Our company has the right to
modify this document without any
notice.
Special Notice
 Never use this product nearby an
aircraft or medical facility. It can
cause interference or undesirable
effect on the operation result.
 Use of this product in the following
locations may result in abnormal video
and audio output (noise, blocked
image... etc,).
 Product installed in the walls
made of concrete.
 Product is situated near the
refrigerator or metal fitment.
 A cluttered room where the
wireless signals may be blocked
 This product has been tested and
manufactured to comply with each
country’s safety rules. However, there
is no guarantee that interference will
not occur in some installation scenario.
If the interference happens, increase
the distance between the transmitter
and receiver.
 ZWD-2422 may interfere 5GHz
wireless devices, such as routers or
other wireless devices. Therefore, if
you have an 802.11n router, configure
it to the 2.4 GHz band rather than the
5GHz band.
 Optimal range between ZWD-2422
transmitter and receiver is between 2
and 20 meters within line of sight.
EN 55022 Information technology
equipment----
Radio disturbance characteristics---
Limits and methods of measurement
EN 61000-3-2 Electromagnetic
compatibility (EMC)---
Part 3-2:Limits---Limits for harmonic
current emissions (equipment input
current up to and including 16 A per
phase)
EN 61000-3-3 Electromagnetic
compatibility (EMC)---
Part 3:Limits---Section 3: Limitation of
voltage changes, voltage fluctuations and
flicker in public low-voltage supply
systems, for equipment with rated current
≦16 A per phase and not subject to
conditional connection
EN 55024 Information technology
equipment----
Equipment---Immunity
characteristics---Limits and methods of
measurement
EN 301 489-1
Electromagnetic compatibility and Radio
spectrum Matters (ERM); Electro
Magnetic Compatibility (EMC) standard
for radio equipment and services;
Part 1: Common technical requirements
DECLARATION OF CONFORMITY
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including
interference that may cause undesired
operation.
EMI (Electro Magnetic Interference)
TRADEMARK INFORMATION
 HDMI, the HDMI Logo and
High-Definition Multimedia
Interface are trademarks of HDMI
Licensin
g
LLC.
EN 301 489-17
Electromagnetic compatibility and Radio
spectrum Matters (ERM); Electro
magnetic Compatibility(EMC) standard
for radio equipment;
Part 17: Specific conditions for 2,4 GHz
wideband transmission systems, 5GHz
high performance RLAN equipment and
5,8 GHz Broadband Transmitting Systems
EN 60065 Audio
，video and similar
electronic apparatus—Safety
requ
irements
4
CAUTION of RF module on US
region
 Any changes or modifications not
expressly approved by the grantee of
this device could void the user's
authority to operate the equipment.
 This equipment must be installed and
operated in accordance with provided
instructions and the antenna(s) used
for this transmitter must be installed to
provide a separation distance of at
least 20 cm from all persons and must
not be co-located or operating in
conjunction with any other antenna or
transmitter. End-users and installers
must be provided with antenna
installation instructions and
transmitter operating conditions for
satisfying RF exposure compliance.
 Outdoor operations in the 5150 ~
5250MHz, 5600~5650MHz band are
prohibited.
 This device has no Ad-hoc capability
for 5250~5350MHz and
5470~5725MHz.
 Outdoor operations in the
5470~5725MHz band are prohibited.
This device could not be used in the
5600~5650MHz.
 The Device not operation in
5600~5650MHz.
 Industry Canada regulatory
information Operation is subject to the
following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any
interference, including interference
that may cause undesired operation of
the device.
 The user is cautioned that this device
should be used only as specified
within this manual to meet RF
exposure requirements. Use of this
device in a manner inconsistent with
this manual could lead to excessive RF
exposure conditions.
 The following statement must be
included with all versions of this
document supplied to an OEM or
integrator, but should not be
distributed to the end user.
 This device is intended for OEM
integrators only.
 Please See the full Grant of
Equipment document for other
restrictions.
 This device must be operated
and used with a locally approved
access point.
 The following regulatory and Safety
notices must be published in
documentation supplied to the end
user of the product or system
incorporating an adapter in
compliance with local regulations,
Host system must be labeled with
“Contains FCC ID: XXX-XXXXX”, FCC ID
displayed on label.
System Warning
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in
a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
 Reorient or relocate the receiving
antenna.
 Increase the separation between the
equipment and receiver.
 Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced
radio/TV technician for help.
5
CAUTION of System on US
region
 Any changes or modifications not
expressly approved by the grantee of
this device could void the user's
authority to operate the equipment.
 This equipment must be installed and
operated in accordance with provided
instructions and the antenna(s) used
for this transmitter must be installed to
provide a separation distance of at
least 20 cm from all persons and must
not be co-located or operating in
conjunction with any other antenna or
transmitter. End-users and installers
must be provided with antenna
installation instructions and
transmitter operating conditions for
satisfying RF exposure compliance.
 Outdoor operations in the
5150~5250MHz, 5600~5650MHz band
are prohibited.
 This device has no Ad-hoc capability
for 5250~5350MHz and
5470~5725MHz.
 Outdoor operations in the
5470~5725MHz band are prohibited.
This device could not be used in the
5600~5650MHz.
 The device not operation in
5600~5650MHz.
CAUTION of System on Canada
region
 Industry Canada regulatory
information Operation is subject to the
following two conditions:
1. This device may not cause
interference,
2. This device must accept any
interference, including
interference that may cause
undesired operation of the
device.
 The user is cautioned that this device
should be used only as specified
within this manual to meet RF
exposure requirements. Use of this
device in a manner inconsistent with
this manual could lead to excessive RF
exposure conditions.
6
CAUTION of System on US region
 Any installation of either a master or a client device within 35 km of a TDWR location
shall be separated by at least 30 MHz (center-to-center) from the TDWR operating
frequency (as shown in the below table), and
 Procedures for the installers and the operators on how to register the devices in the
industry-sponsored database with the appropriate information regarding the location
and operation of the device and installer information is included.
A voluntary WISPA sponsored database has been developed that allows operators and
installers to register the location information of the UNII devices operating outdoors in the
5470 – 5725 MHz band within 35 km of any TDWR location (see
http://www.spectrumbridge.com/udia/home.aspx). This database may be used by
government agencies in order to expedite resolution of any interference to TDWRs.
3
STATE CITY LONGITU
DE
LATITUDE FREQUENC
Y
TERRAIN
ELEVATION
(MSL) [ft]
ANTENNA
HEIGHT
ABOVE
TERRAIN [ft]
AZ PHOENIX W 112 09 46 N 33 25 14 5610 MHz 1024 64
CO DENVER W 104 31 35 N 39 43 39 5615 MHz 5643 64
FL FT LAUDERDALE W 080 20 39 N 26 08 36 5645 MHz 7 113
FL MIAMI W 080 29 28 N 25 45 27 5605 MHz 10 113
FL ORLANDO W 081 19 33 N 28 20 37 5640 MHz 72 97
FL TAMPA W 082 31 04 N 27 51 35 5620 MHz 14 80
FL WEST PALM BEACH W 080 16 23 N 26 41 17 5615 MHz 20 113
GA ATLANTA W 084 15 44 N 33 38 48 5615 MHz 962 113
IL MCCOOK W 087 51 31 N 41 47 50 5615 MHz 646 97
IL CRESTWOOD W 087 43 47 N 41 39 05 5645 MHz 663 113
IN INDIANAPOLIS W 086 26 08 N 39 38 14 5605 MHz 751 97
KS WICHITA W 097 26 13 N 37 30 26 5603 MHz 1270 80
KY COVINGTON
CINCINNATI
W 084 34 48 N 38 53 53 5610 MHz 942 97
KY LOUISVILLE W 085 36 38 N 38 02 45 5646 MHz 617 113
LA NEW ORLEANS W 090 24 11 N 30 01 18 5645 MHz 2 97
MA BOSTON W 070 56 01 N 42 09 30 5610 MHz 151 113
MD BRANDYWINE W 076 50 42 N 38 41 43 5635 MHz 233 113
MD BENFIELD W 076 37 48 N 39 05 23 5645 MHz 184 113
MD CLINTON W 076 57 43 N 38 45 32 5615 MHz 249 97
MI DETROIT W 083 30 54 N 42 06 40 5615 MHz 656 113
MN MINNEAPOLIS W 092 55 58 N 44 52 17 5610 MHz 1040 80
MO KANSAS CITY W 094 44 31 N 39 29 55 5605 MHz 1040 64
MO SAINT LOUIS W 090 29 21 N 38 48 20 5610 MHz 551 97
MS DESOTO COUNTY W 089 59 33 N 34 53 45 5610 MHz 371 113
NC CHARLOTTE W 080 53 06 N 35 20 14 5608 MHz 757 113
NC RALEIGH DURHAM W 078 41 50 N 36 00 07 5647 MHz 400 113
NJ WOODBRIDGE W 074 16 13 N 40 35 37 5620 MHz 19 113
NJ PENNSAUKEN W 075 04 12 N 39 56 57 5610 MHz 39 113
NV LAS VEGAS W 115 00 26 N 36 08 37 5645 MHz 1995 64
NY FLOYD BENNETT FIELD W 073 52 49 N 40 35 20 5647 MHz 8 97
OH DAYTON W 084 07 23 N 40 01 19 5640 MHz 922 97
OH CLEVELAND W 082 00 28 N 41 17 23 5645 MHz 817 113
OH COLUMBUS W 082 42 55 N 40 00 20 5605 MHz 1037 113
OK AERO. CTR TDWR #1 W 097 37 31 N 35 24 19 5610 MHz 1285 80
OK AERO. CTR TDWR #2 W 097 37 43 N 35 23 34 5620 MHz 1293 97
OK TULSA W 095 49 34 N 36 04 14 5605 MHz 712 113
OK OKLAHOMA CITY W 097 30 36 N 35 16 34 5603 MHz 1195 64
PA HANOVER W 080 29 10 N 40 30 05 5615 MHz 1266 113
PR SAN JUAN W 066 10 46 N 18 28 26 5610 MHz 59 113
TN NASHVILLE W 086 39 42 N 35 58 47 5605 MHz 722 97
TX HOUSTON
INTERCONTL
W 095 34 01 N 30 03 54 5605 MHz 154 97
TX PEARLAND W 095 14 30 N 29 30 59 5645 MHz 36 80
TX DALLAS LOVE FIELD W 096 58 06 N 32 55 33 5608 MHz 541 80
TX LEWISVILLE DFW W 096 55 05 N 33 03 53 5640 MHz 554 31
UT SALT LAKE CITY W 111 55 47 N 40 58 02 5610 MHz 4219 80
VA LEESBURG W 077 31 46 N 39 05 02 5605 MHz 361 113
WI MILWAUKEE W 088 02 47 N 42 49 10 5603 MHz 820 113
3
2. Introduction
ZWD-2422T and ZWD-2422R wireless HD
audio/video transmission solution allows
users to place their HDTV set or projector
where you want, free of the constraint of
cables. Just connect your HDTV to the
ZWD-2422R (receiver) with an HDMI cable,
and connect your AV equipment (Blu-ray
players, HD set-up boxes, game consoles or
HD media players and streamers) to the
ZWD-2422T (transmitter) Besides HDTVs,
any display with an HDMI input, such as LCD
and plasma monitors, are compatible with
the ZWD-2422R.
This setup doesn’t clutter your media and
allows the AV equipment to be hidden in the
cabinet behind your seating area. This
solution delivers uncompressed 1080p full
HD video and audio content to your existing
HDTV set wirelessly. It operates the
transmission in 4.9 GHz~ 5.9 GHz
frequencies and it can adjust its
communication frequency automatically in
case of interference from another RF system.
With built-in Omni-directional antennas, it
can transmit uncompressed video content to
20 meters (66 feet) LOS (Line of sight) with
no latency.

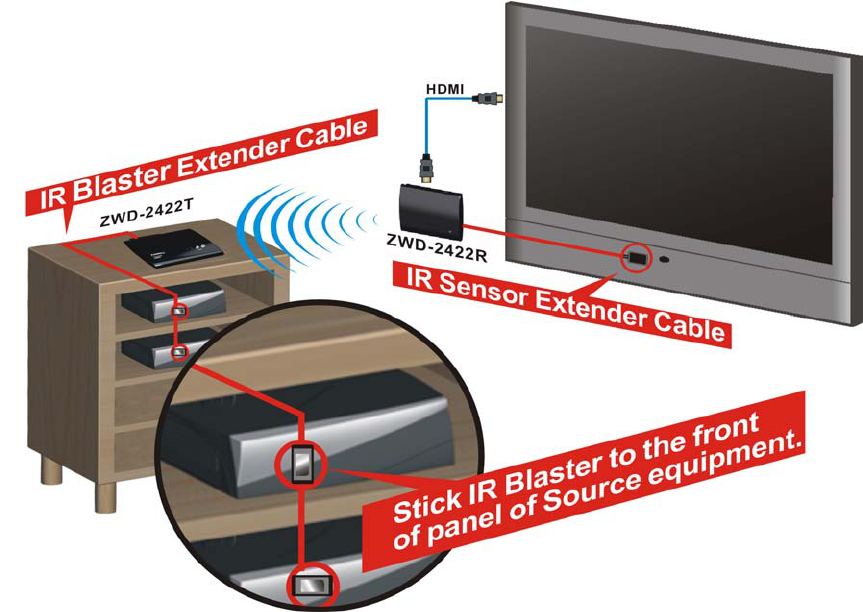

Both IR Sensor Extender Cable and IR Blaster
Extender Cable are included in the package
so users can point their remote control of
the AV source at the ZWD-2422R directly for
device operation.
Note:
Except North America, The wireless link
might require 80 seconds to connect
between transmitter and receiver, and
show video on the TV screen. Please be
patient and wait for a while.
2.1 Packing Content
Please check whether the following items are
present in the package. If any items missed
or damaged, please call your dealer.
4

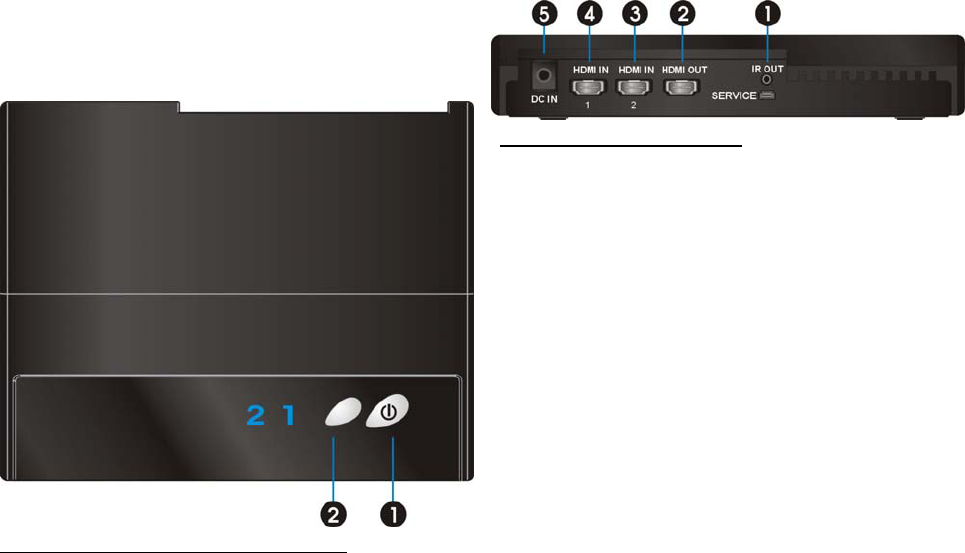

2.2 Overview
A. ZWD-2422T: Full HD Transmitter
Front Panel Buttons and LEDs
Power Button with LED Indicator
Press to turn the transmitter on and off. The
indicator in the power button is lit in solid
blue when the power is on, and turns red in
standby mode.
Source Selection Button
Press to switch between the various inputs of
the transmitter. The one of two LED
indicators next to this button is lit in solid
blue to show current input you switch. Press
this button to cycle through connected
sources in sequence.
Note:
Make sure you have connected the
ZWD-2422R correctly to your HDTV set with
an HDMI cable, and have selected the
correct HDMI input on your TV.
If you have more than one pair of ZWD-2422,
each transmitter and receiver should be at
least 6.5 feet away from one another..
If both the transmitter and the receiver exist
in the same room, the suggested the
distance between the two is 6.5 feet
minimum.

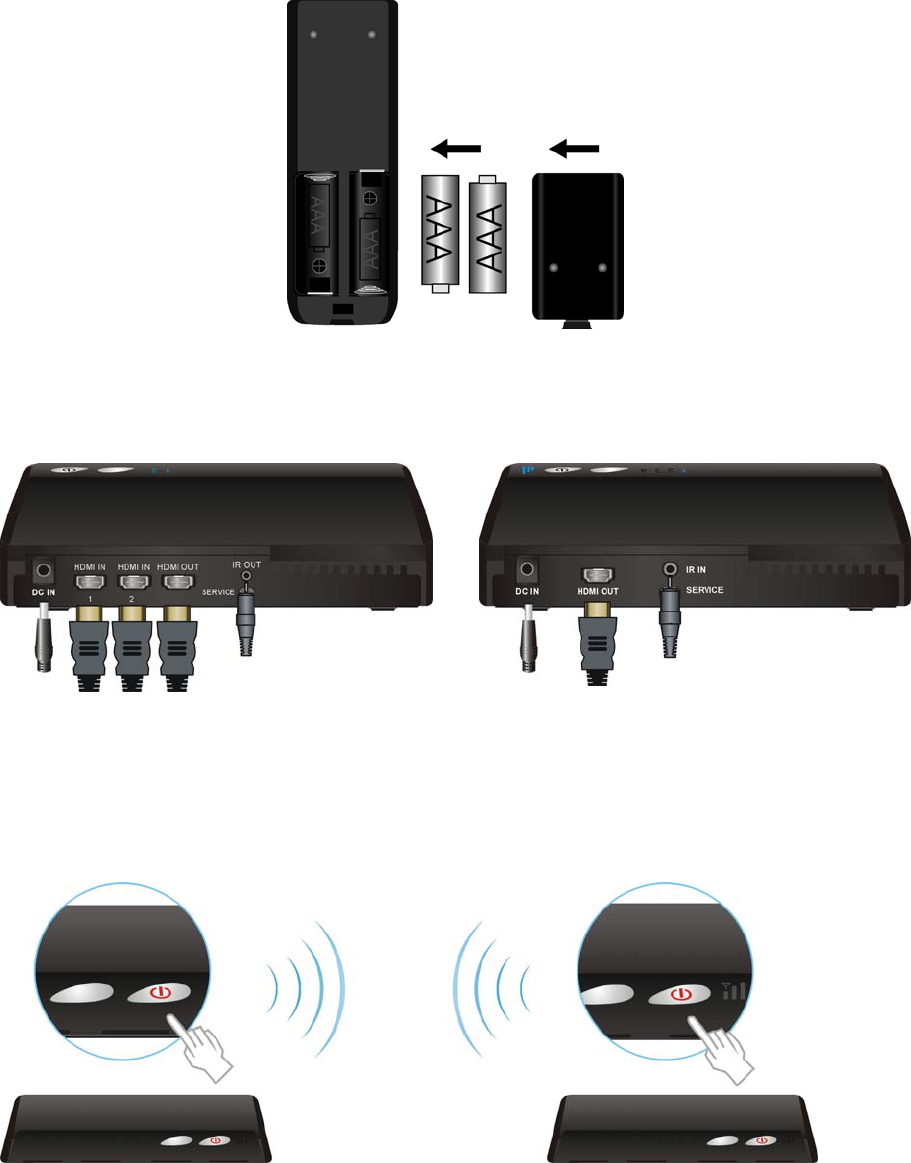

Main Unit Back Panel
IR Blaster Extender Jack
Plug the IR Blaster Extender Cable into the IR
OUT jack at rear panel of the transmitter.
Attach the IR blaster to the device connected
to the ZWD-2422T. You can point your AV
equipment’s existing remote control at the
ZWD-2422R receiver (usually close to your
TV) to control connected Source device.
HDMI OUT
To use the “loop-through” feature, you can
place your 1st HDTV set close to the AV
equipment, and connect the ZWD-2422T
(transmitter) to that HDTV set via HDMI out,
and the AV equipment via HDMI in. Then,
you can enjoy the same digital content on
your 2nd HDTV set connected to the
ZWD-2422R (receiver), possibly in another
room.
HDMI IN
Connect Transmitter to High-definition
audio/video devices that have an HDMI port
using a provided HDMI cable.
DC IN
For connecting the ZWD-2422T power
adapter.
Note:
The ZWD-2422T transmitter can be
connected two audio/video devices running
on HDMI cable, plus looping through the
signals to the HDTV set via the HDMI OUT
port at the same time. Only one AV source
connected to the ZWD-2422T can be
selected and displayed on either the HDTV
also connected to the ZWD-2422T, or on a
2nd HDTV possibly in a different room, once
the transmitter is paired successfully with
receiver connected to the 2nd HDTV set.
5
B. ZWD-2422R: Full HD Receiver
Front Panel Buttons and LEDs
Power Button with LED indicator
Press to turn the receiver on and off. The
indicator in the power button lights up in
blue when the power is on, and turns red in
standby mode.
Source Selection Button
Press this button repeatedly until you see
the desired video transmitted to your TV
set.
Main Unit Back Panel
IR Sensor Extender Jack
Plug the IR Sensor Extender cable into the
IR IN jack at the rear panel of the receiver.
Generally, sensors with cable are placed
near your HDTV set so that you can easily
operate and control your AV equipment
connected to ZWD-2422T by pointing the
remote control to the TV instead of the AV
equipment.

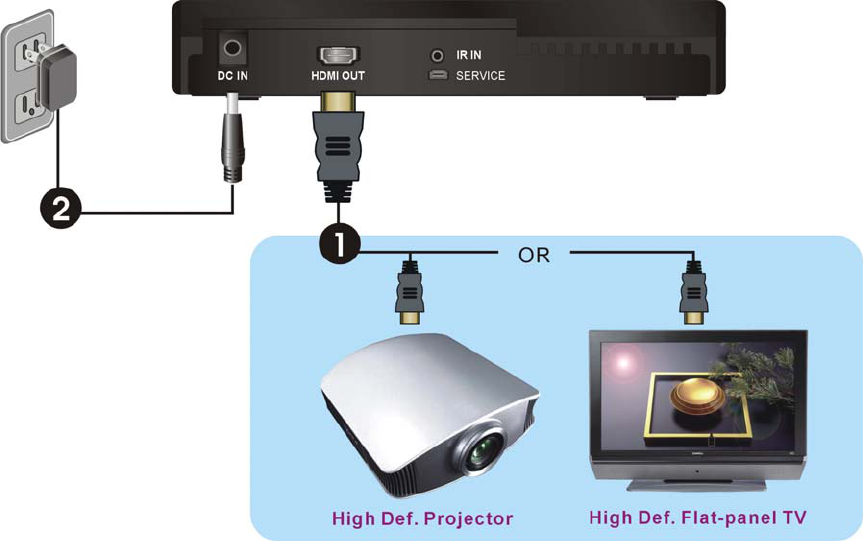

HDMI OUT
For connecting the HDTV set via an HDMI
cable.
DC IN
For connecting the ZWD-2422R power
adapter.
6

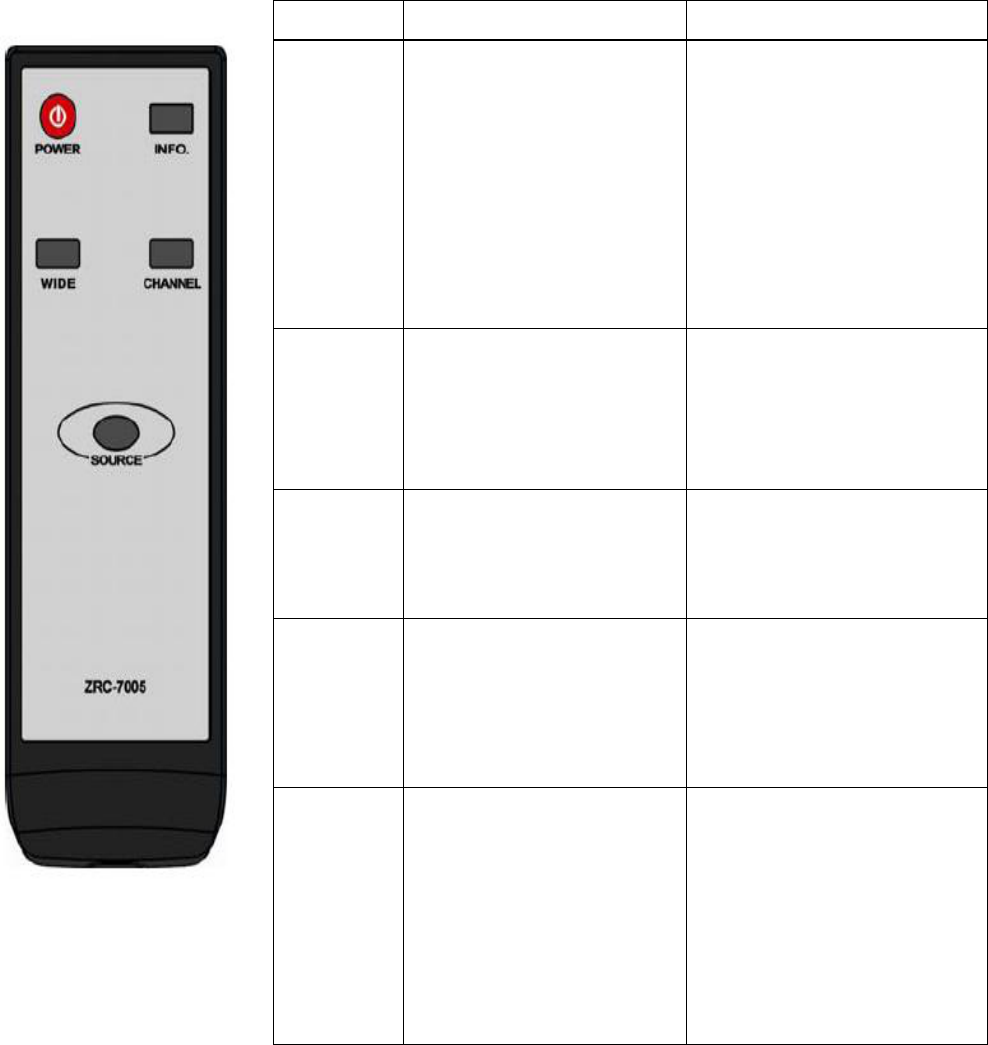

C. Remote Controller Unit (RCU) Instruction
Button Function Description Operation
POWER
Press to turn the
ZWD-2422 Transmitter /
Receiver on/off.
See the below Note 1 &
2. When both of TX &
RX Power LED are red,
Please press Power
button point at TX and
RX separately.
Press it pointing at
receiver to enter
“Standby” mode and the
Loop-through connection
is on; Press it pointing at
transmitter to enter
“Standby” mode and the
Loop-through connection
is off.
INFO.
Press this button to
display related
information. Please
refer next page for the
detail.
Press once to display the
current status. Press
again to exit OSD.

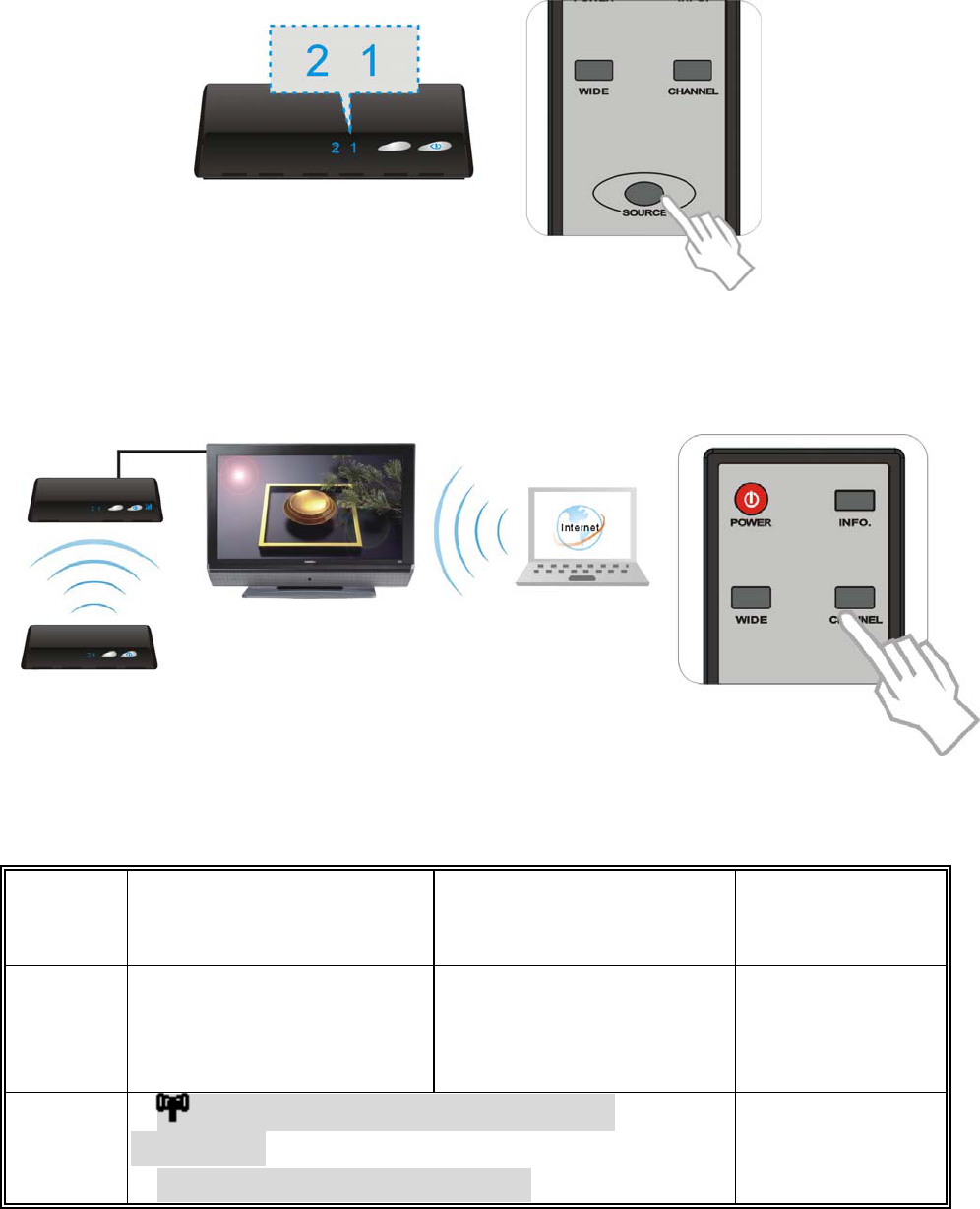

SOURCE
Press this button to
switch audio/video
sources connected to
the ZWD-2422T.
Press to go to the next
input source. Users can
see the current setting on
the OSD.
CHANNE
L
Press this button to
change wireless
channels manually if the
user experiences video
noise.
Press once to display the
current "Channel" status.
Press again within 5
seconds to switch to
another channel, and the
channel number will be
displayed on the OSD.
WIDE
Press this button to
enable the “WIDE”
mode to boost
transmission distance
and keep the same
video performance; up
to 100 feet (1080i
content only)
Press to enable and
disable WIDE mode. Press
again within 5 seconds to
enable WIDE mode, and
the status will be
displayed on OSD.
7
Note:
1. When the system is in active mode, press POWER key on the RCU pointing to
transmitter or on the top of transmitter, then both the transmitter and the receiver will
enter “Standby mode” (RF disconnected; LED lit in red) and Loop-through display and
the 2nd display will be off.
2. When the system is in active mode, press POWER key on the RCU pointing to receiver
or on the top of receiver, then the transmitter will enter “Listen mode” (RF
disconnected; POWER LED lit in purple) and the 2nd display (the display attached to the
receiver) will be off but Loop-through display (the display attached to the transmitter)
will keep on.
3. The “Standby” mode consumes 90% less of the power. User has to press power key on
top cover of both transmitter and receiver to resume to “Active mode”.

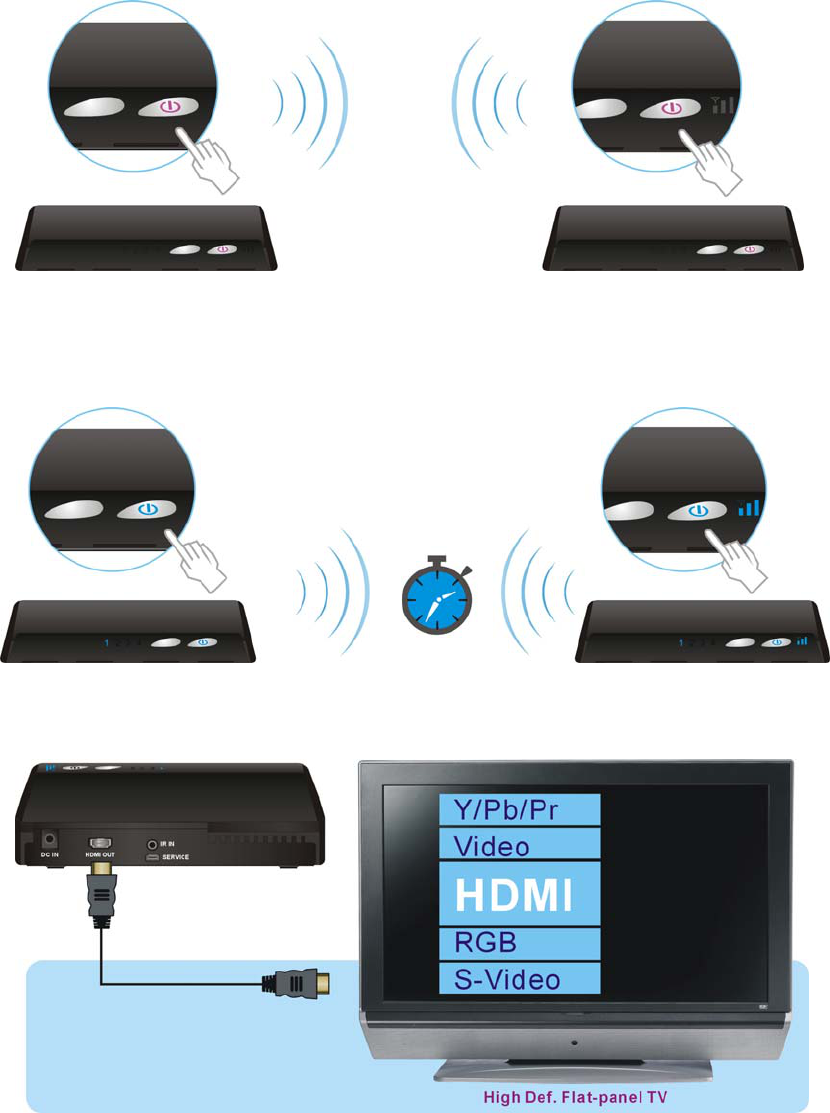

D. On Screen Display (OSD) vs. RCU Instruction
Press the POWER button
(1) Press the power button on the RCU to Transmitter or press the power button on
the top of Transmitter to enter “Standby mode” from “active mode”.
OSD Displayed:
▃▆█ HDMI1 CH10 WIDE Off 1280x1024
Standby Mode, Loop-thru Off
(2) Press the power button on the RCU to Receiver or press the power button on the
top of Receiver to enter “Standby mode” from “active mode”.
OSD Displayed:
▃▆█ HDMI1 CH10 WIDE Off 1280x1024
Standby Mode, Loop-thru On
Press the INFO button on the RCU, and Signal Quality, Source, Channel, WIDE mode
status and resolution will be displayed for user reference.
OSD Displayed:
▃▆█ HDMI1 CH10 WIDE Off 1280x1024
Press again to exit the OSD
8
Press the SOURCE button on the RCU or on the top of transmitter (or receiver) for
audio/video source input selection.
OSD Displayed:
▃▆█ [HDMI1] CH10 WIDE Off 1280x1024
or
▃▆█ [HDMI2] CH10 WIDE Off 1280x1024
Press the CHANNEL button on the RCU to manually switch wireless channels if the
user experiences video noise.
Press “Channel” button once for current Channel status displayed on the OSD :
▃▆█ HDMI1 [CH10] WIDE Off 1280x1024
Press again to change Channel
Press the “Channel” button again within 5 seconds to switch Channel manually.
▃▆█ HDMI1 [CH 8] WIDE Off 1280x1024
Press again to change Channel
Press the WIDE button of RCU for longer distance transmission of audio/video
contents.
(1) Press once for current WIDE mode status displayed on the OSD (Default is
disable):
▃▆█ HDMI1 CH10 [WIDE Off] 1280x1024
Press again to switch WIDE mode
9
(2) Press WIDE button again within 5seconds to switch WIDE mode status, OSD
Displayed:
▃▆█ HDMI1 CH10 [WIDE On] 1280x1024
Press again to switch WIDE mode
NOTE: Only the status of the ZWD-2422R (receiver) connected to the HDTV can be displayed
on the OSD. The status of the ZWD-2422T (transmitter) HDMI out cannot be displayed.
10
3. Installation
Step1: Setup the ZWD-2422T transmitter
Connect Two High-Definition Audio/Video Sources and an HDTV to the
ZWD-2422T:
(1) Connect the ZWD-2422T’s
(transmitter)“HDMI IN” to the
High-Definition AV sources’ “HDMI
OUT” with an HDMI cable (included).
The ZWD-2422T has two HDMI inputs
for the latest High-Definition device, like
PS3, Blu-ray Player.
(2) Connect the ZWD-2422T’s (transmitter)
“HDMI OUT” to the HDTV set’s “HDMI
IN” port with an HDMI cable for the
loop-through output.
(3) Connect the supplied power adapter to
the DC IN jack of the ZWD-2422T and a
wall socket. The LED indicator in the
POWER button lights up in solid purple
when the ZWD-2422T is connected to
the power mains.
11
Step2: Setup the ZWD-2422R receiver
HDTV set Connection with ZWD-2422R:
(1) Connect the HDMI cable to
the HDMI OUT jack of the
ZWD-2422R and to your
HDTV set (or an HD projector).
Press the Source / Input
button of your TV’s remote to
select the appropriate
“HDMI” video input.
(2) Connect the supplied power adapter
to the DC IN jack of the ZWD-2422R
and a wall socket. The LED indicator in
the POWER button lights up in solid
blue when the ZWD-2422R is
connected to the power mains.
12
Step3: Setup the IR blaster extender cable and IR sensor extender cable
If necessary, connect the Infrared (IR) blaster (or sensor) Extender cable. Users
can point hand-held remote control of your High Definition AV equipment at
the ZWD-2422R or the HDTV set to operate the source devices, not exceeding
the distance of 66 feet at Line-of-sight.
(1) Plug the IR blaster cable into the IR
OUT jack of the ZWD-2422T.
Place the IR blaster head near the IR
sensor of your High-Definition
audio/video devices nearby.
The infrared (IR) sensor should be
close to the front panel of your High
Definition device, usually behind a
dark and sometimes reddish plastic
window.
Please try to manually move the IR
blaster in the front of the front panel
of your HD device and then press the
key of remote control to search a
good position of IR response.
When the IR blaster cable is
connected, it relays infrared
command from your remote control
to the device. Users can control their
AV devices by pointing
their remote control to the TV of RX
instead of to their AV equipment.
(2) If the ZWD-2422R will be out of the
direct line of sight of your remote
controls, plug the IR Sensor Extender
cable into the IR IN jack at the rear
panel of the ZWD-2422R (receiver)
and place the IR sensor on the front
of TV for operation.
Note:
(1) The IR sensor supports 36KHz ~ 56KHz
(NEC, RC5, RC6) remote’s signal
protocol. Therefore, it is possible that
some devices may not be supported.
(2) The IR blaster supports 47KHz remote’
signal protocol.
13
Step 4: Boot up the ZWD-2422T and ZWD-2422R
(1) Place the two AAA batteries into the remote control.
(2) After the power cord is plugged into the electrical outlet, the ZWD-2422 will be turned
on automatically.
(3) If it is in Standby mode and Loop-thru. display off (Both POWER LED of transmitter and
receiver are lit in red), press the POWER button on both transmitter and receiver to turn
on the ZWD-2422T and ZWD-2422R. It will take over 1 minute for the system boot up.
14
(4) If it is in Standby mode and Loop-thru. display on (Transmitter POWER LED is lit in
purple and Receiver POWER LED is lit in red), just press the POWER button of receiver to
turn on the ZWD-2422T and ZWD-2422R.
Note: During this period, ZWD-2422T will enter Standby mode and turn off Loop-thru.
display when press the POWER button of transmitter or press the POWER key of RCU to
transmitter.
(5) During the warm-up, the POWER LED will blink in blue until the signal link between the
ZWD-2422T and the ZWD-2422R is established.
Ensure your TV set or projector is in “HDMI input” mode, and is already powered on.
15
(6) Press the Source button until you see the video being broadcasted from your device.
(7) If you have electronic devices such as a cordless phone, wireless access point/ router
sharing the 5GHz channel frequency, when you use it near the ZWD-2422, you may
experience disturbed picture or diminished sound quality. Press the CHANNEL button
on the remote control to change the ZWD-2422 to different channels.
Note:
A. Changing the ZWD-2422 to a different wireless channel:
1. Enter the wireless RF
channel adjustment mode
2. Changes to the next
available RF wireless
channel
3. Exit the wireless
RF channel
adjustment mode
Method
Press the CHANNEL button
on the Remote Control Unit
(RCU) for current channel
status display.
Press the CHANNEL button
on the RCU again within 5
seconds to switch channel
randomly.
No button is
pressed for 5
seconds.
OSD
Display
Status
▃▆█ HDMI1 [CH 8] WIDE Off
1280x1024
Press again to change Channel
Exit.
16
B. Channel Number Indicating the Wireless Frequency:
US (DFS) Europe (DFS) Japan (DFS)
WIDE mode Off
Frequency
[MHz]
Support
Region
Channel Support
Region
Channel Support
Region
Channel
5190 V 1 V 1 V 1
5230 V 2 V 2 V 2
5270 V 3 V 3 V 3
5310 V 4 V 4 V 4
5510 V 5 V 5 V 5
5550 V 6 V 6 V 6
5590 X X X X X X
5630 X X X X X X
5670 V 7 V 7 V 7
5755 V 8 X X X X
5795 V 9 X X X X
US (Non-DFS) Europe (Non-DFS) Japan (Non-DFS)
WIDE mode ON
Frequency
[MHz]
Support
Region
Channel Support
Region
Channel Support
Region
Channel
5160 X X X X X X
5180 V* 1 V 1 V 1
5200 V* 2 V 2 V 2
5220 V* 3 V 3 V 3
5240 V* 4 V 4 V 4
5260~5700 X X X X X X
5745 V 5 X X X X
5765 V 6 X X X X
5785 V 7 X X X X
5805 V 8 X X X X
5825 V 9 X X X X
Note :
A. Gray background indicates the DFS region.
B. * Means “Limited to indoor use”.
C. Unused Weather Satellite Channels on DFS:
i. WIDE mode OFF: Center Frequency 5590MHz, 5630MHz
ii. WIDE mode On: Center Frequency 5600MHz, 5620MHz, 5640MHz
17
(8) If all the operation is normal, the POWER LED and SOURCE LED will glow in solid blue.
Please refer to the next form containing detailed LED description.
Note:
A. Make sure your High-Definition audio/video devices connected to the ZWD-2422T
has already been powered on.
B. Warming-up or source switching time should take approximately 20~30 seconds if
the operation is in normal condition.
(9) TRANSMITTER/RECEIVER Status Indicator on LED and OSD:
LED indicator status light on the front that indicates the following messages:
Power
LED
Source
LED Mode Status
Description OSD Display
Static
Purple on
TX
Static Red
on RX
Static Blue
on TX
Off on RX
Listen
“Loop through”
display always
on; Wireless
transmission off.
▃▆█ HDMI1 CH10 WIDE off
1280x1024
Standby Mode, Loop-thru On
Static Red Off Standby
For the lowest
power
consumption.
▃▆█ HDMI1 CH10 WIDE off
1280x1024
Standby Mode, Loop-thru Off
Blinking
Blue Blinking
Initial
Boot up or
Linking
System boots
up
Or
RF linking.
(Note A)
HDMI1 CH WIDE off
Searching available channels….
Blinking
3 times
/sec.
(Quickly)
No input
detected from
selected source.
(Note B)
▃▆█ HDMI1 CH 1 WIDE off
No Signal
Static Blue
Blinking
1 time /
sec.
(Slowly)
Linked
Video frame
rate or
resolution
cannot be
recognized.
(Note C)
▃▆█ HDMI1 CH 1 WIDE off
Not Supported Format
18
Static Blue
Video frame
rate or
resolution is
recognized.
Transmission is
available with
stable RF signal.
Note:
A. If the RF connection exceeds 80sec without the link established, the link might be lost or
the transmitter is most likely out of range. You have to verify the range and adjust or
shorten the distance between your HDTV set with the transmitter and the receiver. The
maximum video transmission range for 1080p content (WIDE mode off) is up to 66 feet
in line of sight (LOS); The maximum video transmission range for 1080i content (WIDE
mode on) is up to 100 feet (Line of Sight). < The minimum range is 6.5 feet >
B. Please make sure the source player have been power on and switched the signal output
to HDMI out; also re-plug the HDMI cable to make sure the HDMI connector had settled
well.
C. If there is no video displayed and OSD displayed “Not Supported Format”, this is an
indication that the video frame rate from the source device is not supported, please
refer chapter 5 to switch a supported video timing.
19
Step 5: For multi-room audio/video transmission or transmission between
different floors, user could press the “WIDE” button on the remote control to
enable the Wide mode for longer-range audio/video transmission..
Note:
Only 1080i or below HD video transmission is available when enabling the “Wide” mode
(OSD shows: WIDE On). Please shorten the distance and disable the “Wide” mode (OSD
shows: WIDE Off) if full HD 1080p 60Hz content transmission is desired.
20

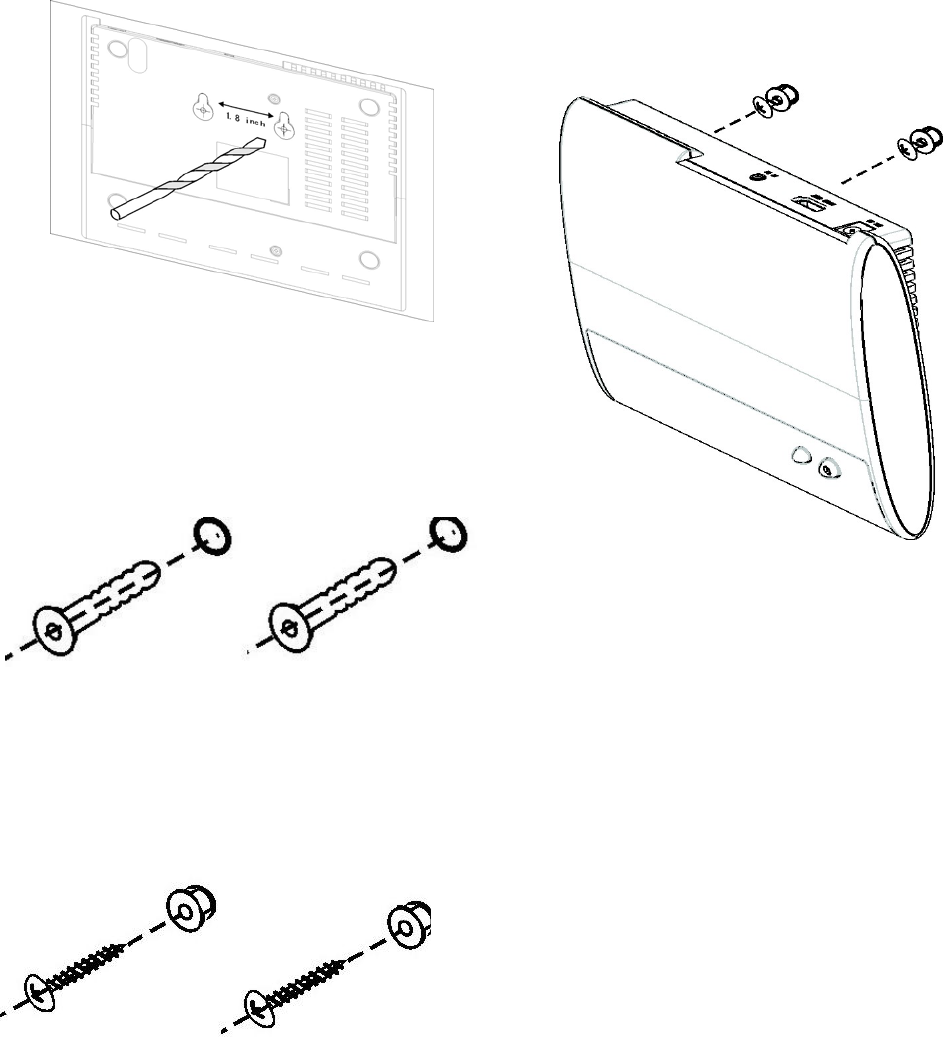

Step 6: Mounting the ZWD-2422 to the Wall

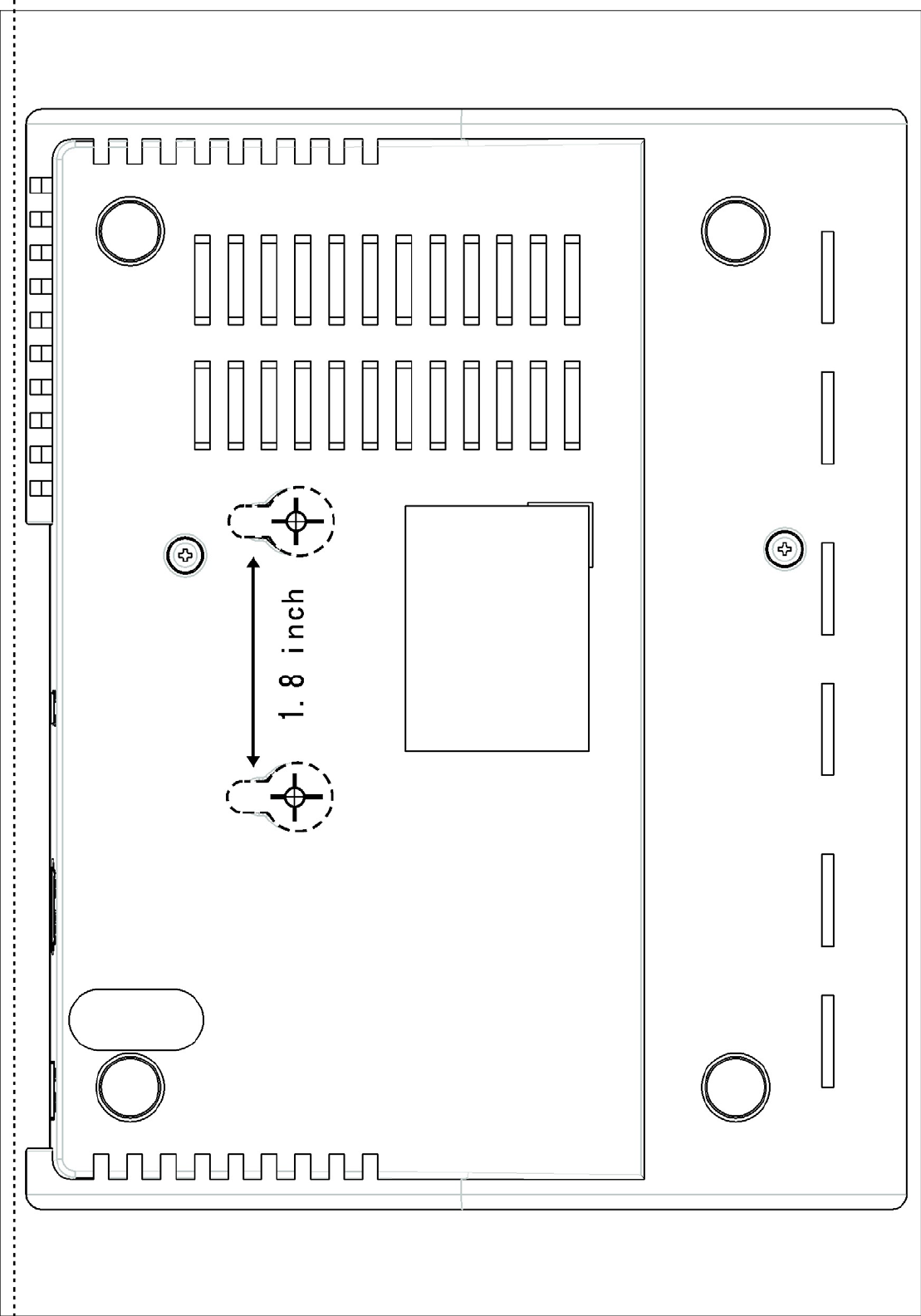

(1) Refer the drawing of the bottom page
that have relative position of the main
holes and attach this paper on wall.
(2) Drill pilot holes.
(3) Insert the supplied two Anchors into
the wall.
(4) Insert two screws into the anchors.
Leave 1/8” length for mounting the
Transmitter or receiver.
(5) Place ZWD-2422 main holes over the
protruding screws and slide down into
position.
21
4. Troubleshooting
Problem Solution
The ZWD-2422 front
panel power
indicator (red LED)
doesn't light up.
 Check if the power plugs of ZWD-2422T/ZWD-2422R are
properly inserted into a functioning power outlet.
No video is displayed
on your TV screen.
 The wireless link might require 80 seconds to connect
between transmitter and receiver, and show video on the
TV screen. Please be patient and wait for a while.
 Verify that the proper cables have been selected and installed
between the ZWD-2422T (transmitter) input and your
High-Definition device output.
 On your TV side (connected to the ZWD-2422R), select the
HDMI as input source.
 Verify the POWER LED and SOURCE LED indicator of ZWD-2422.
Power LED Flashing in Blue
OSD shows: Searching available channels…..
* Ensure the transmission range between the transmitter and the
receiver is not over 66 feet (LOS-line of sight) transmission
distance. Move the transmitter closer to the receiver.
* Press CHANNEL on the included remote control to manually
change the wireless channel.
POWER LED in Solid Blue + Slow and Flashing SOURCE LED
OSD shows: No Supported Format
* Ensure your video resolution and frame rate is recognized/
supported and within the transmission range.
*Connect the source device to your TV to check and modify the
video format compatibility.
*Check if your video resolution with HDMI input from your device
is set among 1080p, 1080i, 720p, 576p, or 480p.
POWER LED in Solid Blue STATUS LED Flash Quickly
OSD shows: No Signal
* Ensure the proper cables are connected between the transmitter
and your AV devices.
* Ensure your source devices connected to the ZWD-2422
transmitter are powered on.
* Ensure the proper cables are connected between the receiver
and your 2nd HDTV near the receiver.
Poor picture quality
or intermittent video.
 Check if your video resolution with HDMI input from your
device is set among 1080p, 1080i, 720p, 576p, or 480p. Please
refer to the “Supported Resolution” chapter where the video
frame rate from
y
our HD AV device ZWD-2422 can su
pp
ort is
22
defined.
 Press CHANNEL on ZWD-2422 remote control to manually
change the wireless channel.
 Ensure the transmission distance is less than 66 feet (LOS).
No audio.
 Check your TV’s volume is properly set and not set in "MUTE"
mode.
 Check if the audio connectors are properly connected.
 Ensure the bit rate of audio from the source device can be
supported by ZWD-2422. Please refer to the details in Chapter 6
Audio Bit Rate Support.
No Supported Video
/Audio on WIDE
mode only.
 Check the HDMI output setting of Source device, set up HDMI
output format to Auto mode instead of 1080p.
 Check Chapter 5 Supported resolution. Some resolution can’t
be supported on WIDE mode on.
IR Blaster can’t
control Source
device.
 Check where is IR sensor of Source device. Make sure IR Blaster
sensor is close and straight to Source device’s IR sensor. Please
refer Chapter 3, step 3 for reference setup.
 Change IR Blaster frequency to meet Source device’s
requirement. Please continue pressing Source key on the top of
Receiver only over 3secs to switch IR Blaster frequency 47K to
58K to 38K recurring.
- The OSD shows: (Display 5secs)
▃▆█ HDMI1 CH10 WIDE Off 1280x1024
IR Blaster Frequency [47KHz]
Press Source key on the top of Receiver again to switch IR
Blaster frequency.
23
5. Supported Resolution
If the SOURCE LED continues to blink in blue (slower than “no signal” mode); OSD display:
“No Supported Format ” and there is no video displayed or the video quality suffers, it
indicates that the video frame rate from your A/V source device is not supported. Ensure that
the consumer timing of your HD device is compliant with the standard listed below:
Video Format Timings Resolutio
n
WIDE mode OFF WIDE mode ON
Primary CEA Video Timing
640x480p @ 59.94 / 60Hz YES YES
720x480p @ 59.94Hz YES YES
720x480p @ 60Hz
480p
YES YES
720x576p @ 50Hz 576p YES YES
1280x720p @ 50Hz YES YES
1280x720p @ 59.94 / 60Hz 720p YES YES
1920x1080i @ 50Hz YES YES
1920x1080i @ 59.94 / 60Hz 1080i YES YES
1920x1080p @ 50Hz YES n/a
1920x1080p @ 59.94 / 60Hz 1080p / 60 YES n/a
Secondary CEA Video Timing
1920x1080p @ 23.98 / 24Hz YES YES
1920x1080p @ 25Hz YES YES
1920x1080p @ 29.97 / 30Hz
1080p / 24
YES YES
VESA Timing (DVI only)
640x480 @ 59.94 / 72.809Hz VGA YES YES
800x600 @ 60.317 / 72.188Hz SVGA YES YES
1024x768 @ 60 / 70.069Hz XGA YES YES
1280x768 @ 60 Hz WXGA YES n/a
1280x1024 @ 60 Hz SXGA YES n/a
1600x1200 @ 60Hz UXGA YES n/a
24
6. Audio Bit Rate Support
 Digital Audio from HDMI inputs: Up to 6Mbit/s bit-rate support.
 Support AC3 and DTS.
 2-channel PCM: 16~24 bits audio sample with 32~96KHz sampling rate as below:
2channel PCM 32KHz 44.1KHz 48KHz 96KHz
16 bits YES YES YES YES
24 bits YES YES YES YES
25
7. Product Specification
General Specifications
Supported Video
Resolutions HDMI Input 1080p, 1080i, 720p, 576p, 480p
Supported Audio
Formats
Digital
Audio Up to 6 Mbps AC3 and DTS
Transmission Distance
The maximum video transmission range is 20 meters (66
feet)
(The minimum range is 2 meters)
Line of sight (LOS) scenarios
System Latency No latency (<1ms)
Antenna High Performance Internal Antennas
Operating Frequencies 4.9~ 5.9GHz (Include non-DFS and DFS Frequency Bands)
Power Supply 100~ 240V AC in, 5V 3A DC out Power Adaptor
Operating Temperature 0~40°C
Interfaces ZWD-2422T ZWD-2422R
HDMI Input TWO (Type A) - A/V
Interfaces HDMI Output -One (Loop-through) One (Type A)
IR Sensor YES YES
IR Sensor Extender - 2.5mm Jack
Control
Signal
Interfaces IR Blaster Extender 2.5mm Jack -
Power
Interface Power Input 5V DC Jack 5V DC Jack
Front Power Switch YES (One Tack Switch) YES (One Tack Switch)
Switches Front Channel
Switch YES (One Tack Switch) YES (One Tack Switch)
Power LED 1 x LED (Three Tone: Blue /
Red/purple)
1 x LED (Three Tone: Blue /
Red)
Status LED 2 x Blue LED 2 x Blue LED
LEDs
Signal Quality
Status - OSD Displayed
Dimensions 181(W) x 145(L) x 33(H) mm 181(W) x 145(L) x 33(H)
mm
26
27
