The Zip Product Guide
2015
Issue 2
The complete range of Zip products
Including the innovative, exciting
HydroTap G4
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
www.zipheaters.co.uk
2
Introduction
Thank you for considering a Zip product. Whichever one you choose,
you can be quite certain of one thing - nobody offers you a more
advanced boiling, chilled, sparkling water system for your project,
because nobody knows instant boiling water like Zip. We also lead the
way in the UK development of instantaneous hot water products.
Today millions of people around the world use Zip instant boiling water
systems each day in homes, public buildings, hospitals, schools, offices
and factories in more than sixty countries.
Zip remains world leader in instant boiling water, setting the pace in
time-saving, energy-saving, water-conserving and user-safety
technology.
You can be confident that the Zip product you choose is a sound
investment, because it is by far the best of its kind, designed to save
you time, energy and money every day and for many years to come.
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
Training
Zip’s experienced team of Training
Managers offer bespoke product
training geared to the needs of
Installers, Specifiers and Facility
Managers.
These ‘hands on’ sessions typically take place on site, or in one of
Zip’s specially designed training centres, covering all relevant product
installation, servicing and maintenance issues.
Additionally a choice of RIBA accredited CPD programmes are available
for those involved in the specification of boiling, chilled or hot water
products.
3
Prompt service
Zip HydroTap is better designed, better built and better backed than any
comparable boiling and chilled filtered water system and is designed
to give many years of service. However, like any appliance, it may
need attention from time to time to keep it in top operating condition.

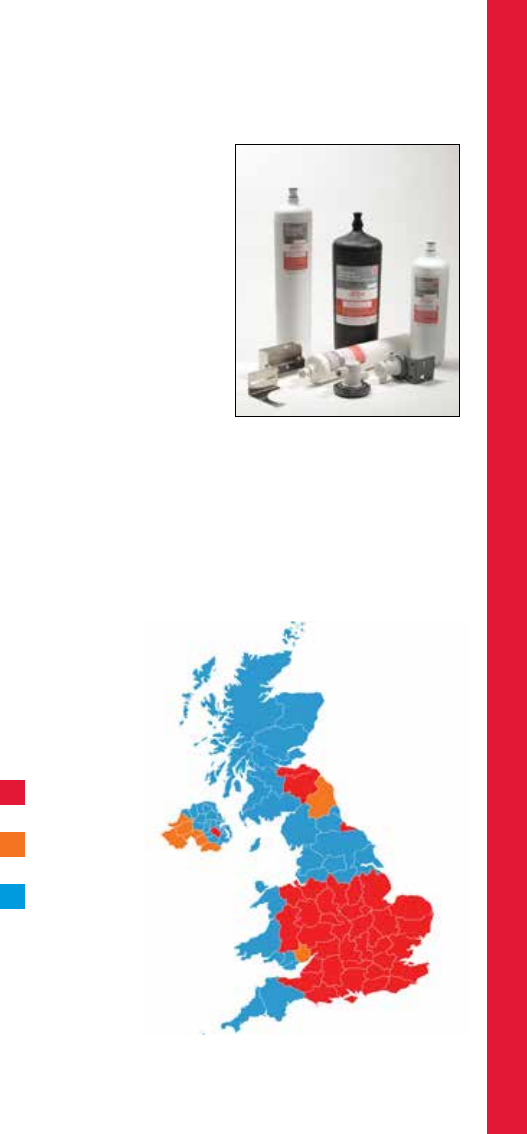

To provide prompt service in any location, Zip has established a team
of national, fully trained, directly employed, service engineers covering
the whole of the UK – for installation, repairs or routine periodic
maintenance.
In the Greater London area (within the M25) we offer a same day
service, providing that the call is made before mid-day. Other areas
may take a little longer.
4
NEW for 2015
The new Zip HydroTap G4
The world’s most advanced drinking water system
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
Boiling | Chilled | Sparkling | Filtered | Instantly
Product Index
5
Drinking Water - Boiling
HydroTap G4 6-7
HydroTap technology 8-9
HydroTap commercial overview 10-11
HydroTap filtered boiling, chilled and sparkling 14-15
HydroTap filtered boiling 16-17
HydroTap filtered chilled 18-19
HydroTap 3-in-1, 4-in-1 and 5-in-1 20-21
HydroTap All-in-One 22-23
HydroTap Industrial 24-25
HydroTap for the home 26-29
HydroTap optional extras 30-31
HydroTap filtration 32-33
Wall mounted 34-35
Hydroboil Plus 36-37
Hydroboil 38-39
Econoboil 40-41
Duo 42-43
Red-E-Boil 44-45
Accessories 46-47
Drinking Water - Chilled 48-49
HydroTap 50-51
ChillTap & ChillTap Extra 52-55
Chillmaster 56-57

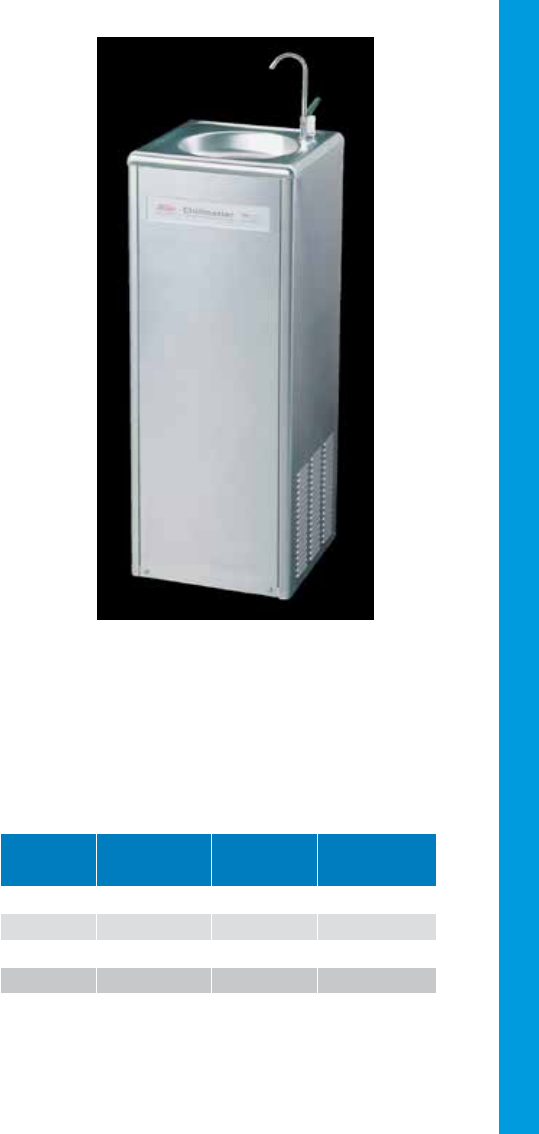

Wall Fountain 58-59
Chill Fountain 60-61
Chilled water for the home 62-65
Accessories 66-67

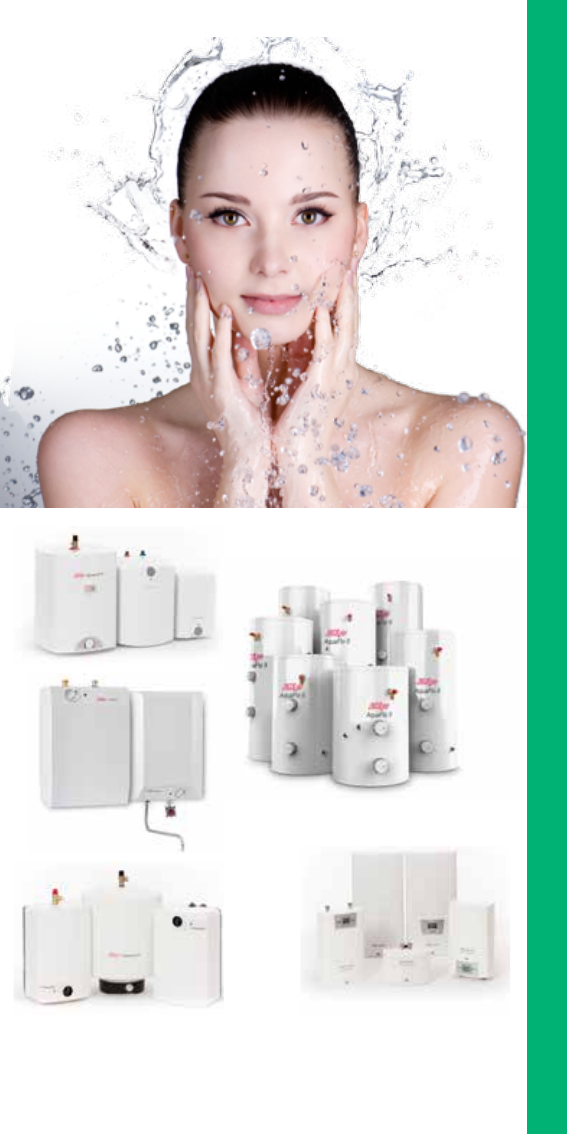

Hot Water 68-69

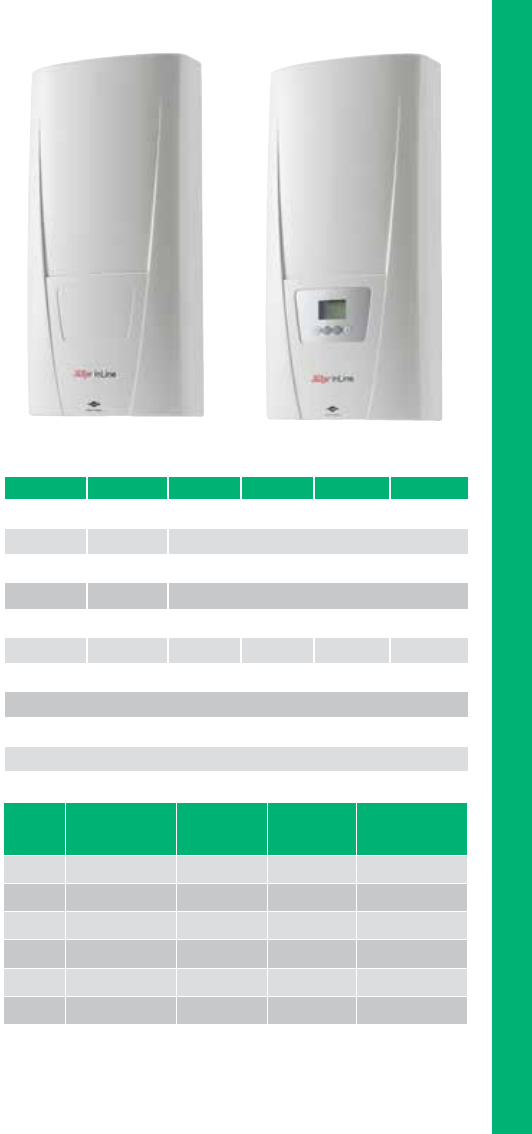

InLine Instantaneous - ES; CEX; DBX; DEX 70-81
Unvented - Aquapoint 5 to 15 litres 82-83
Unvented - Varipoint 10 & 15 litres 84-85
Unvented accessories 86-87
Unvented - Aquapoint 30 to 100 litres 88-89
Unvented - Varipoint 30 to 100 litres 90-91
Stainless steel unvented - AquaFlo 92-95
Open outlet vented - Contract 96-97
Open outlet vented - Tudor 98-99
Flatback storage - RCH 100-101
General Data 102-103
HydroTap G4
6
Zip Heaters’ policy of continual product development has resulted
in the most advanced, energy saving, time saving product providing
instant filtered, boiling, chilled and sparkling drinking water.

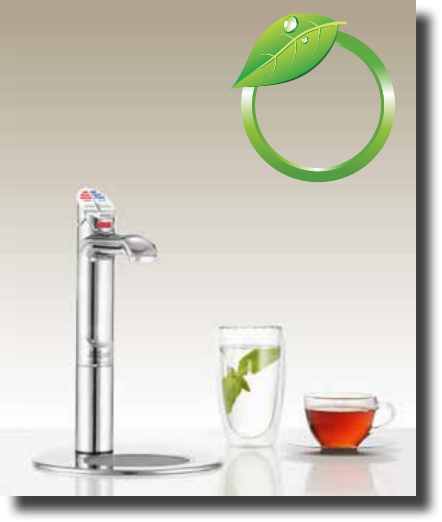

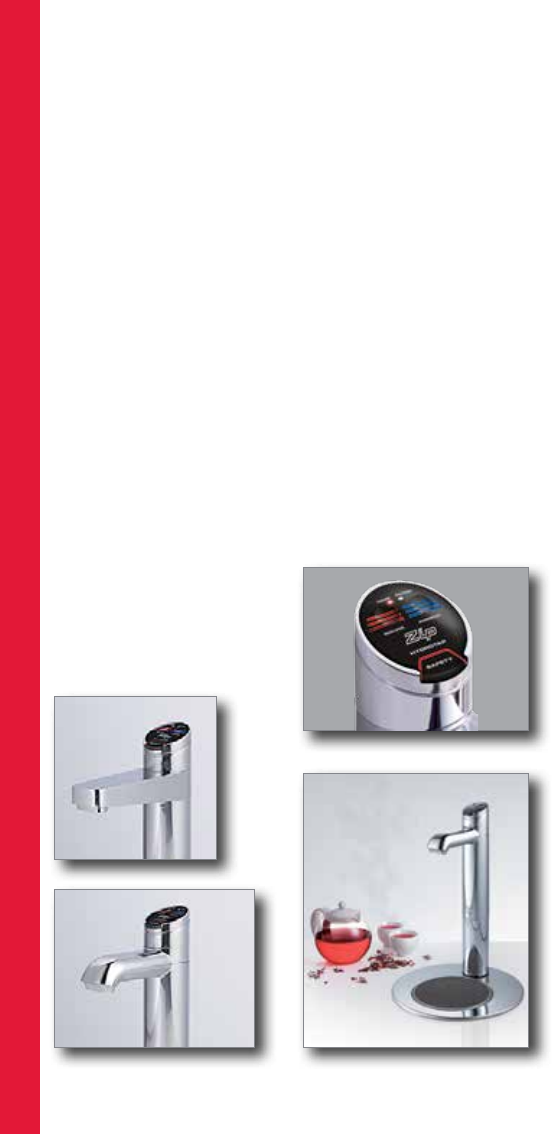

The Zip HydroTap G4
Zip HydroTap®
The most intelligent filtered drinking water
system ever invented
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y

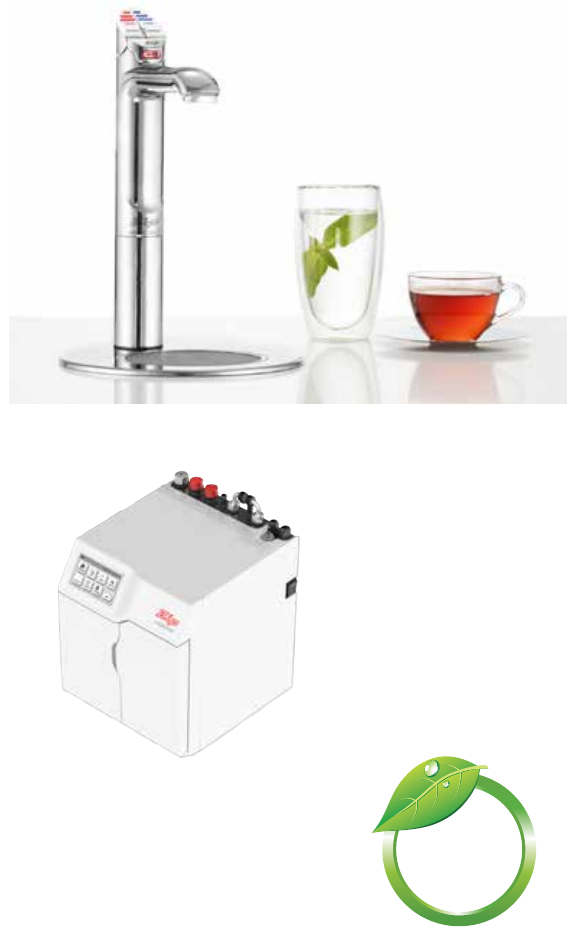

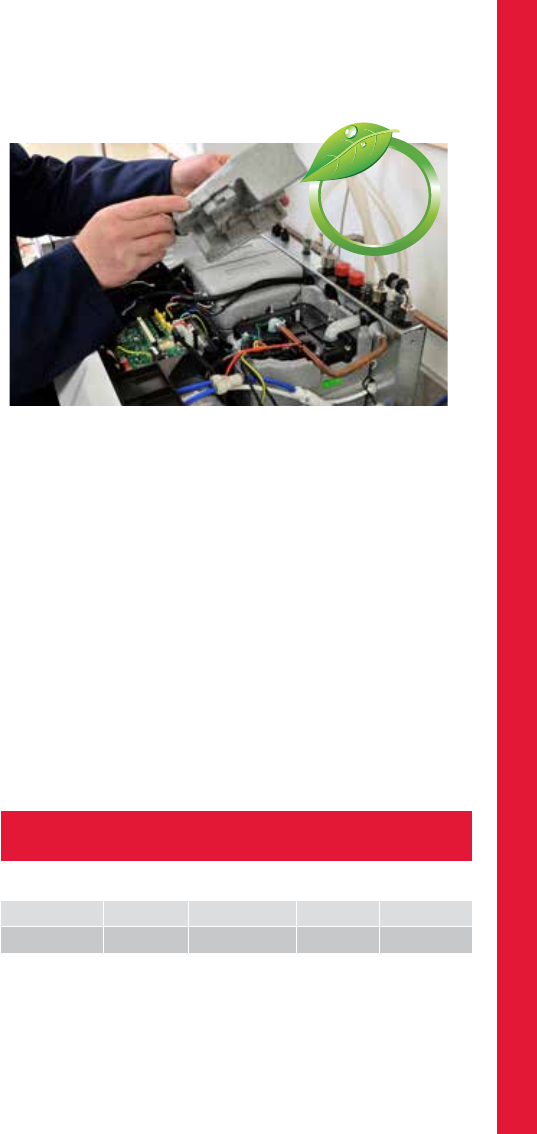

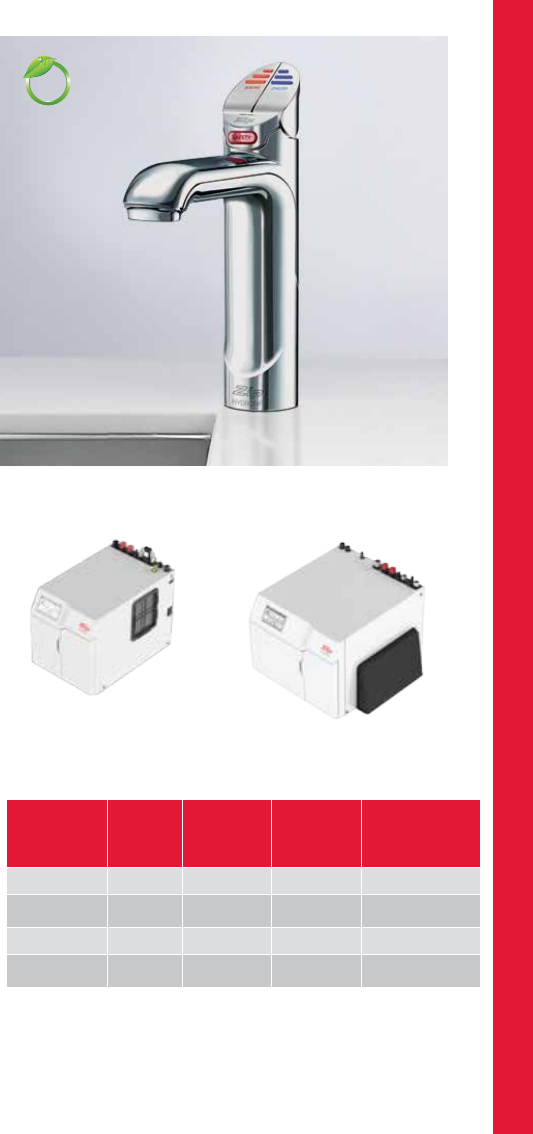

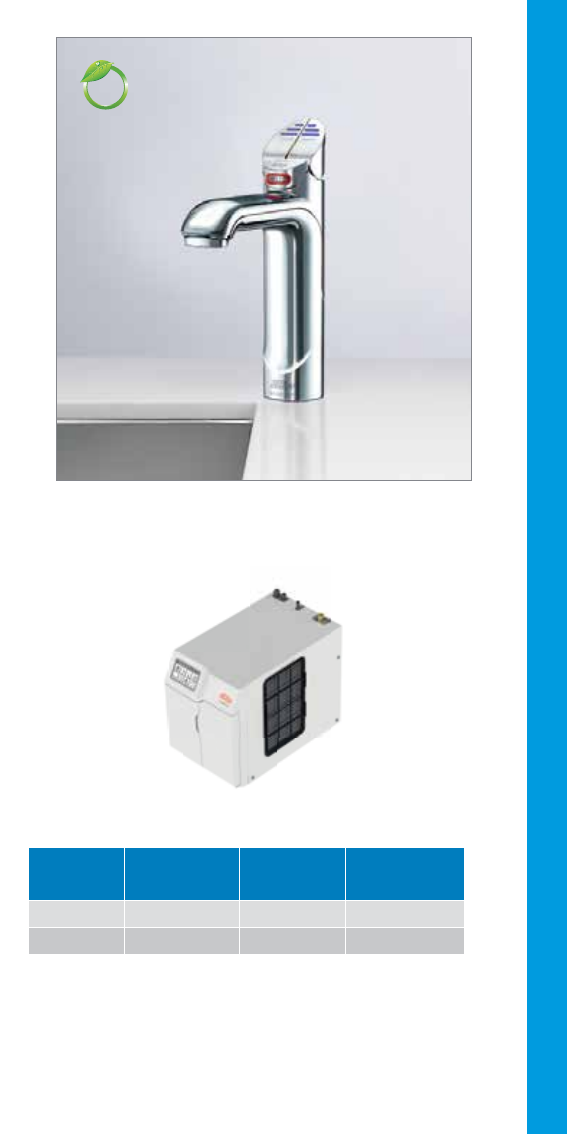

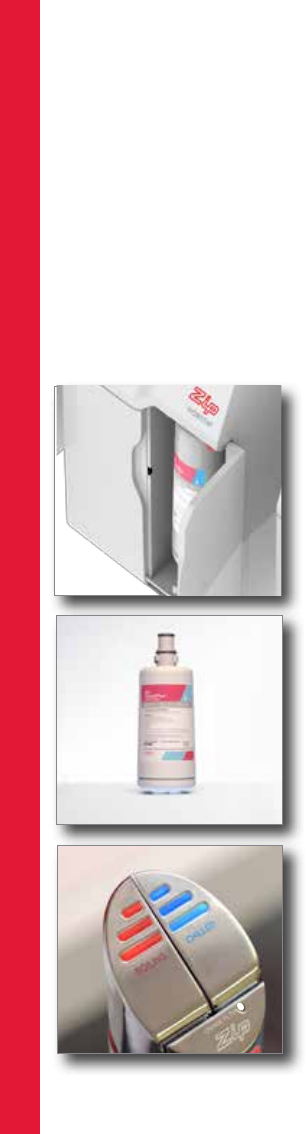

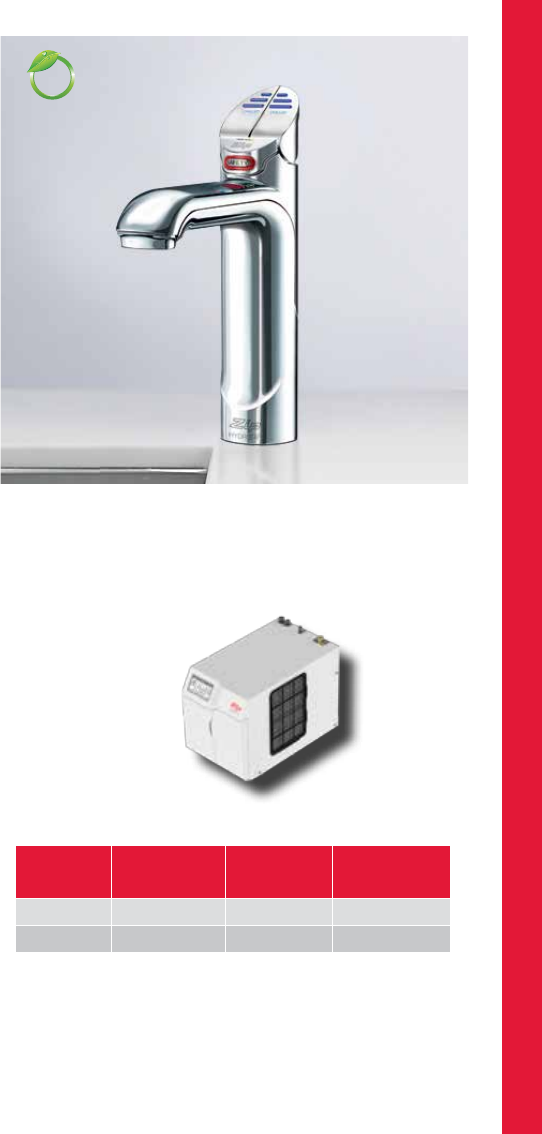

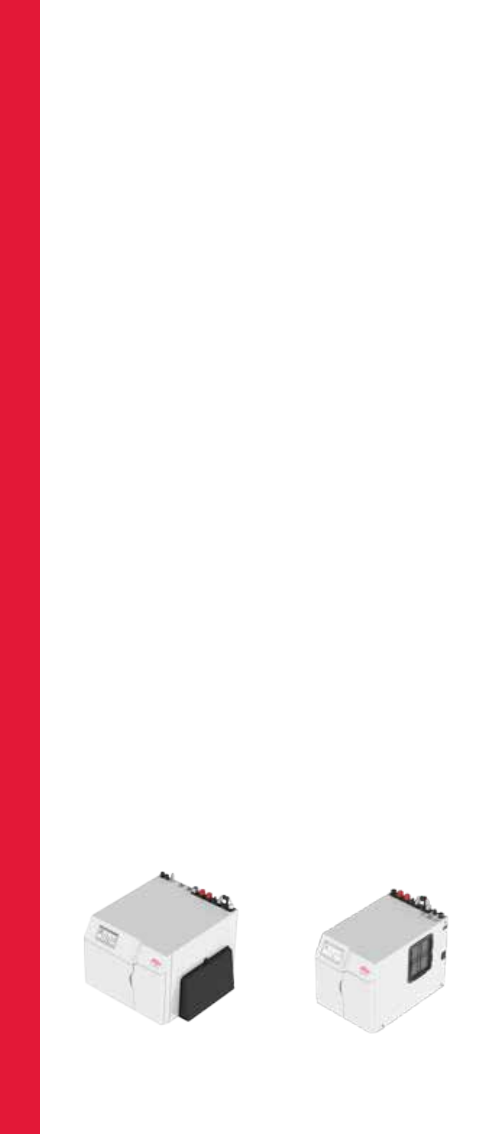

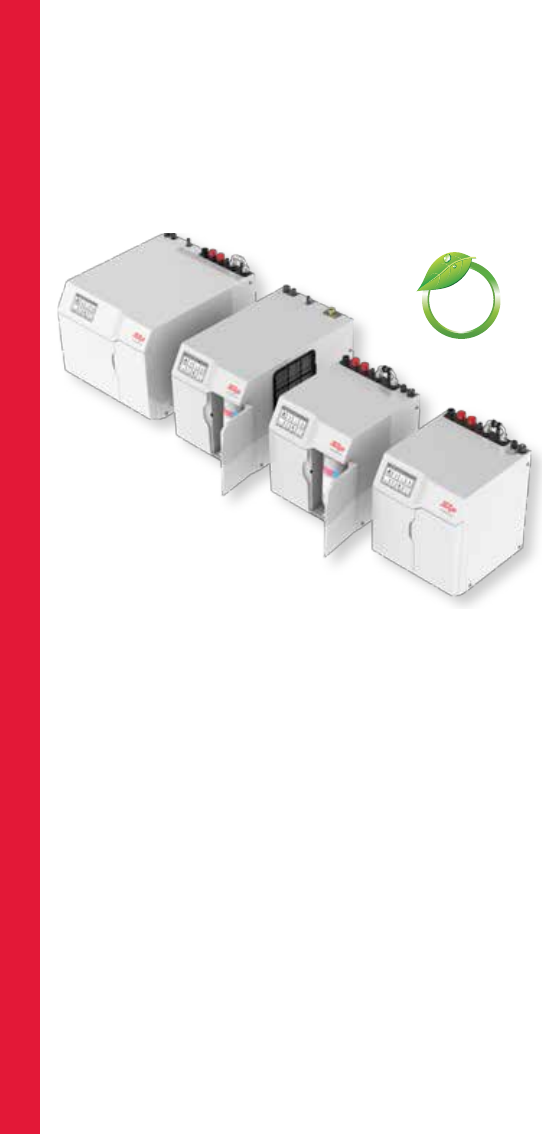

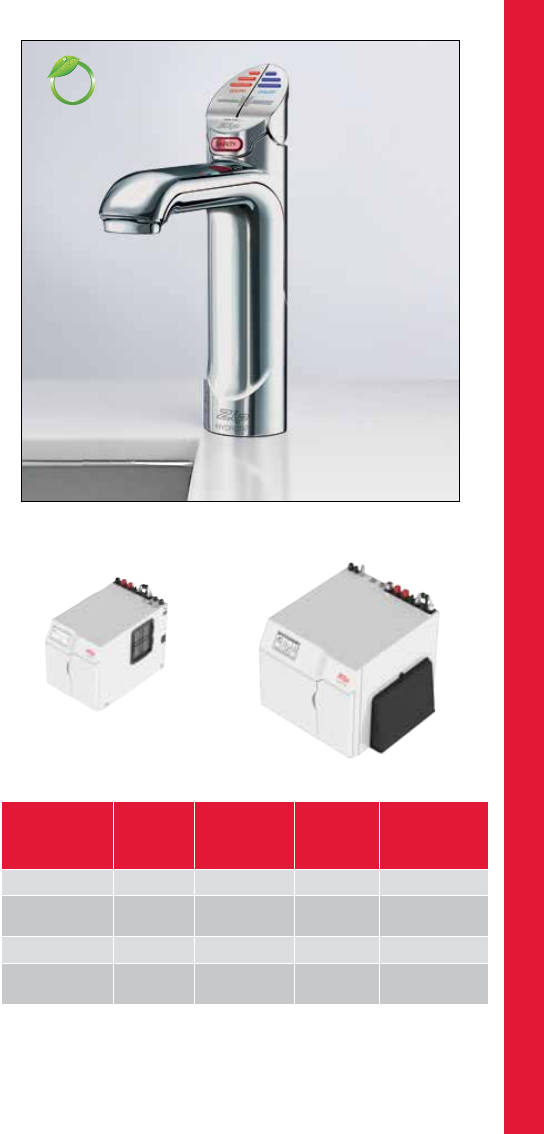

New under-sink Zip Command-Centre units are more compact
than ever before and all connection points are now push-fit and at the
rear, reducing installation time. A front access door makes changing the
filtration cartridge as simple and quick as replacing a light bulb.
Advanced insulation and electronics technology reduces standby energy
consumption substantially over earlier Zip models of similar capacity, by up
to 53%.
Auto-calibrates to boiling point upon installation, regularly re-calibrates
and optimises performance.

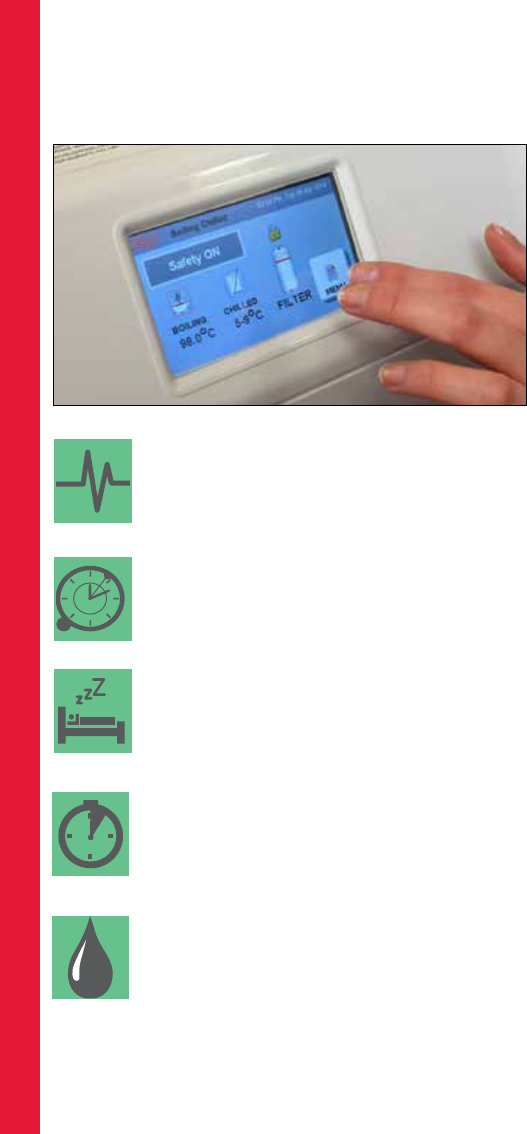

Simple pin-code-protected touch-screen puts managers in total control
of each appliance.
Adjustments include temperature, dispensing time, safety settings and
energy-saving settings.
Continuous auto-diagnostics system monitors performance and provides
total history on demand.
Integral cross-ventilation system eliminates cupboard heat-up with no
need for an external fan.
Multiple filter life settings, with precise litre monitoring, to optimise filter
replacement timing.
Added peace-of-mind features include overload protection, temperature
monitoring, internal leak detection, plus an internal pressure limiting valve.
7
■Adjustable water temperature: boiling water 100oC to 68oC, factory
set at 98oC for optimum results. Chilled water 5oC to 14oC.
■Power-PulseTM electronic technology controls the set boiling
temperature within 0.2oC and eliminates overboil.
■Choice of fingertip control for fast cup filling (lever down) or hands-
free pot filling (lever up).
■Can be set to require finger-thumb safety operation for boiling water
access, eliminating the risk of accidental use. Can also be set to boiling
isolation mode for increased safety.
■Longer spout caters for under-mount sinks. Extended lever & Braille
pads also available.
■Energy saving technology
• Low-energy lights signal boiling water is ready, chilled is ready, or
filter change is due.
• Hidden light sensor sends appliance to sleep, to conserve energy
when the room goes dark.
• Sleeps or powers off after 2 hours of non-use.
• Plus 24/7 on/off timer, allowing power to be turned off,
automatically, for weekday or weekend periods.
Zip brings you the most
intelligent filtered drinking water
tap ever invented.
HydroTap G4
8
Zip HydroTap® technology
Superior technology saves energy and
conserves water
Power-Pulse™ energy saving technology
Reduces power consumption by allowing the system to
regulate its power during periods of high and low usage.
This saves energy whilst maintaining the tightest possible
temperature control.
Automatically calculates boiling point
Because boiling point varies by altitude, Zip HydroTap
pinpoints boiling point during installation and sets it
accordingly.
Sleeps when inactive
The system can be pre-set to power down after 2 hours
of non-use, but will still retain stored ‘boiling’ water at
an energy saving 64°C, or can also be set to hibernate
(power off completely). The system quickly recovers to
the pre-set boiling temperature upon further draw-off.
Programmable 24/7 timer
Pre-set the ‘power on’ and ‘power off’ times
(once a day) for those periods when the Zip HydroTap
will not be used, such as overnight or at weekends (for
commercial users).
Cuts down water wastage, too
Every drop of water is dispensed at the set temperature,
so there is, no longer, any need to waste water running a
tap until the water is at the correct temperature.
HydroTap technology
9
Zip HydroTap® sustainability
Supporting the environment as never before
HydroTap technology
Conserves water
New, improved air-cooled system, with integral cross-ventilation,
does not dump water to waste. An environmentally responsible
solution.
Conserves energy
Choice of four energy-saving settings to allow installers or site
managers to adjust each set-up to operate with optimum energy
efficiency.
RoHS Compliant
All materials involved in Zip HydroTap manufacturing comply with
the European Restriction of Hazardous Substances Directive
2011/65/EC.
WRAS Approval
All Zip HydroTap G4 commercial products carry the WRAS (Water
Regulations Advisory Scheme) accreditation.
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
Standing heat-loss energy consumption comparison
(tests for a 24 hour period with no draw-off)
Example G3
models
Energy used
(watt/hours)
Example G4
models
Energy used
(watt/hours)
Energy saved
BC100/125 60.6 BC160/125G4 34 44%
BC150/175 74.5 BC240/175G4 36.2 51%
N.B. When the sleep mode facilities were activated on both the G3 and G4 models,
the G4 showed a 53% stand-by energy saving over the superceded G3 models.
10

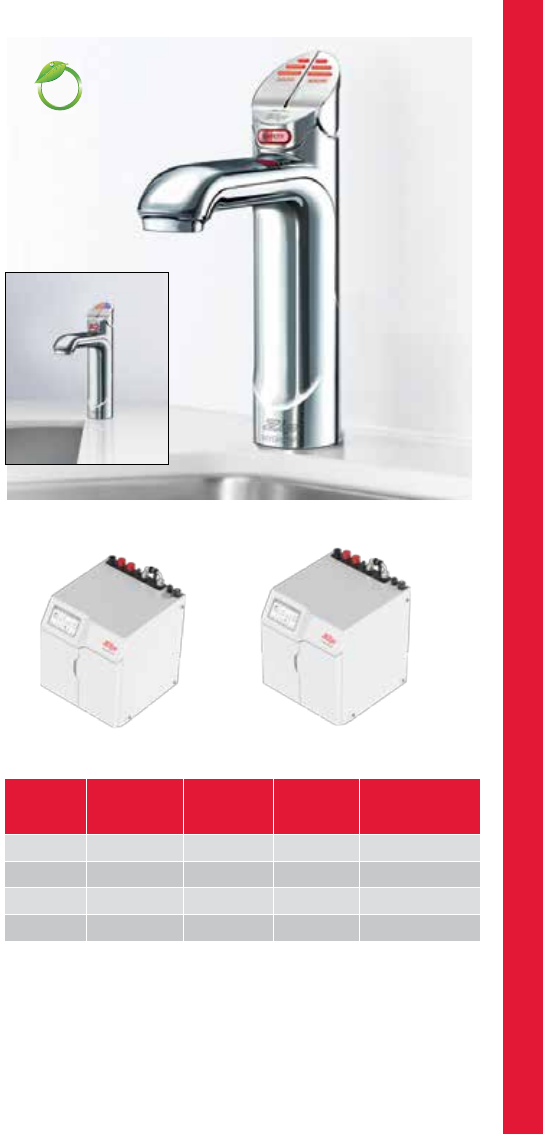

Zip HydroTap® range
General Information—Commercial HydroTap
HydroTap
sink
mounted

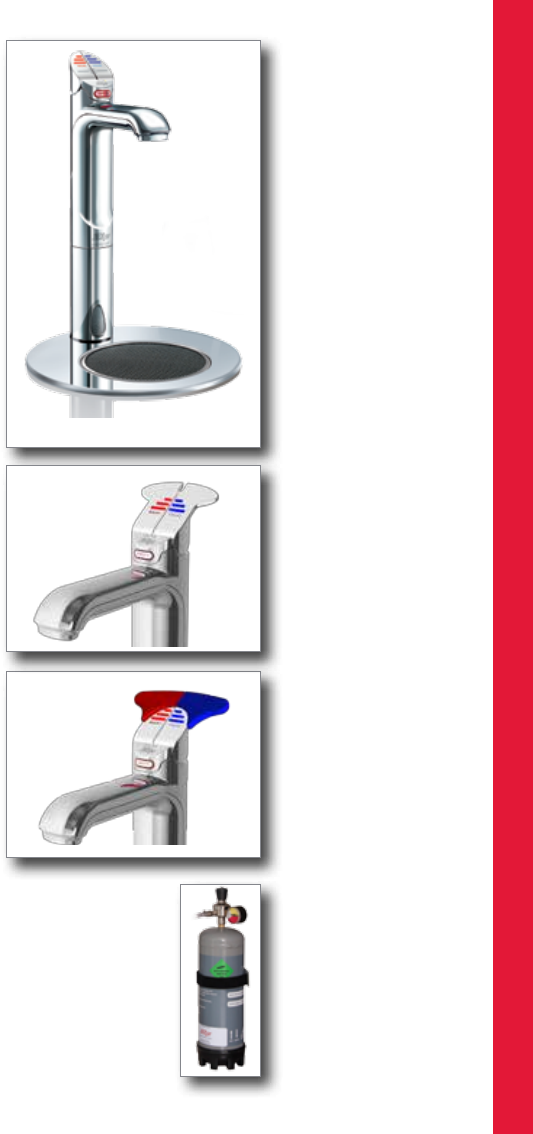

Tap head
Chrome plated, die cast tap
body with push and pull levers.
Integral safety lock and LED
indicators. It can be mounted at
the sink or on the optional font
and drain (see page 31).
D.D.A. options
Oversize tap levers. Braille
covers.
Control panel
Located on undercounter unit
for programming sleep mode,
timer, water temperature and
water delivery. (see page 7)
Filtration system
Integral triple-action 0.2 micron
encapsulated cartridge.
Safety features
Child-proof interlock on
tap. Boiling isolation mode.
Undercounter safe tray with
leak detector.
Pin-code protection.

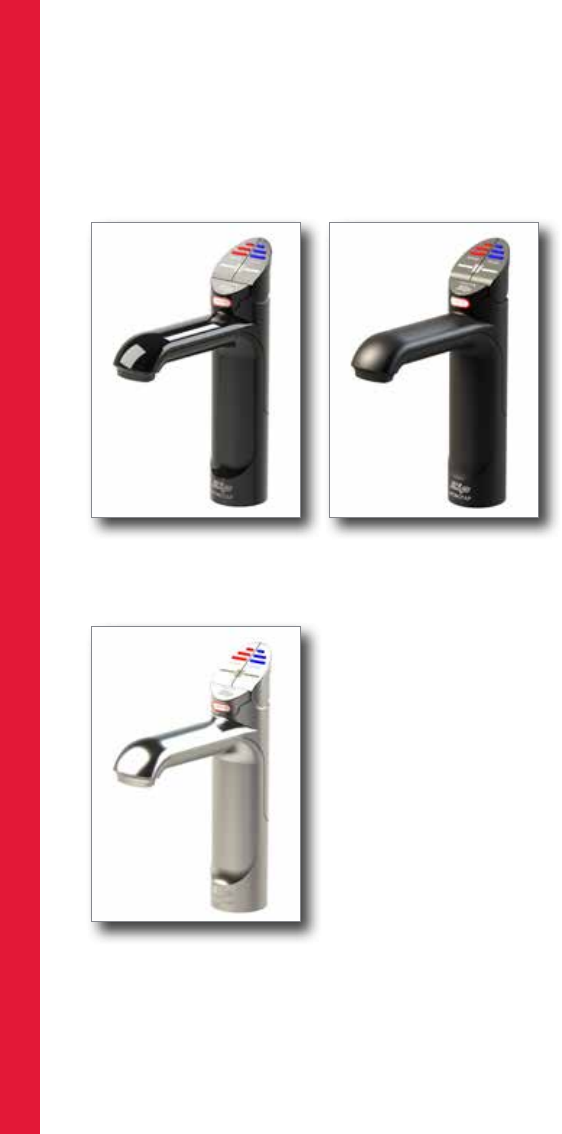

Finishes
Available in Bright Chrome
(standard), Satin Chrome, Gloss
Black and Matt Black.
Approvals
WRAS. CE endorsed.
Warranty
2 years on site parts and labour
with additional 3 years on the
boiling tank. For full details visit:
www.zipheaters.co.uk/warranty
Plumbing
The water supply must be
potable (drinkable).
If static pressure exceeds 7 bar,
a pressure reducing valve must
be fitted.
An isolating valve should be
installed between the water
supply and the unit.
Venting
The cupboard housing the unit
must be amply ventilated as per
the installation manual.
Electrical
To be wired to a double pole
switched fused spur with a
minimum break capacity of 13
amp.
If the booster system is used it
must be connected to a separate
fused spur.
Installation must comply with
current IEE regulations.
3 metre power cable provided.
Caution
In some hard water areas
where scale is an issue we
recommend the fitting of one
of the Zip Professional range
of scale filtration systems.
(See page 33).

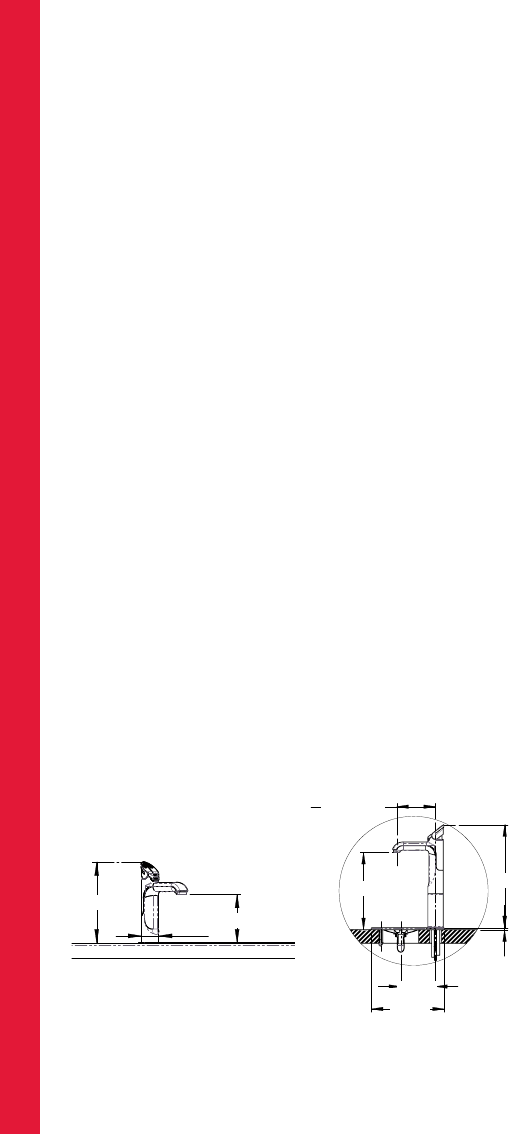

HydroTap range
207 mm
125 mm
40 mm
HydroTap
font
mounted
308 mm
104 mm
219 mm
116mm CL reach
HydroTap range
207 mm
11

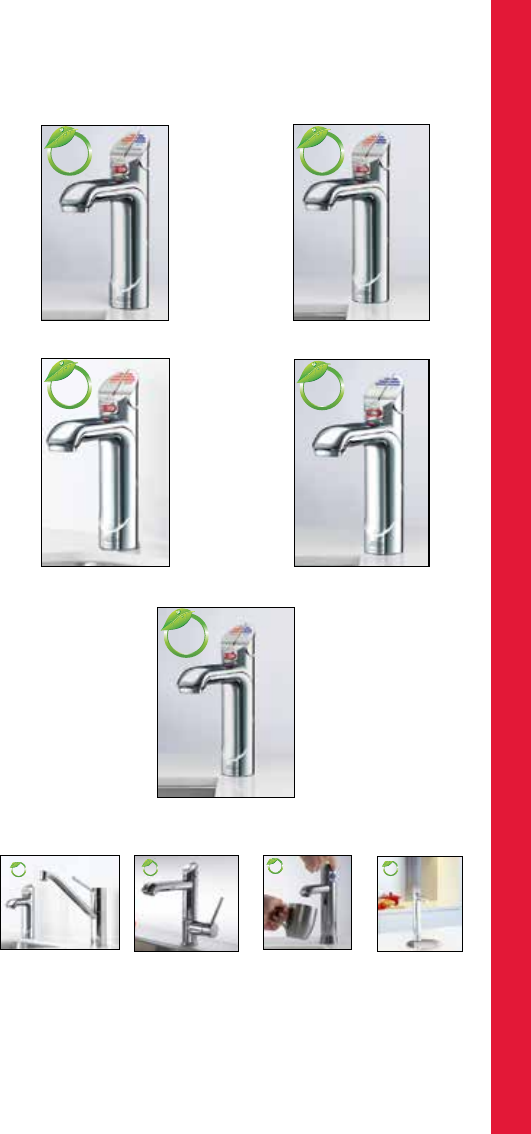

Zip HydroTap® range
The wide range of products available
Boiling & chilledBoiling, chilled & sparkling
Chilled only
For the Home
Boiling only
All-in-One Industrial
&
Custodial
Boiling & ambient
3-in-1,4-in-1
&
5-in-1
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
HydroTap range
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y

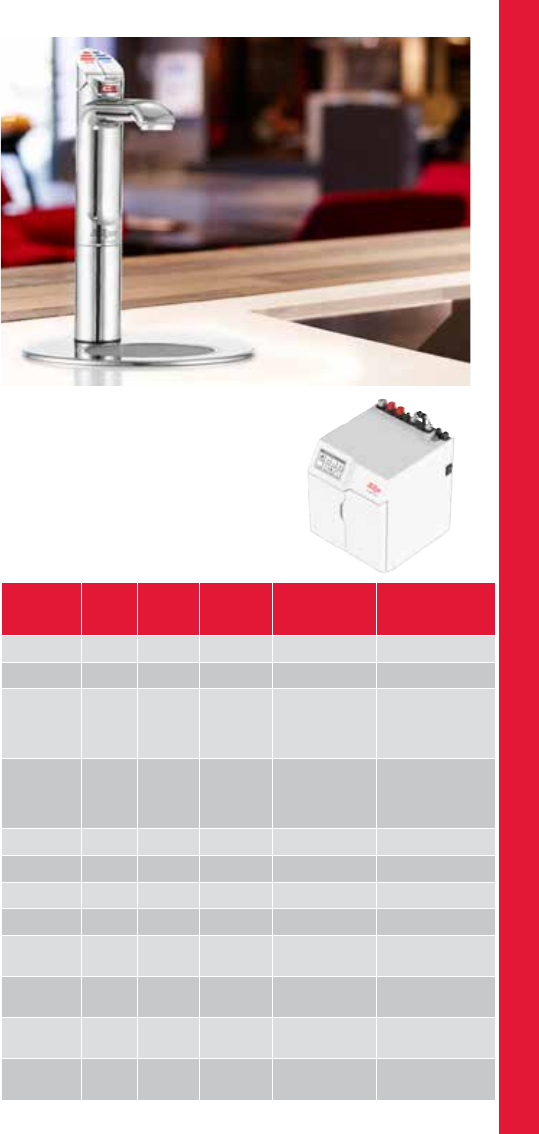

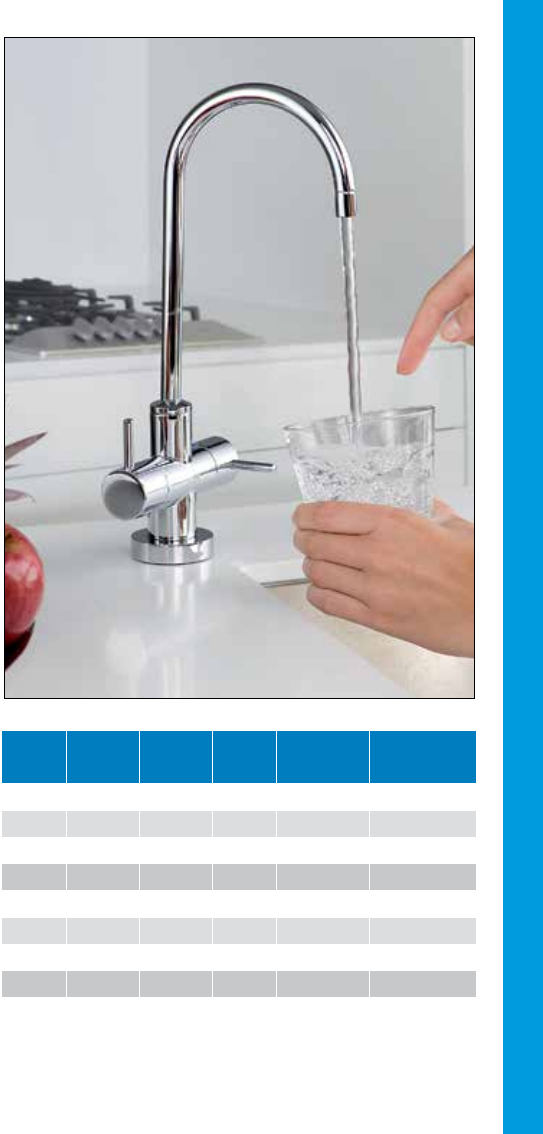

Zip HydroTap®
Boiling, chilled and sparkling filtered water
Features & benefits
• Simple to operate, and with
more safety features than
ever.
• Press red lever for boiling
water, however, if safety
interlock is activated, press
red lever and safety button
at the same time.
• Press the blue lever to fill
a glass, jug or bottle with
chilled filtered water.
• Press both red and blue
levers together for sparkling
chilled filtered water.
• Lift either lever to run water
for any pre-set period of 5 to
15 seconds.
• Boiling water can be
isolated, if needed, during
periods when your HydroTap
is unattended.
• Smarter technology cuts
power consumption
dramatically.
• Power-Pulse™ controls
power phasing to cut power
costs.
• Sleeps or powers off after 2
hours of non-use.
• 24/7 on/off weekly timer to
save energy when HydroTap
is not in use.
• BCS100/75G4 and
BCS160/175G4 can be
upgraded, retrospectively,
if additional boiling water
capacity is required, by
installing the booster unit
SP91412.
• Can be mounted at the sink
or on the optional font and
drain (see page 31).
Capacity choice options
BCS100/75G4.
BCS140/75G4 -including booster
unit.
(separate fused spur needed)
BCS160/175G4
BCS240/175G4 -including
booster unit.
(separate fused spur needed)
Boiling system
Open outlet, vented; factory set
to operate at 98°C.
Chilling system
Fan-cooled condenser type,
factory set to operate at 5-14°C.
Flow rate - Chilled 4.0 l/min
Sparkling 1.8 l/min
Refrigerant R134A.
Temperature settings
The boiling temperature can be
adjusted from 100°C to 68°C.
Factory set at 98°C.
Flow rate - 4.0 l/min
Finishes
These models are available in 4
tap finishes:
Bright Chrome (standard)
Gloss Black
Matt Black
Satin Chrome
Matching fonts are also available
See page 31 for details.
N.B.
For general installation and
specification details of the
HydroTap G4 range see page 10.
Visit www.zipheaters.co.uk/
downloads
12
HydroTap boiling, chilled and sparkling
13
Product Code Maximum
boiling
cups/hour
Maximum
chilled /
sparkling
glasses/hour
Power
rating
kW@230V
Dimensions
W x D x H
(mm)
BCS100/75G4 100 75 2.15 281 x 470 x 335
BCS140/75G4*
(including booster unit) 140 75 2.15 + 2.2 281 x 470 x 335
BCS160/175G4 160 175 2.30 450 x 470 x 335
BCS240/175G4*
(including booster unit) 240 175 2.30 + 2.2 450 x 470 x 335
* These Zip HydroTap G4 models are installed with a 2.2kW, externally mounted, booster unit and must be connected
to two separate 13 amp power supplies.

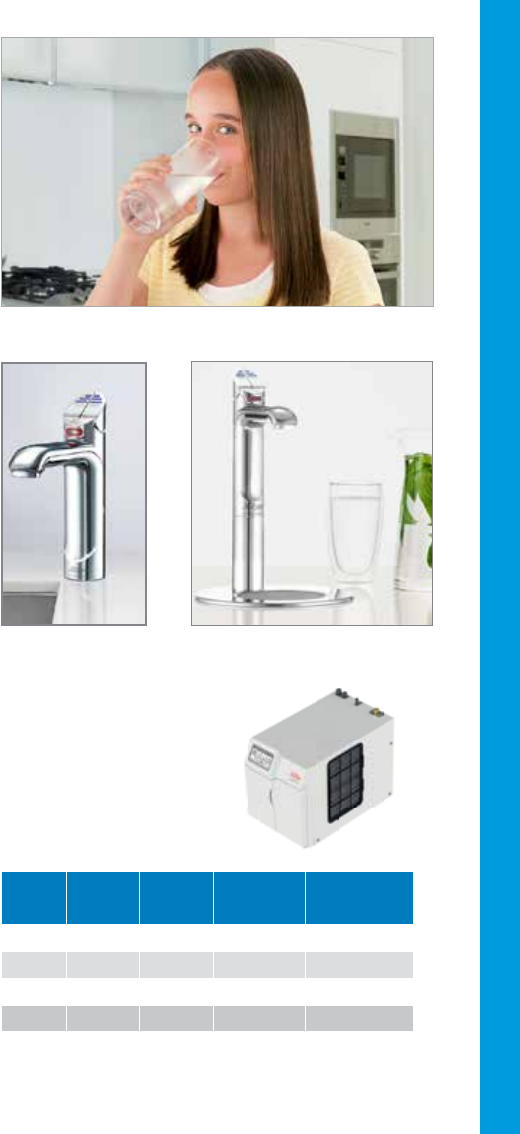

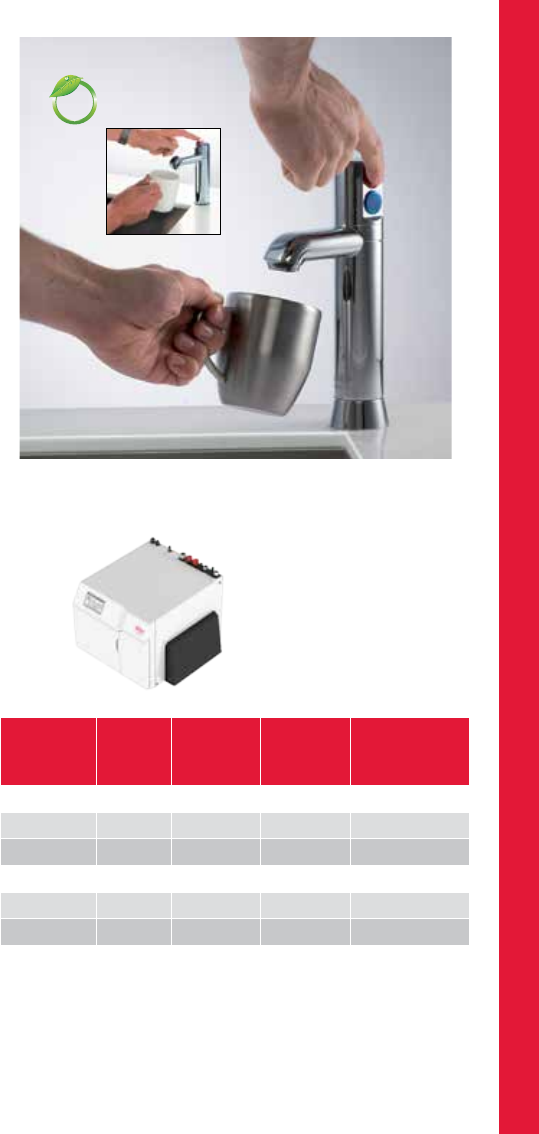

Under-counter Zip Command Centre
BCS100/75G4 & BCS140/75G4
BCS160/175G4 & BCS240/175G4
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
HydroTap boiling, chilled and sparkling
Zip HydroTap®
Boiling and chilled filtered water
Features & benefits
• Simple to operate, and with
more safety features than
ever.
• Press red lever for boiling
water, however, if safety
interlock is activated, press
red lever and safety button
at the same time.
• Press the blue lever to fill
a glass, jug or bottle with
chilled filtered water.
• Press both red and blue
levers together for sparkling
chilled filtered water.
• Lift either lever to run water
for any pre-set period of 5 to
15 seconds.
• Boiling water can be
isolated, if needed, during
periods when your HydroTap
is unattended.
• Smarter technology cuts
power consumption
dramatically.
• Power-Pulse™ controls
power phasing to cut power
costs.
• Sleeps or powers off after 2
hours on non-use.
• 24/7 on/off weekly timer to
save energy when HydroTap
is not in use.
• BC100/75G4 and
BC160/175G4 can be
upgraded, retrospectively,
if additional boiling water
capacity is required, by
installing the booster unit
SP91412.
• Can be mounted at the
sink or on the optional font
and drain (see page 31).
Capacity choice options
BC100/75G4.
BC140/75G4.-including booster
unit.
(separate fused spur needed)
BC160/175G4
BC240/175G4 -including booster
unit.
(separate fused spur needed)
Boiling system
Open outlet, vented; factory set
to operate at 98°C.
The boiling temperature can be
adjusted from 100°C to 68°C.
Factory set at 98°C.
Flow rate - 4.0 l/min
Chilling system
Fan-cooled condenser type,
factory set to operate at 5-14°C.
Flow rate - 4.0 l/min
Refrigerant R134A.
Finishes
These models are available in 4
tap finishes:
Bright Chrome (standard)
Gloss Black
Matt Black
Satin Chrome
Matching fonts are also available
See page 31 for details
N.B.
For general installation and
specification details of the
HydroTap G4 range see page 10.
Visit www.zipheaters.co.uk/
download
14
HydroTap boiling and chilled
15
Product Code Maximum
boiling
cups/
hour
Maximum
chilled
glasses/
hour
Power rating
kW@230V
Dimensions
W x D x H
(mm)
BC100/75G4 100 75 2.05 280 x 470 x 335
BC140/75G4* 140 75 2.05 + 2.20 280 x 470 x 335
BC160/175G4 160 175 2.20 450 x 470 x 335
BC240/175G4* 240 175 2.20 + 2.20 450 x 470 x 335
* These Zip HydroTap G4 models are installed with a 2.2kW, externally mounted booster unit and must be connected
to two separate 13 amp power supplies.
BC100/75G4 & BC140/75G4
BC160/175G4 & BC240/175G4
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
HydroTap boiling and chilled
Under-counter Zip Command Centre
16
Zip HydroTap®
Filtered boiling (B models)
& filtered boiling and ambient water (BA models)
HydroTap boiling
Features & benefits
• Simple to operate, and with
more safety features than
ever.
• Press red lever for boiling
water, however, if safety
interlock is activated, press
red lever and safety button
at the same time.
• For boiling ambient models
right hand blue lever for
filtered ambient water.
• Lift lever to run water for any
pre-set period of 5 to 15
seconds.
• Boiling water can be
isolated, if needed, during
periods when your HydroTap
is unattended.
• Smarter technology cuts
power consumption
dramatically.
• Power-Pulse™ controls
power phasing to cut power
costs.
• Sleeps or powers off after 2
hours on non-use.
• 24/7 on/off weekly timer to
save energy when HydroTap
is not in use.
• B160G4 and BA160G4 can
be upgraded, retrospec-
tively, if additional boiling
water capacity is required,
by installing the booster unit
SP91412.
• Can be mounted at the sink
or on the optional font and
drain (see page 31).
Capacity choice options
B160G4 - filtered boiling
B240G4.- filtered boiling,
including booster unit.
(separate fused spur needed)
BA160G4 - filtered boiling &
ambient
BA240G4 -filtered boiling &
ambient, including booster unit.
(separate fused spur needed)
Boiling system
Open outlet, vented; factory set
to operate at 98°C.
The boiling temperature can be
adjusted from 100°C to 68°C.
Factory set at 98°C.
Flow rate - 4.0 l/min
Ambient supply
Free-flow, mains pressure, at
incoming water temperature
Finishes
These models are available in 4
tap finishes:
Bright Chrome (standard)
Gloss Black
Matt Black
Satin Chrome
Matching fonts are also available
See page 31 for details
N.B.
For general installation and
specification details of the
HydroTap G4 range see page 10.
Visit www.zipheaters.co.uk/
downloads
17

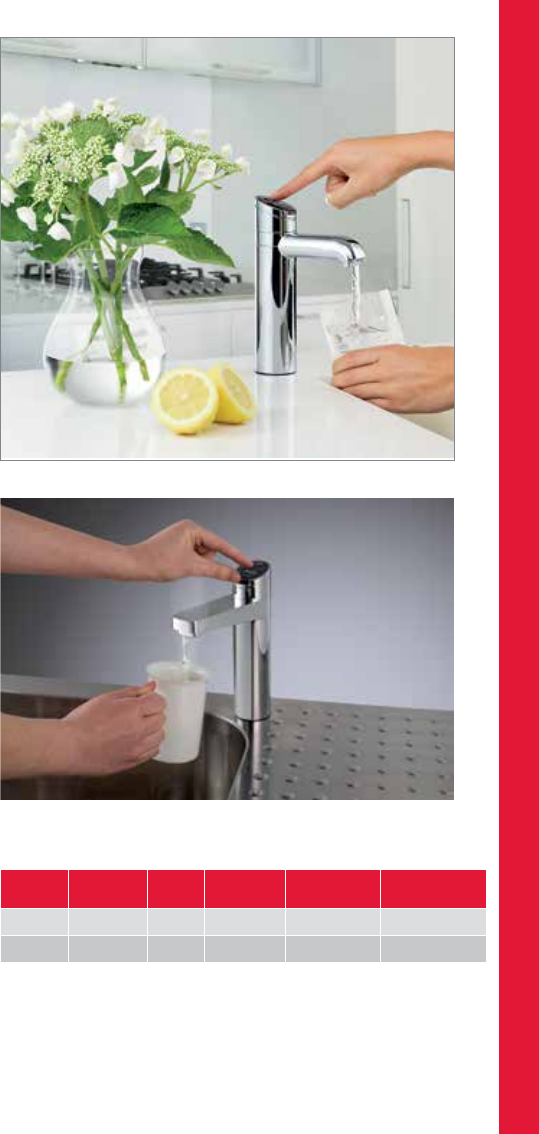

HydroTap boiling
Product
Code
Maximum
boiling
cups/hour
Maximum
ambient
glasses/hour
Power
rating
kW@230V
Dimensions
W x D x H
(mm)
BA160G4 160 Free Flow 1.90 280 x 313 x 335
BA240G4* 240 Free Flow 1.90 + 2.20 280 x 313 x 335
B160G4 160 N/A 1.90 280 x 313 x 335
B240G4* 240 N/A 1.90+ 2.20 280 x 313 x 335
Boiling and ambient tap
Boiling only tap
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
* These Zip HydroTap G4 models are installed with a 2.2kW, externally mounted booster unit and must be connected
to two separate 13 amp power supplies.
Under-counter Zip Command Centre
18
Zip HydroTap®
Filtered chilled and sparkling water
Features and benefits
• Provides chilled filtered
water instantly.
• Provides chilled and
sparkling fitered water
instantly.
• No need for expensive and
environmentally damaging
bottled water.
• No need to store and
handle bottled water.
• Free-Flow system means
no fear of running out of
drinking water in extreme
weather conditions.
• Can be mounted at the
sink or on the optional font
and drain (see page 31).
Choice options
C175G4 - Chilled only
CS175G4 - Chilled and
Sparkling
Chilling system
Fan-cooled condenser type,
factory set to operate at
5-14°C.
Flow rate - Chilled 4.0 l/min
Sparkling 1.8 l/min
Refrigerant R134A.
Finishes
These models are available in 4
tap finishes:
Bright Chrome (standard)
Gloss Black
Matt Black
Satin Chrome
Matching fonts are also
available
See page 31 for details
N.B. For general installation
and specification details of the
HydroTap range see page 10.

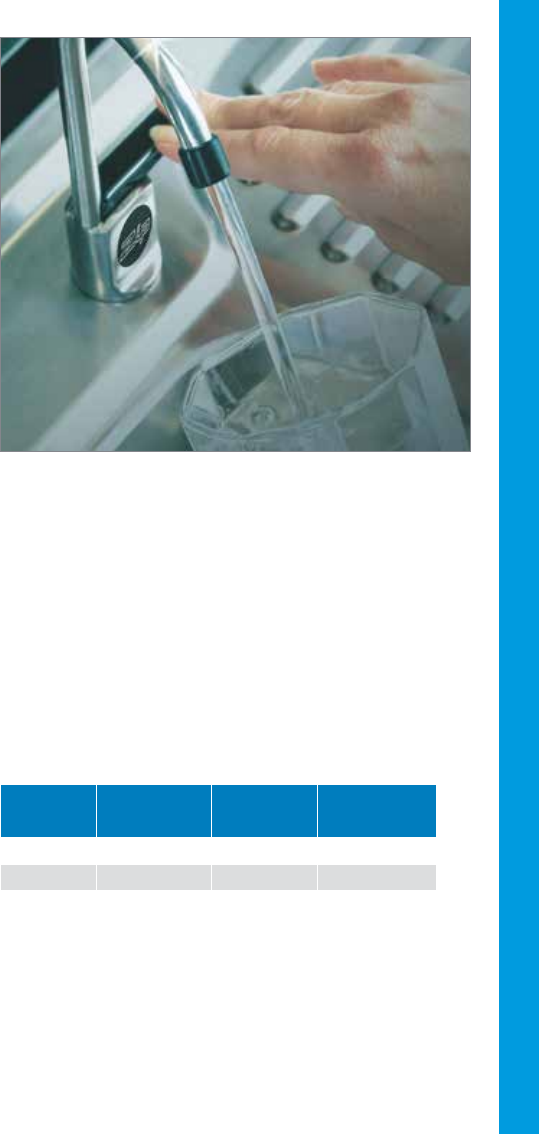

HydroTap chilled
19
HydroTap chilled
Product Code Maximum chilled
glasses/hour
Power rating
kW@230V
Dimensions
W x D x H
(mm)
C175G4 175 0.30 336 x 476 x 335
CS175G4 175 0.45 336 x 476 x 335
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
Under-counter Zip Command Centre
20
Features & benefits
Offers all of the advantages of a
standard HydroTap plus these
additional 4 benefits.
•Provides hot water at 50°C
to the mixer tap (supplied)
and either boiling, chilled and
sparkling (5-in-1), or boiling and
chilled (4-in-1) or boiling or
boiling and ambient (3-in-1)
to the HydroTap.
•Saves the cost of a separate
hot water supply.
•Saves space.
•Conserves energy.
Choice options
See table on page 21
N.B.The above units are
supplied, as standard, with the
classic mixer tap. Alternative mixer
taps (the square and the Tall) are
also available.
Boiling system
Open outlet, vented; factory set to
operate at 98°C.
The boiling temperature can be
adjusted from 100°C to 68°C.
Factory set at 98°C.
Flow rate - 4.0 l/min
Chilling system
Fan-cooled condenser type,
factory set to operate at 5-14°C.
Flow rate - 4.0 l/min
Refrigerant R134A.
Mixer Flow
The mixer tap will deliver up to
3ltr/min, ideal for rinsing cups and
handwashing.

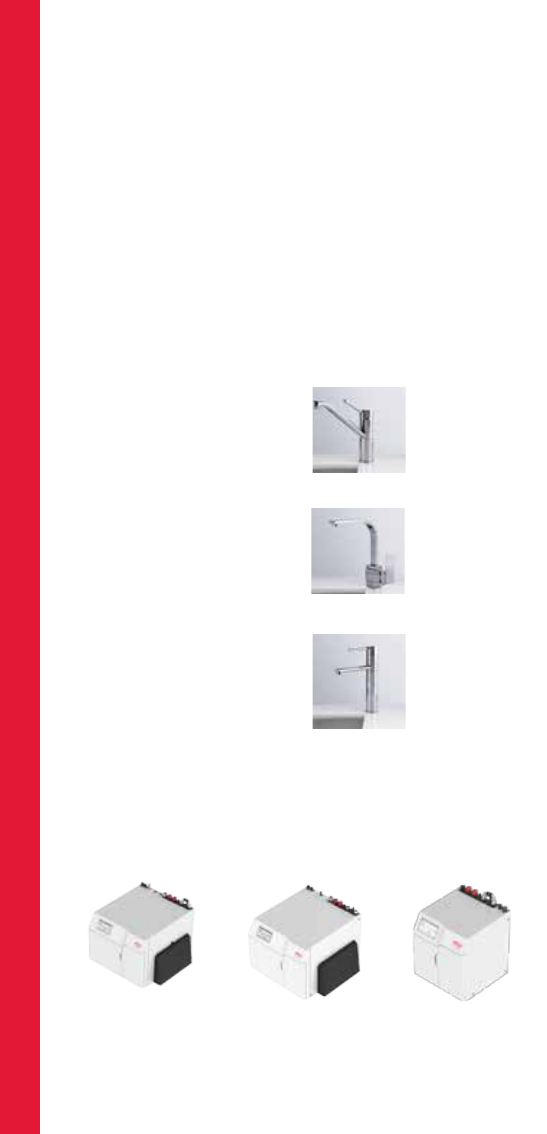

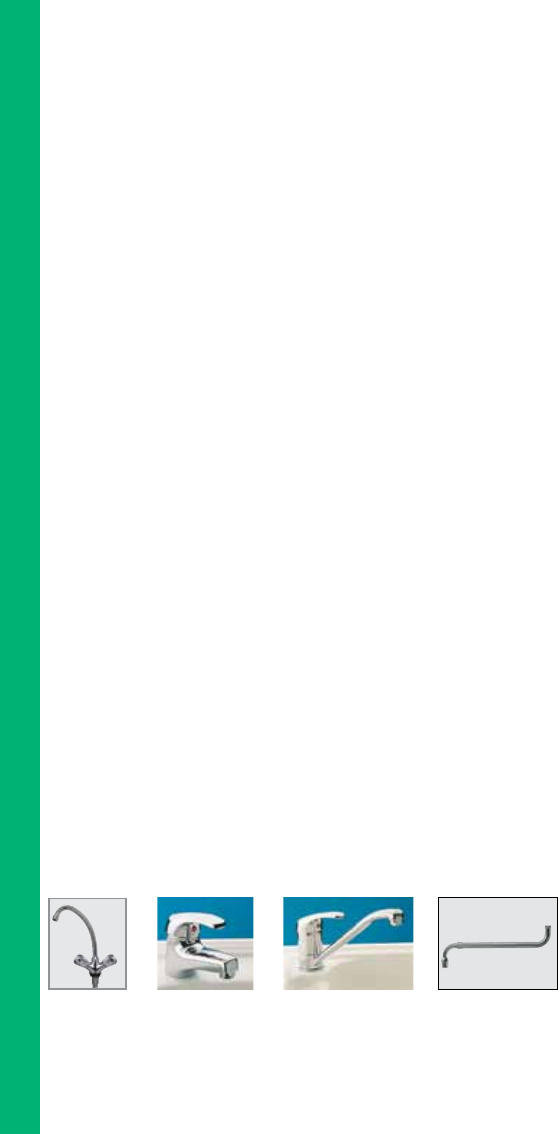

Mixer Taps
The mixer tap is available in three
types:
Zip HydroTap® 3-in-1, 4-in-1 & 5-in-1
Boiling, chilled and sparkling filtered drinking
water PLUS hot, cold (ambient) or mixed
warm water – from two taps
Classic
Square - add S to the
product order code
HydroTap 4-in-1
4-in-1 3-in-1
Tall - add T to the
product order code
5-in-1
Under-counter Zip Command Centre
21
5-in-1 provides filtered boiling, chilled and sparkling water delivered through the HydroTap
PLUS hot and cold (ambient) through the mixer tap.
4-in-1 provides filtered boiling and chilled (or ambient) water delivered through the
HydroTap PLUS hot and cold (ambient) through the mixer tap.
3-in-1 provides filtered boiling water delivered through the HydroTap PLUS hot and cold
(ambient) through the mixer tap.
HydroTap 4-in-1
Product Code Maximum
boiling
cups/hr
Maximum
chilled
glasses/hr
Power rating
kW@230V
Dimensions
W x D x H
(mm)
3-in-1 (filtered boiling PLUS hot and cold through a separate mixer)
BH160G4 160 N/A 1.90 280 x 313 x 335
BH240G4* 240 N/A 1.90 + 2.20 280 x 313 x 335
4-in-1 (filtered boiling & chilled PLUS hot & cold through a separate mixer)
BCH160/175G4 160 175 2.20 450 x 470 x 335
BCH240/175G4* 240 175 2.20+ 2.20 450 x 470 x 335
4-in-1 (filtered boiling & ambient PLUS hot & cold through a separate mixer)
BAH160G4 160 N/A 1.90 280 x 313 x 335
BAH240G4* 240 N/A 1.90 + 2.20 280 x 313 x 335
5-in-1 (filtered boiling, chilled & sparkling PLUS hot and cold through a separate mixer)
BCSH160/175G4 160 175 2.30 450 x 470 x 335
BCSH240/175G4* 240 175 2.30 + 2.20 450 x 470 x 335
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
* These Zip HydroTap G4 models are installed with a 2.2kW, externally mounted booster unit and must be connected
to two separate 13 amp power supplies.
22

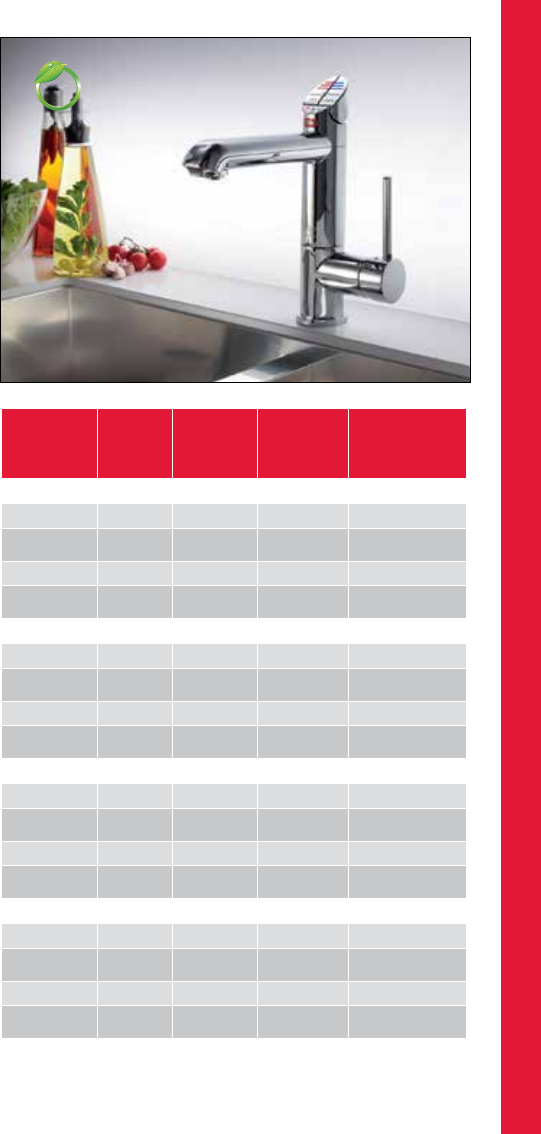

Zip HydroTap® All-in-One
(Commercial)
Boiling, chilled and sparkling filtered drinking
water PLUS hot, cold (ambient) or mixed
warm water – all from one tap
Features & benefits
• Offers all of the advantages
of a standard HydroTap
plus these additional
benefits.
• Replaces mixer taps to
declutter and simplify
kitchen design.
• Vented systems save
space, cost and energy by
eliminating the need for a
separate hot water supply.
• Separate drinking water
controls for convenience
and safety.
• Vented and non-vented
systems available.
Choice options
See table on page 23
Finishes
This model is available in 4 tap
finishes:
Bright Chrome (standard)
Gloss Black
Matt Black
Satin Chrome
Matching fonts are also available
See page 31 for details
Boiling system
Open outlet, vented; factory to
operate at 98°C.
The boiling temperature can be
adjusted from 100°C to 68°C.
Factory set at 98°C.
Flow rate - 4.0 l/min
Chilling system
Fan-cooled condenser type,
factory set to operate at 5-14°C.
Flow rate - 4.0 l/min
Refrigerant R134A.
Mixer Flow
The mixer tap will deliver up to
3ltr/min, ideal for rinsing cups and
handwashing.
Tap head
Long reach spout swings through
120° to make use at the sink, for
washing up, much easier.
HydroTap All-in-One
For 100/75 & 140/75 models
For 160/175 & 240/175 models
Under-counter Zip Command Centre
23
HydroTap All-in-One
Product Code Maximum
boiling
cups/
hour
Maximum
chilled
glasses/
hour
Power rating
kW@230V
Dimensions
W x D x H
(mm)
Boiling & chilled with non-vented mixer tap (hot & cold feed)
AN100/75G4 100 75 2.05 280 x 470 x 335
AN140/75G4*140 75 2.05 + 2.20 280 x 470 x 335
AN160/175G4 160 175 2.20 450 x 470 x 335
AN240/175G4*240 175 2.20 + 2.20 450 x 470 x 335
Boiling & chilled with vented mixer tap (cold feed only - no hot supply needed)
AV100/75G4 100 75 2.05 280 x 470 x 335
AV140/75G4*140 75 2.05 + 2.20 280 x 470 x 335
AV160/175G4 160 175 2.20 450 x 470 x 335
AV240/175G4*240 175 2.20 + 2.20 450 x 470 x 335
Boiling, chilled & sparkling with non-vented mixer tap (hot & cold feed)
SAN100/75G4 100 75 2.15 280 x 470 x 335
SAN140/75G4*140 75 2.15 + 2.20 280 x 470 x 335
SAN160/175G4 160 175 2.30 450 x 470 x 335
SAN240/175G4*240 175 2.30 +2.20 450 x 470 x 335
Boiling, chilled & sparkling with vented mixer tap (cold feed only - no hot supply needed)
SAV100/75G4 100 75 2.15 280 x 470 x 335
SAV140/75G4*140 75 2.15 + 2.20 280 x 470 x 335
SAV160/175G4 160 175 2.30 450 x 470 x 335
SAV240/175G4*240 175 2.30 + 2.20 450 x 470 x 335
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
* These Zip HydroTap G4 models are installed with a 2.2kW, externally mounted booster unit and must be connected
to two separate 13 amp power supplies.
24
Zip HydroTap® in Industry
Heavy duty designs for industrial
environments and institutions
Features & benefits
Offers all of the advantages of a
standard HydroTap plus these
additional benefits.
Super strong tapered shank
anchor (side touch models).
Damage-resistant side or top
touch buttons.
Simple 2-button without safety
lock.
Optional 3-button with safety
lock.
Can be installed R/H or L/H.
Up to 240 boiling cups per
hour.
Up to 175 chilled glasses per
hour.
Side touch variant (primarily
for use in high security locations,
such as prisons) has a high
strength tapered base which
fastens to an undersink clamp
block with a reinforcing spine.
Choice options
See panel on page 25
Boiling system
Open outlet, vented; factory set
to operate at 98°C.
The boiling temperature can be
adjusted from 100°C to 68°C.
Factory set at 98°C.
Flow rate - 4.0 l/min
Chilling system
Fan-cooled condenser type,
factory set to operate at 5-14°C.
Flow rate - 4.0 l/min
Refrigerant R134A.
Tap Head
Chrome plated.
N.B. For general installation
and specification details of the
HydroTap range see page 10.
Visit www.zipheaters.co.uk/
downloads
HydroTap in Industry
25
HydroTap in Industry
Product Code Maximum
boiling
cups/
hour
Maximum
chilled
glasses/
hour
Power rating
kW@230V
Dimensions
W x D x H
(mm)
Side-touch model
IS160/175G4 160 175 2.20 450 x 470 x 335
IS240/175G4* 240 175 2.20 + 2.20 450 x 470 x 335
Top-touch model
IT160/175G4 160 175 2.20 450 x 470 x 335
IT240/175G4* 240 175 2.20 + 2.20 450 x 470 x 335
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
Under-counter Zip Command Centre
Zip HydroTap® for the Home
Instant boiling, chilled and sparkling filtered
water systems for home kitchens, large and
small, traditional or contemporary.
Now available with new G4 technology.
Features and benefits
• No more waiting for water
to boil.
• No more bottled water to
buy.
• Easy to use.
• 0.2 micron filtration for great
tasting healthy water.
• Scale management filter
option.
• Can be sited next to sink or
on optional font and drain.
• Both the boiling and
chilled water systems are
pumped for correct water
temperature delivery, plus
no wasted water.
• Even more energy efficient.
• Integral child safety lock.
• Tap levers can be ‘locked’
for filling of large vessels.
• Measured dispense when
levers are in upright
position.
• Power-pulse energy saving
technology.
• Sleep mode to save power.
• Integral 24/7 timer.
Models available
Boiling, chilled and sparkling
filtered water.
Boiling and chilled filtered water.
Boiling and cold (ambient) filtered
water.
Boiling filtered water.
Chilled filtered water.
All-in-One model with boiling,
chilled, hot and cold water and
now sparkling from one tap.
4-in-1, providing boiling and
chilled water, hot and cold water
to separate mixer tap (provided).
See options on page 20.
Taps
All taps, except for the
DOMSAN4, DOMAN4,
DOMHBH4, DOMBAH4.
DOMBCH4 and DOMBCSH4
models are available with the
option of different finishes to the
standard chrome. (See page 31)
The separate mixer tap is
available in three types. (See
page 20).
Warranty
3 years on site parts and labour
with additional 2 years on the
boiling tank. For full details visit:
www.zipheaters.co.uk/warranty
26
HydroTap for the home
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
On sink installation Installation using the optional font and drain
27
HydroTap for the home
Product
Code
Boiling Chilled Sparkling Hot & cold
(for mixer facility)
Dimensions
W x D x H
(mm)
DOMBCS4 Yes Yes Yes No 280 x 470 x 335
DOMBC4 Yes Yes No No 280 x 470 x 335
DOMSAN4 Yes Yes Yes
Yes - with integral
mixer.
Requires hot and
cold feeds
280 x 470 x 335
DOMAN4 Yes Yes No
Yes - with integral
mixer.
Requires hot and
cold feeds
280 x 470 x 335
DOMBA4 Yes Ambient No No 280 x 313 x 335
DOMHB4 Yes No No No 280 x 313 x 335
DOMCS4 No Yes Yes No 280 x 389 x 335
DOMC4 No Yes No No 280 x 389 x 335
DOMHBH4 Yes No No Yes - with separate
mixer tap 280 x 470 x 335
DOMBAH4 Yes Ambient No Yes - with separate
mixer tap 280 x 470 x 335
DOMBCH4 Yes Yes No Yes - with separate
mixer tap 280 x 470 x 335
DOMBCSH4 Yes Yes Yes Yes - with separate
mixer tap 280 x 470 x 335
Under-counter Zip Command Centre
Zip HydroTap®
Miniboil Classic & Elite
Super compact economy models for filtered
boiling and filtered cold (ambient) water for
the home
28
Models available
• Boiling and cold (ambient)
filtered water with Classic tap.
•Boiling and cold (ambient)
filtered water with Elite tap.
Features and benefits
•No waiting for water to boil.
•Easy to use touch pads.
•0.2 micron filtration for great
tasting healthy water.
•Scale management filter option.
•Can be sited next to sink or on
optional font and drain.
•Inactivity sleep mode.
•Filter change indicator.
•Cool-touch tap.
•Compact size makes it ideal
for kitchens with limited space.
•Highly energy efficient.
•Safety interlock.
•Power-Pulse™ technology.
Filtration
Supplied with external triple
action 0.2 micron filter.
Additional anti-scale filtration
option.
Warranty
12 months on site parts and
labour warranty. These products
are designed for use in domestic
environments and their use
commercially may invalidate the
warranty.
Visit www.zipheaters.co.uk/
download
Zip Miniboil Elite
Zip Miniboil Classic Miniboil shown font mounted
HydroTap Miniboil
29
HydroTap Miniboil
Product
Code
Tap style Boiling Ambient Rating
(kW@230V)
Dimensions
W x D x H mm
MB1BA Classic • • 1.5 212 x 272 x 338
MB2BA Elite • • 1.5 212 x 272 x 338
HydroTap options
30
Zip HydroTap® Options
Finishes
Traditional Zip HydroTap and fonts are available in standard Bright chrome and a choice of
three additional finishes.
Not available for Industrial, 3-in-1, 4-in-1models and 5-in-1 models.
Gloss Black
Add ‘B’ to normal code
when ordering.
Satin Chrome
Add ‘S’ to normal code
when ordering.
Matt Black
Add ‘M’ to normal code
when ordering.

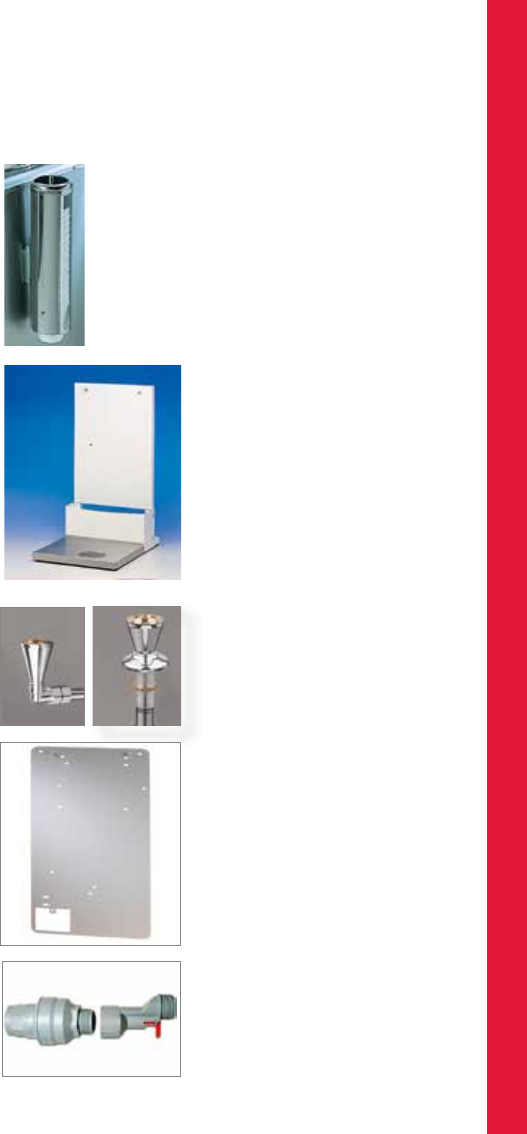

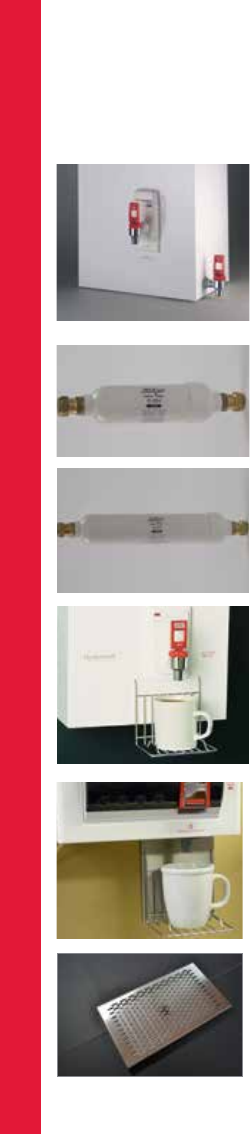

HydroTap optional extras
31
Font and Drain*
Zip HydroTap can be ordered with a
matching font and drain for mounting
remotely from the sink.
Order Codes:
ZT008 – Standard Chrome
ZT009 – Satin Chrome
ZT010 – Gloss Black
ZT012 – Matt Black
*Not for use with All-in-One.
Drainless Font
For locations where there is no
available drainage, the Zip “Drainless
Font” system ensures the safe and
effective collection of waste water
from a HydroTap font.
Order Code: ZT006
Over sized levers
All HydroTap models, except for
models in the All-in-One, Industrial
and Miniboil ranges, can be fitted with
oversize levers to assist those with
restricted dexterity.
Order Codes: Add ‘D’ to normal order
code
Braille covers
To aid those with sight issues Braille
covers can be fitted to these levers.
Order Codes:
SP99910 – Boiling/chilled
SP99911 – Boiling only
SP99912 – Chilled only
Sparkling consumables
Order Codes:
ZT400 – CO2 canister (single).
ZT401 – CO2 regulator
HydroTap Filtration
32
Zip HydroTap® Filtration
All HydroTap products NOW feature .02
micron filtration
New Zip 0.2 micron filters reduce chlorine
taste and odour, filtering out particles
more than one fifth of a micron in size
– that’s one five-thousandth (1/5000th)
of a millimetre – twenty five times finer
than commonly used 5.0 micron filters,
designed to filter out both Cryptosporidium
and Giardia cysts and other impurities,
for crystal-clear great-tasting water and
healthier drinking.
This is arguably the most advanced and
most practical water filtration system
available anywhere today, developed to
meet our exacting specifications by the
world leader in water filter technology.
Zip 0.2 micron filter cartridges
are incorporated into the Zip HydroTap installation
under the sink, or out of sight within the Zip
HydroTap command-centre installed beneath
the tap.
Zip 0.2 micron filter cartridges
are hygienically encased for fast and easy filter
cartridge replacements. A white light on the
tap will flash to indicate that the filter requires
changing.
Order code: ZT402
Zip HydroTap ‘filter change
light’ flashes when a filter change is due.
It can be set to measure both water volume
and the number of days in service, signalling
whichever occurs first.
HydroTap Filtration
33
N.B. Check with local water authority for accurate data
Scale Management
Recommended for use when the water
hardness level is above 4 degrees Clark
(60 parts per million CaCO3).
• Triple action filtration
• Ion exchange resin to
reduce water hardness
• Carbon block to improve
taste and odour
• High efficiency filtration to
remove particulates
• Choice of four filters to suit
various applications
• Can be installed horizontally if
required using optional
bracket
Choice of four filters:
• FL1100 with submicron
filtration for domestic use.
• FL2300 with one micron
filtration for light commercial use.
• FL3600 with one micron
filtration for normal
commercial use.
• FL6000 PLUS with one
micron filtration for heavy
commercial use.
• For initial installation each filter
has a dedicated installation
kit, which includes the
head, all necessary push
fit components.
The Order Codes are:
FL1100G4 KIT
FL2300G4 KIT
FL3600G4 KIT
FL6000G4 PLUS KIT
Zip Professional Range
High performance limescale filtration system
for use with Zip HydroTap.
UK Scale Map
Hard to very hard
Medium hard
Soft
Saves time
No more time wasted waiting for water to
boil—Zip delivers boiling water instantly, at
the touch of a tap.
Saves energy
No energy is wasted boiling more water
than needed—fingertip control gives a cup
full or teapot full at a time.
Saves space
No cluttered worktops—Zip instant boiling
water eliminates the need for kettles and
exposed power leads.
Saves money
Costs little to run—thanks to energy-
efficient design and electronic controls
(Hydroboil Plus) to minimise power
consumption.
Sets a new standard
Every working day in the UK over eight
million cups of tea and coffee are made
using Zip instant boiling water systems.
Temperature control
Zip’s patented high precision temperature
control systems are designed to keep the
boiling water within one degree of the set
temperature. This means that boiling water
and only boiling water is delivered.
Ranges
Zip offers a choice of three ranges:
Hydroboil Plus
Thermostatically controlled, twin chamber
technology with stainless steel boiling tank.
Premium insulation and cool touch two way
tap with safety lock.
Energy saving Power-Pulse™
Sleep mode - after 2 hours of no demand
or when lights turned off.
Integral 24 hour 7 day timer.
Available in sizes from 3.0 to 40.0 litres.
White or stainless steel finishes.
Hydroboil
Thermostatically controlled, twin chamber
technology with stainless steel boiling tank.
Premium insulation and chrome catering
style tap.
Available in sizes from 1.5 to 40.0 litres.
White or stainless steel finishes.
Econoboil
Thermostatically controlled, twin chamber
technology with copper boiling tank.
Tontine insulation.
Chrome catering style tap.
Available in 3.0 & 5.0 litres.
White finish.
34

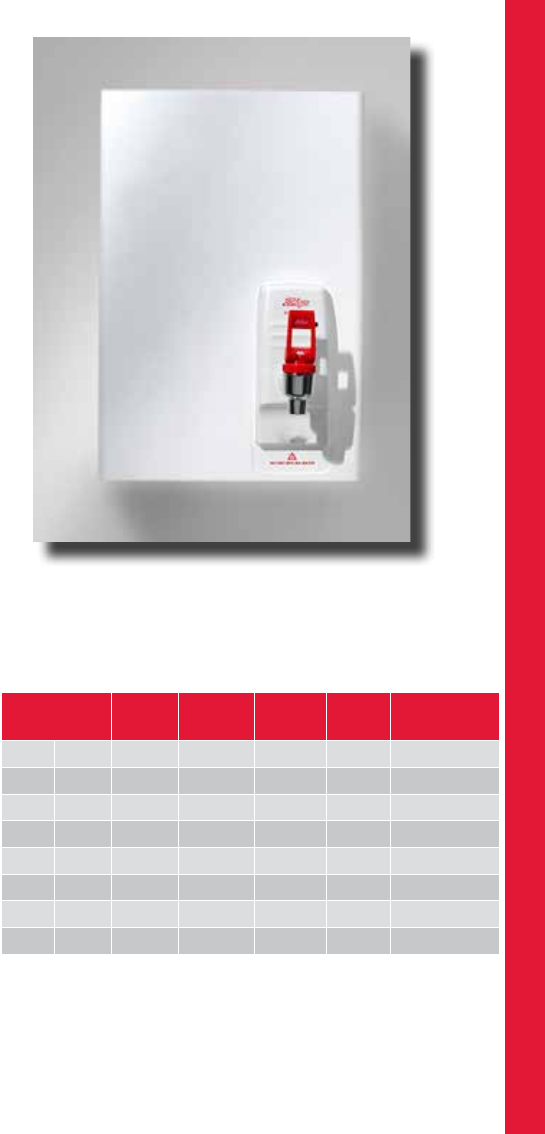

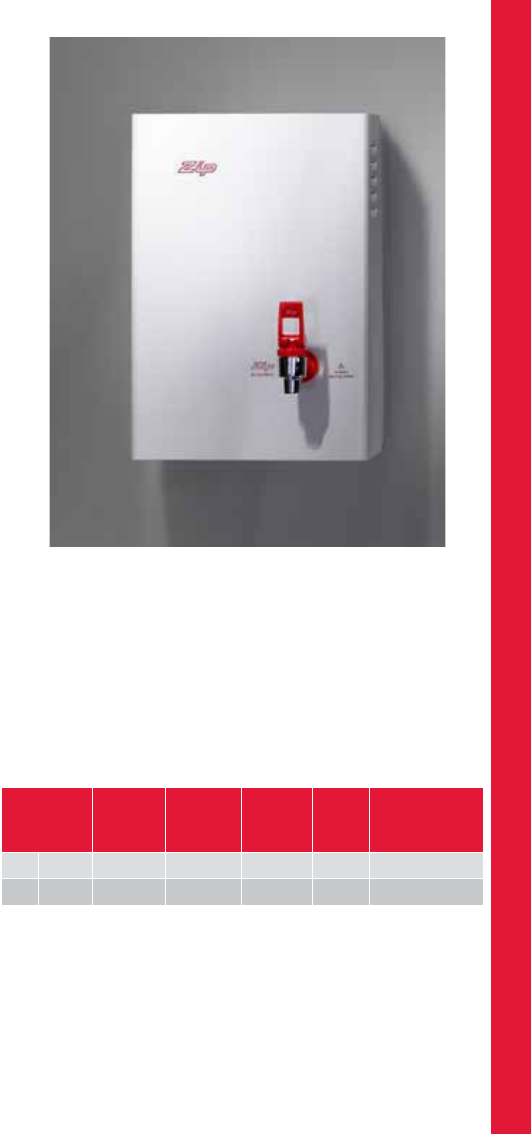

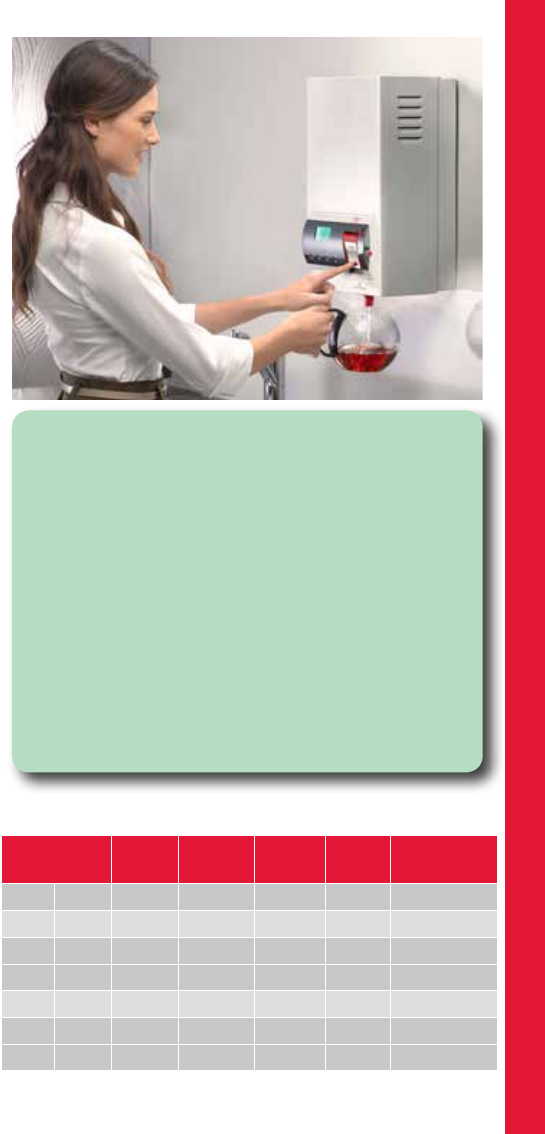

Wall mounted instant boiling water
Overview
Wall mounted instant boiling water
Zip Hydroboil Plus
Zip Hydroboil
Zip Econoboil
Instant boiling water heaters are essential appliances for the workplace
and are available in the widest range of models and capacities.
35

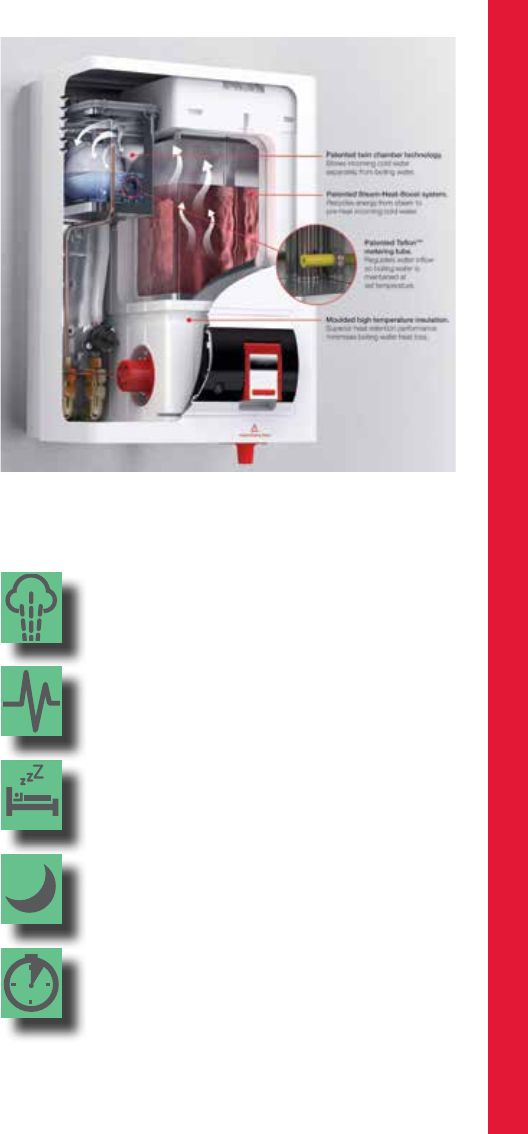

Zip Hydroboil Plus cuts energy
consumption in 5 ways
Steam-Heat-Boost System
Steam from boiling water is recycled to pre-heat incoming cold water.
A patented metering tube maintains the stored water within 1°C of set
temperature.
Power-Pulse™ energy saving technology
Applies full power only during heavy usage periods cutting back to micro-
pulse power during light usage or when unused — not available on 40 litre
model.
Inactivity sleep mode
After 2 hours of non-use Hydroboil Plus enters sleep mode, allowing the
water temperature to reduce to 65° at which it is maintained until next
draw-off.
Low light sleep mode
When activated, an integral light detector activates this facility when room
light is switched off and the unit enters sleep mode as above.
Integral 24 hour 7 day timer
Switches system off during known periods of inactivity,
returning to full functionality ahead of next expected demand.
Wall mounted instant boiling water
Further energy savings are made due to the use of the unique cool touch tap, where no metal
parts are used.
36
Zip Hydroboil Plus
Wall mounted instant boiling water
3, 5, 7.5, 10, 15, 25, 40 litre
Heating element
Long-life incoloy sheathed embedded rod
type. Dry start protection.
Boiling chamber
Twin chamber-stainless steel. Steam-Heat-
Boost technology. Crevice-free stainless
steel with removable access ports, top and
bottom.
Insulation
Compressed high temperature insulation
panels on sizes below 10 litres, engineered
for easy boiling chamber access. High
efficiency aluminium backed mineral wool
insulation on other sizes.
Thermostat
Thermistor controlled.
Case
Stainless steel or corrosion-resistant, white
enamelled steel.
Temperature Settings
On installation, to suit user needs, the boiling
water temperature can be adjusted from
100˚C to 68˚C.
Control Panel
Liquid Crystal Display shows time, day,
heater operation and energy saving mode
status.
Tap
Unique two-way cool touch tap.
Safety features
Integral safety lock.
Approvals
WRAS, CE endorsed.
Warranty
Two-year on site parts and labour. For
full details of the Zip Warranty visit:
www.zipheaters.co.uk/warranty
Installation
Install over a draining board, or work top
fitted with a drip tray. Tap spout should be
no higher than necessary to fill large pots.
Minimum tap height above draining board
for on-wall fitting is 200mm.
Plumbing
Designed for direct connection to a potable
cold water supply with a minimum pressure
of 0.7 bar. If pressure exceeds 7 bar, a
pressure limiting valve must be fitted. An
isolating valve should be installed between
the water supply and the heater.
Concealed plumbing
Connect inlet and vent pipes from the rear via
15mm capillary elbows.
Exposed plumbing
Connect inlet and vent pipes from below
directly to 15mm compression fittings.
Venting
The vent must discharge to a safe visible
position using a tundish.
Electrical
To be wired to a double pole fused spur
with a minimum break capacity of 13 amps.
Installation must comply with current IEE
regulations.
Caution
In some hard water areas where scale is an
issue we recommend the fitting of the Zip
Inline filter.
Wall mounted instant boiling water
37
Energy Conservation
The installer can select one of two programmable energy
saving modes –
• Integral 24 hour 7 day timer enables the unit to switch off automatically
during known periods of inactivity e.g. overnight or at weekends, returning
to full functionality ahead of the next expected demand.
Sleep Modes
• Inactivity Sleep Mode. Following a period of 2 hours non-use
Hydroboil Plus automatically enters sleep mode when the unit powers
down allowing the water temperature to gradually reduce to 65˚C, at
which it is maintained. Upon further draw off boiling resumes.
and/or
• Low light Sleep Mode. An integral light detector automatically
activates sleep mode (as above) when room lights are switched off,
returning to normal operation when the next draw off occurs or the
lighting is switched back on.
Product Code
Case Finish
s/steel white
Capacity
litres
Delivery
cups* at any
one time
Recovery
cups*
per hour
Rating
kW@230V
Dimensions
W x D x H
(mm)
HP103 HP003 3.0 18 100 1.5 289 x 180 x 431
HP105 HP005 5.0 30 140 2.4 318 x 198 x 465
HP107 HP007 7.5 45 140 2.4 318 x 198 x 578
HP110 HP010 10.0 60 180 3.0 390 x 244 x 600
HP115 HP015 15.0 90 180 3.0 390 x 299 x 600
HP125 HP025 25.0 150 180 3.0 390 x 299 x 780
HP140 HP040 40.0 240 240 2 x 3.0 515 x 284 x 840
Zip Hydroboil Plus with cool touch tap an energy saving features
* Standard cup size 167ml
Wall mounted instant boiling water
38
Zip Hydroboil®
Wall mounted instant boiling water
1.5, 3, 5, 7.5, 10, 15, 25, 40 litre
Heating element
Long-life incoloy sheathed
embedded rod type.
Dry start protection.
Boiling chamber
Twin chamber-stainless steel.
Steam-Heat-Boost technology.
Crevice-free stainless steel with removable
access ports, top and bottom.
Insulation
Compressed high temperature insulation
panels on sizes below 10 litres, engineered
for easy boiling chamber access. High
efficiency aluminium backed mineral wool
insulation on other sizes.
Thermostat
Capillary type.
Case
Stainless steel or corrosion
resistant white enamelled steel.
Tap
Two way, chrome-plated classic,
catering style.
Approvals
WRAS, CE endorsed.
Warranty
Two-year on site parts and labour. For
full details of the Zip Warranty visit:
www.zipheaters.co.uk/warranty
Installation
Install over a draining board, or work top
fitted with a drip tray. Tap spout should
be no higher than is necessary to fill large
pots. Minimum tap height above draining
board for on-wall maintenance is 200mm.
Plumbing
Designed for connection to a potable cold
water supply with a minimum pressure
of 0.7 bar. If pressure exceeds 7 bar,
a pressure limiting valve must be fitted.
An isolating valve should be installed
between the mains supply and the system.
Concealed plumbing
Connect inlet and vent pipes from the rear via
15mm capillary elbows.
Exposed plumbing
Connect inlet and vent pipes from below
directly to 15mm compression fittings.
Venting
The vent must discharge to a safe and
visible position using a tundish.
Electrical
To be wired to a double pole fused spur,
minimum break capacity of 13 amps.
Installation must comply with current IEE
regulations.
Caution
In some hard water areas where scale is an
issue we recommend the fitting of the Zip
Inline filter.
Wall mounted instant boiling water
39
Product Code
Case Finish
s/steel white
Capacity
litres
Delivery
cups* at any
one time
Recovery
cups*
per hour
Rating
kW@230V
Dimensions
W x D x H
(mm)
- HS001 1.5 9 100 1.5 289 x 180 x 335
- HS003 3.0 18 100 1.5 289 x 180 x 431
HS105 HS005 5.0 30 140 2.4 318 x 198 x 465
HS107 HS007 7.5 45 140 2.4 318 x 198 x 578
HS110 HS010 10.0 60 180 3.0 390 x 244 x 600
HS115 HS015 15.0 90 180 3.0 390 x 299 x 600
HS125 HS025 25.0 150 180 3.0 390 x 299 x 780
HS140 HS040 40.0 240 240 2 x 3.0 515 x 284 x 840
Zip Hydroboil with Classic tap
* Standard cup size 167ml
Wall mounted instant boiling water
40
Zip Econoboil®
Wall mounted instant boiling water
3 & 5 litre
Heating element
Embedded rod type.
Boiling chamber
Twin chamber in copper.
Steam-Heat-Boost technology.
Insulation
Aluminium backed Tontine.
Thermostat
Capillary type.
Case
Corrosion resistant white enamelled steel.
Tap
Two way, chrome-plated classic, catering
style.
Approvals
WRAS, CE endorsed.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty
visit: www.zipheaters.co.uk/warranty
Installation
Install over a draining board, or work top
fitted with a drip tray. Tap spout should
be no higher than is necessary to fill large
pots. Minimum tap height above draining
board for on-wall maintenance is 200mm.
Plumbing
Designed for connection to a potable cold
water supply with a minimum pressure of
0.7 bar. If pressure exceeds 7 bar, a
pressure limiting valve must be fitted. An
isolating valve should be installed between
the mains supply and the system.
Concealed plumbing
Connect inlet and vent pipes from the rear
via 15mm capillary elbows.
Exposed plumbing
Connect inlet and vent pipes from below
directly to 15mm compression fittings.
Venting
The vent must discharge to a safe and
visible position using a tundish.
Electrical
To be wired to a double pole fused spur,
minimum break capacity of 13 amps.
Installation must comply with current IEE
regulations.
Caution
In some hard water areas where scale is an
issue we recommend the fitting of the Zip
Inline filter.
Wall mounted instant boiling water
41
Product
Code
Case Finish
s/steel white
Capacity
litres
Delivery
cups* at any
one time
Recovery
cups*
per hour
Rating
kW
@230V
Dimensions
W x D x H
(mm)
- HS503 3.0 18 100 1.5 289 x 180 x 431
- HS505 5.0 30 140 2.4 318 x 198 x 465
Zip Econoboil the low cost boiling water solution for locations where economy is of the essence
* Standard cup size 167ml
Wall mounted instant boiling water

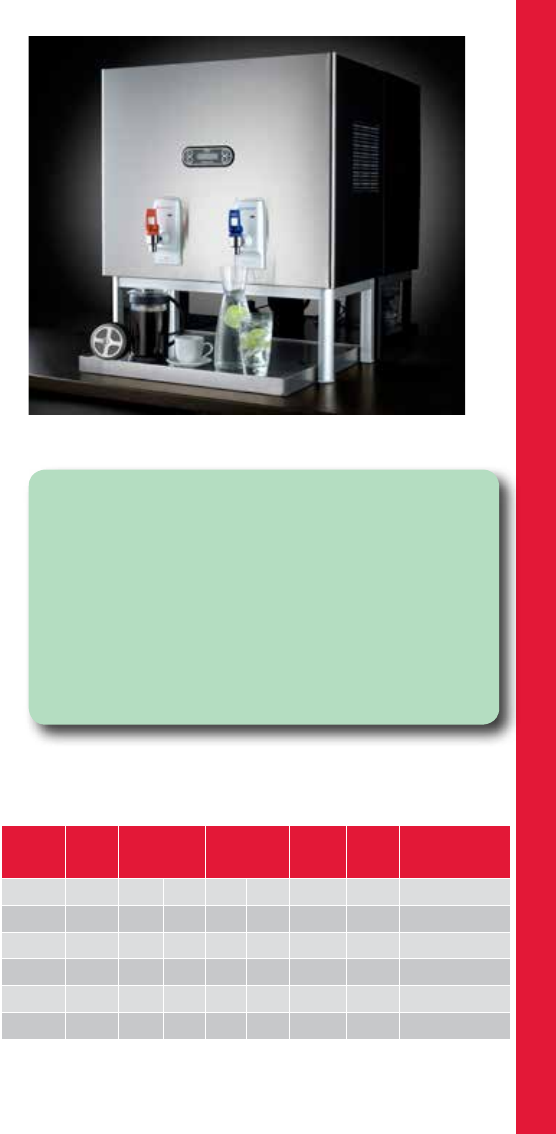

Zip Duo®
Boiling and chilled filtered water
On-wall fixing or counter-mounted on stand provided
Delivery rate
Up to 100 cups of boiling and 35 glasses of
chilled water at a time.
Recovery rate
Up to 217 boiling cups/hour. 90 chilled
glasses/hour.
Case
Stainless steel or corrosion-resistant, white
enamelled steel.
Taps
Two way, classic style catering taps.
Filtration
Integral 0.2 micron filtration.
Control panel
For programming sleep mode, timer and
water temperature.
Refrigerant
R134A.
Approvals
CE endorsed.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Temperature Settings
On installation, to suit user needs, the
boiling water temperature can be adjusted
from 100˚ to 68˚C.
Location
The unit should be positioned either on
a suitable load bearing wall capable of
supporting 42kg - 5 litre, 64kg - 15 litre
or on the counter mounting stand supplied.
The unit must have a minimum 150mm
clearance on the left, 50mm on the right
and 150mm on top.
Minimum tap height, if wall mounted should
be 200mm above work surface. The vent
must discharge to a safe and visible place.
Plumbing
The water supply must be potable
(drinkable).
If static pressure exceeds 7 bar, a pressure
reducing valve must be fitted. An isolating
valve should be installed between the water
supply and the unit.
Electrical
To be wired to a double pole switched
fused spur with a minimum break capacity
of 13 amps (3.5kW 15 amp). Installation
must comply with current IEE regulations.
HD215 & HD315 should be provided with
their own dedicated supply.
Caution
In some hard water areas where scale is
an issue we recommend the fitting of the
Zip Professional Range of High Performance
Scale Filters (see page 33).
42
Wall mounted instant boiling water
Zip Duo®
Boiling and chilled filtered water
On-wall fixing or counter-mounted on stand provided
43
Energy Conservation
A choice of two programmable energy saving modes –
• Integral 24 hour 7 day timer to enable the boiling and chilled
units to switch automatically off during known periods of inactivity
e.g. overnight or weekends but return to full functionality ahead of
the next expected demand.
• Inactivity sleep mode enables the boiling water unit to power
down automatically following a period of 2 hours non-use. This
allows the water temperature to gradually reduce to 65˚C, at
which it is maintained. Upon further draw off boiling resumes.
Product
Code
Case
finish
Delivery
any one time
cups* glass
Recovery
per hour
cups* glass
Weight
kg
(full)
Rating
kW
@230V
Dimensions
W x D x H
(mm)
HD005 White 30 35 120 90 42 2.0 650 x 280 x 430
HD105 S/Steel 30 35 120 90 42 2.0 700 x 350 x 580
HD015 White 100 35 140 90 64 2.3 700 x 350 x 580
HD115 S/Steel 100 35 140 90 64 2.3 700 x 350 x 580
HD215 White 100 35 217 90 64 3.5 700 x 350 x 580
HD315 S/Steel 100 35 217 90 64 3.5 700 x 350 x 580
Zip Duo
* Standard cup size 167ml
Wall mounted instant boiling water
44
Wall mounted instant boiling water

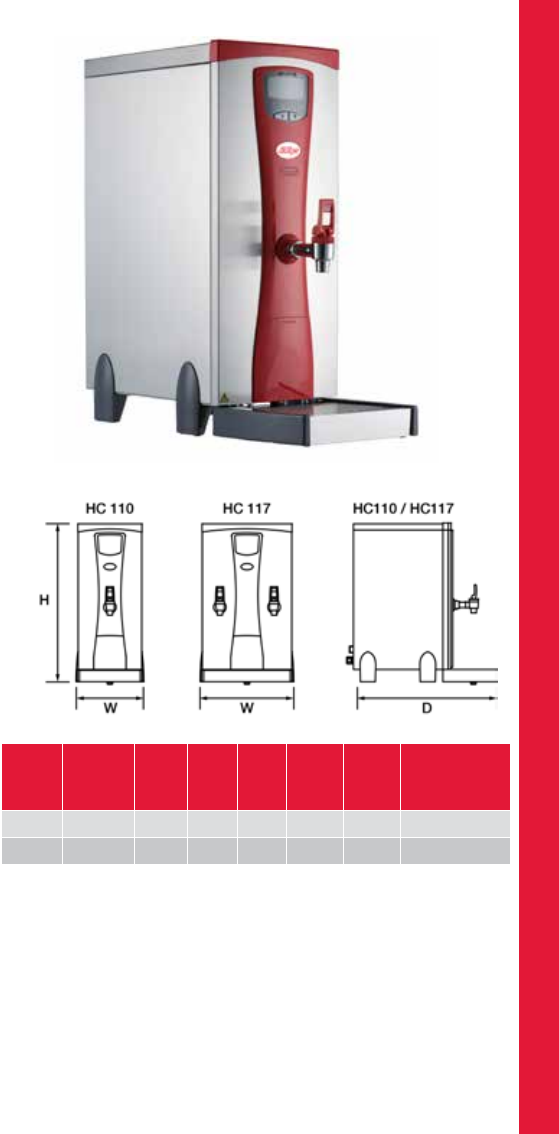

Zip Red-E-Boil®
Boiling filtered water
a solution for locations where an on-wall product is
unsuitable
Features and benefits
• Provides water at 96oC.
Can be adjusted if required
• 0.9mm 304 & 316 grade
stainless steel tank
• 304 grade stainless steel
outer case
• 304 grade stainless steel
integral drip tray
• Status indicator when
heating and ready for use
• Integral 0.2 micron filtration
• Over-boil and boil-dry safety
protection
• 7 day programmable timer
• Energy saving ECO mode
• Programmable filter change
indicator
• Unique tank baffle plate aids
heat recovery
Installation
Place on a suitable worktop
capable of holding it’s weight
when full. Ensure a minimum
clearance of 50mm around the
product.
Plumbing
Designed for connection to
potable water supply with a
minimum water pressure of 2
bar and a maximum of 7 bar. A
1.6 metre flexible water hose is
provided.
Electrical
A 1.7 metre cable fitted with a UK
standard 3 pin plug is provided for
connection to a standard 13 amp
switched outlet.
This product must be earthed.
Drainage
The integral drip-tray is designed to
handle small spillages and drips.
It is recommended where possible
to drain to waste either from the
drip tray using Zip accessory
ZE013 or by ½” BSP connection
at the rear.
A minimum 15mm diameter pipe is
required to drain to a safe outlet.
Caution
In some hard water areas where
mineral scale accumulation can
become a problem, consideration
should be given to the maintenance
required.
Accessories
ZE013 - Drain Kit
ZT402 - Zip 0.2 micron
replacement filter
Approvals
WRAS approved and CE endorsed.
Warranty
2 years on site parts and labour.
For full details of the Zip Warranty
Scheme visit: www.zipheaters.
co.uk/warranty.
45
Wall mounted instant boiling water
Product
Code
Capacity
Litres
Heat
up
time
(mins)
Cups
at
one
time
Cups
per
hour
Rating
kW
@230V
Weight
kg
(full)
Dimensions
W x D x H
(mm)
HC110 10.0 32 60 168 3.0 28.1 650 x 280 x 430
HC117 17.0 48 100 168 3.00 38.9 700 x 350 x 580
Zip Accessories
Boiling water
46
Hydroboil Extra Tap Kits
(tap extension pipework)
ZC100 For 10, 15 and 25 litre heaters, up
to 2 taps (excludes taps).
SP90502 Tap for above.
Inline Filters
FL064 6” filter for taste and odour removal
with scale reduction.
For use with Hydroboil up to 7.5 litre.
FL104 10” filter for taste and odour removal
with scale reduction. For use with
Hydroboil 10 litre and above.
Mug Racks
ZE010 Stainless steel
(for Classic Tap models only).
ZE011 Stainless steel
(for Hydroboil Plus models only).
Drip Trays
ZD200 Stainless steel (with drain adaptor).
Drip Tray dimensions:
W: 340mm x D: 190mm x H: 20mm with a 19.5mm
drainage access
Wall mounted instant boiling water - Accessories
N.B. In areas where hardwater is a problem, we
recommend the Zip Professional filter range - page 33
Cup Dispensers
ZE001 Stainless steel.
ZE002 White plastic.
Counter Stands
ZE004 - HS001.
ZE006 - HS003.
ZE007 - HS005, HS105, HP005, HP105
ZE008 - HS007, HS107, HP007, HP107
Tundish
ZD100 Wall mounted chromed tundish.
ZD101 Sink mounted chromed tundish.
Universal Mounting Bracket
When a Zip Hydroboil replaces a Heatrae Sadia, Calomax
or Instanta product this bracket may be used to secure
the Hydroboil using existing fixings.
ZP001 3 and 5 litre.
ZP002 7.5 litre.
Zip Water Block
Recommended to be fitted in the water supply line to all
Zip products (except HydroTap) to minimise the potential
damage in the event of leakage.
HE45004
47
Zip Accessories
Boiling water
Wall mounted instant boiling water - Accessories
Overview
Chilled, filtered water
Zip’s mains fed chillers are designed for the workplace environment, to provide healthy,
fresh filtered drinking water.
Features and benefits
• Provides drinking water at a fraction of the cost of bottled water.
• No more bottled water to buy.
• No more bottled water to store.
• No more bottled water to handle.
• No more environmental issues associated with bottled water.
• No more running out of drinking water during periods of high
demand such as hot weather.
• Now feature the most technically advanced 0.2 micron filtration system for healthier,
better tasting drinking water.
48
Zip HydroTap
Zip FilterTap
Zip ChillTap
Zip Chillmaster
Zip Chill Fountain
Zip Wall Fountain
Chilled drinking water
49
Good hydration at work
Water is a vital nutrient for life. Everybody
wants to be healthy at work and a healthier
workforce leads to improved efficiency.
Even mild levels of dehydration adversely
affect both physical and mental
performance.
There is currently no agreement on how
much water we should drink each day
but estimates range from 1.2 to 3 litres
per day.
The need for consumption at the top of
these estimates would apply to those
working in hot or dusty environments or
where there is a need to wear protective
clothing.
Access to drinking water
The law requires that employers provide
an adequate supply of wholesome drinking
water for all persons in the workplace. This
must be readily available at suitable places.
Drinking water should not be sited where
contamination is likely such as toilet or
washroom facilities.
More information is available from the
Health and Safety Executive by visiting:
www.hse.gov.uk
(Source: www.water.org.uk)
Chilled drinking water
50
Zip HydroTap®
Filtered chilled water system
Energy Conservation
Programmable operation
• Integral 24 hour 7 day timer enables the chilled water unit to switch-off automatically during
known periods of inactivity e.g. overnight or weekends, but return to full functionality ahead
of the next expected demand.
Features and benefits
• Provides chilled filtered water,
instantly.
• Eliminates the need for expensive
and environmentally damaging
bottled water.
• Eliminates the need to store or
handle bottled water.
• Eliminates the fear of running out of
drinking water in extreme weather
conditions or other periods of high
demand.
• Can be sited at a sink, or away from
it on the optional font and drain.
• Free-Flow™ facility, ensuring
cold filtered water continues to be
available even when the ‘chilled
glasses per hour’ capacity is
exceeded.
Choice options
C125G4
C175G4
Location
Fan-cooled condensor type.
Refrigerant
R134A
Temperature settings
The chilled water temperature is factory set
to deliver water at between 5°C to 14°C.
N.B.
For general installation and specification
details of the HydroTap range see page 10.
Chilled drinking water
51
Product Code Maximum chilled
glasses/hour
Power rating
kW@230V
Dimensions
W x D x H
(mm)
C125G4 125 0.2 336 x 476 x 335
C175G4 175 0.25 336 x 476 x 335
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
G4
T
E
C
H
N
O
L
O
G
Y
G4
T
E
C
H
N
O
L
O
G
Y
T
E
C
H
N
O
L
O
G
Y
Chilled drinking water
Under-counter Zip Command Centre
52

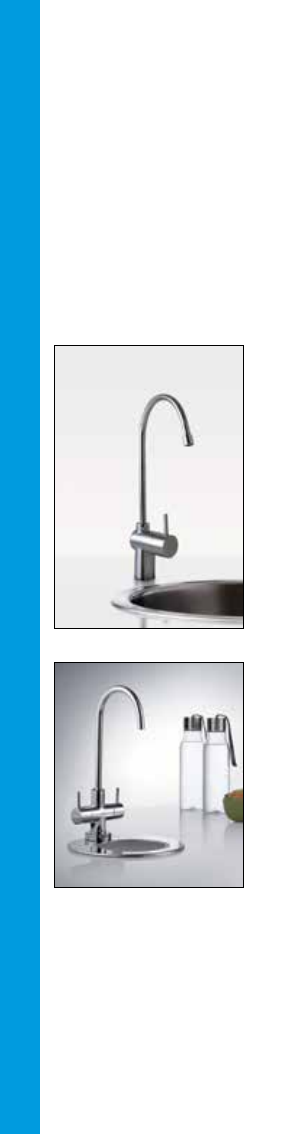

Zip ChillTap® & ChillTap® Extra
Commercial
Features and benefits
• Stylish tap.
• Fingertip control for filling glasses.
• Hands-free filling for large jugs and bottles.
• Superior 0.2 micron filtration.
• Filter change every 12 months.
• 140 glasses per hour.
Zip ChillTap
CT1/140
Chilled filtered water instantly.
Zip ChillTap Extra
CT2/140
Chilled filtered water instantly and cold
(ambient) filtered water.
Shown on optional font—ZT008.
Chilled drinking water
53
Product Code Maximum chilled
glasses/hour
Power rating
kW@230V
Dimensions
W x D x H
(mm)
CT1/140 140 0.45 353 x 291 x 385
CT2/140 140 0.45 353 x 291 x 385
Chilled drinking water
54
Zip Chilltap®
Under-sink chiller
Filtered drinking water
Features and benefits
• Great tasting freshly filtered cool
drinking water for fitting on a sink.
• Filters out dirt, rust and other
particles contaminating drinking
water.
• Reduces chlorine and other
offensive water treatment chemicals.
• Delivers up to 140 glasses per hour.
• 0.2 micron filtration.
Storage capacity
Nominal 8 glasses.
Output capacity
Up to 140 glasses per hour at <10˚C.
Rating
0.3 kW @ 230V AC.
Chiller type
Fan cooled condenser with a compressor
rated at up to 0.25 hp.
Refrigerant type
Non-toxic R134A.
Under-sink case
Corrosion resistant white enamelled steel.
Sink mounted tap
Chrome plated brass with lever action tap
and swivel head.
Filtration
0.2 micron fully encapsulated externally
mounted double action carbon filter.
Approvals
WRAS, CE endorsed.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Installation
The tap should be:
Positioned to the rear of a sink.
Mounted on a flat surface.
Mounted at 45degrees to the edge
of the sink so it drains into the sink
when running.
The under-sink chiller must be:
Located asclosely as possible to, and
directly beneath thetap.
Installed with clearances of 50mm left,
right and above, with 65mm to rear.
Filter should be:
Mounted where readily accessible on
the chiller or on the adjacent cupboard
wall.
Plumbing
Water connections 15mm push-fit.
If the water pressure is above 7 bar a
pressure reducing valve (AQ3) should be
fitted.
Electrical
To be wired to a double pole switched
fused spur with a minimum break capacity
of 13 amps. Installation must comply with
current IEE regulations.
Chilled drinking water
55
Product Code Maximum chilled
glasses/hour
Power rating
kW@230V
Dimensions
W x D x H
(mm)
Zip Chilltap undersink, sink mounted tap
CH103 140 0.45 355 x 290 x 385
Chilled drinking water
Features and benefits
• Great tasting freshly filtered cool
drinking water for high usage and
public access areas.
• Heavy duty, easy-to-clean stainless
steel bowl and stainless steel case.
• Filter change reminder light signals
when filter cartridge replacement is
due.
• Filter cartridges are quick and simple
to change.
• Submicron filtration.
Storage capacity
Nominal 8 glasses.
Output capacity
140 glasses per hour at <10ºC.
Rating
0.3 kW @ 230V.
Chiller type
Fan cooled condenser with a compressor
rated at 0.25 hp.
Carafe filler
Chrome plated brass lever action tap with
swivel head.
Optional Taps
Bubbler or Push Button (see page 64).
Refrigerant type
R134A.
Case
Brushed finish stainless steel with front
access panel.
Filtration
0.2 micron filtration.
Drain connection 38mm or 43mm
diameter.
Approvals
WRAS, CE endorsed.
BREEAM compliance
The Zip Chillmaster is fully BREEAM
compliant when fitted with ZG500 fitting kit
(see page 65).
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Installation
Water, drainage and power should all be
available nearby.
The chiller should be mounted on a level
surface (levelling feet are provided).
The chiller must be installed with clearances
of 50 mm left, right and 65mm at rear
(except on wall mounted).
The optional kit ZG500, gives BREEAM
compliance by ensuring services are
protected from vandalism and the chiller
securely fixed to the wall and floor.
Wall mounted Chillmaster supplied with 1⁄2”
masonry anchors for use on solid walls only.
Plumbing
Water connections 15mm push-fit.
If water pressure is above 7 bar, a pressure
reducing valve (AQ3) should be used (see
page 84).
Electrical
To be wired to a double pole switched
fused spur with a minimum break capacity
of 13 amps. Installation must comply with
current IEE regulations.
56
Zip Chillmaster®
Floor standing and wall mounted chiller
Filtered drinking water
Chilled drinking water
57
Product Code Maximum chilled
glasses/hour
Power rating
kW@230V
Dimensions
W x D x H
(mm)
Zip Chillmaster, floor standing
CH101 140 0.45 350 x 350 x 915
Zip Chillmaster, wall mounted
CH102 140 0.45 353 x 248 x 369
Chilled drinking water
58

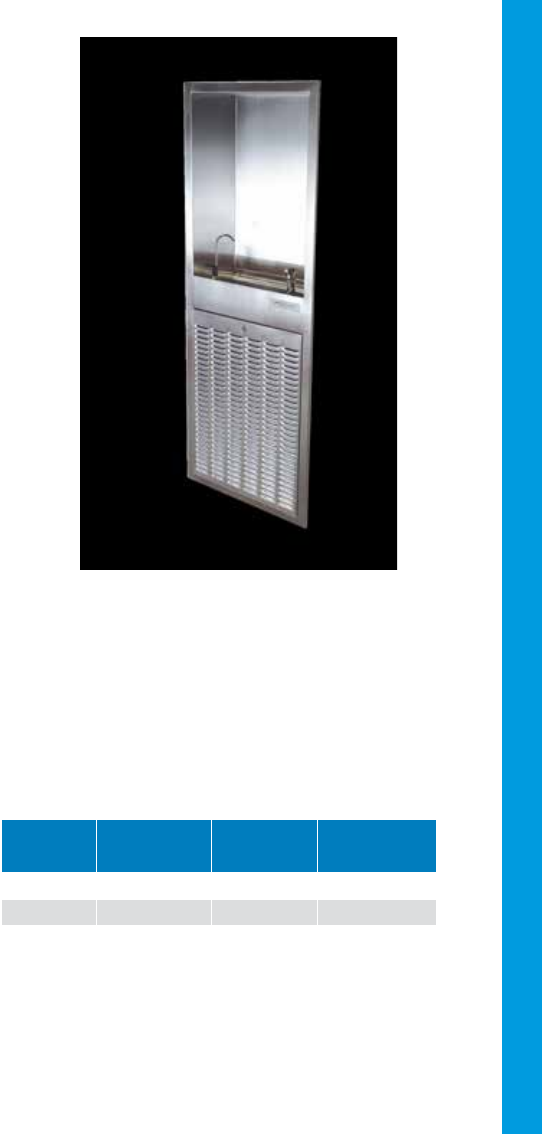

Zip Wall Fountain®
Recessed chiller
Filtered drinking water
Features and benefits
• Recessed chiller ideal for providing
chilled filtered water where space is
at a premium.
• Perfect for installing in busy
corridors.
• 0.2 micron filtration.
Storage capacity
Nominal 8 glasses.
Output capacity
Rated at 140 glasses per hour at <10ºC.
Rating
0.3 kW @ 230V.
Chiller type
Fan cooled condensor with a compressor
rated at 0.25 hp.
Refrigerant type
R134A.
Configuration
Equipped with carafe filler and bubbler.
Case
Brushed finish stainless steel with lockable
front access panel.
Filtration
Complete with 0.2 micron fully
encapsulated double action carbon filter.
Approvals
WRAS, CE endorsed.
BREEAM compliance
The Zip Wall Fountain is fully BREEAM
compliant when installed as per fitting
instructions.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Installation
The chiller should be recessed into a wall
where it is easy for users to access.
Water, drainage and power should all be
available nearby.
Integral, removable drip tray can be
plumbed into waste if required.
Plumbing
Water connections 15mm push-fit.
If water pressure is above 7 bar a pressure
reducing valve (AQ3) should be used (see
page 84).
Electrical
To be wired to a double fused switched
spur, with a minimum breal capacity of 13
amps. Installation must comply with current
IEE regulations.
Availability
Allow 12 week lead time.
Chilled drinking water
59
Product Code Maximum chilled
glasses/hour
Power rating
kW@230V
Dimensions
W x D x H
(mm)
Zip Wall Fountain
CH104 140 0.45 635 x 303 x 1670
Chilled drinking water
60

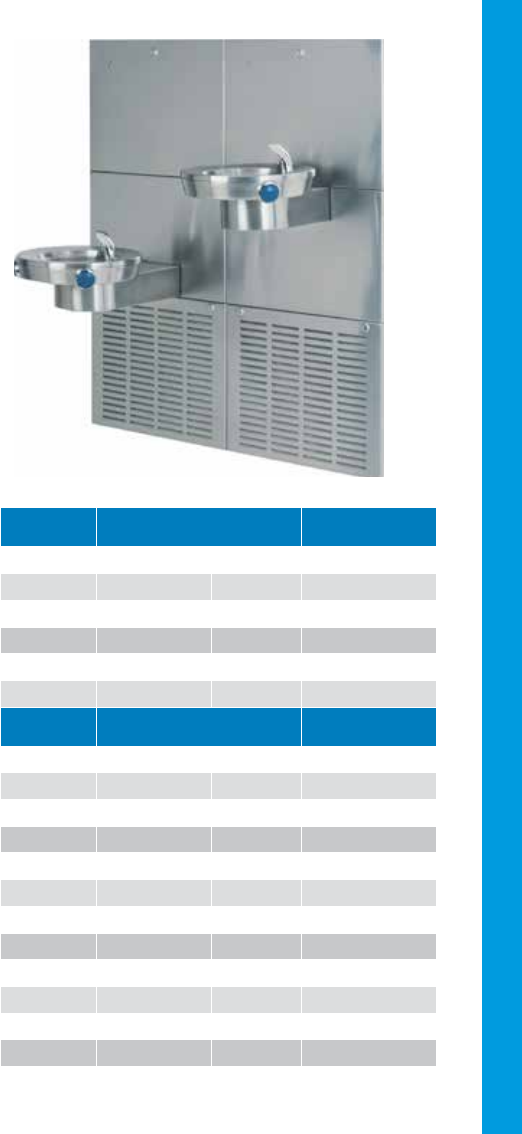

Zip Chill Fountain®
Wall mounted chiller
Filtered drinking water
Features and benefits
• The perfect heavy duty solution for
public areas where configurations for
adults, children or wheelchair access
may be necessary.
• Bump action electronic controls for
wheelchair usage and lockable front
panels.
• Heavy duty, easy-to-clean stainless
steel bowls and stainless steel case.
• Can be configured for adult, child or
wheelchair usage.
• 0.2 micron filtration.
Storage capacity
Nominal 8 glasses.
Output capacity
Rated at 140 glasses per hour at <10ºC.
Rating
0.3 kW @ 230V.
Refrigerant type
R134A.
Chiller type
Fan cooled condensor with a compressor
rated at 0.25 hp.
Configuration
Can be configured for adult, child or
wheelchair use or any combination of
these.
Case
Brushed finish stainless steel case with
lockable front access panel.
Filtration
Complete with submicron fully encapsulated
double action carbon filter.
Approvals
WRAS, CE endorsed.
BREEAM compliance
The Zip Chill Fountain is fully BREEAM
compliant when installed as per fitting
instructions.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Installation
The chiller should be wall mounted where it
is easy for users to access.
Water, drainage and power should all be
available nearby.
Integral, removable drip tray can be
plumbed into waste if required.
Plumbing
Water connections 15mm push-fit.
If water pressure is above 7 bar, a pressure
reducing valve (AQ3) should be used (see
page 84).
Electrical
To be wired to a double pole switched
fused spur with a minimum break capacity
of 13 amps. Installation must comply with
current IEE regulations.
Availability
Allow a 12 week lead time.
Chilled drinking water
61
Product Code Product type
Single bowl
Dimensions (mm)
W x D x H
Zip Chill Fountain - Adult
CH105 140 0.45 500 x 410 x 1140
Zip Chill Fountain - Child
CH145 140 0.45 500 x 410 x 1140
Zip Chill Fountain - Wheelchair
CH115 140 0.45 500 x 410 x 1140
Product Code Product type
Double bowl
Dimensions (mm)
W x D x H
Zip Chill Fountain - Adult / Adult
CH155 140 0.45 500 x 410 x 1140
Zip Chill Fountain - Child / Child
CH165 140 0.45 500 x 410 x 1140
Zip Chill Fountain - Wheelchair / Wheelchair
CH135 140 0.45 500 x 410 x 1140
Zip Chill Fountain - Adult / Child
CH125 140 0.45 500 x 410 x 1140
Zip Chill Fountain - Adult / Wheelchair
CH175 140 0.45 500 x 410 x 1140
Zip Chill Fountain - Child / Wheelchair
CH185 140 0.45 500 x 410 x 1140
Chilled drinking water
62
Delivery rate
Up to 18 glasses of chilled water at a time.
Rating
0.3 kW @ 230V AC.
Chilling system
Fan-cooled condenser type.
Refrigerant
R134A.
Tap head
Chrome plated, die cast tap body with push
and pull levers for electronically controlled
water delivery, integral LED indicators.
Disabled 0ption
Oversize lever taps.
Under counter unit
Houses chilled and filtration systems.
Corrosion resistant white enamelled steel
case, with front access door.
Control panel
Located on under counter unit to control
timer and water delivery.
Filtration system
Integral triple-action, 0.2 micron,
encapsulated cartridge.
Safety features
Undercounter safe tray with leak detector.
Approvals
CE endorsed.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Installation
The tap should be positioned either on
a suitable sink or on a Zip Tap Font. If
installing on a sink, the tap should be
mounted so that it will dispense into the
sink.
The undersink unit should be located
if possible directly beneath the tap and
not more than 1 metre away. It must be
installed with clearances of 50mm left and
right and 65mm at rear.
Plumbing
The water supply must be potable
(drinkable).
If static pressure exceeds 7 bar, a
pressure reducing valve must be fitted. An
isolating valve should be installed between
the water supply and the under-bench unit.
If water pressure is above 7 bar, a pressure
reducing valve (AQ3) should be used (see
page 84).
Venting
The cupboard containing the chilling unit
must be amply ventilated: cupboard doors
must be offset all round for ventilation,
using buffers provided and the vent fitted
(supplied).
Electrical
To be wired to a double pole switched
fused spur with a minimum break capacity
of 13 amps. Installation must comply with
current IEE regulations.
Energy Conservation
Programmable operation
• Integral 24 hour 7 day timer enables the chilled water unit to switch off automatically
during known periods of inactivity e.g. overnight or weekends but return to full functionality
ahead of the next expected demand.
Zip HydroTap
Chilled and chilled sparkling water for
the Home
Chilled drinking water
63
Tap mounted on sink Tap mounted on optional font and drain ZT008
Product
Code
Chilled
sparkling
water
Chilled
still water
Power rating
kW@230V
Dimensions
W x D x H
(mm)
HydroTap chilled
DOMC4 NO YES 0.13 280 x 389 x 335
HydroTap chilled and sparkling
DOMCS4 YES YES 0.30 280 x 389 x 335
Chilled drinking water
Under-counter Zip Command Centre
64
Chilled Water
For the Home
Features and benefits
• Fingertip control for filling glasses.
• Hands-free filling for large jugs and bottles.
• Superior 0.2 micron water filter.
• Filter change every 12 months.
Zip ChillTap Sparkling
• Chilled filtered water, instantly.
• Plus chilled filtered sparkling
water, instantly.
Zip Filter Tap
• Filtered cold (ambient) water.
Zip Font and Drain
• Allows siting away from the sink.
• Connects to waste.
Zip ChillTap Extra
• Chilled filtered water, instantly.
• Plus filtered cold (ambient) water.
Chilled drinking water
65
Product
Code
Sparkling
water
Chilled
still water
Ambient
water
Power rating
kW@230V
Dimensions
W x D x H
(mm)
ChillTap Sparkling
DOMCTS YES YES NO 0.245 354 x 248 x 369
ChillTap Extra
DOMCT1 NO YES YES 0.245 353 x 253 x 377
ChillTap
DOMCT2 NO YES NO 0.245 353 x 253 x 377
Filter Tap
DOMFT1 NO NO YES - -
Chilled drinking water
66
Chilled water
Accessories

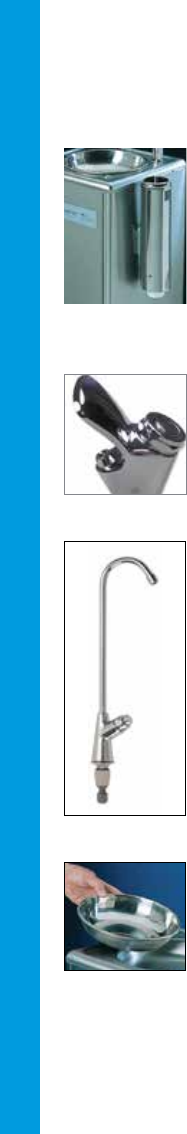

ZE001
Stainless steel dispenser for
disposable cups.
ZI001
Optional drinking bubbler.
ZD003
Waste water dish for installation where drainage is not available.
ZI002
Optional Tap for Chillmaster with push
button dispense.
Chilled drinking water - Accessories
67
Chilled water
Accessories

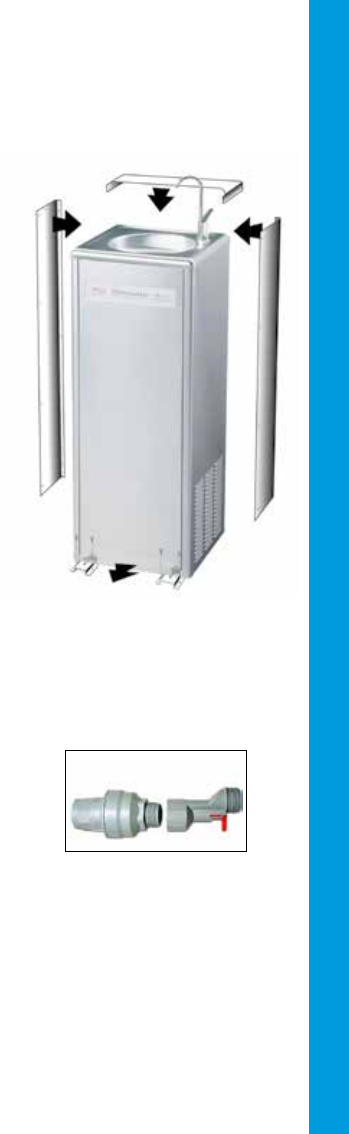

BREEAM
(BRE Environmental Assessment
Method) sets the standard for best
practice in sustainable design and
has become the de facto measure
used to describe a building’s
environmental performance.
The BREEAM Health and Well
Being credit HEA16 (drinking
water) requires chillers to be
installed in compliance with
industry standard.
ZG500 (right) enables the Zip
Chillmaster to fully comply with
these requirements.
Zip Water Block
HE45004
Recommended to be fitted in the
water supply line to all Zip chilled
products (except HydroTap) to
minimise the potential damage in
the event of leakage.
Chilled drinking water - Accessories
Hot water
Zip offers one of the widest and most sophisticated
ranges available in the UK
Instantaneous
• No standing heat loss, only heats water as required.
• Unlimited supply of hot water - subject to conditions and demand.
• Electronic temperature control automatically compensates for
fluctuations in incoming water temperature and pressure.
Choose from:
ES; 2.8, 4.4 & 6.6kW (see pages 70-73).
CEX; 6.6 & 8.8kW (see pages 74-75).
DEX, DEX12 & DBX 18, 21, 24 & 27kW (see pages 76-77).
Unvented
• Fed directly from cold water mains.
• Quicker to install with no need for cold water storage cistern.
• Balanced hot and cold water supplies.
• High performance showering and faster filling baths.
• No special taps needed.
Choose from:
Aquapoint, 5 to 100 litres (see pages 80-81 & 86-87).
Varipoint, 10 to 100 litres (see pages 82-83 & 88-89).
AquaFlo, 90 to 300 litres (see pages 90-93).
Open Vented
• Easy to install.
• Single point of use.
• Overbasin and underbasin variants.
• Overbasin includes spout and valve.
• Underbasin requires vented taps.
Choose from:
Tudor, 5 & 10 litres (see pages 94-95).
Contract, 5 & 10 litres (see pages 96-97).
Cistern Fed Storage
• Can serve multiple outlets.
• Can be installed in ceiling voids.
• Reliable, ‘fit and forget’ solution.
Choose from:
RCH, 25 to 100 litres (see pages 98-99).
68
Overview
Energy-efficient water heaters
69
Hot water
Why Zip InLine
instantaneous water
heating?
Zip InLine instantaneous water heaters are
the most energy efficient way of directly
heating water electrically.
Using the very latest German technology,
Zip InLine offers a host of Specifier, Installer
and End User benefits:
• Unrivalled energy efficiency
- no standing heat loss.
• Sophisticated electronic control.
• Unlimited hot water supply.
• Easy to install.
• Compatible with standard tapware.
• Neat compact design.
• Tangible water savings.
Energy efficiency
Zip InLine saves energy by:
• Heating only the water drawn off.
• Avoiding stored water heat losses.
When comparing the energy used over 24
hrs to deliver 75 litres of water at 38°C
(assuming 12°C supply) typical savings of
23% can be achieved.
N.B. Percentage savings may be less with
increased demand but more during periods
without draw off.
70
Zip InLine
instantaneous water heating
The inside story
Product Energy Usage
15 litre storage water heater 3.0kWh
Zip InLine 2.3kWh
Hot water

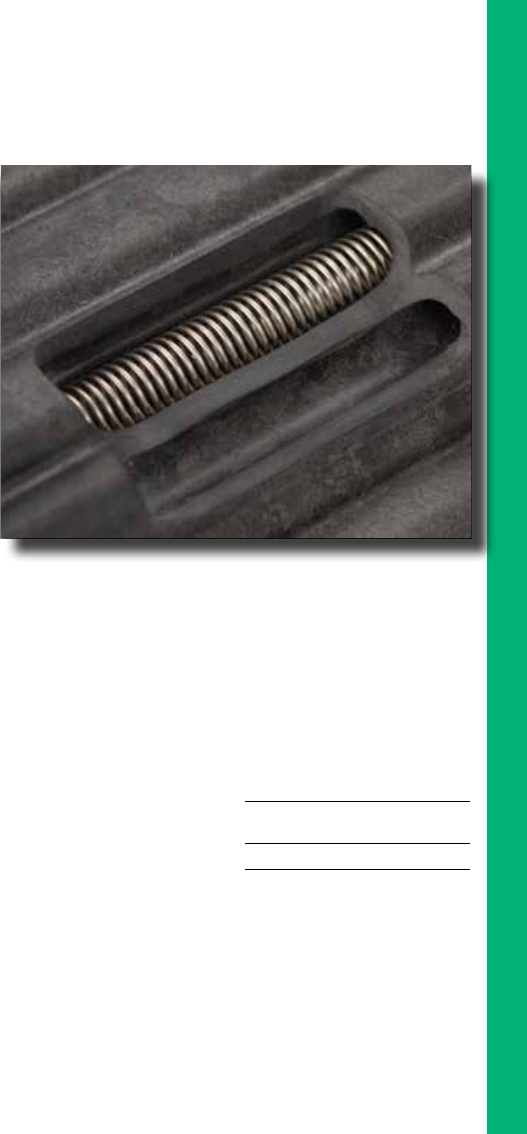

Bare wire technology
The Zip ES, CEX, DEX and DBX models
feature bare wire heating technology using
stainless steel elements directly immersed
in the water flow path.This system achieves
maximum efficiency by means of direct
contact with the water flow plus the fastest
possible heat up times.
Unlimited supply of hot water
* Zip InLine will deliver a continuous supply at
the selected temperature.
Easy installation
Zip InLine products simply connect to
standard closed outlet taps without the need
for unvented water controls.
Smart design
The unit’s compact size enables it to fit
neatly and unobtrusively in any location.
Water conservation
Zip InLine is designed for installation close
to the point of use, avoiding the need
for water to be run off before achieving
temperature.
Savings per draw off compared to
centralised systems with long pipe runs are
as follows:
71
Traditional system Litres saved
pipe run 15mm per draw off
10 metres 3.2
* Subject to sufficient power being available to achieve the required
temperature and outlet flow under local conditions.
Hot water

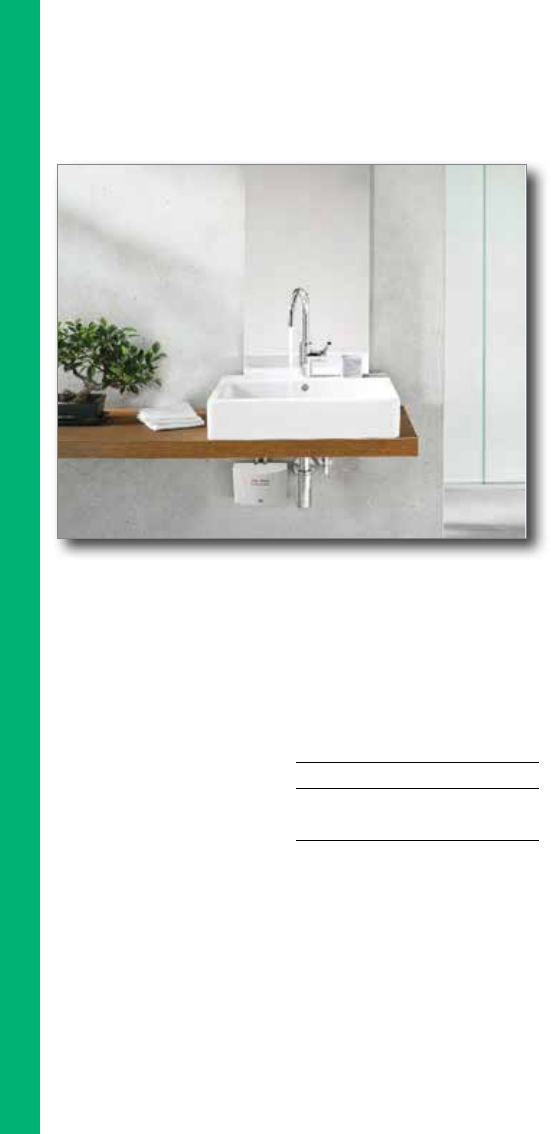

Zip InLine ES®
Electronic instantaneous
water heater
Single outlet for hand washing
72
Features and benefits
• Compact electronically controlled
instantaneous water heater for hand
washing.
• Bare-wire for fast heat up.
• Innovatively designed appliance that
heats the water automatically as it
flows through.
• No standing heat losses.
• Heating power automatically adjusted
to compensate for variable inlet
pressure and temperature.
• Supplied with 700mm of pre-wired
cable.
• Outlet temperature factory set to
38°C, but can be installer adjusted
between 30°C to 43°C.
• Intended for use with taps having
removable M22/M24 nozzles.
• External flow regulation.
• Easier servicing.
• Easy to install with re-designed,
improved wall bracket.
Operation
Heating power is switched on automatically
once the minimum flow rate is exceeded.
Rating
ES3 2.8kW @230V
ES4 4.4kW @230V
ES6 5.5kW @230V
Heating system
Bare-wire heating system for fast response.
Safety feature
Water temperature electronically controlled
to maintain factory setting of 38°C.
Temperature setting
Temperature and flow adjustable at time of
installation.
IP rating
IP 25.
Product Selection
Instantaneous water heating is the most
efficient available, however, delivered
water temperature is dependent on local
incoming water temperature and supply
voltage. Quoted performance assumes
12°C incoming water temperature and
230V supply.
Case
Impact resistant plastic.
Approvals
WRAS, VDE, CE endorsed.
Taps - Important.
For correct operation, it is
essential that the special
tap nozzle supplied is
fitted to the tap spout.
Nozzles supplied to suit
M22/24 taps should be used.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Location
The appliance must be installed in a frost
free environment.
Plumbing
The appliance is intended for connection
to the mains water supply. It should be
installed by a suitably qualified person. The
appliance may be used as an unvented or
vented installation. N.B. Not recommended
for use with thermostatic mixing valves
or taps.
Electrical
The appliance must be earthed and
connected to the supply by means of
permanent wiring through suitable isolation
having a contact separation of at least 3mm
in all poles. Installation must comply with
current IEE regulations.
Hot water
73
Product
Code
Product Power
rating
kW@230V
*38OC Max
Flow rate
ltrs/min
Dimensions
W x D x H
(mm)
ES3 Zip InLine instantaneous 2.8 1.5 187 x 80 x 132
ES4 Zip InLine instantaneous 4.4 2.4 187 x 80 x 132
ES6 Zip InLine instantaneous 5.5 3.0 187 x 80 x 132
Hot water
T Technical Data echnical Data
Maximum temperature increase @230V and
a flow rate of:
ES3 ES4 ES6
2.0 litres/min 20K31K 39K
2.5 litres/min 16K25K31K
3.0 litres/min 13K21K26K
3.5 litres/min 11K18K22K
4.0 litres/min 10K16K20K
Switch on flow rate (l/min) 1.2 1.5 1.5
Switch off flow rate (l/min) 1.0 1.3 1.3
74

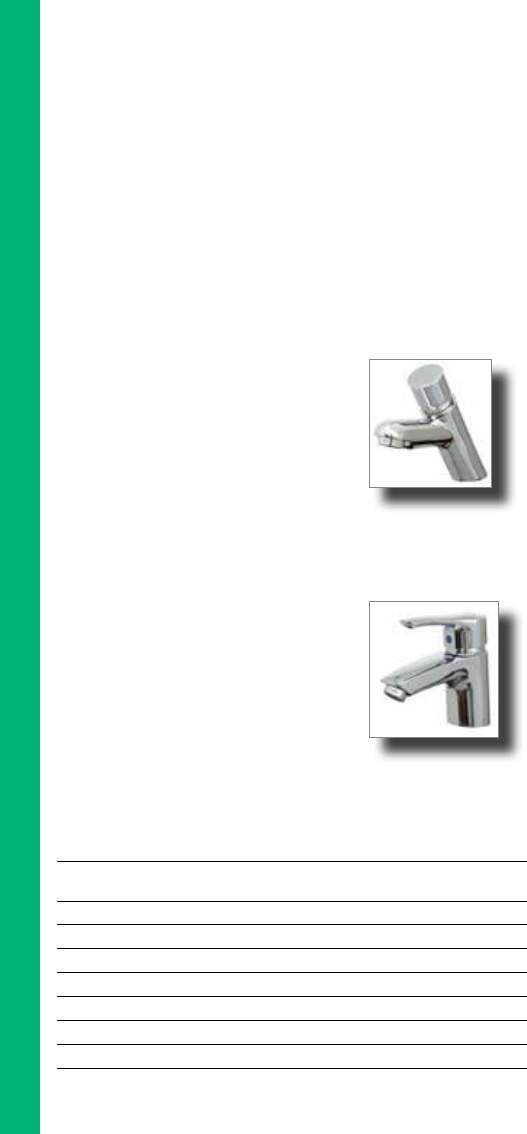

Zip InLine ES®
Instantaneous hand wash packs –
complete with heater, tap & fittings
These new packs provide the installer with the
ES heater, compatible tap and a comprehensive
plumbing kit including flexible hoses and fittings to
ensure quick and easy system installation.
The packs are offered in a choice of 3 power ratings
with non-concussive or mixer tap.
Non-concussive (NC) pack:
• ES instantaneous water heater.
• Non-concussive single outlet tap.
• 50cm flexible hose for connection to heater.
• 50cm flexible hose for connection to tap.
(Isolating valve NOT supplied).
Mixer Tap (MT) pack:
• ES instantaneous water heater.
• Single lever mixer tap complete with braided hoses.
• 50cm braided hose for connection to heater.
• Flow rate adjuster for cold supply to tap.
• Non-return valve for hot supply to tap.
• Tee piece connector.
(Isolating valve NOT supplied).
Approvals
WRAS, VDE, CE endorsed.
Product Tap Type Rating 38˚C Max Flow Rate
Code kW @ 230V ltrs/min
ES3/NC Non-concussive 2.8 1.5
ES4/NC Non-concussive 4.4 2.4
ES6/NC Non-concussive 5.5 3.0
ES3/MT Single lever mixer 2.8 1.5
ES4/MT Single lever mixer 4.4 2.4
ES6/MT Single lever mixer 5.5 3.0
ZL018 Matching non-concussive cold tap
Optional matching cold taps
available
Hot water
75

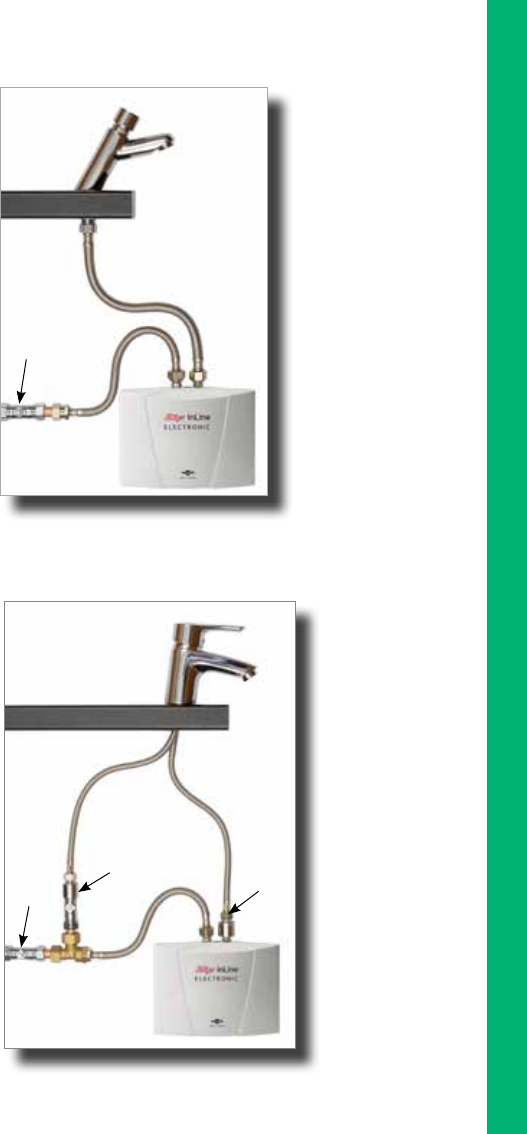

NC Pack (non-concussive tap)
MT Pack (mixer tap)
Isolating
valve
Isolating
valve
Flow rate
adjuster Non
return
valve
Hot water
76
Zip InLine CEX®
Over and Undersink Electronic
Instantaneous Water Heaters for
Single or Multiple Outlets
* Subject to a minimum water pressure of 2 bar and maximum of 10 bar
Features and benefits
• The most energy efficient way
of heating water electrically.
• Highly efficient bare wire heating
system.
• Zero standing heat loss as no stored
water.
• Instant hot water.
• Provides a constant* supply of hot
water at exactly the temperature
selected.
• Heating power adjusted electronically
to compensate for variable inlet
pressures and temperatures.
• Required temperature can be set
using two touch sensitive keys within
the range 30°C to 55°C with digital
display.
• Maintains precise temperature
control despite fluctuations in
voltage and water pressure.
• Suitable for use with preheated water
from solar systems.
• Power rating can be selected at time
of installation.
• Optional wireless control (ZL016).
• CEX-O for oversink CEX-U
for undersink installation.
Ratings
6.6kW/8.8kW. Selected at installation.
Heating System
Bare-wire system.
IP Rating
Oversink IP25 Undersink IP24
Suitable for Zone 1.
Approvals
WRAS, VDE & CE endorsed.
Warranty
1 year on site parts and labour. For full
details visit: www.zipheaters.co.uk/warranty
Location
The appliance must be installed in a frost
free environment.
In order to minimise thermal losses the
distance between the appliance and the
outlet fitting should be as short as possible.
Plumbing
The appliance is intended for connection to
a mains potable water supply. The specific
water resistance of the supply must not
fall below the minimum specified on the
rating plate.
Minimum flow rate 2 litres/min.
Should be installed by a suitably qualified
installer of electric instantaneous water
heaters.
Electrics
The appliance must be earthed and to
connected to the supply by means of
permanent wiring through an isolation switch
having a contact separation of at least 3mm
on all poles and protected by a suitably
rated circuit breaker.
The cross sectional area of the connection
cable must be in accordance with the power
rating of the appliance.
The installation must be in accordance with
current IEE regulations.
Hot water
77
Product
Code
Power
rating
kW@230V
50OC Max
Flow rate
ltrs/min
38OC Max
Flow rate
ltrs/min
Temperature
setting
range
(oC)
Dimensions
W x D x H
(mm)
CEX-O 6.6 - 8.8 2.5 - 3.3 1.5 30 - 55 177 x 108 x 294
CEX-U 6.6 - 8.8 2.5 - 3.3 2.4 30 - 55 177 x 108 x 294
Technical Data
Maximum temperature increase @230V and a flow rate of:
3.0 litres/min 31K- 42K
3.0 litres/min 24K- 31K
3.0 litres/min 19K- 25K
3.0 litres/min 16K- 21K
Switch on flow rate (l/min) 2.0
Hot water

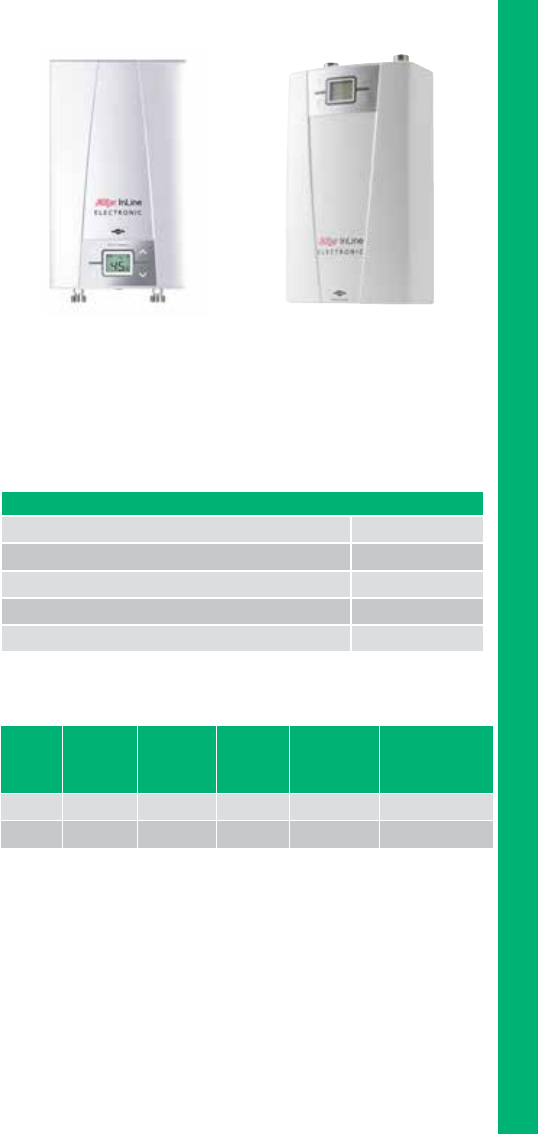

CEX-O CEX-U
78
Zip InLine® DEX, DEX12 & DBX
Electronic Instantaneous Water
Heaters for Single or Multiple Outlets
Features and benefits
All models
• The most energy efficient way
of directly heating water electrically.
• Highly efficient bare wire heating
system.
• Zero standing heat loss as no stored
water.
• Instant hot water.
• Provides a constant* supply of hot
water at exactly the temperature
selected.
• Heating power adjusted electronically
to compensate for variable inlet
pressures and temperatures.
• Maintains precise temperature
control despite fluctuations in
voltage and water pressure.
• Optional remote control temperature
selection (using ZL017).
DBX:
Outlet temperature set to 50°C adjustable
inside the appliance from 30°C to 60°C.
DEX:
If required, two temperature settings can
be set using the touch sensitive keys
within the range 20°C to 60°C. (20°C to
55°C for DEX12) with digital display of the
selected temperature.
Suitable for use with preheated water from
solar systems (not DEX12).
Power rating can be selected at time of
installation.
Ratings
DEX12 8.8-11kW (adjustable)
DEX 18-27kW (adjustable)
DBX 18kW, 21kW, 24kW & 27kW.
Heating System
Bare-wire system.
IP Rating
IP 25 - Suitable for Zone 1
Approvals
WRAS, VDE & CE endorsed.
Warranty
1 year on site parts and labour. For full
details visit: www.zipheaters.co.uk/warranty
Location
The appliance must be installed in a frost
free environment.
In order to minimise distribution losses the
distance between the appliance and the
outlet fitting should be as short as possible
(less than 2m).
Plumbing
The appliance is intended for connection to
a mains potable water supply. The specific
water resistance of the supply must not
fall below the minimum specified on the
rating plate.
Minimum flow requirements:
2 litres/min.
Should be installed by a suitably qualified
person.
N.B. Not recommended for use with
thermostatic mixing valves or taps.
Electrical
The appliance must be earthed and
connected to the supply by means of
permanent wiring through an isolation
switch having a contact separation of at
least 3mm on all poles and protected by a
suitably rated circuit breaker.
The cross sectional area of the connection
cable must be in accordance with the power
rating of the appliance.
The installation must be in accordance with
current IEE regulations.
* Subject to a minimum water pressure of 2 bar and maximum of 10 bar
Hot water
79
Product
Code
Power rating kW 500C Max
Flow rate
ltrs/min
38OC Max
Flow rate
ltrs/min
Dimensions
W x D x H
(mm)
DEX12 8.8 - 11.0* 3.3 - 4.1 4.8 - 6.1 231 x 97 x 466
DEX 18.0** - 27.0*** 6.8 9.8 231 x 97 x 466
DBX18 18.0** 6.8 9.8 231 x 97 x 466
DBX21 21.0** 7.9 11.4 231 x 97 x 466
DBX24 24.0** 9.0 13.0 231 x 97 x 466
DBX27 27.0*** 10.2 14.8 231 x 97 x 466
* 1/N/PE 230V ** 3/PE 280-4150V *** 3/PE 400V
mixed with cold water at the tap
DEX12 DEX DBX18 DBX21 DBX24 DBX27
Temperature adjustment range
7.5ºC- 55ºC 20ºC- 60ºC 30ºC- 60ºC
Maximum inlet temperature
25ºC 70ºC 30ºC
Maximum flow rate (litres/min)
5.0 8.0 7.0 8.0 8.0 9.0
Pressure loss @ 2.5 l/min
0.2 bar
Pressure loss @ 9.0 l/min
1.3 bar
Hot water
DBX DEX
Zip InLine
Instantaneous water heating

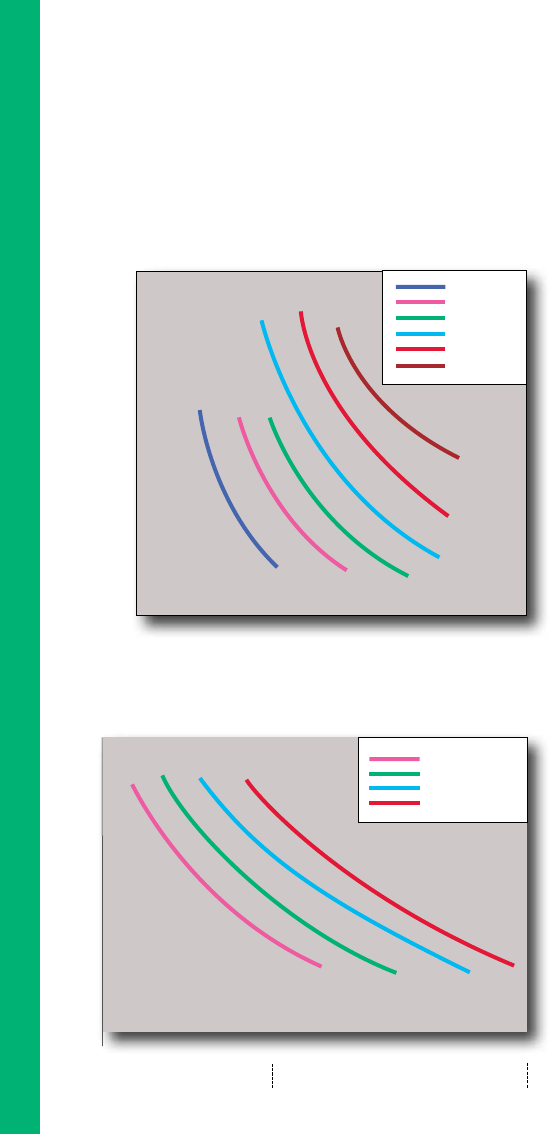

Instantaneous flow and temperature rise chart
80
65
60
55
50
45
40
35
30
5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0
Flow Rate (l/min) mixed with cold water at the outlet
Delivered Temp (˚C) with 12˚C ambient
Delivered Temp (˚C) with 12˚C ambient
Single Phase
Three Phase
DEX/DBX (18kW)
DEX/DBX (21kW)
DEX/DBX (24kW)
DEX/DBX (27kW)
60
55
50
45
40
35
30
25
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0
Flow Rate (l/min)
ES3
ES4
ES6
CEX (6.6kW)
CEX (8.8kW)
DEX12
Hot water
81

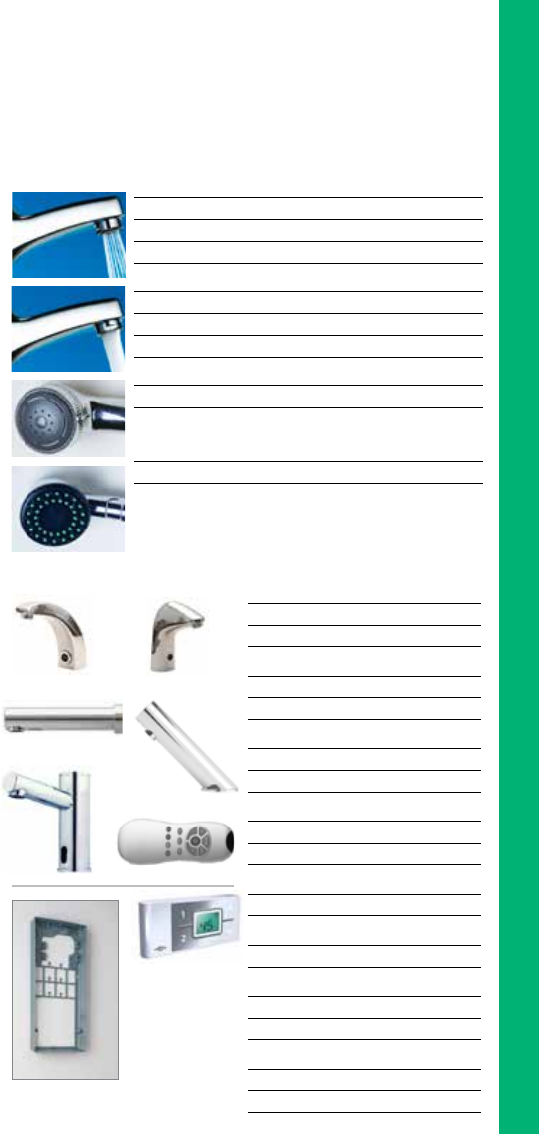

Zip InLine
Accessories
Optimum performance
For the best results from the Zip InLine products the following tap
spray nozzles, handsets and remote control should be used.
Touch-free taps for use with Zip InLine
Tap spray nozzle
Code Type Flow rates
ZL002 22mm female thread 2.0 litres/min
ZL003 24mm male thread 2.0 litres/min
Tap aerator nozzle
ZL008 15mm insert 3.5 litres/min (ES6)
ZL004 22mm female thread 3.5 litres/min
ZL005 24mm male thread 3.5 litres/min
Shower hand set
ZL006 Fixed pattern 4.0 litres/min
Shower hand set
ZL007 4 mode adjustable 4.0 litres/min
1 Long reach basin/sink tap
TF001—Mains powered
TF002—Battery powered
2 Standard reach basin/sink tap
TF003—Mains powered
TF004—Battery powered
3 Tubular wall mounted tap
TF005—Battery powered
TF006—Mains powered
4 Tubular deck mounted tap
TF007—Battery powered
TF008—Mains powered
5 Pillar tap
TF009—Dual powered
6 Remote control
TF100 for 3, 4 & 5
7 Remote control
ZL016 for CEX
ZL017 for DEX
8 Installation Frame
ZL020 for DEX & DBX
3
8
1 2
5
4
7
6
Hot water
82

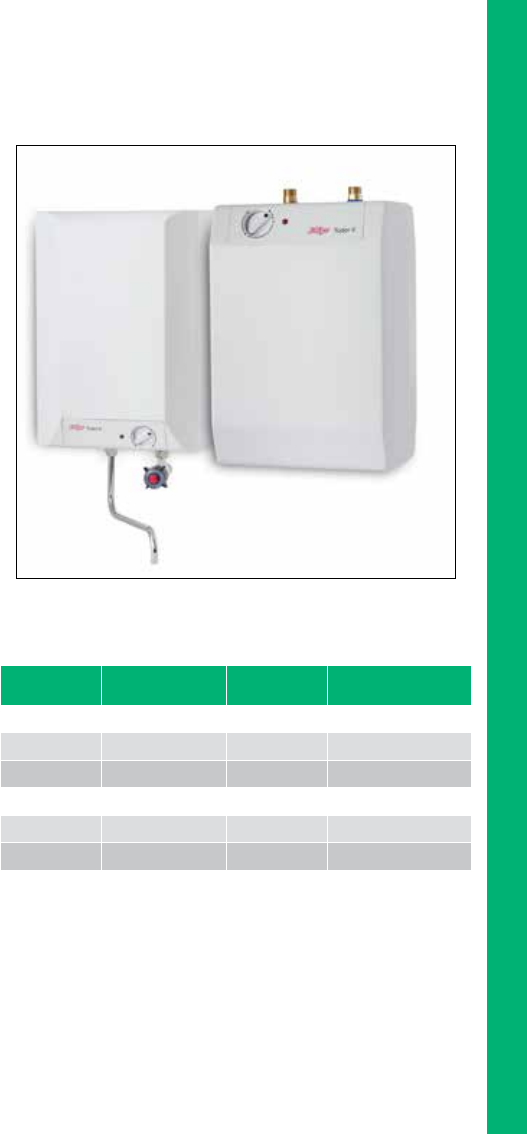

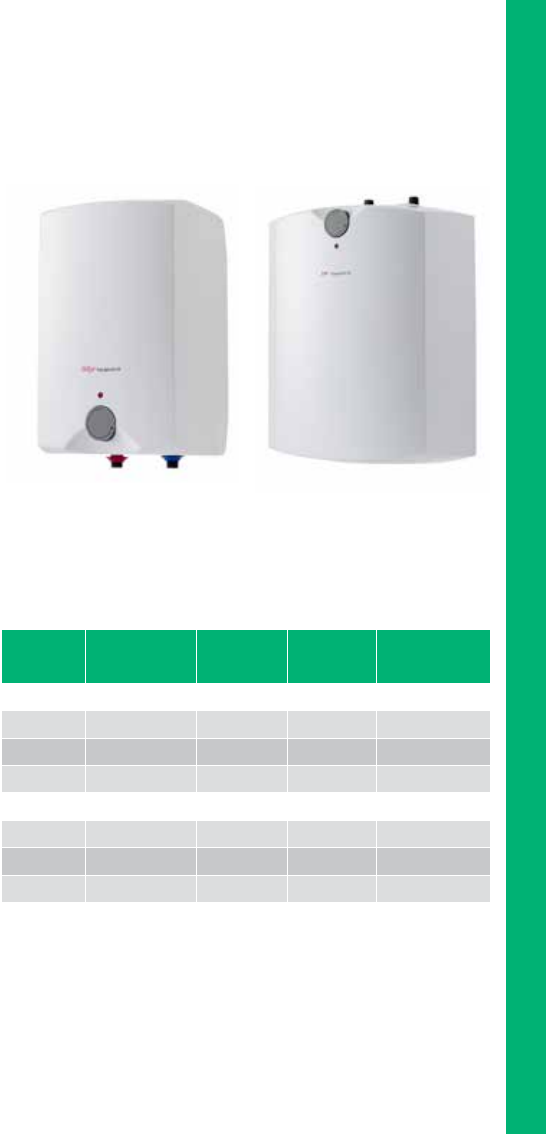

Zip Aquapoint III®
Unvented water heater
Single or multiple outlets
5, 10, 15 litre
Undersink and Oversink
Safety features
Manually resettable over temperature safety
cutout.
Expansion relief valve (supplied) set at 6
bar.
Sacrificial anode for added protection
for element and tank in aggressive water
conditions, requiring regular inspection and
replacement when necessary.
Installation
Separate models available for oversink and
undersink installation.
All models can be wall mounted.
Undersink units can be installed
unsupported on the floor if required.
All models can supply one outlet or multiple
outlets, subject to capacity, without the
need for special taps.
Plumbing
Water connections 1⁄2” BSP
Expansion relief valve (supplied) set at
6bar. Should be installed only by a suitably
experienced installer of unvented electric
storage water heaters.
Oversink and undersink models not
interchangeable.
Electrical
To be wired to a double pole switched
fused spur with a minimum break capacity
of 13 amps. Installation must comply with
current IEE regulations.
Supplied with 1 metre of pre-wired cable.
Features and benefits
• Glass lines steel inner container
tested to 12 bar
• Sacrificial anode for protection
against corrosion.
• Element ‘ON’ neon indicator.
• External temperature control with
frost protection.
• Oversink and Undersink versions
available. 5, 10 & 15 litre.
Capacities
5 litre, 10 litre, 15 litre.
Rating
2.0 kW @ 230V.
Heating element
Embedded rod type.
Thermostat
Capillary type adjustable from 7ºC to 75ºC.
Water tank
1.8 mm glass enamelled steel tested to
12 bar.
Case
High impact resistant white plastic.
Insulation
High density, CFC-free polyurethane foam.
IP rating
24.
Approvals
WRAS, CE endorsed.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Hot water
83
Product
Code
Power rating
kW@230V
Capacity
Litres
Thermal
Loss
kWh/day
Dimensions
W x D x H
(mm)
Zip Aquapoint II Oversink
AP3/05/OB 2.0 5.0 0.35 256 x 260 x 376
AP3/10/OB 2.0 10.0 0.48 350 x 265 x 480
AP3/15/OB 2.0 15.0 0.62 350 x 310 x 480
Zip Aquapoint II Undersink
AP3/05 2.0 5.0 0.35 256 x 260 x 376
AP3/10 2.0 10.0 0.48 350 x 265 x 480
AP3/15 2.0 15.0 0.62 350 x 310 x 480
Hot water
Oversink Undersink
84

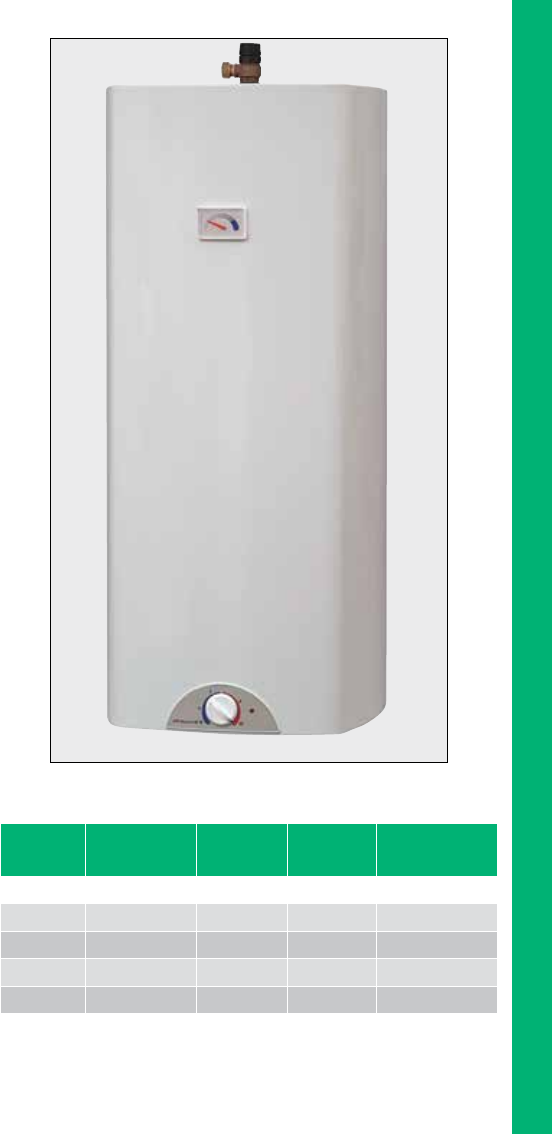

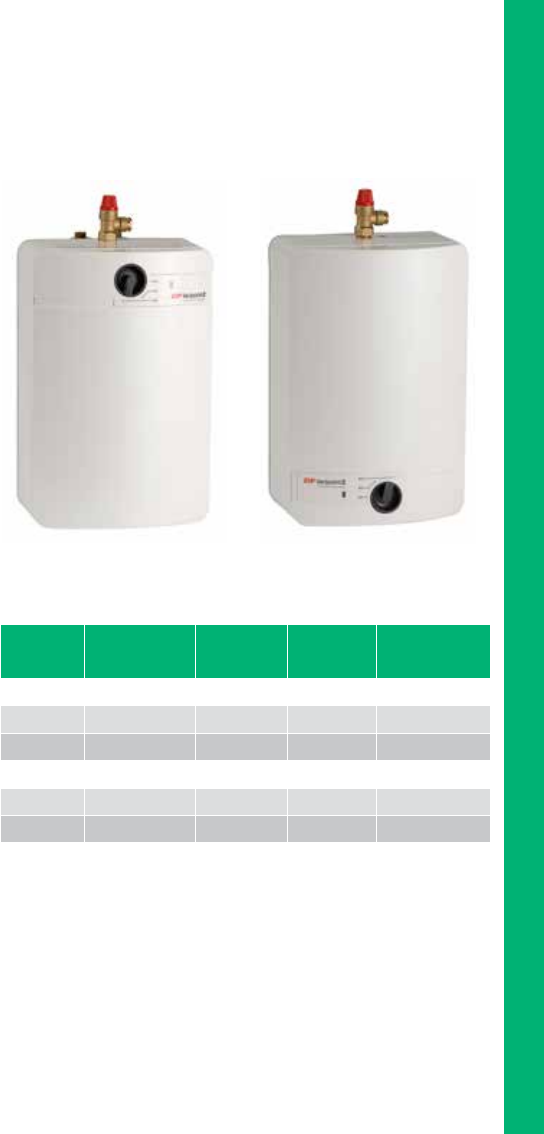

Zip Varipoint II®
Unvented water heater
Single or multiple outlets
10, 15 litre
Undersink & oversink
Safety features
Manually resettable over temperature
cut-out
Pressure and temperature relief valve
supplied.
Expansion relief valve supplied, set at 6 bar.
Frost protection setting.
Installation
Separate models available for oversink and
undersink installation.
All models can supply one or more outlets.
No special taps required.
Undersink is floor standing or wall hung on
bracket (supplied).
Oversink is wall hung, on bracket (supplied).
Plumbing
Water connections 1⁄2” BSP.
Pressure and temperature relief valve
(supplied) should be fitted to heater.
Pressure relief valve (supplied) to be fitted in
cold water supply.
Should be installed only by a suitably
experienced installer of unvented electric
storage water heaters.
Oversink and undersink models not
interchangeable.
Electrical
To be wired to a double pole switched fused
spur with a minimum break capacity of 13
amps. Installation must comply with current
IEE regulations.
Supplied with 1 metre of pre-wired cable.
Features and benefits
• Heavy guage copper inner container
tested to 16 bar.
• Five year warranty on inner
container, two years on controls.
• Does not require an anode or regular
inspection.Supplied with temperature
and pressure relief valve.
• Oversink and undersink versions
available 10 litre or 15 litre.
• External temperature control with
frost protection setting.
• Element ‘ON’ neon indicator.
• Supplied complete with wall
mounting bracket.
Capacities
10 litre, 15 litre.
Rating
2.2 kW @ 230V.
Heating element
Embedded rod type.
Thermostat
Capillary type adjustable up
to 75ºC.
Water tank
Heavy gauge copper, pressure tested to
16 bar.
Case
High impact resistant white plastic.
Insulation
High density, CFC-free polyurethane foam.
IP rating
24.
Approvals
WRAS, CE endorsed.
Warranty
Five year on site parts and labour warranty
on inner container, two years on controls.
For full details of the Zip Warranty Scheme
visit: www.zipheaters.co.uk/warranty
Hot water
85
Product
Code
Power rating
kW@230V
Capacity
Litres
Thermal
Loss
kWh/day
Dimensions
W x D x H
(mm)
Zip Varipoint II Oversink
VP103 2.2 10.0 0.36 300 x 285 x 452
VP153 2.2 15.0 0.50 300 x 285 x 452
Zip Varipoint II Undersink
VP103UB 2.2 10.0 0.41 300 x 285 x 452
VP153UB 2.2 15.0 0.58 300 x 285 x 452
Hot water
Underrsink Oversink
AQ2
Expansion vessel
and check valve
(3.5 bar)
AQ3
Combined pressure
reducer (set at 3.5
bar) and line strainer
AQ1
Pressure and temperature relief valve (7 bar/90ºC).
Provides additional levels of safety when fitted to water
heater as shown in Diagram D.
Note: Varipoint supplied complete with AQ1.
Order AQ1 separately for use with Aquapoint.
AQ4 TMV2
Thermostatic blending valve complete with 2 check valves. (Set temp range
30º to 65ºC).
AQ4S TMV3
NHS Approved Thermostatic Blending Valve complete with 2 check valves.
(Set temp range 30º to 50ºC).
These blending valves provide over temperature protection and are also
ideal for extending system capacity.
Zip Accessories
Unvented water heating
5, 10 & 15 litre capacity
Varipoint & Aquapoint

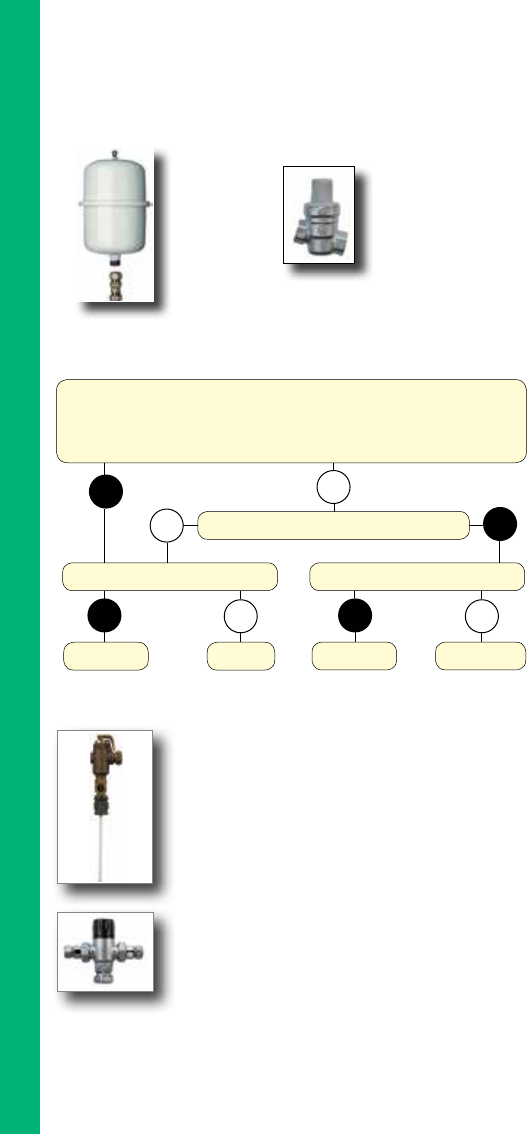

Unvented Accessory Selection
Additional Accessories
86
YES
NO
NO
NO
NO
Will the pipework accommodate expanded water without hot water entering any supply
pipe connected to a cold water draw-off? (See diagram A opposite and note minimum
pipe lengths). If expansion in the cold water main is restricted, e.g. by a valve or meter,
an expansion vessel and other relevant accessories MUST be fitted.
Is reverse flow prevented, e.g. by a valve or meter?
Is the mains pressure 4.0 bar or less?
NOT REQUIRED
Fit AQ2 + AQ3
Is the mains pressure 4.0 bar or less?
Fit AQ2Fit AQ2 + AQ3
AQ4
AQ1
YES
YES YES
Hot water
87
Zip Accessories
Unvented water heating
5, 10 & 15 litre capacity

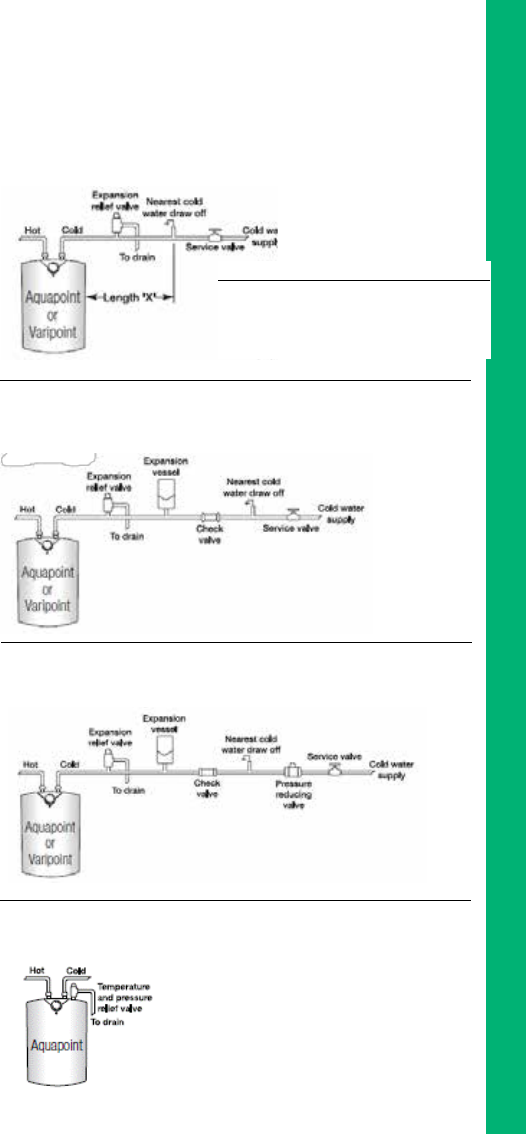

Diagram B
Inlet pressure less than 4 bar but expanded hot water cannot be accommodated in the pipe
work. (Install AQ2 expansion vessel and check valve).
Diagram C
Inlet pressure greater than 4 bar. (Install AQ2 expansion vessel and check valve with AQ3
pressure reducer).
Diagram A
Inlet pressure less than 4 bar and expanded hot water can be accommodated in the pipe work.
Hot water
Diagram D
Temperature and pressure relief valve (AQ1)
Minimum length of pipe – Length ‘A’
Capacity 15mm pipe 22mm pipe
5 litres 1.37m 0.6m
10 litres 2.7m 1.2m
15 litres 4.2m 1.8m
88
Zip Aquapoint III®
Unvented water heater
Multiple outlet 30, 50, 80 & 100 litre
Approvals
WRAS, CE endorsed.
Safety features
Manually resettable safety cutout.
Heater protected against freezing while
power switched on.
Factory fitted pressure and temperature
relief valve designed to operate at 7 bar
and 90ºC.
Expansion relief valve set to operate at
6 bar.
Installation
For installation by a qualified installer in
accordance with all national and local
Building Regulations.
Intended for wallmounting – please ensure
that the wall and fixings are strong enough
to take the weight of the water heater
when full.
Plumbing
Water connections 1⁄2” BSP.
Minimum recommended water pressure
1 bar.
Unit supplied with full installation kit
comprising: expansion vessel, pressure
reducing valve, balanced take off, expansion
relief valve (6 bar), line strainer, tundish and
wall brackets.
P&T and expansion relief valves require
plumbing to waste in accordance with water
authority bylaws.
Sacrificial anode for added protection for
element and inner container in aggressive
water conditions – requires regular
inspection and replacement when
necessary.
Electrical
To be wired to a double pole switched fused
spur with a minimum break capacity of 13
amps. Installation must comply with current
IEE regulations.
Element can be changed without draining
down.
Features and benefits
• Glass lined steel inner container
tested to 13 bar.
• Sacrificial anode for protection
against corrosion.
• Element ‘ON’ neon indicator.
• External temperature control with
frost protection.
• High performance foam insulation.
• Factory fitted P&T valve.
• Element replacement can be carried
out without draining.
Accessories (supplied)
Pressure reducing valve set to 3.5 bar and
line strainer.
Expansion relief and single check valve set
to 6 bar.
Pressure and temperature relief valve set to
7 bar and 90ºC.
External expansion vessel pre-charged to
3.5 bar.
Tundish and wall brackets.
Capacities
30 litre, 50 litre, 80 litre, 100 litre.
Rating
3.0 kW @ 230V.
Heating element
Dry pocketed tubular.
Thermostat
Capillary type adjustable
20ºC to 75ºC.
Inner container
1.8mm glass enamelled steel tested to
13 bar.
Case
Corrosion resistant white enamelled steel.
Insulation
High density, CFC-free polyurethane foam.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Hot water
89
Product
Code
Capacity
Litres
Weight
Full (kg)
Thermal
Loss
kWh/day
Dimensions
W x D x H
(mm)
Zip Aquapoint II
AP3/30 30.0 49 0.65 420 x 445 x 525
AP3/50 50.0 74 0.68 420 x 445 x 690
AP3/80 80.0 108 0.94 420 x 445 x 950
AP3/100 100.0 131 1.10 420 x 445 x 1125
Hot water

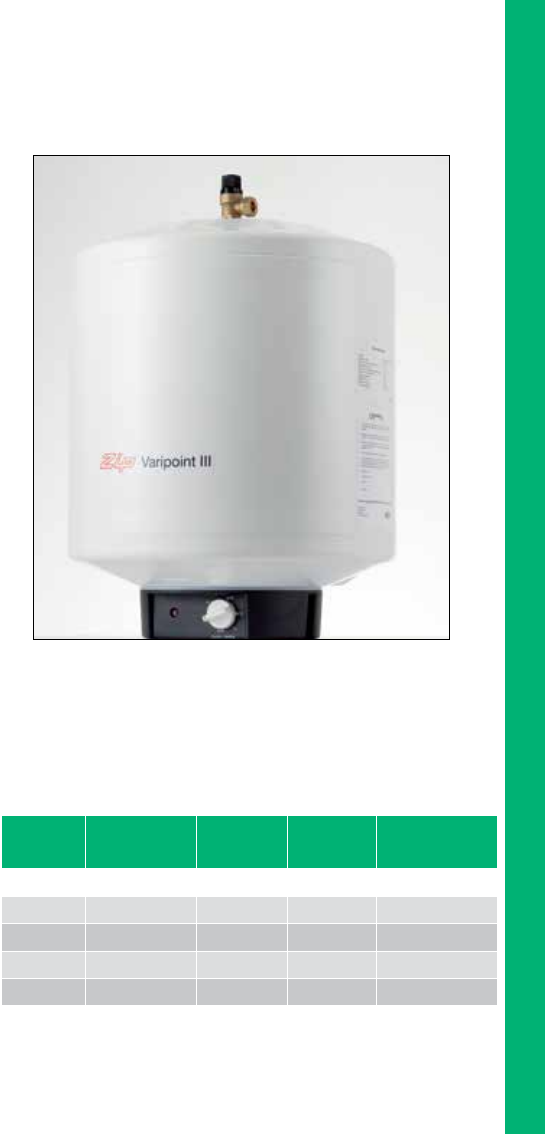

Zip Varipoint III®
Unvented water heater
Multiple outlets
30, 50, 80,100 litre
90
Insulation
High density, CFC free polyurethane foam.
Warranty
Five-year on site parts and labour warranty
on inner container, two years on controls.
For full details of the Zip Warranty Scheme
visit: www.zipheaters.co.uk/warranty.
Safety features
Manually resettable safety cutout.
Heater protected against freezing while
power switched on.
Factory fitted pressure and temperature
relief valve designed to operate at 7 bar
and 90ºC.
Expansion relief valve set to operate at
6 bar.
Installation
For installation by a qualified installer in
accordance with all national and local
Building Regulations.
Intended for wallmounting – please ensure
that the wall and fixings are strong enough
to take the weight of the water heater
when full.
Plumbing
Water connections 1⁄2” BSP.
Minimum recommended water pressure
1 bar.
Unit supplied with full installation kit
comprising: expansion vessel, pressure
reducing valve, balanced take off, expansion
relief valve (6 bar), line strainer, tundish and
wall brackets.
P&T and expansion relief valves require
plumbing to waste in accordance with water
authority bylaws.
Electrical
To be wired to a double pole switched fused
spur with a minimum break capacity of 13
amps. Installation must comply with current
IEE regulations.
Features and benefits
Heavy gauge copper inner container, tested
to 12 bar.
Five year warranty on inner container, two
years on controls.
Does not require an anode or regular
inspection.
Supplied with factory fitted P&T valve and
full installation fitting kit.
External temperature control.
Element ‘ON’ neon indicator.
High performance foam insulation.
Accessories (supplied)
Pressure reducing valve set to 3.5 bar and
line strainer.
Pressure relief valve set to 6 bar and single
check valve.
Pressure and temperature relief valve set to
7 bar and 90ºC.
External expansion vessel pre-charged to
3.5 bar.
Tundish and wall brackets.
Tee piece and drain valve.
Expansion vessel capacity
VP303/VP505 = 5 litre
VP803/VP953 = 8 litre
Capacities
30 litre, 50 litre, 80 litre, 100 litre.
Rating
2.7 kW @ 230V.
Heating element
Replaceable embedded rod type.
Thermostat
Capillary type adjustable
37ºC to 75ºC.
Inner container
Heavy gauge copper tested to 12 bar.
Case
Corrosion resistant white enamelled steel.
Hot water
91
Product
Code
Capacity
Litres
Weight
Full (kg)
Thermal
Loss
kWh/day
Dimensions
H x Diameter
(mm)
Zip Varipoint III
VP303 30.0 50 0.732 620 x 430
VP503 50.0 70 0.912 808 x 430
VP803 80.0 107 1.032 946 x 485
VP953 100.0 133 1.207 1091 x 485
Hot water

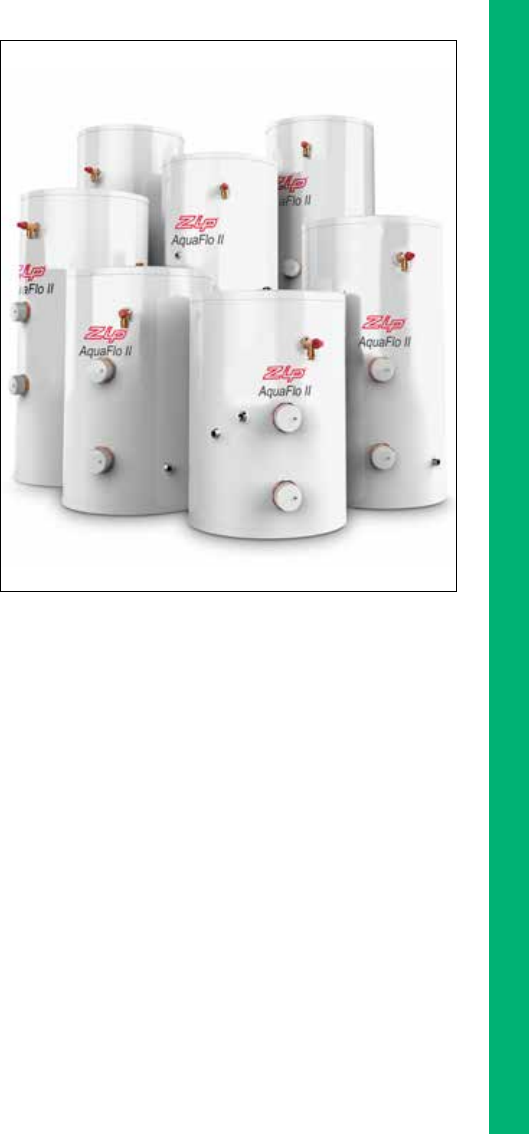

Zip AquaFlo II®
Unvented water heater
Unvented stainless-steel cylinders
90 to 300 litre capacity
Construction
• Direct, indirect and solar compatible
unvented water heaters.
• Corrosion resistant Duplex Stainless Steel
cylinder.
• High performance, low profile coil-in-coil
heat exchanger.
• High performance CFC free injected
polyurethane foam insulation.
• White plastic coated steel case resistant
to scuffs and damage.
• External expansion for reliability and ease
of maintenance.
• Cylinder pressure tested to 15 bar.
Installation
For installation by a qualified installer in
accordance with all national and local
Building Regulations.
Intended for floor standing only – refer to
Technical Data for weight when full.
Nominal Capacity
Direct and Indirect units: 90, 120, 150,
180, 210, 250 and 300 litres.
Solar Twin Coil and Solar Direct units: 150,
180, 210, 250 and 300 litres.
Immersion Elements
Incoloy construction 1¾” thread. Length
14” Loading 3kW @ 240V.
Heat Exchanger
22mm low profile, high efficiency stainless
steel coil-in-coil.
Features and benefits
• Wide range of capacities from 90
litres up to 300 litres.
• High grade Duplex Stainless Steel
Unvented Cylinder for long life.
• Incoloy immersion elements provide
excellent corrosion resistance.
• Titanium replacement elements
available for high use applications.
• Compact coil-in-coil heat exchangers
provide fast heat up and recovery.
• Multi-element options for faster heat
up.
• High performance insulation ensures
minimum heat loss.
• External expansion for optimum
reliability, more usable space and
ease of maintenance.
• No sacrificial anode. Avoids the need
for regular inspection.
• 22mm compression connections for
ease of installation.
• Cylinders tested to 15 bar.
• 25 year transferable cylinder warranty.
• 2 year warranty on all other components.
• Fully approved to UK Water Regulations
and Buildings Regulations Part G3
and Part L.
92
Hot water
93
Controls
Thermostat – adjustable up to 65°C.
Over temperature safety cut-out –
Re-settable. Operates at 85°C.
Expansion relief valve – 6 bar.
Temperature and pressure relief valve –
90°C and 7 bar.
Tundish.
Two way valve with indirect models.
Pressure reducing valve – 3 bar.
Expansion vessel – Pre-charged to 3 bar.
Plumbing
For connection to 22mm mains potable
water supply.
Minimum water supply 1.5 bar, 20 l/min.
Maximum water supply pressure 12 bar.
Electrical
To be wired to a suitably rated double pole
fused spur.
Installation must comply with current IEE
regulations.
Approvals
KIWA approved to UK Water Regulations.
KIWA approved to UK Building Regulations
Part G3 and Part L.
Immersion element/thermostat BEAB
approved and CE endorsed.
Warranty
25 years on cylinder transferable
(conditions apply).
2 years on all other components.
Hot water
Zip AquaFlo II®
Unvented water heater
Unvented stainless-steel cylinders
90 to 300 litre capacity
94
AquaFlo Direct
Product Nominal Height Weight Weight Vol within Heat up Heat up Heat up Boost Low level High level Standing
Code Capacity (mm) x Empty when Full 10ºC of set 3kW 6kW 9kW re-heat immersion immersion Loss
(L) 545 Dia (kg) (kg) temp (L) (mins) (mins) (mins) (mins) elements elements (kWh/day)
AF3090 90 727 21 111 73 76.0 - - - 1 0 1.07
AF3120 120 915 26 146 102 103.0 - - 58.0 1 1 1.23
AF3150 150 1102 33 183 133 134.0 - - 72.0 1 1 1.41
AF3180 180 1290 38 218 163 164.0 - - 82.0 1 1 1.53
AF3210 210 1478 41 251 194 203.0 - - 96.0 1 1 1.80
AF3250 250 1728 46 296 236 248.0 - - 117.0 1 1 2.15
AF3300 300 2041 55 355 288 323.0 - - 145.0 1 1 2.28
AF3150S* 150 1102 33 183 133 134.0 73 57 72.0# 3 or 2 0 or 1 1.41
AF3180S* 180 1290 38 218 163 164.0 88 67 82.0# 3 or 2 0 or 1 1.53
AF3210S* 210 1478 41 251 194 203.0 108 80 96.0# 3 or 2 0 or 1 1.80
AF3250S* 250 1728 46 296 236 248.0 130 95 117.0# 3 or 2 0 or 1 2.15
AF3300S* 300 2041 55 355 288 323.0 168 120 145.0# 3 or 2 0 or 1 2.28
* Supplied with 3 elements and 4 bosses - 3 at low level and 1 at high level. Additional elements are available for installation in the 4th boss. # If using high level element
AquaFlo Indirect
Product Nominal Height Weight Weight Vol within Indirect Heat Recovery Boost Low level High level Standing
Code Capacity (mm) x Empty when Full 10ºC of set Exchanger Indirect re-heat immersion immersion Loss
(L) 545 Dia (kg) (kg) temp (L) (kW) (mins) (mins) elements elements (kWh/day)
AF4090 90 727 23 111 74 16.46 12.0 - 1 0 1.07
AF4120 120 915 30 148 105 16.46 16.0 - 1 0 1.23
AF4150 150 1102 38 186 132 18.55 17.2 - 1 0 1.41
AF4180 180 1290 42 220 160 18.55 20.4 - 1 0 1.53
AF4210 210 1478 45 253 188 18.55 22.0 - 1 0 1.80
AF4250 250 1728 51 299 232 22.00 25.0 117.0 1 1 2.15
AF4300 300 2041 60 357 285 22.00 34.0 145.0 1 1 2.28
AquaFlo Solar Compatible
Product Nominal Height Weight Weight Vol within Indirect Heat Solar Dedicated Recovery Boost Low level High level Standing
Code Capacity (mm) x Empty when Full 10ºC of set Exchanger Heat Solar solar re-heat immersion immersion Loss
(L) 545 Dia (kg) (kg) temp (L) (kW) Exchanger Capacity (mins) (mins) elements elements (kWh/day)
Solar Twin Coil
AF5150 150 1102 40 187 132 18.55 16.46 77 25.0* 12.0# 0 1 1.41
AF5180 180 1290 45 222 160 18.55 18.55 95 26.3* 14.8# 0 1 1.53
AF5210 210 1478 48 255 188 22 18.55 101 31.2* 15.5# 0 1 1.80
AF5250 250 1728 53 300 232 22 22.00 107 33.0* 20.0# 0 1 2.15
AF5300 300 2041 63 359 285 22 22.00 121 41.0* 25.0# 0 1 2.28
Solar Direct
AF6150 150 1102 38 186 102 - 16.46 80 25.0* 72.0 1 1 1.41
AF6180 180 1290 42 220 123 - 18.55 100 26.3* 82.0 1 1 1.53
AF6210 210 1478 45 253 143 - 18.55 116 31.2* 96.0 1 1 1.80
AF6250 250 1728 51 299 175 - 22.00 137 33.0* 117.0 1 1 2.15
AF6300 300 2041 60 358 210 - 22.00 160 41.0* 145.0 1 1 2.28
Actual performance when installed will vary considerably dependant * Re-heat times based on BS12897 parameters with an 80°C primary flow at 15 l/min.
on the rate of solar or other renewable input, number of panels etc. # Using Indirect heat exchanger
Hot water
95
AquaFlo Direct
Product Nominal Height Weight Weight Vol within Heat up Heat up Heat up Boost Low level High level Standing
Code Capacity (mm) x Empty when Full 10ºC of set 3kW 6kW 9kW re-heat immersion immersion Loss
(L) 545 Dia (kg) (kg) temp (L) (mins) (mins) (mins) (mins) elements elements (kWh/day)
AF3090 90 727 21 111 73 76.0 - - - 1 0 1.07
AF3120 120 915 26 146 102 103.0 - - 58.0 1 1 1.23
AF3150 150 1102 33 183 133 134.0 - - 72.0 1 1 1.41
AF3180 180 1290 38 218 163 164.0 - - 82.0 1 1 1.53
AF3210 210 1478 41 251 194 203.0 - - 96.0 1 1 1.80
AF3250 250 1728 46 296 236 248.0 - - 117.0 1 1 2.15
AF3300 300 2041 55 355 288 323.0 - - 145.0 1 1 2.28
AF3150S* 150 1102 33 183 133 134.0 73 57 72.0# 3 or 2 0 or 1 1.41
AF3180S* 180 1290 38 218 163 164.0 88 67 82.0# 3 or 2 0 or 1 1.53
AF3210S* 210 1478 41 251 194 203.0 108 80 96.0# 3 or 2 0 or 1 1.80
AF3250S* 250 1728 46 296 236 248.0 130 95 117.0# 3 or 2 0 or 1 2.15
AF3300S* 300 2041 55 355 288 323.0 168 120 145.0# 3 or 2 0 or 1 2.28
* Supplied with 3 elements and 4 bosses - 3 at low level and 1 at high level. Additional elements are available for installation in the 4th boss. # If using high level element
AquaFlo Indirect
Product Nominal Height Weight Weight Vol within Indirect Heat Recovery Boost Low level High level Standing
Code Capacity (mm) x Empty when Full 10ºC of set Exchanger Indirect re-heat immersion immersion Loss
(L) 545 Dia (kg) (kg) temp (L) (kW) (mins) (mins) elements elements (kWh/day)
AF4090 90 727 23 111 74 16.46 12.0 - 1 0 1.07
AF4120 120 915 30 148 105 16.46 16.0 - 1 0 1.23
AF4150 150 1102 38 186 132 18.55 17.2 - 1 0 1.41
AF4180 180 1290 42 220 160 18.55 20.4 - 1 0 1.53
AF4210 210 1478 45 253 188 18.55 22.0 - 1 0 1.80
AF4250 250 1728 51 299 232 22.00 25.0 117.0 1 1 2.15
AF4300 300 2041 60 357 285 22.00 34.0 145.0 1 1 2.28
AquaFlo Solar Compatible
Product Nominal Height Weight Weight Vol within Indirect Heat Solar Dedicated Recovery Boost Low level High level Standing
Code Capacity (mm) x Empty when Full 10ºC of set Exchanger Heat Solar solar re-heat immersion immersion Loss
(L) 545 Dia (kg) (kg) temp (L) (kW) Exchanger Capacity (mins) (mins) elements elements (kWh/day)
Solar Twin Coil
AF5150 150 1102 40 187 132 18.55 16.46 77 25.0* 12.0# 0 1 1.41
AF5180 180 1290 45 222 160 18.55 18.55 95 26.3* 14.8# 0 1 1.53
AF5210 210 1478 48 255 188 22 18.55 101 31.2* 15.5# 0 1 1.80
AF5250 250 1728 53 300 232 22 22.00 107 33.0* 20.0# 0 1 2.15
AF5300 300 2041 63 359 285 22 22.00 121 41.0* 25.0# 0 1 2.28
Solar Direct
AF6150 150 1102 38 186 102 - 16.46 80 25.0* 72.0 1 1 1.41
AF6180 180 1290 42 220 123 - 18.55 100 26.3* 82.0 1 1 1.53
AF6210 210 1478 45 253 143 - 18.55 116 31.2* 96.0 1 1 1.80
AF6250 250 1728 51 299 175 - 22.00 137 33.0* 117.0 1 1 2.15
AF6300 300 2041 60 358 210 - 22.00 160 41.0* 145.0 1 1 2.28
Actual performance when installed will vary considerably dependant * Re-heat times based on BS12897 parameters with an 80°C primary flow at 15 l/min.
on the rate of solar or other renewable input, number of panels etc. # Using Indirect heat exchanger
Hot water
96
Zip Tudor II®
Over-sink or under-sink water heater
Open outlet for single point of use
5, 10 litre
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Operation
Externally adjustable temperature control.
Neon light indicates when the power is ‘ON’.
Safety features
Open-outlet non-pressurised system.
Heater protected against freezing while
power switched on.
Manually re-settable over-temperature
safety cut-out.
Installation
Supplies hot water to a single outlet using
spout or Zip vented taps. No need for
expansion vessel or pressure relief valve.
Screws and wall fixings provided.
Plumbing
Can be connected to a rising main or to a
cistern with a minimum working head of
3metres.
Over-sink models are supplied with a
300mm open outlet spout and control
valve.
Undersink models must only be connected
to Zip open-outlet taps, (see page 96).
Over-sink and under-sink models are NOT
interchangeable.
Electrical
To be wired to a double pole switched
fused spur with a minimum break capacity
of 13 amps. Installation must comply with
current IEE regulations.
Features and benefits
• Open outlet heater, for single point
of use.
• Externally adjustable temperature
control with frost protection.
• Manually re-settable cut-out.
• Oversink models supplied complete
with spout and valve.
• Undersink models for connection to
Zip open-outlet tapware only - see
page 98.
• Supplied with 1 metre of pre-wired
cable.
• CFC-free insulation.
• Impact resistant, easy clean, white
plastic casing.
• Neon power-on indicator light.
• Choice of 5 and 10 litre capacities.
• Supplied complete with wall plugs
and screws.
Rating
2.0 kW @ 230V.
Heating element
Embedded rod type.
Thermostat
Capillary type, adjustable
35˚C to 80˚C.
Inner container
Polypropylene tested to 1.5 bar.
Case
Impact resistant plastic.
Insulation
Moulded CFC-free polystyrene.
Approvals
WRAS, CE endorsed.
Hot water
97
Product Code Capacity
Litres
Thermal Loss
kWh/day
Dimensions
W x H x D (mm)
Zip Tudor II Oversinkk
P4/52 5.0 0.32 255 x 215 x 390
P4/102 10.0 0.40 310 x 265 x 440
Zip Tudor II Undersink
P4/52UB 5.0 0.32 255 x 215 x 390
P4/102UB 10.0 0.40 310 x 265 x 440
Hot water
98
Zip Contract II®
Over-sink water heater
Open outlet for single point of use
5, 10 litre
Insulation
Moulded, CFC free Polystyrene.
Approvals
WRAS, CE endorsed.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Safety features
Safety cut out in the event of
a thermostat failure.
Heater protected against freezing while
power switched on.
Installation
All models should be wall mounted.
Screws and wall fixings provided.
Plumbing
Can be connected to a rising main or to a
cistern with a minimum working head of
3metres.
Supplied with a 300mm open outlet spout and
water control valve.
Electrical
To be wired to a double pole switched fused
spur with a minimum break capacity of 13
amps. Installation must comply with current
IEE regulations.
Features and benefits
• Open outlet oversink water heater for
single point of use.
• External temperature control with
frost protection.
• Over temperature safety thermal fuse
(C2/50 and C2/100).
• Remotely resettable over
temperature protection (C3/50).
• Supplied with inlet control valve and
swivel outlet spout.
• Impact resistant, easy clean, white
plastic casing.
• CFC-free insulation.
• Choice of 5 or 10 litre capacity.
Capacities
5 litre, 10 litre.
Rating
2.0 kW @ 230V.
Heating element
Embedded rod type.
Thermostat
Capillary type adjustable
35˚C – 80˚C.
Inner container
Polypropylene tested to 1.5 bar.
Case
Impact resistant white plastic.
*For use with Zip Tudor P4/52UB and P4/102UB
Zip Accessories
Vented Point of Use
*UB6
Single lever
basin tap
*UB1
Monobloc mixer
TS1
Telescopic spout
350-600mm
*UB7
Single lever sink tap
Hot water
98
* Specialist product for temporary site applications with remotely resettable dry start
protection. For details contact Zip Technical support.

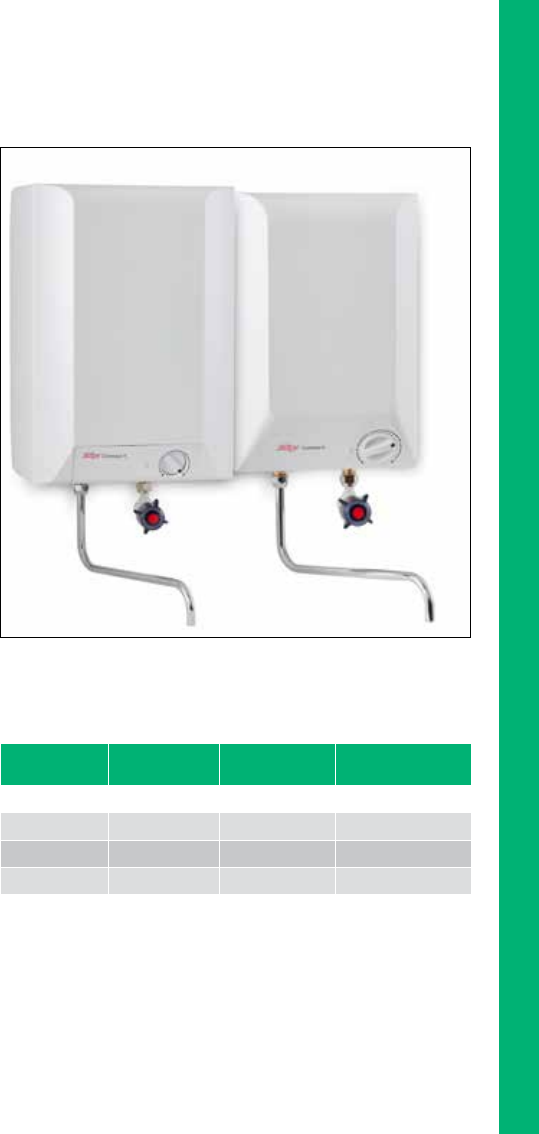

C3/50 model C2/50 model
Product Code Capacity
Litres
Thermal Loss
kWh/day
Dimensions
W x H x D (mm)
Zip Contract
C2/50 5.0 0.32 255 x 215 x 390
C2/100 10.0 0.40 310 x 265 x 440
*C3/50 5.0 0.32 255 x 215 x 390
Hot water
100

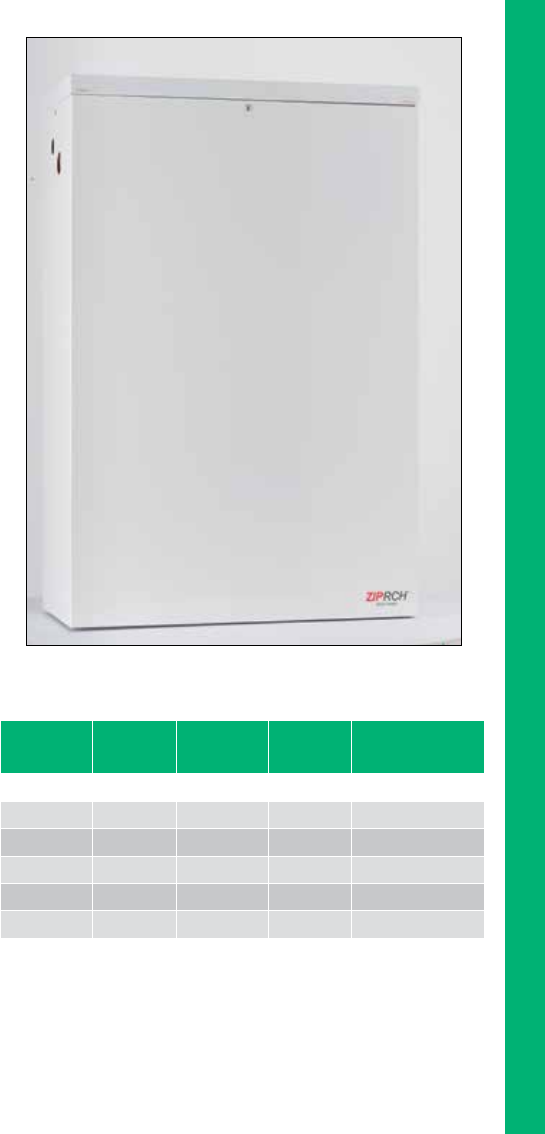

Zip RCH®
Cistern-type water heater
Single or multiple outlet
25, 50, 75, 100 litre
Installation
Should be mounted on a wall at least one
metre above the highest draw-off point.
Wall and fixings should be adequate to
support the weight of the heater when full.
Heater to be fixed using the integral wall
mounting bracket.
Top clearance of 150mm must be allowed
for access to the ball valve in the cistern
tank.
Bottom clearance of 250mm must be
allowed for withdrawal of the heating
element.
Plumbing
Cold inlet, left or right hand connection,
1⁄2” BSP.
Hot outlet, from base of heater, 22mm
compression fitting.
Drain connection, supplied
and fitted.
Overflow, left or right hand connection,
22mm compression fitting.
Ball valve is for mains pressure operation,
brass body to BS1212-2.
Electrical
To be wired to a double pole switched
fused spur with a minimum break capacity
of 13 amps.
RCH 100/6 should be provided with its own
dedicated supply.
Installation must comply with current IEE
regulations. Supplied with 1 metre of cable.
The cross sectional area of the connection
cable must be in accordance with the power
rating of the appliance.
Features and benefits
• Patented design ensures the
temperature of the water in the
cistern tank is maintained within
current regulatory limits.
• Simple to install and maintain.
• Trouble free operation
• Choice of 4 capacities.
Capacities
25 litre, 50 litre, 75 litre, 100 litre.
Rating
2.8 kW @ 230V
(5.6 kW option on 100 litre).
Heating element
Embedded rod.
Thermostat
Rod type, adjustable from 5ºC – 65ºC.
Water tank
Hot water tank and cold water feed cistern
are both manufactured from copper sheet
with brazed seams.
Case
Corrosion resistant, white powder coated
steel.
Insulation
Fully fire-retardant foiled urethane core.
Safety features
Over temperature cut-out.
Approvals
WRAS, approval pending.
CE endorsed.
Warranty
One-year on site parts and labour. For full
details of the Zip Warranty Scheme visit:
www.zipheaters.co.uk/warranty
Hot water
101
Product
Code
Capacity
Litres
Rating
kW @ 230V
Weight
Full (kg)
Dimensions
W x D x H
(mm)
Zip RCH
RCH25 30.0 3.0 52 470 x 210 x 705
RCH50 50.0 3.0 106 600 x 320 x 750
RCH75 80.0 3.0 136 600 x 320 x 925
RCH100 100.0 3.0 164 600 x 320 x 1080
RCH100/6 100.0 2 x 3.0 164 600 x 320 x 1080
Hot water
General Data
102
Zip Hot Water
Typical applications
Application Suggested Page
(Up to) Zip Products reference
Single hand wash ES3*, ES4*, ES6* 70
1 basin CEX 74
AP3/05, AP3/05/OB 80
P4/52, P4/52UB 94
C2/50 96
1 sink CEX* 74
DEX12* 76
AP3/30 86
VP303 88
2 basins CEX* 74
DEX12* 76
AP3/10, AP3/10/OB 80
VP103, VP103UB 82
3 basins AP3/15, AP3/15/OB 80
VP153, VP153UB 82
1 basin, 2 sinks RCH25 98
3 basins, heavy use or 2 sinks DEX/DBX* 76
1 shower DEX12* 76
DEX/DBX* 76
1 bath & shower DEX/DBX* 76
AP3/80 86
VP803 88
RCH75 98
Bed-sit DEX/DBX* 76
AP3/100 86
VP953 88
AF3120, AF4090 90
RCH100 98
1 bath & shower (1-2 beds) DEX/DBX* 76
AF3150, AF4120 90
1 bath & shower (3 beds) AF3180, AF4150 90
1 bath & shower (4 beds) AF3210, AF4180 90
2 bath & shower (5 beds) AF3250, AF4210 90
3 bath & shower (6 beds) AF3300, AF4250 90
N.B. These application suggestions are based upon the assumption that the incoming water
supply temperature is 12°C.
For advice on product selection, if the incoming water temperature is likely to be lower, call our
Technical Service Team on 0845 6 005 005.
Zip Hot Water
General Data
103
Useful formulae
Time to heat stored water (mins) = Litres x Temp Rise (˚C )
kW rating x 14.3
Temperature rise with an = 14.3 x kW rating
instantaneous water heater ( ˚C ) Litres/min flow
Temperature Degrees Celsius = ( ˚F-32 ) x 5⁄9
Degrees Fahrenheit = ( ˚C x 9⁄5 ) + 32
Degrees Kelvin = ( ˚C + 273.2 )
Conversion factors
Pressure 1 Bar = 14.5 psi
= 100 kiloNewtons/m2 = 100 kPa
1 psi = 7 kPa
Heat 1 kiloCalorie (kCal) is the amount of energy required
to raise 1 kg of water through one degree Celsius
Zip Heaters (UK) Ltd reserves the right to modify the specification of its products without
notice and makes every effort to maintain the accuracy of information contained in this
publication.
The terms ‘Zip’, ‘HydroTap’, ‘Hydroboil’, ‘Econoboil’, ‘Duo’, ‘Chilltap’, ‘Chillmaster’, ‘Wall
Fountain’, ‘Chill Fountain’, ‘Aquapoint’, ‘Varipoint’, ‘AquaFlo’, ‘Inline ES’, ‘InLine’, ‘Tudor’,
‘Contract’ and ‘RCH’ are all registered trademarks.
The Zip Product Guide April 2015
©Copyright Zip Heaters (UK) Ltd
General Data
Tel: 0845 6 005 005 (for landline users)
Tel: 0345 6 005 005 (for mobile users)
Head Office:
Zip Heaters UK Ltd
Bertie Ward Way
Dereham
Norfolk
NR19 1TE
Birmingham Office:
Zip Heaters UK Ltd
3A Orion Building
Navigation Street
Birmingham
B5 4AA
London Office:
Zip Heaters UK Ltd
Clover House
147-149 Farringdon Road
Clerkenwell
London
EC1R 3HN
Manchester Office:
Zip Heaters UK Ltd
269-271 Deansgate
Manchester
M3 4EW
Brochure reference:
ZDL/010415/V2
