Zound WOBURN ACTIVE STEREO LOUDSPEAKER User Manual
Zound Industries ACTIVE STEREO LOUDSPEAKER
Zound >
User manual
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions – All the safety and operating instructions should be read before this
product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future
reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be
adhered to.
• Follow all instructions – All operating and use instructions should be followed.
WARNING!
• WARNING – To reduce the risk of re or electric shock, do not expose this apparatus to rain or
moisture. The apparatus shall not be exposed to dripping or splashing and that objects lled with liquids,
such as vases, shall not be placed on apparatus.
• WARNING – do not cover.
• WARNING – only use attachments/accessories specied by the manufacturer (such as the exclu-
sive supply adapter, battery etc).
• WARNING – the plug is the main disconnect device and should be used as such. The
disconnect device should remain readily accessible.
• WARNING – this active loudspeaker may emit high sound pressure levels.
• WARNING – do not listen too close to the active loudspeaker.
• WARNING – do not listen for an extended period of time at a high sound pressure level.
• WARNING – do not attempt to remove the active loudspeaker chassis, there are no user service-
able parts.
• WARNING – do not plug a guitar into the WOBURN.
• WARNING – do not insert body parts or objects into the bass port for risk of injury.
• DANGER – of dropping the product.
• DANGER – of sharp corners.
MOISTURE AND HUMIDITY
• The active loudspeaker should be located in a place free from moisture and water.
• Do not use this apparatus near water. Do not expose it to rain or dripping water. Do not splash water
on it.
INSTALLATION
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
• No naked ame sources, such as lighted candles, should be placed on the active loudspeaker.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
CONNECTION
• Connect the active loudspeaker according to the instructions in the manual.
• Connect the active loudspeaker only to the correct mains voltage as shown on the equipment.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta-
cles, and the point where they exit the apparatus.
• Use only power cables of the type specied in the operating instructions or as marked on the active
loudspeaker. Do not substitute the separate power cable included with this active loudspeaker with
any other power supply – use only the power cable provided by the manufacturer.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not t into
your outlet, consult an electrician for replacement of the obsolete outlet.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Do not install in an area that impedes access to the power plug. Disconnecting the power plug is the
only way to completely remove power to the product and the plug must be readily accessible at all times.
CLEANING
• Clean only with dry cloth.
MAINTENANCE
• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• CAUTION: These servicing instructions are for use by qualied service personnel only. To reduce
the risk of electric shock, do not perform any servicing unless you are qualied to do so.
001. SAFETY INSTRUCTIONS
002. SAFETY LABELS
003. LANGUAGE INDEX
005. THE WOBURN
006. BOX CONTENTS
008. GENERAL DESCRIPTION
010. TURNING THE POWER ON/OFF
012. USING THE WOBURN WITH
YOUR DEVICES
013. CHOOSING YOUR SOURCE
014. BLUETOOTH CONNECTION
018. CABLE CONNECTION

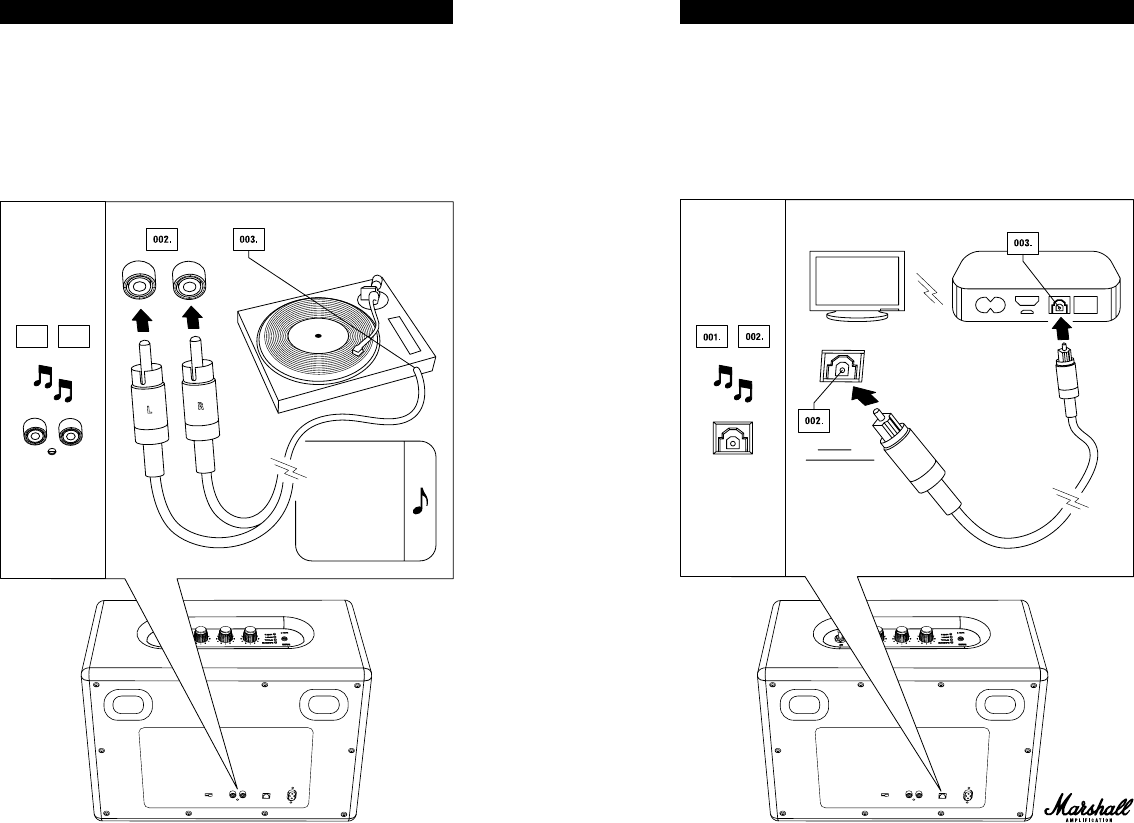

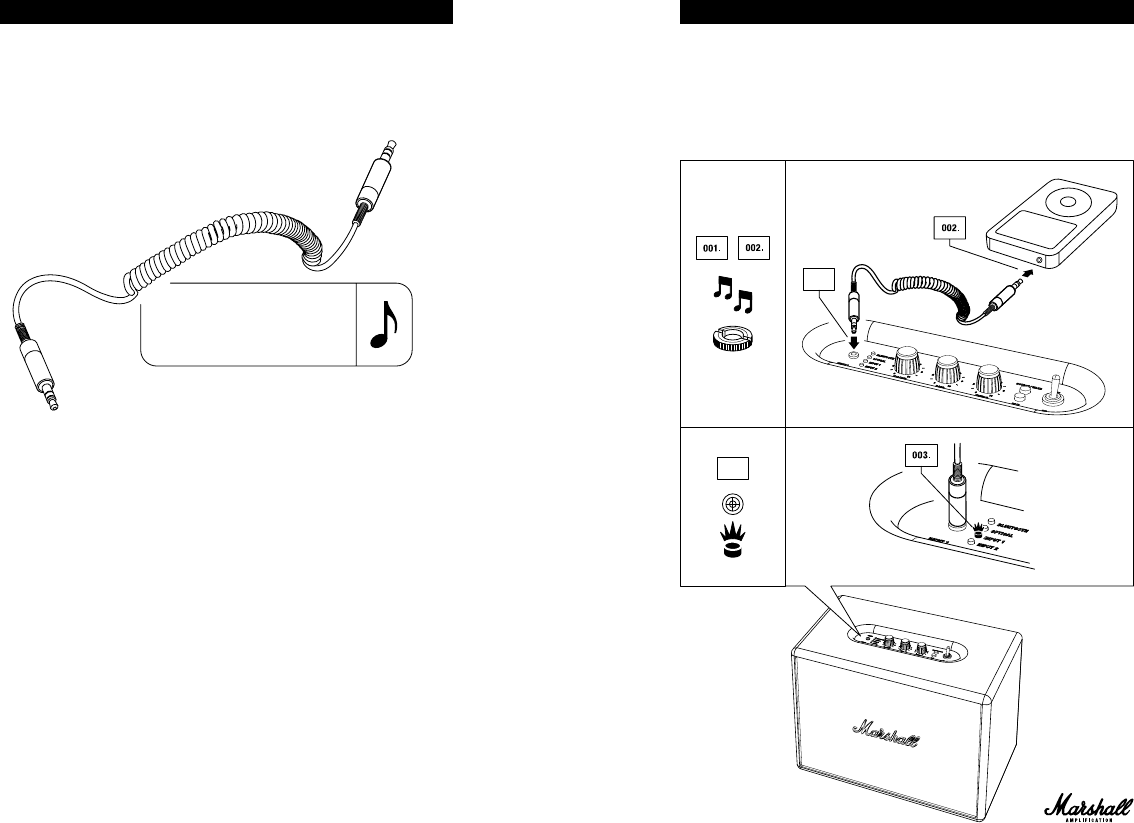

019. INPUT 1 - 3.5MM STEREO PLUG
020. INPUT 2 - RCA PORTS
021. OPTICAL AUDIO
022. STANDBY MODES

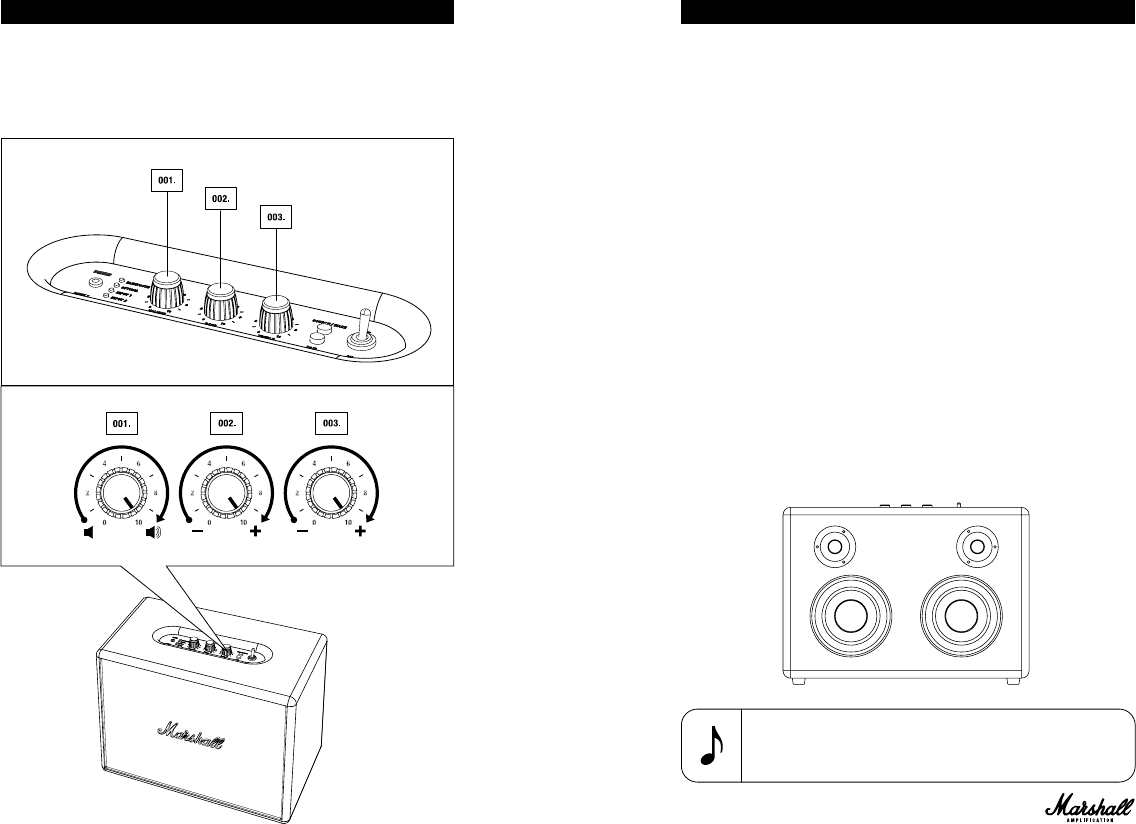

024. ADJUSTING SOUND
025. TECHNICAL INFORMATION
029. TROUBLE SHOOTING
257. WARRANTY INFO
ENGLISH
SECTIONS
LANGUAGE INDEX
002.
SAFTEY LABELS
CAUTION: To prevent the risk of electric shock, do not
remove cover (or back plate). There are no user serviceable
parts inside. Refer servicing to qualified service personnel.
This appliance may not be treated as regu-lar household
waste. Management of WEEE (Waste Electrical and Electronic
Equipment) is applicable in member states of the Europe-an
Union and other European countries with individual national
policies on the manage-ment of WEEE. If you need more
information on the collection, reuse and recycling sys-tems,
please contact your local or regional waste administration
facility.
Japan PSE Mark. The product complies with the following
standards J60065 (H23), ARIB STD T-66 Ver.3.6, J55013
(H22).
This product conforms to ANSI/UL Std. 60065 and is
Certified to CAN/CSA Std. C22.2 No. 60065.
The product complies with the following European directives: the
electromagnetic compatibility directive 2004/108/EC. The low voltage
directive 2006/95/EC.
This equipment is a Class II or a double- insulated electrical
appliance. It has been designed in such a way that it
does not require a safety connection to electrical earth.
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harm-ful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
3114849
PAGE
FRENCH - FRANÇAIS
PAGE 033
JAPANESE - 日本語
PAGE 065
GERMAN - DEUTSCH
PAGE 097
SPANISH - ESPAÑOL
PAGE 129
SIMPLIFIED CHINESE - 简体中文
PAGE 193
TRADITIONAL CHINESE - 繁體中文
PAGE 257
ITALIAN - ITALIANO
PAGE 161
Changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate
the equipment.
IC statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
harmful
WOBURN
YOU’VE JUST BROUGHT HOME YET ANOTHER UNCOMPROMISING ADDITION
TO MARSHALL’S LEGACY OF LOUD, THE WOBURN. THE MEETING POINT
BETWEEN MODERN TECHNOLOGY AND VINTAGE MARSHALL STYLING, THIS
ACTIVE STEREO LOUDSPEAKER BRINGS MARSHALL’S ICONIC HARD AND
HEAVY SOUND DIRECTLY TO YOUR LIVING ROOM.
BUT, WAIT A MINUTE, BEFORE YOU TURN IT UP, MAKE SURE YOU READ THIS
MANUAL CAREFULLY AND HOLD ON TO IT, ALONG WITH THE INCLUDED
WARRANTY INFORMATION IN CASE YOU EVER NEED IT.
WHEN IT COMES TO SOUND QUALITY, THE WOBURN SPARES NO EXPENSE.
IT’S DESIGNED WITH LOUD IN MIND AND YOU’LL QUICKLY HEAR BY ITS
PERFORMANCE THAT IT HOLDS TRUE TO THE MARSHALL NAME. THIS
LOUDSPEAKER HITS HIGH TREBLES CLEANLY, HANDLES LOW BASS WITH
EASE AND HAS A CLEAR, LIFELIKE MID RANGE. THE ANALOGUE TREBLE,
BASS AND VOLUME KNOBS GIVE YOU CUSTOM CONTROL OF YOUR SOUND.
WITH UNIQUE SOUND DESIGN AND QUALITY COMPONENTS, IT’S MADE TO
DELIVER ACCURATE RESPONSE THROUGHOUT THE FREQUENCY RANGE. THE
WOBURN IS LITERALLY BUILT TO THRILL.
THE WOBURN GIVES YOU THE FREEDOM TO HOOK UP YOUR SMARTPHONE
OR LAPTOP USING THE 3.5 MM AUXILIARY INPUT, CONNECT WIRELESSLY
VIA BLUETOOTH®, PLUG IN YOUR RECORD PLAYER USING THE RCA INPUT,
OR USE THE OPTICAL OUTPUT FOR DEVICES LIKE APPLE TV.
BUT LET’S BE HONEST, LOOKS MATTER, AND WITH IT’S DURABLE VINYL
COVERING, GOLD PIPING, VINTAGE STYLE FRET, AND ICONIC MARSHALL
SCRIPT LOGO, THE WOBURN DOES NOT DISAPPOINT. IT’S CLASSIC DESIGN
ECHOES THE VIBE OF THE GOLDEN YEARS OF ROCK’N’ROLL.
SO, PLUG THIS BEAST IN, CRANK IT UP AND HEAR THE DEFINING SOUND
THAT PUT MARSHALL ON THE MAP
004.

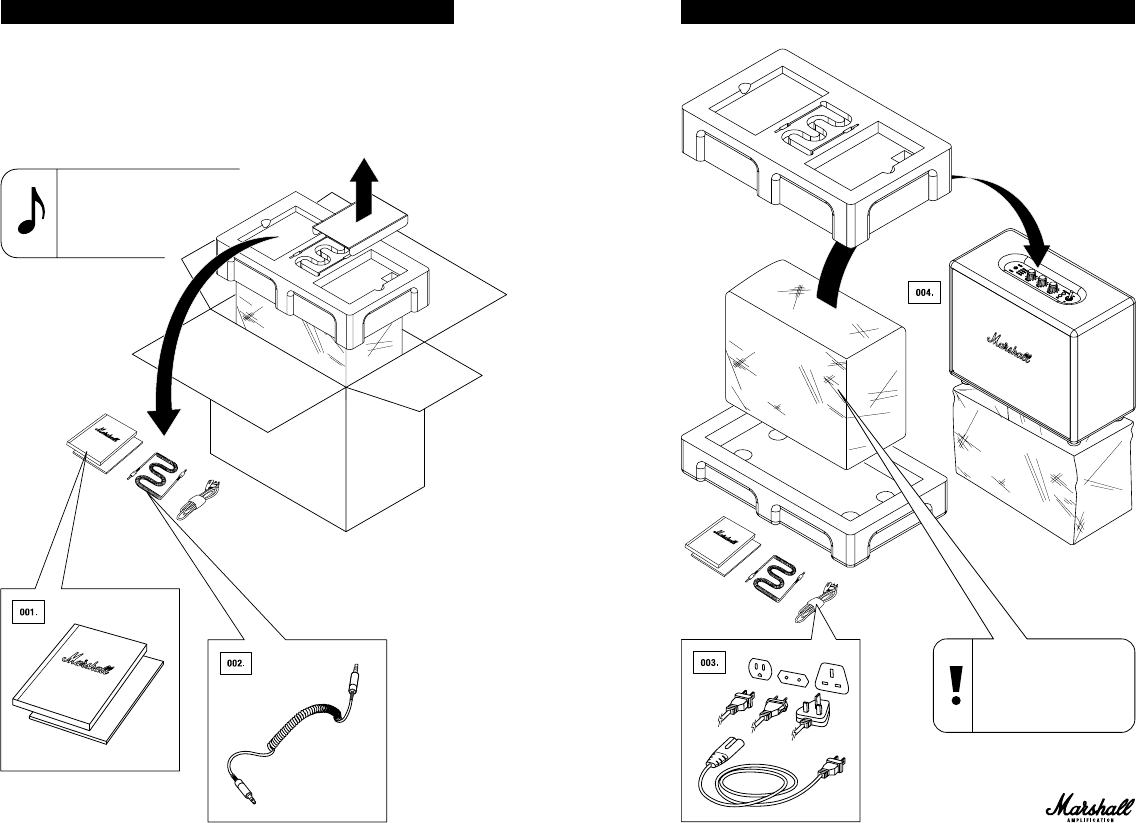

WOBURNBOX CONTENTS
001. USER MANUAL & WARRANTY INFORMATION
002. DOUBLE-ENDED COIL CORD WITH 3.5MM STEREO PLUGS TO
CONNECT TO YOUR MUSIC PLAYER
003. POWER CORD
004. MARSHALL WOBURN ACTIVE STEREO LOUDSPEAKER
006.
NOTE: OPTICAL AUDIO CABLE AND
RCA CABLE NOT INCLUDED WITH
THE WOBURN AND MUST BE
PURCHASED SEPARATELY.
CAUTION: LIFT ACTIVE
LOUDSPEAKER FROM BOTTOM.
DO NOT LIFT BY PROTECTIVE
BAG FOR RISK OF DROPPING
THE PRODUCT.
WOBURN
NOTE: DATE CODE
AND SERIAL
NUMBER STICKER
LOCATED HERE.

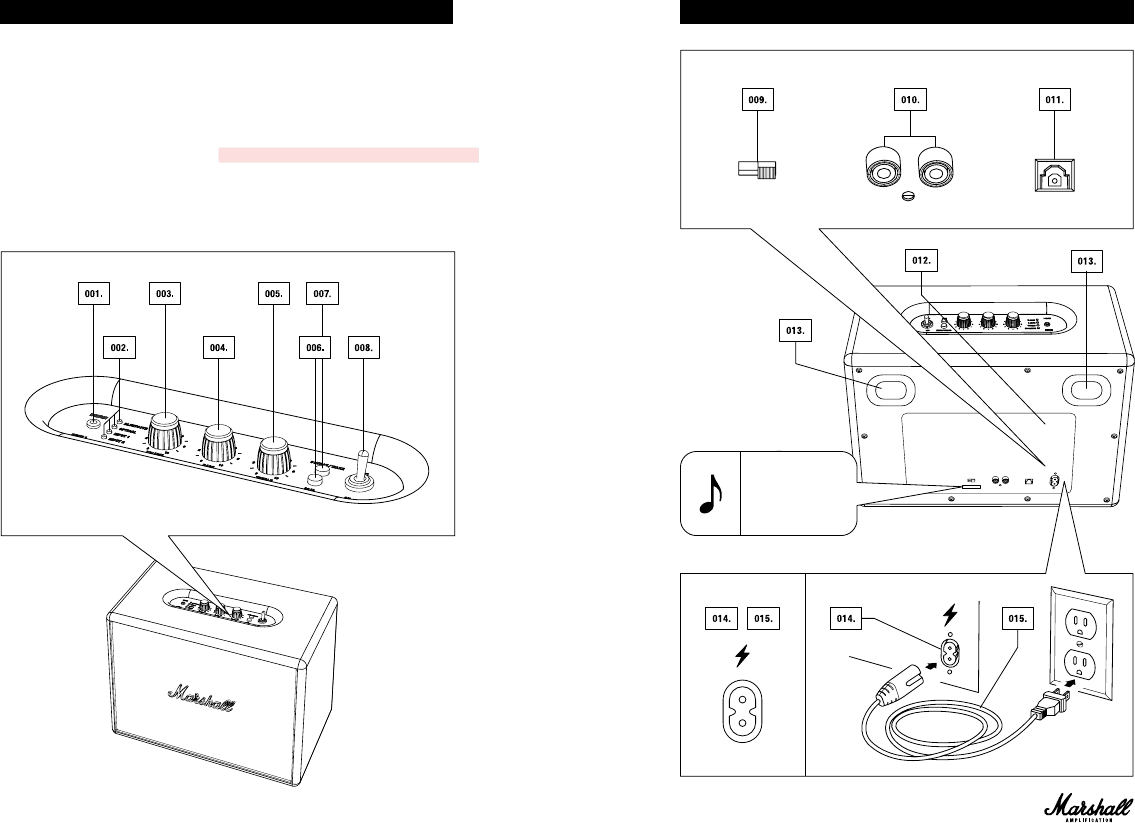

GENERAL DESCRIPTION
001. INPUT FOR 3.5MM
STEREO PLUG
002. LED LIGHT SOURCE INDICATOR
003. VOLUME
004. BASS
005. TREBLE
006. PAIR BUTTON
007. SOURCE/WAKE BUTTON
008. POWER SWITCH
009. STANDBY MODE SWITCH
(POWERSAVER MODE AND
STANDARD MODE)
010. RCA INPUT (LEFT & RIGHT)
011. OPTICAL INPUT
012. BACK PLATE
013. BASS PORTS
014. POWER JACK
015. POWER CORD
08.
WOBURN
003. TO TURN THE ACTIVE LOUDSPEAKER ON, SWITCH THE ON/OFF
SWITCH. THE LED LIGHT INDICATOR WILL FLASH RED ON THE
SOURCE MARKED AS BLUETOOTH.
004. TO TURN THE ACTIVE LOUDSPEAKER OFF, SWITCH THE ON/OFF
SWITCH. THE LED INDICATOR WILL TURN OFF.

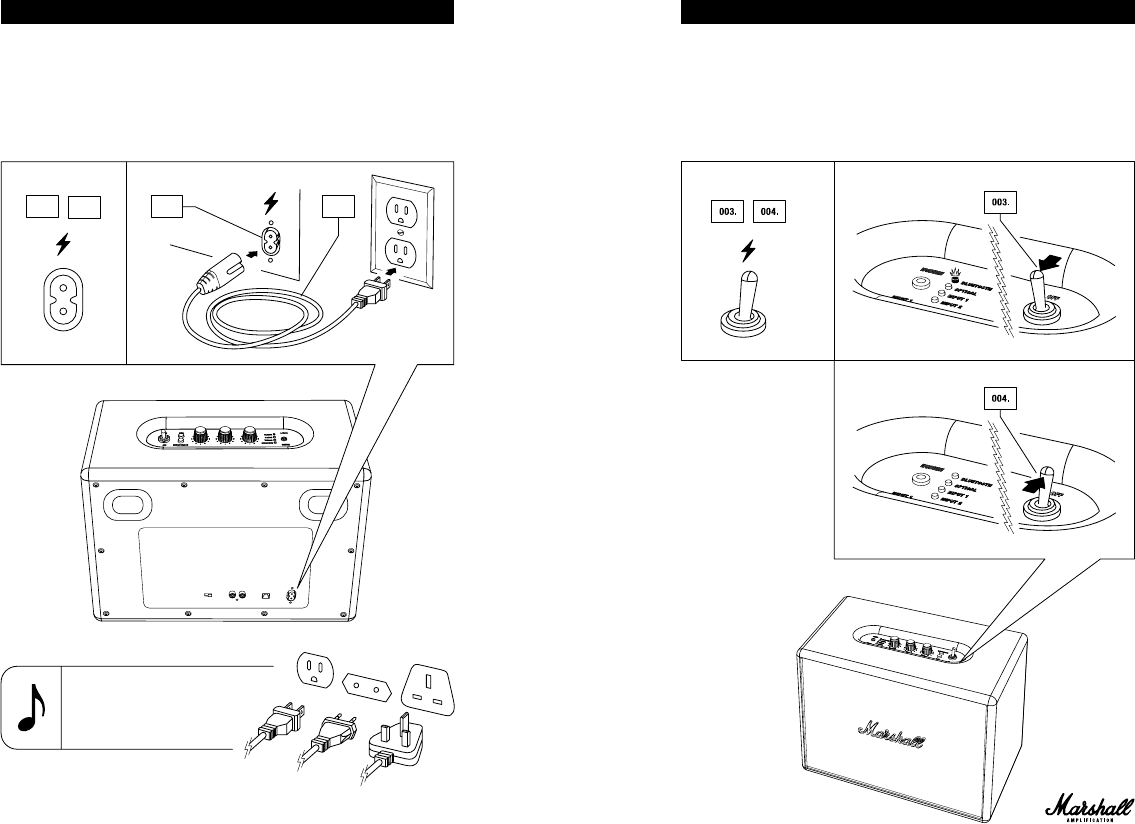

TURNING THE POWER ON/OFF
001. INSERT THE POWER CORD INTO THE POWER JACK.
002. CONNECT THE CORRECT POWER CORD TO THE WALL SOCKET.
010.
NOTE: DEPENDING ON YOUR
REGION, A POWER CORD WITH AN
APPROPRIATE PLUG IS SUPPLIED.
002.
001. 001. 002.

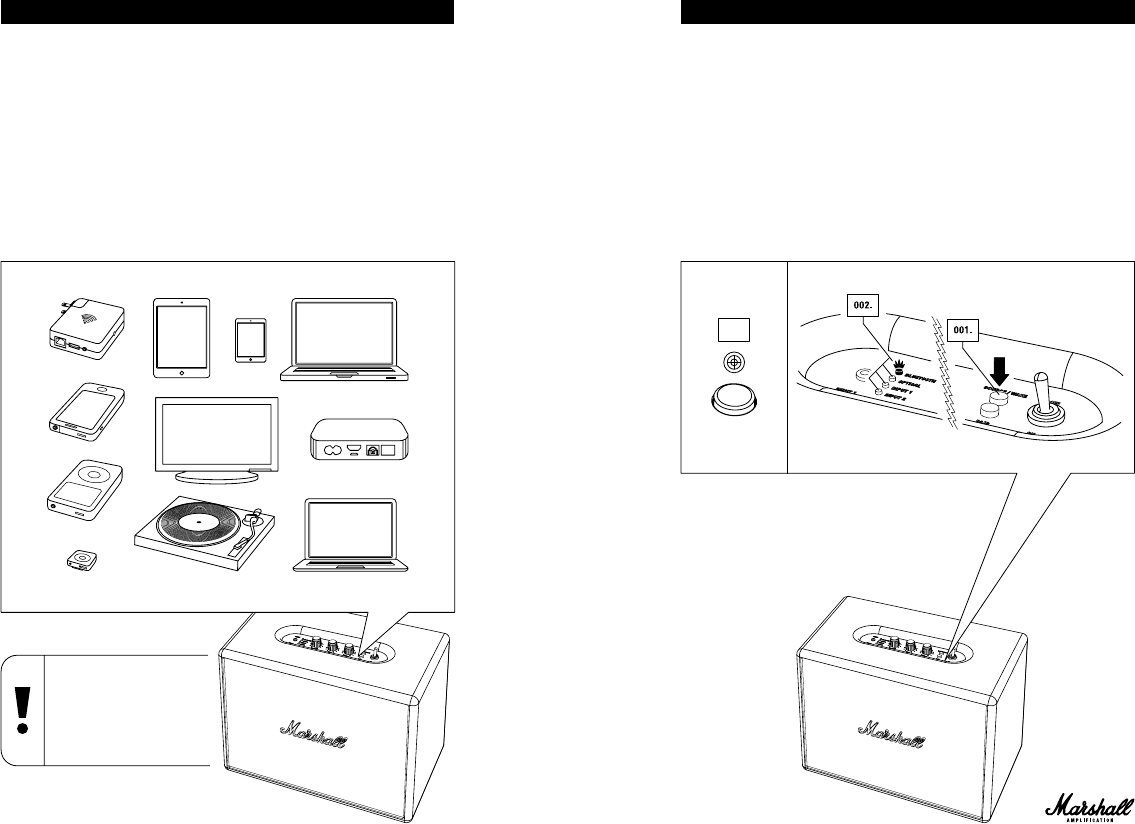

CHOOSING YOUR SOURCE
001. PUSH THE SOURCE/WAKE BUTTON TO CHOOSE YOUR SOURCE AND/OR
TO SWITCH BETWEEN CONNECTED SOURCES.
002. A LIT LED LIGHT INDICATES WHICH SOURCE YOU HAVE SELECTED.
ORDER OF CONNECTIONS (FROM TOP TO BOTTOM):
• BLUETOOTH
• OPTICAL
• INPUT 1 - 3.5MM STERO PLUG
• INPUT 2 - RCA PORTS
002.
USING THE WOBURN WITH YOUR DEVICES
THE WOBURN IS A LOUDSPEAKER CREATED FOR TODAY’S WORLD. WITH
MULTIPLE CONNECTION SOURCES, THERE ARE LOADS OF WAYS TO CONNECT
TO YOUR SPEAKER, WHETHER VIA YOUR PHONE, TURNTABLES, TV OR
WIRELESSLY VIA THE LATEST VERSION OF BLUETOOTH®, FEATURING
aptX® TECHNOLOGY. THE ADVANTAGE OF aptX® TECHNOLOGY IS THAT
THE SOUND QUALITY VIA BLUETOOTH IS SIGNIFICANTLY BETTER THAN
A2DP BLUETOOTH. BELOW YOU WILL FIND MORE DETAILS ABOUT THE
CONNECTION SOURCES, IN TWO CATEGORIES:
• WIRELESS CONNECTION VIA BLUETOOTH
• CONNECTION VIA THE 3.5MM, RCA, OR OPTICAL AUDIO CABLE
012.
CAUTION: MAKE SURE THAT
THE VOLUME IS SET TO
LOW ON BOTH THE ACTIVE
LOUDSPEAKER AND THE
MUSIC PLAYER WHEN YOU
START PLAYING MUSIC.
CONNECTING VIA BLUETOOTH
004.
005.
003. 005.
002.

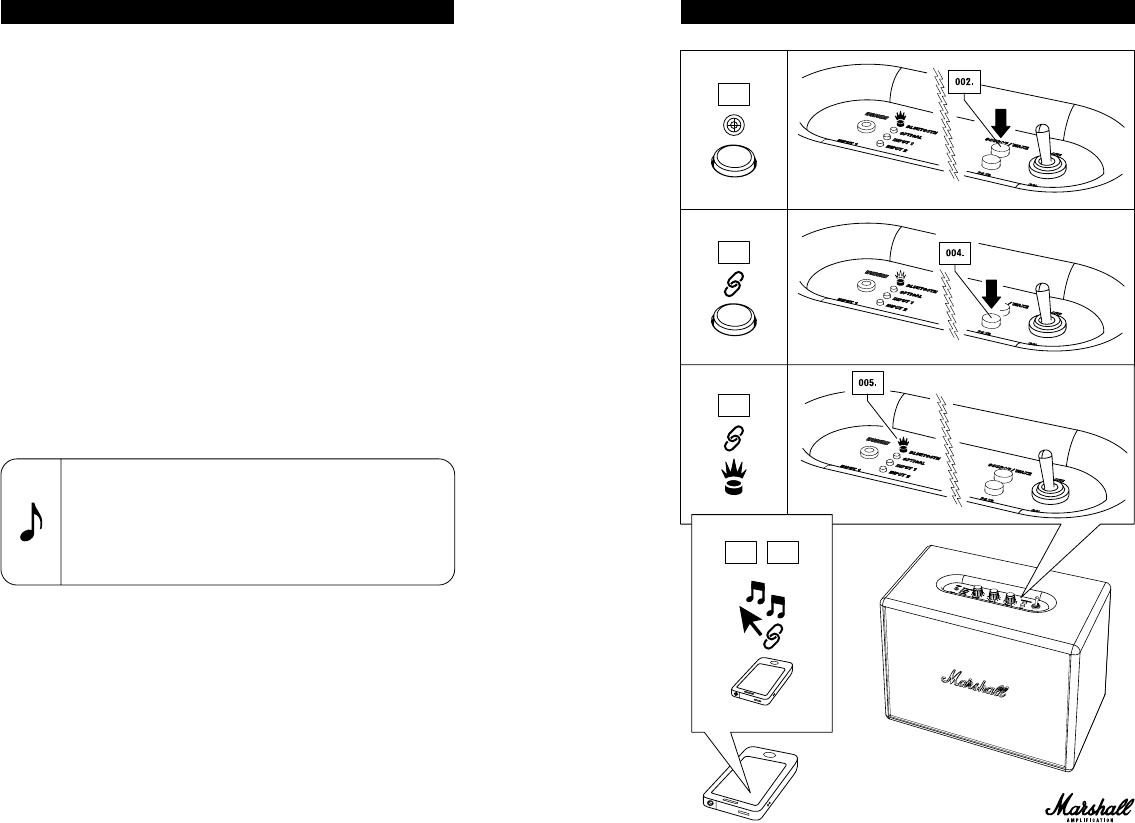

CONNECTING VIA BLUETOOTH
WITH THE HELP OF BLUETOOTH TECHNOLOGY, BLUETOOTH-COMPATIBLE
DEVICES CAN EASILY BE CONNECTED TO EACH OTHER OVER A SHORT
WIRELESS CONNECTION. USE YOUR BLUETOOTH-ENABLED SMARTPHONE,
TABLET OR COMPUTER TO STREAM MUSIC TO YOUR DIRECTLY TO YOUR
WOBURN WITH NO WIRES ATTACHED. USE YOUR NEWLY FOUND FREEDOM
TO MOVE AROUND WITH ALL YOUR MUSIC AT YOUR FINGERTIPS. FOLLOW
THESE STEPS TO CONNECT YOUR WOBURN WIRELESSLY TO YOUR
BLUETOOTH DEVICE.
001. TURN THE WOBURN ACTIVE STERO LOUDSPEAKER ON (SEE PAGE 010.).
002. SELECT BLUETOOTH AS SOURCE BY PUSHING THE SOURCE/WAKE
BUTTON UNTIL THE BLUETOOTH LED IS LIT.
003. ACTIVATE THE BLUETOOTH FUNCTIONALITY ON YOUR DEVICE
(SMARTPHONE, TABLET, COMPUTER).
004. PRESS THE PAIR BUTTON. THE LED LIGHT ON THE WOBURN WILL
START TO FLASH RAPIDLY IN RED.
005. ON YOUR DEVICE, SELECT THE WOBURN SPEAKER FROM
YOUR LIST. THE LED LIGHT ON THE SPEAKER WILL TURN TO A
STEADY RED.
006. YOU ARE NOW READY TO PLAY YOUR MUSIC WIRELESSLY VIA THE
WOBURN SPEAKER.
014.
NOTES:
• YOU ONLY NEED TO PAIR YOUR SMARTPHONE/TABLET/COMPUTER WITH THE
WOBURN ONCE, AFTER WHICH THE DEVICE WILL BE INCLUDED IN THE LIST OF YOUR
BLUETOOTH DEVICES.
• WHEN PAIRING A NEW DEVICE, PRESS THE PAIR BUTTON AGAIN, AND REPEAT
STEPS ABOVE.
• UP TO SIX DEVICES CAN BE STORED IN THE SPEAKER’S MEMORY.
BLUETOOTH AUTO CONNECTION
IF A DEVICE IS MOVED OUTSIDE THE RANGE OF WOBURN SPEAKER
(APPROXIMATELY 10 METRES WITHOUT OBSTACLES), THAT DEVICE IS
DISCONNECTED. THE DEVICE IS AUTOMATICALLY CONNECTED AGAIN
WHEN IT IS MOVED BACK WITHIN RANGE. THE WOBURN SPEAKER CAN
MEMORISE UP TO SIX DEVICES AND ALWAYS STARTS SEARCHING FOR THE
LAST DEVICE THAT HAS BEEN CONNECTED. IF THE WOBURN SPEAKER HAS
BEEN CONNECTED TO DEVICES A–B–C–D–E–F IN THAT ORDER, DEVICE F IS
GIVEN FIRST PRIORITY, WHILE DEVICE A IS GIVEN LAST PRIORITY. EVERY
TIME THE WOBURN STARTS UP, IT WILL PERFORM AN AUTO CONNECTION
OF DEVICES WITHIN ITS RANGE.
016.
LOCATING YOUR DEVICES VIA BLUETOOTH
SELECT BLUETOOTH AS THE INPUT SOURCE BY PRESSING SOURCE/WAKE
ON THE SPEAKER. BLUETOOTH IS NOW ACTIVATED, WITH A FLASHING RED
LIGHT IF NO DEVICE IS CONNECTED, AND A SOLID RED LIGHT IF A DEVICE
IS CONNECTED. WOBURN SPEAKER WILL NOW AUTOMATICALLY SEARCH
FOR PAIRED DEVICES FOR 3 MINUTES, AND THE LED WILL RAPIDLY FLASH
RED DURING THE SEARCH. THE WOBURN SPEAKER WILL LOCATE DEVICES
WITHIN RANGE THAT HAVE PREVIOUSLY BEEN CONNECTED AND WILL
CONNECT THEM AUTOMATICALLY. IF NO DEVICES ARE LOCATED WITHIN
THREE MINUTES, THE WOBURN SPEAKER WILL REVERT TO STANDBY
STATUS (EITHER POWERSAVER MODE OR STANDARD MODE, DEPENDING
ON WHICH OPTION YOU CHOOSE. THERE IS MORE INFORMATION ON MODES
IN THE STANDBY MODES SECTION ON PAGE 022.). IF THE PAIR BUTTON IS
PRESSED WHILE BLUETOOTH IS SELECTED AS THE AUDIO SOURCE, THE
WOBURN LOUDSPEAKER WILL PERFORM A NEW SEARCH FOR THREE
MINUTES AFTERWARDS, DURING WHICH TIME, THE LED LIGHT WILL
RAPIDLY FLASH RED.
NOTES:
• THE AUTO CONNECTION FUNCTION WILL NOT WORK IF THE WOBURN LOUDSPEAKER
IS TURNED OFF VIA THE MAIN POWER SWITCH AT THE TOP OF THE UNIT.
• IF A SEVENTH DEVICE IS CONNECTED, DEVICE A WILL NO LONGER BE MEMORISED.
• ALWAYS START BLUETOOTH IN YOUR SMARTPHONE/COMPUTER FIRST, AND THEN
START WOBURN LOUDSPEAKER TO RECEIVE AN AUTO CONNECTION.
INPUT 1 - 3.5MM STEREO PLUG
001. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE INPUT
LABELLED INPUT 1 ON THE LOUDSPEAKER.
002. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE MUSIC PLAYER.
003. SELECT INPUT 1 AS SOURCE BY PUSHING THE SOURCE/WAKE
BUTTON UNTIL THE INPUT 1 LED IS LIT (SEE PAGE 013.).
001.
003.
CONNECTING SOURCES BY CABLE
THERE ARE A NUMBER OF WAYS TO CONNECT TO YOUR WOBURN THE OLD
FASHIONED WAY, USING A CABLE. USE ONE OF THE THREE AUDIO INPUTS
AVAILABLE: INPUT 1 - 3.5MM STEREO PLUG, INPUT 2 - RCA ANALOGUE
INPUT OR THE OPTICAL AUDIO DIGITAL INPUT.
• INPUT 1 - 3.5MM STEREO PLUG
USE THE DOUBLE-ENDED COIL CORD WITH 3.5MM PLUGS TO
CONNECT TO AUDIO SOURCES THAT HAVE AUDIO OUTPUT SUCH AS
A MOBILE TELEPHONE, IPHONE/IPAD/IPOD, MP3 PLAYER, OR
AIRPORT EXPRESS.
• INPUT 2 - RCA ANALOGUE INPUT
USE THE RCA ANALOGUE INPUT TO CONNECT TO YOUR CD PLAYER,
TURNTABLE (WITH RIAA) OR SONOS UNIT.
• OPTICAL AUDIO DIGITAL INPUT
USE THE OPTICAL INPUT TO CONNECT TO YOUR TV, APPLE TV,
AIRPORT EXPRESS, HARD DISK PLAYER, STREAMING PLAY, AND
SATELLITE OR CABLE RECEIVER. OPTICAL INPUT WORKS WITH PCM
STEREO ONLY. IF A CONNECTED DEVICE SENDS 5.1 AUDIO (OR
SIMILAR SURROUND SOUND), THE WOBURN WILL NOT FUNCTION.
SET THE AUDIO OUT TO STEREO ONLY ON YOUR TV, EVEN IF THE
SHOW IS BROADCASTED IN 5.1 AUDIO.
018.
NOTE: OPTICAL AUDIO CABLE AND RCA
CABLE NOT INCLUDED WITH THE WOBURN
AND MUST BE PURCHASED SEPARATELY.
OPTICAL AUDIO
001. SELECT OPTICAL AS SOURCE BY PUSHING THE SOURCE/WAKE
BUTTON UNTIL THE OPTICAL LED IS LIT (SEE PAGE 013.).
002. CONNECT THE OPTICAL AUDIO CABLE’S CONNECTOR POINTS TO
THE OUTPUT PORT LOCATED ON THE BACK OF THE LOUDSPEAKER
LABELLED OPTICAL IN.
003. CONNECT THE OPTICAL AUDIO CABLE TO THE OPTICAL AUDIO
INPUT ON YOUR HOME THEATRE, APPLE TV OR OTHER RECEIVER.
INPUT 2 - RCA PORTS
001. SELECT INPUT 2 AS SOURCE BY PUSHING THE SOURCE/WAKE
BUTTON UNTIL THE INPUT 2 LED IS LIT (SEE PAGE 013.).
002. CONNECT THE CORD WITH THE RCA PLUGS TO THE MATCHING
SOCKETS (LEFT AND RIGHT) ON THE LOUDSPEAKER.
003. CONNECT THE RCA CORD TO THE RCA PORT ON YOUR SOURCE.
020.
002. 003.
NOTE: TURNTABLE
MUST HAVE A
BUILT IN RIAA
PREAMPLIFIER,
OTHERWISE A
SEPARATE PRE-
AMPLIFIER WILL
BE NEEDED.
001. POWERSAVER STANDBY MODE: THE WOBURN WILL GO TO POWER
SAVING STANDBY MODE AFTER 20 MINUTES OF NOT RECEIVING A
SOUND SIGNAL. IF YOU HAVE CHOSEN TO USE THE POWERSAVER
STANDBY MODE, THE WOBURN WILL NOT WAKE UP AUTOMATICALLY
WHEN YOU BEGIN PLAYING MUSIC AND WILL NOT SHOW UP AS AN
AVAILABLE DEVICE IN YOUR BLUETOOTH LIST AFTER IT HAS GONE
INTO THIS LOW-POWER STATE. TO ACTIVATE WOBURN AND PLAY
MUSIC FROM ANY SOURCE AFTER THE UNIT HAS GONE TO STANDBY
MODE, PRESS THE WAKE BUTTON ONCE. THIS WILL BRING THE
WOBURN BACK TO LIFE AND READY TO PLAY AGAIN.
002. STANDARD STANDBY MODE: THE WOBURN WILL GO INTO STANDBY
MODE AFTER 20 MINUTES OF NOT RECEIVING A SOUND SIGNAL.
IF YOU HAVE CHOSEN TO USE THE STANDARD STANDBY MODE, THE
WOBURN WILL AUTOMATICALLY ‘WAKE UP’ WHEN THE LAST
SOURCE IS PLAYED. FOR EXAMPLE, IF A SOURCE CONNECTED WITH
A CABLE BEGINS TO PLAY, THE SPEAKER WAKES UP AUTOMATICALLY
WHEN THAT SOURCE IS SELECTED. IF A BLUETOOTH DEVICE WAS
USED AS THE LAST SOURCE, SIMPLY TOUCHING THE LATEST
BLUETOOTH DEVICE TO HAVE BEEN USED WILL WAKE THE WOBURN
UP AUTOMATICALLY. IF YOU WANT TO PLAY ANOTHER BLUETOOTH
DEVICE INSTEAD OF THE LAST ONE USED, PRESS THE WAKE BUTTON
ONCE TO PLAY MUSIC AGAIN.
POWERSAVER & STANDARD STANDBY MODES
022.
ON THE BACK OF YOUR WOBURN, YOU WILL FIND A SWITCH THAT ALLOWS
YOU TO CHOOSE BETWEEN TWO DIFFERENT STANDBY MODES: POWERSAVER
OR STANDARD.
EUROPEAN UNION REGULATION STATES THAT ELECTRONIC DEVICES
MAY ONLY HAVE 0.5W POWER CONSUMPTION IN STANDBY MODE (THE
EUROPEAN DIRECTIVE ON ENERGY RELATED PRODUCTS, OR ERP). THIS IS
WHY THE WOBURN’S FACTORY DEFAULT SETTING IS THE POWERSAVER
MODE, BECAUSE THE POWERSAVER MODE SAVES MORE ENERGY THAN
THE STANDARD MODE.
AS THE NAME IMPLIES, USING THIS SETTING SAVES POWER. WHEN YOU
STOP PLAYING MUSIC, THE WOBURN WILL GO INTO A LOW-POWER STATE
AFTER 20 MINUTES. POWERSAVER MODE CAN BE DISABLED IF YOU WANT
WOBURN TO START AUTOMATICALLY AND STAY VISIBLE ON YOUR LIST
OF BLUETOOTH DEVICES AFTER 20 MINUTES. TO DISABLE POWERSAVER,
SIMPLY CHANGE THE SWITCH TO STANDARD MODE.
001. 002.
TECHNICAL INFORMATION
SOUND SPECIFICATION
• ACTIVE STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM
• CLASS D AMPLIFIERS: 2X20W+1X50W
• 1” DOME TWEETERS: 2X (FERROFLUID COOLED)
• 5¼” WOOFERS: 2X
• MAX SPL: 110DB @ 1M (GROUND PLANE 300HZ 3%THD)
• BASS AND TREBLE TONE CONTROLS
• FREQUENCY RANGE: 35- 22.000HZ
• CROSSOVER FREQUENCY: 2500HZ
CONNECTIVITY
•BLUETOOTH: 3.0
• INPUT 1 - 3.5MM: 1X
• INPUT 2 - RCA: 2X
• OPTICAL INPUT: 1X
TECHNICAL INFORMATION
• MAINS INPUT VOLTAGE: 100-240V~ /200W
• ABSOLUTE MIN/MAX: 90-264V~
• MAINS FREQUENCY: 50-60HZ
• MAX PEAK POWER CONSUMPTION: 200W
• TWO STANDBY MODES: POWERSAVER MODE (0,43W)
AND STANDARD MODE (8,7W)
• MAX POWER OUTPUT: 80W RMS
• WEIGHT: 7.90KG / 17.42 LBS
• SIZE: 400 x 308 x 200MM / 15.75 x 11.40 x 7.87IN
NOTE: THE FRONT FRET IS NOT REMOVEABLE. THIS ILLUSTRATION INTENDS TO
SHOW THE INTERNAL SPEAKER LAYOUT. DO NOT ATTEMPT TO REMOVE THE
FRONT FRET FOR RISK OF DAMAGING YOUR ACTIVE LOUDSPEAKER.
ADJUSTING THE VOLUME/BASS/TREBLE
TURN THE KNOB TO ADJUST THE:
001. VOLUME
002. BASS
003. TREBLE
024.
WOBURN
ACTION
Plug the power cord into a working wall socket and plug the connector
into the power jack on the back of the active loudspeaker.
Unplug and re-plug the 3.5mm cord/input cable/signal cable into
both the active loudspeaker and the music player.
Turn up the volume on the active loudspeaker.
Turn up the volume on the music player.
Turn down the volume.
Try another sound file (mp3) or music player.
Turn down playback level on the volume knob or reduce the sound
level on the music player.
Turn down the volume control on the control panel and/or music
player. Reduce the bass boost on the control panel or excessive bass
boost/eq on the music player.
Turn down the volume on the speaker or on the music player.
Reduce the bass boost.
Move the active loudspeaker to another spot or turn off or move
other electronic devices.
TROUBLE SHOOTING
PROBLEM CAUSE
THE ACTIVE
LOUDSPEAKER WILL
NOT TURN ON.
THE SOUND IS WEAK
OR THERE IS NO
SOUND AT ALL.
THE SOUND IS
DISTORTED.
SHARP CRACKLING/
CLICKING ON STRONG
PASSAGES/TRANSIENTS.
ERRATIC
PERFORMANCE.
The power cord is not plugged into a
working wall socket or not plugged into
the power jack on the back of the active
loudspeaker.
The 3.5mm cord/input cable/signal cable is
not correctly connected to either the active
loudspeaker or the music player.
The volume level is too low on the active
loudspeaker.
The volume level is too low on the music
player.
The volume level is too high.
The original sound le (mp3) is of poor quality.
Excessive playback volume.
Too much bass/treble boost.
Clipping when the amplifier runs out of
power.
Interference from another source or
electronic device.
026.
WOBURN
ACTION
Place the Woburn closer to the Bluetooth device during the pairing
process.
Move to an area with better reception to improve Bluetooth connectivity.
Move the Woburn closer to the Bluetooth device. If the distance
exceeds the Bluetooth device’s wireless range, the connection will
be lost.
Ensure that the Woburn is placed near the Bluetooth device, and
unobstructed by obstacles such as walls or doors.
Please ensure that there is no electrical interference surrounding the
Woburn, that your Bluetooth device is on and working properly.
NOTES:
• A BLUETOOTH DEVICE COULD CAUSE SOUND-RELATED OR TECHNICAL FAULTS,
DEPENDING ON USE, IN THE FOLLOWING CASES:
- WHEN SOME PART OF THE BODY IS IN CONTACT WITH THE RECEIVING/
TRANSMITTING SYSTEM FOR THE BLUETOOTH DEVICE OR THE WOBURN LOUDSPEAKER.
- ELECTRICAL VARIATIONS DUE TO OBSTACLES IN THE FORM OF WALLS, CORNERS, ETC.
- EXPOSURE TO ELECTRICAL DISRUPTIONS FROM DEVICES WITHIN THE SAME
FREQUENCY BAND, FOR EXAMPLE MEDICAL EQUIPMENT, MICROWAVE OVENS
AND WIRELESS NETWORKS.
• THIS WIRELESS DEVICE MAY CAUSE ELECTRICAL DISRUPTIONS DURING USE.
• YOU DO NOT NEED TO ENTER THE PIN CODE (PASSWORD) WHEN CONNECTING THE
BLUETOOTH DEVICE TO WOBURN SPEAKER. IF THE WINDOW FOR ENTERING THE PIN
CODE IS DISPLAYED, YOU SHOULD ENTER <0000>.
• YOU CANNOT CONNECT TO A BLUETOOTH DEVICE THAT ONLY SUPPORTS THE HF
(HANDS FREE) AREA FUNCTION.
BLUETOOTH TROUBLE SHOOTING
PROBLEM CAUSE
BLUETOOTH WILL NOT
CONNECT.
BLUETOOTH
CONNECTION DOES
NOT WORK AS WELL
AS IT SHOULD.
THE SOUND QUALITY
IS POOR WHEN
CONNECTED THROUGH
BLUETOOTH.
BLUETOOTH
CONNECTION IS
BROKEN OR
DISRUPTED.
THE WOBURN
LOUDSPEAKER
CANNOT FIND A
BLUETOOTH
CONNECTION.
Woburn is too far away from your device
during the pairing process.
You may be in an area with poor reception.
The greater the distance between the
Woburn and the Bluetooth device, the
poorer the sound quality will be.
The Bluetooth connection only works
when it is near the device. The connection
is automatically broken if the Bluetooth
device moves outside of the area. The
connection may even be affected due to
obstacles such as walls or doors.
The loudspeaker cannot search or connect
correctly in the following cases:
• If there is a strong electric field
surrounding the Woburn.
• If the Bluetooth device is turned off, not
available or does not function as it should.
• Please note that items such as, for
example, microwave ovens, wireless net-
work adapters, fluorescent lights and gas
cookers use the same frequency range as
the Bluetooth device, which could lead to
electrical disturbances.
028.
