About Your ZyXEL G-162
The ZyXEL G-162 is an IEEE 802.11g compliant wireless LAN PC card that fits
into any CardBus slot. With the ZyXEL G-162, you can enjoy the wireless mobility
within the coverage area. The IEEE 802.11g technology provides greater range and
offers transmission rate at up to 54 Mbps. Your ZyXEL G-162 can transmit at the
proprietary transmission rate of 125 Mbps if you are connecting to the ZyXEL G-
162 and G-560 (at the time of writing).
ZyXEL G-162 Quick Start Guide
2
1. Installation Requirements
Before installation, make sure you have a computer with the following:
• Pentium II 300MHz or above
• A minimum of 6 MB available hard disk space
• A minimum of 32 MB RAM
• A CD-ROM drive
• A CardBus slot
• Windows 98 SE/Me/2000/XP
• Windows 98 SE users may need the Windows 98 SE CD
If you install the Funk Odyssey Client software on the
computer, uninstall (remove) it.
2. ZyXEL Utility and Hardware Installation
The installation procedures are similar for all supported Windows versions.
Windows 2000 screen shots are shown unless otherwise specified.
DO NOT insert the ZyXEL G-162 at this point.
1. Insert the support CD into the CD-ROM drive on your computer. The CD
automatically runs. Otherwise, locate and double-click setup.exe.
ZyXEL G-162 Quick Start Guide
3

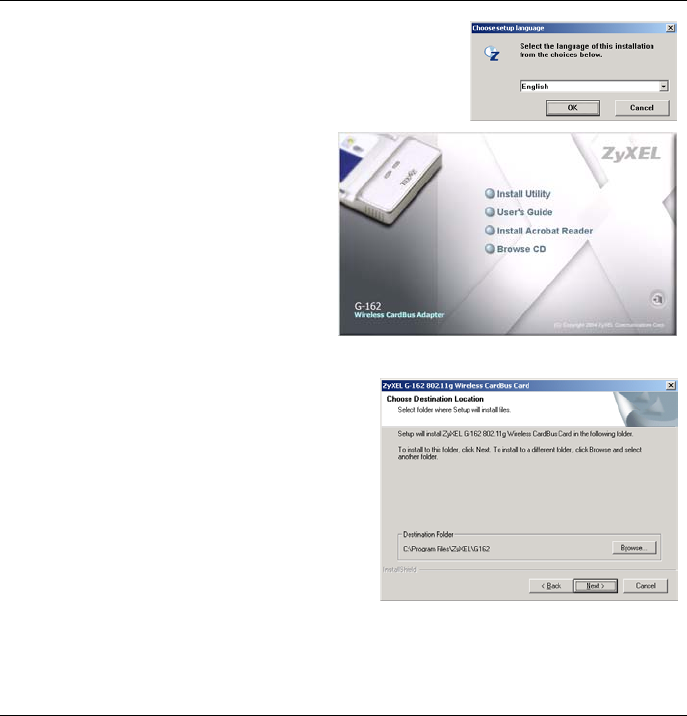

2. Select your language and click
OK.
3. Click Install Utility to start
installation.
4. A welcome screen displays. Click Next.
5. Click Next to accept the default
file location or click Browse to
select an alternate folder.
6. Click Finish to restart the computer.
ZyXEL G-162 Quick Start Guide
4
7. Locate an available CardBus slot on the
computer.
8. With the pin connectors facing the slot and
the LED side facing up, slide the ZyXEL
G-162 into the slot. The LEDs turn on if
the ZyXEL G-162 is properly inserted.
Never bend, force or twist the ZyXEL G-162 into the slot.
After you install the ZyXEL Utility and insert the ZyXEL G-162, an icon
appears in the system tray.
If the ZyXEL Utility icon displays, the ZyXEL G-162 is
installed properly. Refer to the User’s Guide to configure the
ZyXEL G-162.
LED Display
The following table describes the LEDs on the ZyXEL G-162.
LIN
K
PW
R
ZyXEL G-162 Quick Start Guide
5
LED COLOR STATUS DESCRIPTION
On The ZyXEL G-162 is receiving power. PWR Green
Off The ZyXEL G-162 is not receiving power.
Blinking The ZyXEL G-162 is receiving or sending data. LINK Green
Off The ZyXEL G-162 is not receiving or sending data.
Troubleshooting
PROBLEM CORRECTIVE ACTION
Make sure the ZyXEL G-162 is inserted into the computer
CardBus slot properly and then restart your computer. Check
the LEDs on the ZyXEL G-162.
Perform a hardware scan by clicking Start, Settings, Control
Panel and double-clicking Add/Remove Hardware. (Steps
may vary depending on the version of Windows).
Follow the on-screen instructions to search for the ZyXEL G-
162 and install the driver.
Check for possible hardware conflicts. In Windows, click Start,
Settings, Control Panel, System, Hardware and then click
Device Manager. Verify the status of the ZyXEL G-162 under
Network Adapter. (Steps may vary depending on the version
of Windows).
Windows does not
auto-detect the
ZyXEL G-162.
Install the ZyXEL G-162 in another computer. If the error
persists, you may have a hardware problem. In this case, you
should contact your local vendor.
or C ertifica tions. F or more information about your devices Declaration of C onformity (DOC ) pleas e refer to www.zyxel.com
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The equipment version marketed in USA is restricted to usage of the channels 1-11 only.
This equipment has been SAR-evaluated for use in laptops (notebooks) with side.
