ZyXEL Communications NBG334SH1 Wireless Router User Manual SMG 700 User s Guide V1 00 Nov 2004

ZyXEL Communications Corporation Wireless Router SMG 700 User s Guide V1 00 Nov 2004

users manual pt1

www.zyxel.com
NBG-334SH
802.11g Super G High Power Wireless Router
User’s Guide
Version 3.60
01/2007
Edition 1
About This User's Guide
ZyXEL NBG-334SH User’s Guide 3
About This User's Guide
Intended Audience
This manual is intended for people who want to configure the ZyXEL Device using the web
configurator. You should have at least a basic knowledge of TCP/IP networking concepts and
topology.
Related Documentation
• Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. It contains
information on setting up your network and configuring for Internet access.
• Web Configurator Online Help
Embedded web help for descriptions of individual screens and supplementary
information.
"It is recommended you use the web configurator to configure the ZyXEL
Device.
• Supporting Disk
Refer to the included CD for support documents.
• ZyXEL Web Site
Please refer to www.zyxel.com for additional support documentation and product
certifications.
User Guide Feedback
Help us help you. Send all User Guide-related comments, questions or suggestions for
improvement to the following address, or use e-mail instead. Thank you!
The Technical Writing Team,
ZyXEL Communications Corp.,
6 Innovation Road II,
Science-Based Industrial Park,
Hsinchu, 300, Taiwan.
E-mail: techwriters@zyxel.com.tw
Document Conventions
ZyXEL NBG-334SH User’s Guide
4
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this User’s Guide.
1Warnings tell you about things that could harm you or your device.
"Notes tell you other important information (for example, other things you may
need to configure or helpful tips) or recommendations.
Syntax Conventions
• The NBG-334SH may be referred to as the “ZyXEL Device”, the “device”, the “product”
or the “system” in this User’s Guide.
• Product labels, screen names, field labels and field choices are all in bold font.
• A key stroke is denoted by square brackets and uppercase text, for example, [ENTER]
means the “enter” or “return” key on your keyboard.
• “Enter” means for you to type one or more characters and then press the [ENTER] key.
“Select” or “choose” means for you to use one of the predefined choices.
• A right angle bracket ( > ) within a screen name denotes a mouse click. For example,
Maintenance > Log > Log Setting means you first click Maintenance in the navigation
panel, then the Log sub menu and finally the Log Setting tab to get to that screen.
• Units of measurement may denote the “metric” value or the “scientific” value. For
example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000”
or “1048576” and so on.
• “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”.
Document Conventions
ZyXEL NBG-334SH User’s Guide 5

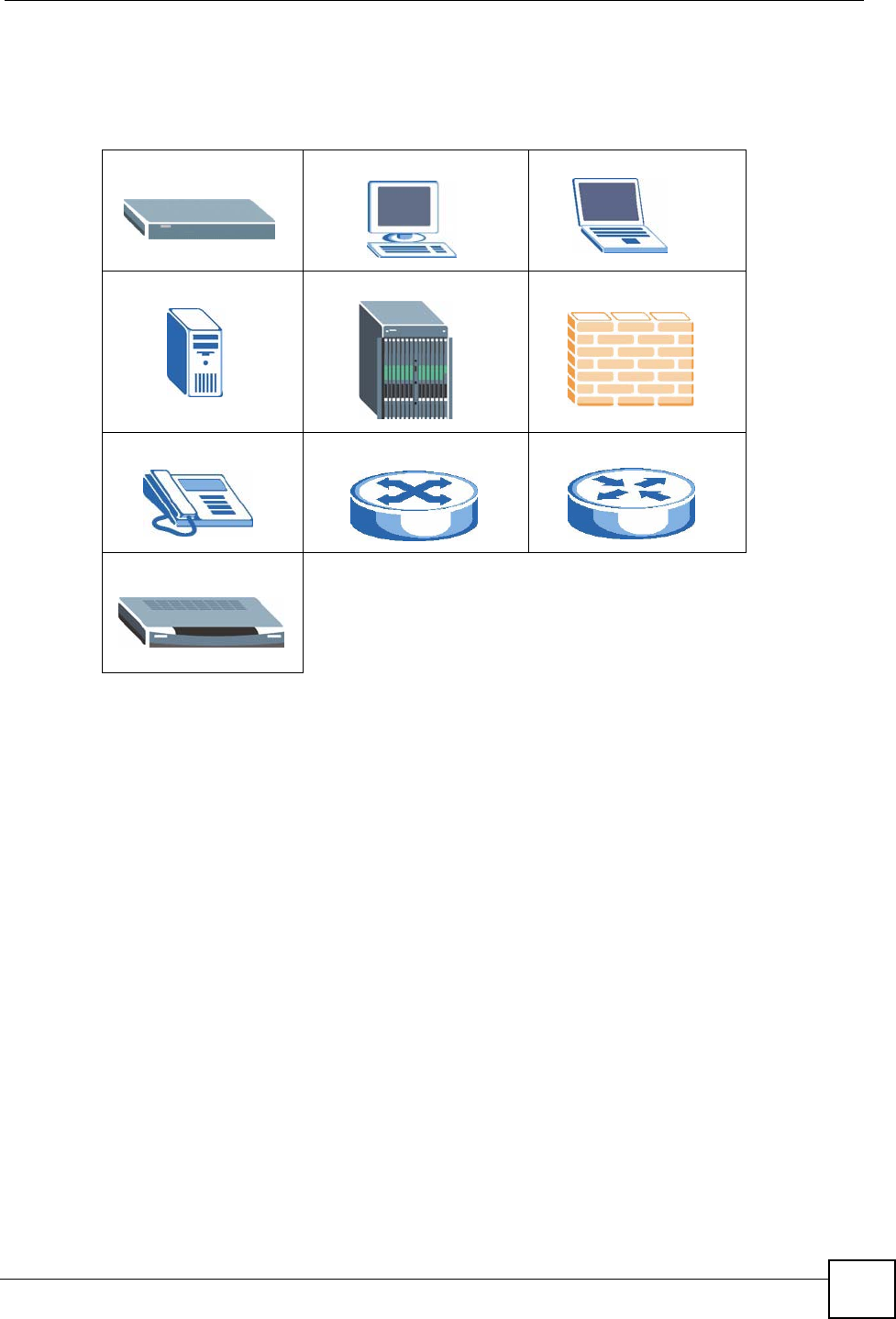

Icons Used in Figures
Figures in this User’s Guide may use the following generic icons. The ZyXEL Device icon is
not an exact representation of your device.
ZyXEL Device Computer Notebook computer
Server DSLAM Firewall
Telephone Switch Router
Modem
Safety Warnings
ZyXEL NBG-334SH User’s Guide
6
Safety Warnings
1For your safety, be sure to read and follow all warning notices and instructions.
• Do NOT use this product near water, for example, in a wet basement or near a swimming
pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk
of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• Do NOT open the device or unit. Opening or removing covers can expose you to
dangerous high voltage points or other risks. ONLY qualified service personnel should
service or disassemble this device. Please contact your vendor for further information.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble over them.
• Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power adaptor or cord for your device.
• Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in
North America or 230V AC in Europe).
• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the
product where anyone can walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it might cause
electrocution.
• If the power adaptor or cord is damaged, remove it from the power outlet.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a
new one.
• Do not use the device outside, and make sure all the connections are indoors. There is a
remote risk of electric shock from lightning.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your
device.
• Antenna Warning! This device meets ETSI and FCC certification requirements when
using the included antenna(s). Only use the included antenna(s).
• If you wall mount your device, make sure that no electrical lines, gas or water pipes will
be damaged.
This product is recyclable. Dispose of it properly.
Safety Warnings
ZyXEL NBG-334SH User’s Guide 7
Safety Warnings
ZyXEL NBG-334SH User’s Guide
8
Contents Overview
ZyXEL NBG-334SH User’s Guide 9
Contents Overview
Introduction ............................................................................................................................ 27
Getting to Know Your ZyXEL Device ......................................................................................... 29
Wireless Tutorial ........................................................................................................................ 33
Introducing the Web Configurator .............................................................................................. 41
Wizard ..................................................................................................................................... 53
Connection Wizard .................................................................................................................... 55
Advanced ................................................................................................................................ 71
Wireless LAN ............................................................................................................................. 73
WAN .......................................................................................................................................... 89
LAN ............................................................................................................................................ 99
DHCP Server ........................................................................................................................... 105
Network Address Translation (NAT) ........................................................................................ 109
Dynamic DNS ...........................................................................................................................119
Firewall .................................................................................................................................... 121
Content Filtering ...................................................................................................................... 127
Static Route Screens ............................................................................................................... 133
Bandwidth Management .......................................................................................................... 137
Remote Management Screens ................................................................................................ 149
Universal Plug-and-Play (UPnP) ............................................................................................. 155
Maintenance and Troubleshooting ..................................................................................... 167
System ..................................................................................................................................... 169
Logs ......................................................................................................................................... 173
Tools ........................................................................................................................................ 187
Configuration Mode ................................................................................................................. 193
Troubleshooting ....................................................................................................................... 195
Appendices and Index .........................................................................................................201
Contents Overview
ZyXEL NBG-334SH User’s Guide
10
Table of Contents
ZyXEL NBG-334SH User’s Guide 11
Table of Contents
About This User's Guide .......................................................................................................... 3
Document Conventions............................................................................................................4
Safety Warnings........................................................................................................................ 6
Contents Overview ...................................................................................................................9
Table of Contents.................................................................................................................... 11
List of Figures ......................................................................................................................... 19
List of Tables........................................................................................................................... 23
Part I: Introduction................................................................................. 27
Chapter 1
Getting to Know Your ZyXEL Device .................................................................................... 29
1.1 ZyXEL Device Overview ......................................................................................................29
1.2 Applications for the ZyXEL Device ...................................................................................... 29

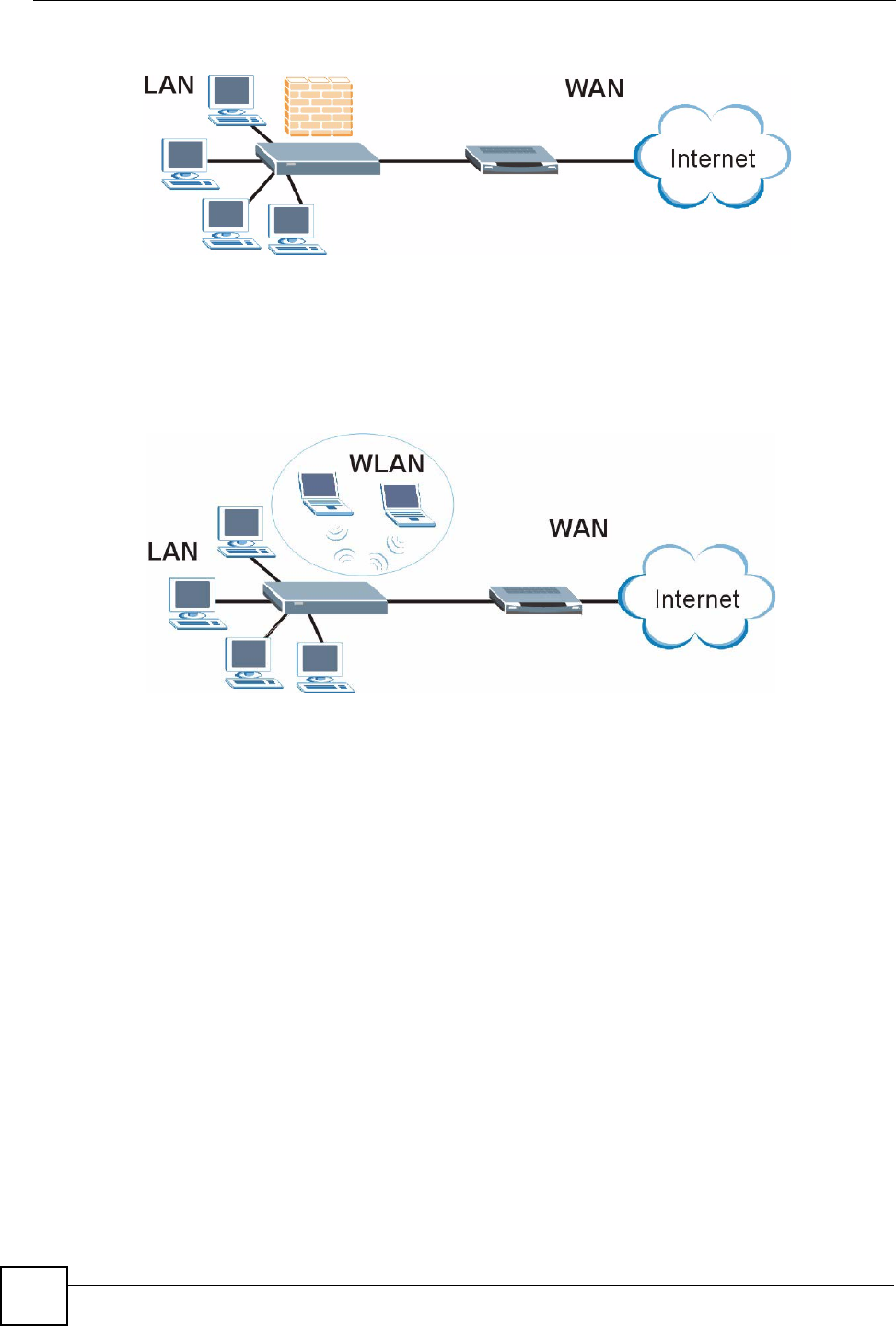

1.2.1 Secure Broadband Internet Access ........................................................................... 29
1.3 Ways to Manage the ZyXEL Device .................................................................................... 30
1.4 Good Habits for Managing the ZyXEL Device ..................................................................... 30

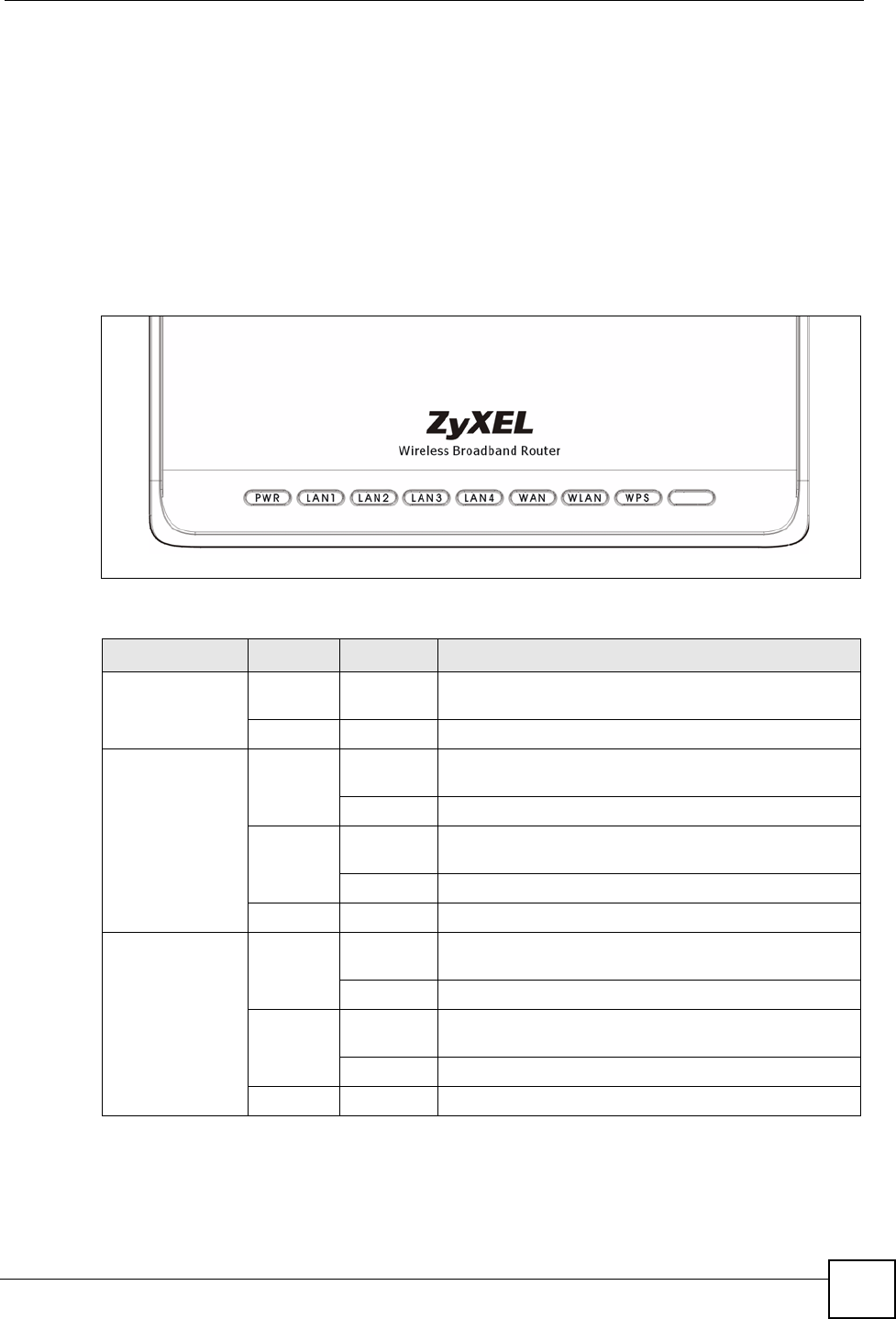

1.5 LEDs .................................................................................................................................... 31
Chapter 2
Wireless Tutorial ..................................................................................................................... 33
2.1 Example Parameters ........................................................................................................... 33
2.2 Configuring the AP .............................................................................................................. 33
2.3 Configuring the Wireless Client ........................................................................................... 35
2.3.1 Connecting to a Wireless LAN ................................................................................... 36

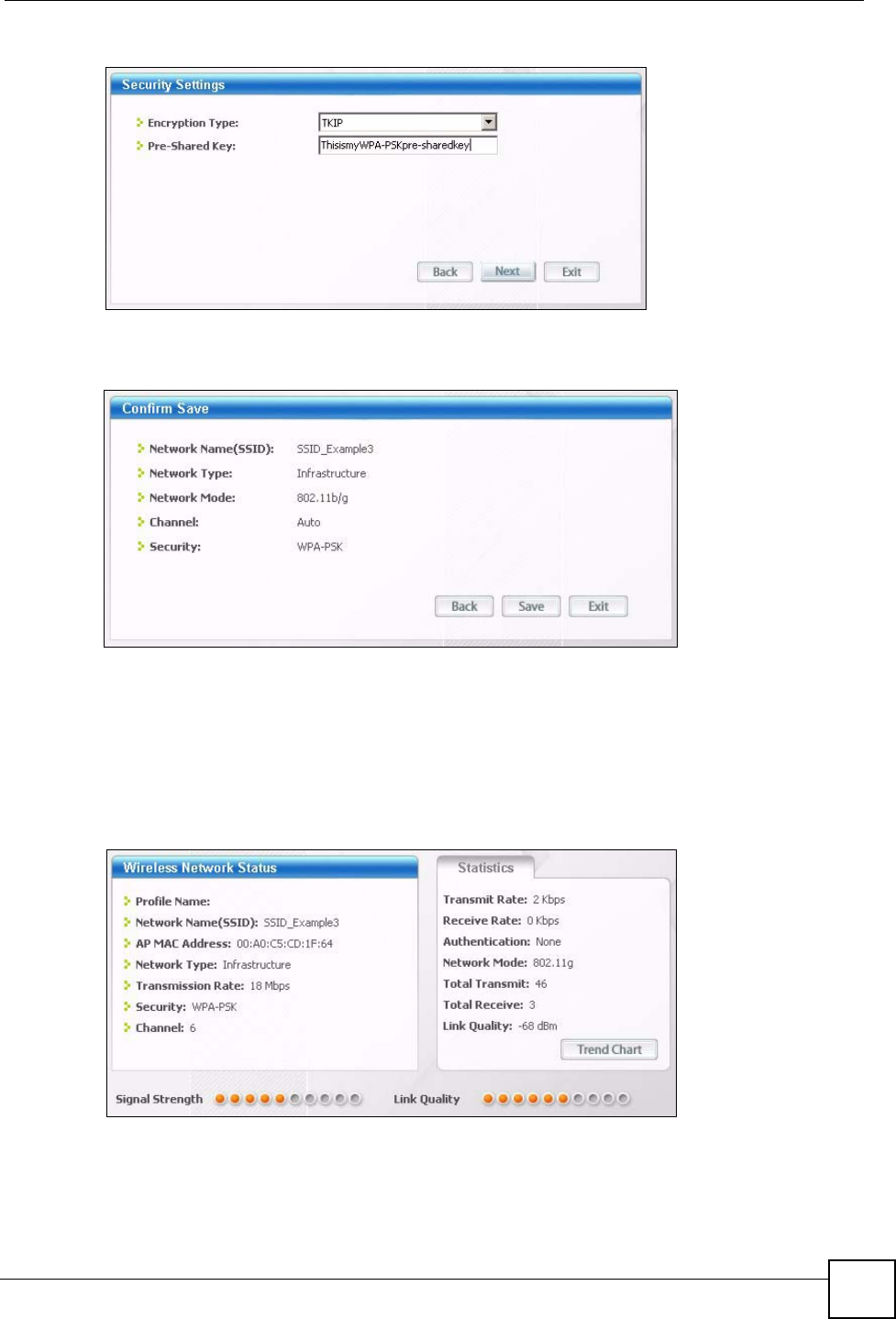

2.3.2 Creating and Using a Profile ...................................................................................... 38
Chapter 3
Introducing the Web Configurator ........................................................................................ 41
3.1 Web Configurator Overview ................................................................................................. 41
3.2 Accessing the Web Configurator ......................................................................................... 41
3.3 Resetting the ZyXEL Device ................................................................................................ 43
3.3.1 Procedure to Use the Reset Button ........................................................................... 43
Table of Contents
ZyXEL NBG-334SH User’s Guide
12
3.4 Navigating the Web Configurator ...................................................................................... 43

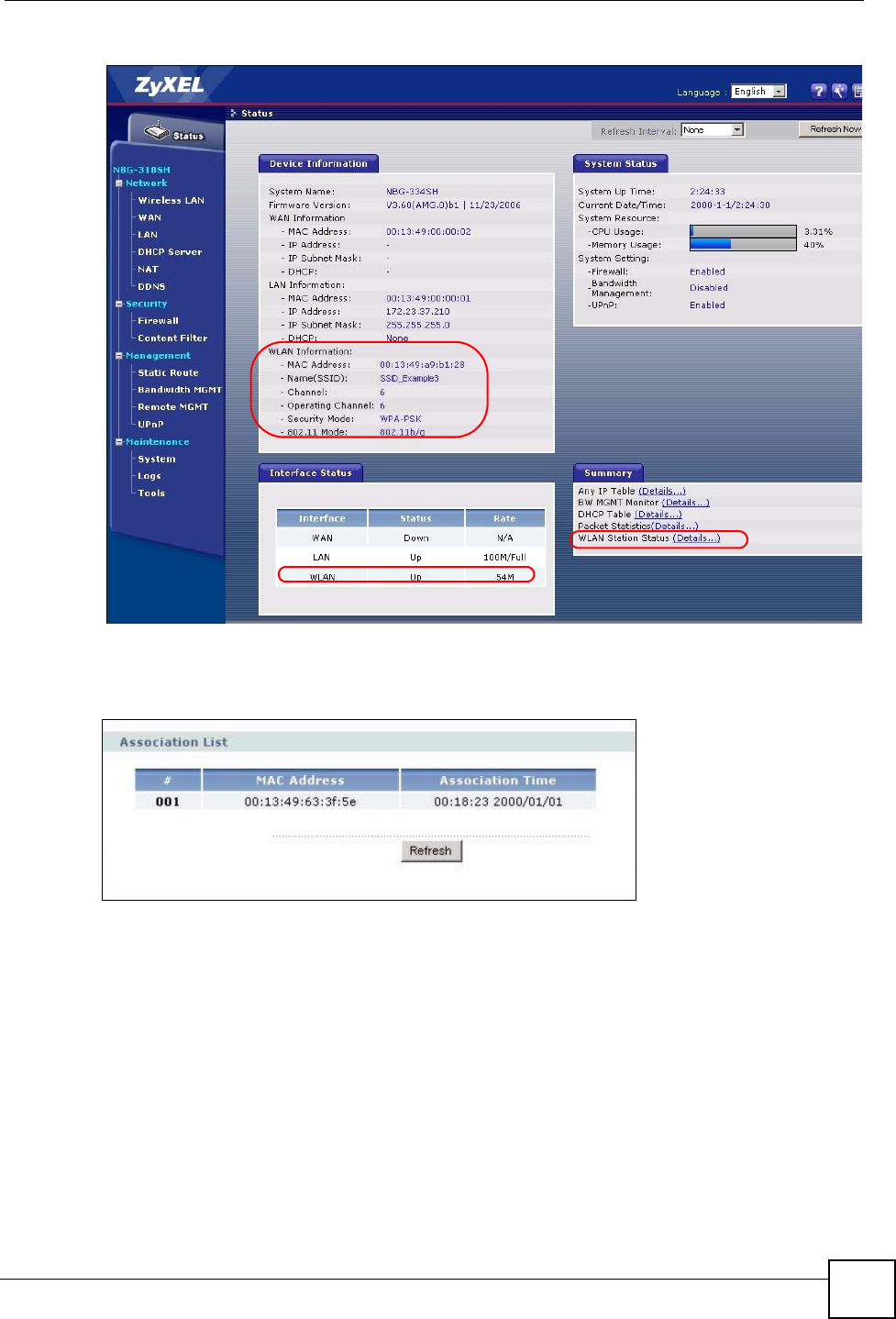

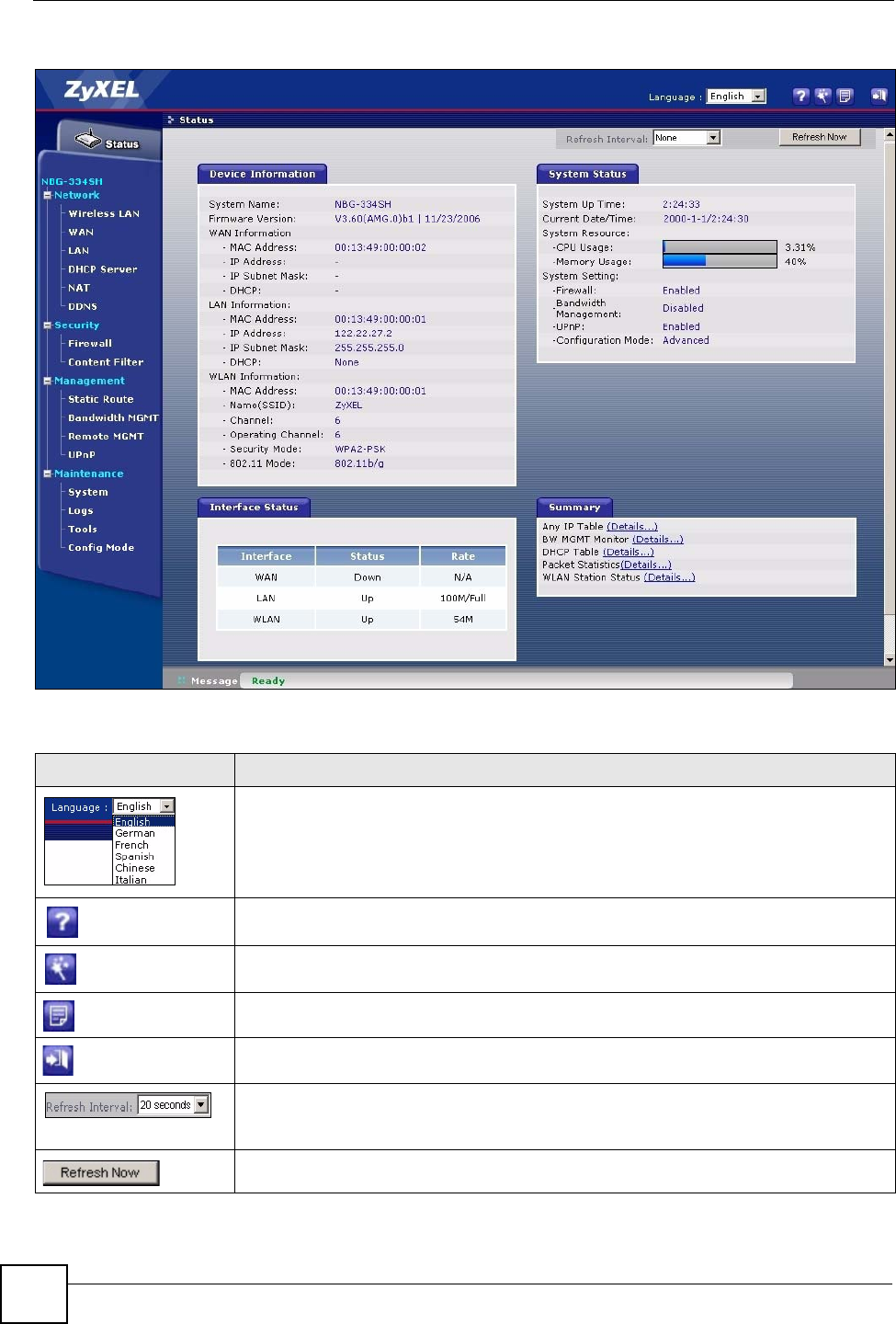

3.4.1 The Status Screen ..................................................................................................... 43
3.4.2 Navigation Panel ........................................................................................................ 46

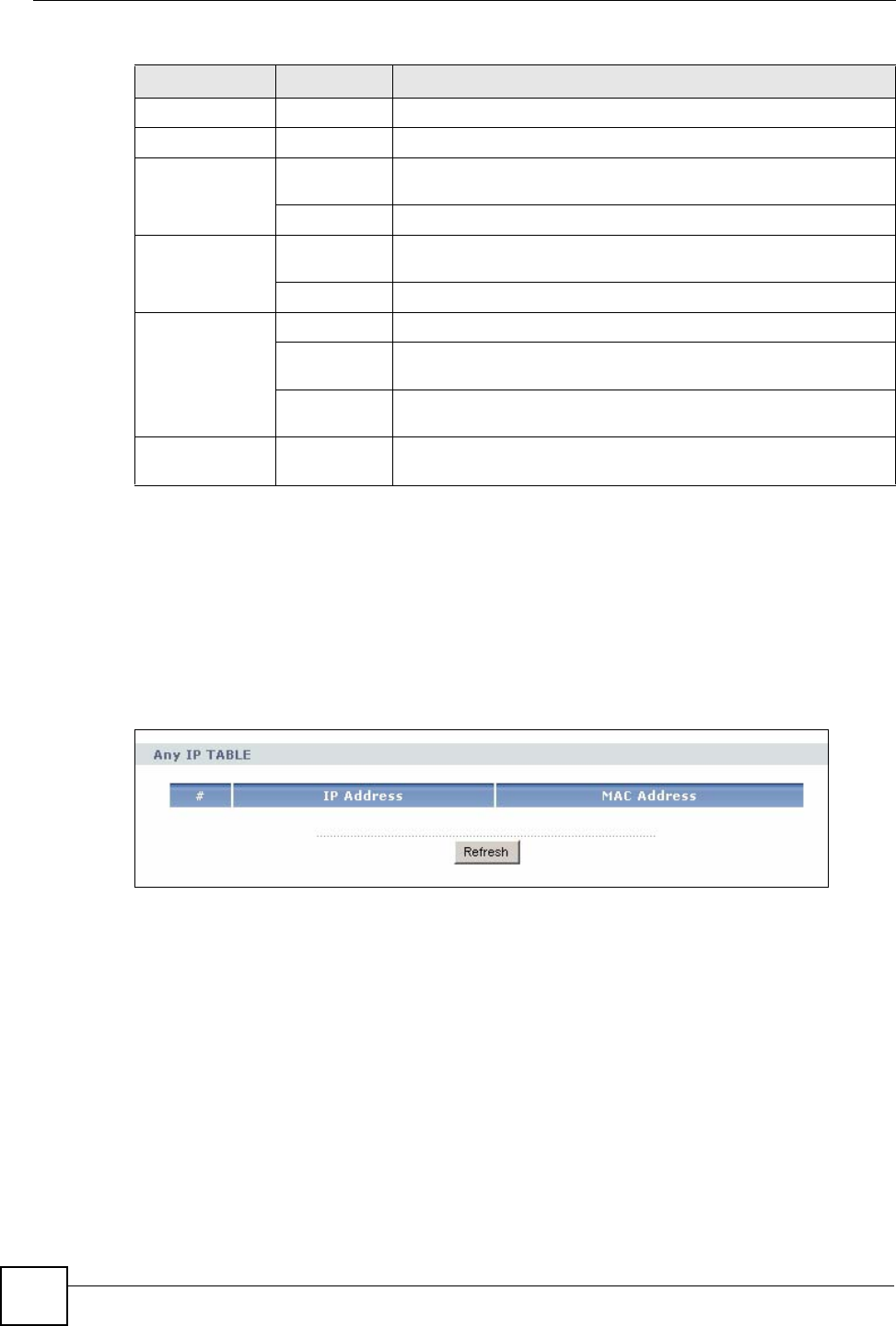

3.5 Summary: Any IP Table ....................................................................................................... 48

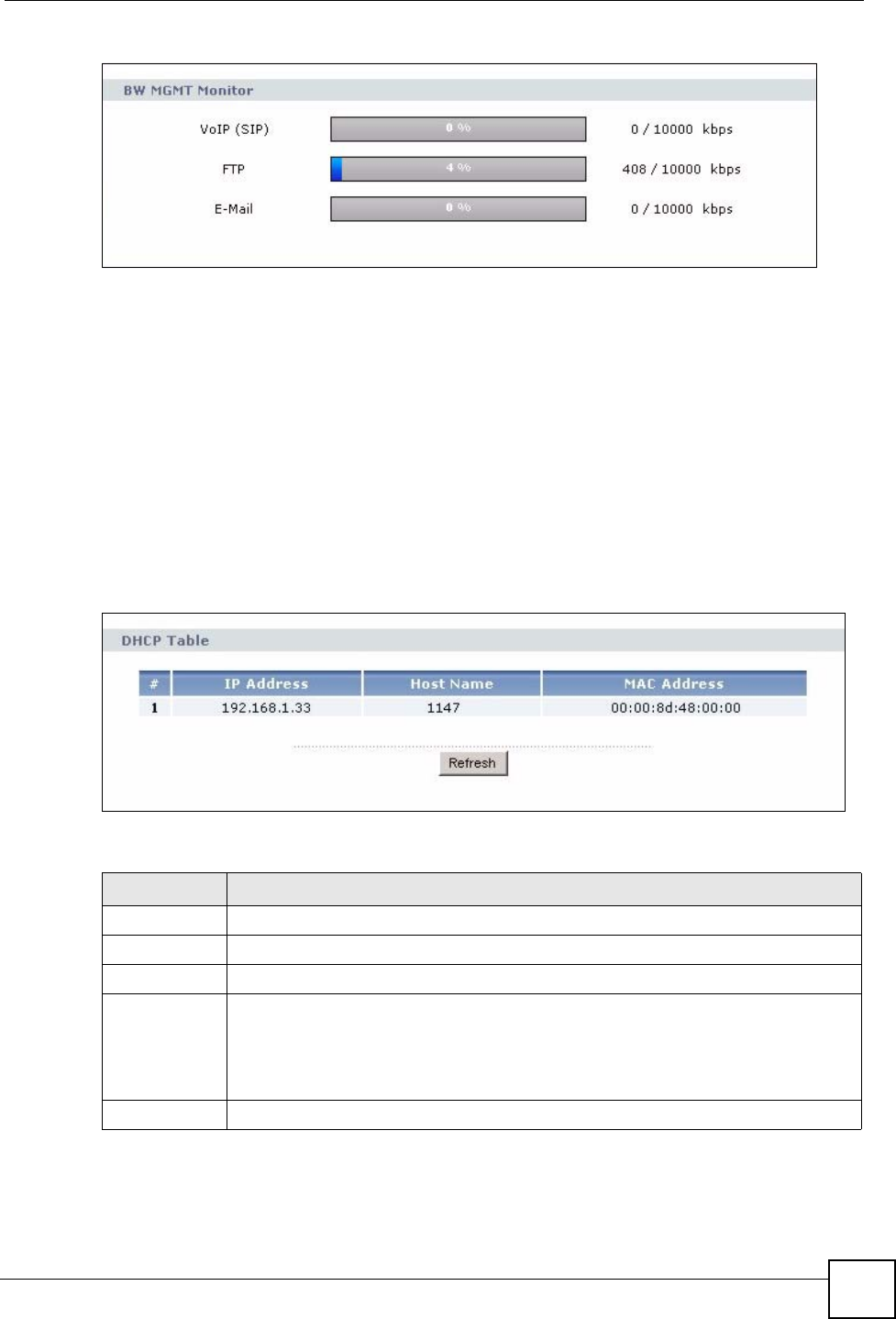

3.5.1 Summary: Bandwidth Management Monitor ........................................................... 48
3.5.2 Summary: DHCP Table ........................................................................................... 49

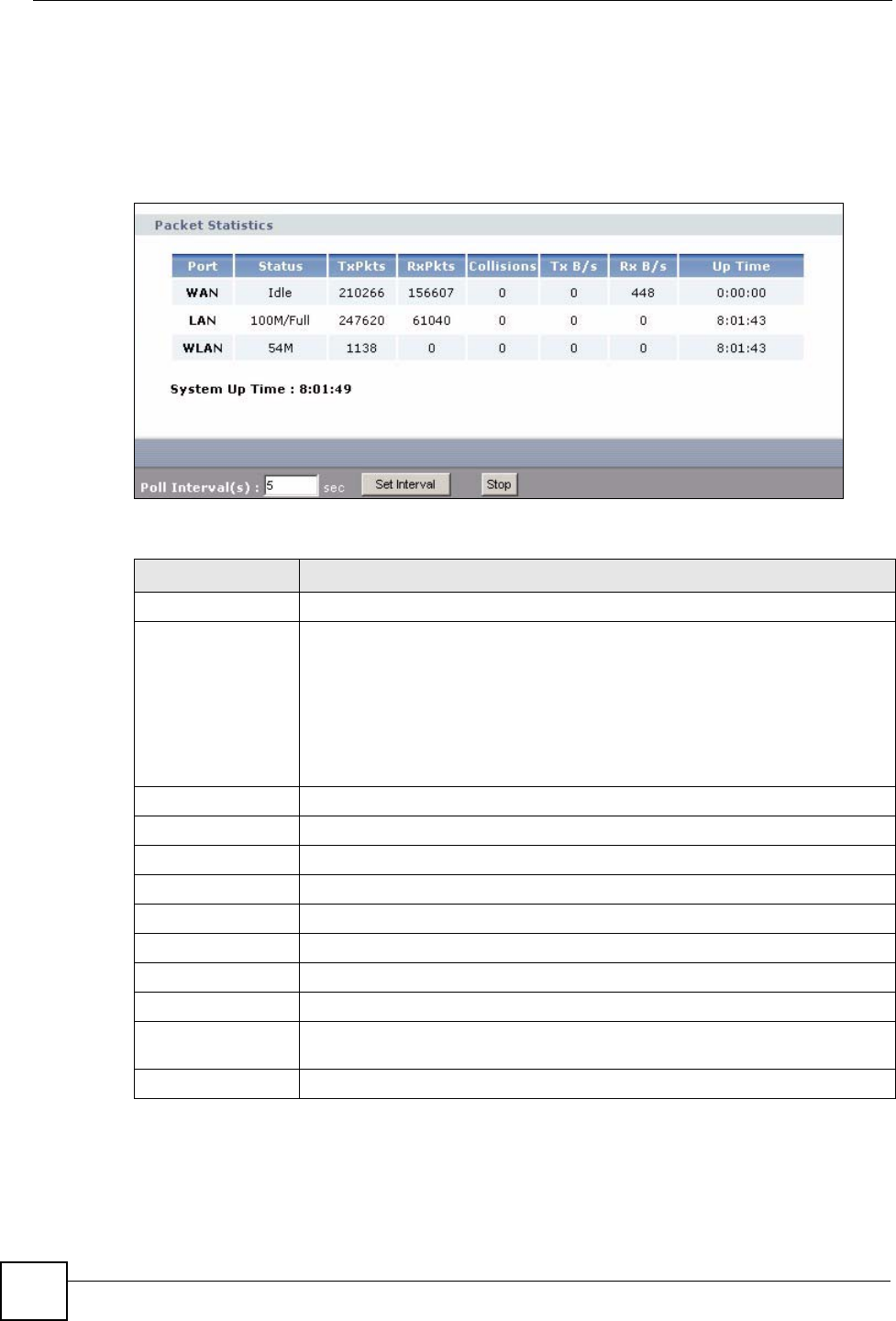

3.5.3 Summary: Packet Statistics ..................................................................................... 50

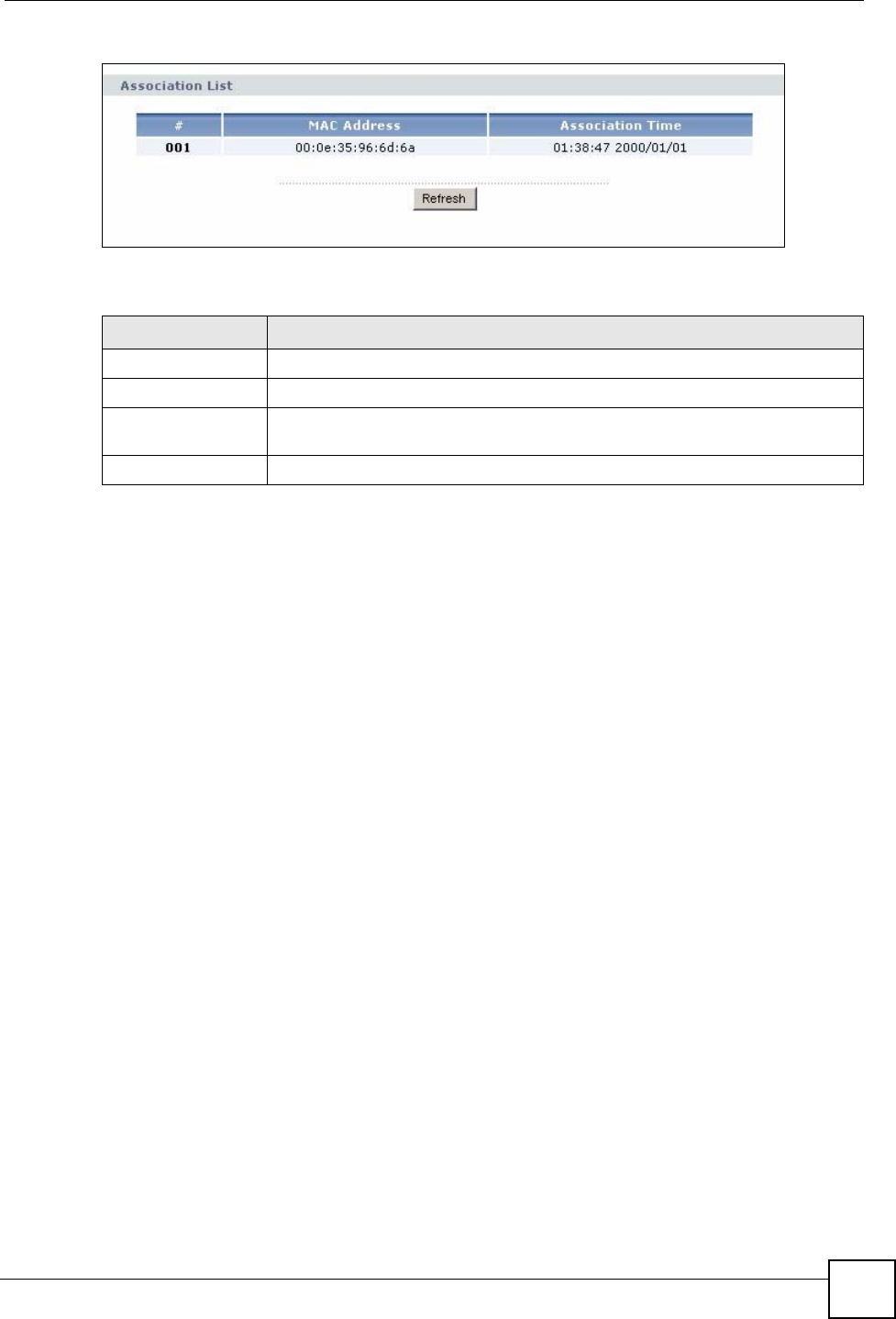

3.5.4 Summary: Wireless Station Status ......................................................................... 50
Part II: Wizard ......................................................................................... 53
Chapter 4
Connection Wizard ................................................................................................................. 55

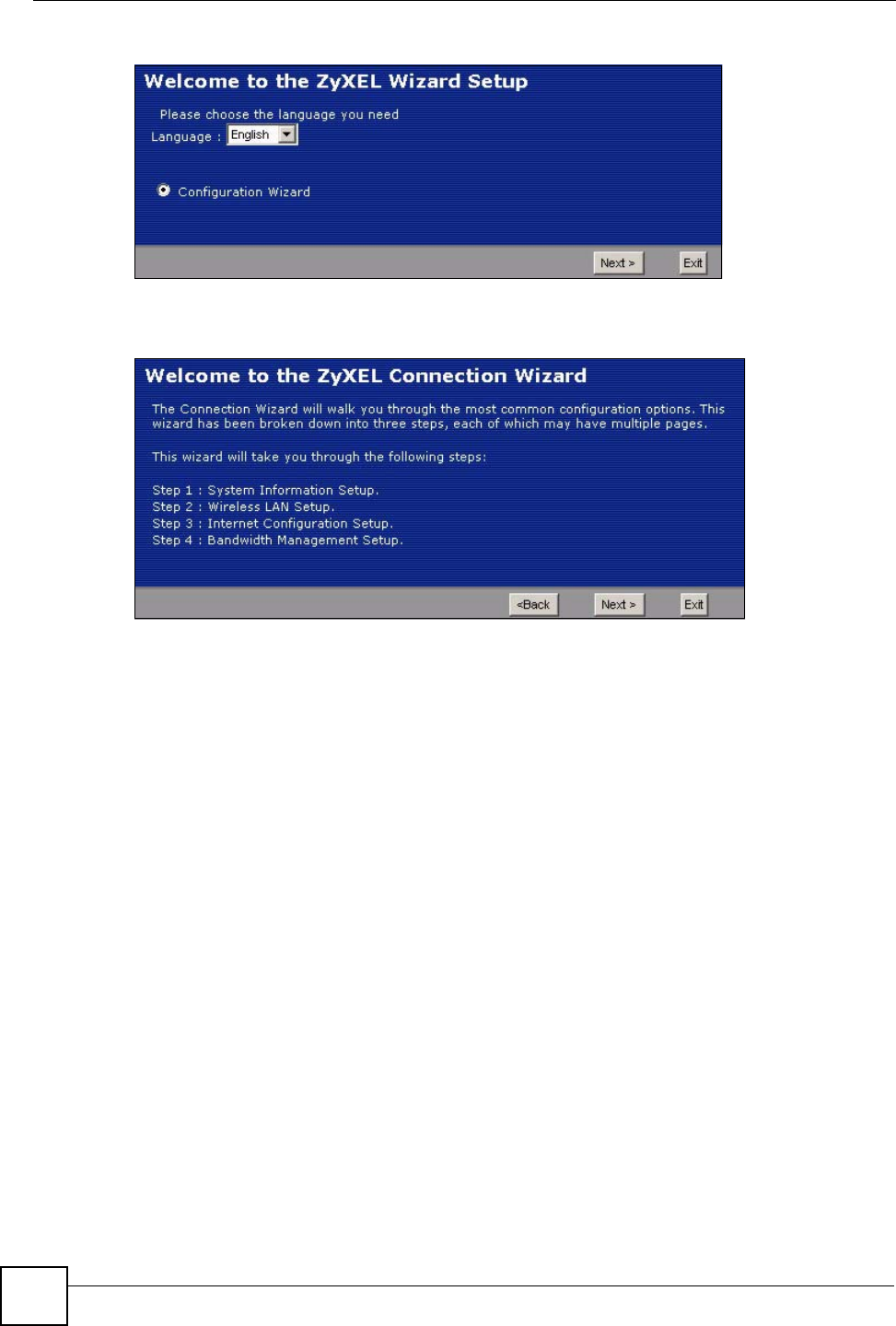

4.1 Wizard Setup ....................................................................................................................... 55

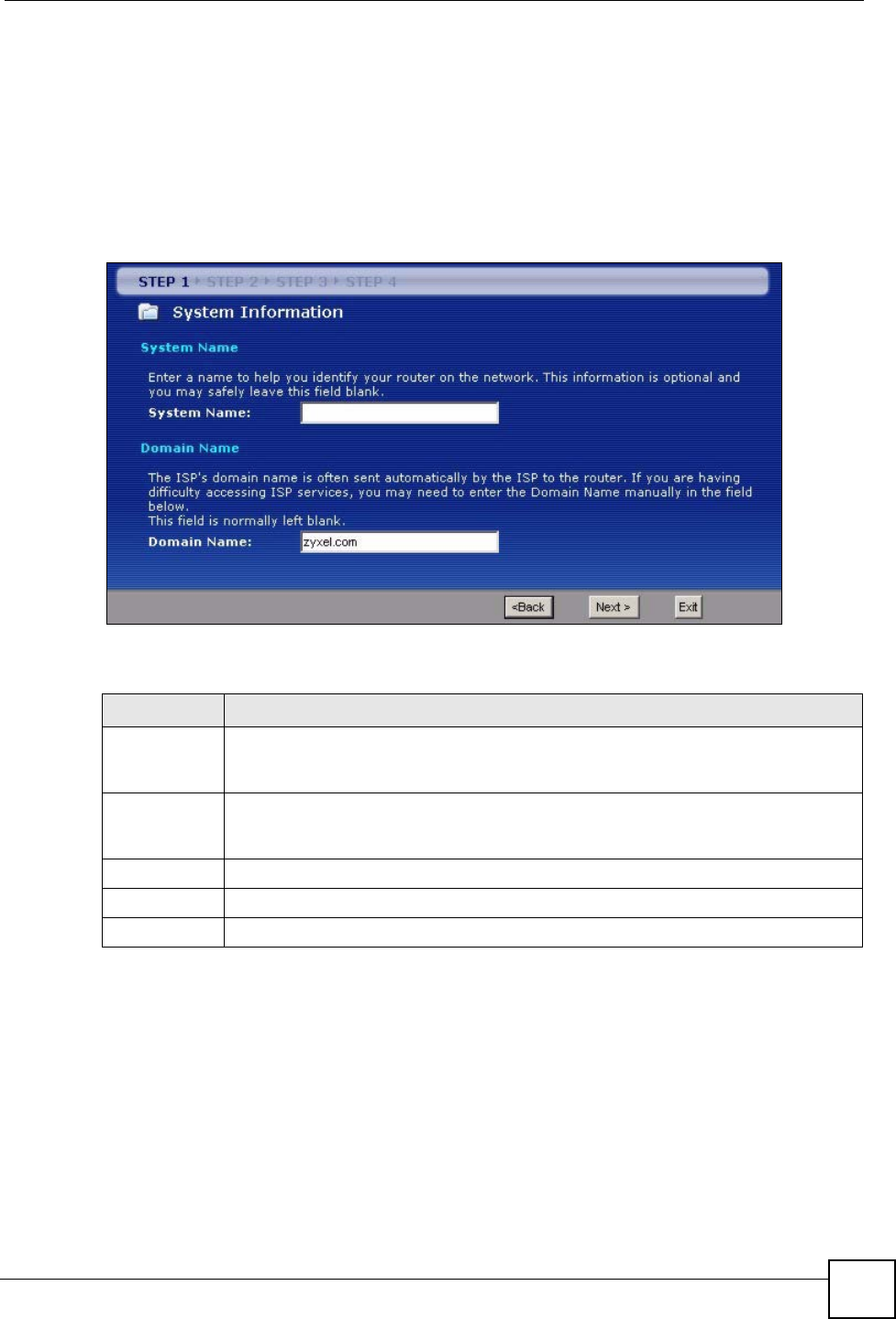

4.2 Connection Wizard: STEP 1: System Information ............................................................... 56
4.2.1 System Name ............................................................................................................. 56
4.2.2 Domain Name ............................................................................................................ 57
4.3 Connection Wizard: STEP 2: Wireless LAN ........................................................................ 57
4.3.1 Basic (WEP) Security ................................................................................................. 59
4.3.2 Extend (WPA-PSK or WPA2-PSK) Security ............................................................... 60

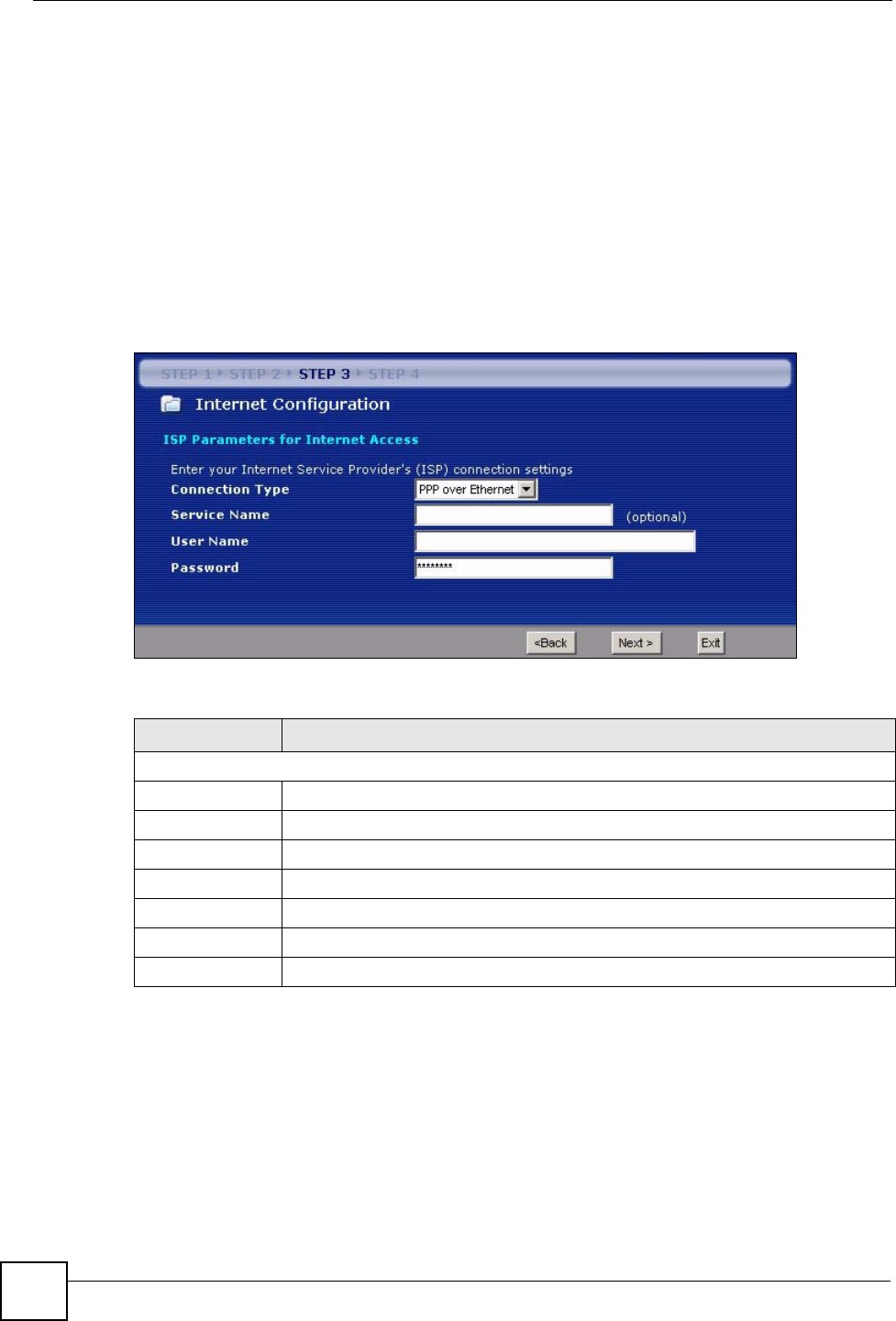

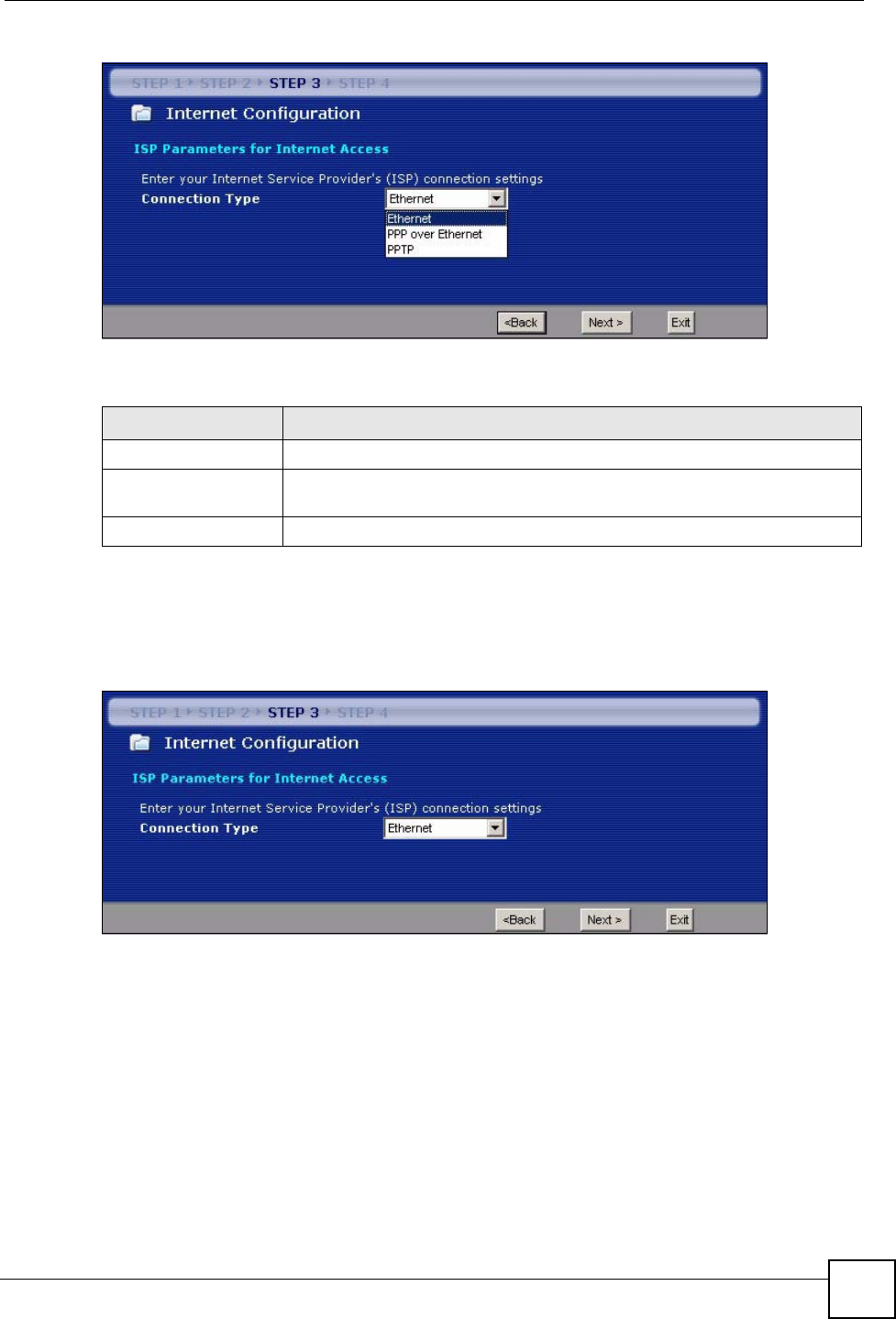

4.4 Connection Wizard: STEP 3: Internet Configuration ........................................................... 60

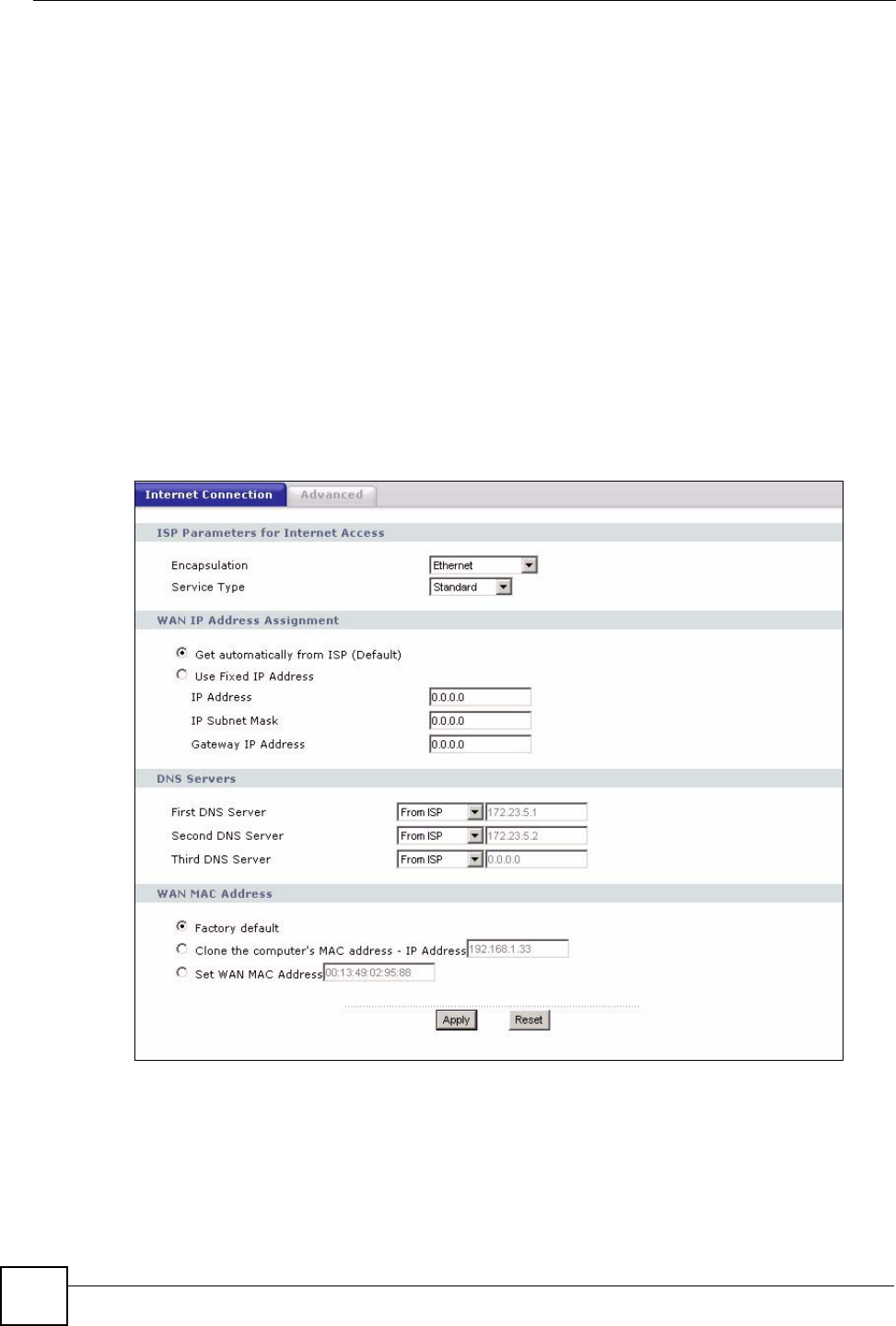

4.4.1 Ethernet Connection .................................................................................................. 61
4.4.2 PPPoE Connection .................................................................................................... 61

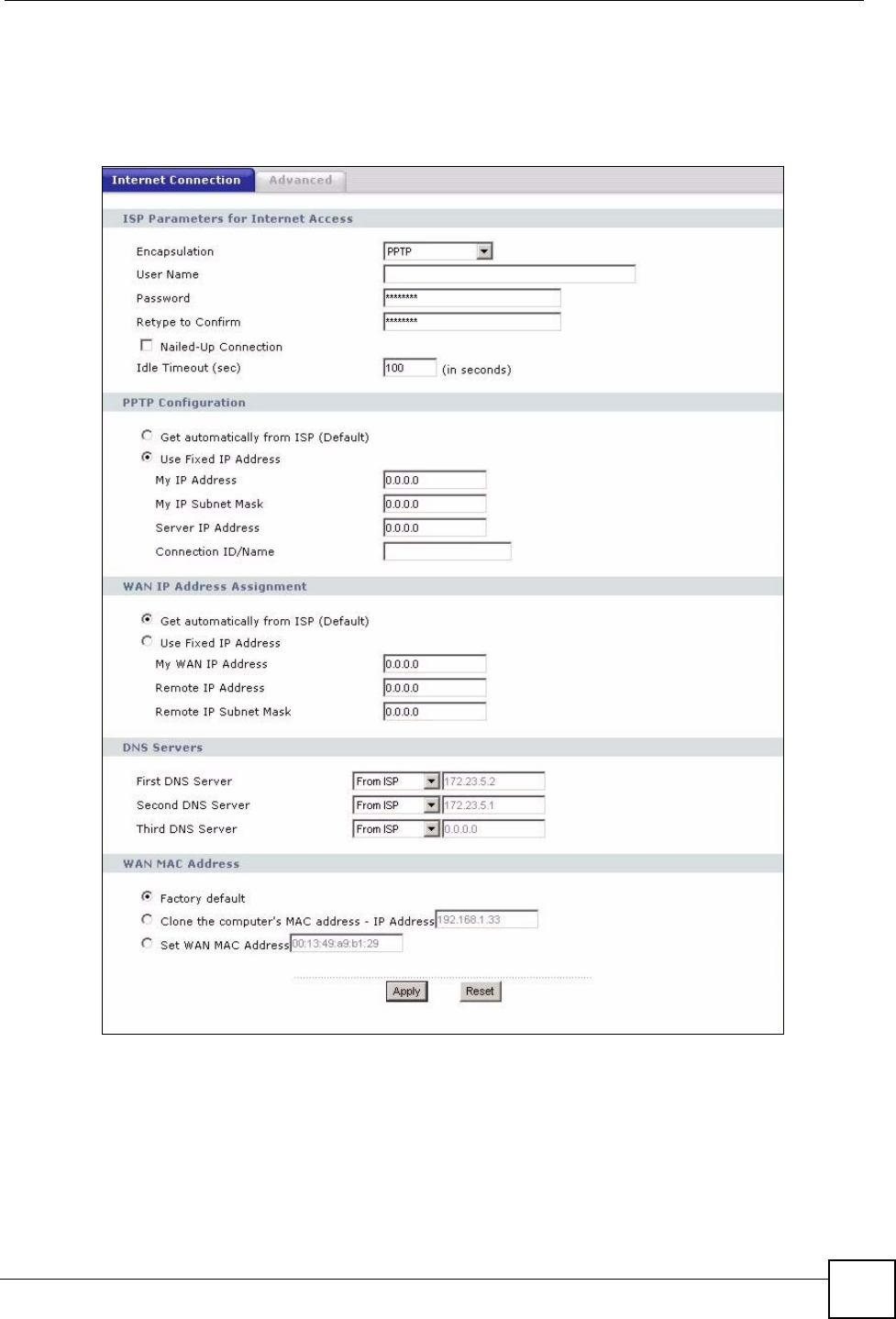

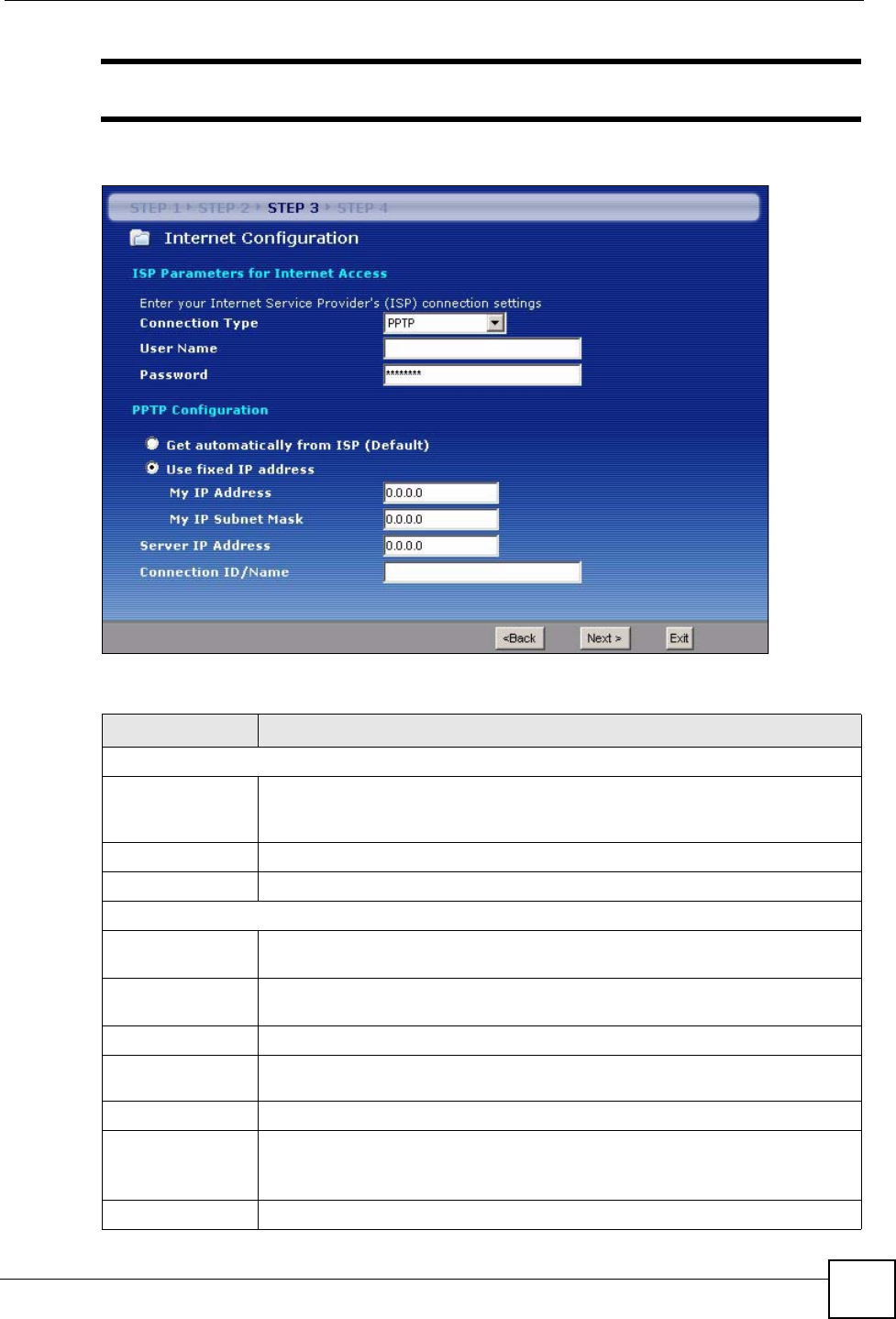

4.4.3 PPTP Connection ....................................................................................................... 62

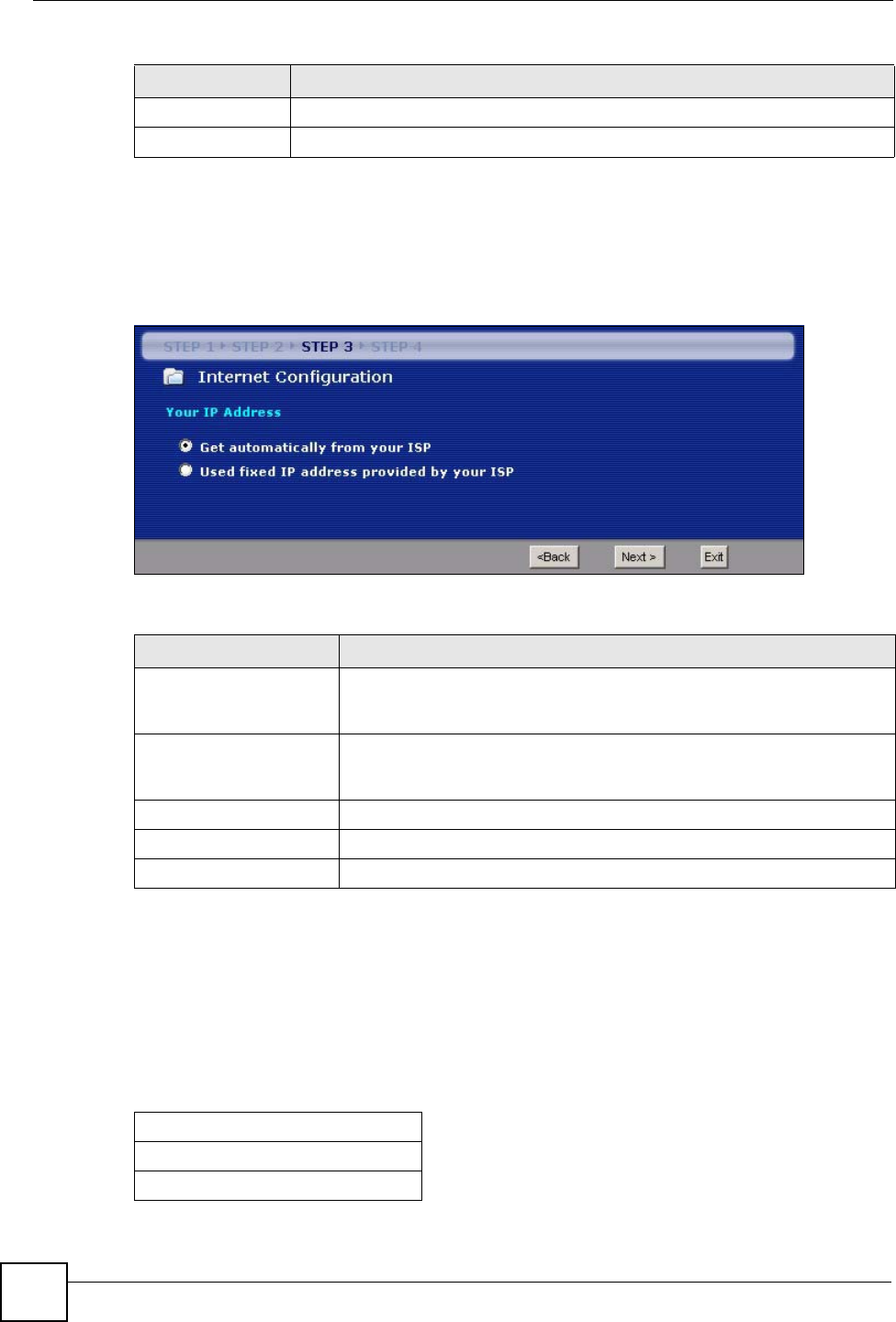

4.4.4 Your IP Address ......................................................................................................... 64
4.4.5 WAN IP Address Assignment ..................................................................................... 64
4.4.6 IP Address and Subnet Mask ..................................................................................... 65
4.4.7 DNS Server Address Assignment .............................................................................. 65
4.4.8 WAN IP and DNS Server Address Assignment ......................................................... 66

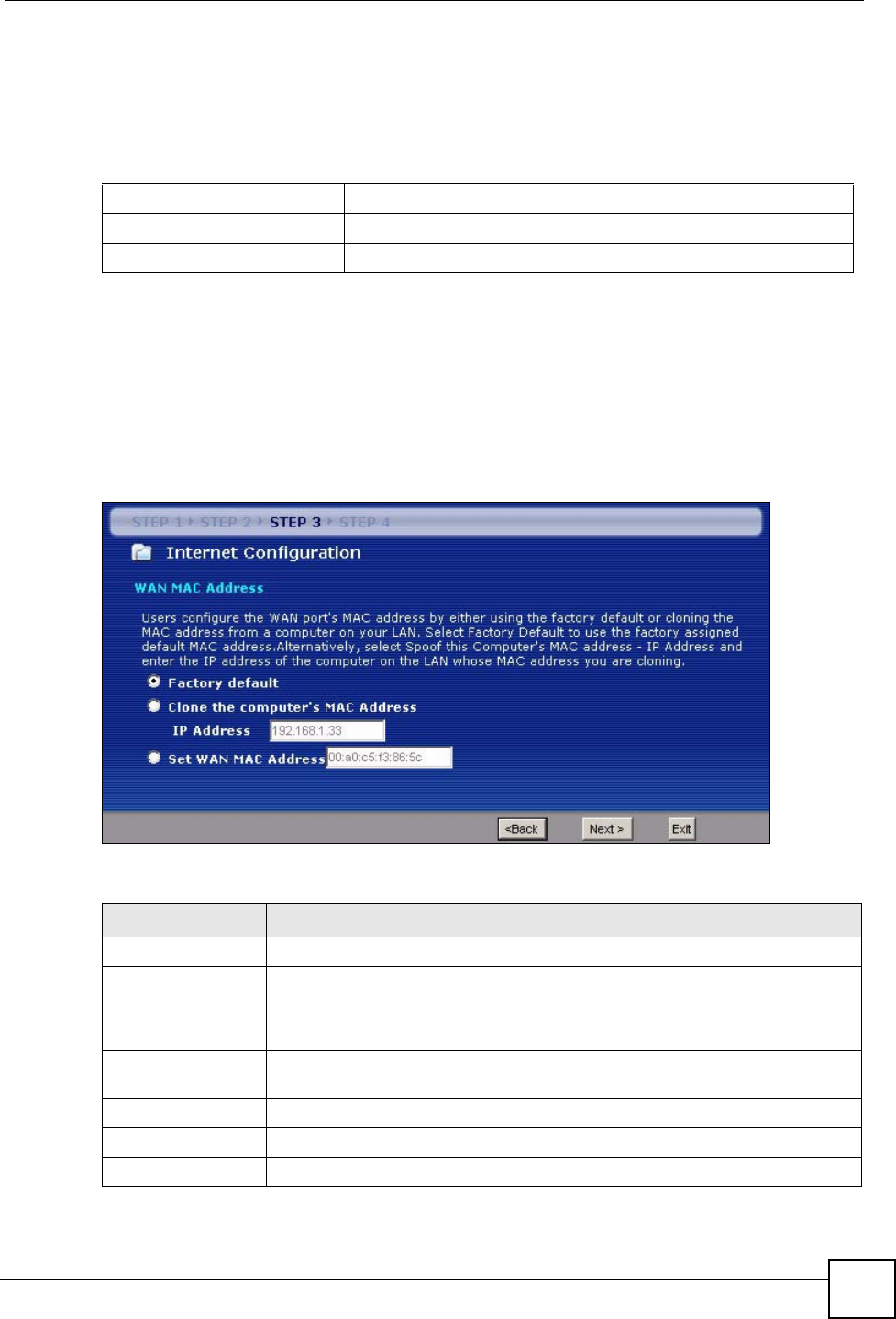

4.4.9 WAN MAC Address .................................................................................................... 67

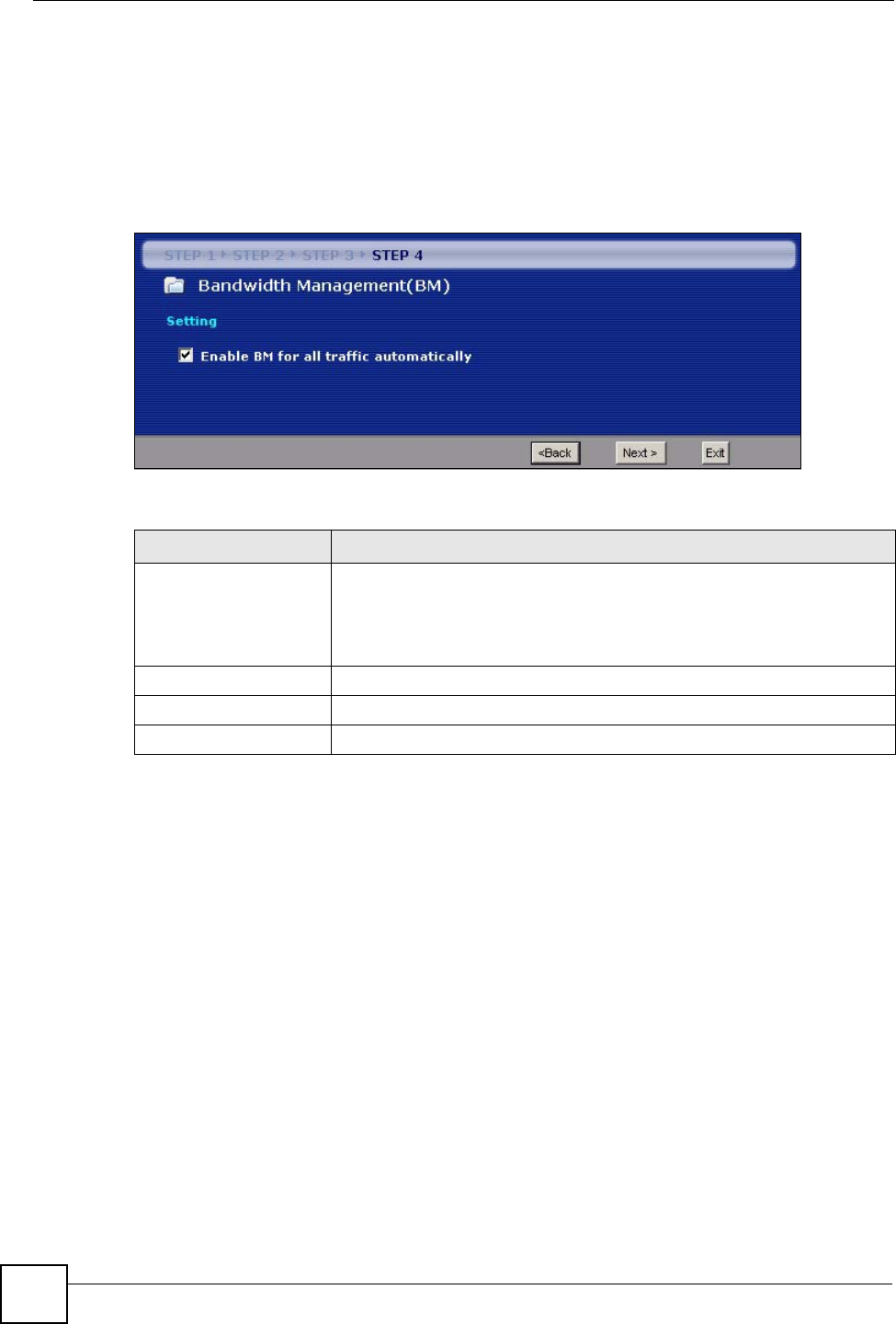

4.5 Connection Wizard: STEP 4: Bandwidth management ....................................................... 68

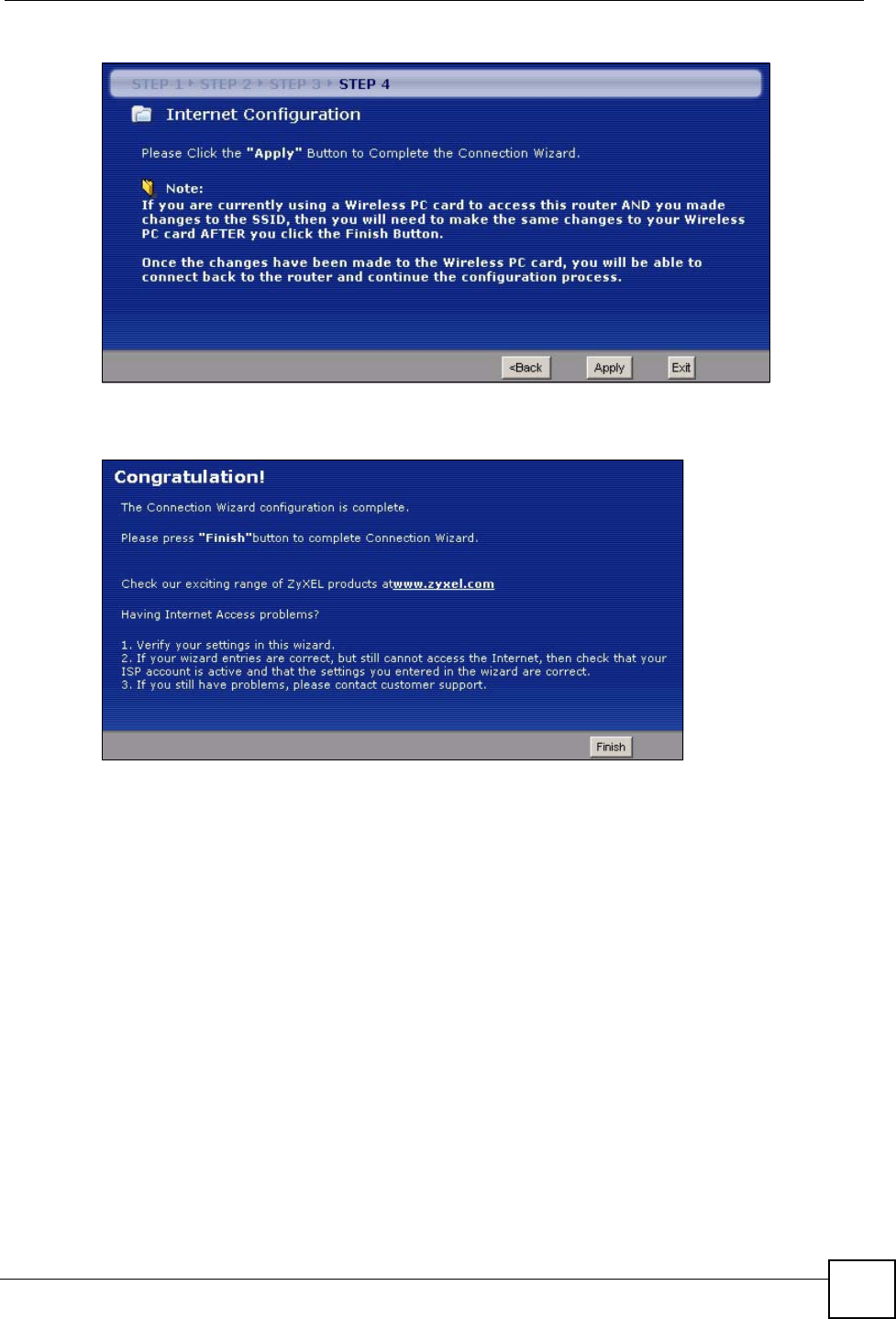

4.6 Connection Wizard Complete .............................................................................................. 68
Part III: Advanced................................................................................... 71
Chapter 5
Wireless LAN........................................................................................................................... 73

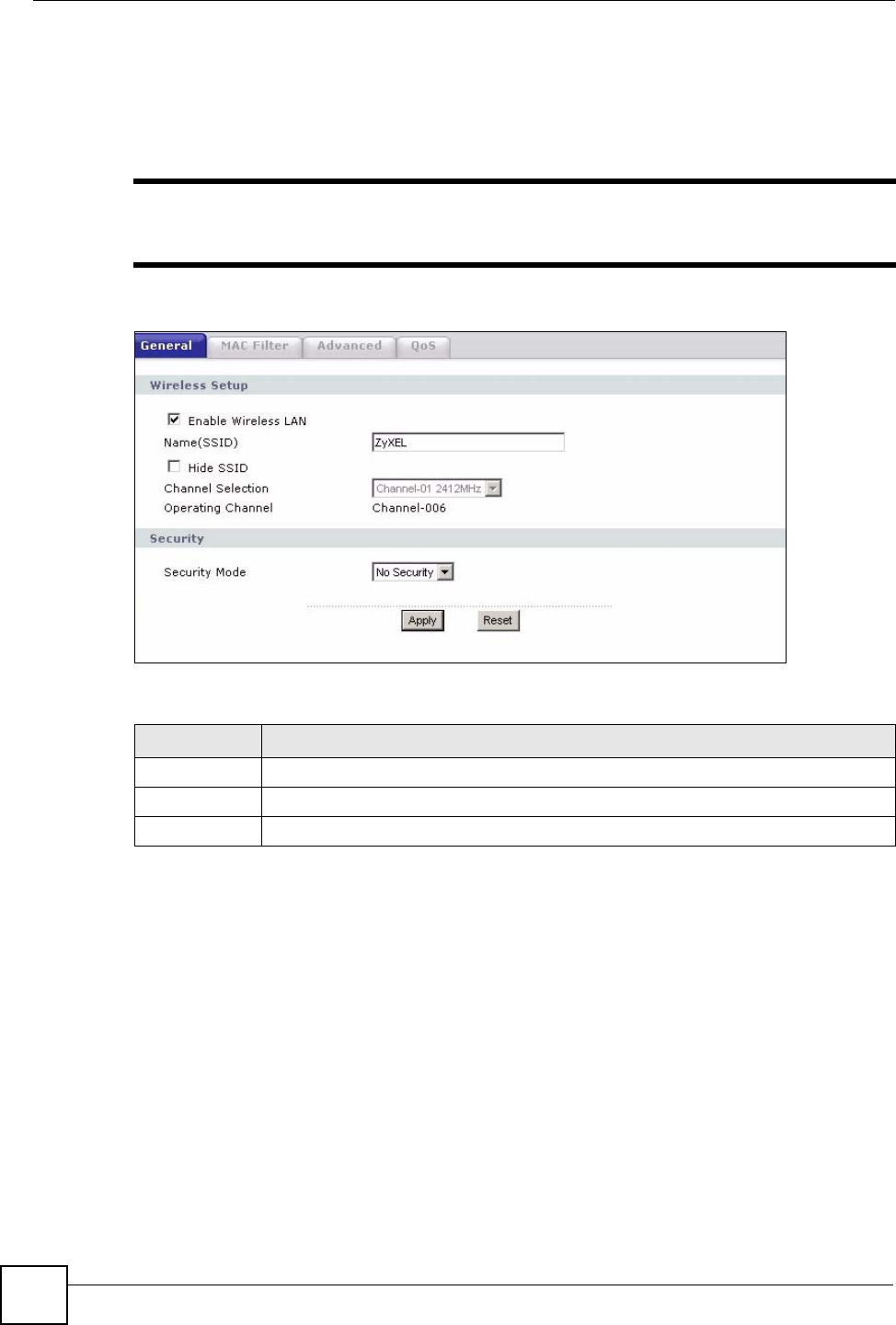

5.1 Wireless Network Overview ................................................................................................. 73
5.2 Wireless Security Overview .................................................................................................74
5.2.1 SSID ........................................................................................................................... 74
Table of Contents
ZyXEL NBG-334SH User’s Guide 13
5.2.2 MAC Address Filter .................................................................................................... 74
5.2.3 User Authentication .................................................................................................... 74
5.2.4 Encryption .................................................................................................................. 75
5.3 Quality of Service ................................................................................................................ 76
5.3.1 WMM QoS ..................................................................................................................76

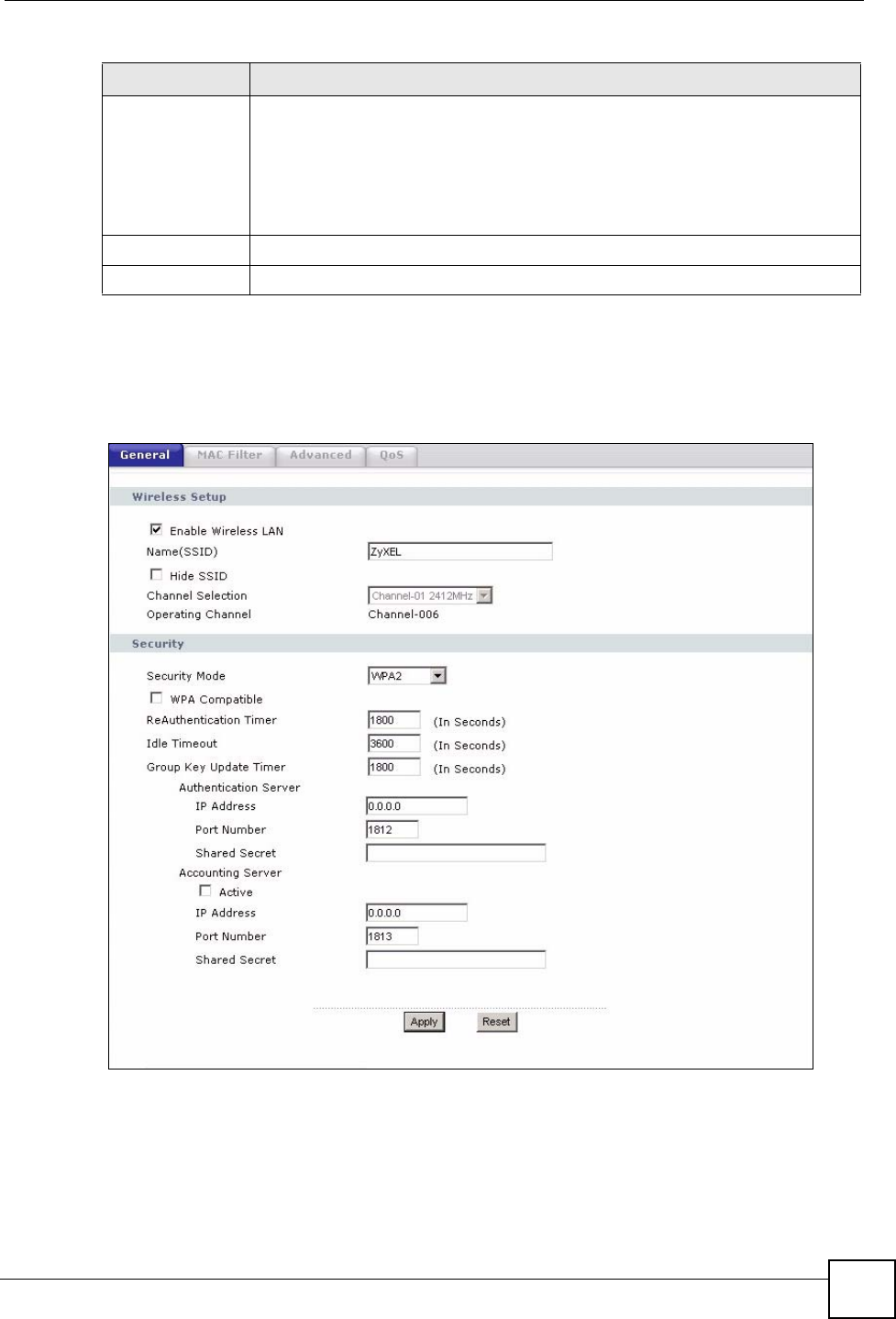

5.4 General Wireless LAN Screen ........................................................................................ 77
5.4.1 No Security ................................................................................................................. 78

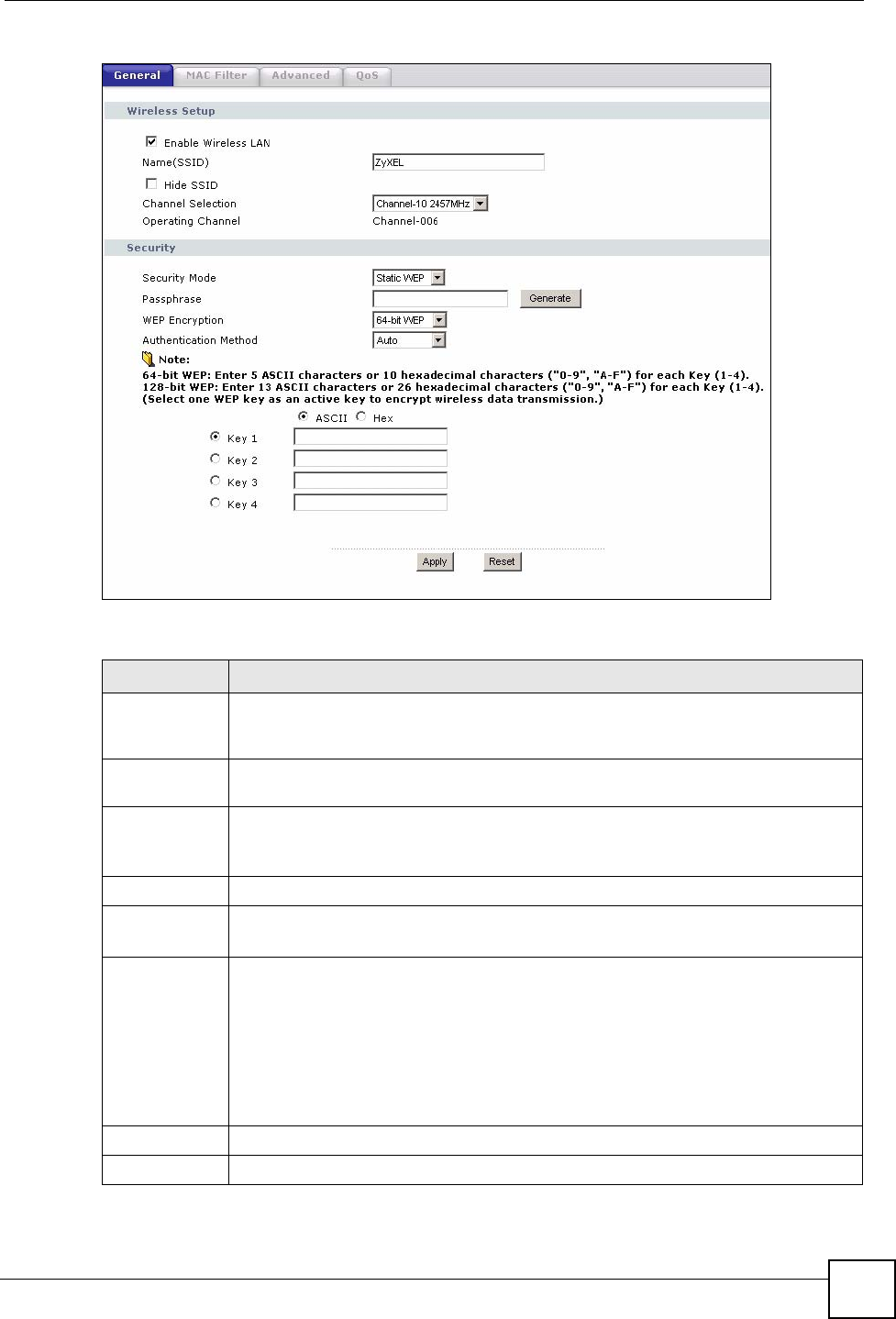

5.4.2 WEP Encryption ......................................................................................................... 78
5.4.3 WPA-PSK/WPA2-PSK ................................................................................................ 80
5.4.4 WPA/WPA2 ................................................................................................................ 81

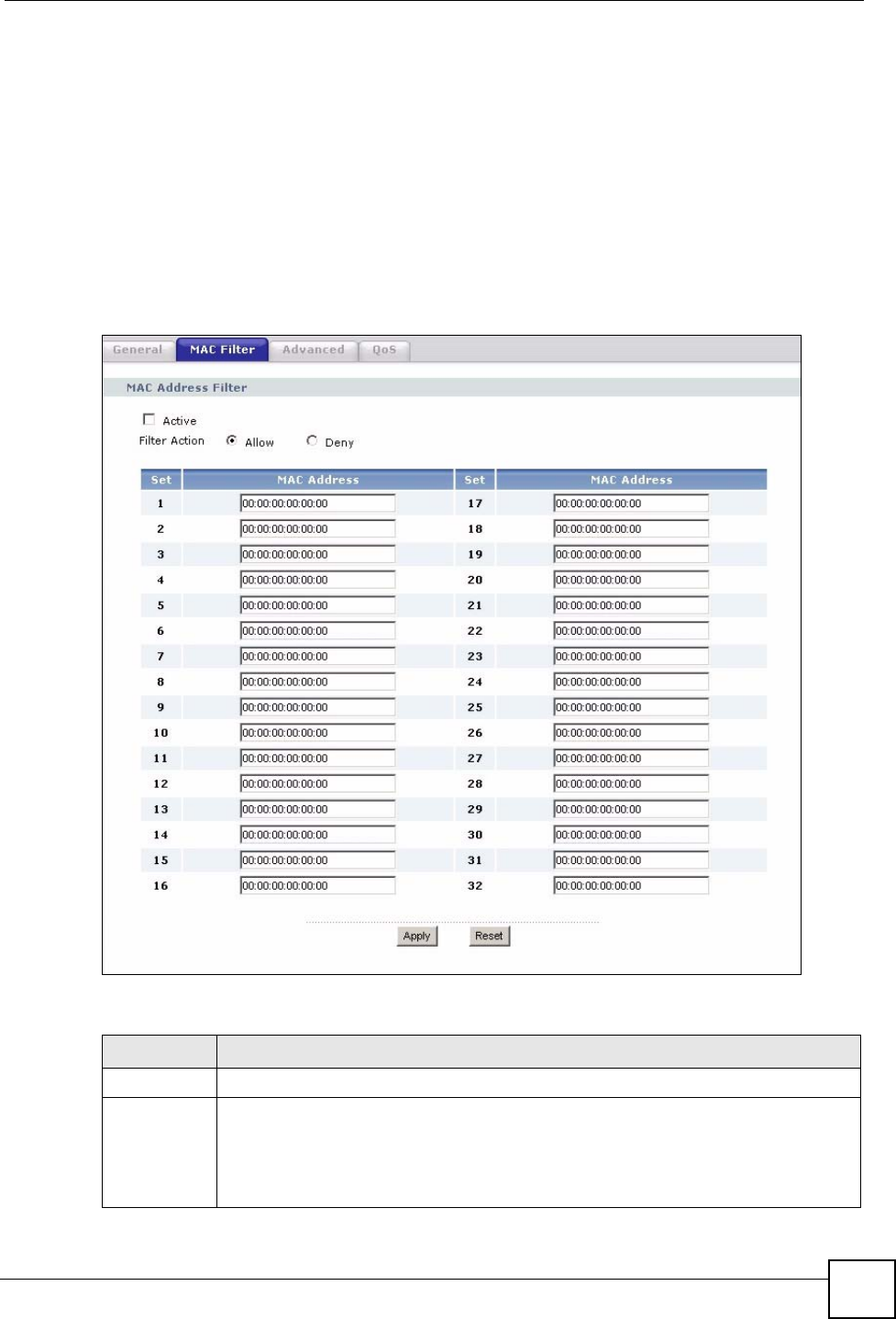

5.5 MAC Filter ............................................................................................................................ 83

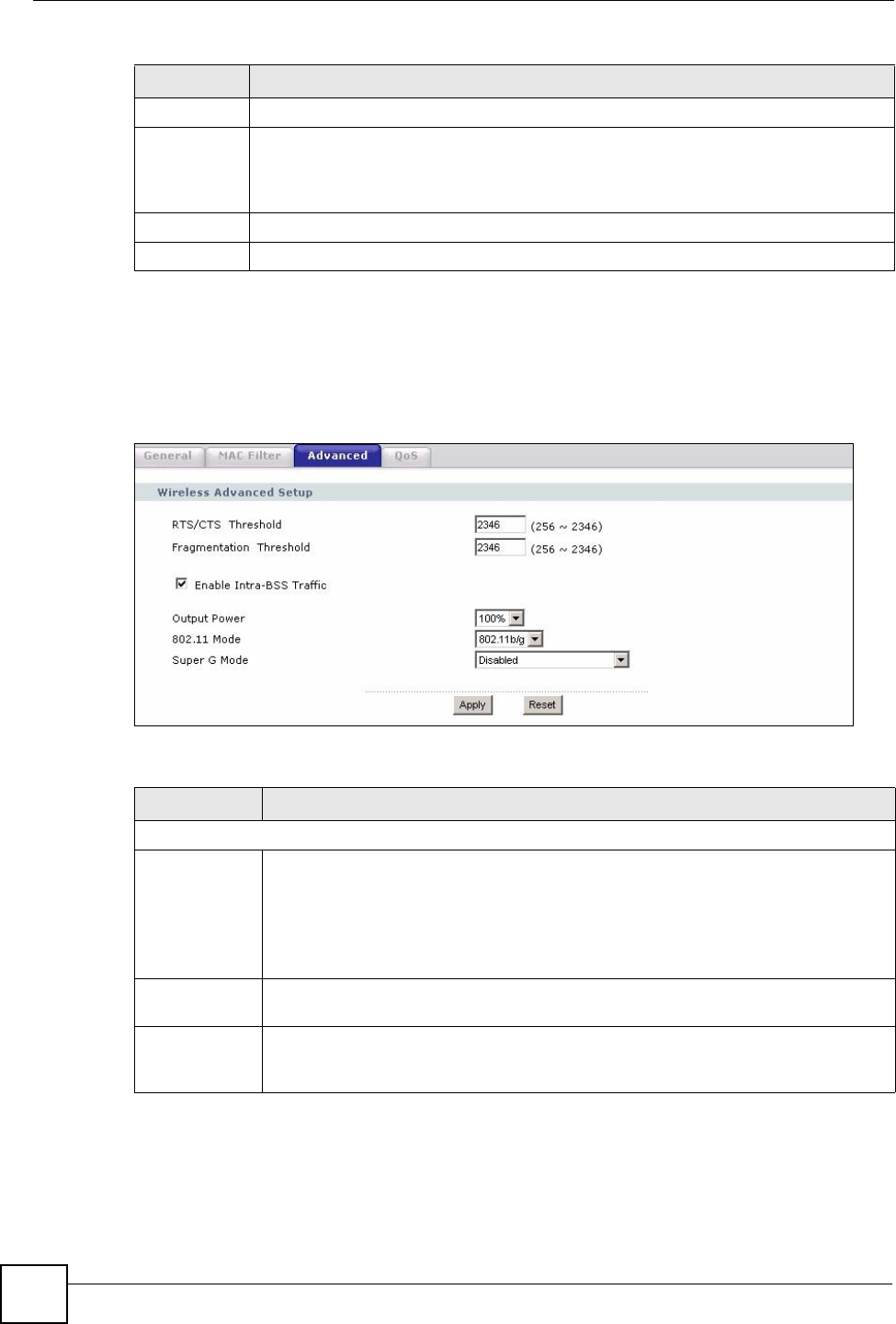

5.6 Wireless LAN Advanced Screen ......................................................................................... 84
5.7 Quality of Service (QoS) Screen ......................................................................................... 85
5.7.1 Application Priority Configuration ............................................................................... 87
Chapter 6
WAN.......................................................................................................................................... 89
6.1 WAN Overview .................................................................................................................... 89
6.2 WAN MAC Address ............................................................................................................. 89
6.3 Multicast .............................................................................................................................. 89
6.4 Internet Connection ............................................................................................................. 90
6.4.1 Ethernet Encapsulation .............................................................................................. 90
6.4.2 PPPoE Encapsulation ................................................................................................ 92
6.4.3 PPTP Encapsulation .................................................................................................. 94
6.5 Advanced WAN Screen ....................................................................................................... 97
Chapter 7
LAN........................................................................................................................................... 99
7.1 LAN Overview ...................................................................................................................... 99
7.1.1 IP Pool Setup ............................................................................................................. 99
7.1.2 System DNS Servers ................................................................................................. 99
7.2 LAN TCP/IP ......................................................................................................................... 99
7.2.1 Factory LAN Defaults ................................................................................................. 99
7.2.2 IP Address and Subnet Mask ................................................................................... 100
7.2.3 Multicast ................................................................................................................... 100
7.2.4 Any IP ....................................................................................................................... 100
7.3 LAN IP Screen ................................................................................................................... 102
7.4 LAN IP Alias ..................................................................................................................... 102
7.5 Advanced LAN Screen ...................................................................................................... 103
Chapter 8
DHCP Server.......................................................................................................................... 105
8.1 DHCP ................................................................................................................................ 105
Table of Contents
ZyXEL NBG-334SH User’s Guide
14
8.2 DHCP Server General Screen ........................................................................................... 105
8.3 DHCP Server Advanced Screen .................................................................................... 106
8.4 Client List Screen .............................................................................................................. 107
Chapter 9
Network Address Translation (NAT).................................................................................... 109
9.1 NAT Overview ................................................................................................................. 109
9.2 Using NAT .......................................................................................................................... 109
9.2.1 Port Forwarding: Services and Port Numbers .......................................................... 109
9.2.2 Configuring Servers Behind Port Forwarding Example .............................................110
9.3 General NAT Screen ...........................................................................................................110
9.4 NAT Application Screen .................................................................................................... 111
9.4.1 Game List Example ...................................................................................................113
9.5 Trigger Port Forwarding .....................................................................................................114
9.5.1 Trigger Port Forwarding Example .............................................................................114
9.5.2 Two Points To Remember About Trigger Ports .........................................................115
9.6 NAT Advanced Screen .......................................................................................................115
Chapter 10
Dynamic DNS ........................................................................................................................ 119
10.1 Dynamic DNS Introduction ..............................................................................................119
10.1.1 DynDNS Wildcard ...................................................................................................119
10.2 Dynamic DNS Screen .....................................................................................................119
Chapter 11
Firewall................................................................................................................................... 121
11.1 Introduction to ZyXEL’s Firewall ..................................................................................... 121
11.1.1 What is a Firewall? ................................................................................................. 121
11.1.2 Stateful Inspection Firewall ..................................................................................... 121
11.1.3 About the ZyXEL Device Firewall ........................................................................... 121
11.1.4 Guidelines For Enhancing Security With Your Firewall .......................................... 122
11.2 Triangle Routes ................................................................................................................ 122
11.2.1 Triangle Routes and IP Alias .................................................................................. 122
11.3 General Firewall Screen ............................................................................................... 123
11.4 Services Screen .............................................................................................................. 124
Chapter 12
Content Filtering ................................................................................................................... 127
12.1 Introduction to Content Filtering ...................................................................................... 127
12.2 Restrict Web Features .....................................................................................................127
12.3 Days and Times ............................................................................................................... 127
12.4 Filter Screen .................................................................................................................... 127
12.5 Schedule .......................................................................................................................... 129
Table of Contents
ZyXEL NBG-334SH User’s Guide 15
12.6 Customizing Keyword Blocking URL Checking ............................................................... 130
12.6.1 Domain Name or IP Address URL Checking ......................................................... 130
12.6.2 Full Path URL Checking ......................................................................................... 130
12.6.3 File Name URL Checking ....................................................................................... 130
Chapter 13
Static Route Screens ............................................................................................................133
13.1 Static Route Overview .....................................................................................................133
13.2 IP Static Route Screen ....................................................................................................133
13.2.1 Static Route Setup Screen ................................................................................... 134
Chapter 14
Bandwidth Management.......................................................................................................137
14.1 Bandwidth Management Overview ................................................................................. 137
14.2 Application-based Bandwidth Management .................................................................... 137
14.3 Subnet-based Bandwidth Management .......................................................................... 137
14.4 Application and Subnet-based Bandwidth Management ................................................. 138
14.5 Bandwidth Management Priorities ................................................................................... 138
14.6 Predefined Bandwidth Management Services ................................................................. 139
14.6.1 Services and Port Numbers ................................................................................... 140
14.7 Default Bandwidth Management Classes and Priorities .................................................. 142
14.8 Bandwidth Management General Configuration ............................................................. 142
14.9 Bandwidth Management Advanced Configuration .......................................................... 143
14.9.1 Rule Configuration with the Pre-defined Service ................................................ 144
14.9.2 Rule Configuration with the User-defined Service .............................................. 145
14.10 Bandwidth Management Monitor ................................................................................ 146
Chapter 15
Remote Management Screens............................................................................................. 149
15.1 Remote Management Overview ...................................................................................... 149
15.1.1 Remote Management Limitations .......................................................................... 150
15.1.2 Remote Management and NAT .............................................................................. 150
15.1.3 System Timeout .................................................................................................... 150
15.2 WWW Screen ............................................................................................................... 150
15.3 Telnet ............................................................................................................................... 151
15.4 Telnet Screen ................................................................................................................... 151
15.5 FTP Screen ..................................................................................................................... 152
15.6 DNS Screen .................................................................................................................. 153
Chapter 16
Universal Plug-and-Play (UPnP).......................................................................................... 155
16.1 Introducing Universal Plug and Play ............................................................................... 155
16.1.1 How do I know if I'm using UPnP? ......................................................................... 155
Table of Contents
ZyXEL NBG-334SH User’s Guide
16
16.1.2 NAT Traversal ........................................................................................................ 155
16.1.3 Cautions with UPnP ............................................................................................... 155
16.2 UPnP and ZyXEL ............................................................................................................156
16.3 UPnP Screen ................................................................................................................... 156
16.4 Installing UPnP in Windows Example .............................................................................. 157
Part IV: Maintenance and Troubleshooting ....................................... 167
Chapter 17
System ................................................................................................................................... 169
17.1 System Overview ............................................................................................................. 169
17.2 System General Screen ................................................................................................ 169
17.3 Time Setting Screen ........................................................................................................ 170
Chapter 18
Logs ....................................................................................................................................... 173
18.1 View Log ......................................................................................................................... 173
18.2 Log Settings ..................................................................................................................... 174
18.3 Log Descriptions .............................................................................................................. 177
Chapter 19
Tools....................................................................................................................................... 187
19.1 Firmware Upload Screen ................................................................................................. 187
19.2 Configuration Screen ....................................................................................................... 188
19.2.1 Backup Configuration ............................................................................................. 189
19.2.2 Restore Configuration ............................................................................................ 189
19.2.3 Back to Factory Defaults ........................................................................................ 190
19.3 Restart Screen ................................................................................................................. 190
Chapter 20

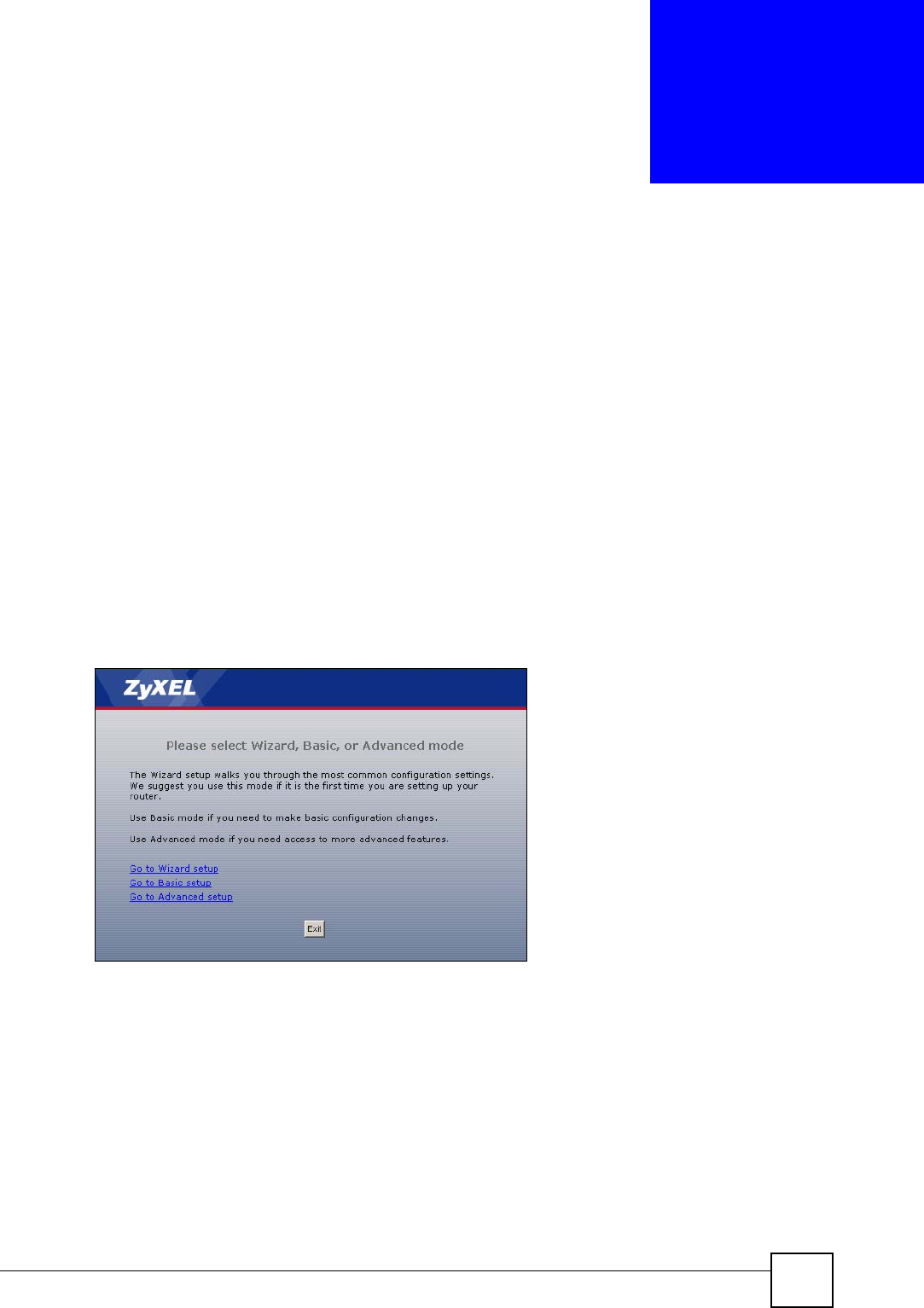

Configuration Mode..............................................................................................................193
Chapter 21
Troubleshooting.................................................................................................................... 195
21.1 Power, Hardware Connections, and LEDs ...................................................................... 195
21.2 ZyXEL Device Access and Login .................................................................................... 196
21.3 Internet Access ................................................................................................................ 197
21.4 Resetting the ZyXEL Device to Its Factory Defaults ........................................................ 199
21.5 Advanced Features .........................................................................................................199
Part V: Appendices and Index ............................................................ 201
Table of Contents
ZyXEL NBG-334SH User’s Guide 17
Appendix A Product Specifications....................................................................................... 203
Appendix B Pop-up Windows, JavaScripts and Java Permissions ...................................... 207
Appendix C IP Addresses and Subnetting ........................................................................... 213
Appendix D Wall-mounting Instructions................................................................................ 221
Appendix E Setting up Your Computer’s IP Address............................................................223
21.5.1 Verifying Settings ................................................................................................... 238
Appendix F Wireless LANs................................................................................................... 239

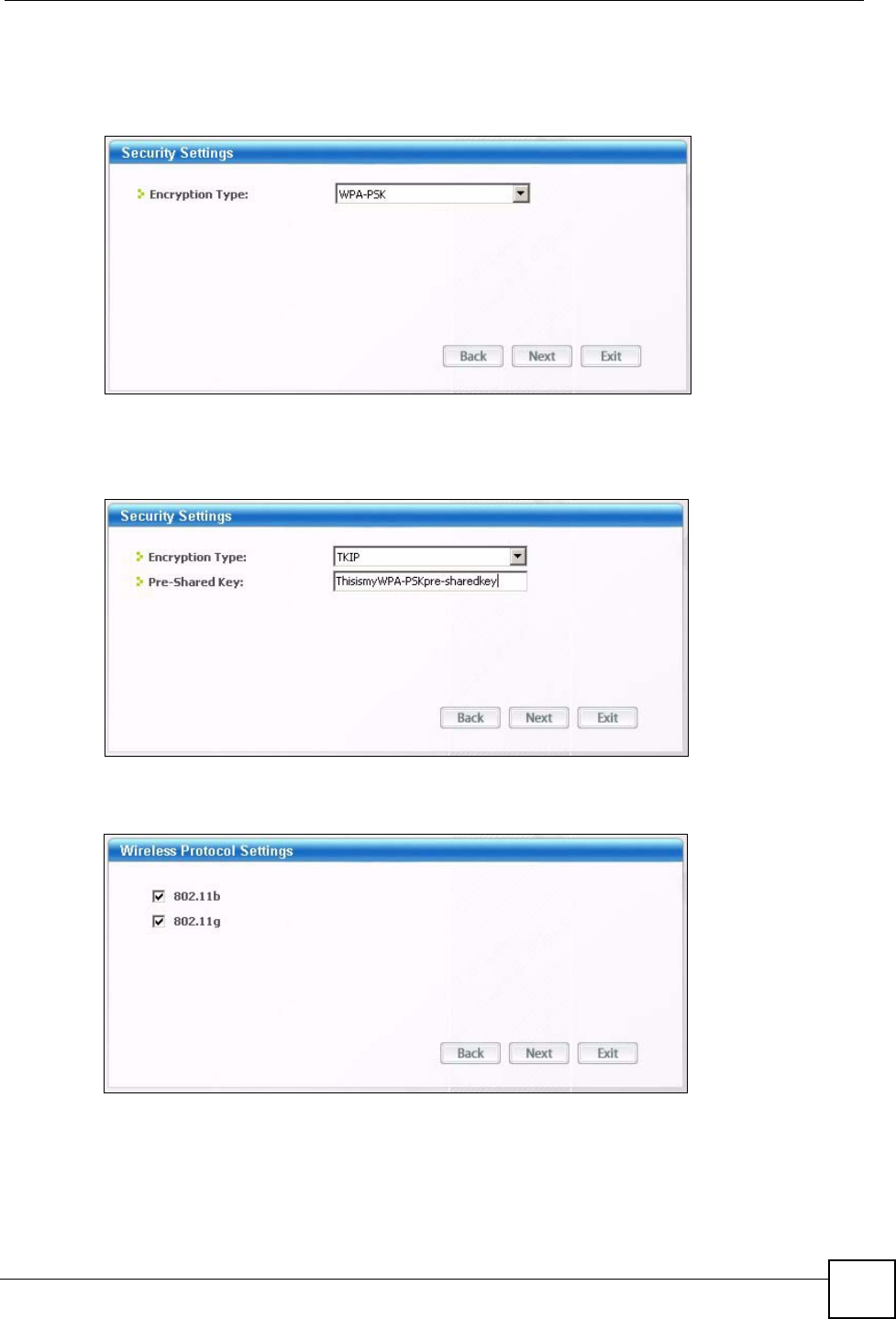

21.5.2 WPA(2)-PSK Application Example ......................................................................... 248
21.5.3 WPA(2) with RADIUS Application Example ........................................................... 248
Appendix G Command Interpreter .......................................................................................251
Appendix H NetBIOS Filter Commands ............................................................................... 255
Appendix I Services..............................................................................................................257
Appendix J Internal SPTGEN............................................................................................... 261
Appendix K Legal Information .............................................................................................. 277
Appendix L Customer Support ............................................................................................. 281
Index....................................................................................................................................... 285
Table of Contents
ZyXEL NBG-334SH User’s Guide
18
List of Figures
ZyXEL NBG-334SH User’s Guide 19
List of Figures
Figure 1 Secure Internet Access via Cable, DSL or Wireless Modem ................................................... 30
Figure 2 WLAN Application Example ..................................................................................................... 30
Figure 3 Front Panel ............................................................................................................................... 31
Figure 4 AP: Wireless LAN > General .................................................................................................... 34
Figure 5 AP: Status ................................................................................................................................. 35
Figure 6 AP: Status: WLAN Station Status ............................................................................................. 35
Figure 7 ZyXEL Utility: Security Settings ............................................................................................... 37
Figure 8 ZyXEL Utility: Confirm Save ..................................................................................................... 37
Figure 9 ZyXEL Utility: Link Info ............................................................................................................ 37

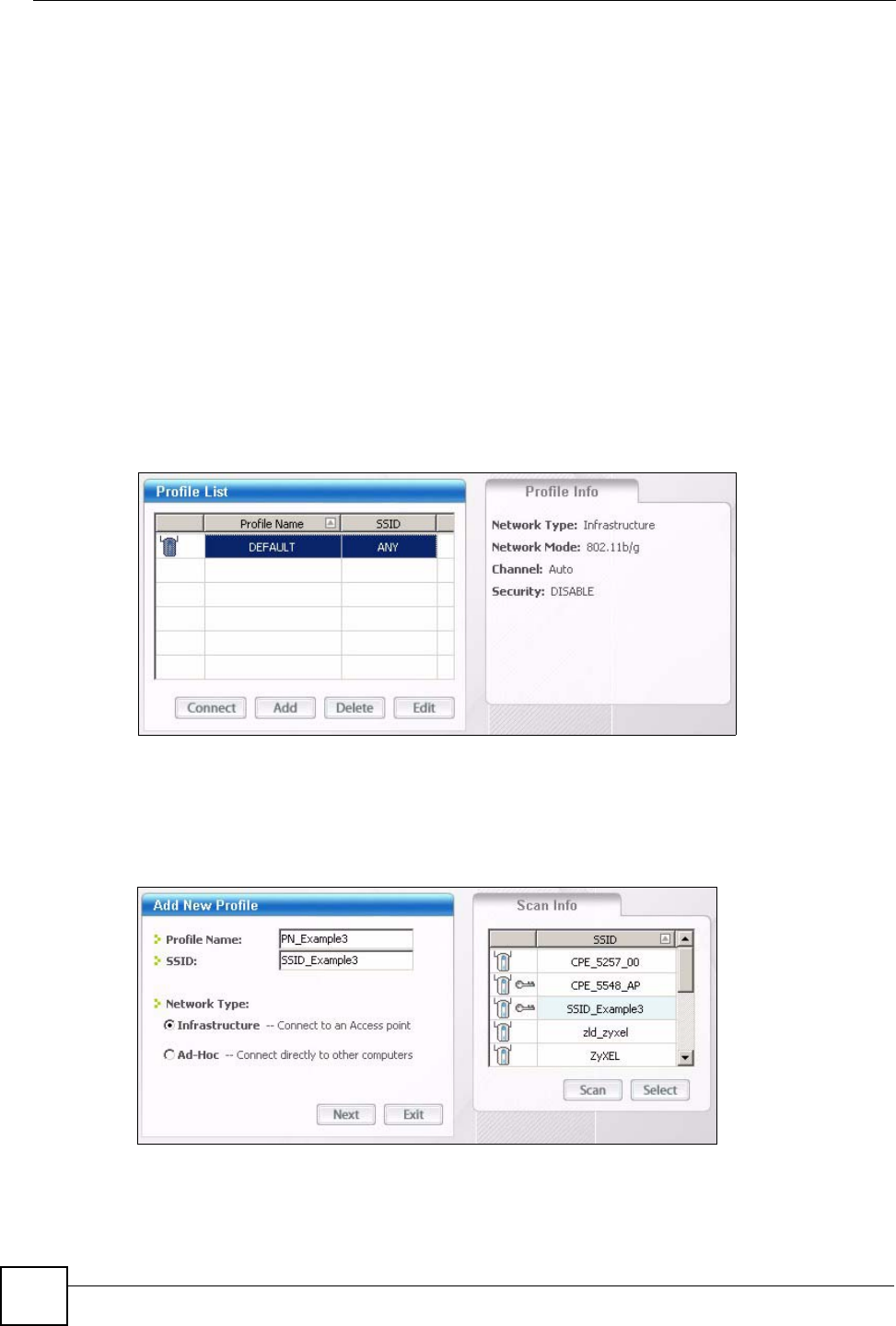

Figure 10 ZyXEL Utility: Profile ............................................................................................................... 38
Figure 11 ZyXEL Utility: Add New Profile ............................................................................................... 38
Figure 12 ZyXEL Utility: Profile Security ................................................................................................. 39
Figure 13 ZyXEL Utility: Profile Encryption ............................................................................................. 39
Figure 14 Profile: Wireless Protocol Settings. ........................................................................................ 39
Figure 15 Profile: Confirm Save ............................................................................................................. 40
Figure 16 Profile: Activate ...................................................................................................................... 40
Figure 17 Change Password Screen ...................................................................................................... 42
Figure 18 Web Configurator Status Screen ........................................................................................... 44
Figure 19 Any IP Table ........................................................................................................................... 48
Figure 20 Summary: BW MGMT Monitor ............................................................................................... 49
Figure 21 Summary: DHCP Table .......................................................................................................... 49
Figure 22 Summary: Packet Statistics .................................................................................................. 50
Figure 23 Summary: Wireless Association List ...................................................................................... 51
Figure 24 Select Wizard or Advanced Mode .......................................................................................... 55
Figure 25 Select a Language ................................................................................................................. 56
Figure 26 Welcome to the Connection Wizard ....................................................................................... 56
Figure 27 Wizard Step 1: System Information ........................................................................................ 57

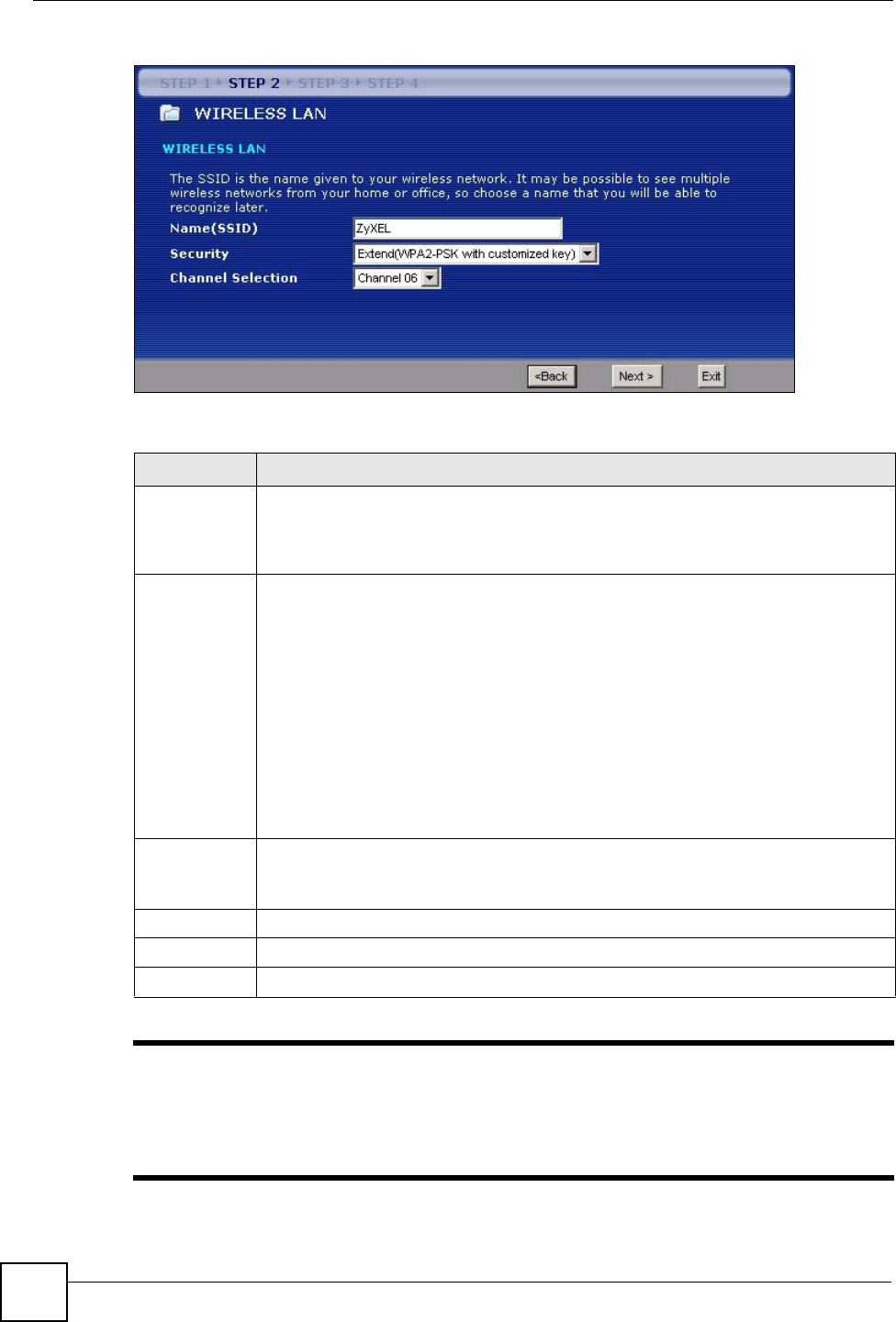

Figure 28 Wizard Step 2: Wireless LAN ................................................................................................. 58

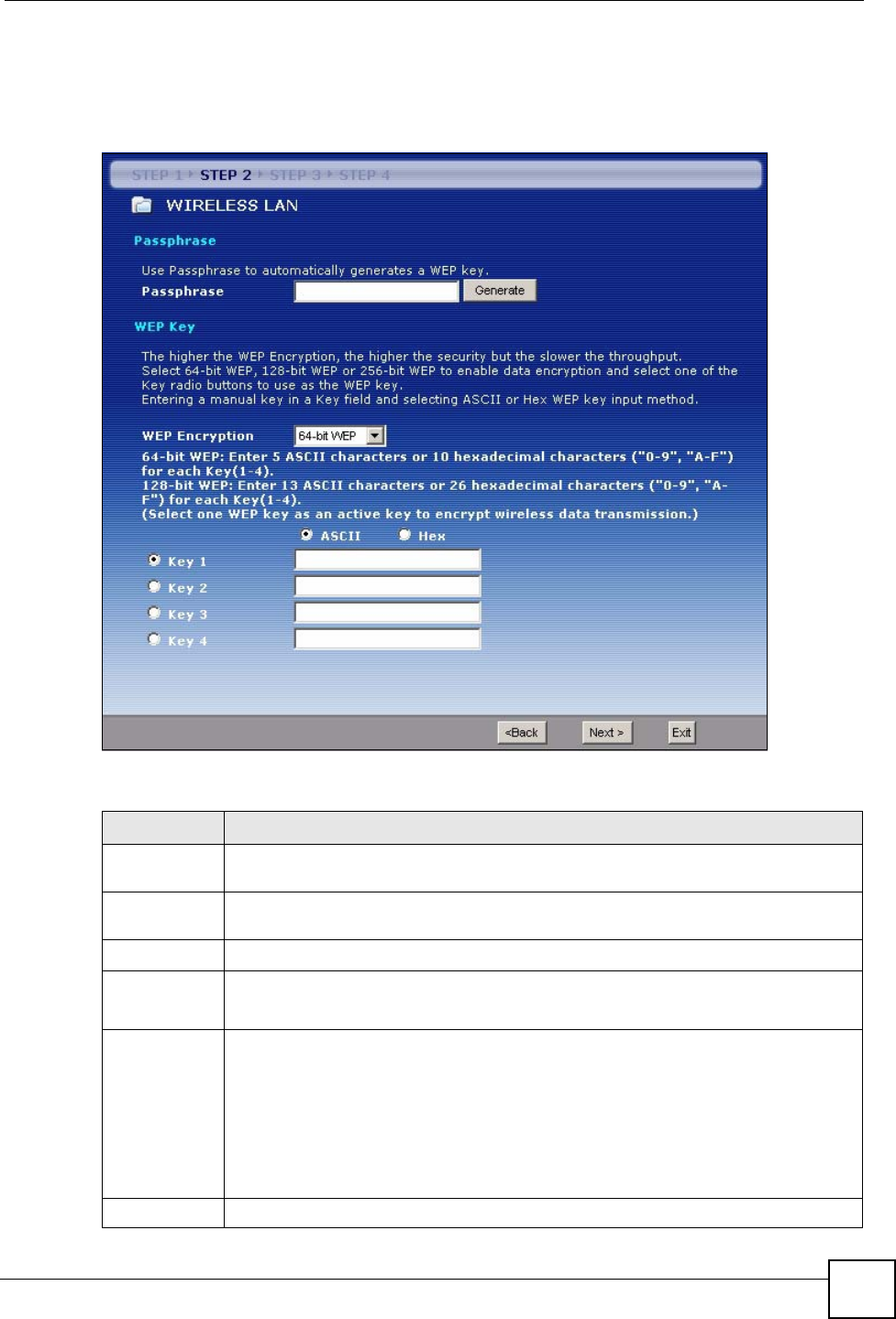

Figure 29 Wizard Step 2: Basic (WEP) Security ..................................................................................... 59
Figure 30 Wizard Step 2: Extend (WPA-PSK or WPA2-PSK) Security ................................................... 60
Figure 31 Wizard Step 3: ISP Parameters. ............................................................................................. 61
Figure 32 Wizard Step 3: Ethernet Connection ...................................................................................... 61
Figure 33 Wizard Step 3: PPPoE Connection ........................................................................................ 62
Figure 34 Wizard Step 3: PPTP Connection .......................................................................................... 63
Figure 35 Wizard Step 3: Your IP Address ............................................................................................. 64
Figure 36 Wizard Step 3: WAN IP and DNS Server Addresses ............................................................. 66
Figure 37 Wizard Step 3: WAN MAC Address ........................................................................................ 67
Figure 38 Wizard Step 4: Bandwidth Management ............................................................................... 68
List of Figures
ZyXEL NBG-334SH User’s Guide
20
Figure 39 Connection Wizard Save ....................................................................................................... 69
Figure 40 Connection Wizard Complete ................................................................................................. 69
Figure 41 Example of a Wireless Network ............................................................................................. 73

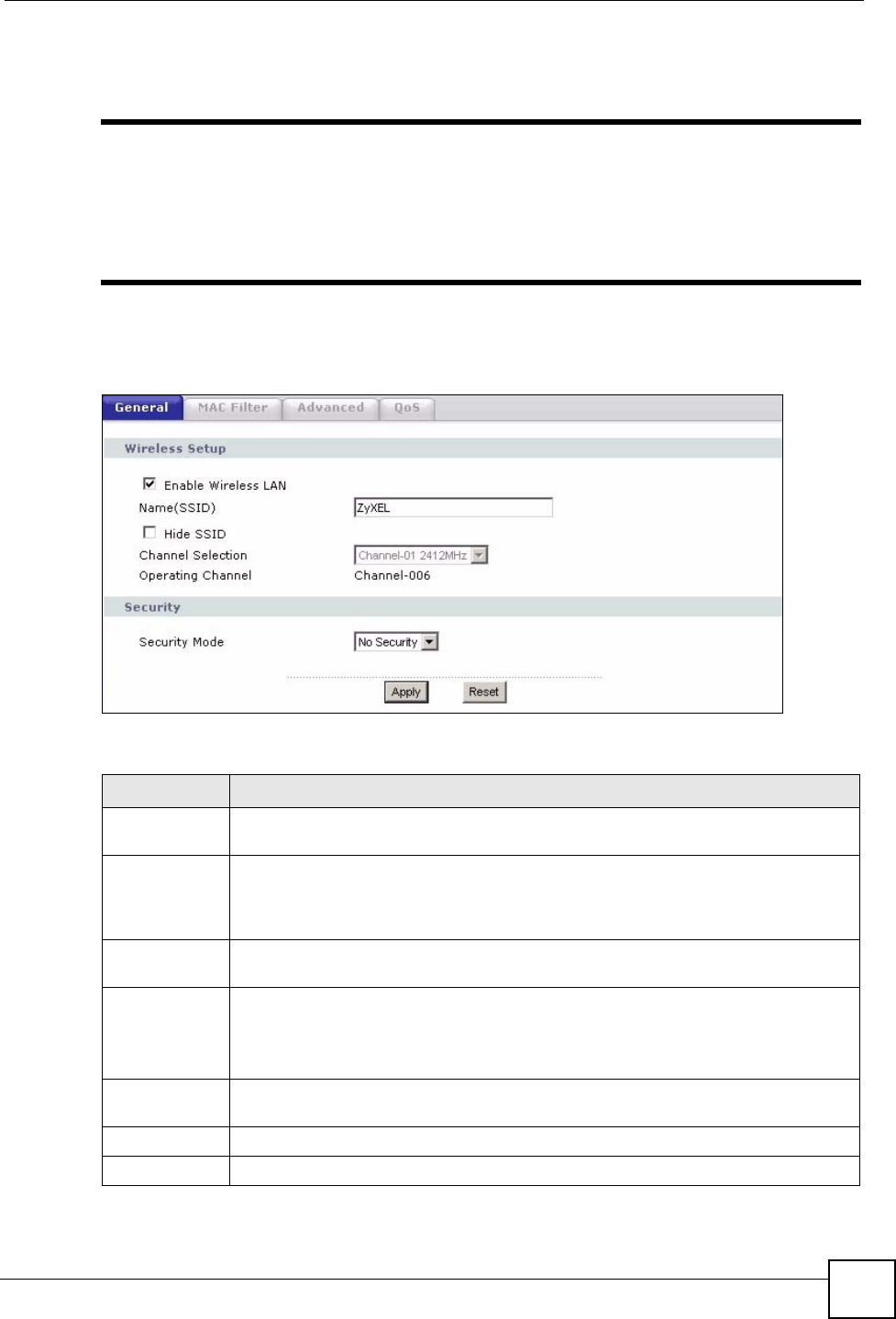

Figure 42 Wireless General ................................................................................................................... 77
Figure 43 Wireless: No Security ............................................................................................................. 78
Figure 44 Wireless: Static WEP Encryption ............................................................................................ 79

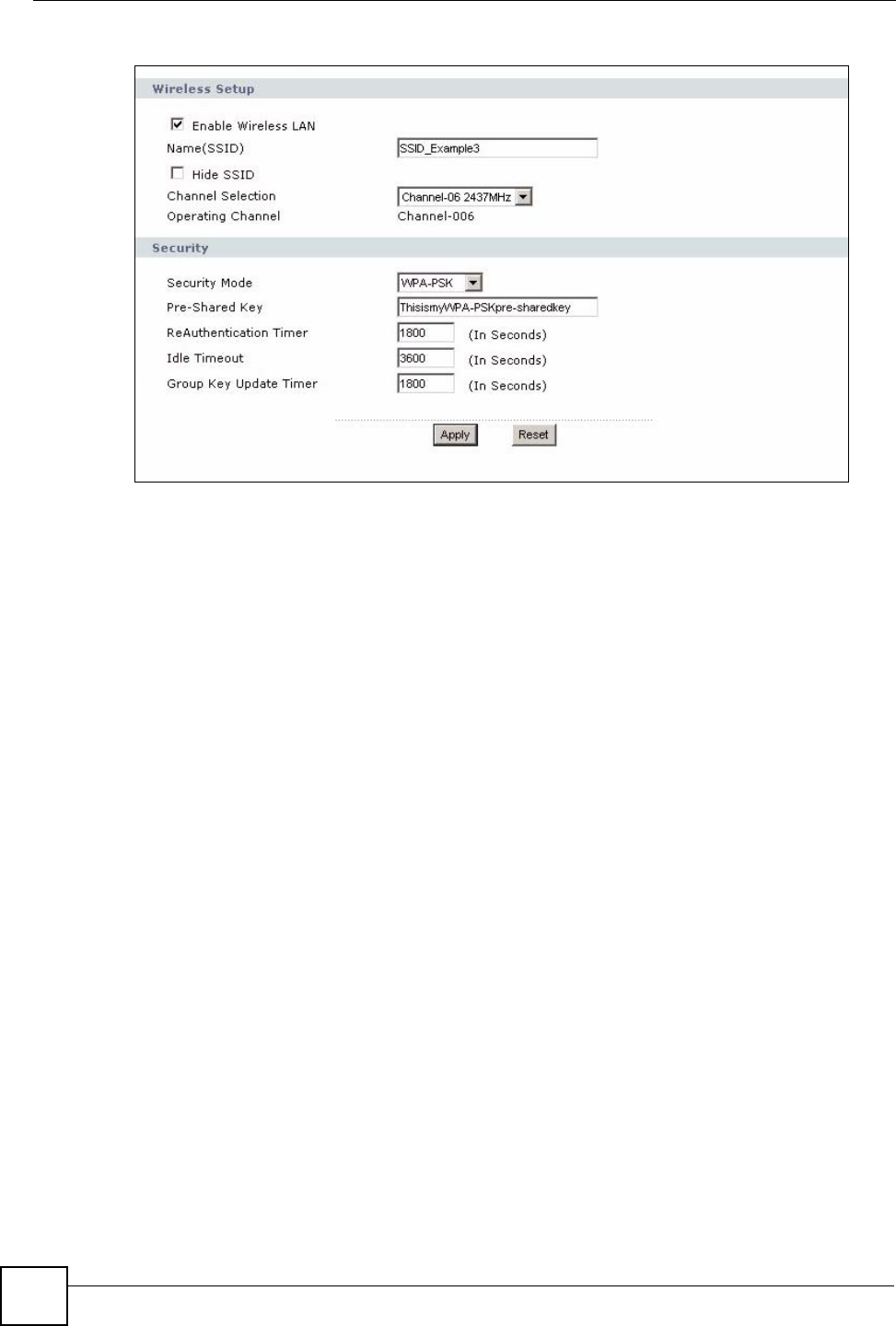

Figure 45 Wireless: WPA-PSK/WPA2-PSK ............................................................................................ 80
Figure 46 Wireless: WPA/WPA2 ............................................................................................................. 81
Figure 47 MAC Address Filter ................................................................................................................ 83
Figure 48 Wireless LAN Advanced ......................................................................................................... 84

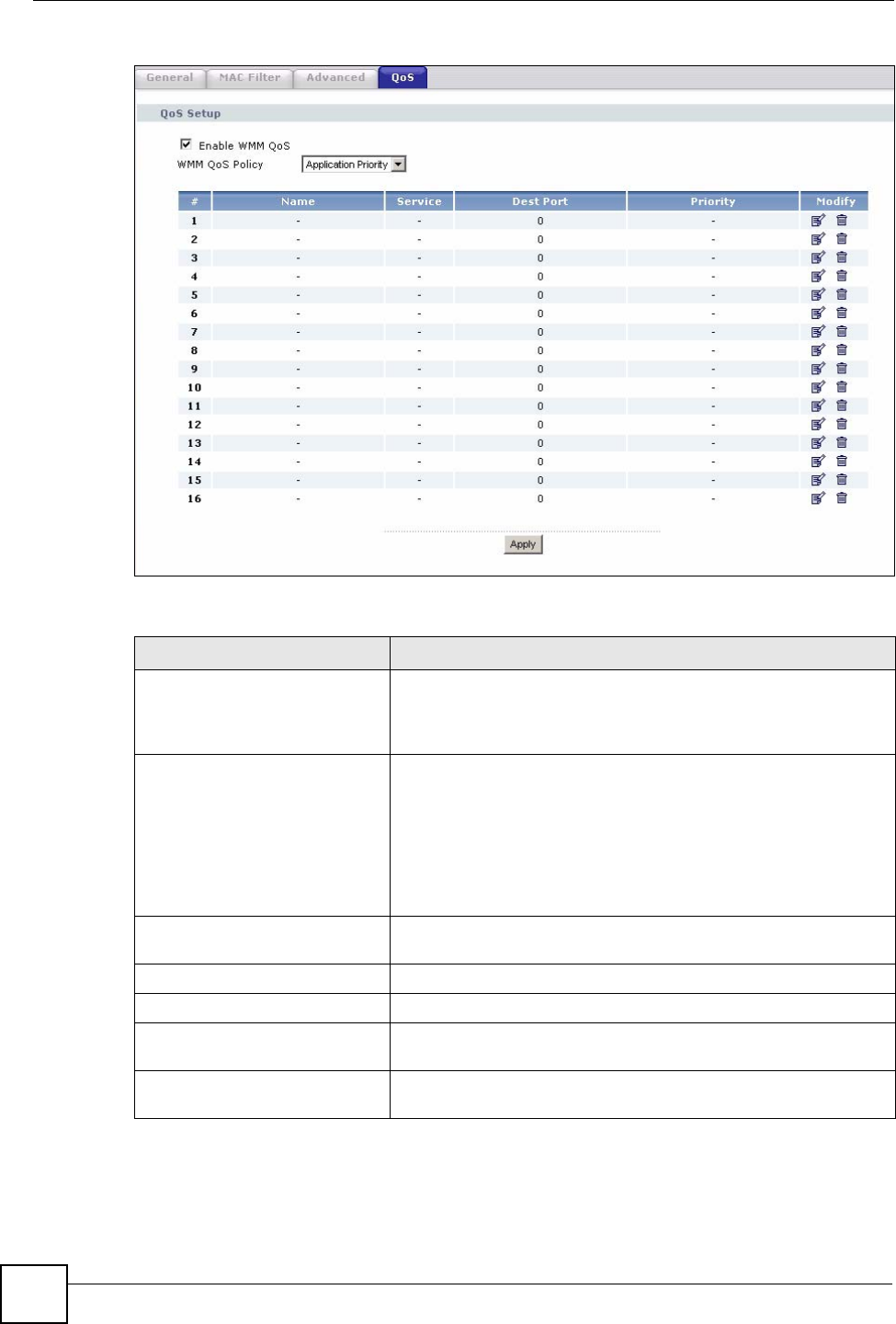

Figure 49 Wireless LAN QoS ................................................................................................................ 86

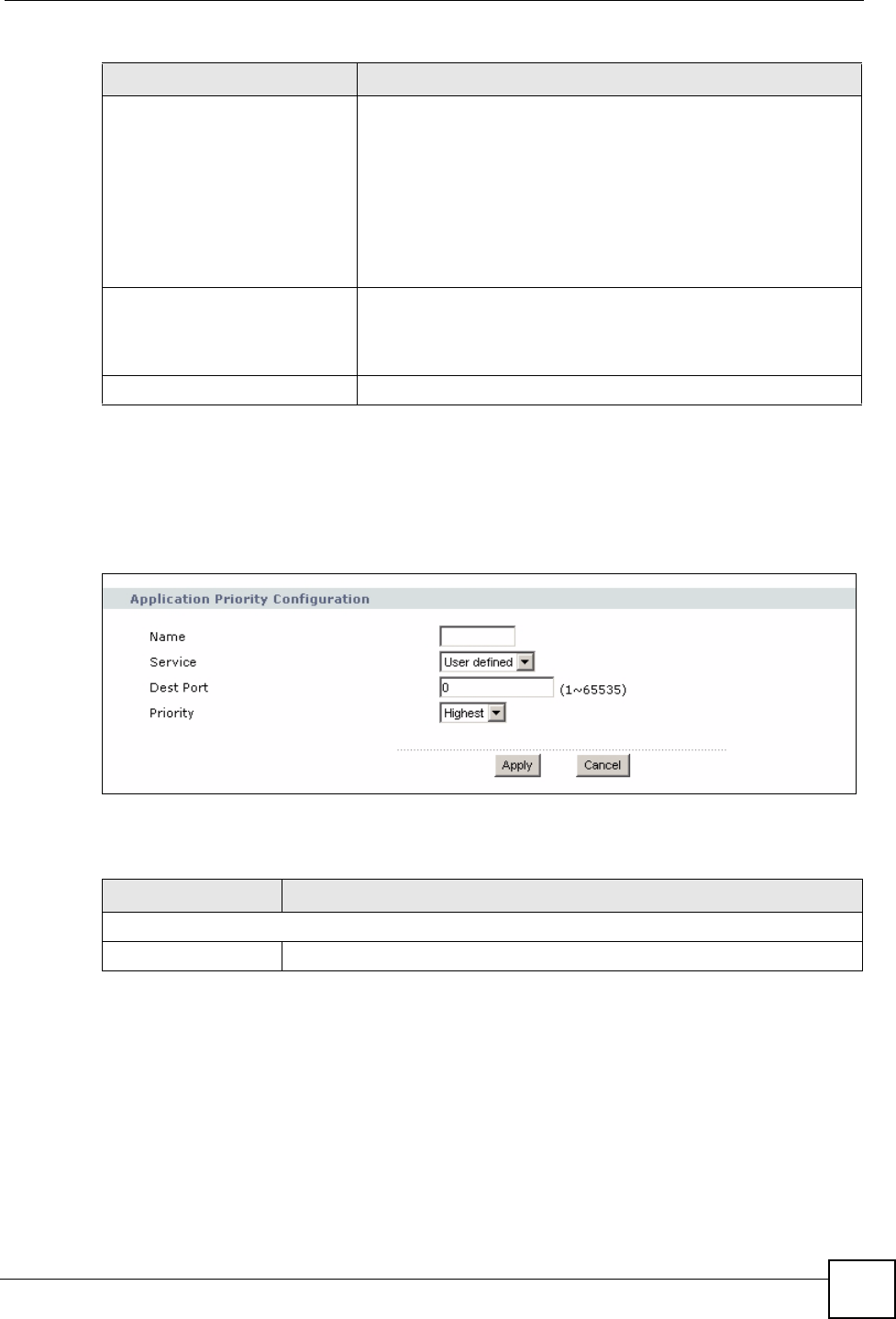

Figure 50 Application Priority Configuration ........................................................................................... 87
Figure 51 Ethernet Encapsulation .......................................................................................................... 90
Figure 52 PPPoE Encapsulation ............................................................................................................ 93

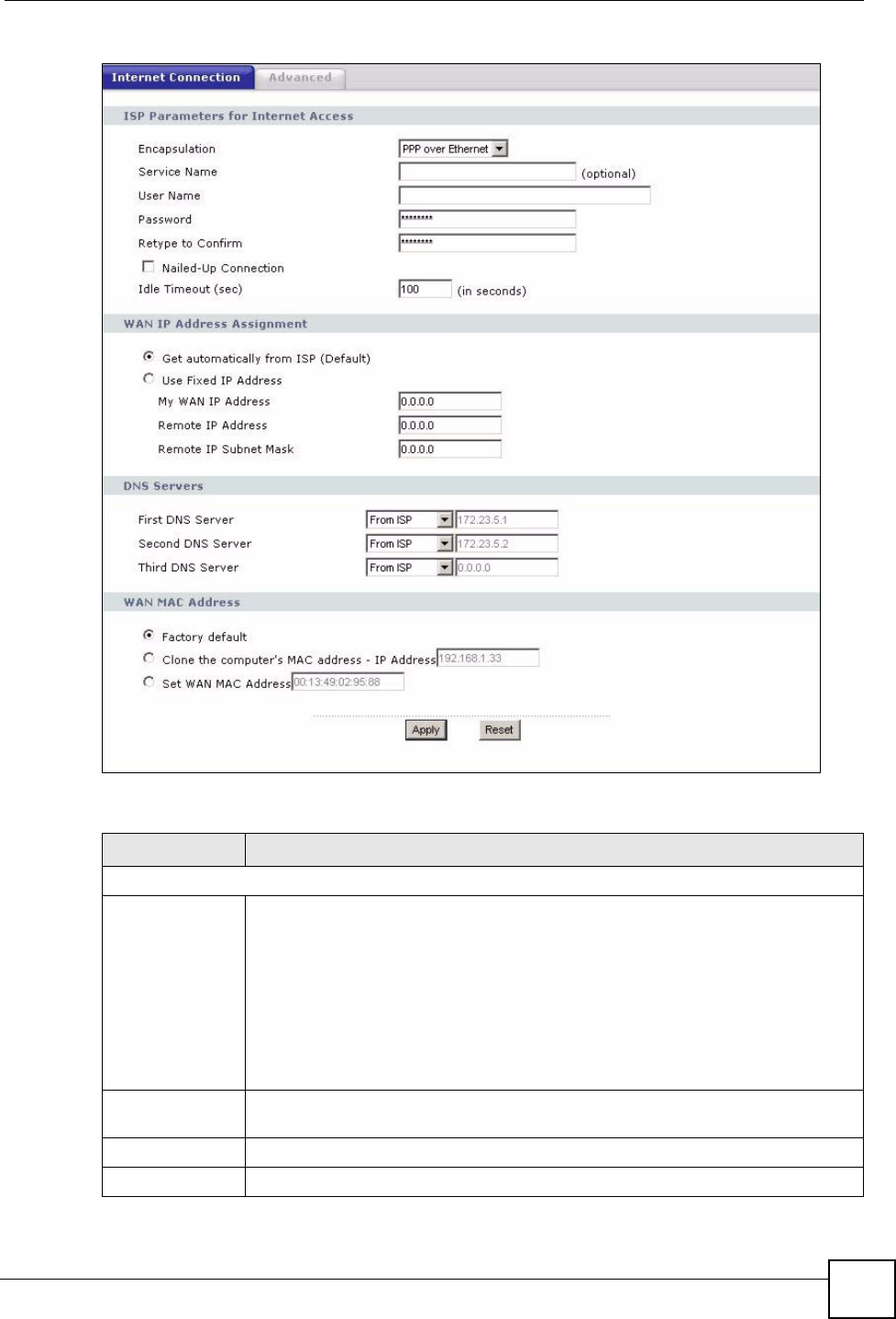

Figure 53 PPTP Encapsulation ............................................................................................................... 95

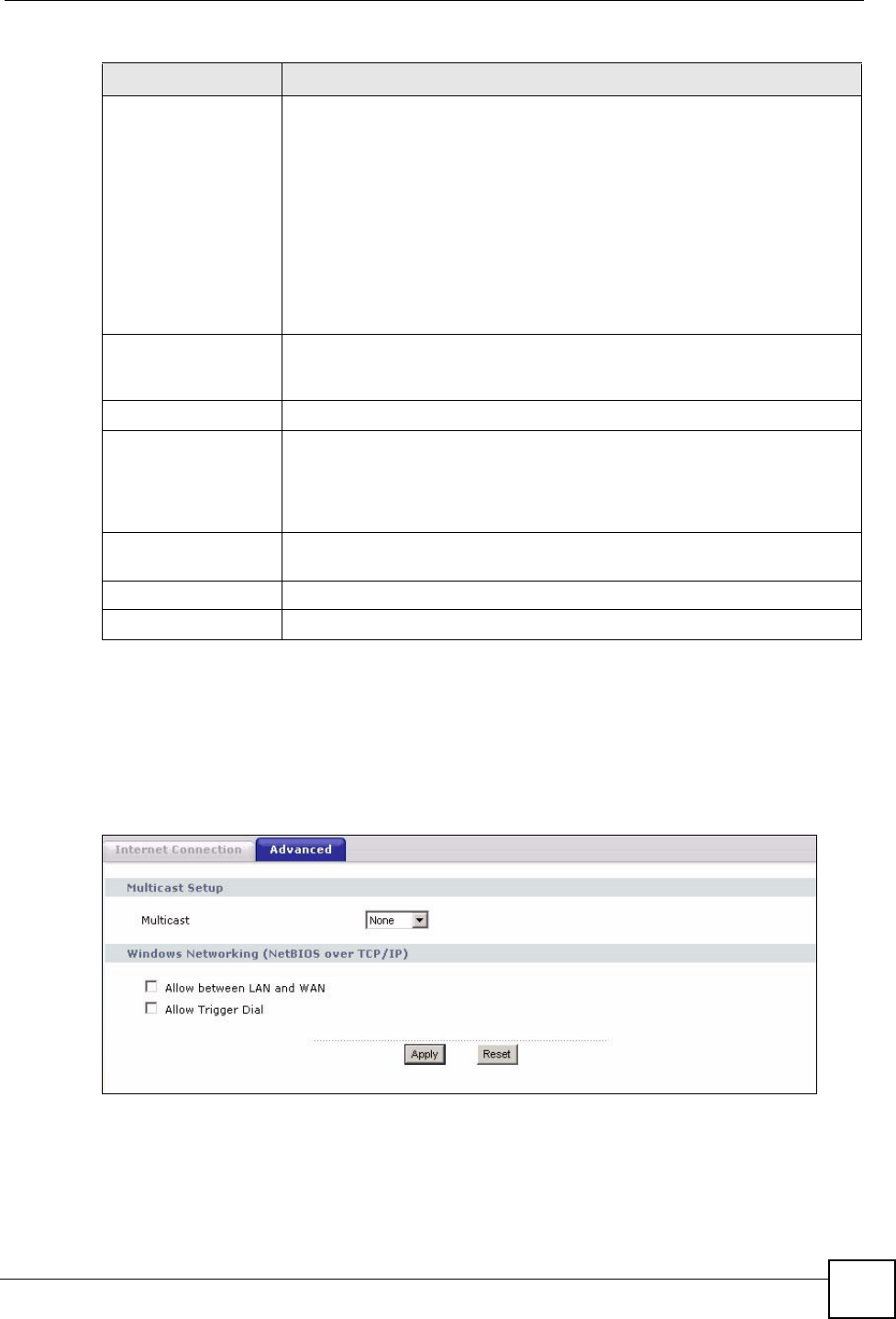

Figure 54 WAN > Advanced ................................................................................................................... 97
Figure 55 Any IP Example .................................................................................................................... 101
Figure 56 LAN IP .................................................................................................................................. 102
Figure 57 LAN IP Alias ......................................................................................................................... 103
Figure 58 Advanced LAN ..................................................................................................................... 104
Figure 59 DHCP Server General .......................................................................................................... 105
Figure 60 DHCP Server Advanced ....................................................................................................... 106
Figure 61 Client List .............................................................................................................................. 107
Figure 62 Multiple Servers Behind NAT Example .................................................................................110
Figure 63 NAT General ..........................................................................................................................110
Figure 64 NAT Application .....................................................................................................................112
Figure 65 Game List Example ...............................................................................................................114
Figure 66 Trigger Port Forwarding Process: Example ...........................................................................115
Figure 67 NAT Advanced ......................................................................................................................116
Figure 68 Dynamic DNS ....................................................................................................................... 120
Figure 69 Using IP Alias to Solve the Triangle Route Problem ............................................................ 123
Figure 70 General ................................................................................................................................. 123
Figure 71 Firewall Services .................................................................................................................. 125
Figure 72 Content Filter: Filter .............................................................................................................. 128
Figure 73 Content Filter: Schedule ....................................................................................................... 129
Figure 74 Example of Static Routing Topology ..................................................................................... 133
Figure 75 IP Static Route ...................................................................................................................... 134
Figure 76 Static Route Setup ................................................................................................................ 135
Figure 77 Subnet-based Bandwidth Management Example ................................................................ 138
Figure 78 Bandwidth Management: General ........................................................................................142
Figure 79 Bandwidth Management: Advanced ..................................................................................... 143
Figure 80 Bandwidth Management Rule Configuration: Pre-defined Service ...................................... 145
Figure 81 Bandwidth Management Rule Configuration: User-defined Service .................................... 146
List of Figures
ZyXEL NBG-334SH User’s Guide 21
Figure 82 Bandwidth Management: Monitor ......................................................................................... 147
Figure 83 WWW Remote Management ................................................................................................150
Figure 84 Telnet Configuration on a TCP/IP Network ........................................................................... 151
Figure 85 Telnet Remote Management ................................................................................................ 152
Figure 86 FTP Remote Management ................................................................................................... 152
Figure 87 DNS Remote Management .................................................................................................. 153
Figure 88 Configuring UPnP ................................................................................................................. 156
Figure 89 Add/Remove Programs: Windows Setup: Communication .................................................. 157
Figure 90 Add/Remove Programs: Windows Setup: Communication: Components ............................ 158
Figure 91 Network Connections ........................................................................................................... 158
Figure 92 Windows Optional Networking Components Wizard ............................................................ 159
Figure 93 Networking Services ............................................................................................................. 159
Figure 94 Network Connections ........................................................................................................... 160
Figure 95 Internet Connection Properties ............................................................................................ 161
Figure 96 Internet Connection Properties: Advanced Settings ............................................................. 162
Figure 97 Internet Connection Properties: Advanced Settings: Add .................................................... 162
Figure 98 System Tray Icon .................................................................................................................. 163
Figure 99 Internet Connection Status ................................................................................................... 163
Figure 100 Network Connections ......................................................................................................... 164
Figure 101 Network Connections: My Network Places ........................................................................ 165
Figure 102 Network Connections: My Network Places: Properties: Example ...................................... 165
Figure 103 System General ................................................................................................................. 169
Figure 104 Time Setting ....................................................................................................................... 171
Figure 105 View Log ............................................................................................................................. 173
Figure 106 Log Settings ....................................................................................................................... 175
Figure 107 Maintenance Firmware Upload .......................................................................................... 187
Figure 108 Upload Warning .................................................................................................................. 188
Figure 109 Network Temporarily Disconnected ....................................................................................188
Figure 110 Upload Error Message ........................................................................................................ 188
Figure 111 Configuration ....................................................................................................................... 189
Figure 112 Configuration Restore Successful ...................................................................................... 190
Figure 113 Temporarily Disconnected .................................................................................................. 190
Figure 114 Configuration Restore Error ................................................................................................ 190
Figure 115 System Restart ................................................................................................................... 191
Figure 116 Config Mode ....................................................................................................................... 193
Figure 117 Pop-up Blocker ................................................................................................................... 207
Figure 118 Internet Options: Privacy .................................................................................................... 208
Figure 119 Internet Options: Privacy .................................................................................................... 209
Figure 120 Pop-up Blocker Settings ..................................................................................................... 209
Figure 121 Internet Options: Security ................................................................................................... 210
Figure 122 Security Settings - Java Scripting ........................................................................................211
Figure 123 Security Settings - Java .......................................................................................................211
Figure 124 Java (Sun) .......................................................................................................................... 212
List of Figures
ZyXEL NBG-334SH User’s Guide
22
Figure 125 Network Number and Host ID ............................................................................................ 214
Figure 126 Subnetting Example: Before Subnetting ............................................................................ 216
Figure 127 Subnetting Example: After Subnetting ............................................................................... 217
Figure 128 Wall-mounting Example ...................................................................................................... 221
Figure 129 WIndows 95/98/Me: Network: Configuration ...................................................................... 224
Figure 130 Windows 95/98/Me: TCP/IP Properties: IP Address .......................................................... 225
Figure 131 Windows 95/98/Me: TCP/IP Properties: DNS Configuration .............................................. 226
Figure 132 Windows XP: Start Menu .................................................................................................... 227
Figure 133 Windows XP: Control Panel ............................................................................................... 227
Figure 134 Windows XP: Control Panel: Network Connections: Properties ......................................... 228
Figure 135 Windows XP: Local Area Connection Properties ............................................................... 228
Figure 136 Windows XP: Internet Protocol (TCP/IP) Properties .......................................................... 229
Figure 137 Windows XP: Advanced TCP/IP Properties ....................................................................... 230
Figure 138 Windows XP: Internet Protocol (TCP/IP) Properties .......................................................... 231
Figure 139 Macintosh OS 8/9: Apple Menu .......................................................................................... 232
Figure 140 Macintosh OS 8/9: TCP/IP ................................................................................................. 232
Figure 141 Macintosh OS X: Apple Menu ............................................................................................ 233
Figure 142 Macintosh OS X: Network .................................................................................................. 234
Figure 143 Red Hat 9.0: KDE: Network Configuration: Devices ......................................................... 235
Figure 144 Red Hat 9.0: KDE: Ethernet Device: General .................................................................. 236
Figure 145 Red Hat 9.0: KDE: Network Configuration: DNS ............................................................... 236
Figure 146 Red Hat 9.0: KDE: Network Configuration: Activate ........................................................ 237
Figure 147 Red Hat 9.0: Dynamic IP Address Setting in ifconfig-eth0 ............................................... 237
Figure 148 Red Hat 9.0: Static IP Address Setting in ifconfig-eth0 ................................................... 237
Figure 149 Red Hat 9.0: DNS Settings in resolv.conf ........................................................................ 238
Figure 150 Red Hat 9.0: Restart Ethernet Card ................................................................................. 238
Figure 151 Red Hat 9.0: Checking TCP/IP Properties ....................................................................... 238
Figure 152 Peer-to-Peer Communication in an Ad-hoc Network ......................................................... 239
Figure 153 Basic Service Set ............................................................................................................... 240
Figure 154 Infrastructure WLAN ........................................................................................................... 241
Figure 155 RTS/CTS ........................................................................................................................... 242
Figure 156 WPA(2)-PSK Authentication ............................................................................................... 248
Figure 157 Displaying Log Categories Example .................................................................................. 252
Figure 158 Displaying Log Parameters Example ................................................................................. 252
Figure 159 Configuration Text File Format: Column Descriptions ........................................................ 261
Figure 160 Invalid Parameter Entered: Command Line Example ........................................................ 262
Figure 161 Valid Parameter Entered: Command Line Example ........................................................... 262
Figure 162 Internal SPTGEN FTP Download Example ....................................................................... 263
Figure 163 Internal SPTGEN FTP Upload Example ............................................................................ 263
List of Tables
ZyXEL NBG-334SH User’s Guide 23
List of Tables
Table 1 Front Panel LEDs ...................................................................................................................... 31
Table 2 Status Screen Icon Key ............................................................................................................. 44
Table 3 Web Configurator Status Screen ........................................................................................... 45
Table 4 Screens Summary .................................................................................................................... 46
Table 5 Summary: DHCP Table ............................................................................................................. 49
Table 6 Summary: Packet Statistics ...................................................................................................... 50
Table 7 Summary: Wireless Association List ......................................................................................... 51
Table 8 Wizard Step 1: System Information ........................................................................................... 57
Table 9 Wizard Step 2: Wireless LAN .................................................................................................... 58
Table 10 Wizard Step 2: Basic (WEP) Security ..................................................................................... 59
Table 11 Wizard Step 2: Extend (WPA-PSK or WPA2-PSK) Security ................................................... 60
Table 12 Wizard Step 3: ISP Parameters .............................................................................................. 61
Table 13 Wizard Step 3: PPPoE Connection ......................................................................................... 62
Table 14 Wizard Step 3: PPTP Connection ........................................................................................... 63
Table 15 Wizard Step 3: Your IP Address .............................................................................................. 64
Table 16 Private IP Address Ranges ..................................................................................................... 64
Table 17 Wizard Step 3: WAN IP and DNS Server Addresses .............................................................. 66
Table 18 Example of Network Properties for LAN Servers with Fixed IP Addresses ............................ 67
Table 19 Wizard Step 3: WAN MAC Address ........................................................................................ 67
Table 20 Wizard Step 4: Bandwidth Management ................................................................................. 68
Table 21 Types of Encryption for Each Type of Authentication ............................................................. 75
Table 22 WMM QoS Priorities ............................................................................................................... 76
Table 23 Wireless General .................................................................................................................... 77
Table 24 Wireless No Security ............................................................................................................... 78
Table 25 Wireless: Static WEP Encryption ............................................................................................ 79
Table 26 Wireless: WPA-PSK/WPA2-PSK ............................................................................................. 80
Table 27 Wireless: WPA/WPA2 ............................................................................................................. 82
Table 28 MAC Address Filter ................................................................................................................. 83
Table 29 Wireless LAN Advanced ......................................................................................................... 84
Table 30 Wireless LAN QoS .................................................................................................................. 86
Table 31 Application Priority Configuration ............................................................................................ 87
Table 32 Ethernet Encapsulation ........................................................................................................... 91
Table 33 PPPoE Encapsulation ............................................................................................................. 93
Table 34 PPTP Encapsulation ............................................................................................................... 96
Table 35 WAN > Advanced .................................................................................................................... 98
Table 36 LAN IP ................................................................................................................................... 102
Table 37 LAN IP Alias .......................................................................................................................... 103
Table 38 Advanced LAN ...................................................................................................................... 104
List of Tables
ZyXEL NBG-334SH User’s Guide
24
Table 39 DHCP Server General .......................................................................................................... 105
Table 40 DHCP Server Advanced ....................................................................................................... 106
Table 41 Client List .............................................................................................................................. 108
Table 42 NAT General ..........................................................................................................................111
Table 43 NAT Application .....................................................................................................................112
Table 44 NAT Advanced .......................................................................................................................116
Table 45 Dynamic DNS ....................................................................................................................... 120
Table 46 Firewall General .................................................................................................................... 123
Table 47 Firewall Services ................................................................................................................... 125
Table 48 Content Filter: Filter .............................................................................................................. 128
Table 49 Content Filter: Schedule ....................................................................................................... 130
Table 50 IP Static Route ...................................................................................................................... 134
Table 51 Static Route Setup ................................................................................................................ 135
Table 52 Application and Subnet-based Bandwidth Management Example ....................................... 138
Table 53 Bandwidth Management Priorities ........................................................................................ 138
Table 54 Media Bandwidth Management Setup: Services .................................................................. 139
Table 55 Commonly Used Services ..................................................................................................... 140
Table 56 Bandwidth Management Priority with Default Classes ......................................................... 142
Table 57 Bandwidth Management: General ........................................................................................143
Table 58 Bandwidth Management: Advanced ..................................................................................... 144
Table 59 Bandwidth Management Rule Configuration: Pre-defined Service ....................................... 145
Table 60 Bandwidth Management Rule Configuration: User-defined Service ..................................... 146
Table 61 .............................................................................................................................................. 149
Table 62 WWW Remote Management ................................................................................................151
Table 63 Telnet Remote Management ................................................................................................. 152
Table 64 FTP Remote Management .................................................................................................... 153
Table 65 DNS Remote Management ................................................................................................... 154
Table 66 Configuring UPnP ................................................................................................................. 156
Table 67 System General .................................................................................................................... 170
Table 68 Time Setting .......................................................................................................................... 171
Table 69 View Log ............................................................................................................................... 174
Table 70 Log Settings .......................................................................................................................... 175
Table 71 System Maintenance Logs .................................................................................................... 177
Table 72 System Error Logs ................................................................................................................ 178
Table 73 Access Control Logs ............................................................................................................. 178
Table 74 TCP Reset Logs .................................................................................................................... 178
Table 75 Packet Filter Logs ................................................................................................................. 179
Table 76 ICMP Logs ............................................................................................................................ 179
Table 77 CDR Logs ............................................................................................................................. 180
Table 78 PPP Logs .............................................................................................................................. 180
Table 79 UPnP Logs ............................................................................................................................ 180
Table 80 Content Filtering Logs ........................................................................................................... 180
Table 81 Attack Logs ........................................................................................................................... 181
List of Tables
ZyXEL NBG-334SH User’s Guide 25
Table 82 PKI Logs ............................................................................................................................... 182
Table 83 802.1X Logs .......................................................................................................................... 183
Table 84 ACL Setting Notes ................................................................................................................ 184
Table 85 ICMP Notes ........................................................................................................................... 184
Table 86 Syslog Logs .......................................................................................................................... 185
Table 87 RFC-2408 ISAKMP Payload Types ...................................................................................... 185
Table 88 Maintenance Firmware Upload ............................................................................................. 187
Table 89 Maintenance Restore Configuration ..................................................................................... 189
Table 90 Config Mode: Advanced Screens ......................................................................................... 193
Table 91 Hardware Features ............................................................................................................... 203
Table 92 Firmware Features ................................................................................................................ 203
Table 93 Subnet Mask - Identifying Network Number ......................................................................... 214
Table 94 Subnet Masks ....................................................................................................................... 215
Table 95 Maximum Host Numbers ...................................................................................................... 215
Table 96 Alternative Subnet Mask Notation ......................................................................................... 215
Table 97 Subnet 1 ................................................................................................................................ 217
Table 98 Subnet 2 ................................................................................................................................ 218
Table 99 Subnet 3 ................................................................................................................................ 218
Table 100 Subnet 4 .............................................................................................................................. 218
Table 101 Eight Subnets ...................................................................................................................... 218
Table 102 24-bit Network Number Subnet Planning ............................................................................ 219
Table 103 16-bit Network Number Subnet Planning ............................................................................ 219
Table 104 IEEE 802.11g ...................................................................................................................... 243
Table 105 Comparison of EAP Authentication Types .......................................................................... 246
Table 106 Wireless Security Relational Matrix .................................................................................... 249
Table 107 NetBIOS Filter Default Settings .......................................................................................... 256
Table 108 Examples of Services ......................................................................................................... 257
Table 109 Abbreviations Used in the Example Internal SPTGEN Screens Table ............................... 264
Table 110 Menu 1 General Setup ........................................................................................................ 264
Table 111 Menu 3 ................................................................................................................................. 264
Table 112 Menu 4 Internet Access Setup ............................................................................................ 267
Table 113 Menu 12 .............................................................................................................................. 269
Table 114 Menu 15 SUA Server Setup ................................................................................................ 269
Table 115 Menu 21.1 Filter Set #1 ....................................................................................................... 271
Table 116 Menu 21.1 Filer Set #2, ....................................................................................................... 272
Table 117 Menu 23 System Menus ..................................................................................................... 274
Table 118 Menu 24.11 Remote Management Control ......................................................................... 275
Table 119 Command Examples ........................................................................................................... 276
List of Tables
ZyXEL NBG-334SH User’s Guide
26
27
PART I
Introduction
Getting to Know Your ZyXEL Device (29)
Wireless Tutorial (33)
Introducing the Web Configurator (41)
28
ZyXEL NBG-334SH User’s Guide 29
CHAPTER 1
Getting to Know Your ZyXEL
Device
This chapter introduces the main features and applications of the ZyXEL Device.
1.1 ZyXEL Device Overview
The ZyXEL Device is the ideal secure wireless firewall router for all data passing between the
Internet and your Local Area Network.
You can configure firewall and/or content filtering for secure Internet access. You can also use
media bandwidth management to efficiently manage traffic on your network. The Quality of
Service (QoS) features allow you to prioritize time-sensitive or highly important applications
such as VoIP.
The ZyXEL Device has an embedded mini-PCI module for 802.11g Wireless LAN
connectivity. The ZyXEL Device supports the IEEE 802.11b and g standards, so that either
IEEE 802.11b or IEEE 802.11g compatible clients can wirelessly access the ZyXEL Device or
the wired network behind it. the ZyXEL Device allows you to access wireless networks at
speeds of up to 108Mbps (with the Super G function enabled)
"Only use firmware for your ZyXEL Device’s specific model.
1.2 Applications for the ZyXEL Device
Here are some examples of what you can do with your ZyXEL Device.
1.2.1 Secure Broadband Internet Access
You can connect a cable modem, DSL or wireless modem to the ZyXEL Device for broadband
Internet access via an Ethernet or a wireless port on the modem. The ZyXEL Device
guarantees not only high speed Internet access, but secure internal network protection and
traffic management as well.
Chapter 1 Getting to Know Your ZyXEL Device
ZyXEL NBG-334SH User’s Guide
30
Figure 1 Secure Internet Access via Cable, DSL or Wireless Modem
1.2.1.1 Wireless LAN Application
Add a wireless LAN to your existing network without expensive network cables. Wireless
stations can move freely anywhere in the coverage area and use resources on the wired
network.
Figure 2 WLAN Application Example
1.3 Ways to Manage the ZyXEL Device
Use any of the following methods to manage the ZyXEL Device.
• Web Configurator. This is recommended for everyday management of the ZyXEL Device
using a (supported) web browser.
• Command Line Interface. Line commands are mostly used for troubleshooting by service
engineers.
• FTP. Use File Transfer Protocol for firmware upgrades and configuration backup/restore.
1.4 Good Habits for Managing the ZyXEL Device
Do the following things regularly to make the ZyXEL Device more secure and to manage the
ZyXEL Device more effectively.
• Change the password. Use a password that’s not easy to guess and that consists of
different types of characters, such as numbers and letters.
• Write down the password and put it in a safe place.
Chapter 1 Getting to Know Your ZyXEL Device
ZyXEL NBG-334SH User’s Guide 31
• Back up the configuration (and make sure you know how to restore it). Restoring an
earlier working configuration may be useful if the device becomes unstable or even
crashes. If you forget your password, you will have to reset the ZyXEL Device to its
factory default settings. If you backed up an earlier configuration file, you would not have
to totally re-configure the ZyXEL Device. You could simply restore your last
configuration.
1.5 LEDs
Figure 3 Front Panel
The following table describes the LEDs.
Table 1 Front Panel LEDs
LED COLOR STATUS DESCRIPTION
PWR Green On The ZyXEL Device is receiving power and functioning
properly.
None Off The ZyXEL Device is not receiving power.
LAN 1-4 Green On The ZyXEL Device has a successful 10Mb Ethernet
connection.
Blinking The ZyXEL Device is sending/receiving data.
Amber On The ZyXEL Device has a successful 100Mb Ethernet
connection.
Blinking The ZyXEL Device is sending/receiving data.
None Off The LAN is not connected.
WAN Green On The ZyXEL Device has a successful 10Mb WAN
connection.
Blinking The ZyXEL Device is sending/receiving data.
Amber On The ZyXEL Device has a successful 100Mb Ethernet
connection.
Blinking The ZyXEL Device is sending/receiving data.
None Off The WAN connection is not ready, or has failed.
Chapter 1 Getting to Know Your ZyXEL Device
ZyXEL NBG-334SH User’s Guide
32
WLAN Green On The ZyXEL Device is ready, but is not sending/receiving
data through the wireless LAN.
Blinking The ZyXEL Device is sending/receiving data through
the wireless LAN.
None Off The wireless LAN is not ready or has failed.
WPS This LED is reserved for future firmware release.
Table 1 Front Panel LEDs (continued)
LED COLOR STATUS DESCRIPTION
ZyXEL NBG-334SH User’s Guide 33
CHAPTER 2
Wireless Tutorial
This chapter gives you examples of how to set up an access point and wireless client for
wireless communication using the following parameters. The wireless clients can access the
Internet through an AP wirelessly.
2.1 Example Parameters
An access point (AP) or wireless router is referred to as an “AP” and a computer with a
wireless network card or USB/PCI adapter is referred to as a “wireless client” here.
We use the M-302 utility screens as an example for the wireless client. The screens may vary
for different models.
2.2 Configuring the AP
Flow the steps below to configure the wireless settings on your AP.
1Open the Wireless LAN > General screen in the AP’s web configurator.
SSID SSID_Example3
Channel 6
Security WPA-PSK
(Pre-Shared Key: ThisismyWPA-PSKpre-sharedkey)
802.11 mode IEEE 802.11b/g
Chapter 2 Wireless Tutorial
ZyXEL NBG-334SH User’s Guide
34
Figure 4 AP: Wireless LAN > General
2Make sure the Enable Wireless LAN check box is selected.
3Enter SSID_Example3 as the SSID and select a channel.
4Set security mode to WPA-PSK and enter ThisismyWPA-PSKpre-sharedkey in the
Pre-Shared Key field. Click Apply.
5Open the Status screen.Verify your wireless and wireless security settings under Device
Information and check if the WLAN connection is up under Interface Status.
Chapter 2 Wireless Tutorial
ZyXEL NBG-334SH User’s Guide 35
Figure 5 AP: Status
6Click the WLAN Station Status hyperlink in the AP’s Status screen. You can see if any
wireless client has connected to the AP.
Figure 6 AP: Status: WLAN Station Status
2.3 Configuring the Wireless Client
This section describes how to connect the wireless client to a network.
Chapter 2 Wireless Tutorial
ZyXEL NBG-334SH User’s Guide
36

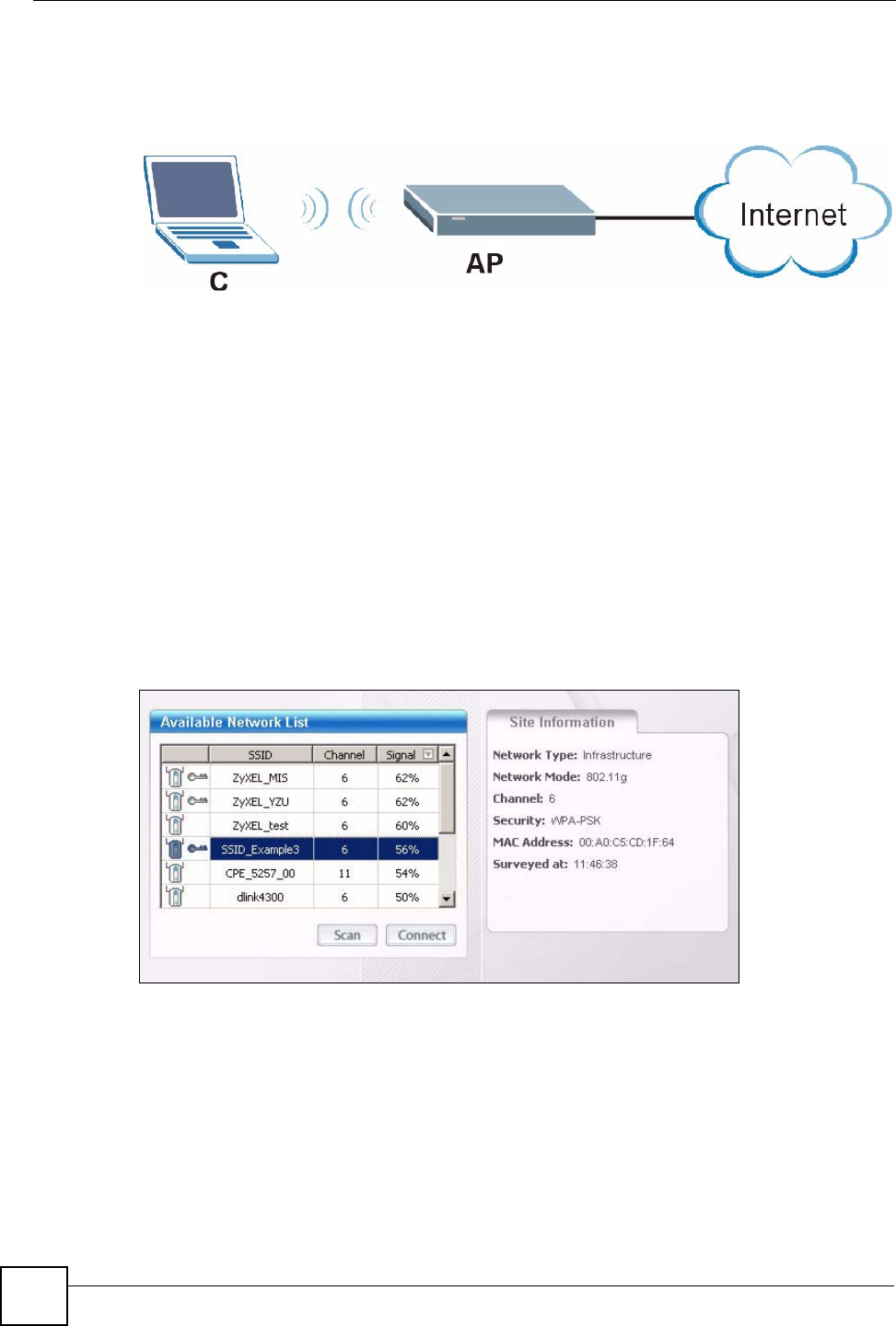

2.3.1 Connecting to a Wireless LAN
The following sections show you how to join a wireless network using the ZyXEL utility, as in
the following diagram. The wireless client is labeled C and the access point is labeled AP.
There are three ways to connect the client to an access point.
• Configure nothing and leave the wireless client to automatically scan for and connect to
any available network that has no wireless security configured.
• Manually connect to a network.
• Configure a profile to have the wireless client automatically connect to a specific network
or peer computer.
This example illustrates how to manually connect your wireless client to an access point (AP)
which is configured for WPA-PSK security and connected to the Internet. Before you connect
to the access point, you must know its Service Set IDentity (SSID) and WPA-PSK pre-shared
key. In this example, the SSID is “SSID_Example3” and the pre-shared key is
“ThisismyWPA-PSKpre-sharedkey”.
After you install the ZyXEL utility and then insert the wireless client, follow the steps below
to connect to a network using the Site Survey screen.
1Open the ZyXEL utility and click the Site Survey tab to open the screen shown next.
2The wireless client automatically searches for available wireless networks. Click Scan if
you want to search again. If no entry displays in the Available Network List, that means
there is no wireless network available within range. Make sure the AP or peer computer
is turned on or move the wireless client closer to the AP or peer computer.
3When you try to connect to an AP with security configured, a window will pop up
prompting you to specify the security settings. Enter the pre-shared key and leave the
encryption type at the default setting.
Use the Next button to move on to the next screen. You can use the Back button at any
time to return to the previous screen, or the Exit button to return to the Site Survey
screen.
Chapter 2 Wireless Tutorial
ZyXEL NBG-334SH User’s Guide 37
Figure 7 ZyXEL Utility: Security Settings
4The Confirm Save window appears. Check your settings and click Save to continue.
Figure 8 ZyXEL Utility: Confirm Save
5The ZyXEL utility returns to the Link Info screen while it connects to the wireless
network using your settings. When the wireless link is established, the ZyXEL utility
icon in the system tray turns green and the Link Info screen displays details of the active
connection. Check the network information in the Link Info screen to verify that you
have successfully connected to the selected network. If the wireless client is not
connected to a network, the fields in this screen remain blank.
Figure 9 ZyXEL Utility: Link Info
6Open your Internet browser and enter http://www.zyxel.com or the URL of any other
web site in the address bar. If you are able to access the web site, your wireless
connection is successfully configured.
Chapter 2 Wireless Tutorial
ZyXEL NBG-334SH User’s Guide
38
If you cannot access the web site, try changing the encryption type in the Security
Settings screen, check the Troubleshooting section of this User's Guide or contact your
network administrator.
2.3.2 Creating and Using a Profile
A profile lets you automatically connect to the same wireless network every time you use the
wireless client. You can also configure different profiles for different networks, for example if
you connect a notebook computer to wireless networks at home and at work.
This example illustrates how to set up a profile and connect the wireless client to an access
point configured for WPA-PSK security. In this example, the SSID is “SSID_Example3”, the
profile name is “PN_Example3” and the pre-shared key is “ThisismyWPA-PSKpre-
sharedkey”. You have chosen the profile name “PN_Example3”.
1Open the ZyXEL utility and click the Profile tab to open the screen shown next. Click
Add to configure a new profile.
Figure 10 ZyXEL Utility: Profile
2The Add New Profile screen appears. The wireless client automatically searches for
available wireless networks, which are displayed in the Scan Info box. Click on Scan if
you want to search again. You can also configure your profile for a wireless network that
is not in the list.
Figure 11 ZyXEL Utility: Add New Profile
3Give the profile a descriptive name (of up to 32 printable ASCII characters). Select
Infrastructure and either manually enter or select the AP's SSID in the Scan Info table
and click Select.
Chapter 2 Wireless Tutorial
ZyXEL NBG-334SH User’s Guide 39
4Choose the same encryption method as the AP to which you want to connect (In this
example, WPA-PSK).
Figure 12 ZyXEL Utility: Profile Security
5This screen varies depending on the encryption method you selected in the previous
screen. Enter the pre-shared key and leave the encryption type at the default setting.
Figure 13 ZyXEL Utility: Profile Encryption
6In the next screen, leave both boxes checked.
Figure 14 Profile: Wireless Protocol Settings.
7Verify the profile settings in the read-only screen. Click Save to save and go to the next
screen.
Chapter 2 Wireless Tutorial
ZyXEL NBG-334SH User’s Guide
40
Figure 15 Profile: Confirm Save
8Click Activate Now to use the new profile immediately. Otherwise, click the Activate
Later button.
If you clicked Activate Later, you can select the profile from the list in the Profile
screen and click Connect to activate it.
"Only one profile can be activated and used at any given time.
Figure 16 Profile: Activate
9When you activate the new profile, the ZyXEL utility returns to the Link Info screen
while it connects to the AP using your settings. When the wireless link is established, the
ZyXEL utility icon in the system tray turns green and the Link Info screen displays
details of the active connection.
10 Open your Internet browser, enter http://www.zyxel.com or the URL of any other web
site in the address bar and press ENTER. If you are able to access the web site, your new
profile is successfully configured.
11 If you cannot access the Internet go back to the Profile screen, select the profile you are
using and click Edit. Check the details you entered previously. Also, refer to the
Troubleshooting section of this User's Guide or contact your network administrator if
necessary.
ZyXEL NBG-334SH User’s Guide 41
CHAPTER 3
Introducing the Web
Configurator
This chapter describes how to access the ZyXEL Device web configurator and provides an
overview of its screens.
3.1 Web Configurator Overview
The web configurator is an HTML-based management interface that allows easy setup and
management of the ZyXEL Device via Internet browser. Use Internet Explorer 6.0 and later or
Netscape Navigator 7.0 and later versions. The recommended screen resolution is 1024 by 768
pixels.
In order to use the web configurator you need to allow:
• Web browser pop-up windows from your device. Web pop-up blocking is enabled by
default in Windows XP SP (Service Pack) 2.
• JavaScripts (enabled by default).
• Java permissions (enabled by default).
Refer to the Troubleshooting chapter to see how to make sure these functions are allowed in
Internet Explorer.
3.2 Accessing the Web Configurator
1Make sure your ZyXEL Device hardware is properly connected and prepare your
computer or computer network to connect to the ZyXEL Device (refer to the Quick Start
Guide).
2Launch your web browser.
3Type "192.168.1.1" as the URL.
4Type "1234" (default) as the password and click Login. In some versions, the default
password appears automatically - if this is the case, click Login.
5You should see a screen asking you to change your password (highly recommended) as
shown next. Type a new password (and retype it to confirm) and click Apply or click
Ignore.
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide
42
Figure 17 Change Password Screen
"The management session automatically times out when the time period set in
the Administrator Inactivity Timer field expires (default five minutes). Simply
log back into the ZyXEL Device if this happens.
6Select the setup mode you want to use.
• Click Go to Wizard Setup to use the Configuration Wizard for basic Internet and
Wireless setup.
• Click Go to Basic Setup if you want to view and configure basic settings that are not
part of the wizard setup. Not all Web Configurator screens are available in this mode.
•Click Go to Advanced Setup to view and configure all the ZyXEL Device’s settings.
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide 43
3.3 Resetting the ZyXEL Device
If you forget your password or cannot access the web configurator, you will need to use the
RESET button at the back of the ZyXEL Device to reload the factory-default configuration
file. This means that you will lose all configurations that you had previously saved, and the
password will be reset to “1234”.
3.3.1 Procedure to Use the Reset Button
1Make sure the PWR LED is on.
2Press the RESET button for ten seconds or until the PWR LED begins to blink and then
release it. When the PWR LED begins to blink, the defaults have been restored and the
ZyXEL Device restarts.
3.4 Navigating the Web Configurator
The following summarizes how to navigate the web configurator from the Status screen.
3.4.1 The Status Screen
The following screen displays when you log into the ZyXEL Device.
"Not all fields are available when you select Basic mode (see Section 3.2 on
page 41). See the Configuration Mode field in the System Status box to
check whether you are in Basic or Advanced mode. Use the Config Mode >
General screen to change between modes.
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide
44
Figure 18 Web Configurator Status Screen
The following table describes the icons shown in the Status screen.
Table 2 Status Screen Icon Key
ICON DESCRIPTION
Select a language from the drop-down list box to have the web configurator display in
that language.
Click this icon to open a web help page relevant to the screen you are currently
configuring.
Click this icon to open the setup wizard.
Click this icon to view copyright and a link for related product information.
Click this icon at any time to exit the web configurator.
Select a number of seconds or None from the drop-down list box to refresh all screen
statistics automatically at the end of every time interval or to not refresh the screen
statistics.
Click this button to refresh the status screen statistics.
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide 45
The following table describes the labels shown in the Status screen.
Table 3 Web Configurator Status Screen
LABEL DESCRIPTION
Device Information
System Name This is the System Name you enter in the Maintenance > System > General
screen. It is for identification purposes.
Firmware Version This is the ZyNOS firmware version and the date created. ZyNOS is ZyXEL's
proprietary Network Operating System design.
WAN Information
- MAC Address This shows the WAN Ethernet adapter MAC Address of your device.
- IP Address This shows the WAN port’s IP address.
- IP Subnet Mask This shows the WAN port’s subnet mask.
- DHCP This shows the WAN port’s DHCP role - Client or None.
LAN Information
- MAC Address This shows the LAN Ethernet adapter MAC Address of your device.
- IP Address This shows the LAN port’s IP address.
- IP Subnet Mask This shows the LAN port’s subnet mask.
- DHCP This shows the LAN port’s DHCP role - Server, Relay or None.
WLAN Information
- MAC Address This shows the wireless adapter MAC Address of your device.
- Name (SSID) This shows a descriptive name used to identify the ZyXEL Device in the wireless
LAN.
- Channel This shows the channel number which you select manually.
- Operating Channel This shows the channel number which the ZyXEL Device is currently using over the
wireless LAN.
- Security Mode This shows the level of wireless security the ZyXEL Device is using.
- 802.11 Mode This shows the wireless standard.
System Status
System Uptime This is the total time the ZyXEL Device has been on.
Current Date/Time This field displays your ZyXEL Device’s present date and time.
System Resource
- CPU Usage This displays what percentage of the ZyXEL Device’s processing ability is currently
used. When this percentage is close to 100%, the ZyXEL Device is running at full
load, and the throughput is not going to improve anymore. If you want some
applications to have more throughput, you should turn off other applications (for
example, using bandwidth management.
- Memory Usage This shows what percentage of the heap memory the ZyXEL Device is using. Heap
memory refers to the memory that is not used by ZyNOS (ZyXEL Network Operating
System) and is thus available for running processes like NAT and the firewall.
System Setting
- Firewall This shows whether the firewall is active or not.
- Bandwidth Management This shows whether the bandwidth management is active or not.
- UPnP This shows whether UPnP is active or not.
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide
46
3.4.2 Navigation Panel
After you enter the password, use the sub-menus on the navigation panel to configure ZyXEL
Device features.
The following table describes the sub-menus.
- Configuration Mode This shows whether the advanced screens of each feature are turned on
(Advanced) or not (Basic).
Interface Status
Interface This displays the ZyXEL Device port types. The port types are: WAN, LAN and
WLAN.
Status For the LAN and WAN ports, this field displays Down (line is down) or Up (line is up
or connected).
For the WLAN, it displays Up when the WLAN is enabled or Down when the WLAN
is disabled.
Rate For the LAN ports, this displays the port speed and duplex setting or N/A when the
line is disconnected.
For the WAN port, it displays the port speed and duplex setting if you’re using
Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to trigger a call) and
Drop (dropping a call) if you're using PPPoE or PPTP encapsulation. This field
displays N/A when the line is disconnected.
For the WLAN, it displays the maximum transmission rate when the WLAN is
enabled and N/A when the WLAN is disabled.
Summary
Any IP Table Use this screen to view details of IP addresses assigned to devices not in the same
subnet as the ZyXEL Device.
BW MGMT Monitor Use this screen to view the ZyXEL Device’s bandwidth usage and allotments.
DHCP Table Use this screen to view current DHCP client information.
Packet Statistics Use this screen to view port status and packet specific statistics.
WLAN Station Status Use this screen to view the wireless stations that are currently associated to the
ZyXEL Device.
Table 3 Web Configurator Status Screen (continued)
LABEL DESCRIPTION
Table 4 Screens Summary
LINK TAB FUNCTION
Status This screen shows the ZyXEL Device’s general device, system and
interface status information. Use this screen to access the wizard,
and summary statistics tables.
Network
Wireless
LAN
General Use this screen to configure wireless LAN.
MAC Filter Use the MAC filter screen to configure the ZyXEL Device to block
access to devices or block the devices from accessing the ZyXEL
Device.
Advanced This screen allows you to configure advanced wireless settings.
QoS Use this screen to configure Wi-Fi Multimedia Quality of Service
(WMM QoS). WMM QoS allows you to prioritize wireless traffic
according to the delivery requirements of individual services.
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide 47
WAN Internet
Connection
This screen allows you to configure ISP parameters, WAN IP
address assignment, DNS servers and the WAN MAC address.
Advanced Use this screen to configure other advanced properties.
LAN IP Use this screen to configure LAN IP address and subnet mask.
IP Alias Use this screen to partition your LAN interface into subnets.
Advanced Use this screen to enable other advanced properties.
DHCP
Server
General Use this screen to enable the ZyXEL Device’s DHCP server.
Advanced Use this screen to assign IP addresses to specific individual
computers based on their MAC addresses and to have DNS
servers assigned by the DHCP server.
Client List Use this screen to view current DHCP client information and to
always assign an IP address to a MAC address (and host name).
NAT General Use this screen to enable NAT.
Application Use this screen to configure servers behind the ZyXEL Device.
Advanced Use this screen to change your ZyXEL Device’s port triggering
settings.
DDNS General Use this screen to set up dynamic DNS.
Security
Firewall General Use this screen to activate/deactivate the firewall.
Services This screen shows a summary of the firewall rules, and allows you
to edit/add a firewall rule.
Content Filter Filter Use this screen to block certain web features and sites containing
certain keywords in the URL.
Schedule Use this screen to set the days and times for the ZyXEL Device to
perform content filtering.
Management
Static Route IP Static
Route
Use this screen to configure IP static routes.
Bandwidth
MGMT
General Use this screen to enable bandwidth management.
Advanced Use this screen to set the upstream bandwidth and edit a
bandwidth management rule.
Monitor Use this screen to view the ZyXEL Device’s bandwidth usage and
allotments.
Remote
MGMT
WWW Use this screen to configure through which interface(s) and from
which IP address(es) users can use HTTP to manage the ZyXEL
Device.
Telnet Use this screen to configure through which interface(s) and from
which IP address(es) users can use Telnet to manage the ZyXEL
Device.
FTP Use this screen to configure through which interface(s) and from
which IP address(es) users can use FTP to access the ZyXEL
Device.
DNS Use this screen to configure through which interface(s) and from
which IP address(es) users can send DNS queries to the ZyXEL
Device.
Table 4 Screens Summary
LINK TAB FUNCTION
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide
48
3.5 Summary: Any IP Table
This screen displays the IP address of each computer that is using the ZyXEL Device via the
any IP feature. Any IP allows computers to access the Internet through the ZyXEL Device
without changing their network settings when NAT is enabled. To access this screen, open the
Status screen (see Section 3.4.1 on page 43), and click (Details...) next to Any IP Table.
Figure 19 Any IP Table
3.5.1 Summary: Bandwidth Management Monitor
Select the BW MGMT Monitor (Details...) hyperlink in Status screen. View the bandwidth
usage of the WAN configured bandwidth rules. This is also shown as bandwidth usage over
the bandwidth budget for each rule. The gray section of the bar represents the percentage of
unused bandwidth and the blue color represents the percentage of bandwidth in use.
UPnP General Use this screen to enable UPnP on the ZyXEL Device.
Maintenance
System General Use this screen to view and change administrative settings such as
system and domain names, password and inactivity timer.
Time Setting Use this screen to change your ZyXEL Device’s time and date.
Logs View Log Use this screen to view the logs for the categories that you
selected.
Log Settings Use this screen to change your ZyXEL Device’s log settings.
To o l s Firmware Use this screen to upload firmware to your ZyXEL Device.
Configuration Use this screen to backup and restore the configuration or reset
the factory defaults to your ZyXEL Device.
Restart This screen allows you to reboot the ZyXEL Device without turning
the power off.
Config Mode General This screen allows you to display or hide the advanced screens or
features.
Table 4 Screens Summary
LINK TAB FUNCTION
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide 49
Figure 20 Summary: BW MGMT Monitor
3.5.2 Summary: DHCP Table
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual
clients to obtain TCP/IP configuration at start-up from a server. You can configure the ZyXEL
Device as a DHCP server or disable it. When configured as a server, the ZyXEL Device
provides the TCP/IP configuration for the clients. If DHCP service is disabled, you must have
another DHCP server on your LAN, or else the computer must be manually configured.
Click the DHCP Table (Details...) hyperlink in the Status screen. Read-only information here
relates to your DHCP status. The DHCP table shows current DHCP client information
(including IP Address, Host Name and MAC Address) of all network clients using the
ZyXEL Device’s DHCP server.
Figure 21 Summary: DHCP Table
The following table describes the labels in this screen.
Table 5 Summary: DHCP Table
LABEL DESCRIPTION
# This is the index number of the host computer.
IP Address This field displays the IP address relative to the # field listed above.
Host Name This field displays the computer host name.
MAC Address This field shows the MAC address of the computer with the name in the Host Name
field.
Every Ethernet device has a unique MAC (Media Access Control) address. The MAC
address is assigned at the factory and consists of six pairs of hexadecimal
characters, for example, 00:A0:C5:00:00:02.
Refresh Click Refresh to renew the screen.
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide
50
3.5.3 Summary: Packet Statistics
Click the Packet Statistics (Details...) hyperlink in the Status screen. Read-only information
here includes port status and packet specific statistics. Also provided are "system up time" and
"poll interval(s)". The Poll Interval(s) field is configurable.
Figure 22 Summary: Packet Statistics
The following table describes the labels in this screen.
3.5.4 Summary: Wireless Station Status
Click the WLAN Station Status (Details...) hyperlink in the Status screen. View the wireless
stations that are currently associated to the ZyXEL Device in the Association List screen.
Table 6 Summary: Packet Statistics
LABEL DESCRIPTION
Port This is the ZyXEL Device’s port type.
Status For the LAN ports, this displays the port speed and duplex setting or Down
when the line is disconnected.
For the WAN port, it displays the port speed and duplex setting if you’re using
Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to trigger a call)
and Drop (dropping a call) if you're using PPPoE or PPTP encapsulation. This
field displays Down when the line is disconnected.
For the WLAN, it displays the maximum transmission rate when the WLAN is
enabled and Down when the WLAN is disabled.
TxPkts This is the number of transmitted packets on this port.
RxPkts This is the number of received packets on this port.
Collisions This is the number of collisions on this port.
Tx B/s This displays the transmission speed in bytes per second on this port.
Rx B/s This displays the reception speed in bytes per second on this port.
Up Time This is the total amount of time the line has been up.
System Up Time This is the total time the ZyXEL Device has been on.
Poll Interval(s) Enter the time interval for refreshing statistics in this field.
Set Interval Click this button to apply the new poll interval you entered in the Poll Interval(s)
field.
Stop Click Stop to stop refreshing statistics, click Stop.
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide 51
Figure 23 Summary: Wireless Association List
The following table describes the labels in this screen.
Table 7 Summary: Wireless Association List
LABEL DESCRIPTION
# This is the index number of an associated wireless station.
MAC Address This field displays the MAC address of an associated wireless station.
Association Time This field displays the time a wireless station first associated with the ZyXEL
Device.
Refresh Click Refresh to reload the list.
Chapter 3 Introducing the Web Configurator
ZyXEL NBG-334SH User’s Guide
52
53
PART II
Wizard
Connection Wizard (55)
54
ZyXEL NBG-334SH User’s Guide 55
CHAPTER 4
Connection Wizard
This chapter provides information on the wizard setup screens in the web configurator.
4.1 Wizard Setup
The web configurator’s wizard setup helps you configure your device to access the Internet.
Refer to your ISP (Internet Service Provider) checklist in the Quick Start Guide to know what
to enter in each field. Leave a field blank if you don’t have that information.
1After you access the ZyXEL Device web configurator, click the Go to Wizard setup
hyperlink.
You can click the Go to Basic setup or Go to Advanced setup hyperlink to skip this
wizard setup and configure basic or advanced features accordingly.
Figure 24 Select Wizard or Advanced Mode
2Choose your language from the drop-down list box.
3Click the Next button to proceed to the next screen.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide
56
Figure 25 Select a Language
4Read the on-screen information and click Next.
Figure 26 Welcome to the Connection Wizard
4.2 Connection Wizard: STEP 1: System Information
System Information contains administrative and system-related information.
4.2.1 System Name
System Name is for identification purposes. However, because some ISPs check this name
you should enter your computer's "Computer Name".
• In Windows 95/98 click Start, Settings, Control Panel, Network. Click the
Identification tab, note the entry for the Computer Name field and enter it as the System
Name.
• In Windows 2000, click Start, Settings and Control Panel and then double-click System.
Click the Network Identification tab and then the Properties button. Note the entry for
the Computer name field and enter it as the System Name.
• In Windows XP, click Start, My Computer, View system information and then click
the Computer Name tab. Note the entry in the Full computer name field and enter it as
the ZyXEL Device System Name.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide 57
4.2.2 Domain Name
The Domain Name entry is what is propagated to the DHCP clients on the LAN. If you leave
this blank, the domain name obtained by DHCP from the ISP is used. While you must enter
the host name (System Name) on each individual computer, the domain name can be assigned
from the ZyXEL Device via DHCP.
Click Next to configure the ZyXEL Device for Internet access.
Figure 27 Wizard Step 1: System Information
The following table describes the labels in this screen.
4.3 Connection Wizard: STEP 2: Wireless LAN
Set up your wireless LAN using the following screen.
Table 8 Wizard Step 1: System Information
LABEL DESCRIPTION
System Name System Name is a unique name to identify the ZyXEL Device in an Ethernet network.
Enter a descriptive name. This name can be up to 30 alphanumeric characters long.
Spaces are not allowed, but dashes "-" and underscores "_" are accepted.
Domain Name Type the domain name (if you know it) here. If you leave this field blank, the ISP may
assign a domain name via DHCP. The domain name entered by you is given priority
over the ISP assigned domain name.
Back Click Back to display the previous screen.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide
58
Figure 28 Wizard Step 2: Wireless LAN
The following table describes the labels in this screen.
"The wireless stations and ZyXEL Device must use the same SSID, channel ID
and WEP encryption key (if WEP is enabled), WPA-PSK (if WPA-PSK is
enabled) or WPA2-PSK (if WPA2-PSK is enabled) for wireless
communication.
Table 9 Wizard Step 2: Wireless LAN
LABEL DESCRIPTION
Name (SSID) Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless
LAN.
If you change this field on the ZyXEL Device, make sure all wireless stations use the
same SSID in order to access the network.
Security Select a Security level from the drop-down list box.
Choose Auto to have the ZyXEL Device generate a pre-shared key automatically. A
screen pops up displaying the generated pre-shared key after you click Next. Click
OK to continue.
Choose None to have no wireless LAN security configured. If you do not enable any
wireless security on your ZyXEL Device, your network is accessible to any wireless
networking device that is within range. If you choose this option, skip directly to
Section 4.4 on page 60.
Choose Basic (WEP) security if you want to configure WEP Encryption parameters. If
you choose this option, go directly to Section 4.3.1 on page 59.
Choose Extend (WPA-PSK or WPA2-PSK) security to configure a Pre-Shared Key.
Choose this option only if your wireless clients support WPA-PSK or WPA2-PSK
respectively. If you choose this option, skip directly to Section 4.3.2 on page 60.
Channel
Selection
The range of radio frequencies used by IEEE 802.11b/g wireless devices is called a
channel.
Select a channel that is not used by any nearby devices.
Back Click Back to display the previous screen.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide 59
4.3.1 Basic (WEP) Security
Choose Basic (WEP) to setup WEP Encryption parameters.
Figure 29 Wizard Step 2: Basic (WEP) Security
The following table describes the labels in this screen.
Table 10 Wizard Step 2: Basic (WEP) Security
LABEL DESCRIPTION
Passphrase Type a Passphrase (up to 32 printable characters) and click Generate. The ZyXEL
Device automatically generates a WEP key.
WEP
Encryption
Select 64-bit WEP or 128-bit WEP to allow data encryption.
ASCII Select this option in order to enter ASCII characters as the WEP keys.
HEX Select this option to enter hexadecimal characters as the WEP keys.
The preceding “0x” is entered automatically.
Key 1 to Key 4 The WEP keys are used to encrypt data. Both the ZyXEL Device and the wireless
stations must use the same WEP key for data transmission.
If you chose 64-bit WEP, then enter any 5 ASCII characters or 10 hexadecimal
characters ("0-9", "A-F").
If you chose 128-bit WEP, then enter 13 ASCII characters or 26 hexadecimal
characters ("0-9", "A-F").
You must configure at least one key, only one key can be activated at any one time.
The default key is key 1.
Back Click Back to display the previous screen.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide
60
4.3.2 Extend (WPA-PSK or WPA2-PSK) Security
Choose Extend (WPA-PSK) or Extend (WPA2-PSK) security in the Wireless LAN setup
screen to set up a Pre-Shared Key.
Figure 30 Wizard Step 2: Extend (WPA-PSK or WPA2-PSK) Security
The following table describes the labels in this screen.
4.4 Connection Wizard: STEP 3: Internet Configuration
The ZyXEL Device offers three Internet connection types. They are Ethernet, PPP over
Ethernet or PPTP. The wizard attempts to detect which WAN connection type you are using.
If the wizard does not detect a connection type, you must select one from the drop-down list
box. Check with your ISP to make sure you use the correct type.
This wizard screen varies according to the connection type that you select.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Table 10 Wizard Step 2: Basic (WEP) Security
LABEL DESCRIPTION
Table 11 Wizard Step 2: Extend (WPA-PSK or WPA2-PSK) Security
LABEL DESCRIPTION
Pre-Shared
Key
Type from 8 to 63 case-sensitive ASCII characters. You can set up the most secure
wireless connection by configuring WPA in the wireless LAN screens. You need to
configure an authentication server to do this.
Back Click Back to display the previous screen.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide 61
Figure 31 Wizard Step 3: ISP Parameters.
The following table describes the labels in this screen,
4.4.1 Ethernet Connection
Choose Ethernet when the WAN port is used as a regular Ethernet.
Figure 32 Wizard Step 3: Ethernet Connection
4.4.2 PPPoE Connection
Point-to-Point Protocol over Ethernet (PPPoE) functions as a dial-up connection. PPPoE is an
IETF (Internet Engineering Task Force) standard specifying how a host personal computer
interacts with a broadband modem (for example DSL, cable, wireless, etc.) to achieve access
to high-speed data networks.
For the service provider, PPPoE offers an access and authentication method that works with
existing access control systems (for instance, RADIUS).
Table 12 Wizard Step 3: ISP Parameters
CONNECTION TYPE DESCRIPTION
Ethernet Select the Ethernet option when the WAN port is used as a regular Ethernet.
PPPoE Select the PPP over Ethernet option for a dial-up connection. If your ISP
gave you a an IP address and/or subnet mask, then select PPTP.
PPTP Select the PPTP option for a dial-up connection.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide
62
One of the benefits of PPPoE is the ability to let end users access one of multiple network
services, a function known as dynamic service selection. This enables the service provider to
easily create and offer new IP services for specific users.
Operationally, PPPoE saves significant effort for both the subscriber and the ISP/carrier, as it
requires no specific configuration of the broadband modem at the subscriber’s site.
By implementing PPPoE directly on the ZyXEL Device (rather than individual computers),
the computers on the LAN do not need PPPoE software installed, since the ZyXEL Device
does that part of the task. Furthermore, with NAT, all of the LAN's computers will have
Internet access.
Refer to the appendix for more information on PPPoE.
Figure 33 Wizard Step 3: PPPoE Connection
The following table describes the labels in this screen.
4.4.3 PPTP Connection
Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables transfers of data
from a remote client to a private server, creating a Virtual Private Network (VPN) using TCP/
IP-based networks.
PPTP supports on-demand, multi-protocol, and virtual private networking over public
networks, such as the Internet.
Refer to the appendix for more information on PPTP.
Table 13 Wizard Step 3: PPPoE Connection
LABEL DESCRIPTION
ISP Parameter for Internet Access
Connection Type Select the PPP over Ethernet option for a dial-up connection.
Service Name Type the name of your service provider.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the user name above.
Back Click Back to return to the previous screen.
Next Click Next to continue.
Exit Click Exit to close the wizard screen without saving.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide 63
"The ZyXEL Device supports one PPTP server connection at any given time.
Figure 34 Wizard Step 3: PPTP Connection
The following table describes the fields in this screen
Table 14 Wizard Step 3: PPTP Connection
LABEL DESCRIPTION
ISP Parameters for Internet Access
Connection Type Select PPTP from the drop-down list box. To configure a PPTP client, you must
configure the User Name and Password fields for a PPP connection and the
PPTP parameters for a PPTP connection.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the User Name above.
PPTP Configuration
Get automatically
from ISP
Select this radio button if your ISP did not assign you a fixed IP address.
Use fixed IP
address
Select this radio button, provided by your ISP to give the ZyXEL Device a fixed,
unique IP address.
My IP Address Type the (static) IP address assigned to you by your ISP.
My IP Subnet
Mask
Type the subnet mask assigned to you by your ISP (if given).
Server IP Address Type the IP address of the PPTP server.
Connection ID/
Name
Enter the connection ID or connection name in this field. It must follow the "c:id"
and "n:name" format. For example, C:12 or N:My ISP.
This field is optional and depends on the requirements of your ISP.
Back Click Back to return to the previous screen.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide
64
4.4.4 Your IP Address
The following wizard screen allows you to assign a fixed IP address or give the ZyXEL
Device an automatically assigned IP address depending on your ISP.
Figure 35 Wizard Step 3: Your IP Address
The following table describes the labels in this screen
4.4.5 WAN IP Address Assignment
Every computer on the Internet must have a unique IP address. If your networks are isolated
from the Internet, for instance, only between your two branch offices, you can assign any IP
addresses to the hosts without problems. However, the Internet Assigned Numbers Authority
(IANA) has reserved the following three blocks of IP addresses specifically for private
networks.
Next Click Next to continue.
Exit Click Exit to close the wizard screen without saving.
Table 14 Wizard Step 3: PPTP Connection
LABEL DESCRIPTION
Table 15 Wizard Step 3: Your IP Address
LABEL DESCRIPTION
Get automatically from
your ISP
Select this option If your ISP did not assign you a fixed IP address. This is
the default selection. If you choose this option, skip directly to section
4.4.9.
Use fixed IP address
provided by your ISP
Select this option if you were given IP address and/or DNS server settings
by the ISP. The fixed IP address should be in the same subnet as your
broadband modem or router.
Back Click Back to return to the previous screen.
Next Click Next to continue.
Exit Click Exit to close the wizard screen without saving.
Table 16 Private IP Address Ranges
10.0.0.0 -10.255.255.255
172.16.0.0 -172.31.255.255
192.168.0.0 -192.168.255.255
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide 65
You can obtain your IP address from the IANA, from an ISP or have it assigned by a private
network. If you belong to a small organization and your Internet access is through an ISP, the
ISP can provide you with the Internet addresses for your local networks. On the other hand, if
you are part of a much larger organization, you should consult your network administrator for
the appropriate IP addresses.
"Regardless of your particular situation, do not create an arbitrary IP address;
always follow the guidelines above. For more information on address
assignment, please refer to RFC 1597, Address Allocation for Private Internets
and RFC 1466, Guidelines for Management of IP Address Space.
4.4.6 IP Address and Subnet Mask
Similar to the way houses on a street share a common street name, so too do computers on a
LAN share one common network number.
Where you obtain your network number depends on your particular situation. If the ISP or
your network administrator assigns you a block of registered IP addresses, follow their
instructions in selecting the IP addresses and the subnet mask.
If the ISP did not explicitly give you an IP network number, then most likely you have a single
user account and the ISP will assign you a dynamic IP address when the connection is
established. The Internet Assigned Number Authority (IANA) reserved this block of addresses
specifically for private use; please do not use any other number unless you are told otherwise.
Let's say you select 192.168.1.0 as the network number; which covers 254 individual
addresses, from 192.168.1.1 to 192.168.1.254 (zero and 255 are reserved). In other words, the
first three numbers specify the network number while the last number identifies an individual
computer on that network.
Once you have decided on the network number, pick an IP address that is easy to remember,
for instance, 192.168.1.1, for your ZyXEL Device, but make sure that no other device on your
network is using that IP address.
The subnet mask specifies the network number portion of an IP address. Your ZyXEL Device
will compute the subnet mask automatically based on the IP address that you entered. You
don't need to change the subnet mask computed by the ZyXEL Device unless you are
instructed to do otherwise.
4.4.7 DNS Server Address Assignment
Use DNS (Domain Name System) to map a domain name to its corresponding IP address and
vice versa, for instance, the IP address of www.zyxel.com is 204.217.0.2. The DNS server is
extremely important because without it, you must know the IP address of a computer before
you can access it.
The ZyXEL Device can get the DNS server addresses in the following ways.
1The ISP tells you the DNS server addresses, usually in the form of an information sheet,
when you sign up. If your ISP gives you DNS server addresses, enter them in the DNS
Server fields in the Wizard and/or WAN > Internet Connection screen.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide
66
2If the ISP did not give you DNS server information, leave the DNS Server fields set to
0.0.0.0 in the Wizard screen and/or set to From ISP in the WAN > Internet
Connection screen for the ISP to dynamically assign the DNS server IP addresses.
4.4.8 WAN IP and DNS Server Address Assignment
The following wizard screen allows you to assign a fixed WAN IP address and DNS server
addresses.
Figure 36 Wizard Step 3: WAN IP and DNS Server Addresses
The following table describes the labels in this screen
Table 17 Wizard Step 3: WAN IP and DNS Server Addresses
LABEL DESCRIPTION
WAN IP Address Assignment
My WAN IP Address Enter your WAN IP address in this field. The WAN IP address should be in
the same subnet as your DSL/Cable modem or router.
My WAN IP Subnet Mask Enter the IP subnet mask in this field.
Gateway IP Address Enter the gateway IP address in this field.
System DNS Server Address Assignment (if applicable)
DNS (Domain Name System) is for mapping a domain name to its corresponding IP address and vice
versa. The DNS server is extremely important because without it, you must know the IP address of a
computer before you can access it. The ZyXEL Device uses a system DNS server (in the order you
specify here) to resolve domain names for DDNS and the time server.
First DNS Server
Second DNS Server
Third DNS Server
Enter the DNS server's IP address in the fields provided.
If you do not configure a system DNS server, you must use IP addresses
when configuring DDNS and the time server.
Back Click Back to return to the previous screen.
Next Click Next to continue.
Exit Click Exit to close the wizard screen without saving.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide 67
4.4.9 WAN MAC Address
Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address
is assigned at the factory and consists of six pairs of hexadecimal characters, for example,
00:A0:C5:00:00:02.
This screen allows users to configure the WAN port's MAC address by either using the
ZyXEL Device’s MAC address, copying the MAC address from a computer on your LAN or
manually entering a MAC address. Once it is successfully configured, the address will be
copied to the "rom" file (ZyNOS configuration file). It will not change unless you change the
setting or upload a different "rom" file. It is advisable to clone the MAC address from a
computer on your LAN even if your ISP does not presently require MAC address
authentication.
Figure 37 Wizard Step 3: WAN MAC Address
The following table describes the fields in this screen.
Table 18 Example of Network Properties for LAN Servers with Fixed IP Addresses
Choose an IP address 192.168.1.2-192.168.1.32; 192.168.1.65-192.168.1.254.
Subnet mask 255.255.255.0
Gateway (or default route) 192.168.1.1(ZyXEL Device LAN IP)
Table 19 Wizard Step 3: WAN MAC Address
LABEL DESCRIPTION
Factory Default Select Factory Default to use the factory assigned default MAC address.
Clone the
computer’s MAC
address
Select this option and enter the IP address of the computer on the LAN whose
MAC you are cloning. It is advisable to clone the MAC address from a computer
on your LAN even if your ISP does not presently require MAC address
authentication.
Set WAN MAC
Address
Select this option and enter the MAC address you want to use.
Back Click Back to return to the previous screen.
Next Click Next to continue.
Exit Click Exit to close the wizard screen without saving.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide
68
4.5 Connection Wizard: STEP 4: Bandwidth management
Bandwidth management allows you to control the amount of bandwidth going out through the
ZyXEL Device’s WAN, LAN or WLAN port and prioritize the distribution of the bandwidth
according to the traffic type. This helps keep one service from using all of the available
bandwidth and shutting out other users.
Figure 38 Wizard Step 4: Bandwidth Management
The following fields describe the label in this screen.
4.6 Connection Wizard Complete
Click Apply to save your configuration.
Table 20 Wizard Step 4: Bandwidth Management
LABEL DESCRIPTION
Enable BM for all traffic
automatically
Select the check box to have the ZyXEL Device apply bandwidth
management to traffic going out through the ZyXEL Device’s WAN, LAN or
WLAN port. Bandwidth is allocated according to the traffic type
automatically. Real-time packets, such as VoIP traffic always get higher
priority.
Back Click Back to return to the previous screen.
Next Click Next to continue.
Exit Click Exit to close the wizard screen without saving.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide 69
Figure 39 Connection Wizard Save
Follow the on-screen instructions and click Finish to complete the wizard setup.
Figure 40 Connection Wizard Complete
Well done! You have successfully set up your ZyXEL Device to operate on your network and
access the Internet.
Chapter 4 Connection Wizard
ZyXEL NBG-334SH User’s Guide
70
71
PART III
Advanced
Wireless LAN (73)
WA N ( 89 )
LAN (99)
DHCP Server (105)
Network Address Translation (NAT) (109)
Dynamic DNS (119)
Firewall (121)
Content Filtering (127)
Static Route Screens (133)
Bandwidth Management (137)
Remote Management Screens (149)
Universal Plug-and-Play (UPnP) (155)
72
ZyXEL NBG-334SH User’s Guide 73
CHAPTER 5
Wireless LAN
This chapter discusses how to configure the wireless network settings in your ZyXEL Device.
See the appendices for more detailed information about wireless networks.
5.1 Wireless Network Overview
The following figure provides an example of a wireless network.
Figure 41 Example of a Wireless Network
The wireless network is the part in the blue circle. In this wireless network, devices A and B
are called wireless clients. The wireless clients use the access point (AP) to interact with other
devices (such as the printer) or with the Internet. Your ZyXEL Device is the AP.
Every wireless network must follow these basic guidelines.
• Every wireless client in the same wireless network must use the same SSID.
The SSID is the name of the wireless network. It stands for Service Set IDentity.
• If two wireless networks overlap, they should use different channels.
Like radio stations or television channels, each wireless network uses a specific channel,
or frequency, to send and receive information.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide
74
• Every wireless client in the same wireless network must use security compatible with the
AP.
Security stops unauthorized devices from using the wireless network. It can also protect
the information that is sent in the wireless network.
5.2 Wireless Security Overview
The following sections introduce different types of wireless security you can set up in the
wireless network.
5.2.1 SSID
Normally, the AP acts like a beacon and regularly broadcasts the SSID in the area. You can
hide the SSID instead, in which case the AP does not broadcast the SSID. In addition, you
should change the default SSID to something that is difficult to guess.
This type of security is fairly weak, however, because there are ways for unauthorized devices
to get the SSID. In addition, unauthorized devices can still see the information that is sent in
the wireless network.
5.2.2 MAC Address Filter
Every wireless client has a unique identification number, called a MAC address.1 A MAC
address is usually written using twelve hexadecimal characters2; for example, 00A0C5000002
or 00:A0:C5:00:00:02. To get the MAC address for each wireless client, see the appropriate
User’s Guide or other documentation.
You can use the MAC address filter to tell the AP which wireless clients are allowed or not
allowed to use the wireless network. If a wireless client is allowed to use the wireless network,
it still has to have the correct settings (SSID, channel, and security). If a wireless client is not
allowed to use the wireless network, it does not matter if it has the correct settings.
This type of security does not protect the information that is sent in the wireless network.
Furthermore, there are ways for unauthorized devices to get the MAC address of an authorized
wireless client. Then, they can use that MAC address to use the wireless network.
5.2.3 User Authentication
You can make every user log in to the wireless network before they can use it. This is called
user authentication. However, every wireless client in the wireless network has to support
IEEE 802.1x to do this.
For wireless networks, there are two typical places to store the user names and passwords for
each user.
• In the AP: this feature is called a local user database or a local database.
• In a RADIUS server: this is a server used in businesses more than in homes.
1. Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless networks.
These kinds of wireless devices might not have MAC addresses.
2. Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide 75
If your AP does not provide a local user database and if you do not have a RADIUS server,
you cannot set up user names and passwords for your users.
Unauthorized devices can still see the information that is sent in the wireless network, even if
they cannot use the wireless network. Furthermore, there are ways for unauthorized wireless
users to get a valid user name and password. Then, they can use that user name and password
to use the wireless network.
Local user databases also have an additional limitation that is explained in the next section.
5.2.4 Encryption
Wireless networks can use encryption to protect the information that is sent in the wireless
network. Encryption is like a secret code. If you do not know the secret code, you cannot
understand the message.
The types of encryption you can choose depend on the type of user authentication. (See
Section 5.2.3 on page 74 for information about this.)
For example, if the wireless network has a RADIUS server, you can choose WPA or WPA2.
If users do not log in to the wireless network, you can choose no encryption, Static WEP,
WPA-PSK, or WPA2-PSK.
Usually, you should set up the strongest encryption that every wireless client in the wireless
network supports. For example, suppose the AP does not have a local user database, and you
do not have a RADIUS server. Therefore, there is no user authentication. Suppose the wireless
network has two wireless clients. Device A only supports WEP, and device B supports WEP
and WPA. Therefore, you should set up Static WEP in the wireless network.
"It is recommended that wireless networks use WPA-PSK, WPA, or stronger
encryption. IEEE 802.1x and WEP encryption are better than none at all, but it
is still possible for unauthorized devices to figure out the original information
pretty quickly.
It is not possible to use WPA-PSK, WPA or stronger encryption with a local
user database. In this case, it is better to set up stronger encryption with no
authentication than to set up weaker encryption with the local user database.
Table 21 Types of Encryption for Each Type of Authentication
NO AUTHENTICATION RADIUS SERVER
Weakest No Security WPA
Static WEP
WPA-PSK
Strongest WPA2-PSK WPA2
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide
76
When you select WPA2 or WPA2-PSK in your ZyXEL Device, you can also select an option
(WPA Compatible) to support WPA as well. In this case, if some wireless clients support
WPA and some support WPA2, you should set up WPA2-PSK or WPA2 (depending on the
type of wireless network login) and select the WPA Compatible option in the ZyXEL Device.
Many types of encryption use a key to protect the information in the wireless network. The
longer the key, the stronger the encryption. Every wireless client in the wireless network must
have the same key.
5.3 Quality of Service
This section discusses the Quality of Service (QoS) features available on the ZyXEL Device.
5.3.1 WMM QoS
WMM (Wi-Fi MultiMedia) QoS (Quality of Service) ensures quality of service in wireless
networks. It controls WLAN transmission priority on packets to be transmitted over the
wireless network.
WMM QoS prioritizes wireless traffic according to delivery requirements. WMM QoS is a
part of the IEEE 802.11e QoS enhancement to certified Wi-Fi wireless networks.
On APs without WMM QoS, all traffic streams are given the same access priority to the
wireless network. If the introduction of another traffic stream creates a data transmission
demand that exceeds the current network capacity, then the new traffic stream reduces the
throughput of the other traffic streams.
The ZyXEL Device uses WMM QoS to prioritize traffic streams according to the IEEE 802.1q
tag or DSCP information in each packet’s header. The ZyXEL Device automatically
determines the priority to use for an individual traffic stream. This prevents reductions in data
transmission for applications that are sensitive to latency (delay) and jitter (variations in
delay).
5.3.1.1 WMM QoS Priorities
The following table describes the WMM QoS priority levels that the ZyXEL Device uses.
Table 22 WMM QoS Priorities
PRIORITY LEVEL DESCRIPTION
voice
(WMM_VOICE)
Typically used for traffic that is especially sensitive to jitter. Use this priority
to reduce latency for improved voice quality.
video
(WMM_VIDEO)
Typically used for traffic which has some tolerance for jitter but needs to be
prioritized over other data traffic.
best effort
(WMM_BEST_EFFORT)
Typically used for traffic from applications or devices that lack QoS
capabilities. Use best effort priority for traffic that is less sensitive to latency,
but is affected by long delays, such as Internet surfing.
background
(WMM_BACKGROUND)
This is typically used for non-critical traffic such as bulk transfers and print
jobs that are allowed but that should not affect other applications and users.
Use background priority for applications that do not have strict latency and
throughput requirements.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide 77
5.4 General Wireless LAN Screen
"If you are configuring the ZyXEL Device from a computer connected to the
wireless LAN and you change the ZyXEL Device’s SSID, channel or security
settings, you will lose your wireless connection when you press Apply to
confirm. You must then change the wireless settings of your computer to
match the ZyXEL Device’s new settings.
Click Network > Wireless LAN to open the General screen.
Figure 42 Wireless General
The following table describes the general wireless LAN labels in this screen.
See the rest of this chapter for information on the other labels in this screen.
Table 23 Wireless General
LABEL DESCRIPTION
Enable
Wireless LAN
Click the check box to activate wireless LAN.
Name(SSID) (Service Set IDentity) The SSID identifies the Service Set with which a wireless
station is associated. Wireless stations associating to the access point (AP) must
have the same SSID. Enter a descriptive name (up to 32 printable 7-bit ASCII
characters) for the wireless LAN.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station
cannot obtain the SSID through scanning using a site survey tool.
Channel
Selection
Set the operating frequency/channel depending on your particular region.
Select a channel from the drop-down list box. The options vary depending on
whether you are using A or B/G frequency band and the country you are in.
Refer to the Connection Wizard chapter for more information on channels.
Operating
Channel
This displays the channel the ZyXEL Device is currently using.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide
78
5.4.1 No Security
Select No Security to allow wireless stations to communicate with the access points without
any data encryption.
"If you do not enable any wireless security on your ZyXEL Device, your network
is accessible to any wireless networking device that is within range.
Figure 43 Wireless: No Security
The following table describes the labels in this screen.
5.4.2 WEP Encryption
WEP encryption scrambles the data transmitted between the wireless stations and the access
points to keep network communications private. It encrypts unicast and multicast
communications in a network. Both the wireless stations and the access points must use the
same WEP key.
Your ZyXEL Device allows you to configure up to four 64-bit or 128-bit WEP keys but only
one key can be enabled at any one time.
In order to configure and enable WEP encryption; click Network > Wireless LAN to display
the General screen. Select Static WEP from the Security Mode list.
Table 24 Wireless No Security
LABEL DESCRIPTION
Security Mode Choose No Security from the drop-down list box.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide 79
Figure 44 Wireless: Static WEP Encryption
The following table describes the wireless LAN security labels in this screen.
Table 25 Wireless: Static WEP Encryption
LABEL DESCRIPTION
Passphrase Enter a passphrase (password phrase) of up to 32 printable characters and click
Generate. The ZyXEL Device automatically generates four different WEP keys and
displays them in the Key fields below.
WEP
Encryption
Select 64-bit WEP or 128-bit WEP to enable data encryption.
Authentication
Method
This field is activated when you select 64-bit WEP or 128-bit WEP in the WEP
Encryption field.
Select Auto, Open System or Shared Key from the drop-down list box.
ASCII Select this option in order to enter ASCII characters as WEP key.
Hex Select this option in order to enter hexadecimal characters as a WEP key.
The preceding "0x", that identifies a hexadecimal key, is entered automatically.
Key 1 to Key 4 The WEP keys are used to encrypt data. Both the ZyXEL Device and the wireless
stations must use the same WEP key for data transmission.
If you chose 64-bit WEP, then enter any 5 ASCII characters or 10 hexadecimal
characters ("0-9", "A-F").
If you chose 128-bit WEP, then enter 13 ASCII characters or 26 hexadecimal
characters ("0-9", "A-F").
You must configure at least one key, only one key can be activated at any one time.
The default key is key 1.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide
80
5.4.3 WPA-PSK/WPA2-PSK
Click Network > Wireless LAN to display the General screen.
Figure 45 Wireless: WPA-PSK/WPA2-PSK
The following table describes the labels in this screen.
Table 26 Wireless: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
WPA Compatible This check box is available only when you select WPA2-PSK or WPA2 in the
Security Mode field.
Select the check box to have both WPA2 and WPA wireless clients be able to
communicate with the ZyXEL Device even when the ZyXEL Device is using
WPA2-PSK or WPA2.
Pre-Shared Key The encryption mechanisms used for WPA/WPA2 and WPA-PSK/WPA2-PSK
are the same. The only difference between the two is that WPA-PSK/WPA2-PSK
uses a simple common password, instead of user-specific credentials.
Type a pre-shared key from 8 to 63 case-sensitive ASCII characters (including
spaces and symbols).
ReAuthentication
Timer (in
seconds)
Specify how often wireless stations have to resend usernames and passwords in
order to stay connected. Enter a time interval between 10 and 9999 seconds. The
default time interval is 1800 seconds (30 minutes).
Note: If wireless station authentication is done using a RADIUS
server, the reauthentication timer on the RADIUS server has
priority.
Idle Timeout The ZyXEL Device automatically disconnects a wireless station from the wired
network after a period of inactivity. The wireless station needs to enter the
username and password again before access to the wired network is allowed. The
default time interval is 3600 seconds (or 1 hour).
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide 81
5.4.4 WPA/WPA2
Click Network > Wireless LAN to display the General screen.
Figure 46 Wireless: WPA/WPA2
Group Key
Update Timer
The Group Key Update Timer is the rate at which the AP (if using WPA-PSK/
WPA2-PSK key management) or RADIUS server (if using WPA/WPA2 key
management) sends a new group key out to all clients. The re-keying process is
the WPA/WPA2 equivalent of automatically changing the WEP key for an AP and
all stations in a WLAN on a periodic basis. Setting of the Group Key Update
Timer is also supported in WPA-PSK/WPA2-PSK mode. The default is 1800
seconds (30 minutes).
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Table 26 Wireless: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide
82
The following table describes the labels in this screen.
Table 27 Wireless: WPA/WPA2
LABEL DESCRIPTION
WPA Compatible This check box is available only when you select WPA2-PSK or WPA2 in the
Security Mode field.
Select the check box to have both WPA2 and WPA wireless clients be able to
communicate with the ZyXEL Device even when the ZyXEL Device is using
WPA2-PSK or WPA2.
ReAuthentication
Timer (in seconds)
Specify how often wireless stations have to resend usernames and passwords in
order to stay connected. Enter a time interval between 10 and 9999 seconds.
The default time interval is 1800 seconds (30 minutes).
Note: If wireless station authentication is done using a RADIUS
server, the reauthentication timer on the RADIUS server
has priority.
Idle Timeout The ZyXEL Device automatically disconnects a wireless station from the wired
network after a period of inactivity. The wireless station needs to enter the
username and password again before access to the wired network is allowed.
The default time interval is 3600 seconds (or 1 hour).
Group Key Update
Timer
The Group Key Update Timer is the rate at which the AP (if using WPA-PSK/
WPA2-PSK key management) or RADIUS server (if using WPA/WPA2 key
management) sends a new group key out to all clients. The re-keying process is
the WPA/WPA2 equivalent of automatically changing the WEP key for an AP
and all stations in a WLAN on a periodic basis. Setting of the Group Key Update
Timer is also supported in WPA-PSK/WPA2-PSK mode. The ZyXEL Device
default is 1800 seconds (30 minutes).
Authentication Server
IP Address Enter the IP address of the external authentication server in dotted decimal
notation.
Port Number Enter the port number of the external authentication server. The default port
number is 1812.
You need not change this value unless your network administrator instructs you
to do so with additional information.
Shared Secret Enter a password (up to 31 alphanumeric characters) as the key to be shared
between the external authentication server and the ZyXEL Device.
The key must be the same on the external authentication server and your ZyXEL
Device. The key is not sent over the network.
Accounting Server
Active Select Yes from the drop down list box to enable user accounting through an
external authentication server.
IP Address Enter the IP address of the external accounting server in dotted decimal notation.
Port Number Enter the port number of the external accounting server. The default port number
is 1813.
You need not change this value unless your network administrator instructs you
to do so with additional information.
Shared Secret Enter a password (up to 31 alphanumeric characters) as the key to be shared
between the external accounting server and the ZyXEL Device.
The key must be the same on the external accounting server and your ZyXEL
Device. The key is not sent over the network.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide 83
5.5 MAC Filter
The MAC filter screen allows you to configure the ZyXEL Device to give exclusive access to
up to 32 devices (Allow) or exclude up to 32 devices from accessing the ZyXEL Device
(Deny). Every Ethernet device has a unique MAC (Media Access Control) address. The MAC
address is assigned at the factory and consists of six pairs of hexadecimal characters, for
example, 00:A0:C5:00:00:02. You need to know the MAC address of the devices to configure
this screen.
To change your ZyXEL Device’s MAC filter settings, click Network > Wireless LAN >
MAC Filter. The screen appears as shown.
Figure 47 MAC Address Filter
The following table describes the labels in this menu.
Table 28 MAC Address Filter
LABEL DESCRIPTION
Active Select Yes from the drop down list box to enable MAC address filtering.
Filter Action Define the filter action for the list of MAC addresses in the MAC Address table.
Select Deny to block access to the ZyXEL Device, MAC addresses not listed will be
allowed to access the ZyXEL Device
Select Allow to permit access to the ZyXEL Device, MAC addresses not listed will be
denied access to the ZyXEL Device.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide
84
5.6 Wireless LAN Advanced Screen
Click Network > Wireless LAN > Advanced. The screen appears as shown.
Figure 48 Wireless LAN Advanced
The following table describes the labels in this screen.
Set This is the index number of the MAC address.
MAC
Address
Enter the MAC addresses of the wireless station that are allowed or denied access to
the ZyXEL Device in these address fields. Enter the MAC addresses in a valid MAC
address format, that is, six hexadecimal character pairs, for example,
12:34:56:78:9a:bc.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Table 28 MAC Address Filter
LABEL DESCRIPTION
Table 29 Wireless LAN Advanced
LABEL DESCRIPTION
Wireless Advanced Setup
RTS/CTS
Threshold
Data with its frame size larger than this value will perform the RTS (Request To
Send)/CTS (Clear To Send) handshake.
If the RTS/CTS value is greater than the Fragmentation Threshold value, then the
RTS/CTS handshake will never occur as data frames will be fragmented before they
reach RTS/CTS size.
Enter a value between 0 and 2432.
Fragmentation
Threshold
It is the maximum data fragment size that can be sent. Enter a value between 256
and 2432.
Output Power Set the output power of the ZyXEL Device in this field. If there is a high density of
APs within an area, decrease the output power of the ZyXEL Device to reduce
interference with other APs.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide 85
5.7 Quality of Service (QoS) Screen
The QoS screen allows you to automatically give a service (such as e-mail, VoIP or FTP) a
priority level.
Click Network > Wireless LAN > QoS. The following screen appears.
802.11 Mode Select 802.11b to allow only IEEE 802.11b compliant WLAN devices to associate
with the ZyXEL Device.
Select 802.11g to allow only IEEE 802.11g compliant WLAN devices to associate
with the ZyXEL Device.
Select 802.11b/g to allow either IEEE802.11b or IEEE802.11g compliant WLAN
devices to associate with the ZyXEL Device. The transmission rate of your ZyXEL
Device might be reduced.
Super G Mode Use this field to enable or disable the Super G function. Super G mode is available
only if you select 802.11g or 802.11b/g in the 802.11 Mode field.
Super G provides higher data transmission rates than 802.11g.
Select Disabled if your wireless clients do not support Super G.
Select Super G with Dynamic Turbo if some or all of your wireless clients support
Super G with Dynamic Turbo. Dynamic Turbo uses two channels bonded together to
achive higher transmission rates than 802.11g or Super G without Dynamic Turbo.
Dynamic turbo is on only when all wireless devices on the network support it. The
wireless channel is automatically fixed at 6 if you select this mode.
Select Super G without Turbo if the wireless clients on your network support Super
G but do not support dynamic turbo.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Table 29 Wireless LAN Advanced
LABEL DESCRIPTION
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide
86
Figure 49 Wireless LAN QoS
The following table describes the labels in this screen.
Table 30 Wireless LAN QoS
LABEL DESCRIPTION
Enable WMM QoS Select this to turn on WMM QoS (Wireless MultiMedia Quality of
Service). The ZyXEL Device assigns priority to packets based on
the 802.1q or DSCP information in their headers. If a packet has no
WMM information in its header, it is assigned the default priority.
WMM QoS Policy Select Default to have the ZyXEL Device automatically give a
service a priority level according to the ToS value in the IP header
of packets it sends. WMM QoS (Wifi MultiMedia Quality of Service)
gives high priority to voice and video, which makes them run more
smoothly.
Select Application Priority from the drop-down list box to display a
table of application names, services, ports and priorities to which
you want to apply WMM QoS.
The table appears only if you select Application Priority in WMM
QoS Policy.
# This is the number of an individual application entry.
Name This field displays a description given to an application entry.
Service This field displays either FTP, WWW, E-mail or a User Defined
service to which you want to apply WMM QoS.
Dest Port This field displays the destination port number to which the
application sends traffic.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide 87
5.7.1 Application Priority Configuration
Use this screen to edit a WMM QoS application entry. Click the edit icon under Modify. The
following screen displays.
Figure 50 Application Priority Configuration
See Appendix I on page 257 for a list of commonly-used services and destination ports. The
following table describes the fields in this screen.
Priority This field displays the priority of the application.
Highest - Typically used for voice or video that should be high-
quality.
High - Typically used for voice or video that can be medium-quality.
Mid - Typically used for applications that do not fit into another
priority. For example, Internet surfing.
Low - Typically used for non-critical “background” applications,
such as large file transfers and print jobs that should not affect
other applications.
Modify Click the Edit icon to open the Application Priority Configuration
screen. Modify an existing application entry or create a application
entry in the Application Priority Configuration screen.
Click the Remove icon to delete an application entry.
Apply Click Apply to save your changes to the ZyXEL Device.
Table 30 Wireless LAN QoS (continued)
LABEL DESCRIPTION
Table 31 Application Priority Configuration
LABEL DESCRIPTION
Application Priority Configuration
Name Type a description of the application priority.
Chapter 5 Wireless LAN
ZyXEL NBG-334SH User’s Guide
88
Service The following is a description of the applications you can prioritize with WMM
QoS. Select a service from the drop-down list box.
• E-Mail
Electronic mail consists of messages sent through a computer network to
specific groups or individuals. Here are some default ports for e-mail:
POP3 - port 110
IMAP - port 143
SMTP - port 25
HTTP - port 80
•FTP
File Transfer Protocol enables fast transfer of files, including large files that it
may not be possible to send via e-mail. FTP uses port number 21.
•WWW
The World Wide Web is an Internet system to distribute graphical, hyper-
linked information, based on Hyper Text Transfer Protocol (HTTP) - a client/
server protocol for the World Wide Web. The Web is not synonymous with the
Internet; rather, it is just one service on the Internet. Other services on the
Internet include Internet Relay Chat and Newsgroups. The Web is accessed
through use of a browser.
•User-Defined
User-defined services are user specific services configured using known ports
and applications.
Dest Port This displays the port the selected service uses. Type a port number in the
field provided if you want to use a different port to the default port.
Priority Select a priority from the drop-down list box.
Apply Click Apply to save your changes back to the ZyXEL Device.
Cancel Click Cancel to return to the previous screen.
Table 31 Application Priority Configuration (continued)
LABEL DESCRIPTION
ZyXEL NBG-334SH User’s Guide 89
CHAPTER 6
WAN
This chapter describes how to configure WAN settings.
6.1 WAN Overview
See the chapter about the connection wizard for more information on the fields in the WAN
screens.
6.2 WAN MAC Address
The MAC address screen allows users to configure the WAN port's MAC address by either
using the factory default or cloning the MAC address from a computer on your LAN. Choose
Factory Default to select the factory assigned default MAC Address.
Otherwise, click Clone the computer's MAC address - IP Address and enter the IP address
of the computer on the LAN whose MAC you are cloning. Once it is successfully configured,
the address will be copied to the rom file (ZyNOS configuration file). It will not change unless
you change the setting or upload a different ROM file. It is recommended that you clone the
MAC address prior to hooking up the WAN Port.
6.3 Multicast
Traditionally, IP packets are transmitted in one of either two ways - Unicast (1 sender - 1
recipient) or Broadcast (1 sender - everybody on the network). Multicast delivers IP packets to
a group of hosts on the network - not everybody and not just 1.
IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish
membership in a Multicast group - it is not used to carry user data. IGMP version 2 (RFC
2236) is an improvement over version 1 (RFC 1112) but IGMP version 1 is still in wide use. If
you would like to read more detailed information about interoperability between IGMP
version 2 and version 1, please see sections 4 and 5 of RFC 2236. The class D IP address is
used to identify host groups and can be in the range 224.0.0.0 to 239.255.255.255. The address
224.0.0.0 is not assigned to any group and is used by IP multicast computers. The address
224.0.0.1 is used for query messages and is assigned to the permanent group of all IP hosts
(including gateways). All hosts must join the 224.0.0.1 group in order to participate in IGMP.
The address 224.0.0.2 is assigned to the multicast routers group.
Chapter 6 WAN
ZyXEL NBG-334SH User’s Guide
90
The ZyXEL Device supports both IGMP version 1 (IGMP-v1) and IGMP version 2 (IGMP-
v2). At start up, the ZyXEL Device queries all directly connected networks to gather group
membership. After that, the ZyXEL Device periodically updates this information. IP
multicasting can be enabled/disabled on the ZyXEL Device LAN and/or WAN interfaces in
the web configurator (LAN; WA N ). Select None to disable IP multicasting on these
interfaces.
6.4 Internet Connection
Use this screen to change your ZyXEL Device’s Internet access settings. Click Network >
WAN . The screen differs according to the encapsulation you choose.
6.4.1 Ethernet Encapsulation
This screen displays when you select Ethernet encapsulation.
Figure 51 Ethernet Encapsulation
Chapter 6 WAN
ZyXEL NBG-334SH User’s Guide 91
The following table describes the labels in this screen.
Table 32 Ethernet Encapsulation
LABEL DESCRIPTION
Encapsulation You must choose the Ethernet option when the WAN port is used as a regular
Ethernet.
Service Type Choose from Standard, RR-Telstra (RoadRunner Telstra authentication
method), RR-Manager (Roadrunner Manager authentication method), RR-
Toshiba (Roadrunner Toshiba authentication method) or Telia Login.
The following fields do not appear with the Standard service type.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the user name above.
Retype to Confirm Type your password again to make sure that you have entered is correctly.
Login Server IP
Address
Type the authentication server IP address here if your ISP gave you one.
This field is not available for Telia Login.
Login Server
(Telia Login only)
Type the domain name of the Telia login server, for example login1.telia.com.
Relogin
Every(min) (Telia
Login only)
The Telia server logs the ZyXEL Device out if the ZyXEL Device does not log in
periodically. Type the number of minutes from 1 to 59 (30 default) for the ZyXEL
Device to wait between logins.
WAN IP Address Assignment
Get automatically
from ISP
Select this option If your ISP did not assign you a fixed IP address. This is the
default selection.
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
IP Address Enter your WAN IP address in this field if you selected Use Fixed IP Address.
IP Subnet
Mask
Enter the IP Subnet Mask in this field.
Gateway IP
Address
Enter a Gateway IP Address (if your ISP gave you one) in this field.
DNS Servers
First DNS Server
Second DNS
Server
Third DNS Server
Select From ISP if your ISP dynamically assigns DNS server information (and the
ZyXEL Device's WAN IP address). The field to the right displays the (read-only)
DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS
server's IP address in the field to the right. If you chose User-Defined, but leave
the IP address set to 0.0.0.0, User-Defined changes to None after you click
Apply. If you set a second choice to User-Defined, and enter the same IP
address, the second User-Defined changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do not configure
a DNS server, you must know the IP address of a computer in order to access it.
WAN MAC
Address
The MAC address section allows users to configure the WAN port's MAC address
by either using the ZyXEL Device’s MAC address, copying the MAC address from
a computer on your LAN or manually entering a MAC address.
Factory default Select Factory default to use the factory assigned default MAC Address.
Clone the
computer’s MAC
address
Select Clone the computer's MAC address - IP Address and enter the IP
address of the computer on the LAN whose MAC you are cloning. Once it is
successfully configured, the address will be copied to the rom file (ZyNOS
configuration file). It will not change unless you change the setting or upload a
different ROM file.
Chapter 6 WAN
ZyXEL NBG-334SH User’s Guide
92
6.4.2 PPPoE Encapsulation
The ZyXEL Device supports PPPoE (Point-to-Point Protocol over Ethernet). PPPoE is an
IETF standard (RFC 2516) specifying how a personal computer (PC) interacts with a
broadband modem (DSL, cable, wireless, etc.) connection. The PPP over Ethernet option is
for a dial-up connection using PPPoE.
For the service provider, PPPoE offers an access and authentication method that works with
existing access control systems (for example Radius).
One of the benefits of PPPoE is the ability to let you access one of multiple network services,
a function known as dynamic service selection. This enables the service provider to easily
create and offer new IP services for individuals.
Operationally, PPPoE saves significant effort for both you and the ISP or carrier, as it requires
no specific configuration of the broadband modem at the customer site.
By implementing PPPoE directly on the ZyXEL Device (rather than individual computers),
the computers on the LAN do not need PPPoE software installed, since the ZyXEL Device
does that part of the task. Furthermore, with NAT, all of the LANs’ computers will have
access.
This screen displays when you select PPPoE encapsulation.
Set WAN MAC
Address
Select this option and enter the MAC address you want to use.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to begin configuring this screen afresh.
Table 32 Ethernet Encapsulation
LABEL DESCRIPTION
Chapter 6 WAN
ZyXEL NBG-334SH User’s Guide 93
Figure 52 PPPoE Encapsulation
The following table describes the labels in this screen.
Table 33 PPPoE Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation The PPP over Ethernet choice is for a dial-up connection using PPPoE. The
ZyXEL Device supports PPPoE (Point-to-Point Protocol over Ethernet). PPPoE is
an IETF Draft standard (RFC 2516) specifying how a personal computer (PC)
interacts with a broadband modem (i.e. xDSL, cable, wireless, etc.) connection.
Operationally, PPPoE saves significant effort for both the end user and ISP/carrier,
as it requires no specific configuration of the broadband modem at the customer
site. By implementing PPPoE directly on the router rather than individual
computers, the computers on the LAN do not need PPPoE software installed, since
the router does that part of the task. Further, with NAT, all of the LAN's computers
will have access.
Service Name Type the PPPoE service name provided to you. PPPoE uses a service name to
identify and reach the PPPoE server.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the user name above.
Chapter 6 WAN
ZyXEL NBG-334SH User’s Guide
94
6.4.3 PPTP Encapsulation
Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables secure transfer of
data from a remote client to a private server, creating a Virtual Private Network (VPN) using
TCP/IP-based networks.
Retype to
Confirm
Type your password again to make sure that you have entered is correctly.
Nailed-Up
Connection
Select Nailed-Up Connection if you do not want the connection to time out.
Idle Timeout This value specifies the time in seconds that elapses before the router
automatically disconnects from the PPPoE server.
WAN IP Address Assignment
Get automatically
from ISP
Select this option If your ISP did not assign you a fixed IP address. This is the
default selection.
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
My WAN IP
Address
Enter your WAN IP address in this field if you selected Use Fixed IP Address.
Remote IP
Address
Enter the remote IP address (if your ISP gave you one) in this field.
Remote IP
Subnet Mask
Enter the remote IP subnet mask in this field.
DNS Servers
First DNS Server
Second DNS
Server
Third DNS Server
Select From ISP if your ISP dynamically assigns DNS server information (and the
ZyXEL Device's WAN IP address). The field to the right displays the (read-only)
DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the DNS
server's IP address in the field to the right. If you chose User-Defined, but leave
the IP address set to 0.0.0.0, User-Defined changes to None after you click
Apply. If you set a second choice to User-Defined, and enter the same IP
address, the second User-Defined changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do not configure a
DNS server, you must know the IP address of a computer in order to access it.
WAN MAC
Address
The MAC address section allows users to configure the WAN port's MAC address
by using the ZyXEL Device’s MAC address, copying the MAC address from a
computer on your LAN or manually entering a MAC address.
Factory default Select Factory default to use the factory assigned default MAC Address.
Clone the
computer’s MAC
address
Select Clone the computer's MAC address - IP Address and enter the IP
address of the computer on the LAN whose MAC you are cloning. Once it is
successfully configured, the address will be copied to the rom file (ZyNOS
configuration file). It will not change unless you change the setting or upload a
different ROM file.
Set WAN MAC
Address
Select this option and enter the MAC address you want to use.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to begin configuring this screen afresh.
Table 33 PPPoE Encapsulation
LABEL DESCRIPTION
Chapter 6 WAN
ZyXEL NBG-334SH User’s Guide 95
PPTP supports on-demand, multi-protocol and virtual private networking over public
networks, such as the Internet.
This screen displays when you select PPTP encapsulation.
Figure 53 PPTP Encapsulation
Chapter 6 WAN
ZyXEL NBG-334SH User’s Guide
96
The following table describes the labels in this screen.
Table 34 PPTP Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables
secure transfer of data from a remote client to a private server, creating a
Virtual Private Network (VPN) using TCP/IP-based networks. PPTP supports
on-demand, multi-protocol, and virtual private networking over public
networks, such as the Internet. The ZyXEL Device supports only one PPTP
server connection at any given time.
To configure a PPTP client, you must configure the User Name and
Password fields for a PPP connection and the PPTP parameters for a PPTP
connection.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the User Name above.
Retype to Confirm Type your password again to make sure that you have entered is correctly.
Nailed-up Connection Select Nailed-Up Connection if you do not want the connection to time out.
Idle Timeout This value specifies the time in seconds that elapses before the ZyXEL
Device automatically disconnects from the PPTP server.
PPTP Configuration
Get automatically from
ISP
Select this option If your ISP did not assign you a fixed IP address. This is the
default selection.
Use Fixed IP Address Select this option If the ISP assigned a fixed IP address.
My IP Address Type the (static) IP address assigned to you by your ISP.
My IP Subnet
Mask
Your ZyXEL Device will automatically calculate the subnet mask based on the
IP address that you assign. Unless you are implementing subnetting, use the
subnet mask computed by the ZyXEL Device.
Server IP Address Type the IP address of the PPTP server.
Connection ID/
Name
Type your identification name for the PPTP server.
WAN IP Address Assignment
Get automatically from
ISP
Select this option If your ISP did not assign you a fixed IP address. This is the
default selection.
Use Fixed IP Address Select this option If the ISP assigned a fixed IP address.
My WAN IP
Address
Enter your WAN IP address in this field if you selected Use Fixed IP
Address.
Remote IP
Address
Enter the remote IP address (if your ISP gave you one) in this field.
Remote IP Subnet
Mask
Enter the remote IP subnet mask in this field.
DNS Servers
Chapter 6 WAN
ZyXEL NBG-334SH User’s Guide 97
6.5 Advanced WAN Screen
To change your ZyXEL Device’s advanced WAN settings, click Network > WAN >
Advanced. The screen appears as shown.
Figure 54 WAN > Advanced
First DNS Server
Second DNS Server
Third DNS Server
Select From ISP if your ISP dynamically assigns DNS server information (and
the ZyXEL Device's WAN IP address). The field to the right displays the (read-
only) DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter the
DNS server's IP address in the field to the right. If you chose User-Defined,
but leave the IP address set to 0.0.0.0, User-Defined changes to None after
you click Apply. If you set a second choice to User-Defined, and enter the
same IP address, the second User-Defined changes to None after you click
Apply.
Select None if you do not want to configure DNS servers. If you do not
configure a DNS server, you must know the IP address of a computer in order
to access it.
WAN MAC Address The MAC address section allows users to configure the WAN port's MAC
address by either using the ZyXEL Device’s MAC address, copying the MAC
address from a computer on your LAN or manually entering a MAC address.
Factory default Select Factory default to use the factory assigned default MAC Address.
Clone the computer’s
MAC address
Select Clone the computer's MAC address - IP Address and enter the IP
address of the computer on the LAN whose MAC you are cloning. Once it is
successfully configured, the address will be copied to the rom file (ZyNOS
configuration file). It will not change unless you change the setting or upload a
different ROM file.
Set WAN MAC
Address
Select this option and enter the MAC address you want to use.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to begin configuring this screen afresh.
Table 34 PPTP Encapsulation
LABEL DESCRIPTION
Chapter 6 WAN
ZyXEL NBG-334SH User’s Guide
98
The following table describes the labels in this screen.
Table 35 WAN > Advanced
LABEL DESCRIPTION
Multicast Setup
Multicast Select IGMP V-1, IGMP V-2 or None. IGMP (Internet Group Multicast
Protocol) is a network-layer protocol used to establish membership in a
Multicast group - it is not used to carry user data. IGMP version 2 (RFC 2236)
is an improvement over version 1 (RFC 1112) but IGMP version 1 is still in
wide use. If you would like to read more detailed information about
interoperability between IGMP version 2 and version 1, please see sections 4
and 5 of RFC 2236.
Windows Networking (NetBIOS over TCP/IP): NetBIOS (Network Basic Input/Output System) are TCP
or UDP broadcast packets that enable a computer to connect to and communicate with a LAN. For
some dial-up services such as PPPoE or PPTP, NetBIOS packets cause unwanted calls. However it
may sometimes be necessary to allow NetBIOS packets to pass through to the WAN in order to find a
computer on the WAN.
Allow between LAN
and WAN
Select this check box to forward NetBIOS packets from the LAN to the WAN
and from the WAN to the LAN. If your firewall is enabled with the default
policy set to block WAN to LAN traffic, you also need to enable the default
WAN to LAN firewall rule that forwards NetBIOS traffic.
Clear this check box to block all NetBIOS packets going from the LAN to the
WAN and from the WAN to the LAN.
Allow Trigger Dial Select this option to allow NetBIOS packets to initiate calls.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to begin configuring this screen afresh.
ZyXEL NBG-334SH User’s Guide 99
CHAPTER 7
LAN
This chapter describes how to configure LAN settings.
7.1 LAN Overview
A Local Area Network (LAN) is a shared communication system to which many computers
are attached. A LAN is a computer network limited to the immediate area, usually the same
building or floor of a building. The LAN screens can help you configure a LAN DHCP server,
manage IP addresses, and partition your physical network into logical networks.
7.1.1 IP Pool Setup
The ZyXEL Device is pre-configured with a pool of 32 IP addresses starting from
192.168.1.33 to 192.168.1.64. This configuration leaves 31 IP addresses (excluding the
ZyXEL Device itself) in the lower range (192.168.1.2 to 192.168.1.32) for other server
computers, for instance, servers for mail, FTP, TFTP, web, etc., that you may have.
7.1.2 System DNS Servers
Refer to the IP address and subnet mask section in the Connection Wizard chapter.
7.2 LAN TCP/IP
The ZyXEL Device has built-in DHCP server capability that assigns IP addresses and DNS
servers to systems that support DHCP client capability.
7.2.1 Factory LAN Defaults
The LAN parameters of the ZyXEL Device are preset in the factory with the following values:
• IP address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits)
• DHCP server enabled with 32 client IP addresses starting from 192.168.1.33.
These parameters should work for the majority of installations. If your ISP gives you explicit
DNS server address(es), read the embedded web configurator help regarding what fields need
to be configured.
Chapter 7 LAN
ZyXEL NBG-334SH User’s Guide
100
7.2.2 IP Address and Subnet Mask
Refer to the IP address and subnet mask section in the Connection Wizard chapter for this
information.
7.2.3 Multicast
Traditionally, IP packets are transmitted in one of either two ways - Unicast (1 sender - 1
recipient) or Broadcast (1 sender - everybody on the network). Multicast delivers IP packets to
a group of hosts on the network - not everybody and not just 1.
IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish
membership in a Multicast group - it is not used to carry user data. IGMP version 2 (RFC
2236) is an improvement over version 1 (RFC 1112) but IGMP version 1 is still in wide use. If
you would like to read more detailed information about interoperability between IGMP
version 2 and version 1, please see sections 4 and 5 of RFC 2236. The class D IP address is
used to identify host groups and can be in the range 224.0.0.0 to 239.255.255.255. The address
224.0.0.0 is not assigned to any group and is used by IP multicast computers. The address
224.0.0.1 is used for query messages and is assigned to the permanent group of all IP hosts
(including gateways). All hosts must join the 224.0.0.1 group in order to participate in IGMP.
The address 224.0.0.2 is assigned to the multicast routers group.
The ZyXEL Device supports both IGMP version 1 (IGMP-v1) and IGMP version 2 (IGMP-
v2). At start up, the ZyXEL Device queries all directly connected networks to gather group
membership. After that, the ZyXEL Device periodically updates this information. IP
multicasting can be enabled/disabled on the ZyXEL Device LAN and/or WAN interfaces in
the web configurator (LAN; WA N ). Select None to disable IP multicasting on these
interfaces.
7.2.4 Any IP
Traditionally, you must set the IP addresses and the subnet masks of a computer and the
ZyXEL Device to be in the same subnet to allow the computer to access the Internet (through
the ZyXEL Device). In cases where your computer is required to use a static IP address in
another network, you may need to manually configure the network settings of the computer
every time you want to access the Internet via the ZyXEL Device.
With the Any IP feature and NAT enabled, the ZyXEL Device allows a computer to access the
Internet without changing the network settings (such as IP address and subnet mask) of the
computer, when the IP addresses of the computer and the ZyXEL Device are not in the same
subnet. Whether a computer is set to use a dynamic or static (fixed) IP address, you can simply
connect the computer to the ZyXEL Device and access the Internet.
The following figure depicts a scenario where a computer is set to use a static private IP
address in the corporate environment. In a residential house where a ZyXEL Device is
installed, you can still use the computer to access the Internet without changing the network
settings, even when the IP addresses of the computer and the ZyXEL Device are not in the
same subnet.
