About This User's Guide
NBG-419N User s Guide 3
About This User's Guide
Intended Audience
This manual is intended for people who want to configure the NBG-419N using the
Web Configurator. You should have at least a basic knowledge of TCP/IP
networking concepts and topology.
Related Documentation
Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. It
contains information on setting up your network and configuring for Internet
access.
Supporting Disc
Refer to the included CD for support documents.
ZyXEL Web Site
Please refer to www.zyxel.com for additional support documentation and
product certifications.
User Guide Feedback
Help us help you. Send all User Guide-related comments, questions or suggestions
for improvement to the following address, or use e-mail instead. Thank you!
The Technical Writing Team,
ZyXEL Communications Corp.,
6 Innovation Road II,
Science-Based Industrial Park,
Hsinchu, 300, Taiwan.
E-mail: techwriters@zyxel.com.tw
Company Confidential
![](/img.php?id=1180986&img=bg4.png)
About This User's Guide
NBG-419N User s Guide
4
Customer Support
In the event of problems that cannot be solved by using this manual, you should
contact your vendor. If you cannot contact your vendor, then contact a ZyXEL
office for the region in which you bought the device. See http://www.zyxel.com/
web/contact_us.php for contact information. Please have the following information
ready when you contact an office.
Product model and serial number.
Warranty Information.
Date that you received your device.
Brief description of the problem and the steps you took to solve it.
Company Confidential
![](/img.php?id=1180986&img=bg5.png)
Document Conventions
NBG-419N User s Guide 5
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this User!s Guide.
Warnings tell you about things that could harm you or your
device.
Note: Notes tell you other important information (for example, other things you may
need to configure or helpful tips) or recommendations.
Syntax Conventions
The NBG-419N may be referred to as the "NBG-419N#, the "device#, the
"product# or the "system# in this User!s Guide.
Product labels, screen names, field labels and field choices are all in bold font.
A key stroke is denoted by square brackets and uppercase text, for example,
[ENTER] means the "enter# or "return# key on your keyboard.
"Enter# means for you to type one or more characters and then press the
[ENTER] key. "Select# or "choose# means for you to use one of the predefined
choices.
A right angle bracket ( > ) within a screen name denotes a mouse click. For
example, Maintenance > Log > Log Setting means you first click
Maintenance in the navigation panel, then the Log sub menu and finally the
Log Setting tab to get to that screen.
Units of measurement may denote the "metric# value or the "scientific# value.
For example, "k# for kilo may denote "1000# or "1024#, "M# for mega may
denote "1000000# or "1048576# and so on.
"e.g.,# is a shorthand for "for instance#, and "i.e.,# means "that is# or "in other
words#.
Company Confidential
![](/img.php?id=1180986&img=bg6.png)
Document Conventions
NBG-419N User s Guide
6
Icons Used in Figures

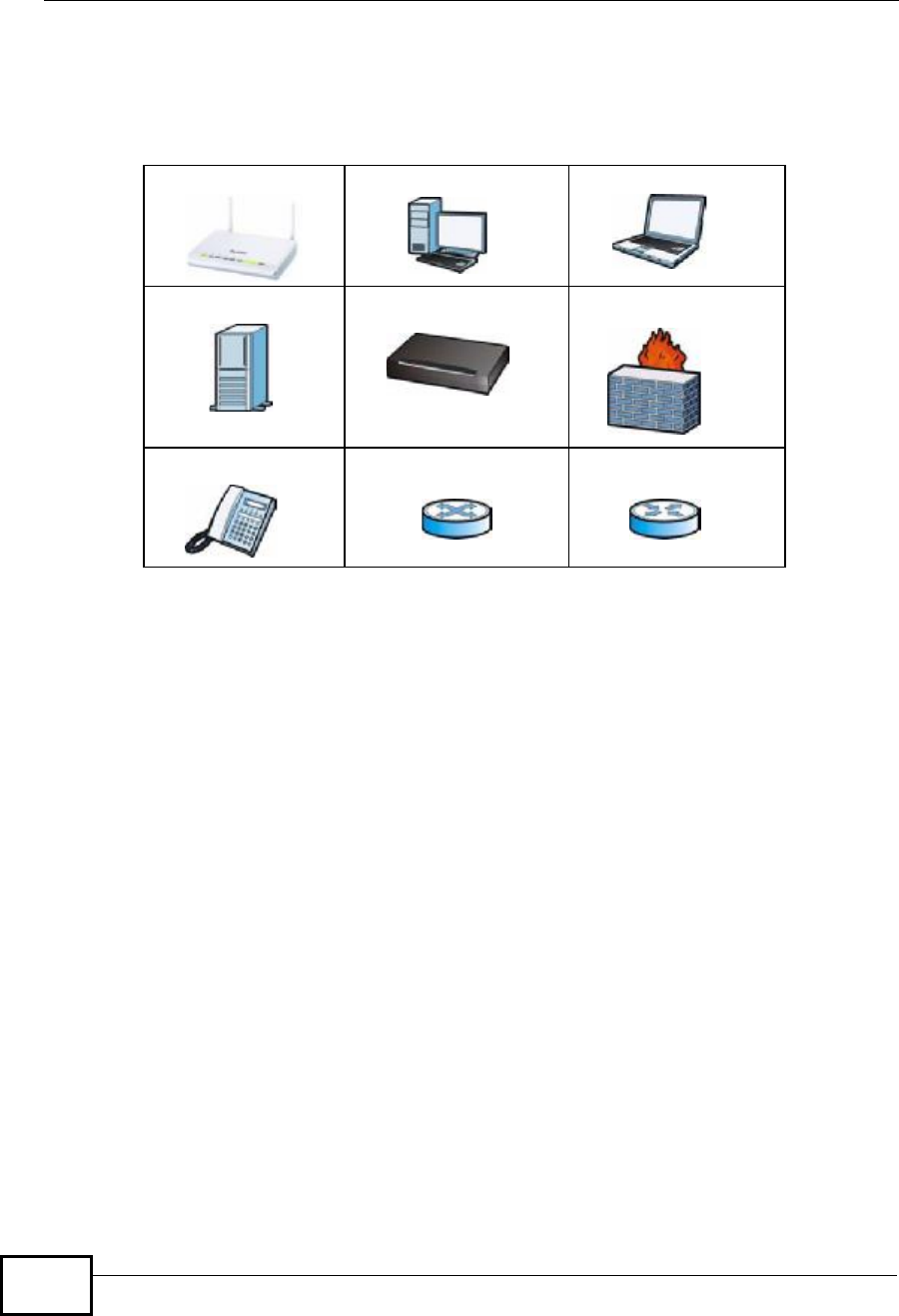

Figures in this User!s Guide may use the following generic icons. The NBG-419N
icon is not an exact representation of your device.
NBG-419N Computer Notebook computer
Server Modem Firewall
Telephone Switch Router
Company Confidential
![](/img.php?id=1180986&img=bg7.png)
Safety Warnings
NBG-419N User s Guide 7
Safety Warnings
Do NOT use this product near water, for example, in a wet basement or near a swimming
pool.
Do NOT expose your device to dampness, dust or corrosive liquids.
Do NOT store things on the device.
Do NOT install, use, or service this device during a thunderstorm. There is a remote risk
of electric shock from lightning.
Connect ONLY suitable accessories to the device.
Do NOT open the device or unit. Opening or removing covers can expose you to
dangerous high voltage points or other risks. ONLY qualified service personnel should
service or disassemble this device. Please contact your vendor for further information.
Make sure to connect the cables to the correct ports.
Place connecting cables carefully so that no one will step on them or stumble over them.
Always disconnect all cables from this device before servicing or disassembling.
Use ONLY an appropriate power adaptor or cord for your device.
Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in
North America or 230V AC in Europe).
Do NOT allow anything to rest on the power adaptor or cord and do NOT place the
product where anyone can walk on the power adaptor or cord.
Do NOT use the device if the power adaptor or cord is damaged as it might cause
electrocution.
If the power adaptor or cord is damaged, remove it from the power outlet.
Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order
a new one.
Do not use the device outside, and make sure all the connections are indoors. There is a
remote risk of electric shock from lightning.
Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your
device.
Antenna Warning! This device meets ETSI and FCC certification requirements when using
the included antenna(s). Only use the included antenna(s).
If you wall mount your device, make sure that no electrical lines, gas or water pipes will
be damaged.
Your product is marked with this symbol, which is known as the WEEE mark. WEEE
stands for Waste Electronics and Electrical Equipment. It means that used electrical
and electronic products should not be mixed with general waste. Used electrical and
electronic equipment should be treated separately.
Company Confidential
![](/img.php?id=1180986&img=bg8.png)
Safety Warnings
NBG-419N User s Guide
8
Company Confidential
![](/img.php?id=1180986&img=bg9.png)
Contents Overview
NBG-419N User s Guide 9
Contents Overview
Introduction ............................................................................................................................19
Getting to Know Your NBG-419N ..............................................................................................21
Connection Wizard ....................................................................................................................25
Introducing the Web Configurator ..............................................................................................37
Monitor .......................................................................................................................................43
NBG-419N Modes .....................................................................................................................49
Easy Mode .................................................................................................................................51
Router Mode ..............................................................................................................................63
Access Point Mode ....................................................................................................................71
WISP Mode ...............................................................................................................................79
Tutorials .....................................................................................................................................89
Network ...................................................................................................................................97
Wireless LAN .............................................................................................................................99
WAN ........................................................................................................................................119
LAN ..........................................................................................................................................135
DHCP Server ...........................................................................................................................139
Network Address Translation (NAT) ........................................................................................143
Dynamic DNS ..........................................................................................................................151
Static Route .............................................................................................................................153
RIP ...........................................................................................................................................157
Security .................................................................................................................................159
Firewall ....................................................................................................................................161
Content Filter ...........................................................................................................................167
Management .........................................................................................................................171
Bandwidth Management ..........................................................................................................173
Remote Management ..............................................................................................................183
Universal Plug-and-Play (UPnP) .............................................................................................187
Maintenance and Troubleshooting ....................................................................................195
Maintenance ............................................................................................................................197
Password .................................................................................................................................199
Time .........................................................................................................................................201
Firmware Upgrade ...................................................................................................................205
Backup/Restore .......................................................................................................................207
Company Confidential
![](/img.php?id=1180986&img=bga.png)
Contents Overview
NBG-419N User s Guide
10
Reset/Restart ...........................................................................................................................211
Sys OP Mode ..........................................................................................................................213
Troubleshooting .......................................................................................................................217
Appendices and Index .........................................................................................................231
Company Confidential
![](/img.php?id=1180986&img=bgb.png)
Table of Contents
NBG-419N User s Guide 11
Table of Contents
About This User's Guide..........................................................................................................3
Document Conventions............................................................................................................5
Safety Warnings........................................................................................................................7
Contents Overview...................................................................................................................9
Table of Contents....................................................................................................................11
Part I: Introduction.................................................................................19
Chapter 1
Getting to Know Your NBG-419N..........................................................................................21
1.1 Overview ..............................................................................................................................21
1.2 Applications .........................................................................................................................21
1.3 Ways to Manage the NBG-419N .........................................................................................22
1.4 Good Habits for Managing the NBG-419N ..........................................................................22
1.5 LEDs ....................................................................................................................................22
Chapter 2
Connection Wizard.................................................................................................................25
2.1 Overview ..............................................................................................................................25
2.2 Accessing the Wizard ..........................................................................................................25
2.3 Connect to Internet ..............................................................................................................26
2.3.1 Connection Type: DHCP ............................................................................................27
2.3.2 Connection Type: Static IP .........................................................................................28
2.3.3 Connection Type: PPPoE ..........................................................................................28
2.3.4 Connection Type: PPTP .............................................................................................30
2.3.5 Connection Type: L2TP .............................................................................................31
2.4 Router Password .................................................................................................................33
2.5 Wireless Security .................................................................................................................33
2.5.1 Wireless Security: No Security ...................................................................................33
2.5.2 Wireless Security: WPA-PSK/WPA2-PSK .................................................................34
Chapter 3
Introducing the Web Configurator........................................................................................37
3.1 Overview ..............................................................................................................................37
Company Confidential
![](/img.php?id=1180986&img=bgc.png)
Table of Contents
NBG-419N User s Guide
12
3.2 Accessing the Web Configurator .........................................................................................37
3.2.1 Login Screen ..............................................................................................................38
3.2.2 Password Screen .......................................................................................................39
3.2.3 Home Screen .............................................................................................................39
3.3 Resetting the NBG-419N .....................................................................................................41
3.3.1 Procedure to Use the Reset Button ...........................................................................42
Chapter 4
Monitor.....................................................................................................................................43
4.1 Overview ..............................................................................................................................43
4.2 What You Can Do ................................................................................................................43

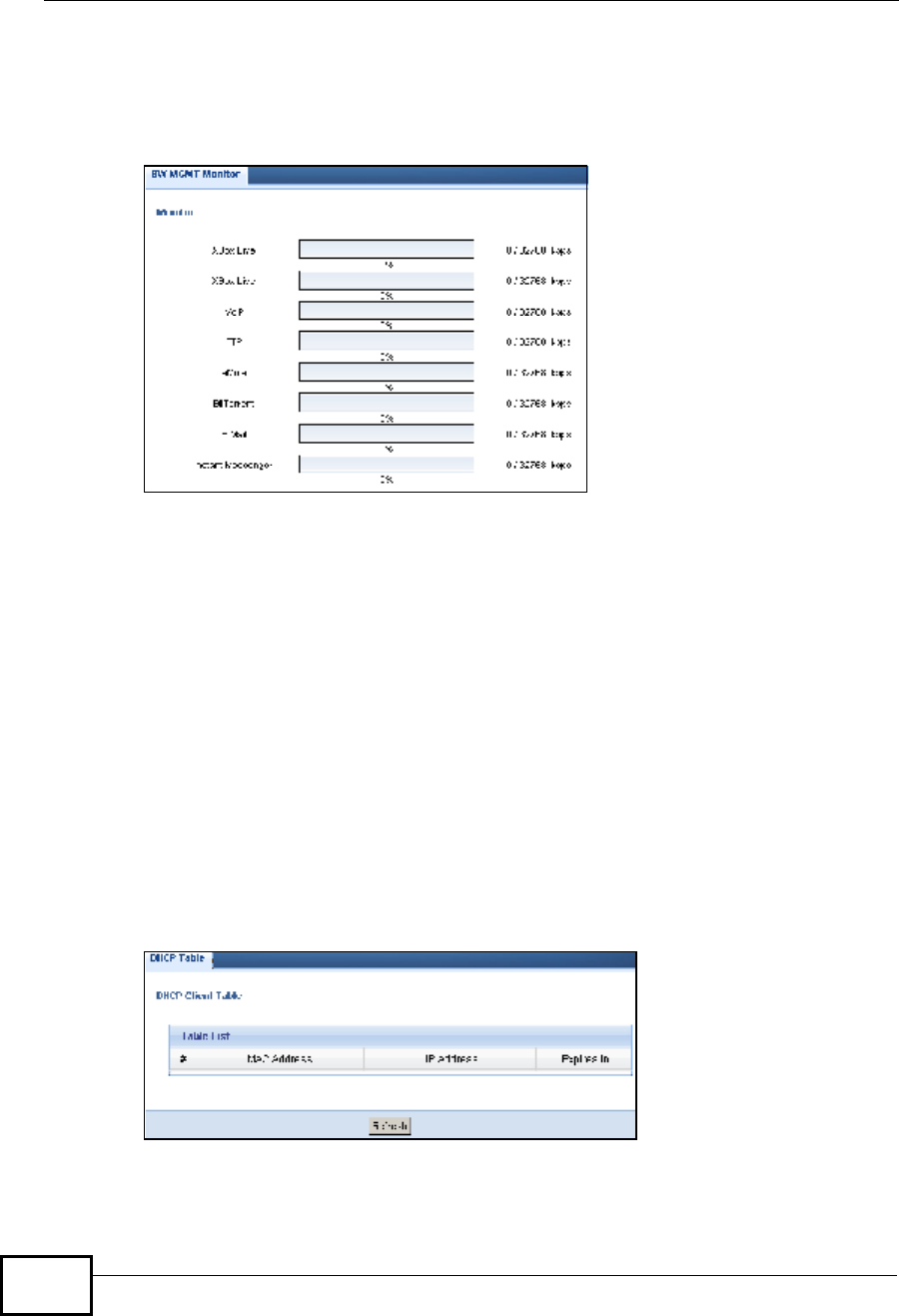

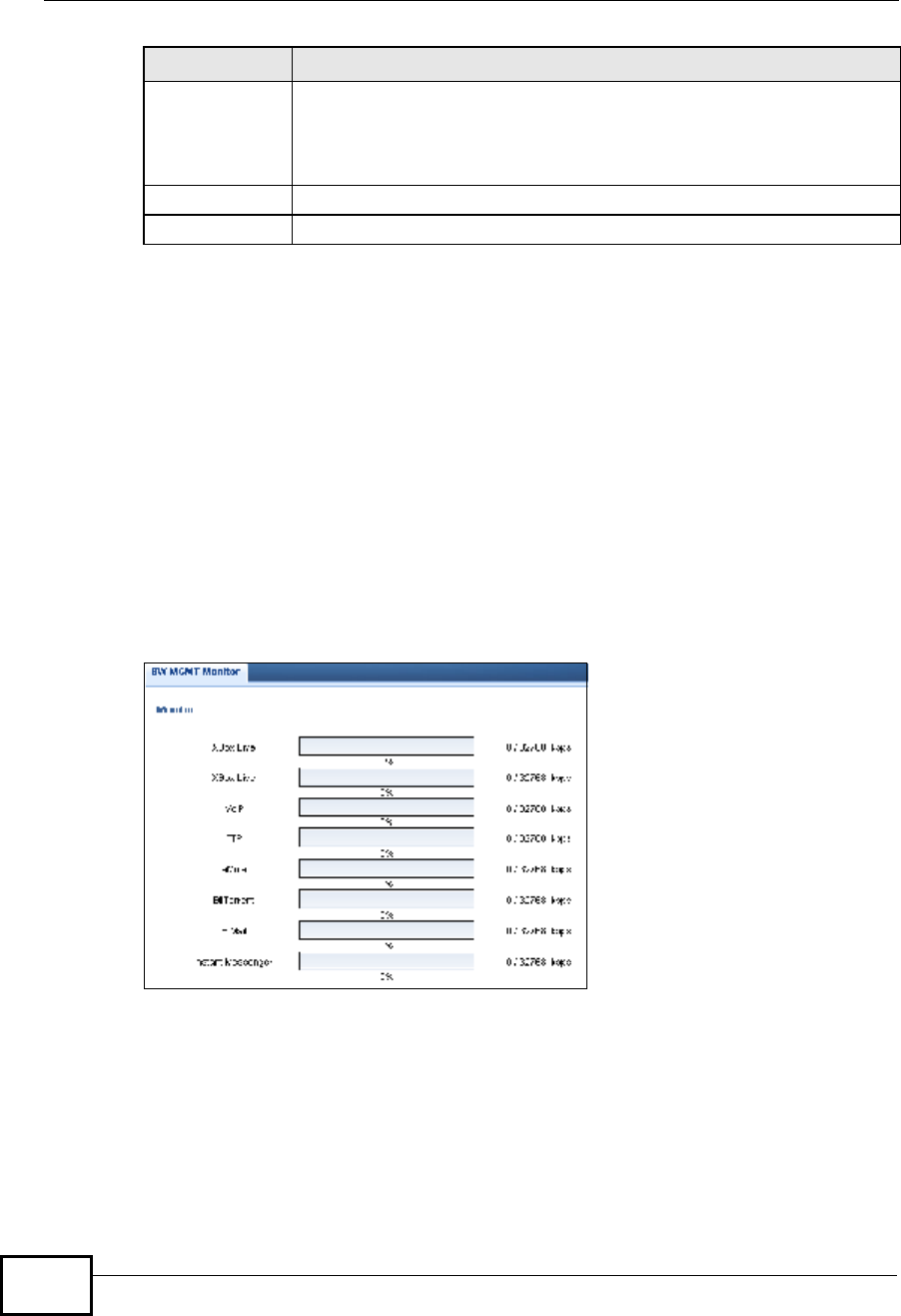

4.3 BW MGMT Monitor ..............................................................................................................43
4.4 DHCP Table .....................................................................................................................44

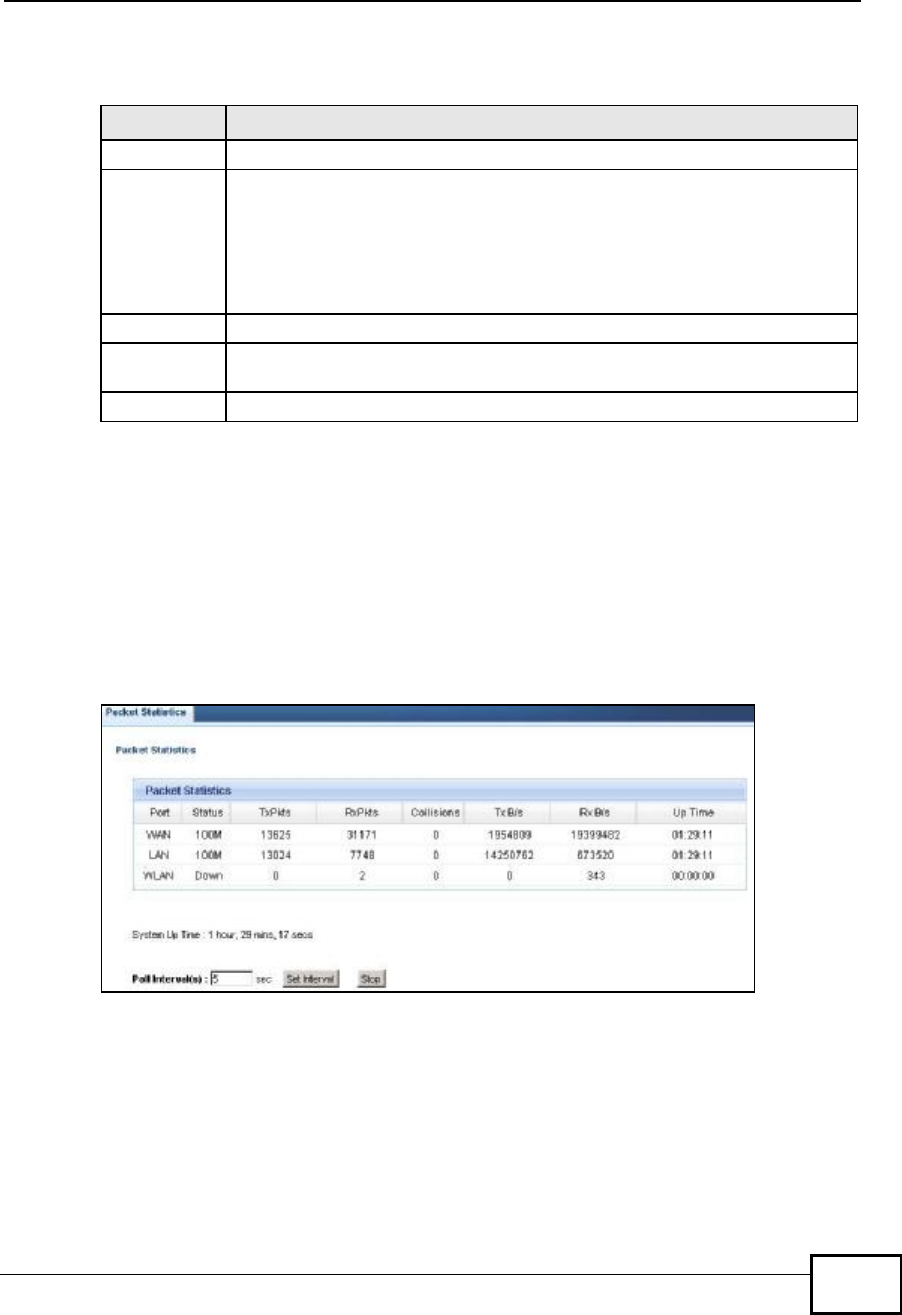

4.5 Packet Statistics ...............................................................................................................45
4.6 WLAN Station Status .......................................................................................................46
Chapter 5
NBG-419N Modes....................................................................................................................49
5.1 Overview ..............................................................................................................................49
5.1.1 Web Configurator Modes ...........................................................................................49
5.1.2 Device Modes ............................................................................................................49
Chapter 6
Easy Mode...............................................................................................................................51
6.1 Overview ..............................................................................................................................51
6.2 What You Can Do ................................................................................................................52
6.3 What You Need to Know .....................................................................................................52
6.4 Navigation Panel .................................................................................................................53
6.5 Network Map .......................................................................................................................53
6.6 Control Panel .......................................................................................................................54

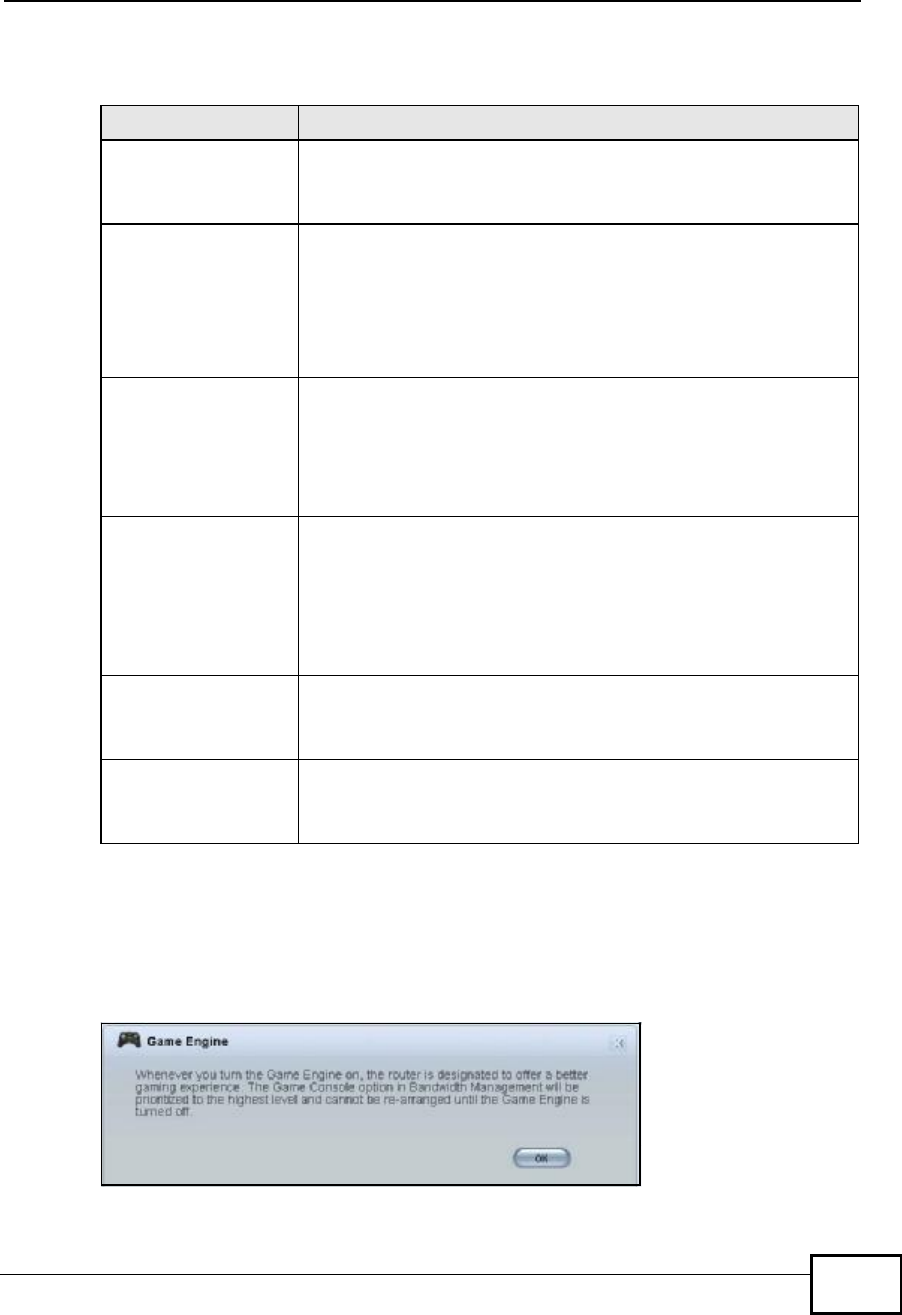

6.6.1 Game Engine .............................................................................................................55
6.6.2 Power Saving .............................................................................................................56
6.6.3 Content Filter ..............................................................................................................57
6.6.4 Bandwidth MGMT ......................................................................................................58
6.6.5 Firewall .......................................................................................................................58
6.6.6 Wireless Security .......................................................................................................59

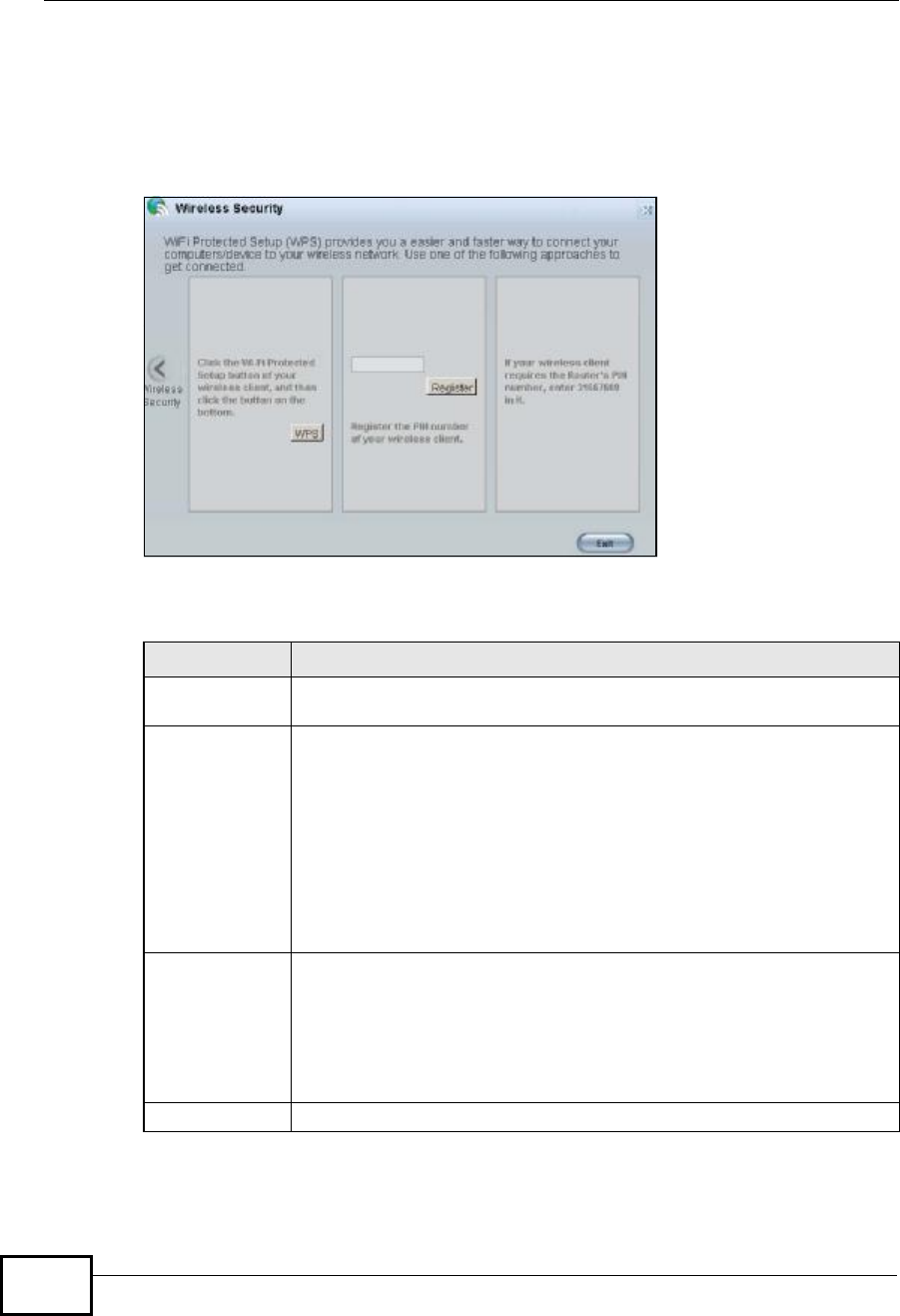

6.6.7 WPS ...........................................................................................................................60
6.7 Status Screen in Easy Mode ...............................................................................................61
Chapter 7
Router Mode............................................................................................................................63
7.1 Overview ..............................................................................................................................63
7.2 What You Can Do ................................................................................................................63
Company Confidential
![](/img.php?id=1180986&img=bgd.png)
Table of Contents
NBG-419N User s Guide 13
7.3 Status Screen ......................................................................................................................64
7.3.1 Navigation Panel ........................................................................................................67
Chapter 8
Access Point Mode.................................................................................................................71
8.1 Overview ..............................................................................................................................71
8.2 What You Can Do ................................................................................................................71
8.3 What You Need to Know .....................................................................................................72
8.3.1 Setting your NBG-419N to AP Mode ..........................................................................72
8.3.2 Accessing the Web Configurator in Access Point Mode ............................................73
8.3.3 Configuring your WLAN, Bandwidth Management and Maintenance Settings ..........73
8.4 AP Mode Status Screen ......................................................................................................74
8.5 LAN Screen .........................................................................................................................76
Chapter 9
WISP Mode..............................................................................................................................79
9.1 Overview ..............................................................................................................................79
9.2 What You Can Do ................................................................................................................79
9.3 What You Need to Know .....................................................................................................80
9.3.1 Setting your NBG-419N to WISP Mode .....................................................................80
9.3.2 Accessing the Web Configurator in WISP Mode ........................................................80
9.4 WISP Mode Status Screen ..................................................................................................81
9.5 Wireless LAN General Screen .............................................................................................84
9.5.1 Static WEP .................................................................................................................85
9.5.2 WPA(2)-PSK ..............................................................................................................87
9.5.3 Advance Screen .........................................................................................................88
Chapter 10
Tutorials...................................................................................................................................89
10.1 Overview ............................................................................................................................89
10.2 Connecting to the Internet from an Access Point ..............................................................89
10.3 Configuring Wireless Security Using WPS ........................................................................89
10.3.1 Push Button Configuration (PBC) ............................................................................90
10.3.2 PIN Configuration .....................................................................................................91
10.4 Enabling and Configuring Wireless Security (No WPS) ....................................................93
10.4.1 Configure Your Notebook .........................................................................................94
Part II: Network.......................................................................................97
Chapter 11
Wireless LAN...........................................................................................................................99
Company Confidential
![](/img.php?id=1180986&img=bge.png)
Table of Contents
NBG-419N User s Guide
14
11.1 Overview ............................................................................................................................99
11.2 What You Can Do ............................................................................................................100
11.3 What You Should Know ...................................................................................................100
11.3.1 Wireless Security Overview ...................................................................................100

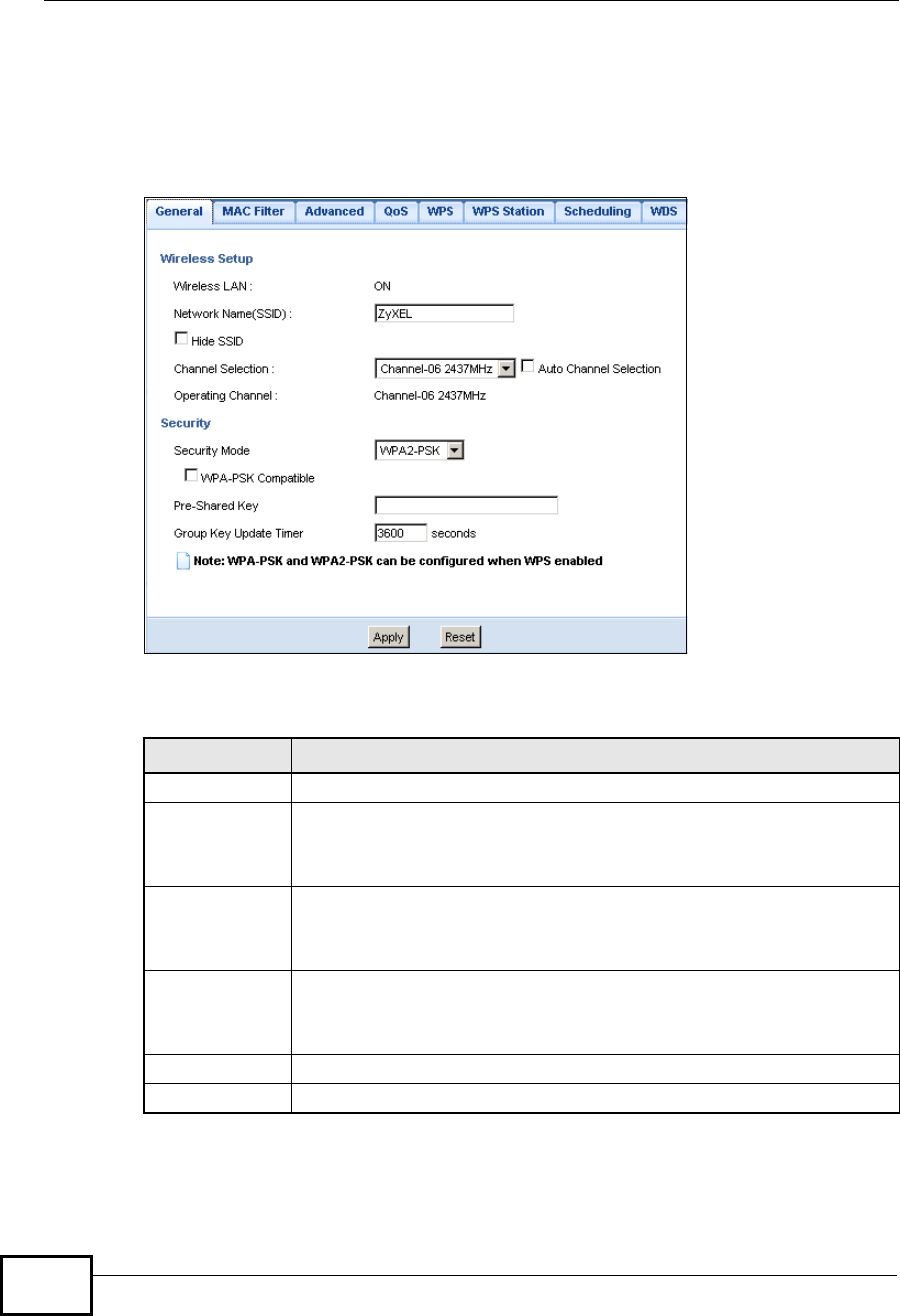

11.4 General Wireless LAN Screen ........................................................................................103
11.4.1 No Security .............................................................................................................104
11.4.2 WEP Encryption .....................................................................................................105
11.4.3 WPA-PSK/WPA2-PSK ...........................................................................................108
11.5 MAC Filter ........................................................................................................................109
11.6 Wireless LAN Advanced Screen .....................................................................................110
11.7 Quality of Service (QoS) Screen .....................................................................................111
11.8 WPS Screen ....................................................................................................................112
11.9 WPS Station Screen ........................................................................................................113
11.10 Scheduling Screen ........................................................................................................114
11.11 WDS Screen ..................................................................................................................115
Chapter 12
WAN.......................................................................................................................................119
12.1 Overview ..........................................................................................................................119
12.2 What You Can Do ............................................................................................................119
12.3 What You Need To Know ................................................................................................120
12.3.1 Configuring Your Internet Connection ....................................................................120
12.3.2 Multicast .................................................................................................................121

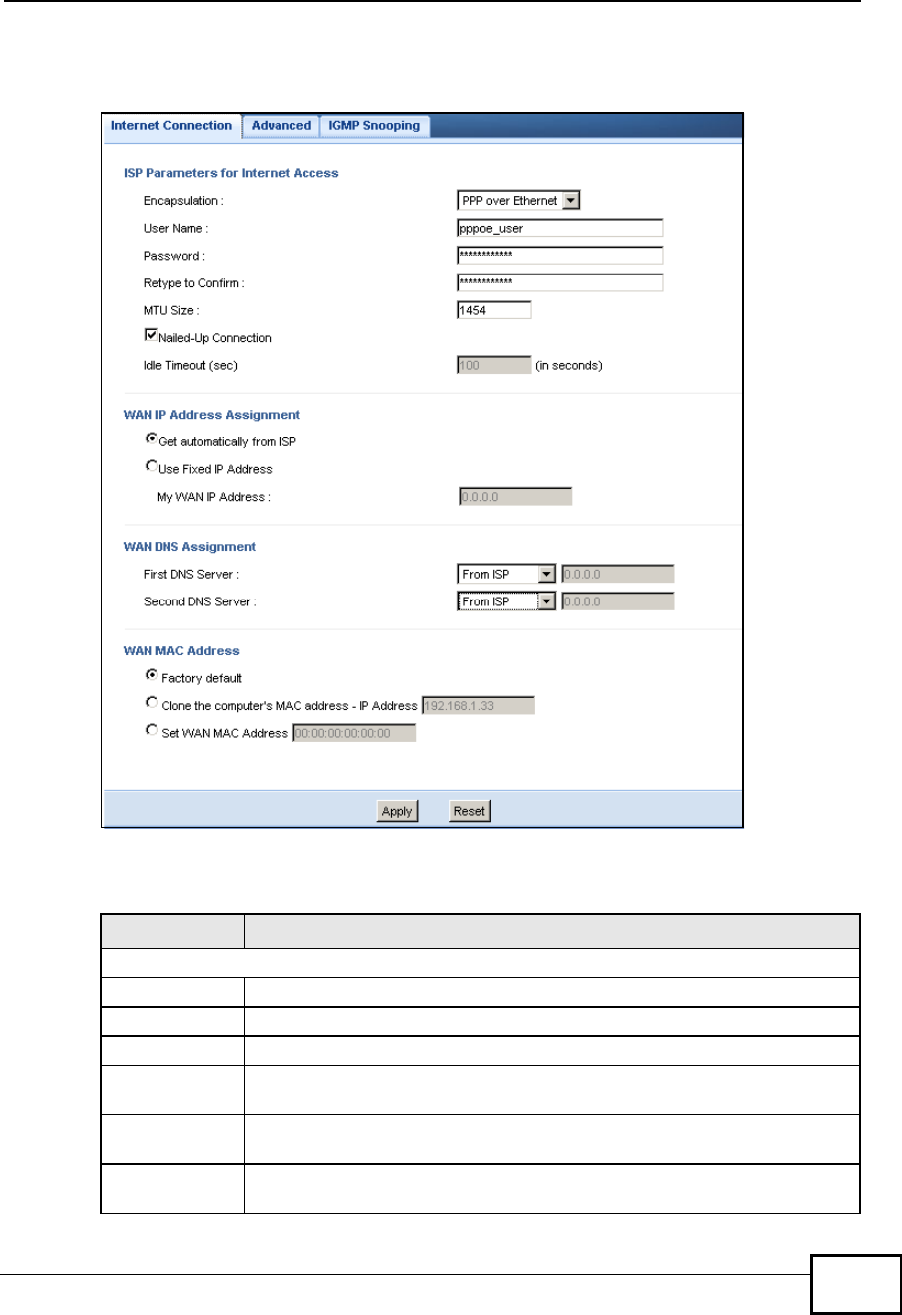

12.4 Internet Connection .........................................................................................................122
12.4.1 Ethernet Encapsulation ..........................................................................................122
12.4.2 PPPoE Encapsulation ............................................................................................124
12.4.3 PPTP Encapsulation ..............................................................................................126
12.4.4 L2TP Encapsulation ...............................................................................................129
12.5 Advanced WAN Screen ...................................................................................................132
12.6 IGMP Snooping Screen ...................................................................................................132
Chapter 13
LAN.........................................................................................................................................135
13.1 Overview ..........................................................................................................................135
13.2 What You Can Do ............................................................................................................135
13.3 What You Need To Know ................................................................................................136
13.3.1 IP Pool Setup .........................................................................................................136
13.3.2 LAN TCP/IP ............................................................................................................136
13.3.3 IP Alias ...................................................................................................................137
13.4 LAN IP Screen .................................................................................................................137
13.5 IP Alias Screen ................................................................................................................138
Chapter 14
DHCP Server..........................................................................................................................139
Company Confidential
![](/img.php?id=1180986&img=bgf.png)
Table of Contents
NBG-419N User s Guide 15
14.1 Overview ..........................................................................................................................139
14.2 What You Can Do ............................................................................................................139
14.3 General Screen ...............................................................................................................139
14.4 Advanced Screen .........................................................................................................140
Chapter 15

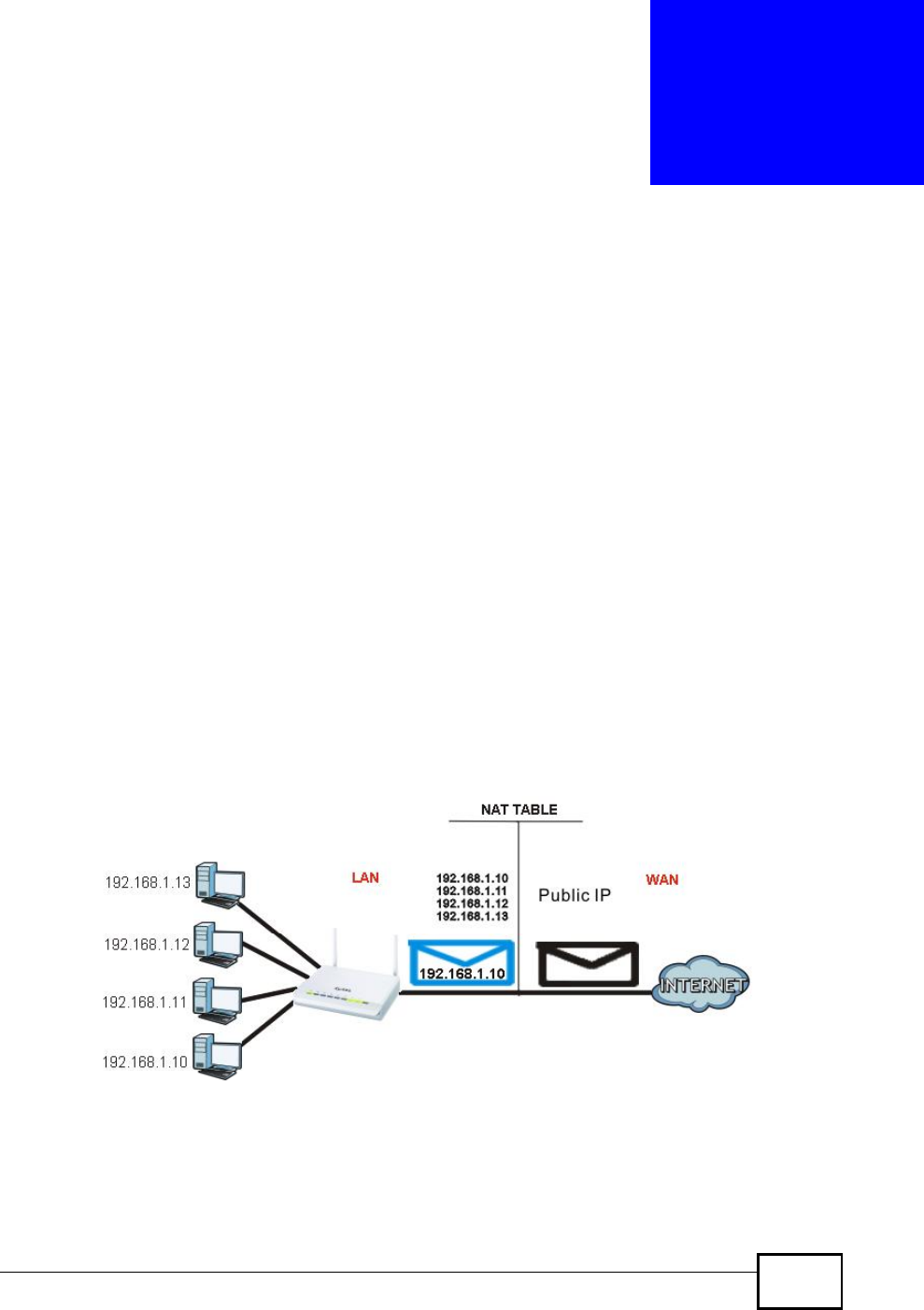

Network Address Translation (NAT)...................................................................................143
15.1 Overview .......................................................................................................................143
15.2 What You Can Do ............................................................................................................144
15.3 General NAT Screen .......................................................................................................144
15.4 NAT Application Screen ................................................................................................145
15.5 NAT Advanced Screen ....................................................................................................147
15.5.1 Trigger Port Forwarding Example ..........................................................................149
15.5.2 Two Points To Remember About Trigger Ports .....................................................149
Chapter 16
Dynamic DNS........................................................................................................................151
16.1 Overview .........................................................................................................................151
16.2 What You Can Do ............................................................................................................151
16.3 What You Need To Know ................................................................................................151

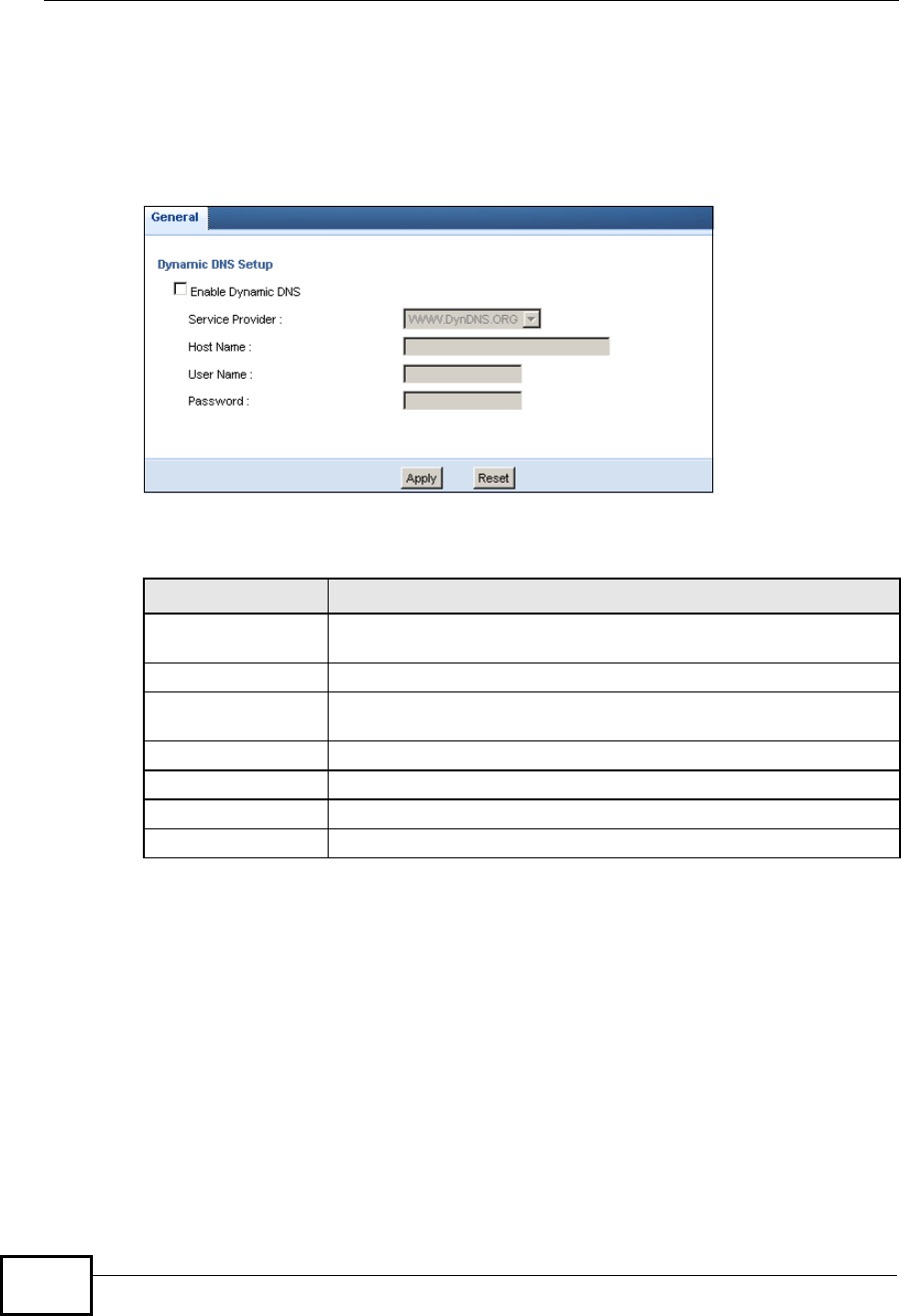

16.4 Dynamic DNS Screen ....................................................................................................152
Chapter 17
Static Route...........................................................................................................................153
17.1 Overview .......................................................................................................................153
17.2 What You Can Do ............................................................................................................153
17.3 IP Static Route Screen ...................................................................................................154
Chapter 18
RIP..........................................................................................................................................157
18.1 Overview .........................................................................................................................157
18.2 What You Can Do ............................................................................................................157

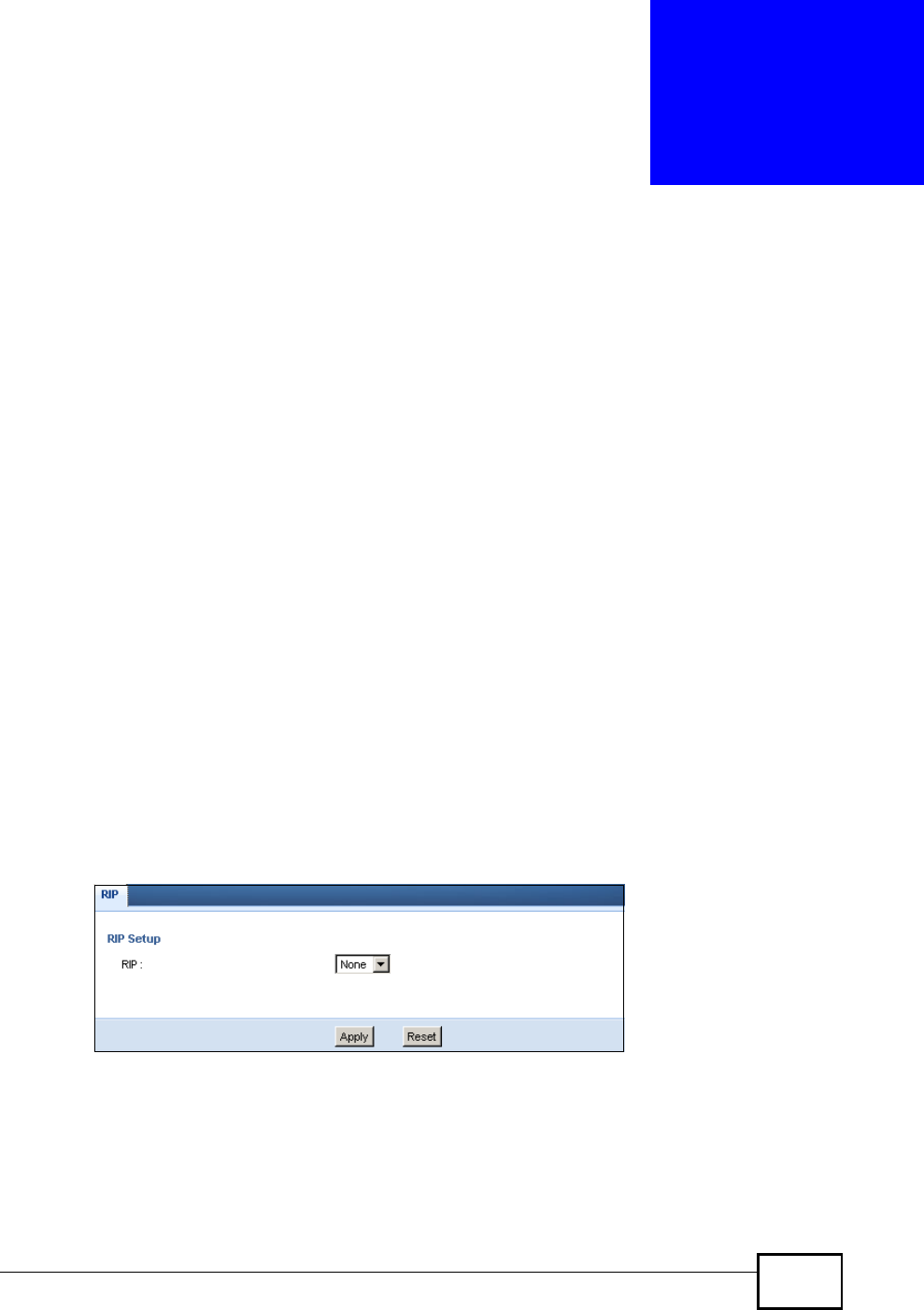

18.3 RIP Screen ....................................................................................................................157
Part III: Security....................................................................................159
Chapter 19
Firewall...................................................................................................................................161
19.1 Overview ........................................................................................................................161
19.2 What You Can Do ............................................................................................................162
19.3 What You Need To Know ................................................................................................162
Company Confidential
![](/img.php?id=1180986&img=bg10.png)
Table of Contents
NBG-419N User s Guide
16
19.4 General Firewall Screen ...............................................................................................163
19.5 Services Screen ...........................................................................................................163
Chapter 20
Content Filter.........................................................................................................................167
20.1 Overview ..........................................................................................................................167
20.2 What You Can Do ............................................................................................................167
20.3 What You Need To Know ................................................................................................167
20.3.1 Content Filtering Profiles ........................................................................................167

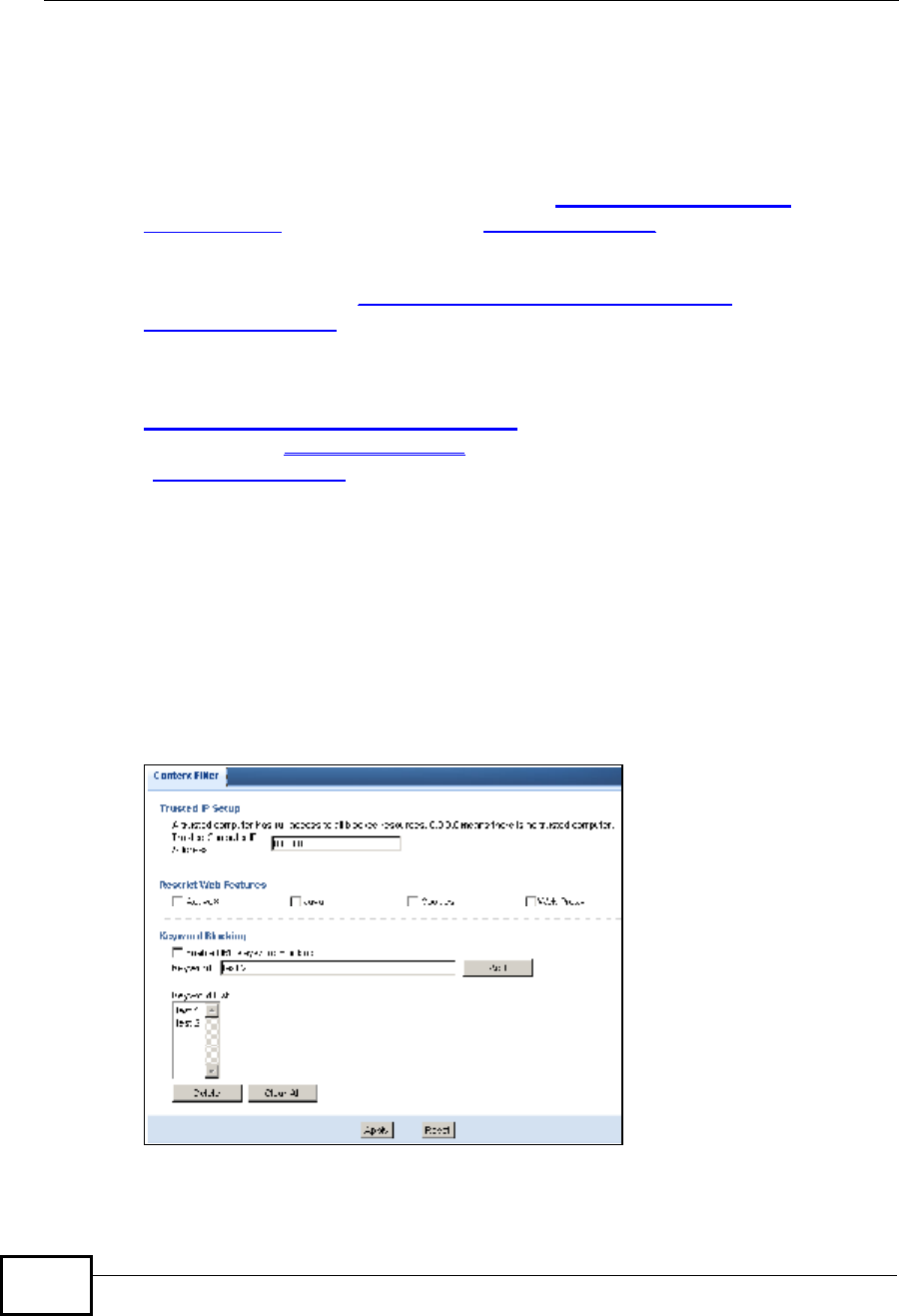

20.4 Content Filter Screen .......................................................................................................168
Part IV: Management...........................................................................171
Chapter 21
Bandwidth Management.......................................................................................................173
21.1 Overview .........................................................................................................................173
21.2 What You Can Do ............................................................................................................173
21.3 What You Need To Know ................................................................................................174
21.4 General Screen ..............................................................................................................174

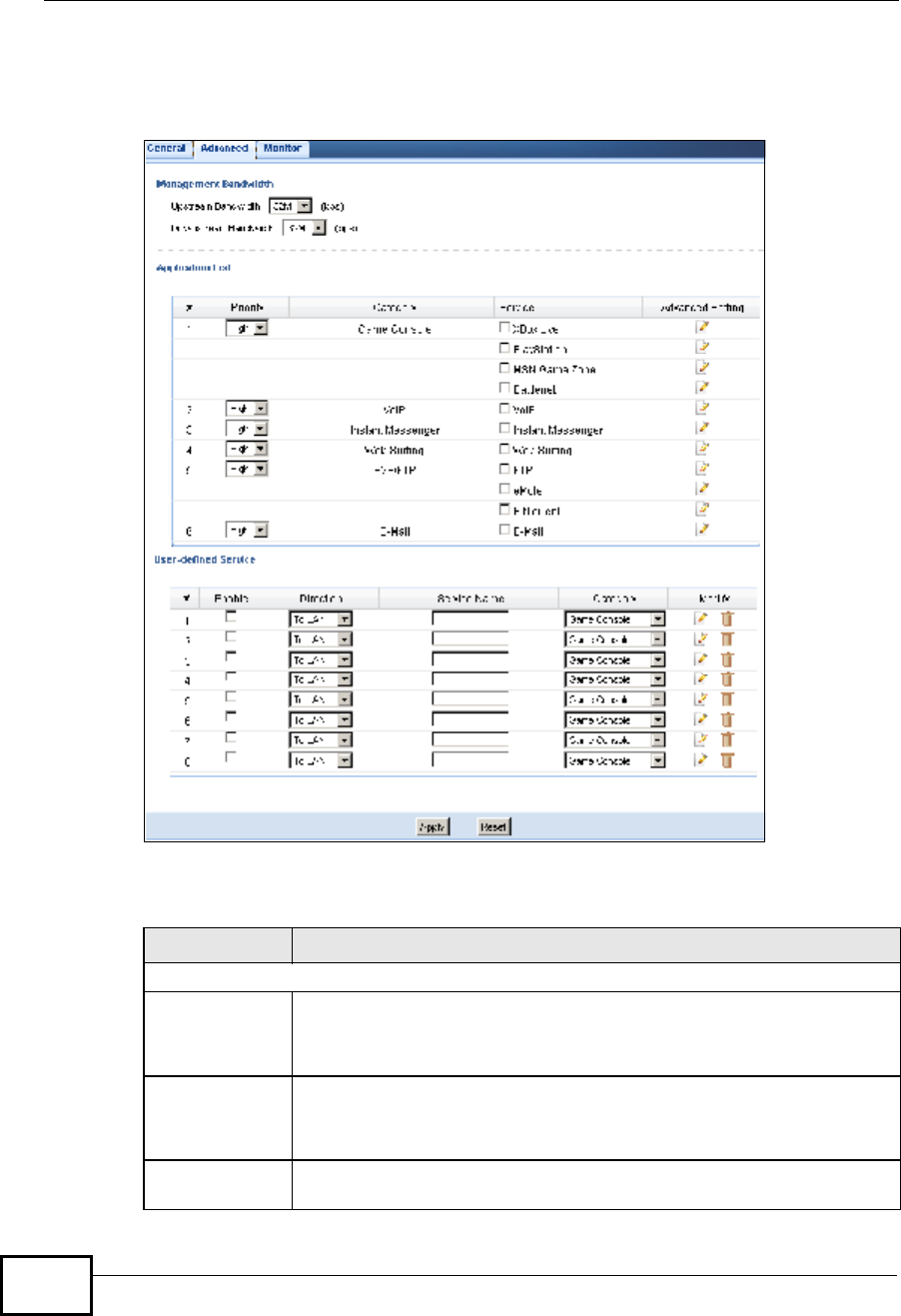

21.5 Advanced Screen ...........................................................................................................175
21.5.1 Rule Configuration: Application Rule Configuration ............................................178
21.5.2 Rule Configuration: User Defined Service Rule Configuration ............................179
21.6 Monitor Screen ................................................................................................................180
21.6.1 Predefined Bandwidth Management Services .......................................................181
Chapter 22
Remote Management............................................................................................................183
22.1 Overview ..........................................................................................................................183
22.2 What You Can Do ............................................................................................................183
22.3 What You Need to Know .................................................................................................183
22.3.1 Remote Management and NAT .............................................................................184
22.3.2 System Timeout ....................................................................................................184
22.4 WWW Screen ...............................................................................................................184
Chapter 23
Universal Plug-and-Play (UPnP)..........................................................................................187
23.1 Overview .........................................................................................................................187
23.2 What You Can Do ............................................................................................................187
23.3 What You Need to Know .................................................................................................187
23.3.1 NAT Traversal ........................................................................................................187
23.3.2 Cautions with UPnP ...............................................................................................188
Company Confidential
![](/img.php?id=1180986&img=bg11.png)
Table of Contents
NBG-419N User s Guide 17
23.4 UPnP Screen ..................................................................................................................188
23.5 Technical Refereance ......................................................................................................189

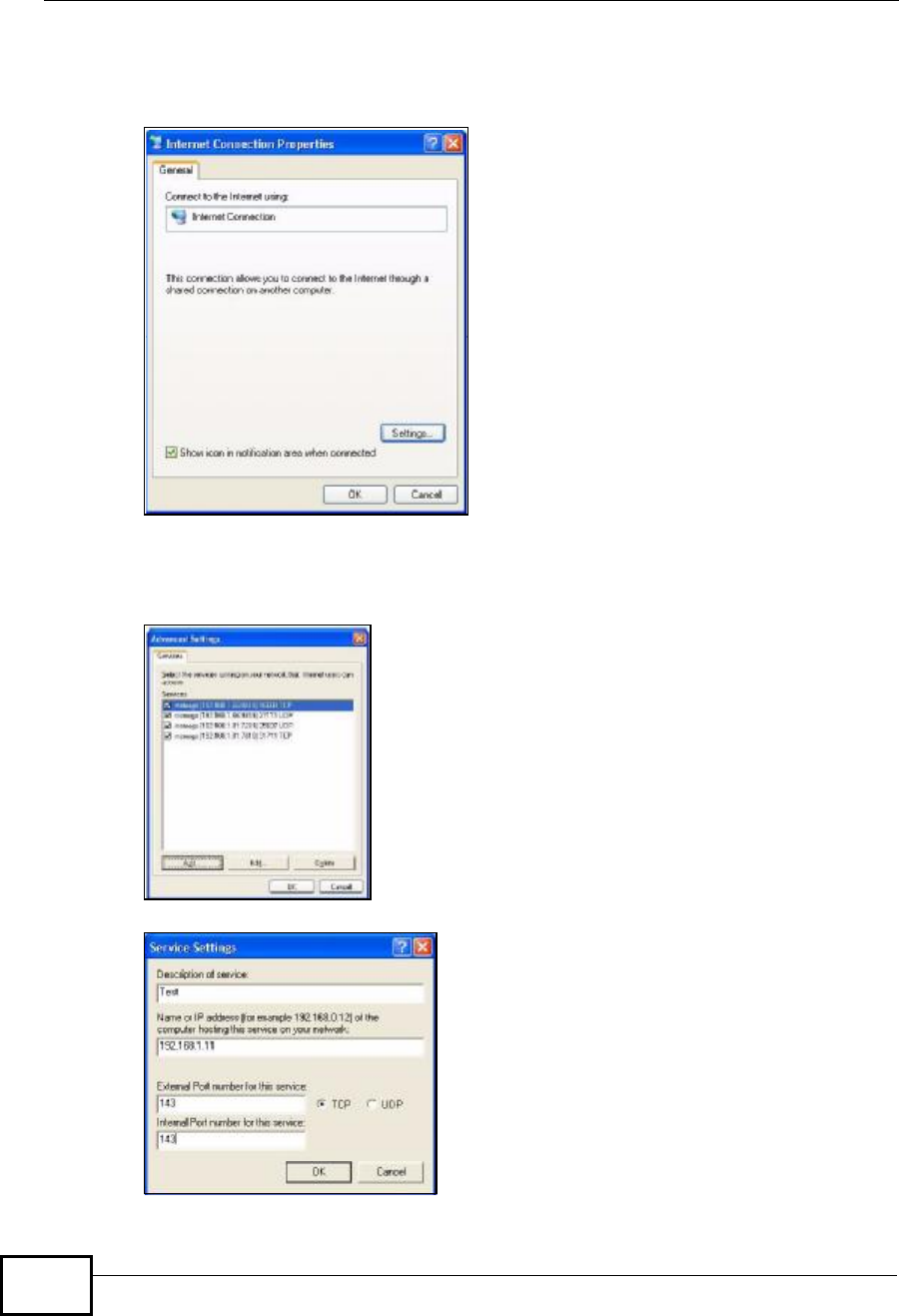

23.5.1 Using UPnP in Windows XP Example ...................................................................189
23.5.2 Web Configurator Easy Access .............................................................................191
Part V: Maintenance and Troubleshooting........................................195
Chapter 24
Maintenance..........................................................................................................................197
24.1 Overview ..........................................................................................................................197
24.2 What You Can Do ............................................................................................................197
24.3 General Screen ..............................................................................................................197
Chapter 25
Password...............................................................................................................................199
25.1 Overview ..........................................................................................................................199
25.2 What You Can Do ............................................................................................................199
25.3 What You Need to Know .................................................................................................199
25.4 Password Screen ............................................................................................................200
Chapter 26
Time........................................................................................................................................201
26.1 Overview ..........................................................................................................................201
26.2 What You Can Do ............................................................................................................201
26.3 Time Setting Screen ........................................................................................................201
Chapter 27
Firmware Upgrade................................................................................................................205
27.1 Overview ..........................................................................................................................205
27.2 What You Can Do ............................................................................................................205
27.3 Firmware Upload Screen .................................................................................................205
Chapter 28
Backup/Restore.....................................................................................................................207
28.1 Overview ..........................................................................................................................207
28.2 What You Can Do ............................................................................................................207
28.3 Configuration Screen .......................................................................................................208
Chapter 29
Reset/Restart.........................................................................................................................211
29.1 Overview ..........................................................................................................................211
Company Confidential
![](/img.php?id=1180986&img=bg12.png)
Table of Contents
NBG-419N User s Guide
18
29.2 What You Can Do ............................................................................................................211
29.3 Reset/Restart Screen ......................................................................................................211
Chapter 30
Sys OP Mode.........................................................................................................................213
30.1 Overview ..........................................................................................................................213
30.2 What You Can Do ............................................................................................................213
30.3 What You Need to Know .................................................................................................213
30.4 Sys Op Mode Screen ......................................................................................................215
Chapter 31
Troubleshooting....................................................................................................................217
31.1 Power, Hardware Connections, and LEDs ......................................................................217
31.2 NBG-419N Access and Login ..........................................................................................218
31.3 Internet Access ................................................................................................................220
31.4 Resetting the NBG-419N to Its Factory Defaults .............................................................221
31.5 Wireless Router/AP Troubleshooting ..............................................................................222
Chapter 32
Chapter 32 Product Specifications.....................................................................................225
32.1 Wall-mounting Instructions ..............................................................................................228
Part VI: Appendices and Index...........................................................231
Appendix A Pop-up Windows, JavaScripts and Java Permissions......................................233
Appendix B IP Addresses and Subnetting...........................................................................241

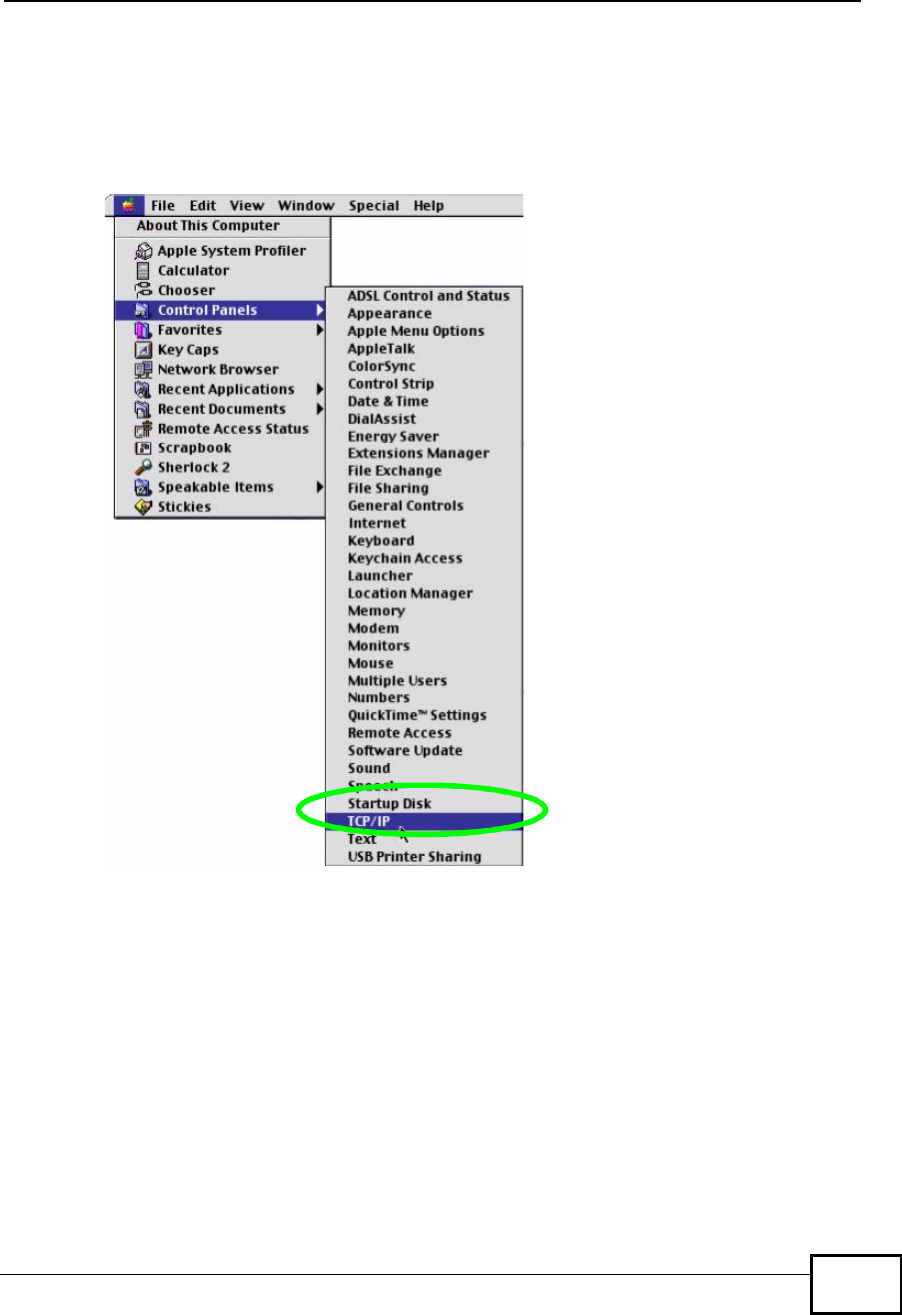

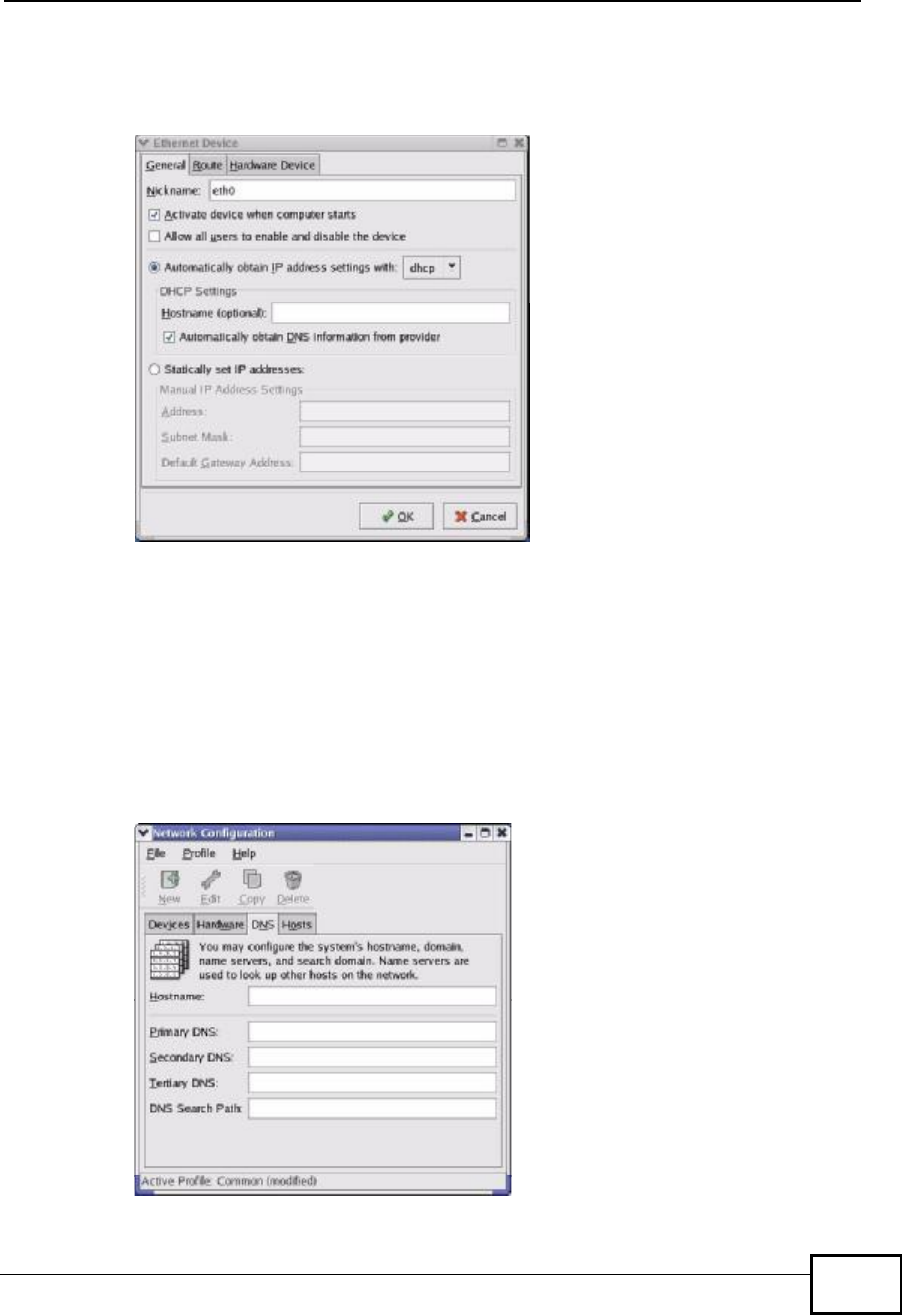

Appendix C Setting up Your Computer s IP Address...........................................................251
32.1.1 Verifying Settings ...................................................................................................268
Appendix D Wireless LANs..................................................................................................269
32.1.2 WPA(2)-PSK Application Example .........................................................................279
32.1.3 WPA(2) with RADIUS Application Example ...........................................................279
Appendix E Common Services.............................................................................................281
Appendix F Legal Information..............................................................................................285
Index.......................................................................................................................................293
Company Confidential
![](/img.php?id=1180986&img=bg13.png)
19
PART I
Introduction
Getting to Know Your NBG-419N (21)
Connection Wizard (25)
Introducing the Web Configurator (37)
NBG-419N Modes (49)
Monitor (43)
Tutorials (89)
Company Confidential
![](/img.php?id=1180986&img=bg14.png)
20
Company Confidential
![](/img.php?id=1180986&img=bg15.png)
NBG-419N User s Guide 21
CHAPTER 1
Getting to Know Your NBG-419N
1.1 Overview
This chapter introduces the main features and applications of the NBG-419N.
The NBG-419N extends the range of your existing wired network without
additional wiring, providing easy network access to mobile users. You can set up a
wireless network with other IEEE 802.11b/g/n compatible devices.
A range of services such as a firewall and content filtering are also available for
secure Internet computing. You can use media bandwidth management to
efficiently manage traffic on your network. Bandwidth management features allow
you to prioritize time-sensitive or highly important applications such as Voice over
the Internet (VoIP).
1.2 Applications
Your can create the following networks using the NBG-419N:
Wired. You can connect network devices via the Ethernet ports of the NBG-
419N so that they can communicate with each other and access the Internet.
Wireless. Wireless clients can connect to the NBG-419N to access network
resources.
WAN. Connect to a broadband modem/router for Internet access.

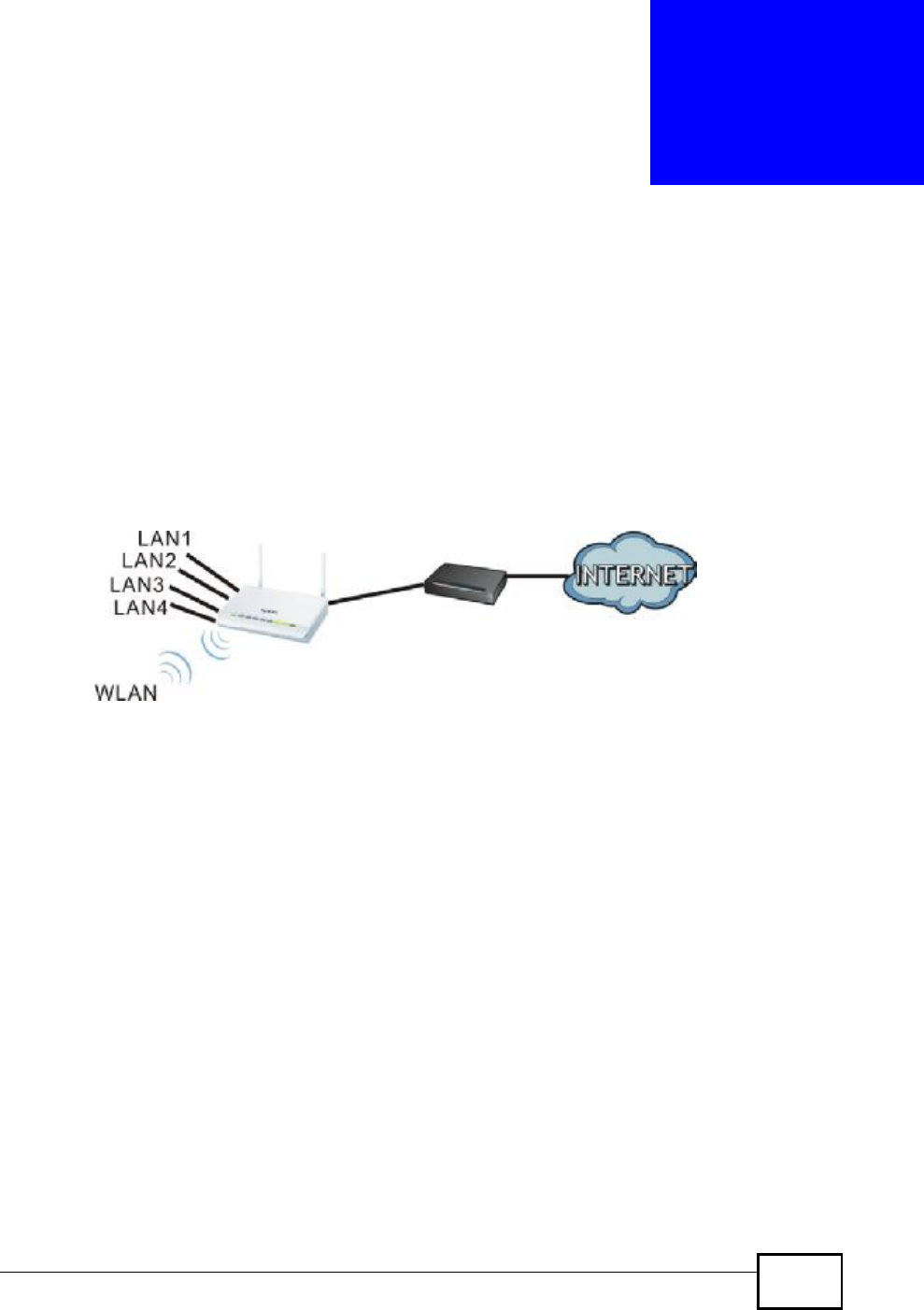

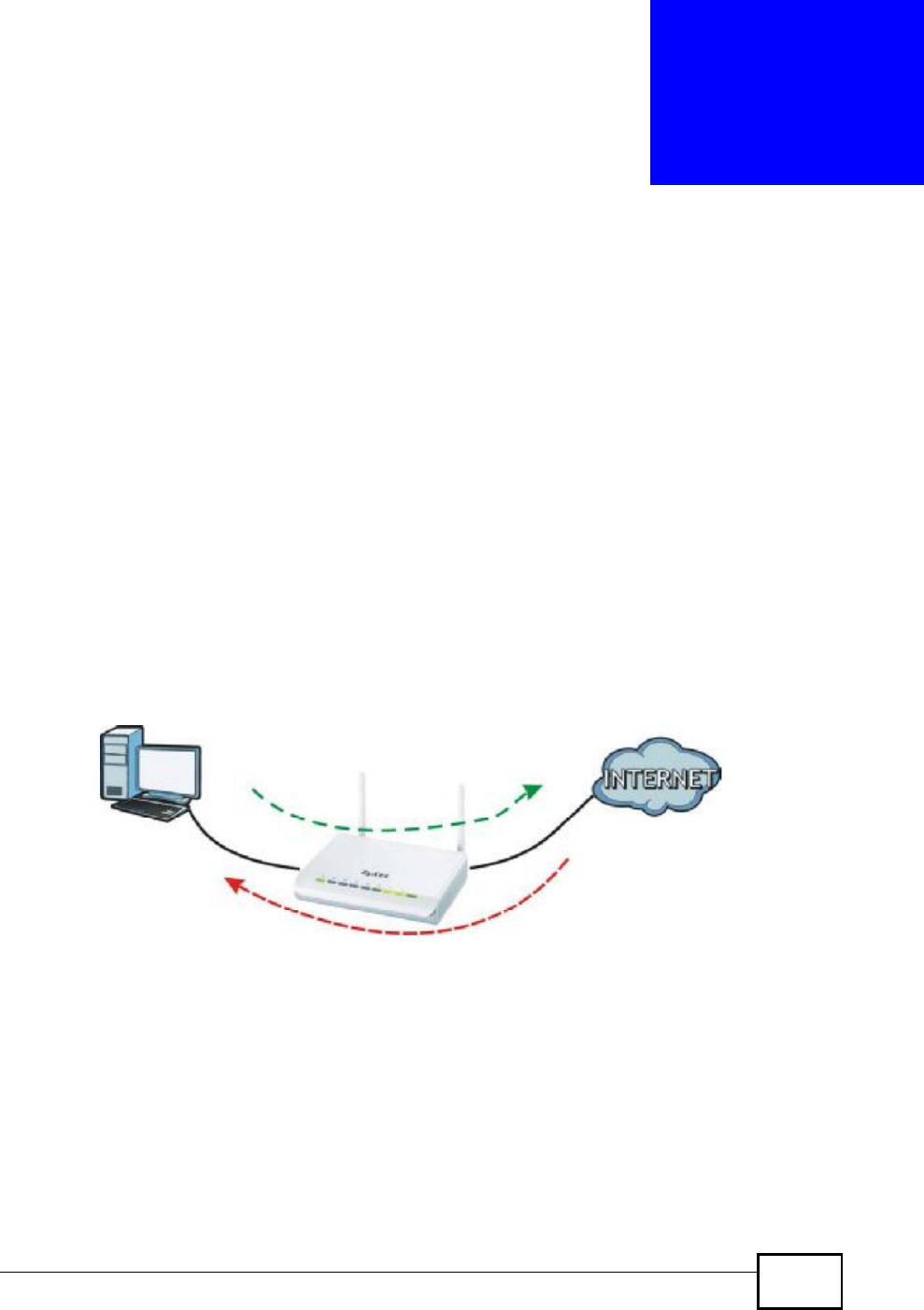

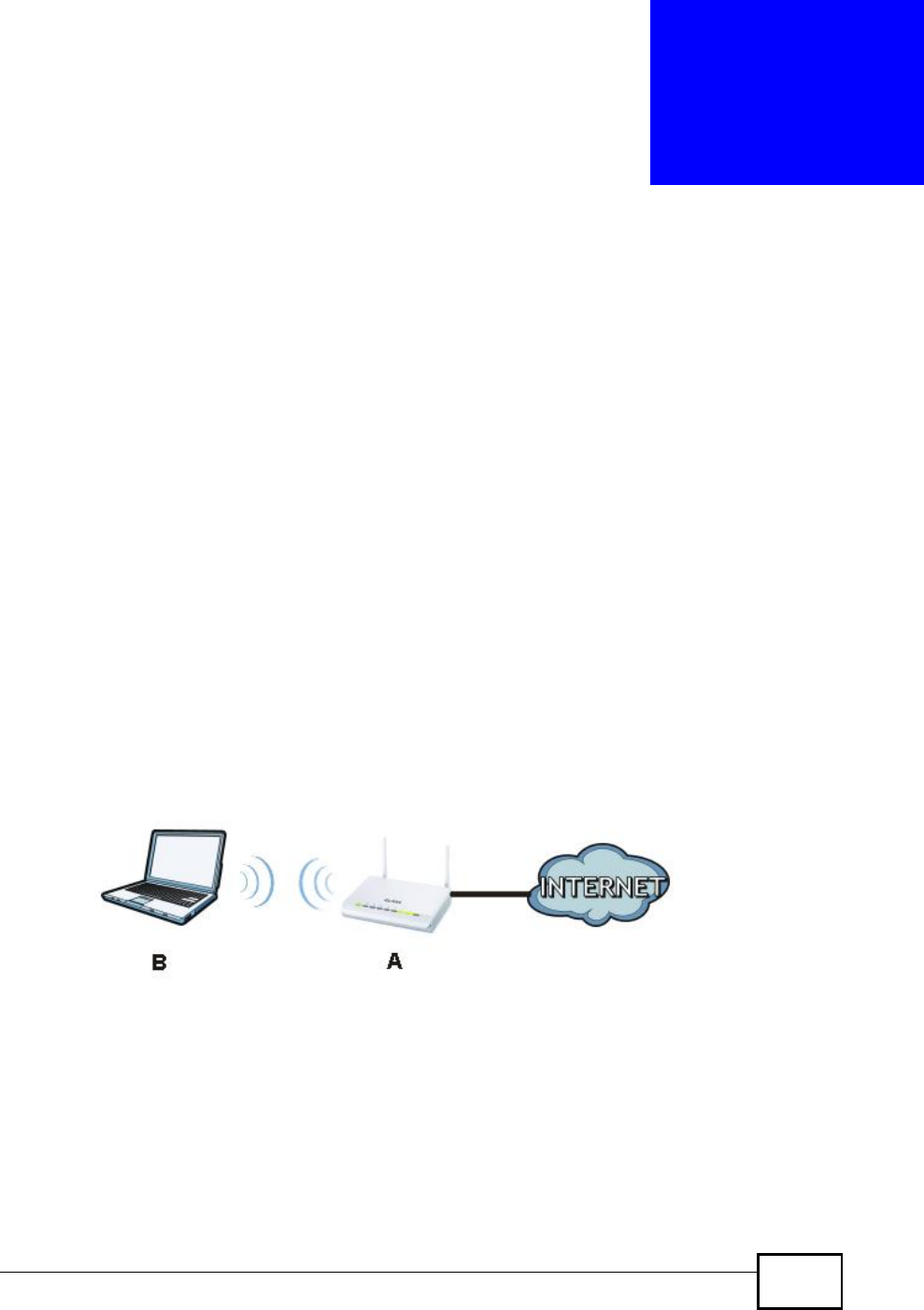

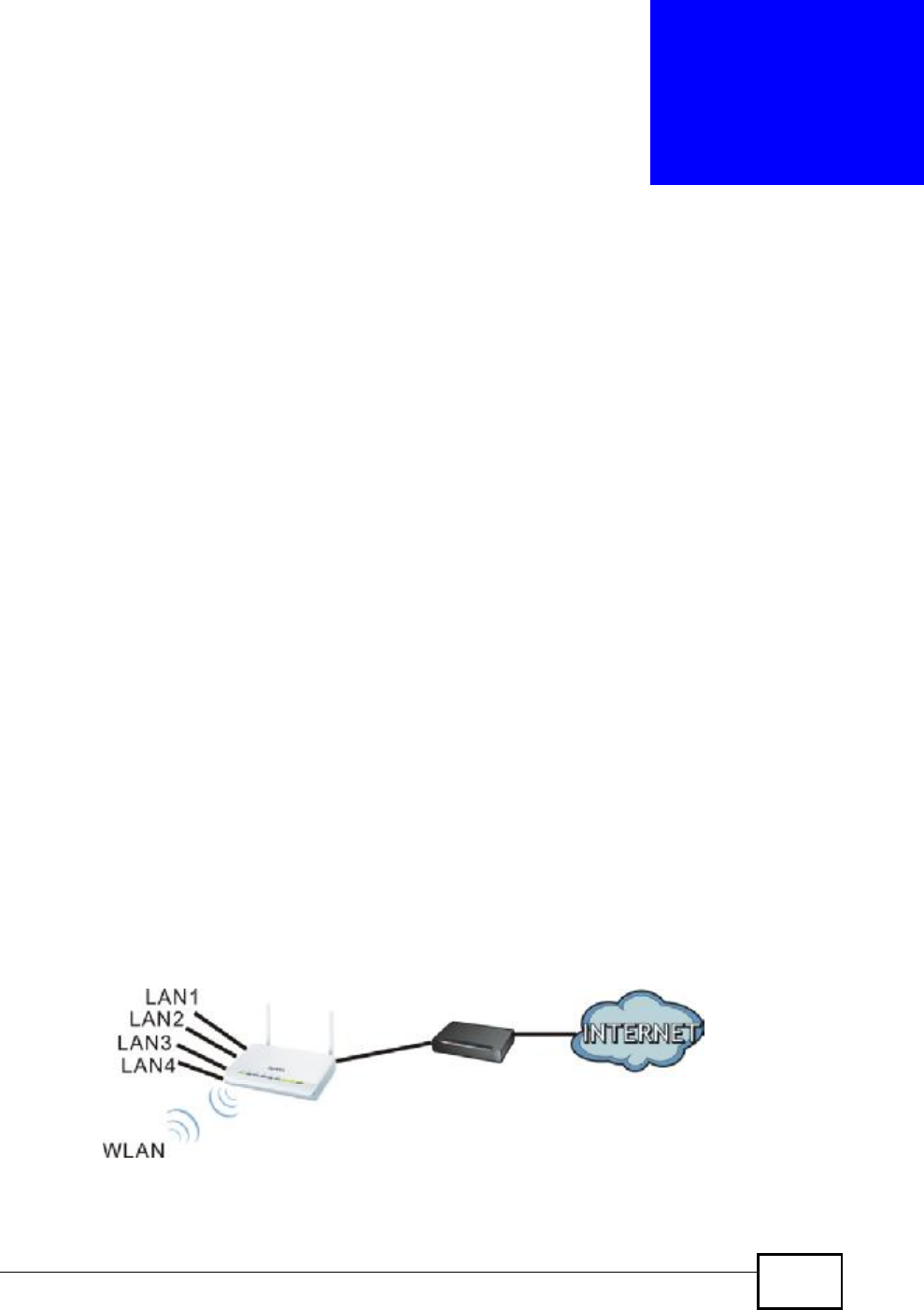

Figure 1 NBG-419N Network
Company Confidential
![](/img.php?id=1180986&img=bg16.png)
Chapter 1Getting to Know Your NBG-419N
NBG-419N User s Guide
22
1.3 Ways to Manage the NBG-419N
Use any of the following methods to manage the NBG-419N.
Web Configurator. This is recommended for everyday management of the NBG-
419N using a (supported) web browser.
Wireless switch. You can use the built-in switch of the NBG-419N to turn the
wireless function on and off without opening the Web Configurator.
WPS (Wi-Fi Protected Setup) button. You can use the WPS button or the WPS
section of the Web Configurator to set up a wireless network with your ZyXEL
Device.
1.4 Good Habits for Managing the NBG-419N
Do the following things regularly to make the NBG-419N more secure and to
manage the NBG-419N more effectively.
Change the password. Use a password that!s not easy to guess and that
consists of different types of characters, such as numbers and letters.
Write down the password and put it in a safe place.
Back up the configuration (and make sure you know how to restore it).
Restoring an earlier working configuration may be useful if the device becomes
unstable or even crashes. If you forget your password, you will have to reset
the NBG-419N to its factory default settings. If you backed up an earlier
configuration file, you would not have to totally re-configure the NBG-419N. You
could simply restore your last configuration.
1.5 LEDs

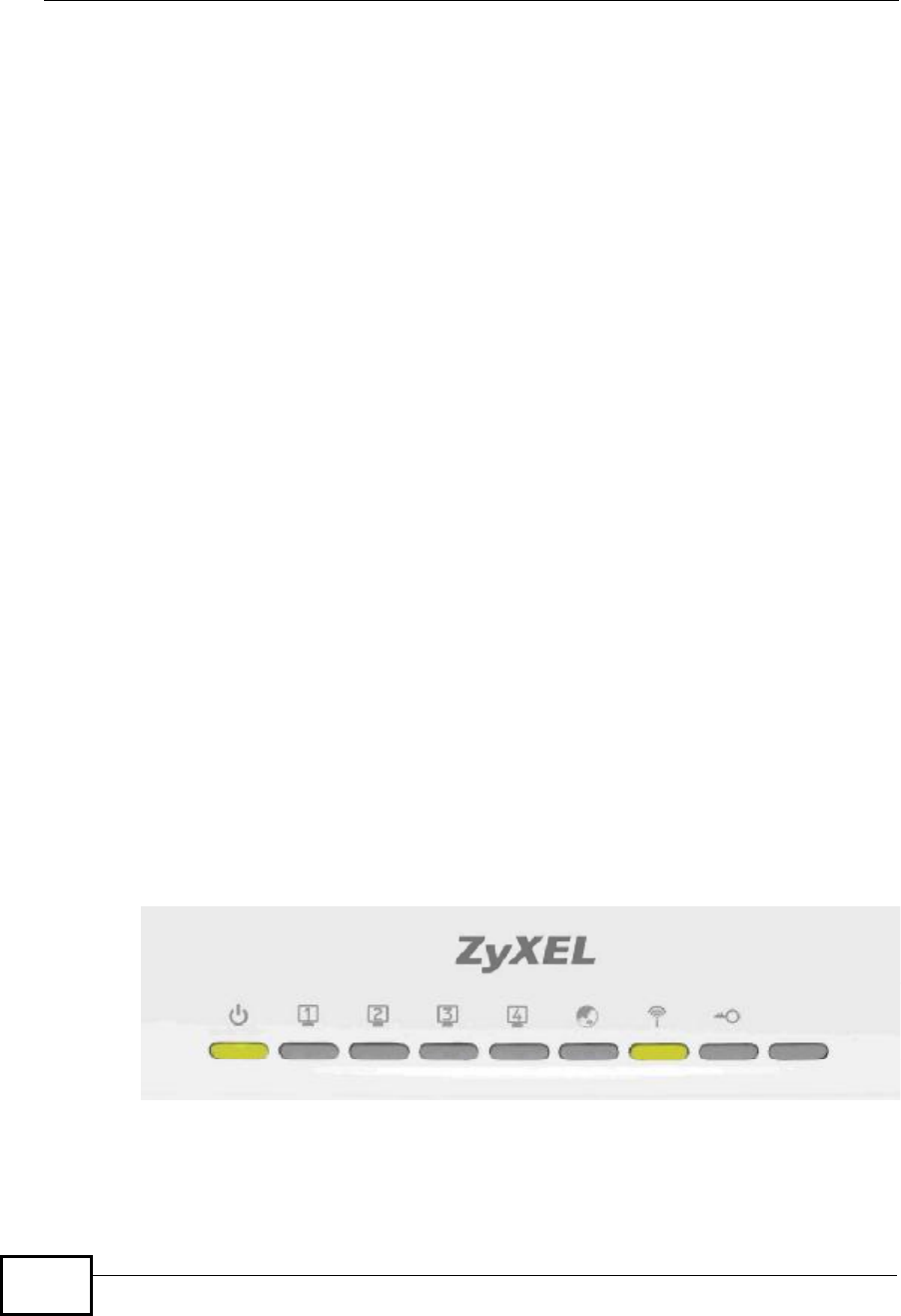

Figure 2 Front Panel
Company Confidential
![](/img.php?id=1180986&img=bg17.png)
Chapter 1Getting to Know Your NBG-419N
NBG-419N User s Guide 23

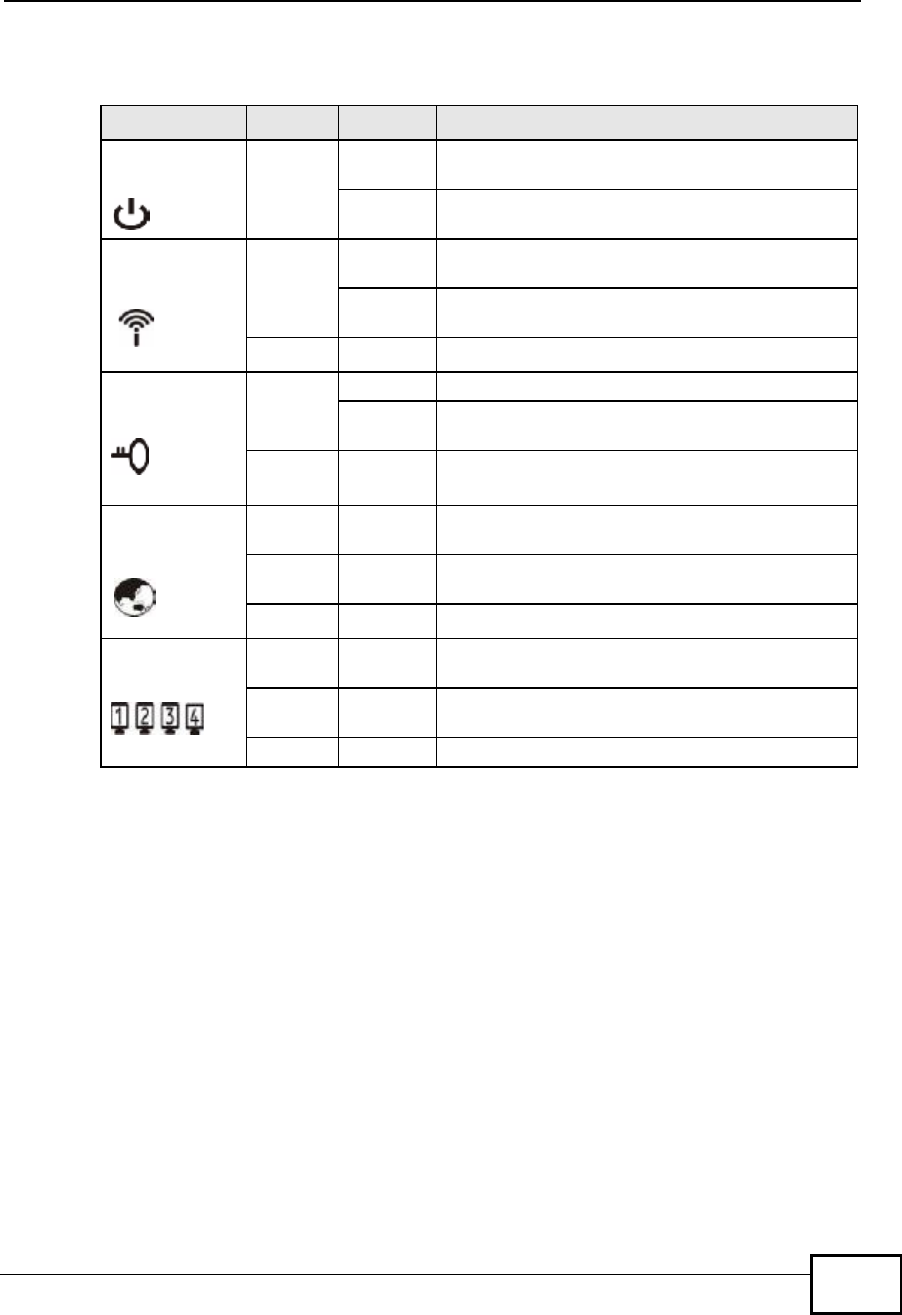

The following table describes the LEDs and the WPS button.
Table 1 Front Panel LEDs and WPS Button
LED COLOR STATUS DESCRIPTION
POWERGreenOnThe NBG-419N is receiving power and
functioning properly.
OffThe NBG-419N is not receiving power.
WLANGreenOnThe NBG-419N is ready, but is not sending/
receiving data through the wireless LAN.
BlinkingThe NBG-419N is sending/receiving data through
the wireless LAN.
OffThe wireless LAN is not ready or has failed.
WPSGreenOnWPS is enabled.
BlinkingThe NBG-419N is negotiating a WPS connection
with a wireless client.
OffThe wireless LAN is not ready or has failed.
WANGreenOnThe NBG-419N has a successful 10/100MB WAN
connection.
BlinkingThe NBG-419N is sending/receiving data through
the WAN.
OffThe WAN connection is not ready, or has failed.
LAN 1-4GreenOnThe NBG-419N has a successful 10/100MB
Ethernet connection.
BlinkingThe NBG-419N is sending/receiving data through
the LAN.
OffThe LAN is not connected.
Company Confidential
![](/img.php?id=1180986&img=bg18.png)
Chapter 1Getting to Know Your NBG-419N
NBG-419N User s Guide
24
Company Confidential
![](/img.php?id=1180986&img=bg19.png)
NBG-419N User s Guide 25
CHAPTER 2
Connection Wizard
2.1 Overview
This chapter provides information on the wizard setup screens in the Web
Configurator.
The Web Configurator!s wizard setup helps you configure your device to access
the Internet. Refer to your ISP for your Internet account information. Leave a field
blank if you don!t have that information.
2.2 Accessing the Wizard
Launch your web browser and type "http://192.168.1.1" as the website address.
Type "1234" (default) as the password and click Login.
Note: The Wizard appears when the NBG-419N is accessed for the first time or when
you reset the NBG-419N to its default factory settings.
The Wizard screen opens. Choose your Language and click Connect to
Internet.

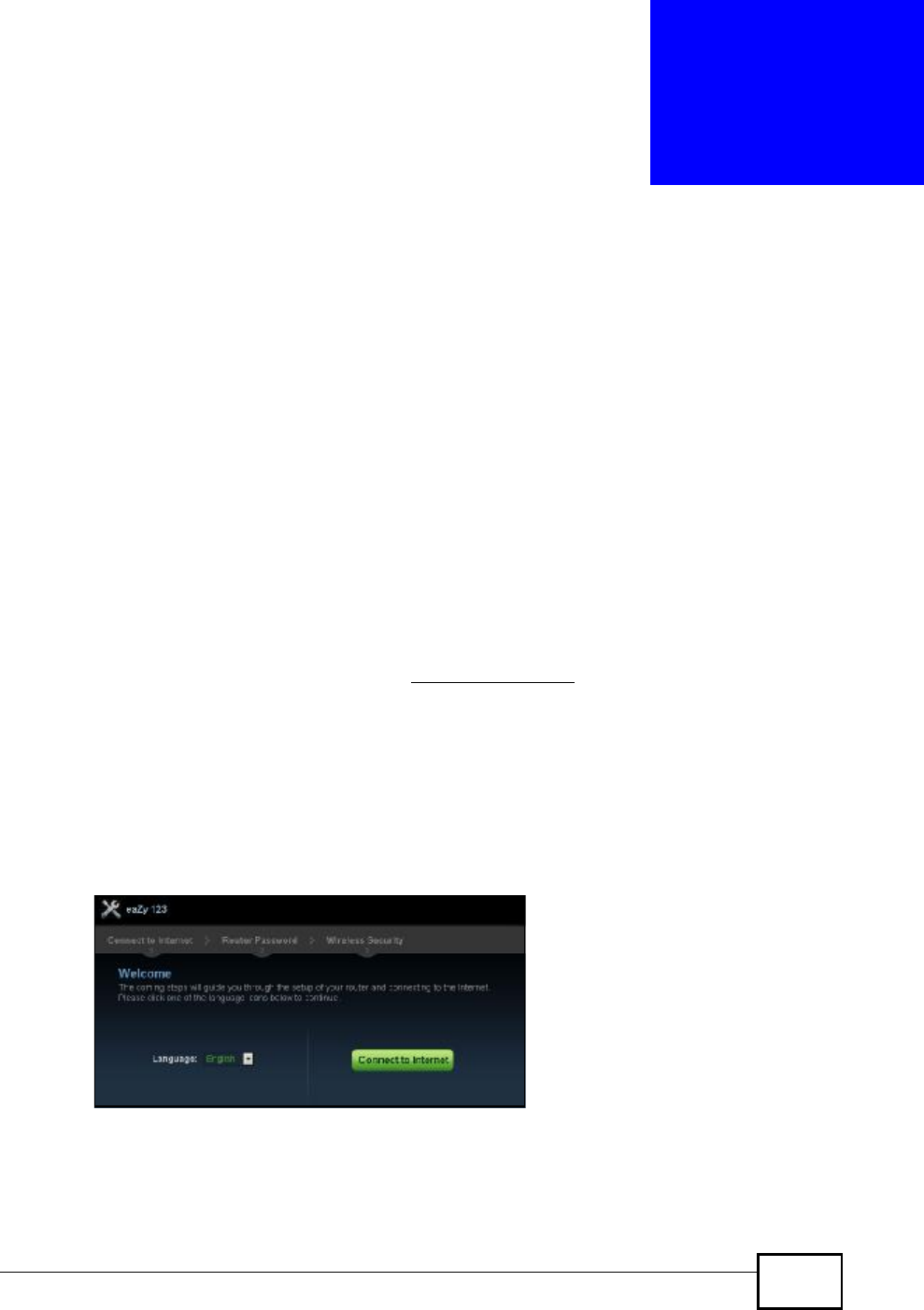

Figure 3 Welcome
Company Confidential
![](/img.php?id=1180986&img=bg1a.png)
Chapter 2Connection Wizard
NBG-419N User s Guide
26
2.3 Connect to Internet
The NBG-419N offers five Internet connection types. They are Static IP, DHCP,
PPPoE, PPTP or L2TP. The wizard attempts to detect which WAN connection
type you are using.
Figure 4 Detecting your Internet Connection Type
If the wizard does not detect a connection type, you must select one from the
drop-down list box. Check with your ISP to make sure you use the correct type.
Note: If you get an error message, check your hardware connections. Make sure your
Internet connection is up and running.
The following screen depends on your Internet connection type. Enter the details
provided by your Internet Service Provider (ISP) in the fields (if any).

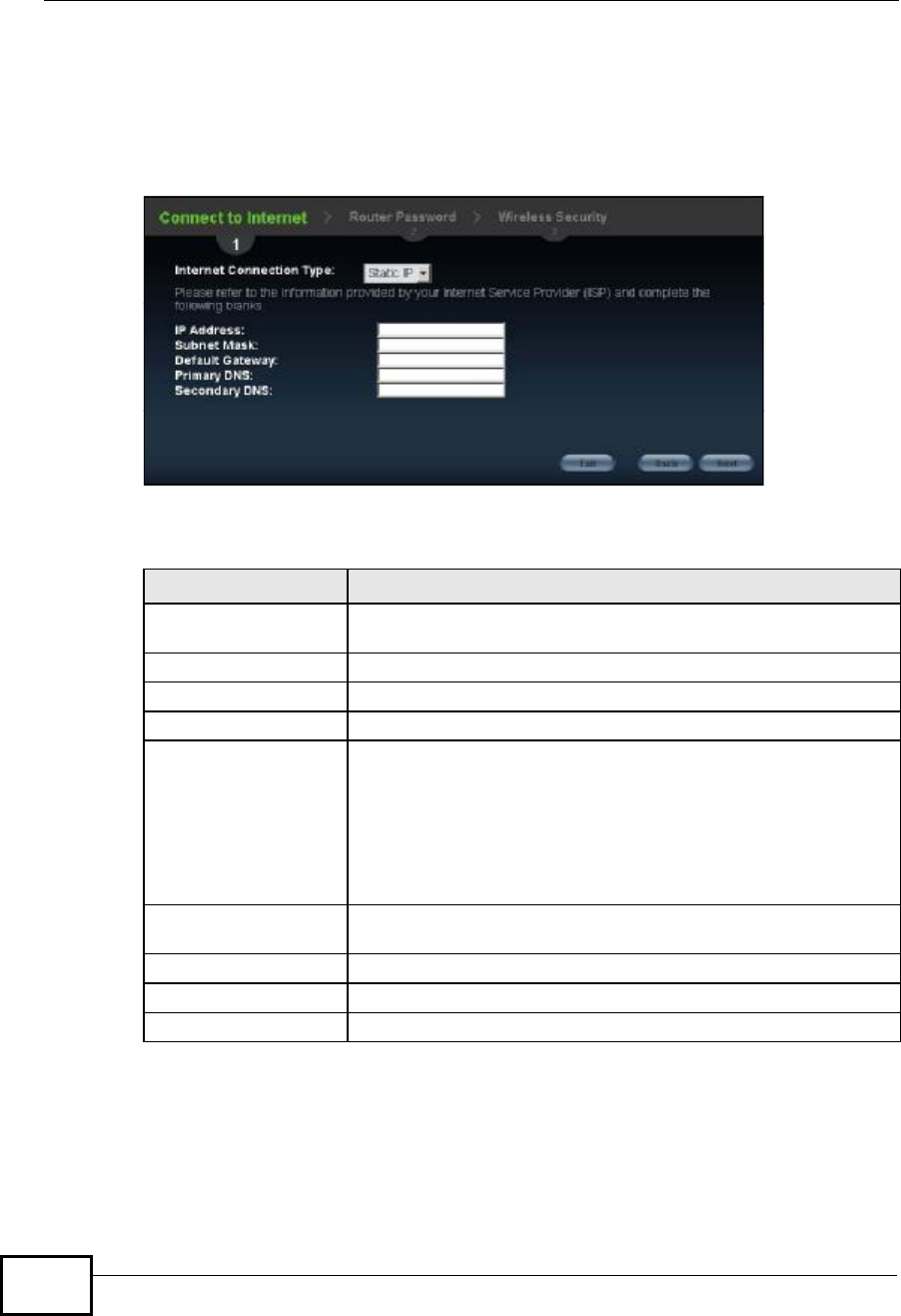

Figure 5 Internet Connection Type
Your NBG-419N detects the following Internet Connection type.
Table 2 Internet Connection Type
CONNECTION
TYPE DESCRIPTION
Static IPSelect the Static IP if an administrator assigns the IP address of
your computer.
DHCPSelect the DHCP (Dynamic Host Configuration Protocol) option
when the WAN port is used as a regular Ethernet.
Company Confidential
![](/img.php?id=1180986&img=bg1b.png)
Chapter 2Connection Wizard
NBG-419N User s Guide 27
2.3.1 Connection Type: DHCP
Choose DHCP as the Internet Connection Type when the WAN port is used as a
regular Ethernet. Click Next.

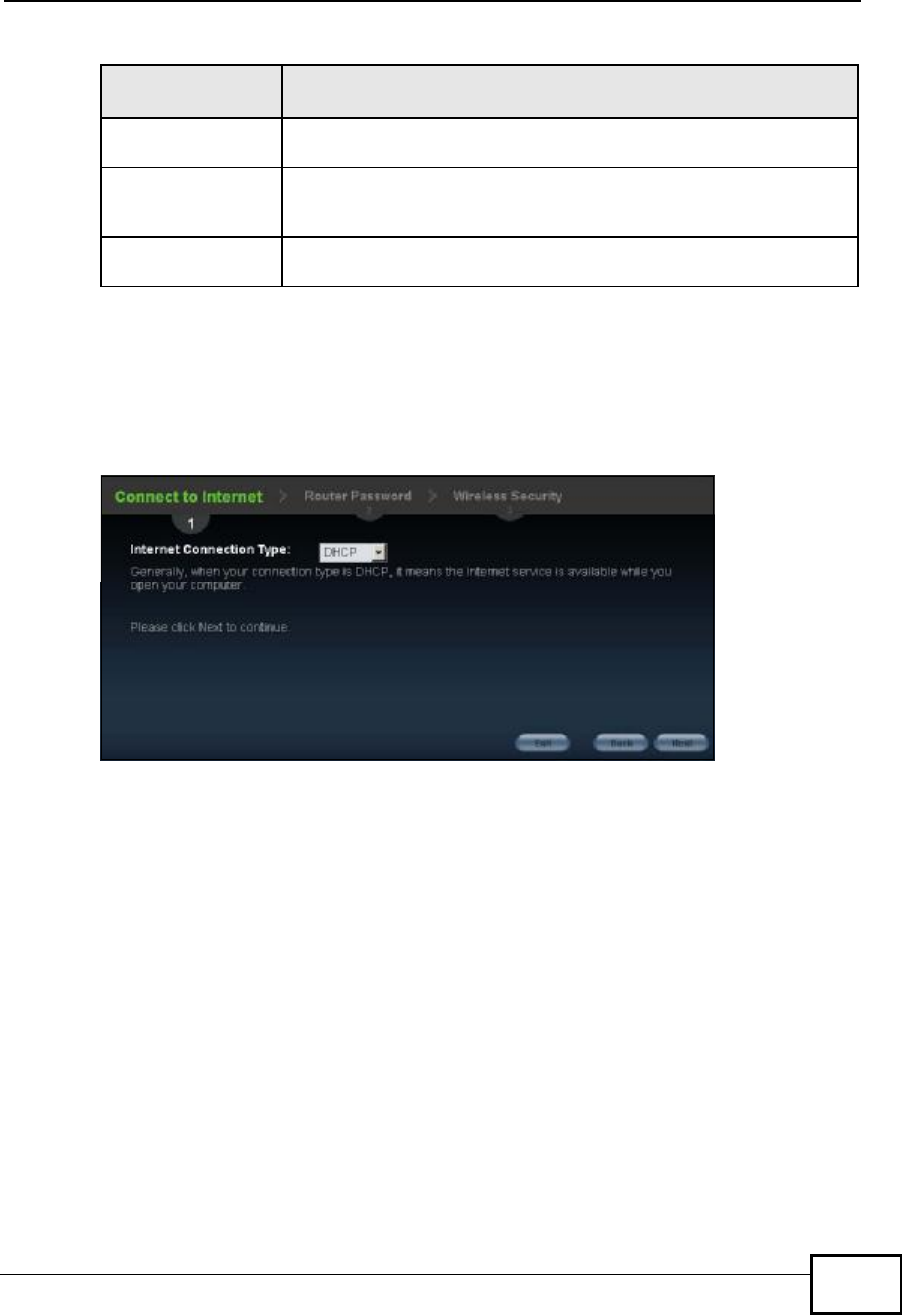

Figure 6 Internet Connection Type: DHCP
Note: If you get an error screen after clicking Next, you might have selected the
wrong Internet Connection type. Click Back, make sure your Internet
connection is working and select the right Connection Type. Contact your ISP if
you are not sure of your Internet Connection type.
PPPoE Select the PPPoE (Point-to-Point Protocol over Ethernet) option for
a dial-up connection.
PPTPSelect the PPTP (Point-to-Point Tunneling Protocol) option for a
dial-up connection, and your ISP gave you an IP address and/or
subnet mask.
L2TPSelect the L2TP (Layer 2 Tunnel Protocol) if you are connecting to
another device over another network (like the Internet or VPN).
Table 2 Internet Connection Type
CONNECTION
TYPE DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg1c.png)
Chapter 2Connection Wizard
NBG-419N User s Guide
28
2.3.2 Connection Type: Static IP
Choose Static IP as the Internet Connection Type if your ISP assigned an IP
address for your Internet connection. Click Next.
Figure 7 Internet Connection Type: Static IP
The following table describes the labels in this screen.
2.3.3 Connection Type: PPPoE
Point-to-Point Protocol over Ethernet (PPPoE) functions as a dial-up connection.
PPPoE is an IETF (Internet Engineering Task Force) standard specifying how a host
Table 3 Internet Connection Type: Static IP
LABEL DESCRIPTION
Internet Connection
Type
Select the Static IP option.
IP Address Enter the IP address provided by your ISP.
Subnet Mask Enter the IP subnet mask in this field.
Default Gateway Enter the gateway IP address in this field.
Primary DNS DNS (Domain Name System) is for mapping a domain name to
its corresponding IP address and vice versa. The DNS server is
extremely important because without it, you must know the IP
address of a computer before you can access it. The NBG-419N
uses a system DNS server (in the order you specify here) to
resolve domain names for DDNS and the time server.
Enter the primary DNS server's IP address in the fields provided.
Secondary DNS Enter the secondary DNS server's IP address in the fields
provided.
Exit Click this to close the wizard screen without saving.
Back Click this to return to the previous screen.
Next Click this to continue.
Company Confidential
![](/img.php?id=1180986&img=bg1d.png)
Chapter 2Connection Wizard
NBG-419N User s Guide 29
personal computer interacts with a broadband modem (for example DSL, cable,
wireless, etc.) to achieve access to high-speed data networks.
For the service provider, PPPoE offers an access and authentication method that
works with existing access control systems (for instance, RADIUS).
One of the benefits of PPPoE is the ability to let end users access one of multiple
network services, a function known as dynamic service selection. This enables the
service provider to easily create and offer new IP services for specific users.
Operationally, PPPoE saves significant effort for both the subscriber and the ISP/
carrier, as it requires no specific configuration of the broadband modem at the
subscriber's site.
By implementing PPPoE directly on the NBG-419N (rather than individual
computers), the computers on the LAN do not need PPPoE software installed,
since the NBG-419N does that part of the task. Furthermore, with NAT, all of the
LAN's computers will have Internet access.

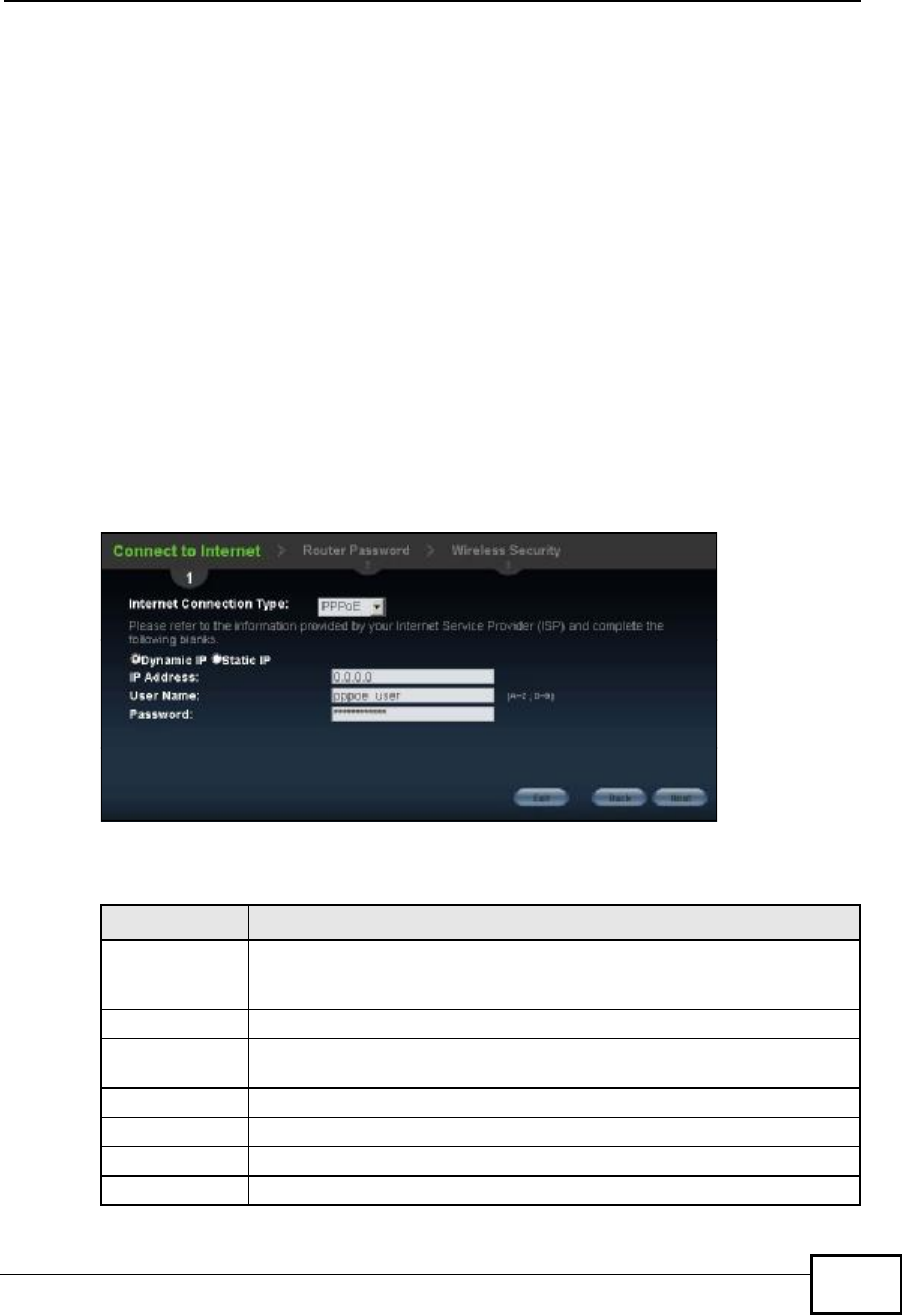

Figure 8 Internet Connection Type: PPPoE
The following table describes the labels in this screen.
Table 4 Internet Connection Type: PPPoE
LABEL DESCRIPTION
Internet
Connection
Type
Select the PPPoE option for a dial-up connection.
Dynamic IP Select this radio button if your ISP did not assign you a fixed IP address.
Static IP Select this radio button, provided by your ISP to give the NBG-419N a
fixed, unique IP address.
IP Address Type the name of your service provider.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the user name above.
Exit Click this to close the wizard screen without saving.
Company Confidential
![](/img.php?id=1180986&img=bg1e.png)
Chapter 2Connection Wizard
NBG-419N User s Guide
30
2.3.4 Connection Type: PPTP
Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables
transfers of data from a remote client to a private server, creating a Virtual Private
Network (VPN) using TCP/IP-based networks.
PPTP supports on-demand, multi-protocol, and virtual private networking over
public networks, such as the Internet.
Refer to the appendix for more information on PPTP.
The NBG-419N supports one PPTP server connection at any given time.

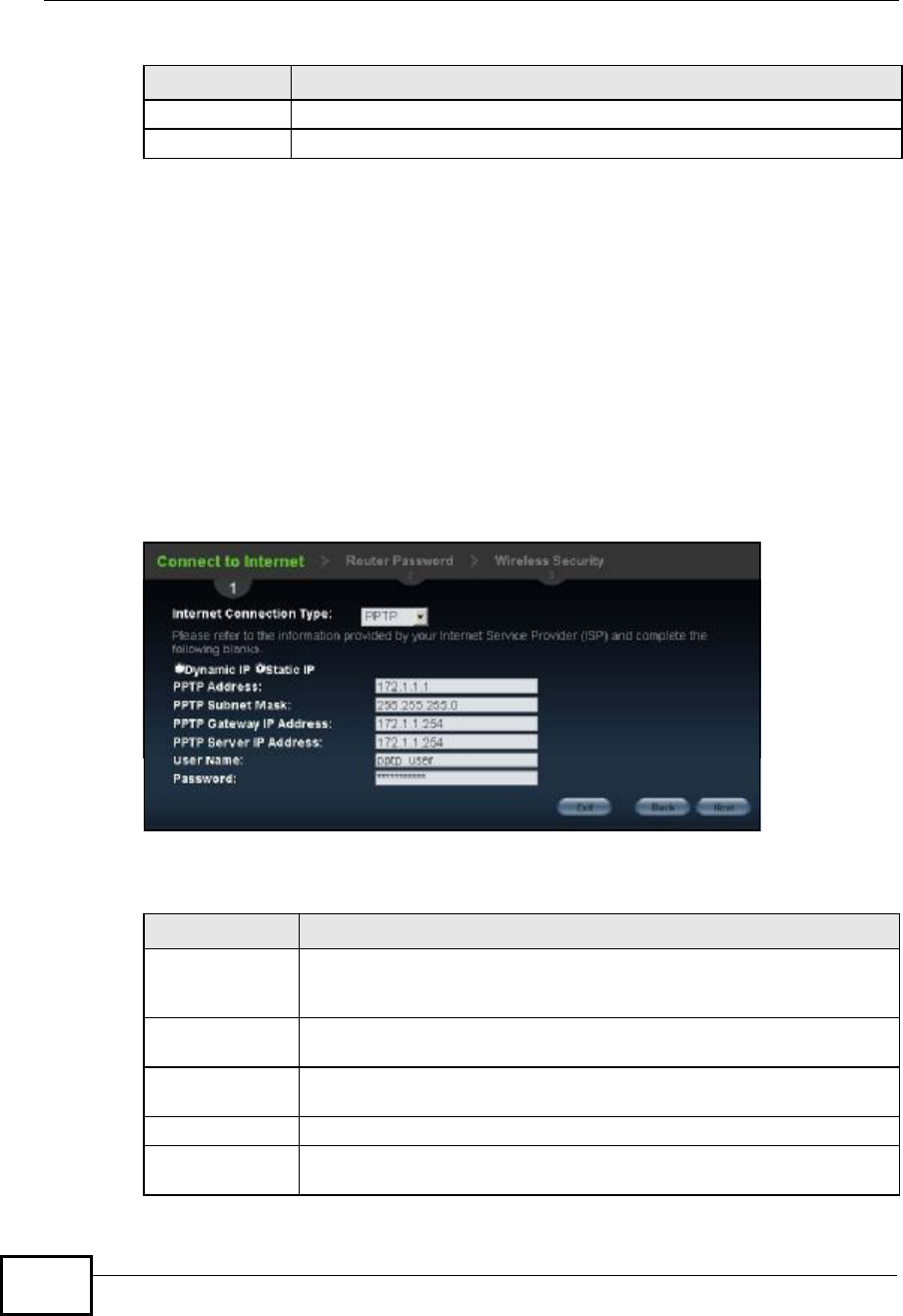

Figure 9 Internet Connection Type: PPTP
The following table describes the fields in this screen
Back Click this to return to the previous screen.
Next Click this to continue.
Table 4 Internet Connection Type: PPPoE
LABEL DESCRIPTION
Table 5 Internet Connection Type: PPTP
LABEL DESCRIPTION
Internet
Connection Type
Select PPTP from the drop-down list box. To configure a PPTP client,
you must configure the User Name and Password fields for a PPP
connection and the PPTP parameters for a PPTP connection.
Dynamic IP Select this radio button if your ISP did not assign you a fixed IP
address.
Static IP Select this radio button, provided by your ISP to give the NBG-419N a
fixed, unique IP address.
PPTP Address Type the (static) IP address assigned to you by your ISP.
PPTP Subnet
Mask
Type the subnet mask assigned to you by your ISP (if given).
Company Confidential
![](/img.php?id=1180986&img=bg1f.png)
Chapter 2Connection Wizard
NBG-419N User s Guide 31
2.3.5 Connection Type: L2TP
The Layer 2 Tunneling Protocol (L2TP) works at layer 2 (the data link layer) to
tunnel network traffic between two peer devices over another network (like the
Internet).
Figure 10 Internet Connection Type: L2TP
The following table describes the fields in this screen
PPTP Gateway IP
Address
Type the gateway IP address of the PPTP server.
PPTP Server IP
Address
Type the server IP address of the PPTP server.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the User Name above.
Exit Click this to close the wizard screen without saving.
Back Click this to return to the previous screen.
Next Click this to continue.
Table 5 Internet Connection Type: PPTP
LABEL DESCRIPTION
Table 6 Internet Connection Type: L2TP
LABEL DESCRIPTION
Internet
Connection Type
Select L2TP from the drop-down list box.
Dynamic IP Select this radio button if your ISP did not assign you a fixed IP
address.
Static IP Select this radio button, provided by your ISP to give the NBG-419N a
fixed, unique IP address.
L2TP Address Type the (static) IP address assigned to you by your ISP.
L2TP Subnet
Mask
Type the subnet mask assigned to you by your ISP (if given).
Company Confidential
![](/img.php?id=1180986&img=bg20.png)
Chapter 2Connection Wizard
NBG-419N User s Guide
32
The NBG-419N connects to the Internet.
Figure 11 Connecting to the Internet
Note: If the Wizard successfully connects to the Internet, it proceeds to the next step.
If you get an error message, go back to the previous screen and make sure you
have entered the correct information provided by your ISP.
L2TP Gateway IP
Address
Type the gateway IP address of the L2TP server.
L2TP Server IP
Address
Type the server IP address of the L2TP server.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the User Name above.
Exit Click this to close the wizard screen without saving.
Back Click this to return to the previous screen.
Next Click this to continue.
Table 6 Internet Connection Type: L2TP
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg21.png)
Chapter 2Connection Wizard
NBG-419N User s Guide 33

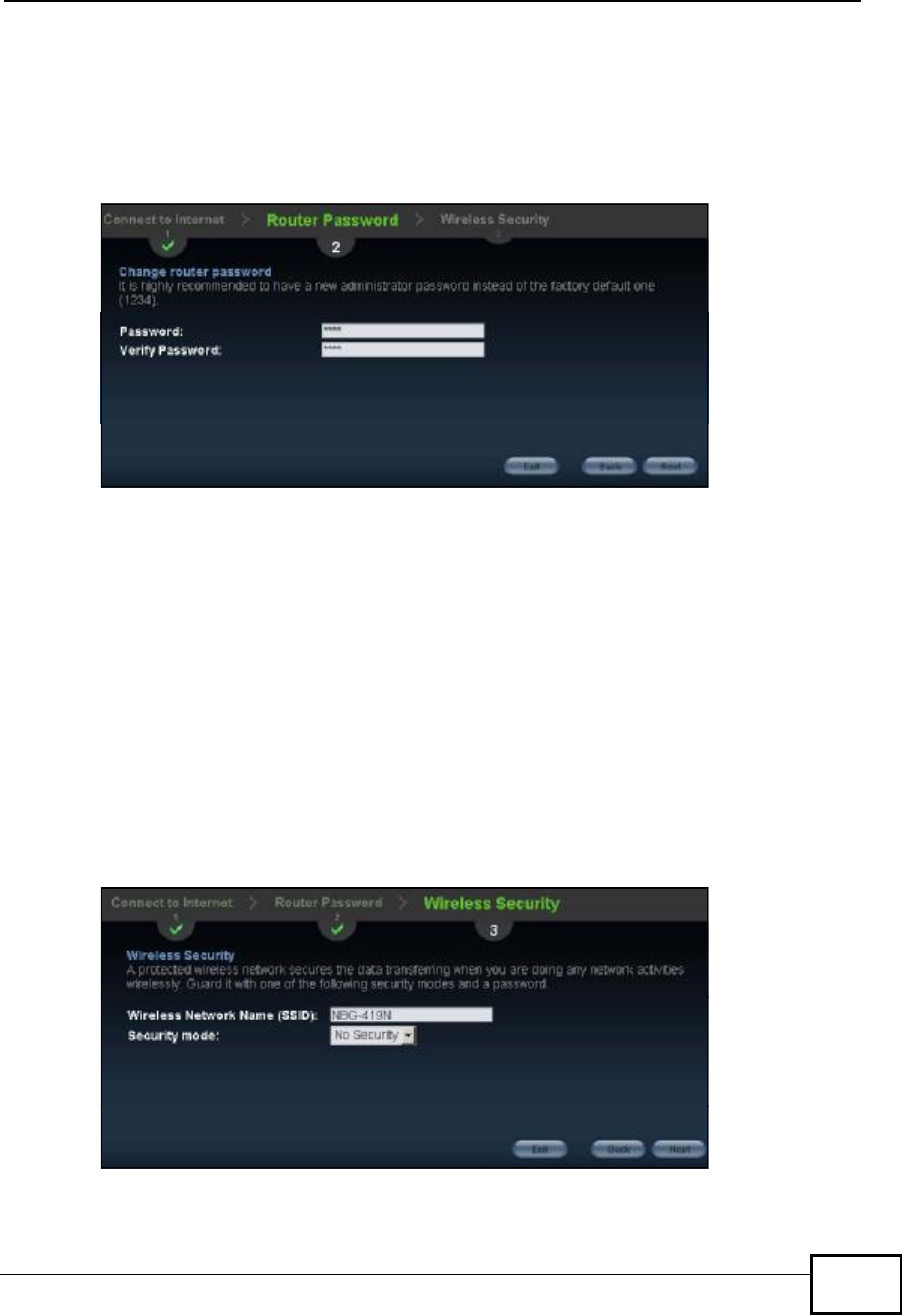

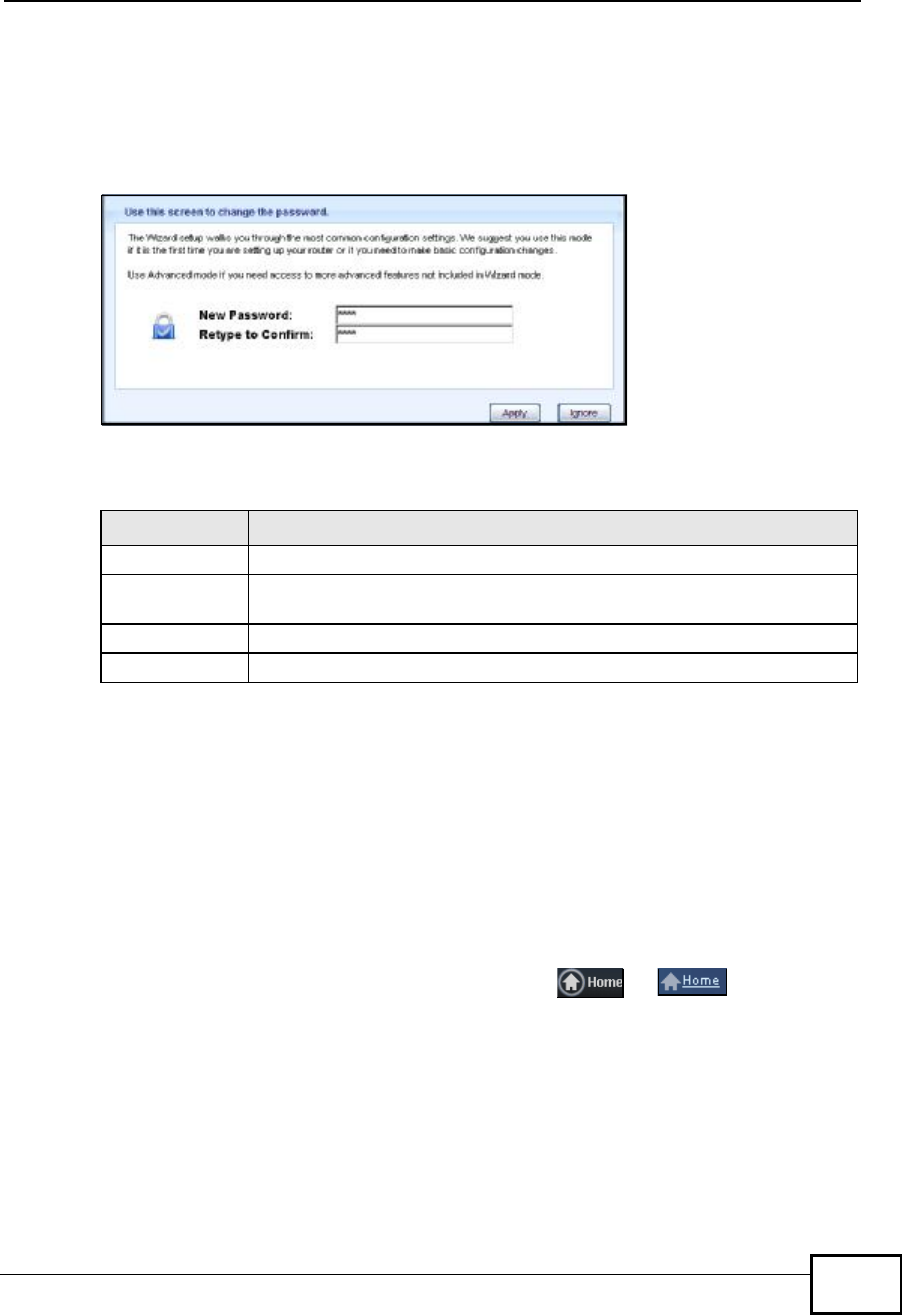

2.4 Router Password
Change the login password in the following screen. Enter the new password and
retype it to confirm. Click Next to proceed with the Wireless Security screen.
Figure 12 Router Password
2.5 Wireless Security
Configure Wireless Settings. Configure the wireless network settings on your NBG-
419N in the following screen. The fields that show up depend on the kind of
security you select.
2.5.1 Wireless Security: No Security
Choose No Security in the Wireless Security screen to let wireless devices within
range access your wireless network.
Figure 13 Wireless Security: No Security
Company Confidential
![](/img.php?id=1180986&img=bg22.png)
Chapter 2Connection Wizard
NBG-419N User s Guide
34
The following table describes the labels in this screen.
2.5.2 Wireless Security: WPA-PSK/WPA2-PSK
Choose WPA-PSK or WPA2-PSK security in the Wireless Security screen to set
up a password for your wireless network.
Figure 14 Wireless Security: WPA-PSK/WPA2-PSK
Table 7 Wireless Security: No Security
LABEL DESCRIPTION
Wireless
Network
Name
(SSID)
Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the
wireless LAN.
If you change this field on the NBG-419N, make sure all wireless stations
use the same SSID in order to access the network.
Security
mode
Select a Security level from the drop-down list box.
Choose None to have no wireless LAN security configured. If you do not
enable any wireless security on your NBG-419N, your network is accessible
to any wireless networking device that is within range.
Exit Click this to close the wizard screen without saving.
Back Click this to return to the previous screen.
Next Click this to continue.
Company Confidential
![](/img.php?id=1180986&img=bg23.png)
Chapter 2Connection Wizard
NBG-419N User s Guide 35
The following table describes the labels in this screen.
Congratulations! Open a web browser, such as Internet Explorer, to visit your
favorite website.
Note: If you cannot access the Internet when your computer is connected to one of
the NBG-419N s LAN ports, check your connections. Then turn the NBG-419N
off, wait for a few seconds then turn it back on. If that does not work, log in to
the web configurator again and check you have typed all information correctly.
See the User s Guide for more suggestions.

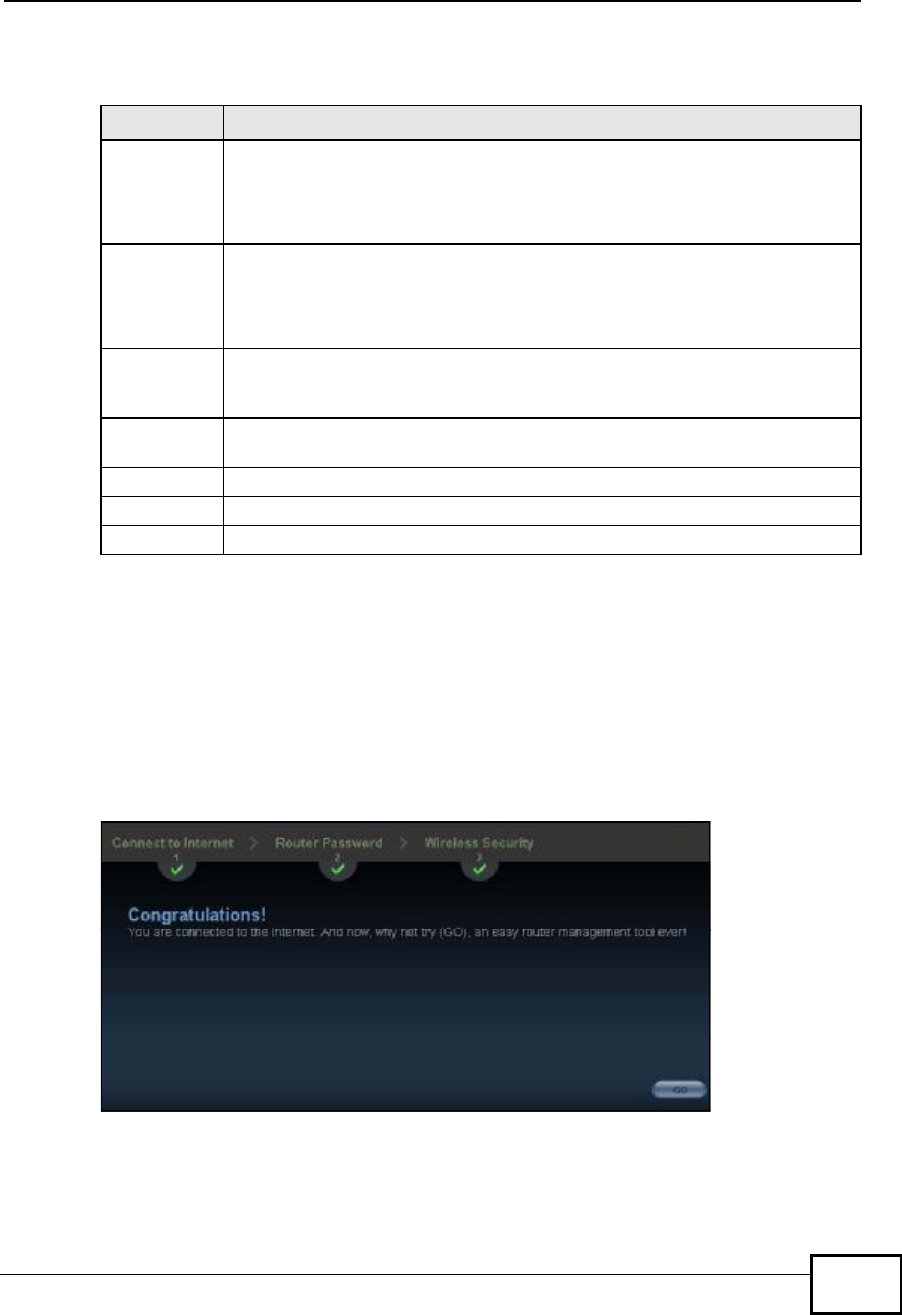

Figure 15 Congratulations
You can also click ZyGO to open the Easy Mode Web Configurator of your NBG-
419N.
Table 8 Wireless Security: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Wireless
Network
Name
(SSID)
Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the
wireless LAN.
If you change this field on the NBG-419N, make sure all wireless stations
use the same SSID in order to access the network.
Security
mode
Select a Security level from the drop-down list box.
Choose WPA-PSK or WPA2-PSK security to configure a Pre-Shared Key.
Choose this option only if your wireless clients support WPA-PSK or WPA2-
PSK respectively.
Wireless
password
Type from 8 to 63 case-sensitive ASCII characters. You can set up the
most secure wireless connection by configuring WPA in the wireless LAN
screens.
Verify
Password
Retype the password to confirm.
Exit Click this to close the wizard screen without saving.
Back Click this to return to the previous screen.
Next Click this to continue.
Company Confidential
![](/img.php?id=1180986&img=bg24.png)
Chapter 2Connection Wizard
NBG-419N User s Guide
36
You have successfully set up your NBG-419N to operate on your network and
access the Internet. You are now ready to connect wirelessly to your NBG-419N
and access the Internet.
Company Confidential
![](/img.php?id=1180986&img=bg25.png)
NBG-419N User s Guide 37
CHAPTER 3
Introducing the Web
Configurator
3.1 Overview
This chapter describes how to access the NBG-419N Web Configurator and
provides an overview of its screens.
The Web Configurator is an HTML-based management interface that allows easy
setup and management of the NBG-419N via Internet browser. Use Internet
Explorer 6.0 and later or Netscape Navigator 7.0 and later versions or Safari 2.0
or later versions. The recommended screen resolution is 1024 by 768 pixels.

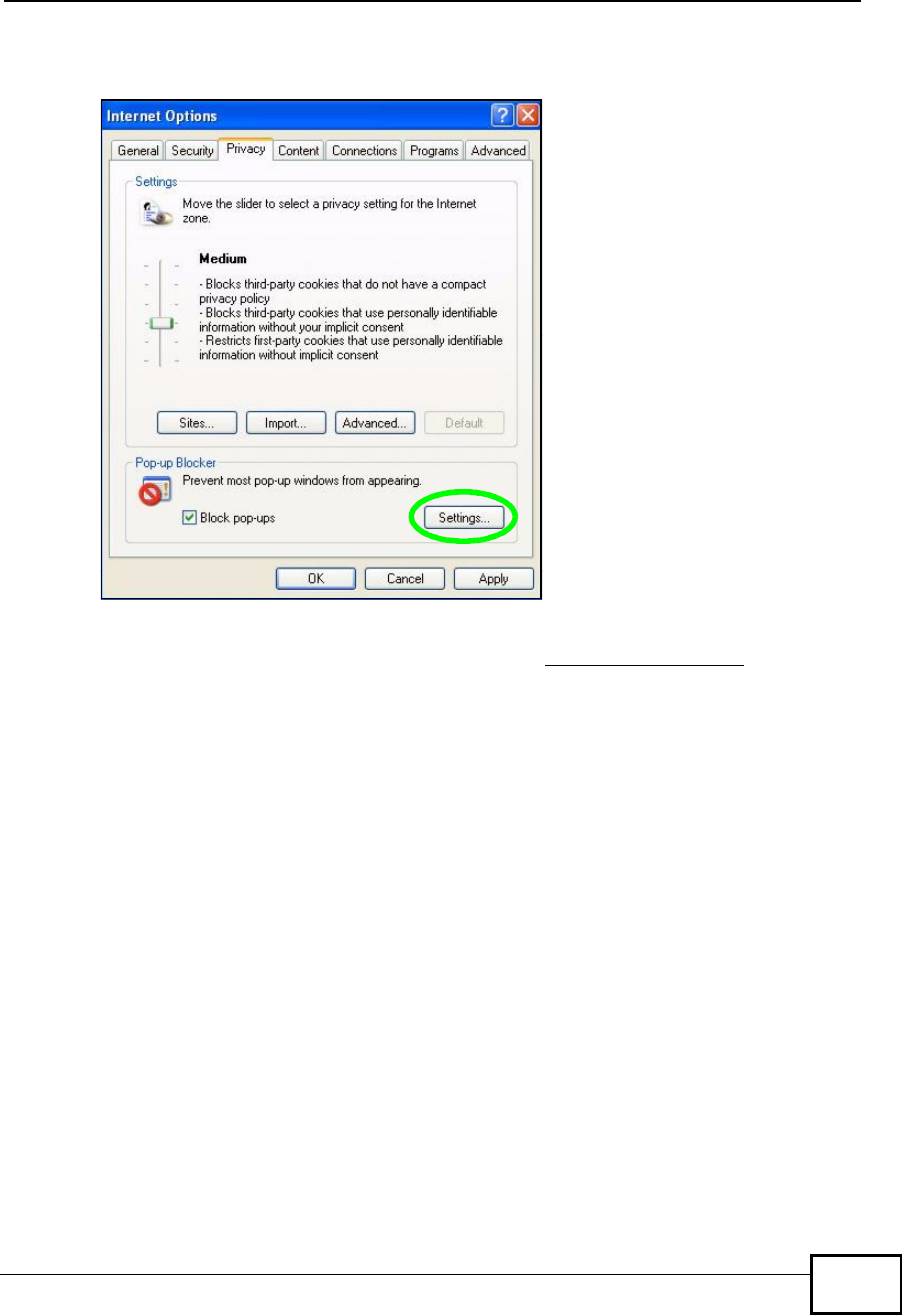

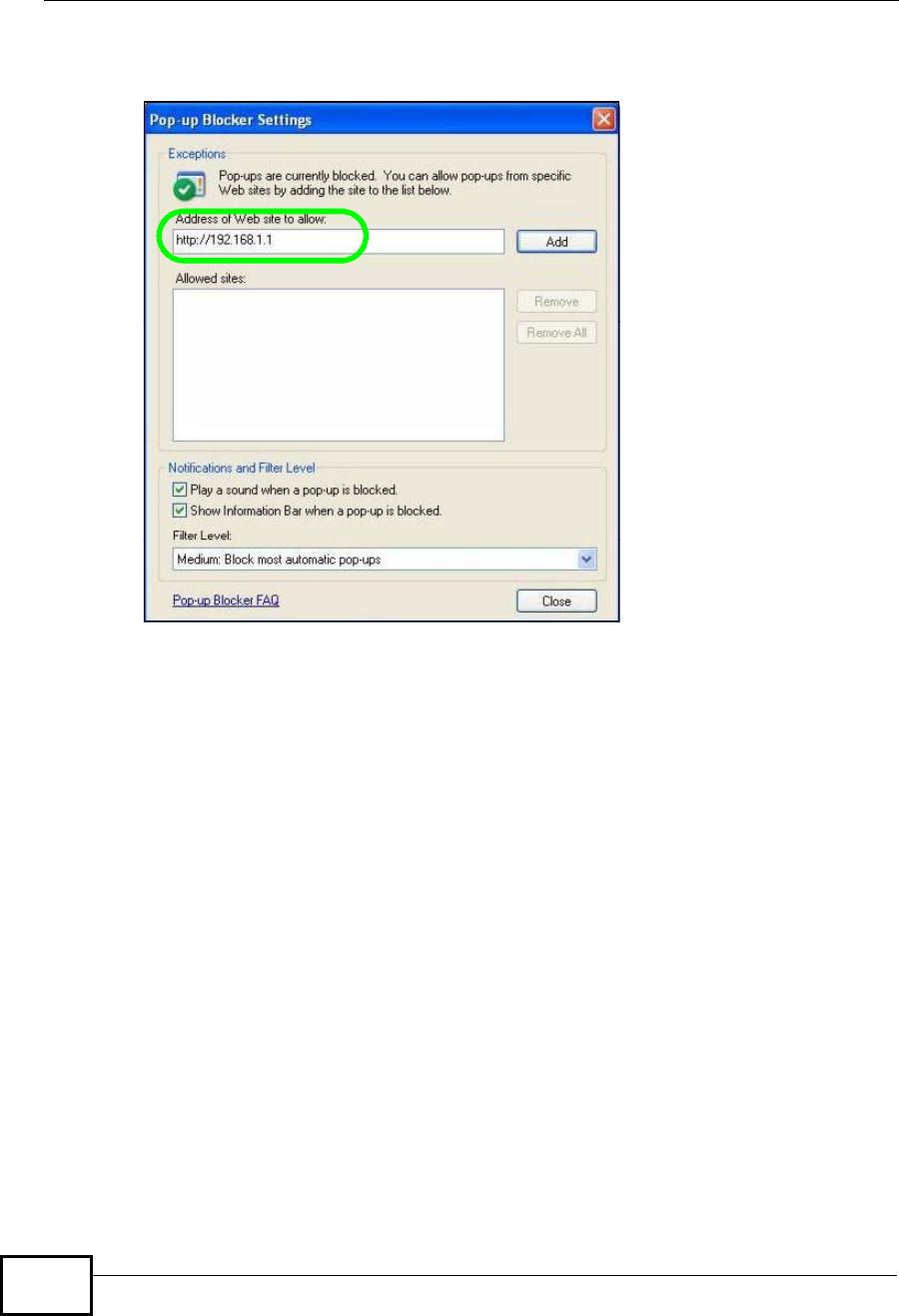

In order to use the Web Configurator you need to allow:
Web browser pop-up windows from your device. Web pop-up blocking is
enabled by default in Windows XP SP (Service Pack) 2.
JavaScripts (enabled by default).
Java permissions (enabled by default).

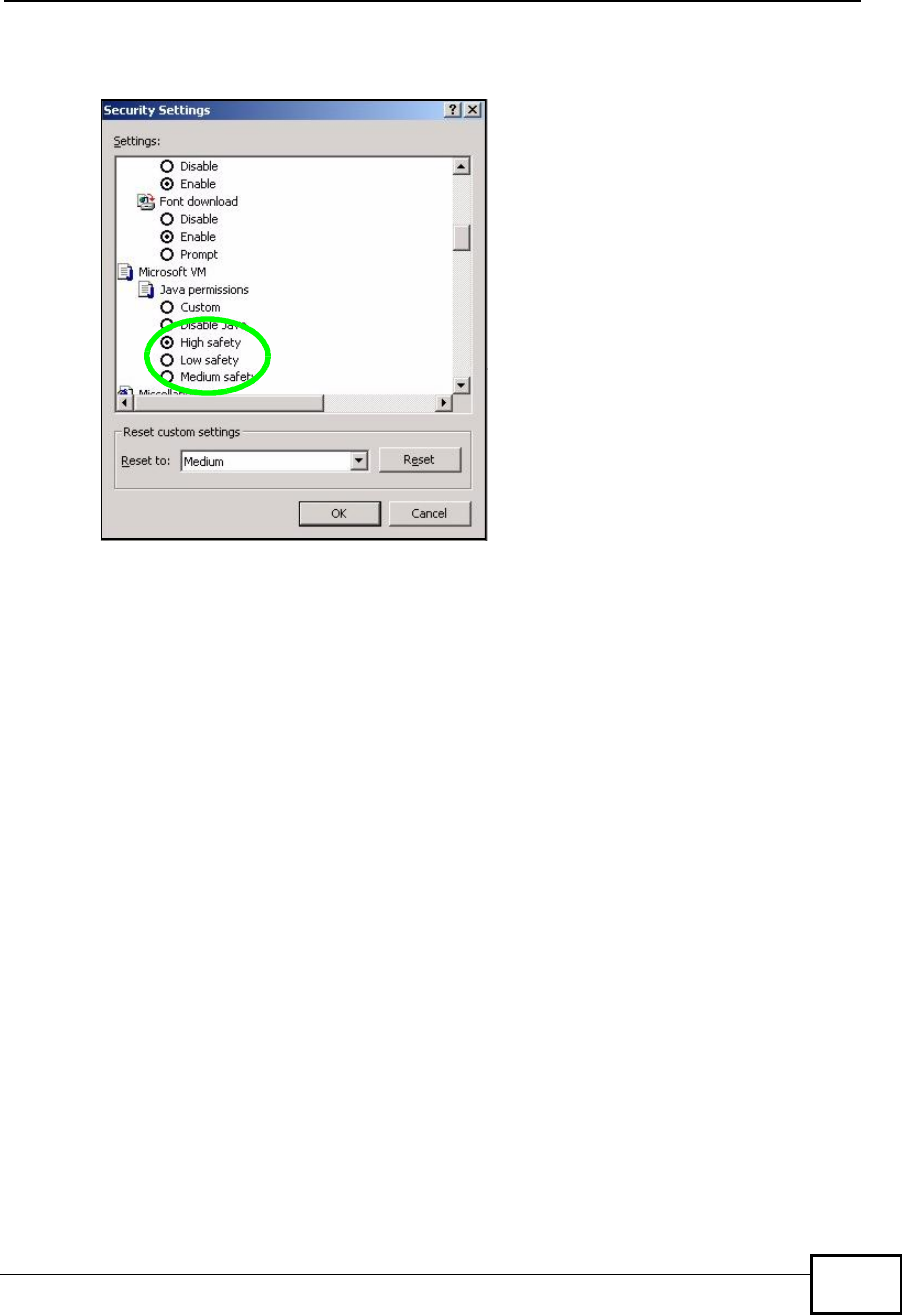

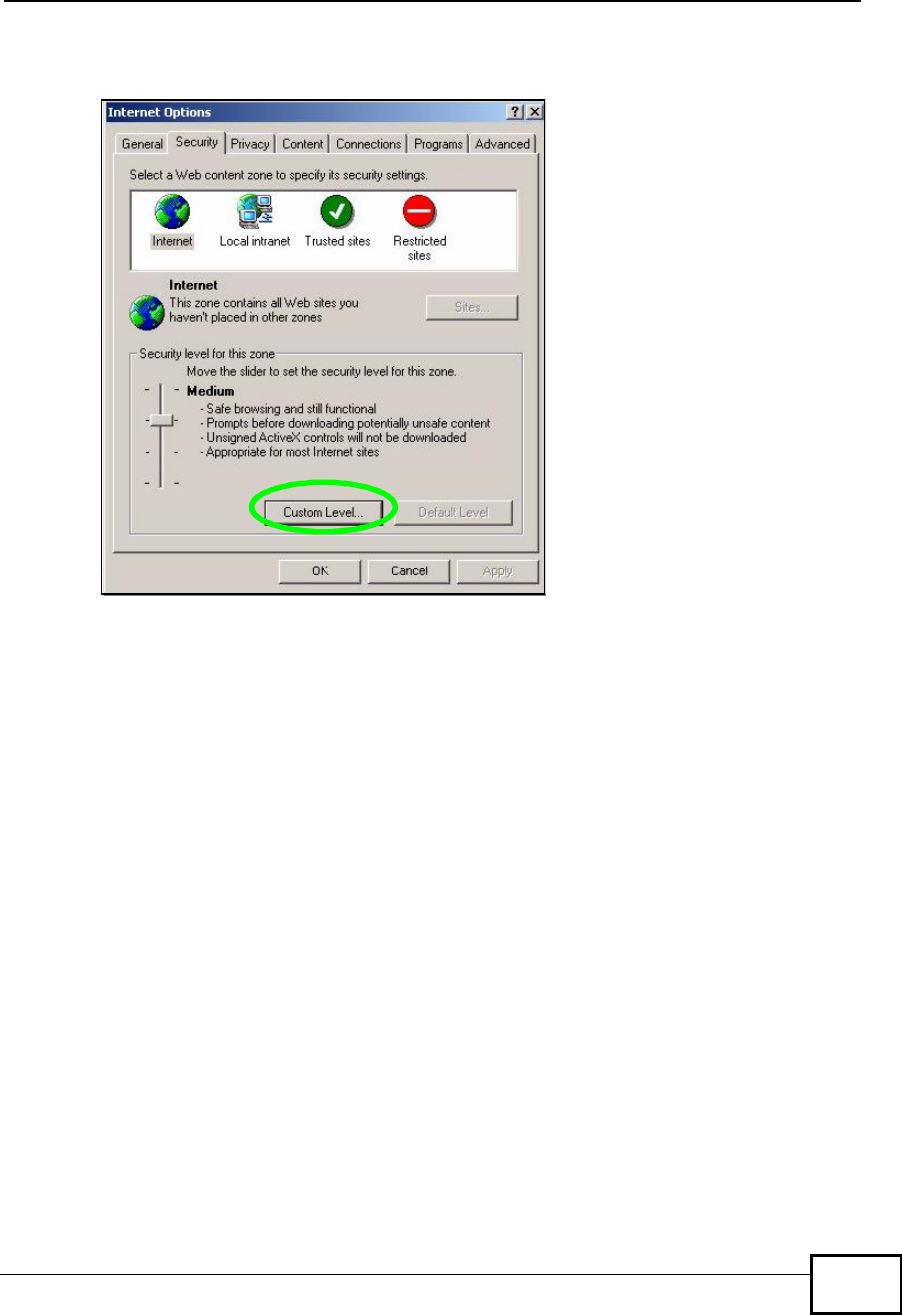

Refer to the Troubleshooting chapter (Chapter 31 on page 217) to see how to
make sure these functions are allowed in Internet Explorer.
3.2 Accessing the Web Configurator
1Make sure your NBG-419N hardware is properly connected and prepare your
computer or computer network to connect to the NBG-419N (refer to the Quick
Start Guide).
2Launch your web browser.
3Type "http://192.168.1.1" as the website address.
Your computer must be in the same subnet in order to access this website
address.
Company Confidential
![](/img.php?id=1180986&img=bg26.png)
Chapter 3Introducing the Web Configurator
NBG-419N User s Guide
38
3.2.1 Login Screen
Note: If this is the first time you are accessing the Web Configurator, you may be
redirected to the Wizard. Refer to Chapter 2 on page 25 for the Connection
Wizard screens.

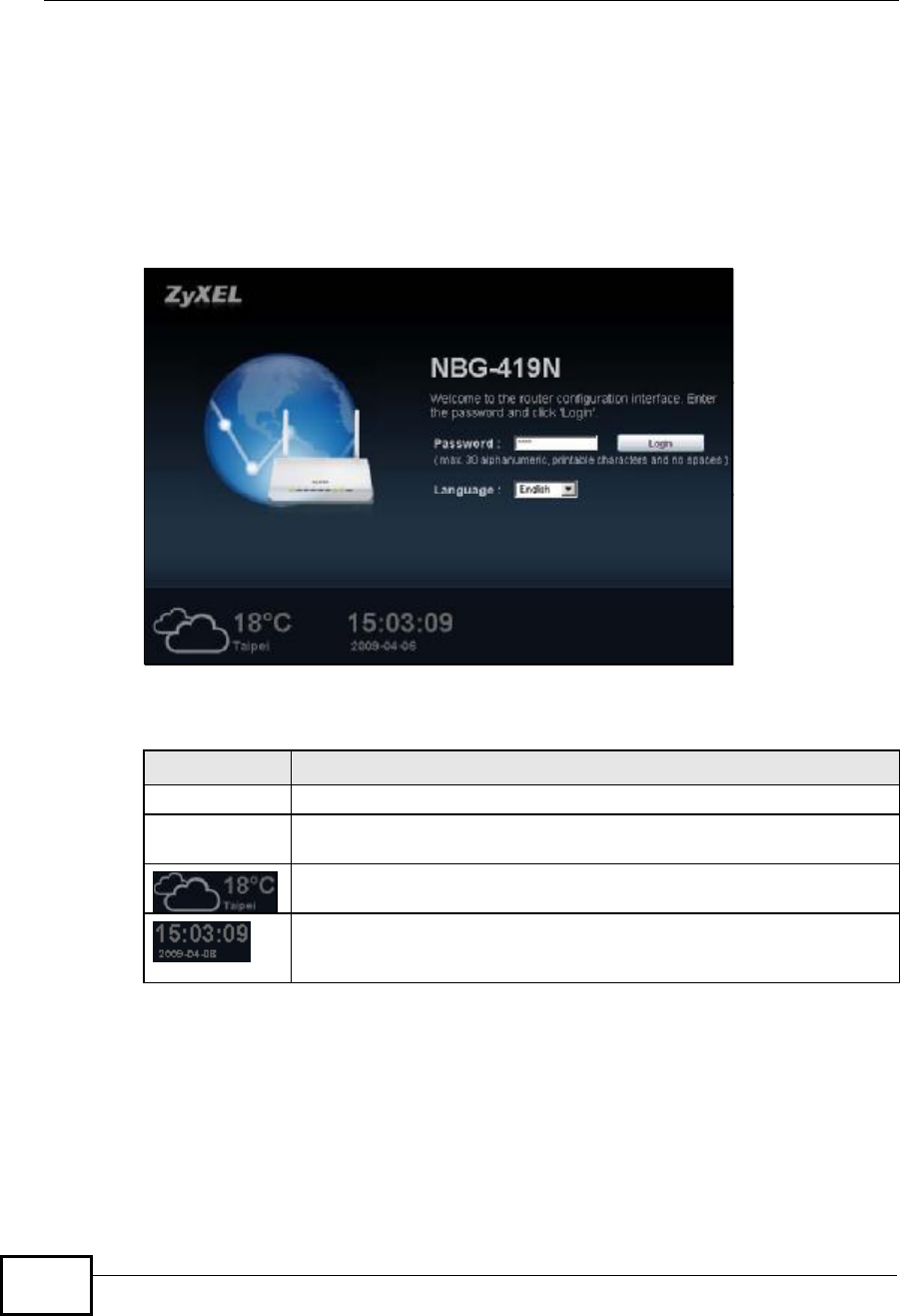

The Web Configurator initially displays the following login screen.
Figure 16 Login screen
The following table describes the labels in this screen.
Table 9 Login screen
LABEL DESCRIPTION
Password Type "1234" (default) as the password.
Language Select the language you want to use to configure the Web
Configurator. Click Login.
This shows the current weather, either in celsius or fahrenheit, of the
city you specify in Section 3.2.3.1 on page 40.
This shows the time (hh:mm:ss) and date (yyyy:mm:dd) of the
timezone you select in Section 3.2.3.2 on page 41 or Section 26.3 on
page 201. The time is in 24-hour format, for example 15:00 is 3:00 PM.
Company Confidential
![](/img.php?id=1180986&img=bg27.png)
Chapter 3Introducing the Web Configurator
NBG-419N User s Guide 39
3.2.2 Password Screen
You should see a screen asking you to change your password (highly
recommended) as shown next.
Figure 17 Change Password Screen
The following table describes the labels in this screen.
Note: The management session automatically times out when the time period set in
the Administrator Inactivity Timer field expires (default five minutes; go to
Chapter 24 on page 197 to change this). Simply log back into the NBG-419N if
this happens.
3.2.3 Home Screen
If you have previously logged into the Web Configurator but did not click Logout,
you may be redirected to the Home screen.
You can also open this screen by clicking Home ( or ) in the Easy
Mode or Expert mode screens.
Table 10 Change Password Screen
LABEL DESCRIPTION
New Password Type a new password.
Retype to
Confirm
Retype the password for confirmation.
Apply Click Apply to save your changes back to the NBG-419N.
Ignore Click Ignore if you do not want to change the password this time.
Company Confidential
![](/img.php?id=1180986&img=bg28.png)
Chapter 3Introducing the Web Configurator
NBG-419N User s Guide
40

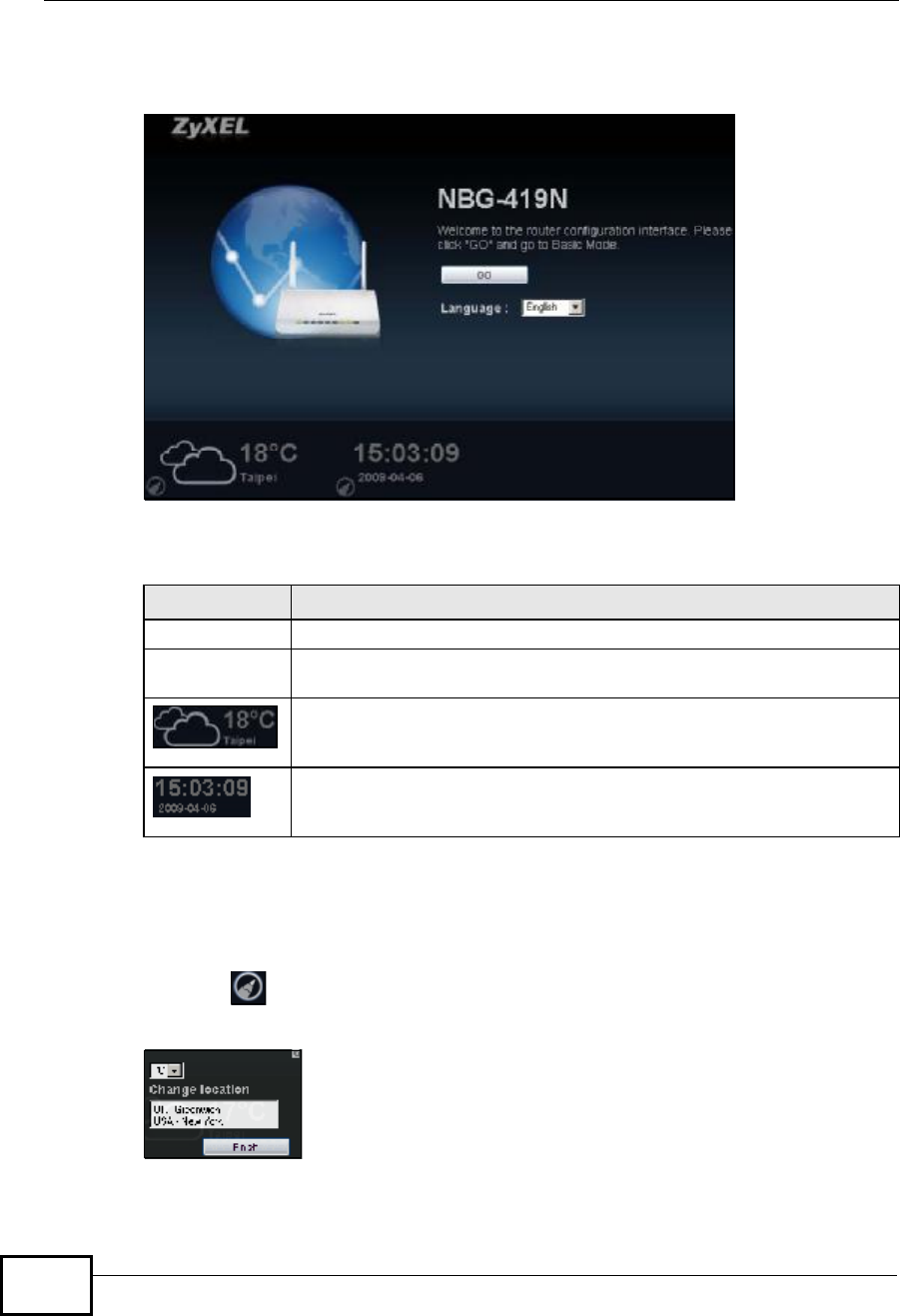

The Home screen displays as follows.
Figure 18 Home Screen
The following table describes the labels in this screen.
3.2.3.1 Weather Edit
You can change the temperature unit and select the location for which you want to
know the weather.
Click the icon to change the Weather display.
Figure 19 Change Weather
Table 11 Home Screen
LABEL DESCRIPTION
Go Click this to open the Easy mode Web Configurator.
Language Select a language to go to the Easy mode Web Configurator in
that language and click Login.
(This is just an example). This shows the current weather, either in
celsius or fahrenheit, of the city you specify in Section 3.2.3.1 on page
40.
(This is just an example). This shows the time (hh:mm:ss) and date
(yyyy:mm:dd) of the timezone you select in Section 3.2.3.2 on page 41
or Section 26.3 on page 201.
Company Confidential
![](/img.php?id=1180986&img=bg29.png)
Chapter 3Introducing the Web Configurator
NBG-419N User s Guide 41
The following table describes the labels in this screen.

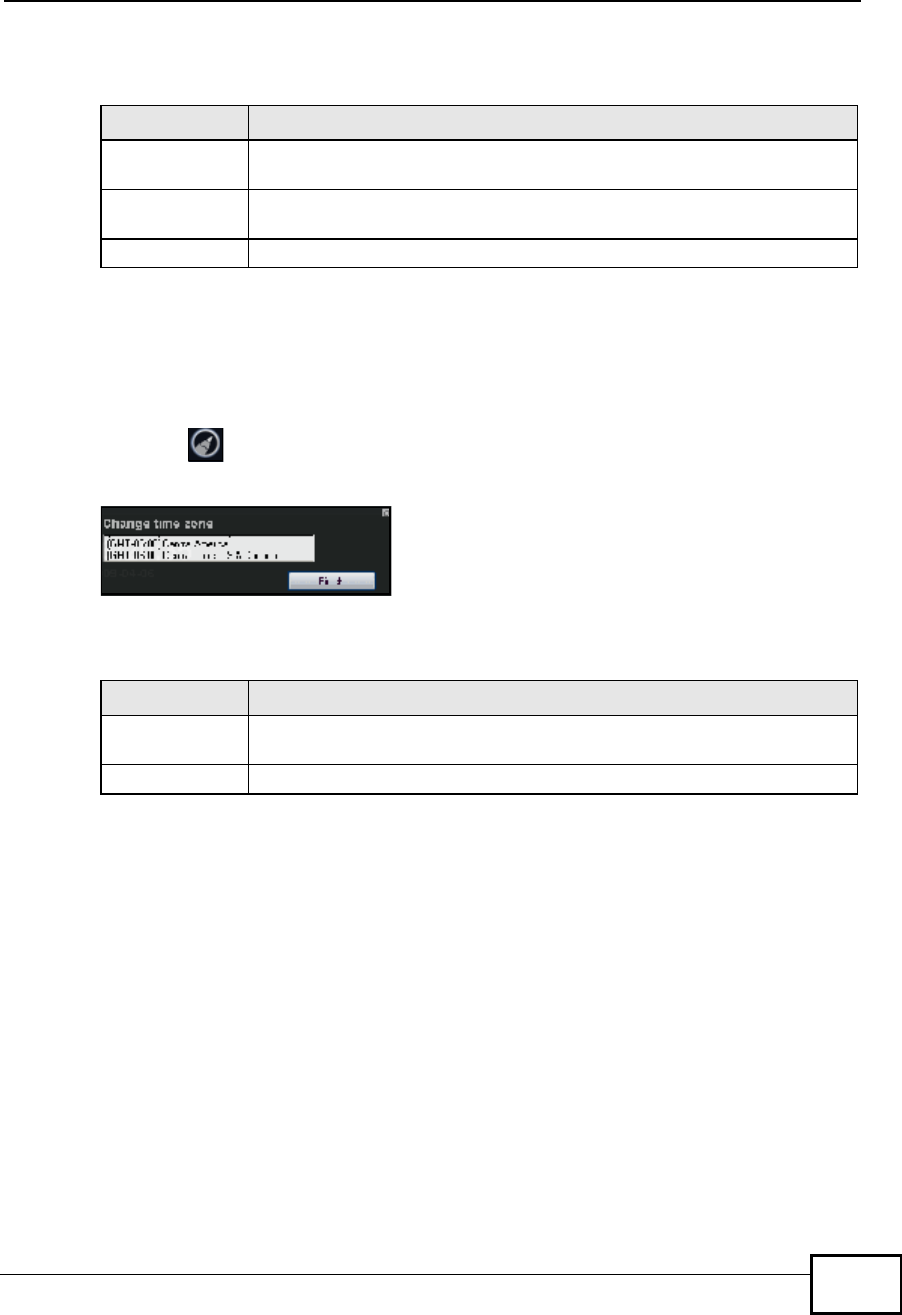

3.2.3.2 Time/Date Edit
One timezone can cover more than one country. You can choose a particular
country in which the NBG-419N is located and have the NBG-419N display and use
the current time and date for its logs.
Click the icon to change the Weather display.
Figure 20 Change Password Screen
The following table describes the labels in this screen.
Note: You can also edit the timezone in Section 26.3 on page 201.
3.3 Resetting the NBG-419N
If you forget your password or IP address, or you cannot access the Web
Configurator, you will need to use the RESET button at the back of the NBG-419N
to reload the factory-default configuration file. This means that you will lose all
configurations that you had previously saved, the password will be reset to "1234#
and the IP address will be reset to "192.168.1.1#.
Table 12 Change Weather
LABEL DESCRIPTION
oC or oF Choose which temperature unit you want the NBG-419N to
display.
Change
Location
Select the location for which you want to know the weather. If
the city you want is not listed, choose one that is closest to it.
Finish Click this to apply the settings and refresh the date and time display.
Table 13 Change Password Screen
LABEL DESCRIPTION
Change time
zone
Select the specific country whose current time and date you
want the NBG-419N to display.
Finish Click this to apply the settings and refresh the weather display.
Company Confidential
![](/img.php?id=1180986&img=bg2a.png)
Chapter 3Introducing the Web Configurator
NBG-419N User s Guide
42
3.3.1 Procedure to Use the Reset Button
1Make sure the power LED is on.
2Press the RESET button for longer than 1 second to restart/reboot the NBG-419N.
3Press the RESET button for longer than five seconds to set the NBG-419N back to
its factory-default configurations.
Company Confidential
![](/img.php?id=1180986&img=bg2b.png)
NBG-419N User s Guide 43
CHAPTER 4
Monitor
4.1 Overview
This chapter discusses read-only information related to the device state of the
NBG-419N.
Note: To access the Monitor screens, you can also click the links in the Summary
table of the Status screen to view the bandwidth consumed, packets sent/
received as well as the status of clients connected to the NBG-419N.
4.2 What You Can Do
Use the BW MGMT Monitor screen (Section 4.3 on page 43) to view the
amount of network bandwidth that applications running in the network are
using.
Use the DHCP Table screen (Section 4.4 on page 44) to view information
related to your DHCP status.
use the Packet Statistics screen (Section 4.5 on page 45) to view port status,
packet specific statistics, the "system up time" and so on.
Use the WLAN Station Status screen (Section 4.6 on page 46) to view the
wireless stations that are currently associated to the NBG-419N.
4.3 BW MGMT Monitor
The Bandwidth Management (BW MGMT) Monitor allows you to view the amount
of network bandwidth that applications running in the network are using.
The bandwidth is measured in kilobits per second (kbps).
Company Confidential
![](/img.php?id=1180986&img=bg2c.png)
Chapter 4Monitor
NBG-419N User s Guide
44
The monitor shows what kinds of applications are running in the network, the
maximum kbps that each application can use, as well as the percentage of
bandwidth it is using.
Figure 21 Summary: BW MGMT Monitor
4.4 DHCP Table
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows
individual clients to obtain TCP/IP configuration at start-up from a server. You can
configure the NBG-419N!s LAN as a DHCP server or disable it. When configured as
a server, the NBG-419N provides the TCP/IP configuration for the clients. If DHCP
service is disabled, you must have another DHCP server on that network, or else
the computer must be manually configured.
Click the DHCP Table (Details...) hyperlink in the Status screen. Read-only
information here relates to your DHCP status. The DHCP table shows current
DHCP client information (including IP Address, Host Name and MAC Address)
of all network clients using the NBG-419N!s DHCP server.
Figure 22 Summary: DHCP Table
Company Confidential
![](/img.php?id=1180986&img=bg2d.png)
Chapter 4Monitor
NBG-419N User s Guide 45
The following table describes the labels in this screen.
4.5 Packet Statistics
Click the Packet Statistics (Details...) hyperlink in the Status screen. Read-
only information here includes port status, packet specific statistics and the
"system up time". The Poll Interval(s) field is configurable and is used for
refreshing the screen.
Figure 23 Summary: Packet Statistics
Table 14 Summary: DHCP Table
LABEL DESCRIPTION
# This is the index number of the host computer.
MAC AddressThis field shows the MAC address of the computer with the name in the
Host Name field.
Every Ethernet device has a unique MAC (Media Access Control) address
which uniquely identifies a device. The MAC address is assigned at the
factory and consists of six pairs of hexadecimal characters, for example,
00:A0:C5:00:00:02.
IP AddressThis field displays the IP address relative to the # field listed above.
Expires inThis field displays the time when the IP address and MAC address
association ends.
RefreshClick Refresh to renew the screen.
Company Confidential
![](/img.php?id=1180986&img=bg2e.png)
Chapter 4Monitor
NBG-419N User s Guide
46
The following table describes the labels in this screen.
4.6 WLAN Station Status
Click the WLAN Station Status (Details...) hyperlink in the Status screen. View
the wireless stations that are currently associated to the NBG-419N in the
Association List. Association means that a wireless client (for example, your
network or computer with a wireless network card) has connected successfully to
the AP (or wireless router) using the same SSID, channel and security settings.
Figure 24 Summary: Wireless Association List
Table 15 Summary: Packet Statistics
LABEL DESCRIPTION
Port This is the NBG-419N!s port type.
Status For the LAN ports, this displays the port speed and duplex setting or
Down when the line is disconnected.
For the WAN port, it displays the port speed and duplex setting if
you!re using Ethernet encapsulation and Idle (line (ppp) idle), Dial
(starting to trigger a call) and Drop (dropping a call) if you're using
PPPoE or PPTP encapsulation. This field displays Down when the line
is disconnected.
For the WLAN, it displays the maximum transmission rate when the
WLAN is enabled and Down when the WLAN is disabled.
TxPkts This is the number of transmitted packets on this port.
RxPkts This is the number of received packets on this port.
Collisions This is the number of collisions on this port.
Tx B/s This displays the transmission speed in bytes per second on this port.
Rx B/s This displays the reception speed in bytes per second on this port.
Up Time This is the total time the NBG-419N has been for each session.
System Up Time This is the total time the NBG-419N has been on.
Poll Interval(s) Enter the time interval in seconds for refreshing statistics in this field.
Set Interval Click this button to apply the new poll interval you entered in the Poll
Interval(s) field.
Stop Click Stop to stop refreshing statistics.
Company Confidential
![](/img.php?id=1180986&img=bg2f.png)
Chapter 4Monitor
NBG-419N User s Guide 47
The following table describes the labels in this screen.
Table 16 Summary: Wireless Association List
LABEL DESCRIPTION
# This is the index number of an associated wireless station.
MAC Address This field displays the MAC address of an associated wireless station.
Association Time This field displays the time a wireless station first associated with the
NBG-419N!s WLAN network.
Refresh Click Refresh to reload the list.
Company Confidential
![](/img.php?id=1180986&img=bg30.png)
Chapter 4Monitor
NBG-419N User s Guide
48
Company Confidential
![](/img.php?id=1180986&img=bg31.png)
NBG-419N User s Guide 49
CHAPTER 5
NBG-419N Modes
5.1 Overview
This chapter introduces the different modes available on your NBG-419N. First,
the term "mode# refers to two things in this User!s Guide.
Web Configurator mode. This refers to the Web Configurator interface you
want to use for editing NBG-419N features.
Device mode. This is the operating mode of your NBG-419N, or simply how the
NBG-419N is being used in the network.
5.1.1 Web Configurator Modes
This refers to the configuration interface of the Web Configurator, which has two
modes:
Easy. The Web Configurator shows this mode by default. Refer to Chapter 6 on
page 51 for more information on the screens in this mode. This interface may be
sufficient for users who just want to use the device.
Expert. Advanced users can change to this mode to customize all the functions
of the NBG-419N. Click Expert Mode after logging into the Web Configurator.
The User!s Guide Chapter 3 on page 37 through Chapter 30 on page 213
discusses the screens in this mode.
5.1.2 Device Modes
This refers to the operating mode of the NBG-419N, which can act as a:
Router. This is the default device mode of the NBG-419N. Use this mode to
connect the local network to another network, like the Internet. Go to Section
7.3 on page 64 to view the Status screen in this mode.
Access Point. Use this mode if you want to extend your network by allowing
network devices to connect to the NBG-419N wirelessly. Go to Section 8.4 on
page 74 view the Status screen in this mode.
WISP mode. Use this mode if there is an existing wireless router or access
point in the network to which you want to connect your local network. Go to
Section 9.4 on page 81 to view the Status screen in this mode.
Company Confidential
![](/img.php?id=1180986&img=bg32.png)
Chapter 5NBG-419N Modes
NBG-419N User s Guide
50

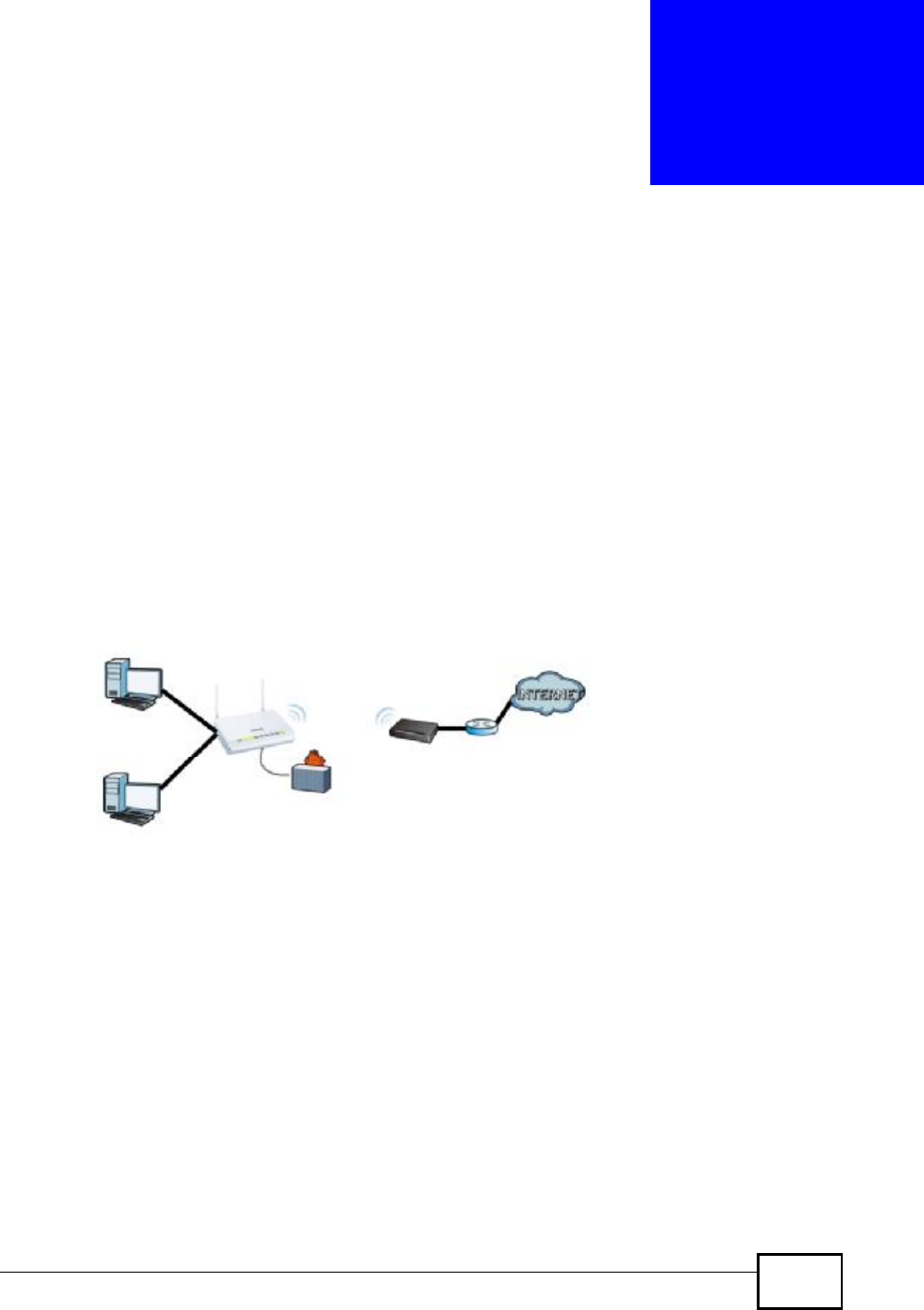

The following figure is a simple illustration of the device configuration modes of
the NBG-419N.
Figure 25 Device Mode Example
For more information on these modes and to change the mode of your NBG-419N,
refer to Chapter 30 on page 213.
The menu for changing device modes is available in Expert mode only.
Note: Choose your Device Mode carefully to avoid having to change it later.
When changing to another mode, the IP address of the NBG-419N changes. The
running applications and services of the network devices connected to the NBG-
419N can be interrupted.
In WISP mode, you should know the SSID and wireless security details of the
access point to which you want to connect.
Company Confidential
![](/img.php?id=1180986&img=bg33.png)
NBG-419N User s Guide 51
CHAPTER 6
Easy Mode
6.1 Overview
The Web Configurator is set to Easy Mode by default. You can configure several
key features of the NBG-419N in this mode. This mode is useful to users who are
not fully familiar with some features that are usually intended for network
administrators.
When you log in to the Web Configurator, the following screen opens.
Figure 26 Easy Mode: Network Map
Network Map
Control Panel
Go to
Status
Screen
Navigation Panel
Company Confidential
![](/img.php?id=1180986&img=bg34.png)
Chapter 6Easy Mode
NBG-419N User s Guide
52
Click Status to open the following screen screen.

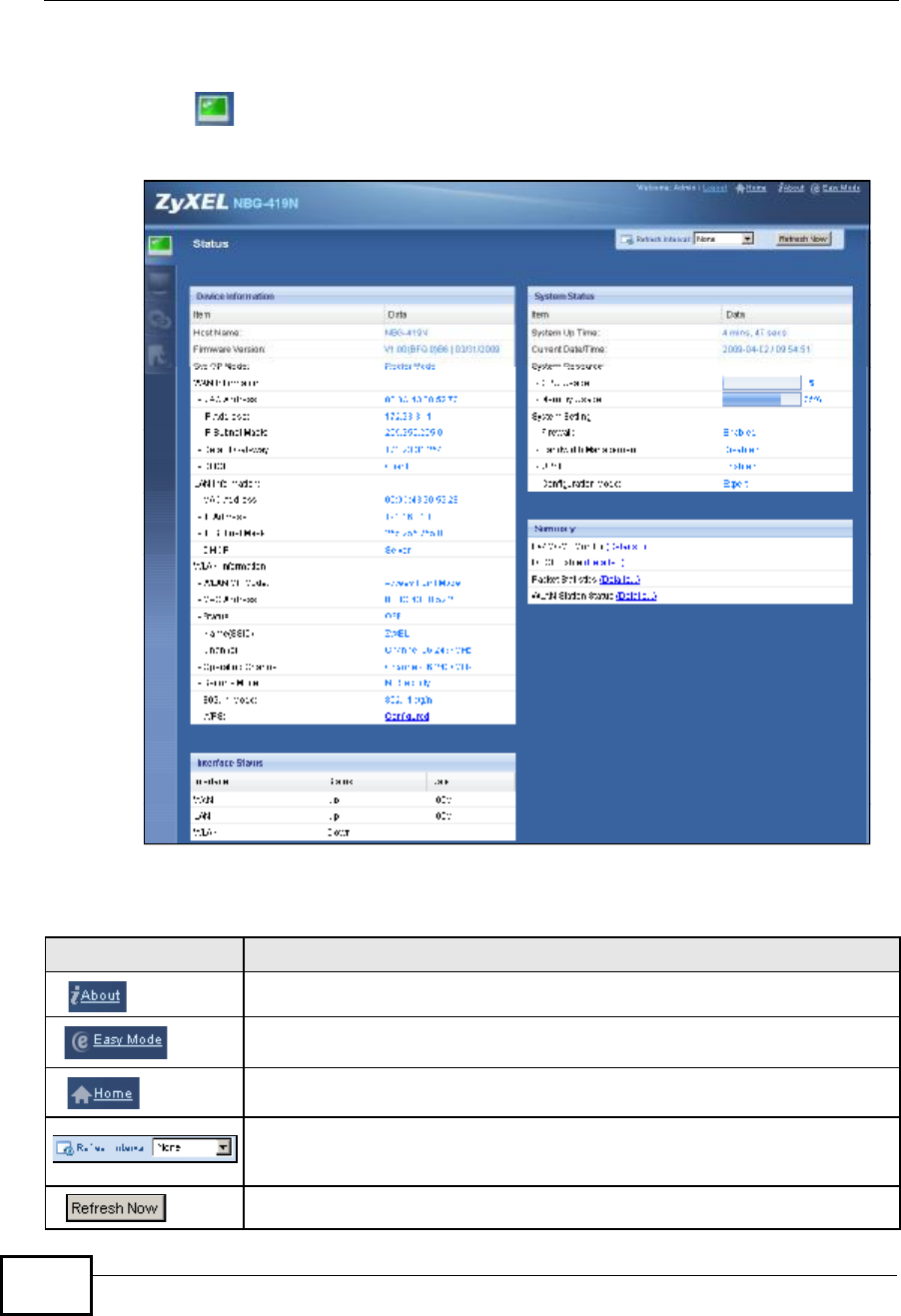

Figure 27 Easy Mode: Status Screen
6.2 What You Can Do
You can do the following in this mode:
Use this Navigation Panel (Section 6.4 on page 53) to opt out of the Easy
mode.
Use the Network Map screen (Section 6.5 on page 53) to check if your NBG-
419N can ping the gateway and whether it is connected to the Internet.
Use the Control Panel (Section 6.6 on page 54) to configure and enable NBG-
419N features, including wireless security, wireless scheduling and bandwidth
management and so on.
Use the Status Screen screen (Section 6.7 on page 61) to view read-only
information about the NBG-419N, including the WAN IP, MAC Address of the
NBG-419N and the firmware version.
6.3 What You Need to Know
Between the different device modes, the Control Panel (Section 6.6 on page 54)
changes depending on which features are applicable to the mode:
Router Mode: All Control Panel features are available.
Control Panel
Status Screen
Go to
Network
Map
Screen
Navigation Panel
Company Confidential
![](/img.php?id=1180986&img=bg35.png)
Chapter 6Easy Mode
NBG-419N User s Guide 53
Access Point Mode: Only Power Saving and Wireless Security are
available.
WISP Mode: The available features for this mode are Game Console,
Content Filter, Bandwidth MGMT, and Firewall.

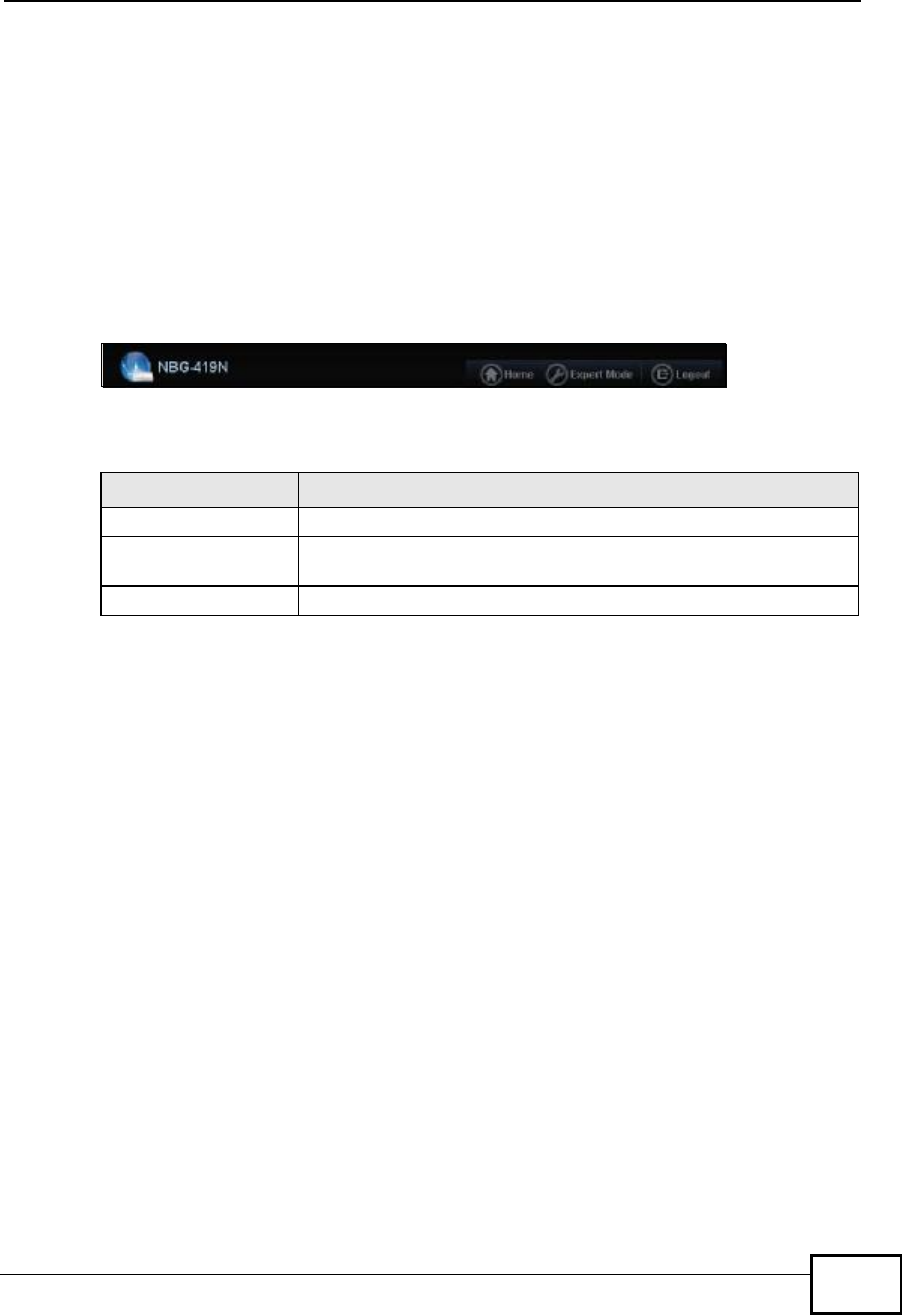

6.4 Navigation Panel
Use this navigation panel to opt out of the Easy mode.
Figure 28 Control Panel
The following table describes the labels in this screen.
6.5 Network Map
Note: The NetworkMAP is viewable by Windows XP (need to install patch), Windows
Vista and Windows 7 users only. For Windows XP (Service Pack 2) users, you
can see the network devices connected to the NBG-419N by downloading the
LLTD (Link Layer Topology Discovery) patch from the Microsoft Website.
Note: Don t worry if the Network Map does not display in your web browser. This
feature may not be supported by your system. You can still configure the
Control Panel (Section 6.6 on page 54) in the Easy Mode and the NBG-419N
features that you want to use in the Expert Mode.
Table 17 Control Panel
ITEM DESCRIPTION
HomeClick this to go to the Login page.
Expert ModeClick this to change to Expert mode and customize features of
the NBG-419N.
LogoutClick this to end the Web Configurator session.
Company Confidential
![](/img.php?id=1180986&img=bg36.png)
Chapter 6Easy Mode
NBG-419N User s Guide
54

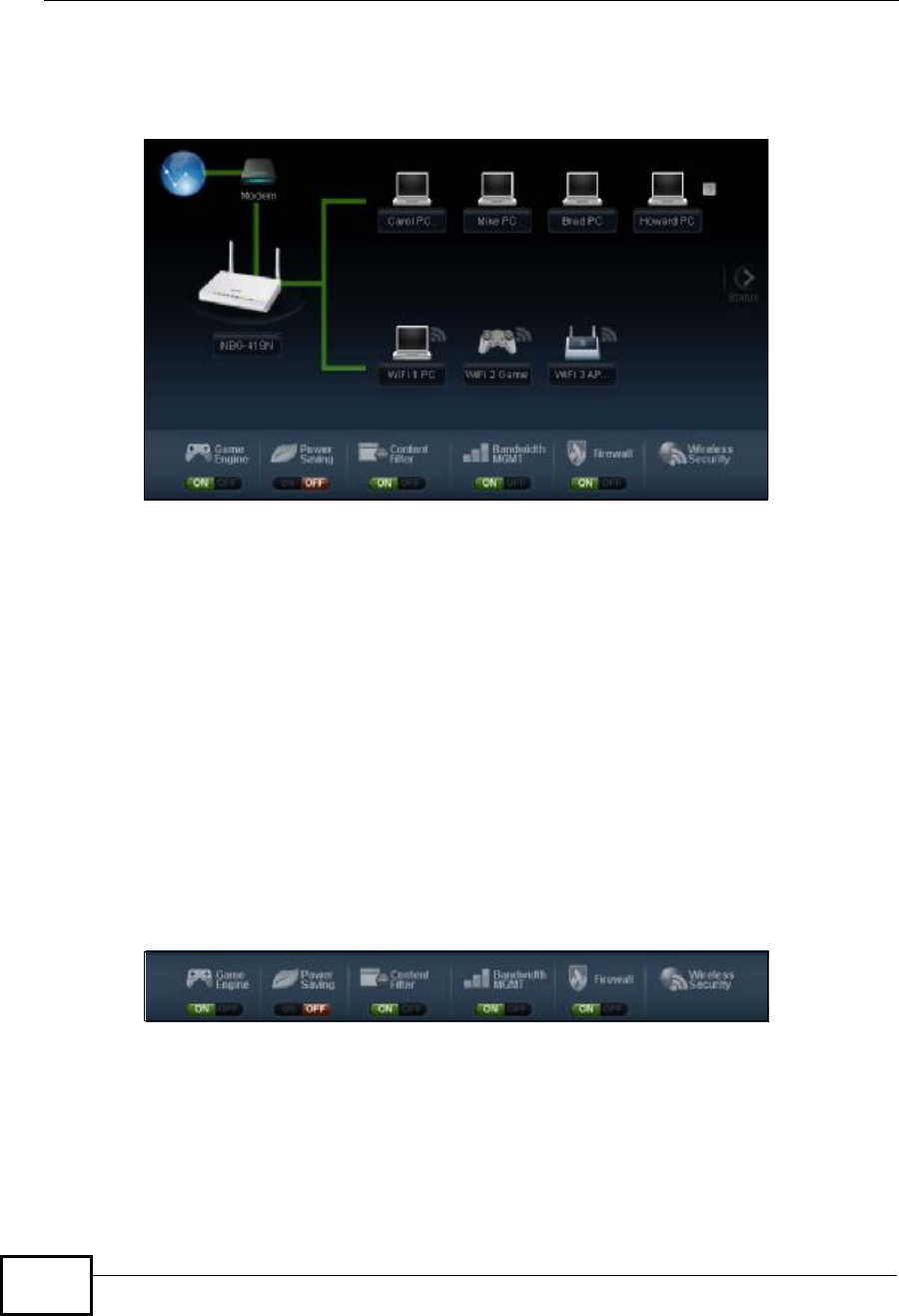

When you log into the Network Configurator, the Network Map is shown as
follows.
Figure 29 Network Map
The line connecting the NBG-419N to the gateway becomes green when the NBG-
419N is able to ping the gateway. It becomes red when the ping initiating from the
NBG-419N does not get a response from the gateway. The same rule applies to
the line connecting the gateway to the Internet.
You can also view the devices (represented by icons indicating the kind of network
device) connected to the NBG-419N, including those connecting wirelessly. Right-
click on the NBG-419N icon to refresh the network map and go to the Wizard.

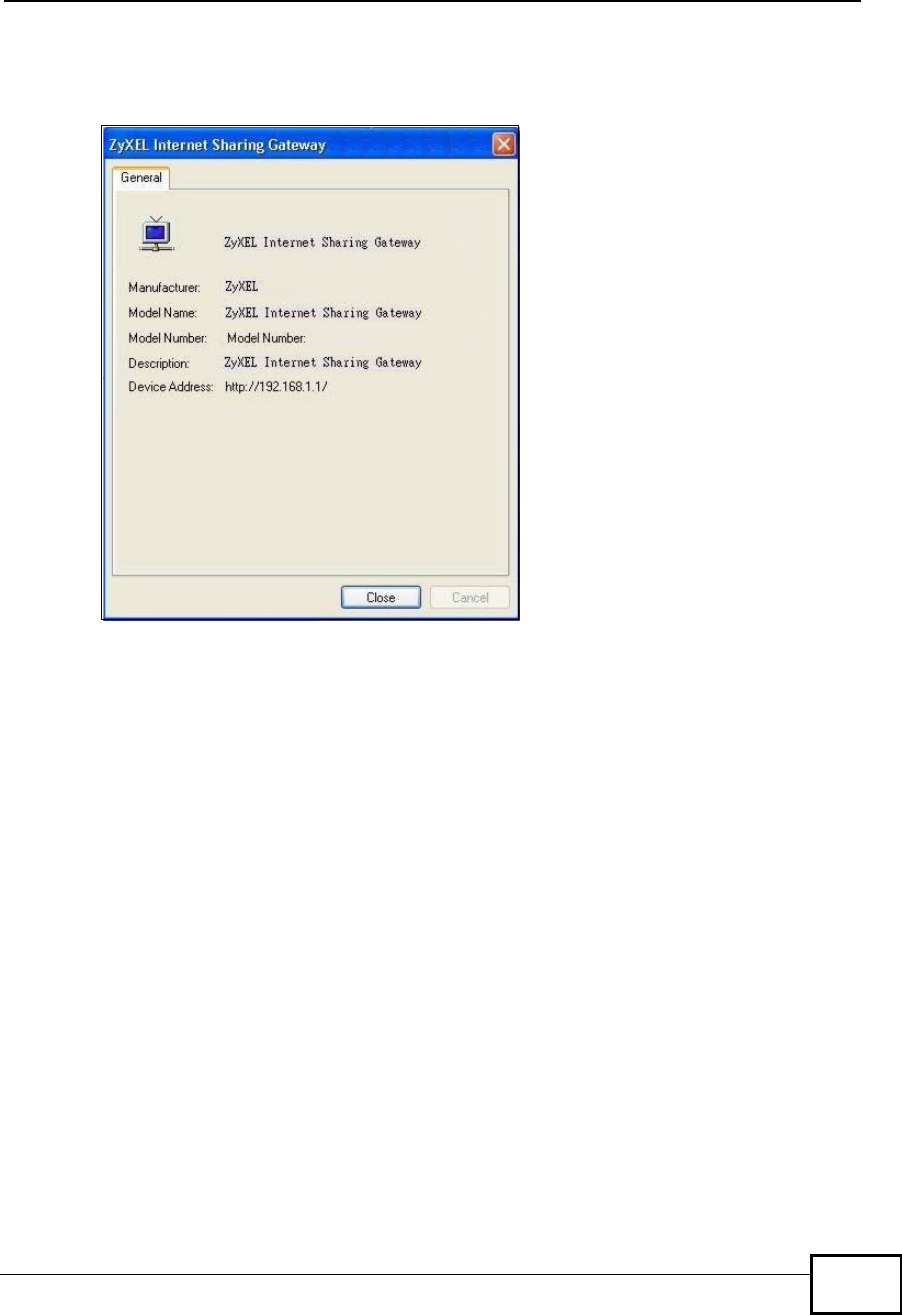

Right click on the other icons to view information about the device.
6.6 Control Panel
The features configurable in Easy Mode are shown in the Control Panel.
Figure 30 Control Panel
Switch ON to enable the feature. Otherwise, switch OFF. If the feature is turned
on, the green light flashes. If it is turned off, the red light flashes.
Additionally, click the feature to open a screen where you can edit its settings.
Company Confidential
![](/img.php?id=1180986&img=bg37.png)
Chapter 6Easy Mode
NBG-419N User s Guide 55
The following table describes the labels in this screen.
6.6.1 Game Engine
When this feature is enabled, the NBG-419N maximizes the bandwidth for gaming
traffic that it forwards out through an interface.
Figure 31 Game Engine
Table 18 Control Panel
ITEM DESCRIPTION
Game EngineSwitch ON to maximize bandwidth for gaming traffic in your
network. Otherwise, switch OFF.
Refer to Section 6.6.1 on page 55 to see this screen.
Power SavingClick this to schedule the wireless feature of the NBG-419N.
Disabling the wireless function helps lower the energy
consumption of the NBG-419N.
Switch ON to apply wireless scheduling. Otherwise, switch OFF.
Refer to Section 6.6.2 on page 56 to see this screen.
Content FilterClick this to restrict access to certain websites, based on
keywords contained in URLs, to which you do not want users in
your network to open.
Switch ON to apply website filtering. Otherwise, switch OFF.
Refer to Section 6.6.3 on page 57 to see this screen.
Bandwidth MgmtClick this to edit bandwidth management for predefined
applications.
Switch ON to have the NBG-419N management bandwidth for
uplink and downlink traffic according to an application or service.
Otherwise, switch OFF.
Refer to Section 6.6.4 on page 58 to see this screen.
FirewallSwitch ON to ensure that your network is protected from Denial
of Service (DoS) attacks. Otherwise, switch OFF.
Refer to Section 6.6.5 on page 58 to see this screen.
Wireless SecurityClick this to configure the wireless security, such as SSID,
security mode and WPS key on your NBG-419N.
Refer to Section 6.6.6 on page 59 to see this screen.
Company Confidential
![](/img.php?id=1180986&img=bg38.png)
Chapter 6Easy Mode
NBG-419N User s Guide
56
Note: When this is switched on, the Game Console tab in the Bandwidth Mgmt
screen is automatically positioned on top.
Turn this off if your network is not using gaming.
Click OK to close this screen.
6.6.2 Power Saving
Use this screen to set the day of the week and time of the day when your wireless
LAN is turned on and off. Wireless LAN scheduling is disabled by default.
Disabling the wireless capability lowers the energy consumption of the of the NBG-
419N.
Figure 32 Power Saving
The following table describes the labels in this screen.
Table 19 Power Saving
LABEL DESCRIPTION
WLAN Status Select On or Off to specify whether the Wireless LAN is turned on or off
(depending on what you selected in the WLAN Status field). This field
works in conjunction with the Day and Except for the following
times fields.
Day Select Everyday or the specific days to turn the Wireless LAN on or off.
If you select Everyday you can not select any specific days. This field
works in conjunction with the Except for the following times field.
Company Confidential
![](/img.php?id=1180986&img=bg39.png)
Chapter 6Easy Mode
NBG-419N User s Guide 57

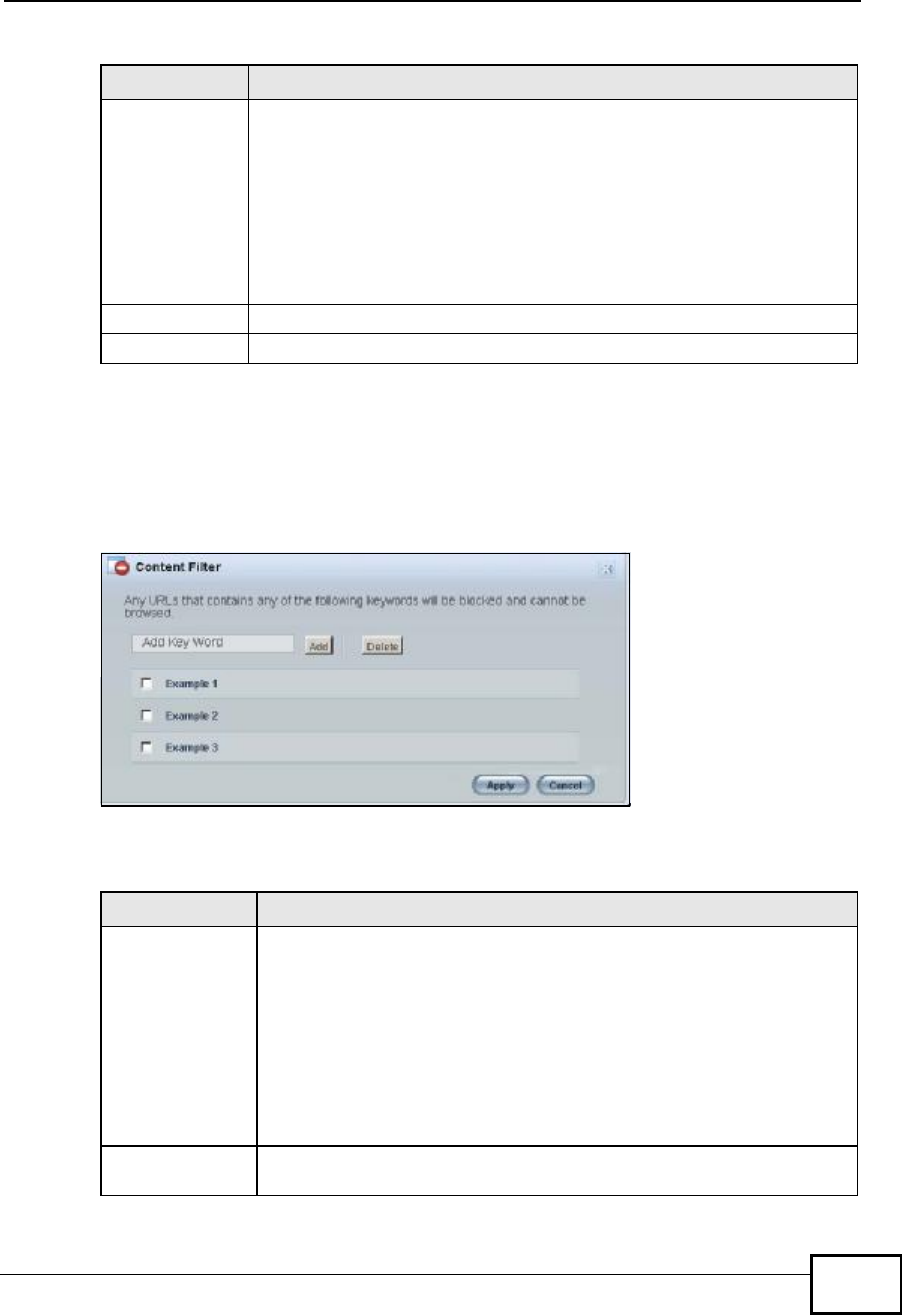

6.6.3 Content Filter
Use this screen to restrict access to certain websites, based on keywords
contained in URLs, to which you do not want users in your network to open.
Figure 33 Content Filter
The following table describes the labels in this screen.
For the
following times
(24-Hour
Format)
Select a begin time using the first set of hour and minute (min) drop
down boxes and select an end time using the second set of hour and
minute (min) drop down boxes. If you have chosen On earlier for the
WLAN Status the Wireless LAN will turn on between the two times you
enter in these fields. If you have chosen Off earlier for the WLAN Status
the Wireless LAN will turn off between the two times you enter in these
fields.
In this time format, midnight is 00:00 and progresses up to 24:00. For
example, 6:00 PM is 18:00.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Table 19 Power Saving
LABEL DESCRIPTION
Table 20 Content Filter
LABEL DESCRIPTION
Add Click Add after you have typed a keyword.
Repeat this procedure to add other keywords. Up to 64 keywords are
allowed.
Note: The NBG-419N does not recognize wildcard characters as
keywords.
When you try to access a web page containing a keyword, you will get
a message telling you that the content filter is blocking this request.
Delete Highlight a keyword in the text box and click Delete to remove it. The
keyword disappears from the text box after you click Apply.
Company Confidential
![](/img.php?id=1180986&img=bg3a.png)
Chapter 6Easy Mode
NBG-419N User s Guide
58

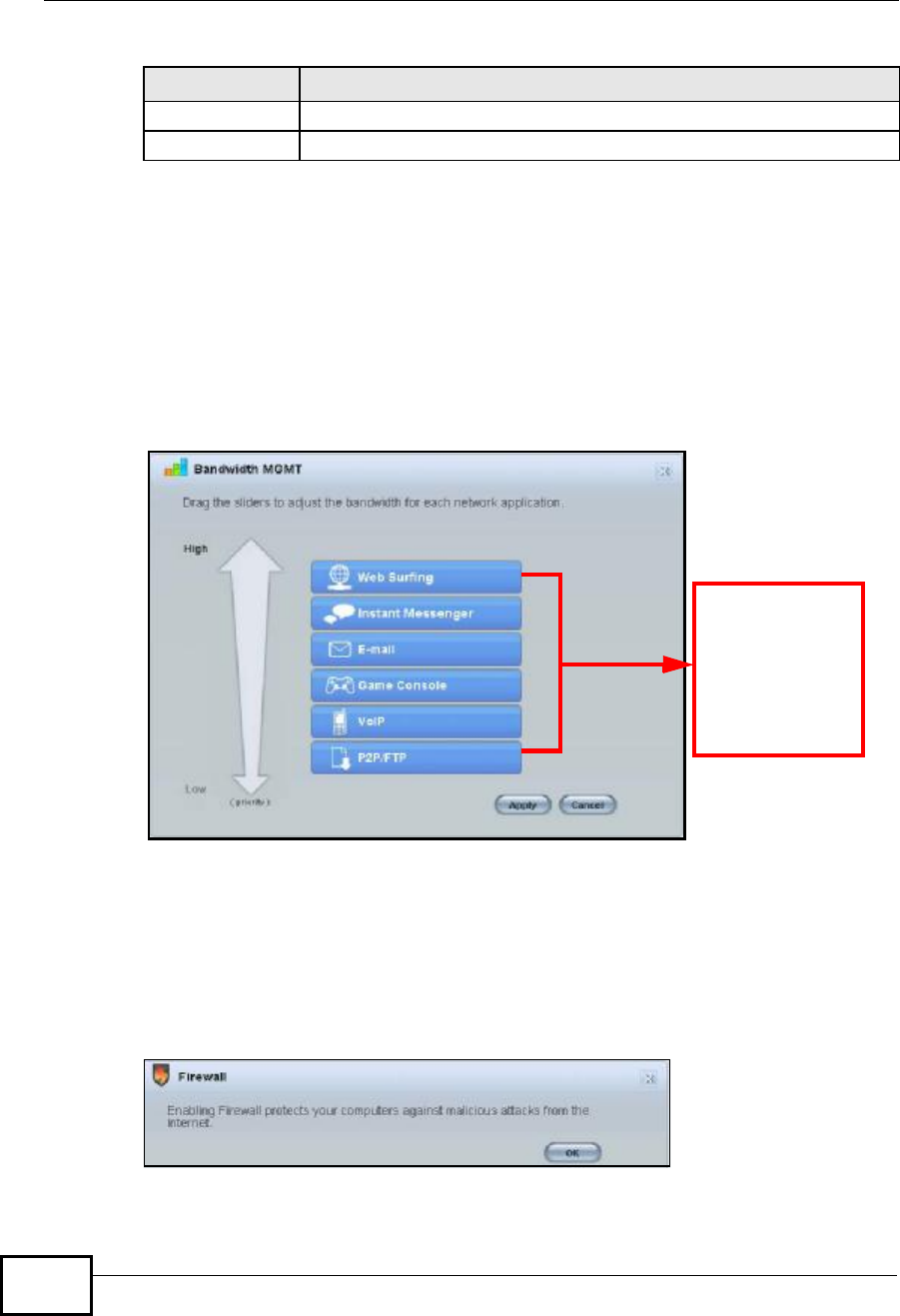

6.6.4 Bandwidth MGMT
Use this screen to set bandwidth allocation to pre-defined services and
applications for bandwidth allocation.
The NBG-419N uses bandwidth management for incoming and outgoing traffic.
Rank the services and applications by dragging them accordingly from High to
Low and click Apply. Click Cancel to close the screen.
Figure 34 Bandwidth MGNT
6.6.5 Firewall
Enable this feature to protect the network from Denial of Service (DoS) attacks.
The NBG-419N blocks repetitive pings from the WAN that can otherwise cause
systems to slow down or hang.

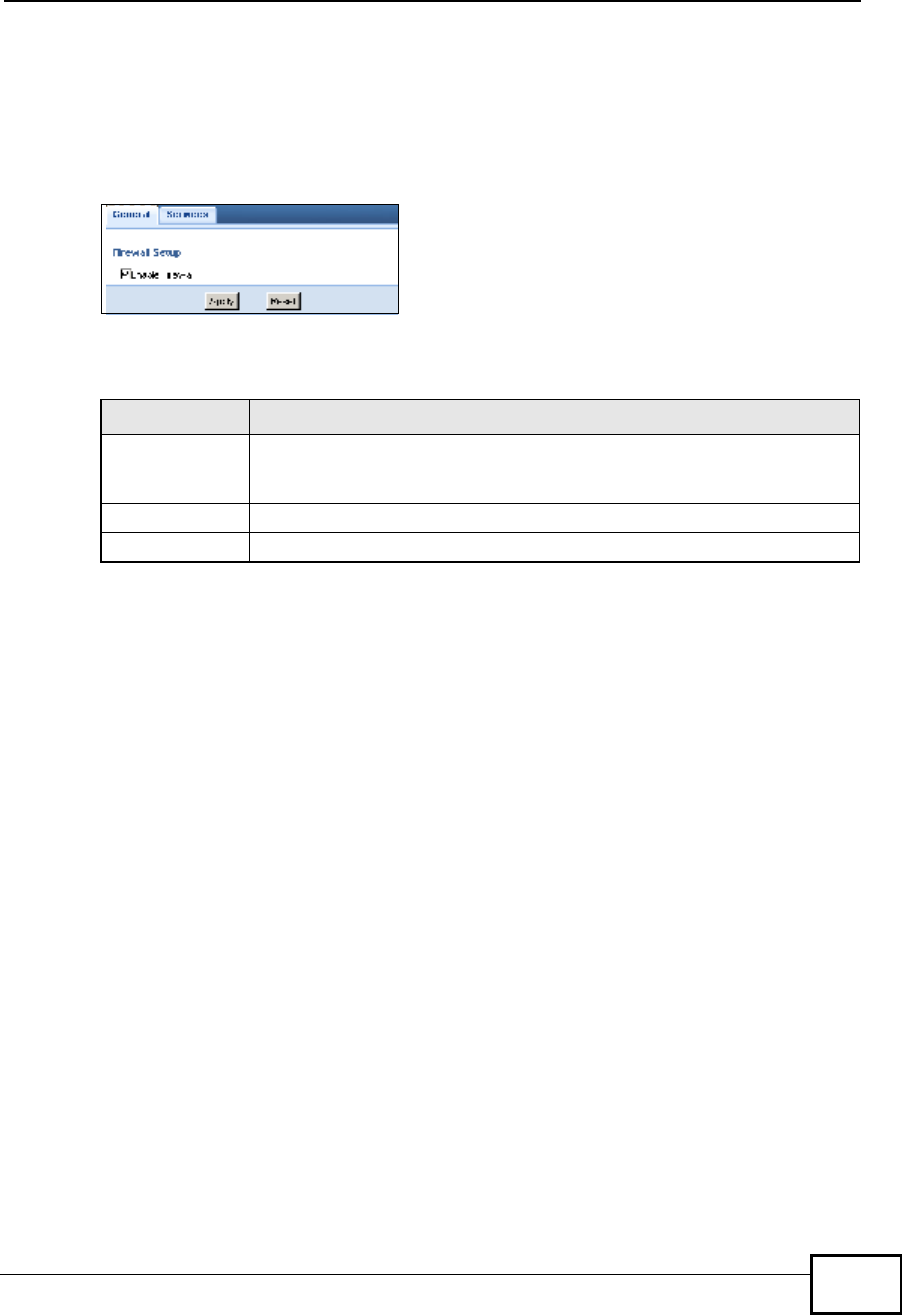

Figure 35 Firewall
Click OK to close this screen.
Apply Click Apply to save your changes.
Cancel Click Cancel to close this screen without saving any changes.
Table 20 Content Filter
LABEL DESCRIPTION

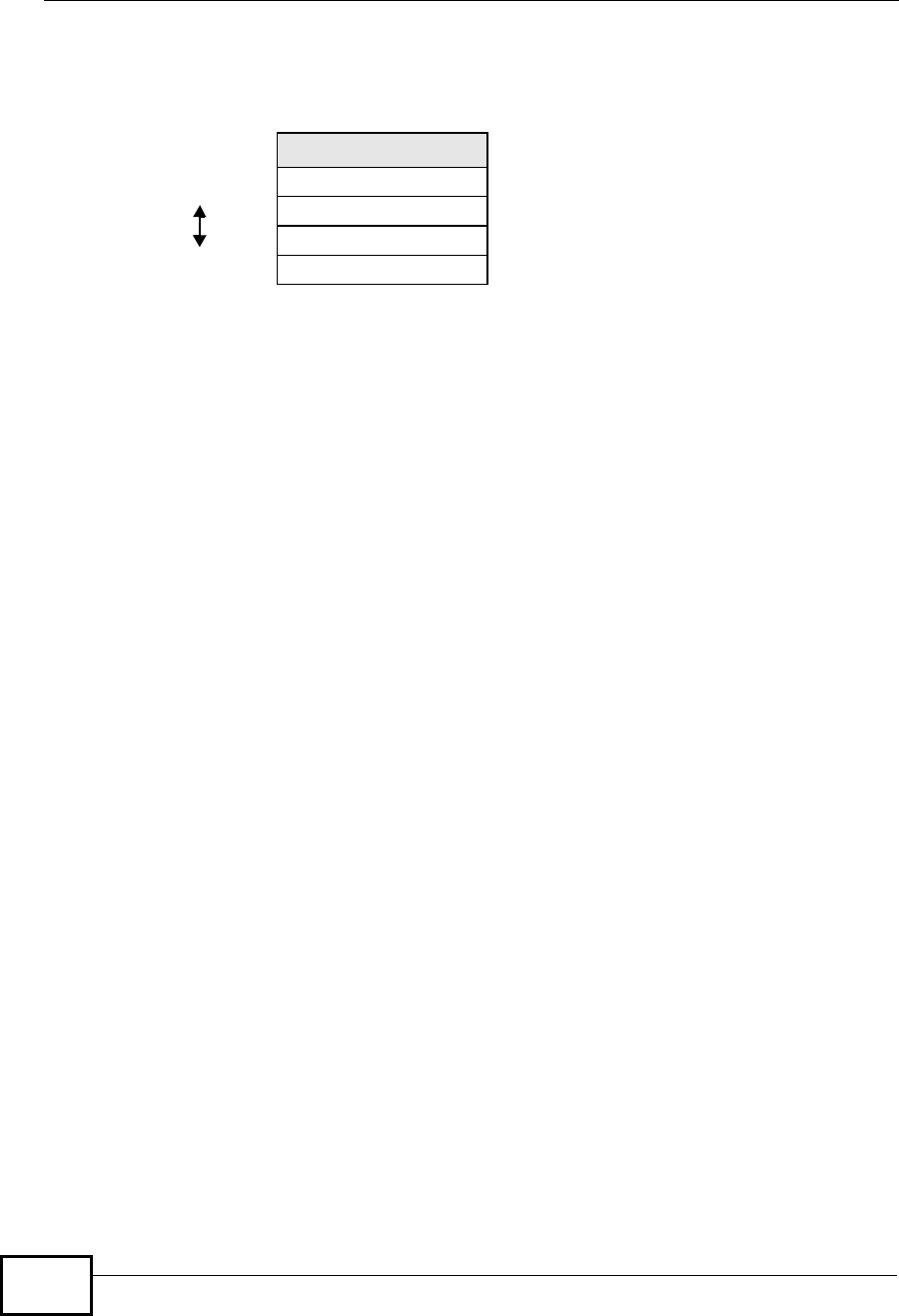

Use your mouse
to drag the items
according to how
you want to
prioritze them.
Left-click and
slide up or down.
Company Confidential
![](/img.php?id=1180986&img=bg3b.png)
Chapter 6Easy Mode
NBG-419N User s Guide 59
6.6.6 Wireless Security
Use this screen to configuresecurity for your the Wireless LAN. You can enter the
SSID and select the wireless security mode in the following screen.
Note: You can enable the Wireless function of your NBG-419N by first turning on the
switch in the back panel.

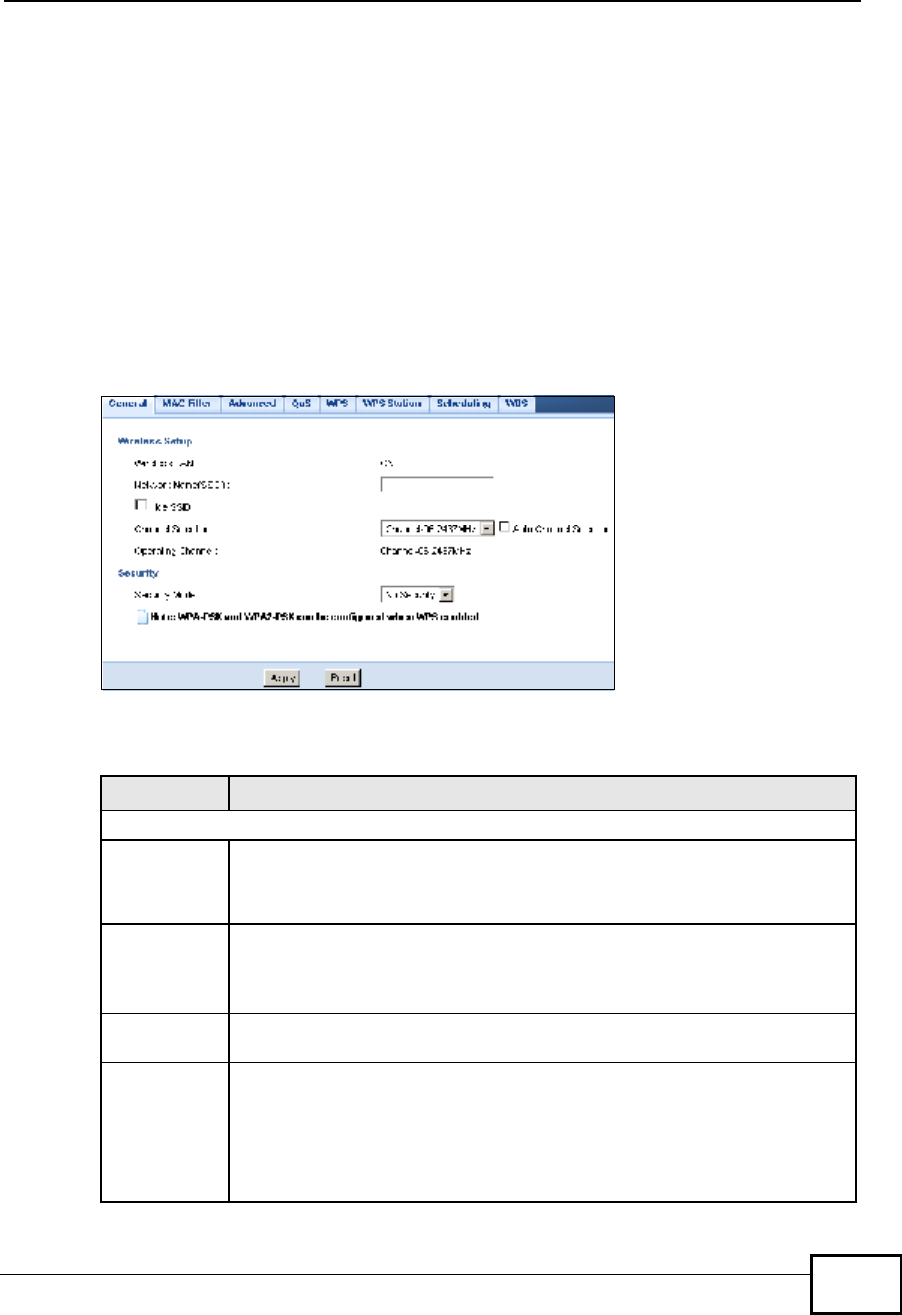

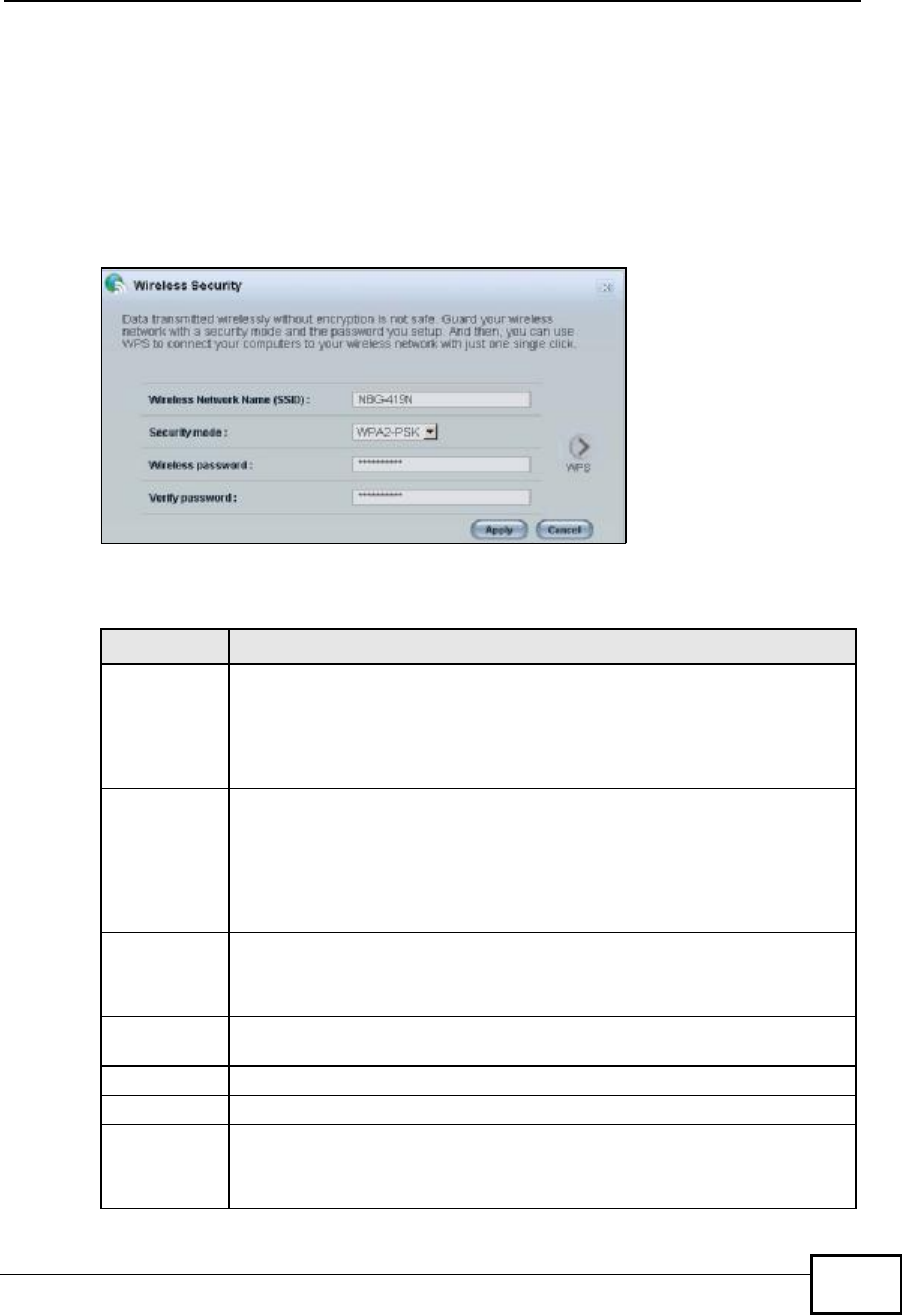

Figure 36 Wireless Security
The following table describes the general wireless LAN labels in this screen.
Table 21 Wireless Security
LABEL DESCRIPTION
Wireless
Network
Name (SSID)
(Service Set IDentity) The SSID identifies the Service Set with which a
wireless station is associated. Wireless stations associating to the access
point (AP) must have the same SSID. Enter a descriptive name (up to 32
keyboard characters) for the wireless LAN.
The default SSID is NBG-419N.
Security
mode
Select WPA-PSK or WPA2-PSK to add security on this wireless
network. The wireless clients which want to associate to this network
must have same wireless security settings as this device. After you select
to use a security, additional options appears in this screen.
Select No Security to allow any client to connect to this network without
authentication.
Wireless
password
This field appears when you choose wither WPA-PSK or WPA2-PSK as
the security mode.
Type a pre-shared key from 8 to 63 case-sensitive keyboard characters.
Verify
password
Type the password again to confirm.
Apply Click Apply to save your changes back to the NBG-419N.
Cancel Click Cancel to close this screen.
WPS Click this to configure the WPS screen.
You can transfer the wireless settings configured here (Wireless
Security screen) to another wireless device that supports WPS.
Company Confidential
![](/img.php?id=1180986&img=bg3c.png)
Chapter 6Easy Mode
NBG-419N User s Guide
60
6.6.7 WPS
Use this screen to add a wireless station to the network using WPS. Click WPS in
the Wireless Security to open the following screen.
Figure 37 Wireless Security: WPS
The following table describes the labels in this screen.
Table 22 Wireless Security: WPS
LABEL DESCRIPTION
Wireless
Security
Click this to go back to the Wireless Security screen.
WPS Create a secure wireless network simply by pressing a button.
The NBG-419N scans for a WPS-enabled device within the range and
performs wireless security information synchronization.
Note: After you click the WPS button on this screen, you have to
press a similar button in the wireless station utility within 2
minutes. To add the second wireless station, you have to
press these buttons on both device and the wireless station
again after the first 2 minutes.
Register Create a secure wireless network simply by entering a wireless
client's PIN (Personal Identification Number) in the NBG-419N!s
interface and pushing this button.
Type the same PIN number generated in the wireless station!s utility.
Then click Register to associate to each other and perform the wireless
security information synchronization.
Exit Click Exit to close this screen.
Company Confidential
![](/img.php?id=1180986&img=bg3d.png)
Chapter 6Easy Mode
NBG-419N User s Guide 61
6.7 Status Screen in Easy Mode
In the Network Map screen, click Status to view read-only information about the
NBG-419N.

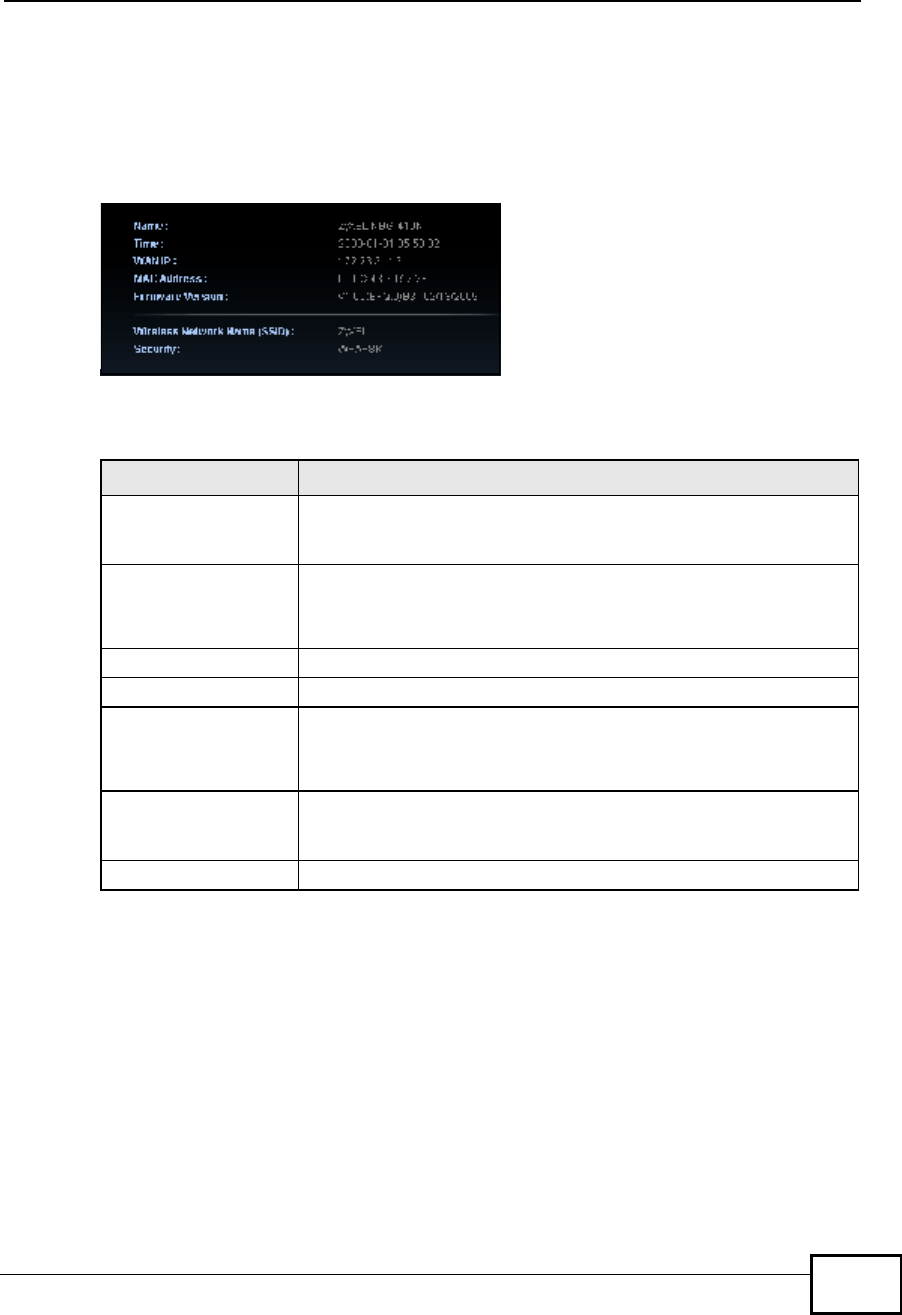

Figure 38 Status Screen in Easy Mode
The following table describes the labels in this screen.
Table 23 Status Screen in Easy Mode
ITEM DESCRIPTION
NameThis is the name of the NBG-419N in the network. You can change
this in the Maintenance > General screen in Section 24.3 on
page 197.
TimeThis is the current system date and time.
The date is in YYYY:MM:DD (Year-Month-Day) format. The time is
in HH:MM:SS (Hour:Minutes:Seconds) format.
WAN IPThis is the IP address of the WAN port.
MAC AddressThis is the MAC address of the NBG-419N.
Firmware VersionThis shows the firmware version of the NBG-419N.
The firmware version format shows the trunk version, model code
and release number.
Wireless Network
Name
This shows the SSID of the wireless network. You can configure
this in the Wireless Security screen (Section 6.6.6 on page 59;
Section 11.3.1.1 on page 101).
SecurityThis shows the wireless security used by the NBG-419N.
Company Confidential
![](/img.php?id=1180986&img=bg3e.png)
Chapter 6Easy Mode
NBG-419N User s Guide
62
Company Confidential
![](/img.php?id=1180986&img=bg3f.png)
NBG-419N User s Guide 63
CHAPTER 7
Router Mode
7.1 Overview
The NBG-419N is set to router mode by default. Routers are used to connect the
local network to another network (for example, the Internet). In the figure below,
the NBG-419N connects the local network (LAN1 ~ LAN4) to the Internet.

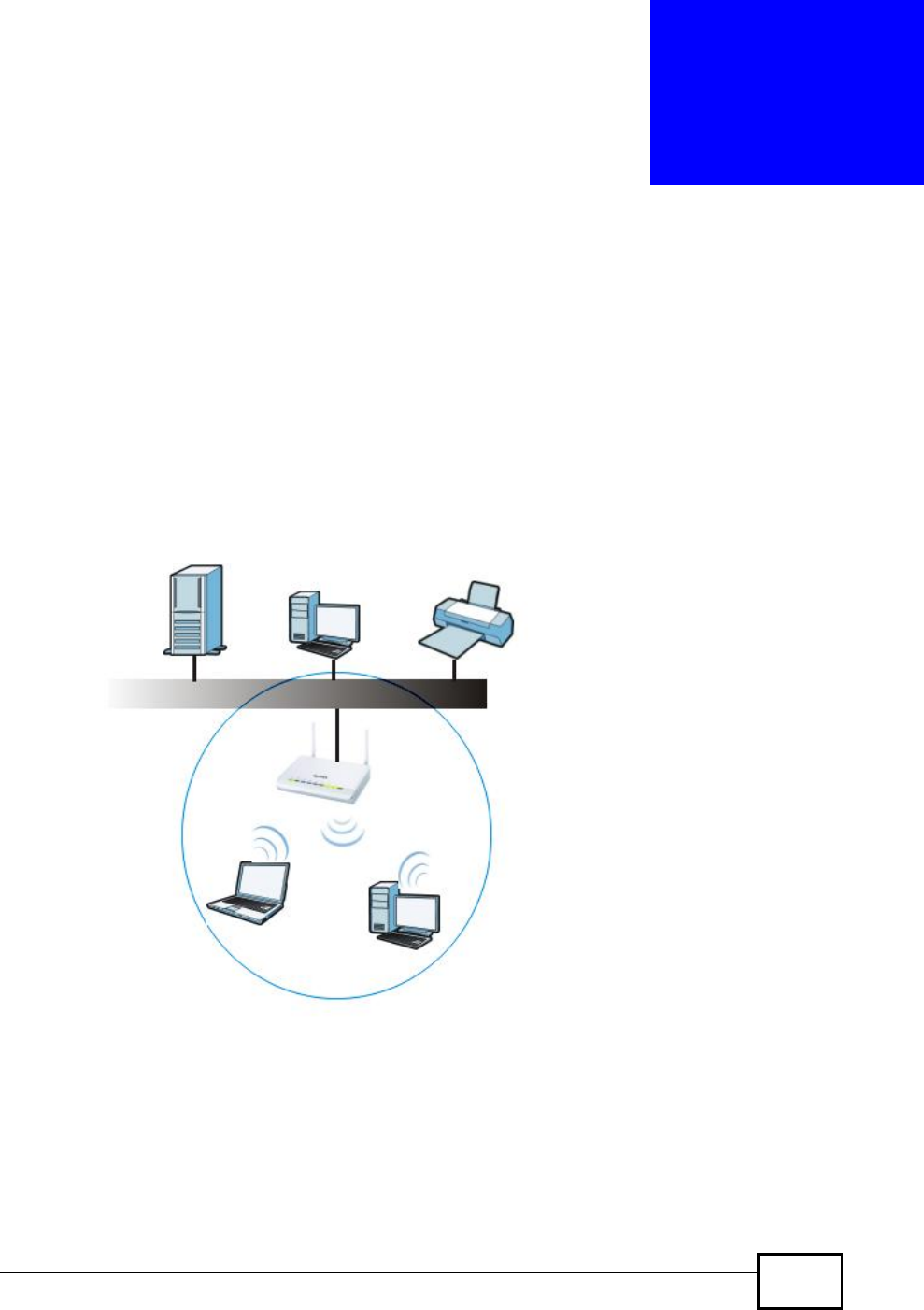

Figure 39 NBG-419N Network
Note: The Status screen is shown after changing to the Expert mode of the Web
Configurator. It varies depending on the device mode of your NBG-419N.
7.2 What You Can Do
Use the Status screen (Section 7.3 on page 64) to view read-only information
about your NBG-419N.
Modem
Company Confidential
![](/img.php?id=1180986&img=bg40.png)
Chapter 7Router Mode
NBG-419N User s Guide
64
7.3 Status Screen
Click to open the status screen.
Figure 40 Status Screen: Router Mode
The following table describes the icons shown in the Status screen.
Table 24 Status Screen Icon Key: Router Mode
ICON DESCRIPTION
Click this icon to view copyright and a link for related product information.
Click this icon to go to Easy Mode. See Chapter 6 on page 51.
Click this to go to the Home page. See Chapter 4 on page 43.
Select a number of seconds or None from the drop-down list box to refresh
all screen statistics automatically at the end of every time interval or to not
refresh the screen statistics.
Click this button to refresh the status screen statistics.
Company Confidential
![](/img.php?id=1180986&img=bg41.png)
Chapter 7Router Mode
NBG-419N User s Guide 65
The following table describes the labels shown in the Status screen.
Click this icon to see the Status page. The information in this screen depends
on the device mode you select.

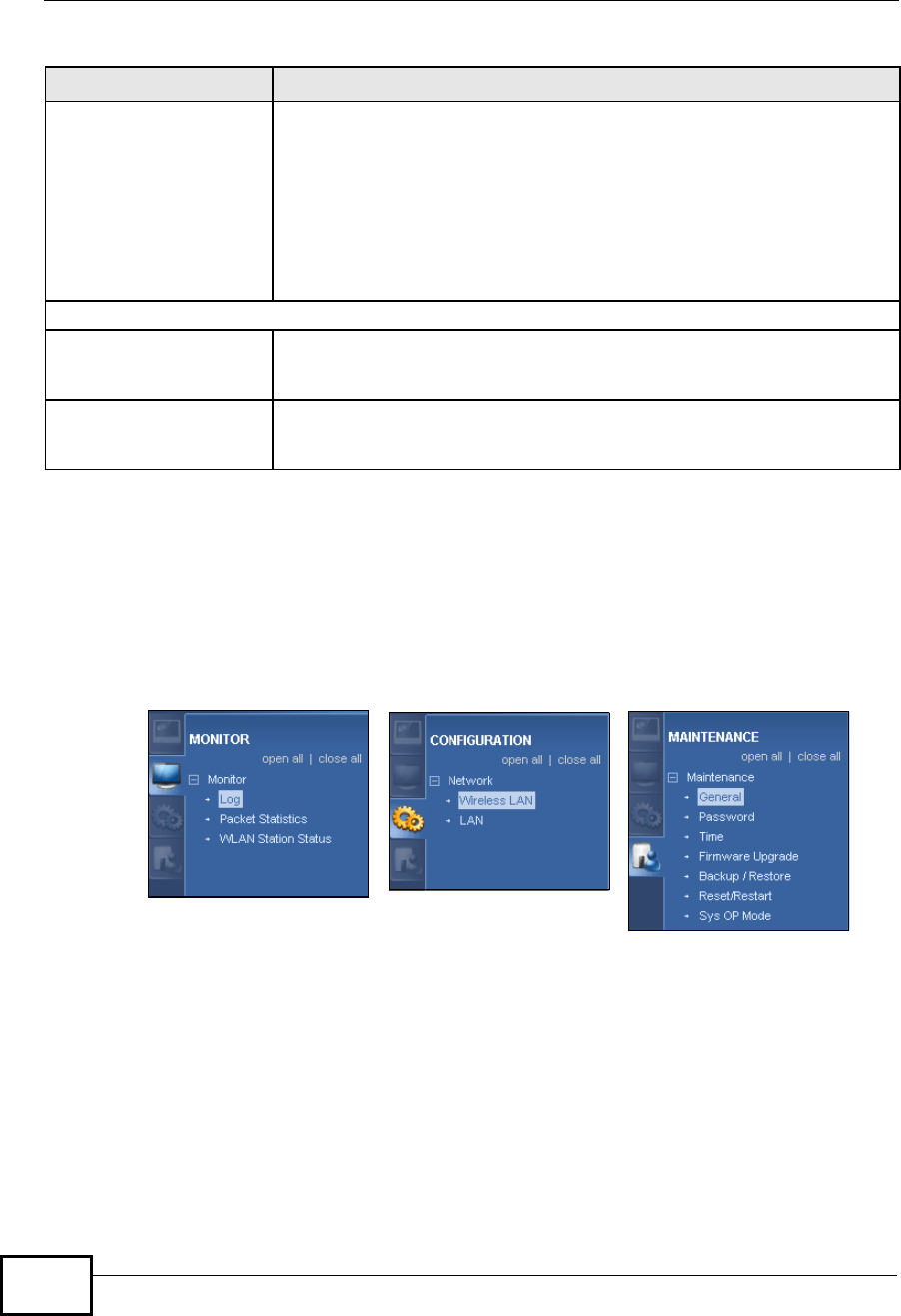

Click this icon to see the Monitor navigation menu.
Click this icon to see the Configuration navigation menu.
Click this icon to see the Maintenance navigation menu.
Table 24 Status Screen Icon Key: Router Mode (continued)
ICON DESCRIPTION
Table 25 Status Screen: Router Mode
LABEL DESCRIPTION
LogoutClick this at any time to exit the Web Configurator.
Device Information
Host NameThis is the System Name you enter in the Maintenance > General
screen. It is for identification purposes.
Firmware VersionThis is the firmware version and the date created.
Sys OP ModeThis is the device mode (Section 5.1.2 on page 49) to which the NBG-
419N is set - Router Mode.
WAN Information
- MAC AddressThis shows the WAN Ethernet adapter MAC Address of your device.
- IP AddressThis shows the WAN port!s IP address.
- IP Subnet MaskThis shows the WAN port!s subnet mask.
- Default GatewayThis shows the WAN port!s gateway IP address.
- DHCPThis shows the LAN port!s DHCP role - Client or Server.
LAN Information
- MAC AddressThis shows the LAN Ethernet adapter MAC Address of your device.
- IP AddressThis shows the LAN port!s IP address.
- IP Subnet MaskThis shows the LAN port!s subnet mask.
- DHCPThis shows the LAN port!s DHCP role - Server or None.
WLAN Information
- WLAN OP ModeThis is the device mode (Section 5.1.2 on page 49) to which the NBG-
419N!s wireless LAN is set - Access Point Mode.
- MAC AddressThis shows the wireless adapter MAC Address of your device.
- StatusThis shows the current status of the Wireless LAN - ON or OFF.
- Name (SSID)This shows a descriptive name used to identify the NBG-419N in the
wireless LAN.
- ChannelThis shows the channel number which you select manually.
- Operating ChannelThis shows the channel number which the NBG-419N is currently using
over the wireless LAN.
- Security ModeThis shows the level of wireless security the NBG-419N is using.
Company Confidential
![](/img.php?id=1180986&img=bg42.png)
Chapter 7Router Mode
NBG-419N User s Guide
66
- 802.11 ModeThis shows the wireless standard.
- WPSThis displays Configured when the WPS has been set up.
This displays Unconfigured if the WPS has not been set up.
Click the status to display Network > Wireless LAN > WPS screen.
System Status
ItemThis column shows the type of data the NBG-419N is recording.
DataThis column shows the actual data recorded by the NBG-419N.
System Up TimeThis is the total time the NBG-419N has been on.
Current Date/TimeThis field displays your NBG-419N!s present date and time.
System Resource
- CPU UsageThis displays what percentage of the NBG-419N!s processing ability is
currently used. When this percentage is close to 100%, the NBG-419N is
running at full load, and the throughput is not going to improve anymore.
If you want some applications to have more throughput, you should turn
off other applications (for example, using bandwidth management.)
- Memory UsageThis shows what percentage of the heap memory the NBG-419N is using.
System Setting
- FirewallThis shows whether the firewall is enabled or not.
- Bandwidth
Management
This shows whether the bandwidth management is enabled or not.
- UPnPThis shows whether UPnP is enabled or not.
- Configuration ModeThis shows the web configurator mode you are viewing - Expert.
Interface Status
InterfaceThis displays the NBG-419N port types. The port types are: WAN, LAN
and WLAN.
StatusFor the LAN and WAN ports, this field displays Down (line is down) or Up
(line is up or connected).
For the WLAN, it displays Up when the WLAN is enabled or Down when
the WLAN is disabled.
RateFor the LAN ports, this displays the port speed and duplex setting or N/A
when the line is disconnected.
For the WAN port, it displays the port speed and duplex setting if you!re
using Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to
trigger a call) and Drop (dropping a call) if you're using PPPoE or PPTP
encapsulation. This field displays N/A when the line is disconnected.
For the WLAN, it displays the maximum transmission rate when the WLAN
is enabled and N/A when the WLAN is disabled.
Summary
BW MGMT Monitor Click Details... to go to the Monitor > BW MGMT Monitor screen
(Section 4.3 on page 43). Use this screen to view the amount of
network bandwidth that applications running in the network are
using.
Table 25 Status Screen: Router Mode
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg43.png)
Chapter 7Router Mode
NBG-419N User s Guide 67
7.3.1 Navigation Panel
Use the sub-menus on the navigation panel to configure NBG-419N features.
Figure 41 Navigation Panel: Router Mode
The following table describes the sub-menus.
DHCP Table Click Details... to go to the Monitor > DHCP Table screen (Section
4.4 on page 44). Use this screen to view current DHCP client information.
Packet Statistics Click Details... to go to the Monitor > Packet Statistics screen
(Section 4.5 on page 45). Use this screen to view port status and packet
specific statistics.
WLAN Station Status Click Details... to go to the Monitor > WLAN Station Status screen
(Section 4.6 on page 46). Use this screen to view the wireless stations
that are currently associated to the NBG-419N.
Table 25 Status Screen: Router Mode
LABEL DESCRIPTION
Table 26 Navigation Panel: Router Mode
LINK TAB FUNCTION
Status This screen shows the NBG-419N!s general device, system
and interface status information. Use this screen to access
the wizard, and summary statistics tables.
MONITOR
Log Use this screen to view the list of activities recorded by
your NBG-419N.
BW MGMT Use this screen to view the amount of network
bandwidth that applications running in the network
are using.
DHCP Table Use this screen to view current DHCP client information.
Company Confidential
![](/img.php?id=1180986&img=bg44.png)
Chapter 7Router Mode
NBG-419N User s Guide
68
Packet
Statistics
Use this screen to view port status and packet specific
statistics.
WLAN Station
Status
Use this screen to view the wireless stations that are
currently associated to the NBG-419N.
CONFIGURATION
Network
Wireless
LAN

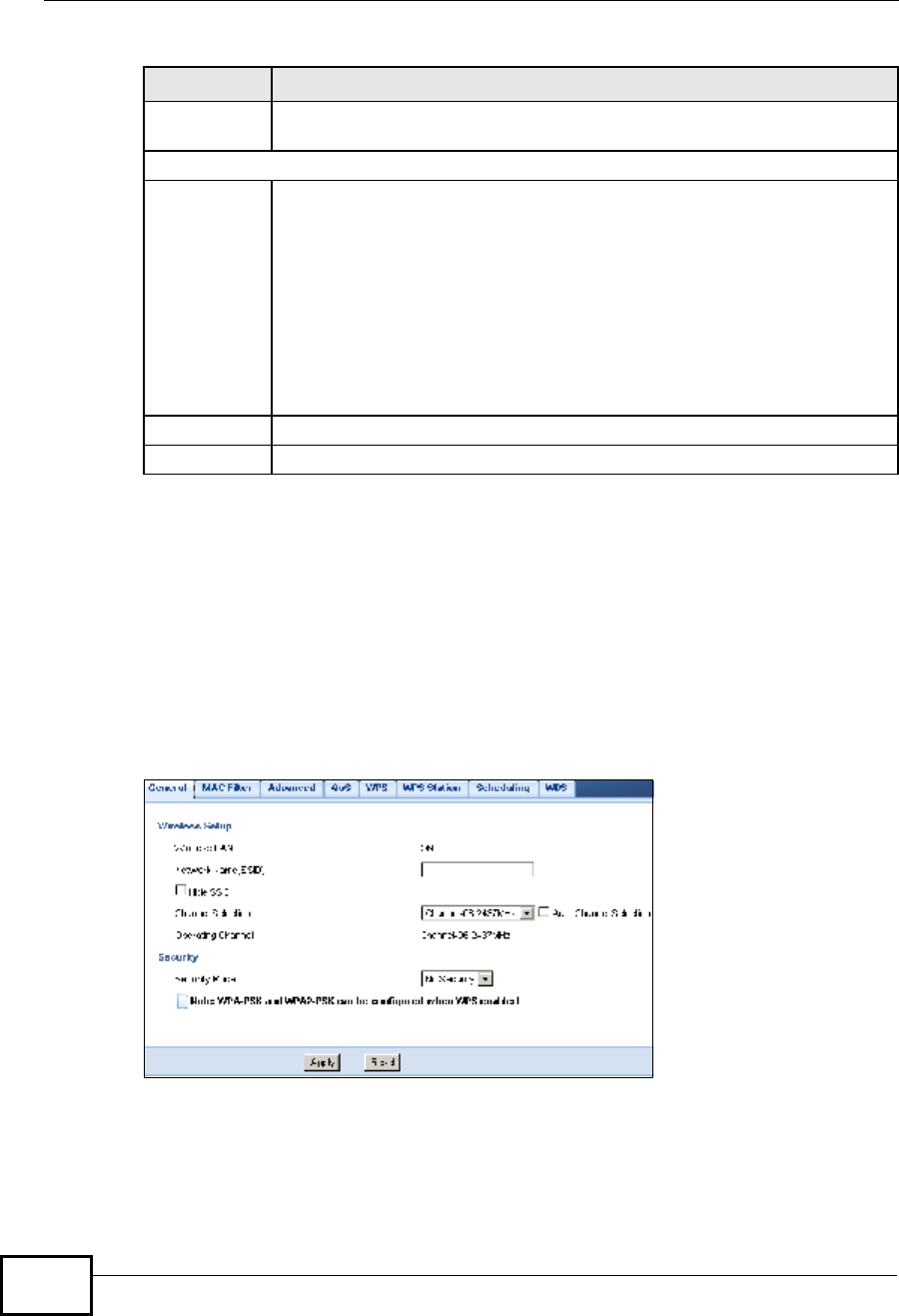

General Use this screen to configure wireless LAN.
MAC Filter Use the MAC filter screen to configure the NBG-419N to
block access to devices or block the devices from
accessing the NBG-419N.

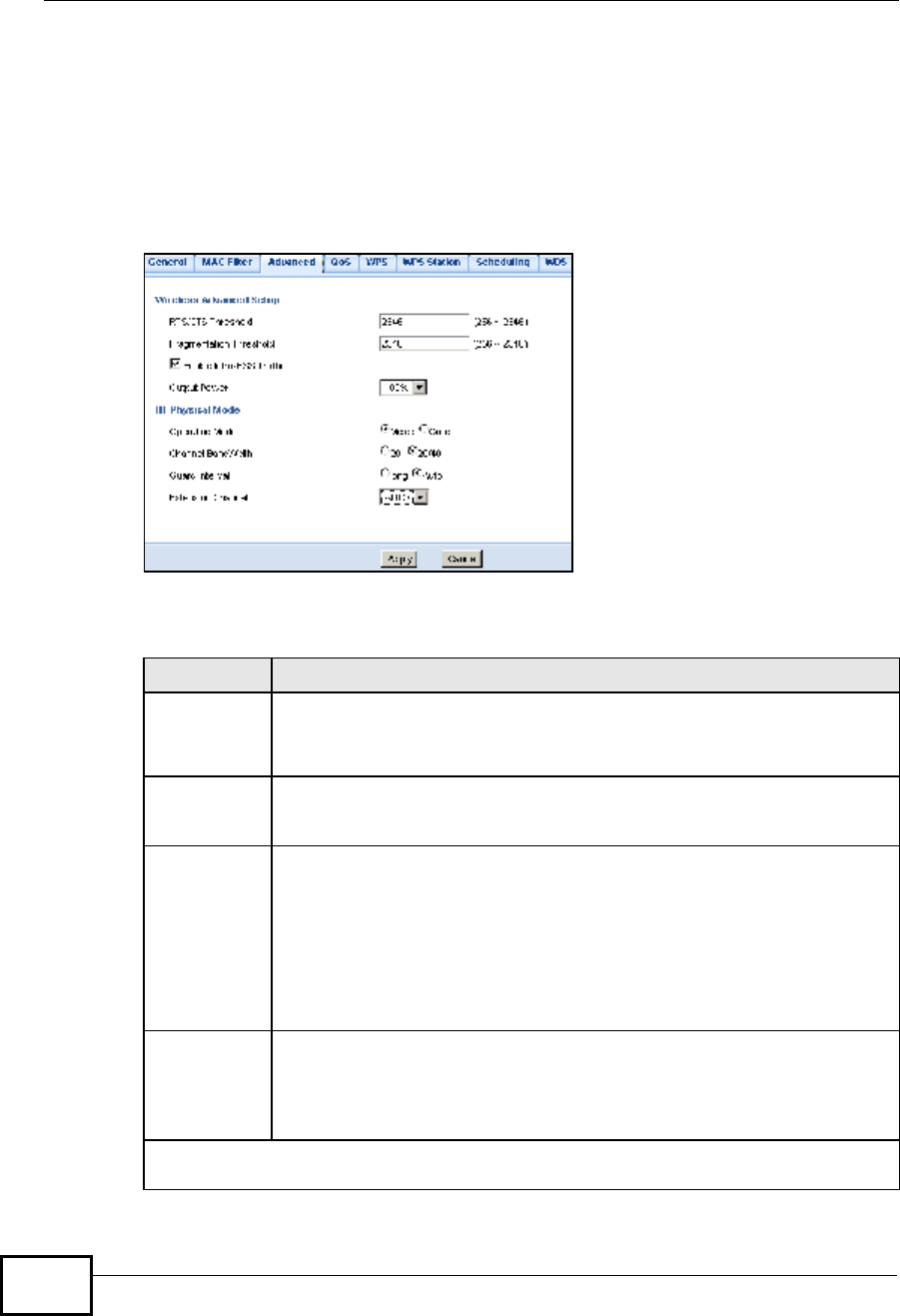

Advanced This screen allows you to configure advanced wireless
settings.

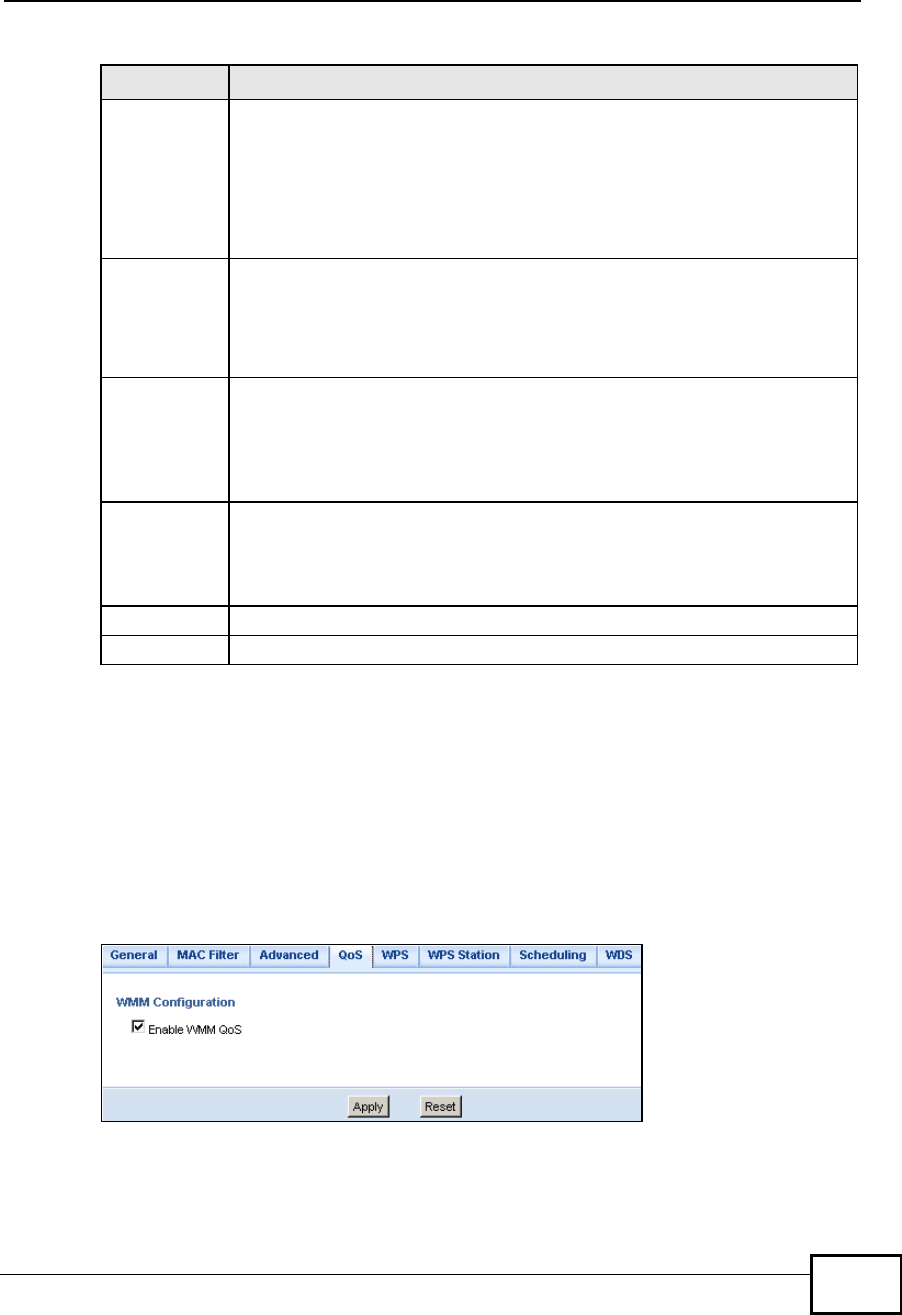

QoS Use this screen to configure Wi-Fi Multimedia Quality of
Service (WMM QoS). WMM QoS allows you to prioritize
wireless traffic according to the delivery requirements of
individual services.
WPS Use this screen to configure WPS.
WPS
Station

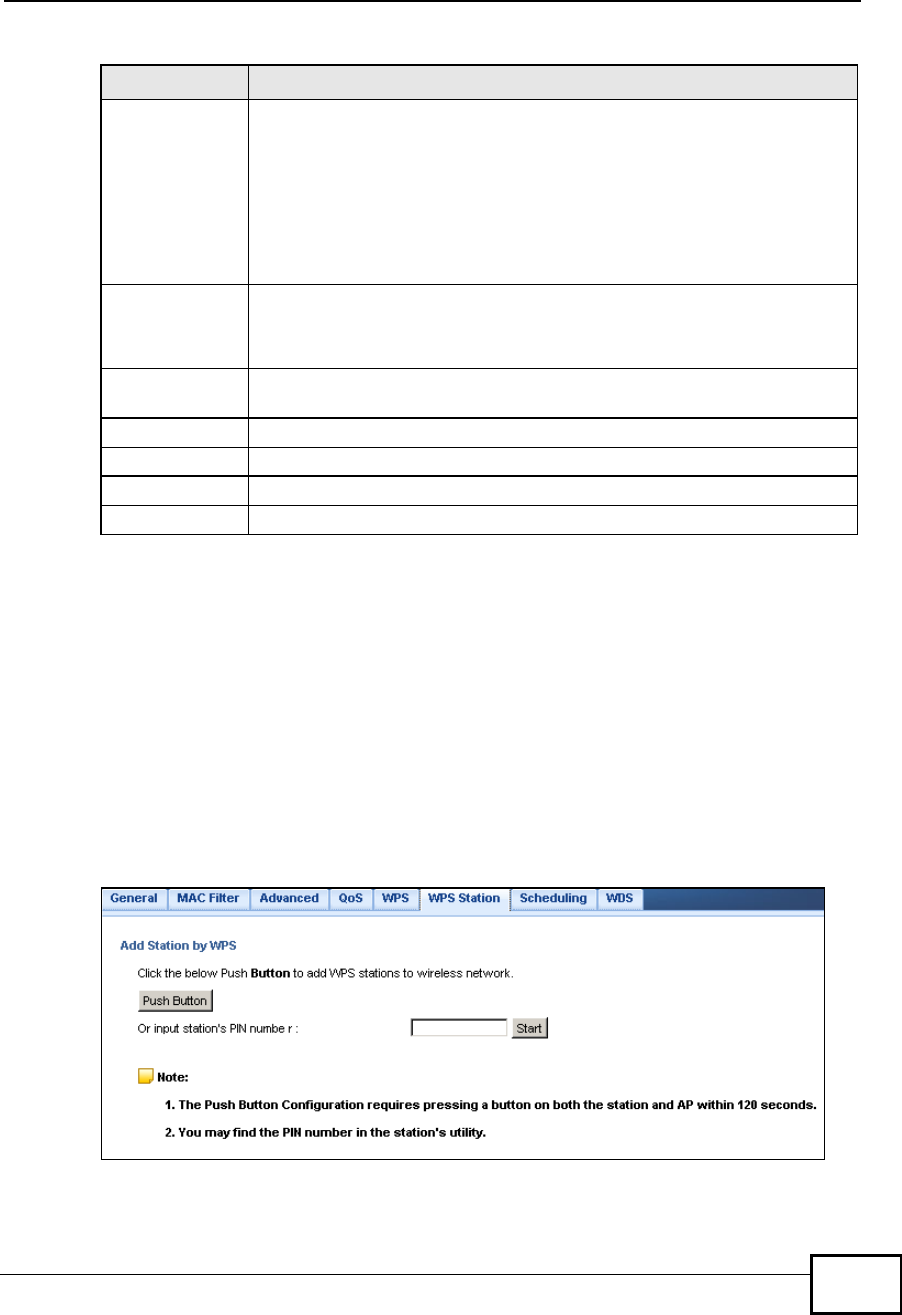

Use this screen to add a wireless station using WPS.
Scheduling Use this screen to schedule the times the Wireless LAN is
enabled.

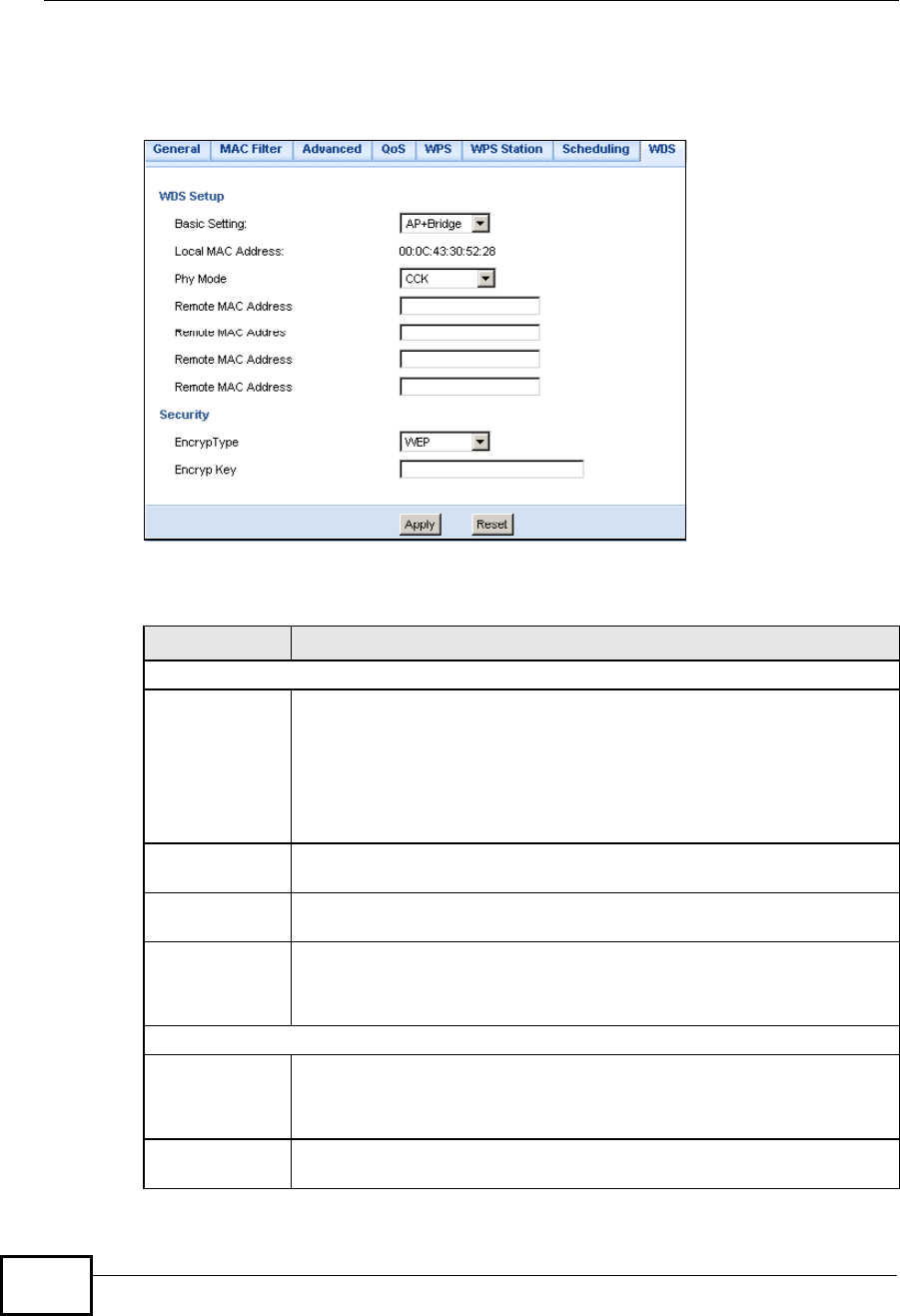

WDS Use this screen to set up Wireless Distribution System
(WDS) on your NBG-419N.

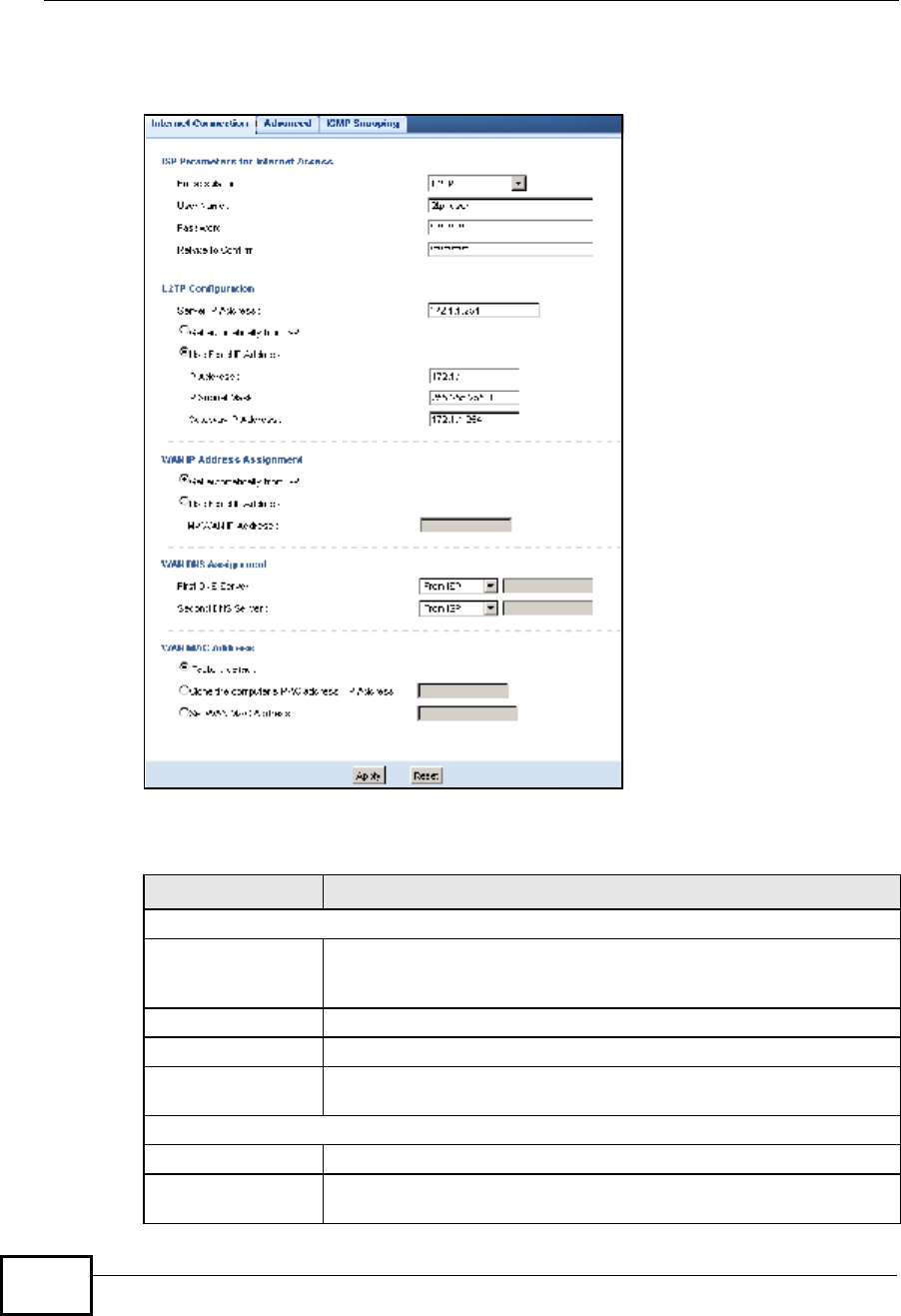

WAN Internet
Connection
This screen allows you to configure ISP parameters, WAN
IP address assignment, DNS servers and the WAN MAC
address.
Advanced Use this screen to configure other advanced properties.
IGMP
Snooping
Use this screen to enable IGMP snooping if you have LAN
users that subscribe to multicast services.
LAN IP Use this screen to configure LAN IP address and subnet
mask.
IP Alias Use this screen to have the NBG-419N apply IP alias to
create LAN subnets.
DHCP
Server
General Use this screen to enable the NBG-419N!s DHCP server.
Advanced Use this screen to assign IP addresses to specific
individual computers based on their MAC addresses and to
have DNS servers assigned by the DHCP server.
NAT General Use this screen to enable NAT.
Application Use this screen to configure servers behind the NBG-
419N.
Advanced Use this screen to change your NBG-419N!s port triggering
settings.
DDNS General Use this screen to set up dynamic DNS.
Static
Route
IP Static
Route
Use this screen to configure IP static routes.
Table 26 Navigation Panel: Router Mode
LINK TAB FUNCTION
Company Confidential
![](/img.php?id=1180986&img=bg45.png)
Chapter 7Router Mode
NBG-419N User s Guide 69
RIP Use this screen to enable RIPv1 or RIPv2, which are LAN
broadcast protocols.
Security
Firewall General Use this screen to activate/deactivate the firewall.
Services This screen shows a summary of the firewall rules, and
allows you to edit/add a firewall rule.
Content Filter Use this screen to block certain web features and sites
containing certain keywords in the URL.
Management
Bandwidth
Manageme
nt
General Use this screen to enable bandwidth management.
Advanced Use this screen to set the upstream bandwidth and edit a
bandwidth management rule.
Monitor Use this screen to view the amount of network
bandwidth that applications running in the network
are using.
Remote
Manageme
nt
WWW Use this screen to be able to access the NBG-419N
from the LAN, WAN or both.
UPnP General Use this screen to enable UPnP on the NBG-419N.
MAINTENANCE
General Use this screen to view and change administrative settings
such as system and domain names.
Password Password
Setup
Use this screen to change the password of your NBG-
419N.
Time Time
Setting
Use this screen to change your NBG-419N!s time and date.
Remote
Manageme
nt
WWW Use this screen to configure through which interface(s)
and from which IP address(es) users can use HTTP to
manage the NBG-419N.
Firmware
Upgrade
Use this screen to upload firmware to your NBG-419N.
Backup/
Restore
Use this screen to backup and restore the configuration or
reset the factory defaults to your NBG-419N.
Reset/
Restart

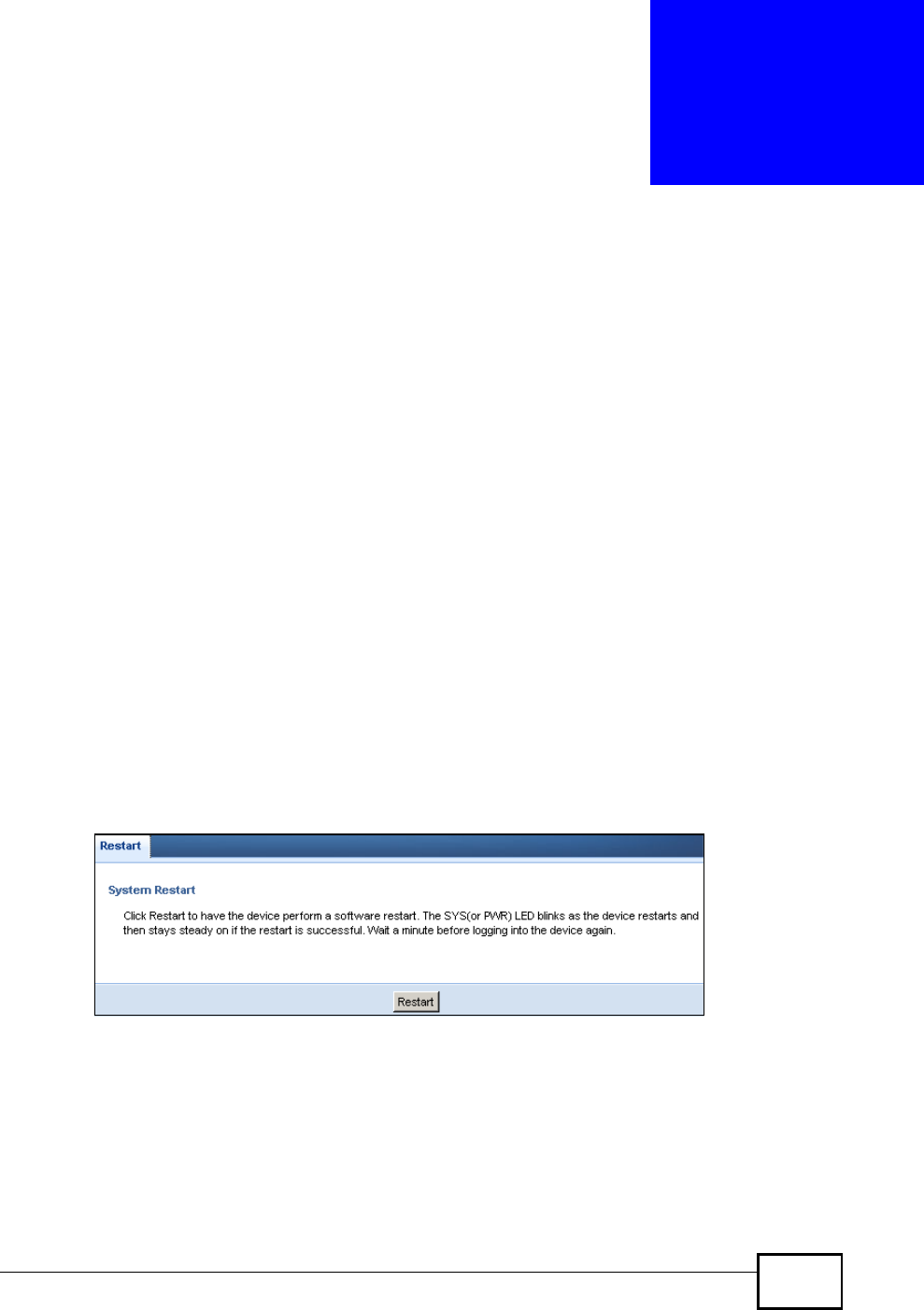

Restart This screen allows you to reboot the NBG-419N without
turning the power off.
Sys OP
Mode
This screen allows you to select whether your device acts
as a Router or a Access Point.
Table 26 Navigation Panel: Router Mode
LINK TAB FUNCTION
Company Confidential
![](/img.php?id=1180986&img=bg46.png)
Chapter 7Router Mode
NBG-419N User s Guide
70
Company Confidential
![](/img.php?id=1180986&img=bg47.png)
NBG-419N User s Guide 71
CHAPTER 8
Access Point Mode
8.1 Overview
Use your NBG-419N as an access point (AP) if you already have a router or
gateway on your network. In this mode your NBG-419N bridges a wired network
(LAN) and wireless LAN (WLAN) in the same subnet. See the figure below for an
example.

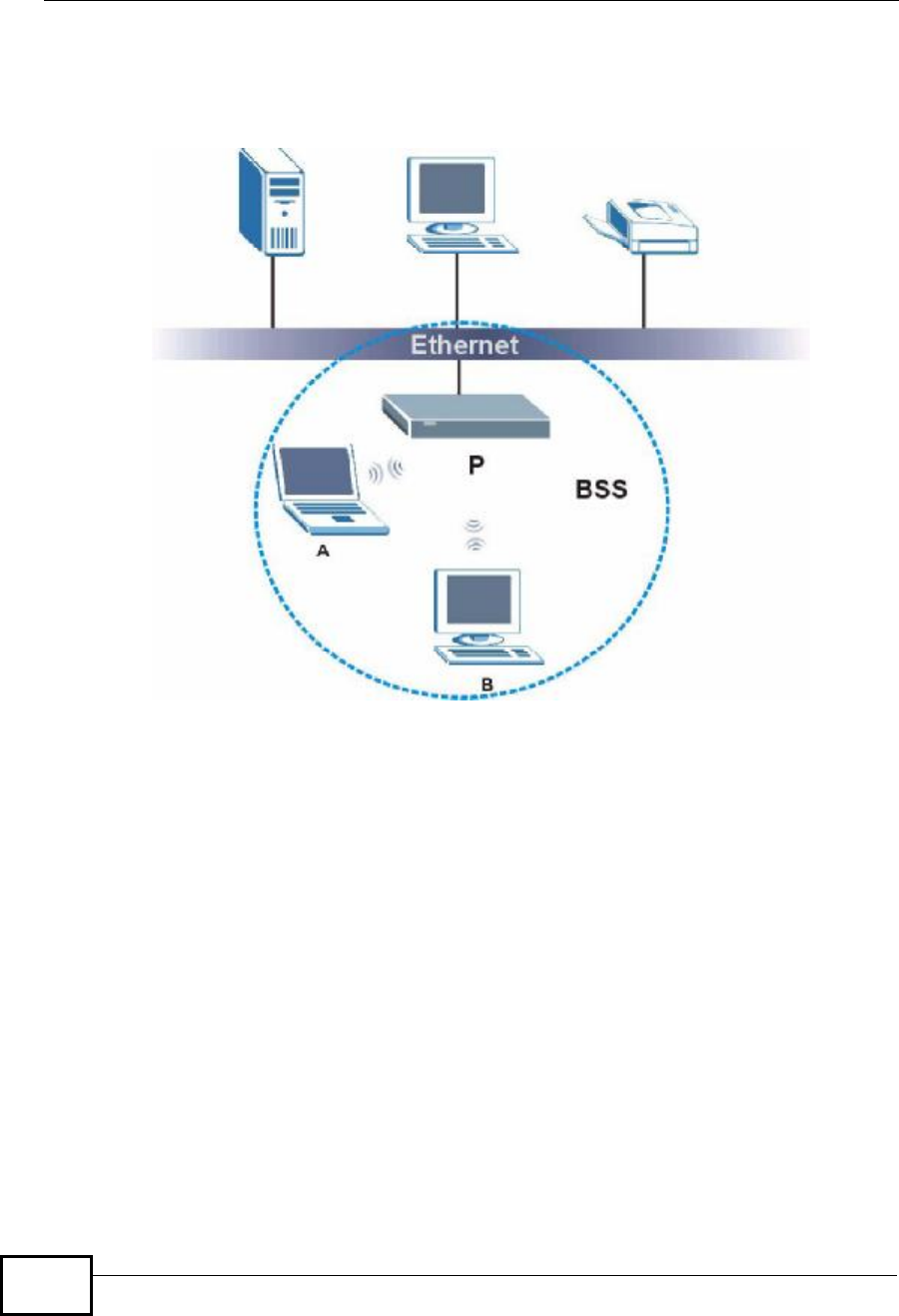

Figure 42 Wireless Internet Access in Access Point Mode
Many screens that are available in Router mode are not available in Access Point
mode, such as bandwidth management and firewall.
Note: See Chapter 10 on page 89 for an example of setting up a wireless network in
Access Point mode.
8.2 What You Can Do
Use the Status screen (Section 8.4 on page 74) to view read-only information
about your NBG-419N.
Use the LAN screen (Section 8.5 on page 76) to set the IP address for your
NBG-419N acting as an access point.
Company Confidential
![](/img.php?id=1180986&img=bg48.png)
Chapter 8Access Point Mode
NBG-419N User s Guide
72
8.3 What You Need to Know
See Chapter 10 on page 89 for a tutorial on setting up a network with the NBG-
419N as an access point.
8.3.1 Setting your NBG-419N to AP Mode
1Log into the Web Configurator if you haven!t already. See the Quick start Guide for
instructions on how to do this.
2To use your NBG-419N as an access point, go to Maintenance > Sys OP Mode
> General and select Access Point mode.
Figure 43 Changing to Access Point mode
Note: You have to log in to the Web Configurator again when you change modes.As
soon as you do, your NBG-419N is already in Access Point mode.
3When you select Access Point Mode, the following pop-up message window
appears.
Figure 44 Pop up for Access Point mode
Click OK. The Web Configurator refreshes once the change to Access Point mode
is successful.
Company Confidential
![](/img.php?id=1180986&img=bg49.png)
Chapter 8Access Point Mode
NBG-419N User s Guide 73
8.3.2 Accessing the Web Configurator in Access Point Mode
Log in to the Web Configurator in Access Point mode, do the following:
1Connect your computer to the LAN port of the NBG-419N.
2The default IP address of the NBG-419N is "192.168.1.2#. In this case, your
computer must have an IP address in the range between "192.168.1.3# and
"192.168.1.254#.
3Click Start > Run on your computer in Windows. Type "cmd# in the dialog box.
Enter "ipconfig# to show your computer!s IP address. If your computer!s IP
address is not in the correct range then see Appendix C on page 251 for
information on changing your computer!s IP address.
4After you!ve set your computer!s IP address, open a web browser such as Internet
Explorer and type "192.168.1.2# as the web address in your web browser.
Note: After clicking Login, the Easy mode appears. Refer to Section on page 51 for
the Easy mode screens. Change to Expert mode to see the screens described
in the sections following this.
8.3.3 Configuring your WLAN, Bandwidth Management and
Maintenance Settings
The configuration of wireless, bandwidth management and maintenance settings
in Access Point mode is the same as for Router Mode.
See Chapter 11 on page 99 for information on the configuring your wireless
network.
See Chapter 21 on page 173 for information on configuring your Bandwidth
Management screen.
See Maintenance and Troubleshooting (195) for information on configuring
your Maintenance settings.
Company Confidential
![](/img.php?id=1180986&img=bg4a.png)
Chapter 8Access Point Mode
NBG-419N User s Guide
74
8.4 AP Mode Status Screen
Click to open the Status screen.
Figure 45 Status Screen: Access Point Mode
The following table describes the labels shown in the Status screen.
Table 27 Status Screen: Access Point Mode
LABEL DESCRIPTION
LogoutClick this at any time to exit the Web Configurator.
Device Information
Host NameThis is the System Name you enter in the Maintenance > General
screen. It is for identification purposes.
Firmware VersionThis is the firmware version and the date created.
Sys OP ModeThis is the device mode (Section 5.1.2 on page 49) to which the NBG-
419N is set - Access Point Mode.
LAN Information
- MAC AddressThis shows the LAN Ethernet adapter MAC Address of your device.
- IP AddressThis shows the LAN port!s IP address.
- IP Subnet MaskThis shows the LAN port!s subnet mask.
- DHCPThis shows the LAN port!s DHCP role - Server, Client or None.
Company Confidential
![](/img.php?id=1180986&img=bg4b.png)
Chapter 8Access Point Mode
NBG-419N User s Guide 75
WLAN Information
- WLAN OP ModeThis is the device mode (Section 5.1.2 on page 49) to which the NBG-
419N!s wireless LAN is set - Access Point Mode.
- MAC AddressThis shows the wireless adapter MAC Address of your device.
- StatusThis shows the current status of the Wireless LAN - ON or OFF.
- Name (SSID)This shows a descriptive name used to identify the NBG-419N in the
wireless LAN.
- ChannelThis shows the channel number which you select manually.
- Operating ChannelThis shows the channel number which the NBG-419N is currently using
over the wireless LAN.
- Security ModeThis shows the level of wireless security the NBG-419N is using.
- 802.11 ModeThis shows the wireless standard.
- WPSThis displays Configured when the WPS has been set up.
This displays Unconfigured if the WPS has not been set up.
Click the status to display Network > Wireless LAN > WPS screen.
System Status
ItemThis column shows the type of data the NBG-419N is recording.
DataThis column shows the actual data recorded by the NBG-419N.
System Up TimeThis is the total time the NBG-419N has been on.
Current Date/TimeThis field displays your NBG-419N!s present date and time.
System Resource
- CPU UsageThis displays what percentage of the NBG-419N!s processing ability is
currently used. When this percentage is close to 100%, the NBG-419N is
running at full load, and the throughput is not going to improve anymore.
If you want some applications to have more throughput, you should turn
off other applications (for example, using bandwidth management.
- Memory UsageThis shows what percentage of the heap memory the NBG-419N is using.
System Setting
- Configuration ModeThis shows the web configurator mode you are viewing - Expert.
Interface Status
InterfaceThis displays the NBG-419N port types. The port types are: LAN and
WLAN.
StatusFor the LAN and WAN ports, this field displays Down (line is down) or Up
(line is up or connected).
For the WLAN, it displays Up when the WLAN is enabled or Down when
the WLAN is disabled.
Table 27 Status Screen: Access Point Mode
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg4c.png)
Chapter 8Access Point Mode
NBG-419N User s Guide
76
8.4.0.1 Navigation Panel
Use the menu in the navigation panel to configure NBG-419N features in Access
Point mode.
The following screen and table show the features you can configure in Access Point
mode.
Figure 46 Menu: Access Point Mode
Refer to Table 26 on page 67 for descriptions of the labels shown in the
Navigation panel.
8.5 LAN Screen
Use this section to configure your LAN settings while in Access Point mode.
Click Network > LAN to see the screen below.
RateFor the LAN ports, this displays the port speed and duplex setting or N/A
when the line is disconnected.
For the WAN port, it displays the port speed and duplex setting if you!re
using Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to
trigger a call) and Drop (dropping a call) if you're using PPPoE or PPTP
encapsulation. This field displays N/A when the line is disconnected.
For the WLAN, it displays the maximum transmission rate when the WLAN
is enabled and N/A when the WLAN is disabled.
Summary
Packet Statistics Click Details... to go to the Monitor > Packet Statistics screen
(Section 4.5 on page 45). Use this screen to view port status and packet
specific statistics.
WLAN Station Status Click Details... to go to the Monitor > WLAN Station Status screen
(Section 4.6 on page 46). Use this screen to view the wireless stations
that are currently associated to the NBG-419N.
Table 27 Status Screen: Access Point Mode
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg4d.png)
Chapter 8Access Point Mode
NBG-419N User s Guide 77
Note: If you change the IP address of the NBG-419N in the screen below, you will
need to log into the NBG-419N again using the new IP address.

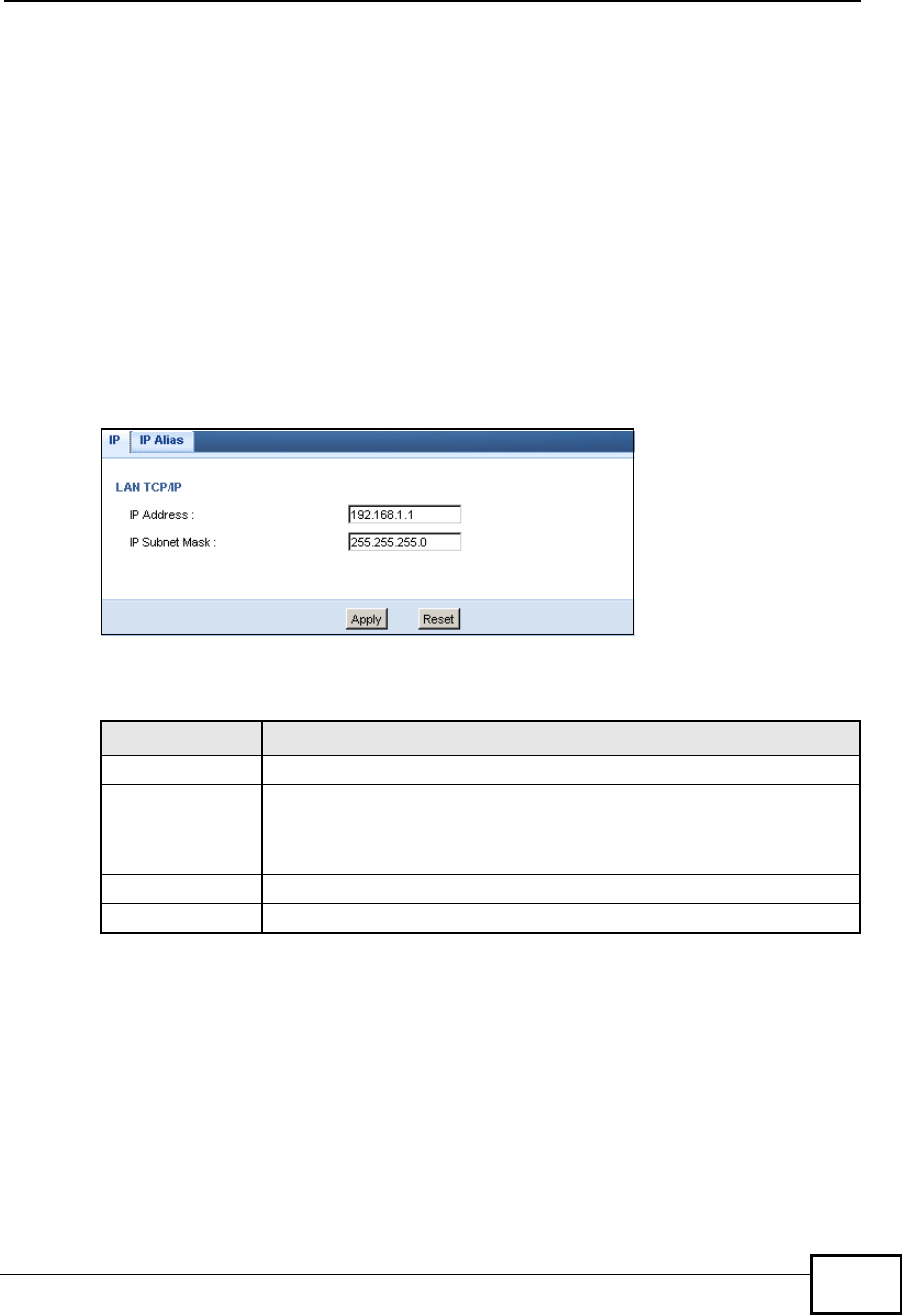

Figure 47 Network > LAN > IP
The table below describes the labels in the screen.
Table 28 Network > LAN > IP
LABEL DESCRIPTION
Get from
DHCP Server
Click this to deploy the NBG-419N as an access point in the network.
When you enable this, the NBG-419N gets its IP address from the
network!s DHCP server (for example, your ISP). Users connected to the
NBG-419N can now access the network (i.e., the Internet if the IP address
is given by the ISP).
The Web Configurator may no longer be accessible unless you know the IP
address assigned by the DHCP server to the NBG-419N. You need to reset
the NBG-419N to be able to access the Web Configurator again (see
Section 28.3 on page 208 for details on how to reset the NBG-419N).
Also when you select this, you cannot enter an IP address for your NBG-
419N in the field below.
Use Defined
LAN IP
Address
Click this if you want to specify the IP address of your NBG-419N. Or if
your ISP or network administrator gave you a static IP address to access
the network or the Internet.
IP Address Type the IP address in dotted decimal notation. The default setting is
192.168.1.2. If you change the IP address you will have to log in again
with the new IP address.
IP Subnet
Mask
The subnet mask specifies the network number portion of an IP address.
Your NBG-419N will automatically calculate the subnet mask based on the
IP address that you assign. Unless you are implementing subnetting, use
the subnet mask computed by the NBG-419N.
Gateway IP
Address
Enter a Gateway IP Address (if your ISP or network administrator gave
you one) in this field.
DNS Assignment
Company Confidential
![](/img.php?id=1180986&img=bg4e.png)
Chapter 8Access Point Mode
NBG-419N User s Guide
78
First DNS
Server
Second DNS
Server
Select From ISP if your ISP dynamically assigns DNS server information
(and the NBG-419N's WAN IP address). The field to the right displays the
(read-only) DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter
the DNS server's IP address in the field to the right. If you chose User-
Defined, but leave the IP address set to 0.0.0.0, User-Defined changes
to None after you click Apply. If you set a second choice to User-
Defined, and enter the same IP address, the second User-Defined
changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do not
configure a DNS server, you must know the IP address of a computer in
order to access it.
Apply Click Apply to save your changes to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg4f.png)
NBG-419N User s Guide 79
CHAPTER 9
WISP Mode
9.1 Overview
Your NBG-419N can act as a wireless client. In wireless client mode, it can connect
to an existing network via an access point. Use this mode if you already have an
access point or router in your network.
In the example below, one NBG-419N (A) is configured as a wireless client and
another is used as an access point (B). The wireless client has two clients that
need to connect to the Internet. The NBG-419N wirelessly connects to the
available access point (B).
Figure 48 Wireless Client Mode
After the NBG-419N and the access point connect, the NBG-419N acquires its
WAN IP address from the access point. The clients of the NBG-419N can now surf
the Internet.
9.2 What You Can Do
Use the Status screen (Section 8.4 on page 74) to view read-only information
about your NBG-419N.
Use the LAN screen (Section 8.5 on page 76) to set the IP address for your
NBG-419N acting as an access point.
Use the Wireless LAN screen () to associate your NBG-419N (acting as a
wireless client) with an existing access point.
built-in
firewall
Access
Point
WISP
Company Confidential
![](/img.php?id=1180986&img=bg50.png)
Chapter 9WISP Mode
NBG-419N User s Guide
80
9.3 What You Need to Know
With the exception of the LAN screen, the Monitor, Configuration and
Maintainance screens in WISP mode are similar to the ones in Router Mode. See
Chapter 11 on page 99 through Chapter 30 on page 213 of this User!s Guide.
9.3.1 Setting your NBG-419N to WISP Mode
1Log into the Web Configurator if you haven!t already. See the Quick start Guide for
instructions on how to do this.
2To set your NBG-419N to AP Mode, go to Maintenance > Sys OP Mode >
General and select WISP Mode.
Figure 49 Changing to WISP mode
Note: You have to log in to the Web Configurator again when you change modes.As
soon as you do, your NBG-419N is already in WISP mode.
3When you select WISP Mode, the following pop-up message window appears.
Figure 50 Pop up window for WISP mode
Click OK. The Web Configurator refreshes once the change to WISP mode is
successful.
9.3.2 Accessing the Web Configurator in WISP Mode
To login to Web Configurator in WISP mode, do the following:
Company Confidential
![](/img.php?id=1180986&img=bg51.png)
Chapter 9WISP Mode
NBG-419N User s Guide 81
1Connect your computer to the LAN port of the NBG-419N.
2The default IP address of the NBG-419N is "192.168.1.1#. If you did not change
this, you can use the same IP address in WISP mode. Open a web browser such as
Internet Explorer and type "192.168.1.1# as the web address in your web
browser.
If you changed the IP address of your NBG-419N while in Router Mode, use this IP
address in WISP mode. The WISP mode IP address is always the same as the
Router mode IP adderss.
Note: After clicking Login, the Easy mode appears. Refer to Section on page 51 for
the Easy mode screens. Click Expert mode to see the screens described in the
sections following this.
9.4 WISP Mode Status Screen
Click to open the status screen.
Figure 51 Status: WISP Mode
Company Confidential
![](/img.php?id=1180986&img=bg52.png)
Chapter 9WISP Mode
NBG-419N User s Guide
82
The following table describes the labels shown in the Status screen.
Table 29 Status Screen: WISP Mode
LABEL DESCRIPTION
LogoutClick this at any time to exit the Web Configurator.
Device Information
Host NameThis is the System Name you enter in the Maintenance > General
screen. It is for identification purposes.
Firmware VersionThis is the firmware version and the date created.
Sys OP ModeThis is the device mode (Section 5.1.2 on page 49) to which the NBG-
419N is set - WISP Mode.
WAN Information
- MAC AddressThis shows the WAN Ethernet adapter MAC Address of your device.
- IP AddressThis shows the WAN port!s IP address.
- IP Subnet MaskThis shows the WAN port!s subnet mask.
- Default GatewayThis shows the WAN port!s gateway IP address.
- DHCPThis shows the LAN port!s DHCP role - Client or Server.
LAN Information
- MAC AddressThis shows the LAN Ethernet adapter MAC Address of your device.
- IP AddressThis shows the LAN port!s IP address.
- IP Subnet MaskThis shows the LAN port!s subnet mask.
- DHCPThis shows the LAN port!s DHCP role - Server or None.
WLAN Information
- WLAN OP ModeThis is the device mode (Section 5.1.2 on page 49) to which the NBG-
419N!s wireless LAN is set - Access Point Mode.
- MAC AddressThis shows the wireless adapter MAC Address of your device.
- StatusThis shows the current status of the Wireless LAN - ON or OFF.
- Name (SSID)This shows a descriptive name used to identify the NBG-419N in the
wireless LAN.
- Connect StatusThis shows whether or not the NBG-419N has successfully associated with
an access point - Connected or Disassociated.
- Security ModeThis shows the level of wireless security the NBG-419N is using.
- 802.11 ModeThis shows the wireless standard.
System Status
ItemThis column shows the type of data the NBG-419N is recording.
DataThis column shows the actual data recorded by the NBG-419N.
System Up TimeThis is the total time the NBG-419N has been on.
Current Date/TimeThis field displays your NBG-419N!s present date and time.
System Resource
Company Confidential
![](/img.php?id=1180986&img=bg53.png)
Chapter 9WISP Mode
NBG-419N User s Guide 83
- CPU UsageThis displays what percentage of the NBG-419N!s processing ability is
currently used. When this percentage is close to 100%, the NBG-419N is
running at full load, and the throughput is not going to improve anymore.
If you want some applications to have more throughput, you should turn
off other applications (for example, using bandwidth management.
- Memory UsageThis shows what percentage of the heap memory the NBG-419N is using.
System Setting
- FirewallThis shows whether the firewall is enabled or not.
- Bandwidth
Management
This shows whether the bandwidth management is enabled or not.
- UPnPThis shows whether UPnP is enabled or not.
- Configuration ModeThis shows the web configurator mode you are viewing - Expert.
Interface Status
InterfaceThis displays the NBG-419N port types. The port types are: LAN and
WLAN.
StatusFor the LAN and WAN ports, this field displays Down (line is down) or Up
(line is up or connected).
For the WLAN, it displays Up when the WLAN is enabled or Down when
the WLAN is disabled.
RateFor the LAN ports, this displays the port speed and duplex setting or N/A
when the line is disconnected.
For the WAN port, it displays the port speed and duplex setting if you!re
using Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to
trigger a call) and Drop (dropping a call) if you're using PPPoE or PPTP
encapsulation. This field displays N/A when the line is disconnected.
For the WLAN, it displays the maximum transmission rate when the WLAN
is enabled and N/A when the WLAN is disabled.
Summary
BW MGMT Monitor Click Details... to go to the Monitor > BW MGMT Monitor screen
(Section 4.3 on page 43). Use this screen to view the amount of
network bandwidth that applications running in the network are
using.
DHCP Table Click Details... to go to the Monitor > DHCP Table screen (Section
4.4 on page 44). Use this screen to view current DHCP client information.
Packet Statistics Click Details... to go to the Monitor > Packet Statistics screen
(Section 4.5 on page 45). Use this screen to view port status and packet
specific statistics.
Table 29 Status Screen: WISP Mode
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg54.png)
Chapter 9WISP Mode
NBG-419N User s Guide
84
9.5 Wireless LAN General Screen
Use this screen to configure the wireless LAN settings of your NBG-419N. Go to
Configuration > Wireless LAN > General to open the following screen.
Figure 52 WISP Mode: LAN > General Screen
The following table describes the labels in this screen.
9.5.0.1 No Security
Use this screen if the access point to which you want to connect does not use
encryption.
Figure 53 No Security (WISP)
Table 30 WISP Mode: LAN > General Screen
LABEL DESCRIPTION
Wireless Setup
Network
Name
(SSID)
Enter the name of the access point to which you are connecting.
Security
Security
Mode
Select the security mode of the access point to which you want to connect.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Company Confidential
![](/img.php?id=1180986&img=bg55.png)
Chapter 9WISP Mode
NBG-419N User s Guide 85
The following table describes the labels in this screen.
9.5.1 Static WEP
Use this screen if the access point to which you want to connect to uses WEP
security mode.
Figure 54 WEP (WISP)
The following table describes the labels in this screen..
Table 31 No Security (WISP)
LABEL DESCRIPTION
Wireless Setup
Network
Name
(SSID)
Enter the name of the access point to which you are connecting.
Security
Security
Mode
Select No Security in this field.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Table 32 WEP (WISP)
LABEL DESCRIPTION
Wireless Setup
Network
Name (SSID)
Enter the name of the access point to which you are connecting.
Security
Company Confidential
![](/img.php?id=1180986&img=bg56.png)
Chapter 9WISP Mode
NBG-419N User s Guide
86
Security
Mode
Select Static WEP to enable data encryption.
PassPhrase Enter a Passphrase (up to 26 printable characters) and click Generate.
A passphrase functions like a password. In WEP security mode, it is
further converted by the NBG-419N into a complicated string that
is referred to as the "key#. This key is requested from all devices
wishing to connect to a wireless network.
WEP
Encryption
Select 64-bit WEP or 128-bit WEP.
This dictates the length of the security key that the network is going to
use.
Authenticatio
n Method
Select Auto or Shared Key from the drop-down list box.
This field specifies whether the wireless clients have to provide the WEP
key to login to the wireless client. Keep this setting at Auto unless you
want to force a key verification before communication between the
wireless client and the ZyXEL Device occurs.
Select Shared Key to force the clients to provide the WEP key prior to
communication.
ASCII Select this option in order to enter ASCII characters as WEP key.
Hex Select this option in order to enter hexadecimal characters as a WEP key.
The preceding "0x", that identifies a hexadecimal key, is entered
automatically.
Key 1 to Key
4
The WEP keys are used to encrypt data. Both the NBG-419N and the
wireless stations must use the same WEP key for data transmission.
If you chose 64-bit WEP, then enter any 5 ASCII characters or 10
hexadecimal characters ("0-9", "A-F").
If you chose 128-bit WEP, then enter 13 ASCII characters or 26
hexadecimal characters ("0-9", "A-F").
You must configure at least one key, only one key can be activated at any
one time. The default key is key 1.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Table 32 WEP (WISP)
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg57.png)
Chapter 9WISP Mode
NBG-419N User s Guide 87
9.5.2 WPA(2)-PSK
Use this screen if the access point to which you want to connect uses WPA(2)-PSK
security mode.
Figure 55 WPA-PSK/WPA2-PSK (WISP)
The following table describes the labels in this screen. .
Table 33 WPA-PSK/WPA2-PSK (WISP)
LABEL DESCRIPTION
Wireless Setup
Network Name
(SSID)
Enter the name of the access point to which you are connecting.
Security
Encryption Type Select the type of wireless encryption employed by the access point to
which you want to connect.
Pre-Shared Key WPA-PSK/WPA2-PSK uses a simple common password for
authentication.
Type the pre-shared key employed by the access point to which you
want to connect.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Company Confidential
![](/img.php?id=1180986&img=bg58.png)
Chapter 9WISP Mode
NBG-419N User s Guide
88
9.5.3 Advance Screen
Use this screen to enable the power saving mode of your NBG-419N. Go to
Configuration > Wireless LAN to open the following screen.

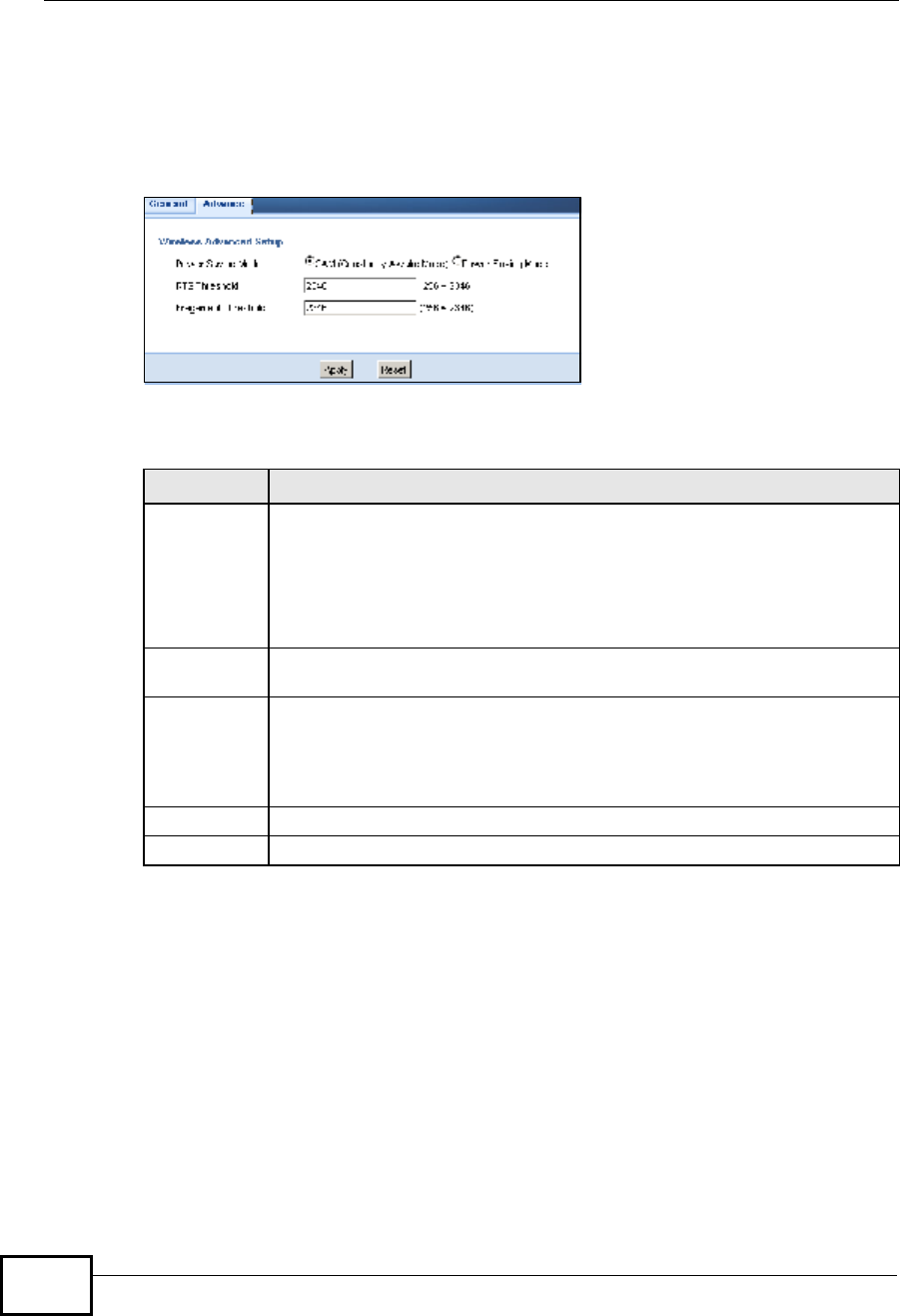

Figure 56 Configuration > Wireless LAN > Advance Screen (WISP)
The following table describes the labels in this screen.
Table 34 Configuration > Wireless LAN > Advance Screen (WISP)
LABEL DESCRIPTION
Power
Saving Mode
Select CAM (Constantly Awake Mode) if you do not want your NBG-
419N to go to "sleep# when no wireless activity is detected in the Wireless
LAN.
Select Power Saving Mode if you want the NBG-419N to go to sleep
when no wireless connection is needed for a period of time. This means
the NBG-419N consumes less electrical power.
RTS
Threshold
This is the maximum data fragment size that can be sent in a wireless
network before the AP fragments the packet into smaller data frames.
Fragment
Threshold
This value controls how often wireless clients must get permission to send
information to the AP. The lower the value, the more often the wireless
clients must get permission. If this value is greater than the fragmentation
threshold value, then wireless clients never have to get permission to send
information to the AP.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Company Confidential
![](/img.php?id=1180986&img=bg59.png)
NBG-419N User s Guide 89
CHAPTER 10
Tutorials
10.1 Overview
This chapter provides tutorials for your NBG-419N as follows:
Connecting to the Internet from an Access Point
Configuring Wireless Security Using WPS
Enabling and Configuring Wireless Security (No WPS)
10.2 Connecting to the Internet from an Access
Point
This section gives you an example of how to set up an access point (AP) and
wireless client (a notebook (B), in this example) for wireless communication. B
can access the Internet through the access point wirelessly.
Figure 57 Wireless Access Point Connection to the Internet
10.3 Configuring Wireless Security Using WPS
This section gives you an example of how to set up wireless network using WPS.
This example uses the NBG-419N as the AP and NWD210N as the wireless client
which connects to a notebook.
Company Confidential
![](/img.php?id=1180986&img=bg5a.png)
Chapter 10Tutorials
NBG-419N User s Guide
90
Note: The wireless client must be a WPS-aware device (for example, a WPS USB
adapter or PCI card).
There are two WPS methods for creating a secure connection. This tutorial shows
you how to do both.

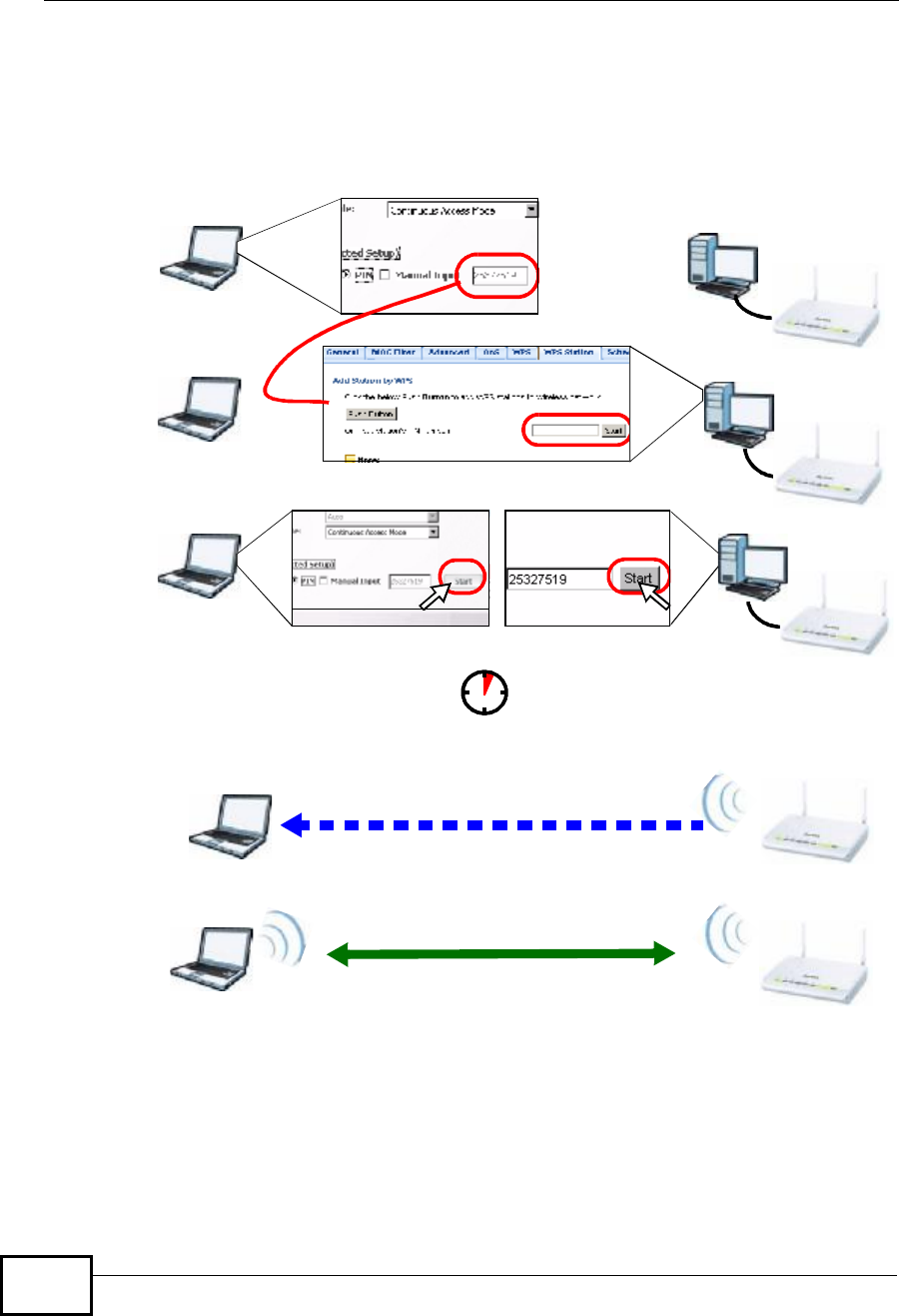

Push Button Configuration (PBC) - create a secure wireless network simply
by pressing a button. See Section 10.3.1 on page 90.This is the easier method.
PIN Configuration - create a secure wireless network simply by entering a
wireless client's PIN (Personal Identification Number) in the NBG-419N!s
interface. See Section 10.3.2 on page 91. This is the more secure method, since
one device can authenticate the other.

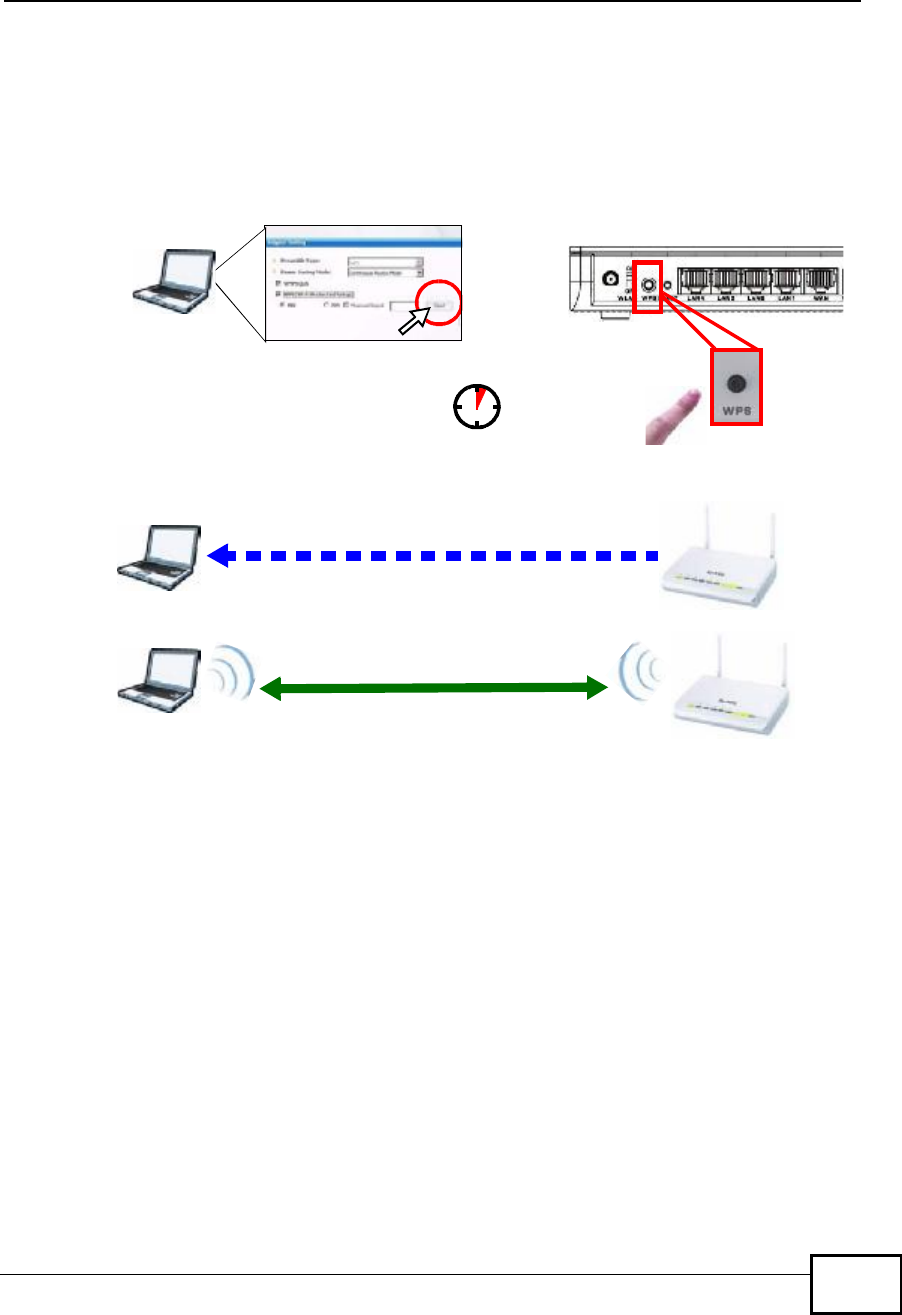

10.3.1 Push Button Configuration (PBC)
1Make sure that your NBG-419N is turned on and that it is within range of your
computer.
2Make sure that you have installed the wireless client (this example uses the
NWD210N) driver and utility in your notebook.
3In the wireless client utility, find the WPS settings. Enable WPS and press the WPS
button (Start or WPS button)
4Log into NBG-419N!s Web Configurator and press the Push Button button in the
Network > Wireless Client > WPS Station screen.
Note: Your NBG-419N has a WPS button located on its panel, as well as a WPS
button in its configuration utility. Both buttons have exactly the same function;
you can use one or the other.
Note: It doesn t matter which button is pressed first. You must press the second
button within two minutes of pressing the first one.
The NBG-419N sends the proper configuration settings to the wireless client. This
may take up to two minutes. Then the wireless client is able to communicate with
the NBG-419N securely.
Company Confidential
![](/img.php?id=1180986&img=bg5b.png)
Chapter 10Tutorials
NBG-419N User s Guide 91
The following figure shows you an example to set up wireless network and
security by pressing a button on both NBG-419N and wireless client (the
NWD210N in this example).
Figure 58 Example WPS Process: PBC Method
10.3.2 PIN Configuration
When you use the PIN configuration method, you need to use both NBG-419N!s
configuration interface and the client!s utilities.
1Launch your wireless client!s configuration utility. Go to the WPS settings and
select the PIN method to get a PIN number.
2Enter the PIN number to the PIN field in the Network > Wireless LAN > WPS
Station screen on the NBG-419N.
3Click Start buttons (or button next to the PIN field) on both the wireless client
utility screen and the NBG-419N!s WPS Station screen within two minutes.
The NBG-419N authenticates the wireless client and sends the proper
configuration settings to the wireless client. This may take up to two minutes.
Then the wireless client is able to communicate with the NBG-419N securely.
Wireless Client NBG-419N
SECURITY INFO
COMMUNICATION
WITHIN 2 MINUTES
Company Confidential
![](/img.php?id=1180986&img=bg5c.png)
Chapter 10Tutorials
NBG-419N User s Guide
92
The following figure shows you the example to set up wireless network and
security on NBG-419N and wireless client (ex. NWD210N in this example) by using
PIN method.
Figure 59 Example WPS Process: PIN Method
Authentication by PIN
SECURITY INFO
WITHIN 2 MINUTES
Wireless Client NBG-419N
COMMUNICATION
Company Confidential
![](/img.php?id=1180986&img=bg5d.png)
Chapter 10Tutorials
NBG-419N User s Guide 93

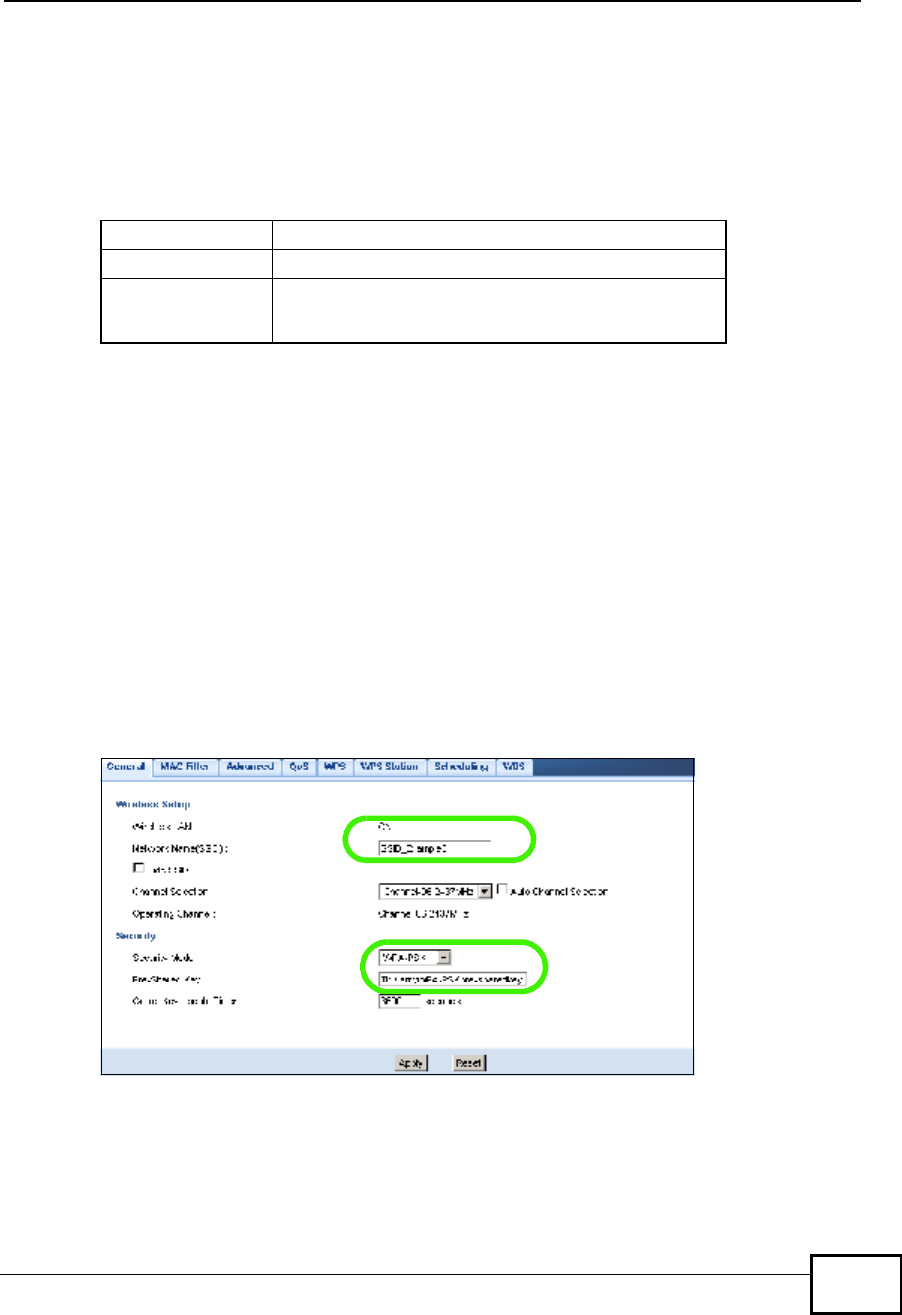

10.4 Enabling and Configuring Wireless Security
(No WPS)
This example shows you how to configure wireless security settings with the
following parameters on your NBG-419N.
Follow the steps below to configure the wireless settings on your NBG-419N.
The instructions require that your hardware is connected (see the Quick Start
Guide) and you are logged into the Web Configurator through your LAN
connection (see Section 3.2 on page 37).
1Open the Wireless LAN > General screen in the AP!s Web Configurator.
2Make sure the Enable Wireless LAN check box is selected.
3Enter SSID_Example3 as the SSID and select a channel.
4Set security mode to WPA-PSK and enter ThisismyWPA-PSKpre-sharedkey in
the Pre-Shared Key field. Click Apply.
Figure 60 Tutorial: Network > Wireless LAN > General
SSID SSID_Example3
Channel 6
Security WPA-PSK
(Pre-Shared Key: ThisismyWPA-PSKpre-sharedkey)
Company Confidential
![](/img.php?id=1180986&img=bg5e.png)
Chapter 10Tutorials
NBG-419N User s Guide
94
5Open the Status screen. Verify your wireless and wireless security settings under
Device Information and check if the WLAN connection is up under Interface
Status.
Figure 61 Tutorial: Checking Wireless Settings
10.4.1 Configure Your Notebook
Note: We use the ZyXEL M-302 wireless adapter utility screens as an example for the
wireless client. The screens may vary for different models.
1The NBG-419N supports IEEE 802.11b, IEEE 802.11g and IEEE 802.11n wireless
clients. Make sure that your notebook or computer!s wireless adapter supports
one of these standards.
2Wireless adapters come with software sometimes called a "utility# that you install
on your computer. See your wireless adapter!s User!s Guide for information on
how to do that.
3After you!ve installed the utility, open it. If you cannot see your utility!s icon on
your screen, go to Start > Programs and click on your utility in the list of
programs that appears. The utility displays a list of APs within range, as shown in
the example screen below.
Company Confidential
![](/img.php?id=1180986&img=bg5f.png)
Chapter 10Tutorials
NBG-419N User s Guide 95
4Select SSID_Example3 and click Connect.

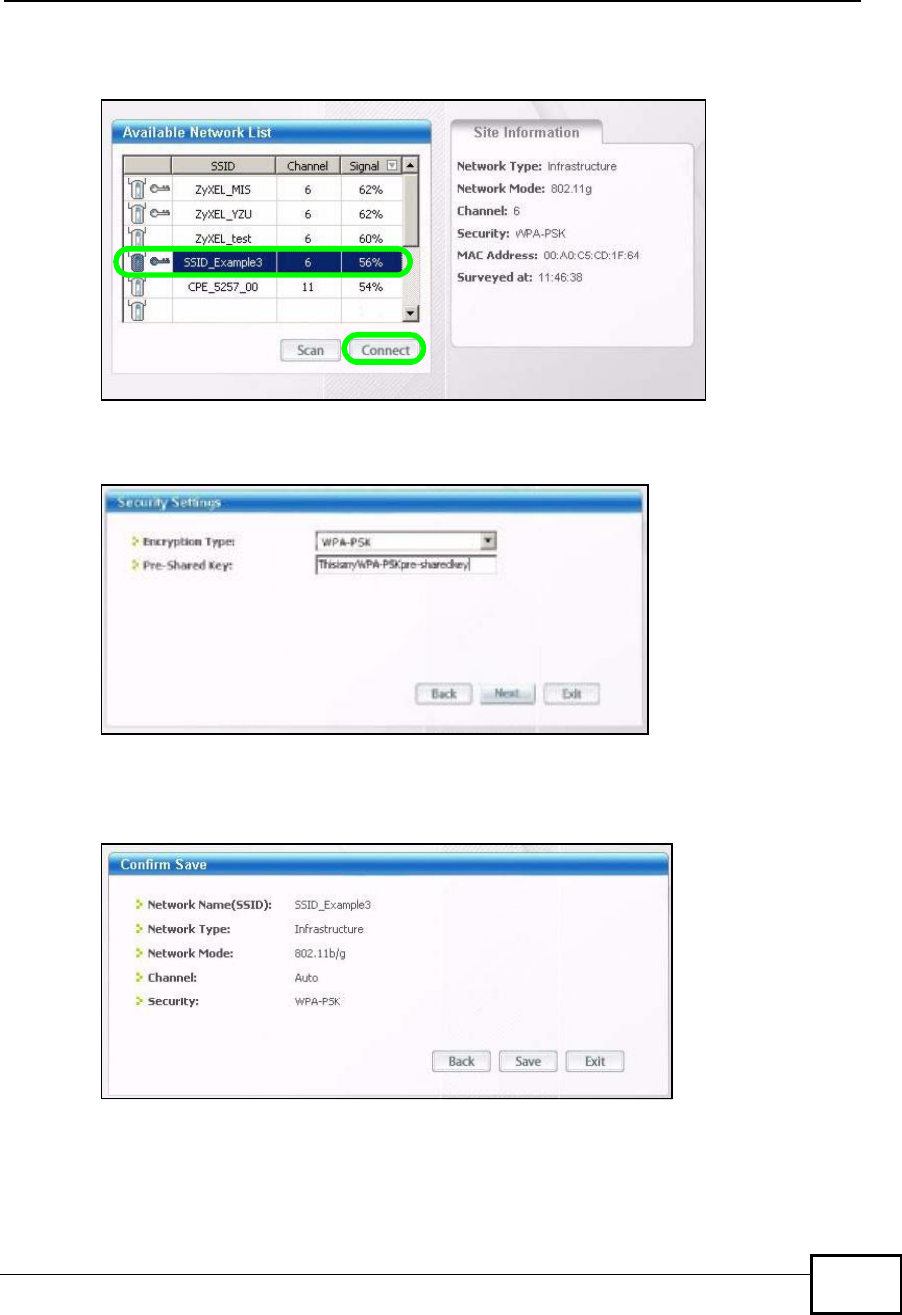

Figure 62 Connecting a Wireless Client to a Wireless Network t
5Select WPA-PSK and type the security key in the following screen. Click Next.
Figure 63 Security Settings
6The Confirm Save window appears. Check your settings and click Save to
continue.
Figure 64 Confirm Save
Company Confidential
![](/img.php?id=1180986&img=bg60.png)
Chapter 10Tutorials
NBG-419N User s Guide
96
7Check the status of your wireless connection in the screen below. If your wireless
connection is weak or you have no connection, see the Troubleshooting section of
this User!s Guide.
Figure 65 Link Status
If your connection is successful, open your Internet browser and enter http://
www.zyxel.com or the URL of any other web site in the address bar. If you are
able to access the web site, your wireless connection is successfully configured.
Company Confidential
![](/img.php?id=1180986&img=bg61.png)
97
PART II
Network
Wireless LAN (99)
WAN (119)
LAN (135)
DHCP Server (139)
Network Address Translation (NAT) (143)
Dynamic DNS (151)
Static Route (153)
RIP (157)
Company Confidential
![](/img.php?id=1180986&img=bg62.png)
98
Company Confidential
![](/img.php?id=1180986&img=bg63.png)
NBG-419N User s Guide 99
CHAPTER 11
Wireless LAN
11.1 Overview
This chapter discusses how to configure the wireless network settings in your
NBG-419N. See the appendices for more detailed information about wireless
networks.
The following figure provides an example of a wireless network.
Figure 66 Example of a Wireless Network
The wireless network is the part in the blue circle. In this wireless network,
devices A and B are called wireless clients. The wireless clients use the access
point (AP) to interact with other devices (such as the printer) or with the Internet.
Your NBG-419N is the AP.
A
B
NBG-419N
Company Confidential
![](/img.php?id=1180986&img=bg64.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
100
11.2 What You Can Do
Use the General screen (Section 11.4 on page 103) to enable the Wireless LAN,
enter the SSID and select the wireless security mode.
Use the MAC Filter screen (Section 11.5 on page 109) to allow or deny wireless
stations based on their MAC addresses from connecting to the NBG-419N.
Use the Advanced screen (Section 11.6 on page 110) to allow wireless
advanced features, such as intra-BSS networking and set the RTS/CTS
Threshold.
Use the QoS screen (Section 11.7 on page 111) to set priority levels to services,
such as e-mail, VoIP, chat, and so on.
Use the WPS screen (Section 11.8 on page 112) to quickly set up a wireless
network with strong security, without having to configure security settings
manually.
Use the WPS Station screen (Section 11.9 on page 113) to add a wireless
station using WPS.
Use the Scheduling screen (Section 11.10 on page 114) to set the times your
wireless LAN is turned on and off.
Use the WDS screen (Section 11.11 on page 115) to configure Wireless
Distribution System on your NBG-419N.
11.3 What You Should Know
Every wireless network must follow these basic guidelines.
Every wireless client in the same wireless network must use the same SSID.
The SSID is the name of the wireless network. It stands for Service Set
IDentity.
If two wireless networks overlap, they should use different channels.
Like radio stations or television channels, each wireless network uses a specific
channel, or frequency, to send and receive information.
Every wireless client in the same wireless network must use security compatible
with the AP.
Security stops unauthorized devices from using the wireless network. It can also
protect the information that is sent in the wireless network.
11.3.1 Wireless Security Overview
The following sections introduce different types of wireless security you can set up
in the wireless network.
Company Confidential
![](/img.php?id=1180986&img=bg65.png)
Chapter 11Wireless LAN
NBG-419N User s Guide 101
11.3.1.1 SSID
Normally, the AP acts like a beacon and regularly broadcasts the SSID in the area.
You can hide the SSID instead, in which case the AP does not broadcast the SSID.
In addition, you should change the default SSID to something that is difficult to
guess.
This type of security is fairly weak, however, because there are ways for
unauthorized devices to get the SSID. In addition, unauthorized devices can still
see the information that is sent in the wireless network.
11.3.1.2 MAC Address Filter
Every wireless client has a unique identification number, called a MAC address.1 A
MAC address is usually written using twelve hexadecimal characters2; for
example, 00A0C5000002 or 00:A0:C5:00:00:02. To get the MAC address for each
wireless client, see the appropriate User!s Guide or other documentation.
You can use the MAC address filter to tell the AP which wireless clients are allowed
or not allowed to use the wireless network. If a wireless client is allowed to use the
wireless network, it still has to have the correct settings (SSID, channel, and
security). If a wireless client is not allowed to use the wireless network, it does not
matter if it has the correct settings.
This type of security does not protect the information that is sent in the wireless
network. Furthermore, there are ways for unauthorized devices to get the MAC
address of an authorized wireless client. Then, they can use that MAC address to
use the wireless network.
11.3.1.3 Encryption
Wireless networks can use encryption to protect the information that is sent in the
wireless network. Encryption is like a secret code. If you do not know the secret
code, you cannot understand the message.
1. Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless networks.
These kinds of wireless devices might not have MAC addresses.
2. Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F.
Company Confidential
![](/img.php?id=1180986&img=bg66.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
102
The types of encryption you can choose depend on the type of user
authentication.
Usually, you should set up the strongest encryption that every wireless client in
the wireless network supports. Suppose the wireless network has two wireless
clients. Device A only supports WEP, and device B supports WEP and WPA-PSK.
Therefore, you should set up WEP in the wireless network.
Note: It is recommended that wireless networks use WPA-PSK or stronger
encryption. IEEE 802.1x and WEP encryption are better than none at all, but it
is still possible for unauthorized devices to figure out the original information
pretty quickly.
When you select WPA2-PSK in your NBG-419N, you can also select an option
(WPA Compatible) to support WPA as well. In this case, if some wireless clients
support WPA and some support WPA2, you should set up WPA2-PSK (depending
on the type of wireless network login) and select the WPA Compatible option in
the NBG-419N.
Many types of encryption use a key to protect the information in the wireless
network. The longer the key, the stronger the encryption. Every wireless client in
the wireless network must have the same key.
11.3.1.4 WPS
WiFi Protected Setup (WPS) is an industry standard specification, defined by the
WiFi Alliance. WPS allows you to quickly set up a wireless network with strong
security, without having to configure security settings manually. Depending on the
devices in your network, you can either press a button (on the device itself, or in
its configuration utility) or enter a PIN (Personal Identification Number) in the
devices. Then, they connect and set up a secure network by themselves. See how
to set up a secure wireless network using WPS in the Section 10.3 on page 89.
11.3.1.5 WDS
Wireless Distribution System or WDS security is used between bridged APs. It is
independent of the security between the wired networks and their respective APs.
If you do not enable WDS security, traffic between APs is not encrypted. When
WDS security is enabled, both APs must use the same pre-shared key.
Table 35 Types of Encryption for Each Type of Authentication
NO AUTHENTICATION
Weakest No Security
WEP
WPA-PSK
Strongest WPA2-PSK
Company Confidential
![](/img.php?id=1180986&img=bg67.png)
Chapter 11Wireless LAN
NBG-419N User s Guide 103
11.4 General Wireless LAN Screen
Use this screen to enable the Wireless LAN, enter the SSID and select the wireless
security mode.
Note: If you are configuring the NBG-419N from a computer connected to the wireless
LAN and you change the NBG-419N s SSID, channel or security settings, you
will lose your wireless connection when you press Apply to confirm. You must
then change the wireless settings of your computer to match the NBG-419N s
new settings.
Click Network > Wireless LAN to open the General screen.
Figure 67 Network > Wireless LAN > General
The following table describes the general wireless LAN labels in this screen.
Table 36 Network > Wireless LAN > General
LABEL DESCRIPTION
Wireless Setup
Wireless LAN This is turned on by default.
You can turn the wireless LAN on or off using the switch at the rear panel
of the NBG-419N. The current wireless state is reflected in this field.
Network
Name(SSID)
(Service Set IDentity) The SSID identifies the Service Set with which a
wireless station is associated. Wireless stations associating to the NBG-
419N must have the same SSID. Enter a descriptive name (up to 32
keyboard characters) for the wireless LAN.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a
station cannot obtain the SSID through scanning using a site survey tool.
Channel
Selection
Set the operating frequency/channel depending on your particular region.
Select a channel from the drop-down list box. The options vary depending
on the frequency band and the country you are in.
Refer to the Connection Wizard chapter for more information on channels.
This option is only available if Auto Channel Selection is disabled.
Company Confidential
![](/img.php?id=1180986&img=bg68.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
104
See the rest of this chapter for information on the other labels in this screen.
11.4.1 No Security
Select No Security to allow wireless stations to communicate with the access
points without any data encryption.
Note: If you do not enable any wireless security on your NBG-419N, your network is
accessible to any wireless networking device that is within range.
Figure 68 Network > Wireless LAN > General: No Security
Operating
Channel
This displays the channel the NBG-419N is currently using.
Security
Security
Mode
Select WEP, WPA-PSK or WPA2-PSK to add security on this wireless
network. The wireless clients which want to associate to this network
must have same wireless security settings as the NBG-419N. After you
select to use a security, additional options appears in this screen. See
11.4.2 and 11.4.3 sections.
Or you can select No Security to allow any client to associate this
network without authentication.
Note: If you enable the WPS function, only No Security, WPA-PSK
and WPA2-PSK are available in this field.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Table 36 Network > Wireless LAN > General
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg69.png)
Chapter 11Wireless LAN
NBG-419N User s Guide 105
The following table describes the labels in this screen.
Refer to Table 36 on page 103 for descriptions of the other labels in this screen.
11.4.2 WEP Encryption
WEP encryption scrambles the data transmitted between the wireless stations and
the access points to keep network communications private. It encrypts unicast
and multicast communications in a network. Both the wireless stations and the
access points must use the same WEP key.
Your NBG-419N allows you to configure up to four 64-bit or 128-bit WEP keys but
only one key can be enabled at any one time.
Table 37 Network > Wireless LAN > General: No Security
LABEL DESCRIPTION
Security
Mode
Choose No Security from the drop-down list box.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Company Confidential
![](/img.php?id=1180986&img=bg6a.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
106
In order to configure and enable WEP encryption, click Network > Wireless LAN
to display the General screen. Select Static WEP from the Security Mode list.
Figure 69 Network > Wireless LAN > General: Static WEP
The following table describes the wireless LAN security labels in this screen.
Table 38 Network > Wireless LAN > General: Static WEP
LABEL DESCRIPTION
Security
Mode
Select Static WEP to enable data encryption.
PassPhrase Enter a Passphrase (up to 26 printable characters) and click Generate.
A passphrase functions like a password. In WEP security mode, it is further
converted by the NBG-419N into a complicated string that is referred to as
the "key#. This key is requested from all devices wishing to connect to a
wireless network.
WEP
Encryption
Select 64-bit WEP or 128-bit WEP.
This dictates the length of the security key that the network is going to
use.
Company Confidential
![](/img.php?id=1180986&img=bg6b.png)
Chapter 11Wireless LAN
NBG-419N User s Guide 107
Refer to Table 36 on page 103 for descriptions of the other labels in this screen.
Authenticatio
n Method
Select Auto or Shared Key from the drop-down list box.
This field specifies whether the wireless clients have to provide the WEP
key to login to the wireless client. Keep this setting at Auto unless you
want to force a key verification before communication between the
wireless client and the ZyXEL Device occurs.
Select Shared Key to force the clients to provide the WEP key prior to
communication.
ASCII Select this option in order to enter ASCII characters as WEP key.
Hex Select this option in order to enter hexadecimal characters as a WEP key.
The preceding "0x", that identifies a hexadecimal key, is entered
automatically.
Key 1 to Key
4
The WEP keys are used to encrypt data. Both the NBG-419N and the
wireless stations must use the same WEP key for data transmission.
If you chose 64-bit WEP, then enter any 5 ASCII characters or 10
hexadecimal characters ("0-9", "A-F").
If you chose 128-bit WEP, then enter 13 ASCII characters or 26
hexadecimal characters ("0-9", "A-F").
You must configure at least one key, only one key can be activated at any
one time. The default key is key 1.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Table 38 Network > Wireless LAN > General: Static WEP
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg6c.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
108
11.4.3 WPA-PSK/WPA2-PSK
Click Network > Wireless LAN to display the General screen. Select WPA-PSK
or WPA2-PSK from the Security Mode list.
Figure 70 Network > Wireless LAN > General: WPA-PSK/WPA2-PSK
The following table describes the labels in this screen.
Refer to Table 36 on page 103 for descriptions of the other labels in this screen.
Table 39 Network > Wireless LAN > General: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Security Mode Select WPA-PSK or WPA2-PSK to enable data encryption.
WPA-PSK
Compatible
This field appears when you choose WPA-PSK2 as the Security Mode.
Check this field to allow wireless devices using WPA-PSK security
mode to connect to your NBG-419N.
Pre-Shared Key WPA-PSK/WPA2-PSK uses a simple common password for
authentication.
Type a pre-shared key from 8 to 63 case-sensitive keyboard characters.
Group Key
Update Timer
The Group Key Update Timer is the rate at which the AP sends a new
group key out to all clients.
The default is 3600 seconds (60 minutes).
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Company Confidential
![](/img.php?id=1180986&img=bg6d.png)
Chapter 11Wireless LAN
NBG-419N User s Guide 109

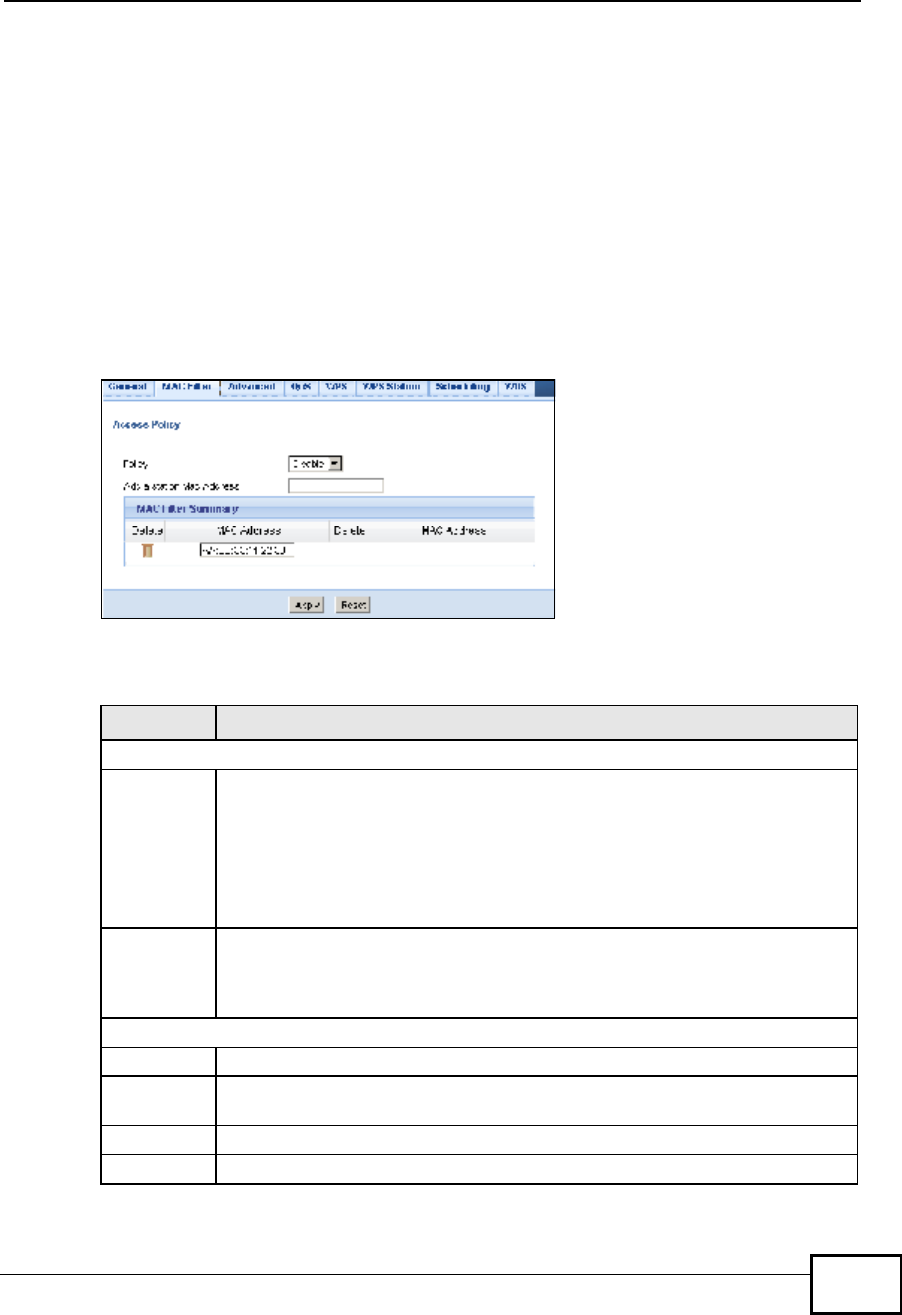

11.5 MAC Filter
The MAC filter screen allows you to configure the NBG-419N to give exclusive
access to devices (Allow) or exclude devices from accessing the NBG-419N
(Deny). Every Ethernet device has a unique MAC (Media Access Control) address.
The MAC address is assigned at the factory and consists of six pairs of
hexadecimal characters, for example, 00:A0:C5:00:00:02. You need to know the
MAC address of the devices to configure this screen.
To change your NBG-419N!s MAC filter settings, click Network > Wireless LAN
> MAC Filter. The screen appears as shown.
Figure 71 Network > Wireless LAN > MAC Filter
The following table describes the labels in this menu.
Table 40 Network > Wireless LAN > MAC Filter
LABEL DESCRIPTION
Access Policy
Policy Define the filter action for the list of MAC addresses in the MAC Address
table.
Select Allow to permit access to the NBG-419N, MAC addresses not listed
will be denied access to the NBG-419N.
Select Reject to block access to the NBG-419N, MAC addresses not listed
will be allowed to access the NBG-419N
Add a
station Mac
Address
Enter the MAC addresses of the wireless station that are allowed or denied
access to the NBG-419N in these address fields. Enter the MAC addresses in
a valid MAC address format, that is, six hexadecimal character pairs, for
example, 12:34:56:78:9a:bc. Click Add.
MAC Filter Summary
Delete Click the delete icon to remove the MAC address from the list.
MAC
Address
This is the MAC address of the wireless station that are allowed or denied
access to the NBG-419N.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Company Confidential
![](/img.php?id=1180986&img=bg6e.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
110
11.6 Wireless LAN Advanced Screen
Use this screen to allow wireless advanced features, such as intra-BSS networking
and set the RTS/CTS Threshold
Click Network > Wireless LAN > Advanced. The screen appears as shown.
Figure 72 Network > Wireless LAN > Advanced
The following table describes the labels in this screen.
Table 41 Network > Wireless LAN > Advanced
LABEL DESCRIPTION
RTS/CTS
Threshold
Data with its frame size larger than this value will perform the RTS
(Request To Send)/CTS (Clear To Send) handshake.
Enter a value between 256 and 2432.
Fragmentatio
n Threshold
The threshold (number of bytes) for the fragmentation boundary for
directed messages. It is the maximum data fragment size that can be
sent. Enter an even number between 256 and 2346.
Enable Intra-
BSS Traffic

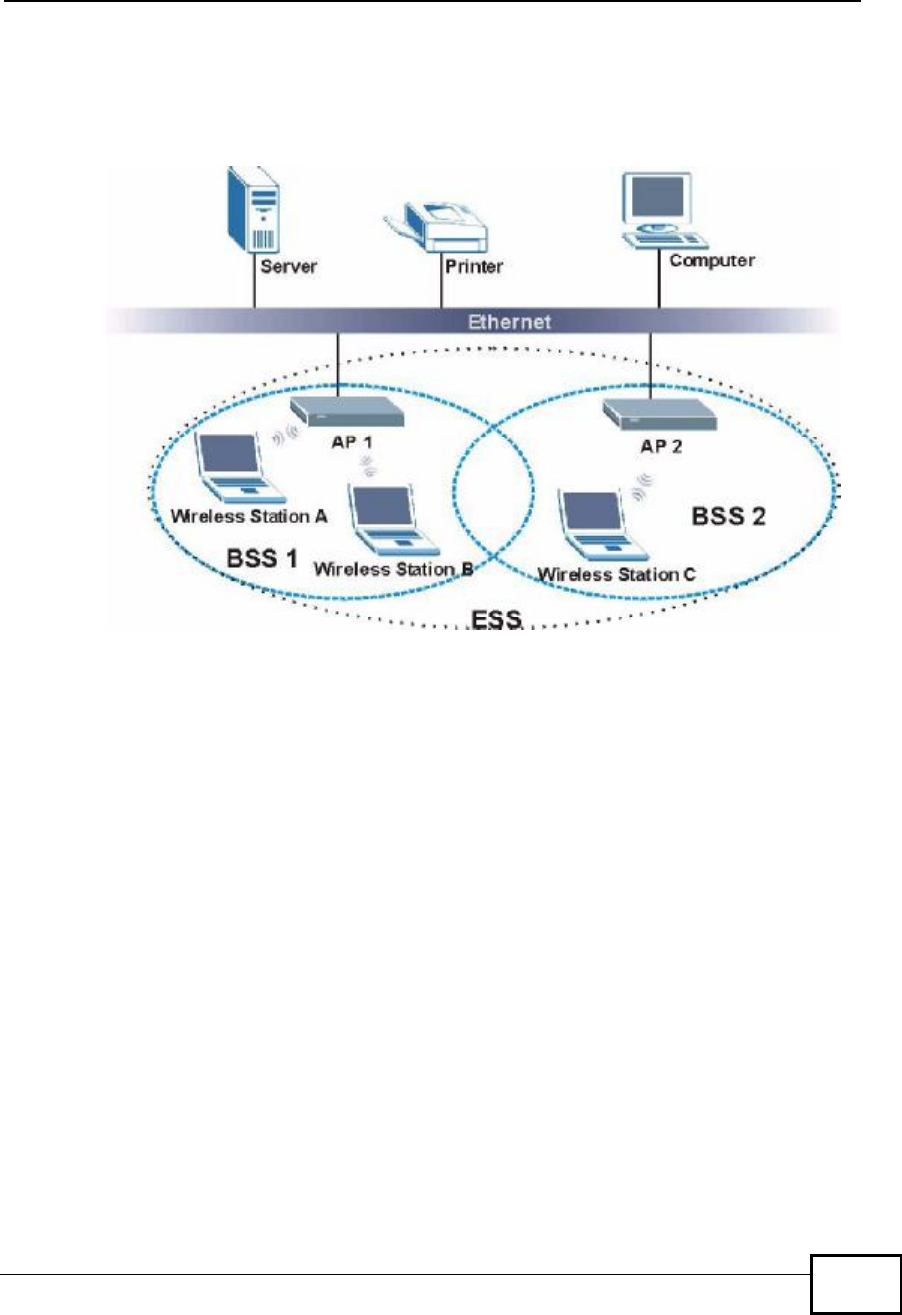

A Basic Service Set (BSS) exists when all communications between
wireless clients or between a wireless client and a wired network client go
through one access point (AP).
Intra-BSS traffic is traffic between wireless clients in the BSS. When Intra-
BSS is enabled, wireless client A and B can access the wired network and
communicate with each other. When Intra-BSS is disabled, wireless client
A and B can still access the wired network but cannot communicate with
each other.
Output Power Set the output power of the NBG-419N in this field. If there is a high
density of APs in an area, decrease the output power of the NBG-419N to
reduce interference with other APs. Select one of the following 100%,
90%, 75%, 50%, 25%, 10% or Minimum. See the product
specifications for more information on your NBG-419N!s output power.
HT (High Throughput) Physical Mode - Use the fields below to configure the 802.11
wireless environment of your NBG-419N.
Company Confidential
![](/img.php?id=1180986&img=bg6f.png)
Chapter 11Wireless LAN
NBG-419N User s Guide 111
11.7 Quality of Service (QoS) Screen
The QoS screen allows you to automatically give a service (such as VoIP and
video) a priority level.
Click Network > Wireless LAN > QoS. The following screen appears.
Figure 73 Network > Wireless LAN > QoS
Operating
Mode
Choose this according to the wireless mode(s) used in your network.
Mixed Mode - Select this if the wireless clients in your network use
different wireless modes (for example, IEEE 802.11b/g and IEEE 802.1n
modes)
Green Mode - Select this if the wireless clients in your network uses only
one type of wireless mode (for example, IEEEE 802.11 n only)
Channel
Bandwidth
Select the channel bandwidth you want to use for your wireless network.
It is recommended that you select 20/40 (20/40 MHz).
Select 20 MHz if you want to lessen radio interference with other wireless
devices in your neighborhood.
Guard
Interval
Select Auto to increase data throughput. However, this may make data
transfer more prone to errors.
Select Long to prioritize data integrity. This may be because your wireless
network is busy and congested or the NBG-419N is located in an
environment prone to radio interference.
Extension
Channel
This is set to Auto by default.
If you select 20/40 as your Channel Bandwidth, the extension channel
enables the NBG-419N to get higher data throughput. This also lowers
radio interference and traffic.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Table 41 Network > Wireless LAN > Advanced
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg70.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
112
The following table describes the labels in this screen.
11.8 WPS Screen
Use this screen to enable/disable WPS, view or generate a new PIN number and
check current WPS status. To open this screen, click Network > Wireless LAN >
WPS tab.

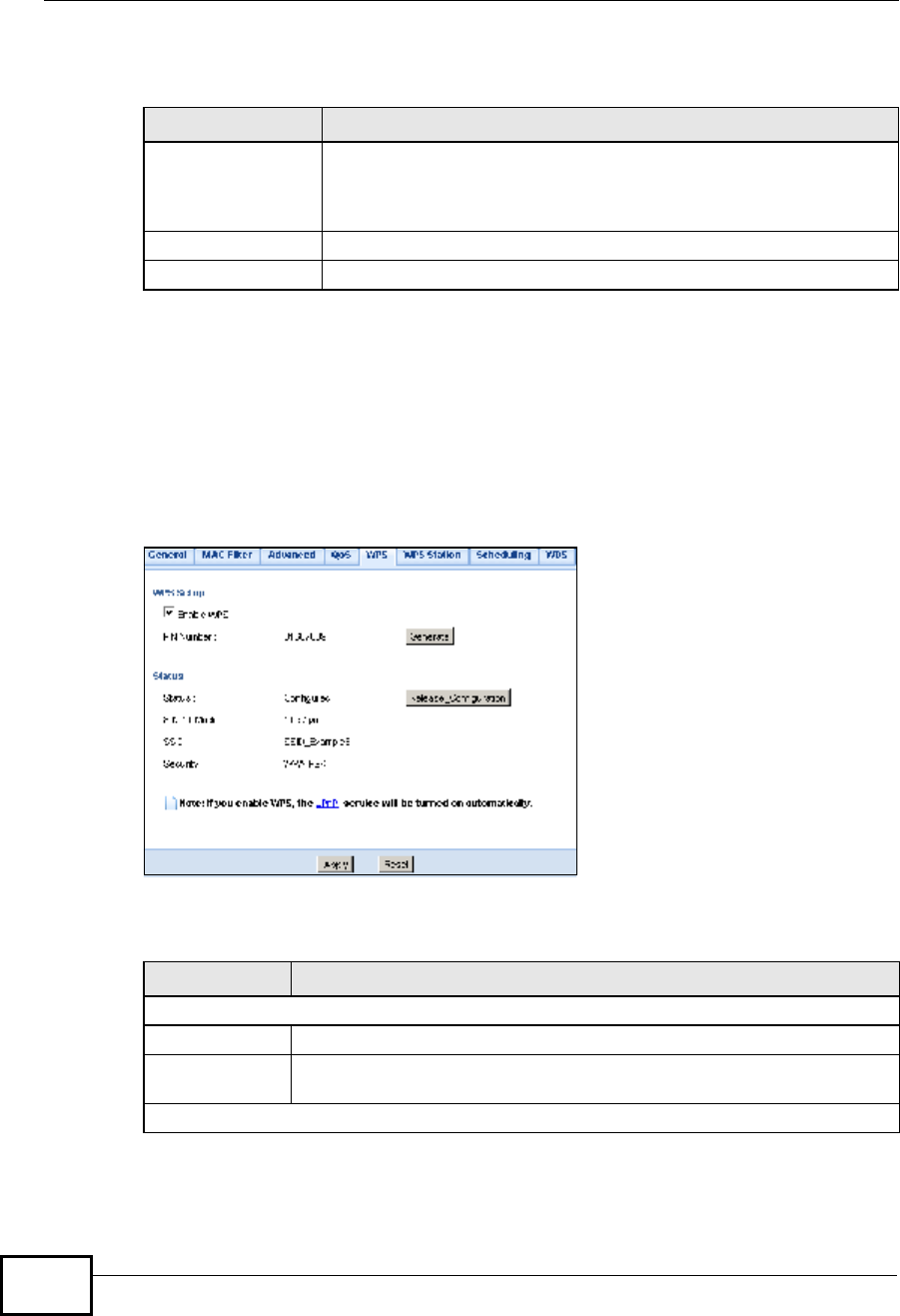

Figure 74 Network > Wireless LAN > WPS
The following table describes the labels in this screen.
Table 42 Network > Wireless LAN > QoS
LABEL DESCRIPTION
Enable WMM QoSCheck this to have the NBG-419N automatically give a service a
priority level according to the ToS value in the IP header of packets
it sends. WMM QoS (Wifi MultiMedia Quality of Service) gives high
priority to voice and video, which makes them run more smoothly.
Apply Click Apply to save your changes to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Table 43 Network > Wireless LAN > WPS
LABEL DESCRIPTION
WPS Setup
Enable WPS Select this to enable the WPS feature.
PIN Number This displays a PIN number last time system generated. Click Generate
to generate a new PIN number.
Status
Company Confidential
![](/img.php?id=1180986&img=bg71.png)
Chapter 11Wireless LAN
NBG-419N User s Guide 113
11.9 WPS Station Screen
Use this screen when you want to add a wireless station using WPS. To open this
screen, click Network > Wireless LAN > WPS Station tab.
Note: Note: After you click Push Button on this screen, you have to press a similar
button in the wireless station utility within 2 minutes. To add the second wireless
station, you have to press these buttons on both device and the wireless station
again after the first 2 minutes.
Figure 75 Network > Wireless LAN > WPS Station
Status This displays Configured when the NBG-419N has connected to a
wireless network using WPS or when Enable WPS is selected and
wireless or wireless security settings have been changed. The current
wireless and wireless security settings also appear in the screen.
This displays Unconfigured if WPS is disabled and there are no
wireless or wireless security changes on the NBG-419N or you click
Release_Configuration to remove the configured wireless and
wireless security settings.
Release
Configuration
This button is only available when the WPS status displays Configured.
Click this button to remove all configured wireless and wireless security
settings for WPS connections on the NBG-419N.
802.11 Mode This is the 802.11 mode used. Only compliant WLAN devices can
associate with the NBG-419N.
SSID This is the name of the wireless network.
Security This is the type of wireless security employed by the network.
Apply Click Apply to save your changes back to the NBG-419N.
Refresh Click Refresh to get this screen information afresh.
Table 43 Network > Wireless LAN > WPS
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg72.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
114
The following table describes the labels in this screen.
11.10 Scheduling Screen
Use this screen to set the times your wireless LAN is turned on and off. Wireless
LAN scheduling is disabled by default. The wireless LAN can be scheduled to turn
on or off on certain days and at certain times. To open this screen, click Network
> Wireless LAN > Scheduling tab.
Figure 76 Network > Wireless LAN > Scheduling
Table 44 Network > Wireless LAN > WPS Station
LABEL DESCRIPTION
Push Button Use this button when you use the PBC (Push Button Configuration)
method to configure wireless stations!s wireless settings. See Section
10.3.1 on page 90.
Click this to start WPS-aware wireless station scanning and the wireless
security information synchronization.
Or input
station!s PIN
number
Use this button when you use the PIN Configuration method to
configure wireless station!s wireless settings. See Section 10.3.2 on
page 91.
Type the same PIN number generated in the wireless station!s utility.
Then click Start to associate to each other and perform the wireless
security information synchronization.
Company Confidential
![](/img.php?id=1180986&img=bg73.png)
Chapter 11Wireless LAN
NBG-419N User s Guide 115
The following table describes the labels in this screen.
11.11 WDS Screen
A Wireless Distribution System is a wireless connection between two or more APs.
Use this screen to set the operating mode of your NBG-419N to AP + Bridge or
Bridge Only and establish wireless links with other APs. You need to know the
MAC address of the peer device, which also must be in bridge mode.
Note: You must enable the same wireless security settings on the NBG-419N and on
all wireless clients that you want to associate with it.
Table 45 Network > Wireless LAN > Scheduling
LABEL DESCRIPTION
Wireless LAN Scheduling
Enable Wireless
LAN Scheduling
Select this to enable Wireless LAN scheduling.
Scheduling
WLAN Status Select On or Off to specify whether the Wireless LAN is turned on or
off. This field works in conjunction with the Day and Except for the
following times fields.
Day Select Everyday or the specific days to turn the Wireless LAN on or off.
If you select Everyday you can not select any specific days. This field
works in conjunction with the Except for the following times field.
For the
following times
(24-Hour
Format)
Select a begin time using the first set of hour and minute (min) drop
down boxes and select an end time using the second set of hour and
minute (min) drop down boxes. If you have chosen On earlier for the
WLAN Status the Wireless LAN will turn on between the two times you
enter in these fields. If you have chosen Off earlier for the WLAN Status
the Wireless LAN will turn off between the two times you enter in these
fields.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to reload the previous configuration for this screen.
Company Confidential
![](/img.php?id=1180986&img=bg74.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
116
Click Network > Wireless LAN > WDS tab. The following screen opens with the
Basic Setting set to Disabled, and Security Mode set to No Security.
Figure 77 Network > Wireless LAN > WDS
The following table describes the labels in this screen.
Table 46 Network > Wireless LAN > WDS
LABEL DESCRIPTION
WDS Setup
Basic Settings Select the operating mode for your NBG-419N.
AP + Bridge - The NBG-419N functions as a bridge and access point
simultaneously.
Bridge - The NBG-419N acts as a wireless network bridge and
establishes wireless links with other APs. You need to know the MAC
address of the peer device, which also must be in bridge mode. The
NBG-419N can establish up to five wireless links with other APs.
Local MAC
Address
This is the MAC address of your NBG-419N.
Phy Mode Select the Phy mode you want the NBG-419N to use. This dictates the
maximum size of packets during data transmission.
Remote MAC
Address
This is the MAC address of the peer device that your NBG-419N wants
to make a bridge connection with.
You can connect to up to 4 peer devices.
Security
EncrypType Select whether to use WEP, TKIP or AES encryption for your WDS
connection in this field.
Otherwise, select No Security.
EncrypKey The Encryp key is used to encrypt data. Peers must use the same key
for data transmission.
Company Confidential
![](/img.php?id=1180986&img=bg75.png)
Chapter 11Wireless LAN
NBG-419N User s Guide 117
Apply Click Apply to save your changes to NBG-419N.
Refresh Click Refresh to reload the previous configuration for this screen.
Table 46 Network > Wireless LAN > WDS
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg76.png)
Chapter 11Wireless LAN
NBG-419N User s Guide
118
Company Confidential
![](/img.php?id=1180986&img=bg77.png)
NBG-419N User s Guide 119
CHAPTER 12
WAN
12.1 Overview
This chapter discusses the NBG-419N!s WAN screens. Use these screens to
configure your NBG-419N for Internet access.
A WAN (Wide Area Network) connection is an outside connection to another
network or the Internet. It connects your private networks such as a LAN (Local
Area Network) and other networks, so that a computer in one location can
communicate with computers in other locations.
Figure 78 LAN and WAN
12.2 What You Can Do
Use the Internet Connection screen (Section 12.4 on page 122) to enter your
ISP information and set how the computer acquires its IP, DNS and WAN MAC
addresses.
Use the Advanced screen (Section 12.5 on page 132) to enable multicasting,
configure Windows networking and bridge.
Use IGMP Snooping screen (Section 12.6 on page 132) to enable IGMP
snooping in the LAN ports.
Company Confidential
![](/img.php?id=1180986&img=bg78.png)
Chapter 12WAN
NBG-419N User s Guide
120
12.3 What You Need To Know
The information in this section can help you configure the screens for your WAN
connection, as well as enable/disable some advanced features of your NBG-419N.
12.3.1 Configuring Your Internet Connection
Encapsulation Method
Encapsulation is used to include data from an upper layer protocol into a lower
layer protocol. To set up a WAN connection to the Internet, you need to use the
same encapsulation method used by your ISP (Internet Service Provider). If your
ISP offers a dial-up Internet connection using PPPoE (PPP over Ethernet) or PPTP
(Point-to-Point Tunneling Protocol), they should also provide a username and
password (and service name) for user authentication.
WAN IP Address
The WAN IP address is an IP address for the NBG-419N, which makes it accessible
from an outside network. It is used by the NBG-419N to communicate with other
devices in other networks. It can be static (fixed) or dynamically assigned by the
ISP each time the NBG-419N tries to access the Internet.
If your ISP assigns you a static WAN IP address, they should also assign you the
subnet mask and DNS server IP address(es) (and a gateway IP address if you use
the Ethernet or ENET ENCAP encapsulation method).
DNS Server Address Assignment
Use Domain Name System (DNS) to map a domain name to its corresponding IP
address and vice versa, for instance, the IP address of www.zyxel.com is
204.217.0.2. The DNS server is extremely important because without it, you must
know the IP address of a computer before you can access it.
The NBG-419N can get the DNS server addresses in the following ways.
1The ISP tells you the DNS server addresses, usually in the form of an information
sheet, when you sign up. If your ISP gives you DNS server addresses, manually
enter them in the DNS server fields.
2If your ISP dynamically assigns the DNS server IP addresses (along with the NBG-
419N!s WAN IP address), set the DNS server fields to get the DNS server address
from the ISP.
Company Confidential
![](/img.php?id=1180986&img=bg79.png)
Chapter 12WAN
NBG-419N User s Guide 121
WAN MAC Address
The MAC address screen allows users to configure the WAN port's MAC address by
either using the factory default or cloning the MAC address from a computer on
your LAN. Choose Factory Default to select the factory assigned default MAC
Address.
Otherwise, click Clone the computer's MAC address - IP Address and enter
the IP address of the computer on the LAN whose MAC you are cloning. Once it is
successfully configured, the address will be copied to configuration file. It is
recommended that you clone the MAC address prior to hooking up the WAN Port.
12.3.2 Multicast
Traditionally, IP packets are transmitted in one of either two ways - Unicast (1
sender - 1 recipient) or Broadcast (1 sender - everybody on the network).
Multicast delivers IP packets to a group of hosts on the network - not everybody
and not just 1.

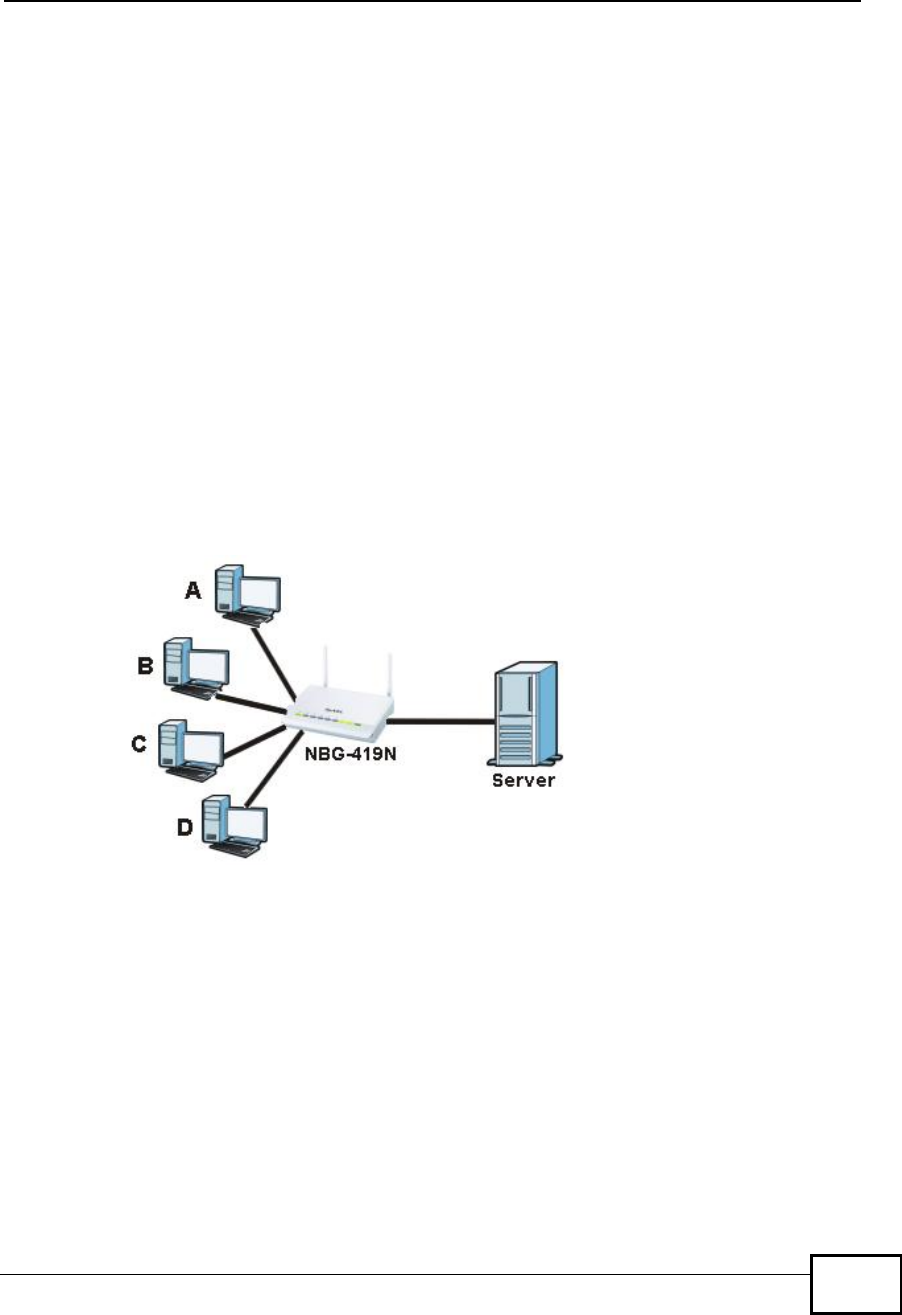

Figure 79 Multicast Example
In the multicast example above, systems A and D comprise one multicast group.
In multicasting, the server only needs to send one data stream and this is
delivered to systems A and D.
IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to
establish membership in a multicast group - it is not used to carry user data. The
NBG-419N supports both IGMP version 1 (IGMP-v1) and IGMP version 2 (IGMP-
v2).
At start up, the NBG-419N queries all directly connected networks to gather group
membership. After that, the NBG-419N periodically updates this information. IP
multicasting can be enabled/disabled on the NBG-419N LAN and/or WAN
Company Confidential
![](/img.php?id=1180986&img=bg7a.png)
Chapter 12WAN
NBG-419N User s Guide
122
interfaces in the Web Configurator (LAN; WAN). Select None to disable IP
multicasting on these interfaces.
12.4 Internet Connection
Use this screen to change your NBG-419N!s Internet access settings. Click WAN
from the Configuration menu. The screen differs according to the encapsulation
you choose.
12.4.1 Ethernet Encapsulation
This screen displays when you select Ethernet encapsulation.
Figure 80 Network > WAN > Internet Connection: Ethernet Encapsulation
Company Confidential
![](/img.php?id=1180986&img=bg7b.png)
Chapter 12WAN
NBG-419N User s Guide 123
The following table describes the labels in this screen.
Table 47 Network > WAN > Internet Connection: Ethernet Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation You must choose the Ethernet option when the WAN port is used as a
regular Ethernet.
WAN IP Address Assignment
Get
automatically
from ISP
(Default)
Select this option If your ISP did not assign you a fixed IP address. This
is the default selection.
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
IP Address Enter your WAN IP address in this field if you selected Use Fixed IP
Address.
IP Subnet
Mask
Enter the IP Subnet Mask in this field.
Gateway IP
Address
Enter a Gateway IP Address (if your ISP gave you one) in this field.
WAN DNS Assignment
First DNS
Server
Second DNS
Server
Select From ISP if your ISP dynamically assigns DNS server
information (and the NBG-419N's WAN IP address). The field to the
right displays the (read-only) DNS server IP address that the ISP
assigns.
Select User-Defined if you have the IP address of a DNS server. Enter
the DNS server's IP address in the field to the right. If you chose User-
Defined, but leave the IP address set to 0.0.0.0, User-Defined
changes to None after you click Apply. If you set a second choice to
User-Defined, and enter the same IP address, the second User-
Defined changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do not
configure a DNS server, you must know the IP address of a computer in
order to access it.
WAN MAC
Address
The MAC address section allows users to configure the WAN port's MAC
address by either using the NBG-419N!s MAC address, copying the MAC
address from a computer on your LAN or manually entering a MAC
address.
Factory default Select Factory default to use the factory assigned default MAC
Address.
Clone the
computer!s MAC
address - IP
Address
Select Clone the computer's MAC address - IP Address and enter
the IP address of the computer on the LAN whose MAC you are cloning.
Set WAN MAC
Address
Select this option and enter the MAC address you want to use.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg7c.png)
Chapter 12WAN
NBG-419N User s Guide
124
12.4.2 PPPoE Encapsulation
The NBG-419N supports PPPoE (Point-to-Point Protocol over Ethernet). PPPoE is
an IETF standard (RFC 2516) specifying how a personal computer (PC) interacts
with a broadband modem (DSL, cable, wireless, etc.) connection. The PPP over
Ethernet option is for a dial-up connection using PPPoE.
For the service provider, PPPoE offers an access and authentication method that
works with existing access control systems (for example Radius).
One of the benefits of PPPoE is the ability to let you access one of multiple network
services, a function known as dynamic service selection. This enables the service
provider to easily create and offer new IP services for individuals.
Operationally, PPPoE saves significant effort for both you and the ISP or carrier, as
it requires no specific configuration of the broadband modem at the customer site.
By implementing PPPoE directly on the NBG-419N (rather than individual
computers), the computers on the LAN do not need PPPoE software installed,
since the NBG-419N does that part of the task. Furthermore, with NAT, all of the
LANs! computers will have access.
Company Confidential
![](/img.php?id=1180986&img=bg7d.png)
Chapter 12WAN
NBG-419N User s Guide 125
This screen displays when you select PPPoE encapsulation.
Figure 81 Network > WAN > Internet Connection: PPPoE Encapsulation
The following table describes the labels in this screen.
Table 48 Network > WAN > Internet Connection: PPPoE Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation Select PPP over Ethernet if you connect to your Internet via dial-up.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the user name above.
Retype to
Confirm
Type your password again to make sure that you have entered is
correctly.
MTU Size Enter the Maximum Transmission Unit (MTU) or the largest packet size
per frame that your NBG-419N can receive and process.
Nailed-Up
Connection
Select Nailed-Up Connection if you do not want the connection to time
out.
Company Confidential
![](/img.php?id=1180986&img=bg7e.png)
Chapter 12WAN
NBG-419N User s Guide
126
12.4.3 PPTP Encapsulation
Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables secure
transfer of data from a remote client to a private server, creating a Virtual Private
Network (VPN) using TCP/IP-based networks.
Idle Timeout
(sec)
This value specifies the time in minutes that elapses before the router
automatically disconnects from the PPPoE server.
WAN IP Address Assignment
Get
automatically
from ISP
Select this option If your ISP did not assign you a fixed IP address. This
is the default selection.
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
My WAN IP
Address
Enter your WAN IP address in this field if you selected Use Fixed IP
Address.
WAN DNS Assignment
First DNS
Server
Second DNS
Server
Select From ISP if your ISP dynamically assigns DNS server information
(and the NBG-419N's WAN IP address). The field to the right displays
the (read-only) DNS server IP address that the ISP assigns.
Select User-Defined if you have the IP address of a DNS server. Enter
the DNS server's IP address in the field to the right. If you chose User-
Defined, but leave the IP address set to 0.0.0.0, User-Defined
changes to None after you click Apply. If you set a second choice to
User-Defined, and enter the same IP address, the second User-
Defined changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do not
configure a DNS server, you must know the IP address of a computer in
order to access it.
WAN MAC
Address
The MAC address section allows users to configure the WAN port's MAC
address by using the NBG-419N!s MAC address, copying the MAC
address from a computer on your LAN or manually entering a MAC
address.
Factory default Select Factory default to use the factory assigned default MAC
Address.
Clone the
computer!s
MAC address -
IP Address
Select Clone the computer's MAC address - IP Address and enter
the IP address of the computer on the LAN whose MAC you are cloning.
Set WAN MAC
Address
Select this option and enter the MAC address you want to use.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Table 48 Network > WAN > Internet Connection: PPPoE Encapsulation
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg7f.png)
Chapter 12WAN
NBG-419N User s Guide 127
PPTP supports on-demand, multi-protocol and virtual private networking over
public networks, such as the Internet.
This screen displays when you select PPTP encapsulation.

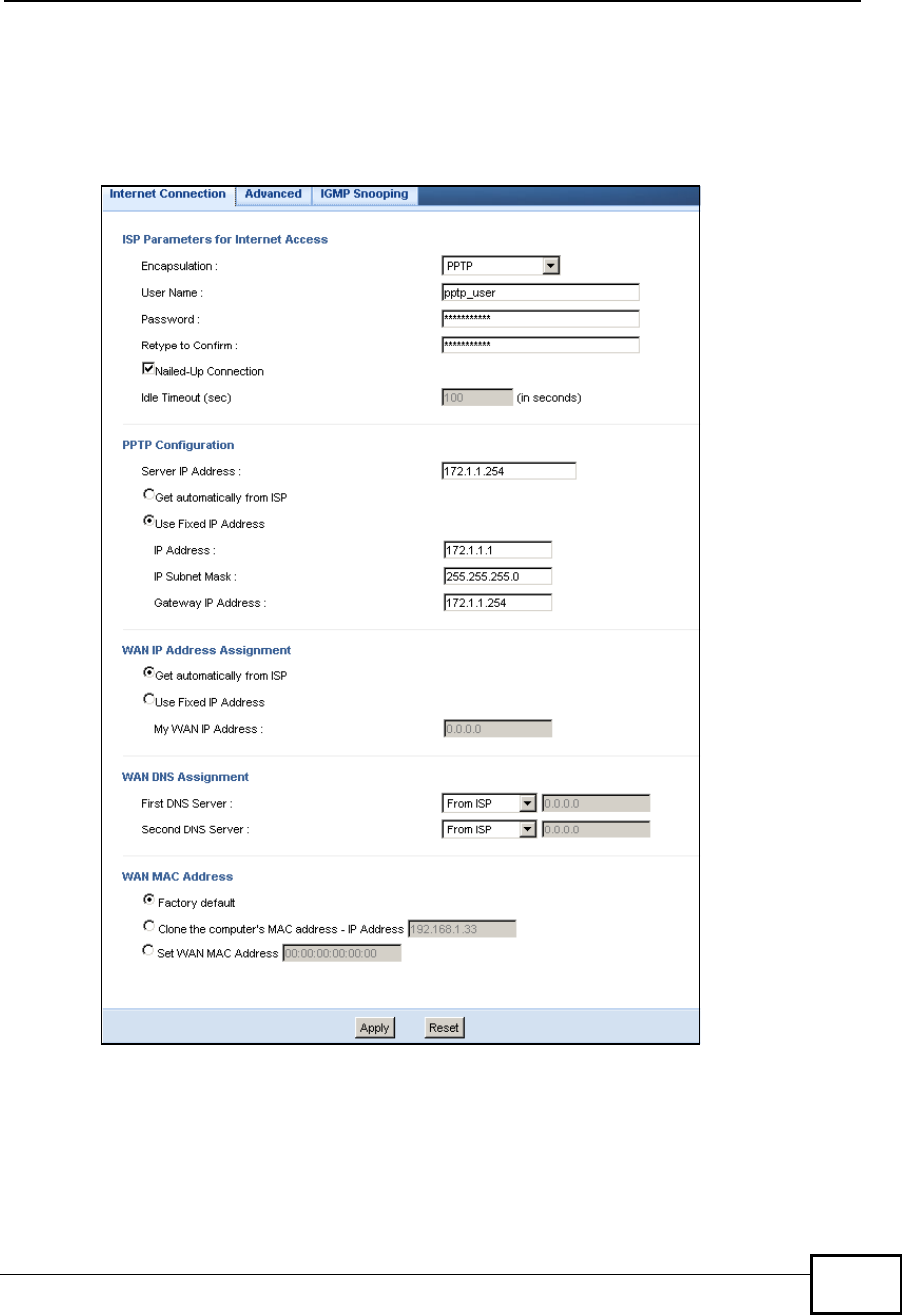

Figure 82 Network > WAN > Internet Connection: PPTP Encapsulation
Company Confidential
![](/img.php?id=1180986&img=bg80.png)
Chapter 12WAN
NBG-419N User s Guide
128
The following table describes the labels in this screen.
Table 49 Network > WAN > Internet Connection: PPTP Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Connection Type To configure a PPTP client, you must configure the User Name and
Password fields for a PPP connection and the PPTP parameters for
a PPTP connection.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the User Name above.
Retype to Confirm Type your password again to make sure that you have entered is
correctly.
Nailed-up
Connection
Select Nailed-Up Connection if you do not want the connection to
time out.
Idle Timeout This value specifies the time in minutes that elapses before the
NBG-419N automatically disconnects from the PPTP server.
PPTP Configuration
Server IP Address Type the IP address of the PPTP server.
Get automatically
from ISP
Select this option If your ISP did not assign you a fixed IP address.
This is the default selection.
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
IP Address Enter your WAN IP address in this field if you selected Use Fixed IP
Address.
IP Subnet Mask Your NBG-419N will automatically calculate the subnet mask based
on the IP address that you assign. Unless you are implementing
subnetting, use the subnet mask computed by the NBG-419N.
Gateway IP
Address
Enter a Gateway IP Address (if your ISP gave you one) in this
field.
WAN IP Address Assignment
Get automatically
from ISP
Select this to get your WAN IP address from your ISP.
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
My WAN IP
Address
Enter your WAN IP address in this field if you selected Use Fixed IP
Address.
WAN DNS Assignment
Company Confidential
![](/img.php?id=1180986&img=bg81.png)
Chapter 12WAN
NBG-419N User s Guide 129
12.4.4 L2TP Encapsulation
The Layer 2 Tunneling Protocol (L2TP) works at layer 2 (the data link layer) to
tunnel network traffic between two peer devices over another network (like the
Internet).
First DNS Server
Second DNS Server
Select From ISP if your ISP dynamically assigns DNS server
information (and the NBG-419N's WAN IP address). The field to the
right displays the (read-only) DNS server IP address that the ISP
assigns.
Select User-Defined if you have the IP address of a DNS server.
Enter the DNS server's IP address in the field to the right. If you
chose User-Defined, but leave the IP address set to 0.0.0.0, User-
Defined changes to None after you click Apply. If you set a
second choice to User-Defined, and enter the same IP address,
the second User-Defined changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do
not configure a DNS server, you must know the IP address of a
computer in order to access it.
WAN MAC Address The MAC address section allows users to configure the WAN port's
MAC address by either using the NBG-419N!s MAC address, copying
the MAC address from a computer on your LAN or manually entering
a MAC address.
Factory default Select Factory default to use the factory assigned default MAC
Address.
Clone the
computer!s MAC
address - IP
Address
Select Clone the computer's MAC address - IP Address and
enter the IP address of the computer on the LAN whose MAC you
are cloning.
Set WAN MAC
Address
Select this option and enter the MAC address you want to use.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Table 49 Network > WAN > Internet Connection: PPTP Encapsulation
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg82.png)
Chapter 12WAN
NBG-419N User s Guide
130
This screen displays when you select L2TP encapsulation.
Figure 83 Network > WAN > Internet Connection: L2TP Encapsulation
The following table describes the labels in this screen.
Table 50 Network > WAN > Internet Connection: L2TP Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Connection Type To configure a L2TP client, you must configure the User Name and
Password fields for a layer-2 connection and the L2TP parameters
for an L2TP connection.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the User Name above.
Retype to Confirm Type your password again to make sure that you have entered is
correctly.
L2TP Configuration
Server IP Address Type the IP address of the L2TP server.
Get automatically
from ISP
Select this option If your ISP did not assign you a fixed IP address.
This is the default selection.
Company Confidential
![](/img.php?id=1180986&img=bg83.png)
Chapter 12WAN
NBG-419N User s Guide 131
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
IP Address Enter your WAN IP address in this field if you selected Use Fixed IP
Address.
IP Subnet Mask Your NBG-419N will automatically calculate the subnet mask based
on the IP address that you assign. Unless you are implementing
subnetting, use the subnet mask computed by the NBG-419N.
Gateway IP
Address
Enter a Gateway IP Address (if your ISP gave you one) in this
field.
WAN IP Address Assignment
Get automatically
from ISP
Select this to get your WAN IP address from your ISP.
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
My WAN IP
Address
Enter your WAN IP address in this field if you selected Use Fixed IP
Address.
WAN DNS Assignment
First DNS Server
Second DNS Server
Select From ISP if your ISP dynamically assigns DNS server
information (and the NBG-419N's WAN IP address). The field to the
right displays the (read-only) DNS server IP address that the ISP
assigns.
Select User-Defined if you have the IP address of a DNS server.
Enter the DNS server's IP address in the field to the right. If you
chose User-Defined, but leave the IP address set to 0.0.0.0, User-
Defined changes to None after you click Apply. If you set a
second choice to User-Defined, and enter the same IP address,
the second User-Defined changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do
not configure a DNS server, you must know the IP address of a
computer in order to access it.
WAN MAC Address The MAC address section allows users to configure the WAN port's
MAC address by either using the NBG-419N!s MAC address, copying
the MAC address from a computer on your LAN or manually entering
a MAC address.
Factory default Select Factory default to use the factory assigned default MAC
Address.
Clone the
computer!s MAC
address - IP
Address
Select Clone the computer's MAC address - IP Address and
enter the IP address of the computer on the LAN whose MAC you
are cloning.
Set WAN MAC
Address
Select this option and enter the MAC address you want to use.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Table 50 Network > WAN > Internet Connection: L2TP Encapsulation
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg84.png)
Chapter 12WAN
NBG-419N User s Guide
132
12.5 Advanced WAN Screen
Use this screen to enable Multicast and enable Auto-bridge.
Note: The categories shown in this screen are independent of each other.
To change your NBG-419N!s advanced WAN settings, click Network > WAN >
Advanced. The screen appears as shown.

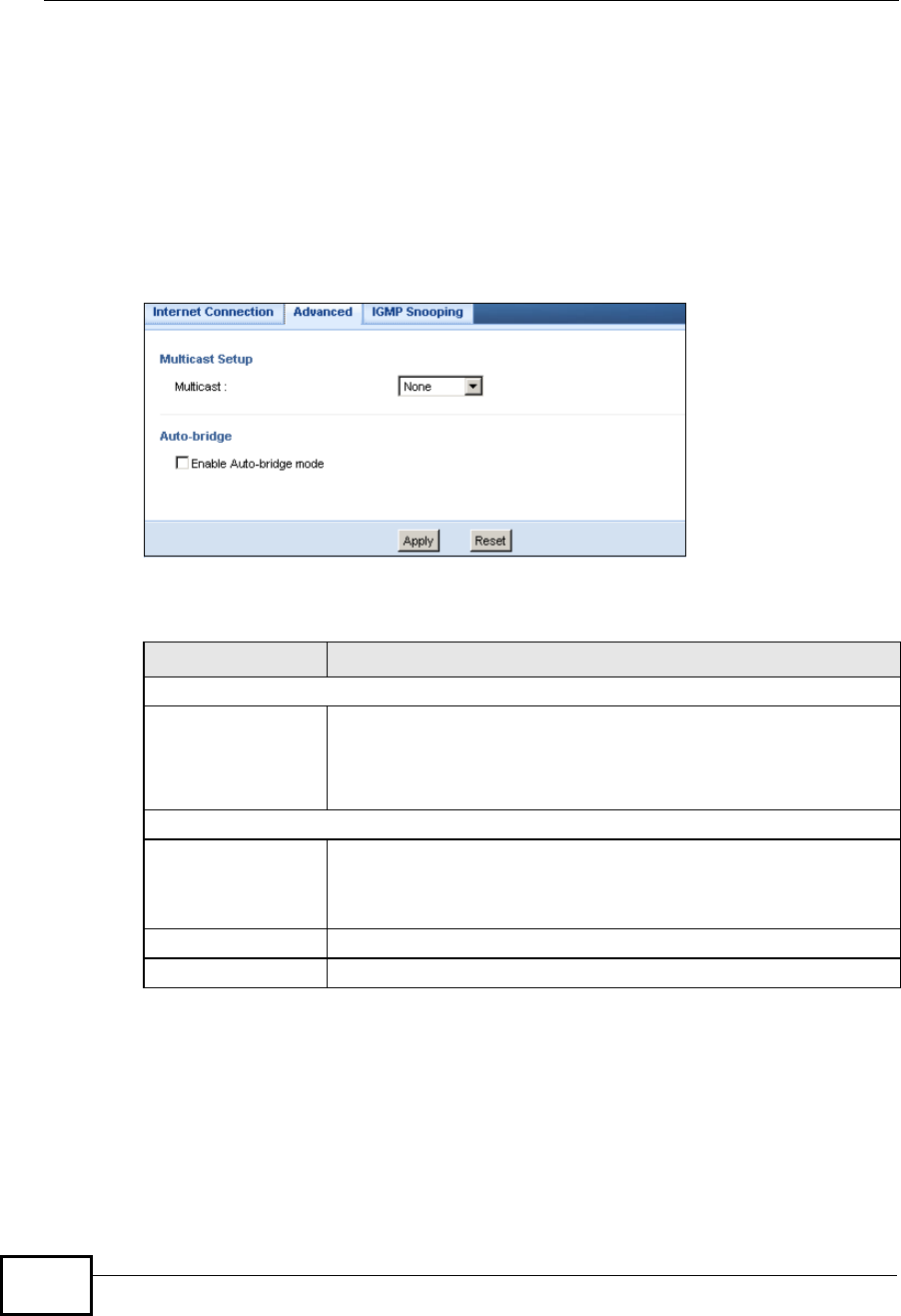

Figure 84 Network > WAN > Advanced
The following table describes the labels in this screen.
12.6 IGMP Snooping Screen
Use this screen to enable IGMP snooping if you have LAN users that subscribe to
multicast services.
Table 51 Network > WAN > Advanced
LABEL DESCRIPTION
Multicast Setup
Multicast Select IGMPv1/v2 to enable multicasting. This applies to traffic
routed from the WAN to the LAN.
Select None to disable this feature. This may cause incoming traffic
to be dropped or sent to all connected network devices.
Auto-bridge
Enable Auto-bridge
mode
Select this option to have the NBG-419N switch to bridge mode
automatically when the NBG-419N gets a WAN IP address in the
range of 192.168.x.y (where x and y are from zero to nine) no
matter what the LAN IP address is.
ApplyClick Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg85.png)
Chapter 12WAN
NBG-419N User s Guide 133
IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to
establish membership in a multicast group - it is not used to carry user data.
Click Network > WAN > IGMP Snooping. The screen appears as shown.
Figure 85 Network > WAN > IGMP Snooping
The following table describes the labels in this screen.
Table 52 Network > WAN > IGMP Snooping
LABEL DESCRIPTION
Auto-bridge
Enable IGMP
Snooping
Select this option to have the NBG-419N use IGMP snooping.
Check the LAN port/s to which IGMP snooping applies.
ApplyClick Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg86.png)
Chapter 12WAN
NBG-419N User s Guide
134
Company Confidential
![](/img.php?id=1180986&img=bg87.png)
NBG-419N User s Guide 135
CHAPTER 13
LAN
13.1 Overview
This chapter describes how to configure LAN settings.
A Local Area Network (LAN) is a shared communication system to which many
computers are attached. A LAN is a computer network limited to the immediate
area, usually the same building or floor of a building. The LAN screens can help
you configure a LAN DHCP server, manage IP addresses, and partition your
physical network into logical networks.
Figure 86 LAN Example
The LAN screens can help you manage IP addresses.
13.2 What You Can Do
Use the IP screen (Section 13.4 on page 137) to change the IP address for your
NBG-419N.
Use the IP Alias screen (Section 13.5 on page 138) to have the NBG-419N
apply IP alias to create LAN subnets.
Company Confidential
![](/img.php?id=1180986&img=bg88.png)
Chapter 13LAN
NBG-419N User s Guide
136
13.3 What You Need To Know
The actual physical connection determines whether the NBG-419N ports are LAN
or WAN ports. There are two separate IP networks, one inside the LAN network
and the other outside the WAN network as shown next.

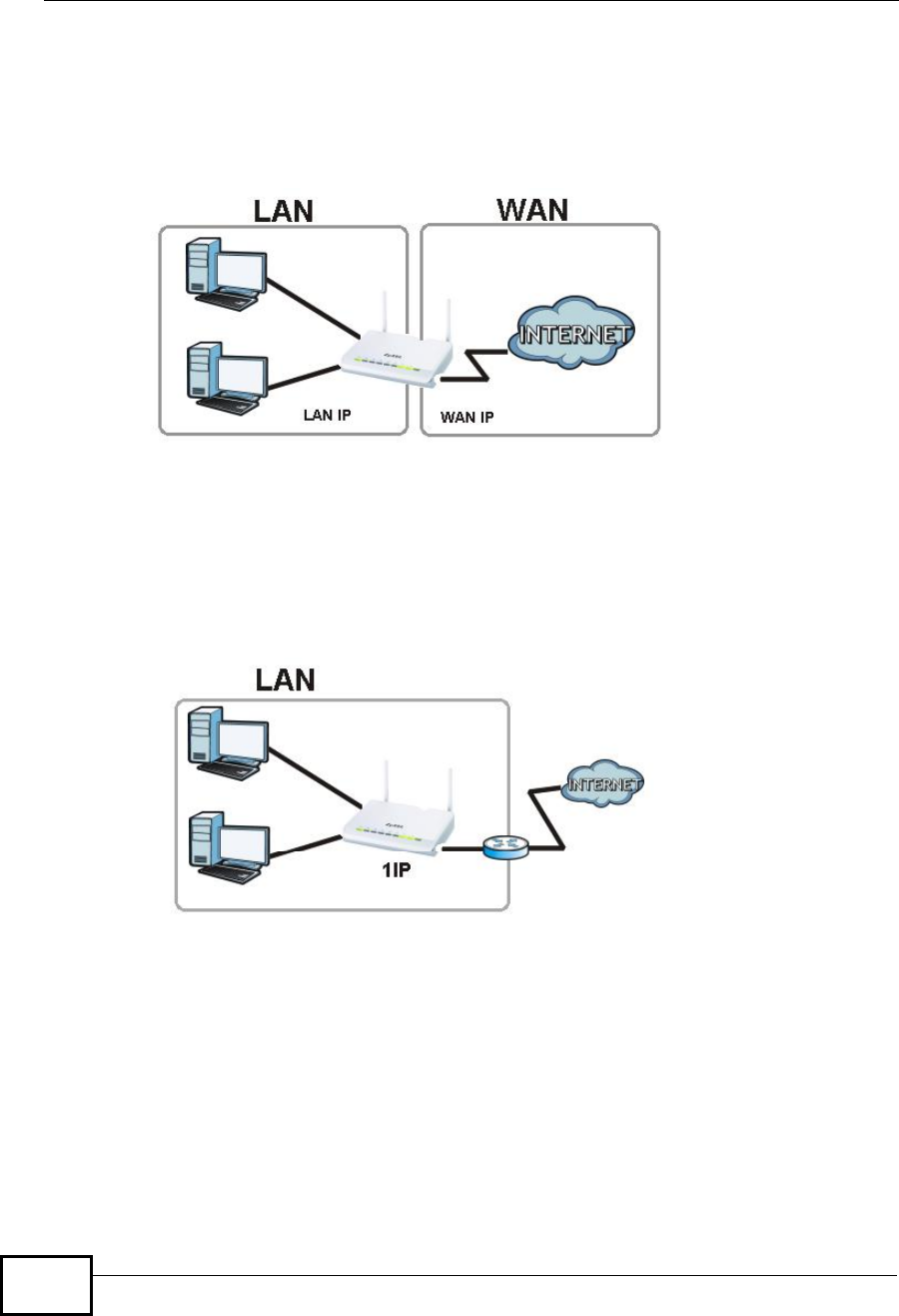

Figure 87 LAN and WAN IP Addresses
The LAN parameters of the NBG-419N are preset in the factory with the following
values:
IP address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits)
DHCP server enabled with 32 client IP addresses starting from 192.168.1.33.
These parameters should work for the majority of installations. If your ISP gives
you explicit DNS server address(es), read the embedded Web Configurator help
regarding what fields need to be configured.
13.3.1 IP Pool Setup
The NBG-419N is pre-configured with a pool of 32 IP addresses starting from
192.168.1.33 to 192.168.1.64. This configuration leaves 31 IP addresses
(excluding the NBG-419N itself) in the lower range (192.168.1.2 to 192.168.1.32)
for other server computers, for instance, servers for mail, FTP, TFTP, web, etc.,
that you may have.
13.3.2 LAN TCP/IP
The NBG-419N has built-in DHCP server capability that assigns IP addresses and
DNS servers to systems that support DHCP client capability.
Company Confidential
![](/img.php?id=1180986&img=bg89.png)
Chapter 13LAN
NBG-419N User s Guide 137
13.3.3 IP Alias
IP alias allows you to partition a physical network into different logical networks
over the same Ethernet interface. The NBG-419N supports three logical LAN
interfaces via its single physical Ethernet interface with the NBG-419N itself as the
gateway for each LAN network.
13.4 LAN IP Screen
Use this screen to change the IP address for your NBG-419N. Click Network >
LAN > IP.
Figure 88 Network > LAN > IP
The following table describes the labels in this screen.
Table 53 Network > LAN > IP
LABEL DESCRIPTION
IP Address Type the IP address of your NBG-419N in dotted decimal notation.
IP Subnet Mask The subnet mask specifies the network number portion of an IP
address. Your NBG-419N will automatically calculate the subnet mask
based on the IP address that you assign. Unless you are implementing
subnetting, use the subnet mask computed by the NBG-419N.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg8a.png)
Chapter 13LAN
NBG-419N User s Guide
138
13.5 IP Alias Screen
Use this screen to have the NBG-419N apply IP alias to create LAN subnets. Click
LAN IP Alias.
Figure 89 Network > LAN > IP Alias
The following table describes the labels in this screen.
Table 54 Network > LAN > IP Alias
LABEL DESCRIPTION
IP Alias Check this to enable IP alias.
IP Address Type the IP alias address of your NBG-419N in dotted decimal
notation.
IP Subnet Mask The subnet mask specifies the network number portion of an IP
address. Your NBG-419N will automatically calculate the subnet mask
based on the IP address that you assign. Unless you are implementing
subnetting, use the subnet mask computed by the NBG-419N.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg8b.png)
NBG-419N User s Guide 139
CHAPTER 14
DHCP Server
14.1 Overview
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows
individual clients to obtain TCP/IP configuration at start-up from a server. You can
configure the NBG-419N!s LAN as a DHCP server or disable it. When configured as
a server, the NBG-419N provides the TCP/IP configuration for the clients. If DHCP
service is disabled, you must have another DHCP server on your LAN, or else the
computer must be manually configured.
14.2 What You Can Do
Use the General (Section 14.3 on page 139) screen to enable the DHCP server.
Use the Advanced (Section 14.4 on page 140) screen to assign IP addresses on
the LAN to specific individual computers based on their MAC Addresses.
14.3 General Screen
Use this screen to enable the DHCP server. Click Network > DHCP Server. The
following screen displays.
Figure 90 Network > DHCP Server > General
Company Confidential
![](/img.php?id=1180986&img=bg8c.png)
Chapter 14DHCP Server
NBG-419N User s Guide
140
The following table describes the labels in this screen.
14.4 Advanced Screen
This screen allows you to assign IP addresses on the LAN to specific individual
computers based on their MAC addresses. You can also use this screen to
configure the DNS server information that the NBG-419N sends to the DHCP
clients.
To change your NBG-419N!s static DHCP settings, click Network > DHCP Server
> Advanced. The following screen displays.
Figure 91 Network > DHCP Server > Advanced
Table 55 Network > DHCP Server > General
LABEL DESCRIPTION
Enable DHCP
Server
Enable or Disable DHCP for LAN.
IP Pool Starting
Address
This field specifies the first of the contiguous addresses in the IP
address pool for LAN.
Pool Size This field specifies the size, or count of the IP address pool for LAN.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg8d.png)
Chapter 14DHCP Server
NBG-419N User s Guide 141
The following table describes the labels in this screen.
Table 56 Network > DHCP Server > Advanced
LABEL DESCRIPTION
LAN Static DHCP Table
#This is the index number of the static IP table entry (row).
MAC Address Type the MAC address (with colons) of a computer on your LAN.
IP Address Type the LAN IP address of a computer on your LAN.
DNS Server
DNS Servers
Assigned by
DHCP Server
The NBG-419N passes a DNS (Domain Name System) server IP
address (in the order you specify here) to the DHCP clients. The NBG-
419N only passes this information to the LAN DHCP clients when you
select the Enable DHCP Server check box. When you clear the
Enable DHCP Server check box, DHCP service is disabled and you
must have another DHCP sever on your LAN, or else the computers
must have their DNS server addresses manually configured.
First DNS Server
Second DNS
Server
Select From ISP if your ISP dynamically assigns DNS server
information (and the NBG-419N's WAN IP address). The field to the
right displays the (read-only) DNS server IP address that the ISP
assigns.
Select User-Defined if you have the IP address of a DNS server.
Enter the DNS server's IP address in the field to the right. If you chose
User-Defined, but leave the IP address set to 0.0.0.0, User-Defined
changes to None after you click Apply. If you set a second choice to
User-Defined, and enter the same IP address, the second User-
Defined changes to None after you click Apply.
Select DNS Relay to have the NBG-419N act as a DNS proxy. The
NBG-419N's LAN IP address displays in the field to the right (read-
only). The NBG-419N tells the DHCP clients on the LAN that the NBG-
419N itself is the DNS server. When a computer on the LAN sends a
DNS query to the NBG-419N, the NBG-419N forwards the query to the
NBG-419N's system DNS server (configured in the WAN > Internet
Connection screen) and relays the response back to the computer.
You can only select DNS Relay for one of the three servers; if you
select DNS Relay for a second or third DNS server, that choice
changes to None after you click Apply.
Select None if you do not want to configure DNS servers. If you do
not configure a DNS server, you must know the IP address of a
computer in order to access it.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg8e.png)
Chapter 14DHCP Server
NBG-419N User s Guide
142
Company Confidential
![](/img.php?id=1180986&img=bg8f.png)
NBG-419N User s Guide 143
CHAPTER 15
Network Address Translation
(NAT)
15.1 Overview
NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP
address of a host in a packet. For example, the source address of an outgoing
packet, used within one network is changed to a different IP address known within
another network.
Each packet has two addresses $ a source address and a destination address. For
outgoing packets, NAT maps private (local) IP addresses to globally unique ones
required for communication with hosts on other networks. It replaces the original
IP source address in each packet and then forwards it to the Internet. The NBG-
419N keeps track of the original addresses and port numbers so incoming reply
packets can have their original values restored. The following figure illustrates
this.
Figure 92 NAT Example
For more information on IP address translation, refer to RFC 1631, The IP Network
Address Translator (NAT).
Company Confidential
![](/img.php?id=1180986&img=bg90.png)
Chapter 15Network Address Translation (NAT)
NBG-419N User s Guide
144
15.2 What You Can Do
Use the General screen (Section 15.3 on page 144) to enable NAT and set a
default server.
Use the Application screen (Section 15.4 on page 145) o forward incoming
service requests to the server(s) on your local network.
Use the Advanced screen (Section 15.5 on page 147) to change your NBG-
419N!s trigger port settings.
15.3 General NAT Screen
Use this screen to enable NAT and set a default server. Click Network > NAT >
General to open the following screen.

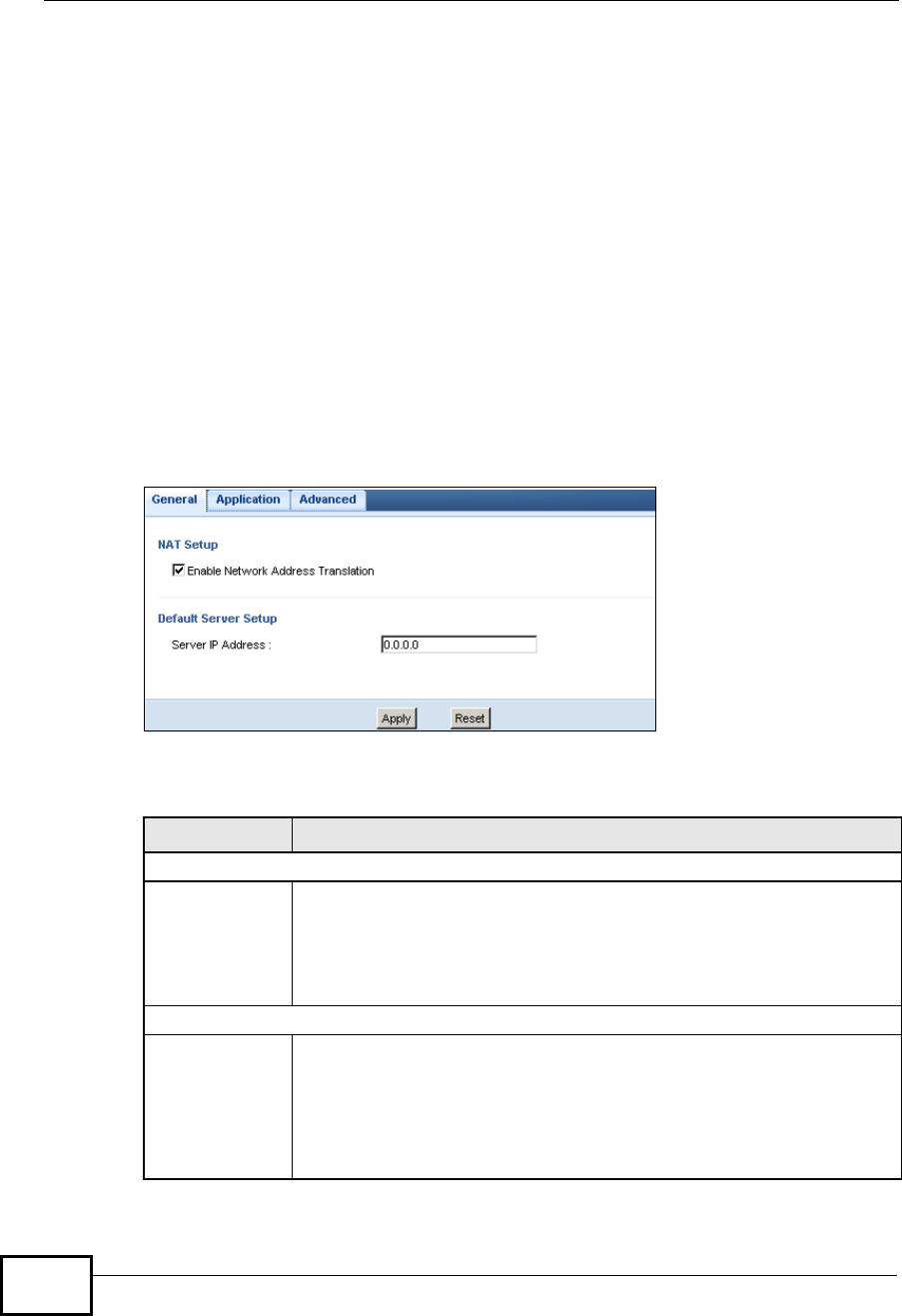

Figure 93 Network > NAT > General
The following table describes the labels in this screen.
Table 57 Network > NAT > General
LABEL DESCRIPTION
NAT Setup
Enable Network
Address
Translation
Network Address Translation (NAT) allows the translation of an Internet
protocol address used within one network (for example a private IP
address used in a local network) to a different IP address known within
another network (for example a public IP address used on the Internet).
Select the check box to enable NAT.
Default Server Setup
Server IP
Address
In addition to the servers for specified services, NAT supports a default
server. A default server receives packets from ports that are not
specified in the Application screen.
If you do not assign a Default Server IP address, the NBG-419N
discards all packets received for ports that are not specified in the
Application screen or remote management.
Company Confidential
![](/img.php?id=1180986&img=bg91.png)
Chapter 15Network Address Translation (NAT)
NBG-419N User s Guide 145
15.4 NAT Application Screen
Use the Application screen to forward incoming service requests to the server(s)
on your local network. You may enter a single port number or a range of port
numbers to be forwarded, and the local IP address of the desired server. The port
number identifies a service; for example, web service is on port 80 and FTP on
port 21. In some cases, such as for unknown services or where one server can
support more than one service (for example both FTP and web service), it might
be better to specify a range of port numbers.
In addition to the servers for specified services, NAT supports a default server. A
service request that does not have a server explicitly designated for it is
forwarded to the default server. If the default is not defined, the service request is
simply discarded.
Note: Many residential broadband ISP accounts do not allow you to run any server
processes (such as a Web or FTP server) from your location. Your ISP may
periodically check for servers and may suspend your account if it discovers any
active services at your location. If you are unsure, refer to your ISP.
Port forwarding allows you to define the local servers to which the incoming
services will be forwarded. To change your NBG-419N!s port forwarding settings,
click Network > NAT > Application. The screen appears as shown.
Note: If you do not assign a Default Server IP address in the NAT > General screen,
the NBG-419N discards all packets received for ports that are not specified in
this screen or remote management.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Table 57 Network > NAT > General
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg92.png)
Chapter 15Network Address Translation (NAT)
NBG-419N User s Guide
146
Refer to Appendix E on page 281 for port numbers commonly used for particular
services.

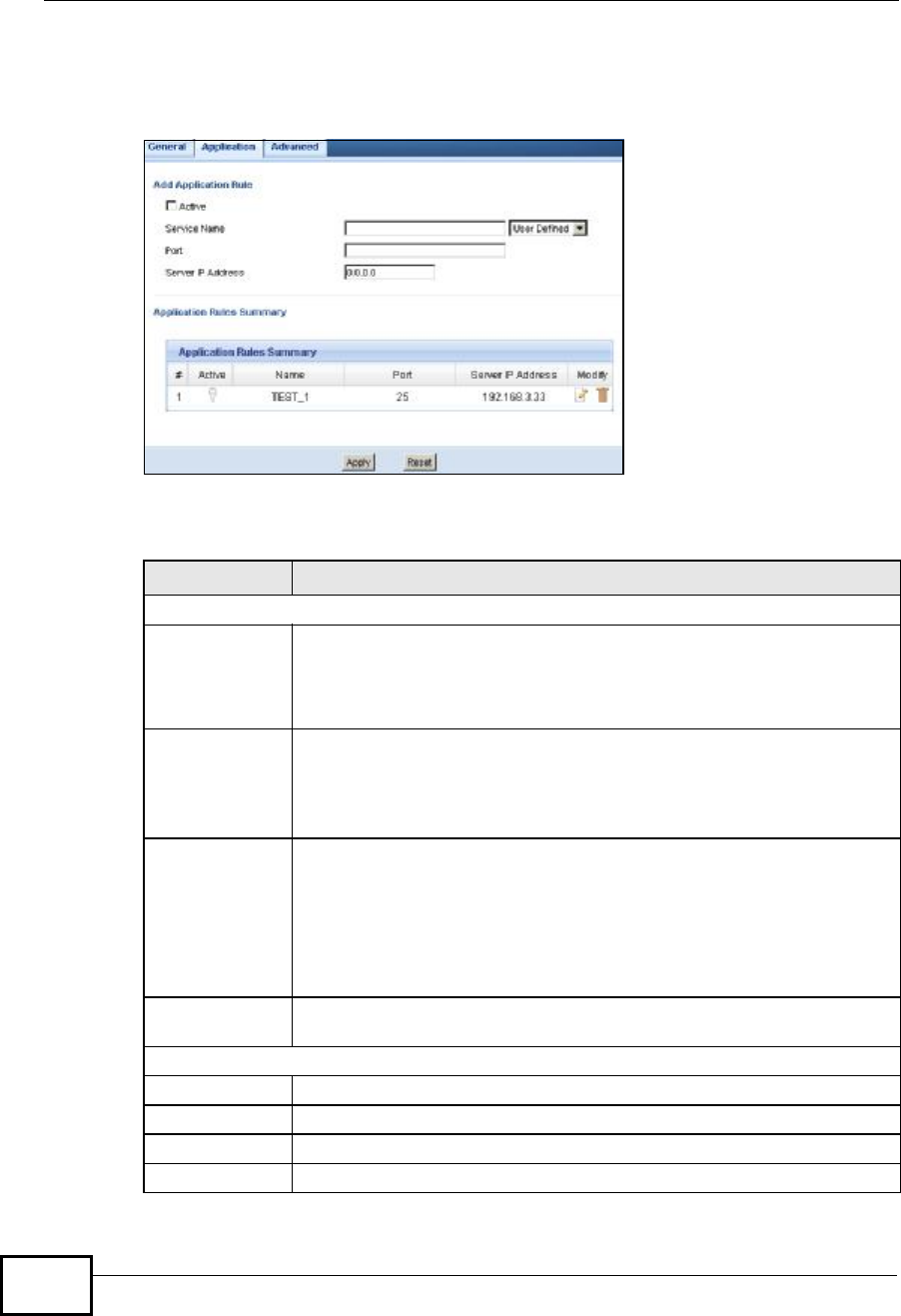

Figure 94 Network > NAT > Application
The following table describes the labels in this screen.
Table 58 Network > NAT > Application
LABEL DESCRIPTION
Add Application Rule
Active Select the check box to enable this rule and the requested service can
be forwarded to the host with a specified internal IP address.
Clear the checkbox to disallow forwarding of these ports to an inside
server without having to delete the entry.
Service Name Type a name (of up to 31 printable characters) to identify this rule in
the first field next to Service Name. Otherwise, select a predefined
service in the second field next to Service Name. The predefined
service name and port number(s) will display in the Service Name and
Port fields.
Port Type a port number(s) to define the service to be forwarded to the
specified server.
To specify a range of ports, enter a hyphen (-) between the first port
and the last port, such as 10-20.
To specify two or more non-consecutive port numbers, separate them
by a comma without spaces, such as 123,567.
Server IP
Address
Type the IP address of the server on your LAN that receives packets
from the port(s) specified in the Port field.
Application Rules Summary
#This is the number of an individual port forwarding server entry.
Active This icon is turned on when the rule is enabled.
Name This field displays a name to identify this rule.
Port This field displays the port number(s).
Company Confidential
![](/img.php?id=1180986&img=bg93.png)
Chapter 15Network Address Translation (NAT)
NBG-419N User s Guide 147
15.5 NAT Advanced Screen
Some services use a dedicated range of ports on the client side and a dedicated
range of ports on the server side. With regular port forwarding you set a
forwarding port in NAT to forward a service (coming in from the server on the
WAN) to the IP address of a computer on the client side (LAN). The problem is
that port forwarding only forwards a service to a single LAN IP address. In order to
use the same service on a different LAN computer, you have to manually replace
the LAN computer's IP address in the forwarding port with another LAN
computer's IP address.
Trigger port forwarding solves this problem by allowing computers on the LAN to
dynamically take turns using the service. The NBG-419N records the IP address of
a LAN computer that sends traffic to the WAN to request a service with a specific
port number and protocol (a "trigger" port). When the NBG-419N's WAN port
receives a response with a specific port number and protocol ("incoming" port),
the NBG-419N forwards the traffic to the LAN IP address of the computer that sent
the request. After that computer!s connection for that service closes, another
computer on the LAN can use the service in the same manner. This way you do
not need to configure a new IP address each time you want a different LAN
computer to use the application.
To change your NBG-419N!s trigger port settings, click Network > NAT >
Advanced. The screen appears as shown.
Server IP
Address
This field displays the inside IP address of the server.
Modify Click the Edit icon to display and modify an existing rule setting in the
fields under Add Application Rule.
Click the Remove icon to delete a rule.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Table 58 Network > NAT > Application (continued)
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg94.png)
Chapter 15Network Address Translation (NAT)
NBG-419N User s Guide
148
Note: Only one LAN computer can use a trigger port (range) at a time.
Figure 95 Network > NAT > Advanced
The following table describes the labels in this screen.
Table 59 Network > NAT > Advanced
LABEL DESCRIPTION
#This is the rule index number (read-only).
Name Type a unique name (up to 15 characters) for identification purposes.
All characters are permitted - including spaces.
Incoming Incoming is a port (or a range of ports) that a server on the WAN uses
when it sends out a particular service. The NBG-419N forwards the
traffic with this port (or range of ports) to the client computer on the
LAN that requested the service.
Start Port Type a port number or the starting port number in a range of port
numbers.
End Port Type a port number or the ending port number in a range of port
numbers.
Trigger The trigger port is a port (or a range of ports) that causes (or triggers)
the NBG-419N to record the IP address of the LAN computer that sent
the traffic to a server on the WAN.
Start Port Type a port number or the starting port number in a range of port
numbers.
End Port Type a port number or the ending port number in a range of port
numbers.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg95.png)
Chapter 15Network Address Translation (NAT)
NBG-419N User s Guide 149
15.5.1 Trigger Port Forwarding Example
The following is an example of trigger port forwarding.
Figure 96 Trigger Port Forwarding Process: Example
1Jane requests a file from the Real Audio server (port 7070).
2Port 7070 is a "trigger# port and causes the NBG-419N to record Jane!s computer
IP address. The NBG-419N associates Jane's computer IP address with the
"incoming" port range of 6970-7170.
3The Real Audio server responds using a port number ranging between 6970-7170.
4The NBG-419N forwards the traffic to Jane!s computer IP address.
5Only Jane can connect to the Real Audio server until the connection is closed or
times out. The NBG-419N times out in three minutes with UDP (User Datagram
Protocol), or two hours with TCP/IP (Transfer Control Protocol/Internet Protocol).
15.5.2 Two Points To Remember About Trigger Ports
1Trigger events only happen on data that is going coming from inside the NBG-
419N and going to the outside.
If an application needs a continuous data stream, that port (range) will be tied up
so that another computer on the LAN can!t trigger it.
Company Confidential
![](/img.php?id=1180986&img=bg96.png)
Chapter 15Network Address Translation (NAT)
NBG-419N User s Guide
150
Company Confidential
![](/img.php?id=1180986&img=bg97.png)
NBG-419N User s Guide 151
CHAPTER 16
Dynamic DNS
16.1 Overview
Dynamic DNS (DDNS) services let you use a domain name with a dynamic IP
address.
16.2 What You Can Do
Use the Dynamic DNS screen (Section 16.4 on page 152) to enable DDNS and
configure the DDNS settings on the NBG-419N.
16.3 What You Need To Know
Dynamic DNS allows you to update your current dynamic IP address with one or
many dynamic DNS services so that anyone can contact you (in NetMeeting, CU-
SeeMe, etc.). You can also access your FTP server or Web site on your own
computer using a domain name (for instance myhost.dhs.org, where myhost is a
name of your choice) that will never change instead of using an IP address that
changes each time you reconnect. Your friends or relatives will always be able to
call you even if they don't know your IP address.
Company Confidential
![](/img.php?id=1180986&img=bg98.png)
Chapter 16Dynamic DNS
NBG-419N User s Guide
152
16.4 Dynamic DNS Screen
To change your NBG-419N!s DDNS, click Network > DDNS. The screen appears
as shown.
Figure 97 Network > DDNS
The following table describes the labels in this screen.
Table 60 Network > DDNS
LABEL DESCRIPTION
Enable Dynamic
DNS
Select this check box to use dynamic DNS.
Service Provider Select the name of your Dynamic DNS service provider.
Host Name Enter a host names in the field provided. You can specify up to two
host names in the field separated by a comma (",").
User Name Enter your user name.
Password Enter the password assigned to you.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg99.png)
NBG-419N User s Guide 153
CHAPTER 17
Static Route
17.1 Overview
This chapter shows you how to configure static routes for your NBG-419N.
Each remote node specifies only the network to which the gateway is directly
connected, and the NBG-419N has no knowledge of the networks beyond. For
instance, the NBG-419N knows about network N2 in the following figure through
remote node Router 1. However, the NBG-419N is unable to route a packet to
network N3 because it doesn't know that there is a route through the same
remote node Router 1 (via gateway Router 2). The static routes are for you to tell
the NBG-419N about the networks beyond the remote nodes.
Figure 98 Example of Static Routing Topology
17.2 What You Can Do
Use the IP Static Route screen (Section 17.3 on page 154) to view, add and
delete routes.
Company Confidential
![](/img.php?id=1180986&img=bg9a.png)
Chapter 17Static Route
NBG-419N User s Guide
154
17.3 IP Static Route Screen
Click Network > Static Route to open the IP Static Route screen.
Figure 99 Network > Static Route
The following table describes the labels in this screen.
Table 61 Network > Static Route
LABEL DESCRIPTION
Static Routing Settings
Route Name Enter a the name that describes or identifies this route.
Destination IP
Address
Enter the IP network address of the final destination.
IP Subnet
Netmask
This is the subnet to which the route!s final destination belongs.
Gateway IP
Address
Enter the the IP address of the gateway.
Metric Assign a number to identify the route.
Add Rule Click this to add the IP static route.
Application Rules Summary
No. This is the number of an individual static route.
Active The rules are always on and this is indicated by the icon.
Name This is the name that describes or identifies this route.
Destination This parameter specifies the IP network address of the final destination.
Routing is always based on network number.
Company Confidential
![](/img.php?id=1180986&img=bg9b.png)
Chapter 17Static Route
NBG-419N User s Guide 155
Gateway This is the IP address of the gateway. The gateway is a router or switch
on the same network segment as the device's LAN or WAN port. The
gateway helps forward packets to their destinations.
Metric This is the number assigned to the route.
Delete Click the Delete icon to remove a static route from the NBG-419N. A
window displays asking you to confirm that you want to delete the route.
Table 61 Network > Static Route
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg9c.png)
Chapter 17Static Route
NBG-419N User s Guide
156
Company Confidential
![](/img.php?id=1180986&img=bg9d.png)
NBG-419N User s Guide 157
CHAPTER 18
RIP
18.1 Overview
Routing Information Protocol (RIP) is an interior or intra-domain routing protocol
that uses distance-vector routing algorithms. RIP is used on the Internet and is
common in the NetWare environment as a method for exchanging routing
information between routers.
18.2 What You Can Do
Use the RIP screen (Section 18.3 on page 157) to enable RIPv1 or RIPv2, which are
LAN broadcast protocols.
18.3 RIP Screen
Use this screen to enable RIPv1 or RIPv2, which are LAN broadcast protocols. Click
Network > RIP. The screen appears as shown.
Figure 100 Network > RIP
Company Confidential
![](/img.php?id=1180986&img=bg9e.png)
Chapter 18RIP
NBG-419N User s Guide
158
The following table describes the labels in this screen.
Table 62 Network > RIP
LABEL DESCRIPTION
RIP Select the RIPv1 or RIPv2 you want the NBG-419N to use.
Otherwise select None.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bg9f.png)
159
PART III
Security
Firewall (161)
Content Filter (167)
Company Confidential
![](/img.php?id=1180986&img=bga0.png)
160
Company Confidential
![](/img.php?id=1180986&img=bga1.png)
NBG-419N User s Guide 161
CHAPTER 19
Firewall
19.1 Overview
This chapter shows you how to enable and configure the firewall that protects your
NBG-419N and your LAN from unwanted or malicious traffic.
Enable the firewall to protect your LAN computers from attacks by hackers on the
Internet and control access between the LAN and WAN. By default the firewall:
allows traffic that originates from your LAN computers to go to all of the
networks.
blocks traffic that originates on the other networks from going to the LAN.
The following figure illustrates the default firewall action. User A can initiate an IM
(Instant Messaging) session from the LAN to the WAN (1). Return traffic for this
session is also allowed (2). However other traffic initiated from the WAN is blocked
(3 and 4).

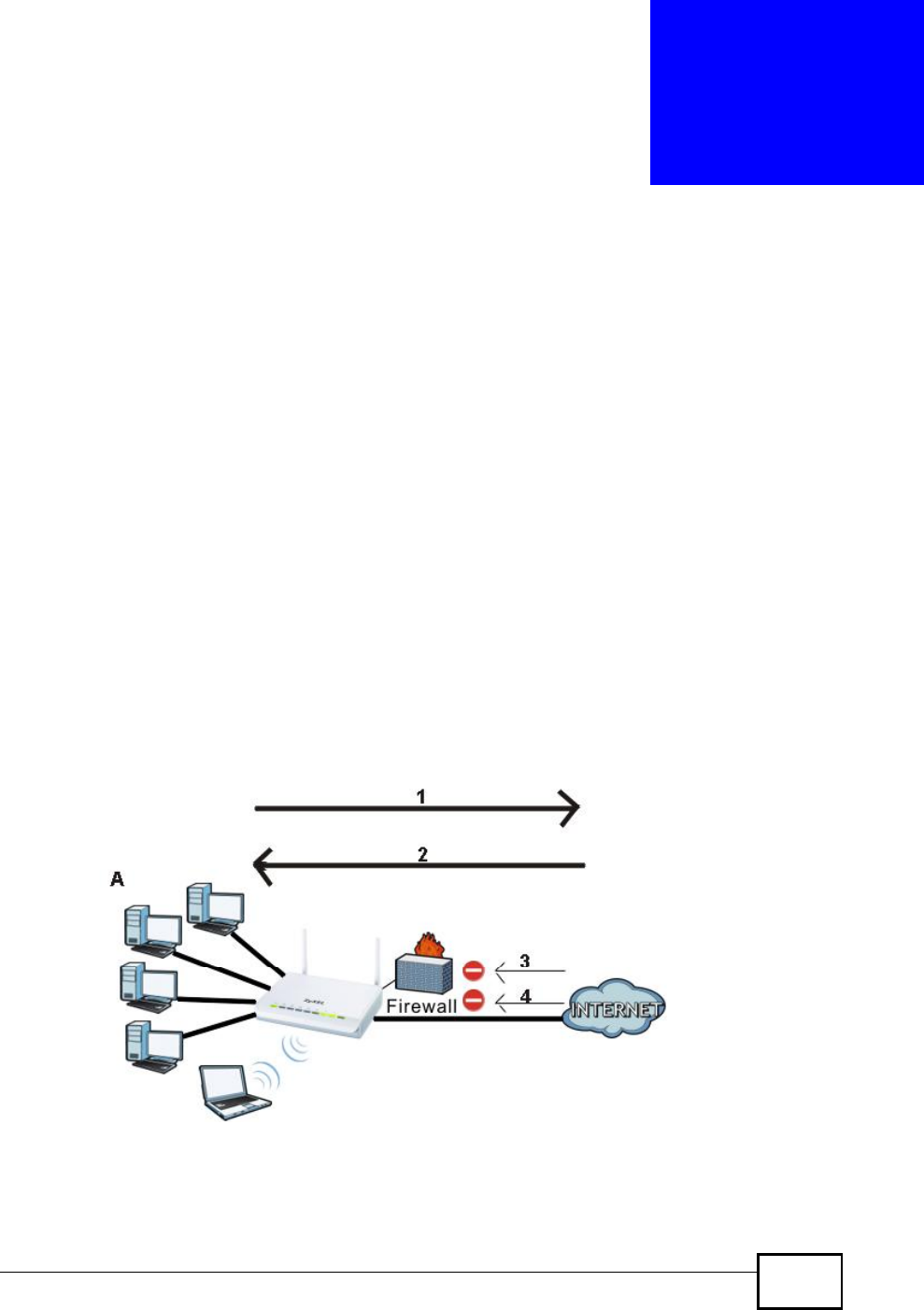

Figure 101 Default Firewall Action
Company Confidential
![](/img.php?id=1180986&img=bga2.png)
Chapter 19Firewall
NBG-419N User s Guide
162
19.2 What You Can Do
Use the General (Section 19.4 on page 163) screen to enable or disable the
NBG-419N!s firewall.
Use the Services screen (Section 19.5 on page 163) screen enable service
blocking, enter/delete/modify the services you want to block and the date/time
you want to block them.
19.3 What You Need To Know
The NBG-419N!s firewall feature physically separates the LAN and the WAN and
acts as a secure gateway for all data passing between the networks.
It is designed to protect against Denial of Service (DoS) attacks when activated
(click the General tab under Firewall and then click the Enable Firewall check
box). The NBG-419N's purpose is to allow a private Local Area Network (LAN) to
be securely connected to the Internet. The NBG-419N can be used to prevent
theft, destruction and modification of data, as well as log events, which may be
important to the security of your network.
The NBG-419N is installed between the LAN and a broadband modem connecting
to the Internet. This allows it to act as a secure gateway for all data passing
between the Internet and the LAN.
The NBG-419N has one Ethernet WAN port and four Ethernet LAN ports, which are
used to physically separate the network into two areas.The WAN (Wide Area
Network) port attaches to the broadband (cable or DSL) modem to the Internet.
The LAN (Local Area Network) port attaches to a network of computers, which
needs security from the outside world. These computers will have access to
Internet services such as e-mail, FTP and the World Wide Web. However, "inbound
access" is not allowed (by default) unless the remote host is authorized to use a
specific service.
Company Confidential
![](/img.php?id=1180986&img=bga3.png)
Chapter 19Firewall
NBG-419N User s Guide 163
19.4 General Firewall Screen
Use this screen to enable or disable the NBG-419N!s firewall, and set up firewall
logs. Click Security > Firewall to open the General screen.
Figure 102 Security > Firewall > General
The following table describes the labels in this screen.
19.5 Services Screen
If an outside user attempts to probe an unsupported port on your NBG-419N, an
ICMP response packet is automatically returned. This allows the outside user to
know the NBG-419N exists. Use this screen to prevent the ICMP response packet
from being sent. This keeps outsiders from discovering your NBG-419N when
unsupported ports are probed.
You can also use this screen to enable service blocking, enter/delete/modify the
services you want to block and the date/time you want to block them.
Table 63 Security > Firewall > General
LABEL DESCRIPTION
Enable FirewallSelect this check box to activate the firewall. The NBG-419N performs
access control and protects against Denial of Service (DoS) attacks
when the firewall is activated.
Apply Click Apply to save the settings.
Reset Click Reset to start configuring this screen again.
Company Confidential
![](/img.php?id=1180986&img=bga4.png)
Chapter 19Firewall
NBG-419N User s Guide
164
Click Security > Firewall > Services. The screen appears as shown next.

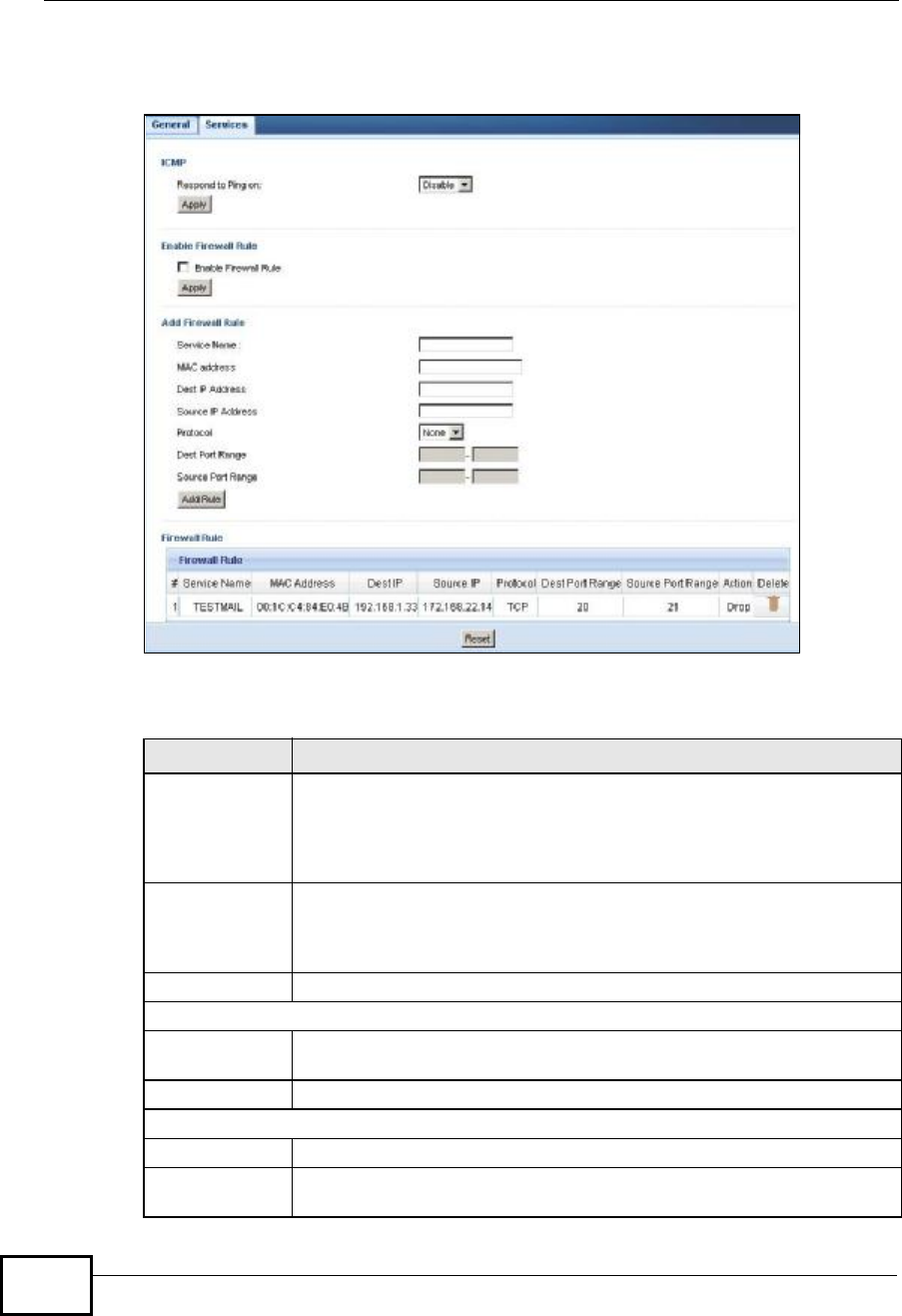

Figure 103 Security > Firewall > Services
The following table describes the labels in this screen.
Table 64 Security > Firewall > Services
LABEL DESCRIPTION
ICMP Internet Control Message Protocol is a message control and error-
reporting protocol between a host server and a gateway to the Internet.
ICMP uses Internet Protocol (IP) datagrams, but the messages are
processed by the TCP/IP software and directly apparent to the
application user.
Respond to Ping
on
The NBG-419N will not respond to any incoming Ping requests when
Disable is selected. Select LAN to reply to incoming LAN Ping requests.
Select WAN to reply to incoming WAN Ping requests. Otherwise select
LAN & WAN to reply to all incoming LAN and WAN Ping requests.
Apply Click Apply to save the settings.
Enable Firewall Rule
Enable Firewall
Rule
Select this check box to activate the firewall rules that you define (see
Add Firewall Rule below)
Apply Click Apply to save the settings.
Add Firewall Rule
Service Name Enter a name that identifies or describes the firewall rule.
MAC Address Enter the MAC address of the computer for which the firewall rule
applies.
Company Confidential
![](/img.php?id=1180986&img=bga5.png)
Chapter 19Firewall
NBG-419N User s Guide 165
See Appendix E on page 281 for commonly used services and port numbers.
Dest IP Address Enter the IP address of the computer to which traffic for the application
or service is entering.
The NBG-419N applies the firewall rule to traffic initiating from this
computer.
Source IP
Address
Enter the IP address of the computer that initializes traffic for the
application or service.
The NBG-419N applies the firewall rule to traffic initiating from this
computer.
Protocol Select the protocol (TCP, UDP, ICMP or None) used to transport the
packets for which you want to apply the firewall rule.
Dest Port Range Enter the port number/range of the destination that define the traffic
type, for example TCP port 80 defines web traffic.
Source Port
Range
Enter the port number/range of the source that define the traffic type,
for example TCP port 80 defines web traffic.
Add Rule Click Add to save the firewall rule.
Firewall Rule
#This is your firewall rule number. The ordering of your rules is important
as rules are applied in turn.
Service Name This is a name that identifies or describes the firewall rule.
MAC Address This is the MAC address of the computer for which the firewall rule
applies.
Dest IP Address This is the IP address of the computer to which traffic for the application
or service is entering.
Source IP
Address
This is the IP address of the computer from which traffic for the
application or service is initialized.
Protocol This is the protocol (TCP, UDP, ICMP or None) used to transport the
packets for which you want to apply the firewall rule.
Dest Port Range This is the port number/range of the destination that define the traffic
type, for example TCP port 80 defines web traffic.
Source Port
Range
This is the port number/range of the source that define the traffic type,
for example TCP port 80 defines web traffic.
Action Drop - Traffic matching the conditions of the firewall rule are stopped.
Delete Click this to remove the firewall rule.
Reset Click Reset to start configuring this screen again.
Table 64 Security > Firewall > Services
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bga6.png)
Chapter 19Firewall
NBG-419N User s Guide
166
Company Confidential
![](/img.php?id=1180986&img=bga7.png)
NBG-419N User s Guide 167
CHAPTER 20
Content Filter
20.1 Overview
This chapter provides a brief overview of content filtering using the embedded
web GUI.
Internet content filtering allows you to create and enforce Internet access policies
tailored to your needs. Content filtering is the ability to block certain web features
or specific URL keywords.
20.2 What You Can Do
Use the Content Filter (Section 20.4 on page 168) screen to restrict web
features, add keywords for blocking and designate a trusted computer.
20.3 What You Need To Know
Content filtering allows you to block certain web features, such as cookies, and/or
block access to specific web sites. For example, you can configure one policy that
blocks John Doe!s access to arts and entertainment web pages.
20.3.1 Content Filtering Profiles
A content filtering profile conveniently stores your custom settings for the
following features.
Restrict Web Features
The NBG-419N can disable web proxies and block web features such as ActiveX
controls, Java applets and cookies.
Company Confidential
![](/img.php?id=1180986&img=bga8.png)
Chapter 20Content Filter
NBG-419N User s Guide
168
Keyword Blocking URL Checking
The NBG-419N checks the URL!s domain name (or IP address) and file path
separately when performing keyword blocking.
The URL!s domain name or IP address is the characters that come before the first
slash in the URL. For example, with the URL www.zyxel.com.tw/news/
pressroom.php, the domain name is www.zyxel.com.tw.
The file path is the characters that come after the first slash in the URL. For
example, with the URL www.zyxel.com.tw/news/pressroom.php, the file path is
news/pressroom.php.
Since the NBG-419N checks the URL!s domain name (or IP address) and file path
separately, it will not find items that go across the two. For example, with the URL
www.zyxel.com.tw/news/pressroom.php, the NBG-419N would find "tw# in the
domain name (www.zyxel.com.tw). It would also find "news# in the file path
(news/pressroom.php) but it would not find "tw/news#.
20.4 Content Filter Screen
Use this screen to restrict web features, add keywords for blocking and designate
a trusted computer.
Click Security > Content Filter to open the Content Filter screen.
Figure 104 Security > Content Filter > Content Filter
Company Confidential
![](/img.php?id=1180986&img=bga9.png)
Chapter 20Content Filter
NBG-419N User s Guide 169
The following table describes the labels in this screen.
Table 65 Security > Content Filter > Content Filter
LABEL DESCRIPTION
Trusted IP Setup To enable this feature, type an IP address of any one of the computers
in your network that you want to have as a trusted computer. This
allows the trusted computer to have full access to all features that are
configured to be blocked by content filtering.
Leave this field blank to have no trusted computers.
Restrict Web
Features
Select the box(es) to restrict a feature. When you download a page
containing a restricted feature, that part of the web page will appear
blank or grayed out.
ActiveX A tool for building dynamic and active Web pages and distributed
object applications. When you visit an ActiveX Web site, ActiveX
controls are downloaded to your browser, where they remain in case
you visit the site again.
Java A programming language and development environment for building
downloadable Web components or Internet and intranet business
applications of all kinds.
Cookies Used by Web servers to track usage and provide service based on ID.
Web Proxy A server that acts as an intermediary between a user and the Internet
to provide security, administrative control, and caching service. When
a proxy server is located on the WAN it is possible for LAN users to
circumvent content filtering by pointing to this proxy server.
Enable URL
Keyword
Blocking
The NBG-419N can block Web sites with URLs that contain certain
keywords in the domain name or IP address. For example, if the
keyword "bad" was enabled, all sites containing this keyword in the
domain name or IP address will be blocked, e.g., URL http://
www.website.com/bad.html would be blocked. Select this check box to
enable this feature.
Keyword Type a keyword in this field. You may use any character (up to 64
characters). Wildcards are not allowed. You can also enter a numerical
IP address.
Keyword List This list displays the keywords already added.
Add Click Add after you have typed a keyword.
Repeat this procedure to add other keywords. Up to 64 keywords are
allowed.
When you try to access a web page containing a keyword, you will get
a message telling you that the content filter is blocking this request.
Delete Highlight a keyword in the lower box and click Delete to remove it.
The keyword disappears from the text box after you click Apply.
Clear All Click this button to remove all of the listed keywords.
Apply Click Apply to save your changes.
Reset Click Reset to begin configuring this screen afresh
Company Confidential
![](/img.php?id=1180986&img=bgaa.png)
Chapter 20Content Filter
NBG-419N User s Guide
170
Company Confidential
![](/img.php?id=1180986&img=bgab.png)
171
PART IV
Management
Bandwidth Management (173)
Remote Management (183)
Universal Plug-and-Play (UPnP) (187)
Company Confidential
![](/img.php?id=1180986&img=bgac.png)
172
Company Confidential
![](/img.php?id=1180986&img=bgad.png)
NBG-419N User s Guide 173
CHAPTER 21
Bandwidth Management
21.1 Overview
This chapter contains information about configuring bandwidth management and
editing rules.
ZyXEL!s Bandwidth Management allows you to specify bandwidth management
rules based on an application.
In the figure below, uplink traffic goes from the LAN device (A) to the WAN device
(B). Bandwidth management is applied before sending the packets out to the
WAN. Downlink traffic comes back from the WAN device (B) to the LAN device
(A). Bandwidth management is applied before sending the traffic out to LAN.
Figure 105 Bandwidth Management Example
You can allocate specific amounts of bandwidth capacity (bandwidth budgets) to
individual applications (like VoIP, Web, FTP, and E-mail for example).
21.2 What You Can Do
Use the General screen (Section 21.4 on page 174) to enable bandwidth
management and assign bandwidth values.
AB
-> VOIP
-> FTP
-> HTTP
-> Chat, Email
Company Confidential
![](/img.php?id=1180986&img=bgae.png)
Chapter 21Bandwidth Management
NBG-419N User s Guide
174
Use the Advanced screen (Section 21.5 on page 175) to configure bandwidth
managements rule for the pre-defined services and applications.
Use the Monitor screen (Section 21.6 on page 180) to view the amount of
network bandwidth that applications running in the network are using.
21.3 What You Need To Know
The sum of the bandwidth allotments that apply to the WAN interface (LAN to
WAN, WLAN to WAN) must be less than or equal to the Upstream Bandwidth
that you configure in the Bandwidth Management Advanced screen (Section
21.5 on page 175).
The sum of the bandwidth allotments that apply to the LAN interface (WAN to
LAN, WAN to WLAN) must be less than or equal to the Downstream Bandwidth
that you configure in the Bandwidth Management Advanced screen Section
21.5 on page 175.
21.4 General Screen
Use this screen to have the NBG-419N apply bandwidth management.
Click Management > Bandwidth MGMT to open the bandwidth management
General screen.
Figure 106 Management > Bandwidth Management > General
Company Confidential
![](/img.php?id=1180986&img=bgaf.png)
Chapter 21Bandwidth Management
NBG-419N User s Guide 175
The following table describes the labels in this screen.
21.5 Advanced Screen
Use this screen to configure bandwidth management rules for the pre-defined
services or applications.
You can also use this screen to configure bandwidth management rule for other
services or applications that are not on the pre-defined list of NBG-419N.
Additionally, you can define the source and destination IP addresses and port for a
service or application.
Note: The two tables shown in this screen can be configured and applied at the same
time.
Table 66 Management > Bandwidth Management > General
LABEL DESCRIPTION
Enable
Bandwidth
Management
This field allows you to have NBG-419N apply bandwidth
management.
Enable bandwidth management to give traffic that matches a
bandwidth rule priority over traffic that does not match a bandwidth
rule.
Enabling bandwidth management also allows you to control the
maximum or minimum amounts of bandwidth that can be used by
traffic that matches a bandwidth rule.
Apply Click Apply to save your customized settings.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bgb0.png)
Chapter 21Bandwidth Management
NBG-419N User s Guide
176
Click Management > Bandwidth Management > Advanced to open the
bandwidth management Advanced screen.
Figure 107 Management > Bandwidth Management > Advanced
The following table describes the labels in this screen.
Table 67 Management > Bandwidth Management > Advanced
LABEL DESCRIPTION
Management Bandwidth
Upstream
Bandwidth
Select the total amount of bandwidth (from 64 Kilobits to 32 Megabits)
that you want to dedicate to uplink traffic.
This is traffic from LAN/WLAN to WAN.
Downstream
Bandwidth
Select the total amount of bandwidth (from 64 Kilobits to 32 Megabits)
that you want to dedicate to uplink traffic.
This is traffic from WAN to LAN/WLAN.
Application List Use this table to allocate specific amounts of bandwidth based on a pre-
defined service.
Company Confidential
![](/img.php?id=1180986&img=bgb1.png)
Chapter 21Bandwidth Management
NBG-419N User s Guide 177
#This is the number of an individual bandwidth management rule.
Priority Select a priority from the drop down list box. Choose High, Mid or
Low.
High - Select this for voice traffic or video that is especially sensitive
to jitter (jitter is the variations in delay).
Mid - Select this for "excellent effort" or better than best effort and
would include important business traffic that can tolerate some
delay.
Low - Select this for non-critical "background" traffic such as bulk
transfers that are allowed but that should not affect other
applications and users.
Category This is the category where a service belongs.
Service This is the name of the service.
Select the check box to have the NBG-419N apply this bandwidth
management rule.
Advanced
Setting
Click the Edit icon to open the Rule Configuration screen where you
can modify the rule.
User-defined
Service
Use this table to allocate specific amounts of bandwidth to specific
applications or services you specify.
#This is the number of an individual bandwidth management rule.
Enable Select this check box to have the NBG-419N apply this bandwidth
management rule.
Direction Select LAN to apply bandwidth management to traffic from WAN to
LAN.
Select WAN to apply bandwidth management to traffic from LAN/WLAN
to WAN.
Select WLAN to apply bandwidth management to traffic from WAN to
WLAN.
Service Name Enter a descriptive name for the bandwidth management rule.
Category This is the category where a service belongs.
Modify Click the Edit icon to open the Rule Configuration screen. Modify an
existing rule or create a new rule in the Rule Configuration screen.
See Section 21.5.2 on page 179 for more information.
Click the Remove icon to delete a rule.
Apply Click Apply to save your customized settings.
Reset Click Reset to begin configuring this screen afresh.
Table 67 Management > Bandwidth Management > Advanced (continued)
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bgb2.png)
Chapter 21Bandwidth Management
NBG-419N User s Guide
178
21.5.1 Rule Configuration: Application Rule Configuration
If you want to edit a bandwidth management rule for a pre-defined service or
application, click the Edit icon in the Application List table of the Advanced
screen. The following screen displays.
Figure 108 Bandwidth Management Rule Configuration: Application List
The following table describes the labels in this screen.
Table 68 Bandwidth Management Rule Configuration: Application List
LABEL DESCRIPTION
#This is the number of an individual bandwidth management rule.
Enable Select an interface!s check box to enable bandwidth management on
that interface.
Direction These read-only labels represent the physical interfaces. Bandwidth
management applies to all traffic flowing out of the router through the
interface, regardless of the traffic!s source.
Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through
the NBG-419N and be managed by bandwidth management.
Bandwidth Select Maximum Bandwidth or Minimum Bandwidth and specify
the maximum or minimum bandwidth allowed for the rule in kilobits per
second.
Destination Port This is the port number of the destination that define the traffic type,
for example TCP port 80 defines web traffic.
See Appendix E on page 281 for some common services and port
numbers.
Source Port This is the port number of the sourcethat define the traffic type, for
example TCP port 80 defines web traffic.
See Appendix E on page 281 for some common services and port
numbers.
Protocol This is the protocol (TCP,UDP or user-defined) used for the service.
Apply Click Apply to save your customized settings.
Cancel Click Cancel to exit this screen without saving.
Company Confidential
![](/img.php?id=1180986&img=bgb3.png)
Chapter 21Bandwidth Management
NBG-419N User s Guide 179
21.5.2 Rule Configuration: User Defined Service Rule
Configuration
If you want to edit a bandwidth management rule for other applications or
services, click the Edit icon in the User-defined Service table of the Advanced
screen. The following screen displays.
Figure 109 Bandwidth Management Rule Configuration: User-defined Service
The following table describes the labels in this screen
Table 69 Bandwidth Management Rule Configuration: User-defined Service
LABEL DESCRIPTION
BW Budget Select Maximum Bandwidth or Minimum Bandwidth and specify
the maximum or minimum bandwidth allowed for the rule in kilobits per
second.
Destination
Address
Enter the IP address of the destination computer.
The NBG-419N applies bandwidth management to the service or
application that is entering this computer.
Destination
Subnet
Netmask
Enter the subnet netmask of the destination of the traffic for which the
bandwidth management rule applies.
Destination Port This is the port number of the destination that define the traffic type,
for example TCP port 80 defines web traffic.
Source Address Enter the IP address of the computer that initializes traffic for the
application or service.
The NBG-419N applies bandwidth management to traffic initiating from
this computer.
Source Subnet
Netmask
Enter the subnet netmask of the computer initiating the traffic for which
the bandwidth management rule applies.
Source Port This is the port number of the source that define the traffic type, for
example TCP port 80 defines web traffic.
Company Confidential
![](/img.php?id=1180986&img=bgb4.png)
Chapter 21Bandwidth Management
NBG-419N User s Guide
180
See Appendix E on page 281 for commonly used services and port numbers.
21.6 Monitor Screen
Use this screen to view the amount of network bandwidth that applications
running in the network are using.
The bandwidth is measured in kilobits per second (kbps).
The monitor shows what kinds of applications are running in the network, the
maximum kbps that each application can use, as well as the percentage of
bandwidth it is using.
Figure 110 Management > Bandwidth Management > Monitor
Protocol Select the protocol (TCP, UDP, User defined) for which the bandwidth
management rule applies.
If you select User-defined, enter the protocol for which the bandwidth
management rule applies. For example, ICMP for ping traffic.
Apply Click Apply to save your customized settings.
Cancel Click Cancel to exit this screen without saving.
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bgb5.png)
Chapter 21Bandwidth Management
NBG-419N User s Guide 181
21.6.1 Predefined Bandwidth Management Services
The following is a description of some services that you can select and to which
you can apply media bandwidth management in the Management > Bandwidth
Management > Advanced screen.
Table 70 Media Bandwidth Management Setup: Services
SERVICE DESCRIPTION
FTPFile Transfer Program enables fast transfer of files, including large files
that may not be possible by e-mail.
WWWThe World Wide Web (WWW) is an Internet system to distribute
graphical, hyper-linked information, based on Hyper Text Transfer
Protocol (HTTP) - a client/server protocol for the World Wide Web. The
Web is not synonymous with the Internet; rather, it is just one service
on the Internet. Other services on the Internet include Internet Relay
Chat and Newsgroups. The Web is accessed through use of a browser.
E-MailElectronic mail consists of messages sent through a computer network
to specific groups or individuals. Here are some default ports for e-mail:
VoIP (SIP)Sending voice signals over the Internet is called Voice over IP or VoIP.
Session Initiated Protocol (SIP) is an internationally recognized
standard for implementing VoIP. SIP is an application-layer control
(signaling) protocol that handles the setting up, altering and tearing
down of voice and multimedia sessions over the Internet.
SIP is transported primarily over UDP but can also be transported over
TCP.
BitTorrentBitTorrent is a free P2P (peer-to-peer) sharing tool allowing you to
distribute large software and media files. BitTorrent requires you to
search for a file with a searching engine yourself. It distributes files by
corporation and trading, that is, the client downloads the file in small
pieces and share the pieces with other peers to get other half of the file.
GamingOnline gaming services lets you play multiplayer games on the Internet
via broadband technology. As of this writing, your NBG-419N supports
Xbox, Playstation, Battlenet and MSN Game Zone.
Company Confidential
![](/img.php?id=1180986&img=bgb6.png)
Chapter 21Bandwidth Management
NBG-419N User s Guide
182
Company Confidential
![](/img.php?id=1180986&img=bgb7.png)
NBG-419N User s Guide 183
CHAPTER 22
Remote Management
22.1 Overview
This chapter provides information on the Remote Management screens.
Remote Management allows you to manage your NBG-419N from a remote
location through the following interfaces:
LAN and WAN
LAN only
WAN only
Note: The NBG-419N is managed using the Web Configurator.
22.2 What You Can Do
Use the WWW screen (Section 22.4 on page 184) to define the interface/s from
which the NBG-419N can be managed remotely and specify a secure client that
can manage the NBG-419N.
22.3 What You Need to Know
Remote management over LAN or WAN will not work when:
1The IP address in the Secured Client IP Address field (Section 22.4 on page
184) does not match the client IP address. If it does not match, the NBG-419N
will disconnect the session immediately.
2There is already another remote management session. You may only have one
remote management session running at one time.
3There is a firewall rule that blocks it.
Company Confidential
![](/img.php?id=1180986&img=bgb8.png)
Chapter 22Remote Management
NBG-419N User s Guide
184
22.3.1 Remote Management and NAT
When NAT is enabled:
Use the NBG-419N!s WAN IP address when configuring from the WAN.
Use the NBG-419N!s LAN IP address when configuring from the LAN.
22.3.2 System Timeout
There is a default system management idle timeout of five minutes (three
hundred seconds). The NBG-419N automatically logs you out if the management
session remains idle for longer than this timeout period. The management session
does not time out when a statistics screen is polling. You can change the timeout
period in the System screen
22.4 WWW Screen
To change your NBG-419N!s remote management settings, click Management >
Remote Management > WWW.
Figure 111 Management > Remote Management > WWW
The following table describes the labels in this screen
Table 71 Management > Remote Management > WWW
LABEL DESCRIPTION
Server Port You may change the server port number for a service if needed,
however you must use the same port number in order to use that
service for remote management.
Server Access Select the interface(s) through which a computer may access the NBG-
419N using this service.
Secured Client
IP Address
Select All to allow all computes to access the NBG-419N.
Otherwise, check Selected and specify the IP address of the computer
that can access the NBG-419N.
Company Confidential
![](/img.php?id=1180986&img=bgb9.png)
Chapter 22Remote Management
NBG-419N User s Guide 185
Apply Click Apply to save your customized settings and exit this screen.
Reset Click Reset to begin configuring this screen afresh.
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bgba.png)
Chapter 22Remote Management
NBG-419N User s Guide
186
Company Confidential
![](/img.php?id=1180986&img=bgbb.png)
NBG-419N User s Guide 187
CHAPTER 23
Universal Plug-and-Play (UPnP)
23.1 Overview
This chapter introduces the UPnP feature in the web configurator.
Universal Plug and Play (UPnP) is a distributed, open networking standard that
uses TCP/IP for simple peer-to-peer network connectivity between devices. A
UPnP device can dynamically join a network, obtain an IP address, convey its
capabilities and learn about other devices on the network. In turn, a device can
leave a network smoothly and automatically when it is no longer in use.
23.2 What You Can Do
Use the UPnP screen (Section 23.4 on page 188) to enable UPnP on your NBG-
419N.
23.3 What You Need to Know
UPnP hardware is identified as an icon in the Network Connections folder
(Windows XP). Each UPnP compatible device installed on your network will appear
as a separate icon. Selecting the icon of a UPnP device will allow you to access the
information and properties of that device.
23.3.1 NAT Traversal
UPnP NAT traversal automates the process of allowing an application to operate
through NAT. UPnP network devices can automatically configure network
addressing, announce their presence in the network to other UPnP devices and
enable exchange of simple product and service descriptions. NAT traversal allows
the following:
Dynamic port mapping
Company Confidential
![](/img.php?id=1180986&img=bgbc.png)
Chapter 23Universal Plug-and-Play (UPnP)
NBG-419N User s Guide
188
Learning public IP addresses
Assigning lease times to mappings
Windows Messenger is an example of an application that supports NAT traversal
and UPnP.
See the NAT chapter for more information on NAT.
23.3.2 Cautions with UPnP
The automated nature of NAT traversal applications in establishing their own
services and opening firewall ports may present network security issues. Network
information and configuration may also be obtained and modified by users in
some network environments.
When a UPnP device joins a network, it announces its presence with a multicast
message. For security reasons, the NBG-419N allows multicast messages on the
LAN only.
All UPnP-enabled devices may communicate freely with each other without
additional configuration. Disable UPnP if this is not your intention.
23.4 UPnP Screen
Use this screen to enable UPnP on your NBG-419N.
Click Management > UPnP to display the screen shown next.
Figure 112 Management > UPnP
Company Confidential
![](/img.php?id=1180986&img=bgbd.png)
Chapter 23Universal Plug-and-Play (UPnP)
NBG-419N User s Guide 189
The following table describes the fields in this screen.
23.5 Technical Refereance
The sections show examples of using UPnP.
23.5.1 Using UPnP in Windows XP Example
This section shows you how to use the UPnP feature in Windows XP. You must
already have UPnP installed in Windows XP and UPnP activated on the NBG-419N.
Make sure the computer is connected to a LAN port of the NBG-419N. Turn on
your computer and the NBG-419N.
23.5.1.1 Auto-discover Your UPnP-enabled Network Device
1Click start and Control Panel. Double-click Network Connections. An icon
displays under Internet Gateway.
2Right-click the icon and select Properties.
Figure 113 Network Connections
Table 72 Management > UPnP
LABEL DESCRIPTION
Enable the Universal Plug
and Play (UPnP) Feature
Select this check box to activate UPnP. Be aware that anyone
could use a UPnP application to open the web configurator's
login screen without entering the NBG-419N's IP address
(although you must still enter the password to access the web
configurator).
Apply Click Apply to save the setting to the NBG-419N.
Cancel Click Cancel to return to the previously saved settings.
Company Confidential
![](/img.php?id=1180986&img=bgbe.png)
Chapter 23Universal Plug-and-Play (UPnP)
NBG-419N User s Guide
190
3In the Internet Connection Properties window, click Settings to see the port
mappings there were automatically created.
Figure 114 Internet Connection Properties
4You may edit or delete the port mappings or click Add to manually add port
mappings.
Figure 115 Internet Connection Properties: Advanced Settings
Figure 116 Internet Connection Properties: Advanced Settings: Add
Company Confidential
![](/img.php?id=1180986&img=bgbf.png)
Chapter 23Universal Plug-and-Play (UPnP)
NBG-419N User s Guide 191
Note: When the UPnP-enabled device is disconnected from your computer, all port
mappings will be deleted automatically.
5Select Show icon in notification area when connected option and click OK.
An icon displays in the system tray.
Figure 117 System Tray Icon
6Double-click on the icon to display your current Internet connection status.
Figure 118 Internet Connection Status
23.5.2 Web Configurator Easy Access
With UPnP, you can access the web-based configurator on the NBG-419N without
finding out the IP address of the NBG-419N first. This comes helpful if you do not
know the IP address of the NBG-419N.
Follow the steps below to access the web configurator.
1Click Start and then Control Panel.
2Double-click Network Connections.
Company Confidential
![](/img.php?id=1180986&img=bgc0.png)
Chapter 23Universal Plug-and-Play (UPnP)
NBG-419N User s Guide
192
3Select My Network Places under Other Places.
Figure 119 Network Connections
4An icon with the description for each UPnP-enabled device displays under Local
Network.
5Right-click on the icon for your NBG-419N and select Invoke. The web
configurator login screen displays.
Figure 120 Network Connections: My Network Places
Company Confidential
![](/img.php?id=1180986&img=bgc1.png)
Chapter 23Universal Plug-and-Play (UPnP)
NBG-419N User s Guide 193
6Right-click on the icon for your NBG-419N and select Properties. A properties
window displays with basic information about the NBG-419N.
Figure 121 Network Connections: My Network Places: Properties: Example
Company Confidential
![](/img.php?id=1180986&img=bgc2.png)
Chapter 23Universal Plug-and-Play (UPnP)
NBG-419N User s Guide
194
Company Confidential
![](/img.php?id=1180986&img=bgc3.png)
195
PART V
Maintenance and
Troubleshooting
Maintenance (197)
Password (199)
Time (201)
Firmware Upgrade (205)
Backup/Restore (207)
Reset/Restart (211)
Sys OP Mode (213)
Troubleshooting (217)
Company Confidential
![](/img.php?id=1180986&img=bgc4.png)
196
Company Confidential
![](/img.php?id=1180986&img=bgc5.png)
NBG-419N User s Guide 197
CHAPTER 24
Maintenance
24.1 Overview
This chapter provides information on the Maintenance > General screen.
24.2 What You Can Do
Use the General screen (Section 24.3 on page 197) to enter a name to identify
the NBG-419N in the network and set the password.
Use the Time Setting screen (Section 26.3 on page 201) to change your NBG-
419N!s time and date.
24.3 General Screen
Use this screen to enter a name to identify the NBG-419N in the network and set
the password. Click Maintenance > General. The following screen displays.
Figure 122 Maintenance > General
Company Confidential
![](/img.php?id=1180986&img=bgc6.png)
Chapter 24Maintenance
NBG-419N User s Guide
198
The following table describes the labels in this screen.
Table 73 Maintenance > General
LABEL DESCRIPTION
System Setup
System Name System Name is a unique name to identify the NBG-419N in an
Ethernet network.
Domain Name Enter the domain name you want to give to the NBG-419N.
Administrator
Inactivity Timer
Type how many minutes a management session can be left idle before
the session times out. The default is 5 minutes. After it times out you
have to log in with your password again. Very long idle timeouts may
have security risks. A value of "0" means a management session never
times out, no matter how long it has been left idle (not
recommended).
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bgc7.png)
NBG-419N User s Guide 199
CHAPTER 25
Password
25.1 Overview
This chapter contains information about configuring general log settings and
viewing the NBG-419N!s logs. Refer to the appendices for example log message
explanations.
The Web Configurator allows you to look at all of the NBG-419N!s logs in one
location.
25.2 What You Can Do
Use the View Log screen (Section 25.4 on page 200) to see the logs for the
categories such as system maintenance, system errors, access control, allowed
or blocked web sites, blocked web features, and so on.
25.3 What You Need to Know
An alert is a type of log that warrants more serious attention. They include system
errors, attacks (access control) and attempted access to blocked web sites or web
sites with restricted web features such as cookies, active X and so on. Some
categories such as System Errors consist of both logs and alerts. You may
differentiate them by their color in the View Log screen. Alerts display in red and
logs display in black.
Alerts are e-mailed as soon as they happen. Logs may be e-mailed as soon as the
log is full (see Log Schedule). Selecting many alert and/or log categories
(especially Access Control) may result in many e-mails being sent.
Company Confidential
![](/img.php?id=1180986&img=bgc8.png)
Chapter 25Password
NBG-419N User s Guide
200
25.4 Password Screen
Use the View Log screen to see the logged messages for the NBG-419N. Options
include logs about system maintenance, system errors, access control, allowed or
blocked web sites, blocked web features (such as ActiveX controls, Java and
cookies), attacks (such as DoS) and IPSec.
Log entries in red indicate system error logs. The log wraps around and deletes
the old entries after it fills. Click a column heading to sort the entries. A triangle
indicates ascending or descending sort order.
Click Maintenance > Password.
Figure 123 Maintenance > Password
The following table describes the labels in this screen.
Table 74 Maintenance > Password
LABEL DESCRIPTION
Password Setup Change your NBG-419N!s password (recommended) using the fields
as shown.
Old Password Type the default password or the existing password you use to access
the system in this field.
New Password Type your new system password (up to 30 characters). Note that as
you type a password, the screen displays an asterisk (*) for each
character you type.
Retype to Confirm Type the new password again in this field.
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Company Confidential
![](/img.php?id=1180986&img=bgc9.png)
NBG-419N User s Guide 201
CHAPTER 26
Time
26.1 Overview
This chapter provides information on the Time Setting screens. See Section 3.2.3
on page 39 for more information on how to set up the NBG-419N!s date and time.
26.2 What You Can Do
Use the Time Setting screen (Section 26.3 on page 201) to change your NBG-
419N!s time and date.
26.3 Time Setting Screen
Use this screen to configure the NBG-419N!s time based on your local time zone.
To change your NBG-419N!s time and date, click Maintenance > System >
Time Setting. The screen appears as shown.
Figure 124 Maintenance > Time
Company Confidential
![](/img.php?id=1180986&img=bgca.png)
Chapter 26Time
NBG-419N User s Guide
202
he following table describes the labels in this screen.
Table 75 Maintenance > Time
LABEL DESCRIPTION
Current Time and Date
Current Time This field displays the time of your NBG-419N.
Each time you reload this page, the NBG-419N synchronizes the time
with the time server.
Current Date This field displays the date of your NBG-419N.
Each time you reload this page, the NBG-419N synchronizes the date
with the time server.
Current Time and Date
Manual Select this radio button to enter the time and date manually. If you
configure a new time and date, Time Zone and Daylight Saving at the
same time, the new time and date you entered has priority and the
Time Zone and Daylight Saving settings do not affect it.
New Time
(hh:mm:ss)
This field displays the last updated time from the time server or the
last time configured manually.
When you set Time and Date Setup to Manual, enter the new time
in this field and then click Apply.
New Date
(yyyy/mm/dd)
This field displays the last updated date from the time server or the
last date configured manually.
When you set Time and Date Setup to Manual, enter the new date
in this field and then click Apply.
Get from Time
Server
Select this radio button to have the NBG-419N get the time and date
from the time server you specified below.
Auto Select Auto to have the NBG-419N automatically search for an
available time server and synchronize the date and time with the time
server after you click Apply.
User Defined
Time Server
Address
Select User Defined Time Server Address and enter the IP
address or URL (up to 20 extended ASCII characters in length) of
your time server. Check with your ISP/network administrator if you
are unsure of this information.
Time Zone Setup
Time Zone Choose the time zone of your location. This will set the time
difference between your time zone and Greenwich Mean Time (GMT).
Daylight Savings Daylight saving is a period from late spring to early fall when many
countries set their clocks ahead of normal local time by one hour to
give more daytime light in the evening.
Select this option if you use Daylight Saving Time.
Company Confidential
![](/img.php?id=1180986&img=bgcb.png)
Chapter 26Time
NBG-419N User s Guide 203
Start Date Configure the day and time when Daylight Saving Time starts if you
selected Daylight Savings. The o'clock field uses the 24 hour
format. Here are a couple of examples:
Daylight Saving Time starts in most parts of the United States on the
first Sunday of April. Each time zone in the United States starts using
Daylight Saving Time at 2 A.M. local time. So in the United States you
would select First, Sunday, April and type 2 in the o'clock field.
Daylight Saving Time starts in the European Union on the last Sunday
of March. All of the time zones in the European Union start using
Daylight Saving Time at the same moment (1 A.M. GMT or UTC). So
in the European Union you would select Last, Sunday, March. The
time you type in the o'clock field depends on your time zone. In
Germany for instance, you would type 2 because Germany's time
zone is one hour ahead of GMT or UTC (GMT+1).
End Date Configure the day and time when Daylight Saving Time ends if you
selected Daylight Savings. The o'clock field uses the 24 hour
format. Here are a couple of examples:
Daylight Saving Time ends in the United States on the last Sunday of
October. Each time zone in the United States stops using Daylight
Saving Time at 2 A.M. local time. So in the United States you would
select Last, Sunday, October and type 2 in the o'clock field.
Daylight Saving Time ends in the European Union on the last Sunday
of October. All of the time zones in the European Union stop using
Daylight Saving Time at the same moment (1 A.M. GMT or UTC). So
in the European Union you would select Last, Sunday, October. The
time you type in the o'clock field depends on your time zone. In
Germany for instance, you would type 2 because Germany's time
zone is one hour ahead of GMT or UTC (GMT+1).
Apply Click Apply to save your changes back to the NBG-419N.
Reset Click Reset to begin configuring this screen afresh.
Table 75 Maintenance > Time
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bgcc.png)
Chapter 26Time
NBG-419N User s Guide
204
Company Confidential
![](/img.php?id=1180986&img=bgcd.png)
NBG-419N User s Guide 205
CHAPTER 27
Firmware Upgrade
27.1 Overview
This chapter shows you how to upload a new firmware, upload or save backup
configuration files and restart the NBG-419N.
27.2 What You Can Do
Use the Firmware screen (Section 27.3 on page 205) to upload firmware to
your NBG-419N.
27.3 Firmware Upload Screen
Find firmware at www.zyxel.com in a file that (usually) uses the system model
name with a "*.bin# extension, e.g., "NBG-419N.bin#. The upload process uses
HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a
successful upload, the system will reboot.
Click Maintenance > Firmware Upgrade. Follow the instructions in this screen
to upload firmware to your NBG-419N.
Figure 125 Maintenance > Firmware Upgrade
Company Confidential
![](/img.php?id=1180986&img=bgce.png)
Chapter 27Firmware Upgrade
NBG-419N User s Guide
206
The following table describes the labels in this screen.
Note: Do not turn off the NBG-419N while firmware upload is in progress!
After you see the Firmware Upload In Process screen, wait two minutes before
logging into the NBG-419N again.
The NBG-419N automatically restarts in this time causing a temporary network
disconnect. In some operating systems, you may see the following icon on your
desktop.
Figure 126 Network Temporarily Disconnected
After two minutes, log in again and check your new firmware version in the
Status screen.
If the upload was not successful, an error message appears. Click Return to go
back to the Firmware screen.
Table 76 Maintenance > Firmware Upgrade
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click
Browse... to find it.
Browse... Click Browse... to find the .bin file you want to upload. Remember that
you must decompress compressed (.zip) files before you can upload them.
Upload Click Upload to begin the upload process. This process may take up to
two minutes.
Company Confidential
![](/img.php?id=1180986&img=bgcf.png)
NBG-419N User s Guide 207
CHAPTER 28
Backup/Restore
28.1 Overview
This chapter shows you how to backup, restore and reset your NBG-419N.
Backup configuration allows you to back up (save) the NBG-419N!s current
configuration to a file on your computer. Once your NBG-419N is configured and
functioning properly, it is highly recommended that you back up your
configuration file before making configuration changes. The backup configuration
file will be useful in case you need to return to your previous settings.
Restore configuration allows you to upload a new or previously saved
configuration file from your computer to your NBG-419N.
28.2 What You Can Do
Use the Backup/Restore screen (Section 28.3 on page 208) to view information
related to factory defaults, backup configuration, and restoring configuration.
Company Confidential
![](/img.php?id=1180986&img=bgd0.png)
Chapter 28Backup/Restore
NBG-419N User s Guide
208
28.3 Configuration Screen
Click Maintenance > Backup/Restore. Information related to factory defaults,
backup configuration, and restoring configuration appears as shown next.
Figure 127 Maintenance > Backup/Restore
The following table describes the labels in this screen.
Table 77 Maintenance > Backup/Restore
LABEL DESCRIPTION
Backup Click Backup to save the NBG-419N!s current configuration to
your computer.
File Path Type in the location of the file you want to upload in this field or click
Browse... to find it.
Browse... Click Browse... to find the file you want to upload. Remember that you
must decompress compressed (.ZIP) files before you can upload them.
Company Confidential
![](/img.php?id=1180986&img=bgd1.png)
Chapter 28Backup/Restore
NBG-419N User s Guide 209
Note: If you uploaded the default configuration file you may need to change the IP
address of your computer to be in the same subnet as that of the default NBG-
419N IP address (192.168.1.1). See Appendix C on page 251 for details on
how to set up your computer s IP address.
Upload Click Upload to begin the upload process.
Note: Do not turn off the NBG-419N while configuration file upload is
in progress.
After you see a "configuration upload successful# screen, you must then
wait one minute before logging into the NBG-419N again. The NBG-419N
automatically restarts in this time causing a temporary network
disconnect.
If you see an error screen, click Back to return to the Backup/Restore
screen.
Reset Pressing the Reset button in this section clears all user-entered
configuration information and returns the NBG-419N to its factory
defaults.
You can also press the RESET button on the rear panel to reset the
factory defaults of your NBG-419N. Refer to the chapter about
introducing the Web Configurator for more information on the
RESET button.
Table 77 Maintenance > Backup/Restore
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bgd2.png)
Chapter 28Backup/Restore
NBG-419N User s Guide
210
Company Confidential
![](/img.php?id=1180986&img=bgd3.png)
NBG-419N User s Guide 211
CHAPTER 29
Reset/Restart
29.1 Overview
This chapter shows you how to restart your NBG-419N.
29.2 What You Can Do
Use the Reset/Restart screen (Section 29.3 on page 211) to reboot the NBG-
419N without turning the power off.
29.3 Reset/Restart Screen
System restart allows you to reboot the NBG-419N without turning the power off.
Click Maintenance > Reset/Restart to open the following screen.
Figure 128 Maintenance > Reset/Restart
Click Restart to have the NBG-419N reboot. This does not affect the NBG-419N's
configuration.
Company Confidential
![](/img.php?id=1180986&img=bgd4.png)
Chapter 29Reset/Restart
NBG-419N User s Guide
212
Company Confidential
![](/img.php?id=1180986&img=bgd5.png)
NBG-419N User s Guide 213
CHAPTER 30
Sys OP Mode
30.1 Overview
The Sys OP Mode (System Operation Mode) function lets you configure your
NBG-419N as a router, access point or Wireless ISP (WISP) client. You can choose
between Router Mode, Access Point Mode and WISP Mode depending on
your network topology and the features you require from your device.
See Section 5.1.2 on page 49 for more information on which mode to choose.
30.2 What You Can Do
Use the Sys OP Mode screen (Section 30.4 on page 215) to select how you want
to use your NBG-419N.
30.3 What You Need to Know
The following describes the device modes available in your NBG-419N.
Company Confidential
![](/img.php?id=1180986&img=bgd6.png)
Chapter 30Sys OP Mode
NBG-419N User s Guide
214
Router
A router connects your local network with another network, such as the Internet.
The router has two IP addresses, the LAN IP address and the WAN IP address.
Figure 129 LAN and WAN IP Addresses in Router Mode
Access Point
An access point enabled all ethernet ports to be bridged together and be in the
same subnet. To connect to the Internet, another device, such as a router, is
required.
Figure 130 IP Address in Access Point Mode
Company Confidential
![](/img.php?id=1180986&img=bgd7.png)
Chapter 30Sys OP Mode
NBG-419N User s Guide 215
WISP
A WISP client connects to an existing access point wirelessly. It acts just like a
wireless client in notebooks/computers.
Figure 131 IP Address in Access Point Mode
30.4 Sys Op Mode Screen
Use this screen to select how you want to use your NBG-419N.
Figure 132 Maintenance > Sys OP Mode
The following table describes the labels in the General screen.
Table 78 Maintenance > Sys OP Mode
Access Point
Wireless
Client
LABEL DESCRIPTION
System Operation Mode
Router Select Router Mode if your device routes traffic between a local network
and another network such as the Internet. This mode offers services such
as a firewall or bandwidth management.
You can configure the IP address settings on your WAN port. Contact your
ISP or system administrator for more information on appropriate settings.
Company Confidential
![](/img.php?id=1180986&img=bgd8.png)
Chapter 30Sys OP Mode
NBG-419N User s Guide
216
Note: If you select the incorrect System Operation Mode you may not be able to
connect to the Internet.
Access Point Select Access Point Mode if your device bridges traffic between clients
on the same network.
In Access Point mode all Ethernet ports have the same IP address.
All ports on the rear panel of the device are LAN ports, including the
port labeled WAN. There is no WAN port.
The DHCP server on your device is disabled.
The IP address of the device on the local network is set to 192.168.1.2.
WISP Mode Select WISP Mode if your device needs a wireless client to connect to an
existing access point.
You cannot configure Wireless LAN settings (including WPS) and
scheduling in the WISP mode.
The IP address of the device on the local network is the same as the IP
address given to the NBG-419N while in router mode (default is
192.168.1.1).
Apply Click Apply to save your settings.
Reset Click Reset to return your settings to the default (Router)
LABEL DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bgd9.png)
NBG-419N User s Guide 217
CHAPTER 31
Troubleshooting
This chapter offers some suggestions to solve problems you might encounter. The
potential problems are divided into the following categories.
Power, Hardware Connections, and LEDs
NBG-419N Access and Login
Internet Access
Resetting the NBG-419N to Its Factory Defaults
Wireless Router/AP Troubleshooting
31.1 Power, Hardware Connections, and LEDs
The NBG-419N does not turn on. None of the LEDs turn on.
1Make sure you are using the power adaptor or cord included with the NBG-419N.
2Make sure the power adaptor or cord is connected to the NBG-419N and plugged
in to an appropriate power source. Make sure the power source is turned on.
3Disconnect and re-connect the power adaptor or cord to the NBG-419N.
4If the problem continues, contact the vendor.
One of the LEDs does not behave as expected.
1Make sure you understand the normal behavior of the LED. See Section 1.5 on
page 22.
2Check the hardware connections. See the Quick Start Guide.
Company Confidential
![](/img.php?id=1180986&img=bgda.png)
Chapter 31Troubleshooting
NBG-419N User s Guide
218
3Inspect your cables for damage. Contact the vendor to replace any damaged
cables.
4Disconnect and re-connect the power adaptor to the NBG-419N.
5If the problem continues, contact the vendor.
31.2 NBG-419N Access and Login
I don t know the IP address of my NBG-419N.
1The default IP address is 192.168.1.1.
2If you changed the IP address and have forgotten it, you might get the IP address
of the NBG-419N by looking up the IP address of the default gateway for your
computer. To do this in most Windows computers, click Start > Run, enter cmd,
and then enter ipconfig. The IP address of the Default Gateway might be the IP
address of the NBG-419N (it depends on the network), so enter this IP address in
your Internet browser.Set your device to Router Mode, login (see the Quick Start
Guide for instructions) and go to the Device Information table in the Status
screen. Your NBG-419N!s IP address is available in the Device Information
table.
If the DHCP setting under LAN information is None, your device has a fixed
IP address.
If the DHCP setting under LAN information is Client, then your device
receives an IP address from a DHCP server on the network.
3If your NBG-419N is a DHCP client, you can find your IP address from the DHCP
server. This information is only available from the DHCP server which allocates IP
addresses on your network. Find this information directly from the DHCP server or
contact your system administrator for more information.
4Reset your NBG-419N to change all settings back to their default. This means your
current settings are lost. See Section 31.4 on page 221 in the Troubleshooting
for information on resetting your NBG-419N.
I forgot the password.
1The default password is 1234.
Company Confidential
![](/img.php?id=1180986&img=bgdb.png)
Chapter 31Troubleshooting
NBG-419N User s Guide 219
2If this does not work, you have to reset the device to its factory defaults. See
Section 31.4 on page 221.
I cannot see or access the Login screen in the Web Configurator.
1Make sure you are using the correct IP address.
The default IP address is 192.168.1.1.
If you changed the IP address (Section 13.4 on page 137), use the new IP
address.
If you changed the IP address and have forgotten it, see the troubleshooting
suggestions for I don!t know the IP address of my NBG-419N.
2Check the hardware connections, and make sure the LEDs are behaving as
expected. See the Quick Start Guide.
3Make sure your Internet browser does not block pop-up windows and has
JavaScripts and Java enabled. See Appendix A on page 233.
4Make sure your computer is in the same subnet as the NBG-419N. (If you know
that there are routers between your computer and the NBG-419N, skip this step.)
If there is a DHCP server on your network, make sure your computer is using
a dynamic IP address. See Section 14.3 on page 139.
If there is no DHCP server on your network, make sure your computer!s IP
address is in the same subnet as the NBG-419N. See Appendix B on page
241.
5Reset the device to its factory defaults, and try to access the NBG-419N with the
default IP address. See Section 28.3 on page 208.
6If the problem continues, contact the network administrator or vendor, or try one
of the advanced suggestions.
Advanced Suggestion
If your computer is connected to the WAN port or is connected wirelessly, use a
computer that is connected to a LAN/ETHERNET port.
I can see the Login screen, but I cannot log in to the NBG-419N.
1Make sure you have entered the password correctly. The default password is
1234. This field is case-sensitive, so make sure [Caps Lock] is not on.
Company Confidential
![](/img.php?id=1180986&img=bgdc.png)
Chapter 31Troubleshooting
NBG-419N User s Guide
220
2This can happen when you fail to log out properly from your last session. Try
logging in again after 5 minutes.
3Disconnect and re-connect the power adaptor or cord to the NBG-419N.
4If this does not work, you have to reset the device to its factory defaults. See
Section 31.4 on page 221.
31.3 Internet Access
I cannot access the Internet.
1Check the hardware connections, and make sure the LEDs are behaving as
expected. See the Quick Start Guide.
2Make sure you entered your ISP account information correctly in the wizard.
These fields are case-sensitive, so make sure [Caps Lock] is not on.
3If you are trying to access the Internet wirelessly, make sure the wireless settings
in the wireless client are the same as the settings in the AP.
Go to Network > Wireless LAN > General > WDS and check if the NBG-419N
is set to bridge mode. Select Disable and try to connect to the Internet again.
4Disconnect all the cables from your device, and follow the directions in the Quick
Start Guide again.
5Go to Maintenance > Sys OP Mode > General. Check your System Operation Mode
setting.
Select Router if your device routes traffic between a local network and
another network such as the Internet.
Select Access Point if your device bridges traffic between clients on the
same network.
6If the problem continues, contact your ISP.
I cannot access the Internet anymore. I had access to the Internet (with the NBG-
419N), but my Internet connection is not available anymore.
Company Confidential
![](/img.php?id=1180986&img=bgdd.png)
Chapter 31Troubleshooting
NBG-419N User s Guide 221
1Check the hardware connections, and make sure the LEDs are behaving as
expected. See the Quick Start Guide and Section 1.5 on page 22.
2Reboot the NBG-419N.
3If the problem continues, contact your ISP.
The Internet connection is slow or intermittent.
1There might be a lot of traffic on the network. Look at the LEDs, and check Section
1.5 on page 22. If the NBG-419N is sending or receiving a lot of information, try
closing some programs that use the Internet, especially peer-to-peer applications.
2Check the signal strength. If the signal strength is low, try moving the NBG-419N
closer to the AP if possible, and look around to see if there are any devices that
might be interfering with the wireless network (for example, microwaves, other
wireless networks, and so on).
3Reboot the NBG-419N.
4If the problem continues, contact the network administrator or vendor, or try one
of the advanced suggestions.
Advanced Suggestions
Check the settings for bandwidth management. If it is disabled, you might
consider activating it. If it is enabled, you might consider changing the
allocations.
Check the settings for QoS. If it is disabled, you might consider activating it. If it
is enabled, you might consider raising or lowering the priority for some
applications.
31.4 Resetting the NBG-419N to Its Factory
Defaults
If you reset the NBG-419N, you lose all of the changes you have made. The NBG-
419N re-loads its default settings, and the password resets to 1234. You have to
make all of your changes again.
Company Confidential
![](/img.php?id=1180986&img=bgde.png)
Chapter 31Troubleshooting
NBG-419N User s Guide
222
You will lose all of your changes when you push the RESET button.
To reset the NBG-419N,
1Make sure the power LED is on.
2Press the RESET button for longer than 1 second to restart/reboot the NBG-419N.
3Press the RESET button for longer than five seconds to set the NBG-419N back to
its factory-default configurations.
If the NBG-419N restarts automatically, wait for the NBG-419N to finish
restarting, and log in to the Web Configurator. The password is "1234#.
If the NBG-419N does not restart automatically, disconnect and reconnect the
NBG-419N!s power. Then, follow the directions above again.
31.5 Wireless Router/AP Troubleshooting
I cannot access the NBG-419N or ping any computer from the WLAN (wireless
AP or router).
1Make sure the wireless LAN is enabled on the NBG-419N
2Make sure the wireless adapter on the wireless station is working properly.
3Make sure the wireless adapter installed on your computer is IEEE 802.11
compatible and supports the same wireless standard as the NBG-419N.
4Make sure your computer (with a wireless adapter installed) is within the
transmission range of the NBG-419N.
5Check that both the NBG-419N and your wireless station are using the same
wireless and wireless security settings.
6Make sure traffic between the WLAN and the LAN is not blocked by the firewall on
the NBG-419N.
7Make sure you allow the NBG-419N to be remotely accessed through the WLAN
interface. Check your remote management settings.
Company Confidential
![](/img.php?id=1180986&img=bgdf.png)
Chapter 31Troubleshooting
NBG-419N User s Guide 223
See the chapter on Wireless LAN in the User!s Guide for more information.
to select Router Mode.
I set up URL keyword blocking, but I can still access a website that should be
blocked.
Make sure that you select the Enable URL Keyword Blocking check box in the
Content Filtering screen. Make sure that the keywords that you type are listed in
the Keyword List.
If a keyword that is listed in the Keyword List is not blocked when it is found in a
URL, customize the keyword blocking using commands. See the Customizing
Keyword Blocking URL Checking section in the Content Filter chapter.
I can access the Internet, but I cannot open my network folders.
In the Network > LAN > Advanced screen, make sure Allow between LAN and
WAN is checked. This is not checked by default to keep the LAN secure.
If you still cannot access a network folder, make sure your account has access
rights to the folder you are trying to open.
I can access the Web Configurator after I switched to AP mode.
When you change from router mode to AP mode, your computer must have an IP
address in the range between "192.168.1.3# and "192.168.1.254#.
Refer to Appendix C on page 251 for instructions on how to change your
computer!s IP address.
Company Confidential
![](/img.php?id=1180986&img=bge0.png)
Chapter 31Troubleshooting
NBG-419N User s Guide
224
Company Confidential
![](/img.php?id=1180986&img=bge1.png)
NBG-419N User s Guide 225
CHAPTER 32
Product Specifications
The following tables summarize the NBG-419N!s hardware and firmware features.
Table 79 Hardware Features
Dimensions (W x D x
H)
162 mm x 115 mm x 33 mm
Weight 252 g
Power Specification Input: 100~240 V AC, 50~60 Hz
Output: 12 V DC 1A
Ethernet portsAuto-negotiating: 10 Mbps, 100 Mbps in either half-duplex or full-
duplex mode.
Auto-crossover: Use either crossover or straight-through Ethernet
cables.
4-5 Port Switch A combination of switch and router makes your NBG-419N a cost-
effective and viable network solution. You can add up to four
computers to the NBG-419N without the cost of a hub when
connecting to the Internet through the WAN port. You can add up
to five computers to the NBG-419N when you connect to the
Internet in AP mode. Add more than four computers to your LAN
by using a hub.
LEDsPWR, LAN1-4, WAN, WLAN, WPS
Reset Button The reset button is built into the rear panel. Use this button to
restore the NBG-419N to its factory default settings. Press for 1
second to restart the device. Press for 5 seconds to restore to
factory default settings.
WPS button Press the WPS on two WPS enabled devices within 120 seconds
for a security-enabled wireless connection.
Wireless Switch Turn on or turn off the wireless function of the NBG-419N using
this switch. There is no need to go into the Web Configurator.
Antenna The NBG-419N is equipped with two 2dBi (2.4GHz) detachable
antennas to provide clear radio transmission and reception on the
wireless network.
Operation
Environment
Temperature: 0º C ~ 40º C / 32ºF ~ 104ºF
Humidity: 20% ~ 90%
Storage Environment Temperature: -30º C ~ 70º C / -22ºF ~ 158ºF
Humidity: 20% ~ 95%
Company Confidential
![](/img.php?id=1180986&img=bge2.png)
Chapter 32Product Specifications
NBG-419N User s Guide
226
Table 80 Firmware Features
FEATURE DESCRIPTION
Default IP Address 192.168.1.1 (router)
192.168.1.2. (AP)
Default Subnet Mask 255.255.255.0 (24 bits)
Default Password 1234
DHCP Pool 192.168.1.33 to 192.168.1.64
Wireless InterfaceWireless LAN
Default Wireless SSIDZyXEL
Default Wireless DHCP
Pool Size
Wireless LAN: Same as LAN (32 from 192.168.1.33 to
192.168.1.64)
Device ManagementUse the Web Configurator to easily configure the rich range of
features on the NBG-419N.
Wireless FunctionalityAllows IEEE 802.11b and/or IEEE 802.11g wireless clients to
connect to the NBG-419N wirelessly. Enable wireless security (
WPA(2)-PSK) and/or MAC filtering to protect your wireless
network.
Note: The NBG-419N may be prone to RF (Radio
Frequency) interference from other 2.4 GHz devices
such as microwave ovens, wireless phones,
Bluetooth enabled devices, and other wireless LANs.
Firmware UpgradeDownload new firmware (when available) from the ZyXEL web
site and use the Web Configurator to put it on the NBG-419N.
Note: Only upload firmware for your specific model!
Configuration Backup &
Restoration
Make a copy of the NBG-419N!s configuration and put it back
on the NBG-419N later if you decide you want to revert back to
an earlier configuration.
Network Address
Translation (NAT)
Each computer on your network must have its own unique IP
address. Use NAT to convert a single public IP address to
multiple private IP addresses for the computers on your
network.
FirewallYou can configure firewall on the NBG-419N for secure Internet
access. When the firewall is on, by default, all incoming traffic
from the Internet to your network is blocked unless it is
initiated from your network. This means that probes from the
outside to your network are not allowed, but you can safely
browse the Internet and download files for example.
Company Confidential
![](/img.php?id=1180986&img=bge3.png)
Chapter 32Product Specifications
NBG-419N User s Guide 227
Content FilterThe NBG-419N blocks or allows access to web sites that you
specify and blocks access to web sites with URLs that contain
keywords that you specify. You can define time periods and
days during which content filtering is enabled. You can also
include or exclude particular computers on your network from
content filtering.
You can also subscribe to category-based content filtering that
allows your NBG-419N to check web sites against an external
database.
Bandwidth Management You can efficiently manage traffic on your network by reserving
bandwidth and giving priority to certain types of traffic and/or
to particular computers.
Remote ManagementThis allows you to decide whether a service (HTTP or FTP traffic
for example) from a computer on a network (LAN or WAN for
example) can access the NBG-419N.
Wireless LAN SchedulerYou can schedule the times the Wireless LAN is enabled/
disabled.
Time and DateGet the current time and date from an external server when
you turn on your NBG-419N. You can also set the time
manually. These dates and times are then used in logs.
Port ForwardingIf you have a server (mail or web server for example) on your
network, then use this feature to let people access it from the
Internet.
DHCP (Dynamic Host
Configuration Protocol)
Use this feature to have the NBG-419N assign IP addresses, an
IP default gateway and DNS servers to computers on your
network.
Dynamic DNS SupportWith Dynamic DNS (Domain Name System) support, you can
use a fixed URL, www.zyxel.com for example, with a dynamic
IP address. You must register for this service with a Dynamic
DNS service provider.
IP MulticastIP Multicast is used to send traffic to a specific group of
computers. The NBG-419N supports versions 1 and 2 of IGMP
(Internet Group Management Protocol) used to join multicast
groups (see RFC 2236).
LoggingUse logs for troubleshooting. You can view logs in the Web
Configurator.
PPPoEPPPoE mimics a dial-up Internet access connection.
PPTP EncapsulationPoint-to-Point Tunneling Protocol (PPTP) enables secure
transfer of data through a Virtual Private Network (VPN). The
NBG-419N supports one PPTP connection at a time.
Universal Plug and Play
(UPnP)
The NBG-419N can communicate with other UPnP enabled
devices in a network.
Table 80 Firmware Features
FEATURE DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bge4.png)
Chapter 32Product Specifications
NBG-419N User s Guide
228
32.1 Wall-mounting Instructions
Complete the following steps to hang your NBG-419N on a wall.
1Select a position free of obstructions on a sturdy wall.
2Drill two holes for the screws.
Be careful to avoid damaging pipes or cables located inside the
wall when drilling holes for the screws.
3Do not insert the screws all the way into the wall. Leave a small gap of about 0.5
cm between the heads of the screws and the wall.
4Make sure the screws are snugly fastened to the wall. They need to hold the
weight of the NBG-419N with the connection cables.
5Align the holes on the back of the NBG-419N with the screws on the wall. Hang
the NBG-419N on the screws.
Figure 133 Wall-mounting Example
Company Confidential
![](/img.php?id=1180986&img=bge5.png)
Chapter 32Product Specifications
NBG-419N User s Guide 229
The following are dimensions of an M4 tap screw and masonry plug used for wall
mounting. All measurements are in millimeters (mm).
Figure 134 Masonry Plug and M4 Tap Screw
Company Confidential
![](/img.php?id=1180986&img=bge6.png)
Chapter 32Product Specifications
NBG-419N User s Guide
230
Company Confidential
![](/img.php?id=1180986&img=bge7.png)
231
PART VI
Appendices and
Index
Pop-up Windows, JavaScripts and Java
Permissions (233)
IP Addresses and Subnetting (241)
Setting up Your Computer!s IP Address
(251)
Wireless LANs (269)
Common Services (281)
Legal Information (285)
Index (293)
Company Confidential
![](/img.php?id=1180986&img=bge8.png)
232
Company Confidential
![](/img.php?id=1180986&img=bge9.png)
NBG-419N User s Guide 233
APPENDIX A
Pop-up Windows, JavaScripts
and Java Permissions
In order to use the Web Configurator you need to allow:
Web browser pop-up windows from your device.
JavaScripts (enabled by default).
Java permissions (enabled by default).
Note: Internet Explorer 6 screens are used here. Screens for other Internet Explorer
versions may vary.
Internet Explorer Pop-up Blockers
You may have to disable pop-up blocking to log into your device.
Either disable pop-up blocking (enabled by default in Windows XP SP (Service
Pack) 2) or allow pop-up blocking and create an exception for your device!s IP
address.
Disable pop-up Blockers
1In Internet Explorer, select Tools, Pop-up Blocker and then select Turn Off
Pop-up Blocker.
Figure 135 Pop-up Blocker
You can also check if pop-up blocking is disabled in the Pop-up Blocker section in
the Privacy tab.
Company Confidential
![](/img.php?id=1180986&img=bgea.png)
Appendix APop-up Windows, JavaScripts and Java Permissions
NBG-419N User s Guide
234
1In Internet Explorer, select Tools, Internet Options, Privacy.
2Clear the Block pop-ups check box in the Pop-up Blocker section of the screen.
This disables any web pop-up blockers you may have enabled.
Figure 136 Internet Options: Privacy
3Click Apply to save this setting.
Enable pop-up Blockers with Exceptions
Alternatively, if you only want to allow pop-up windows from your device, see the
following steps.
1In Internet Explorer, select Tools, Internet Options and then the Privacy tab.
Company Confidential
![](/img.php?id=1180986&img=bgeb.png)
Appendix APop-up Windows, JavaScripts and Java Permissions
NBG-419N User s Guide 235
2Select Settings to open the Pop-up Blocker Settings screen.
Figure 137 Internet Options: Privacy
3Type the IP address of your device (the web page that you do not want to have
blocked) with the prefix "http://#. For example, http://192.168.167.1.
Company Confidential
![](/img.php?id=1180986&img=bgec.png)
Appendix APop-up Windows, JavaScripts and Java Permissions
NBG-419N User s Guide
236
4Click Add to move the IP address to the list of Allowed sites.
Figure 138 Pop-up Blocker Settings
5Click Close to return to the Privacy screen.
6Click Apply to save this setting.
JavaScripts
If pages of the Web Configurator do not display properly in Internet Explorer,
check that JavaScripts are allowed.
Company Confidential
![](/img.php?id=1180986&img=bged.png)
Appendix APop-up Windows, JavaScripts and Java Permissions
NBG-419N User s Guide 237
1In Internet Explorer, click Tools, Internet Options and then the Security tab.
Figure 139 Internet Options: Security
2Click the Custom Level... button.
3Scroll down to Scripting.
4Under Active scripting make sure that Enable is selected (the default).
5Under Scripting of Java applets make sure that Enable is selected (the
default).
Company Confidential
![](/img.php?id=1180986&img=bgee.png)
Appendix APop-up Windows, JavaScripts and Java Permissions
NBG-419N User s Guide
238
6Click OK to close the window.
Figure 140 Security Settings - Java Scripting
Java Permissions
1From Internet Explorer, click Tools, Internet Options and then the Security
tab.
2Click the Custom Level... button.
3Scroll down to Microsoft VM.
4Under Java permissions make sure that a safety level is selected.
Company Confidential
![](/img.php?id=1180986&img=bgef.png)
Appendix APop-up Windows, JavaScripts and Java Permissions
NBG-419N User s Guide 239
5Click OK to close the window.
Figure 141 Security Settings - Java
JAVA (Sun)
1From Internet Explorer, click Tools, Internet Options and then the Advanced
tab.
2Make sure that Use Java 2 for <applet> under Java (Sun) is selected.
Company Confidential
![](/img.php?id=1180986&img=bgf0.png)
Appendix APop-up Windows, JavaScripts and Java Permissions
NBG-419N User s Guide
240
3Click OK to close the window.
Figure 142 Java (Sun)
Company Confidential
![](/img.php?id=1180986&img=bgf1.png)
NBG-419N User s Guide 241
APPENDIX B
IP Addresses and Subnetting
This appendix introduces IP addresses and subnet masks.
IP addresses identify individual devices on a network. Every networking device
(including computers, servers, routers, printers, etc.) needs an IP address to
communicate across the network. These networking devices are also known as
hosts.
Subnet masks determine the maximum number of possible hosts on a network.
You can also use subnet masks to divide one network into multiple sub-networks.
Introduction to IP Addresses
One part of the IP address is the network number, and the other part is the host
ID. In the same way that houses on a street share a common street name, the
hosts on a network share a common network number. Similarly, as each house
has its own house number, each host on the network has its own unique
identifying number - the host ID. Routers use the network number to send
packets to the correct network, while the host ID determines to which host on the
network the packets are delivered.
Structure
An IP address is made up of four parts, written in dotted decimal notation (for
example, 192.168.1.1). Each of these four parts is known as an octet. An octet is
an eight-digit binary number (for example 11000000, which is 192 in decimal
notation).
Therefore, each octet has a possible range of 00000000 to 11111111 in binary, or
0 to 255 in decimal.
Company Confidential
![](/img.php?id=1180986&img=bgf2.png)
Appendix BIP Addresses and Subnetting
NBG-419N User s Guide
242
The following figure shows an example IP address in which the first three octets
(192.168.1) are the network number, and the fourth octet (16) is the host ID.
Figure 143 Network Number and Host ID
How much of the IP address is the network number and how much is the host ID
varies according to the subnet mask.
Subnet Masks
A subnet mask is used to determine which bits are part of the network number,
and which bits are part of the host ID (using a logical AND operation). The term
"subnet# is short for "sub-network#.
A subnet mask has 32 bits. If a bit in the subnet mask is a "1# then the
corresponding bit in the IP address is part of the network number. If a bit in the
subnet mask is "0# then the corresponding bit in the IP address is part of the host
ID.
The following example shows a subnet mask identifying the network number (in
bold text) and host ID of an IP address (192.168.1.2 in decimal).
Table 81 Subnet Mask - Identifying Network Number
1ST
OCTET:
(192)
2ND
OCTET:
(168)
3RD
OCTET:
(1)
4TH
OCTET
(2)
IP Address (Binary)11000000101010000000000100000010
Subnet Mask (Binary) 111111111111111111111111 00000000
Company Confidential
![](/img.php?id=1180986&img=bgf3.png)
Appendix BIP Addresses and Subnetting
NBG-419N User s Guide 243
By convention, subnet masks always consist of a continuous sequence of ones
beginning from the leftmost bit of the mask, followed by a continuous sequence of
zeros, for a total number of 32 bits.
Subnet masks can be referred to by the size of the network number part (the bits
with a "1# value). For example, an "8-bit mask# means that the first 8 bits of the
mask are ones and the remaining 24 bits are zeroes.
Subnet masks are expressed in dotted decimal notation just like IP addresses. The
following examples show the binary and decimal notation for 8-bit, 16-bit, 24-bit
and 29-bit subnet masks.
Network Size
The size of the network number determines the maximum number of possible
hosts you can have on your network. The larger the number of network number
bits, the smaller the number of remaining host ID bits.
An IP address with host IDs of all zeros is the IP address of the network
(192.168.1.0 with a 24-bit subnet mask, for example). An IP address with host
IDs of all ones is the broadcast address for that network (192.168.1.255 with a
24-bit subnet mask, for example).
Network Number 110000001010100000000001
Host ID00000010
Table 82 Subnet Masks
BINARY
DECIMAL
1ST
OCTET
2ND
OCTET
3RD
OCTET
4TH
OCTET
8-bit mask 11111111 00000000 00000000 00000000 255.0.0.0
16-bit
mask
11111111 11111111 00000000 00000000 255.255.0.0
24-bit
mask
11111111 11111111 11111111 00000000 255.255.255.0
29-bit
mask
11111111 11111111 11111111 11111000 255.255.255.24
8
Table 81 Subnet Mask - Identifying Network Number
1ST
OCTET:
(192)
2ND
OCTET:
(168)
3RD
OCTET:
(1)
4TH
OCTET
(2)
Company Confidential
![](/img.php?id=1180986&img=bgf4.png)
Appendix BIP Addresses and Subnetting
NBG-419N User s Guide
244
As these two IP addresses cannot be used for individual hosts, calculate the
maximum number of possible hosts in a network as follows:
Notation
Since the mask is always a continuous number of ones beginning from the left,
followed by a continuous number of zeros for the remainder of the 32 bit mask,
you can simply specify the number of ones instead of writing the value of each
octet. This is usually specified by writing a "/# followed by the number of bits in
the mask after the address.
For example, 192.1.1.0 /25 is equivalent to saying 192.1.1.0 with subnet mask
255.255.255.128.
The following table shows some possible subnet masks using both notations.
Table 83 Maximum Host Numbers
SUBNET MASK HOST ID SIZE MAXIMUM NUMBER OF
HOSTS
8 bits255.0.0.024 bits2
24 $ 216777214
16 bits255.255.0.016 bits2
16 $ 265534
24 bits255.255.255.08 bits2
8
$ 2254
29 bits255.255.255.2
48
3 bits2
3
$ 26
Table 84 Alternative Subnet Mask Notation
SUBNET
MASK
ALTERNATIVE
NOTATION
LAST OCTET
(BINARY)
LAST OCTET
(DECIMAL)
255.255.255.0 /24 0000 0000 0
255.255.255.12
8
/25 1000 0000 128
255.255.255.19
2
/26 1100 0000 192
255.255.255.22
4
/27 1110 0000 224
255.255.255.24
0
/28 1111 0000 240
255.255.255.24
8
/29 1111 1000 248
255.255.255.25
2
/30 1111 1100 252
Company Confidential
![](/img.php?id=1180986&img=bgf5.png)
Appendix BIP Addresses and Subnetting
NBG-419N User s Guide 245
Subnetting
You can use subnetting to divide one network into multiple sub-networks. In the
following example a network administrator creates two sub-networks to isolate a
group of servers from the rest of the company network for security reasons.
In this example, the company network address is 192.168.1.0. The first three
octets of the address (192.168.1) are the network number, and the remaining
octet is the host ID, allowing a maximum of 28 $ 2 or 254 possible hosts.
The following figure shows the company network before subnetting.
Figure 144 Subnetting Example: Before Subnetting
You can "borrow# one of the host ID bits to divide the network 192.168.1.0 into
two separate sub-networks. The subnet mask is now 25 bits (255.255.255.128 or
/25).
The "borrowed# host ID bit can have a value of either 0 or 1, allowing two
subnets; 192.168.1.0 /25 and 192.168.1.128 /25.
Company Confidential
![](/img.php?id=1180986&img=bgf6.png)
Appendix BIP Addresses and Subnetting
NBG-419N User s Guide
246
The following figure shows the company network after subnetting. There are now
two sub-networks, A and B.
Figure 145 Subnetting Example: After Subnetting
In a 25-bit subnet the host ID has 7 bits, so each sub-network has a maximum of
27 $ 2 or 126 possible hosts (a host ID of all zeroes is the subnet!s address itself,
all ones is the subnet!s broadcast address).
192.168.1.0 with mask 255.255.255.128 is subnet A itself, and 192.168.1.127
with mask 255.255.255.128 is its broadcast address. Therefore, the lowest IP
address that can be assigned to an actual host for subnet A is 192.168.1.1 and
the highest is 192.168.1.126.
Similarly, the host ID range for subnet B is 192.168.1.129 to 192.168.1.254.
Example: Four Subnets
The previous example illustrated using a 25-bit subnet mask to divide a 24-bit
address into two subnets. Similarly, to divide a 24-bit address into four subnets,
you need to "borrow# two host ID bits to give four possible combinations (00, 01,
10 and 11). The subnet mask is 26 bits
(11111111.11111111.11111111.11000000) or 255.255.255.192.
Company Confidential
![](/img.php?id=1180986&img=bgf7.png)
Appendix BIP Addresses and Subnetting
NBG-419N User s Guide 247
Each subnet contains 6 host ID bits, giving 26 - 2 or 62 hosts for each subnet (a
host ID of all zeroes is the subnet itself, all ones is the subnet!s broadcast
address).
Table 85 Subnet 1
IP/SUBNET MASK NETWORK NUMBER LAST OCTET BIT
VALUE
IP Address (Decimal) 192.168.1. 0
IP Address (Binary) 11000000.10101000.00000001. 00000000
Subnet Mask (Binary) 11111111.11111111.11111111. 11000000
Subnet Address:
192.168.1.0
Lowest Host ID: 192.168.1.1
Broadcast Address:
192.168.1.63
Highest Host ID: 192.168.1.62
Table 86 Subnet 2
IP/SUBNET MASK NETWORK NUMBER LAST OCTET BIT
VALUE
IP Address 192.168.1. 64
IP Address (Binary) 11000000.10101000.00000001. 01000000
Subnet Mask (Binary) 11111111.11111111.11111111. 11000000
Subnet Address:
192.168.1.64
Lowest Host ID: 192.168.1.65
Broadcast Address:
192.168.1.127
Highest Host ID: 192.168.1.126
Table 87 Subnet 3
IP/SUBNET MASK NETWORK NUMBER LAST OCTET BIT
VALUE
IP Address 192.168.1. 128
IP Address (Binary) 11000000.10101000.00000001. 10000000
Subnet Mask (Binary) 11111111.11111111.11111111. 11000000
Subnet Address:
192.168.1.128
Lowest Host ID: 192.168.1.129
Broadcast Address:
192.168.1.191
Highest Host ID: 192.168.1.190
Table 88 Subnet 4
IP/SUBNET MASK NETWORK NUMBER LAST OCTET BIT
VALUE
IP Address 192.168.1. 192
IP Address (Binary) 11000000.10101000.00000001
.
11000000
Subnet Mask (Binary) 11111111.11111111.11111111
.
11000000
Company Confidential
![](/img.php?id=1180986&img=bgf8.png)
Appendix BIP Addresses and Subnetting
NBG-419N User s Guide
248
Example: Eight Subnets
Similarly, use a 27-bit mask to create eight subnets (000, 001, 010, 011, 100,
101, 110 and 111).
The following table shows IP address last octet values for each subnet.
Subnet Planning
The following table is a summary for subnet planning on a network with a 24-bit
network number.
Subnet Address:
192.168.1.192
Lowest Host ID: 192.168.1.193
Broadcast Address:
192.168.1.255
Highest Host ID: 192.168.1.254
Table 88 Subnet 4 (continued)
IP/SUBNET MASK NETWORK NUMBER LAST OCTET BIT
VALUE
Table 89 Eight Subnets
SUBNET SUBNET
ADDRESS FIRST ADDRESS LAST
ADDRESS
BROADCAST
ADDRESS
10130 31
2 32 33 62 63
3 64 65 94 95
4 96 97 126 127
5 128 129 158 159
6 160 161 190 191
7 192 193 222 223
8 224 225 254 255
Table 90 24-bit Network Number Subnet Planning
NO. !BORROWED"
HOST BITS SUBNET MASK NO. SUBNETS NO. HOSTS PER
SUBNET
1255.255.255.128 (/25) 2 126
2 255.255.255.192 (/26) 4 62
3 255.255.255.224 (/27) 8 30
4 255.255.255.240 (/28) 16 14
5 255.255.255.248 (/29) 32 6
6 255.255.255.252 (/30) 64 2
7 255.255.255.254 (/31) 128 1
Company Confidential
![](/img.php?id=1180986&img=bgf9.png)
Appendix BIP Addresses and Subnetting
NBG-419N User s Guide 249
The following table is a summary for subnet planning on a network with a 16-bit
network number.
Configuring IP Addresses
Where you obtain your network number depends on your particular situation. If
the ISP or your network administrator assigns you a block of registered IP
addresses, follow their instructions in selecting the IP addresses and the subnet
mask.
If the ISP did not explicitly give you an IP network number, then most likely you
have a single user account and the ISP will assign you a dynamic IP address when
the connection is established. If this is the case, it is recommended that you select
a network number from 192.168.0.0 to 192.168.255.0. The Internet Assigned
Number Authority (IANA) reserved this block of addresses specifically for private
use; please do not use any other number unless you are told otherwise. You must
also enable Network Address Translation (NAT) on the NBG-419N.
Once you have decided on the network number, pick an IP address for your NBG-
419N that is easy to remember (for instance, 192.168.1.1) but make sure that no
other device on your network is using that IP address.
The subnet mask specifies the network number portion of an IP address. Your
NBG-419N will compute the subnet mask automatically based on the IP address
Table 91 16-bit Network Number Subnet Planning
NO. !BORROWED"
HOST BITS SUBNET MASK NO.
SUBNETS
NO. HOSTS PER
SUBNET
1255.255.128.0 (/17) 2 32766
2 255.255.192.0 (/18) 4 16382
3 255.255.224.0 (/19) 8 8190
4255.255.240.0 (/20) 16 4094
5255.255.248.0 (/21) 32 2046
6255.255.252.0 (/22) 64 1022
7255.255.254.0 (/23) 128 510
8 255.255.255.0 (/24) 256 254
9 255.255.255.128 (/25) 512 126
10 255.255.255.192 (/26) 1024 62
11 255.255.255.224 (/27) 2048 30
12 255.255.255.240 (/28) 4096 14
13 255.255.255.248 (/29) 8192 6
14 255.255.255.252 (/30) 16384 2
15 255.255.255.254 (/31) 32768 1
Company Confidential
![](/img.php?id=1180986&img=bgfa.png)
Appendix BIP Addresses and Subnetting
NBG-419N User s Guide
250
that you entered. You don't need to change the subnet mask computed by the
NBG-419N unless you are instructed to do otherwise.
Private IP Addresses
Every machine on the Internet must have a unique address. If your networks are
isolated from the Internet (running only between two branch offices, for example)
you can assign any IP addresses to the hosts without problems. However, the
Internet Assigned Numbers Authority (IANA) has reserved the following three
blocks of IP addresses specifically for private networks:
10.0.0.0 & 10.255.255.255
172.16.0.0 & 172.31.255.255
192.168.0.0 & 192.168.255.255
You can obtain your IP address from the IANA, from an ISP, or it can be assigned
from a private network. If you belong to a small organization and your Internet
access is through an ISP, the ISP can provide you with the Internet addresses for
your local networks. On the other hand, if you are part of a much larger
organization, you should consult your network administrator for the appropriate IP
addresses.
Regardless of your particular situation, do not create an arbitrary IP address;
always follow the guidelines above. For more information on address assignment,
please refer to RFC 1597, Address Allocation for Private Internets and RFC 1466,
Guidelines for Management of IP Address Space.
Company Confidential
![](/img.php?id=1180986&img=bgfb.png)
NBG-419N User s Guide 251
APPENDIX C
Setting up Your Computer#s IP
Address
All computers must have a 10M or 100M Ethernet adapter card and TCP/IP
installed.
Windows 95/98/Me/NT/2000/XP, Macintosh OS 7 and later operating systems and
all versions of UNIX/LINUX include the software components you need to install
and use TCP/IP on your computer. Windows 3.1 requires the purchase of a third-
party TCP/IP application package.
TCP/IP should already be installed on computers using Windows NT/2000/XP,
Macintosh OS 7 and later operating systems.
After the appropriate TCP/IP components are installed, configure the TCP/IP
settings in order to "communicate" with your network.
If you manually assign IP information instead of using dynamic assignment, make
sure that your computers have IP addresses that place them in the same subnet
as the Prestige!s LAN port.
Company Confidential
![](/img.php?id=1180986&img=bgfc.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide
252
Windows 95/98/Me
Click Start, Settings, Control Panel and double-click the Network icon to open
the Network window.
Figure 146 WIndows 95/98/Me: Network: Configuration
Installing Components
The Network window Configuration tab displays a list of installed components.
You need a network adapter, the TCP/IP protocol and Client for Microsoft
Networks.
If you need the adapter:
1In the Network window, click Add.
2Select Adapter and then click Add.
3Select the manufacturer and model of your network adapter and then click OK.
If you need TCP/IP:
1In the Network window, click Add.
2Select Protocol and then click Add.
Company Confidential
![](/img.php?id=1180986&img=bgfd.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide 253
3Select Microsoft from the list of manufacturers.
4Select TCP/IP from the list of network protocols and then click OK.
If you need Client for Microsoft Networks:
1Click Add.
2Select Client and then click Add.
3Select Microsoft from the list of manufacturers.
4Select Client for Microsoft Networks from the list of network clients and then
click OK.
5Restart your computer so the changes you made take effect.
Configuring
1In the Network window Configuration tab, select your network adapter's TCP/IP
entry and click Properties
2Click the IP Address tab.
If your IP address is dynamic, select Obtain an IP address automatically.
If you have a static IP address, select Specify an IP address and type your
information into the IP Address and Subnet Mask fields.
Figure 147 Windows 95/98/Me: TCP/IP Properties: IP Address
Company Confidential
![](/img.php?id=1180986&img=bgfe.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide
254
3Click the DNS Configuration tab.
If you do not know your DNS information, select Disable DNS.
If you know your DNS information, select Enable DNS and type the
information in the fields below (you may not need to fill them all in).
Figure 148 Windows 95/98/Me: TCP/IP Properties: DNS Configuration
4Click the Gateway tab.
If you do not know your gateway!s IP address, remove previously installed
gateways.
If you have a gateway IP address, type it in the New gateway field and click
Add.
5Click OK to save and close the TCP/IP Properties window.
6Click OK to close the Network window. Insert the Windows CD if prompted.
7Turn on your Prestige and restart your computer when prompted.
Verifying Settings
1Click Start and then Run.
2In the Run window, type "winipcfg" and then click OK to open the IP
Configuration window.
Company Confidential
![](/img.php?id=1180986&img=bgff.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide 255
3Select your network adapter. You should see your computer's IP address, subnet
mask and default gateway.
Windows 2000/NT/XP
The following example figures use the default Windows XP GUI theme.
1Click start (Start in Windows 2000/NT), Settings, Control Panel.
Figure 149 Windows XP: Start Menu
Company Confidential
![](/img.php?id=1180986&img=bg100.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide
256
2In the Control Panel, double-click Network Connections (Network and Dial-
up Connections in Windows 2000/NT).
Figure 150 Windows XP: Control Panel
3Right-click Local Area Connection and then click Properties.
Figure 151 Windows XP: Control Panel: Network Connections: Properties
Company Confidential
![](/img.php?id=1180986&img=bg101.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide 257
4Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and then
click Properties.
Figure 152 Windows XP: Local Area Connection Properties
5The Internet Protocol TCP/IP Properties window opens (the General tab in
Windows XP).
If you have a dynamic IP address click Obtain an IP address
automatically.
If you have a static IP address click Use the following IP Address and fill in
the IP address, Subnet mask, and Default gateway fields.
Company Confidential
![](/img.php?id=1180986&img=bg102.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide
258
Click Advanced.
Figure 153 Windows XP: Internet Protocol (TCP/IP) Properties
6 If you do not know your gateway's IP address, remove any previously installed
gateways in the IP Settings tab and click OK.
Do one or more of the following if you want to configure additional IP addresses:
In the IP Settings tab, in IP addresses, click Add.
In TCP/IP Address, type an IP address in IP address and a subnet mask in
Subnet mask, and then click Add.
Repeat the above two steps for each IP address you want to add.
Configure additional default gateways in the IP Settings tab by clicking Add
in Default gateways.
In TCP/IP Gateway Address, type the IP address of the default gateway in
Gateway. To manually configure a default metric (the number of
transmission hops), clear the Automatic metric check box and type a metric
in Metric.
Click Add.
Repeat the previous three steps for each default gateway you want to add.
Company Confidential
![](/img.php?id=1180986&img=bg103.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide 259
Click OK when finished.
Figure 154 Windows XP: Advanced TCP/IP Properties
7In the Internet Protocol TCP/IP Properties window (the General tab in
Windows XP):
Click Obtain DNS server address automatically if you do not know your
DNS server IP address(es).
If you know your DNS server IP address(es), click Use the following DNS
server addresses, and type them in the Preferred DNS server and
Alternate DNS server fields.
Company Confidential
![](/img.php?id=1180986&img=bg104.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide
260
If you have previously configured DNS servers, click Advanced and then the
DNS tab to order them.
Figure 155 Windows XP: Internet Protocol (TCP/IP) Properties
8Click OK to close the Internet Protocol (TCP/IP) Properties window.
9Click Close (OK in Windows 2000/NT) to close the Local Area Connection
Properties window.
10 Close the Network Connections window (Network and Dial-up Connections
in Windows 2000/NT).
11 Turn on your Prestige and restart your computer (if prompted).
Verifying Settings
1Click Start, All Programs, Accessories and then Command Prompt.
2In the Command Prompt window, type "ipconfig" and then press [ENTER]. You
can also open Network Connections, right-click a network connection, click
Status and then click the Support tab.
Company Confidential
![](/img.php?id=1180986&img=bg105.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide 261
Macintosh OS 8/9
1Click the Apple menu, Control Panel and double-click TCP/IP to open the TCP/
IP Control Panel.
Figure 156 Macintosh OS 8/9: Apple Menu
Company Confidential
![](/img.php?id=1180986&img=bg106.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide
262
2Select Ethernet built-in from the Connect via list.
Figure 157 Macintosh OS 8/9: TCP/IP
3For dynamically assigned settings, select Using DHCP Server from the
Configure: list.
4For statically assigned settings, do the following:
From the Configure box, select Manually.
Type your IP address in the IP Address box.
Type your subnet mask in the Subnet mask box.
Type the IP address of your Prestige in the Router address box.
5Close the TCP/IP Control Panel.
6Click Save if prompted, to save changes to your configuration.
7Turn on your Prestige and restart your computer (if prompted).
Verifying Settings
Check your TCP/IP properties in the TCP/IP Control Panel window.
Company Confidential
![](/img.php?id=1180986&img=bg107.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide 263
Macintosh OS X
1Click the Apple menu, and click System Preferences to open the System
Preferences window.
Figure 158 Macintosh OS X: Apple Menu
2Click Network in the icon bar.
Select Automatic from the Location list.
Select Built-in Ethernet from the Show list.
Click the TCP/IP tab.
3For dynamically assigned settings, select Using DHCP from the Configure list.
Figure 159 Macintosh OS X: Network
Company Confidential
![](/img.php?id=1180986&img=bg108.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide
264
4For statically assigned settings, do the following:
From the Configure box, select Manually.
Type your IP address in the IP Address box.
Type your subnet mask in the Subnet mask box.
Type the IP address of your Prestige in the Router address box.
5Click Apply Now and close the window.
6Turn on your Prestige and restart your computer (if prompted).
Verifying Settings
Check your TCP/IP properties in the Network window.
Linux
This section shows you how to configure your computer!s TCP/IP settings in Red
Hat Linux 9.0. Procedure, screens and file location may vary depending on your
Linux distribution and release version.
Note: Make sure you are logged in as the root administrator.
Using the K Desktop Environment (KDE)
Follow the steps below to configure your computer IP address using the KDE.
1Click the Red Hat button (located on the bottom left corner), select System
Setting and click Network.
Figure 160 Red Hat 9.0: KDE: Network Configuration: Devices
Company Confidential
![](/img.php?id=1180986&img=bg109.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide 265
2Double-click on the profile of the network card you wish to configure. The
Ethernet Device General screen displays as shown.
Figure 161 Red Hat 9.0: KDE: Ethernet Device: General
If you have a dynamic IP address click Automatically obtain IP address
settings with and select dhcp from the drop down list.
If you have a static IP address click Statically set IP Addresses and fill in
the Address, Subnet mask, and Default Gateway Address fields.
3Click OK to save the changes and close the Ethernet Device General screen.
4If you know your DNS server IP address(es), click the DNS tab in the Network
Configuration screen. Enter the DNS server information in the fields provided.
Figure 162 Red Hat 9.0: KDE: Network Configuration: DNS
Company Confidential
![](/img.php?id=1180986&img=bg10a.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide
266
5Click the Devices tab.
6Click the Activate button to apply the changes. The following screen displays.
Click Yes to save the changes in all screens.
Figure 163 Red Hat 9.0: KDE: Network Configuration: Activate
7After the network card restart process is complete, make sure the Status is
Active in the Network Configuration screen.
Using Configuration Files
Follow the steps below to edit the network configuration files and set your
computer IP address.
1Assuming that you have only one network card on the computer, locate the
ifconfig-eth0 configuration file (where eth0 is the name of the Ethernet card).
Open the configuration file with any plain text editor.
If you have a dynamic IP address, enter dhcp in the BOOTPROTO= field. The
following figure shows an example.
Figure 164 Red Hat 9.0: Dynamic IP Address Setting in ifconfig-eth0
DEVICE=eth0
ONBOOT=yes
BOOTPROTO=dhcp
USERCTL=no
PEERDNS=yes
TYPE=Ethernet
Company Confidential
![](/img.php?id=1180986&img=bg10b.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide 267
If you have a static IP address, enter static in the BOOTPROTO= field. Type
IPADDR= followed by the IP address (in dotted decimal notation) and type
NETMASK= followed by the subnet mask. The following example shows an
example where the static IP address is 192.168.1.10 and the subnet mask is
255.255.255.0.
Figure 165 Red Hat 9.0: Static IP Address Setting in ifconfig-eth0
2If you know your DNS server IP address(es), enter the DNS server information in
the resolv.conf file in the /etc directory. The following figure shows an example
where two DNS server IP addresses are specified.
Figure 166 Red Hat 9.0: DNS Settings in resolv.conf
3After you edit and save the configuration files, you must restart the network card.
Enter./network restart in the /etc/rc.d/init.d directory. The following
figure shows an example.
Figure 167 Red Hat 9.0: Restart Ethernet Card
DEVICE=eth0
ONBOOT=yes
BOOTPROTO=static
IPADDR=192.168.1.10
NETMASK=255.255.255.0
USERCTL=no
PEERDNS=yes
TYPE=Ethernet
nameserver 172.23.5.1
nameserver 172.23.5.2
[root@localhost init.d]# network restart
Shutting down interface eth0: [OK]
Shutting down loopback interface: [OK]
Setting network parameters: [OK]
Bringing up loopback interface: [OK]
Bringing up interface eth0: [OK]
Company Confidential
![](/img.php?id=1180986&img=bg10c.png)
Appendix CSetting up Your Computer s IP Address
NBG-419N User s Guide
268
32.1.1 Verifying Settings
Enter ifconfig in a terminal screen to check your TCP/IP properties.
Figure 168 Red Hat 9.0: Checking TCP/IP Properties
[root@localhost]# ifconfig
eth0 Link encap:Ethernet HWaddr 00:50:BA:72:5B:44
inet addr:172.23.19.129 Bcast:172.23.19.255 Mask:255.255.255.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:717 errors:0 dropped:0 overruns:0 frame:0
TX packets:13 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:100
RX bytes:730412 (713.2 Kb) TX bytes:1570 (1.5 Kb)
Interrupt:10 Base address:0x1000
[root@localhost]#
Company Confidential
![](/img.php?id=1180986&img=bg10d.png)
NBG-419N User s Guide 269
APPENDIX D
Wireless LANs
Wireless LAN Topologies
This section discusses ad-hoc and infrastructure wireless LAN topologies.
Ad-hoc Wireless LAN Configuration
The simplest WLAN configuration is an independent (Ad-hoc) WLAN that connects
a set of computers with wireless stations (A, B, C). Any time two or more wireless
adapters are within range of each other, they can set up an independent network,
which is commonly referred to as an Ad-hoc network or Independent Basic Service
Set (IBSS). The following diagram shows an example of notebook computers
using wireless adapters to form an Ad-hoc wireless LAN.
Figure 169 Peer-to-Peer Communication in an Ad-hoc Network
BSS
A Basic Service Set (BSS) exists when all communications between wireless
stations or between a wireless station and a wired network client go through one
access point (AP).
Intra-BSS traffic is traffic between wireless stations in the BSS. When Intra-BSS is
enabled, wireless station A and B can access the wired network and communicate
Company Confidential
![](/img.php?id=1180986&img=bg10e.png)
Appendix DWireless LANs
NBG-419N User s Guide
270
with each other. When Intra-BSS is disabled, wireless station A and B can still
access the wired network but cannot communicate with each other.
Figure 170 Basic Service Set
ESS
An Extended Service Set (ESS) consists of a series of overlapping BSSs, each
containing an access point, with each access point connected together by a wired
network. This wired connection between APs is called a Distribution System (DS).
This type of wireless LAN topology is called an Infrastructure WLAN. The Access
Points not only provide communication with the wired network but also mediate
wireless network traffic in the immediate neighborhood.
Company Confidential
![](/img.php?id=1180986&img=bg10f.png)
Appendix DWireless LANs
NBG-419N User s Guide 271
An ESSID (ESS IDentification) uniquely identifies each ESS. All access points and
their associated wireless stations within the same ESS must have the same ESSID
in order to communicate.
Figure 171 Infrastructure WLAN
Channel
A channel is the radio frequency(ies) used by IEEE 802.11a/b/g wireless devices.
Channels available depend on your geographical area. You may have a choice of
channels (for your region) so you should use a different channel than an adjacent
AP (access point) to reduce interference. Interference occurs when radio signals
from different access points overlap causing interference and degrading
performance.
Adjacent channels partially overlap however. To avoid interference due to overlap,
your AP should be on a channel at least five channels away from a channel that an
adjacent AP is using. For example, if your region has 11 channels and an adjacent
AP is using channel 1, then you need to select a channel between 6 or 11.
RTS/CTS
A hidden node occurs when two stations are within range of the same access
point, but are not within range of each other. The following figure illustrates a
hidden node. Both stations (STA) are within range of the access point (AP) or
Company Confidential
![](/img.php?id=1180986&img=bg110.png)
Appendix DWireless LANs
NBG-419N User s Guide
272
wireless gateway, but out-of-range of each other, so they cannot "hear" each
other, that is they do not know if the channel is currently being used. Therefore,
they are considered hidden from each other.
Figure 172 RTS/CTS
When station A sends data to the AP, it might not know that the station B is
already using the channel. If these two stations send data at the same time,
collisions may occur when both sets of data arrive at the AP at the same time,
resulting in a loss of messages for both stations.
RTS/CTS is designed to prevent collisions due to hidden nodes. An RTS/CTS
defines the biggest size data frame you can send before an RTS (Request To
Send)/CTS (Clear to Send) handshake is invoked.
When a data frame exceeds the RTS/CTS value you set (between 0 to 2432
bytes), the station that wants to transmit this frame must first send an RTS
(Request To Send) message to the AP for permission to send it. The AP then
responds with a CTS (Clear to Send) message to all other stations within its range
to notify them to defer their transmission. It also reserves and confirms with the
requesting station the time frame for the requested transmission.
Stations can send frames smaller than the specified RTS/CTS directly to the AP
without the RTS (Request To Send)/CTS (Clear to Send) handshake.
You should only configure RTS/CTS if the possibility of hidden nodes exists on
your network and the "cost" of resending large frames is more than the extra
network overhead involved in the RTS (Request To Send)/CTS (Clear to Send)
handshake.
If the RTS/CTS value is greater than the Fragmentation Threshold value (see
next), then the RTS (Request To Send)/CTS (Clear to Send) handshake will never
occur as data frames will be fragmented before they reach RTS/CTS size.
Note: Enabling the RTS Threshold causes redundant network overhead that could
negatively affect the throughput performance instead of providing a remedy.
Company Confidential
![](/img.php?id=1180986&img=bg111.png)
Appendix DWireless LANs
NBG-419N User s Guide 273
Fragmentation Threshold
A Fragmentation Threshold is the maximum data fragment size (between 256
and 2432 bytes) that can be sent in the wireless network before the AP will
fragment the packet into smaller data frames.
A large Fragmentation Threshold is recommended for networks not prone to
interference while you should set a smaller threshold for busy networks or
networks that are prone to interference.
If the Fragmentation Threshold value is smaller than the RTS/CTS value (see
previously) you set then the RTS (Request To Send)/CTS (Clear to Send)
handshake will never occur as data frames will be fragmented before they reach
RTS/CTS size.
Preamble Type
A preamble is used to synchronize the transmission timing in your wireless
network. There are two preamble modes: Long and Short.
Short preamble takes less time to process and minimizes overhead, so it should
be used in a good wireless network environment when all wireless stations
support it.
Select Long if you have a 'noisy! network or are unsure of what preamble mode
your wireless stations support as all IEEE 802.11b compliant wireless adapters
must support long preamble. However, not all wireless adapters support short
preamble. Use long preamble if you are unsure what preamble mode the wireless
adapters support, to ensure interpretability between the AP and the wireless
stations and to provide more reliable communication in 'noisy! networks.
Select Dynamic to have the AP automatically use short preamble when all
wireless stations support it, otherwise the AP uses long preamble.
Note: The AP and the wireless stations MUST use the same preamble mode in order
to communicate.
IEEE 802.11g Wireless LAN
IEEE 802.11g is fully compatible with the IEEE 802.11b standard. This means an
IEEE 802.11b adapter can interface directly with an IEEE 802.11g access point
(and vice versa) at 11 Mbps or lower depending on range. IEEE 802.11g has
Company Confidential
![](/img.php?id=1180986&img=bg112.png)
Appendix DWireless LANs
NBG-419N User s Guide
274
several intermediate rate steps between the maximum and minimum data rates.
The IEEE 802.11g data rate and modulation are as follows:
IEEE 802.1x
In June 2001, the IEEE 802.1x standard was designed to extend the features of
IEEE 802.11 to support extended authentication as well as providing additional
accounting and control features. It is supported by Windows XP and a number of
network devices. Some advantages of IEEE 802.1x are:
User based identification that allows for roaming.
Support for RADIUS (Remote Authentication Dial In User Service, RFC 2138,
2139) for centralized user profile and accounting management on a network
RADIUS server.
Support for EAP (Extensible Authentication Protocol, RFC 2486) that allows
additional authentication methods to be deployed with no changes to the access
point or the wireless stations.
RADIUS
RADIUS is based on a client-server model that supports authentication,
authorization and accounting. The access point is the client and the server is the
RADIUS server. The RADIUS server handles the following tasks:
Authentication
Determines the identity of the users.
Authorization
Determines the network services available to authenticated users once they are
connected to the network.
Accounting
Keeps track of the client!s network activity.
RADIUS is a simple package exchange in which your AP acts as a message relay
between the wireless station and the network RADIUS server.
Table 92 IEEE 802.11g
DATA RATE
(MBPS) MODULATION
1DBPSK (Differential Binary Phase Shift Keyed)
2DQPSK (Differential Quadrature Phase Shift Keying)
5.5 / 11CCK (Complementary Code Keying)
6/9/12/18/24/36/
48/54
OFDM (Orthogonal Frequency Division Multiplexing)
Company Confidential
![](/img.php?id=1180986&img=bg113.png)
Appendix DWireless LANs
NBG-419N User s Guide 275
Types of RADIUS Messages
The following types of RADIUS messages are exchanged between the access point
and the RADIUS server for user authentication:
Access-Request
Sent by an access point requesting authentication.
Access-Reject
Sent by a RADIUS server rejecting access.
Access-Accept
Sent by a RADIUS server allowing access.
Access-Challenge
Sent by a RADIUS server requesting more information in order to allow access.
The access point sends a proper response from the user and then sends another
Access-Request message.
The following types of RADIUS messages are exchanged between the access point
and the RADIUS server for user accounting:
Accounting-Request
Sent by the access point requesting accounting.
Accounting-Response
Sent by the RADIUS server to indicate that it has started or stopped accounting.
In order to ensure network security, the access point and the RADIUS server use a
shared secret key, which is a password, they both know. The key is not sent over
the network. In addition to the shared key, password information exchanged is
also encrypted to protect the network from unauthorized access.
Types of Authentication
This appendix discusses some popular authentication types: EAP-MD5, EAP-TLS,
EAP-TTLS, PEAP and LEAP.
The type of authentication you use depends on the RADIUS server or the AP.
Consult your network administrator for more information.
EAP-MD5 (Message-Digest Algorithm 5)
MD5 authentication is the simplest one-way authentication method. The
authentication server sends a challenge to the wireless station. The wireless
station 'proves! that it knows the password by encrypting the password with the
challenge and sends back the information. Password is not sent in plain text.
Company Confidential
![](/img.php?id=1180986&img=bg114.png)
Appendix DWireless LANs
NBG-419N User s Guide
276
However, MD5 authentication has some weaknesses. Since the authentication
server needs to get the plaintext passwords, the passwords must be stored. Thus
someone other than the authentication server may access the password file. In
addition, it is possible to impersonate an authentication server as MD5
authentication method does not perform mutual authentication. Finally, MD5
authentication method does not support data encryption with dynamic session
key. You must configure WEP encryption keys for data encryption.
EAP-TLS (Transport Layer Security)
With EAP-TLS, digital certifications are needed by both the server and the wireless
stations for mutual authentication. The server presents a certificate to the client.
After validating the identity of the server, the client sends a different certificate to
the server. The exchange of certificates is done in the open before a secured
tunnel is created. This makes user identity vulnerable to passive attacks. A digital
certificate is an electronic ID card that authenticates the sender!s identity.
However, to implement EAP-TLS, you need a Certificate Authority (CA) to handle
certificates, which imposes a management overhead.
EAP-TTLS (Tunneled Transport Layer Service)
EAP-TTLS is an extension of the EAP-TLS authentication that uses certificates for
only the server-side authentications to establish a secure connection. Client
authentication is then done by sending username and password through the
secure connection, thus client identity is protected. For client authentication, EAP-
TTLS supports EAP methods and legacy authentication methods such as PAP,
CHAP, MS-CHAP and MS-CHAP v2.
PEAP (Protected EAP)
Like EAP-TTLS, server-side certificate authentication is used to establish a secure
connection, then use simple username and password methods through the
secured connection to authenticate the clients, thus hiding client identity.
However, PEAP only supports EAP methods, such as EAP-MD5, EAP-MSCHAPv2
and EAP-GTC (EAP-Generic Token Card), for client authentication. EAP-GTC is
implemented only by Cisco.
LEAP
LEAP (Lightweight Extensible Authentication Protocol) is a Cisco implementation of
IEEE 802.1x.
Dynamic WEP Key Exchange
The AP maps a unique key that is generated with the RADIUS server. This key
expires when the wireless connection times out, disconnects or reauthentication
times out. A new WEP key is generated each time reauthentication is performed.
Company Confidential
![](/img.php?id=1180986&img=bg115.png)
Appendix DWireless LANs
NBG-419N User s Guide 277
If this feature is enabled, it is not necessary to configure a default encryption key
in the Wireless screen. You may still configure and store keys here, but they will
not be used while Dynamic WEP is enabled.
Note: EAP-MD5 cannot be used with dynamic WEP key exchange
For added security, certificate-based authentications (EAP-TLS, EAP-TTLS and
PEAP) use dynamic keys for data encryption. They are often deployed in corporate
environments, but for public deployment, a simple user name and password pair
is more practical. The following table is a comparison of the features of
authentication types.
WPA(2)
Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i standard. WPA2
(IEEE 802.11i) is a wireless security standard that defines stronger encryption,
authentication and key management than WPA.
Key differences between WPA(2) and WEP are improved data encryption and user
authentication.
Encryption
Both WPA and WPA2 improve data encryption by using Temporal Key Integrity
Protocol (TKIP), Message Integrity Check (MIC) and IEEE 802.1x. In addition to
TKIP, WPA2 also uses Advanced Encryption Standard (AES) in the Counter mode
with Cipher block chaining Message authentication code Protocol (CCMP) to offer
stronger encryption.
Temporal Key Integrity Protocol (TKIP) uses 128-bit keys that are dynamically
generated and distributed by the authentication server. It includes a per-packet
key mixing function, a Message Integrity Check (MIC) named Michael, an
extended initialization vector (IV) with sequencing rules, and a re-keying
mechanism.
Table 93 Comparison of EAP Authentication Types
EAP-MD5 EAP-TLS EAP-TTLS PEAP LEAP
Mutual Authentication No Yes Yes Yes Yes
Certificate $ Client No Yes Optional Optional No
Certificate $ Server No Yes Yes Yes No
Dynamic Key Exchange No Yes Yes Yes Yes
Credential Integrity None Strong Strong Strong Moderate
Deployment Difficulty Easy Hard Moderate Moderate Moderate
Client Identity
Protection
No No Yes Yes No
Company Confidential
![](/img.php?id=1180986&img=bg116.png)
Appendix DWireless LANs
NBG-419N User s Guide
278
TKIP regularly changes and rotates the encryption keys so that the same
encryption key is never used twice. The RADIUS server distributes a Pairwise
Master Key (PMK) key to the AP that then sets up a key hierarchy and
management system, using the pair-wise key to dynamically generate unique
data encryption keys to encrypt every data packet that is wirelessly
communicated between the AP and the wireless clients. This all happens in the
background automatically.
WPA2 AES (Advanced Encryption Standard) is a block cipher that uses a 256-bit
mathematical algorithm called Rijndael.
The Message Integrity Check (MIC) is designed to prevent an attacker from
capturing data packets, altering them and resending them. The MIC provides a
strong mathematical function in which the receiver and the transmitter each
compute and then compare the MIC. If they do not match, it is assumed that the
data has been tampered with and the packet is dropped.
By generating unique data encryption keys for every data packet and by creating
an integrity checking mechanism (MIC), TKIP makes it much more difficult to
decode data on a Wi-Fi network than WEP, making it difficult for an intruder to
break into the network.
The encryption mechanisms used for WPA and WPA-PSK are the same. The only
difference between the two is that WPA-PSK uses a simple common password,
instead of user-specific credentials. The common-password approach makes WPA-
PSK susceptible to brute-force password-guessing attacks but it's still an
improvement over WEP as it employs an easier-to-use, consistent, single,
alphanumeric password.
User Authentication
WPA or WPA2 applies IEEE 802.1x and Extensible Authentication Protocol (EAP) to
authenticate wireless clients using an external RADIUS database.
If both an AP and the wireless clients support WPA2 and you have an external
RADIUS server, use WPA2 for stronger data encryption. If you don't have an
external RADIUS server, you should use WPA2 -PSK (WPA2 -Pre-Shared Key) that
only requires a single (identical) password entered into each access point, wireless
gateway and wireless client. As long as the passwords match, a wireless client will
be granted access to a WLAN.
If the AP or the wireless clients do not support WPA2, just use WPA or WPA-PSK
depending on whether you have an external RADIUS server or not.
Select WEP only when the AP and/or wireless clients do not support WPA or WPA2.
WEP is less secure than WPA or WPA2.
Company Confidential
![](/img.php?id=1180986&img=bg117.png)
Appendix DWireless LANs
NBG-419N User s Guide 279
32.1.2 WPA(2)-PSK Application Example
A WPA(2)-PSK application looks as follows.
1First enter identical passwords into the AP and all wireless clients. The Pre-Shared
Key (PSK) must consist of between 8 and 63 ASCII characters (including spaces
and symbols).
2The AP checks each wireless client's password and (only) allows it to join the
network if the password matches.
3The AP derives and distributes keys to the wireless clients.
4The AP and wireless clients use the TKIP or AES encryption process to encrypt
data exchanged between them.
Figure 173 WPA(2)-PSK Authentication
32.1.3 WPA(2) with RADIUS Application Example
You need the IP address of the RADIUS server, its port number (default is 1812),
and the RADIUS shared secret. A WPA(2) application example with an external
RADIUS server looks as follows. "A" is the RADIUS server. "DS" is the distribution
system.
1The AP passes the wireless client's authentication request to the RADIUS server.
2The RADIUS server then checks the user's identification against its database and
grants or denies network access accordingly.
3The RADIUS server distributes a Pairwise Master Key (PMK) key to the AP that
then sets up a key hierarchy and management system, using the pair-wise key to
dynamically generate unique data encryption keys to encrypt every data packet
that is wirelessly communicated between the AP and the wireless clients.
Company Confidential
![](/img.php?id=1180986&img=bg118.png)
Appendix DWireless LANs
NBG-419N User s Guide
280
Security Parameters Summary
Refer to this table to see what other security parameters you should configure for
each Authentication Method/ key management protocol type. MAC address filters
are not dependent on how you configure these security features.
Table 94 Wireless Security Relational Matrix
AUTHENTICATION
METHOD/ KEY
MANAGEMENT
PROTOCOL
ENCRYPTIO
N METHOD
ENTER
MANUAL KEY IEEE 802.1X
OpenNoneNoDisable
Enable without Dynamic WEP
Key
Open WEP No Enable with Dynamic WEP
Key
Yes Enable without Dynamic WEP
Key
Yes Disable
Shared WEP No Enable with Dynamic WEP
Key
Yes Enable without Dynamic WEP
Key
Yes Disable
WPA TKIP No Enable
WPA-PSK TKIP Yes Enable
WPA2 AES No Enable
WPA2-PSK AES Yes Enable
Company Confidential
![](/img.php?id=1180986&img=bg119.png)
NBG-419N User s Guide 281
APPENDIX E
Common Services
The following table lists some commonly-used services and their associated
protocols and port numbers. For a comprehensive list of port numbers, ICMP type/
code numbers and services, visit the IANA (Internet Assigned Number Authority)
web site.
Name: This is a short, descriptive name for the service. You can use this one or
create a different one, if you like.
Protocol: This is the type of IP protocol used by the service. If this is TCP/
UDP, then the service uses the same port number with TCP and UDP. If this is
USER-DEFINED, the Port(s) is the IP protocol number, not the port number.
Port(s): This value depends on the Protocol. Please refer to RFC 1700 for
further information about port numbers.
If the Protocol is TCP, UDP, or TCP/UDP, this is the IP port number.
If the Protocol is USER, this is the IP protocol number.
Description: This is a brief explanation of the applications that use this service
or the situations in which this service is used.
Table 95 Commonly Used Services
NAME PROTOCOL PORT(S) DESCRIPTION
AH
(IPSEC_TUNNEL)
User-Defined 51 The IPSEC AH (Authentication
Header) tunneling protocol uses this
service.
AIM/New-ICQ TCP 5190 AOL!s Internet Messenger service. It
is also used as a listening port by
ICQ.
AUTH TCP 113 Authentication protocol used by some
servers.
BGP TCP 179 Border Gateway Protocol.
BOOTP_CLIENT UDP 68 DHCP Client.
BOOTP_SERVER UDP 67 DHCP Server.
CU-SEEME TCP
UDP
7648
24032
A popular videoconferencing solution
from White Pines Software.
DNS TCP/UDP 53 Domain Name Server, a service that
matches web names (for example
www.zyxel.com) to IP numbers.
Company Confidential
![](/img.php?id=1180986&img=bg11a.png)
Appendix ECommon Services
NBG-419N User s Guide
282
ESP
(IPSEC_TUNNEL)
User-Defined 50 The IPSEC ESP (Encapsulation
Security Protocol) tunneling protocol
uses this service.
FINGER TCP 79 Finger is a UNIX or Internet related
command that can be used to find out
if a user is logged on.
FTP TCP
TCP
20
21
File Transfer Program, a program to
enable fast transfer of files, including
large files that may not be possible by
e-mail.
H.323 TCP 1720 NetMeeting uses this protocol.
HTTP TCP 80 Hyper Text Transfer Protocol - a
client/server protocol for the world
wide web.
HTTPS TCP 443 HTTPS is a secured http session often
used in e-commerce.
ICMP User-Defined 1 Internet Control Message Protocol is
often used for diagnostic or routing
purposes.
ICQ UDP 4000 This is a popular Internet chat
program.
IGMP
(MULTICAST)
User-Defined 2 Internet Group Management Protocol
is used when sending packets to a
specific group of hosts.
IKE UDP 500 The Internet Key Exchange algorithm
is used for key distribution and
management.
IRC TCP/UDP 6667 This is another popular Internet chat
program.
MSN Messenger TCP 1863 Microsoft Networks! messenger
service uses this protocol.
NEW-ICQ TCP 5190 An Internet chat program.
NEWS TCP 144 A protocol for news groups.
NFS UDP 2049 Network File System - NFS is a client/
server distributed file service that
provides transparent file sharing for
network environments.
NNTP TCP 119 Network News Transport Protocol is
the delivery mechanism for the
USENET newsgroup service.
PING User-Defined 1 Packet INternet Groper is a protocol
that sends out ICMP echo requests to
test whether or not a remote host is
reachable.
POP3 TCP 110 Post Office Protocol version 3 lets a
client computer get e-mail from a
POP3 server through a temporary
connection (TCP/IP or other).
Table 95 Commonly Used Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg11b.png)
Appendix ECommon Services
NBG-419N User s Guide 283
PPTP TCP 1723 Point-to-Point Tunneling Protocol
enables secure transfer of data over
public networks. This is the control
channel.
PPTP_TUNNEL
(GRE)
User-Defined 47 PPTP (Point-to-Point Tunneling
Protocol) enables secure transfer of
data over public networks. This is the
data channel.
RCMD TCP 512 Remote Command Service.
REAL_AUDIO TCP 7070 A streaming audio service that
enables real time sound over the
web.
REXEC TCP 514 Remote Execution Daemon.
RLOGIN TCP 513 Remote Login.
RTELNET TCP 107 Remote Telnet.
RTSP TCP/UDP 554 The Real Time Streaming (media
control) Protocol (RTSP) is a remote
control for multimedia on the
Internet.
SFTP TCP 115 Simple File Transfer Protocol.
SMTP TCP 25 Simple Mail Transfer Protocol is the
message-exchange standard for the
Internet. SMTP enables you to move
messages from one e-mail server to
another.
SNMP TCP/UDP 161 Simple Network Management
Program.
SNMP-TRAPS TCP/UDP 162 Traps for use with the SNMP
(RFC:1215).
SQL-NET TCP 1521 Structured Query Language is an
interface to access data on many
different types of database systems,
including mainframes, midrange
systems, UNIX systems and network
servers.
SSH TCP/UDP 22 Secure Shell Remote Login Program.
STRM WORKS UDP 1558 Stream Works Protocol.
SYSLOG UDP 514 Syslog allows you to send system logs
to a UNIX server.
TACACS UDP 49 Login Host Protocol used for
(Terminal Access Controller Access
Control System).
TELNET TCP 23 Telnet is the login and terminal
emulation protocol common on the
Internet and in UNIX environments. It
operates over TCP/IP networks. Its
primary function is to allow users to
log into remote host systems.
Table 95 Commonly Used Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg11c.png)
Appendix ECommon Services
NBG-419N User s Guide
284
TFTP UDP 69 Trivial File Transfer Protocol is an
Internet file transfer protocol similar
to FTP, but uses the UDP (User
Datagram Protocol) rather than TCP
(Transmission Control Protocol).
VDOLIVE TCP 7000 Another videoconferencing solution.
Table 95 Commonly Used Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
Company Confidential
![](/img.php?id=1180986&img=bg11d.png)
NBG-419N User s Guide 285
APPENDIX F
Legal Information
Copyright
Copyright © 2009 by ZyXEL Communications Corporation.
The contents of this publication may not be reproduced in any part or as a whole,
transcribed, stored in a retrieval system, translated into any language, or
transmitted in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, photocopying, manual, or otherwise, without the prior written
permission of ZyXEL Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or use of any
products, or software described herein. Neither does it convey any license under
its patent rights nor the patent rights of others. ZyXEL further reserves the right
to make changes in any products described herein without notice. This publication
is subject to change without notice.
Certifications
Federal Communications Commission (FCC) Interference Statement
The device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that
may cause undesired operations.
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may cause
Company Confidential
![](/img.php?id=1180986&img=bg11e.png)
Appendix FLegal Information
NBG-419N User s Guide
286
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this device does cause harmful interference to radio/television reception, which
can be determined by turning the device off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
1Reorient or relocate the receiving antenna.
2Increase the separation between the equipment and the receiver.
3Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-
limited to channels 1 through 11.
To comply with FCC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons.
Notices
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Company Confidential
![](/img.php?id=1180986&img=bg11f.png)
Appendix FLegal Information
NBG-419N User s Guide 287
This device has been designed for the WLAN 2.4 GHz network throughout the EC
region and Switzerland, with restrictions in France.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions:
1this device may not cause interference and
2this device must accept any interference, including interference that may cause
undesired operation of the device
This device has been designed to operate with an antenna having a maximum
gain of 2dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry
Canada. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the EIRP is not more than required for successful
communication.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Viewing Certifications
1Go to http://www.zyxel.com.
2Select your product on the ZyXEL home page to go to that product's page.
3Select the certification you wish to view from this page.
Company Confidential
![](/img.php?id=1180986&img=bg120.png)
Appendix FLegal Information
NBG-419N User s Guide
288
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free from
any defects in materials or workmanship for a period of up to two years from the
date of purchase. During the warranty period, and upon proof of purchase, should
the product have indications of failure due to faulty workmanship and/or
materials, ZyXEL will, at its discretion, repair or replace the defective products or
components without charge for either parts or labor, and to whatever extent it
shall deem necessary to restore the product or components to proper operating
condition. Any replacement will consist of a new or re-manufactured functionally
equivalent product of equal or higher value, and will be solely at the discretion of
ZyXEL. This warranty shall not apply if the product has been modified, misused,
tampered with, damaged by an act of God, or subjected to abnormal working
conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy
of the purchaser. This warranty is in lieu of all other warranties, express or
implied, including any implied warranty of merchantability or fitness for a
particular use or purpose. ZyXEL shall in no event be held liable for indirect or
consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact your vendor. You may also refer to
the warranty policy for the region in which you bought the device at http://
www.zyxel.com/web/support_warranty_info.php.
Registration
Register your product online to receive e-mail notices of firmware upgrades and
information at www.zyxel.com for global products, or at www.us.zyxel.com for
North American products.
End-User License Agreement for "NBG-419N"
WARNING: ZyXEL Communications Corp. IS WILLING TO LICENSE THE
ENCLOSED SOFTWARE TO YOU ONLY UPON THE CONDITION THAT YOU ACCEPT
ALL OF THE TERMS CONTAINED IN THIS LICENSE AGREEMENT. PLEASE READ
THE TERMS CAREFULLY BEFORE COMPLETING THE INSTALLATION PROCESS AS
INSTALLING THE SOFTWARE WILL INDICATE YOUR ASSENT TO THEM. IF YOU DO
NOT AGREE TO THESE TERMS, THEN ZyXEL, INC. IS UNWILLING TO LICENSE THE
SOFTWARE TO YOU, IN WHICH EVENT YOU SHOULD RETURN THE UNINSTALLED
SOFTWARE AND PACKAGING TO THE PLACE FROM WHICH IT WAS ACQUIRED,
AND YOUR MONEY WILL BE REFUNDED.
Company Confidential
![](/img.php?id=1180986&img=bg121.png)
Appendix FLegal Information
NBG-419N User s Guide 289
1Grant of License for Personal Use
ZyXEL Communications Corp. ("ZyXEL") grants you a non-exclusive, non-
sublicense, non-transferable license to use the program with which this license is
distributed (the "Software"), including any documentation files accompanying the
Software ("Documentation"), for internal business use only, for up to the number
of users specified in sales order and invoice. You have the right to make one
backup copy of the Software and Documentation solely for archival, back-up or
disaster recovery purposes. You shall not exceed the scope of the license granted
hereunder. Any rights not expressly granted by ZyXEL to you are reserved by
ZyXEL, and all implied licenses are disclaimed.
2Ownership
You have no ownership rights in the Software. Rather, you have a license to use
the Software as long as this License Agreement remains in full force and effect.
Ownership of the Software, Documentation and all intellectual property rights
therein shall remain at all times with ZyXEL. Any other use of the Software by any
other entity is strictly forbidden and is a violation of this License Agreement.
3Copyright
The Software and Documentation contain material that is protected by United
States Copyright Law and trade secret law, and by international treaty provisions.
All rights not granted to you herein are expressly reserved by ZyXEL. You may
not remove any proprietary notice of ZyXEL or any of its licensors from any copy
of the Software or Documentation.
4Restrictions
You may not publish, display, disclose, sell, rent, lease, modify, store, loan,
distribute, or create derivative works of the Software, or any part thereof. You
may not assign, sublicense, convey or otherwise transfer, pledge as security or
otherwise encumber the rights and licenses granted hereunder with respect to the
Software. Certain components of the Software, and third party open source
programs included with the Software, have been or may be made available by
ZyXEL on its Open Source web site (ftp://opensource.zyxel.com) (collectively the
"Open-Sourced Components") You may modify or replace only these Open-
Sourced Components; provided that you comply with the terms of this License
and any applicable licensing terms governing use of the Open-Sourced
Components. ZyXEL is not obligated to provide any maintenance, technical or
other support for the resultant modified Software. You may not copy, reverse
engineer, decompile, reverse compile, translate, adapt, or disassemble the
Software, or any part thereof, nor shall you attempt to create the source code
from the object code for the Software. Except as and only to the extent expressly
permitted in this License, by applicable licensing terms governing use of the Open-
Sourced Components, or by applicable law, you may not market, co-brand,
Company Confidential
![](/img.php?id=1180986&img=bg122.png)
Appendix FLegal Information
NBG-419N User s Guide
290
private label or otherwise permit third parties to link to the Software, or any part
thereof. You may not use the Software, or any part thereof, in the operation of a
service bureau or for the benefit of any other person or entity. You may not
cause, assist or permit any third party to do any of the foregoing. Portions of the
Software utilize or include third party software and other copyright material.
Acknowledgements, licensing terms and disclaimers for such material are
contained in the online electronic documentation for the Software (ftp://
opensource.zyxel.com), and your use of such material is governed by their
respective terms. ZyXEL has provided, as part of the Software package, access to
certain third party software as a convenience. To the extent that the Software
contains third party software, ZyXEL has no express or implied obligation to
provide any technical or other support for such software. Please contact the
appropriate software vendor or manufacturer directly for technical support and
customer service related to its software and products.
5Confidentiality
You acknowledge that the Software contains proprietary trade secrets of ZyXEL
and you hereby agree to maintain the confidentiality of the Software using at least
as great a degree of care as you use to maintain the confidentiality of your own
most confidential information. You agree to reasonably communicate the terms
and conditions of this License Agreement to those persons employed by you who
come into contact with the Software, and to use reasonable best efforts to ensure
their compliance with such terms and conditions, including, without limitation, not
knowingly permitting such persons to use any portion of the Software for the
purpose of deriving the source code of the Software.
6No Warranty
THE SOFTWARE IS PROVIDED "AS IS." TO THE MAXIMUM EXTENT PERMITTED BY
LAW, ZyXEL DISCLAIMS ALL WARRANTIES OF ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ZyXEL DOES
NOT WARRANT THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE WILL MEET
ANY REQUIREMENTS OR NEEDS YOU MAY HAVE, OR THAT THE SOFTWARE WILL
OPERATE ERROR FREE, OR IN AN UNINTERUPTED FASHION, OR THAT ANY
DEFECTS OR ERRORS IN THE SOFTWARE WILL BE CORRECTED, OR THAT THE
SOFTWARE IS COMPATIBLE WITH ANY PARTICULAR PLATFORM. SOME
JURISDICTIONS DO NOT ALLOW THE WAIVER OR EXCLUSION OF IMPLIED
WARRANTIES SO THEY MAY NOT APPLY TO YOU. IF THIS EXCLUSION IS HELD TO
BE UNENFORCEABLE BY A COURT OF COMPETENT JURISDICTION, THEN ALL
EXPRESS AND IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO A
PERIOD OF THIRTY (30) DAYS FROM THE DATE OF PURCHASE OF THE
SOFTWARE, AND NO WARRANTIES SHALL APPLY AFTER THAT PERIOD.
7Limitation of Liability
Company Confidential
![](/img.php?id=1180986&img=bg123.png)
Appendix FLegal Information
NBG-419N User s Guide 291
IN NO EVENT WILL ZyXEL BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT
LIMITATION, INDIRECT, SPECIAL, PUNITIVE, OR EXEMPLARY DAMAGES FOR
LOSS OF BUSINESS, LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
BUSINESS INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE
THE PROGRAM, OR FOR ANY CLAIM BY ANY OTHER PARTY, EVEN IF ZyXEL HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. ZyXEL's AGGREGATE
LIABILITY WITH RESPECT TO ITS OBLIGATIONS UNDER THIS AGREEMENT OR
OTHERWISE WITH RESPECT TO THE SOFTWARE AND DOCUMENTATION OR
OTHERWISE SHALL BE EQUAL TO THE PURCHASE PRICE, BUT SHALL IN NO
EVENT EXCEED THE PRODUCT°ØS PRICE. BECAUSE SOME STATES/COUNTRIES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.
8Export Restrictions
THIS LICENSE AGREEMENT IS EXPRESSLY MADE SUBJECT TO ANY APPLICABLE
LAWS, REGULATIONS, ORDERS, OR OTHER RESTRICTIONS ON THE EXPORT OF
THE SOFTWARE OR INFORMATION ABOUT SUCH SOFTWARE WHICH MAY BE
IMPOSED FROM TIME TO TIME. YOU SHALL NOT EXPORT THE SOFTWARE,
DOCUMENTATION OR INFORMATION ABOUT THE SOFTWARE AND
DOCUMENTATION WITHOUT COMPLYING WITH SUCH LAWS, REGULATIONS,
ORDERS, OR OTHER RESTRICTIONS. YOU AGREE TO INDEMNIFY ZyXEL AGAINST
ALL CLAIMS, LOSSES, DAMAGES, LIABILITIES, COSTS AND EXPENSES,
INCLUDING REASONABLE ATTORNEYS' FEES, TO THE EXTENT SUCH CLAIMS
ARISE OUT OF ANY BREACH OF THIS SECTION 8.
9Audit Rights
ZyXEL SHALL HAVE THE RIGHT, AT ITS OWN EXPENSE, UPON REASONABLE
PRIOR NOTICE, TO PERIODICALLY INSPECT AND AUDIT YOUR RECORDS TO
ENSURE YOUR COMPLIANCE WITH THE TERMS AND CONDITIONS OF THIS
LICENSE AGREEMENT.
10 Termination
This License Agreement is effective until it is terminated. You may terminate this
License Agreement at any time by destroying or returning to ZyXEL all copies of
the Software and Documentation in your possession or under your control. ZyXEL
may terminate this License Agreement for any reason, including, but not limited
to, if ZyXEL finds that you have violated any of the terms of this License
Agreement. Upon notification of termination, you agree to destroy or return to
ZyXEL all copies of the Software and Documentation and to certify in writing that
all known copies, including backup copies, have been destroyed. All provisions
relating to confidentiality, proprietary rights, and non-disclosure shall survive the
termination of this Software License Agreement.
Company Confidential
![](/img.php?id=1180986&img=bg124.png)
Appendix FLegal Information
NBG-419N User s Guide
292
11 General
This License Agreement shall be construed, interpreted and governed by the laws
of Republic of China without regard to conflicts of laws provisions thereof. The
exclusive forum for any disputes arising out of or relating to this License
Agreement shall be an appropriate court or Commercial Arbitration Association
sitting in ROC, Taiwan. This License Agreement shall constitute the entire
Agreement between the parties hereto. This License Agreement, the rights
granted hereunder, the Software and Documentation shall not be assigned by you
without the prior written consent of ZyXEL. Any waiver or modification of this
License Agreement shall only be effective if it is in writing and signed by both
parties hereto. If any part of this License Agreement is found invalid or
unenforceable by a court of competent jurisdiction, the remainder of this License
Agreement shall be interpreted so as to reasonably effect the intention of the
parties.
Note: NOTE: Some components of the Vantage CNM 2.3 incorporate source code
covered under the Apache License, GPL License, LGPL License, Sun License,
and Castor License. To obtain the source code covered under those Licenses,
please check ftp://opensource.zyxel.com to get it.
Company Confidential
![](/img.php?id=1180986&img=bg125.png)
Index
NBG-419N User s Guide 293
Index
A
ActiveX 169
Address Assignment 120
Alert 199
alternative subnet mask notation 244
AP 21
AP (Access Point) 271
AP Mode
menu 76
status screen 74, 81
AP+Bridge 21
Auto-bridge 132, 133
B
Bandwidth management
overview 173
priority 176
services 181
BitTorrent 181
Bridge/Repeater 21
bridged APs, security 102
BSS 269
C
CA 276
Certificate Authority 276
certifications 285
notices 286
viewing 287
Channel 65, 75, 271
Interference 271
channel 100
Configuration
restore 208
content filtering 167
by keyword (in URL) 168
by web feature 167
Cookies 169
copyright 285
CPU usage 66, 75, 83
CTS (Clear to Send) 272
D
Daylight saving 202
DDNS 151
see also Dynamic DNS
service providers 152
DHCP 44, 139
DHCP server
see also Dynamic Host Configuration Protocol
DHCP server 136, 139
DHCP table 44
DHCP client information
DHCP status
Dimensions 225
disclaimer 285
DNS 141
DNS Server 120
DNS server 141
Domain Name System 141
Domain Name System. See DNS.
duplex setting 66, 76, 83
Dynamic DNS 151
Dynamic Host Configuration Protocol 139
Dynamic WEP Key Exchange 276
DynDNS 152
DynDNS see also DDNS 152
Company Confidential
![](/img.php?id=1180986&img=bg126.png)
Index
NBG-419N User s Guide
294
E
EAP Authentication 275
Encryption 277
encryption 101
key 102
WPA compatible 102
ESS 270
ESSID 222
Extended Service Set 270
F
FCC interference statement 285
File Transfer Program 181
Firewall
ICMP packets 163
Firmware upload 205
file extension
using HTTP
firmware version 65, 74, 82
Fragmentation Threshold 273
FTP. see also File Transfer Program 181
G
General wireless LAN screen 103
H
Hidden Node 271
HTTP 181
Hyper Text Transfer Protocol 181
I
IANA 250
IBSS 269
IEEE 802.11g 273
IGMP 121
see also Internet Group Multicast Protocol
version
IGMP version 121
Independent Basic Service Set 269
Internet Assigned Numbers Authority
See IANA
Internet Group Multicast Protocol 121
IP Address 137, 138, 144, 145
IP alias 137
IP Pool 140
J
Java 169
L
LAN 135
IP pool setup 136
LAN overview 135
LAN setup 135
LAN TCP/IP 136
Language 211
Link type 66, 75, 83
Local Area Network 135
Log 200
M
MAC 109
MAC address 101, 121
cloning 121
MAC address filter 101
MAC address filtering 109
MAC filter 109
managing the device
good habits 22
using the web configurator. See web
configurator.
using the wireless switch.
Company Confidential
![](/img.php?id=1180986&img=bg127.png)
Index
NBG-419N User s Guide 295
using the WPS. See WPS.
MBSSID 21
Media access control 109
Memory usage 66, 75, 83
mode 21
Multicast 121
IGMP 121
N
NAT 143, 144, 249
how it works 143
overview 143
see also Network Address Translation
NAT Traversal 187
Navigation Panel 67, 76
navigation panel 67, 76
Network Address Translation 143, 144
O
Operating Channel 65, 75
operating mode 21
P
P2P 181
peer-to-peer 181
Point-to-Point Protocol over Ethernet 124
Point-to-Point Tunneling Protocol 126
Pool Size 140
Port forwarding 145
default server 145
local server 145
port speed 66, 76, 83
Power Specification 225
PPPoE 124
dial-up connection
PPTP 126
Preamble Mode 273
product registration 288
Q
Quality of Service (QoS) 111
R
RADIUS 274
Shared Secret Key 275
RADIUS Message Types 275
RADIUS Messages 275
registration
product 288
related documentation 3
Remote management
and NAT 184
limitations 183
system timeout 184
Reset button 41
Reset the device 41
Restore configuration 208
RF (Radio Frequency) 226
RIP 157
Roaming 110
RTS (Request To Send) 272
RTS Threshold 271, 272
RTS/CTS Threshold 100, 110
S
safety warnings 7
Scheduling 114
Security Parameters 280
Service and port numbers 165, 180
Service Set 59, 103
Service Set IDentification 59, 103
Service Set IDentity. See SSID.
Session Initiated Protocol 181
SIP 181
SSID 59, 65, 75, 82, 100, 103
Static DHCP 140
Static Route 153
Status 64
Company Confidential
![](/img.php?id=1180986&img=bg128.png)
Index
NBG-419N User s Guide
296
subnet 241
Subnet Mask 137, 138
subnet mask 242
subnetting 245
Summary
DHCP table 44
Packet statistics 45
Wireless station status 46
syntax conventions 5
Sys Op Mode 213
System General Setup 197
System Name 198
System restart 211
T
TCP/IP configuration 139
Temperature 225
Time setting 201
trigger port 147
Trigger port forwarding 147
example 149
process 149
U
Universal Plug and Play 187
Application 188
Security issues 188
UPnP 187
URL Keyword Blocking 169
Use Authentication 278
User Name 152
V
VoIP 181
VPN 126
W
WAN (Wide Area Network) 119
WAN advanced 132
WAN MAC address 121
warranty 288
note 288
Web Configurator
how to access 37
Overview 37
web configurator 22
Web Proxy 169
WEP Encryption 86, 106, 108
WEP encryption 105
WEP key 105
Wireless association list 46
wireless channel 222
wireless LAN 222
wireless LAN scheduling 114
Wireless network
basic guidelines 100
channel 100
encryption 101
example 99
MAC address filter 101
overview 99
security 100
SSID 100
Wireless security 100
overview 100
type 100
wireless security 222
wireless switch 22
Wireless tutorial 89
WPS 89
Wizard setup 25
WLAN
Interference 271
Security Parameters 280
World Wide Web 181
WPA compatible 102
WPA, WPA2 277
WPS 22
WWW 181
Company Confidential
![](/img.php?id=1180986&img=bg129.png)
Index
NBG-419N User s Guide 297
X
Xbox Live 181
Company Confidential
![](/img.php?id=1180986&img=bg12a.png)
Index
NBG-419N User s Guide
298
Company Confidential
