ZyXEL Communications NWD2105 Wireless N-lite USB Adapter User Manual NWD2105 0531
ZyXEL Communications Corporation Wireless N-lite USB Adapter NWD2105 0531
Contents
- 1. UserMan-1_I88NWD2105
- 2. UserMan-2_I88NWD2105
UserMan-1_I88NWD2105
About This User's Guide
NWD2105 User’s Guide 3
About This User's Guide
Intended Audience
This manual is intended for people who want to configure the NWD2105 using the
ZyXEL utility.
Tips for Reading User’s Guides On-Screen
When reading a ZyXEL User’s Guide On-Screen, keep the following in mind:
•If you don’t already have the latest version of Adobe Reader, you can download
it from http://www.adobe.com.
•Use the PDF’s bookmarks to quickly navigate to the areas that interest you.
Adobe Reader’s bookmarks pane opens by default in all ZyXEL User’s Guide
PDFs.
•If you know the page number or know vaguely which page-range you want to
view, you can enter a number in the toolbar in Reader, then press [ENTER] to
jump directly to that page.
•Type [CTRL]+[F] to open the Adobe Reader search utility and enter a word or
phrase. This can help you quickly pinpoint the information you require. You can
also enter text directly into the toolbar in Reader.
•To quickly move around within a page, press the [SPACE] bar. This turns your
cursor into a “hand” with which you can grab the page and move it around freely
on your screen.
•Embedded hyperlinks are actually cross-references to related text. Click them to
jump to the corresponding section of the User’s Guide PDF.
Related Documentation
•Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. It
contains information on setting up your network and configuring for Internet
access.
•Online Help
Embedded web help for descriptions of individual screens and supplementary
information.
•Support Disc
Refer to the included CD for support documents.
Documentation Feedback
Send your comments, questions or suggestions to: techwriters@zyxel.com.tw
About This User's Guide
NWD2105 User’s Guide
4
Thank you!
The Technical Writing Team, ZyXEL Communications Corp.,
6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 30099, Taiwan.
Need More Help?
More help is available at www.zyxel.com.

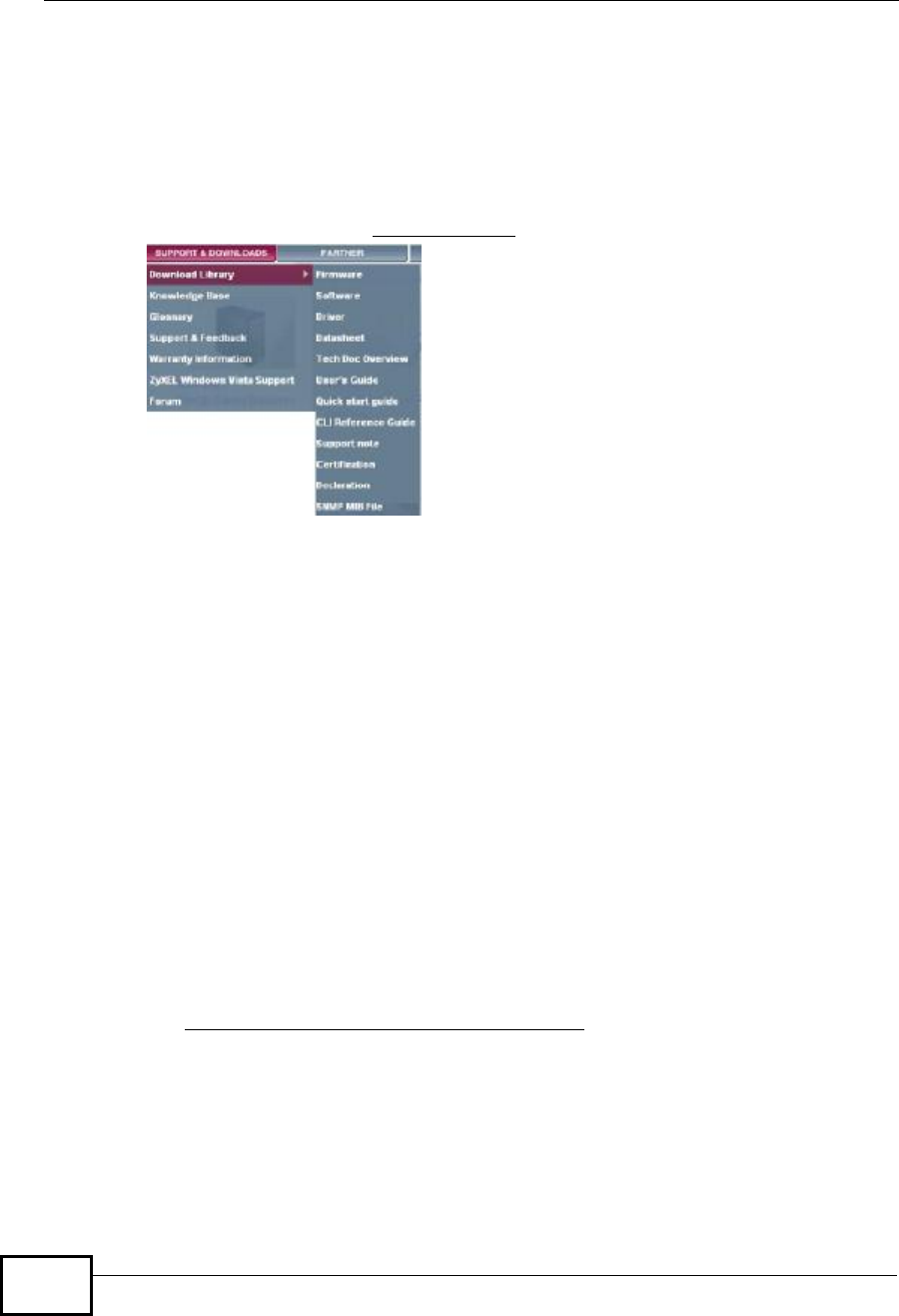

•Download Library
Search for the latest product updates and documentation from this link. Read
the Tech Doc Overview to find out how to efficiently use the documentation in
order to better understand how to use your product.
•Knowledge Base
If you have a specific question about your product, the answer may be here.
This is a collection of answers to previously asked questions about ZyXEL
products.
•Forum
This contains discussions on ZyXEL products. Learn from others who use ZyXEL
products and share your experiences as well.
Customer Support
Should problems arise that cannot be solved by the methods listed above, you
should contact your vendor. If you cannot contact your vendor, then contact a
ZyXEL office for the region in which you bought the device.
See http://www.zyxel.com/web/contact_us.php for contact information. Please
have the following information ready when you contact an office.
•Product model and serial number.
•Warranty Information.
•Date that you received your device.
•Brief description of the problem and the steps you took to solve it.
Document Conventions
NWD2105 User’s Guide 5
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this User’s Guide.
Warnings tell you about things that could harm you or your
NWD2105.
Note: Notes tell you other important information (for example, other things you may
need to configure or helpful tips) or recommendations.
Syntax Conventions
•The NWD2105 may be referred to as the “NWD2105”, the “device”, the “system”
or the “product” in this User’s Guide.
•Product labels, screen names, field labels and field choices are all in bold font.
•A key stroke is denoted by square brackets and uppercase text, for example,
[ENTER] means the “enter” or “return” key on your keyboard.
•“Enter” means for you to type one or more characters and then press the
[ENTER] key. “Select” or “choose” means for you to use one of the predefined
choices.
•A right angle bracket ( > ) within a screen name denotes a mouse click. For
example, Maintenance > Log > Log Setting means you first click
Maintenance in the navigation panel, then the Log sub menu and finally the
Log Setting tab to get to that screen.
•Units of measurement may denote the “metric” value or the “scientific” value.
For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may
denote “1000000” or “1048576” and so on.
•“e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other
words”.
Document Conventions
NWD2105 User’s Guide
6

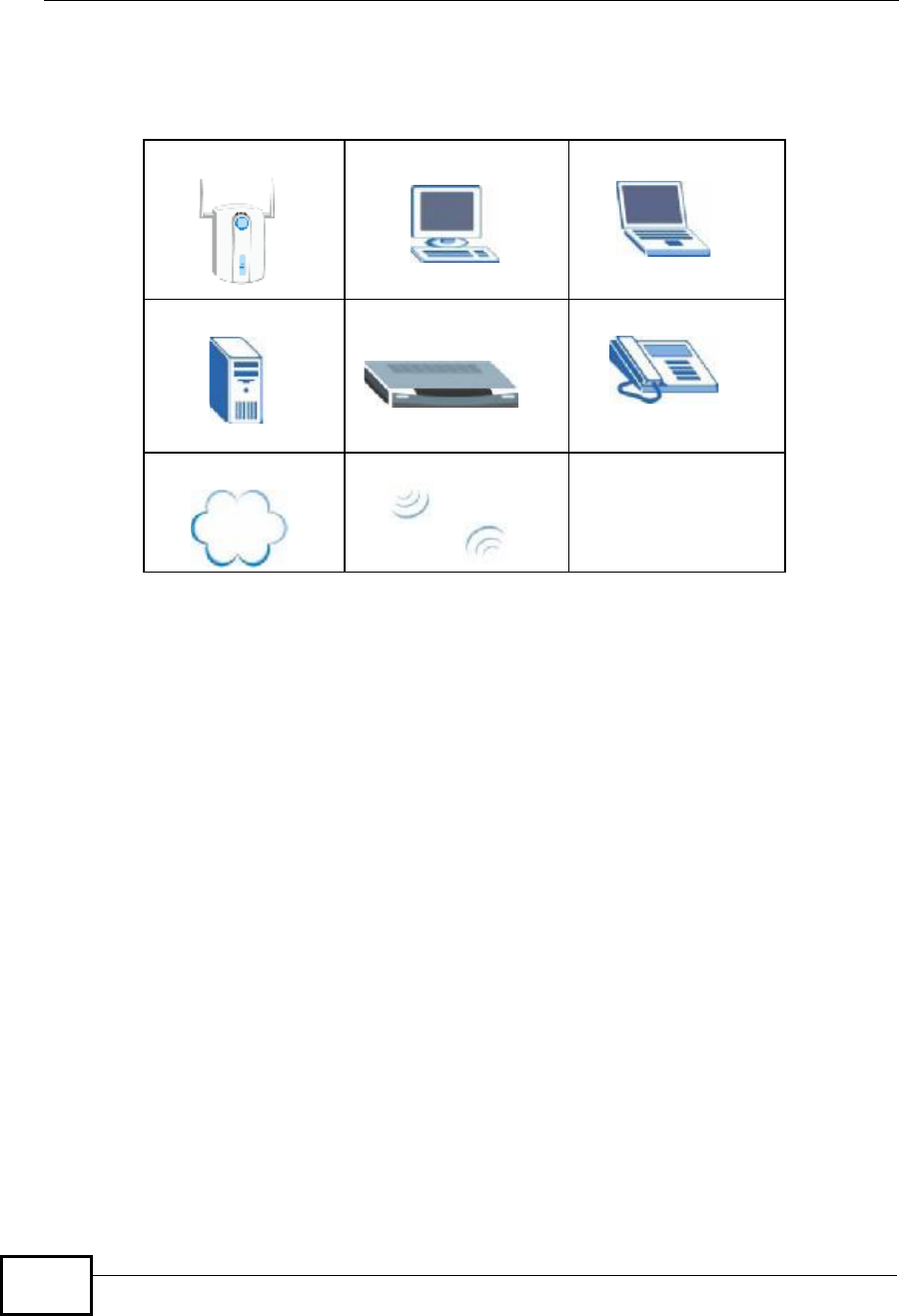

Icons Used in Figures
Figures in this User’s Guide may use the following generic icons.
Wireless Access Point Computer Notebook computer
Server Modem Telephone
Internet Wireless Signal
Safety Warnings
NWD2105 User’s Guide 7
Safety Warnings
•Do NOT use this product near water, for example, in a wet basement or near a swimming
pool.
•Do NOT expose your device to dampness, dust or corrosive liquids.
•Do NOT store things on the device.
•Do NOT install, use, or service this device during a thunderstorm. There is a remote risk
of electric shock from lightning.
•Connect ONLY suitable accessories to the device.
•Ground yourself (by properly using an anti-static wrist strap, for example) whenever
working with the device’s hardware or connections.
•ONLY qualified service personnel should service or disassemble this device.
•Antenna Warning! This device meets ETSI and FCC certification requirements when using
the included antenna(s). Only use the included antenna(s).
Your product is marked with this symbol, which is known as the WEEE mark.
WEEE stands for Waste Electronics and Electrical Equipment. It means that
used electrical and electronic products should not be mixed with general waste.
Used electrical and electronic equipment should be treated separately.
Safety Warnings
NWD2105 User’s Guide
8
Contents Overview
NWD2105 User’s Guide 9
Contents Overview
Introduction and Configuration ............................................................................................15
Getting Started ...........................................................................................................................17
Tutorial .......................................................................................................................................23
Wireless LANs ...........................................................................................................................37
Station Mode ..............................................................................................................................49
AP Mode ....................................................................................................................................75
Maintenance ..............................................................................................................................85
Troubleshooting and Specifications ....................................................................................89
Troubleshooting .........................................................................................................................91
Product Specifications ...............................................................................................................95
Appendices and Index ...........................................................................................................99
Contents Overview
NWD2105 User’s Guide
10
Table of Contents
NWD2105 User’s Guide 11
Table of Contents
About This User's Guide..........................................................................................................3
Document Conventions............................................................................................................5
Safety Warnings........................................................................................................................7
Contents Overview...................................................................................................................9
Table of Contents....................................................................................................................11
Part I: Introduction and Configuration.................................................15
Chapter 1
Getting Started........................................................................................................................17
1.1 Overview ..............................................................................................................................17
1.1.1 What You Need to Know ............................................................................................17
1.1.2 Before You Begin .......................................................................................................18
1.2 About Your NWD2105 .......................................................................................................18
1.2.1 Hardware ....................................................................................................................18
1.3 Application Overview ...........................................................................................................19
1.3.1 Infrastructure ..............................................................................................................19
1.3.2 Ad-Hoc .......................................................................................................................20
1.4 Hardware and Utility Installation ..........................................................................................20
1.4.1 ZyXEL Utility Icon .......................................................................................................20
1.5 Configuration Methods .......................................................................................................21
1.5.1 Enabling Windows Wireless Configuration ................................................................21
1.5.2 Accessing the ZyXEL Utility ......................................................................................21
Chapter 2
Tutorial.....................................................................................................................................23
2.1 Overview ..............................................................................................................................23
2.1.1 What You Can Do in This Tutorial ..............................................................................23
2.1.2 What You Need to Know ............................................................................................23
2.1.3 Before You Begin .......................................................................................................24
2.2 Connecting to an AP using Wi-Fi Protected Setup (WPS) ..................................................24
2.2.1 Push Button Configuration (PBC) ..............................................................................24
2.2.2 PIN Configuration .......................................................................................................25
2.3 Connecting to an AP Without Using WPS ...........................................................................29
Table of Contents
NWD2105 User’s Guide
12
2.3.1 Manually Connecting to a Wireless LAN ...................................................................29
2.3.2 Creating and Using a Profile ......................................................................................31
2.4 Configuring the NWD2105 as an AP ...................................................................................34
Chapter 3
Wireless LANs.........................................................................................................................37
3.1 Overview ..............................................................................................................................37
3.1.1 What You Can Do in This Section ..............................................................................37
3.1.2 What You Need to Know ............................................................................................37
3.1.3 Before You Begin .......................................................................................................38
3.2 Wireless LAN Overview ......................................................................................................38
3.3 Wireless LAN Security ........................................................................................................39
3.3.1 User Authentication and Encryption ...........................................................................39
3.4 WiFi Protected Setup ...........................................................................................................41
3.4.1 Push Button Configuration .........................................................................................42
3.4.2 PIN Configuration .......................................................................................................42
3.4.3 How WPS Works ........................................................................................................44
3.4.4 Limitations of WPS .....................................................................................................47
Chapter 4
Station Mode............................................................................................................................49
4.1 Overview ..............................................................................................................................49
4.1.1 What You Can Do in This Section ..............................................................................49
4.1.2 What You Need to Know ............................................................................................49
4.1.3 Before You Begin .......................................................................................................50

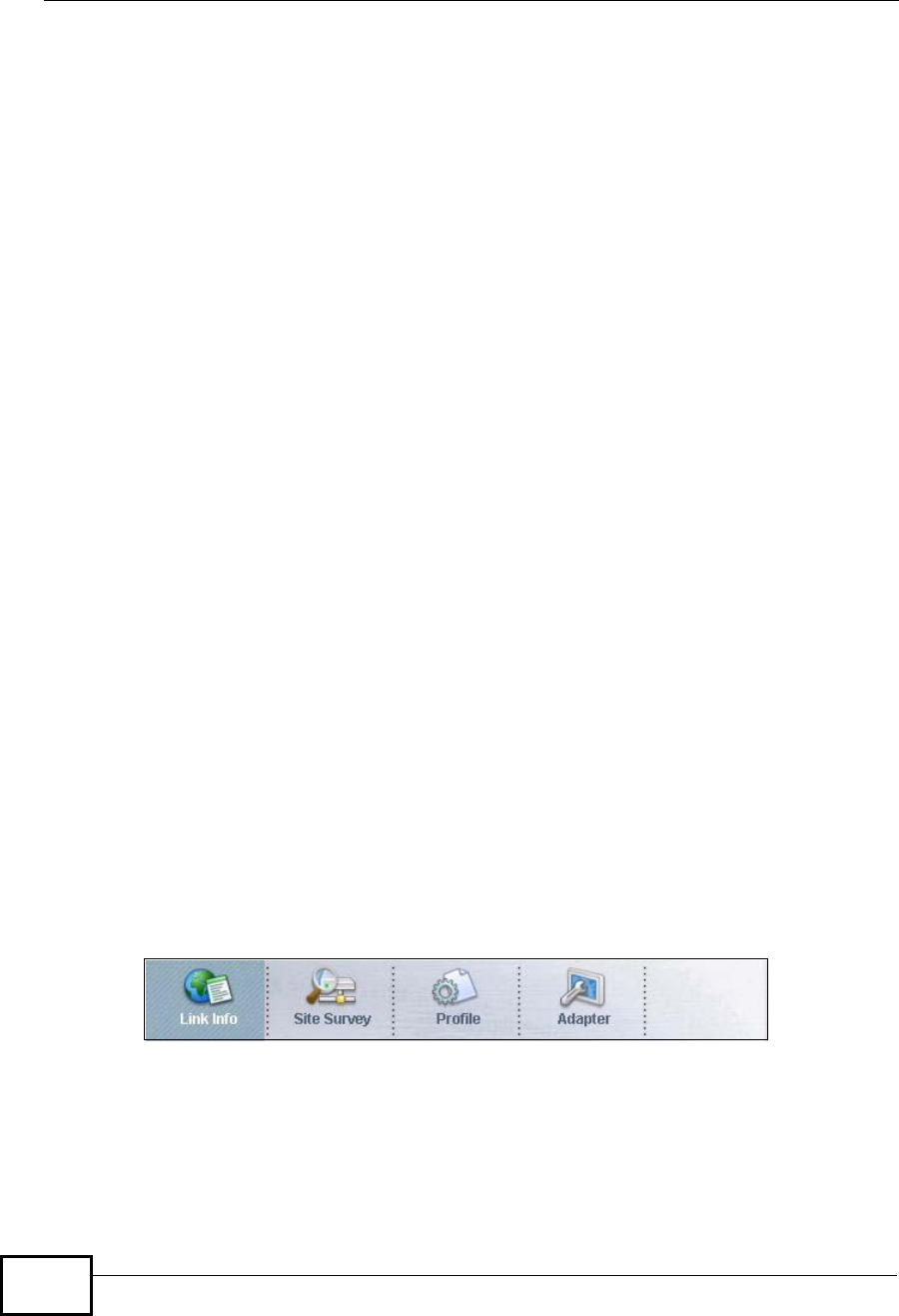

4.2 ZyXEL Utility Screen Summary ...........................................................................................50
4.3 The Link Info Screen ..........................................................................................................51

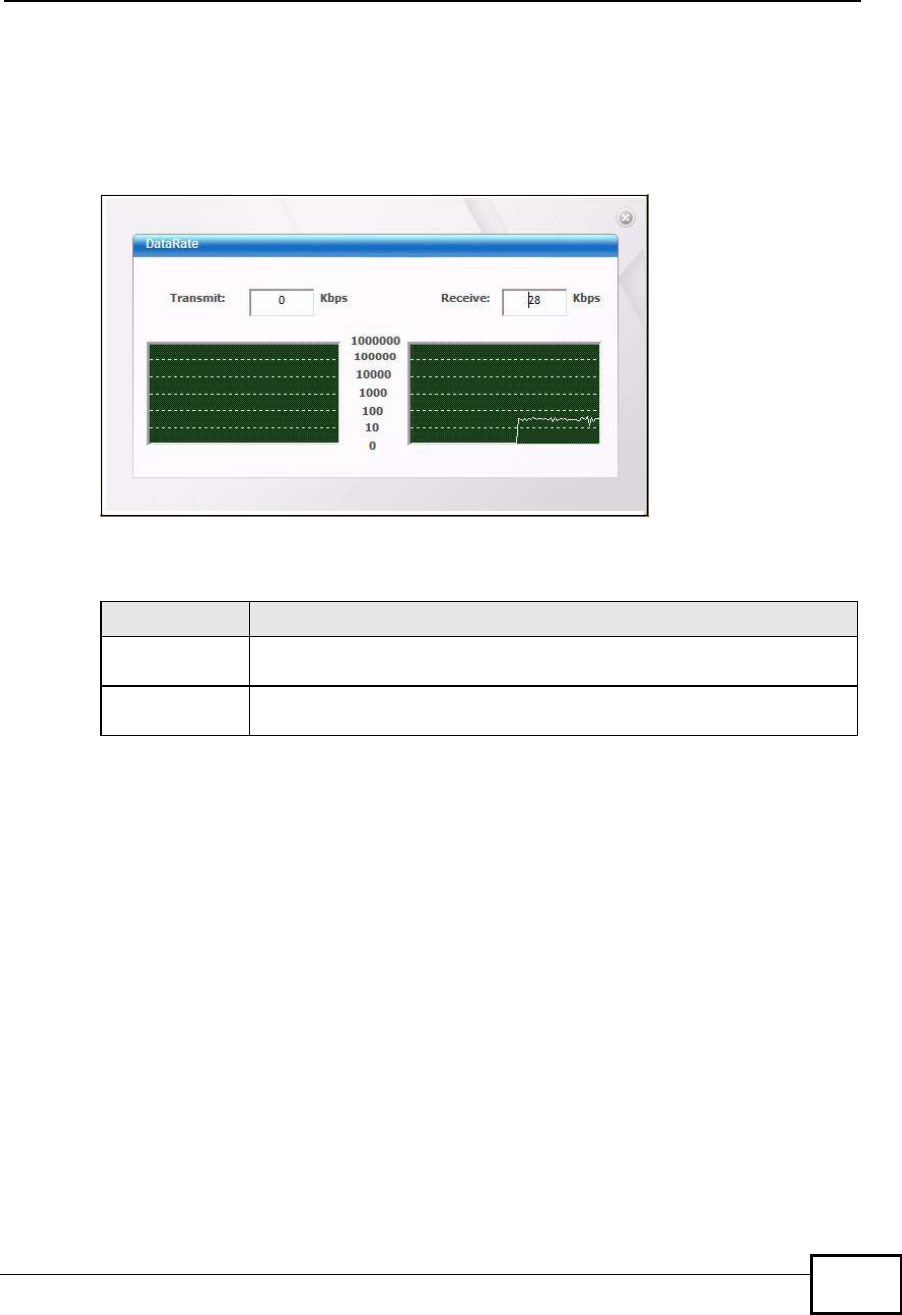

4.3.1 Trend Chart ................................................................................................................53

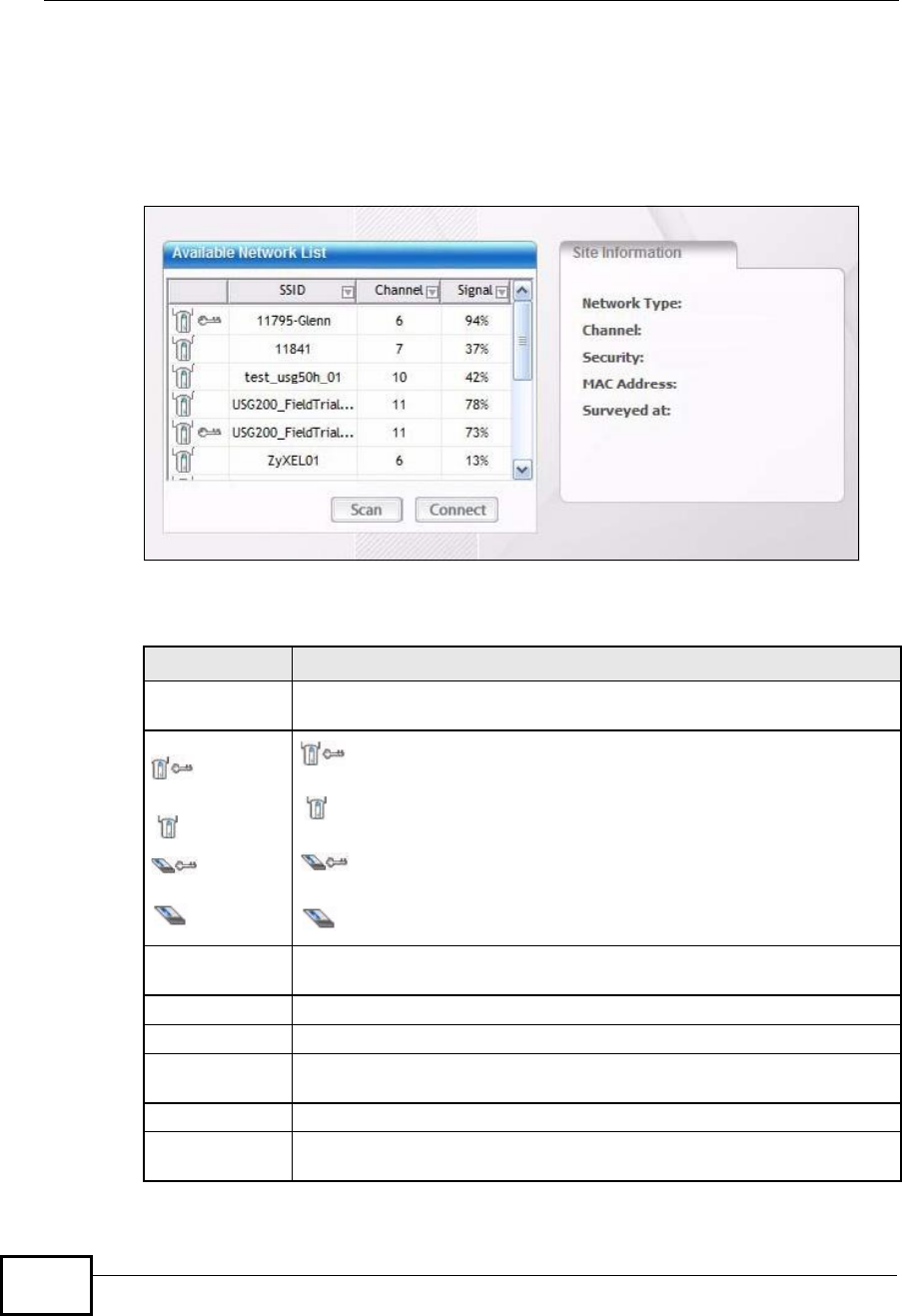

4.4 The Site Survey Screen .....................................................................................................54

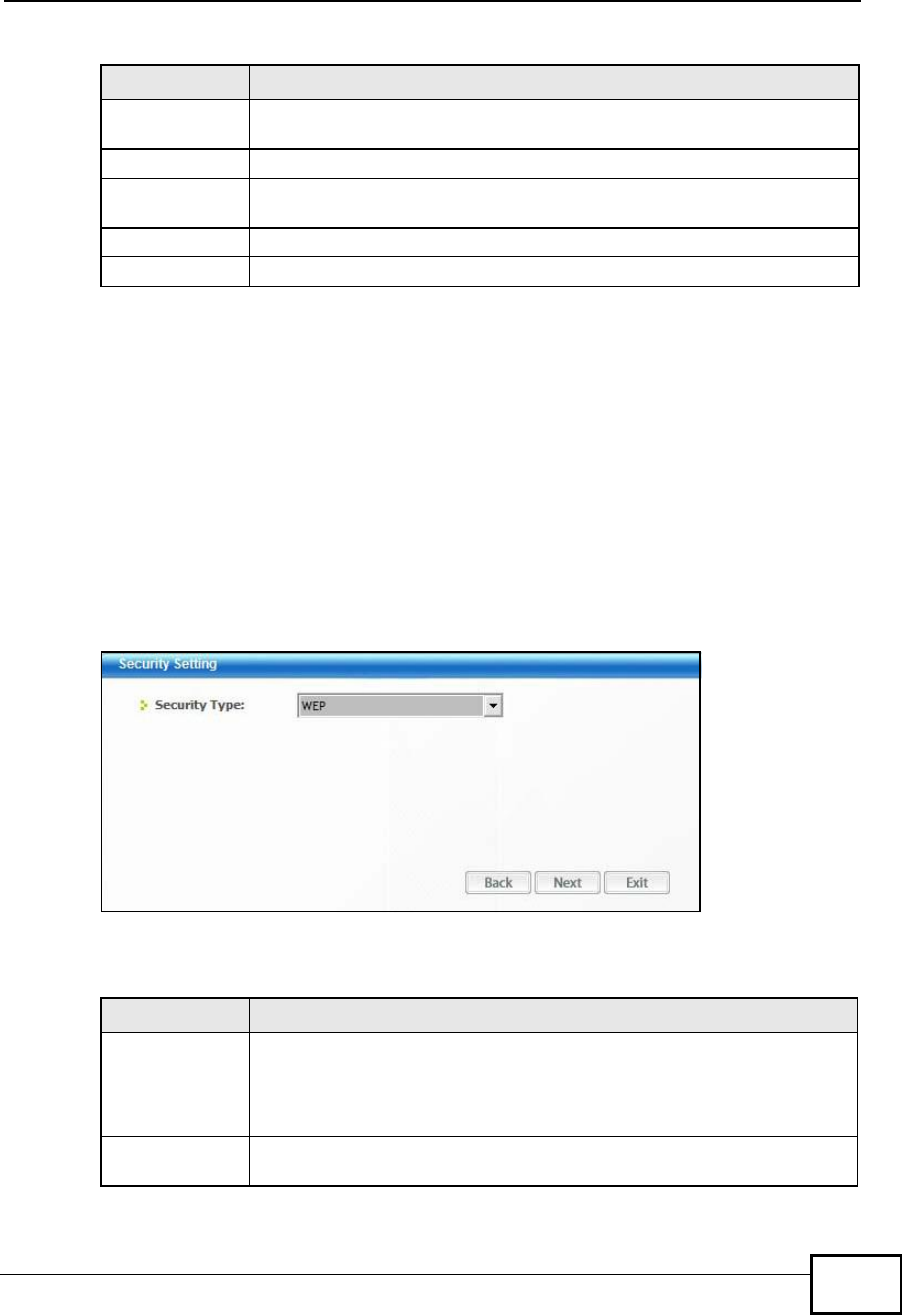

4.4.1 Security Settings .......................................................................................................55
4.4.2 Summary Screen .......................................................................................................61

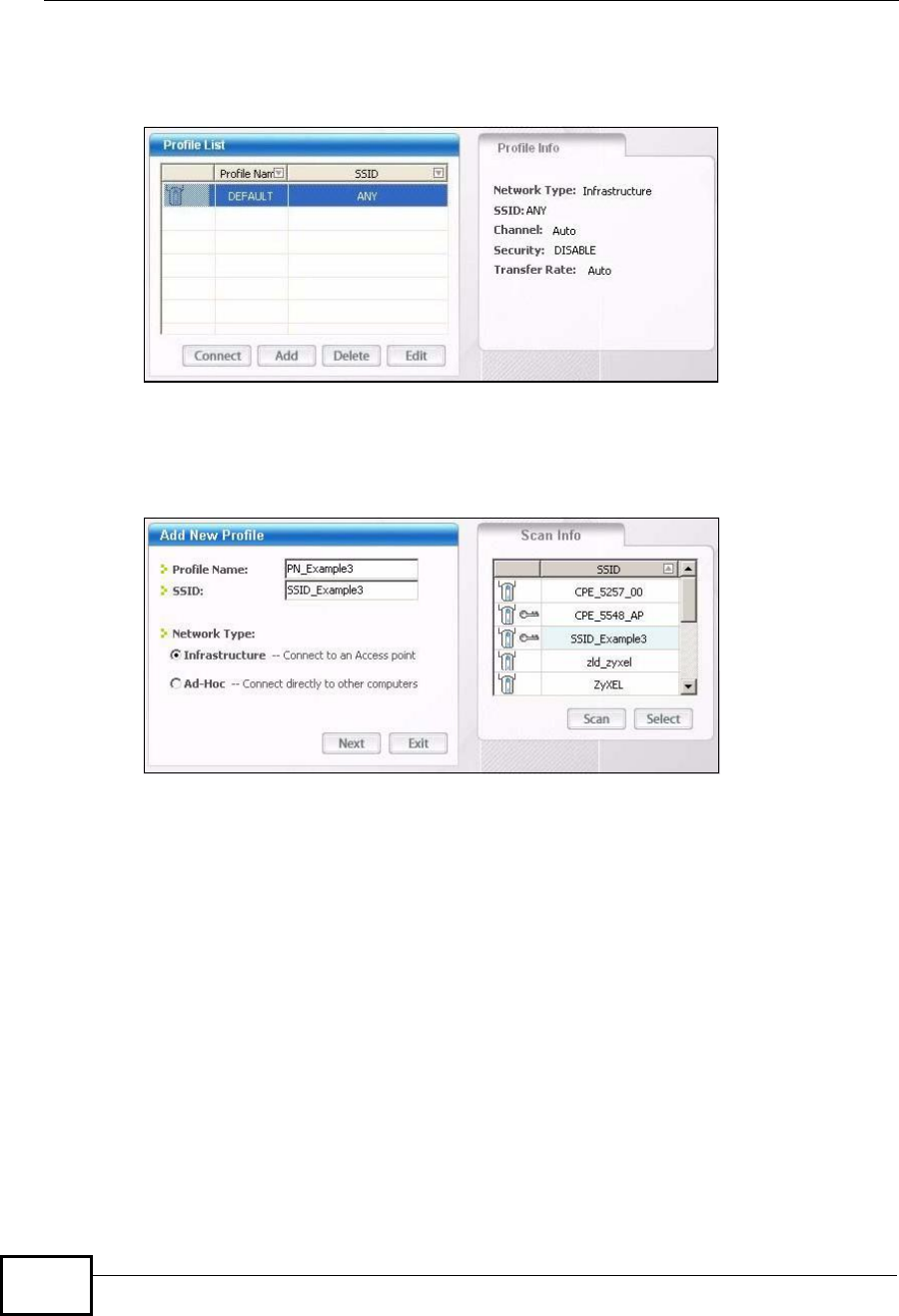

4.5 The Profile Screen ..............................................................................................................62
4.5.1 Adding a New Profile ..................................................................................................64
4.6 The Adapter Screen ...........................................................................................................68
4.6.1 WPS: PBC (Push Button Configuration) ....................................................................69

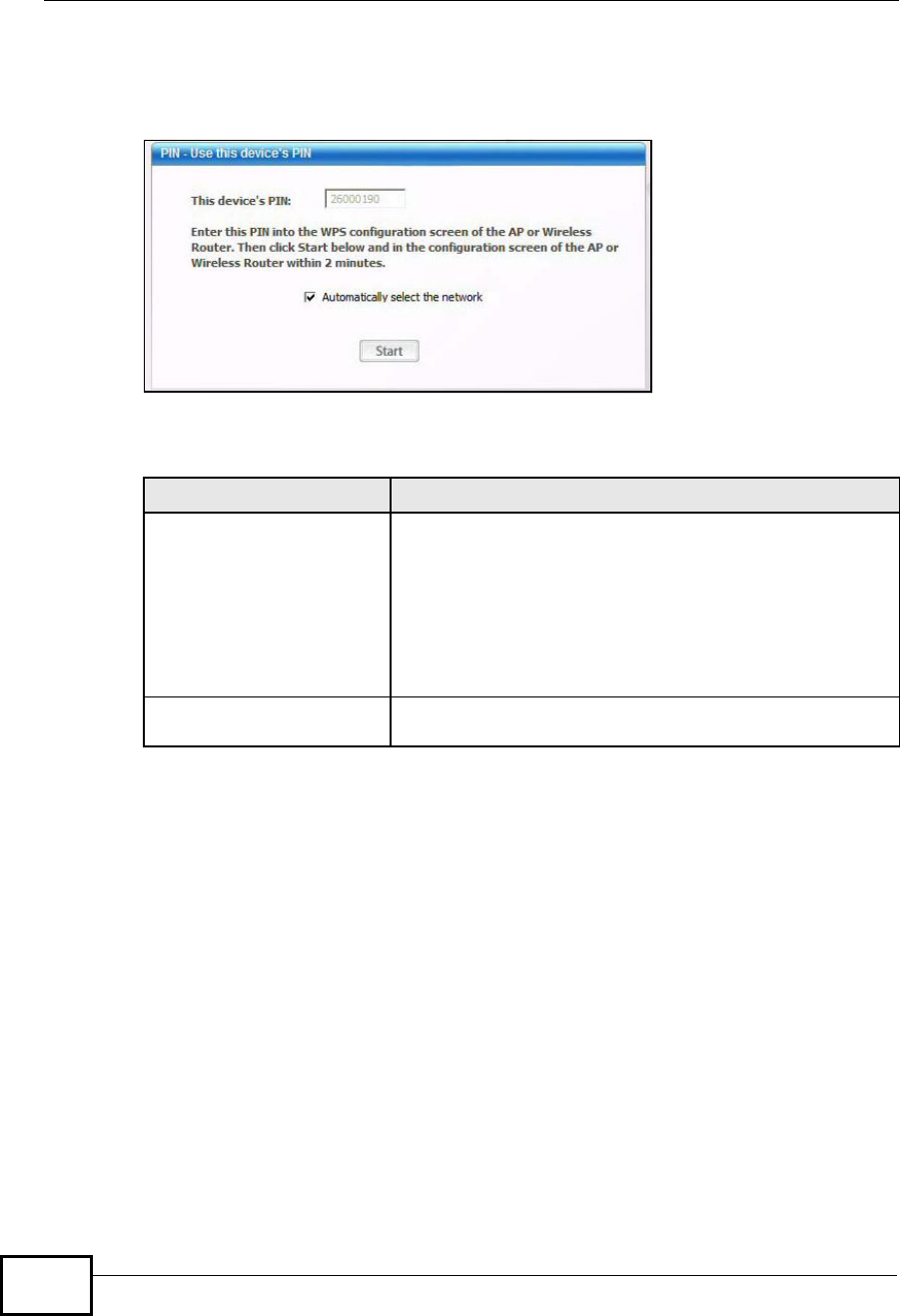

4.6.2 WPS: PIN - Use this Device’s PIN .............................................................................69
4.6.3 WPS: PIN - Use the PIN from the AP or Wireless Router ..........................................70

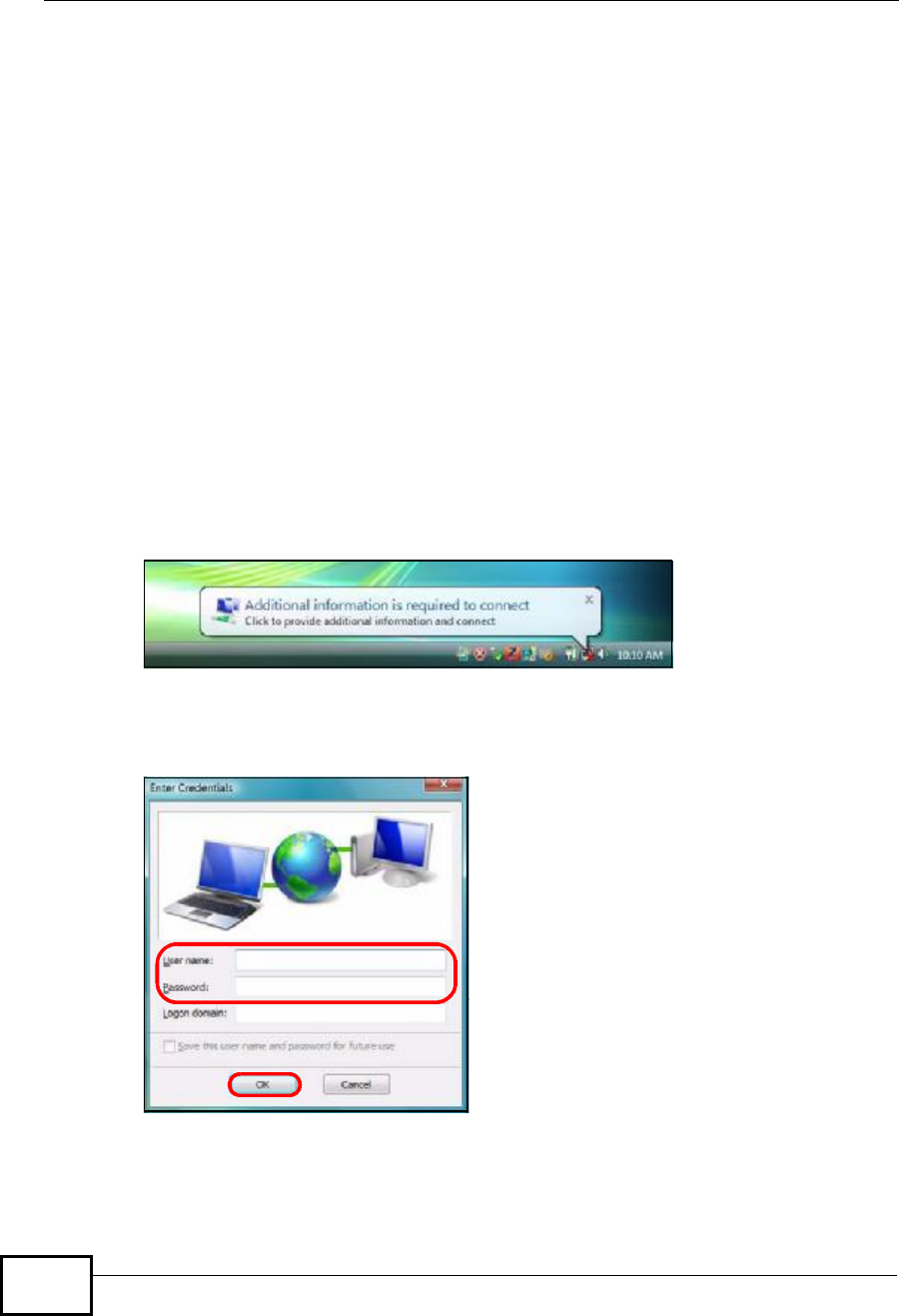

4.7 Security Settings in Windows Vista ....................................................................................71

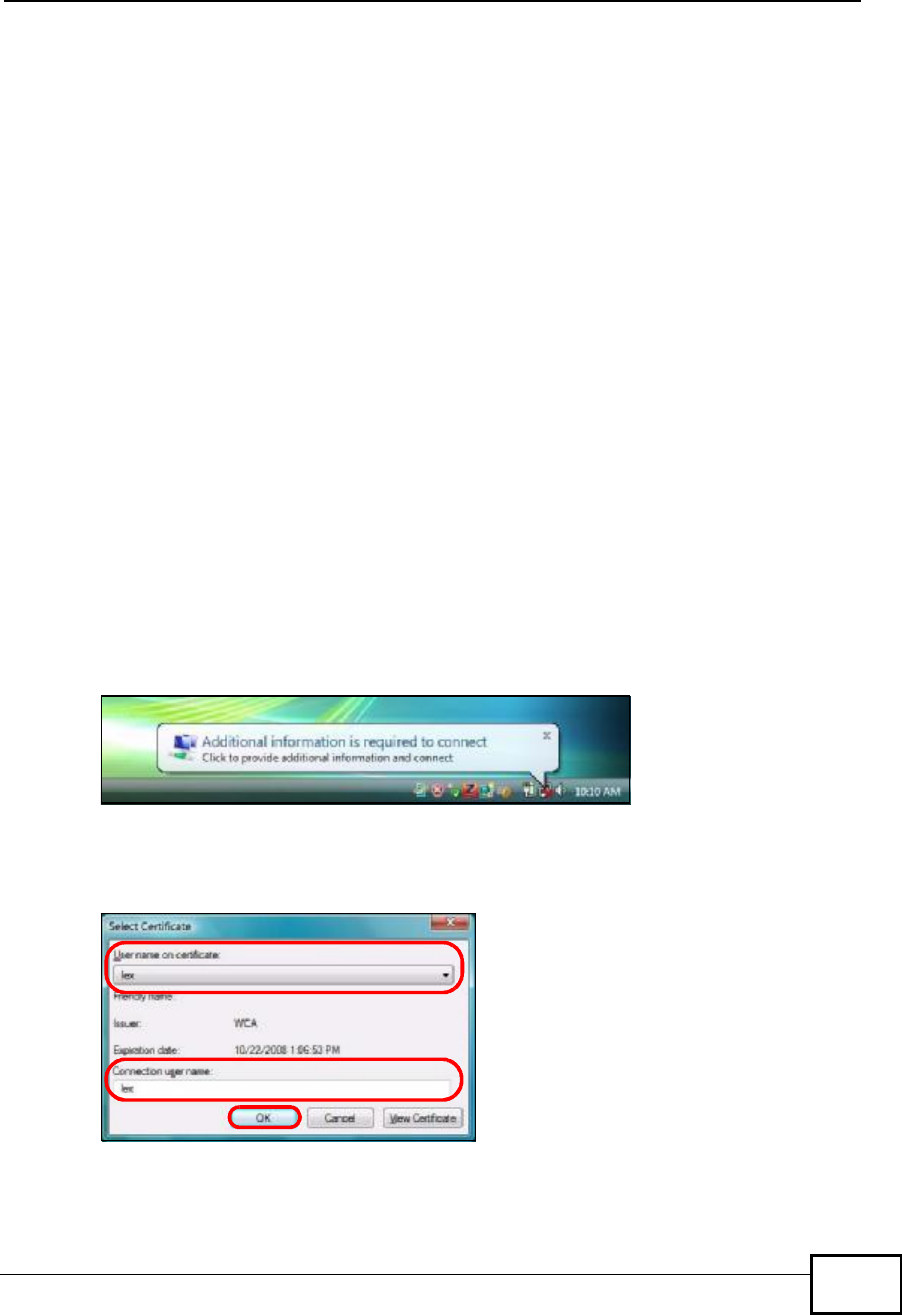

4.7.1 Using PEAP in Vista ...................................................................................................72
4.7.2 Using TLS in Vista .....................................................................................................73
Chapter 5
AP Mode...................................................................................................................................75
Table of Contents
NWD2105 User’s Guide 13
5.1 Overview ..............................................................................................................................75
5.1.1 What You Can Do in This Section ..............................................................................76
5.1.2 What You Need to Know ............................................................................................76
5.1.3 Before You Begin .......................................................................................................77

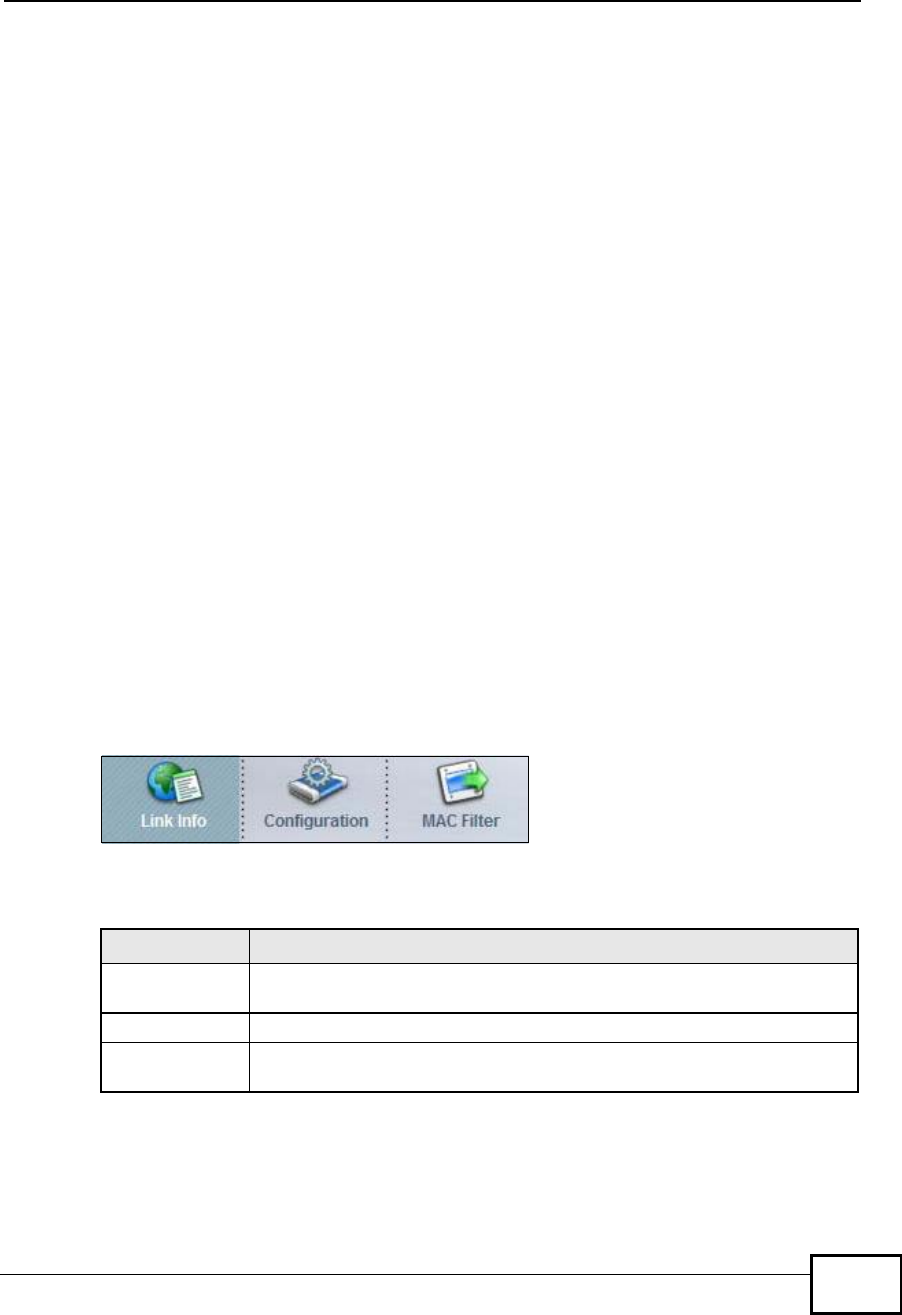

5.2 AP Mode Screen Summary .................................................................................................77

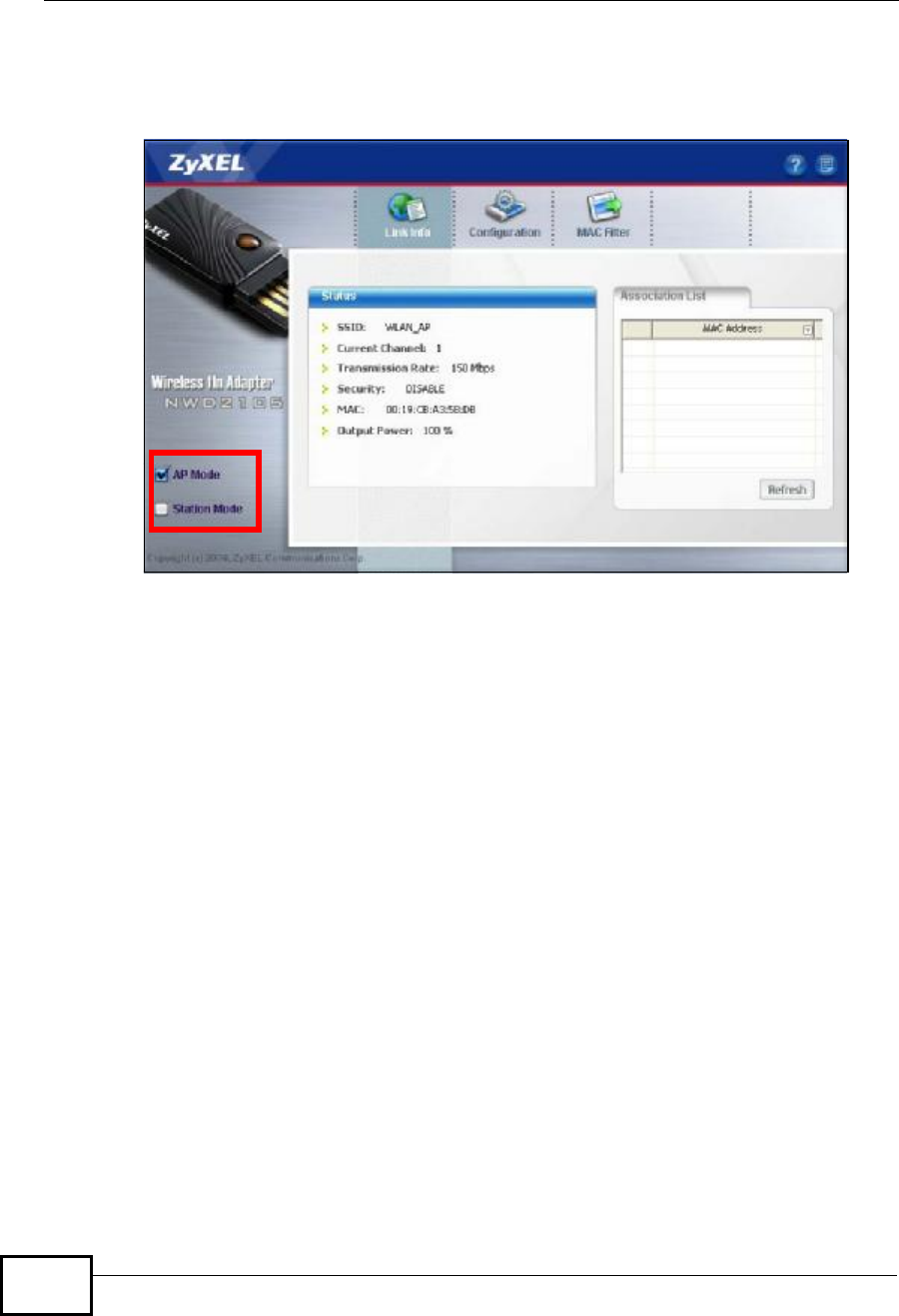

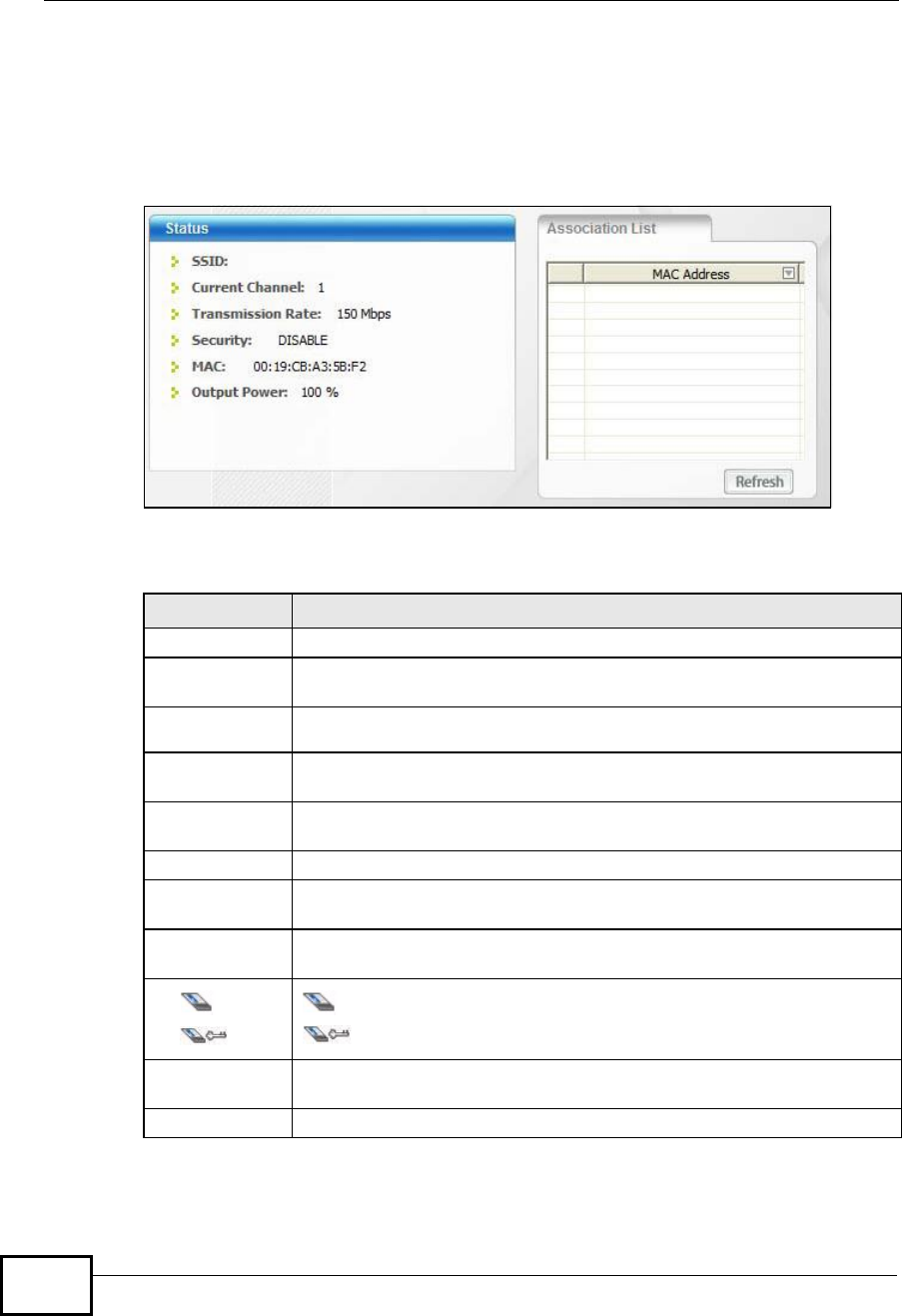

5.3 The Link Info Screen ..........................................................................................................78

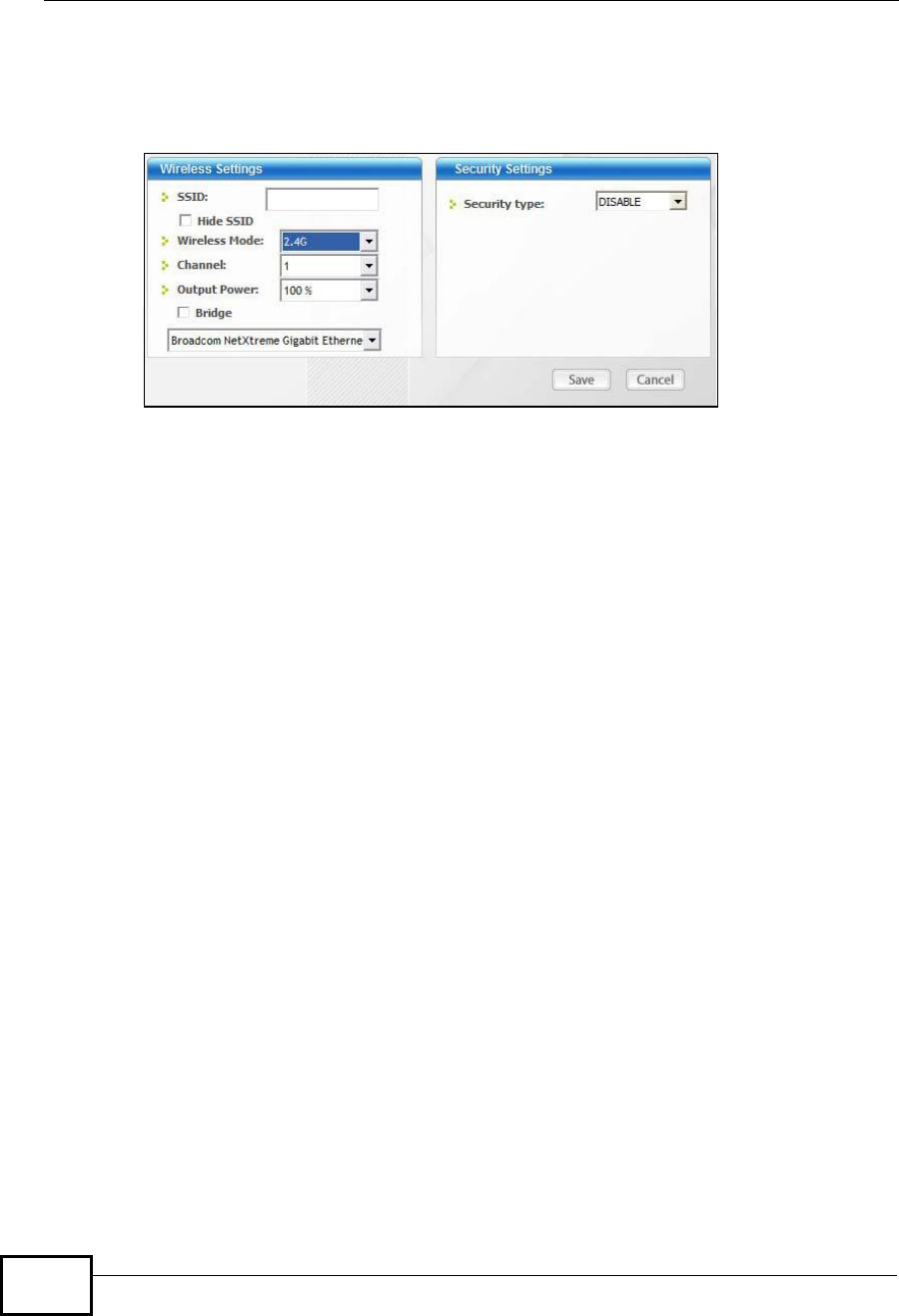

5.4 The Configuration Screen ...................................................................................................79
5.4.1 Security Settings .......................................................................................................80
5.5 The MAC Filter Screen ........................................................................................................83
Chapter 6
Maintenance............................................................................................................................85
6.1 Overview ..............................................................................................................................85
6.1.1 What You Can Do in This Section ..............................................................................85
6.1.2 What You Need to Know ............................................................................................85
6.1.3 Before You Begin .......................................................................................................85
6.2 The About Screen ...............................................................................................................86

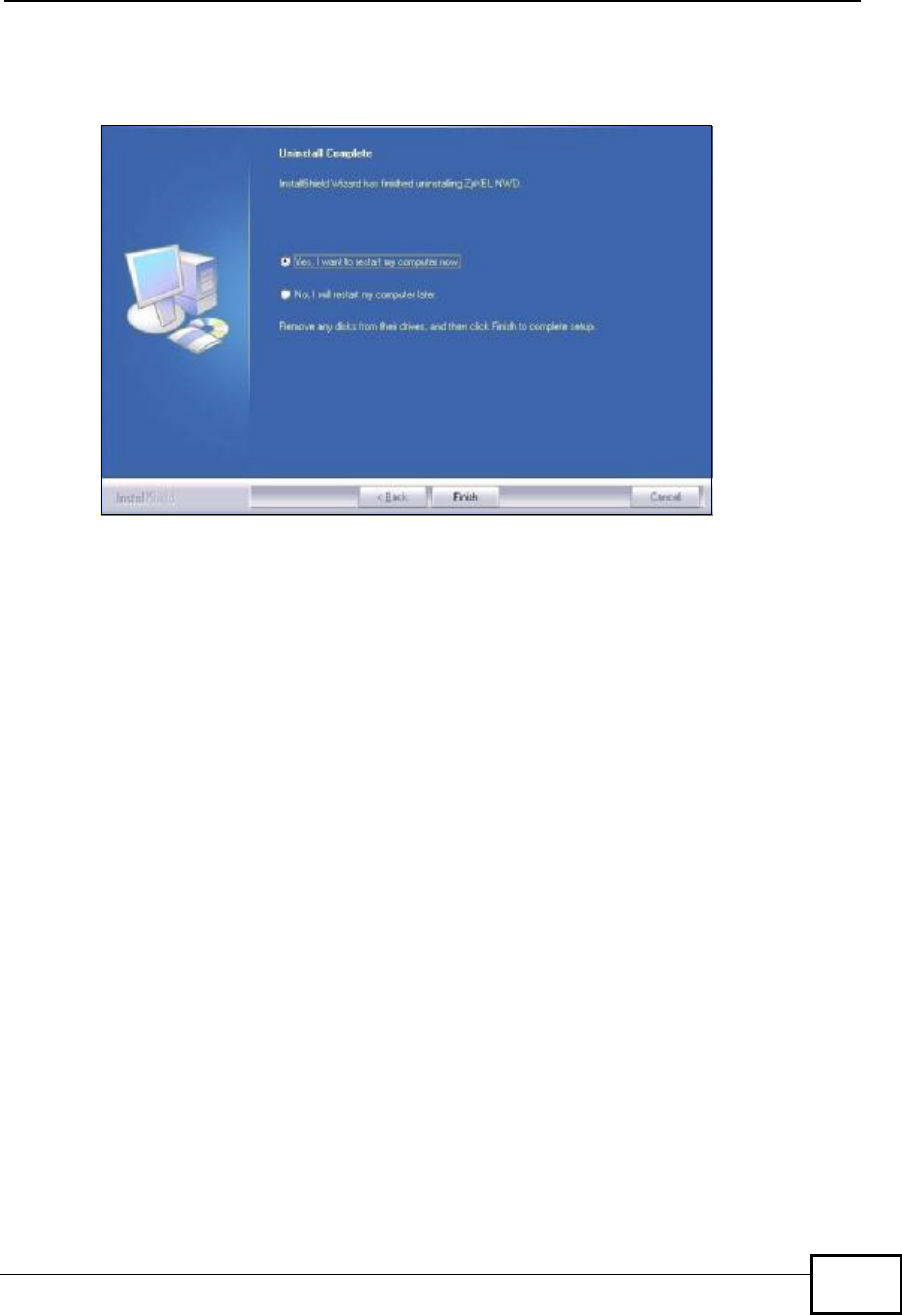

6.3 Uninstalling the ZyXEL Utility ..............................................................................................86
6.4 Upgrading the ZyXEL Utility ................................................................................................87
Part II: Troubleshooting and Specifications........................................89
Chapter 7
Troubleshooting......................................................................................................................91
7.1 Power, Hardware Connections, and LEDs ..........................................................................91
7.2 Accessing the ZyXEL Utility .................................................................................................92
7.3 Link Quality ..........................................................................................................................92
7.4 Problems Communicating with Other Computers ...............................................................93
Chapter 8
Product Specifications...........................................................................................................95
Part III: Appendices and Index..............................................................99
Appendix A Setting Up Your Computer’s IP Address...........................................................101
Appendix B Wireless LANs..................................................................................................131
Appendix C Windows Wireless Management......................................................................147
Appendix D Wireless for Windows 7....................................................................................173
Table of Contents
NWD2105 User’s Guide
14
Appendix E Legal Information..............................................................................................179
Index.......................................................................................................................................185
15
PART I
Introduction and
Configuration
Getting Started (17)
Tutorial (23)
Wireless LANs (37)
Station Mode (49)
AP Mode (75)
Maintenance (85)
16
NWD2105 User’s Guide 17
CHAPTER 1
Getting Started
1.1 Overview
The ZyXEL NWD2105 wireless N-lite USB adapter brings you a better Internet
experience over existing 802.11 networks. With data rates of up to 150 Mbps, you
can enjoy a breathtaking high-speed connection at home or in the office. It is an
excellent solution for daily activities such as file transfers, music downloading,
video streaming and online gaming.
This section includes:
•About Your NWD2105 on page 18
•Application Overview on page 19
•Hardware and Utility Installation on page 20
•Configuration Methods on page 21
1.1.1 What You Need to Know
The following terms and concepts may help as you read through this section, and
subsequently as you read through the rest of the User’s Guide.
Access Point
An Access Point (AP) is a network device that acts as a bridge between a wired
and a wireless network. Outside of the home or office, APs can most often be
found in coffee shops, bookstores and other businesses that offer wireless
Internet connectivity to their customers.
Infrastructure
An infrastructure network is one that seamlessly combines both wireless and
wired components. One or more APs often serve as the bridge between wireless
and wired LANs.
Chapter 1Getting Started
NWD2105 User’s Guide
18
Ad-Hoc
An Ad-Hoc wireless LAN is a self-contained group of computers connected
wirelessly and which is independent of any other networks and Access Points.
1.1.2 Before You Begin
•Read the Quick Start Guide for information on making hardware connections
and using the ZyXEL utility to connect your NWD2105 to a network.
1.2 About Your NWD2105
Your NWD2105 is an IEEE 802.11n compliant wireless LAN adapter. It can also
connect to IEEE 802.11b/g wireless networks. The NWD2105 is WPS (Wi-Fi
Protected Setup) compliant. WPS allows you to easily connect to another WPS-
enabled device.
The NWD2105 is a USB adapter which connects to an empty USB port on your
computer.
See your NWD2105’s Quick Start Guide for installation instructions, and see the
section on product specifications in this User’s Guide for detailed information.
1.2.1 Hardware
This section describes the NWD2105’s physical appearance.
Figure 1 The NWD2105
The following table describes the NWD2105.
Table 1 NWD2105 External View
LABEL DESCRIPTION
ALED and also a WPS button
BUSB connector
A
B
Chapter 1Getting Started
NWD2105 User’s Guide 19
The following table describes the operation of the NWD2105’s LEDs.
1.3 Application Overview
This section describes some network applications for the NWD2105. You can either
set the network type to Infrastructure and connect to an AP or use Ad-Hoc
mode and connect to a peer computer (another wireless device in Ad-Hoc mode).
1.3.1 Infrastructure
To connect to a network via an access point (AP), set the NWD2105 network type
to Infrastructure (see Chapter 4 on page 62). Through the AP, you can access
the Internet or the wired network behind the AP.

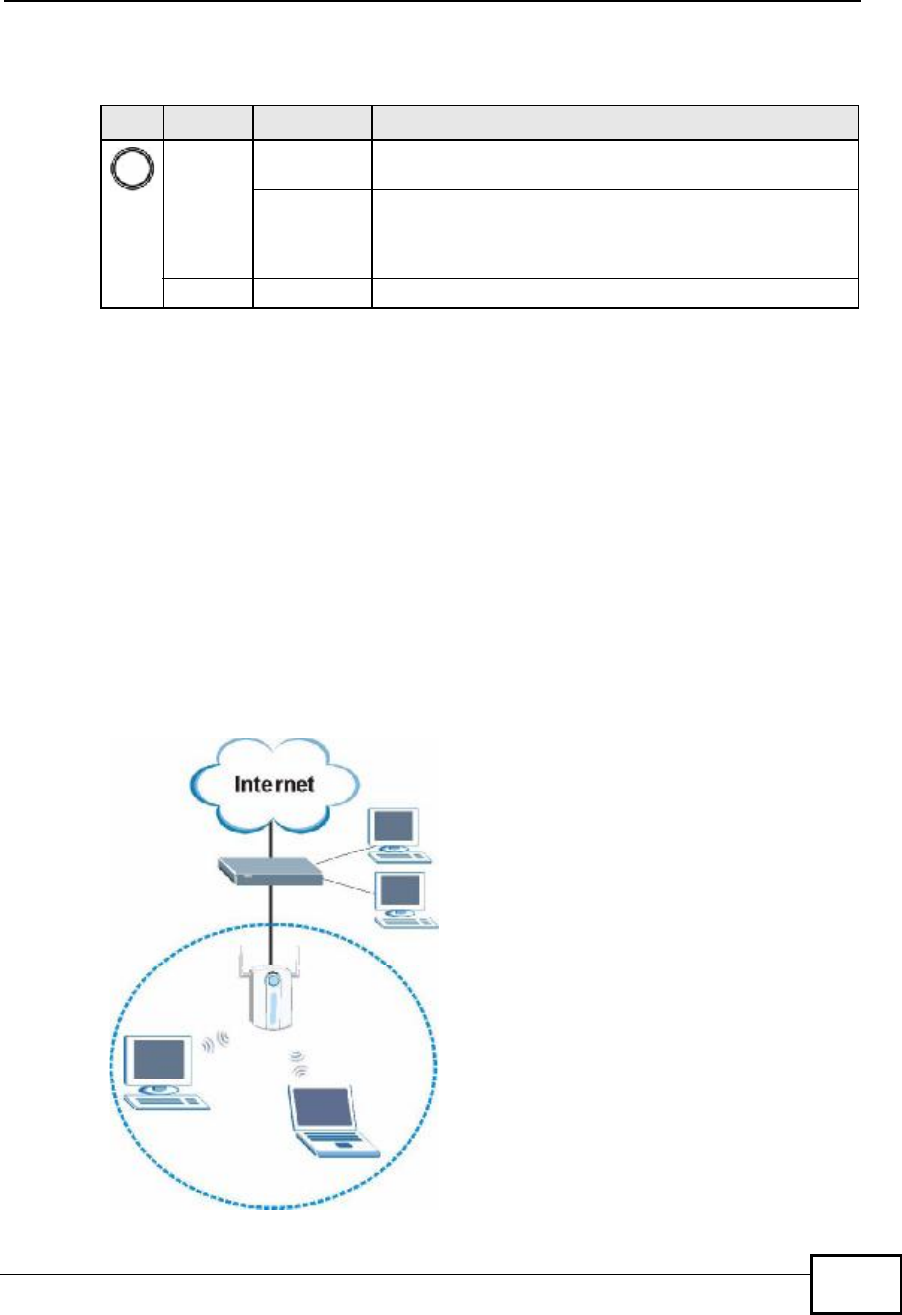

Figure 2 Application: Infrastructure
Table 2 NWD2105 LEDs
LED COLOR STATUS DESCRIPTION
OrangeSlow
Blinking The NWD2105 is turned on, connected to an AP, and is
not transmitting or receiving data.
Rapid
Blinking The NWD2105 is turned on, connected to an AP, and is
transmitting or receiving data. It also blinks when the
WPS feature is being used or a WPS connection is being
initiated.
OffThe NWD2105 is turned off.
Chapter 1Getting Started
NWD2105 User’s Guide
20
1.3.2 Ad-Hoc
To set up a small independent wireless workgroup without an AP, use Ad-Hoc (see
Chapter 4 on page 62).
Ad-Hoc does not require an AP or a wired network. Two or more wireless clients
communicate directly with each other.
Note: Wi-Fi Protected Setup (WPS) is not available in ad-hoc mode.

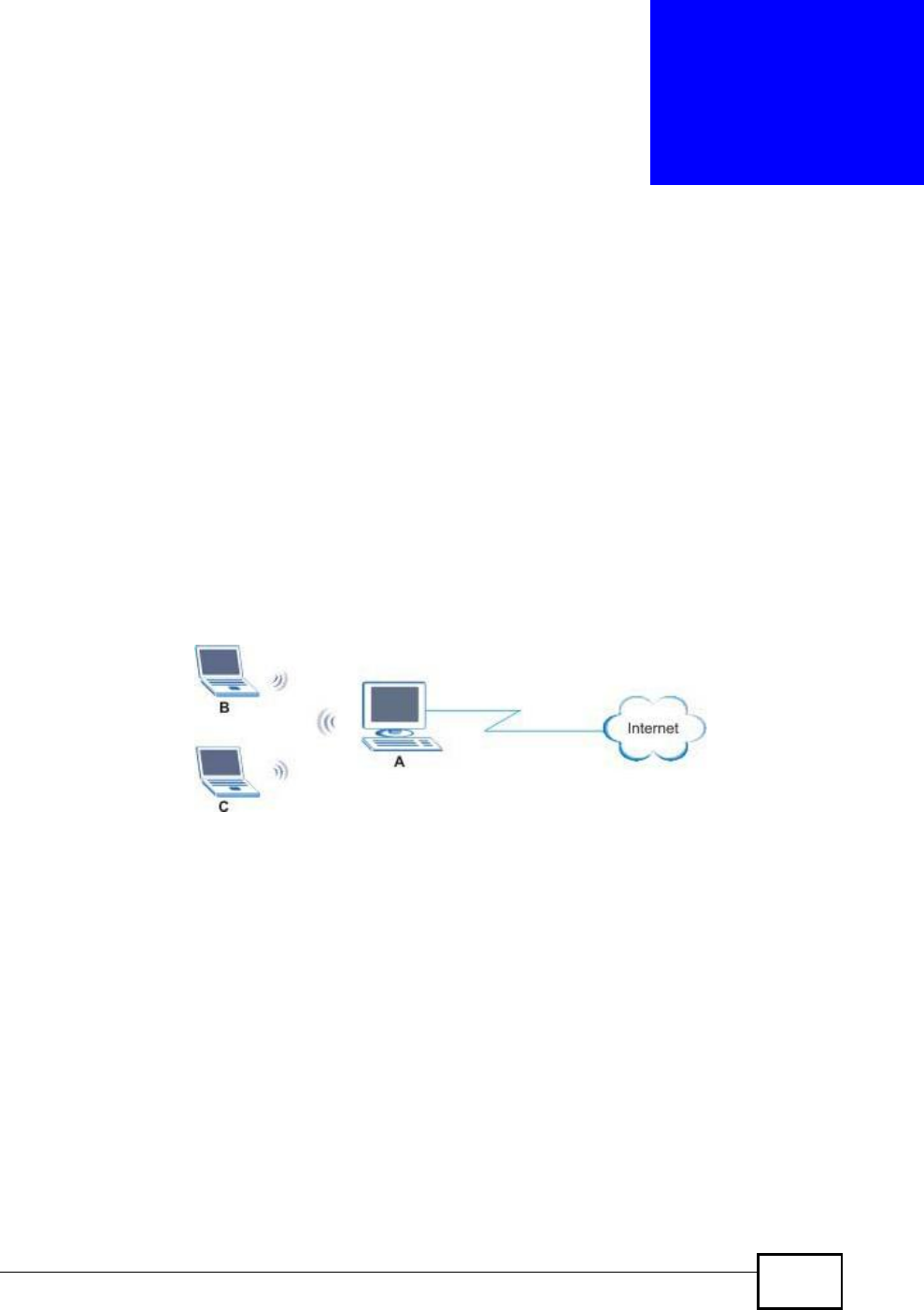

Figure 3 Application: Ad-Hoc
1.4 Hardware and Utility Installation
Follow the instructions in the Quick Start Guideto install the ZyXEL utility and
make hardware connections.
1.4.1 ZyXEL Utility Icon
After you install and start the ZyXEL utility, an icon for the ZyXEL utility appears in
the system tray.
Note: The ZyXEL utility system tray icon displays only when the NWD2105 is installed
properly.
Note: When you use the ZyXEL utility, it automatically disables Wireless Zero
Configuration (WZC) in Windows XP.
Figure 4 ZyXEL Utility: System Tray Icon
Chapter 1Getting Started
NWD2105 User’s Guide 21
The color of the ZyXEL utility system tray icon indicates the status of the
NWD2105. Refer to the following table for details.
1.5 Configuration Methods
To configure your NWD2105, use one of the following applications:
•Wireless Zero Configuration (WZC, the Windows XP wireless configuration tool)
or WLAN AutoConfig (the Windows Vista wireless configuration tool).
•The ZyXEL utility.
Note: Do NOT use Windows XP’s Wireless Zero Configuration tool at the same time
you use the ZyXEL utility.
1.5.1 Enabling Windows Wireless Configuration
Note: When you use the ZyXEL utility, it automatically disables Windows XP’s
wireless configuration tool.
If you want to use the Windows XP wireless configuration tool to configure the
NWD2105, you need to disable the ZyXEL utility. Right-click the utility icon ( )
in the system tray and select Exit.
Figure 5 Enable WZC
Refer to the appendices for information on how to use the Windows wireless
configuration tool to manage the NWD2105.
To reactivate the ZyXEL utility, double-click the ( ) icon on your desktop or click
Start > (All) Programs > Wireless N-lite USB Adapter Utility >Wireless N
USB Adapter Utility.
1.5.2 Accessing the ZyXEL Utility
Double-click on the ZyXEL wireless LAN utility icon in the system tray to open the
ZyXEL utility.
Table 3 ZyXEL Utility: System Tray Icon
COLOR DESCRIPTION
RedThe NWD2105 is not connected to a wireless network.
GreenThe NWD2105 is connected to a wireless network.
Chapter 1Getting Started
NWD2105 User’s Guide
22
The ZyXEL utility screens are similar in all Microsoft Windows versions. Screens for
Windows XP are shown in this User’s Guide.
Note: Click the icon (located in the top right corner) to display the online help
window.
NWD2105 User’s Guide 23
CHAPTER 2
Tutorial
2.1 Overview
This tutorial shows you how to join a wireless infrastructure network using the
ZyXEL utility. The wireless client is labeled C and the Access Point is labeled AP.

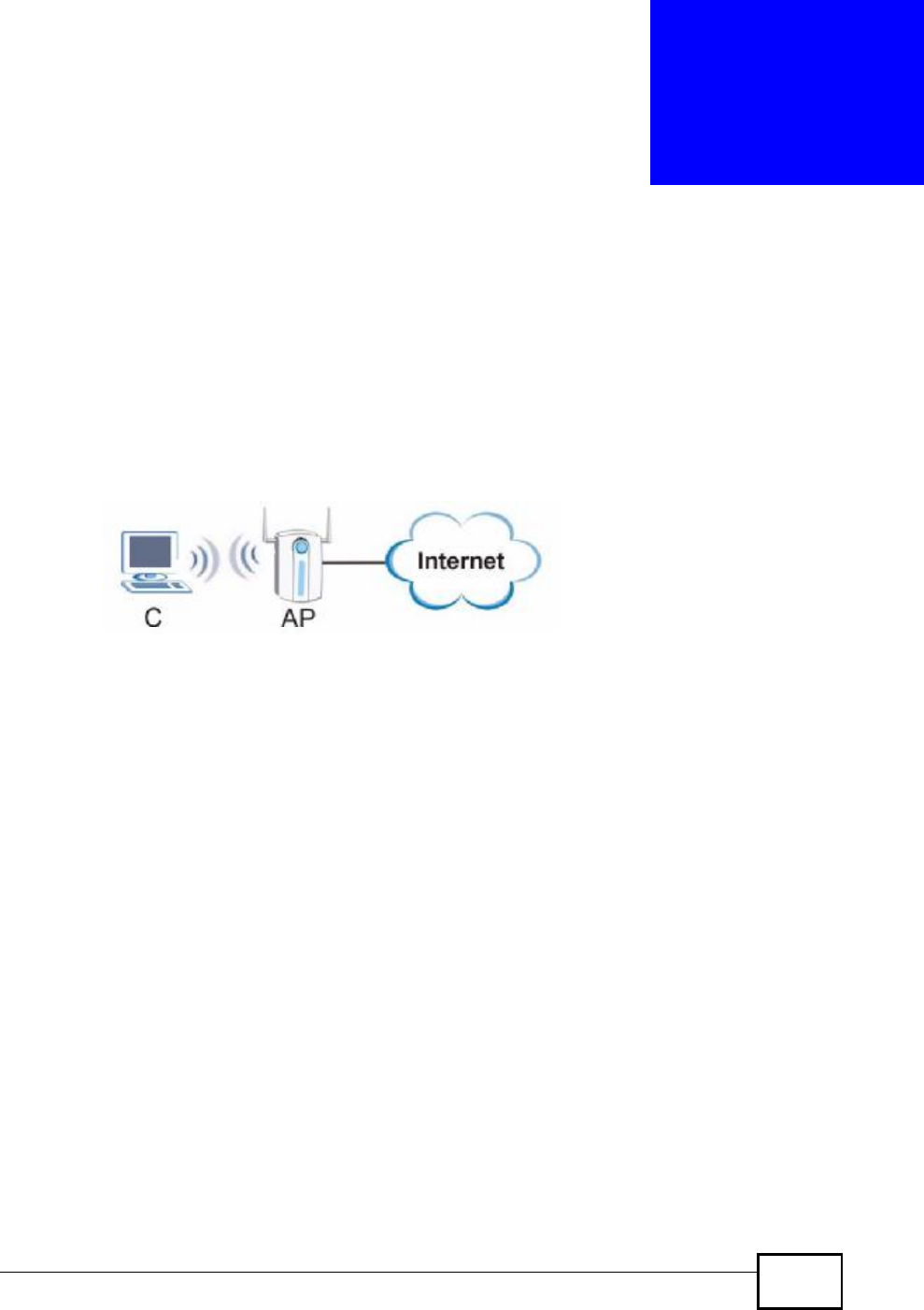

Figure 6 Infrastructure Network
2.1.1 What You Can Do in This Tutorial
•Connect securely either to an infrastructure AP using the WPS protocol. See
Section 2.2 on page 24 for details.
•Connect securely to an infrastructure AP using many of the strongest and most
common encryption protocols. See Section 2.3 on page 29 for details.
•Save a your settings so that you can later connect again to an infrastructure AP
with a single click. See Section 2.3.2 on page 31 for details.
•Configure your NWD2105 as an Access Point (AP), allowing other devices to
connect to it and share its network connections. See Section 2.4 on page 34 for
details.
2.1.2 What You Need to Know
The following term may help as you read through this section.
WPS
Wi-Fi Protected Setup (WPS) is a security protocol that lets two or more devices
connect securely to one another with a minimum amount of hassle on your part. It
most cases, establishing a secure connection with another WPS device is as easy
as pushing a button.
Chapter 2Tutorial
NWD2105 User’s Guide
24
2.1.3 Before You Begin
•Make sure that you have already familiarized yourself with the NWD2105’s
features and hardware, as described in Chapter 1 on page 17.
•You should have valid login information for an existing network Access Point,
otherwise you may not be able to make a network connection right away.
2.2 Connecting to an AP using Wi-Fi Protected
Setup (WPS)
This section gives you an example of how to set up your wireless network using
WPS. This example uses the NWD2105 as the wireless client, and ZyXEL’s
NBG334W as the Access Point (AP).
Note: The Access Point must be a WPS-aware device.
There are two WPS methods for creating a secure connection. This tutorial shows
you both.
•Push Button Configuration (PBC) - create a secure wireless network simply
by pressing a button. See Section 2.2.1 on page 24.This is the easier method.
•PIN Configuration - create a secure wireless network simply by entering a
wireless client's PIN (Personal Identification Number) in the NWD2105’s
interface. See Section 2.2.2 on page 25. This is the more secure method, since
one device can authenticate the other.
2.2.1 Push Button Configuration (PBC)
1Make sure that your access point is turned on and that it is within range of the
computer with the NWD2105 installed.
2Make sure that you have installed the NWD2105’s driver and utility on your
computer.
3In the NWD2105’s utility, click the Adapter tab, enable WPS and select PBC
(Push Button Configuration). In the screen that appears, click Start.
4Log into the AP’s web configurator and locate its WPS settings section. On the
NBG334W, press the Push Button button in the Network > Wireless Client >
WPS Station screen.
Note: It doesn’t matter which button is pressed first. You must press the second
button within two minutes of pressing the first one.
Chapter 2Tutorial
NWD2105 User’s Guide 25
The AP sends the proper configuration settings to the NWD2105. This may take up
to two minutes. Then the NWD2105 is able to communicate with the AP securely.
The following figure shows you an example to set up wireless network and security
by pressing a button on both the AP (the NBG334W in this example) and the
NWD2105.

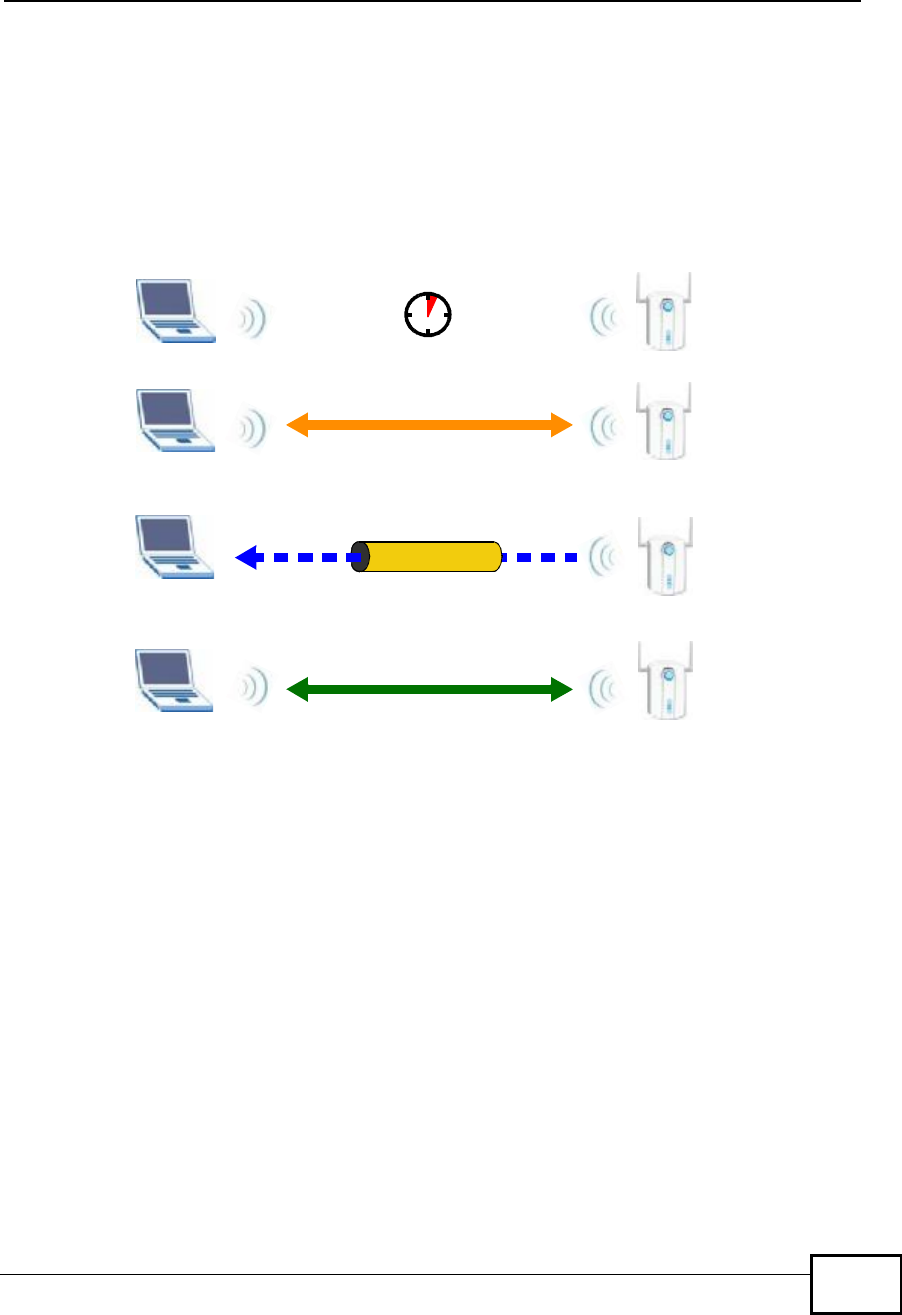

Figure 7 Example WPS Process: PBC Method
2.2.2 PIN Configuration
When you use the PIN configuration method, you need to use both the NWD2105’s
utility and the AP’s configuration interface.
1In the NWD2105’s Adaptor tab, select WPS and PIN - Use this Device’s PIN.
Note down the PIN in the screen that appears.
2Enter the PIN number in the AP’s configuration interface. In the NBG334W, use the
PIN field in the Network > Wireless LAN >WPS Station screen.
You AP
SECURITY INFO
COMMUNICATION
WITHIN 2 MINUTES
Chapter 2Tutorial
NWD2105 User’s Guide
26
3Click the Start buttons on both the NWD2105 utility screen and the AP’s
configuration utility (the WPS Station screen on the NBG334W) within two
minutes.
The NBG334W authenticates the wireless client and sends the proper
configuration settings to the wireless client. This may take up to two minutes.
Then the wireless client is able to communicate with the NBG334W securely.
Chapter 2Tutorial
NWD2105 User’s Guide 27

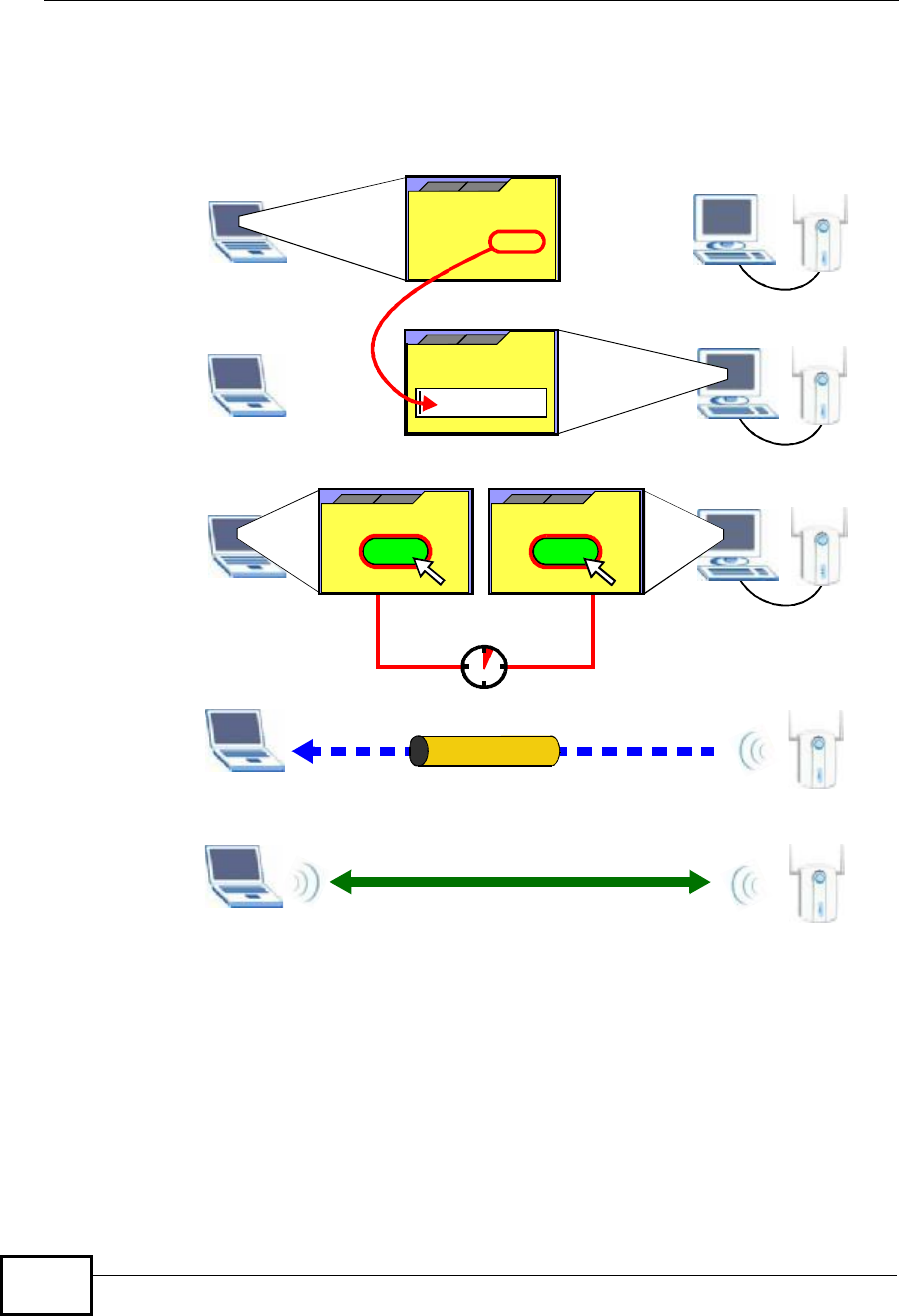

The following figure shows you the example of configuring the wireless network
and security on the NWD2105 and the AP (ZyXEL’s NBG334W in this example) by
using the PIN method.
Chapter 2Tutorial
NWD2105 User’s Guide
28
Figure 8 Example WPS Process: PIN Method
Authentication by PIN
SECURITY INFO
WITHIN 2 MINUTES
COMMUNICATION
You AP
Chapter 2Tutorial
NWD2105 User’s Guide 29
2.3 Connecting to an AP Without Using WPS
There are three ways to connect the wireless client (the NWD2105) to a network
without using WPS.
•Configure nothing and leave the wireless client to automatically scan for and
connect to any available network that has no wireless security configured.
•Manually connect to a network (see Section 2.3.1 on page 29).
•Configure a profile to have the wireless client automatically connect to a specific
network or peer computer (see Section 2.3.2 on page 31).
2.3.1 Manually Connecting to a Wireless LAN
This example illustrates how to manually connect your wireless client to an access
point (AP) configured for WPA-PSK security and connected to the Internet. Before
you connect to the access point, you must know its Service Set IDentity (SSID)
and WPA-PSK pre-shared key. In this example, the AP’s SSID is “SSID_Example3”
and its pre-shared key is “ThisismyWPA-PSKpre-sharedkey”.
After you install the ZyXEL utility and then insert the wireless client, follow the
steps below to connect to a network using the Site Survey screen.

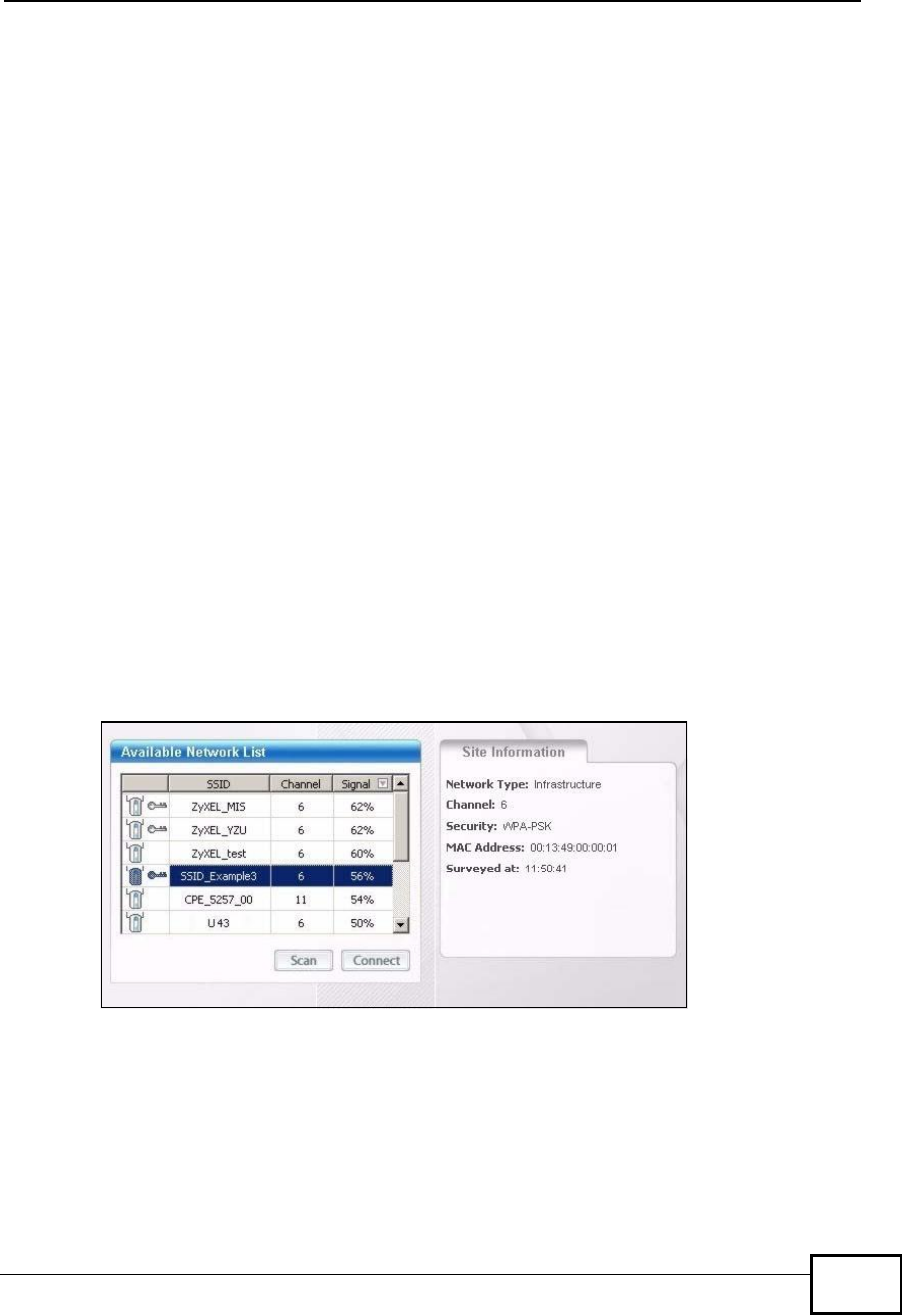

1Open the ZyXEL utility and click the Site Survey tab to open the screen shown
next.
Figure 9 ZyXEL Utility: Site Survey
2The wireless client automatically searches for available wireless networks. Click
Scan if you want to search again. If no entry displays in the Available Network
List, that means there is no wireless network available within range. Make sure
the AP or peer computer is turned on, or move the wireless client closer to the AP
or peer computer. See Table 4.4 on page 54 for detailed field descriptions.
Chapter 2Tutorial
NWD2105 User’s Guide
30
3To connect to an AP or peer computer, either click an entry in the list and then
click Connect or double-click an entry (SSID_Example3 in this example).
4When you try to connect to an AP with security configured, a window will pop up
prompting you to specify the security settings. Enter the pre-shared key and leave
the encryption type at the default setting.
Use the Next button to move on to the next screen. You can use the Back button
at any time to return to the previous screen, or the Exit button to return to the
Site Survey screen.

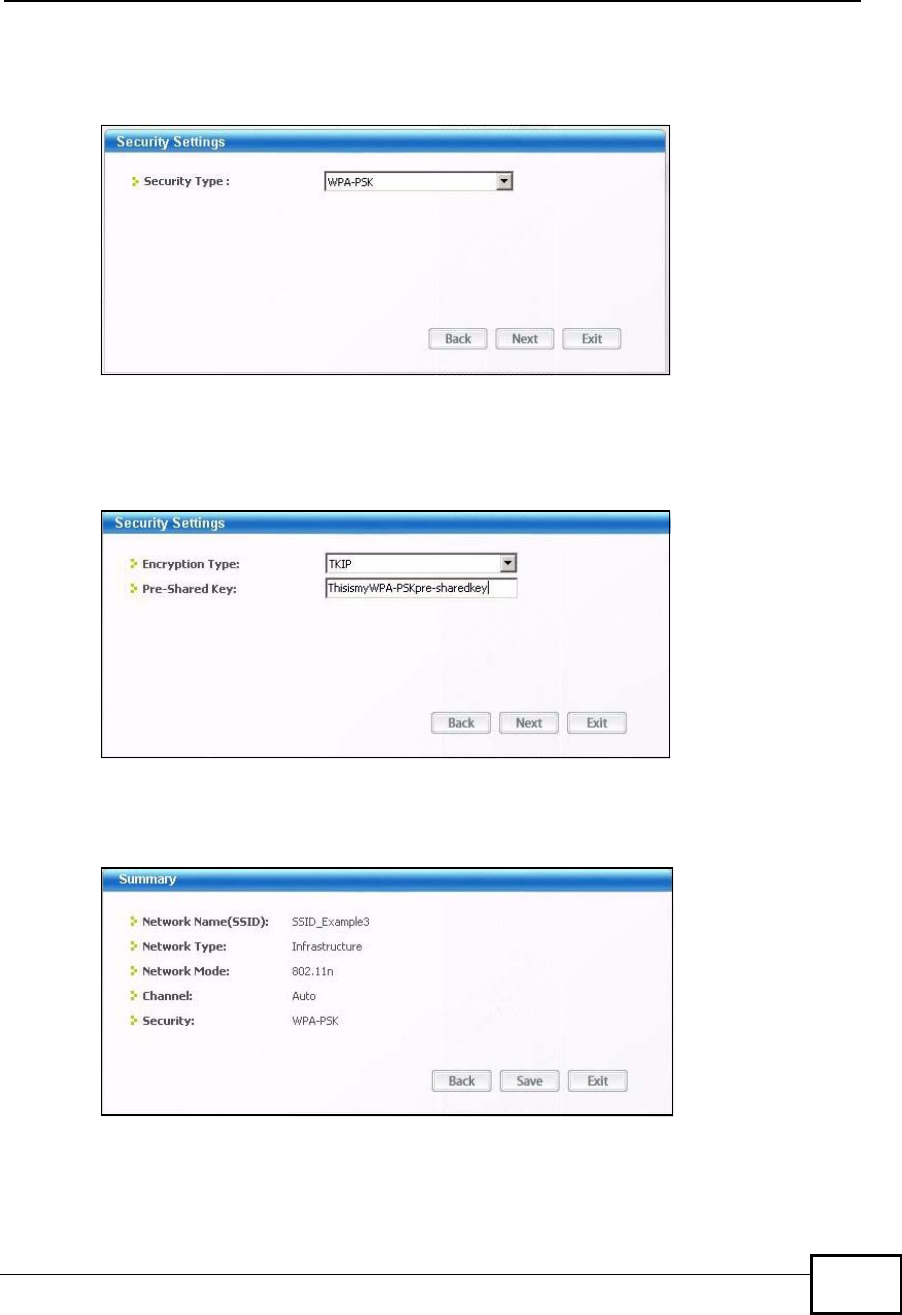

Figure 10 ZyXEL Utility: Security Settings
5The Summary window appears. Check your settings and click Save to continue.
Figure 11 ZyXEL Utility: Summary
Chapter 2Tutorial
NWD2105 User’s Guide 31
6The ZyXEL utility returns to the Link Info screen while it connects to the wireless
network using your settings. When the wireless link is established, the ZyXEL
utility icon in the system tray turns green and the Link Info screen displays
details of the active connection. Check the network information in the Link Info
screen to verify that you have successfully connected to the selected network. If
the wireless client is not connected to a network, the fields in this screen remain
blank. See Table 4.3 on page 51 for detailed field descriptions.

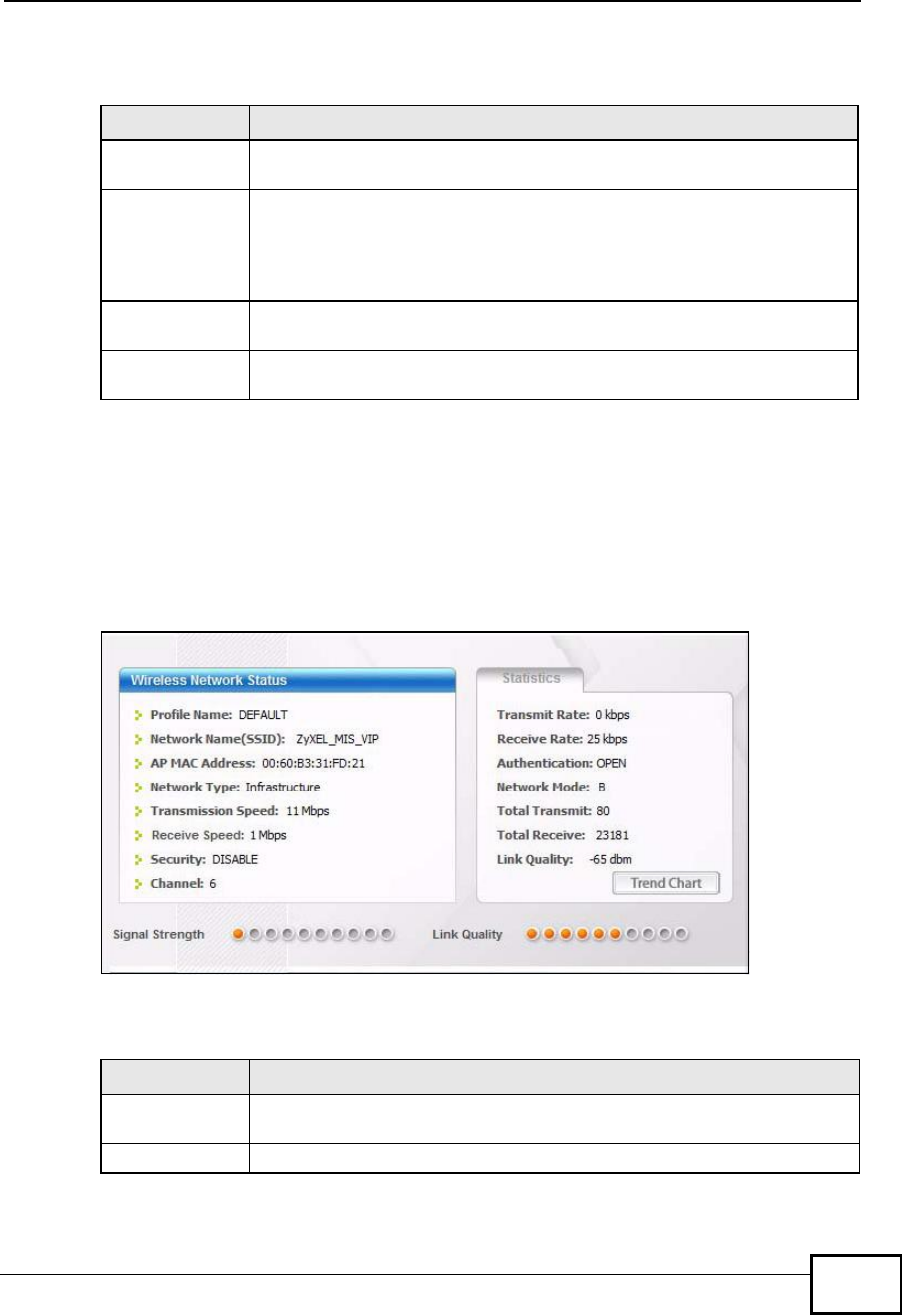

Figure 12 ZyXEL Utility: Link Info
7Open your Internet browser and enter http://www.zyxel.com or the URL of any
other web site in the address bar. If you are able to access the web site, your
wireless connection is successfully configured. If you cannot access the web site,
check the Troubleshooting section of this User's Guide or contact your network
administrator if necessary.
2.3.2 Creating and Using a Profile
A profile lets you automatically connect to the same wireless network every time
you use the ZyXEL utility. You can also configure different profiles for different
networks, for example if you connect a notebook computer to wireless networks at
home and at work.
This example illustrates how to set up a profile and connect the wireless client to
an access point configured for WPA-PSK security. In this example, the AP’s SSID is
“SSID_Example3” and its pre-shared key is “ThisismyWPA-PSKpre-sharedkey”.
You have chosen the profile name “PN_Example3”.
Chapter 2Tutorial
NWD2105 User’s Guide
32
1Open the ZyXEL utility and click the Profile tab to open the screen as shown. Click
Add to configure a new profile.

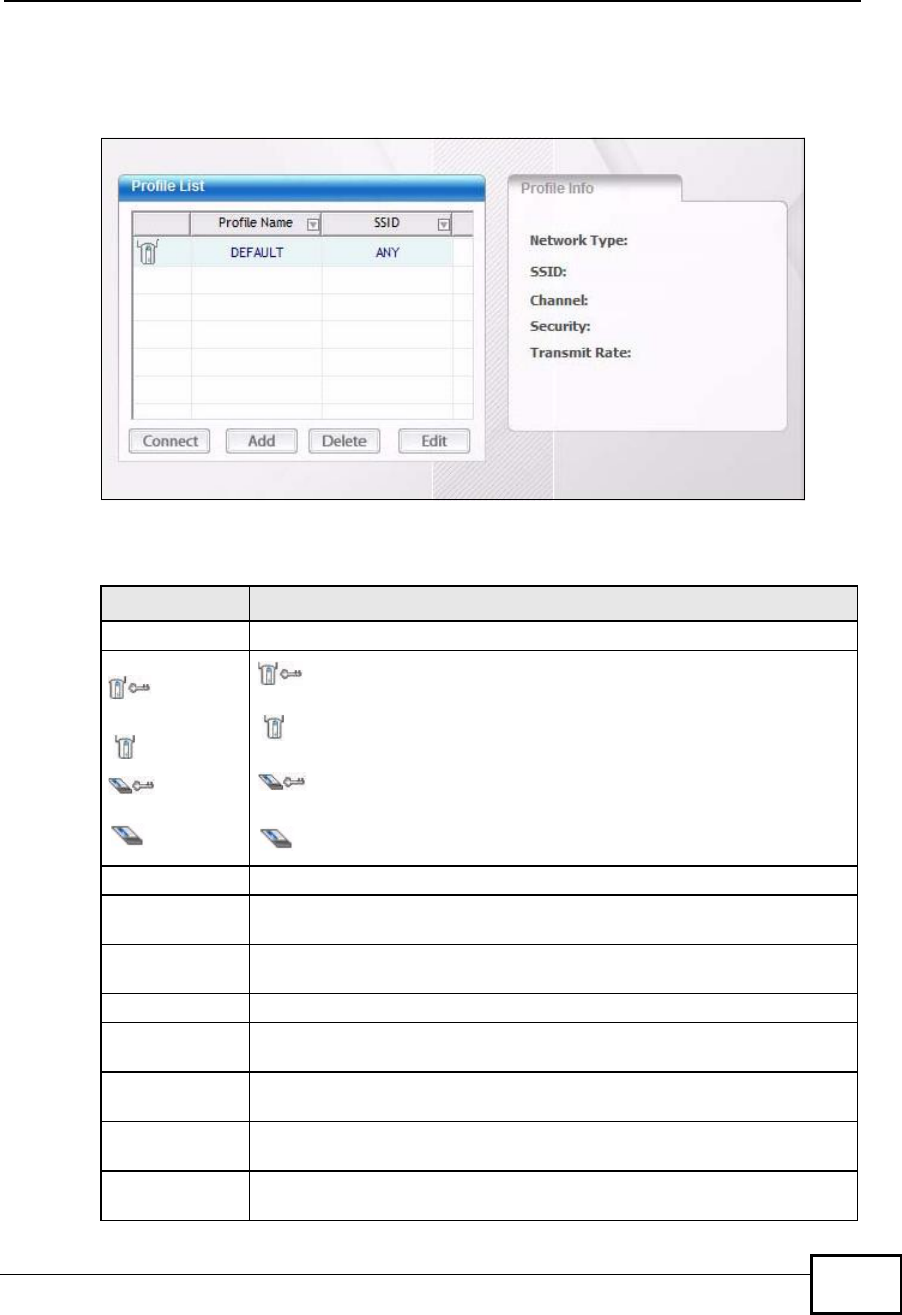

Figure 13 ZyXEL Utility: Profile
2The Add New Profile screen appears. The wireless client automatically searches
for available wireless networks, which are displayed in the Scan Info box. You can
also configure your profile for a wireless network that is not in the list.
Figure 14 ZyXEL Utility: Add New Profile
3Give the profile a descriptive name (of up to 32 printable ASCII characters). Select
Infrastructure and either manually enter or select the AP's SSID in the Scan
Info table and click Select.
Chapter 2Tutorial
NWD2105 User’s Guide 33

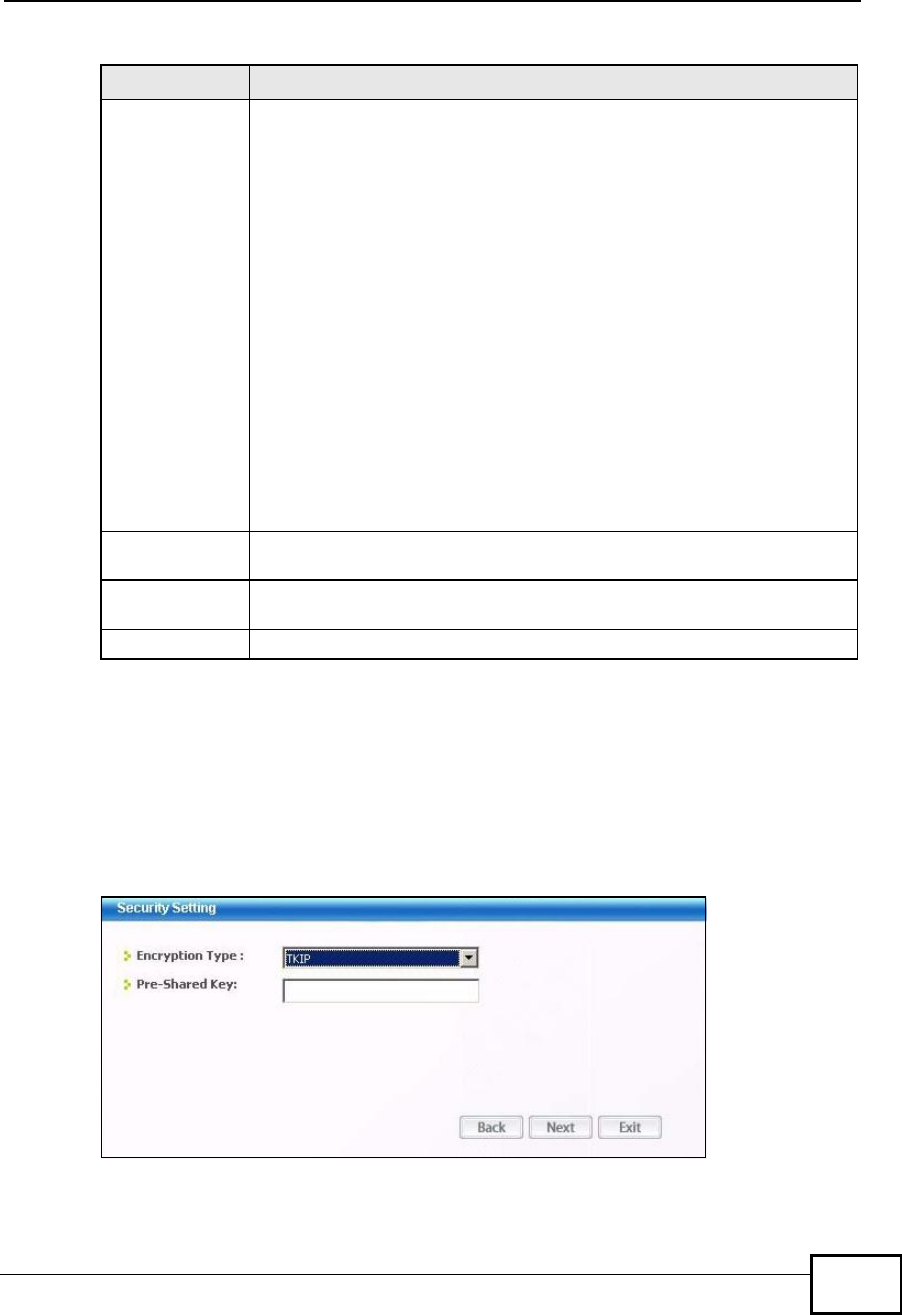

4Choose the same encryption method as the AP to which you want to connect (In
this example, WPA-PSK).
Figure 15 ZyXEL Utility: Profile Security
5This screen varies depending on the encryption method you selected in the
previous screen. In this example, enter the pre-shared key and leave the
encryption type at the default setting.

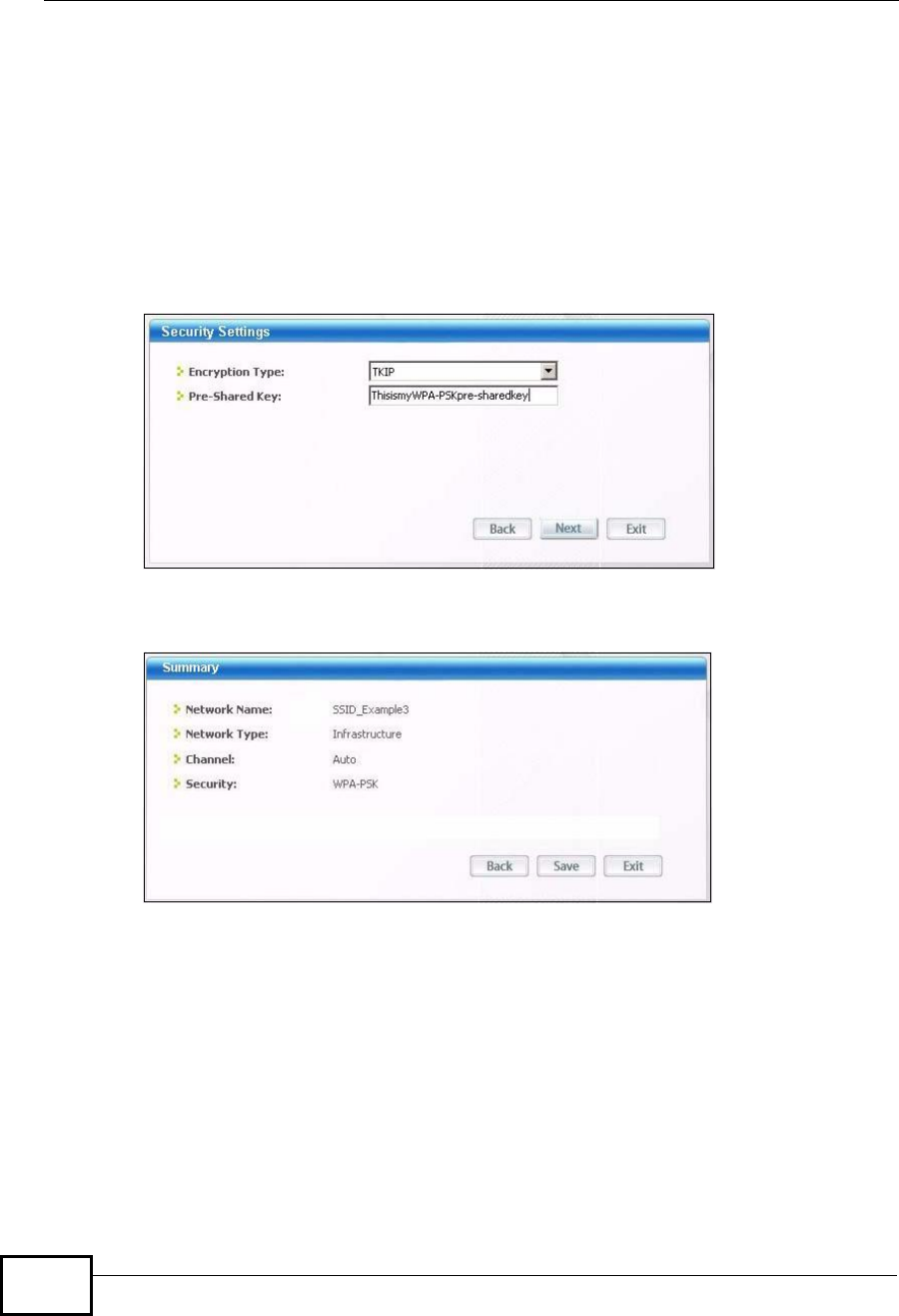

Figure 16 ZyXEL Utility: Profile Encryption
6Verify the profile settings in the ready-only screen. Click Save to save and go to
the next screen.
Figure 17 ZyXEL Utility: Profile Summary
Chapter 2Tutorial
NWD2105 User’s Guide
34
7Click Activate Now to use the new profile immediately. Otherwise, click the
Activate Later button to go back to the Profile List screen.
If you clicked Activate Later you can select the profile from the list in the Profile
screen and click Connect to activate it.
Note: Only one profile can be activated and used at any given time.
Figure 18 ZyXEL Utility: Profile Activate
8When you activate the new profile, the ZyXEL utility goes to the Link Info screen
while it connects to the AP using your settings. When the wireless link is
established, the ZyXEL utility icon in the system tray turns green and the Link
Info screen displays details of the active connection.
9Make sure the selected AP in the active profile is on and connected to the Internet.
Open your Internet browser, enter http://www.zyxel.com or the URL of any other
web site in the address bar and press ENTER. If you are able to access the web
site, your new profile is successfully configured.
10 If you cannot access the Internet, go back to the Profile screen. Select the profile
you are using and click Edit. Check the details you entered previously. Also, refer
to the Troubleshooting section of this User's Guide or contact your network
administrator if necessary.
2.4 Configuring the NWD2105 as an AP
In access point mode, your NWD2105 allows you to set up your wireless network
without using a dedicated AP. See Chapter 5 on page 75 for more information.
After you install the ZyXEL Utility and then connect the NWD2105 to your
computer, follow the steps below to set up your NWD2105 as an AP.
Chapter 2Tutorial
NWD2105 User’s Guide 35
1Select AP Mode in the main ZyXEL Utility screen. The AP Mode version of the
default Link Info screen displays.
Figure 19 ZyXEL Utility - AP Mode
2Under Status, you can view the current settings on the NWD2105. In the
Association List, you can see if any wireless clients have connected to your
NWD2105.
Figure 20 ZyXEL Utility - AP Mode: Link Info
Chapter 2Tutorial
NWD2105 User’s Guide
36
3If you want to change the access point’s SSID and enable wireless security for
your NWD2105, click the Configuration tab. See Section 5.4.1 on page 80 for
detailed field descriptions found on this screen.
Figure 21 ZyXEL Utility - AP Mode: Configuration
NWD2105 User’s Guide 37
CHAPTER 3
Wireless LANs
3.1 Overview
This section provides background information on wireless Local Area Networks.
3.1.1 What You Can Do in This Section
•Connect securely to an AP using many of the strongest and most common
encryption protocols. See Section 3.3 on page 39 for details.
•Connect securely either to an AP or computer-to-computer using WPS. See
Section 3.4 on page 41 for details.
3.1.2 What You Need to Know
The following terms and concepts may help as you read through this section.
Server
When two or more devices are connected digitally to form a network, the one that
distributes data to the other devices is known as the “server”. A RADIUS (Remote
Authentication Dial-In User Service) is a kind of server that manages logins and
logout, among other things, for the network to which it is connected.
Client
When two or more devices are connected digitally to form a network, the one that
contacts and obtains data from a server is known as the “client”. Each client is
designed to work with one or more specific kinds of servers, and each server
requires a specific kind of client. Wireless adapters are clients that connect to a
network server through an AP.
Authentication
Authentication is the process of confirming a client’s or user’s digital identity when
they connect to a network. Turning off authentication means disabling all security
protocols and opening your network to anyone with the means to connect to it.
Chapter 3Wireless LANs
NWD2105 User’s Guide
38
Encryption
The process of taking data and encoding it, usually using a mathematical formula,
so that it becomes unreadable unless decrypted with the proper code or pass
phrase.
3.1.3 Before You Begin
•You should have valid login information for an existing network Access Point,
otherwise you may not be able to make a network connection right away.
3.2 Wireless LAN Overview
The following figure provides an example of a wireless network with an AP. See
Figure 3 on page 20 for an Ad Hoc network example.

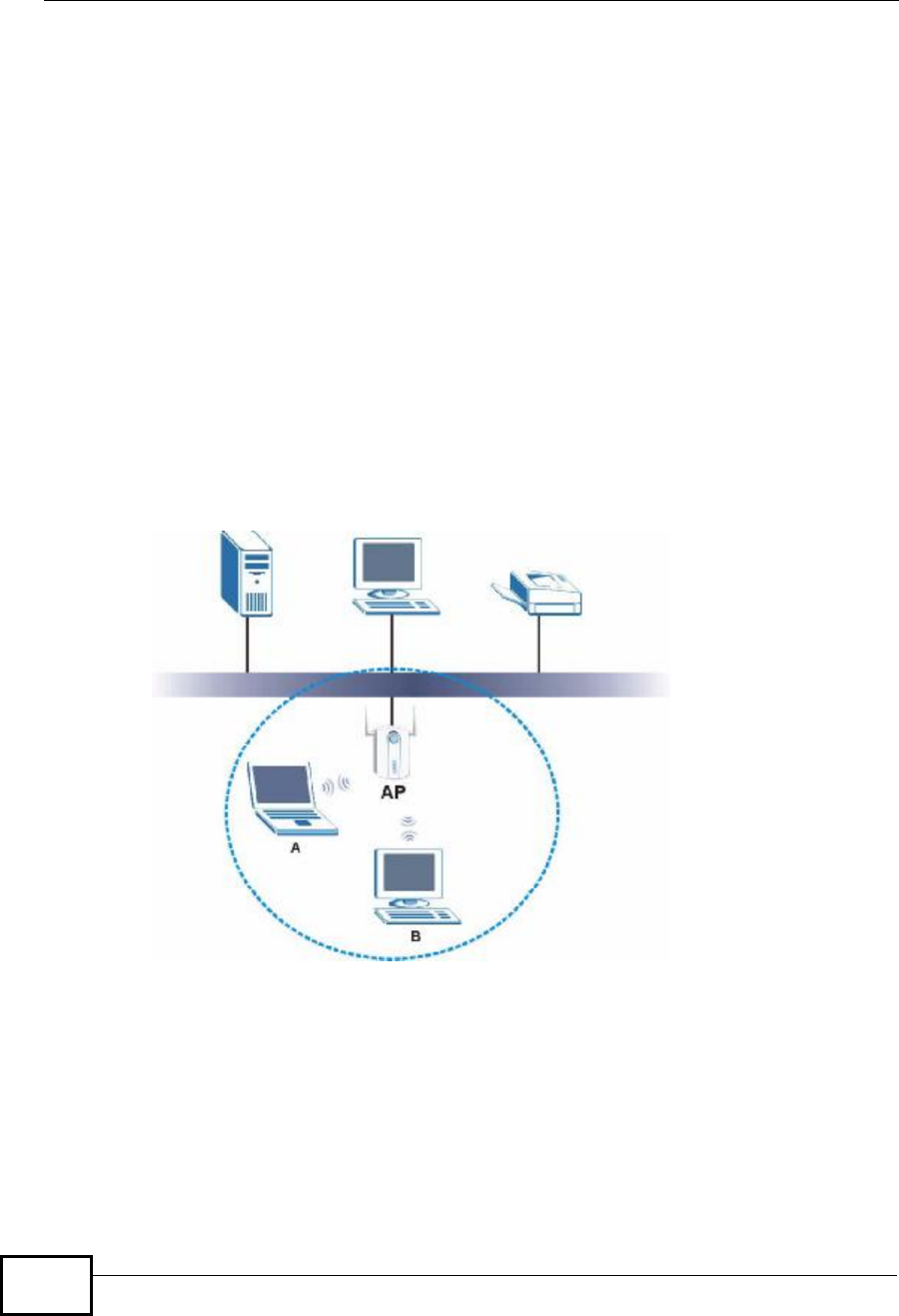

Figure 22 Example of a Wireless Network
The wireless network is the part in the blue circle. In this wireless network,
devices A and B are called wireless clients. The wireless clients use the access
point (AP) to interact with other devices (such as the printer) or with the Internet
Every wireless network must follow these basic guidelines.
•Every device in the same wireless network must use the same SSID.
The SSID is the name of the wireless network. It stands for Service Set IDentity.
Chapter 3Wireless LANs
NWD2105 User’s Guide 39
•If two wireless networks overlap, they should use a different channel.
Like radio stations or television channels, each wireless network uses a specific
channel, or frequency, to send and receive information.
•Every device in the same wireless network must use security compatible with
the AP or peer computer.
Security stops unauthorized devices from using the wireless network. It can also
protect the information that is sent in the wireless network.
3.3 Wireless LAN Security
Wireless LAN security is vital to your network to protect wireless communications.
If you do not enable any wireless security on your NWD2105, the NWD2105’s
wireless communications are accessible to any wireless networking device that is
in the coverage area.
Note: You can use only WEP encryption if you set the NWD2105 to Ad-hoc mode.
See the appendices for more detailed information about wireless security.
3.3.1 User Authentication and Encryption
You can make every user log in to the wireless network before they can use it.
This is called user authentication. However, every wireless client in the wireless
network has to support IEEE 802.1x to do this.
Wireless networks can use encryption to protect the information that is sent in the
wireless network. Encryption is like a secret code. If you do not know the secret
code, you cannot understand the message.
3.3.1.1 WEP
3.3.1.1.1 Data Encryption
WEP (Wired Equivalent Privacy) encryption scrambles all data packets transmitted
between the NWD2105 and the AP or other wireless stations to keep network
communications private. Both the wireless stations and the access points must
use the same WEP key for data encryption and decryption.
There are two ways to create WEP keys in your NWD2105.
Chapter 3Wireless LANs
NWD2105 User’s Guide
40
•Automatic WEP key generation based on a “password phrase” called a
passphrase. The passphrase is case sensitive. You must use the same
passphrase for all WLAN adapters with this feature in the same WLAN.
For WLAN adapters without the passphrase feature, you can still take advantage
of this feature by writing down the four automatically generated WEP keys from
the Security Settings screen of the ZyXEL utility and entering them manually
as the WEP keys in the other WLAN adapter(s).
•Enter the WEP keys manually.
Your NWD2105 allows you to configure up to four 64-bit or 128-bit WEP keys.
Only one key is used as the default key at any one time.
3.3.1.1.2 Authentication Type
The IEEE 802.11b/g standard describes a simple authentication method between
the wireless stations and AP. Three authentication types are defined: Auto,Open
and Shared.
•Open mode is implemented for ease-of-use and when security is not an issue.
The wireless station and the AP or peer computer do not share a secret key.
Thus the wireless stations can associate with any AP or peer computer and listen
to any transmitted data that is not encrypted.
•Shared mode involves a shared secret key to authenticate the wireless station
to the AP or peer computer. This requires you to enable the wireless LAN
security and use same settings on both the wireless station and the AP or peer
computer.
•Auto authentication mode allows the NWD2105 to switch between the open
system and shared key modes automatically. Use the auto mode if you do not
know the authentication mode of the other wireless stations.
3.3.1.2 IEEE 802.1x
The IEEE 802.1x standard outlines enhanced security methods for both the
authentication of wireless stations and encryption key management.
Authentication can be done using an external RADIUS server.
3.3.1.2.1 EAP Authentication
EAP (Extensible Authentication Protocol) is an authentication protocol that runs on
top of the IEEE 802.1x transport mechanism in order to support multiple types of
user authentication. By using EAP to interact with an EAP-compatible RADIUS
server, an access point helps a wireless station and a RADIUS server perform
authentication.
The type of authentication you use depends on the RADIUS server and an
intermediary AP(s) that supports IEEE 802.1x. The NWD2105 supports EAP-TLS,
EAP-TTLS (at the time of writing, TTLS is not available in Windows Vista) and EAP-
PEAP. Refer to Appendix B on page 131 for descriptions.
Chapter 3Wireless LANs
NWD2105 User’s Guide 41
For EAP-TLS authentication type, you must first have a wired connection to the
network and obtain the certificate(s) from a certificate authority (CA). Certificates
(also called digital IDs) can be used to authenticate users and a CA issues
certificates and guarantees the identity of each certificate owner.
3.3.1.3 WPA and WPA2
Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i standard. WPA2
(IEEE 802.11i) is a wireless security standard that defines stronger encryption,
authentication and key management than WPA.
Key differences between WPA(2) and WEP are improved data encryption and user
authentication.
Both WPA and WPA2 improve data encryption by using Temporal Key Integrity
Protocol (TKIP), Message Integrity Check (MIC) and IEEE 802.1x. WPA and WPA2
use Advanced Encryption Standard (AES) in the Counter mode with Cipher block
chaining Message authentication code Protocol (CCMP) to offer stronger
encryption than TKIP.
If both an AP and the wireless clients support WPA2 and you have an external
RADIUS server, use WPA2 for stronger data encryption. If you don't have an
external RADIUS server, you should use WPA2-PSK (WPA2-Pre-Shared Key) that
only requires a single (identical) password entered into each access point, wireless
gateway and wireless client. As long as the passwords match, a wireless client will
be granted access to a WLAN.
If the AP or the wireless clients do not support WPA2, just use WPA or WPA-PSK
depending on whether you have an external RADIUS server or not.
Select WEP only when the AP and/or wireless clients do not support WPA or WPA2.
WEP is less secure than WPA or WPA2.
3.4 WiFi Protected Setup
Your NWD2105 supports WiFi Protected Setup (WPS), which is an easy way to set
up a secure wireless network. WPS is an industry standard specification, defined
by the WiFi Alliance.
WPS allows you to quickly set up a wireless network with strong security, without
having to configure security settings manually. Each WPS connection works
between two devices. Both devices must support WPS (check each device’s
documentation to make sure).
Chapter 3Wireless LANs
NWD2105 User’s Guide
42
Depending on the devices you have, you can either press a button (on the device
itself, or in its configuration utility) or enter a PIN (a unique Personal Identification
Number that allows one device to authenticate the other) in each of the two
devices. When WPS is activated on a device, it has two minutes to find another
device that also has WPS activated. Then, the two devices connect and set up a
secure network by themselves.
3.4.1 Push Button Configuration
WPS Push Button Configuration (PBC) is initiated by pressing a button on each
WPS-enabled device, and allowing them to connect automatically. You do not need
to enter any information.
Not every WPS-enabled device has a physical WPS button. Some may have a WPS
PBC button in their configuration utilities instead of or in addition to the physical
button.
Take the following steps to set up WPS using the button.
1Ensure that the two devices you want to set up are within wireless range of one
another.
2Look for a WPS button on each device. If the device does not have one, log into its
configuration utility and locate the button (see the device’s User’s Guide for how to
do this - for the NWD2105, see Section 4.6.1 on page 69).
3Press the button on one of the devices (it doesn’t matter which).
4Within two minutes, press the button on the other device. The registrar sends the
network name (SSID) and security key through an secure connection to the
enrollee.
If you need to make sure that WPS worked, check the list of associated wireless
clients in the AP’s configuration utility. If you see the wireless client in the list,
WPS was successful.
3.4.2 PIN Configuration
Each WPS-enabled device has its own PIN (Personal Identification Number). This
may either be static (it cannot be changed) or dynamic (in some devices you can
generate a new PIN by clicking on a button in the configuration interface).
Use the PIN method instead of the push-button configuration (PBC) method if you
want to ensure that the connection is established between the devices you specify,
not just the first two devices to activate WPS in range of each other. However, you
Chapter 3Wireless LANs
NWD2105 User’s Guide 43
need to log into the configuration interfaces of both devices to use the PIN
method.
When you use the PIN method, you must enter the PIN from one device (usually
the wireless client) into the second device (usually the Access Point or wireless
router). Then, when WPS is activated on the first device, it presents its PIN to the
second device. If the PIN matches, one device sends the network and security
information to the other, allowing it to join the network.
Take the following steps to set up a WPS connection between an access point or
wireless router (referred to here as the AP) and a client device using the PIN
method.
1Ensure WPS is enabled on both devices.
2Access the WPS section of the AP’s configuration interface. See the device’s User’s
Guide for how to do this.
3Look for the client’s WPS PIN; it will be displayed either on the device, or in the
WPS section of the client’s configuration interface (see the device’s User’s Guide
for how to find the WPS PIN - for the NWD2105, see Section 4.6 on page 68).
4Enter the client’s PIN in the AP’s configuration interface.
Note: If the client device’s configuration interface has an area for entering another
device’s PIN, you can either enter the client’s PIN in the AP, or enter the AP’s
PIN in the client - it does not matter which.
5Start WPS on both devices within two minutes.
Note: Use the configuration utility to activate WPS, not the push-button on the device
itself.
6On a computer connected to the wireless client, try to connect to the Internet. If
you can connect, WPS was successful.
If you cannot connect, check the list of associated wireless clients in the AP’s
configuration utility. If you see the wireless client in the list, WPS was successful.
Chapter 3Wireless LANs
NWD2105 User’s Guide
44
The following figure shows a WPS-enabled wireless client (installed in a notebook
computer) connecting to the WPS-enabled AP via the PIN method.
Figure 23 Example WPS Process: PIN Method
3.4.3 How WPS Works
When two WPS-enabled devices connect, each device must assume a specific role.
One device acts as the registrar (the device that supplies network and security
settings) and the other device acts as the enrollee (the device that receives
network and security settings. The registrar creates a secure EAP (Extensible
Authentication Protocol) tunnel and sends the network name (SSID) and the WPA-
PSK or WPA2-PSK pre-shared key to the enrollee. Whether WPA-PSK or WPA2-PSK
is used depends on the standards supported by the devices. If the registrar is
ENROLLEE
SECURE EAP TUNNEL
SSID
WPA(2)-PSK
WITHIN 2 MINUTES
COMMUNICATION
This device’s
WPS
Enter WPS PIN
WPS
from other device:
WPS PIN: 123456
WPS
START
WPS
START
REGISTRAR
Chapter 3Wireless LANs
NWD2105 User’s Guide 45
already part of a network, it sends the existing information. If not, it generates
the SSID and WPA(2)-PSK randomly.

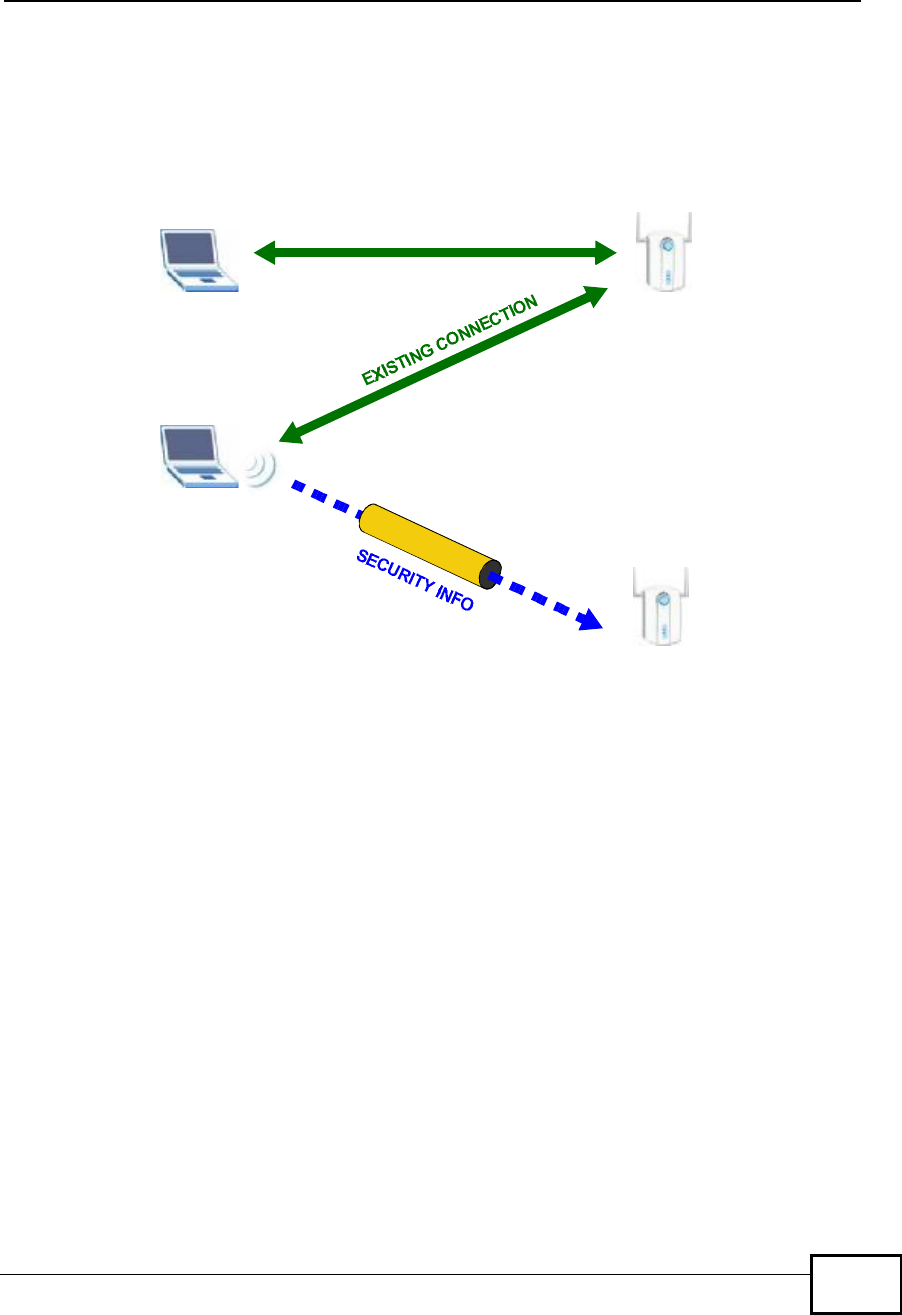

The following figure shows a WPS-enabled client (installed in a notebook
computer) connecting to a WPS-enabled access point.
Figure 24 How WPS works
The roles of registrar and enrollee last only as long as the WPS setup process is
active (two minutes). The next time you use WPS, a different device can be the
registrar if necessary.
The WPS connection process is like a handshake; only two devices participate in
each WPS transaction. If you want to add more devices you should repeat the
process with one of the existing networked devices and the new device.
Note that the access point (AP) is not always the registrar, and the wireless client
is not always the enrollee. All WPS-certified APs can be a registrar, and so can
some WPS-enabled wireless clients.
By default, a WPS devices is “unconfigured”. This means that it is not part of an
existing network and can act as either enrollee or registrar (if it supports both
functions). If the registrar is unconfigured, the security settings it transmits to the
enrollee are randomly-generated. Once a WPS-enabled device has connected to
another device using WPS, it becomes “configured”. A configured wireless client
can still act as enrollee or registrar in subsequent WPS connections, but a
configured access point can no longer act as enrollee. It will be the registrar in all
SECURE TUNNEL
SECURITY INFO
WITHIN 2 MINUTES
COMMUNICATION
ACTIVATE
WPS
ACTIVATE
WPS
WPS HANDSHAKE
REGISTRARENROLLEE
Chapter 3Wireless LANs
NWD2105 User’s Guide
46
subsequent WPS connections in which it is involved. If you want a configured AP to
act as an enrollee, you must reset it to its factory defaults.
3.4.3.1 Example WPS Network Setup
This section shows how security settings are distributed in an example WPS setup.
The following figure shows an example network. In step 1, both AP1 and Client 1
are unconfigured. When WPS is activated on both, they perform the handshake. In
this example, AP1 is the registrar, and Client 1 is the enrollee. The registrar
randomly generates the security information to set up the network, since it is
unconfigured and has no existing information.
Figure 25 WPS: Example Network Step 1
In step 2, you add another wireless client to the network. You know that Client 1
supports registrar mode, but it is better to use AP1 for the WPS handshake with
the new client since you must connect to the access point anyway in order to use
the network. In this case, AP1 must be the registrar, since it is configured (it
already has security information for the network). AP1 supplies the existing
security information to Client 2.
Figure 26 WPS: Example Network Step 2
REGISTRARENROLLEE
SECURITY INFO
CLIENT 1 AP1
REGISTRAR
CLIENT 1 AP1
ENROLLEE
CLIENT 2
EXISTING CONNECTION
Chapter 3Wireless LANs
NWD2105 User’s Guide 47
In step 3, you add another access point (AP2) to your network. AP2 is out of
range of AP1, so you cannot use AP1 for the WPS handshake with the new access
point. However, you know that Client 2 supports the registrar function, so you use
it to perform the WPS handshake instead.
Figure 27 WPS: Example Network Step 3
3.4.4 Limitations of WPS
WPS has some limitations of which you should be aware.
•WPS works in Infrastructure networks only (where an AP and a wireless client
communicate). It does not work in Ad-Hoc networks (where there is no AP).
•When you use WPS, it works between two devices only. You cannot enroll
multiple devices simultaneously, you must enroll one after the other.
For instance, if you have two enrollees and one registrar you must set up the
first enrollee (by pressing the WPS button on the registrar and the first enrollee,
for example), then check that it successfully enrolled, then set up the second
device in the same way.
•WPS works only with other WPS-enabled devices. However, you can still add
non-WPS devices to a network you already set up using WPS.
WPS works by automatically issuing a randomly-generated WPA-PSK or WPA2-
PSK pre-shared key from the registrar device to the enrollee devices (see
Section 4.4.1.3 on page 57 for information on pre-shared keys). Whether the
network uses WPA-PSK or WPA2-PSK depends on the device. You can check the
CLIENT 1 AP1
REGISTRAR
CLIENT 2
EXISTING CONNECTION
ENROLLEE
AP1
Chapter 3Wireless LANs
NWD2105 User’s Guide
48
configuration interface of the registrar device to discover the key the network is
using (if the device supports this feature). Then, you can enter the key into the
non-WPS device and join the network as normal (the non-WPS device must also
support WPA-PSK or WPA2-PSK).
•When you use the PBC method, there is a short period (from the moment you
press the button on one device to the moment you press the button on the
other device) when any WPS-enabled device could join the network. This is
because the registrar has no way of identifying the “correct” enrollee, and
cannot differentiate between your enrollee and a rogue device. This is a possible
way for a hacker to gain access to a network.
You can easily check to see if this has happened. WPS works between only two
devices simultaneously, so if another device has enrolled your device will be
unable to enroll, and will not have access to the network. If this happens, open
the access point’s configuration interface and look at the list of associated
clients (usually displayed by MAC address). It does not matter if the access
point is the WPS registrar, the enrollee, or was not involved in the WPS
handshake; a rogue device must still associate with the access point to gain
access to the network. Check the MAC addresses of your wireless clients
(usually printed on a label on the bottom of the device). If there is an unknown
MAC address you can remove it or reset the AP.
NWD2105 User’s Guide 49
CHAPTER 4
Station Mode
4.1 Overview
This section shows you how to configure your NWD2105 using the ZyXEL utility in
Windows.
Note: Some features available in Windows XP or Windows 2000 are not available in
Windows Vista.
4.1.1 What You Can Do in This Section
•On the Link Info screen, you can see your current connection details, monitor
signal strength and quality, and more. See Section 4.3 on page 51 for details.
•On the Site Survey screen, you can connect to any available unsecured
wireless network in range of the NWD2105, or open the security settings screen
for any secured wireless network in range. See Section 4.4 on page 54 for
details.
•On the Profile screen, you can create, delete and manage your wireless
network profiles. See Section 4.5 on page 62 for details.
•On the Adapter screen, you can configure the NWD2105 hardware, such as
activating WPS mode or its power saving feature. See Section 4.6 on page 68
for details.
4.1.2 What You Need to Know
The following terms and concepts may help as you read through this section.
Wired Equivalent Privacy (WEP)
WEP (Wired Equivalent Privacy) encrypts data transmitted between wired and
wireless networks to keep the transmission private. Although one of the original
wireless encryption protocols, WEP is also the weakest. Many people use it strictly
to deter unintentional usage of their wireless network by outsiders.
Chapter 4Station Mode
NWD2105 User’s Guide
50
Wi-fi Protected Access (WPA)
Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i standard. It
improves data encryption by using Temporal Key Integrity Protocol (TKIP),
Message Integrity Check (MIC) and IEEE 802.1x. WPA uses Advanced Encryption
Standard (AES) in the Counter mode with Cipher block chaining Message
authentication code Protocol (CCMP) to offer stronger encryption than TKIP. WPA
applies IEEE 802.1x and Extensible Authentication Protocol (EAP) to authenticate
wireless clients using an external RADIUS database. The WPA protocol affords
users with vastly stronger security than the WEP protocol. It comes in two
different varieties: WPA and WPA2. Always try to use WPA2 as it implements the
full version of the security standard while WPA does not.
Pre-Shared Key (PSK)
A pre-shared key is a password shared between the server and the client that
unlocks the algorithm used to encrypt the data traffic between them. Without the
proper password, the client and the server cannot communicate.
Extensible Authentication Protocol (EAP)
An enhanced security framework designed to improve an existing security
protocol, such as WPA-PSK or WPA2-PSK.
4.1.3 Before You Begin
•Make sure the ZyXEL utility is already installed. See the Quick Start Guide for
more.
4.2 ZyXEL Utility Screen Summary
This section describes the ZyXEL utility screens.
Figure 28 ZyXEL Utility Menu Summary
Chapter 4Station Mode
NWD2105 User’s Guide 51
The following table describes the menus.

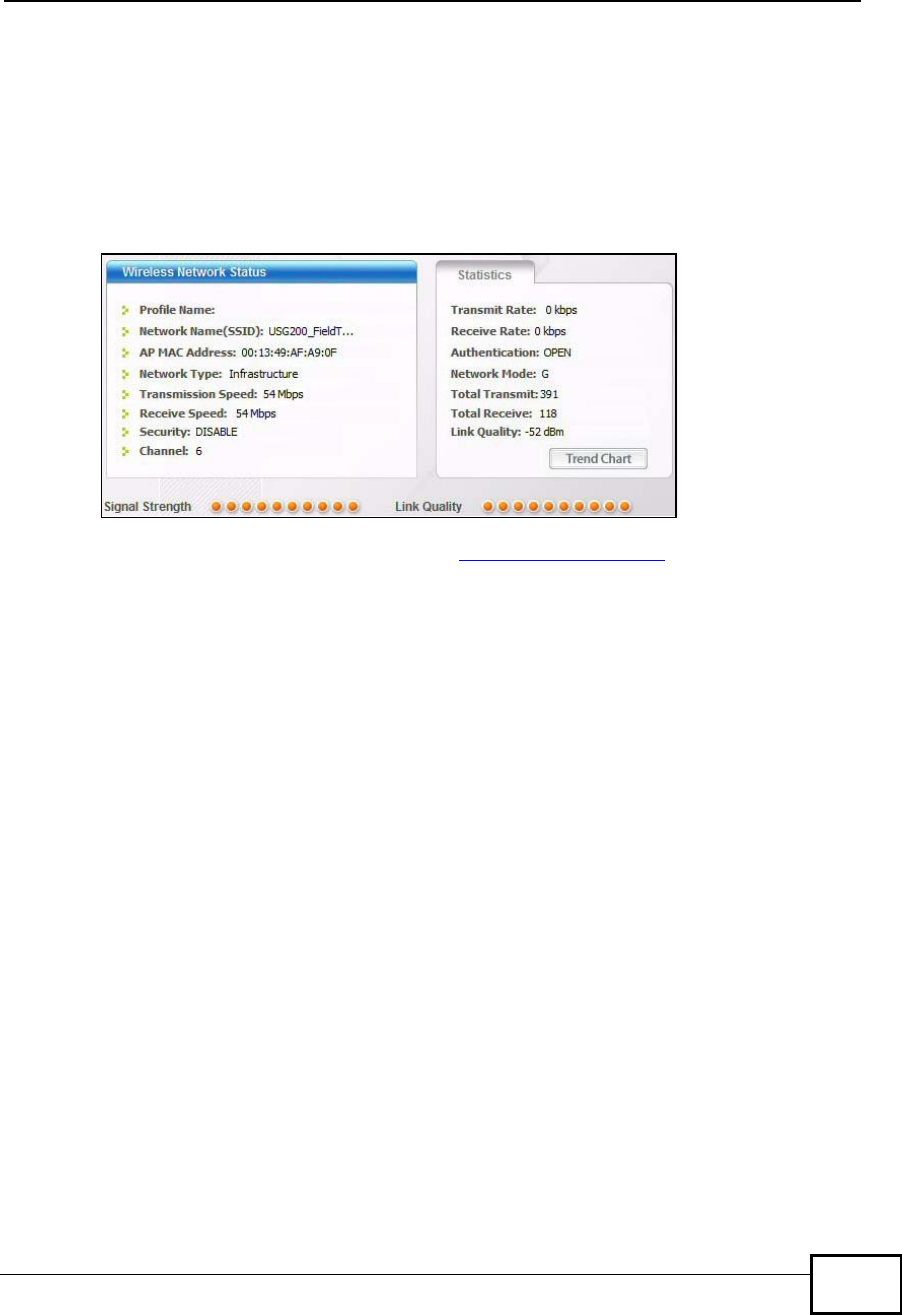

4.3 The Link Info Screen
When the ZyXEL utility starts, the Link Info screen displays, showing the current
configuration and connection status of your NWD2105.
Figure 29 Link Info
The following table describes the labels in this screen.
Table 4 ZyXEL Utility Menu Summary
TAB DESCRIPTION
Link InfoUse this screen to see your current connection status, configuration and
data rate statistics.
Site SurveyUse this screen to:
•scan for a wireless network.
•configure wireless security (if activated on the selected network).
•connect to a wireless network.
ProfileUse this screen to add, delete, edit or activate a profile with a set of
wireless and security settings.
AdapterUse this screen to configure preamble type, enable power saving and
use WiFi Protected Setup (WPS).
Table 5 Link Info
LABEL DESCRIPTION
Wireless
Network Status
Profile NameThis is the name of the profile you are currently using.
Chapter 4Station Mode
NWD2105 User’s Guide
52
Network
Name
(SSID)
The SSID identifies the wireless network to which a wireless station is
associated. This field displays the name of the wireless device to which
the NWD2105 is associated.
AP MAC
Address This field displays the MAC address of the AP or peer computer to which
the NWD2105 is associated.
Network
Type This field displays the network type (Infrastructure or Ad-Hoc) of the
wireless network.
Transmission
Speed This field displays the current transmission speed of the NWD2105 in
megabits per second (Mbps).
Receive
Speed This field displays the current receive speed of the NWD2105 in
megabits per second (Mbps).
Security This field displays whether data encryption is activated (WEP / 802.1x
/WPA /WPA-PSK /WPA2 / WPA2-PSK) or inactive (DISABLE).
ChannelThis field displays the radio channel the NWD2105 is currently using.
Statistics
Transmit
Rate This field displays the current data transmission rate in kilobits per
second (Kbps).
Receive Rate This field displays the current data receiving rate in kilobits per second
(Kbps).
Authenticati
on This field displays the authentication method of the NWD2105.
Network
Mode This field displays the wireless standard used by the selected wireless
device. It shows Bfor 802.11b, Gfor 802.11g or Nfor 802.11n.
Total
Transmit This field displays the total number of data frames transmitted.
Total
Receive This field displays the total number of data frames received.
Link Quality This field displays the signal strength of the NWD2105.
Trend Chart Click this button to display the real-time statistics of the data rate in
kilobits per second (Kbps).
Signal Strength The status bar shows the strength of the signal. The signal strength
mainly depends on the antenna output power and the distance between
your NWD2105 and the AP or peer computer.
Link Quality The status bar shows the quality of wireless connection. This refers to
the percentage of packets transmitted successfully. If there are too
many wireless stations in a wireless network, collisions may occur which
could result in a loss of messages even though you have high signal
strength.
Table 5 Link Info (continued)
LABEL DESCRIPTION
Chapter 4Station Mode
NWD2105 User’s Guide 53
4.3.1 Trend Chart
Click Trend Chart in the Link Info screen to display a screen as shown below.
Use this screen to view real-time data traffic statistics.
Figure 30 Link Info: Trend Chart
The following table describes the labels in this screen.
Table 6 Link Info: Trend Chart
LABEL DESCRIPTION
TransmitThis field displays the current data transmission rate in kilobits per
second (Kbps).
ReceiveThis field displays the current data reception rate in kilobits per second
(Kbps).
Chapter 4Station Mode
NWD2105 User’s Guide
54
4.4 The Site Survey Screen
Use the Site Survey screen to scan for and connect to a wireless network
automatically.

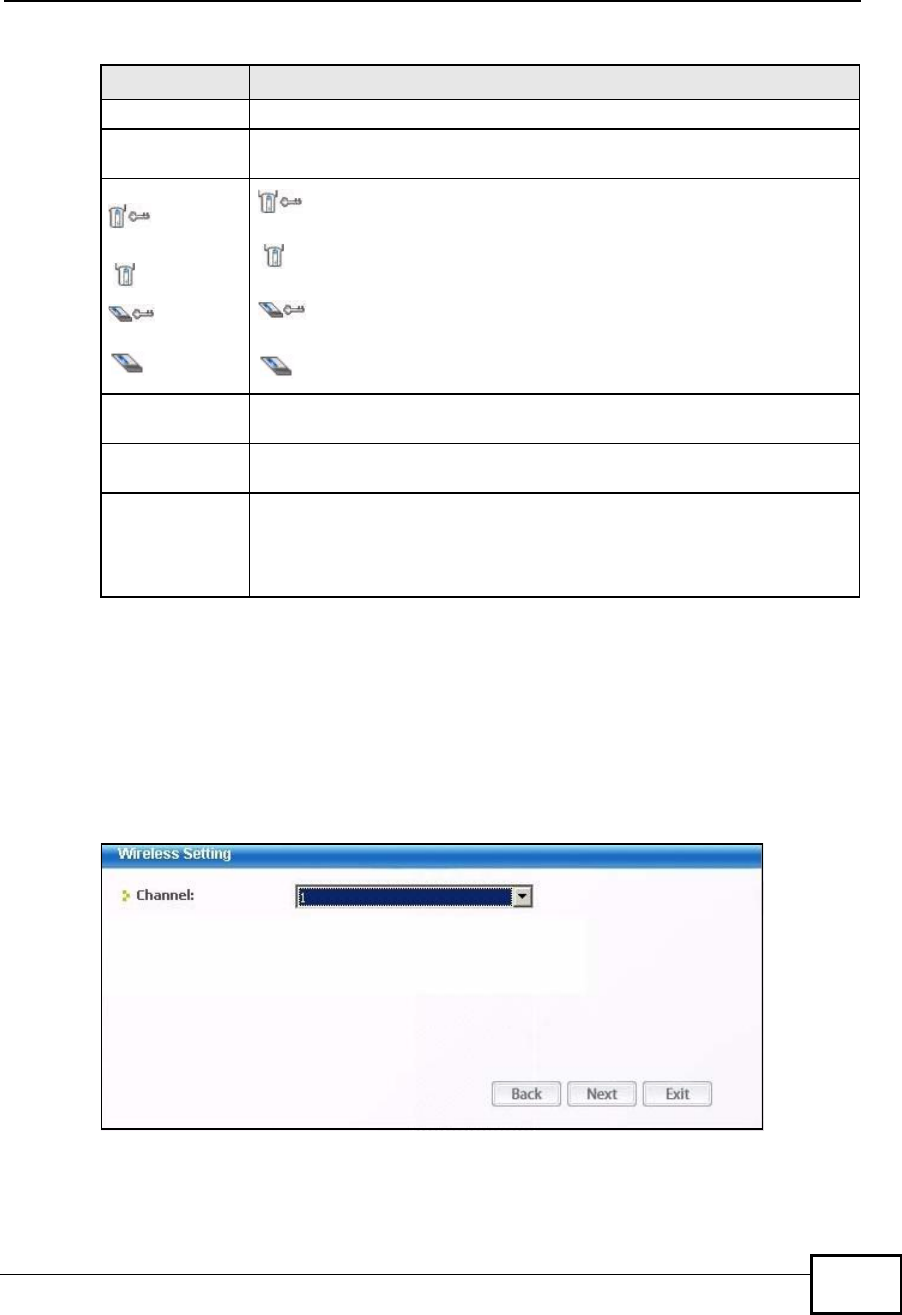

Figure 31 Site Survey
The following table describes the labels in this screen.
Table 7 Site Survey
LABEL DESCRIPTION
Available
Network List Click a column heading to sort the entries.
,
,
or
denotes that the wireless device is in infrastructure mode and
the wireless security is activated.
denotes that the wireless device is in infrastructure mode but the
wireless security is deactivated.
denotes that the wireless device is in Ad-Hoc mode and the
wireless security is activated.
denotes that the wireless device is in Ad-Hoc mode but the
wireless security is deactivated.
SSIDThis field displays the SSID (Service Set IDentifier) of each wireless
device.
ChannelThis field displays the channel number used by each wireless device.
SignalThis field displays the signal strength of each wireless device.
ScanClick Scan to search for available wireless devices within transmission
range.
ConnectClick Connect to associate to the selected wireless device.
Site
Information Click an entry in the Available Network List table to display the
information of the selected wireless device.
Chapter 4Station Mode
NWD2105 User’s Guide 55
4.4.1 Security Settings
When you configure the NWD2105 to connect to a network with wireless security
activated and the security settings are disabled on the NWD2105, the screen
varies according to the encryption method used by the selected network.
4.4.1.1 Security Type Selection
When you choose to connect to a network that has security, you are presented
with is a security selection screen. Choose the security of the network you are
attempting to join.

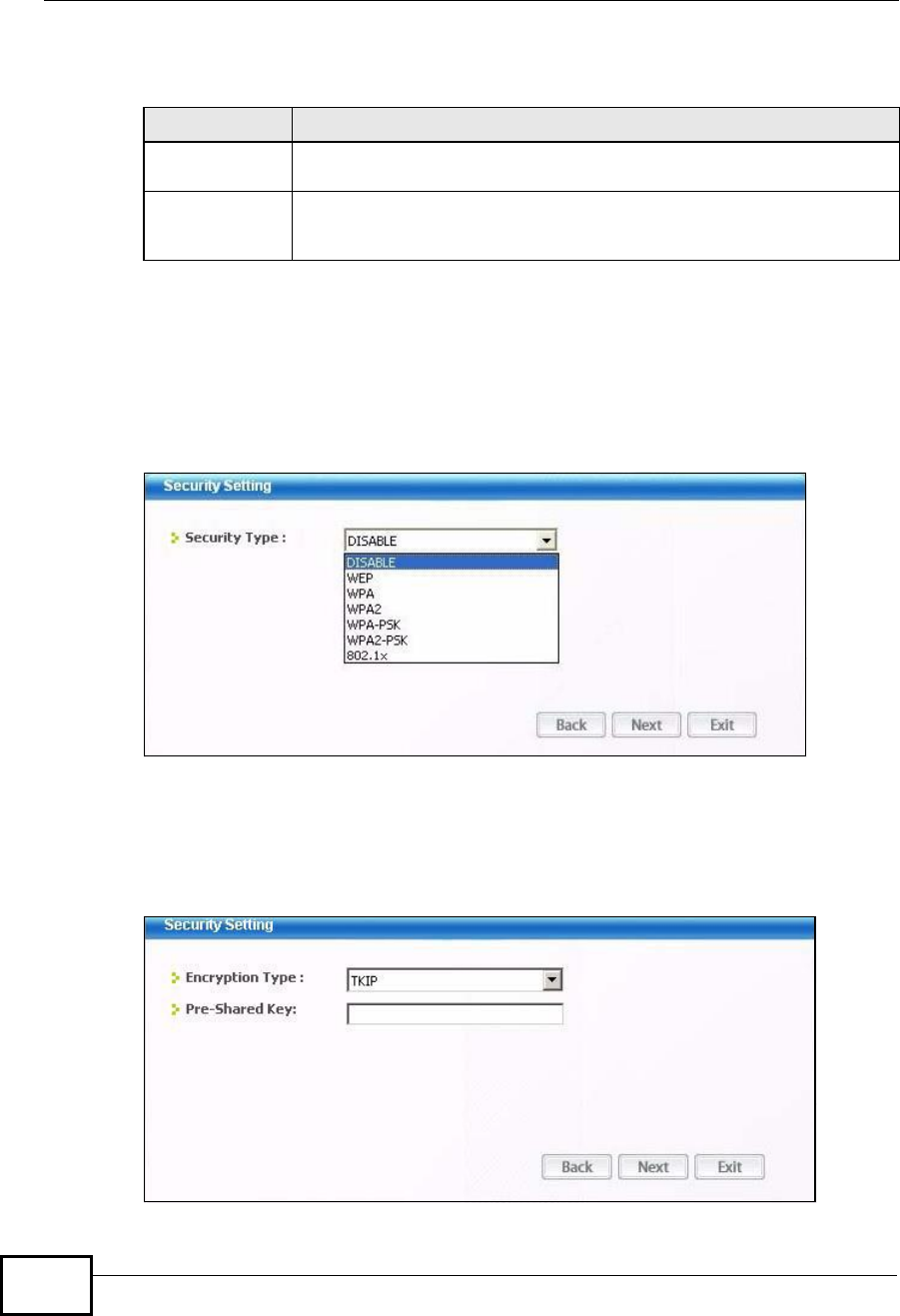

Figure 32 Security Setting Selection
The following table describes the labels in this screen.
Network Type This field displays the network type (Infrastructure or Ad Hoc) of the
wireless device.
ChannelThis field displays the channel number used by each wireless device.
SecurityThis field shows whether data encryption is activated (WEP,WPA,
WPA-PSK,WPA2,WPA2-PSK or 802.1x) or inactive (DISABLE).
MAC address This field displays the MAC address of the wireless device.
Surveyed at This field displays the time when the wireless device was scanned.
Table 7 Site Survey (continued)
LABEL DESCRIPTION
Table 8 Security Setting: WEP
LABEL DESCRIPTION
Security TypeSelect the security type that matches the security setting of the
network you’re trying to join.
The options are: WEP,WPA,WPA2,WPA-PSK, WPA2-PSK, and
802.1x.
BackClick Back to go to the Site Survey screen to select and connect to
another network.
Chapter 4Station Mode
NWD2105 User’s Guide
56
4.4.1.2 WEP Encryption
Configure WEP security in this screen.
Figure 33 Security Setting: WEP
The following table describes the labels in this screen.
NextClick Next to confirm your selections and advance to the Security
Settings screen that corresponds to the one you select here.
ExitClick Exit to return to the Site Survey screen without saving.
Table 8 Security Setting: WEP (continued)
LABEL DESCRIPTION
Table 9 Security Setting: WEP
LABEL DESCRIPTION
Security
Settings
WEPSelect 64 Bits or 128 Bits to activate WEP encryption and then fill in
the related fields.
Authentication
Type Select an authentication method. Choices are Open and Shared.
Refer to Section 3.3.1.1.2 on page 40 for more information.
Pass PhraseEnter a passphrase of up to 32 case-sensitive printable characters. As
you enter the passphrase, the NWD2105 automatically generates four
different WEP keys and displays the first in the key field below. Refer to
Section 3.3.1.1.1 on page 39 for more information.
Transmit KeySelect a default WEP key to use for data encryption. The key displays in
the adjacent field.
Chapter 4Station Mode
NWD2105 User’s Guide 57
4.4.1.3 WPA-PSK/WPA2-PSK
Configure WPA-PSK/WPA2-PSK security in this screen.
Note: The procedure to configure WPA or WPA2 is different in Windows Vista. See
Section 4.7 on page 71 for information on setting up your NWD2105 to use
WPA or WPA2 in Vista.
Figure 34 Security Setting: WPA-PSK/WPA2-PSK
Key x (where x
is a number
between 1 and
4)
Select this option if you want to manually enter the WEP keys. Enter the
WEP key in the field provided.
If you select 64 Bits in the WEP field.
Enter either 10 hexadecimal digits in the range of “A-F”, “a-f” and
“0-9” (for example, 11AA22BB33) for HEX key type.
or
Enter 5 ASCII characters (case sensitive) ranging from “a-z”, “A-Z”
and “0-9” (for example, MyKey) for ASCII key type.
If you select 128 Bits in the WEP field,
Enter either 26 hexadecimal digits in the range of “A-F”, “a-f” and
“0-9” (for example, 00112233445566778899AABBCC) for HEX key
type
or
Enter 13 ASCII characters (case sensitive) ranging from “a-z”, “A-Z”
and “0-9” (for example, MyKey12345678) for ASCII key type.
Note: The values for the WEP keys must be set up exactly the
same on all wireless devices in the same wireless LAN.
ASCII WEP keys are case sensitive.
BackClick Back to go to the Site Survey screen to select and connect to
another network.
NextClick Next to confirm your selections and advance to the Summary
screen. Refer to Section 4.4.2 on page 61.
ExitClick Exit to return to the Site Survey screen without saving.
Table 9 Security Setting: WEP (continued)
LABEL DESCRIPTION
Chapter 4Station Mode
NWD2105 User’s Guide
58
The following table describes the labels in this screen.
4.4.1.4 WPA/WPA2
The screen that displays when you select WPA or WPA2 differs, depending on the
EAP Type you select (TLS,PEAP or TTLS).
Figure 35 Security Settings: WPA/WPA2
Table 10 Security Setting: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Encryption TypeThe encryption mechanisms used for WPA/WPA2 and WPA-PSK/WPA2-
PSK are the same. The only difference between the two is that WPA-
PSK/WPA2-PSK uses a simple common password, instead of user-
specific credentials.
Select the encryption type (TKIP or AES) for data encryption.
Refer to Section 3.3.1.3 on page 41 for more information.
Pre-Shared KeyType a pre-shared key (same as the AP or peer device) of between 8
and 63 case-sensitive ASCII characters (including spaces and symbols)
or 64 hexadecimal characters.
BackClick Back to go to the Site Survey screen to select and connect to
another network.
NextClick Next to confirm your selections and advance to the Summary
screen. Refer to Section 4.4.2 on page 61.
ExitClick Exit to return to the Site Survey screen without saving.
Chapter 4Station Mode
NWD2105 User’s Guide 59
The following table describes the labels in this screen.
4.4.1.5 IEEE 802.1x
Configure IEEE 802.1x security with various authentication methods in this
screen.
Table 11 Security Setting: WPA/WPA2
LABEL DESCRIPTION
Encryption TypeThe encryption mechanisms used for WPA/WPA2 and WPA-PSK/WPA2-
PSK are the same. The only difference between the two is that WPA-
PSK/WPA2-PSK uses a simple common password, instead of user-
specific credentials.
Select the encryption type (TKIP or AES) for data encryption.
Refer to Section 3.3.1.3 on page 41 for more information.
EAP TypeThe type of authentication you use depends on the RADIUS server or
AP.
Select an authentication method from the drop down list. Options are
TLS,PEAP and TTLS (at the time of writing, TTLS is not available in
Windows Vista).
Login NameEnter a user name.
This is the user name that you or an administrator set up on a RADIUS
server.
PasswordThis field is not available when you select TLS in the EAP Type field.
Enter the password associated with the user name above.
CertificateThis field is only available when you select TLS in the EAP Type field.
Click Browse to select a certificate.
Note: You must first have a wired connection to a network and
obtain the certificate(s) from a certificate authority (CA).
Consult your network administrator for more information.
PEAP Inner EAPThis field is only available when you select PEAP in the EAP Type field.
The PEAP method used by the RADIUS server or AP for client
authentication is MS CHAP v2.
TTLS ProtocolThis field is available only when you select TTLS in the EAP Type field.
Select a TTLS protocol that the RADIUS server uses. Options are CHAP,
MS-CHAP,MS-CHAP-V2 and PAP.
Note: This feature is not available on Windows Vista.
BackClick Back to go to the Site Survey screen to select and connect to
another network.
NextClick Next to confirm your selections and advance to the Summary
screen. Refer to Section 4.4.2 on page 61.
ExitClick Exit to return to the Site Survey screen without saving.
Chapter 4Station Mode
NWD2105 User’s Guide
60
Note: The procedure to configure 802.1x is different in Windows Vista. See Section
4.7 on page 71 for information on setting up your NWD2105 to use 802.1x in
Vista.

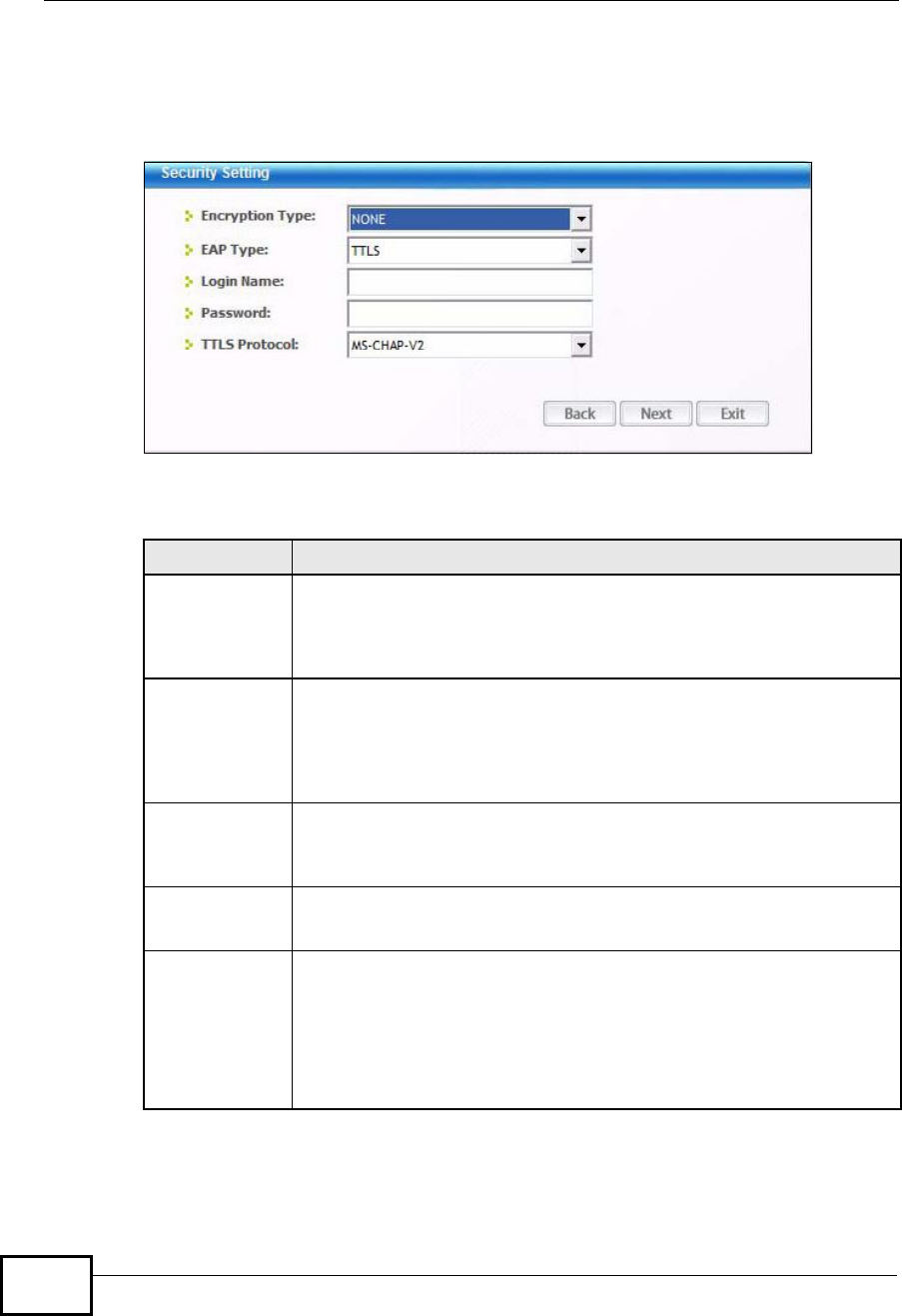

Figure 36 Security Setting: 802.1x
The following table describes the labels in this screen.
Table 12 Security Settings: IEEE 802.1x
LABEL DESCRIPTION
Encryption TypeSelect WEP if the access point is configured to use 802.1x with WEP
encryption. A dynamic WEP key is generated automatically.
Otherwise, select NONE (at the time of writing, this is not available in
Windows Vista).
EAP TypeThe type of authentication you use depends on the RADIUS server or
AP.
Select an authentication method from the drop down list. Options are
TLS,PEAP and TTLS (at the time of writing, TTLS is not available in
Windows Vista).
Login NameEnter a user name.
This is the user name that you or an administrator set up on a RADIUS
server.
PasswordThis field is not available when you select TLS in the EAP Type field.
Enter the password associated with the user name above.
CertificateThis field is only available when you select TLS in the EAP Type field.
Click Browse to select a certificate.
Note: You must first have a wired connection to a network and
obtain the certificate(s) from a certificate authority (CA).
Consult your network administrator for more information.
Chapter 4Station Mode
NWD2105 User’s Guide 61
4.4.2 Summary Screen
Use this screen to confirm and save the security settings.
Figure 37 Summary Screen
The following table describes the labels in this screen.
TTLS ProtocolThis field is available only when you select TTLS in the EAP Type field.
Select a TTLS protocol that the RADIUS server uses. Options are CHAP,
MS-CHAP,MS-CHAP-V2 and PAP.
Note: This feature is not available on Windows Vista.
PEAP Inner EAPThis field is only available when you select PEAP in the EAP Type field.
The PEAP method used by the RADIUS server or AP for client
authentication is MS CHAP v2.
Validate Server
Certificate
(Click to
Enable)
Select this option to validate a server’s certificate when you select
PEAP in the EAP Type field.
BackClick Back to go to the Site Survey screen to select and connect to
another network.
NextClick Next to confirm your selections and advance to the Summary
screen. Refer to Section 4.4.2 on page 61.
ExitClick Exit to return to the Site Survey screen without saving.
Table 12 Security Settings: IEEE 802.1x
LABEL DESCRIPTION
Table 13 Summary Screen
LABEL DESCRIPTION
Network Name
(SSID) This field displays the SSID previously entered.
Network TypeThis field displays the network type (Infrastructure or Ad-Hoc) of the
wireless device.
ChannelThis field displays the channel number used by the profile.
Chapter 4Station Mode
NWD2105 User’s Guide
62
4.5 The Profile Screen
A profile is a set of wireless parameters that you need to connect to a wireless
network. With a profile activated, each time you start the NWD2105, it
automatically scans for the specific SSID and joins that network with the pre-
defined wireless security settings. If the specified network is not available, the
NWD2105 cannot connect to a network.
If you do not configure and activate a profile, each time you start the NWD2105,
the NWD2105 uses the default profile to connect to any available network that has
no security enabled.
The default profile is a profile that allows you to connect to any SSID that has no
security enabled.
Click the Profile tab in the ZyXEL utility program to display the Profile screen as
shown next.
SecurityThis field shows whether data encryption is activated (WEP,WPA,
WPA-PSK,WPA2,WPA2-PSK, 802.1x) or inactive (DISABLE).
BackClick Back to return to the previousscreen.
SaveClick Save to save the changes back to the NWD2105 and display the
Link Info screen.
ExitClick Exit to discard changes and return to the Site Survey screen.
Table 13 Summary Screen
LABEL DESCRIPTION
Chapter 4Station Mode
NWD2105 User’s Guide 63
The profile function allows you to save the wireless network settings in this
screen, or use one of the pre-configured network profiles.
Figure 38 Profile
The following table describes the labels in this screen.
Table 14 Profile
LABEL DESCRIPTION
Profile ListClick a column heading to sort the entries.
,
,
or
denotes that the wireless device is in infrastructure mode and
the wireless security is activated.
denotes that the wireless device is in infrastructure mode but the
wireless security is deactivated.
denotes that the wireless device is in Ad-Hoc mode and the
wireless security is activated.
denotes that the wireless device is in Ad-Hoc mode but the
wireless security is deactivated.
Profile NameThis is the name of the pre-configured profile.
SSIDThis is the SSID of the wireless network to which the selected profile
associate.
Connect To use and activate a previously saved network profile, select a pre-
configured profile name in the table and click Connect.
Add To add a new profile into the table, click Add.
DeleteTo delete an existing wireless network configuration, select a profile in
the table and click Delete.
EditTo edit an existing wireless network configuration, select a profile in the
table and click Edit.
Profile InfoThe following fields display detailed information of the selected profile in
the Profile List table.
Network TypeThis field displays the network type (Infrastructure or Ad-Hoc) of the
profile.
Chapter 4Station Mode
NWD2105 User’s Guide
64
4.5.1 Adding a New Profile
Follow the steps below to add a new profile.
1Click Add in the Profile screen. An Add New Profile screen displays as shown
next.
Figure 39 Profile: Add a New Profile
The following table describes the labels in this screen.
SSIDThis field displays the network’s Service Set IDentity (the name of the
network).
ChannelThis field displays the channel number used by the profile.
SecurityThis field shows whether data encryption is activated (WEP,WPA,
WPA-PSK,WPA2,WPA2-PSK or 802.1x) or inactive (DISABLE).
Transmit RateThis field displays the transmission speed of the selected profile in
megabits per second (Mbps).
Table 14 Profile (continued)
LABEL DESCRIPTION
Table 15 Profile: Add a New Profile
LABEL DESCRIPTION
Add New Profile
Profile NameEnter a descriptive name in this field.
SSIDSelect an available wireless device in the Scan Info table and click
Select, or enter the SSID of the wireless device to which you want to
associate in this field manually. Otherwise, enter Any to have the
NWD2105 associate to any AP or roam between any infrastructure
wireless networks.
Network TypeSelect Infrastructure to associate to an AP. Select Ad-Hoc to
associate to a peer computer.
NextClick Next to go to the next screen.
Chapter 4Station Mode
NWD2105 User’s Guide 65
2If you select the Infrastructure network type in the previous screen, skip to step
3. If you select the Ad-Hoc network type in the previous screen, a screen displays
as follows. Select a Channel number and Wireless Mode and click Next to
continue.
Note: To associate to an ad-hoc network, you must use the same channel as the peer
computer.
Figure 40 Profile: Wireless Settings
ExitClick Exit to go back to the previous screen without saving.
Scan InfoThis table displays the information of the available wireless networks
within the transmission range.
,
,
or
denotes that the wireless device is in infrastructure mode and
the wireless security is activated.
denotes that the wireless device is in infrastructure mode but the
wireless security is deactivated.
denotes that the wireless device is in Ad-Hoc mode and the
wireless security is activated.
denotes that the wireless device is in Ad-Hoc mode but the
wireless security is deactivated.
SSIDThis field displays the SSID (Service Set IDentifier) of each AP or peer
device.
ScanClick Scan to search for available wireless devices within transmission
range.
SelectSelect an available wireless device in the table and click Select to add it
to this profile.
Whenever you activate this profile, the NWD2105 associates to the
selected wireless network only.
Table 15 Profile: Add a New Profile (continued)
LABEL DESCRIPTION
Chapter 4Station Mode
NWD2105 User’s Guide
66
The following table describes the labels in this screen.
3If you selected Infrastructure network type in the first screen, select WEP,
WPA, WPA2,WPA-PSK, WPA2-PSK or 802.1x from the drop-down list box to
enable data encryption. If you selected Ad-Hoc network type in the first screen,
you can use only WEP encryption method. Otherwise, select DISABLE to allow
the NWD2105 to communicate with the access points or other peer wireless
computers without any data encryption, and skip to step 5.
Figure 41 Profile: Wireless Settings
4The screen varies depending on the encryption method you select in the previous
screen. The settings must be exactly the same on the AP or other peer wireless
computers as they are on the NWD2105. Refer to Section 5.4.1 on page 80 for
detailed information on wireless security configuration.
Figure 42 Profile: Security Settings
Table 16 Profile: Wireless Settings
LABEL DESCRIPTION
Wireless
Settings
ChannelSelect a channel number from the drop-down list box. To associate to
an ad-hoc network, you must use the same channel as the peer
computer.
Chapter 4Station Mode
NWD2105 User’s Guide 67
5This read-only screen shows a summary of the new profile settings. Verify that the
settings are correct. Click Save to save and go to the next screen. Click Back to
return to the previous screen. Otherwise, click Exit to go back to the Profile
screen without saving.
Figure 43 Profile: Confirm New Settings
6To use this network profile, click the Activate Now button. Otherwise, click the
Activate Later button. You can activate only one profile at a time.
Note: Once you activate a profile, the ZyXEL utility will use that profile the next time it
is started.
Figure 44 Profile: Activate the Profile
Chapter 4Station Mode
NWD2105 User’s Guide
68
4.6 The Adapter Screen
To set the other advanced features on the NWD2105, click the Adapter tab.
Figure 45 Adapter
The following table describes the labels in this screen.
Table 17 Adapter
LABEL DESCRIPTION
Adapter Setting
Power Saving
Mode Select Maximum or Normal to save power. This forces the NWD2105
to go to sleep mode when it is not transmitting data.
When you select Off, the NWD2105 will never go to sleep mode.
At the time of writing, this field is not available in Windows Vista.
WMM QoSSelect this to enable Wi-fi MultiMedia Quality of Service on the
NWD2105.
At the time of writing, this field is not available in Windows Vista.
WPS (WiFi
Protected
Setup)
Select this to enable Wi-fi Protected Setup on the NWD2105.
PBC (Push
Button
Configuratio
n)
Select this to use the PBC (Push-Button Configuration) WPS mode.
When you use the PBC mode you do not use a PIN.
When you select this, the PBC (Push Button Configuration screen
appears (see Section 4.6.1 on page 69).
PIN - Use
This Device’s
PIN
Select this to use the PIN (Personal Identification Number) WPS mode.
Use this option when you want to enter the NWD2105’s PIN in another
WPS-enabled device.
When you select this, the PIN - Use this Device’s PIN screen appears
(see Section 4.6.2 on page 69).
Chapter 4Station Mode
NWD2105 User’s Guide 69
4.6.1 WPS: PBC (Push Button Configuration)
This screen allows you to use the WPS Push Button Configuration mode. See
Section 3.4.1 on page 42 for more information. Select WPS and PBC (Push
Button Configuration) in the Adapter screen. The following screen displays.
Figure 46 WPS: PBC (Push Button Configuration)
Press Start when you want to begin the WPS process. You must also press the
button on the other device within two minutes.
4.6.2 WPS: PIN - Use this Device’s PIN
This screen allows you to use the WPS Personal Identification Number mode, by
entering the NWD2105’s unique PIN in the configuration utility of the other WPS-
enabled device. See Section 3.4.2 on page 42 for more information. Select WPS
PIN - Use
the PIN
From the AP
or Wireless
Router
Select this to use the PIN (Personal Identification Number) WPS mode.
Use this option when you want to enter the PIN from another WPS-
enabled device in the NWD2105.
When you select this, the PIN - Use the PIN From the AP or
Wireless Router screen appears (see Section 4.6.3 on page 70).
SaveClick Save to save the changes to the NWD2105 and return to the Link
Info screen.
Table 17 Adapter (continued)
LABEL DESCRIPTION
Chapter 4Station Mode
NWD2105 User’s Guide
70
and PIN - Use this Device’s PIN in the Adapter screen. The following screen
displays.
Figure 47 WPS: PIN - Use this Device’s PIN
The following table describes the labels in this screen.
4.6.3 WPS: PIN - Use the PIN from the AP or Wireless Router
This screen allows you to use the WPS Personal Identification Number mode, by
entering the PIN from another WPS-enabled device into the NWD2105’s utility.
See Section 3.4.2 on page 42 for more information. Select WPS and PIN - Use
Table 18 WPS: PIN - Use this Device’s PIN
LABEL DESCRIPTION
This device’s PINThis is the NWD2105’s Personal Identification Number
(PIN). This field is read-only. Enter the number that
displays in this field into the configuration interface of the
other WPS-enabled device.
Note: Each time this screen displays, the PIN is
different. The PIN is valid for only one WPS
transaction.
StartClick this to start WPS. You must start WPS on the other
WPS-enabled device within two minutes.
Chapter 4Station Mode
NWD2105 User’s Guide 71
the PIN from the AP or Wireless Router in the Adapter screen. The following
screen displays.
Figure 48 WPS: PIN - Use the PIN from the AP or Wireless Router
The following table describes the labels in this screen.
4.7 Security Settings in Windows Vista
When you use the NWD2105 in Windows Vista, the procedure for setting up WPA,
WPA2 and 802.1x security settings is different from that of other operating
systems (other security types are not affected).
The procedures for setting up WPA, WPA2 or 802.1x in Vista are the same.
However, the procedure differs depending on whether you use PEAP (Protected
Extensible Authentication Protocol) or TLS (Transport Layer Security) encryption.
Consult your network administrator if you are unsure which type of encryption to
use.
See Section 4.7.1 on page 72 to use PEAP, or see Section 4.7.2 on page 73 to use
TLS.
Note: TTLS (Tunneled TLS) is not available when using Windows Vista, at the time of
writing.
Table 19 WPS: PIN - Use the PIN from the AP or Wireless Router
LABEL DESCRIPTION
AP or Router’s PINEnter the PIN from your AP or wireless router in this field
before you click Start.
StartClick this to start WPS. You must start WPS on the other
WPS-enabled device within two minutes.
Chapter 4Station Mode
NWD2105 User’s Guide
72
4.7.1 Using PEAP in Vista
Take the following steps to set up WPA, WPA2 or 802.1x security using PEAP in
Windows Vista.
1Either select the AP to which you want to connect in the Site Survey screen (see
Section 4.4 on page 54), or configure a profile in the normal way (see Section 4.5
on page 62).
2In the WPA,WPA2 or 802.1x security screen (see Section 4.4.1.4 on page 58
and Section 4.4.1.5 on page 59), select PEAP as the EAP Type. Note that the
Login Name and Password fields are greyed-out (not available).
3Click Next.
4In the Summary screen that appears, click Save.
5A message similar to the following appears in the bottom-right of your screen.
Click the message.
Figure 49 Vista Security: Additional Information Required
6The Enter Credentials screen displays. Enter your User name and Password
for the network to which you want to connect.
Figure 50 Vista Security: Enter Credentials
Note: If you are not sure what to enter, contact your network administrator.
Chapter 4Station Mode
NWD2105 User’s Guide 73
7Click OK. The Enter Credentials screen disappears and the NWD2105 tries to
connect to the network. The ZyXEL utility’s Link Info screen displays, showing
the connection status (see Section 4.3 on page 51). If the Link Info screen
displays an active connection, you have successfully completed the procedure.
4.7.2 Using TLS in Vista
Take the following steps to set up WPA, WPA2 or 802.1x security using TLS in
Windows Vista.
1Either select the AP to which you want to connect in the Site Survey screen (see
Section 4.4 on page 54), or configure a profile (see Section 4.5 on page 62) in the
normal way.
2In the WPA,WPA2 or 802.1x security screen, select TLS as the EAP Type. Note
that the Login Name, Certificate and Validate Server Certificate fields are
greyed-out (not available).
3Click Next.
4In the Summary screen, click Save.
5A message similar to the following appears in the bottom-right of your screen.
Click the message.
Figure 51 Vista Security: Additional Information Required
6The Select Certificate screen displays. Select the certificate you want to use in
order to authenticate with the server, and enter your username.
Figure 52 Vista Security: Select Certificate
Note: If you do not have the right certificate, or are not sure which certificate you
should use, contact your network administrator.
Chapter 4Station Mode
NWD2105 User’s Guide
74
7Click OK. The Select Certificate screen disappears and the NWD2105 tries to
connect to the network. The ZyXEL utility’s Link Info screen displays, showing
the connection status (see Section 4.3 on page 51). If the Link Info screen
displays an active connection, you have successfully completed the procedure.
NWD2105 User’s Guide 75
CHAPTER 5
AP Mode
5.1 Overview
This section shows you how to configure your NWD2105 in AP Mode using the
Windows version of the ZyXEL Utility.
Note: Some features available in Windows XP or Windows 2000 are not available in
Windows Vista.
AP Mode allows you to set up a wireless network without using a pre-existing AP.
The following figure shows a sample AP network set up.
Figure 53 AP Network Example .
Here, the NWD2105 is installed on computer A and set to operate in access point
mode. Computer A provides an Internet connection to the wireless LAN, so
wireless stations B and C can access the Internet.
Chapter 5AP Mode
NWD2105 User’s Guide
76
Select the AP Mode option the ZyXEL Utility to have the device function as an
access point.
Figure 54 ZyXEL Utility: Setting AP Mode .
5.1.1 What You Can Do in This Section
•On the Link Info screen, you can see your AP’s current transmission and
security status See Section 5.3 on page 78 for details.
•On the Configuration screen, you can set up the broadcast parameters for
your access point as well as its security options. See Section 5.4 on page 79 for
details.

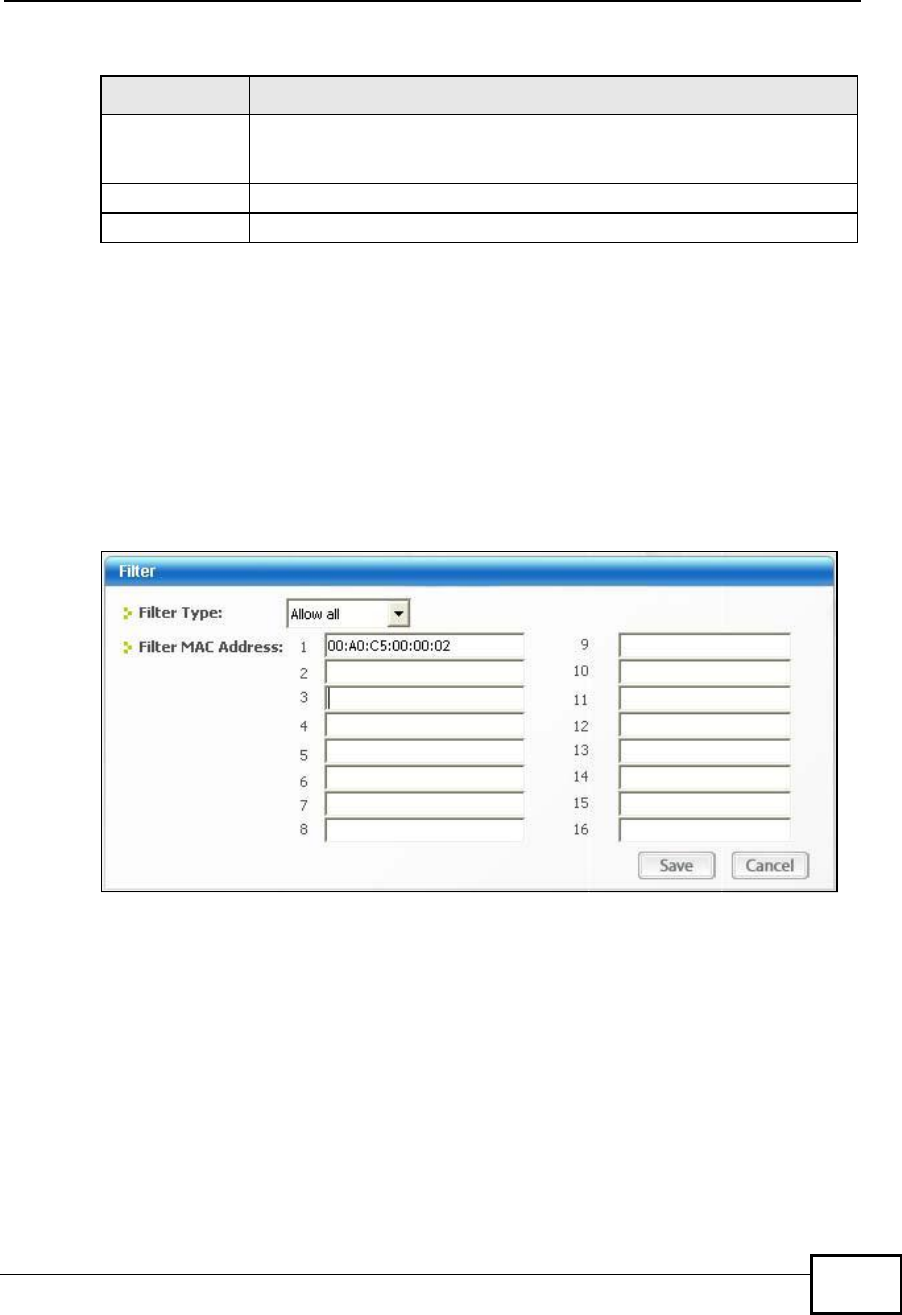

•On the MAC Filter screen, you can configure the NWD2105 to give exclusive
access to devices or exclude specific devices from connecting to the AP. See
Section 5.5 on page 83 for details.
5.1.2 What You Need to Know
The following terms and concepts may help as you read through this section.
MAC Address
On a local area network (LAN) or other network, the MAC address is a computer's
unique hardware number. On an Ethernet LAN, it's the same as your Ethernet
address. The MAC layer frames data for transmission over the network, then
passes the frame to the physical layer interface where it is transmitted as a
stream of bits.
Chapter 5AP Mode
NWD2105 User’s Guide 77
See Also...
The terms and concepts introduced in Chapter 4 on page 49 apply to this chapter
as well.
5.1.3 Before You Begin
Make sure the ZyXEL Utility is already installed. See the Quick Start Guide for
more.
To bridge your wired and wireless network using the NWD2105, the following
requirements must be met:
•The NWD2105 must be installed on a computer connected to the wired network.
•Either bridge the two interfaces (wireless and wired) on the computer (using the
Configuration screen) or configure network sharing.
•Set the wireless station’s IP address to be dynamic if you want the wireless
stations to access the wired network or the Internet through the NWD2105.
Refer to Appendix A on page 101 for how to configure your computer’s IP
address.
5.2 AP Mode Screen Summary
This section describes the ZyXEL Utility screens while in AP Mode.
Figure 55 ZyXEL Utility Menu Summary
The following table describes the menus.
Table 20 ZyXEL Utility Menu Summary
TAB DESCRIPTION
Link InfoUse this screen to see your current connection status, configuration and
data rate statistics.
ConfigurationUse this screen to configure wireless LAN settings.
MAC FilterUse this screen to configure which computer(s) you want access to the
wireless LAN through the NWD2105.
Chapter 5AP Mode
NWD2105 User’s Guide
78
5.3 The Link Info Screen
When you enter AP Mode, the Link Info screen displays, showing the current
configuration and connection status of your NWD2105 access point.
Figure 56 Link Info
The following table describes the labels in this screen.
Table 21 Link Info
LABEL DESCRIPTION
Status
SSIDThis field displays the name that identifies your NWD2105 in the wire-
less LAN network.
Current
Channel This field displays the radio channel the NWD2105 is currently using.
Transmis-
sion Rate This field displays the current transmission rate of the NWD2105 in
megabits per second (Mbps).
SecurityThis field shows whether data encryption is activated (WEP,WPA,
WPA2,WPA-PSK or WPA2-PSK) or inactive (DISABLE).
MACThis field displays the MAC address of the NWD2105.
Output
Power This field shows the strength of the NWD2105’s antenna gain or trans-
mission power.
Association ListThis table lists the wireless clients that are currently connected to the
NWD2105.
denotes a wireless client without wireless security.
denotes a wireless client with wireless security enabled.
MAC Address This field displays the MAC addresses of a wireless client that is cur-
rently connected to the NWD2105.
RefreshClick Refresh to update this screen.
Chapter 5AP Mode
NWD2105 User’s Guide 79
5.4 The Configuration Screen
The Configuration screen allows you to set up the broadcast parameters for your
access point as well as its security options.
Figure 57 The Configuration Screen
The following table describes the labels in this screen.
Table 22 Configuration
LABEL DESCRIPTION
Wireless Set-
tings
SSIDEnter a name for your AP This name is broadcast to all wireless-capable
devices in range and can be used to connect to your AP.
You can enter up to 32 printable ASCII characters in this field.
Hide SSIDSelect this option to keep your AP’s SSID private. Only users who
explicitly enter the SSID name in their connection window while con-
necting will be able to “see” it.
While effective at deterring the casual user from inadvertantly connect-
ing to your AP, it is the weakest of all wireless security. Anyone with a
basic sniffer program will be able to detect the channel.
Wireless
Mode This displays a list of available wireless modes. As of this writing, the
NWD2105 only supports 2.4 GHz.
ChannelSelect a channel on which on broadcast your AP’s wireless signal.
If there are a high number of APs broadcast within range of one
another, try to use a channel that is either not in use or that has the
fewest number of broadcasters. Too many APs using the same channel
can interfere with one another.
Chapter 5AP Mode
NWD2105 User’s Guide
80
5.4.1 Security Settings
When you configure the NWD2105 to act as an AP and wireless security is
activated, the Configuration screen varies according to the encryption method
used by your network.
5.4.1.1 Disable
This option indicates that no security services are enabled. Anyone within range of
your AP can connect to it without having to enter a pre-shared key.
Note: When security settings are disabled in AP Mode and if you have a shared
Internet connection via the Bridge feature (see page80) or any shared folders
on the computer that is hosting the AP, they will be available to anyone who is
connected.
Output
Power Set this field if you need to conserve power consumption (especially for
notebook computers). This control changes the strength of the
NWD2105’s antenna gain or transmission power. Antenna gain, listed
here as a percentage, is the increase in coverage. Higher antenna gain
improves the range of the signal for better communications.
•100% - Sets the antenna gain at maximum output power. This has
the highest level of power consumption. If you are using the
NWD2105 on a notebook computer running on battery power, then
using this power setting will drain the battery the fastest.
•75% - Sets the antenna gain to medium-high output power. This is
a decent comprimise between signal strength and power consump-
tion.
•50% - Sets the antenna gain to medium output power. The range is
reduced but the power consumption is much less.
•25% - Sets the antenna gain to low output power. This significantly
reduces the transmission range but save considerable power.
•Lowest - Sets the antenna gain to minimal output power. You are
trading decent transmission range for significant power savings.
Bridge Select the check box and an Ethernet adapter (network interface card
(NIC)) on your computer from the drop-down list box. This allows you
to connect your wireless network to the specified wired network.
Note: This feature is not supported in Windows 2000.
Security typeSelect a security type for your AP. Options are DISABLE,WEP,WPA-
PSK and WPA2-PSK.
SaveClickto save the changes.
CancelClickto discard the changes.
Table 22 Configuration (continued)
LABEL DESCRIPTION
Chapter 5AP Mode
NWD2105 User’s Guide 81
5.4.1.2 WEP Encryption
Configure WEP security with these options.
Figure 58 Security Setting: WEP
The following table describes the labels in this screen.
Table 23 Security Setting: WEP
LABEL DESCRIPTION
Security typeSelect WEP to enable this encryption type.
Authentication
Type Select an authentication method. Choices are Open System and
Shared Key.
WEPSelect 64 Bits or 128 Bits for your WEP encryption type.
Transmit KeySelect a default WEP key to use for data encryption.
Note: This feature is not available in Windows Vista.
Pass PhraseIf you select this transmit key option, enter a passphrase of up to 32
case-sensitive printable characters.
As you enter the passphrase, the NWD2105 automatically generates
four different transmit keys and displays the first in the key field below.
Chapter 5AP Mode
NWD2105 User’s Guide
82
5.4.1.3 WPA-PSK/WPA2-PSK
Configure WPA-PSK and WPA2-PSK security with these options.
Figure 59 Security Setting: WPA-PSK/WPA2-PSK
The following table describes the labels in this screen.
Key 1-4Select this option if you want to manually enter a transmit key. Enter
the key in the field provided.
If you select 64 Bits in the WEP field.
Enter either 10 hexadecimal digits in the range of “A-F”, “a-f” and “0-
9” (for example, 11AA22BB33) for HEX key type.
or
Enter 5 ASCII characters (case sensitive) ranging from “a-z”, “A-Z”
and “0-9” (for example, MyKey) for ASCII key type.
If you select 128 Bits in the WEP field,
Enter either 26 hexadecimal digits in the range of “A-F”, “a-f” and “0-
9” (for example, 00112233445566778899AABBCC) for HEX key type
or
Enter 13 ASCII characters (case sensitive) ranging from “a-z”, “A-Z”
and “0-9” (for example, MyKey12345678) for ASCII key type.
Note: The values for the WEP keys must be set up exactly the
same on all wireless devices in the same wireless LAN.
ASCII WEP keys are case sensitive.
SaveClickto save the changes.
CancelClickto discard the changes.
Table 23 Security Setting: WEP (continued)
LABEL DESCRIPTION
Table 24 Security Setting: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Security TypeSelect either WPA-PSK or WPA2-PSK to enable these encryption
types.
Encryption TypeSelect the encryption type (TKIP or AES) for data encryption.
Chapter 5AP Mode
NWD2105 User’s Guide 83
5.5 The MAC Filter Screen
The MAC Filter screen allows you to configure the NWD2105 to give exclusive
access to devices (Allow all) or exclude devices from connecting to the NWD2105
(Reject all). The MAC address is assigned at the factory and consists of six pairs
of hexadecimal characters, for example, 00:A0:C5:00:00:02. You need to know
the MAC address of the device(s) to configure this screen.
Figure 60 The MAC Filter Screen
Pre-Shared KeyType a pre-shared key (same as the AP or peer device) of between 8
and 63 case-sensitive ASCII characters (including spaces and symbols)
or 64 hexadecimal characters.
SaveClickto save the changes.
CancelClickto discard the changes.
Table 24 Security Setting: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Chapter 5AP Mode
NWD2105 User’s Guide
84
The following table describes the labels in this screen.
Table 25 MAC Filter
LABEL DESCRIPTION
Filter Type Define the filter action for the list of MAC addresses in the MAC address
filter table.
Select Disable to deactivate the MAC filter feature.
Select Reject all to block access to the NWD2105, MAC addresses not
listed will be allowed to access the NWD2105.
Select Allow all to permit access to the NWD2105, MAC addresses not
listed will be denied access to the NWD2105.
Filter MAC
Address 1-16 Specify the MAC address(es) of the wireless station(s) that is allowed or
denied association to the NWD2105.
Enter six pairs of hexadecimal digits (separated by colons) in the range
of “A-F”, “a-f” and “0-9” (for example, 00:A0:C5:00:00:02).
If you enter an invalid MAC address, once you click Save to save the
values, a warning screen will be displayed.
SaveClickto save the changes.
CancelClickto discard the changes.
NWD2105 User’s Guide 85
CHAPTER 6
Maintenance
6.1 Overview
This section describes how to uninstall or upgrade the ZyXEL utility.
6.1.1 What You Can Do in This Section
•Learn which version of the ZyXEL utility and device driver you’re currently using.
See Section 6.2 on page 86 for details.
•Remove the ZyXEL utility from your computer. See Section 6.3 on page 86 for
details.
•Upgrade the ZyXEL utility. See Section 6.4 on page 87 for details.
6.1.2 What You Need to Know
The following term may help as you read through this section.
Device driver
A system file that lets other programs interact with a piece of hardware, or
“device.” You should never try to locate and install or uninstall device drivers
yourself since they are modifications to an operating system at the core (or
“kernel”) level. Doing so could irreparably damage your installation.
6.1.3 Before You Begin
•Disconnect the NWD2105 if you are going to uninstall or upgrade the ZyXEL
utility, save your work in any other open programs, and then close them.
Chapter 6Maintenance
NWD2105 User’s Guide
86
6.2 The About Screen
The About screen displays driver and utility version numbers of the NWD2105. To
display the screen as shown below, click the About ( ) button.
Figure 61 About
The following table describes the read-only fields in this screen.
6.3 Uninstalling the ZyXEL Utility
Follow the steps below to remove (or uninstall) the ZyXEL utility from your
computer.
Note: Before you uninstall the ZyXEL utility, take note of your current wireless
configurations.
1Click Start > (All) Programs > Wireless N-lite USB Adapter Utility >
Uninstall Wireless N-lite USB Adapter Utility.
2When prompted, click OK or Yes to remove the driver and the utility software.
Figure 62 Uninstall: Confirm
Table 26 About
LABEL DESCRIPTION
Driver VersionThis field displays the version number of the NWD2105 driver.
Utility VersionThis field displays the version number of the ZyXEL utility.
Chapter 6Maintenance
NWD2105 User’s Guide 87
3Click Finish to complete uninstalling the software and restart the computer when
prompted.
Figure 63 Uninstall: Finish
6.4 Upgrading the ZyXEL Utility
Note: Before you uninstall the ZyXEL utility, take note of your current wireless
configurations.
To perform the upgrade, follow the steps below.
1Download the latest version of the utility from the ZyXEL web site and save the file
on your computer.
2Follow the steps in Section 6.3 on page 86 to remove the current ZyXEL utility
from your computer.
3Restart your computer when prompted.
4Disconnect the NWD2105 from your computer.
5Double-click on the setup program for the new utility to start the ZyXEL utility
installation.
6Insert the NWD2105 and check the version numbers in the About screen to make
sure the new utility is installed properly.
Chapter 6Maintenance
NWD2105 User’s Guide
88
89
PART II
Troubleshooting
and Specifications
Troubleshooting (91)
Product Specifications (95)
90
NWD2105 User’s Guide 91
CHAPTER 7
Troubleshooting
This chapter offers some suggestions to solve problems you might encounter. The
potential problems are divided into the following categories.
•Power, Hardware Connections, and LEDs
•Accessing the ZyXEL Utility
•Link Quality
•Problems Communicating with Other Computers
7.1 Power, Hardware Connections, and LEDs
The NWD2105 does not turn on. None of the LEDs turn on.
1Make sure the NWD2105 is correctly installed (refer to your Quick Start Guide).
2Restart the computer to which the NWD2105 is attached.
3If the problem continues, contact the vendor.
One of the LEDs does not behave as expected.
1Make sure you understand the normal behavior of the LED. See Section 1.2 on
page 18.
2Check the hardware connection. See the Quick Start Guide and Section 1.2 on
page 18.
3Restart the computer to which the NWD2105 is attached.
4If the problem continues, contact the vendor.
Chapter 7Troubleshooting
NWD2105 User’s Guide
92
7.2 Accessing the ZyXEL Utility
I cannot access the ZyXEL Utility
1Make sure the NWD2105 is properly inserted and the LEDs are on. Refer to the
Quick Start Guide for information on how to properly connect the NWD2105.
2Use the Device Manager to check for possible hardware conflicts. Click Start >
Settings > Control Panel > System > Hardware >Device Manager. Verify
the status of the NWD2105 under Network Adapter (steps may vary depending
on the version of Windows).
3Install the NWD2105 on another computer.
4If the error persists, you may have a hardware problem. In this case, you should
contact your vendor.
7.3 Link Quality
The link quality and/or signal strength is poor.
1Scan for and connect to another AP with a better link quality using the Site
Survey screen.
2Move your computer closer to the AP or the peer computer(s) within the
transmission range.
3There may be too much radio interference (for example from a microwave oven,
or another AP using the same channel) around your wireless network. Lower the
output power of each AP.
4Make sure there are not too many wireless stations connected to a wireless
network.
Chapter 7Troubleshooting
NWD2105 User’s Guide 93
7.4 Problems Communicating with Other
Computers
The computer with the NWD2105 installed cannot communicate with the other
computer(s).
In Infrastructure Mode
•Make sure that the AP and the associated computers are turned on and working
properly.
•Make sure the NWD2105 computer and the associated AP use the same SSID.
•Change the AP and the associated wireless clients to use another radio channel
if interference is high.
•Make sure that the computer and the AP share the same security option and
key. Verify the settings in the Profile Security Setting screen.
•If you are using WPA(2) or WPA(2)-PSK security, try changing your encryption
type from TKIP to AES or vice versa.
In Ad-Hoc Mode
•Verify that the peer computer(s) is turned on.
•Make sure the NWD2105 computer and the peer computer(s) are using the
same SSID and channel.
•Make sure that the computer and the peer computer(s) share the same security
settings.
•Change the wireless clients to use another radio channel if interference is high.
Chapter 7Troubleshooting
NWD2105 User’s Guide
94
NWD2105 User’s Guide 95
CHAPTER 8
Product Specifications
Table 27 Product Specifications
PHYSICAL AND ENVIRONMENTAL
Product Name NWD2105 Wireless N-lite USB Adapter
InterfaceUSB 2.0
StandardsIEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Operating Frequency2.4GHZ
Antenna TypeChip
Operating Temperature0 - 50 degrees Celsius
Storage Temperature-30 - 70 degrees Celsius
Operating Humidity20 - 90% (non-condensing)
Storage Humidity 10 - 90% (non-condensing)
Voltage5V
Power Saving ModeYes
Current ConsumptionTransmit: <300 mA
Receive: <160 mA
Device Weight3 g
Device Dimensions18 mm (L) x 6 mm (W) x 36 mm (H)
RADIO SPECIFICATIONS
Chapter 8Product Specifications
NWD2105 User’s Guide
96
Transmit Power
(+/- 1.5 dB)
802.11b:
1/2/5.5/11M: 18.5 dBm
802.11g:
54/48M: 15dBm
24/36M: 15dBm
12/18M: 16dBm
6/9M: 16.5 dBm
802.11n:
@ HT20
MCS0~MCS07: 15.5 dBm
@ HT40
MCS0~MCS07: 15.5 dBm
Receiver Sensitivity802.11b: 11Mbps at -82dBm
802.11g: 54Mbps at -68dBm
802.11n: HT20 at -64dBm
HT40 at -62dBm
WIRELESS STANDARDS
IEEE 802.11bDynamically shifts between 11, 5.5, 2, and 1 Mbps network
speed.
Operation Frequency2.412GHz~2.472GHz
Operation ChannelsN. America &Taiwan
2.412GHz~ 2.462GHz 1-11
Euro ETSI
2.412GHz~ 2.472GHz 1-13
IEEE 802.11gDynamically shifts between 54, 48, 36, 24, 18, 12, 9 and 6
Mbps network speed.
Operation Frequency2.412GHz~2.472GHz
Operation ChannelsN. America &Taiwan
2.412GHz~ 2.462GHz 1-11
Euro ETSI
2.412GHz~ 2.472GHz 1-13
IEEE 802.11n
Downstream data rate 150 Mbps
Upstream data rate 150 Mbps
Operation Frequency 2.412GHz~ 2.472GHz 1-13
Table 27 Product Specifications (continued)
Chapter 8Product Specifications
NWD2105 User’s Guide 97
Operation ChannelsN. America & Taiwan HT20
2.412GHz~ 2.462GHz 1-11
N. America & Taiwan HT40
2.422GHz~ 2.452GHz 3-9
Euro ETSI HT20
2.412GHz~ 2.472GHz 1-13
Euro ETSI HT40
2.422GHz~ 2.462GHz 3-11
Networking ModeInfrastructure, Ad-Hoc, SoftAP Support
ApprovalsSafety
European Union: EN60950-1 (CE-LVD)
EMI
United States: FCC Part 15B Class B
Canada: ICES-003
European Union: CE EN 55022 Class B
Australia: C-Tick
EMS
European Union: CE EN55024
RF
United States: FCC Part 15C
Canada: RSS-210
European Union: CE EN 300 328
Taiwan: NCC LP0002
Wi-Fi Certification
11 b/g/n WPA/WPA2/WPS
Microsoft Certification
WHQL: Windows 7 (32- and 64-bit), Windows Vista (32-
and 64-bit), Windows XP (32- and 64-bit), Windows
2000
SOFTWARE SPECIFICATIONS
Device DriversWindows 7 (32- and 64-bit)
Windows Vista (32- and 64-bit)
Windows XP (32- and 64-bit)
Windows 2000
Mac OS X (10.3/10.4/10.5)
WIRELESS FEATURES
Wireless SecurityWEP 64bit, 128bit, WPA, WPA-PSK, WPA2, WPA2-PSK
802.1x (EAP-TLS, EAP-TTLS, EAP-PEAP), WPS.
Note: EAP-TTLS is not supported in Windows Vista
Table 27 Product Specifications (continued)
Chapter 8Product Specifications
NWD2105 User’s Guide
98
Wireless QoSWi-Fi Multi Media (WMM)
Wi-Fi Protected Setup
(WPS) Push button configuration
Use device's PIN
Use AP or Router's PIN
OtherWMM power-saving support
Compatible with Windows Zero Configuration
Table 27 Product Specifications (continued)
99
