ZyXEL Communications P664HNT1 802.11n Dual ADSL 2+ 4-port Gateway User Manual

ZyXEL Communications Corporation 802.11n Dual ADSL 2+ 4-port Gateway

User Manual

P
-664HN-T1
802.11n
Dual
ADSL 2+
4-port
Gateway
Quick Start
Guide
Version 3.40
8/2010
Edition 1
P-664HN-T1 Quick Start Guide
Overview

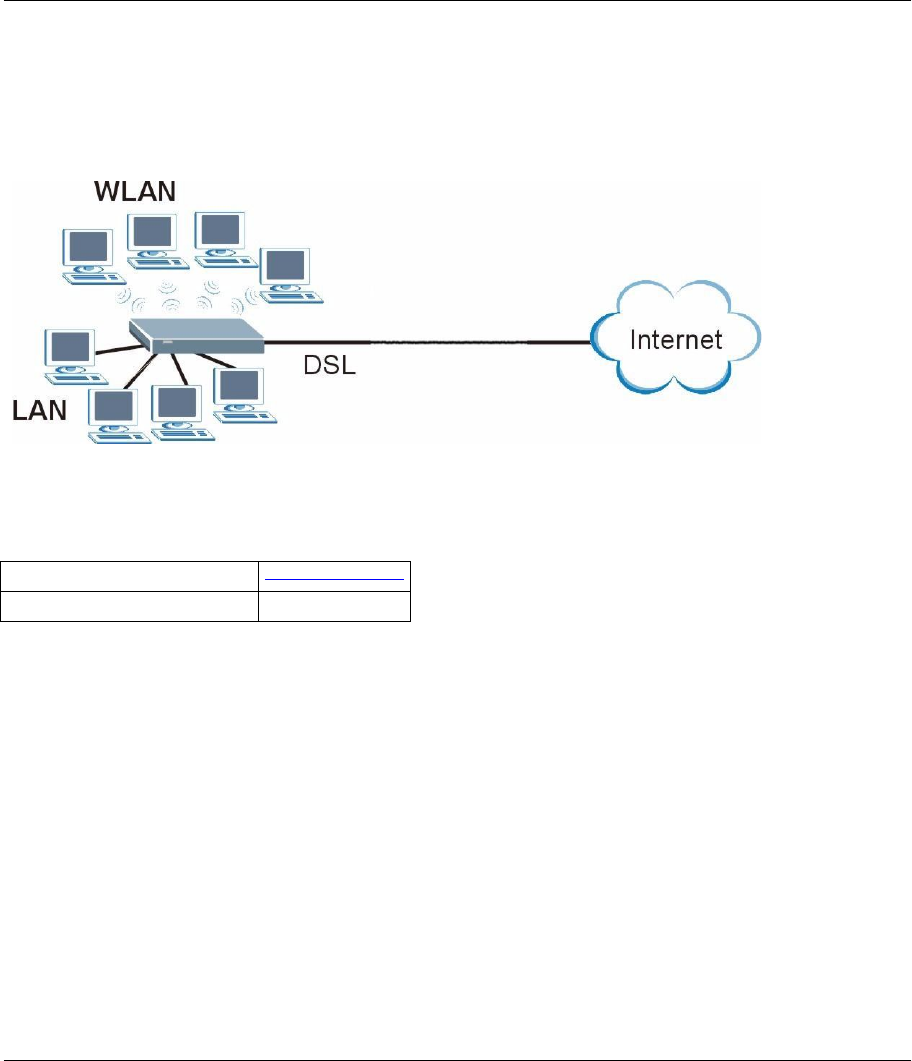

The P-664HN-T1 is a 802.11n Dual ADSL2+ 4-port Gateway with a four-port built-in
switch.
This Quick Start Guide shows you how to use the P-664HN-T1 to connect to the Internet and
how to configure the device settings to connect wirelessly.
See your User’s Guide for background information on all features.
Quick Login Information
LAN IP address
http://192.168.1.1
default administrator password
1234
2
P-664HN-T1 Quick Start Guide
1
Hardware
Connections
1 DSL: Use the gray telephone wire to connect your P-664HN-T1’s DSL port to telephone jack (or to
the modem port on a splitter if you are using one).
2 ETHERNET: Use the yellow Ethernet cable to connect a computer to an ETHERNET port for
initial configuration and/or Internet access.
3 POWER: Use the included power adaptor to connect an appropriate power source to the POWER socket.
Make sure the power source is on.
4Push in the POWER button.
5Look at the lights on the front panel.
• The POWER light blinks while your P-664HN-T1 starts up and stays on once it is ready.
• Each ETHERNET light stays on if the corresponding ETHERNET port is properly connected and blinks
when there is traffic.
• The DSL light is on when the P-664HN-T1 has a DSL connection.
• The INTERNET light is on when you are able to access the Internet and blinks when the P-664HN-T1
is sending or receiving data. Wait a couple of minutes while your device checks the connection.
If any of these lights are not on, check your connections and inspect your cables for damage. If the lights
are still off, contact your local vendor.
2
Internet Connection
Setup: Automatic
Use this section to have your P-664HN-T1 automatically detect and set up your Internet connection.
1Open your web browser to a website. W ait while your P-664HN-T1 tries to detect your DSL connection to
your
ISP. This may take a few minutes.
2After it detects the connection, the DSL light shows green on your device and the Internet light comes on
when the Internet is ready for you to use. If you have a PPPoE connection, you will have to enter your
user name and password.
3Go to section 3if you wish to configure your wireless settings.
4If you do not see the connection test screen, or the connection test is not successful , follow the
i nstructions i n the screen below, or check your connections and restart the P-664HN-T1. If you still
cannot access the Internet, follow the steps in section 3.
3
Configuring your Wireless
Settings
To create a wireless network, the P-664HN-T1 and your wireless computer must all use the same
SSID (network name), channel and security settings.
If you do not set wireless security then anyone within range could use your P-664HN-T1 to access
your network and the Internet.
Choose W PA-PSK wireless security if your wireless device supports it as it is stronger than W EP. Otherwise
choose W EP.
3
P-664HN-T1 Quick Start Guide
1Select Active and click Next to continue. It is strongly recommended that Enable OTIST is NOT selected.
See
section
7for more information.
2Configure your wireless settings in the screen. Click Next.
3) If you select either WEP or WPA-PSK security (recommended), then follow the directions to enter
the appropriate key. Click Next to continue and Apply to save your wireless LAN settings.
4Check your configuration and write down your wireless LAN settings for later use. Click Finish to complete and
save the wizard setup.
5Your Internet is ready for you to use. Open your browser and navigate to your favorite website.
4
Internet Connection
Setup Using
Advanced
Settings
Use this section to set up your Internet connection manually if you do not see the ISP Parameters for Internet
Access screen when you run the wizard (see section 4, step 4).
1Login again. (Follow steps 1to 5in section 3.)
2Select Go to Advanced setup. Then, click Apply.
3The Status screen appears. Click Network >WAN in the navigation panel on the left of the screen.
4Enter the information exactly as provided by your ISP. Click Apply.
5If you still cannot access the Internet, see Troubleshooting and/or contact your Internet Service Provider
(ISP) for assistance.
4
P-664HN-T1 Quick Start Guide
Troubleshooting
1If you cannot access the web configurator,
• Your computer may be set to use a static IP address in a different subnet from the ZyXEL device. See the
appendix in the User’s Guide for information on setting up your IP address.
• If you are using Internet Explorer in W indows XP or W indows Server 2003, make sure you allow pop-up
windows, JavaScripts and Java permissions or set the Internet security level lower than High in Internet
Explorer (in Internet Explorer, click Tools > Internet Options > Security > Custom Level...). See the
appendix in the User’s Guide for more information.
2If you cannot access the Internet when your computer is connected to the ETHERNET port, follow these
steps.
A) Check the lights on the front panel. If they are different from what is described in section 1, make sure
the P-664HN-T1 is correctly connected. (See section 1.) If the lights are still different, turn off the
device, wait a few seconds, and turn it on again.
B) Check you have correctly entered the informatinon your ISP gave you. For example, if your account has
a user name and password, make sure you type it correctly. In addition, if you are not sure which
encapsulation your ISP uses, contact your ISP. If your ISP did not give you Internet connection
information, follow the steps in section 2.
C) If you are using a new Internet account, contact your ISP to make sure it is active.
D) If you still have problems, see Troubleshooting in the User’s Guide.
If you cannot access the Internet after you take the steps above, either try the following or contact your ISP:
E) Turn your P-664HN-T1 off and on. Open your Internet browser if it is not already open.
Let the P-664HN-T1 complete the DSL connection test (this may take several minutes). See section 2
for details.
If the test is successful, check whether you can access the Internet.
F) If the test is unsuccessful or if you cannot access the Internet, log in to the P-664HN-T1’s
web configurator (see section 3).
• Click Network >WAN >Internet Connection. Ensure that the settings i n this screen are the sam e as
those your ISP gave you. If your ISP gave you a stati c IP address to use, select Static IP Address in
the IP Address section and enter it i n the IP Address field. If not, sel ect Obtain an IP Address Auto-
matically. Click Apply.
• Click the wizard icon ( ). Run the Internet/Wireless Setup wizard again. Check whether you can
access the Internet.
If you still cannot access the Internet, take the following steps:
• If you are using Bridge mode (check Mode in the Network >WAN >Internet Connection screen) click
NAT >General and ensure Active Network Address Translation (NAT) is not selected. Click LAN >
DHCP Setup and ensure that DHCP is set to None. Your ISP gives your computer an IP address
directly. If you want to access the P-664HN-T1 again, you need to use a static IP address in the same
subnet as your P-664HN-T1 (the P-664HN-T1’s default IP address is http://192.168.1.1).
• Click the wizard icon ( ). Run the Internet/Wireless Setup wizard again. Check whether you can
access the Internet.
If you still cannot access the Internet, contact your Internet Service Provider.
5
P-664HN-T1 Quick Start Guide
3If you cannot access the Internet using the wireless network, follow these steps.
A) On a computer in the wireless network, open your browser, and go to http://192.168.1.1. If you see the
login screen in section 3, follow suggestions A-Fabove. If you do not, go to the next step.
B) On a computer connected to the P-664HN-T1, make sure your P-664HN-T1 and the computers
on your wireless network are using the same wireless and wireless security settings. See the
chapter on W ireless LAN in the User’s Guide for more information.
Viewing Your
Product’s
Certifications
1Go to www.zyxel.com.
2Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.
3Select the certification you wish to view from this page.
Customer Information
Statement
The information informing the user of his/her and the telephone company's rights and obligations is outlined
on the following pages. This information will be included in the final version of the manual.
Customer Information
1This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On
bottom of this equipment is a label that contains, among other information, a product identifier of P-
664HN-T1. If requested, this number must be provided to the telephone company.
2If this equipment DL causes harm to the telephone network, the telephone com pany will notify you in
advance that temporary discontinuance of service may be required. But if advance notice isn't practical,
the telephone company will notify the customer as soon as possible. Also you will be advised of your right
to file a complaint with the FCC if you believe it is necessary.
3The telephone company may make changes in its facilities, equipment, operations or procedures that
could affect the operation of the equipm ent. If this happens, the telephone company will provide advance
notice in order for you to make necessary modification to maintain uninterrupted service.
4If you experience trouble with this equipment, you disconnect it from the network until the problem has
been corrected or until you are sure that the equipment is not malfunctioning.
5Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not alternate
or repair any parts of device except specified.
6Connection to party line service is subject to state tariffs. Contact the state public utility commission, public
service commission or corporation commission for information.
6
P-664HN-T1 Quick Start Guide
7If your home has specially wired alarm equipment connected to the telephone line, ensure the installation
of this equipment does not disable alarm equipment, consult your telephone company or a qualified
installer.
Service Requirements
In the event of equipment malfunction, all repairs should be performed by our Company or an authorized
agent. It is the responsibility of users requiring service to report the need for service to our Company or to one
of our authorized agents.
Service can be facilitated through our office at:
ZyXEL Communications Corporation
6, Innovation Rd II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C.
+886- 3-578-3942
Certifications
Federal Communications Commission (FCC) Interference Statement
The device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that
may cause undesired operations.
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may cause
harmful interference to radio
communications.
However, there is no guarantee
that interference will not occur in a particular installation.
If this device does cause harmful interference to radio/television reception, which
can be determined by turning the device off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
1Reorient or relocate the receiving antenna.
2Increase the separation between the equipment and the receiver.
3Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4Consult the dealer or an experienced radio/TV technician for help.
7
P-664HN-T1 Quick Start Guide
FCC Radiation Exposure Statement
• This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
• IEEE 802.11b or 802.11g or 802.11n(20MHz) operation of this product in the
U.S.A. is firmware-limited to channels 1 through 11. 802.11n(40MHz)
operation of this product in the U.S.A. is firmware-limited to channels 3
through 9.
• To comply with FCC RF exposure compliance
requirements,
a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons.
Safety Warnings
• Do NOT use this product near water, for example, in a wet basement or near a
swimming pool.
• Do NOT expose your device to dampness, dust or corrosive
liquids.
• Do NOT store things on the
device.
• Do NOT install, use, or service this device during a thunderstorm. There is a
remote risk of electric shock from lightning.
• Connect ONLY suitable accessories to the
device.
• Do NOT open the device or unit. Opening or removing covers can expose you
to dangerous high voltage points or other risks. ONLY qualified service
personnel should service or disassemble this device. Please contact your
vendor for further information.
• Make sure to connect the cables to the
correct ports.
• Place connecting cables carefully so that no one will step on them or stumble
over them.
• Always disconnect all cables from this device before servicing or
disassembling.
• Use ONLY an appropriate power adaptor or cord for your
device.
• Connect the power adaptor or cord to the right supply voltage (for example,
110V AC in North America or 230V AC in Europe).
• Do NOT allow anything to rest on the power adaptor or cord and do NOT
place the product where anyone can walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it
might cause electrocution.
8
P-664HN-T1 Quick Start Guide
• If the power adaptor or cord is damaged, remove it from the device and the
power source.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to
order a new one.
• Do not use the device outside, and make sure all the connections are indoors.
There is a remote risk of electric shock from lightning.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may
harm your device.
• Use only No. 26 AWG (American Wire Gauge) or larger telecommunication
line cord.
• Antenna Warning! This device meets ETSI and FCC certification requirements
when using the included antenna(s). Only use the included antenna(s).
• If you wall mount your device, make sure that no electrical lines, gas or water
pipes will be damaged.
9

Navigation menu
