ZyXEL Communications VMG3925-B10A Dual-Band Wireless AC/N VDSL2 Combo WAN Gigabit Gateway with USB User Manual VMG3925 B10A
ZyXEL Communications Corporation Dual-Band Wireless AC/N VDSL2 Combo WAN Gigabit Gateway with USB VMG3925 B10A
User manual
5 GHz 11ac (3x3) for
smooth, optimized
HD IPTV services
everywhere
2.4 GHz 11n (2x2) for
superior
performance and
coverage
Extreme routing
performance for FTTx
applications
VDSL2 vectoring for
maximized service
coverage
Combo WAN-in-a-box
for optimized CAPEX
in FTTH/VDSL2
deployments
3G dongle support
Intelligent CoC saves
energy with rich
green features
VMG3925-B10A
Dual-Band Wireless AC/N VDSL2 Combo WAN
Gigabit Gateway with USB
Benefits
G.vector to optimize performance and CAPEX
The VMG3925-B10A supports Vectoring technology that
eliminates cross-talk or interference among different
VDSL lines. With the mechanism, Vectoring significantly
increases the bit rates to compete with cable/fiber
technology as well as to enlarge the service coverage
without changing the current infrastructure—a way to
save cost significantly comparing to fiber-to-the-home
(FTTH) deployments and CAPEX can also be optimized
by the improved data rates and coverage without
upgrading the equipment.
Combo WAN for simplified ISP logistics and optimized
CAPEX
With the VMG3925-B10A, there’s no need for service
providers to invest on and replace new CPEs at
customer sites when customers migrate from ADSL2+ or
VDSL2 to PON or LTE; all they need to do is to unplug
the DSL line, and then plug the Ethernet cable to the
Ethernet WAN port as the existing CPE. VMG3925-B10A
will be used to terminate the IP connections via the
WAN interface. In most cases, users can still connect
with the original CPE to avoid replacing the unit due to
the difference of physical connections.
802.11ac technology for extreme performance and coverage
The VMG3925-B10A features 802.11ac technology to provide the ultimate solution for
both speed and coverage. With 802.11ac wireless data rates of up to 1.3 Gbps, the
VMG3925-B10A provides stable, reliable wireless connections for high-speed data and
multimedia usages. The 802.11ac technology empowered the device to eliminate dead
zones and extend coverage while retaining backward compatibility with any Wi-Fi
certified device.
Quality of Service (QoS) support
With QoS features, service providers can freely design their QoS policies and prioritize
the mission- critical services such as IPTV based on their service plan offerings. This
increases network efficiency and productivity that enable service providers to offer a
real multi-play solution meeting the needs of residential users.
TR-069 remote management
The VMG3925-B10A incorporates the TR-069 standard management specifications for
service providers to manage and configure client devices remotely without any end
user intervention. This feature offers a true “plug-and-play” experience while reducing
deployment complexity to help saving the operating and maintenance costs for service
providers.
Specifications
System Specifications
Wireless
•
IEEE 802.11ac 5 GHz
with up to 1.3 Gbps
data rate
•
IEEE 802.11n 2.4 GHz
with up to 300 Mbps
data rate
•
Wireless Protected
Setup (WPS)
•
WEP data encryption
(64/128 bit)
•
WPA/WPA2,
WPA-PSK/WPA2-PSK
•
Wi-Fi scheduling
•
Multiple SSID (up to 4)
VDSL and ADSL
•
VDSL/ADSL2+
compliance
•
VDSL2 (G.993.2), band
plan Annex A, Annex B
(over POTS)
•
Support profile 8a, 8b,
8c, 8d, 12a,12b, 17a
•
VDSL1 (G.993.1)
•
ADSL2+ (G.992.5)
support Annex A, I, M
•
ADSL2 (G.992.3)
support Annex A, I, L,
M
•
ADSL (G.992.1) Annex
A
•
ANSI T1.413 issue 2
•
G.INP (G.998.4)
•
G.vector (G.993.5)
VLAN/QoS
•
Support flexible traffic
classification
•
6-bit DiffServ Code
Point (DSCP, RFC 2474)
•
802.1P 3-bit Class of
Service (CoS)
•
802.1Q 12-bit VLAN ID
Router/Bridge Features
•
IEEE 802.1d
transparent bridge
•
PPP over Ethernet (RFC
2516)
•
MAC encapsulation
routing/IPoE
•
Network Address
Translation
(NAT)/Network
Address Port
Translation (NAPT )
•
NAT server (Port
forwarding)
•
DHCP
client/server/relay
•
DNS proxy/dynamic
DNS
•
Static route/policy
routing
•
IGMP v1, v2
•
IP protocol v6 (IPv6)
Security
•
Firewall
•
Generic packet filter
•
DoS attack prevention
•
Parental control
USB
•
File sharing
•
3G backup
Management
•
Web GUI
(HTTP/HTTPS)
•
Command Line
Interface (CLI)
•
Firmware upgrade via
HTTP/FTP/TR-069
•
DSL forum
TR-069/TR-098/TR-111
/TR-064 • 802.1ag
Connectivity Fault
Management (CFM)
Hardware Specifications
WAN
•
one RJ11 interface for
VDSL(over POTS)
•
one RJ45 connector for
Giga Ethernet WAN port
LAN: Four 10/100/1000
MDI/MDIX RJ45 ports
Wireless
•
Two internal 3dBi 2.4GHz
antennas
•
Three internal 3dBi 5GHz
antennas
Buttons
•
One reset
•
One WPS on/off
•
One WLAN on/off
One USB host port
Status LED: Power, DSL,
Ethernet, WAN, WLAN 2.4G,
WLAN 5G, WPS, Internet,
USB
Power Specifications
•
External power supply:
110~240VAC/12V DC
1.5A Adaptor
•
Power consumption at
peak: 18 W
Physical Specifications
•
Dimension: 215(H) x
142(W) x 42(D) mm
•
Weight: TBD
Environment
Specifications
•
Operation
Temperature: 0°C ~
45°C
•
Operation Humidity:
10% ~ 95%
•
Storage Temperature:
-30°C ~ 60°C
•
Storage Humidity: 10%
~ 95%
Regulations
•
RoHS, WEEE, HSF

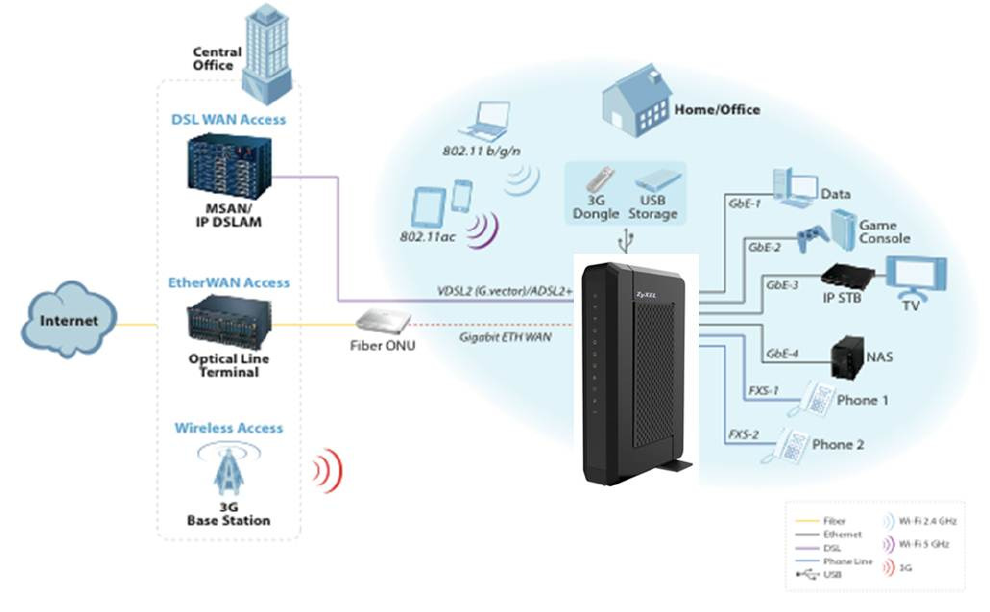

Application Diagram
Certifications
Federal Communications Commission (FCC) Interference Statement
The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operations.
This device has been tested and found to comply with the limits for a Class B digital device pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This device generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this device does cause harmful interference to radio/television reception, which can be determined
by turning the device off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
•
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
•
For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment.
•
IEEE 802.11b, 802.11g or 802.11n (20MHz) operation of this product in the U.S.A. is
firmware-limited to channel 1 through 11. IEEE 802.11n (40MHz) operation of this product in the
U.S.A. is firmware-limited to channel 3 through 9.
•
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
