Zylux Acoustic SB2821D6 28 inch Sound Bar 2.1 System User Manual
Zylux Acoustic Corporation 28 inch Sound Bar 2.1 System
User Manual
QUICK START GUIDE
VIZIO
Please read this guide before using the product.
SB2821-D6
English - ii
Your Unit is designed and manufactured to operate within dened design limits, and
misuse may result in electric shock or re. To prevent your Unit from being damaged,
the following rules should be observed for its installation, use, and maintenance.
Please read the following safety instructions before operating your Unit. Keep these
instructions in a safe place for future reference.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specied by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods
of time.
• Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
• To reduce the risk of electric shock or component damage, switch o the power
before connecting other components to your Unit.
• Unplug the power cord before cleaning your Unit. A damp cloth is sucient for
cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive
cleaners.
• Always use the accessories recommended by the manufacturer to insure
compatibility.
• When moving your Unit from an area of low temperature to an area of high
temperature, condensation may form in the housing. Wait before turning on your
Unit to avoid causing re, electric shock, or component damage.
• Slots and openings in the back and bottom of the cabinet are provided for
ventilation. To ensure reliable operation of your Unit and to protect it from
overheating, be sure these openings are not blocked or covered. Do not place your
Unit in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slots and openings on your Unit enclosure. Do not
place any objects on the top of your Unit. Doing so could short circuit parts causing
a re or electric shock. Never spill liquids on your Unit.
• When connected to a power outlet, power is always owing into your Unit. To
totally disconnect power, unplug the power cord.
• Do not overload power strips and extension cords. Overloading can result in re or
electric shock.
• The wall socket should be located near your Unit and be easily accessible
• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture.
If water penetrates into your Unit, unplug the power cord and contact your dealer.
Continuous use in this case may result in re or electric shock.
• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes
apparent, unplug the power cord and contact your dealer immediately. Do not try
to repair your
unit yourself.
• Avoid using dropped or damaged appliances. If your Unit is dropped and the
housing is damaged, the internal components may function abnormally. Unplug
the power cord immediately and contact your dealer for repair. Continued use of
your Unit may cause re or electric shock.
• Do not install your Unit in an area with heavy dust or high humidity. Operating
your Unit in environments with heavy dust or high humidity may cause re or
electric shock.
• Ensure that the power cord and any other cables are unplugged before moving
your Unit.
Safety Information
English - iii
Explanation of WARNING symbols:• When unplugging your Unit, hold the power plug, not the cord. Pulling on the
power cord may damage the wires inside the cord and cause re or electric shock.
When your Unit will not be used for an extended period of time, unplug the power
cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control batteries in accordance with instructions. Incorrect
polarity may cause the battery to leak which can damage the remote control or
injure the operator.
• See the important note and rating located on the back of the unit.
• WARNING - This equipment is not waterproof. To prevent a re or shock hazard,
do not place any container lled with liquid near the equipment (such as a vase or
ower pot) or expose it to dripping, splashing, rain, or moisture.
• CAUTION - Danger of explosion or re if batteries are mistreated. Replace only with
the same or specied type.
• Do not leave the batteries exposed to direct sunlight for a long period of time with
doors and windows closed. Do not disassemble the batteries or dispose of it in re.
• Where the MAINS plug or appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to
rain or moisture.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lighting ash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of not isolated dangerous voltage within the product
that may be sucient magnitude to constitute a risk of shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and servicing instructions in the literature
accompanying the appliance.
Warning: This equipment is a Class II or double insulated electrical appliance. It
has been designed in such a way that it does not require a safety connection to
electrical earth.
English - iv
Table of Contents
Package Contents ..............................................................................................................5
Remote Control ..................................................................................................................6
Inserting and replacing batteries. .................................................................................................. 7
Controls & Connections ....................................................................................................8
First-Time Setup .................................................................................................................10
LED Indicators ....................................................................................................................15
Bluetooth Pairing ...............................................................................................................17
Using Bluetooth Mode ......................................................................................................18
Reconnecting the Subwoofer ..........................................................................................19
Using Button Combinations .............................................................................................20
Wall-Mounting the Sound Bar ..........................................................................................21
Help Topics .........................................................................................................................25
Legal Information & Specications ..................................................................................26
Regulatory Information .....................................................................................................27
Warranty Information .......................................................................................................28
English - 5

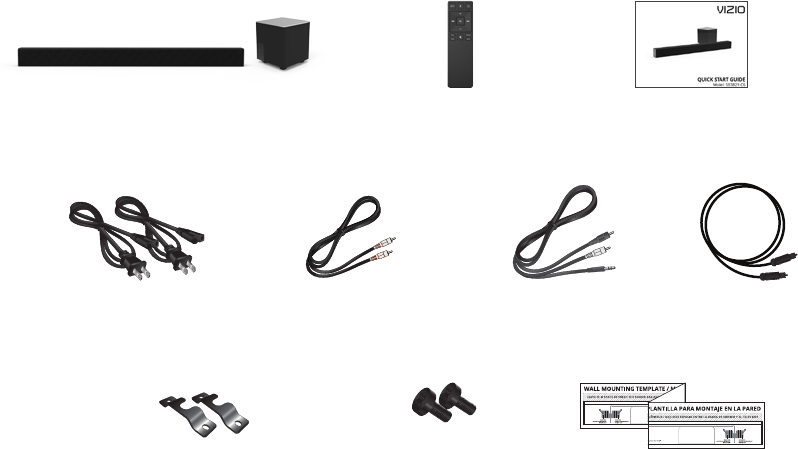

Package Contents
Quick Start GuideRemote Control with
2 x AAA Batteries

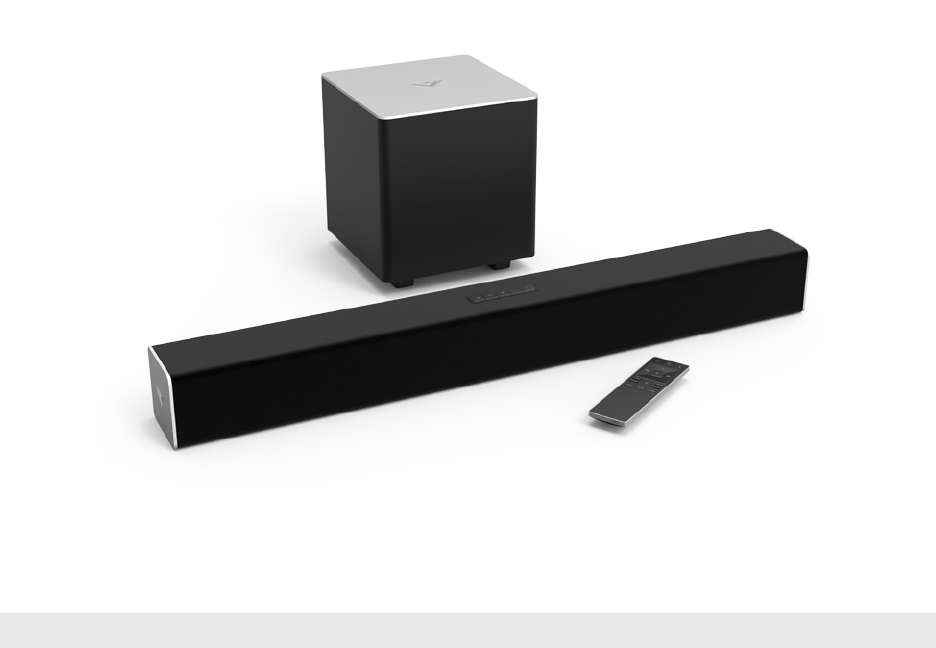

High Denition Sound Bar
with Wireless Subwoofer
2 x Sound Bar
Wall Mount Brackets
Wall Mount Template2 x Wall
Mount Screws
(Size: M4 x 10mm)
Digital Optical CableStereo RCA to 3.5mm
Audio Cable
Coaxial Audio Cable2 x Power Cables
English - 6
Remote Control
1. Power - Press to turn the sound bar on or o.
2. Input - Press to change input source.
3. Bluetooth - Press to enter Bluetooth input.
(To enter force pair mode, press and hold for 5 seconds)
4. Volume (+/-) - Press to increase and decrease volume levels.
5. Enter/Play/Pause - Press to select an option. Press to play
or pause.
6. Previous - Press to return to previous track.
(Changes Subwoofer, Treble, and Bass levels)
7. Next - Press to skip to the next track.
(Changes Subwoofer, Treble, and Bass levels)
8. TruVolume - Press to enable/disable TruVolume.
9. TruSurround HD - Press to enable/disable TruSurround HD.
10. Mute - Press to mute/unmute.
11. Movie - Press to enable Movie preset EQ mode.
12. Music - Press to enable Music preset EQ mode.
13. SUB - Press to enter subwoofer level adjustment mode.
(Use Previous/Next buttons to adjust levels)
14. Bass - Press to enter bass level adjustment mode.
(Use Previous/Next buttons to adjust levels)
15. Treble - Press to enter treble level adjustment mode.
(Use Previous/Next buttons to adjust levels)
1 2 3
4
5
6 7
8
9
10 11
12
13 14 15
English - 7
Inserting and replacing batteries.
Two AAA batteries are included for you to use with
the basic remote control.
To insert/replace the batteries:
1. Remove the battery cover by gently sliding it away
from the remote.
2. Insert two AAA batteries (included). Be sure
to align the + and - signs on the batteries
and remote.
3. Replace the battery cover.
When needed, VIZIO recommends
replacing the batteries that came
with this remote with two, new
Duracell ‘AAA’ alkaline batteries.
WARNING: keep the remote control
batteries away from children. It may
cause choking and/or lead to a re or
chemical burn if mishandled. Do not
dispose of batteries in re. Replace only
with batteries of the correct type.
English - 8
Controls & Connections

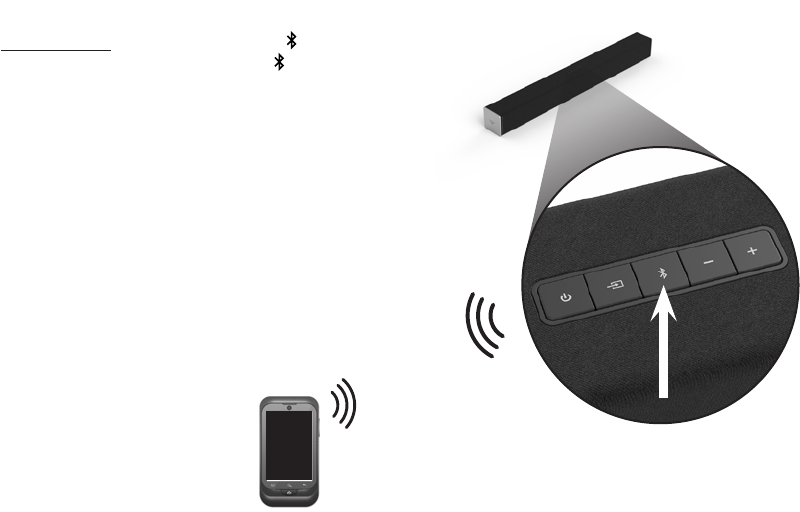

1. Bluetooth Input - Hold to pair.
(See
Bluetooth Pairing
for more information)
2. Volume - Increase or decrease the loudness
of the audio.
3. Input - Press to change the audio source.
4. Power - Press to turn sound bar on or o.
1
2
3
4
English - 9
1. DC IN - Power Port
2. USB - USB In
3. Optical - Digital Optical Audio in
4. Digital - Coaxial In
5. AUX - Analog Audio In (Stereo RCA)
6. AUX - Analog Audio In (Stereo 3.5mm)
1 2 3 4 5 6
Back of Sound Bar
English - 10
First-Time Setup
GOOD
3.5MM TO RCA CABLE
GOOD
RCA TO 3.5MM CABLE
BETTER
DIGITAL COAXIAL CABLE*
BETTER
DIGITAL OPTICAL CABLE*
CHOOSE ONE CABLE
BETTER
GOOD
OR
1
AND CONNECT
IT TO YOUR TV
2
Note: Not all TVs have the audio outputs shown above. To
connect the Sound Bar directly to your other devices (Blu-Ray
player, game system, etc.) see your device’s user manual.
* When using either of the Digital Inputs, if there is no audio: (A)
try setting the TV output to PCM or (B) Connect directly to your
Blu-ray/other source, some TVs do not pass through digital audio.
Back of Sound Bar
English - 11
Connect the included power adapter
to the Sound Bar DC IN as shown.
Plug the power adapter into an
electrical outlet.
3
English - 12

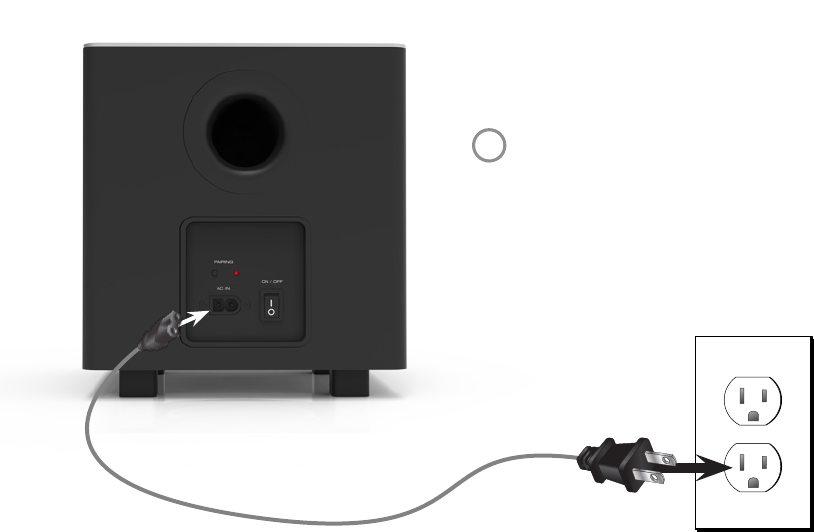

Connect the power cable to the Subwoofer
AC IN as shown.
Plug the power cable into an electrical outlet.
Flip the Power Switch into the On position.
4
Sound Bar is centered
below the TV.
Subwoofer
For the best surround sound experience, position the Sound Bar as shown.
The Sound Bar should be close to ear level. The Subwoofer should be placed
in a corner of the room.
5
English - 13
English - 14
Turn your TV on, the Sound Bar will
automatically turn on and begin searching for
an active input.
The LED indicators on the front of the Sound
Bar will begin cycling in pairs through inputs
until an audio source is detected.*
You can press the INPUT button to switch
between audio sources. For example, if you
connected your TV to Input 1, set the Sound
Bar to Input 1.
Tip: Pressing the INPUT button will
stop the auto detect function.
* Auto detect function only occurs once when the Sound Bar is rst powered on. To enable this feature again, you must do a Factory Reset (see the
Using Button Combinations
section for more information) or press and hold the
INPUT button for 3 seconds.
6
English - 15
LED Indicators are located here.
Function LED Behavior Description
Input
Press the INPUT button on the remote to cycle through the available inputs:
• Analog Audio In - AUX Stereo RCA (1)
• Analog Audio In - AUX Stereo 3.5mm (2)
• Coaxial In - Digital (3)
• Digital Optical Audio In - Optical (4)
• Bluetooth
• USB In - USB (6)
Press and hold the INPUT button on the remote control for 3 seconds to enable the auto
input detect function.
Bluetooth
Pairing
Press and hold the button on the remote. The Sound Bar will be discoverable for 15
minutes. You can now search for the Sound Bar (VIZIO SB2821) using your Bluetooth
Device. The sound bar will power down if no device is found.
Note: Set your Bluetooth device into pairing mode prior to the Sound Bar.
DTS
TruVolume
On/O
Press the TVOL button to enable/disable TruVolume.
When enabled (On), TruVolume provides a consistent and comfortable volume level
for a more enjoyable listening experience.
LED Indicators
(When searching for device)
Flash from the bottom
to the top and back
continuously.
TruVolume On
TruVolume O
Analog Audio In - AUX (1)
Analog Audio In - AUX (2)
Coaxial In - Digital (3)
Digital Optical Audio In
Optical (4)
Bluetooth
USB In - USB (6)
English - 16
Function LED Behavior Description
DTS
TruSurround
On/O
Press the TSHD button to enable/disable DTS TruSurround. When enabled (On),
all inputs will produce virtual surround sound. When disabled (O), all sources will
playback in stereo.
Treble
Levels
Press the TREBLE button then press the Next/Previous button to increase/decrease
the treble level. The LED indicators will move to the top with increasing levels and to
the bottom with decreasing levels.
Bass
Levels
Press the BASS button then press the Next/Previous button to increase/decrease the
bass level. The LED indicators will move to the top with increasing levels and to the
bottom with decreasing levels.
When a Dolby
Digital signal
is detected.
Dolby Digital is only available on either the Coaxial In or Digital Optical Audio In
inputs. When a Dolby Digital signal is detected, the Dolby Digital indicator LED will light
up for 3 seconds before fading away.
Two center LEDs indicate
Treble level 0.
Two center LEDs indicate
Bass level 0.
TruSurround On
TruSurround O
Dolby Digital
Indicator LED
English - 17
Top of Sound Bar
Bluetooth Pairing
To pair the Sound Bar with a Bluetooth device:
1. Press and hold the Bluetooth button on the
Sound Bar or the Bluetooth button on the
remote for ve (5) seconds. When the Sound Bar
is in Bluetooth Pairing Mode, the LED Indicators
on the Display Panel on the front of the Sound Bar
will light sequentially from bottom to top and back
again.
Once the device is paired, the LED Indicators will stop
ashing.
2. You can now search for the Sound Bar (VIZIO
SB2821) using your Bluetooth device. For more
information, refer to the user documentation that
came with the device.
3. Play audio from your Bluetooth device. Volume can
be controlled on your source device and the Sound
Bar.
Bluetooth Device
English - 18
Using Bluetooth Mode
Your Sound Bar supports music streaming from
smartphones, tablets, and computers with
Bluetooth capability. Device compatibility will
vary, see your device’s documentation for more
information. Once you have paired your source
device to the Sound Bar, as long as you stay within
range of the Sound Bar, your device should remain
paired, even if you change the input on the Sound
Bar.
Maximizing Signal
A Bluetooth signal has a range of up to 30 feet.
Keep in mind that Bluetooth is a compressed audio
format, so streamed music may lose some integrity
when compared to a wired connection.
Try the following if your sound quality is less than
optimal:
• If you hear any break-up or disconnect while
streaming music from your device, move the
source device closer to the Sound Bar.
• Be sure that there are no solid obstructions
in the line-of-sight between the Sound Bar
and the source device.
• Other wireless devices can aect Bluetooth
range, including wireless security cameras,
wireless video baby monitors, cordless
phones, and microwave ovens. Turning
o or moving these devices may improve
Bluetooth range.
Your Sound Bar is not equipped with a
microphone, so it cannot operate as a
hands-free device for a smartphone.
Reduce the volume levels on your
device and on the Sound Bar before
pressing Play. High volume levels can
damage your hearing.
English - 19
Reconnecting the Subwoofer
The Subwoofer has already been paired
with the Sound Bar by VIZIO. However, the
Subwoofer may need to be re-linked to
the Sound Bar if there is no sound coming
from the Subwoofer.
1
First conrm that the power switch is in the ON
position. Press and hold the Pairing button on
the back of the Subwoofer for 5 seconds. The LED
on the back of the Subwoofer will begin to blink.
2
Press and hold the Power button on the top
of the Sound Bar for 5 Seconds. The LED
indicators on the front will
ash 3 times. The
Subwoofer is now linked with the Sound Bar.
What does pairing mean?
Pairing means to wirelessly
connect.
Buttons are located on
top of the Sound Bar
Back of Subwoofer
Power Button
English - 20
Using Button Combinations
There are 3 functions that are triggered by 3 dierent button combinations on the Sound Bar.
Function LED Behavior Description
Factory
Reset
Reset the Sound Bar to the factory default settings. To perform a Factory
Reset,
Press and Hold the Bluetooth( ) and Volume Down (—) buttons for
5 seconds.
Note: This will erase all settings and preferences that you have set.
VIZIO TV
Remote
Control
Enable/disable the use of a VIZIO TV remote control to power on and
adjust the volume of the sound bar. To enable/disable this function,
Press and Hold the Power ( ) and Volume Up ( + ) buttons for 5 seconds.
Note: This function is enabled by default.
Energy
Star
When the Energy Star setting is enabled, the sound bar will automatically
power down after a period of inactivity. When disabled, the sound bar
will remain powered on until you turn it o. To enable/disable this
function, Press and Hold the Power
( ) and Volume Down (—) buttons
for 5 seconds.
Note: Energy Star setting is enabled by default.
All 12 LEDs will
ash 3 times
VIZIO TV
Remote Enabled
VIZIO TV
Remote Disable
Energy Star
Enabled
Energy Star
Disabled
Buttons are located here.
English - 21
Wall-Mounting the Sound Bar
Back of Sound Bar
Insert the two wall-mount screws into the wall-mount screw
holes, and then tighten them with a Phillips screwdriver.
1
2
Place the included wall mounting template against the wall
under your TV. Mark the four bracket holes using a pencil.
Wall-Mount Screw Holes
English - 22
Be sure your screws are attached
to wood studs, drywall anchors
(for drywall), or concrete anchors
(for brick/concrete walls).
Screws for attaching the brack-
ets to the wall are not included.
Choose the screw type and length
appropriate to your home’s
construction. If in doubt, consult a
professional installer.
30.95 in (78.60 cm)
Wall Mount Screw
Screw Size: M4 x 10
3
If you are unfamiliar with power tools or the
layout of electrical wiring in the walls of your
home, consult a professional installer.
Take a moment to register your product
VIZIO.COM/PRODUCT-REGISTRATION
Why register?
Customized Support
Get assistance quickly with your information on hand.
News and Oers
Take advantage of the latest news and special oers from VIZIO.
Safety and Satisfaction
Stay up-to-date with important product updates and notications.
Se habla Español • Nous parlons Français
Hours of Operation:
Monday - Friday: 7 am to 11 pm (CSt)
Saturday - Sunday: 9 am to 6 pm (CSt)
Phone: (877) 698-4946 (toll-free)
You can also contact our
popular support team at:
Live chat
support available
Find help with:
•
New product setup
• Connecting your devices
• Technical problems
• Product updates and more
Award-Winning Customer Care At Your Convenience.
NEED HELP?
Go to: support.vizio.com
English - 25
There is no power.
• Press the POWER button on the remote control or on the top of your Sound Bar.
• Ensure the power cord is securely connected.
• Plug a dierent device into the electrical outlet to verify that the outlet is working correctly.
There is no sound.
• Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar.
• Press MUTE on the remote to ensure the Sound Bar is not muted.
• Press INPUT on the remote or on the top of your Sound Bar to select a dierent input source.
• When using either of the Digital Inputs, if there is no audio: (A) Try setting the TV output to PCM or (B)
Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.
• On digital inputs, the input LEDs will ash rapidly if an unsupported format is present. Set the source to
output PCM.
• Your TV may be set to variable audio output. Conrm that the audio output setting is set to FIXED or
STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.
• If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not
muted.
I hear buzzing or
humming.
• Ensure all cables and wires are securely connected.
• Connect a dierent source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem
may be with the original device.
• Connect your device to a dierent input on the Sound Bar.
The remote
isn’t working.
• Replace the remote batteries with new ones.
• Point the remote directly at the center of the Sound Bar when pressing a button.
• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming
application. (e.g., Pandora doesn’t support the Back button.)
Help Topics
English - 26
Software Licenses, Data and Privacy
All software is provided subject to software license agreements and you agree that you will be bound by such license
agreements in addition to other applicable terms of use. By using the VIZIO products, you agree to the VIZIO Terms
of Service and Privacy Policy. The VIZIO Terms of Use and Privacy Policy may be updated from time to time and are
available to view at http://www.vizio.com/terms and http://www.vizio.com/privacy, respectively.
Export Regulations
Customer acknowledges that the VIZIO products, which include technology and software, are subject to customs
and export control laws in the United States (“US”). The products may also be subject to the customs and export
control laws and regulations of the country in which the products are manufactured and/or received.
Information in this Installation Guide is subject to change without notice. To review the most updated version of this
Installation Guide and the associated User Manual, go to http://www.vizio.com.
© 2016 VIZIO, Inc. All Right Reserved.
This Installation Guide may not be copied in whole or in part without the written permission of VIZIO, Inc. VIZIO, Inc.
has made reasonable eorts to ensure the accuracy of the information provided herein. All product specications,
functionality, features, congurations, performance, design and other product information described herein are
subject to change without notice. VIZIO, Inc. is not responsible for typographical, technical, or descriptive errors.
VIZIO, the VIZIO logo, the V logo, and other terms and phrases are trademarks or registered trademarks of VIZIO, Inc.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the
Symbol, & DTS and the Symbol together are registered trademarks, and DTS Studio Sound is a trademark of
DTS, Inc. © DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby
Laboratories.
Other names of companies, products, and services used in this Installation Guide may be trademarks, trade names
or service marks of others and VIZIO, Inc. dis- claims any interest in trademarks, trade names or service marks
other than its own. Mention of non-VIZIO products is for informational purposes only.
Warning: To reduce risk of electric shock, re or damage to your device or other property, do not attempt to
power the device with a voltage converter kit sold for appliances.
Battery Disposal
Caution: Battery cells may explode. Do not dispose of the battery in a re or with
ordinary household waste. Dispose of or recycle batteries promptly. Replace the
battery only with the same or equivalent type of battery recommended by VIZIO. For
more information on recycling or properly disposing of your batteries please go to
www.vizio.com/environment.
Always properly dispose of your VIZIO electronic products. For information on how to properly
dispose of or recycle your VIZIO products please go to www.vizio.com/environment.
This product qualies for ENERGY STAR in the “factory default” setting and this is the setting
in which power savings will be achieved. Changing the factory default settings or enabling
other features will increase power consumption that could exceed the limits necessary to
qualify for ENERGY STAR rating.
Legal Information & Specications
Sound Bar: Two 2¾” Full-Range Drivers
Subwoofer: One 5¼” High Excursion Driver
Inputs: One 3.5mm Stereo Audio
One RCA Stereo Audio
One Optical (Toslink)
One Digital Coaxial Audio
Bluetooth (Wireless)
One USB
Sound Pressure Level (System): 100 dB
Frequency Response (System): 50 Hz to 19KHz
Voltage: 120 VAC, 60 Hz
Compliances: cTUVus/ FCC / ICES-003 Class B / CEC / Energy star /
NOM / IFETEL
Specications
The Bluetooth
®
word mark and Logos are registered trademark owned by
Bluetooth SIG,Inc. and any use of such marks by VIZIO, Inc. is under license.
Other trademarks and trade names are those of their respective owners.
English - 27
Regulatory Information
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Notice:
1. The changes or modications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to
comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modication to this equipment. It is the responsibilities of the
user to correct such interference.
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves. This
device is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of the
U.S. Government. This device complies with FCC radiation exposure limits set forth for
an uncontrolled environment.
IC Statement
1. This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation
of the device.
2. Changes or modications not expressly approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
1. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2)l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage
est susceptible d’en compromettre le fonctionnement.
IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled
environment. This equipment should be installed and operated with minimum
distance 20cm
between the radiator & your body.
English - 28
FOR UNITED STATES AND CANADA ONLY
BY USING YOUR VIZIO PRODUCT YOU AGREE TO BE BOUND BY ALL THE TERMS OF THIS
WARRANTY. BEFORE USING YOUR VIZIO PRODUCT, PLEASE READ THIS WARRANTY
CAREFULLY. IF YOU DO NOT AGREE TO THE TERMS OF THIS WARRANTY, DO NOT USE THE
VIZIO PRODUCT AND, WITHIN THIRTY (30) DAYS OF THE DATE OF PURCHASE, RETURN IT
FOR A REFUND TO THE AUTHORIZED RETAILER WHERE YOU PURCHASED IT.
This warranty contains a binding arbitration agreement and a class action waiver for United
States residents. If you live in the United States, the binding arbitration agreement and class
action waiver aect your rights under this warranty. Please read the text under the section
titled “Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)” carefully.
How Long This Warranty Lasts
For non-commercial use, VIZIO warrants the product on the terms set forth below for one
(1) year from the date of original purchase. For commercial use, VIZIO warrants this product
on the terms set forth below for ninety (90) days from the date of original purchase.
What This Warranty Covers
VIZIO warrants the product against defects in materials and workmanship when the
product is used normally in accordance with VIZIO’s user guides and manuals.
Except where restricted by law, this warranty applies only to the original purchaser of a new
product. The purchase must have been made from an authorized retailer in the United
States (including Puerto Rico) or Canada. The product must also be located in the country
where it was purchased at the time of warranty service.
Zero Bright Pixel Defect Guarantee (TVs Only)
Your product may qualify for a warranty against “zero bright pixel” defects for the duration
of the warranty on select new product purchases. To determine if this guarantee applies to
your product, refer to the model’s product information page at www.vizio.com, look for the
“zero bright pixel” guarantee on the box, or contact VIZIO Technical Support at the email
address or telephone number below.
How to Get Service
Before obtaining warranty service, you may visit www.vizio.com for additional help and
troubleshooting. To obtain warranty service, contact VIZIO Technical Support via email at
TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877-698-4946). The VIZIO Technical
Support hours are 6:00AM to 9:00PM Monday through Friday and 7:00AM to 4:00PM
Saturday and Sunday, Pacic Time.
Your Obligations Before Service
You must obtain pre-authorization before sending your product to a VIZIO service center.
You may be required to supply a purchase receipt (or copy) to show that the product is
within the warranty period.
When you return a product to a VIZIO service center, you must ship the product in its
original packaging or in packaging that aords an equal degree of protection. VIZIO
Technical Support will provide instructions for packing and shipping the product to the
VIZIO service center.
ALL USER DATA AND DOWNLOADED APPLICATIONS STORED ON A PRODUCT WILL BE
DELETED IN THE COURSE OF SOME IN-HOME AND ALL SHIP-IN WARRANTY SERVICE. If
this occurs, your product will be restored to its original state. You will be responsible for
restoring all applicable user data and downloaded applications. Recovery and reinstallation
of user data and downloaded applications is not covered under this warranty. In order to
protect your personal information, VIZIO recommends that you always clear all personal
information from the product before it is serviced, regardless of the servicer.
VIZIO’s Responsibilities
If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair
or replace it, or refund the purchase price to you. There will be no charge for parts or labor
during the warranty period. Replacement parts may be new or recertied at VIZIO’s option
and sole discretion. Replacement parts and VIZIO’s labor are warranted for the remaining
portion of the original warranty or for ninety (90) days from warranty service, whichever
is longer.
Types of Service
TVs that are 32 inches or larger will usually be serviced in-home. In-home service requires
complete and easy access to the product and does not include de-installation or re-
installation of the product. In-home service is subject to availability. VIZIO will provide other
service options when in-home service is not available.
All other VIZIO products must be sent to a VIZIO service center to obtain warranty service.
VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover
return shipping to the customer.
What This Warranty Does Not Cover
This warranty does not cover: (a) cosmetic damage; (b) normal wear and tear; (c) improper
operation; (d) improper voltage supply or power surges; (e) signal issues; (f) damage from
shipping; (g) acts of God; (h) customer misuse, modications or adjustments; (i) installation,
set-up, or repairs attempted by anyone other than by a VIZIO authorized service center;
(j) products with unreadable or removed serial numbers; (k) products requiring routine
maintenance; or (l) products sold “AS IS”, “CLEARANCE”, “FACTORY RECERTIFIED”, or by a
non-authorized reseller.
What to Do If You Are Not Satised With Service
If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve
the issue informally with VIZIO. If you are unable to resolve the issue informally and wish
to le a formal claim against VIZIO, and if you are a resident of the United States, you must
submit your claim to binding arbitration according to the procedures described below,
unless an exception applies. Submitting a claim to binding arbitration means that you do
not have the right to have your claim heard by a judge or jury. Instead your claim will be
heard by a neutral arbitrator.
Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)
Warranty Information
English - 29
UNLESS YOU HAVE BROUGHT AN ELIGIBLE CLAIM IN SMALL CLAIMS COURT OR HAVE
OPTED OUT AS DESCRIBED BELOW, ANY CONTROVERSY OR CLAIM RELATING IN ANY WAY
TO YOUR VIZIO PRODUCT, INCLUDING ANY CONTROVERSY OR CLAIM ARISING OUT OF OR
RELATING TO THIS WARRANTY, A BREACH OF THIS WARRANTY, OR THE VIZIO PRODUCT’S
SALE, CONDITION OR PERFORMANCE, WILL BE SETTLED BY BINDING ARBITRATION
ADMINISTERED BY THE AMERICAN ARBITRATION ASSOCIATION AND CONDUCTED BY
A SINGLE ARBITRATOR APPOINTED BY THE AMERICAN ARBITRATION ASSOCIATION, IN
ACCORDANCE WITH ITS COMMERCIAL ARBITRATION RULES AND ITS SUPPLEMENTARY
PROCEDURES FOR CONSUMER-RELATED DISPUTES. You may learn more about the
American Arbitration Association and its rules for arbitration by visiting www.adr.org
or by calling 800-778-7879. Since this warranty concerns a transaction in interstate or
international commerce, the Federal Arbitration Act will apply.
The ling fees to begin and carry out arbitration will be shared between you and VIZIO, but
in no event will your fees ever exceed the amount allowable by the American Arbitration
Association, at which point VIZIO will cover all additional administrative fees and expenses.
VIZIO waives its right to recover attorneys’ fees in connection with any arbitration under
this warranty. If you are the prevailing party in an arbitration to which the Supplementary
Procedures for Consumer-Related Disputes applies, then you are entitled to recover
attorneys’ fees as the arbitrator may determine.
The dispute will be governed by the laws of the state or territory in which you resided at
the time of your purchase (if in the United States). The place of arbitration will be Irvine,
California, or your county of residence (if in the United States). The arbitrator will have no
authority to award punitive or other damages not measured by the prevailing party’s actual
damages, except as may be required by statute. The arbitrator will not award consequential
damages, and any award will be limited to monetary damages and will include no equitable
relief, injunction, or direction to any party other than the direction to pay a monetary
amount. Judgment on the award rendered by the arbitrator will be binding and nal,
except for any right of appeal provided by the Federal Arbitration Act, and may be entered
in any court having jurisdiction. Except as may be required by law, neither you nor VIZIO nor
an arbitrator may disclose the existence, content, or results of any arbitration under this
warranty without the prior written consent of you and VIZIO.
ANY DISPUTE, WHETHER IN ARBITRATION, IN COURT, OR OTHERWISE, WILL BE CONDUCTED
SOLELY ON AN INDIVIDUAL BASIS. VIZIO AND YOU AGREE THAT NO PARTY WILL HAVE THE
RIGHT OR AUTHORITY FOR ANY DISPUTE TO BE ARBITRATED AS A CLASS ACTION, A PRIVATE
ATTORNEY GENERAL ACTION, OR IN ANY OTHER PROCEEDING IN WHICH EITHER PARTY
ACTS OR PROPOSES TO ACT IN A REPRESENTATIVE CAPACITY.
NO ARBITRATION OR PROCEEDING WILL BE JOINED, CONSOLIDATED, OR COMBINED WITH
ANOTHER ARBITRATION OR PROCEEDING WITHOUT THE PRIOR WRITTEN CONSENT OF ALL
PARTIES TO ANY SUCH ARBITRATION OR PROCEEDING.
Exceptions to Binding Arbitration Agreement and Class Action Waiver
IF YOU DO NOT WISH TO BE BOUND BY THE BINDING ARBITRATION AGREEMENT AND
CLASS ACTION WAIVER, THEN: (1) you must notify VIZIO in writing within sixty (60) days of
the date that you purchased the product; (2) your written notication must be mailed to
VIZIO at 39 Tesla, Irvine, CA 92618, Attn: Legal Department; and (3) your written notication
must include (a) your name, (b) your address, (c) the date you purchased the product, and
(d) a clear statement that you wish to opt out of the binding arbitration agreement and
class action waiver.
In addition, you may pursue a claim in small claims court in your county of residence (if in
the United States) or in Orange County, California. In such case the provisions of the section
titled “Binding Arbitration Agreement; Class Action Waiver (U.S. Residents)” will not apply.
Exclusions and Limitations
TO THE GREATEST EXTENT PERMITTED BY APPLICABLE LAW, THERE ARE NO EXPRESS
WARRANTIES OTHER THAN THOSE DESCRIBED ABOVE. ANY IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WILL BE LIMITED IN DURATION TO THE WARRANTY PERIOD SET
FORTH ABOVE. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
VIZIO WILL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA,
COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF VIZIO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, AND EVEN IF THE REMEDY FAILS OF ITS ESSENTIAL
PURPOSE. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
IN LIEU OF ANY OTHER REMEDY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING
FROM ANY CAUSE WHATSOEVER (INCLUDING VIZIO’S NEGLIGENCE, ALLEGED DAMAGE,
OR DEFECTIVE GOODS, NO MATTER WHETHER SUCH DEFECTS ARE DISCOVERABLE OR
LATENT), VIZIO MAY, AT ITS SOLE AND EXCLUSIVE OPTION AND IN ITS DISCRETION, REPAIR
OR REPLACE YOUR PRODUCT, OR REFUND ITS PURCHASE PRICE. AS NOTED, SOME STATES
AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
How the Law Applies
This warranty gives you specic legal rights, and you may also have other rights, which vary
from state to state and province to province. This warranty applies to the greatest extent
permitted by applicable law.
General
No employee or agent of VIZIO may modify this warranty. If any term of this warranty, other
than the class action waiver, is found to be unenforceable, that term will be severed from
this warranty and all other terms will remain in eect. If the class action waiver is found
to be unenforceable, then the entire section titled “Binding Arbitration Agreement; Class
Action Waiver (U.S. Residents Only)” will not apply. This warranty applies to the maximum
extent not prohibited by law.
Changes to Warranty
This warranty may change without notice, but any change will not aect your original
warranty. Check www.vizio.com for the most current version.
English - 30
FOR MEXICO ONLY
BY USING YOUR VIZIO PRODUCT YOU AGREE TO BE BOUND BY ALL THE TERMS OF THIS
WARRANTY. BEFORE USING YOUR VIZIO PRODUCT, PLEASE READ THIS WARRANTY
CAREFULLY. IF YOU DO NOT AGREE TO THE TERMS OF THIS WARRANTY, DO NOT USE THE
VIZIO PRODUCT AND, WITHIN THIRTY (30) DAYS OF THE DATE OF PURCHASE, RETURN IT
FOR A REFUND TO THE AUTHORIZED RETAILER WHERE YOU PURCHASED IT.
Warrantor
The warrantor under this warranty is VIZIO Sales & Marketing Mexico S. de R.L. de C.V.
How Long This Warranty Lasts
For non-commercial use, VIZIO warrants the product on the terms set forth below for one
(1) year from the date of original purchase. For commercial use, VIZIO warrants this product
on the terms set forth below for ninety (90) days from the date of original purchase.
What This Warranty Covers
VIZIO warrants the product against defects in materials and workmanship when the
product is used normally in accordance with VIZIO’s user guides and manuals.
Except where restricted by law, this warranty applies only to the original purchaser of a new
product. The purchase must have been made from an authorized retailer in Mexico. The
product must also be located in Mexico at the time of warranty service.
Zero Bright Pixel Defect Guarantee (TVs Only)
Your product may qualify for a warranty against “zero bright pixel” defects for the duration
of the warranty on select new product purchases. To determine if this guarantee applies to
your product, refer to the model’s product information page at www.vizio.mx, look for the
“zero bright pixel” guarantee on the box, or contact VIZIO Technical Support at the email
address or telephone number below.
How to Get Service
Before obtaining warranty service, you may visit www.vizio.mx for additional help and
troubleshooting. To obtain warranty service, contact VIZIO Technical Support via email at
ApoyoTecnico.MX@VIZIO.com or via phone at 01-800-801-0096 or 001-855-472-7444. The
VIZIO Technical Support hours are 9:00AM to 6:00PM Monday through Friday, Central
Standard Time.
Your Obligations Before Service
You must obtain pre-authorization before sending your product to a VIZIO service center.
You may be required to supply a purchase receipt (or copy) to show that the product is
within the warranty period.
When you return a product to a VIZIO service center, you must ship the product in its
original packaging or in packaging that aords an equal degree of protection. VIZIO
Technical Support will provide instructions for packing and shipping the product to the
VIZIO service center.
ALL USER DATA AND DOWNLOADED APPLICATIONS STORED ON A PRODUCT WILL BE
DELETED IN THE COURSE OF SOME IN-HOME AND ALL SHIP-IN WARRANTY SERVICE. If
this occurs, your product will be restored to its original state. You will be responsible for
restoring all applicable user data and downloaded applications. Recovery and reinstallation
of user data and downloaded applications is not covered under this warranty. In order to
protect your personal information, VIZIO recommends that you always clear all personal
information from the product before it is serviced, regardless of the servicer.
VIZIO’s Responsibilities
If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair
or replace it, or refund the purchase price to you. There will be no charge for parts or labor
during the warranty period. Replacement parts may be new or recertied at VIZIO’s option
and sole discretion. Replacement parts and VIZIO’s labor are warranted for the remaining
portion of the original warranty or for ninety (90) days from warranty service, whichever
is longer.
Types of Service
TVs that are 32 inches or larger will usually be serviced in-home. In-home service requires
complete and easy access to the product and does not include de-installation or re-
installation of the product. In-home service is subject to availability. VIZIO will provide other
service options when in-home service is not available.
All other VIZIO products must be sent to a VIZIO service center to obtain warranty service.
VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover
return shipping to the customer.
What This Warranty Does Not Cover
This warranty does not cover: (a) cosmetic damage; (b) normal wear and tear; (c) improper
operation; (d) improper voltage supply or power surges; (e) signal issues; (f) damage from
shipping; (g) acts of God; (h) customer misuse, modications or adjustments; (i) installation,
set-up, or repairs attempted by anyone other than by a VIZIO authorized service center;
(j) products with unreadable or removed serial numbers; (k) products requiring routine
maintenance; or (l) products sold “AS IS”, “CLEARANCE”, “FACTORY RECERTIFIED”, or by a
non-authorized reseller.
What to Do If You Are Not Satised With Service
If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve
the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to
le a formal claim against VIZIO, you may do so.
Exclusions and Limitations
TO THE GREATEST EXTENT PERMITTED BY APPLICABLE LAW, THERE ARE NO EXPRESS
WARRANTIES OTHER THAN THOSE DESCRIBED ABOVE. ANY IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WILL BE LIMITED IN DURATION TO THE WARRANTY PERIOD SET
FORTH ABOVE. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
English - 31
VIZIO WILL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA,
COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF VIZIO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, AND EVEN IF THE REMEDY FAILS OF ITS ESSENTIAL
PURPOSE. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
IN LIEU OF ANY OTHER REMEDY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING
FROM ANY CAUSE WHATSOEVER (INCLUDING VIZIO’S NEGLIGENCE, ALLEGED DAMAGE,
OR DEFECTIVE GOODS, NO MATTER WHETHER SUCH DEFECTS ARE DISCOVERABLE OR
LATENT), VIZIO MAY, AT ITS SOLE AND EXCLUSIVE OPTION AND IN ITS DISCRETION, REPAIR
OR REPLACE YOUR PRODUCT, OR REFUND ITS PURCHASE PRICE. AS NOTED, SOME STATES
AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
How the Law Applies
This warranty gives you specic legal rights, and you may also have other rights, which vary
from state to state and province to province. This warranty applies to the greatest extent
permitted by applicable law.
General
No employee or agent of VIZIO may modify this warranty. If any term of this warranty is
found to be unenforceable, that term will be severed from this warranty and all other terms
will remain in eect. This warranty applies to the maximum extent not prohibited by law.
Changes to Warranty
This warranty may change without notice, but any change will not aect your original
warranty. Check www.vizio.mx for the most current version.
INFORMATION EXCLUSIVELY FOR MEXICO
To make a warranty claim, or to obtain parts, components, supplies and accessories, you
may contact the importer of record, the warranty service provider, or the establishment
from whom you purchased the VIZIO product.
Importer of Record
VIZIO Sales & Marketing México S de RL de CV
Presidente Masaryk 111, Of 152 - Of 111
Col. Polanco V Sección
Delegación Miguel Hidalgo
México Distrito Federal
C.P. 11560
Date of purchase:
Model:
Brand:
To make a warranty claim, present your product and either this warranty, duly stamped by
the establishment from whom you purchased the VIZIO product, or a valid invoice or receipt
showing the date of purchase.
Under the terms of this warranty, VIZIO or its representative must exchange parts and
components of the product and include labor and shipping expenses of the product on
which this warranty is valid, within the service network, at no cost to the consumer.
VIZIO is not obligated to honor the warranty in the following cases.
(a) When the product has been used under other than normal conditions.
(b) When the product has not been operated according to the accompanying instructions
for use.
(c) When the product has been altered or repaired by persons not authorized by VIZIO or
the respective seller.
© 2016 VIZIO INC. ALL RIGHTS RESERVED.
160615OC-US-NC
