QUICK START GUIDEModel: SB362An-F6VIZIO Sound BarPlease read this guide before using the product.
English - iiYour Unit is designed and manufactured to operate within dened design limits, and misuse may result in electric shock or re. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.• Read these instructions.• Keep these instructions.• Heed all warnings.• Follow all instructions.• Do not use this apparatus near water.• Clean only with a dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• Only use attachments/accessories specied by the manufacturer.• Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.• Unplug this apparatus during lightning storms or when unused for long periods of time.• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• To reduce the risk of electric shock or component damage, switch o the power before connecting other components to your Unit.• Unplug the power cord before cleaning your Unit. A damp cloth is sucient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.• Always use the accessories recommended by the manufacturer to insure compatibility.• When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing re, electric shock, or component damage.• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.• Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a re or electric shock. Never spill liquids on your Unit.• Never use the subwoofer in the upright, vertical position without installing the legs• Do not block the subwoofer ports. Allow for 1-2 inches of space around all sides for ventilation.• WARNING: Exposure to loud sounds can damage your hearing causing hearing loss and tinnitus (ringing or buzzing in the ears). With continued IMPORTANT SAFETY INSTRUCTIONS

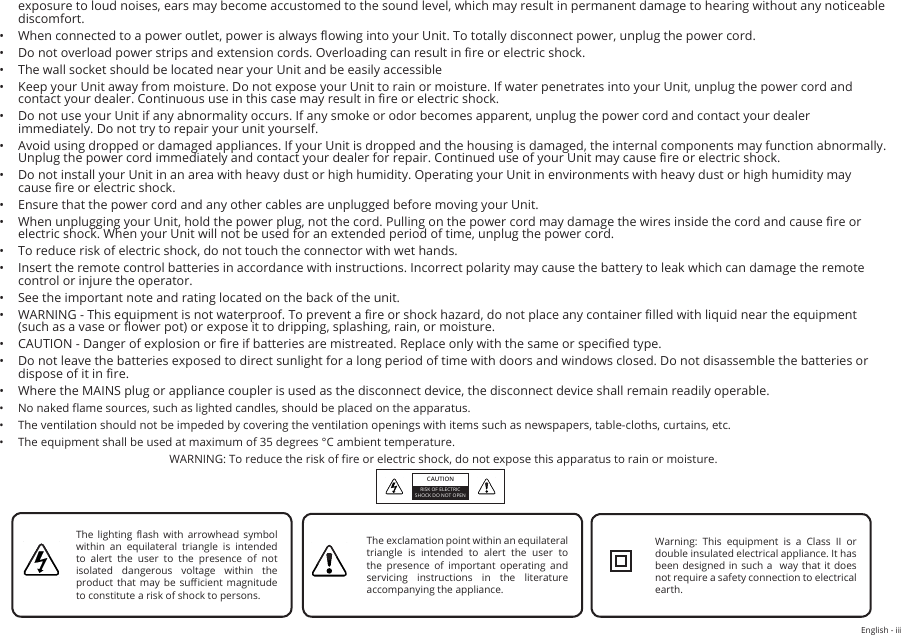

English - iiiexposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable discomfort.• When connected to a power outlet, power is always owing into your Unit. To totally disconnect power, unplug the power cord.• Do not overload power strips and extension cords. Overloading can result in re or electric shock.• The wall socket should be located near your Unit and be easily accessible• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in re or electric shock.• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your unit yourself.• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause re or electric shock.• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause re or electric shock.• Ensure that the power cord and any other cables are unplugged before moving your Unit.• When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause re or electric shock. When your Unit will not be used for an extended period of time, unplug the power cord.• To reduce risk of electric shock, do not touch the connector with wet hands.• Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.• See the important note and rating located on the back of the unit.• WARNING - This equipment is not waterproof. To prevent a re or shock hazard, do not place any container lled with liquid near the equipment (such as a vase or ower pot) or expose it to dripping, splashing, rain, or moisture.• CAUTION - Danger of explosion or re if batteries are mistreated. Replace only with the same or specied type.• Do not leave the batteries exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the batteries or dispose of it in re.• Where the MAINS plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.• No naked ame sources, such as lighted candles, should be placed on the apparatus.• The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.• The equipment shall be used at maximum of 35 degrees °C ambient temperature.WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPENThe lighting ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of not isolated dangerous voltage within the product that may be sucient magnitude to constitute a risk of shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.Warning: This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

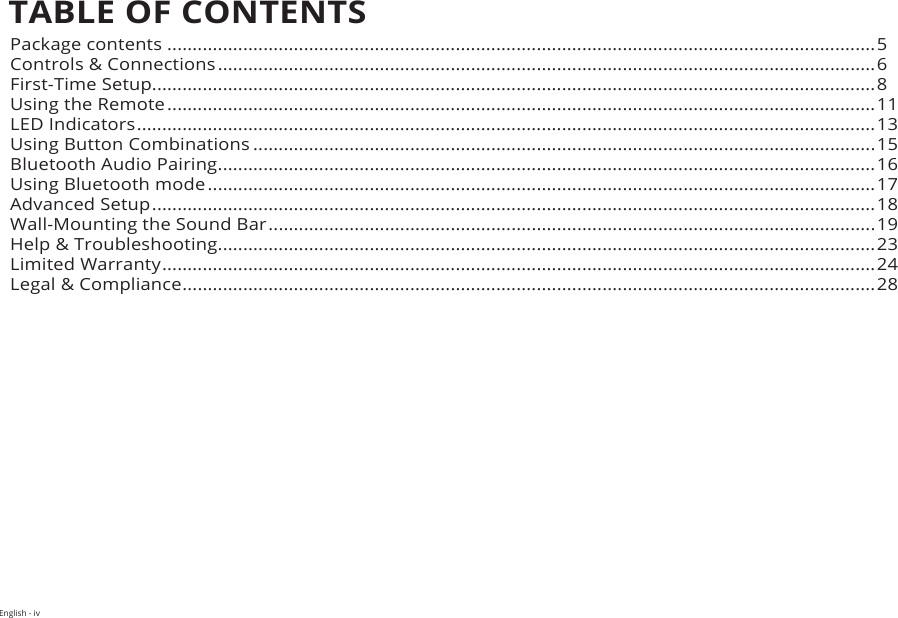

English - ivTABLE OF CONTENTSPackage contents ............................................................................................................................................5Controls & Connections ..................................................................................................................................6First-Time Setup...............................................................................................................................................8Using the Remote ............................................................................................................................................11LED Indicators .................................................................................................................................................. 13Using Button Combinations ...........................................................................................................................15Bluetooth Audio Pairing ..................................................................................................................................16Using Bluetooth mode ....................................................................................................................................17Advanced Setup ............................................................................................................................................... 18Wall-Mounting the Sound Bar ........................................................................................................................ 19Help & Troubleshooting ..................................................................................................................................23Limited Warranty ............................................................................................................................................. 24Legal & Compliance .........................................................................................................................................28
English - 5PACKAGE CONTENTSWall Mount TemplateDigital Optical CablePower Cable3.5mm to 3.5mm Audio CableQuick Start GuideQUICK START GUIDEModel: SB3621n-E8MVIZIO Sound BarPlease read this guide before using the product. VIZIO Sound BarRemote Control with 2x AAA BatteriesStereo RCA to 3.5mm Audio Cable2 x Wall Mount Brackets (Sound Bar) HOME THEATER DISPLAY | QUICK START GUIDE Installation Guide | Models:

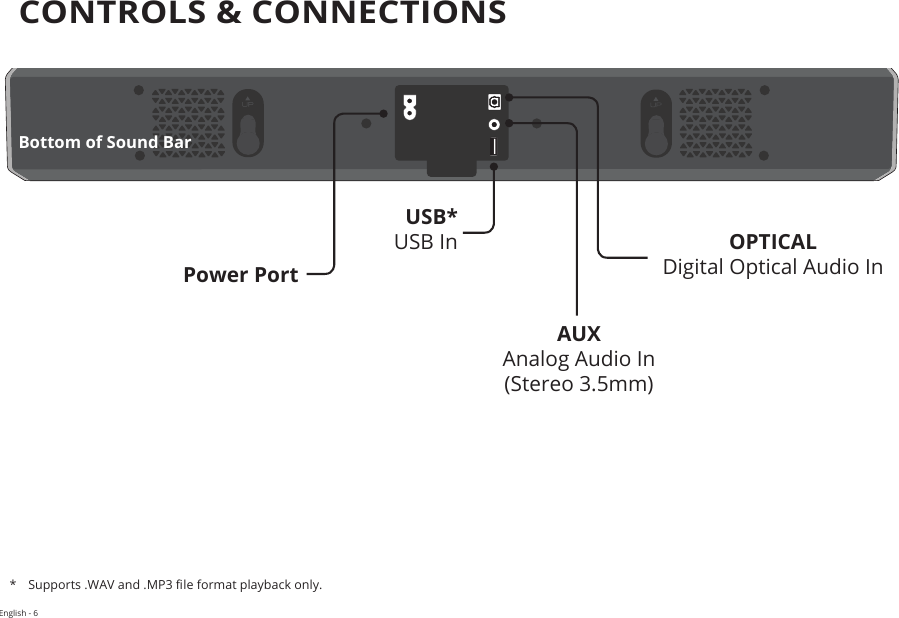

English - 6CONTROLS & CONNECTIONS* Supports .WAV and .MP3 le format playback only.Bottom of Sound BarPower PortOPTICAL Digital Optical Audio InAUX Analog Audio In (Stereo 3.5mm)USB* USB In

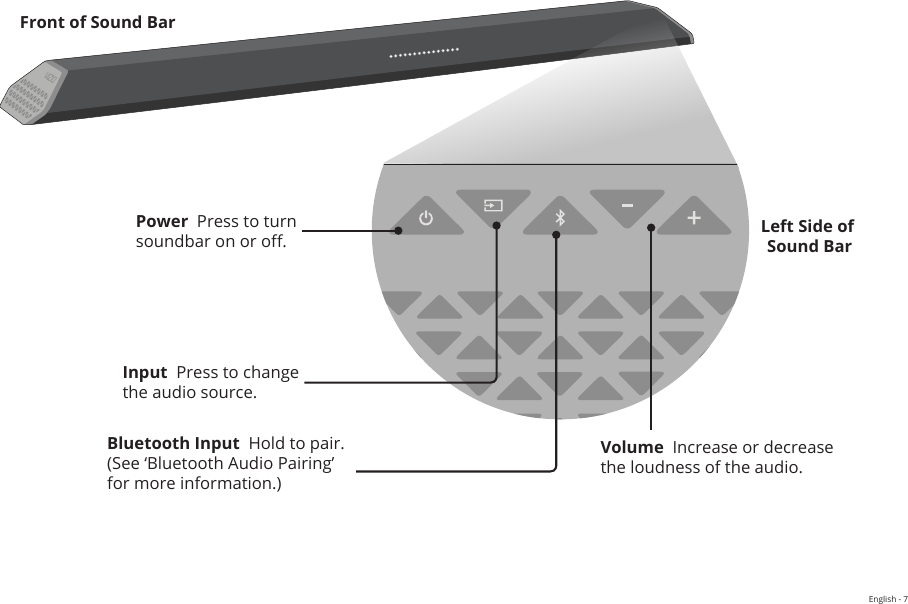

English - 7Front of Sound BarInput Press to change the audio source.Volume Increase or decrease the loudness of the audio.Power Press to turn soundbar on or o.Bluetooth Input Hold to pair.(See ‘Bluetooth Audio Pairing’ for more information.)Left Side of Sound Bar

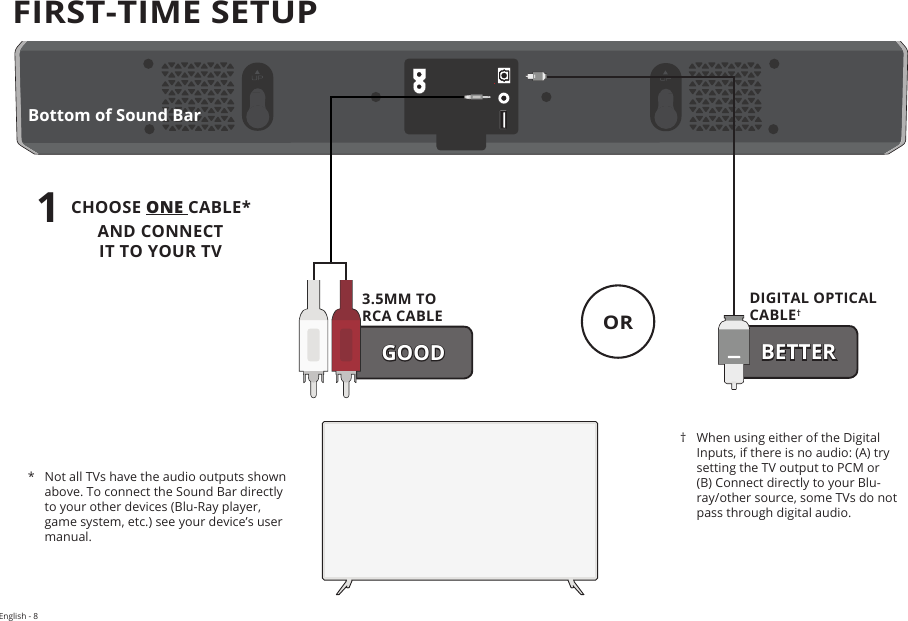

English - 8Bottom of Sound BarFIRST-TIME SETUP* Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-Ray player, game system, etc.) see your device’s user manual. HOME THEATER DISPLAY | QUICK START GUIDE Installation Guide | Models:AND CONNECT IT TO YOUR TV1CHOOSE ONE CABLE*3.5MM TO RCA CABLEGOOD BETTERDIGITAL OPTICAL CABLE†OR† When using either of the Digital Inputs, if there is no audio: (A) try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.

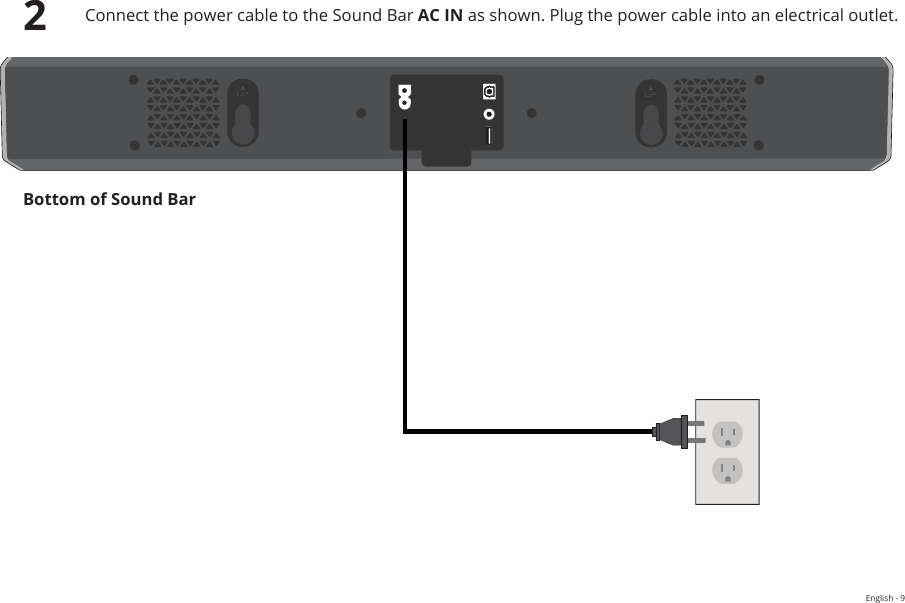

English - 92Connect the power cable to the Sound Bar AC IN as shown. Plug the power cable into an electrical outlet. HOME THEATER DISPLAY | QUICK START GUIDE Installation Guide | Models:Bottom of Sound Bar

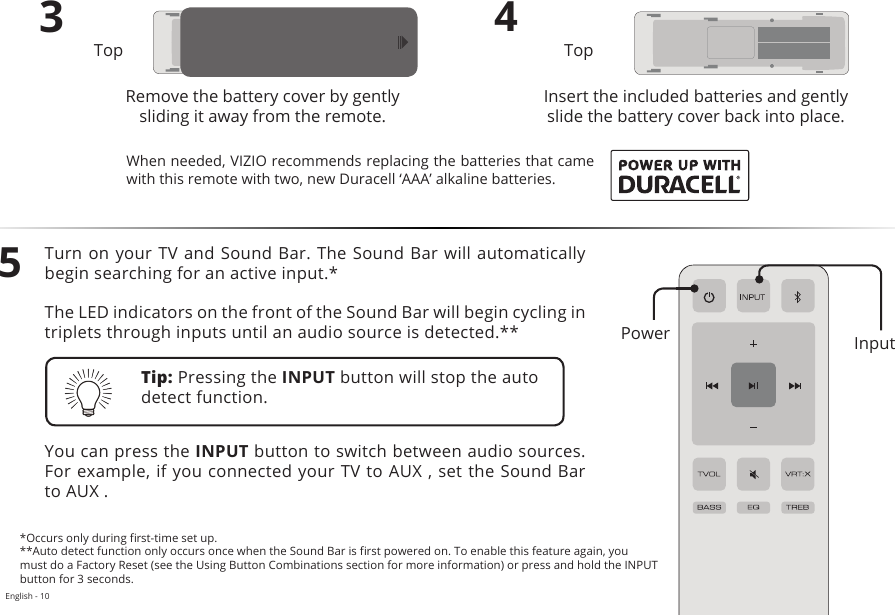

English - 10Turn on your TV and Sound Bar. The Sound Bar will automatically begin searching for an active input.*The LED indicators on the front of the Sound Bar will begin cycling in triplets through inputs until an audio source is detected.**You can press the INPUT button to switch between audio sources. For example, if you connected your TV to AUX , set the Sound Bar to AUX .3Remove the battery cover by gently sliding it away from the remote.4Insert the included batteries and gently slide the battery cover back into place.5Top TopTip: Pressing the INPUT button will stop the auto detect function.*Occurs only during rst-time set up.**Auto detect function only occurs once when the Sound Bar is rst powered on. To enable this feature again, you must do a Factory Reset (see the Using Button Combinations section for more information) or press and hold the INPUT button for 3 seconds.When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries.InputPower

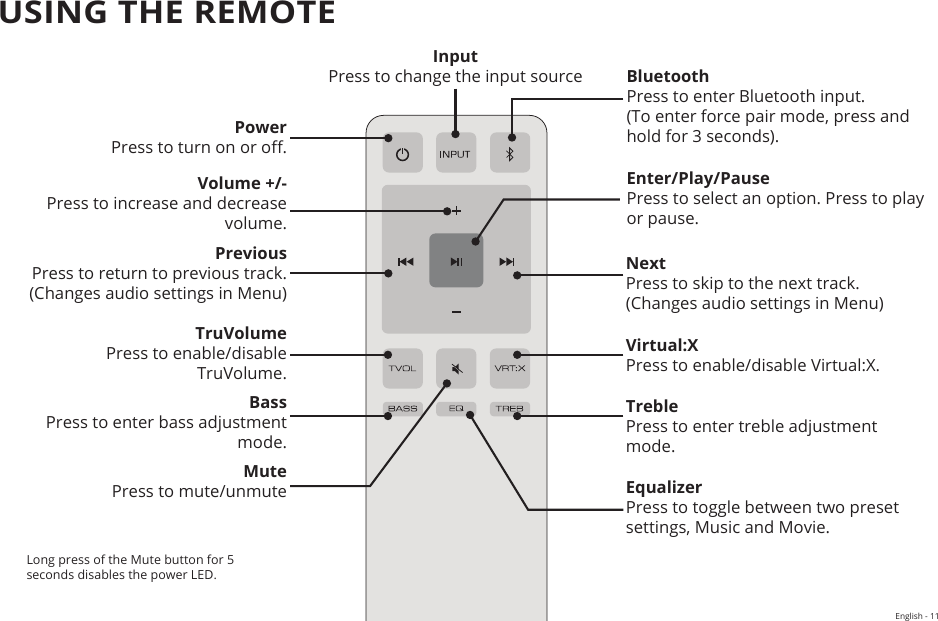

English - 11USING THE REMOTEVolume +/- Press to increase and decrease volume.Previous Press to return to previous track.(Changes audio settings in Menu)TruVolume Press to enable/disable TruVolume.Bass Press to enter bass adjustment mode.BluetoothPress to enter Bluetooth input.(To enter force pair mode, press and hold for 3 seconds).PowerPress to turn on or o.Enter/Play/Pause Press to select an option. Press to play or pause.Next Press to skip to the next track.(Changes audio settings in Menu)Virtual:X Press to enable/disable Virtual:X.Treble Press to enter treble adjustment mode.Equalizer Press to toggle between two preset settings, Music and Movie.InputPress to change the input sourceLong press of the Mute button for 5 seconds disables the power LED.Mute Press to mute/unmute

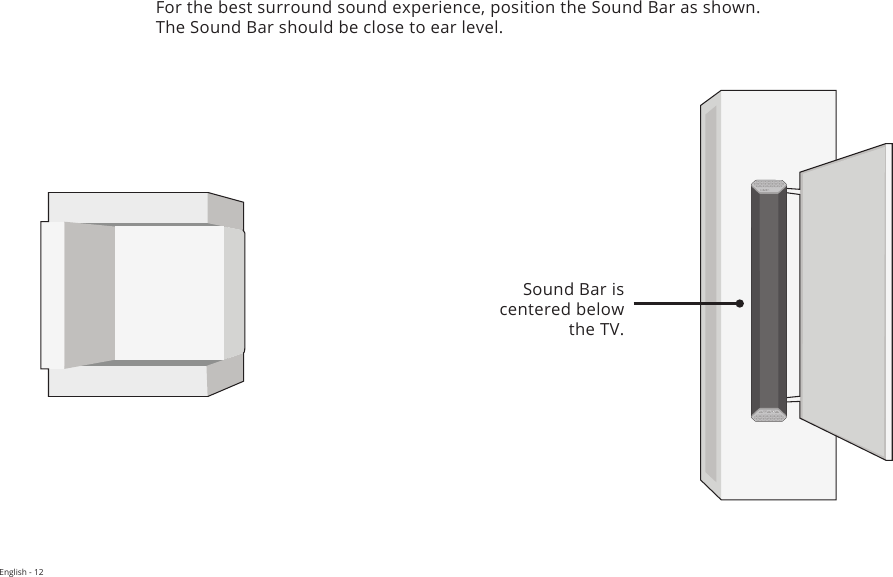

English - 12Sound Bar is centered below the TV.For the best surround sound experience, position the Sound Bar as shown. The Sound Bar should be close to ear level.

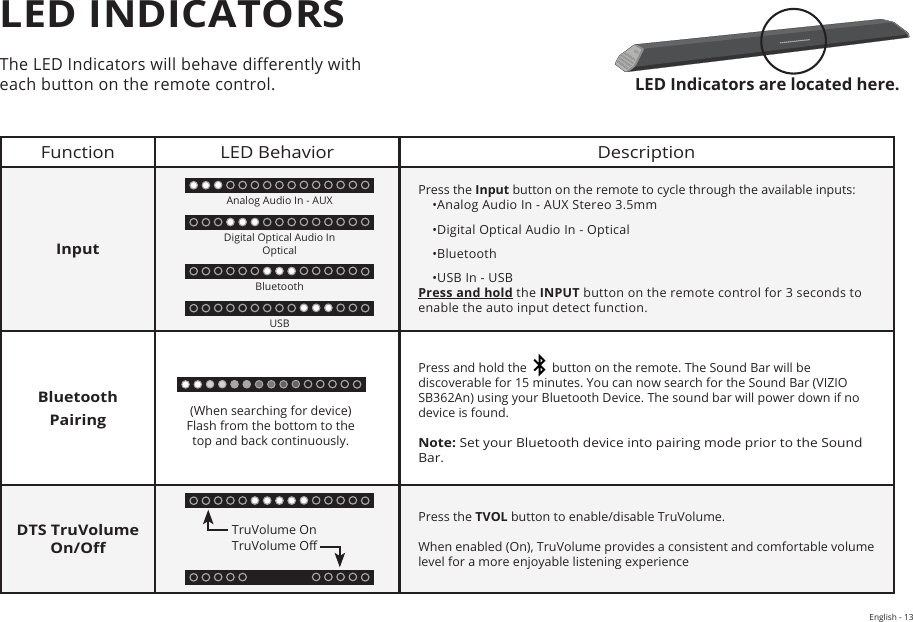

English - 13LED Indicators are located here.The LED Indicators will behave dierently with each button on the remote control.Function LED Behavior DescriptionInputPress the Input button on the remote to cycle through the available inputs: •Analog Audio In - AUX Stereo 3.5mm •Digital Optical Audio In - Optical •Bluetooth •USB In - USB Press and hold the INPUT button on the remote control for 3 seconds to enable the auto input detect function.Bluetooth PairingPress and hold the button on the remote. The Sound Bar will be discoverable for 15 minutes. You can now search for the Sound Bar (VIZIO SB362An) using your Bluetooth Device. The sound bar will power down if no device is found.Note: Set your Bluetooth device into pairing mode prior to the Sound Bar.DTS TruVolume On/OPress the TVOL button to enable/disable TruVolume. When enabled (On), TruVolume provides a consistent and comfortable volume level for a more enjoyable listening experience(When searching for device) Flash from the bottom to the top and back continuously.TruVolume OnTruVolume OLED INDICATORSAnalog Audio In - AUX Digital Optical Audio In Optical BluetoothUSB
English - 14Function LED Behavior DescriptionEqualizer ModePress the EQ button to toggle between two preset equalizer settings, Music and Movie.settings, Movie, or Music. Note: Movie mode is on by defaultTreble LevelPress the TREB button then press the Next/Previous button to increase/decrease the treble level. The LED indicators will move up with increasing levels and down with decreasing levels.Bass LevelsPress the BASS button then press the Next/Previous button to increase/decrease the bass level. The LED indicators will move up with increasing levels and down with decreasing levels . Decreasing the BASS level to the lowest setting will reduce BASS and Subwoofer levels on the bar. This is best for watching TV late at night in a quiet environment.Virtual X ModePress the VRT:X button to enable/disable Virtual X. When enabled (On), all inputs will produce a virtual sound technology that simulates the eect of having overhead sound. When disabled (O), all sources will playback in stereo.When a Dolby Audio signal is detected.Dolby Audio is only available on the Digital Optical Audio In inputs. When a Dolby Audio signal is detected, the Dolby Audio indicator LED will light up for 3 seconds before fading away.Three center LEDs indicate Treble level 0.Three center LEDs indicate Bass level 0.Dolby Audio Indicator LEDMovie MusicEnabled Disabled

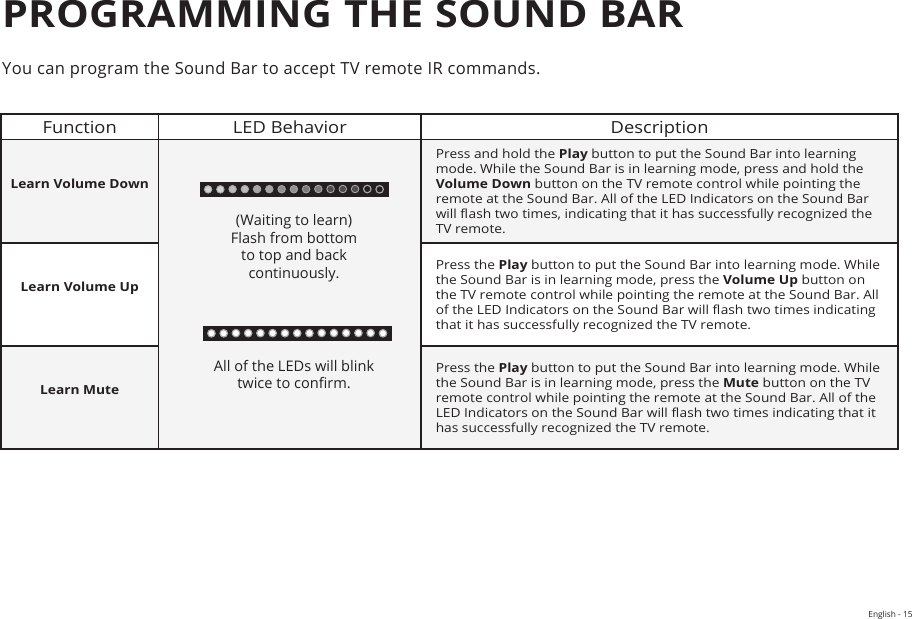

English - 15PROGRAMMING THE SOUND BARYou can program the Sound Bar to accept TV remote IR commands. Function LED Behavior DescriptionLearn Volume DownPress and hold the Play button to put the Sound Bar into learning mode. While the Sound Bar is in learning mode, press and hold the Volume Down button on the TV remote control while pointing the remote at the Sound Bar. All of the LED Indicators on the Sound Bar will ash two times, indicating that it has successfully recognized the TV remote.Learn Volume UpPress the Play button to put the Sound Bar into learning mode. While the Sound Bar is in learning mode, press the Volume Up button on the TV remote control while pointing the remote at the Sound Bar. All of the LED Indicators on the Sound Bar will ash two times indicating that it has successfully recognized the TV remote.Learn MutePress the Play button to put the Sound Bar into learning mode. While the Sound Bar is in learning mode, press the Mute button on the TV remote control while pointing the remote at the Sound Bar. All of the LED Indicators on the Sound Bar will ash two times indicating that it has successfully recognized the TV remote.(Waiting to learn)Flash from bottom to top and back continuously.All of the LEDs will blink twice to conrm.
English - 16USING BUTTON COMBINATIONSThere are 3 functions that are triggered by 3 dierent button combinations on the Sound Bar.Function LED Behavior DescriptionFactory ResetReset the Sound Bar to the factory default settings. To perform a Factory Reset, Press and Hold the Bluetooth( ) and Volume Down (—) buttons for 5 seconds. Note: This will erase all settings and preferences that you have set.VIZIO TV Remote ControlEnable/disable the use of a VIZIO TV remote control to power on and adjust the volume of the Sound Bar. To enable/disable this function, Press and Hold the Power ( ) and Volume Up ( + ) buttons for 5 seconds.Note: This function is enabled by default.Energy StarWhen the Energy Star setting is enabled, the Sound Bar will automatically power down after a period of inactivity. When disabled, the Sound Bar will remain powered on until you turn it o. To enable/disable this function, Press and Hold the Power ( ) and Volume Down (—) buttons for 5 seconds. Note: Energy Star setting is enabled by default.All 15 LEDs will ash 3 timesButtons are located on side of Sound Bar.Enabled DisabledEnabled Disabled

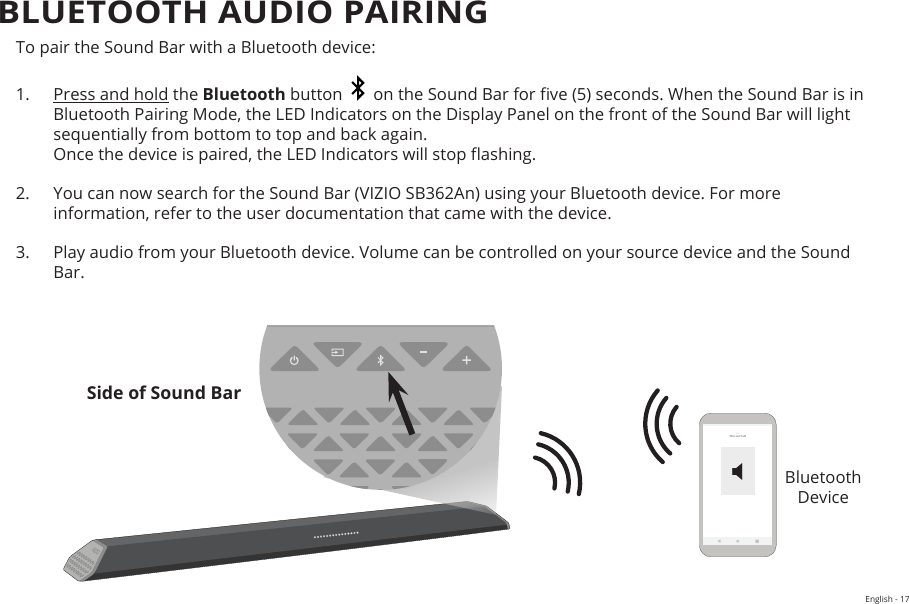

English - 17To pair the Sound Bar with a Bluetooth device:1. Press and hold the Bluetooth button on the Sound Bar for ve (5) seconds. When the Sound Bar is in Bluetooth Pairing Mode, the LED Indicators on the Display Panel on the front of the Sound Bar will light sequentially from bottom to top and back again. Once the device is paired, the LED Indicators will stop ashing.2. You can now search for the Sound Bar (VIZIO SB362An) using your Bluetooth device. For more information, refer to the user documentation that came with the device.3. Play audio from your Bluetooth device. Volume can be controlled on your source device and the Sound Bar.Bluetooth DeviceBLUETOOTH AUDIO PAIRINGSide of Sound BarThe Last YardX

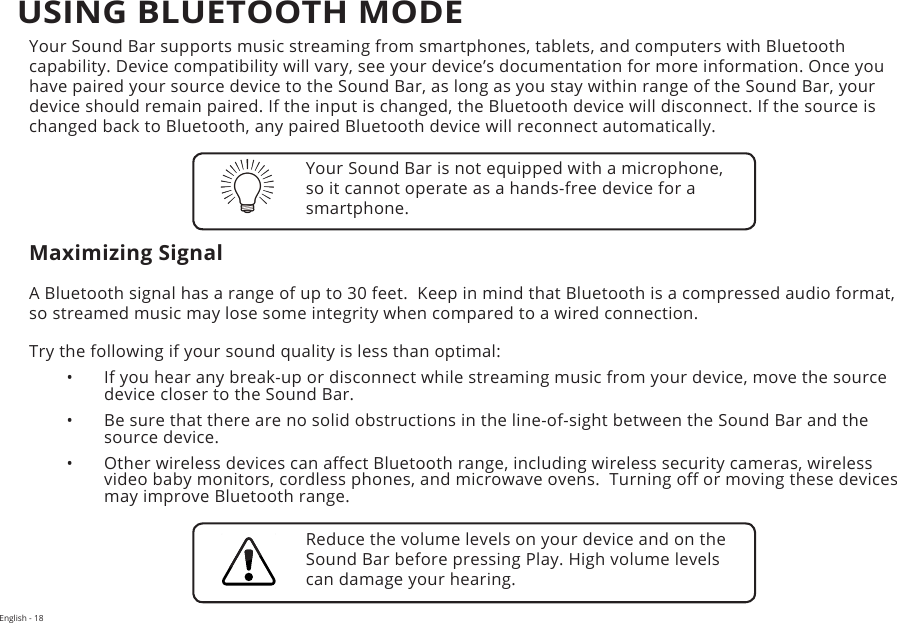

English - 18Your Sound Bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the Sound Bar, as long as you stay within range of the Sound Bar, your device should remain paired. If the input is changed, the Bluetooth device will disconnect. If the source is changed back to Bluetooth, any paired Bluetooth device will reconnect automatically.Maximizing SignalA Bluetooth signal has a range of up to 30 feet. Keep in mind that Bluetooth is a compressed audio format, so streamed music may lose some integrity when compared to a wired connection.Try the following if your sound quality is less than optimal:• If you hear any break-up or disconnect while streaming music from your device, move the source device closer to the Sound Bar. • Be sure that there are no solid obstructions in the line-of-sight between the Sound Bar and the source device. • Other wireless devices can aect Bluetooth range, including wireless security cameras, wireless video baby monitors, cordless phones, and microwave ovens. Turning o or moving these devices may improve Bluetooth range.Your Sound Bar is not equipped with a microphone, so it cannot operate as a hands-free device for a smartphone.Reduce the volume levels on your device and on the Sound Bar before pressing Play. High volume levels can damage your hearing.USING BLUETOOTH MODE

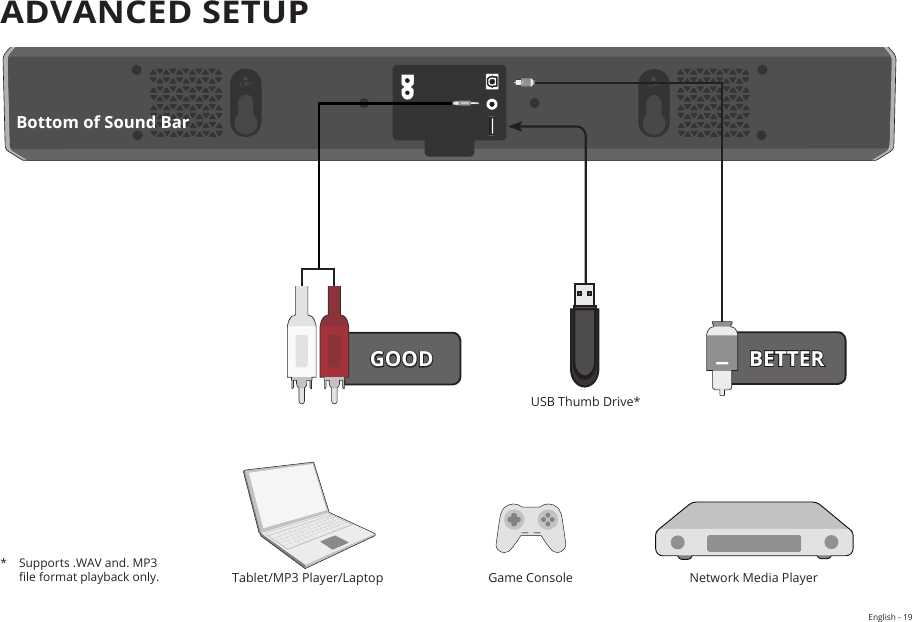

English - 19 HOME THEATER DISPLAY | QUICK START GUIDE Installation Guide | Models:ADVANCED SETUP* Supports .WAV and. MP3 le format playback only. Game Console HOME THEATER DISPLAY | QUICK START GUIDE Installation Guide | Models:Network Media Player HOME THEATER DISPLAY | QUICK START GUIDE Installation Guide | Models:Tablet/MP3 Player/LaptopBottom of Sound BarGOOD BETTERUSB Thumb Drive*

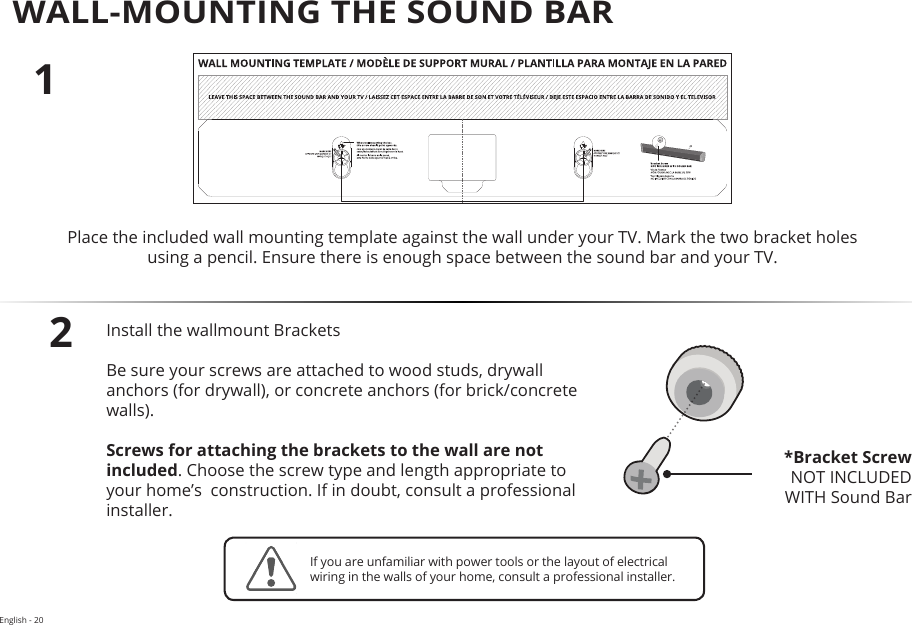

English - 20WALL-MOUNTING THE SOUND BAR12Place the included wall mounting template against the wall under your TV. Mark the two bracket holes using a pencil. Ensure there is enough space between the sound bar and your TV.Install the wallmount Brackets Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls).Screws for attaching the brackets to the wall are not included. Choose the screw type and length appropriate to your home’s construction. If in doubt, consult a professional installer.*Bracket ScrewNOT INCLUDED WITH Sound BarIf you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer.

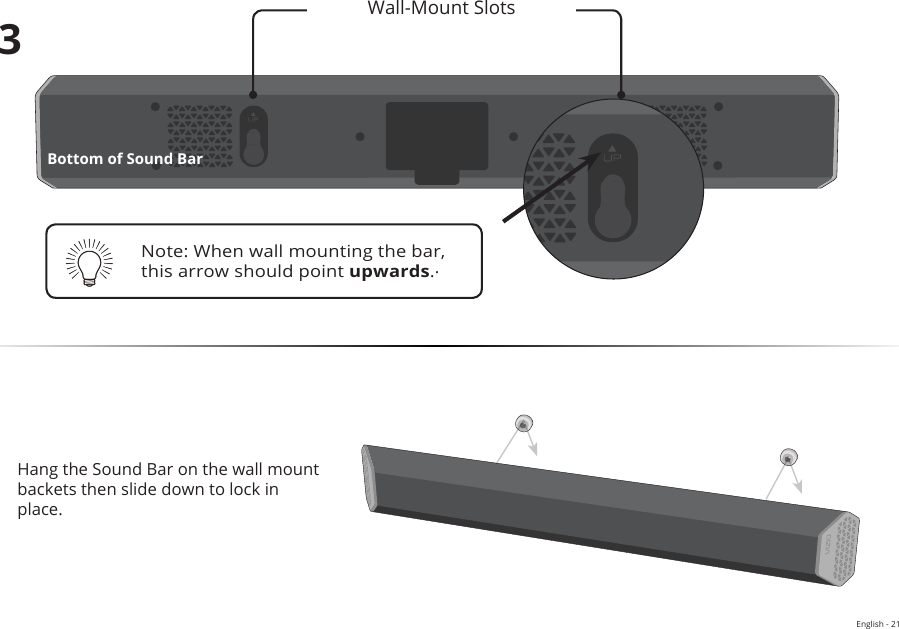

English - 213Bottom of Sound BarHang the Sound Bar on the wall mount backets then slide down to lock in place.Wall-Mount Slots Note: When wall mounting the bar, this arrow should point upwards..WALL-MOUNTING THE SOUND BAR
Take a moment to register your productVIZIO.COM/PRODUCT-REGISTRATIONWhy register?Customized SupportGet assistance quickly with your information on hand.News and OersTake advantage of the latest news and special oers from VIZIO.Safety and SatisfactionStay up-to-date with important product updates and notications.English - 22
Phone: (877) 698-4946 (toll-free)You can also contact our popular support team at:Live chat support availableFind help with:• New product setup• Connecting your devices• Technical problems• Product updates and moreAward-Winning Customer Care At Your Convenience.NEED HELP?Go to: support.vizio.comVIZIO.COM/PRODUCT-REGISTRATIONSe habla Español • Nous parlons FrançaisEnglish - 23

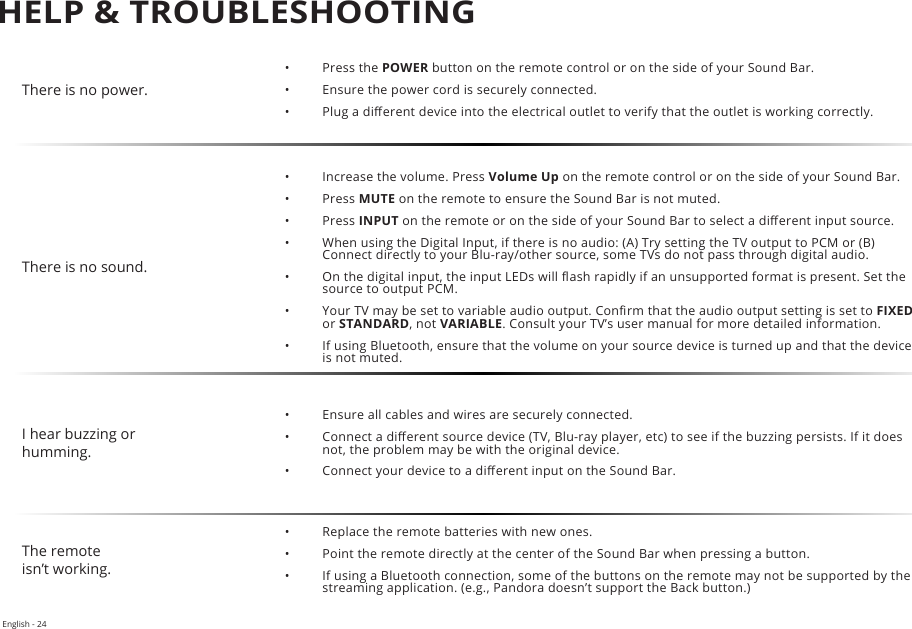

There is no power.• Press the POWER button on the remote control or on the side of your Sound Bar.• Ensure the power cord is securely connected.• Plug a dierent device into the electrical outlet to verify that the outlet is working correctly.There is no sound.• Increase the volume. Press Volume Up on the remote control or on the side of your Sound Bar.• Press MUTE on the remote to ensure the Sound Bar is not muted.• Press INPUT on the remote or on the side of your Sound Bar to select a dierent input source.• When using the Digital Input, if there is no audio: (A) Try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio. • On the digital input, the input LEDs will ash rapidly if an unsupported format is present. Set the source to output PCM.• Your TV may be set to variable audio output. Conrm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.• If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.I hear buzzing or humming.• Ensure all cables and wires are securely connected.• Connect a dierent source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with the original device.• Connect your device to a dierent input on the Sound Bar.The remoteisn’t working.• Replace the remote batteries with new ones.• Point the remote directly at the center of the Sound Bar when pressing a button.• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming application. (e.g., Pandora doesn’t support the Back button.)HELP & TROUBLESHOOTINGEnglish - 24

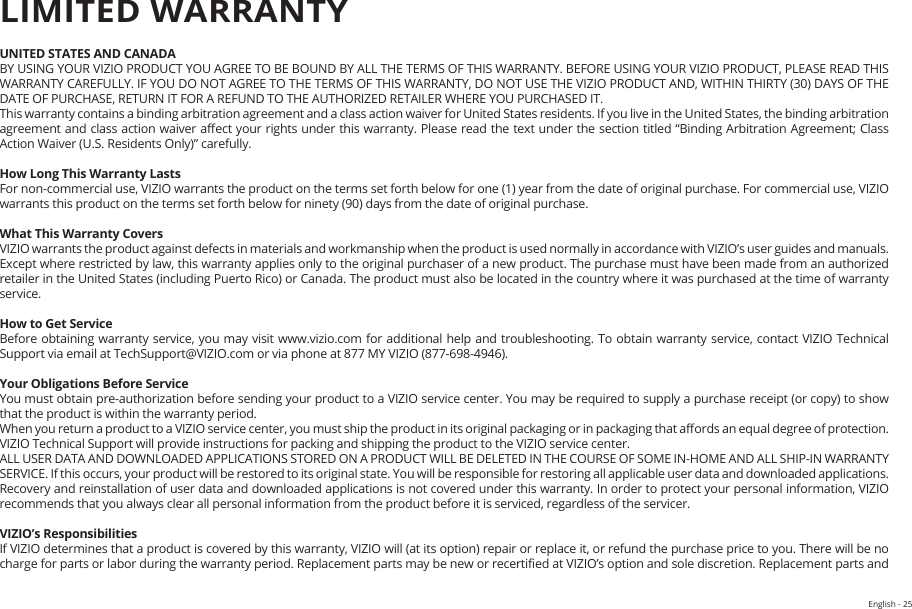

English - 25UNITED STATES AND CANADABY USING YOUR VIZIO PRODUCT YOU AGREE TO BE BOUND BY ALL THE TERMS OF THIS WARRANTY. BEFORE USING YOUR VIZIO PRODUCT, PLEASE READ THIS WARRANTY CAREFULLY. IF YOU DO NOT AGREE TO THE TERMS OF THIS WARRANTY, DO NOT USE THE VIZIO PRODUCT AND, WITHIN THIRTY (30) DAYS OF THE DATE OF PURCHASE, RETURN IT FOR A REFUND TO THE AUTHORIZED RETAILER WHERE YOU PURCHASED IT.This warranty contains a binding arbitration agreement and a class action waiver for United States residents. If you live in the United States, the binding arbitration agreement and class action waiver aect your rights under this warranty. Please read the text under the section titled “Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)” carefully.How Long This Warranty LastsFor non-commercial use, VIZIO warrants the product on the terms set forth below for one (1) year from the date of original purchase. For commercial use, VIZIO warrants this product on the terms set forth below for ninety (90) days from the date of original purchase. What This Warranty CoversVIZIO warrants the product against defects in materials and workmanship when the product is used normally in accordance with VIZIO’s user guides and manuals.Except where restricted by law, this warranty applies only to the original purchaser of a new product. The purchase must have been made from an authorized retailer in the United States (including Puerto Rico) or Canada. The product must also be located in the country where it was purchased at the time of warranty service.How to Get ServiceBefore obtaining warranty service, you may visit www.vizio.com for additional help and troubleshooting. To obtain warranty service, contact VIZIO Technical Support via email at TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877-698-4946). Your Obligations Before ServiceYou must obtain pre-authorization before sending your product to a VIZIO service center. You may be required to supply a purchase receipt (or copy) to show that the product is within the warranty period.When you return a product to a VIZIO service center, you must ship the product in its original packaging or in packaging that aords an equal degree of protection. VIZIO Technical Support will provide instructions for packing and shipping the product to the VIZIO service center.ALL USER DATA AND DOWNLOADED APPLICATIONS STORED ON A PRODUCT WILL BE DELETED IN THE COURSE OF SOME IN-HOME AND ALL SHIP-IN WARRANTY SERVICE. If this occurs, your product will be restored to its original state. You will be responsible for restoring all applicable user data and downloaded applications. Recovery and reinstallation of user data and downloaded applications is not covered under this warranty. In order to protect your personal information, VIZIO recommends that you always clear all personal information from the product before it is serviced, regardless of the servicer.VIZIO’s ResponsibilitiesIf VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair or replace it, or refund the purchase price to you. There will be no charge for parts or labor during the warranty period. Replacement parts may be new or recertied at VIZIO’s option and sole discretion. Replacement parts and LIMITED WARRANTYHELP & TROUBLESHOOTING

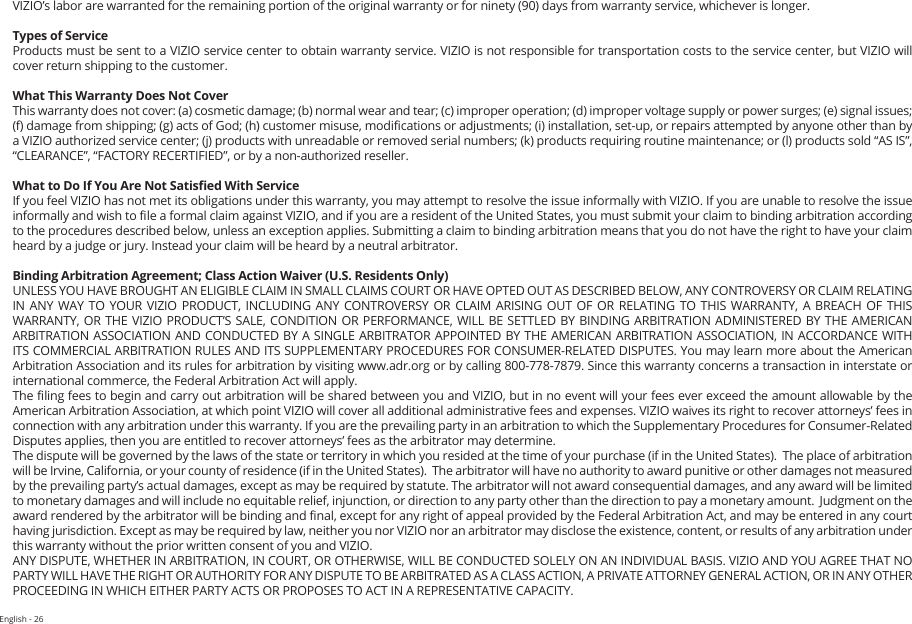

English - 26VIZIO’s labor are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service, whichever is longer.Types of ServiceProducts must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. What This Warranty Does Not CoverThis warranty does not cover: (a) cosmetic damage; (b) normal wear and tear; (c) improper operation; (d) improper voltage supply or power surges; (e) signal issues; (f) damage from shipping; (g) acts of God; (h) customer misuse, modications or adjustments; (i) installation, set-up, or repairs attempted by anyone other than by a VIZIO authorized service center; (j) products with unreadable or removed serial numbers; (k) products requiring routine maintenance; or (l) products sold “AS IS”, “CLEARANCE”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.What to Do If You Are Not Satised With ServiceIf you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to le a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according to the procedures described below, unless an exception applies. Submitting a claim to binding arbitration means that you do not have the right to have your claim heard by a judge or jury. Instead your claim will be heard by a neutral arbitrator. Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)UNLESS YOU HAVE BROUGHT AN ELIGIBLE CLAIM IN SMALL CLAIMS COURT OR HAVE OPTED OUT AS DESCRIBED BELOW, ANY CONTROVERSY OR CLAIM RELATING IN ANY WAY TO YOUR VIZIO PRODUCT, INCLUDING ANY CONTROVERSY OR CLAIM ARISING OUT OF OR RELATING TO THIS WARRANTY, A BREACH OF THIS WARRANTY, OR THE VIZIO PRODUCT’S SALE, CONDITION OR PERFORMANCE, WILL BE SETTLED BY BINDING ARBITRATION ADMINISTERED BY THE AMERICAN ARBITRATION ASSOCIATION AND CONDUCTED BY A SINGLE ARBITRATOR APPOINTED BY THE AMERICAN ARBITRATION ASSOCIATION, IN ACCORDANCE WITH ITS COMMERCIAL ARBITRATION RULES AND ITS SUPPLEMENTARY PROCEDURES FOR CONSUMER-RELATED DISPUTES. You may learn more about the American Arbitration Association and its rules for arbitration by visiting www.adr.org or by calling 800-778-7879. Since this warranty concerns a transaction in interstate or international commerce, the Federal Arbitration Act will apply. The ling fees to begin and carry out arbitration will be shared between you and VIZIO, but in no event will your fees ever exceed the amount allowable by the American Arbitration Association, at which point VIZIO will cover all additional administrative fees and expenses. VIZIO waives its right to recover attorneys’ fees in connection with any arbitration under this warranty. If you are the prevailing party in an arbitration to which the Supplementary Procedures for Consumer-Related Disputes applies, then you are entitled to recover attorneys’ fees as the arbitrator may determine.The dispute will be governed by the laws of the state or territory in which you resided at the time of your purchase (if in the United States). The place of arbitration will be Irvine, California, or your county of residence (if in the United States). The arbitrator will have no authority to award punitive or other damages not measured by the prevailing party’s actual damages, except as may be required by statute. The arbitrator will not award consequential damages, and any award will be limited to monetary damages and will include no equitable relief, injunction, or direction to any party other than the direction to pay a monetary amount. Judgment on the award rendered by the arbitrator will be binding and nal, except for any right of appeal provided by the Federal Arbitration Act, and may be entered in any court having jurisdiction. Except as may be required by law, neither you nor VIZIO nor an arbitrator may disclose the existence, content, or results of any arbitration under this warranty without the prior written consent of you and VIZIO. ANY DISPUTE, WHETHER IN ARBITRATION, IN COURT, OR OTHERWISE, WILL BE CONDUCTED SOLELY ON AN INDIVIDUAL BASIS. VIZIO AND YOU AGREE THAT NO PARTY WILL HAVE THE RIGHT OR AUTHORITY FOR ANY DISPUTE TO BE ARBITRATED AS A CLASS ACTION, A PRIVATE ATTORNEY GENERAL ACTION, OR IN ANY OTHER PROCEEDING IN WHICH EITHER PARTY ACTS OR PROPOSES TO ACT IN A REPRESENTATIVE CAPACITY.

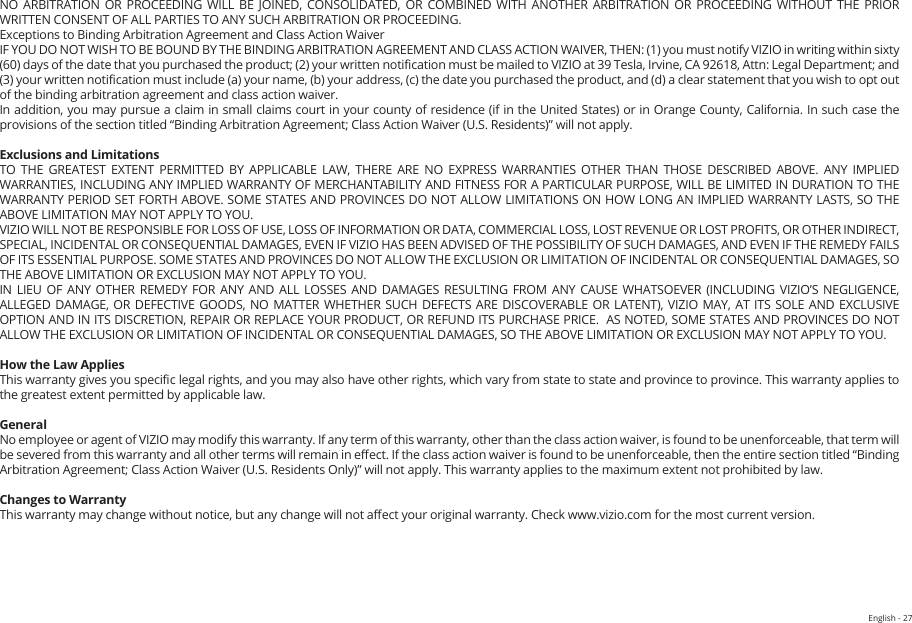

English - 27NO ARBITRATION OR PROCEEDING WILL BE JOINED, CONSOLIDATED, OR COMBINED WITH ANOTHER ARBITRATION OR PROCEEDING WITHOUT THE PRIOR WRITTEN CONSENT OF ALL PARTIES TO ANY SUCH ARBITRATION OR PROCEEDING.Exceptions to Binding Arbitration Agreement and Class Action WaiverIF YOU DO NOT WISH TO BE BOUND BY THE BINDING ARBITRATION AGREEMENT AND CLASS ACTION WAIVER, THEN: (1) you must notify VIZIO in writing within sixty (60) days of the date that you purchased the product; (2) your written notication must be mailed to VIZIO at 39 Tesla, Irvine, CA 92618, Attn: Legal Department; and (3) your written notication must include (a) your name, (b) your address, (c) the date you purchased the product, and (d) a clear statement that you wish to opt out of the binding arbitration agreement and class action waiver.In addition, you may pursue a claim in small claims court in your county of residence (if in the United States) or in Orange County, California. In such case the provisions of the section titled “Binding Arbitration Agreement; Class Action Waiver (U.S. Residents)” will not apply.Exclusions and LimitationsTO THE GREATEST EXTENT PERMITTED BY APPLICABLE LAW, THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WILL BE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.VIZIO WILL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF VIZIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND EVEN IF THE REMEDY FAILS OF ITS ESSENTIAL PURPOSE. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.IN LIEU OF ANY OTHER REMEDY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER (INCLUDING VIZIO’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, NO MATTER WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT), VIZIO MAY, AT ITS SOLE AND EXCLUSIVE OPTION AND IN ITS DISCRETION, REPAIR OR REPLACE YOUR PRODUCT, OR REFUND ITS PURCHASE PRICE. AS NOTED, SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.How the Law AppliesThis warranty gives you specic legal rights, and you may also have other rights, which vary from state to state and province to province. This warranty applies to the greatest extent permitted by applicable law.GeneralNo employee or agent of VIZIO may modify this warranty. If any term of this warranty, other than the class action waiver, is found to be unenforceable, that term will be severed from this warranty and all other terms will remain in eect. If the class action waiver is found to be unenforceable, then the entire section titled “Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)” will not apply. This warranty applies to the maximum extent not prohibited by law.Changes to WarrantyThis warranty may change without notice, but any change will not aect your original warranty. Check www.vizio.com for the most current version.

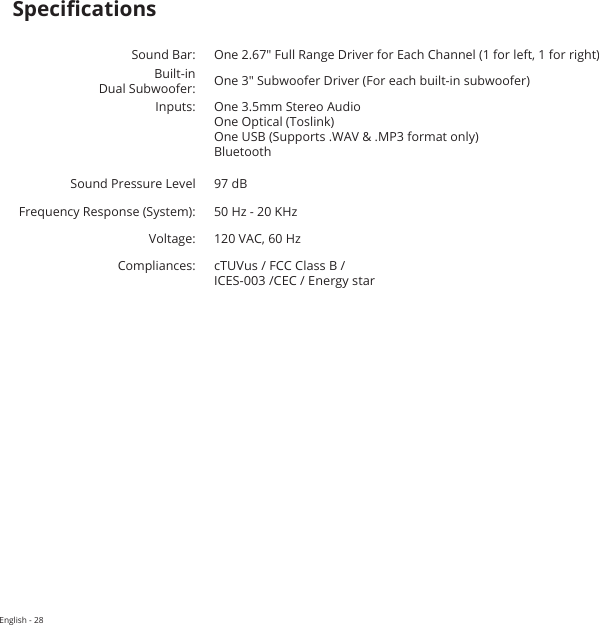

English - 28SpecicationsSound Bar: One 2.67" Full Range Driver for Each Channel (1 for left, 1 for right)Built-in Dual Subwoofer: One 3" Subwoofer Driver (For each built-in subwoofer)Inputs: One 3.5mm Stereo Audio One Optical (Toslink) One USB (Supports .WAV & .MP3 format only) BluetoothSound Pressure Level 97 dBFrequency Response (System): 50 Hz - 20 KHzVoltage: 120 VAC, 60 HzCompliances:cTUVus / FCC Class B / ICES-003 /CEC / Energy star

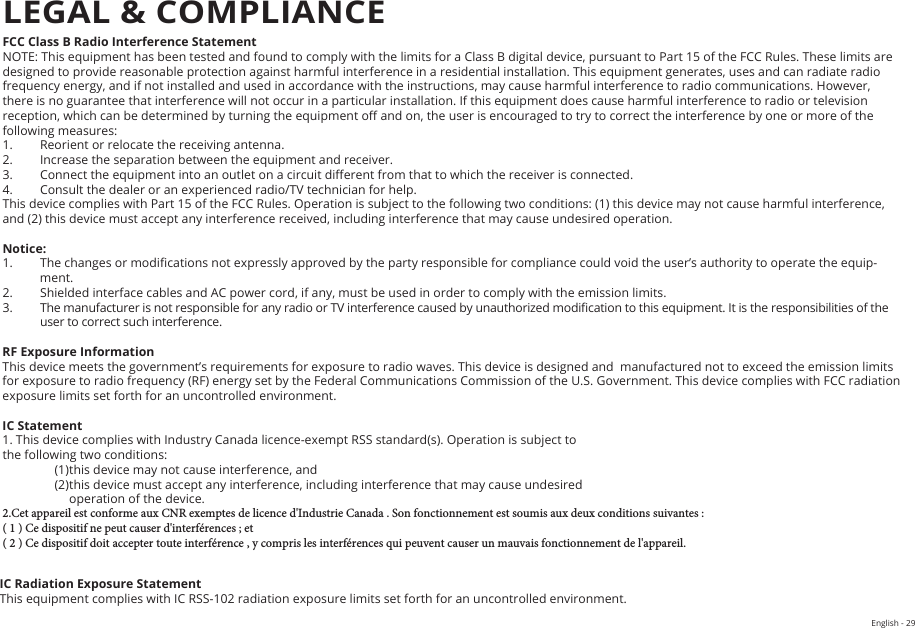

English - 29FCC Class B Radio Interference StatementNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Notice:1. The changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equip-ment.2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modication to this equipment. It is the responsibilities of the user to correct such interference.RF Exposure InformationThis device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.IC Statement1. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.2.Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes :( 1 ) Ce dispositif ne peut causer d'interférences ; et( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.IC Radiation Exposure StatementThis equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. LEGAL & COMPLIANCE
English - 30Battery Disposal and RecyclingYou must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and/or a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options. For more information, visit www.vizio.com/environment. Software LicensesAll software is provided subject to software license agreements and you agree that you will be bound by such license agreements in addition to other applicable terms of use. By using the VIZIO products, you agree to the VIZIO Terms of Service and Privacy Policy. The VIZIO Terms of Use and Privacy Policy may be updated from time to time and are available to view at http://www.vizio.com/ terms and http://www.vizio.com/privacy, respectively.Export RegulationsCustomer acknowledges that the VIZIO products, which include technology and software, are subject to customs and export control laws in the United States (“US”). The products may also be subject to the customs and export control laws and regulations of the country in which the products are manufactured and/or received. Information in this Quick Start Guide is subject to change without notice. To review the most updated version of this Quick Start Guide and the associated User Manual, go to http://www.vizio.com.© 2018 VIZIO, Inc. All Right Reserved.Image(s) used under license from Shutterstock.comThis Quick Start Guide may not be copied in whole or in part without the written permission of VIZIO, Inc. VIZIO, Inc. has made reasonable eorts to ensure the accuracy of the information provided herein. All product specications, functionality, features, congurations, performance, design and other product information described herein are subject to change without notice. VIZIO, Inc. is not responsible for typographical, technical, or descriptive errors.VIZIO, the VIZIO logo, the V logo, and other terms and phrases are trademarks or registered trademarks of VIZIO, Inc. Sound pressure level measured using pink noise at 1 meter, c-weighted.
English - 31This product qualies for ENERGY STAR in the “factory default” setting and this is the setting in which power savings will be achieved. Changing the factory default settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating.We want to help you save energy.Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are registered trademarks of Dolby Laboratories.The Bluetooth® word mark and Logos are registered trademark owned by Bluetooth SIG,Inc. and any use of such marks by VIZIO, Inc. is under license. Other trademarks and trade names are those of their respective owners. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the DTS Virtual:X logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
