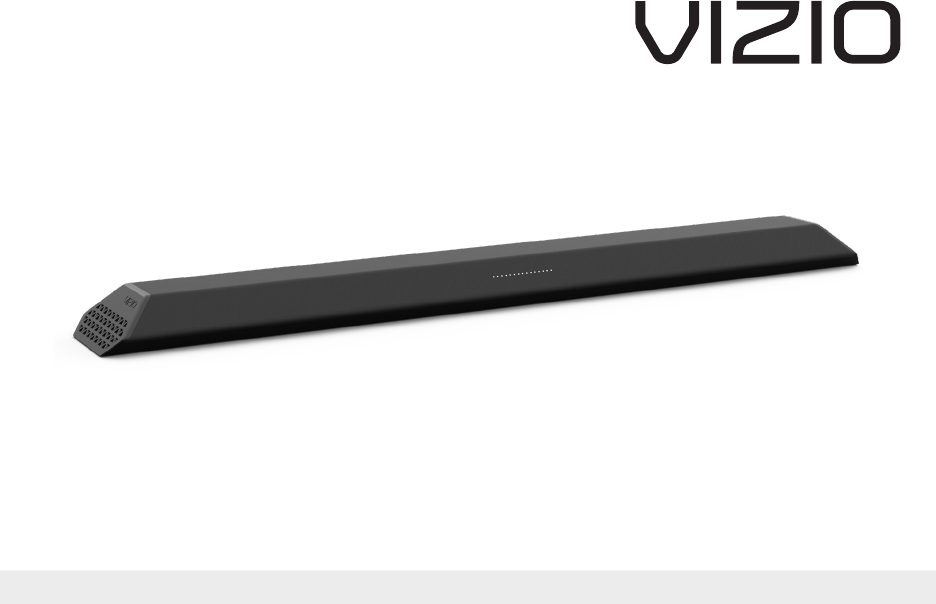

VIZIO Sound Bar
Please read this guide before using the product.
English - ii
Your Unit is designed and manufactured to operate within dened design limits, and misuse may result in electric shock or re. To prevent your Unit
from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions
before operating your Unit. Keep these instructions in a safe place for future reference.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus.
• Only use attachments/accessories specied by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as when
the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
• To reduce the risk of electric shock or component damage, switch o the power before connecting other components to your Unit.
• Unplug the power cord before cleaning your Unit. A damp cloth is sucient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not
use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before
turning on your Unit to avoid causing re, electric shock, or component damage.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it
from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is
provided.
• Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short
circuit parts causing a re or electric shock. Never spill liquids on your Unit.
• Never use the subwoofer in the upright, vertical position without installing the legs
• Do not block the subwoofer ports. Allow for 1-2 inches of space around all sides for ventilation.
• WARNING: Exposure to loud sounds can damage your hearing causing hearing loss and tinnitus (ringing or buzzing in the ears). With continued
IMPORTANT SAFETY INSTRUCTIONS
English - iii
exposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable
discomfort.
• When connected to a power outlet, power is always owing into your Unit. To totally disconnect power, unplug the power cord.
• Do not overload power strips and extension cords. Overloading can result in re or electric shock.
• The wall socket should be located near your Unit and be easily accessible
• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and
contact your dealer. Continuous use in this case may result in re or electric shock.
• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer
immediately. Do not try to repair your unit yourself.
• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally.
Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause re or electric shock.
• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may
cause re or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Unit.
• When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause re or
electric shock. When your Unit will not be used for an extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote
control or injure the operator.
• See the important note and rating located on the back of the unit.
• WARNING - This equipment is not waterproof. To prevent a re or shock hazard, do not place any container lled with liquid near the equipment
(such as a vase or ower pot) or expose it to dripping, splashing, rain, or moisture.
• CAUTION - Danger of explosion or re if batteries are mistreated. Replace only with the same or specied type.
• Do not leave the batteries exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the batteries or
dispose of it in re.
• Where the MAINS plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• No naked ame sources, such as lighted candles, should be placed on the apparatus.
• The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
• The equipment shall be used at maximum of 35 degrees °C ambient temperature.
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lighting ash with arrowhead symbol
within an equilateral triangle is intended
to alert the user to the presence of not
isolated dangerous voltage within the
product that may be sucient magnitude
to constitute a risk of shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
servicing instructions in the literature
accompanying the appliance.
Warning: This equipment is a Class II or
double insulated electrical appliance. It has
been designed in such a way that it does
not require a safety connection to electrical
earth.
English - iv
TABLE OF CONTENTS
Package contents ............................................................................................................................................5
Controls & Connections ..................................................................................................................................6
First-Time Setup...............................................................................................................................................8
Using the Remote ............................................................................................................................................11
LED Indicators .................................................................................................................................................. 13
Using Button Combinations ...........................................................................................................................15
Bluetooth Audio Pairing ..................................................................................................................................16
Using Bluetooth mode ....................................................................................................................................17
Advanced Setup ............................................................................................................................................... 18
Wall-Mounting the Sound Bar ........................................................................................................................ 19
Help & Troubleshooting ..................................................................................................................................23
Limited Warranty ............................................................................................................................................. 24
Legal & Compliance .........................................................................................................................................28
English - 5

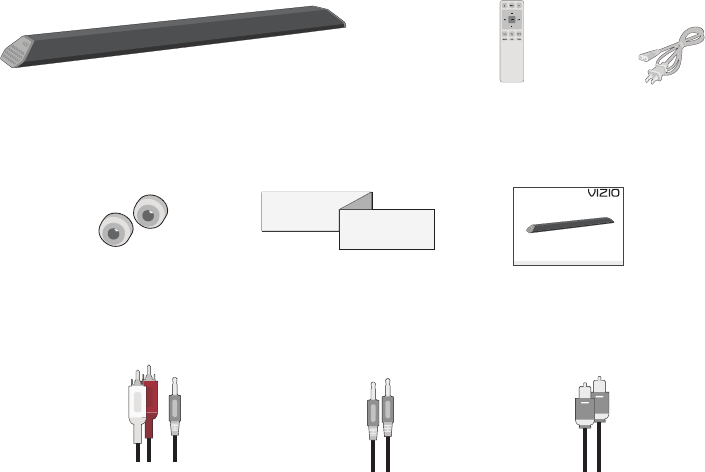

PACKAGE CONTENTS
Wall Mount
Template
Digital Optical
Cable
Power Cable
3.5mm to 3.5mm
Audio Cable
Quick Start
Guide
QUICK START GUIDE
Model: SB3621n-E8M
VIZIO Sound Bar
Please read this guide before using the product.
VIZIO
Sound Bar
Remote Control
with 2x AAA Batteries
Stereo RCA to
3.5mm Audio
Cable
2 x Wall
Mount
Brackets
(Sound Bar)
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
English - 6
CONTROLS & CONNECTIONS
* Supports .WAV and .MP3 le format playback only.

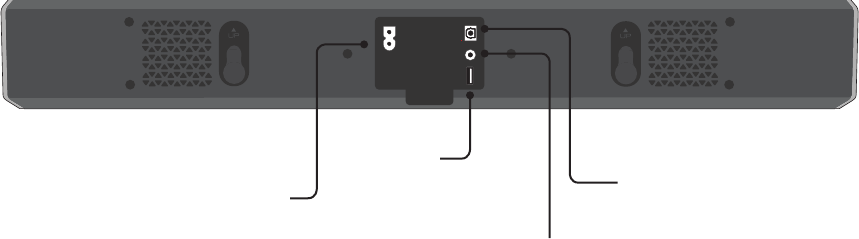

Bottom of Sound Bar
Power Port
OPTICAL
Digital Optical Audio In
AUX
Analog Audio In
(Stereo 3.5mm)
USB*
USB In
English - 7

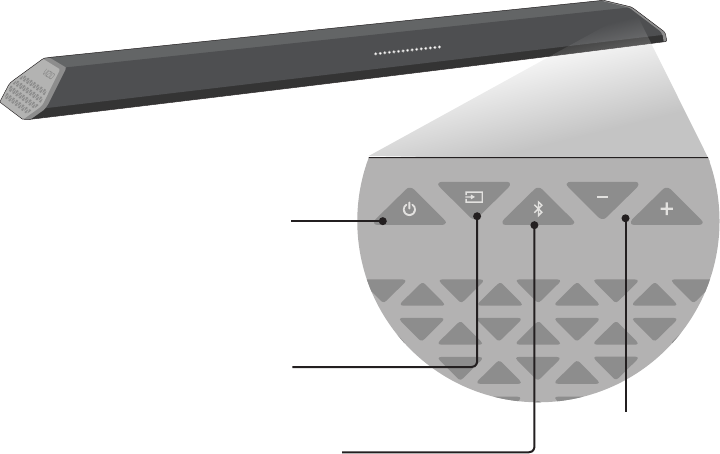

Front of Sound Bar
Input Press to change
the audio source.
Volume Increase or decrease
the loudness of the audio.
Power Press to turn
soundbar on or o.
Bluetooth Input Hold to pair.
(See ‘Bluetooth Audio Pairing’
for more information.)
Left Side of
Sound Bar
English - 8
Bottom of Sound Bar
FIRST-TIME SETUP
* Not all TVs have the audio outputs shown
above. To connect the Sound Bar directly
to your other devices (Blu-Ray player,
game system, etc.) see your device’s user
manual.
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
AND CONNECT
IT TO YOUR TV

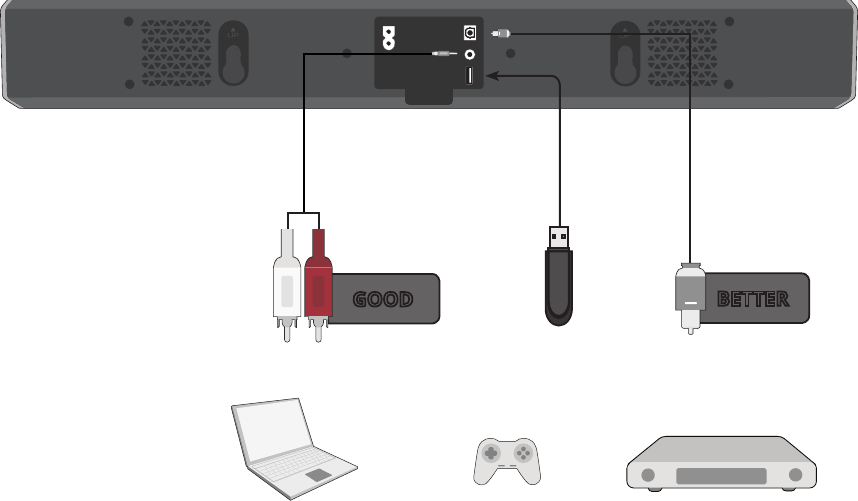

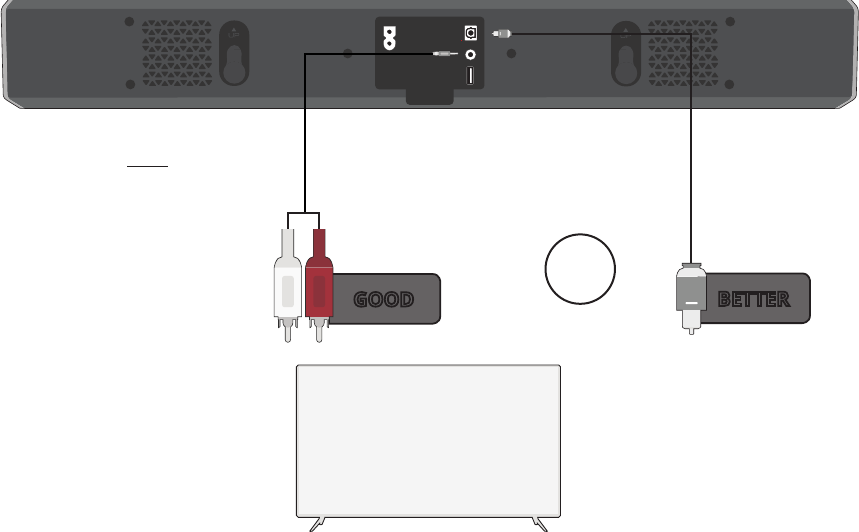

1CHOOSE ONE CABLE*
3.5MM TO
RCA CABLE
GOOD BETTER
DIGITAL OPTICAL
CABLE†
OR
† When using either of the Digital
Inputs, if there is no audio: (A) try
setting the TV output to PCM or
(B) Connect directly to your Blu-
ray/other source, some TVs do not
pass through digital audio.
English - 9

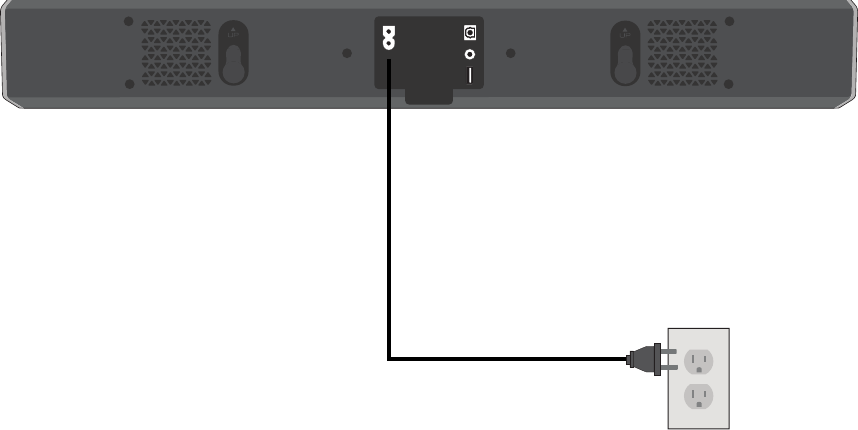

2Connect the power cable to the Sound Bar AC IN as shown. Plug the power cable into an electrical outlet.
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Bottom of Sound Bar
English - 10
Turn on your TV and Sound Bar. The Sound Bar will automatically
begin searching for an active input.*
The LED indicators on the front of the Sound Bar will begin cycling in
triplets through inputs until an audio source is detected.**
You can press the INPUT button to switch between audio sources.
For example, if you connected your TV to AUX , set the Sound Bar
to AUX .
3

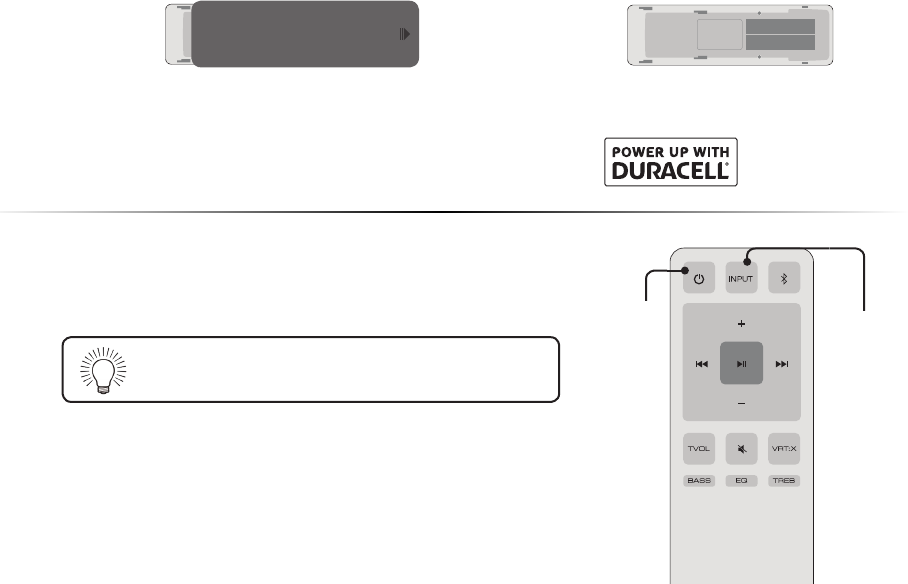

Remove the battery cover by gently
sliding it away from the remote.
4
Insert the included batteries and gently
slide the battery cover back into place.
5
Top Top
Tip: Pressing the INPUT button will stop the auto
detect function.
*Occurs only during rst-time set up.
**Auto detect function only occurs once when the Sound Bar is rst powered on. To enable this feature again, you
must do a Factory Reset (see the Using Button Combinations section for more information) or press and hold the INPUT
button for 3 seconds.
When needed, VIZIO recommends replacing the batteries that came
with this remote with two, new Duracell ‘AAA’ alkaline batteries.
Input
Power
English - 11

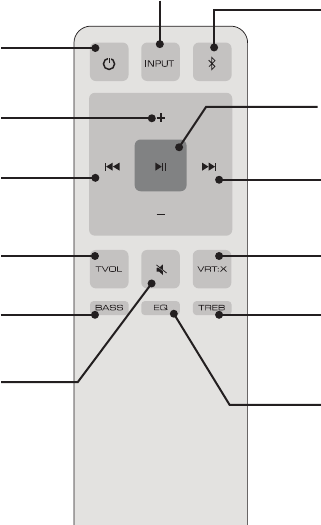

USING THE REMOTE
Volume +/-
Press to increase and decrease
volume.
Previous
Press to return to previous track.
(Changes audio settings in Menu)
TruVolume
Press to enable/disable
TruVolume.
Bass
Press to enter bass adjustment
mode.
Bluetooth
Press to enter Bluetooth input.
(To enter force pair mode, press and
hold for 3 seconds).
Power
Press to turn on or o.
Enter/Play/Pause
Press to select an option. Press to play
or pause.
Next
Press to skip to the next track.
(Changes audio settings in Menu)
Virtual:X
Press to enable/disable Virtual:X.
Treble
Press to enter treble adjustment
mode.
Equalizer
Press to toggle between two preset
settings, Music and Movie.
Input
Press to change the input source
Long press of the Mute button for 5
seconds disables the power LED.
Mute
Press to mute/unmute
English - 12
Sound Bar is
centered below
the TV.
For the best surround sound experience, position the Sound Bar as shown.
The Sound Bar should be close to ear level.
English - 13
LED Indicators are located here.

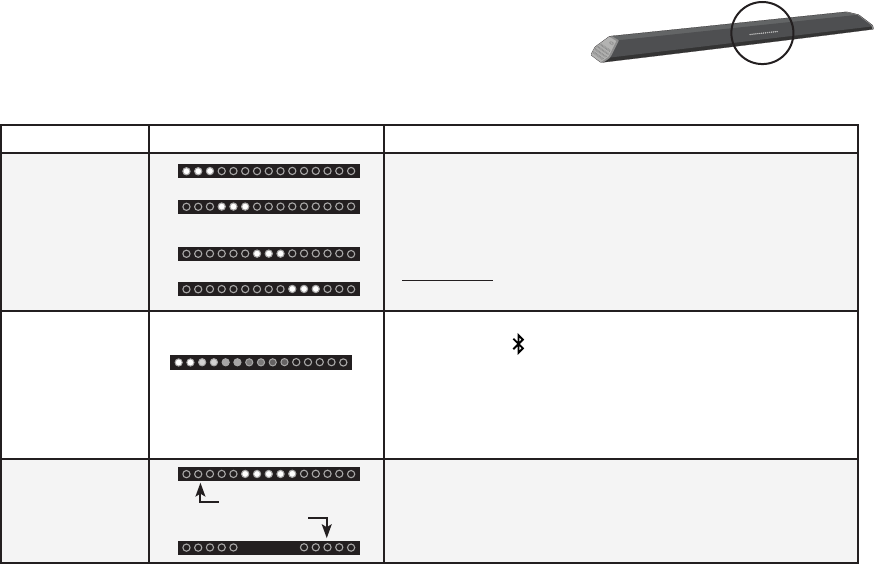

The LED Indicators will behave dierently with
each button on the remote control.

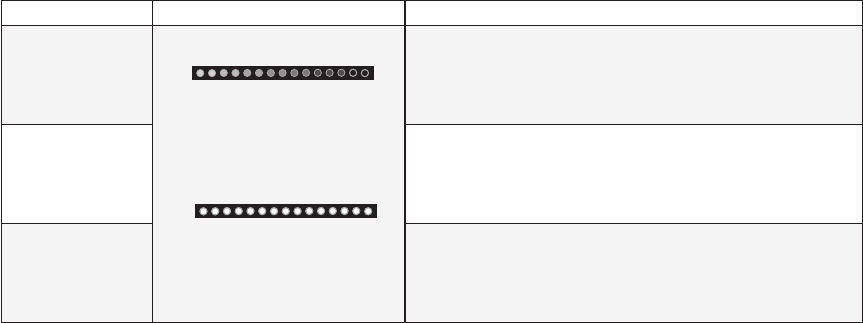

Function LED Behavior Description
Input
Press the Input button on the remote to cycle through the available inputs:
•Analog Audio In - AUX Stereo 3.5mm
•Digital Optical Audio In - Optical
•Bluetooth
•USB In - USB
Press and hold the INPUT button on the remote control for 3 seconds to
enable the auto input detect function.
Bluetooth
Pairing

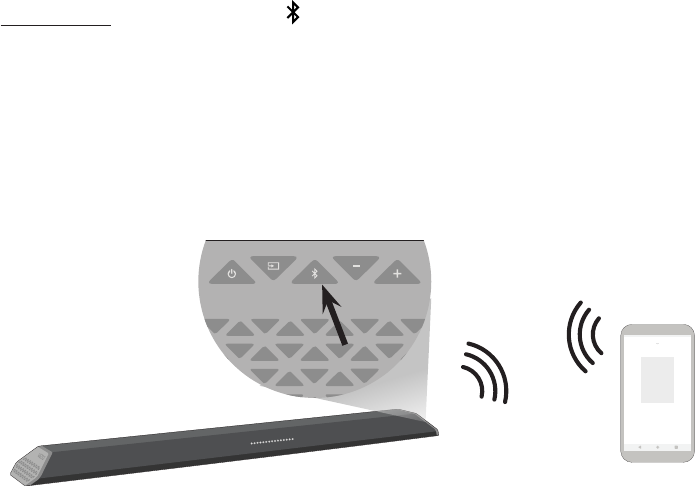

Press and hold the button on the remote. The Sound Bar will be
discoverable for 15 minutes. You can now search for the Sound Bar (VIZIO
SB362An) using your Bluetooth Device. The sound bar will power down if no
device is found.
Note: Set your Bluetooth device into pairing mode prior to the Sound
Bar.
DTS TruVolume
On/O
Press the TVOL button to enable/disable TruVolume.
When enabled (On), TruVolume provides a consistent and comfortable volume
level for a more enjoyable listening experience
(When searching for device)
Flash from the bottom to the
top and back continuously.
TruVolume On
TruVolume O
LED INDICATORS
Analog Audio In - AUX
Digital Optical Audio In
Optical
Bluetooth
USB
English - 14

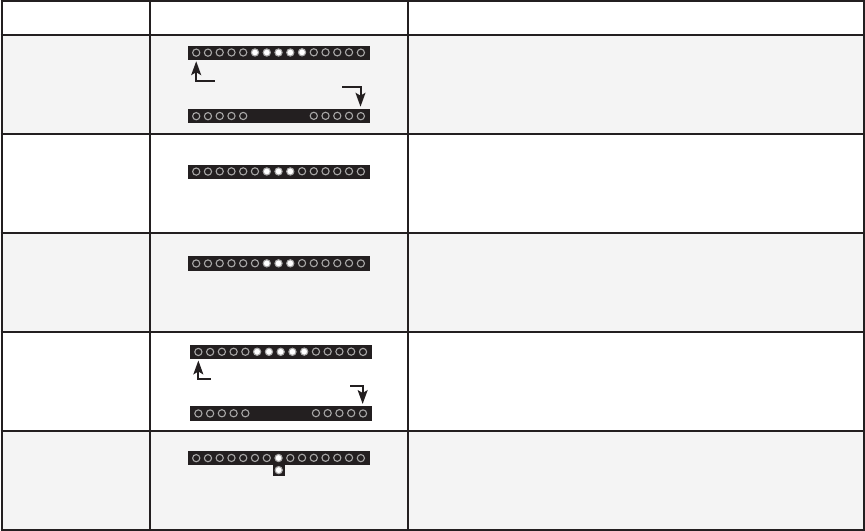

Function LED Behavior Description
Equalizer
Mode
Press the EQ button to toggle between two preset equalizer settings, Music
and Movie.settings, Movie, or Music. Note: Movie mode is on by default
Treble
Level
Press the TREB button then press the Next/Previous button to increase/
decrease the treble level. The LED indicators will move up with increasing
levels and down with decreasing levels.
Bass
Levels
Press the BASS button then press the Next/Previous button to increase/
decrease the bass level. The LED indicators will move up with increasing
levels and down with decreasing levels . Decreasing the BASS level to the
lowest setting will reduce BASS and Subwoofer levels on the bar. This is
best for watching TV late at night in a quiet environment.
Virtual X
Mode
Press the VRT:X button to enable/disable Virtual X. When enabled (On), all
inputs will produce a virtual sound technology that simulates the eect of
having overhead sound. When disabled (O), all sources will playback in
stereo.
When a Dolby Audio
signal is detected.
Dolby Audio is only available on the Digital Optical Audio In inputs. When
a Dolby Audio signal is detected, the Dolby Audio indicator LED will light up
for 3 seconds before fading away.
Three center LEDs
indicate Treble level 0.
Three center LEDs
indicate Bass level 0.
Dolby Audio
Indicator LED
Movie Music
Enabled Disabled
English - 15
PROGRAMMING THE SOUND BAR
You can program the Sound Bar to accept TV remote IR commands.
Function LED Behavior Description
Learn Volume Down
Press and hold the Play button to put the Sound Bar into learning
mode. While the Sound Bar is in learning mode, press and hold the
Volume Down button on the TV remote control while pointing the
remote at the Sound Bar. All of the LED Indicators on the Sound Bar
will ash two times, indicating that it has successfully recognized the
TV remote.
Learn Volume Up
Press the Play button to put the Sound Bar into learning mode. While
the Sound Bar is in learning mode, press the Volume Up button on
the TV remote control while pointing the remote at the Sound Bar. All
of the LED Indicators on the Sound Bar will ash two times indicating
that it has successfully recognized the TV remote.
Learn Mute
Press the Play button to put the Sound Bar into learning mode. While
the Sound Bar is in learning mode, press the Mute button on the TV
remote control while pointing the remote at the Sound Bar. All of the
LED Indicators on the Sound Bar will ash two times indicating that it
has successfully recognized the TV remote.
(Waiting to learn)
Flash from bottom
to top and back
continuously.
All of the LEDs will blink
twice to conrm.
English - 16
USING BUTTON
COMBINATIONS
There are 3 functions that are triggered by 3 dierent button combinations on the Sound Bar.
Function LED Behavior Description
Factory
Reset
Reset the Sound Bar to the factory default settings. To perform a Factory Reset,
Press and Hold the Bluetooth( ) and Volume Down (—) buttons for
5 seconds.
Note: This will erase all settings and preferences that you have set.
VIZIO TV
Remote
Control
Enable/disable the use of a VIZIO TV remote control to power on and adjust the
volume of the Sound Bar. To enable/disable this function, Press and Hold the
Power ( ) and Volume Up ( + ) buttons for 5 seconds.
Note: This function is enabled by default.
Energy Star
When the Energy Star setting is enabled, the Sound Bar will automatically
power down after a period of inactivity. When disabled, the Sound Bar will
remain powered on until you turn it o. To enable/disable this function, Press
and Hold the Power ( ) and Volume Down (—) buttons for 5 seconds.
Note: Energy Star setting is enabled by default.
All 15 LEDs will
ash 3 times
Buttons are located on side of Sound Bar.
Enabled Disabled
Enabled Disabled
English - 17
To pair the Sound Bar with a Bluetooth device:
1. Press and hold the Bluetooth button on the Sound Bar for ve (5) seconds. When the Sound Bar is in
Bluetooth Pairing Mode, the LED Indicators on the Display Panel on the front of the Sound Bar will light
sequentially from bottom to top and back again.
Once the device is paired, the LED Indicators will stop ashing.
2. You can now search for the Sound Bar (VIZIO SB362An) using your Bluetooth device. For more
information, refer to the user documentation that came with the device.
3. Play audio from your Bluetooth device. Volume can be controlled on your source device and the Sound
Bar.
Bluetooth
Device
BLUETOOTH AUDIO PAIRING
Side of Sound Bar
The Last Yard
X
English - 18
Your Sound Bar supports music streaming from smartphones, tablets, and computers with Bluetooth
capability. Device compatibility will vary, see your device’s documentation for more information. Once you
have paired your source device to the Sound Bar, as long as you stay within range of the Sound Bar, your
device should remain paired. If the input is changed, the Bluetooth device will disconnect. If the source is
changed back to Bluetooth, any paired Bluetooth device will reconnect automatically.
Maximizing Signal
A Bluetooth signal has a range of up to 30 feet. Keep in mind that Bluetooth is a compressed audio format,
so streamed music may lose some integrity when compared to a wired connection.
Try the following if your sound quality is less than optimal:
• If you hear any break-up or disconnect while streaming music from your device, move the source
device closer to the Sound Bar.
• Be sure that there are no solid obstructions in the line-of-sight between the Sound Bar and the
source device.
• Other wireless devices can aect Bluetooth range, including wireless security cameras, wireless
video baby monitors, cordless phones, and microwave ovens. Turning o or moving these devices
may improve Bluetooth range.
Your Sound Bar is not equipped with a microphone,
so it cannot operate as a hands-free device for a
smartphone.
Reduce the volume levels on your device and on the
Sound Bar before pressing Play. High volume levels
can damage your hearing.
USING BLUETOOTH MODE
English - 19
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
ADVANCED SETUP
* Supports .WAV and. MP3
le format playback only. Game Console
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Network Media Player
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Tablet/MP3 Player/Laptop
Bottom of Sound Bar
GOOD BETTER
USB Thumb Drive*
English - 20
WALL-MOUNTING THE SOUND BAR
1
2

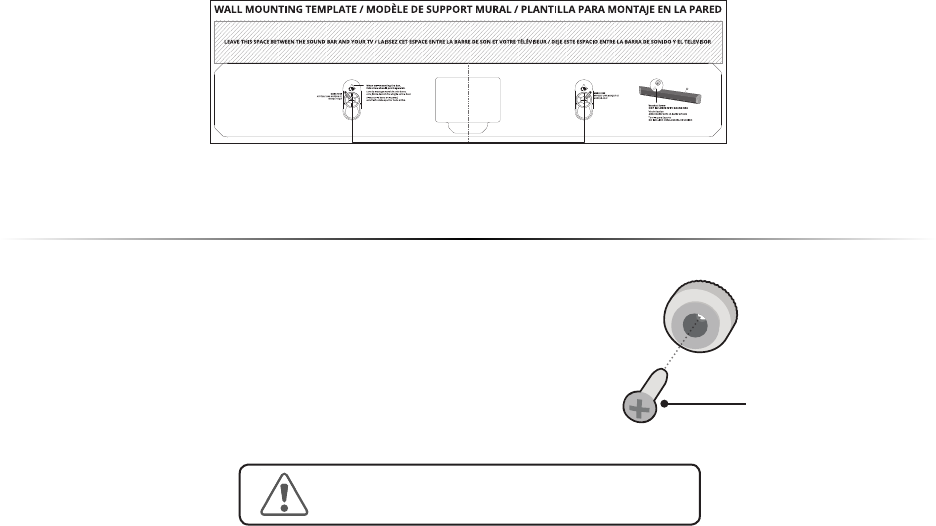

Place the included wall mounting template against the wall under your TV. Mark the two bracket holes
using a pencil. Ensure there is enough space between the sound bar and your TV.
Install the wallmount Brackets
Be sure your screws are attached to wood studs, drywall
anchors (for drywall), or concrete anchors (for brick/concrete
walls).
Screws for attaching the brackets to the wall are not
included. Choose the screw type and length appropriate to
your home’s construction. If in doubt, consult a professional
installer.
*Bracket Screw
NOT INCLUDED
WITH Sound Bar
If you are unfamiliar with power tools or the layout of electrical
wiring in the walls of your home, consult a professional installer.
English - 21
3
Bottom of Sound Bar
Hang the Sound Bar on the wall mount
backets then slide down to lock in
place.
Wall-Mount Slots
Note: When wall mounting the bar,
this arrow should point upwards.
.
WALL-MOUNTING THE SOUND BAR
Take a moment to register your product
VIZIO.COM/PRODUCT-REGISTRATION
Why register?
Customized Support
Get assistance quickly with your information on hand.
News and Oers
Take advantage of the latest news and special oers from VIZIO.
Safety and Satisfaction
Stay up-to-date with important product updates and notications.
English - 22
Phone: (877) 698-4946 (toll-free)
You can also contact our
popular support team at:
Live chat
support available
Find help with:
•
New product setup
• Connecting your devices
• Technical problems
• Product updates and more
Award-Winning Customer Care At Your Convenience.
NEED HELP?
Go to: support.vizio.com
VIZIO.COM/PRODUCT-REGISTRATION
Se habla Español • Nous parlons Français
English - 23
There is no power.
• Press the POWER button on the remote control or on the side of your Sound Bar.
• Ensure the power cord is securely connected.
• Plug a dierent device into the electrical outlet to verify that the outlet is working correctly.
There is no sound.
• Increase the volume. Press Volume Up on the remote control or on the side of your Sound Bar.
• Press MUTE on the remote to ensure the Sound Bar is not muted.
• Press INPUT on the remote or on the side of your Sound Bar to select a dierent input source.
• When using the Digital Input, if there is no audio: (A) Try setting the TV output to PCM or (B)
Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.
• On the digital input, the input LEDs will ash rapidly if an unsupported format is present. Set the
source to output PCM.
• Your TV may be set to variable audio output. Conrm that the audio output setting is set to FIXED
or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.
• If using Bluetooth, ensure that the volume on your source device is turned up and that the device
is not muted.
I hear buzzing or
humming.
• Ensure all cables and wires are securely connected.
• Connect a dierent source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does
not, the problem may be with the original device.
• Connect your device to a dierent input on the Sound Bar.
The remote
isn’t working.
• Replace the remote batteries with new ones.
• Point the remote directly at the center of the Sound Bar when pressing a button.
• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the
streaming application. (e.g., Pandora doesn’t support the Back button.)
HELP & TROUBLESHOOTING
English - 24
English - 25
UNITED STATES AND CANADA
BY USING YOUR VIZIO PRODUCT YOU AGREE TO BE BOUND BY ALL THE TERMS OF THIS WARRANTY. BEFORE USING YOUR VIZIO PRODUCT, PLEASE READ THIS
WARRANTY CAREFULLY. IF YOU DO NOT AGREE TO THE TERMS OF THIS WARRANTY, DO NOT USE THE VIZIO PRODUCT AND, WITHIN THIRTY (30) DAYS OF THE
DATE OF PURCHASE, RETURN IT FOR A REFUND TO THE AUTHORIZED RETAILER WHERE YOU PURCHASED IT.
This warranty contains a binding arbitration agreement and a class action waiver for United States residents. If you live in the United States, the binding arbitration
agreement and class action waiver aect your rights under this warranty. Please read the text under the section titled “Binding Arbitration Agreement; Class
Action Waiver (U.S. Residents Only)” carefully.
How Long This Warranty Lasts
For non-commercial use, VIZIO warrants the product on the terms set forth below for one (1) year from the date of original purchase. For commercial use, VIZIO
warrants this product on the terms set forth below for ninety (90) days from the date of original purchase.
What This Warranty Covers
VIZIO warrants the product against defects in materials and workmanship when the product is used normally in accordance with VIZIO’s user guides and manuals.
Except where restricted by law, this warranty applies only to the original purchaser of a new product. The purchase must have been made from an authorized
retailer in the United States (including Puerto Rico) or Canada. The product must also be located in the country where it was purchased at the time of warranty
service.
How to Get Service
Before obtaining warranty service, you may visit www.vizio.com for additional help and troubleshooting. To obtain warranty service, contact VIZIO Technical
Support via email at TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877-698-4946).
Your Obligations Before Service
You must obtain pre-authorization before sending your product to a VIZIO service center. You may be required to supply a purchase receipt (or copy) to show
that the product is within the warranty period.
When you return a product to a VIZIO service center, you must ship the product in its original packaging or in packaging that aords an equal degree of protection.
VIZIO Technical Support will provide instructions for packing and shipping the product to the VIZIO service center.
ALL USER DATA AND DOWNLOADED APPLICATIONS STORED ON A PRODUCT WILL BE DELETED IN THE COURSE OF SOME IN-HOME AND ALL SHIP-IN WARRANTY
SERVICE. If this occurs, your product will be restored to its original state. You will be responsible for restoring all applicable user data and downloaded applications.
Recovery and reinstallation of user data and downloaded applications is not covered under this warranty. In order to protect your personal information, VIZIO
recommends that you always clear all personal information from the product before it is serviced, regardless of the servicer.
VIZIO’s Responsibilities
If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair or replace it, or refund the purchase price to you. There will be no
charge for parts or labor during the warranty period. Replacement parts may be new or recertied at VIZIO’s option and sole discretion. Replacement parts and
LIMITED WARRANTY
HELP & TROUBLESHOOTING
English - 26
VIZIO’s labor are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service, whichever is longer.
Types of Service
Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will
cover return shipping to the customer.
What This Warranty Does Not Cover
This warranty does not cover: (a) cosmetic damage; (b) normal wear and tear; (c) improper operation; (d) improper voltage supply or power surges; (e) signal issues;
(f) damage from shipping; (g) acts of God; (h) customer misuse, modications or adjustments; (i) installation, set-up, or repairs attempted by anyone other than by
a VIZIO authorized service center; (j) products with unreadable or removed serial numbers; (k) products requiring routine maintenance; or (l) products sold “AS IS”,
“CLEARANCE”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.
What to Do If You Are Not Satised With Service
If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue
informally and wish to le a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according
to the procedures described below, unless an exception applies. Submitting a claim to binding arbitration means that you do not have the right to have your claim
heard by a judge or jury. Instead your claim will be heard by a neutral arbitrator.
Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)
UNLESS YOU HAVE BROUGHT AN ELIGIBLE CLAIM IN SMALL CLAIMS COURT OR HAVE OPTED OUT AS DESCRIBED BELOW, ANY CONTROVERSY OR CLAIM RELATING
IN ANY WAY TO YOUR VIZIO PRODUCT, INCLUDING ANY CONTROVERSY OR CLAIM ARISING OUT OF OR RELATING TO THIS WARRANTY, A BREACH OF THIS
WARRANTY, OR THE VIZIO PRODUCT’S SALE, CONDITION OR PERFORMANCE, WILL BE SETTLED BY BINDING ARBITRATION ADMINISTERED BY THE AMERICAN
ARBITRATION ASSOCIATION AND CONDUCTED BY A SINGLE ARBITRATOR APPOINTED BY THE AMERICAN ARBITRATION ASSOCIATION, IN ACCORDANCE WITH
ITS COMMERCIAL ARBITRATION RULES AND ITS SUPPLEMENTARY PROCEDURES FOR CONSUMER-RELATED DISPUTES. You may learn more about the American
Arbitration Association and its rules for arbitration by visiting www.adr.org or by calling 800-778-7879. Since this warranty concerns a transaction in interstate or
international commerce, the Federal Arbitration Act will apply.
The ling fees to begin and carry out arbitration will be shared between you and VIZIO, but in no event will your fees ever exceed the amount allowable by the
American Arbitration Association, at which point VIZIO will cover all additional administrative fees and expenses. VIZIO waives its right to recover attorneys’ fees in
connection with any arbitration under this warranty. If you are the prevailing party in an arbitration to which the Supplementary Procedures for Consumer-Related
Disputes applies, then you are entitled to recover attorneys’ fees as the arbitrator may determine.
The dispute will be governed by the laws of the state or territory in which you resided at the time of your purchase (if in the United States). The place of arbitration
will be Irvine, California, or your county of residence (if in the United States). The arbitrator will have no authority to award punitive or other damages not measured
by the prevailing party’s actual damages, except as may be required by statute. The arbitrator will not award consequential damages, and any award will be limited
to monetary damages and will include no equitable relief, injunction, or direction to any party other than the direction to pay a monetary amount. Judgment on the
award rendered by the arbitrator will be binding and nal, except for any right of appeal provided by the Federal Arbitration Act, and may be entered in any court
having jurisdiction. Except as may be required by law, neither you nor VIZIO nor an arbitrator may disclose the existence, content, or results of any arbitration under
this warranty without the prior written consent of you and VIZIO.
ANY DISPUTE, WHETHER IN ARBITRATION, IN COURT, OR OTHERWISE, WILL BE CONDUCTED SOLELY ON AN INDIVIDUAL BASIS. VIZIO AND YOU AGREE THAT NO
PARTY WILL HAVE THE RIGHT OR AUTHORITY FOR ANY DISPUTE TO BE ARBITRATED AS A CLASS ACTION, A PRIVATE ATTORNEY GENERAL ACTION, OR IN ANY OTHER
PROCEEDING IN WHICH EITHER PARTY ACTS OR PROPOSES TO ACT IN A REPRESENTATIVE CAPACITY.
English - 27
NO ARBITRATION OR PROCEEDING WILL BE JOINED, CONSOLIDATED, OR COMBINED WITH ANOTHER ARBITRATION OR PROCEEDING WITHOUT THE PRIOR
WRITTEN CONSENT OF ALL PARTIES TO ANY SUCH ARBITRATION OR PROCEEDING.
Exceptions to Binding Arbitration Agreement and Class Action Waiver
IF YOU DO NOT WISH TO BE BOUND BY THE BINDING ARBITRATION AGREEMENT AND CLASS ACTION WAIVER, THEN: (1) you must notify VIZIO in writing within sixty
(60) days of the date that you purchased the product; (2) your written notication must be mailed to VIZIO at 39 Tesla, Irvine, CA 92618, Attn: Legal Department; and
(3) your written notication must include (a) your name, (b) your address, (c) the date you purchased the product, and (d) a clear statement that you wish to opt out
of the binding arbitration agreement and class action waiver.
In addition, you may pursue a claim in small claims court in your county of residence (if in the United States) or in Orange County, California. In such case the
provisions of the section titled “Binding Arbitration Agreement; Class Action Waiver (U.S. Residents)” will not apply.
Exclusions and Limitations
TO THE GREATEST EXTENT PERMITTED BY APPLICABLE LAW, THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE DESCRIBED ABOVE. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WILL BE LIMITED IN DURATION TO THE
WARRANTY PERIOD SET FORTH ABOVE. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
VIZIO WILL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF VIZIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND EVEN IF THE REMEDY FAILS
OF ITS ESSENTIAL PURPOSE. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
IN LIEU OF ANY OTHER REMEDY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER (INCLUDING VIZIO’S NEGLIGENCE,
ALLEGED DAMAGE, OR DEFECTIVE GOODS, NO MATTER WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT), VIZIO MAY, AT ITS SOLE AND EXCLUSIVE
OPTION AND IN ITS DISCRETION, REPAIR OR REPLACE YOUR PRODUCT, OR REFUND ITS PURCHASE PRICE. AS NOTED, SOME STATES AND PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
How the Law Applies
This warranty gives you specic legal rights, and you may also have other rights, which vary from state to state and province to province. This warranty applies to
the greatest extent permitted by applicable law.
General
No employee or agent of VIZIO may modify this warranty. If any term of this warranty, other than the class action waiver, is found to be unenforceable, that term will
be severed from this warranty and all other terms will remain in eect. If the class action waiver is found to be unenforceable, then the entire section titled “Binding
Arbitration Agreement; Class Action Waiver (U.S. Residents Only)” will not apply. This warranty applies to the maximum extent not prohibited by law.
Changes to Warranty
This warranty may change without notice, but any change will not aect your original warranty. Check www.vizio.com for the most current version.
English - 28
Specications
Sound Bar: One 2.67" Full Range Driver for Each Channel (1 for left, 1 for right)
Built-in
Dual Subwoofer: One 3" Subwoofer Driver (For each built-in subwoofer)
Inputs: One 3.5mm Stereo Audio
One Optical (Toslink)
One USB (Supports .WAV & .MP3 format only)
Bluetooth
Sound Pressure Level 97 dB
Frequency Response (System): 50 Hz - 20 KHz
Voltage: 120 VAC, 60 Hz
Compliances:
cTUVus / FCC Class B /
ICES-003 /CEC / Energy star
English - 29
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
Notice:
1. The changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equip-
ment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modication to this equipment. It is the responsibilities of the
user to correct such interference.
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation
exposure limits set forth for an uncontrolled environment.
IC Statement
1. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
2.Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
LEGAL & COMPLIANCE
English - 30
Battery Disposal and Recycling
You must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and/or a battery,
it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options. For more information, visit
www.vizio.com/environment.
Software Licenses
All software is provided subject to software license agreements and you agree that you will be bound by such license agreements in addition to other
applicable terms of use. By using the VIZIO products, you agree to the VIZIO Terms of Service and Privacy Policy. The VIZIO Terms of Use and Privacy
Policy may be updated from time to time and are available to view at http://www.vizio.com/ terms and http://www.vizio.com/privacy, respectively.
Export Regulations
Customer acknowledges that the VIZIO products, which include technology and software, are subject to customs and export control laws in the United States (“US”).
The products may also be subject to the customs and export control laws and regulations of the country in which the products are manufactured and/or received.
Information in this Quick Start Guide is subject to change without notice. To review the most updated version of this Quick Start Guide and the associated User Manual, go to
http://www.vizio.com.
© 2018 VIZIO, Inc. All Right Reserved.
Image(s) used under license from Shutterstock.com
This Quick Start Guide may not be copied in whole or in part without the written permission of VIZIO, Inc. VIZIO, Inc. has made reasonable eorts to ensure the accuracy
of the information provided herein. All product specications, functionality, features, congurations, performance, design and other product information described
herein are subject to change without notice. VIZIO, Inc. is not responsible for typographical, technical, or descriptive errors.
VIZIO, the VIZIO logo, the V logo, and other terms and phrases are trademarks or registered trademarks of VIZIO, Inc.
Sound pressure level measured using pink noise at 1 meter, c-weighted.
English - 31
This product qualies for ENERGY STAR in the “factory default” setting and this is the setting in which power savings will be achieved. Changing
the factory default settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for
ENERGY STAR rating.We want to help you save energy.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are registered trademarks of Dolby Laboratories.
The Bluetooth® word mark and Logos are registered trademark owned by Bluetooth SIG,Inc. and any use of such marks by VIZIO, Inc. is under
license. Other trademarks and trade names are those of their respective owners.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, Virtual:X, and the
DTS Virtual:X logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
© 2018 VIZIO INC. ALL RIGHTS RESERVED.
180207ET
