Zylux Acoustic SB3830C6M 38 inch Sound Bar 3.0 System User Manual

Zylux Acoustic Corporation 38 inch Sound Bar 3.0 System

User manual

QUICK START GUIDEModel: SB3830-C6MVIZIO

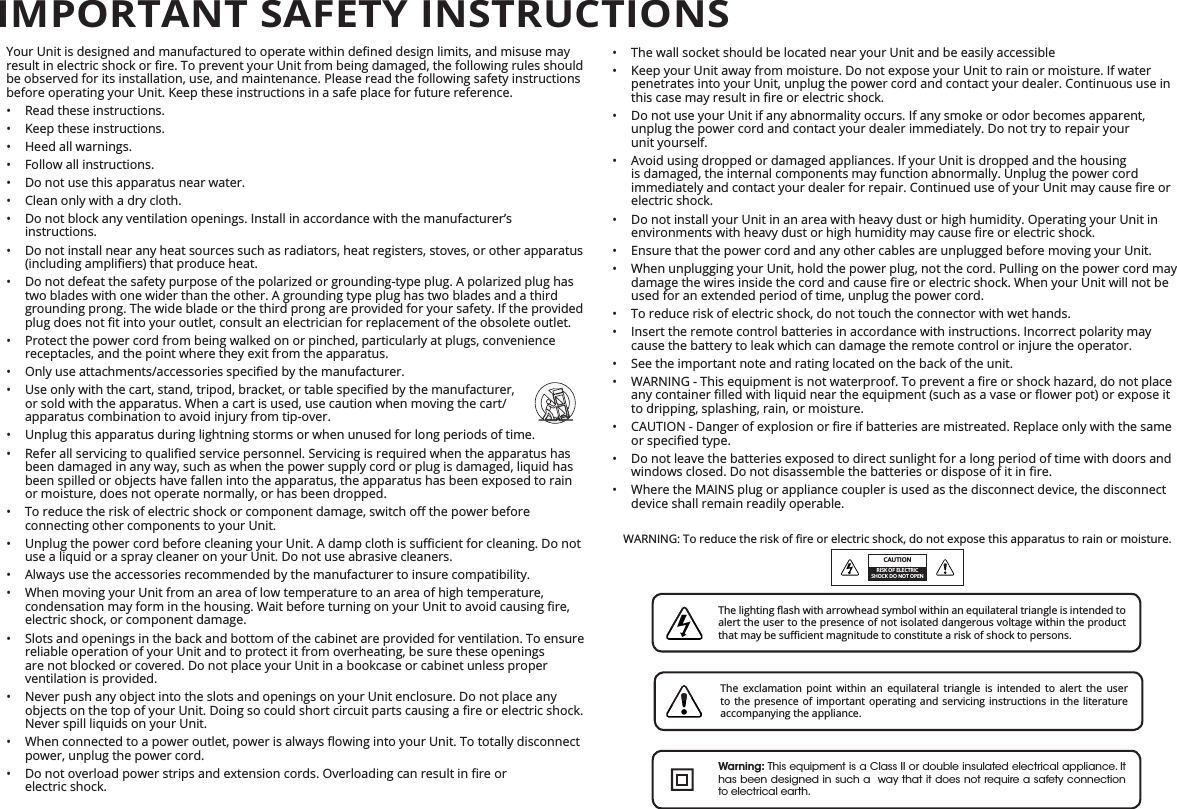

• The wall socket should be located near your Unit and be easily accessible• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in • Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your unit yourself.• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord electric shock.• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in • Ensure that the power cord and any other cables are unplugged before moving your Unit.• When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may used for an extended period of time, unplug the power cord.• To reduce risk of electric shock, do not touch the connector with wet hands.• Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.• See the important note and rating located on the back of the unit.• to dripping, splashing, rain, or moisture.• • Do not leave the batteries exposed to direct sunlight for a long period of time with doors and • Where the MAINS plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.Explanation of WARNING symbols:be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.• Read these instructions.• Keep these instructions.• Heed all warnings.• Follow all instructions.• Do not use this apparatus near water.• Clean only with a dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus • two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• • or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.• Unplug this apparatus during lightning storms or when unused for long periods of time.• been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• connecting other components to your Unit.• use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.• Always use the accessories recommended by the manufacturer to insure compatibility.• When moving your Unit from an area of low temperature to an area of high temperature, electric shock, or component damage.• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.• Never push any object into the slots and openings on your Unit enclosure. Do not place any Never spill liquids on your Unit.• power, unplug the power cord.•  electric shock.IMPORTANT SAFETY INSTRUCTIONSCAUTIONRISK OF ELECTRIC SHOCK DO NOT OPENalert the user to the presence of not isolated dangerous voltage within the product The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.Warning: This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

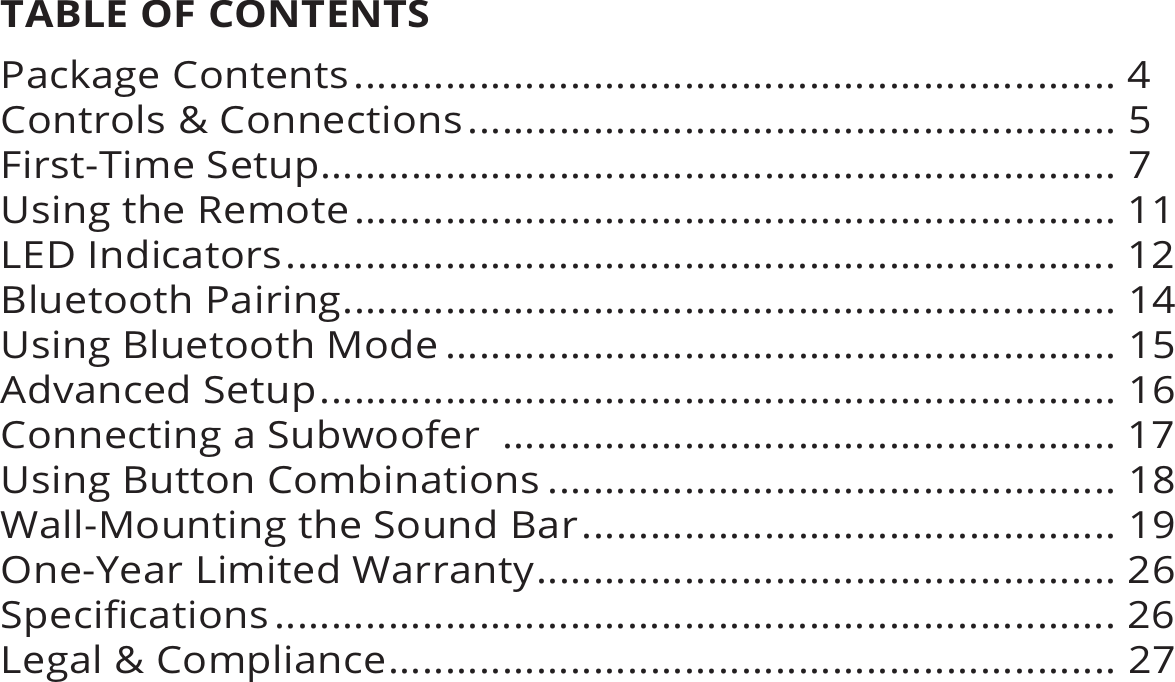

TABLE OF CONTENTSPackage Contents ................................................................... 4Controls & Connections ......................................................... 5First-Time Setup...................................................................... 7Using the Remote ................................................................... 11LED Indicators ......................................................................... 12Bluetooth Pairing .................................................................... 14Using Bluetooth Mode ........................................................... 15Advanced Setup ...................................................................... 16Connecting a Subwoofer ...................................................... 17Using Button Combinations .................................................. 18Wall-Mounting the Sound Bar ............................................... 19One-Year Limited Warranty ................................................... 26 .......................................................................... 26Legal & Compliance ................................................................ 27

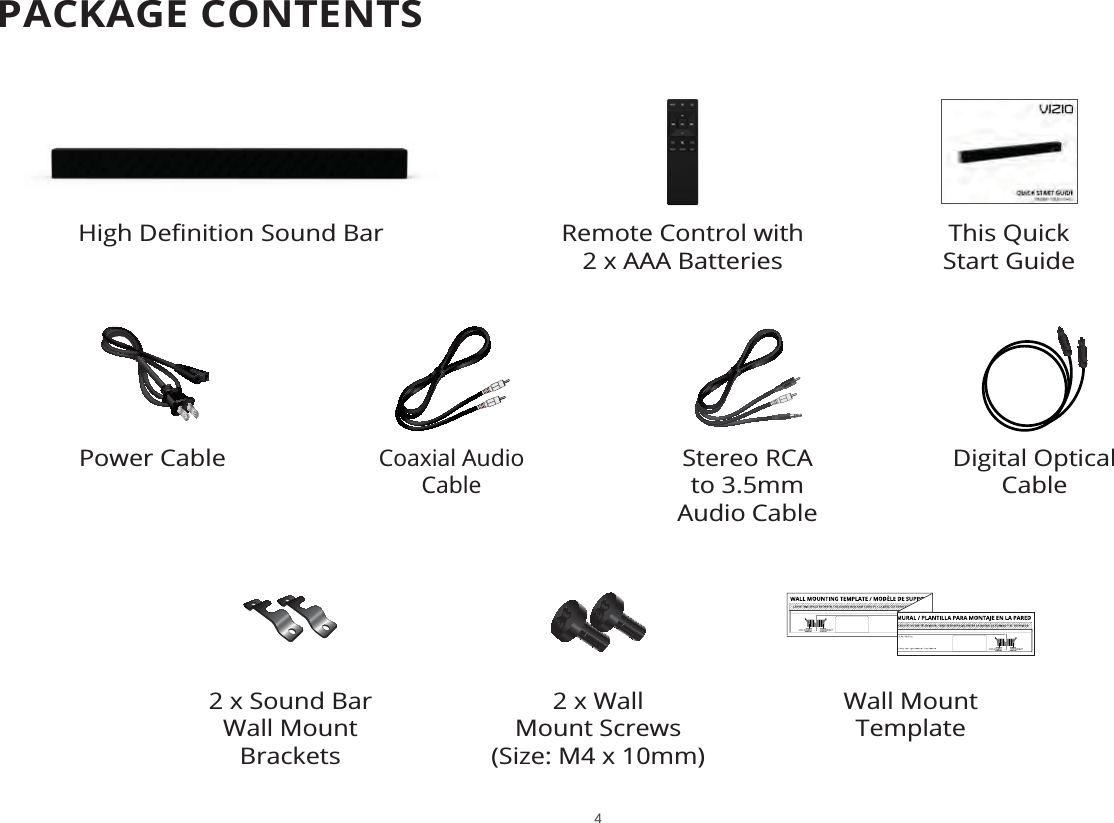

PACKAGE CONTENTSThis Quick Start GuideRemote Control with 2 x AAA Batteries2 x Sound Bar Wall Mount BracketsWall Mount Template2 x Wall Mount Screws(Size: M4 x 10mm)Digital Optical CableStereo RCA to 3.5mm Audio CableCoaxial Audio CablePower Cable4

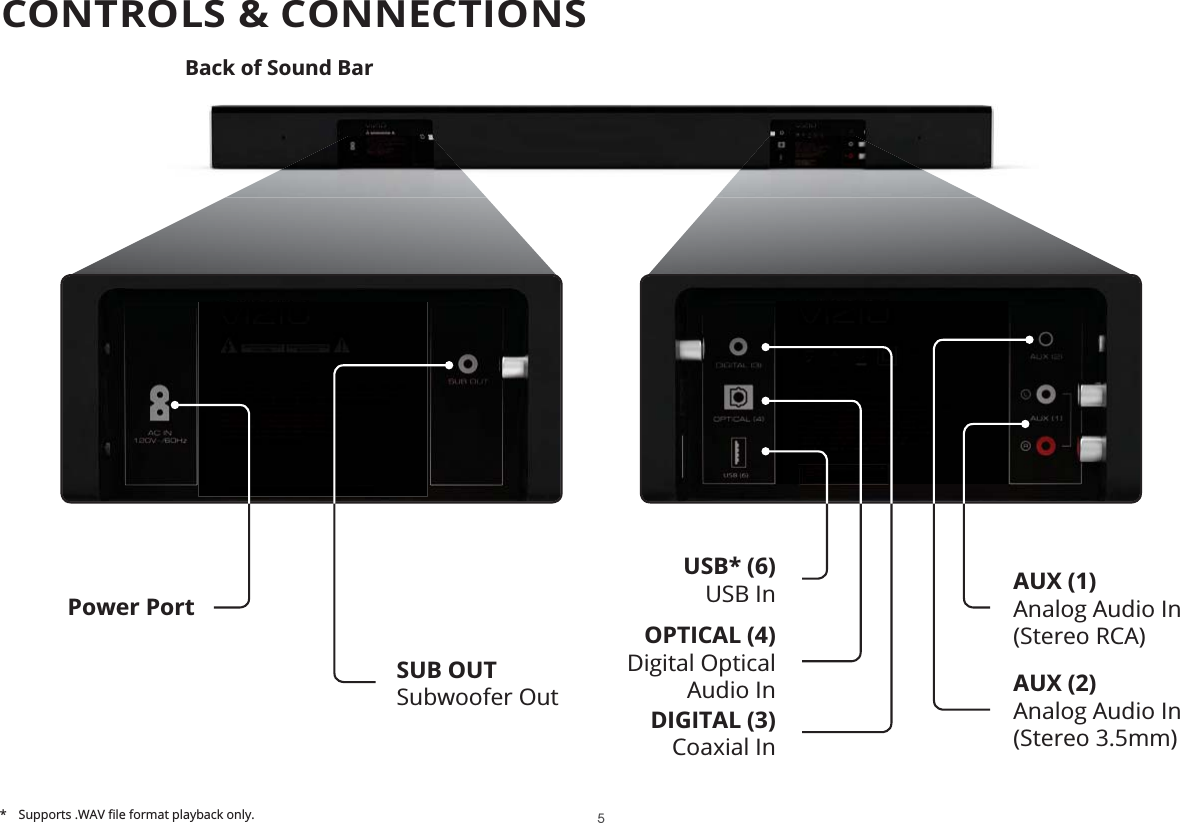

Back of Sound BarPower PortSUB OUTSubwoofer OutOPTICAL (4)Digital Optical Audio InDIGITAL (3)Coaxial InAUX (1)Analog Audio In(Stereo RCA)AUX (2)Analog Audio In(Stereo 3.5mm)USB* (6)USB In  5CONTROLS & CONNECTIONS

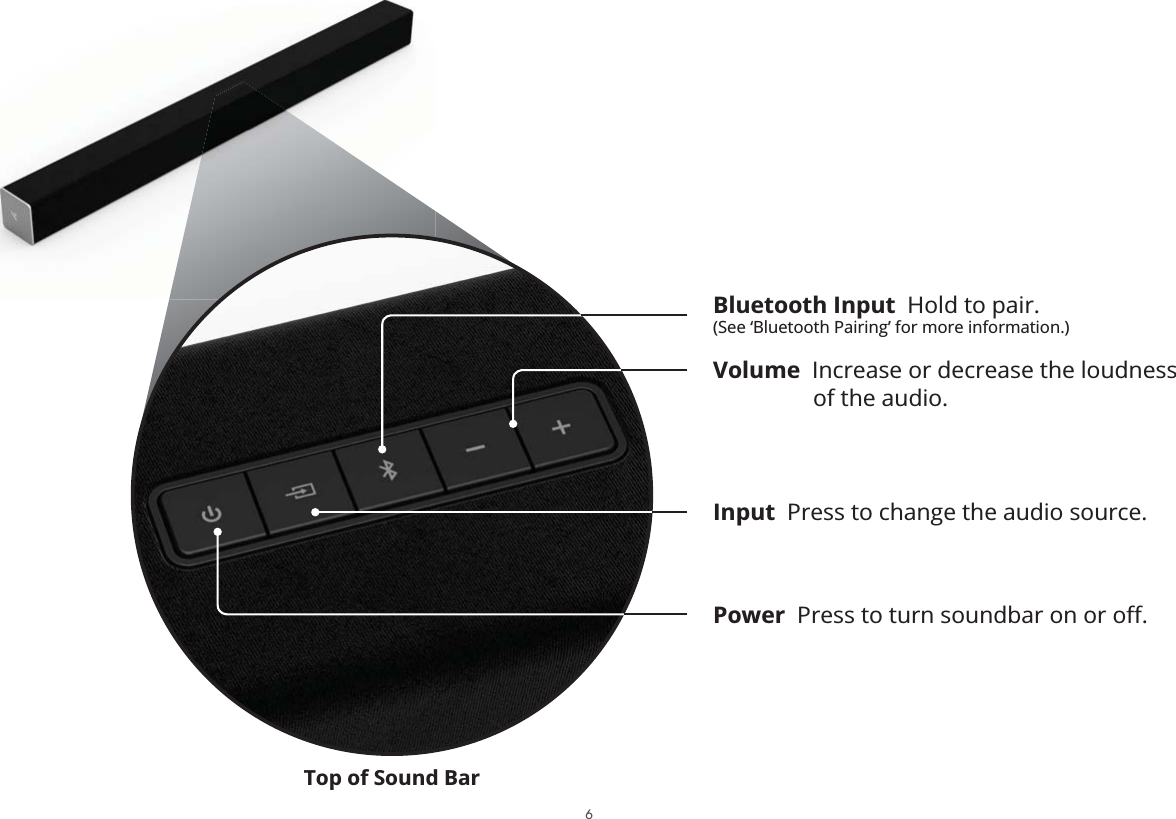

Top of Sound BarInput Press to change the audio source.PowerVolume Increase or decrease the loudness of the audio.Bluetooth Input Hold to pair.(See ‘Bluetooth Pairing’ for more information.)6

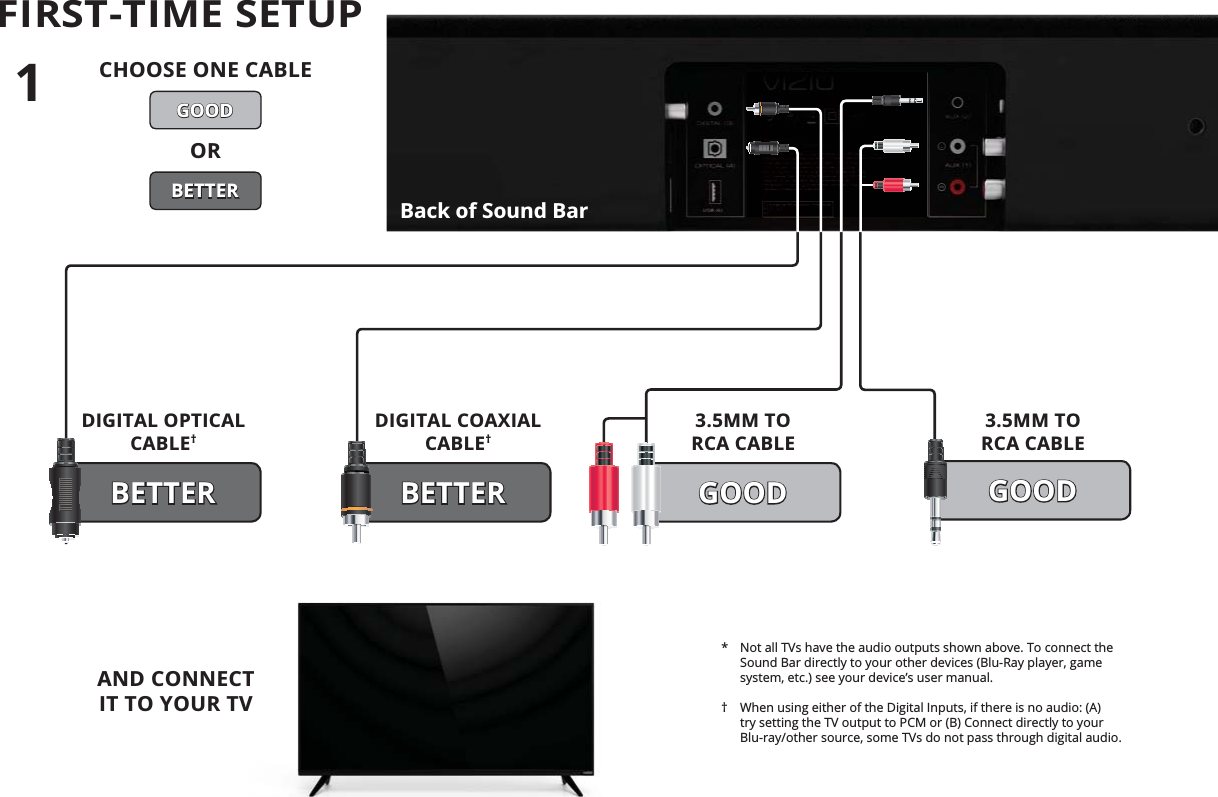

FIRST-TIME SETUP* Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-Ray player, game system, etc.) see your device’s user manual.† When using either of the Digital Inputs, if there is no audio: (A) try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.Back of Sound BarAND CONNECT IT TO YOUR TV3.5MM TO RCA CABLEGOOD3.5MM TO RCA CABLEGOODDIGITAL COAXIAL CABLE†BETTERDIGITAL OPTICAL CABLE†BETTER1CHOOSE ONE CABLEBETTERGOODOR

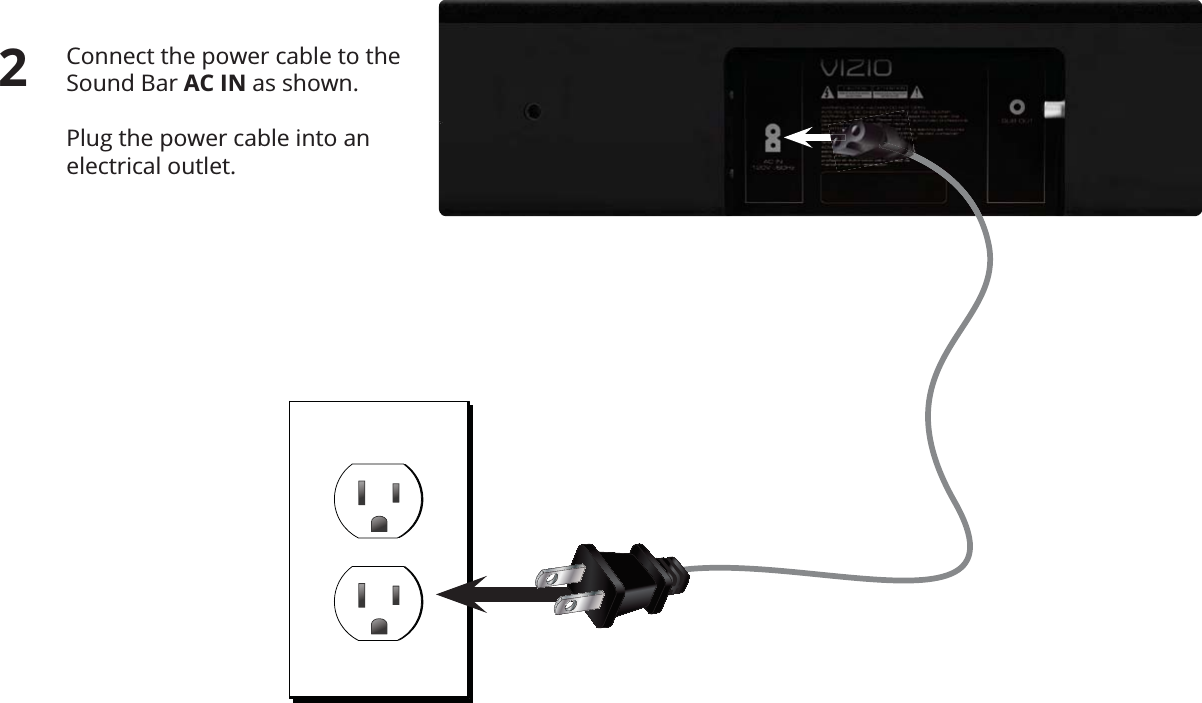

Connect the power cable to the Sound Bar AC IN as shown. Plug the power cable into an electrical outlet. 2
Sound Bar is centered below the TV.For the best surround sound experience, position the Sound Bar as shown. The Sound Bar should be close to ear level.3

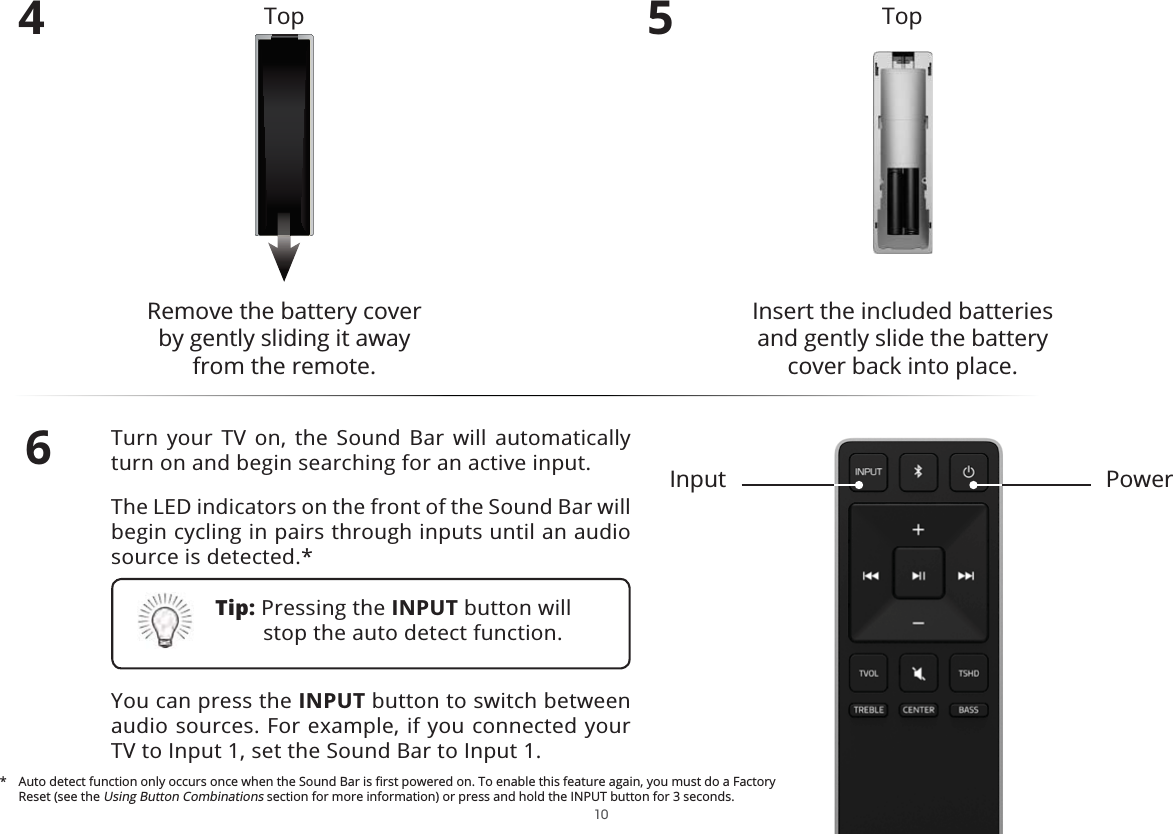

4Remove the battery cover by gently sliding it away from the remote.5Insert the included batteries and gently slide the battery cover back into place.6Turn your TV on, the Sound Bar will automatically turn on and begin searching for an active input.The LED indicators on the front of the Sound Bar will begin cycling in pairs through inputs until an audio source is detected.*You can press the INPUT button to switch between audio sources. For example, if you connected your TV to Input 1, set the Sound Bar to Input 1.PowerInputTop TopTip: Pressing the INPUT button will stop the auto detect function. Reset (see the Using Button Combinations section for more information) or press and hold the INPUT button for 3 seconds. 10

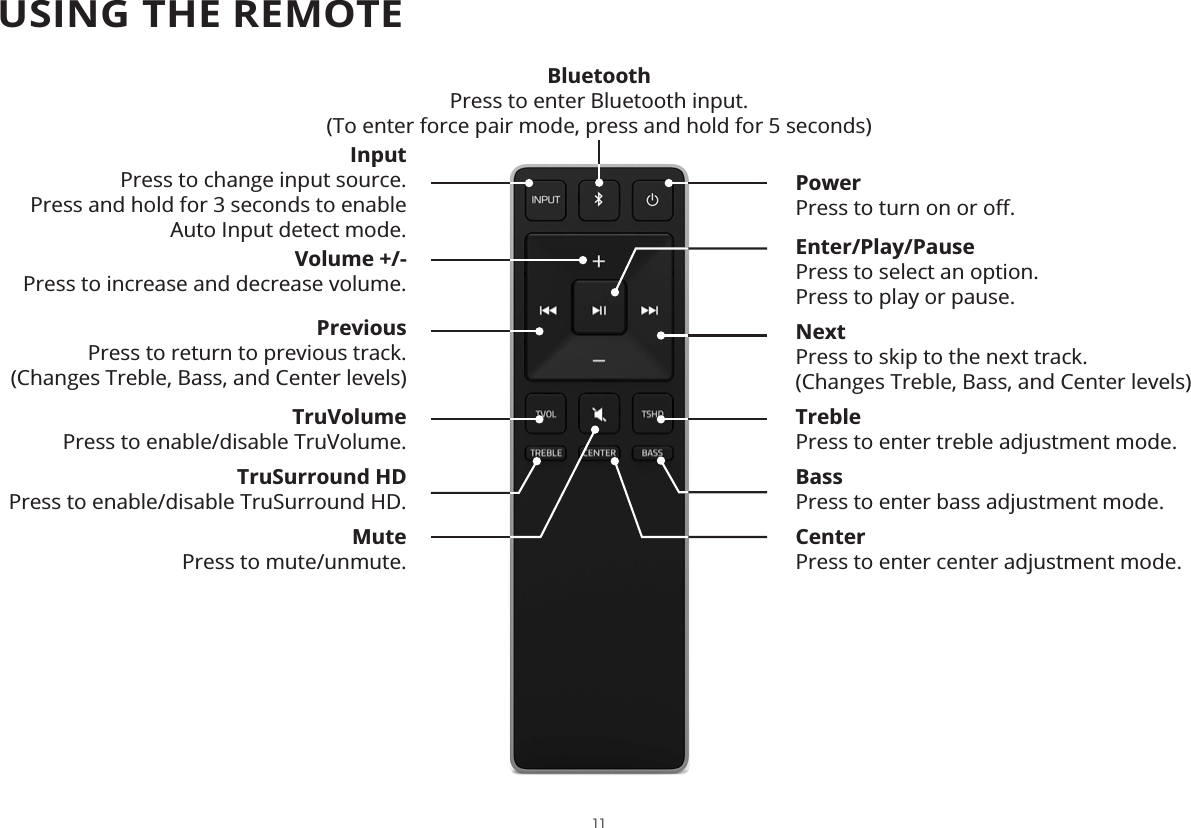

Volume +/- Press to increase and decrease volume.USING THE REMOTEPrevious Press to return to previous track.(Changes Treble, Bass, and Center levels)PowerMute Press to mute/unmute.Input Press to change input source.Press and hold for 3 seconds to enable Auto Input detect mode. Enter/Play/Pause Press to select an option.Press to play or pause.Next Press to skip to the next track.(Changes Treble, Bass, and Center levels)Treble Press to enter treble adjustment mode.Bass Press to enter bass adjustment mode.TruVolume Press to enable/disable TruVolume.TruSurround HD Press to enable/disable TruSurround HD.BluetoothPress to enter Bluetooth input. (To enter force pair mode, press and hold for 5 seconds) 11Center Press to enter center adjustment mode.
LED Indicators are located here.12Function LED Behavior DescriptionInputPress the INPUT button on the remote to cycle through the available inputs:• Analog Audio In - AUX Stereo RCA (1)• Analog Audio In - AUX Stereo 3.5mm (2)• Coaxial In - Digital (3)• Digital Optical Audio In - Optical (4)• Bluetooth• USB In - USB (6)Bluetooth PairingPress and hold the button on the remote. The Sound Bar will be discoverable for 15 minutes. You can now search for the Sound Bar (VIZIO SB3830) using your Bluetooth Device. The sound bar will power down if no device is found.Note: Set your Bluetooth device into pairing mode prior to the Sound Bar.DTS TruVolume Press the TVOL button to enable/disable TruVolume. When enabled (On), TruVolume provides a consistent and comfortable volume level for a more enjoyable listening experience.LED INDICATORS(When searching for device) Flash from the bottom to top and back continuously.TruVolume OnAnalog Audio In - AUX (1)Analog Audio In - AUX (2)Coaxial In - Digital (3)Digital Optical Audio In Optical (4)BluetoothUSB In - USB (6)LED INDICATORS

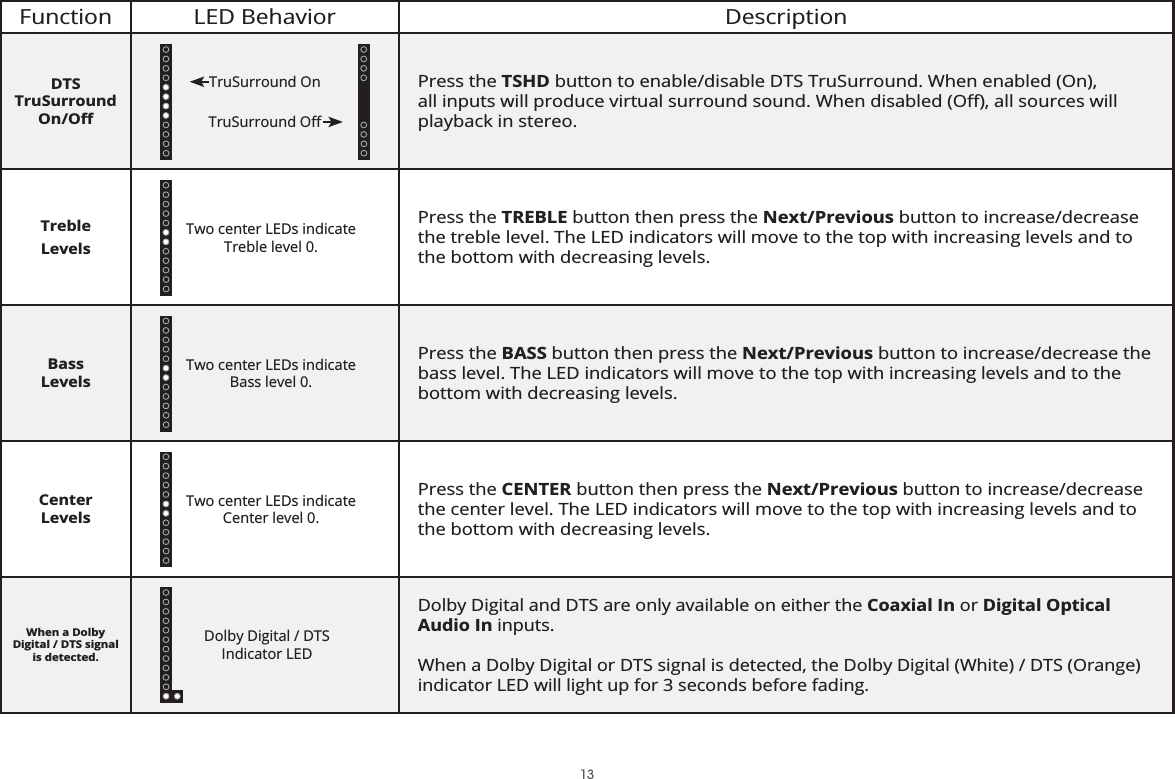

13Function LED Behavior DescriptionDTS TruSurround Press the TSHD button to enable/disable DTS TruSurround. When enabled (On), playback in stereo.Treble LevelsPress the TREBLE button then press the Next/Previous button to increase/decrease the treble level. The LED indicators will move to the top with increasing levels and to the bottom with decreasing levels.BassLevelsPress the BASS button then press the Next/Previous button to increase/decrease the bass level. The LED indicators will move to the top with increasing levels and to the bottom with decreasing levels.CenterLevelsPress the CENTER button then press the Next/Previous button to increase/decrease the center level. The LED indicators will move to the top with increasing levels and to the bottom with decreasing levels.When a Dolby Digital / DTS signal is detected.Dolby Digital and DTS are only available on either the Coaxial In or Digital Optical Audio In inputs. When a Dolby Digital or DTS signal is detected, the Dolby Digital (White) / DTS (Orange) indicator LED will light up for 3 seconds before fading.Two center LEDs indicate Treble level 0.Two center LEDs indicate Bass level 0.Dolby Digital / DTS Indicator LEDTruSurround OnTwo center LEDs indicate Center level 0.

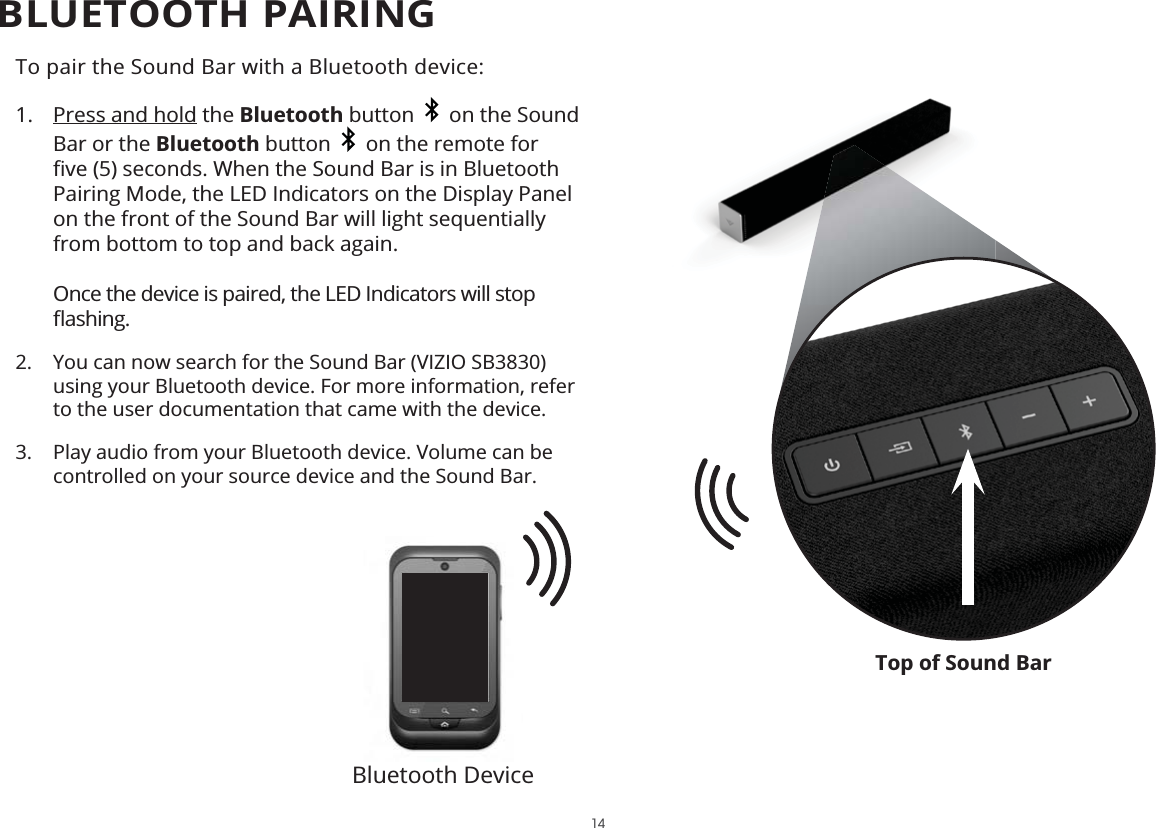

Top of Sound BarTo pair the Sound Bar with a Bluetooth device:1. Press and hold the Bluetooth button on the Sound Bar or the Bluetooth button on the remote for Pairing Mode, the LED Indicators on the Display Panel on the front of the Sound Bar will light sequentially from bottom to top and back again. Once the device is paired, the LED Indicators will stop 2. You can now search for the Sound Bar (VIZIO SB3830) using your Bluetooth device. For more information, refer to the user documentation that came with the device.3. Play audio from your Bluetooth device. Volume can be controlled on your source device and the Sound Bar.Bluetooth Device14BLUETOOTH PAIRING

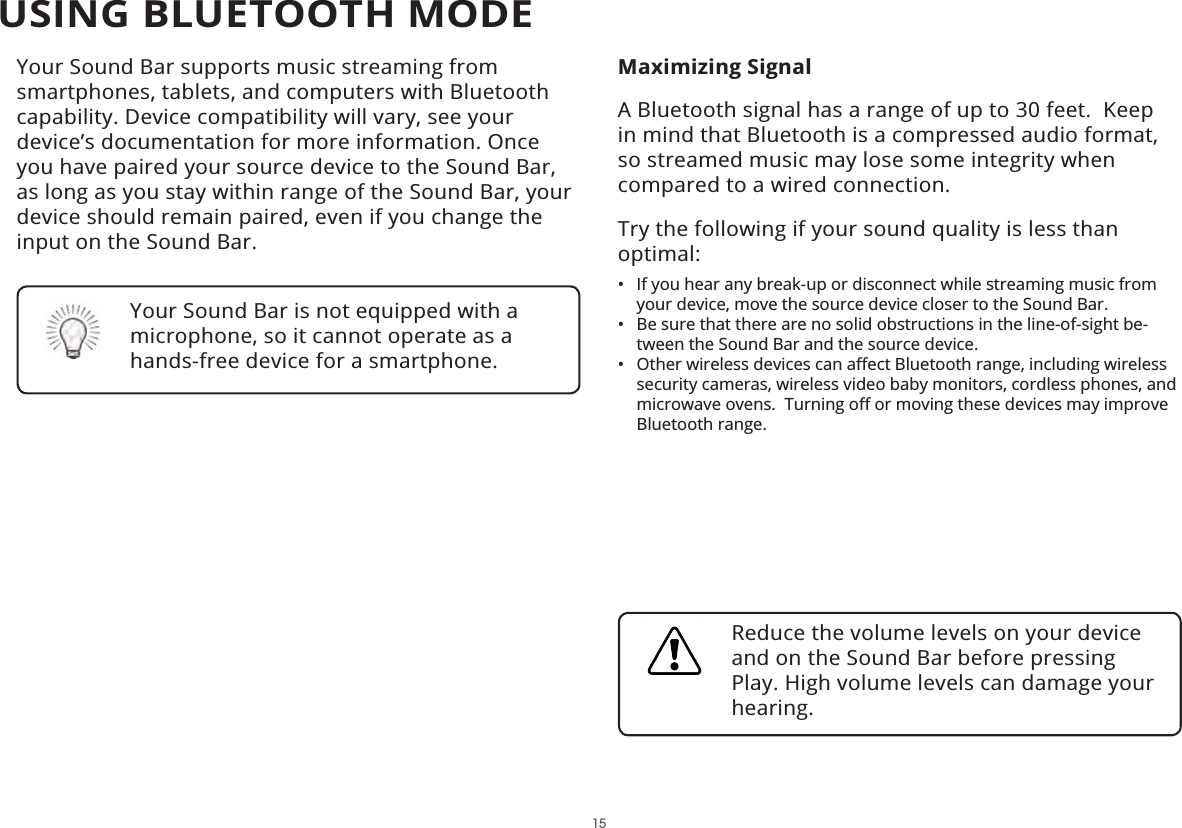

Your Sound Bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the Sound Bar, as long as you stay within range of the Sound Bar, your device should remain paired, even if you change the input on the Sound Bar.Maximizing SignalA Bluetooth signal has a range of up to 30 feet. Keep in mind that Bluetooth is a compressed audio format, so streamed music may lose some integrity when compared to a wired connection.Try the following if your sound quality is less than optimal:• If you hear any break-up or disconnect while streaming music from your device, move the source device closer to the Sound Bar. • Be sure that there are no solid obstructions in the line-of-sight be-tween the Sound Bar and the source device. • security cameras, wireless video baby monitors, cordless phones, and Bluetooth range.Your Sound Bar is not equipped with a microphone, so it cannot operate as a hands-free device for a smartphone.Reduce the volume levels on your device and on the Sound Bar before pressing Play. High volume levels can damage your hearing.15USING BLUETOOTH MODE

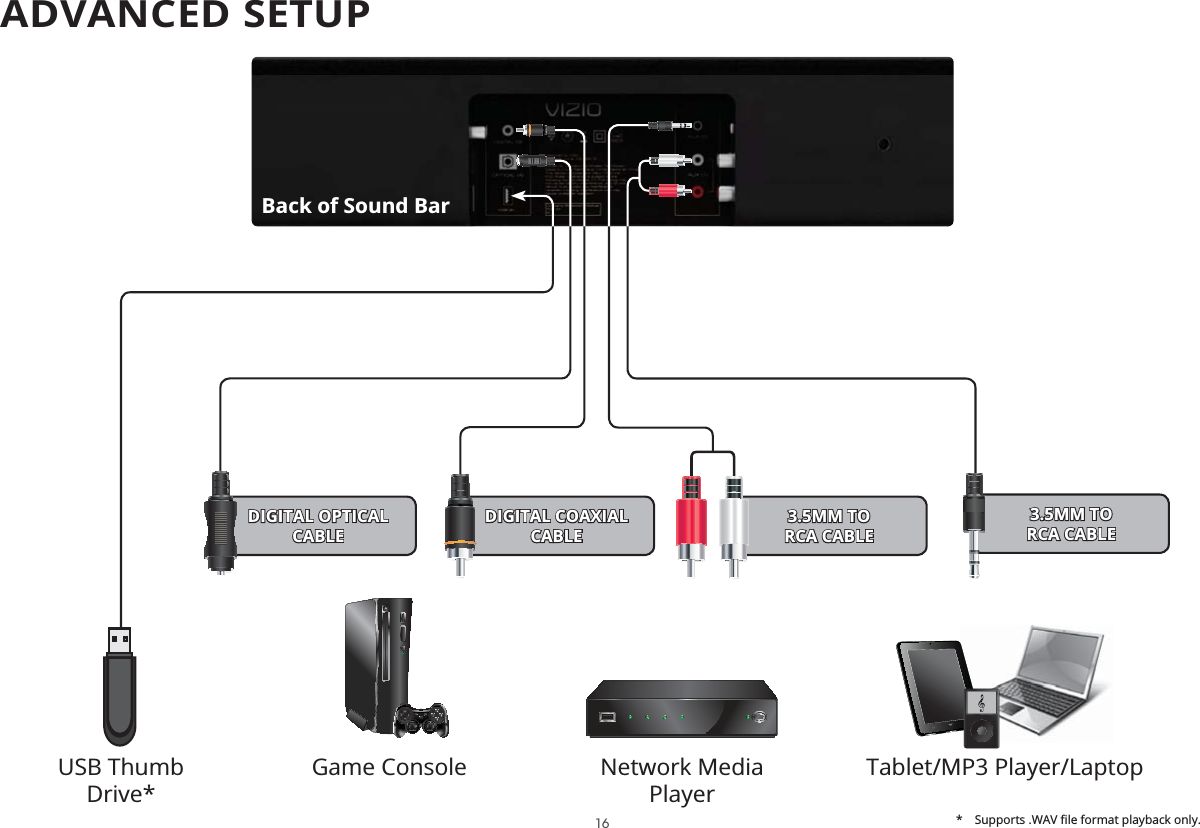

ADVANCED SETUP DIGITAL OPTICAL CABLEDIGITAL COAXIAL CABLE3.5MM TO RCA CABLE3.5MM TO RCA CABLEBack of Sound BarGame Console Network Media PlayerTablet/MP3 Player/LaptopUSB Thumb Drive*16

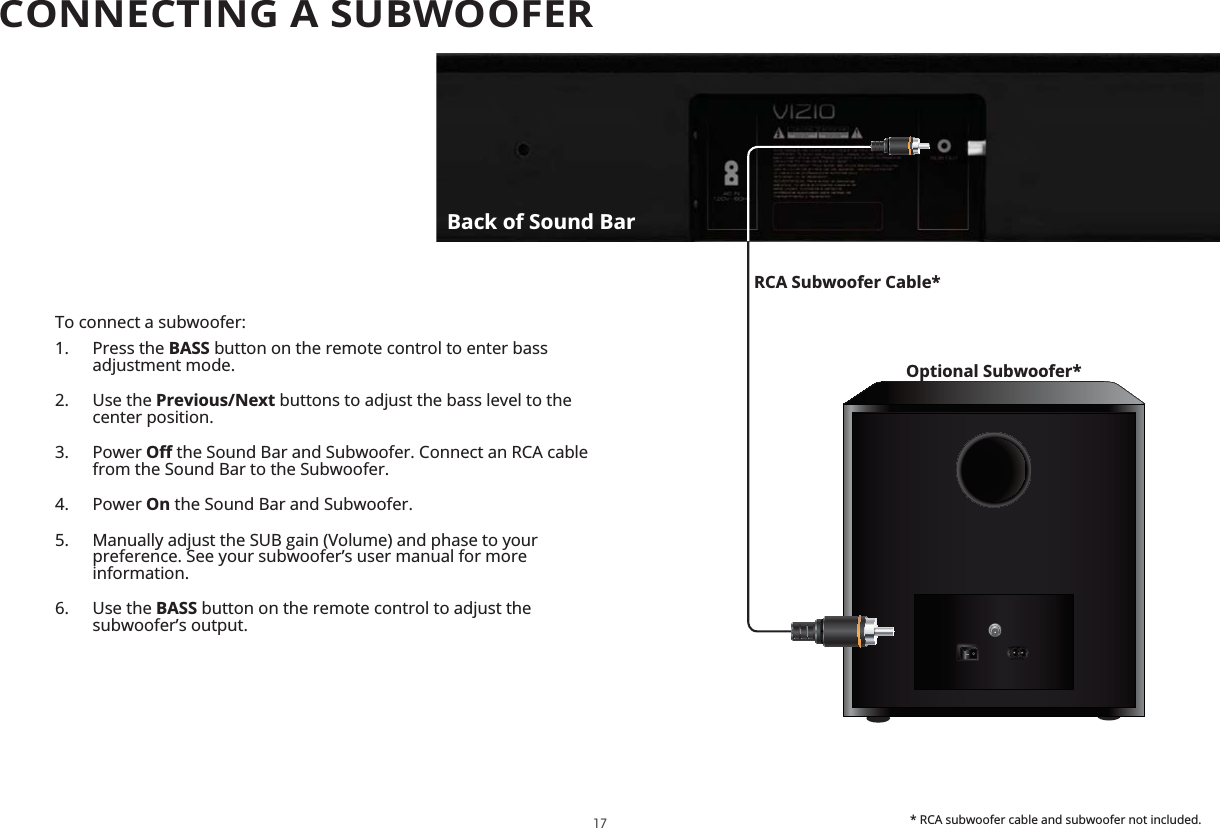

To connect a subwoofer:1. Press the BASS button on the remote control to enter bass adjustment mode.2. Use the Previous/Next buttons to adjust the bass level to the center position.3. Power  the Sound Bar and Subwoofer. Connect an RCA cable from the Sound Bar to the Subwoofer.4. Power On the Sound Bar and Subwoofer.5. Manually adjust the SUB gain (Volume) and phase to your preference. See your subwoofer’s user manual for more information.6. Use the BASS button on the remote control to adjust the subwoofer’s output. Optional Subwoofer*RCA Subwoofer Cable** RCA subwoofer cable and subwoofer not included.Back of Sound Bar17CONNECTING A SUBWOOFER

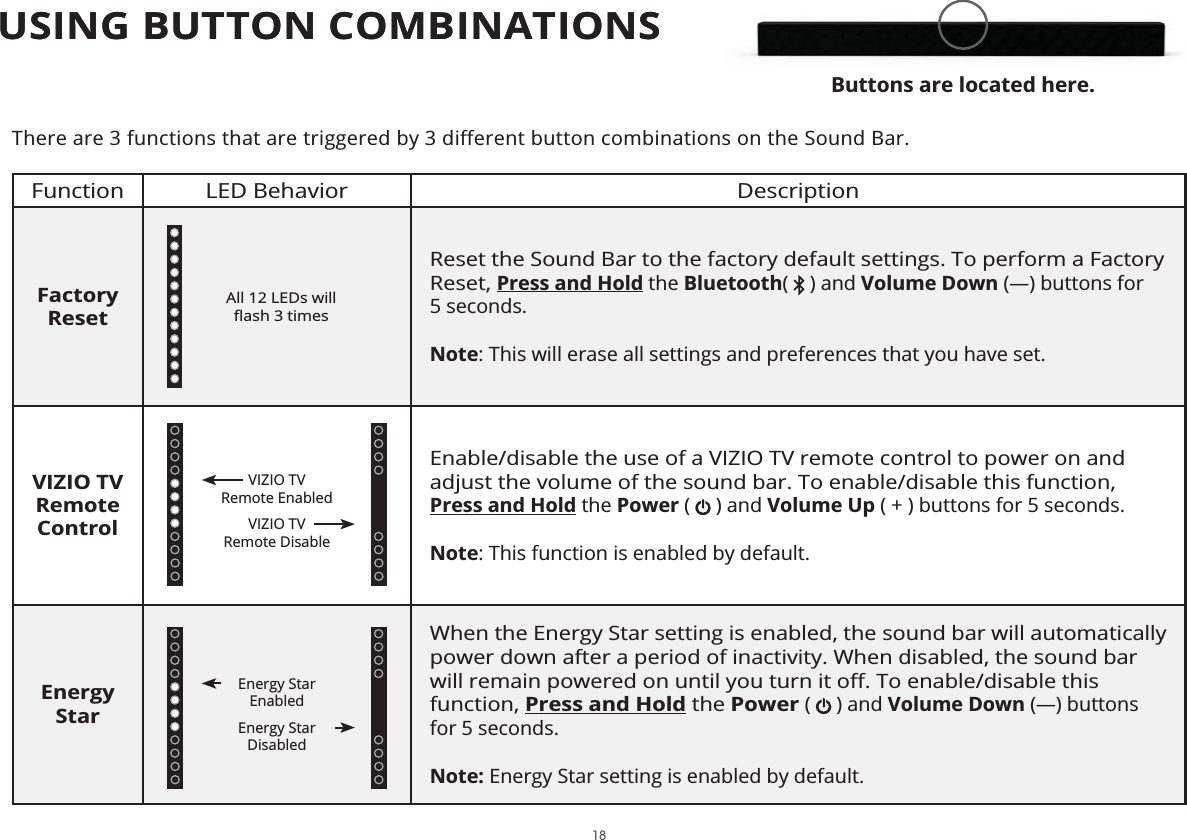

USING BUTTON COMBINATIONSFunction LED Behavior DescriptionFactory ResetReset the Sound Bar to the factory default settings. To perform a Factory Reset, Press and Hold the Bluetooth( ) and Volume Down (—) buttons for 5 seconds. Note: This will erase all settings and preferences that you have set.VIZIO TV Remote ControlEnable/disable the use of a VIZIO TV remote control to power on and adjust the volume of the sound bar. To enable/disable this function, Press and Hold the Power ( ) and Volume Up ( + ) buttons for 5 seconds.Note: This function is enabled by default.Energy StarWhen the Energy Star setting is enabled, the sound bar will automatically power down after a period of inactivity. When disabled, the sound bar function, Press and Hold the Power ( ) and Volume Down (—) buttons for 5 seconds. Note: Energy Star setting is enabled by default.All 12 LEDs will VIZIO TV Remote EnabledVIZIO TV Remote DisableEnergy Star EnabledEnergy Star DisabledButtons are located here.18USING BUTTON COMBINATIONS

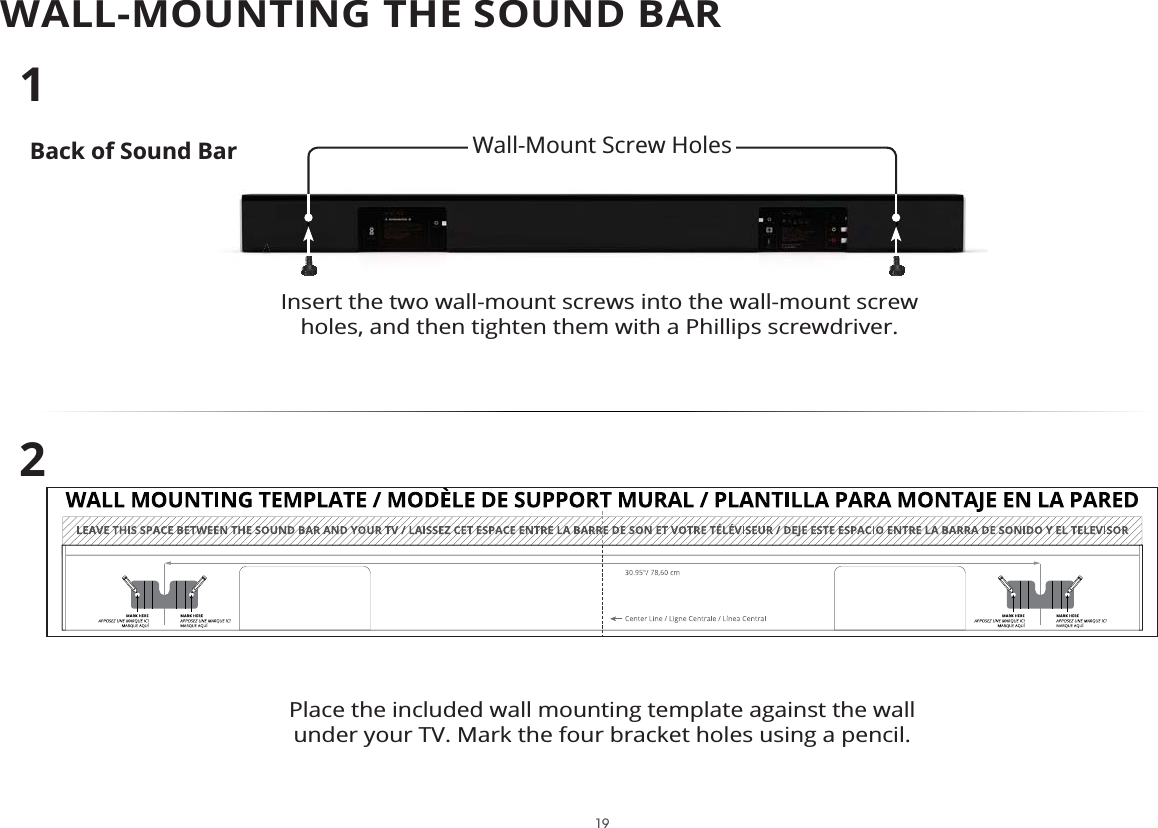

WALL-MOUNTING THE SOUND BARBack of Sound BarInsert the two wall-mount screws into the wall-mount screw holes, and then tighten them with a Phillips screwdriver. 12Place the included wall mounting template against the wall under your TV. Mark the four bracket holes using a pencil.Wall-Mount Screw Holes 19

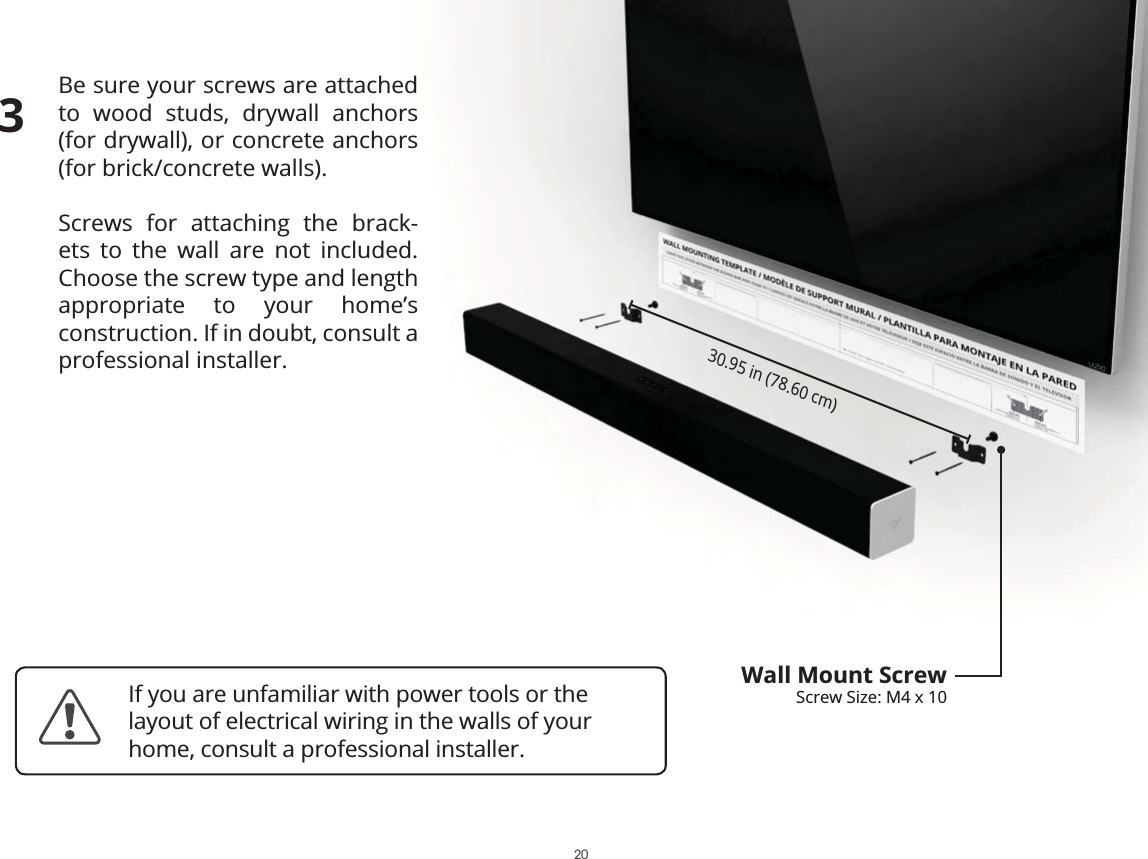

Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls).Screws for attaching the brack-ets to the wall are not included. Choose the screw type and length appropriate to your home’s construction. If in doubt, consult a professional installer.30.95 in (78.60 cm)Wall Mount ScrewScrew Size: M4 x 103If you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer.20

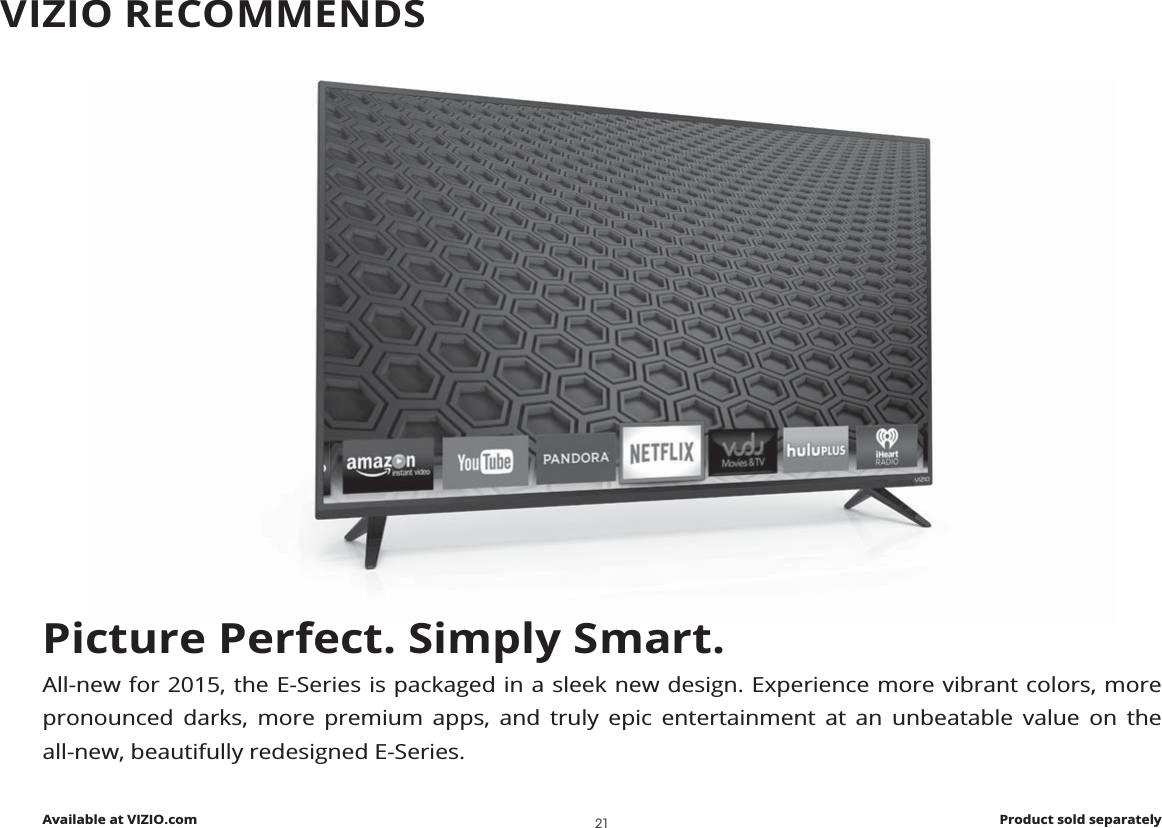

Picture Perfect. Simply Smart.All-new for 2015, the E-Series is packaged in a sleek new design. Experience more vibrant colors, more pronounced darks, more premium apps, and truly epic entertainment at an unbeatable value on the all-new, beautifully redesigned E-Series.Available at VIZIO.com Product sold separatelyVIZIO RECOMMENDS21
VIZIO High-Speed HDMI® CableThis high-speed HDMI®              resolutions, the E-Series HDMI cable provides picture-perfect HD video, 3D, and superior audio, all at up to 18 Gbps. This all-in-one cable also supports advanced 7.1 surround sound and Audio Return Channel, eliminating the need for additional cables.Available at VIZIO.com Product sold separatelyVIZIO RECOMMENDS22

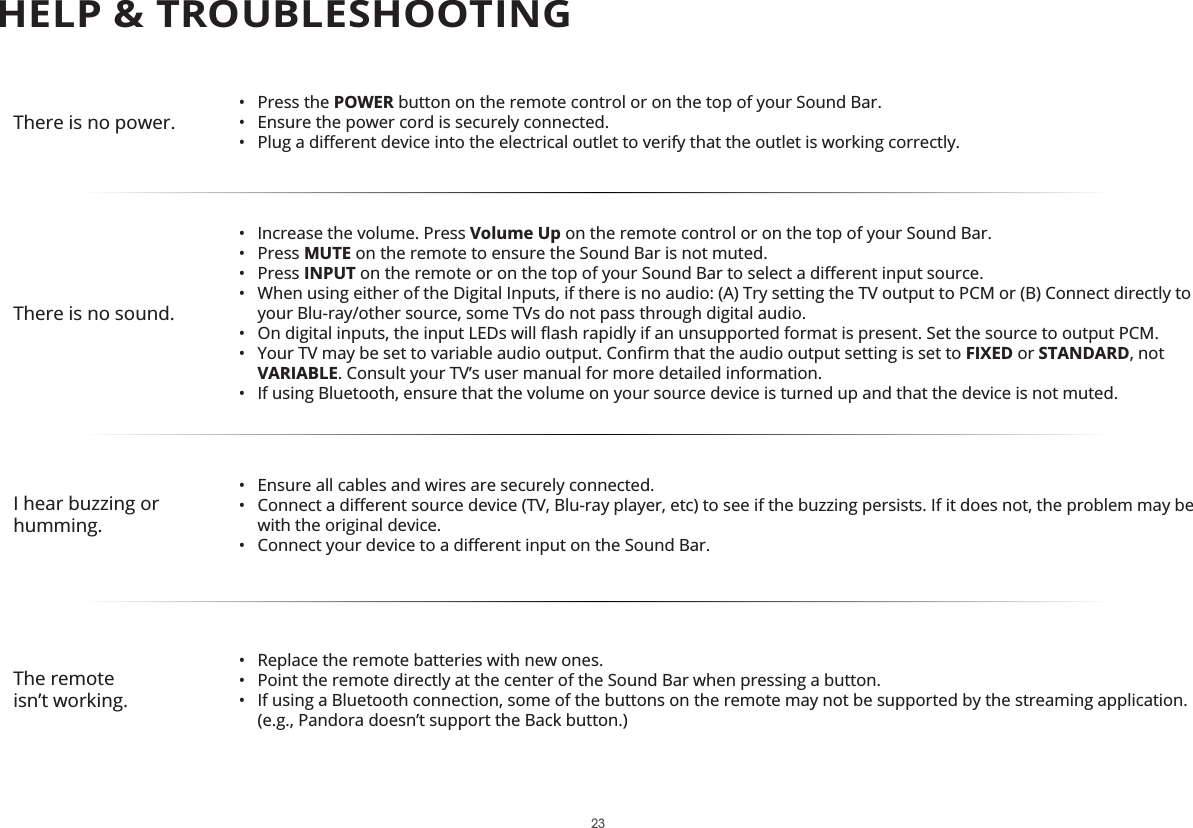

There is no power.• Press the POWER button on the remote control or on the top of your Sound Bar.• Ensure the power cord is securely connected.• There is no sound.• Volume Up on the remote control or on the top of your Sound Bar.• Press MUTE on the remote to ensure the Sound Bar is not muted.• Press INPUT• When using either of the Digital Inputs, if there is no audio: (A) Try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio. • • FIXED or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.• I hear buzzing or humming.• Ensure all cables and wires are securely connected.• • The remote• Replace the remote batteries with new ones.• Point the remote directly at the center of the Sound Bar when pressing a button.• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming application. HELP & TROUBLESHOOTING23
Take A Moment To Register Your Product AtVIZIO.COM/PRODUCT-REGISTRATIONREGISTER YOUR VIZIO PRODUCT NOWCustomized SupportGet assistance quickly with your information on-hand.News & OffersTake advantage of the latest news and special offers from VIZIO.Safety & SatisfactionStay up to date with important product updates and notifications.Why Register?
Do You Have Questions? Find Answers AtFind help with:• New Product Setup• Connecting Your Devices• Technical Problems• Product Updates• And MoreSUPPORT.VIZIO.COMYou can also contact our award-winning support team at:Phone:Email:(877) 878-4946 (TOLL-FREE)techsupport@VIZIO.comHours Of Operation: Monday - Friday: 7 AM TO 11 PM (CST) Saturday - Sunday: 9 AM TO 6 PM (CST)Live Chat Support Available

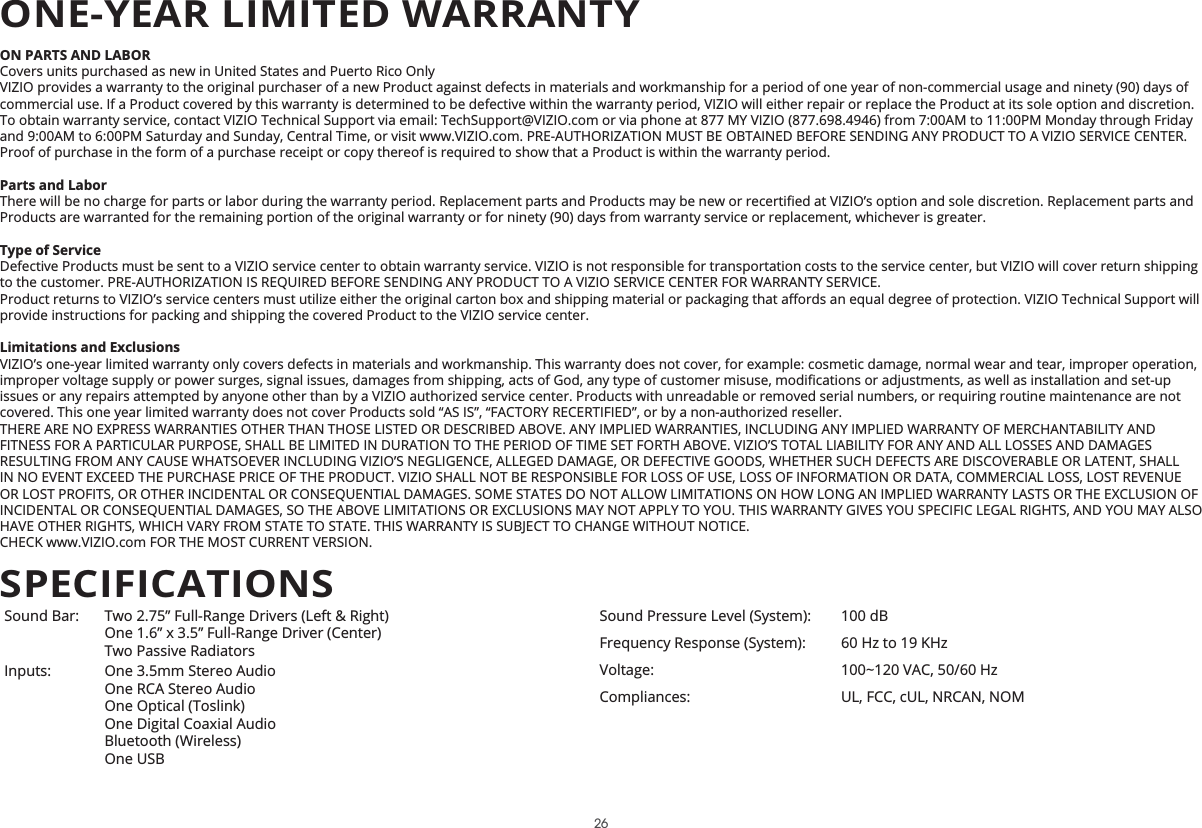

ON PARTS AND LABORCovers units purchased as new in United States and Puerto Rico OnlyVIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946) from 7:00AM to 11:00PM Monday through Friday and 9:00AM to 6:00PM Saturday and Sunday, Central Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.Parts and LaborProducts are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.Type of ServiceDefective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.provide instructions for packing and shipping the covered Product to the VIZIO service center.Limitations and ExclusionsVIZIO’s one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper operation, issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring routine maintenance are not covered. This one year limited warranty does not cover Products sold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.Sound Bar: Two 2.75” Full-Range Drivers (Left & Right)One 1.6” x 3.5” Full-Range Driver (Center) Two Passive RadiatorsInputs: One 3.5mm Stereo Audio One RCA Stereo Audio One Optical (Toslink) One Digital Coaxial Audio Bluetooth (Wireless)One USBSound Pressure Level (System): 100 dBFrequency Response (System): 60 Hz to 19 KHzVoltage: 100~120 VAC, 50/60 HzCompliances: UL, FCC, cUL, NRCAN, NOMSPECIFICATIONSONE-YEAR LIMITED WARRANTY26

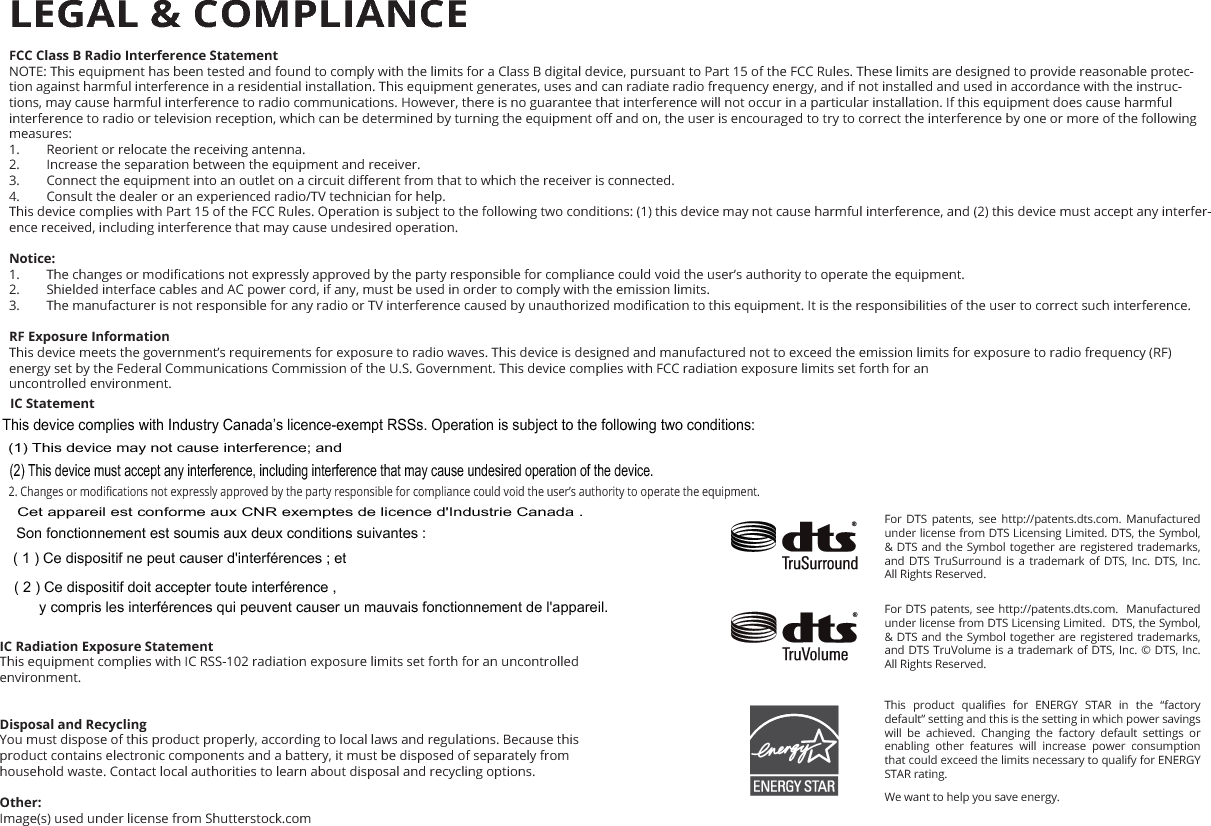

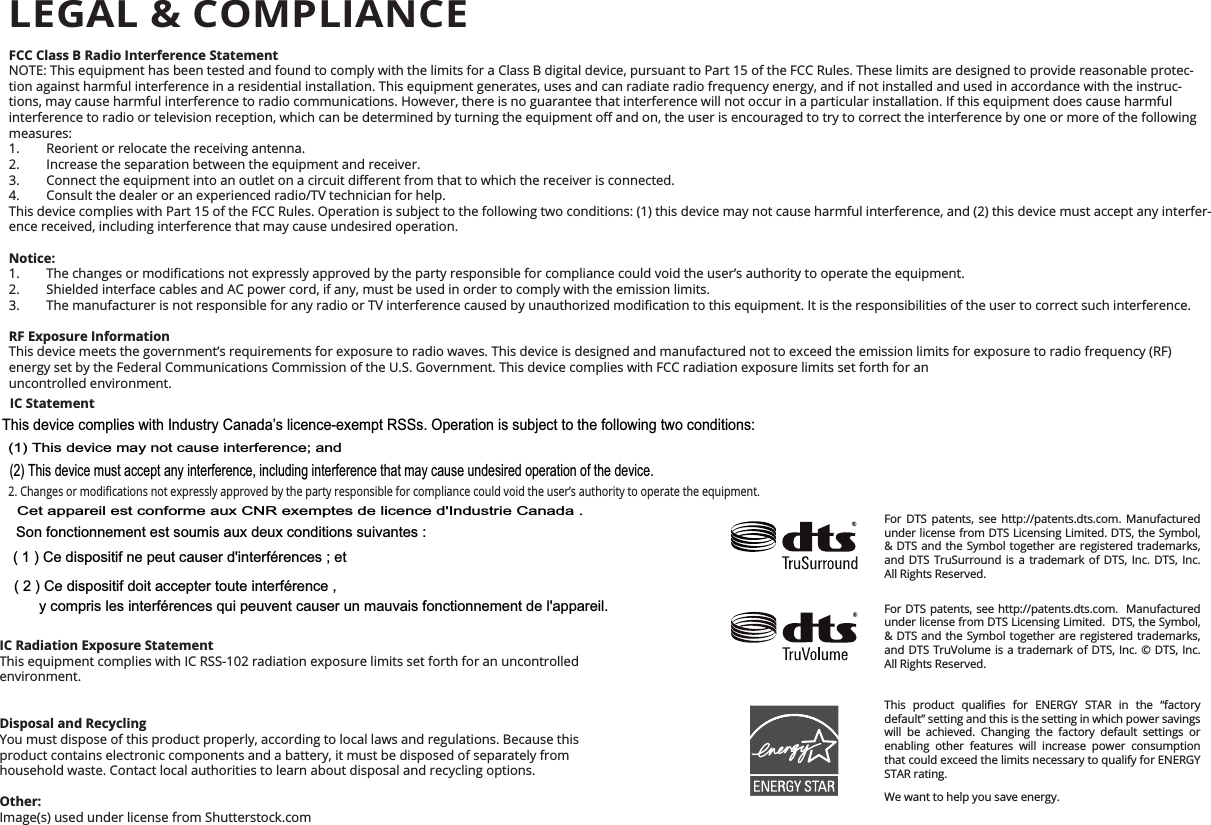

environment. FCC Class B Radio Interference StatementNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruc-tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful measures:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver. 4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interfer-ence received, including interference that may cause undesired operation.Notice: 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. RF Exposure InformationThis device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.IC Statement  IC Radiation Exposure StatementThis equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled Disposal and RecyclingYou must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options.Other:Image(s) used under license from Shutterstock.comFor DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. DTS, Inc. All Rights Reserved.For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruVolume is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.        default” setting and this is the setting in which power savings will be achieved. Changing the factory default settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating.We want to help you save energy.LEGAL & COMPLIANCEThis device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. ( 1 ) Ce dispositif ne peut causer d'interférences ; etCet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes :( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
© 2015 VIZIO INC. ALL RIGHTS RESERVED. 150126OC-US-NC
