Zylux Acoustic SIRTTR1 Sirius TTR1 Radio User Manual

Zylux Acoustic Corporation Sirius TTR1 Radio

User Manual

Need TTR1 Logo
User Guide
3
Table of Contents
Introduction....................5
Features ............................6
Safety and Care Information . . . . . . . . . . .7
What’s in the Box? . . . . . . . . . . . . . . . . . . .9
SIRIUS TTR1 Radio Functions . . . . . . . . . 10
Remote Control.....................12
Display Screen......................13
Installation ...................15
Introduction........................16
Step 1: Connect to a Network . . . . . . . . . 17
Step 2: Enter Your SIRIUS Account
Information...................... 30
Using your SIRIUS TTR1 Radio . . 33
Navigation Basics . . . . . . . . . . . . . . . . . . 34
Direct Tune........................ 38
Favorite Channels . . . . . . . . . . . . . . . . . . 39
Alarm Clock .......................40
Snooze ........................... 42
Sleep Timer ....................... 43
Parental Control . . . . . . . . . . . . . . . . . . . 44
Equalization (EQ). . . . . . . . . . . . . . . . . . . 50
Configuring your SIRIUS TTR1
Radio...................... 53
SIRIUS setup ...................... 54
System Setup...................... 58
Troubleshooting. . . . . . . . . . . . . . . .73
Product Specifications . . . . . . . . . .77
Patent Information . . . . . . . . . . . . . . . . . .79
Environmental Information . . . . . . . . . . .79
Owner’s Record . . . . . . . . . . . . . . . . . . . 82
4
5
Introduction
6
Features
Congratulations, on your purchase of the SIRIUS TTR1 Radio!
Your new SIRIUS TTR1 Radio comes with everything you need to enjoy SIRIUS
radio in your home.
Use this manual to familiarize yourself with all of your SIRIUS TTR1 Radio features
and capabilities. For the latest information about your SIRIUS TTR1 Radio and
other SIRIUS products and accessories, visit http://www.sirius.com.
Please read the entire User Guide before using your SIRIUS TTR1 Radio!
Introduction
7
Safety and Care Information
IMPORTANT! Always read and understand all the instructions to avoid
injury to yourself and/or damage to your device. SIRIUS XM Radio Inc.
disclaims all responsibility for damage from data loss due to breakdown,
repair, or other causes.
• Do not expose to extreme temperatures (above 140ûF or below -4ûF, or
above 60ûC or below -20ûC).
• Do not expose to moisture. Do not use device near or in water.
• Do not let any foreign matter spill into device.
• Do not store in dusty areas.
• Do not expose to chemicals such as benzene and thinners. Do not use
liquid or aerosol cleaners. Clean with a soft damp cloth only.
• Do not expose to direct sunlight, fire, flame or other heat sources for a
prolonged period.
• Do not try to disassemble and/or repair device yourself.
• Do not drop your device or subject it to severe impact.
• Do not place heavy objects on device.
• Do not subject device to excessive pressure.
• If the screen is damaged, do not touch the liquid crystal fluid.
8

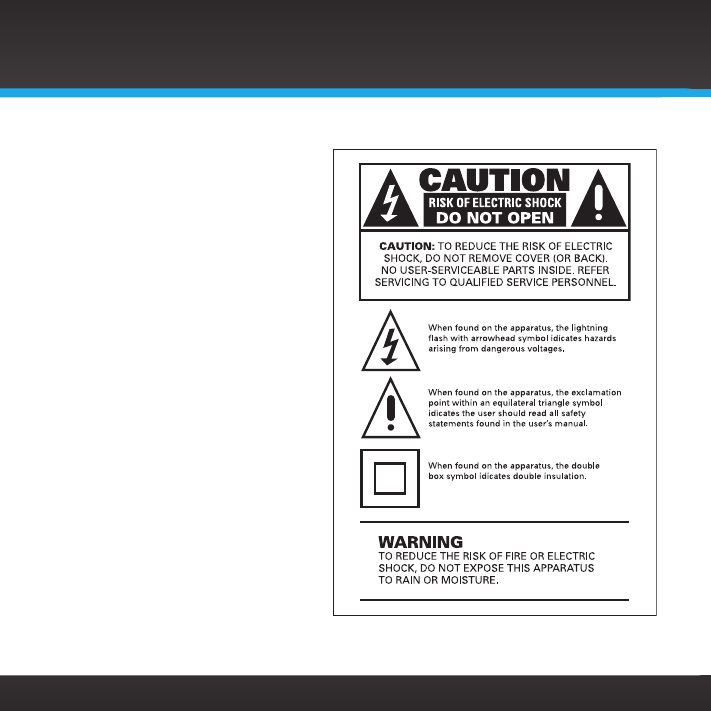

WARNING!
• Opening the case may result in
electric shock.
• Make sure that you insert the
plug all the way into the outlet.
• Do not touch the device with wet
hands.
• Do not install near any heat
sources such as radiators,
heat registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
• Do not defeat the safety purpose
of the polarized or grounding
type plug. A polarized plug has
two blades with one wider than
the other. A grounding type
plug has two blades and a third
grounding prong. The wide blade
or the third prong is provided for
your safety. When the provided
plug does not fit into your
outlet, consult an electrician
for replacement of the obsolete
outlet.
• Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Introduction
9

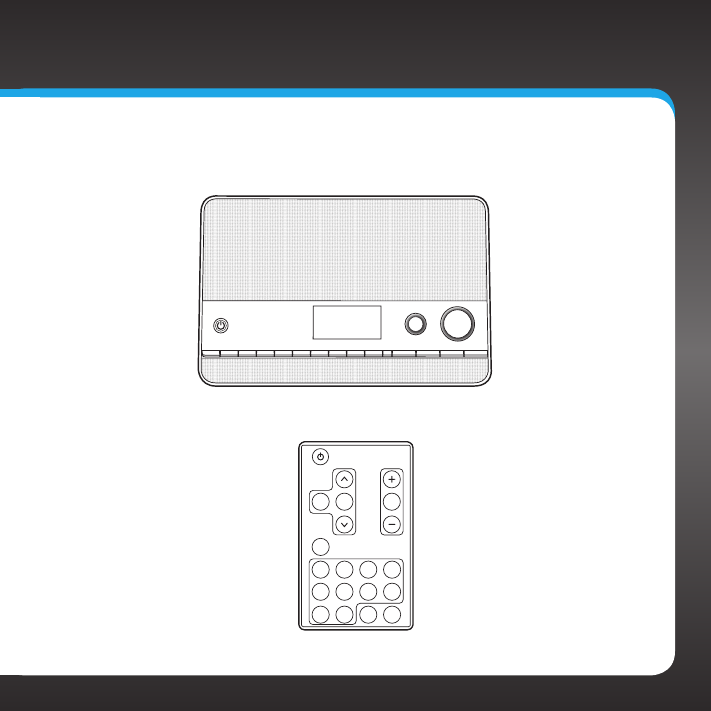

What’s in the Box?
SIRIUS TTR1 Radio
1 2 3 5 6 7 8 9 0 BACK MENU
TUNE VOL
ALARM 1 ALARM 24
Remote Control
MENU
MUTEBACK OK
ALARM
1
ALARM
2
2 3 41
6 7 85
09
10
SIRIUS TTR1 Radio Functions
Introduction
1 2 3 5 6 7 8 9 0 BACK MENU
TUNE VOL
ALARM 1 ALARM 24

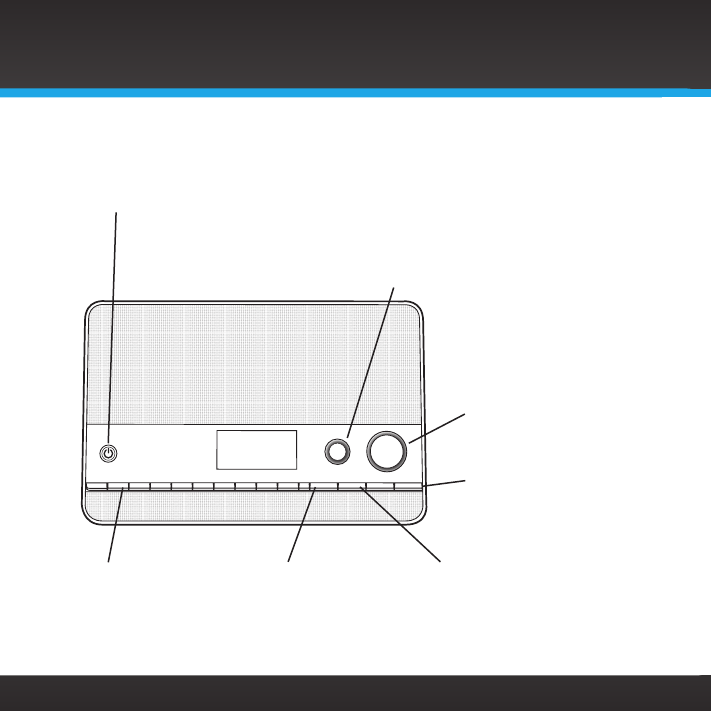

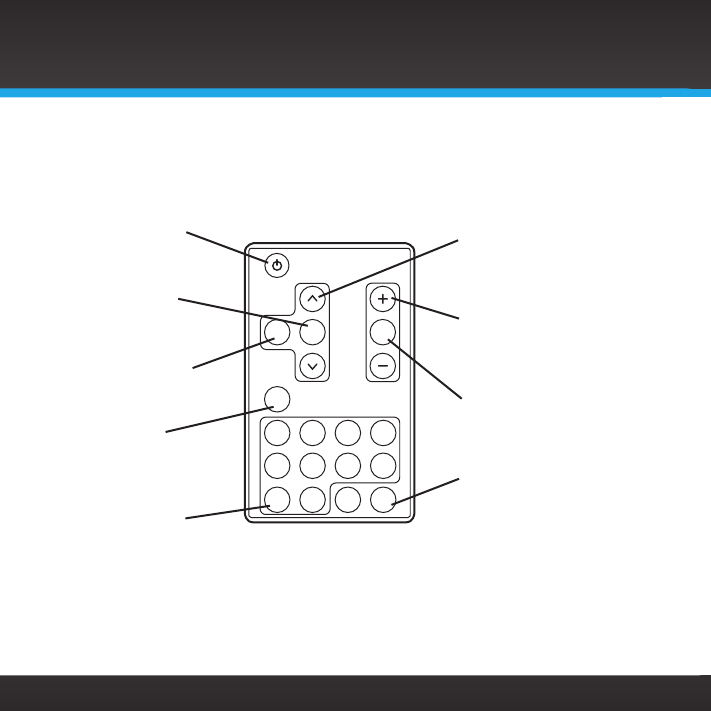

Power Button
Turn radio on and off.
Back Button
Press to return back to
the previous display
screen.
TUNE Knob (Multifunction)
Turning the knob at the default display screen displays the
category tune screen; pressing the knob at the default display
screen displays the direct tune screen; turning the knob in a menu
or user input screen scrolls through menus and choices; pressing
the knob in a menu or user input screen selects a highlighted item;
pressing and holding displays the Parental control menu.
Volume Knob
Increases or decreases
volume; also mutes the
audio.
0-9 Number Buttons
Set and select and select
channels.
Menu Button
Press to access or exit
category and channel
tuning, advanced features,
and configuration options.
Alarm 1 / Alarm 2 Buttons
Turns the alarm clocks
On or Off; pressing and
holding displays the alarm
settings.
11
Snooze/Sleep Timer Button
Mutes the alarm for, or sets the sleep
timer for, 5, 10, 15, 30, 45, or 60 minutes.

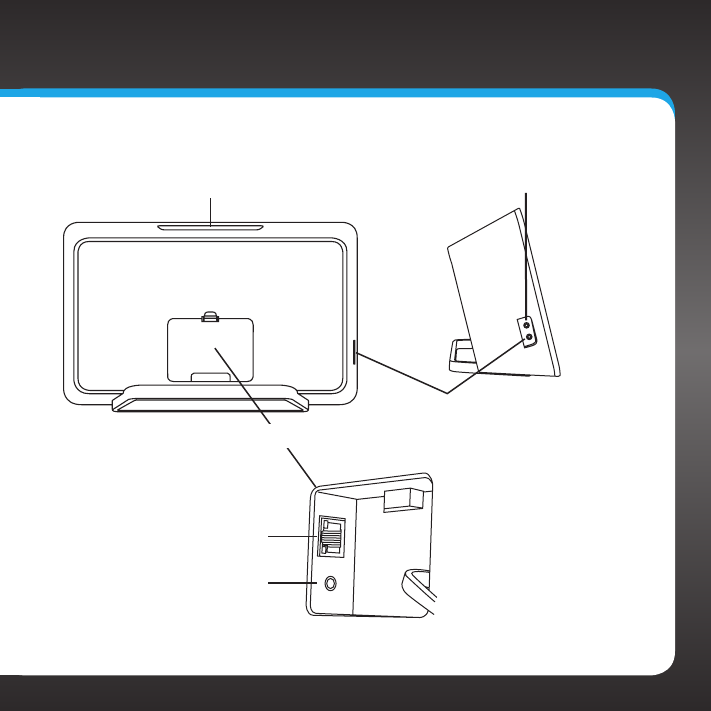

Rear Compartment
Wired Ethernet Connector
Line Out Connector
Aux In Connector
Headphone Connector
12
Remote Control
Introduction
MENU
MUTEBACK OK
ALARM
1
ALARM
2
2 3 41
6 7 85
09
Power Button
Turn radio on and off.
OK Button
Press to confirm
selection for channel
and menu items.
Back Button
Press to return back to
the previous display
screen.
Menu Button
Press to access or exit
advanced features and
configuration options.
0-9 Number Buttons
Set and select channels.
Arrow Buttons
Press to scroll through lists;
also highlight menu options.
+/— Buttons
Press to increase or
decrease the audio volume.
Mute
Press to silence the audio.
Alarm 1 / Alarm 2
Press to turn the respective
alarm clock On or Off;
pressing and holding
displays the alarm settings.
13
Display Screen

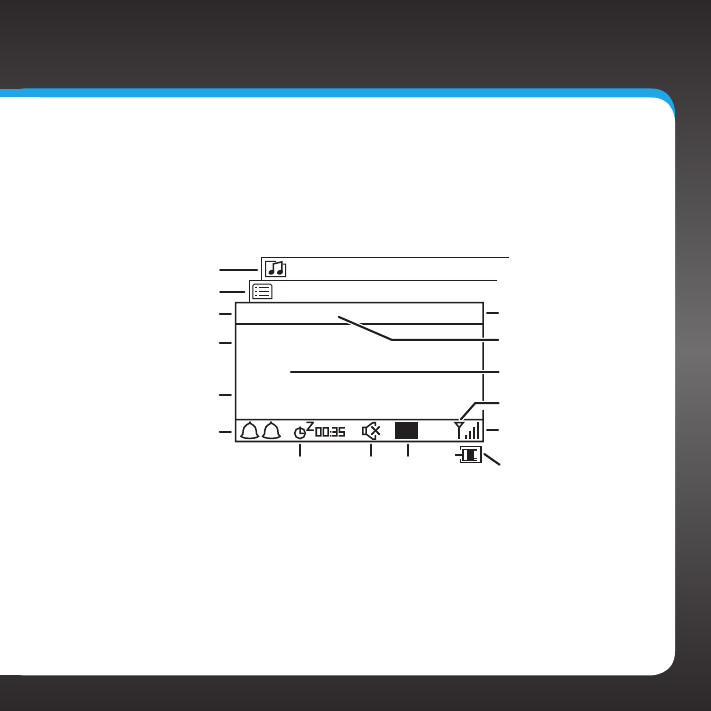

When using the SIRIUS TTR1 Radio, information about songs and artists, and
radio functions are displayed.
Category or Channel
List Screen
Phish
First Tube
Jam_ON
SIRIUS 017 5:23PM
Main Display Screen
Menu Options Screen
Channel Name
Artist Name or
Talk Show Host
Song Title or
Talk Show Schedule
Alarm 1/2 On Indicator
Preset
Number
(Favorites)
Audio is
Muted
Alarm
Snooze
Countdown
Current Time
Channel Number
Network Connection
Type (wired)
Network Connection
Type (wireless)
Signal Strength
(wireless)
1 2
P
1
14
15
Installation
16
Introduction
The SIRIUS TTR1 Radio allows you to listen to all of the channels on the Sirius
Internet Radio service using either a wireless Internet connection (Wi-Fi), or using
a wired Ethernet connection.
You must be subscribed to the SIRIUS Internet Radio service to use the SIRIUS
TTR1 Radio. Go to www.sirius.com/siriusinternetradio or call 888-539-7474 to
subscribe and get your user name and password. You can add this service to your
SIRIUS subscription, or subscribe only to the SIRIUS Internet Radio service.
To verify that you are subscribed to service, go to www.sirius.com, click on the
LISTEN ONLINE link, and then click the LAUNCH PLAYER link. Enter your
username and password. Select a channel to listen to and then click on the
PREMIUM link. If you can listen in the Premium mode, then you are subscribed to
the SIRIUS Internet Radio service.
The SIRIUS TTR1 Radio supports a wireless Internet connection through any
standard 802.11b/g access point. This includes wireless networks which are WEP/
WPA/WPA2 protected and require a password, and wireless networks where the
network name (SSID) is hidden. Once you have connected to a wireless network,
the radio will remember your network settings so you will not have to enter the
information again, unless you perform a reset of the radio to the factory defaults.
Installation
17
Step 1: Connect to a Network
When you turn your SIRIUS TTR1 Radio On for the first time, the Network
settings screen is displayed while the radio searches for wireless networks.
When complete, the SSID screen is displayed
with a list of the wireless networks found, along
with several other menu options.
Decide whether you will be using a wired
Ethernet connection, or a wireless connection.
Then complete the instructions in the
appropriate following section.
To Connect to a Network Using the Network Wizard
To connect to a wireless network using the Network Wizard:
The Network Wizard feature is the easiest way to connect to a wireless
network. It searches for available wireless networks and displays a list of
wireless networks found, for you to select. However, if your wireless network
name (SSID) is hidden, or if your network is DHCP disabled, you’ll have to
manually enter the network settings using the Manual Settings or [Manual
config] menu option rather than using the Network Wizard.
If the wireless network is secured, you’ll need to enter the password for the
wireless network during the connection procedure. If you don’t know the
password, contact your network administrator of the person who setup the
wireless network.
a. If you have just turned your SIRIUS TTR1 Radio on for the first time,
the SSID screen will already be displayed. Skip ahead to step 5.
Network wizard
Scanning.../
Network settings
18
b. Press MENU and turn the TUNE knob to highlight System Setup. Press
the TUNE Knob.
c. Turn the TUNE knob to highlight Network. Press the TUNE Knob.
d. Press the TUNE Knob to select Network Wizard.
e. The radio will scan for wireless networks and return with a list of
wireless networks which were found. Turn
the TUNE knob to highlight your wireless
network and press the TUNE knob. If you
don’t know the network name, contact your
network administrator of the person who
setup the wireless network.
f. If you choose an unsecured network, and
the radio is able to connect to the wireless
network, the Connected screen will be
displayed and the radio will connect to the
wireless network. Skip to step h.
If you choose a network that is secured,
you will be prompted to enter the key
(password). If you don’t know the password,
contact your network administrator of the
person who setup the wireless network.
Turn the TUNE knob to scroll through
the list of characters and highlight each
character. Press the TUNE knob to select the
highlighted character and move to the next
character. If you make a mistake, turn the
Installation
Connected
Connected
Key:
BKSP
OK
CANCEL
0123456789., ab
cdefghijklmnopq
rstuvwxyzABCDEF
GHIJKLMNOPQRSTU
Your_Network_Name
Other_Network_Name
[Rescan]
[Wired]
[Manual config]
SSID
19
TUNE knob to highlight BKSP and press the TUNE knob to erase
the character. Remember that the key is case sensitive.
g. When the key has been entered, turn
the TUNE knob to scroll to highlight
OK and press the TUNE knob. If you
have entered the correct key, and
the radio is able to connect to your
wireless network, the Connected
screen will be displayed. If you have
entered the wrong key, the Incorrect key screen is displayed, and
you will be prompted to enter the key again.
h. If you are installing your SIRIUS TTR1 Radio for the first time,
continue with “Step 2: Enter Your SIRIUS Account Information” on
page 30.
If you have previously entered your SIRIUS user name and key
into the radio, and had tuned to a channel, the screen will show
Connecting. When successfully connected, the Buffering... screen
will be displayed as the channel information is streamed to the
radio. When complete, you are returned to the main display screen
and you should hear the audio playing. Otherwise, the SIRIUS
screen is displayed.
Connecting.
/
SIRIUS Hits 1
SIRIUS
3:13PM
Buffering...
/
SIRIUS Hits 1
SIRIUS 001 3:14PM
Incorrect
key
20
To connect to a wired network using the Network Wizard:
a. At the rear of the radio, remove the
compartment cover and connect an
Ethernet cable to the Ethernet connector
on the inside left of the compartment.
Refer to “Wired Ethernet Connector” on
page 11 for the location of the Ethernet
connector. Replace the compartment cover.
b. Connect the other end of the Ethernet
cable to your home’s wired network.
c. If you have turned your SIRIUS TTR1 Radio
on for the first time, the SSID screen will
already be displayed. Skip ahead to step g.
d. Press MENU and turn the TUNE knob to highlight System Setup. Press
the TUNE Knob.
e. Turn the TUNE knob to highlight Network. Press the TUNE Knob.
f. Press the TUNE Knob to select Network
Wizard.
g. The radio will scan for networks. When
the scan is complete, turn the TUNE knob
to highlight [Wired] and press the TUNE
knob.
h. If the radio is able to connect to your network, the Connected screen
Installation
Connected
Connected
Network wizard
Scanning.../
Network settings
Some Network Name
Other Network Name
[Rescan]
[Wired]
[Manual config]
SSID
21
will be displayed. If Waiting for
Ethernet is displayed, check the
Ethernet cable connections.
i. If you are installing your SIRIUS TTR1
Radio for the first time, continue with
“Step 2: Enter Your SIRIUS Account
Information” on page 30.
If you have previously entered your SIRIUS user name and key
into the radio, and had tuned to a channel, the screen will show
Connecting. When successfully connected, the Buffering... screen
will be displayed as the channel information is streamed to the
radio. When complete, you are returned to the main display screen
and you should hear the audio playing. Otherwise, the SIRIUS
screen is displayed.
Buffering...
/
SIRIUS Hits 1
SIRIUS 001 3:14PM
Connecting.
/
SIRIUS Hits 1
SIRIUS
3:13PM
Waiting for
Ethernet
Network settings
22
To Connect to a Network Using Manual Settings
Connecting to a network using the Manual settings requires some knowledge of
your network. You’ll need to manually configure your network connection using the
Manual Settings or [Manual config] option if your wireless network name (SSID) is
hidden, or if your network is DHCP disabled.
Decide whether you will be using a wireless network connection, or a wired Ethernet
connection. Then follow the instructions in the appropriate following section.
To connect to a wireless network using the Manual Settings:
In order to connect to a wireless network, you will need to have the following
information to enter during the procedure:
Is DHCP enabled or disabled?
If disabled, the IP address to use for the radio?
If disabled, the Subnet Mask IP address?
If disabled, the Gateway IP address?
If disabled, the Primary DNS IP address?
If disabled, the Secondary IP address?
The name of your wireless network (SSID)?
Is the wireless network password protected?
If so, the type of authentication?
If Pre-Shared Key, whether WEP is enabled?
If WPA or WPA2, whether it’s TKIP or AES?
The wireless network key (password)?
Installation
23
a. If you have just turned your SIRIUS TTR1 Radio on for the first time,
the SSID screen will already be displayed. Skip ahead to step 4.
b. Press MENU and turn the TUNE knob to highlight System Setup.
Press the TUNE Knob.
c. Turn the TUNE knob to highlight Network. Press the TUNE Knob.
d. Turn the TUNE Knob to highlight Manual Settings or [Manual
config]. Press the TUNE Knob.
e. Turn the TUNE Knob to highlight
Wireless. Press the TUNE Knob.
f. Will you be using DHCP? Turn the
TUNE Knob to highlight DHCP enable
or DHCP disable and press the TUNE
Knob.
g. If you have selected DHCP disable, enter the following information.
Otherwise, continue with step h.
For each entry, Turn the TUNE knob to select the numbers, and
press the TUNE knob to confirm and move to the next number.
Press BACK if you entered an incorrect number.
TIP! You can use the Remote Control to increment the numbers ( ), and
move forward or backward through the number fields ( + and —).
i. Enter the IP address to use for the radio.
ii. Enter the Subnet Mask IP address for the network.
Wired
Wireless
>
>
Connection type 1/9
24
Installation
iii. Enter the Gateway IP address for the
network.
iv. Enter the Primary DNS IP address for
the network.
v. Enter the Secondary DNS IP address
for the network.
h. Enter your wireless network name (SSID).
Turn the TUNE knob to scroll through
the list of characters and highlight each
character. Press the TUNE knob to select
the highlighted character and move to
the next character. If you make a mistake,
turn the TUNE knob to highlight BKSP
and press the TUNE knob to erase the
character. When done, turn the TUNE knob to highlight OK and press
the TUNE knob.
i. Select the authentication type, Open (no
key (password)), Pre-Shared key, WPA, or
WPA2. Turn the TUNE Knob to highlight your
selection and press the TUNE knob. If you
have selected Open, skip ahead to step 10.
j. Depending upon your selection, complete these additional steps:
•Pre-Shared Key:
i. Select whether the Pre-Shared Key has WEP encryption disabled or
Key: 9/9
BKSP
OK
CANCEL
0123456789., ab
cdefghijklmnopq
rstuvwxyzABCDEF
GHIJKLMNOPQRSTU
Open
Pre-Shared Key
WPA
WPA2
>
Authentication 7/9
IP settings 3/9
IP address
.0.0.0
Subnet mask
.
255 255 .255 .0
0
25
disabled. Turn the TUNE Knob to highlight your selection and
press the TUNE knob.
ii. Enter your key (password). Turn the TUNE knob to scroll through
the list of characters and highlight each character. Press the
TUNE knob to select the highlighted character and move to the
next character. If you make a mistake, turn the TUNE knob to
highlight BKSP and press the TUNE knob erase the character.
•WPA or WPA2:
i. Select whether WPA or WPA2 has TKIP or AES encryption.
Turn the TUNE Knob to highlight your selection and press the
TUNE knob.
ii. Enter your key (password). Turn the TUNE knob to scroll
through the list of characters
and highlight each character.
Press the TUNE knob to select
the highlighted character and
move to the next character. If you
make a mistake, turn the TUNE
knob to highlight BKSP and press
the TUNE knob to erase the
character. When done, turn the
TUNE knob to highlight OK and
press the TUNE knob.
k. If you have entered the correct
information, and the radio is able to
connect to your wireless network, the
Connected
Connected
Failed
to connect
26
Connected screen will be displayed. If not, the Failed to connect screen
is displayed. This means that one or more of the settings you entered is
incorrect.
l. If you are installing your SIRIUS TTR1 Radio for the first time, continue
with “Step 2: Enter Your SIRIUS Account Information” on page 30.
If you have previously entered your SIRIUS user name and key into the
radio, and had tuned to a channel, the screen will show Connecting.
When successfully connected, the Buffering... screen will be displayed
as the channel information is streamed to the radio. When complete,
you are returned to the main display screen and you should hear the
audio playing. Otherwise, the SIRIUS screen is displayed.
Installation
Connecting.
/
SIRIUS Hits 1
SIRIUS
3:13PM
Buffering...
/
SIRIUS Hits 1
SIRIUS 001
3:14PM
27
To connect to a wired network using the Manual Settings:
In order to connect to a wired network, you will need to have the following
information to enter during the procedure:
Is DHCP enabled or disabled?
If disabled, the IP address to use for the radio?
If disabled, the Subnet Mask IP address?
If disabled, the Gateway IP address?
If disabled, the Primary DNS IP address?
If disabled, the Secondary IP address?
a. At the rear of the radio, remove the compartment cover and
connect an Ethernet cable to the Ethernet connector on the inside
left of the compartment. Refer to “Wired Ethernet Connector”
on page 11 for the location of the Ethernet connector. Replace the
compartment cover.
b. Connect the other end of the Ethernet cable to your home’s wired
network.
c. If you have just turned your SIRIUS TTR1 Radio on for the first time,
the SSID screen will already be displayed. Skip ahead to step f.
d. Press MENU and turn the TUNE knob to highlight System Setup.
Press the TUNE Knob.
e. Turn the TUNE knob to highlight Network. Press the TUNE Knob.
f. Turn the TUNE Knob to highlight Manual Settings [Manual config].
Press the TUNE Knob.
28
g. Turn the TUNE Knob to highlight Wired.
Press the TUNE Knob.
h. Will you be using DHCP? Turn the TUNE
Knob to highlight DHCP enable or DHCP
disable and press the TUNE Knob.
i. If you have selected DHCP disable, enter
the following information. Otherwise, continue with step 7.
For each entry, Turn the TUNE knob to select the numbers, and press
the TUNE knob to confirm and move to the next number. Press BACK if
you entered an incorrect number.
TIP! You can use the Remote Control to increment the numbers ( ), and move
forward or backward through the number fields ( + and —).
i. Enter the IP address to use for the radio.
ii. Enter the Subnet Mask IP address for the network.
iii. Enter the Gateway IP address for the
network.
iv. Enter the Primary DNS IP address for
the network.
v. Enter the Secondary DNS IP address
for the network.
j. If you have entered the correct
information, and the radio is able to connect to your network, the
Connected screen will be displayed. If not, the Failed to connect screen
is displayed. This means that one or more of the settings you entered
IP settings 3/9
IP address
.0.0.0
Subnet mask
.
255 255 .255 .0
0
Installation
Wired
Wireless
>
>
Connection type 1/9
29
is incorrect. If Waiting for Ethernet is
displayed, check the Ethernet cable
connections.
k. If you are installing your SIRIUS TTR1
Radio for the first time, continue with
“Step 2: Enter Your SIRIUS Account
Information” on page 30.
If you have previously entered your
SIRIUS user name and key into the
radio, and had tuned to a channel,
the screen will show Connecting.
When successfully connected, the
Buffering... screen will be displayed as
the channel information is streamed
to the radio. When complete, you are
returned to the main display screen
and you should hear the audio playing.
Otherwise, the SIRIUS screen is
displayed.
Waiting for
Ethernet
Network settings
Buffering...
/
SIRIUS Hits 1
SIRIUS 001 3:14PM
Connecting.
/
SIRIUS Hits 1
SIRIUS
3:13PM
Connected
Connected
Failed
to connect
30
Step 2: Enter Your SIRIUS Account Information
The SIRIUS TTR1 Radio needs your account user name and password to connect
to Sirius Internet Radio service. If are not yet subscribed to the Sirius Internet
Radio service, go to www.sirius.com/siriusinternetradio or call 888-539-7474 to
subscribe, and get your user name and password.
To enter your account information:
a. Turn on the radio by pressing the Power button.
b. Press MENU and turn the TUNE knob to
highlight SIRIUS Setup. Press the TUNE
knob.
c. Turn the TUNE knob to highlight User
name. Press the TUNE knob.
d. Turn the TUNE knob to scroll through
the list of characters and highlight each
character for your user name. Press the
TUNE knob to select the highlighted
character and move to the next character.
If you make a mistake, turn the TUNE knob
to highlight BKSP and press the TUNE
knob to erase the character.
e. When you have entered your user name, turn the TUNE knob to scroll to
highlight OK and press the TUNE knob.
User name
BKSP
OK
CANCEL
0123456789 abcd
efghijklmnopqrs
tuvwxyzABCDEFGH
IJKLMNOPQRSTUVW
Category Tune
SIRIUS Setup
EQ
Parental control
System Setup
>
>
>
SIRIUS
Installation
31
f. You will then be prompted to enter your password. Enter your
password in the same way as you entered your user name and then
select OK.
g. The radio will attempt to connect
to the Sirius Internet Radio service.
If the user name and password you
entered is incorrect, the Login failed
screen will be displayed. You’ll have
to re-enter the correct user name and
password.
If you have previously connected to a network, and had tuned to
a channel, the screen will show Connecting. When successfully
connected, the Buffering... screen will be displayed as the channel
information is streamed to the radio. When complete, you are
returned to the main display screen and you should hear the audio
playing. Otherwise, the SIRIUS screen is displayed.
Login failed
Go to SIRIUS setup
SIRIUS
Buffering...
/
SIRIUS Hits 1
SIRIUS 001 3:14PM
Connecting.
/
SIRIUS Hits 1
SIRIUS 3:13PM
32
33
Using your SIRIUS TTR1 Radio
34
Using your SIRIUS TTR1 Radio
Navigation Basics
Power Button
The Power button turns the SIRIUS TTR1 Radio On or Off.
Tune Knob
The TUNE knob is multifunction— you can turn it clockwise or counter-
clockwise, and press it.
• Turn: Turning the TUNE knob when at the main display screen displays the
Category tune screen. When in menus or user input screens, turning the
TUNE knob scrolls forwards or backwards through menus and user choices.
• Press and Release: Pressing the TUNE knob at the default display screen
displays the Direct tune screen. When in menus or user input screens,
pressing the TUNE knob selects a highlighted item.
• Press and Hold: pressing and holding the TUNE knob displays the Parental
control menu options.
Vol Knob
Turning the VOL knob clockwise or counter-clockwise increases or
decreases the volume of the audio. When turned counter-clockwise it will mute the
audio when zero is reached.
Number Buttons 0-9
The number buttons are used to store favorite channels in a button location so you
can tune a channel just by pressing the button. They can also be used to enter the
channel number when at the Direct tune screen.
TUNE
VOL
1 0
...
35
Back Button
The BACK button returns back to the previously displayed screen.
Menu Button
Pressing the MENU button from the main display screen accesses the
advanced features and configuration options menu, where you can browse the
channel categories and channels, and change the radio settings. Pressing it
when in the configuration options menu returns the radio to the main display
screen.
Alarm 1 / Alarm 2 Buttons
Pressing the ALARM button turns the respective alarm clock function On or
Off. Pressing and holding the ALARM button displays the respective alarm
setup screen where you can configure the options for each alarm.
Snooze / Sleep Button
When the alarm clock is sounding, pressing the Snooze /Sleep button will
silence the alarm for 5 minutes. Each additional press of the Snooze / Sleep
button silences the alarm for 10, 15, 30, 45 or 60 minutes. While snoozing, the
snooze countdown time is displayed on the display screen.
While the radio is playing, pressing the Snooze /Sleep button enters the sleep
mode. The first press displays Sleep OFF, and each additional press increses
the sleep time for 5, 10, 15, 30, 45 or 60 minutes. While in sleep mode, the
sleep countdown time is displayed at the bottom of the display screen.
ALARM 1 ALARM 2
BACK
MENU
36
Listening to Sirius Internet Radio
Tune a Channel:
1. Press MENU.
2. Press the TUNE knob to select Category
Tune.
3. Press the TUNE knob to select All
Channels to browse through all the
channels, or turn the TUNE knob to highlight a category. Press the
TUNE knob to select the category.
4. Turn the TUNE knob browse through the channels, and highlight a
channel to tune. Press the TUNE knob to tune the channel. The radio
will momentarily tune the channel.
View a Category:
Channels are organized into categories to make it easier for you to find the ones
that suit your taste.
1. To view the categories press MENU.
2. Press the TUNE knob to select Category
Tune.
3. Turn the TUNE knob to browse through
001-SIRIUS Hits
002-The Blend
003-SIRIUS XM Love
004-40s on 4
005-50s on 5
All channels
All Channels
Pop
Rock
Electronic/Dance
Hip-Hop/R&B
>
>
>
>
>
Category Tune
Using your SIRIUS TTR1 Radio
37
and highlight a category.
4. Press the TUNE knob to select the
category and view the channels in the
category.
Returning to Main Display Screen
When in the advanced features and configuration options menu, pressing
MENU will return you to the main display screen.
039-Backspin
040-Hip-Hop Nation
045-Shade 45
050-The Heat
051-Heart & Soul
Hip-Hop/R&B
38
Using your SIRIUS TTR1 Radio
Direct Tune
A channel can be tuned directly by entering the channel number.
1. From the main display screen, press the
TUNE button.
2. You can use the 0-9 number buttons to
enter the channel number. You can also
turn the TUNE knob to scroll the list of
numbers and highlight each number. Press
the TUNE knob to select the highlighted
number and move to the next character. If you make a mistake, turn
the TUNE knob to highlight BKSP and press the TUNE knob erase the
character.
3. When the channel number is entered, turn the TUNE knob to highlight
OK. Press the TUNE knob to tune the channel.
Direct Tune
BKSP
OK
CANCEL
0123456789
39
Favorite Channels
You can assign up to 10 of your favorite channels to a number button (0-9) so
you can easily tune them.
To assign a favorite channel to a number button:
1. Tune to the channel you want as a
favorite.
2. Press and hold a number button (0-9)
for one second to assign the channel as
a favorite (preset) to that button.
IMPORTANT! If the button you choose already has a favorite channel
assigned to it, it will be replaced with the new favorite channel.
To tune a favorite channel:
1. Press the number button 0-9 that is assigned to the favorite
channel. The channel will momentarily be tuned.
Preset stored
40
Alarm Clock
Your SIRIUS TTR1 Radio has two alarm clocks which
can be configured according to your liking. When the
radio is off, and the alarm(s) are on, the times of each
alarm are displayed on the screen.
To turn the alarm clocks On or Off:
1. Press the Alarm 1 or Alarm 2 button to
toggle the alarms On or Off. If the alarm(s)
are On, the alarm icon(s) 1 2 will be
displayed in the lower left of the main
display screen.
To configure the alarm clock:
1. Press MENU. You can also press and hold the alarm button that you want
to configure to go directly to the alarm configuration (go to step 4).
2. Turn the TUNE knob to scroll to and highlight System Setup. Press the
TUNE knob.
3. Turn the TUNE knob to scroll to and
highlight Alarms. Press the TUNE knob.
4. The Alarms screen summarizes each alarm
clock setting. To configure an alarm, turn
the TUNE knob to scroll to and highlight
Michael Bolton
That’s What Love Is All A
SIRIUS XM Love
SIRIUS 007
6:49PM
1 2
Alarm 1: On [6:30AM]
Alarm 2: Off [8:00AM]
Alarms
Using your SIRIUS TTR1 Radio
AM
4:54
1 2
41
Alarm 1 or Alarm 2. Press the TUNE knob.
5. Each alarm has 5 configuration options which are summarized in
the following table at the beginning of this section. To change an
option, turn the TUNE knob to scroll to and highlight the option.
Press the TUNE knob to configure the option.
Enable Off
Daily
Once
Weekends
Weekdays
Time 12:00 AM - 11:59 PM
Wake to SIRIUS
Buzzer
Preset Last listened (last channel tuned)
Any favorite channel (1 - 10)
Volume 1 - 20
6. Turn the TUNE knob to scroll to and highlight a setting for each
option. Press the TUNE knob to
select the setting. Continue until you
have configured all the options for
the alarm.
7. When you are done, press MENU. The
alarm settings will be saved.
Alarm
Saved
Enable: Daily
Time: 6:30AM
Wake to: SIRIUS
Preset: Last Listened
Volume: 5
Alarm 1
42
Using your SIRIUS TTR1 Radio
Snooze
When the alarm sounds, pressing the Snooze button will silence the alarm for a
period of time. After the snooze time elapses, the alarm will sound again.
To snooze:
1. Press the Snooze/Sleep button on the top
of the radio. The radio will display a snooze
time of 05 minutes.
2. Each subsequent press of the Snooze/
Sleep button increases the snooze time to
10, 15, 30, 45, or 60 minutes.
3. For the snoozing alarm, a countdown timer
is displayed showing how many minutes
are remaining before the alarm sounds
again. The alarm icon will also blink for the
snoozing alarm.
05 minutes
Set snooze time
AM
5:30
21
43
Sleep Timer
The sleep timer turns the radio off after a period of time as you fall asleep.
The time can be set to turn the radio off after 5, 10, 15, 30, 45, or 60 minutes.
To turn the sleep timer On:
1. Press the Snooze/Sleep button on the
top of the radio. The radio will display
a sleep time of 05 minutes.
2. Each subsequent press of the Snooze/
Sleep button increases the sleep time
to 10, 15, 30, 45, or 60 minutes.
3. A countdown timer is displayed at the
bottom of the screen showing how
many minutes are remaining before
the radio turns off.
To turn the sleep timer Off:
1. Repeatedly press the Snooze/Sleep
button on the top of the radio until
Off is displayed.
05 minutes
Set sleep time
Eric Clapton & B.B. King
Key to the Highway
Deep Tracks
SIRIUS 016
3:21PM
Sleep OFF
Set sleep time
44
Using your SIRIUS TTR1 Radio
Parental Control
Your SIRIUS TTR1 Radio has a parental control feature which will allow you to lock
access to channels. A 4-digit code controls access to the locked channel or locked
category.
When you browse a category, the locked channel will
have an L displayed to the right of the channel name.
If you attempt to tune to a locked channel, either by
using direct tune or through the category list, you’ll be
prompted to enter your 4-digit code. When the correct
code is entered, you’ll be able to tune to the channel.
All locked channels become unlocked and will remain unlocked until you turn the
radio Off, and back On.
If the radio is turned off while listening to a locked
channel, the next time you turn the radio on, you will
be prompted to enter your lock code. If you cancel,
and do not enter your lock code, the channel will
display Parental locked.
To change the parental lock code:
The SIRIUS TTR1 Radio has a default lock code of 1111. The first time you change
the lock code, you’ll need to enter this code during the procedure.
1. Press MENU. You can also press and hold the TUNE knob to go directly
to parental control (go to step 3).
2. Turn the TUNE knob to scroll to and highlight Parental control. Press
the TUNE knob.
100-Howard 100
101-Howard 101
102-SIRIUS XM Stars
103-Blue Collar Radio
104-Raw Dog Comedy
L
L
L
Lock channels
Parental locked
Howard 101
SIRIUS 101
11:14AM
1
45
3. Turn the TUNE knob to highlight Change lock code. Press the
TUNE knob.
4. You will be prompted to enter the original lock code. If this is the
first time you are changing the lock code, enter 1111, otherwise
enter your existing lock code. Turn the TUNE knob to scroll
through the list of numbers and
highlight each a number. Press the
TUNE knob to select the highlighted
character and move to the next
character. If you make a mistake, turn
the TUNE knob to highlight BKSP and
press the TUNE knob to erase the
character. When you have selected all 4 digits of your code, turn
the TUNE knob to highlight OK and press the TUNE knob.
5. You will be prompted to enter the new code. Enter the new code
you desire in the same way. When you have selected all 4 digits
of your code, turn the TUNE knob to highlight OK and press the
TUNE knob.
6. You will be prompted to enter the new code again. Enter the new
code again in the same way. When you have selected all 4 digits
of your code, turn the TUNE knob
to highlight OK and press the TUNE
knob.
7. If you have entered your new code
correctly, New Code Saved will be
displayed.
Enter orginal code
BKSP
OK
CANCEL
0123456789
New code saved
Category Tune
46
Using your SIRIUS TTR1 Radio
8. Press MENU to exit.
To turn Parental control Off:
1. Press and hold the TUNE knob.
2. Lock/Unlock will be highlighted. Press the TUNE knob.
3. You will be prompted to enter your 4-digit lock code. Turn the TUNE
knob to scroll through the list of numbers and highlight a number.
Press the TUNE knob to select the
highlighted number and move to the next
number. If you make a mistake, turn the
TUNE knob to highlight BKSP and press
the TUNE knob to erase the character.
When you have selected all 4 digits
of your code, turn the TUNE knob to
highlight OK and press the TUNE knob.
4. If you have entered the correct code, the parental lock is turned off. If
you entered an incorrect code, Parental lock code mismatch message
will be displayed, and the channels will remain locked.
Enter lock code
BKSP
OK
CANCEL
0123456789
Parental lock is off
Parental lock code
mismatch
Category Tune
SIRIUS
47
To lock or unlock channels:
1. Press and hold the TUNE knob.
2. Turn the TUNE knob to scroll through the list and highlight Lock
channels. Press the TUNE knob.
3. If parental control is On (locked), you will be prompted to enter
your 4-digit code, otherwise skip to step 4. Turn the TUNE knob to
scroll through the list of numbers and
highlight a number. Press the TUNE
knob to select the highlighted number
and move to the next number. If you
make a mistake, turn the TUNE knob
to highlight BKSP and press the
TUNE knob to erase the character.
When you have selected all 4 digits of your code, turn the TUNE
knob to highlight OK and press the TUNE knob.
4. When you have successfully unlocked parental control, a list of all
the channels will be displayed. Turn
the TUNE knob to scroll through the
list and highlight a channel that you
wish to lock. Press the TUNE knob
to lock the channel. An L will be
displayed to the right of the channel
name indicating that the channel is
locked.
Enter lock code
BKSP
OK
CANCEL
0123456789
100-Howard 100
101-Howard 101
102-SIRIUS XM Stars
103-Blue Collar Radio
104-Raw Dog Comedy
L
L
L
Lock channels
48
To unlock a channel, highlight a locked channel and press the TUNE
knob. The L lock indicator will be removed
indicating that the channel is unlocked.
5. Continue to lock or unlock channels until
you are done. When complete, press MENU.
You will be prompted to save the parental
lock list. Turn the TUNE knob to highlight
YES and press the TUNE knob.
6. A confirmation screen will be displayed.
Press MENU to exit.
To listen to a locked channel:
When you tune to a locked channel, the channel will display Parental locked and no
audio will play until you have unlocked the channel.
1. Select the locked channel which will display Parental locked.
2. Press the TUNE knob.
3. Turn the TUNE knob to scroll through the
list of numbers and highlight a number.
Press the TUNE knob to select the
highlighted number and move to the next
number. If you make a mistake, turn the
YES No*
Parental lock
Save parental
lock list?
Locked channels
saved
Category Tune
Enter lock code
BKSP
OK
CANCEL
0123456789
Using your SIRIUS TTR1 Radio
49
TUNE knob to highlight BKSP and press the TUNE knob to erase
the character. When you have selected
all 4 digits of your code, turn the
TUNE knob to highlight OK and press
the TUNE knob.
4. If you have entered the correct lock
code, the channel will begin playing.
Once you have unlocked one channel, all locked channels become unlocked
and will remain unlocked until you turn the radio Off. The next time you turn
the radio On, all channels will be locked.
Parental lock is of
f
Category Tune
50
Using your SIRIUS TTR1 Radio
Equalization (EQ)
You can adjust the equalization profile of the radio to adjust for room acoustics
and your listening pleasure. The profiles for
equalization are Flat, Loudness, Bass Boost, Bright,
and Vocal Boost.
Another adjustment option is spatialization.
Spatialization makes the radio sound like it is
in a three-dimensional environment. By default,
spatialization is on, but can be turned off.
To change the equalization profile:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight EQ. Press the TUNE knob.
3. Press the TUNE knob to select EQ Profiles.
4. The currently selected profile will be
denoted with an asterisk. Turn the
TUNE knob to scroll to and highlight the
equalization profile desired, and press the
TUNE knob. The radio will change to the
new equalization profile.
5. Press MENU to exit.
EQ Profiles
Spatialization
>
EQ
Flat
Loudness
Bass Boost
Bright
Vocal Boost
*
EQ
51
To turn spatialization on or off:
1. Press MENU.
2. Turn the TUNE knob to scroll to and
highlight Spatialization. Press the
TUNE knob.
3. Turn the TUNE knob to highlight ON
or OFF and press the TUNE knob.
4. Press MENU to exit.
OFF
Spatialization
Spatialization
ON*
52
53
Configuring your SIRIUS TTR1 Radio
54
SIRIUS setup
The SIRIUS setup menu option allows you to configure your user name and
password for the Sirius Internet Radio service. You
can also check the status of your connection.
If are not yet subscribed to the Sirius Internet Radio
service, go to www.sirius.com/siriusinternetradio or
call 888-539-7474 to subscribe, and get your user
name and password.
To test whether you are subscribed to service, go to www.sirius.com, click on
the LISTEN ONLINE link, and then click the LAUNCH PLAYER link. Enter your
username and password. Select a channel to listen to and then click on the
PREMIUM link. If you can listen in the Premium mode, then you are subscribed to
the SIRIUS Internet Radio service.
User name and Password
This option allows you to enter your user name and password for the Sirius
Internet Radio service.
To enter your user name:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight SIRIUS setup. Press the
TUNE knob.
User name
Password
Status
SIRIUS setup
Configuring your SIRIUS TTR1 Radio
55
3. User name will be highlighted. Press the TUNE knob.
4. Turn the TUNE knob to scroll through the list of characters and
highlight each character for your user
name. Press the TUNE knob to select
the highlighted character and move
to the next character. If you make
a mistake, turn the TUNE knob to
highlight BKSP and press the TUNE
knob erase the character.
5. When you have entered your user name, turn the TUNE knob to
scroll to highlight OK and press the TUNE knob.
6. You’ll now be prompted to enter your password. Continue with the
step 4 in next section, and enter your password.
To enter your password:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight SIRIUS setup. Press
the TUNE knob.
3. Turn the TUNE knob to scroll to and
highlight Password. Press the TUNE
knob.
4. Turn the TUNE knob to scroll through
the list of characters and highlight
each character for your password.
Password
BKSP
OK
CANCEL
0123456789 abcd
efghijklmnopqrs
tuvwxyzABCDEFGH
IJKLMNOPQRSTUVW
SIRIUS setup
The SIRIUS setup menu option allows you to configure your user name and
password for the Sirius Internet Radio service. You
can also check the status of your connection.
If are not yet subscribed to the Sirius Internet Radio
service, go to www.sirius.com/siriusinternetradio or
call 888-539-7474 to subscribe, and get your user
name and password.
To test whether you are subscribed to service, go to www.sirius.com, click on
the LISTEN ONLINE link, and then click the LAUNCH PLAYER link. Enter your
username and password. Select a channel to listen to and then click on the
PREMIUM link. If you can listen in the Premium mode, then you are subscribed to
the SIRIUS Internet Radio service.
User name and Password
This option allows you to enter your user name and password for the Sirius
Internet Radio service.
To enter your user name:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight SIRIUS setup. Press the
TUNE knob.
User name
BKSP
OK
CANCEL
0123456789 abcd
efghijklmnopqrs
tuvwxyzABCDEFGH
IJKLMNOPQRSTUVW
56
Press the TUNE knob to select the highlighted character and move
to the next character. If you make a mistake, turn the TUNE knob to
highlight BKSP and press the TUNE knob erase the character.
5. When you have entered your user name, turn the TUNE knob to scroll to
highlight OK and press the TUNE knob.
6. The Saved screen will be displayed. If you have correctly entered the
information, the radio will display the Connecting... and then the
Loading... screens. If your user name or password is incorrect, the Login
failed screen will be displayed.
Login failed
Go to SIRIUS setup
SIRIUS
Buffering...
/
SIRIUS Hits 1
SIRIUS 001
3:14PM
Configuring your SIRIUS TTR1 Radio
57
Configuring your SIRIUS TTR1 Radio
Status
The Status screen shows the current status of your Sirius Internet Radio
service, the user name you are using, and the bit rate of your connection.
To display the status:
1. Press MENU.
2. Turn the TUNE knob to scroll to and
highlight SIRIUS setup. Press the
TUNE knob.
3. Turn the TUNE knob to scroll to and
highlight Status. Press the TUNE
knob.
4. The Status screen will be displayed. Press MENU to exit.
Active
User name:
your_user_name
Bit rate:
HIGH
Status
58
System Setup
The System Setup menu option offers the following menu items:
SIRIUS page 59
AUX in page 59
Alarms page 60
Alarm 1: page 60
Alarm 2: page 60
Brightness page 60
Clock Setup page 61
Set Time/Date page 61
Auto Update page 62
Time Zone page 62
Daylight savings page 63
Network page 64
Network wizard page 64
View Settings page 65
Manual Settings page 66
Network profile page 66
Factory reset page 68
Software update page 69
Auto-check setting page 69
Check now page 70
Info page 72
Refer to the sections following for each menu option.
SIRIUS
AUX in
Alarms
Brightness
Clock Setup >
System Setup
Configuring your SIRIUS TTR1 Radio
59
SIRIUS and AUX in
These two menu options select what the radio will play— SIRIUS selects the
Sirius Internet Radio service to be played, and AUX in selects the auxiliary
input to be played. You can connect a CD or MP3 player to the AUX In
connector, and listen to it.
To select auxiliary in to be played:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup.
Press the TUNE knob.
3. Turn the TUNE knob to scroll to and highlight AUX in. Press the
TUNE knob.
4. The Auxiliary input screen will be
displayed, and the radio will play the
input from the AUX In connector.
To switch from AUX in to SIRIUS:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup.
Press the TUNE knob.
3. SIRIUS will be highlighted. Press the
TUNE knob.
4. The radio will switch back to SIRIUS
and connect to the Sirius Internet
Radio service.
Audio In
Auxiliary input
7:14PM
EQ
System Setup >
AUX in
Configuring your SIRIUS TTR1 Radio
60
Alarms
Refer to “Alarm Clock” on page 40 for information about the alarm clocks. Refer to
“Snooze” on page 42 for more information about the snooze function.
Brightness
Brightness has four settings to set the brightness of the display screen,
Automatic, High, Medium, and Low. The Automatic setting adjusts the brightness
of the display screen according to the background light in the room, automatically
dimming the display screen the darker the room.
To change the display screen brightness:
1. Press MENU.
2. Turn the TUNE knob to scroll to and
highlight System Setup. Press the TUNE
knob.
3. Turn the TUNE knob to scroll to and
highlight Brightness. Press the TUNE
knob.
4. Turn the TUNE knob to display your
desired setting, Automatic, High, Medium, or Low. Press the TUNE knob
to select your setting.
5. Press MENU to exit.
Automatic
Brightness
Configuring your SIRIUS TTR1 Radio
61
Configuring your SIRIUS TTR1 Radio
Clock Setup
Clock Setup allows you to change the clock settings:
• Set Time/Date - Change the time and/
or date.
• Auto Update - Synchronize the clock via
the Internet Yes or No.
• Time Zone - Select the time zone you are
in.
• Daylight savings - Turn daylight savings time On or Off.
To set the time and date:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup.
Press the TUNE knob.
3. Turn the TUNE knob to scroll to and highlight Clock Setup. Press
the TUNE knob.
4. Set Time/Date will be highlighted.
Press the TUNE knob.
5. Turn the TUNE knob to select the
desired hour, and press the TUNE
knob to advance to the next field.
Continue doing this until you have
finished.
Set Time/Date
Auto Update
Time Zone
Daylight savings
>
Clock Setup
07-20-2009
11:39 AM
Set Time/Date
62
To set Auto Update:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup. Press the
TUNE knob.
3. Turn the TUNE knob to scroll to and highlight Clock Setup. Press the
TUNE knob.
4. Turn the TUNE knob to scroll to and
highlight Auto Update. Press the TUNE
knob.
5. Turn the TUNE knob to select either YES
or NO, and press the TUNE knob.
6. Press MENU to exit.
To set your time zone:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup. Press the
TUNE knob.
3. Turn the TUNE knob to scroll to and highlight Clock Setup. Press the
TUNE knob.
4. Turn the TUNE knob to scroll to and highlight Time Zone. Press the
TUNE knob.
YES* NO
Auto Update
Sync. Time
Via Internet?
Configuring your SIRIUS TTR1 Radio
63
Configuring your SIRIUS TTR1 Radio
5. Turn the TUNE knob to scroll to and highlight the time zone you
are in. Press the TUNE knob.
6. Press MENU to exit.
To set daylight savings time:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup.
Press the TUNE knob.
3. Turn the TUNE knob to scroll to and highlight Clock Setup. Press
the TUNE knob.
4. Turn the TUNE knob to scroll to and
highlight Daylight savings. Press the
TUNE knob.
5. Turn the TUNE knob to select either
ON or OFF, and press the TUNE knob.
6. Press MENU to exit.
Eastern
Central
Mountain
Pacific
Alaska
>
Time Zone
ON OFF*
Daylight savings
Daylight savings
64
Network
Network allows you to view and change the network settings:
• Network wizard - Helps you to easily connect
to a network
• View settings - Displays information about
your network connection
• Manual Settings - Allows you to manually
setup your connection to a network
• Network profile - Displays the wireless network connections saved in the
radio
Each Network menu option is discussed in the sections which follow.
Network Wizard:
IMPORTANT! To connect to a wireless network which restricts access by MAC
address, the MAC address of the SIRIUS TTR1 Radio must be added to the allowed
list of MAC addresses in the access point before connecting. You can find the MAC
address of your radio by pressing MENU, then turning and pressing the TUNE
knob to highlight and select: System Setup Network View settings. The
MAC address of the SIRIUS TTR1 Radio will be displayed.
Refer to one the following sections for detailed instructions on using the Network
Wizard to connect to a network:
Network wizard
View settings
Manual Settings
Network profile >
Network settings
Configuring your SIRIUS TTR1 Radio
65
Configuring your SIRIUS TTR1 Radio
• For connecting to a wireless network, refer to “To connect to a
wireless network using the Network Wizard:” on page 17.
• For connecting to a wired network, refer to “To connect to a wired
network using the Network Wizard:” on page 20.
View settings:
View Settings displays information about your network connection, including
the type of connection, the status, the radio’s MAC address, and other
network connection details such as IP addresses.
To view the network settings:
1. Press MENU.
2. Turn the TUNE knob to scroll to and
highlight System Setup. Press the
TUNE knob.
3. Turn the TUNE knob to scroll to and
highlight Network. Press the TUNE
knob.
4. Turn the TUNE knob to scroll to and highlight View settings.
Press the TUNE knob.
5. Turn the TUNE knob to scroll through the network settings.
6. Press MENU to exit.
Active connection:
WLAN is active
MAC address:
00:00:00:00:00:00
Wlan region:
View settings
66
Manual Settings:
Refer to one the following sections for detailed instructions on using the Manual
Settings to connect to a network:
• For connecting to a wireless network, refer to “To connect to a wireless
network using the Manual Settings:” on page 22.
• For connecting to a wired network, refer to “To connect to a wired network
using the Manual Settings:” on page 27.
Network profile:
Network profile displays the wireless network
connections which are stored in the radio when you
connect to a wireless network. You can delete the
profiles if desired.
To view and delete the network profiles:
Note that you cannot delete the active wireless network profile.
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup. Press the
TUNE knob.
3. Turn the TUNE knob to scroll to and highlight Network. Press the TUNE
Your_Network_Name
Some_Other_Network
*
Network profile
Configuring your SIRIUS TTR1 Radio
67
knob.
4. Turn the TUNE knob to scroll to and highlight Network profile.
Press the TUNE knob.
5. The saved wireless network names will be displayed. If you wish to
delete a profile, turn the TUNE knob
to scroll to and highlight a profile
name. Press the TUNE knob.
6. Confirm that you really want to delete
the profile. Turn the TUNE knob to
highlight YES or NO and press the
TUNE knob.
7. Press MENU to exit.
YES NO*
Confirm delete
Confirm delete
Configuring your SIRIUS TTR1 Radio
68
Factory reset
Factory reset restores the SIRIUS TTR1 Radio to the factory settings. It will
erase all the stored network settings, account user name and password, favorite
channels, alarm clock settings, lock code, and set all other options back to the
factory settings.
To restore the radio to the factory settings:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup. Press the
TUNE knob.
3. Turn the TUNE knob to scroll to and highlight Factory reset. Press the
TUNE knob.
4. Confirm that you really want to proceed
with the factory reset. Turn the TUNE
knob to highlight YES or NO and press the
TUNE knob.
5. The screen will display Restarting and the
radio turn off.
YES NO*
Factory reset
Proceed?
Configuring your SIRIUS TTR1 Radio
69
Software update
Software update allows you to set the radio to automatically check for any
available software updates, and also to manually
force the radio to check if an update is available.
SIRIUS occasionally updates the software for
their radios.
By default, the SIRIUS TTR1 Radio is set to
automatically check for updates. If it finds a
software update, you’ll be prompted that a new software is available. You can
change this setting so the radio will not automatically check for updates.
To change automatic software updates:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup. Press
the TUNE knob.
3. Turn the TUNE knob to scroll to and highlight Software Update.
Press the TUNE knob.
4. Turn the TUNE knob to scroll to and
highlight Auto-check setting. Press
the TUNE knob.
5. Select whether you periodically
want the radio to check for software
updates. Turn the TUNE knob to
Auto-check setting
Check now
Software update
YES* NO
Software update
Check periodically for
new versions?
Configuring your SIRIUS TTR1 Radio
70
highlight YES or NO and press the TUNE knob.
6. Press MENU to exit.
To force the radio to check for a software update:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup. Press the
TUNE knob.
3. Turn the TUNE knob to scroll to and
highlight Software Update. Press the
TUNE knob.
4. Turn the TUNE knob to scroll to and
highlight Check now. Press the TUNE
knob.
5. The radio will check for a software update.
If an update is available, the radio will
download and install the update. If no
update is available, Software up to date
will be displayed. If a software update is
available, Software update is displayed.
6. Press MENU to exit.
Software update
Checking for
new versions.../
Software up to
date
Software update
Configuring your SIRIUS TTR1 Radio
71
Configuring your SIRIUS TTR1 Radio
Updating the software:
If you manually force the radio to check for a software update, or the radio
automatically finds a software update, and you want to update the software,
follow these steps.
1. The Software update screen is
displayed. Turn the TUNE knob to
highlight YES and press the TUNE
knob.
2. The radio will download the software
update. Allow the download to finish.
3. When the download is complete, you
will be prompted to proceed with the
installation of the software. The
default answer is YES. Press the
TUNE knob to proceed.
4. You will be warned not to power
off the radio, and the radio will be
updated with the new software.
Software update
New version available.
Update Software?
YES NO*
Software update
1.5.6.21635-1A17
Downloading
/
YES* NO*
Software update
Proceed?
Software update
1.5.6.21635-1A17
Updating...
/
72
5. When the update is complete, you’ll be prompted to Press ‘SELECT’ to
start. Press the TUNE knob.
6. The radio will start with the new software.
Info
Info displays the software version number, and the Radio ID number.
To display the information:
1. Press MENU.
2. Turn the TUNE knob to scroll to and highlight System Setup. Press the
TUNE knob.
3. Turn the TUNE knob to scroll to and
highlight Info. Press the TUNE knob.
4. The software version number, and the
Radio ID number will be displayed.
5. Press MENU to exit.
Software update
Update
Completed
Press ‘SELECT’ to start
SW version:
v1.5.6.21635-1A13
Radio ID:
0013E09BD52FB6:1E
Info
Configuring your SIRIUS TTR1 Radio
73
Troubleshooting
Configuring your SIRIUS TTR1 Radio
74
Your SIRIUS TTR1 Radio has been designed and built to be trouble-free but if you
experience a problem, here’s some troubleshooting hints.
You can also call SIRIUS Customer Care at XXX-XXXX-XXXX.
If you see this on the screen: Try this:
Connecting •The radio is attempting to connect to the Sirius
Internet Radio service. If this message is displayed
more than one minute, make sure your network is
connected to the Internet.
To verify that you have an Internet connection,
refer to “To force the radio to check for a software
update:” on page 70 and follow the procedure. If
you get the message Software up to date, or New
version available, then the radio is connected to the
Internet. If you get the message, Login failed, then
you don’t have an Internet connection. Check with
your network administrator for Internet connectivity
on your network.
•Turn your radio Off and On again.
Loading •The radio is loading the channel information. If this
message is displayed for more than one minute,
make sure your connection to the Internet has
not been interrupted. See Connecting (previous
troubleshooting item) for verifying your Internet
connection.
•Turn your radio Off and On again.
Updating •Your radio is installing a software update. Do not turn
the radio off. Allow the software update complete.
Troubleshooting
75
Troubleshooting
If you see this on the screen: Try this:
Waiting for Ethernet •The radio is expecting a wired Ethernet
connection. Plug an Ethernet wire into your
home network, then plug the other end into the
Ethernet connection inside the compartment at
the rear of the radio.
•Change to a wireless network connection if a
wired Ethernet connection is not available.
Login failed •Your SIRIUS user name and/or password is
incorrect, you don’t have a subscription to
the Sirius Internet Radio service, or your
subscription is no longer valid. To verify that you
are subscribed to service, go to www.sirius.com,
click on the LISTEN ONLINE link, and then click
the LAUNCH PLAYER link. Enter your username
and password. Select a channel to listen to and
then click on the PREMIUM link. If you can listen
in the Premium mode, then you are subscribed
to the SIRIUS Internet Radio service.
Failed to connect •The network information you entered is
incorrect. Verify and re-enter the information.
•You have entered an incorrect password for a
secure wireless network. Verify and re-enter the
information.
•If you have manually configured a network
connection, you have entered one or more
incorrect settings. Verify and re-enter the
information.
76
If you see this on the screen: Try this:
Stream Closed •Your account username and password has been
used at another location to connect to the Sirius
Internet Radio service, and your radio has been
disconnected from the service. Turn your radio
Off and On again.
If this happens: Try this:
You do not receive all the SIRIUS
channels to which you subscribed
•The Sirius Internet Radio service does not have
not of the same channels as the SIRIUS satellite
service.
Check www.sirius.com/siriusinternetradio and
click the view channel lineup link for the latest
channel lineup.
The Network Wizard does not find
your wireless network
•Your wireless network has a hidden name (SSID).
If so, you will have to manually configure your
network connection, or used a wired network
connection.
•The wireless signal from your access point is too
low. Try moving the radio closer to your access
point and see if the Network Wizard finds your
wireless network.
The Network Wizard fails before
the radio connects to your
network
•Your network has DHCP disabled. You’ll have to
manually configure your network connection.
Troubleshooting
77
Product Specifications
Troubleshooting
78
Product Specifications
Dimensions
SIRIUS TTR1 Radio 283 mm (W) x 185 mm (H) x 95 mm (D)
11 in (W) X 7.25 in (H) X 3.75 in (D)
Remote 52 mm (W) x 85 mm (H) x 5 mm (D)
2 in (W) x 3.3 in (H) x .25 in (D)
Weight
SIRIUS TTR1 Radio 2.85 kg (6.3 lbs)
Audio Outputs
Headphone 3.5 mm diameter mini stereo jack
Line Out 3.5 mm diameter mini stereo jack
Audio Input
Aux In 3.5 mm diameter mini stereo jack
79
Patent and Environmental Information
Patent Information
It is prohibited to, and you agree that you will not, copy, decompile,
disassemble, reverse engineer, hack, manipulate, or otherwise access and/
or make available any technology incorporated in this product. Furthermore,
the AMBEª voice compression software included in this product is protected
by intellectual property rights including patent rights, copyrights, and trade
secrets of Digital Voice Systems, Inc. The software is licensed solely for use
within this product. The music, talk, news, entertainment, data, and other
content on the Services are protected by copyright and other intellectual
property laws and all ownership rights remain with the respective content
and data service providers. You are prohibited from any export of the content
and/or data (or derivative thereof ) except in compliance with applicable
export laws, rules and regulations. The user of this or any other software
contained in a SIRIUS | XM radio is explicitly prohibited from attempting to
copy, decompile, reverse engineer, hack, manipulate or disassemble the object
code, or in any other way convert the object code into human-readable form.
Environmental Information
Follow local guidelines for waste disposal when discarding packaging and
electronic appliances.
Your radio is packaged with cardboard, polyethylene, etc., and does not
contain any unnecessary materials.

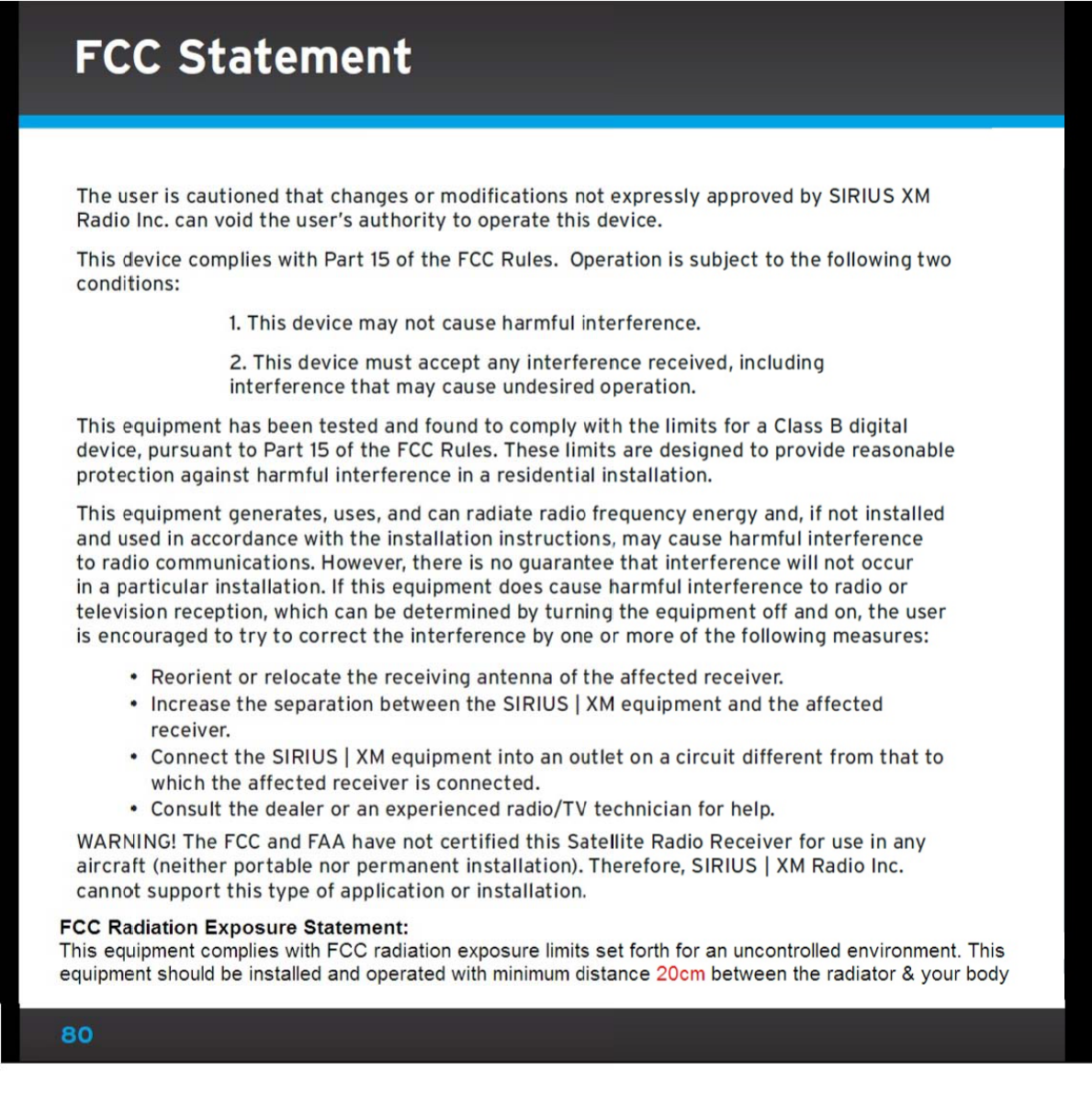

81
©2009 SIRIUS XM Radio Inc. “SIRIUS”, “XM” and all related marks and logos are
trademarks of SIRIUS XM Radio Inc. and its subsidiaries. “BBC” and “Radio One” are
trademarks of the British Broadcasting Corporation and are used under license. BBC
logo © BBC 1996. Radio 1 logo © BBC 2001. Cosmopolitanª is a registered trademark
of Hearst Communications, Inc. Elvis Radio logo © EPE Reg. U.S. Pat & TM off. IndyCar
(and Design) are registered trademarks of Brickyard Trademarks, Inc., used with
permission. Major League Baseball trademarks and copyrights are used with permission
of Major League Baseball Properties, Inc. Visit the official website at MLB.com. Games
subject to availability and change and may not include all spring training games. All
rights reserved. NASCARª is a registered trademark of the National Association for
Stock Car Auto Racing, Inc. The NBA identifications are the intellectual property of
NBA Properties, Inc. and the respective NBA member teams. © 2009 NBA Properties,
Inc. © 2009 NFL Properties LLC. All NFL-related trademarks are trademarks of the
National Football League. NHL and the NHL Shield are registered trademarks of the
National Hockey League. © NHL 2009. All NHL logos and marks and NHL team logos
and marks depicted herein are the property of the NHL and the respective teams and
may not be reproduced without the prior written consent of NHL Enterprises, L.P. The
Home Ice® channel is a registered trademark of XM Satellite Radio Inc. The Swinger
Golfer logo is a registered trademark of PGA TOUR, Inc. Visit xmradio.com/xmlineup for
updates. All programming/channel lineup/XM service subject to change or preemption.
All other marks and logos are the property of their respective owners. All rights
reserved. Hardware, subscription and activation fee required. Other fees and taxes may
apply. Month-to-month subscriptions must be activated via telephone. Hardware and
subscription sold separately. Subscription governed by XM Customer Agreement, which
can be found at xmradio.com/serviceterms. Prices and programming are subject to
change. SIRIUS Radio U.S. service only available in the 48 contiguous United States
and the District of Columbia.
Copyrights and Trademarks
82
Owner’s Record
The model number is located below and the Radio ID is located on the label on the
SIRIUS TTR1 Radio
Record the Radio ID in the space provided below. Refer to these numbers
whenever you call your dealer regarding this product.
Model Number: TTR1
Radio ID:___________________________
Owners Record
Owners Record
sirius.com
SIRIUS XM Radio Inc.
1221 Avenue of the Americas
New York, NY 10020
1.866.746.6796
© 2009 SIRIUS XM Radio Inc.
SIRIUS TTR1 Radio 080409a

Navigation menu
