User Manual
![](/img.php?id=1875663&img=bg1.png)
Carisma
User Manual
© 2010. All rights are reserved. No part of this document
may be reproduced without permission.
![](/img.php?id=1875663&img=bg2.png)
2
While all efforts have been made to ensure the accuracy of all
contents in this manual, we assume no liability for errors or
omissions or statements of any kind in this manual, whether
such errors or omissions or statements resulting from
negligence, accidents, or any other cause. The contents of
this manual are subject to change without notice.
Protect our environment! We strive to produce products in
compliance with global environmental standards. Please
consult your local authorities for proper disposal.
Note: User’s Manual is Just to guide the user about the
functionality of the phone. This does not seem any certificate
of technology. Some functions may very due to modifications
and up gradations of software or due to print mistake.
Welcome
Congratulations on your purchase of the mobile phone. Your
phone provides many functions which are practical for daily
use, such as a hands-free loudspeaker, camera, MP3 player,
video recorder, and more. Your phone can also connect to a
PC, laptop, or other device using a USB data cable.
You can read the manual for details on how to use mobile
phone and experience the well-established functions and
simple operation method. Please use the original accessory in
order to achieve the best use of effects, such as the use of
non-original components of the damage caused by
machinery, the company shall not be responsible.
![](/img.php?id=1875663&img=bg3.png)
3
Contents
1About your Mobile Phone.............................................. 5
1.1Appearance............................................................... 5
1.2Functions of Keys..................................................... 7
1.3Icons.......................................................................... 7
2Getting started................................................................ 14
2.1The Battery............................................................. 14
2.2Install & remove a battery.................................... 14
2.3Charging.................................................................. 14
2.4SIM card installation.............................................. 15
2.5Memory card installation....................................... 15
2.6Storage Management............................................ 15
2.7Power on and off.................................................... 16
3Call functions................................................................... 16
3.1Make a call.............................................................. 16
3.1.1Make a domestic call ........................... 16
3.1.2Make an extension call ........................ 17
3.1.3Make an international call .................... 17
3.1.4Make a call from Mobile Phone book..... 17
3.1.5Redial a call by recent call lists............. 17
3.2Answer a call .......................................................... 17
3.3Reject a call ............................................................ 17
3.4Call options............................................................. 18
4Menu functions ............................................................... 18
4.1Message .................................................................. 18
4.1.1SMS ................................................... 18
4.1.2MMS................................................... 20
4.1.3Chat................................................... 23
4.1.4Voicemail server.................................. 23
4
4.1.5Broadcast Message.............................. 23
4.2Multimedia .............................................................. 24
4.2.1Mobile TV ........................................... 24
4.2.2Audio Player........................................ 24
4.2.3Camera............................................... 24
4.2.4Image Viewer ..................................... 25
4.2.5Video Recorder ................................... 25
4.2.6Video Player........................................ 25
4.2.7Sound Recorder .................................. 26
4.2.8FM Radio............................................ 26
4.3Organizer................................................................. 27
4.3.1Pray Setting........................................ 27
4.3.2Alarm ................................................. 27
4.3.3World Clock ........................................ 27
4.3.4Tasks.................................................. 27
4.3.5Calendar............................................. 27
4.3.6Bluetooth............................................ 27
4.4Settings ................................................................... 28
4.4.1Cards Setting...................................... 28
4.4.2User profiles....................................... 28
4.4.3Display ............................................... 29
4.4.4Phone................................................. 29
4.4.5Call settings........................................ 30
4.4.6Network setting................................... 32
4.4.7Sound effects...................................... 32
4.4.8Security Setup..................................... 32
4.4.9Mobile tracker..................................... 33
4.4.10Restore Factory settings ...................... 33
4.4.11Sound effect ....................................... 33
4.5Call center............................................................... 33
4.5.1Call history.......................................... 34
![](/img.php?id=1875663&img=bg5.png)
5
4.6Games...................................................................... 34
4.7Web.......................................................................... 34
4.7.1WAP................................................... 34
4.7.2Data account ...................................... 35
4.8PC suite................................................................... 35
5Safety information......................................................... 36
5.1Operating environment......................................... 36
5.2Electronic devices................................................... 36
5.2.1Pacemaker.......................................... 36
5.2.2Hearing aids ....................................... 37
5.2.3Other medical devices ......................... 37
5.2.4Vehicles.............................................. 37
5.3Potentially dangerous situations.......................... 37
1 About your Mobile Phone

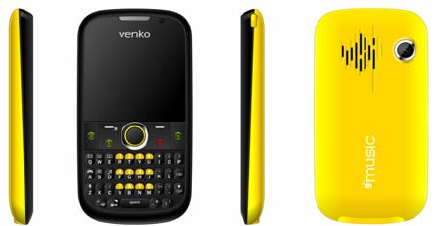

1.1 Appearance
View
![](/img.php?id=1875663&img=bg6.png)
6
Model GG1053A
Size 108.1mm*59mm*12mm
MODEL
Weight 70g(battery included)
Type Lithium battery
Standard Voltage 3.7 V
Restrictions on
Charging voltage 4.2 V
BATTERY
Rated capacity 850 mAh
Model GG1053A
Input 110-240V
CHARGER
Output 5.0V
![](/img.php?id=1875663&img=bg7.png)
7
1.2 Functions of Keys
1.3 Icons
Status Icons
Network Signal
Connecting GPRS and using
GPRS
Auto Keypad Lock
Alarm Clock is activated
New Message or Message
Memory Full
WAP Message
Sound Status
Ringing
Vibrating
![](/img.php?id=1875663&img=bg8.png)
8
Vibrating and Ringing
Silent
Back Light
You can set the Back Light for the display and keypad
through options in the menu. The backlight will switch off
automatically if no key operated for a while.
IMPORTANT INFORMATION
Use of Passwords
Your mobile phone and SIM card have various passwords.
Those passwords avoid unauthorized use of your phone and
SIM card. You can change PIN, PIN2 and phone password in
the “Settings > Security”
Phone Code
The Phone code can be used to avoid unauthorized use of
your phone. The factory setting for the phone code is 4321.
If phone lock is enabled, you will be asked to input the phone
password when you switch on your phone.
PIN (4 to 8 digits)
The PIN (Personal Identification Number) code protects your
SIM card from unauthorized use. The PIN code is usually
supplied with the SIM card. When the PIN code request is
enabled, the password is asked every time the phone is
turned on.
Three times wrong PIN input, the SIM card will be locked and
you will need to use the PUK to unlock it. PUK is usually set by
the network operator.
1. Enter the correct PUK to unlock the SIM card, and then
enter the new PIN and press OK.
9
2. If you are prompted to enter the new PIN again, enter it
and press OK.
3. If the PUK is correct, the SIM card will be unlocked and
the PIN will be reset.
PUK (8 digits)
The PUK (Personal Unblocking Key) code is required to
change a blocked PIN code. Please contact your network
operator for the code.
Note: Ten times wrong input in succession, the SIM card will
be invalid and you need to consult with your network
operator for a new SIM card.
PIN2 (4 to 8 digits)
The PIN2 code, supplied with some SIM card, is used for
some functions, such as Call Cost, Fixed Dial and so on.
Please consult your network operator to confirm whether
your SIM card supports those services or not.
Three times wrong PIN2 code input, the SIM card will be
locked and you will need to use the PUK2 to unlock it.
1. Enter the correct PUK2 to unlock PIN2, and then enter the
new PIN2 and press OK.
2. If you are prompted to enter the new PIN2 again, enter it
and press OK.
PUK2 (8 digits)
The PUK2 code, supplied with some SIM card, is required to
change a blocked PIN2 code. It may be supplied with the SIM
card. If not, contact your network operator.
10
Note: Ten times wrong input in succession, the SIM card will
be invalid and you need to consult with your network
operator for a new SIM card.
Barring Code
To activate call barring, you need a Barring Code. You obtain
the password from your service provider.
Battery Information
Charging and Discharging
The charger is designed to be used in temperatures
between 0°C to 40°C.
Do not charge the phone in wet and damp conditions.
Use only batteries approved by the phone manufacturer
and recharge your battery only with the charger
approved by the manufacturer.
We strive to produce products in compliance with global
environmental standards
The charger meets the standard for safety of
information technology equipment and office equipment
use. It must be used for this purpose only.
Your phone is powered by a rechargeable battery. Full
performance of the battery is achieved only after two or
three complete charge and discharge cycles.
When the battery level is low, “Low Battery” will be
displayed on the LCD screen. If you have selected Alert
Tone (Warning Tone of any profile in Profiles), the
phone will sound the alert tone.
When a charger is not in use, disconnect it from the
power source. Do not leave the battery connected to a
11
charger for longer than 12 hours, since overcharging
may shorten its life.
Temperature extremes will affect the ability of your
battery to charge.
Tips for Battery
Placing the battery in hot or cold places, such as in a
closed car in summer or winter, will reduce the capacity
and lifetime of the battery.
Do not let the metal contacts on the battery touch other
metal contacts. It could short-circuit and damage the
battery. Use the battery only for its intended purpose.
Do not disassemble or modify the battery by yourself.
Do not clean the battery with water or any organic
solvent.
Always keep the battery dry.
The battery can be charged and discharged many times
but it will wear out with time. When the talk and standby
time is obviously shorter than normal, please change
with the original battery approved by manufacturer.
Do not short-circuit the battery.
Turn off mobile phone before removing the battery.
Do not dispose of batteries in fire.
If you smell anything strange from the battery or find
that the battery is overheated, you should stop using it
immediately and contact the authorized After Service
Center in your region.
If you don’t use the battery for a long time, please fully
charge the battery before you store it.
12
Batteries should never be placed in municipal waste.
Batteries must be recycled or disposed of properly.
Please follow local regulations for disposal of batteries.
Usage & Maintenance
To keep your product working well, take a moment to review
the following usage & maintenance tips, which will help you
to fulfill any warranty obligations and to enjoy this product for
many years.
Keep your phone and all its parts and accessories out of
children’s reach.
Your products are not water-resistant. Keep it dry.
Precipitation, humidity and liquids contain minerals that
will corrode the connectors.
Always treat your products with care and keep it in a
clean and dust-free place.
Do not expose your product to extreme high or low
temperatures. Your phone operates best in temperature
between 15 °C and 25°C. Minimum and maximum
temperatures recommended by the manufacturer are
-10°C and 55°C.
Do not expose your product to open flames or lit
tobacco products.
Do not attempt to disassemble or modify your product.
Only authorized personnel should perform service.
Do not drop, throw or try to bend your product.
Do not paint your product.
Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean it.
13
Keep anything magnetic, such as credit cards, far away
from your product.
If you find that the battery has any crack, deformation
or anything else, you should stop using the battery
immediately.
If the electrolyte leak out and contact your skin or
clothes, you should immediately use soap and clean
water to clean it. In case the electrolyte spatters into
your eyes, you must use the clean water to wash your
eyes thoroughly and go to the hospital immediately.
If your phone or any accessory doesn’t function normally,
please send them to the nearest authorized service
facility. The qualified personnel there will assist you, and
if necessary, arrange for service.
Emergency Calls
This phone, like any wireless phones, operates using radio
signals. Wireless networks cannot guarantee connection in all
conditions. Therefore, you should never rely solely upon any
wireless phone for essential communications (e.g. medical
emergencies)
To make an emergency call:
1> Switch your phone on.
Some networks may require that a valid SIM card is
properly inserted in the phone
2> Dial the official emergency number. Emergency
numbers vary by location.
While making an emergency call, please remember to give all
information as correctly as possible. Never end the call until
you are given permission to do so.
14
2 Getting started
2.1 The Battery
The lithium battery can be charged and discharged hundreds
of times. Please use the approved batteries, and only use the
battery charger approved by the Mobile Phone producer to
charge your battery.
2.2 Install & remove a battery
Remove:
(1)Slide forward the bottom off the back cover to remove.
(2) Lift the battery from its slot and take it out.
Install:
(1) Place the battery into the battery slot.
(2) Slide the back cover toward the top of the Mobile Phone
to lock the cover into its place.
Warning:
(1) There may be the risk of explosion if the battery is
replaced by the wrong type.
(2)Dispose of used batteries according to the guidelines.
2.3 Charging
To plug in the power charger, the charger cable plug at the
bottom of the Mobile Phone
Note:
1. It is beneficial to the battery to charge it until full at the
first three times.
2. When charging, don’t remove or take out off the battery
to avoid the battery circuit to burn out.
3. While charging, it is normal that the Mobile Phone and
charger will become hot.
4. If the battery is completely empty, it may take a period of
time before the charging icon appears on the display.
![](/img.php?id=1875663&img=bgf.png)
15
Warning: Provides charging temperature range -5
to 55 , over this range, please do not use the ℃℃
charging equipment. And be sure to use the charger
provided by the supplier. Use of an unapproved
charger may be dangerous and breach of warranty
of the equipment approval and terms.
Notice:
The socket-outlet shall be installed near the equipment
and shall be easily accessible。
2.4 SIM card installation
Turn off the Mobile Phone, and take out the battery.
Keep the gold color side of the SIM card downward, and slide
it gently to the right place.
2.5 Memory card installation
Power off the Mobile Phone, and take out the battery or any
other electrical supply.
Keep the golden color side of the Memory card downward,
and push it gently to the right place.
Before take out off the memory card, be sure to Power off the
Mobile Phone and remove the battery first.
2.6 Storage Management
Manage the storage space of memory card.
1. The computer and synchronize
Note: This Mobile Phone does not support USB boot function;
all operations are on the computer need to use the card
reader.
You can enter after the discovery has a number of preset
folders, for normal use, set the relevant documents were
deposited with the corresponding directory, that is, which
corresponds to MP3 folder My music, photos corresponding
![](/img.php?id=1875663&img=bg10.png)
16
album Folder, corresponding folders, pictures corresponding
Images folder. Sound recording, self-Tone Audio
corresponding folder.
2. Format
If you format the memory card, all files saved in it will be lost.
By two ways you can format your Memory card:
Format by Mobile Phone: enter File Manager—>select
Memory card —>select Format.
Format by computer: Please complete the format work as
following steps:
(1) Right-click "My Computer" and choose "management",
after entering the option "store" -> "Disk Management";
(2) In the memory card on the disk where the right-click and
choose "format";
2.7 Power on and off
Press and hold key to turn on/off the Mobile Phone.
And if you have set PIN or Mobile Phone code, input it
correctly.
3 Call functions
3.1 Make a call
When the network supplier's symbol appears when the
display monitors, you might dial or answer the mobile phone.
Under readiness for action, display monitor top left-hand
corner information strip demonstration network signal
strength (when has 4 information strip expressed signal is
strongest).After the user inserts SIM cards, may realize the
double caliper also to wait for an opportunity.
3.1.1 Make a domestic call
Enter the Mobile Phone number including the area code.
Press Key to make a call.
![](/img.php?id=1875663&img=bg11.png)
17
3.1.2 Make an extension call
When making an extension call, press and hold 0 key to get
“P” that is a prefix of extension numbers. It will dial
automatically in several seconds since you dialed the mobile
phone exchange.
viz.: area code—telephone exchange numbers—P—extension
numbers, then press key.
3.1.3 Make an international call
Enter the country code, the area code and the Mobile Phone
number, press key to dial. ”+” is needed when input
country code, and it can be got by pressing and holding 0 key.
Dial to Hong Kong, Macao and Taiwan Mobile Phone ibid.
3.1.4 Make a call from Mobile Phone book
Enter the telephone directory tabulation, the telephone
number which the choice must dial, the pressed key passes
the excessively leftist soft key choice to use the SIM dials.
3.1.5 Redial a call by recent call lists
Press key to find the SIM recent call lists or the recent
call lists, scroll to the number or name, and then press
key to use the SIM dials.
3.2 Answer a call
An incoming call window will be displayed as the Mobile
Phone receives a call. The number will appear on the window
if you have opened this function. Press key to answer it.
If you missed a call, a missed call log will appear after you
return to the start screen.
3.3 Reject a call
You can press key to reject an incoming call.
18
3.4 Call options
In the call, press left soft key "options" to enter the call
option, there is OK to answer multi-functional conference
needs to support the network, contact your network vendor.
4 Menu functions
4.1 Message
User can insert picture, animation, melody and sound
etc. User can use template to create the SMS.
Enter the submenu of Messages, there are several items
like Inbox, outbox, write message, templates and
message settings.
4.1.1 SMS
4.1.1.1 Write Message
Enter the submenu of Write Message, user can select
Text Message.
Access Text Message menu to edit message, press
“option” to do as following:
- SIM Done
After finished edit, user can choose “send to”, “Input
method”, “Insert template”, “Advanced” and “send to
Drafts”.
- Insert template
EMS can be supported in this Mobile Phone. User can
insert picture, my picture, predefined animation, melody,
my melody and predefined sound.
Note: Only the Mobile Phone supporting EMS can
received the message with picture, animation and
sound.
- Advanced
- Save to Draft
19
4.1.1.2 Inbox
Access this menu to view the received short Messages.
Choose the SMS inbox and enter it to read the received
Messages. Press left soft key in view Text Message
screen to do the following functions View, Reply, Call
sender, Forward
Delete , Delete all ,save to phonebook, mark several
4.1.1.3 Outbox
Access this menu to view the sent short Messages.
Choose the SIM1 outbox and enter it to read the
uncompleted short Messages and sent Messages, drafts.
(The SIM2 outbox has the same function, so we do not
do it in explained specially.)
Press left soft key in view Text Message screen to do the
following functions, view, forwards, Delete, Delete all
and mark several
4.1.1.4 Templates
There are ten predefined texts. User can use them to
edit, Erase or Write message.
4.1.1.5 SMS settings
Enter the submenu of Write Message, user can select
Text Message. Access Text Message menu to edit
message, press “option” to do as follow:
- SIM1 message setting
- SIM2 message setting
- SIM3 message setting
- SIM4 message setting
You can profile/Common setting as follow for SIM1 and
SIM2:
- Profile Settings
Contact with local network provider to get the SC
20
address. After entering the submenu, the setting
list will be displayed. The number of the list is
different according to the network and the type of
SIM card, Select the mode and press “edit” to set
the profile name, SC address, valid period and
message type.
- Voicemail server
- Common settings
Set the delivery report and reply path.
- Memory Status
Check memory space of messages in Mobile Phone
or SIM.
- Preferred Storage
Select to save in phone or SIM.
4.1.2 MMS
4.1.2.1 Write Message
Enter the submenu of Write Message, user can select
Text Message. (The SIM2 outbox has the same function,
so we do not do it in explained specially.)
Access Text Message menu to edit message, press
“option” to do as following:
- SIM Done
After finished edit, user can choose “send only”, “save”,
“save and send”, “send to many” and “send By Group”.
- Use Templates
Insert the predefined text in the Mobile Phone to the
message.
- Insert object
EMS can be supported in this Mobile Phone. User
can insert picture, my picture, predefined
animation, melody, my melody and predefined
21
sound.
Note: Only the Mobile Phone supporting EMS can
received the message with picture, animation and
sound.
- Format Text
Set text style, alignment, new paragraph of the
message.
- Insert Number
Enter phonebook to select the number.
- Insert Name
Enter phonebook to select the name.
- Insert Bookmark
Enter the bookmark in WAP.
- Input Method
Change the input method.
4.1.2.2 Inbox
Access this menu to view the received MMS. Choose the
MMS inbox and enter it to read the received Messages.
Press left soft key in view Text Message screen to do the
following functions (The SIM2/3/4 outbox has the same
function, so we do not do it in explained specially.)
- Reply
- Delete
- Forward
- Copy to Mobile Phone
- Move to Mobile Phone
- Delete all
- Copy all
- Move all
- Use number: Extract the number of the message
or in the message. The length of the number is
22
between 3 and 40. User can call the number
directly or save it to phonebook.
- Use URL: Extract the URL of the message or in the
message. Users can visit the page, or save it to
your bookmarks.
4.1.2.3 Outbox
Access this menu to view the received MMS. Choose the
SIM outbox and enter it to read the uncompleted MMS
and sent Messages, drafts. Press left soft key in view
Text Message screen to do the following functions
- Send from SIM
- Edit
- Use URL: Extract the website in the message and
visit it.
- Use USSD
4.1.2.4 Drafts
The SMS which is not been sent is been stored in the
“ Draft”. User can check the SMS in the draft, and do the
following options:
- View: View the SMS which is not been sent
- Send: Send the SMS from the draft
- Edit: Edit the SMS in the draft
- Delete: Delete the SMS in the draft
- Delete all: Delete all the SMS in the draft
- Mark several: Mark the SMS in the draft.
- Advanced: In the menu, there are 4 options “Copy
to phone”, ”Move to phone”, ”Copy all” ,”’Move all”.
That’s mean the user can make the unsent SMS in
draft copy to the phone or move to the phone.
4.1.2.5 MMS Settings
Access submenu of Message Settings, user can select
23
SIM Message settings. Before using message function,
you should do some settings as following:
- Edit account
Contact with local network provider to get the SC
address. After entering the submenu, the setting
list will be displayed. The number of the list is
different according to the network and the type of
SIM card, Select the mode and press “edit” to set
the profile name, SC address, valid period and
message type.
- Common setting
z Compose
You can select mode/image Resizing/Best page
time here
z Send
z Retrieve
z Filter
z Memory Status
Check memory space of messages in Mobile Phone
or SIM.
4.1.3 Chat
Chat room is anther type of SMS , Both sides will see all
the chat history .
4.1.4 Voicemail server
The function is supported by the local operator. People
who call you can leave a voice message for you when
you do not want to answer the calling, or miss the
calling .Please contact to the local operator to get the
detail.
4.1.5 Broadcast Message
Broadcast public information sent by the network
24
providers. Use Cell Broadcast service, you can receive
information on various subjects from network provider.
For more available information, please contact your
local network providers.
4.2 Multimedia
4.2.1 Mobile TV
Area Setting:You can choose the correct country to search
for the television.
Channel Setting:when you choose the correct country, Use
the ”Search” Option to search the channel automatically.
REC Setting:User this, user can record the TV program
Storage:You can storage the TV program in T-FLASH cards.
4.2.2 Audio Player
Select Multimedia/audio player item in main menu to
enter audio player interface.
- Press the track pad to play or pause Mp3
- Slide the track pad to left/right to switch to the
previous/next song
- Slide the track pad up or down to adjust the
volume.
- Press “#” key to mute the music.
- press “*” key to view the information of the song.
4.2.3 Camera
From the main menu select [Multimedia] / cameras,
according to the "OK" to enter. In the preview, you can
be left soft key "options" are as follows: photos, camera
settings, image setting, white balance, scene mode,
storage, restore default, to restore the default values in
order to carry out a more detailed set of parameters.
25
4.2.4 Image Viewer
Select submenu album, you can easily view the album
stored in the camera in the picture list, it may also
choose to view pictures, browse style, send, rename,
delete, delete all files, entire albums of pictures in order
and switch Photo album in the store path. One can view
the picture by 1 to 3 keys to the picture to enlarge,
reduce, rotate operation, under the specific
circumstances of the operation and success of the
factors related to the size of the picture.
4.2.5 Video Recorder
Access the menu, the screen is in preview state. While
preview, press “option” and do as following:
- Camcorder Settings: include, banding and video
quality.
- Video Setting -white balance –Effect setting
- Storage: set the storage to phone or memory card.
- Restore default: press left soft key, then the
parameters of The video recorder will restore to
default ones
4.2.6 Video Player
Select video player, you can easily view the saved list of
movies, and "options" to choose the video player can
send, rename, delete, delete all the files, sortby, storage
location of the operation.
In the video, according to the * key to switch to
full-screen, full-screen when they press the "*" key to
exit full-screen, according to the # key to switch Mute,
according to the center button can film play / pause
function, according to the up key and the down key
adjusting the volume, Note: in the video player to play
26
in the documents must be placed on the phone or
memory card Videos of document.
4.2.7 Sound Recorder
Access this menu, it will display the saved files in the
list.
Press “option”, and the sub menu is:
- Record: begin to record.
- Play: begin to play the selected record file.
- Append: add record to the selected file which
should be AMR file.
- Rename: rename the selected file.
- Delete: delete the selected file.
- Delete all files: delete all the record files in the list.
- Settings: set storage and format.
- Use: could be the currently selected audio file, use
the User profiles.
- Send: Send the selected record file to MMS and
Bluetooth.
4.2.8 FM Radio
Enter FM radio, you can press left/right key to switch
the channel manually, down key to pause or play, up key
to set the function of the auto search, digital key to
select the channel in channel list, and “*” key and “#”
key to adjust the volume.
- Channel list: it shows the number and name of the
channel stored in the list.
- Manual input:You can input your favorite channel
manually.
- Preset auto search:Search new channel
automatically, and it will be stored in channel list.
- Settings:Enter this menu to open or close
27
background play and loud speaker, set Record
format or select record storage.
4.3 Organizer
4.3.1 Pray Setting
Access this menu, there are five pray time to choose.
The user can set location, calculate method, Custom
time for every pray time.
4.3.2 Alarm
Set the alarm time and it will remind you by alert tone or
vibration when the alarm time expires.
You can set 5 alarms in the Mobile Phone at most.
4.3.3 World Clock
User can view the local time of some cities around the
world.
4.3.4 Tasks
User can add new task, read the old one or delete all
tasks. After setting a task, the Mobile Phone will remind
user the information at the time appointed.
4.3.5 Calendar
Access this menu, the calendar will be shown on the
screen. Press the direction key to change the date, and
the calendar shown on the screen will be changed
accordingly.
4.3.6 Bluetooth
- Power: Bluetooth options on and off.
- Visibility: enter setup options, you can "Visibility
(on and off), change device name, authentication
(on and off), audio path (leave in phone, forward
to BT headset), FTP settings (shared folder, access
28
right) "options settings.
- My device : In your own device, select Bluetooth
devices to enter the option, user can "connect,
rename, delete, delete all, service list, Inquiry new
device" such an operation.
- Search audio devices: According to determine
started to search for Bluetooth-free devices, in the
search process you can choose to have the search
link Bluetooth devices operate, the search process
on abolition stop the search.
- Name: Bluetooth devices revealed that the Device
name, address Bluetooth devices, supported
services and other information.
4.4 Settings
4.4.1 Cards Setting
- Card1 state: only supports SIM1 simultaneously
to wait for an opportunity the work.
- Card2 state: only supports SIM2 simultaneously
to wait for an opportunity the work.
- Card3 state: only supports SIM3 simultaneously
to wait for an opportunity the work
- Card4 state: only supports SIM4 simultaneously
to wait for an opportunity the work
4.4.2 User profiles
Profiles define how your Mobile Phone reacts when you
receive a call or a message, how your keypad sounds
when you press a key, and more. Each of the available
profiles can be left at their default setting or customized
to suit your needs. Select and customize the most
suitable profile for your situation. The available modes
are General, Meeting, Outdoor, Indoor, and Headset.
29
In standby mode, you can press and hold key # to
switch to silent mode.
4.4.3 Display
- Wall paper
User can choose the wallpaper in system and
defined himself
- Show data and time: Choose on or off
- LCD backlight: The user can adjust the LCD
brightness and time there
- Keypad backlight setting: set the keypad backlight
on or off.
- Screen saver: Set the screen saver on or off
- Show operator name: show the SIM1 /SIM2
operator name on or off
- Show owner number: Show the owner number on
or off.
4.4.4 Phone
- Time and Date
Set the home city, time and date, time and date’s
format.
- Schedule Power On/off
You can set power on/off schedule, and the Mobile
Phone will power on or power off according to the
settings.
- Pref. input method Setting
Select preferred input method.
- G-sensor
The device supports motion sensor, Enter the
setting menu, ->Phone->G-sensor. The user can
set music/picture/alarm/TV /FM radio/Wallpaper
to shake or not.
30
- Short key
You can select application quickly using this
function. If you assign the shortcut to the presses
of the key, you can run the application as the usual
menu action when pressing the key in standby
mode.
- Themes
There are two theme to choose for the user
- Font size
- OFN Sensor Setting
The user can set the sensitive/sound/vibrate of
sensor there.
4.4.5 Call settings
Access this menu, user can select these items SIM call
settings
- SIM 1 call settings
z Caller ID:
There are these options: “Set By Network”, “Hide
Id”, and “Send Id”.
z Call Waiting:
If it is supported by your service provider, call
waiting will notifies you of an incoming call even if
you are in a call. You can then accept, reject, or
ignore the incoming call.
To make this function available, please contact
local network provider.
z Call Divert
Call diverting is a network services, it tells your
network to divert incoming calls to another
number to avoid missing a call.
The following is available: divert All Voice Calls,
31
Divert If Unreachable, Divert If No Answer, Divert
If Busy, Divert All Data Calls, and Cancel All Divert.
- Call barring
- Black List
User can choose 5 phone numbers that he doesn’t
want to answer. And select mode on to shield the
numbers.
- Auto Redial
It can dial the same Mobile Phone number
automatically after a failing dial with this function.
- Speed Dial
Speed dials is a shortcut to dial frequently called
numbers. Set the numbers to speed dials before
use it. User can choose the SIM to call
- IP Number
- You can set the prefix IP number with this
function.
- In phonebook, you can select one of the
phonebook items, and select “IP Call” in options,
the prefix IP number will be added automatically
to the call number and be sent out.
z Active SIM: Activates the current IP number to
take the SIM card IP number.
z Edit: Edit the current IP number.
- More
z Call Time Display:
Set it to “on” or “off” state
z Call Time Reminder
z There will be a hint sound when the setting time
passed during a call.
Off: turn off the function
32
Single: Input 1-3000(second) between the
random numeral.
Periodic: Input 30-60(second) between the
random numeral.
- Auto quick end:
During the calling, the system hangs up the
current mobile phone conversation automatically
in the user establishment deadline time.
- Line Switching
You can switch between line 1 and line 2.
Note: It depends on the service provider whether
line 2 is available.
- Closed user group
4.4.6 Network setting
First choose SIM 1 or SIM 2 network
- Network selection
- Preferred Network
4.4.7 Sound effects
Enters the menu establishment sound special effect,
may use the high and low about key to choose each
effect the balancer and the closure balancer
4.4.8 Security Setup
4.4.8.1 Phone lock
Set the Phone lock on or off.
Note: The default password is 1122, please as soon as
possible its change as own establishment password.
4.4.8.2 Auto keypad lock
Press left soft key in standby mode and enter Main
Menu, then press # key to lock the keypad. If the
keypad is locked, you can unlock it by pressing left soft
key and then # key.
33
You can set the auto lock time in the submenu of this
function, and then the key will automatically be locked if
there is no more action of the Mobile Phone.
4.4.8.3 Change password
Input the Mobile phone lock password (4321), then
enter the new password to change.
4.4.8.4 Privacy lock
Input the privacy lock (4321) to enter, and the user can
choose phonebook , messages, call log or Gallery to
lock . Or make all to lock.
4.4.9 Mobile tracker
Mobile tracker is used for getting the phone number
when someone who use your phone and change the
SIM card in your phone.
Enter the menu, Input the password “4321” make →→
the status on Set 2 receiver numbers.→
When someone uses your phone and change your SIM
card, you will get a SMS about his phone number which
is sent from the receiver number you had set before.
4.4.10 Restore Factory settings
You can reset some of the Mobile Phone settings to their
original values by input Mobile Phone lock password
(4321).
4.4.11 Sound effect
Sound effect is setting for the effect of audio player.
User can set Equalizer effect like
dance/classical/Treble/party…
User also can set the reverb effect,3D surround.
4.5 Call center
Select call center from main menu, you can view the
34
information about call history and the general call
settings.
4.5.1 Call history
Access this menu, user can select these items SIM call
history.
- SIM 1 call history: You can view the information
about SIM1 call history, including missed calls,
dialed calls, received calls, you can delete call logs,
call timers, call costs, SMS counter and GPRS
counter.
- SIM 2 call history: You can view the information
about SIM1 call history, including missed calls,
dialed calls, received calls, you can delete call logs,
call timers, call costs, SMS counter and GPRS
counter.
4.6 Games
4.7 Web
4.7.1 WAP
This function allows you to acquire or visit diversified
services on the Internet through message or network.
Please contact your network operator for more
information.
a. Homepage: Start a connection to the selected URL
set.
b. Bookmarks: Access or edit a bookmark.
c. Recent pages: Browse a saved URL.
d. Offline pages: Check the history web addresses.
e. Input address: Enter the address.
f. Service inbox: Enable a trusted server to send
messages to the phone, which is
saved in the Service Inbox.
35
g. Settings: Set parameters of WAP browser. Please
consult your network operator
for details of the parameters.
z Select SIM: This option includes “always inquire,
SIM1 and SIM2”.
z Profiles: To edit and enable the profile function.
z Browser options: To set the wait time and whether
to show images.
z Service message settings: To set the service
message, white list and SL.
z Clear cache: To clear the cache. It may reduce
speed of internet connection when there are too
much data stored in the cache.
z Clear cookies: To clear the cookies.
4.7.2 Data account
Support GSM and GPRS data account.
4.8 PC suite
Install the “Install Driver.exe” in USB Driver file:
1. Install the PC suite on your computer.
2. Connect the mobile phone to the computer with
USB cable→ follow the option “Comport” Double →
click the “pc suite” icon on your computer, then
click the “SET” icon. Enter into the “SET” →
interface Choose the right Comport port to make →
connection.(If choose wrong port, it will be
disconnected.)
3. Ones you have defined your synchronization
settings, you can connect your device message,
contacts and file Dali-up on your PC.
Twitter
36
5 Safety information
5.1 Operating environment
Remember to follow any special regulations in force in
any area and always switch off your device when its use
is prohibited or when it may cause interference or
danger. Use the device only in its normal operating
positions. Do not keep the device near credit cards and
other magnetism medium, some accessories can bring
magnetism that may be delete the data.
5.2 Electronic devices
Most modern electronic equipment is shielded from
radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against the
RF signals from your wireless phone.
5.2.1 Pacemaker
Pacemaker manufacturers recommend that a minimum
separation of 6in (20cm) should be maintained between
a wireless Mobile Phone and a pacemaker to avoid
potential interference with the pacemaker. These
recommendations are consistent with the independent
research by and recommendations of Wireless
Technology Research. To minimize the potential
interference, persons with pacemakers should do as
below:
Always keep the device more than 6 in (20 cm) from
their pacemaker when the device is switched on.
Not carry the device in a breast pocket.
Hold the device to the ear opposite the pacemaker.
If you have any reason to suspect that interference is
taking place, switch off your device immediately.
37
5.2.2 Hearing aids
Some digital wireless devices may interfere with some
hearing aids. If interference occurs, consult your service
provider.
5.2.3 Other medical devices
Operation of any radio transmitting equipment,
including wireless Mobile Phones, may interfere with the
functionality of inadequately protected medical devices.
Switch off your Mobile Phone in health care facilities
when any regulations are posted in these areas
instructing you to do so.
5.2.4 Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. For more information, check with the
manufacturer or its representative of your vehicle or any
equipment that has been added.
5.3 Potentially dangerous situations
Switch off your device when in any area with a
potentially explosive atmosphere and obey all signs and
instructions. Sparks in such areas could cause an
explosion or fire resulting in body injury even death.
Switch off the device at refueling points such as near
gas pumps at service stations. Observe restrictions on
the use of radio equipment in fuel depots, storage, and
distribution areas, chemical plants or where blasting
operations are in progress.
Areas with a potentially explosive atmosphere are often
but not always clearly marked. They include below deck
on boats, chemical transfer or storage facilities, vehicles
using liquefied petroleum gas (such as propane or
38
butane), and areas where the air contains chemicals or
particles such as grain, dust or metal powders.
Operating instructions of English editor
Your phone provides you with different input methods for the
convenience of using other function. You can enter texts by
keypad wherever texts are required.
Input interface key function:
Alt Key: Switch the input method.
“sym” Key: Enter symbols while typing SMS, email etc.
Hang-up key: Retreat from the edit interface.
Capital Key is used to switch between Capital letter and
Small letter.
Capitalized, small English letters and numbers:
To select “ABC or abc or 123” input method, you can input
capitalized, small English letters or numbers.
Punctuation Input:
Enter the “sym” key to switch to the punctuation input. Press
the up, down, left or right key to select the desired one, and
press the left selection key to choose and press the
corresponding number key to enter.
Application of USB storage function:
Precautions before using:
z Please maintain correct operation of USB equipment
connection and disconnection.
z Please do not use windows format command to carry on
the format operation to the mobile disk of cell phone;
otherwise, it will result in the damage that cannot be
repaired any further.
39
z USB operation environment:
a. windows2000 / XP.
b. Other operating systems may require the installation of
USB driver before successfully creating the connection
of PC and cell phone.
Note: The phone can use USB function (like charging) under
switched off mode.
When USB cable is plugged in, phone will have the following
options:
z Mass storage: the phone can be connected to the PC
and used as a USB Flash Disk.
z Webcam: the phone can be connected to the PC and
used as a PC camera
z COM port: the phone can be connected to the PC and
used as Dial-Up Network.
Note: The phone can use USB function (like charging) under
switched off mode.
When USB cable is plugged in, phone will have the following
options:
z Mass storage: the phone can be connected to the PC
and used as a USB Flash Disk.
z Webcam: the phone can be connected to the PC and
used as a PC camera
z COM port: the phone can be connected to the PC and
used as Dial-Up Network.
Any Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
40
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
IMPORTANT NOTE:
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause
41
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and
receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV
technician for help.
Specific Absorption Rate (SAR)
information
42
SAR tests are conducted using standard operating
positions accepted by the FCC with the
phone transmitting at its highest certified power level in
all tested frequency bands, although
the SAR is determined at the highest certified power
level, the actual SAR level of the phone
while operating can be well below the maximum value,
in general, the closer you are to a
wireless base station antenna, the lower the power
output.
Before a new model phone is a available for sale to the
public, it must be tested and certified to
the FCC that it does not exceed the exposure limit
established by the FCC, Tests for each
phone are performed in positions and locations (e.g. at
the ear and worn on the body)as
required by the FCC.
For body worn operation, this model phone has been
tested and meets the FCC RF exposure
guidelines when used with an accessory designated for this
product or when used with an accessory that
Contains no metal and that positions the handset a minimum
43
of 1.5 cm from the body.
Non-compliance with the above restrictions may result in
violation of RF exposure guidelines.
