Centurion 4986 OE8082 Rev. D User Manual Bb2f66c5 267c 4d2e B8d2 2bdfdb054470

User Manual: centurion 4986 Centurion Portable Generator 4986 User Guide |

Open the PDF directly: View PDF .
Page Count: 20

• Safety

• Assembly

• Operation

• Maintenance

• Troubleshooting

• Electrical Data

• Parts

• Warranty

FOR YOUR NEAREST

AUTHORIZED SERVICE

CENTER 1-800-333-1322

Owner’s

Manual

COMMERCIAL • INDUSTRIAL • RESIDENTIAL

MODELS:

04986 (12,500 Watt)

04987 (15,000 Watt)

Part No. 0E8082 Rev. D 11.03, 9.04, 10.04, 9.05

www.centuriongenerators.com

Printed in USA

Table of Contents

Commercial-Industrial-Residential Portable Generator System

Safety Rules ..............................................1-3

Section 1 – General Information ................4

1.1 Unpacking ....................................................................4

1.1.1 Accessory Box..................................................4

1.2 Assembly ......................................................................4

1.2.1 Assembling the Wheel Kit ................................4

1.2.2 Assembling the Handle ....................................5

1.2.3 Battery Connection ..........................................5

Section 2 – Operation ..................................6

2.1 Know The Generator ....................................................6

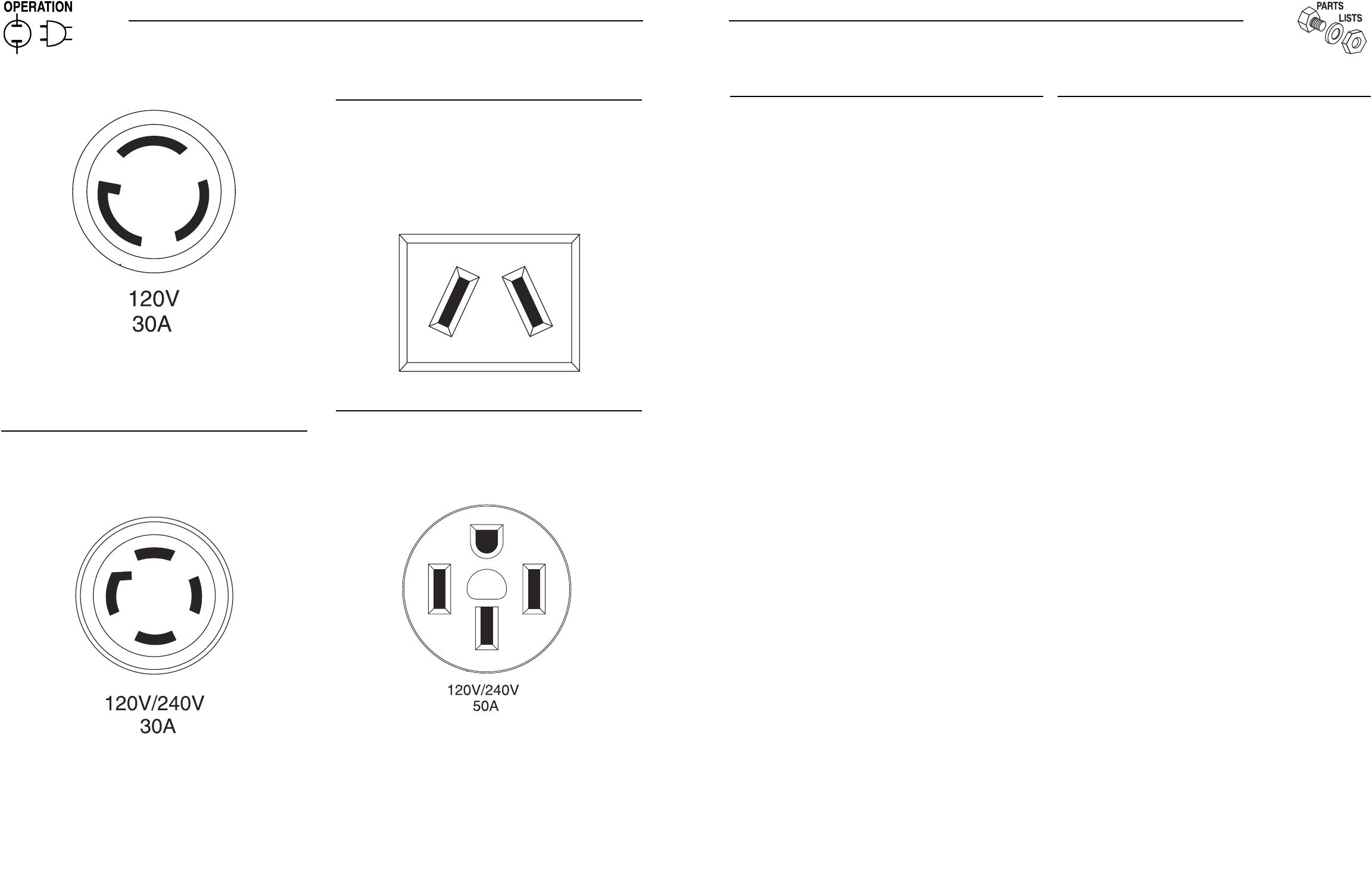

2.2 Cord Sets and Connector Plugs....................................7

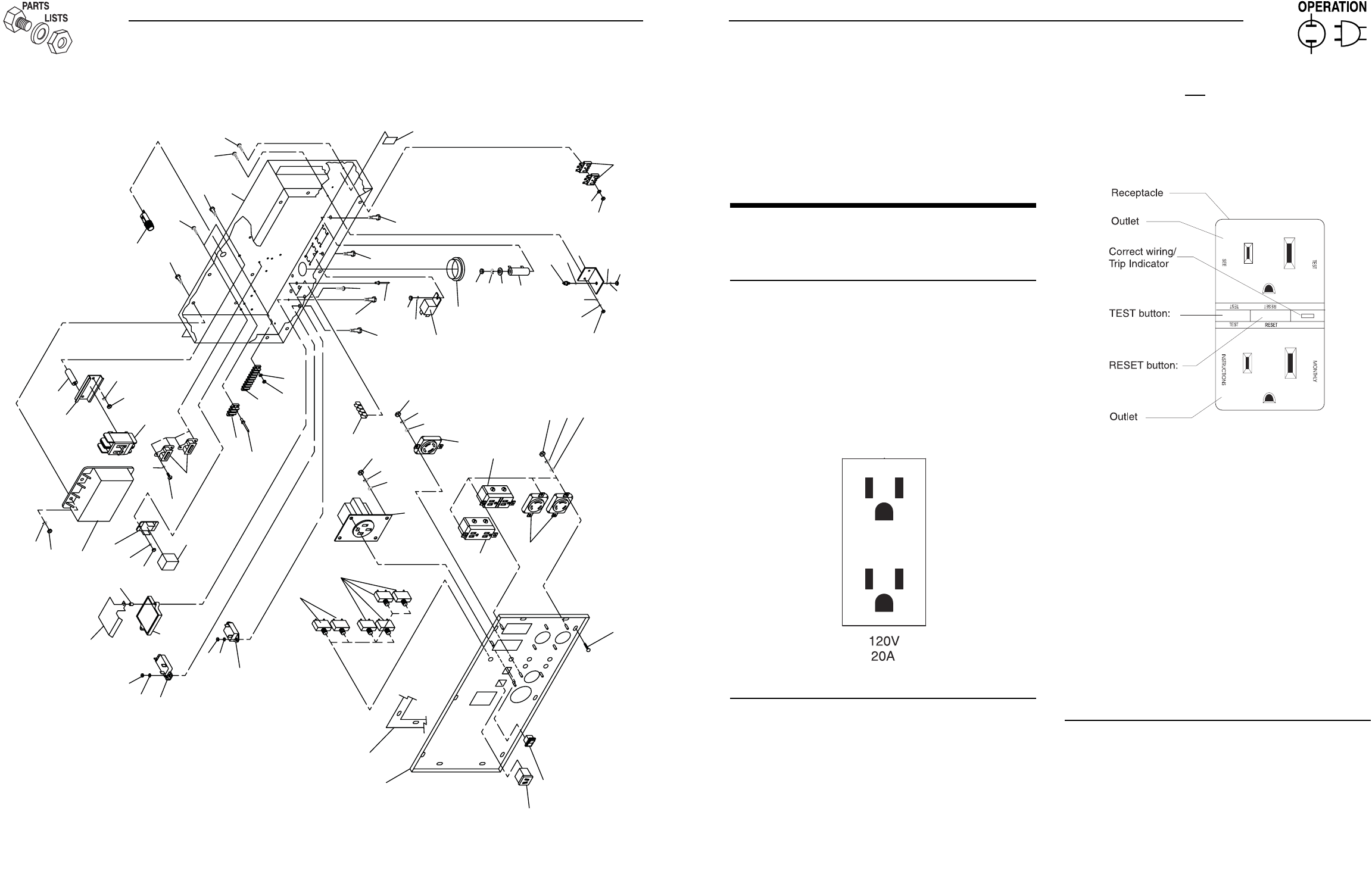

2.2.1 120V AC, 20 A, Duplex Receptacle ..................7

2.2.2 120V AC, 20 A, GFCI Receptacle ......................7

2.2.3 120V AC, 30 A Receptacle ............................7-8

2.2.4 120/240V AC, 30 A, Receptacle........................8

2.2.5 12 VDC, 10 Amp Receptacle ............................8

2.2.6 120/240V AC, 50 A, Receptacle........................8

2.3 How To Use The Generator ..........................................9

2.3.1 Grounding The Generator ................................9

2.3.2 Connecting Electric Loads ................................9

2.4 Don’t Overload The Generator ......................................9

2.5 Wattage Reference Chart ............................................10

2.6 Before Starting The Generator ....................................10

2.6.1 Adding Engine Oil ..........................................10

2.6.2 Adding Gasoline ............................................11

2.7 To Start The Engine ....................................................11

2.8 Stopping The Engine ..................................................12

2.9 Automatic Idle Control ................................................12

2.10 Cold Weather Operation/De-Icer ................................12

2.11 Low Oil Pressure Shutdown........................................12

2.11.1 Initial Start-up ................................................12

2.11.2 Sensing Low Oil Pressure ..............................12

2.11.3 Restarting ......................................................12

2.12 Charging a Battery ......................................................13

Section 3 – Maintenance............................14

3.1 Maintenance Schedule ................................................14

3.2 Product Specifications ................................................14

3.2.1 Generator Specifications ................................14

3.2.2 Engine Specifications ....................................14

3.3 General Recommendations ........................................15

3.3.1 General Maintenance ......................................15

3.3.2 To Clean The Generator..................................15

3.3.3 Engine Maintenance ......................................15

3.3.4 Checking Oil Level ..........................................15

3.3.5 Changing The Oil & Oil Filter ..........................15

3.3.6 Replacing The Spark Plug ........................15-16

3.4 Service Air Cleaner......................................................16

3.5 Clean Spark Arrestor Screen ......................................16

3.6 Adjusting Valve Clearance ..........................................17

3.7 General ......................................................................18

3.8 Long Term Storage ....................................................18

3.9 Other Storage Tips......................................................18

Section 4 – Troubleshooting ....................19

4.1 Troubleshooting Guide................................................19

Section 5 – Notes ..................................20-21

Section 6 – Electrical Data ..................22-23

Section 7 – Exploded Views and

Parts Lists..........................24-33

Section 8 – Warranty ............................34-36

INTRODUCTION

Thank you for purchasing this model of the GUARDIAN®product

line by Generac Power Systems, Inc. This model is a compact,

high performance, air-cooled, engine driven generator designed

to supply electrical power to operate electrical loads where no

utility power is available.

READ THIS MANUAL THOROUGHLY

If you do not understand any portion of this manual, contact your

nearest GENERAC/GUARDIAN®Authorized Dealer for starting,

operating and servicing procedures.

Throughout this publication, and on tags and decals affixed to the

generator, DANGER, WARNING, CAUTION and NOTE blocks are

used to alert you to special instruction about a particular operation

that may be hazardous if performed incorrectly or carelessly.

Observe them carefully. Their definitions are as follows:

After this heading, you can read instructions that, if

not strictly complied with, will result in personal injury

or property damage.

After this heading, you can read instructions that, if

not strictly complied with, may result in personal

injury or property damage.

After this heading, you can read instructions that, if

not strictly complied with, could result in damage to

equipment and/or property.

NOTE: After this heading, you can read explanatory statements

that require special emphasis. These safety warnings cannot

eliminate the hazards that they indicate. Common sense and

strict compliance with the special instructions while performing

the service are essential to preventing accidents.

Four commonly used safety symbols accompany the DANGER,

WARNING and CAUTION blocks. The type of information each

indicates follows:

This symbol points out important safety

information that, if not followed, could endanger

personal safety and/or property of you and others.

This symbol points out potential explosion hazard.

This symbol points out potential fire hazard.

This symbol points out potential electrical shock

hazard.

The operator is responsible for proper and safe use of

the equipment. We strongly recommend that the

operator read this Owner’s Manual and thoroughly

understand all instructions before using this

equipment. We also strongly recommend instructing

other users to properly start and operate the unit. This

prepares them if they need to operate the equipment

in an emergency.

CAUTION! Always disconnect spark plug wire and place the

wire where it cannot contact the spark plug to prevent accidental

starting when setting up, transporting, adjusting or making

repairs to your generator.

• The generator produces dangerously high voltage that can

cause extremely hazardous electrical shock. Avoid contact with

bare wires, terminals, etc. Never permit any unqualified person

to operate or service the generator.

• Never handle any kind of electrical cord or device while

standing in water, while barefoot or while hands or feet are

wet. Dangerous electrical shock will result.

• The National Electric Code requires the frame and external

electrically conductive parts of the generator be properly

connected to an approved earth ground. Local electrical codes

may also require proper grounding of the generator. Consult

with a local electrician for grounding requirements in your

area.

• Use a ground fault circuit interrupter in any damp or highly

conductive area (such as metal decking or steel work).

• Do not use worn, bare, frayed or otherwise damaged electrical

cord sets with the generator.

• Operate generator only on level surfaces and where it will not

be exposed to excessive moisture, dirt, dust or corrosive

vapors.

• Gasoline is highly FLAMMABLE and its vapors are

EXPLOSIVE. Do not permit smoking, open flames, sparks or

heat in the vicinity while handling gasoline. Avoid spilling

gasoline on a hot engine. Comply with all laws regulating

storage and handling of gasoline.

• Never add fuel while unit is running.

• Do not overfill the fuel tank. Always allow room for fuel

expansion. If tank is over filled, fuel can overflow onto a hot

engine and cause FIRE or an EXPLOSION.

• Never store generator with fuel in tank where gasoline vapors

might reach an open flame, spark or pilot light (as on a

furnace, water heater or clothes dryer). FIRE or

EXPLOSION may result.

• Generator exhaust gases contain DEADLY carbon monoxide

gas.This dangerous gas, if breathed in sufficient

concentrations, can cause unconsciousness or even death.

Operate this equipment only in the open air where adequate

ventilation is available.

• Allow at least 2 feet of clearance on all sides of generator or

you could damage the unit. Never operate the unit inside any

room or enclosure where the free flow of cooling air into and

out of the unit might be obstructed. Review “Cold Weather

Operation” on page 12.

-------------  DANGER -------------

-------------  WARNING -------------

-------------  CAUTION -------------

GENERAC POWER SYSTEMS “TWO YEAR” LIMITED WARRANTY FOR CENTURION

“12,500 WATT AND 15,000 WATT PORTABLE GENERATORS”

For a period of two years from the date of original sale, Generac Power Systems, Inc. (Generac) warrants its Centurion

generator will be free from defects in materials and workmanship for the items and period set forth below. Generac will, at its option, repair or replace

any part which, upon examination, inspection and testing by Generac or a Generac Authorized Warranty Service Dealer, is found to be defective. Any

equipment that the purchaser/owner claims to be defective must be returned to and examined by the nearest Generac Authorized Warranty Service

Dealer. All transportation costs under the warranty, including return to the factory, are to be borne and prepaid by the purchaser/owner. This warranty

applies only to Centurion portable generators and is not transferable.

WARRANTY SCHEDULE

Consumer applications are warranted for 2 (two) years. Commercial applications are warranted for 1 (one) year. Rental applications are warranted for

90 (ninety) days. CONSUMER APPLICATION

YEARS ONE and TWO - 100% (one hundred percent) coverage on Labor and Part(s) listed (proof of purchase and maintenance is required):

•Engine - All Components

•Alternator - All Components

NOTE: For the purpose of this warranty "consumer use" means personal residential household use by original purchaser. This does not apply to units

used for Prime Power in place of utility where utility power service normally exists. Once a generator has experienced commercial or rental use, it shall

thereafter be considered a non-consumer use generator for the purpose of this warranty.

All warranty expense allowances are subject to the conditions defined in Generac's Warranty Policies, Procedures and Flat Rate Manual.

THIS WARRANTY SHALL NOT APPLY TO THE FOLLOWING:

• Generac Centurion portable generators that utilize non-Generac replacement parts.

• Costs of normal maintenance and adjustments.

• Failures caused by any contaminated fuels, oils or lack of proper oil levels.

• Failures due, but not limited, to normal wear and tear, accident, misuse, abuse, negligence or improper use. As with all mechanical devices, the

Generac engines need periodic part(s) service and replacement to perform well. This warranty will not cover repair when normal use has exhausted

the life of a part(s) or engine.

• Failures caused by any external cause or act of God, such as collision, theft, vandalism, riot or wars, nuclear holocaust, fire, freezing, lightning,

earthquake, windstorm, hail, volcanic eruption, water or flood, tornado or hurricane.

• Damage related to rodent or insect infestation.

• Products that are modified or altered in a manner not authorized by Generac in writing.

• Any incidental, consequential or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the defective part(s).

• Failure due to misapplication.

• Telephone, cellular phone, facsimile, internet access or other communication expenses.

• Living or travel expenses of person(s) performing service, except as specifically included within the terms of a specific unit warranty period.

• Expenses related to "customer instruction" or troubleshooting where no manufacturing defect is found.

• Rental equipment used while warranty repairs are being performed.

• Overnight freight costs for replacement part(s).

• Overtime labor.

• Starting batteries, fuses, light bulbs and engine fluids.

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. SPECIFICALLY, GENERAC MAKES NO OTHER WARRANTIES

AS TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow limitations on how long an implied warranty

lasts, so the above limitation may not apply to you.

GENERAC'S ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT OF PART(S) AS STATED ABOVE. IN NO EVENT SHALL GENERAC BE LIABLE

FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF GENERAC'S NEGLIGENCE. Some states

do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This warranty gives you specific legal rights. You also have other rights from state to state.

GENERAC®POWER SYSTEMS, INC.

P.O. BOX 297 • WHITEWATER, WI 53190

Section 8 – Warranty

Commercial-Industrial-Residential Portable Generator System

• Never start or stop the unit with electrical loads connected to

receptacles AND with connected devices turned ON. Start the

engine and let it stabilize before connecting electrical loads.

Disconnect all electrical loads before shutting down the

generator.

• Do not insert objects through unit's cooling slots.

• Never operate generator: in rain; in any enclosed

compartment; if connected electrical devices overheat; if

electrical output is lost; if engine or generator sparks; if flames

or smoke are observed while unit is running; if unit vibrates

excessively.

Note: Your generator is equipped with a spark arrestor

muffler. The spark arrestor must be maintained in

effective working order by the owner/ operator. In the

State of California, a spark arrestor is required by law

(Section 4442 of the California Public Resources

Code). Other states may have similar laws. Federal

laws apply on federal lands.

Study these SAFETY RULES carefully before installing,

operating or servicing this equipment. Become familiar with this

Owner’s Manual and with the unit. The generator can operate

safely, efficiently and reliably only if it is properly installed,

operated and maintained. Many accidents are caused by failing to

follow simple and fundamental rules or precautions.

GENERAC®cannot possibly anticipate every possible

circumstance that might involve a hazard. The warnings in this

manual, and on tags and decals affixed to the unit are, therefore,

not all-inclusive. If you use a procedure, work method or

operating technique GENERAC®does not specifically recommend,

you must satisfy yourself that it is safe for you and others. You

also must make sure the procedure, work method or operating

technique that you choose does not render the generator unsafe.

Despite the safe design of this generator, operating

this equipment imprudently, neglecting its

maintenance or being careless can cause possible

injury or death. Permit only responsible and capable

persons to operate or maintain this equipment.

Potentially lethal voltages are generated by these

machines. Ensure all steps are taken to render

the machine safe before attempting to work on

the generator.

 Parts of the generator are rotating and/or hot during

operation. Exercise care near running generators.

 GENERAL HAZARDS 

• For safety reasons, GENERAC®recommends that the

installation, initial start-up and maintenance of this equipment

is carried out by a GENERAC®Authorized Dealer.

• The engine exhaust fumes contain carbon monoxide, which

can be DEADLY. This dangerous gas, if breathed in sufficient

concentrations, can cause unconsciousness or even death.

This exhaust system must be installed properly, in strict

compliance with applicable codes and standards. Following

installation, you must do nothing that might render the system

unsafe or in noncompliance with such codes and standards.

• Keep hands, feet, clothing, etc., away from drive belts, fans,

and other moving or hot parts. Never remove any drive belt or

fan guard while the unit is operating.

• Adequate, unobstructed flow of cooling and ventilating air is

critical to correct generator operation. Do not alter the

installation or permit even partial blockage of ventilation

provisions, as this can seriously affect safe operation of the

generator. The generator MUST be operated outdoors.

• When working on this equipment, remain alert at all times.

Never work on the equipment when you are physically or

mentally fatigued.

• Inspect the generator regularly, and contact your nearest

GENERAC®Authorized Dealer for parts needing repair or

replacement.

• Before performing any maintenance on the generator,

disconnect its battery cables to prevent accidental start up.

Disconnect the cable from the battery post indicated by a

NEGATIVE, NEG or (–) first. Reconnect that cable last.

• Never use the generator or any of its parts as a step. Stepping

on the unit can stress and break parts, and may result in

dangerous operating conditions from leaking exhaust gases,

fuel leakage, oil leakage, etc.

IMPORTANT SAFETY INSTRUCTIONS

Commercial-Industrial-Residential Portable Generator System

SAVE THESE INSTRUCTIONS – The manufacturer suggests that these rules for safe operation be copied and posted near

the unit's installation site. Safety should be stressed to all operators and potential operators of this equipment.

The engine exhaust from this product

contains chemicals known to the state

of California to cause cancer, birth

defects or other reproductive harm.

WARNING:

This product contains or emits chemicals

known to the state of California to cause

cancer, birth defects or other reproductive harm.

WARNING:

-------------  DANGER -------------



EMISSION CONTROL SYSTEM WARRANTY

Emission Control System Warranty (ECS warranty) for 2001 and later model year LSI engines:

(a) Applicability: This warranty shall apply to 1995 and later model year engines. The ECS Warranty period shall begin on the date the new engine or

equipment is purchased by/delivered to its original, end-use purchaser/owner and shall continue for 24 consecutive months thereafter.

(b) General Emissions Warranty Coverage: Generac warrants to the original, end-use purchaser/owner of the new engine or equipment and to each

subsequent purchaser/owner that each of its engines is...

(1) Designed, built and equipped so as to conform with all applicable regulations adopted by the CARB pursuant to its authority, and

(2) Free from defects in materials and workmanship which, at any time during the ECS Warranty Period, may cause a warranted emissions-related part

to fail to be identical in all material respects to the part as described in the engine manufacturer's application for certification.

The ECS Warranty pertains only to emissions-related parts on your engine, as follows:

(1) Any warranted, emissions-related parts that are not scheduled for replacement as required maintenance in the Owner's Manual shall be warranted

for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by Generac according to Subsection

(4) below. Any such part repaired or replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

(2) Any warranted, emissions-related part that is scheduled only for regular inspection as specified in the Owner's Manual shall be warranted for the ECS

Warranty Period. A statement in such written instructions to the effect of "repair or replace as necessary" shall not reduce the ECS Warranty Period.

Any such part repaired or replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

(3) Any warranted, emissions-related part that is scheduled for replacement as required maintenance in the Owner's Manual shall be warranted for the

period of time prior to first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part shall be repaired

or replaced by Generac according to Subsection (4) below. Any such emissions-related part repaired or replaced under the ECS warranty shall be

warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for such emissions-related part.

(4) Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be performed at no charge to the owner at a Generac

Authorized Warranty Service Facility.

(5) When the engine is inspected by a Generac Authorized Warranty Service Facility, the purchaser/owner shall not be held responsible for diagnostic

costs if the repair is deemed warrantable.

(6) Generac shall be liable for damages to other original engine components or approved modifications caused by a failure under warranty of any

emission-related part covered by the ECS Warranty.

(7) Throughout the ECS Warranty Period, Generac shall maintain a supply of warranted emission-related parts sufficient to meet the expected demand

for such emission-related parts.

(8) Any Generac authorized and approved emission-related replacement part may be used in the performance of any ECS warranty maintenance or repairs

and will be provided without charge to the purchaser/owner. Such use shall not reduce Generac RCS Warranty obligations.

(9) Unapproved, add-on, modified, counterfeit and/or "grey market" parts nay not be used to modify or repair a Generac engine. Such use voids this ECS

Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. Generac shall not be held liable hereunder for failures of any

warranted parts of a Generac engine caused by the use of such an unapproved, add-on, modified, counterfeit and/or "grey market" part.

EMISSION RELATED PARTS INCLUDE THE FOLLOWING:

* Generac engine types covered by this warranty statement include the following:

1) Prepackaged Standby Generator

2) Auxiliary Power Unit (APU) Generator

3) Standby Generator

Section 8 – Warranty

Commercial-Industrial-Residential Portable Generator System

1) Fuel Metering System:

1.2) LPG/Natural Gas carburetion assembly and its internal components.

a) Fuel controller (if so equipped)

b) Mixer and its gaskets (if so equipped)

c) Carburetor and its gaskets (if so equipped)

d) Primary gas regulator (if so equipped)

e) LP liquid vaporizer (if so equipped)

2) Air Induction System including:

a) Intake pipe/manifold

b) Air cleaner

3) Ignition System including:

a) Spark plug

b) Ignition module

4) Catalytic Muffler Assembly (if so equipped) including:

a) Muffler gasket

b) Exhaust manifold

5) Crankcase Breather Assembly including:

a) Breather connection tube

Part 2

 ELECTRICAL HAZARDS

• All generators covered by this manual produce dangerous

electrical voltages and can cause fatal electrical shock. Utility

power delivers extremely high and dangerous voltages as

does the generator when it is in operation. Avoid contact with

bare wires, terminals, connections, etc., while the unit is

running. Ensure all appropriate covers, guards and barriers

are in place before operating the generator. If you must work

around an operating unit, stand on an insulated, dry surface

to reduce shock hazard.

• Do not handle any kind of electrical device while standing in

water, while barefoot, or while hands or feet are wet.

DANGEROUS ELECTRICAL SHOCK MAY RESULT.

• The National Electrical Code (NEC) requires the frame and

external electrically conductive parts of the generator to be

connected to an approved earth ground. Local electrical codes

also may require proper grounding of the generator electrical

system.

• In case of accident caused by electric shock, immediately shut

down the source of electrical power. If this is not possible,

attempt to free the victim from the live conductor. AVOID

DIRECT CONTACT WITH THE VICTIM. Use a non-

conducting implement, such as a rope or board, to free the

victim from the live conductor. If the victim is unconscious,

apply first aid and get immediate medical help.

• Never wear jewelry when working on this equipment. Jewelry

can conduct electricity resulting in electric shock, or may get

caught in moving components causing injury.

FIRE HAZARDS 

• For fire safety, the generator must be operated and maintained

properly. Operation always must comply with applicable

codes, standards, laws and regulations. Adhere strictly to local,

state and national electrical and building codes. Comply with

regulations the Occupational Safety and Health Administration

(OSHA) has established. Also, ensure that the generator is

operated in accordance with the manufacturer’s instructions

and recommendations. Do not alter the construction of

generator or change controls which might create an unsafe

operating condition.

• Keep a fire extinguisher near the generator at all times.

Extinguishers rated “ABC” by the National Fire Protection

Association are appropriate for use on the standby electric

system. Keep the extinguisher properly charged and be familiar

with its use. If you have any question pertaining to fire

extinguishers, consult your local fire department.

 EXPLOSION HAZARDS 

• Do not smoke around the generator. Wipe up any fuel or oil

spills immediately. Ensure that no combustible materials are

left on or near the generator, as FIRE or EXPLOSION may

result. Keep the area surrounding the generator clean and

free from debris.

• Gasoline is extremely EXPLOSIVE.

STANDARDS INDEX

In the absence of pertinent standards, codes, regulations and

laws, the published information listed below may be used as a

guideline for operation of this equipment.

1. NFPA No. 70, NFPA HANDBOOK OF NATIONAL

ELECTRIC CODE.

2. Article X, NATIONAL BUILDING CODE, available from the

American Insurance Association, 85 John Street, New York,

N.Y. 10038.

3. AGRICULTURAL WIRING HANDBOOK, available from the Food

and Energy Council, 909 University Avenue, Columbia, MO

65201.

4. ASAE EP-3634, INSTALLATION AND MAINTENANCE OF FARM

STANDBY ELECTRICAL SYSTEMS, available from the

American Society of Agricultural Engineers, 2950 Niles Road,

St. Joseph, MI 49085.

5. NFPA No. 30, FLAMMABLE AND COMBUSTIBLE LIQUIDS

CODE.

IMPORTANT SAFETY INSTRUCTIONS

Commercial-Industrial-Residential Portable Generator System

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board (CARB) and Generac Power Systems, Inc. (Generac) are pleased to explain the Emission Control

System warranty on your new engine. In California, new off-road Large Spark-Ignition (LSI) engines must be designed, built and equipped

to meet the state's stringent anti-smog standards. Generac will warrant the emission control. system on your engine one for the periods

of time listed below provided there has been no abuse, neglect, unapproved modification or improper maintenance of your engine.

Your emission control system may include parts such as the carburetor, ignition system and exhaust system. Generac will repair your

engine at no cost to you for diagnosis, replacement parts arid labor, should a warrantable condition occur.

MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:

Emissions control systems on 2001 and later model year LSI engines are warranted for two years as hereinafter noted- If, during such

warranty period, any emission-related component or system on your engine is found to be defective in materials or workmanship, repairs

or replacement will be performed by a Generac Authorized Warranty Service Facility.

PURCHASER'S/OWNER'S WARRANTY RESPONSIBILITIES:

As the engine owner, you are responsible for the completion of all required maintenance as listed in your factory supplied Owner's Manual.

For warranty purposes, Generac recommends that you retain all receipts covering maintenance on your engine. However, Generac cannot

deny warranty solely due to the lack of receipts or for your failure to ensure the completion of all scheduled maintenance.

As the engine purchaser/owner, you should, however, be aware that Generac may deny any and/or all warranty coverage or responsibility

if your engine, or a part/component thereof, has failed due to abuse, neglect , improper maintenance or unapproved modifications, or the

use of counterfeit and/or "grey market" parts not made, supplied or approved by Generac.

You are responsible for contacting a. Generac Authorized Warranty Facility as soon as a problem occurs. The

warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

Warranty service can be arranged by contacting either your selling dealer or a Generac Authorized Warranty Service Facility. To locate the

Generac Authorized Warranty Service Facility nearest you, call our toll free number:

1-800-333-1322

IMPORTANT NOTE: This warranty statement explains your rights and obligations under the Emission Control System Warranty (ECS

Warranty), which is provided to you by Generac pursuant to California law. See also the "Generac Limited Warranties for Generac Power

Systems, Inc.," which is enclosed herewith on a separate sheet, also provided to you by Generac. The ECS Warranty applies only to the

emission control system of your new engine. If there is any conflict in terms between the ECS Warranty and the Generac Warranty, the

ECS warranty shall apply except in circumstances where the Generac Warranty may provide a longer warranty period. Both the ECS

Warranty and the Generac Warranty describe important rights and obligations with respect to your new engine.

Warranty service can be performed only by a Generac Authorized Warranty Service Facility. When requesting warranty service, evidence

must be presented showing the date of the sale to the original purchaser/owner.

If you have any questions regarding your warranty rights and responsibilities, you should contact Generac at one of the following

addresses:

ATTENTION WARRANTY DEPARTMENT

GENERAC POWER SYSTEMS, INC.

P.O. BOX 297 • WHITEWATER, WI 53190

Section 8 – Warranty

Commercial-Industrial-Residential Portable Generator System

Part 1

1.1 UNPACKING

• Set the palleted carton on a rigid flat surface.

• Remove staples along bottom of carton that fasten carton to

pallet. Open carton from top.

• Remove all packaging material.

• Remove separate accessory box.

• Lift carton off the generator.

• Remove generator from shipping pallet by removing bolts

through the shipping brackets.

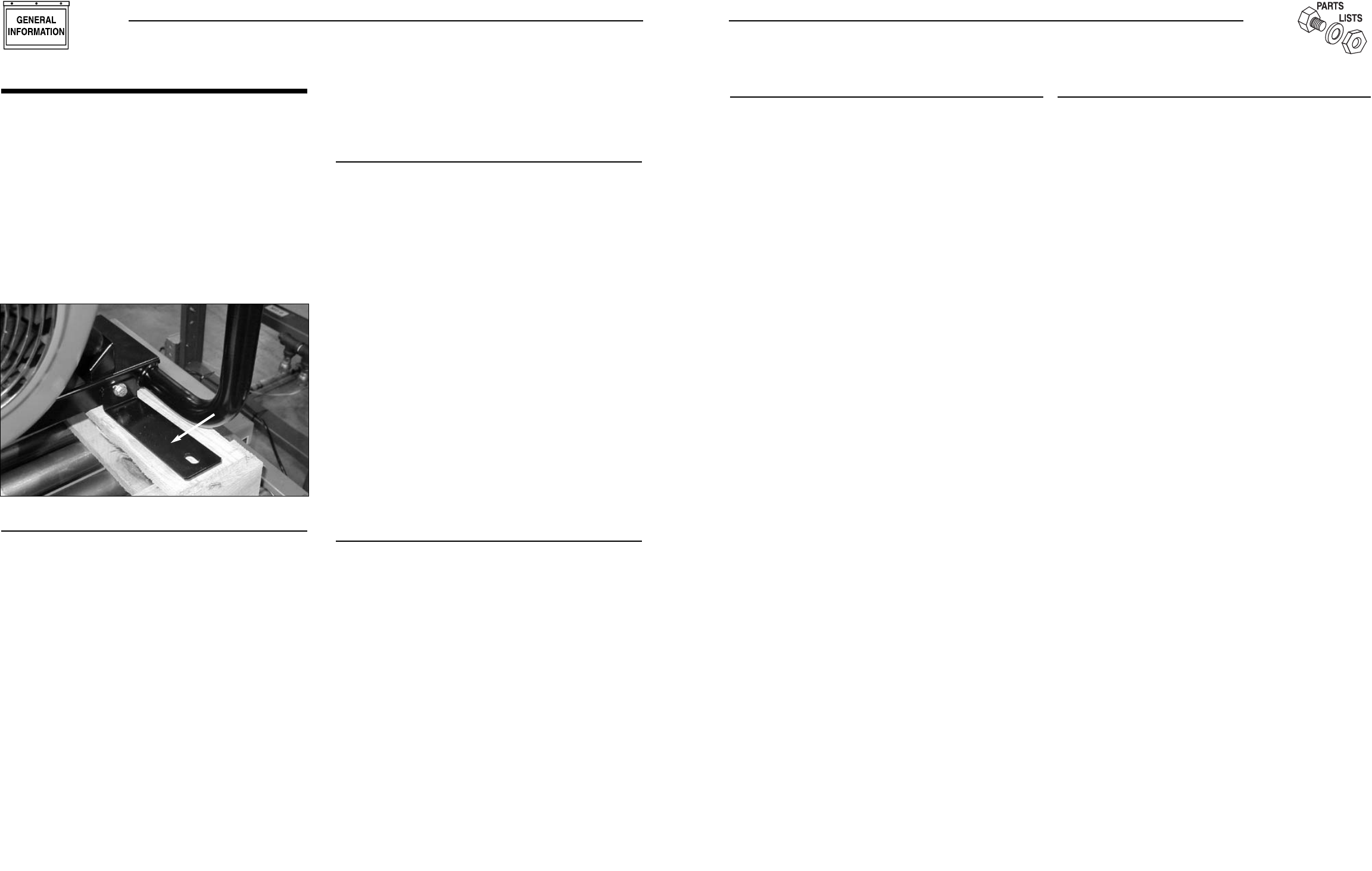

Figure 1 - Bracket Removal

1.1.1 ACCESSORY BOX

Check all contents. If any parts are missing or damaged locate an

authorized dealer at 1-800-333-1322.

Contents include:

• Owner’s Manual

• Bolt-on tubular handle

• Wheel Axle

• 2 – Pneumatic Wheels

• 2 – Axle Bracket Assemblies

• 2 – Washers

• 2 – Wheel Spacers

• 2 – Cotter Pins

• Bolt-on Foot

• 6 – Carriage Bolts, Washers, Nuts

• Battery Charge Cable

• Spark Plug Wrench

• 2 Spark Plugs.

• Air Filter

• Pre-cleaner

1.2 ASSEMBLY

The generator requires some assembly prior to using it.

1.2.1 ASSEMBLING THE WHEEL KIT

The wheel kit is designed to greatly improve the portability of the

generator. A socket wrench with a 9/16” socket, a 1/2” socket, a

1/2” wrench and a pair of pliers are the tools that will be needed

for assembly of the wheel kit.

Note:The wheel kit is not intended for over-the-road use.

• Refer to Figure 2 shown on opposite page and install the wheel

kit as follows:

• Place the generator on a hard flat surface.

• Stand at the engine end of the unit and gently tilt the generator

forward, high enough to place wooden blocks beneath the

cradle. This will allow space to install the wheel assemblies.

• Attach an axle bracket assembly with attached sleeve to either

side of the frame. Ensure the sleeve faces outward.

• Slide the axle through the sleeves on the axle brackets.

• Slide one wheel with flat washer to the outside and a spacer to

the inside onto each end of the axle. Make sure the air inflation

valve on the wheel is facing outward.

• Insert retaining pins and using pliers, bend out the ends to

prevent the pins from falling out of the axle. Remove the

wooden blocks.

1.2.2 ASSEMBLING THE HANDLE

• Attach the handle by aligning one side of the handle on the

cradle, then spread the handle around the cradle and let it

spring into place. Secure the handle to the frame using the

5/16’ hex head bolts provided. Check each fastener to ensure

that it is secure.

• Using the handle, lift the unit high enough to place wooden

blocks under the unit. Attach the front support foot to the

underside of the cradle using the 3/8” carriage bolts provided.

• Remove the shipping brackets from the cradle, if you have not

already done so.

Section 1 – General Information

Commercial-Industrial-Residential Portable Generator System

Shipping

Bracket

(x4)

ITEM PART NO. QTY. DESCRIPTION

1 057058 4 SCREW HHC M6-1.0 X 55

2 0D5315 4 RUBBER TANK MOUNT

3 0D4570 1 CAP, FUEL WITH GAUGE & VENT

4 0D22850SRV 1 KIT, FUEL TANK

5 045771 4 NUT HEX M8-1.25

6 022129 10 WASHER LOCK M8-5/16

7 022145 14 WASHER FLAT 5/16

8 0D4565 1 BRACKET BATTERY

9 0D3545 2 BOLT,BATTERY J-BOLT

10 022287 2 SCREW HHC 1/4-20 X 3/4 G5

11 022473 2 WASHER FLAT 1/4

12 022097 2 WASHER LOCK M6-1/4

13 022127 2 NUT HEX 1/4-20

14 0388040AK0 1 BATTERY CABLE, RED

15 0D4575 1 BATTERY U1

16 0D5202 1 NUT WING 5/16-18 BRASS

17 0D5199 4 WASHER FLAT 5/16 BRASS

18 029809 1 NUT HEX 5/16-18 BRASS

19 0C3168 1 5/16 SPECIAL L/WASH

20 0D5198 1 SCREW HHC 5/16-18 X 1.5 BRASS

21 0E0317 1 BRACKET FRONT FOOT (15 kW)

0D2498 1 BRACKET FRONT FOOT (12.5 kW)

22 027007 2 VIB MOUNT

23 0D5303 4 WASHER FLAT .25ID X 1"OD

24 042909 2 SCREW HHC M8-1.25 X 30

25 090388 4 SCREW HHTT M6-1.0 X 12

26 064101 6 NUT LOCK FL 3/8-16

27 039214 6 BOLT CARR 3/8-16 X 1

28 0D9165 1 AXLE, 3/4"DIA X 30" (15 kW)

0D2496 1 AXLE, 3/4"DIA X 27.25" (12.5 kW)

ITEM PART NO. QTY. DESCRIPTION

29 045900 2 WASHER FLAT 3/4" (15 kW)

045900 4 WASHER FLAT 3/4" (12.5 kW)

30 0D7668 2 12.3" PNEUM WHEEL 3/4" AXLE

(15 kW)

0D2495 2 10" PNEUM WHEEL 3/4" AXLE

(12.5 kW)

31 0D4999 2 PIN COTTER 1/8 X 1-1/4

32 0D4044 2 BRACKET, WHEEL SPACER

33 0D3700 4 NUT FLANGE M6-1.0 NYLOK

34 0D2497 1 HANDLE

35 022532 4 SCREW HHC 5/16-18 X 2-1/2 G5

36 027028 6 NUT LOCK HEX 5/16-18 NYLON

INSERT

37 0D2271 1 FRAME

38 052762 4 SCREW HHC M5-0.8 X 45 G8.8

39 051713 8 WASHER FLAT M5

40 049226 4 WASHER LOCK M5

41 051716 4 NUT HEX M5-0.8

42 050190 2 WASHER FLAT 1"

43 078299 1 BUSHING TANK DEXTOR

44 080270 1 VALVE, PLASTIC TANK

45 0D5142 1 AIR DEFLECTOR

46 096021 2 GROMMET .75 X .06 X .50

47 048031C 2 CLAMP HOSE BAND ¼

48 030340 18" HOSE ¼ ID

49 075763 1 BOOT BATTERY CABLE

50 075763A 1 BOOT STARTER CABLE

51 0E0318 2 SPACER, AXLE (15 kW)

52 030795 2 SCREW HHC 5/16"-18 X 1"

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

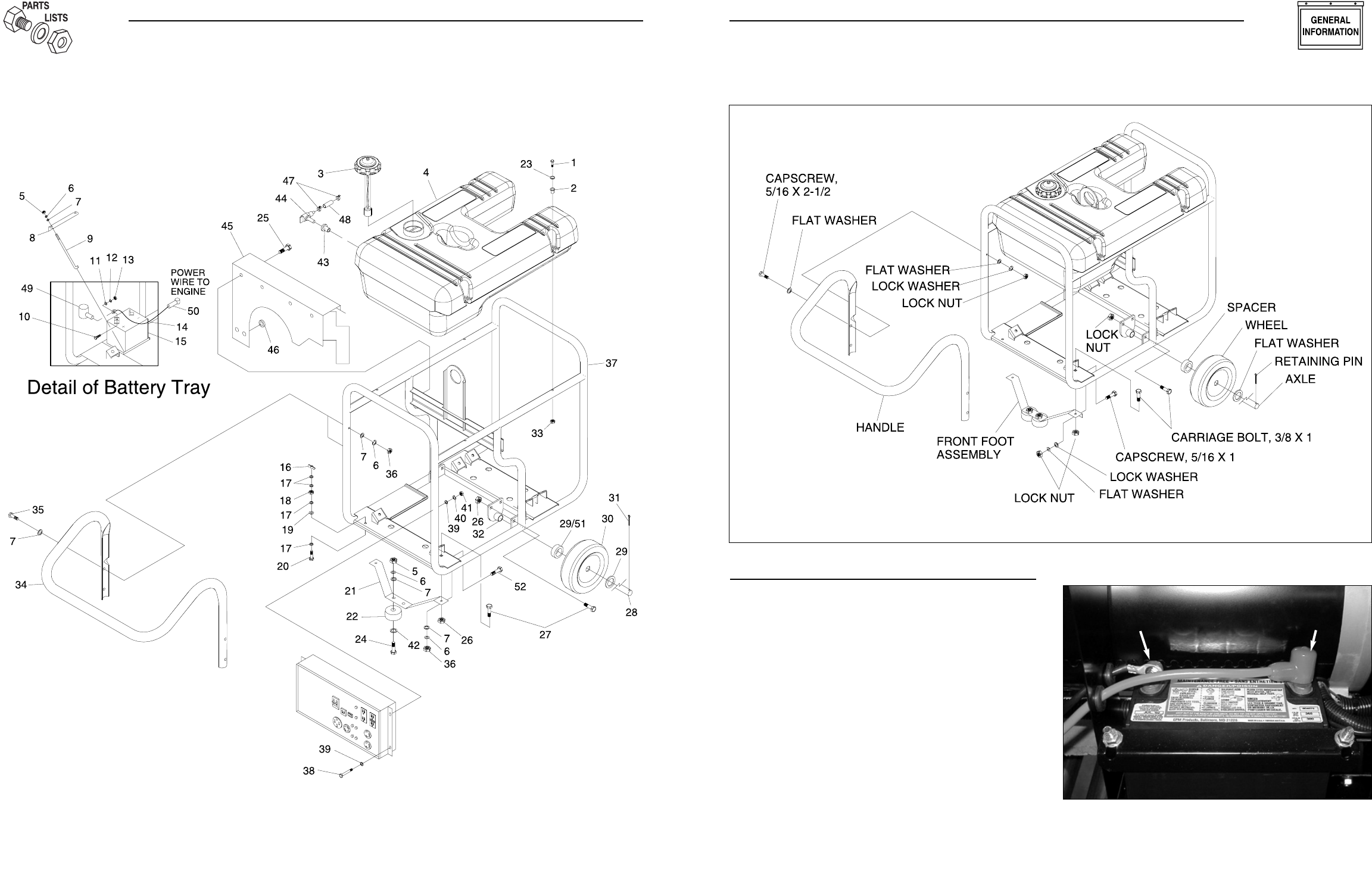

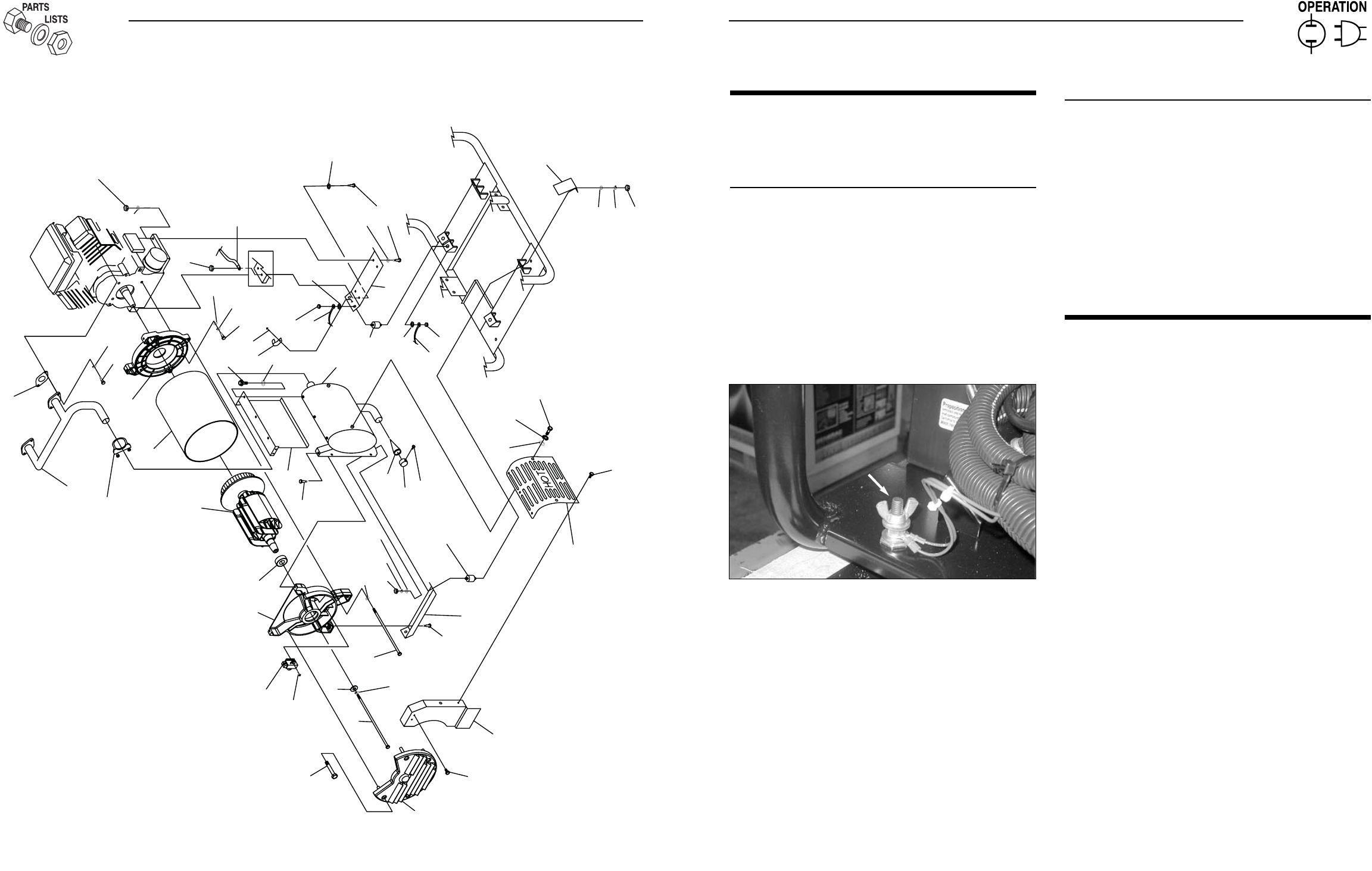

Frame, Handle & Wheel Kit – Drawing No. 0E0695A

1.2.3 BATTERY CONNECTION

• The battery shipped with the generator has been provided fully

charged. Caution must be taken when connecting the battery.

• Cut the tie wrap cable holding the RED and BLACK battery

cables to the stator.

• Connect the RED battery cable to the battery Positive terminal

(+). After making sure that the connection is tight, slip the

rubber boot over the terminal connection.

• Connect the BLACK battery cable to the battery Negative

terminal (–). Make sure the connection is tight.

• Double check all connections to ensure they are in the correct

location and secure. See Figure 3 at right.

Figure 3 - Battery Connections

Section 1 - General Information

Commercial-Industrial-Residential Portable Generator System

Negative

Cable Positive

Cable

Figure 2 - Handle Assembly

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Frame, Handle & Wheel Kit – Drawing No. 0E0695A

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Control Panel – Drawing No. 0E0227-C

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

OPERATION

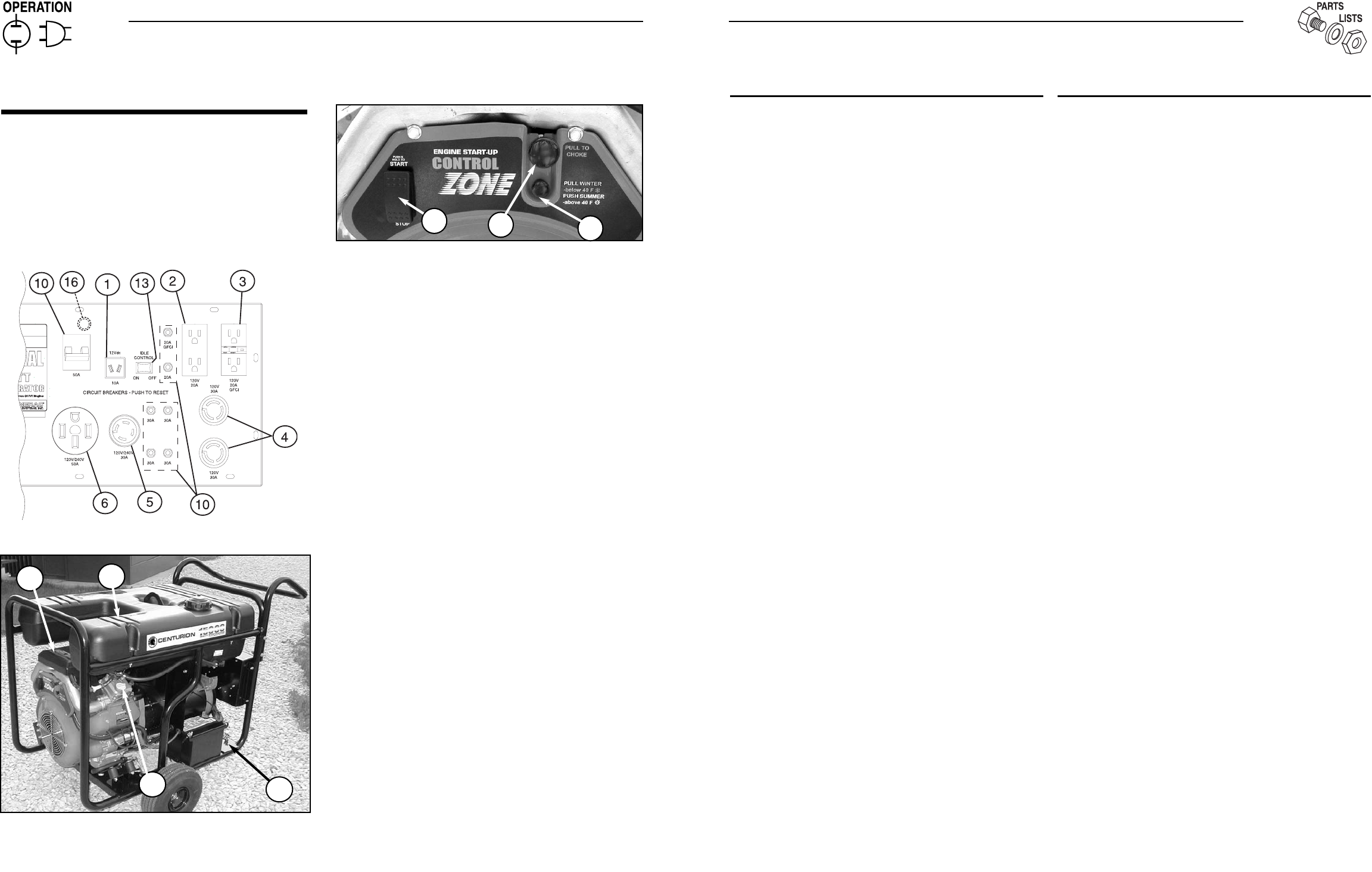

2.1 KNOW THE GENERATOR

Read the Owner’s Manual and Safety Rules before

operating this generator.

Compare the generator to this illustration to become familiarized

with the locations of various controls and adjustments. Save this

manual for future reference.

1) 12 Volt DC, 10 Amp Receptacle –This receptacle

allows the capability to recharge a 12 volt DC storage battery

with provided battery charge cables.

2) 120 Volt AC, 20 Amp, Duplex Receptacle – Supplies

electrical power for the operation of 120 Volt AC, 20 Amp,

single-phase, 60 Hz electrical lighting, appliance, tool and

motor loads.

3) 120 Volt AC, 20A Duplex GFCI Receptacle –

Supplies ground fault protected electrical power for

operation of 120 volt AC 20 amp, single-phase, 60 Hz electric

lighting, appliances, tools and motor loads.

4) 120 Volt AC, 30 Amp Locking Receptacle –Supplies

electrical power for the operation of 120 Volt AC, 30 Amp,

single-phase, 60 Hz electrical lighting, appliance, tool and

motor loads.

5) 120/240 Volt AC, 30 Amp Locking Receptacle –

Supplies electrical power for the operation of 120 and/or 240

Volt AC, 30 Amp, single-phase, 60 Hz, electrical lighting,

appliance, tool and motor loads.

6) 120/240 Volt AC, 50 Amp Receptacle – Supplies

electrical power for the operation of 120/240 Volt AC, 50

Amp, single-phase, 60 Hz, welder or motor loads.

7) Air Cleaner –Filters intake air as it is drawn into the engine.

8) Choke Knob –Used when starting a cold engine.

9) Winter / Summer Valve –See “Cold Weather Operation.”

(Section 2, page 12.)

10) Circuit Breakers (AC) – Each receptacle is provided with

a push-to-reset circuit breaker to protect the generator

against electrical overload. (50 amp uses toggle reset)

11) Fuel Tank – Tank holds 16 U.S. gallons of fuel.

12) Grounding Lug –Ground the generator to an approved

earth ground here. See page 9 for details.

13) Idle Control Switch –The idle control runs the engine at

normal (high) speeds when there is an electrical load present and

runs the engine at idle (low) speeds when a load is not present.

711

Figure 5 - Generator Controls

Figure 6 - Engine Control Panel

Figure 4 - Control Panel

ITEM PART NO. QTY. DESCRIPTION

1 087968 1 SWITCH, ROCKER -/0

2 090418 1 OUTLET, 12VDC SNAP

3 0D6640 1 COVER, GOVERNOR CONTROL

4 090987 6 SCREW PPHM M3-0.5 X 12

5 0D8740 1 PANEL, SHEET METAL

6 068868 2 OUTLET 30A 120V RECEPT

7 022985 2 WASHER FLAT #6

8 043182 10 WASHER LOCK M3

9 051714 6 NUT HEX M3-0.5 G8

10 075207A 4 CIRCUIT BREAKER 30A

11 075207 2 CIRCUIT BREAKER 20A

12 0D4969 1 OUTLET 50A 125/250V

13 043437 1 OUTLET 30A 125/250V

14 0D4968 1 OUTLET 20A 120V DPLX

15 0D4966 1 OUTLET 20A 120V GFCI

16 0D1004E 1 CIRCUIT BREAKER 50A 400V 2POLE

17 051716 8 NUT HEX M5-0.8 G8

18 022152 8 WASHER LOCK #10

19 0D5045 1 DIN RAIL 59.5mm LONG

20 067680 1 ASSEMBLY VOLTAGE REGULATOR

60HZ

21 0D4409 1 ELECTRONIC GOVERNOR / IDLE

CONTROLLER

22 052844 1 RELAY PNL 12VDC SPST 30A

23 0F3100 1 RELAY 3PDT 12VDC

24 0D2691 1 CONTROL PANEL BOX

25 023484L 1 BUSHING SNAP

26 0A1661 2 RIVET POP .156 X .160-.164 / #20

27 048766 1 BLOCK TERMINAL 20A 2 X 6 X

1100V

28 0D3550 1 BLOCK DOUBLE ROW TERMINAL 8

POSITION

29 049939 1 RECTIFIER MSC 12A 600V

30 070370 1 WASHER MICA .203

31 030468 1 WASHER STEP NYLON .20

ITEM PART NO. QTY. DESCRIPTION

32 022158 1 NUT HEX #10-32

33 023897 1 WASHER FLAT #10

34 057405 1 RESISTOR 25R 5% 25W

35 022473 1 WASHER FLAT 1/4

36 022097 1 WASHER LOCK M6-1/4

37 049813 1 NUT HEX M6-1.0 G8

38 065795 2 RECTIFIER-BATTERY CHARGER

39 0D4804 2 TRANSFORMER, IDLE CURRENT

40 0C1085 4 SCREW PPHM M3-0.5 X 8

41 051715 18 NUT HEX M4-0.7 G8

42 022264 18 WASHER LOCK M4

43 048505 1 CIRCUIT BREAKER 6 X 1

44 087962 1 CIRCUIT BREAKER 10 X 1 12VDC

1/4"QC

45 036261 2 RIVET POP .125 X .129-.133 / #30

46 0A2769 1 LUG GRND 8 TABS

47 032300 1 HOLDER FUSE

48 028578 1 FUSE 10A X AGC10

49 055444 1 HEATSINK

50 075475 2 SCREW PPHM M4-0.7 X 10

51 049815 4 SCREW HHC M5-0.8 X 16 G8.8

52 0A2053 1 SCREW HHC M6-1.0 X 65 G8.8

53 055440 2 SCREW HHC M5-0.8 X 25 G8.8

54 045770 1 SCREW HHC M5-0.8 X 10 G8.8

55 0D5734 2 SPACER .25 X .50 X 1.5

56 074908 18 SCREW HHTT M5-0.8 X 10

57 075235 1 SCREW PPHM M5-0.8 X 30

58 080823 2 SCREW PPHM M5-0.8 X 50

59 038150 14 WASHER FLAT #8

60 0D6140 1 GASKET, PORTABLE CONTROL

PANEL

61 075476 2 SCREW PPHM M4-0.7 X 16

62 027565 A/R TAPE ELEC UL PERMACEL

63 058000K 2 NUT TRIC M5-0.8

64 0F3101 1 RELAY BASE 3PDT 12VDC

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Control Panel – Drawing No. 0E0227-C

14) Start/Run/Stop Switch –Controls the operation of the

generator.

16) Oil Fill –Use this point to add oil to engine.

16) Fuse - 10 Amp (Located at rear of panel) –Protects

the DC control circuit from overload. If this fuse element has

melted open the engine will not be able to crank and start.

2.2 CORD SETS AND CONNECTION

PLUGS

2.2.1 AC, 20 AMP, DUPLEX RECEPTACLE

This is a 120 Volt outlet protected against overload by a 20 Amp

push-to-reset circuit breaker. Use each socket to power 120 Volt AC,

single phase, 60 Hz electrical loads requiring up to a combined 2400

watts (2.4 kW) or 20 Amps of current. Use only high quality, well-

insulated, 3-wire grounded cord sets rated for 125 Volts at 20 Amps

(or greater).

Keep extension cords as short as possible, preferably less than 15

feet long, to prevent voltage drop and possible overheating of wires.

Figure 7 - 120 Volt AC, 20 Amp, Duplex Receptacle

2.2.2 120V AC, 20 AMP, GFCI RECEPTACLE

This unit is equipped with a ground fault circuit interrupter (GFCI).

This device meets applicable federal, state and local codes.

A GFCI receptacle is different from conventional receptacles. In

the event of a ground fault, a GFCI will trip and quickly stop the

flow of electricity to prevent serious injury.

Definition: Instead of following its normal safe path, electricity

passes through a persons body to reach the ground. For example,

a defective appliance can cause a ground fault.

A GFCI receptacle does NOT protect against circuit overloads,

short circuits, or shocks. For example, electric shock can still

occur if a person touches charged electrical wires while standing

on a non-conducting surface, such as a wood floor.

Figure 8 - 120 VAC, 20 Amp GFCI Receptacle

Testing the GFCI: Test the GFCI outlet every month as follows:

• Plug a test lamp into the receptacle.

• Start the generator, the test lamp should be on.

• Press the “Test” button located on the front of the receptacle

to trip the device.

• This should stop the flow of electricity making the lamp shut

off. The yellow trip indicator should now be on.

• To restore the flow of electricity, press the “Reset” button on

the front of the receptacle. If the GFCI does not perform in this

manner, do not use the receptacle. Contact a local service

dealer.

• This outlet is protected against overload by a 20A push-to-

reset circuit breaker. Use the outlet to power 120V AC, single-

phase, 60 Hz, electrical loads requiring up to a combined 2400

watts (2.4 kW) or 20 amps of current.

2.2.3 120V AC, 30 AMP RECEPTACLE

Use a NEMA L5-30 plug with this receptacle. Connect a 3-wire

cord set rated for 125 Volts AC at 30 Amps (or greater) to the

plug.

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

47,48

42 7

Figure 9 - 120 VAC, 30 Amp Receptacle

Use this receptacle to operate 120 Volt AC, 60 Hz, single phase

loads requiring up to 3600 watts (3.6 kW) of power at 30 Amps.

The outlet is protected by a 30 Amp push-to-reset circuit breaker.

2.2.4 120/240V AC, 30 AMP RECEPTACLE

Use a NEMA L14-30 plug with this receptacle. Connect a suitable

4-wire grounded cord set to the plug and to the desired load. The

cord set should be rated for 250 Volts AC at 30 Amps (or greater).

Figure 10 - 120/240 VAC, 30 Amp Receptacle

Use this receptacle to operate 120 Volt AC, 60 Hz, single phase

loads requiring up to 3600 watts (3.6 kW) of power at 30 Amps

or 240 Volt AC, 60 Hz, single phase loads requiring up to 7200

watts (7.2 kW) of power at 30 Amps. The outlet is protected by

two 30 Amp push-to-reset circuit breakers.

2.2.5 12 VOLT DC, 10 AMP RECEPTACLE

This receptacle allows you to recharge a 12 Volt automotive or

utility style storage battery with the battery charge cables

provided. This receptacle can not recharge 6 Volt batteries and

can not be used to crank an engine having a discharged battery.

See the section "Charging a Battery" (page 12) before attempting

to recharge a battery.

Figure 11 - 12 Volt DC, 10 Amp Receptacle

2.2.6 120/240 VOLT AC, 50 AMP RECEPTACLE

Use a NEMA 14-50 plug with this receptacle. Connect a 4-wire

cord set rated for 250 Volts AC at 50 Amps to the plug.

Figure 12 - 120/240 VAC, 50 Amp Receptacle

Use this receptacle to operate 120/240 Volt AC, 60 Hz electrical

loads requiring up to 12,000 watts (12.0 kW) of power. This

receptacle is protected by a 50 Amp 2-pole circuit breaker.

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Generator – Drawing No. 0D4488-E

ITEM PART NO. QTY. DESCRIPTION

1 0C6934 1 ADAPTOR, ENGINE

2 0D2123 1 STATOR 12.5KW

0D2134 STATOR 15KW

3 0D21320SRV 1 ASSEMBLY, ROTOR WITH FAN

12.5KW

0D21330SRV 1 ASSEMBLY, ROTOR WITH FAN

15KW

4 0C6043B 1 CARRIER, REAR BEARING

5 0D2492 1 EXHAUST MANIFOLD

6 0D2726 1 MUFFLER

7 0C4138 2 GASKET, EXHAUST

8 0D3547 1 COVER, ALTERNATOR AIR IN

9 031971 1 BEARING

10 0C3168 3 5/16 SPECIAL LOCK WASHER

11 0D1838 1 SCREW IHHC 3/8-24 X 15.50 G5

12 0D3549 4 SCREW IHHC M8-1.25 X 400 G8.8

13 0C7038E 1 BRACKET, ALT MOUNTING

14 032712 4 SCREW HHTT #10-32 X 1.75

15 0D4662 1 SCREW HHTT M8-1.2 X 20

16 0C7038D 1 ENGINE MOUNTING PLATE

17 0C7758 6 RUBBER MOUNT

18 0388050AF0 1 BATTERY CABLE, BLACK

19 0C2417A 1 EARTH STRAP 3/8X 3/8

20 082121C 1 CLIP-J VINYL COAT .625 ID

21 066386 1 ASSEMBLY, BRUSH HOLDER

22 0C2824 1 SCREW TAP-R #10-32 X 9/16

23 0A2038 1 WASHER FLAT 3/8 ZINC

ITEM PART NO. QTY. DESCRIPTION

24 022237 5 WASHER LOCK 3/8

25 022511 4 SCREW HHC 3/8-16 X 1-1/4 G5

26 022131 4 WASHER FLAT 3/8-M10 ZINC

27 051731 4 SCREW HHC M8-1.25 X 50 G8.8

28 022145 21 WASHER FLAT 5/16 ZINC

29 049820 4 NUT LOCK HEX M8-1.25 NYLON

INSERT

30 079246 5 SCREW HHC M6-1.0 X 16 WITH

LOCK WASHER

31 022129 18 WASHER LOCK M8-5/16

32 022259 12 NUT HEX 5/16-18 STEEL

33 059637 2 SCREW TAPTITE 3/8-16 X 3/4 BP

34 0D5100 1 SHIELD, MUFFLER HEAT

35 0D5823 1 U-BOLT & SADDLE

36 0C8565 4 SCREW SHC M8-1.25 X 18

37 0D5833 1 PANEL, MUFFLER BOX BACK

38 0D5834 1 PANEL, MUFFLER BOX END

39 090388 3 SCREW HHTT M6-1.0 X 12

40 022473 5 WASHER FLAT 1/4

41 N/A - NOT USED

42 0D5133 1 SPARK ARRESTOR SCREEN

43 0D5133A 1 RETAINER, SPARK ARREST

SCREEN

44 045764 1 SCREW HHTT M4-0.7 X 8

45 0D6214 1 SHIELD, RUBBER MOUNT

46 066849 2 SCREW HHTT M5-0.8 X 16

2.3 HOW TO USE THE GENERATOR

If you have any problems operating your generator, please call the

generator help line at 1-800-333-1322.

2.3.1 GROUNDING THE GENERATOR

The National Electrical Code requires that the frame

and external electrically conductive parts of this

generator be properly connected to an approved earth

ground. Local electrical codes may also require proper

grounding of the unit. For that purpose, generally, connecting a

No. 10 AWG (American Wire Gauge) stranded copper wire to the

grounding wing nut and to an earth-driven copper or brass

grounding rod (electrode) provides adequate protection against

electrical shock. However, local codes may vary widely. Consult

with a local electrician for grounding requirements in

your area.

Figure 13 - Grounding the Generator

Proper grounding of the generator will help prevent

electrical shock in the event of a ground fault condition in the

generator or in connected electrical devices. Proper grounding

also helps dissipate static electricity, which often builds up in

ungrounded devices.

2.3.2 CONNECTING ELECTRICAL LOADS

DO NOT connect 240 Volt loads to 120 Volt receptacles. DO

NOT connect 3-phase loads to the generator. DO NOT connect

50 Hz loads to the generator.

• Let engine stabilize and warm up for a few minutes after

starting.

• Plug in and turn on the desired 120 or 240 Volt AC, single

phase, 60 Hz electrical loads.

• Add up the rated watts (or amps) of all loads to be connected

at one time. This total should not be greater than (a) the rated

wattage/amperage capacity of the generator or (b) circuit

breaker rating of the receptacle supplying the power. See

"Don't Overload the Generator" below.

2.4 DON’T OVERLOAD THE

GENERATOR

Overloading a generator in excess of its rated wattage capacity

can result in damage to the generator and to connected electrical

devices. Observe the following to prevent overloading the unit:

• Add up the total wattage of all electrical devices to be

connected at one time. This total should NOT be greater than

the generator's wattage capacity.

• The rated wattage of lights can be taken from light bulbs. The

rated wattage of tools, appliances and motors can usually be

found on a data plate or decal affixed to the device.

• If the appliance, tool or motor does not give wattage, multiply

volts times ampere rating to determine watts (volts x amps =

watts).

• Some electric motors, such as induction types, require about

three times more watts of power for starting than for running.

This surge of power lasts only a few seconds when starting

such motors. Make sure you allow for this high starting

wattage when selecting electrical devices to connect to your

generator:

1. Figure the watts needed to start the largest motor.

2. Add to that figure the running watts of all other connected

loads.

The Wattage Reference Guide on page 10 is provided to assist

you in determining how many items your generator can operate

at one time. (Note: All figures are approximate. See data plate on

appliance for wattage requirements.)

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

Generator Ground Lug

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Generator – Drawing No. 0D4488-E

25 24

32 31

2.5 WATTAGE REFERENCE GUIDE

Device . . . . . . . . . . . . . . . . . . . . . . .Running Watts

*Air Conditioner (12,000 Btu) . . . . . . . . . . . . . . . . .1700

*Air Conditioner (24,000 Btu) . . . . . . . . . . . . . . . . .3800

*Air Conditioner (40,000 Btu) . . . . . . . . . . . . . . . . .6000

Battery Charger (20 Amp) . . . . . . . . . . . . . . . . . . . . .500

Belt Sander (3") . . . . . . . . . . . . . . . . . . . . . . . . . . . .1000

Chain Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Circular Saw (6-1/2") . . . . . . . . . . . . . . . . . . .800 to 1000

*Clothes Dryer (Electric) . . . . . . . . . . . . . . . . . . . . .5750

*Clothes Dryer (Gas) . . . . . . . . . . . . . . . . . . . . . . . . .700

*Clothes Washer . . . . . . . . . . . . . . . . . . . . . . . . . . .1150

Coffee Maker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1750

*Compressor (1 HP) . . . . . . . . . . . . . . . . . . . . . . . .2000

*Compressor (3/4 HP) . . . . . . . . . . . . . . . . . . . . . . .1800

*Compressor (1/2 HP) . . . . . . . . . . . . . . . . . . . . . . .1400

Curling Iron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700

*Dehumidifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .650

Disc Sander (9") . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Edge Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Electric Blanket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .400

Electric Nail Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Electric Range (per element) . . . . . . . . . . . . . . . . . .1500

Electric Skillet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1250

*Freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700

*Furnace Fan (3/5 HP) . . . . . . . . . . . . . . . . . . . . . . . .875

*Garage Door Opener . . . . . . . . . . . . . . . . . . .500 to 750

Hair Dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Hand Drill . . . . . . . . . . . . . . . . . . . . . . . . . . .250 to 1100

Device . . . . . . . . . . . . . . . . . . . . . . .Running Watts

Hedge Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .450

Impact Wrench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Iron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

*Jet Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .800

Lawn Mower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Light Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Microwave Oven . . . . . . . . . . . . . . . . . . . . . .700 to 1000

*Milk Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1100

Oil Burner on Furnace . . . . . . . . . . . . . . . . . . . . . . . .300

Oil Fired Space Heater (140,000 Btu) . . . . . . . . . . . . .400

Oil Fired Space Heater (85,000 Btu) . . . . . . . . . . . . . .225

Oil Fired Space Heater (30,000 Btu) . . . . . . . . . . . . . .150

*Paint Sprayer, Airless (1/3 HP) . . . . . . . . . . . . . . . .600

Paint Sprayer, Airless (handheld) . . . . . . . . . . . . . . . .150

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 to 200

*Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700

Slow Cooker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200

*Submersible Pump (1-1/2 HP) . . . . . . . . . . . . . . . .2800

*Submersible Pump (1 HP) . . . . . . . . . . . . . . . . . . .2000

*Submersible Pump (1/2 HP) . . . . . . . . . . . . . . . . .1500

*Sump Pump . . . . . . . . . . . . . . . . . . . . . . . .800 to 1050

*Table Saw (10") . . . . . . . . . . . . . . . . . . . . .1750 to 2000

Television . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 to 500

Toaster . . . . . . . . . . . . . . . . . . . . . . . . . . . .1000 to 1650

Weed Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

*Allow 3 times the listed watts for starting these devices.

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

2.6 BEFORE STARTING THE

GENERATOR

Prior to operating the generator, engine oil and gasoline will need

to be added, as follows:

2.6.1 ADDING ENGINE OIL

NOTE: When adding oil to the engine crankcase in

the future, use only high quality detergent oil rated

with API service classification SF or SG SAE 30

weight. Use no special additives.

Select the oil’s viscosity grade according to the expected

operating temperature. Do not use SAE 10W-40.

• Above 40°F, use SAE 10W-30 or SAE 30.

• Below 40°F, use synthetic 5W-20 or 5W-30.

Although multi-viscosity oils (5W-30, 10W-30, etc.) improve

starting in cold weather, these multi-viscosity oils will result in

increased oil consumption when used above 32°F. Check your

engine oil level more frequently to avoid possible damage from

running low on oil.

• Place generator on a level surface.

• Clean area around oil fill and remove oil fill cap and dipstick.

• Wipe dipstick clean.

• Slowly fill engine with oil through the oil fill opening until it

reaches the full mark on the dipstick. Stop filling occasionally

to check oil level. DO NOT OVERFILL.

• Install dipstick. Install oil fill cap and finger tighten securely.

• Check engine oil level before starting each time thereafter.

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

GT-990 & GT-760 Engine (Page 2) – Drawing No. 0E8589-J

ITEM PART # QTY. DESCRIPTION

66 0D6592 1 WINGNUT, AIRBOX

67 0D4511 1 PRECLEANER, AIR

68 0D9723 1 ELEMENT, AIR CLEANER

69 0E5302 1 STUD M6-1.0 X 73

70 0D4183 1 ADAPTOR, SPIT BACK

71 0D6327 1 GASKET, SPITBACK

72 0D2774B 1 BASE, AIRBOX

73 0D5125 1 SPRING, WINTER/SUMMER VALVE

74 0D2930 1 VALVE, SUMMER / WINTER

75 0D4612A 1 SNORKEL, AIR INTAKE

76 0D6143 1 TUBE, HEAT RISER 50.8 I.D.

77 0D2775 1 COVER, AIRBOX

78 0D5014A 1 KNOB, AIRBOX 17mm

79 0D5014B 1 KNOB, AIRBOX 95MM

80 049721 1 SCREW HHC M6-1.0 X 35

81 022097 1 WASHER LOCK M6-1/4

82 022473 1 WASHER FLAT 1/4

83 0E8388 4 NUT HEX FLANGE WHIZ M6-1.0

84 0D6021 4 STUD, METRIC

85 0C9093A 1 HOSE, BREATHER

86 0D4522 1 CONTROLLER ASSEMBLY

87 074908 2 SCREW HHTT M5-0.8 X 10

89 0E3398 1 ASSEMBLY, WIRE

90 0E2548 1 CARBURETOR (GT-990)

0E5077 1 CARBURETOR (GT-760)

91 0D4026 1 GASKET, CARB TO SPACER

(GT-990)

0D4024 1 GASKET, CARB/AIRBOX (GT-760)

92 048031C 4 CLAMP HOSE BAND 1/4

93 030340 12" HOSE ¼ ID

94 0D4023 1 GASKET, MANIFOLD TO CARB

(GT-990)

0D5282 1 GASKET, MANIFOLD TO CARB

(GT-760)

95 086061G 1 SLEEVING 1/2" I.D.

96 0D6313 1 FILTER, FUEL

97 070008 4 WASHER FLAT M8

98 070006 4 WASHER LOCK M8

99 049821 4 SCREW SHC M8-1.25 X 30

100 0C9911 1 MANIFOLD, INTAKE

101 051714 1 NUT HEX M3-0.5

102 0D5411 1 ROD, SUMMER / WINTER VALVE

103 0D5445 1 BUSHING, MINI CONTROL PANEL

104 0D5416A 1 KNOB, CONTROL SUMMER /

WINTER

105 0D5398 1 CHOKE ASSEMBLY

106 0E6043 2 SCREW TAPTITE M5-0.8 X 8 ZP

107 0D3432 1 PANEL, CONTROL FACE PLATE

108 045756 24 SCREW TAPTITE M6-1.0X 10

YELLOW CHROME

109 0D4767 1 SWITCH ROCKER

110 0D1142A 1 WRAPPER, LOWER CYLINDER 2

111 0D1143 1 WRAPPER, UPPER CYLINDER 2

112 0F1177 1 ASSEMBLY, GROUND WIRE

113 022097 4 WASHER LOCK M6-1/4

ITEM PART NO#.QTY. DESCRIPTION

114 092079 4 SCREW TAPTITE M6-1.0 X 25 BP

115 0F1338B 1 ASSY, IGN COIL W/DIODE NO ADV

116 0C4147 1 PUMP, IMPULSE

117 022264 2 WASHER LOCK M4

118 0D6142 2 SCREW PPHM M4-0.7 X 40

119 0D5399A 1 ELBOW, RUBBER 90 DEG.

120 0E7585 2 SPARKPLUG, CHAMPION RC14YC

121 0E4271 1 STARTER, DELCO REMY SD80

122 022129 3 WASHER LOCK M8-5/16

123 061906 2 SCREW HHC M8-1.25 X 85 G8.8

124 022145 1 WASHER, FLAT M8

125 045771 1 NUT, HEX M8-1.25 YELLOW ZINC

126 0D1131 1 GUARD,FAN

127 0F1169J 1 HOUSING, BLOWER REPOWER

L&G

128 0C9763 4 NUT, GROMMET 1/4 PLUG

129 0C3034 1 NUT,HEX M24

130 0C3033 1 WASHER, M24

131 0C3032 1 PLATE, FAN

132 0A5992 2 WASHER SHAKEPROOF INT M8 SS

133 051754 2 SCREW HHC M8-1.25 X 12 G8.8

134 0C3031 1 FAN, NYLON

135 0E4997 1 ASSY,GROUND WIRE CONNECTOR

136 045756 4 SCREW TAPTITE M6-1X10 YELLOW

CHROME

137 0C3725A 1 FLYWHEEL ASSEMBLY

138 0F1170C 1 PLATE, BACKING GT990 WITH REG.

CUTOUT

139 082774 1 KEY, WOODRFF 4 X 19D

140 0C3043 2 GASKET, MANIFOLD / PORT

141 0C9764 4 PLASTITE,1/4-15 X 3/4

142 0C3026 1 COOLER, OIL

143 0F6301 4 CLAMP, HOSE OETIKER 16.5mm

144 0C9806 2 HOSE, 3/8" I.D. X 6" LONG

145 035461 2 BARBED STR 1/4NPT X 3/8

146 070185B 1 OIL FILTER

147 0C7292 1 NIPPLE, 3/4"-16 UNF

148 0D3083 1 ASSEMBLY, OIL DRAIN HOSE

149 0C3025 1 SWITCH, OIL PRESS

150 0D4550 1 BRACKET, AIRBOX SUPPORT

151 0C3018 1 WRAPPER, UPPER CYLINDER 1

152 0C3019 1 WRAPPER, LOWER CYLINDER 1

153 046964 1 BRASS ST ELBOW 1/4 NPT

154 0E0409 1 ASSY, ROD, GOV. STEPPER

MOTOR

155 0C8563 6 SCREW HHHC M6-1.0 X12

157 0D9784 2 NUT, LOCK HEX M3-0.5 (GT-990)

0E4869 2 NUT, HEX W/TOOTH WASHER M3-

0.5 (GT-760)

158 031879 1 WASHER FLAT #4 (GT-990)

0E4868 1 WASHER FLAT #4 (GT-760)

159 0D6098 1 SPACER, ROD (GT-760 ONLY)

160 0D6147 7 SCREW HHFC M6-1.0 X 10mm

161 0F1338A 1 ASSY, IGN COIL W/DIODE NO ADV

2.6.2 ADDING GASOLINE

WARNING: Never fill fuel tank indoors. Never fill

fuel tank when engine is running or hot. DO NOT

light a cigarette or smoke when filling the fuel

tank.

CAUTION: Do not overfill the fuel tank. Always

leave room for fuel expansion.

• Use regular UNLEADED gasoline with the generator engine. Do

not use premium gasoline. Do not mix oil with gasoline.

• Clean area around fuel fill cap, remove cap.

• Slowly add unleaded regular gasoline to fuel tank. Be careful

not to overfill. Allow about 1/2" of tank space for fuel

expansion, as shown here.

• Install fuel cap and wipe up any spilled gasoline.

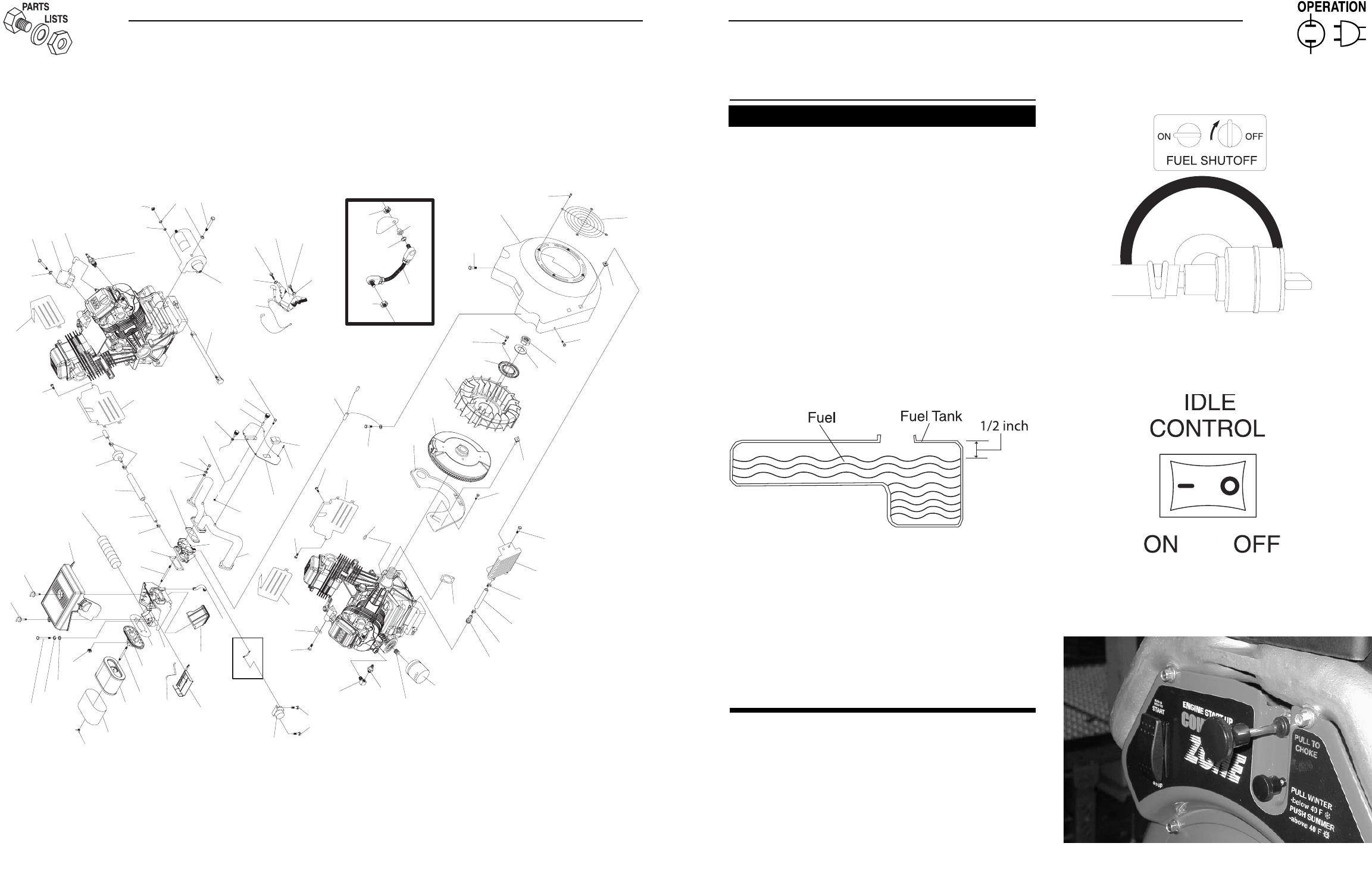

Figure 14 - Fuel Tank

IMPORTANT: It is important to prevent gum deposits from

forming in fuel system parts such as the carburetor, fuel hose or

tank during storage. Alcohol-blended fuels (called gasohol,

ethanol or methanol) can attract moisture, which leads to

separation and formation of acids during storage. Acidic gas can

damage the fuel system of an engine while in storage. To avoid

engine problems, the fuel system should be emptied before

storage of 30 days or longer. See "Storage" on page 18. Never use

engine or carburetor cleaner products in the fuel tank as

permanent damage may occur.

2.7 TO START THE ENGINE

 WARNING! Never start or stop engine with electrical

devices plugged into the receptacles AND devices turned on.

• Unplug all electrical loads from the unit's receptacles before

starting the engine.

• Make sure the unit is in a level position.

• Open the fuel shut-off valve.

Figure 15 - Fuel Shut-off Valve

• Locate the Idle Control ON/OFF switch on the control panel and

set it to the “OFF” position.

Figure 16 - Idle Control Switch

• Move engine CHOKE knob to “Full Choke” position.

Figure 17 - Full Choke Position

Section 2 — Operation

Commercial-Industrial-Residential Portable Generator System

-------------  WARNING -------------

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

GT-990 & GT-760 Engine (Page 2) – Drawing No. 0E8589-J

108

136

125

127

122

149

143

147

146

145

143

140

144

142

74 75

DETAIL "A"

153

82 83

151

150

158

135

141

138 137

154

128

129

108

132

131

130

134

133

126

155

DETAIL "A"

159

104

152

108

139

101

160

100

107

91 92

105

108

106

109

103

102

110

160 118

117

121

155

157

147

112

113

114

157

115, 161

114

120 124

116

119

111

123

• To start engine, press and hold the Start/Run/Stop switch in

the “Start” position. The engine will crank and attempt to start.

When the engine starts, release the switch to the run position.

• When the engine starts, move choke knob to “1/2 Choke” position until

the engine runs smoothly and then to “Run” position. If engine falters,

move choke knob to “1/2 Choke” position until the engine runs

smoothly and then to “Run” position.

Note: If engine fires, but does not continue to run,

move choke lever to “Full Choke” and repeat starting

instructions.

2.8 STOPPING THE ENGINE

• Shut off all loads, then unplug the electrical loads from

generator panel receptacles. Never start or stop the engine

with electrical devices plugged in and turned on.

• Turn “Off” the Idle Control switch (if on).

• Let engine run at no-load for several minutes to stabilize the

internal temperatures of engine and generator.

• Move Start/Run/Stop switch to “Off” position.

• Close fuel valve.

IMPORTANT: Do not overload the generator. Also, do not

overload individual panel receptacles. These outlets are protected

against overload with push-to-reset-type circuit breakers. If

amperage rating of any circuit breaker is exceeded, that breaker

opens and electrical output to that receptacle is lost. Read “Don’t

Overload the Generator” on page 9 carefully.

2.9 AUTOMATIC IDLE CONTROL

This feature is designed to greatly improve fuel economy. When

this switch is turned “On,” the engine will only run at its normal

fast governed engine speed when electrical load is connected.

When the load is removed, the engine will run at a reduced speed

of 2100 RPM. With the switch “Off,” the engine runs at the

normal fast engine speed all the time. Always have the

switch OFF when starting and stopping the engine.

2.10 COLD WEATHER OPERATION/

DE-ICER

Under certain weather conditions (temperatures below 40° F (4°

C) and a high dew point), the engine may experience icing of the

carburetor and/or the crankcase breather system. To eliminate

this problem, this generator engine is fitted with a winter/summer

valve. this directs hot air into the carburetor during cold weather

operation. Always make sure the winter/summer valve is in the

correct location relative to the weather conditions.

2.11 LOW OIL PRESSURE SHUTDOWN

SYSTEM

The engine is equipped with a low oil pressure sensor that shuts

down the engine automatically when the oil pressure drops below

10 psi. If the engine shuts down by itself and the fuel tank has

enough gasoline, check engine oil level.

2.11.1 INITIAL START-UP

A delay built into the low oil shutdown system allows oil pressure

to build during starting. The delay allows the engine to run for

about 10 seconds before sensing oil pressure.

2.11.2 SENSING LOW OIL PRESSURE

If the system senses low oil pressure during operation, the engine

shuts down.

2.11.3 RESTARTING

If you try to restart the engine within 10 seconds after it shuts

down, the engine may NOT start. The system needs 5 to 10

seconds to reset.

If you do restart the engine after such a shutdown and have not

corrected the low oil pressure, the engine runs for about 10

seconds as described above and then stops.

2.12 CHARGING A BATTERY

DANGER! Storage batteries give off explosive hydrogen

gas while recharging. An explosive mixture will remain

around the battery for a long time after it has been charged.

The slightest spark can ignite the hydrogen and cause an

explosion. Such an explosion can shatter the battery and

cause blindness or other serious injury.

DANGER! Do not permit smoking, open flame, sparks

or any other source of heat around a battery. Wear protective

goggles, rubber apron and rubber gloves when working

around a battery. Battery electrolyte fluid is an extremely

caustic sulfuric acid solution that can cause severe burns. If

spill occurs flush area with clear water immediately.

Your generator has the capability of recharging a discharged 12

Volt automotive or utility style storage battery. Do not use the

unit to charge any 6 Volt batteries. Do not use the unit

to crank an engine having a discharged battery.

Section 2 — Operation

Commercial-Industrial-Residential Portable Generator System

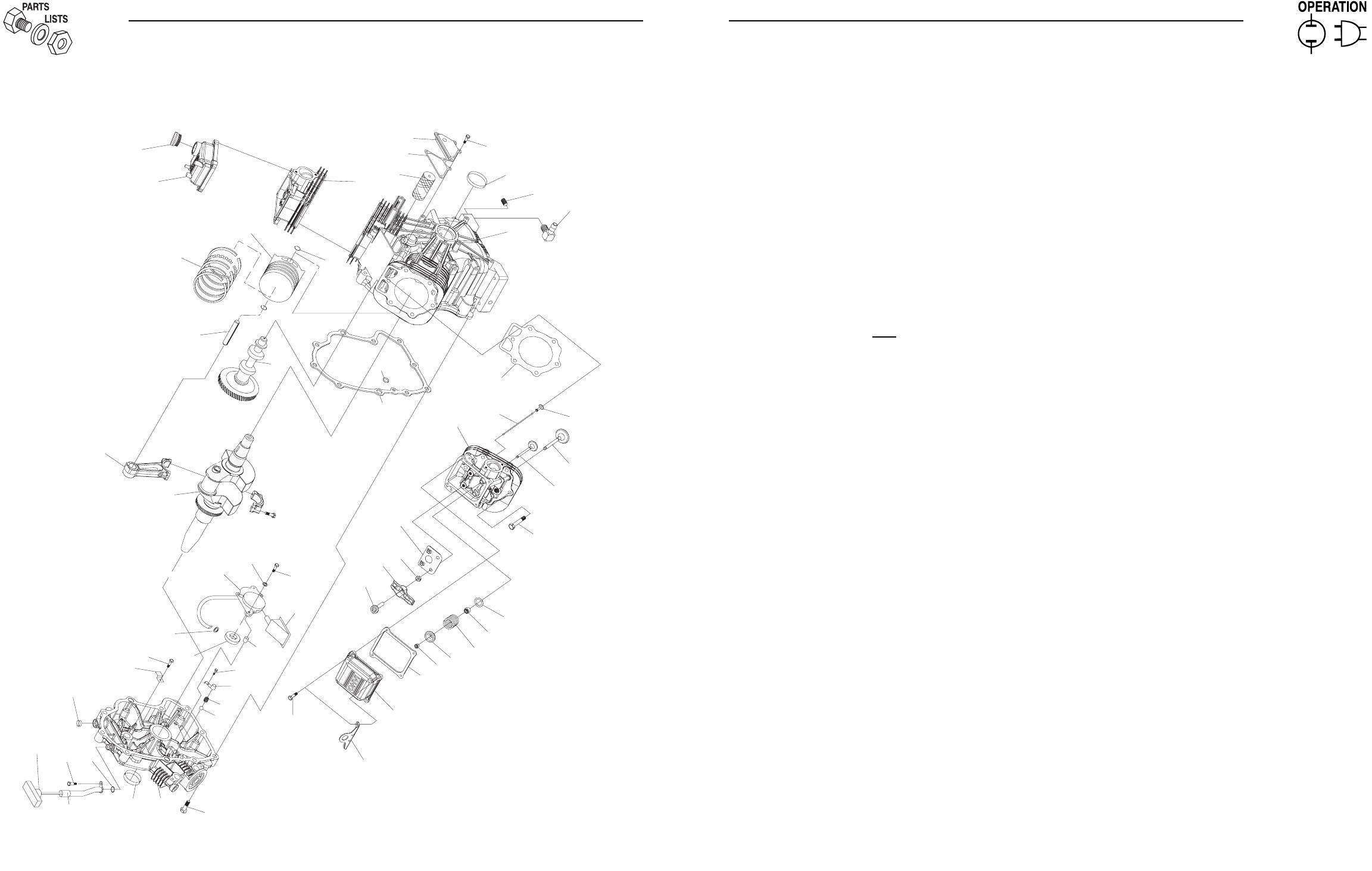

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

GT-990 & GT-760 Engine (Page 1) – Drawing No. 0E8589-J

ITEM PART NO. QTY. DESCRIPTION

1 0C5729 1 ASSEMBLY, CRANKCASE HOUSING

WITH SLEEVE

2 0E9843 1 SEAL, 38 I.D. CRANKSHAFT

3 090388 3 SCREW, TAPTITE M6-1.0 X 12 BP

4 0C5372 1 ASSEMBLY, BREATHER

5 0C3005 1 GASKET, BREATHER COVER

6 0E3372B 1 SEPARATOR, OIL BREATHER

7 0D8067A 1 ASSEMBLY, HEAD #1

8 071983 4 RETAINER, PISTON PIN 20

9 0D5269 1 ROCKER, COVER

10 043790 1 BARBED EL 90 3/8NPT X 3/8

11 0E2950 2 PISTON, LC (GT-990)

0E2985 2 PISTON, HC (GT-760)

12 021533 2 SET, PISTON RING 90MM

13 0E1466 2 PIN PISTON

14 0D4041 1 ASSEMBLY, CAMSHAFT & GEAR

15 0D4788 2 PLUG STD PIPE 3/8 STEEL SQ HD

16 093064 1 ASSEMBLY, OIL FILL CAP

17 0C2977 1 GASKET, CRANK CASE

18 0C5943 1 SEAL, OIL PASSAGE

19 0E4357E 1 ASSEMBLY, CRANKSHAFT

HORIZONTAL DIRECT DRIVE

(GT-990)

0E4356E 1 ASSEMBLY, CRANKSHAFT

HORIZONTAL DIRECT DRIVE

(GT-760)

20 0E3223 2 ASSEMBLY, CONNECTING ROD

(GT-990)

0E3222 2 ASSEMBLY, CONNECTING ROD

(GT-760)

21 0D2157 2 SCREW SHC M6-1.0 X 50 G8.8

22 0E6098 1 SCREEN, OIL PICKUP

23 0D4123A 1 ASSEMBLY, OIL PUMP

24 078699E 2 SLEEVE, SEAMED DOWEL 10 DIA.

25 0C3011 2 COVER, OIL RELIEF

26 0C3009 2 SPRING, OIL RELIEF

27 0C3010 2 BALL, 1/2D OIL RELIEF

28 093873 2 WASHER, LOCK RIB M6

29 0C5315 1 GEROTOR, OUTER

30 0C5998 1 CLAMP, OIL TUBE

31 0D4497 1 PLUG-CRANKCASE GOVERNOR

BORE

32 0C3971E 1 ASSEMBLY, DIPSTICK WITH

HANDLE

33 0D3745 1 TUBE, DIPSTICK

34 0C3027 3 O-RING, OIL CLR

35 0E9842 1 SEAL, 42 I.D. CRANKSHAFT

ITEM PART NO. QTY. DESCRIPTION

36 0C5731 1 ASSEMBLY, HOUSING COVER

WITH SLEEVE

37 0C3006 11 SCREW, HHFC M10-1.5 X 55

38 080318 8 SCREW HHFC M6-1.0 X 25

39 0C8808 2 HOOK, LIFTING

40 0C2981C 1 ROCKER, COVER

41 0C2979 2 GASKET, VALVE COVER

42 086515 8 KEEPER, VALVE SPRING

43 0D2274 4 RETAINER, VALVE SPRING

44 0D3867 4 SPRING, VALVE

45 078672 2 SEAL, VALVE STEM D7

46 0C5371 4 WASHER, VALVE SPRING

47 072694 4 STUD, ROCKER ARM PIVOT

48 0C3027 2 O-RING, 3/8" X 1/2"

49 0D5313 4 ROCKER ARM

50 0D3998 4 NUT, HEX M8-1.0 GB YELLOW

CHROME

51 0D6024 2 PLATE, PUSH ROD GUIDE

52 0C2976 12 SCREW HHFC M8-1.25 X 65

53 086516 2 VALVE, EXHAUST

54 0C2229 2 VALVE, INTAKE

55 083897 4 TAPPET, SOLID

56 0D8067B 1 ASSEMBLY, HEAD #2

57 0D9853D 4 PUSHROD 147

58 0C2978 2 GASKET, HEAD

59 0D6008 1 KIT GEAR COVER

60 0D4010 1 KIT GASKET

61 0D6007 1 KIT PISTON & RINGS

62 0D4012 1 KIT BREATHER ASSEMBLY

63 0D8675A 1 KIT HEAD ASSEMBLY CYLINDER 1

64 0D8675B 1 KIT HEAD ASSEMBLY CYLINDER 2

65 0D4015 1 KIT OIL RELIEF

Item 59 (Kit) includes items 3, 30, 35, 65

Item 60 (Kit) includes items 2, 5, 17, 18, 34, 35, 40, 57, 139, 153.

Item 61 (Kit) includes items 8, 11, 12, 13

Item 62 (Kit) includes items 4, 5, 6

Item 63 (Kit) includes items 7, 41, 42, 43, 44, 45, 46, 47, 49, 50, 51, 52,

53, 54, 57, 58

Item 64 (Kit) includes items 41, 42, 43, 44, 45, 46, 47, 49, 50, 51, 52, 53,

54, 56, 57, 58

Item 65 (Kit) includes items 25, 26, 27

To recharge 12 Volt batteries, proceed as follows:

• Check fluid level in all battery cells. If necessary, add ONLY

distilled water to cover separators in battery cells. Do not

use tap water.

• If the battery is equipped with vent caps, make sure they are

installed and are tight.

• If necessary, clean battery terminals.

• Connect battery charge cable connector plug to panel

receptacle identified by the words "12-VOLT D.C."

• Connect battery charge cable clamp with red handle to the

positive (+) battery terminal.

• Connect battery charge cable clamp with black handle to the

negative (-) battery terminal.

• Start engine. Let the engine run while battery recharges.

Engine idle control switch must be in off position for battery

charging.

• When battery has charged, shut down engine.

Note: Use an automotive hydrometer to test battery

state of charge and condition. Follow the hydrometer

manufacturer's instructions carefully. Generally, a

battery is considered to be at 100% state of charge

when specific gravity of its fluid (as measured by

hydrometer) is 1.260 or higher.

Section 2 — Operation

Commercial-Industrial-Residential Portable Generator System

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

GT-990 & GT-760 Engine (Page 1) – Drawing No. 0E8589-J

160

49 51

54 55

25, 26, 27

41, 42, 43, 44, 45, 46, 47, 49, 50, 51, 52, 53, 54, 56, 57, 58

3.2.1 GENERATOR SPECIFICATIONS

MODEL C 12500 C 15000

Model # 04986 04987

Rated Max. Power 12.5 kW 15.0 kW

Surge Power 18.75 kW 22.5 kW

Rated AC Voltage 120/240 120/240

Rated Max AC Load

Current @ 240V 52.0 Amps 62.5 Amps

Current @ 120V 104.0 Amps 125.0 Amps

Rated Frequency 60 Hz @ 3600 RPM

Phase Single Phase

Rated DC Voltage 12 Volts

Rated Max DC Load

Current @ 12 Volts 10 Amperes

3.2.2 ENGINE SPECIFICATIONS

Rated Horsepower

@ 3600 RPM 27 30

Displacement 763cc 992cc

Spark Plug Type Champion®RC14YC or Equivalent

Spark Plug Gap 0.030 inch or (0.76 mm)

Gasoline Capacity 16 U.S. gallons

Oil Type Summer – SAE 30 or 10W-30 / Winter – Synthetic 5W-20 or 5W-30

Oil Capacity w/ Filter Change = 1.5 Qts. w/o Filter Change = 1.2 Qts.

Run Time/Fuel 10 Hours / 1.6 gallons per hour

Consumption-1/2 Load

Check Oil Level ✓

Service Air Pre-Cleaner ✓**

Change Oil and Oil Filter‡ ✓*

Clean Spark Arrestor Screen ✓

Adjust Valve Clearance ✓

Service Air Cleaner ✓**

Replace Spark Plugs ✓

‡ Change oil after first 8 hours of operation then every season.

* Change oil and oil filter every month when operating under heavy load or in high temperatures.

** Clean more often under dirty or dusty operating conditions. Replace air cleaner parts if very dirty..

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

3.1 MAINTENANCE SCHEDULE

Follow the calendar intervals. More frequent service is required when operating in adverse conditions noted below.

Operation Maintenance Daily Every Season Every Season Every Season

PRODUCT SPECIFICATIONS

Section 6 — Electrical Data

Commercial-Industrial-Residential Portable Generator System

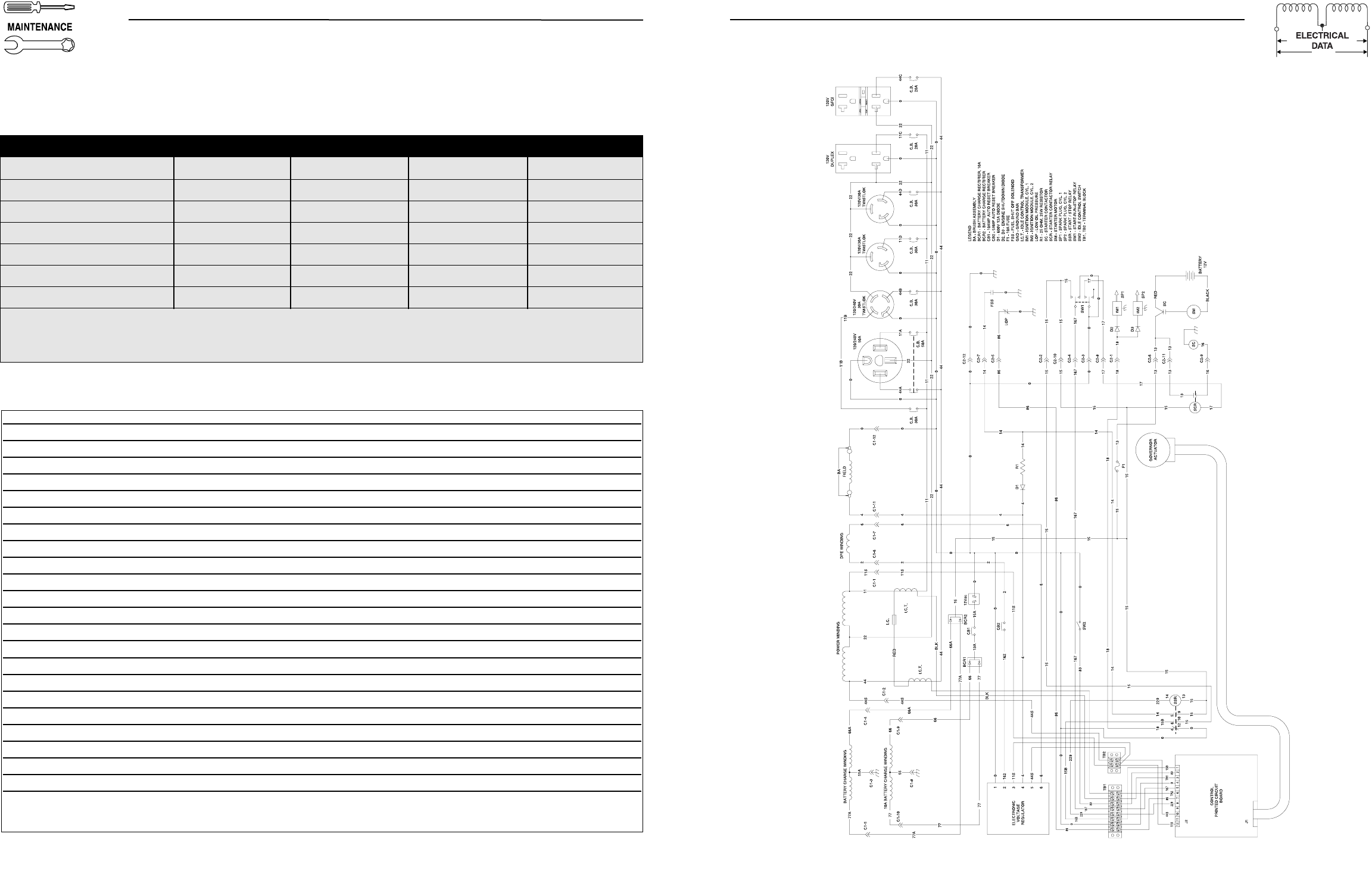

Schematic – Drawing No. 0E0229A

3.3 GENERAL RECOMMENDATIONS

The warranty of the generator does not cover items that have

been subjected to operator abuse or negligence. To receive full

value from the warranty, the operator must maintain the

generator as instructed in this manual.

Some adjustments will need to be made periodically to properly

maintain the generator.

All adjustments in the Maintenance section (3) of this manual

should be made at least once each season. Follow the

requirements in the "Maintenance Schedule" chart on page 14.

NOTE: Once a year you should replace the spark plug

and replace the air filter. A new spark plug and clean

air filter assure proper fuel-air mixture and help your

engine run better and last longer.

3.3.1 GENERATOR MAINTENANCE

Generator maintenance consists of keeping the unit clean and dry.

Operate and store the unit in a clean dry environment where it will

not be exposed to excessive dust, dirt, moisture or any corrosive

vapors. Cooling air slots in the generator must not become

clogged with snow, leaves, or any other foreign material.

Check the cleanliness of the generator frequently and clean when

dust, dirt, oil, moisture or other foreign substances are visible on

its exterior surface.

CAUTION! Never insert any object or tool through the air

cooling slots, even if the engine is not running.

Note: DO NOT use a garden hose to clean generator.

Water can enter the engine fuel system and cause

problems. In addition, if water enters the generator

through cooling air slots, some water will be retained

in voids and crevices of the rotor and stator winding

insulation. Water and dirt buildup on the generator

internal windings will eventually decrease the

insulation resistance of these windings.

3.3.2 TO CLEAN THE GENERATOR

• Use a damp cloth to wipe exterior surfaces clean.

• A soft, bristle brush may be used to loosen caked on dirt, oil, etc.

• A vacuum cleaner may be used to pick up loose dirt and debris.

• Low pressure air (not to exceed 25 psi) may be used to blow

away dirt. Inspect cooling air slots and openings on the

generator. These openings must be kept clean and

unobstructed.

3.3.3 ENGINE MAINTENANCE

DANGER! When working on the generator, always disconnect

negative cable from battery. Also disconnect spark plug wires

from spark plug and keep wire away from spark plug.

3.3.4 CHECKING OIL LEVEL

See the “BEFORE STARTING THE GENERATOR” section on page

10 for information on checking the oil level. The oil level should

be checked before each use, or at least every eight hours of

operation. Keep the oil level maintained.

3.3.5 CHANGING THE OIL AND OIL FILTER

Change the oil and filter after the first eight hours of operation.

Change the oil every 100 hours thereafter. If you are running this

unit under dirty or dusty conditions, or in extremely hot weather,

change the oil more often.

Use the following instructions to change the oil while

the engine is still warm:

• Clean area around oil drain hose and plug.

• Remove oil drain plug from end of hose and oil fill plug to drain

oil completely into a suitable container.

• When oil has completely drained, install oil drain plug and

tighten securely.

• Place a suitable container beneath the oil filter and turn filter

counterclockwise to remove. Discard according to local

regulations.

• Coat gasket of new filter with clean engine oil. Turn filter

clockwise until gasket contacts lightly with filter adapter. Then

tighten an additional 3/4 turn.

• Fill oil sump with recommended oil. (See “Before Starting the

Generator” on page 10 for oil recommendations).

• Wipe up any spilled oil.

3.3.6 REPLACING THE SPARK PLUG

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

Section 6 — Electrical Data

Commercial-Industrial-Residential Portable Generator System

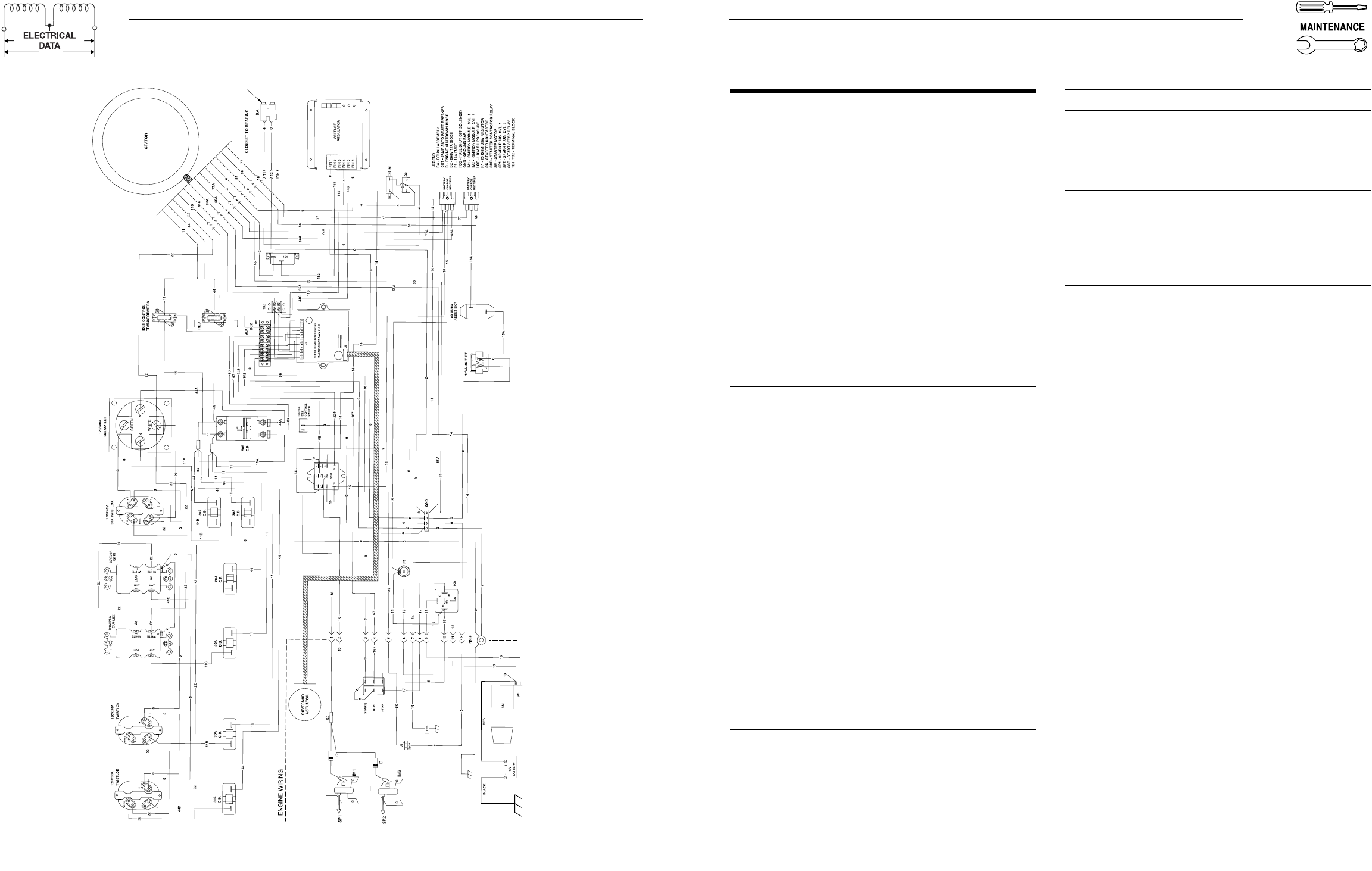

Wiring Diagram – Drawing No. 0E0228

Use Champion RC14YC spark plug or equivalent. The correct air

gap is 0.76 mm (0.030 in.). Replace the plug once each

year. This will help your engine start easier and run better.

1. Stop the engine and pull the spark plug wire off of the spark

plug.

2. Clean the area around the spark plug and remove it from the

cylinder head.

3. Set the spark plug's gap to 0.76 mm (0.030 in.). Install the

correctly gapped spark plug into the cylinder head.

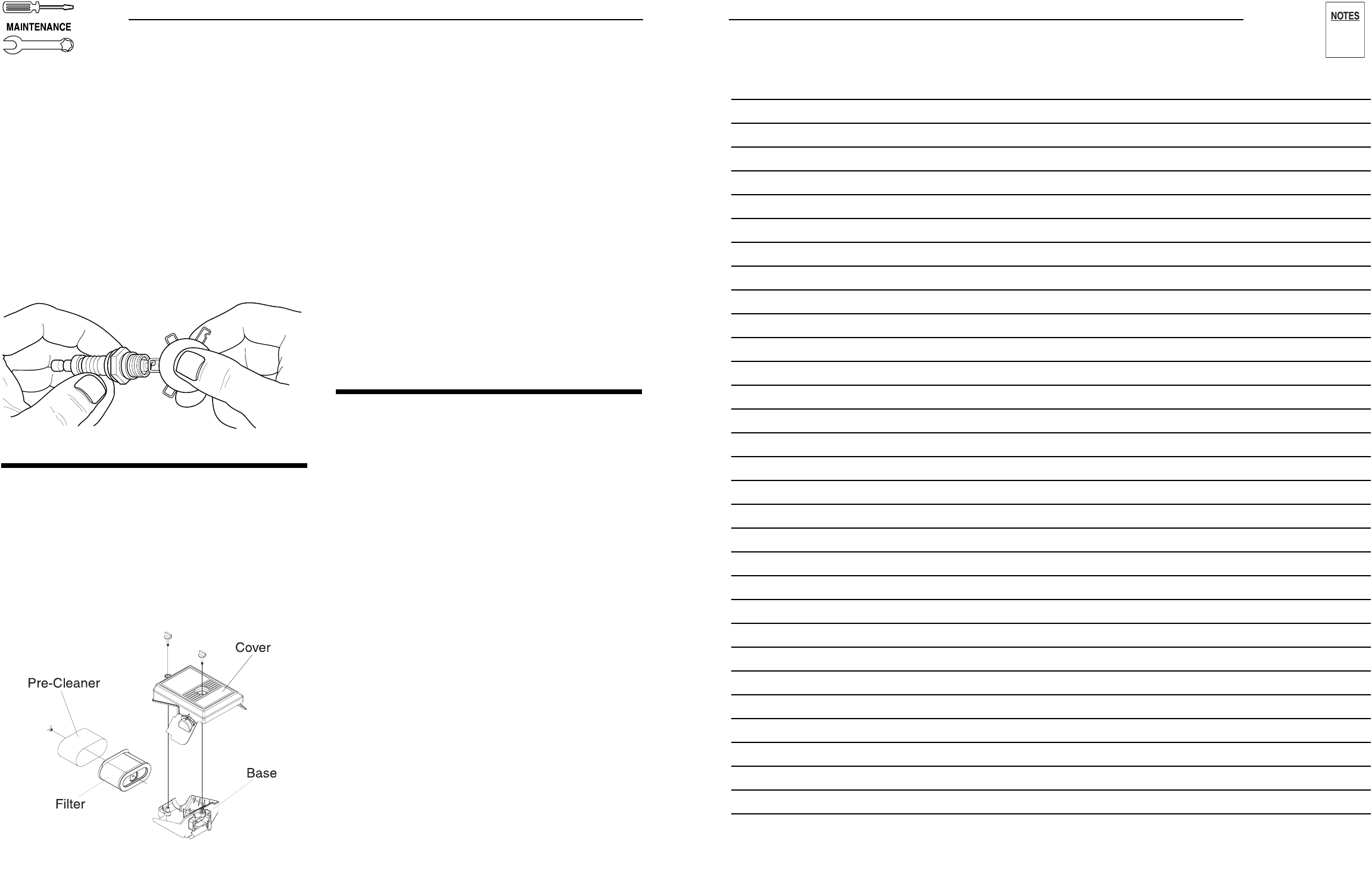

Figure 18 - Spark Plug Gap

3.4 SERVICE AIR CLEANER

Your engine will not run properly and may be damaged if you run

it using a dirty air cleaner. Clean or replace the air cleaner paper

filter once a year. Clean or replace more often if operating under

dusty conditions. Clean foam pre-cleaner every month or more

often under dusty conditions.

Figure 20 - Air Cleaner

To clean or replace foam pre-cleaner:

• Remove air cleaner cover, then foam pre-filter.

• Wash pre-cleaner in soapy water. Squeeze pre-filter dry in

clean cloth (DO NOT TWIST).

• Clean air cleaner cover before re-installing it.

To clean or replace paper air filter:

• Remove air cleaner cover; then remove foam pre-filter (service

if necessary) and remove paper filter.

• Clean paper filter by tapping it gently on a solid surface. If the

filter is too dirty, replace it with a new one. Dispose of the old

filter properly.

• Clean air cleaner cover then slip pre-cleaner over filter. Next

insert new paper filter into the base of the air cleaner. Re-

install air cleaner cover.

Note: To order a new air filter, please contact the

nearest authorized service center at 1-800-333-1322.

3.5 CLEAN SPARK ARRESTOR

SCREEN

The engine exhaust muffler has a spark arrestor screen. Inspect

and clean the screen at least once each year. If unit is used

regularly, inspect and clean more often.

NOTE: If you use your generator on any forest-

covered, brush-covered or grass-covered unimproved

land, it must equipped with a spark arrestor. The spark

arrestor must be maintained in good condition by the

owner/operator.

Clean and inspect the spark arrestor as follows:

• Remove the screen retaining bracket by removing the screw.

• Slide the spark arrestor screen out from the tail pipe.

• Inspect screen and replace if torn, perforated or otherwise

damaged. DO NOT USE a defective screen. If screen is not

damaged, clean it with commercial solvent.

• Replace the screen and the retaining bracket.

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

Section 5 - Notes

Commercial-Industrial-Residential Portable Generator System

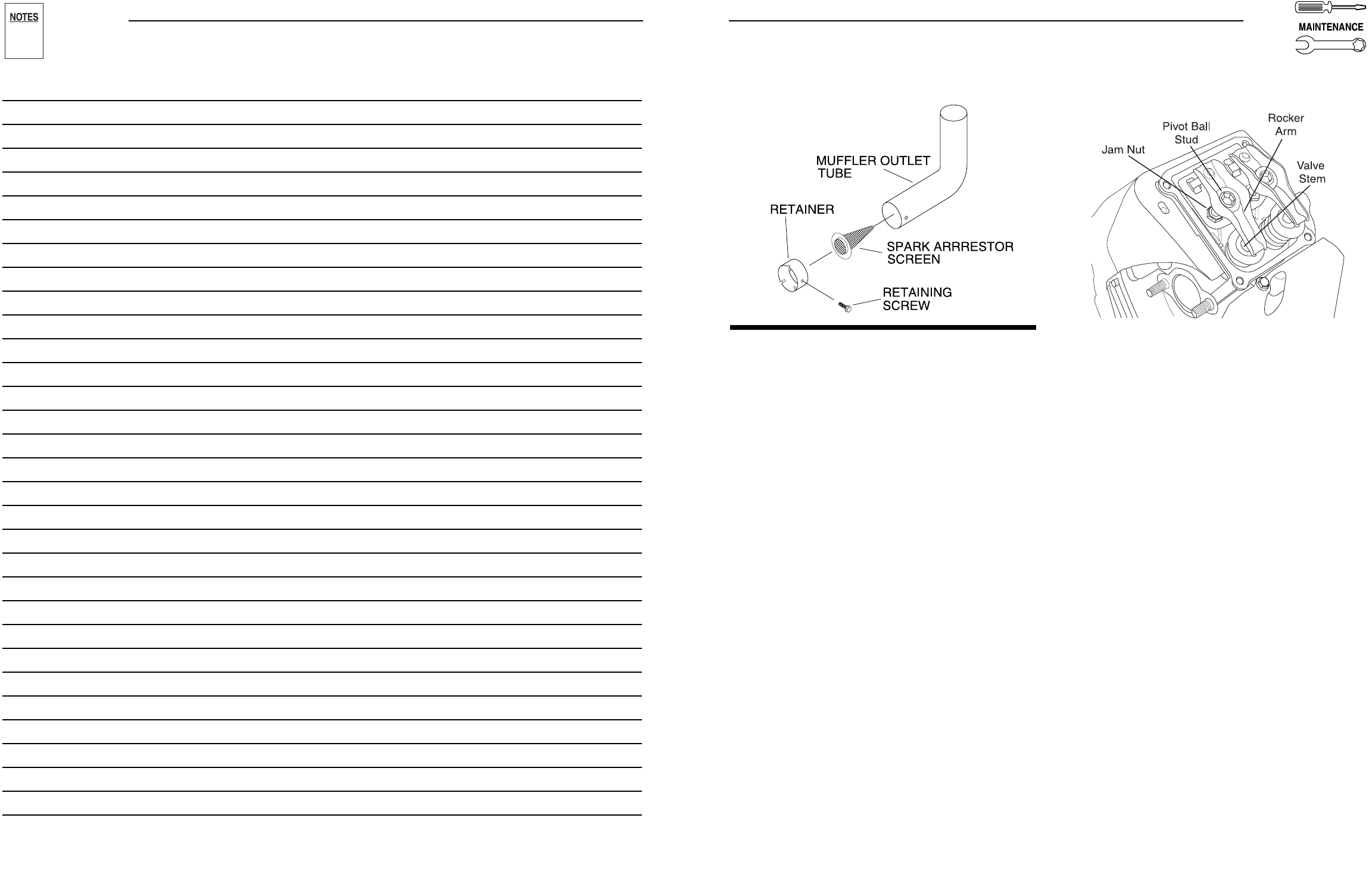

Figure 21 - Spark Arrestor

3.6 ADJUSTING VALVE CLEARANCE

After the first 50 hours of operation, you should adjust

the valve clearance in the engine.

Important: If you feel uncomfortable about doing this procedure

or you don't have the proper tools, please take your generator in

to the nearest service center to have the valve clearance adjusted.

This is a very important step to insure longest life for your engine.

To adjust valve clearance:

• Make sure the engine is at room temperature.

• Make sure that the spark plug wire is removed from the spark

plug and out of the way.

• Remove the four screws attaching the valve cover with a #2 or

#3 phillips screwdriver.

• Make sure the piston is at Top Dead Center (TDC) of its

compression stroke (both valves closed). To get the piston at

TDC, remove the intake screen at the front of the engine to gain

access to the flywheel nut. Use a large socket and socket wrench

to rotate the nut and hence the engine. While watching the piston

through the spark plug hole. The piston should move up and

down. The piston is at TDC when it is up as high as it can go.

• Loosen the rocker jam nut. Use an 10mm allen wrench to turn

the pivot ball stud while checking clearance between the rocker

arm and the valve stem with a feeler gauge. Correct clearance

is 0.002-0.004 inch (0.05-0.1 mm).

NOTE: You must hold the rocker arm jam nut in place

as you turn the pivot ball stud.

When valve clearance is correct, hold the pivot ball stud in place

with the allen wrench and tighten the rocker arm jam nut. Tighten

the jam nut to 174 in/lbs. torque. After tightening the jam nut,

recheck valve clearance to make sure it did not change.

Figure 22 - Valve Clearance Adjustment

• Install new valve cover gasket.

• Re-attach the valve cover.

NOTE: Start all four screws before tightening or you

will not be able to get all the screws in place. Make

sure the valve cover gasket is in place.

• Re-attach the spark plug wire to the spark plug.

• Repeat the process for the other cylinder.

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

Section 5 — Notes

Commercial-Industrial-Residential Portable Generator System

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

3.7 GENERAL

The generator should be started at least once every seven days

and be allowed to run at least 30 minutes. If this cannot be done

and you must store the unit for more than 30 days, use the

following information as a guide to prepare it for storage.

 DANGER! Never store engine with fuel in

tank indoors or in enclosed, poorly ventilated

areas where fumes may reach an open flame,

spark or pilot light as on a furnace, water heater,

clothes dryer or other gas appliance.

3.8 LONG TERM STORAGE

It is important to prevent gum deposits from forming in essential

fuel system parts such as the carburetor, fuel hose or tank during

storage. Also, experience indicates that alcohol-blended fuels

(called gasohol, ethanol or methanol) can attract moisture, which

leads to separation and formation of acids during storage. Acidic

gas can damage the fuel system of an engine while in

storage.

To avoid engine problems, the fuel system should be emptied

before storage of 30 days or longer, as follows:

• Remove all gasoline from the fuel tank.

 DANGER! Drain fuel into approved container

outdoors, away from open flame. Be sure engine

is cool. Do not smoke.

• Start and run engine until engine stops from lack of fuel.

• While engine is still warm, drain oil from crankcase. Refill with

recommended grade.

• Remove spark plugs and pour about 1/2 ounce

(15 ml) of engine oil into the cylinders. Cover spark plug hole

with rag. Press the “Start” button and allow engine to crank

for 2 seconds. Then press the “Stop” button.

CAUTION! Avoid spray from spark plug holes

when cranking engine.

• Install and tighten spark plugs. Do not connect spark plug

wires.

• Clean the generator outer surfaces. Check that cooling air

slots and openings on generator are open and unobstructed.

• Store the unit in a clean, dry place.

3.9 OTHER STORAGE TIPS:

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust. Rust

and/or dirt in your gasoline will cause problems with the

carburetor and fuel system.

• If possible, store your unit indoors and cover it to give

protection from dust and dirt. BE SURE TO EMPTY THE

FUEL TANK.

• If it is not practical to empty the fuel tank and the unit is to be

stored for some time, use a commercially available fuel

stabilizer added to the gasoline to increase the life of the

gasoline.

• Cover your unit with a suitable protective cover that does not

retain moisture.

 DANGER! Never cover your generator while

engine and exhaust area are warm.

STORAGE

4.1 TROUBLESHOOTING

Section 4 — Troubleshooting

Commercial-Industrial-Residential Portable Generator System

Engine is running, but no AC 1. Circuit breaker is open. 1. Reset circuit breaker.

output is available. 2. Poor connection or defective cord set. 2. Check and repair.

3. Connected device is bad. 3. Connect another device that is in

good condition.

4. Fault in generator. 4. Contact Authorized Service Facility.

Engine runs good but bogs 1. Short circuit in a connected load. 1. Disconnect shorted electrical load.

down when loads are connected. 2. Generator is overloaded. 2. See “Don’t Overload the Generator” on page 9.

3. Engine speed is too slow. 3. Contact Authorized Service Facility.

4. Shorted generator circuit. 4. Contact Authorized Service Facility.

Engine will not crank. 10 amp fuse at rear of generator Replace fuse with only an identical

control panel has melted open. 10-amp replacement fuse.

Engine will not start; or starts 1. Dirty air cleaner. 1. Clean or replace air cleaner.

and runs rough. 2. Out of gasoline. 2. Fill fuel tank.

3. Stale gasoline. 3. Drain fuel tank and fill with fresh fuel.

4. Spark plug wire not connected to 4. Connect wire to spark plug.

spark plug.

5. Bad spark plug. 5. Replace spark plug.

6. Water in gasoline. 6. Drain fuel tank; fill with fresh fuel.

7. Overchoking. 7. Put choke knob to No Choke position.

8. Low oil level. 8. Fill crankcase to proper level.

9. Excessive rich fuel mixture. 9. Contact Authorized Service Facility.

10. Intake valve stuck open or closed. 10. Contact Authorized Service Facility.

11. Engine has lost compression. 11. Contact Authorized Service Facility.

Engine shuts down during 1. Out of gasoline. 1. Fill fuel tank.

operation. 2. Low oil level. 2. Fill crankcase to proper level.

3. Fault in engine. 3. Contact Authorized Service Facility.

Engine lacks power. 1. Load is too high. 1. See “Don’t Overload the Generator” on page 9.

2. Dirty air filter. 2. Replace air filter.

3. Engine needs to be serviced. 3. Contact Authorized Service Facility.

Engine “hunts” or falters. 1. Choke is opened too soon. 1. Move choke to halfway position until

engine runs smoothly.

2. Carburetor is running too rich or too 2. Contact Authorized Service Facility.

lean.

No Battery Charge DC output. 1. Battery posts are corroded. 1. Clean battery posts.

2. Battery cable is bad. 2. Replace cable.

3. Battery is defective. 3. Check battery condition; replace if

defective.

4. Receptacle is bad. 4. Contact Authorized Service Facility.

SYMPTOM CAUSE SOLUTION

Centurion 4986 OE8082 Rev. D User Manual Bb2f66c5 267c 4d2e B8d2 2bdfdb054470

Navigation menu

Versions of this User Manual:

Views

Navigation
