RFID Wall Mounted Reader
Installed with ILCO RAC 4 or RAC 4XT
Introduction
The RFID wall mounted reader provided by Kaba is compact, lightweight, rugged and water resistant, able to withstand
temperatures from -30°F to 150°F (-35°C to 66°C). It is made from durable materials and comes with at least 15 feet
(4.6 m) of cable. The reader is capable of functioning up to distances of 500 feet (152.4 m) when powered from the RAC
controller board.
The reader has a blue LED that indicates that the unit is powered. The reader also provides visual feedback when
access is granted.
Installing the Reader
IMPORTANT: For proper dimensions required for the holes to be drilled, refer to drilling template DT-514800. If
unavailable, drilling templates may be obtained through Kaba Customer Support: 1-800-906-4526
As shown in Figure B and Table 1, the RFID wall mounted reader connects to the RAC 4/4XT controller board for single
or dual reader applications.
1. As per the installation type, mark and drill the required holes for the reader as per drilling
template DT-514800, or using the mounting plate of the reader.
2. Screw the mounting plate of the reader to the wall using the screws provided. Use the 1 ¼”
wood screws and inserts for drywall, or use the ½” steel screws for metal frame mounting.
3. Connect one end of the supplied wire to the back of the reader as per the column ‘Reader
Connection’ in Table 1 or as per Figure A. Route the other end of the wire, which will connect to
the RAC enclosure, through the grommet in the mounting plate.
4. Hook the top of the reader enclosure onto the top of the mounting plate and secure together
with the provided #6 screw, tightened at the bottom of the reader.
5. Route the wire to the RAC 4/4XT enclosure and connect to the controller board as per the
column ‘RAC 4/4XT Controller Board Connection’ in Table 1, or as per Figure B.
IMPORTANT: The jumper cables supplied with the reader must be connected as shown in Figure B and Table 1
for the contactless reader to operate properly.
NOTE: The RAC 4 controller board supports a single reader only, for Ingress functionality, using connectors
J1 and J2.
NOTE: The RAC 4XT controller board can support dual readers for Ingress (connectors J1 & J2) and
Egress (connectors J13 & J14) functionality.
Controller
Board
124-511689-002
123
Bypass
Active
Reset
SW1
SW2
D46
D45
D41
D42
J1 J2 J3
J5
J6
J7
J8
J9
J12J13J14
J15
J16
J17
J18
J19
D43
D44
Programming
Port
SW3
WHITE
GREEN
WHIT
E
GREEN
BLACK
RED
BLACK
ON
123123
123123 123 121234
1234123 4 123 4
123123 4
123 4
For EGRESS
Application
RED
For INGRESS
Application
See Note 1*
WHITE
GREEN
BLACK
J4
2 1
J5
2 1
RED
Controller Board to RFID Wall Mounted Reader Connection
RAC4/4XT Controller Board Connection
Signal Reader Connection
GND J4 - 2 J1, Pin 2 J14, Pin 2
+12V J4 - 1 J1, Pin 3 J14, Pin 3
RS485+ J5 - 2 J2, Pin 1 + J3, Pin 1* J13, Pin 1 + J12, Pin 1
RS485- J5 - 1 J2, Pin 2 + J3, Pin 2* J13, Pin 2 + J12, Pin 2 Green See Note 1
Note 1: Jumper cables as shown in figure B must be connected for the reader to operate correctly.
Wire Color
Red
Black
See Note 1White
Comments
GND
+12V
Ingress Reader
Terminal Block Egress Reader
Kaba Ilco Inc.
7301 Boul. Décarie, Montréal, Québec, H4P 2G7
T: (514) 735-5411, TF: 1-800-906-4526, F: (514) 735-1394
lodgingtech@kaba.com, www.kabalodging.com
PK3660_10_14 Printed in Canada

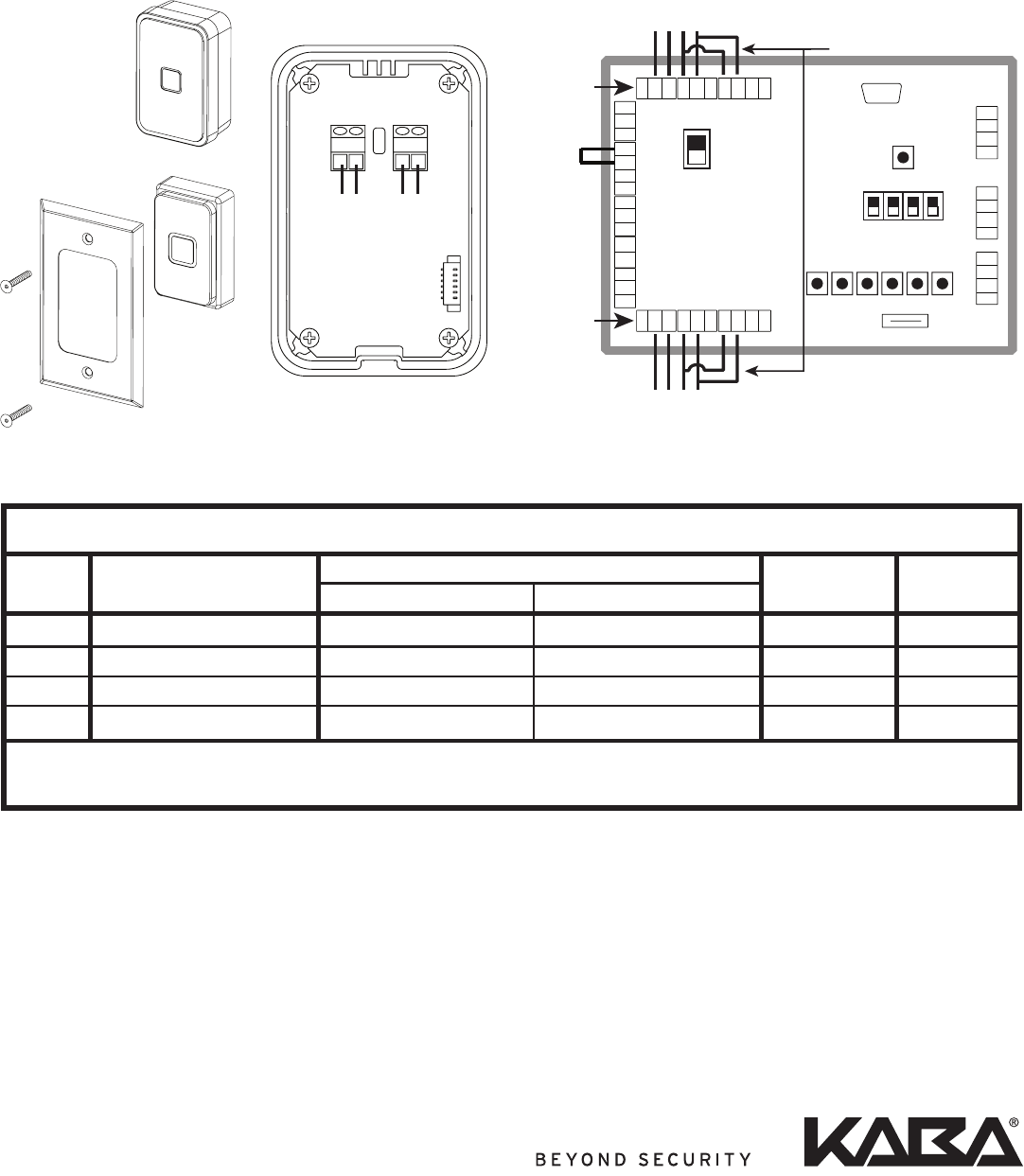

Figure A: RFID Wall Mounted Reader
Surface Mount
Flush Mount
Table 1: RAC 4/4XT RFID Wall Mounted Reader Wire Connections
Figure B: RAC 4XT Controller Board
(Note: RAC 4 Ingress only)
Installation Sheet
RFID Wall Mounted Reader
Installed with ILCO RAC 4 or RAC 4XT
Regulatory Compliance:
This device complies with Part 15 of the FCC Rules,. Operation is subject to the following two conditions: (1) this device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications of this product, not approved by manufacturer will void the user’s authority to operate the equipment.
“This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.”
FCC # Q8SR79KSR
IC# 4652A-R79KSR
