HUGHES COVER GOES HERE

Model: HIRD-E45

Platinum

Edition

Digital Satellite Receiver

Owner’s Manual

Trademarks and Copyrights— This manual is

Software contained in the DIRECTV PLUS™ digital

satellite receiver and referenced in this manual is copyright

are patent pending. WatchWord, PreSelect, TurboTune,

AlphaTune and OneLine Guide are trademarks of Hughes

Network Systems. DIRECTV, DIRECTV PLUS and

DIRECT TICKET are trademarks of DIRECTV, Inc., a

unit of Hughes Electronics Corp., and are used with

permission. All other trademarks and service marks are the

property of their respective owners.

This product is the subject of one or more U.S. or foreign

patents pending.

Disclaimer—Every effort has been made to ensure the

correctness and completeness of the material in this

document. No company shall be liable for errors contained

herein. The information in this document is subject to

change without notice. No warranty of any kind is made

with regard to this material, including, but not limited to,

the implied warranties of merchantability and fitness for a

particular purpose.

StarSight Information—StarSight® features licensed

under one or more of the following U.S. patents: 4,706,121;

5,151,789; 5,335,277; 5,353,121; 5,479,266; 5,479,268;

and 5,532,754. Use rights reserved.

Macrovision Information—This device incorporates an

anticopy process technology that is protected by U.S.

patents and other intellectual property rights. The anticopy

process is licensed for noncommercial, home use only.

Reverse engineering or disassembly is prohibited.

Note on Recording Programming—Most television

programs and films are copyrighted. This means that

someone has legal rights governing the reproduction and

distribution of this material. In certain circumstances,

copyrighted materials. In most cases, it is permissible to

record for personal use, as long as you do not sell the

material. You must act responsibly in this area — check

into the matter if you are unsure.

Some pay per view programs may be licensed from

producers as “view only” programs. These are copyrighted

programs and may not be copied or reproduced for any

purpose without the express written permission of the

DIRECTV® Programming—For subscription

information, or to resolve problems related to

programming, call the service provider, DIRECTV at

1-800-DIRECTV (347-3288).

DIRECTV System Hardware and Installation—To

arrange for professional installation of your DIRECTV

System, ask questions, or to resolve problems related to

your DIRECTV System, contact your dealer. If additional

information is needed, please contact the Customer Care

Center toll free at 1-800-274-8995.

Hughes Customer Care Center

1-800-274-8995

DIRECTV Subscriptions and

Pay Per View

1-800-DIRECTV

PLEASE MAKE NOTE OF THE FOLLOWING

INFORMATION FOR WARRANTY

System Model #: HSYS- ____ ____ ____ ____ ____

Receiver Model #: HIRD-E4

Receiver Serial #: ___________________________

Access Card #: __________ __________ __________

LNB Serial #: ________________________________

IMPORTANT SAFETY INSTRUCTIONS

For your safety and protection, read this entire Owner’s Manual before you attempt to install or use your satellite system. In

particular, read this safety section carefully. Keep this safety information where you can refer to it if necessary.

Heed Warnings—All warnings on the product and in the operating instructions should be adhered to.

Follow Instructions—All operating and use instructions should be followed.

THESE ARE DEFINITIONS FOR ALERTS USED IN THIS MANUAL

WARNING or CAUTION

Where you see this alert symbol

and the WARNING or CAUTION

heading, strictly follow the warning

instructions to avoid personal injury.

DANGER

Electric shock hazard: Where you

see these symbol and the DANGER

heading, strictly follow the warning

instructions to avoid electric shock

injury.

THESE ALERTS APPEAR IN THIS MANUAL

DANGER

Do not select a location to install the satellite

dish antenna near power lines. You can be

killed if the satellite dish antenna comes into

contact with electric power lines.

• Do not contact overhead power lines

• Check the distance to any nearby power

lines before starting installation. Stay at

least 20 feet away from all power lines.

• If any part of the satellite dish antenna or

mast assembly comes into contact with a

power line, call your local power

company. Do not try to remove it

yourself. They will remove it safely.

CAUTION

Local electric codes and the National Electric

Code (NEC) require the satellite dish antenna

to be grounded. Grounding the satellite dish

antenna helps protect against damage caused

by static voltage buildup. Grounding can also

protect against voltage surges created by

nearby lightning strikes.

WARNING

For your own safety, follow these important

safety rules:

• Perform as many functions as possible

on the ground.

• Do not install the satellite dish antenna

on a rainy or windy day.

• If you start to drop the satellite dish

antenna or mast assembly, get away

from it and let it fall.

INSTALLATION

Polarization—This digital satellite receiver is equipped

with a plug that will fit into the power outlet only one way.

Do not modify the plug defeating this feature. If the plug

does not fit, contact your electrician to replace your outlet.

To prevent electric shock, do not use this plug with an

extension cord or outlet unless you can fully insert the

blades without blade exposure.

Power Sources—Operate this digital satellite receiver

only from the type of power source indicated on the

marking label. If you are not sure of the type of power

supply to your home, consult your dealer or local power

company.

Power-Cord Protection—Power-supply cords should

be routed so that they are not likely to be walked on or

pinched by items placed upon or against them, pay

particular attention to cords at plugs, convenience

receptacles, and at the point where they exit from the

product.

Overloading—Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result

in a risk of fire or electric shock.

Ventilation—Slots and openings in the cabinet are

provided for ventilation and to ensure reliable operation of

the product and to protect it from overheating, and these

openings must not be blocked or covered. The openings

should never be blocked by placing the product on a bed,

sofa, rug, or other similar surface. This product should not

be placed in a built-in installation such as a bookcase or

rack unless proper ventilation is provided or the

manufacturer’s instructions have been adhered to.

For electrical safety, power line operated equipment or

accessories connected to this unit should bear the UL

listing mark should not be modified so as to defeat the

safety features. This will help avoid any potential

hazard from electrical shock or fire. If in doubt, contact

qualified service personnel.

Heat—The product should be situated away from heat

sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

Accessories—To avoid personal injury or damage to the

digital satellite receiver, do not place the digital satellite

receiver on any unstable cart, stand, table, or bracket. Any

mounting of the product should follow the manufacturer’s

instructions.

Attachments—Do not use attachments unless

recommended by Hughes as they may cause hazards.

Satellite Dish Antenna Grounding—The outdoor

satellite dish antenna used to receive satellite signals and

the cable used to connect the satellite dish antenna to the

indoor receiving unit are required to comply with local

installation codes and the appropriate sections of the

National Electric Code (NEC) and in particular Article 810-

15, which covers proper installation and grounding of

television receiving equipment, as well as to Article 820-

33, which specifies that the satellite dish antenna cable

ground shall be connected to the grounding system of the

building as close to the point of cable entry as practical.

These codes require proper grounding of the metal structure

of the outdoor satellite dish antenna and grounding of the

connecting cable at a point where it enters the house (or

other building). If you are having a professional installer

make the installation, the installer must observe installation

codes. This manual contains instructions on how to make

the installation in compliance with the NEC. If additional

local installation codes apply, contact local inspection

authorities.

EXAMPLE OF ANTENNA GROUNDING ACCORDING

TO THE NATIONAL ELECTRICAL CODE

INSTRUCTIONS CONTAINED IN “RADIO AND

TELEVISION EQUIPMENT”

Water and Moisture— WARNING! To reduce the risk

of fire or electric shock, do not expose this product to rain

or moisture.

Lightning—For added protection for this product during a

lightning storm, or when it is left unattended and unused

for long periods of time, unplug it from the wall outlet,

disconnect the antenna and cable system, and disconnect it

from the telephone line. This will prevent damage to the

product due to lightning and power-line surges.

Television Antenna Information—Installing an

outdoor antenna can be hazardous and should be left to a

professional antenna installer. Do not locate the outside

antenna system in the vicinity of overhead power lines or

other electric light or power circuits, or where it can fall

into such power lines or circuits. When installing an outside

antenna system, take extreme care to keep from touching

such power lines or circuits, as contact with them might be

fatal. If an outside antenna is connected to the digital

satellite receiver, be sure the antenna system is grounded so

as to provide some protection against voltage surges and

built-up static charges. Section 810 of the NEC, NFPA No.

70 1987, provides information with respect to proper

grounding of the mast and supporting structure, grounding

of the lead-in wire to an antenna discharge unit, size of the

grounding conductors, location of antenna discharge unit,

connection to grounding electrodes, and requirements for

the grounding electrode.

Note to CATV System Installer—This reminder is

provided to call the CATV system installer’s attention to

Section 820-40 of the NEC which provides guidelines for

proper grounding an, in particular, specifies that the cable

ground shall be connected to the grounding system of the

building, as close to the point of cable entry as practical.

Power Lines—Extreme care must be taken when

installing and adjusting or maintaining the outdoor antenna

and connecting cable, especially in the vicinity of overhead

power lines, electric lights, or power circuits. When

installing the outdoor antenna or cable, extreme care should

be taken to keep from touching or approaching such power

lines or circuits, as contact with them might be fatal.

Cleaning—Unplug this digital satellite receiver from the

wall outlet before cleaning. Do not use liquid cleaners or

aerosol cleaners. Use a damp cloth for cleaning.

Object and Liquid Entry—Never push objects of any

kind into this digital satellite receiver through openings as

they may touch dangerous voltages or “short out” parts that

could result in a fire or electric shock. Never spill liquid of

any kind on the digital satellite receiver.

SERVICE

Servicing—Do not attempt to service this digital satellite

receiver yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. There

are no user serviceable parts inside. Refer all servicing to

qualified service personnel.

Conditions Requiring Service—Unplug this digital

satellite receiver from the wall outlet and refer servicing to

qualified personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled on, or objects have fallen

into, the digital satellite receiver or it has been

exposed to water.

• If the digital satellite receiver does not operate

normally by following the operating instructions.

Adjust only those controls that are covered by the

operating instructions. Other adjustments may result in

damage and will often require extensive work by a

qualified technician to restore the digital satellite

receiver to its normal operation.

• If the digital satellite receiver has been dropped or the

cabinet has been damaged.

• When the digital satellite receiver exhibits a distinct

change in performance.

Replacement Parts—When replacement parts are

required, have the technician verify that the replacements

being used have the same safety characteristics as the

original parts. Use of replacement parts specified by the

manufacturer can prevent fire, electric shock, or other

hazards.

Safety Check—Upon completion of any service or

repairs to this digital satellite receiver, ask the service

technician to perform safety checks recommended by the

manufacturer to determine that the digital satellite receiver

is in safe operating condition.

FEDERAL COMUNICATIONS COMMISSION (FCC)

REGULATORY INFORMATION

Federal Communications Commission (FCC)—

This equipment complies with both Part 15 and Part 68 of

the FCC rules.

Part 15 compliance—

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception,

which can be determined by removing and applying power

to the equipment, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving satellite dish antenna.

• Increase the separation between the equipment and the

digital satellite receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the digital satellite receiver

is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

The user may find the following booklet, prepared by the

Federal Communications Commission, helpful: “How to

Identify and Resolve Radio and TV Interference

Problems.” This booklet is available from the U.S.

Government Printing Office, Washington, DC.

To meet FCC requirements, only peripherals (computer

input/output devices, terminals, printers, etc.) certified to

comply with the Class B limits may be attached to this

device. Operation with non-certified peripherals is likely to

result in interference to radio and TV reception.

To meet FCC requirements, shielded cables are required to

connect the device to a personal computer, peripheral, or

other Class B certified device.

Part 68 compliance—

1. The FCC has established Part 68 of the FCC Rules,

which permit this device to be directly connected to

the telephone network. Standardized jacks are used for

these connections. This equipment should not be used

on coin lines or party lines.

2. If this device is malfunctioning, it may also be causing

harm to the telephone network; this device should be

disconnected until the source of the problem can be

determined and until repair has been made. If this is

not done, the telephone company may temporarily

disconnect service.

3. The telephone company may make changes in its

technical operations and procedures; if such changes

affect the compatibility or use of this device, the

telephone company is required to give adequate notice

of the changes. You will be advised of your right to

file a complaint with the FCC.

4. If the telephone company requests information on

what equipment is connected to their lines, inform

them of:

• the telephone number this unit is connected to.

• the ringer equivalence number (REN). The number

can be found on a label located on the bottom of the

equipment.

• the Universal Service Order Code (USOC) jack

required. This equipment requires a USOC RJ11

jack.

• the FCC registration number. The number can be

found on a label located on the bottom of this

equipment.

TABLE OF CONTENTS

A FIRST LOOK AT THE SATELLITE SYSTEM ........ 1-1

What You Should Do First....................................... 1-1

How Does All This Work?....................................... 1-1

SATELLITE SYSTEM COMPONENTS.............................. 1-2

The Satellite Dish Antenna....................................... 1-2

The DIRECTV PLUS™ Digital Satellite Receiver .. 1-2

The Remote Control ................................................. 1-4

SETTING UP YOUR SATELLITE SYSTEM ............... 2-1

INSTALLING REMOTE CONTROL BATTERIES.............. 2-1

CHOOSING THE BEST CONNECTION FOR YOUR

ENTERTAINMENT SYSTEM........................................... 2-2

Hook Up the Audio/S-video Signals......................... 2-2

Hook Up the Audio/Video Signals ........................... 2-3

Hook Up the RF Signals .......................................... 2-3

Hook Up to a Stereo System .................................... 2-4

Distributing the Video Signal to Distant Rooms...... 2-5

Finishing Up ............................................................ 2-5

CONNECTING THE VCR CONTROL CABLE................. 2-6

Finding the VCR’s Remote Control Sensor............. 2-6

REMOTE CONTROL EXTENDER ................................... 2-6

Receiver Base Station Installation........................... 2-7

Transmitter Nose Cone Installation......................... 2-7

Battery Replacement ................................................ 2-8

Setting the Address of your DIRECTV PLUS™ Digital

Satellite Receiver and Remote Control.................... 2-8

NOW YOU CAN TURN IT ON........................................ 2-8

CONTROLLING THE DIRECTV PLUS™ DIGITAL

SATELLITE RECEIVER................................................ 3-1

FRONT PANEL VS. REMOTE CONTROL KEYS.............. 3-1

BASIC NAVIGATION ..................................................... 3-1

INSTALLING THE SATELLITE DISH ANTENNA …4-1

DETERMINE WHERE TO POINT YOUR SATELLITE DISH

ANTENNA ..................................................................... 4-2

The INSTALLATION screen.................................... 4-2

ALIGNMENT RESULT Pop-up Panel..................... 4-3

CHOOSING THE ANTENNA INSTALLATION SITE.......... 4-3

SELECTING A MOUNTING OPTION .............................. 4-5

INSTALLING THE SATELLITE DISH ANTENNA ONTO A

WOODEN SURFACE...................................................... 4-5

Installation Procedure............................................. 4-6

INSTALLING THE SATELLITE DISH ANTENNA ONTO A

BRICK SURFACE.......................................................... 4-7

Installation Procedure............................................. 4-8

INSTALLING THE SATELLITE DISH ANTENNA ONTO A

CINDER BLOCK SURFACE............................................ 4-9

Installation Procedure............................................. 4-9

INSTALLING THE SATELLITE DISH ANTENNA ONTO A

METAL POLE.............................................................. 4-11

Installation Procedure........................................... 4-11

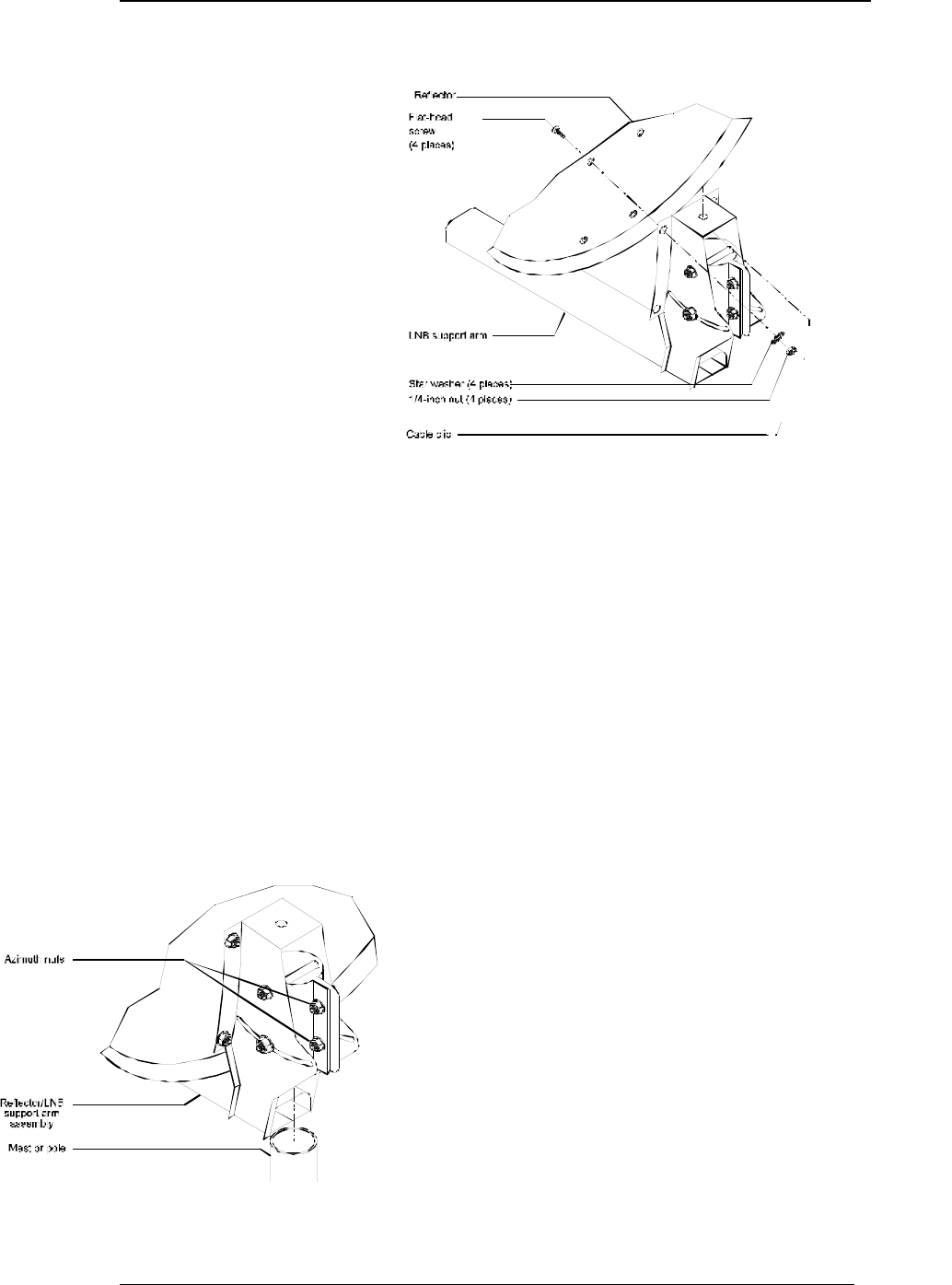

ATTACHING THE REFLECTOR ONTO THE LNB SUPPORT

ARM............................................................................ 4-12

Assembling the Satellite Dish Antenna .................. 4-12

ATTACHING THE SATELLITE DISH ANTENNA ASSEMBLY

TO THE MAST OR POLE.............................................. 4-13

GROUNDING THE METAL POLE MOUNT................... 4-14

Installation Procedure........................................... 4-14

GROUNDING THE BASE PLATE................................... 4-14

Installation Procedure........................................... 4-15

INSTALLING AND ROUTING THE LNB COAXIAL CABLE

................................................................................... 4-15

Installation Procedure........................................... 4-16

CONNECTING THE COAXIAL CABLE TO THE LNB .... 4-16

Installation Procedure........................................... 4-16

ATTACHING THE LNB TO THE LNB SUPPORT ARM. 4-16

ROUTING THE LNB CABLE TO THE DIGITAL SATELLITE

RECEIVER................................................................... 4-17

CONNECTING THE SATELLITE DISH ANTENNA ......... 4-17

POSITIONING THE SATELLITE DISH ANTENNA.......... 4-18

The INSTALLATION Screen.................................. 4-18

Pointing the Satellite Dish Antenna Using the “Box”

Method ................................................................... 4-19

AUTHORIZING YOUR SERVICE.................................. 4-21

WATCHING DIRECTV PROGRAMMING................ 5-1

BASIC CHANNEL CHANGING ....................................... 5-1

The Channel Banner ................................................ 5-1

The Information Banner........................................... 5-1

The OneLine™ Guide.............................................. 5-2

TurboTune™ ........................................................... 5-2

AlphaTune™ ............................................................ 5-2

ALTERNATE SERVICES................................................. 5-3

Audio........................................................................ 5-3

Digital Audio............................................................ 5-3

THE ON-SCREEN GUIDES .......................................... 6-1

Choosing the Guide Style......................................... 6-1

Descriptions............................................................. 6-2

General On-Screen Guide Features ........................ 6-2

Using PreSelect........................................................ 6-3

PreSelecting Programs for Taping.......................... 6-3

PreSelecting Programs for Viewing ........................ 6-3

Canceling PreSelected Programs............................ 6-3

THE PROGRAM GUIDE (SM. CELL) .................... 6-3

THE PROGRAM GUIDE (LG. CELL) .................... 6-4

THE TITLE GUIDE................................................... 6-5

THE LOGO GUIDE.................................................... 6-6

THE WATCHWORDTM GUIDE ................................. 6-6

FILTERING THE GUIDES............................................... 6-7

Theme Filters........................................................... 6-7

Channel List............................................................. 6-8

Guide Times ............................................................. 6-8

Class Filters............................................................. 6-8

THE INFORMATION SCREEN ................................. 6-9

Done......................................................................... 6-9

View.......................................................................... 6-9

PreSelect .................................................................. 6-9

PreSelect To View.................................................. 6-10

Cancel PreSelect.................................................... 6-10

Buy ......................................................................... 6-10

Buy Options............................................................ 6-10

Cancel Purchase.................................................... 6-11

Show Times ............................................................ 6-11

DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER’S

MENU SYSTEM ............................................................ 7-1

Menu Overview........................................................ 7-1

MAIN MENU................................................................. 7-2

Setup......................................................................... 7-2

Scheduler.................................................................. 7-2

Check Mail............................................................... 7-2

Purchases................................................................. 7-2

Help.......................................................................... 7-2

Lock/Unlock............................................................. 7-2

SETUP MENU................................................................ 7-3

Preferences .............................................................. 7-3

Limits ....................................................................... 7-3

Chan. Lists ............................................................... 7-3

TurboTune™ ........................................................... 7-3

Installation ............................................................... 7-3

VCR Setup ................................................................ 7-3

WatchWord .............................................................. 7-3

Current settings overview........................................ 7-4

SCHEDULER.................................................................. 7-4

Editing an event ....................................................... 7-4

CHECK MAIL............................................................... 7-5

Message ................................................................... 7-5

Page ......................................................................... 7-5

Erase........................................................................ 7-5

PURCHASES.................................................................. 7-5

History/Upcoming.................................................... 7-6

Purchase History..................................................... 7-6

Upcoming Purchases ............................................... 7-6

LOCK/UNLOCK............................................................ 7-6

Locking Procedure................................................... 7-7

Unlocking Procedure............................................... 7-7

Temporarily Overriding the Lock............................ 7-7

PREFERENCES .............................................................. 7-8

Advanced.................................................................. 7-8

MultiColor................................................................ 7-8

Chan. Tags............................................................... 7-8

Chan. Sort................................................................ 7-8

Scheme..................................................................... 7-8

Audio........................................................................ 7-8

Language ................................................................. 7-9

Filters....................................................................... 7-9

ADVANCED PREFERENCES........................................... 7-9

Receiver ID.............................................................. 7-9

Screen Ratio............................................................. 7-9

Channel Lock ........................................................... 7-9

Input Key.................................................................. 7-9

Demo Mode............................................................ 7-10

Factory Defaults .................................................... 7-10

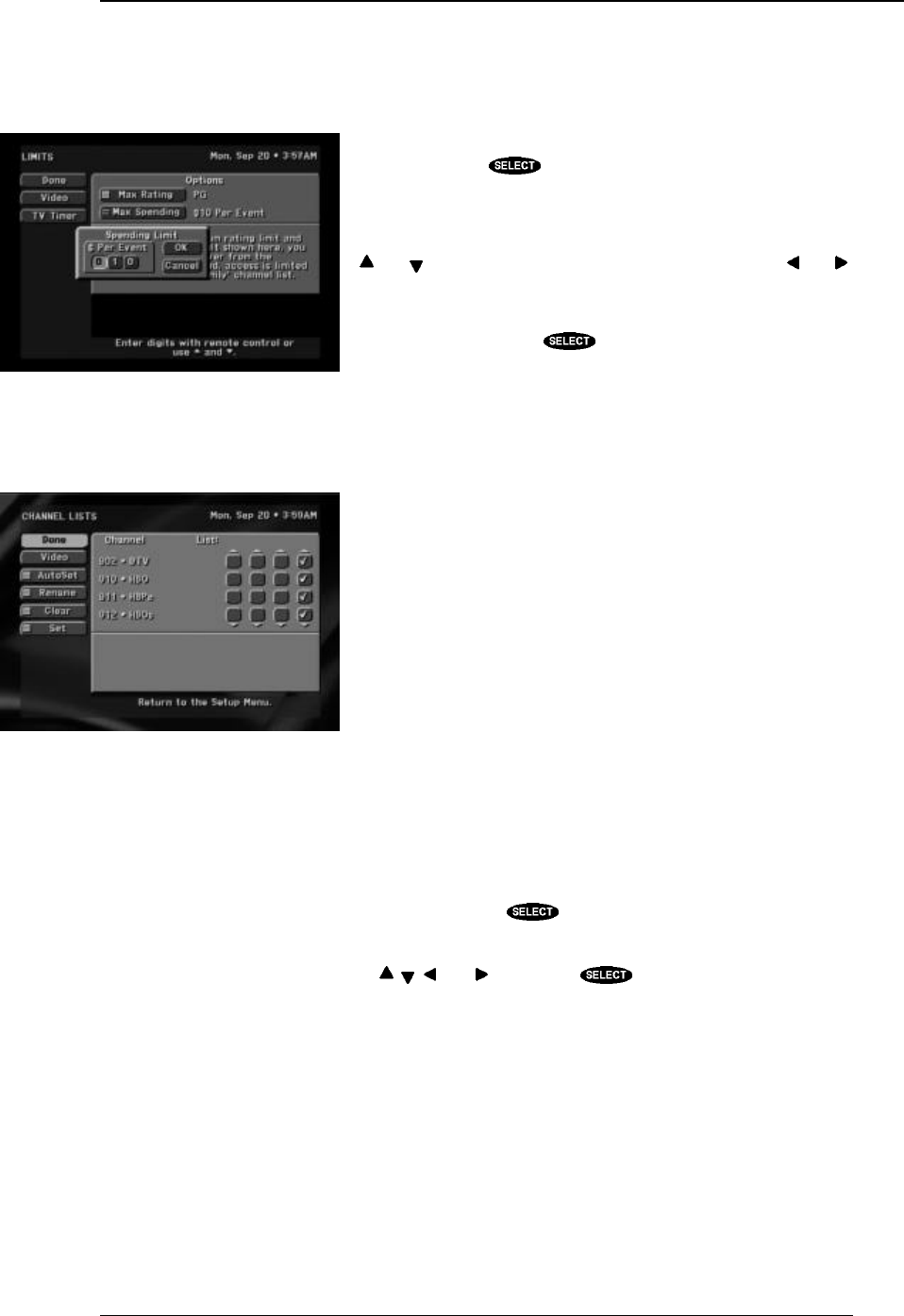

LIMITS........................................................................ 7-10

TV Timer ................................................................ 7-10

Max Rating............................................................. 7-11

Max Spending......................................................... 7-11

CHANNEL LISTS ......................................................... 7-11

Rename................................................................... 7-12

Auto Set .................................................................. 7-12

Clear ...................................................................... 7-12

Set........................................................................... 7-12

Tag Boxes............................................................... 7-12

TURBOTUNE™.......................................................... 7-13

Set Channel ............................................................ 7-13

INSTALLATION ........................................................... 7-13

System Test............................................................. 7-13

New Card............................................................... 7-13

Satellite................................................................... 7-13

Transponder # ....................................................... 7-13

Receiver ID............................................................ 7-14

Dish Type............................................................... 7-14

Position .................................................................. 7-14

SYSTEM TEST............................................................. 7-15

Receiver Test.......................................................... 7-15

Cable Test.............................................................. 7-15

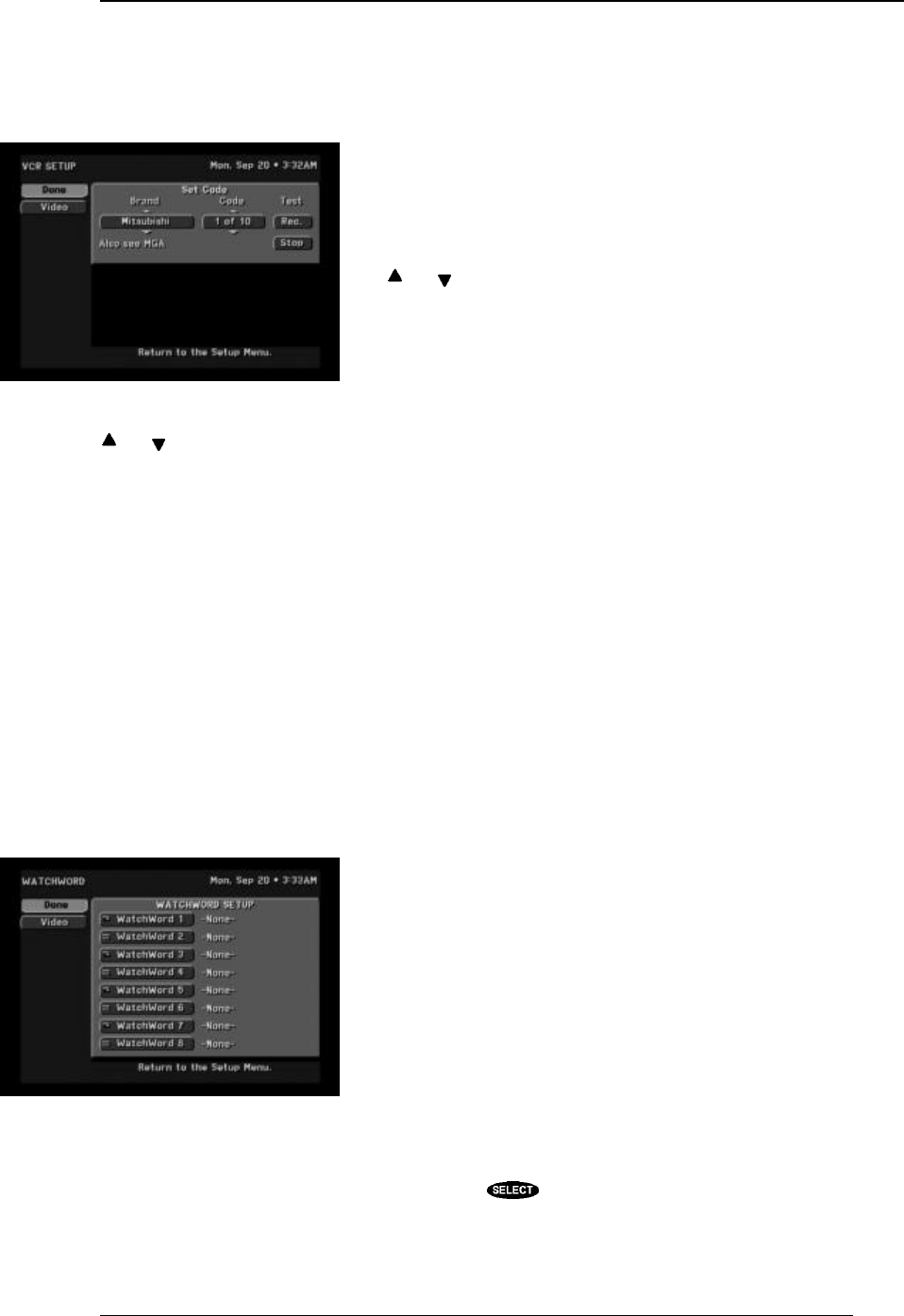

VCR SETUP............................................................... 7-15

Brand ..................................................................... 7-15

Code....................................................................... 7-15

Test (Record/Stop).................................................. 7-15

WATCHWORD............................................................ 7-16

WatchWord # ......................................................... 7-16

USING D-VHS FEATURES........................................... 8-1

CONNECTING THE DIGITAL A/V CABLE..................... 8-1

VCR SETUP................................................................. 8-1

Recording Type ........................................................ 8-1

Recording Speed ...................................................... 8-2

Test D-VHS Status ................................................... 8-2

TRANSPORT CONTROLS............................................... 8-2

STATUS DISPLAYS ........................................................ 8-2

Lockout Warnings.................................................... 8-3

SCHEDULING TO RECORD............................................ 8-3

CONTROLLING YOUR D-VHS VCR WITH YOUR

REMOTE CONTROL...................................................... 8-3

PROGRAMMING YOUR REMOTE CONTROL......... 9-1

PROGRAMMING THE REMOTE CONTROL.................... 9-1

Programming Mode................................................. 9-1

Code Scan ................................................................ 9-1

Code Entry............................................................... 9-1

USING THE REMOTE CONTROL ................................... 9-4

Switching the Remote Control to Operate Additional

Digital Satellite Receiver ......................................... 9-4

Identifying Codes that Have Been Stored ................ 9-4

Controlling Other Components Using the AUX Button

................................................................................. 9-5

PAGE 1-1

Congratulations! You’ve selected one of the most advanced digital video and audio components

available today. You now have the capability to receive hundreds of channels of video programming

and CD-quality audio.

What You Should Do First

Your satellite system is both a sophisticated technical product and an easy-to-operate source of

entertainment. You should complete the following steps to achieve the greatest performance from your

system:

• Read this manual to familiarize yourself with the system.

• Install the DIRECTV PLUS™ digital satellite receiver.

• Install your satellite dish antenna and cable.

• Align the satellite dish antenna.

• Arrange for programming from DIRECTV.

• Enjoy endless hours of TV entertainment.

How Does All This Work?

Many film studios, news organizations and other broadcasters (step 1) provide their video, audio, and

data services to the DIRECTV uplink center (step 2).

DIRECTV then digitally transmits the signals 22,300

miles into space to a grouping of high-powered

satellites (step 3) built by Hughes Electronics. These

satellites are located in geostationary orbit. This

means that after installation of the satellite system,

which includes aiming the satellite dish antenna at

the satellites, no adjustment will be necessary to

change channels because everything comes from the

same locations in the sky. The satellite dish antenna

never has to track the satellite, so there's no waiting

for the picture to come in. From the satellites the

digital signals are beamed back to earth where they

are received by your satellite dish antenna (step 4).

The signals then go into the digital satellite receiver

(step 5) where they undergo extensive processing to

determine if you are authorized to access them. The

signals are then reconverted into high-quality video

and audio that you can enjoy on your television. The

telephone connection (step 6) is used by the digital

satellite receiver to report back to DIRECTV (step 7)

any purchase activity.

A FIRST LOOK AT

THE SATELLITE

SYSTEM

The DIRECTV network

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 1-2

Satellite System Components

There are three main components of a satellite system. They are the satellite dish antenna, the

DIRECTV PLUS digital satellite receiver, and the remote control. Take a few minutes to read about

each one.

The Satellite Dish Antenna

The satellite dish antenna is the component that receives the digital signals. It must be mounted to a

solid outdoor surface that allows a clear view of the southern sky.

The large dish-shaped part is known as the reflector. Your reflector

may be fairly round (18”) or oval shaped (18” high by 24” wide).

At the end of a tubular arm that is attached to the satellite dish

antenna, there is a low noise block (LNB) assembly. Satellite dish

antennas come in a variety of LNB configurations. Your assembly

may provide for receiving signals from multiple satellites and/or

distributing the signal to one or more satellite receivers.

The mounting bracket and base plate make adjustments easy during

installation. Once the satellite dish antenna has been properly

positioned to point toward the satellites, you should never need to

adjust it again.

Refer to the instructions in Chapter 4, “Installing the Satellite Dish

Antenna” or other satellite dish antenna installation instructions to

determine the type of antenna you have.

The DIRECTV PLUS™ Digital

Satellite Receiver

This DIRECTV PLUS digital satellite receiver is one of the most compact available today. The basic

features for setup, installation, and viewing programming can be accessed from the front panel keys.

Your access card is located behind the door on the right side of the digital satellite receiver. This

special card contains information about your level of service and holds pay per view purchase activity.

This card should not be removed except to protect the digital satellite receiver from unauthorized use

or to replace the card when DIRECTV supplies a new one.

The power key ( ) is used to turn the digital satellite receiver on and off. The power light will

illuminate when the unit is on. Any off-air signal, such as cable TV or local programming, connected

to the IN FROM ANT jack is passed through to the OUT TO TV jack when the digital satellite receiver

power is off.

The information key ( ) is used to display descriptions of satellite programs and channels on your

TV screen.

The satellite dish antenna parts. While your dish may

vary in appearance, the components are referred to

using the same names.

The front of the digital satellite receiver and Access Card.

A FIRST LOOK AT THE SATELLITE SYSTEM

PAGE 1-3

At any time, pressing the program guide key ( ) will initiate the display of the on-screen guide,

where you can see a listing of all available programs, or will display the GUIDE MENU if pressed

while displaying a program guide.

The four directional keys, up ( ), down ( ), left ( ), and right ( ), are used to move the highlight

around the program guide and menus. They also provide access to the OneLine™ Guide when menus

aren’t displayed.

The select key ( ) is used to access a highlighted guide or menu item.

The rear of the digital satellite receiver has numerous jacks for connection to your audio/video

entertainment system. You will also find the power cord permanently connected to the back.

The SATELLITE IN F-type jack is for connecting the cable from your satellite dish antenna to the digital

satellite receiver. Be sure that you use RG-6 cable only.

The IN FROM ANT F-type jack is an input where you can connect the cable from an RF terrestrial

source such as an off-air antenna or cable TV service.

The OUT TO TV F-type jack is an RF output which you may connect to your TV or VCR (depending

on your entertainment system). Note that the CH3/CH4 switch on the upper left enables you to select

the channel that digital satellite receiver signals will appear on. Set you TV to match this.

The phono-type AUDIO output jacks, labeled and color coded (L is white, R is red) to indicate left and

right, can be used for connection to your TV, VCR, or audio system. The phono-type composite

VIDEO output jack is color-coded yellow. You may use this jack for connection to your TV or VCR.

The multiple-pin S-VIDEO jack is for high-quality video output. Use this jack to achieve the clearest

picture for your TV or VCR. Many newer TVs, SVHS VCRs, Hi8 VCRs and some AV Receivers

support S-video connections.

The VCR CONTROL mini-jack is for connecting the VCR control cable included with the system.

With this cable, the digital satellite receiver can interface with most popular brands of VCRs to record

selected programs automatically.

The D-VHS jack is for connecting a digital A/V cable for use with some D-VHS digital VCRs. When

connected to a D-VHS VCR, the additional D-VHS features described in this manual become active

and the standard VCR CONTROL mini-jack is disabled.

The LOW SPEED DATA port is for connection to other data devices. See your dealer regarding any

options that may be available. Use of this port without the proper cable or equipment could damage the

digital satellite receiver and/or connected devices.

There are two DIGITAL AUDIO OUT connectors. One is OPTICAL and the other is COAX. They

both provide the same signals for connection to a Dolby Digital decoder.

The RF REMOTE jack is provided for future accessory use.

The rear of the digital satellite receiver.

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 1-4

The standard RJ-11 modular PHONE JACK is for connecting the digital satellite receiver to your

phone line. This phone connection is necessary to access certain program offerings. Calls generated by

the digital satellite receiver are toll free. The telephone line connection will not normally interfere with

your telephone operation.

The Remote Control

The remote control can control your digital satellite receiver and most TV brands, as well as VCRs and

many other auxiliary devices such as cable boxes, amplifiers, and laser disc players.

The remote control uses an invisible infrared light to send signals to your components when you press

the keys. You must aim the remote control toward the component for it to receive the command.

The mode keys across the top of the remote control enable you to specify the device you intend to

control. This is important since many devices share the same keys, such as the key and

the numeric keys. You must press the appropriate device key before pressing a command

key to make sure the remote control sends the right signal to the right device. The only

keys that deviate from the rule are the blue keys, as they are always associated with the digital

satellite receiver.

Four directional keys will cause the on-screen highlight to move in the direction you want.

The keys will be referred to as , , , and .

The select key ( ) is one of the most important keys. Pressing the key will tell the

digital satellite receiver that you wish to choose the highlighted item.

The arch of keys below the power and mode keys control frequently used functions. These

include special action ( ), information ( ), guide ( ), exit ( ), and

favorite ( ) keys.

The key is unique because it does nothing by itself. Pressing it displays the action icon

in the upper left corner of your screen for a few seconds. During that time, other keys may be

pressed to access special functions indicated in yellow above the keys. Each will be described

later in this manual.

The following chart describes the key functions for easy reference:

Keys Label Feature

MENU Displays the MAIN MENU from any screen

LIST Displays the CHANNEL LISTS screen

SERVICES Displays the Alternate Services menu

MOVIES Filters the on-screen guide to movies only

SPORTS Filters the on-screen guide to sports only

NEWS Filters the on-screen guide to news only

ALL Resets the on-screen guide filters

The remaining keys are digital satellite receiver-specific keys and common device keys including

numbers, channel up and down, etc. The functions of these keys change depending on the device

currently selected. Please refer to “Controlling the DIRECTV PLUS™ Digital Satellite Receiver” for

more remote control capabilities and “Programming Your Remote Control” for setting your remote

control to handle other audio/video components. Descriptions and details of each individual key will

be given in the appropriate sections throughout this manual.

The remote control

PAGE 2-1

It is recommended that you have your satellite system professionally installed. This is due to safety

issues, electrical codes, and assurance of a quality installation. If you should choose to perform the

installation yourself, please pay special attention to the precautions in the front of this manual

and refer to the chapter “Installing and Pointing Your Satellite Dish Antenna." You may also

want to obtain the Do-It-Yourself Installation Kit, sold separately.

This chapter provides step-by-step instructions for setting up your satellite system and connecting it to

your television or entertainment system.

The carton includes the DIRECTV PLUS digital satellite receiver itself, an access card (already

installed in the digital satellite receiver behind the door), a remote control (batteries included), cables,

and documentation. Contact your dealer if anything is missing or damaged. Please save all packing

materials until the installation of your system is complete in case anything needs to be returned.

You now need to decide where you want to place the digital satellite receiver. Choose a location near

your TV where the power cord or cables will not be inadvertently disconnected. The location should

also be well ventilated. Do not set electronic components or other objects (including this manual) on

top of the digital satellite receiver or otherwise block its cooling vents.

Installing Remote Control

Batteries

Before the remote control can be used, the two supplied (“AAA”) batteries need to be installed. First,

unsnap the battery cover from the back of the remote control. Install

each fresh battery as shown, making sure that the + and - on each

battery line up with the marks in the battery compartment. Next,

snap the cover back onto the remote control.

Refer to “Programming Your Remote Control” for setting the codes

to control the devices in your entertainment system.

SETTING UP YOUR

SATELLITE

SYSTEM

Battery installation

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 2-2

Choosing the Best Connection for

Your Entertainment System

There are a number of ways to connect the DIRECTV PLUS digital satellite receiver, depending on

the other audio/video equipment you wish to use. The simplest hookups are described in the following

sections.

Before connecting the digital satellite receiver to your entertainment system, you should connect the

phone line. This can be done by plugging one end of the provided telephone cable into

the PHONE LINE jack on the back of the digital satellite receiver and the other end

into a telephone wall jack. If you do not have a telephone jack within reach, you may

have a new one installed or reorient the digital satellite receiver to be within reach of a

telephone wall jack.

You may need to purchase additional connectors and/or cables to suit specific needs from your dealer

or electronic hardware stores. Choose which hookup method to use based on:

• The capabilities of your TV and VCR.

• Your desire to pass local programming through the digital satellite receiver.

• Any other devices you want to include in the system (stereo, second VCR, etc.).

Before attempting to connect anything, position yourself so you are looking at the back of your

components. Note the various input and output receptacles, their shapes, and how they are labeled.

Then read through the rest of this hookup section before going ahead with actual hookup.

Do not turn on the power yet. For your safety, make sure the digital satellite receiver, TV, VCR, and

any other devices to be connected are unplugged from the wall outlet while hooking them up.

Hook Up the Audio/S-video Signals

Many newer TVs, VCRs and some AV Receivers have S-video inputs. VCRs that support S-video

include Hi8 and SVHS types. Look on the back of your TV and VCR for this special

jack. It will probably be labeled S-VIDEO IN. If you are unsure, you can see the type

of connector that you are looking for on the back of the digital satellite receiver. If

neither the TV nor VCR has this jack, proceed to the “Hook Up the Audio/Video

Signals” section.

This hookup will give you the sharpest picture of any of the hookups. Also, this hookup will allow you

to view DIRECTV programming and local terrestrial broadcast simultaneously on TVs with “picture

in picture” (PIP) feature.

The rear of the digital satellite receiver

The Phone line and jack

The S-video cable and jack

SETTING UP YOUR SATELLITE SYSTEM

PAGE 2-3

When using this hookup, you cannot use the digital satellite receiver as a switch to choose between

satellite programming and local terrestrial broadcasts. Instead, you will use the input selection that

your TV and/or VCR offers to select the source.

If your VCR has S-video input…

use an S-video cable to connect the digital satellite receiver’s S-VIDEO output to the S-video input on

your VCR. Also connect one pair of the digital satellite receiver’s audio outputs (Left and Right) to the

audio inputs on your VCR.

If your TV has S-video input…

connect an S-video cable from the S-VIDEO output (either from the digital satellite receiver if

available or the VCR) to the S-video input on the TV. Also connect the left and right audio outputs

from the same device that the S-video is coming from and connect them to the TV.

If you have a stereo system…

you may be able to achieve big speaker sound. See the “Hook Up to a Stereo System” section for the

necessary connections.

If your hookup is complete…

move on to the “Finishing Up” section.

Hook Up the Audio/Video Signals

Most high-end TVs and VCRs have phono-type audio and video inputs. Look at the back of your TV

and VCR for three jacks—possibly color coded yellow, white and red. They will

be labeled something like IN (L and R), AUDIO IN, and VIDEO IN. If you are

unsure, look at these connectors on the back of the digital satellite receiver. If

you have no jacks like these on your TV or VCR, skip this section and proceed

to the “Hook Up the RF Signals” section.

This video hookup will give you a clearer picture than an RF hookup. Also, this hookup will allow you

to view DIRECTV

® programming and local broadcasts simultaneously on TVs that offer a “picture in

picture” (PIP) feature.

When using this hookup, you cannot use the digital satellite receiver as a switch to choose between

DIRECTV

® programming and local broadcasts. Instead, you will use the input selection that your TV

and/or VCR offer to select the source.

If your VCR has a video input…

use an audio/video cable to connect the digital satellite receiver’s VIDEO output to the video input on

your VCR. Also connect the pair of the digital satellite receiver’s audio outputs (Left and Right) to the

audio inputs on your VCR.

If your TV has a video input…

connect an audio/video cable from the VIDEO output (from either the digital satellite receiver, if

available, or the VCR) to the video input on the TV. Also, connect the left and right audio outputs from

the same device that the video is coming from and connect them to the TV.

If you have a stereo system…

you may be able to achieve big speaker sound. See the “Hook Up to a Stereo System” section for the

necessary connections.

If your hookup is complete…

move on to the “Finishing Up” section.

Hook Up the RF Signals

If your TV instructions show special “Cable Box” connections that differ from the instructions below,

you should use those instructions with the digital satellite receiver.

The phono-type video cable and jack

The RF cable and jack

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 2-4

Look at the back of your TV and VCR for RF inputs. These may be labeled 75-OHM, 300-OHM,

CABLE, FROM ANTENNA, VHF or UHF. These could appear either as a pair of screws or an F-type

connector as on the back of the digital satellite receiver.

If your TV or VCR does not have threaded F-type connectors you will need to obtain adapters which

convert the round F-type RG-6 or RG-59 cable to the connectors on your TV and/or VCR. These are

sold separately and should be available from your dealer or an electronics hardware store.

Note: The RF connector OUT TO TV from the digital satellite receiver does not provide stereo

sound to your TV or VCR.

To connect your VCR…

use a coaxial cable to connect the OUT TO TV from the digital satellite receiver to the RF input section

on your VCR. This is the first place where an adapter may be needed if your VCR doesn’t have the F-

type connector.

To connect your TV…

connect a coaxial cable from the RF output (from either the digital satellite receiver’s OUT TO TV, if

available, or the VCR) to the RF input on the TV. This is the other place where an adapter may be

needed if your TV doesn’t have the F-type connector.

Set the channel 3/4 selector switch on the back of the digital satellite receiver to the channel that is not

broadcast or has the weakest signal in your area. This will be the channel that you need to set your TV

and/or VCR to for viewing or recording satellite programming.

You can also use the digital satellite receiver as a switch to select between DIRECTV® programming

and local broadcasts. This can be accomplished by pressing the key on the remote control while

the remote is in SAT mode. Also, you must connect your local signal, either from an antenna or cable

service, to the IN FROM ANT on the back of the digital satellite receiver. If your antenna wire is not a

coaxial type you will need an adapter as described earlier.

If you have a stereo system…

you may be able to achieve big speaker sound. See the “Hook Up to a Stereo System” section for the

necessary connections.

If your hookup is complete…

move on to the “Finishing Up” section.

Hook Up to a Stereo System

To achieve high-quality sound from the digital satellite receiver through a stereo system, simply

connect the AUDIO outputs (Left and Right) to an available input on your audio

system. First, look for an input labeled AUX. If you aren’t using a compact disc

player or laser disc player, you can use one of those inputs, if available. The only

input that you should not use is one that is specified for a turntable/phonograph.

The following applications require that your audio system is equipped with

coaxial or optical digital inputs. Not all stereo equipment provides this type of

input.

For two-channel digital stereo, connect one of the DIGITAL AUDIO OUT connectors. These are

labeled OPTICAL and COAX. Before using the OPTICAL connector, you must remove the protective

cover. Save this cover in case you ever need to transport your digital satellite receiver.

Warning: Before using the DIGITAL AUDIO OUT connectors with a standard PCM digital

bitstream decoder/receiver, set the Dolby Digital option to “Off” on the Advanced Preferences

screen in the digital satellite receiver’s menus. Failure to do this could result in a high level noise

and could be harmful to your ears and equipment.

The phono-type audio cable and jack

SETTING UP YOUR SATELLITE SYSTEM

PAGE 2-5

The best quality sound can be achieved through the use of a 6-channel amplifier equipped with a

Dolby Digital (AC-3) decoder or Dolby Digital (AC-3) processor. Unlike analog Dolby Surround with

its single band-limited surround channel (usually played over two speakers), Dolby Digital features

two completely independent surround channels, each offering the same full-range fidelity as the three

front channels. As a result, true stereo surround effects can be achieved for an expanded sense of

depth, localization, and overall realism.

Distributing the Video Signal to Distant Rooms

There are several ways to distribute the digital satellite receiver's video to another room or throughout

your home. The most direct way to achieve this is by running a cable from the OUT TO TV on the

digital satellite receiver to the desired distant locations. Be aware that running this cable for very long

distances or splitting the cable to multiple rooms will reduce the quality of the video and audio signal.

In this case, you should use amplified splitters.

Other distribution systems are available. Some of these even offer distribution without additional

wiring. Ask your dealer for advice as to what might best suit your needs.

Finishing Up

You can mix and match the different hookups described above to suit your entertainment system’s

available connections. For example, you could connect the VCR using audio/video, while the TV is

connected with the RF signal. Always try to achieve the highest quality and greatest flexibility

available.

Once all connections have been completed, plug in the TV, VCR and digital satellite receiver to the

wall outlet, appropriate extension cord, or surge protector. See Important Safety Instructions described

in the front of this manual.

Note: If you have connected a VCR into your entertainment system in a way that routes the cables

from the digital satellite receiver to your VCR before the signal reaches the TV, you may experience

a distorted picture if you attempt to record a copy-protected program. These programs are identified

by a “Can’t Tape” symbol in the banner area of the screen. If this occurs, simply stop the recording

process and your picture will automatically correct itself.

The Dolby Digital (AC-3) environment

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 2-6

Connecting the VCR Control Cable

With the proper connections you can have the digital satellite receiver control your VCR for

unattended recording. First, plug the VCR Control cable into the back of the digital

satellite receiver. Then proceed to the next section to determine where the other

end of the cable should be attached.

Finding the VCR’s Remote Control Sensor

So that the digital satellite receiver can control your VCR, the emitter end of the VCR control cable

must be attached where the VCR’s remote control sensor is located.

This is labeled on some VCRs. You may also find a diagram in your

VCR manual indicating the sensor position. It is commonly

identifiable by a small dark plastic window. For reference, see the

sensor on the digital satellite receiver located in the center.

If the sensor is not labeled or documented, you will need to scan the

front of your VCR with your VCR remote control. Use the following

procedure to accomplish this:

• Hold the VCR remote control about ½-inch from the front left

side of your VCR.

• Slowly move the remote control to the right repeatedly pressing

the remote control’s power key on and off.

• Once your VCR responds to your pressing the remote control

power, note the position. This should be the location of your

VCR IR sensor.

Once the sensor position has been determined, temporarily attach the emitter to the area with a piece of

tape until the system can be tested. Refer to the “VCR Setup” section in the chapter “DIRECTV

PLUS™ Digital Satellite Receiver’s Menu System” to program and test the VCR Control feature.

Upon verifying that the VCR control is functioning properly you can remove the tape and permanently

attach the emitter using the peel-and-stick backing. This attachment should not interfere with normal

VCR operation.

Remote Control Extender

Your receiver includes a Remote Control Extender. With the Remote Control Extender, you can have

complete control of your digital satellite receiver and other entertainment system components from

anywhere inside of the house. It converts IR (Infra-Red) signals emitted by the remote control into a

powerful radio signal which is then broadcast up to a distance of 150 feet to the receiver base station.

No tools are needed to install the Remote Extender.

The Remote Control Extender consists of two components; the transmitter “nose cone” (which attaches

to the front of the remote control), and the receiver “base station” (which is placed in the room where

the digital satellite receiver is located).

The VCR Control cable and jack

Look for indications of the remote control sensor

Scanning for the remote control sensor

SETTING UP YOUR SATELLITE SYSTEM

PAGE 2-7

Receiver Base Station Installation

Place the receiver base station in the room where your digital satellite receiver is located. Choose a

location that is near an electrical outlet on an opposing wall

to where your equipment is installed. Point the front of the

base station towards the receiver. Try to use your remote

control from your chosen location to confirm that it is within

the operating “view” of your digital satellite receiver.

Plug the AC power adapter (included with your Remote

Control Extender) in the wall outlet. Attach the small plug

from the transformer into the jack on the receiver base

station. The power light on the receiver base station will

illuminate when a transmission is received. Extend the

antenna fully. The Remote Control Extender base station is

ready for use.

With the proper connection, you can hide the receiver base station behind your entertainment system

and still control your digital satellite receiver. First, plug the control cable into the side of the receiver

base station. The emitter end of the control cable must then be attached to the front of the satellite

receiver to communicate with the remote control sensor. It is suggested that you attach the emitter on

the lower front left corner of the digital satellite receiver. You may have to try different locations for

optimum performance. You can permanently attach the emitter using the peel-and-stick backing. This

attachment should not interfere with normal operation. While the remote

Transmitter Nose Cone Installation

The Remote Control Extender nose cone has been designed to attach to the front of your Hughes

satellite remote control. Firmly press the nose cone onto

the front of the remote control until it will be held in place

by the bumps on the bottom.

Before the nose cone transmitter can function you will

need to install the supplied battery. To do this, begin by

simply opening the small door on the bottom of the nose

cone. Install the provided “mn21, 12v” battery noting the

proper polarity (+/-). Then replace the door.

You are now ready to use your Remote Control Extender

equipped remote control. You should find that using your

remote control from another room will work just as though

you were right in front of your digital satellite receiver and

other entertainment equipment. Note that you do not need

to point it towards the room for it to work. The signals are broadcast from the nose cone in all

directions — even through floors, walls, ceilings and furniture!

Base station placement

Attach the emitter where the rectangle appears in this picture. The remote control sensor (indicated with an oval) will detect the signals.

Attach the nose cone

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 2-8

Battery Replacement

Your operating range will start to decrease as the battery life decreases. Replacement batteries are

conveniently available at most electronic stores. To replace the battery, follow the directions above.

Remember to dispose of the old battery properly. Use battery type “mn21, 12v” or equivalent.

Setting the Address of your DIRECTV PLUS™ Digital

Satellite Receiver and Remote Control

To avoid interference between your remote control and your neighbors that may have the same model

remote control, you should change the address of your components. This is similar to choosing a

channel on a cordless phone so that you and your neighbors don't hear each others' conversations.

See the chapter, "Programming Your Remote Control" for the instructions to accomplish this.

Now You Can Turn It On

Once you have connected everything, you can begin powering up the components. Turn the TV on and

set it to the digital satellite receiver’s output channel (3 or 4) or input (video or S-video). Do the same

for the VCR, if applicable. Now turn the digital satellite receiver on. You will see the start-up screen

for several seconds, followed by a black screen with the message at the bottom:

“Searching for satellite signal. To access related utilities, press .”

If so, this is good! If not, try pressing the key while the remote control is in SAT mode. If that

doesn’t work, check all of the connections.

You’re well on your way to enjoying your satellite system.

PAGE 3-1

Now it’s time for you to take control. Take a few minutes to read through this chapter to begin to

understand how to operate your system. Let’s begin with a couple of simple rules. First, there is

nothing that you can do, using the front panel keys or the remote control keys, which could harm the

DIRECTV PLUS digital satellite receiver in any way. Once you understand the capabilities and

options available in your receiver, you’ll be able to undo any changes or settings that you make.

The next important rule is to have fun. The features of the digital satellite receiver are intended to

make watching TV more enjoyable. It isn’t necessary to know everything your system can do right

away. Learn the capabilities a little at a time. As you use the digital satellite receiver, the techniques

necessary to control it will become second nature.

Front Panel vs. Remote Control

Keys

The front panel provides all the basic controls needed to access and use the primary features of the

digital satellite receiver. The remote control has additional keys to provide shortcuts or access to

extended features of the digital satellite receiver. Most of the remote control keys can also be used to

control other components in your entertainment system. For this reason, you must remember to press

the key, putting the remote control in digital satellite receiver mode, when you want to control

the digital satellite receiver.

Basic Navigation

The most common digital satellite receiver-related keys that you will use are , , , , and .

Four distinct keys on the digital satellite receiver front panel represent the direction keys. On the

remote control, the direction keys are represented by the top, bottom, left and right keys surrounding

the key. These keys are primarily used to move the highlight (also known as a cursor) around

the screen. The key should be pressed to indicate that a highlighted item is the one that you

wish to choose.

Another key you will be using frequently is the key, located on both the front panel of the

digital satellite receiver and on the remote control. This key is used when you want to display the

current on-screen guide. Once you are in the guide, pressing the key while a program title is

highlighted will display the Guide pop-up menu.

Another key appearing on both the front panel and the remote control is the key. This key is

used to retrieve descriptive information about a currently airing event and to provide access to

scheduling information (and purchasing information for pay per view) about highlighted programs in

the on-screen guide.

The final key that appears on both the remote control and the front panel is the key. Make sure

the remote control is in “SAT” mode for the key to apply to the digital satellite receiver. When

CONTROLLING THE

DIRECTV PLUS™

DIGITAL SATELLITE

RECEIVER

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 3-2

you power the digital satellite receiver off, it has not actually stopped using electricity. Rather, it goes

into a standby mode which enables it to continue monitoring data sent from DIRECTV, call in status

reports to DIRECTV, start and stop your VCR for programs you have scheduled, receive messages,

and perform other background activities. The only apparent changes occurring in the standby mode are

that the video goes black, the IN FROM ANTENNA connector signals are passed through to the OUT

TO TV connector, and the power light is off.

There are three keys on your remote control that most people use frequently. They are the ,

, and keys.

After you have established favorite channel lists, as described in the chapter “DIRECTV PLUS™

Digital Satellite Receiver’s Menu System,” you will want to cycle through them quickly and easily. Do

so by pressing the key. Each press will advance to the next list of channels. After stepping

through the favorite lists it will cycle back to “All Channels.”

At any time, you can exit the on-screen guide by selecting Video in the Guide pop-up menu. An even

faster way is to press the key.

The key will switch between DIRECTV programming and local broadcasts.

Knowing these few keys should enable to navigate through almost every digital satellite receiver

feature and menu.

PAGE 4-1

There’s a cluster of satellites way out there in space, and just as a telescope is pointed at a star, you

need to point your satellite dish antenna at the satellites. In this chapter we will explain the basic

process for determining where to mount and how to point your satellite dish antenna.

It is recommended that you have your satellite system professionally installed. This is due to

safety issues, electrical codes, and assurance of a quality installation.

Read the contents of this chapter, as well as the important safety information in the front of this

manual. These instructions are intended for an installer experienced in performing the various

tasks described here. Depending on how you intend to install the antenna, you may be required to:

• Climb a ladder and work on your roof.

• Use a power drill to drill holes in your house.

• Determine if there are water pipes, electrical wiring, or gas lines hidden in the walls near

where you will be drilling.

• Route coaxial cable through the foundation wall, under floors, and through interior walls.

• Ground the antenna and coaxial cable as recommended in the National Electrical Code

(published by the National Fire Protection Association, Batterymarch Park, Quincy, MA

02269).

If you are unsure about your ability to perform these tasks or comply with installation

requirements, contact your dealer for information regarding professional installation.

Successfully installing and obtaining the satellite signals can be a time consuming and tedious

task. For that reason, it is highly recommended that you contact a professional installer to get you

up and running. The warranty covering your satellite system assumes professional installation and

may not apply in self installation situations since improper installation could damage the various

components or cause undesired performance.

If you decide to install the satellite dish antenna yourself, we recommend you purchase the Do-It-

Yourself Installation Kit. It contains many items you will need to complete most installations.

You will need some of the following tools, depending on your installation:

• Electric drill

• Drill bits (1/8-inch,

3/16-inch, 1/2-inch

masonry)

• Carpenter’s level

• Pencil or chalk

• Tape measure

• Wrenches or hex socket

(3/8-inch, 5/16-inch,

7/16-inch)

• Hammer

• Hole digging tools

• Wheelbarrow or

concrete mixing box

• Hacksaw

• Sledge hammer

• Flat blade screwdriver

• Phillips screwdriver

• Clinometer or protractor

INSTALLING THE

SATELLITE DISH

ANTENNA

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-2

For the traditional 18” satellite dish, confirm that you have all of the components listed below.

• Steel reflector (1)

• Mast (1)

• Base plate (1)

• LNB support arm (1)

• Dual output LNB (1)

• ¼-inch nuts (5)

• Retainer screw (2)

• Flat head screws (4)

• ¼-20 x ½-inch

grounding bolt (1)

For the larger, oval, multi-LNB satellite dish, refer to the additional

assembly documentation included with the satellite dish.

If you are missing any parts contact Hughes Consumer Care Center at 1-800-274-8995.

Your satellite dish antenna will need to be pointed at a satellite cluster located 22,300 miles in

orbit above the equator. To aim the satellite dish antenna at the satellites you need to know the

azimuth and elevation angles. The digital satellite receiver will assist you in determining these

angles. If you see the message:

“Searching for satellite signal. To access related utilities, press .”

press the key. Otherwise, press keys in the following order to navigate to the

INSTALLATION screen:

• to display the MAIN MENU

• or to move the highlight over the Setup Menu button

• to display the SETUP MENU

• or to move the highlight over the Installation button

• to display the INSTALLATION screen

Determine Where to Point Your

Satellite Dish Antenna

The INSTALLATION screen

When you press you will see a screen that assists you with the satellite dish antenna

pointing and signal strength utilities.

Move the highlight to the Dish Type button and press . You

will need to specify the style of dish you have so that the pointing

information will be accurate. Press the or keys on the remote

control or receiver front panel until your preferred selection is

highlighted.

SINGLE – Refers to the traditional 18” satellite dish. This dish will

be configured with an LNB with two outputs. (HSYS-E4532)

DUAL – Refers to the larger, oval, multi-LNB satellite dish. This

dish will be configured with two LNBs in the positions marked

“SAT A” (101°) and “SAT B” (119°). Each LNB will have two

outputs. (HSYS-E4574)

TRIPLE - Refers to the larger, oval, multi-LNB satellite dish. This dish will be configured with

three LNBs in the positions marked “SAT A” (101°), “SAT B” (119°) and “SAT C” (110°).

LNB’s for use with SAT A & B will have 2 outputs, and the LNB for SAT C will have 1 output.

(HSYS-E4574 used w/ additional LNB for SAT. C. The additional LNB is available from your

installer.)

The INSTALLATION screen

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-3

Note: Choosing the correct dish type is necessary to obtain correct pointing results.

After highlighting the appropriate dish type, press .

Next, move the highlight to the Position button and press . You will need to determine

your location by either ZIP code or by your latitudinal and longitudinal position. Press the or

keys on the remote control or receiver front panel until your preferred selection is highlighted,

then press .

You will now see a pop-up panel with space to enter your information. Enter your location. If you

are using the remote control, press the key, followed by the five appropriate digits. From

the remote control or receiver front panel you can also use the or keys to increase or decrease

the highlighted digit value, and the key to advance to the next digit. Use the key on the

remote control to back up to correct any mistakes. When you are finished, highlight the OK button

and press to continue.

ALIGNMENT RESULT Pop-up Panel

The ALIGNMENT RESULT will display the proper elevation and azimuth for pointing the

satellite dish antenna calculated from the information you entered.

Take a moment to write down the pointing information.

AZIMUTH: _________

ELEVATION: _________

ROTATION (Tilt): _________ (Dual and Triple dishes only)

The values displayed are fairly accurate; however some fine-tuning

may be necessary. Use these values when choosing a mounting

location for your satellite dish antenna and remember that you will

need an unobstructed view in that direction.

Choosing the Antenna

Installation Site

WARNING

For your own safety, follow these important safety rules:

• Perform as many functions as possible on the ground.

• Do not install the antenna on a rainy or windy day.

• If you start to drop the antenna or mast assembly, get away

from it and let it fall.

Perform the following steps to select the best site to install the antenna:

1) Go to the location where you plan to install the antenna.

The Alignment Result pop-up panel.

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-4

2) Using a compass like the one shown, hold the compass level so that the needle can rotate

freely. When the needle stops rotating, it will be pointing north.

Doing so carefully so as not to disturb the needle, rotate the

body of the compass so that the 0° or N marks printed on the

compass align with the painted end of the needle. The compass

is now aligned with magnetic north.

Note: Large metal structures, such as air conditioning units

and steel beams near the compass may greatly reduce its

accuracy. If you are near such structures, move several feet

away and repeat the measurement to verify the readings.

3) Draw an imaginary line from the center of the compass to the

azimuth value you recorded above. This is the direction for

pointing the satellite dish antenna toward the satellites. Use a

rock or some other object to mark the location where you are

standing; then pick a landmark in the distance that aligns with

the magnetic azimuth bearing, or mark the azimuth in some

way.

4) Verify that there are no obstructions (such as buildings or trees) blocking the view to the

satellite, as shown in the diagram. Remember that trees that are small or do not have leaves

now could grow to ultimately block the clear line of sight.

5) Make sure that the site you have chosen is not where people or equipment could hit the

satellite dish antenna.

DANGER

Do not select a location to install the satellite dish antenna near power

lines. You can be killed if the satellite dish antenna comes into contact

with electric power lines.

• Do not contact overhead power lines.

• Check the distance to any nearby power lines before

starting installation. Stay at least 20 feet away from all

power lines.

• If any part of the satellite dish antenna or mast assembly

comes into contact with a power line, call your local power

company. Do not try to remove it yourself. They will

remove it safely.

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-5

Selecting a Mounting Option

Now that you have chosen where you want to install your satellite dish antenna, you need to select

the appropriate mounting. Use the options described below to determine the section of this chapter

that you should advance to.

All installations require grounding per NEC 810-15 and NEC 820-33.

Note: If you will be installing the satellite

dish antenna base plate and mast using a

mounting configuration other than the

ones recommended here, do so as

follows:

1. Install the base plate and mast.

2. Verify that the mast is level.

3. Go to the section titled “Attaching

the Reflector Onto the LNB Support

Arm.”

Installing the Satellite Dish

Antenna onto a Wooden Surface

The satellite dish antenna can be installed onto several types of wooden surfaces. This section

describes installing the satellite dish antenna base plate and mast onto the side of your house or on

a deck rail or floor.

Do not mount the satellite dish antenna onto composite (also called particleboard or fiberboard)

surfaces unless there is a wall stud or rafter located where you will be installing the mounting

hardware. Composite materials are not strong enough to support the satellite dish antenna during

strong winds and other violent weather conditions.

Installing the satellite dish antenna on

the rail or floor of a deck. See the

section titled “Installing the Satellite

Dish Antenna Onto a Wooden

Surface.”

Installing the satellite dish antenna on

a brick surface. See the section titled

“Installing the Satellite Dish Antenna

Onto a Brick Surface.”

Installing the satellite dish antenna on

the side of your house. Do not install

on vinyl or aluminum siding. See the

section titled “Installing the Satellite

Dish Antenna Onto a Wooden

Surface.”

Installing the satellite dish antenna on

a cinder block or masonry surface.

See the section titled “Installing the

Satellite Dish Antenna Onto a Cinder

Block Surface.”

Installing the satellite dish antenna on

a metal pole. See the section titled

“Installing the Satellite Dish Antenna

Onto a Metal Pole.”

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-6

Have the following tools and materials handy during this process. Items marked with an asterisk

(*) indicate that they are included in the Do-It-Yourself Installation Kit (sold separately).

• Drill bits (1/8-inch,

3/16-inch)

• Carpenter’s level

• Silicone sealant *

• Washers * (5/16-inch,

Qty. 4)

• Wrenches (3/8-inch,

7/16-inch)

• Lag screws * (3-inch x

¼-inch, Qty.2; 2-inch x

5/16-inch, Qty.4)

• Electric Drill

Installation Procedure

1) Select a secure site to install the satellite dish antenna base plate.

2) Place the base plate so the center holes align with the centerline of the rafter or stud (see

diagram). While holding the base plate in place, use a pencil to mark the location of the top

center hole onto the mounting surface. This mark indicates where you will be drilling later.

3) Using a carpenter’s level, plumb the antenna mast in at least two different locations on the

side of the mast, as shown. These two measurements should be at right angles to each other. If

the mast is plumbed (aligned vertically with the bubble level), go to step 5. Otherwise, loosen

the pivot bolt and adjustment nuts (see diagram).

Wall mounting on the side of your house. Locate a

wall stud onto which you can install the antenna base

plate as shown. Wall studs can most easily be found by

looking for the line of nails that shows where siding is

attached to the house or by using a stud finder.

Deck Mounting on a deck railing or floor.

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-7

4) Rotate the mast until it is plumb with the

level, then tighten the pivot bolt and alignment

nuts. If you are still unable to align the mast with the level, try using wooden shims. If they do

not correct the problem you will need to find another site to install the satellite dish antenna.

5) Set the mast aside and drill a 1/8-inch x 3-inch pilot hole where you made the pencil mark.

6) Install the mast assembly onto the mounting surface using a 3-inch x ¼-inch lag screw.

Tighten the screw enough to secure the base plate, but leave it loose enough to enable you to

adjust the base plate.

7) Verify that the mast is still plumb and adjust if necessary.

8) Mark the locations of the outside holes and remaining center hole on the mounting surface.

9) Remove the base plate from the mounting surface.

10) Drill a 1/8-inch x 3-inch pilot hole for the lower center hole.

11) Drill four 1/8-inch x 2-inch pilot holes for the outside holes.

12) While holding the base plate in place, apply silicone sealant onto the six pilot holes and

around the bottom edge of the base where it contacts the mounting surface (see

diagram). Doing so will help prevent water from seeping into your house.

13) Install four 2-inch x 5/16-inch lag screws and four 5/16-inch washers into the

outside holes on the base plate.

14) Install two 3-inch x ¼-inch lag screws into the center holes on the base plate.

15) Tighten all screws.

16) Apply additional silicone sealant to cover the tops of the lag screws.

With the base plate and mast installed, proceed to the section titled “Attaching the

Reflector Onto the LNB Support Arm” later in this chapter.

Installing the Satellite Dish

Antenna onto a Brick Surface

The satellite dish antenna can be installed onto brick surfaces. This section describes installing the

satellite dish antenna base plate and mast onto the side of your brick house or on a chimney.

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-8

Have the following tools and materials handy during this process. Items marked with a asterisk

(*) indicate that they are included in the Do-It-Yourself Installation Kit (sold separately).

• Masonry drill bit (3/8-

inch)

• Machine screws *

(¼-inch x 3-inch ,

Qty. 4)

• Carpenter’s level

• Silicone sealant *

• Expansion anchors*

(Qty. 4)

• Washers * (5/16-inch,

Qty. 4)

• Pencil or chalk

• Wrenches (3/8-inch,

7/16-inch, or

adjustable)

• Hammer

Installation Procedure

1) Select a flat and secure site to install the satellite dish antenna base plate.

2) Place the base plate so the outside holes are positioned over the brick surfaces. Do not drill

into the mortar between the bricks.

3) Using a carpenter’s level, plumb the satellite dish antenna mast in at least two different

locations on the side of the mast, as shown. These two

measurements should be at right angles to each other. If the

mast is plumb (aligned vertically with the bubble level), go to

step 5. Otherwise, loosen the pivot bolt and adjustment nuts (see

diagram).

4) Rotate the mast until it is plumb with the level, then tighten the

pivot bolt and alignment nuts. If you are still unable to align the

mast with the level, try using wooden shims. If they do not

correct the problem you will need to find another site to install

the satellite dish antenna.

5) Use a pencil to mark the location of the top left outside hole of

the base plate (see diagram) onto the brick surface.

6) Set the mast aside and drill a 3/8-inch x 3-inch hole where you

made the pencil mark.

Front view Side View

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-9

7) Clean out the hole and insert an expansion anchor. The anchor should fit snugly, so you may

have to use a hammer to gently tap the anchor until it is flush with the brick surface.

8) Install the mast assembly onto the mounting surface using a 3-inch x ¼-20 machine screw

(see diagram). Tighten the screw enough to

secure the base plate, but leave it loose

enough to enable you to adjust the base plate.

9) Verify that the mast is still plumb and adjust if

necessary.

10) Mark the locations of the other three outside

holes on the mounting surface.

11) Remove the base plate from the brick surface.

12) Drill three ½-inch x 3-inch holes for the

outside holes.

13) Install the base plate using the 3-inch x ¼-20 machine screws and four 5/16-inch washers.

14) Tighten the four machine screws.

With the base plate and mast installed, proceed to the section titled “Attaching the Reflector Onto

the LNB Support Arm” later in this chapter.

Installing the Satellite Dish

Antenna onto a Cinder Block

Surface

The satellite dish antenna can be installed onto cinder block surfaces. This section describes

installing the satellite dish antenna base plate and mast onto a cinder block or masonry surface.

Have the following tools and materials handy during this process. Items marked with a asterisk

(*) indicate that they are included in the Do-It-Yourself Installation Kit (sold separately).

• Masonry drill bit (½-

inch)

• Machine screws *

(¼-inch x 3-inch ,

Qty. 4)

• Washers * (5/16-inch,

Qty. 4)

• Hammer Carpenter’s

level

• Pencil or chalk

• Electric drill

• Wrenches (3/8-inch,

7/16-inch, or

adjustable)

• Machine screws * (¼-

inch x 3-inch , Qty. 4)

• Silicone sealant *

• Togglers* (Qty. 4)

Installation Procedure

1) Select a flat and secure site to install the satellite dish antenna base plate.

2) Tap the cinder blocks with a hammer to locate the hollow center cores.

3) Place the base plate so the outside holes are positioned over the hollow center cores of the

cinder block. Do not drill into the mortar between the cinder blocks.

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-10

4) Using a carpenter’s level,

plumb the satellite dish antenna mast in at least two different

locations on the side of the mast, as shown. These two

measurements should be at right angles to each other. If the

mast is plumb (aligned vertically with the bubble level), go to

step 5. Otherwise, loosen the pivot bolt and adjustment nuts (see

diagram).

5) Rotate the mast until it is plumb with the level, then tighten the

pivot bolt and alignment nuts. If you are still unable to align the

mast with the level, try using wooden shims. If they do not

correct the problem you will need to find another install site.

6) Use a pencil to mark the location of the top left outside hole of

the base plate (see diagram) onto the cinder block surface.

7) Set the mast assembly aside and drill a ½-inch hole where you

made the pencil mark.

8) Clean out the hole.

9) Install the toggler as follows: Holding the ring end of a toggler,

fold the metal channel flat against the toggler and insert it into

the drilled hole until you feel the channel open inside the hollow core of the cinder block.

Rotate the toggler and gently pull the ring to ensure the metal channel is flat against the inside

of the cinder block. While pulling the toggler toward you to apply tension, slide the push-cap

until it is snug against the cinder block. Break the ring along the center perforation and bend

the two straps away from each other until they break at the push-cap.

Toggler installation steps.

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-11

10) Install the mast assembly onto the cinder block

surface using a 3-inch x ¼-20 machine screw (see

diagram). Tighten the screw enough to secure the

base plate, but leave it loose enough to enable

you to adjust the base plate.

11) Verify that the mast is still plumb and adjust if

necessary.

12) Mark the locations of the other three outside

holes on the cinder block surface.

13) Remove the base plate from the cinder block.

14) Drill three ½-inch holes for the outside holes.

15) Repeat steps 8 through 12 to install togglers in

the three drilled holes.

16) Install the base mast assembly using the 3-inch x ¼-20 machine screws and four 5/16-inch

washers.

17) Tighten the four machine screws.

With the base plate and mast installed, proceed to the section titled “Attaching the Reflector onto

the LNB Support Arm” later in this chapter.

Installing the Satellite Dish

Antenna onto a Metal Pole

The satellite dish antenna can be installed onto a metal pole. You will not be using the base plate

or mast included with the satellite dish antenna for this procedure. Store these items in case you

decide to move the satellite dish antenna to a new location in the future.

Have the following tools and materials handy during this process.

• Hole digging tools

• Wheelbarrow or

concrete mixing box

• Carpenter’s level

• Pencil or chalk

• Guy wires and

wooden stakes

• Hacksaw

• 40-pound bag of

quick setting concrete

(Qty 4)

• Metal pole (1¼-inch

inside diameter

schedule 40

galvanized water pipe

- 6-foot length

minimum)

Installation Procedure

1) Use a hacksaw to cut the bottom edge of the pole at a 45° angle, as shown. This prevents the

pole from rotating in the concrete over time.

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-12

2) Dig a hole at least 8-inches in diameter and 36-inches deep. If you live in an area where the

frost line goes deeper than 30-inches, dig the hole

at least 6-inches deeper than the frost line.

3) Place the pole into the hole and place rocks

(for example) around the pole to stabilize it in a

vertical position.

4) Fill the hole with prepared quick drying

cement. Shape the top of the concrete with a slope

to improve drainage.

5) Using a carpenter’s level, plumb the pole in at

least two different locations on the side of the pole,

as shown. These two measurements should be at

right angles to each other. When the pole is plumb,

secure it with the rocks, or attach guy wires to hold

it upright.

6) Let the cement dry for 24 hours before you remove the guy wires or attempt to attach the

satellite dish antenna to the pole.

With the pole installed, proceed to the section titled “Attaching the Reflector Onto the LNB

Support Arm” later in this chapter.

Attaching the Reflector onto the

LNB Support Arm

If your satellite dish is not the traditional 18” style (meaning it is the larger,

oval, multi-LNB style), refer to the assembly documentation included with the

satellite dish. After assembly, resume this manual starting on page 4-17 at the

section titled “Positioning the Satellite Dish Antenna”.

Assembling the Satellite Dish Antenna

1) Insert a flat-head screw into one of the holes in the face of the reflector, as shown.

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-13

2) Install the mounting bracket

of the LNB support arm onto

the four flat-head screws, as

shown.

3) Loosely install a ¼-inch nut

onto the portion of each flat-

head screw that sticks

through the back of the

reflector and mounting

bracket.

4) Tighten the four ¼-inch nuts.

The heads of the flat-head

screws must be flush on the

inside surface of the reflector

to be securely fastened to the

LNB support arm.

5) Install the cable clip as

shown.

Attaching the Satellite Dish

Antenna Assembly to the Mast

or Pole

Now that you have assembled the satellite dish antenna you are ready to mount it on your

previously installed mast or pole. While the diagrams may

show a satellite dish antenna model that differs from the one

you have, the same procedures apply.

1) If necessary, slightly loosen the azimuth nuts on the

LNB support arm.

2) Slide the satellite dish antenna assembly onto the mast

or pole until the top of the mast stops at the bolt at the top of

the mounting assembly.

3) Tighten the azimuth nuts enough so that the satellite

dish antenna assembly can rotate easily on the mast or pole.

4) The next step is to ground the satellite dish antenna.

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-14

CAUTION

Local electric codes and the National Electric Code (NEC) require the satellite

dish antenna to be grounded. Grounding the satellite dish antenna helps protect

against damage caused by static voltage buildup or nearby lightning strikes.

Refer to the following:

• Go to the section titled “Grounding the Metal Pole Mount” if your satellite dish antenna is

installed on a metal pole.

• Go to the section titled “Grounding the Base Plate” if you satellite dish antenna is installed on

the supplied satellite dish antenna mast.

Grounding the Metal Pole Mount

Have the following tools and materials handy during this process. Items marked with a asterisk

(*) indicate that they are included in the Do-It-Yourself Installation Kit (sold separately).

• 1½-inch ground

clamp

• 5/8-inch x 8-foot

ground rod and

ground rod clamp

• #8 aluminum

grounding wire *

• Cable ties *

• Adjustable wrench

• Sledge hammer

Installation Procedure

1) Approximately 1 foot from the pole’s cement pier foundation, use a sledge hammer to drive

the ground rod 8 feet into the ground.

2) Install the grounding clamp approximately 1 foot from the base

of the pole.

3) Install the #8 aluminum grounding wire onto the ground clamp

in accordance with National Electric Code 810-15..

4) Route the ground wire from the clamp to the ground rod. Use

the ground rod clamp to attach the grounding wire to the ground

rod.

5) Secure the ground wire to the pole using the cable ties.

You can now proceed to the section titled “Installing and Routing

the LNB Coaxial Cable.”

Grounding the Base Plate

Have the following tools and materials handy during this process. Items marked with a asterisk

(*) indicate that they are included in the Do-It-Yourself Installation Kit (sold separately).

• 5/8-inch x 8-foot

ground rod

• ground rod clamp

• Adjustable wrench

• #8 aluminum

grounding wire *

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-15

• Sledge hammer • Cable ties *

Installation Procedure

1) Use a sledgehammer to drive the ground rod 8 feet into the ground near where you installed

the satellite dish antenna base plate.

2) Insert the ¼-20 x ½-inch bolt through the

grounding hole on the base plate.

3) Install the ¼-inch nut onto the bolt.

4) Wrap the #8 aluminum grounding wire around

the bolt between the star washer and the base

plate in accordance with National Electric

Code section 810-15, then tighten the nut.

5) Route the ground wire from the base plate to

the ground rod. Use the ground rod clamp to

attach the ground wire to the ground rod.

6) If necessary, secure the ground wire to the

wall using insulated U-shaped tacks.

Installing and Routing the LNB

Coaxial Cable

This section describes routing and installing the coaxial cable between the LNB and the grounding

block. Depending on the routing of the coaxial cable, you may

choose to use a cable that can be buried. When normal coaxial cable

is buried, its outer cover decays in the soil, and the cable’s life is

shortened. Cables that are suitable for burial use a special outer

cover that resists breakdown. Some of these cables also have a

special coating on their ground shields. This coating resists corrosion

if water gets into the cable. Anytime the coaxial cable is buried, use

cable that is suitable for burial. Doing so will help prevent problems

in the future.

An important goal of your cable installation is to protect the cable

from physical damage and moisture penetration. To protect the cable

from physical damage, secure it to walls or another stable surface

with cable clips. This prevents the cable from sagging and being

damaged by people stepping on it or running over it with yard

equipment. Prevent moisture penetration by using weatherproof connectors, or by sealing any

connection that is exposed to the elements. Drip loops provide a connection with additional

protection by preventing moisture from traveling down the cable and entering the connection.

Have the following tools and materials available:

• Phillips screwdriver

• Hammer

• #14 (or larger)

insulated grounding

wire

• Flat-blade

screwdriver

Remove Star washer

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-16

Installation Procedure

1) Select the location where you will install the ground block. Choose a site that will be near the

cable entry point into the building. Also, plan a

short and straight path for the ground wire to the

grounding rod.

2) Select 2 equal lengths of cable that can be

routed easily from the LNB to the ground block.

3) Secure the grounding block to a stable

mounting surface with two screws, then connect

the cables to the grounding block.

4) Secure the cables with cable clips. Do not

forget to form the drip loop and secure it in place

with cable clips.

5) Install the #14 insulated ground wire on the

ground terminal of the ground block in accordance with National Electric Code section 820-

33.

6) Route the ground wire to the ground rod.

7) Connect the ground wire to the ground rod. Remember to secure the wire to a wall or some

surface to protect it.

Connecting the Coaxial Cable to

the LNB

Installation Procedure

1) Make sure your digital satellite receiver is unplugged. Connecting the LNB cable to the LNB

while the digital satellite receiver is plugged in could

permanently damage your LNB.

2) If you installed the satellite dish antenna assembly onto a metal

pole, go to step 3. Otherwise, route the coaxial cables through

the mast and LNB support arm, and then continue on to step 4.

3) Route the coaxial cables along the outside of the pole and inside

the LNB support arm leaving enough slack in case you need to

remove the LNB later.

4) Attach the coaxial cables onto the LNB as shown.

Attaching the LNB to

the LNB Support Arm

1) Slide the cable connection end of the LNB into the D-shaped opening in the LNB support arm

so that the LNB points toward the reflector. The end of the LNB may be rectangular or D-

shaped, however either type will fit.

2) Insert the correct size retainer screw into the LNB mounting hole. Two sizes of this screw are

provided to accommodate either LNB style.

For dual LNB installations using only one receiver,

a single coaxial cable will be used.

Note that your LNB style may vary slightly

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-17

3) Use the appropriate screwdriver to tighten the screw.

Routing the LNB Cable to the

Digital Satellite Receiver

During this step of the installation, route the LNB cable from the ground block to the satellite

receiver. In most installations, there is more than

one way to get the LNB cable to the adapter from

the grounding block. If the adapter is near an

inside wall, use the crawl space, basement, or attic

area. When routing the LNB cable to the digital

satellite receiver, take the shortest possible path

and always protect it from physical damage.

1) After verifying that there are no wires or

pipes blocking the location where you near to

feed the coaxial cable into the building, drill

a ½-inch hole. If you are routing two coaxial

cables, drill a second ½-inch hole near the

first.

2) Connect one end of the cable to the ground block. Repeat this step if you are routing two

cables.

3) Form a 3-inch to 5-inch drip loop in the cables before inserting it in the access hole.

4) Secure the drip loops and cables to the wall with cable clips.

5) Inside the building, route the cables to where the digital satellite receiver(s) are located.

Depending on the installation site, this could be through a floor or wall, directly to the rear of

the satellite receiver. If the cable goes straight through a wall, you can use a wall plate at the

access point.

6) Seal the access point into the building with silicone sealant.

The satellite dish antenna and cables are now completely installed.

Connecting the Satellite Dish

Antenna

You must connect the satellite dish antenna cable to receive a signal. To protect your LNB from

damage, you should unplug your digital satellite receiver from the power

outlet prior to making this connection. Once the satellite dish antenna has

been mounted and the satellite cable has been run from the satellite dish

antenna to the digital satellite receiver, you are ready to monitor the signal

strength while adjusting the satellite dish antenna pointing. Make sure

that you are connecting the cable to the SATELLITE IN jack - not the IN

FROM ANT jack.

Connecting the satellite dish antenna cable

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-18

Positioning the Satellite Dish

Antenna

Pointing accuracy is very important. You must be pointing the satellite dish antenna exactly at the

satellites for you to receive a signal. Please follow these instructions carefully to achieve a

successful installation.

In the following procedure you will be referring to the meter on the INSTALLATION screen. If

this screen is not currently displayed, press the key, shutting the system down, and then

press the key to start the system up again.

If you see a black screen with the message:

“Searching for satellite signal. To access related utilities, press .”

Press the key. Otherwise, press keys in the following order to navigate to the

INSTALLATION screen:

• to display the MAIN MENU

• or to move the highlight over the Setup Menu button

• to display the SETUP MENU

• or to move the highlight over the Installation button

• to display the INSTALLATION screen

You should see a meter displaying your signal strength.

The INSTALLATION Screen

The INSTALLATION screen shows the quality of the signal that you are receiving. Because you

have not adjusted the direction of your satellite dish antenna, you

probably have a signal strength of 0. To let you know that it is

“looking,” you should hear a short beep every few seconds.

Even though a signal strength of 50 will give you the same high-

quality picture and sound as a reading of 90, you should maximize

your signal as much as possible, because rain or snow can cause the

signal strength to drop significantly. This signal reduction is known

as “rain fade.” As soon as the signal can penetrate the rain cloud or

snow, your picture will return automatically.

The INSTALLATION screen

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-19

Pointing the Satellite Dish Antenna Using the “Box”

Method

The easiest way to find the satellite signal is by scanning the sky in the general direction that the

satellite is located. While you could possibly achieve this by trial and error, you should be able to

find the signal in just a few minutes using the “box” method. What you are effectively doing is

scanning the sky in a pattern similar to the way a farmer plows a field.

It will be easiest to fine-tune your satellite dish antenna with someone else’s assistance, calling out

the signal strength while you make the adjustments. In addition, you should turn up the volume of

your TV so that you can hear the beeps while you make adjustments. When there is no signal,

beeps will occur every few seconds so that you know it is searching. As the signal strength

increases, the beeps will become much more rapid.

Before you begin make these quick checks:

• Verify that there are no obstructions such as trees, buildings, etc., blocking the signal.

• Verify that you are using the proper cable type (RG-6) between the satellite dish antenna

and the digital satellite receiver. Also, be sure that the connections are tight and the center

wire in the cable extends about 1/8th-inch beyond the end of the connector.

• Verify that the azimuth and elevation values that you determined earlier are correct for

your area.

• Get a 7/16-inch wrench (not included) to loosen and tighten the satellite dish antenna’s

bolts.

• Find the initial direction to point your satellite dish antenna using a compass.

The “box” method begins by subtracting 10 degrees from the azimuth and subtracting 4 degrees

from the elevation values that you determined earlier.

We’ll begin by adjusting the elevation. First, loosen the nuts securing the two (one on each side)

elevation bolts just enough so that you can easily tilt the reflector up and down. Owners of the

oval dish will find a fine adjustment screw used to set the elevation. Next, line up the elevation

indicator with the tick mark corresponding to the elevation calculated earlier (result minus 4

degrees). This indicator is the leading edge of the metal just to the left of the bolt. It is

recessed inside the slot. Do not use the bolt or nut as a point of reference. Finish adjusting the

elevation by lightly tightening the bolts when the indicator is aligned with the correct tick mark.

Make sure that the satellite dish antenna doesn’t slip out of position while you are tightening the

bolts.

Pattern of scanning the sky

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 4-20

Next, we’ll adjust the azimuth. For this part of the procedure, a compass (such as the one included

in the Do-It-Yourself Installation Kit) will make it possible to point in the proper direction. This is

done by first loosening the azimuth bolts just enough in order to turn the satellite dish antenna

smoothly with a little pressure. Stand behind or beneath the satellite dish antenna reflector and,

while grasping the outer edges of the reflector, rotate the satellite dish antenna until it is pointing

toward the azimuth value determined earlier (result minus 10 degrees). Be sure that as you do this

you do not lean on the reflector, as that would affect the alignment. Don’t tighten the bolts just

yet!

1) Slowly turn the satellite dish antenna 20 degrees towards and past the actual determined

azimuth. It should take about 20 seconds to make the sweep of the sky.

2) If no signal was found in this pass, increase the elevation by 1 degree and slowly turn the

satellite dish antenna back the other direction. If you do find a signal, go to step 4.

3) If you have done this for 9 passes (now 4 degrees above the determined elevation), start back

at the beginning point and try again. If you cannot achieve any signal after several tries,

recheck that the LNB satellite cable is connected to the SATELLITE IN jack - not the IN

FROM ANT jack. For additional support, call your dealer or Hughes Consumer Care Center

at 1-800-274-8995.

4) To have reached this step it is assumed that there is some degree of signal. A numeric value

for the strength ranges from 0 to 99. While your signal strength may vary, refer to the

following map to determine the suggested signal strength goal for your area:

5) Gently continue turning the satellite dish antenna reflector a small amount as you were

turning it when you began receiving a signal. Continue to adjust the satellite dish antenna in

this fashion until the signal strength meter reaches the highest possible reading. Tighten the

azimuth bolts.

6) Slowly tilt the satellite dish antenna up and down to try to improve the signal strength reading.

When you are satisfied that you have achieved the strongest signal, tighten the elevation bolts.

You may choose to try different transponders. Each transponder transmits multiple programs at a

time. The transponder displayed when entering the screen represents the one associated with the

last viewed program (or “02” if no program has been viewed). By moving the highlight to the

transponder area, you can enter a number from 01 to 32. Different transponders may show varying

signal strengths. This is not indicative of any problem unless the variations are extreme (such as

40 and 90). In the event of signal reception problems, customer service representatives may ask

for information such as signal strength on a different transponder. Do not change transponders

trying to find the best signal since the transponder will automatically change to the one that

corresponds with the satellite channels that you view.

If you are using the oval dish, you should also check the signal strength of the other satellite(s).

Typical signal strength results. Your actual signal strength may vary.

INSTALLING THE SATELLITE DISH ANTENNA

PAGE 4-21

Authorizing Your Service

To confirm that the satellite dish antenna is properly adjusted to receive signals, try to receive

promotional channels from DIRECTV. If you can receive them, you can now arrange to receive

your DIRECTV

 programming 24 hours a day, 7 days a week, at the following number:

DIRECTV 1-800-DIRECTV (347-3288)

You can enjoy access to over 210 channels of digitally delivered sports, movies, news, and family

entertainment. Check with DIRECTV regarding details about available offerings and packages.

PAGE 5-1

This chapter will reveal many different ways to find the programs you want to watch. The first thing

you should know is that channels in the DIRECTV programming guide are arranged differently.

Local programming delivered via satellite (if available) is located in channel numbers below 100.

Channels that are not traditionally local broadcasts start at channel 100 and could go as high as 9999.

Remember, do not assume that the front panel keys are a substitute for the remote control keys.

Basic Channel Changing

There are many ways to “surf” through the available programming. You already know at least two

ways to change channels. The first of these is by using the and keys. Each key press takes you

to the next available channel in the direction that you selected. The second way is to enter the number

of the desired channel. For example, to go to the Direct Ticket movie previews, simply press .

If the channel does not change right away, press to instruct the satellite receiver that you are

finished entering digits. You can enter the number for any channel you wish.

The Channel Banner

Every time you tune to a channel, a banner will be displayed at the top of the screen. You can also

display the Channel Banner any time by pressing the key.

The key on the front panel of the digital satellite receiver will

also provide this functionality, if there are no other messages

indicating otherwise. Pressing will remove the banner

immediately.

This banner contains information about the program, including the

program start and end times, title, rating, channel call sign or logo,

channel number, and program or channel-related symbols where

applicable. Symbols , as shown below, could include alternate audio,

data, new mail, can’t tape, closed caption, and/or the lock status. See

the section called “Alternate Services” later in this chapter for

information on accessing alternate audio or data services.

Icon DATA

SVCS. ALT.

AUDIO NEW

MAIL CAN’T

TAPE DOLBY

DIGITAL

Meaning Pay Per View

Data available

Other audio

available

Closed

caption

available Unread mail Limits

enforced Limits

override Taping not

allowed

Dolby Digital

audio

available

The Information Banner

Pressing the key (or the front panel key) a second time while the Channel Banner is

displayed will replace the information with any available description of the current program. This is

called the Information Banner. Either of these banners will go away after a few seconds, or you can

press the key or key to clear it on demand.

WATCHING

DIRECTV

PROGRAMMING

The CHANNEL BANNER

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 5-2

The OneLine™ Guide

If you’d like to know what’s on another channel without switching from your current channel, use the

OneLine Guide. Simply press or and begin browsing. You can

see the channel call sign and number, titles, and program start and

end times. When you see something you like; then press to

tune to the channel.

You may also directly enter a channel number to advance the

OneLine Guide to that channel. The other filter keys, including

for movies, for sports, and for news,

as well as the key will also control the content of the

OneLine Guide.

Pressing the key will cancel the OneLine Guide.

TurboTune™

The TurboTune feature provides access to nine of your preferred channels on top of the current video.

The TurboTune panel is displayed by pressing the remote control

key while watching video as long as there are no messages

prompting you to press for some other purpose. TurboTune

is not accessible from the front panel key. The TurboTune

panel displays nine channel tags. These channels can be specified

via the TurboTune button on the SETUP MENU. The header area of

the panel displays the title of the program currently airing on the

highlighted channel tag. You can choose one of the nine by moving

the highlight over the desired channel and pressing . A

shortcut to moving the highlight is to press the remote control

numbers that corresponds with the on-screen position of the desired

channel. In the example on the right, press 7 for CNN.

AlphaTune™

AlphaTune enables you to tune to a channel by spelling a channel’s call sign rather than by number. To

enter the AlphaTune mode, you must first press the key located on the lower right on the

keypad. The symbol appears on the screen. You can now enter the numbers and letters

(located above each of the number keys) to spell the desired channel call sign. For example, to tune to

ESPN, press . All special symbols (i.e., &, /, +, !, etc.) are located on the key. As

soon as the receiver can determine which channel you are seeking, it will tune to it automatically. No

additional keys need to be entered. If the channel call sign is fewer than four letters, you may need to

press to indicate that you are finished. If more than one channel shares the same set of key (i.e.,

“CNN” and “COM”, both using ), the next matching occurrence is used. If that was not the

channel you wanted, just press to find the next occurrence of that key sequence. It

is important that you enter the channel call sign exactly. With experience, you will become more

familiar with the channel name abbreviations that are used.

The OneLine Guide

The TurboTune panel

WATCHING SATELLITE PROGRAMS

PAGE 5-3

Alternate Services

The digital satellite receiver can support alternate audio services. To determine if the services are

available for a particular program, look for their icons below the date

and time in the Information Banner or on the on-screen guide. To

access these services when available press the key on the

remote control. The Alternate Services banner will appear at the

bottom of the screen.

Audio

Once you have selected the Audio button you can use the and

keys to step through the audio tracks offered for the current program.

To choose the highlighted language, press . On occasion an

audio track may be offered that is not being broadcast. If this is the

case, you will hear either unchanged audio or silence.

Changing channels will restore the audio track to the one that is

specified on the PREFERENCES screen. See the chapter “DIRECTV PLUS™ Digital Satellite

Receiver’s Menu System” for information on setting the default audio.

Digital Audio

Once you have selected the Digital Audio button you can use the and keys to step through the

audio tracks offered for the current program. For programs that are offered in Dolby Digital the icon

along with the name of the audio track will be displayed. The option of "Same as Audio" is always

available. This will provide PCM digital audio that is the same track as selected under the Audio

option.

To choose the highlighted digital audio, press . On occasion an audio track may be offered that

is not being broadcast. If this is the case for the selected track, you will hear either unchanged audio or

silence.

Changing channels will restore the audio track to the one that is specified on the PREFERENCES

screen. See the chapter “DIRECTV PLUS™ Digital Satellite Receiver’s Menu System” for

information on setting the default audio.

The Alternate Services panel

PAGE 6-1

The most powerful feature of the DIRECTV PLUS digital satellite receiver is the on-screen guides.

You may customize the on-screen guide you can see a page of channels or program listings to include

only programs of interest to you. Other advanced features available from the on-screen guides, such as

scheduling and program information, will help plan your viewing. Continue reading to learn the real

power of the digital satellite receiver’s on-screen guides. At any time you can press the key to

display the current on-screen guide.

The on-screen guides are not accessible from the front panel keys. However, the front panel key

will access the INFORMATION screen described later in this chapter if it is being pressed in

response to a message such as "Press to order."

This digital satellite receiver offers a variety of on-screen guides. Each guide has its own design to

make finding programs of interest an easy task. These guides include the PROGRAM GUIDE

(SM.CELL), PROGRAM GUIDE (LG. CELL), TITLE GUIDE, and LOGO GUIDE. The digital

satellite receiver also offers the WATCHWORD™ GUIDE.

Each guide can be filtered into smaller channel groupings, as specified in your personalized favorite

Channel Lists. You can also reduce the displayed listing by specifying a Theme of interest, and then

narrow the offerings further by specifying a type within the Theme. Additional settings, such as Guide

Times and Classes, may be specified to determine the guide content. A full description of the filtering

options can be found later in this chapter.

Choosing the Guide Style

To display on-screen guides, press the key. Press the key again to display or remove the

guide pop-up menu. The guide menu provides buttons to access the

MAIN MENU, exit to Video, ways to narrow your search, and

Guide Style.

To choose a guide style, simply highlight the Guide Style button and

press . A pop-up menu offering each of the guide styles will

be displayed. Highlight your selection and press the key. The

guide will be redrawn to display your selection.

Familiarize yourself with the benefits of each guide style:

PROGRAM GUIDE (SM. CELL) - This guide style displays

several rows of channels with columns indicating the time period of the programming. Cells occupy

the main portion of the screen with program titles in them. This layout makes it very easy to see what

programming at what time is being offered. The "SM. CELL" portion of the guide style name refers to

the fact that there is only one line of text associated with each program title. While this could cause the

title to be cut short, it also allows for a large number of channels to be displayed simultaneously.

PROGRAM GUIDE (LG. CELL) - This guide style, like the SM. CELL style, displays several rows

of channels with columns indicating the time period of the programming. Cells occupy the main

portion of the screen with program titles in them. This layout makes it very easy to see what

programming at what time is being offered. The "LG. CELL" portion of the guide style name refers to

THE ON-SCREEN

GUIDES

The Guide pop-up menu

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 6-2

the fact that there is two lines of text associated with each program title. While this provides more

space for the program titles and for channel tags, it also reduces the number of channels to be

displayed simultaneously.

TITLE GUIDE - The guide style is convenient when you are looking for a program that is coming on

in the next few hours that you know the title of, but just don't know the channel it will be on. In this

guide style, program titles are listed in alphabetical order with reference to times and channels

displayed as supplementary information.

LOGO GUIDE - This guide style offers the greatest number of channels displayed simultaneously. It

is also the most colorful. For those viewers that choose their programming more by the channel, rather

than by program title, this is the best option. Almost every channel is represented by the logo.

WATCHWORD GUIDE - This is a special guide available in the digital satellite receiver. It creates a

list of program titles based on various keywords that you specify. First, you have to enter your

keywords on the WATCHWORD SETUP screen. Then, when you are not using your digital satellite

receiver, turn it off. It is during the "off time" that the digital satellite receiver scours the thousands of

program titles and their descriptions looking for matches to your keywords. To fully complete this

process, several hours are needed. So, it is best if you let your system do this for you while you are

asleep. When you return, selecting the WATCHWORD GUIDE will provide you with a list of

matching programs that it was able to find.

As you can see, there are various guide styles to suit various tastes and needs.

Descriptions

One guide option is to automatically display descriptions for highlighted program titles. The

descriptions usually provide information such as actors’ names, a program synopsis, and additional

rating information. Sometimes the description may be only a message describing what type of

program is highlighted, such as “Current News.”

This option is chosen via the Descriptions button on the guide pop-up menu. Displaying the extra

information reduces the number of channels or titles that can be displayed at one time.

Remember that you can always access program descriptions by pressing the key, whether or not

the Descriptions button is selected.

General On-Screen Guide Features

While there are different ways the guides can appear, there are some things they have in common.

The guide name will always appear in the upper left corner. It may be something simple like

“PROGRAM GUIDE.” If you have filtered the guide, it could be more descriptive such as “COMEDY

MOVIES GUIDE.” (See “Filtering the Guides” section later in this chapter.)

• Immediately below the guide title are indicators showing how the guide is further filtered. The

label to the left of the bullet specifies the current class filter setting. To the right of the bullet you

will see the current channel list.

• In the upper right corner of your screen the current day, date, and time are displayed.

• Just below the time you may see small icons indicating the status of the system or details about the

currently highlighted program title. They are the same icons that appear in the Channel Banner.

• The primary body of the guide screen displays channels or program titles. You can press

on a currently airing program to tune to it. Pressing will take you to the INFORMATION

screen described later in this chapter in the section called “The INFORMATION Screen.”

• If a program title cannot entirely fit in the space provided, an ellipsis (…) indicates that a portion

of the title is missing.

THE ON-SCREEN GUIDES

PAGE 6-3

Using PreSelect

With the PreSelect feature you can select viewing choices in advance to avoid missing them. Use

PreSelect to plan your evening viewing; your digital satellite receiver will automatically change

channels according to your selections and control your VCR for unattended recording.

To PreSelect a program, find an upcoming program you wish to watch and press the key.

PreSelecting Programs for Taping

You can utilize this feature commonly known as StarSight One-Touch Record (OTR). Programs that

have been scheduled to be taped will be identified with a videotape icon ( ) before the

program title on the on-screen guide. If you do not want to have the PreSelected program

recorded, press the key again to change the setting to be automatically tuned to for

viewing.

When using the Schedule To Tape feature the following steps must be completed for the

digital satellite receiver to perform unattended recording:

• Attach the VCR Control cable (see chapter 2, “Setting Up Your Satellite System.”)

• Use the VCR SETUP screen (see chapter 7, “DIRECTV PLUS™ Digital Satellite

Receiver’s Menu System.”)

• Set your VCR to match the output of the digital satellite receiver. This could be either RF

(channel 3 or 4) or A/V (phono or S-video).

• Insert a recordable videotape of sufficient length in the VCR.

• Leave the VCR turned ON.

PreSelecting Programs for Viewing

Programs that are PreSelected for viewing will be identified on the on-screen guide with a check mark

(ü) before the program title. An additional press of the key will return the status to not

scheduled.

Canceling PreSelected Programs

To cancel a PreSelected a program, find the upcoming program you wish to cancel and press the

key until the check mark (ü) or videotape icon () is no longer shown.

If the program is currently airing, you will need to delete the event from the SCHEDULER screen

accessed from the MAIN MENU.

The PROGRAM GUIDE (SM. CELL)

The PROGRAM GUIDE (SM. CELL) without

descriptions The PROGRAM GUIDE (SM. CELL) with

descriptions

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 6-4

The PROGRAM GUIDE (SM. CELL) displays 1½-hours of programming. Up to 12 channels can be

seen at one time. This number is reduced to 9 if the program description option is enabled.

The largest area of the PROGRAM GUIDE (SM. CELL) made up of cells is known as the program

grid. Some cells have arrows indicating that the program started at an earlier time or continues until a

later time than displayed in the grid. Each grid cell approximates the duration of the associated

program.

A time line spanning the width of the guide indicates the show times of the programs being displayed.

The list of blocks running down the left-hand side are the “channel tags.” Depending on the Channel

Sort (Name or Number) option specified in your system’s PREFERENCES screen (described in

“DIRECTV PLUS™ Digital Satellite Receiver’s Menu System”) the tags may display the channel

numbers or call signs. This will dictate whether the channels are listed by channel number or

alphabetically by call sign.

To navigate the guide, use the , , , and keys. You can continue to press the or keys to scroll

more program offerings onto the screen.

Pressing on any title will direct you to the INFORMATION screen.

Use and to scroll through the guide entries a full page at a time.

When the highlight is in the grid, use the and keys to move left and right. If you move the

highlight onto the channel tags, they will temporarily change to the opposite of what they were before

(either channel numbers or call signs).

Move the highlight to the right to move the grid area to reveal later time periods. Sometimes, after

scrolling a few hours ahead, there may be a brief delay while more information is received from the

satellite.

The PROGRAM GUIDE (LG. CELL)

The PROGRAM GUIDE (LG. CELL) displays two hours of programming. Up to 8 channels can be

seen at one time. This number is reduced to 6 if the program description option is enabled.

The largest area of the PROGRAM GUIDE (LG. CELL) made up of cells is known as the program

grid. Some cells have arrows indicating that the program started at an earlier time or continues until a

later time than displayed in the grid. Each grid cell approximates the duration of the associated

program.

A time line spanning the width of the guide indicates the show times of the programs being displayed.

The list of blocks running down the left-hand side are the “channel tags.” Depending on the Channel

Tag (Name/Number or Logos) option specified in the system’s PREFERENCES screen (described in

The PROGRAM GUIDE (LG. CELL) without

descriptions The PROGRAM GUIDE (LG. CELL) with

descriptions

THE ON-SCREEN GUIDES

PAGE 6-5

the chapter, “DIRECTV PLUS™ Digital Satellite Receiver’s Menu System”) the tags may display the

channel numbers and call signs or network logos. Also, the Channel Sort (Name or Number) option

specified in the system’s PREFERENCES screen will dictate whether the channels are listed by

channel number, or alphabetically by call sign.

To navigate the guide, use the , , , and keys. You can continue to press the or keys to scroll

more program offerings onto the screen.

Pressing on any title will direct you to the INFORMATION screen.

Use and to scroll through the guide entries a full page at a time.

When the highlight is in the grid, use the and keys to move left and right. If you move the

highlight onto the channel tags, they will temporarily change to the opposite of what they were before

(either channel numbers or call signs).

Move the highlight to the right to move the grid area to reveal later time periods. Sometimes, after

scrolling a few hours ahead, there may be a brief delay while more information is received from the

satellite.

The TITLE GUIDE

The TITLE GUIDE displays up to 12 program titles at any one time. This quantity is reduced to 9 if

the program description option is enabled.

The largest area of the TITLE GUIDE is the first column that displays the program titles in

alphabetical order. If a program title cannot fit entirely, an ellipsis (…) indicates a portion of the title is

missing. The second column indicates the start time of the program. If the program is going to be

airing several times within the next few hours, the word “Multiple” will appear in this column. The

third column indicates the program channel. If the program is going to be airing on several different

channels, the word “Multiple” will appear in this column. Pressing on any title will direct you

to the INFORMATION screen where you can select Show Times to determine which showings best

suit you.

To move around the guide, use the or keys. You can continue to press the or keys to scroll

more program offerings onto the screen.

To speed up the process of reviewing the guide, you can use or to page through the guide

entries a full page at a time.

The TITLE GUIDE without descriptions The TITLE GUIDE with descriptions

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 6-6

The LOGO GUIDE

The LOGO GUIDE displays up to 56 network logos at a time. This number is reduced to 42 if the

program description option is enabled.

The title of the program currently airing on the highlighted channel appears in the header area

immediately above the logo grid. Only current programming is available from the LOGO GUIDE.

To navigate the guide, use the , , , and keys. You can continue to press the or keys to scroll

more program offerings onto the screen.

Pressing on any title will direct you to the INFORMATION screen. Use and to scroll

through the guide entries a full page at a time.

The WATCHWORDTM Guide

The WATCHWORD guide lists programs matching one of the eight words you have specified on the

WATCHWORD screen (accessed from the SETUP MENU).

Note: For the WatchWord Guide to have the opportunity to find

programs with matching words, your digital satellite receiver must

be turned off for a period of time. It is recommended that you allow

your system to look for your words while you sleep or when you are

at work. It cannot search for words while it is turned on.

The WATCHWORD guide displays up to 8 program titles that can

be seen at once. To navigate the guide, use the or keys. You can

continue to press the or keys to scroll more program offerings

onto the screen.

The first column displays the program titles. The second column

indicates the start time of the program. The third column indicates

the channel that the program is or will be airing on. The fourth and final column indicates the keyword

that was found in the program title

Pressing on any title will direct you to the INFORMATION screen.

To speed up the process of reviewing the guide, you can use or to page through the guide

entries a full page at a time.

The LOGO GUIDE without descriptions The LOGO GUIDE with descriptions

The WATCHWORD Guide

THE ON-SCREEN GUIDES

PAGE 6-7

Filtering the Guides

Searching through hundreds of programs can be overwhelming. The digital satellite receiver will help

you find what you are looking for. By pressing the key while already in a guide, a pop-up menu

will display, providing the filtering tools and ways to access other guide styles.

By combining each of these filter options, you can quickly narrow down over 210 channels to those

that meet your viewing interests. Once you exit to view your program, all filters except for the favorite

list will reset to an unfiltered condition.

You should also be aware that some guide styles do not provide access to certain filter options. The

unavailable filters will not appear in the Guide Menu.

Theme Filters

When the Theme Filters button is highlighted and is pressed, a pop-up menu appears. This

menu offers all the available category groupings of programs. After

choosing a category (other than All), the drop-down menu is

replaced by another menu called Types.

The Types pop-up menu allows you to break down your chosen theme by type. For example, if you

chose Movies for the category, you can now choose a type of movie

such as Comedy, Drama, Sci-Fi, etc. After selecting one of these, the

guide will be further filtered to show only those channels offering

programs of the selected category and type.

Popular categories can be quickly selected from your remote control

by pressing followed by a number key. You will see labels on

the remote control for filtering the guide to movies, sports, news, and

all. Press for movies, for sports, or

for news and the guide will filter accordingly. Pressing the key

sequence a second time or pressing will restore the guide

to show all themes.

The Category pop-up menu

The Types pop-up menu

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 6-8

Channel List

The Lists pop-up menu enables you to filter the guide to display only channels from the selected list. In

addition to All Channels, you can choose one of your own defined

lists. See the “Fav. Lists” section of “DIRECTV PLUS™ Digital

Satellite Receiver’s Menu System” to learn how to set your favorite

lists.

You can use the key to cycle through the lists at any time in

the on-screen guide without using the drop-down menu. The Top-10

list can only be selected via the drop-down menu.

The “Top 10” favorite list is automatically maintained by the digital

satellite receiver. The digital satellite receiver monitors the channels

viewed in your household and compiles the ten most watched

channels on the list. As viewing habits change, the list will update

itself accordingly.

It should be noted that all channel lists are maintained privately within the digital satellite receiver for

your use only.

Guide Times

The Guides pop-up menu ordinarily provides easy access to future programming information. Simply

select one of the hour offsets from the current time. After a few

seconds, the selected guide will appear.

Another type of guide that may be offered is a list-type guide. These

guides do not represent channels and time, but rather a list of

possible options. These guide types are very rare.

Class Filters

Another way to filter the guide is by using the Classes menu. From this menu you can select

classifications including the following:

• Subscrptn will exclude the PPV channels from the on-screen

guide.

• PPV will list only channels offering PPV programs.

• Schedule will list channels that have events you have scheduled.

• Other options may be listed since DIRECTV can update this list

via the satellite.

The Lists pop-up menu

The Guide Times pop-up menu

The Classes pop-up menu

THE ON-SCREEN GUIDES

PAGE 6-9

The INFORMATION Screen

To obtain more information about a particular program while viewing one of the various on-screen

guides, press the key. This screen is also displayed when

pressing the key on the remote control or front panel in

response to a message such as "Press to order."

The INFORMATION screen offers the same program description

explained earlier, and more. You can see displayed the program’s

actual start time and duration, the program rating, and a variety of

options associated with the selected program.

Many variations of button combinations exist. The button on the left

side of the Things to Do area could be View, PreSelect, or DeSelect.

An additional button that could appear refers to pay per view

programs only. Unless your receiver is authorized to make such

purchases this button will not be displayed. It could be Buy, Cancel

$, or $ Options.

The following buttons may be available:

Done

When you highlight the Done button and press , you will be returned either to the guide or to the

channel offering a purchase.

View

After reading the program description and related information, you may choose to view it by

highlighting the View button and pressing . If the program is a PPV event, you may need to

complete the purchase process (either on-screen or by calling DIRECTV) before the program can

actually be viewed.

PreSelect

PreSelect is one of the handiest features of your digital satellite receiver. You can use it to plan your

evening or weekend viewing, then let the system do the rest. PreSelect will initiate a drop-down menu

offering your PreSelect options.

You can perform the PreSelect capability from within the on-screen guides. Simply highlight the

program you want schedule and press the key. Each press of the key cycles through the

available options.

To View will mark the selected program to be automatically tuned in when it airs. At the right time the

digital satellite receiver will turn on and tune to the appropriate channel. Your selected programs will

be identified on the on-screen guide with a check mark (ü) before the program title.

To Tape is very similar to To View; however, if you have connected your VCR to the digital satellite

receiver via the IR cable and have properly set the VCR code from the Setup Menu, the chosen

program will be recorded at the correct time. If the digital satellite receiver turned itself on to record

the program, it will also remember to turn itself back off after the program ends. Programs you have

scheduled for taping will be identified with a videotape icon ( ) before the program title in the on-

screen guide.

When using the PreSelect To Tape feature the following steps must be completed for the digital

satellite receiver to perform unattended recording:

• Attach the VCR Control cable as described in the chapter “Setting Up Your Satellite

System.”

The INFORMATION screen

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 6-10

• Use the VCR SETUP screen as described in the chapter “DIRECTV PLUS™ Digital

Satellite Receiver’s Menu System.”

• Set your VCR to match the output of the digital satellite receiver. This could be either RF

(channel 3 or 4) or A/V (phono or S-video).

• Insert a recordable videotape of sufficient length in the VCR.

• Leave the VCR turned ON.

Don’t Schedule is used if you initiate the drop-down menu and then choose not to schedule anything.

PreSelect To View

The PreSelect To View option appears when the unattended recording capability is not available when

a program is not authorized for taping. In this case, the digital satellite receiver can still be scheduled to

tune to it when it comes on.

Cancel PreSelect

Once a program has been scheduled for viewing, previewing, or taping, you have the option of

canceling the action. Schedules can also be canceled directly from the on-screen guide by highlighting

a scheduled program and pressing the key.

If you wish to switch between To View and To Tape or vice versa, you must cancel the current

selection first, then choose the newly desired action. Canceling a scheduled program will also remove

the check mark or videotape icon preceding the program title on the on-screen guide.

If the program is currently airing, you will need to delete the event from the SCHEDULER screen

accessed from the MAIN MENU.

Buy

Buy is used for pay per view programming. The price of the event is displayed under the title of the

selected program. After highlighting the button and pressing , you will be given the opportunity

to confirm your purchase.

If you are not authorized to make the purchase directly from the digital satellite receiver, you will need

to contact DIRECTV for assistance.

Buy Options

The Buy Options button is similar to the Buy button. This button will initiate a drop-down menu with

three purchase options: View, Tape, and Don’t Purchase.

The View price indicates the cost to view the program only. A purchase of this type excludes the

possibility of taping the event for later viewing.

The Tape price indicates the cost to record the event for later viewing. Of course, you can also view

the event when it airs if you select this option.

After choosing either View or Tape, you may either confirm or cancel the purchase.

If neither purchase option is of interest to you, highlight Don’t Purchase and press .

Cancel Purchase

Some events may allow cancellation after they have been purchased, depending on the event type, and

whether the event has been viewed. Unviewed purchases can usually be canceled. If the Cancel

Purchase button is displayed, you are allowed to cancel the previous purchase. If this button is not

offered, then most likely a portion of the event has already been viewed, committing you to the

purchase.

THE ON-SCREEN GUIDES

PAGE 6-11

Show Times

The Show Times button provides a simple way to display a concise list of other presentation times for a

certain program. Use this button to find a more convenient viewing

time.

After selecting an alternate viewing time, you will be returned to an

updated INFORMATION screen.

The SHOW TIMES screen

PAGE 7-1

The DIRECTV PLUS digital satellite receiver offers much more than fantastic audio and video. The

Main Menu is the primary location where you can access system management functions. From the

MAIN MENU you can access the on-screen guide, customize system features, read DIRECTV

messages, lock and unlock your system, and more.

Most of the menus and screens described in this chapter cannot be accessed from the front panel. One

exception to this is the INSTALLATION screen and the LOCK OVERRIDE pop-up panel. When

there is no satellite signal detected, pressing the key will initiate the INSTALLATION screen

described in this chapter. If there is a message indicating that the selected program is locked, pressing

the key will provide the opportunity to override the lock as described in this chapter.

Menu Overview

Digital satellite receiver menus have been designed to provide a logical and convenient way to access

system features and settings. The basic screen layout of each menu is divided into several distinct

areas. They are as follows:

• Title, date, and time – Across the top of the screen you will see the title of the current menu on the

left-hand edge, and the date and time on the right-hand edge.

• Advisory messages – Along the bottom of the screen you will see an area that is dedicated to

providing a brief explanation of the currently highlighted on-screen button.

• Places to go – Down the left-hand edge of the screen is a variety of buttons. These buttons usually

navigate you to different screens. The top two buttons on the list are always Done and Video. The

Done button will take you back one level. The Video button will return you to the most recently

watched channel. This button is provided in case you are using the digital satellite receiver’s front

panel and don’t have access to the remote control. If the remote control is handy, pressing the

key is an easier way to return to your program. The information banner will appear briefly

or you can erase it quickly by pressing the key again.

• Things to do – This largest portion of the screen is dedicated to topics associated with the current

menu. Contents usually include buttons for changing settings or checking the status of some

feature. You will also see information regarding the current menu.

Some buttons contain small icons inside them, indicating their function:

The current setting will cycle through the possible settings with each press of the key.

A list of options will be offered. This list appears in what is referred to as a “Pop-up Menu.”

A series of boxes will appear used to specify numb ers and/or letters for the particular feature.

DIRECTV PLUS™

DIGITAL SATELLITE

RECEIVER’S MENU

SYSTEM

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 7-2

Main Menu

From the MAIN MENU you can access the on-screen guide, customize your system features, check

incoming mail, lock and unlock your system, and more.

There are two ways to get to the MAIN MENU. First, you can press

the keys on the remote control. Or when one of the

on-screen program guide is displayed, you can press the key

to reveal the pop-up GUIDE MENU, then select the Main Menu

button.

Places to go from the MAIN MENU

The Guide button takes you from the MAIN MENU to the on-

screen guide. You can use the guide to display what’s available at a

given time. The guide also offers a pop-up menu of buttons that are

useful for filtering the guide or changing the style of the on-screen

guide. See the chapter “The On-Screen Guides” for information.

A quicker way to access the on-screen guide from the MAIN MENU or any other menu is by pressing

the key, either on the remote control or on the digital satellite receiver’s front panel.

The remaining buttons provide access to those features described in greater detail in this chapter.

Setup

The Setup button will take you to the SETUP MENU, which provides access to infrequently changed

setup options of the digital satellite receiver.

Scheduler

The Scheduler button takes you to the SCHEDULER screen, where you can program and edit

automated channel-changing events. Events can be programmed to occur either once or multiple times.

Check Mail

The Check Mail button takes you to the CHECK MAIL screen. The mail feature enables DIRECTV

to inform you about upcoming special events, programming changes, offers, and other important

information.

Purchases

The Purchases button takes you to the PURCHASES screen, where you can review your recent pay

per view activity, including past and advance purchases.

Help

The Help button takes you to the ASSISTANCE screen. It should be your first stop when you need

help or have a question. Think of this feature as a quick reference manual.

Lock/Unlock

This bottom button displays a pop-up panel to activate or deactivate the LOCK. It is labeled either

Lock or Unlock indicating the option available depending on the current status of the digital satellite

receiver lock. If the digital satellite receiver is locked, you will see a small lock icon just below the

date and time at the top of the screen.

The MAIN MENU

DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER'S MENU SYSTEM

PAGE 7-3

Setup Menu

Many functions of your digital satellite receiver can be customized. These settings may be modified

and reviewed in the SETUP MENU.

Places to go from the SETUP MENU

The remaining buttons provide access to those features described in

greater detail in this chapter.

Preferences

The Preferences button takes you to the PREFERENCES screen,

where you can customize the appearance of the on-screen guides and

various menus.

Limits

The Limits button takes you to the LIMITS screen, where you can establish restrictions on the use of

the digital satellite receiver. These restrictions include program rating limits and pay per view

spending limits.

Chan. Lists

The Chan. Lists button takes you to the CHANNEL LISTS screen, where you can preset your favorite

channel selections into four groupings. Three lists can be named and used by different household

members. A fourth list is labeled “Family” and can be used to restrict access to channels to be viewed

by everyone in the household.

TurboTune™

The TurboTune button takes you to the TURBOTUNE SETUP screen, from which you may set the

channels associated with the TurboTune feature. See the chapter “Watching DIRECTV®

Programming” for more information on using TurboTune. Refer to the “TurboTune” section later in

this chapter for information about programming the TurboTune feature.

Installation

The Installation button takes you to the INSTALLATION screen, which contains utilities to facilitate

installation of your satellite dish antenna. You can also evaluate your system’s signal strength via the

INSTALLATION screen.

VCR Setup

The VCR Setup button takes you to the VCR SETUP screen, which is used to allow the digital satellite

receiver to be able to perform unattended recording on a VCR. You will need to tell the digital satellite

receiver what your VCR brand and the code used to control it.

WatchWord

The WatchWord button takes you to the WATCHWORD screen, which is used to specify key words

in program titles and descriptions that are of interest to you. After specifying up to eight different

words, the digital satellite receiver will search for program information containing one or more of these

words while the digital satellite receiver is in standby mode.

The SETUP MENU

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 7-4

Things to do in the SETUP MENU

Current settings overview

An overview of the current settings can be reviewed without having to access each associated screen.

Scheduler

The digital satellite receiver is equipped with a SCHEDULER that allows up to 32 events to be

programmed. You can use the SCHEDULER feature along with

your VCR to record programs unattended. The SCHEDULER can

be used to automatically tune to a program at a specific date and

time or at a specific time on a repeating basis.

With the digital satellite receiver you can have programs taped

automatically.

When using the PreSelect To Tape feature, the following steps must

be completed for the digital satellite receiver to perform unattended

recording:

• Attach the VCR Control cable as described in the chapter 2,

“Setting Up Your Satellite System.”

• Use the VCR SETUP utility as described elsewhere in this

chapter.

• Set your VCR to match the output of the digital satellite receiver. This could be either RF

(channel 3 or 4) or A/V (phono or S-video).

• Insert a recordable videotape of sufficient length in the VCR.

• Leave the VCR turned ON.

Things to do in the SCHEDULER screen

The SCHEDULER screen displays up to seven rows of events. You can use the key to scroll

through the events.

There are multiple settings for the On column: a check mark (ü) for viewing only, or a videotape

symbol ( ) for taping.

Editing an event

The “Events” portion of the screen displays up to seven previously scheduled events at one time. If

more than seven events are already scheduled, you may use either the key to scroll down, or the

key to view the additional events. A small arrow at the top or bottom of the event list indicates that

there are additional events.

Once you have highlighted the event you wish to set or edit, press . You will be prompted with a

pop-up menu. If you choose the scheduling option, the digital satellite receiver will turn on (if

necessary) and tune to the specified channel at the correct date and time. If the Schedule to Tape

option is provided and is chosen, and you have successfully completed the VCR setup procedure, the

digital satellite receiver will allow recording of the event. To remove a previously scheduled event,

select the Delete option. If you inadvertently pressed , select Cancel.

After choosing a scheduling option, a pop-up panel appears for channel selection. You can enter the

desired channel using either the number keys on the remote control or the and or and .

After specifying a channel, press the key or select OK when you are ready to continue.

The SCHEDULER screen

DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER'S MENU SYSTEM

PAGE 7-5

Next, enter a Start time using either the number keys on the remote control or the and keys. Press

to continue.

You then must specify whether the time you entered is AM or PM (or N for noon, or M for midnight if

the time specified is 12:00) using the and keys. To continue, press .

Using the same procedure as setting the start time, set the program Duration as hours and minutes. As

before, use to advance to the Frequency column.

The Frequency column is very versatile. Using the and keys, you can specify when, or how often,

the event occurs. Your choices are: Today, Tomorrow, Every Mon, Every Tue, Every Wed, Every Thu,

Every Fri, Every Sat, Every Sun, Everyday, Mon-Fri, or “/” to specify an exact date. If you are

specifying a date, enter the numbers using the remote control in month/day format. The year will be set

automatically. Events can be scheduled up to eleven months in advance. Once you have set the

Frequency, advance using the key.

Review your settings and choose OK. Otherwise, choose Cancel to delete the edits made to this event.

Check Mail

The CHECK MAIL feature of the digital satellite receiver enables DIRECTV to notify you about

important information, upcoming special events, offers, and other

promotional programming.

When new messages are received, a “new mail” icon appears at the

top of all menu screens. This indicator will remain on the menus

until you have read the new message.

When you highlight the Check Mail button, the advisory message at

the bottom of the screen indicates if there are any messages to read.

If there are, you can press to access the CHECK MAIL

screen.

Things to do in the CHECK MAIL screen

Message

The Message button will allow you to cycle through multiple messages if more than one piece of mail

is available. Highlight the Message button and use the and keys to step through the messages.

Page

The Page button will allow you to cycle through the pages of a multi-page message. Highlight the

Page button and use the and keys to step through the pages.

Erase

The Erase button will remove a piece of mail from your mailbox. Please be aware that once a piece of

mail has been erased, it cannot be retrieved. Messages will self erase if they become outdated or if

space is needed to hold newer incoming messages.

Purchases

The PURCHASE screen displays recently viewed and advanced purchased pay per view events. You

can choose between Purchase History and Upcoming Purchases by selecting the History button or

Upcoming button located in the Places to Go area of the PURCHASES screen.

The CHECK MAIL screen

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 7-6

For each purchase, the event channel, title, start date and time, and cost is listed. If there are more

events than can fit on the screen, use the key or advance a page at a time using to view them

Places to go from the PURCHASES screen

History/Upcoming

The History or Upcoming button appears only on the complementary screen. This means that if you

are viewing history on the PURCHASES screen, you will have the Upcoming button offered.

Conversely, if you are viewing upcoming on the PURCHASES screen, you will have the History

button offered in the Places To Go area.

Things to do on the PURCHASES screen

Purchase History

The Purchase History displays recently viewed pay per view events that will be or have been charged

to you. You will not see events you purchased but later canceled, or cancelable events that were

purchased but which the digital satellite receiver never tuned to, will not appear. Events that were

ordered by directly calling DIRECTV will also not appear on this list. You cannot remove events from

this list. Reported events will disappear from this list as the digital satellite receiver needs space to log

more recent purchases.

You will see the event channel, title, the start date and time, and the cost for each purchase. There may

be more events than can fit on the screen. You can access these by using the key or key.

If you need to discuss an event with DIRECTV, highlight the questioned event and press .

Additional information will be displayed.

Upcoming Purchases

The Upcoming Purchases screen displays PPV events you have purchased but not yet viewed, or

purchased but never viewed. Events that were ordered by calling DIRECTV will not appear on this list.

You will see the event channel, title, the start date and time, and the cost for each purchase. There may

be more events than can fit on the screen. You can access these by using the key or key.

If you would like to cancel an event, highlight the event in question and press . A pop-up panel

will be displayed where you may be given the opportunity to cancel your purchase. Be aware that

cancellation of some events may not be possible.

Lock/Unlock

When you first receive your satellite system, it will be unlocked; (i.e., no limits or restrictions are in

effect). To enforce the limits (spending, ratings, and “Family” favorite list), you must lock the system.

When the button on the MAIN MENU reads Lock, no lock symbol appears at the top of the menu

screen, indicating that the system is unlocked.

NOTE: Once the digital satellite receiver is locked, only existing Family list channels will be

accessible. If the Family list does not have channels on it, no channels can be viewed without first

unlocking the digital satellite receiver. To avoid this inconvenience, verify the contents of the

Family list before locking the digital satellite receiver.

DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER'S MENU SYSTEM

PAGE 7-7

Locking Procedure

When the Lock button is selected, the LOCK SYSTEM pop-up panel is displayed. Use the and

keys or the remote control number keys to enter a four-digit

passcode of your choosing. If you enter the code using the number

keys, you will not see the numbers appear on the screen. After

entering a four-digit passcode, highlight and select OK to proceed.

Otherwise, choose Cancel to cancel the locking process.

If you continue, you will be asked to confirm the code by entering it

again in the same fashion as before. Once again, highlight and select

OK to proceed. Otherwise, choose Cancel.

Once OK has been selected, the digital satellite receiver is locked.

You will need code whenever you wish to unlock or override the

lock. The button used to lock your system is now used to unlock

your receiver. A lock symbol appears at the top of every menu

screen to remind you that the digital satellite receiver is locked.

Unlocking Procedure

To remove the lock and its restrictions, highlight the Unlock button and press the key.

When the SYSTEM UNLOCK pop-up panel appears, you can use

the and keys or the remote control number keys to enter the

four-digit passcode that you used to lock the digital satellite receiver

earlier. If you enter the code using the number keys, you will not see

the numbers appear on the screen.

After entering the passcode, highlight and select OK. Once the

digital satellite receiver has been unlocked, all limits and

restrictions are removed! Otherwise, choose Cancel to keep the

lock in effect.

If you forget your four-digit code, you must call DIRECTV for

assistance.

Temporarily Overriding the Lock

There are times you may wish to temporarily remove the restrictions imposed by locking. You can do

this without unlocking the digital satellite receiver. When you press

, when prompted, the OVERRIDE LOCK pop-up will be

displayed. It looks and navigates just like the SYSTEM UNLOCK

pop-up.

Note: Once the correct four-digit code is entered, the digital

satellite receiver will remain unlocked until you power the

digital satellite receiver off. At that time all locks and limits will

be enforced again.

The LOCK pop-up panel

The UNLOCK pop-up panel

The OVERRIDE LOCK pop-up panel on menus

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 7-8

Preferences

By changing the various options on the PREFERENCES screen, you can customize the digital

satellite receiver to operate in the way that best suits your needs.

You can access the PREFERENCES screen at any time and as

often as you like to change any of these settings. Making changes

cannot harm your satellite system in any way.

Places to go from the PREFERENCES

screen

Advanced

When you select Advanced, the ADVANCED PREFERENCES

screen will be displayed. Here, you can also reset all options to the

factory default settings.

Things to do in the PREFERENCES screen

MultiColor

The MultiColor option allows you to choose whether or not programs in the on-screen guide will be

color coded to indicate their category. When enabled, programs that are movies will appear on a rose

background, sports on a green background, and news on a brown background. All other program

categories will continue to appear on a blue background.

Chan. Tags

The Chan. Tags option will influence only the appearance of the PROGRAM GUIDE styles. With

this control, you may choose whether the channel tags will appear as channel numbers and call signs or

as network logos.

Chan. Sort

By default, “Channel Sort Option” is set to Number. This numerically lists channels in the program

guide. Setting this option to Name will display channels in alphabetical order.

NOTE: If you sort the channels by Name, please take note. Using the and keys to step

through the channels will appear to change channels a random order when, in fact, the channels

are sorted and tuned to in alphabetical order.

Scheme

The SCHEME pop-up menu enables you to select a color scheme for the on-screen guides and menus.

Audio

The DEFAULT AUDIO pop-up menu enables you to specify the audio track for programs you watch.

While English is the default audio, you may choose an alternate audio track. If your chosen audio track

is available for the program, you will hear it. Otherwise, you will hear will be the primary audio track

in which the program produced.

Language

The LANGUAGE option enables you to specify the language in which menus and messages are

displayed. While English is the default language, you may choose Spanish. Be aware that program

titles and descriptions will continue to be in English since that text is broadcast.

The PREFERENCES screen

DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER'S MENU SYSTEM

PAGE 7-9

Filters

The default setting for Filters is “Temporary.” With a setting of “Temporary,” each time you leave the

on-screen guide, all filters other than Channel List will reset (all categories and complete class). If you

change the Filters setting to “Persistent,” any filtering that you should happen to do will survive

exiting the on-screen guide and be in effect for the OneLine Guide and even later when returning to

the on-screen guide at a later time.

Advanced Preferences

The ADVANCED PREFERENCES screen contains options that are less likely to require changes

once they are set. Most users will not make any changes to this

screen. This screen also provides a means to reset all preference

options to the factory defaults.

Things to do in the ADVANCED

PREFERENCES screen

Receiver ID

Someday, you may choose to get a second digital satellite receiver.

If both receivers are in the same room or if you are using an RF

remote control or a remote control extender, you may experience

interference between signals. To avoid this “cross talk,” simply

highlight the Receiver ID button and press on the remote control to be used for that specific

digital satellite receiver. Remember to set your remote control to the desired code first. For information

regarding changing the remote control code, see the chapter “Programming Your Remote Control.”

Screen Ratio

Screen Ratio should be set to 4:3 for most televisions, which is the default. This indicates that you are

using a standard format television screen. However, if you have a wide-screen television, you may

want to change this setting to the 16:9 option. While setting this option to the wrong format will not

harm your TV, it may cause a distorted picture.

Channel Lock

The Channel Lock setting provides a way for you to set your digital satellite receiver to permanently

stay on a specified channel. When the setting is anything other than “- - - -” the digital satellite receiver

will always power up on that channel and will ignore any attempts to change the channel. To allow

channel changing to function again, set this option back to “- - - -.”

Input Key

The Input Key option allows you to enable or disable the functionality of the key on your

remote control. This is useful if you are not using the local TV pass through capability of your digital

satellite receiver and want to avoid getting a snowy picture from inadvertent presses of the key.

Please note that the pass through capability happens automatically when the digital satellite receiver is

powered off.

Demo Mode

The Demo Mode is a feature that is primarily intended for in-store presentations. When enabled, the

digital satellite receiver will step through a variety of features and display messages decribing these

features. While pressing any key will allow you to regain operation of your digital satellite receiver,

this is only temporary. After several minutes of non-interaction, the demonstration will begin again. To

stop the demonstration mode permanently, disable the Demo Mode via this button.

The ADVANCED PREFERENCES screen

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 7-10

Factory Defaults

If you ever want to reset the digital satellite receiver preferences, select the Factory Defaults button.

Limits

The LIMITS screen provides settings to help you control the viewing restrictions of DIRECTV

programming. These limits, when accompanied by the CHANNEL

LISTS, put a great degree of control in your hands.

For the TV Timer, Rating and Spending limits to be enforced,

the digital satellite receiver must be locked, as described earlier

in this chapter.

Places to go from the LIMITS screen

TV Timer

When you select TV Allow, the TV TIMER screen will be presented. If your receiver is locked, you

will need to enter your passcode to access this screen.

From the TV TIMER screen you can specify the hours that

DIRECTV

® programming can be viewed on your receiver. This is

done by highlighting each of the days you wish to control and

pressing . After selecting a day of the week, you can set an

acceptable start and end viewing period or a total viewing duration.

Things to do in the LIMITS screen

Max Rating

Program ratings indicate the suitability of a program’s content for a given audience. For families with

younger children, a lower rating limit may be desirable. Other

families may choose to allow viewing of more sophisticated

programming. The LIMITS screen leaves this choice and control up

to you.

Highlight the Max Ratings button and press to display the

MAX RATING pop-up menu where you set the limit. When the

digital satellite receiver is locked, the passcode must be entered to

change the ratings limit.

Determine the highest allowable rating for your family and highlight

it. When you press all ratings up to and including the chosen

rating will be checked. All higher ratings will be cleared. You may

choose to Lock All or Allow All instead of setting a specific limit.

The LIMITS screen

The TV TIMER screen

The MAX RATING pop-up panel

DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER'S MENU SYSTEM

PAGE 7-11

Max Spending

Pay per view access enables you to purchase special, limited-broadcast events such as sporting events

and movies. You can set the maximum purchase price on a per-event

basis. To change the displayed limit, highlight the Max Spending

button and press to display the SPENDING LIMIT pop-up

panel. When the digital satellite receiver is locked, the passcode will

be needed to change the ratings limit.

Use the number keys on the remote control to set the limit or use the

and keys to increase or decrease each digit. Use the and

keys to highlight the digit that you want to change. The maximum

limit is $655 per event.

Highlight OK and press to confirm the entered amount.

Channel Lists

Channel Lists are provided to help you organize the hundreds of available channels into groupings that

suit the needs of your household. Each list can contain as many or as

few channels as you would like. You can customize these groupings

in a variety of ways. For example, Fav. A could be Dad’s favorite

channels, Fav. B could be Mom’s favorites, Fav. C could be the

kids’ channels, and Family could be all channels that Mom and Dad

have deemed appropriate for the entire family. Each of the lists, with

the exception of Family, can be renamed.

NOTE: Once the digital satellite receiver is locked, only existing

Family list channels will be accessible. If the Family list has not

had channels added to it, no channels can be viewed without first

unlocking the digital satellite receiver. To avoid this

inconvenience, set up the Family list before locking the digital

satellite receiver.

Places to go from the CHANNEL LISTS screen

Rename

When you highlight the Rename button and press the key, a Rename List pop-up menu appears.

You can choose any of the first three lists to be renamed. The All, Family, and Top 10 lists cannot be

renamed. Once you have selected a list, a Rename List entry keyboard pop-up panel appears. You can

highlight the desired letter using the , , , and keys. Press to enter the letter. When you

have finished, choose OK.

Auto Set

AutoSet is designed to help in the initial programming of your channel lists. When you select the Auto

Set button, a pop-up menu appears showing each of the channel lists. Highlight and select a channel

list to be programmed. Once selected, the Auto Set Progress pop-up status panel appears. It will take

several minutes for the digital satellite receiver to scan through all channels and determine which ones

you are authorized to receive. The results of this scan will be stored in the designated channel list.

Note: Auto Set may exclude some channels such as the Music Choice channels or include some

pay per view channels. This does not mean that the digital satellite receiver is faulty. These

The SPENDING LIMIT pop-up panel

The CHANNEL LISTS setup screen

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 7-12

channels were excluded or included due to the digital satellite receiver’s analysis process. You

may edit the lists manually to correct these oversights.

Clear

You may decide to remove all channels from a particular list later on. Selecting Clear will allow you to

clear all channels from a chosen list. You may then add channels back in.

Set

If you decide to include all channels in a particular list, selecting Set will allow you to specify the list.

You may then remove channels from this list if you so choose.

Things to do in the CHANNEL LISTS screen

Tag Boxes

The four columns of small boxes on the right hand side of the screen are the Tag Boxes. The first three

columns are the lists traditionally known as Fav.A, Fav.B, and Fav.C. The farthest right hand column

is the Family list.

In the CHANNEL LISTS screen, use the , , , and keys to highlight the button that corresponds

to the channel number and list that you wish to change. Press the key to add or remove the

check mark, which indicates that the channel in that row is included in the list shown at the top of the

column.

To help you decide whether to include or exclude a certain channel, the title of the currently airing

program for that channel will appear at the top of the screen.

Remember that when the digital satellite receiver is locked, only channels in the Family list can

be viewed. This means that even though a channel appears on the Fav. A, B, C, or All Channels list,

the selected channel must also be on the Family list in order to see or hear it.

For the Family List limit to be in force, the digital satellite receiver must be locked. Locking is

described earlier in this chapter. When the system is locked the passcode will be needed to modify the

settings of the channel lists.

TurboTune™

The TURBOTUNE SETUP screen is used to specify which nine channels that will appear in the

TurboTune pop-up panel that shows over video when is

pressed.

Things to do in the TURBOTUNE

SETUP screen

Set Channel

Using the , , , and keys, highlight one of the nine channel

boxes. You can enter the desired channel using the number keys on

the remote control, or by using the and . Pressing while

highlighting one of the channel boxes will also initiate a pop-up

panel that will allow you to set the channel using the and keys

on the remote control or the digital satellite receiver’s front panel.

The TURBOTUNE setup screen

DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER'S MENU SYSTEM

PAGE 7-13

Installation

The INSTALLATION screen provides the utilities that makes the setup and testing of your system

simple and convenient.

Places to go from the INSTALLATION

screen

System Test

The System Test button takes you to the SYSTEM TEST screen.

New Card

The NEW CARD screen provides a way for DIRECTV to distribute

new access cards. Should you be issued a new card, you will need to

activate it. Follow the on-screen instructions carefully to initialize it.

Once the process has begun, your old access card will no longer allow viewing. You should not

interrupt the process once it has begun. An interruption could cause both the old and the new card to

become invalid. When the process is complete, your new access card will be usable, while the old card

will no longer be valid.

Satellite

This button only applies for oval dishes that are equipped with LNBs that receive signals from 101°,

119° and possibly 110°. Each time this button is selected, the satellite being monitored for signal

strength will advance.

Transponder #

You may want to try different transponders to troubleshoot satellite signal reception problems. Each

transponder transmits multiple programs at a time. The transponder shown when the screen first

displays represents the one associated with the last viewed program. By moving the highlight to the

transponder area, you can enter a number from 01 to 32. Different transponders may show varying

signal strengths. This is normal unless the variations are extreme (such as 40 and 90). In the event of

signal reception problems, customer service representatives may ask for signal strength on a different

transponder. Do not change transponders trying to find the best signal since the transponder will

automatically change depending on the channel you want to view.

Another signal strength utility that you may find useful is the Cable Test that can be found in the

SYSTEM TEST screen.

Receiver ID

Someday, you may choose to get a second digital satellite receiver. If both receivers are in the same

room or if you are using an RF remote control or a remote control extender, you may experience

interference between signals. To avoid this “cross talk,” simply highlight the Receiver ID button and

press on the remote control to be used for that specific digital satellite receiver. Remember to

set your remote control to the desired code first. For information regarding changing the remote control

code, see the chapter “Programming Your Remote Control.”

Dish Type

The Dish Type button will initiate a pop-up menu where you can choose the style of satellite dish you

are using. The following options are provided in that menu:

SINGLE – Refers to the traditional 18” satellite dish. This dish will be configured with an LNB with

two outputs. (HSYS-E4532)

The INSTALLATION screen

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 7-14

DUAL – Refers to the larger, oval, multi-LNB satellite dish. This dish will be configured with two

LNB’s in the positions marked “SAT A” (101°) and “SAT B” (119°). Each LNB will have two

outputs. (HSYS-E4574)

TRIPLE - Refers to the larger, oval, multi-LNB satellite dish. This dish will be configured with three

LNB’s in the positions marked “SAT A” (101°), “SAT B” (119°) and “SAT C” (110°). LNB’s for use

with SAT A & B will have 2 outputs, and the LNB for SAT C will have 1 output. (HSYS-E4574 used

w/ additional LNB for SAT. C. The additional LNB is available from your installer.)

Note: Choosing the correct dish type is necessary to obtain correct pointing results.

Position

After selecting Position from the INSTALLATION screen a pop-up menu called Alignment Mode

will appear. You can enter your location by either Align by ZIP or Align by LAT/LONG. After making

your selection, the appropriate pop-up entry panel will appear. Use the and keys or use the

numeric keypad to change the value of the digits. Press the key to advance or the key to back up.

Once you have entered all of the correct digits, select OK. The calculated results on the proper

direction to point your satellite dish antenna will be displayed.

Things to do in the INSTALLATION screen

Here, the quality of the satellite signal is automatically displayed. In addition to using this at

installation time, you can use it to troubleshoot if you experience loss of signal, momentary video

freezing, or similar problems.

System Test

Whenever you experience a problem with your satellite system, you can use the SYSTEM TEST

screen, which runs a series of internal diagnostics that will provide

you with basic information about the status of your system.

Things to do in the SYSTEM TEST

screen

Receiver Test

Depending on your test results, you may be able to remedy the

problem yourself. For example, if your Access Card is missing,

verify that it is facing the right direction and try reinserting it. A “No

Dial Tone” message indicates that the phone line is in use or the

digital satellite receiver is disconnected from the phone line. If you

cannot remedy a problem yourself, call your dealer or Hughes Consumer Relations at 1-800-274-8995

and provide the technician with a complete description of the problem and the results of the system

test. The technician will assist you with additional repair information and instructions.

Cable Test

When Cable Test is selected the digital satellite receiver scans through all transponders and displays

the signal strength for each. If there are any detectable problems, you will be notified of the most likely

cause of the problem. Otherwise, you may simply find this test to be a convenient way to analyze your

signal quality.

SYSTEM TEST screen

DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER'S MENU SYSTEM

PAGE 7-15

VCR Setup

The VCR SETUP screen provides access to the settings that will allow the digital satellite receiver to

communicate the record and stop commands to your VCR.

Things to do in the VCR SETUP screen

Brand

Search through the various brands of VCRs that are supported using

the and keys. Related brands that share the same control codes

may be suggested. You may want to experiment with these if you are

having difficulty finding a functioning code under your VCR’s own

brand name.

Code

More than one code may be assigned to your brand of VCR. Try each of the codes offered by using the

and keys to step through each code. Alternate between this procedure and testing the code.

Test (Record/Stop)

The testing function allows you to verify that the specified brand and code will control your VCR. To

run the test, the VCR Control cable must be properly attached, a recordable tape must be in the VCR

and the VCR powered on.

Use the front panel of the digital satellite receiver, rather than the remote control, when testing the

codes. This is because signals coming from the remote control at the same time as signals coming from

the VCR Control cable could give unreliable test results.

Be sure to test both the Record and the Stop commands, which are necessary for successful taping

capability. If either Record or Stop fails to function, try other Codes associated with your VCR brand.

If you are unsuccessful in the test process after trying all available codes, recheck your VCR Control

cable connections and IR emitter placement.

WatchWord

The WATCHWORD setup screen is used to specify up to eight different words that can be used to

identify programming of interest to you. While the digital satellite

receiver is in standby mode the program titles and descriptions in the

guide will be searched. Programs which contain matching words,

will be included in the WATCHWORD on-screen guide.

Note: For the WatchWord Guide to have the opportunity to find

programs with matching words, your digital satellite receiver must

be turned off for a period of time. It is recommended that you

allow your system to look for your words while you sleep or when

you are at work. It cannot search for words while it is turned on.

Things to do in the WATCHWORD

screen

WatchWord #

Highlighting one of the eight choices and pressing will initiate a pop-up panel where you can

define a search word. If “CAGNEY” and “ALIEN” were specified, the “CAGNEY” search word

might find movies in which James Cagney performed in, as well as the TV series “Cagney and Lacey.”

The VCR SETUP screen

The WATCHWORD setup screen

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 7-16

The “ALIEN” search word might find the movie “Aliens” as well as any program which includes the

word “alien” in the description. Partial words work as well.

Entering the desired words is easy using the pop-up keyboard. You can highlight the desired letter

using the , , , and keys. Press to enter the letter. Once

the word in entered, choose OK.

The WatchWord pop-up keyboard

PAGE 8-1

This DIRECTV PLUS digital satellite receiver has the added advantage of being compatible with the

Hughes HDR-205 D-VHS video recorder. This recorder allows you to record DIRECTV

programming in the highest quality possible. This is because the D-VHS records the actual digital

signal, rather than a converted analog signal. The advantage to this is that every time you play the tape

back, you will be able to enjoy it in the same picture and sound quality in which it was originally

broadcast.

Connecting the Digital A/V Cable

Before the features that are described in this chapter can be accessed, you must have correctly

connected a D-VHS video deck to your digital satellite receiver by way of a digital A/V cable. If you

connect this cable after the digital satellite receiver or D-VHS deck has been powered on, it may take

several seconds for each unit to detect that the connection has been made.

With the proper connections you can have your digital satellite receiver control your VCR for

unattended recording. First, you will need to plug the digital A/V cable into the back of your digital

satellite receiver. Then connect the other end of the digital A/V cable to your D-VHS VCR.

VCR Setup

The VCR SETUP screen is used to specify the record mode that you will want to use most often. This

screen replaces the VCR SETUP screen that is described in the

chapter, “DIRECTV PLUS™ Digital Satellite Receiver’s Menu

System.” A D-VHS VCR and a standard VCR cannot be controlled

at the same time.

Things to do on the VCR SETUP screen

From the D-VHS VCR SETUP screen you can change the default

Recording Type and review the current status of the D-VHS

recorder.

Recording Type

The Recording Type setting is for where you do not explicitly

specify the recording mode for recordings initiated through your

digital satellite receiver. By default, the recording setting is “Digital.” This is because you have most

likely purchased a D-VHS ready digital satellite receiver and a D-VHS video deck to take advantage of

the digital recording feature. If you will be recording programs that will be played back on a non-D-

VHS you may choose to change this setting to “Analog EP” or “Analog SP” for compatibility. Keep in

mind that whenever you schedule a recording event you can change the record type to be the different

from the default, if so desired.

USING D-VHS

FEATURES

The VCR SETUP screen for D-VHS

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 8-2

Recording Speed

The Recording Speed setting is for specifying the default speed for analog recording. See your D-VHS

owner’s manual to determine the benefits of the two recording speed options.

Test D-VHS Status

The Test D-VHS Status field displays the current tape transport

activity.

If you press the key while the Test D-VHS Status button is

highlighted, the TEST D-VHS STATUS screen will appear. The

TEST D-VHS STATUS screen dynamically reports the current

status of the D-VHS VCR. For example, the Motion Mode status

will change from “Rewind” to “Stop” as the VCR stops at the

beginning of the tape after a rewind operation.

Transport Controls

The D-VHS VCR pop-up control panel appears when the keys are pressed and the digital

satellite receiver is in video mode. Pressing either the

keys again, pressing the key will make the control panel

disappear.

The D-VHS pop-up control panel uses familiar button icons, similar

to standard VCR buttons. There is a status area on the lower portion

of the control panel that displays the current VCR activity.

Icon

Action Reset

tape

counter Rewind Stop Play Fast

forward

Skip to

last

index Pause Skip to

index Record

Status Displays

There are several status displays that can occur when utilizing the D-VHS features of the digital

satellite receiver. Take a moment to familiarize these displays and how they may differ when in the

D-VHS mode from normal DIRECTV programming. The various displays disappear automatically

after a few seconds, or can be removed sooner by pressing the key.

The digital satellite receiver displays a status advisory when the D-VHS VCR initiates an action and

the D-VHS control panel is not being displayed. The status advisory shows the VCR activity and the

tape counter or error messages.

When playing back a D-VHS recording, the CHANNEL BANNER can be displayed by pressing the

key. The date and time that the program was recorded are displayed in the banner. The date and

The TEST D-VHS STATUS screen

The D-VHS pop-up control panel

USING THE D-VHS FEATURES

PAGE 8-3

time displayed in the upper right corner are associated with the time that the program was recorded,

rather than the current date and time.

The INFORMATION BANNER can be displayed by pressing the key while the CHANNEL

BANNER is displayed.

The OneLine Guide appears when you press the and keys. The full program guide is not available

during D-VHS playback, so only the playing program’s information is available.

The ALTERNATE SERVICES pop-up panel is accessible by pressing the key.

You should be aware that initiating any of these displays while a program is being recorded digitally

will not interfere with your recording. Superimposed displays are not recorded in D-VHS mode,

however would be recorded if you are recording in analog mode.

Lockout Warnings

During D-VHS recording or playback some features of the digital satellite receiver are disabled to

prevent interruption. When you request access to one of the locked out features, a warning message is

displayed. If you do not heed the warning and press the key to continue, recording or playback

stops and returns control of the digital satellite receiver to you. If you do not interrupt the recording or

playback, press , or wait several seconds for the warning to disappear.

Scheduling to Record

Scheduling for unattended recording is very much the same whether you have a D-VHS VCR or not.

With a D-VHS VCR, however, you are given additional options as to whether you want to record in

digital or analog mode.

Just as before, you can schedule future programs to be recorded simply by highlighting the desired

program in the guide and pressing the key.

When editing an event on the SCHEDULER screen you are prompted in the Schedule Options pop-up

menu as to the type of recording you wish to do: digital or analog.

Programs and events that are scheduled to be recorded are marked

with a video tape icon. The analog tape icon simply looks like a

video tape ( ), while the digital tape is indicated by the D-VHS

“D” symbol. These icons are used on the on-screen guides and on

the SCHEDULER screen.

NOTE: For all scheduled recording events, the D-VHS VCR

must be in the power “off” mode and have a recordable tape of

the correct type and length inserted.

Controlling Your D-VHS VCR with

Your Remote Control

This procedure assumes you are using a Hughes Network Systems brand D-VHS VCR.

While holding down the “VCR” key, press the “Mute” key, and simultaneously release both keys. The

“VCR” key will light and stay lit.

You are now in code entry mode. Simply use the remote control keypad to enter “0 1 3”. Press the

“VCR” key to lock the code in. The remote will remember the code until you reprogram it.

D-VHS Schedule Options

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 8-4

The VCR keys on your remote control should now operate the VCR transport functions.

For additional information regarding D-VHS VCR features, please refer to the owner’s manual that

accompanied your D-VHS VCR.

PAGE 9-1

You can use the remote control that came with your DIRECTV PLUS digital satellite receiver to

control other components in your entertainment system.

Programming the Remote

Control

There are two ways to program your remote control to match your

equipment: code scan and code entry. Code scan can take some time, but it

avoids having to refer to this manual to program your remote control. Code

entry saves some time but you will need to look up the codes assigned to the

devices.

Programming Mode

Keep your remote control aimed at the device you want to control during this

process. The remote control will send out the “power” command for the

device being programmed.

While holding down the device key (i.e., TV) that you are programming,

press the “Mute” key for one full second. Then release the keys. The device

key should light and stay lit. If it doesn’t, repeat the process.

Then choose either the code scan or code entry method.

Code Scan

Once you are in programming mode, repeatedly tap the key to step

through the codes, sending out the power command. This could take some

time since there are could be many for each type of device. When your device

shuts off, you have found the code. If you inadvertently go past a code that

responded, or realized that you may not have been aiming the remote at the

device, you can use the key to step backward through the codes. Press the

key to verify that you haven’t missed the code. In order to lock in the

code, press the device key again. The remote will remember the code until

you reprogram it.

Code Entry

First, look up the device type and brand in the following charts. You will find

a list of numbers; one or more of which should operate your device. If there is

more than one code, you will need to try each of them to find the one that

works best.

Once you are in code entry mode, enter the three-digit code. Press the device

key being programmed once again to lock in the entered code. The remote

will remember the code until you reprogram it.

PROGRAMMING

YOUR REMOTE

CONTROL

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 9-2

Test if the entered code matches your device by pressing the key. If the device works, you’re all

set. Otherwise, repeat the process using the next code for your brand or try the code scan procedure.

TELEVISION CODE NUMBER

Admiral 072 081 160 161

A Mark 112 143

Akai 070 146

Amstrad 052

Anam 043 054 056 080 112

131

AOC 070 004 058 112

Audiovox 076 120

Blaupunkt 088

Bruette 572

Candle 070 002 003 004

Capehart 058

Cetronic 043

Citizen 070 002 003 004 043

101 103 143

Classic 043

Concerto 004

Contec 043 050 051

Coronado 143

Craig 043 054 191

Crown 043 143

Curtis Mathes

070 101 143 004

CXC 043

Daewoo 076 103 004 016 043

114 120 127 143 128

136 192 044

Daytron 004 143

Dynasty 043

Dynatech 062

Electrohome 024 076 120 143

Emerson 004 005 028 043 047

048 050 051 076 120

143 151 153 154 155

070 096 191

Fisher 007 057

Funal 028 043

Futuretech 043

GE 160 165 161 070 008

009 034 056 073 074

130 155 167 004 145

Goldstar 004 106 110 112 119

127 143 193

Hall Mark 004

Hitachi 011 004 009 010 012

023 075 143 007 072

Infinity 164

JBL 164

JCPenny 070 004 008 009 030

065 101 160 024 143

156

Jensen 013

JVC 038 001 083 034

KEC 043

Kenwood 070 001

Kloss 002 059

KMC 143

KTV 043 143 154 070

Kuehn 722

Lodgenet 072

Logik 072

Lauxman 004

LXI 007 015 052 081 160

TELEVISION CODE NUMBER

Magnavox 164 059 070 003 004

060 061 063 064 022

094 127 160

Marantz 070 164

Matsui 164

Memorex 004 007 072

Metz 088

MGA 024 070 004 024 028

042

Minerva 088

Hughes 024 004 040 042 028

146

MTC 070 004 062 101

NAD 015 025

NEC 070 040 016 056 024

130 134 019 004

Nikei 043

Onking 043

Onwa 043

Optonica 019 081

Panasonic 034 080 056 164

Philco 164 070 003 059 060

064 004 056 063 024

Philips 164 093 038 005 059

127 070 003 004

Pioneer 025 070 004 018 023

190

Portland 004 143 065

Proscan 160 161 167 145 065

Proton 004 058 131 143 171

173

Quasar 034 056 080 164

Radio Shack 004 019 043 127 143

RCA 160 161 156 165 065

070 004 023 024 056

074 152 167 145

Realistic 007 019 043 047

Runco 072 130

Sampo 070 004 058

Samsung 101 004 050 089 105

160 127 143 133

Sanyo 007 020 053 057 082

Scott 004 028 043 048 143

Sears 015 030 028 094 004

007 057 082 143 160

167

Sharp 081 004 014 019 022

028 143 029

Siemens 088

Signature 072

Sony 001 085 126 166 079

Soundesign 028 003 004 043

Spectricon 112

SSS 004 043

Supre Macy 002

Sylvania 070 003 059 060 063

064 127 160 164 044

Sylvester 917

Symphonics 194 052

Tandy 081

Tatung 056 062

Technics 034 080

TELEVISION CODE NUMBER

Techwood 004

Teknika 002 003 004 024 028

043 072 101 143

Telerent 072

Tera 173

Tmk 004

Toshiba 015 030 007 040 062

101

Universal 008 009

Video

Concepts 146

Vidtech 004

Wards 004 019 064 008 009

028 060 061 063 072

074 143 164 165

Westing

House 076 120

Yamaha 070 004

York 004

Yupiteru 043

Zenith 072 073 095 103

Zonda 112

VCR CODE NUMBER

Aiwa 034

Akai 016 043 046 124 125

142 146

Ampro 072

Anam 031

Audio

Dynamics 012 023 039 043

Brooksonic 035 037 044 129 152

Canon 028 031

Capehart 108

Craig 003 040 135

Curtis Mathes

031 041 156

Deawoo 117 119 005 116 007

010 065 108 110 112

Daytron 108

Dimensia 156

DBX 012 023 039 043

Dynatech 034 053

Electrohome 059

Emerson 006 029 035 025 027

034 036 037 046 101

129 131 138 017 031

044 152 157 153

Fisher 003 008 009 010

Funai 034

GE 031 072 144 147 063

151 107 109 156 126

Go Video 040 132 136

Goldstar 101 123 012 013 114

Harman

Kardon 012 045

Hitachi 004 026 034 063 137

150 156

Instantreplay 031

JCL 031

JCPenny 012 013 040 101 156

066

Jensen 043

PROGRAMMING YOUR REMOTE CONTROL

PAGE 9-3

VCR CODE NUMBER

JVC 048 050 043 130 060

012 031 150 055 158

Kenwood 014 034 047 048 023

Lloyd 034

LXI 034 003 009 017

Magin 040

Magnavox 067 031 034 041 068

154 160 064

Marantz 067 069 031 067 012

023

Marta 101

Matsui 027 030

MEI 031

Memorex 102 101 003 010 014

031 034 053 072 139

134

MGA 045 046 059

Minolta 013 156

Hughes 059 061 046 051 142

013 045 162

MTC 034 040

Multitech 024 034

NEC 012 023 043 048 039

Nordmende 043

Optonica 053 054

Panasonic 070 133 031 066 161

Pentax 013 031 063 156

Philco 031 034 067

Philips 031 067 034 101 054

071

Pilot 101

Pioneer 021 013 048

Portland 108

Quartz 002 014

Quasar 070 133 161 031 066

Radio Shack 123

RCA 107 109 144 147 151

013 041 034 040 156

031 140

Realistic 003 008 010 014 031

034 040 053 054 101

Rico 058 078

Salora 014

Samsung 102 040 032 104 107

109 112 113 115 120

122 125 159

Sansui 043 048 135 022

Sanyo 003 010 102 007 014

134

Scott 017 037 044 129 131

112 159

Sears 003 008 009 010 013

014 017 081 101

Sharp 031 054 053

Shintom 024

Signature 034

Sony 056 057 058 003 052

149 031 155

Soundesign 034

STS 013

Sylvania 031 059 034 067

Symphonic 034

VCR CODE NUMBER

Tandy 010 034

Tatung 039 043 023

Teac 034 039 043 023

Technics 031 070

Teknika 031 019 034 101

TMK 006

Toshiba 112 008 131 047 059

082 013 042

Totevision 040 101

Unitech 040

Vector

Research 012

Video

Concepts 012 046 034 141

Videosonic 040

Wards 003 013 024 031 034

040 053 054 017 131

Yamaha 012 043 034 039

Zenith 072 080 056 048 034

101 058

Aux CODE NUMBER

Audio Access

095

Adcom 146 149 227 244

Amc 082 083 084

Arcam 100

Audio File 093 098

Audio

Techinica 221

Aiwa 111 114 117 156 170

199 203 219 231 241

254

Akal 181 233

Anam 180

Bose 064 137 219

B & K 150 152

Carver 013 091 098 107 126

129 160 163 164 220

245 249

Casio 076

Clarion 151 169

Denon 101 133 191 202 208

246 247

Enlightened

Audio 078 153

Fisher 107 129 157 163 176

Fosgate

Audionics 113 228 248

GE 216 123

Goldstar 110

Harman

Kardon 073 195 248 249

Haital 119

Hitachl 088

JCPenny 109 154 178

Jesen 099

Jerrold 141

JVC 112 198 252

Kenwood 096 104 119 125 148

151 163 171 173 242

Krell 223

Lexicon 215 250

Aux CODE NUMBER

Luxman 066 071 120 134 205

206 229

LXI 123 177

Magnavox 126 162 185 186 224

228

Marantz 074 091 105 126 128

139 155 162 164 186

232

McIntosh 251

Mondial 069 070 077 225 226

MCS 108 178

Hughes 253

Merldian 013 067

NAD 128

Nakamichi 072 212 234 235

Niles 236

Onkyo 079 094 115 116 207

209 211 255

Optimus 121 125 140 181

Panasonic 131 144 187 200

Parasound 085 086 090

Philips 136 186 126 197

Pioneer 087 093 132 138 210

165 168 189 195 201

081 230

Quasar 131 187

RCA 109 213 166

Realistic 103 122 123 124 172

174 177 179 180 194

Rotel 204 218 239

Sansui 196 214 126 139 075

197

Sanyo 157 129

Samsung 068

Scientific

Atlanta 142

Scott 180 190

Sharp 096 125 151 161 169

182 193

Sherwood 089 127

Sony 097 117 147 183 200

253 237 238 188 192

080 063 243

Soundesign 135

Soundstream 197

SSI 130

Starcom 141

Symphonic 124

3M 217

Teac 102 159 180 062

Technics 131 143 184 145 187

200 202 208 165

Toshiba 175

Wards 163

Yamaha 092 120 166 240 125

169 065 216

Zenith 222 061

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

PAGE 9-4

Using the Remote Control

Once your codes are entered, you are ready to start using your universal remote control. The device

keys allow you to switch from one device to another. Some keys behave in a special way. They control

one device while you are actually in another device mode. For instance, while in SATellite mode,

pressing Volume +/- controls your TV’s volume—not a digital satellite receiver volume. This is

because the remote control knows that there is no volume control on the digital satellite receiver.

Advanced feature keys (i.e. , ) are not supported for devices other than your digital

satellite receiver. For other devices, only the primary keys (i.e. and , ) will function.

• For Sony-brand devices, use the key as the “Enter” key.

• For RCA-brand devices, the device key (i.e., “TV” or “VCR”) might be the “power on” key and

is the power off key.

Switching the Remote Control to Operate Additional

Digital Satellite Receiver

Your remote control can be reprogrammed to operate additional digital satellite receivers. This may be

necessary in situations where multiple digital satellite receivers are located in the same general area

and can pick up signals intended for each other.

To switch the remote control, simply press and hold the key while entering the receiver ID.

The receiver ID can be 001 through 008. Do not forget the two zeros. Remember to access the

ADVANCED PREFERENCES screen using the keys on the front of the digital satellite receiver to

pair it with the remote control.

The other way to program your remote control to match your digital satellite receiver is to scan for the

correct code.

1. Keep your remote control aimed at the device you want to control during this process. The

remote control will send out the “power” command for the digital satellite receiver.

2. While holding down the SAT key, press the “Mute” key for one full second. Then release the

keys. The SAT key should light and stay lit. If it doesn’t, repeat the process.

3. Once you are in programming mode, repeatedly tap the key to step through the codes,

sending out the power command. This could take up to eight presses. When your digital

satellite receiver shuts off, you have found the code.

4. Press the key to verify that you haven’t missed the code. In order to lock in the code,

press the SAT key again.

The remote will remember the code until you reprogram it.

Identifying Codes that Have Been Stored

You can determine the codes that are stored in your remote control. This may be useful for

reprogramming additional remote controls later on.

1. Press the device key and the “Mute” key simultaneously.

2. Press the key and count the number of times the red light on the top of the remote control

blinks. Each digit of the three-digit code is separated by a 3-second period the light is off. For example,

if the code number is 021, the light will blink 10 times (for “0”), pause three seconds, blink twice,

pause three seconds, and blink once.

Controlling Other Components Using the AUX Button

Some additional features are available when the remote control is in the AUX mode.

PROGRAMMING YOUR REMOTE CONTROL

PAGE 9-5

Volume Control in AUX Mode

Note that when the remote control is in TV, VCR, or SAT mode, the volume keys control the sound

volume for the television. When you’re in AUX mode, if your auxiliary component has audio output,

the volume keys control that component’s sound volume. If your auxiliary component doesn’t have

audio output, you can program the volume button so that it continues to control the TV volume when

your remote control is in AUX mode:

1. Press the “AUX” key and the “Mute” key simultaneously.

2. Press the “Volume Up” key.

Once you perform these steps, whenever your remote control is in AUX mode the volume keys will

control the television volume. In the event that you reprogram the “AUX” key to control a different

component at some future time, you can restore the remote control’s capability to control the auxiliary

component’s volume by simply repeating these two steps.

Assigning a Device to a Different Device Key

You can assign a component to a mode key that has a different label. For example, you can assign a

second TV to the AUX key.

1. Begin the programming process as described earlier. (i.e. Press and hold the “AUX” key and then

press the “Mute” key. Then release both keys.)

2. Press the device key associated with the type of device you wish to assign to the AUX key.

3. Establish the correct code, either by scanning or direct code entry.

4. Press the “AUX” key to store the code onto the “AUX” key

Questions? Did we forget to tell you something? Many people, over time, have questions about their

satellite system. We have compiled the most common of these questions and the answers in

this appendix. We hope they help!

QI had a signal but now I am getting a message “Searching for satellite signal. To access related

utilities, press .” What happened?

ARain clouds and snow can affect the satellite signal reception. This loss of signal is temporary.

Also check for new growth on trees and bushes that could be blocking the signal. One other

possibility is that the wind or someone has moved the satellite dish antenna.

QWhy can’t I control my TV?

ABefore you can control your TV, VCR, or any other device, besides your digital satellite

receiver, you must program your remote control to match your different devices. See the

chapter, “Programming Your Remote Control” in this manual for specific instructions. If you

have already successfully programmed your remote control, try pressing the appropriate

device key to put your remote in the proper mode. Then try controlling that device. Also,

make sure that the batteries in the remote control are good.

QMy digital satellite receiver does not respond when I press keys. What’s wrong?

AMost likely, if the front panel keys work but the remote control doesn’t work, try pressing the

“SAT” key before trying to control the digital satellite receiver. If that doesn’t work, press the

“SAT” and “Mute” keys together and try again. If that doesn’t work, or if the front panel keys

don’t work either, unplug your digital satellite receiver for 30 seconds, then plug it back in.

Since your digital satellite receiver is a computing device it is susceptible to erratic changes in

power and/or signal, just as any other computer, and these sudden changes can cause it to

become “confused.”

QSome channels look good, while others freeze or indicate that no signal is available. What’s

wrong?

AThe most common causes for this behavior relate to an improperly grounded satellite cable.

Check the cable between your digital satellite receiver and the satellite dish antenna. Confirm

that RG-6 (not RG-59) cable is used and does not exceed 100 feet in length. Longer cable

runs require amplification. This special amplifier is available from your dealer.

QHow can I watch one channel while recording another?

AWith only one digital satellite receiver, unfortunately, you can’t. Each receiver can only

decode one channel at a time.

APPENDIX

QUESTIONS

AND

ANSWERS

HUGHES BRAND DIRECTV PLUS™ DIGITAL SATELLITE RECEIVER

QI’m getting a message to call some extension. Why?

AThere are many different reasons for this. If you want to watch the channel that is displaying

the message, call DIRECTV at 1-800-DIRECT V (347-3288).

QWhy don’t I have an on-screen offer to purchase pay per view programs?

AThere are three possibilities; your digital satellite receiver must be connected to a phone line

and it is not, or DIRECTV doesn’t realize that your phone line is connected or has disabled

your ability to make on-screen purchases. Call DIRECTV at 1-800-DIRECTV (347-3288), for

assistance.

QCan I receive my local TV programs through my digital satellite receiver?

AThere are three ways to receive local programming:

1) If you are in an area where local programming is available via satellite and have the

proper satellite dish antenna, contact DIRECTV to arrange for the necessary subscription

package.

2) Install a traditional antenna (i.e. roof mounted, attic mounted or rabbit ears) or “lifeline”

cable TV.

3) Arrange for basic or “lifeline” cable service from your local cable company.

If you should select item 1 above, your local programming will appear in the program guide

just as any other channel. For options 2 or 3, connect the local signal to the IN FROM

ANTENNA on the back of your digital satellite receiver. Use the key to switch

between DIRECTV

® programming and local programming provided on the OUT TO TV

connector.

QIf I have questions about my satellite system or need to have it serviced, who should I call?

AFor issues regarding your equipment, contact Hughes Consumer Care Center directly at 1-

800-274-8995. If you would like, call your dealer first. They are most familiar with your

installation and needs. Also, they are likely to be local to you.

If you need assistance with your subscription, such as adding channels, contact DIRECTV at

1-800-DIRECTV (347-3288).

QI think I set an event to record on my VCR, but when I played the tape back nothing was

there. What could be wrong?

AThere are several possible reasons for this. First, check that the VCR was programmed

correctly and left turned on and the input matches the output from your digital satellite

receiver. Confirm that you were authorized to tape the chosen program.

QI picked up my telephone and it was making a hissing and squealing sound. Why?

AYour digital satellite receiver was reporting any pay per view activity that may have occurred.

This happens very rarely and lasts for only a minute or so.

QWhat if my question isn’t listed here?

ACall your dealer or Hughes Consumer Care Center at 1-800-274-8995. We will do our very

best to answer your questions.

LIMITED WARRANTY

Hughes Network Systems (HNS) provides the following limited warranty on this equipment

This limited warranty is in lieu of all other warranties, whether express, implied, or statutory, including, without limitation,

the implied warranties of merchantability and fitness for a particular purpose. HNS shall not be liable for damages in

excess of the purchase price of the product less reasonable amount for use and wear, or for any incidental, special,

punitive, or consequential damages of any nature whatsoever, or for any delays, loss of use, time, profits, revenue or

savings, any commercial loss, inconvenience, damage to buyer's or to other person's property, arising from the use or

inability to use the product, or otherwise for any failure to perform. HNS neither assumes nor authorizes any customer

care center or any other person or entity to assume any other obligation or liability beyond that which is provided for in

this limited warranty. No oral or written information or advice given by HNS, its dealers, distributors, agents or employees,

shall create a warranty or in any way increase the scope of this warranty.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations of implied

warranties, so the above limitations or exclusions may not apply to Purchaser.

This Limited Warranty gives specific legal rights to Purchaser, and Purchaser also may have other rights which may vary

from state to state.

PROVISIONS

Your Hughes manufactured DIRECTV PLUS™ Digital Satellite Receiver, Satellite Dish Antenna, and Remote Control are warranted against

defects in materials, workmanship for parts and labor:

• The digital satellite receiver is warranted for two (2) years from date of purchase.

• The satellite dish antenna (including the LNB) is warranted for one (1) years from date of purchase.

• The remote control is warranted for ninety (90) days from date of purchase.

This limited warranty does not cover:

• a unit that has been modified

• damage from misuse, negligence, or

accident

• any installation, or damages caused

by installation

• shipments to HNS that are damaged

in transit

• removal and reinstallation of

equipment for repair

• loss of programming

• damage due to lightning (for

example, power surges, nearby

strikes)

• acts of God

• cost of shipping to HNS

• batteries or cables after installation

This limited warranty is not transferable and is valid only in the United States

SERVICE

If you have any questions or encounter any problems, you may contact your authorized HNS dealer or call our Customer Care Center, at

1-800-274-8995. To ensure prompt and efficient service, please have your model and serial numbers handy. Space to note these numbers

is provided inside the front cover of this manual. In the event of repair or replacement, you will need these numbers, along with your bill of

sale.

RETURN PROCEDURES

In the event that your equipment must be repaired or replaced, you can:

• contact your authorized HNS dealer or call our Customer Care Center to find the authorized service center nearest you.

• choose the “replace after receipt” option, whereby you must ship HNS your defective equipment and, once your unit is received, a

new or refurbished unit (at the sole discretion of HNS) will be shipped to you.

• choose the “advance replacement” option, whereby a new or refurbished unit (at the sole discretion of HNS) will be shipped to you

after you have provided an accepted credit card number for collateral purposes. Once you receive the replacement part from

HNS, return your defective equipment within the specified time period to avoid being charged for the advanced part.

If the warranty on the equipment has expired, the Customer Care technician will provide you with an estimate of the cost to replace the

unit when the RMA is assigned.

PACKING INSTRUCTIONS FOR EQUIPMENT TO BE RETURNED

1. Call the Customer Care Center. The Customer Care technician will give you an RMA (Return Merchandise Authorization) and a

mailing address for returning your unit.

2. If you are returning the digital satellite receiver, please keep your access card and return only the digital satellite receiver.

3. Pack the unit in the original box and packing material, if possible, or in other packaging that provides adequate protection for

shipping. Include your name and address, the model number, the serial number, and a copy of the bill of sale.

4. Write: "Attention: RMA #" (the number given to you by the Customer Care technician) on the return shipping label.

5. Insure the shipment for the full replacement value.

If the warranty on the equipment has expired, the Customer Care technician will provide you with an estimate of the cost to replace the

unit when the RMA is assigned.

Part # 1028324-0001 (Revision: B)
