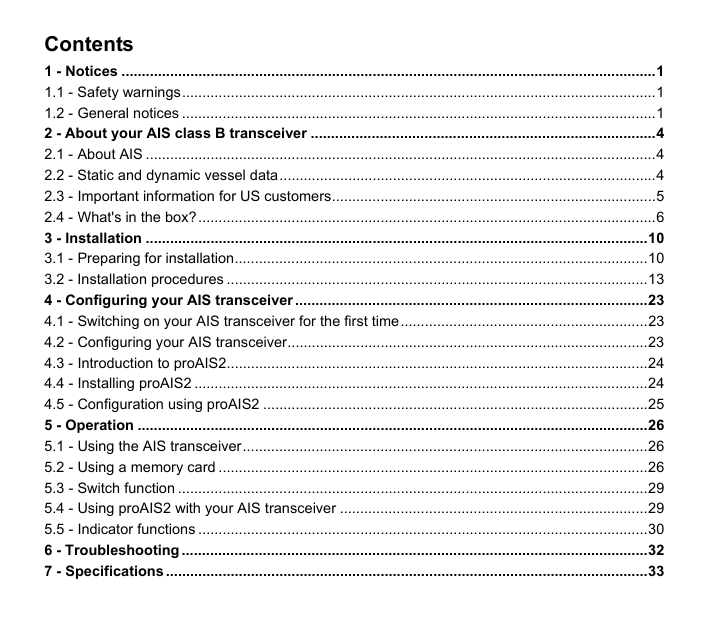

Contents1 - Notices ....................................................................................................................................11.1 - Safety warnings.....................................................................................................................11.2 - General notices .....................................................................................................................12 - About your AIS class B transceiver .....................................................................................42.1 - About AIS ..............................................................................................................................42.2 - Static and dynamic vessel data.............................................................................................42.3 - Important information for US customers................................................................................52.4 - What's in the box? .................................................................................................................63 - Installation ............................................................................................................................103.1 - Preparing for installation......................................................................................................103.2 - Installation procedures ........................................................................................................134 - Configuring your AIS transceiver .......................................................................................234.1 - Switching on your AIS transceiver for the first time.............................................................234.2 - Configuring your AIS transceiver.........................................................................................234.3 - Introduction to proAIS2........................................................................................................244.4 - Installing proAIS2 ................................................................................................................244.5 - Configuration using proAIS2 ...............................................................................................255 - Operation ..............................................................................................................................265.1 - Using the AIS transceiver....................................................................................................265.2 - Using a memory card ..........................................................................................................265.3 - Switch function ....................................................................................................................295.4 - Using proAIS2 with your AIS transceiver ............................................................................295.5 - Indicator functions ...............................................................................................................306 - Troubleshooting ...................................................................................................................327 - Specifications .......................................................................................................................33

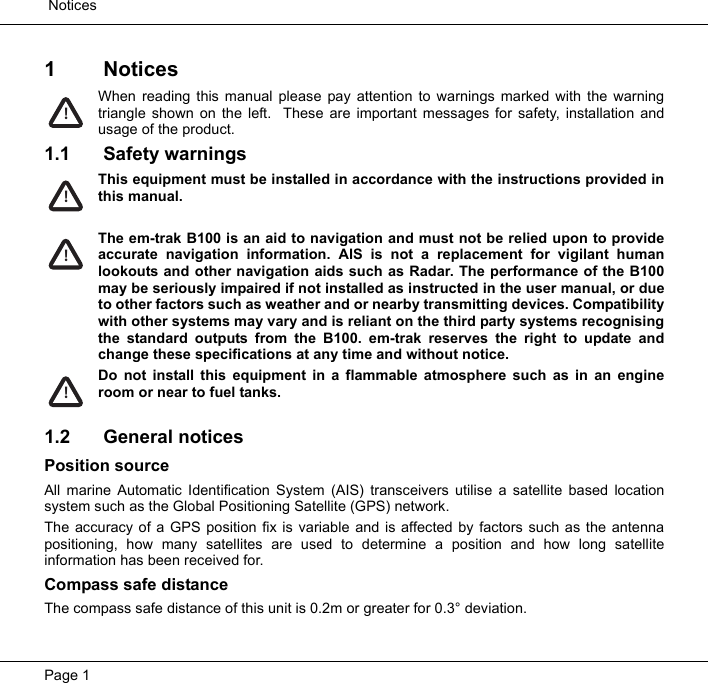

NoticesPage 11 NoticesWhen reading this manual please pay attention to warnings marked with the warningtriangle shown on the left. These are important messages for safety, installation andusage of the product.1.1 Safety warningsThis equipment must be installed in accordance with the instructions provided inthis manual.The em-trak B100 is an aid to navigation and must not be relied upon to provideaccurate navigation information. AIS is not a replacement for vigilant humanlookouts and other navigation aids such as Radar. The performance of the B100may be seriously impaired if not installed as instructed in the user manual, or dueto other factors such as weather and or nearby transmitting devices. Compatibilitywith other systems may vary and is reliant on the third party systems recognisingthe standard outputs from the B100. em-trak reserves the right to update andchange these specifications at any time and without notice.Do not install this equipment in a flammable atmosphere such as in an engineroom or near to fuel tanks. 1.2 General noticesPosition sourceAll marine Automatic Identification System (AIS) transceivers utilise a satellite based locationsystem such as the Global Positioning Satellite (GPS) network. The accuracy of a GPS position fix is variable and is affected by factors such as the antennapositioning, how many satellites are used to determine a position and how long satelliteinformation has been received for.Compass safe distanceThe compass safe distance of this unit is 0.2m or greater for 0.3° deviation.!!!!

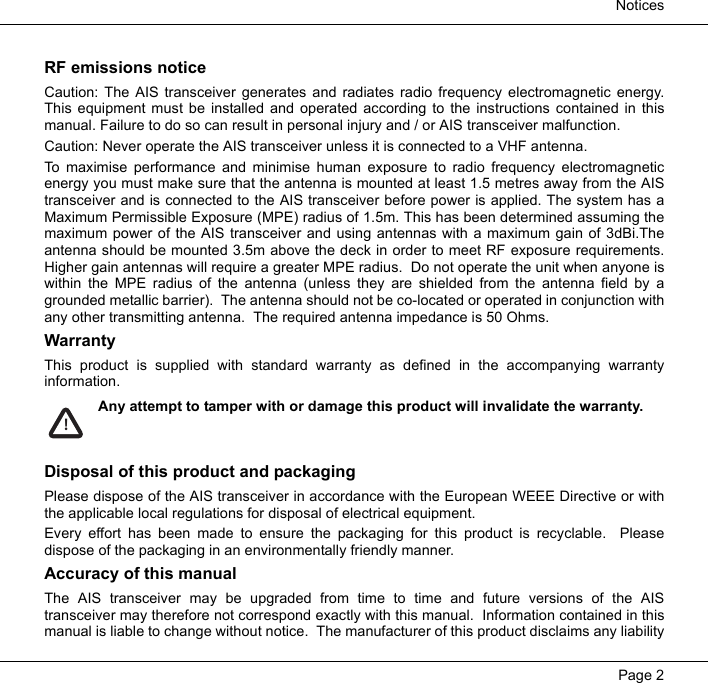

NoticesPage 2RF emissions noticeCaution: The AIS transceiver generates and radiates radio frequency electromagnetic energy.This equipment must be installed and operated according to the instructions contained in thismanual. Failure to do so can result in personal injury and / or AIS transceiver malfunction. Caution: Never operate the AIS transceiver unless it is connected to a VHF antenna. To maximise performance and minimise human exposure to radio frequency electromagneticenergy you must make sure that the antenna is mounted at least 1.5 metres away from the AIStransceiver and is connected to the AIS transceiver before power is applied. The system has aMaximum Permissible Exposure (MPE) radius of 1.5m. This has been determined assuming themaximum power of the AIS transceiver and using antennas with a maximum gain of 3dBi.Theantenna should be mounted 3.5m above the deck in order to meet RF exposure requirements.Higher gain antennas will require a greater MPE radius. Do not operate the unit when anyone iswithin the MPE radius of the antenna (unless they are shielded from the antenna field by agrounded metallic barrier). The antenna should not be co-located or operated in conjunction withany other transmitting antenna. The required antenna impedance is 50 Ohms.WarrantyThis product is supplied with standard warranty as defined in the accompanying warrantyinformation. Any attempt to tamper with or damage this product will invalidate the warranty. Disposal of this product and packagingPlease dispose of the AIS transceiver in accordance with the European WEEE Directive or withthe applicable local regulations for disposal of electrical equipment. Every effort has been made to ensure the packaging for this product is recyclable. Pleasedispose of the packaging in an environmentally friendly manner. Accuracy of this manualThe AIS transceiver may be upgraded from time to time and future versions of the AIStransceiver may therefore not correspond exactly with this manual. Information contained in thismanual is liable to change without notice. The manufacturer of this product disclaims any liability!

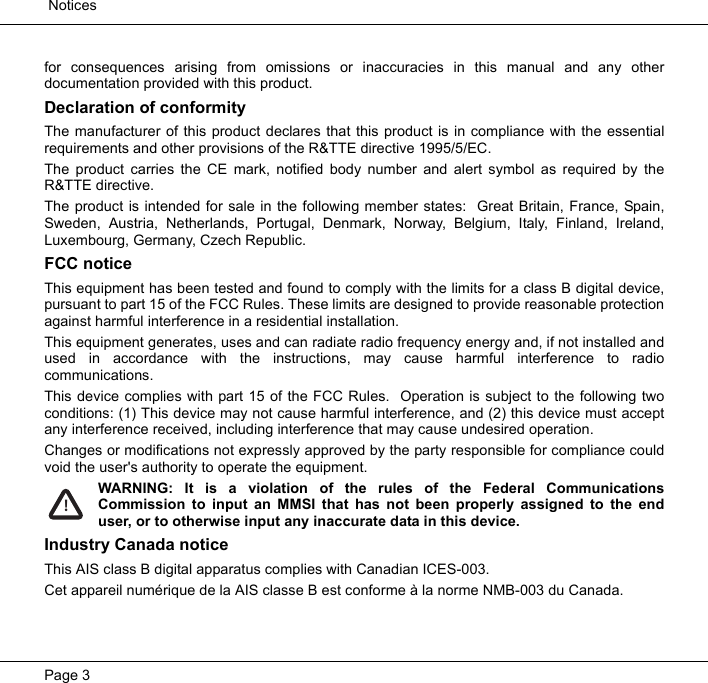

NoticesPage 3for consequences arising from omissions or inaccuracies in this manual and any otherdocumentation provided with this product. Declaration of conformityThe manufacturer of this product declares that this product is in compliance with the essentialrequirements and other provisions of the R&TTE directive 1995/5/EC. The product carries the CE mark, notified body number and alert symbol as required by theR&TTE directive. The product is intended for sale in the following member states: Great Britain, France, Spain,Sweden, Austria, Netherlands, Portugal, Denmark, Norway, Belgium, Italy, Finland, Ireland,Luxembourg, Germany, Czech Republic. FCC noticeThis equipment has been tested and found to comply with the limits for a class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed andused in accordance with the instructions, may cause harmful interference to radiocommunications. This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment. WARNING: It is a violation of the rules of the Federal CommunicationsCommission to input an MMSI that has not been properly assigned to the enduser, or to otherwise input any inaccurate data in this device.Industry Canada noticeThis AIS class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la AIS classe B est conforme à la norme NMB-003 du Canada. !

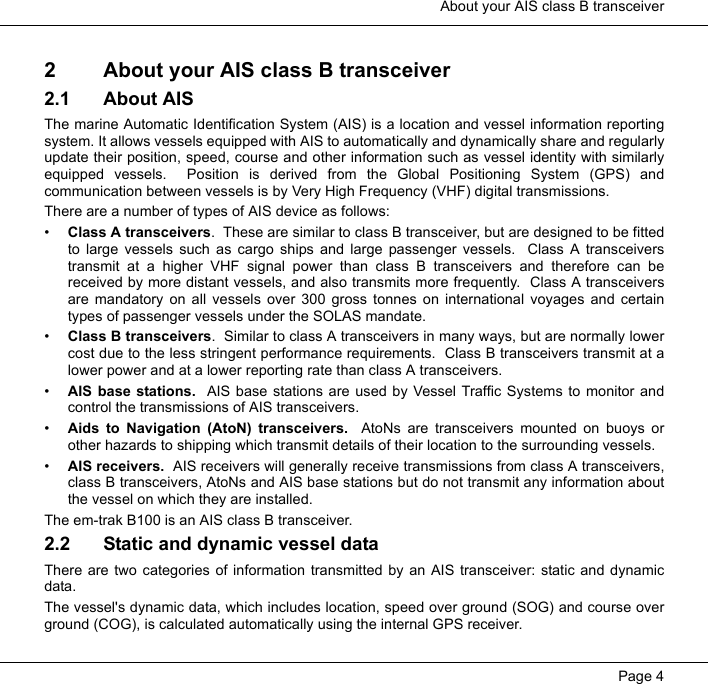

About your AIS class B transceiverPage 42 About your AIS class B transceiver2.1 About AISThe marine Automatic Identification System (AIS) is a location and vessel information reportingsystem. It allows vessels equipped with AIS to automatically and dynamically share and regularlyupdate their position, speed, course and other information such as vessel identity with similarlyequipped vessels. Position is derived from the Global Positioning System (GPS) andcommunication between vessels is by Very High Frequency (VHF) digital transmissions. There are a number of types of AIS device as follows:•Class A transceivers. These are similar to class B transceiver, but are designed to be fittedto large vessels such as cargo ships and large passenger vessels. Class A transceiverstransmit at a higher VHF signal power than class B transceivers and therefore can bereceived by more distant vessels, and also transmits more frequently. Class A transceiversare mandatory on all vessels over 300 gross tonnes on international voyages and certaintypes of passenger vessels under the SOLAS mandate. •Class B transceivers. Similar to class A transceivers in many ways, but are normally lowercost due to the less stringent performance requirements. Class B transceivers transmit at alower power and at a lower reporting rate than class A transceivers. •AIS base stations. AIS base stations are used by Vessel Traffic Systems to monitor andcontrol the transmissions of AIS transceivers. •Aids to Navigation (AtoN) transceivers. AtoNs are transceivers mounted on buoys orother hazards to shipping which transmit details of their location to the surrounding vessels. •AIS receivers. AIS receivers will generally receive transmissions from class A transceivers,class B transceivers, AtoNs and AIS base stations but do not transmit any information aboutthe vessel on which they are installed. The em-trak B100 is an AIS class B transceiver. 2.2 Static and dynamic vessel dataThere are two categories of information transmitted by an AIS transceiver: static and dynamicdata.The vessel's dynamic data, which includes location, speed over ground (SOG) and course overground (COG), is calculated automatically using the internal GPS receiver.

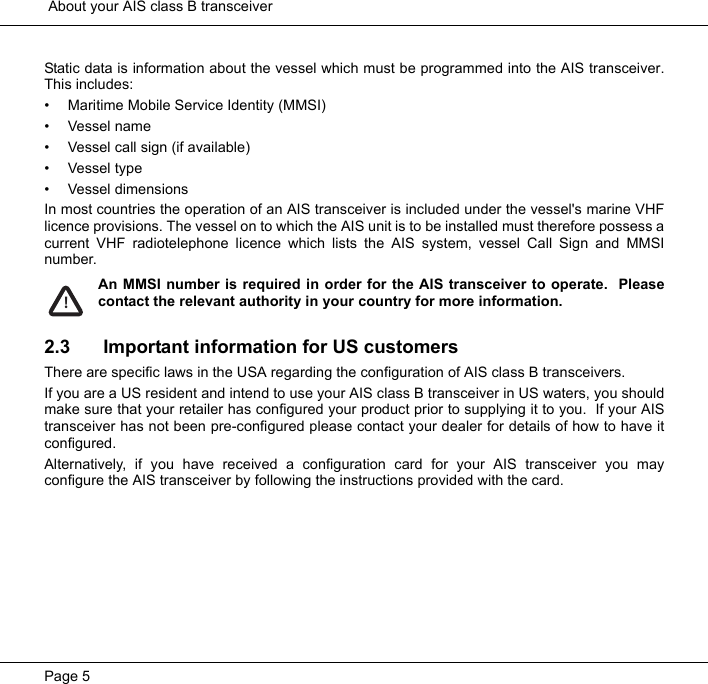

About your AIS class B transceiverPage 5Static data is information about the vessel which must be programmed into the AIS transceiver.This includes:• Maritime Mobile Service Identity (MMSI)•Vessel name• Vessel call sign (if available)• Vessel type• Vessel dimensionsIn most countries the operation of an AIS transceiver is included under the vessel's marine VHFlicence provisions. The vessel on to which the AIS unit is to be installed must therefore possess acurrent VHF radiotelephone licence which lists the AIS system, vessel Call Sign and MMSInumber. An MMSI number is required in order for the AIS transceiver to operate. Pleasecontact the relevant authority in your country for more information. 2.3 Important information for US customersThere are specific laws in the USA regarding the configuration of AIS class B transceivers. If you are a US resident and intend to use your AIS class B transceiver in US waters, you shouldmake sure that your retailer has configured your product prior to supplying it to you. If your AIStransceiver has not been pre-configured please contact your dealer for details of how to have itconfigured. Alternatively, if you have received a configuration card for your AIS transceiver you mayconfigure the AIS transceiver by following the instructions provided with the card. !

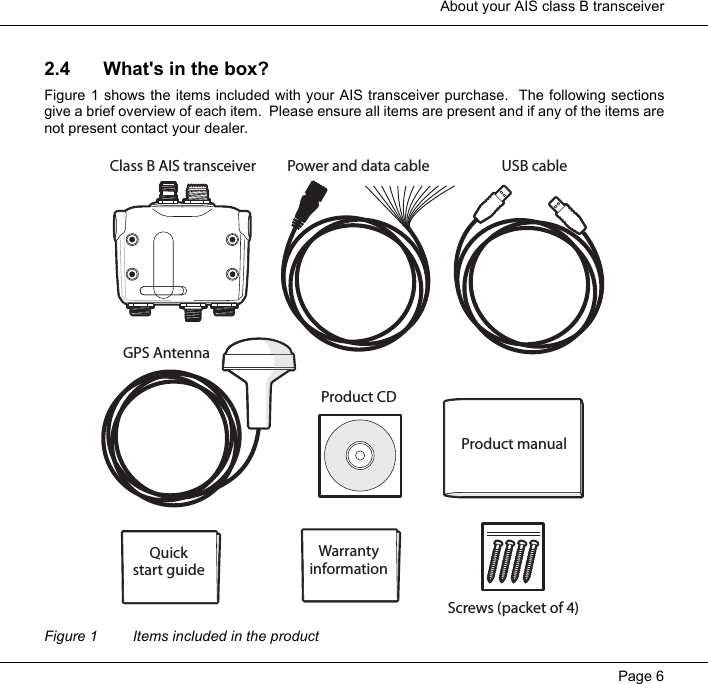

About your AIS class B transceiverPage 62.4 What's in the box?Figure 1 shows the items included with your AIS transceiver purchase. The following sectionsgive a brief overview of each item. Please ensure all items are present and if any of the items arenot present contact your dealer. Figure 1 Items included in the productScrews (packet of 4)Product CDQuickstart guideProduct manualGPS AntennaClass B AIS transceiver Power and data cable USB cableWarrantyinformation

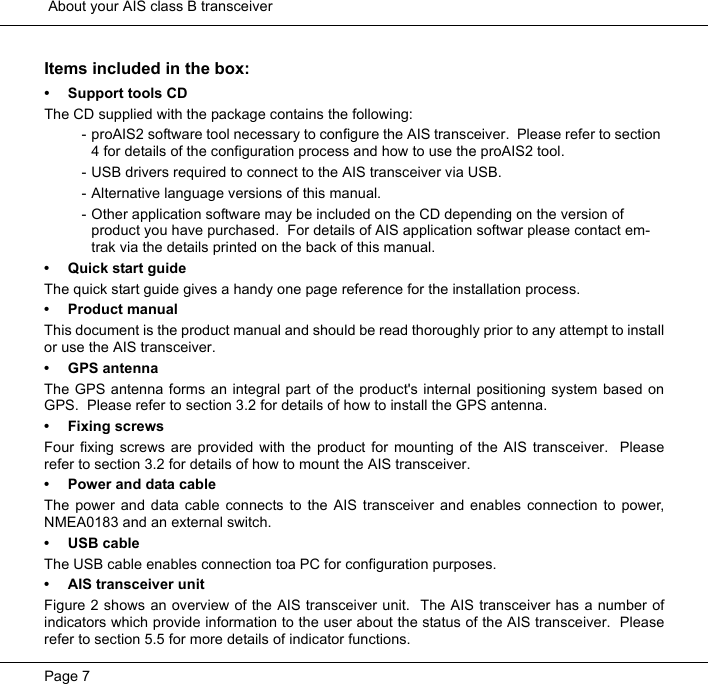

About your AIS class B transceiverPage 7Items included in the box:• Support tools CDThe CD supplied with the package contains the following:- proAIS2 software tool necessary to configure the AIS transceiver. Please refer to section 4 for details of the configuration process and how to use the proAIS2 tool.- USB drivers required to connect to the AIS transceiver via USB.- Alternative language versions of this manual.- Other application software may be included on the CD depending on the version of product you have purchased. For details of AIS application softwar please contact em-trak via the details printed on the back of this manual.• Quick start guideThe quick start guide gives a handy one page reference for the installation process. • Product manualThis document is the product manual and should be read thoroughly prior to any attempt to installor use the AIS transceiver. • GPS antennaThe GPS antenna forms an integral part of the product's internal positioning system based onGPS. Please refer to section 3.2 for details of how to install the GPS antenna. • Fixing screwsFour fixing screws are provided with the product for mounting of the AIS transceiver. Pleaserefer to section 3.2 for details of how to mount the AIS transceiver. • Power and data cableThe power and data cable connects to the AIS transceiver and enables connection to power,NMEA0183 and an external switch.• USB cableThe USB cable enables connection toa PC for configuration purposes. • AIS transceiver unitFigure 2 shows an overview of the AIS transceiver unit. The AIS transceiver has a number ofindicators which provide information to the user about the status of the AIS transceiver. Pleaserefer to section 5.5 for more details of indicator functions.

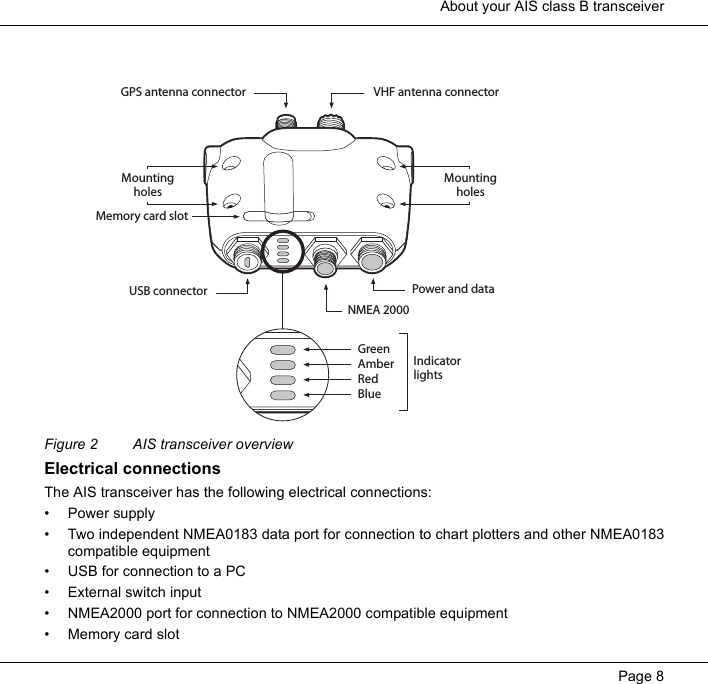

About your AIS class B transceiverPage 8Figure 2 AIS transceiver overviewElectrical connectionsThe AIS transceiver has the following electrical connections:• Power supply• Two independent NMEA0183 data port for connection to chart plotters and other NMEA0183compatible equipment• USB for connection to a PC• External switch input• NMEA2000 port for connection to NMEA2000 compatible equipment• Memory card slotVHF antenna connectorPower and dataNMEA 2000GPS antenna connectorUSB connectorMountingholesMountingholesGreenAmberRedBlueIndicatorlightsMemory card slot

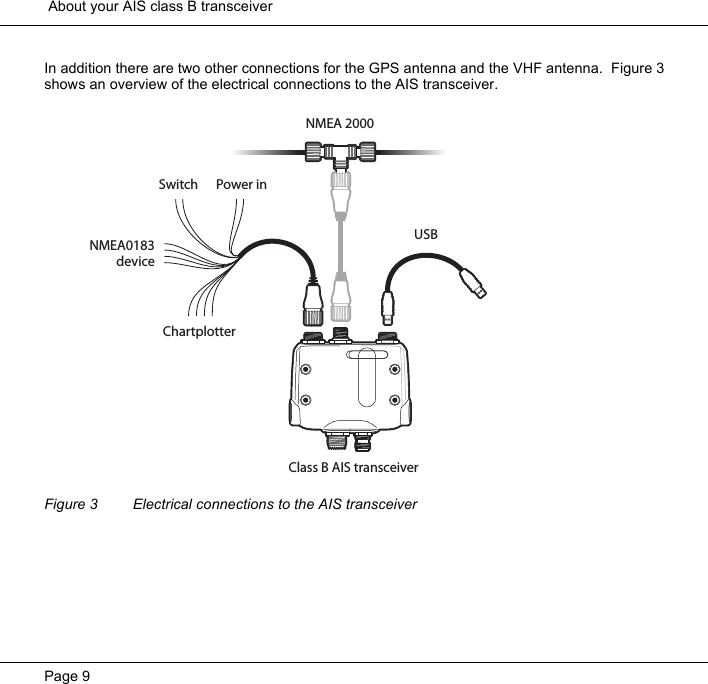

About your AIS class B transceiverPage 9In addition there are two other connections for the GPS antenna and the VHF antenna. Figure 3shows an overview of the electrical connections to the AIS transceiver.Figure 3 Electrical connections to the AIS transceiverChartplotterNMEA0183deviceSwitch Power inNMEA 2000USBClass B AIS transceiver

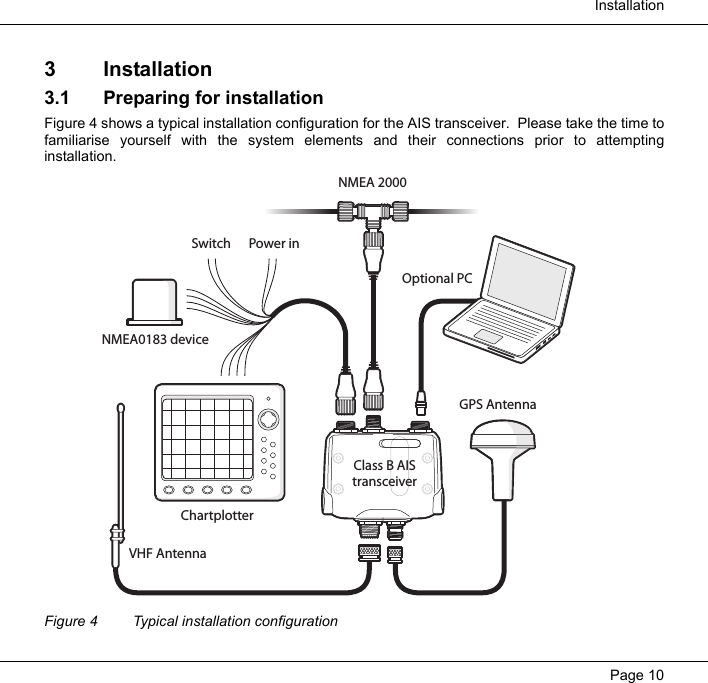

InstallationPage 103 Installation3.1 Preparing for installationFigure 4 shows a typical installation configuration for the AIS transceiver. Please take the time tofamiliarise yourself with the system elements and their connections prior to attemptinginstallation. Figure 4 Typical installation configurationGPS AntennaVHF AntennaChartplotterNMEA0183 deviceSwitchPower inNMEA 2000Optional PCClass B AIStransceiver

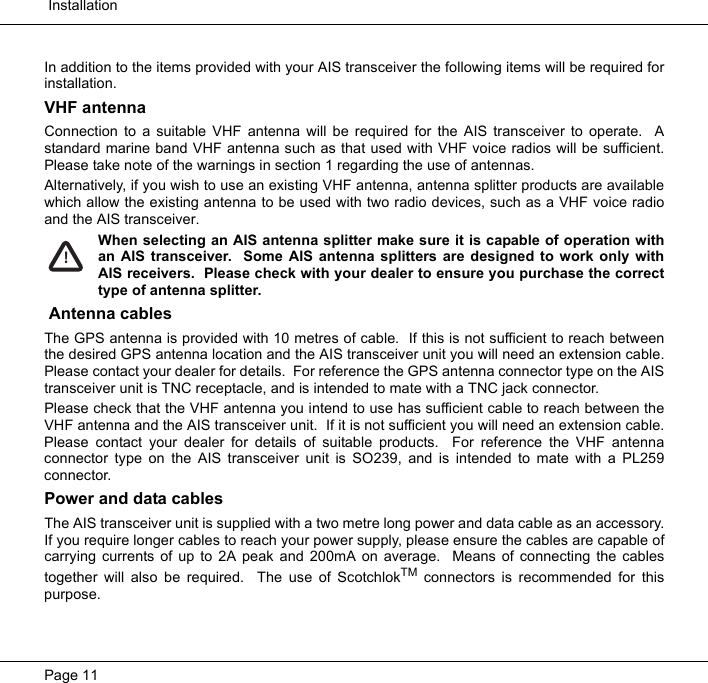

InstallationPage 11In addition to the items provided with your AIS transceiver the following items will be required forinstallation.VHF antennaConnection to a suitable VHF antenna will be required for the AIS transceiver to operate. Astandard marine band VHF antenna such as that used with VHF voice radios will be sufficient.Please take note of the warnings in section 1 regarding the use of antennas.Alternatively, if you wish to use an existing VHF antenna, antenna splitter products are availablewhich allow the existing antenna to be used with two radio devices, such as a VHF voice radioand the AIS transceiver. When selecting an AIS antenna splitter make sure it is capable of operation withan AIS transceiver. Some AIS antenna splitters are designed to work only withAIS receivers. Please check with your dealer to ensure you purchase the correcttype of antenna splitter. Antenna cablesThe GPS antenna is provided with 10 metres of cable. If this is not sufficient to reach betweenthe desired GPS antenna location and the AIS transceiver unit you will need an extension cable.Please contact your dealer for details. For reference the GPS antenna connector type on the AIStransceiver unit is TNC receptacle, and is intended to mate with a TNC jack connector. Please check that the VHF antenna you intend to use has sufficient cable to reach between theVHF antenna and the AIS transceiver unit. If it is not sufficient you will need an extension cable.Please contact your dealer for details of suitable products. For reference the VHF antennaconnector type on the AIS transceiver unit is SO239, and is intended to mate with a PL259connector. Power and data cablesThe AIS transceiver unit is supplied with a two metre long power and data cable as an accessory.If you require longer cables to reach your power supply, please ensure the cables are capable ofcarrying currents of up to 2A peak and 200mA on average. Means of connecting the cablestogether will also be required. The use of ScotchlokTM connectors is recommended for thispurpose. !

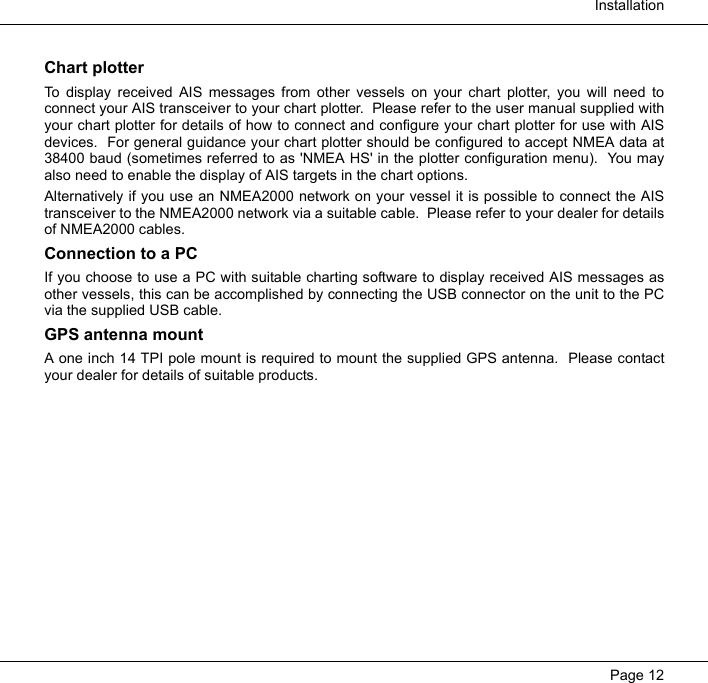

InstallationPage 12Chart plotterTo display received AIS messages from other vessels on your chart plotter, you will need toconnect your AIS transceiver to your chart plotter. Please refer to the user manual supplied withyour chart plotter for details of how to connect and configure your chart plotter for use with AISdevices. For general guidance your chart plotter should be configured to accept NMEA data at38400 baud (sometimes referred to as 'NMEA HS' in the plotter configuration menu). You mayalso need to enable the display of AIS targets in the chart options. Alternatively if you use an NMEA2000 network on your vessel it is possible to connect the AIStransceiver to the NMEA2000 network via a suitable cable. Please refer to your dealer for detailsof NMEA2000 cables. Connection to a PCIf you choose to use a PC with suitable charting software to display received AIS messages asother vessels, this can be accomplished by connecting the USB connector on the unit to the PCvia the supplied USB cable.GPS antenna mountA one inch 14 TPI pole mount is required to mount the supplied GPS antenna. Please contactyour dealer for details of suitable products.

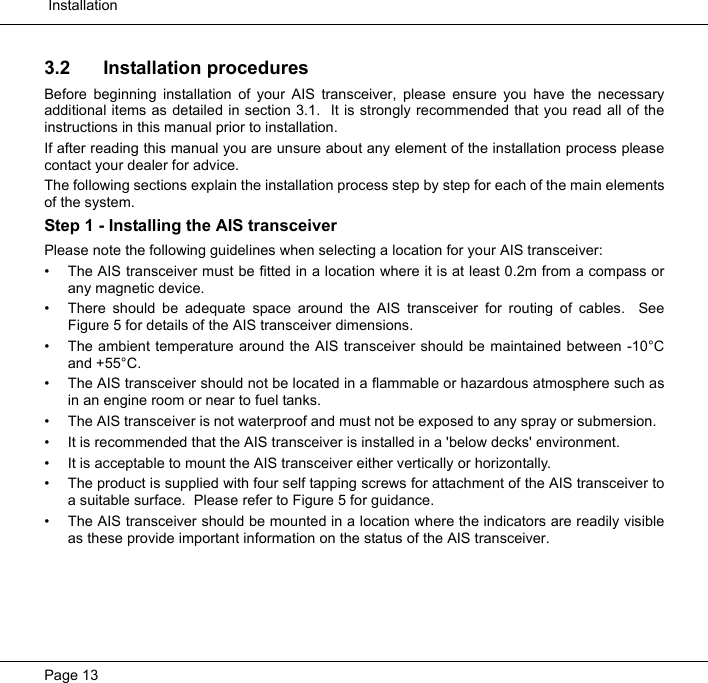

InstallationPage 133.2 Installation proceduresBefore beginning installation of your AIS transceiver, please ensure you have the necessaryadditional items as detailed in section 3.1. It is strongly recommended that you read all of theinstructions in this manual prior to installation. If after reading this manual you are unsure about any element of the installation process pleasecontact your dealer for advice. The following sections explain the installation process step by step for each of the main elementsof the system. Step 1 - Installing the AIS transceiverPlease note the following guidelines when selecting a location for your AIS transceiver:• The AIS transceiver must be fitted in a location where it is at least 0.2m from a compass orany magnetic device. • There should be adequate space around the AIS transceiver for routing of cables. SeeFigure 5 for details of the AIS transceiver dimensions. • The ambient temperature around the AIS transceiver should be maintained between -10°Cand +55°C. • The AIS transceiver should not be located in a flammable or hazardous atmosphere such asin an engine room or near to fuel tanks. • The AIS transceiver is not waterproof and must not be exposed to any spray or submersion. • It is recommended that the AIS transceiver is installed in a 'below decks' environment. • It is acceptable to mount the AIS transceiver either vertically or horizontally. • The product is supplied with four self tapping screws for attachment of the AIS transceiver toa suitable surface. Please refer to Figure 5 for guidance. • The AIS transceiver should be mounted in a location where the indicators are readily visibleas these provide important information on the status of the AIS transceiver.

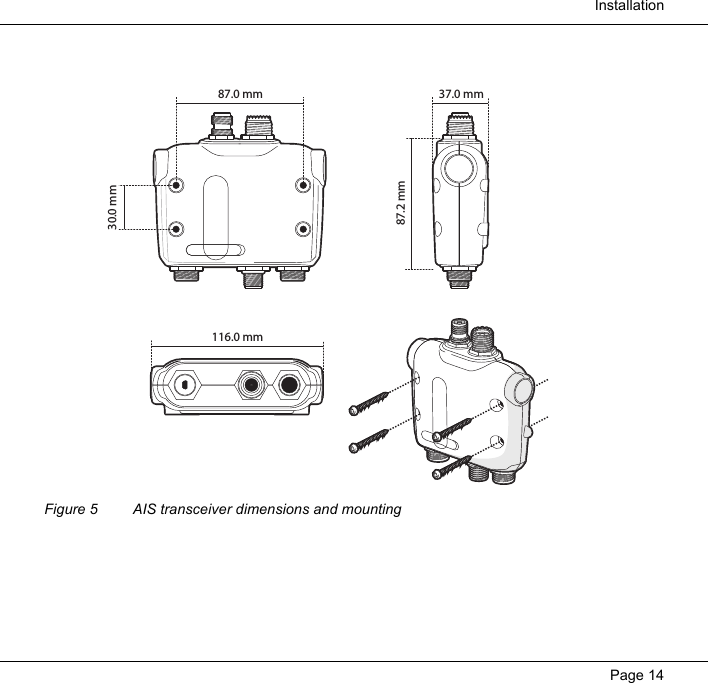

InstallationPage 14 Figure 5 AIS transceiver dimensions and mounting87.2 mm37.0 mm116.0 mm30.0 mm87.0 mm

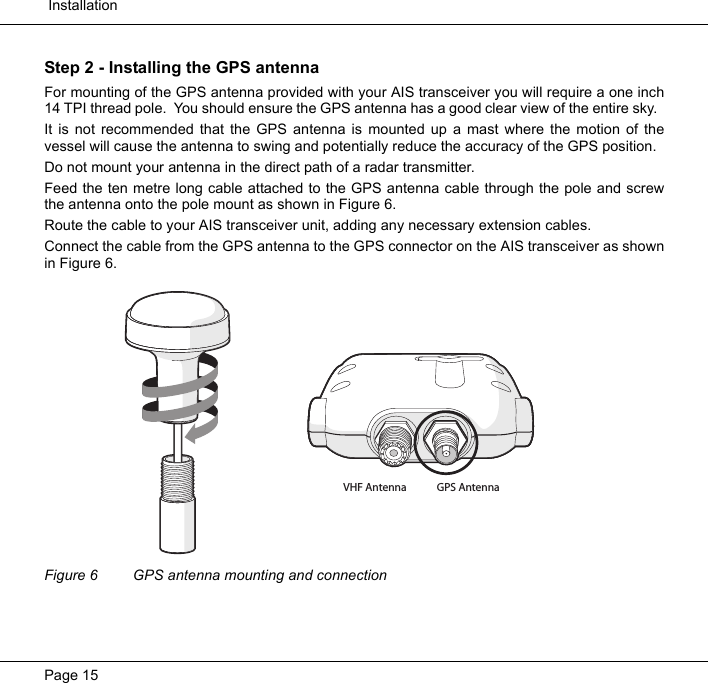

InstallationPage 15Step 2 - Installing the GPS antennaFor mounting of the GPS antenna provided with your AIS transceiver you will require a one inch14 TPI thread pole. You should ensure the GPS antenna has a good clear view of the entire sky. It is not recommended that the GPS antenna is mounted up a mast where the motion of thevessel will cause the antenna to swing and potentially reduce the accuracy of the GPS position. Do not mount your antenna in the direct path of a radar transmitter. Feed the ten metre long cable attached to the GPS antenna cable through the pole and screwthe antenna onto the pole mount as shown in Figure 6. Route the cable to your AIS transceiver unit, adding any necessary extension cables. Connect the cable from the GPS antenna to the GPS connector on the AIS transceiver as shownin Figure 6. Figure 6 GPS antenna mounting and connectionGPS AntennaVHF Antenna

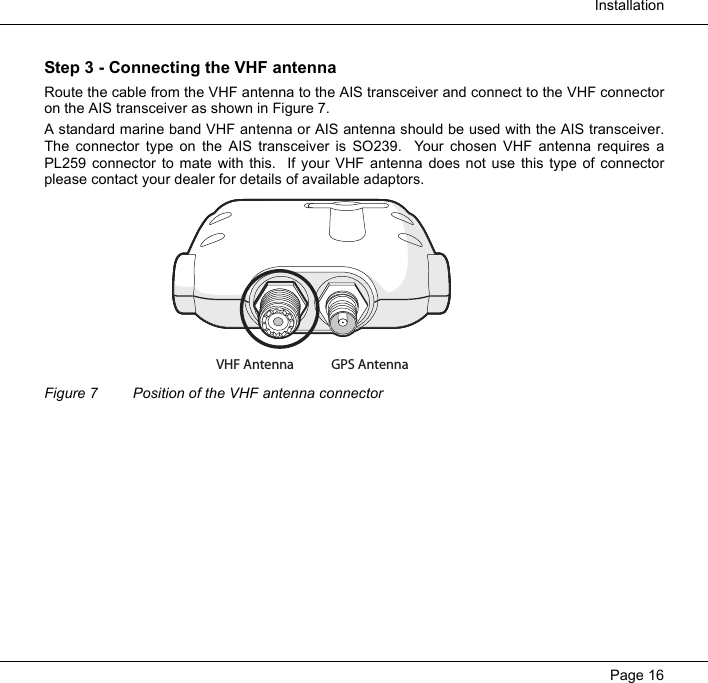

InstallationPage 16Step 3 - Connecting the VHF antennaRoute the cable from the VHF antenna to the AIS transceiver and connect to the VHF connectoron the AIS transceiver as shown in Figure 7. A standard marine band VHF antenna or AIS antenna should be used with the AIS transceiver.The connector type on the AIS transceiver is SO239. Your chosen VHF antenna requires aPL259 connector to mate with this. If your VHF antenna does not use this type of connectorplease contact your dealer for details of available adaptors. Figure 7 Position of the VHF antenna connectorGPS AntennaVHF Antenna

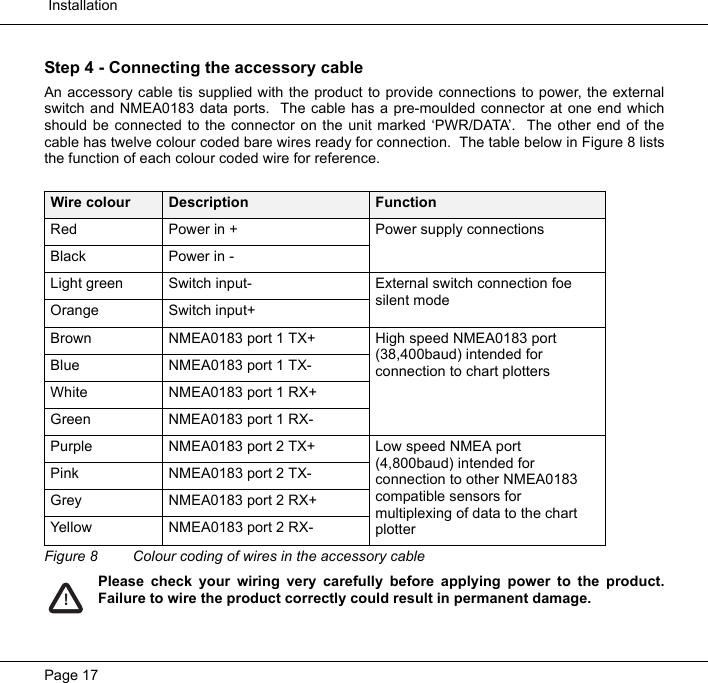

InstallationPage 17Step 4 - Connecting the accessory cableAn accessory cable tis supplied with the product to provide connections to power, the externalswitch and NMEA0183 data ports. The cable has a pre-moulded connector at one end whichshould be connected to the connector on the unit marked ‘PWR/DATA’. The other end of thecable has twelve colour coded bare wires ready for connection. The table below in Figure 8 liststhe function of each colour coded wire for reference.Figure 8 Colour coding of wires in the accessory cablePlease check your wiring very carefully before applying power to the product.Failure to wire the product correctly could result in permanent damage. Wire colour Description FunctionRed Power in + Power supply connectionsBlack Power in -Light green Switch input- External switch connection foe silent modeOrange Switch input+Brown NMEA0183 port 1 TX+ High speed NMEA0183 port (38,400baud) intended for connection to chart plottersBlue NMEA0183 port 1 TX-White NMEA0183 port 1 RX+Green NMEA0183 port 1 RX-Purple NMEA0183 port 2 TX+ Low speed NMEA port (4,800baud) intended for connection to other NMEA0183 compatible sensors for multiplexing of data to the chart plotterPink NMEA0183 port 2 TX-Grey NMEA0183 port 2 RX+Yellow NMEA0183 port 2 RX-!

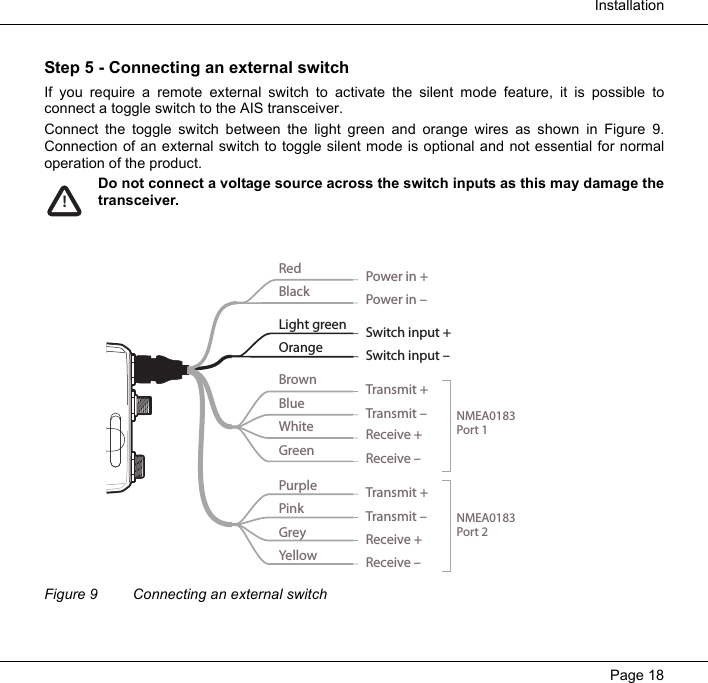

InstallationPage 18Step 5 - Connecting an external switchIf you require a remote external switch to activate the silent mode feature, it is possible toconnect a toggle switch to the AIS transceiver. Connect the toggle switch between the light green and orange wires as shown in Figure 9.Connection of an external switch to toggle silent mode is optional and not essential for normaloperation of the product. Do not connect a voltage source across the switch inputs as this may damage thetransceiver. Figure 9 Connecting an external switch!Transmit +Transmit –Power in +Power in –Switch input +Switch input –Receive +Receive –BrownBlueLight greenOrangeRedBlackWhiteGreenPurplePinkGreyYellowTransmit +Transmit –Receive +Receive –NMEA0183Port 1NMEA0183Port 2

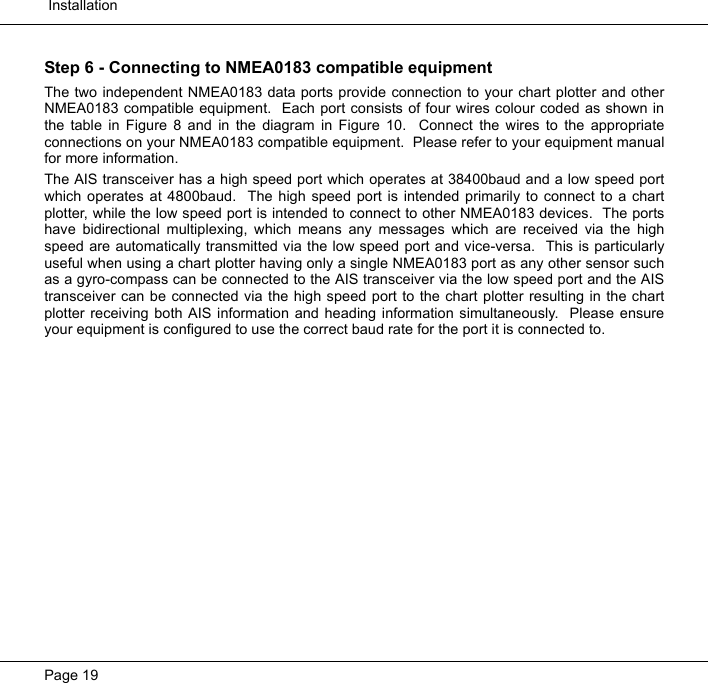

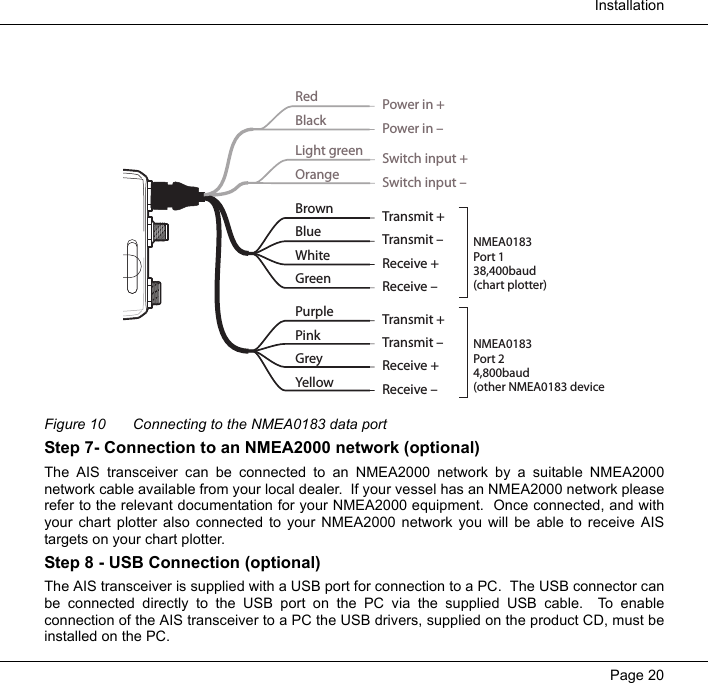

InstallationPage 19Step 6 - Connecting to NMEA0183 compatible equipmentThe two independent NMEA0183 data ports provide connection to your chart plotter and otherNMEA0183 compatible equipment. Each port consists of four wires colour coded as shown inthe table in Figure 8 and in the diagram in Figure 10. Connect the wires to the appropriateconnections on your NMEA0183 compatible equipment. Please refer to your equipment manualfor more information. The AIS transceiver has a high speed port which operates at 38400baud and a low speed portwhich operates at 4800baud. The high speed port is intended primarily to connect to a chartplotter, while the low speed port is intended to connect to other NMEA0183 devices. The portshave bidirectional multiplexing, which means any messages which are received via the highspeed are automatically transmitted via the low speed port and vice-versa. This is particularlyuseful when using a chart plotter having only a single NMEA0183 port as any other sensor suchas a gyro-compass can be connected to the AIS transceiver via the low speed port and the AIStransceiver can be connected via the high speed port to the chart plotter resulting in the chartplotter receiving both AIS information and heading information simultaneously. Please ensureyour equipment is configured to use the correct baud rate for the port it is connected to.
InstallationPage 20 Figure 10 Connecting to the NMEA0183 data portStep 7- Connection to an NMEA2000 network (optional)The AIS transceiver can be connected to an NMEA2000 network by a suitable NMEA2000network cable available from your local dealer. If your vessel has an NMEA2000 network pleaserefer to the relevant documentation for your NMEA2000 equipment. Once connected, and withyour chart plotter also connected to your NMEA2000 network you will be able to receive AIStargets on your chart plotter. Step 8 - USB Connection (optional)The AIS transceiver is supplied with a USB port for connection to a PC. The USB connector canbe connected directly to the USB port on the PC via the supplied USB cable. To enableconnection of the AIS transceiver to a PC the USB drivers, supplied on the product CD, must beinstalled on the PC. Transmit +Transmit –Power in +Power in –Switch input +Switch input –Receive +Receive –BrownBlueLight greenOrangeRedBlackWhiteGreenPurplePinkGreyYellowTransmit +Transmit –Receive +Receive –NMEA0183Port 138,400baud(chart plotter)NMEA0183Port 24,800baud(other NMEA0183 device

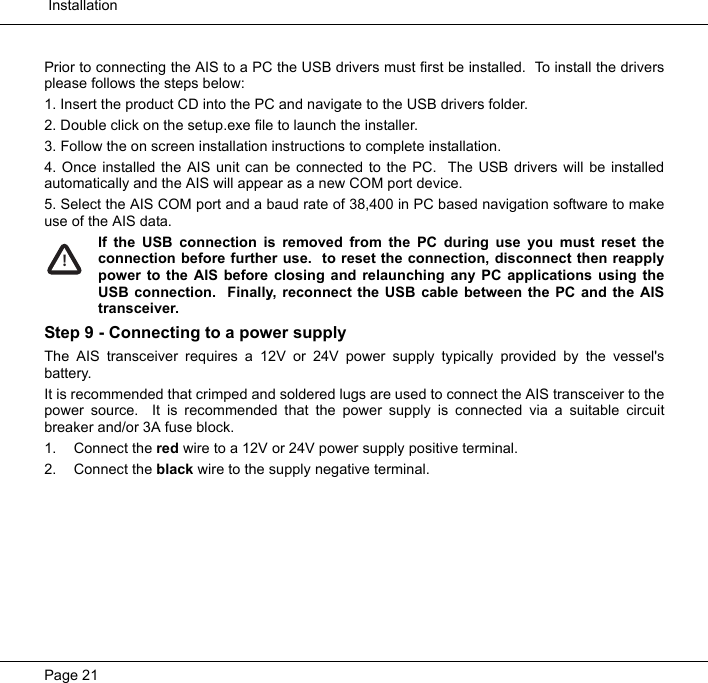

InstallationPage 21Prior to connecting the AIS to a PC the USB drivers must first be installed. To install the driversplease follows the steps below:1. Insert the product CD into the PC and navigate to the USB drivers folder.2. Double click on the setup.exe file to launch the installer. 3. Follow the on screen installation instructions to complete installation.4. Once installed the AIS unit can be connected to the PC. The USB drivers will be installedautomatically and the AIS will appear as a new COM port device. 5. Select the AIS COM port and a baud rate of 38,400 in PC based navigation software to makeuse of the AIS data. If the USB connection is removed from the PC during use you must reset theconnection before further use. to reset the connection, disconnect then reapplypower to the AIS before closing and relaunching any PC applications using theUSB connection. Finally, reconnect the USB cable between the PC and the AIStransceiver. Step 9 - Connecting to a power supplyThe AIS transceiver requires a 12V or 24V power supply typically provided by the vessel'sbattery. It is recommended that crimped and soldered lugs are used to connect the AIS transceiver to thepower source. It is recommended that the power supply is connected via a suitable circuitbreaker and/or 3A fuse block. 1. Connect the red wire to a 12V or 24V power supply positive terminal. 2. Connect the black wire to the supply negative terminal.!

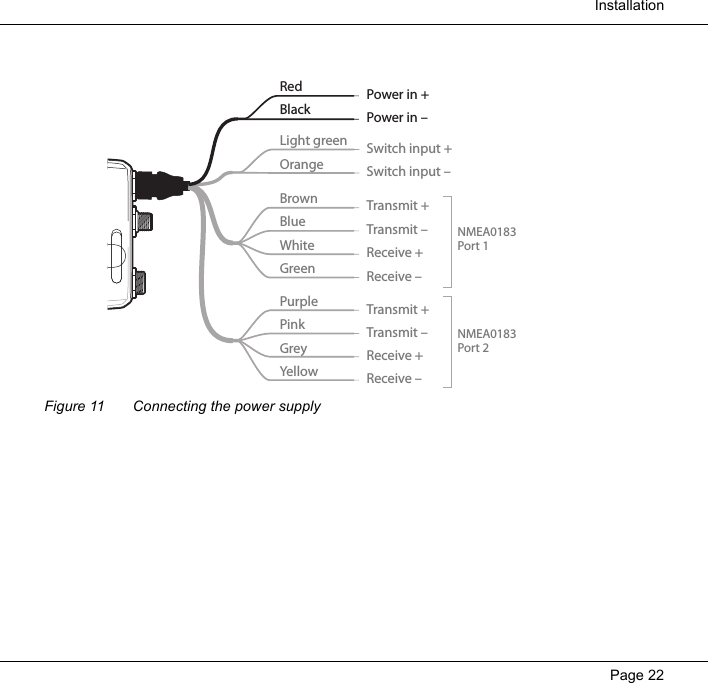

InstallationPage 22Figure 11 Connecting the power supplyTransmit +Transmit –Power in +Power in –Switch input +Switch input –Receive +Receive –BrownBlueLight greenOrangeRedBlackWhiteGreenPurplePinkGreyYellowTransmit +Transmit –Receive +Receive –NMEA0183Port 1NMEA0183Port 2

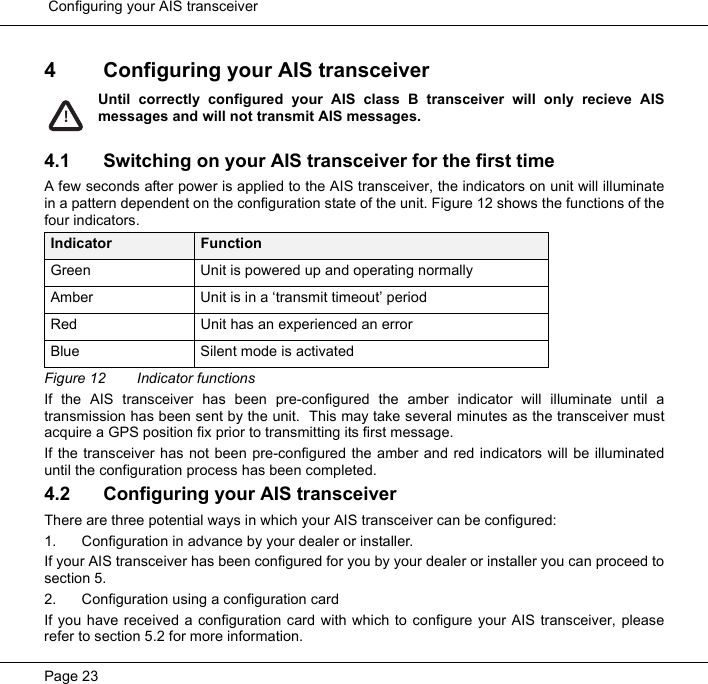

Configuring your AIS transceiverPage 234 Configuring your AIS transceiverUntil correctly configured your AIS class B transceiver will only recieve AISmessages and will not transmit AIS messages. 4.1 Switching on your AIS transceiver for the first timeA few seconds after power is applied to the AIS transceiver, the indicators on unit will illuminatein a pattern dependent on the configuration state of the unit. Figure 12 shows the functions of thefour indicators. Figure 12 Indicator functionsIf the AIS transceiver has been pre-configured the amber indicator will illuminate until atransmission has been sent by the unit. This may take several minutes as the transceiver mustacquire a GPS position fix prior to transmitting its first message. If the transceiver has not been pre-configured the amber and red indicators will be illuminateduntil the configuration process has been completed.4.2 Configuring your AIS transceiverThere are three potential ways in which your AIS transceiver can be configured:1. Configuration in advance by your dealer or installer.If your AIS transceiver has been configured for you by your dealer or installer you can proceed tosection 5. 2. Configuration using a configuration cardIf you have received a configuration card with which to configure your AIS transceiver, pleaserefer to section 5.2 for more information. Indicator FunctionGreen Unit is powered up and operating normallyAmber Unit is in a ‘transmit timeout’ periodRed Unit has an experienced an errorBlue Silent mode is activated!

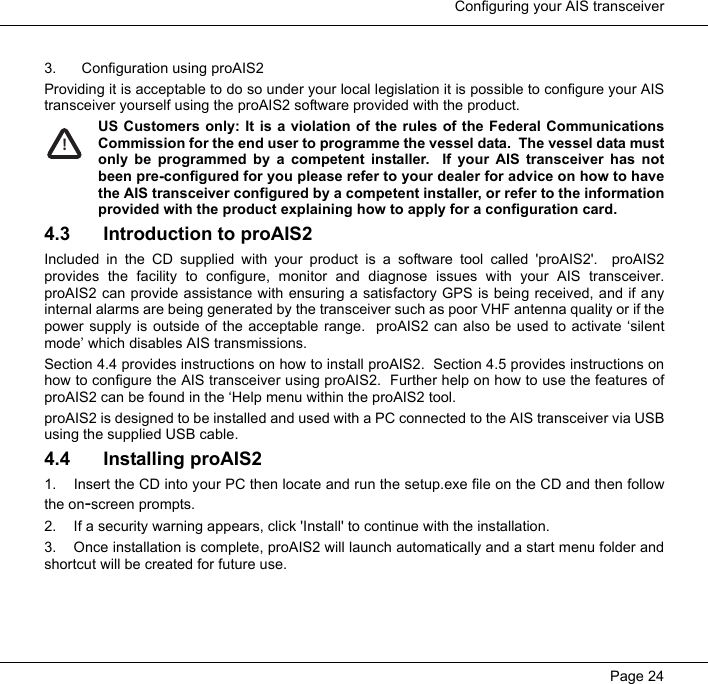

Configuring your AIS transceiverPage 243. Configuration using proAIS2Providing it is acceptable to do so under your local legislation it is possible to configure your AIStransceiver yourself using the proAIS2 software provided with the product. US Customers only: It is a violation of the rules of the Federal CommunicationsCommission for the end user to programme the vessel data. The vessel data mustonly be programmed by a competent installer. If your AIS transceiver has notbeen pre-configured for you please refer to your dealer for advice on how to havethe AIS transceiver configured by a competent installer, or refer to the informationprovided with the product explaining how to apply for a configuration card. 4.3 Introduction to proAIS2Included in the CD supplied with your product is a software tool called 'proAIS2'. proAIS2provides the facility to configure, monitor and diagnose issues with your AIS transceiver.proAIS2 can provide assistance with ensuring a satisfactory GPS is being received, and if anyinternal alarms are being generated by the transceiver such as poor VHF antenna quality or if thepower supply is outside of the acceptable range. proAIS2 can also be used to activate ‘silentmode’ which disables AIS transmissions. Section 4.4 provides instructions on how to install proAIS2. Section 4.5 provides instructions onhow to configure the AIS transceiver using proAIS2. Further help on how to use the features ofproAIS2 can be found in the ‘Help menu within the proAIS2 tool. proAIS2 is designed to be installed and used with a PC connected to the AIS transceiver via USBusing the supplied USB cable.4.4 Installing proAIS21. Insert the CD into your PC then locate and run the setup.exe file on the CD and then followthe on-screen prompts.2. If a security warning appears, click 'Install' to continue with the installation. 3. Once installation is complete, proAIS2 will launch automatically and a start menu folder andshortcut will be created for future use. !

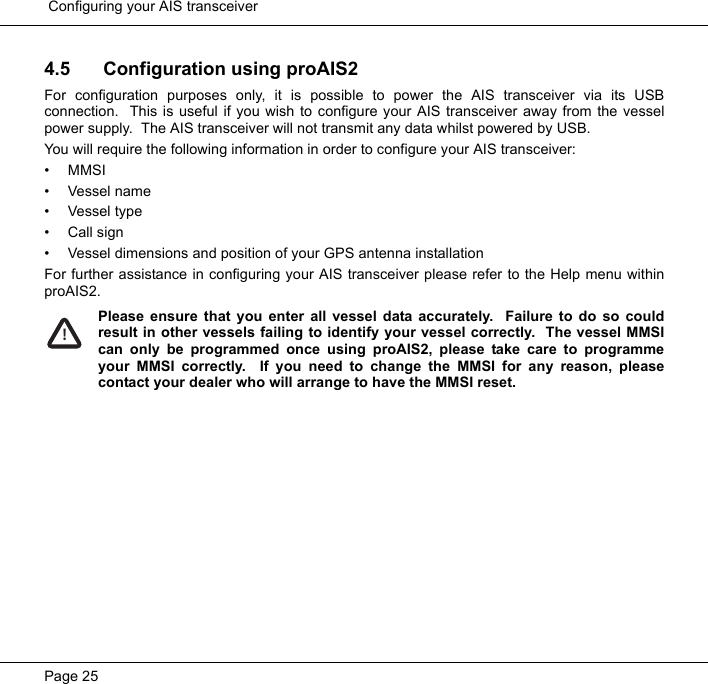

Configuring your AIS transceiverPage 254.5 Configuration using proAIS2For configuration purposes only, it is possible to power the AIS transceiver via its USBconnection. This is useful if you wish to configure your AIS transceiver away from the vesselpower supply. The AIS transceiver will not transmit any data whilst powered by USB. You will require the following information in order to configure your AIS transceiver:• MMSI•Vessel name• Vessel type• Call sign• Vessel dimensions and position of your GPS antenna installationFor further assistance in configuring your AIS transceiver please refer to the Help menu withinproAIS2. Please ensure that you enter all vessel data accurately. Failure to do so couldresult in other vessels failing to identify your vessel correctly. The vessel MMSIcan only be programmed once using proAIS2, please take care to programmeyour MMSI correctly. If you need to change the MMSI for any reason, pleasecontact your dealer who will arrange to have the MMSI reset. !

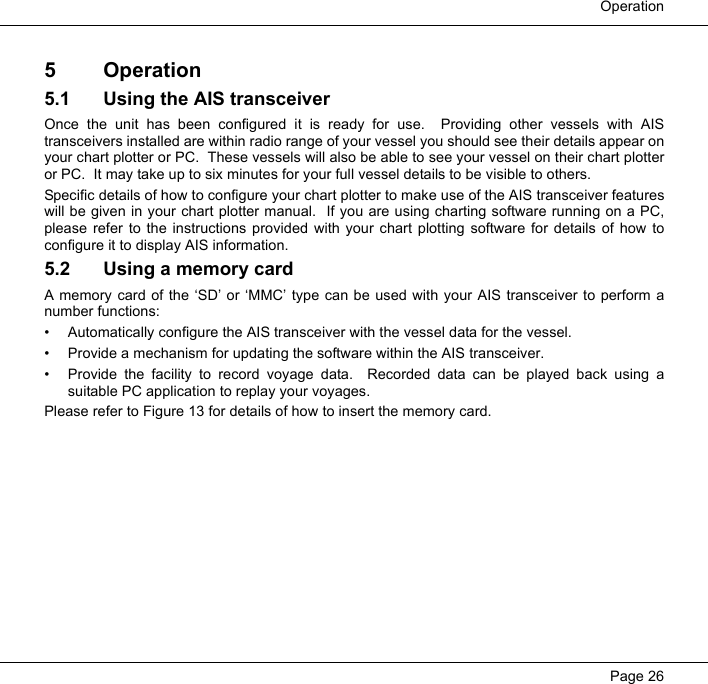

OperationPage 265 Operation5.1 Using the AIS transceiverOnce the unit has been configured it is ready for use. Providing other vessels with AIStransceivers installed are within radio range of your vessel you should see their details appear onyour chart plotter or PC. These vessels will also be able to see your vessel on their chart plotteror PC. It may take up to six minutes for your full vessel details to be visible to others. Specific details of how to configure your chart plotter to make use of the AIS transceiver featureswill be given in your chart plotter manual. If you are using charting software running on a PC,please refer to the instructions provided with your chart plotting software for details of how toconfigure it to display AIS information. 5.2 Using a memory cardA memory card of the ‘SD’ or ‘MMC’ type can be used with your AIS transceiver to perform anumber functions:• Automatically configure the AIS transceiver with the vessel data for the vessel.• Provide a mechanism for updating the software within the AIS transceiver.• Provide the facility to record voyage data. Recorded data can be played back using asuitable PC application to replay your voyages.Please refer to Figure 13 for details of how to insert the memory card.

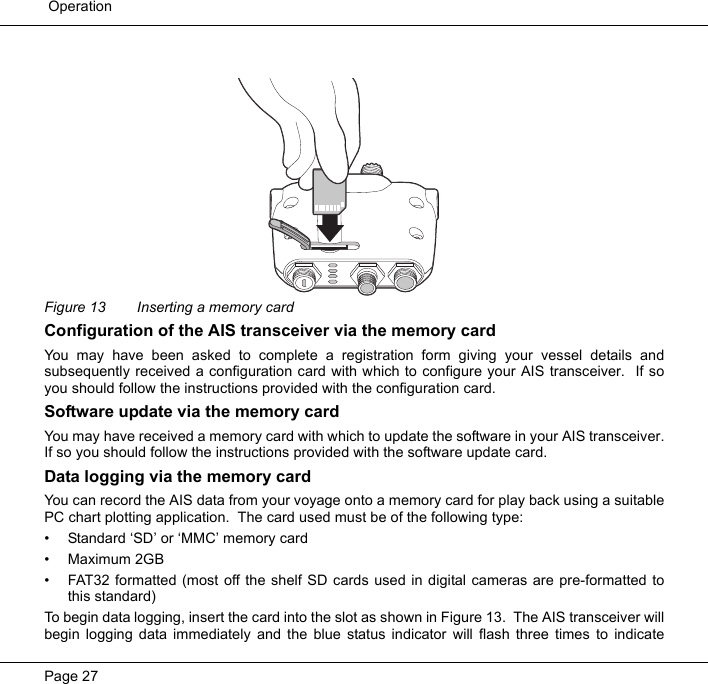

OperationPage 27Figure 13 Inserting a memory cardConfiguration of the AIS transceiver via the memory cardYou may have been asked to complete a registration form giving your vessel details andsubsequently received a configuration card with which to configure your AIS transceiver. If soyou should follow the instructions provided with the configuration card. Software update via the memory cardYou may have received a memory card with which to update the software in your AIS transceiver.If so you should follow the instructions provided with the software update card. Data logging via the memory cardYou can record the AIS data from your voyage onto a memory card for play back using a suitablePC chart plotting application. The card used must be of the following type:• Standard ‘SD’ or ‘MMC’ memory card• Maximum 2GB• FAT32 formatted (most off the shelf SD cards used in digital cameras are pre-formatted tothis standard)To begin data logging, insert the card into the slot as shown in Figure 13. The AIS transceiver willbegin logging data immediately and the blue status indicator will flash three times to indicate

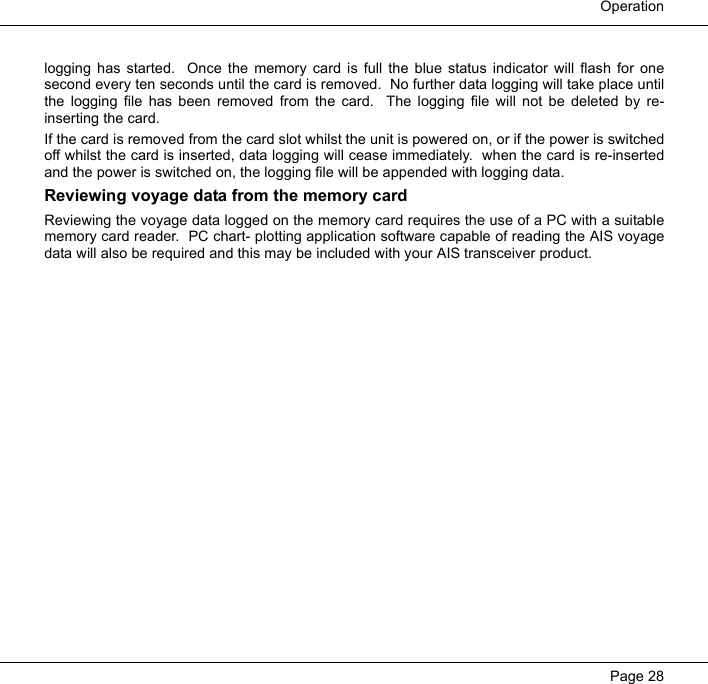

OperationPage 28logging has started. Once the memory card is full the blue status indicator will flash for onesecond every ten seconds until the card is removed. No further data logging will take place untilthe logging file has been removed from the card. The logging file will not be deleted by re-inserting the card. If the card is removed from the card slot whilst the unit is powered on, or if the power is switchedoff whilst the card is inserted, data logging will cease immediately. when the card is re-insertedand the power is switched on, the logging file will be appended with logging data. Reviewing voyage data from the memory cardReviewing the voyage data logged on the memory card requires the use of a PC with a suitablememory card reader. PC chart- plotting application software capable of reading the AIS voyagedata will also be required and this may be included with your AIS transceiver product.

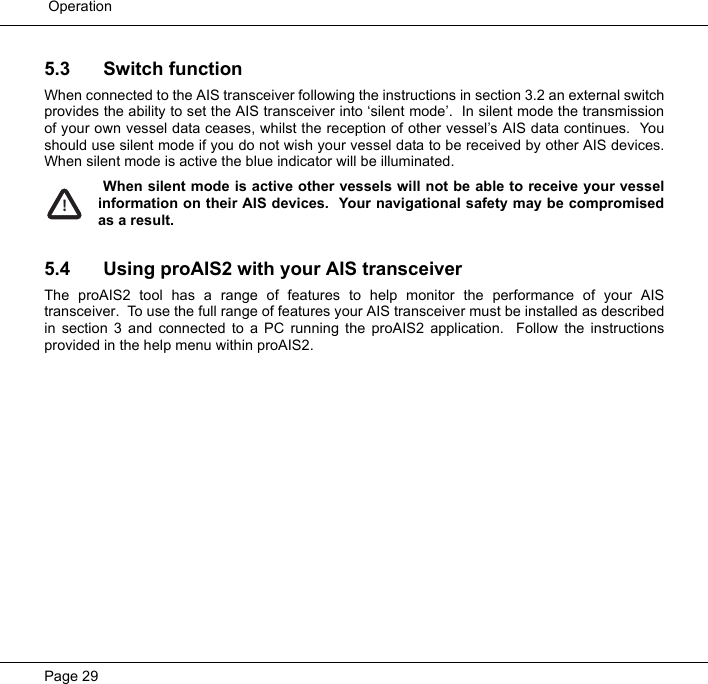

OperationPage 295.3 Switch functionWhen connected to the AIS transceiver following the instructions in section 3.2 an external switchprovides the ability to set the AIS transceiver into ‘silent mode’. In silent mode the transmissionof your own vessel data ceases, whilst the reception of other vessel’s AIS data continues. Youshould use silent mode if you do not wish your vessel data to be received by other AIS devices.When silent mode is active the blue indicator will be illuminated. When silent mode is active other vessels will not be able to receive your vesselinformation on their AIS devices. Your navigational safety may be compromisedas a result. 5.4 Using proAIS2 with your AIS transceiverThe proAIS2 tool has a range of features to help monitor the performance of your AIStransceiver. To use the full range of features your AIS transceiver must be installed as describedin section 3 and connected to a PC running the proAIS2 application. Follow the instructionsprovided in the help menu within proAIS2. !

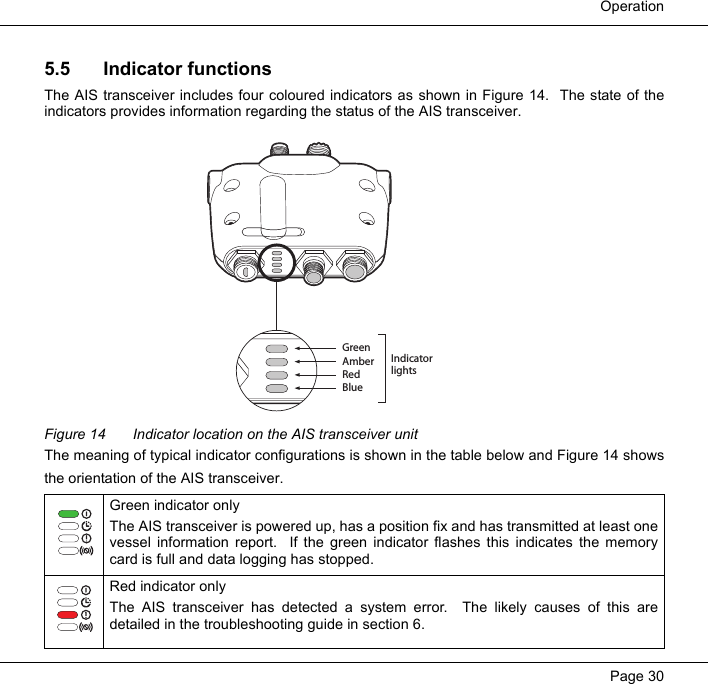

OperationPage 305.5 Indicator functionsThe AIS transceiver includes four coloured indicators as shown in Figure 14. The state of theindicators provides information regarding the status of the AIS transceiver. Figure 14 Indicator location on the AIS transceiver unitThe meaning of typical indicator configurations is shown in the table below and Figure 14 showsthe orientation of the AIS transceiver. Green indicator onlyThe AIS transceiver is powered up, has a position fix and has transmitted at least onevessel information report. If the green indicator flashes this indicates the memorycard is full and data logging has stopped. Red indicator onlyThe AIS transceiver has detected a system error. The likely causes of this aredetailed in the troubleshooting guide in section 6.GreenAmberRedBlueIndicatorlights

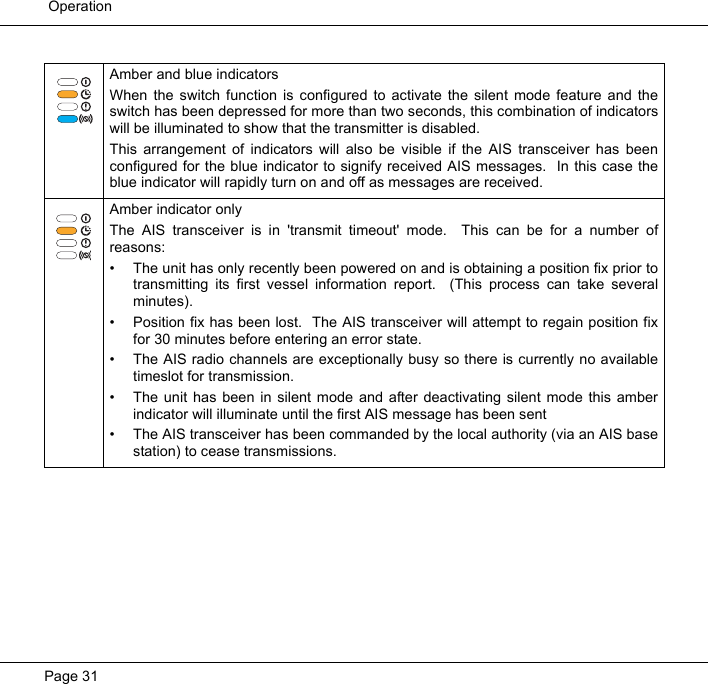

OperationPage 31Amber and blue indicatorsWhen the switch function is configured to activate the silent mode feature and theswitch has been depressed for more than two seconds, this combination of indicatorswill be illuminated to show that the transmitter is disabled. This arrangement of indicators will also be visible if the AIS transceiver has beenconfigured for the blue indicator to signify received AIS messages. In this case theblue indicator will rapidly turn on and off as messages are received. Amber indicator onlyThe AIS transceiver is in 'transmit timeout' mode. This can be for a number ofreasons: • The unit has only recently been powered on and is obtaining a position fix prior totransmitting its first vessel information report. (This process can take severalminutes).• Position fix has been lost. The AIS transceiver will attempt to regain position fixfor 30 minutes before entering an error state. • The AIS radio channels are exceptionally busy so there is currently no availabletimeslot for transmission. • The unit has been in silent mode and after deactivating silent mode this amberindicator will illuminate until the first AIS message has been sent• The AIS transceiver has been commanded by the local authority (via an AIS basestation) to cease transmissions.

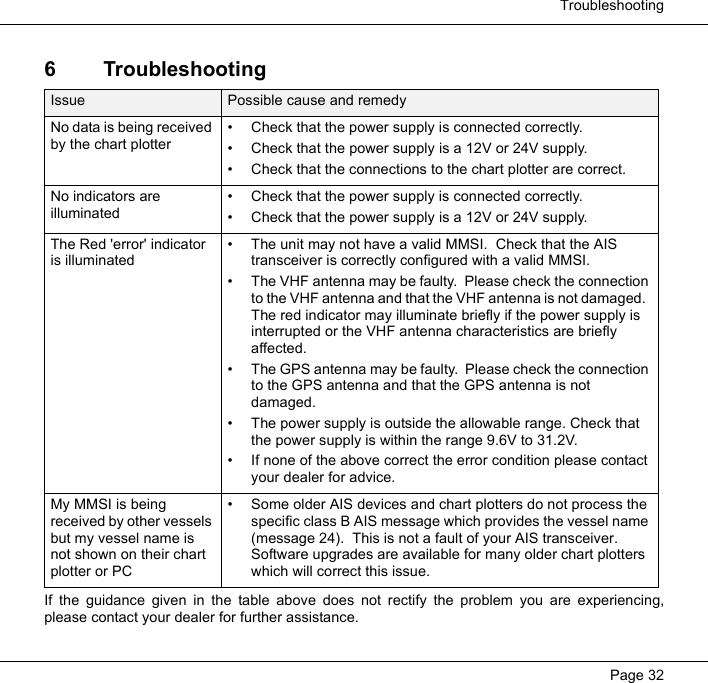

TroubleshootingPage 326 TroubleshootingIf the guidance given in the table above does not rectify the problem you are experiencing,please contact your dealer for further assistance. Issue Possible cause and remedyNo data is being received by the chart plotter• Check that the power supply is connected correctly. • Check that the power supply is a 12V or 24V supply. • Check that the connections to the chart plotter are correct. No indicators are illuminated• Check that the power supply is connected correctly. • Check that the power supply is a 12V or 24V supply. The Red 'error' indicator is illuminated• The unit may not have a valid MMSI. Check that the AIS transceiver is correctly configured with a valid MMSI. • The VHF antenna may be faulty. Please check the connection to the VHF antenna and that the VHF antenna is not damaged. The red indicator may illuminate briefly if the power supply is interrupted or the VHF antenna characteristics are briefly affected. • The GPS antenna may be faulty. Please check the connection to the GPS antenna and that the GPS antenna is not damaged. • The power supply is outside the allowable range. Check that the power supply is within the range 9.6V to 31.2V. • If none of the above correct the error condition please contact your dealer for advice. My MMSI is being received by other vessels but my vessel name is not shown on their chart plotter or PC• Some older AIS devices and chart plotters do not process the specific class B AIS message which provides the vessel name (message 24). This is not a fault of your AIS transceiver. Software upgrades are available for many older chart plotters which will correct this issue.

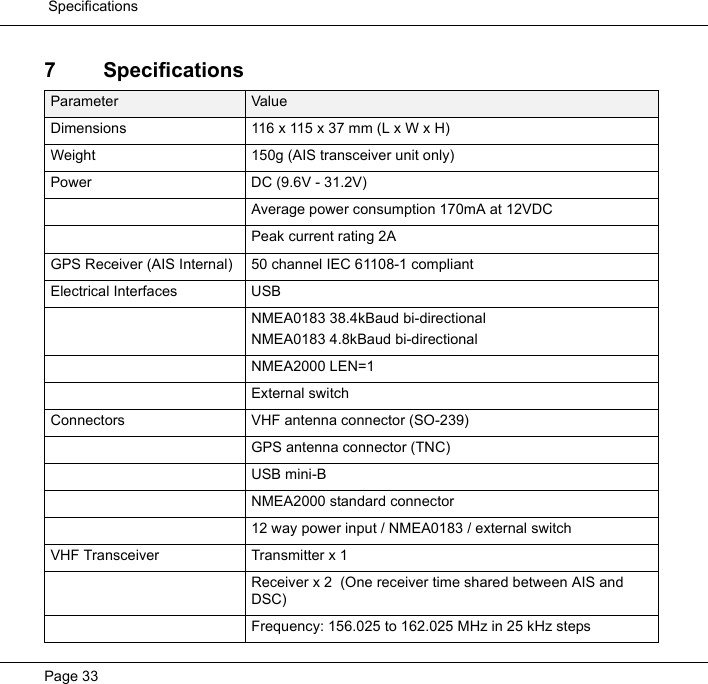

SpecificationsPage 337 SpecificationsParameter ValueDimensions 116 x 115 x 37 mm (L x W x H)Weight 150g (AIS transceiver unit only)Power DC (9.6V - 31.2V)Average power consumption 170mA at 12VDCPeak current rating 2AGPS Receiver (AIS Internal) 50 channel IEC 61108-1 compliantElectrical Interfaces USBNMEA0183 38.4kBaud bi-directionalNMEA0183 4.8kBaud bi-directionalNMEA2000 LEN=1External switchConnectors VHF antenna connector (SO-239)GPS antenna connector (TNC)USB mini-BNMEA2000 standard connector12 way power input / NMEA0183 / external switch VHF Transceiver Transmitter x 1Receiver x 2 (One receiver time shared between AIS and DSC)Frequency: 156.025 to 162.025 MHz in 25 kHz steps

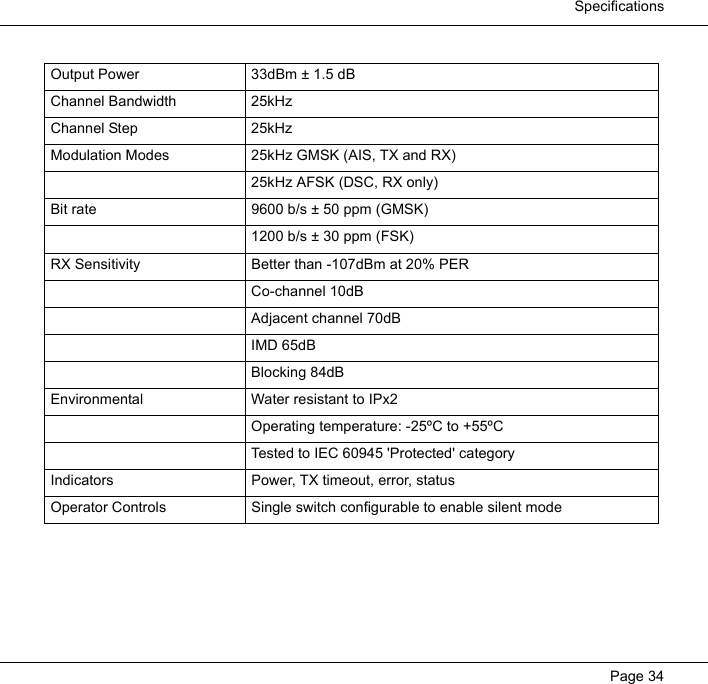

SpecificationsPage 34Output Power 33dBm ± 1.5 dBChannel Bandwidth 25kHzChannel Step 25kHzModulation Modes 25kHz GMSK (AIS, TX and RX)25kHz AFSK (DSC, RX only)Bit rate 9600 b/s ± 50 ppm (GMSK)1200 b/s ± 30 ppm (FSK)RX Sensitivity Better than -107dBm at 20% PERCo-channel 10dBAdjacent channel 70dBIMD 65dBBlocking 84dBEnvironmental Water resistant to IPx2 Operating temperature: -25ºC to +55ºCTested to IEC 60945 'Protected' categoryIndicators Power, TX timeout, error, statusOperator Controls Single switch configurable to enable silent mode
SpecificationsPage 35
