Users manual



1/19



Enjoy your hands-free communications



UserManual

For

N/A

SEED



2/19



FCC ID: 2ALXX-SEED

1. WELCOME

ThankyouforusingthiswirelessHeadset.We

hopeyouwillenjoyit!



FEATURES

 Voiceguidance

 Batteryandpairingstatusdisplay

 HDVoice

 Longtalktime–Upto7hours

 PowerNapfeature

 Wirelessfreedom‐Upto10m/33ft

 Paringrightafterpoweron

 Voiceassistantfunction&Sirisupported



3/19



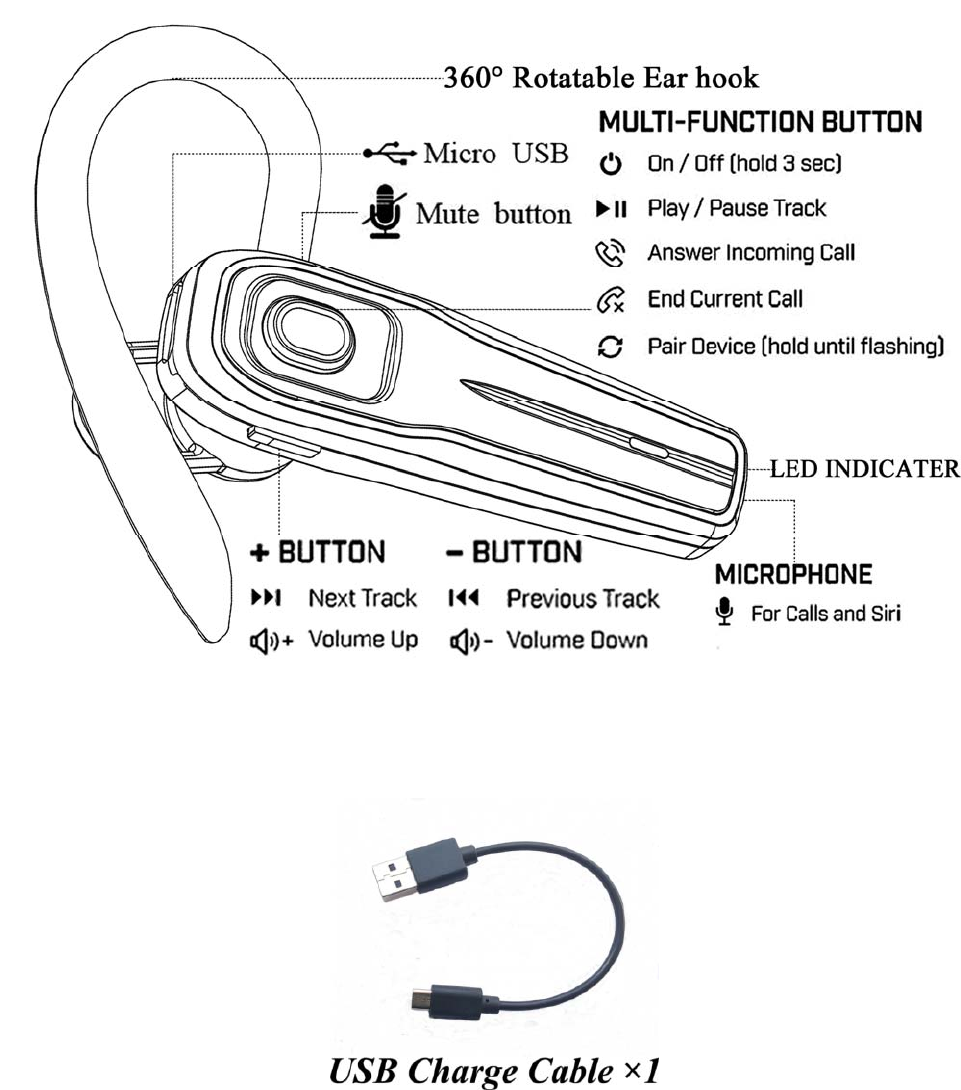

2. HEADSETOVERVIEW



4/19



3. HOWTOWEAR

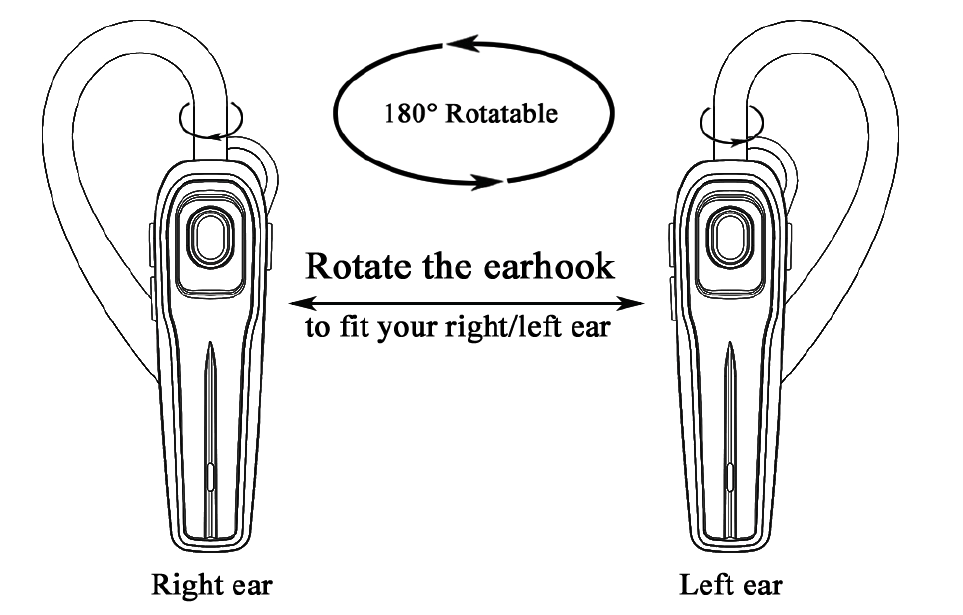

3.1WornonLeftorRightEar

Theheadsetcanbewornontheleftorright

ear.Toswitchear:

1. Rotatetheearhook180°

2. Twistitaroundsotheeartipisonthe

otherside

3. Lowertheearhook



5/19



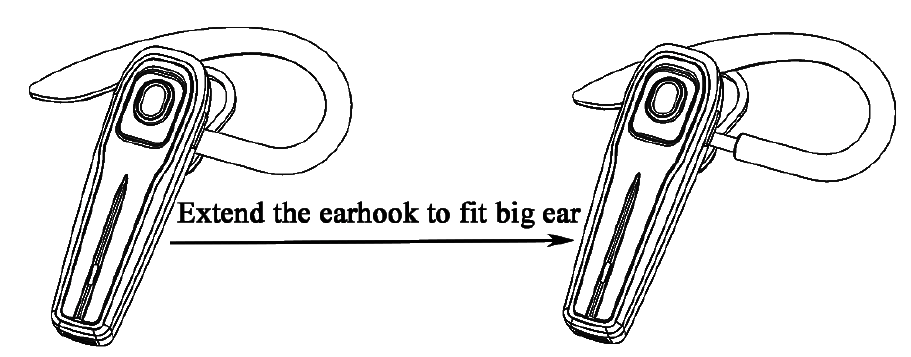

3.2Adjusttheearhook

1.Lengthentheearhook,tofitbigears

2.Retracttheearhook,tofitsmallears.



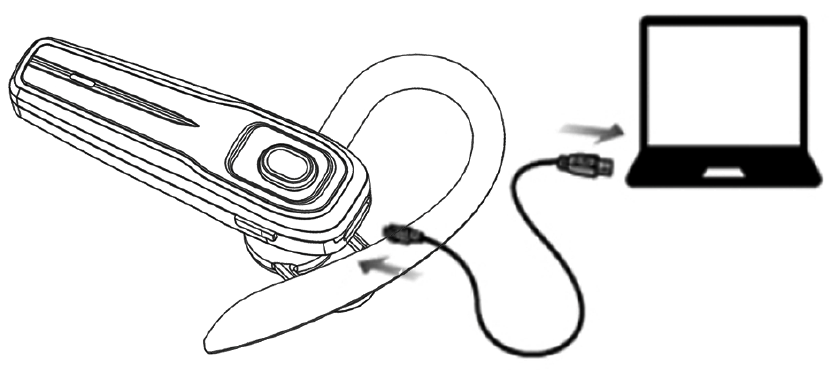

4. HOWTOCHARGETHEBATTERY

PlugtheheadsetintoanyavailableUSBport

onyourPCusingtheUSBcable.



6/19





NOTE1:Forsafetyreasons,wedesignedthis

headsettobenotfunctionalwhileitisunder

charging.

NOTE2:Iftheoutputofyourchargerforthis

headsetishigherthan5V,itwilldamageyour

headsetpotentially.Youmustusestandard

charger(5Vorlower)foryourheadset.

Ittakesapprox.2hourstofullychargethe

battery.



7/19



5. HOWTOCONNECT

5.1GetPaired

Thefirsttimeyoupoweronyourheadset,it

beginsthepairingprocess.



1. Wearingyourheadset,pressthe“MFB”

buttonfor2seconds.Youwillhear“Power

ON”andtheheadsetindicatorlightsflash

redandblue.



8/19



2. Theindicatorlightswillflashbluewhen

yourheadsetgetpairedsuccessfully;butif

theheadsetfailuretomatchwithin3min,it

willpoweroffautomatically.

3. ActivateBluetooth®onyourphoneandset

ittosearchfornewdevices.

•iPhone®Settings>Bluetooth>On*

•Android™>Bluetooth:On>Scanfor

devices*

NOTE*Menusmayvarybydevice.

4. Select“SpoonB1”

Ifnecessary,enterfourzeros(0000)for

thepasscodeoraccepttheconnection.

Oncesuccessfullypaired,youhear

“connected”andtheheadsetindicatorlights

stopflashing.

NOTE*Theheadsetpowersoffautomatically

after3minwithoutpairedtophones.



9/19



5.2Pairanotherphone

Afterpairingyourheadsettoyourphoneyou

maywanttopairanotherornewphone.

DeactivateBluetooth®onyourfirstphone.

1.Tapandholdthe“MFB”buttonfor6secs.

Theheadsetindicatorlightsflashredand

turnoff.

2.Tapandholdthe“MFB”buttonfor2secs,

theheadsetindicatorlightsflashredand

blue.

3.ActivateBluetooth®onyouranother

phoneandsetittosearchfornewdevices.

4.Select“SpoonB1”

Ifnecessary,enterfourzeros(0000)for

thepasscodeoraccepttheconnection.Once

successfullypaired,theheadsetindicatorlights

stopflashingandyouwillhear“Connected”.

5.ActivateBluetooth®onyourfirstphone.



10/19



6. Tapandholdthe“MFB”buttonfor6secs

topowerofftheheadset.

7. Tapandholdthe“MFB”buttonfor2secs

topowerontheheadset,thenyoucanget

twophonesautomaticallyconnectwith

yourphone.

NOTE:IfyourPCdoesnotsupportBluetooth

functionorremindyouneeddriver,youneed

touseanexternalBluetoothUSBAdapter.



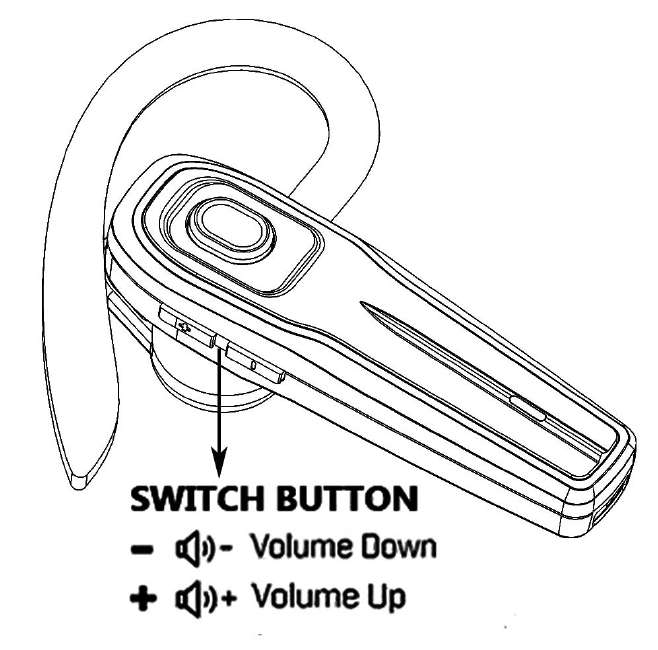

6. HOWTOADJUSTVOLUME



11/19





DuringMusicplayingorvoicecalls,shortly

tapthebutton“+”or“‐”canadjustvoice

volume.

 Shortlytap“+”buttonforonce,

volumewillincreasealittle,tap

continuallycangetthevolume

increasedcontinually,yougetthe

highestvoicewhenyouheara“BIP”.

 Shortlytap“‐”buttonforonce,



12/19



volumewilldecreasealittle,tapcontinually

cangetthevolumedecreasecontinually,you

getthelowestvoicewhenyouheara“BIP”.

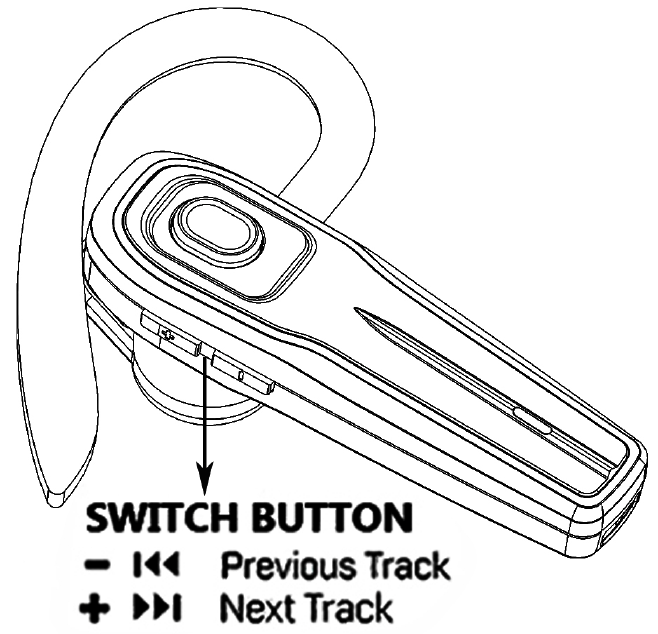

7. HOWTOSWITCHSONGS



DuringMusicPlaying,tapandholdthe

Volumebuttoncanswitchforward/backward

songs.

 Tapthevolumebutton“‐”



13/19



andholdfor4secs,youwillheara“BIP”and

thenforwardtonextsong.

 Tapthevolumebutton“+”andhold

for4secs,youwillheara“BIP”and

thenbackwardtoprevioussong.



8.HOWTOMUTEDURINGCALL

Duringphonecalls,clickthemutebutton

canenable/disablemutefunction.

 Clickthemutebuttonyouwillget

voiceprompt“muteon”,voice“mute”will

promptevery2minuteswhenkeepinmute

state.

 Clickagainthemutebuttonyouwill

getvoiceprompt“muteoff”means

unmuted.



14/19



10.USERGUIDESUMMARY



FUNCTIONSTEP

PowerOn/PairPressandholdthe“MFB”for2secs

PoweroffPressandholdthe“MFB”for6secs



AnswerCallClicktheMultifunctionbutton

Siri



15/19



EndCallClicktheMultifunctionbutton

RejectcallPressandholdtheMultifunction

buttonfor3secs

Activatevoice

dialing(phone

dependent)

RefertoSection9.

Rediallast

number

Double‐clicktheMultifunction

button

Adjustthe

volume

Refertosection6

Playorpause

streaming

audio

ClicktheMultifunctionbutton

Playnextorback

streamingaudio

Refertosection7

Restoreto

factorysettings

PressandholdtheMultifunction

buttonfor3secswhencharging.





16/19



11. Q&A

QWhydoIhavecracklingnoise?

ABluetoothisaradiotechnologythatis

sensitivetoobjectsbetweentheheadsetand

theconnecteddevice.Ensuretheheadset

andtheconnecteddevicearewithinrange

(upto10metersor33feet).

QWhatistherangeoftheheadset?

AThisBluetoothHeadsetsupportsthe

followingmaximumranges:10m/33ft.

QWhycan’tIhearanything?

AYoumightneedtoincreasethespeaker

volume,orensurethattheheadsetis

connectedtoadevice.

QWhycouldn’tmyheadsetconnectwith

thedevice?



17/19



ACheckyourdevice’sBluetoothmenuand

delete/forgettheheadset.Re‐connectthe

headsettoyourBluetoothdevicefollowing

theBluetoothconnection

instructions(Section5).

QHowtotakecareofmyheadset?

ARecommendtopowerofftheheadset

andputitinstoragecasewhennotuse.

Avoidstorageatextremetemperatures

(above35°C/95°Forbelow‐20°C/‐4°F).Itwill

shortenbatterylifeandmayaffectheadset

operation.

Donotexposetheheadsettorainorother

liquids.

12. TECHNICALSPECIFICATIONS



18/19



WirelessHeadsetSPECIFICATION

Weight:0.56ounces

Dimensions:3.15*1.96*0.69inches

Microphones:Omni‐directionalmic

Speaker:Dynamicspeaker

Operatingrange:10m(33ft)

Bluetoothversion:4.1

Paireddevices:1to2atthesametime

SupportedBluetooth

profiles:

A2DP(v1.2),HandsFree

Profile(v1.6),Headset

profile(v1.2)

Talktime:Upto6hours

DataEncryption:128bitsencrypted

Standbytime:Upto120hours

Operatingtemperature:‐10°Cto55°C(14°Fto131°F)

Storagetemperature:‐20°Cto35°C(‐4Fto95F)

PairingpasskeyorPIN:0000



19/19



FCC Requirement

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The d

evice can be used in portable exposure condition without restriction.

FCC ID: 2ALXX-SEED
