Manual
5015 B.U. Bowman Drive Buford, GA 30518 USA
Certification Exhibit
FCC ID: X32-NSHKG020
IC: 8797A-NSHKG020
FCC Rule Part: 15.231
ISED Canada Radio Standards Specification: RSS-210
Project Number: 72128703
Manufacturer: iKeyless, LLC
Model: NSHKL-G02X
Manual
User Manual Draft for
NSHKL-G02X
Doug Robertson
2017/11/14
11/14/2017 iKeyless Confidential 1
iKeyless
P/N
NSHKL
-G020
NSHKL
-G021
Description
3 button Nissan RHK, no
manual or packaging
4 button Nissan RHK, no
manual or packaging
11/14/2017 iKeyless Confidential 2
Compatibility List
11/14/2017 iKeyless Confidential 3
Model
Model Year Range
Nissan Rogue
2008
-2015
Nissan Versa
2011
-2017
Nissan Sentra
2007
-2017
Nissan Juke
2011
-2014
Nissan Cube
2009
-2014
Nissan Note
2014
-2016
Nissan NV
2013
-2017
Nissan Frontier
2004
-2016
Nissan Titan
2012
-2015
Nissan Altima
2005
-2006
Nissan Armada
2004
-2007
Nissan 350Z
2003
-2006
Nissan Maxima
2004
-2006
Nissan Pathfinder
2005
-2013
Nissan Xterra
2006
-2015
Nissan Murano
2006
-2008
Nissan Quest
2004
-2009
Button Functions
11/14/2017 iKeyless Confidential 4
Trunk
Unlock
Lock
Panic
Note: Remotes come in 3 & 4 button versions.
The 3 button version has the Trunk button removed
Transponder Pairing Instructions
Like an original Nissan RK, this product requires a separate procedure
for pairing the transponder and the remote to the vehicle. The
transponder will program exactly like an original key. The remote will
require on-board programming. For help or assistance please contact
technical support at 1-844-KEYS-USA with any questions related to the
remote functions of this key.
11/14/2017 iKeyless Confidential 5
RKE Programming Instructions
PLEASE READ CAREFULLY BEFORE TRYING! IF AT ANY TIME YOU
MAKE A MISTAKE, START AND STOP YOUR CAR, EXIT THE
VEHICLE AND START OVER. THE REMOTE CAN BE ONLY
PROGRAMMED WITH A MASTER KEY
1. SIT IN CAR WITH DOORS AND WINDOWS CLOSED.
2. LOCK DOORS WITH POWER DOOR LOCK SWITCH ON
DRIVER'S DOOR.
3. PUT IN AND PULL OUT KEY FROM IGNITION APPROX. 8
TIMES OR UNTIL YOU SEE THE HAZARD/TURN SIGNAL
LIGHTS FLASH.(older models lights may flash after 4 or 5
times) YOU NEED TO DO THAT IN LESS THEN 10 SEC
4. WHEN HAZARD LIGHTS FLASH (ON 2005 AND NEWER
MODELS THE GAUGE NEEDLES MAY JUMP A LITTLE
INSTEAD) , PUT KEY IN IGNITION AND TURN TO THE ACC
POSITION.(when your hazard lights flash your car is
sending a signal to be received by the remote)
5. PRESS LOCK BUTTON ON THE NEW REMOTE
TRANSMITTER, LIGHTS SHOULD FLASH AGAIN.
IF YOU HAVE 2 REMOTES, 1 NEW AND 1 OLD OR 2 NEW ONES,
PLEASE CONTINUE WITH STEPS 6 AND 7. IF NOT, SKIP TO END.
6. PRESS UNLOCK BUTTON ON DRIVER'S DOOR, THEN LOCK
BUTTON ON DRIVERS DOOR, LIGHTS WILL AGAIN FLASH
7. PRESS LOCK BUTTON ON 2ND NEW OR OLD REMOTE.
LIGHTS AGAIN WILL FLASH.
YOU ARE DONE. EXIT VEHICLE AND TRY YOUR REMOTE. IT WILL
NOT WORK FROM INSIDE CAR OR WITH KEY IN IGNITION.
Note: if your hazard lights flash after inserting your key in and
out, but you can't get the remote to program, you may have a
dead battery or the wrong remote. If instructions do not work,
do it again but when you get in - shut the door, buckle seat belt
and lock doors, then proceed to putting key in ignition
11/14/2017 iKeyless Confidential 6

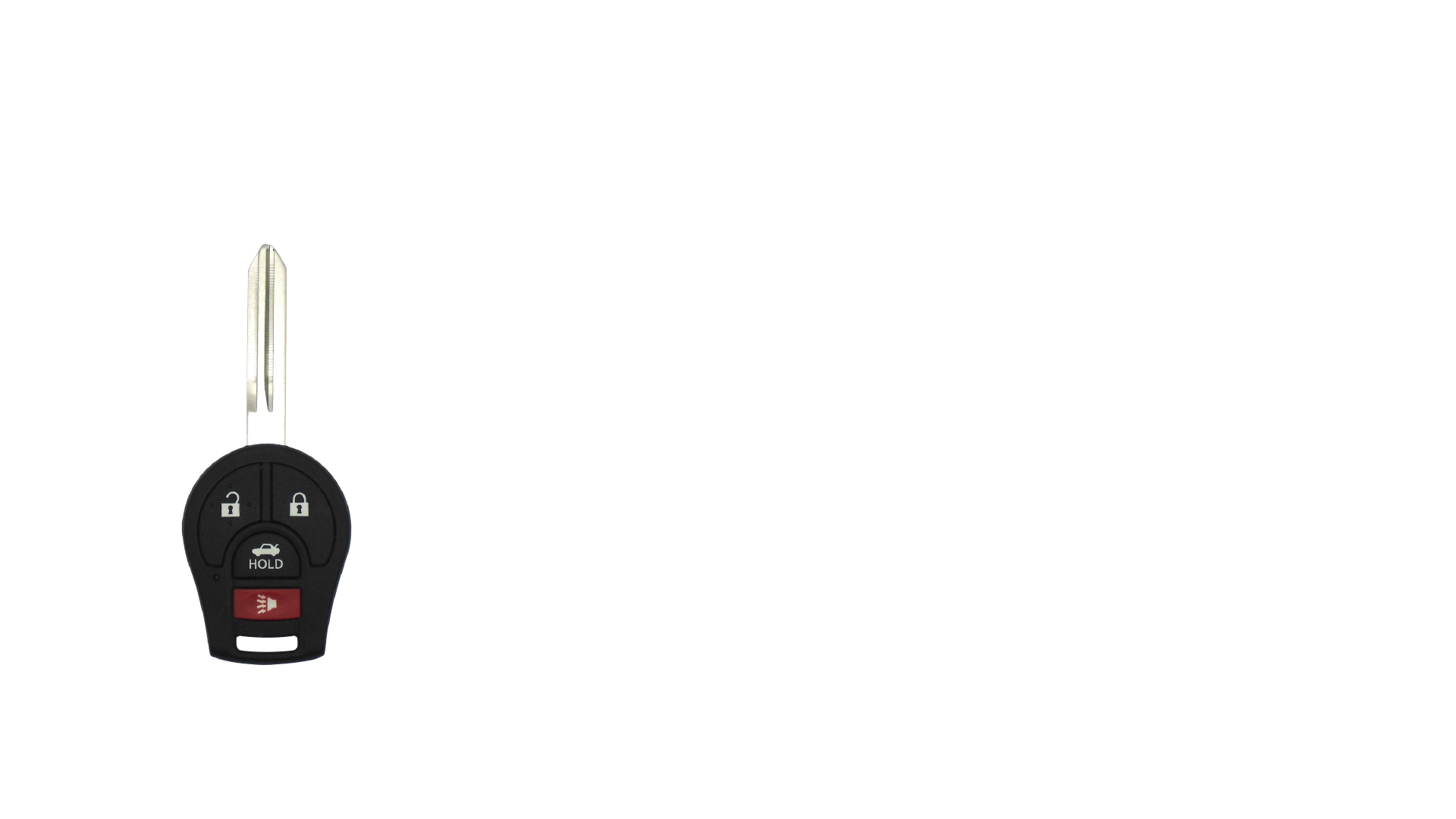

Using the Remote
11/14/2017 iKeyless Confidential 7
After completing the pairing and programming instructions,
make sure you are within range of the vehicle before using
remote.
•Press Lock to lock all doors
•Press Unlock to unlock the driver's door
•Press Unlock again within 2 seconds to unlock all doors
•Press and hold the Trunk button for longer than 0.5 seconds
to open trunk
•Press the Panic button to sound alarm
•Press any button to disable alarm
Note: The exact behavior in response to each button press
may vary depending on the vehicle. Consult the vehicle manual
for more information.
Replacing Battery
11/14/2017 iKeyless Confidential 8
11/14/2017 iKeyless Confidential 9

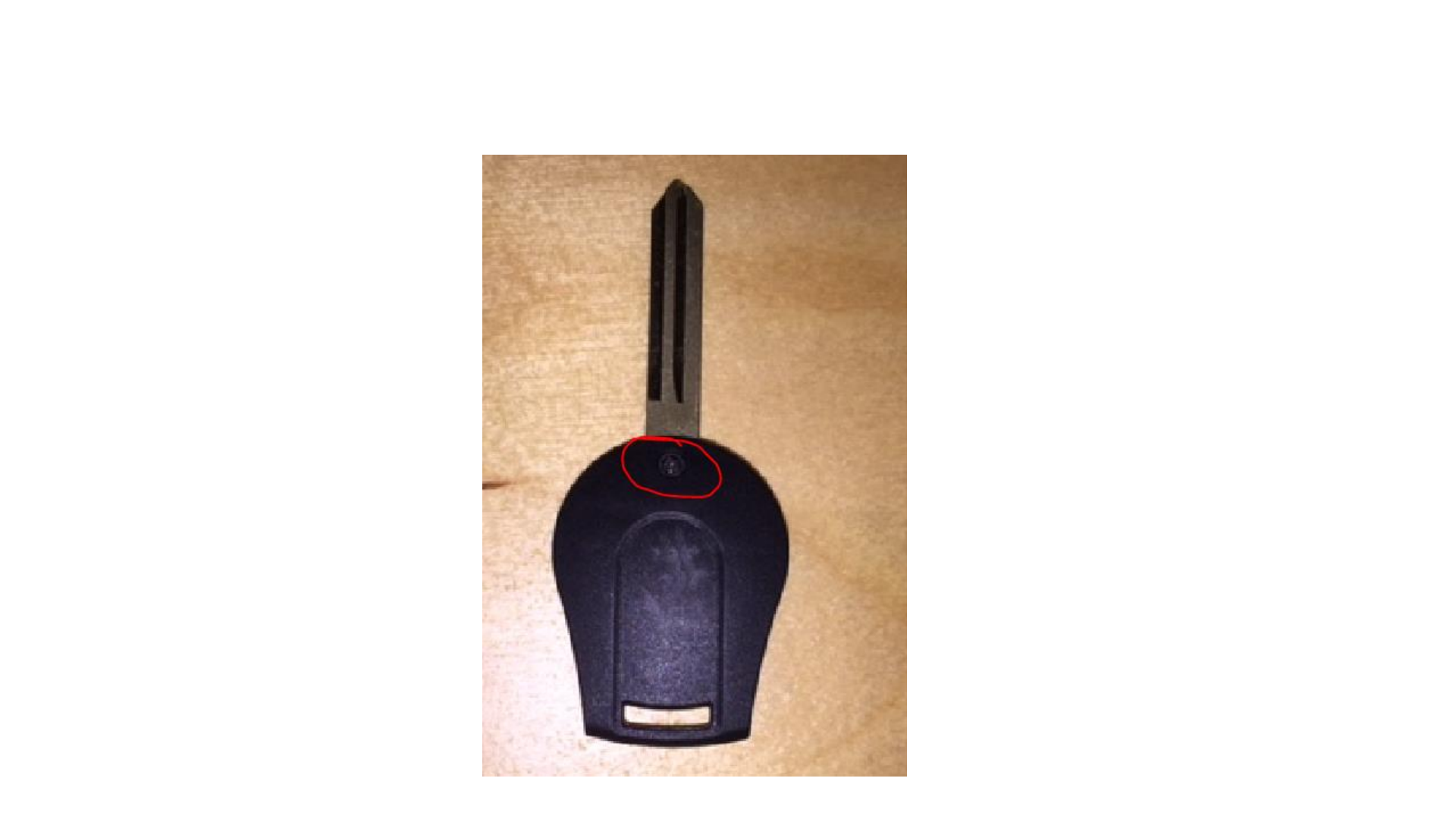

Remove small Phillips Screw
11/14/2017 iKeyless Confidential 10

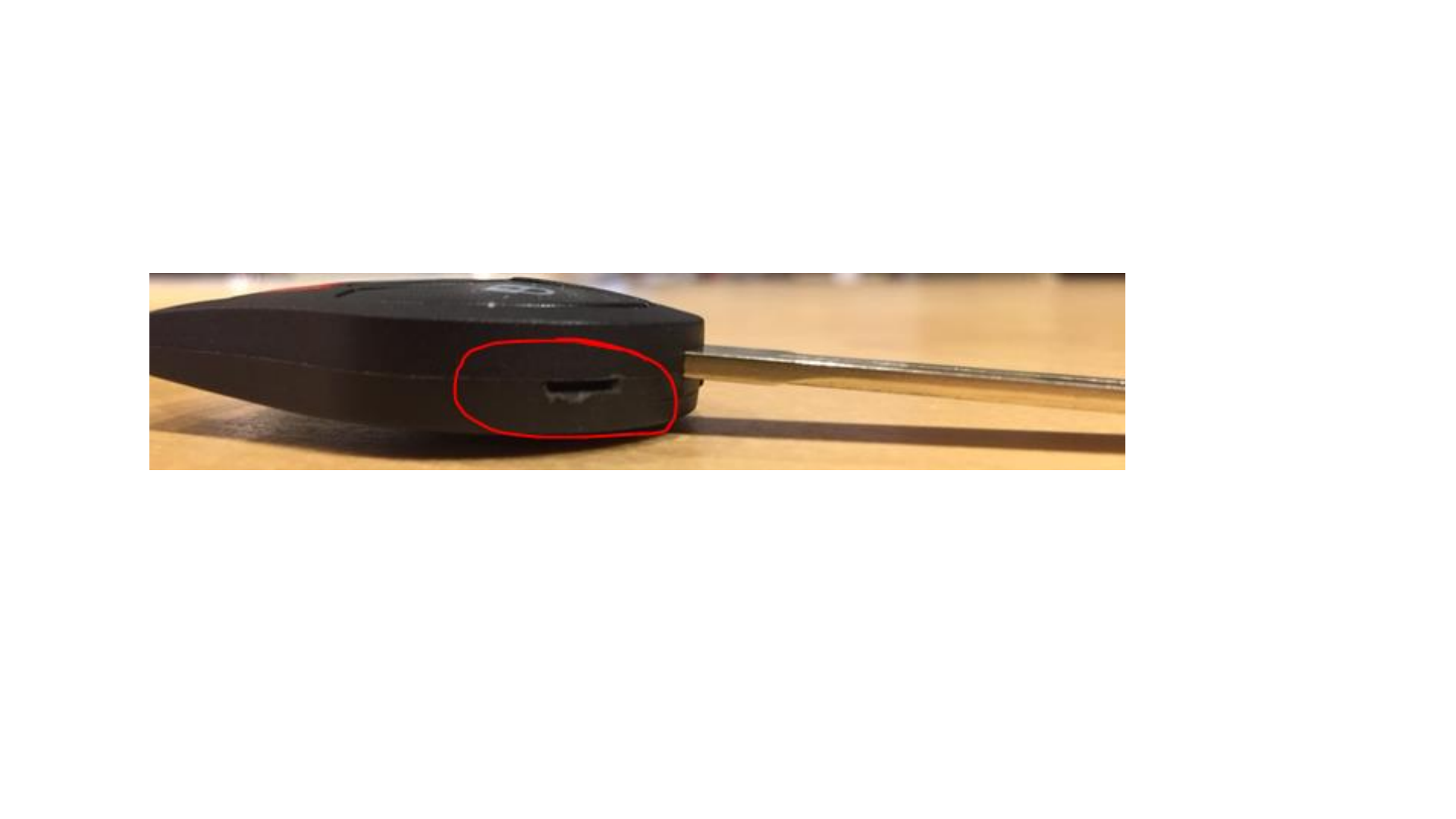

Pry open at slot on side
11/14/2017 iKeyless Confidential 11

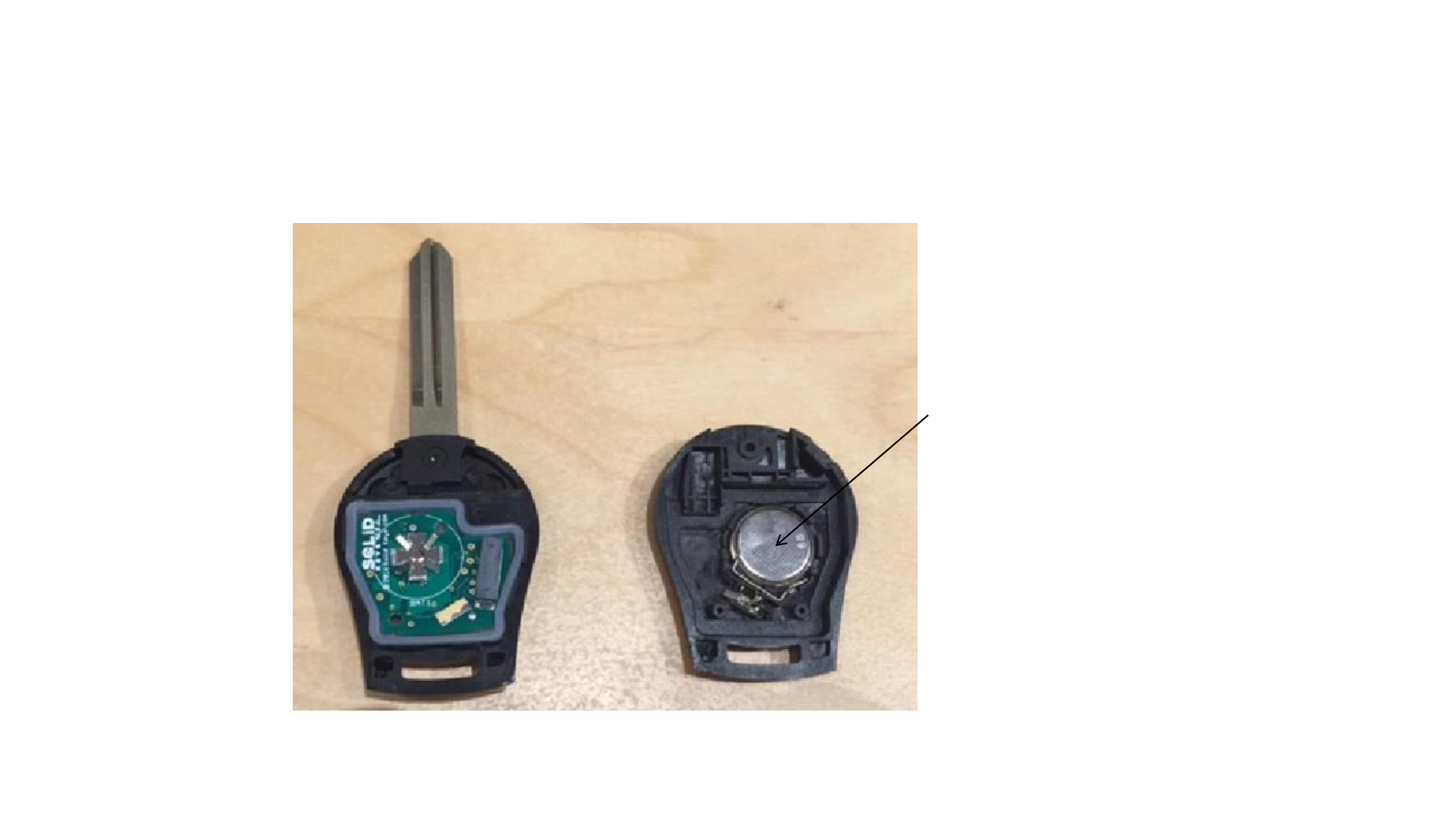

Replace battery, keep same orientation
of +/-
Negative Side Up,
Positive side Down
11/14/2017 iKeyless Confidential 12
Reverse steps to reassemble
Regulatory Statements
FCC Regulatory Statement
MODEL: NSHKL-G02X
FCCID: X32-NSHKG020
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
ISED Regulatory Statement
MODEL: NSHKL-G02X
IC: 8797A-NSHKG020
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
11/14/2017 iKeyless Confidential 13
Warning: Changes or modifications to this device not expressly approved
by iKeyless LLC could void the user’s authority to operate the equipment.
