Chipset Datasheet
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
2.4-GHz Bluetooth™ low energy and Proprietary System-on-Chip
Check for Samples: CC2541
1FEATURES
23• RF – High-Performance and Low-Power 8051
Microcontroller Core With Code Prefetch
– 2.4-GHz Bluetooth low energy Compliant
and Proprietary RF System-on-Chip – In-System-Programmable Flash, 128- or
256-KB
– Supports 250-kbps, 500-kbps, 1-Mbps, 2-
Mbps Data Rates – 8-KB RAM With Retention in All Power
Modes
– Excellent Link Budget, Enabling Long-
Range Applications Without External Front – Hardware Debug Support
End – Extensive Baseband Automation, Including
– Programmable Output Power up to 0 dBm Auto-Acknowledgment and Address
Decoding
– Excellent Receiver Sensitivity (–94 dBm at
1 Mbps), Selectivity, and Blocking – Retention of All Relevant Registers in All
Performance Power Modes
– Suitable for Systems Targeting Compliance • Peripherals
With Worldwide Radio Frequency – Powerful Five-Channel DMA
Regulations: ETSI EN 300 328 and EN 300 – General-Purpose Timers (One 16-Bit, Two
440 Class 2 (Europe), FCC CFR47 Part 15 8-Bit)
(US), and ARIB STD-T66 (Japan) – IR Generation Circuitry
• Layout – 32-kHz Sleep Timer With Capture
– Few External Components – Accurate Digital RSSI Support
– Reference Design Provided – Battery Monitor and Temperature Sensor
– 6-mm × 6-mm QFN-40 Package – 12-Bit ADC With Eight Channels and
– Pin-Compatible With CC2540 (When Not Configurable Resolution
Using USB or I2C) – AES Security Coprocessor
• Low Power – Two Powerful USARTs With Support for
– Active-Mode RX Down to: 17.9 mA Several Serial Protocols
– Active-Mode TX (0 dBm): 18.2 mA – 23 General-Purpose I/O Pins
– Power Mode 1 (4-µs Wake-Up): 270 µA (21 × 4 mA, 2 × 20 mA)
– Power Mode 2 (Sleep Timer On): 1 µA – I2C interface
– Power Mode 3 (External Interrupts): 0.5 µA – 2 I/O Pins Have LED Driving Capabilities
– Wide Supply-Voltage Range (2 V–3.6 V) – Watchdog Timer
•TPS62730 Compatible Low Power in Active – Integrated High-Performance Comparator
Mode • Development Tools
– RX Down to: 14.7 mA (3-V supply) – CC2541 Evaluation Module Kit
– TX (0 dBm): 14.3 mA (3-V supply) (CC2541EMK)
White space – CC2541 Mini Development Kit (CC2541DK-
White space MINI)
White space – SmartRF™ Software
White space – IAR Embedded Workbench™ Available
White space
White space
• Microcontroller
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2Bluetooth is a trademark of Bluetooth SIG, Inc..
3ZigBee is a registered trademark of ZigBee Alliance.
PRODUCTION DATA information is current as of publication date. Copyright © 2012–2013, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
SOFTWARE FEATURES CC2541 WITH TPS62730
•Bluetooth v4.0 Compliant Protocol Stack for • TPS62730 is a 2-MHz Step-Down Converter
Single-Mode BLE Solution With Bypass Mode
– Complete Power-Optimized Stack, • Extends Battery Lifetime by up to 20%
Including Controller and Host • Reduced Current in All Active Modes
– GAP – Central, Peripheral, Observer, or • 30-nA Bypass Mode Current to Support Low-
Broadcaster (Including Combination Power Modes
Roles) • RF Performance Unchanged
– ATT / GATT – Client and Server • Small Package Allows for Small Solution Size
– SMP – AES-128 Encryption and • CC2541 Controllable
Decryption
– L2CAP DESCRIPTION
– Sample Applications and Profiles The CC2541 is a power-optimized true system-on-
chip (SoC) solution for both Bluetooth low energy and
– Generic Applications for GAP Central proprietary 2.4-GHz applications. It enables robust
and Peripheral Roles network nodes to be built with low total bill-of-material
– Proximity, Accelerometer, Simple Keys, costs. The CC2541 combines the excellent
and Battery GATT Services performance of a leading RF transceiver with an
– More Applications Supported in BLE industry-standard enhanced 8051 MCU, in-system
programmable flash memory, 8-KB RAM, and many
Software Stack other powerful supporting features and peripherals.
– Multiple Configuration Options The CC2541 is highly suited for systems where
– Single-Chip Configuration, Allowing ultralow power consumption is required. This is
Applications to Run on CC2541 specified by various operating modes. Short transition
times between operating modes further enable low
– Network Processor Interface for power consumption.
Applications Running on an External
Microcontroller The CC2541 is pin-compatible with the CC2540 in
the 6-mm × 6-mm QFN40 package, if the USB is not
– BTool – Windows PC Application for used on the CC2540 and the I2C/extra I/O is not used
Evaluation, Development, and Test on the CC2541. Compared to the CC2540, the
CC2541 provides lower RF current consumption. The
APPLICATIONS CC2541 does not have the USB interface of the
• 2.4-GHz Bluetooth low energy Systems CC2540, and provides lower maximum output power
in TX mode. The CC2541 also adds a HW I2C
• Proprietary 2.4-GHz Systems interface.
• Human-Interface Devices (Keyboard, Mouse,
Remote Control) The CC2541 is pin-compatible with the CC2533
RF4CE-optimized IEEE 802.15.4 SoC.
• Sports and Leisure Equipment
The CC2541 comes in two different versions:
• Mobile Phone Accessories CC2541F128/F256, with 128 KB and 256 KB of flash
• Consumer Electronics memory, respectively.
For the CC2541 block diagram, see Figure 1.
2Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
SFR bus SFR bus
MEMORY
ARBITRATOR
8051 CPU
CORE
DMA
FLASH
SRAM
FLASH CTRL
DEBUG
INTERFACE
RESET
RESET_N
P2_4
P2_3
P2_2
P2_1
P2_0
P1_4
P1_3
P1_2
P1_1
P1_0
P1_7
P1_6
P1_5
P0_4
P0_3
P0_2
P0_1
P0_0
P0_7
P0_6
P0_5
32.768-kHz
CRYSTAL OSC
32-MHZ
CRYSTAL OSC
HIGH SPEED
RC-OSC
32-kHz
RC-OSC
CLOCK MUX and
CALIBRATION
RAM
USART 0
USART 1
TIMER 1 (16-Bit)
TIMER 3 (8-bit)
TIMER 2
(BLE LL TIMER)
TIMER 4 (8-bit)
AES
ENCRYPTION
and
DECRYPTION
WATCHDOG TIMER
IRQ
CTRL
FLASH
UNIFIED
RF_P RF_N
SYNTH
MODULATOR
POWER-ON RESET
BROWN OUT
RADIO
REGISTERS
POWER MGT. CONTROLLER
SLEEP TIMER
PDATA
XRAM
IRAM
SFR
XOSC_Q2
XOSC_Q1
DS ADC
AUDIO / DC
DIGITAL
ANALOG
MIXED
VDD (2 V–3.6 V)
DCOUPL
ON-CHIP VOLTAGE
REGULATOR
Link Layer Engine
FREQUENCY
SYNTHESIZER
I2C
DEMODULATOR
RECEIVE TRANSMIT
OP-
ANALOG COMPARATOR
I/O CONTROLLER
1-KB SRAM
Radio Arbiter
FIFOCTRL
SDA
SCL
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.

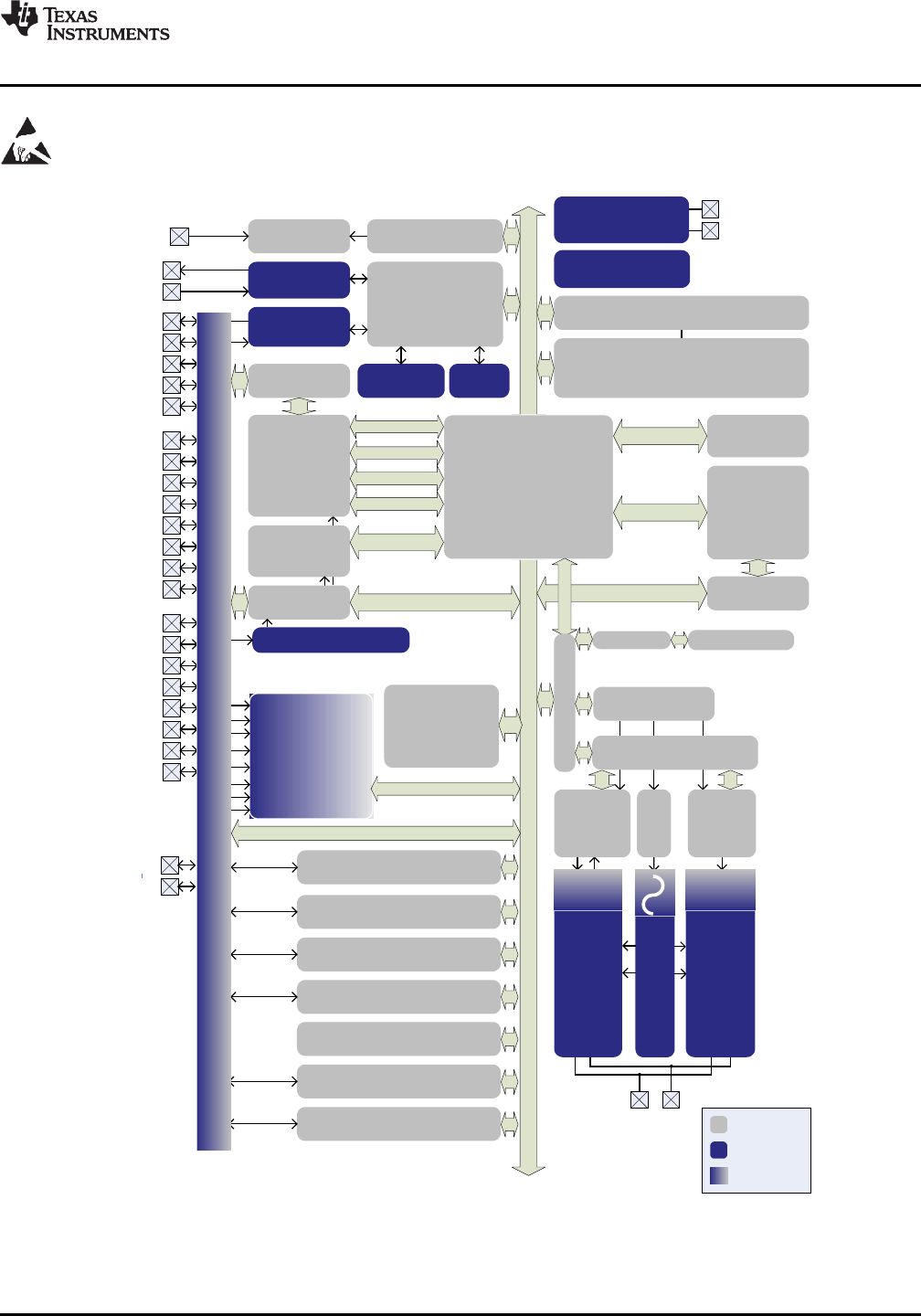

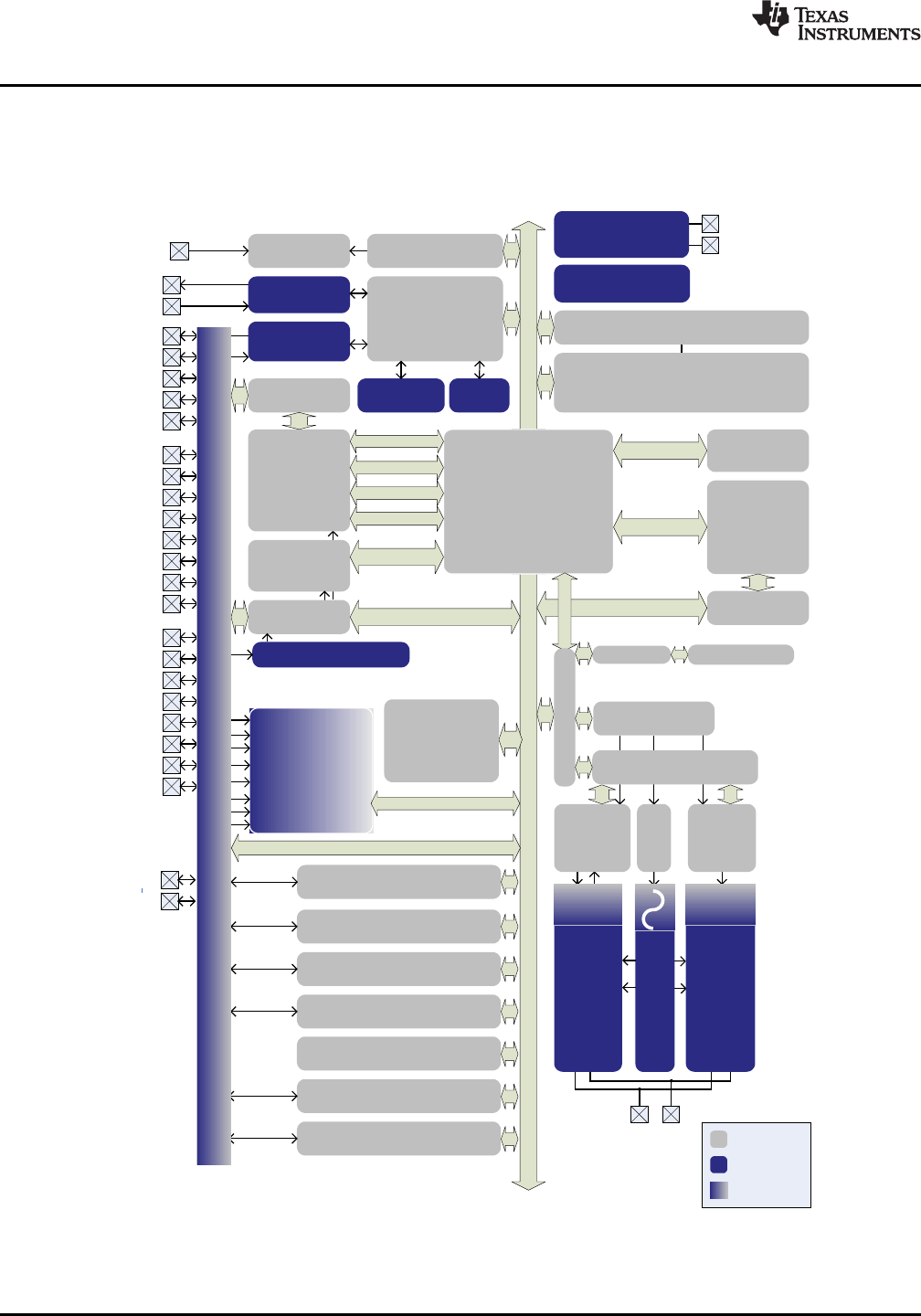

Figure 1. Block Diagram
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Links: CC2541
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
ABSOLUTE MAXIMUM RATINGS(1)
over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Supply voltage All supply pins must have the same voltage –0.3 3.9 V
Voltage on any digital pin –0.3 VDD + 0.3 ≤3.9 V
Input RF level 10 dBm
Storage temperature range –40 125 °C
All pins, excluding pins 25 and 26, according to human-body 2 kV
model, JEDEC STD 22, method A114
All pins, according to human-body model, JEDEC STD 22,
ESD(2) 1 kV
method A114
According to charged-device model, JEDEC STD 22, method 500 V
C101
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) CAUTION: ESD sesnsitive device. Precautions should be used when handling the device in order to prevent permanent damage.
RECOMMENDED OPERATING CONDITIONS
over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Operating ambient temperature range, TA–40 85 °C
Operating supply voltage 2 3.6 V
ELECTRICAL CHARACTERISTICS
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C and VDD = 3 V,
1 Mbps, GFSK, 250-kHz deviation, Bluetooth low energy mode, and 0.1% BER
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
RX mode, standard mode, no peripherals active, low MCU 17.9
activity
RX mode, high-gain mode, no peripherals active, low MCU 20.2
activity mA
TX mode, –20 dBm output power, no peripherals active, low 16.8
MCU activity
TX mode, 0 dBm output power, no peripherals active, low 18.2
MCU activity
Power mode 1. Digital regulator on; 16-MHz RCOSC and 32-
Icore Core current consumption MHz crystal oscillator off; 32.768-kHz XOSC, POR, BOD and 270
sleep timer active; RAM and register retention
Power mode 2. Digital regulator off; 16-MHz RCOSC and 32- µA
MHz crystal oscillator off; 32.768-kHz XOSC, POR, and sleep 1
timer active; RAM and register retention
Power mode 3. Digital regulator off; no clocks; POR active; 0.5
RAM and register retention
Low MCU activity: 32-MHz XOSC running. No radio or 6.7 mA
peripherals. Limited flash access, no RAM access.
Timer 1. Timer running, 32-MHz XOSC used 90
Timer 2. Timer running, 32-MHz XOSC used 90
Peripheral current consumption Timer 3. Timer running, 32-MHz XOSC used 60 μA
Iperi (Adds to core current Icore for each Timer 4. Timer running, 32-MHz XOSC used 70
peripheral unit activated)
Sleep timer, including 32.753-kHz RCOSC 0.6
ADC, when converting 1.2 mA
4Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
GENERAL CHARACTERISTICS
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C and VDD = 3 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
WAKE-UP AND TIMING
Digital regulator on, 16-MHz RCOSC and 32-MHz crystal
Power mode 1 →Active 4 μs
oscillator off. Start-up of 16-MHz RCOSC
Digital regulator off, 16-MHz RCOSC and 32-MHz crystal
Power mode 2 or 3 →Active 120 μs
oscillator off. Start-up of regulator and 16-MHz RCOSC
Crystal ESR = 16 Ω. Initially running on 16-MHz RCOSC, 500 μs
with 32-MHz XOSC OFF
Active →TX or RX
With 32-MHz XOSC initially on 180 μs
Proprietary auto mode 130
RX/TX turnaround μs
BLE mode 150
RADIO PART
RF frequency range Programmable in 1-MHz steps 2379 2496 MHz
2 Mbps, GFSK, 500-kHz deviation
2 Mbps, GFSK, 320-kHz deviation
1 Mbps, GFSK, 250-kHz deviation
Data rate and modulation format 1 Mbps, GFSK, 160-kHz deviation
500 kbps, MSK
250 kbps, GFSK, 160-kHz deviation
250 kbps, MSK
RF RECEIVE SECTION
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C, VDD = 3 V, fc= 2440 MHz
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
2 Mbps, GFSK, 500-kHz Deviation, 0.1% BER
Receiver sensitivity –90 dBm
Saturation BER < 0.1% –1 dBm
Co-channel rejection Wanted signal at –67 dBm –9 dB
±2 MHz offset, 0.1% BER, wanted signal –67 dBm –2
In-band blocking rejection ±4 MHz offset, 0.1% BER, wanted signal –67 dBm 36 dB
±6 MHz or greater offset, 0.1% BER, wanted signal –67 dBm 41
Including both initial tolerance and drift. Sensitivity better than –67dBm,
Frequency error tolerance(1) –300 300 kHz
250 byte payload. BER 0.1%
Symbol rate error Maximum packet length. Sensitivity better than–67dBm, 250 byte –120 120 ppm
tolerance(2) payload. BER 0.1%
2 Mbps, GFSK, 320-kHz Deviation, 0.1% BER
Receiver sensitivity –86 dBm
Saturation BER < 0.1% –7 dBm
Co-channel rejection Wanted signal at –67 dBm –12 dB
±2 MHz offset, 0.1% BER, wanted signal –67 dBm –1
In-band blocking rejection ±4 MHz offset, 0.1% BER, wanted signal –67 dBm 34 dB
±6 MHz or greater offset, 0.1% BER, wanted signal –67 dBm 39
Including both initial tolerance and drift. Sensitivity better than –67 dBm,
Frequency error tolerance(1) –300 300 kHz
250 byte payload. BER 0.1%
Symbol rate error Maximum packet length. Sensitivity better than –67 dBm, 250 byte –120 120 ppm
tolerance(2) payload. BER 0.1%
(1) Difference between center frequency of the received RF signal and local oscillator frequency
(2) Difference between incoming symbol rate and the internally generated symbol rate
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 5
Product Folder Links: CC2541
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
RF RECEIVE SECTION (continued)
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C, VDD = 3 V, fc= 2440 MHz
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
1 Mbps, GFSK, 250-kHz Deviation, Bluetooth low energy Mode, 0.1% BER
High-gain mode –94
Receiver sensitivity(3)(4) dBm
Standard mode –88
Saturation(4) BER < 0.1% 5 dBm
Co-channel rejection(4) Wanted signal –67 dBm –6 dB
±1 MHz offset, 0.1% BER, wanted signal –67 dBm –2
±2 MHz offset, 0.1% BER, wanted signal –67 dBm 26
In-band blocking rejection(4) dB
±3 MHz offset, 0.1% BER, wanted signal –67 dBm 34
>6 MHz offset, 0.1% BER, wanted signal –67 dBm 33
Minimum interferer level < 2 GHz (Wanted signal –67 dBm) –21
Out-of-band blocking Minimum interferer level [2 GHz, 3 GHz] (Wanted signal –67 dBm) –25 dBm
rejection(4)
Minimum interferer level > 3 GHz (Wanted signal –67 dBm) –7
Intermodulation(4) Minimum interferer level –36 dBm
Including both initial tolerance and drift. Sensitivity better than -67dBm,
Frequency error tolerance(5) –250 250 kHz
250 byte payload. BER 0.1%
Symbol rate error Maximum packet length. Sensitivity better than –67 dBm, 250 byte –80 80 ppm
tolerance(6) payload. BER 0.1%
1 Mbps, GFSK, 160-kHz Deviation, 0.1% BER
Receiver sensitivity(7) –91 dBm
Saturation BER < 0.1% 0 dBm
Co-channel rejection Wanted signal 10 dB above sensitivity level –9 dB
±1-MHz offset, 0.1% BER, wanted signal –67 dBm 2
±2-MHz offset, 0.1% BER, wanted signal –67 dBm 24
In-band blocking rejection dB
±3-MHz offset, 0.1% BER, wanted signal -–67 dBm 27
>6-MHz offset, 0.1% BER, wanted signal –67 dBm 32
Including both initial tolerance and drift. Sensitivity better than –67 dBm,
Frequency error tolerance(5) –200 200 kHz
250-byte payload. BER 0.1%
Symbol rate error Maximum packet length. Sensitivity better than –67 dBm, 250-byte –80 80 ppm
tolerance(6) payload. BER 0.1%
500 kbps, MSK, 0.1% BER
Receiver sensitivity(7) –99 dBm
Saturation BER < 0.1% 0 dBm
Co-channel rejection Wanted signal –67 dBm –5 dB
±1-MHz offset, 0.1% BER, wanted signal –67 dBm 20
In-band blocking rejection ±2-MHz offset, 0.1% BER, wanted signal –67 dBm 27 dB
>2-MHz offset, 0.1% BER, wanted signal –67 dBm 28
Including both initial tolerance and drift. Sensitivity better than –67 dBm,
Frequency error tolerance –150 150 kHz
250-byte payload. BER 0.1%
Maximum packet length. Sensitivity better than –67 dBm, 250-byte
Symbol rate error tolerance –80 80 ppm
payload. BER 0.1%
(3) The receiver sensitivity setting is programmable using a TI BLE stack vendor-specific API command. The default value is standard
mode.
(4) Results based on standard-gain mode.
(5) Difference between center frequency of the received RF signal and local oscillator frequency
(6) Difference between incoming symbol rate and the internally generated symbol rate
(7) Results based on high-gain mode.
6Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
RF RECEIVE SECTION (continued)
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C, VDD = 3 V, fc= 2440 MHz
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
250 kbps, GFSK, 160 kHz Deviation, 0.1% BER
Receiver sensitivity (8) –98 dBm
Saturation BER < 0.1% 0 dBm
Co-channel rejection Wanted signal -67 dBm –3 dB
±1-MHz offset, 0.1% BER, wanted signal –67 dBm 23
In-band blocking rejection ±2-MHz offset, 0.1% BER, wanted signal –67 dBm 28 dB
>2-MHz offset, 0.1% BER, wanted signal –67 dBm 29
Including both initial tolerance and drift. Sensitivity better than –67 dBm,
Frequency error tolerance(9) –150 150 kHz
250-byte payload. BER 0.1%
Symbol rate error Maximum packet length. Sensitivity better than –67 dBm, 250-byte –80 80 ppm
tolerance(10) payload. BER 0.1%
250 kbps, MSK, 0.1% BER
Receiver sensitivity (11) –99 dBm
Saturation BER < 0.1% 0 dBm
Co-channel rejection Wanted signal -67 dBm –5 dB
±1-MHz offset, 0.1% BER, wanted signal –67 dBm 20
In-band blocking rejection ±2-MHz offset, 0.1% BER, wanted signal –67 dBm 29 dB
>2-MHz offset, 0.1% BER, wanted signal –67 dBm 30
Including both initial tolerance and drift. Sensitivity better than –67 dBm,
Frequency error tolerance –150 150 kHz
250-byte payload. BER 0.1%
Maximum packet length. Sensitivity better than –67 dBm, 250-byte
Symbol rate error tolerance –80 80 ppm
payload. BER 0.1%
ALL RATES/FORMATS
Spurious emission in RX. f < 1 GHz –67 dBm
Conducted measurement
Spurious emission in RX. f > 1 GHz –57 dBm
Conducted measurement
(8) Results based on standard-gain mode.
(9) Difference between center frequency of the received RF signal and local oscillator frequency
(10) Difference between incoming symbol rate and the internally generated symbol rate
(11) Results based on high-gain mode.
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 7
Product Folder Links: CC2541
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
RF TRANSMIT SECTION
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C, VDD = 3 V and fc= 2440 MHz
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Delivered to a single-ended 50-Ωload through a balun using 0
maximum recommended output power setting
Output power dBm
Delivered to a single-ended 50-Ωload through a balun using –23
minimum recommended output power setting
Programmable output power Delivered to a single-ended 50-Ωload through a balun using 23 dB
range minimum recommended output power setting
f < 1 GHz –52 dBm
Spurious emission conducted f > 1 GHz –48 dBm
measurement Suitable for systems targeting compliance with worldwide radio-frequency regulations ETSI EN 300 328 and
EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T66 (Japan)
Differential impedance as seen from the RF port (RF_P and RF_N)
Optimum load impedance 70 +j30 Ω
toward the antenna
Designs with antenna connectors that require conducted ETSI compliance at 64 MHz should insert an LC
resonator in front of the antenna connector. Use a 1.6-nH inductor in parallel with a 1.8-pF capacitor. Connect
both from the signal trace to a good RF ground.
CURRENT CONSUMPTION WITH TPS62730
Measured on Texas Instruments CC2541 TPA62730 EM reference design with TA= 25°C, VDD = 3 V and fc= 2440 MHz,
1 Mbsp, GFSK, 250-kHz deviation, Bluetooth™ low energy Mode, 1% BER(1)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
RX mode, standard mode, no peripherals active, low MCU activity, MCU 14.7
at 1 MHz
RX mode, high-gain mode, no peripherals active, low MCU activity, 16.7
MCU at 1 MHz
Current consumption mA
TX mode, –20 dBm output power, no peripherals active, low MCU activity, 13.1
MCU at 1 MHz
TX mode, 0 dBm output power, no peripherals active, low MCU activity, 14.3
MCU at 1 MHz
(1) 0.1% BER maps to 30.8% PER
32-MHz CRYSTAL OSCILLATOR
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C and VDD = 3 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Crystal frequency 32 MHz
Crystal frequency accuracy –40 40 ppm
requirement(1)
ESR Equivalent series resistance 6 60 Ω
C0Crystal shunt capacitance 1 7 pF
CLCrystal load capacitance 10 16 pF
Start-up time 0.25 ms
The crystal oscillator must be in power down for a guard
time before it is used again. This requirement is valid for
Power-down guard time 3 ms
all modes of operation. The need for power-down guard
time can vary with crystal type and load.
(1) Including aging and temperature dependency, as specified by [1]
8Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
32.768-kHz CRYSTAL OSCILLATOR
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C and VDD = 3 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Crystal frequency 32.768 kHz
Crystal frequency accuracy requirement(1) –40 40 ppm
ESR Equivalent series resistance 40 130 kΩ
C0Crystal shunt capacitance 0.9 2 pF
CLCrystal load capacitance 12 16 pF
Start-up time 0.4 s
(1) Including aging and temperature dependency, as specified by [1]
32-kHz RC OSCILLATOR
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C and VDD = 3 V.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Calibrated frequency(1) 32.753 kHz
Frequency accuracy after calibration ±0.2%
Temperature coefficient(2) 0.4 %/°C
Supply-voltage coefficient(3) 3 %/V
Calibration time(4) 2 ms
(1) The calibrated 32-kHz RC oscillator frequency is the 32-MHz XTAL frequency divided by 977.
(2) Frequency drift when temperature changes after calibration
(3) Frequency drift when supply voltage changes after calibration
(4) When the 32-kHz RC oscillator is enabled, it is calibrated when a switch from the 16-MHz RC oscillator to the 32-MHz crystal oscillator
is performed while SLEEPCMD.OSC32K_CALDIS is set to 0.
16-MHz RC OSCILLATOR
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C and VDD = 3 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Frequency(1) 16 MHz
Uncalibrated frequency accuracy ±18%
Calibrated frequency accuracy ±0.6%
Start-up time 10 μs
Initial calibration time(2) 50 μs
(1) The calibrated 16-MHz RC oscillator frequency is the 32-MHz XTAL frequency divided by 2.
(2) When the 16-MHz RC oscillator is enabled, it is calibrated when a switch from the 16-MHz RC oscillator to the 32-MHz crystal oscillator
is performed while SLEEPCMD.OSC_PD is set to 0.
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 9
Product Folder Links: CC2541
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
RSSI CHARACTERISTICS
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C and VDD = 3 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
2 Mbps, GFSK, 320-kHz Deviation, 0.1% BER and 2 Mbps, GFSK, 500-kHz Deviation, 0.1% BER
Reduced gain by AGC algorithm 64
Useful RSSI range(1) dB
High gain by AGC algorithm 64
Reduced gain by AGC algorithm 79
RSSI offset(1) dBm
High gain by AGC algorithm 99
Absolute uncalibrated accuracy(1) ±6 dB
Step size (LSB value) 1 dB
All Other Rates/Formats
Standard mode 64
Useful RSSI range(1) dB
High-gain mode 64
Standard mode 98
RSSI offset(1) dBm
High-gain mode 107
Absolute uncalibrated accuracy(1) ±3 dB
Step size (LSB value) 1 dB
(1) Assuming CC2541 EM reference design. Other RF designs give an offset from the reported value.
FREQUENCY SYNTHESIZER CHARACTERISTICS
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C, VDD = 3 V and fc= 2440 MHz
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
At ±1-MHz offset from carrier –109
Phase noise, unmodulated carrier At ±3-MHz offset from carrier –112 dBc/Hz
At ±5-MHz offset from carrier –119
ANALOG TEMPERATURE SENSOR
Measured on Texas Instruments CC2541 EM reference design with TA= 25°C and VDD = 3 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Output 1480 12-bit
Temperature coefficient 4.5 / 1°C
Voltage coefficient 1 0.1 V
Measured using integrated ADC, internal band-gap voltage
reference, and maximum resolution
Initial accuracy without calibration ±10 °C
Accuracy using 1-point calibration ±5 °C
Current consumption when enabled 0.5 mA
COMPARATOR CHARACTERISTICS
TA= 25°C, VDD = 3 V. All measurement results are obtained using the CC2541 reference designs, post-calibration.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Common-mode maximum voltage VDD V
Common-mode minimum voltage –0.3
Input offset voltage 1 mV
Offset vs temperature 16 µV/°C
Offset vs operating voltage 4 mV/V
Supply current 230 nA
Hysteresis 0.15 mV
10 Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
ADC CHARACTERISTICS
TA= 25°C and VDD = 3 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Input voltage VDD is voltage on AVDD5 pin 0 VDD V
External reference voltage VDD is voltage on AVDD5 pin 0 VDD V
External reference voltage differential VDD is voltage on AVDD5 pin 0 VDD V
Input resistance, signal Simulated using 4-MHz clock speed 197 kΩ
Full-scale signal(1) Peak-to-peak, defines 0 dBFS 2.97 V
Single-ended input, 7-bit setting 5.7
Single-ended input, 9-bit setting 7.5
Single-ended input, 10-bit setting 9.3
Single-ended input, 12-bit setting 10.3
Differential input, 7-bit setting 6.5
ENOB(1) Effective number of bits bits
Differential input, 9-bit setting 8.3
Differential input, 10-bit setting 10
Differential input, 12-bit setting 11.5
10-bit setting, clocked by RCOSC 9.7
12-bit setting, clocked by RCOSC 10.9
Useful power bandwidth 7-bit setting, both single and differential 0–20 kHz
Single ended input, 12-bit setting, –6 dBFS(1) –75.2
THD Total harmonic distortion dB
Differential input, 12-bit setting, –6 dBFS(1) –86.6
Single-ended input, 12-bit setting(1) 70.2
Differential input, 12-bit setting(1) 79.3
Signal to nonharmonic ratio dB
Single-ended input, 12-bit setting, –6 dBFS(1) 78.8
Differential input, 12-bit setting, –6 dBFS(1) 88.9
Differential input, 12-bit setting, 1-kHz sine
CMRR Common-mode rejection ratio >84 dB
(0 dBFS), limited by ADC resolution
Single ended input, 12-bit setting, 1-kHz sine
Crosstalk >84 dB
(0 dBFS), limited by ADC resolution
Offset Midscale –3 mV
Gain error 0.68%
12-bit setting, mean(1) 0.05
DNL Differential nonlinearity LSB
12-bit setting, maximum(1) 0.9
12-bit setting, mean(1) 4.6
12-bit setting, maximum(1) 13.3
INL Integral nonlinearity LSB
12-bit setting, mean, clocked by RCOSC 10
12-bit setting, max, clocked by RCOSC 29
Single ended input, 7-bit setting(1) 35.4
Single ended input, 9-bit setting(1) 46.8
Single ended input, 10-bit setting(1) 57.5
Single ended input, 12-bit setting(1) 66.6
SINAD Signal-to-noise-and-distortion dB
(–THD+N) Differential input, 7-bit setting(1) 40.7
Differential input, 9-bit setting(1) 51.6
Differential input, 10-bit setting(1) 61.8
Differential input, 12-bit setting(1) 70.8
7-bit setting 20
9-bit setting 36
Conversion time μs
10-bit setting 68
12-bit setting 132
(1) Measured with 300-Hz sine-wave input and VDD as reference.
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 11
Product Folder Links: CC2541
RESET_N
Px.n
T0299-01
1 2
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
ADC CHARACTERISTICS (continued)
TA= 25°C and VDD = 3 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Power consumption 1.2 mA
Internal reference VDD coefficient 4 mV/V
Internal reference temperature 0.4 mV/10°C
coefficient
Internal reference voltage 1.24 V

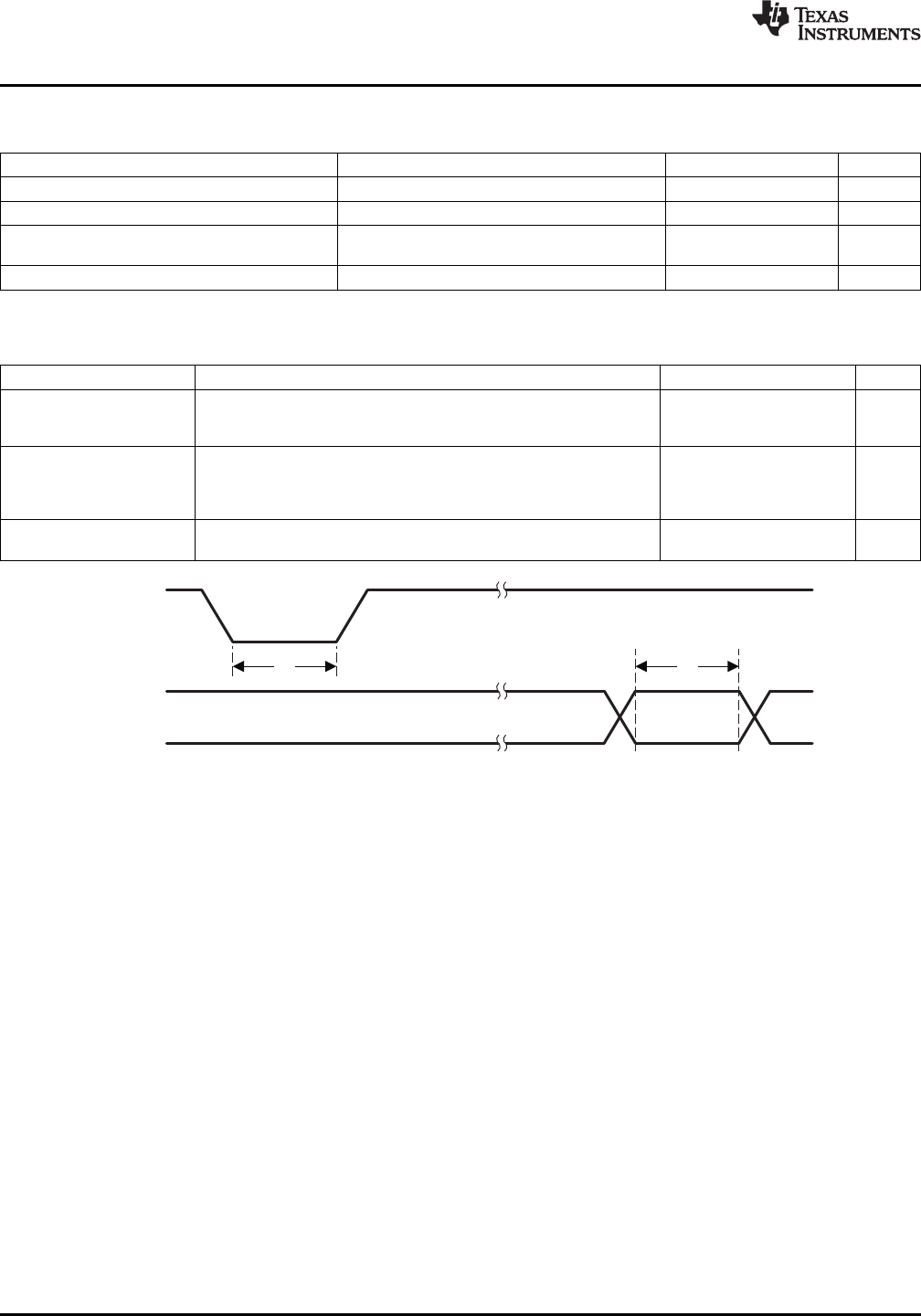

CONTROL INPUT AC CHARACTERISTICS
TA= –40°C to 85°C, VDD = 2 V to 3.6 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
The undivided system clock is 32 MHz when crystal oscillator is used.
System clock, fSYSCLK The undivided system clock is 16 MHz when calibrated 16-MHz RC 16 32 MHz
tSYSCLK = 1/ fSYSCLK oscillator is used.
See item 1, Figure 2. This is the shortest pulse that is recognized as
a complete reset pin request. Note that shorter pulses may be
RESET_N low duration 1 µs
recognized but do not lead to complete reset of all modules within the
chip.
See item 2, Figure 2.This is the shortest pulse that is recognized as
Interrupt pulse duration 20 ns
an interrupt request.
Figure 2. Control Input AC Characteristics
12 Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
SCK
SSN
MOSI
MISO
D0 D1
X
D0
X
t2
t4
t6t7
t5
t3
X
T0478-01
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013

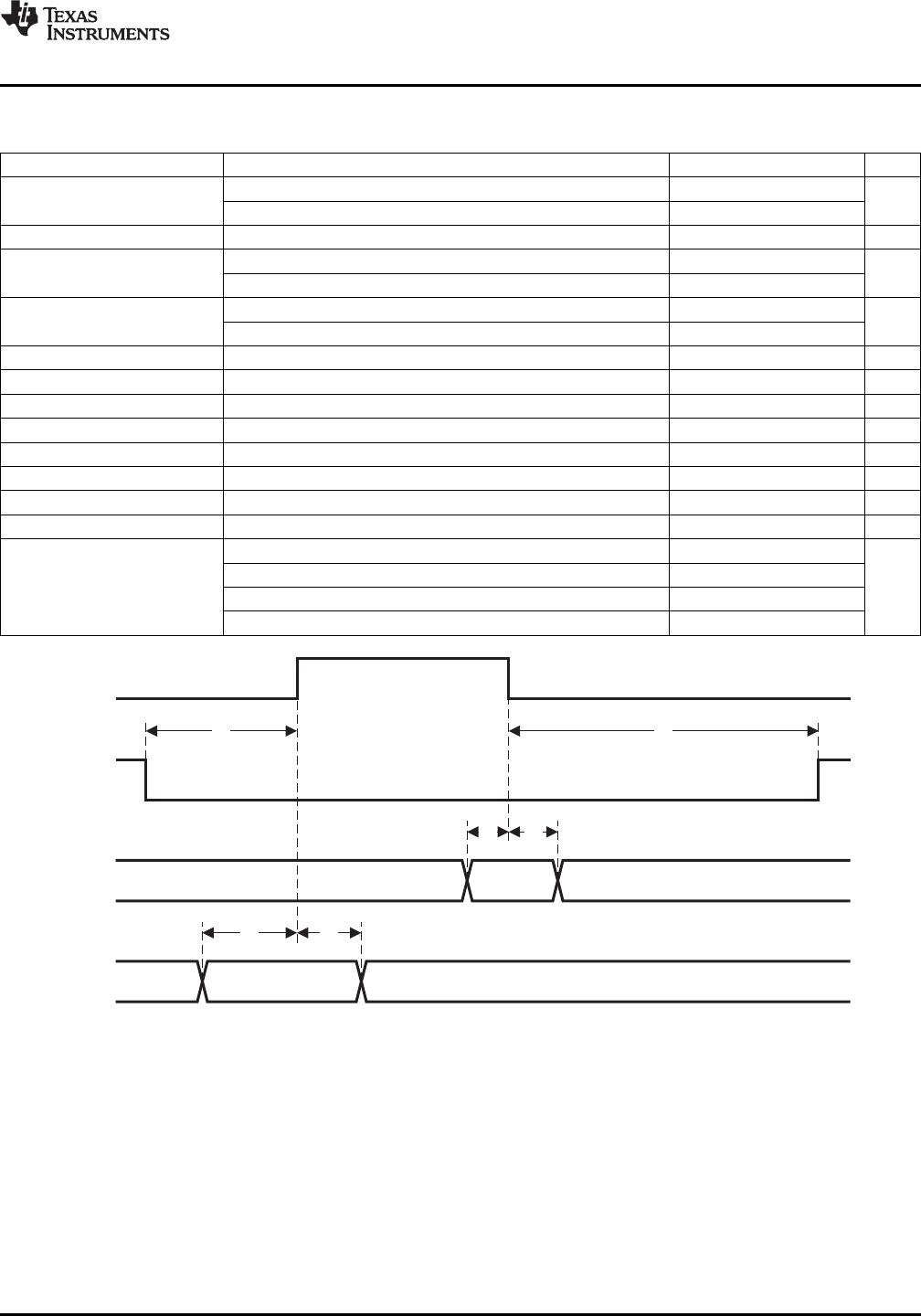

SPI AC CHARACTERISTICS
TA= –40°C to 85°C, VDD = 2 V to 3.6 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Master, RX and TX 250
t1SCK period ns
Slave, RX and TX 250
SCK duty cycle Master 50%
Master 63
t2SSN low to SCK ns
Slave 63
Master 63
t3SCK to SSN high ns
Slave 63
t4MOSI early out Master, load = 10 pF 7 ns
t5MOSI late out Master, load = 10 pF 10 ns
t6MISO setup Master 90 ns
t7MISO hold Master 10 ns
SCK duty cycle Slave 50% ns
t10 MOSI setup Slave 35 ns
t11 MOSI hold Slave 10 ns
t9MISO late out Slave, load = 10 pF 95 ns
Master, TX only 8
Master, RX and TX 4
Operating frequency MHz
Slave, RX only 8
Slave, RX and TX 4

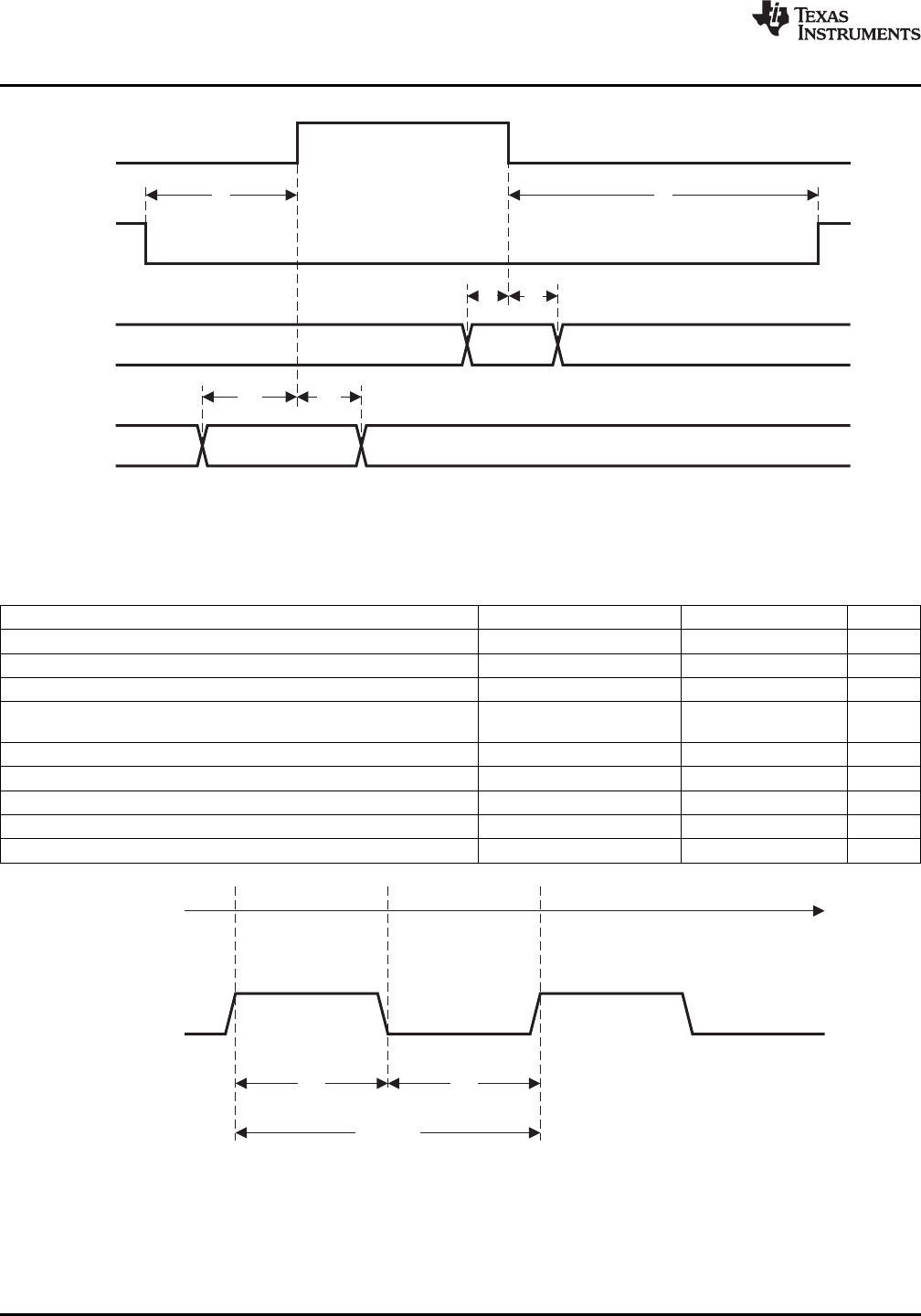

Figure 3. SPI Master AC Characteristics
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 13
Product Folder Links: CC2541
Time
DEBUG_CLK
P2_2
t1t2
1/fclk_dbg
T0436-01
T0479-01
SCK
SSN
MOSI
MISO D0 D1
X
D0
X
t2t3
X
t8
t10 t11
t9
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
Figure 4. SPI Slave AC Characteristics
DEBUG INTERFACE AC CHARACTERISTICS
TA= –40°C to 85°C, VDD = 2 V to 3.6 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
fclk_dbg Debug clock frequency (see Figure 5) 12 MHz
t1Allowed high pulse on clock (see Figure 5) 35 ns
t2Allowed low pulse on clock (see Figure 5) 35 ns
EXT_RESET_N low to first falling edge on debug clock (see
t3167 ns
Figure 7)
t4Falling edge on clock to EXT_RESET_N high (see Figure 7) 83 ns
t5EXT_RESET_N high to first debug command (see Figure 7) 83 ns
t6Debug data setup (see Figure 6) 2 ns
t7Debug data hold (see Figure 6) 4 ns
t8Clock-to-data delay (see Figure 6) Load = 10 pF 30 ns

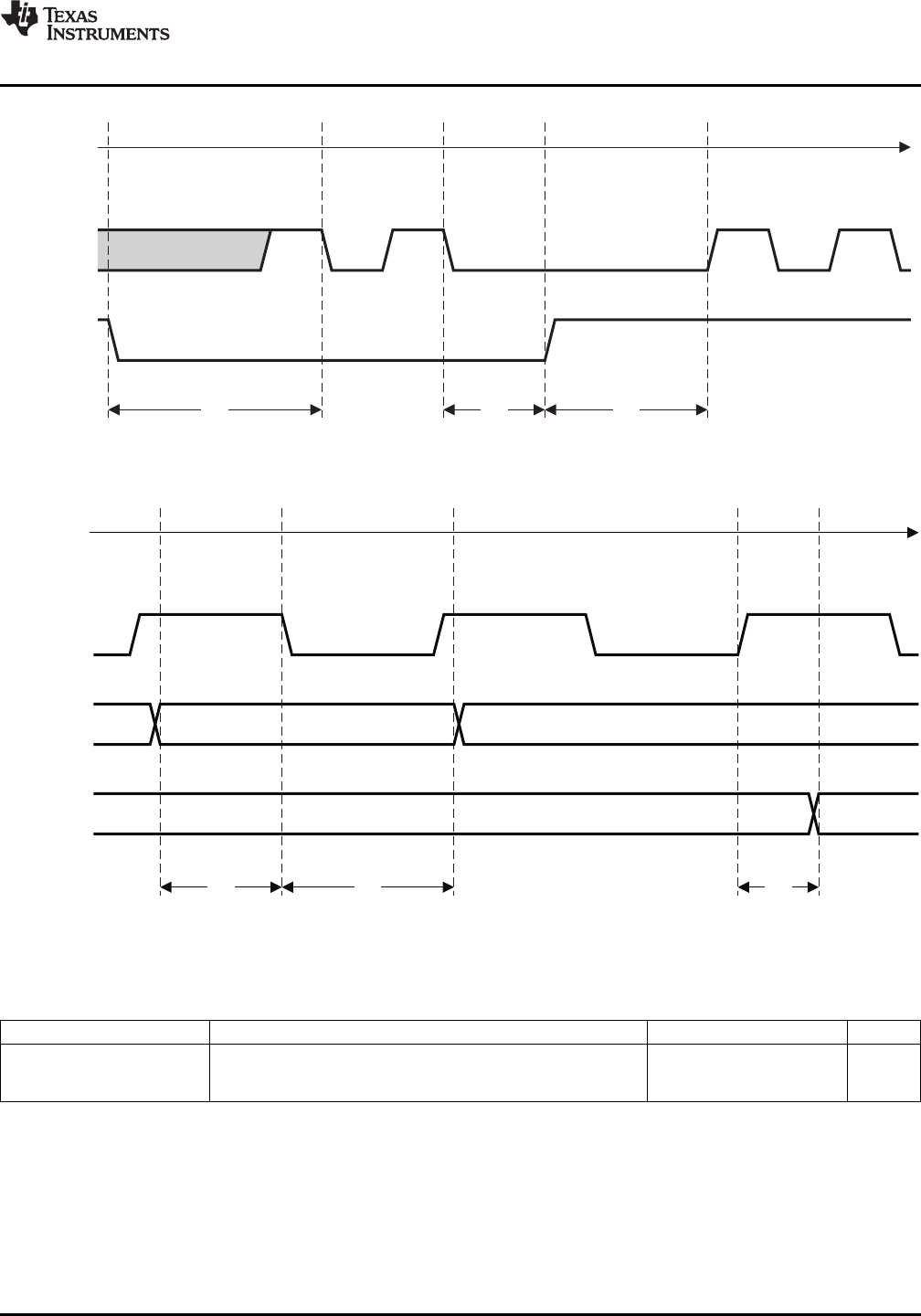

Figure 5. Debug Clock – Basic Timing
14 Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
Time
DEBUG_CLK
P2_2
DEBUG_DATA
(to CC2541)
P2_1
DEBUG_DATA
(from CC2541)
P2_1
t6t8
t7
RESET_N
Time
DEBUG_CLK
P2_2
t3t4t5
T0437-01
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
Figure 6. Debug Enable Timing
Figure 7. Data Setup and Hold Timing
TIMER INPUTS AC CHARACTERISTICS
TA= –40°C to 85°C, VDD = 2 V to 3.6 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Synchronizers determine the shortest input pulse that can be
Input capture pulse duration recognized. The synchronizers operate at the current system 1.5 tSYSCLK
clock rate (16 MHz or 32 MHz).
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 15
Product Folder Links: CC2541
CC2541
RHA Package
(Top View)
P0_1
RESET_N
P2_3 / OSC32K_Q2
AVDD6
NC
R_BIAS
P0_2
P0_0
AVDD4
P0_3
AVDD1
P0_4
AVDD2
P0_5
RF_N
P0_6
RF_P
P0_7
AVDD3
XOSC_Q1
P1_0
XOSC_Q2
AVDD5
P2_2
P2_4 / OSC32K_Q1
SCL
P2_1
SDA
P2_0
GND
P1_7
P1_5
P1_6
P1_4
DVDD1
P1_3
P1_1
DCOUPL
P1_2
DVDD2
30
1
29
2
28
3
27
4
26
5
256
24
22
7
9
23
21
8
10 18 20
33 31
17 19
34 32
16
35
15
36
14
37
13
38
12
39
11
40
GND
Ground Pad
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com

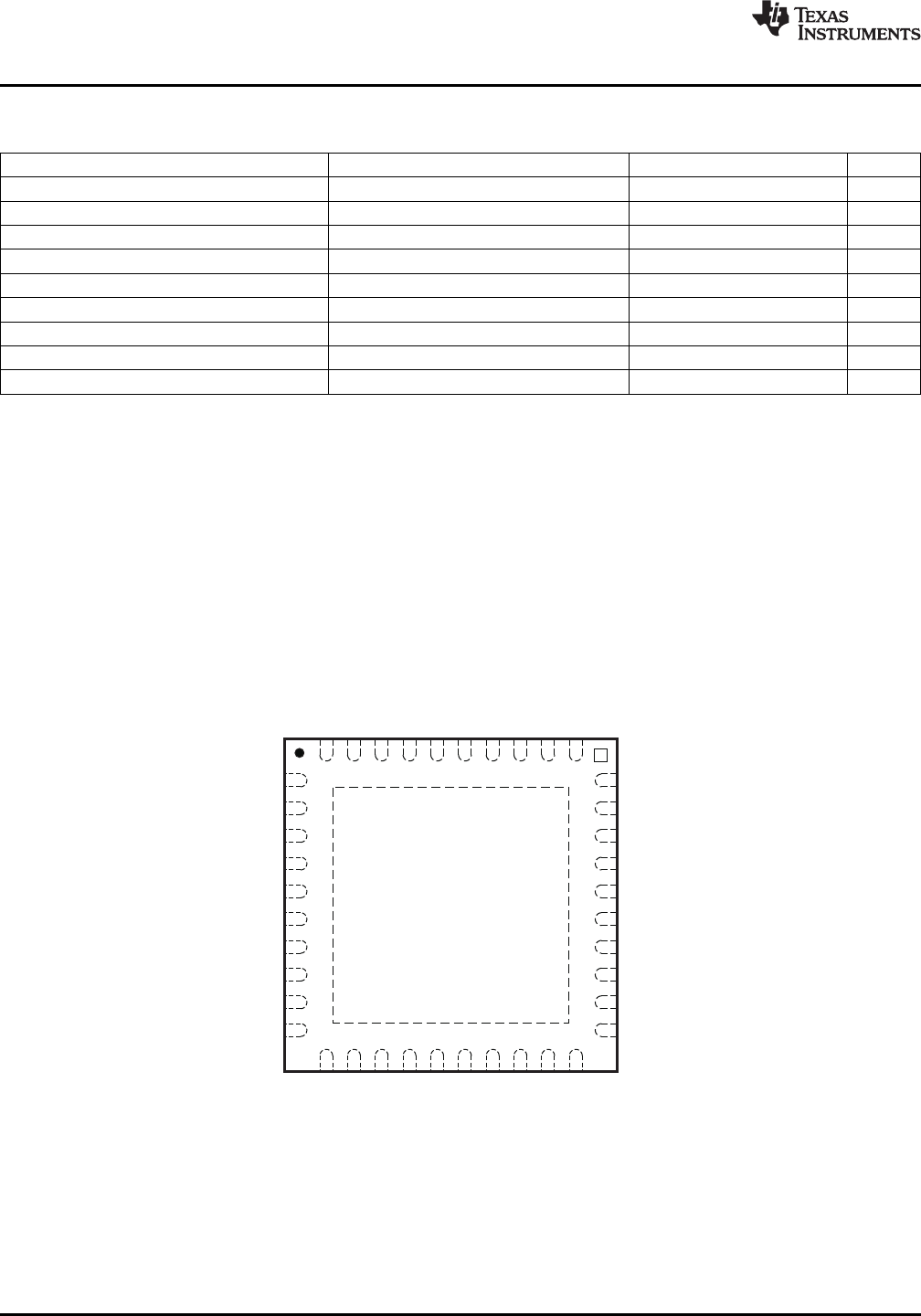

DC CHARACTERISTICS
TA= 25°C, VDD = 3 V
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Logic-0 input voltage 0.5 V
Logic-1 input voltage 2.4 V
Logic-0 input current Input equals 0 V –50 50 nA
Logic-1 input current Input equals VDD –50 50 nA
I/O-pin pullup and pulldown resistors 20 kΩ
Logic-0 output voltage, 4- mA pins Output load 4 mA 0.5 V
Logic-1 output voltage, 4-mA pins Output load 4 mA 2.5 V
Logic-0 output voltage, 20- mA pins Output load 20 mA 0.5 V
Logic-1 output voltage, 20-mA pins Output load 20 mA 2.5 V
DEVICE INFORMATION
PIN DESCRIPTIONS
The CC2541 pinout is shown in Figure 8 and a short description of the pins follows.
NOTE: The exposed ground pad must be connected to a solid ground plane, as this is the ground connection for the chip.
Figure 8. Pinout Top View
16 Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
PIN DESCRIPTIONS
PIN NAME PIN PIN TYPE DESCRIPTION
AVDD1 28 Power (analog) 2-V–3.6-V analog power-supply connection
AVDD2 27 Power (analog) 2-V–3.6-V analog power-supply connection
AVDD3 24 Power (analog) 2-V–3.6-V analog power-supply connection
AVDD4 29 Power (analog) 2-V–3.6-V analog power-supply connection
AVDD5 21 Power (analog) 2-V–3.6-V analog power-supply connection
AVDD6 31 Power (analog) 2-V–3.6-V analog power-supply connection
DCOUPL 40 Power (digital) 1.8-V digital power-supply decoupling. Do not use for supplying external circuits.
DVDD1 39 Power (digital) 2-V–3.6-V digital power-supply connection
DVDD2 10 Power (digital) 2-V–3.6-V digital power-supply connection
GND 1 Ground pin Connect to GND
GND — Ground The ground pad must be connected to a solid ground plane.
NC 4 Unused pins Not connected
P0_0 19 Digital I/O Port 0.0
P0_1 18 Digital I/O Port 0.1
P0_2 17 Digital I/O Port 0.2
P0_3 16 Digital I/O Port 0.3
P0_4 15 Digital I/O Port 0.4
P0_5 14 Digital I/O Port 0.5
P0_6 13 Digital I/O Port 0.6
P0_7 12 Digital I/O Port 0.7
P1_0 11 Digital I/O Port 1.0 – 20-mA drive capability
P1_1 9 Digital I/O Port 1.1 – 20-mA drive capability
P1_2 8 Digital I/O Port 1.2
P1_3 7 Digital I/O Port 1.3
P1_4 6 Digital I/O Port 1.4
P1_5 5 Digital I/O Port 1.5
P1_6 38 Digital I/O Port 1.6
P1_7 37 Digital I/O Port 1.7
P2_0 36 Digital I/O Port 2.0
P2_1/DD 35 Digital I/O Port 2.1 / debug data
P2_2/DC 34 Digital I/O Port 2.2 / debug clock
P2_3/ 33 Digital I/O, Analog I/O Port 2.3/32.768 kHz XOSC
OSC32K_Q2
P2_4/ 32 Digital I/O, Analog I/O Port 2.4/32.768 kHz XOSC
OSC32K_Q1
RBIAS 30 Analog I/O External precision bias resistor for reference current
RESET_N 20 Digital input Reset, active-low
RF_N 26 RF I/O Negative RF input signal to LNA during RX
Negative RF output signal from PA during TX
RF_P 25 RF I/O Positive RF input signal to LNA during RX
Positive RF output signal from PA during TX
SCL 2 I2C clock or digital I/O Can be used as I2C clock pin or digital I/O. Leave floating if not used. If grounded
disable pull up
SDA 3 I2C clock or digital I/O Can be used as I2C data pin or digital I/O. Leave floating if not used. If grounded
disable pull up
XOSC_Q1 22 Analog I/O 32-MHz crystal oscillator pin 1 or external clock input
XOSC_Q2 23 Analog I/O 32-MHz crystal oscillator pin 2
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 17
Product Folder Links: CC2541
SFR bus SFR bus
MEMORY
ARBITRATOR
8051 CPU
CORE
DMA
FLASH
SRAM
FLASH CTRL
DEBUG
INTERFACE
RESET
RESET_N
P2_4
P2_3
P2_2
P2_1
P2_0
P1_4
P1_3
P1_2
P1_1
P1_0
P1_7
P1_6
P1_5
P0_4
P0_3
P0_2
P0_1
P0_0
P0_7
P0_6
P0_5
32.768-kHz
CRYSTAL OSC
32-MHZ
CRYSTAL OSC
HIGH SPEED
RC-OSC
32-kHz
RC-OSC
CLOCK MUX and
CALIBRATION
RAM
USART 0
USART 1
TIMER 1 (16-Bit)
TIMER 3 (8-bit)
TIMER 2
(BLE LL TIMER)
TIMER 4 (8-bit)
AES
ENCRYPTION
and
DECRYPTION
WATCHDOG TIMER
IRQ
CTRL
FLASH
UNIFIED
RF_P RF_N
SYNTH
MODULATOR
POWER-ON RESET
BROWN OUT
RADIO
REGISTERS
POWER MGT. CONTROLLER
SLEEP TIMER
PDATA
XRAM
IRAM
SFR
XOSC_Q2
XOSC_Q1
DS ADC
AUDIO / DC
DIGITAL
ANALOG
MIXED
VDD (2 V–3.6 V)
DCOUPL
ON-CHIP VOLTAGE
REGULATOR
Link Layer Engine
FREQUENCY
SYNTHESIZER
I2C
DEMODULATOR
RECEIVE TRANSMIT
OP-
ANALOG COMPARATOR
I/O CONTROLLER
1-KB SRAM
Radio Arbiter
FIFOCTRL
SDA
SCL
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
BLOCK DIAGRAM
A block diagram of the CC2541 is shown in Figure 9. The modules can be roughly divided into one of three
categories: CPU-related modules; modules related to power, test, and clock distribution; and radio-related
modules. In the following subsections, a short description of each module is given.
Figure 9. CC2541 Block Diagram
18 Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
BLOCK DESCRIPTIONS
A block diagram of the CC2541 is shown in Figure 9. The modules can be roughly divided into one of three
categories: CPU-related modules; modules related to power, test, and clock distribution; and radio-related
modules. In the following subsections, a short description of each module is given.
CPU and Memory
The 8051 CPU core is a single-cycle 8051-compatible core. It has three different memory access busses (SFR,
DATA, and CODE/XDATA), a debug interface, and an 18-input extended interrupt unit.
The memory arbiter is at the heart of the system, as it connects the CPU and DMA controller with the physical
memories and all peripherals through the SFR bus. The memory arbiter has four memory-access points, access
of which can map to one of three physical memories: an SRAM, flash memory, and XREG/SFR registers. It is
responsible for performing arbitration and sequencing between simultaneous memory accesses to the same
physical memory.
The SFR bus is drawn conceptually in Figure 9 as a common bus that connects all hardware peripherals to the
memory arbiter. The SFR bus in the block diagram also provides access to the radio registers in the radio
register bank, even though these are indeed mapped into XDATA memory space.
The 8-KB SRAM maps to the DATA memory space and to parts of the XDATA memory spaces. The SRAM is
an ultralow-power SRAM that retains its contents even when the digital part is powered off (power mode 2 and
mode 3).
The 128/256 KB flash block provides in-circuit programmable non-volatile program memory for the device, and
maps into the CODE and XDATA memory spaces.
Peripherals
Writing to the flash block is performed through a flash controller that allows page-wise erasure and 4-bytewise
programming. See User Guide for details on the flash controller.
A versatile five-channel DMA controller is available in the system, accesses memory using the XDATA memory
space, and thus has access to all physical memories. Each channel (trigger, priority, transfer mode, addressing
mode, source and destination pointers, and transfer count) is configured with DMA descriptors that can be
located anywhere in memory. Many of the hardware peripherals (AES core, flash controller, USARTs, timers,
ADC interface, etc.) can be used with the DMA controller for efficient operation by performing data transfers
between a single SFR or XREG address and flash/SRAM.
Each CC2541 contains a unique 48-bit IEEE address that can be used as the public device address for a
Bluetooth device. Designers are free to use this address, or provide their own, as described in the Bluetooth
specfication.
The interrupt controller services a total of 18 interrupt sources, divided into six interrupt groups, each of which
is associated with one of four interrupt priorities. I/O and sleep timer interrupt requests are serviced even if the
device is in a sleep mode (power modes 1 and 2) by bringing the CC2541 back to the active mode.
The debug interface implements a proprietary two-wire serial interface that is used for in-circuit debugging.
Through this debug interface, it is possible to erase or program the entire flash memory, control which oscillators
are enabled, stop and start execution of the user program, execute instructions on the 8051 core, set code
breakpoints, and single-step through instructions in the code. Using these techniques, it is possible to perform in-
circuit debugging and external flash programming elegantly.
The I/O controller is responsible for all general-purpose I/O pins. The CPU can configure whether peripheral
modules control certain pins or whether they are under software control, and if so, whether each pin is configured
as an input or output and if a pullup or pulldown resistor in the pad is connected. Each peripheral that connects
to the I/O pins can choose between two different I/O pin locations to ensure flexibility in various applications.
The sleep timer is an ultralow-power timer that can either use an external 32.768-kHz crystal oscillator or an
internal 32.753-kHz RC oscillator. The sleep timer runs continuously in all operating modes except power mode
3. Typical applications of this timer are as a real-time counter or as a wake-up timer to get out of power mode 1
or mode 2.
A built-in watchdog timer allows the CC2541 to reset itself if the firmware hangs. When enabled by software,
the watchdog timer must be cleared periodically; otherwise, it resets the device when it times out.
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 19
Product Folder Links: CC2541
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
Timer 1 is a 16-bit timer with timer/counter/PWM functionality. It has a programmable prescaler, a 16-bit period
value, and five individually programmable counter/capture channels, each with a 16-bit compare value. Each of
the counter/capture channels can be used as a PWM output or to capture the timing of edges on input signals. It
can also be configured in IR generation mode, where it counts timer 3 periods and the output is ANDed with the
output of timer 3 to generate modulated consumer IR signals with minimal CPU interaction.
Timer 2 is a 40-bit timer. It has a 16-bit counter with a configurable timer period and a 24-bit overflow counter
that can be used to keep track of the number of periods that have transpired. A 40-bit capture register is also
used to record the exact time at which a start-of-frame delimiter is received/transmitted or the exact time at which
transmission ends. There are two 16-bit output compare registers and two 24-bit overflow compare registers that
can be used to give exact timing for start of RX or TX to the radio or general interrupts.
Timer 3 and timer 4 are 8-bit timers with timer/counter/PWM functionality. They have a programmable prescaler,
an 8-bit period value, and one programmable counter channel with an 8-bit compare value. Each of the counter
channels can be used as PWM output.
USART 0 and USART 1 are each configurable as either an SPI master/slave or a UART. They provide double
buffering on both RX and TX and hardware flow control and are thus well suited to high-throughput full-duplex
applications. Each USART has its own high-precision baud-rate generator, thus leaving the ordinary timers free
for other uses. When configured as SPI slaves, the USARTs sample the input signal using SCK directly instead
of using some oversampling scheme, and are thus well-suited for high data rates.
The AES encryption/decryption core allows the user to encrypt and decrypt data using the AES algorithm with
128-bit keys. The AES core also supports ECB, CBC, CFB, OFB, CTR, and CBC-MAC, as well as hardware
support for CCM.
The ADC supports 7 to 12 bits of resolution with a corresponding range of bandwidths from 30-kHz to 4-kHz,
respectively. DC and audio conversions with up to eight input channels (I/O controller pins) are possible. The
inputs can be selected as single-ended or differential. The reference voltage can be internal, AVDD, or a single-
ended or differential external signal. The ADC also has a temperature-sensor input channel. The ADC can
automate the process of periodic sampling or conversion over a sequence of channels.
The I2Cmodule provides a digital peripheral connection with two pins and supports both master and slave
operation. I2C support is compliant with the NXP I2C specification version 2.1 and supports standard mode (up to
100 kbps) and fast mode (up to 400 kbps). In addition, 7-bit device addressing modes are supported, as well as
master and slave modes.
The ultralow-power analog comparator enables applications to wake up from PM2 or PM3 based on an analog
signal. Both inputs are brought out to pins; the reference voltage must be provided externally. The comparator
output is connected to the I/O controller interrupt detector and can be treated by the MCU as a regular I/O pin
interrupt.
20 Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
16
16.5
17
17.5
18
18.5
19
19.5
20
2 2.2 2.4 2.6 2.8 3 3.2 3.4 3.6
Voltage (V)
Current (mA)
1 Mbps GFSK 250 kHz
Standard Gain Setting
Input = −70 dBm
TA = 25°C
G005
16
16.5
17
17.5
18
18.5
19
19.5
20
2 2.2 2.4 2.6 2.8 3 3.2 3.4 3.6
Voltage (V)
Current (mA)
TX Power Setting = 0 dBm
TA = 25°C
G006
−92
−90
−88
−86
−84
−40 −20 0 20 40 60 80
Temperature (°C)
Level (dBm)
1 Mbps GFSK 250 kHz
Standard Gain Setting
VCC = 3 V
G003
−4.0
−2.0
0.0
2.0
4.0
−40 −20 0 20 40 60 80
Temperature (°C)
Level (dBm)
TX Power Setting = 0 dBm
VCC = 3 V
G004
16.5
17
17.5
18
18.5
19
−40 −20 0 20 40 60 80
Temperature (°C)
Current (mA)
1 Mbps GFSK 250 kHz
Standard Gain Setting
Input = −70 dBm
VCC = 3 V
G001
17
17.5
18
18.5
19
19.5
−40 −20 0 20 40 60 80
Temperature (°C)
Current (mA)
TX Power Setting = 0 dBm
VCC = 3 V
G002
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013

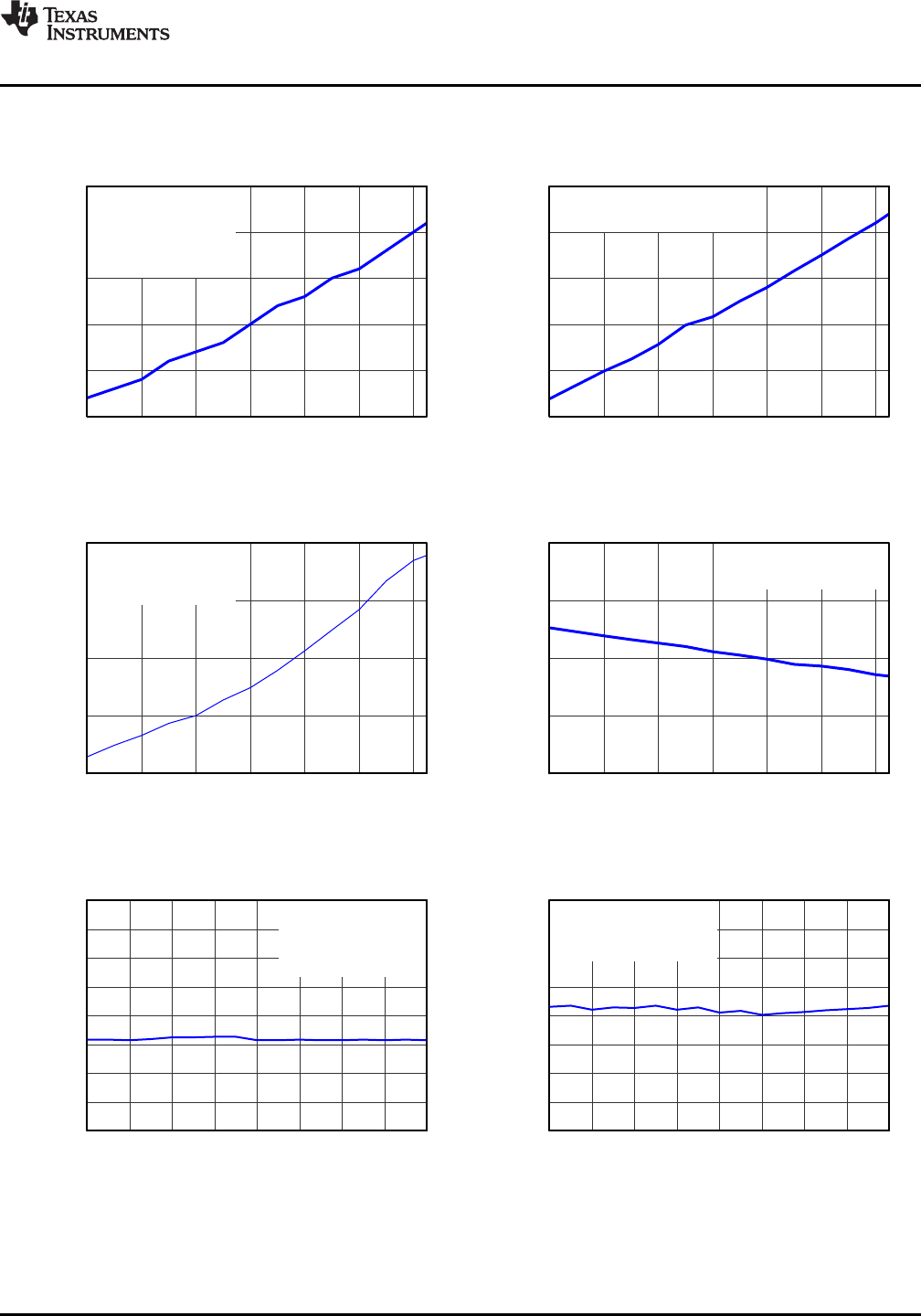

TYPICAL CHARACTERISTICS
RX CURRENT TX CURRENT
vs vs
TEMPERATURE TEMPERATURE
Figure 10. Figure 11.
RX SENSITIVITY TX POWER
vs vs
TEMPERATURE TEMPERATURE
Figure 12. Figure 13.
RX CURRENT TX CURRENT
vs vs
SUPPLY VOLTAGE SUPPLY VOLTAGE
Figure 14. Figure 15.
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 21
Product Folder Links: CC2541
−92
−90
−88
−86
−84
2400 2410 2420 2430 2440 2450 2460 2470 2480
Frequency (MHz)
Level (dBm)
1 Mbps GFSK 250 kHz
Standard Gain Setting
TA = 25°C
VCC = 3 V
G009
−4
−2
0
2
4
2400 2410 2420 2430 2440 2450 2460 2470 2480
Frequency (MHz)
Level (dBm)
TX Power Setting = 0 dBm
TA = 25°C
VCC = 3 V
G010
−92
−90
−88
−86
−84
2 2.2 2.4 2.6 2.8 3 3.2 3.4 3.6
Voltage (V)
Level (dBm)
1 Mbps GFSK 250 kHz
Standard Gain Setting
TA = 25°C
G007
−4
−2
0
2
4
2 2.2 2.4 2.6 2.8 3 3.2 3.4 3.6
Voltage (V)
Level (dBm)
TX Power Setting = 0 dBm
TA = 25°C
G008
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
TYPICAL CHARACTERISTICS (continued)
RX SENSITIVITY TX POWER
vs vs
SUPPLY VOLTAGE SUPPLY VOLTAGE
Figure 16. Figure 17.
RX SENSITIVITY TX POWER
vs vs
FREQUENCY FREQUENCY
Figure 18. Figure 19.
Table 1. Output Power(1)(2)
TXPOWER Setting Typical Output Power (dBm)
0xE1 0
0xD1 –2
0xC1 –4
0xB1 –6
0xA1 –8
0x91 –10
0x81 –12
0x71 –14
0x61 –16
0x51 –18
0x41 –20
0x31 –23
(1) Measured on Texas Instruments CC2541 EM reference design with TA= 25°C, VDD = 3 V and fc= 2440 MHz. See SWRU191 for
recommended register settings.
(2) 1 Mbsp, GFSK, 250-kHz deviation, Bluetooth™ low energy mode, 1% BER
22 Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541

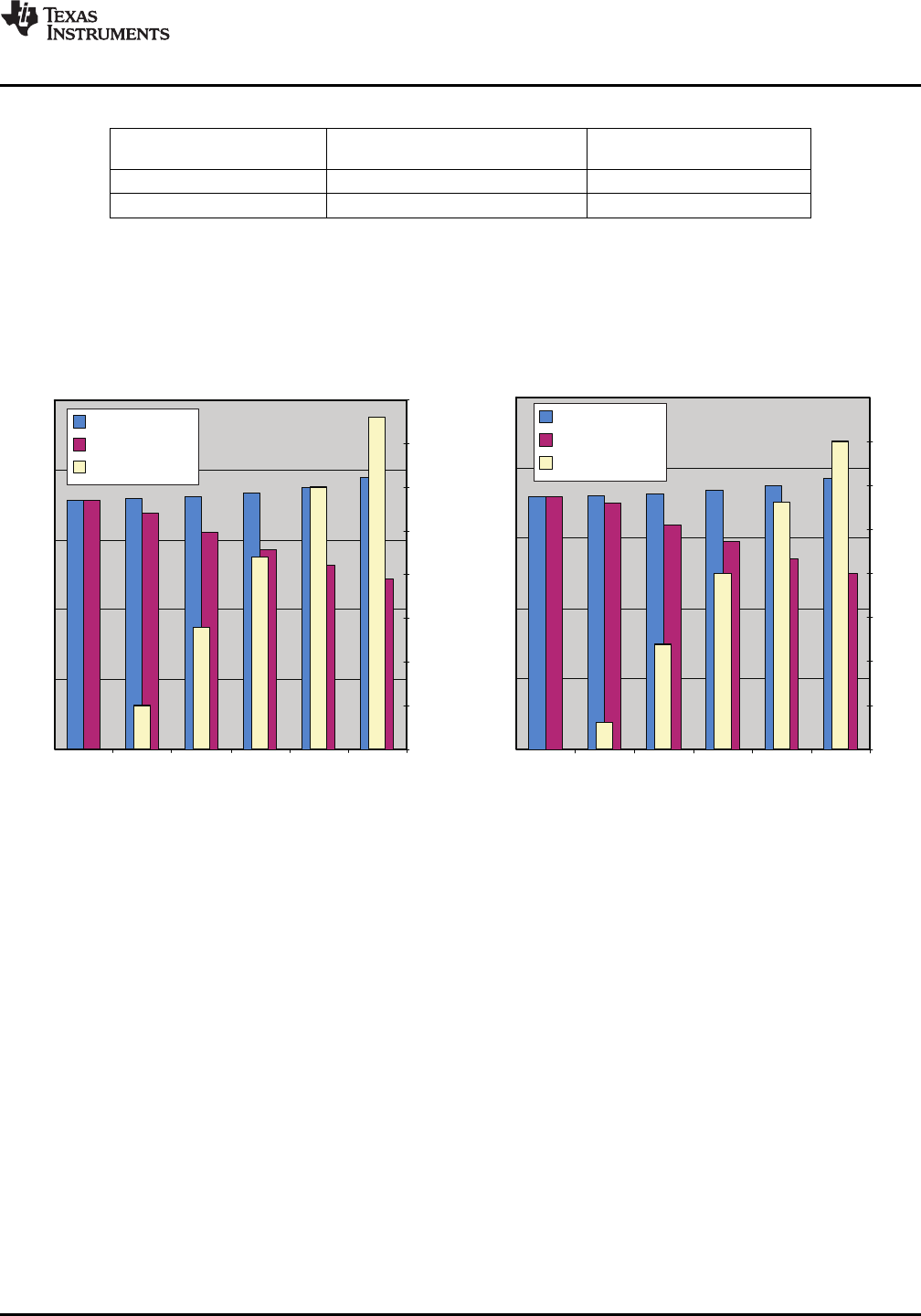

Current Consumption RX SG
CLKCONMOD 0xBF
0
5
10
15
20
25
Current (mA)
0
5
10
15
20
25
30
35
40
Current Savings (%)
2.1 2.4 2.7 3 3.3 3.6
Supply (V)
DC/DC OFF
DC/DC ON
Current Savings
Current Consumption TX 0 dBm
0
2.1 2.4 2.7 3 3.3 3.6
Supply (V)
0
5
10
15
20
25
Current (mA)
0
5
10
15
20
25
30
35
40
Current Savings (%)
DC/DC OFF
DC/DC ON
Current Savings
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
Table 2. Output Power and Current Consumption
Typical Current Consumption Typical Current Consumption
Typical Output Power (dBm) (mA)(1) With TPS62730 (mA)(2)
0 18.2 14.3
–20 16.8 13.1
(1) Measured on Texas Instruments CC2541 EM reference design with TA= 25°C, VDD = 3 V and fc=
2440 MHz. See SWRU191 for recommended register settings.
(2) Measured on Texas Instruments CC2541 TPS62730 EM reference design with TA= 25°C, VDD = 3 V
and fc= 2440 MHz. See SWRU191 for recommended register settings.
TYPICAL CURRENT SAVINGS WHEN USING TPS62730
Figure 20. Current Savings in TX at Room Figure 21. Current Savings in RX at Room
Temperature Temperature
The application note (SWRA365) has information regarding the CC2541 and TPS62730 combo board and the
current savings that can be achieved using the combo board.
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 23
Product Folder Links: CC2541
GND
SCL
SDA
NC
P1_5
DVDD2
P1_1
P1_2
P1_3
P1_4
2-V to 3.6-V Power Supply
R301
XTAL1
C221 C231
XTAL2
C321
C331
C401
32-kHz Crystal(1)
CC2541
DIE ATTACH PAD
RBIAS
AVDD4
AVDD1
AVDD2
RF_N
AVDD5
XOSC_Q1
XOSC_Q2
AVDD3
RF_P
P1_0
P0_7
P0_6
P0_5
P0_4
RESET_N
P0_0
P0_1
P0_2
P0_3
DCOUPL
DVDD1
P1_6
P1_7
P2_0
AVDD6
P2_4/XOSC32K_Q1
P2_3/XOSC32K_Q2
P2_2
P2_1
Antenna
(50 )W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Power Supply Decoupling Capacitors are Not Shown
Digital I/O Not Connected
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
APPLICATION INFORMATION
Few external components are required for the operation of the CC2541. A typical application circuit is shown in
Figure 22.
(1) 32-kHz crystal is mandatory when running the BLE protocol stack in low-power modes, except if the link layer is in
the standby state (Vol. 6 Part B Section 1.1 in [1]).
NOTE: Different antenna alternatives will be provided as reference designs.
Figure 22. CC2541 Application Circuit
Table 3. Overview of External Components (Excluding Supply Decoupling Capacitors)
Component Description Value
C401 Decoupling capacitor for the internal 1.8-V digital voltage regulator 1 µF
R301 Precision resistor ±1%, used for internal biasing 56 kΩ
Input/Output Matching
When using an unbalanced antenna such as a monopole, a balun should be used to optimize performance. The
balun can be implemented using low-cost discrete inductors and capacitors. See reference design, CC2541EM,
for recommended balun.
24 Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
L parasitic
321 331
1
C C
1 1
C C
= +
+
L parasitic
221 231
1
C C
1 1
C C
= +
+
CC2541
www.ti.com
SWRS110D –JANUARY 2012–REVISED JUNE 2013
Crystal
An external 32-MHz crystal, XTAL1, with two loading capacitors (C221 and C231) is used for the 32-MHz crystal
oscillator. See 32-MHz CRYSTAL OSCILLATOR for details. The load capacitance seen by the 32-MHz crystal is
given by:
(1)
XTAL2 is an optional 32.768-kHz crystal, with two loading capacitors (C321 and C331) used for the 32.768-kHz
crystal oscillator. The 32.768-kHz crystal oscillator is used in applications where both very low sleep-current
consumption and accurate wake-up times are needed. The load capacitance seen by the 32.768-kHz crystal is
given by:
(2)
A series resistor may be used to comply with the ESR requirement.
On-Chip 1.8-V Voltage Regulator Decoupling
The 1.8-V on-chip voltage regulator supplies the 1.8-V digital logic. This regulator requires a decoupling capacitor
(C401) for stable operation.
Power-Supply Decoupling and Filtering
Proper power-supply decoupling must be used for optimum performance. The placement and size of the
decoupling capacitors and the power supply filtering are very important to achieve the best performance in an
application. TI provides a compact reference design that should be followed very closely.
References
1. Bluetooth® Core Technical Specification document, version 4.0
http://www.bluetooth.com/SiteCollectionDocuments/Core_V40.zip
2. CC253x System-on-Chip Solution for 2.4-GHz IEEE 802.15.4 and ZigBee®Applications/CC2541 System-on-
Chip Solution for 2.4-GHz Bluetooth low energy Applications (SWRU191)
3. Current Savings in CC254x Using the TPS62730 (SWRA365).
Additional Information
Texas Instruments offers a wide selection of cost-effective, low-power RF solutions for proprietary and standard-
based wireless applications for use in industrial and consumer applications. Our selection includes RF
transceivers, RF transmitters, RF front ends, and System-on-Chips as well as various software solutions for the
sub-1- and 2.4-GHz frequency bands.
In addition, Texas Instruments provides a large selection of support collateral such as development tools,
technical documentation, reference designs, application expertise, customer support, third-party and university
programs.
The Low-Power RF E2E Online Community provides technical support forums, videos and blogs, and the chance
to interact with fellow engineers from all over the world.
With a broad selection of product solutions, end application possibilities, and a range of technical support, Texas
Instruments offers the broadest low-power RF portfolio. We make RF easy!
The following subsections point to where to find more information.
Copyright © 2012–2013, Texas Instruments Incorporated Submit Documentation Feedback 25
Product Folder Links: CC2541
CC2541
SWRS110D –JANUARY 2012–REVISED JUNE 2013
www.ti.com
Texas Instruments Low-Power RF Web Site
• Forums, videos, and blogs
• RF design help
• E2E interaction
Join us today at www.ti.com/lprf-forum.
Texas Instruments Low-Power RF Developer Network
Texas Instruments has launched an extensive network of low-power RF development partners to help customers
speed up their application development. The network consists of recommended companies, RF consultants, and
independent design houses that provide a series of hardware module products and design services, including:
• RF circuit, low-power RF, and ZigBee®design services
• Low-power RF and ZigBee module solutions and development tools
• RF certification services and RF circuit manufacturing
Need help with modules, engineering services or development tools?
Search the Low-Power RF Developer Network tool to find a suitable partner.
www.ti.com/lprfnetwork
Low-Power RF eNewsletter
The Low-Power RF eNewsletter keeps you up-to-date on new products, news releases, developers’ news, and
other news and events associated with low-power RF products from TI. The Low-Power RF eNewsletter articles
include links to get more online information.
Sign up today on
www.ti.com/lprfnewsletter
Spacer
REVISION HISTORY
Changes from Original (January 2012) to Revision A Page
• Changed data sheet status from Product Preview to Production Data ................................................................................ 1
Changes from Revision A (February 2012) to Revision B Page
• Changed the Temperature coefficient Unit value From: mV/°C To: / 0.1°C ....................................................................... 10
• Changed Figure 22 text From: Optional 32-kHz Crystal To: 32-kHz Crystal ..................................................................... 24
Changes from Revision B (August 2012) to Revision C Page
• Changed the "Internal reference voltage" TYP value From 1.15 V To: 1.24 V .................................................................. 12
• Changed pin XOSC_Q1 Pin Type From Analog O To: Analog I/O, and changed the Pin Description .............................. 17
• Changed pin XOSC_Q2 Pin Type From Analog O To: Analog I/O .................................................................................... 17
Changes from Revision C (November 2012) to Revision D Page
• Changed the RF TRANSMIT SECTION, Output power TYP value From: –20 To: –23 ....................................................... 8
• Changed the RF TRANSMIT SECTION, Programmable output power range TYP value From: 20 To: 23 ........................ 8
• Added row 0x31 to Table 1 ................................................................................................................................................. 22
26 Submit Documentation Feedback Copyright © 2012–2013, Texas Instruments Incorporated
Product Folder Links: CC2541
PACKAGE OPTION ADDENDUM
www.ti.com 23-Sep-2014
Addendum-Page 1
PACKAGING INFORMATION
Orderable Device Status
(1)
Package Type Package
Drawing Pins Package
Qty Eco Plan
(2)
Lead/Ball Finish
(6)
MSL Peak Temp
(3)
Op Temp (°C) Device Marking
(4/5)
Samples
CC2541F128RHAR ACTIVE VQFN RHA 40 2500 Green (RoHS
& no Sb/Br)
CU NIPDAU Level-3-260C-168 HR -40 to 85 CC2541
F128
CC2541F128RHAT ACTIVE VQFN RHA 40 250 Green (RoHS
& no Sb/Br)
CU NIPDAU Level-3-260C-168 HR -40 to 85 CC2541
F128
CC2541F256RHAR ACTIVE VQFN RHA 40 2500 Green (RoHS
& no Sb/Br)
CU NIPDAU Level-3-260C-168 HR -40 to 85 CC2541
F256
CC2541F256RHAT ACTIVE VQFN RHA 40 250 Green (RoHS
& no Sb/Br)
CU NIPDAU Level-3-260C-168 HR -40 to 85 CC2541
F256
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish
value exceeds the maximum column width.
PACKAGE OPTION ADDENDUM
www.ti.com 23-Sep-2014
Addendum-Page 2
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF CC2541 :
•Automotive: CC2541-Q1
NOTE: Qualified Version Definitions:
•Automotive - Q100 devices qualified for high-reliability automotive applications targeting zero defects

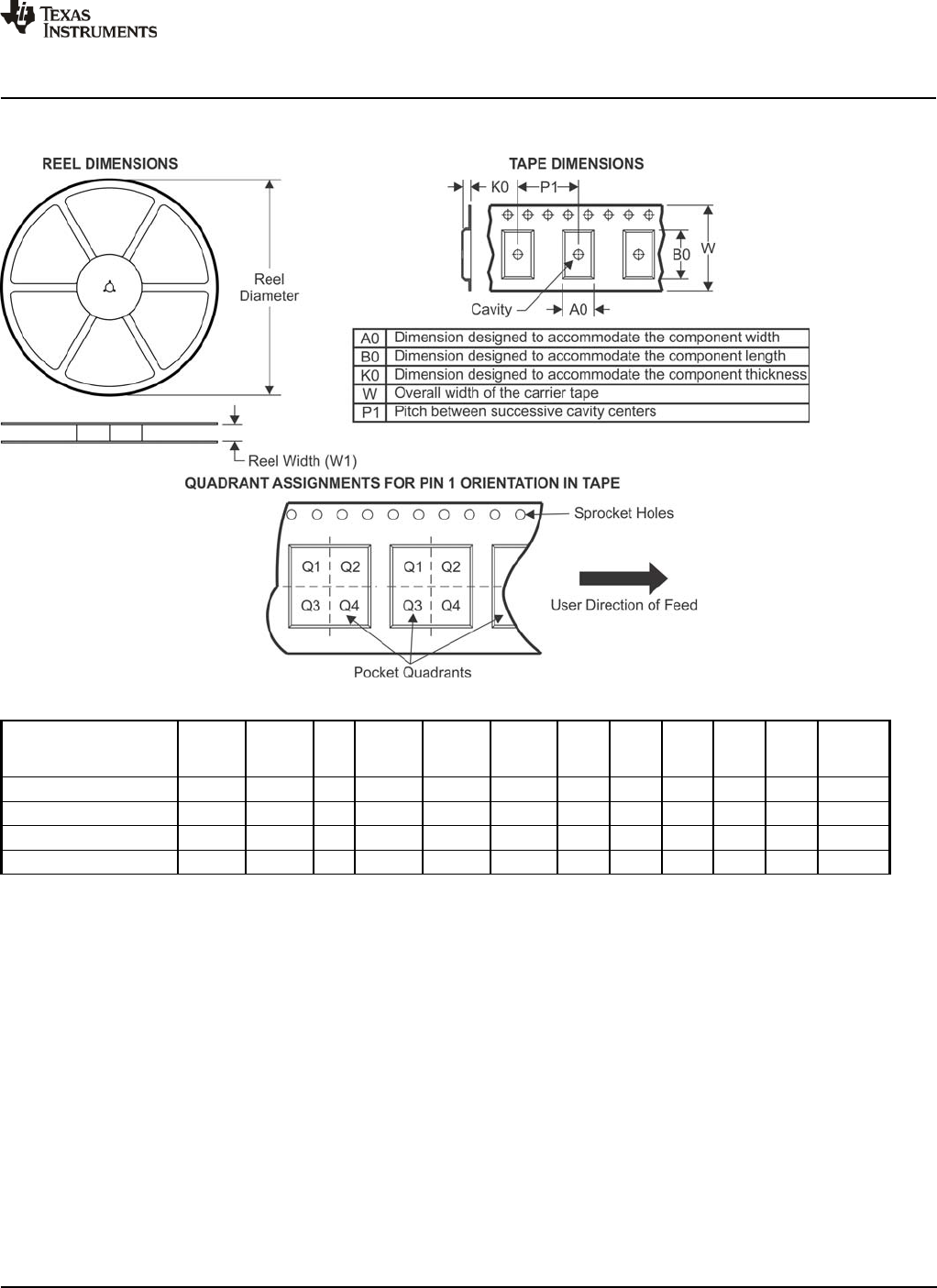

TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package
Type Package
Drawing Pins SPQ Reel
Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm) B0
(mm) K0
(mm) P1
(mm) W
(mm) Pin1
Quadrant
CC2541F128RHAR VQFN RHA 40 2500 330.0 16.4 6.3 6.3 1.5 12.0 16.0 Q2
CC2541F128RHAT VQFN RHA 40 250 180.0 16.4 6.3 6.3 1.5 12.0 16.0 Q2
CC2541F256RHAR VQFN RHA 40 2500 330.0 16.4 6.3 6.3 1.5 12.0 16.0 Q2
CC2541F256RHAT VQFN RHA 40 250 180.0 16.4 6.3 6.3 1.5 12.0 16.0 Q2

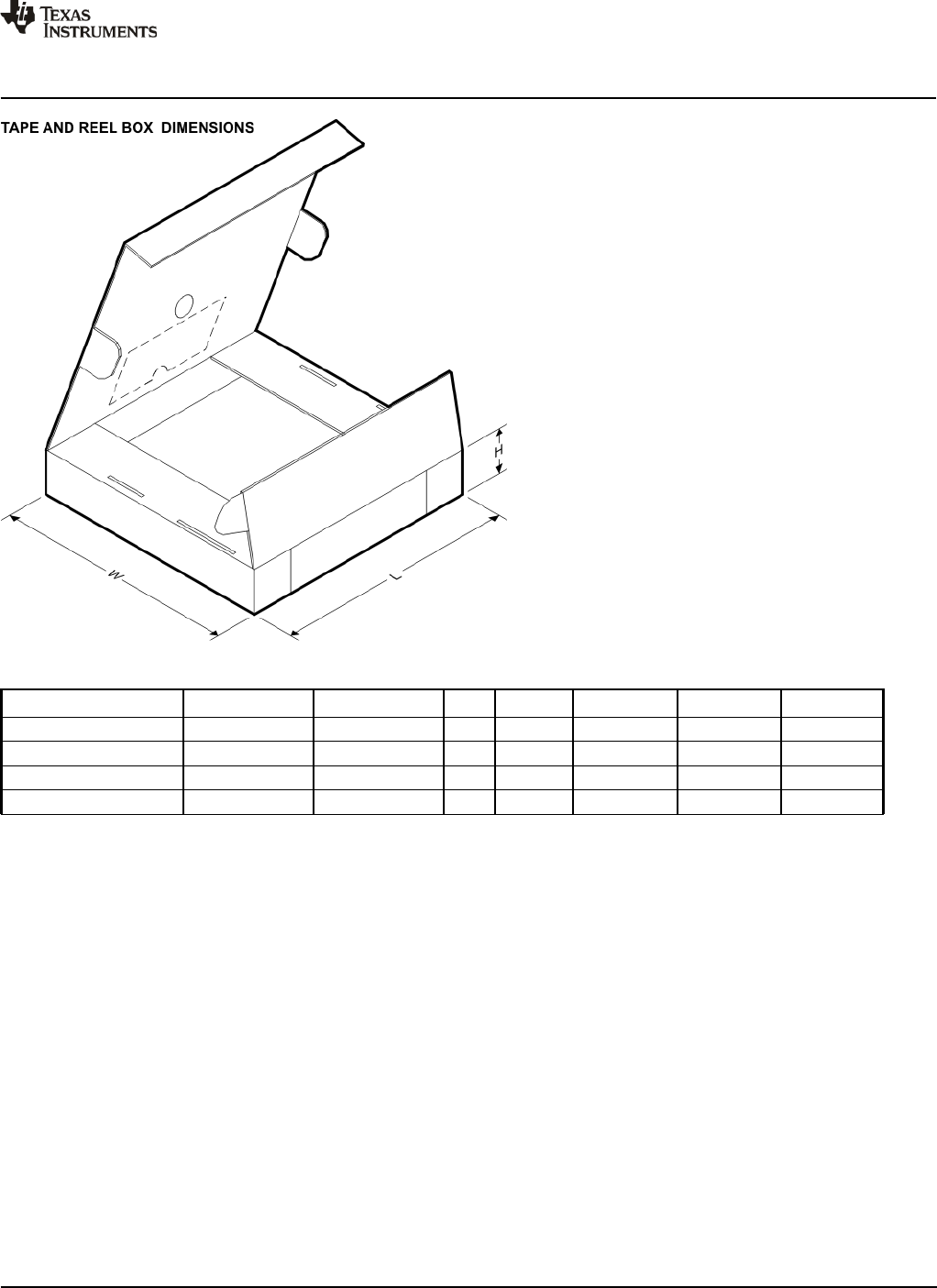

PACKAGE MATERIALS INFORMATION
www.ti.com 13-Nov-2014
Pack Materials-Page 1
*All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
CC2541F128RHAR VQFN RHA 40 2500 336.6 336.6 28.6
CC2541F128RHAT VQFN RHA 40 250 213.0 191.0 55.0
CC2541F256RHAR VQFN RHA 40 2500 336.6 336.6 28.6
CC2541F256RHAT VQFN RHA 40 250 213.0 191.0 55.0
PACKAGE MATERIALS INFORMATION
www.ti.com 13-Nov-2014
Pack Materials-Page 2

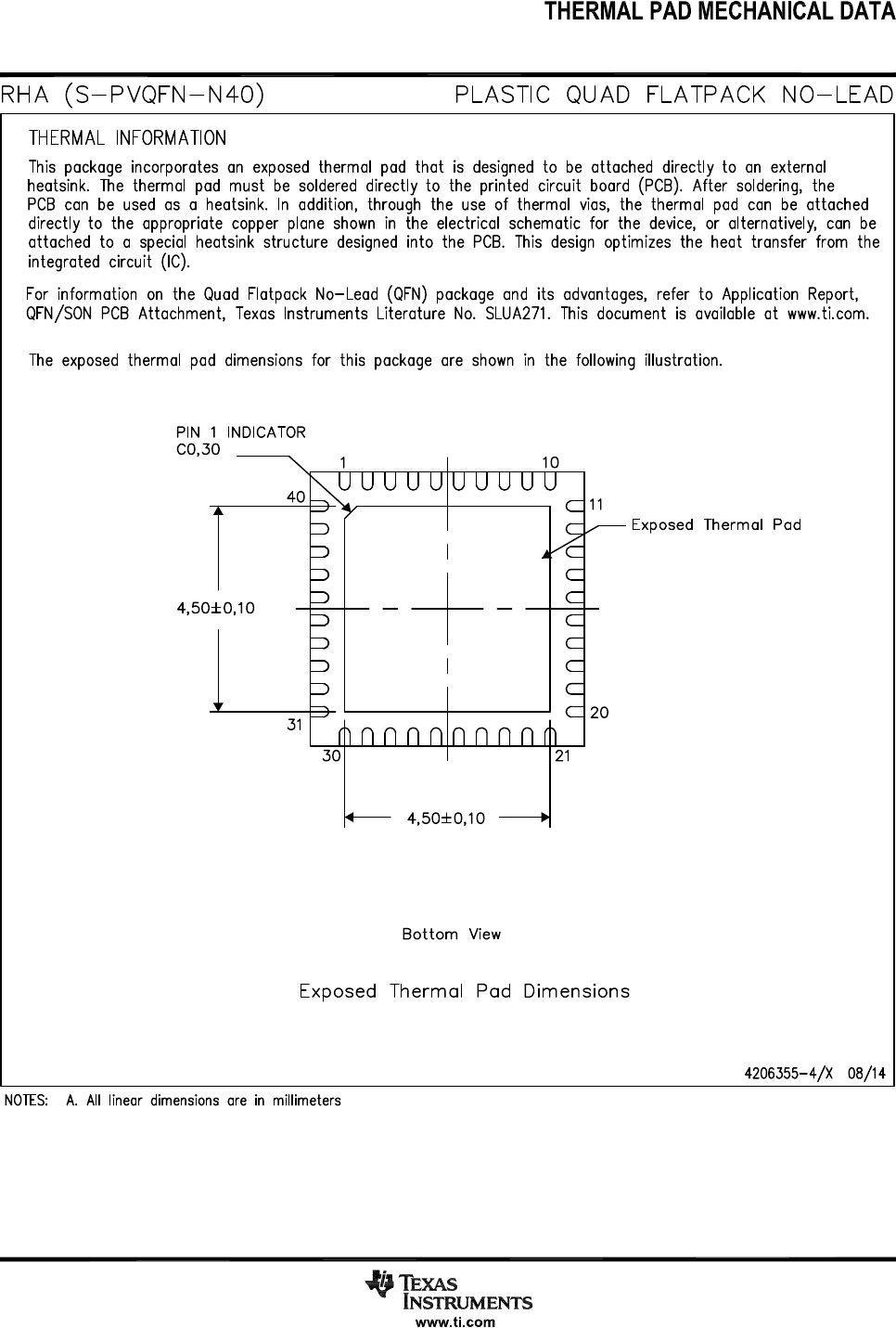

IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products Applications
Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive
Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications
Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers
DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps
DSP dsp.ti.com Energy and Lighting www.ti.com/energy
Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial
Interface interface.ti.com Medical www.ti.com/medical
Logic logic.ti.com Security www.ti.com/security
Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense
Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video
RFID www.ti-rfid.com
OMAP Applications Processors www.ti.com/omap TI E2E Community e2e.ti.com
Wireless Connectivity www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2014, Texas Instruments Incorporated
