User manual

Rugged Handheld Computer
- PA730 -
User's Manual
Version 1.1
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Revision History
Date Change Description Version
2017/9/26 first published version 1.0
2017/10/13 Update photos
Update spec info.
1.1
Preface
About This Manual
Thank you for purchasing the unitech product.
This manual explains how to install, operate and maintain our product.
No part of this publication may be reproduced or used in any form, or by any
electrical or mechanical means, such as photocopying, recording, or
information storage and retrieval systems, without permission in writing from
the manufacturer. The material in this manual is subject to change without
notice.
Regulatory Compliance Statements
FCC Warning Statement
i © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference with radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference with radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
ii © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
1. This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
2. This device complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. To maintain compliance with FCC RF
exposure requirements, avoid direct contact to the transmitting antenna
during transmitting.
3. Any changes or modifications (including the antennas) made to this device
that are not expressly approved by the manufacturer may void the users
authority to operate the equipment.
Operation on the 5.15 - 5.25GHz frequency band is restricted to indoor use
only. The FCC requires indoor use for the 5.15-5.25GHz band to reduce the
potential for harmful interference to co-channel Mobile Satellite Systems.
Therefore, it will only transmit on the 5.25-5.35 GHz, 5.47-5.725 GHz and
5.7255.850 GHz band when associated with an access point (AP).
FCC Label Statement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
i © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Hearing Aid Compatibility Information
The FCC has adopted hearing aid compatibility (HAC) rules for digital wireless
phones. These rules require certain phones to be tested and rated under the
American National Standard Institute (ANSI) C63.19-2007 or C63.19-2011
hearing aid compatibility standards.
The ANSI standard for hearing aid compatibility contains the below rating:
An “ M “ rating for reduced radio frequency interference to enable acoustic
coupling with hearing aids that are not operating in telecoil mode.
These rating are given on a scale form one to four, where four is the most
compatible. A phone is considered hearing aid compatible under FCC rules if it
is rated M4 for acoustic coupling.
Hearing aid compatibility ratings don't guarantee that a particular hearing aid
works with a particular phone. Some hearing aids might work well with phones
that don’t meet particular ratings. To ensure interoperability between a hearing
aid and a phone, try using them together before purchase.
This phone has been tested and rated for use with hearing aids for some of the
wireless technologies it uses. However, there may be some newer wireless
technologies used in this phone that have not been tested yet for use with
hearing aids. It is important to try the different features of this phone thoroughly
and in different locations, using your hearing aid or cochlear implant, to
determine id you hear any interfering noise. Consult your carrier or Unitech for
information on hearing aid compatibility. If you have questions about return or
exchange policies, consult your carrier or phone retailer.
RF Radiation Exposure Statement
For body contact during operation, this device has been tested and meets FCC
RF exposure guidelines when used with an accessory that contains no metal
and that positions the handset a minimum of 1 cm from the body.
Use of other accessories may not ensure compliance with FCC RF exposure
guidelines.
Canadian Compliance Statement
This Class B Digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe B respecte les exigences du Reglement
sur le material broilleur du Canada.
European Conformity Statement
unitech Electronics co., Ltd herewith declares that the unitech product is in
compliance with the essential requirements and all other provisions of the RED
2014/53/EU directive, the EMC 2014/30/EU directive and the Low Voltage
2014/35/EU directive.
The declaration of conformity is available for download at :
https://portal.unitech.eu/public/Safetyregulatorystatement
CE RF Exposure Compliance
This device meets EU requirements (2014/53/EU) on the limitation of exposure
of the general public to electromagnetic fields by way of health protection.
For body-worn operation, this device has been tested and meets the ICNIRP
guidelines and the European Standard EN 62209-2, for use with dedicated
accessories, SAR is measured with this device at a separation of 0.5 cm to the
body, while transmitting at the highest certified output power level in all
frequency bands of this device. Use of other accessories which contain metals
may not ensure compliance with ICNIRP exposure guidelines.
CE Mark Warning
This equipment complies with the requirements of Directive 2014/53/EU of the
European Parliament and Commission from 24 May, 2014 governing Radio
and Telecommunications Equipment and mutual recognition of conformity.
The highest CE SAR values for the device are as follows :
0.776 W/kg @ 10g (Head)
ii © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
iii © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1.400 W/kg @ 10g (Body)
RoHS Statement
This device conforms to RoHS (Restriction Of
Hazardous Substances) European Union regulations
that set maximum concentration limits on hazardous
materials used in electrical and electronic equipment.
Waste electrical and electronic equipment (WEEE)
unitech has set up a policy and process to meet the EU
directive 2002/96/EC and update 2003/108/EC
concerning electronic waste disposal.
For more detailed information of the electronic waste
disposal of the products you have purchased from
unitech directly or via unitech’s resellers, you shall either
contact your local supplier or visit us at :
https://portal.unitech.eu/public/WEEE
iv © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Taiwan NCC Warning Statement
低功率電波輻射性電機管理辦法
第十二條經型式認證合格之低功率射頻電機非經許可公司商號或使用者
均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信經發現有
干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。
低功率射頻電機需忍受合法通信或工業、科學及醫療用電波輻射性電機設備
之干擾。
注意事項:
1. 使用過度恐傷害視力。
2. 使用30分鐘請休息10分鐘2歲以下幼兒不看螢幕2歲以上每天看螢幕不要超過
1小時。
3. 減少電磁波影響,請妥適使用。
Laser Information
The unitech product is certified in the U.S. to conform to the requirements of
DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 60825-1.
Class II and Class 2 products are not considered to be hazardous. The unitech
product contains internally a Visible Laser Diode (VLD) whose emissions do
not exceed the maximum limits as set forth in the above regulations. The
scanner is designed so that there is no human access to harmful laser light
during normal operation, user maintenance or prescribed service operations.
The laser safety warning label required by the DHHS/IEC for the unitech
product’s optional laser scanner module is located on the memory
compartment cover, on the back of the unit.
* Laser information only applies to the products with laser components.
CAUTION! Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous laser
light. Use of optical instruments with the scanner, including
binoculars, microscopes, and magnifying glasses, with will
increase eye damage. This does not include eyeglasses worn by
the user.
LED Information
The unitech product contains LED indicator(s) or LED ring whose luminance is
not harmful to human eyes during normal operation, user maintenance or
prescribed service operations.
*LED information only applies to the products with LED components.
v © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Battery Notice
1. To guarantee optimal performance, it is recommended that rechargeable
batteries be replaced every year, or after 500 charging cycles are
completed. It is normal for the battery to balloon or expand after one
year or 500 cycles. Although it does not cause damage, it cannot be
used again and must be disposed of according to the location's safe
battery disposal procedures.
2. If a battery performance decreases more than 20%, the battery is at the
end of its life cycle. Stop use and ensure the battery is disposed of
properly.
3. The length of time that a battery lasts depends on the battery type and
how the device is used. Conserve the battery life by doing the following:
Avoid fully uncharging the battery because this places additional
strain on it. Several partial uncharges with frequent charges are better
than a fully uncharged battery. Charging a partially charged battery
does not cause harm to the unit.
Keep the battery cool. Avoid hot vehicles. For prolonged
storage, keep the battery at a 40% charge level.
Do not leave the battery uncharged and unused for an extended
period of time, the battery will wear out and the longevity of the
battery will be at least half of one with frequent charges.
4. Protect battery life by not over or under charging the battery.
5. Please do not leave battery unused for long time without charging it.
Despite unitech’s safety precautions, the battery pack may begin to
change shape. If so, stop using it immediately. Please check to see if
you are using a proper power adapter to charge the battery or contact
your service provider for service.
6. If you cannot charge the battery after it has been idle for an extended
period of time and it begins to heat up, please do not try to charge it. It
may not be functional anymore.
7. Please only use the original battery from unitech. Using a third party
battery can damage our products. Please note that when such damage
occurs, it is not covered by unitech’s warranty policy.
vi © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
vii © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
RISK OF EXPLOSION IF BATTERY IS
REPLACED INCORRECTLY.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS.
如果更換不正確之電池會有爆炸的風險
請依製造商說明書處理用過之電池
CAUTION!
如果更换不正确之电池会有爆炸的风险
请依制造商说明书处理用过之电池
Battery charge notice
It is important to consider temperature when the battery pack is charging.
Charging is most efficient at normal room temperature or in a slightly cooler
environment. It is essential that batteries are charged within the stated range of
0°C to 40°C. Charging batteries outside of the specified range could damage
the batteries and shorten their life cycle.
CAUTION! Do not charge batteries at a temperature lower than 0°C. This will
make the batteries unstable and dangerous. Please use a battery
temperature detecting device for a charger to ensure a safe
charging temperature range.
CAUTION! To ensure the unit working properly, please keep all connectors
away from the contaminants staying inside of them such as dust,
grease, mud, and water. The negligence may cause the unit with
no communication, short circuited, overheated and so on.
CAUTION! If the connector is damaged, please ensure the connector is being
fully repaired before use the unit to avoid causing short circuited.
Storage and safety notice
Although charged batteries may be left unused for several months, their
capacity may be depleted due to build up of internal resistance. If this happens,
they will require recharging prior to use. Batteries may be stored at
temperatures between -20°C to 60°C, however they may deplete more rapidly
at higher temperatures. It is recommended to store batteries at room
temperature.
* The message above only applies to the usage of the removable batteries.
For the products with non-removable batteries / without batteries, please refer to
the specification of each product.
Product Operation and Storage Notice
The unitech product has applicable operation and storage temperature
conditions. Please follow the limitation of suggested temperature conditions to
avoid failure, damage or malfunction.
*For applicable temperature conditions, please refer to the specification of each
product.
Adapter Notice
1. Please do not leave the power adapter in the socket when it is not
connected to your unitech product for charging.
2. Please remove the power adapter when the battery is fully recharged.
3. The bundled power adapter that comes with your unitech product is not
meant to be used outdoors. An adapter exposed to water or rain, or a very
humid environment can cause damage to both the adapter and the
product.
4. Please only use the bundled power adapter or same specification of
adapter to charge your unitech product. Using the wrong power adapter
can damage your unitech product.
* The message above only applies to the product connected to the adapter.
For the products without using the adapters, please refer to the specification of
each product.
viii © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Hearing Damage Warning
Zx.3 Warning
The warning shall be placed on the equipment, or on the packaging, or in the instruction
manual and shall consist of the following:
- the symbol of Figure 1 with a minimum height of 5 mm; and
- the following wording, or similar :
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Alternatively, the entire warning may be given through the equipment display during use, when
the user is asked to acknowledge activation of the higher level.
ix © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Worldwide Support
unitech’s professional support team is available to quickly answer questions or
assist with technical-related issues. Should an equipment problem occur,
please contact the nearest unitech regional service representative.
For complete contact information please visit the Web sites listed below:
Taipei, Taiwan – Headquarters Europe
Tel: +886-2-89121122 Tel: +31-13-4609292
E-mail: info@hq.ute.com E-mail: info@eu.ute.com
Address: 5F, No. 136, Lane 235, Baoqiao Road, Xindian
District, New Taipei City 231, Taiwan (R.O.C.)
Address: Kapitein Hatterasstraat 19, 5015 BB,
Tilburg, the Netherlands
xii
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Website: http://www.ute.com Website: http://eu.ute.com
China Japan
Tel: +86-59-2310-9966 Tel: +81-3-35232766
E-mail: info@cn.ute.com E-mail: info@jp.ute.com
Address:
Website:
Room401C, 4F, RIHUA International Mansion,
Xinfeng 3nd Road, Huoju Hi-tech District,
Xiamen, Fujan , China
http://cn.ute.com
Address:
Website:
Kayabacho Nagaoka Building 8F.,1-5-19
Shinkawa, Chuo-Ku,
Tokyo, 104-0033, Japan
http://jp.ute.com
Asia & Pacific / Middle East Latin America
Tel: +886-2-27911556 Tel: +52-55-5171-0528
E-mail: info@apac.ute.com
info@india.ute.com
info@mideast.ute.com
E-mail:
Address:
info@latin.ute.com
17171 Park Row, Suite 210
Houston, TX 77084USA (Rep.)
Address: 4F., No. 236, ShinHu 2nd Rd.,
NeiHu Chiu, 114, Taipei,Taiwan
Website: http://latin.ute.com
Website: http://apac.ute.com / http://mideast.ute.com
North America Please scan QR Code to visit us :
Tel: +1-714-8916400
E-mail:
Address:
Website:
info@us.ute.com / info@can.ute.com
6182 Katella Ave, Cypress, CA 90630, USA
http://us.ute.com
Warranty Policy
The following items covered under the unitech Limited Warranty are free from
defects during normal use:
The warranty period is varied from each country. Please consult with your
supplier or unitech local office for actual length of warranty period to your
purchased product.
Warranty becomes void if equipment is modified, improperly installed or used,
damaged by accident or neglect, or if any parts are improperly installed or
replaced by the user.
xiii
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Table of Contents
Preface.............................................................................................................i
Regulatory Compliance Statements ..............................................................i
Laser Information ......................................................................................... v
LED Information ........................................................................................... v
Battery Notice.............................................................................................. vi
Adapter Notice............................................................................................viii
Hearing Damage Warning........................................................................... ix
Worldwide Support..................................................................................... xii
Warranty Policy ..........................................................................................xiii
Chapter 1 - Overview................................................................................1
1.1 Package .................................................................................................1
1.2 Product Detail.........................................................................................2
1.3 Specifications .........................................................................................5
1.4 Getting Started .......................................................................................9
Chapter 2 – Installation & Operation.................................................14
2.1 Barcode Setting....................................................................................14

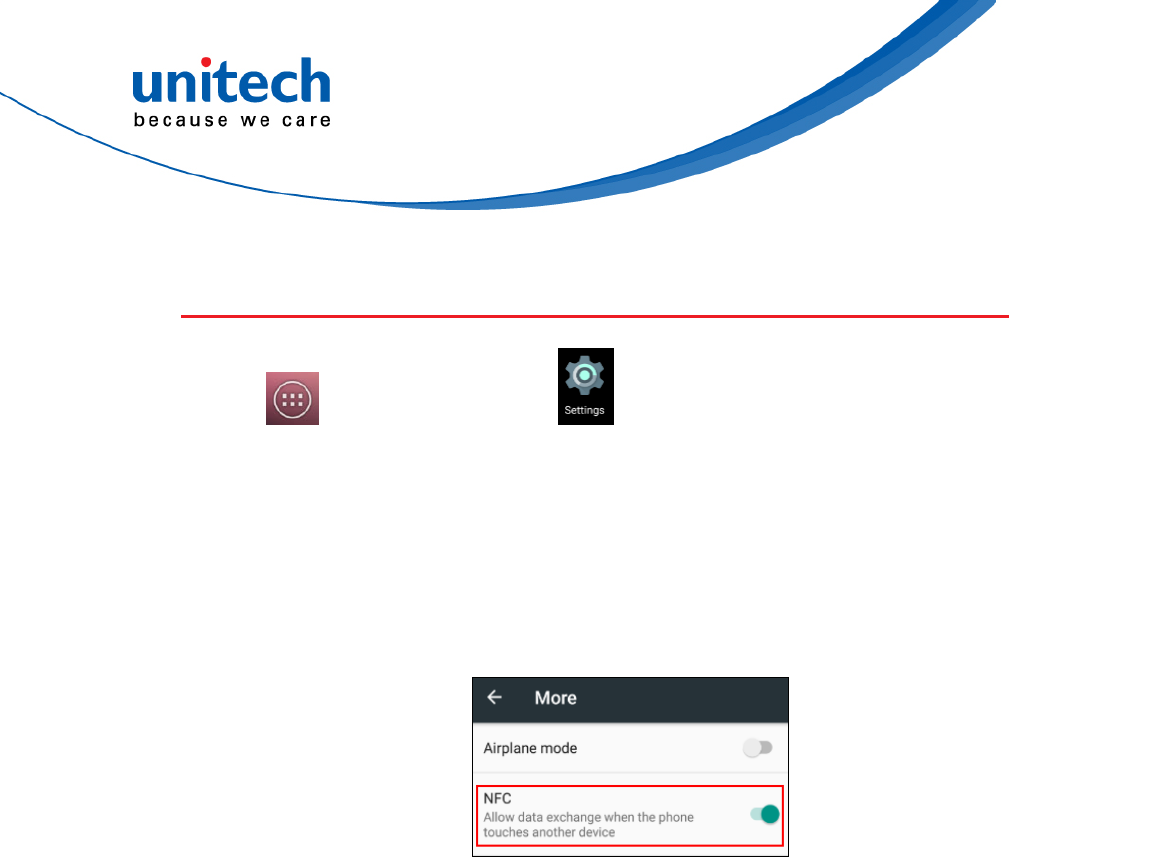

2.2 HF Setting ............................................................................................19
2.3 UHF Setting..........................................................................................20

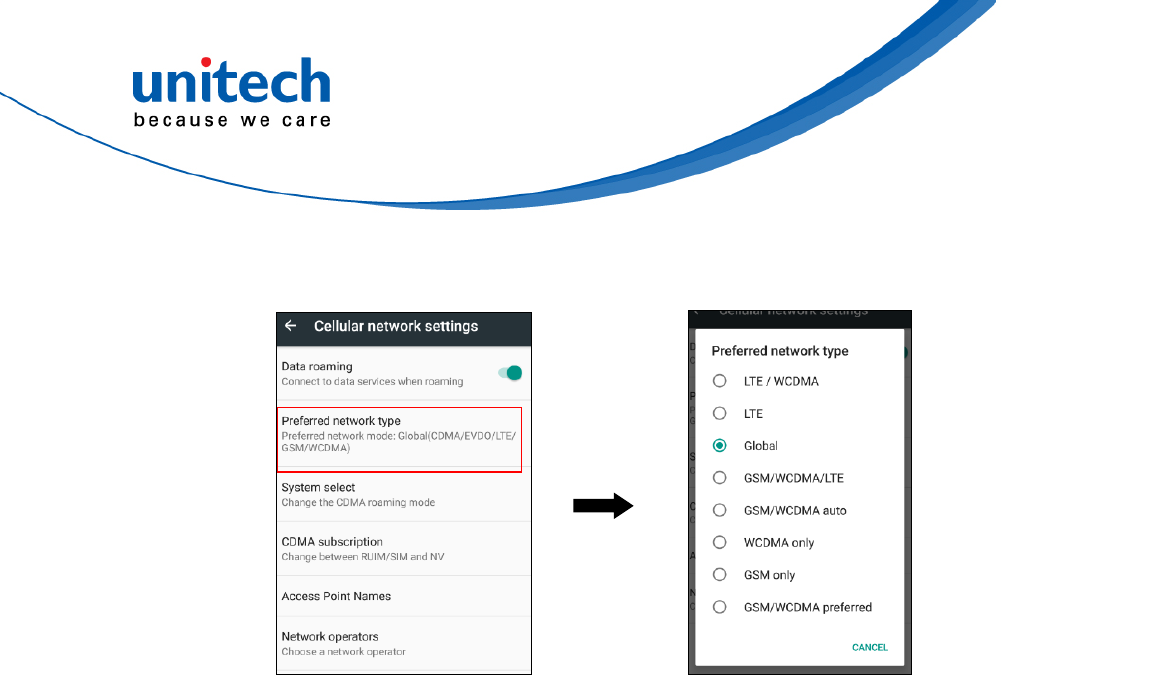

2.4 MSR Setting .........................................................................................20

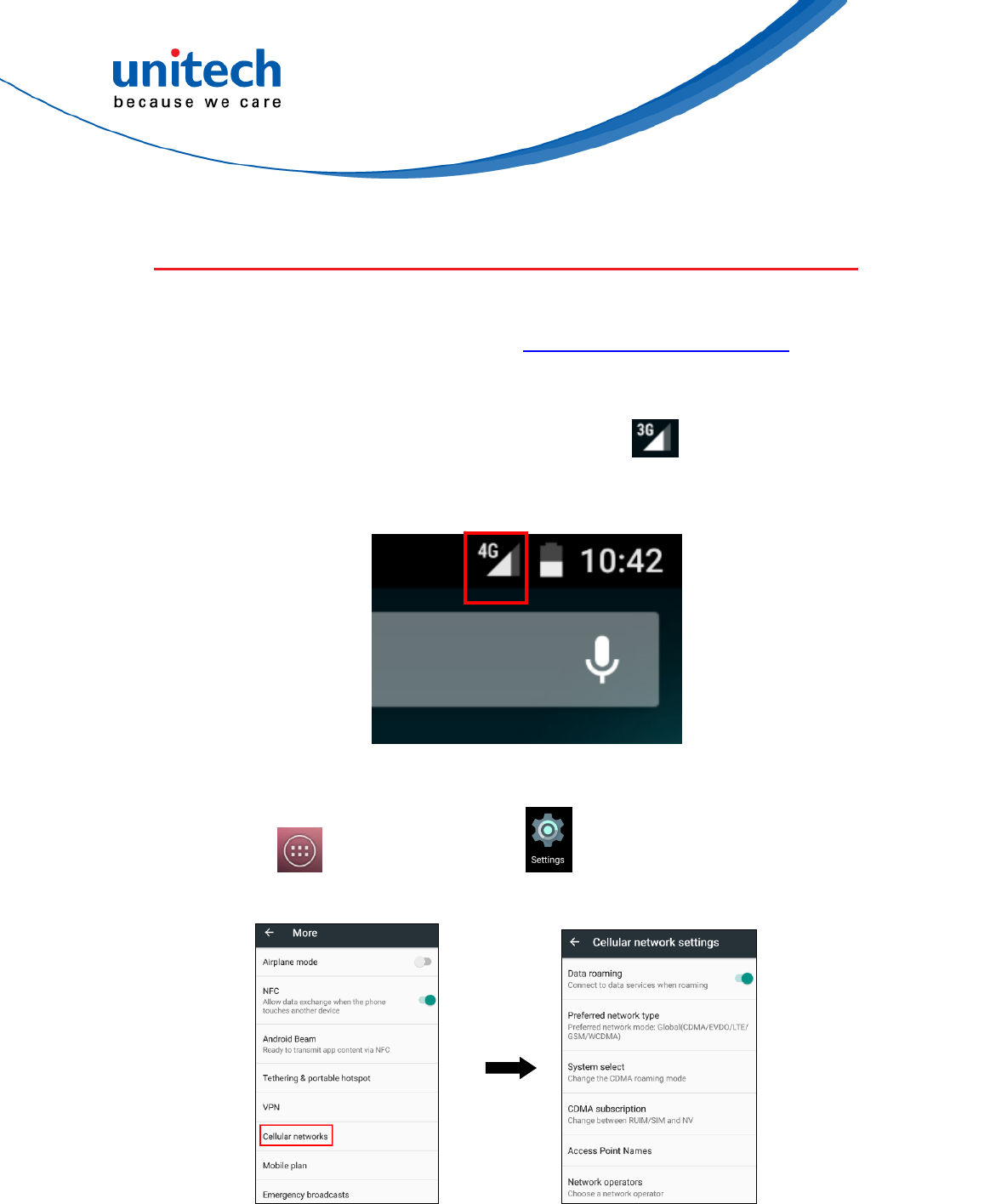

2.5 WWAN Setting......................................................................................21

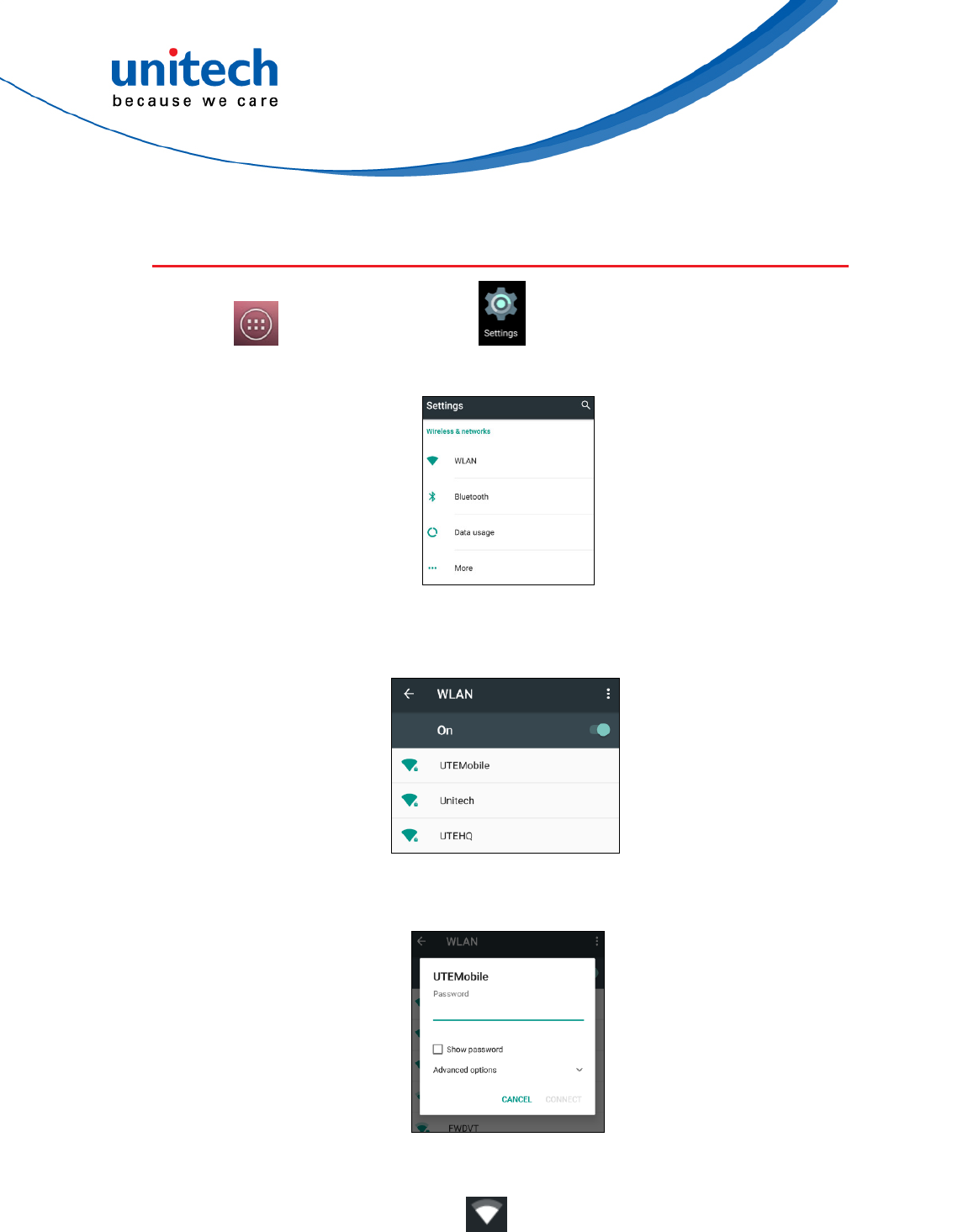

2.6 WLAN Setting.......................................................................................23
2.7 PAN Setting..........................................................................................24

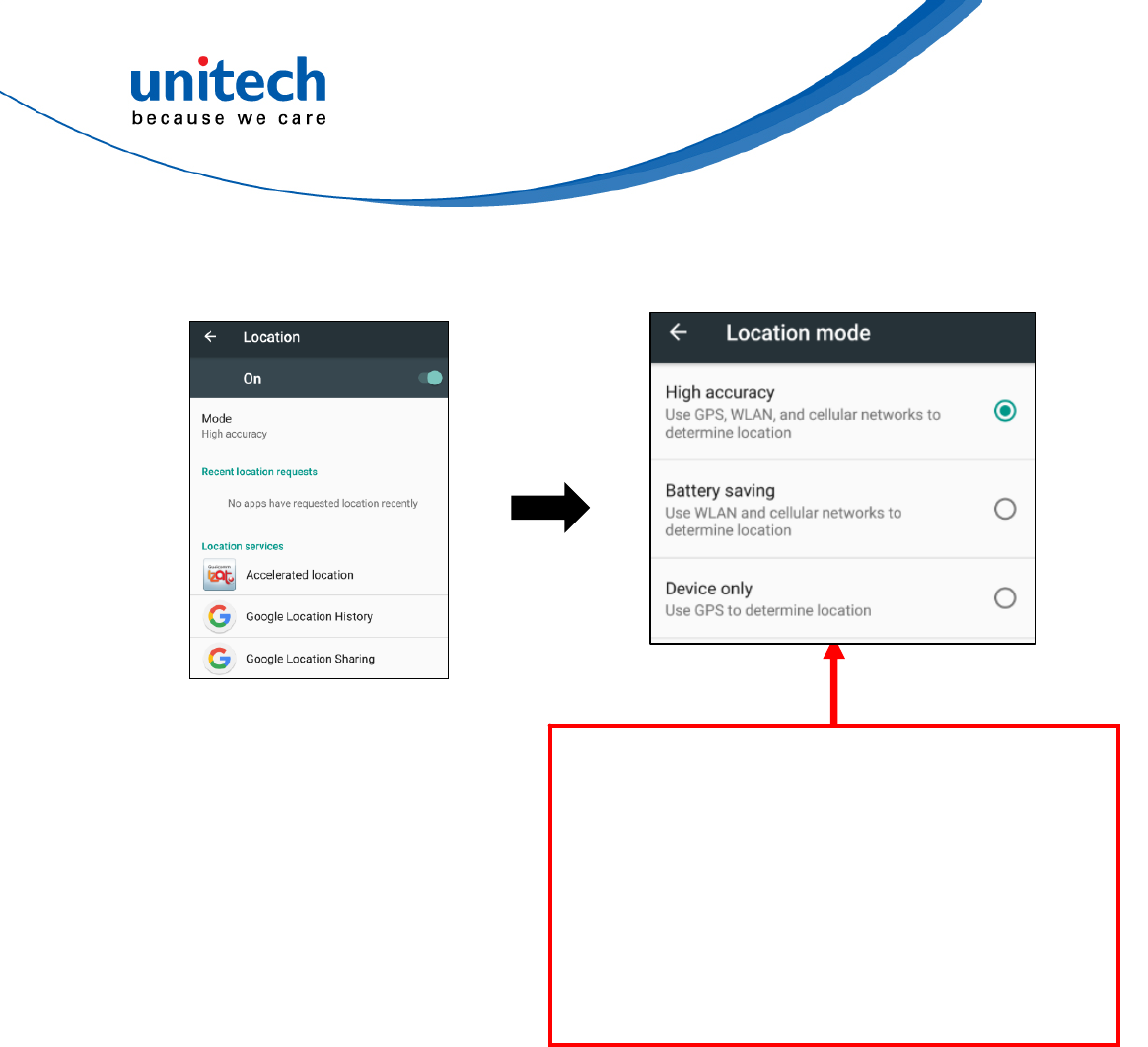

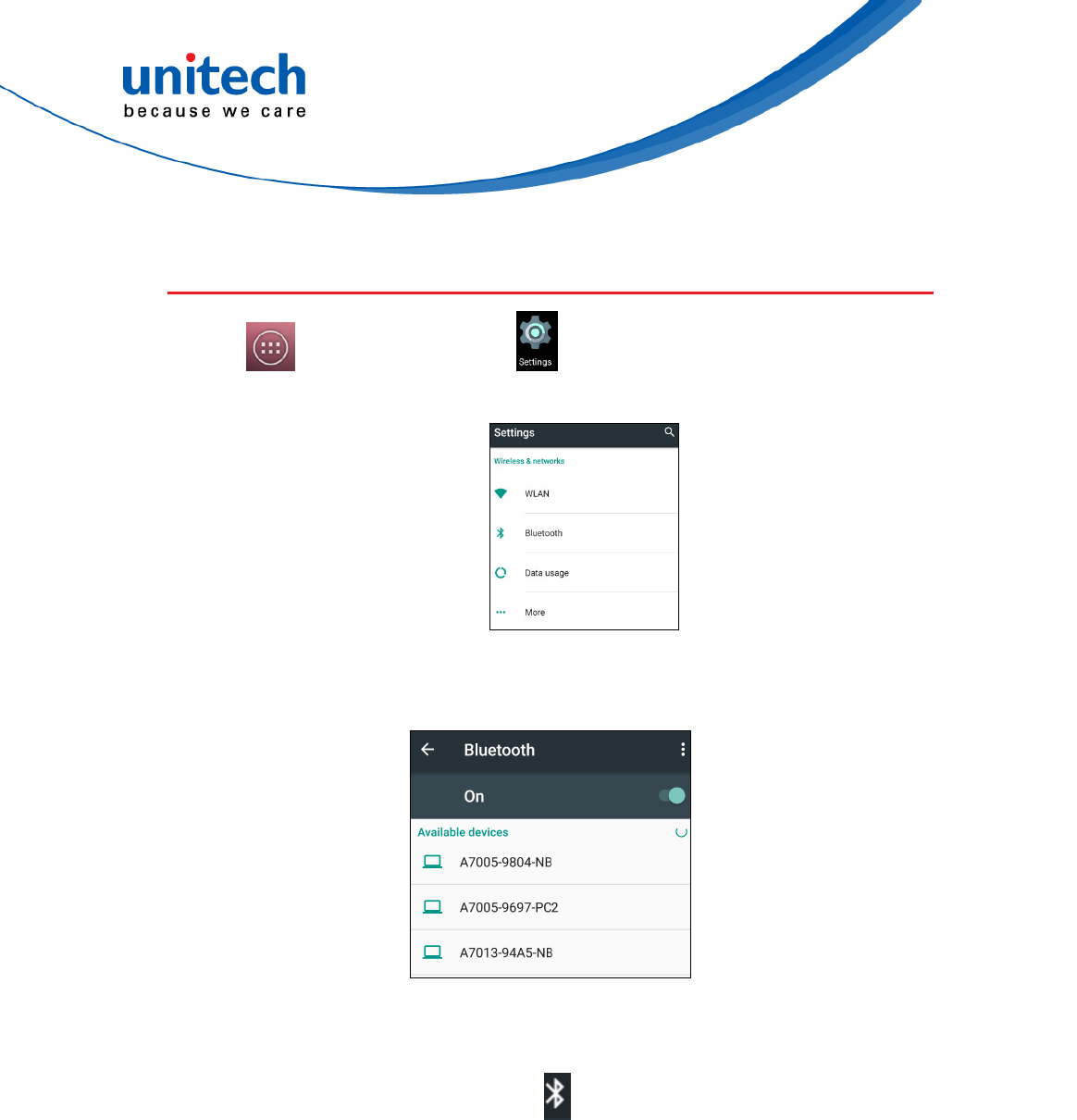

2.8 GPS Setting..........................................................................................25

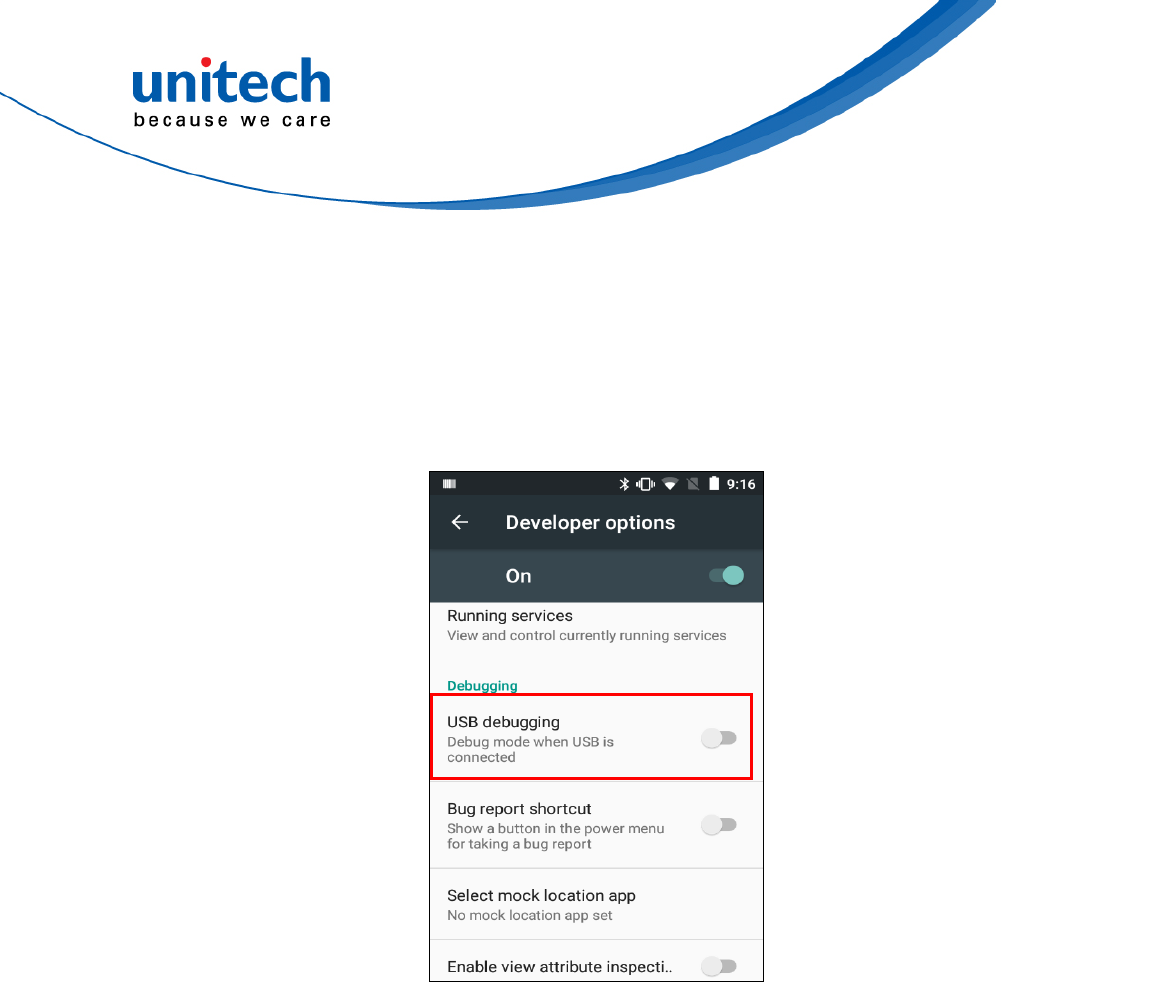

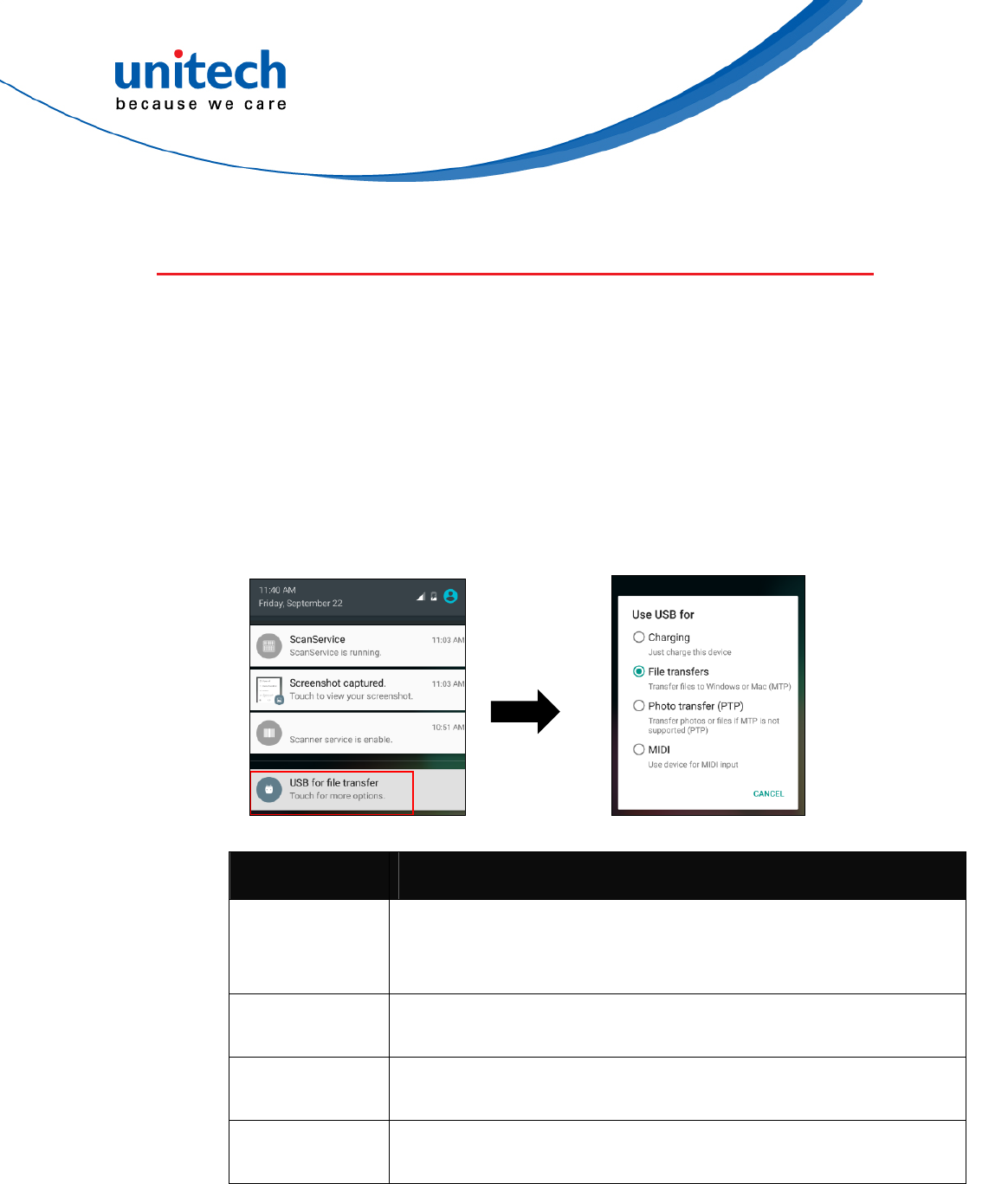

2.9 PC Setting ............................................................................................27

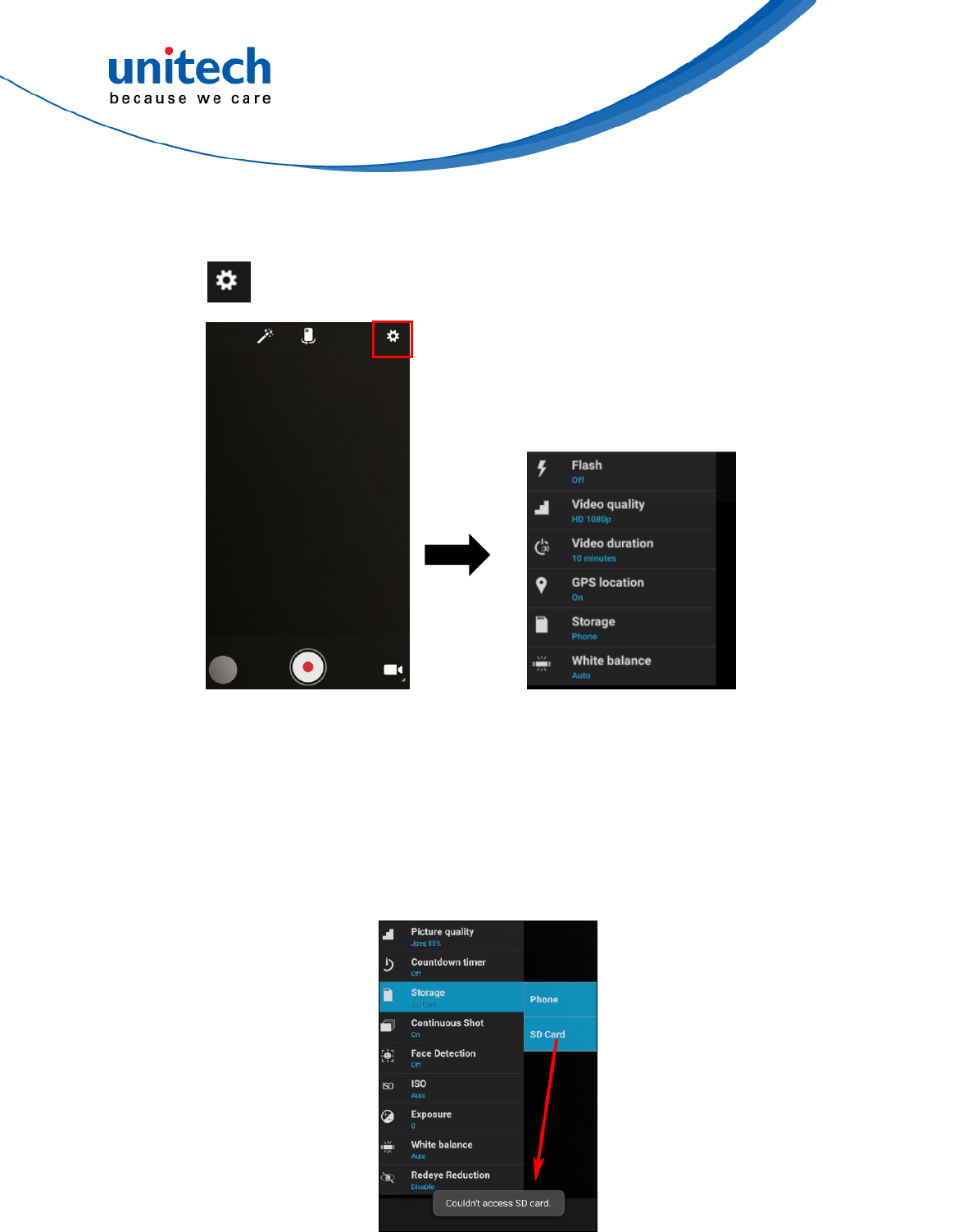

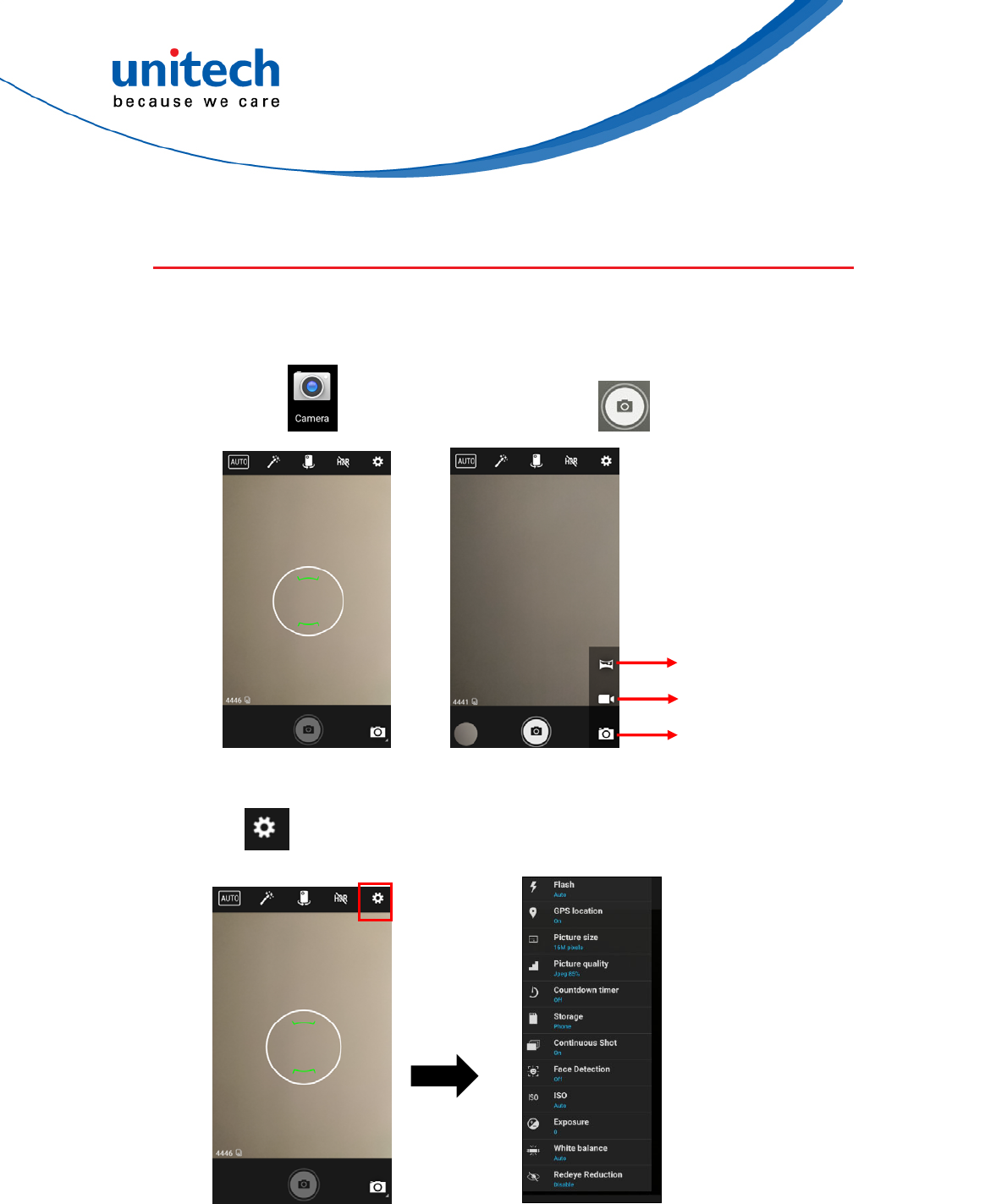

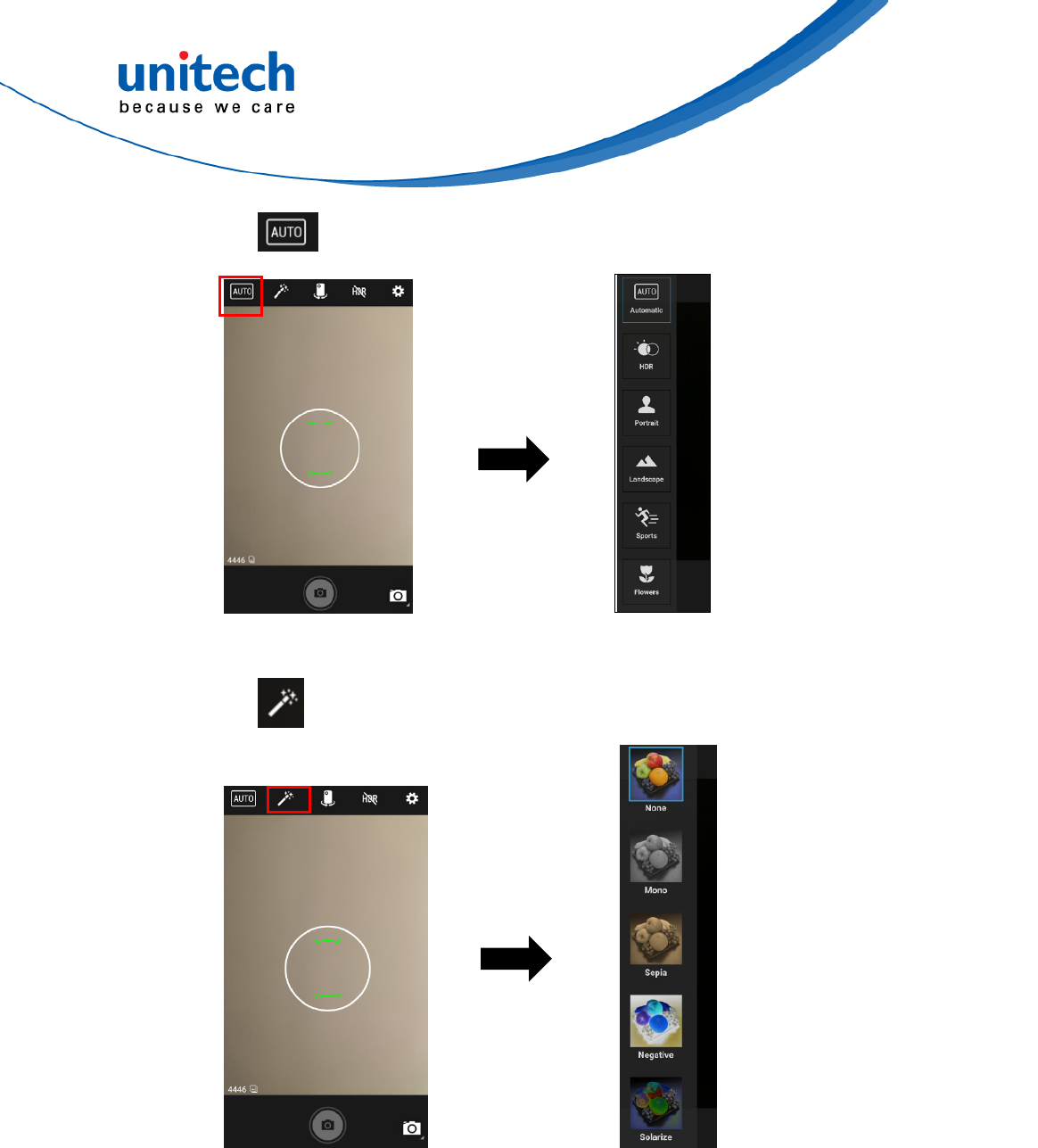

2.10 Camera Setting ..................................................................................29
2.11 Performing a Hardware Reset ............................................................32

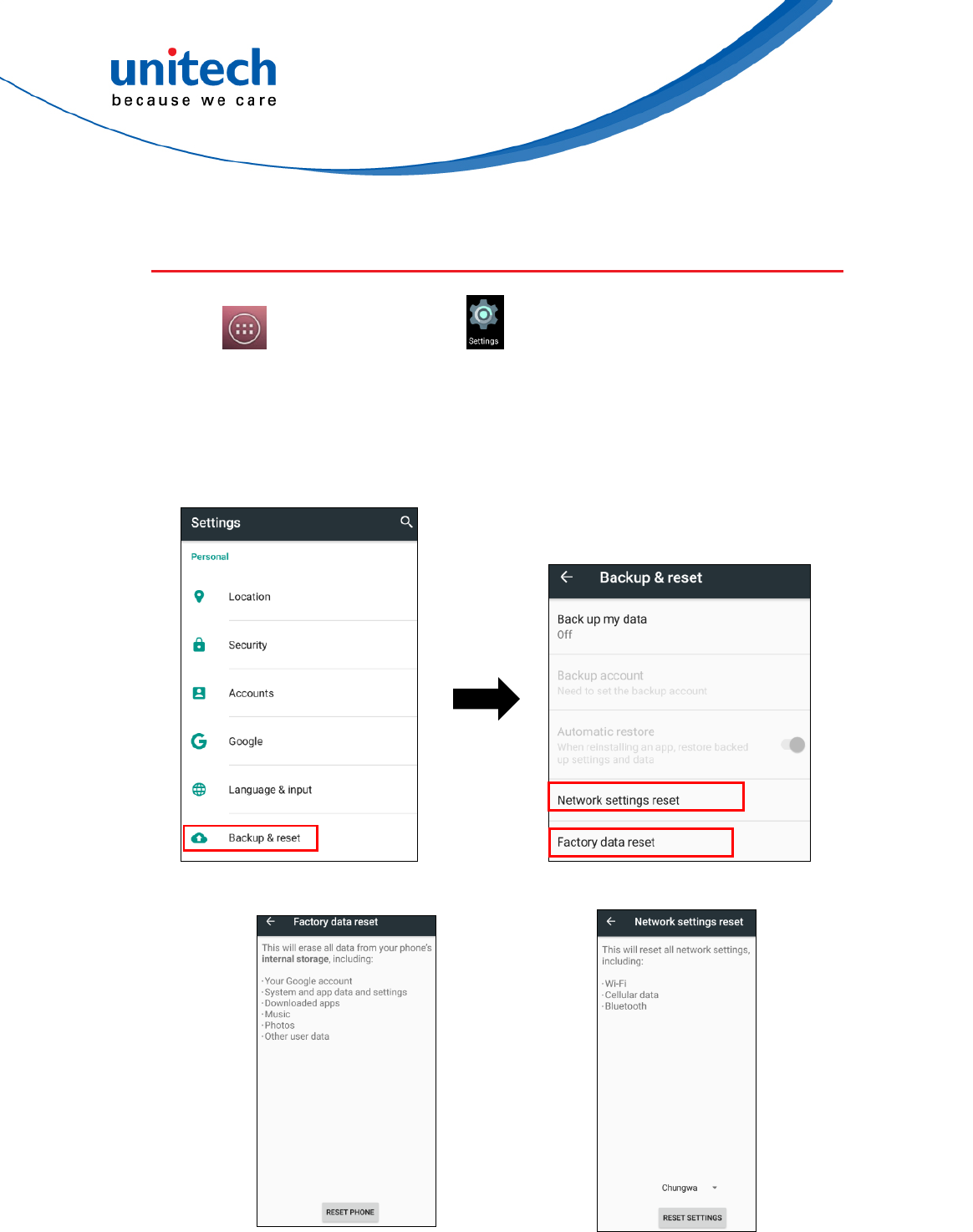

2.12 Performing Factory Data Reset..........................................................33

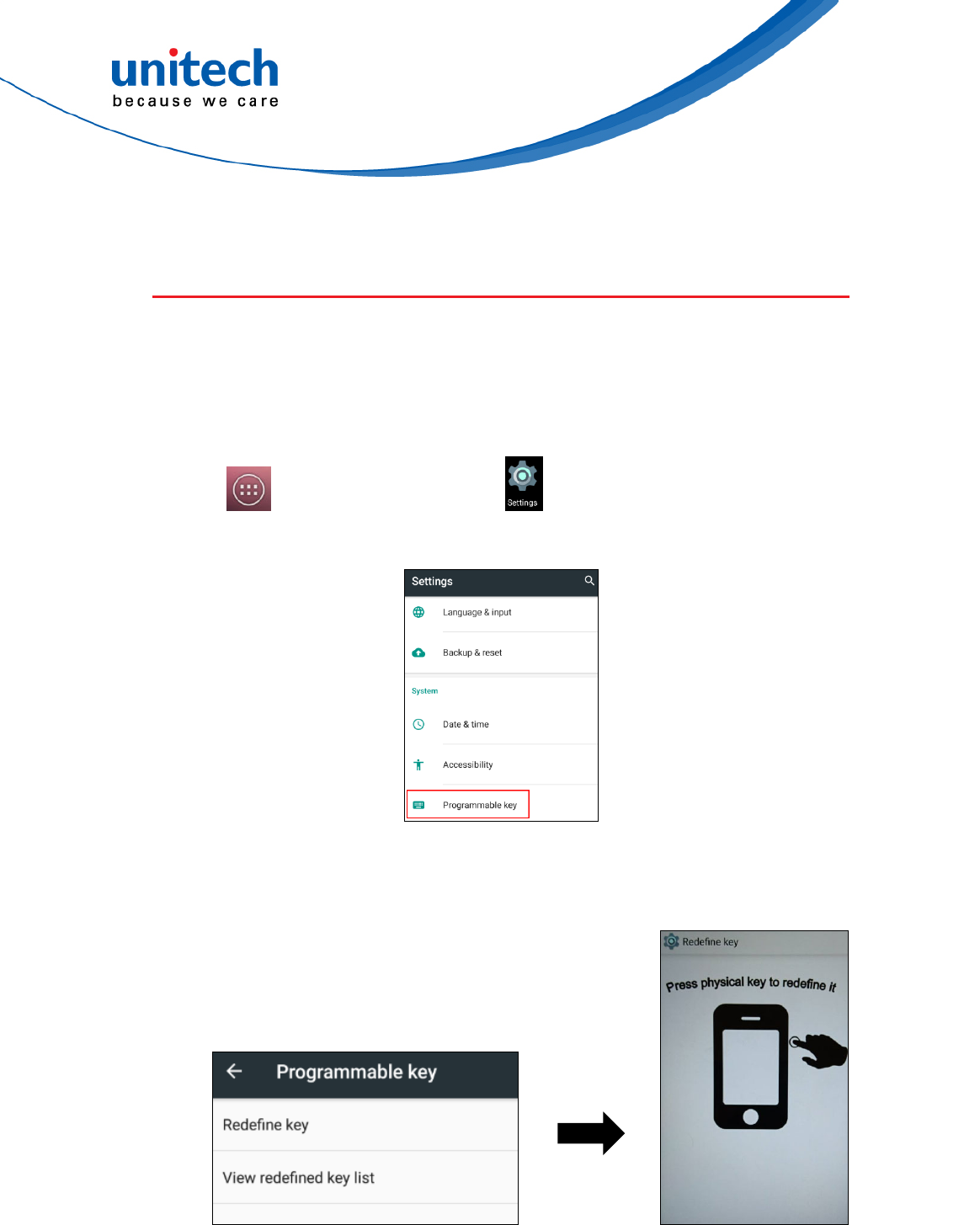

2.13 Programmable Keys...........................................................................34
xiv
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

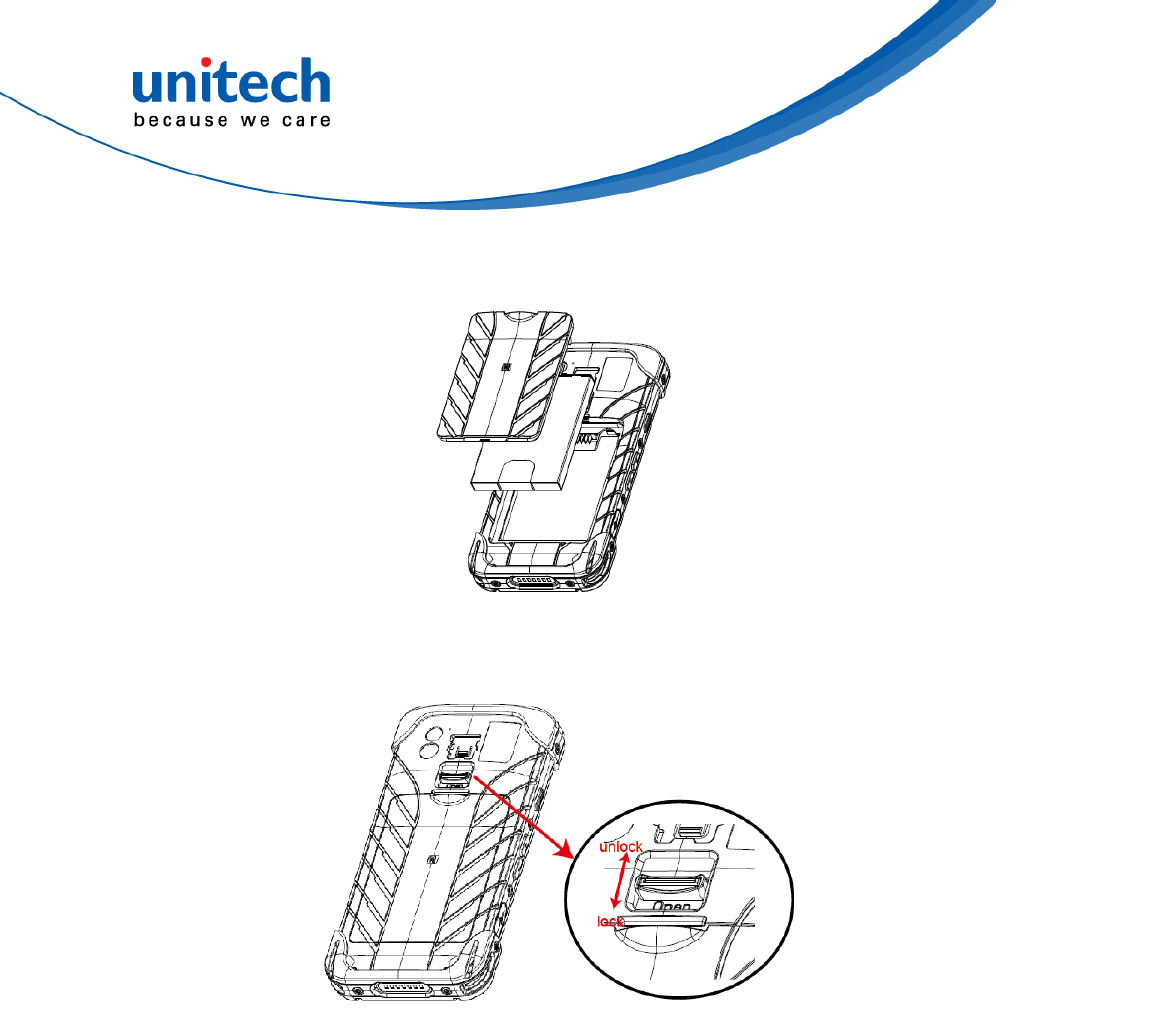

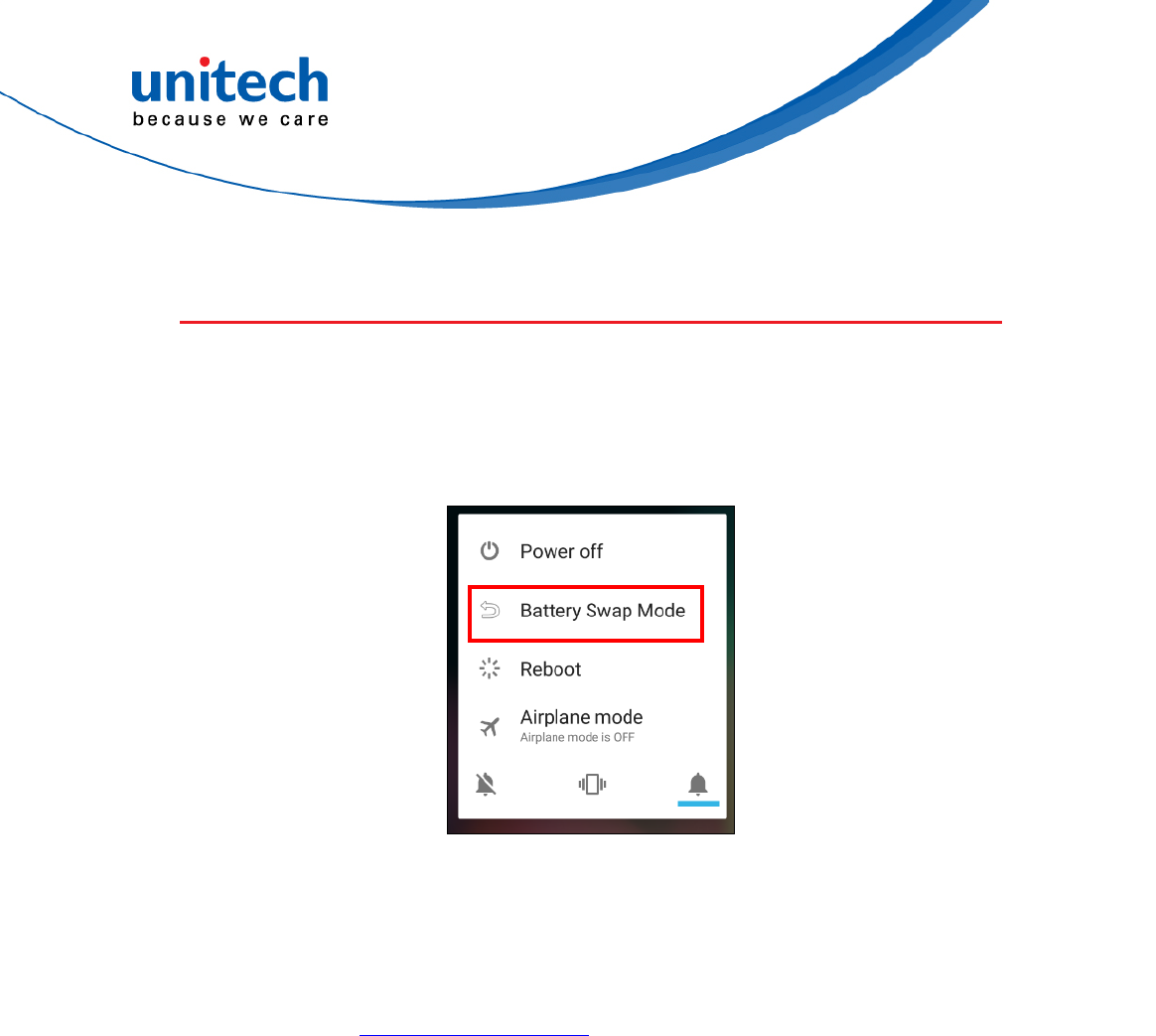

2.14 Battery Swap......................................................................................36
xv
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Chapter 3 – Introduction to Applications.........................................37

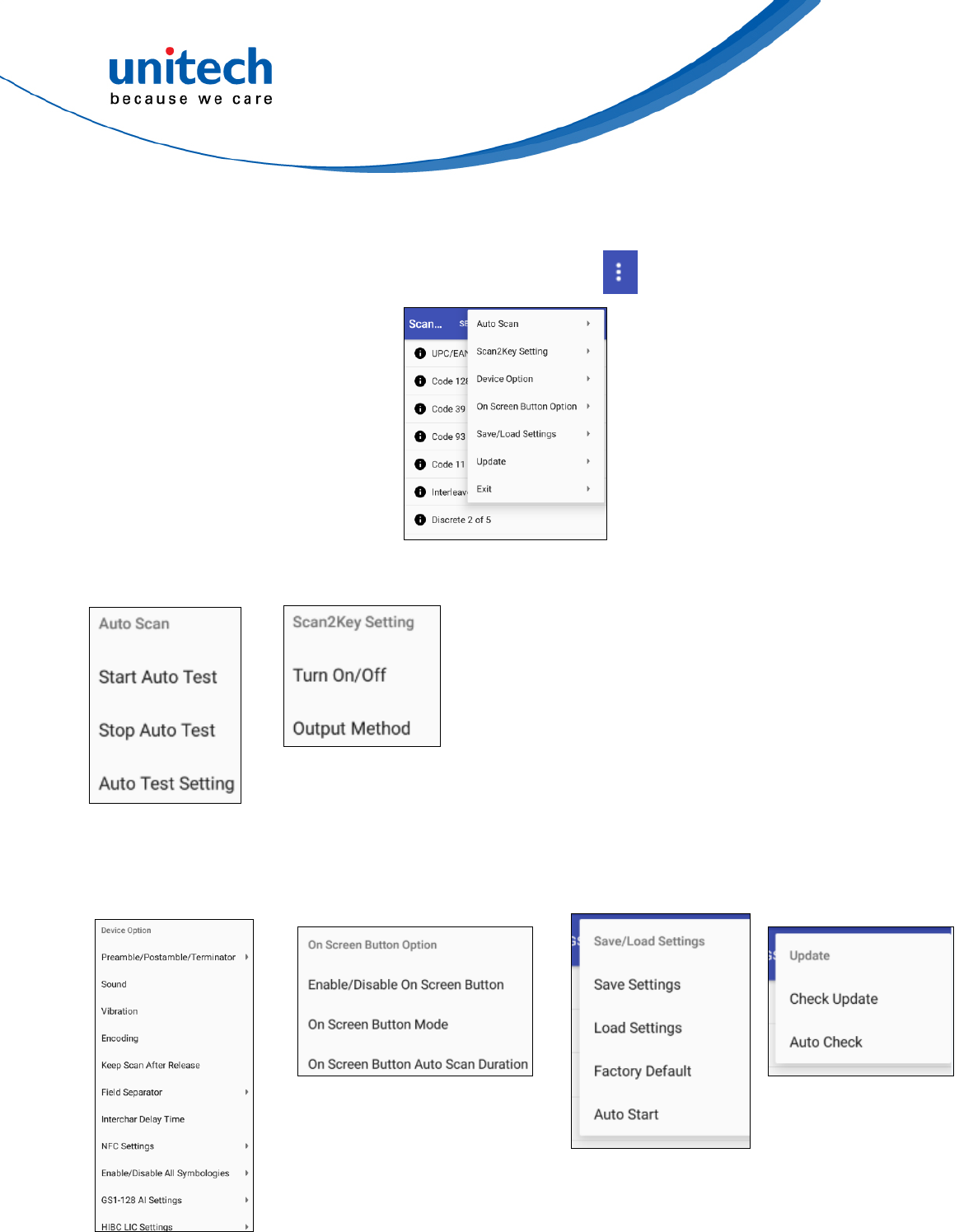

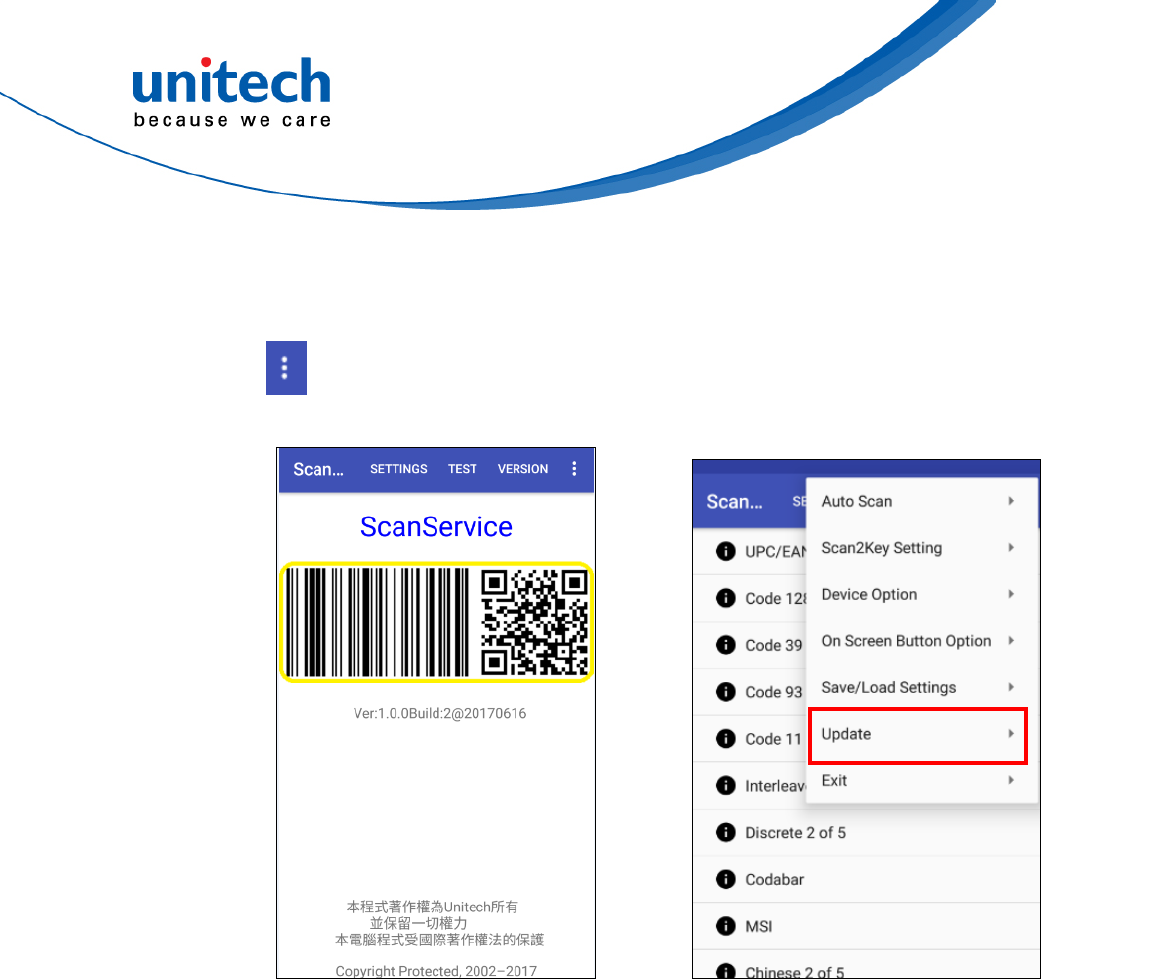

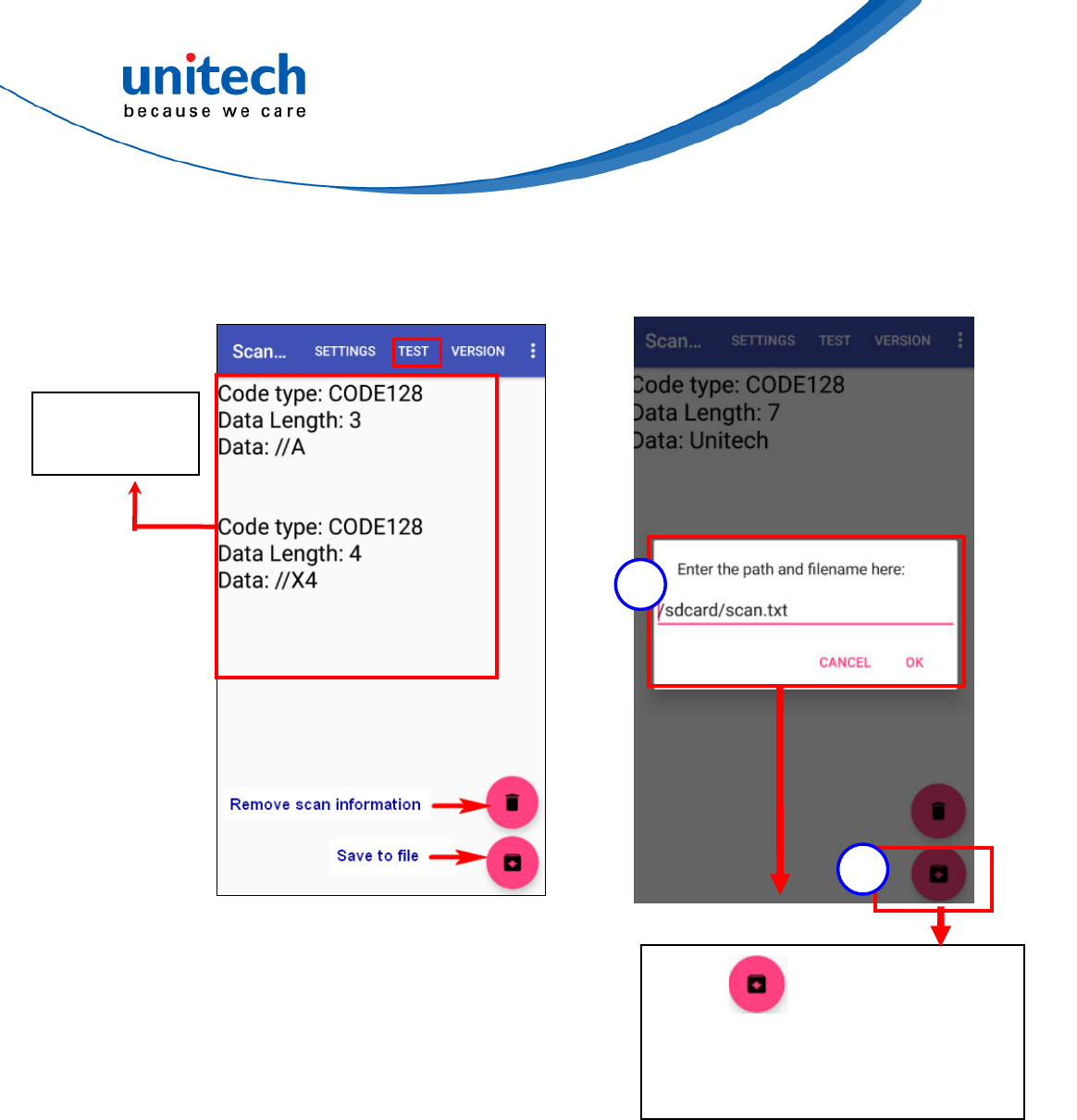

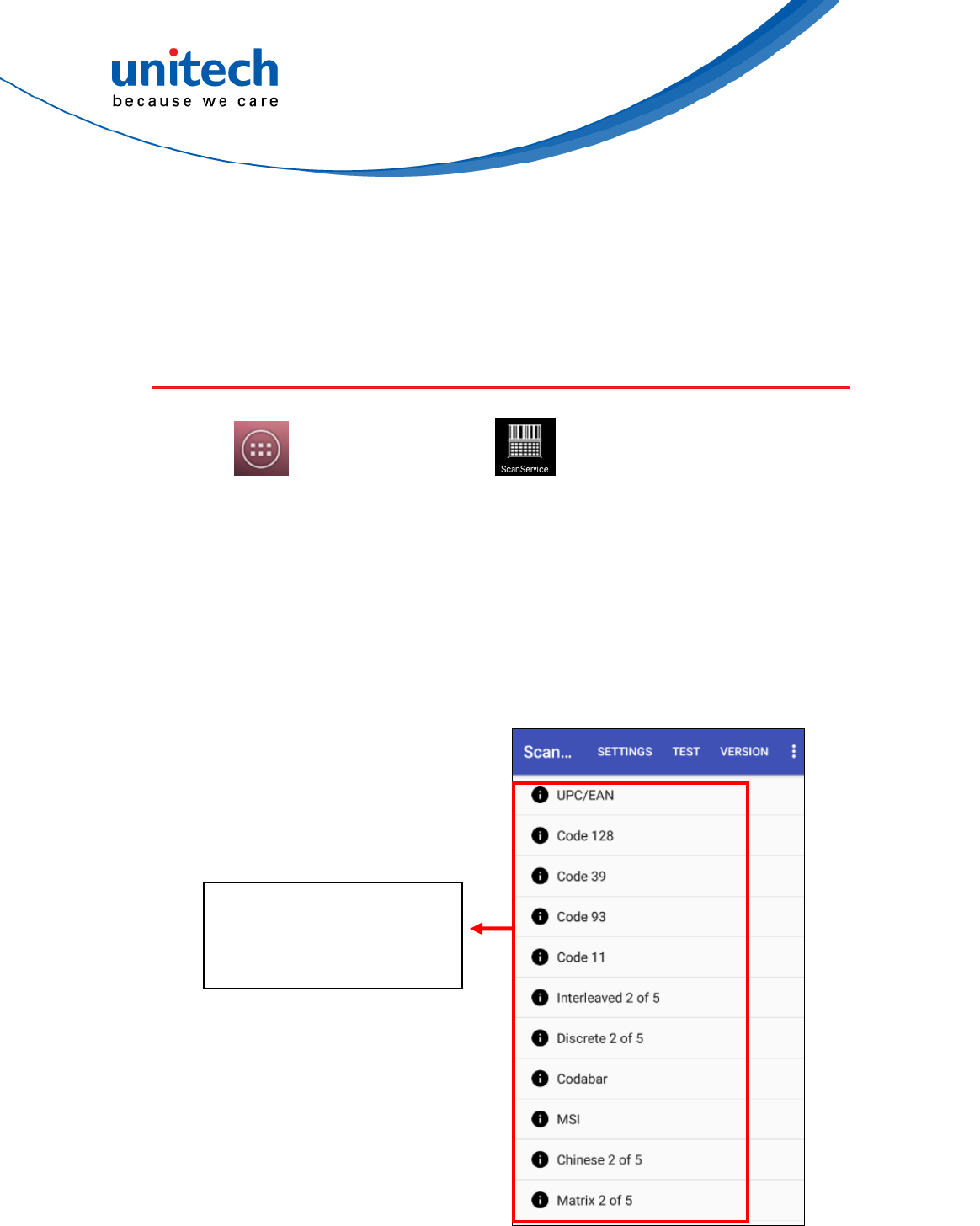

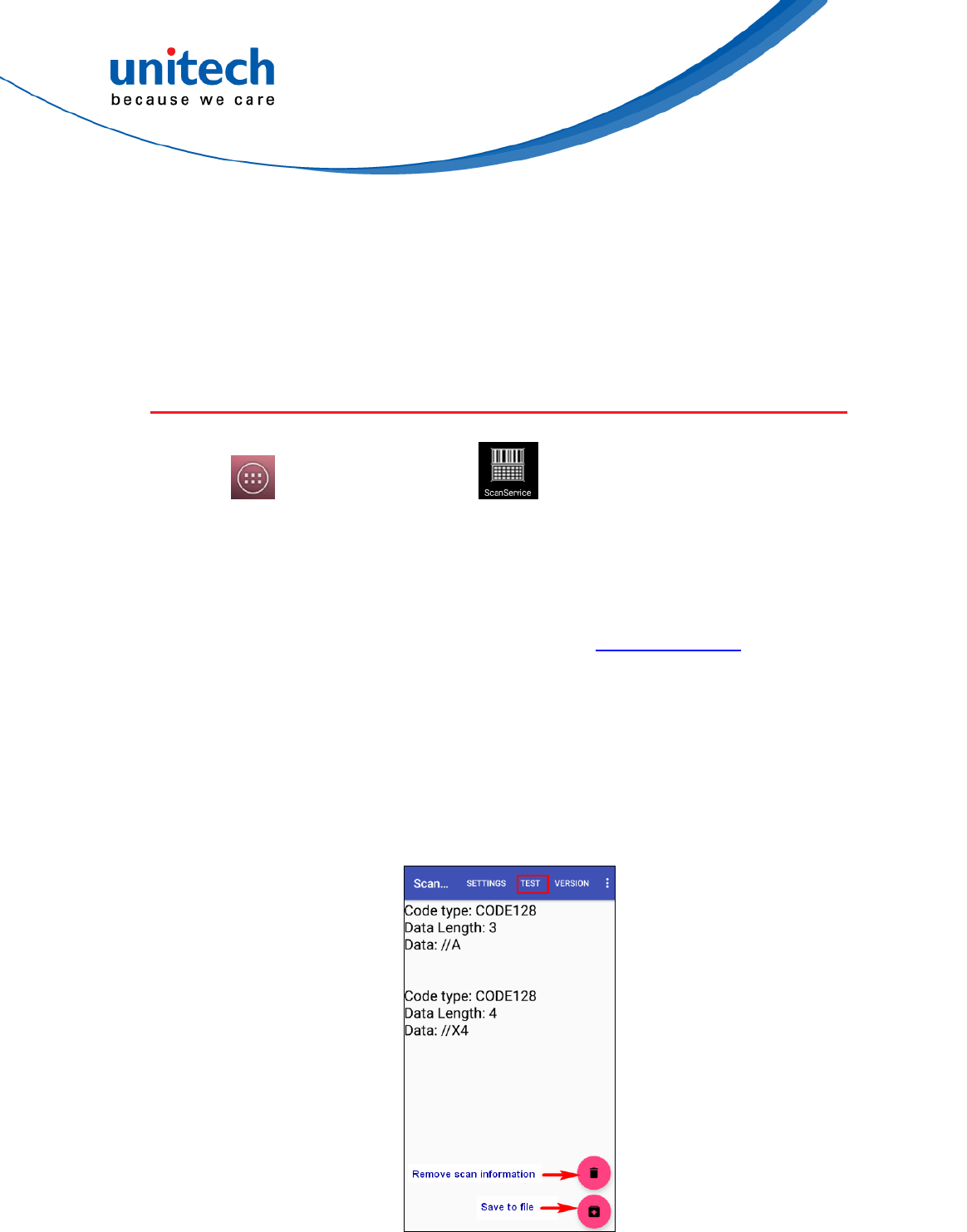

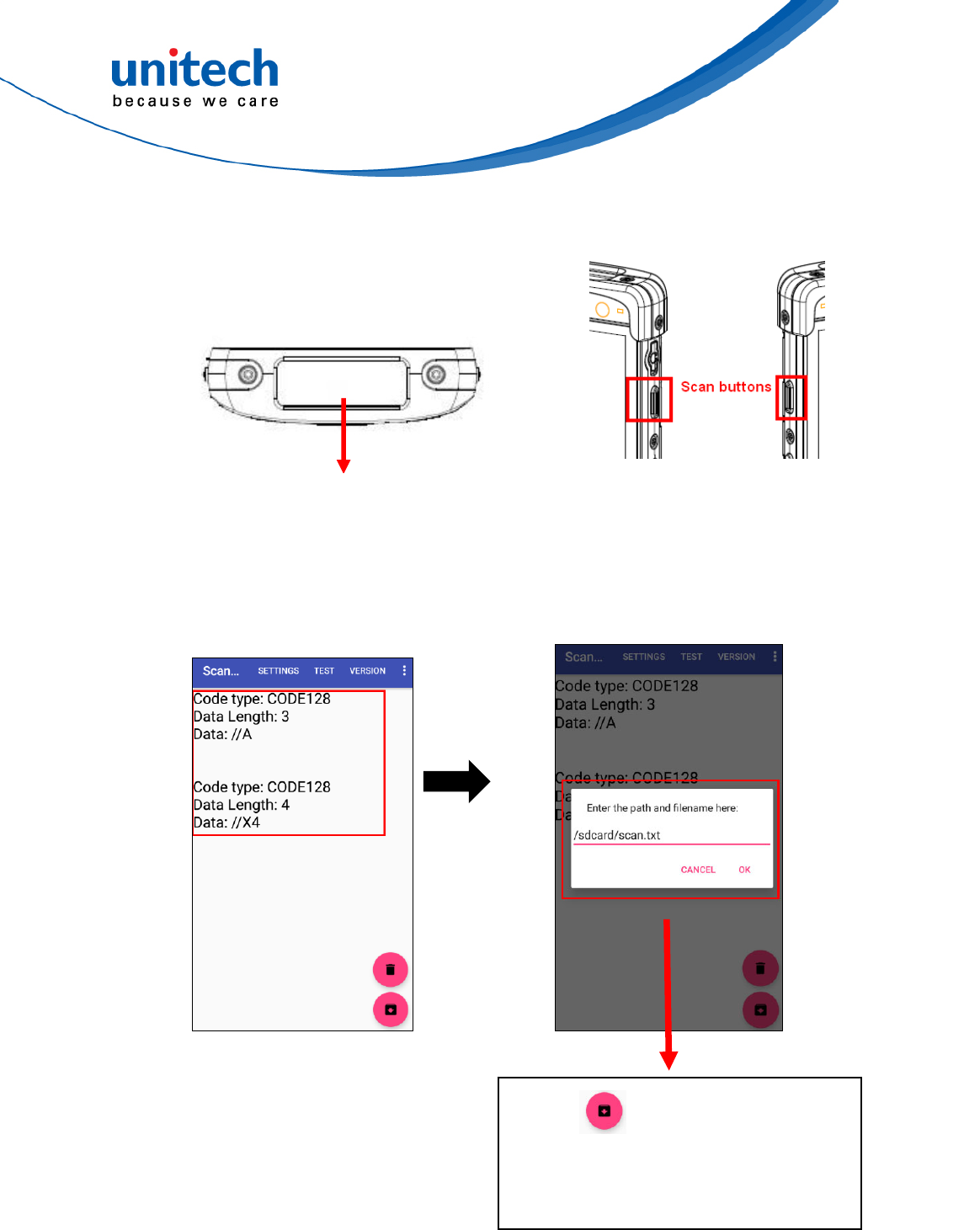

3.1 Scan Service ........................................................................................37

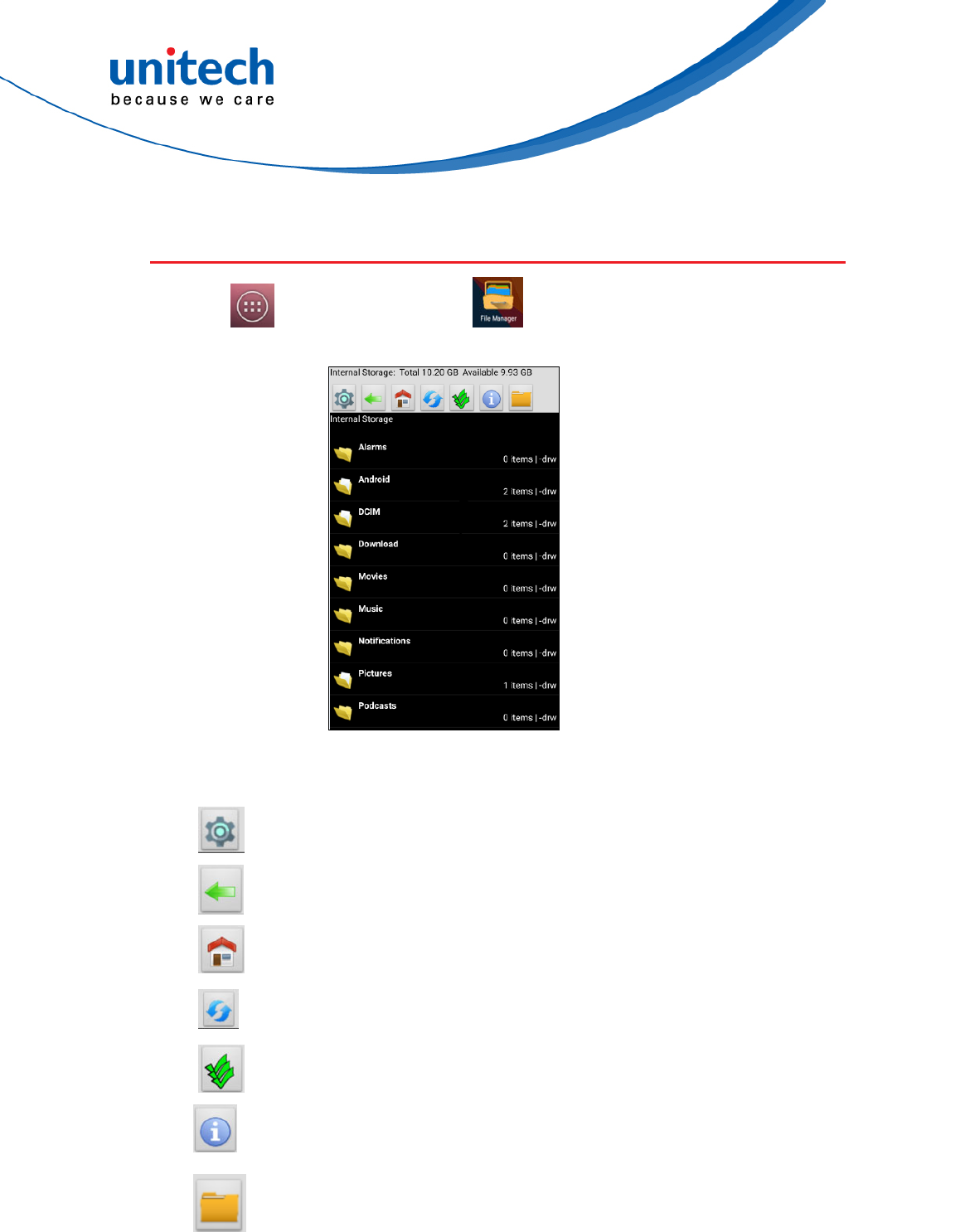

3.2 File Manager ........................................................................................40

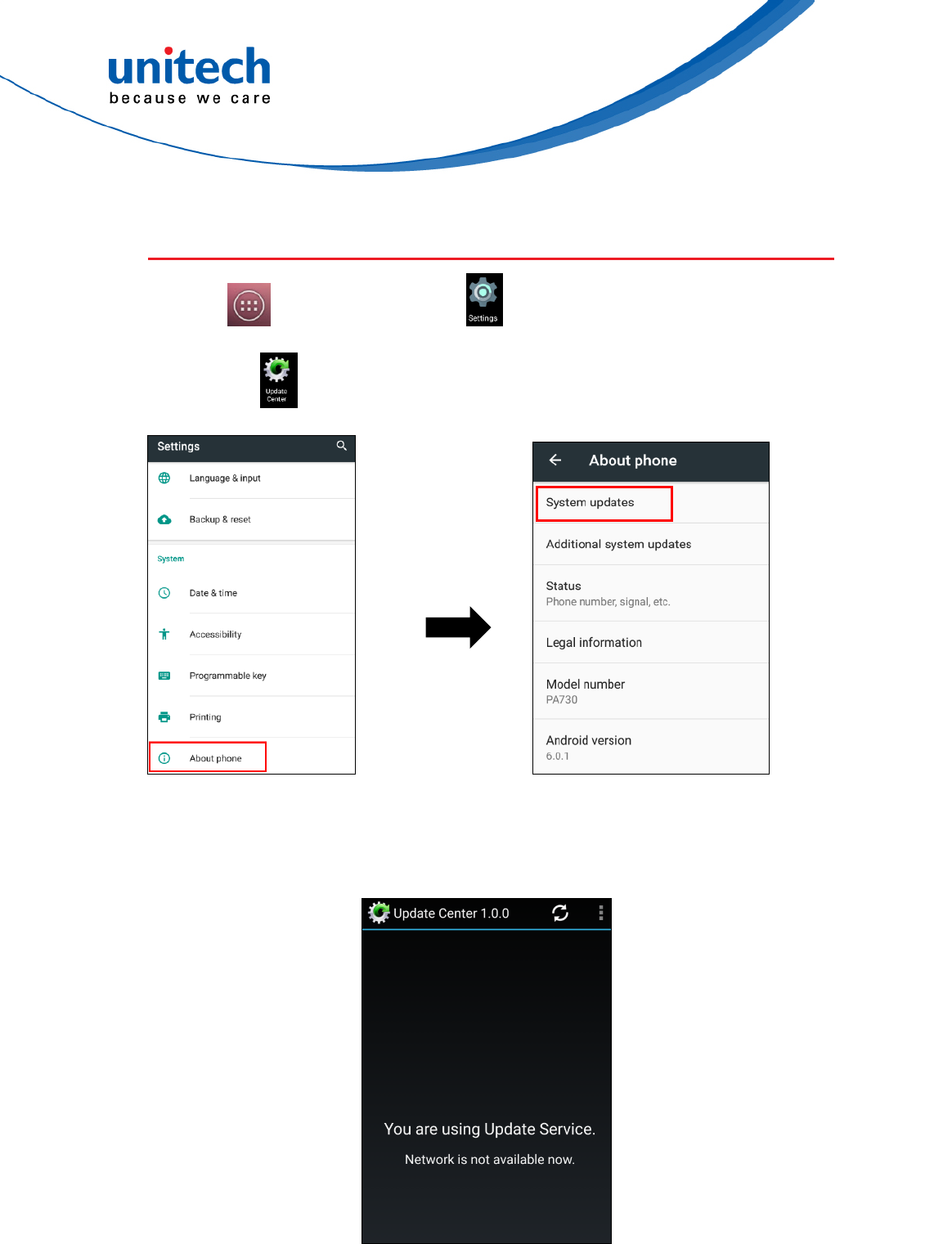

3.3 Update Center......................................................................................41

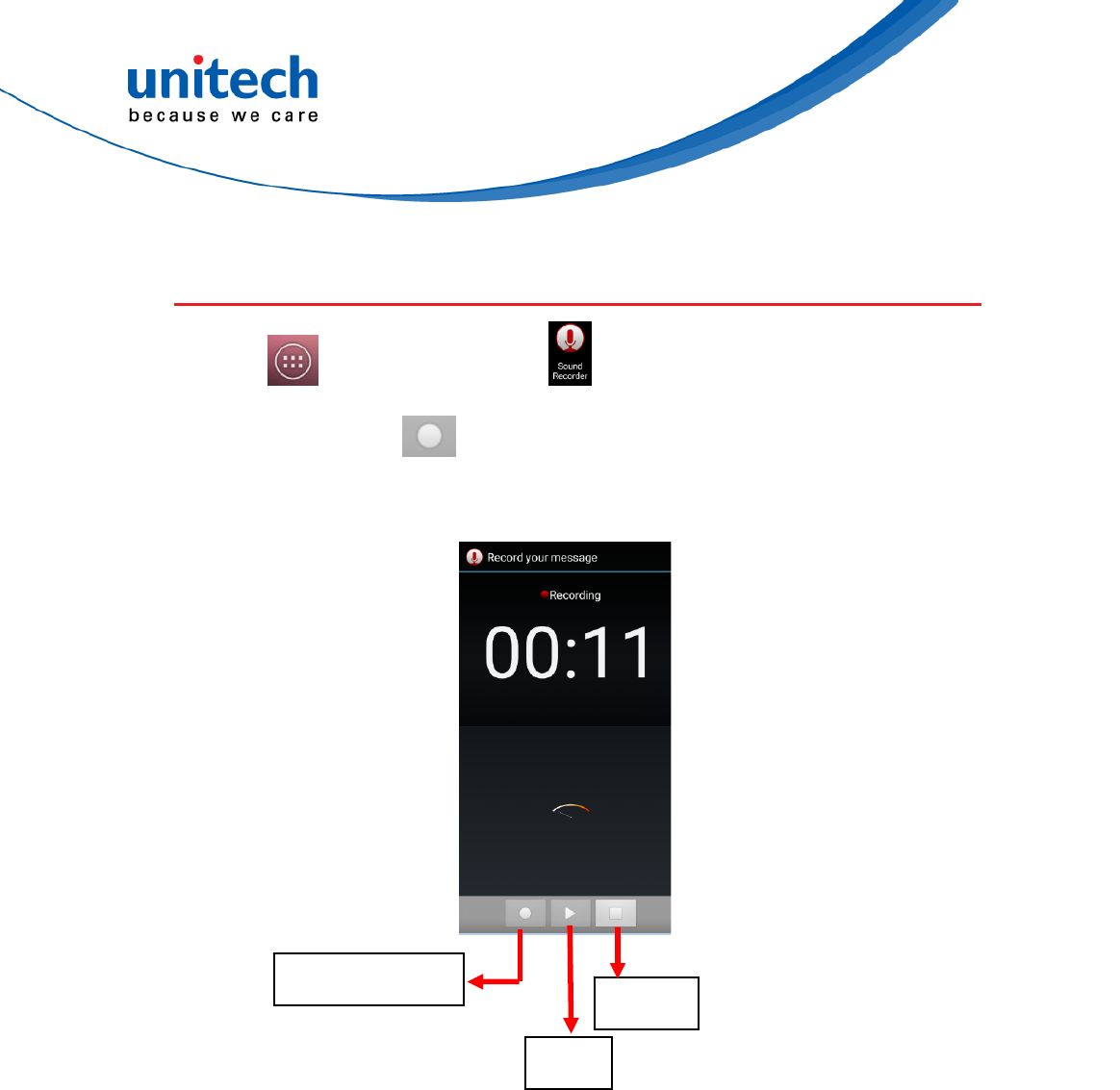

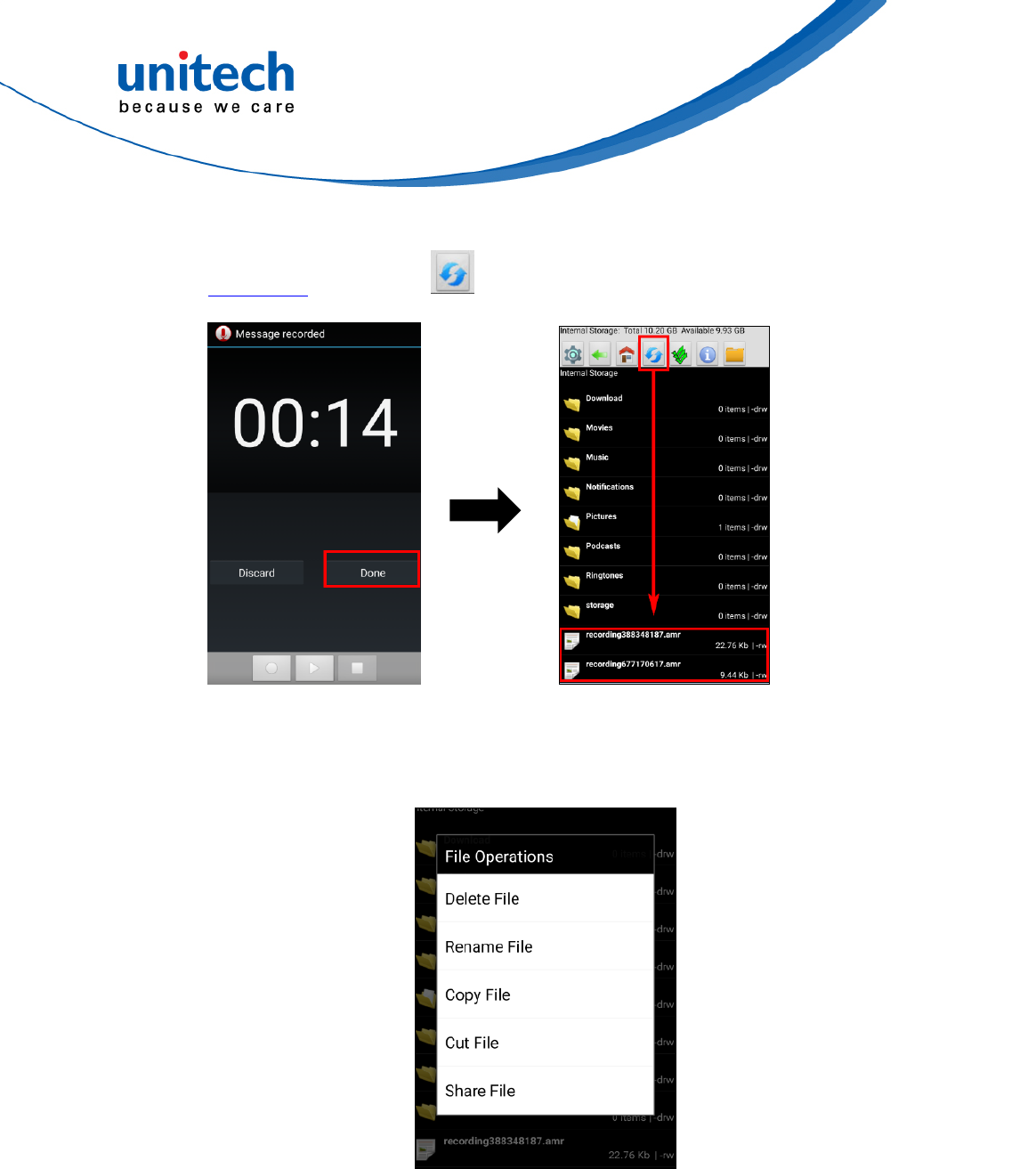

3.4 Sound Recorder ...................................................................................42
3.5 Push To Talk .........................................................................................44

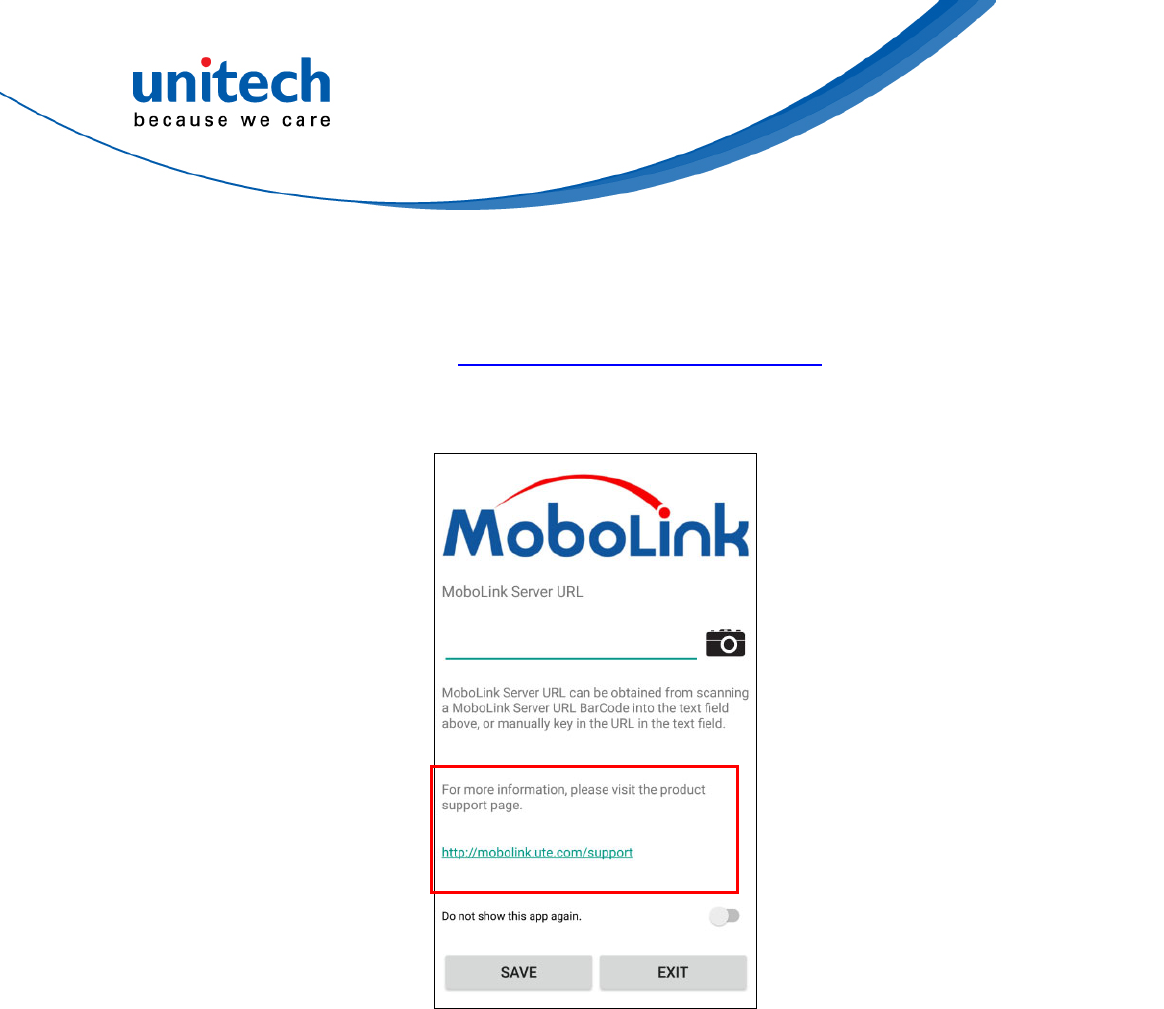

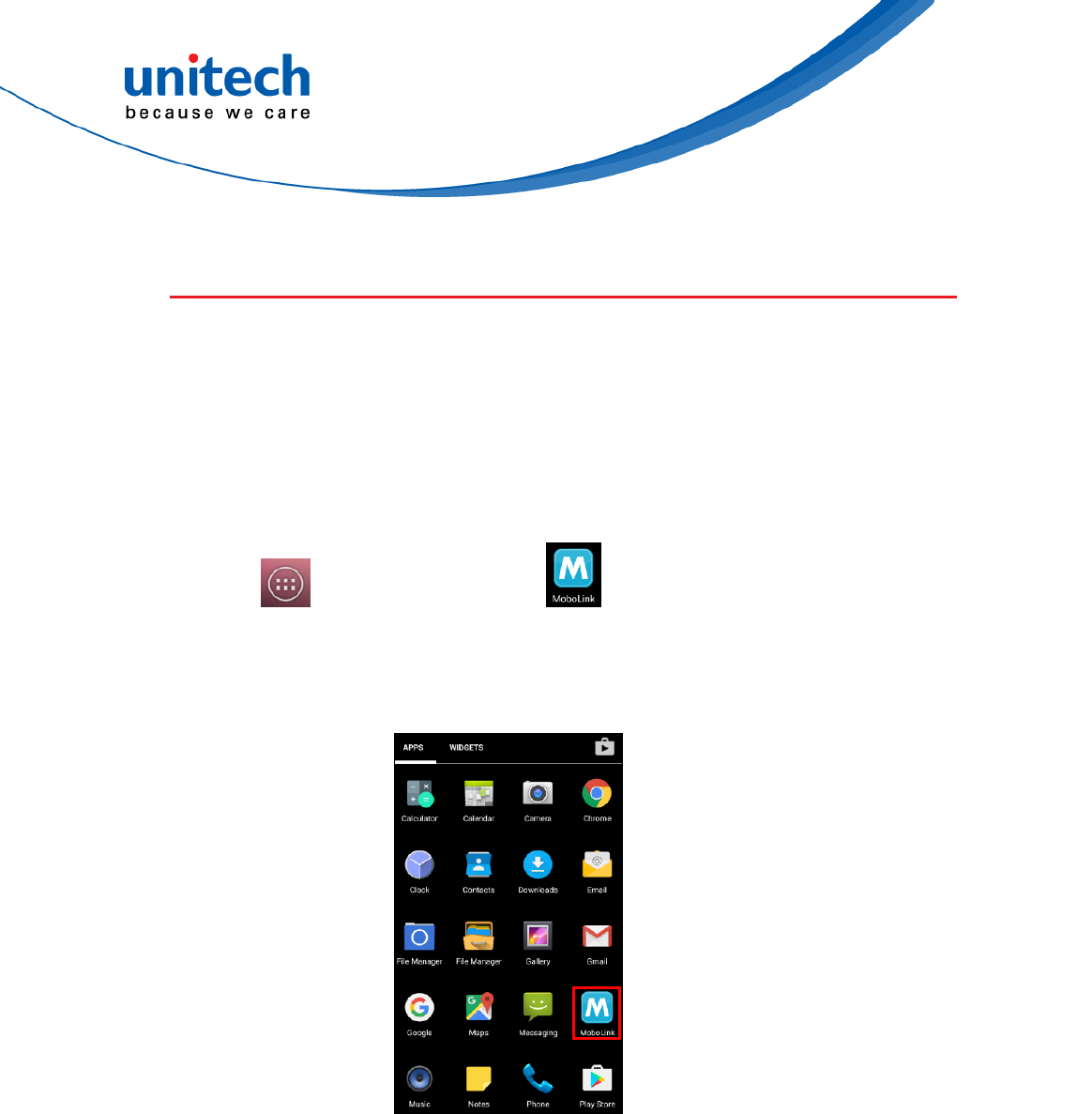

3.6 MoboLink..............................................................................................45

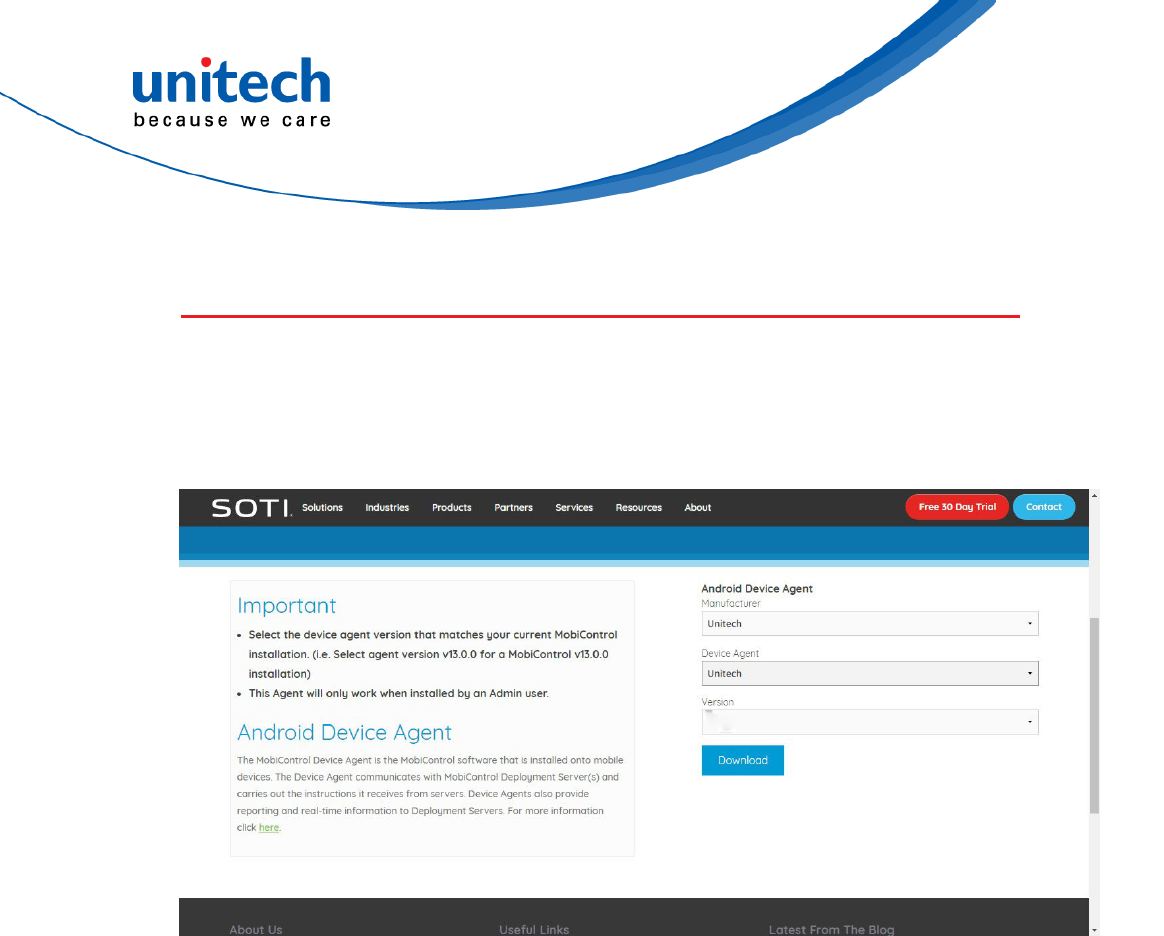

3.7 SOTI.....................................................................................................49
PA730 Users Manual
Chapter 1 - Overview
1.1 Package
Please make sure the following contents are in the PA730 gift box.
If something is missing or damaged, please contact your unitech
representative.
The standard package contents
PA730 Terminal
Battery
Hand Strap
Quick Start Guide
USB Cable (with two special ferrite cores )
the special USB cable must be used with this device
Power Adapter ( EU or US )
Regulatory Compliance Statements
1
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
1.2 Product Detail

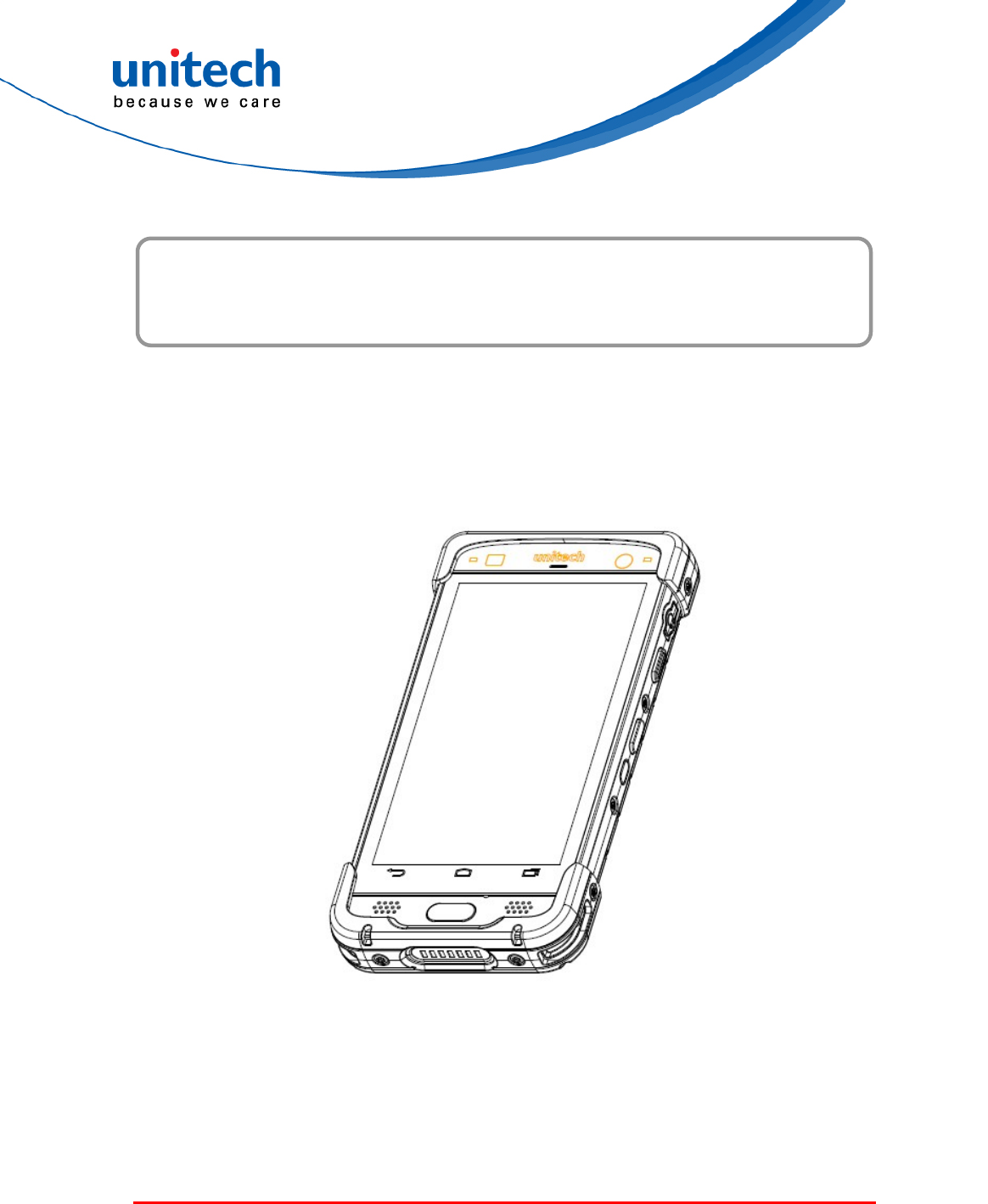

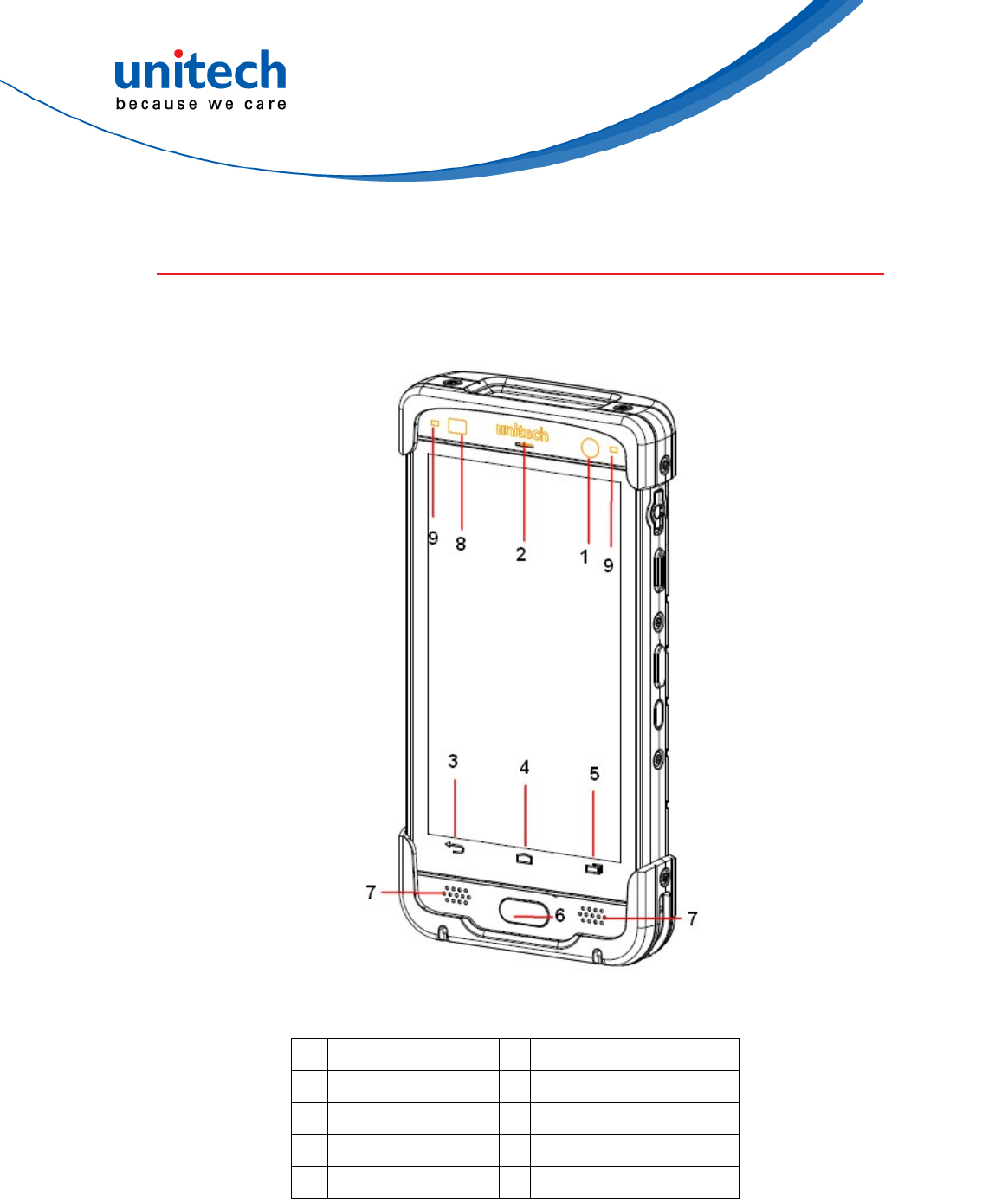

PA730 Front View
1Front camera 6Camera button
2Logo 7Speaker
3Back key 8Light sensor
4Home key 9LED
5Menu key
2
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual

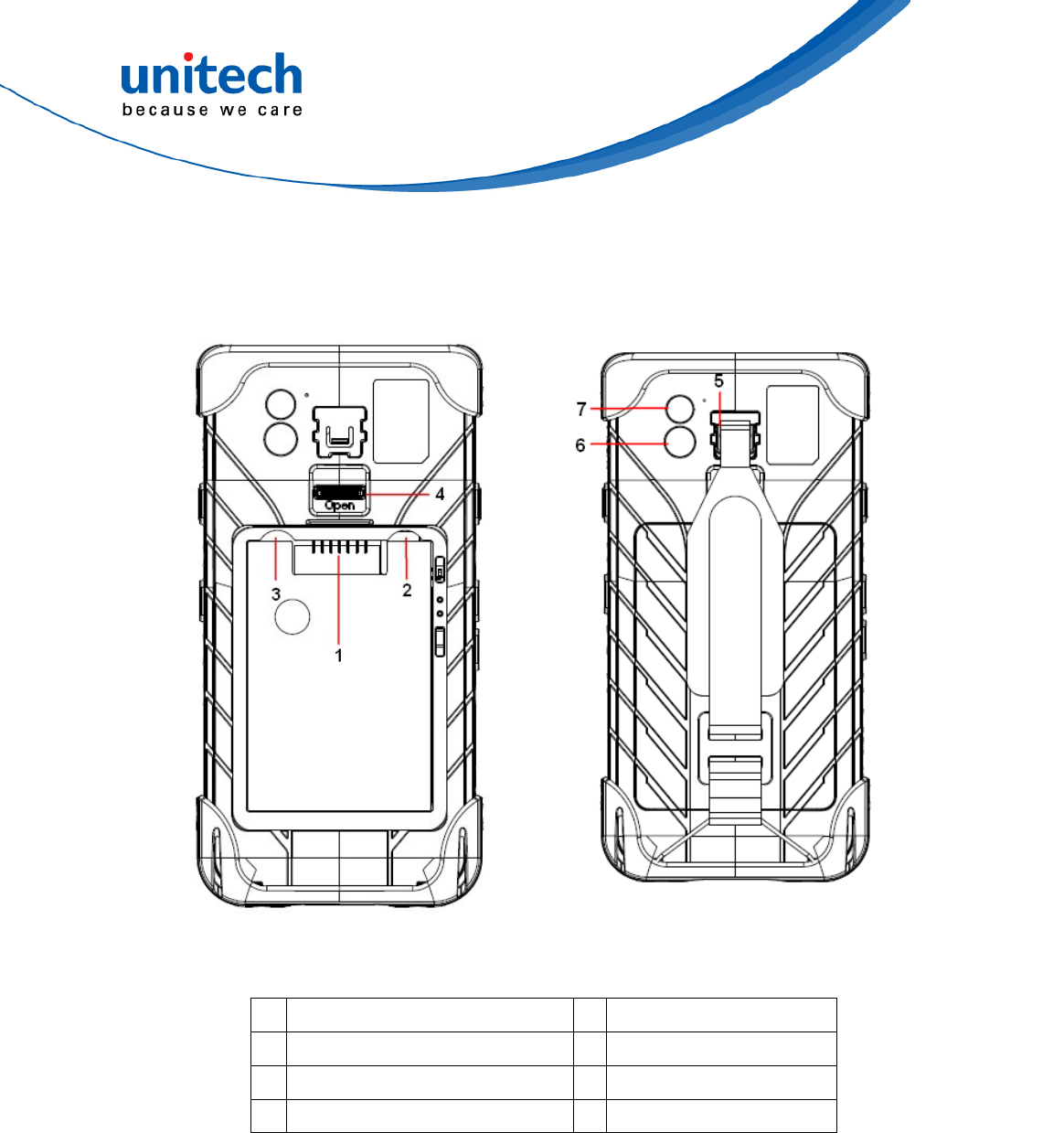

PA730 Rear View
3
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1 Battery pin 5 Hand strap hook
2 6 Back camera

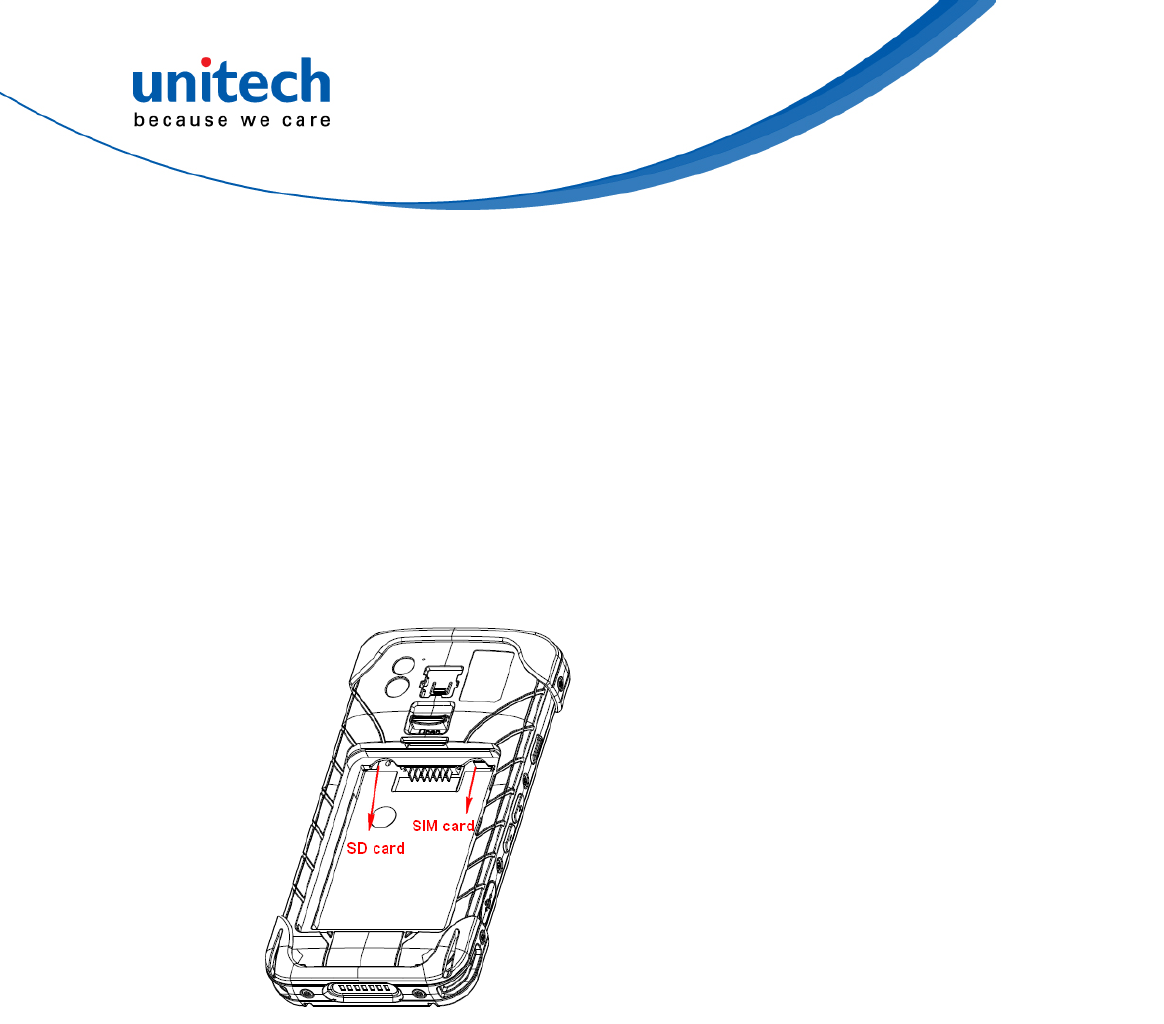

SIM card slot
3 Micro SD card slot 7Flash LED
4 Battery cover lock switch
PA730 User’s Manual

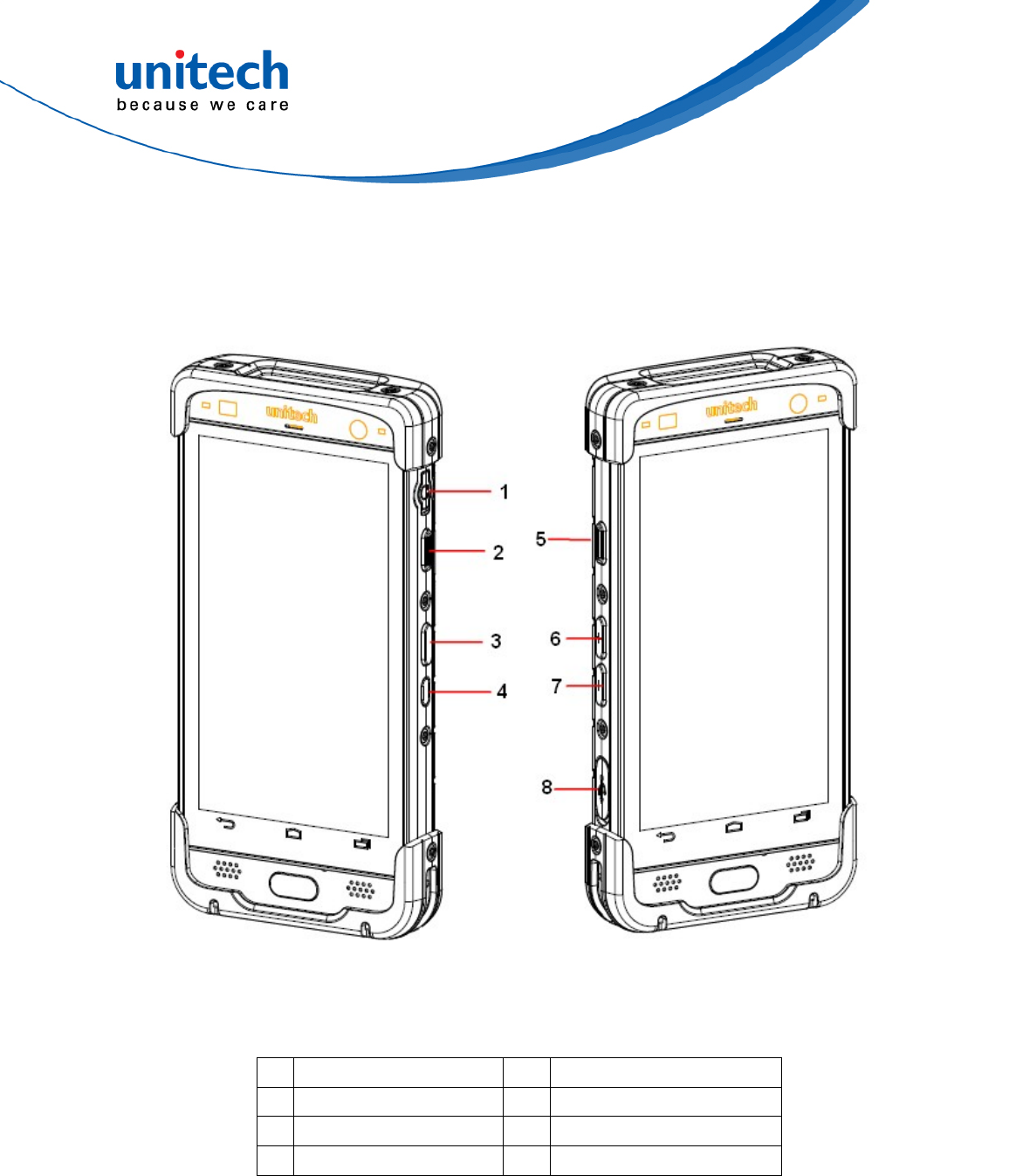

PA730 Left and Right View
1 Ear phone jack 5 Scan button
2 Scan button 6 Volume up
3 Function Key 7 Volume down
4 Power button 8 USB connect
4
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual

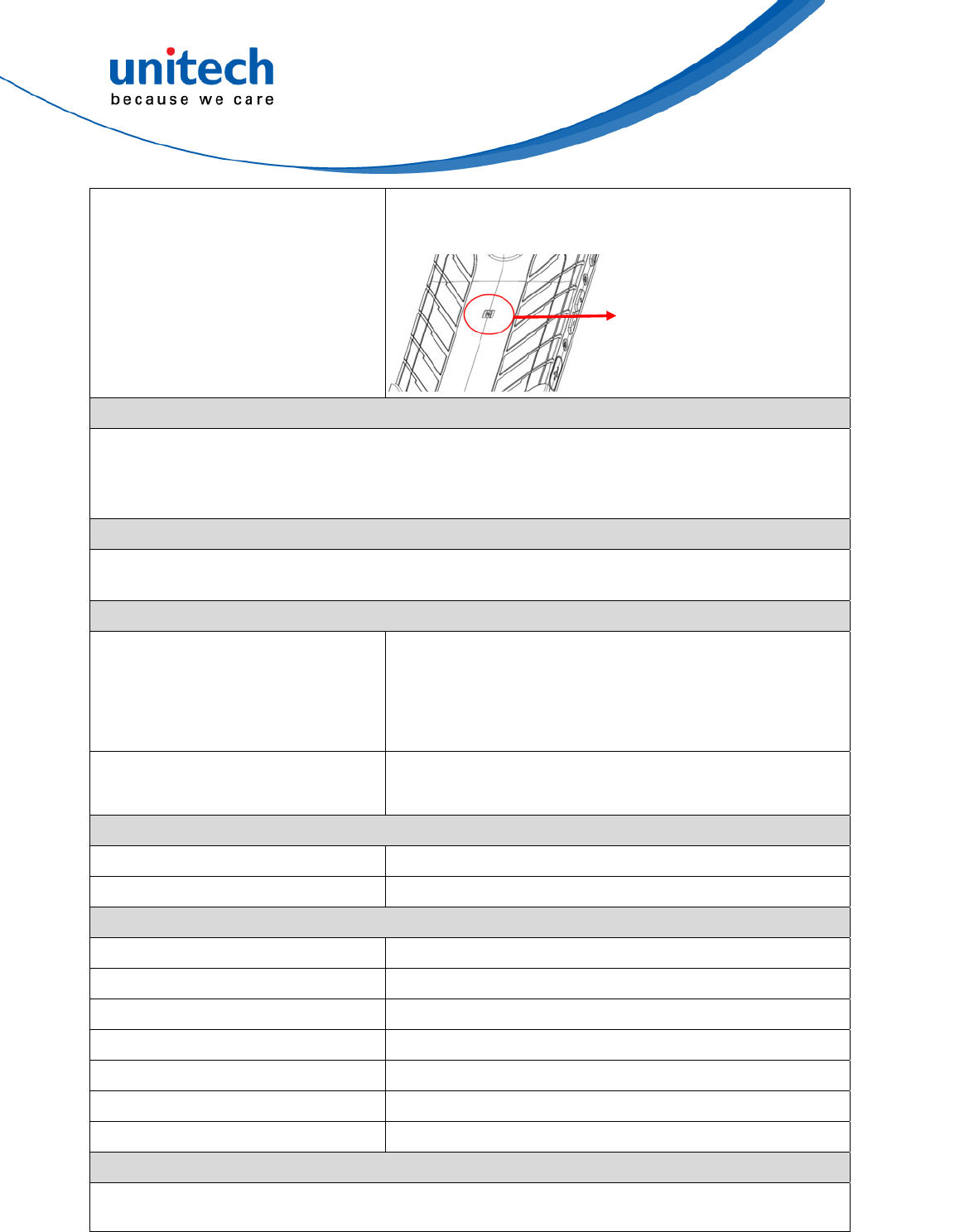

1.3 Specifications
System Features
Processor Qualcomm APQ8052(617) ARM A53 64 bits CPU
Quad Core*1.5Ghz &Quad Core*1.2Ghz
Memory 16GB eMMC Flash ROM plus 2GB LPDDR3 RAM
Expanded slot One user accessible Micro SD Memory Slot
One user accessible SIM slot
Display
5.0”, Color FHD
Capacitive type 5 points multi-touch touch panel with Gorilla Glass
Support finger, glove and stylus
FHD(full high definition):1920 x 1080 (1080P)
Brightness: 500cd/m2 (nits)
Transmissive type TFT LCD
Keypad
Front Key :Standard Android 3 keys(touch key together with touch panel) and one function key.
Side Key : Scan key left and right., volume key up and down, power key and function key.
Indicator
2 x LED indicators for charging LED & information LED.
One vibrator for scan or ring in indication
Audio tone indication
Engines
2D Imager engine (SE 4750)
1D All major codes
2DPDF417, MicroPDF417, Composite, RSS,
TLC-39, Datamatrix, QR code, Micro QR code,
Aztec, MaxiCode, Postal Codes: US PostNet, US
Planet, UK Postal, Australian Postal, Japan Postal
Dutch Postal (KIX)
Audio
Dual speaker
One receiver and dual noise-cancelling microphones
3.5mm DIA stereo headset jack with MIC. In
5
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
6
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
External Connector
One user accessible micro SD Memory slot with SDHC, SDXC compliance and software
image upgrade features
One user accessible Micro SIM slot
Micro USB (B type) support USB 2.0 OTG and USB charge
Cradle connector support USB 2.0 and DC power input
Software
MoboLink, SOTI
Regulatory Approvals
CE, FCC, RoHS compliance
FCC certification :
Max 1g Reported Head SAR (W/kg) 0.46
Max 1g Reported Body SAR (W/kg) 0.39 Limit: 1.60 W/kg
Max Product specific 10g Reported
Body SAR (W/kg) 0.32 Limit: 4.00 W/kg
Max Reported 1g Simultaneous
Transmission SAR (W/kg) 0.97 Limit: 1.60 W/kg
Distance (mm) 10
Verdict PASS
Communication
USB USB 2.0 OTG
WLAN 802.11a/b/g/n/ac Wireless LAN, 2.4GHz and 5GHz
Compliant with WEP, WPA and IEEE 802.11i WPA2
Fast roaming under 100ms
Enterprise security
PAN Bluetooth 4.1 LE
Support profile : HID, A2DP, OPP, SPP
WWAN
(Option)
Europe:
FDD LTE: B1/B3/B5/B7/B8/B20
TDD LTE: B38/B40/B41
WCDMA: B1/B5/B8
GSM: 900/1800
North America-Verizon
FDD LTE: B4/B13
GPS GPS/GLONASS (Only for WAN model)
PA730 User’s Manual
NFC ISO14443-4 (Type A, Type B), ISO15693
Mifare, Felica(ISO/IEC18092)
Camera and Flash Light
NFC location is on the
battery cover.
Rear camera: 16M pixels CMOS color camera with autofocus
Front camera: 5.0M pixels CMOS color camera
LED flash light with torch
Sensors
Accelerometer, Light sensor, Proximity sensor
Gyroscope, E-compass
Power Source
Battery Replaceable Main Battery : 3.7V, typ. 2960mAh Li-Ion
battery pack(standard), typ. 5920mAh (extended)
One rechargeable RTC backup battery
One rechargeable backup battery for battery swap
Power Adapter 100~240Vac, 50/60Hz Input
5V, 2A / 9V, 2A output
Enclosure
Weight Approximately 340g with standard battery
Dimension Approximately 158 X 77 X 16.9 mm
Environmental
Operating temperature -4°F to 122°F (-20°C to 50°C)
Storage temperature -22°F to 140°F (-30°C to 60°C) (without Battery)
10% ~ 90% ( non-condensing )
Relative Humidity
1.8m MIL-STD 810G
Drop test to Concrete
Environmental Sealing IP67 & IP65 standard
ESD +/-8KV direct discharge, +/-15KV air discharge
Tumble 0.5m tumbles for 300 cycles and 600 drops
Operating System
Android 6.0
7
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
8
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
Radio Type Description Frequency Maximum Output
Bluetooth
BR+EDR 2400~2483.5 MHz 4dBm
Bluetooth Bluetooth
4.0-LE 2400~2483.5 MHz 4dBm
2.4GHz 2400~2483.5 MHz 17dBm
5150~5350 MHz 21dBm
WLAN
5GHz 5470~5725 MHz 22dBm
GSM 900 880~915 MHz 33dBm
GSM GSM 1800 1710~1785 MHz 30.5dBm
WCDMA
Band I 1920~1980 MHz 24dBm
WCDMA WCDMA
Band VIII 880~915 MHz 24dBm
LTE Band 1 1920~1980 MHz 23.5dBm
LTE Band 3 1710~1785 MHz 23dBm
LTE Band 5 824MHz~849MHz 23dBm
LTE Band 7 2500~2570 MHz 23dBm
LTE Band 8 880~915 MHz 23dBm
LTE Band 20 832~862 MHz 23dBm
LTE Band 38 2570~2620 MHz 23dBm
LTE Band 40 2300~2400 MHz 23dBm
LTE
LTE Band 41 2496MHz~2690MHz 23dBm
NFC 13.56 MHz
Other GPS 1575.42 MHz
NOTE : Requirements in
AT/BE/BG/CZ/DK/EE/FR/DE/IS/IE/IT/EL/ES/CY/LV/LI/LT/LU/HU/MT/NL/NO/PL/PT/RO/
SI/SK/TR/FI/SE/CH/UK/HR. 5150MHz~5350MHz is for indoor use only.
9
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
1.4 Getting Started
1.4.1 Installing The Battery
1. Press and push the hand hook to loosen or move the hand strap
from PA730.
2. Push up the battery cover switch to unlock, and remove battery
cover from top.
PA730 User’s Manual
3. Insert the battery pack, and the put back the battery cover.
4. Push down the battery cover switch to lock the cover.
NOTE: After installing the battery, make sure the battery cover is securely closed, or you may
be unable to turn ON the terminal.
WARNING! There is a risk of fire and burns if the battery pack is handled improperly. DO
NOT disassemble, crush, puncture, short external contacts, or dispose the
battery pack in fire or water. DO NOT attempt to open or service the battery pack.
Dispose of used batteries according to local recycling guidelines in your area.
10
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
1.4.2 Charging The Battery
Before you turn on and start using this device, it is recommended that you
charge the battery.
If the battery has been discharged for several days, you may need to charge
for several minutes before powering it on.
Use only the adapter and the USB cable that came with this device to charge
the battery. When the battery power is too low, make sure to use the power
adapter or put into the dock to charge, not the USB cable connection with your
computer.
Charge with USB
Charge with cradle
11
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
1.4.3 Turning On The Terminal For The First time
After you have initially charged your device for about 24 hours, the device is
ready to be used. You can now start up your device. You can then set up the
languages, WiFi setting, and date and time.

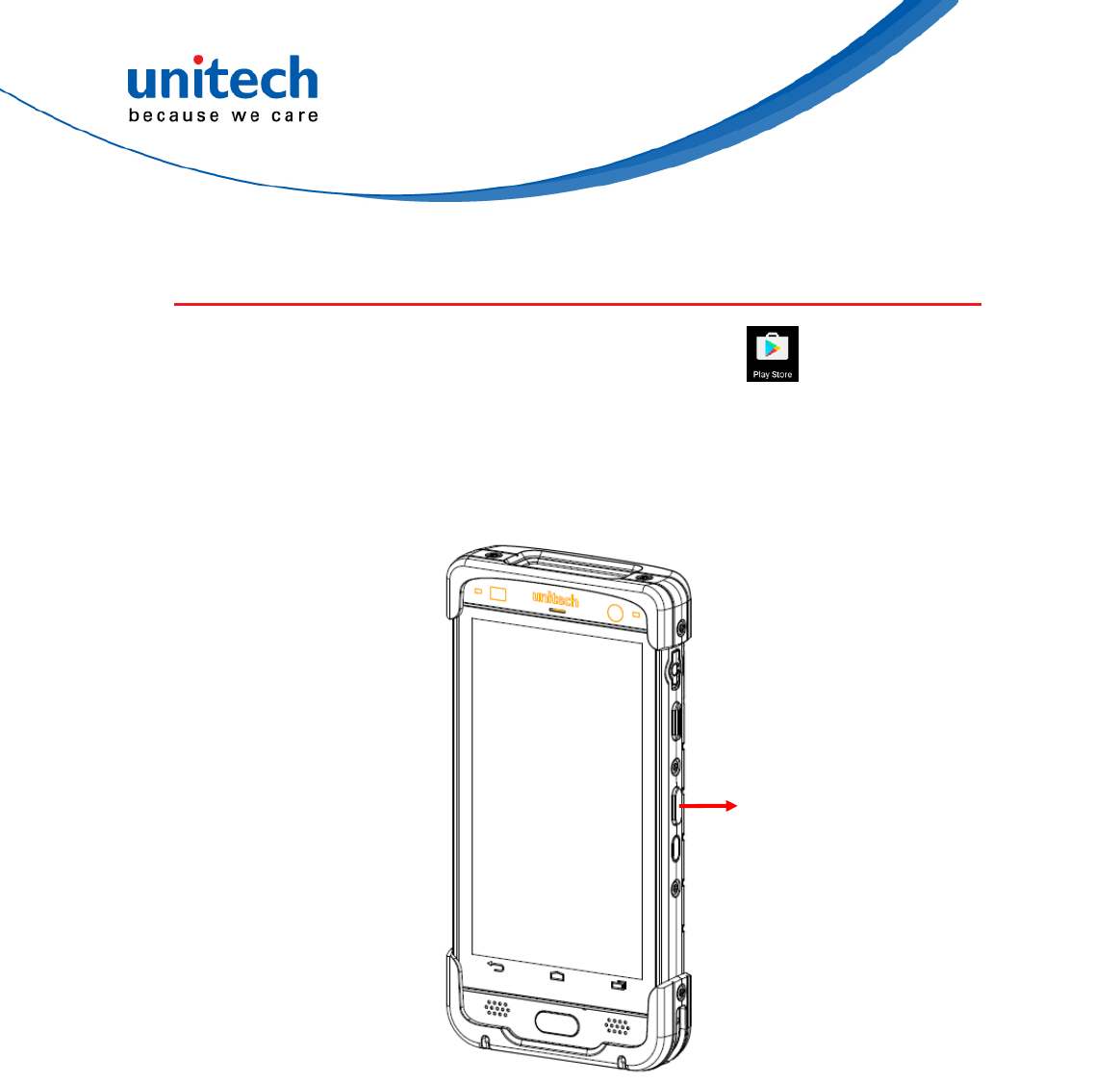

Power-On Button
Turn ON your device by pressing the power button of the terminal.
1.4.4 Checking The LED Status
Status LED Description
Blue light Message received
Message Blue light Miss called
12
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Red light Being charged
Terminal
Green light Fully charged
Power
Orange light Quick charged
Checking the battery status
If the battery level becomes low in the course of normal use, a status icon
appears on the device screen indicating low or very low battery status. In both
cases, connect PC with USB to back up your data, and then recharge your
device as soon as possible.
PA730 User’s Manual
1.4.5 Using The SD/SIM Card
The PA730 has SD/SIM card slots inside the battery compartment.
Inserting a SD/SIM card
1. Remove the battery cover and battery pack.
2. Insert the SD card to the left slot.
3. Insert the SIM card to the right slot.
4. Insert the battery pack and battery cover.
5. Push down the battery cover switch to lock the cover.
13
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
Chapter 2 – Installation &
Operation
2.1 Barcode Setting
14 © 2016 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, then tap ScanService.
2. You are now enter the ScanService application. There are three main
items : Settings, Test and Version.
2.1.1 Settings
Tap the default barcode
symbologies for a
different application
PA730 User’s Manual

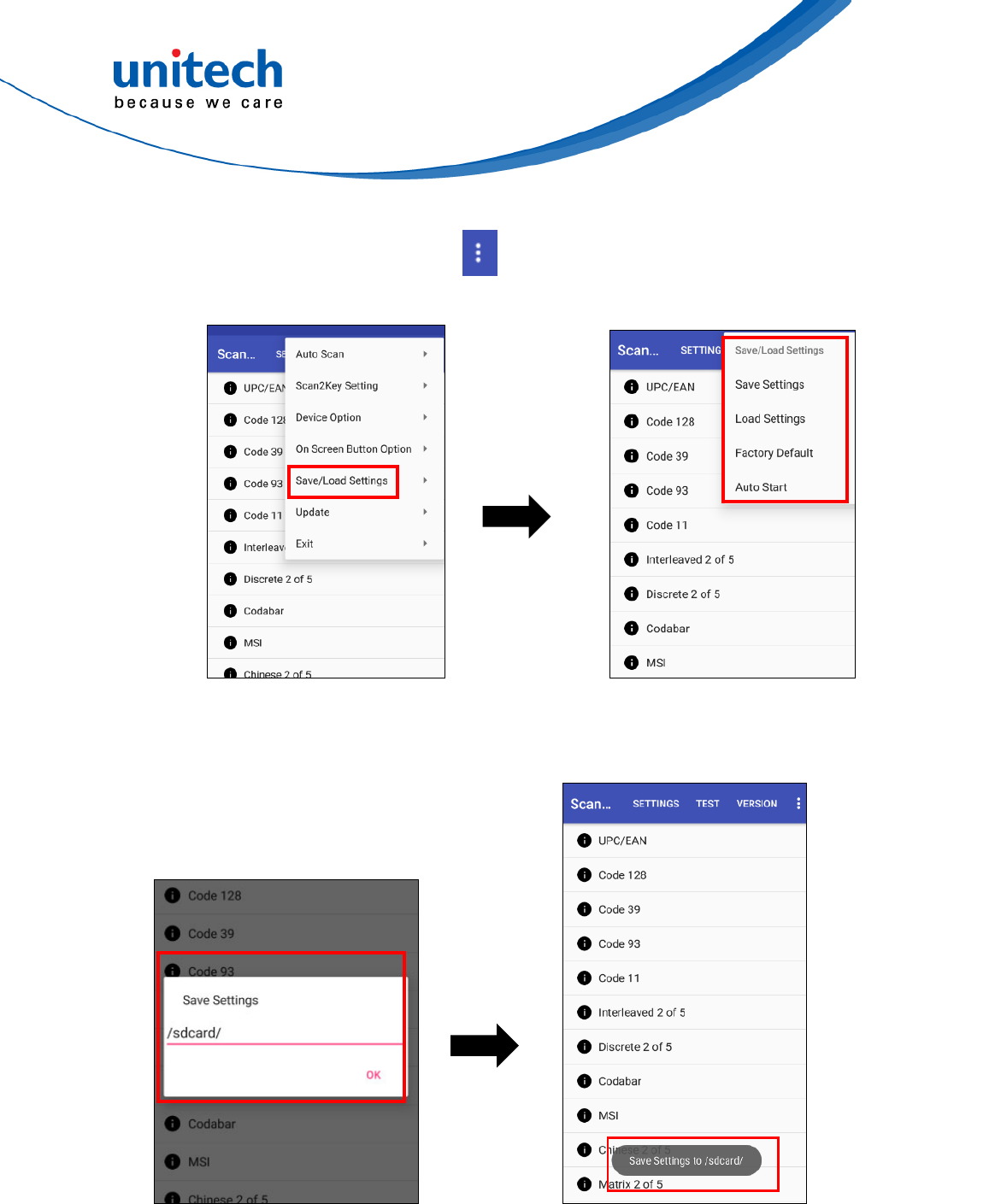

For Save / Load Settings, and Factory Default section,
To save data, Please tap and then tap Save / Load
Settings.
15 © 2016 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Please tap Save Settings – input path - OK
PA730 User’s Manual
The save setting data is stored in File Manager. (Please see 3.2 File Manager )
16 © 2016 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
17 © 2016 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
2.1.2 Test
Scanned data
information
2
1
Tap
Choose the path and filename to
save the scanned data.
PA730 User’s Manual
Version
Show the recent version of ScanService.
Tab to update Scanservice manually.
18 © 2016 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
2.2 HF Setting
19 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap Settings and then under Wireless
& networks, tap More…
2. Tap NFC check box to Enable / disable NFC function.
3. If enable / disable NFC check box, it will also enable / disable Android
Beam too.
4. Make sure that both devices are unlocked and have NFC turned on. If the
other device has an Android Beam option, make sure it is also turned on.
5. Make sure that the NFC area (shaded part) of PA730 and the other phone's
NFC area are close to one another. Experiment by slightly moving the
phones until a connection is made. Tap the screen.
PA730 User’s Manual
2.3 UHF Setting
Current model is not available.
2.4 MSR Setting
Current model is not available.
20 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
2.5 WWAN Setting
1. Turn off the terminal to insert the SIM card.
Note :
For the instruction, please refer to 1.4.5 Using the Micro SD/SIM Card.
It only applies to the device which supports WWAN.
2. Turn on the terminal, 4G signal will show at the top of the screen.
If you insert 3G SIM card into PA730, the icon is displayed on the
status bar.
2.5.1 Mobile Network Settings
21 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap Settings.
Go to Wireless & networks, Tap More, and tap Cellular networks.
PA730 User’s Manual
2. You can have more Cellular network settings in this section.
For network type, please tap Preferred network type.
22 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
2.6 WLAN Setting
23 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap Settings and then go to Wireless &
networks, Tap WLAN.
2. To see available networks, turn Wi-Fi ON. And tap to choose the available
networks.
3. Choose the available networks, and enter the Password and tap Connect.
4. If the wireless network that you want is not listed, tap + to manually add it.
5. When enabled, the Wi-Fi icon is displayed on the status bar.
PA730 User’s Manual
2.7 PAN Setting
24 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap Settings.
2. Select Bluetooth from Wireless & Networks.
3. Tap the Bluetooth tile to turn Bluetooth on.
4. Tap the Bluetooth to see a list of available devices.
5. If prompted to enter a passcode, try 0000 or 1234, or consult the headset
documentation to find the passcode.
6. When enabled, the Bluetooth icon is displayed in the status bar.
When the Bluetooth device is connected, you'll see in the status bar.
Normally, you can easily reconnect your device by switching on Bluetooth on
PA730, and then turning on the device.
However, you might have to connect manually if PA730 has been used with
another Bluetooth device.
PA730 User’s Manual
2.8 GPS Setting
25 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap Settings.
2. Go to PERSONAL , Tap Location.
3. Tap ON/OFF for the permission to use your location information.
PA730 User’s Manual
4. Tap Mode for more location mode settings.
26 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
High accuracy :
Use GPS, Wi-Fi and cellular networks to
determine location
Battery saving :
Use Wi-Fi and cellular networks to determine
location
Device only :
Use GPS to determine location
PA730 User’s Manual
2.9 PC Setting
You can transfer your file from or to your computer. The OS of host side please
use Windows 7 or upper.
1. Connect PA730 to your computer with the USB cable. Your computer will
recognize it is USB charging.
2. Then slide from top, the system will show as follow picture, then you can
select File transfers item.
27 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Use USB for Description
Charging For charging when you connect with PC host.
If your OS of PC host is Windows XP, only this item be selected
and you can’t select other items.
File Transfers For file transfer when you connect with PC host.
You can find a storage device on your PC host site.
Photo Transfer
(PTP)
For file transfer when you connect with PC host.
You can find DCIM folder of storage device on your PC host site.
MIDI For file transfer when you connect with PC host.
You can find some folder of storage device on your PC host site.
3. After connecting the terminal to PC with USB, you can find a removable
storage on my computer.
PA730 User’s Manual
You may also download the Google sync device manager software on your
computer. You can set it up to automatically get music, photos, and videos file
of PA730 to your computer.
Please disable check box of USB debugging on the Developer options item of
android Setting when you want transfer file from computer to PA730.
28 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
2.10 Camera Setting
2.10.1 Camera Settings
29 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Please tap to start Camera App, press to take a picture.
2. Press to do advance setting.
Panorama mode
Video
Camera
PA730 User’s Manual
3. Press to do mode setting
30 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
4. Press to do effects setting
31 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
2.10.2 Video Settings
Press to do advance setting.
2.10.3 Photos & Videos Storage Location
You can choose two different storage ways to save photos & videos : Phone or
SD card. SD Card item can not be activated if no SD Card installed in PA730.
Please see the photo below.
PA730 User’s Manual
2.11 Performing a Hardware Reset
You may have to perform a reset if the device freezes (i.e., the terminal no
longer responds to the buttons or tapping on the screen).
Long press Power button and Volume down button simultaneously to make
the device restart the system within 20 seconds.
32 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
2.12 Performing Factory Data Reset
33 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap Settings.
2. You can reset to factory default when you select Factory data reset item, it
will erase all include enterprise folder.
3. You can reset to factory default when you select Network Setting reset
item, it will erase all RF data
Factory Data Reset Network Setting Reset
PA730 User’s Manual
2.13 Programmable Keys
The PA730’s keys can be programmed for users to be able to perform different
functions or applications.
2.13.1 Programming a Physical Key
34 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap Settings, go to SYSTEM, Tap
Programmable keys
2. Tap Redefine Key to select the physical key to remap.
Then select the redefined type that you prefer : Keycode / Unicode
Note: Power key can not be redefined.
35 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual

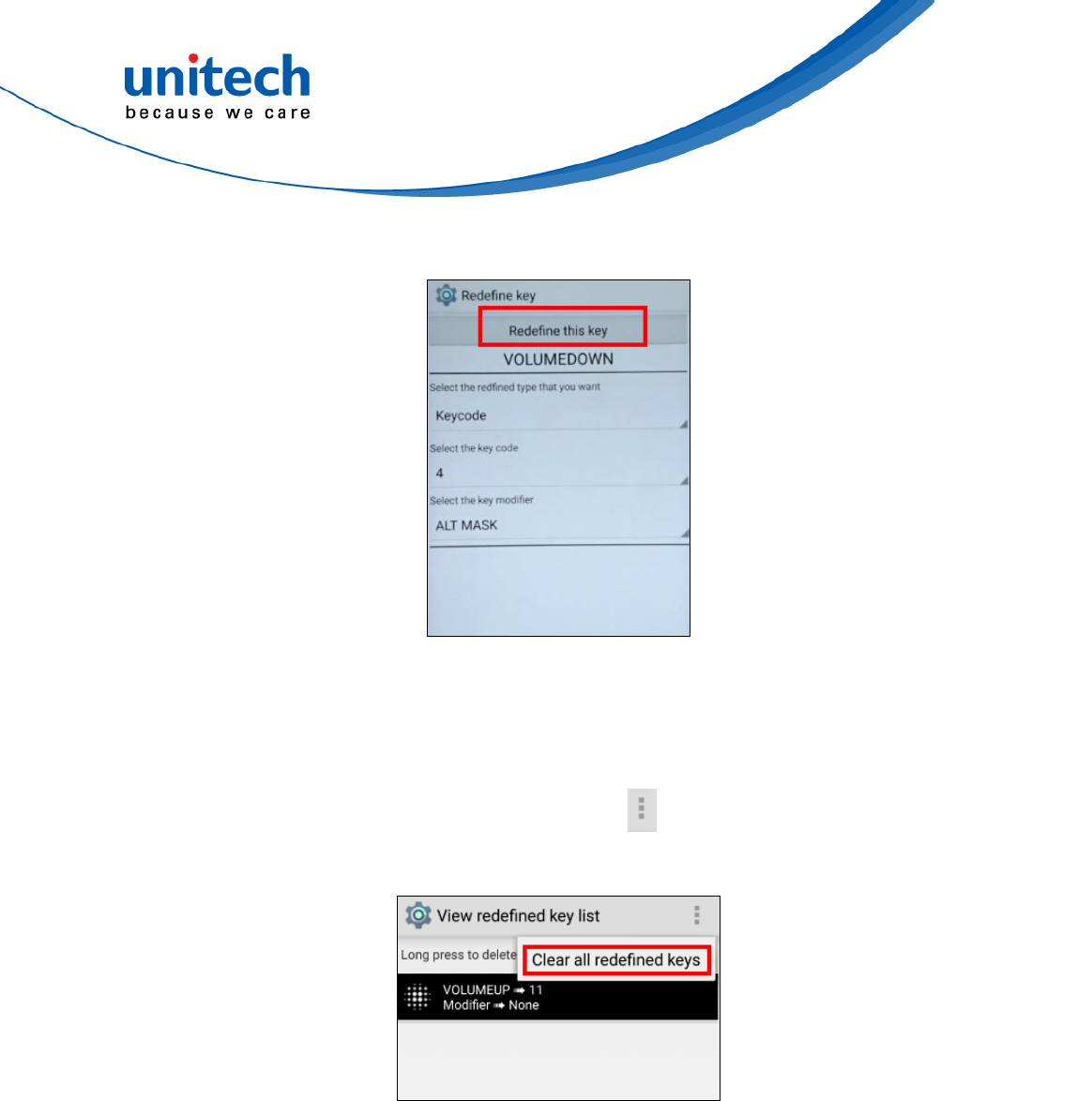

3. Please tap Redefine this key after remapping the physical key.
2.13.2 View Redefined Key List
Please tap view redefined key list to check the redefined keys.
To remove all redefined keys, please tap
PA730 User’s Manual
2.14 Battery Swap
Please follow the steps for the battery swap.
1. Long press power button until you see the pop up window and tap Battery
Swap Mode.
2. The LED indicator will start showing solid red light. Please swap the
battery after the LED red light goes off. Make sure do not turn on PA730
during the battery swap process.
3. When the battery swap is done, press the power button to restart PA730.
Note: Please see 1.4.1 Installing the Battery for more information.
36 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
Chapter 3 – Introduction to
Applications
3.1 Scan Service
37 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, then tap ScanService.
2. You are now enter the ScanService application. There are three main
items : Settings, Test and Version.
Note : For more Scan Service settings, please refer to 2.1 Barcode Setting.
3.1.1 Test
1. Scanned data information / Save / Clear all scanned data.
Tap Test to start scanning barcodes.
38 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
2. Aim the Barcode Scan Engine to the barcode and press one of two
scan buttons.
Barcode Scan Engine
3. After scanning the barcodes, the barcode information is as shown
below.
Tap
Choose the path and filename to
save the scanned data.
PA730 User’s Manual
3.1.2 More Options
For more options and settings, please tap .
Auto Scan Scan2key Setting
Device Option On Screen Button Option Save / Load
Settings
Update
39 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
3.2 File Manager
40 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap File Manager.
: Settings
: Return to the previous page
: Main page
: Refresh
: Folder arrangement
: Folder Information
: Solutions
PA730 User’s Manual
3.3 Update Center
41 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap Settings, and then tap About
Phone to search for System updates.
Or tap for system updates.
2. To update or check the latest version of software and applications, you will
need to do it manually.
42 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
3.4 Sound Recorder
1. Tap go to APPS, and tap Sound Recorder.
2. Recording : Tap to start the sound recording.
Record Button Pause
Play
PA730 User’s Manual
3. After recording messages, all the recording files will be saved in
43 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
filemanger. Please tap first to refresh all the files.
4. Long press the recording files for more file operations.
PA730 User’s Manual
3.5 Push To Talk
To operate push to talk, please go to Google Play store to download the
walkie talkie apps which can support any android device.
For example, Zello PTT Walkie Talkie is the most recommended
walkie talkie app.
Push to Talk
44 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
3.6 MoboLink
MoboLink is a software platform that helps unitech customers to remote
manage their purchased devices and applications. The core of the MoboLink
platform provides functionalities in the MDM (Mobile Device Management) and
MAM (Mobile Application Management) domains, and then further extends into
other management functions such as alert notification management and
account management.
45 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
1. Tap go to APPS, and tap MoboLink.
MoboLink will run in the background.
Note: If there is no internet connection, MoboLink will be activated after few seconds.
PA730 User’s Manual

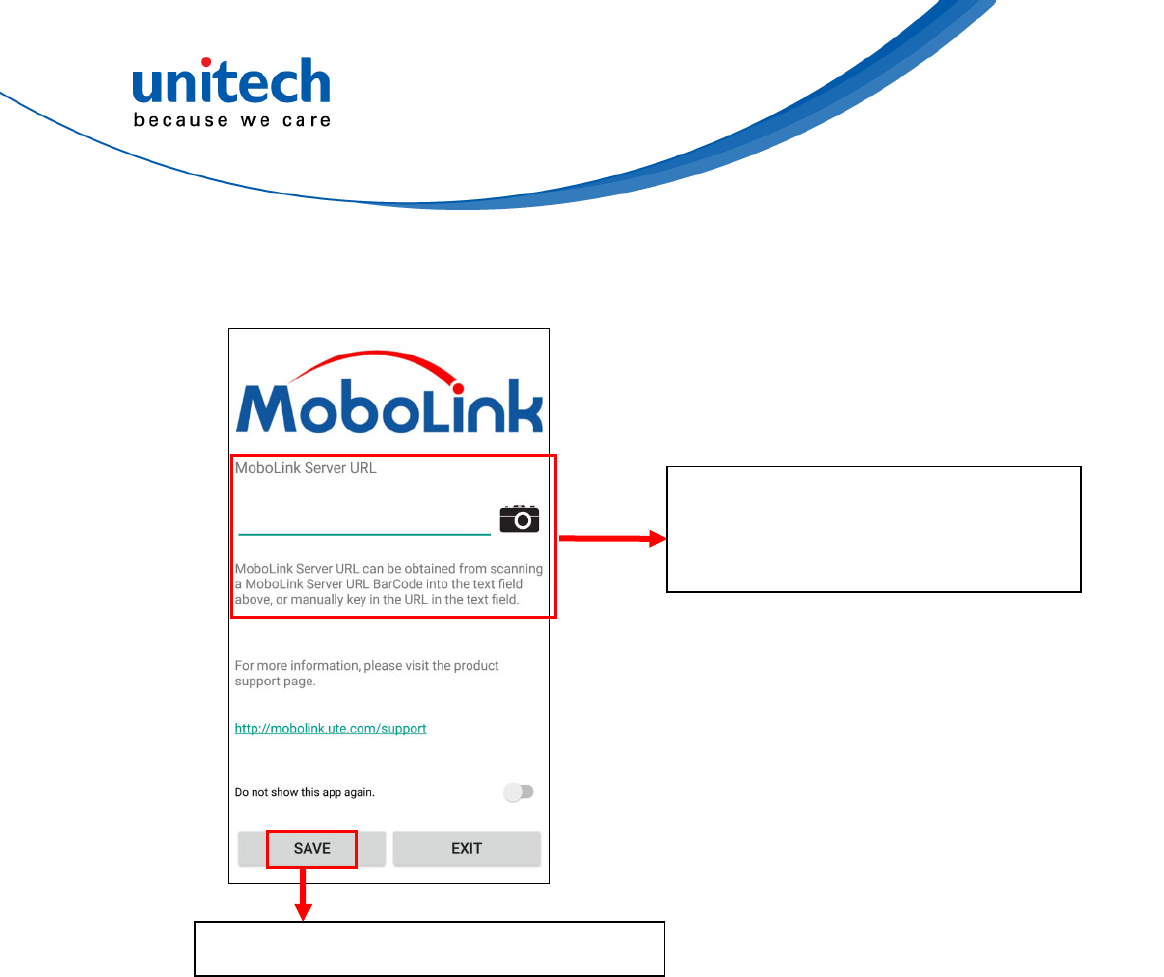

2. MoboLink setting is shown as below :
Enter MoboLink server URL manually
in the text field or scan a MoboLink
server URL Barcode
46 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Tap “Save” to initiate MoboLink Server URL
PA730 User’s Manual

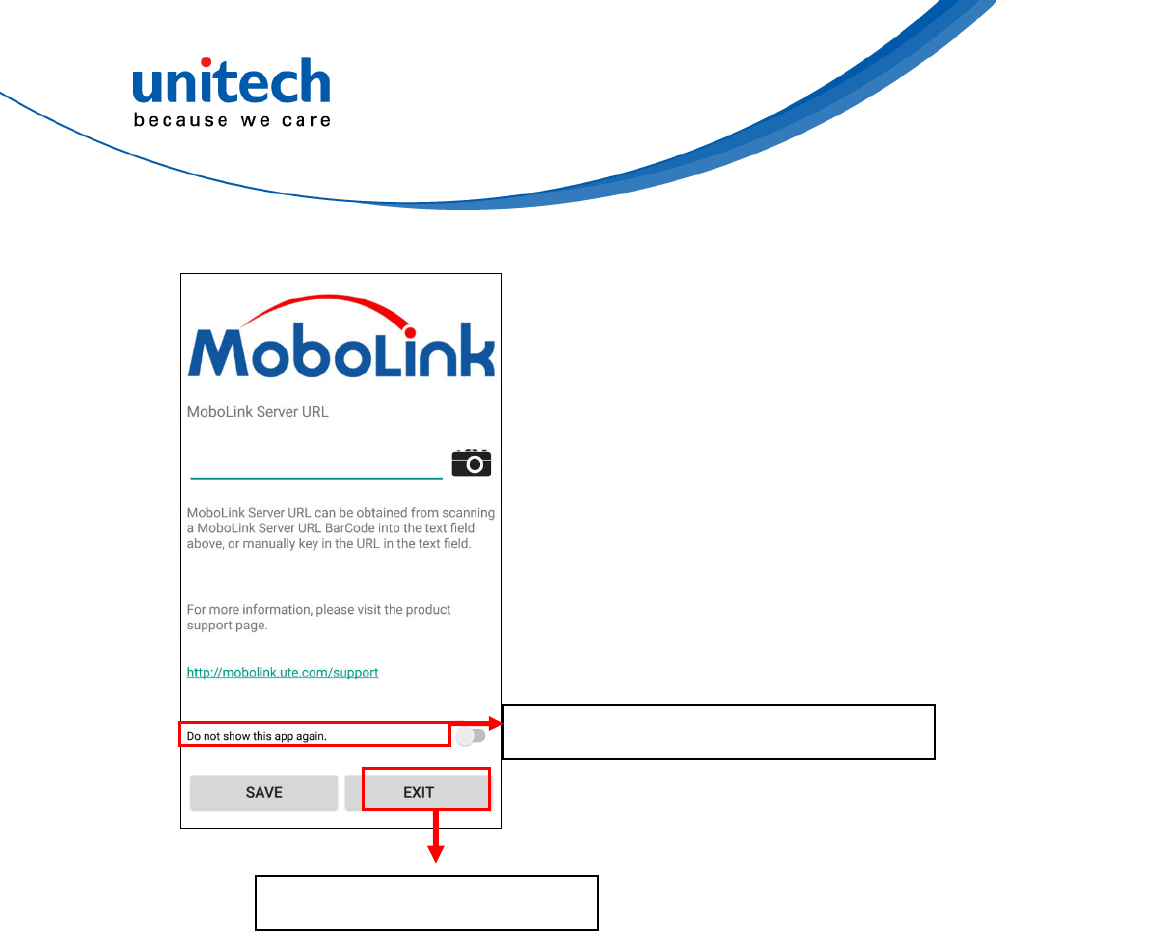

3. MoboLink screen information is as below:
Slide ON/OFF button to show MoboLink
47 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Tap “Exit” to leave the screen
PA730 User’s Manual
3.6.1 More about MoboLink
For detailed operation, solution and usage, please refer to
MoboLink users guide. ( http://mobolink.tw.ute.com/support )
48 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
PA730 User’s Manual
3.7 SOTI
PA730 is supported by SOTI which provides advanced helpdesk solutions for
our users. To download SOTI, please go to : https://www.soti.net/oem
49 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
