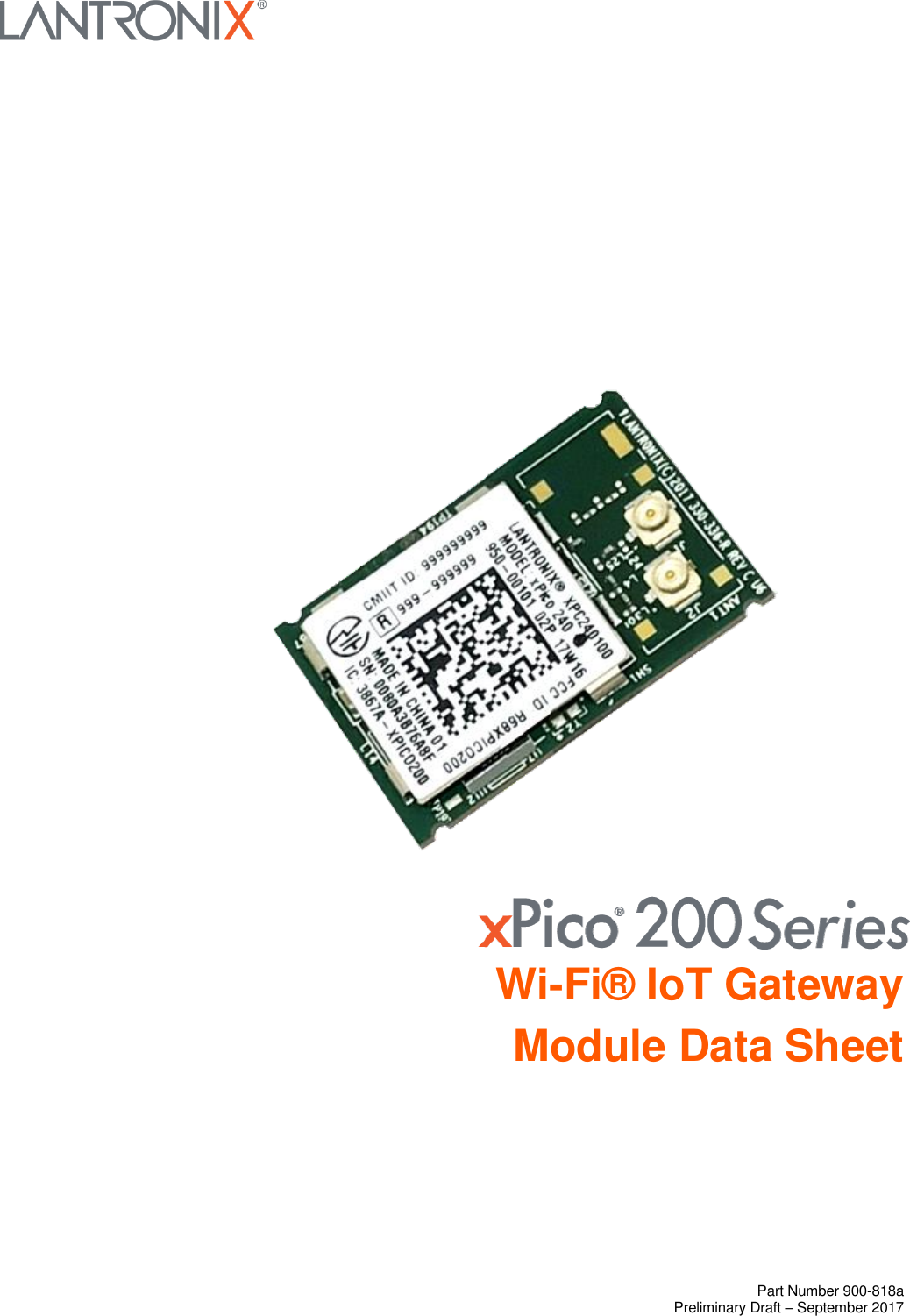

Part Number 900-818a Preliminary Draft – September 2017 xPico 200 Series Wi-Fi® IoT Gateway Module Data Sheet

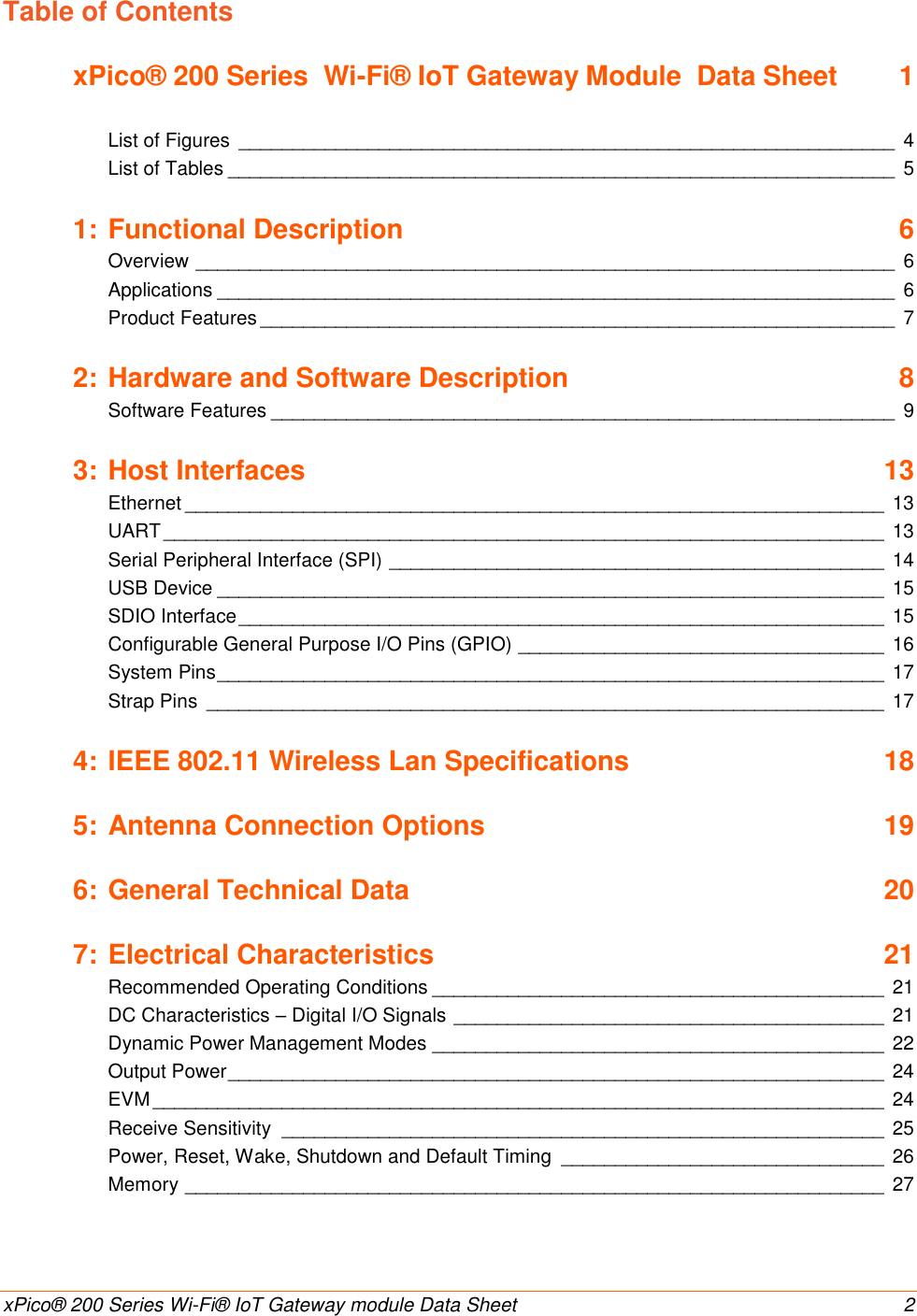

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 2 Table of Contents xPico® 200 Series Wi-Fi® IoT Gateway Module Data Sheet 1 List of Figures _____________________________________________________________ 4 List of Tables ______________________________________________________________ 5 1: Functional Description 6 Overview _________________________________________________________________ 6 Applications _______________________________________________________________ 6 Product Features ___________________________________________________________ 7 2: Hardware and Software Description 8 Software Features __________________________________________________________ 9 3: Host Interfaces 13 Ethernet _________________________________________________________________ 13 UART ___________________________________________________________________ 13 Serial Peripheral Interface (SPI) ______________________________________________ 14 USB Device ______________________________________________________________ 15 SDIO Interface ____________________________________________________________ 15 Configurable General Purpose I/O Pins (GPIO) __________________________________ 16 System Pins ______________________________________________________________ 17 Strap Pins _______________________________________________________________ 17 4: IEEE 802.11 Wireless Lan Specifications 18 5: Antenna Connection Options 19 6: General Technical Data 20 7: Electrical Characteristics 21 Recommended Operating Conditions __________________________________________ 21 DC Characteristics – Digital I/O Signals ________________________________________ 21 Dynamic Power Management Modes __________________________________________ 22 Output Power _____________________________________________________________ 24 EVM ____________________________________________________________________ 24 Receive Sensitivity ________________________________________________________ 25 Power, Reset, Wake, Shutdown and Default Timing ______________________________ 26 Memory _________________________________________________________________ 27

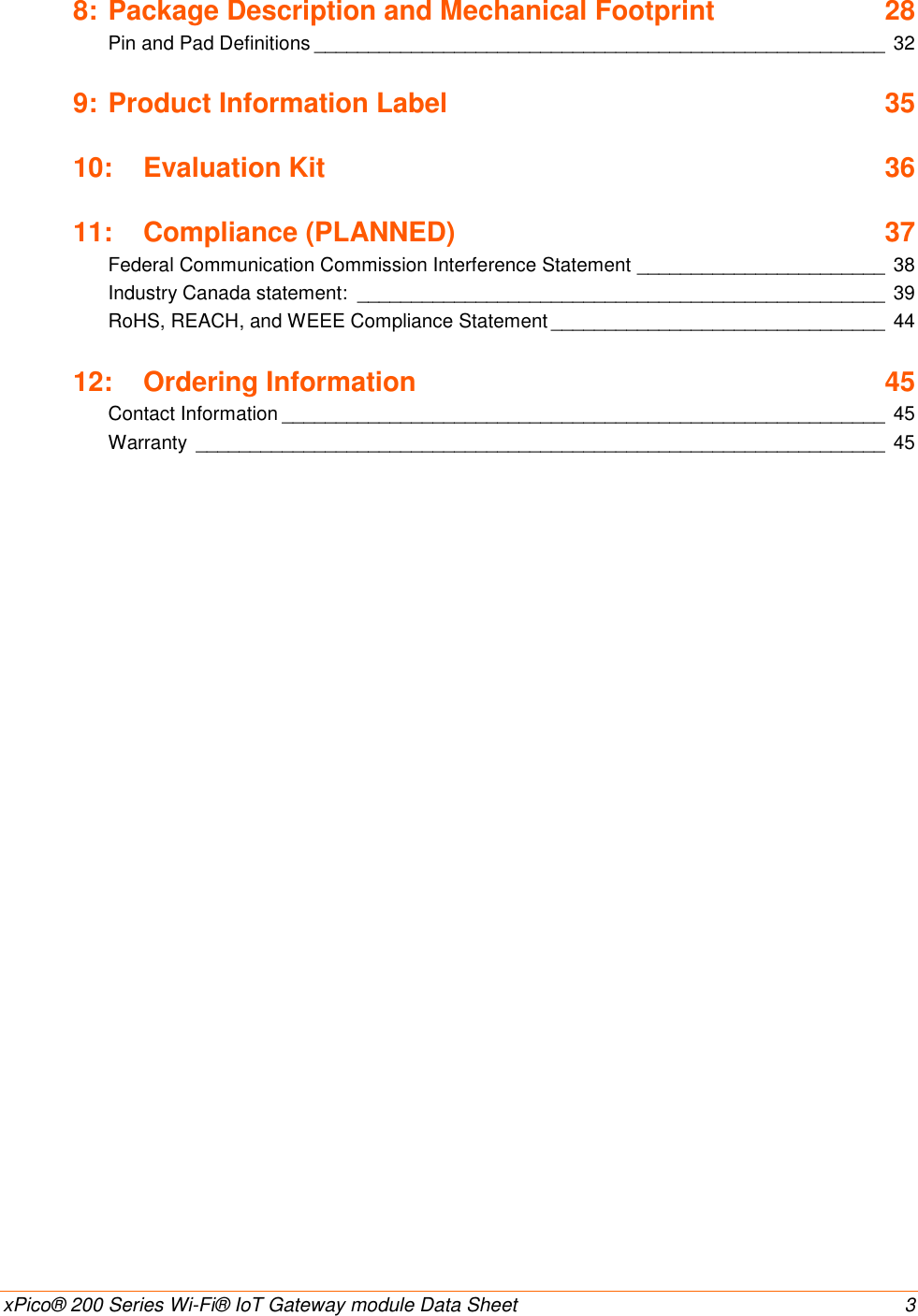

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 3 8: Package Description and Mechanical Footprint 28 Pin and Pad Definitions _____________________________________________________ 32 9: Product Information Label 35 10: Evaluation Kit 36 11: Compliance (PLANNED) 37 Federal Communication Commission Interference Statement _______________________ 38 Industry Canada statement: _________________________________________________ 39 RoHS, REACH, and WEEE Compliance Statement _______________________________ 44 12: Ordering Information 45 Contact Information ________________________________________________________ 45 Warranty ________________________________________________________________ 45

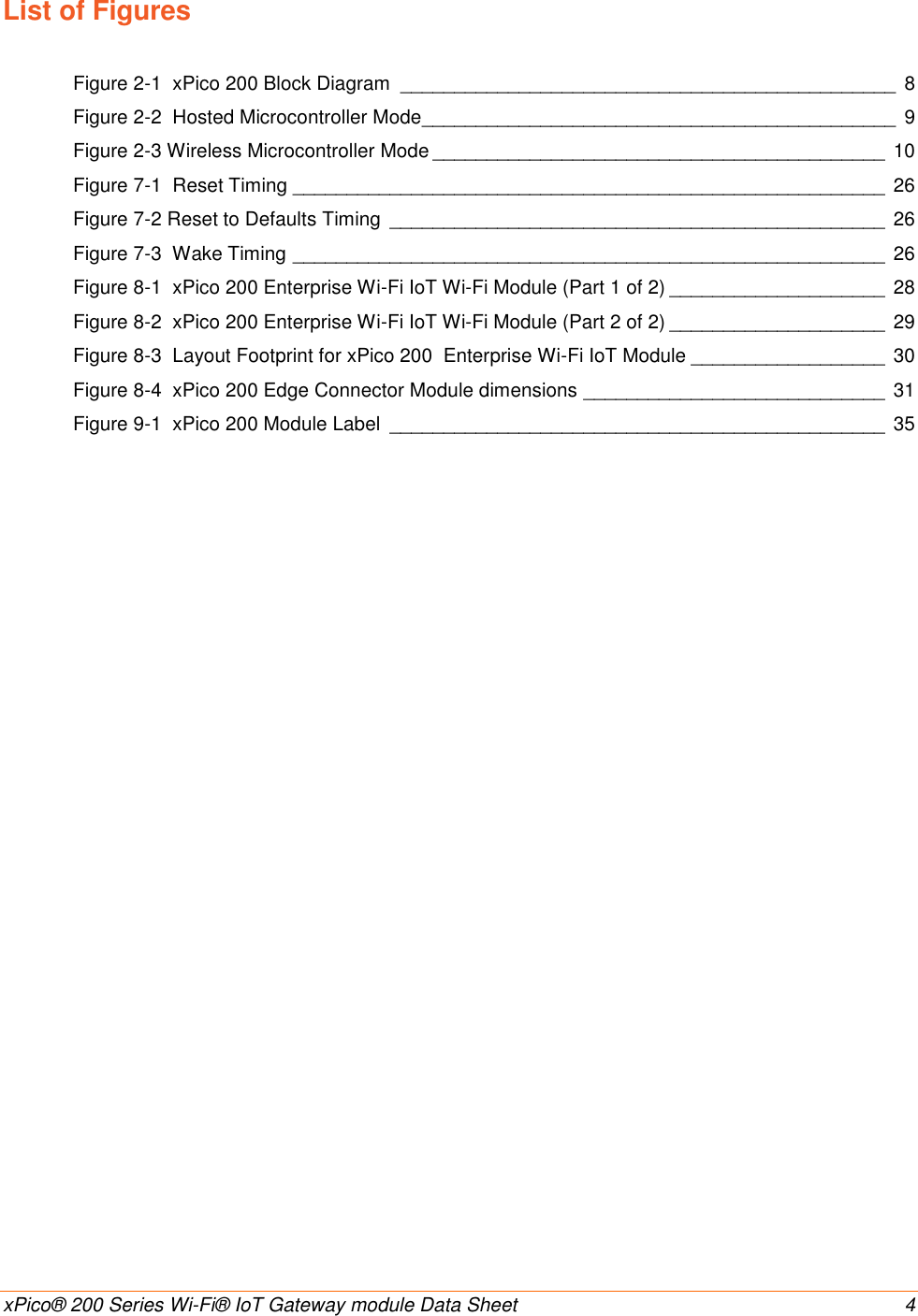

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 4 List of Figures Figure 2-1 xPico 200 Block Diagram ______________________________________________ 8 Figure 2-2 Hosted Microcontroller Mode ____________________________________________ 9 Figure 2-3 Wireless Microcontroller Mode __________________________________________ 10 Figure 7-1 Reset Timing _______________________________________________________ 26 Figure 7-2 Reset to Defaults Timing ______________________________________________ 26 Figure 7-3 Wake Timing _______________________________________________________ 26 Figure 8-1 xPico 200 Enterprise Wi-Fi IoT Wi-Fi Module (Part 1 of 2) ____________________ 28 Figure 8-2 xPico 200 Enterprise Wi-Fi IoT Wi-Fi Module (Part 2 of 2) ____________________ 29 Figure 8-3 Layout Footprint for xPico 200 Enterprise Wi-Fi IoT Module __________________ 30 Figure 8-4 xPico 200 Edge Connector Module dimensions ____________________________ 31 Figure 9-1 xPico 200 Module Label ______________________________________________ 35

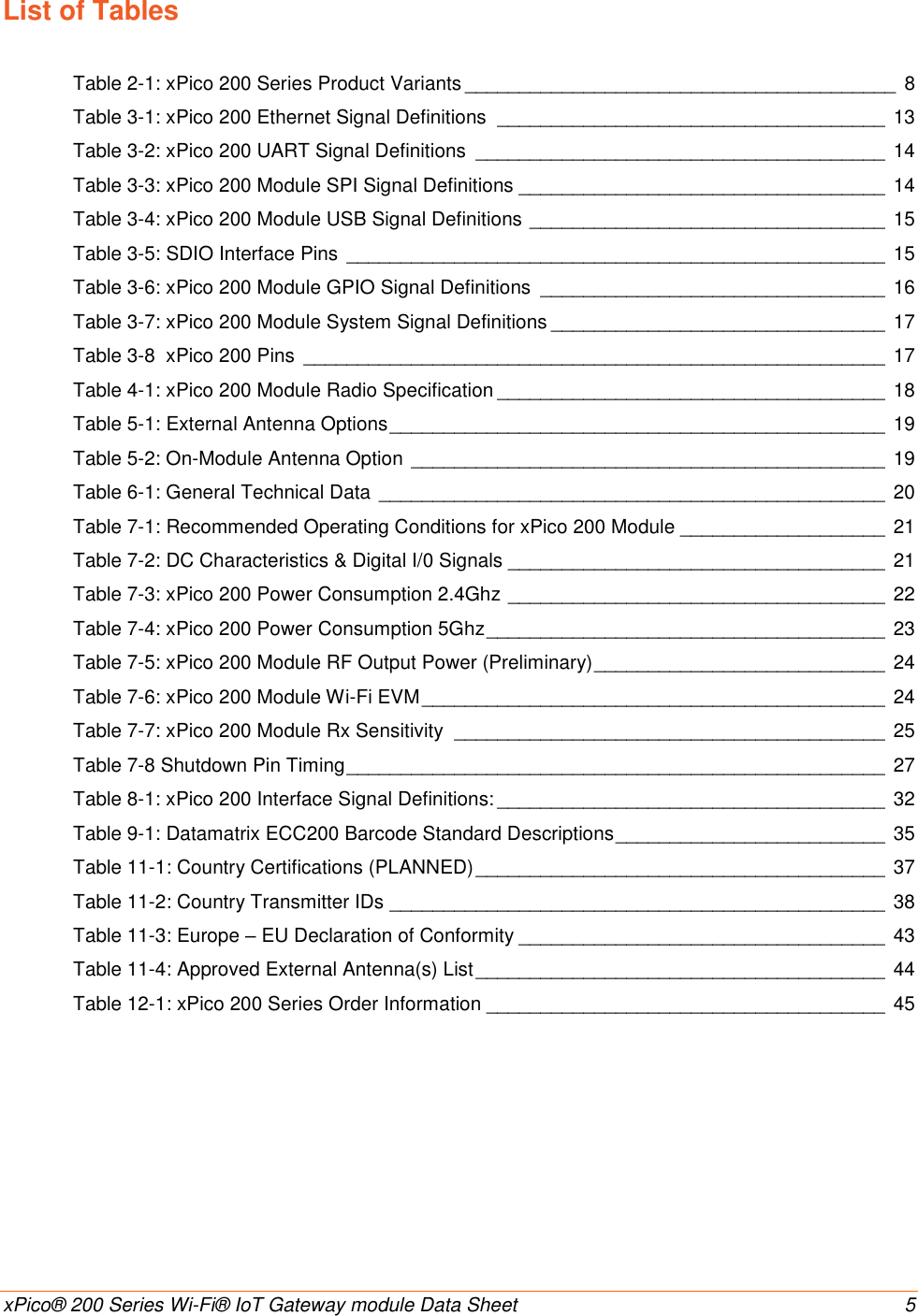

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 5 List of Tables Table 2-1: xPico 200 Series Product Variants ________________________________________ 8 Table 3-1: xPico 200 Ethernet Signal Definitions ____________________________________ 13 Table 3-2: xPico 200 UART Signal Definitions ______________________________________ 14 Table 3-3: xPico 200 Module SPI Signal Definitions __________________________________ 14 Table 3-4: xPico 200 Module USB Signal Definitions _________________________________ 15 Table 3-5: SDIO Interface Pins __________________________________________________ 15 Table 3-6: xPico 200 Module GPIO Signal Definitions ________________________________ 16 Table 3-7: xPico 200 Module System Signal Definitions _______________________________ 17 Table 3-8 xPico 200 Pins ______________________________________________________ 17 Table 4-1: xPico 200 Module Radio Specification ____________________________________ 18 Table 5-1: External Antenna Options ______________________________________________ 19 Table 5-2: On-Module Antenna Option ____________________________________________ 19 Table 6-1: General Technical Data _______________________________________________ 20 Table 7-1: Recommended Operating Conditions for xPico 200 Module ___________________ 21 Table 7-2: DC Characteristics & Digital I/0 Signals ___________________________________ 21 Table 7-3: xPico 200 Power Consumption 2.4Ghz ___________________________________ 22 Table 7-4: xPico 200 Power Consumption 5Ghz _____________________________________ 23 Table 7-5: xPico 200 Module RF Output Power (Preliminary) ___________________________ 24 Table 7-6: xPico 200 Module Wi-Fi EVM ___________________________________________ 24 Table 7-7: xPico 200 Module Rx Sensitivity ________________________________________ 25 Table 7-8 Shutdown Pin Timing __________________________________________________ 27 Table 8-1: xPico 200 Interface Signal Definitions: ____________________________________ 32 Table 9-1: Datamatrix ECC200 Barcode Standard Descriptions _________________________ 35 Table 11-1: Country Certifications (PLANNED) ______________________________________ 37 Table 11-2: Country Transmitter IDs ______________________________________________ 38 Table 11-3: Europe – EU Declaration of Conformity __________________________________ 43 Table 11-4: Approved External Antenna(s) List ______________________________________ 44 Table 12-1: xPico 200 Series Order Information _____________________________________ 45

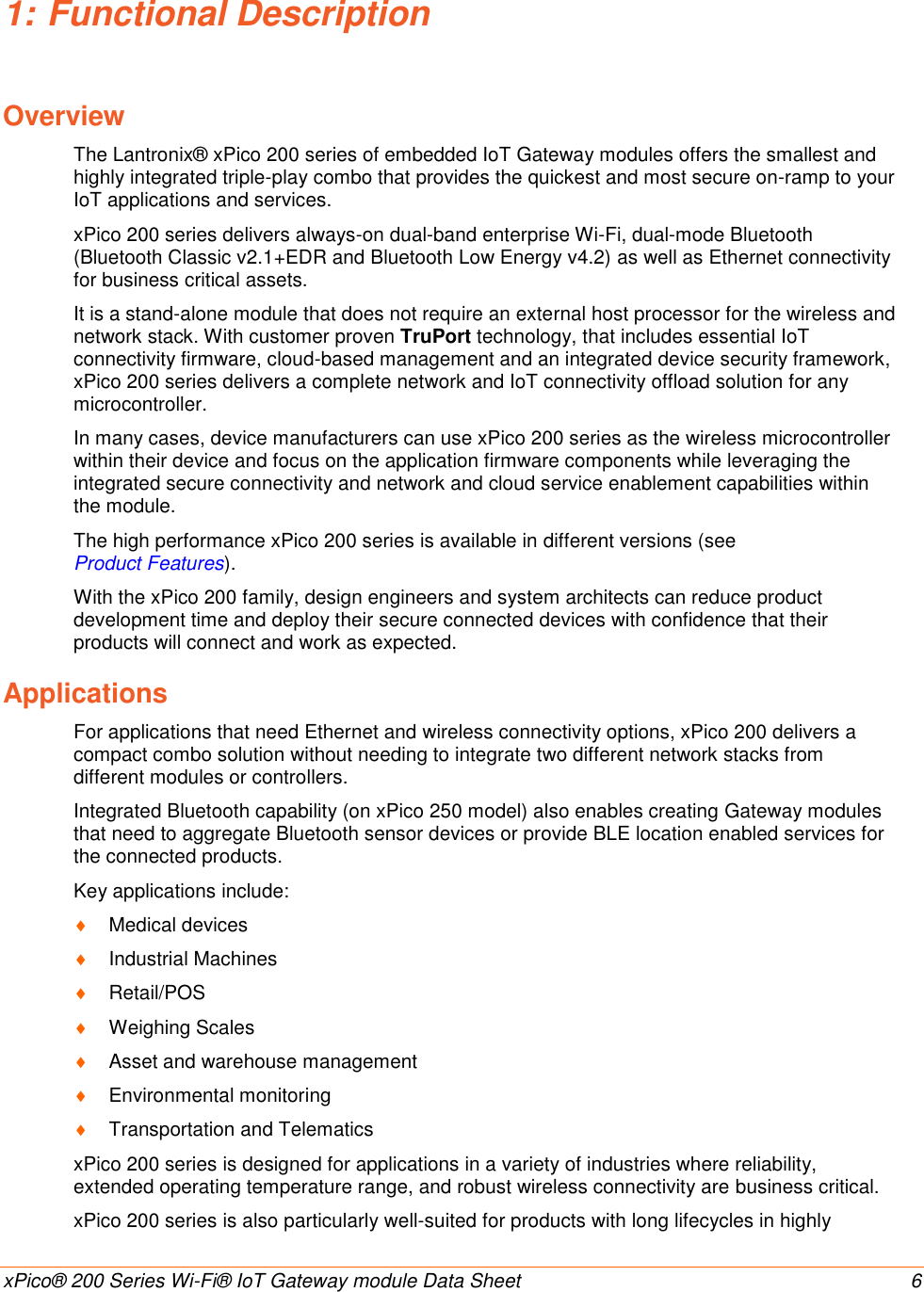

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 6 1: Functional Description Overview The Lantronix® xPico 200 series of embedded IoT Gateway modules offers the smallest and highly integrated triple-play combo that provides the quickest and most secure on-ramp to your IoT applications and services. xPico 200 series delivers always-on dual-band enterprise Wi-Fi, dual-mode Bluetooth (Bluetooth Classic v2.1+EDR and Bluetooth Low Energy v4.2) as well as Ethernet connectivity for business critical assets. It is a stand-alone module that does not require an external host processor for the wireless and network stack. With customer proven TruPort technology, that includes essential IoT connectivity firmware, cloud-based management and an integrated device security framework, xPico 200 series delivers a complete network and IoT connectivity offload solution for any microcontroller. In many cases, device manufacturers can use xPico 200 series as the wireless microcontroller within their device and focus on the application firmware components while leveraging the integrated secure connectivity and network and cloud service enablement capabilities within the module. The high performance xPico 200 series is available in different versions (see Product Features). With the xPico 200 family, design engineers and system architects can reduce product development time and deploy their secure connected devices with confidence that their products will connect and work as expected. Applications For applications that need Ethernet and wireless connectivity options, xPico 200 delivers a compact combo solution without needing to integrate two different network stacks from different modules or controllers. Integrated Bluetooth capability (on xPico 250 model) also enables creating Gateway modules that need to aggregate Bluetooth sensor devices or provide BLE location enabled services for the connected products. Key applications include:  Medical devices  Industrial Machines  Retail/POS  Weighing Scales  Asset and warehouse management  Environmental monitoring  Transportation and Telematics xPico 200 series is designed for applications in a variety of industries where reliability, extended operating temperature range, and robust wireless connectivity are business critical. xPico 200 series is also particularly well-suited for products with long lifecycles in highly

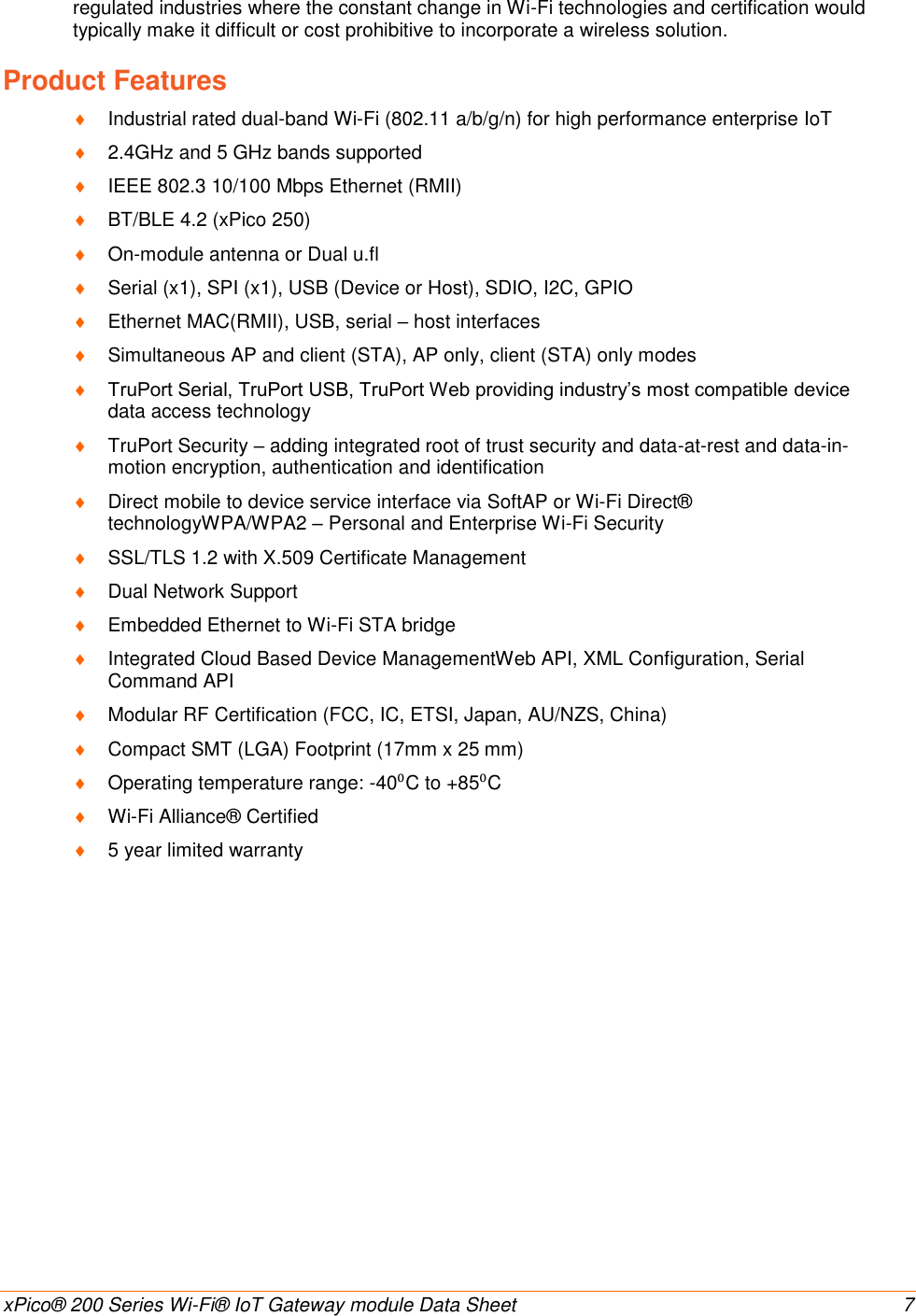

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 7 regulated industries where the constant change in Wi-Fi technologies and certification would typically make it difficult or cost prohibitive to incorporate a wireless solution. Product Features  Industrial rated dual-band Wi-Fi (802.11 a/b/g/n) for high performance enterprise IoT  2.4GHz and 5 GHz bands supported  IEEE 802.3 10/100 Mbps Ethernet (RMII)  BT/BLE 4.2 (xPico 250)  On-module antenna or Dual u.fl  Serial (x1), SPI (x1), USB (Device or Host), SDIO, I2C, GPIO  Ethernet MAC(RMII), USB, serial – host interfaces  Simultaneous AP and client (STA), AP only, client (STA) only modes  TruPort Serial, TruPort USB, TruPort Web providing industry’s most compatible device data access technology  TruPort Security – adding integrated root of trust security and data-at-rest and data-in-motion encryption, authentication and identification  Direct mobile to device service interface via SoftAP or Wi-Fi Direct® technologyWPA/WPA2 – Personal and Enterprise Wi-Fi Security  SSL/TLS 1.2 with X.509 Certificate Management  Dual Network Support  Embedded Ethernet to Wi-Fi STA bridge  Integrated Cloud Based Device ManagementWeb API, XML Configuration, Serial Command API  Modular RF Certification (FCC, IC, ETSI, Japan, AU/NZS, China)  Compact SMT (LGA) Footprint (17mm x 25 mm)  Operating temperature range: -40⁰C to +85⁰C  Wi-Fi Alliance® Certified  5 year limited warranty

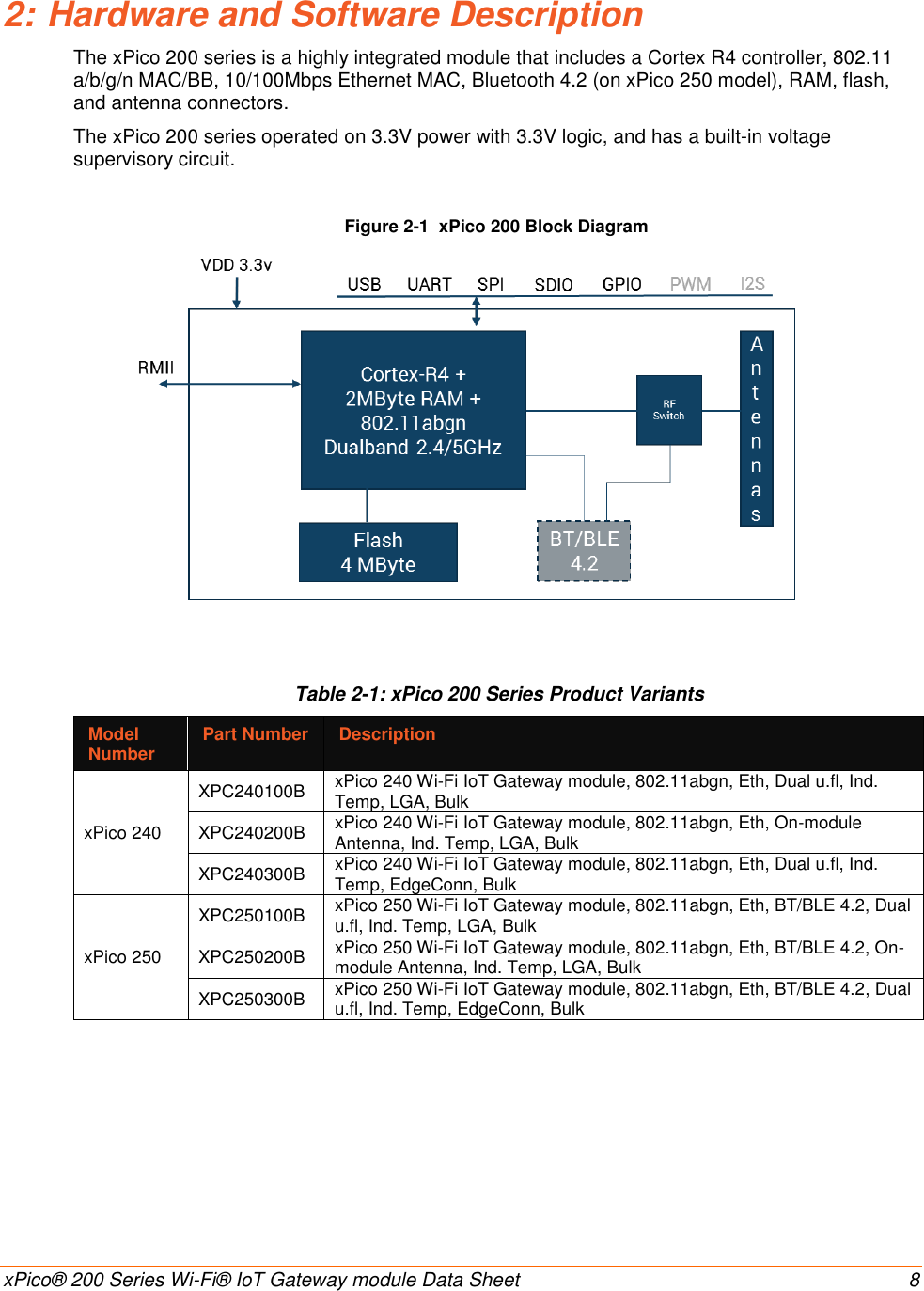

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 8 2: Hardware and Software Description The xPico 200 series is a highly integrated module that includes a Cortex R4 controller, 802.11 a/b/g/n MAC/BB, 10/100Mbps Ethernet MAC, Bluetooth 4.2 (on xPico 250 model), RAM, flash, and antenna connectors. The xPico 200 series operated on 3.3V power with 3.3V logic, and has a built-in voltage supervisory circuit. Figure 2-1 xPico 200 Block Diagram Table 2-1: xPico 200 Series Product Variants Model Number Part Number Description xPico 240 XPC240100B xPico 240 Wi-Fi IoT Gateway module, 802.11abgn, Eth, Dual u.fl, Ind. Temp, LGA, Bulk XPC240200B xPico 240 Wi-Fi IoT Gateway module, 802.11abgn, Eth, On-module Antenna, Ind. Temp, LGA, Bulk XPC240300B xPico 240 Wi-Fi IoT Gateway module, 802.11abgn, Eth, Dual u.fl, Ind. Temp, EdgeConn, Bulk xPico 250 XPC250100B xPico 250 Wi-Fi IoT Gateway module, 802.11abgn, Eth, BT/BLE 4.2, Dual u.fl, Ind. Temp, LGA, Bulk XPC250200B xPico 250 Wi-Fi IoT Gateway module, 802.11abgn, Eth, BT/BLE 4.2, On-module Antenna, Ind. Temp, LGA, Bulk XPC250300B xPico 250 Wi-Fi IoT Gateway module, 802.11abgn, Eth, BT/BLE 4.2, Dual u.fl, Ind. Temp, EdgeConn, Bulk

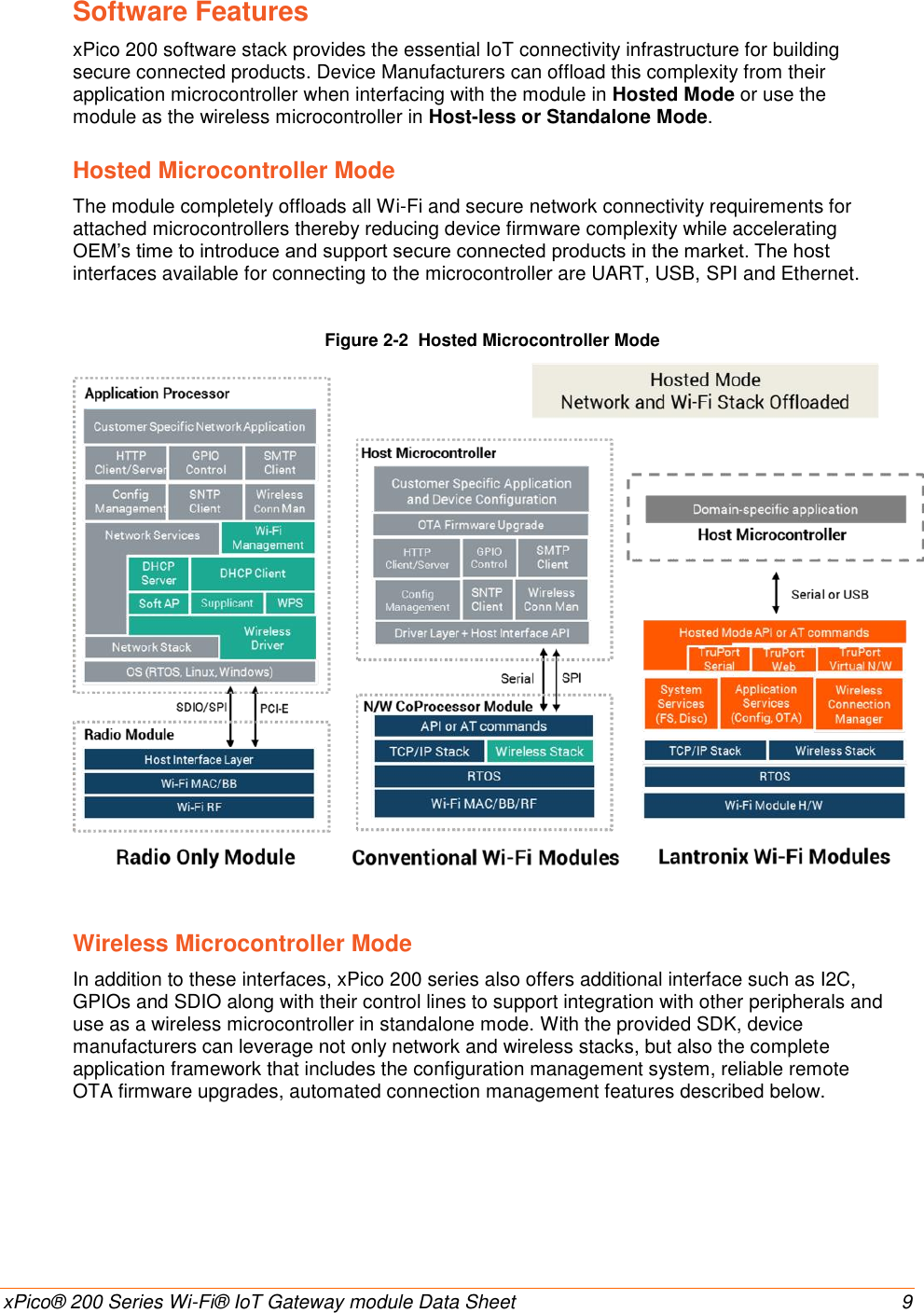

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 9 Software Features xPico 200 software stack provides the essential IoT connectivity infrastructure for building secure connected products. Device Manufacturers can offload this complexity from their application microcontroller when interfacing with the module in Hosted Mode or use the module as the wireless microcontroller in Host-less or Standalone Mode. Hosted Microcontroller Mode The module completely offloads all Wi-Fi and secure network connectivity requirements for attached microcontrollers thereby reducing device firmware complexity while accelerating OEM’s time to introduce and support secure connected products in the market. The host interfaces available for connecting to the microcontroller are UART, USB, SPI and Ethernet. Figure 2-2 Hosted Microcontroller Mode Wireless Microcontroller Mode In addition to these interfaces, xPico 200 series also offers additional interface such as I2C, GPIOs and SDIO along with their control lines to support integration with other peripherals and use as a wireless microcontroller in standalone mode. With the provided SDK, device manufacturers can leverage not only network and wireless stacks, but also the complete application framework that includes the configuration management system, reliable remote OTA firmware upgrades, automated connection management features described below.

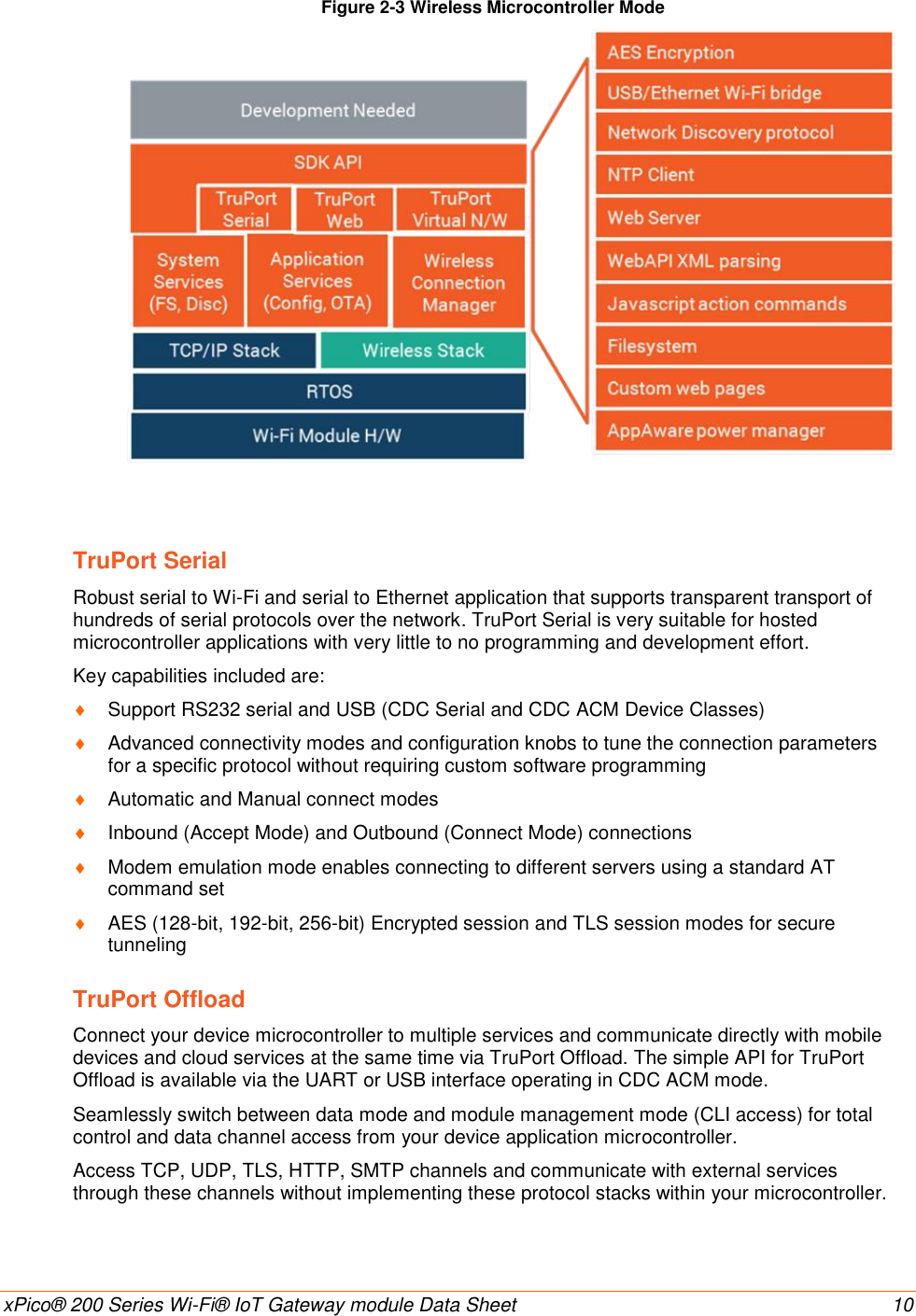

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 10 Figure 2-3 Wireless Microcontroller Mode TruPort Serial Robust serial to Wi-Fi and serial to Ethernet application that supports transparent transport of hundreds of serial protocols over the network. TruPort Serial is very suitable for hosted microcontroller applications with very little to no programming and development effort. Key capabilities included are:  Support RS232 serial and USB (CDC Serial and CDC ACM Device Classes)  Advanced connectivity modes and configuration knobs to tune the connection parameters for a specific protocol without requiring custom software programming  Automatic and Manual connect modes  Inbound (Accept Mode) and Outbound (Connect Mode) connections  Modem emulation mode enables connecting to different servers using a standard AT command set  AES (128-bit, 192-bit, 256-bit) Encrypted session and TLS session modes for secure tunneling TruPort Offload Connect your device microcontroller to multiple services and communicate directly with mobile devices and cloud services at the same time via TruPort Offload. The simple API for TruPort Offload is available via the UART or USB interface operating in CDC ACM mode. Seamlessly switch between data mode and module management mode (CLI access) for total control and data channel access from your device application microcontroller. Access TCP, UDP, TLS, HTTP, SMTP channels and communicate with external services through these channels without implementing these protocol stacks within your microcontroller.

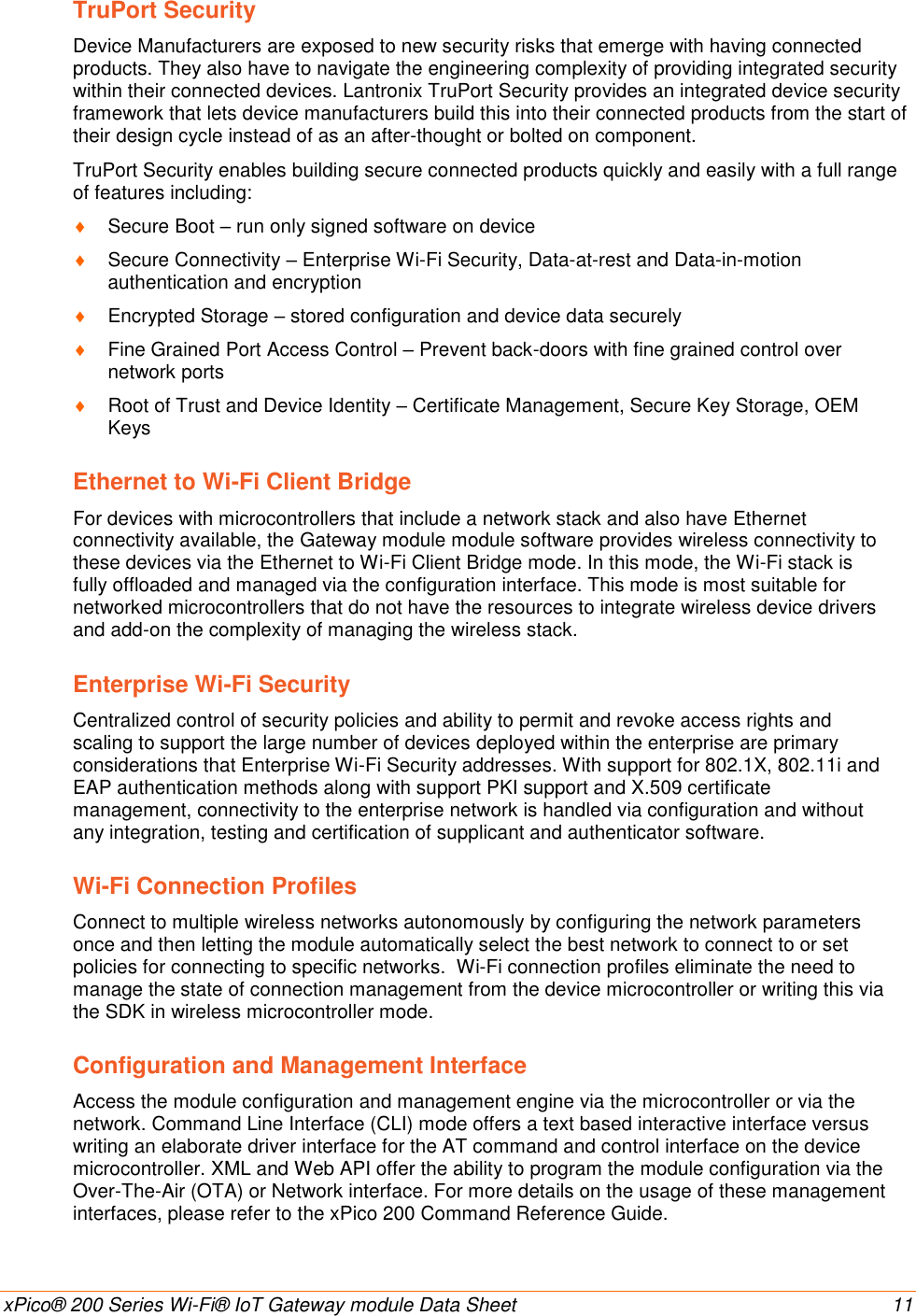

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 11 TruPort Security Device Manufacturers are exposed to new security risks that emerge with having connected products. They also have to navigate the engineering complexity of providing integrated security within their connected devices. Lantronix TruPort Security provides an integrated device security framework that lets device manufacturers build this into their connected products from the start of their design cycle instead of as an after-thought or bolted on component. TruPort Security enables building secure connected products quickly and easily with a full range of features including:  Secure Boot – run only signed software on device  Secure Connectivity – Enterprise Wi-Fi Security, Data-at-rest and Data-in-motion authentication and encryption  Encrypted Storage – stored configuration and device data securely  Fine Grained Port Access Control – Prevent back-doors with fine grained control over network ports  Root of Trust and Device Identity – Certificate Management, Secure Key Storage, OEM Keys Ethernet to Wi-Fi Client Bridge For devices with microcontrollers that include a network stack and also have Ethernet connectivity available, the Gateway module module software provides wireless connectivity to these devices via the Ethernet to Wi-Fi Client Bridge mode. In this mode, the Wi-Fi stack is fully offloaded and managed via the configuration interface. This mode is most suitable for networked microcontrollers that do not have the resources to integrate wireless device drivers and add-on the complexity of managing the wireless stack. Enterprise Wi-Fi Security Centralized control of security policies and ability to permit and revoke access rights and scaling to support the large number of devices deployed within the enterprise are primary considerations that Enterprise Wi-Fi Security addresses. With support for 802.1X, 802.11i and EAP authentication methods along with support PKI support and X.509 certificate management, connectivity to the enterprise network is handled via configuration and without any integration, testing and certification of supplicant and authenticator software. Wi-Fi Connection Profiles Connect to multiple wireless networks autonomously by configuring the network parameters once and then letting the module automatically select the best network to connect to or set policies for connecting to specific networks. Wi-Fi connection profiles eliminate the need to manage the state of connection management from the device microcontroller or writing this via the SDK in wireless microcontroller mode. Configuration and Management Interface Access the module configuration and management engine via the microcontroller or via the network. Command Line Interface (CLI) mode offers a text based interactive interface versus writing an elaborate driver interface for the AT command and control interface on the device microcontroller. XML and Web API offer the ability to program the module configuration via the Over-The-Air (OTA) or Network interface. For more details on the usage of these management interfaces, please refer to the xPico 200 Command Reference Guide.

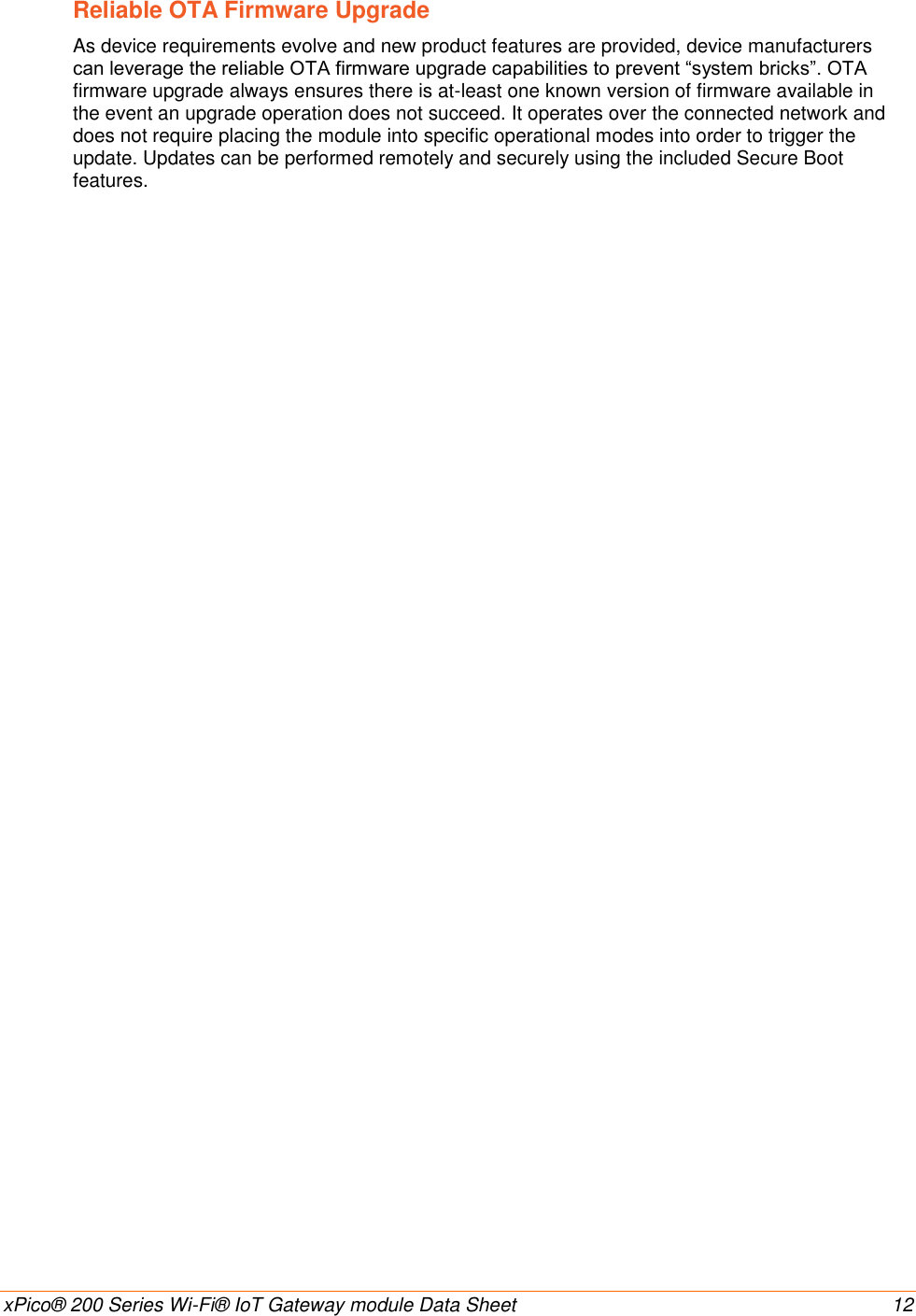

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 12 Reliable OTA Firmware Upgrade As device requirements evolve and new product features are provided, device manufacturers can leverage the reliable OTA firmware upgrade capabilities to prevent “system bricks”. OTA firmware upgrade always ensures there is at-least one known version of firmware available in the event an upgrade operation does not succeed. It operates over the connected network and does not require placing the module into specific operational modes into order to trigger the update. Updates can be performed remotely and securely using the included Secure Boot features.

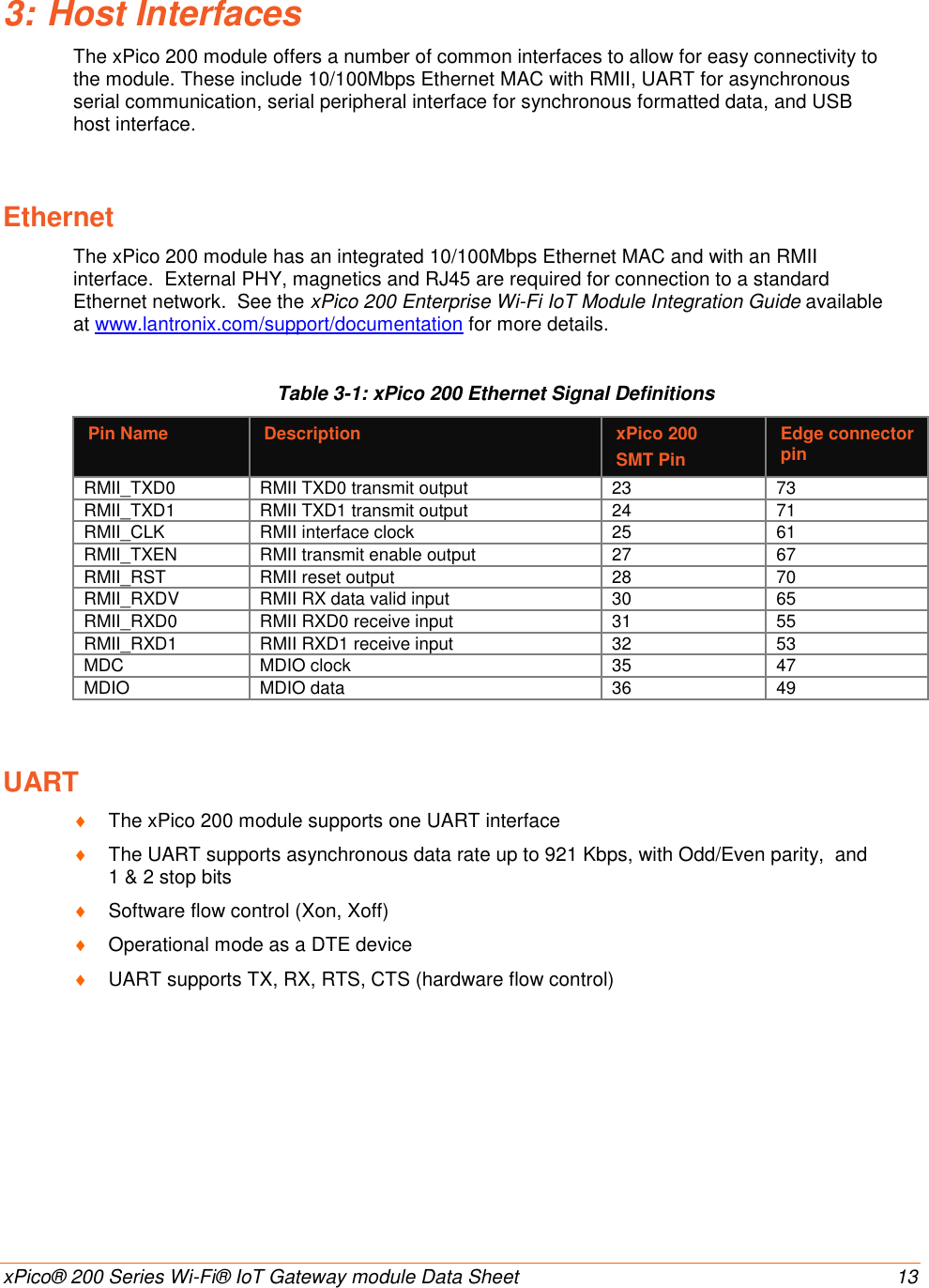

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 13 3: Host Interfaces The xPico 200 module offers a number of common interfaces to allow for easy connectivity to the module. These include 10/100Mbps Ethernet MAC with RMII, UART for asynchronous serial communication, serial peripheral interface for synchronous formatted data, and USB host interface. Ethernet The xPico 200 module has an integrated 10/100Mbps Ethernet MAC and with an RMII interface. External PHY, magnetics and RJ45 are required for connection to a standard Ethernet network. See the xPico 200 Enterprise Wi-Fi IoT Module Integration Guide available at www.lantronix.com/support/documentation for more details. Table 3-1: xPico 200 Ethernet Signal Definitions Pin Name Description xPico 200 SMT Pin Edge connector pin RMII_TXD0 RMII TXD0 transmit output 23 73 RMII_TXD1 RMII TXD1 transmit output 24 71 RMII_CLK RMII interface clock 25 61 RMII_TXEN RMII transmit enable output 27 67 RMII_RST RMII reset output 28 70 RMII_RXDV RMII RX data valid input 30 65 RMII_RXD0 RMII RXD0 receive input 31 55 RMII_RXD1 RMII RXD1 receive input 32 53 MDC MDIO clock 35 47 MDIO MDIO data 36 49 UART  The xPico 200 module supports one UART interface  The UART supports asynchronous data rate up to 921 Kbps, with Odd/Even parity, and 1 & 2 stop bits  Software flow control (Xon, Xoff)  Operational mode as a DTE device  UART supports TX, RX, RTS, CTS (hardware flow control)

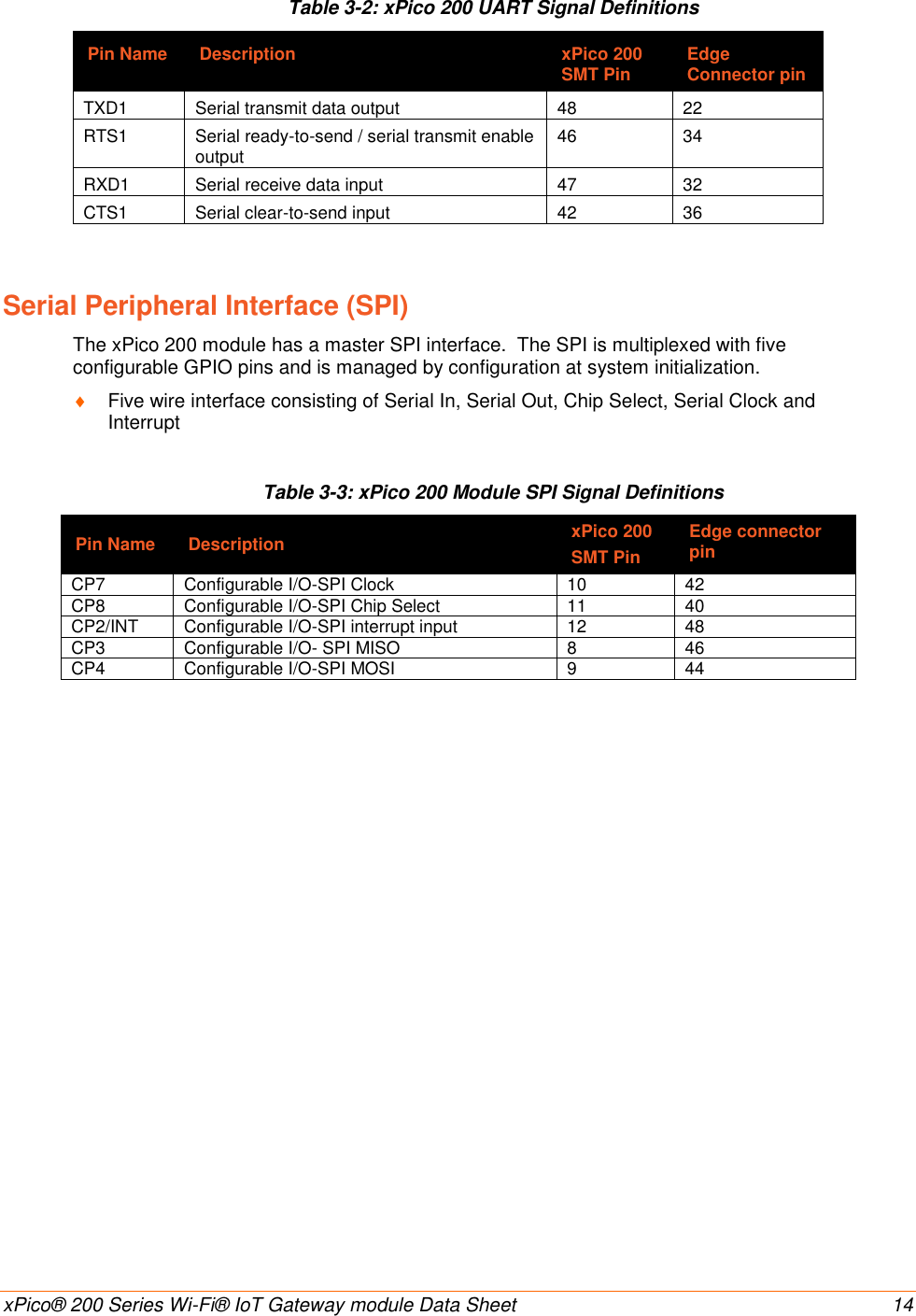

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 14 Table 3-2: xPico 200 UART Signal Definitions Pin Name Description xPico 200 SMT Pin Edge Connector pin TXD1 Serial transmit data output 48 22 RTS1 Serial ready-to-send / serial transmit enable output 46 34 RXD1 Serial receive data input 47 32 CTS1 Serial clear-to-send input 42 36 Serial Peripheral Interface (SPI) The xPico 200 module has a master SPI interface. The SPI is multiplexed with five configurable GPIO pins and is managed by configuration at system initialization.  Five wire interface consisting of Serial In, Serial Out, Chip Select, Serial Clock and Interrupt Table 3-3: xPico 200 Module SPI Signal Definitions Pin Name Description xPico 200 SMT Pin Edge connector pin CP7 Configurable I/O-SPI Clock 10 42 CP8 Configurable I/O-SPI Chip Select 11 40 CP2/INT Configurable I/O-SPI interrupt input 12 48 CP3 Configurable I/O- SPI MISO 8 46 CP4 Configurable I/O-SPI MOSI 9 44

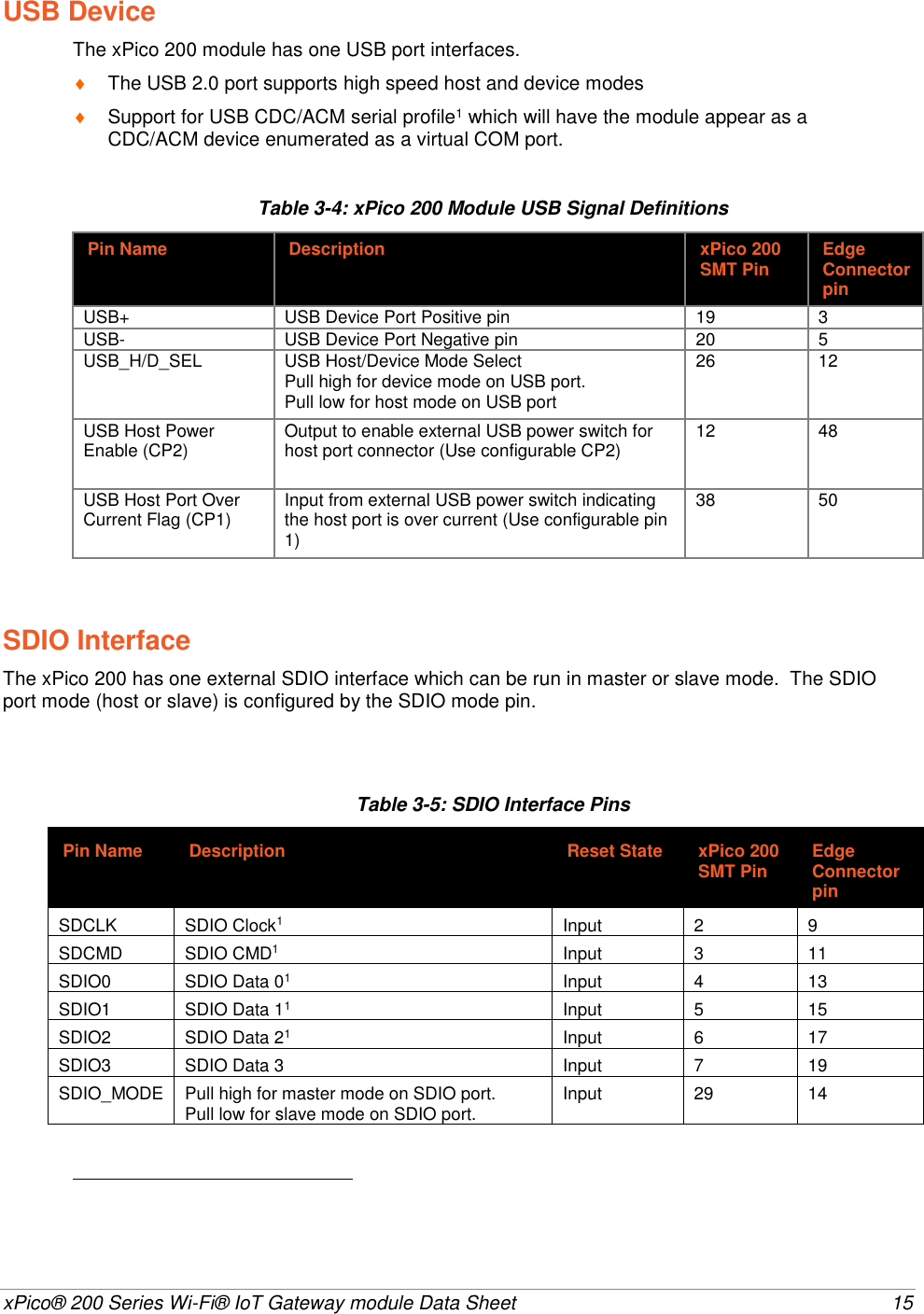

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 15 USB Device The xPico 200 module has one USB port interfaces.  The USB 2.0 port supports high speed host and device modes  Support for USB CDC/ACM serial profile1 which will have the module appear as a CDC/ACM device enumerated as a virtual COM port. Table 3-4: xPico 200 Module USB Signal Definitions Pin Name Description xPico 200 SMT Pin Edge Connector pin USB+ USB Device Port Positive pin 19 3 USB- USB Device Port Negative pin 20 5 USB_H/D_SEL USB Host/Device Mode Select Pull high for device mode on USB port. Pull low for host mode on USB port 26 12 USB Host Power Enable (CP2) Output to enable external USB power switch for host port connector (Use configurable CP2) 12 48 USB Host Port Over Current Flag (CP1) Input from external USB power switch indicating the host port is over current (Use configurable pin 1) 38 50 SDIO Interface The xPico 200 has one external SDIO interface which can be run in master or slave mode. The SDIO port mode (host or slave) is configured by the SDIO mode pin. Table 3-5: SDIO Interface Pins Pin Name Description Reset State xPico 200 SMT Pin Edge Connector pin SDCLK SDIO Clock1 Input 2 9 SDCMD SDIO CMD1 Input 3 11 SDIO0 SDIO Data 01 Input 4 13 SDIO1 SDIO Data 11 Input 5 15 SDIO2 SDIO Data 21 Input 6 17 SDIO3 SDIO Data 3 Input 7 19 SDIO_MODE Pull high for master mode on SDIO port. Pull low for slave mode on SDIO port. Input 29 14

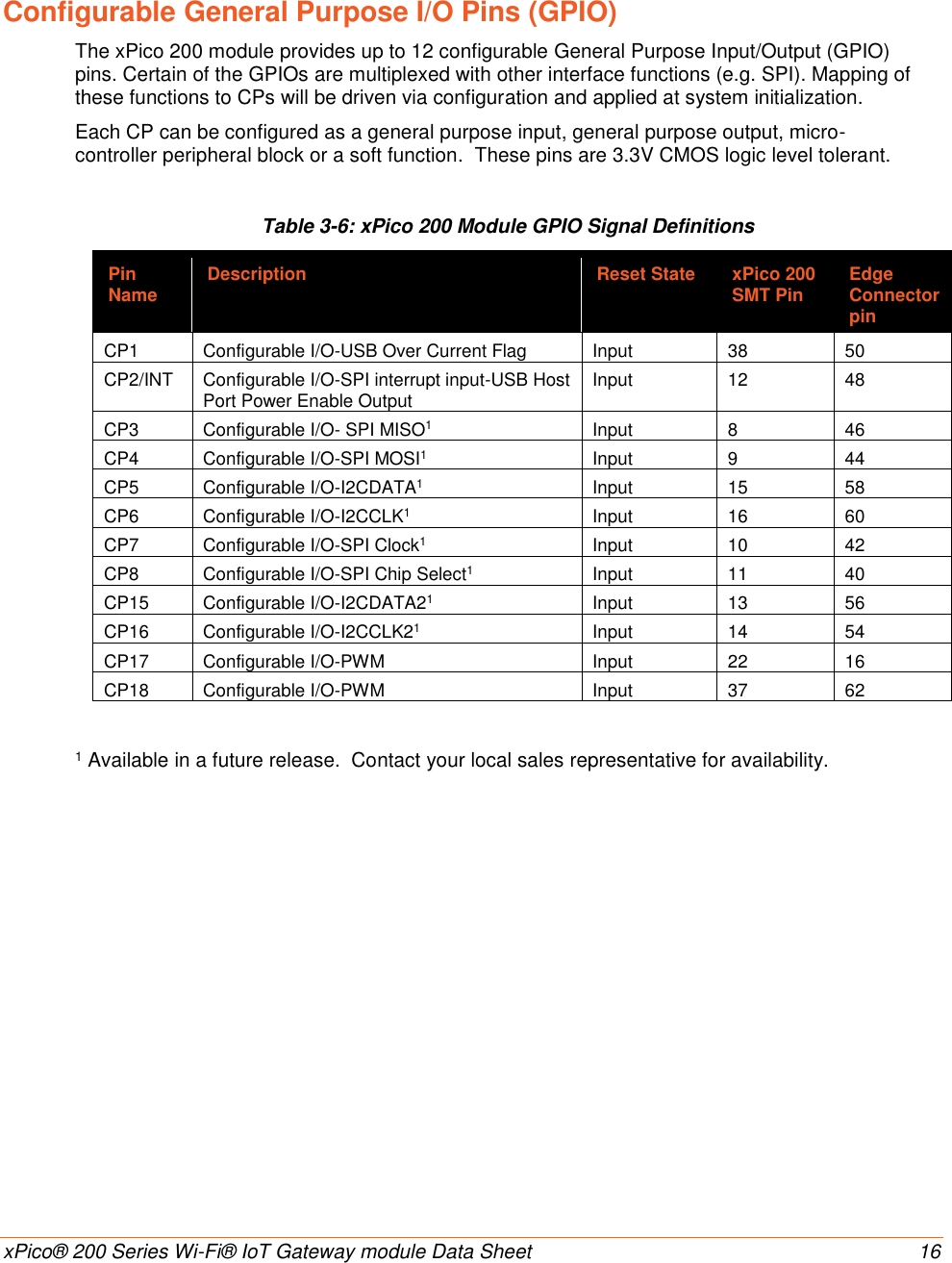

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 16 Configurable General Purpose I/O Pins (GPIO) The xPico 200 module provides up to 12 configurable General Purpose Input/Output (GPIO) pins. Certain of the GPIOs are multiplexed with other interface functions (e.g. SPI). Mapping of these functions to CPs will be driven via configuration and applied at system initialization. Each CP can be configured as a general purpose input, general purpose output, micro-controller peripheral block or a soft function. These pins are 3.3V CMOS logic level tolerant. Table 3-6: xPico 200 Module GPIO Signal Definitions Pin Name Description Reset State xPico 200 SMT Pin Edge Connector pin CP1 Configurable I/O-USB Over Current Flag Input 38 50 CP2/INT Configurable I/O-SPI interrupt input-USB Host Port Power Enable Output Input 12 48 CP3 Configurable I/O- SPI MISO1 Input 8 46 CP4 Configurable I/O-SPI MOSI1 Input 9 44 CP5 Configurable I/O-I2CDATA1 Input 15 58 CP6 Configurable I/O-I2CCLK1 Input 16 60 CP7 Configurable I/O-SPI Clock1 Input 10 42 CP8 Configurable I/O-SPI Chip Select1 Input 11 40 CP15 Configurable I/O-I2CDATA21 Input 13 56 CP16 Configurable I/O-I2CCLK21 Input 14 54 CP17 Configurable I/O-PWM Input 22 16 CP18 Configurable I/O-PWM Input 37 62 1 Available in a future release. Contact your local sales representative for availability.

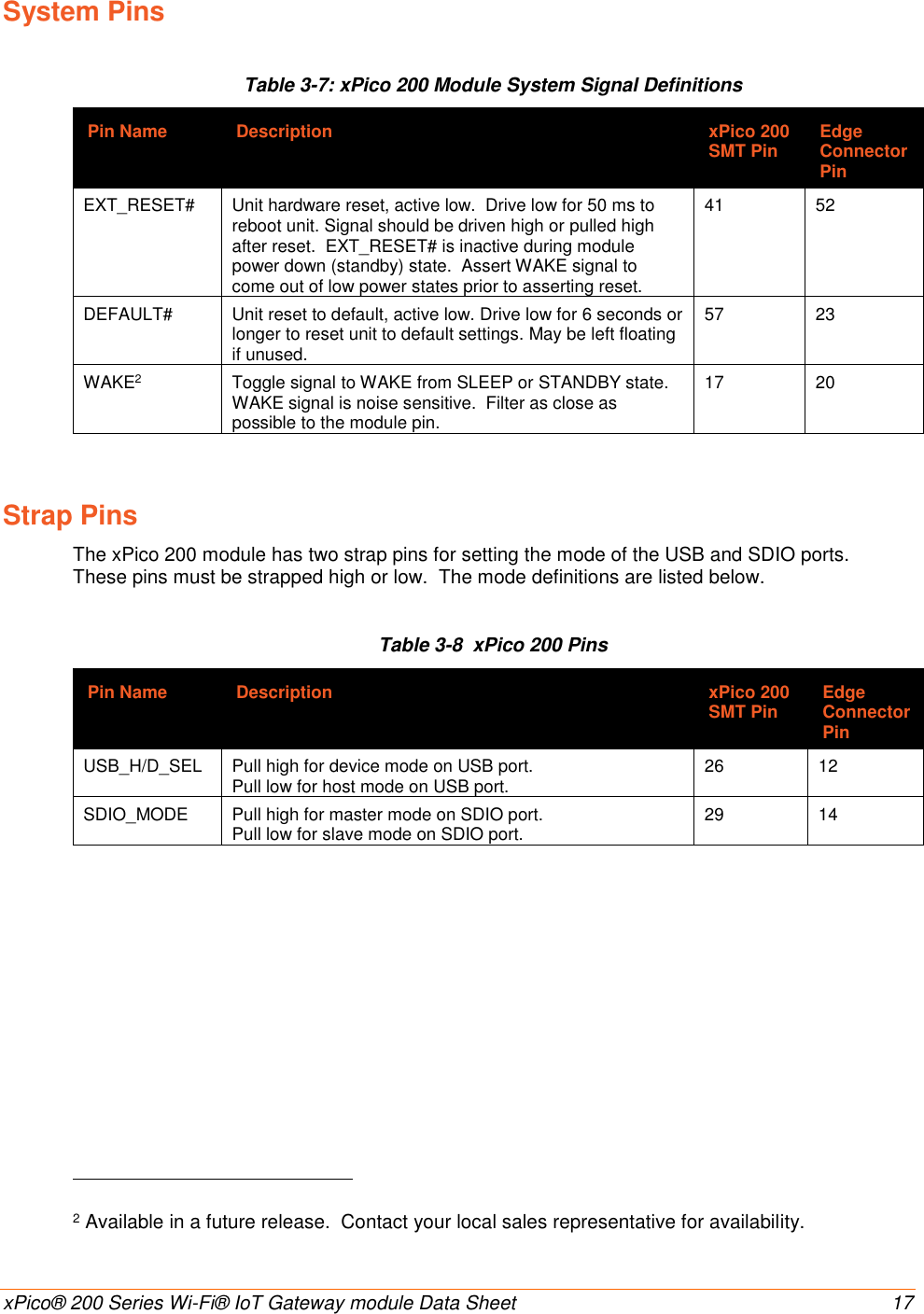

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 17 System Pins Table 3-7: xPico 200 Module System Signal Definitions Pin Name Description xPico 200 SMT Pin Edge Connector Pin EXT_RESET# Unit hardware reset, active low. Drive low for 50 ms to reboot unit. Signal should be driven high or pulled high after reset. EXT_RESET# is inactive during module power down (standby) state. Assert WAKE signal to come out of low power states prior to asserting reset. 41 52 DEFAULT# Unit reset to default, active low. Drive low for 6 seconds or longer to reset unit to default settings. May be left floating if unused. 57 23 WAKE2 Toggle signal to WAKE from SLEEP or STANDBY state. WAKE signal is noise sensitive. Filter as close as possible to the module pin. 17 20 Strap Pins The xPico 200 module has two strap pins for setting the mode of the USB and SDIO ports. These pins must be strapped high or low. The mode definitions are listed below. Table 3-8 xPico 200 Pins Pin Name Description xPico 200 SMT Pin Edge Connector Pin USB_H/D_SEL Pull high for device mode on USB port. Pull low for host mode on USB port. 26 12 SDIO_MODE Pull high for master mode on SDIO port. Pull low for slave mode on SDIO port. 29 14 2 Available in a future release. Contact your local sales representative for availability.

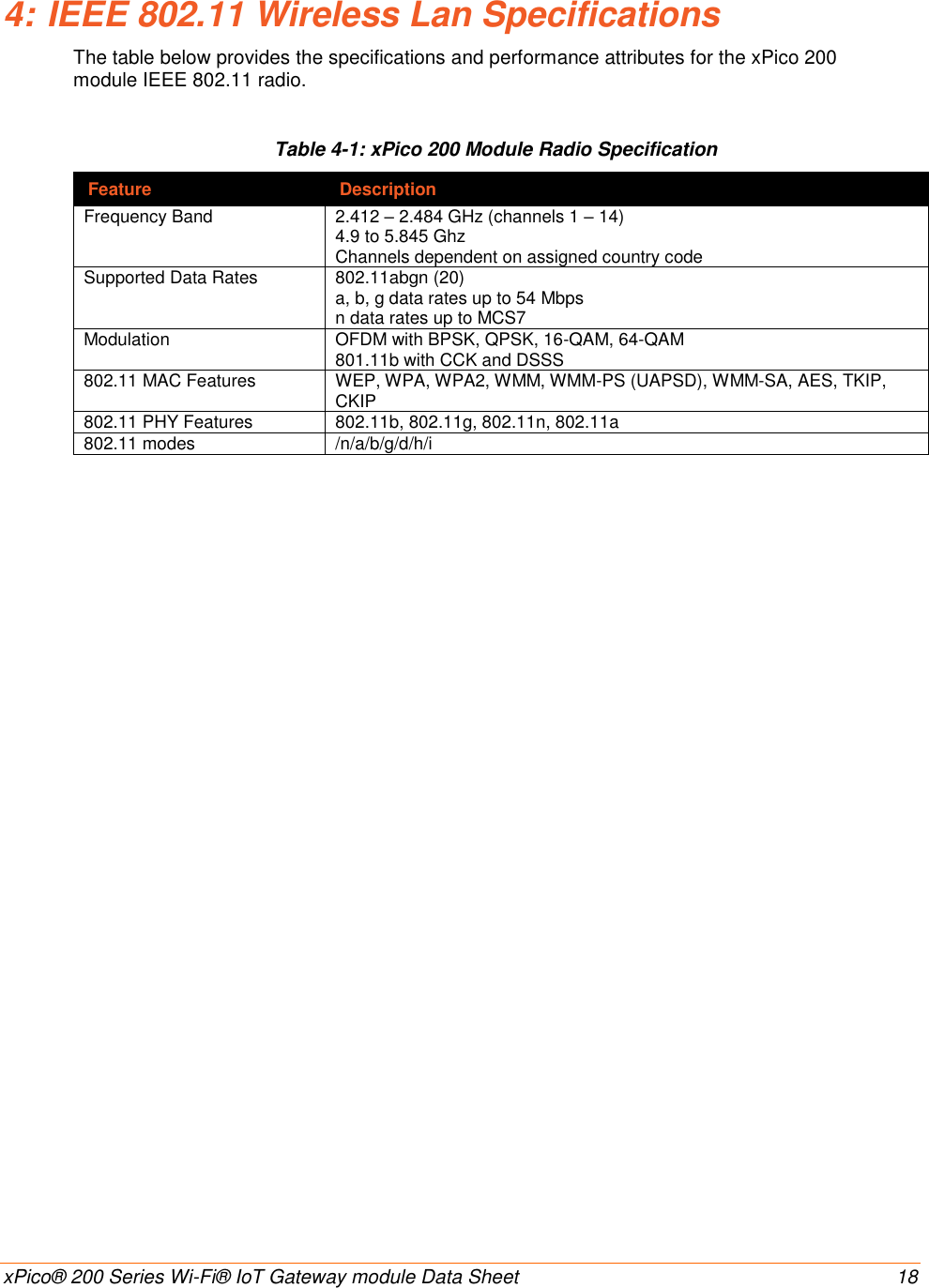

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 18 4: IEEE 802.11 Wireless Lan Specifications The table below provides the specifications and performance attributes for the xPico 200 module IEEE 802.11 radio. Table 4-1: xPico 200 Module Radio Specification Feature Description Frequency Band 2.412 – 2.484 GHz (channels 1 – 14) 4.9 to 5.845 Ghz Channels dependent on assigned country code Supported Data Rates 802.11abgn (20) a, b, g data rates up to 54 Mbps n data rates up to MCS7 Modulation OFDM with BPSK, QPSK, 16-QAM, 64-QAM 801.11b with CCK and DSSS 802.11 MAC Features WEP, WPA, WPA2, WMM, WMM-PS (UAPSD), WMM-SA, AES, TKIP, CKIP 802.11 PHY Features 802.11b, 802.11g, 802.11n, 802.11a 802.11 modes /n/a/b/g/d/h/i

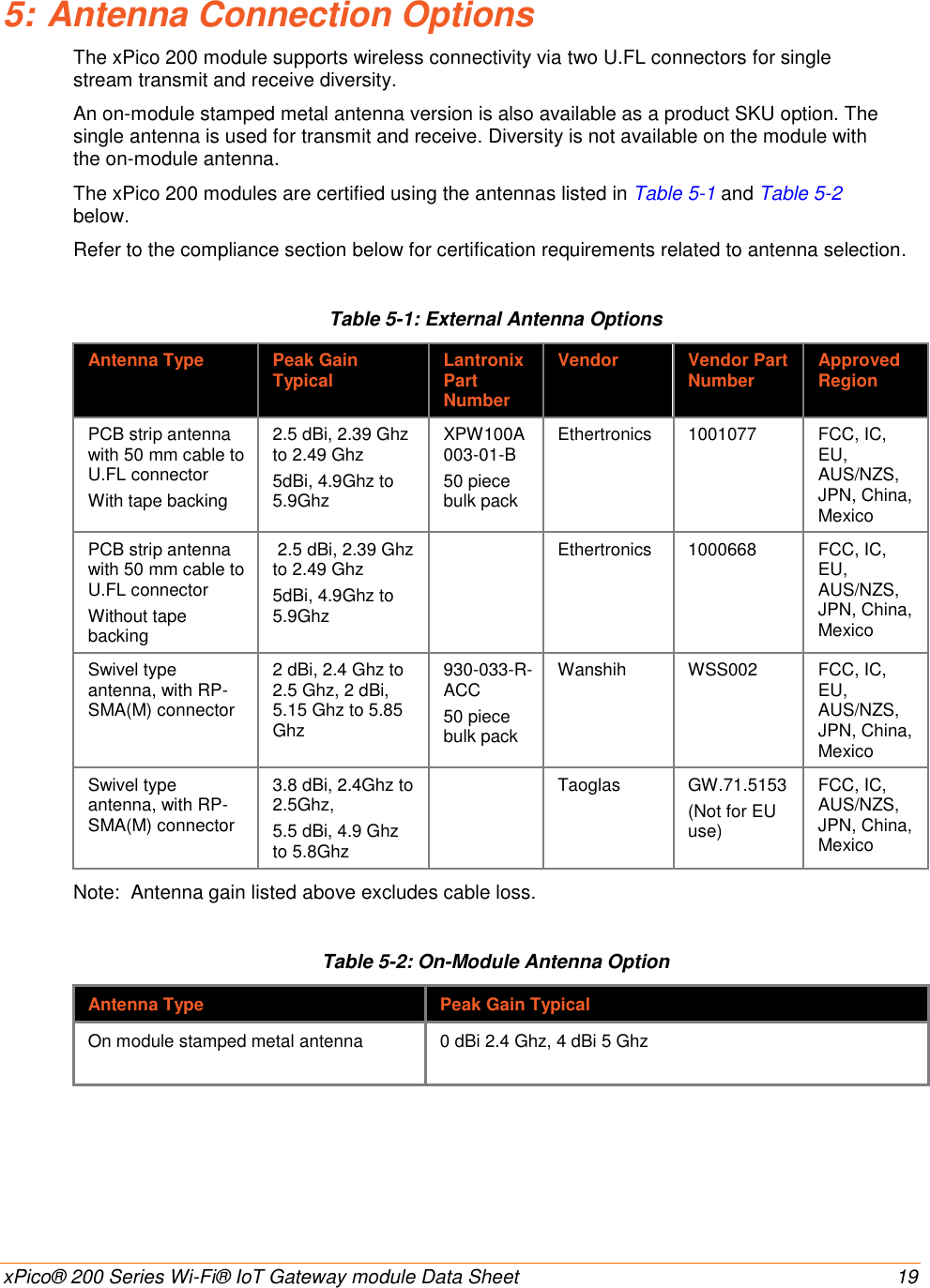

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 19 5: Antenna Connection Options The xPico 200 module supports wireless connectivity via two U.FL connectors for single stream transmit and receive diversity. An on-module stamped metal antenna version is also available as a product SKU option. The single antenna is used for transmit and receive. Diversity is not available on the module with the on-module antenna. The xPico 200 modules are certified using the antennas listed in Table 5-1 and Table 5-2 below. Refer to the compliance section below for certification requirements related to antenna selection. Table 5-1: External Antenna Options Antenna Type Peak Gain Typical Lantronix Part Number Vendor Vendor Part Number Approved Region PCB strip antenna with 50 mm cable to U.FL connector With tape backing 2.5 dBi, 2.39 Ghz to 2.49 Ghz 5dBi, 4.9Ghz to 5.9Ghz XPW100A003-01-B 50 piece bulk pack Ethertronics 1001077 FCC, IC, EU, AUS/NZS, JPN, China, Mexico PCB strip antenna with 50 mm cable to U.FL connector Without tape backing 2.5 dBi, 2.39 Ghz to 2.49 Ghz 5dBi, 4.9Ghz to 5.9Ghz Ethertronics 1000668 FCC, IC, EU, AUS/NZS, JPN, China, Mexico Swivel type antenna, with RP-SMA(M) connector 2 dBi, 2.4 Ghz to 2.5 Ghz, 2 dBi, 5.15 Ghz to 5.85 Ghz 930-033-R-ACC 50 piece bulk pack Wanshih WSS002 FCC, IC, EU, AUS/NZS, JPN, China, Mexico Swivel type antenna, with RP-SMA(M) connector 3.8 dBi, 2.4Ghz to 2.5Ghz, 5.5 dBi, 4.9 Ghz to 5.8Ghz Taoglas GW.71.5153 (Not for EU use) FCC, IC, AUS/NZS, JPN, China, Mexico Note: Antenna gain listed above excludes cable loss. Table 5-2: On-Module Antenna Option Antenna Type Peak Gain Typical On module stamped metal antenna 0 dBi 2.4 Ghz, 4 dBi 5 Ghz

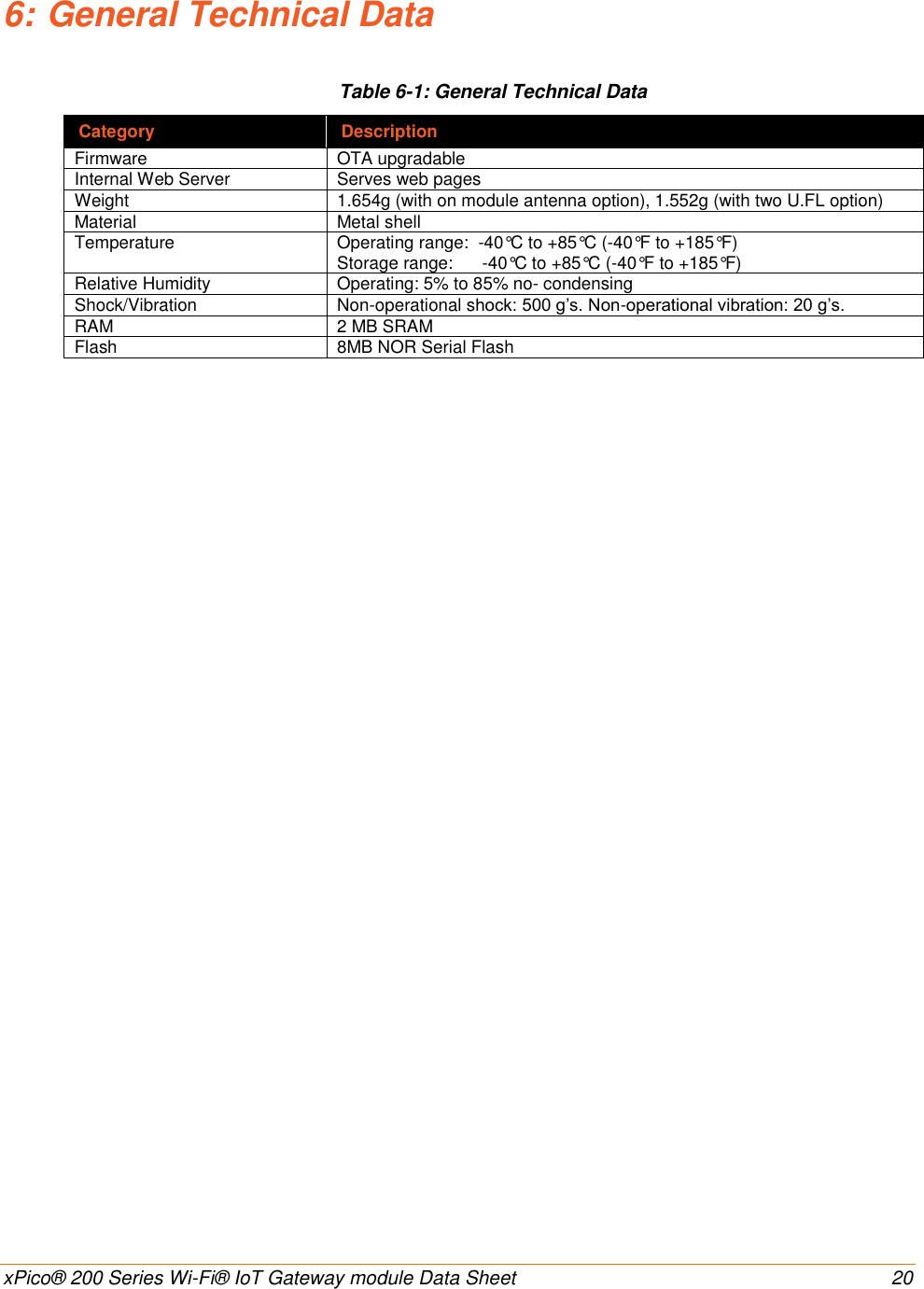

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 20 6: General Technical Data Table 6-1: General Technical Data Category Description Firmware OTA upgradable Internal Web Server Serves web pages Weight 1.654g (with on module antenna option), 1.552g (with two U.FL option) Material Metal shell Temperature Operating range: -40°C to +85°C (-40°F to +185°F) Storage range: -40°C to +85°C (-40°F to +185°F) Relative Humidity Operating: 5% to 85% no- condensing Shock/Vibration Non-operational shock: 500 g’s. Non-operational vibration: 20 g’s. RAM 2 MB SRAM Flash 8MB NOR Serial Flash

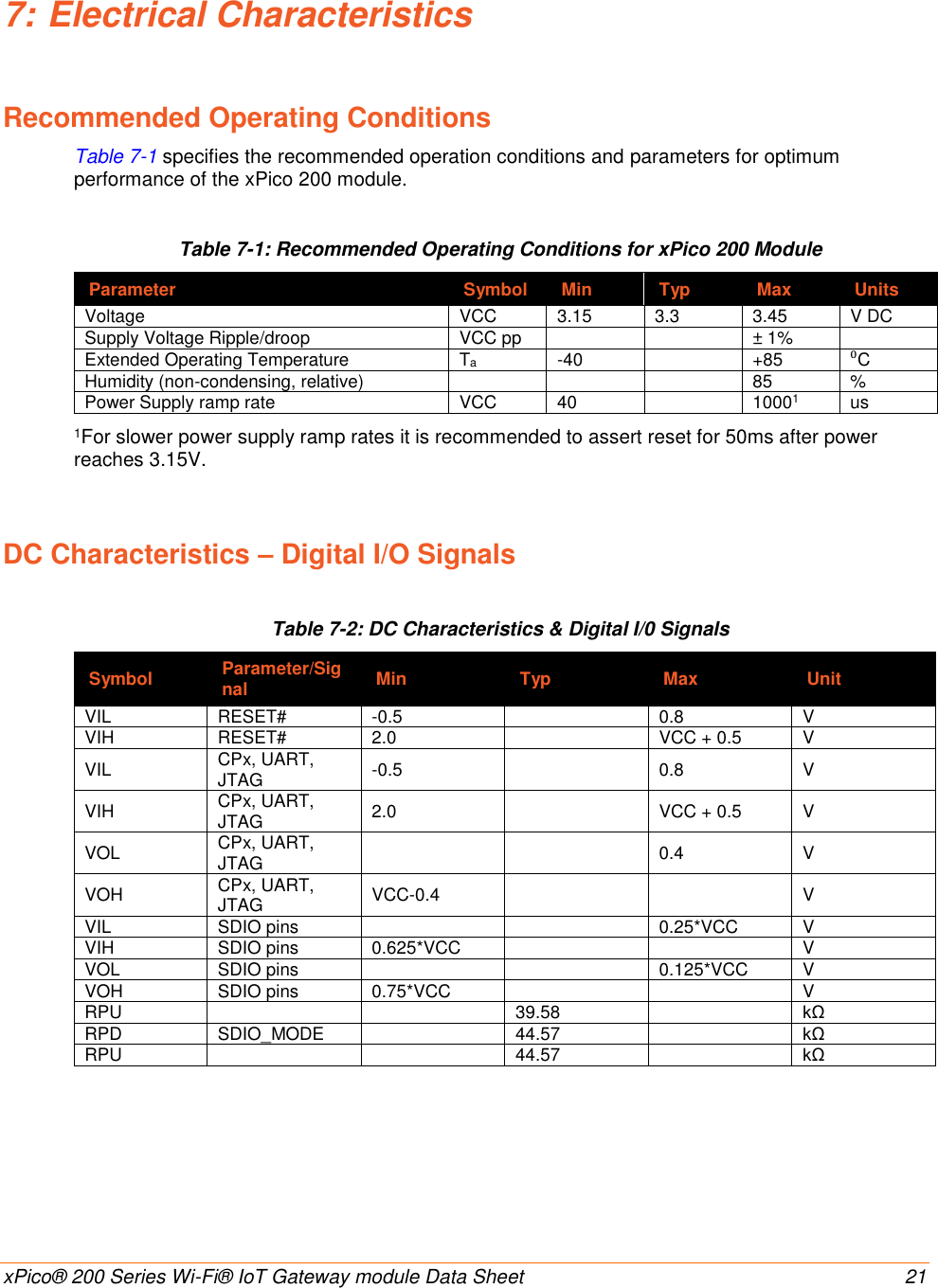

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 21 7: Electrical Characteristics Recommended Operating Conditions Table 7-1 specifies the recommended operation conditions and parameters for optimum performance of the xPico 200 module. Table 7-1: Recommended Operating Conditions for xPico 200 Module Parameter Symbol Min Typ Max Units Voltage VCC 3.15 3.3 3.45 V DC Supply Voltage Ripple/droop VCC pp ± 1% Extended Operating Temperature Ta -40 +85 ⁰C Humidity (non-condensing, relative) 85 % Power Supply ramp rate VCC 40 10001 us 1For slower power supply ramp rates it is recommended to assert reset for 50ms after power reaches 3.15V. DC Characteristics – Digital I/O Signals Table 7-2: DC Characteristics & Digital I/0 Signals Symbol Parameter/Signal Min Typ Max Unit VIL RESET# -0.5 0.8 V VIH RESET# 2.0 VCC + 0.5 V VIL CPx, UART, JTAG -0.5 0.8 V VIH CPx, UART, JTAG 2.0 VCC + 0.5 V VOL CPx, UART, JTAG 0.4 V VOH CPx, UART, JTAG VCC-0.4 V VIL SDIO pins 0.25*VCC V VIH SDIO pins 0.625*VCC V VOL SDIO pins 0.125*VCC V VOH SDIO pins 0.75*VCC V RPU 39.58 kΩ RPD SDIO_MODE 44.57 kΩ RPU 44.57 kΩ

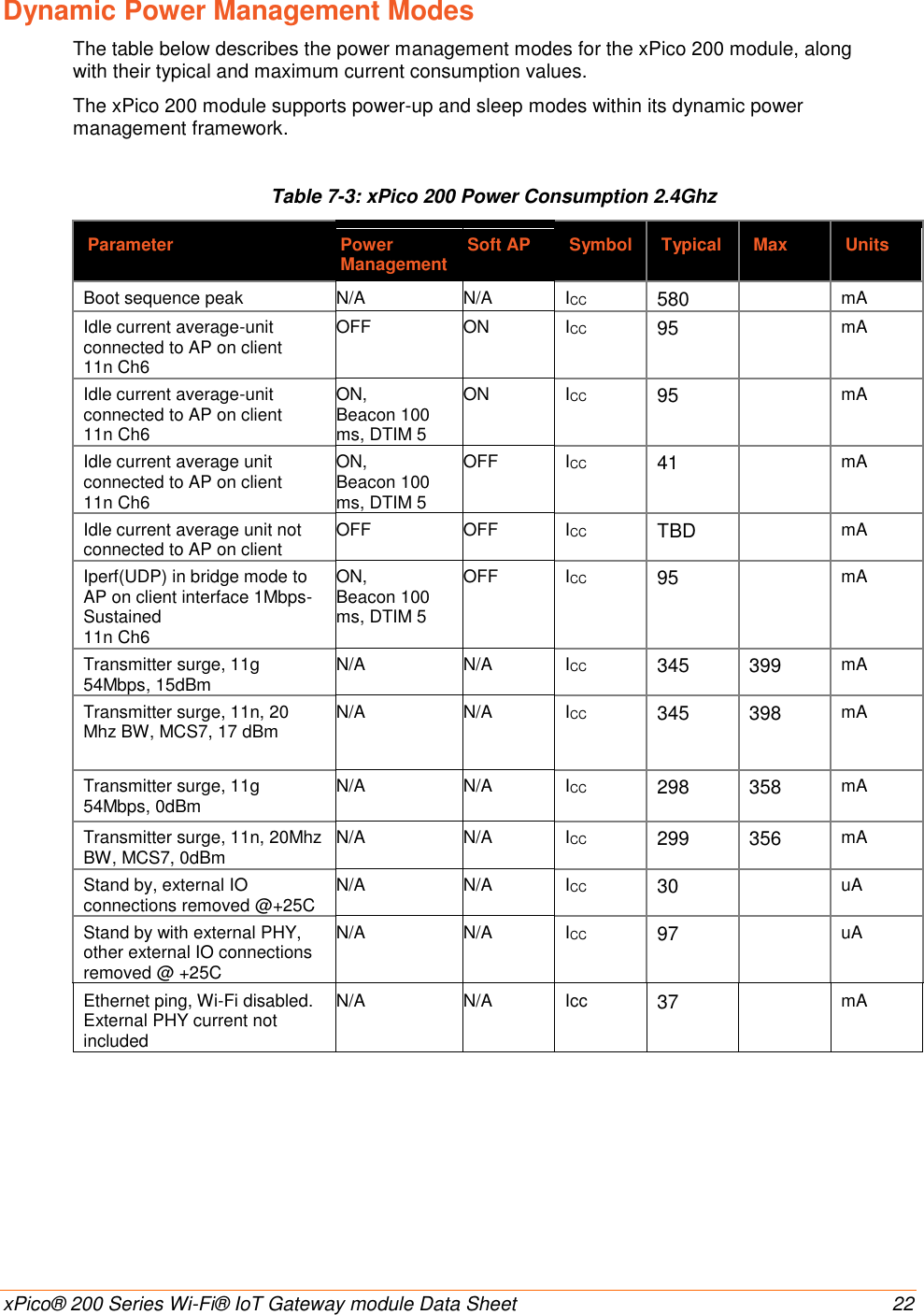

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 22 Dynamic Power Management Modes The table below describes the power management modes for the xPico 200 module, along with their typical and maximum current consumption values. The xPico 200 module supports power-up and sleep modes within its dynamic power management framework. Table 7-3: xPico 200 Power Consumption 2.4Ghz Parameter Power Management Soft AP Symbol Typical Max Units Boot sequence peak N/A N/A ICC 580 mA Idle current average-unit connected to AP on client 11n Ch6 OFF ON ICC 95 mA Idle current average-unit connected to AP on client 11n Ch6 ON, Beacon 100 ms, DTIM 5 ON ICC 95 mA Idle current average unit connected to AP on client 11n Ch6 ON, Beacon 100 ms, DTIM 5 OFF ICC 41 mA Idle current average unit not connected to AP on client OFF OFF ICC TBD mA Iperf(UDP) in bridge mode to AP on client interface 1Mbps-Sustained 11n Ch6 ON, Beacon 100 ms, DTIM 5 OFF ICC 95 mA Transmitter surge, 11g 54Mbps, 15dBm N/A N/A ICC 345 399 mA Transmitter surge, 11n, 20 Mhz BW, MCS7, 17 dBm N/A N/A ICC 345 398 mA Transmitter surge, 11g 54Mbps, 0dBm N/A N/A ICC 298 358 mA Transmitter surge, 11n, 20Mhz BW, MCS7, 0dBm N/A N/A ICC 299 356 mA Stand by, external IO connections removed @+25C N/A N/A ICC 30 uA Stand by with external PHY, other external IO connections removed @ +25C N/A N/A ICC 97 uA Ethernet ping, Wi-Fi disabled. External PHY current not included N/A N/A Icc 37 mA

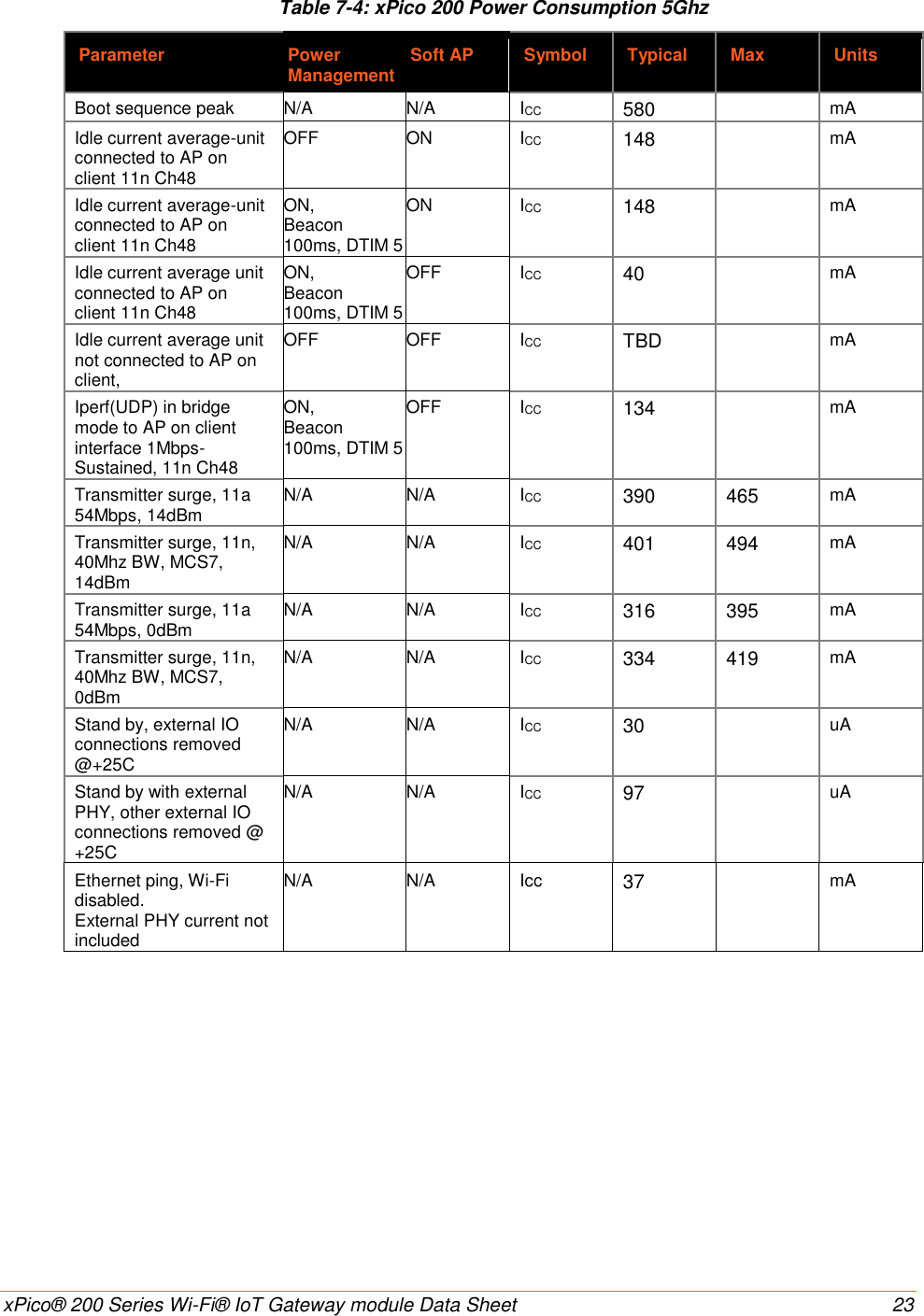

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 23 Table 7-4: xPico 200 Power Consumption 5Ghz Parameter Power Management Soft AP Symbol Typical Max Units Boot sequence peak N/A N/A ICC 580 mA Idle current average-unit connected to AP on client 11n Ch48 OFF ON ICC 148 mA Idle current average-unit connected to AP on client 11n Ch48 ON, Beacon 100ms, DTIM 5 ON ICC 148 mA Idle current average unit connected to AP on client 11n Ch48 ON, Beacon 100ms, DTIM 5 OFF ICC 40 mA Idle current average unit not connected to AP on client, OFF OFF ICC TBD mA Iperf(UDP) in bridge mode to AP on client interface 1Mbps-Sustained, 11n Ch48 ON, Beacon 100ms, DTIM 5 OFF ICC 134 mA Transmitter surge, 11a 54Mbps, 14dBm N/A N/A ICC 390 465 mA Transmitter surge, 11n, 40Mhz BW, MCS7, 14dBm N/A N/A ICC 401 494 mA Transmitter surge, 11a 54Mbps, 0dBm N/A N/A ICC 316 395 mA Transmitter surge, 11n, 40Mhz BW, MCS7, 0dBm N/A N/A ICC 334 419 mA Stand by, external IO connections removed @+25C N/A N/A ICC 30 uA Stand by with external PHY, other external IO connections removed @ +25C N/A N/A ICC 97 uA Ethernet ping, Wi-Fi disabled. External PHY current not included N/A N/A Icc 37 mA

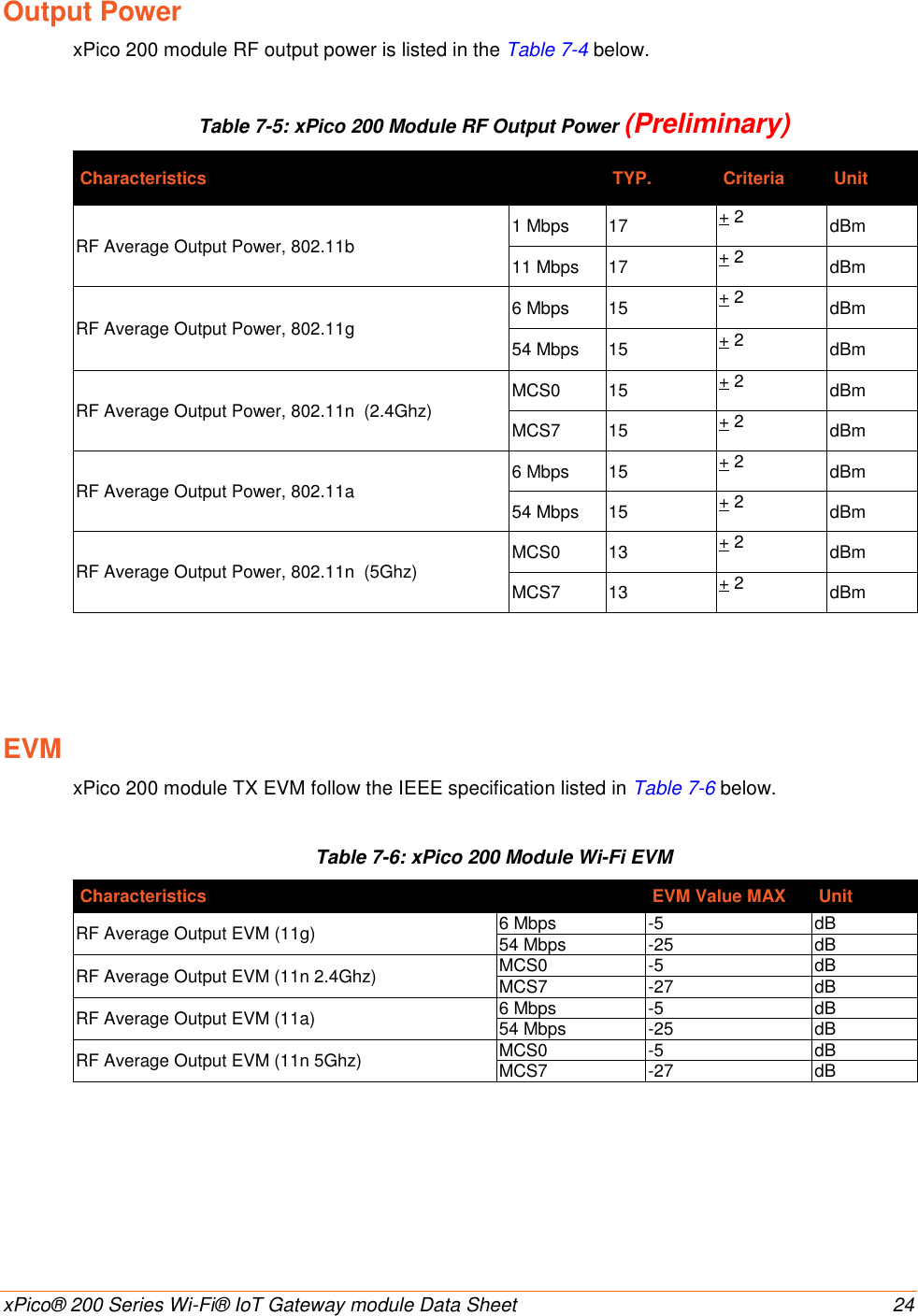

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 24 Output Power xPico 200 module RF output power is listed in the Table 7-4 below. Table 7-5: xPico 200 Module RF Output Power (Preliminary) Characteristics TYP. Criteria Unit RF Average Output Power, 802.11b 1 Mbps 17 + 2 dBm 11 Mbps 17 + 2 dBm RF Average Output Power, 802.11g 6 Mbps 15 + 2 dBm 54 Mbps 15 + 2 dBm RF Average Output Power, 802.11n (2.4Ghz) MCS0 15 + 2 dBm MCS7 15 + 2 dBm RF Average Output Power, 802.11a 6 Mbps 15 + 2 dBm 54 Mbps 15 + 2 dBm RF Average Output Power, 802.11n (5Ghz) MCS0 13 + 2 dBm MCS7 13 + 2 dBm EVM xPico 200 module TX EVM follow the IEEE specification listed in Table 7-6 below. Table 7-6: xPico 200 Module Wi-Fi EVM Characteristics EVM Value MAX Unit RF Average Output EVM (11g) 6 Mbps -5 dB 54 Mbps -25 dB RF Average Output EVM (11n 2.4Ghz) MCS0 -5 dB MCS7 -27 dB RF Average Output EVM (11a) 6 Mbps -5 dB 54 Mbps -25 dB RF Average Output EVM (11n 5Ghz) MCS0 -5 dB MCS7 -27 dB

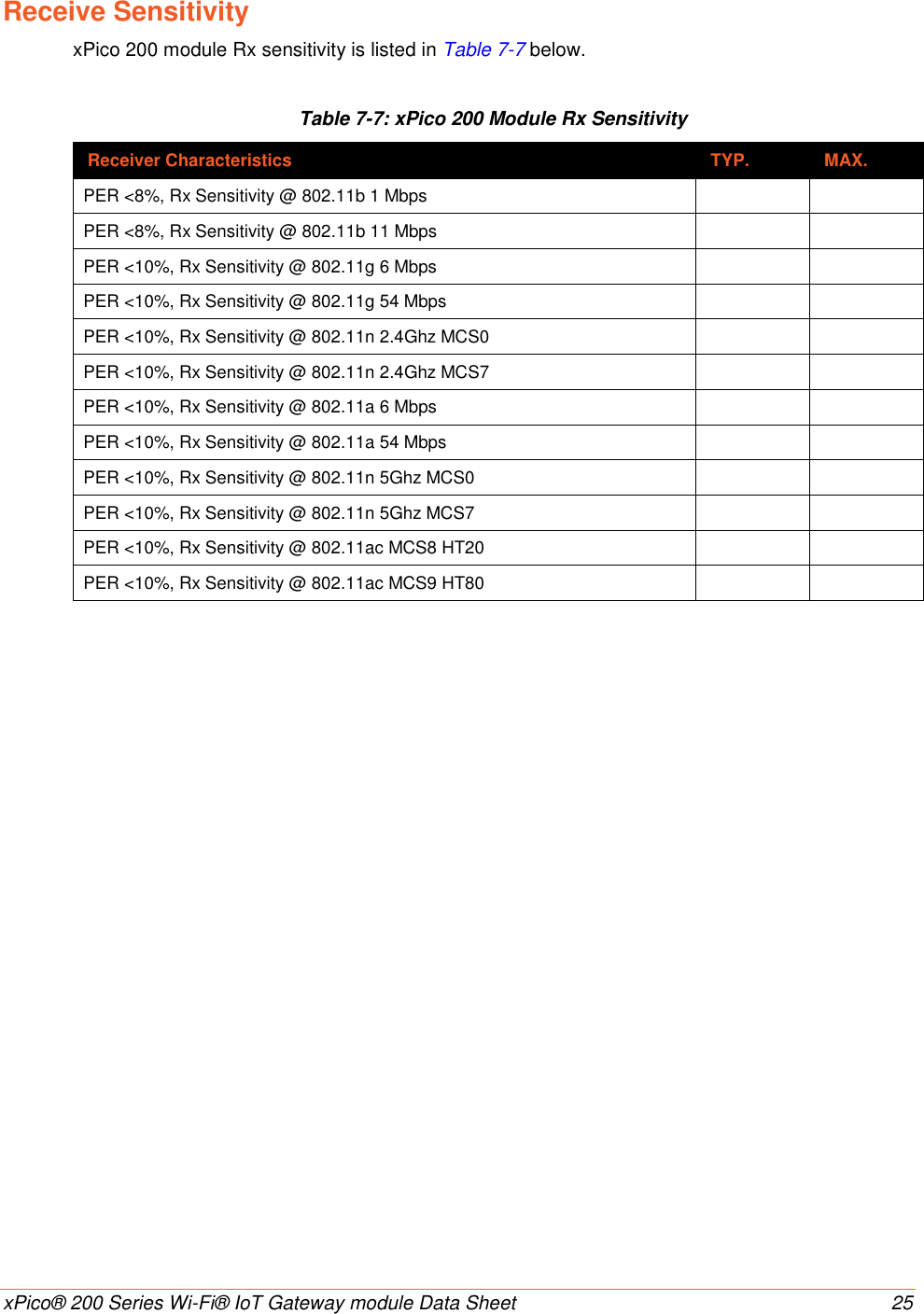

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 25 Receive Sensitivity xPico 200 module Rx sensitivity is listed in Table 7-7 below. Table 7-7: xPico 200 Module Rx Sensitivity Receiver Characteristics TYP. MAX. PER <8%, Rx Sensitivity @ 802.11b 1 Mbps PER <8%, Rx Sensitivity @ 802.11b 11 Mbps PER <10%, Rx Sensitivity @ 802.11g 6 Mbps PER <10%, Rx Sensitivity @ 802.11g 54 Mbps PER <10%, Rx Sensitivity @ 802.11n 2.4Ghz MCS0 PER <10%, Rx Sensitivity @ 802.11n 2.4Ghz MCS7 PER <10%, Rx Sensitivity @ 802.11a 6 Mbps PER <10%, Rx Sensitivity @ 802.11a 54 Mbps PER <10%, Rx Sensitivity @ 802.11n 5Ghz MCS0 PER <10%, Rx Sensitivity @ 802.11n 5Ghz MCS7 PER <10%, Rx Sensitivity @ 802.11ac MCS8 HT20 PER <10%, Rx Sensitivity @ 802.11ac MCS9 HT80

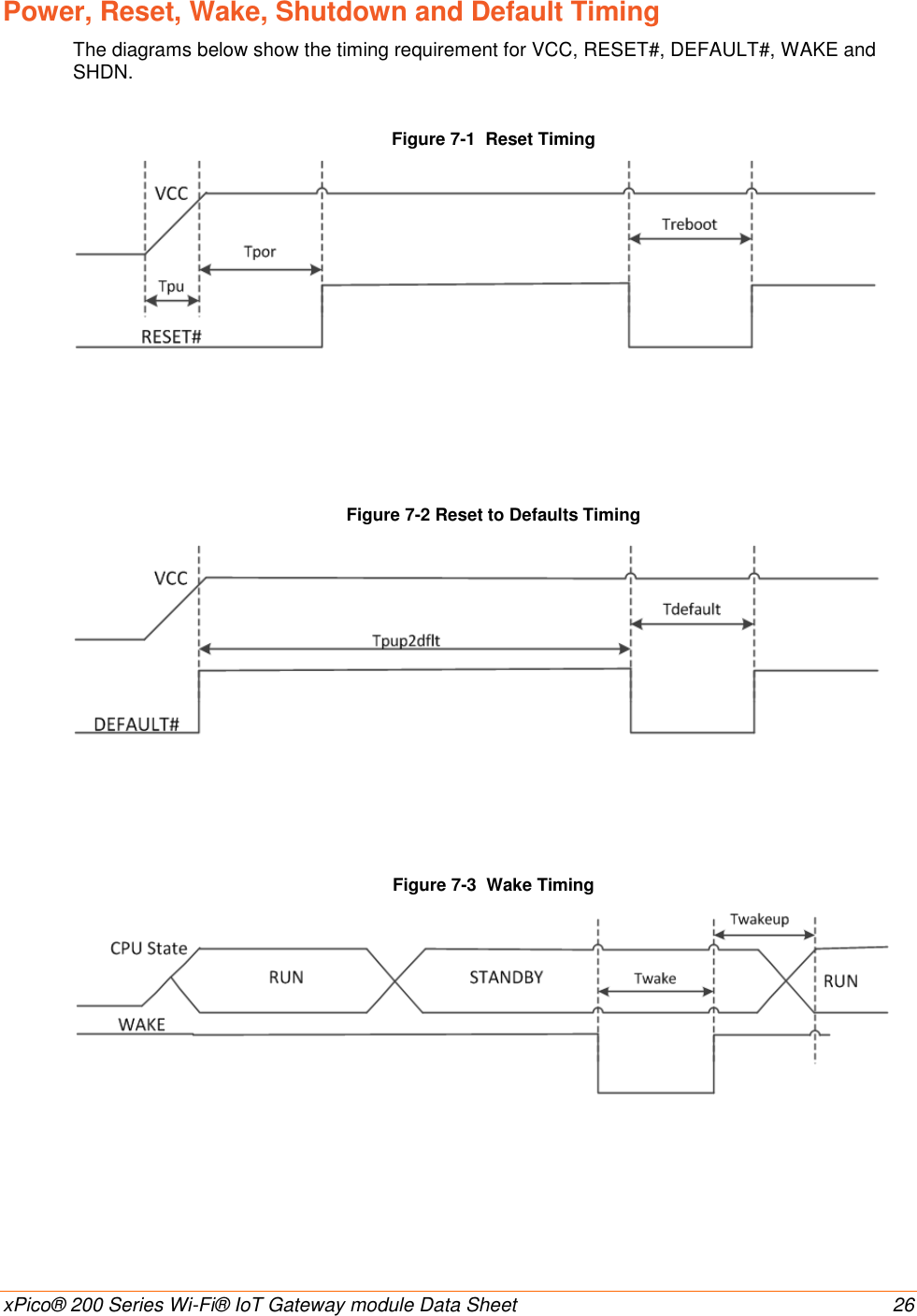

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 26 Power, Reset, Wake, Shutdown and Default Timing The diagrams below show the timing requirement for VCC, RESET#, DEFAULT#, WAKE and SHDN. Figure 7-1 Reset Timing Figure 7-2 Reset to Defaults Timing Figure 7-3 Wake Timing

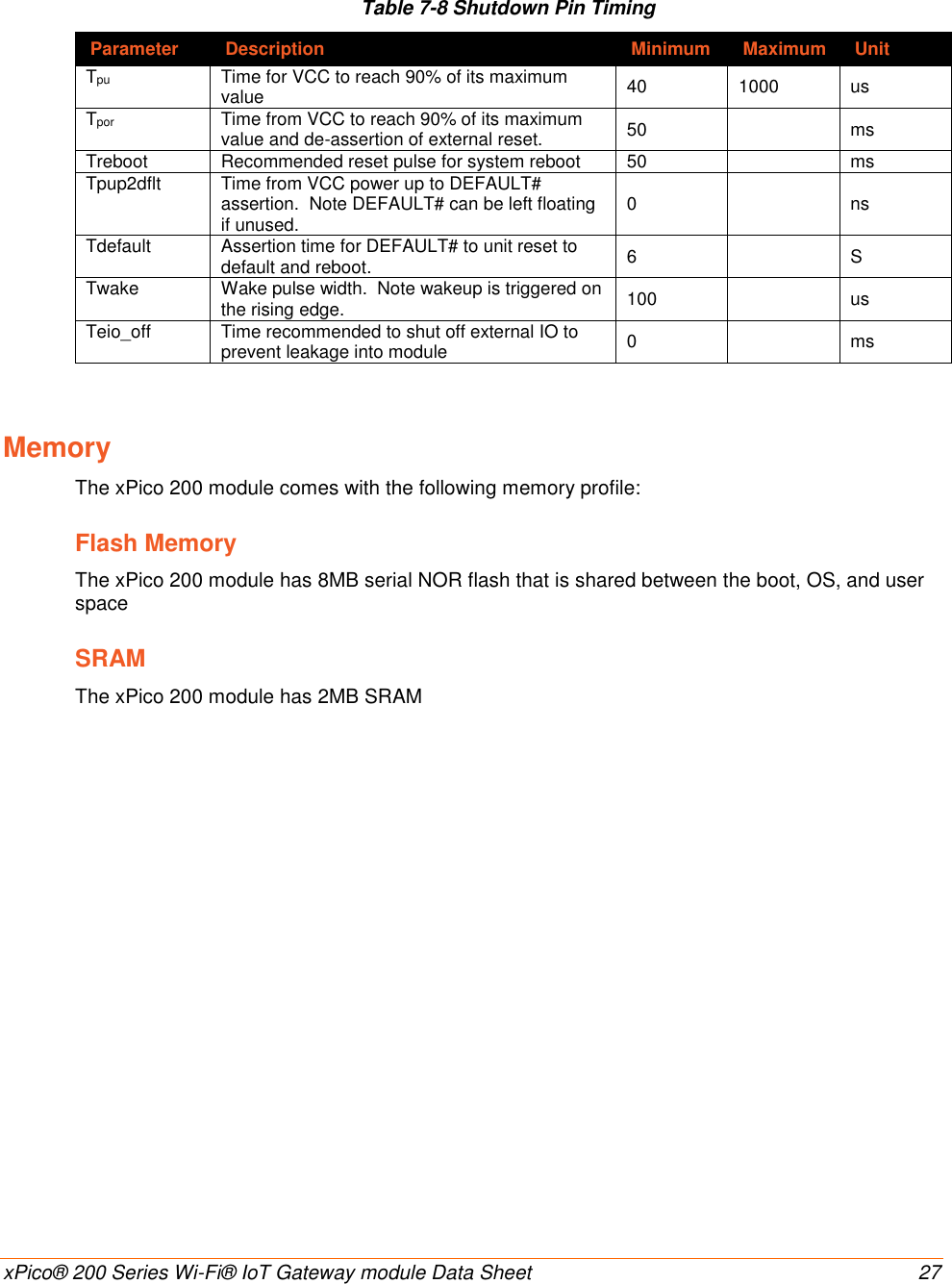

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 27 Table 7-8 Shutdown Pin Timing Parameter Description Minimum Maximum Unit Tpu Time for VCC to reach 90% of its maximum value 40 1000 us Tpor Time from VCC to reach 90% of its maximum value and de-assertion of external reset. 50 ms Treboot Recommended reset pulse for system reboot 50 ms Tpup2dflt Time from VCC power up to DEFAULT# assertion. Note DEFAULT# can be left floating if unused. 0 ns Tdefault Assertion time for DEFAULT# to unit reset to default and reboot. 6 S Twake Wake pulse width. Note wakeup is triggered on the rising edge. 100 us Teio_off Time recommended to shut off external IO to prevent leakage into module 0 ms Memory The xPico 200 module comes with the following memory profile: Flash Memory The xPico 200 module has 8MB serial NOR flash that is shared between the boot, OS, and user space SRAM The xPico 200 module has 2MB SRAM

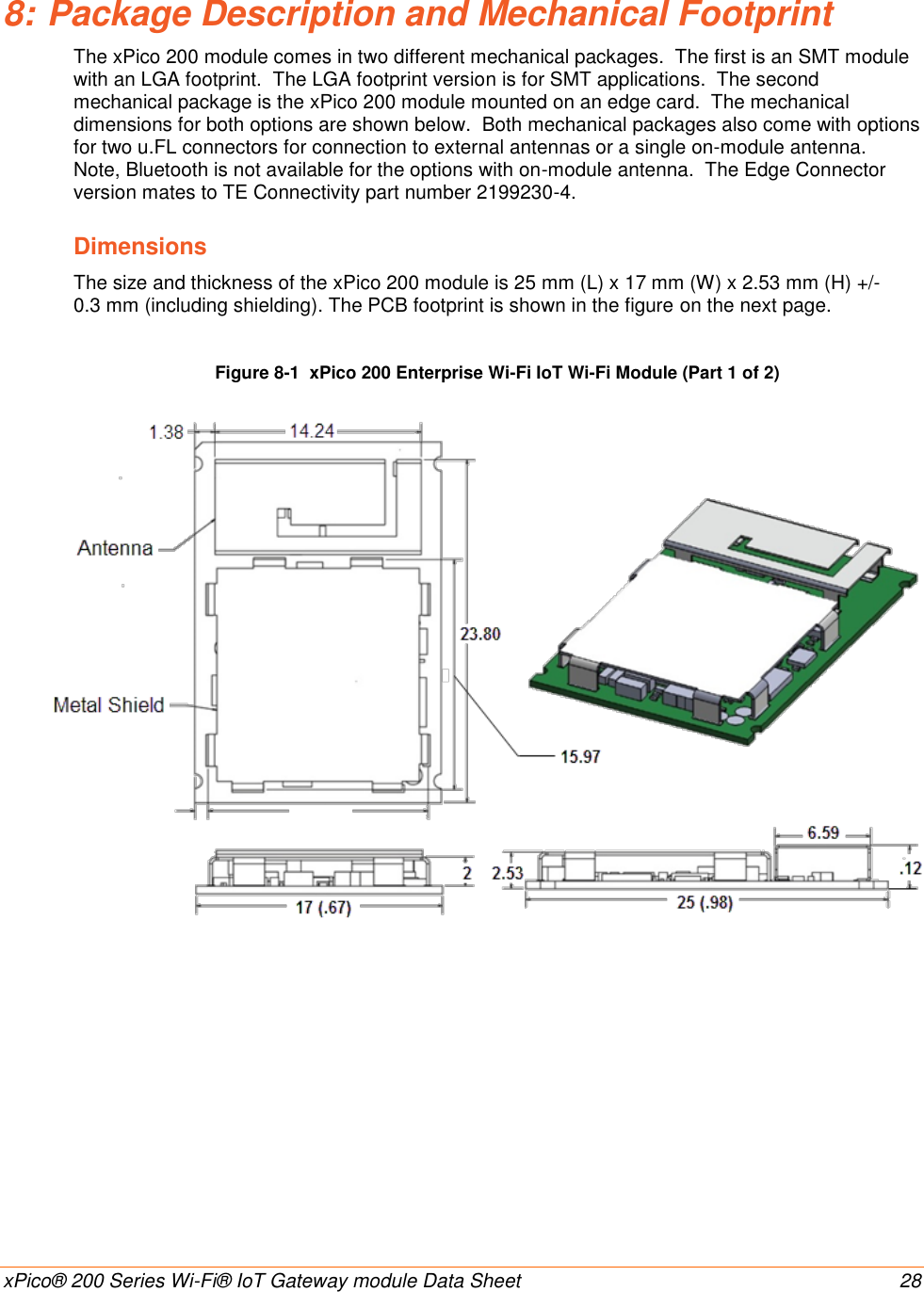

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 28 8: Package Description and Mechanical Footprint The xPico 200 module comes in two different mechanical packages. The first is an SMT module with an LGA footprint. The LGA footprint version is for SMT applications. The second mechanical package is the xPico 200 module mounted on an edge card. The mechanical dimensions for both options are shown below. Both mechanical packages also come with options for two u.FL connectors for connection to external antennas or a single on-module antenna. Note, Bluetooth is not available for the options with on-module antenna. The Edge Connector version mates to TE Connectivity part number 2199230-4. Dimensions The size and thickness of the xPico 200 module is 25 mm (L) x 17 mm (W) x 2.53 mm (H) +/- 0.3 mm (including shielding). The PCB footprint is shown in the figure on the next page. Figure 8-1 xPico 200 Enterprise Wi-Fi IoT Wi-Fi Module (Part 1 of 2)

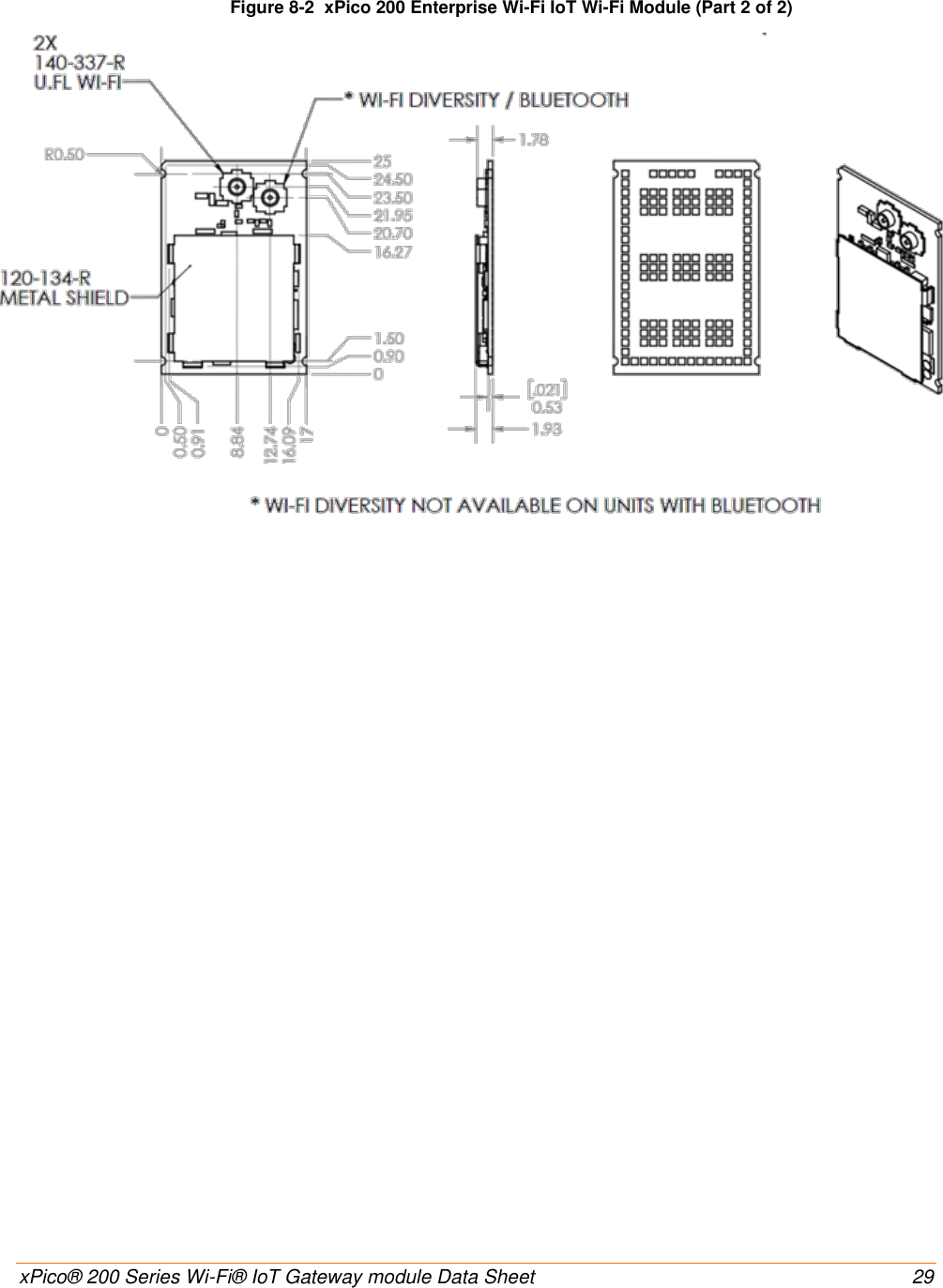

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 29 Figure 8-2 xPico 200 Enterprise Wi-Fi IoT Wi-Fi Module (Part 2 of 2)

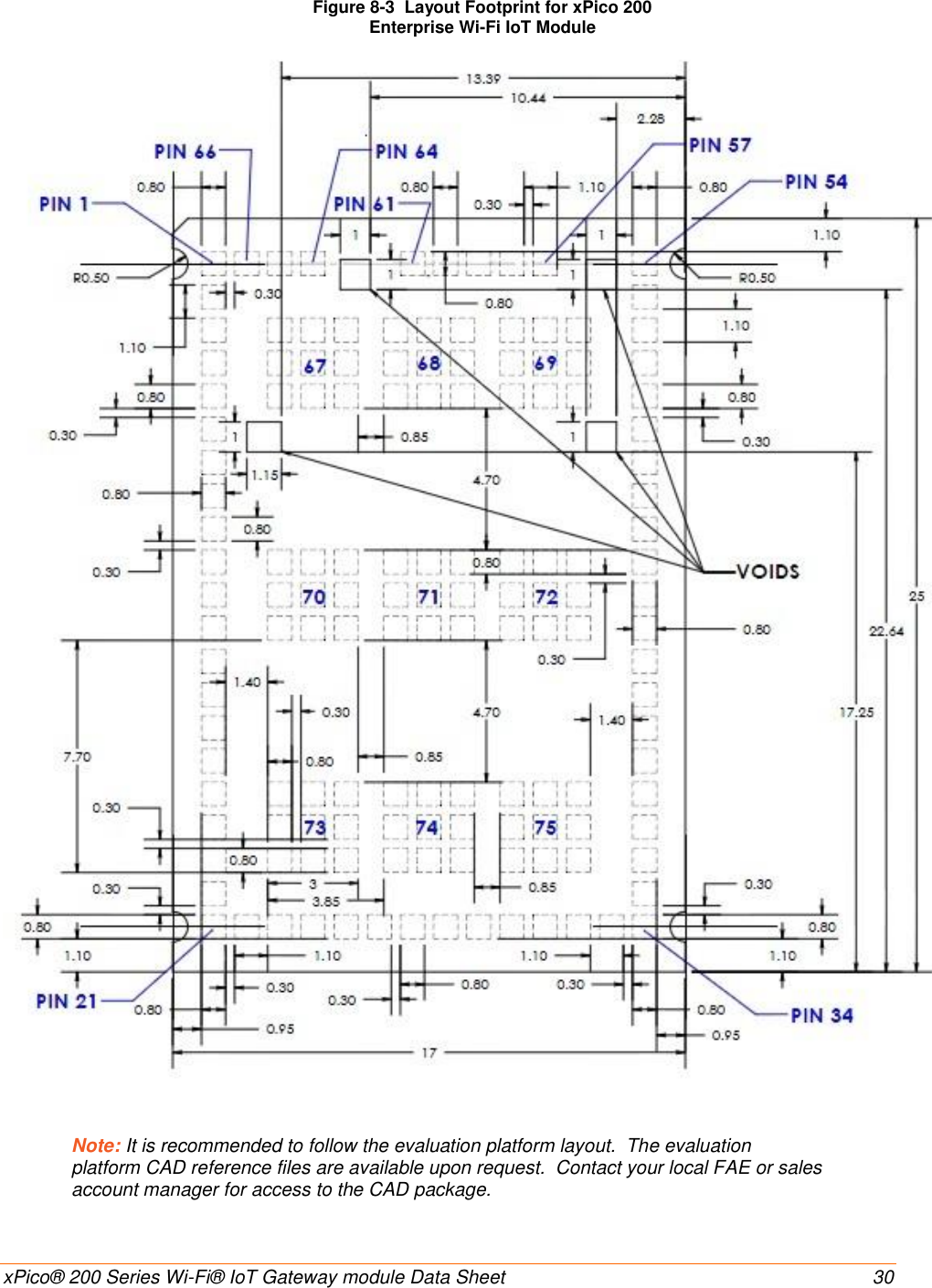

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 30 Figure 8-3 Layout Footprint for xPico 200 Enterprise Wi-Fi IoT Module Note: It is recommended to follow the evaluation platform layout. The evaluation platform CAD reference files are available upon request. Contact your local FAE or sales account manager for access to the CAD package.

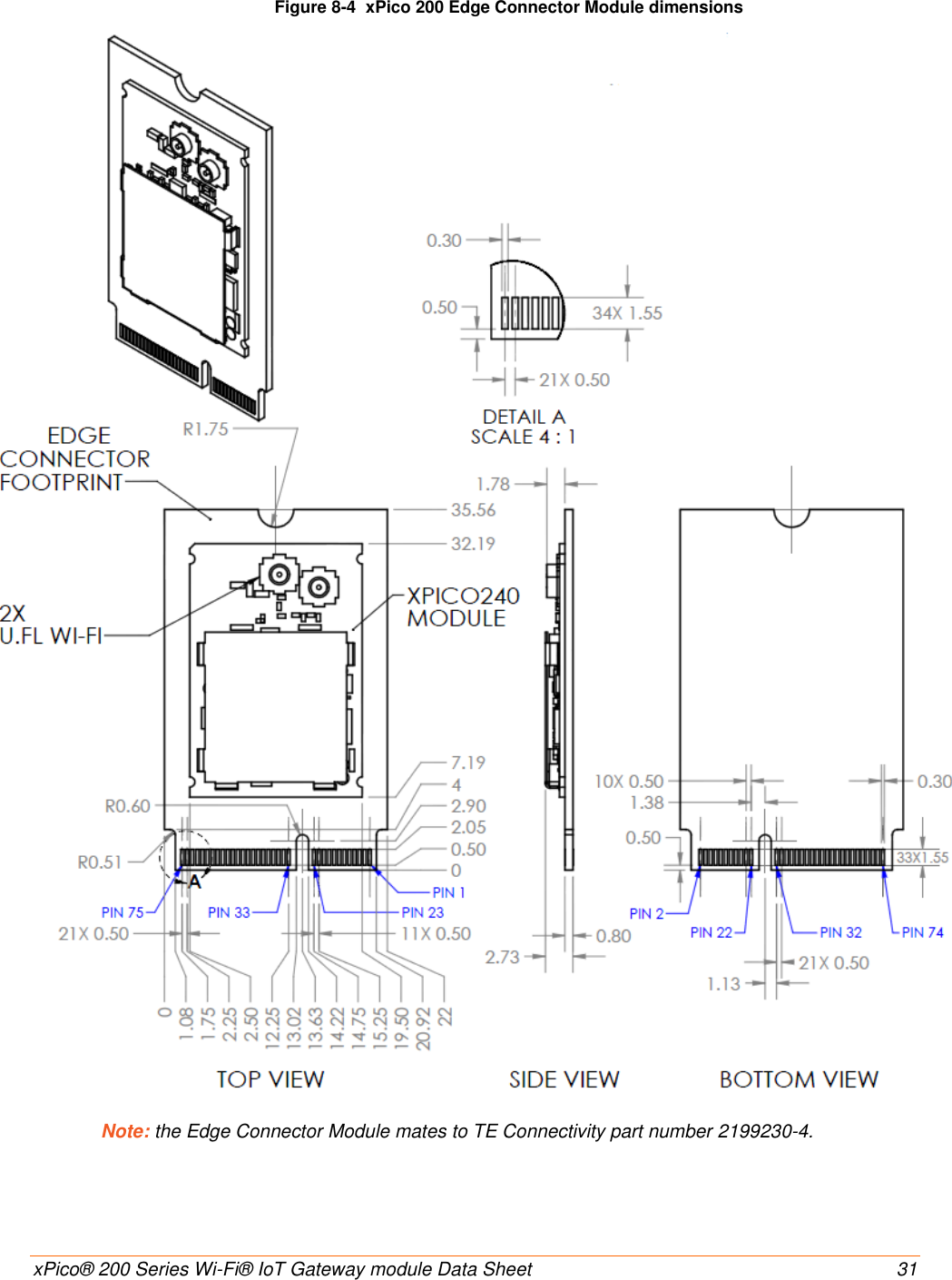

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 31 Figure 8-4 xPico 200 Edge Connector Module dimensions Note: the Edge Connector Module mates to TE Connectivity part number 2199230-4.

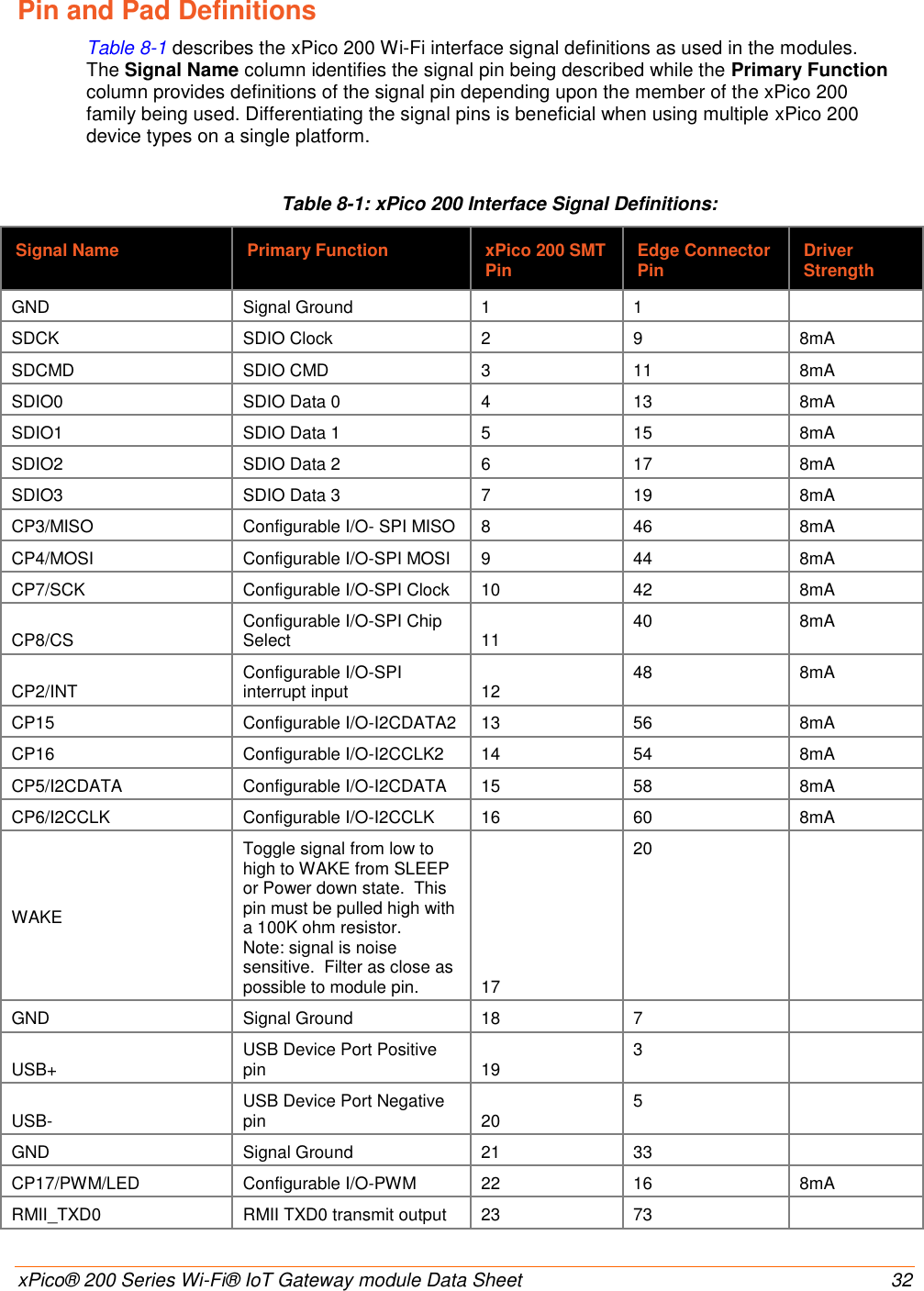

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 32 Pin and Pad Definitions Table 8-1 describes the xPico 200 Wi-Fi interface signal definitions as used in the modules. The Signal Name column identifies the signal pin being described while the Primary Function column provides definitions of the signal pin depending upon the member of the xPico 200 family being used. Differentiating the signal pins is beneficial when using multiple xPico 200 device types on a single platform. Table 8-1: xPico 200 Interface Signal Definitions: Signal Name Primary Function xPico 200 SMT Pin Edge Connector Pin Driver Strength GND Signal Ground 1 1 SDCK SDIO Clock 2 9 8mA SDCMD SDIO CMD 3 11 8mA SDIO0 SDIO Data 0 4 13 8mA SDIO1 SDIO Data 1 5 15 8mA SDIO2 SDIO Data 2 6 17 8mA SDIO3 SDIO Data 3 7 19 8mA CP3/MISO Configurable I/O- SPI MISO 8 46 8mA CP4/MOSI Configurable I/O-SPI MOSI 9 44 8mA CP7/SCK Configurable I/O-SPI Clock 10 42 8mA CP8/CS Configurable I/O-SPI Chip Select 11 40 8mA CP2/INT Configurable I/O-SPI interrupt input 12 48 8mA CP15 Configurable I/O-I2CDATA2 13 56 8mA CP16 Configurable I/O-I2CCLK2 14 54 8mA CP5/I2CDATA Configurable I/O-I2CDATA 15 58 8mA CP6/I2CCLK Configurable I/O-I2CCLK 16 60 8mA WAKE Toggle signal from low to high to WAKE from SLEEP or Power down state. This pin must be pulled high with a 100K ohm resistor. Note: signal is noise sensitive. Filter as close as possible to module pin. 17 20 GND Signal Ground 18 7 USB+ USB Device Port Positive pin 19 3 USB- USB Device Port Negative pin 20 5 GND Signal Ground 21 33 CP17/PWM/LED Configurable I/O-PWM 22 16 8mA RMII_TXD0 RMII TXD0 transmit output 23 73

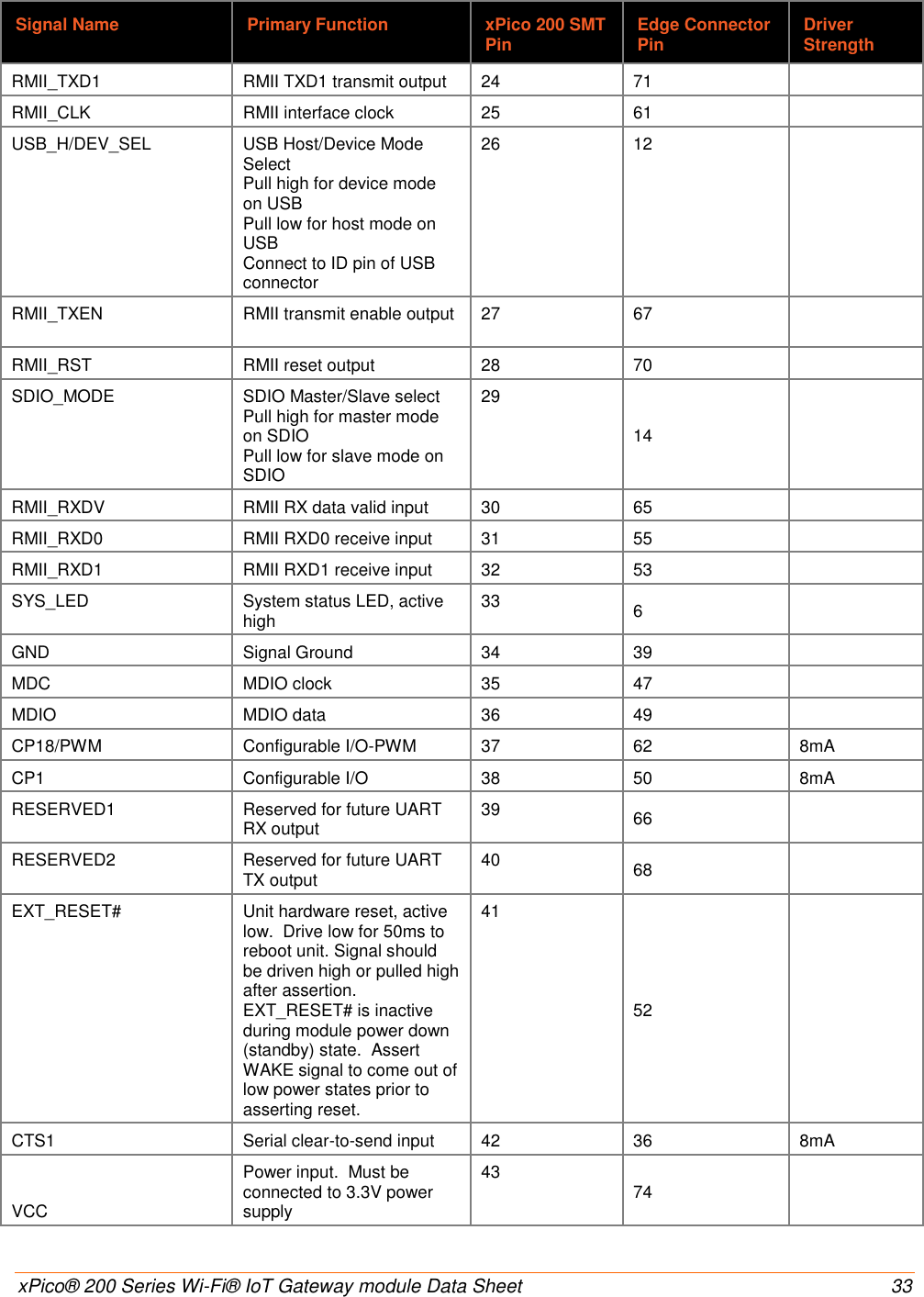

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 33 Signal Name Primary Function xPico 200 SMT Pin Edge Connector Pin Driver Strength RMII_TXD1 RMII TXD1 transmit output 24 71 RMII_CLK RMII interface clock 25 61 USB_H/DEV_SEL USB Host/Device Mode Select Pull high for device mode on USB Pull low for host mode on USB Connect to ID pin of USB connector 26 12 RMII_TXEN RMII transmit enable output 27 67 RMII_RST RMII reset output 28 70 SDIO_MODE SDIO Master/Slave select Pull high for master mode on SDIO Pull low for slave mode on SDIO 29 14 RMII_RXDV RMII RX data valid input 30 65 RMII_RXD0 RMII RXD0 receive input 31 55 RMII_RXD1 RMII RXD1 receive input 32 53 SYS_LED System status LED, active high 33 6 GND Signal Ground 34 39 MDC MDIO clock 35 47 MDIO MDIO data 36 49 CP18/PWM Configurable I/O-PWM 37 62 8mA CP1 Configurable I/O 38 50 8mA RESERVED1 Reserved for future UART RX output 39 66 RESERVED2 Reserved for future UART TX output 40 68 EXT_RESET# Unit hardware reset, active low. Drive low for 50ms to reboot unit. Signal should be driven high or pulled high after assertion. EXT_RESET# is inactive during module power down (standby) state. Assert WAKE signal to come out of low power states prior to asserting reset. 41 52 CTS1 Serial clear-to-send input 42 36 8mA VCC Power input. Must be connected to 3.3V power supply 43 74

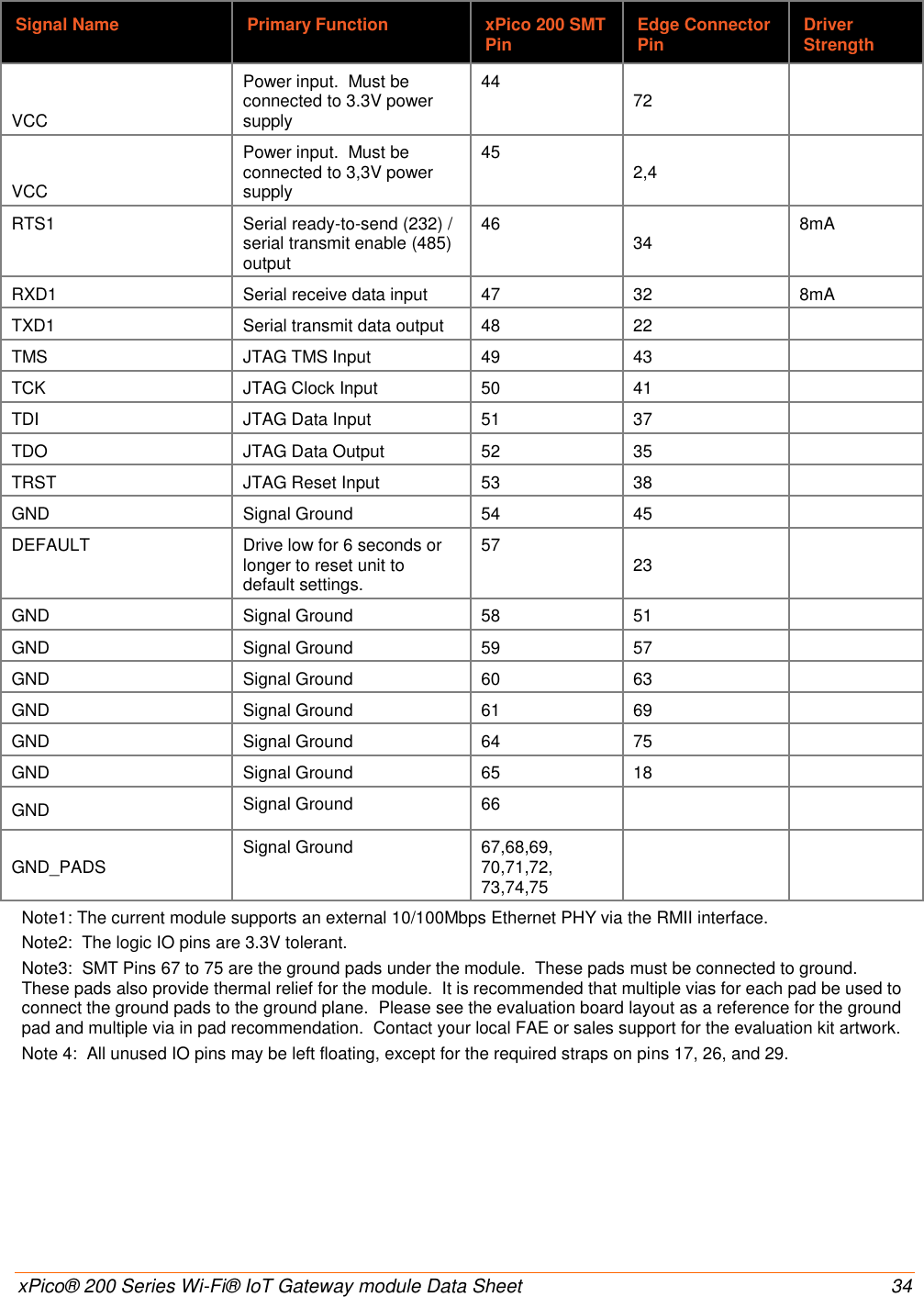

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 34 Signal Name Primary Function xPico 200 SMT Pin Edge Connector Pin Driver Strength VCC Power input. Must be connected to 3.3V power supply 44 72 VCC Power input. Must be connected to 3,3V power supply 45 2,4 RTS1 Serial ready-to-send (232) / serial transmit enable (485) output 46 34 8mA RXD1 Serial receive data input 47 32 8mA TXD1 Serial transmit data output 48 22 TMS JTAG TMS Input 49 43 TCK JTAG Clock Input 50 41 TDI JTAG Data Input 51 37 TDO JTAG Data Output 52 35 TRST JTAG Reset Input 53 38 GND Signal Ground 54 45 DEFAULT Drive low for 6 seconds or longer to reset unit to default settings. 57 23 GND Signal Ground 58 51 GND Signal Ground 59 57 GND Signal Ground 60 63 GND Signal Ground 61 69 GND Signal Ground 64 75 GND Signal Ground 65 18 GND Signal Ground 66 GND_PADS Signal Ground 67,68,69, 70,71,72, 73,74,75 Note1: The current module supports an external 10/100Mbps Ethernet PHY via the RMII interface. Note2: The logic IO pins are 3.3V tolerant. Note3: SMT Pins 67 to 75 are the ground pads under the module. These pads must be connected to ground. These pads also provide thermal relief for the module. It is recommended that multiple vias for each pad be used to connect the ground pads to the ground plane. Please see the evaluation board layout as a reference for the ground pad and multiple via in pad recommendation. Contact your local FAE or sales support for the evaluation kit artwork. Note 4: All unused IO pins may be left floating, except for the required straps on pins 17, 26, and 29.

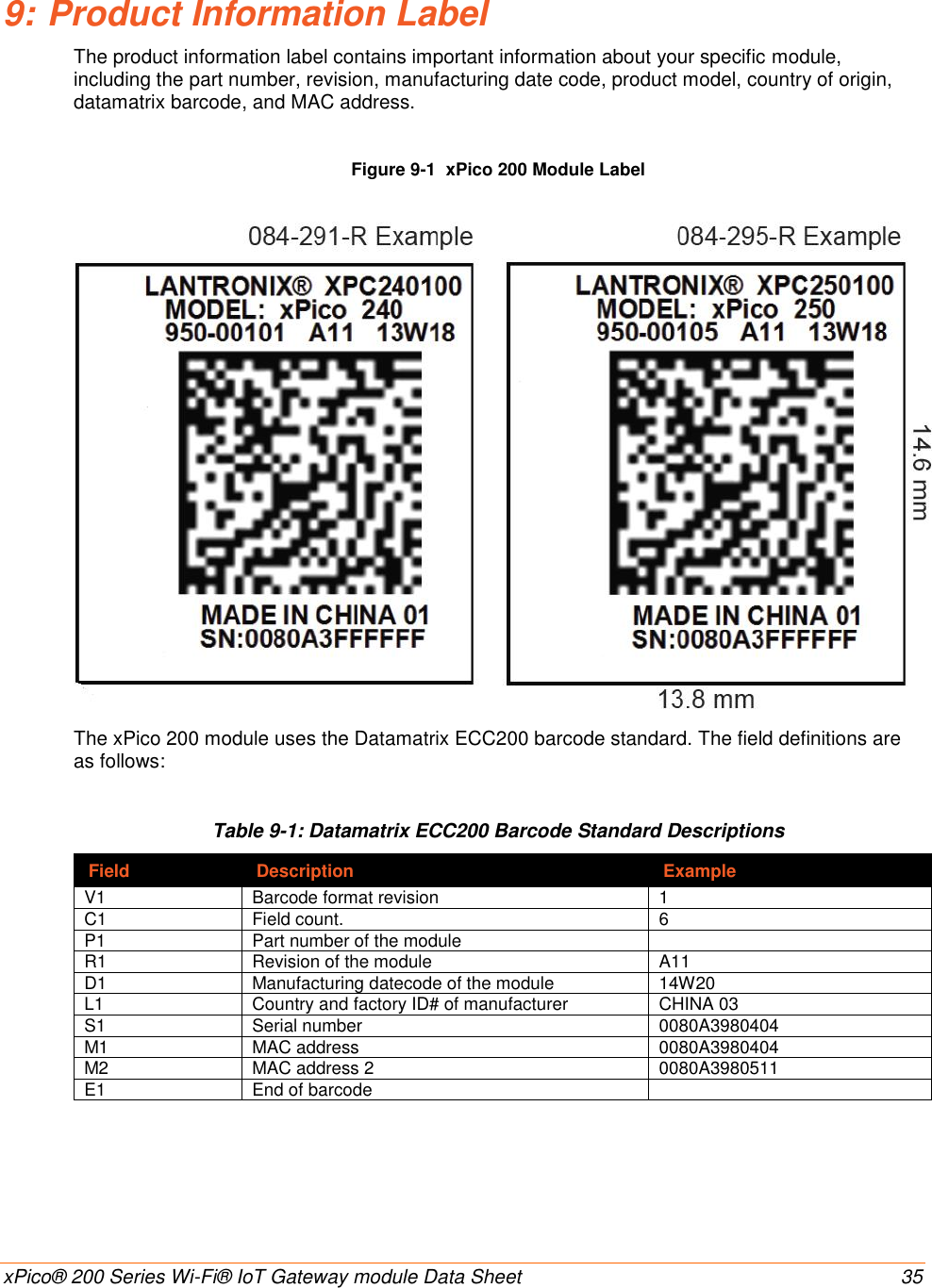

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 35 9: Product Information Label The product information label contains important information about your specific module, including the part number, revision, manufacturing date code, product model, country of origin, datamatrix barcode, and MAC address. Figure 9-1 xPico 200 Module Label The xPico 200 module uses the Datamatrix ECC200 barcode standard. The field definitions are as follows: Table 9-1: Datamatrix ECC200 Barcode Standard Descriptions Field Description Example V1 Barcode format revision 1 C1 Field count. 6 P1 Part number of the module R1 Revision of the module A11 D1 Manufacturing datecode of the module 14W20 L1 Country and factory ID# of manufacturer CHINA 03 S1 Serial number 0080A3980404 M1 MAC address 0080A3980404 M2 MAC address 2 0080A3980511 E1 End of barcode

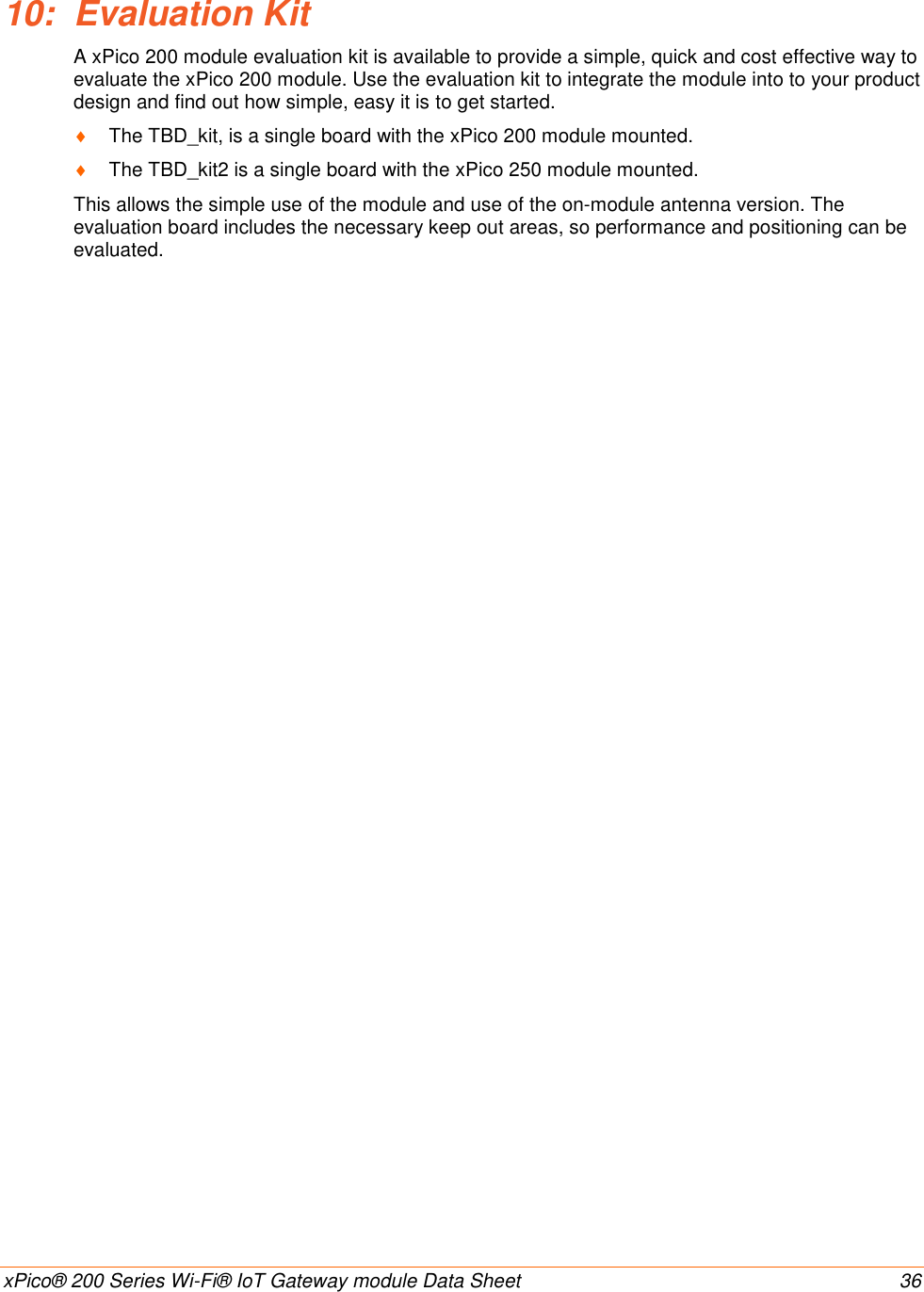

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 36 10: Evaluation Kit A xPico 200 module evaluation kit is available to provide a simple, quick and cost effective way to evaluate the xPico 200 module. Use the evaluation kit to integrate the module into to your product design and find out how simple, easy it is to get started.  The TBD_kit, is a single board with the xPico 200 module mounted.  The TBD_kit2 is a single board with the xPico 250 module mounted. This allows the simple use of the module and use of the on-module antenna version. The evaluation board includes the necessary keep out areas, so performance and positioning can be evaluated.

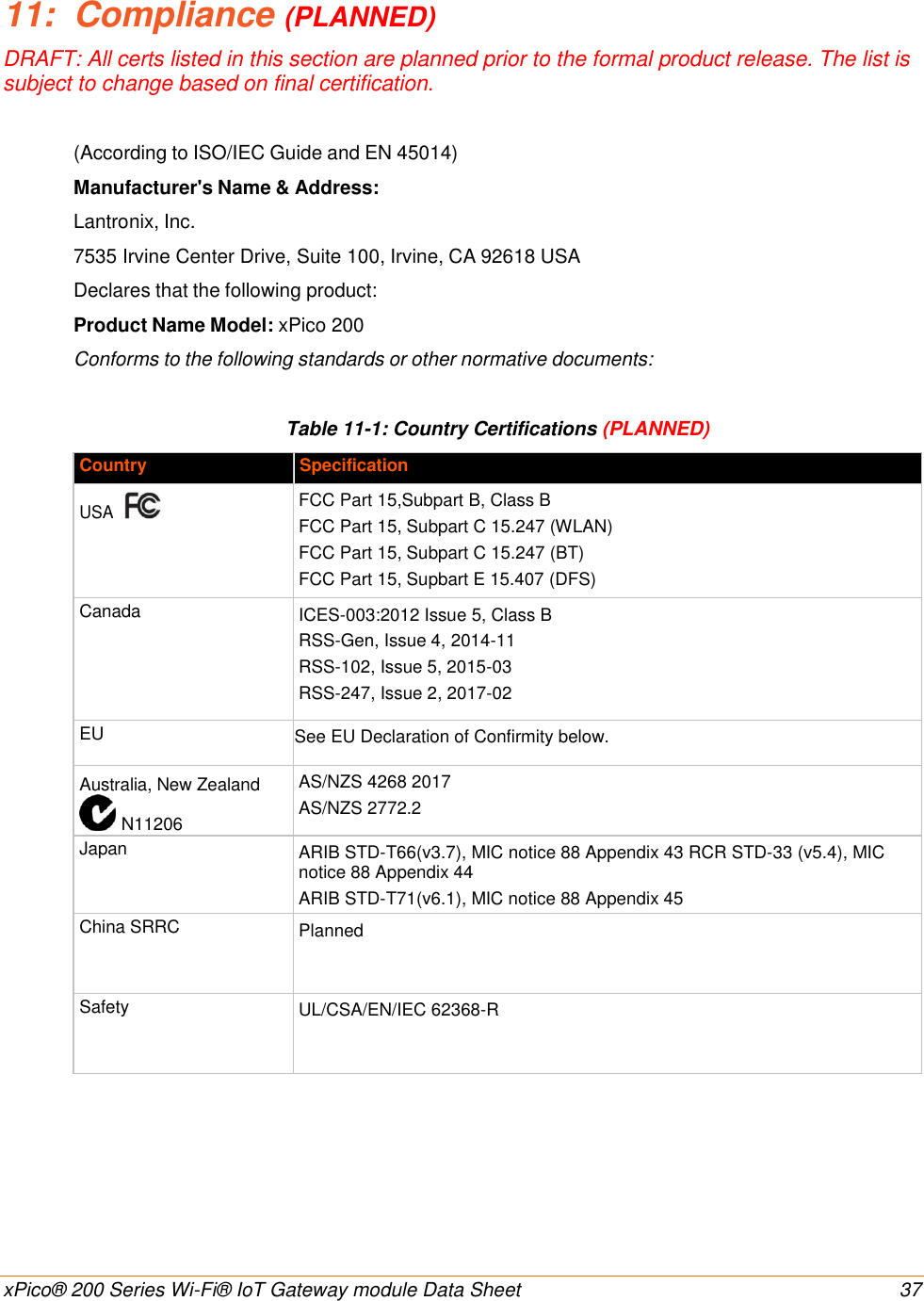

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 37 11: Compliance (PLANNED) DRAFT: All certs listed in this section are planned prior to the formal product release. The list is subject to change based on final certification. (According to ISO/IEC Guide and EN 45014) Manufacturer's Name & Address: Lantronix, Inc. 7535 Irvine Center Drive, Suite 100, Irvine, CA 92618 USA Declares that the following product: Product Name Model: xPico 200 Conforms to the following standards or other normative documents: Table 11-1: Country Certifications (PLANNED) Country Specification USA FCC Part 15,Subpart B, Class B FCC Part 15, Subpart C 15.247 (WLAN) FCC Part 15, Subpart C 15.247 (BT) FCC Part 15, Supbart E 15.407 (DFS) Canada ICES-003:2012 Issue 5, Class B RSS-Gen, Issue 4, 2014-11 RSS-102, Issue 5, 2015-03 RSS-247, Issue 2, 2017-02 EU See EU Declaration of Confirmity below. Australia, New Zealand N11206 AS/NZS 4268 2017 AS/NZS 2772.2 Japan ARIB STD-T66(v3.7), MIC notice 88 Appendix 43 RCR STD-33 (v5.4), MIC notice 88 Appendix 44 ARIB STD-T71(v6.1), MIC notice 88 Appendix 45 China SRRC Planned Safety UL/CSA/EN/IEC 62368-R

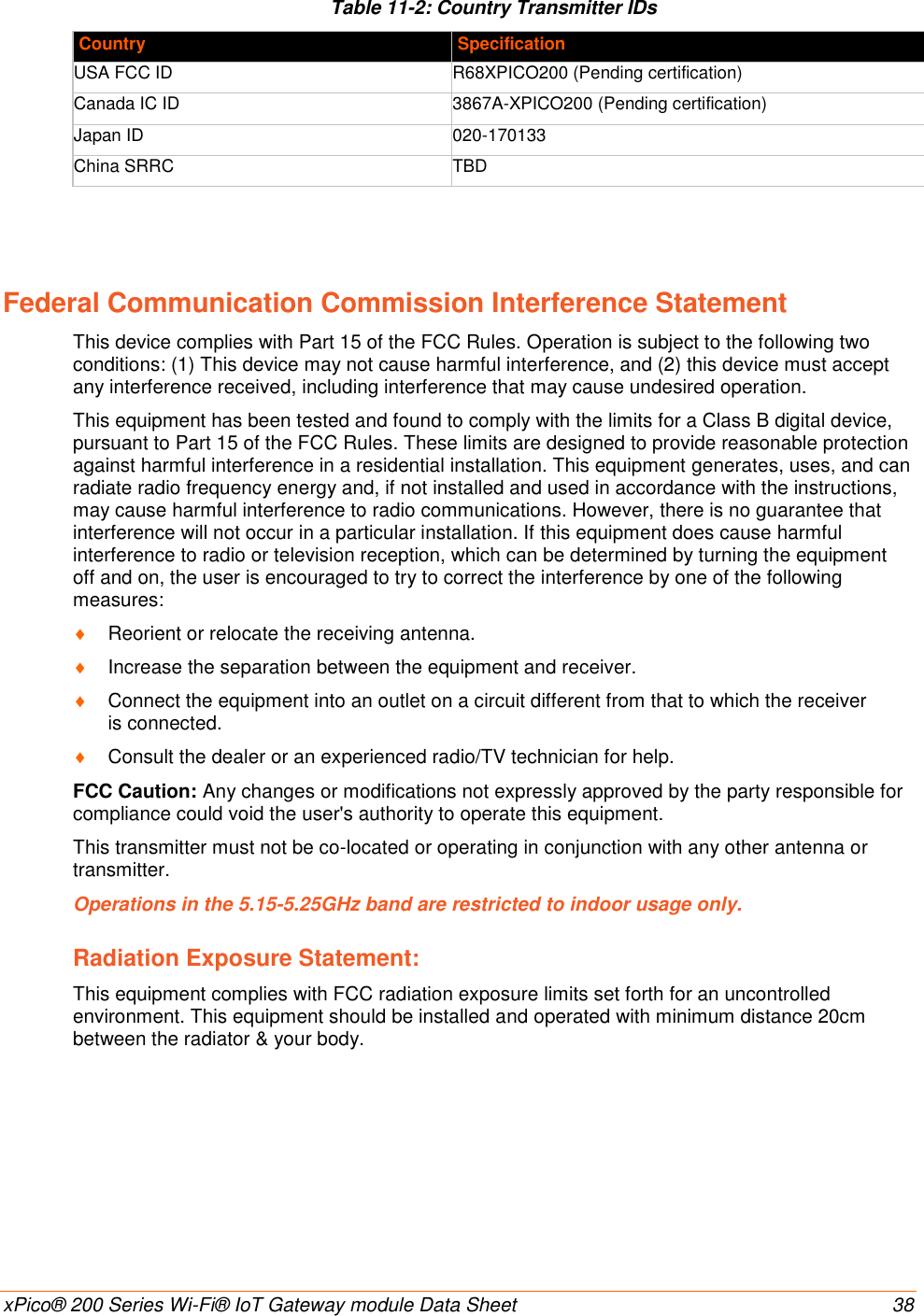

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 38 Table 11-2: Country Transmitter IDs Country Specification USA FCC ID R68XPICO200 (Pending certification) Canada IC ID 3867A-XPICO200 (Pending certification) Japan ID 020-170133 China SRRC TBD Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

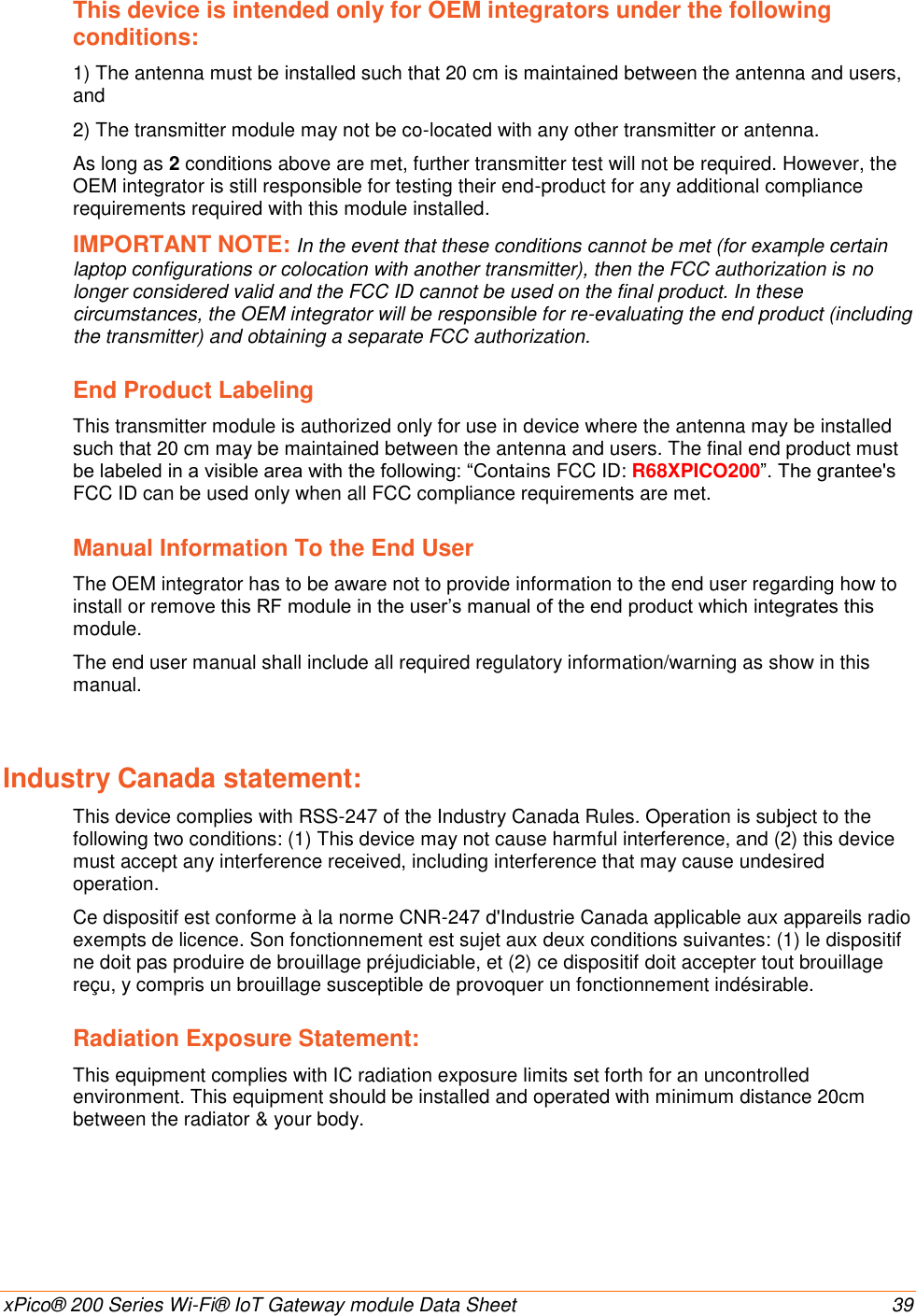

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 39 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or colocation with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: R68XPICO200”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Industry Canada statement: This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-247 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

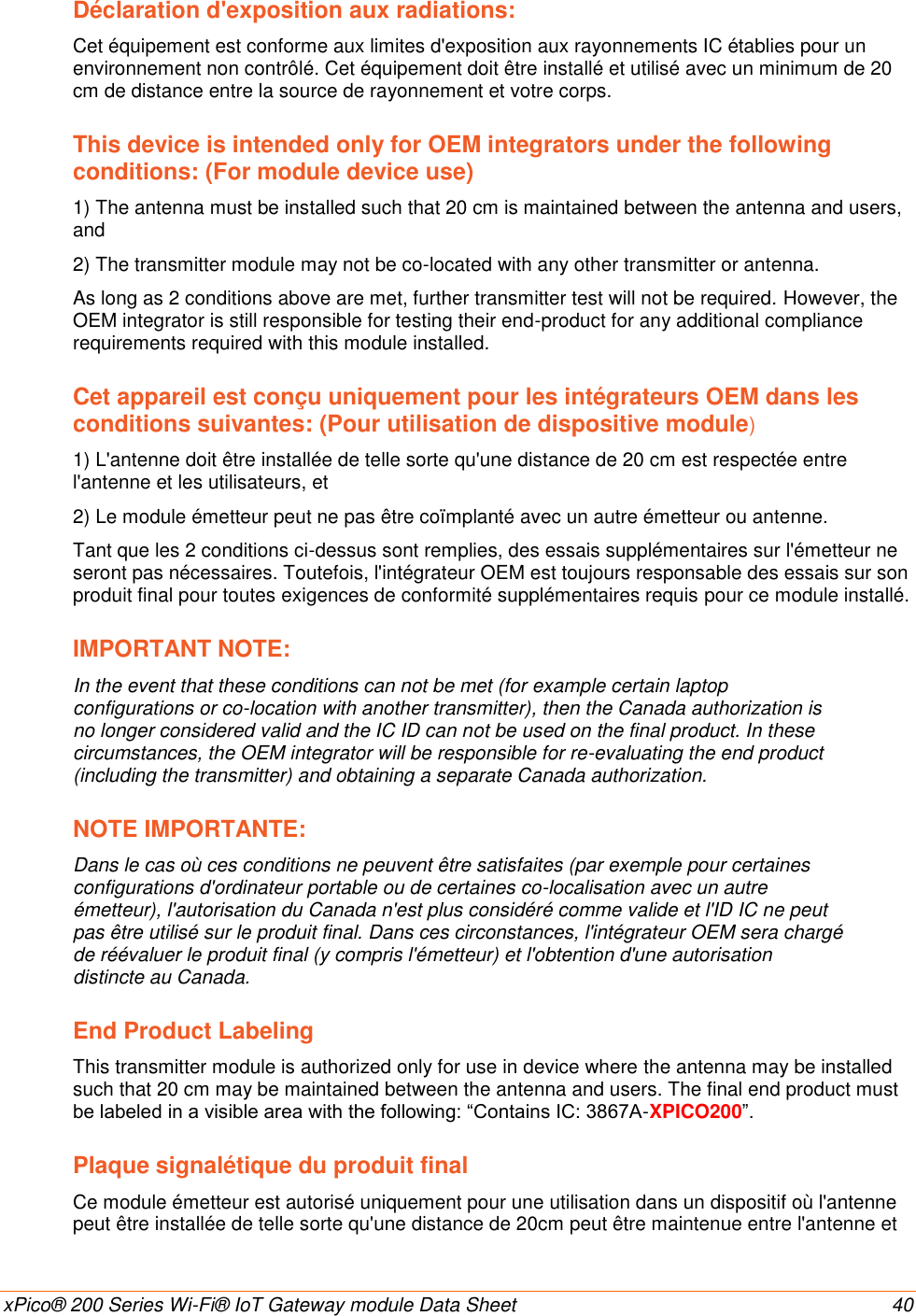

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 40 Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour utilisation de dispositive module) 1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les utilisateurs, et 2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne. Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final pour toutes exigences de conformité supplémentaires requis pour ce module installé. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the Canada authorization is no longer considered valid and the IC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate Canada authorization. NOTE IMPORTANTE: Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains IC: 3867A-XPICO200”. Plaque signalétique du produit final Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où l'antenne peut être installée de telle sorte qu'une distance de 20cm peut être maintenue entre l'antenne et

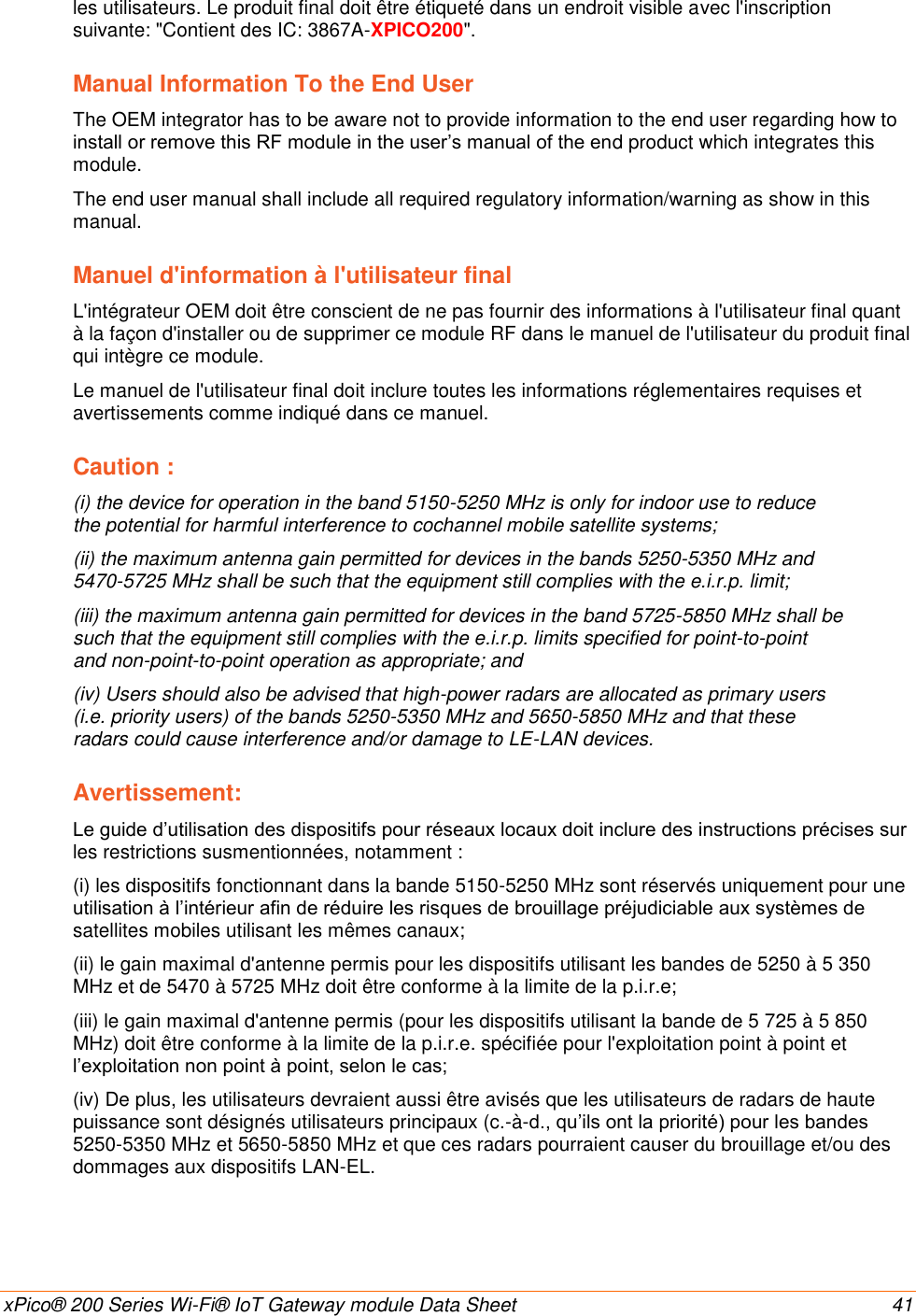

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 41 les utilisateurs. Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient des IC: 3867A-XPICO200". Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Manuel d'information à l'utilisateur final L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce module. Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements comme indiqué dans ce manuel. Caution : (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to cochannel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit; (iii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and (iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Avertissement: Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment : (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5250 à 5 350 MHz et de 5470 à 5725 MHz doit être conforme à la limite de la p.i.r.e; (iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à point et l’exploitation non point à point, selon le cas; (iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 42 7535 Irvine Center Drive, Suite 100, Irvine, CA 92618 EU DECLARATION OF CONFORMITY This declaration of conformity is issued under the sole responsibility of the manufacturer. Object of the declaration Product Information Product Name: xPico 200 Model SW Version (Radio FW) HW Version xPico 240 7.15.168.87 11 (or later) xPico 250 7.15.168.87 11 (or later) The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: • References to the relevant harmonised standards used or references to the technical specifications in relation to which conformity is declared Radio Equipment Directive 2014/53/EU EN 300 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 EN 301 893-1 V2.1.1 EN 62311:2008 62368-1 The notified body, ___________________________, performed a conformity assessment of the technical construction file and issued certificate _________________________. Signature: ________________________________ Date: ___________________________ Name: Daryl R. Miller Title: VP of Engineering, Lantronix, Inc.

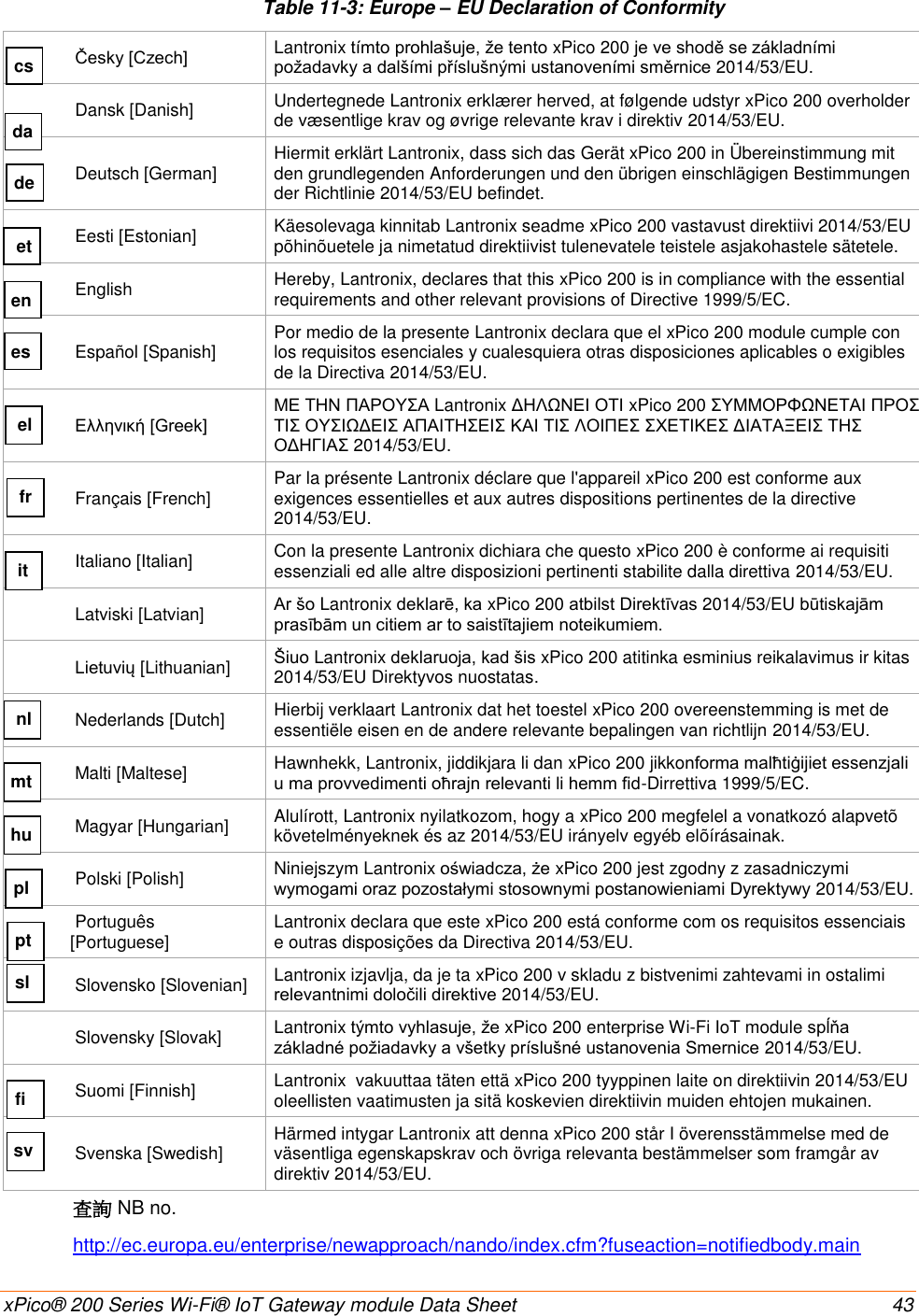

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 43 Table 11-3: Europe – EU Declaration of Conformity Česky [Czech] Lantronix tímto prohlašuje, že tento xPico 200 je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 2014/53/EU. Dansk [Danish] Undertegnede Lantronix erklærer herved, at følgende udstyr xPico 200 overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EU. Deutsch [German] Hiermit erklärt Lantronix, dass sich das Gerät xPico 200 in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EU befindet. Eesti [Estonian] Käesolevaga kinnitab Lantronix seadme xPico 200 vastavust direktiivi 2014/53/EU põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, Lantronix, declares that this xPico 200 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente Lantronix declara que el xPico 200 module cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Lantronix ΔΗΛΩΝΕΙ ΟΤΙ xPico 200 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EU. Français [French] Par la présente Lantronix déclare que l'appareil xPico 200 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 2014/53/EU. Italiano [Italian] Con la presente Lantronix dichiara che questo xPico 200 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/EU. Latviski [Latvian] Ar šo Lantronix deklarē, ka xPico 200 atbilst Direktīvas 2014/53/EU būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo Lantronix deklaruoja, kad šis xPico 200 atitinka esminius reikalavimus ir kitas 2014/53/EU Direktyvos nuostatas. Nederlands [Dutch] Hierbij verklaart Lantronix dat het toestel xPico 200 overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2014/53/EU. Malti [Maltese] Hawnhekk, Lantronix, jiddikjara li dan xPico 200 jikkonforma malħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian] Alulírott, Lantronix nyilatkozom, hogy a xPico 200 megfelel a vonatkozó alapvetõ követelményeknek és az 2014/53/EU irányelv egyéb elõírásainak. Polski [Polish] Niniejszym Lantronix oświadcza, że xPico 200 jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 2014/53/EU. Português [Portuguese] Lantronix declara que este xPico 200 está conforme com os requisitos essenciais e outras disposições da Directiva 2014/53/EU. Slovensko [Slovenian] Lantronix izjavlja, da je ta xPico 200 v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU. Slovensky [Slovak] Lantronix týmto vyhlasuje, že xPico 200 enterprise Wi-Fi IoT module spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/EU. Suomi [Finnish] Lantronix vakuuttaa täten että xPico 200 tyyppinen laite on direktiivin 2014/53/EU oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska [Swedish] Härmed intygar Lantronix att denna xPico 200 står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 2014/53/EU. 查詢 NB no. http://ec.europa.eu/enterprise/newapproach/nando/index.cfm?fuseaction=notifiedbody.main cs da de et en es el fr it nl mt hu pl pt sl fi sv

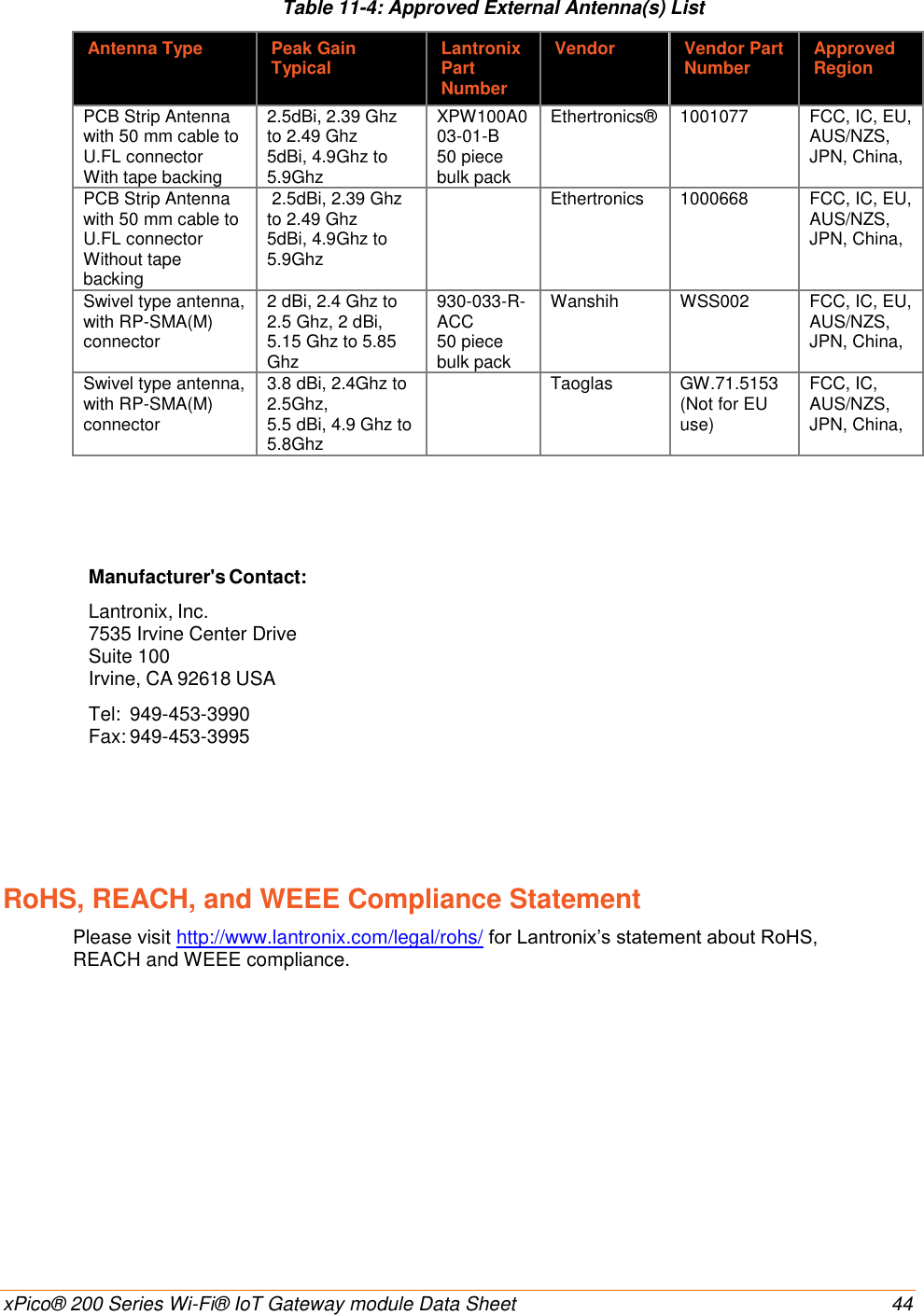

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 44 Table 11-4: Approved External Antenna(s) List Antenna Type Peak Gain Typical Lantronix Part Number Vendor Vendor Part Number Approved Region PCB Strip Antenna with 50 mm cable to U.FL connector With tape backing 2.5dBi, 2.39 Ghz to 2.49 Ghz 5dBi, 4.9Ghz to 5.9Ghz XPW100A003-01-B 50 piece bulk pack Ethertronics® 1001077 FCC, IC, EU, AUS/NZS, JPN, China, PCB Strip Antenna with 50 mm cable to U.FL connector Without tape backing 2.5dBi, 2.39 Ghz to 2.49 Ghz 5dBi, 4.9Ghz to 5.9Ghz Ethertronics 1000668 FCC, IC, EU, AUS/NZS, JPN, China, Swivel type antenna, with RP-SMA(M) connector 2 dBi, 2.4 Ghz to 2.5 Ghz, 2 dBi, 5.15 Ghz to 5.85 Ghz 930-033-R-ACC 50 piece bulk pack Wanshih WSS002 FCC, IC, EU, AUS/NZS, JPN, China, Swivel type antenna, with RP-SMA(M) connector 3.8 dBi, 2.4Ghz to 2.5Ghz, 5.5 dBi, 4.9 Ghz to 5.8Ghz Taoglas GW.71.5153 (Not for EU use) FCC, IC, AUS/NZS, JPN, China, Manufacturer's Contact: Lantronix, Inc. 7535 Irvine Center Drive Suite 100 Irvine, CA 92618 USA Tel: 949-453-3990 Fax: 949-453-3995 RoHS, REACH, and WEEE Compliance Statement Please visit http://www.lantronix.com/legal/rohs/ for Lantronix’s statement about RoHS, REACH and WEEE compliance.

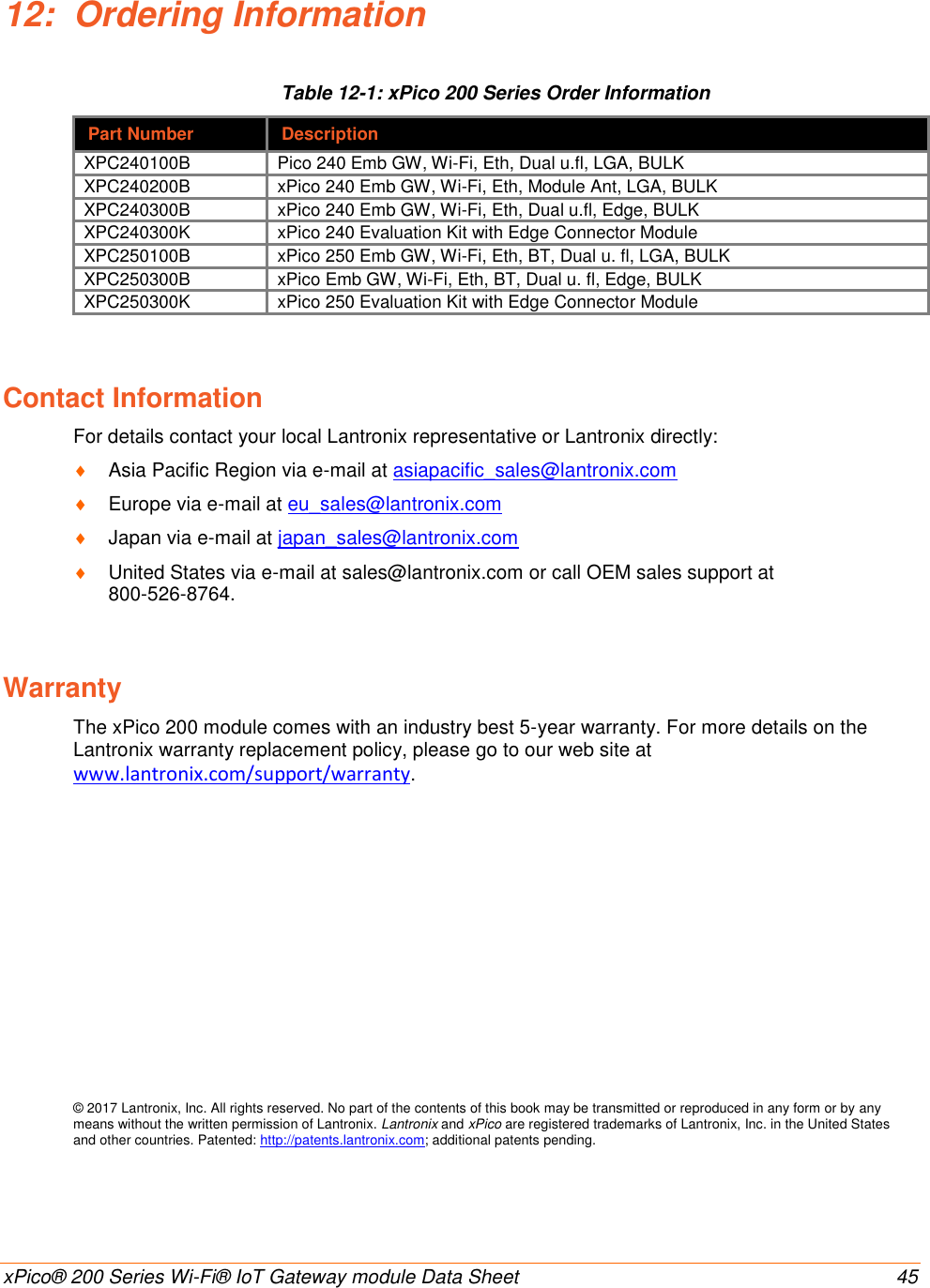

xPico® 200 Series Wi-Fi® IoT Gateway module Data Sheet 45 12: Ordering Information Table 12-1: xPico 200 Series Order Information Part Number Description XPC240100B Pico 240 Emb GW, Wi-Fi, Eth, Dual u.fl, LGA, BULK XPC240200B xPico 240 Emb GW, Wi-Fi, Eth, Module Ant, LGA, BULK XPC240300B xPico 240 Emb GW, Wi-Fi, Eth, Dual u.fl, Edge, BULK XPC240300K xPico 240 Evaluation Kit with Edge Connector Module XPC250100B xPico 250 Emb GW, Wi-Fi, Eth, BT, Dual u. fl, LGA, BULK XPC250300B xPico Emb GW, Wi-Fi, Eth, BT, Dual u. fl, Edge, BULK XPC250300K xPico 250 Evaluation Kit with Edge Connector Module Contact Information For details contact your local Lantronix representative or Lantronix directly:  Asia Pacific Region via e-mail at asiapacific_sales@lantronix.com  Europe via e-mail at eu_sales@lantronix.com  Japan via e-mail at japan_sales@lantronix.com  United States via e-mail at sales@lantronix.com or call OEM sales support at 800-526-8764. Warranty The xPico 200 module comes with an industry best 5-year warranty. For more details on the Lantronix warranty replacement policy, please go to our web site at www.lantronix.com/support/warranty. © 2017 Lantronix, Inc. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix and xPico are registered trademarks of Lantronix, Inc. in the United States and other countries. Patented: http://patents.lantronix.com; additional patents pending.
