26 of 386.4 Repeat/shuffle You can repeat tracks or play them in random order by selecting Menu > Repeat play or Menu > Shuffle play.6.5 Now playing information While a track is playing, the screen shows its track and artist (UPnP). There is also a progress bar with figures for elapsed and total track time. At the bottom of the screen, an icon indicates UPnP. To view further information, press Info. Each time you press Info, another set of information is displayed, cyclingthrough: UPnP playback progress bar (default), album, codec/sampling rate, playback Buffer bar, today's date.7. Using the “Play To” feature in Windows 7 to stream media One of the new Windows 7 features includes a feature called “Play To” and this lets your PC running Windows 7 control M5+ to push media and use as a universal remote control for your media collection. M5+ supports the industry standard DLNA (Digital Living Network Alliance) 1.5 digital media renderer. This allows you to "Play To" other devices around your home and combine media streaming with controlling a connected media receiver while streaming content to it from another Windows 7 PC on a home network. Before you can use the “Play To” feature you need the set-up M5+ for Windows 7 streaming media. 7.1 Use “Play To” in Windows Media Player Windows Media Player makes it easy to manage your media, find items that you want to play, and open Play To. To select items that you want to play, follow these steps: 1.Click the Start button, click All Programs, and then click Windows Media Player.If the Player is currently open and you’re in Now Playing mode, click the Switch to Library button in the upper-right corner of the Player.2. If the list pane is closed or if the Burn or Sync tabs are exposed, click the Play tab.3. Find the items that you want to play in the Player Library, and then drag those items From the details pane into the list pane.4. Click the Play to button at the top of the list pane, click the device on your network that Will receive the media.5. In the Play To dialog box, use the playback controls to play, pause, or stop the media stream, and to change to the next or previous item in the list.7.2 Use “Play To” elsewhere in Windows 7 Outside of Windows Media Player, you can stream media to M5+ with “Play To” by right-clicking music files. To select music files and stream them to M5+, follow these steps: 1).Click the files you want to stream to M5+.2).Right-click the selected files, point to “Play to”, and then click the device on the network that will receive the media. 3). In the Play to dialog box, use the playback controls to play, pause, or stop the media stream, and to change to the next or previous item in the list. 7.3 Now playing information While a track is playing, the screen shows its track name (UPnP). There is also a progress bar with figures for elapsed and total track time. At the bottom of the screen, an icon indicates UPnP. To view further information, press Info. Each time you press Info, another set of information is displayed, cycling through the following: Artist, album, codec/sampling rate, playback buffer8. DAB radio mode DAB radio mode receives DAB/DAB+ digital radio and displays informationabout the station, stream and track playing. To enter DAB mode, either press Mode until the display shows DAB Radio or select; Menu > Main menu > DAB. 27 of 38

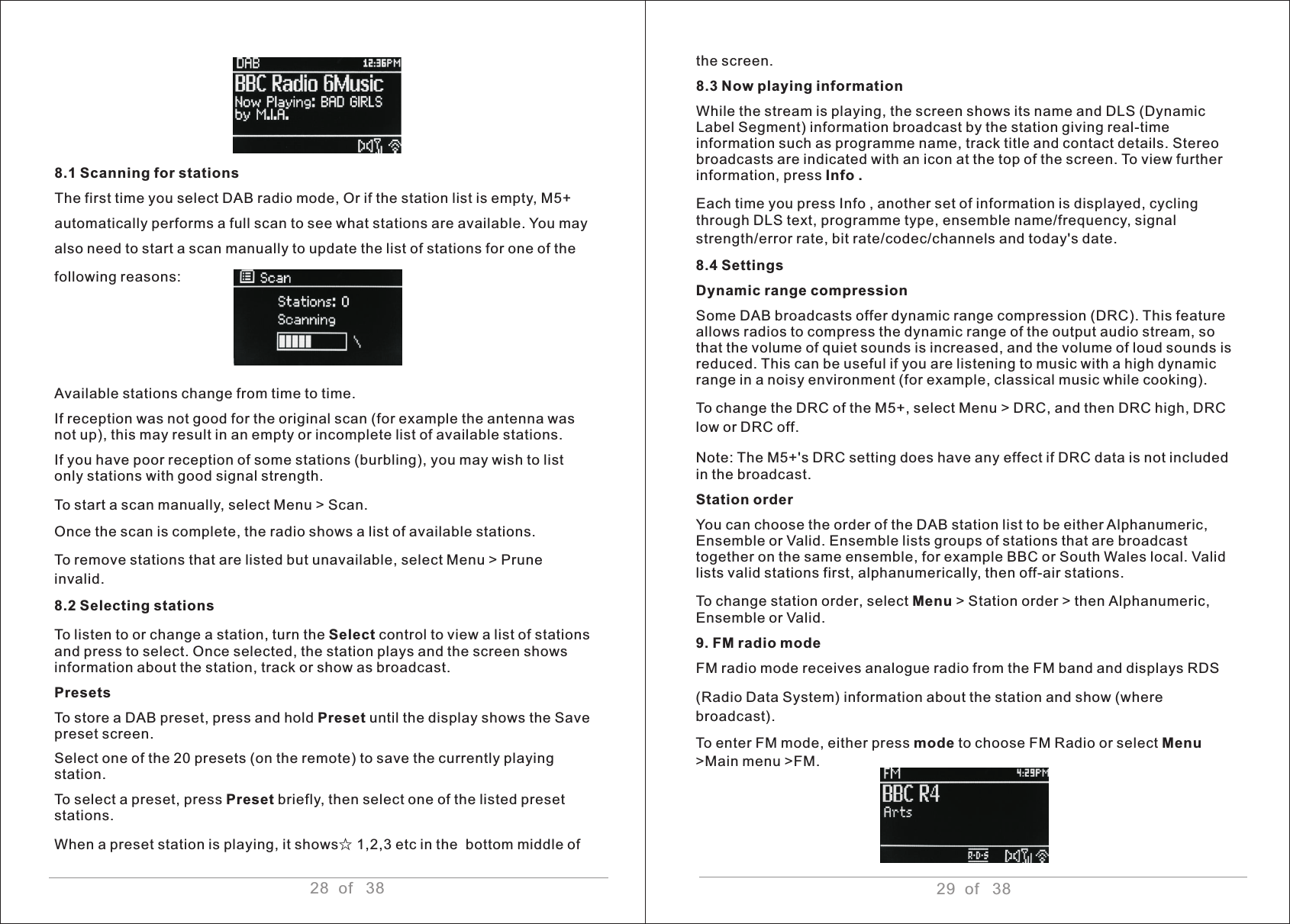

28 of 388.1 Scanning for stations The first time you select DAB radio mode, Or if the station list is empty, M5+automatically performs a full scan to see what stations are available. You mayalso need to start a scan manually to update the list of stations for one of thefollowing reasons: Available stations change from time to time. If reception was not good for the original scan (for example the antenna was not up), this may result in an empty or incomplete list of available stations.If you have poor reception of some stations (burbling), you may wish to list only stations with good signal strength.To start a scan manually, select Menu > Scan.Once the scan is complete, the radio shows a list of available stations.To remove stations that are listed but unavailable, select Menu > Prune invalid.8.2 Selecting stationsTo listen to or change a station, turn the Select control to view a list of stations and press to select. Once selected, the station plays and the screen shows information about the station, track or show as broadcast. Presets To store a DAB preset, press and hold Preset until the display shows the Save preset screen. Select one of the 20 presets (on the remote) to save the currently playing station. To select a preset, press Preset briefly, then select one of the listed preset stations. When a preset station is playing, it shows☆ 1,2,3 etc in the bottom middle of 29 of 38the screen. 8.3 Now playing information While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station giving real-time information such as programme name, track title and contact details. Stereo broadcasts are indicated with an icon at the top of the screen. To view further information, press Info .Each time you press Info , another set of information is displayed, cycling through DLS text, programme type, ensemble name/frequency, signal strength/error rate, bit rate/codec/channels and today's date.8.4 Settings Dynamic range compression Some DAB broadcasts offer dynamic range compression (DRC). This feature allows radios to compress the dynamic range of the output audio stream, so that the volume of quiet sounds is increased, and the volume of loud sounds is reduced. This can be useful if you are listening to music with a high dynamic range in a noisy environment (for example, classical music while cooking). To change the DRC of the M5+, select Menu > DRC, and then DRC high, DRC low or DRC off. Note: The M5+'s DRC setting does have any effect if DRC data is not included in the broadcast. Station order You can choose the order of the DAB station list to be either Alphanumeric, Ensemble or Valid. Ensemble lists groups of stations that are broadcast together on the same ensemble, for example BBC or South Wales local. Valid lists valid stations first, alphanumerically, then off-air stations. To change station order, select Menu > Station order > then Alphanumeric, Ensemble or Valid.9. FM radio mode FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and show (where broadcast). To enter FM mode, either press mode to choose FM Radio or select Menu >Main menu >FM.

Adjust the volume level on your device. You should not have to pair your iPhone/iPod/iPad again. The volume output level of music files varies.If you prefer an even higher output level, check the settings in your iPhone/iPod touch/iPad:Set the EQ Off, the Sound Check Off, and the Volume limit Off. If you encounter a problem Pairing, press the small arrow to the right of “LEMEGA M5+” on your iPhone/iPod touch/iPad display and select “Forget this Device”, then repeat the Pairing process. Depending on your device.You may need to make multiple attempts at Pairing and/or Connecting to the M5+, but please give your device adequate time to Pair or Connect before repeating the process.12. CD PlaybackNotice! Improper operation can result in material damages!Do not insert any recording media that deviate from the standard CD format (eg: mini-discs) into the CD player. These may not be played and ejected correctly. Insert only one disc at a time into the CD player.Insert a disc (with printing side facing up) until it is drawn inside. The CD player will automatically load the CD and start playback.The display will say “Loading”. Disc functions will not work while the disc is loading. Playback will begin automatically once the table of contents is read. The display will show “No Disc” when the unit is set to CD mode and there is no CD inside.Insert the CD into the CD slot with the label side up, The display shows the following information in CD mode:ŸCD modeŸTimeŸElapsed playback time in minutesŸTrack numberŸPayback status(playing/pause)To pause/resume playback of the CD, press the button.To switch to the next track, press the button once.To fast forward through a track, press and hold To switch to the previous track, press and holdTo fast backward through a track, press and hold To stop CD playback, pressAdjusting CD playback,You can choose different playback sequences to play tracks by press PRG on remote control. Press the menu button to open the CD 32 of 38 menu for system settings.13. Alarms and sleep As well as a clock/calendar, there are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode. 13.1 AlarmsTo set or change an alarm, either press Alarm or select Menu > Main Menu >Alarms. Select the alarm number (1 or 2) then configure the following parameters:ŸEnable: on/off,ŸFrequency: Daily, Once, Weekends or Weekdays,ŸTime,ŸMode: Buzzer, Internet radio, DAB, FM, CDŸPreset: Last listened or 1-20,ŸVolume: 0 - max.To activate the new settings, scroll down and select Save.The screen shows active alarms with an icon at the bottom left.At the set time, the alarm will sound. To temporarily silence it, press Snooze . You can change the snooze period with the Select control if you like. The radio returns to standby for the set period, with the silenced alarm icon flashing.13.2 Sleep To set the sleep timer, select Menu > Main menu > Sleep then choose fromSleep OFF, 15 MINS,30 MINS, 45 MINS or 60 MINS.33 of 38

Once you select a sleep period, the system returns to the main menu. Press Menu to return to the Now playing screen.14. Software upgrades and factory reset 14.1 Software upgrade From time to time, M5+ may make software upgrades available with bug Fixes and/or additional features. You can either check manually, or set M5+ to check periodically automatically (this is the default). If M5+ detects that newer software is available, it asks if you want to go ahead with an update.If you agree, the new software is then downloaded and installed. After a software upgrade, all user settings are maintained. CAUTION: Before starting a software upgrade, ensure that M5+ is plugged into a stable mains power connection. Disconnecting power during a software update may permanently damage the unit.To turn automatic checking on or off, select Menu > System settings>Software update >Auto-check setting.14.2 Factory reset A factory reset resets all user settings to default values, so time/date, network configuration and presets are lost. However, the radio's current software version is maintained, as is registration with the Internet radio portal. Internet radio favorites therefore remain unless you re-register your radio with another account on the portal website. To perform a factory reset, select Menu > System settings > Factory reset proceed >Yes.15. Troubleshooting and error messages 15.1 Error messages Example MAC filtering enabled on Received.wma,but found Data obtained from server Router switched off Streaming IR station and suddenly station becomes unavailable that the stream wasn't WMA is unreadable. when trying to decode when trying to decode DescriptionCorrect key entered,But router rejects requestCannot recognise file format Problem past router - Problem with connection to Problem past router – no No UPnP servers found No DAB reception Trying to access USB menu, UPnP server settings Allow access for M5+ in UPnP server but no USB plugged in Access not granted by Software upgrade failed plugged in. Unsupported USB device General USB problems USB USB device device Bad memory sector found on -independent of network incorrect data being router response being received received from network from network from network Messege Failed to connect Format error Network error Network not ready Network timeout No UPnP media Service not No USB device Unauthorised Update failed unsupported USB device data from memory user have to remove the Unable to read particular Power failure to USB device- USB read error underpowered USB error available (DAB) found found router35 of 3834 of 38Waiting for Users Spotify mode - No Spotify account credentials available on the M5+audio system. Connect to the audio system using a Spotify Connect account.

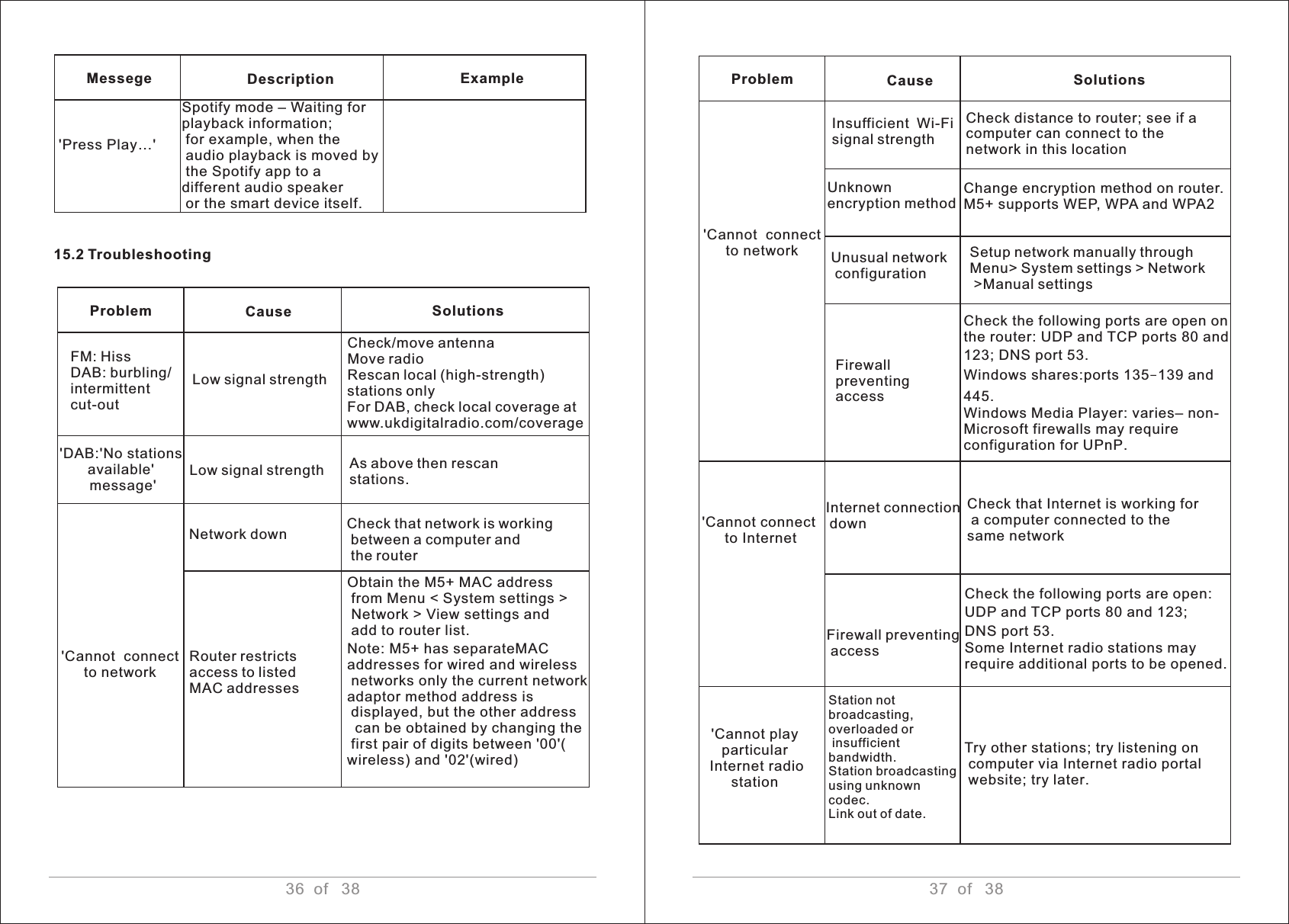

15.2 Troubleshooting'Press Play…' Spotify mode – Waiting for playback information; for example, when the audio playback is moved by the Spotify app to a different audio speaker or the smart device itself. Example Description Messege 'DAB:'No stationsavailable' message' 'Cannot connect to network Low signal strength Low signal strength Network down Solutions Cause Problem FM: HissDAB: burbling/intermittent cut-out Check/move antenna Move radio Rescan local (high-strength)stations only For DAB, check local coverage at www.ukdigitalradio.com/coverage As above then rescan stations. Check that network is working between a computer and the router Obtain the M5+ MAC address from Menu < System settings > Network > View settings and add to router list. Router restricts access to listed MAC addresses Note: M5+ has separateMAC addresses for wired and wireless networks only the current network adaptor method address is displayed, but the other address can be obtained by changing the first pair of digits between '00'(wireless) and '02'(wired) Insufficient Wi-Fi signal strength Unusual network configuration Unknown encryption method Firewall preventingaccess Check distance to router; see if a computer can connect to the network in this location Setup network manually through Menu> System settings > Network >Manual settings Change encryption method on router.M5+ supports WEP, WPA and WPA2 Check the following ports are open onthe router: UDP and TCP ports 80 and123; DNS port 53. Windows shares:ports 135–139 and 445. Windows Media Player: varies– non-Microsoft firewalls may require configuration for UPnP. 'Cannot connect to network Solutions Cause Problem Internet connection down Firewall preventing access Station not broadcasting, overloaded or insufficient bandwidth. Station broadcastingusing unknown codec. Link out of date. Check that Internet is working for a computer connected to the same network Check the following ports are open:UDP and TCP ports 80 and 123; DNS port 53. Some Internet radio stations may require additional ports to be opened. Try other stations; try listening on computer via Internet radio portal website; try later. ' Cannot connect to Internet ' Cannot play particular Internet radiostation37 of 3836 of 38

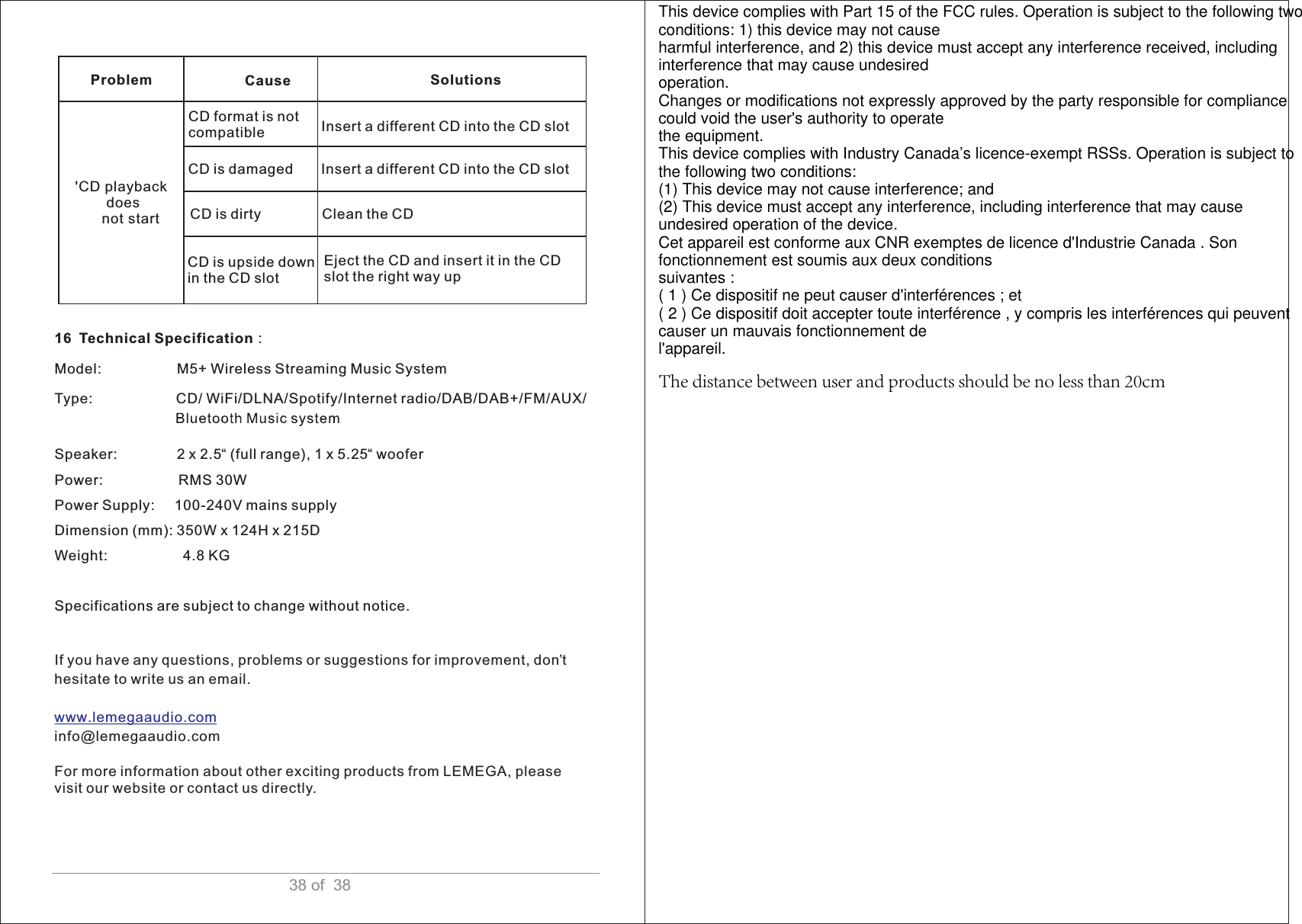

38 of 38 CD format is notcompatible CD is dirty CD is damaged CD is upside downin the CD slot Insert a different CD into the CD slotClean the CDInsert a different CD into the CD slot Eject the CD and insert it in the CD slot the right way up' CD playback doesnot startSolutions CauseProblem 16 Technical Specification：Model: M5+ Wireless Streaming Music System Type: CD/ WiFi/DLNA/Spotify/Internet radio/DAB/DAB+/FM/AUX/Speaker: 2 x 2.5“ (full range), 1 x 5.25“ woofer Power: RMS 30WPower Supply: 100-240V mains supplyDimension (mm): 350W x 124H x 215DWeight: 4.8 KGSpecifications are subject to change without notice.If you have any questions, problems or suggestions for improvement, don’t hesitate to write us an email.info@lemegaaudio.comFor more information about other exciting products from LEMEGA, please visit our website or contact us directly.www.lemegaaudio.comThis device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not causeharmful interference, and 2) this device must accept any interference received, including interference that may cause undesiredoperation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operatethe equipment.This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:(1) This device may not cause interference; and(2) This device must accept any interference, including interference that may cause undesired operation of the device.Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditionssuivantes :( 1 ) Ce dispositif ne peut causer d'interférences ; et( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement del'appareil.The distance between user and products should be no less than 20cm
