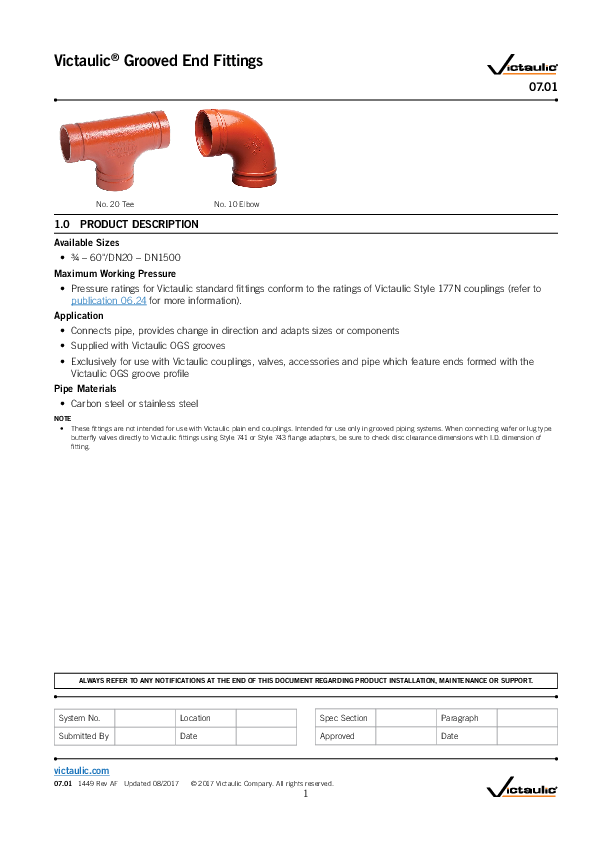

Victaulic� Grooved End Fittings 07.01 No. 20 Tee No. 10 Elbow 1.0 PRODUCT DESCRIPTION Available Sizes � � � 60"/DN20 � DN1500 Maximum Working Pressure � Pressure ratings for Victaulic standard fittings conform to the ratings of Victaulic Style 177N couplings (refer to publication 06.24 for more information). Application � Connects pipe, provides change in direction and adapts sizes or components � Supplied with Victaulic OGS grooves � Exclusively for use with Victaulic couplings, valves, accessories and pipe which feature ends formed with the Victaulic OGS groove profile Pipe Materials � Carbon steel or stainless steel NOTE � These fittings are not intended for use with Victaulic plain end couplings. Intended for use only in grooved piping systems. When connecting wafer or lug type butterfly valves directly to Victaulic fittings using Style 741 or Style 743 flange adapters, be sure to check disc clearance dimensions with I.D. dimension of fitting. ALWAYS REFER TO ANY NOTIFICATIONS AT THE END OF THIS DOCUMENT REGARDING PRODUCT INSTALLATION, MAINTENANCE OR SUPPORT. System No. Submitted By Location Date Spec Section Approved victaulic.com 07.01 1449 Rev AF Updated 08/2017 � 2017 Victaulic Company. All rights reserved. 1 Paragraph Date victaulic.com 1.0 PRODUCT DESCRIPTION (Continued) Other Fitting Styles AGS - Advanced Groove System from 14 � 60"/DN350 � DN1500 Publication 20.05 Stainless Steel Publication 17.16 Galvanized Publication 07.01 for Original Groove Fittings Publication 20.05 for AGS Fittings Extra Heavy EndSeal "ES" Publication 07.03 Copper Publication 22.04 Ductile Iron for AWWA size pipe Publication 23.05 XL fittings for abrasive services Publication 07.07 Aluminum Publication 21.03 Shouldered Ends Publication 07.06 Plain End Publication 14.04 07.01 1449 Rev AF Updated 08/2017 victaulic.com � 2017 Victaulic Company. All rights reserved. 2 victaulic.com 2.0 CERTIFICATION/LISTINGS NOTES � When supplied as "hot dip galvanized" the following fittings are UL Classified in accordance with ANSI/NSF 61 and for use on cold +86�F/+30�C potable water service and ANSI/NSF 372: No. 10 90� Elbow, No. 11 45� Elbow, No. 12 22 �� Elbow, No. 13 11 �� Elbow, No. 100 90� Long Radius Elbow, No. 110 45� Long Radius Elbow, No. 20 Tee, No. 25 Tee with Grooved Branch, No. 30 45� Lateral, No. 60 Cap, No. 50 Concentric Reducers, No. 51 Eccentric Reducers. � The following Victaulic fittings are VdS approved: No.10 90� Elbow, No.11 45� Elbow, No.20 Tee and No.60 Cap. � The following Victaulic fittings are LPCB approved: No.10 90� Elbow, No.11 45� Elbow, No.12 22 � Elbow, No.13 11 �� Elbow, No.30 45� Lateral, No.30-R Reducing Lateral, No.100 Long Radius Elbow, No.110 Long Radius Elbow, No.20 Tee, No.35 Cross, No.60 Cap, No.25 Reducing Tee, No.33 True Wye, No.50 Concentric Reducer, No.51 Eccentric Reducer and No.29M Tee with Threaded Branch. � The following Victaulic fittings are FM approved: No.10 90� Elbow, No.11 45� Elbow, No.12 22 � Elbow, No.13 11 �� Elbow, No.30 45� Lateral, No.100 Long Radius Elbow, No.20 Tee, No.35 Cross, No.60 Cap, No.25 Reducing Tee and No.50 Concentric Reducer. 3.0 SPECIFICATIONS - MATERIAL Fitting: (specify choice) Standard: Ductile iron conforming to ASTM A536, Grade 65-45-12. Optional: Segmentally welded steel as shown under nipples Nipples: (specify choice) � � 4"/DN20 � DN100: Carbon steel, Schedule 40, conforming to ASTM A53, Type F 5 � 6"/DN125 � DN150: Carbon steel, Schedule 40, conforming to ASTM A53, Type E or S, Gr. B 8 � 12"/DN200 � DN300: Carbon steel, Schedule 30 or 40, conforming to ASTM A53, Type E or S, Gr. B Flanged Adapter Nipples: (specify choice) Class 125 Flange: Cast iron conforming to ANSI B16.1 Class 150 Flange: Carbon steel conforming to ANSI B16.5, raised or flat face Class 300 Flange: Carbon steel conforming to ANSI B16.5, raised or flat face Fitting Coating: (specify choice) Standard: Orange enamel Optional: Hot dip galvanized and others. Some fittings supplied electroplated as standard � see product specifications Flanged Adapter Nipple Coating: (specify choice) Standard: None (Unfinished) Optional: Orange enamel, hot dip galvanized and others 07.01 1449 Rev AF Updated 08/2017 victaulic.com � 2017 Victaulic Company. All rights reserved. 3 victaulic.com 4.15 DIMENSIONS (Continued) Concentric/Eccentric Reducer No. 50 Concentric No. 51 Eccentric E to E E to E E to E E to E E to E E to E E to E E to E No. 50 No. 51 Fabricated Steel Fabricated Steel No. 50 No. 51 No. 50 Concentric No. 51 Size Reducer Eccentric Reducer Nominal E to E Approx. Weight (Each) E to E Approx. Weight (Each) inches DN inches lb inches lb mm kg mm kg 10 DN250 x 4 DN100 6.00 152 19.7 13.00 (sw) 32.0 8.9 330 14.5 5 + 33.0 15.0 + 34.6 15.7 6 6.00 DN150 152 20.0 13.00 (sw) 36.9 9.1 330 16.7 8 6.00 22.0 7.00 21.6 DN200 152 10.0 178 9.8 12 DN300 x 4 DN100 + 44.0 14.00 (sw) 48.0 20.0 356 21.8 6 7.00 DN150 178 24.6 14.00 (sw) 50.0 11.2 356 22.7 8 7.00 DN200 178 52.0 14.00 (sw) 53.5 23.6 356 24.3 10 7.00 DN250 178 39.0 14.00 (sw) 57.0 17.7 356 25.9 142 DN350 x 6 DN150 13.00 330 65.0 29.5 13.00 330 60.0 27.2 8 13.00 65.0 13.00 60.0 DN200 330 29.5 330 27.2 10 13.00 66.0 13.00 65.0 DN250 330 29.9 330 29.5 12 13.00 68.0 13.00 66.0 DN300 330 30.8 330 29.9 162 DN400 x 8 DN200 14.00 356 73.0 33.1 14.00 355 73.0 33.1 10 14.00 73.0 14.00 73.0 DN250 356 33.1 355 33.1 12 14.00 73.0 14.00 73.0 DN300 356 33.1 355 33.1 14 14.00 73.0 14.00 73.0 DN350 356 33.1 355 33.1 182 DN450 x 10 DN250 15.00 381 91.0 41.3 15.00 381 91.0 41.3 12 15.00 91.0 15.00 91.0 DN300 381 41.3 381 41.3 14 15.00 91.0 15.00 91.0 DN350 381 41.3 381 41.3 16 15.00 91.0 15.00 91.0 DN400 381 41.3 381 41.3 2 For 14"/DN350 and larger roll grooved systems, Victaulic offers the Advanced Groove System (AGS). For pricing and availability of cut groove fittings in this size, contact your nearest Victaulic sales representative. No. 50 No. 51 Fabricated Steel Fabricated Steel No. 50 No. 51 No. 50 Concentric No. 51 Size Reducer Eccentric Reducer Nominal inches DN 202 DN500 x 10 DN250 12 DN300 14 DN350 16 DN400 18 DN450 242 DN600 x 10 DN250 12 DN300 14 DN350 16 DN400 18 DN450 20 DN500 E to E inches mm 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 Approx. Weight (Each) lb kg 110.0 49.9 120.0 54.4 149.0 67.9 120.0 54.4 136.0 61.7 142.0 64.4 150.0 68.0 162.0 73.5 162.0 73.5 162.0 73.5 151.0 68.5 E to E inches mm 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 20.00 508 Approx. Weight (Each) lb kg 177.0 80.3 120.0 54.4 149.0 67.9 120.0 54.4 136.0 61.7 142.0 64.4 150.0 68.0 162.0 73.5 162.0 73.5 162.0 73.5 190.0 86.2 14 � 60 For AGS fitting information, see publication 20.05 DN350 � DN1500 2 For 14"/DN350 and larger roll grooved systems, Victaulic offers the Advanced Groove System (AGS). For pricing and availability of cut groove fittings in this size, contact your nearest Victaulic sales representative. (s) = Carbon Steel Direct Roll Groove (OGS) (sw) = Carbon Steel Segmentally Welded + Contact Victaulic for details. NOTES � Available with male threaded small end No. 52. � Cast fitting available for JIS size. Contact Victaulic for details. � Steel eccentric reducers available through 30"/DN750, contact Victaulic for dimensions. � All fittings are ductile iron unless otherwise noted with an (sw) or (s). 07.01 1449 Rev AF Updated 08/2017 victaulic.com � 2017 Victaulic Company. All rights reserved. 22
