User Manual for BOBLOV models including: X6B, 2A2Y9-X6B, 2A2Y9X6B, X6B Body Worn Camera, Body Worn Camera
Shenzhen Eeyelog Technology Co., Ltd. X6B Body Worn Camera 2A2Y9-X6B 2A2Y9X6B x6b

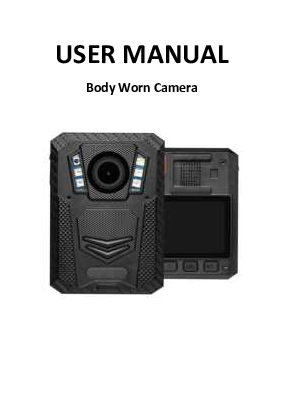

USER MANUAL Body Worn Camera About this Guide The content in this document is for information purpose and is subject to change without prior notice. We have made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors or omissions that may have occurred. The manufacturer reserves the right to change the technical specification and accessories without prior notice. Caution Do not expose battery being placed in high temperature environment. If battery leaks or bulges, stop to use. Risk of explosion if battery is placed by an incorrect type. Dispose of used batteries according to the instructions. Never replace the battery on your own. Doing so may cause the damage or explosion. Please have the dealer do it for you. Do not put the LCD display or lens under the sunshine. Note A specific emission frequency may influence the image quality. Please try a few times of video-taking test before you formally use this product in order to be familiar with this product. Always full charge the battery before use. Never dismantle, crush, or pierce the product, or allow the product to short-circuit. Please persuade for professional assistance if the product doesn't work properly. Before you start using this product, it is assumed that you agree to the above statement. 1 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off 2 and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. 3 TABLE OF CONTENTS About this Guide Caution Note Introduction 1. Introduction 2. Box Contents 3. Product Overview 4. Main Menu Optional Detail 5. Operation 6. Camera setting through Camera Manager This camera is new generation video recorder of High Efficiency video coding (HEVC, H.265) and low power consumption. If you record videos by using H.265 coding format, it is suggested to download Media Player Codec Pack (check below link) to assist to play back H.265 videos on windows Media Player. https://www.mediaplayercodecpack.com/ 4 1. Introduction Thank you for purchasing this product. This camera is specially designed for video recording, audio recording and photo shooting. Please read the user manual before you start to use it. Important information: before you start to use this device, please connect it to computer through auxiliary USB cable, then camera will require password in the LCD screen. Please press OK button for six times to get access to camera storage, then Copy BodyCam PC software from camera folder to your computer for camera setting purpose in the future. Without the software, you can also change camera setting on camera menu (Page 8). BodyCam PC software will be deleted if you format the camera storage. Please contact vendor if it is lost. 2. Box contents Body Camera Charging Dock USB Cable Wall Charger Rotatable Epaulette Clip Rotatable Crocodile Clip User Manual 5 3. Product Overview 6 Item 1. Status Indicator LED 2. Charging Indicator LED 3. Pogo Pin 4. Light Sensor 5. Infrared LED 6. Lens Description Still Green: camera is in standby mode (Power on but not recording) Still Red: camera is on pre-recording mode Flashing Red: camera is recording video Flashing Yellow: camera is recording audio only Red: Charging Status Green: Camera is fully charged Connection port to charging dock Detect changes of light and turn on/off IR for low-light recording automatically Providing infrared light compensation in low light conditions, to help camera record good quality video with clear face view up to 10 meters Capture high resolution images/videos 7. White Light Hold OK button to turn on/off white light 8. USB port & Reset Button USB port is for power charging or data transmission; Reset camera when camera has operation error. 9. Video Recording Button 10.Snapshot Button / Infrared Light Button a) In power-on mode, short press to start/stop recording b) In power-off mode, hold for 3 seconds to power on camera and execute video recording function. a) Press to take photo in standby mode or in video recording mode b) Hold to turn on/off infrared lights. 7 11.Audio / SOS Button 12. Power Button 13. LCD Screen 14.Scroll Up Button 15. OK Button 16. Menu & Scroll Down Button 17. Fn Button 18. Battery Door a) Press to start/stop audio recording b) Hold to turn on/off SOS mode (flashing lights) a) Hold 3 seconds to power on/off camera b) In power-on mode, short press to turn on/off LCD . c) Short press to exit to previous interface when navigating setting or playing back files View camera status and playback recorded files a) Hold to switch 720P and 1080P resolution b) In Menu or Playback mode, short press to scroll down next page or file c) In standby or video recording mode, hold to zoom out d) In playback mode, press to rewind video a) In menu set-up, short press to make a selection b) In standby mode, press to review files c) In playback mode, press to pause/resume video or audio playback d) hold to turn on/off white lights. a) In standby mode, short press to enter menu set-up b) In Menu or Playback mode, short press to scroll down next page or file c) In standby or video recording mode, hold to zoom in d) In playback mode, press to fast forward video a) Press to mark video/audio as importance when on video/audio recording. b) press to switch between video, photo and audio when playing back files. Open it to change battery 8 LCD Interface: 9 4. Main Menu Optional Detail To enter the setting menu: 1. Press Menu button and then enter the password. 2. Enter the password by the following commands: Press Scroll Up button to change the character to the previous letter or number. Press Menu button to change the character to the next letter or number. Press OK button to confirm and move to the next character PS: The default password is 000000. 3. After selecting the last character, press OK button to enter the setting menu. To navigate the settings menu: Press Scroll Down button to select next setting or option. Press Scroll Up button to select the previous setting or option. Press OK button to move to confirm your selection or enter the sub-menu. Press Power button to return to the previous menu. Following is a list of the available settings and options. Setting Description Video Resolution The video resolution Coding Format The coding format of video files Options 2688x1512 30P 2560×1440 30P 2304×1296 30P 1920×1080 30P 1280×720 30P 864×480 30P H.264, H.265 Quality The quality of the video. S. Fine, Fine, Normal 10 Pre-record Post Record Dewarp EIS CarDV Mode Loop Recording Split Time Photo Resolution Burst When on, a certain time (depend on video resolution) will be combined into the recorded video before record button is pressed to start recording; When off, video start until the Record button is pressed to start recording. The amount of the time the camera waits to stop recording video after you press the Record button. When on, video distortion correction will be corrected, with more power consumption. When on, electronic image stabilization is activated to avoid shaky video. When on, camera will power up automatically and start video recording when it is charged. Camera will power off as it normally does when it is disconnected from the power source. When on, camera will overwrite the oldest video file with the most current video file once its memory is full. This setting can be selected only when car DVR mode is on. While recording video, the camera will automatically split its recording into files of this length. Off, On Off, 5 sec, 1 minute, 10 minutes, 20 minutes, 35 minutes Off, On Off, On Off, On Off, On 1 min, 3min, 5 min, 10 min, 15 min, 20 min, 30 min, 45min The photo resolution The number of images captured in a row when you take a photo. 40M (8448×4752 16:9) 30M (7304×4104 16:9) 25M (6664×3752 16:9) 20M (5984×3366 16:9) 12M (4608×2592 16:9) 5M (3008×1688 16:9) Off, 2, 3, 5, 7, 10, 15, 20, 30 11 Self Timer Slides Show Infrared Motion Detect The time camera waits until taking a photo after you press Snapshot button. When on, viewing photo file will start a slideshow where each photo will be shown for around 5 seconds. When set to manual, you will need to hold Snapshot button to turn IR LEDs on/off. When set to Auto, these lights will activate automatically based on the light sensor's reading. When on, camera will start recording when front movement is detected by the lens. Off, 5 sec, 10 sec, 20 sec, 30 sec, 1 min Off, On Manual, Auto Off, On Record Warning When on, you will hear a voice confirmation when you start recording. When off, voice confirmation is disabled. Off, On Global Positioning WiFi G-sensor / G-sensor sensitivity Time Zone Language Screen Saver LCD Brightness When GPS is on, position of video will be recorded and can be reviewed by GPS player. WiFi mode When G-sensor is on, camera will detect attack from external force and trigger video recording. Adopt local time in real time zone The language of the text in camera interface The amount of the time the camera can be idle before deactivating the display to conserve power. Screen lighting to view Off, On ON(AP), ON(STA), OFF OFF, High, Middle, Low -12 to +12 Default 0 English, , P, JezykPolski, French, Portuguese Off, 30 sec, 1 min, 3 min, 5 min High, Low 12 Auto Power off LED Light White Led Key Tone Motor Volume Time Setup ID Setting Password Change Password Default Setting FW Name The amount of the time the camera can be idle before powering off. Off, 30 sec, 1 min, 3 min, 5 min When on, indicator LED will tell the status of the camera; When off, camera is entering covert mode On, Off White Led light to offer light source When on, camera will play a tone each time you press a button. When off, tone is disabled. Off, On On, Off Switch of vibration indication On, Off The volume of camera speaker. This affects the loudness of video playback, audio playback, the key tone, record warning, and any other sounds played by camera. This doesn't affect the volume of the recorded video or audio files themselves. Adjust time to real location User can set Device SN and Person SN If password is on, user needs to enter password to get access to setting and connection to PC Password can be set or changed Use this to return camera to its original settings. This does not erase the memory 0-12 Default 12 yyyy/mm/ddhh/mm Alphanumeric characters On, Off Alphanumeric characters O (Yes), X (No) Firmware version 13 5. Operation 5.1 Power on/off Hold Power button for 3 seconds to start up and enter standby mode; In any mode with holding Power button for 3 seconds, camera will shut down. PS: in standby / video recording / audio recording mode, short press power button , screen saver can be on/off. 5.2 Audio recording In standby mode, press audio Recording Button for audio recording. Camera will beep, and vibrate once and LED indicator on the top turns yellow and flashes. Press again audio Recording Button to stop audio recording (camera vibrates twice) and save the file. In audio recording mode, short press Fn button to remark the file as an important file, the yellow star icon will appear at the right side on screen. 5.3 Photo shooting In standby mode, press photo button to take photos. 5.4 Video recording In standby mode, press video Recording Button to start video recording. Camera will beep, and vibrate once and LED indicator on the top turns red and flashes. Press again video Recording Button to stop video recording (camera vibrates twice) and save the file. In video recording mode, short press Fn button to remark the file as an important file, the yellow star icon will appear at the right side on screen. 5.5 One-button video recording In power-off mode, hold video Recording Button for three seconds for powering on the camera and start video recording immediately. 5.6 PIV (picture in video) In video recording mode, press photo button to capture photo. 14 5.7 Zoom In standby or video recording mode, hold Scroll Up button and scroll down button to zoom in and out the image. 5.8 IR night vision Under dark circumstances, infrared LED will help to record clear image or video. In standby mode, PRESS Menu button to navigate. Find option Infrared, PRESS OK button to enter sub-menu: Manual & Auto, press OK button to select. 1) Auto infrared mode: In low light situations (1 Lux), 4 IR LEDs will be turned on automatically, camera switches on infrared filter lens, video image turn black and white. Otherwise, when circumstance brightness grew up, IR LED turns off, and image becomes colorful again. 2) Manual infrared mode: When night vision is needed, hold infrared light button to switch to Infrared mode, IR LEDs will be turned on, black and white image. Hold this button again to turn off IR LEDs, image becomes colorful. 5.9 White LED In standby or video recording mode, hold OK button white LED. to turn on/off 5.10 Playback In standby mode, press OK button to enter playback mode. There are Video, Photo, and Audio options. Press Fn button to select, and press OK button to confirm the selection. 1) In video file playback mode, PRESS OK button to pause/resume 15 playback; PRESS scroll-Up button to rewind, PRESS Scroll-down button to fast forward, then PRESS OK button to play normally. You can fast forward or rewind 2x, 4x, 8x, 16x, 32x, 64x. 2) In photo file playback mode, hold scroll-Up button and Scroll-down button to zoom in and out the image. Adjustable is X1.0X10.0. In the zoom in and out image, short press scroll-Up button and Scroll-down button to move the image to right or left side. 5.11 Reset In any case the camera is frozen, use a pin to reset and restart the camera. Reset button is inside USB port. 5.12 Device ID/ User ID In standby mode, PRESS Menu button to enter settings. Find [ID setting], PRESS OK button to select, then the Device & Person SN interface will show up, 5 characters for device ID and 6 characters for person ID. PRESS scroll-Up button or Scroll-down button to choose a character, then PRESS OK button to select. 5.13 Time Setting In standby mode, PRESS Menu button to enter settings. Find Time bar, for example, 2008/02/02 07:40. PRESS OK button and enter the password, then users can change the date and time. Press scroll-Up button or Scroll-down button to choose a character, then PRESS OK button to select. 16 5.14 USB Driver video/picture/audio files can only be deleted on your PC/laptop. After being connected to PC, password interface shows up, please enter the password (default password is 000000) Press the (ok) button 6 times, the camera will be recognized by the computer as Extra drive. User can go to camera folder and delete those files not needed. 5.15 Charging When camera battery is low, the battery icon will flash in the display, and you will hear a alert tone. When this happens, charge the camera. While camera is charging, indicator light turns red and will turn green after camera is fully charged. It will take approximately 4 hours to fully charge the camera. Charging methods: 1). Use a USB cable to connect camera's USB port to a USB port on your computer (powered on) or USB power adapter (connect to a power outlet) 2). Attach camera to the docking bay. Use a USB cable to connect the docking bay to a USB port on your computer (powered on) or USB power adapter (connect to a power outlet). 17 5.16 WiFi AP mode - used for single device real time video review and controlling. Search "Eyescam Pro" in App Store or Google Play and download it to your phone or tablet. 18 Go to camera menu and Turn on "WiFi". You will see GREEN WiFi icon on top of screen. Go to phone/tablet WiFi setting. Find out your body camera's WiFi SSID (H22_WIFI_AP as default) and select, then input WiFi password (12345678 as default) and connect. Open Eyescam Pro and tap "connecting device" to enter camera interface. 19 Tap resolution window to change video resolution. 20 Tap setting icon to enter simple setting menu. Tap RED button to start/stop video recording. Tap PHOTO button to make a snapshot. 21 22 Tap "Recorder File" to view the video and photo files. 23 STA mode - used to view and control multiple cameras inside internal network. Operation is as below: 1, Connect camera to Cam Manager program. 2. Set "WiFi" to "ON (STA)" 3. Set WiFi parameter to same as WiFi router (enter WiFi router info and then click "Set"). 4, Go to WiFi router setting to check the body camera IP address distributed by router. (If needed, please check with router vendor on how IP address is distributed). 5, Open VLC player and click "Ctrl+N", then enter rtsp://IP Address/live For example,rtsp://192.168.1.5/live. You can view real time stream from camera. 24 6. Camera setting through Camera Manager Camera setting can be changed within the menu or by Camera Manager (from BodyCam PC Software). The software is stored in camera storage. Please check page 3 to get access to it. 1, Open Camera Manager and enter password, connect and login. (Default password is 000000) 25 2, Click "Get" to show up camera original settings. Choose target setting and click "Set", then setting is changed. 3, Click "Enter U Disk" (upper right corner) to make camera to be recognized by PC as a folder. You can check all files from the camera folder. 26 IMPORTANT INFORMATION The clips and attachment studs rotate 360 degrees - The crocodile clip, epaulette clip, chest harness and shoulder harness attachment studs ALL turn 360 degrees. Slot the clip into the back of the camera then turn the clip vertically. Or you can slot the clips into the back of the body camera first, then attach the body camera to the chest or shoulder harness, then turn the body camera vertically. Reset device- To reset the device, use a small needle to jab the reset button. The reset button is located next to the USB port. Delete files - You can only delete the recorded files from a computer. This is to stop people from getting rid of the evidence straight from the device itself. To delete the files from your computer, right click, and then delete them. Product warranty - We offer a 12-month warranty on the body camera. This warranty covers faults that were caused by the manufacturer. If the fault was caused by the customer, then the warranty will be void. USB cable - Please only use the USB cable provided in the product box. Using other USB cables might cause damage to the body camera. Attention - Please charge camera fully after camera is left without working for long time. Please keep camera bottom away from water to avoid short circuit or oxidation. Please don't disassemble camera without authorized instruction. 27WPS 文字
