Measurement Solutions - Humidity, Temperature, CO2 and Differential Pressure Measurement (EN_US)User Manual for rotronic models including: Rotronic Monitoring System
Save all your documents in the system: user manuals, data sheets, calibration certificates, SOP's... 5 ... Please see the device manual for detailed considerations.

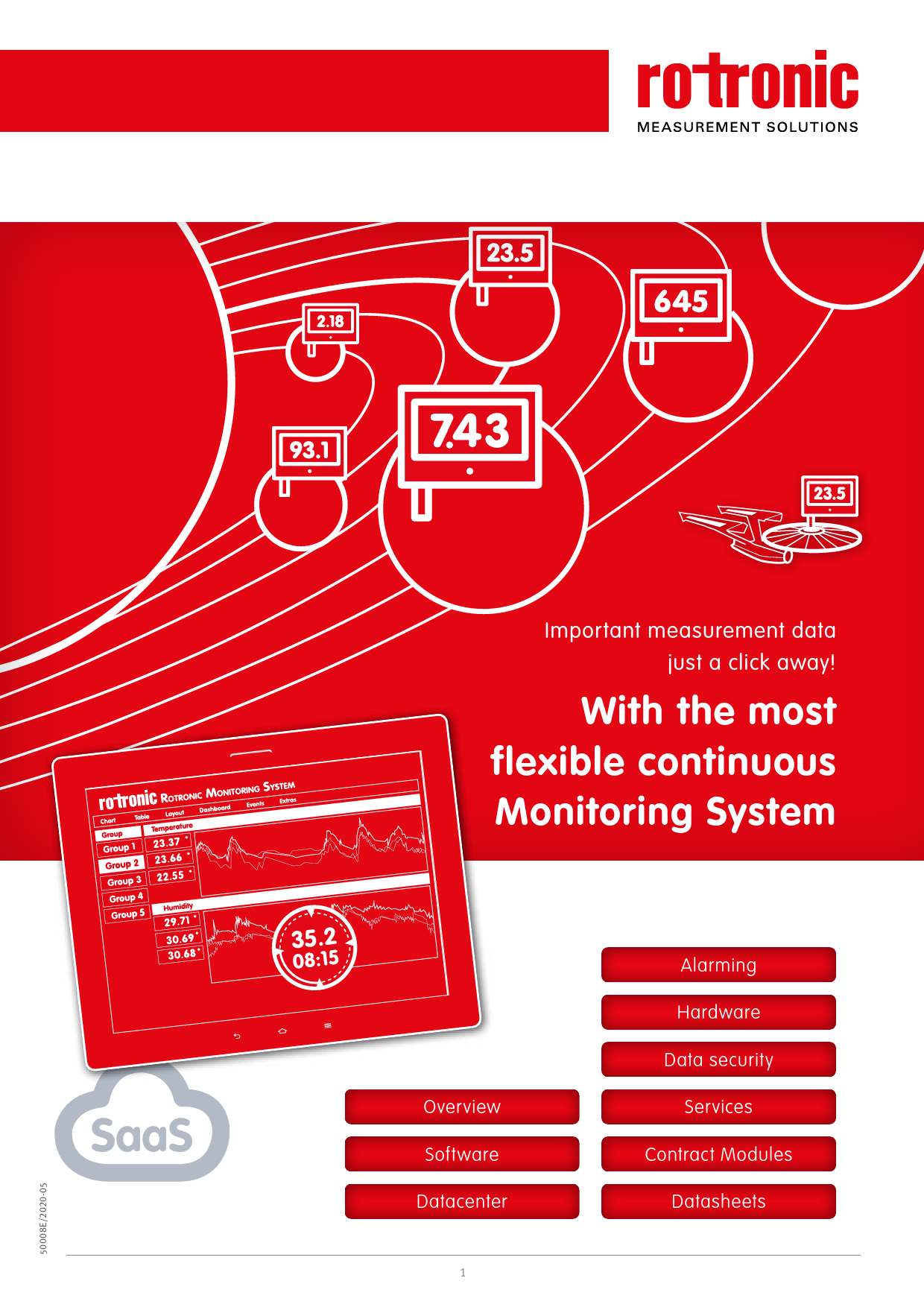

SaaS Important measurement data just a click away! With the most flexible continuous Monitoring System 50008E/2020-05 1
50008E/2020-05 SaaS Important measurement data just a click away! With the most flexible continuous Monitoring System Overview Software Datacenter 1 Alarming Hardware Data security Services Contract Modules Datasheets Rotronic Monitoring System RMS ROTRONIC MONITORING SYSTEM The Rotronic continuous Monitoring System allows users to monitor anything from anywhere using an on-premise or cloud (SaaS) solution. Strongly regulated applications · Fridges · Cold rooms · Freezers · Transport with dry ice · Cryogenics with nitrogen tanks · Blood banks · Clean rooms · Warehouses Less regulated applications such as: · Museums · Archives · Storage areas · And much more... Watch the short Explain-it Movie Customize your own RMS Architecture 2 Rotronic Monitoring System Multiple parameter monitoring RMS monitors various parameters to ensure that the environment meets the required specifications for any application. 1. Digital probes give acces to a complete audit trail and easy digital calibration thanks to the probe hot swap possibility: · Relative humidity · Temperature · CO2 · Differential pressure 2. Other inputs and outputs for third party devices (particle counters, air flow and other such parameters): · 0/4...20mA for the integration of existing devices or other parameters · 0...10V for the integration of existing devices or other parameters · Digital inputs for door contacts, leak detectors, etc. · Digital outputs to switch alarm beacons Webcams to enable a snap shot to add to automatically generated reports and see the application in real time (mouse-over) mA V Real time camera view (mouse over) Any 3rd party devices with a documented protocol LoRa devices via the API function 3 Rotronic Monitoring System Wireless or wired secure data communication 1. Wireless: · Data stored on the logger with a battery backup and 24V power supply · Redundant or parallel operation with various gateways · Decrease wiring costs · No more looking for errors in cabling · Projects accomplished faster due to no cable requirements · Easy to relocated physical measuring points · Fast and easy implementation of new measuring points · Monitor mobile equipment · 868 or 915 MHz 2. Wired: · Data stored on the logger with a backup battery, PoE and 24V power supply · No loss of communication for high risk applications · Link up to the existing Ethernet network Compliance 1. Validatable software (new releases on a 6 months basis) 2. FDA CFR 21 Part 11 compliant 3. EU Annex 11 compliant 4. Developed based upon the GAMP©5 recommendations 5. Complete GxP documentation and an IQ testing script (from the URS to the IQ/OQ/PQ) Real time monitoring and alarming The RMS software will inform you in real time via E-Mail, SMS and telephone call should a measurement point be out of limits! Automatic reporting allow for a hassle free solution and a quick login via mobile phone, tablet, PC or laptop will give you either a chart, table or a layout overview of the current situation, with short cuts to all events listed within the audit trail. Find out more at www.rotronic.com/rms 4 Rotronic Monitoring System MONITORING SOFTWARE Main Software Features · Alarm overview see directly how many alarms are active and where they are coming from · Receive alerts via interactive phone, SMS's and E-Mails · Audit trail to see exactly what happened and when · Monitor multiple locations one system for all your monitoring locations · Input floor plans get a real overview of the setup · Scalable prefect for single points in small installations to thousands of points in worldwide installations · Automatic report generation · Integration of Rotronic and any third party hardware analog and digital · Automatic validation scripts for fast and effective OQ validation · Continuously developing based around customer feedback · Create custom dashboards per user · FDA 21 CFR Part 11 & EU Annex 11 complaint · GAMP©5 conform for GxP applications Additional Features · Calibrate all of your measuring points, possibility to adjust all of the Rotronic devices · Archive all measuring points that are no longer needed, keeping access to the data for as long as necessary · Save all your documents in the system: user manuals, data sheets, calibration certificates, SOP's... 5 Rotronic Monitoring System Main software benefits · Compliance, audit and risk management · Time saving with automatic data collection and report generation · 24/7 real-time centralised monitoring of all operations · All critical measurements in one system · Real time alarming for critical measuring points Software solutions SaaS 1. Fast & Easy with the Rotronic SaaS Cloud solution Forget the hassle of having to maintain your IT infrastructure and focus only on what is crucial to your application. You can setup multiple measurement points in various locations and access the data from any device with a browser and internet connection. Setup alarms and notifications to be sure that you are always informed of what is happening! SaaS 2. Remain compliant to GxP regulations with the Rotronic Exclusive SaaS Cloud solution Hosted on a high security and redundant datacentre with your own virtual server, you can run the Rotronic category 4 software in the cloud throughout each and every GxP compliant facility. Equip your worldwide facilities with the RMS hardware and access all of the data, including the audit trail, alarming and data analysis functions from a completely validated system. 3. Take advantage of your own IT infrastructure with the RMS on-premise solution Run the RMS software with an SQL database on your own IT infrastructure and have complete control over your entire system and comply to your own internal regulations, access the interface via most browsers. 6 Rotronic Monitoring System System Overview RMS offers different views/tabs to present your system data, customised to your needs. · Chart measured values graphically and numerically and direct notification status · Table measured values numerically and various other data · Layout measured values numerically with placement in a room layout · Dashboard individual dashboard for each and every user · Events audit logs, alarms, warnings and system messages Chart view 4 1 2 3 1 Upload your company logo 2 Group information by location, room... 3 Real-time measurement value and live status 4 Current logged on user, and notification overview 5 Historical overview 6 Alarms bands for a visual depicture of warnings and alarms 5 6 6 7 Rotronic Monitoring System Layout view 1 2 1 Mouse over detailed measurement point 2 Standard measurement point overview 3 Mouse over IP camera for a snap shot of the current situation Dashboard view: user defined 3 Real time camera view (mouse over) Events view (audit trail) 1 3 2 1 Define the notifications shown in the audit trail 2 See the actual status and user inputs of each individual event 3 Filter the audit trail based upon your requirements 8 Rotronic Monitoring System DATA C E N T E R cIeTrrtiisfiked RMS Database Security When purchasing the RMS SaaS solution, Rotronic works together with the company 4Net. They provide a virtual data centre for the Rotronic Monitoring System server and database. 4Net uses the Interxion data centre. Interxion's Zurich data centre provides an ultra-secure, known location for storing and processing data in line with Swiss data protection regulations. Like all Interxion data centres, Zurich operates in full accordance with the ITILv3 framework and has ISO 27001 and ISO 22301 certification. Their compliance with the FINMA circular 07/8 is externally audited. Operational excellence: · 99.999% availability SLA · 2N or N+1 configurations for all critical systems · 24x7 operation and monitoring Sustainability: · 100% renewable energy · Carbon neutral, certified by myclimate® Security: · Monitored 24x7 by CCTV and security patrols Resilience and business continuity: · 24x7 monitoring and alarms for every critical system · Connectivity: quadruple-entry fibre from separate carrier main routes and rapidly installed cross connects · Power: secured grid supply from two sub-stations from two different power providers, two power feeds for all equipment, each independently equipped with a power supply and generator backup with full load capacity for indefinite running · Environment: SLAs on temperature and humidity in line with ASHRAE recommendations, N+1 cooling, sophisticated water and very early smoke detection systems, Inergen® gas fire suppression in line with local regulations and designed for maximum safety and minimum damage · Backups saved in a second data centre also located in Switzerland but 80 km away from the main one 9 Rotronic Monitoring System ALARMING Rotronic Monitoring System alarm protocols were set up to ensure that critical alarms cannot be missed. Notifications can be triggered based upon the risk level. Four levels of alarming are available, activation is based on the defined risk: · Reminder for events that are non-urgent: Low battery (device) Simulator connected (measuring point) Reminder that a calibration is due Data gap after downloading missing measured values · Warning for measured values that are out of limit (measuring point) · Alarming for measured values that are out of limit (measuring point) · Error for urgent hardware errors: Device timeout (device) Sensor error (measuring point) An overview of the alarms can be seen once the user has logged into the system. The user only sees the alarms relevant to his granted access rights. Each measuring point, if not conforming, will be attributed a different colour based upon the alarm status: Critical alarms can also be set up with a warning before alarms are activated. Hysteresis and a delay can be set up for the warning, with upper and lower limits defined, as well as for the alarming. All alarms are clearly shown in the audit trail indicating the unique ID for the event, the time and date of the alarm, information about what the alarm is, the target (the measuring point or device) as well as additional details. Viewing the audit trail, it is easily possible to see if an alarm has been either acknowledged, or if it has ended. If an alarm is acknowledged, the time, date, name of the user who acknowledged the alarm as well as the alarm details are also saved and visible within the audit trail. Within the audit trail, it is also possible to close or inhibit an alarm. 10 Rotronic Monitoring System Alarms can be set up based upon either the measuring point, or via an alarm scheme. For alarms based upon the measuring point the choice of options is limited. Within an alarm scheme the user has the possibility to set a condition such as an active time as well as a warning. An action can be configured in both situations. The various alarms can be notified in different ways and can be sent to just one or multiple users. · E-Mail · SMS * · Telephone call * · Switch relay · Send data via TCP * The user's telephone number must be added to the system. E-Mail alarm: When setting the system up with a TCP/IP based camera, a snap-shot can be added to the E-Mail with a chart (either as a PDF or included in the body of the E-Mail). SMS alarm: The alarm will be sent out in the language in which the software is configured. Telephone call: Within the system settings, the user can decide the information stated during the telephone call, from the device/measuring point ID to a measuring point comment. For the telephone call, if various users are selected, the system will call the first user on the list and continue through the list. Only when one user inhibits the alarm via the telephone will calling stop. The inhibition time from the telephone call is also set up within the system settings. Switch relay: If a device with a relay is included in the system, then with the alarm scheme, it is possible to trigger that alarm to action either a visual or audible alarm, or another type. Send data via TCP: Data can be transmitted to a TCP/IP device to switch a device to either On or Off. It is also possible to set up IF-THEN scripts to trigger actions on the basis of one or more defined pre-conditions. 11 Rotronic Monitoring System HARDWARE Lan and Wireless System All RMS components are connected via a LAN or a wireless interface. All data is transmitted to the SQL database and visualised via a web browser. RMS Wall module The RMS wall module is designed for applications where the module is visible to users: simple and practicle. The module can be fixed to the wall and easily wiped clean. The RMS Wall module is available with either a LAN or a wireless (868 or 915MHz) interface. The module can be powered either via PoE (LAN version only), 24V or battery and can store 44'000 data points. Wall module devices: · RMS-LOG-L / 868 / 915 · RMS-GW-868 / 915 The RMS Wall module also exists with display. Wall module with display devices: · RMS-D-L The RMS Mini module The RMS Mini module is only available with a wireless interface (868 or 915MHz) and battery powered, with a storage of up to 12'000* data points. RMS Din Rail module The RMS Din Rail module is for installation where esthetiques are not crucial to the application. The RMS Din Rail module is available with either a LAN or a wireless (868 or 915MHz) interface. The module can be powered either via PoE (LAN version only), 24V or battery and can store 44'000 data points. Din Rail module devices: · RMS-DI-L-R · RMS-DO-L-R RMS Converter The RMS Converter allows for integration of digital third party devices with an Ethernet connection. The converter will translate the digital protocol and send it to the database, the values are then visble via the web browser. The converter also has an onboard 7 day memory** should the network go down. The device is limited to 100 devices. RMS converter: · RMS-CONVERTER-100 Mini module devices: · RMS-MLOG-T-868 / 915 · RMS-MLOG-T10-868 / 915 · RMS-MDI-868 · RMS-MLOG-B-868 / 915 · RMS-MADC-868-A / 915-A · RMS-MADC-868-V · RMS-MLOG-LGT-868 * Please check each device individually for the data storage possibilities. ** The converter should be on the same network as the third party device. 12 Rotronic Monitoring System DATA SECURITY / -INTEGRITY / FDA CONFORMITY Data security, data integrity, data availability: these three terms play a central role in monitoring systems. The RMS reassuringly scores in all these fields. Data Security Data security means the data cannot be accessed by unauthorized persons. This is achieved through encryption during data transfer and storage. Data Security in RMS The monitoring system provides encryption of the data during transfer. This means the data can neither be tapped or manipulated by so-called retry attacks. The security of the stored database in RMS is ensured by the IT structure. The Rotronic Cloud is protected by certified IT data centers. If the database is located in the customer's server center, the customer defines the security infrastructure. Rotronic then offers IT support. FDA/GMP Requirements Regulators in the pharmaceutical and food industries demand that all relevant events are recorded so they are traceable. This is achieved through the electronic marking of all calibration measurements and verification processes. The so-called "electronic recording" requires unique identification of certificates. This means that every calibration certificate with a date and inspection stamp must be traceable such that the calibration chain can be verified. Audit Trail When a monitoring system is commissioned, it is calibrated and validated. In this way the operator assures his Quality department that the system works correctly. During subsequent operation, all relevant changes must be recorded in full. The audit trail guarantees recording of all changes in the system such as, for example, change in measurement probes, user activities, battery change. This in turn ensures that all events can be tracked at a later date. Data Availability For some manufacturar's systems, data availability can contradict data security because secure data are difficult to access. The user must authenticate themselves and use secure connections or verified platforms. Nevertheless, the trend is clearly moving towards worldwide data accessibility allowing platform-independent viewing and evaluation. Data Integrity Ensuring data integrity means guaranteeing secure transmission and storage. A measured value must not change during transmission because of disruptions. Data transmission and storage must therefore be safe from manipulation. This is achieved with CRC checksums and intermediate storage during data transmission. In this way, faulty data communication is recognized and the data stored in the buffer memory are sent again until the transmission has been finished. All data in RMS are sent with CRC checksums and confirmed by the recipient after receipt. Faulty data transmission is thus ruled out. Should the data not arrive with the recipient, they are stored intermediately by the logger and can then be transmitted at a later point in time when the connection has been restored. 13 Rotronic Monitoring System RMS Communications 14 Rotronic Monitoring System RMS SERVICES Project Procedure The Rotronic Monitoring System (RMS) is a hardware and software solution adjustable to your requirements for a continuous monitoring system. The complete system conforms to GAMP5, Rotronic is well aware that our support is crucial to your project, so we offer a complete solution. From the user requirement specifications to the IQ/OQ/PQ with our detailed documentation finishing off with tailor made training for your employees. Furthermore the RMS software is delivered as a GAMP software category 4 system.Our main goal is to fully understand your requirements and deliver the best continuous monitoring system for you and your company. Review of the URS Rotronic has designed a functional description document explaining each and every function of the RMS software. This description will help you create your own URS, but it might also help you adapt the one you already have striving to provide the best risk based approach to compliant GxP computerised systems. Don't know exactly how to build up your URS? No need to worry, Rotronic have the knowledge and documentation required to help support you in any case. The continuous monitoring system RMS is a very flexible solution both on the hardware and the software side (R&D and production in the Headquarters in Switzerland). You have a problem, let us work together to give you the perfect solution. A personal discussion is of the upmost importance though, only when speaking to you can we really understand your requirements for a continuous monitoring system! Design Concept After fully understanding your requirements, a project is setup at Rotronic. Each and every step is listed, costs evaluated and an initial time line defined. A crucial point is software adaptations, any adaptions are follow a stringent testing process within Rotronic, so project timing is a key to a successful roll out of your continuous monitoring project. Rotronic has the possibility to carry out the complete monitoring system project, from the heat mapping of the various areas to the physical installation of the devices. Internally, the project team needs to understand your requirements in order to deliver your solution based upon your time line. Our main aim is an optimised communication based upon information transfer to the entire team: sales, product management, inside sales, after sales, production and R&D are all involved already in this initial process. Conceptual Offer Rotronic will give you an initial quotation based upon your URS and the project planning. This initial quotation is rarely the final quotation, but a ball park figure that will help you to get a feeling for the costs of a project. Products will be added and removed, services will be adapted... The initial quotation will help you get a feel for the market and already an understanding of what working with Rotronic is like. We are more than happy to invest time in a project, so that you get the best continuous monitoring solution possible! 15 Rotronic Monitoring System On site Demo Installation Pricing and promises in hand, we consider it important that customers actually try out the RMS. Be it via our cloud solution or our server software, our engineering team will offer you a solution based upon your requirements. When you start to play with the software, very quickly, thanks to its simple and effective design, you can work your way through the different functions and get a real understanding for what the system can offer. With just a few measurement points, you can already get a feeling for what is going on in the various locations that you monitor. Increase of CO2, people are in the room, a temperature decrease might mean that the heating has been cut off, the lux increase, the sun is coming up... Everything of course can be verified by adding an IP camera next to the measurement point to confirm what you are seeing. You can get a feel for the alarming functions, an overview of how the audit trail actually works and what data you can extract from the system! We will support for the optimal installation of your demonstration, you need to test it to understand the flexibility of what Rotronic can offer you. After seeing the demo, new ideas will appear and will help Final Offer You now understand that the sky is not the limit with our universal RMS. You've had new ideas, seen new potential and have accordingly updated your URS. Rotronic has been with you throughout this process and can now give you a tailor made quotation responding to your exact detailed requirements for a continuous monitoring system. Verification from the Customer Of course, a market comparison is necessary! The flexibility and quality of RMS, the professionalism of our team and the complete package that we can offer will be sure to make Rotronic a very competitive partner for your project. Need more details from our side, don't hesitate to give us a call. Remember, we are FDA 21 CFR Part 11 and GAMP 5 conform for the most demanding applications, but we can also help you with smaller projects where these regulations are not required. With the Rotronic Monitoring System, we have a shoe that fits every foot. Installation /Commissioning Congratulations on choosing to partner with Rotronic on your project! After a review of the project planning and time lines, we can start with the physical installation of the devices, the setup of the software and SQL database on your server, the configuration of the software and the hardware (this is as well something that you can choose to do on your own, we are always happy to offer a helping hand). The heat mapping or the wireless signal mapping can both be carried out with the helping hand of Rotronic should this be a necessity. 16 Rotronic Monitoring System Validation The software is validatable, so time to validate your continuous monitoring system. If you did the URS with the Rotronic documentation, then we can also offer the rest of the validation documentation, the validation master plan, the risk assessment, the functional requirement specifications, the configuration specification, the requirement traceability matrix, the validation script specification, the installation qualification, the operation qualification and the performance qualification of course followed by your tailor made training. This validation model is based upon the GAMP5 standard and is recognised throughout the pharmaceutical world. The entire validation will prove that your system replies to your URS. Even if you didn't use the Rotronic URS, you can still use the Rotronic documentation as guidelines. With our team of trained professionals, Rotronic can carry out the validation of your system partially or fully if required. Maintenance and Support Who better to receive support from but from the manufacturer? Maintaining your system is crucial for the running of your processes. Rotronic offers packages from ISO-17025 and ISO-9001 calibrations only (temperature, relative humidity, dew point, differential pressure) to hardware and software maintenance contracts, build around your requirements. The software is also setup in a way that it makes hardware changes ever so simple and effective. Like the system our support is already very flexible! 17 Rotronic Monitoring System RMS CONTRACT MODULES Create your tailored version based on the various modules Software Hardware General Support Installation Services Onsite Maintenance Premium Support PURCHASE RENT PURCHASE RENT PURCHASE PURCHASE RENT RENT INCLUSIVE INCLUSIVE INCLUSIVE INCLUSIVE OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL COMPULSARY INCLUSIVE COMPULSARY INCLUSIVE What we can offer SaaS Fast & Easy Software only Solution Take advantage of our SaaS solution, freeing you from complex software and IT hardware management and benefit from our outstanding IT infrastructure with a state of the art security and data redundancy setup. You are guaranteed to have a 99.01% availability of your data with no hidden costs! You will also benefit from free software improvements and upgrades throughout the lifetime of your monitoring system. Contract SaaS Software only SaaS Carefree Hardware Solution You also have the possibility to also rent the hardware from us! Rotronic will keep an inventory of relevant measurement product for you so that you do not have to manage anything other than returning the defective units to us. Should a product fail or break, it will be replaced within 24 working hours1. No more issues with making room in your warehouse, finding the devices when you need them and no more cash tied up in possibly never used stock. Contract SaaS Software & Hardware Carefree Installation Service You and your team are too busy or you do not have access to qualified personnel. Your configurable environmental monitoring system can be setup to run, exactly how you want it to as soon as the devices are delivered. Let us install and configure your hardware and software; you will not have to lift a finger! Overview Service Carefree Maintenance SLA Once your system is up and running, who better than Rotronic to service your system. We can calibrate (ISO-17025 or traceable) your devices on a yearly basis, calibrations on site are also possible. At the same time change filters, O-rings and make sure that hardware is running the latest firmware. To guarantee data redundancy, we can also change batteries and ensure that your system is running smoothly. SLA Onsite Maintenance 1 For customers in Switzerland. 18 Rotronic Monitoring System V Fully Compliant Exclusive Contract For GxP compliant systems that require validation, Rotronic offers a turnkey solution from A to Z. Let us know what your user requirement specifications are and let us provide you with the solution! Contract Exclusive SaaS On-Premise Support If you already have solid IT infrastructure in place, responding to your security policies and up to date with the latest norms, we also offer all of the above with an on-premise software solution. Overview Support Stay up to date premium Support SLA Stay up to date and improve your monitoring with the latest software updates Premium Support and features sent out to you on a regular basis. Questions? Do not hesitate to contact us: rms@rotronic.ch 19 Rotronic Monitoring System DATA SHEETS RMS-HCD-S RMS-PCD-S-XXX RMS-CCD-S-XX RMS Data Logger RMS Mini Logger RMS Gateway RMS Display RMS-DI-L-R RMS-DO-L-R RMS Converter RMS-8ADC-L-R-A RMS-8ADC-L-R-V RMS-4RTD-L-R RMS Accessories AD-0001 WB-0001 CF632-W-INC-20 20 RMS-HCD RMS-HCD-S RMS-HCD-IC102 RMS-HCD-IC105 Advantages · Measures relative humidity and temperature · Outstanding accuracy, repeatability and long-term stability · Advanced probe housing and construction · Compatible with RMS data loggers and RMS Software · Low power Applications · Pharmaceutical Monitoring · Food Monitoring · Museum Monitoring · Monitoring conform to GxP and FDA CFR PART 11 The Hygroclip Digital RMS-HCD was specifically designed for use as part of the Rotronic Monitoring System (RMS). Building upon our experience we improved the power consumption so that it is usable by battery powered system like the RMS wireless data loggers. Having less cabling reduces installation cost and increases the flexibility of the installation. Standard Compatible with the following with RMS data loggers such as the RMS-LOG-L (LAN data logger), RMS-LOG-868 (Wireless and RMS-LOG-915. · Application Range · Accuracy · Factory-adjustment · Humidity Sensor · Long-term stability 0...100 %RH, -40...85 °C ±0.8 %RH, ±0.1 K @ 23°C @ 23°C and 10, 35, 80 %RH HYGROMER HT-1 < 1% RH /year Order Code RMS-HCD-S RMS-HCD-S3 Type Black Probe White Probe Industrie Industry probes have a sensor head separated from the measurement electronic by a cable. This allows a higher application range for the sensor head. · Application Range sensor head · Application Range electronic · Accuracy · Factory-adjustment · Materials · Humidity Sensor · Long-term stability 0...100 %RH, -100...190 °C 0...100 %RH, -40...85 °C ±0.8 %RH, ±0.1 K @ 23°C @ 23°C and 10, 35, 80 %RH PPS, stainless steel 1.4301 HYGROMER HT-1 < 1% RH /year Order Code RMS-HCD-IC102 RMS-HCD-IC105 Cable length 2 m 5 m 1 www.rotronic.com 59083E/2018-08 Possible Filters Order Code SPA-PCB-PE SPA-PCB-PTFE SPA-PCB-WM SPA-PCW-PE SPA-PCW-PTFE SPA-PCW-WM SPA-PE SPA-PTFE Filter carrier Polycarbonate, black Polycarbonate, white No filter carrier, only filter Filter Element Polyethylene, white PTFE, white Wire mesh 1.4401 Polyethylene, white PTFE, white Wire mesh 1.4401 Polyethylene PTFE, white Pore size 40-50 m 10 m 40-50 m 10 m 40-50 m 10 m Application Range -50...100 °C -100...200 °C Possible Extension Cables It is possible to extend the distance between the probe and its reading device with extension cable. · Passive connection are possible up to 5m (see table below for possible options). RMS-HCD probe Ex-xxA Extension cable Maximum 5 m Reading Device RMS-LOG-L RMS-LOG-868 RMS-LOG-915 Order Code E2-01A E2-02A E2-05A E3-01A E3-02A E3-05A Cable Length 1 m 2 m 5 m 1 m 2 m 5 m Color Black White TECHNICAL INFORMATION RMS-HCD-S, RMS-HCD-S3 108 mm Ø 15 mm RMS-HCD-IC102, RMS-HCD-IC105 O 15 mm 111 mm 144 mm Technical Data Humidity sensor Temperature sensor Operating humidity Operating temperature Accuracy @ 23 °C Supply voltage Current consumption Protection rating Digital communication Compatible devices Compliance HYGROMER HT-1 PT1000, Class 1/3 B (RMS-HCD-S) PT100, Class 1/3 B (RMS-HCD-IC) 0...100 %RH -40...+85 °C RMS-HCD-S -40...+85 °C RMS-HCD-IC electronic -100...190 °C RMS-HCD-IC sensor head ±0.8 %RH ±0.1 K 2.5...5.5 VDC 5 mA (RMS-HCD-S) 12 mA (RMS-HCD-IC) IP65 UART RMS-LOG-L RMS-LOG-868 RMS-LOG-915 GAMP5 FDA 21 CFR Part 11 Subject to technical change without notice. Printing and other errors reserved. 59083E/2018-08 2 www.rotronic.com RMS-PCD-S-XXX Advantages · High-precision measurement and long-term stability · With ambient pressure compensation · Large overload range · With flow or diaphragm sensor technology · Compatible with RMS logger, RMS On-premises software and SaaS solutions Applications · HVAC · Cleanroom TECHNICAL INFORMATION The Rotronic differential pressure probes are ideal for clean rooms, operating theaters and applications where even minor differences in pressure can have a big effect. Thanks to our two different measurement methods (thermal mass flow measurement and diaphragm measurement), we offer the perfect solution for every requirement. Together with other measurement parameters, these probes can be integrated in RMS perfectly. Compatible with · RMS-LOG: Wireless V1.5/LAN data loggers V1.4 Dimensions 105 mm Ø 32 mm 76 mm 87 mm 113 mm 197 mm 59067E/2018-09 1 www.rotronic.com Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION General specifications Sensor type Parameter Accuracy 1 at 23 °C ±3 K Long-term stability 3 Zero point compensation 4 Medium Ambient pressure compensation Adjustment and calibration Measurement range Pressure resistance (burst pressure) Leak rate Startup time Measurement interval Response time 63 Range of application Voltage Current consumption Battery life RMS wireless logger Battery life LAN logger Protocols Flow Membrane Differential pressure ±1% FS ±1% FS 2 ±0.1% FSS/year ±2% FSS/year for ±25Pa probe ±1% FSS/year for ±50Pa probe ±0.5% FSS/year for ±100Pa probe ±0.25% FSS/year for ±250Pa und ±500Pa probes Automatic, 1x per measurement interval Manual, with external tube; via RMS software 5 Air Air & non-aggressive gases Automatic Not necessary Factory adjustment/calibration: 5 points Customer adjustment: max. 9 points -25...+25 Pa / -50...+50 Pa / -100...+100 Pa / -250...+250 Pa / -500...+500 Pa 5 bar 0.7 bar <180 l/min. 0 l/min. <0.5 s 1 s probe 10s RMS / 1s Modbus <1 s -20...+80°C (0...+70°C temp.-comp.) 0...95% RH non-condensing 3.3 5.5 V 30 mA (avg.) 12 mA (avg.) 60d @ 10s interval 130d @ 10s interval 350d @ 60s interval 650d @ 60s interval 70d @ 10s interval 180d @ 10s interval 395d @ 60s interval 840d @ 60s interval Modbus RTU 1 Please see the device manual for detailed considerations. 2 For maximum accuracy, Rotronic recommends strongly to perform a zero point compensation after the installation and initial operation and to repeat it annually. For aggressive environments / gas media, a more frequent zero point compensation is advised. Please see the device manual for detailed considerations. 3 Highly reducible by a zero point compensation of the RMS-PCD-S-Mxx (membrane sensor). 4 A zero point adjustment is recommended for every installation or position change. 5 Please see the device manual for detailed considerations. FDA & GAMP compatibility FDA / GAMP directives Housing / Mechanical parts Housing material Fire protection class Dimensions Pressure connections Weight IP protection class FDA CFR21 Part 11 / GAMP5 Polycarbonate (housing) Stainless steel DIN 1.4305 (nuts, connectors) Corresponds to UL94-HB Ø 32 mm x 87 mm Tubing connector internal Ø 4 mm x 10 mm 60 g IP65 59067E/2018-09 2 www.rotronic.com RMS-CCD-S-XX Advantages · High-precision measurement and long-term stability · With ambient pressure compensation · Large measurement range · With automatic CO2 calibration · Compatible with RMS-Logger, RMS On-premises software and SaaS solutions Applications · Open-Plan Offices · Classrooms · Shopping Centers Subject to technical change without notice. Printing and other errors reserved. 76 mm 113 mm 186 mm TECHNICAL INFORMATION The Rotronic CO2 probes are ideal for office rooms and applications where the quality of room air has a big effect. Together with other measurement parameters, these probes can be integrated in RMS perfectly. Compatible with · RMS-LOG: Wireless V1.5/LAN data loggers V1.4 Dimensions 105 mm Ø 32 mm Measurement principle Parameter Accuracy @ 25 °C ±10 K, 20 60 %RH (after min. 3 weeks ABC)1 Medium Ambient pressure & temperature compensation Adjustment and calibration Measurement range Resolution Startup time Measurement interval Response time 63 Range of application Voltage Current consumption (16 s interval) Battery life (RMS wireless/LAN logger) Interface Protocols FDA / GAMP directives Housing material Fire protection class Dimensions Weight IP protection class Infrared (NDIR) CO2 concentration (ppm/%) ±50 ppm ±3 % of read value @ 02000 ppm ±10 % of read value @ 200010,000 ppm Air & non-aggressive gases Automatic (3001100hPa) Factory adjustment/calibration: 1 point Customer adjustment: max. 9 points 0...2000ppm / 5000ppm / 10'000ppm 1 ppm 300s 16s probe 130s @ level descending 87s @ level ascending 0...50°C, 0...95%RH non-condensing 3.3 5.5V 20 mA (avg.) / peak 260 mA 2.7d @ 10s/60s interval UART Modbus RTU FDA CFR21 Part 11 / GAMP5 Polycarbonate (housing) Stainless steel DIN 1.4305 (nuts) Corresponds to UL94-V2 Ø 32mm x 87mm 55g IP40 1 Accuracy relates to the uncertainty of calibration mixtures +- 1 % www.rotronic.com 59069E/2018-09 RMS DATA LOGGER Advantages · 44,000 data point memory · Fail-safe, thanks to internal battery · Wireless or LAN interface · Compatible with RMS Gateway, RMS Server Software and RMS Cloud · Conforms to FDA CFR 21 Part 11 / GAMP 5 Applications · Pharma monitoring · Food monitoring · Museum monitoring Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION The data logger is the flexible component between the probe and the database in the Rotronic Monitoring System. It stores 44,000 pairs of measured values from the interchangeable CO2, differential pressure, humidity or low dew point probe, and transmits them to the RMS database via LAN or wireless link. It guarantees absolute data protection, even if power supply and communications should break down temporarily. Compatible with: · CCD-S CO2 probe · PCD-S Differential pressure probe · HCD-S Humidity and temperature probe · RMS-GW Gateway · RMS-WEB On-premises software · RMS-CLD SaaS solutions Dimensions 113 mm 105 mm 38 mm General specifications Measured parameters Humidity & temperature, CO2, differential pressure, LDP Range of application -40..70 °C / 0..100 %RH Storage conditions -40..30 °C / 0..95 %RH Maximum altitude 2000 m ASL Power supply 24 VDC ±10 % / <100 mA / Battery: RMS-BAT (2xAA, LiSocl2) / PoE: 802.3af-2003, Class 1 AC adapter requirements 24 VDC ±10 % / 4 W nominal / <15 W power-limited Battery life 3 years (at 23 °C, measurement interval 1 min., HCD-S probe) Device data Measurement interval 10 s to 15 min. Startup time < 10 s Order code RMS-LOG-L RMS-LOG-868 RMS-LOG-915 Interfaces Ethernet ISM 868 MHz ISM 915 MHz Indoor wireless - range 20..50 meters 15..25 meters Protocols HTTP / MODBUS TCP Ethernet cable requirement Min. Cat. 5, SFTP, max. 30 m Conformity with standards FDA / GAMP directives FDA CFR21 Part 11 / GAMP 5 Housing / Mechanics Housing material ABS Fire protection class UL94 V2 Dimensions 105 x 113 x 38 mm IP protection class IP65 Weight 200 g www.rotronic.com 59057E/2018-04 RMS MINI WIRELESS LOGGER Advantages · Saves up to 10,000 measured values · Fail-safe thanks to internal battery and battery monitoring · Battery life up to 3 years · Conforms to FDA 21 CFR Part 11 / GAMP5 · ISM band 868 MHz / 915 MHz Applications · Environmental chambers · Pharmaceutical industry mA V · Analog third-party devices · Incubators TECHNICAL INFORMATION Compatible with · RMS-GW-868: Firmware V1.0 · RMS-GW-915: Firmware V1.5 · Software V1.2: RMS-MLOG-T10-868 · Software V1.2.1: 915 MHz devices Dimensions / Connections Top view Rubber cap Status LED 26 mm 83 (87*) mm Rubber cap (front view) Grommet Button 29 (32*) mm * with wall bracket 14 mm Wall bracket 87.4 mm 65 mm 3.7 mm 7.5 mm General specifications Device type Memory size Range of application (electronics) Storage conditions Battery Battery life Measurement interval Wireless interface Indoor wireless range Conformity with standards FDA / GAMP directives Housing / Mechanics Housing material Dimensions IP protection class Fire protection class RMS Mini Wireless Logger 10,000 measured values 13,000 data points (RMS-MLOG-B) -30...85 °C / 0...100 %RH -40...85 °C/0...100 %RH (RMS-MLOG-B) -30...30 °C / 0...95 %RH RMS-BAT 3 years (at 23 °C and 1 minute interval) 2.7 years (RMS-MLOG-B) 10 s to 15 min (software dependant) ISM 868 MHz ISM 915 MHz 20...50 meters 15...25 meters FDA 21 CFR Part 11 / GAMP5 ABS 83 x 29 x 29 mm IP65, IP30 (RMS-LOG-B) UL94-V2 1 www.rotronic.com 59059E/2018-12 TECHNICAL INFORMATION Temperature & humidity Type RMS-MLOG-B-868 RMS-MLOG-B-915 Range / Accuracy -40...85 °C (±0.5 °C @ 25 °C / ±1 °C @ 0...70 °C / ±3.5 °C @ rest of temperature range) / 0...100 %RH (±3 %RH @ 25 °C) Temperature RMS-MLOG-T-868 RMS-MLOG-T-915 -30...85 °C (±0.4 °C @ 25 °C) Details: see page 3 Temperature with RMS-MLOG-T10-868 external probe (NTC) RMS-MLOG-T10-915 Item no. T10-0001 T10-0002 T10-0003 T10-0004 Accessories Further NTC probes available in various lengths. Please contact Rotronic. Power input mA V Application Cryotechnology Freezers, dry ice... Probe operating range -196...-90 °C -80...200 °C NTC accuracy range -196...-90 °C -80...150 °C Dimensions / Housing Ø 6 x 50 mm / stainless steel Cable length 2 m RMS-MADC-868-V (0...10 V) 0...10 VDC ( ±0.1 V @ 25 °C) 0...20 mA or 4...20 mA (shunt 110 Ohm) ±0.2 mA @ 25 °C RMS-MADC-868-A RMS-MADC-915-A (0...20 mA) Standard -50...200 °C -50...120 °C Cable duct monitoring -50...200 °C -50...120 °C Digital input RMS-MDI-868 Item no. DC-0001 Accessories Illumination RMS-MLOG-LGT-868 Application Door contact / magnetic trigger Switch Normally open Cable length 30 cm Mounting M3 screws IP IP65 The RMS-MLOG-LGT detects light, meaning that it is possible to monitor the difference between dark and light. The LUX measurement values are not precise and are only used for scaling. The device is not designed for an accurate LUX measurement. 59059D/2018-12 2 www.rotronic.com TEMPERATURE ACCURACY RMS-MLOG-T & T10 accuracy overview The RMS-MLOG-T10-XXX allows users to implement their own NTC sensor. It is possible to add the NTC nominal value and B constant within the RMS software. For NTC's from Rotronic, simply choose the NTC from the dropdown list (as of Software V1.2). The RMS-MLOG-T10-XXX can be calibrated and adjusted (2 points) via the RMS software. When using external NTC's, please account for the accuracy of the RMS-MLOG electronics. Accuracy overview Examples at various temperatures T10-0001* Accuracy between -196...-90 °C T10-0002* Accuracy at 25 °C Accuracy at -80...-30 °C Accuracy at -30...40 °C Accuracy at 40...70 °C Accuracy at 70...200 °C T10-0003* and T10-0004* Accuracy at 25 °C Accuracy at -50...0 °C Accuracy at 0...30 °C Accuracy at 30...60 °C Accuracy at 60...90 °C Accuracy at 90...200 °C RMS-MLOG-T-XXX Accuracy at 25 °C Accuracy at -30...0 °C Accuracy at 0...40 °C Accuracy at 40...85 °C RMS-MLOG-T10-XXX electronic measurement accuracy Accuracy at 25 °C Accuracy at -200...-40 °C Accuracy at -40...150 °C Accuracy at 150...200 °C RMS-MLOG-T10-XXX electronic temperature accuracy Accuracy at 25 °C Accuracy at -30...85 °C ±2.5 °C ±0.2 °C ±1 °C ±0.5 °C ±1 °C ±3 °C ±0.4 °C ±1 °C ±0.5 °C ±1 °C ±1.5 °C ±3.2 °C ±0.4 °C ±1.3 °C ±1 °C ±1.5 °C ±0.1 °C ±0.4 °C ±0.3 °C ±0.6 °C ±0.0 °C ±0.3 °C To calculate the total accuracy of the RMS-MLOG-T10-XXX, it is necessary to add all variables together. * NTC accuracy Use of the T10-0002 at 25 °C and the RMS-MLOG-T10-XXX at 25 °C T10-0002 accuracy at 25 °C ±0.2 °C RMS-MLOG-T10-XXX electronic measurement accuracy ±0.1 °C at 25 °C RMS-MLOG-T10-XXX electronic temperature accuracy at 25 °C ±0.0 °C Total accuracy at 25 °C ±0.3 °C Use of the T10-0001 at -196 °C and the RMS-MLOG-T10-XXX at 25 °C T10-0001 accuracy at -196 °C ±2.5 °C RMS-MLOG-T10-XXX electronic measurement accuracy ±0.4 °C at -196 °C RMS-MLOG-T10-XXX electronic temperature accuracy at 25 °C ±0.0 °C Total accuracy with the sensor at -196 °C and the logger at 25 °C ±2.9 °C Use of the T10-0003 at 35 °C and the RMS-MLOG-T10-XXX at 35 °C T10-0003 accuracy at 35 °C ±1 °C RMS-MLOG-T10-XXX electronic measurement accuracy ±0.3 °C at 35 °C RMS-MLOG-T10-XXX electronic temperature accuracy at 35 °C ±0.3 °C Total accuracy at 35 °C ±1.6 °C Improvement in accuracy: When using the data logger with the internal NTC or any of the NTC's provided by Rotronic, it is possible to carry out a 1 or 2 point adjustment in order to improve the measurement accuracy. 1 point adjustment: · Adjustment range: -25...125 °C · Accuracy: ±0.3 °C · Accuracy range: adjustment point ±10 °C 2 point adjustment: · Adjustment range: -25...125 °C · Accuracy: ±0.3 °C · Maximum span of the 2 adjustment points: 80 °C 59059D/2018-12 3 www.rotronic.com RMS GATEWAY Advantages · Connects 60 wireless data loggers simultaneously · 5 wireless channels for parallel and redundant operation · Compatible with RMS Wireless Data Loggers, RMS Server Software and RMS Cloud · Conforms to FDA CFR 21 Part 11 / GAMP 5 Applications · Monitoring of mobile equipment · Extensible applications · For redundant requirements Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION 113 mm The gateway is the interface between the wireless data logger and the server software. It can manage up to 60 data loggers simultaneously, collecting all wireless-logger measurement data, and passing them on to the server software. When several gateways are used in the same network, they are configured redundantly. If one gateway should fail, the measurement values are automatically sent to the server software via another gateway. Compatible with: · RMS LOG RMS data logger · RMS MLOG RMS mini-logger · RMS-WEB On-premises software · RMS-CLD SaaS solutions Dimensions General specifications Range of application Storage conditions Maximum altitude Power supply AC adapter requirements Device data Measurement interval Startup time Order code Interfaces Indoor wireless range Protocols Ethernet cable requirement Conformity with standards FDA / GAMP directives Housing / Mechanics Housing material Fire protection class Dimensions IP protection class Weight -40..70 °C, 0..100 %RH -40..30 °C, 0..95 %RH 2000 m ASL 24 VDC ±10 % / <100 mA / PoE: 802.3 af-2003, Class 1 24 VDC ±10 % / 4 W nominal / <15 W power-limited 10 s to 15 min. < 10 s RMS-GW-868 RMS-GW-915 Ethernet & ISM868 MHz Ethernet & ISM 915 MHz 20..50 meters 15..25 meters HTTP Min. Cat. 5, SFTP, max. 30 m FDA CFR21 Part 11 / GAMP 5 ABS UL94 V2 105 x 113 x 38 mm IP65 200 g 105 mm 38 mm www.rotronic.com 59058E/2018-03 RMS DISPLAY Advantages · Shows up to 4 measured values · Automatic adjustment of backlight on alarm · Compatible with RMS data loggers, RMS On-premise and RMS SaaS · Conforms to FDA CFR 21 Part 11 / GAMP 5 Applications · Critical places · Cleanrooms Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION The LAN display is a freely configurable display. As a remote display, it can be placed optimally where it suits the viewer best. It is able to show the measured values, states and alarms of RMS products. The display shows up to four measured values. Two measured values are shown at a time. If more than 2 measured values have been selected, the display alternates between the values that are to be displayed every 5 seconds. Compatible with: · All measuring points · RMS-GW RMS Gateway · RMS-WEB RMS On-premise · RMS-CLD RMS SaaS Dimensions General specifications Device type Display of measuring points Range of application Storage conditions Power supply AC adapter requirements Measurement interval Interface Protocols Conformity with standards FDA / GAMP directives Housing / Mechanical parts Housing material Fire protection class Dimensions Display diagonal IP protection class Weight RMS Display Up to 4 measuring points -20...70 °C / 0...100 %RH -20...30 °C / 0...95 %RH 24 VDC ±10 % / <100 mA / PoE: 802.3 af-2003, Class 1 24 VDC ±10 % / >4 W / power-limited 10 s Ethernet HTTP FDA CFR21 Part 11 / GAMP5 PC, ABS UL94-V2 105 x 113 x 38 mm 2.26 inch IP65 206 g 113 mm 105 mm 38 mm www.rotronic.com 59070E/2018-01 RMS-DI-L-R Advantages · Two input channels · Data logging of up to 75,000 measured values · Compatible with RMS-Config, RMS On-Premise and RMS SaaS · Conforms to FDA CFR 21 Part 11 / GAMP 5 Applications · Monitoring / Process control · Safety and automation · Direct condition control Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION The digital input module stores all measured data on an event basis and sends it to the database via Ethernet. The minimum pulse time is 100 ms. Should the connection be lost, the module stores the data intermediately to protect data integrity and fills up the data gaps when the connection has been restored. The device has a battery so that logging of measured data is also ensured in the event of a failure in the external power supply. Compatible with: · RMS-Config · RMS-WEB On-Premise · RMS-CLD SaaS solutions Dimensions General specifications Device type Number of inputs Range of application Storage conditions Maximum altitude Power supply AC adapter requirements Battery type Battery life Device data Input frequency Pulse recognition Input circuit Reed circuit Max. cable length at input Measurement interval Storage capacity Interface Protocols Conformity with standards FDA / GAMP directives Housing / Mechanical parts Housing material Fire protection class Dimensions IP protection class Weight RMS-DI-L-R 2 independent digital inputs -40..70 °C / 0..100 %RH non-condensing -40..30 °C / 0..95 %RH 2000 m ASL 24 VDC ±10 % / <100 mA / PoE: 802.3 af-2003, Class 1 24 VDC ±10 % / 4 W nominal /<15 W power-limited RMS-BAT 3 years at 23 °C Max. 0.833 Hz or 1.2 s >100 ms (periodically > 1.2 s) Logic level: 0 V / 5-24 V Trigger threshold: ~3.77 V Current consumption: <1 mA Max. load at input 100 k <3 m Event-based & interval (10 s to 15 min.) 75,000 data points Ethernet HTTP FDA CFR21 Part 11 / GAMP 5 Polycarbonate (PC) UL94-V0 89.7 x 62.2 x 108 mm IP20 206 g www.rotronic.com 59071E/2018-01 RMS-DO-L-R Advantages · Two output channels · Compatible with RMS-Config, RMS On-Premise and RMS SaaS · Conforms to FDA CFR 21 Part 11 / GAMP 5 Applications · Monitoring / Process control · Building automation · Industrial automation Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION The digital output module serves to display information, issue alarms and control events. The relays can be interrogated or set via Modbus TCP or the RMS software. It is possible to define the conditions in the RMS software and to actuate the outputs on the basis of them. Compatible with: · RMS-Config · RMS-WEB On-Premise · RMS-CLD SaaS solutions Dimensions General specifications Device type Number of outputs Range of application Storage conditions Maximum altitude Power supply AC adapter requirements Device data Interface Relay switching capacity Voltage output (VEX) Max. cable length at input Measurement interval Interface Protocols Conformity with standards FDA / GAMP directives Housing / Mechanical parts Housing material Fire protection class Dimensions IP protection class Weight RMS-DO-L-R 2, polarity-independent -40..70 °C / 0..100 %RH non-condensing -40..30 °C / 0..95 %RH 2000 m ASL 24 VDC ±10 % / <100 mA / PoE: 802.3 af-2003, Class 1 24 VDC ±10 % / 4 W nominal /<15 W power-limited Digital signal / galvanically isolated 50 VAC (peak) 1 A / 50 VDC/1 A, polarityindependent 24 VDC (Note: The maximum current available depends on the external power supply connected.) <3 m >=10 s Ethernet HTTP FDA CFR21 Part 11 / GAMP 5 Polycarbonate (PC) UL94-V0 89.7 x 62.2 x 108 mm IP20 155 g www.rotronic.com 59072E/2018-01 RMS-CONVERTER Advantages · Integrates digital devices seamlessly into RMS · Integrates Rotronic digital devices into RMS · No loss of accuracy due to A/D converters, show up to 5 decimal values · Conforms to FDA 21 CFR Part 11 / GAMP5 Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION The RMS Converter allows you to easily integrate existing devices and networks into RMS. The RMS Converter acts as an interface, gathering the data from digital devices and sending them to the RMS server software/MS SQL database. With a USB dongle, the Converter can be enhanced to a Gateway, and can connect to wireless data loggers. In addition, third party digital devices can be integrated if the communication protocol is available. However, this function requires support from the Rotronic R&D. Where ever possible Rotronic would recommend replacing previous networks with RMS devices in the long term. Dimensions General specifications Device type Number of measuring points Range of application Storage conditions Electrical Supply Measurement interval Interface Protocols Supported webcams Conformity with Standards FDA / GAMP directives Housing / Mechanical parts Dimensions IP protection class RMS Converter Integration of up to 100 -0 .. 50 °C / 0 .. 95 %RH -0 .. 50 °C / 0 .. 95 %RH 5 VDC (universal mains adapter included) 10 s to 15 min Ethernet Modbus TCP RoASCII HTTP SNMP Customer-specific enhancements D-Link DCS-2121 FDA 21 CFR Part 11 / GAMP5 94 x 78 x 30 mm IP20 1 www.rotronic.com 59060E/2018-11 TECHNICAL INFORMATION Compatible with (LAN connection) · HL-NT with Ethernet docking station · HygroLog NT with Ethernet docking station · HF4 .. HF8 with Ethernet connection · PF4 with Ethernet connection · RMS-WEB · RMS-CLD · CRP5 · RMS-8ADC-L-R-A/V · RMS-4RTD-L-R · Lighthouse APEX R5 with Ethernet connection Data logger Data logger Transmitter Transmitter RMS On-Premise RMS SaaS solutions Clean room panel Analogue to digital converter RTD to digital converter Particle counter Network architecture with the RMS Converter CRP5 RMS Converter for Rotronic devices HL-NT 59060E/2018-11 2 www.rotronic.com RMS-8ADC-L-R-A Advantages · 8 isolated input channels · Passive input up to ±20mA · Programmable via the RMS software · Signal LED Applications · Monitoring / Process control · Building automation · Industrial automation mA V TECHNICAL INFORMATION RMS 8 input, analogue to digital converter The 8 input, analogue to digital converter was designed to implement all analogue outputs into the digital world of RMS. The 8 inputs offer the flexibilty of using a current system with one of the newest and most flexible monitoring systems on the market today. Attention Function only with RMS-Converter-XXX. Analog inputs Dimensions 59064E/2018-03 Notes: Terminals "2" and "4" connected internally between them (neg. reference "GNA0"). Terminals "6" and "8" connected internally between them (neg. reference "GNA1"). Terminals "10" and "12" connected internally between them (neg. reference "GNA2"). Terminals "14" and "16" connected internally between them (neg. reference "GNA3"). The references "GNA0", "GNA1", "GNA2" and "GNA3" are isolated from each other. Power supply 1 www.rotronic.com Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION Light signalling LED Colour PWR Green STS Yellow State On Off Blink Off Blink Description Device powered Device not powered Watchdog alarm Device in RUN modality Device in INIT modality General specifications Device type RMS-8ADC-L-R-A Measured parameters Current Memory size 7 days memory with the RMS-Extension Range of application -10...60°C, 0...90%rh Storage conditions -40...85°C, 0...90%rh Maximum altitude 2000 m ASL Electrical supply voltage 14...30VDC Device Data Analog inputs 8 isolated inputs, 0/4...20 mA Input accuracy mA ±0.05%fs Linearity mA ±0.1%fs Thermal drift FS ±0.01%/°C Measurement interval 10 s to 15 min (dependant on software account) Interface output Ethernet RJ-45 Protocol Modbus TCP Ethernet cable requirement Min. Cat 5, SFTP,max. 100m Interface input Removable screw-terminals Housing / Mechanical parts Mounting Din-rail Dimensions 100 x 120 x 22.5mm Weight 160 g IP protection class IP20 Installation recommendation Seperated by at least 5mm Defaut IP configuration 192.168.1.100 2 www.rotronic.com RMS-8ADC-L-R-V Advantages · 8 isolated input channels · Passive input up to ±10 V · Programmable via the RMS software · Signal LED Applications · Monitoring / Process control · Building automation · Industrial automation mA V TECHNICAL INFORMATION RMS 8 input, analogue to digital converter The 8 input, analogue to digital converter was designed to implement all analogue outputs into the digital world of RMS. The 8 inputs offer the flexibilty of using a current system with one of the newest and most flexible monitoring systems on the market today. Attention Function only with RMS-Converter-XXX. Analog inputs Dimensions 59074E/2018-12 Notes: Terminals "2" and "4" connected internally between them (neg. reference "GNA0"). Terminals "6" and "8" connected internally between them (neg. reference "GNA1"). Terminals "10" and "12" connected internally between them (neg. reference "GNA2"). Terminals "14" and "16" connected internally between them (neg. reference "GNA3"). The references "GNA0", "GNA1", "GNA2" and "GNA3" are isolated from each other. Power supply 1 www.rotronic.com Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION Light signalling LED Colour State Description PWR Green On Device powered Off Device not powered Blink Watchdog alarm STS Yellow Off Device in RUN modality Blink Device in INIT modality General specifications Device type RMS-8ADC-L-R-V Measured parameters Voltage Memory size 7 days memory with the RMS-Extension Range of application -10...60°C, 0...90%rh Storage conditions -40...85°C, 0...90%rh Maximum altitude 2000 m ASL Electrical supply voltage 14...30VDC Device Data Analog inputs 8 isolated inputs, 0...10V Input accuracy Voltage ±0.05%fs Linearity Voltage ±0.1%fs Thermal drift FS ±0.01%/°C Measurement interval 10 s to 15 min (dependant on software account) Interface output Ethernet RJ-45 Protocol Modbus TCP Ethernet cable requirement Min. Cat 5, SFTP,max. 100m Interface input Removable screw-terminals Housing / Mechanical parts Mounting Din-rail Dimensions 100 x 120 x 22.5mm Weight 160 g IP protection class IP20 Installation recommendation Seperated by at least 5mm Defaut IP configuration 192.168.1.100 2 www.rotronic.com RMS-4RTD-L-R Advantages · 4 isolated input channels · Input for PT100 & PT1000 · Programmable via the RMS software · Signal LED Applications · Monitoring / Process control · Building automation · Industrial automation mA V TECHNICAL INFORMATION RMS analogue to digital converter with 4 inputs The 4-input analogue to digital converter was developed to implement all temperature sensors in the digital world of RMS. The 4 inputs offer the flexibility of using a modern system with one of the newest and most flexible monitoring systems on the market today. Attention Function only with RMS-Converter-XXX. Analog inputs Dimensions 59075E/2018-03 1 www.rotronic.com Power supply Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION Light signals LED Color PWR Green STS Yellow State On Off Flashing Off Flashing Description Device powered Device not powered Watchdog alarm Device in RUN mode Device in INIT mode Input type RTD 2/3-wire PT100 PT1000 NI100 NI1000 RES 2/3-wire Low High Potentiometer Min. -200 °C -200 °C -60 °C -60 °C 0 0 20 Max. 850 °C 200 °C 180 °C 150 °C 500 2000 50 k General specifications Device type Measured parameters Memory size Application range Storage conditions Maximum altitude Power supply Device data Analog inputs Input accuracy RTD, resistance, potentiometer Linearity RTD Influence line resistance RTD/resistance 3-wire RTD field current Thermal drift FS Start-up time Measurement interval Interface output Protocol Ethernet cable requirement Interface input Housing / Mechanical parts Mounting Dimensions Weight IP protection Installation recommendation Defaut IP configuration RMS-4RTD-L-R PT100, PT1000, potentiometer 7-day memory with RMS-Extension -10..60 °C, 0..90 %RH -40..85 °C, 0..90 %RH 2000 m ASL 14..30 VDC 4 isolated inputs ±0.05 %FS ±0.1 %FS ±0.05 %FS/ 0.370 mA ±0.01 %/°C 3 min. 10 s to 15 min. (dependant on software account) Ethernet RJ-45 Modbus TCP Min. Cat. 5, SFTP, max. 100 m Removable screw terminals DIN rail 100 x 120 x 22.5 mm 160 g IP20 Separated by at least 5 mm 192.168.1.100 Technical specifications (typical @ 25 °C and normal environment). 2 www.rotronic.com RMS ACCESSORIES OVERVIEW TEMPERATURE PROBES The T10 temperature sensors are NTC (Negative Temperature Coefficient) thermistors, meaning that the resistance of the NTC decreases with increasing temperature. The T10 temperature sensors are compatible with the RMS-MLOG-T10-868/915 data loggers. The data logger temperature range is limited from -35...80°C. The RMS temperature portfolio will cover a various array of applications, from the coldest such as liquid nitrogen tanks and cryogenic freezers to freezers, refrigerators and cold rooms to hotter ones such as water baths, incubators, ovens and autoclaves. Certain probes are also designed for specific applications for monitoring legionella within water pipes and monitoring room temperature. It is crucial when setting up your RMS-MLOG-T10-868/915 with the T10 temperature probe to configure the logger accordingly with the software as the characteristic curve of each NTC is stored within the firmware. Please see for each probe below. This list is not extensive and other probes, diameters and cable lengths are available on demand. For accuracy information please see the RMS-MLOG data sheet. T10-0001 · Applications: liquid nitrogen, cyrogenics... · Application range: -196...-90°C · Cable length: 2m · Probe diameter: 6mm · Probe length: 50mm · IP65 · Select NTC T10-0001 within RMS T10-0002 · Applications: Dry ice, freezers... · Application range: -80...150°C · Cable length: 2m · Probe diameter: 6mm · Probe length: 50mm · IP65 · Select NTC T10-0002 within RMS T10-0003 · Applications: freezers, fridges, cold rooms, water baths, incubators, ovens... · Application range: -50...120°C · Cable length: 2m · Probe diameter: 6mm · Probe length: 50mm · IP65 · Select NTC T10-0003/4/6 within RMS T10-0004 · Applications: pipe monitoring (legionella) · Application range: -50...120°C · Cable length: 2m · Probe: duct wrap · Probe length: 50mm · IP65 · Select NTC T10-0003/4/6 within RMS T10-0005 · Applications: Dry ice, freezers... · Application range: -90...0°C · Cable length: 4m · Probe diameter: 6mm · Probe length: 50mm · IP65 · Select NTC T10-0005 within RMS T10-0006 · Applications: freezers, fridges, cold rooms, water baths, incubators, ovens... · Application range: -50...120°C · Cable length: 4m · Probe diameter: 6mm · Probe length: 50mm · IP65 · Select NTC T10-0003/4/6 within RMS 1 www.rotronic.com 59081E/2018-08 OVERVIEW ACCESSORIES E2-xxA extension cable · Applications: Improved probe access for calibration purposes · Available in 01, 02 and 05m (replace xx with the desired length) · Compatibility: RMS-LOG-L/868/915 and HCD, PCD and CCD E2-xxXX extension cable with open ends · Applications: Various · Available in 01, 02 and 05m (replace xx with the desired length) · Compatibility: RMS-LOG-L/868/915 AC0001 Ethernet patch cable · Applications: Ethernet wiring · 3m · White · Compatibility: RMS-LOG-L, RMS-GW-868, RMS-DI/DO-L-R AC0005 Ethernet patch cable · Applications: Ethernet wiring · 3m · Red · Compatibility: RMS-LOG-L, RMS-GW-868, RMS-DI/DO-L-R AC1319 holder · Applications: RMS probe wall mounting module · Compatibility: HCD probes AC1321 mounting kit · Applications: RMS wall module mounting · Mounting cone (to bring the Ethernet cable through the joint) · Allen key · Compatibility: RMS-LOG-L & RMS-GW-868 AC1322 holder · Applications: RMS probe wall mounting module · Compatibility: PCD and CCD probes RMS-AC-0001 holder for RMS-Monitor-7 · Holder to attach the RMS-Monitor-7 to a wall · Compatibility: RMS-Monitor-7 AC6001/XX tubing · Applications: Tubing for differential pressure monitoring · Diameter: 4mm · Compatibility: PCD-S, PF4 & CRP5 WC-0001 Webcam · Applications: Monitoring applications together with a snap shot, PDF report together with a snap shot · Application range: 0...40°C · Resolution: 640 x 480 · Connectivity: RJ45 · Power supply: 5V RMS-DONGLE-868 · Applications: configures 868 wireless devices with RMS-Config · Compatibility: All 868 wireless devices 2 www.rotronic.com RMS-BAT batteries · Applications: Fail safe power supply · Model: ER14505M · Application range: -55°C...80°C · Compatibility: RMS-LOG-L/868/915, RMS-GW-868/915, RMS-MLOG range & RMS-DI-L-R RMS-NPK network planning kit · Applications: Planning of a wireless network · RMS-MLOG and wireless USB dongle to check the wireless communication · Compatibility: RMS-Config 21.99.1196 5 port power over Ethernet Switch · Applications: Setting up a PoE network · Add up to 4 RMS LAN devices 21.99.1197 8 port power over Ethernet Switch · Applications: Setting up a PoE network · Add up to 7 RMS LAN devices RMS-PS & RMS-PS-R power supplies · RMS-PS: 24VDC, 0.5A, 15W with connector · RMS-PS-R: 24VDC, 60mA, 15W, Din rail · Compatibility: RMS-LOG-L/868/915, RMS-GW-868/915, RMS-DO/DI-L-R DC-0001 Magnetic door contact · Applications: Door open/close monitoring for rooms, fridges, freezers... · Application range: -20...70°C · Compatibility: RMS-MDI-868/915 & RMS-DI-L-R WB-0001 Leak detector module · Applications: Leak monitoring for archives, storage areas... · Application range: 0...50°C · Battery powered · Visual alarm · Audible alarm · Compatibility: RMS-MDI-868/915 & RMS-DI-L-R AD-0001 Signal beacon · Applications: Signal alarms to users via light and sound · Application range: -20...50°C · Visual alarm · Audible alarm · Compatibility: RMS-DO-L-R RMS-PS-CONV · Applications: power supply for the RMS-Converter · Compatibility: RMS-CONVERTER-100 AC1000 naturally ventilated weather shield · Applications: protect your outdoor temperature and relative humidity measurement · Application range: protection against wind speeds of up to 70m/s and horizontal precipitation · Compatibility: HCD-S 59081E/2018-08 OVERVIEW FILTERS Description Filter carriers protect the humidity and temperature sensors against mechanical damage. Filters act as a protective barrier against contaminants/ pollutants that can influence the sensor. When choosing the correct combination of filter carrier and filter there are many factors to consider. Specific conditions such as high air velocities, pollutants in the air, disinfection and cleaning routines, mechanical impacts, high bioactivity, condensation, airborne chemical contaminants and required response time are some of the many considerations. Plastic filter carrier · Maximum temperature 100 °C · Mechanical protection Metal filter carrier · Maximum temperature 200 °C · Mechanical protection Overview filters Teflon filters Polyethylene filters Sintered steel filters (stainless steel) Wire mesh filters (metal) Maximum temperature (consider range of application of filter carrier) Protection against particulates Protection against abrasives in the air Pore size Max. air velocity [m/s] (continuous load) = low / = medium / = high 200 °C 10 m 50 Order code SPA-SS Filter carrier 1.4301 Filter element Pore size No filter, only filter carrier SPA-SS-PE Polyethylene, white 40-50 µm SPA-SS-PTFE PTFE, white 10 µm SPA-SS-WM Wire mesh 1.4401 10 µm SPA-SSS Filter carrier incl. filter Sintered steel 1.4404 25 µm SPA-WM No filter carrier, only filter Wire mesh 1.4401 10 µm 100 °C 40 m 50 200 °C 25 m 70 Range of application -50...100 °C -100...200 °C 200 °C 10 m 50 3 www.rotronic.com 59081E/2018-08 Order code SPA-PCB Filter carrier Polycarbonate, black Filter element Pore size No filter, only filter carrier SPA-PCB-PE Polyethylene, white 40-50 µm SPA-PCB-PTFE PTFE, white 10 µm SPA-PCB-WM Wire mesh 1.4401 10 µm SPA-PCW Polycarbonate, white SPA-PCW-PE Polyethylene, white 40-50 µm SPA-PCW-PTFE PTFE, white 10 µm SPA-PCW-WM Wire mesh 1.4401 10 µm SPA-PE SPA-PTFE No filter carrier, only filter No filter carrier, only filter Polyethylene, white 40-50 µm PTFE, white 10 µm Range of application -50...100 °C -50...100 °C -100...200 °C 59081E/2018-08 4 www.rotronic.com AD-0001 Advantages · Direct visual or sound alarming · Alarming via thresholds or scripts (IF/OR/AND/THEN) · Permanent or blinking red LED · Permanent or pulsing buzzer Applications · Any application where a direct alarming is required with either sound or light Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION The AD-0001 will warn users both visually and aurally of any alarms that are setup within the Rotronic monitoring system. Alarms can be setup via the alarm scheme as well as via the script function (IF/OR/AMD/THEN) and then triggered from the actions settings. Compatible with · RMS-DO-L-R Dimensions (mounting bracket) General specifications Device type AD-0001 Range of application -20...50 °C / 0...95 %RH Storage conditions -0...50 °C / 0...95 %RH Electrical supply 24 VDC (power can be supplied via the RMS-DO-L-R) Light Red LED Sound < 85 dB Housing / Mechanical parts Height 154.5 mm without mounting bracket Diameter 70 mm IP protection class IP65 Housing material PA and PC Sound pressure level dB (A) Distance in m 1 2 3 5 10 20 30 50 100 200 300 500 1000 100 94 90 86 80 74 70 66 60 54 50 46 40 90 84 80 76 70 64 60 56 50 44 40 85 79 75 71 65 59 55 51 45 39 70 64 60 56 50 44 40 36 www.rotronic.com 59079E/2018-12 WB-0001 WB-0001 with RMS-MDI-868 Advantages · Detect leaks as soon as they occur · Visual and audible alarm · Battery powered · Adjustable sensing hight · Relay output Applications · Protecting equipment from water damage · Drip pans in air handler units · Raised floors in data centers, museums, archives and cellars TECHNICAL INFORMATION The WB-0001 detects the presence of water or conductive fluids once it reaches a level that bridges the two conductive strips on the bottom of the housing. Once the strips are bridged, audible and visual alerts as well as an internal switch are triggered. The sensing hight can be adjusted from 0.08 mm to 13.5 mm using the included adjustable mounting bracket (that can be attached to any flat surface by either using the attached adhesive strips or mounting screws). Compatible with · RMS-MDI-868/915 · RMS-DI-L-R Dimensions 105.23 mm General specifications Parameters Water or conductive fluids Range of application 0...50 °C Power supply 3V CR2450 lithium metal battery Battery lifetime 5 years steady state / 48 hours during alarm condition Power consumption 0.9 mA steady state / 3.0 mA during alarm condition Dimensions 53 x 105.23 x 30.77 mm Housing ABS and polycarbonate Cable length 1.5 m IP protection class Water tight up to 3/4 of the body hight Weight 137.5 g Delivery package 1 CR2450 lithium metal battery Short instruction manual Technical Information / Functions Switch type SPST NO SSR Audible alarm At least 85dB @30 cm distance Visual alarm Red LED for water level, Yellow LED for low battery 53 mm 30.77 mm Subject to technical change without notice. Printing and other errors reserved. 59080E/2018-05 www.rotronic.com CF632-W-INC-20 Advantages · Measure 0...20% CO2 (other ranges also available) · With ambient pressure and temperature compensation · Non dispersive Infra-red measurement principle Applications · Incubators Subject to technical change without notice. Printing and other errors reserved. TECHNICAL INFORMATION The Rotronic CF6 transmitters are ideal for incubators working at high levels of CO2. The CF6 generates enough heat to help avoid condensation on the mirrors that are required using the NIDR measurement principle. The transmitter is delivered with a ribbon cable to facilite the integration of the unit through the incubator door. Compatible with · RMS-MADC-868/915-A data logger · RMS-8ADC-L-R-A converter Dimensions 66.94 mm 60.65 mm 121.44 mm 40 mm General specifications Measurement principle Measurement range Gas supply Dimensions Warm-up time Non Dispersive Infra-Red (NDIR), Dual wavelength 0...20% CO2 By diffusion (atmospheric pressure) 121.44 x 66.94 x 40 mm < 2 minutes (start up time) < 30 minutes (full specification Measuring response (2) Response time (t90) Digital resolution (@ zero) Detection Limit (3 s) Repeatability Linearity error (4) Long term stability (zero) (5) Long term stability (span) (5) Influencing variable Temp. dependence (zero) Temp. dependence (span) Pressure dependence (zero) Pressure dependence (span) Electrical inputs and outputs Supply voltage Supply current Power consumption Output signal Calibration Appr. 30 s 1 ppm / 0.1 % LEL / 0.01 Vol.-% (1) = ±1000ppm 1 % FS(3) (typically) ± 1 % FS(3) ± 2 % FS ± 2 % FS over 12 month period ± 2 % FS over 12 month period ± 0.1 % FS per °C ± 0.2 % FS per °C 0.1 % to 0.2 % value per hPa (1) 5 V DC ± 5 % or 6 V DC ± 5 % (1) 70 mA average, max. 140 mA < 1 Watt 4...20 mA Zero and span by SW 1) Dependent on the gas and the measurement range 2) Relating to atmospheric pressure 1013 hPa absolute and 25°C ambient temperature 3) FS = Full scale 4) Stated linearity error excludes calibration gas tolerance of ± 2 % 5) For dry and clean test gas at 25°C and 1013hPa absolute - depending on the operating and ambient conditions values may differ 6) Relating to calibration conditions (see final check). At first initiation and depending on application and ambient conditions recalibration is recommended. Recurring cycles of recalibration are recommended. www.rotronic.com 59078E/2018-05
