D-TAC1G-10-0719 000901 - 7- 2PRI TACLANE-1G (KG-175G) Encryptor nnDiscovery nGeneric Discovery Client nStatic Routing nIM PEPD nHAIPE IS Secure Dynamic Discovery nnForeign Interoperability nAlgorithm Agile – Simultaneous Suite A/B/AES EFF/IPMEIR without manual intervention P3, S2, Q2 Ease of Use and Management Tools
HAIPE IS Secure Dynamic Discovery. ▫ Foreign Interoperability. ▫ Algorithm Agile – Simultaneous Suite A/B/AES. EFF/IPMEIR without manual intervention P3 , ...
EFF/IPMEIR without manual intervention P3, S2, Q2 Ease of Use and Management Tools nnGEM One Encryptor Management nManage a network of TACLANE encryptors remotely from a central location nnGeneric Discovery Server (GDS) nAutomatically discovers HAIPE devices nnQuick Start Wizard nAssists users with the initial configuration of the TACLANE device
File Info : application/pdf, 2 Pages, 1.05MB

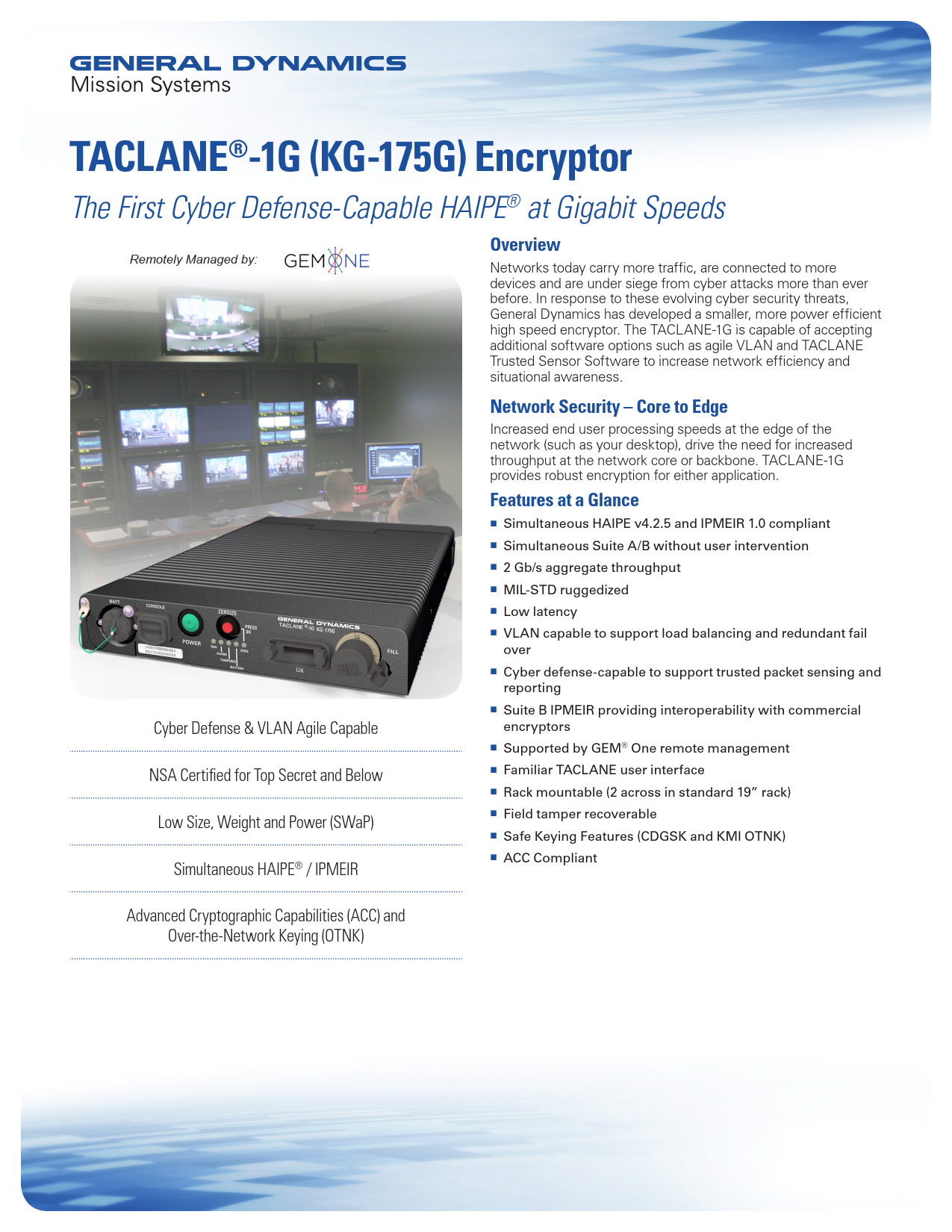

Document DocumentTACLANE®-1G (KG-175G) Encryptor The First Cyber Defense-Capable HAIPE® at Gigabit Speeds Remotely Managed by: Cyber Defense & VLAN Agile Capable NSA Certified for Top Secret and Below Low Size, Weight and Power (SWaP) Simultaneous HAIPE® / IPMEIR Overview Networks today carry more traffic, are connected to more devices and are under siege from cyber attacks more than ever before. In response to these evolving cyber security threats, General Dynamics has developed a smaller, more power efficient high speed encryptor. The TACLANE-1G is capable of accepting additional software options such as agile VLAN and TACLANE Trusted Sensor Software to increase network efficiency and situational awareness. Network Security Core to Edge Increased end user processing speeds at the edge of the network (such as your desktop), drive the need for increased throughput at the network core or backbone. TACLANE-1G provides robust encryption for either application. Features at a Glance nnSimultaneous HAIPE v4.2.5 and IPMEIR 1.0 compliant nnSimultaneous Suite A/B without user intervention nn2 Gb/s aggregate throughput nnMIL-STD ruggedized nnLow latency nnVLAN capable to support load balancing and redundant fail over nnCyber defense-capable to support trusted packet sensing and reporting nnSuite B IPMEIR providing interoperability with commercial encryptors nnSupported by GEM® One remote management nnFamiliar TACLANE user interface nnRack mountable (2 across in standard 19" rack) nnField tamper recoverable nnSafe Keying Features (CDGSK and KMI OTNK) nnACC Compliant Advanced Cryptographic Capabilities (ACC) and Over-the-Network Keying (OTNK) TACLANE-1G (KG-175G) Encryptor Optional Features Agile Virtual Local Area Network (VLAN): Enables use of HAIPE security features on Layer 2 VLAN tagged / Non-IP Ethernet traffic while simultaneously supporting standard HAIPE encryption of IP traffic. Benefits include: nnElimination of GRE Tunnels nnRedundancy nnLoad Balancing TACLANE Trusted Sensor Software: The new Deep Packet Inspection (DPI) in-line sensing capability enables networks to filter for malicious data within the traffic. This in-depth inspection aids network administrators in understanding the overall health of the system. DPI filtering gives administrators the ability to tune their network filtering based on either open standard or Government classified rule sets and to issue Type 1 encrypted alerts to monitor any network point. Technical Specifications nnDimensions: 1.71" (1U) H x 8.6" Wx 12.5" D 19" Rack Mountable, 2 Across, 1U nnWeight: < 8 lbs nnPower: < 40 Watts nnPerformance: 2 Gb/s IP Throughput (Aggregate) Supports Jumbo Packets Supports 4096, duplex Security Associations Supports 16,000, Remote Networks/Hosts nnEnvironmental Operating Temp: -40°C to +52°C Storage Temp: -40°C to +71°C Humidity: 95% RH, Non-condensing, +30°C to +60°C Shock / Vibration: àà20g shock, 11ms ààTransportation Vibration ààGeneral Vibration, Category 4 Altitude: ààStorage/transit: 1,500 ft, below sea level to 60,000 ft, above sea level ààOperational: 1,500 ft, below sea level to 50,000 ft, above sea level Sand: 20 mph winds Dust: 40 mph winds Rain: Drip, Flow Rate 280 liters/meter2/hour nnEMI / TEMPEST: In accordance with NSTISSAM TEMPEST/1-92 Level 1 nnReliability: 250,000 Hrs Mean Time Between Failure (MTBF) nnInterfaces: PT and CT Data Ports: 10/100/1000 Base-T (RJ-45) 1000 Base-SX (LC) Standard KG-175GM (MultiMode optics) 1000 Base-LX (LC) Optional KG-175GS (Single Mode optics, Intermediate Range) nnConsole: 10/100 Base-T (RJ-45) nnStandards Compliance: HAIPE v4.2.5 IPMEIR v1.0 HAIPE VLAN ACC and KMI OTNK nnManagement Perform locally via connected front console, or remote via CT or PT interface nnLocal Management Web-based using standard browser Retains TACLANE menu structure and commands nnKeying Supports HAIPE to HAIPE Keying, APPK/ PPK, FIREFLY, Enhanced FIREFLY, Internet Key Exchange (IKE) v1/v2, Unclassified/Classified Device Generated Shared Key (DGSK), ACC, OTNK (KMI enabled) nnNetwork Protocols Ethernet IPv4/IPv6 Dual Stack Layer 2 Frame Encapsulation (VLAN Mode) IPv6 neighbor discovery and address resolution Address Resolution Protocol (ARP) Internet Group Management Protocol (IGMP) (v1/ v2/v3) Queries/Reports Multicast Listener Discovery (v1/v2) Internet Control Message Protocol (ICMP) Path Maximum Transmission Unit (PMTU) RIP Listener/Speaker nnNAT Support NAT-T Automated Security Association Extension nnReachability Peer HAIPE Reachability Detection (PHRD) Peer Destination Unreachability Notification (PDUN) nnDiscovery Generic Discovery Client Static Routing IM PEPD HAIPE IS Secure Dynamic Discovery nnForeign Interoperability Algorithm Agile Simultaneous Suite A/B/AES EFF/IPMEIR without manual intervention P3, S2, Q2 Ease of Use and Management Tools nnGEM One Encryptor Management Manage a network of TACLANE encryptors remotely from a central location nnGeneric Discovery Server (GDS) Automatically discovers HAIPE devices nnQuick Start Wizard Assists users with the initial configuration of the TACLANE device nnTACLANE Configuration Tool Assists users with the software upgrade and configuration process Interoperability Interoperable with all HAIPE compliant encryptors Ordering nnAvailable to order through IDIQ & General Dynamics nnNSN # 5810-01-619-6583 (Multi-Mode) 5810-01-628-7468 (Single Mode) Designed for 1U Rack Slot at 1.75" 1.71" 12.5" 8.6" gdmissionsystems.com/cyber · infosec@gd-ms.com Phone: 781-410-9400 · Toll-free: 888-Type1-4-U (888-897-3148) · Fax: 781-410-9863 © 2019 General Dynamics. All rights reserved. TACLANE and GEM are trademarks of General Dynamics. HAIPE is a registered trademark of the National Security Agency. All other product and service names are the property of their respective owners. ® Reg. U.S. Pat. & Tm. Off. General Dynamics reserves the right to make changes in its products and specifications at anytime and without notice. The Type 1 encryption provided by the TACLANE is part of the Department of Defense, Defense in Depth strategy. Type 1 encryption is only one portion of the overall defense in depth. A comprehensive network Information Assurance strategy involving Defense in Depth is required to ensure secure and reliable protection for sensitive and classified information. D-TAC1G-10-0719 PRI-1907-0002Adobe PDF Library 15.0 Adobe InDesign CC 13.1 (Macintosh)
