Contents VN4610Manual Version1.3 3 Contents 1Introduction 6 1.1AboutthisUserManual 7 1.1.1Warranty 8 1.1.2RegisteredTrademarks 8 1.2ImportantNotes 9
VN4610 Manual. Version 1.3. 4. 7.2 Software Sync. 38. 7.2.1 General Information . 38. 7.2.2 Configuration. 39. 7.3 Hardware Sync. 40. 7.3.1 General Information. ·

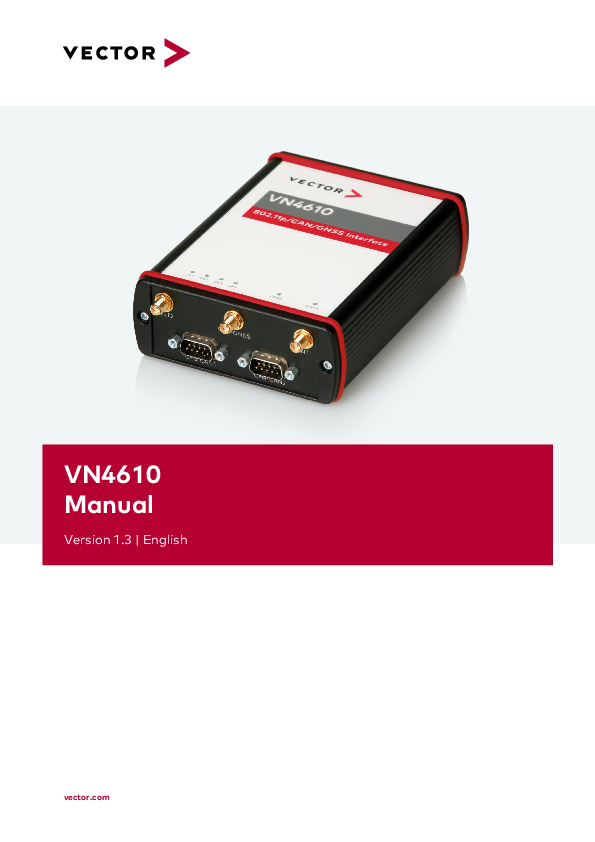

Manual Version1.3 | English vector.com. Imprint VectorInformatikGmbH IngersheimerStraße24 D-70499Stuttgart
VN4610 Manual Version 1.3 | English vector.com Imprint Vector Informatik GmbH Ingersheimer Straße 24 D-70499 Stuttgart The information and data given in this user manual can be changed without prior notice. No part of this manual may be reproduced in any form or by any means without the written permission of the publisher, regardless of which method or which instruments, electronic or mechanical, are used. All technical information, drafts, etc. are liable to law of copyright protection. © Copyright 2021, Vector Informatik GmbH. All rights reserved. Contents 1 Introduction 1.1 About this User Manual 1.1.1 Warranty 1.1.2 Registered Trademarks 1.2 Important Notes 1.2.1 Safety Instructions and Hazard Warnings 1.2.1.1 Proper Use and Intended Purpose 1.2.1.2 Hazards 1.2.2 Disclaimer 2 VN4610 802.11p/CAN/GNSS Interface 2.1 Scope of Delivery 2.2 Introduction 2.3 Accessories 3 Examples of Usage 3.1 General Use Cases 4 Device Description 4.1 Connectors Bus Side 4.2 Connectors USB Side 4.3 LEDs 4.4 Technical Data 5 Getting Started 5.1 Driver Installation 5.2 Loop Tests 5.2.1 CAN 6 Vector Hardware Configuration 6.1 General Information 6.2 Tool Description 6.2.1 Introduction 6.2.2 Tree View 7 Time Synchronization 7.1 General Information VN4610 Manual Version 1.3 Contents 6 7 8 8 9 9 9 10 10 11 12 12 13 14 15 16 17 18 21 22 23 24 26 27 29 30 31 31 32 35 36 3 7.2 Software Sync 7.2.1 General Information 7.2.2 Configuration 7.3 Hardware Sync 7.3.1 General Information 7.3.2 Configuration 7.4 Precision Time Protocol Sync 7.4.1 General Information 7.4.2 Supported Features 7.4.3 Network Topology 7.4.4 Configuration 7.5 GNSS Sync 7.5.1 General Information 7.5.2 Configuration 7.6 Protocol Combinations 7.7 Use Cases and Configuration Examples 7.7.1 GNSS Synchronization 7.7.2 4.2 IEEE1588 Synchronization 7.7.3 Hardware Synchronization 7.8 Compatibility 7.8.1 Vector Software 7.8.2 Device Drivers 7.9 Troubleshooting 8 Ethernet Host Connections 8.1 General Hints 8.2 Getting Started 8.2.1 Connecting the Device 8.2.2 Changing the IP Address 8.3 Windows Network Throttling 8.3.1 Issue 8.3.2 Solution 8.4 Jumbo Frames 8.4.1 Issue 8.4.2 Solution 8.5 Interrupt Moderation Rate 8.5.1 Issue 8.5.2 Solution 8.6 Known Issues with 3rd Party Hardware VN4610 Manual Version 1.3 Contents 38 38 39 40 40 42 43 43 43 44 45 46 46 47 48 49 49 50 51 52 52 52 53 54 55 56 56 58 60 60 60 61 61 61 62 62 62 63 4 8.6.1 Intel I218 / I219 Network Cards Contents 63 VN4610 Manual Version 1.3 5 1 Introduction In this chapter you find the following information: 1.1 About this User Manual 1.1.1 Warranty 1.1.2 Registered Trademarks 1.2 Important Notes 1.2.1 Safety Instructions and Hazard Warnings 1.2.2 Disclaimer 1 Introduction 7 8 8 9 9 10 VN4610 Manual Version 1.3 6 1 Introduction 1.1 About this User Manual Conventions In the two following charts you will find the conventions used in the user manual regarding utilized spellings and symbols. Style Utilization bold Blocks, surface elements, window- and dialog names of the soft- ware. Accentuation of warnings and advices. [OK] Push buttons in brackets File|Save Notation for menus and menu entries Source Code File name and source code. Hyperlink Hyperlinks and references. <CTRL>+<S> Notation for shortcuts. Symbol Utilization This symbol calls your attention to warnings. Here you can obtain supplemental information. Here you can find additional information. Here is an example that has been prepared for you. Step-by-step instructions provide assistance at these points. Instructions on editing files are found at these points. This symbol warns you not to edit the specified file. VN4610 Manual Version 1.3 7 1 Introduction 1.1.1 Warranty Restriction of warranty We reserve the right to change the contents of the documentation and the software without notice. Vector Informatik GmbH assumes no liability for correct contents or damages which are resulted from the usage of the documentation. We are grateful for references to mistakes or for suggestions for improvement to be able to offer you even more efficient products in the future. 1.1.2 Registered Trademarks Registered trademarks All trademarks mentioned in this documentation and if necessary third party registered are absolutely subject to the conditions of each valid label right and the rights of particular registered proprietor. All trademarks, trade names or company names are or can be trademarks or registered trademarks of their particular proprietors. All rights which are not expressly allowed are reserved. If an explicit label of trademarks, which are used in this documentation, fails, should not mean that a name is free of third party rights. Windows, Windows 7, Windows 8.1, Windows 10 are trademarks of the Microsoft Corporation. VN4610 Manual Version 1.3 8 1 Introduction 1.2 Important Notes 1.2.1 Safety Instructions and Hazard Warnings Caution! In order to avoid personal injuries and damage to property, you have to read and understand the following safety instructions and hazard warnings prior to installation and use of this interface. Keep this documentation (manual) always near the interface. Caution! Do not operate the device without antennas! To avoid physical damage to the device, please attach the provided antennas to the device before operation! 1.2.1.1 Proper Use and Intended Purpose Caution! The interface is designed for analyzing, controlling and otherwise influencing control systems and electronic control units. This includes, inter alia, bus systems like CAN, LIN, K-Line, MOST, FlexRay, Ethernet, BroadR-Reach and/or ARINC 429. The interface may only be operated in a closed state. In particular, printed circuits must not be visible. The interface may only be operated (i) according to the instructions and descriptions of this manual; (ii) with the electric power supply designed for the interface, e.g. USB-powered power supply; and (iii) with accessories manufactured or approved by Vector. The interface is exclusively designed for use by skilled personnel as its operation may result in serious personal injuries and damage to property. Therefore, only those persons may operate the interface who (i) have understood the possible effects of the actions which may be caused by the interface; (ii) are specifically trained in the handling with the interface, bus systems and the system intended to be influenced; and (iii) have sufficient experience in using the interface safely. The knowledge necessary for the operation of the interface can be acquired in work-shops and internal or external seminars offered by Vector. Additional and interface specific information, such as ,,Known Issues", are available in the ,,Vector KnowledgeBase" on Vector´s website at www.vector.com. Please consult the ,,Vector KnowledgeBase" for updated information prior to the operation of the interface. VN4610 Manual Version 1.3 9 1 Introduction 1.2.1.2 Hazards Caution! The interface may control and/or otherwise influence the behavior of control systems and electronic control units. Serious hazards for life, body and property may arise, in particular, without limitation, by interventions in safety relevant systems (e.g. by deactivating or otherwise manipulating the engine management, steering, airbag and/or braking system) and/or if the interface is operated in public areas (e.g. public traffic, airspace). Therefore, you must always ensure that the interface is used in a safe manner. This includes, inter alia, the ability to put the system in which the interface is used into a safe state at any time (e.g. by ,,emergency shutdown"), in particular, without limitation, in the event of errors or hazards. Comply with all safety standards and public regulations which are relevant for the operation of the system. Before you operate the system in public areas, it should be tested on a site which is not accessible to the public and specifically prepared for performing test drives in order to reduce hazards. 1.2.2 Disclaimer Caution! Claims based on defects and liability claims against Vector are excluded to the extent damages or errors are caused by improper use of the interface or use not according to its intended purpose. The same applies to damages or errors arising from insufficient training or lack of experience of personnel using the interface. VN4610 Manual Version 1.3 10 2 VN4610 802.11p/CAN/GNSS Interface 2 VN4610 802.11p/CAN/GNSS Interface In this chapter you find the following information: 2.1 Scope of Delivery 12 2.2 Introduction 12 2.3 Accessories 13 VN4610 Manual Version 1.3 11 2 VN4610 802.11p/CAN/GNSS Interface 2.1 Scope of Delivery Contents The delivery includes: 1x VN4610 802.11p/CAN/GNSS Interface 2x 5.9 GHz DSRC antenna (part no. 07204) 1x GNSS antenna (part no. 07205) 1x Power supply (part no. 05024) 1x USB 2.0 cable (part no. 05011) 2.2 Introduction About the VN4610 The VN4610 is a powerful interface with USB PC connection for accessing IEEE 802.11p and CAN FD networks. The dedicated short range communication (DSRC) is based on the IEEE802.11p standard, which transmits/receives frames in the 5.9 GHz frequency range. The VN4610 supports the unfiltered receiving and sending of IEEE 802.11p frames used for the implementation of Car2x/V2x applications. It is possible to synchronize the received radio frames with CAN FD messages. The built-in GNSS receiver supplies the absolute UTC time and current position. Figure 1: VN4610 802.11p/CAN Interface (bus side) Overview of Advantages Sending/receiving frames according to IEEE 802.11p Two configurable IEEE 802.11p WLAN channels Unfiltered forwarding of IEEE 802.11p data packets to the application Adjustable communication parameters such as radio channel selection, band- width, transmission power, modulation type and protocol format LPD/EPD VN4610 Manual Version 1.3 12 2 VN4610 802.11p/CAN/GNSS Interface Two CAN high-speed channels CAN (FD) capable GNSS receiver provides current position and time Precise time stamp based on GNSS time Time synchronisation with PTP according to IEEE 1588 standard (future Release) VN4610 and CANoe.Car2x/CANalyzer.Car2x are optimally matched to each other Synchronization with several interfaces and with other bus systems (Ethernet, CAN, LIN, FlexRay, ...) Robust housing, power supply and temperature range ideal for automotive and industrial applications IO port with digital/analog in/out Ethernet with IEEE802.3: 100BASE-TX and 1000BASE-T Support of customer CAN/DAIO applications via XL-Driver Library (XL-API) Multi-application support (simultaneous operation of different applications on one channel, e. g. CANoe and CANape) High time stamp accuracy Time synchronization of multiple devices and with other bus systems (CAN, LIN, FlexRay, MOST, Ethernet) Software time synchronization Hardware time synchronization GNSS time synchronization to absolute UTC time Time synchronization with PTP according to IEEE 1588 standard Connection to host PC via USB 2.0 LEDs indicating status and activities External power supply, galvanically isolated 2.3 Accessories Reference Information on available accessories can be found in the separate accessories manual on our website. VN4610 Manual Version 1.3 13 3 Examples of Usage In this chapter you find the following information: 3.1 General Use Cases 3 Examples of Usage 15 VN4610 Manual Version 1.3 14 3 Examples of Usage 3.1 General Use Cases Analysis The VN4610 forwards all received radio frames of the two radio channels unfiltered to the test tool for analysis. Therefore, frames can also be analyzed which would berejected by a ECU due to timing, geo information orprotocol errors caused by Car2x/V2x. Since the time stampsof the messages on the bus channels are synchronized intime, latency measurements can also be carried out. GNSS Car2X V2x DSRC Application CANoe.Car2X CANalyzer.Car2X Data IEEE 802.11p CAN(FD) GNSS Data transfer USB/Ethernet IEEE 802.11p VNXXXX Interfaces GNSS HW Sync Sync VN4610 IO Simulation/ Stimulation GNSS Receiver Time synchronization Figure 2: General use cases CAN(FD) CANoe.Car2x together with the VN4610 offers a perfectly coordinated solution for creating an environment stimulation for testing Car2x/V2x applications. The VN4610 sends the transmitted frames, whereby the communication parameters can be easily and individually configured for the different tests. The VN4610 provides precise position, time and speed information that can be used by the application as test stimulus or for documentation. In addition, the absolute GNSS timestamps can be used to synchronize recordings of distributed measurements for subsequent analysis. Additionally, the VN4610 can act as IEEE 1588 time master and provide the GNSS time in a network (in a future release). The VN4610 enables precise time synchronization with PTP according to IEEE1588 standard. The device can be configured e. g. as PTP master with UTC time base, which is provided by the built-in GNSS receiver. VN4610 Manual Version 1.3 15 4 Device Description In this chapter you find the following information: 4.1 Connectors Bus Side 4.2 Connectors USB Side 4.3 LEDs 4.4 Technical Data 4 Device Description 17 18 21 22 VN4610 Manual Version 1.3 16 4.1 Connectors Bus Side Device connectors 4 Device Description Figure 3: Connectors on the bus side Antenna 1/2 (CH1/CH2) The VN4610 has two 802.11p channels which can be used to transmit and receive data packages. Please attach the provided antennas before using these channels. GNSS (CH5) This channel can be used to receive GNSS time and position. D-SUB9 (CH3/CH4) The VN4610 has two D-SUB9 connectors for CAN/CAN FD. The channels are electrically isolated. The pin assignment is as follows: Pin Assignment 1 Not connected 2 1057G CAN Low 3 GND 4 Not connected 5 Not connected 6 Not connected 7 1057G CAN High 8 Not connected 9 Not connected 5 9 4 8 3 7 2 6 1 VN4610 Manual Version 1.3 17 4.2 Connectors USB Side Device connectors 4 Device Description Internal interconnection of digital input 0/1 Figure 4: Connectors on the USB side USB Connect your PC and the VN4610 over USB to install and to use the device with measurement applications (CANoe, CANalyzer). Use the USB 2.0 compliant cable found in the delivery (USB extension cables may generate faults between the PC and the device). Connect the device directly to a USB port at your PC or use a USB hub with its own power supply (self-powered). D-SUB9 (CH6) The VN4610 has a D-SUB9 connector for dedicated digital input/output tasks. The pin assignment is as follows: Pin Assignment 1 Analog input 2 Not connected 3 Not connected 4 Digital input 0 5 Digital input 1 6 Analog GND 7 5 V digital output 8 Digital output 9 Digital GND Analog In Analog GND Digital In 0 Digital In 1 5 V Digital Out Digital Out Digital GND 1 6 1 6 4 2 7 5 3 8 7 4 8 9 5 9 Isolation To Processor OUT Vcc IN- 200k 20k 33 V 370 pF Digital GND IN+ Digital GND Digital GND Vref Figure 5: Digital input 0/1 Digital Input 0/1 VN4610 Manual Version 1.3 18 4 Device Description Internal interconnection of digital output Internal interconnection of analog input Isolation From Processor Figure 6: Digital output 33 V 370 pF Digital GND Digital Output Isolation To Processor OUT ADC IN Vcc IN+ OUT 1M 22 pF IN- Analog GND Analog GND 15k Analog Input 33 V 370 pF 10k 100k Internal interconnection of 5 V digital output Figure 7: Analog input From Processor 5V ISO IO 100 nF Analog GND 100 5 V Digital Output Digital GND Figure 8: 5 V digital output Digital GND Digital GND Extended measuring range of the analog input In normal operation, voltages up to 18 V can be applied and measured at the analog input. The cutoff frequency fc (-3 dB) for AC voltages is approx. 7.2 kHz. For measurements above 18 V (max. 50 V), an external series resistor has to be applied to the analog input. The series resistor Rext depends on the input voltage Uinput and can be calculated as follows: VN4610 Manual Version 1.3 19 4 Device Description The cutoff frequency for AC voltages is also affected by the external series resistor: Examples Rext Rext (E96) fc (-3 dB) 24 V 367 k 374 k (24.12 V) 1148 Hz 32 V 856 k 866 k (32.17 V) 496 Hz 36 V 1100 k 1100 k (36.00 V) 390 Hz 48 V 1833 k 1870 k (48.60 V) 230 Hz Device connectors (continued) Ethernet (RJ45) Connect your PC and the VN4610 via this Ethernet port to install the device and use it together with measurement applications (CANoe, CANalyzer). Power/Sync (Binder connector) The VN4610 has two power/sync connectors (Binder type 711) which can be used for time synchronization of different Vector devices (see section Time Synchronization on page 35) or for power. It does not matter which connector is used to supply the device. For proper operation of the VN4610, an external power supply is required. 1 Power 2 Sync 3 GND Power/Sync VCC 1 Power 2 Sync 3 GND SYNC GND Power/Sync Figure 9: Internal wiring of the power/sync connector Pin Assignment 1 Power supply (typ. 12 V) 2 Synchronization line 13 2 3 Ground VN4610 Manual Version 1.3 20 4.3 LEDs 4 Device Description Figure 10: LEDs of the VN4610 CH1/CH2 Multicolored channel LEDs indicating the WiFi activity. Color Description Green Data frames have been sent or receicved correctly. Red Transmission errors during sending or receiving. WiFi: The flashing frequency depends on the bus load. CH3/CH4 Multicolored channel LED indicating the bus activity. Color Description Green Data frames have been sent or received correctly. Orange CAN: Error frames have been sent or received. Red CAN: Bus off. CAN: The flashing frequency depends on the bus load. GNSS Multicolored channel LED indicating the GNSS activity. Color Green Red Description On: SAT fix within the specified accuracy settings achieved. Flashing: SAT fix without reaching the specified accuracy settings. On: No Satellite signal. Flashing: Satellite signal too weak. Status Multicolored channel LED indicating the status.. Color Green Orange Red Description Device is ready for operation/running measurement. Initializing driver. Please wait. Error. Device not working. VN4610 Manual Version 1.3 21 4 Device Description 4.4 Technical Data 802.11p channels GNSS channel CAN/CAN FD channel Ethernet channel Analog input Digital input Digital output 5 V digital output Time stamps PC interface Time synchronization Average response time Input voltage Power consumption Temperature range (ambient temp. of the device) Relative humidity of ambient air Dimensions (LxWxH) Weight Housing Operating system requirements NXP SAF5100 depending on modulation type up to 27 Mbit/s uBlox NEO-M8U, supports GPS, GLONASS, Beidou, Galileo; up to 3 systems at the same time 2x NXP TJA1057G CAN up to 2 Mbit/s. CAN FD up to 8 Mbit/s. IEEE 100BASE-TX/1000Base-T 10 bit Input 0 V...18 V (Ri = 1.1 M) Voltage tolerance up to 30 V Range 0 V...32 V Schmitt trigger high 2.8 V, low 2.3 V Input frequencies up to 1 kHz Open Drain External supply up to 32 V Output frequency up to 1 kHz Current max. 500 mA Short circuit / over voltage protected 5V TTL output signal on D-SUB9 connector, pin 7. GND reference of the signal is digital GND on pin 9. Accuracy (within one device): 1 µs Accuracy software sync: typ. 50 µs Accuracy hardware sync: typ. 1 µs USB 2.0 / Ethernet IEEE 100Base-TX/1000Base-T PTP according to IEEE1588-2008 standard 250 s 6 V ... 50 V DC Approx. 7 W Operation: -40 °C ... +60 °C Storage: -40 °C ... +85 °C 15 %...95 %, non-condensing Approx. 111 mm x 157 mm x 45 mm without antennas Approx. 610 g Robust aluminium housing Windows 7 SP1 (32 bit / 64 bit) Windows 8.1 (32 bit / 64 bit) Windows 10 (64 bit) VN4610 Manual Version 1.3 22 5 Getting Started In this chapter you find the following information: 5.1 Driver Installation 5.2 Loop Tests 5.2.1 CAN 5 Getting Started 24 26 27 VN4610 Manual Version 1.3 23 5 Getting Started 5.1 Driver Installation Caution! Do not operate the device without antennas! To avoid physical damage to the device, please attach the provided antennas to the device before operation! General information The Vector Driver Disk offers a driver setup which allows the installation or the removal of Vector devices. Note Please note that you will need Administrator Rights for the following steps. Step by Step Procedure 1. Execute the driver setup from the autostart menu or directly from \Drivers\Setup.exe before the device is connected to the PC with the included USB cable. If you have already connected the device to the PC, the Windows found new Hardware wizard appears. Close this wizard and then execute the driver setup. 2. Click [Next] in the driver setup dialog. The initialization process starts. VN4610 Manual Version 1.3 24 5 Getting Started 3. In the driver selection dialog, select your devices to be installed (or to be uninstalled). 4. Click [Install] to execute the driver installation, or [Uninstall] to remove existing drivers. 5. A confirmation dialog appears. Click [Close] to exit. After successful installation, the device is ready for operation and can be connected to the PC with the included USB cable and powered by supplying external voltage (e. g. with an appropriate cable offered by Vector). VN4610 Manual Version 1.3 25 5 Getting Started 5.2 Loop Tests Operation test The test described here can be performed to check the functional integrity of the driver and the device. This test is identical for Windows 7 / Windows 8.1 / Windows 10 and independent of the used application. VN4610 Manual Version 1.3 26 5 Getting Started 5.2.1 CAN Device test The operating test for CAN requires either two high-speed or two low-speed transceivers and can be executed as follows: Step by Step Procedure 1. Connect two CAN channels with a suitable cable. If two high-speed transceivers are being used, we recommend our CANcable1 (CANcable0 for low-speed transceivers). 2. Start \Drivers\Common\Loop3.exe from the Vector Driver Disk. This program accesses the Vector devices and transmits CAN messages. 3. Select the connected CAN channels of the device(s) to be tested. VN4610 Manual Version 1.3 27 5 Getting Started 4. Set the appropriate baudrate depending on the transceiver being used (high- speed max. 1,000,000 Bd, low-speed max. 125,000 Bd). 5. Click [Start]. 6. You will see statistical data in the lower part of the window if the system has been configured properly. 7. The test procedure can be terminated with the [Stop] button. An OK should appear in the upper part of the window. VN4610 Manual Version 1.3 28 6 Vector Hardware Configuration 6 Vector Hardware Configuration In this chapter you find the following information: 6.1 General Information 30 6.2 Tool Description 31 6.2.1 Introduction 31 6.2.2 Tree View 32 VN4610 Manual Version 1.3 29 6 Vector Hardware Configuration 6.1 General Information Executing Vector Hardware Config After the successful driver installation, you will find the configuration application Vector Hardware in the Control Panel (see below). The tool gives you information about the connected and installed Vector devices. There are also several settings that can be changed. Control Panel Windows 7 Control Panel Windows 8.1 Control Panel Windows 10 Figure 11: Icon in Control Panel Category view Windows Start | Control Panel | Hardware and Sound, click Vector Hardware in the list. Symbols view Windows Start | Control Panel, click Vector Hardware in the list. Category view <Windows key>+<X> | Control Panel | Hardware and Sound, click Vector Hardware in the list. Symbols view <Windows key>+<X> | Control Panel, click Vector Hardware in the list. Category view <Windows key>+<X> | Control Panel | Hardware and Sound, click Vector Hardware in the list. Symbols view <Windows key>+<X> | Control Panel, click Vector Hardware in the list. VN4610 Manual Version 1.3 30 6.2 Tool Description 6.2.1 Introduction Vector Hardware Config 6 Vector Hardware Configuration Figure 12: General view of Vector Hardware Config Logical and physical channels Vector Hardware Config enables the channel configuration between installed Vector devices and applications. Applications use so-called logical channels which are hardware independent and have to be assigned to real hardware channels. Application logical channel CAN 1 logical channel LIN 1 lologgicicaallcchhaannnneell FlexRay 1 CAN 1 logical channel CAN 2 not assigned physical CH1 CAN physical CH2 LIN Vector Device 1 physical CH1 FlexRay physical CH2 CAN Vector Device 2 Figure 13: Concept of channel assignments Figure 14: Channel assignment in Vector Hardware Config VN4610 Manual Version 1.3 31 6 Vector Hardware Configuration 6.2.2 Tree View Accessing Vector devices The tool is split into two windows. The left window has a tree view and lets you access the installed Vector devices, the right window displays the details of the selection. The following nodes are available in the tree view: Hardware The Hardware section lists the installed Vector devices. Each device item has physical channels which can be assigned to any number of logical channels (e. g. CANalyzer CAN 1). A logical channel can be assigned to only one physical channel. Application Figure 15: Hardware In Application, all available applications are displayed in a tree view. According to each application, the assignments of logical and physical channels are displayed in the right part of the window. If no assignment exists, the information Not assigned appears. The assignment can be edited via a right-click. Figure 16: Application VN4610 Manual Version 1.3 32 6 Vector Hardware Configuration Global settings Global settings contains global device configuration possibilities, e. g. software time synchronization, GNSS time synchronization, transmit queue size, configuration flags or the number of virtual CAN devices. Driver status Figure 17: Global settings Driver status offers an overall status information of devices and applications currently in use. You can see whether the channels are connected to the bus (online/offline) and whether the time synchronization is activated or not (Time-Sync-On/TimeSync-Off). Figure 18: Driver status VN4610 Manual Version 1.3 33 License 6 Vector Hardware Configuration The License section contains information on all current available licenses (Vector bus devices, Vector License USB dongle devices). Figure 19: License Reference You will find a detailed description of Vector Hardware Config in the online help (Help | Contents). VN4610 Manual Version 1.3 34 7 Time Synchronization In this chapter you find the following information: 7.1 General Information 7.2 Software Sync 7.2.1 General Information 7.2.2 Configuration 7.3 Hardware Sync 7.3.1 General Information 7.3.2 Configuration 7.4 Precision Time Protocol Sync 7.4.1 General Information 7.4.2 Supported Features 7.4.3 Network Topology 7.4.4 Configuration 7.5 GNSS Sync 7.5.1 General Information 7.5.2 Configuration 7.6 Protocol Combinations 7.7 Use Cases and Configuration Examples 7.7.1 GNSS Synchronization 7.7.2 4.2 IEEE1588 Synchronization 7.7.3 Hardware Synchronization 7.8 Compatibility 7.8.1 Vector Software 7.8.2 Device Drivers 7.9 Troubleshooting 7 Time Synchronization 36 38 38 39 40 40 42 43 43 43 44 45 46 46 47 48 49 49 50 51 52 52 52 53 VN4610 Manual Version 1.3 35 7 Time Synchronization 7.1 General Information Time stamps and events Time stamps are useful when analyzing incoming or outgoing data or event sequences on a specific bus. Generating time stamps Figure 20: Time stamps of two CAN channels in CANalyzer Each event which is sent or received by a Vector network interface has an accurate time stamp. Time stamps are generated for each channel in the Vector network interface. The base for these time stamps is a common hardware clock in the device. PC CANalyzer/CANoe USB Vector CAN Interface Time Stamp Clock CAN CH1 Figure 21: Common time stamp clock for each channel CH2 If the measurement setup requires more than one Vector network interface, a synchronization of all connected interfaces and their hardware clocks is needed. Due to manufacturing and temperature tolerances, the hardware clocks may vary in speed, so time stamps of various Vector devices drift over time. VN4610 Manual Version 1.3 36 7 Time Synchronization PC CANalyzer/CANoe USB Vector CAN Interface CH1 CH2 Time Stamp Clock sec 0.000000 0.100376 0.200382 0.300372 0.400406 0.500593 0.600242 USB sec 0.000000 Vector 0.100383 0.200982 Ethernet Interface 0.301456 0.402612 0.503885 Port 1 Port 2 0.604092 Time Stamp Clock CAN Ethernet Figure 22: Example of unsynchronized network interfaces. Independent time stamps drift apart To compensate for these time stamp deviations between the Vector network interfaces, the time stamps can be either synchronized by software, hardware, PTP or GNSS (see next section). Note The accuracy of the software, hardware, PTP or GNSS sync depends on the interface. Further information on specific values can be found in the technical data of the respective devices. VN4610 Manual Version 1.3 37 7 Time Synchronization 7.2 Software Sync 7.2.1 General Information Synchronization by software The software time synchronization is driver-based and available for all applications without any restrictions. The time stamp deviations from different Vector network interfaces are calculated and synchronized to the common PC clock. For this purpose no further hardware setup is required. PC CANalyzer/CANoe PC clock USB synchronization by software (PC clock) USB Vector CAN Interface CH1 CH2 Time Stamp Clock sec 0.000000 1.100356 1.200362 2.300362 2.400356 3.500353 3.600362 sec 0.000000 1.100413 Vector 1.200421 Ethernet Interface 2.300429 2.400419 3.500415 Port 1 Port 2 3.600420 Time Stamp Clock CAN Ethernet Figure 23: Time stamps of devices are synchronized to the PC clock Note Software time synchronization may lead to an increased latency for all connected Vector network interfaces. If a use case requires low latency, deactivate this option and use another synchronization mechanism. VN4610 Manual Version 1.3 38 7 Time Synchronization 7.2.2 Configuration Vector Hardware Config Use the software synchronization if at least one device has no hardware sync connector and to configure all devices to legacy software synchronization. The setting of the software time synchronization can be changed in the Vector Hardware Config tool via a right-clicking on the device and by selecting Time sync device configuration. Software sync modes In section Protocol Mode | Software, select the required mode: Off Synchronization mechanism is turned off. Legacy Device is synchronized to PC performance counter. This setting is compatible with the previous synchronization mechanism Software time synchronization. Can be used in conjunction with device drivers older than 11.2. Master Device operates as software synchronization time master. Slave Device operates as software synchronization time slave. Figure 24: Configuring software synchronization VN4610 Manual Version 1.3 39 7 Time Synchronization 7.3 Hardware Sync 7.3.1 General Information Synchronization by hardware A more accurate time synchronization of multiple devices is provided by the hardware synchronization. Two Vector network interfaces can therefore be connected with the SYNCcableXL (see accessories manual, part number 05018). In order to synchronize up to five devices at the same time, a distribution box is available (see accessories manual, part number 05085). USB PC VN5610A USB PC VN1630A VN1640A USB PC PC Power SYNCcable XL SYNCcable XL SYNCcable XL Multi SYNCbox external USB PC VN1640A SYNCcable XL Figure 25: Example of a time synchronization with multiple devices VN8914 VN7570 USB PC Vector Devices VN5610A VN5610A VN1640A USB PC Power SYNCcable XL Power Power SYNCcable XL SYNCcable XL Multi SYNCbox external USB VN8914 Figure 26: Example of a time synchronization with VN8914 and additional devices At each falling edge on the sync line which is initiated by the driver, the Vector network interface generates a time stamp that is provided to the driver. This allows the driver to calculate the deviations between the network interfaces and to synchronize VN4610 Manual Version 1.3 40 7 Time Synchronization the time stamps to a common time base (master clock) which can be defined by the user. PC CANalyzer/CANoe USB synchronization by hardware (SYNCcable) USB sec sec Vector 0.000000 0.000000 Vector 1.100375 1.100376 CAN Interface 1.200381 1.200382 Ethernet Interface 2.300371 2.300372 CH1 2.400405 2.400406 CH2 3.500592 3.500593 Port 1 Port 2 Time Stamp Clock 3.600241 3.600242 Master Time Stamp Clock CAN Ethernet Figure 27: Time stamps are synchronized to the master clock VN4610 Manual Version 1.3 41 7 Time Synchronization 7.3.2 Configuration Vector Hardware Config Use hardware synchronization if at least one device is connected with USB or PCIe to the PC and all devices are hardware sync capable. One device should be configured as master and all other devices as slaves. Therefore, all devices must be interconnected with SYNCcableXL and Multi SYNCbox external or SYNCbox active. The setting of the hardware time synchronization can be changed in the Vector Hardware Config tool via a right-clicking on the device and by selecting Time sync device configuration. Hardware sync modes In section Protocol Mode | Hardware, select the required mode: Off Synchronization mechanism is turned off. Master Device operates as synchronization master, sending sync pulses on the sync line. Slave Device operates as synchronization slave, awaiting sync pulses on the sync line. Figure 28: Configuring hardware synchronization VN4610 Manual Version 1.3 42 7 Time Synchronization 7.4 Precision Time Protocol Sync 7.4.1 General Information Overview The Precision Time Protocol (PTP) is a protocol used to synchronize clocks through a computer network. On a local area network, it achieves a synchronization accuracy in the sub-microsecond range, making it suitable for measurement and control systems. Vector network interfaces support time synchronization with IEEE1588-2008 standard. The following IEEE1588 features are supported. Note The PTP feature can only be used on the Ethernet host ports of these devices. Therefore, it can only be used, if the device is connected via Ethernet host port to the PC. PTP Network PTP Switch VN5640 Ethernet Host Grandmaster Ordinary Clock Figure 29: Setup example PC 7.4.2 Supported Features IEEE1588 Features Clock Types Ordinary Clock Master Ordinary Clock Slave Synchronization 2-step clock E2E BMCA Transport PTP over UDP with IPv4 PTP over UDP with IPv6 Multicast Master/Slave Unicast Master/Slave Synchronization accuracy 1 µs VN5640 Ethernet Host Slave Ordinary Clock VN Device Support X X X X X X X - X VN4610 Manual Version 1.3 43 7 Time Synchronization 7.4.3 Network Topology Network switches To achieve a maximum accuracy, PTP needs transparent clock support in network equipment. Therefore, a PTP transparent clock capable network switch is strongly suggested. If no such network switch is available, we have experienced good results with the following network switches. Keep in mind that these switches do not support PTP transparent clocks and thus do not guarantee the promised synchronization accuracy. NETGEAR GS108Ev3 TP-Link TL-SG105 LogiLink NS0051A2.0 Cisco SG110D-08 VN4610 Manual Version 1.3 44 7 Time Synchronization 7.4.4 Configuration Vector Hardware Config Use the PTP synchronization if all devices are connected via Ethernet host port to the PC and one device is configured as master and all other devices are configured as slaves. The setting of the PTP synchronization can be changed in the Vector Hardware Config tool via a right-clicking on the device and by selecting Time sync device configuration. PTP sync modes In section Protocol Mode | PTP, select the required mode: Off Synchronization mechanism is turned off. Master Device operates as fixed IEEE1588 master. Slave Device operates as fixed IEEE1588 slave. Auto Devices uses the Best Master Clock Algorithm (BMCA) to determine operation mode. Repeat the steps above to configure each Vector network interface. Keep in mind that only one IEEE1588 Master should be used at the same time and that IEEE1588 Slaves need at least one IEEE1588 Master. Figure 30: Configuring PTP synchronization VN4610 Manual Version 1.3 45 7 Time Synchronization 7.5 GNSS Sync 7.5.1 General Information Synchronization by GNSS This device supports time synchronization via GNSS, i. e. the internal time stamp clock of the device is synchronized to the GNSS master time. Vector 802.11p Interface GNSS Master Time Time Stamp Clock Figure 31: Time stamps are synchronized to GNSS master time You can use this GNSS synchronization to provide the time to other Vector devices by using PTP time synchronization, hardware time synchronization or software time synchronization. In this case, the GNSS synchronized device has to be configured as time master. VN4610 Manual Version 1.3 46 7 Time Synchronization 7.5.2 Configuration Vector Hardware Config The setting of the GNSS time synchronization can be changed in the Vector Hardware Config tool via a right-clicking on the device and by selecting Time sync device configuration. GNSS sync modes In section Protocol Mode | GNSS, select the required mode: Off Synchronization mechanism is turned off. Slave Device synchronizes to GNSS. Figure 32: Configuring GNSS synchronization VN4610 Manual Version 1.3 47 7 Time Synchronization 7.6 Protocol Combinations General information All described time synchronization protocols can be combined in several ways to support different use cases. The following example illustrates this in a generic way: Setup PTP S 2nd Device Level S Root Device MMM HW Sync S 2nd Device Level GNSS GNSS or PTP SW Sync S 2nd Device Level Figure 33: Combination example Legend Symbol S S M Description Active Slave protocol on first device, i. e. protocol which corrects the time on the device. Possible active Slave protocols on second device, i. e. protocol which corrects the time on the device Possible active Master protocol on first device, i. e. protocol which distributes the time to other devices. Possible combinations The following table outlines the possible protocol combinations. See legend above. For example, if the first device is synced to GNSS the second device can be synced to the same time using PTP synchronization Root Device 2nd Device Level Sync Role Slave Master Slave Hardware Sync None Software Sync PTP Time Synchronization Protocol GNSS Hardware Sync Software Sync PTP PTP * Hardware Sync HW Sync Software Sync SW Sync - * with external master or Vector device Note Only one slave protocol can be active on a device but a device can drive multiple master protocols. VN4610 Manual Version 1.3 48 7 Time Synchronization 7.7 Use Cases and Configuration Examples 7.7.1 GNSS Synchronization TAI/UTC time Synchronizing Vector network interfaces to GNSS (TAI/UTC) time. Setup GNSS GNSS VN4610 UTC PTP PTP Network PTP Switch Configuration VN5640 PC VN5640 UTC UTC Figure 34: GNSS example In this use-case the devices shall be configured in the following way: Devices GNSS PTP Software Sync Hardware Sync VN4610 Slave Master Off Off VN5640 Off Slave Off Off Check the synchronization status of all devices. Configuration shall be ok and all devices shall be In-Sync. VN4610 Manual Version 1.3 49 7 Time Synchronization 7.7.2 4.2 IEEE1588 Synchronization PTP master Synchronizing Vector network interfaces to a PTP master. Setup PTP Network PTP Switch Configuration VN5640 Ethernet Host Grandmaster Ordinary Clock Figure 35: IEEE1588 example PC VN5640 Ethernet Host Slave Ordinary Clock In this use-case the devices shall be configured in the following way: Devices GNSS PTP Software Sync Hardware Sync VN5640 (1) Off Master Off Off VN5640 (2) Off Slave Off Off Check the synchronization status of all devices. Configuration shall be ok and all devices shall be In-Sync. VN4610 Manual Version 1.3 50 7 Time Synchronization 7.7.3 Hardware Synchronization Active sync Synchronizing more than five Vector network interfaces via Multi SYNCbox active. Setup PC USB PC Power USB PC Power SYNC in DC in Power SYNCcable XL (In) Multi SYNCbox active SYNC out SYNC out USB PC Power USB PC Power USB PC Power SYNCcable XL (Out) SYNCcable XL Multi SYNCbox external SYNCcable XL (Out) Multi SYNCbox external USB PC Power USB PC Power SYNCcable XL (Out) Multi SYNCbox external Configuration Figure 36: Active sync example USB PC Vector Devices Note The hardware synchronization topology should be evenly balanced to achieve the best synchronization results. This means all synchronization participants (except the master) shall be interconnected on the same topology level. In this use-case the devices shall be configured in the following way: Devices GNSS PTP Software Sync Hardware Sync VN7572 Off Off Off Master all others Off Off Off Slave Check the synchronization status of all devices. Configuration shall be ok and all devices shall be In-Sync. VN4610 Manual Version 1.3 51 7 Time Synchronization 7.8 Compatibility 7.8.1 Vector Software CANoe 12.0 SP3 or higher CANape 18.0 or higher 7.8.2 Device Drivers For backwards compatibility, use software synchronization Legacy for all devices. For devices with driver versions < 11.2, activate Global Settings | Software time synchronization in Vector Hardware Config tool. Figure 37: Global settings Alternatively, disable all synchronization mechanisms and use application hardware synchronization. Note The hardware synchronization must be supported by the application. For further information please refer to the relevant application manual. Please note that the software synchronization must be disabled, if application hardware synchronization is used. VN4610 Manual Version 1.3 52 7 Time Synchronization 7.9 Troubleshooting Problem Vector Hardware Configuration does not show the context menu to configure timesync on the device. Error messages: IEEE1588 sync not supported (only with ETH connection) Software sync not supported (only with USB connection). Possible Reason Old driver. Solution Update device driver to most recent driver. IEEE1588 Synchronization is only Disconnect the USB available if the used Host Interface cable from the device. is Ethernet. Connect the Ethernet A device which uses USB con- Host cable to the nection for Host Interface cannot device. be configured for IEEE1588 synchronization (although the Ethernet Power cycle the cable is connected physically in device. addition to the USB cable). Use another syn- chronization protocol if you want to keep the USB Host connection. Software synchronization is only Disconnect the Eth- available if the host interface used ernet Host cable from is USB or PCIe. the device. A device that uses an Ethernet Connect the USB cable port for the host interface cannot to the device. be configured for software synchronization (although the Ethernet cable is physically connected in Power cycle the device. addition to the USB cable). Use another syn- chronization protocol if you want to keep the Ethernet Host con- nection. Synchronization cannot be established. Sync cluster not properly con- Red icon in Vector Hardware Con- figured. figuration Tool (Status: Out of sync). Slave configured but no Master available. Hw Sync cable not properly connected. No GNSS satellite signal available (check GNSS LED). Used Ethernet Switch for IEEE1588 introduces too much jitter. VN4610 Manual Version 1.3 53 8 Ethernet Host Connections 8 Ethernet Host Connections In this chapter you find the following information: 8.1 General Hints 55 8.2 Getting Started 56 8.2.1 Connecting the Device 56 8.2.2 Changing the IP Address 58 8.3 Windows Network Throttling 60 8.3.1 Issue 60 8.3.2 Solution 60 8.4 Jumbo Frames 61 8.4.1 Issue 61 8.4.2 Solution 61 8.5 Interrupt Moderation Rate 62 8.5.1 Issue 62 8.5.2 Solution 62 8.6 Known Issues with 3rd Party Hardware 63 8.6.1 Intel I218 / I219 Network Cards 63 VN4610 Manual Version 1.3 54 8 Ethernet Host Connections 8.1 General Hints Network switches It is best to avoid network switches between your Vector network interface and your PC. Best throughput and performance can be achieved by directly connecting your Vector network interface to your PC. VN4610 Manual Version 1.3 55 8 Ethernet Host Connections 8.2 Getting Started 8.2.1 Connecting the Device Step by Step Procedure If you want to connect your device to the PC via Ethernet, the device and the PC have to be configured first. 1. In Windows, first check your TCP/IPv4 settings. Note Default subnet of device: The devices are initially configured to the subnet 192.168.0.0\24. The default IP address of the devices is 192.168.0.5 Firewall settings: The firewall may block the communication. The firewall requires exceptions for the following ports: - UDP 42600 (used by Scan network in Vector Hardware Config) - TCP 4200, 4201 (necessary for establishing a connection to device) VN4610 Manual Version 1.3 56 8 Ethernet Host Connections 2. Connect the device to your PC via Ethernet. Ensure that no USB cable is con- nected. 3. Open Vector Hardware Config. 4. Click on Network Devices. 5. Click [Scan network]. The Ethernet device interface will be listed. VN4610 Manual Version 1.3 57 8 Ethernet Host Connections 6. Click [Connect]. Now, the Ethernet interface is available via your network. 8.2.2 Changing the IP Address Step by Step Procedure 1. Connect the device to your PC via Ethernet (see section Connecting the Device on page 56) or via USB. 2. In Vector Hardware Config, select an installed Ethernet interface with a right- click and select Change IP address in the context menu. 3. Enter a suitable IP address according to your network settings and click [OK]. VN4610 Manual Version 1.3 58 8 Ethernet Host Connections Please follow the extra steps below if your device is connected via USB: 4. Remove the USB cable from your host and the device. Otherwise, the USB connection is always preferred to the Ethernet connection. 5. Connect your host and the device via an Ethernet cable. The device will be lis- ted as not available (red icon). 6. Connect the power supply to your device. VN4610 Manual Version 1.3 59 8 Ethernet Host Connections 8.3 Windows Network Throttling 8.3.1 Issue Throttled network traffic Ethernet network traffic is throttled on Windows PC when running a multimedia application like Windows Media Player or an internet browser. This results in increased latency and less data throughput for Vector network interfaces, connected to the PC via Ethernet. 8.3.2 Solution Disabling Network Throttling Index In Windows operating systems, a network throttling mechanism has been existing since 2007 which is activated as soon as the Multimedia Class Scheduler Service is active. In order to reduce CPU utilization by the network driver, the Network Driver Interface Specification (NDIS) framework passes along a maximum number of packets per milliseconds. This number of packets is defined by the following registry key: HKEY_LOCAL_MACHINE\SOFTWARE\ Microsoft\Windows NT\CurrentVersion\Multimedia\ SystemProfile\NetworkThrottlingIndex Step by Step Procedure Follow the steps below to disable the Network Throttling Index: 1. Open Registry Editor and navigate to the key SystemProfile. 2. Change the Value NetworkThrottlingIndex to 0xffffffff. 3. Reboot your PC. VN4610 Manual Version 1.3 60 8 Ethernet Host Connections 8.4 Jumbo Frames 8.4.1 Issue Jumbo Frames not supported For Vector network interfaces connected to a PC via Ethernet, Jumbo Frames must be supported to achieve maximum data throughput. 8.4.2 Solution Activating Jumbo Frames Jumbo Frames allow larger Ethernet frame sizes compared to standard Ethernet frames. Thus more user data can be transferred with a single Jumbo Frame. The data throughput is improved by a smaller proportion of header data relative to the entire packet. If the data throughput should be maximized, activate Jumbo Frames. This is achieved by directly connecting the Vector network interface to the PC or by using the correct network switches. Step by Step Procedure Follow the steps below to enable Jumbo Frames: 1. Open Device Manager. 2. In the tree view, open node Network Adapters. 3. Select the NIC that is connected to the Vector network interface with a right- lick and select Properties. 4. Select tab Advanced. 5. Select the property Jumbo Packet and choose the highest possible option. VN4610 Manual Version 1.3 61 8 Ethernet Host Connections 8.5 Interrupt Moderation Rate 8.5.1 Issue Increased latency Some network interface cards (NIC) have a property called Interrupt Moderation Rate (IMR). If this property is enabled, the latency is increased while the data throughput is improved. 8.5.2 Solution Disabling IMR If latency should be low, disable Interrupt Moderation Rate. Step by Step Procedure Follow the steps below to enable Jumbo Frames: 1. Open Device Manager. 2. In the tree view, open node Network Adapters. 3. Select the NIC that is connected to the Vector network interface with a right- lick and select Properties. 4. Select tab Advanced. 5. Select the property Interrupt Moderation Rate and choose Disable. Note Depending on the network interface, this option may no be available. VN4610 Manual Version 1.3 62 8 Ethernet Host Connections 8.6 Known Issues with 3rd Party Hardware 8.6.1 Intel I218 / I219 Network Cards Issue Intel I218 and I219 network cards have issues with jumbo frames. Solution Disable Jumbo Frames. VN4610 Manual Version 1.3 63 Visit our website for: News Products Demo software Support Training classes Addresses vector.commadbuild
