Instruction Manual for CHAMPION models including: 44 Pro, 66 PRO, 70FF PRO HD, 80HD PRO, Standard Rack Conveyor Dishwashers, PRO Series
1.20.17. All. RP17011002. Released first edition. 6.14.17. 11-15. All. Revised electrical connections. 8.4.17.
Restaurant Equipment & Supplies Champion 44-PRO High Temp Rack Conveyor Dishwasher with Built in Booster

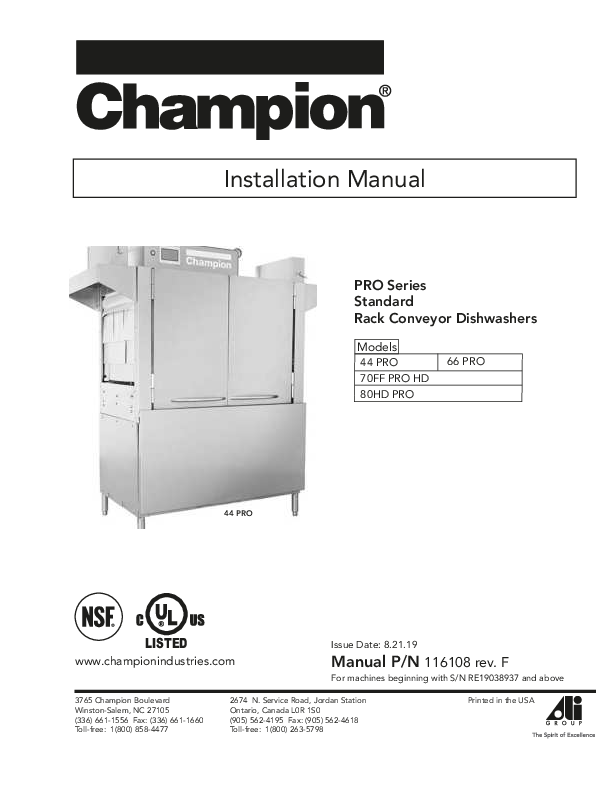

Installation Manual PRO Series Standard Rack Conveyor Dishwashers Models 44 PRO 70FF PRO HD 80HD PRO 66 PRO 44 PRO LISTED www.championindustries.com Issue Date: 8.21.19 Manual P/N 116108 rev. F For machines beginning with S/N RE19038937 and above 3765 Champion Boulevard Winston-Salem, NC 27105 (336) 661-1556 Fax: (336) 661-1660 Toll-free: 1(800) 858-4477 2674 N. Service Road, Jordan Station Ontario, Canada L0R 1S0 (905) 562-4195 Fax: (905) 562-4618 Toll-free: 1(800) 263-5798 Printed in the USA National Service Department In Canada: Toll-free: (800) 263-5798 Tel: (905) 562-4195 Fax: (905) 562-4618 email: service@moyerdiebellimited.com In the USA: Toll-free: (800) 858-4477 Tel: (336) 661-1556 Fax: (336) 661-1660 email: service@championindustries.com ATTENTION The model no., serial no., voltage, Hz and phase are needed to identify your machine and to answer questions. The machine data plate is located on the right front corner of the lower panel Please have this information ready if you call for service assistance. COPYRIGHT © 2019 All rights reserved Printed in the USA Product Registration Two ways to REGISTER YOUR PRODUCT and ACTIVATE YOUR WARRANTY. 4:34 PM 44% · Visit our website at www.championindustries.com and register your product online. · Use the fax form on the next page and fax to 1-800 661-1660. Product Registration PRODUCT REGISTRATION BY FAX COMPLETE THIS FORM AND FAX TO: (336) 661-1660 in the USA 1-(800) 204-0109 in Canada PRODUCT REGISTRATION CARD Model Serial # Date of Installation: Company Name: Address: Telephone #: ( ) --- Contact: (Street) State/Province Zip/Postal Code Installation Company: Address: Telephone #: Contact: FAILURE TO REGISTER YOUR PRODUCT MAY VOID YOUR WARRANTY IMPORTANT IMPORTANT Revision History Revision History Specifications are subject to change based on continual product improvement. Equipment owners may request a revised manual, at no charge, by calling 1 (800) 858-4477 in the USA or 1(800) 263-5798 in Canada. Revision Date 1.20.17 6.14.17 8.4.17 10.19.18 4.17.19 7.1.19 8.21.19 Revised Pages All 11-15 6 7,9,10 1 15 14 5-6 1, 5,7,18 7 Serial Number Effectivity RP17011002 All All All RP18071601 RP18071601 RP18021381 RP19038937 RP19062022 RP19062022 Description Released first edition. Revised electrical connections. Added mechanical DWT valve. Revised fuse blocks. Revised placement instructions to include drains. Revised drain install with electric valve. Fig. 17 changed to show new drive mechanism. Added Steam connection data to manual. Changed drain valve from P/N 114471 Dependodrain to P/N 117014 globe valve. Changed drain connection to 1-1/4" i Limited Warranty LIMITED WARRANTY Champion Industries (herein referred to as "The Company"), 3765 Champion Blvd., Winston-Salem, North Carolina 27105, and 2674 N. Service Road, Jordan Station, Ontario, Canada, L0R 1S0, warrants machines, and parts, as set out below. Warranty of Machines: The Company warrants all new machines of its manufacture bearing the name "Champion and installed within the United States and Canada to be free from defects in material and workmanship for a period of one (1) year after the date of installation or fifteen (15) months after the date of shipment by The Company, whichever occurs first. [See below for special provisions relating to glasswashers.] Warranty registration must be submitted to The Company within ten (10) days after installation either online on the Champion Industries website (http://www.championindustries.com, in the USA or http://www.championindustries.com/canada in Canada or by the fax form provided at the front of this manual. The Company will not assume any responsibility for extra costs for installation in any area where there are jurisdictional problems with local trades or unions. If a defect in workmanship or material is found to exist within the warranty period, The Company, at its election, will either repair or replace the defective part or accept return of the machine for full credit; provided; however, as to glasswashers, The Company's obligation with respect to labor associated with any repairs shall end (a) 120 days after shipment, or (b) 90 days after installation, whichever occurs first. In the event that The Company elects to repair, the labor and work to be performed in connection with the warranty shall be done during regular working hours by a Champion authorized service technician. Defective parts become the property of The Company. Use of replacement parts not authorized by The Company will relieve The Company of all further liability in connection with its warranty. In no event will The Company's warranty obligation exceed The Company's charge for the machine. The following are not covered by The Company's warranty: a. Lighting of gas pilots or burners. b. Cleaning of gas lines. c. Replacement of fuses or resetting of overload breakers. d. Adjustment of thermostats. e. Adjustment of clutches. f. Opening or closing of utility supply valves or switching of electrical supply current. g. Cleaning of valves, strainers, screens, nozzles, or spray pipes. h. Performance of regular maintenance and cleaning as outlined in the operator's guide. i. Damages resulting from water conditions, accidents, alterations, improper use, abuse, tampering, improper installation, or failure to follow maintenance and operation procedures. j. Wear on Pulper cutter blocks, pulse vanes, and auger brush. Examples of the defects not covered by warranty include, but are not limited to: (1) Damage to the exterior or interior finish as a result of the above, (2) Use with utility service other than that designated on the rating plate, (3) Improper connection to utility service, (4) Inadequate or excessive water pressure, (5) Corrosion from chemicals dispensed in excess of recommended concentrations, (6) Failure of electrical components due to connection of chemical dispensing equipment installed by others, (7) Leaks or damage resulting from such leaks caused by the installer, including those at machine table connections or by connection of chemical dispensing equipment installed by others, (8) Failure to comply with local building codes, (9) Damage caused by labor dispute. Warranty of Parts: The Company warrants all new machine parts produced or authorized by The Company to be free from defects in material and workmanship for a period of 90 days from date of invoice. If any defect in material and workmanship is found to exist within the warranty period The Company will replace the defective part without charge. DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY. THE COMPANY'S WARRANTY IS ONLY TO THE EXTENT REFLECTED ABOVE. THE COMPANY'S MAKE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED, TO ANY WARRANTY OF MERCHANTABILITY, OR FITNESS OF PURPOSE. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THE REMEDIES SET OUT ABOVE ARE THE EXCLUSIVE REMEDIES FOR ANY DEFECTS FOUND TO EXIST IN THE COMPANY'S' DISHWASHING MACHINES AND THE COMPANY'S PARTS, AND ALL OTHER REMEDIES ARE EXCLUDED, INCLUDING ANY LIABILITY FOR INCIDENTALS OR CONSEQUENTIAL DAMAGES. The Company does not authorize any other person, including persons who deal in Champion dishwashing machines to change this warranty or create any other obligation in connection with Champion dishwashing machines. ii Table of Contents Table of Contents Revision History............................................................................................................................ i Limited Warranty......................................................................................................................... ii Model Descriptions .................................................................................................................... iv Installation ..................................................................................................1 Receiving and Placement....................................................................................1 Installation Codes/Safety Symbols......................................................................2 Table Connections...............................................................................................3 Hot Water Connection ........................................................................................4 Steam Connection ..............................................................................................5 Drain Connection ................................................................................................7 Cold Water Connection for Drain Water Tempering Valve.................................8 Ventilation - Vent Hood Fan Control...................................................................9 Ventilation - Pant Leg Duct Settings .................................................................10 Detergent Dispenser Connection .....................................................................11 Rinse-aid Dispenser Connection .......................................................................12 Electrical Connections.......................................................................................14 Change 1-Point to 2-Point Electrical Connection................................15 Check Motor Rotation .........................................................................16 21kW to 12kW Booster Conversion.....................................................17 iii Model Descriptions 44 PRO 66 PRO 70FF PRO 80FF PRO 44" single tank 44" single tank with 22" prewash 44" single tank with front feed 26" prewash 44" single tank with 36" heavy duty prewash iv Installation Receiving 1. Inspect the machine for damage and immediately report the damage to a supervisor. 2. Check the inside of the machine for accessories and installation parts. 3. Register your machine by fax or online as soon as possible. WARNING: Use extreme caution to prevent damage to the machine when removing from pallet. Placement 1. Check the dishwasher interior for curtains, panels and supplies. 2. Lift the dishwasher off the shipping pallet and move the machine near its permanent location. 3. Adjust the height and level of the machine using the adjustable legs. Level the machine from side-to-side and front-to-back. 4. Do not remove tags attached to the utility connections. 5. Remove the protective film from the dishwasher exterior. LEVEL ADJUSTMENT Fig. 1 NOTE: DO NOT REMOVE THE INSTALLATION TAGS ATTACHED TO THE MACHINE UNTIL ALL UTILITIES ARE CONNECTED. 1 Installation Installation Codes The installation of the dishwasher must comply with all local electrical, plumbing, health and safety codes or in the absence of local codes, installed in accordance with the applicable requirements in the National Electrical Code, NFPA 70, Canadian Electrical Code (CEC), Part 1, CSA C22.1; and the Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations, NFPA 96. NOTE: Only qualified personnel familiar with the installation of food service equipment should attempt the installation of this machine. Damage or problems associated with improper installation will not be covered by the dishwasher limited warranty. Safety Symbols The following symbols are used throughout this manual to alert the reader to important information. WARNING: Warning statements indicate a condition or practice that can result in personal injury or possible death. CAUTION: Caution statements indicate a condition or practice that can result in damage to the machine or associated equipment. NOTE: Note statements highlight important information necessary for the operation of the machine. 2 Installation Table Connections NOTE: Tables should be installed after the machine is placed in its final location, properly leveled and its height properly adjusted. The standard load height for the dishwasher is 34" [864 mm]. When installing the dish tables: 1. The load end table must slope away from the dishwasher to prevent water from entering the machine. The unload table should slope toward the machine to prevent water from pooling on the exit table. 2. The dish rack must not hit the end of the table as it enters or exits the machine. Adjust the table until the track height of the machine is approximately 1/4" above the table edge. 3. Set the tables inside the machine making sure the table flange fits against the wash tank wall. Attach the tables to the machine applying a silicone sealant to the mating surfaces. See Fig. 4. 25" [635] Machine Width 21-3/4" [552] Opening 20" [508] Inside Track 34" [864] Load Ht. Fig. 2 - Load Height Up to 10" 8" 1/4" 7-1/2" 21-1/2" Flange Max 22" Opening 31" Overall Width 1/4" 1-1/2" Curb Flange Detail 1-1/8" 1/8" Min Fig. 3 - Suggested Table Construction Dish table flange Wash Tank Drill holes, apply sealant, fasten to wash tank Fig. 4 - Attaching the Tables 3 Installation Hot Water Connection HOT WATER Connect the plumbing in accordance with the specifications below. MINIMUM 31/42" NPT HOT WATER SUPPLY LINE. CAUTION: To prevent damage to the dishwasher supply valves, the installing plumber must thoroughly flush debris from the water supply line before connecting it to the dishwasher. Damage caused by improper installation is not covered by the limited warranty. BOOSTER RISE °F 40°F RISE MINIMUM INCOMING MINIMUM INCOMING WATER TEMPERATURE SUPPLY FLOWING PRESSURE 12kW 140°F/60°C 45 PSI/310 kPa MINIMUM/MAXIMUM OPERATING FLOWING PRESSURE 20/22 PSI 138-152 kPa 70°F RISE 21kW 110°F/ 43°C 45 PSI/310 kPa 20/22 PSI 138-152 kPa NO BOOSTER 180°F/ 82°C 45 PSI/310 kPa 20/22 PSI 138-152 kPa WATER HARDNESS OF 3 GRAINS/US GAL - 0.83 IMP GAL -5.3mg/L or LESS. INSTALL A 1/2" OR LARGER SHUT-OFF VALVE IN THE WATER SUPPLY LINE AS CLOSE TO THE DISHWASHER AS POSSIBLE FOR SERVICING. WATER SUPPLY CONNECTION IS LOCATED ON THE MACHINE BASE NEAR THE BOOSTER. INSTALL A PRESSURE REGULATING VALVE IN THE INCOMING WATER SUPPLY LINE TO MAINTAIN THE PROPER FLOWING PRESSURE. Fig. 5 4 Steam Connections Installation STEAM CAUTION: The dishwasher steam connections must comply with all local plumbing, health and safety codes. Damage caused by improper installation is not covered by the limited warranty CHECK THE STEAM SUPPLY PRESSURE REQUIREMENTS PRIOR TO CONNECTING THE STEAM SUPPLY LINES. STANDARD REQUIRED STEAM SUPPLY PRESSURE IS 10-30 PSI. MINIMUM 1-1/4" NPT STEAM LINE. STEAM CONNECTION IS ALWAYS LOCATED AT THE RIGHT SIDE OF THE MACHINE. CONDENSATE LINES MUST BE GRAVITY DRAIN WITH NO BACK PRESSURE. A CONDENSATE LIFT PUMP MUST BE INSTALLED IF THE CONDENSATE IS ABOVE THE FINISHED FLOOR. Steam Heating TANK HEAT: lbs./hr. required at 15 PSI = 75 STEAM BOOSTER: lbs./hr. required 40°F Rise AT 15 PSI = 60 STEAM BOOSTER: lbs./hr. required 70°F AT 15 PSI = 85 WATER HARDNESS OF 3 GRAINS/US GAL - 0.83 IMP GAL -5.3mg/L or LESS. 5 Installation Steam Plumbing and Electrical Drawing PLE26 11 16 " 16" STACK AM 20"DOOR S CLEARANCE 44" 2 41 3 4 " 6 41" 5A 31 1 4 " 7 30" 1 12 3 4 " 10" 1 8A 2" 2" 48" 6 1 2 " 12 1 2 " 643 " 5A 8B 6" MIN. 25 3 4 " 21 3 4 " OPENING 20" INSIDE TRACK 18 1 2 " 33 1 8 " 12" PIPING CLEARANCE 7 41 " 8" 8A 4" 44" 1 5" 8" 4" 8B 20" CLEAR 58 1 4 " MACHINE HEIGHT 34" LOAD HEIGHT 1/6 WASH HP 2 HP 5" 7 BSTR 5A 421 " NOTE: 3A THE (OPTIONAL) DRAIN WATER TEMPERING KIT WILL NEED 1/2" NPT COLD WATER CONNECTION AT THE BOTTOM OF THE MACHINE 943 " 20 3 4 " 6 1 ELECTRICAL SEE ELEC. DATA CHART FOR AMP LOADS 2 HOT WATER (110°F) 3 COLD WATER (50°F-70°F) MACHINE REQUIREMENTS 2.17 HP UTILITIES (STEPDOWN TRANSFORMER PROVIDES 120V CONT.) 1/2" NPT CONNECTION WITH INTERNAL BOOSTER WATER CONSUMPTION 100 GPH AT 20 PSI A. (OPTIONAL) 1/2" NPT, DRAIN WATER TEMPERING 5 DRAIN A. 1 1/2" NPT MACHINE 6 STEAM (10-30PSI) FLOW PRESS. 1 1/4" NPT MACHINE BOOSTER: 85 LB/HR CONSUMPTION TANK HEAT: 75 LB/HR CONSUMPTION 7 CONDENSATE NO BACK PRESSURE 3/4" NPT MACHINE RETURN TO BOILER 4 HOT WATER (180°F) 1/2" NPT WATER CONSUMPTION 100 GPH AT 20 PSI PRV BY OTHERS WHEN PRESSURE EXCEEDS 60 PSI (WATER CONNECTION WITHOUT INTERNAL BOOSTER) 8 VENTS (4" X 16") INSIDE A. LOAD END: 200 CFM AT 1/4" S.P. B. UNLOAD END: 400 CFM AT 1/4" S.P. SPECIFICATIONS ARE SUBJECT TO CHANGE BASED ON CONTINUAL PRODUCT IMPROVEMENT 6 Drain Connection DRAIN Connect the drain in accordance with the specifications below. Installation GRAVITY DRAIN- 1-1/4" NPT DRAIN CONNECTION LOCATED UNDERNEATH MACHINE. MAX FLOW IS 17 US GAL/MIN. USE A DIRECT OR INDIRECT CONNECTION TO THE BUILDING DRAIN IN ACCORDANCE WITH LOCAL CODE. FOR PREWASH MACHINES, CONNECTION IS AT THE LOAD END. FOR SINGLE TANK MACHINES, THE CONNECTION IS AT THE RIGHT-HAND SIDE OF THE MACHINE UNDER THE BOOSTER. THE DRAIN VALVE(S) ARE ELECTRIC. THEY OPEN AND CLOSE AUTOMATICALLY WHEN DISHWASHER POWER IS OFF OR ON. Fig. 6B - Electric Drain Valve Fig. 6A - Drain connections. NOTE: Procedure to manually open and close the valve on page 18. 7 Installation Cold Water Connection Drain Water Tempering, (DWT), Valve COLD WATER MINIMUM 1/2" NPT COLD WATER SUPPLY LINE. MINIMUM INCOMING WATER TEMPERATURE 36°F/ 2°C MAXIMUM INCOMING SUPPLY PRESSURE 60 PSI/414 kPa CAUTION: To prevent damage to the dishwasher supply valves, the installing plumber must thoroughly flush debris from the water supply line before connecting it to the dishwasher. Damage caused by improper installation is not covered by the limited warranty. WATER HARDNESS OF 3 GRAINS/US GAL - 0.83 IMP GAL -5.3mg/L or LESS. INSTALL A 1/2" OR LARGER SHUT-OFF VALVE IN THE WATER SUPPLY LINE AS CLOSE TO THE DISHWASHER AS POSSIBLE FOR SERVICING. WATER SUPPLY CONNECTION IS LOCATED NEAR A MACHINE CORNER AT THE BASE OF THE DISHWASHER. METHOD A: CONNECT A 1/2" NPT DRAIN LINE TO THE MECHANICAL DWT DEVICE (Fig. 7a). METHOD B: CONNECT A 1/2" NPT DRAIN LINE TO THE BACKFLOW PREVENTER/SOLENOID VALVE RELIEF MAINTAINING AN AIRGAP DRAIN CONNECTION (Fig. 7b). Fig. 7a - Mechanical DWT Valve 8 Water Drain Fig. 7b - Backflow Preventer/Solenoid Valve Ventilation - Vent Hood Fan Control Standard model installations using an approved vent hood may require a vent fan signal. This signal is supplied by the dishwasher control circuit. A qualified installer must connect a signal circuit to the fuse holder and a common neutral terminal provided. See Fig. 8. Installation CAUTION: To prevent damage to the dishwasher do not connect vent fan motor to the Line Power 120VAC, 0.5 Amp fused connection terminals. Damage to any component caused by improper installation is not covered by the limited warranty. The fused 120VAC Line Power only supplies an external vent fan contactor (supplied by others), and is limited to 0.5 AMP maximum load. The 120VAC is powered whenever main power is on. 0.5A Fig. 8 - Connection is located inside the top control cabinet. Continued on next page. 9 Installation Ventilation - Pant Leg Duct Settings LOAD END 200 CFM @ 1/4"SP/71 L/SEC UNLOAD END 400 CFM @ 1/4" SP/189 L/SEC. MINIMUM OF SIX KITCHEN AIR CHANGES PER HOUR RECOMMENDED. TWO 4' X 16" VENT STACKS WITH ADJUSTABLE DAMPERS ARE SUPPLIED WITH THE MACHINE. NOTE: Loosen the wing-nut holding the damper handle and turn it to open or close the damper and adjust the steam exiting the machine. Damper Handle Wing-nut Fig. 9 - Vent 10 Detergent Dispenser Connection Installation DET WASH TANK CAPACITY IS 17 US GAL./14.2 IMP. GAL/64.4 L. USE A NON-CHLORINATED COMMERCIAL GRADE DETERGENT. 7/8" DIAMETER HOLES ARE PROVIDED IN THE TANK. FUSED 120VAC 0.5 AMP MAX LOAD DETERGENT SIGNAL CONNECTION IS PROVIDED INSIDE THE CONTROL CABINET. THE DETERGENT SIGNAL IS ENABLED THROUGHOUT THE WASH CYCLE. 0.5A DET Fig. 10 - Connection is located inside the top control cabinet. 11 Installation Rinse-Aid Dispenser Connection R /A RINSE = 0.48 US GAL/RACK, 0.40 IMP. GAL/RACK, 1.82 L/RACK 1/8" NPT PIPE PLUG PROVIDED IN FINAL RINSE PIPING. FUSED 120VAC 0.5 AMP MAX LOAD RINSE AID SIGNAL CONNECTION IS PROVIDED INSIDE THE CONTROL CABINET. 0.5A R/A Fig. 11 Rinse Aid Connection 1/8" PLUG 12 Electrical Connections The installation of the dishwasher must comply with all local electrical, plumbing, health and safety codes or in the absence of local codes, installed in accordance with the applicable requirements in the National Electrical Code, NFPA 70, Canadian Electrical Code (CEC), Part 1, CSA C22.1; and the Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations, NFPA 96. Instaillation CAUTION: Only qualified personnel familiar with the installation of food service equipment should attempt the installation of this machine. Damage or problems associated with improper installation will not be covered by the dishwasher limited warranty. WARNING: There may be more than one power source connected to the machine. Make sure all power sources are disconnected, locked and tagged out before working on the machine. Electrocution may occur when working on energized circuits. Disconnect power at the main breaker or service disconnect switch, then lock out and tag it to indicate that work is being performed on the circuit. ! ATTENTION INSTALLER ! All machines are shipped from the factory as a 1-POINT connection. The BOOSTER is wired for 21kW operation. IT IS THE INSTALLER'S RESPONSIBILITY TO CHANGE THE CONNECTION TO 2-POINT AND/OR THE BOOSTER TO 12kW IF REQUIRED. 13 Installation Electrical Connections - Change 1-Point to 2-Point Electrical Connection COMPARE THE ELECTRICAL SUPPLY WITH THE MACHINE ELECTRICAL CONNECTION DATA PLATE BEFORE CONNECTING THE POWER TO THE MACHINE. THE DATA PLATE IS ADJACENT TO THE INPUT TERMINAL BLOCKS. 1-POINT CONNECTION MACHINES HAVE JUMPERS BETWEEN THE INPUT BLOCKS. REMOVE THE JUMPERS FOR 2-POINT ELECTRICAL CONNECTION. 1L3 1L2 1L1 2L3 2L2 2L1 DISHWASHER For 1-Point and 2-Point Connection BOOSTER For 2-Point Connection Only P/N 115809/B REMOVE JUMPERS FOR 2-POINT ELECTRICAL CONNECTION Fig.12 - 1-point connection jumpers. Fig.13 - 1-point connection data plate 14 Installation To convert a 1-point connection machine to a 2-point connection machine. 1. Open the control cabinet and remove the jumpers, (Fig. 12), between 'Dishwasher' terminal block and the 'Booster' terminal block. 2. Cover the existing 1-point connection data plate, (Fig. 13), with the 2-point connection data plate, (Fig. 14), stowed in the plastic bag, (Fig. 15), next to the input terminal block. 3. Connect the incoming power according to the customer's requirements. 4. Conversion is complete Fig.14 - 2-point connection data plate Fig.15 The 2-point data plate is located in a plastic bag next to the terminal block. 15 Installation Electrical Connections - Check Motor Rotation All motors are phased the same at the factory. Reverse L1 and L2 at the main terminal block to change motor direction of all motors. 1. Fig. 16 shows the rotation arrow label on the rear pump housing. Fig. 16 2. Fig. 17 shows the drive motor rotation label on the drive plate. DIRECTION OF ROTATION Fig. 17 16 Installation Electrical Connections- 21 kW to 12kW Booster Conversion ATTENTION The booster is shipped from the factory wired for 21kW operation. For 12kW operation, the booster must be reconnected as shown below. 21kW Booster 73 73 73 21kW to 12kW Booster Conversion 1 Disconnect all power from the unit. 2 Remove the booster cover. 3 Remove the jumper wires from the 9kW element. 4 Connect a jumper wire between 73 on the 6kW elements. 5 Remove the power wire #74 from the 9kw element. Reconnect the power wire #74 to the #74 strap on 6 the left 6kW element. 7 Double-check all wiring. 8 Replace the booster cover. 9 Conversion is complete. 75 75 75 74 9kW 74 6kW 74 6kW 73 75 74 #73 and #75 FROM SSR #74 DIRECT FROM CABINET 12kW Booster 74 9kW 74 6kW 74 6kW 73 73 73 75 75 75 P/N 115817 rev. A 73 75 74 #73 and #75 FROM SSR #74 DIRECT FROM CABINET 17 Installation HOW TO MANUALLY OPERATE NEW PRO DRAIN VALVE Electric Drain Valve, P/N 117014 Beginning with S/N: RP19062022, Effective 7/1/19 · The new electric drain valve does not have a manual lever as the Dependo-Drain. · To manually operate the new valve, four 2.5mm socket allen screws must be removed, the valve coil removed, and the valve globe rotated with pliers. · The valve coil has an indicator line showing valve position. Ensure valve is reassembled in the same position. 1 2 Remove four 2.5mm coil retaining allen screws. 3 Remove the coil from the valve body. Using pliers, turn the valve body key to the vertical position to open valve. 18 Reassemble in reverse order.Adobe InDesign CC 13.0 (Windows) Adobe PDF Library 15.0
