NT-1228BL
MODEL: NT-1228BL

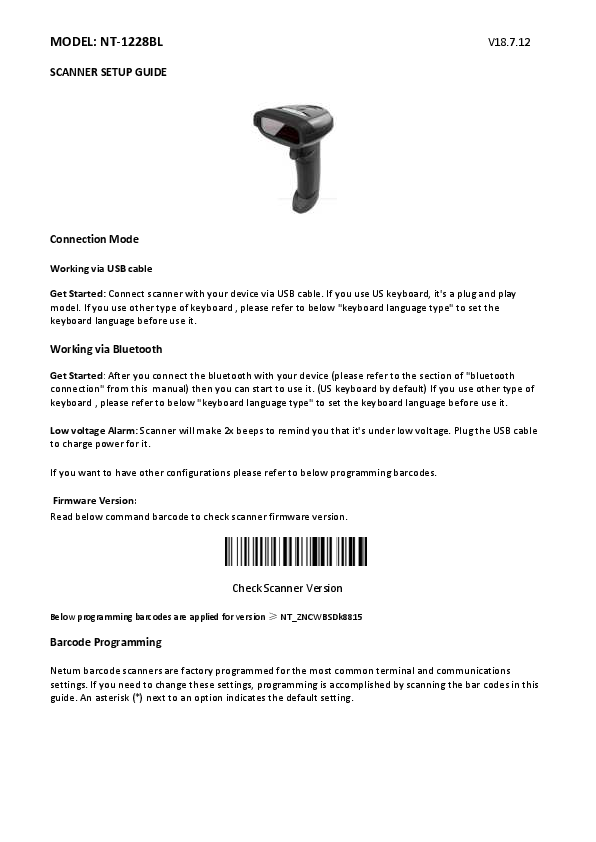

SCANNER SETUP GUIDE

V18.7.12

Connection Mode
Working via USB cable Get Started: Connect scanner with your device via USB cable. If you use US keyboard, it's a plug and play model. If you use other type of keyboard , please refer to below "keyboard language type" to set the keyboard language before use it.
Working via Bluetooth Get Started: After you connect the bluetooth with your device (please refer to the section of "bluetooth connection" from this manual) then you can start to use it. (US keyboard by default) If you use other type of keyboard , please refer to below "keyboard language type" to set the keyboard language before use it.
Low voltage Alarm: Scanner will make 2x beeps to remind you that it's under low voltage. Plug the USB cable to charge power for it.
If you want to have other configurations please refer to below programming barcodes.
Firmware Version: Read below command barcode to check scanner firmware version.
Check Scanner Version
Below programming barcodes are applied for version  NT_ZNCWBSDk8815
Barcode Programming
Netum barcode scanners are factory programmed for the most common terminal and communications settings. If you need to change these settings, programming is accomplished by scanning the bar codes in this guide. An asterisk (*) next to an option indicates the default setting.

Bluetooth Connection
1. Pairing with windows XP or Windows 7/8/10
1) Power on the scanner , a few seconds later the blue indicator will keep flashing. 2) Enter the `Control Panel' - `Devices and Printers' - `Add a device' ­ select, `Bluetooth' to
add the device to your computer 3) Click `Next', the scanner will beep to indicate a successful pairing, and the light will turn to solid blue.
2. Android: Connect Android Device in Basic Mode
1) Power on the scanner. Make sure the scanner is discoverable (unpaired). a few seconds later the blue indicator will keep flashing.
2) Touch Home | Menu | Settings | Wireless & Networks | Bluetooth settings 3) Make sure the device has Bluetooth "On". Scan for devices. 4) In the list of found devices, select "Netum Bluetooth". Tap Pair. 5) The scanner will connect to the Android device. 6) The scanner will beep once after it has connected and is ready to scan barcodes

3. Pairing with your IOS device
1) Power on the scanner. Make sure the scanner is discoverable (unpaired). a few seconds later the blue indicator will keep flashing.
2) Click on "Bluetooth" in the left column. Your IOS device will automatically start searching for any Bluetooth Devices in the area.
3) Once you have identified the "Netum Bluetooth" on the screen, tap on it and you will automatically be connected. The scanner's LED light will turn to solid blue.
Operation mode A) BT HID Mode (Default)* No Software installation needed, connects to most devices with bluetooth or USB interface. In this mode, the scanner interacts with the device like a keyboard. Therefore, the scanner will work with Safari, Notes, and any other applications that supports an active cursor.
BT HID Mode Note: this command barcode is only apply for Bluetooth Wireless Mode

Keyboard Language
In order to let scanner upload the codes in a correct way, you have to set the keyboard language before you use it. For example If you use French Keyboard, just scan barcode of "French Keyboard", after that scanner will upload barcodes according to French keyboard layout. American Keyboard is set by default, if you use a US keyboard you can just skip this part.

American Keyboard *

Portugal Keyboard

French Keyboard

Spanish Keyboard

Germany Keyboard

Turkey Q Keyboard

Italy Keyboard

Turkey F Keyboard

B) Application Mode (SPP)
For Android or Windows only Software installation is required, If you have an application that supports mobile scanners this is the mode recommended.

BT SPP Mode Note: this command is only apply for Bluetooth Wireless Mode

Scan Mode Trigger Mode (Default) Scanning this bar code will enable the scanner to enter manual trigger mode.
Continuous Mode This mode enables the engine to scan/capture, decode and transmit over and over again.
Auto Sense Mode Scanning this bar code will enable the scanner to enter auto sense mode.
Working Mode If you are heading for a working area which lies outside the signal range, you may activate the offline mode of the scanner, following the steps described below. Under this enhanced offline mode, all scanned data will be stored directly into the buffer memory of the device. Furthermore, the data entries will be permanently saved in the buffer memory prior to the manual upload into the working station, so that you may upload them time and again to your liking. 1). By scanning the following barcode, the offline mode will be activated
Offline Mode 2). By scanning the following barcode, all data in the buffer memory will be deleted
Clear Memory

3).By scanning the following barcode, all data entries in the buffer memory can be manually uploaded after reconnecting to the working station (only in offline mode).
Uploading the Data 4). By scanning the following barcode, the gross quantity of the uploaded data entries will be summarised (only in offline mode).
Summarising of uploaded data entry quantity
5). By scanning the following barcode, the device leaves the offline mode, instant uploading mode will be activated. (By default)
Instant uploading mode Notes: Command barcodes from Working mode section are only applied for Bluetooth wireless mode, Terminator The scanner provides a shortcut for setting the terminating character suffix to CR or CRLF and enabling it by scanning the appropriate barcode below.

None

CR&LF *

CR

TAB

Idle Time
Scanner will stay awake during the idle time that you set for it and turn to sleep if you haven't used it during the whole idle time.

30 s

6 Mins

12 Mins

30 Mins

1Hour

2Hours

IOS Keyboard POP UP/HIDE During the scanning IOS keyboard can be hided or popped up by scanning below command barcode.

IOS Keyboard POP UP/HIDE
Beeper Enable/Disable scanner to beep to indicate successful scan.

BEEP ON
BEEP OFF
Restore factory default Scanning the following barcodes one by one to restore the scanner to factory defaults. (Four steps included)

1. Factory Restore
2. Serial Port
3. Baud Rate 19200
4. Enter+LF
Transmit Code ID Character A code ID character identifies the code type of a scanned bar code. This can be useful when decoding more than one code type. The code ID character is inserted between the prefix character (if selected) and the decoded symbol.
Symbol Code ID Character Code ID
Aim Code ID Character AIM ID

*None

Symbol Code ID Identifiers

A= UPC-A, UPC-E, EAN-8, EAN-13 J= MSI, MSI/Plessey

B= Code 39, Code 32

K= GS1-DataBar, /UCC/EAN-128

C= Codabar

L= Bookland EAN, Bookland EAN/ISBN

D= Code 128, ISBT 128

M= Trioptic Code 39

E= Code 93

N= Coupon Code

F= Interleaved 2 of 5

R= GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, RSS

G= Discrete 2 of 5

S= SETUP128

H= CODE11

r= PDF417

x= Maxi Code

u= DataMatrix(DM) v= Veri Code

q= QR

c= HanXin

a= Aztec Code

AIM Code Identifiers

Each AIM Code Identifier contains the three-character string ]cm where: ] = Flag Character c =Code Character (see Table 4-4) m= Modifier Character

Table 4-4

A Code 39, Code 39 Full ASCII, Code 32 C Code 128, ISBT 128, GS1-128,
Coupon (Code 128 portion), Setup128 E UPC/EAN, Coupon (UPC portion) F Codabar G Code 93 H Code 11 I Interleaved 2 of 5

S Discrete 2 of 5, IATA 2 of 5 X Code 39 Trioptic, Bookland EAN, Han Xin
e GS1 DataBar L PDF417 d Data Matrix(DM) Q QR z Aztec Code

Read 1D Normal barcode/ Reversal barcode
* Disable to read 1D reversal barcode
Enabled to read 1D reversal barcode UPC/EAN Enable/Disable UPC-A To enable or disable UPC-A, scan the appropriate bar code below.
*Enable UPC-A
Disable UPC-A Enable/Disable UPC-E To enable or disable UPC-E, scan the appropriate bar code below.
*Enable UPC-E

Disable UPC-E Enable/Disable EAN-8 To enable or disable EAN-8, scan the appropriate bar code below.
*Enable EAN-8
Disable EAN-8 Enable/Disable EAN-13 To enable or disable EAN-13, scan the appropriate bar code below.
*Enable EAN-13
Disable EAN-13 Enable/Disable Bookland EAN(ISBN) To enable or disable EAN Bookland, scan the appropriate bar code below.

Enable Bookland EAN
*Disable Bookland EAN Decode UPC/EAN Supplementals UPC/EAN Supplementals are bar codes appended according to specific format conventions (e.g.UPC A+2, UPC E+2, EAN 13+2, EAN 13+5). The following options are available:
*Ignore UPC/EAN with Supplementals
Decode UPC/EAN with Supplementals
Auto discriminate UPC/EAN Supplementals Transmit UPC-A Check Digit Scan the appropriate bar code below to transmit the symbol with or without the UPC-A check digit.
*Transmit UPC-A Check Digit

*Transmit UPC-A Check Digit Transmit UPC-E Check Digit Scan the appropriate bar code below to transmit the symbol with or without the UPC-E check digit.
*Transmit UPC-E Check Digit
Do Not Transmit UPC-E Check Digit Convert UPC-E to UPC-A Enable this parameter to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows UPC-A format and is affected by UPC-A programming selections
Convert UPC-E to UPC-A
*Do Not Convert UPC-E to UPC-A EAN-8 Zero Extend When enabled, this parameter adds five leading zeros to decoded EAN-8 symbols to make them compatible in format to EAN-13 symbols.

Enable EAN-8 Zero Extend

Code 128

*Disable EAN-8 Zero Extend

Enable/Disable Code 128 To enable or disable Code 128, scan the appropriate bar code below.

*Enable Code 128
Disable Code 128 Enable/Disable GS1-128 To enable or disable GS1-128, scan the appropriate bar code below.
*Enable GS1-128

Disable GS1-128

Enable/Disable ISBT 128 To enable or disable ISBT 128, scan the appropriate bar code below.
*Enable ISBT 128

Code39

Disable ISBT 128

Enable/Disable Code 39 To enable or disable Code 39, scan the appropriate bar code below.

*Enable Code 39

Disable Code 39
Code 39 Check Digit Verification
When this feature is enabled, the scan engine checks the integrity of all Code 39 symbols to verify that the data complies with specified check digit algorithm. Only those Code 39 symbols which include a modulo 43 check digit are decoded. Only enable this feature if your Code 39 symbols contain a module 43 check digit.

Verify Code 39 Check Digit

*Do Not Verify Code 39 Check Digit Transmit Code 39 Check Digit Scan this symbol to transmit the check digit with the data.
Transmit Code 39 Check Digit (Enable) Scan this symbol to transmit data without the check digit.
*Do Not Transmit Code 39 Check Digit Enable/Disable Code 39 Full ASCII Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set.
Enable Code 39 Full ASCII
*Disable Code 39 Full ASCII NOTE Trioptic Code 39 and Code 39 Full ASCII cannot be enabled simultaneously. If you get an error beep when enabling Code 39 Full ASCII, disable Trioptic Code 39 and try again.

Code 93
To enable or disable Code 93, scan the appropriate bar code below.
Enable Code 93
*Disable Code 93 Set Lengths for Code 93 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for Code 93 may be set for any length, one or two discrete lengths, or lengths within a specific range. Any Length - Scan this option to decode Code 93 symbols containing any number of characters

Code 11
Enable/Disable Code 11

Code 93 - Any Length

To enable or disable Code 11, scan the appropriate bar code below.

Enable Code 11

*Disable Code 11

Set Lengths for Code 11
The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Set lengths for Code 11 to any length, one or two discrete lengths, or lengths within a specific range.
Any Length - Scan this option to decode Code 11 symbols containing any number of characters within the scan engine capability.

Code 11 - Any Length Code 11 Check Digit Verification This feature allows the scan engine to check the integrity of all Code 11 symbols to verify that the data complies with the specified check digit algorithm. This selects the check digit mechanism for the decoded Code 11 bar code. The options are to check for one check digit, check for two check digits, or disable the feature.
* Disable

One Check

Transmit Code 11 Check Digits

Two Check Digit

Transmit Code 11 Check Digit(s) (Enable)

*Do Not Transmit Code 11 Check Digit(s) (Disable)
Interleaved 2 of 5/ITF
Enable/Disable Interleaved 2 of 5 To enable or disable Interleaved 2 of 5, scan the appropriate bar code below.
*Enable Interleaved 2 of 5
Disable Interleaved 2 of 5 Set Lengths for Interleaved 2 of 5 Interleaved 2 of 5 Any Length - Scan this option to decode I 2 of 5 symbols containing any number of characters
I 2 of 5 - Any Length Convert I 2 of 5 to EAN-13 This parameter converts a 14 character I 2 of 5 code into EAN-13, and transmits to the host as EAN-13. To accomplish this, I 2 of 5 must be enabled, one length must be set to 14, and the code must have a leading zero and a valid EAN-13 check digit.
Convert I 2 of 5 to EAN-13

*Do Not Convert I 2 of 5 to EAN-13
Discrete 2 of 5/Industrial 2 of 5/IND25
Enable/Disable Discrete 2 of 5 To enable or disable Discrete 2 of 5, scan the appropriate bar code below.
Enable Discrete 2 of 5
*Disable Discrete 2 of 5
Matrix 25
Enable/Disable Matrix 25 To enable or disable Matrix 25, scan the appropriate bar code below.
Enable Matrix 25
*Disable Matrix 25
Standard 25/IATA 25
Enable/Disable Standard 25 To enable or disable Standard 25, scan the appropriate bar code below.

*Disable Standard 25

Standard 25 Check Digit Verification

Enable Standard 25

Disable Standard 25 Check Digit Verification

Transmit Check Character

Enable Standard 25 Check Digit Verification

Disable Standard 25 Transmit Check Character

Enable Standard 25 Transmit Check Character
Codabar
Enable/Disable Codabar To enable or disable Codabar, scan the appropriate bar code below.

Enable Codabar

MSI/MSI PLESSEY

*Disable Codabar

Enable/Disable MSI To enable or disable MSI, scan the appropriate bar code below.

Enable MSI

GS1 DataBar/RSS

*Disable MSI

Enable/Disable GS1 DataBar-14 To enable or disable GS1 DataBar-14, scan the appropriate bar code below.

Enable GS1 DataBar-14

*Disable GS1 DataBar-14 Enable/Disable GS1 DataBar Limited To enable or disable GS1 DataBar Limited, scan the appropriate bar code below.
Enable GS1 DataBar Limited
*Disable GS1 DataBar Limited Enable/Disable GS1 DataBar Expanded To enable or disable GS1 DataBar Expanded, scan the appropriate bar code below.
Enable GS1 DataBar Expanded
*Disable GS1 DataBar Expanded
PDF417
Scan normal or mirror image picture. Enable/Disable PDF417

To enable or disable PDF417, scan the appropriate bar code below.

Disable PDF417

Read Normal Phase/ Phase Reversal

*Enable PDF417

*Read Normal Phase

Read Phase Reversal

Read Normal Phase/ Phase Reversal
QR Read normal phase/ phase reversal/ mirror image picture
Enable/Disable QR To enable or disable QR, scan the appropriate bar code below.

Disable QRCode

Data Matrix(DM)
Scan normal or mirror image picture.

*Enable QRCode

Enable/Disable Data Matrix(DM) To enable or disable Data Matrix(DM), scan the appropriate bar code below.

Disable Data Matrix

Read Normal Phase/ Phase Reversal

*Enable Data Matrix

*Read Normal Phase

Read Phase Reversal
Read Normal Phase/ Phase Reversal
Maxi Code
Enable/Disable Maxi Code To enable or disable Maxi Code, scan the appropriate bar code below.
*Disable MaxiCode

Aztec Code

Enable MaxiCode

Enable/Disable Aztec Code To enable or disable Aztec Code, scan the appropriate bar code below.

*Disable Aztec Code

Enable Aztec Code
Han Xin Code
Enable/Disable Han Xin Code To enable or disable Han Xin Code, scan the appropriate bar code below.

*Disable Han Xin Code

Read Normal Phase/ Phase Reversal

Enable Han Xin Code

*Read Normal Phase

Read Phase Reversal

Read Normal Phase/ Phase Reversal
Hide Prefix or suffix digits The start/middle/end of barcode chars can be hidden. After scan below hide set barcode, scan a double-digit hexadecimal number that you want to hide char length(00~FF e.g. hide length 4, scan 0, 4).
Hide Barcode Start Chars

Hide Barcode Middle Chars

Hide Barcode Middle Char Start

Hide Barcode End Chars
Output Format To change the Scan Data Transmission Format, scan one of the eight bar codes corresponding to the desired format.
Enable Hide Barcode Start Char

Enable Hide Barcode Middle Char
Enable Hide Barcode End Char
To Hide chars of barcode Start/Middle/End: Procedures 1. Scan the Hide Barcode Start / Middle Start / Middle length / End Chars symbol. 2. Determine the hex value for the length you wish to enter(hide 4 chars, scan 0,4; hide 12 chars, scan 0,C). 3. Scan the 2 digit hex value from the Numeric Bar Codes 4. Scan the output format to enable or cancel hide char function.
Custom prefix and suffix Maximum 20 prefixes and 20 suffixes can be added to scan data for use in data editing. To set these values, scan a double-digit hexadecimal number (i.e. two bar codes) that corresponds to ASCII values. See the Table 1 and Numeric Bar Codes in appendix. To Add a Prefix or Suffix: 1. Scan command barcode of " Add Prefix" or" Add Suffix ". 2. Check the prefix or suffix hex value from the ASCII Chart. 3. Scan the 2 digit hex value from the Numeric Bar Codes 4. Repeat Steps 2 and 3 for all the prefix or suffix that you want to add. 5. Scan the output format to enable or disable prefix/suffix output.

Add Prefix Clear All Prefix

Add Suffix

Numeric Bar Codes

Clear All Suffix

Output Format To change the Scan Data Transmission Format, scan one of the eight bar codes corresponding to the desired format.

*Default output format

Enable Suffix output

Enable Prefix output Example on how to add normal prefix or suffix on barcode "123456789" Add " A" and "B" as prefixes and "!" as suffix 1. Scan command barcode of " Add Prefix"
2. Check the prefix hex value from the ASCII Chart. A- "4","1"; B-"4" "2"; 3. Scan the 2 digit hex value from the Numeric Bar Codes
4. Scan the output format to enable prefix output. Enable Prefix output
5. Scan command barcode of " Add Suffix" to add "!" as suffix.

Add Suffix 6. Check the suffix hex value from the ASCII Chart. !- "2" "1" 7. Scan the 2 digit hex value from the Numeric Bar Codes.
8. Scan the output format to enable suffix output. Enable Suffix output
9. Scan the barcode then you will get AB123456789!
Example on how to add Combination Key suffix for barcode "123456789"
Add "Ctrl+P" on "123456789" as suffix 1.Scan command barcode of " Add Suffix" to add "Ctrl+P" as suffix.
Add Suffix 2. Check the suffix hex value from the ASCII Chart. Ctrl+P - "9" "7" "5" "0" 3. Scan the 4 digits hex value from the Numeric Bar Codes.

4. Scan the output format to enable suffix output.
Enable Suffix output 5. Scan " Keyboard Ctrl Combination Key" 6. Scan the barcode 123456789. (test it on Excel)

Table 1. ASCII Character Equivalents

HEX 20H 21H 22H 23H 24H 25H 26H 27H 28H 29H 2AH 2BH 2CH 2DH 2EH 2FH 60H 61H 62H 63H 64H 65H 66H 67H 68H 69H 6AH 6BH 6CH
6DH 6EH 6FH

ASCII Space ! " # $ % & ' ( ) * + , . / ` a b c d e f g h i J k l
m n o

HEX 30H 31H 32H 33H 34H 35H 36H 37H 38H 39H 3AH 3BH 3CH 3DH 3EH 3FH 70H 71H 72H 73H 74H 75H 76H 77H 78H 79H 7AH 7BH 7CH
7DH 7EH 7FH

ASCII 0 1 2 3 4 5 6 7 8 9 : ; < = > ? p q r s t u v w x y z {
} ~ DEL

HEX 40H 41H 42H 43H 44H 45H 46H 47H 48H 49H 4AH 4BH 4CH 4DH 4EH 4FH 80H 81H 82H 83H 84H 85H 86H 87H 88H 89H 8AH 8BH 8CH
8DH 8EH 8FH

ASCII @ A B C D E F G H I J K L M N O F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
Insert
Home Page Up Delete

HEX 50H 51H 52H 53H 54H 55H 56H 57H 58H 59H 5AH 5BH 5CH 5DH 5EH 5FH 90H 91H 92H 93H 94H 95H 96H 97H 98H 99H 9AH 08H 09H
0AH 0DH 1BH

ASCII P Q R S T U V W X Y Z [ \ ] ^ _
End Page Down Right Arrow Left Arrow Down Arrow Up Arrow Print Screen
*Ctrl *Shirt *Left Alt *Right Alt
BS HT
LF CR ESC

Support
For any inquiries concerning our products, please send an email to service@gzxlscan.com, and we will respond to you as soon as possible.
Contact Information
Tel.:+0086 20-6626-0708 Email:service@gzxlscan.com Addr.:Unit 137, The Pacific Industry Park, Xintang Town,Zengcheng District, Guangzhou,China/511340 Made in China



References

Microsoft Office Word 2007 Microsoft Office Word 2007
