Instruction Manual for smeg models including: DWAU6315X3, Dishwasher

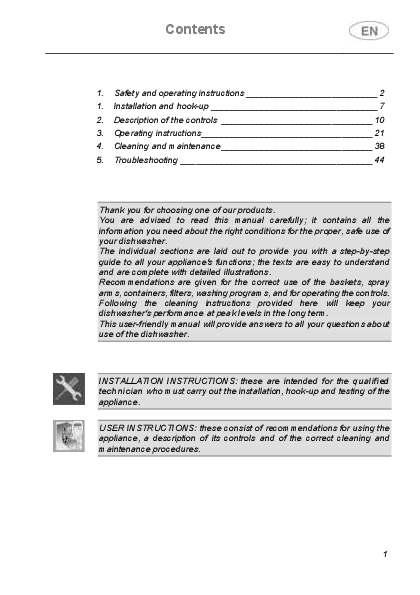

Contents
1. Safety and operating instructions __________________________ 2 1. Installation and hook-up _________________________________ 7 2. Description of the controls ______________________________ 10 3. Operating instructions__________________________________ 21 4. Cleaning and maintenance ______________________________ 38 5. Troubleshooting ______________________________________ 44
Thank you for choosing one of our products. You are advised to read this manual carefully; it contains all the information you need about the right conditions for the proper, safe use of your dishwasher. The individual sections are laid out to provide you with a step-by-step guide to all your appliance's functions; the texts are easy to understand and are complete with detailed illustrations. Recommendations are given for the correct use of the baskets, spray arms, containers, filters, washing programs, and for operating the controls. Following the cleaning instructions provided here will keep your dishwasher's performance at peak levels in the long term. This user-friendly manual will provide answers to all your questions about use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified technician who must carry out the installation, hook-up and testing of the appliance. USER INSTRUCTIONS: these consist of recommendations for using the appliance, a description of its controls and of the correct cleaning and maintenance procedures.
1
Installation instructions
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE; IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER FOR FUTIRE REFERENCE. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. THEY CONTAIN IMPORTANT INFORMATION FOR THE INSTALLATION, USE AND MAINTENANCE OF THE APPLIANCE. IN THE EVENT OF SALE OR TRANSFER, ENSURE THAT THE MANUAL ALWAYS ACCOMPANIES THE APPLIANCE.
THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR APPLICATIONS SUCH AS: - STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING ENVIRONMENTS; - FARM HOUSES; - BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL TYPE ENVIRONMENTS; - BED AND BREAKFAST TYPE ENVIRONMENTS
THIS APPLIANCE IS DESIGNED TO BE USED ONLY IN STATIONARY LOCATIONS.
THIS APPLIANCE COMPLIES WITH DIRECTIVES 2006/95/EC AND 2004/108/EC CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND ELIMINATION OF RADIO FREQUENCY INTERFERENCE AND IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE DESCRIBED ABOVE.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. DO NOT ALLOW CHILDREN TO PLAY WITH PACKAGING MATERIALS. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE COLLECTION CENTRE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR. THE NAME PLATE MUST NEVER BE REMOVED.
2
Installation instructions
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
DURING THE INSTALLATION THE APPLIANCE MUST BE DISCONNECTED FROM THE NETWORK..
DO NOT INSTALL THE APPLIANCE IN A PLACE SUBJECT TO FREEZING.
IF THE APPLIANCE IS INSTALLED ON A CARPET FLOOR, TAKE CARE THAT THE OPENINGS IN ITS BASE ARE NOT OBSTRUCTED.
DO NOT INSTALL THE APPLIANCE NEAR EQUIPMENT WITH HIGH IRRADIATION TEMPERATURES (EG. GAS BURNERS, FIREPLACES, ETC.) AS THEY MAY CAUSE DAMAGE.
IF THE APPLIANCE IS INSTALLED IN A COMPARTMENT ABOVE OR BELOW ANOTHER EQUIPMENT (EG. GAS BURNERS, OVENS, ETC.), READ CAREFULLY THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OF THE EQUIPMENT. IF THE INSTRUCTIONS OF THE EQUIPMENT DO NOT CONTAIN INFORMATION, CONTACT THE MANUFACTURER OF THE EQUIPMENT TO ENSURE THAT THE APPLIANCE CAN BE INSTALLED ABOVE OR BELOW IT.
BUILDING-IN THE APPLIANCE UNDERNEATH A HOB IS ABSOLUTELY FORBIDDEN. INSTALL A HOB ON TOP OF A FREE-STANDING APPLIANCE IS ABSOLUTELY FORBIDDEN.
TO ENSURE STABILITY, INSTALL THE APPLIANCE ONLY UNDER CONTINUOUS WORKTOP, SECURELY FIXED TO ADJACENT CABINETS. IF THE APPLIANCE IS INSTALLED IN A HIGH CABINET BOTH, THE APPLIANCE AND THE CABINET, MUST BE ADEQUATELY FIXED.
IF THE APPLIANCE IS NOT BUILT-IN AND IS THEREFORE ACCESSIBLE ON ONE SIDE, THE DOOR HINGE AREA MUST BE COVERED FOR SAFETY REASON (INJURY HAZARD). THE COVERING FIXTURES ARE AVAILABLE AS AN ACCESSORY FROM SPECIALIST DEALERS OR THE AFTER-SALES.
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE.
THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATION IN FORCE. DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID THE POSSIBILITY OF OVERHEATING OR BURNING.
THE PLUG OF THE APPLIANCE MUST BE ACCESSIBLE AFTER INSTALLATION. NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER CORD.
3
Installation instructions
IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD, A CIRCUIT BREAKER PROVIDING A FULL DISCONNECTION IN OVERVOLTAGE PROTECTION CLASS III MUST BE INSTALLED IN AN EASILY ACCESSIBLE POSITION ON THE SUPPLY LINE.
THE DISHWASHER MUST ALWAYS BE CONNECTED TO THE WATER SYSTEM USING NEW HOSE SETS.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK TEST OF THE APPLIANCE. IF THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE APPLIANCE.
THE APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISED OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A RESPONSIBLE PERSON FOR THEIR SAFETY.
YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
WARNING: SOME DISHWASHER DETERGENTS ARE STRONGLY ALKALINE. THEY CAN BE EXTREMELY DANGEROUS IF SWALLOWED. AVOID CONTACT WITH SKIN AND EYES AND KEEP CHILDREN AWAY FROM THE DISHWASHER WHEN THE DOOR IS OPEN.
KEEP CHILDREN AWAY FROM THE DISHWASHER WHEN THE DOOR IS OPEN. ALWAYS CHECK THAT THE DETERGENT RECEPTACLE IS EMPTY AFTER COMPLETION OF THE WASH CYCLE.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR APPLIANCE AT THE END OF THE WASHING PROGRAM.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE IN THE APPLIANCE, AS THIS MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINT.
PLEASE DO NOT LEAVE THE DOOR OPEN AS THIS WILL CAUSE A TRIPPING HAZARD.
WARNING: KNIVES AND OTHER UTENSILS WITH SHARPS POINTS MUST BE LOADED IN THE BASKET WITH THE POINTS DOWN OR PLACED IN A HORIZONTAL POSITION.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED EXCLUSIVELY BY TRAINED AND AUTHORISED TECHNICIANS: REPAIRS 4
Installation instructions
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER OR ITS SERVICE AGENT OR A SIMILARLY QUALIFIED PERSON IN ORDER TO AVOID HAZARD.
SOME COMPONENTS ARE LIVE EVEN WITH THE ON/OFF BUTTON IN THE OFF POSITION. BEFORE MAINTENANCE WORK ON THE APPLIANCE, DISCONNECT THE PLUG OR TURN OFF THE MAINS SWITCH IN THE FIXED WIRING
CLEANING AND REGULAR MAINTENANCE OF THE APPLIANCE BY CHILDREN IS ONLY PERMITTED UNDER THE SUPERVISION OF A PERSON RESPONSIBLE FOR THEIR SAFETY.
DO NOT USE STEAM CLEANERS TO CLEAN THE DISHWASHER.
MODELS WITH "AQUASTOP" DEVICE THE "AQUASTOP" DEVICE PREVENTS FLOODING IN THE EVENT OF A WATER LEAK. WHEN THE "AQUASTOP" DEVICE IS TRIPPED, CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT. INSIDE THE "AQUASTOP" WATER INTAKE HOSE, THERE ARE ELECTRICAL PARTS. DO NOT CUT THE HOSE AND DO NOT ALLOW THE "AQUASTOP" DEVICE TO DROP INTO WATER. IN THE EVENT OF DAMAGE TO THE "AQUASTOP" WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM THE ELECTRICAL SUPPLY AND FROM THE WATER SUPPLY.
MODELS WITH INTERNAL LIGHTING THE LIGHTING SYSTEM OF THE APPLIANCE BELONGS TO RISK GROUP 1 UNDER THE IEC/EN 62471 STANDARD. THIS MEANS THAT THERE IS NO PHOTOBIOLOGICAL RISK IN NORMAL CONDITIONS OF USE.
IN ACCORDANCE TO ART. 26 OF THE LEGISLATIVE DECREE 14 MARCH 2014, NR. 49 "IMPLEMENTATION OF THE DIRECTIVE 2012/19/EU ON WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)".
THE SYMBOL OF A CROSSED OUT WHEELIE BIN
ON THE DEVICE OR
PACKAGE SHOWS THAT THE PRODUCT MUST BE COLLECTED SEPARATE
FROM OTHER WASTE, AT THE END OF ITS SERVICE LIFE. THEREFORE, THE
USER HAS TO TAKE ANY EQUIPMENT THAT HAS REACHED THE END OF ITS
SERVICE LIFE TO LOCAL WASTE DISPOSAL CENTRES FOR ELECTRICAL
AND ELECTRONIC EQUIPMENT WASTE.
AS AN ALTERNATIVE TO THE IDEPENDENT MANAGEMENT, IT IS POSSIBLE TO DELIVER THE EQUIPMENT WHICH HAS TO BE DISPOSED OF TO THE DEALER, AT THE MOMENT OF PURCHASING A NEW EQUIVALENT DEVICE AT THE ELECTRONIC EQUIPMENT DEALERS WITH A SALES AREA OF AT
5
Installation instructions
LEAST OF 400 M2. ALSO, FOR DISUSED DEVICES WITH DIMENSIONS INFERIOR TO 25 CM, FREE DELIVERY TO THE DEALERS IS POSSIBLE, WITH NO PURCHASE OBLIGATION
A PROPER SEPARATE WASTE COLLECTION AND THE CONSEQUENT HEADING OF THE DISUSED DEVICE TOWARDS ITS RECYCLING, TREATMENT AND ENVIRONMENTALLY COMPATIBLE DISPOSAL, CONTRIBUTES IN PREVENTING ANY POSSIBLE NEGATIVE EFFECTS ON ENVIRONMENT AND HEALTH; ALSO, IT SUPPORTS THE REUSE AND/OR RECYCLE OF THE MATERIALS WHICH COMPOSED THE DEVICE.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR CHILDREN (LOCKS, DOORS, CABLES, HOSES, ETC.).
The manufacturer declines all responsibility for damage to persons or property resulting from failure to observe the above precautions, from tampering with even a single component of the appliance, or from the use of non original spare parts.
TECHNICAL DATA
TECHNICAL DATA Width Depth measured flush with the outer edge of the control panel
Height (depending on models)
Capacity Water supply pressure Electrical characteristics
597 599 mm
Free standing: 600 mm Semi-integrated: 570 mm
Free standing: from 850 mm to 890 mm from 890 mm to 930 mm
Semi-integrated: from 820 mm to 890 mm from 860 mm to 930 mm
15 Standard place settings
min. 0,05 - max. 0,9 MPa (min. 0.5 max. 9 bar)
See rating plate
6
Installation instructions
2. Installation and hook-up
Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. To ensure stability, install integrated or built-under dishwashers only under continuous worktops, and screw them to the adjacent units. To facilitate the installation procedure, the intake and drain hoses can be positioned in any direction; make sure that the hoses are not kinked, crushed or pulled too tightly. Make sure to tighten the locking ring-nut once the pipes have been placed in the direction required. A hole at least 8 cm in diameter is required to allow the power supply cable and pipes to pass. Before putting the dishwasher into its definitive position, turn on the water tap and check that there are no leaks from the tap connection, the dishwasher connection or the hose. Level the appliance on the floor using its adjustable feet. This operation is essential for ensuring correct operation of the dishwasher.
Some models are equipped with only one adjustable foot at the rear, which can be adjusted by turning the screw on the lower front part of the appliance.
Building-in a dishwasher underneath a hob is absolutely forbidden. Moreover, dishwashers may not be installed directly touching appliances which are not conventional built-in kitchen appliances (e.g. fireplaces, stoves, etc.). When installing the dishwasher in a compartment next to one or more other appliances, it is essential to comply with all the recommendations provided by the appliance's manufacturer (minimum distances, installation procedures, etc.).
7
Installation instructions
2.1 Water supply connection Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance. The dishwasher must always be connected to the water system with new hoses; old or used hoses must never be reused. CONNECTING TO THE WATER SUPPLY Connect the intake hose to a cold water supply with ¾" gas thread, inserting the filter A supplied with the dishwasher. Take care to screw the hose firmly into place with your hands and then complete by tightening about ¼ of a turn with pliers. In dishwashers equipped with the ACQUASTOP device, the filters is already fitted inside the threaded ring.
The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness. Make the connection to the domestic hot water supply using the same procedure described for connecting to the cold water supply.
8
Installation instructions
DRAIN CONNECTION Insert the dishwasher's drain hose into a drain pipe having a diameter of at least 4 cm, or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose. It is important to prevent the hose from coming loose and falling. For this purpose, the plastic support is equipped with a hole for tying it to the wall or water tap. The free end should be positioned at a height of between 30 and 100 cm, and should never be submerged in water. If a horizontal drain extension hose is used (for a maximum of 3 m) the drain hose can be placed at a maximum height of 85 cm from the ground. Class of protection against moisture: IPX0
9
User instructions
3. Description of the controls
3.1 Front panel All the dishwasher controls are grouped on the front panel. Programming and option selection are only possible with the door closed.
1 ON/OFF BUTTON AND WARNING LIGHT 2 OPTION SELECTION BUTTONS AND WARNING LIGHTS 3 "CHILD LOCK" ACTIVATION BUTTONS 4 START/PAUSE BUTTON 5 PROGRAM SELECTION BUTTONS 6 INFORMATION DISPLAY 7 HANDLE TO OPEN THE DOOR N.B.: symbols and styling are guideline and may vary depending on the model or version of the dishwasher purchased.
10
User instructions
3.2 Information display The dishwasher is equipped with a practical DISPLAY which provides information on the programmed dishwasher functions.
Rinse aid lack warning indicator
Salt lack warning indicator
End of cycle signal
000 H0....H5 b0....b5
"Child lock" option warning light Delayed start indicator, wash cycle duration and alarms Water softener setting indicator Rinse aid setting indicator
Prewash
Program phases warning lights
Wash
With program in progress, it
indicates the status of the program Rinse
Drying
11
User instructions
PROGRAMS TABLE
PROGRAMME NUMBER & SYMBOL
1 RAPID 27'
2 NORMAL
ECO (*)
3 REGULAR
4 AUTO 60-70
LOAD CROCKERY AND CUTLERY
PROGRAM PROGRESS
Dishes with light dirt, washed immediately after
use
Wash at 38°C Rinse at 50°C
Crockery and cutlery normally soiled
Dishes with regular dirt, even with dried-on residues.
Cold prewash Wash at 50°C Rinse at 43°C Dry
Wash at 55°C Cold rinse Rinse at 70°C Dry
DURATION CONSUMPTION
MINUTES WATER POWER
(1)
LITRES kWh (1)
27
6,5
0,70
220
9,9
0,80
95
11
1,30
Pans and dishest, even with dried-on residues.
When the "AUTO" program is selected, the dishwasher recognises the type of dirt and automatically adjusts the washing parameters as appropriate.
5 ULTRA CLEAN
Very dirty pans and dishes, even with dried-on
residues.
Hot prewash Wash at 70°C 2 cold rinses Rinse at 70°C Dry
155
15,5 1,70
The ULTRA CLEAN program terminates with an extra anti-bacteria rinse that ensures a further reduction in the bacteria level. If the temperature falls during this stage of the
program (e.g. because the door is opened or due to a power blackout), the program
lights (5) flash to warn that the anti-bacteria effect is not guaranteed.
* Reference program as per AS/NZS 2007. During the comparative tests the dishwasher shall to be setted as follow: - ENERSAVE option (if present) DISABLED - At the end of the cycle the door must be opened about 15 cm.
Only run the soak program with partial loads. (1) The cycle duration and power consumption may vary according to the water
and room temperatures, and the type and amount of dishes.
The washing cycle will not take place if the dishwasher door is left open or not properly closed.
12
User instructions
QUICK TIME PROGRAMS (ENERSAVE option non available) (see relevant section for explanation of functioning modes)
PROGRAMME NUMBER E SYMBOL
LOAD CROCKERY AND CUTLERY
PROGRAM PROGRESS
6 SOAK
+ 7 DELICATE
QUICK
+ 8 REGULAR
QUICK
+ 9 DAILY
QUICK
+ 10 STRONG and
FAST
+
Pans and dishes awaiting completion of the load
Delicate dishes
Dishes with regular dirt, washed immediately after
use.
Dishes with regular dirt, washed immediately after
use
Mixed dishes with daily dirt without dried-on residues.
Cold prewash
Cold prewash Wash at 50°C Cold rinse Rinse at 70°C
Cold prewash Wash at 60°C Cold rinse Rinse at 70°C
Cold prewash Wash at 70°C Cold rinse Rinse at 70°C
Wash at 65°C Cold rinse Rinse at 70°C
DURATION MINUTES
(1)
15
60
80
80
55
CONSUMPTION
WATER LITRES
POWER KWh (1)
3,5
0,02
12,5
1,35
12,5
1,25
9,5
1,35
9,5
1,35
(1) The cycle duration and power consumption may vary according to the water and room temperatures, and the type and amount of dishes.
The washing cycle will not take place if the dishwasher door is left open or not properly closed.
Notice for testing institutes Testing institutes are provided with guidelines for comparative tests (e.g. according to AS/NZS 2007). request the guidelines by contacting us at the following e-mail address: dishwasher@test-domestic-appliances.com When making a request, please specify the model (MOD) and the serial number (S/N) indicated on the plate on the side of the door.
13
User instructions
3.3 Washing programs The dishwasher is equipped with a control panel and an INFORMATION DISPLAY from which it is possible to carry out all the power switch-on, switch-off and programming operations. Before starting a washing program make sure that: The water supply tap is open. The correct amount of detergent has been added to the
dispenser. The baskets have been correctly loaded. The spray arms are able to rotate freely and without
obstruction. The dishwasher door is securely closed. Warning: during the initial phase of the washing program, the operation of sprayers is not perceived because they start rotating about 5 minutes after the start. This is the normal operation of the washing cycle.
LIGHTING Pressing the ON/OFF button will start the dishwasher and will lit up the dishwasher pilot light. After approximately 3 second from this operation the DISPLAY will be turned on with a visualization that will depend upon the state of the dishwasher. PROGRAMMING All the programming operations are possible only with closed door. With open door, on the DISPLAY will appear - - : - -.
14
User instructions
SELECTION PROGRAM
The program selection is possible through the relative buttons.
By pressing the relative button of the desired program (see table) it will light up the relative pilot light to confirm that the operation occurred and on the DISPLAY a program duration forecast will appear ("h.mm").
START PROGRAM At this point, in order to start the machine, it is only enough to press the
START/PAUSE
for some seconds until the symbol START/PAUSE
start to flash and confirmation "beep" is heard. From this moment the cycle
duration on the DISPLAY starts to decrease.
This phase, that updates itself during the cycle, is "indicative" since it is
influenced by the washing conditions such as dishwasher type and
quantity, entry temperature etc. For this reason it is normal to see the
updating during a program (increment and decrease of minutes) specially
in the passage from one phase to the other (for example, from washing to
rinse).
Program progress is indicated by the program phases that show the status of the current cycle.
The current phase flashes, while the next washing phases lights stay on. At the end of each phase, the signal will turn off.
N.B.: when a program which does not need the prewash phase is selected, the prewash signal stays off.
Prewash
Wash
Rinse
Drying
END PROGRAM At the end of the program the DISPLAY shows "end". By pressing one of the program buttons the dishwasher is ready to start a new cycle.
15
User instructions
INTERRUPTING A PROGRAM In order to interrupt a running program it is necessary:
to press the START/PAUSE
for some seconds until when the
led START/PAUSE remains lit on (confirmation beep). At this point,
it is possible to start the cycle again, otherwise:
TO CHANGE A PROGRAM
To change the running program it is necessary:
to interrupt the running program (see "INTERRUPTING A PROGRAM"); select the new program;
to press again the START/PAUSE button program.
to make start the new
STOPPING A PROGRAM To cancel a program which is running:
Interrupt the program (see "INTERRUPTING A PROGRAM")
Press the START/PAUSE button
and hold it down; the
display will show "P0" and the dishwasher will immediately
switch to the end of the cycle and drain the tank (during this
process, the "START/PAUSE led will flash). When the drain
procedure ends, the end of cycle "End" message appears on
the display.
In case that the door is opened during the operation, to the next door closing it is going to be necessary to start the program as shown in paragraph "STARTING THE PROGRAM". The program will resume from the point in which it was interrupted. In case that the tub temperature is higher than 50°C the program will start about 60 seconds later.
16
User instructions
OPTIONS
The selection of options is controlled by the relative buttons and indicated by the warning light below the symbol. Please read the paragraphs relating to each option for their usage details. QUICK TIME PROGRAMS
Select this option together with any washing program (except the soak
program) to SHORTEN the cycle by from a minimum of 10% to a maximum of 55%, depending on the cycle selected. To activate this
option, press the QUICK OPTION button
(light comes on) after
selecting the program required. The option is automatically deactivated at
the end of the program.
ENERSAVE This option further reduces energy consumption by opening the door at the end of the cycle for more effective drying. At the end of the wash an automatic device releases the door, which slowly opens by a few centimetres. This allows optimal drying even with low rinsing temperatures, for significant energy saving. The dishwasher remains in an idle state between the rinse stage and the end of the cycle to allow proper drying (the display shows the time left until the end of the cycle). Opening the door at this stage causes the cycle to stop and ends the program. The program end is signalled by a short beep and the flashing of the indicator lights for programs 4 and 5. When the function is activated, opening of the door must not be impeded in any way; do not leave anything in the necessary space in front of the door to allow it to open. Do not force the door lock before the end of the cycle is signalled, as this would damage the mechanism.
When the function is activated, opening of the door must not be impeded in any way; do not leave anything in the space in front of the door necessary to allow it to open.
17
User instructions
Do not re-close the door during automatic opening as this would damage the mechanism. Wait for the pushers to retract before re-closing
the door.
DELAYING THE PROGRAM
The PROGRAM DELAY button
can be pressed to delay the start of
the washing program by 1 up to 24 hours. This means that the dishwasher
can be operated at the time of day of your choice.
Press the PROGRAM DELAY button
again; the INFORMATION
DISPLAY (6) will show the number of hours of delay with which the appliance
will start.
After setting the delay, start the program: press the START/PAUSE button (4) for a few seconds, until the PROGRAM STARTED light starts flashing. The appliance will prewash the dishes, after which the "program delay" set
previously will come into effect.
To cancel the program delay once the wash has started, proceed as follows:
Press the START/PAUSE button (4) for a few seconds, until the PROGRAM STARTED light stops flashing;
Press the PROGRAM DELAY button
several times until the
program delay returns to zero;
Press the START/PAUSE button (4) to start the program.
SPREAD HALF LOAD Suitable when there are not many dishes to be washed, it saves energy and reduces the program duration. Place dishes in both baskets then load the detergent dispenser than less than the normal amount for a full load.
18
User instructions
Flexi Tabs Ideal for multi-function detergents, this option allows washing to be optimised, with full benefits from the combined-action tablets. When this option is activated, any salt and rinse aid in the relative containers will not be used. If the option is not provided, we recommend the use of conventional products (separate detergent, salt and rinse aid), because with conventional washing cycles, combined products might create problems such as a white deposit, poor drying results and residues left on dishes. N.B.: When the salt and rinse aid containers are empty, the relative lights will remain on even if the "Flexi Tabs" option is selected. IMPORTANT: when no longer required, the option must be deactivated by pressing the relative button (the light goes out). These products are not suitable for use with excessively "hard" water. If the hardness level set is higher than H3, when the option is activated the relative light flashes to indicate that the product is being used incorrectly; the dishwasher will still work, but washing results may be poor.
"CHILD LOCK" OPTION By pressing the indicated buttons (3) at the same time, the controls are locked, which is confirmed when the warning light on display turns on. This option stays active until the buttons (3) are pressed again.
19
User instructions
TO SAVE ON ENERGY! ... AND PROTECT THE ENVIRONMENT Always try to run the dishwasher fully loaded. Do not wash the dishes in running water. Use the washing program that is most appropriate for each type of
load. Do not carry out any preliminary rinsing. If available, connect the dishwasher to a hot water supply up to 60°C. TO CUT DOWN ON DETERGENT CONSUMPTION! ... AND PROTECT THE ENVIRONMENT The phosphates contained in dishwasher detergents are harmful to the environment. To avoid using excessive amounts of detergent and to save on electricity, observe the following: separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures; do not pour the detergent directly on the dishes.
ENERGY MANAGEMENT At the end of the program, afterwards 5 minutes, the washing machine switches off automatically in order to reduce standby power consumption. In order to switch it on again, it is necessary to press the ON/OFF button. REMOVING THE DISHES At the end of the washing program, wait at least 20 minutes before removing the dishes, to allow them to cool down. To prevent any water droplets on the upper basket from falling on the dishes in the lower basket, it is advisable to unload the lower basket first, and then the upper basket.
20
User instructions
4. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as follows:
Adjust the water softening system (on some models only); Add the regenerating salt (on some models only); Add the rinse aid and detergent.
4.1 Using the water softening system (on some models only)
The amount of scale contained in the water (water hardness index) can cause whitish staining on the dry dishes, which tend to become dull over time. The dishwasher is equipped with an automatic softening system which uses a special regenerating salt to reduce the hardness of the water.
SALT
When using water of medium hardness, the regenerating salt container should be refilled after approximately 20 washing cycles. The salt container can hold approximately 1.7 Kg of salt in grains. The container is situated at the bottom of the dishwasher. After removing the lower basket, unscrew the salt container cap by turning it anticlockwise and pour in the salt using the funnel supplied with the dishwasher. Before replacing the cap, remove any salt residues from around the opening.
When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container.
Each time the salt container is refilled, make sure that the cap is securely closed. The mixture of water and detergent must never penetrate the salt container, as this would compromise the operation of the regeneration system. In the event of this occurring, the warranty will be invalidated.
Only use regenerating salt specially formulated for domestic dishwashers. If using salt tablets, do not fill the container completely.
21
User instructions
Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system.
When necessary, refill the regenerating salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water; the prolonged presence of salt water inside the tank may lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding detergent to the salt container will damage the water softening system.
WATER SOFTENER SETTING (available in all programs except the soak program) The setting can be adjusted using the PROGRAM DELAY BUTTON.
To access the programming environment, the appliance must be turned on with the door closed. Then proceed as follows:
press the PROGRAM DELAY button
until the H symbol appears
on the display, followed by the number currently set (e.g. H3)
press the PROGRAM DELAY
button the number of times
needed to select the right setting level for the hardness of the water
(H0, H1, H2, H3, H4, H5, H5);
After carrying out the adjustment or displaying the current setting, if you do not touch the button for a few seconds the dishwasher will automatically exit from adjustment mode and return to the standard operating mode.
22
User instructions
WATER HARDNESS TABLE
WATER HARDNESS
German Degrees (°dH) French Degrees (°dF)
0 - 6
0 - 11
7 - 10
12 - 18
11 - 15
19 - 27
16 - 21
28 - 37
22 - 28
38 - 50
29 - 50
51 - 90
SETTING
H0 NO SALT H1 H2 H3 H4 H5
Contact your local water board for information on the hardness of your water supply. Default settings: H3 - 16-21°dH 28-37°dF
4.2 Using the rinse aid and detergent dispensers
The detergent and rinse aid dispensers are situated on the inner part of the door: the detergent dispenser is on the left, and the rinse aid dispenser is on the right.
With the exception of the SOAK program, before every washing cycle it is necessary to add the required amount of detergent to the detergent dispenser. The rinse aid, on the other hand, should only be added as required.
23
User instructions
ADDING THE RINSE AID The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door. To add rinse aid: Open the dispenser by pressing and lifting the tab on the cover. Fill the dispenser with rinse aid. Top up again when the rinse aid
indicator light turns on. Close the cover, a click indicates when it is closed. Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
24
User instructions
RINSE AID SETTING (available in all programs except the soak program) The setting can be adjusted using the PROGRAM DELAY BUTTON.
To access the programming environment, the appliance must be turned on with the door closed. Then proceed as follows:
press the PROGRAM DELAY button
until the b symbol appears
on the display, followed by the number currently set (e.g. b5)
press the PROGRAM DELAY
button the number of times
needed to select the right setting level for amount rinse aid (b0, b1,
b2, b3, b4, b5, b5);
After carrying out the adjustment or displaying the current setting, if you do not touch the button for a few seconds the dishwasher will automatically exit from adjustment mode and return to the standard operating mode.
RINSE AID ADJUSTMENT TABLE
b0
0 not dispensed
b1
minimum 2 ml
b2
3 ml
b3
4 ml
b4
5 ml
b5
maximum 6 ml
Default settings: b4 - 5ml The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains. If, on the other hand, the dishes are sticky or have white streaks, it is
necessary to reduce the rinse aid setting.
25
User instructions
ADDING THE DETERGENT To open the detergent dispenser cover, lightly press button P. Add the detergent or tablet and close the cover by sliding it until it stops, indicated by a click. The dispenser will open automatically during the wash cycle. Only add the detergent (also in tablet form) if the dispenser is dry
26
User instructions
When a program with hot prewash is selected (see program table), extra detergent must be placed in the cavity G/H (depending on models).
Use only detergents specially formulated for dishwashers. The detergent packs must be sealed and stored in a dry place to prevent the formation of lumps which may negatively affect washing results. Once opened the detergent packs should not be kept for too long, otherwise the detergent loses its effectiveness.
Do not use detergents for washing dishes by hand because they may affect the operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of detergent will result in a partial removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results.
For the safeguarding of the environment we recommend the use of phosphate- and chlorine free detergents.
The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher.
4.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account. Before loading the dishes into the baskets it is necessary to: remove coarse food remains: e.g. bones, fish-bones, etc. which may clog the filter or damage the wash pump. soak any pots or pans with burnt-on food remains on the bottom to facilitate removal, then load them into the LOWER BASKET. There is no need to pre-wash the dishes under running water before loading them into the baskets since this only wastes water. Correct loading of the dishes helps ensure optimal washing results. 27
User instructions
WARNING! Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the washing cycle. Do not place very small objects in the baskets as these could fall and obstruct the spray arms or the wash pump. Containers such as cups, bowls, glasses and pots should always be loaded with the opening facing downwards and with any cavities at an angle, to allow the water to drain out. Do not stack dishes or place them in such a way that they cover one other. Do not place glasses too close together because they may knock against each other and break, or there might be staining at the point where they touch. MAKE SURE that the items being washed are dishwasher-safe. Items which are not dishwasher-safe: Wooden dishes, pots or pans: these may be damaged by the high washing temperatures. Handcrafted items: these are rarely suitable for washing in a dishwasher. The relatively high water temperatures and the detergents used may damage them. Plastic dishes: heat resistant plastic dishes must be washed in the upper basket. Dishes and objects in copper, tin, zinc or brass: these tend to stain. Aluminium dishes: items made from anodised aluminium may lose their colour. Silverware: silver items may stain. Glass and crystal: in general, glass and crystal objects can be washed in the dishwasher. However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available. Decorated items: the decorated objects available on the market are generally able to withstand washing in the dishwasher, although the colours may fade after a great many washes. If in doubt as to the fastness of the colours, it is advisable to wash just a few items at a time for approximately one month.
28
User instructions
4.4 Using the baskets The dishwasher has a capacity of 15 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the "toughest" items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom.
Depending on the models, the basket may be equipped with some or all of the following accessories: Plate racks, which can be laid flat when not in use (e.g. to accommodate pans, bowls, etc.). To stow the racks flat, pull them upward and turn them towards the inside of the basket.
Anti-drip inserts which improve the drying of dishes. They may be supplied fitted on the basket or in the accessories bag; in this case, to use them, simply fit them into place as shown.
29
User instructions
Supports for cups and long objects (ladles, spoons, etc.), in the rear; can be tipped to the vertical position when not in use.
Glass holder. Support for longstem glasses. When lifted out of the stowed position (0) it snaps into three different positions (1-2-3).
2-position fold-down supports (1-2). In position 1 (vertical) they can be used to take plates, while in position 2 (slanted) they provide support for long-stem glasses which will be held in place by the glass holder. Adjustment: raise point P as shown until the support turns into position 2.
30
User instructions
To lie completely flat, lift the end and turn it towards you so that the retainer F rotates into place above point S.
LOADING THE LOWER BASKET Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them.
Loading examples:
31
User instructions
UPPER BASKET The upper basket should be loaded with small or medium-sized items such as glasses, small plates and saucers, tea or coffee cups, shallow bowls and light objects. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only lightly soiled. LOADING THE UPPER BASKET Load plates facing forward; cups, bowls etc. must always be facing downwards. The left side of the basket can be loaded with cups and glasses on two levels. In the centre section, plates and saucers can be loaded vertically into the supports provided.
Loading examples:
32
User instructions
CUTLERY BASKET The basket is suitable for all types of cutlery, except long items that may interfere with the upper spray arm. The cutlery should be arranged in the spaces in the upper racks to allow the water to pass effectively between the items. Forks and spoons should be positioned with the handle facing downwards, taking care not to injure yourself with the prongs of the forks. Knives should be placed in the tray on the upper rack or in the cutlery drawer, if present (depending on the model), otherwise position them with the handles facing upwards. Ladles, wooden spoons and kitchen knives can be placed on the upper rack, making sure that the blades of the knives do not protrude from the basket. The upper racks can be opened in order to insert, for example, small items.
The cutlery basket slides across the dishwasher and can be placed in any position to allow optimal use of the space in the bottom basket.
33
User instructions
TOP CUTLERY BASKET (on some models only) The basket is designed to take cutlery, placed in the spaces provided, and long utensils, positioned lengthwise. The "drawer" extraction system makes the basket easier to load, but it can also be taken completely off its runners by removing the retainers (as shown here). Take great care to replace the retainers to ensure that the basket does not come off the runners accidentally.
34
User instructions
Fold-down shelves For mugs, cups and long objects. The ends are designed to hold long stemmed glasses When not used they can be moved to a vertical position (until a click is heard).
Shelves with expandable wings For small objects, mugs and cups. They can be used either closed or open (pull the upper, sliding part). To close them, press the release device (S) and slide them downwards. The ends are designed to hold long stemmed glasses (even when closed). When not used they can be moved to a vertical position (until a click is heard).
35
User instructions
Fold-down tines These can be secured in a vertical position, resting on the bottom of the basket if unused, or placed in an intermediate position, as required. The single tine on the right is ideal for supporting long stemmed glasses.
36
User instructions
ADJUSTING THE UPPER BASKET The height of the top basket can be adjusted to allow large dishes or pans to be placed in the bottom basket. The adjustment procedure may be type A or B, depending on the dishwasher model purchased. Version A: pull-out with adjustment in two positions. Pull out both the basket guides. Remove the stops, first releasing them as shown in the diagram. Pull out the basket. Fit the upper or lower pair of wheels into the guide, depending on the
setting required; Return the stops to their original position. The left hand and right hand sides of the basket must always be set at the same height.
Version B: with adjustment in three positions on both sides. The sides of the basket must always be set at the same height. Raise the basket by pulling on the top edge (1), to the first or second
catch depending on the height required. To lower the basket, first release it by pulling the release lever (2). Adjustment is also possible with the basket loaded, but in this case when lowering the basket it should be held steady with one hand to avoid knocking the dishes.
37
User instructions
5. Cleaning and maintenance
Before carrying out any work, always unplug the appliance from the electrical supply or switch off the all-pole disconnection device.
5.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge. Periodically (once or twice a year) it is advisable to clean the tank and gaskets, using a soft cloth and water to remove any deposits. CLEANING THE WATER INTAKE FILTER The water intake filter A located at the outlet of the water supply tap needs to be cleaned periodically. After having closed the water supply tap, unscrew the end of the water intake hose, remove the filter A and clean it delicately under running water. Reassemble filter A in its seat and carefully screw the water intake hose back into position. CLEANING THE SPRAY ARMS The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded. To remove the upper spray arm, unscrew locking ring R. To remove the orbital spray arm assembly, take hold of the longer
arm and pull the orbital unit upward. Wash the arms under a jet of running water and return them carefully to their seat. After reassembly, check that the spray arms turn freely. Otherwise, check that they have been installed correctly.
ORBITAL
38
User instructions
CLEANING THE FILTER UNIT It is advisable to periodically inspect the centre filter C and, if
necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards; push the centre filter D from the underside to remove it from the microfilter: separate the two parts which make up the plastic filter by pressing the body of the filter in the zone shown by the arrows; remove the centre filter by lifting it upwards.
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT MAINTENANCE: The filters should be cleaned under running water using a stiff
brush. When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block hydraulic components, or foul the spray arm nozzles. It is essential to thoroughly clean the filters according to the above instructions: the dishwasher cannot function if the filters are clogged. Carefully replace the filters in their seats, to avoid damaging the wash pump. PROLONGED DISUSE: Run the soak program twice in succession. Unplug the power cord from the socket. Leave the door slightly open, in order to prevent the formation of unpleasant odours inside the washing tank. Fill the rinse aid dispenser. Shut off the water supply tap.
39
User instructions
BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE: Check that there are no deposits of sludge or rust inside the water
pipe: if there are, allow the water to run from the water supply tap for a few minutes. Plug the power cord back into the socket. Reconnect the water intake hose and open the tap again. TROUBLESHOOTING MINOR PROBLEMS In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: the dishwasher is connected to the electrical power supply; there is no power failure; the water tap is open; the dishwasher door is properly closed. If water remains inside the dishwasher, check that: the drain hose is not kinked; the drain siphon is not obstructed; the dishwasher filters are not clogged. If the dishes are not being cleaned properly, check that: the correct amount of detergent has been added; there is regenerating salt inside the special container; the dishes are being loaded correctly; the selected program is suitable for the dish types and their degree of soiling; all the filters are clean and positioned correctly; the spray arm nozzles are not obstructed; there is no object obstructing the rotation of the spray arms.
40
User instructions
If the dishes fail to dry or remain dull, check that: there is rinse aid inside the special container; the rinse aid dispenser setting is correct; the detergent used is of good quality and has not lost its effectiveness
(for example, through incorrect storage, with the box left open). Non-dry synthetic dishes.
Synthetic material has a lower heat storage capacity and is therefore harder to dry. If the dishes show signs of streaking, staining, etc., check that: the rinse aid dispenser setting is not too high. If there are visible traces of rust inside the tank: the tank is made of steel, and therefore any rust marks are due to external elements (fragments of rust from the water pipes, pots, cutlery, etc.). Special products are commercially available to remove such marks; check that the amount of detergent being used is correct. Certain detergents can be more corrosive than others. check that the cap of the salt container is securely closed, and that the water softening setting is correct.
41
User instructions
Only for models with this lock version. If the door does not close: 1 - Check the position of the door lock catch (D) 2 - If necessary, raise it by adjusting the plastic screw (V) next to the catch. 3 - Check the condition of the lock hook; if it has not triggered (reference N), the door opens and closes normally. If it has triggered (reference S), close the door with force until it resets; open and close the door.
42
User instructions
If after following the above troubleshooting instructions the problem persists, call the nearest After-Sales Centre. WARNING: any operations performed on the appliance by unauthorised persons are not covered by the warranty and shall be paid for by the user.
43
User instructions
6. Troubleshooting
The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults.
TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM
FAULT E 01
DESCRIPTION The anti-flooding system (where present) has been tripped service.
E 02
The water level limitation system has tripped.
E 03
The appliance cannot heat the water.
E 04
The temperature sensor is disconnected.
E 05
The appliance cannot take in the water.
E 06
The appliance cannot drain the water from the tank.
E 07
The dishwasher cannot measure the precise water quantity that has been loaded.
E 08
Problem on the water distribution system to the baskets.
E 09
Water intake system malfunction.
E 11
Wash motor pump does not work
If an alarm occurs the appliance interrupts the program in progress and signals a fault.
Alarms E1, E2, E3, E4, E8 and E9 interrupt the current program immediately. The E5, E6 alarms interrupts the running program once the cause is resolved, it will
bring bach the execution of the program. The alarm E7 is visualized at the end of the cycle that comes, however, brought to the
end since the operation of the dishwasher is not harmed. Alarm E11: contact your authorised Service Centre
To "reset" an alarm is necessary:
Open and close the door, or turn off and on the machine. At this point is possible to program the dishwasher again.
If the malfunction persists, contact your authorised Service Centre.
44
Microsoft: Print To PDF
