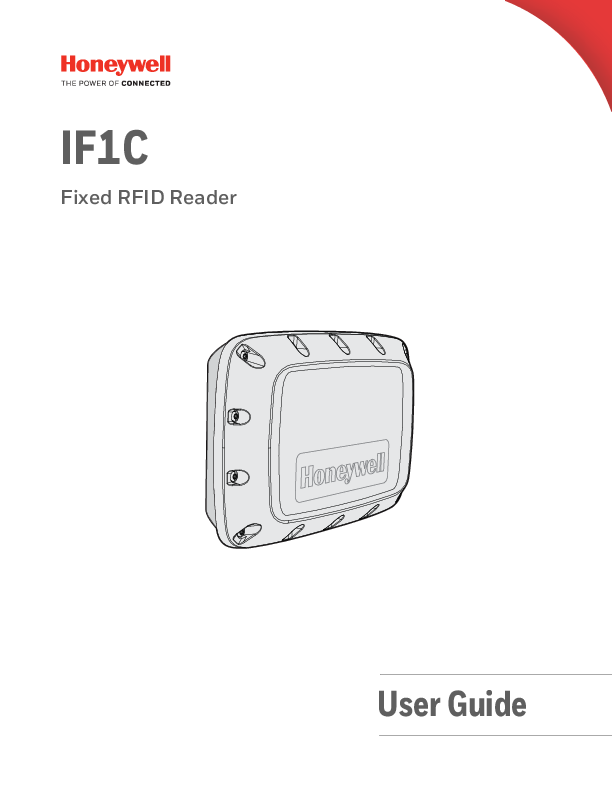

IF1C
Fixed RFID Reader
User Guide

Disclaimer
Honeywell International Inc. ("HII") reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII. HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. HII disclaims all responsibility for the selection and use of software and/or hardware to achieve intended results. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Copyright  2017 Honeywell International Inc. All rights reserved. Web Address: www.honeywellaidc.com
Microsoft® .NETTM, SQL Server, Windows®, Windows NT®, Windows 2000, Windows ME, Windows XP, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. JavaTM is a trademark of Sun Microsystems, Inc., and refers to Sun's Java programming language. Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies and are the property of their respective owners. For patent information, refer to www.hsmpats.com.

TABLE OF CONTENTS

Customer Support ..........................................................................................................................v Technical Assistance ...............................................................................................................v Product Service and Repair ..................................................................................................v Limited Warranty ......................................................................................................................v Send Feedback ..........................................................................................................................v
Chapter 1 - Get Started .................................................................................... 1
RFID Reader Ports.......................................................................................................................... 2 LED Indicators................................................................................................................................. 2 Wall Mounting Kit........................................................................................................................... 3
Install the Wall Mount............................................................................................................ 3 How to Communicate with the RFID reader ........................................................................ 5
Assign an IP Address .............................................................................................................. 5 Log In to the Web Browser Interface................................................................................ 7 Set the Date and Time .................................................................................................................. 8
Chapter 2 - Configure the Reader.................................................................. 9
Configure Ethernet Settings...................................................................................................... 9 Ethernet Settings..................................................................................................................... 9 Configure Common Network Settings ......................................................................... 10 Common Network Settings............................................................................................... 10
Device Configuration Web Service....................................................................................... 11 Device Configuration Web Service ................................................................................ 11 Download the Device Configuration WSDL Document......................................... 11
Configure Services...................................................................................................................... 12

IF1C Fixed RFID Reader User Guide

i

Services Settings ...................................................................................................................12 RFID Services ................................................................................................................................12
Configure the BRI Server Settings..................................................................................13 View the BRI Server Log......................................................................................................13 Configure the BRI Attribute Settings.............................................................................14 Configure LLRP Settings ...................................................................................................16 Configure Security ......................................................................................................................17 Change User Credentials ...................................................................................................17 Configure the RADIUS Server...........................................................................................18 Disable Serial Port Access .................................................................................................18 Certificates .....................................................................................................................................19 Import a Certificate ..............................................................................................................19 View Certificates ....................................................................................................................19
Chapter 3 - Develop and Install RFID Applications................................. 21
RFID Applications ........................................................................................................................21 RFID Resource Kit........................................................................................................................21 Microsoft® .NETTM Support........................................................................................................22 JavaTM Support...............................................................................................................................22
Execute Java Applications.................................................................................................22 Execute .JAR Files .................................................................................................................22 Enable the Java Just-In-Time Compiler ......................................................................22 Specify the Class Path for the Java Virtual Machine ..............................................23 Java Support for Microsoft SQL Server and Sybase ...............................................23 Create an Installation Package ..............................................................................................23 Create a Configuration File ...............................................................................................23 Archive the Installation Files ............................................................................................24 Install RFID Applications ..........................................................................................................24 Install Applications On the Reader.................................................................................25 Manage Applications .................................................................................................................25 Start an Application..............................................................................................................25 Stop an Application ..............................................................................................................25 Uninstall an Application .....................................................................................................25

ii

IF1C Fixed RFID Reader User Guide

Auto-Start an Application at Boot Time ..............................................................................26 Auto-Start an Application with the Web Browser .....................................................26 Auto-Start an Application with the Configuration File ...........................................26
Edgeware Applications ..............................................................................................................26 Install or Upgrade Edgeware Applications..................................................................27
Developer Tools.............................................................................................................................27 Read RFID Tags through the Demo Application .......................................................27 Send BRI Commands ...........................................................................................................27 Run BRI Scripts.......................................................................................................................28
Chapter 4 - GPIO Ports...................................................................................29
GPIO Interfaces.............................................................................................................................29 Input Interfaces ............................................................................................................................29
Powered Input Example ......................................................................................................30 Isolated Input Interface Example....................................................................................30 Open Collector Input Interface Example .....................................................................30 Output Interfaces.........................................................................................................................31 Switch the High Side with Reader Power .....................................................................31 Switch the Low Side with Reader Power.......................................................................32 Switch the High Side with External Power...................................................................32 Drive a DC Relay to Control an AC Load.......................................................................33 Power Interface .............................................................................................................................33
Chapter 5 - Maintainance and Troubleshooting ......................................35
Upgrade Firmware .......................................................................................................................35 View the System Log...................................................................................................................36 Restore Default Settings ...........................................................................................................36 Reboot the Reader .......................................................................................................................36 View Device Information............................................................................................................36 Call Product Support ..................................................................................................................36 Troubleshoot the Reader...........................................................................................................37
Problems with RFID ..............................................................................................................37 Problems with Connectivity...............................................................................................37

IF1C Fixed RFID Reader User Guide

iii

Chapter 6 - Product Specifications............................................................. 39
IF1C Specifications ...................................................................................................................39 Port Pin Assignments.................................................................................................................40
GPIO Port..................................................................................................................................40 Ethernet Port...........................................................................................................................41
Appendix A........................................................................................................ 42

iv

IF1C Fixed RFID Reader User Guide

Customer Support
Technical Assistance
To search our knowledge base for a solution or to log in to the Technical Support portal and report a problem, go to www.hsmcontactsupport.com. For our latest contact information, see www.honeywellaidc.com/locations.
Product Service and Repair
Honeywell International Inc. provides service for all of its products through service centers throughout the world. To obtain warranty or non-warranty service, return your product to Honeywell (postage paid) with a copy of the dated purchase record. To learn more, go to www.honeywellaidc.com and select Service & Repair at the bottom of the page.
Limited Warranty
For warranty information, go to www.honeywellaidc.com and click Get Resources > Product Warranty.

IF1C Fixed RFID Reader User Guide

v

CHAPTER
1 GET STARTED
The IF1C is a family of RFID Readers having options with Integrated Antenna (Linear or Circular Polarized) or Two External-Antenna Ports with Honeywelldesigned radio frequency (RF) platform offering superior read performance. Features of the RFID reader include: · 64 MB of storage space for your RFID applications · A web browser interface for easy configuration · Support for EPCglobal Gen-2 and Gen 2v2 (ISO) tag types · IP66 seal rating for outdoor installations · Support for Power Over Ethernet · VESA mount compatibility · USB and sealed Power Over Ethernet ports · Interfaces Supported: GPI's, GPO's/Wiegand & RS-232

IF1C Fixed RFID Reader User Guide

1

RFID Reader Ports
Depending on your configuration, the ports that are available on the RFID reader may be different.

1
2 3 4

Callout Port

1

Ethernet

2

GPIO

3

USB

4

Antenna

Description
10Base/100Base-T port that connects the reader to your Ethernet network. The reader auto-negotiates with the server to set the best data rate. This port uses MDI/MDI-X auto-switching so you can connect either a standard Ethernet cable or a crossover cable. The port also supports Power Over Ethernet (POE). To power the reader, you need an 802.3af-compliant power supply.
General purpose input/output (GPIO) port that connects the reader to industrial controls such as relays or indicators. It also supports RS-232 and Wiegand Interface multiplexed with GPOs
Connects the reader to a desktop PC for configuration.
Connects an external antenna to your reader. The antenna port uses Reverse TNC connectors.

Caution: Professional Installation Required: Government regulatory agencies require this RFID reader to use only approved antennas and cables.

LED Indicators
The LED indicators on the reader light up to indicate the status of the reader during operation.

2

IF1C Fixed RFID Reader User Guide

Icon

Name RFID antenna
Ethernet

Color Solid green Blinking green Blinking red
Off Solid green
Flickering green
Blinking green and orange Blinking red
Off

Description
RF field is active
A tag is being interrogated.
The reader cannot output the requested RF power level, or an RF fault is detected.
The RFID radio is not powered.
The reader is powered, an Ethernet link is established, and the host is connected.
Packets of information are being sent through the Ethernet port.
An Ethernet link is established, but there is no host connection.
The reader is powered, but an Ethernet link is not established.
The reader is not powered.

Wall Mounting Kit
The wall mounting or VESA mounting kit allows you to mount the reader to a flat surface. It is sold and ordered separately. To order accessories, contact your local sales representative.
Install the Wall Mount
To maintain the IP66 rating of the reader, you must mount the reader correctly.
1. Choose a mounting location. 2. Connect an earth ground cable to the RFID reader.

IF1C Fixed RFID Reader User Guide

3

3. Secure the wall mount to the RFID reader with the washers and screws provided.
(x4)
4. Secure three screws (not provided) to the wall, and place the mounting bracket on to the screws.

5. Secure three screws (not provided) to the bottom of the wall mount bracket.

4

IF1C Fixed RFID Reader User Guide

(x3)
How to Communicate with the RFID reader
The reader is configured to be a DHCP client and accepts offers from any DHCP server by default. Therefore, the reader works out of the box if you connect it to your network and use a DHCP server to assign it an IP address. As a default IP address, this equipment can be accessed through HTTP on 169.254.1.1 if no other device on the network has already been assigned for this IP address. If you are not using a DHCP server to assign an IP address, you need to use a serial communications program such as HyperTerminal or Tera Term to assign a static IP address. After the reader has been assigned an IP address, connect it to your network and then complete the configuration by using the web browser interface.
Assign an IP Address
You need to assign an IP address to the reader before you can connect the reader to your network to use the web browser interface to complete the configuration.
1. Download the USB drivers for the reader from the Technical Support Downloads Portal at https://hsmftp.honeywell.com.
2. Go to: Software - RFID - RFID Fixed Readers - IF1
When prompted, click on Open Honeywell Software Downloader.
3. Extract the installation files that you downloaded.

IF1C Fixed RFID Reader User Guide

5

4. Connect a USB cable from the RFID reader to your desktop PC.
5. When the USB Driver Installation Wizard appears, click Browse my computer for driver software.

6. In Search for driver software in this location, click Browse, select the folder where you extracted the reader installation files, and click OK.
7. Click the Windows icon > Control Panel > Device Manager and see which COM port the reader was assigned.
8. Click Next to install the drivers.
9. If you are using Windows 8 or Windows 10 operating system, a warning may be displayed. Click on Install this driver to proceed with the installation.
10. When the installation is finished, click Close.
11. Open a serial communications program to connect to the reader.

12. Type config and press Enter, and then type config again in the Password field and press Enter.
13. By default, DHCP is enabled and the IP address to configure the reader appears. Use the IP address to configure the reader through the web browser interface.
14. If you are not using DHCP, press D. DHCP is disabled and the Ethernet Configuration Options screen appears.

6

IF1C Fixed RFID Reader User Guide

15. To set the IP address, press 1, type in the IP address, and press Enter. 16. To set the subnet mask, press 2, type in the subnet mask, and press Enter. 17. To set the IP router, press 3, type in the IP address, and press Enter. 18. (Optional) To change the Ethernet link speed, press L, and choose the link
speed. 19. Press Q to close the Initial Configuration screen. 20. Remove the USB cable from the reader. The reader is ready to be configured
and connected to your network.
Log In to the Web Browser Interface
After the reader is assigned an IP address, you can configure the reader through the web browser interface. Before you log in, make sure an IP address has been assigned to the reader, and the reader is connected to your network.
1. Start a web browser. 2. In the browser address field, enter the IP address, and press Enter.

3. (Optional) For a secure session, click A secure session is available.

IF1C Fixed RFID Reader User Guide

7

4. Enter your Username and Password. The default user name is intermec and the default password is intermec.
5. Click Non-Secure Login, or Secure Login. The Ethernet screen appears and you are logged in to the web browser interface.
Set the Date and Time
Set the date and time through the web browser interface.
1. From the Main Screen of the web browser interface, click the date and time in the upper right corner.
2. Select your time zone from the drop-down list, and then click Activate Changes.
3. Enter the current year, month, and day in the entry fields. 4. Enter the current hour, minutes, and seconds in the entry fields. 5. Click Activate Changes. The new time and date are set.

8

IF1C Fixed RFID Reader User Guide

CHAPTER
2 CONFIGURE THE READER

Configure Ethernet Settings
To use the reader, you need to configure Ethernet settings such as your IP address and subnet mask.
Note: If DHCP is enabled, you may not need to configure Ethernet settings. For more information, contact your network administrator.
1. Log in to the web browser interface and click Network Configuration or Ethernet.
2. Configure the settings. 3. When you are finished, click Activate Changes to save your changes.

Ethernet Settings
You can configure these Ethernet settings for your reader to communicate with your network.

Setting Enable DHCP IP Address
Subnet Mask

Description
Select this field if you want the reader to get its IP address from a DHCP server. If this field is not selected, you need to specify the IP address, subnet mask, and IP router for your network.
The IP address of the reader. The IP address has the form x.x.x.x, where x is a number from 0 to 255. The default MAC address is on the label on the side of the reader. If DHCP is enabled, the currently assigned IP address appears in this field. If DHCP is disabled, specify the IP address in the entry field.
The subnet mask for this network. The subnet mask has the form x.x.x.x, where x is a number from 0 to 255. If DHCP is enabled, the currently assigned subnet mask appears in this field. If DHCP is disabled, specify the subnet mask in the entry field.

IF1C Fixed RFID Reader User Guide

9

Setting Router Default
Link Local IP Address
IPv6 Autoconfigure IPv6 Address IPv6 Router

Description
The IP address of the router. The IP address has the form x.x.x.x, where x is a number from 0 to 255. If DHCP is enabled, the currently assigned router address appears in this field. If DHCP is disabled, specify the router address in the entry field.
The IP address of the reader is only routable on the local IP subnet. The reader auto-negotiates with other devices on its Ethernet segment to obtain a unique address, so no user configuration of the Link Local IP Address is necessary. The reader always has a Link Local IP Address, even if another address is assigned through DHCP or statically via userconfiguration.
Enables IPv6 automatic configuration. Auto-configuration is enabled by default. If you disable autoconfiguration, you need to specify an IPv6 address, subnet mask, and router.
128-bit IPv6 address for the reader.
128-bit address for the IPv6 router.

Configure Common Network Settings
You can configure the common network settings that apply to the reader network interface.
1. Log in to the web browser interface and click Network Configuration > Common.
2. Configure the settings. 3. Click Activate Changes to save your changes.

Common Network Settings
You can configure these common network settings that apply to the reader network interface.

Setting Hostname
DNS Server 1 DNS Server 2 DNS Suffix 1 DNS Suffix 2 SNTP Server Name 1

Description
Name for this reader. The default is "IF1<serial number of the reader>". The host name can be either a simple host name, or a qualified domain name (FQDN). If this reader obtains its IP address via DHCP, this parameter is sent to the DHCP server. If the server supports it, this field is used for dynamic DNS updates.
IP address of a domain name server that the reader uses to resolve DNS names.
IP address of a second domain name server that the reader uses to resolve DNS names.
Primary DNS suffix to be appended to unqualified names.
Secondary DNS suffix to be appended to unqualified names.
DNS name or IP address of an SNTP or NTP server.

10

IF1C Fixed RFID Reader User Guide

Setting SNTP Server Name 2 Time Zone
SYSLOG Destination

Description
DNS name or IP address of a second SNTP or NTP server. Time zone for this reader. Choose the time zone from the drop-down list. Default is GMT. Domain name or IP address of the SYSLOG server.

Device Configuration Web Service
The Device Configuration web service provides a way to configure the reader over your network. This SOAP-based service provides a configuration API that allows you to specify a variety of network, RFID, and system settings.
For more information on the Device Configuration web service, see the Device Configuration Web Service Command Reference Manual.

Device Configuration Web Service
Enable the device configuration web service to specify a variety of network, RFID, and system settings.
1. Log in to the web browser interface and click Network Configuration > Device Management.
2. By default, Device Configuration web services are enabled for either secure or insecure connections.
3. To disable web services over a secure connection, clear the Enable Device Web Services (Secure) check box, and then click Activate Changes.
4. To disable web services over an insecure connection, clear the Enable Device Web Services (Insecure) check box, and then click Activate Changes.
Download the Device Configuration WSDL Document
Download the device configuration web service description language (WSDL) document to help you configure your system settings.
1. Log in to the web browser interface and click Network Configuration > Device Management.
2. Click DeviceConfiguration.wsdl. The document opens in the browser window.

IF1C Fixed RFID Reader User Guide

11

Configure Services
Configure the way users (such as developers) can access and configure the reader.
1. Log in to the web browser interface and click Network Configuration > Services.
2. Enable or disable the services by selecting or clearing the check boxes, or by selecting options from the drop-down list.
3. Click Activate Changes to save your changes.

Services Settings
Service settings control the way users access the reader.

Service Enable Web Server (Insecure)
Enable Web Server (Secure)
Enable SSH Server

Description
Enables access to the web browser interface. An insecure connection only allows users to log in to web browser interface from HTTPS through port 80.
Enables access to the web browser interface. A secure connection only allows users to log in to web browser interface from HTTPS through port 443.
Enables Secure Shell (SSH) access to the Linux system console using the same login and password as the web browser interface (default is
intermec). SSH access is disabled by default.

Enable FTP Server Enable Telnet Server

Enables access to the reader through its FTP server.
Enables access to the Linux system console via standard Telnet, using the same login and password as the web browser interface. The default login and password is intermec. The Telnet server is disabled by default.

Enable CIFS/SMB Service
Enable Bonjour Service Advertisement
Enable UPnP Discovery

Enables the Common Internet File System service, which creates a file sharing connection from a Windows PC to the /home/developer directory on the IF1C. CIFS/SMB is disabled by default. When you enable the CIFS/SMB service, entry fields for a username and password appear. Enter these settings and then click Activate Changes.
Enables the reader to advertise services and be discovered by Bonjour zero-configuration networking. Bonjour is enabled by default. To prevent errors when using Bonjour, make sure the reader hostname does not include spaces.
Enables the reader to be discovered by Universal Plug and Play protocols. UPnP is enabled by default.

RFID Services
The RFID services set the protocol your application uses to communicate with the RFID module. There are two RFID services available:

12

IF1C Fixed RFID Reader User Guide

· BRI (Basic Reader Interface) Honeywell proprietary protocol for controlling the reader. For information about the BRI, see the Basic Reader Interface Programmer Reference Manual available on the Honeywell website.
· LLRP (Low-Level Reader Protocol) EPCglobal standard for network interfaces between the RFID reader and its controlling software. The RFID reader supports version 1.0.1 of the EPCglobal LLRP. For information on LLRP, see go to https://www.gs1.org/standards/epcrfid/llrp/1-1-0. An open source LLRP Toolkit can be downloaded at http:// sourceforge.net/projects/llrp-toolkit.

Configure the BRI Server Settings
Configure the BRI Server to handle communications between your application and the RFID module.
1. Log in to the web browser interface and click RFID Services > BRI > BRI Server. 2. Configure the BRI Server settings. 3. Click Activate Changes to save your changes.
BRI Server Settings
BRI Server settings handle communications between your application and the RFID module.

Setting Enable External BRI Connections BRI TCP Port
Enable Logging

Description
Enables external TCP connections to the BRI server. If this is not enabled, BRI applications will not be able to connect to the reader.
Specifies the TCP port used for incoming connections to the BRI server. This port must be unique for all TCP services running on the reader. Valid range is 2189 to 65535. Default is 2189.
Enables logging of BRI server events.

View the BRI Server Log
If you enable logging, you can see a list of BRI server events, and save the logfile as a .txt file.
1. Log in to the web browser interface and enable logging. 2. Click RFID Services > BRI > BRI Log.

IF1C Fixed RFID Reader User Guide

13

3. To save the log file, click Export log to text file and then choose File > Save As. Follow the prompts to save the log file to your desktop PC.
BRI Server Event Settings
You can view BRI Server Events when you enable logging.

Event Name Time/Date Connection Type
Message

Description
Time and date of the event.
Session ID of the client communicating with the BRI server.
Message type of the event, generally indicating which system sent the message: 1 = Command received by BRI server 2 = Response sent by BRI server 3 = BRI server connection message
Text of the message, including responses.

Configure the BRI Attribute Settings
Configure the BRI Attribute settings to control how the reader operates and reads tags.
1. Log in to the web browser interface and click RFID Services > BRI > BRI Attributes.
2. Configure the BRI Attribute settings. 3. Click Activate Changes to save your changes.
BRI Attribute Settings
BRI Attribute settings control how the reader operates and reads tags. For more information, see the Basic Reader Interface Programmer Reference Manual available on the Honeywell website.

Setting Tag Type
Read Tries

Description
Select the tag types you want the RFID reader to read: · EPC Class 1 Gen 2 (default)
This setting is equivalent to the TAGTYPE BRI attribute.
The maximum number of times the read algorithm is executed before a response is returned to a Read command. Valid range is 1 to 254. Default is 3. In practice, this is the number of times an identified tag is read until the Read is successful. This setting is equivalent to the RDTRIES BRI attribute.

14

IF1C Fixed RFID Reader User Guide

Setting Write Tries
Lock Tries Field Separator ID Report
No Tag Report Report Timeout Timeout Configuration Mode Session Initial Q
Initialization Tries

Description
The maximum number of times the read algorithm is executed before a response is returned to a Write command. Valid range is 1 to 254. Default is 5. In practice, this is the number of times an identified tag is written until the Write is successful. This setting is equivalent to the WRTRIES BRI attribute.
The maximum number of times the lock algorithm is executed before a response is returned to a Lock command. Valid range is 1 to 254. Default is 3. This setting is equivalent to the LOCKTRIES BRI attribute.
The character used for separating fields in tag data. Choose from space ( ), comma (,), colon (:), semicolon (;), tab, caret (^), or tilde (~). Default is space ( ). This setting is equivalent to the FIELDSEP BRI attribute.
Enables tag ID reporting after a Read, Write, or Lock command is executed:
· For ISO tags, the tag identifier corresponds to TAGID
· For EPC tags, the identifier corresponds to EPCID Default is enabled. This setting is equivalent to the IDREPORT BRI attribute.
Enables a NOTAG message, which is sent when no tags are found during execution of a Read, Write, or Lock command. Default is enabled. This setting is equivalent to the NOTAGRPT BRI attribute.
The timeout (in ms) for delays in tag reporting when the RFID reader is in continuous read mode. Valid range is 0 to 65534. Default is 0. This setting is equivalent to the RPTTIMEOUT BRI attribute.
Establishes whether to use the Timeout or Tries attributes. Default is off. This setting is equivalent to the TIMEOUTMODE BRI attribute.
The command session parameter to a corresponding EPCglobal Class 1 Gen 2 air protocol command. Valid range is 0 to 3. Default is 3. This setting is equivalent to the SESSION BRI attribute.
(EPCglobal Class 1 Gen 2 tags only) The initial Q parameter value used by the Query command. Valid range is 1 to 254. Default is 4. If you know there is only one tag in the field, set this attribute to 0 for best performance. This setting is equivalent to the INITIALQ BRI attribute.
The maximum number of times the reader attempts to initialize a tag. Valid range is 1 to 254. Default is 1. This setting is equivalent to the INITTRIES BRI attribute.

IF1C Fixed RFID Reader User Guide

15

Setting Schedule Option
ID Tries
Antenna Tries EPCC1G2 Advance Medium Access Mode Dense Reader Mode
Field Strength dB 1-4
Antenna Sequence 1-8

Description
Determines how antennas are switched during the inventory process: 0 - Legacy BRI operations 1 - Simplified BRI operations 2 - Simplified BRI operations with EPCC1G2 A/B toggling. Default is 0. This setting is equivalent to the SCHEDULEOPT BRI attribute.
The maximum number of times the reader executes the identify algorithm before a response is returned to a Read or Write command. Valid range is 1 to 254. Default is 1. In practice, this is the number of times a tag identification attempt is made for the antenna. This setting is equivalent to the IDTRIES BRI attribute.
The number of times the antenna is used for a Read or Write command. Valid range is 1 to 254. Default is 1. This setting is equivalent to the ANTTRIES BRI attribute.
Dense Reader Mode settings used with EPCC1G2 parameters. This setting is equivalent to EPCC1G2PARAMETERS BRI attribute.
Allows the reader to hop between channels within a certain frequency spectrum to prevent other readers in the area from interfering with one another. Default is enabled. This setting is equivalent to the DENSEREADERMODE or DRM BRI attribute.
The RF power level (in dBm). Valid range is 1 to 30. Default is 30. Use this setting to attenuate the antenna field strength. In some situations, full output power can cause unnecessary interference. For example, if the tag is close to the antenna, full output power might overload the tag and cause unreliable behavior. This setting is equivalent to the FIELDSTRENGTH BRI attribute.
The antenna sequence to be used during READ and WRITE commands. This setting is valid for two antennas only, and is equivalent to the ANTS BRI attribute.

Configure LLRP Settings
Configure the LLRP settings to establish an interface method between the reader and a client. For more information on LLRP, see https://www.gs1.org/standards/ epc-rfid/llrp/1-1-0.

1. Log in to the web browser interface and click RFID Services > LLRP. 2. Configure the LLRP settings. 3. Click Activate Changes to save your changes.
LLRP Settings
LLRP settings establish an interface method between the reader and a client.

16

IF1C Fixed RFID Reader User Guide

Setting
Secure Server Enable
Unsecure Server Enable
Download Intermec Extensions Definition
Reader Initiated Connections

Description
Allows connections to the secure LLRP server on port 5085.
Allows connections to the unsecure LLRP sever on port 5084.
Downloads an XML file that describes Honeywell-specific extensions for the LLRP protocol.
For reader-initiated TCP/IP connections to a remote LLRP client. · Client address - The IP address of the remote LLRP client. · TCP port - Port number for the TCP/IP socket connection. · Enable security (TLS) - Select this option to enable Transport Layer
Security for this TCP/IP connection.

Configure Security
To make sure the reader is secure, change your security settings when you set up your reader. You can secure the reader by: · Changing user credentials · Enabling a RADIUS server · Enabling or disabling serial configuration

Change User Credentials
If you are not using a password server to authorize user logins to the reader, change the default user name and password.
1. Log in to the web browser interface and click Security > Passwords. 2. Configure the User Credential settings. 3. Click Activate Changes to save your changes.
User Credential Settings
User Credential settings control the user name and password you use to log in to the reader.

Setting Username
Password

Description
The user name to log in to the reader. The user name can be from 1 to 32 characters long. You must always specify a user name. Default
is intermec.
The password to log in to the reader. This password gives you both read and write access to the reader configuration. The password can be from 8 to 32 characters long. You must always specify a
password. Default is intermec.

IF1C Fixed RFID Reader User Guide

17

Setting Read-only password

Description
The password to log in to the reader. This password gives a user read-only access. The user can view the configuration of the reader and execute diagnostics, but cannot perform any tasks that affect the reader operation. Default is read only. The read-only password cannot be deleted. To disable read-only access, you need to enable the RADIUS server.

Configure the RADIUS Server
If you are using a password server to manage users who log in to the reader, you need to enable and configure the RADIUS server.
1. Log in to the web browser interface and click Security > Passwords. 2. Click Enable RADIUS. 3. Configure the RADIUS server settings. 4. Click Activate Changes to save your changes.
RADIUS Server Settings
You can configure RADIUS Server settings to manage how users log in to the reader.

Setting Enable RADIUS Primary RADIUS Server
Secret Port Secondary RADIUS Server Secret Port

Description
Enables RADIUS authentication for the reader. IP address or DNS name of the RADIUS server. If this is left blank, the RADIUS client does not use this entry. Secret key for the RADIUS server. Port number of the primary RADIUS server. Default is 1812. IP address or DNS name of the RADIUS server to use if there is no response from the primary RADIUS server. Secret key for the secondary RADIUS server. Port number of the secondary RADIUS server. Default is 1812.

Disable Serial Port Access
To enhance security, or allow an external application to communicate with the serial port, disable serial port access to the reader.
1. Log in to the web browser interface and click Security > Passwords. 2. Clear the Enable Serial Configuration check box. 3. Click Activate Changes to save your changes.

18

IF1C Fixed RFID Reader User Guide

Certificates
The default server certificate on the reader (ValidforHTTPSOnly) provides support for secure network applications, such as the secure web browser interface and secure LLRP client connections. You can also use a third-party CA to issue unique client certificates and a root certificate.
Import a Certificate
To enhance security, import a certificate to the reader.
1. Log in to the web browser interface and click Security > Import Certificate. 2. Select the type of certificate. 3. Click Browse and select the certificate. 4. If you selected a server certificate to import, enter the passphrase for the
certificate. 5. Click Import Certificate. The certificate is imported.
View Certificates
Use the web browser interface to view the certificates loaded on to the reader. Log in to the web browser interface and click Security > Certificate Details. The Certificate Details screen appears.

IF1C Fixed RFID Reader User Guide

19

CHAPTER
3 DEVELOP AND INSTALL RFID APPLICATIONS

RFID Applications
RFID applications that you develop communicate through one of two RFID services:
· BRI (Basic Reader Interface) Honeywell proprietary protocol for controlling the reader. For information about the BRI, see the Basic Reader Interface Programmer Reference Manual available on the Honeywell website.
· LLRP (Low-Level Reader Protocol) EPCglobal standard for network interfaces between the RFID reader and its controlling software. The RFID reader supports version 1.0.1 of the EPCglobal LLRP. For information on LLRP, see go to https://www.gs1.org/standards/epcrfid/llrp/1-1-0. An open source LLRP Toolkit can be downloaded at http:// sourceforge.net/projects/llrp-toolkit.
RFID Resource Kit
To create an application, use the RFID Resource Kit. The Honeywell Developer Library RFID Resource Kit includes Java and C# tools you can use to develop applications that enable control of the reader and data management. To learn more about the RFID Resource Kit,
1. Download the RFID Resource Kit from the Technical Support Downloads Portal at https://hsmftp.honeywell.com.
2. Go to: Software - RFID - RFID Fixed Readers - IF1

IF1C Fixed RFID Reader User Guide

21

Microsoft® .NETTM Support The reader supports applications based on the .NET Framework 1.0, 1.1, 2.0 and 4.0. The reader uses Mono open source software to provide support for .NET applications deployed on the Linux operating system of the reader.
JavaTM Support
The reader comes with a JDBC driver you can use to create applications that writes data directly from the reader to a remote database. For more sophisticated Java development, the reader supports the open standard OSGi service-oriented architecture. This architecture allows system administrators to install, uninstall, enable, and disable system services (also known as bundles) without having to reboot the reader each time. To use OSGI, download packages from osgi.org.
Execute Java Applications
To execute a Java application on the reader, use this command: $JAVA_HOME/bin/java myJAVAClass

Execute .JAR Files
To execute .jar files, use this command:
$JAVA_HOME/bin/java myApplication.jar When you create a .jar file, you need to include manifest files: · The manifest needs to include an attribute called "Main-Class" to specify the
application's entry point (for example, Main-Class: MyJavaClass). · If the executable .jar needs to reference other .jar files, specify the files in the
manifest file using the "Class-Path" attribute.
Enable the Java Just-In-Time Compiler
To enable the Java just-in-time (JIT) compiler for maximum performance, use this command:
$JAVA_HOME/bin/java -jit java -jar MyJar.jar

22

IF1C Fixed RFID Reader User Guide

where: $JAVA_HOME is an environment variable that indicates the Java runtime installation path (/usr/java). Always use this variable for simplicity and to make sure that the correct runtime files are used. $JAVA is the name of the Java runtime executable installed in the reader.
Specify the Class Path for the Java Virtual Machine
If your application references third party Java libraries, such as the components from the Honeywell RFID Resource Kit, you must include the -cp option to specify the class path for the JVM to find the Java classes. Make sure to include the current path so classes in the current directory can be found as shown in this example:
$JAVA_HOME/bin/java -cp .:./BasicRFID.jar MyClass
Java Support for Microsoft SQL Server and Sybase
The reader jTDS driver (version 1.2) provides JDBC capabilities to Java applications running on the reader. You need to include the location of the JDBC drivers in the class path with the environmental variable $JDBC_HOME. The JDBC drivers support JDBC 1.0 and: · Microsoft SQL Server versions 6.5, 7, 2000, and 2005 · Sybase versions 10,11, 12, and 15 For more information, go to http://jtds.sourceforge.net.
Create an Installation Package
Before you can install your RFID application, you must create an installation package.
1. Create a configuration file. 2. Archive the installation files.
Create a Configuration File
When you create an application for the reader, you need to include a configuration file in the root directory of the archive so that the application can run on the reader.
1. Open a text editor and type this syntax:
AUTOSTART=true|false RUNAFTERINSTALL=true|false CMDLINE=<Command line to start the application>

IF1C Fixed RFID Reader User Guide

23

where: AUTOSTART specifies whether the application automatically starts when the reader boots. RUNAFTERINSTALL specifies whether the application starts immediately after installation. CMDLINE specifies the application name and optional parameters it accepts. Specify command line parameters as if the application is being executed from inside the directory containing the application.
2. Save the configuration file with the name userapp.conf.
Configuration File Example
This example auto-starts an application when the reader boots and runs an application named testapp.exe:
AUTOSTART=true
RUNAFTERINSTALL=false
CMDLINE=./testapp.exe
Note: The reader executes applications from their installation directories, so the userapp.conf file does not need to include path information.
Archive the Installation Files
To install an RFID application on the reader, you need to package the configuration file and application.
1. Create a configuration file named userapp.conf. 2. Package the userapp.conf file and your application into one of these formats:
.zip, .tar/bz2, or .tar/gz file. Your application can now be installed on the reader.
Install RFID Applications
There are two ways to install your RFID application: · Run the application on a remote server through TCP port 2189. All processing is
performed by the server. · Run the application locally on the reader. The application resides on the reader,
and much of the processing occurs on the reader. Install your application on the reader to improve system scalability by minimizing network traffic, so reader can handle processing tasks such as data filtering.

24

IF1C Fixed RFID Reader User Guide

Install Applications On the Reader
The reader provides up to 64 MB of storage for your applications. Use the web browser interface to install applications on the reader. 1. Log in to the web browser interface and click Edgeware Applications > Install
User Application. 2. Click Browse and follow the prompts to navigate to the location of the
application file. 3. Click Upload. The application is uploaded to the reader, placed in the /home/
developer/edgeware/userapp0 directory, and the application name appears in the Edgeware Applications list.
Manage Applications
To maximize resources, you can start, stop, or uninstall applications on the reader.
Start an Application
By default, an application is stopped. You can start the application from the web browser interface.
1. Log in to the web browser interface and click Edgeware Applications > Application Control. The Application Control screen appears.
2. Click to start an application.
Stop an Application
Stop an application from running to reduce the amount of resources that the reader is using.
1. Log in to the web browser interface and click Edgeware Applications > Application Control. The Application Control screen appears.
2. Click to stop an application.
Uninstall an Application
Uninstall an application that you are not using to free up storage space on the reader.
1. Log in to the web browser interface and click Edgeware Applications > Application Control. The Application Control screen appears.
2. Click to uninstall an application.

IF1C Fixed RFID Reader User Guide

25

Auto-Start an Application at Boot Time
There are two ways to configure your application to auto-start when the reader boots: · Through the web browser · Through the configuration file you deliver with the application
Auto-Start an Application with the Web Browser
After an application is installed, you can easily configure the application to autostart through the web browser interface.
1. Log in to the web browser interface and click Edgeware Applications > Application Control. The Application Control screen appears.
2. Click the Auto-Start check box and then click Activate Changes.
Auto-Start an Application with the Configuration File
When you package an application for installation on the reader, you need to include a configuration file. You can specify Auto-Start in the configuration file.
1. With a text editor, open the userapp.conf configuration file packaged with your application.
2. In the command syntax, make sure AUTOSTART=true. 3. Save the userapp.conf file. 4. Repackage the updated configuration file with your application. 5. Upload the application to the reader through the web browser interface.

Edgeware Applications
Edgeware applications are supplied by Honeywell and its partner developers, and provide immediate functionality for your RFID system.

Name Developer Tools
.NET Mono

Description Used for basic testing of your RFID system. You can read RFID tags, send BRI commands, and run BRI scripts through these tools.
Are part of the firmware so that user can write Edgeware Apps related to .NET

26

IF1C Fixed RFID Reader User Guide

Install or Upgrade Edgeware Applications
Some Edgeware applications, such as the JamVM, are not installed on your reader. You can easily download, install, or upgrade your Edgeware appli-cations through the web browser interface.
1. Log in to the web browser interface and click Edgeware Applications > Install Edgeware.
2. Click Browse to browse to the location of the firmware file, and then doubleclick the file.
3. Click Install. The Edgeware application is installed on the reader. When the installation is complete, the reader reboots.
Developer Tools
Developer Tools are used for basic testing of your RFID system. You can: · Read RFID tags through the demo application · Send BRI commands · Run BRI scripts
Read RFID Tags through the Demo Application
Use the demo application to verify that your reader can read RFID tags.
1. Log in to the web browser interface and click Edgeware Applications > Application Control. The Application Control screen appears.
2. If the Developer Tools are not enabled, click . 3. Click Developer Tools > Reader Demo. 4. Place a tag near the antenna and then click Start.
Send BRI Commands
Use the Developer Tools to easily send BRI commands through the web browser interface.
1. Log in to the web browser interface and click Edgeware Applications > Application Control. The Application Control screen appears.
2. If the Developer Tools are not enabled, click . 3. Click Developer Tools > BRI Commands. 4. Enter a BRI command in the Command field and then click Run. The command
is executed and a value is returned.

IF1C Fixed RFID Reader User Guide

27

Run BRI Scripts
Run a BRI script to send multiple BRI commands to the reader.
1. Log in to the web browser interface and click Edgeware Applications > Application Control. The Application Control screen appears.
2. If the Developer Tools are not enabled, click . 3. Click Developer Tools > BRI Commands. 4. Click Browse and browse to the location of the BRI script. 5. Double-click the BRI script file. 6. Click Load. The script is loaded and run, and values are returned.

28

IF1C Fixed RFID Reader User Guide

CHAPTER
4 GPIO PORTS

GPIO Interfaces

The reader has two general purpose input and output (GPIO) interfaces. You connect external controls such as motion sensors or indicator lamps to the GPIO interfaces, which can then trigger reader operations.
Each interface is electrically isolated from the reader and designed for low voltage DC loads. The reader can also supply 5Vdc at 0.30 A to external devices.
The output interfaces (GPO1, GPO2) interfaces are limited to a maximum of 150mWatts.
How the inputs and outputs are used depends on the RFID application software being used in the system. You need to coordinate input and output control wiring with the software developer.

Input Interfaces

Each of the two inputs is compatible with input signals of 4.5 to 28Vdc. Both the high and low signal contacts are exposed and isolated to 1500V. Input impedance is 1.8K ohms minimum.

Signal Vin (High) Vin (Low)

Description High input voltage Low input voltage

Min. 4.5V -1V

Typical 24V 0V

Max. 28V .8V

In a typical application, the reader senses input from an external control like a switch and then starts a tag read operation.
There are three basic ways to connect input controls to the reader input interfaces: · Supply the input interface with power from the reader · Isolate the reader from the input power source. · Use an open collector solid state drive from a remote device to control the
inputs.

IF1C Fixed RFID Reader User Guide

29

Powered Input Example

The reader powered input the simplest way to connect a control to a reader input interface. If the external control device is a switch, you can connect one side of the switch to a reader +Input pin and the other side of the switch to one of the +5Vdc sources.
+5 V

+Input - Input

External input switch

Ground Reader Powered Input

Isolated Input Interface Example
Isolate the input interface to minimize noise induced by distance or grounding characteristics. The isolated input avoids induced noise by referencing a remote input to chassis return of the reader.

+Input

External input switch

-Input

-+

Twisted pair

4.5 to 28 VDC

Isolated Input Interface

Open Collector Input Interface Example
The input can be connected to an open collector interface of an external device. This open collector input interface typically implies that the grounds are tied together for the two systems. The common ground can be a source of input noise, so you should follow good grounding practices for both the reader and the input device.
In this situation, the reader provides power to the pull-up resistor for the open collector. Connect the +Input pin to the +5Vdc source.

30

IF1C Fixed RFID Reader User Guide

+5 V +Input

- Input Ground Open Collector Input Interface

Output Interfaces

Each reader output interface is optically isolated from the reader, polarized, and rated 5 to 24VDC at 5mA.

Signal
Leakage current (High)
Vsat (Low)

Description Switch output, high leakage current
Switch output on, saturation voltage with 5mA maximum current

Min. 0mA

Typic al
1mA

Max. 10mA

0 V

1V

1.5V

Because the outputs are optically isolated, each one can be configured to switch the high side or the low side of the load. You can power the load directly from the reader or from an external power supply.
In a typical application, the outputs control indicator lamps that signal good reads or errors. The basic methods for connecting external devices to the GPIO outputs include: · Switching the high side, with the load powered by the reader · Switching the low side, with the load powered by the reader · Switching the high side, with the load powered externally · Driving a DC relay that controls an AC load
These methods are shown in the following examples.
Switch the High Side with Reader Power
In this example, an external indicator lamp (0.25A maximum current) is connected to the -Output and Ground pins, and the corresponding +Output pin is connected to the +5VdC source.

IF1C Fixed RFID Reader User Guide

31

+5 V

+Output - Output

External indicator lamp 5mA maximum

Ground

Switching the High Side

Switch the Low Side with Reader Power
For low side switching applications, the lamp power is routed to all the lamps in common and the low side of the load is routed to the switch.
Connect the external indicator lamp to the +Output and +5Vdc pins, and short the corresponding -Output pin to ground.

+5 V +Output

External indicator lamp 5mA maximum

- Output
Ground Switching the Low Side of the Output Load
Switch the High Side with External Power
To use external power (5 to 24Vdc) to switch the high side, connect the Ground pin to the ground system of the external power supply, and connect the positive side of the external supply to the +Output pin. The external indicator LED is connected to the corresponding -Output and Ground pins.

32

IF1C Fixed RFID Reader User Guide

+Output - Output Ground

+External power 5-24 VDC
External indicator lamp

Switching the High Side with External Power
Drive a DC Relay to Control an AC Load
While the reader outputs are designed to switch DC loads, they can also drive relays that control AC loads.

+5V + Output
- Output Ground

AC motor

External relay

120-230 VAC

Driving a DC Relay. The external relay provides dry contacts to the AC motor.
Note: In many installations, the relay and AC wiring must be placed in an enclosure that meets local fire code regulations.
Wiegand Support
The reader outputs can be used to provide Wiegand support for reading of tags. The user App "myapp.zip" should be downloaded from the ftp site, https://hsmftp.honeywell.com. The App should be installed on the Web interface. Log in to the web browser interface and click Edgeware Applications > Install User Application > choose file > upload

IF1C Fixed RFID Reader User Guide

33

+5 V ISO_V+
GND ISO_VGP output 0+ GP output 1+

Wiegand Data0 Wiegand Data1

Power Interface
The reader GPIO interface provides 5Vdc at 5mA for powering external inputs and loads, eliminating the need for an external DC supply and simplifying the system installation.
The GPIO interface power has an internal thermal fuse that trips if the load exceeds 0.5A. The fuse is self-recovering after the excessive load is removed.
The total load on the GPIO interface power must stay within the 5mA limit. When you design a system that uses the GPIO interface power, make sure to complete a power budget assessment to ensure that the supply is adequate for the system. If your system needs more than 5Vdc at 5mA, you can connect an external power supply to the +5V and Ground pins. The external supply powers the external loads, and that power is available at all +5V pins on the GPIO port.

34

IF1C Fixed RFID Reader User Guide

CHAPTER
5 MAINTAINANCE AND TROUBLESHOOTING

Upgrade Firmware
Upgrade the firmware on the reader through the web browser interface.
Caution: Make sure the reader is connected to a reliable power source before you upgrade the firmware. Do not cycle power to the reader during the upgrade. If power is lost during the upgrade, the reader may require factory repair.
1. Download the firmware file for the reader from the Technical Support Downloads Portal at https://hsmftp.honeywell.com.
2. Go to: Software - RFID - RFID Fixed Readers - IF1
3. Double-click the file you downloaded and follow the prompts to extract the file to your PC.
4. Log in to the web browser interface and click Maintenance > Firmware. 5. Click Browse to browse to the location of the firmware file, then double-click
the file.
6. Click Upgrade IF1 RFID Reader.
The upgrade process begins and the firmware is transferred to the reader.
Once the upgrade is complete, the login screen appears.
During the upgrade, the web browser interface screen does not auto-refresh.
To see Firmware Upgrade progress status, Go to Maintenance > System Log
(Click Refresh in the web browser to see the current progress of the upgrade).

IF1C Fixed RFID Reader User Guide

35

View the System Log
The system log shows events logged by the reader. You may need this information to troubleshoot the reader or when you call Product Support.
1. Log in to the web browser interface and click Maintenance > System Log. 2. (Optional) Click Export log to text file and follow the prompts to save the log
file to your desktop PC.
Restore Default Settings
If you have problems with the reader, use the web browser interface to restore the default settings.
1. Log in to the web browser interface and click Maintenance > Configuration. 2. Click Restore Defaults, and then click OK. The reader reboots and restores the
default configuration.
Reboot the Reader
If the reader or an application locks up, or if the reader does not respond, you may need to restart the reader.
1. Log in to the web browser interface and click Maintenance > Reboot. 2. Click Reboot, and follow the prompts to reboot the reader. The reader reboots
and restores the default configuration.
View Device Information
View the device information page to see the installed software versions, serial numbers, and other reader-specific information. Log in to the web browser interface and click About.
Call Product Support
If you are having trouble using your reader, you can: · Refer to Troubleshoot the Reader on page 37 to find your problem and possible
solutions. · Refer to Technical Assistance (see page v).

36

IF1C Fixed RFID Reader User Guide

Troubleshoot the Reader

Problems with RFID
You can solve many problems you may encounter when working with your RFID system by carefully checking the RFID settings and changing them accordingly.

Problem The reader is unable to read RFID tags, or seems to read tags slowly or inconsistently.
The reader does not respond to your RFID application.

Solution
· Make sure your RFID antennas are connected correctly to the reader and mounted in optimum locations. Make sure all antenna connections are tight and that the cables are in good condition. For help, contact your RFID system consultant.
· Make sure you selected the correct tag types for your application.
· Your application may not be communicating with the reader BRI server.
· You may need to change BRI server settings to communicate with your application. For example, if your application is running on a desktop PC, you need to enable external BRI connections to the reader.

Problems with Connectivity
When you troubleshoot problems with connectivity, make sure you know your: · TCP/IP settings · COM port settings for serial connections
You should also make sure all physical network connectors and cables are in good working order.

Problem You cannot connect to the reader through the USB port
You cannot connect to the reader using a web browser.
You cannot load a security certificate. You assigned a static IP address to the reader but cannot connect the reader over your network.

Solution
· Make sure you downloaded the reader USB drivers.
· Verify that your serial connection is configured to 115200, N, 8, none, no flow control.
· Verify that you have the correct IP address for the reader.
· If you access the Internet through a proxy server, make sure you add the IP address of the reader to the Exceptions list.
You must use a secure web browser connection to load certificates.
Make sure that DHCP is disabled and that your TCP/IP parameters are set correctly.

Note: For Toll Application related troubleshooting, refer to Appendix A.

IF1C Fixed RFID Reader User Guide

37

CHAPTER
6 PRODUCT SPECIFICATIONS

IF1C Specifications

Note: Specifications listed may be different due to individual country regulations.

MECHANICAL

DIMENSIONS (LXWXH)

Integrated antenna option: 265 mm x 186 mm x 75 mm (10.2" x 7.3" x 3.0") 2-port option: 265 mm x 186 mm x 59 mm (10.2" x 7.3" x 2.3")

WEIGHT

1.6 kg (3.5 lb)

ELECTRICAL

INPUT POWER

802.3af Power over Ethernet

DC ELECTRICAL RATING

44V, 0.35A

GENERAL PURPOSE INPUT/OUTPUT (GPIO) 2 inputs, 2 outputs (configurable to Wiegand outputs)

COMMUNICATIONS

10/100 BaseT Ethernet, Wiegand, USB & RS-232 for configuration

ENVIRONMENTAL ENVIRONMENTAL SEALING

IP66 with Ethernet cable housing kit and IP66 compliant DB15 connector cable when in use

OPERATING TEMPERATURE

-20 °C to 65 °C (-13 °F to 149 °F)

STORAGE TEMPERATURE HUMIDITY

-30 °C to 75 °C (-22 °F to 167 °F) 10% to 95% relative humidity, non-condensing

RF CHARACTERISTICS

FREQUENCY RANGE READ RANGE

865-867 MHz, factory configured Around 10m*

TRANSMIT POWER

Up to 30 dBm (1 W)

INTERNAL ANTENNA

7 dBiL integrated linear antenna 6.5 dBiC integrated circular antenna

SOFTWARE

UHF TAG PROTOCOLS

EPCglobal UHF Class 1 Gen 2 (Versions 1.x and 2), ISO 18000-6C, 128-bit AES/ GRAIN cryptographic security extensions

OPERATING SYSTEM

Linux

APPLICATION INTERFACE

Basic Reader Interface (BRI), EPCglobal Low-Level Reader Protocol (LLRP)

APPLICATION SUPPORT

Java, C#, .NET Resource Kit for BRI

USER MEMORY

64 MB

*Note : Depends on RFID Tag Type and Installation conditions.

IF1C Fixed RFID Reader User Guide

39

Port Pin Assignments
Use this section to understand the port pin assignments for the ports located on the reader.
GPIO Port
The GPIO port allows GPIO communications with your reader.

1 6
11

5 10
15

Pin Function

1

+5Vdc +/-10%

2

HOST_RX

3

HOST_TX

4

NC

5

GND

6

NC

7

NC

8

NC

9

ISO_V-

10 ISO_V-

11 GP output 0+

12 GP output 1+

13 GP input 0+

14 GP input 1+

15 ISO_V+

Description Non-isolated wetting supply, 300mA max RS232 Receive RS232 Transmit
Non-isolated signal ground
Isolated common return for GPIO input and outputs Isolated common return for GPIO input and outputs Isolated GP output (open collector, 5 - 28V max, 5mA maximum continuous) Isolated GP output (open collector, 5-28V max, 5mA maximum continuous) Isolated GP input Vin low = -1V to 0.8V max; Vin high = 4.5V to 28V max Isolated GP input Vin low = -1V to 0.8V max; Vin high = 4.5V to 28V max Isolated external power for GP out pullups (28Vdc max)

40

IF1C Fixed RFID Reader User Guide

Ethernet Port
The Ethernet port allows Ethernet communications and Power-Over-Ethernet. Use the illustration to understand the port pin assignments.
Pin 1

Pin Description

1

Ethernet TX+/Spare POE return

2

Ethernet TX-/Spare POE return

3

Ethernet RX+/Spare POE 48Vdc

4

POE 48Vdc

5

POE 48Vdc

6

Ethernet RX-/Spare POE 48Vdc

7

POE return

8

POE return

IF1C Fixed RFID Reader User Guide

41

Appendix A: Troubleshooting Guide for Toll Application
The below-mentioned troubleshooting steps help to improve the performance of the IF1C reader in the customer field. (Electronic toll collection).
1. Steps to change the channel number 2. Steps to make duty cycle off 3. Steps to update EPCC1G2 Parameter Set *The RFID performance could vary depends on the environment where it is used and the type of tag used.
Steps to change the channel number
1) Connect Putty session using the reader IP Address.
42

2) You will get BRI prompt with "OK>"
3) Give "attrib" command
4) Give attrib command to update channel "attrib channel=4 OK>"
If the reader gives problem in reading the tags in the default channel, then the user can follow the above steps to change to different channel to check the readability. Note: This channel setting is instance specific. i.e. The changed channel valid only to that particular instance of the connection, other client connections takes the default channel value set in the webpage. (Webpage channel settings options has been introduced on/after FW-247)

Steps to make duty cycle off
1) Connect Putty session
2) You will get BRI prompt with "OK>"

3) Update the duty cycle to "OFF" by using following util commands
Steps to update EPCC1G2 Parameter Set
1) Navigate to BRI Attributes

2) Enable EPCC1G2 Advance Medium Access Mode & Select ID as 18 or 27 in drop down menu in below field. Example shows Select ID as 18.
3) Select Antenna 1, in case only integrated antenna is used.

4) Navigate to maintenance & press reboot to reboot the reader.

Honeywell 9680 Old Bailes Road Fort Mill, SC 29707
www.honeywellaidc.com

IF1C-EN-UG Rev (a) 05/18



References

Adobe Acrobat Pro DC (32-bit) 21.1.20155
