PN-HY551 Dismantle Instruction 7 8. Capacitors Electrolyte Capacitors which diameter/height is larger than 25mm is installed on Power PWB. These capacitors can be removed by using nipper to cut the leads.

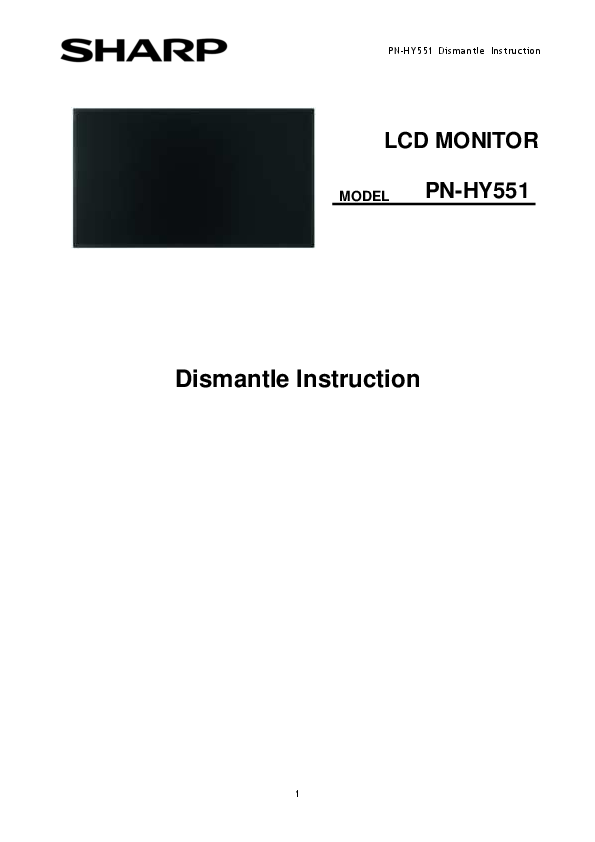

PN-HY551 Dismantle Instruction LCD MONITOR MODEL PN-HY551 Dismantle Instruction 1 PN-HY551 Dismantle Instruction Table of contents 1. Scope.................................................................................................................. 3 2. Tools for dismantling............................................................................................... 3 3. Dismantle Procedure .............................................................................................. 3 4. Back covers .......................................................................................................... 4 5. Printed circuit boards ............................................................................................. 5 6. Battery................................................................................................................ 5 7. LCD Module .......................................................................................................... 6 8. Capacitors............................................................................................................ 7 9. Parts List ............................................................................................................. 7 2 PN-HY551 Dismantle Instruction 1. Scope This document describes dismantling instruction according to Annex VII of Directive 2012/19/EU. 2. Tools for dismantling Below tools are required to dismantle this product. - Screw Driver - Nipper 3. Dismantle Procedure This product can be dismantled by below steps. 1. Remove Back covers (section 4) 2. Remove Printed circuit boards (section 5) 3. Remove Battery (section 6) 4. Dismantle LCD (section 7) 5. Remove Electrolyte Capacitors (section 8) 3 4. Back covers Back cover can be removed by screw driver. PN-HY551 Dismantle Instruction 4 5. Printed circuit boards All PWBs can be removed by screw driver. PN-HY551 Dismantle Instruction Main I/F PWB (1pcs) 0 Power PWB (1pcs) T-CON PWB (1pcs) 6. Battery This model uses only AAA battery for remote control. Battery can easily be removed. 5 7. LCD Module - LCD Dismantle procedure 1. Remove Rear cover 2. Remove PWBs 3. Remove the Cables PN-HY551 Dismantle Instruction LCD 6 PN-HY551 Dismantle Instruction 8. Capacitors Electrolyte Capacitors which diameter/height is larger than 25mm is installed on Power PWB. These capacitors can be removed by using nipper to cut the leads. On Power PWB 9. Parts List Parts described in Annex VII of directive 2012/19/EU are as below. LCD Parts Note 55inch LCD module Printed Circuit Boards Battery Main I/F PWB Power PWB T-CON PWB AAA battery Electrolyte capacitors (height >25mm, diameter >25mm) External electric cables On Power PWB 2 kinds of Power Cord - for EU - for UK 7iTextSharp™ 5.5.13.1 ©2000-2019 iText Group NV (AGPL-version) pdf as
