User’s Manual
30
SDU 2040
signal reaches 5V which is the trigger level after the trigger generating mode sets in, no trigger happens
before it gets over 4.998V.
Conditon of trigger generation that uses the external analogue input
User’s Manual
31
SDU 2040
13. How to Use the Software
(1) Basic Measuring Function
① Cliick the execution icon to execute SoftDAQ.
② SoftDAQ program automatically cheks the internal state of SDU 2040 and the connection to
computer via USB, and reads the initialization data.

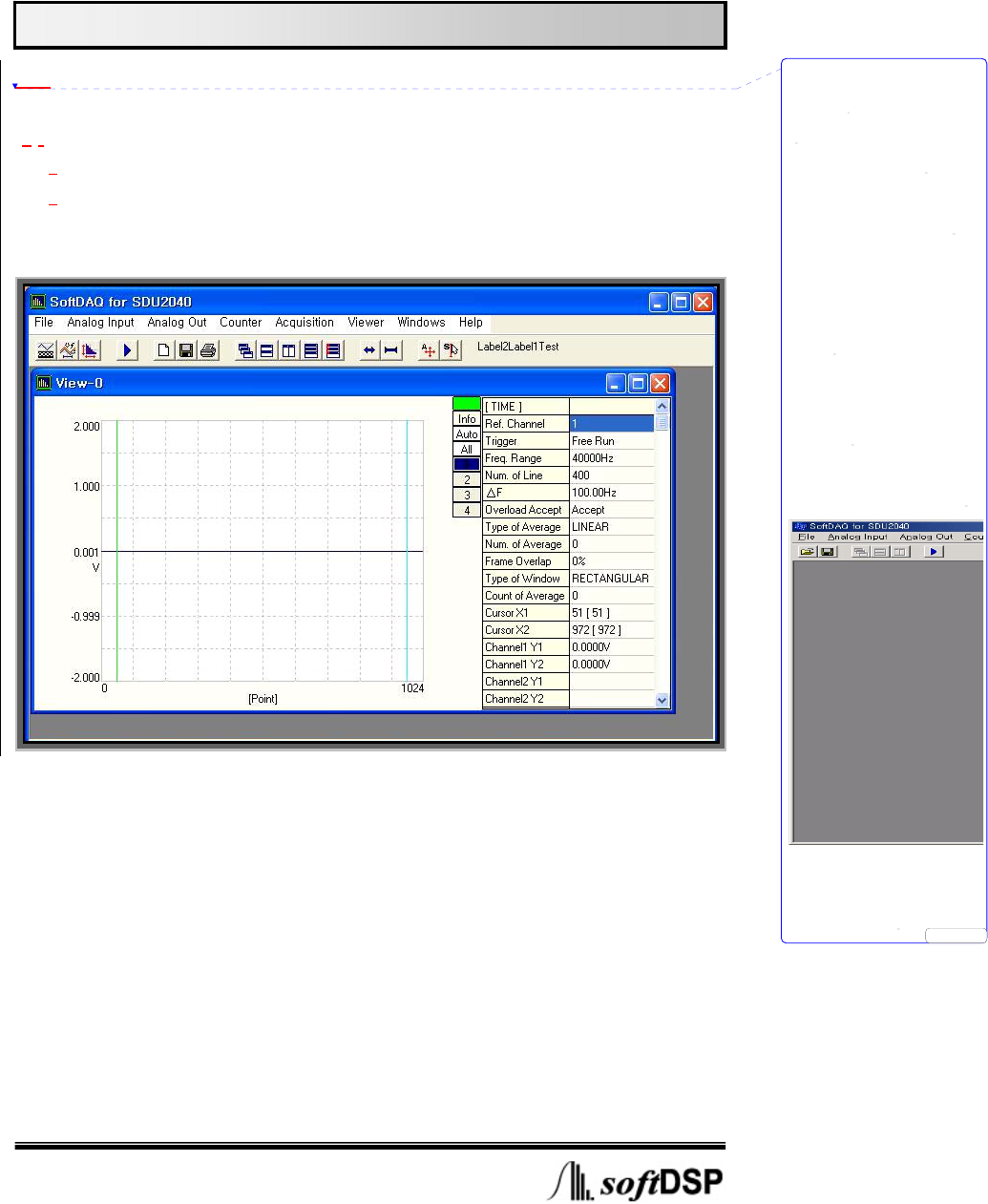

③ The Fig. below shows the initial screen when the SoftDAQ is run.
삭제됨: 14. 소프트웨어 사
용 방법
1. 간단한 측정기능
1. 실행 아이콘을 클릭하여
softDAQ를 실행합니다.
2. softDAQ 프로그램은 자
동으로 SDU 2040의 내부상
태 및 USB를 통한 컴퓨터
와의
연결상태를 점검하고, 초기
화 데이터를 읽어 들이게
됩니다.
3. SoftDAQ가 실행된 초기
화면은 다음과 같습니다.
4. Acquisition => Open Viewer
를 클릭하여 출력화면을 활
성화 시킵니다.... [1]
User’s Manual
32
SDU 2040

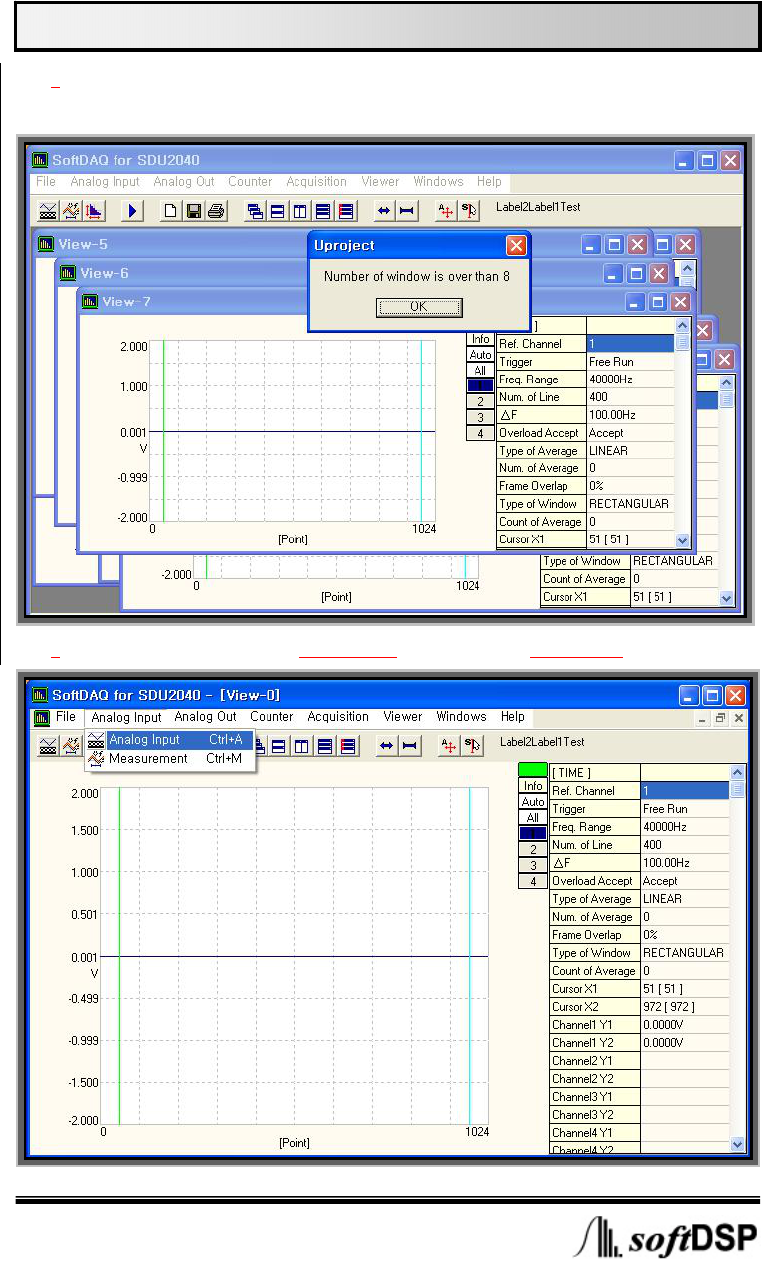

④ The basic window provides a screen. If you want more windows, click the New button on the 5th
row in the menu window. Then, you can get up to 8 windows that you want.
⑤ Activate the output screen for the Analog Input . Then, choose the Analog Input.
User’s Manual
33
SDU 2040

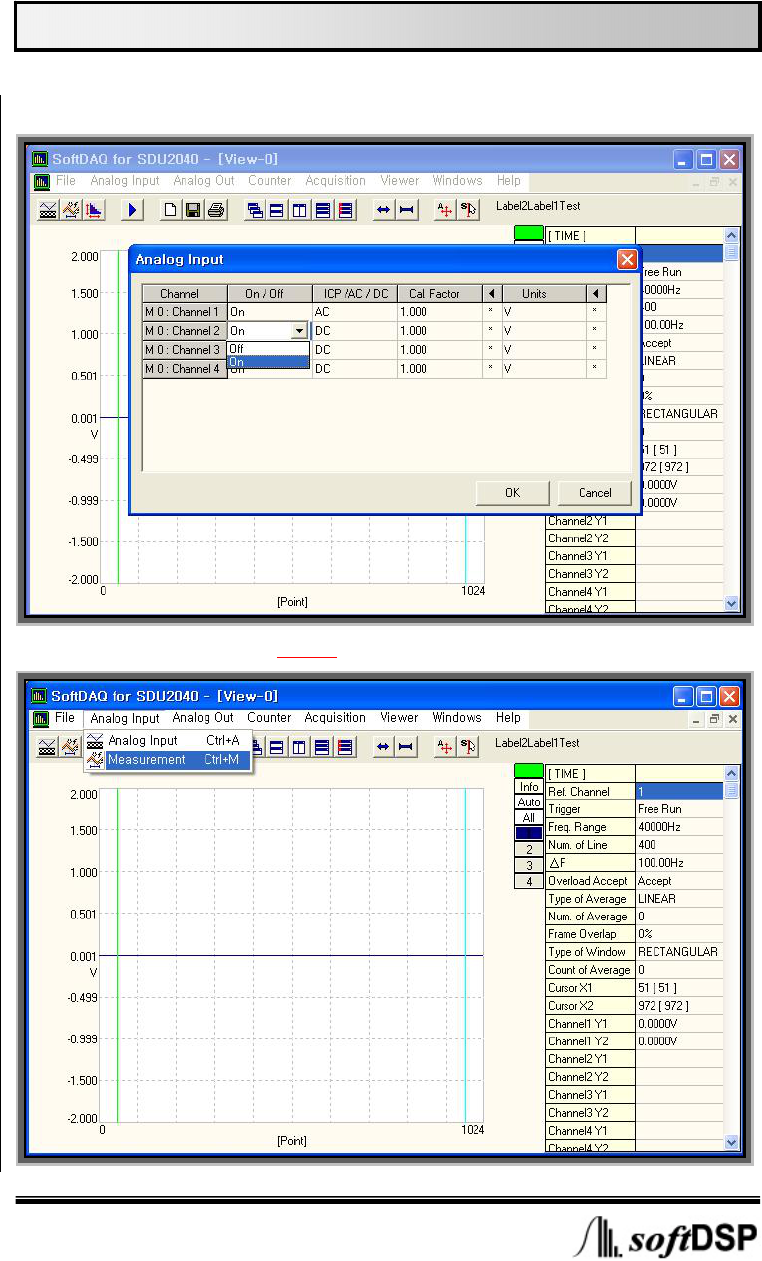

⑥ Activate the corresponding channel in the analogue input, and set the condition that meets the input
condition.
⑦ Activate the output screen for the Analog input. And then choose the Measurement.
User’s Manual
34
SDU 2040

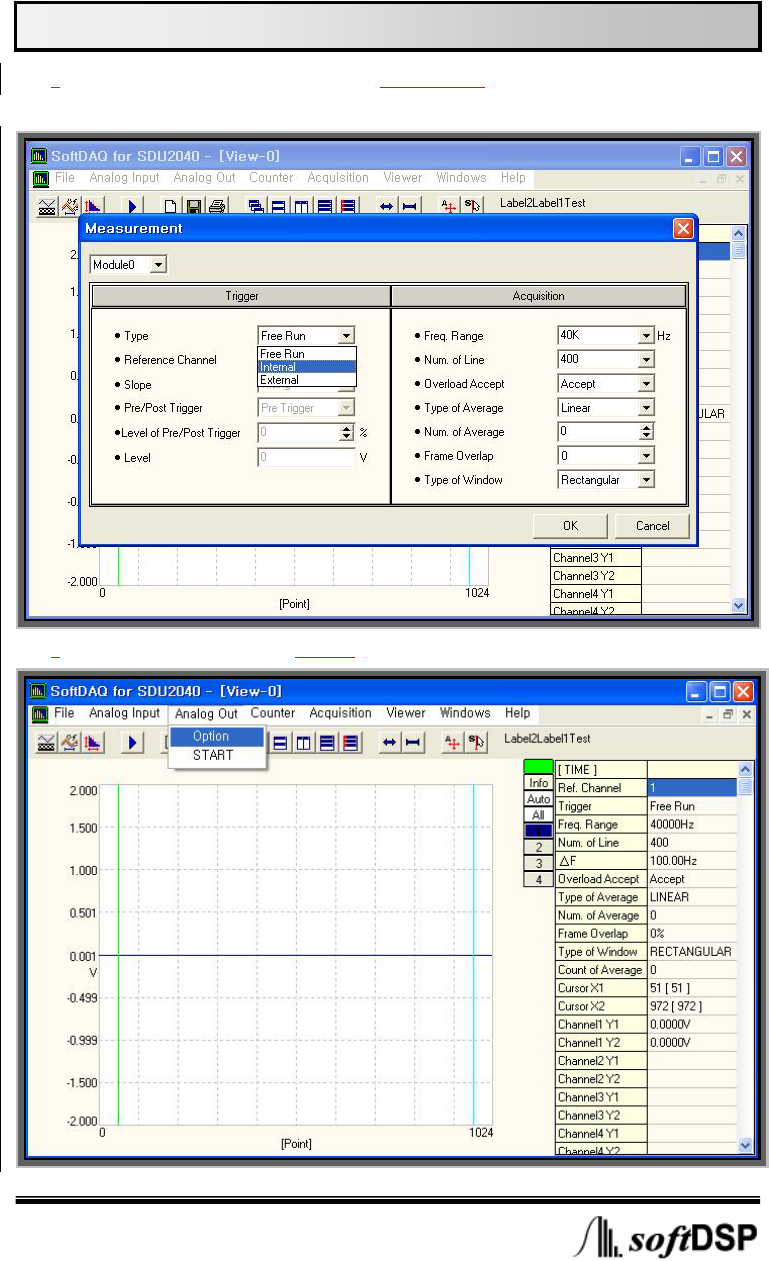

⑧ Activate the corresponding window in the Analog Input set the condition that meets the input
condition.
⑨ Activate the output screen for the Analog input. And then choose the Option.
User’s Manual
35
SDU 2040

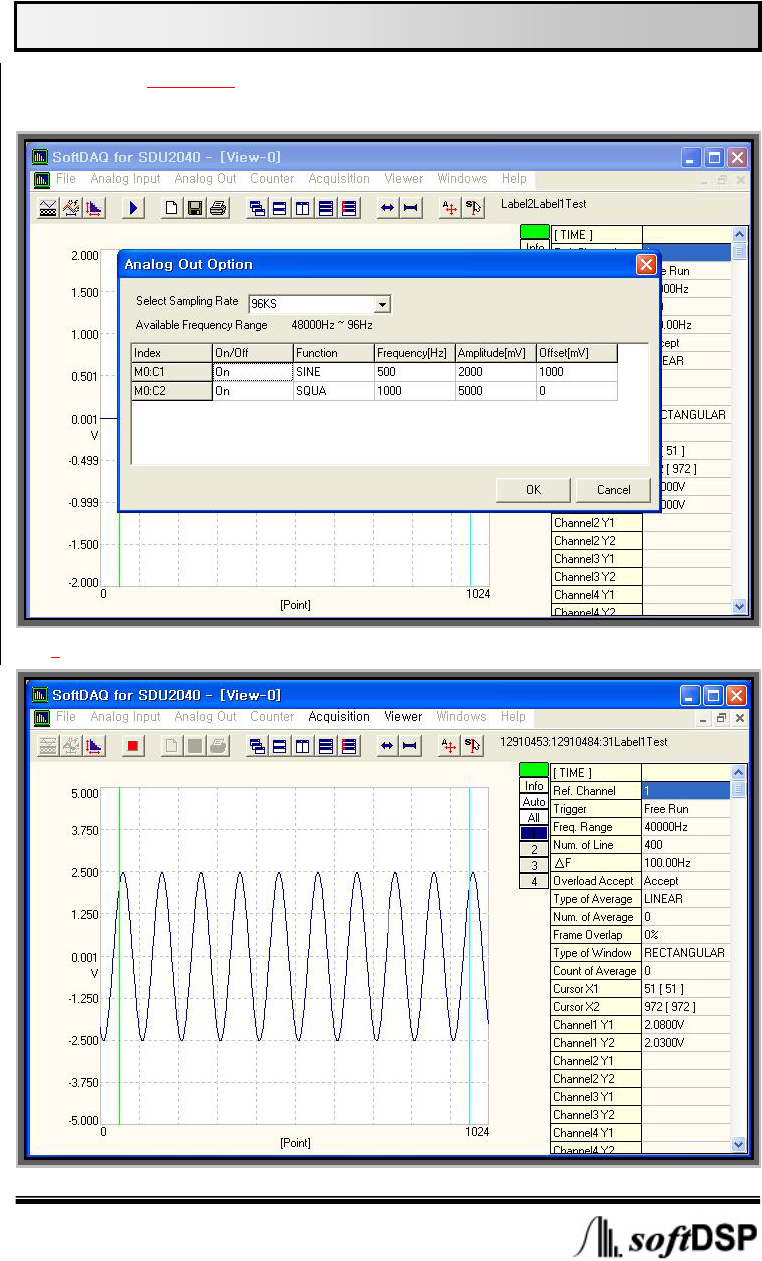

⑩ Activate the Analog out in the corresponding window and set the condition that meets the input
condition.
⑪ Execution Screen
User’s Manual
36
SDU 2040
2. Explanation on the Detailed Function
▪ Analog input
▪ On/Off
Each channel can be activated, and if each channel is set as Off, the corresponding channel does not
output the waveform because each channel does not collect the data.
▪ AC/DC/ ICP
Coupling, DC Coupling can be chosen as the item which can select the input coupling type. The
interception frequency of AC coupling is 3.5Hz. The power supply can be chosen to drive the IPC type
sensor. If ICP is chosen, DC 20V, 4mA electricity is output in the corresponding channel. Therefore, ICP
type sensor can be used without external powe. If ICP On is chosen, it converts to AC coupling
automatically.
▪ Cal. Facter
It is the method to change the unit to M, K, m, u on the y axis for use.
▪ Units
The unit can be set for the output value that suits several input type,by changing the unit of data value that
is output at the user’s discretion.
삭제됨: Scale
삭제됨: 출력 화면의 스케일
설정이 가능하며 외부에 감
쇄기를 통해 아날로그 입력
을 받았을 경우 스케일 조
절을 통해 올바른 출력값을
얻어낼 수 있습니다.
▪ Offset
출력되는 파형의 Offset값
조절이 가능하여 필요시 사
용자가 임의의 Offset값을
부여하여 파형 분석이 가능
합니다.
삭제됨: .
User’s Manual
37
SDU 2040
▪ Measurement
삭제됨:
● Analog Output Option창
Analog Output => Option창을
선택하면 다음 그림과 같이
Analog Out Option창이 활성
화 됩니다.
▪ Select Sampling Rate
Analog Output의 출력 샘플
링 속도를 결정하는 항목으
로 최소 8KS/sec에서 최대
96KS/sec까지 속도 조절이
가능합니다.
User’s Manual
38
SDU 2040
1. Trigger
(1) Free run, internal and external types are provided. Free run is to output the constant inflow of the input
waveform, and cannot choose others for the trigger mode. The internal mode enables the use of all
functions of trigger. The external has the same internal as the mode.
(2) Reference Channel is the place to choose the desired location among the 4 channels for the setting.

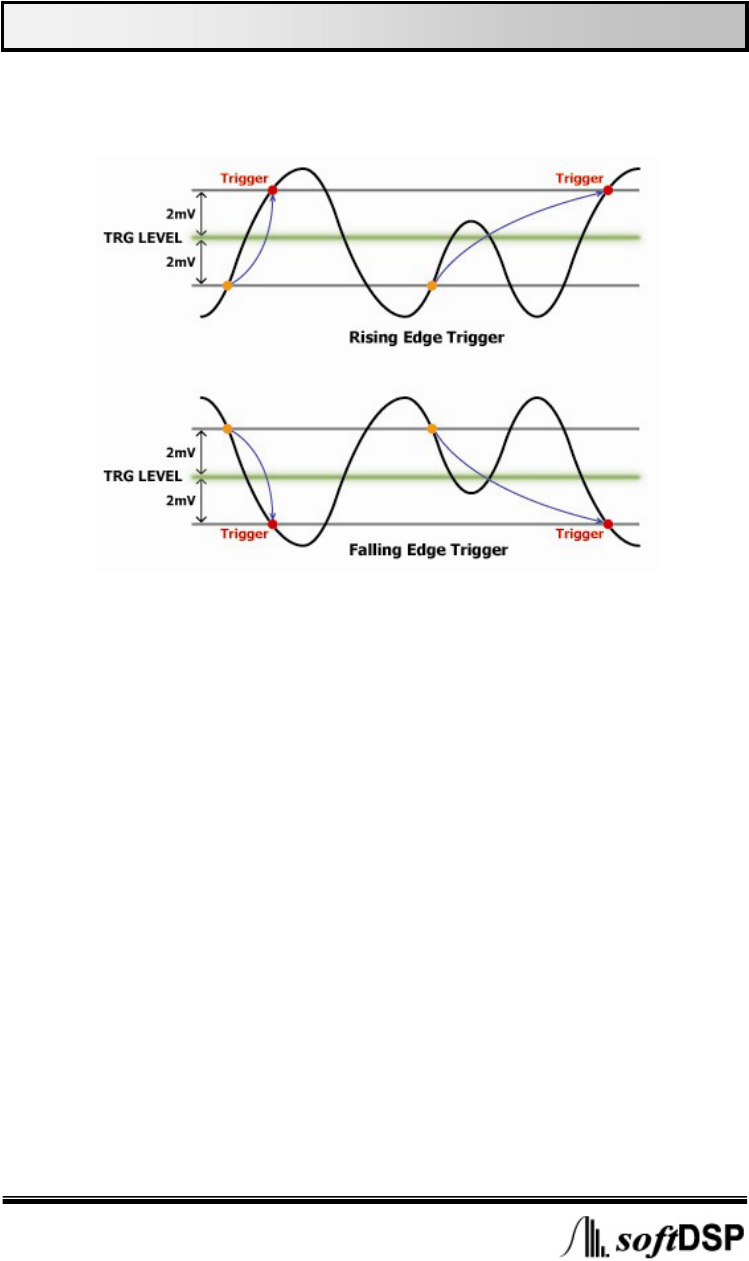

(3) The slope has the trigger condition whwen the signal converts from the low level to high level which
is input from the rising terminal. The trigger level happens when the signal shifts from the high level to
the low level which is input from the falling terminal, and the trigger level is based on the TTL level.
(4) Pre/Post Trigger is provided with the Pre trigger, Post Trigger.
(5) Level of Pre/Post Trigger is the function to adjust and use the Pre trigger, Post Trigger 의 Level value.
(6) It starts collectigng the waveform following the level value as much as the figure input into the level.
User’s Manual
39
SDU 2040
2. Acquisition
▪ Freq. Range
It adjusts the desired width and can be set from 10 to 80Kz.
▪ Num. of Line
It inputs the coefficient of X axis, and if a lot of numbers are input, signal can be brought to the broad
section. Reduce the coefficient and measure if you want to see the waveform.
▪ Overload Accept
It is the function to inquire if the frame overload is to be used.
▪ Type of Average
3 modes like Linear, Exponential and peak Hold are provided. You can chooe what you want and use. If
use put in the number into the Nom. Of Average while using the Liner and Peak Hold, the data collection
comes to a halt after computing the average by the input number.
▪ Num. of Average
Chose and input the average that you want. You can use this with the Type of Average above.
▪ Frame Overlap
You can adjust a 6 stages like 0, 25, 50, 66.7, 75, MAX.
▪ Type of Window
It provides 5 filters like Rectangular, Hanning, Hamming, Blackman, Flat-top.
User’s Manual
40
SDU 2040

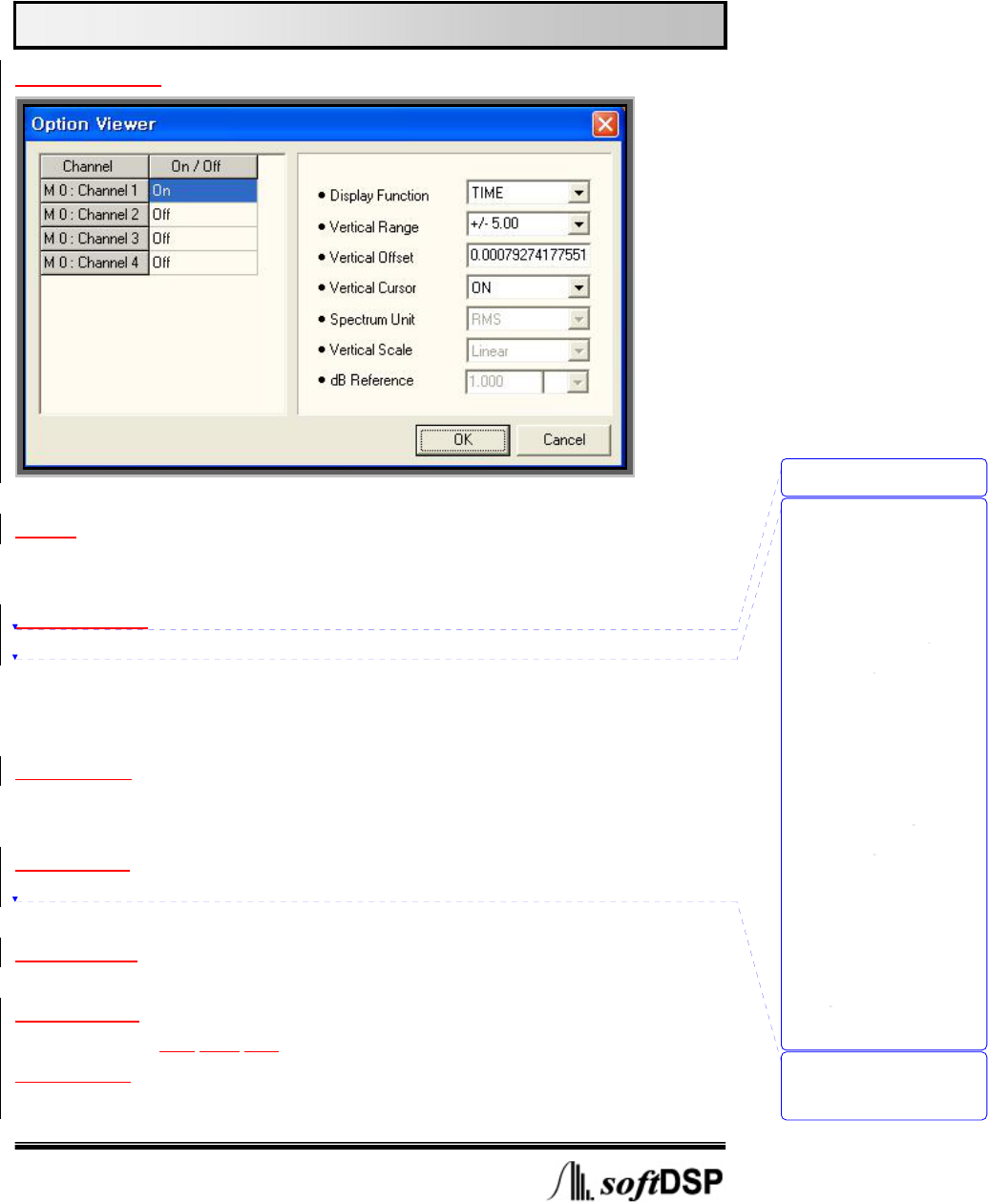

3. Option Viewer
▪ On/Off
If it is set as ON and each channel is set as activation OFF, each channel is in the non-activation state.
Therefore, corresponding channel does not output the waveform.
▪ Display Function
TIME is to analyze the current waveform in the time section. APS means the Auto Power Spectrum. FFT
is a powerful tool to analyze the components of current waveform. Thouth the osciloscope anlayzes the
waveform in the time section, it is used whwen the waveform needs to be analyzed in the frequency
section.
▪ Vertical Range
It sets the range of vertical axis. If small signal comes in, you can fit the range of vertical axis for the
measurement.
▪ Vertical Offset
One method is to use the one which has the offet determined, and the other method is to input number at
discretion for use.
▪ Vertical Cursor
It is the method to switch on/off the cursor on the vertical axis.
▪ Spectrum Unit
Change each unit for RMS, PWR, PSD for use.
▪ Vertical Scale
It is the part to choose the unit on the vertical axis. 3 units like Linear, dB and log are provided.
삭제됨: ▪▪▪▪▪▪▪
삭제됨: 사용자가 원하는 출
력파형 형태를 선택 할 수
있으며 사인파형, 구형파형
등 여러 형태의 출력파형
선택이 가능합니다.
▪ Frequency
사용자가 선택한 파형의 주
파수를 변화 시킬 수 있으
며 해당 주파수의 선택 범
위는 최소 96Hz에서 1kHz
까지 가능합니다.
▪ Amplitude
사용자가 선택한 파형의 출
력 전압을 가변 시킬 수 있
으며 출력전압의 범위는 최
소 1V에서 20V까지 가능합
니다.
▪
삭제됨: 출력 파형과 함께
Offset을 선택하여
User’s Manual
41
SDU 2040
▪ dB Reference
This is whre the desired value can be set when dB is used. 4 units like M, K, m and u can be used.
▪ Run/Stop
This is where the sampling is made to start and stop.
▪ Windows
It indicates the method of arranging the display currently provided. 5 units are provided.
The difference between 2 and 3 in Cascade, Tile Horizontally Tile vertically Tile Horizontally2 Tile
Horizontally3 is that 2 indicates only the arrangement and 3 enables the arrangement and sequence.
삭제됨:
▪ Sampling Rate
Sampling Rate는 최소 1S/sec
부터 최대 216KS/sec까지
가능합니다.
샘플링 속도가 증가 할수록
데이터 저장량이 많이 때문
에 신호를 분석하는데 시간
이 더 소요됩니다. 원 신호
를 분석하기 위한 적당한
샘플링 속도를 선택하는 것
이 효과적인 데이터 수집방
법 입니다.
▪ Sampling Number
Sampling Number는 각 채널
의 출력화면에 크기(샘플링
횟수)를 나타내며 Sampling
Number가 클수록 더 많은
데이터를 화면에 출력해야
하기 때문에 시간이 더 소
요됩니다.
Continuous Mode에서는 사
용자가 샘플링 속도를 지정
하지 않고 Continuous Mode
선택시 자동으로 Sampling
Number가 정해지기 때문에
Continuous Mode는 별도로
Sampling Number를 설정 할
필요가 없습니다.
● Trigger Option
Acquisition => Trigger Option
창을 선택하면 다음과 같이
... [2]
User’s Manual
42
SDU 2040
▪ Type of Display
메모 [C1]:
User’s Manual
43
SDU 2040
User’s Manual
44
SDU 2040

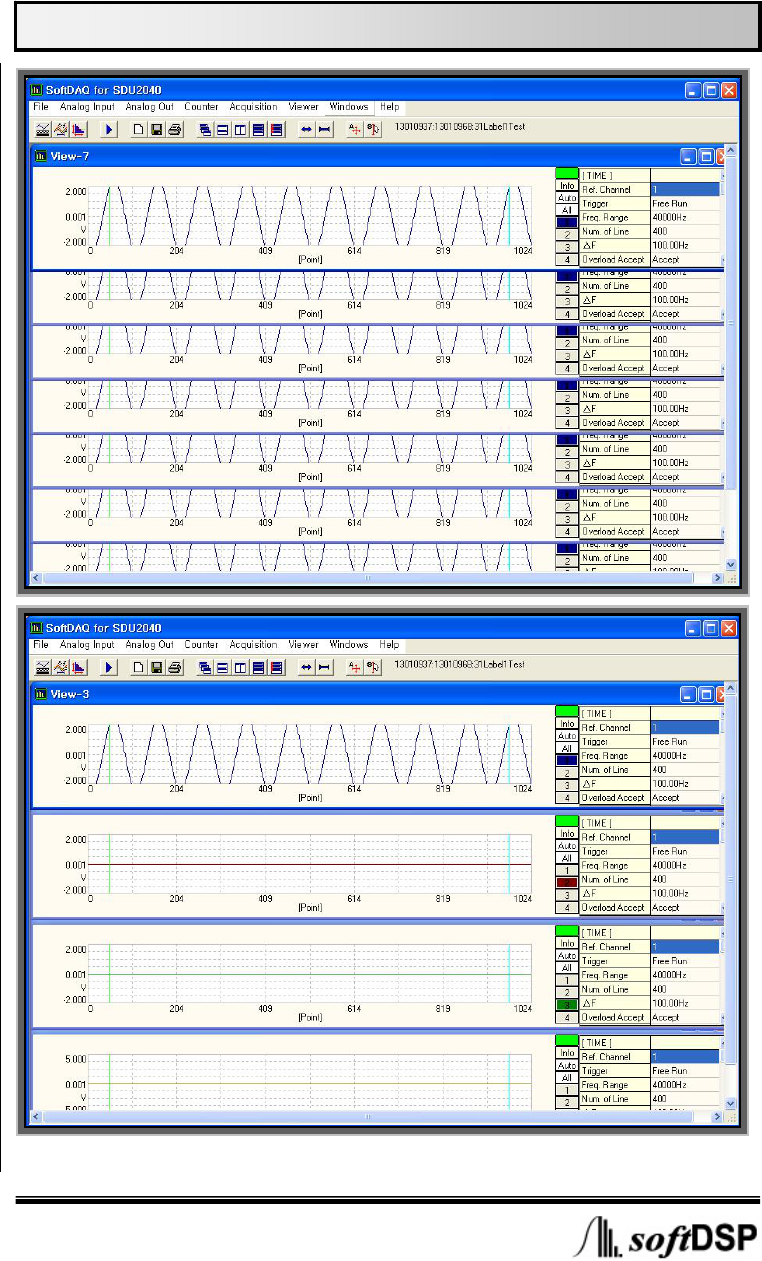

▪ Extend Horizontally & reduce Horizontally
After the vertical axis is extended by the range that you want and reduced, the original signal can be
output. You can ajust and check, using the mouse.
▪ Auto Scale all & Synchronize cursor
2 types of method are being provided, which make the line on the left and right side on the screen shift to
the same location as on other screen.
Other Function
▪ Counter
It enables the counter function for the pulse signal of the external TTL level and allows the counted result
to be used for the trigger source for the analogue input.
▪ Screen
What you see on the right side in case of the screen output indicates the value that the user set. And there
are Info, Auto, All, 1,2,3,4 on the side for your selection. If you click the Info, the informatioin window
disappears. In case of using the Auto, it makes the waveform convenient to see automatically. All plays
the role of switching on all channels of 1, 2, 3 and 4. If you want to delete the waveform that you do not
want to see on the screen, double click the number.
You can see on the upper left side on the screen. This shows the overflow, and if signal higher
than the hardware recognizes, it changes to .
SDU2040 has the phenomenon described in the above in case of over DC +/-10V.
삭제됨: Level
동기화 외부 카운터 숫자에
아날로그 파형 입력을 동기
화 시킬 수 있으며 Level에
입력한 수치 만큼의 카운터
후에 파형 수집을 시작합니
다.
▪ Analog
Rising Mode
트리거 조건이 설정된 해당
채널의 아날로그 입력이
Level전압기준으로 낮은 전
압에서 높은 전압으로 변할
때 트리거 조건을 발생시켜
파형을 동기화 합니다.
Falling Mode
트리거 조건이 설정된 해당
채널의 아날로그 입력이
Level전압기준으로 높은 전
압에서 낮은 전압으로 변할
때 트리거 조건을 발생시켜
파형을 동기화 합니다.
Level
트리거 조건이 설정된 해당
채널의 트리거 Level을 사
용자가 원하는 전압으로 설
정이 가능하며 단위는 mV
단위입니다.
Channel
사용자가 트리거 조건을 4
채널 중 특정 채널을 선택
... [3]
User’s Manual
45
SDU 2040
14. API Function Reference
(1) sdDaqInitialize
z Description:
It searches and initialize SDU 2040, and sets to make the initial communication
possible.
z Format :
C++
SD_DAQ_ERROR sdDaqInitialize(
int* deviceNum_
);
Visual Basic
sdDaqInitialize (ByVal deviceNum_ As Long) As Long
z Parameters:
Parameter Value Mean
deviceNum_ 0 ~ MAX_DAQ It is the variable that gets back the
SDU 2040 device which is currently
connected.
z Usage :
It figures out the number of SDU 2040 device that is currently connected. If
there is no device, it outputs the Error and finishes.
C++
SD_DAQ_ERROR res;
int m_deviceCount;
res = sdDaqInitialize(&m_deviceCount);
if (res != _ERROR_NONE || m_deviceCount <= 0) {
printf(“Error : Initialize”);
}
User’s Manual
46
SDU 2040
Visual Basic
Dim Res As Long
Dim deviceNum_ As Long
Res = sdDaqInitialize(deviceNum_)
If (Res = 0) Then
MsgBox "Error : Initialize "
End
End If
Returns :
Success : _ERROR_NONE
Failure : _ERROR_DEVICE_NOT_FOUND
z Comments:
This is the commanding lanugate that always starts at the first time, and
subsequent commanding language can be used only after this commanding
language is successful.
User’s Manual
47
SDU 2040
(2) sdDaqFinalize
z Description:
It revokes the communication connected to the SDU 2040 that is currently
connected and returns various memories.
z Format :
C++
SD_DAQ_ERROR sdDaqFinalize();
Visual Basic
sdDaqFinalize () As Long
z Parameters:
NONE
z Usage :
SD_DAQ_ERROR res;
res = sdDaqFinalize ();
if (res != _ERROR_NONE ) {
printf(“Error : Finalize”);
}
Visual Basic
Dim Res As Long
Dim deviceNum_ As Long
Res = sdDaqFinalize ()
If (Res < = 0) Then
MsgBox "Error : Finalize"
End
End If
z Returns :
Sucdess : _ERROR_NONE
Failulure : _ERROR_USB_DRIVER
z Comments:
This is the commanding lanugate that is always called last, and all SDU work can
be performed through this commanding.
User’s Manual
48
SDU 2040
(3) sdDaqOpenDevice
z Description:
It opens the device that is currently connected. It should be excecuted only after
the sdDaqInitialize function is executed. This function should be called for every
device that is to be opened.
z Format :
C++
SD_DAQ_ERROR sdDaqOpenDevice(
int indexModule_
);
Visual Basic
sdDaqOpenDevice (ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
indexModule_ 0 ~ MAX_DAQ The device number of SDU 2040 that
is currently connected
SeeIt can be set in the deviceNum
obtained through the sdDaqInitialize
function.
z Usage :
C++
SD_DAQ_ERROR res;
int m_deviceCount;
res = sdDaqInitialize(&m_deviceCount);
if (res != _ERROR_NONE || m_deviceCount <= 0) {
printf(“Error : Initialize”);
}
for (int i = 0; i < m_deviceCount; i++) {
res = sdDaqOpenDevice(i);
if (res != _ERROR_NONE) {
printf("Error : Open device");
}
}
User’s Manual
49
SDU 2040
Visual Basic
Dim G, G2 As Long
Dim deviceNum As Long
For G = 0 To deviceNum_ - 1
Res = sdDaqOpenDevice(G)
If (Res <= 0) Then
MsgBox "Error : Open Device "
End
End If
Next G
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h"
z Comments:
The unique number of the device after the success of this function is
indexModule_number.
User’s Manual
50
SDU 2040
(4) sdDaqCloseDevice
z Description:
It closes the device that is currently connected. It shold be executed before the
sdDaqFinalize function is called all the time.
z Format :
C++
SD_DAQ_ERROR sdDaqCloseDevice(
int indexModule_
);
Visual Basic
sdDaqCloseDevice (ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
SD_DAQ_ERROR res;
for (int i = 0; i < m_deviceCount; i++) {
res = sdDaqCloseDevice(i);
if (res != _ERROR_NONE) {
printf("Error : Close device");
}
}
Visual Basic
Dim Res As Long
Dim indexModule_ As Long
Res = sdDaqCloseDevice(indexModule_)
If (Res = 0) Then
MsgBox "Error : Close device "
End
End If
User’s Manual
51
SDU 2040
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h" .
z Comments:
sdDaqCloseDevice must be called for the successful device through the
sdDaqOpenDevice function.
User’s Manual
52
SDU 2040
(5) sdDaqAdcChannelConfig
z Description:
It sets the Analog Input channel of device that is currently connected.
z Format :
C++
SD_DAQ_ERROR sdDaqAdcChannelConfig(
SD_CHANNEL channel_,
SD_ON_OFF channelOnOff_,
float scale_,
float offset_,
char* units_,
SD_ADC_COUPLING coupling_,
SD_ON_OFF icpOnOff_,
int indexModule_
);
Visual Basic
sdDaqAdcChannelConfig (ByVal channel_ As Long,
ByVal channelOnOff_ As Long,
ByVal scale_ As Single,
ByVal offset_ As Single,
ByRef units_ As String,
ByVal coupling_ As Long,
ByVal icpOnOff_ As Long,
ByVal indexModule_ As Long) As Long
User’s Manual
53
SDU 2040
z Parameters:
Parameter Value Mean
_CHANNEL_1 or 0 Channel 1
_CHANNEL_2 or 1 Channel 2
_CHANNEL_3 or 2 Channel 3
channel_
_CHANNEL_4 or 3 Channel 4
_ OFF or 0 Channel Off channelOnOff_
_ ON or 1 Channel On
scale_ Float Output by multiplying the original
data value of selected data by the
scale_value.
offset_ Float Output by multiplying the original
data value of selected data by the
offset_value.
units_ Char The unit that the user wants can be
expressed through the 15
characters. This is indicted by the
unit when the data is stored and
retrived.(이것은 데이터 저장 및 불
러오기 시에(?) 단위로 표시 됩니다.)
_AC or 0 AC coupling coupling_
_DC or 1 DC coupling
_ OFF or 0 ICP Off icpOnOff_
_ ON or 1 If ICP is switched on. The coupling
changes to AC coupling internally
unconditionally.
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
It swithes on the Analog Input Channel 1 of Module Number 0, and brings the
scale to the original size through DC. It sets the offset as 0 and units as “V”.
C++
SD_DAQ_ERROR res;
res=sdDaqAdcChannelConfig(_CHANNEL_1, _ON, 1.0, 0.0, “V”, _DC, _OFF, 0);
User’s Manual
54
SDU 2040
if (res != _ERROR_NONE) {
printf("Error : Analog Input Channel Configuration");
}
Visual Basic
Dim Res As Long
Res = sdDaqAdcChannelConfig(SD_CHANNEL_1, SD_ON, 1#, 0#, "V", SD_DC,
SD_OFF, 0)
If (Res = 0) Then
MsgBox "Error : Analog Input Channel Configuration"
End
End If
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h" .
z Comments:
User’s Manual
55
SDU 2040
(6) sdDaqAdcSamplingConfig
z Description:
It sets the Sampling Rate, Sampling Size, Sampling Mode of the device that is
currently set.
z Format :
C++
double sdDaqAdcSamplingConfig(
double samplingRate_,
int samplingNumber_,
SD_SAMPLING_MODE samplingMode_,
SD_TRIGGER_MODE trigSamplingmode_,
SD_ON_OFF highPassFilter_,
int indexModule_
);
Visual Basic
sdDaqAdcSamplingConfig (ByVal samplingRate_ As Double,
ByVal samplingNumber_ As Long,
ByVal samplingMode_ As Long,
ByVal trigSamplingmode_ As Long,
ByVal highPassFilter_ As Long,
ByVal indexModule_ As Long) As Long
User’s Manual
56
SDU 2040
z Parameters:
Parameter Value Mean
samplingRate_ Double (
216000, 204800, 190000,
108000, 102400, 96000,
54000, 51200, 48000,
36000, 34133, 32000,
27000, 25600, 24000,
21600, 20480, 19200,
18000, 17066, 16000,
15429, 14628, 13714,
13500, 12800, 12000,
11377, 10800, 10666,
10240, 9818, 9600,
9309, 9000, 8727,
8533, 8308, 8000,
4000, 2000, 1000,
500, 100, 50,
10, 1)
Sampling Rate
The input sampling rate is the
most approximate value and is
set as one of the value.
samplingNumber_ Integer (1 ~ ) Sampling Number
_SAMPLING_CONTINUOU
S_MODE or 0
It obtains the data
consecutively.
_SAMPLING_N_SAMPLE_M
ODE or 1
It obtains the data by N.
samplingMode_
_SAMPLING_TRIGGER_MO
DE or 2
If the trigger happens, the data
is obtained according to the
trigger sampling mode.
_TRIG_CONTINUOUS_MO
DE or 0
It the trigger happens, the data
is obtained from that point
consecutively.
_TRIG_SINGLE_N_SAMPLI
NG_MODE or 1
If the trigger happens, the data
is obtained,
trigSamplingmode
_
_TRIG_EVERY_N_SAMPLIN
G_MODE or 2
If the trigger happens, the data
is obtained by N.
User’s Manual
57
SDU 2040
_ OFF or 0 High Pass Filter Off highPassFilter_
_ ON or 1 High Pass Filter On
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
The device of Module 0 is set as 8KS/s, continuous sampling mode
In fact, the sampling size 1024, Trigger Sampling mode has no meaning in
_SAMPLING_CONTINUOUS_MODE
C++
double res = sdDaqAdcSamplingConfig( 8000,
1024,
_SAMPLING_CONTINUOUS_MODE,
_TRIG_CONTINUOUS_MODE,
_OFF,
0 );
if (res <= 0) {
printf("Error : Sampling Configuration");
}
Visual Basic
Dim Res As Double
Res = sdDaqAdcSamplingConfig( 8000,
1024,
SD_SAMPLING_CONTINUOUS_MODE,
SD_TRIG_CONTINUOUS_MODE,
SD_OFF,
0 );
If (Res = 0) Then
MsgBox "Error : Sampling Configuration"
End
End If
z Returns :
In case of success :The samplingRate value that is set
In case of failure : If it is -1, samplingNumber_ is set. If it is 0, samplingRate_
User’s Manual
58
SDU 2040
results in error.
z Comments:
In case of _SAMPLING_CONTINUOUS_MODE or _TRIG_CONTINUOUS_MODE, it
is set internally. So, the user cannnot set it.
User’s Manual
59
SDU 2040
(7) sdDaqArm
z Description:
Data Acquisition start finish command sdDaqArm(_START) should be necessarily
executed before the start of sdDaqStart command, and sdDaqArm (_STOP)
command should be executed before sdDaqStart(_STOP).
z The setting of Analog Input, Counter, Trigger should be completely set before
that. This function should be necessarily called when only the counter is used.
z Format :
C++
SD_DAQ_ERROR sdDaqArm(
SD_START_STOP startStop_,
int indexModule_
);
Visual Basic
sdDaqArm (ByVal startStop_ As Long, ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
_STOP or 0 Completion of data acquisition startStop_
_START or 1 Start of data acquisition
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
Start of module 0 data acquisition
C++
res = sdDaqArm(_START, 0);
if (res != _ERROR_NONE) {
printf("ERROR : DAQ Arm");
}
User’s Manual
60
SDU 2040
Visual Basic
Dim Res As Long
Res = sdDaqArm(SD_START, 0)
If (Res = 0) Then
MsgBox " ERROR : DAQ Arm"
End
End If
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
User’s Manual
61
SDU 2040
(8) sdDaqCounterConfig
z Description:
The data aquisitio of counter setting channel on/off is same as sdDaqArm.
z Format :
C++
SD_DAQ_ERROR sdDaqCounterConfig(
SD_ON_OFF onOff_,
int indexModule_
);
Visual Basic
sdDaqCounterConfig (ByVal onOff_ As Long, ByVal indexModule_ As Long) As
Long
z Parameters:
Parameter Value Mean
_ OFF or 0 Counter Off onOff_,
_ ON or 1 Counter On
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
It switches on the device 0 number counter.
C++
SD_DAQ_ERROR res = sdDaqCounterConfig(_ON, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Counter Configuration");
}
Visual Basic
Dim Res As Long
Res = sdDaqCounterConfig(SD_ON, 0);
If (Res< = 0) Then
MsgBox "ERROR : Counter Configuration"
End
End If
User’s Manual
62
SDU 2040
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
User’s Manual
63
SDU 2040
(9) sdDaqTriggerConfig
z Description:
trigger mode, trigger option(trigger source, level, up/down edge), pre/post trigger
z Format :
C++
SD_DAQ_ERROR sdDaqTriggerConfig(
SD_TRIGGER_SOURCE source_,
int level_,
SD_TRIGGER_EDGE edge_,
SD_CHANNEL analogSourceChannel_,
SD_TRIGGER_PREPOST prePost_,
int prePostNum_,
int indexModule_
);
Visual Basic
sdDaqTriggerConfig (ByVal source_ As Long,
ByVal level_ As Long,
ByVal edge_ As Long,
ByVal analogSourceChannel_ As Long,
ByVal prePost_ As Long,
ByVal prePostNum_ As Long,
ByVal indexModule_ As Long) As Long
User’s Manual
64
SDU 2040
z Parameters:
Parameter Value Mean
_DIGITAL or 1 Trigger Source : Digital trigger
_ANALOG or 2 Trigger Source : Analog
trigger
source_
_COUNTER or 4 Trigger Source : Counter
trigger
level_ Integer It sets the trigger level. If the
trigger source is analog, it
becomes the input value of
mV, and if it is the counter, it
becomes the number of
counter.
_RISING_EDGE or 0 It sets the trigger edge. It sets
in case that the source is
analog or digital.
edge_
_FALLING_EDGE or 1 It sets the trigger eduge. It
sets in case that the trigger
source is analog or digital.
_CHANNEL_1 or 0 Analog Source : Channel 1
_CHANNEL_2 or 1 Analog Source : Channel 2
_CHANNEL_3 or 2 Analog Source : Channel 3
analogSourceChannel_
_CHANNEL_4 or 3 Analog Source : Channel 4
_PREPOST_NONE or 0 No Pre/Post Sampling
_POST_SAMPLING or 2 Post Sampling Mode
prePost_
_PRE_SAMPLING or 4 Pre Sampling Mode
prePostNum_ Integer The number in case of
Pre/Post Sampling Mode
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
It sets the device 0 as Analog Trigger Mode, sets the Rising Edge Mode, Analog
Trigger Source as channel 11, and sets the Analog Trigger Level as the Pre
Sampling Mode of 50 data.
User’s Manual
65
SDU 2040
C++
SD_DAQ_ERROR res = sdDaqTriggerConfig(_ANALOG, 100, _RISING_EDGE,
_CHANNEL_1, _PRE_SAMPLING, 50, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Trigger Configuration");
}
Visual Basic
Dim Res As Long
Res = sdDaqTriggerConfig(SD_ANALOG, 100, SD_RISING_EDGE, SD_CHANNEL_1,
SD_PRE_SAMPLING, 50, 0)
If (Res< = 0) Then
MsgBox "ERROR : Trigger Configuration"
End
End If
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
User’s Manual
66
SDU 2040
(10) sdDaqDacConfig
z Description:
channel on/off, dacOutMode, DAO sampling rate
z Format :
C++
SD_DAQ_ERROR sdDaqDacConfig(
SD_ON_OFF onOffCh1_,
SD_ON_OFF onOffCh2_,
SD_DAC_MODE modeCh1_,
SD_DAC_MODE modeCh2_,
SD_DAC_SAMP_RATE sampRate_,
int indexModule_
);
Visual Basic
sdDaqDacConfig (ByVal onOffCh1_ As Long,
ByVal onOffCh2_ As Long,
ByVal modeCh1_ As Double,
ByVal modeCh2_ As Long,
ByVal sampRate_ As Long,
ByVal indexModule_ As Long) As Long
User’s Manual
67
SDU 2040
z Parameters:
Parameter Value Mean
_ OFF or 0 Analog Output Channel 1 Off onOffCh1_
_ ON or 1 Analog Output Channel 1 On
_ OFF or 0 Analog Output Channel 2 Off onOffCh2_
_ ON or 1 Analog Output Channel 2 On
_TRIGGER_OUT or 0 It sets the Analog Output Channel
1 as the Trigger Out mode. This is
used to fit the synchronization at
the multi device.
modeCh1_,
_TABLE_OUT or 1 It sets the Analog Output Channel
1 as the Table Out mode. If the
user lowers the certain table. The
output signal is determined by that
table.
_TRIGGER_OUT or 0 It sets the Analog Output Channel
2 as the Trigger Out mode. This is
used to fit the synchronization at
the multi device.
modeCh2_
_TABLE_OUT or 1 It sets the Analog Output Channel
2 as the Table Out mode. If the
user lowers the certain table. The
output signal is determined by that
table.
_96KSPS or 0x00,
_48KSPS or 0x01,
_32KSPS or 0x02,
_24KSPS or 0x03,
_16KSPS or 0x04,
_12KSPS or 0x05,
sampRate_
_8KSPS or 0x06
It sets the Sampling Frequency of
Analog Out. The maximum
frequency that is output is
determined by this setting.
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
User’s Manual
68
SDU 2040
z Usage :
The 2 Analog Out channels of device number 0 are switched on, and set as
Table Out Mode. The Sampling Frequency is set as 96KS/s.
C++
SD_DAQ_ERROR res = sdDaqDacConfig(_ON, _ON, _TABLE_OUT, _TABLE_OUT,
_96KSPS, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Analog out Configuration");
}
Visual Basic
Dim Res As Long
Res = sdDaqDacConfig(SD_ON,SD _ON, SD_TABLE_OUT, SD_TABLE_OUT,
SD _96KSPS, 0)
If (Res <= 0) Then
MsgBox "ERROR : Analog out Configuration"
End
End If
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
User’s Manual
69
SDU 2040
(11) sdDaqDacStart
z Description:
Analog Out Start / Stop
z Format :
C++
SD_DAQ_ERROR sdDaqDacStart(
SD_ON_OFF startOnOff_,
int indexModule_
);
Visual Basic
sdDaqDacStart (ByVal startOnOff_ As Long, ByVal indexModule_ As Long) As
Long
z Parameters:
Parameter Value Mean
_ OFF or 0 Analog Output Stop startOnOff_
_ ON or 1 Analog Output Start
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
SD_DAQ_ERROR res = sdDaqDacStart(_ON, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Analog out Start");
}
Visual Basic
Dim Res As Long
Res = sdDaqDacStart(SD_ON, 0)
If (Res< = 0) Then
MsgBox "ERROR : Analog out Start"
End
End If
User’s Manual
70
SDU 2040
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
User’s Manual
71
SDU 2040
(12) sdDaqDacSetFormTable
z Description:
It is the function to create the table via the internal setting. A total of 6 functions
can be set. (DC , SIN, SQU, TRI, RAMP, NOISE )
z Format :
C++
int sdDaqDacSetFormTable(
SD_CHANNEL channel_,
SD_DAC_FUNCTION function_,
int frequency_,
int amplitude_,
int offset_,
int indexModule_
);
Visual Basic
sdDaqDacSetFormTable (ByVal channel_ As Long,
ByVal function_ As Long,
ByVal frequency_ As Long,
ByVal amplitude_ As Long,
ByVal offset_ As Long,
ByVal indexModule_ As Long) As Long
User’s Manual
72
SDU 2040
z Parameters:
Parameter Value Mean
_CHANNEL_1 or 0 Analog Out: Channel 1 channel_
_CHANNEL_2 or 1 Analog Out : Channel 2
_DAC_DC or 0 DC
_DAC_SIN or 1 SINE Wave
_DAC_SQU or 2 SQUE Wave
_DAC_TRI or 3 TRIANGLE Wave
_DAC_RAMP or 4 RAMP Wave
function_
_DAC_NOISE or 5 Random Noise
frequency_ Integer According to the sampling
frequency of analo. Out, it is
valid as in the following.
_96KSPS : 48KHz ~ 96Hz
_48KSPS : 24KHz ~ 48Hz
_32KSPS : 16KHz ~ 32Hz
_24KSPS : 12KHz ~ 24Hz
_16KSPS : 8KHz ~ 16Hz
_12KSPS : 6KHz ~ 12Hz
_8KSPS : 4KHz ~ 8Hz
amplitude_ Integer The effective value is
20V(20000) at the maximum,
and fluid according to the
Offset.
Offset_ Integer It posseses the +/- 10V(+/-
10000) value.
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
It sets the Analog Out Channel 1 of device number to output the 100Hz, SQUE
wave with 0V~5V.
C++
int resInt = sdDaqDacSetFormTable (_CHANNEL_1, _DAC_SQU, 100, 5000, 2500,
0);
if (resInt <= 0) {
User’s Manual
73
SDU 2040
printf("Error : Analog Out Making Table");
}
Visual Basic
Dim Res As Long
Res = sdDaqDacSetFormTable (SD_CHANNEL_1, SD_DAC_SQU, 100, 5000, 2500,
0) If (Res <= 0) Then
MsgBox "Error : Analog Out Making Table"
End
End If
z Returns :
In case of success : the value of revised frequency
In case of failure : The value equal to or smaller than 0(See the error type of
("usbDaqErrorType.h").
z Comments:
This function can be used in the sdDaqDacConfig when the model of channel
setting is in the TABEL_OUT mode.
User’s Manual
74
SDU 2040
(13) sdDaqDacSetUserTable
z Description:
It is the function to take the external user table out from the SDU 2040 in order to
output in the form of Analog Out.
z Format :
C++
SD_DAQ_ERROR sdDaqDacSetUserTable(
SD_CHANNEL channel_,
int bufferSize_,
unsigned char* tableBuffer_,
int indexModule_
);
Visual Basic
sdDaqDacSetUserTable (ByVal channel_ As Long,
ByVal bufferSize_ As Long,
ByVal tableBuffer_ (3072)As String,
ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
_CHANNEL_1 or 0 Analog Out: Channel 1 channel_
_CHANNEL_2 or 1 Analog Out : Channel 2
BufferSize_ Integer(max
1024Sample:24bit)
It is the size of the table that
the use intends to take down,
and can be set as 1024 sample
at the maximum. (The 1Sample
is 24bit)
tableBuffer_, Unsigned Char * The start address of user table
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
User’s Manual
75
SDU 2040
z Usage :
C++
unsigned char userDefineTable[3072];
// ~
//Fill the table with data
// ~
SD_DAQ_ERROR res;
res = sdDaqDacSetUserTable (_CHANNEL_1, 1024, &userDefineTable, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Analog out User Table");
}
Visual Basic
Dim Res As Long
Dim userDefineTable(3072) As String
Res = sdDaqDacSetUserTable (SD_CHANNEL_1, 1024, userDefineTable(3072), 0)
If (Res <= 0) Then
MsgBox "ERROR : Analog out User Table"
End
End If
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h”.
z Comments:
This function can be used in the sdDaqDacConfig functioin when the mode
setting of each channel is in the TABEL_OUT mode.
User’s Manual
76
SDU 2040
(14) sdDaqDacTriggerLevel
z Description:
It is the function to set the trigger level when it is Analog Out Trigger mode.
z Format :
C++
SD_DAQ_ERROR sdDaqDacTriggerLevel(
SD_CHANNEL channel_,
int trigLevel_,
int indexModule_
);
Visual Basic
sdDaqDacTriggerLevel (ByVal channel_ As Long,
ByVal trigLevel_ As Long,
ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
_CHANNEL_1 or 0 Analog Out: Channel 1 channel_
_CHANNEL_2 or 1 Analog Out : Channel 2
trigLevel_ Integer It is input by the mV unit that
determines the trigger level of
Analog Out.
(At present, it is automatically
set in case of Multi Device).
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage:
C++
SD_DAQ_ERROR res;
res = sdDaqDacTriggerLevel (_CHANNEL_1, 5000, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Analog out Trigger Level");
}
User’s Manual
77
SDU 2040
Visual Basic
Dim Res As Long
Res = sdDaqDacTriggerLevel (SD_CHANNEL_1, 5000, 0)
If (Res = 0) Then
MsgBox " ERROR : Analog out Trigger Level"
End
End If
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
This function can be used in the sdDaqDacConfig function when the mode
setting of each channel is in the TRIGGER_OUT mode.
At present, this setting is valid only in the Multi Device, and the trigger level is
automatically set in case that multi device is operating.
User’s Manual
78
SDU 2040
15. sdDaqTransferData
z Description:
It reads the data through USB.
The form of data depends on the channel that is currently activated.
The data form in case that the 4 analog input channels and counter are
activated at the same time, is such as followings:
The analog input is 24 bit data, and the counter is 32 bit data. But all are
converted into 32 bit and occupy the data space of 4 byte.
Channel
1
(4byte)
Channel
2
(4byte)
Channel
3
(4byte)
Channel
4
(4byte)
Counter
(4byte)
Channel
1
(4byte)
Channel
2
(4byte)
••• Counter
(4byte)
The method to convert the obtained analog data into the real data is such as
followings:
#define _LOWMAX 8388607
Value of real data = 10.0 * (Data value of Analog Input) / _LOWMAX
Reference : Example No. 4
z Format :
C++
int sdDaqTransferData(
int** dataPoint_,
int indexModule_
);
Visual Basic
sdDaqTransferData (ByRef dataPoint_ As Long, ByVal indexModule_ As Long) As
Long
z Parameters:
Parameter Value Mean
dataPoint_ Integer ** It receives the data address of the
data stored in the form of integer
internally, and reads the data.
The data butter is allocated
automatically internally. So, no
work like the butter allocation is
required.
User’s Manual
79
SDU 2040
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
int* buffer;
int readDataCounter = sdDaqTransferData(&buffer, 0);
if (readDataCounter <= 0) {
printf(“Error : Get Data”);
}
Visual Basic
Dim Res As Long
Dim buffer As Long
Res = sdDaqTransferData( buffer, 0)
If (Res< = 0) Then
MsgBox “Error : Get Data”
End
End If
z Returns :
In case of success : The number of read data
In case of failure : The number equal to or smaller than 0 (See the error type of
"usbDaqErrorType.h")
z Comments:
User’s Manual
80
SDU 2040
16. sdDaqTransferPreDataFile
z Description:
It is the function to create the file and make the header information before the
storage of data file and the data.
The information of head file is composed such as following:
0: module index(1byte)
1: Channel 1
1 : onOff(1byte : char)
2: minmax(8byte : double)
10 : scale(8byte : double)
18 : offset(8byte : double)
26 : unit(15byte : char)
41: calibAmp(4byte : float) – Not used
35: calibOffset(4byte : int) – Not used
49 : reserve(8byte)
100 : Channel 2 - The composition is idential to the channle 1(starting from
101).
200 : Channel 3 - The composition is idential to the channle 1(starting from
201).
300 : Channel 4 - The composition is idential to the channle 1(starting from
31).
It sets the Analog Output Channel 1 as the Table Out mode. If the user lowers
the certain table. The output signal is determined by that table.
400 : Counter - The composition is idential to the channle 1(starting from
401).
500 : It is the mark that informs that the current file is the Uproject file.
“uproject”(8byte : 500)
508 : Sampling Rate(8byte(double))
516 : Other information etc reserve(84byte : 234)
The data is stored from 600.
z Format :
C++
SD_DAQ_ERROR sdDaqTransferPreDataFile(
char* fPath_,
int indexModule_
User’s Manual
81
SDU 2040
);
Visual Basic
sdDaqTransferPreDataFile (ByVal fPath_ As String, ByVal indexModule_ As Long)
As Long
z Parameters:
Parameter Value Mean
fPath_, char* path of file for the data storage
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
char filePath[] = “C:₩₩test.bin”;
SD_DAQ_ERROR res = sdDaqTransferPreDataFile(filePath, 0);
if (res != _ERROR_NONE) {
printf("Error : Making Header File");
}
Visual Basic
Dim Res As Long
Dim filePath As String
FilePath = “test.bin”
Res = sdDaqTransferPreDataFile(filePath, 0)
If (Res <= 0) Then
MsgBox "Error : Making Header File"
End
End If
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
This function should be necessarily called first to store the data to ensure other
subsequent functions can be used.
User’s Manual
82
SDU 2040
17. sdDaqTransferDataFile
z Description:
It stores the data after changing the data according to the channel information.
The real data is input from the 600th address of file, and the form of data input
is such as followings.(When the 4 analogue channles and counter are all being
activated)
Channel
1
(4byte)
Channel
2
(4byte)
Channel
3
(4byte)
Channel
4
(4byte)
Counter
(4byte)
Channel
1
(4byte)
Channel
2
(4byte)
••• Counter
(4byte)
z Format :
C++
SD_DAQ_ERROR sdDaqTransferDataFile(
int indexModule_
);
Visual Basic
sdDaqTransferDataFile (ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
SD_DAQ_ERROR res = sdDaqTransferDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Data Transfer to File");
}
Visual Basic
Dim Res As Long
Res = sdDaqTransferDataFile (0)
If (Res < = 0) Then
MsgBox "Error : Data Transfer to File"
End
End If
User’s Manual
83
SDU 2040
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the erro type of "usbDaqErrorType.h".
z Comments:
The sdDaqTransferDataFile function can be used only after the path of file is set
for the data storage by necessarily calling the sdDaqTransferPreDataFile function.
User’s Manual
84
SDU 2040
18. sdDaqTransferEndDataFile
z Description:
It is the function to finish the file after the data storage is over.
z Format :
C++
SD_DAQ_ERROR sdDaqTransferEndDataFile(
int indexModule_
);
Visual Basic
sdDaqTransferEndDataFile (ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
SD_DAQ_ERROR res = sdDaqTransferEndDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Close File");
}
Visual Basic
Dim Res As Long
Res = sdDaqTransferEndDataFile (0)
If (Res < = 0) Then
MsgBox "Error : Close File"
End
End If
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
The sdDaqTransferEndDataFile function can be used only after the path of file is
set for the data storage by necessarily calling the sdDaqTransferPreDataFile
function.
User’s Manual
85
SDU 2040
19. sdDaqStart
z Description:
It starts and finishes Data acquisition
z Format :
C++
SD_DAQ_ERROR sdDaqStart(
SD_ON_OFF startOnOff_ ,
int indexModule_
);
Visual Basic
sdDaqStart (ByVal startOnOff_ As Long, ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
_ OFF or 0 Data Acquisition Start startOnOff_
_ ON or 1 Data Acquisition Stop
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
SD_DAQ_ERROR res = sdDaqStart(_ON, 0);
if (res != _ERROR_NONE) {
printf("Error : Data Acquisition Start");
}
Visual Basic
Dim Res As Long
Res = sdDaqStart(SD_ON, 0)
If (Res <= 0) Then
MsgBox "Error : Data Acquisition Start"
End
End If
z Returns :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
User’s Manual
86
SDU 2040
z Comments:
All settings should be completed at the start and it should be executed only after
sdDaqArm starts.If the current data is being obtained at the finishing point, the
sdDaqTransferDataStop function is called in the first place and the data
transmission comes to a halt before finishing.
User’s Manual
87
SDU 2040
20. sdDaqWriteUserData
z Description:
It is the function that stores the data that user wants on the EEPROM inside the
SDU 2040.
.
z Format :
C++
SD_DAQ_ERROR sdDaqWriteUserData(
char* data_,
WORD address_,
int indexModule_
);
Visual Basic
sdDaqWriteUserData (ByRef data_(32) As String,
ByVal address_ As Long,
ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
data_, char The data to be read
address_, WORD(0, 32, 64, 96, 128,
160, 192, 224)
It uses the consecutive 32
bytes from the start address.
The start address must be
always the mulitple of 32 and
has the value from 0 to 256.
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
char userData[32];
//~
//Fill the userData
//~
SD_DAQ_ERROR res = sdDaqWriteUserData (userData, 0, 0);
if (res != _ERROR_NONE) {
printf("Error : Writing User Data");
User’s Manual
88
SDU 2040
}
Visual Basic
Dim Res As Long
Dim userData(32) As String
Res = sdDaqWriteUserData (userData(32), 0, 0);
If (Res <= 0) Then
MsgBox "Error : Initialize "
End
End If
z Return :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
User’s Manual
89
SDU 2040
21. sdDaqReadUserData
z Description:
It is the function that reads the data that the user stored on EEPROM of SDU
2040.
z Format :
C++
SD_DAQ_ERROR sdDaqReadUserData(
char* data_,
WORD address_,
int indexModule_
);
Visual Basic
sdDaqReadUserData (ByRef data_(32) As String, ByVal address_ As Long, ByVal
indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
data_, char The data to be read
address_, WORD(0, 32, 64, 96, 128,
160, 192, 224)
It reads the consecutive 32
bytes from the start address.
The start address must be
always the mulitple of 32 and
has the value from 0 to 256.
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
char userData[32];
SD_DAQ_ERROR res = sdDaqReadUserData (userData, 0, 0);
if (res != _ERROR_NONE) {
printf("Error : Reading User Data");
}
User’s Manual
90
SDU 2040
Visual Basic
Dim Res As Long
Dim userData(32) As String
Res = sdDaqReadUserData (userData(32), 0, 0)
If (Res< = 0) Then
MsgBox "Error : Reading User Data"
End
End If
z Return :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h".
z Comments:
User’s Manual
91
SDU 2040
22. sdDaqStackConfig
z Description:
The function that sets Multi Device
z Format :
C++
SD_DAQ_ERROR sdDaqStackConfig(
SD_ON_OFF onOff_,
SD_MULTI_MODE multiMode_,
int indexModule_
);
Visual Basic
sdDaqStackConfig (ByVal onOff_ As Long,
ByVal multiMode_ As Long,
ByVal indexModule_ As Long) As Long
z Parameters:
Parameter Value Mean
_ OFF or 0 Multi Device Mode Off onOff_,
_ ON or 1 Multi Device Mode On
_SLAVE_MODE or 0x00 Slave mode로 동작 multiMode_,
_MASTER_MODE or 0x01 Master mode로 동작
indexModule_ 0 ~ MAX_DAQ SDU 2040 device number
z Usage :
C++
SD_DAQ_ERROR res = sdDaqStackConfig (userData, 0, 0);
if (res != _ERROR_NONE) {
printf("Error : Multi Device Configuration");
}
Visual Basic
Dim Res As Long
Res = sdDaqStackConfig (userData, 0, 0)
If (Res = 0) Then
MsgBox " Error : Multi Device Configuration"
End
End If
User’s Manual
92
SDU 2040
z Return :
In case of success : _ERROR_NONE
In case of failure : See the error type of "usbDaqErrorType.h"
z Comments:
Only one device should be always set as _MASTER_MODE in setting the multi
device, and the remaining one should be set as _SLAVE_MODE to ensure the
normal operation.
User’s Manual
93
SDU 2040
<sdDaqApi.h>
#ifndef _SDDAQAPI_H_
#define _SDDAQAPI_H_
/*
* SDU 2040 API Version 0.9
* 1998-2005 softDSP CO., LTD.. all rights reserved.
*/
#include <windows.h>
#include "usbDaqType.h"
#include "usbDaqErrorType.h"
#define DLL_DECL __declspec(dllexport)
#define _WINAPI WINAPI
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqInitialize(int* deviceNum_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqFinalize();
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqOpenDevice(int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqCloseDevice(int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqAdcChannelConfig(SD_CHANNEL
channel_, SD_ON_OFF channelOnOff_, float scale_, float offset_, char* units_,
SD_ADC_COUPLING coupling_, SD_ON_OFF icpOnOff_, int indexModule_);
extern "C" DLL_DECL double _WINAPI sdDaqAdcSamplingConfig(double samplingRate_,
int samplingNumber_, SD_SAMPLING_MODE samplingMode_, SD_TRIGGER_MODE
trigSamplingmode_, SD_ON_OFF highPassFilter_, int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqArm(SD_START_STOP startStop_,
int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqCounterConfig(SD_ON_OFF onOff_,
int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI
sdDaqTriggerConfig(SD_TRIGGER_SOURCE source_, int level_, SD_TRIGGER_EDGE
edge_, SD_CHANNEL analogSourceChannel_, SD_TRIGGER_PREPOST prePost_, int
prePostNum_, int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqDacConfig(SD_ON_OFF onOffCh1_,
SD_ON_OFF onOffCh2_, SD_DAC_MODE modeCh1_, SD_DAC_MODE modeCh2_,
User’s Manual
94
SDU 2040
SD_DAC_SAMP_RATE sampRate_, int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqDacStart(SD_ON_OFF startOnOff_,
int indexModule_);
extern "C" DLL_DECL int _WINAPI sdDaqDacSetFormTable(SD_CHANNEL channel_,
SD_DAC_FUNCTION function_, int frequency_, int amplitude_, int offset_, int
indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqDacSetUserTable(SD_CHANNEL
channel_, int bufferSize_, unsigned char* tableBuffer_, int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqDacTriggerLevel(SD_CHANNEL
channel_, int trigLevel_, int indexModule_);
extern "C" DLL_DECL int _WINAPI sdDaqTransferData(int** dataPoint_, int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqTransferPreDataFile(char* fPath_,
int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqTransferDataFile(int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqTransferEndDataFile(int
indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqStart(SD_ON_OFF startOnOff_ , int
indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqWriteUserData(char* data_, WORD
address_, int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqReadUserData(char* data_, WORD
address_, int indexModule_);
extern "C" DLL_DECL SD_DAQ_ERROR _WINAPI sdDaqStackConfig(SD_ON_OFF onOff_,
SD_MULTI_MODE multiMode_, int indexModule_);
#endif
User’s Manual
95
SDU 2040
<usbDaqType.h>
#ifndef _USBDAQTYPE_H_
#define _USBDAQTYPE_H_
enum {MAX_CHANNL_NUM = 5};
enum {MAX_AI_NUM = 4};
enum {MAX_AO_NUM = 2};
typedef enum {
_SAMPLING_CONTINUOUS_MODE = 0x00,
_SAMPLING_N_SAMPLE_MODE = 0x01,
_SAMPLING_TRIGGER_MODE = 0x02
}SD_SAMPLING_MODE;
typedef enum {
_TRIG_CONTINUOUS_MODE = 0x00,
_TRIG_SINGLE_N_SAMPLING_MODE = 0x01,
_TRIG_EVERY_N_SAMPLING_MODE = 0x02
}SD_TRIGGER_MODE;
typedef enum {
_STOP = 0x00,
_START = 0x01
}SD_START_STOP;
typedef enum {
_OFF = 0x00,
_ON = 0x01
}SD_ON_OFF;
typedef enum {
_AC = 0x00,
_DC = 0x01
}SD_ADC_COUPLING;
User’s Manual
96
SDU 2040
typedef enum {
_DISABLE = 0x00,
_ENABLE = 0x01
}SD_ENABLE_DISABLE;
typedef enum {
_TRIGGER_OUT = 0x00,
_TABLE_OUT = 0x01
}SD_DAC_MODE;
typedef enum {
_96KSPS = 0x00,
_48KSPS = 0x01,
_32KSPS = 0x02,
_24KSPS = 0x03,
_16KSPS = 0x04,
_12KSPS = 0x05,
_8KSPS = 0x06
}SD_DAC_SAMP_RATE;
typedef enum {
_DAC_DC = 0,
_DAC_SIN = 1,
_DAC_SQU = 2,
_DAC_TRI = 3,
_DAC_RAMP = 4,
_DAC_NOISE = 5
}SD_DAC_FUNCTION;
typedef enum {
//_NONE = 0x00,
_DIGITAL = 0x01,
_ANALOG = 0x02,
_COUNTER = 0x04
}SD_TRIGGER_SOURCE;
User’s Manual
97
SDU 2040
typedef enum {
_RISING_EDGE = 0x00,
_FALLING_EDGE = 0x01,
}SD_TRIGGER_EDGE;
typedef enum {
_PREPOST_NONE = 0x00,
_POST_SAMPLING = 0x02,
_PRE_SAMPLING = 0x04
}SD_TRIGGER_PREPOST;
typedef enum {
_COUNTER_OFF = 0x00,
_COUNTER_ON = 0x08,
}SD_COUNTER;
typedef enum {
_CHANNEL_1 = 0x00,
_CHANNEL_2 = 0x01,
_CHANNEL_3 = 0x02,
_CHANNEL_4 = 0x03,
_CHANNEL_COUNTER = 0x04,
}SD_CHANNEL;
typedef enum {
_HIGH_SPEED = 0x20,
_FULL_SPEED = 0x11
}SD_SPEED_MODE;
typedef enum {
_SLAVE_MODE = 0x00,
_MASTER_MODE = 0x01
}SD_MULTI_MODE;
#endif
User’s Manual
98
SDU 2040
<usbDaqErrorType.h>
#ifndef _USBDAQERRORTYPE_H_
#define _USBDAQERRORTYPE_H_
/* Error Code Definitions */
typedef enum {
_ERROR_NONE = 1, /* NO Error */
_ERROR_USB_DRIVER = -1, /* USB Driver Error */
_ERROR_DEVICE_NOT_FOUND = -2, /* Device not Found */
_ERROR_USB_DRIVER_READ = -3, /* USB Driver Read Error */
_ERROR_USB_DRIVER_WRITE = -4, /* USB Driver Write Error */
_ERROR_DEVICE_OPEN = -5, /* Device Open Error */
_ERROR_DEVICE_CLOSE = -6, /* Device Close Error */
_ERROR_DAQ_START_STOP = -10, /* Sampling Start/stop Error */
_ERROR_ADC_START_STOP = -11, /* ADC Start/stop Error */
_ERROR_ADC_SET = -12, /* ADC SET(Sample Rate, High Pass
Filter, Zero Calibration, Pre Sample)
Error */
_ERROR_ADC_SET_READ = -13, /* ADC SET(Sample Rate, High Pass
Filter, Zero Calibration, Pre Sample)
READ Error */
_ERROR_ADC_CHANNEL_SET = -14, /* ADC Channel Select Error */
_ERROR_ADC_ICP_SET = -15, /* ADC ICP Select Error */
_ERROR_ADC_LP_SET = -16, /* ADC Low Pass Filter Error */
_ERROR_SAMPLING_SET = -20, /* Sampling Time (trigger, interval,
number) Error */
_ERROR_SAMPLING_SIZE = -21, /* Sampling Size Error */
_ERROR_DAC_START_STOP = -30, /* Analog Out Start/Stop Error */
_ERROR_DAC_PULSE_SET = -31, /* Analog Out Pulse Error */
_ERROR_DAC_TABLE_NUM = -32, /* Analog Out Table Number Error */
_ERROR_DAC_WRITE_DATA = -33,
User’s Manual
99
SDU 2040
_ERROR_DAC_SET = -34,
_ERROR_TRIG_SET = -40, /* Trigger On/Off */
_ERROR_TRIG_DIGITAL = -41, /* Digital Trigger Set Error */
_ERROR_TRIG_ANALOG = -42, /* Analog Trigger Set Error */
_ERROR_TRIG_ANALOG_LEVEL = -43, /* Analog Trigger Level Error */
_ERROR_TRIG_COUNTER_LEVEL = -44, /* Counter Trigger Level Error */
_ERROR_TRIG_PRE_SAMPLING_NUM = -45, /* Pre Sampling Number Error */
_ERROR_READ_CONFIG_DATA = -50, /* Configuration Data Read Error */
_ERROR_READ_CALIB_DATA_AMP = -51, /* AMP Calibration Data Read Error */
_ERROR_WRITE_CALIB_DATA_AMP = -52, /* AMP Calibration Data Write Error */
_ERROR_READ_CALIB_DATA_OFFSET = -53, /* Offset Calibration Data Read Error
*/
_ERROR_WRITE_CALIB_DATA_OFFSET = -54, /* Offset Calibration Data Write Error
*/
_ERROR_READ_ADC_RESET_STATUS = -55,
_ERROR_READ_MEMORY_DATA_NUM = -60, /* Read Memory Data Error */
_ERROR_READ_COUNTER_VALUE = -61, /* Read Counter Value Error */
_ERROR_FPGA_CONFIG_START = -70, /* FPGA Configuration Error */
_ERROR_FPGA_WRITE_CONFIG = -71, /* Write FPGA Configuration Error */
_ERROR_FPGA_CHECK_CONFIG = -72, /* Check FPGA Configuration Error */
_ERROR_READ_VERSION = -80, /* Read Version Error */
_ERROR_WRITE_USER_MULTI_DATA = -90, /* User Specific Mulit Data Write Error
*/
_ERROR_READ_USER_MULTI_DATA = -91, /* User Specific Multi Data Read
Error */
_ERROR_WRITE_USER_DATA = -92, /* User Specific Data Write Error */
_ERROR_READ_USER_DATA = -93, /* User Specific Data Read Error */
_ERROR_WRITE_EEPROM = -94, /* Write EEPROM Error */
_ERROR_READ_EEPROM = -95, /* Read EEPROM Error */
User’s Manual
100
SDU 2040
_ERROR_READ_CURRENT_SPEED = -96, /* Read Current Speed Error */
_ERROR_ADC_CONSTRAINT_STOP = -97, /* Read ADC Constraint Stop Error
*/
_ERROR_RESET_FX2_FIFO = -110,
_ERROR_CHANGE_FX2_MODE = -111,
_ERROR_FILE_OPEN = -150, /* FILE OPEN Error */
_ERROR_MULTI_SET = -160 /* Multi Stack Error*/
}SD_DAQ_ERROR;
#endif
User’s Manual
101
SDU 2040
<Simple Example Program>
Stroring after obtaining the data through the Analog Input channel 1
<C++>
// Test_1.cpp
// 2005/09/06
// softDSP Co., Ltd.
// info@softdsp.com
// Stroring after obtaining the data through the Analog Input channel 1
#include <stdio.h>
#include "sdDaqApi.h"
int main(void)
{
SD_DAQ_ERROR res;
int i;
//Initialize
int m_deviceCount;
res = sdDaqInitialize(&m_deviceCount);
if (res != _ERROR_NONE || m_deviceCount <= 0) {
printf("Error : Initialize");
return -1;
}
else printf("Success : The number of connected device : %d ₩n",
m_deviceCount);
//Open device 0
res = sdDaqOpenDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Open device");
return -1;
}
else printf("Success : Open device ₩n");
User’s Manual
102
SDU 2040
//Configuration : Analog Input
//Turn On Analog Input Channel 1
res=sdDaqAdcChannelConfig(_CHANNEL_1, _ON, 1.0, 0.0, "V", _DC, _OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Analog Input Channel Configuration");
return -1;
}
else printf("Success : Analog Input Channel 1 Configuration ₩n");
//Turn Off Analog Input Channel 2 ~ 4
for (i = _CHANNEL_2; i < MAX_AI_NUM; i++) {
res=sdDaqAdcChannelConfig((SD_CHANNEL)i, _OFF, 1.0, 0.0, "V", _DC,
_OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Analog Input Channel Configuration");
return -1;
}
else printf("Success : Analog Input Channel %d Configuration ₩n", i + 1);
}
//Configuration : Counter
//Turn Off Counter
res = sdDaqCounterConfig(_OFF, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Counter Configuration");
return -1;
}
else printf("Success : Counter Configuration ₩n");
//Configuration : Trigger
res = sdDaqTriggerConfig(_ANALOG, 100, _RISING_EDGE, _CHANNEL_1,
_PRE_SAMPLING, 50, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Trigger Configuration");
return -1;
User’s Manual
103
SDU 2040
}
else printf("Success : Trigger Configuration ₩n");
//Configuration : Sampling Rate
double resInt = sdDaqAdcSamplingConfig(8000, 4096,
_SAMPLING_CONTINUOUS_MODE, _TRIG_CONTINUOUS_MODE, _OFF, 0);
if (resInt <= 0) {
printf("Error : Sampling Configuration");
return -1;
}
else printf("Success : Sampling Configuration ₩n");
//Save File, make head file
char filePath[] = "test_1.bin";
res = sdDaqTransferPreDataFile(filePath, 0);
if (res != _ERROR_NONE) {
printf("Error : Making Header File");
}
else printf("Success : Making Header File ₩n");
//Start Arm
res = sdDaqArm(_START, 0);
if (res != _ERROR_NONE) {
printf("ERROR : DAQ Arm Start");
return -1;
}
else printf("Success : DAQ Arm Start ₩n");
//Delay 100ms for Arm
Sleep(100);
//Sampling Start
res = sdDaqStart(_ON, 0);
if (res != _ERROR_NONE) {
printf("Error : Data Acquisition Start");
User’s Manual
104
SDU 2040
return -1;
}
else printf("Success : Data Acquisition Start ₩n");
//Data Transfer
int* buffer;
int readDataCounter = sdDaqTransferData(&buffer, 0);
if (readDataCounter <= 0) {
printf("Error : Get Data");
return -1;
}
else printf("Success : The Number of Data : %d ₩n", readDataCounter);
//Save File, Data transfer to the file
res = sdDaqTransferDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Data Transfer to File");
}
else printf("Success : Data Transfer to File ₩n");
//Stop Sampling
res = sdDaqStart(_OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Data Acquisition Stop");
return -1;
}
else printf("Success : Data Acquisition Stop ₩n");
//Stop Arm
res = sdDaqArm(_STOP, 0);
if (res != _ERROR_NONE) {
printf("ERROR : DAQ Arm Stop");
return -1;
}
else printf("Success : DAQ Arm Stop ₩n");
User’s Manual
105
SDU 2040
//Save File, Data transfer to the file
res = sdDaqTransferEndDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Close File");
}
else printf("Success : Close File ₩n");
//Close device 0
res = sdDaqCloseDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Close device");
return -1;
}
else printf("Success : Close device ₩n");
//Finalize
res = sdDaqFinalize ();
if (res != _ERROR_NONE ) {
printf("Error : Finalize");
return -1;
}
else printf("Success : Finalize ₩n");
return 0;
}
User’s Manual
106
SDU 2040
1. Setting the Analog Out Channel 1, 2 to check the output
<C++>
// Test_2.cpp
// 2005/09/06
// softDSP Co., Ltd.
// info@softdsp.com
// Analog Out channel 1, 2 output
#include <stdio.h>
#include <conio.h>
#include "sdDaqApi.h"
int main(void)
{
SD_DAQ_ERROR res;
int resInt;
//Initialize
int m_deviceCount;
res = sdDaqInitialize(&m_deviceCount);
if (res != _ERROR_NONE || m_deviceCount <= 0) {
printf("Error : Initialize");
return -1;
}
else printf("Success : The number of connected device : %d ₩n",
m_deviceCount);
//Open device 0
res = sdDaqOpenDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Open device");
return -1;
}
else printf("Success : Open device ₩n");
User’s Manual
107
SDU 2040
//Analog Out Configuration
res = sdDaqDacConfig(_ON, _ON, _TABLE_OUT, _TABLE_OUT, _96KSPS, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Analog out Configuration");
}
else printf("Success : Analog out Configuration");
//Analog Out Table Configuration Channel 1
resInt = sdDaqDacSetFormTable (_CHANNEL_1, _DAC_SQU, 100, 5000, 2500, 0);
if (resInt <= 0) {
printf("Error : Analog Out Making Table");
}
else printf("Success : Analog out Making Table ₩n");
//Analog Out Table Configuration Channel 2
resInt = sdDaqDacSetFormTable (_CHANNEL_2, _DAC_SIN, 100, 5000, 0, 0);
if (resInt <= 0) {
printf("Error : Analog Out Making Table");
}
else printf("Success : Analog out Making Table ₩n");
//Start Analog Out
res = sdDaqDacStart(_ON, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Analog out Start");
}
else printf("Success : Analog out Start ₩n");
//waiting :
printf("Click any key to stop Analog Out ₩n");
getch();
//Stop Analog Out
res = sdDaqDacStart(_OFF, 0);
User’s Manual
108
SDU 2040
if (res != _ERROR_NONE) {
printf("ERROR : Analog out Stop");
}
else printf("Success : Analog out Stop ₩n");
//Close device 0
res = sdDaqCloseDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Close device");
return -1;
}
else printf("Success : Close device ₩n");
//Finalize
res = sdDaqFinalize ();
if (res != _ERROR_NONE ) {
printf("Error : Finalize");
return -1;
}
else printf("Success : Finalize ₩n");
return 0;
}
User’s Manual
109
SDU 2040
2. Obtaining the data by usinng the Counter
<C++>
// Test_3.cpp
// 2005/09/06
// softDSP Co., Ltd.
// info@softdsp.com
// Storing after obtaining the data through the Analogu input channel 1
#include <stdio.h>
#include "sdDaqApi.h"
int main(void)
{
SD_DAQ_ERROR res;
int i;
//Initialize
int m_deviceCount;
res = sdDaqInitialize(&m_deviceCount);
if (res != _ERROR_NONE || m_deviceCount <= 0) {
printf("Error : Initialize");
return -1;
}
else printf("Success : The number of connected device : %d ₩n",
m_deviceCount);
//Open device 0
res = sdDaqOpenDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Open device");
return -1;
}
else printf("Success : Open device ₩n");
User’s Manual
110
SDU 2040
//Configuration : Analog Input
//Turn Off Analog Input Channel 1 ~ 4
for (i = _CHANNEL_1; i < MAX_AI_NUM; i++) {
res=sdDaqAdcChannelConfig((SD_CHANNEL)i, _OFF, 1.0, 0.0, "V", _DC,
_OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Analog Input Channel Configuration");
return -1;
}
else printf("Success : Analog Input Channel %d Configuration ₩n", i + 1);
}
//Configuration : Counter
//Turn Off Counter
res = sdDaqCounterConfig(_ON, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Counter Configuration");
return -1;
}
else printf("Success : Counter Configuration ₩n");
//Configuration : Trigger
res = sdDaqTriggerConfig(_ANALOG, 100, _RISING_EDGE, _CHANNEL_1,
_PRE_SAMPLING, 50, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Trigger Configuration");
return -1;
}
else printf("Success : Trigger Configuration ₩n");
//Configuration : Sampling Rate
double resInt = sdDaqAdcSamplingConfig(8000, 4096,
_SAMPLING_CONTINUOUS_MODE, _TRIG_CONTINUOUS_MODE, _OFF, 0);
if (resInt <= 0) {
User’s Manual
111
SDU 2040
printf("Error : Sampling Configuration");
return -1;
}
else printf("Success : Sampling Configuration ₩n");
//Save File, make head file
char filePath[] = "test_3.bin";
res = sdDaqTransferPreDataFile(filePath, 0);
if (res != _ERROR_NONE) {
printf("Error : Making Header File");
}
else printf("Success : Making Header File ₩n");
//Start Arm
res = sdDaqArm(_START, 0);
if (res != _ERROR_NONE) {
printf("ERROR : DAQ Arm Start");
return -1;
}
else printf("Success : DAQ Arm Start ₩n");
//Delay 100ms for Arm
Sleep(100);
//Sampling Start
res = sdDaqStart(_ON, 0);
if (res != _ERROR_NONE) {
printf("Error : Data Acquisition Start");
return -1;
}
else printf("Success : Data Acquisition Start ₩n");
//Data Transfer
int* buffer;
int readDataCounter = sdDaqTransferData(&buffer, 0);
User’s Manual
112
SDU 2040
if (readDataCounter <= 0) {
printf("Error : Get Data");
return -1;
}
else printf("Success : The Number of Data : %d ₩n", readDataCounter);
//Save File, Data transfer to the file
res = sdDaqTransferDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Data Transfer to File");
}
else printf("Success : Data Transfer to File ₩n");
//Stop Sampling
res = sdDaqStart(_OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Data Acquisition Stop");
return -1;
}
else printf("Success : Data Acquisition Stop ₩n");
//Stop Arm
res = sdDaqArm(_STOP, 0);
if (res != _ERROR_NONE) {
printf("ERROR : DAQ Arm Stop");
return -1;
}
else printf("Success : DAQ Arm Stop ₩n");
//Save File, Data transfer to the file
res = sdDaqTransferEndDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Close File");
}
else printf("Success : Close File ₩n");
User’s Manual
113
SDU 2040
//Close device 0
res = sdDaqCloseDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Close device");
return -1;
}
else printf("Success : Close device ₩n");
//Finalize
res = sdDaqFinalize ();
if (res != _ERROR_NONE ) {
printf("Error : Finalize");
return -1;
}
else printf("Success : Finalize ₩n");
return 0;
}
3. Storing after obtaining Analog Input Channel 1 and Counter data by setting the
Analog Trigger(.bin, .csv)
// Test_4.cpp
// 2005/09/06
// softDSP Co., Ltd.
// info@softdsp.com
// storing after obtaining Analog Input Channel 1 data by setting the Analog Trigger
#include <stdio.h>
#include "sdDaqApi.h"
#define _LOWMAX 8388607
#define _LOWMIN -8388608
//Save As .CSV File
User’s Manual
114
SDU 2040
void fileSave(int* buffer_, int sizeOfBuffer_, char* fileName_)
{
int* tempBuffer;
FILE* fp;
int i;
//file open
fp = fopen(fileName_, "wb+");
if (fp == NULL) return;
//memory allocation
tempBuffer = new int[sizeOfBuffer_];
//data transfer to the buffer
for (i = 0; i < sizeOfBuffer_; i++) {
memcpy(tempBuffer + i, buffer_ + i, sizeof(int));
}
//cacurate and write result to the file
for (i = 0; i < sizeOfBuffer_; i++) {
fprintf(fp, "%5.3f, ₩n", 10.0 * tempBuffer[i] / _LOWMAX);
}
//memory free
delete [] tempBuffer;
//file close
fclose(fp);
}
//Main
int main(void)
{
SD_DAQ_ERROR res;
int i;
User’s Manual
115
SDU 2040
//Initialize
int m_deviceCount;
res = sdDaqInitialize(&m_deviceCount);
if (res != _ERROR_NONE || m_deviceCount <= 0) {
printf("Error : Initialize");
return -1;
}
else printf("Success : The number of connected device : %d ₩n",
m_deviceCount);
//Open device 0
res = sdDaqOpenDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Open device");
return -1;
}
else printf("Success : Open device ₩n");
//Configuration : Analog Input
//Turn On Analog Input Channel 1
res=sdDaqAdcChannelConfig(_CHANNEL_1, _ON, 1.0, 0.0, "V", _DC, _OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Analog Input Channel Configuration");
return -1;
}
else printf("Success : Analog Input Channel 1 Configuration ₩n");
//Turn Off Analog Input Channel 2 ~ 4
for (i = _CHANNEL_2; i < MAX_AI_NUM; i++) {
res=sdDaqAdcChannelConfig((SD_CHANNEL)i, _OFF, 1.0, 0.0, "V", _DC,
_OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Analog Input Channel Configuration");
return -1;
}
User’s Manual
116
SDU 2040
else printf("Success : Analog Input Channel %d Configuration ₩n", i + 1);
}
//Configuration : Counter
//Turn Off Counter
res = sdDaqCounterConfig(_OFF, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Counter Configuration");
return -1;
}
else printf("Success : Counter Configuration ₩n");
//Configuration : Trigger
res = sdDaqTriggerConfig(_ANALOG, 100, _RISING_EDGE, _CHANNEL_1,
_PRE_SAMPLING, 100, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Trigger Configuration");
return -1;
}
else printf("Success : Trigger Configuration ₩n");
//Configuration : Sampling Rate
double resInt = sdDaqAdcSamplingConfig(8000, 1024,
_SAMPLING_TRIGGER_MODE, _TRIG_SINGLE_N_SAMPLING_MODE, _OFF, 0);
if (resInt <= 0) {
printf("Error : Sampling Configuration");
return -1;
}
else printf("Success : Sampling Configuration ₩n");
//Save File, make head file
char filePath[] = "test_4.bin";
res = sdDaqTransferPreDataFile(filePath, 0);
if (res != _ERROR_NONE) {
printf("Error : Making Header File");
User’s Manual
117
SDU 2040
}
else printf("Success : Making Header File ₩n");
//Start Arm
res = sdDaqArm(_START, 0);
if (res != _ERROR_NONE) {
printf("ERROR : DAQ Arm Start");
return -1;
}
else printf("Success : DAQ Arm Start ₩n");
//Delay 100ms for Arm
Sleep(100);
//Sampling Start
res = sdDaqStart(_ON, 0);
if (res != _ERROR_NONE) {
printf("Error : Data Acquisition Start");
return -1;
}
else printf("Success : Data Acquisition Start ₩n");
//Data Transfer
int* buffer;
int readDataCounter = sdDaqTransferData(&buffer, 0);
if (readDataCounter <= 0) {
printf("Error : Get Data");
return -1;
}
else printf("Success : The Number of Data : %d ₩n", readDataCounter);
//Save File, Data transfer to the file
res = sdDaqTransferDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Data Transfer to File");
User’s Manual
118
SDU 2040
}
else printf("Success : Data Transfer to File ₩n");
//Save As .CSV File Format
fileSave(buffer, readDataCounter,"Test_4.csv");
//Stop Sampling
res = sdDaqStart(_OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Data Acquisition Stop");
return -1;
}
else printf("Success : Data Acquisition Stop ₩n");
//Stop Arm
res = sdDaqArm(_STOP, 0);
if (res != _ERROR_NONE) {
printf("ERROR : DAQ Arm Stop");
return -1;
}
else printf("Success : DAQ Arm Stop ₩n");
//Save File, Data transfer to the file
res = sdDaqTransferEndDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Close File");
}
else printf("Success : Close File ₩n");
//Close device 0
res = sdDaqCloseDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Close device");
return -1;
}
User’s Manual
119
SDU 2040
else printf("Success : Close device ₩n");
//Finalize
res = sdDaqFinalize ();
if (res != _ERROR_NONE ) {
printf("Error : Finalize");
return -1;
}
else printf("Success : Finalize ₩n");
return 0;
}
User’s Manual
120
SDU 2040
4. Storing after obtaining Analog Input Channel 1 and Counter data by setting the
Analog Trigger(.bin, .csv)
<C++>
// Test_5.cpp
// 2005/09/06
// softDSP Co., Ltd.
// info@softdsp.com
5. // Storing after obtaining Analog Input Channel 1 and Counter data by setting the
Analog Trigger(.bin, .csv)
#include <stdio.h>
#include "sdDaqApi.h"
#define _LOWMAX 8388607
#define _LOWMIN -8388608
//Save As .CSV File
void fileSave(int* buffer_, int sizeOfBuffer_, char* fileName_)
{
int* tempBufferAnalogInput;
int* tempBufferCounter;
FILE* fp;
int i;
//file open
fp = fopen(fileName_, "wb+");
if (fp == NULL) return;
//memory allocation
tempBufferAnalogInput = new int[sizeOfBuffer_];
tempBufferCounter = new int[sizeOfBuffer_];
//data transfer to the buffer
for (i = 0; i < sizeOfBuffer_; i++) {
User’s Manual
121
SDU 2040
memcpy(tempBufferAnalogInput + i, buffer_ + i * 2, sizeof(int));
memcpy(tempBufferCounter + i, buffer_ + i * 2 + 1, sizeof(int));
}
//cacurate and write result to the file
for (i = 0; i < sizeOfBuffer_; i++) {
fprintf(fp, "%5.3f, ", 10.0 * tempBufferAnalogInput[i] / _LOWMAX);
fprintf(fp, "%5d, ₩n", tempBufferCounter[i]);
}
//memory free
delete [] tempBufferAnalogInput;
delete [] tempBufferCounter;
//file close
fclose(fp);
}
//Main
int main(void)
{
SD_DAQ_ERROR res;
int i;
//Initialize
int m_deviceCount;
res = sdDaqInitialize(&m_deviceCount);
if (res != _ERROR_NONE || m_deviceCount <= 0) {
printf("Error : Initialize");
return -1;
}
else printf("Success : The number of connected device : %d ₩n",
m_deviceCount);
//Open device 0
User’s Manual
122
SDU 2040
res = sdDaqOpenDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Open device");
return -1;
}
else printf("Success : Open device ₩n");
//Configuration : Analog Input
//Turn On Analog Input Channel 1
res=sdDaqAdcChannelConfig(_CHANNEL_1, _ON, 1.0, 0.0, "V", _DC, _OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Analog Input Channel Configuration");
return -1;
}
else printf("Success : Analog Input Channel 1 Configuration ₩n");
//Turn Off Analog Input Channel 2 ~ 4
for (i = _CHANNEL_2; i < MAX_AI_NUM; i++) {
res=sdDaqAdcChannelConfig((SD_CHANNEL)i, _OFF, 1.0, 0.0, "V", _DC,
_OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Analog Input Channel Configuration");
return -1;
}
else printf("Success : Analog Input Channel %d Configuration ₩n", i + 1);
}
//Configuration : Counter
//Turn Off Counter
res = sdDaqCounterConfig(_ON, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Counter Configuration");
return -1;
}
else printf("Success : Counter Configuration ₩n");
User’s Manual
123
SDU 2040
//Configuration : Trigger
res = sdDaqTriggerConfig(_ANALOG, 100, _RISING_EDGE, _CHANNEL_1,
_PREPOST_NONE, 0, 0);
if (res != _ERROR_NONE) {
printf("ERROR : Trigger Configuration");
return -1;
}
else printf("Success : Trigger Configuration ₩n");
//Configuration : Sampling Rate
double resInt = sdDaqAdcSamplingConfig(8000, 1024,
_SAMPLING_TRIGGER_MODE, _TRIG_SINGLE_N_SAMPLING_MODE, _OFF, 0);
if (resInt <= 0) {
printf("Error : Sampling Configuration");
return -1;
}
else printf("Success : Sampling Configuration ₩n");
//Save File, make head file
char filePath[] = "test_5.bin";
res = sdDaqTransferPreDataFile(filePath, 0);
if (res != _ERROR_NONE) {
printf("Error : Making Header File");
}
else printf("Success : Making Header File ₩n");
//Start Arm
res = sdDaqArm(_START, 0);
if (res != _ERROR_NONE) {
printf("ERROR : DAQ Arm Start");
return -1;
}
else printf("Success : DAQ Arm Start ₩n");
//Delay 100ms for Arm
User’s Manual
124
SDU 2040
Sleep(100);
//Sampling Start
res = sdDaqStart(_ON, 0);
if (res != _ERROR_NONE) {
printf("Error : Data Acquisition Start");
return -1;
}
else printf("Success : Data Acquisition Start ₩n");
//Data Transfer
int* buffer;
int readDataCounter = sdDaqTransferData(&buffer, 0);
if (readDataCounter <= 0) {
printf("Error : Get Data");
return -1;
}
else printf("Success : The Number of Data : %d ₩n", readDataCounter);
//Save File, Data transfer to the file
res = sdDaqTransferDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Data Transfer to File");
}
else printf("Success : Data Transfer to File ₩n");
//Save As .CSV File Format
fileSave(buffer, readDataCounter,"Test_5.csv");
//Stop Sampling
res = sdDaqStart(_OFF, 0);
if (res != _ERROR_NONE) {
printf("Error : Data Acquisition Stop");
return -1;
}
User’s Manual
125
SDU 2040
else printf("Success : Data Acquisition Stop ₩n");
//Stop Arm
res = sdDaqArm(_STOP, 0);
if (res != _ERROR_NONE) {
printf("ERROR : DAQ Arm Stop");
return -1;
}
else printf("Success : DAQ Arm Stop ₩n");
//Save File, Data transfer to the file
res = sdDaqTransferEndDataFile (0);
if (res != _ERROR_NONE) {
printf("Error : Close File");
}
else printf("Success : Close File ₩n");
//Close device 0
res = sdDaqCloseDevice(0);
if (res != _ERROR_NONE) {
printf("Error : Close device");
return -1;
}
else printf("Success : Close device ₩n");
//Finalize
res = sdDaqFinalize ();
if (res != _ERROR_NONE ) {
printf("Error : Finalize");
return -1;
}
else printf("Success : Finalize ₩n");
return 0;
}
User’s Manual
126
SDU 2040
<sdDaqApi.bas>
Declare Function GetProcessHeap Lib "kernel32" () As Long
Declare Function HeapAlloc Lib "kernel32" _
(ByVal hHeap As Long, ByVal dwFlags As Long, ByVal dwBytes As Long) As Long
Declare Function HeapFree Lib "kernel32" _
(ByVal hHeap As Long, ByVal dwFlags As Long, lpMem As Any) As Long
Declare Sub CopyMemoryRead Lib "kernel32" Alias _
"RtlMoveMemory" (Destination As Any, _
ByVal Source As Long, ByVal Length As Long)
Declare Function sdDaqInitialize Lib "sdDaqApi.dll" Alias _
"_sdDaqInitialize@4" (ByRef deviceNum_ As Long) As Long
Declare Function sdDaqFinalize Lib "sdDaqApi.dll" Alias _
"_sdDaqFinalize@0" () As Long
Declare Function sdDaqOpenDevice Lib "sdDaqApi.dll" Alias _
"_sdDaqOpenDevice@4" (ByVal indexModule_ As Long) As Long
Declare Function sdDaqCloseDevice Lib "sdDaqApi.dll" Alias _
"_sdDaqCloseDevice@4" (ByVal indexModule_ As Long) As Long
Declare Function sdDaqAdcChannelConfig Lib "sdDaqApi.dll" Alias _
"_sdDaqAdcChannelConfig@32" (ByVal channel_ As Long, ByVal channelOnOff_
As Long, ByVal scale_ As Single, ByVal offset_ As Single, ByRef units_ As String,
ByVal coupling_ As Long, ByVal icpOnOff_ As Long, ByVal indexModule_ As Long) As
Long
Declare Function sdDaqAdcSamplingConfig Lib "sdDaqApi.dll" Alias _
"_sdDaqAdcSamplingConfig@28" (ByVal samplingRate_ As Double, ByVal
samplingNumber_ As Long, ByVal samplingMode_ As Long, ByVal trigSamplingmode_
As Long, ByVal highPassFilter_ As Long, ByVal indexModule_ As Long) As Long
Declare Function sdDaqArm Lib "sdDaqApi.dll" Alias _
"_sdDaqArm@8" (ByVal startStop_ As Long, ByVal indexModule_ As Long) As
Long
Declare Function sdDaqCounterConfig Lib "sdDaqApi.dll" Alias _
"_sdDaqCounterConfig@8" (ByVal onOff_ As Long, ByVal indexModule_ As Long)
User’s Manual
127
SDU 2040
As Long
Declare Function sdDaqTriggerConfig Lib "sdDaqApi.dll" Alias _
"_sdDaqTriggerConfig@28" (ByVal source_ As Long, ByVal level_ As Long, ByVal
edge_ As Long, ByVal analogSourceChannel_ As Long, ByVal prePost_ As Long,
ByVal prePostNum_ As Long, ByVal indexModule_ As Long) As Long
Declare Function sdDaqDacConfig Lib "sdDaqApi.dll" Alias _
"_sdDaqDacConfig@24" (ByVal onOffCh1_ As Long, ByVal onOffCh2_ As Long,
ByVal modeCh1_ As Double, ByVal modeCh2_ As Long, ByVal sampRate_ As Long,
ByVal indexModule_ As Long) As Long
Declare Function sdDaqDacStart Lib "sdDaqApi.dll" Alias _
"_sdDaqDacStart@8" (ByVal startOnOff_ As Long, ByVal indexModule_ As Long)
As Long
Declare Function sdDaqDacSetFormTable Lib "sdDaqApi.dll" Alias _
"_sdDaqDacSetFormTable@24" (ByVal channel_ As Long, ByVal function_ As
Long, ByVal frequency_ As Long, ByVal amplitude_ As Long, ByVal offset_ As Long,
ByVal indexModule_ As Long) As Long
Declare Function sdDaqDacSetUserTable Lib "sdDaqApi.dll" Alias _
"_sdDaqDacSetUserTable@16" (ByVal channel_ As Long, ByVal bufferSize_ As
Long, ByRef tableBuffer_ As String, ByVal indexModule_ As Long) As Long
Declare Function sdDaqDacTriggerLevel Lib "sdDaqApi.dll" Alias _
"_sdDaqDacTriggerLevel@12" (ByVal channel_ As Long, ByVal trigLevel_ As Long,
ByVal indexModule_ As Long) As Long
Declare Function sdDaqTransferData Lib "sdDaqApi.dll" Alias _
"_sdDaqTransferData@8" (ByRef dataPoint_ As Long, ByVal indexModule_ As
Long) As Long
Declare Function sdDaqTransferPreDataFile Lib "sdDaqApi.dll" Alias _
"_sdDaqTransferPreDataFile@8" (ByVal fPath_ As String, ByVal indexModule_ As
Long) As Long
User’s Manual
128
SDU 2040
Declare Function sdDaqTransferDataFile Lib "sdDaqApi.dll" Alias _
"_sdDaqTransferDataFile@4" (ByVal indexModule_ As Long) As Long
Declare Function sdDaqTransferEndDataFile Lib "sdDaqApi.dll" Alias _
"_sdDaqTransferEndDataFile@4" (ByVal indexModule_ As Long) As Long
Declare Function sdDaqTransferDataStop Lib "sdDaqApi.dll" Alias _
"_sdDaqTransferDataStop@4" (ByVal indexModule_ As Long) As Long
Declare Function sdDaqStart Lib "sdDaqApi.dll" Alias _
"_sdDaqStart@8" (ByVal startOnOff_ As Long, ByVal indexModule_ As Long) As
Long
Declare Function sdDaqWriteUserData Lib "sdDaqApi.dll" Alias _
"_sdDaqWriteUserData@12" (ByRef data_ As String, ByVal address_ As Long,
ByVal indexModule_ As Long) As Long
Declare Function sdDaqReadUserData Lib "sdDaqApi.dll" Alias _
"_sdDaqReadUserData@12" (ByRef data_ As String, ByVal address_ As Long,
ByVal indexModule_ As Long) As Long
Declare Function sdDaqStackConfig Lib "sdDaqApi.dll" Alias _
"_sdDaqStackConfig@12" (ByVal onOff_ As Long, ByVal multiMode_ As Long,
ByVal indexModule_ As Long) As Long
User’s Manual
129
SDU 2040
<sdDaqApiType.bas>
Option Explicit
'enum {MAX_CHANNL_NUM = 5};
Global Const MAX_CHANNL_NUM As Long = 5
'enum {MAX_AI_NUM = 4};
Global Const MAX_AI_NUM As Long = 4
'enum {MAX_AO_NUM = 2};
Global Const MAX_AO_NUM As Long = 2
' DAC STOP & START
Global Const SD_STOP As Long = 0
Global Const SD_START As Long = 1
' ON & OFF
Global Const SD_OFF As Long = 0
Global Const SD_ON As Long = 1
' COUNTER ON&OFF
Global Const SD_COUNTER_OFF As Long = 0
Global Const SD_COUNTER_ON As Long = 1
' CHANNEL
Global Const SD_CHANNEL_1 As Long = 0
Global Const SD_CHANNEL_2 As Long = 1
Global Const SD_CHANNEL_3 As Long = 2
Global Const SD_CHANNEL_4 As Long = 3
Global Const SD_CHANNEL_COUNTER As Long = 4
' DAC_FUNCTION
Global Const SD_DAC_DC As Long = 0
Global Const SD_DAC_SIN As Long = 1
Global Const SD_DAC_SQU As Long = 2
User’s Manual
130
SDU 2040
Global Const SD_DAC_TRI As Long = 3
Global Const SD_DAC_RAMP As Long = 4
Global Const SD_DAC_NOISE As Long = 5
' TRIGGER_SOURCE
Global Const SD_DIGITAL As Long = 1
Global Const SD_ANALOG As Long = 2
Global Const SD_COUNTER As Long = 4
' ADC_COUPLING
Global Const SD_AC As Long = 0
Global Const SD_DC As Long = 1
' SAMPLING_MODE
Global Const SD_SAMPLING_CONTINUOUS_MODE As Long = 0
Global Const SD_SAMPLING_N_SAMPLE_MODE As Long = 1
Global Const SD_SAMPLING_TRIGGER_MODE As Long = 2
' TRIGGER_MODE
Global Const SD_TRIG_CONTINUOUS_MODE As Long = 0
Global Const SD_TRIG_SINGLE_N_SAMPLING_MODE As Long = 1
Global Const SD_TRIG_EVERY_N_SAMPLING_MODE As Long = 2
' TRIGGER_PREPOST
Global Const SD_PREPOST_NONE As Long = 0
Global Const SD_POST_SAMPLING As Long = 2
Global Const SD_PRE_SAMPLING As Long = 4
' TRIGGER_EDGE
Global Const SD_RISING_EDGE As Long = 0
Global Const SD_FALLING_EDGE As Long = 1
'DEVICE_NUMBER
Global Const SD_DEVICE_NUMBER As Long = 0
User’s Manual
131
SDU 2040
'ANY CONSTANT
Global Const LOWMIN As Long = -8388608
Global Const LOWMAX As Long = 8388607
'Usb Daq Error Type
Global Const ERROR_NONE As Long = 1 ' NO Error
Global Const ERROR_USB_DRIVER As Long = -1 ' USB Driver Error
Global Const ERROR_DEVICE_NOT_FOUND As Long = -2 ' Device not
Found
Global Const ERROR_USB_DRIVER_READ As Long = -3 ' USB Driver
Read Error
Global Const ERROR_USB_DRIVER_WRITE As Long = -4 ' USB Driver
Write Error
Global Const ERROR_DEVICE_OPEN As Long = -5 ' Device Open
Error
Global Const ERROR_DEVICE_CLOSE As Long = -6 ' Device Close
Error
Global Const ERROR_DAQ_START_STOP As Long = -10 ' Sampling
Start/stop Error
Global Const ERROR_ADC_START_STOP As Long = -11 ' ADC
Start/stop Error
Global Const ERROR_ADC_SET As Long = -12 ' ADC
SET(Sample Rate High Pass Filter Zero Calibration Pre Sample) Error
Global Const ERROR_ADC_SET_READ As Long = -13 ' ADC
SET(Sample Rate High Pass Filter Zero Calibration Pre Sample) READ Error
Global Const ERROR_ADC_CHANNEL_SET As Long = -14 ' ADC Channel
Select Error
Global Const ERROR_ADC_ICP_SET As Long = -15 ' ADC ICP Select
Error
Global Const ERROR_ADC_LP_SET As Long = -16 ' ADC Low Pass
Filter Error
User’s Manual
132
SDU 2040
Global Const ERROR_SAMPLING_SET As Long = -20 ' Sampling Time
(trigger interval number) Error
Global Const ERROR_DAC_START_STOP As Long = -30 ' Analog Out
Start/Stop Error
Global Const ERROR_DAC_PULSE_SET As Long = -31 ' Analog Out
Pulse Error
Global Const ERROR_DAC_TABLE_NUM As Long = -32 ' Analog Out
Table Number Error
Global Const ERROR_DAC_WRITE_DATA As Long = -33
Global Const ERROR_DAC_SET As Long = -34
Global Const ERROR_TRIG_SET As Long = -40 ' Trigger On/Off
Global Const ERROR_TRIG_DIGITAL As Long = -41 ' Digital Trigger
Set Error
Global Const ERROR_TRIG_ANALOG As Long = -42 ' Analog Trigger
Set Error
Global Const ERROR_TRIG_ANALOG_LEVEL As Long = -43 ' Analog Trigger
Level Error
Global Const ERROR_TRIG_COUNTER_LEVEL As Long = -44 ' Counter
Trigger Level Error
Global Const ERROR_TRIG_PRE_SAMPLING_NUM As Long = -45 ' Pre Sampling
Number Error
Global Const ERROR_READ_CONFIG_DATA As Long = -50 ' Configuration
Data Read Error
Global Const ERROR_READ_CALIB_DATA_AMP As Long = -51 ' AMP
Calibration Data Read Error
Global Const ERROR_WRITE_CALIB_DATA_AMP As Long = -52 ' AMP
Calibration Data Write Error
Global Const ERROR_READ_CALIB_DATA_OFFSET As Long = -53 ' Offset
Calibration Data Read Error
Global Const ERROR_WRITE_CALIB_DATA_OFFSET As Long = -54 ' Offset
Calibration Data Write Error
Global Const ERROR_READ_ADC_RESET_STATUS As Long = -55
User’s Manual
133
SDU 2040
Global Const ERROR_READ_MEMORY_DATA_NUM As Long = -60 ' Read
Memory Data Error
Global Const ERROR_READ_COUNTER_VALUE As Long = -61 ' Read
Counter Value Error
Global Const ERROR_FPGA_CONFIG_START As Long = -70 ' FPGA
Configuration Error
Global Const ERROR_FPGA_WRITE_CONFIG As Long = -71 ' Write FPGA
Configuration Error
Global Const ERROR_FPGA_CHECK_CONFIG As Long = -72 ' Check FPGA
Configuration Error
Global Const ERROR_READ_VERSION As Long = -80 ' Read Version
Error
Global Const ERROR_WRITE_USER_MULTI_DATA As Long = -90 ' User Specific
Mulit Data Write Error
Global Const ERROR_READ_USER_MULTI_DATA As Long = -91 ' User Specific
Multi Data Read Error
Global Const ERROR_WRITE_USER_DATA As Long = -92 ' User Specific
Data Write Error
Global Const ERROR_READ_USER_DATA As Long = -93 ' User Specific
Data Read Error
Global Const ERROR_WRITE_EEPROM As Long = -94 ' Write EEPROM
Error
Global Const ERROR_READ_EEPROM As Long = -95 ' Read EEPROM
Error
Global Const ERROR_READ_CURRENT_SPEED As Long = -96 ' Read
Current Speed Error
Global Const ERROR_ADC_CONSTRAINT_STOP As Long = -97 ' Read ADC
Constraint Stop Error
Global Const ERROR_RESET_FX2_FIFO As Long = -110
Global Const ERROR_CHANGE_FX2_MODE As Long = -111
User’s Manual
134
SDU 2040
Global Const ERROR_FILE_OPEN As Long = -150 ' FILE OPEN
Error
Global Const ERROR_MULTI_SET As Long = -160 ' Multi Stack Error
User’s Manual
135
SDU 2040
SDU2040Test_1.ftm
Private Sub Command1_Click()
Dim Res As Long
' Setting Variables
' CHANNEL
Res = sdDaqAdcChannelConfig(SD_CHANNEL_1, SD_ON, 1#, 0#, "V", SD_DC,
SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Analog Input Channel Configuration"
Call sdDaqFinalize
End
End If
For G = SD_CHANNEL_2 To MAX_AI_NUM - 1
Res = sdDaqAdcChannelConfig(G, SD_OFF, 1#, 0#, "V", SD_DC, SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Analog Input Channel Configuration"
End
End If
Next G
' COUNTER
' Turn Off
Res = sdDaqCounterConfig(SD_OFF, 0)
If (Res <= 0) Then
MsgBox "ERROR : Counter Configuration"
Call sdDaqFinalize
End
End If
' TRIGGER
Res = sdDaqTriggerConfig(SD_ANALOG, 100, SD_RISING_EDGE, SD_CHANNEL_1,
SD_PRE_SAMPLING, 50, 0)
User’s Manual
136
SDU 2040
If (Res <= 0) Then
MsgBox "ERROR : Trigger Configuration"
Call sdDaqFinalize
End
End If
' SAMPLING
Dim ResInt As Long
ResInt = sdDaqAdcSamplingConfig(8000, 4096,
SD_SAMPLING_CONTINUOUS_MODE, SD_TRIG_CONTINUOUS_MODE, SD_OFF, 0)
If (ResInt <= 0) Then
MsgBox "Error : Sampling Configuration"
Call sdDaqFinalize
End
End If
' Save File, make head file
Dim filePath As String
filePath = "test_1.bin"
Res = sdDaqTransferPreDataFile(filePath, 0)
If (Res <= 0) Then
MsgBox "Error : Making Header File"
Call sdDaqFinalize
End
End If
' ARM
Res = sdDaqArm(SD_START, 0)
If (Res <= 0) Then
MsgBox "ERROR : DAQ Arm Start"
Call sdDaqFinalize
End
End If
User’s Manual
137
SDU 2040
' Setting Variables
' DAQ START
Res = sdDaqStart(SD_ON, 0)
If (Res <= 0) Then
MsgBox "Error : Data Acquisition Start"
Call sdDaqFinalize
End
End If
Dim dataPoint_ As Long
Res = sdDaqTransferData(dataPoint_, 0)
If (Res <= 0) Then
MsgBox "Error : Get Data"
Call sdDaqFinalize
End
End If
Res = sdDaqTransferDataFile(0)
If (Res <= 0) Then
MsgBox "Error : Data Transfer to File"
Call sdDaqFinalize
End
End If
'Stop Sampling
Res = sdDaqStart(SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Data Acquisition Stop"
Call sdDaqFinalize
End
End If
'Stop Arm
Res = sdDaqArm(SD_STOP, 0)
If (Res <= 0) Then
User’s Manual
138
SDU 2040
MsgBox "ERROR : DAQ Arm Stop"
Call sdDaqFinalize
End
End If
'Save File, Data transfer to the file
Res = sdDaqTransferEndDataFile(0)
If (Res <= 0) Then
MsgBox "Error : Close File"
Call sdDaqFinalize
End
Else: MsgBox "Success"
End If
'Close device 0
Res = sdDaqCloseDevice(0)
If (Res <= 0) Then
MsgBox "Error : Close device"
Call sdDaqFinalize
End
End If
End Sub
Private Sub Form_Load()
Dim Res As Long
Dim deviceNum_ As Long
Res = sdDaqInitialize(deviceNum_)
If (Res <= 0) Then
MsgBox "Error : Initialize "
End
End If
Dim G2 As Long
For G = 0 To deviceNum_ - 1
User’s Manual
139
SDU 2040
Res = sdDaqOpenDevice(G)
If (Res <= 0) Then
MsgBox "Error : Open Device "
End
End If
Next G
End Sub
Private Sub Form_Unload(Cancel As Integer)
Call sdDaqFinalize
End Sub
User’s Manual
140
SDU 2040
SDU2040Test_2.ftm
Private Sub Command1_Click()
Dim Res As Long
' Setting Variables
' Analog Out Configuration
Res = sdDaqDacConfig(SD_ON, SD_ON, SD_TABLE_OUT, SD_TABLE_OUT,
SD_96KSPS, 0)
If (Res <= 0) Then
MsgBox "ERROR : Analog out Configuration"
Call sdDaqFinalize
End
End If
' COUNTER
' Analog Out Table Configuration Channel 1
Res = sdDaqDacSetFormTable(SD_CHANNEL_1, SD_DAC_SQU, 100, 5000, 2500,
0)
If (Res <= 0) Then
MsgBox "Error : Analog Out Making Table"
Call sdDaqFinalize
End
End If
' Analog Out Table Configuration Channel 2
Res = sdDaqDacSetFormTable(SD_CHANNEL_2, SD_DAC_SIN, 100, 5000, 0, 0)
If (Res <= 0) Then
MsgBox "Error : Analog Out Making Table"
Call sdDaqFinalize
End
End If
' Start Analog Out
Res = sdDaqDacStart(SD_ON, 0)
User’s Manual
141
SDU 2040
If (Res <= 0) Then
MsgBox "ERROR : Analog out Start"
Call sdDaqFinalize
End
End If
End Sub
Private Sub Command2_Click()
'Stop Analog Out
Res = sdDaqDacStart(SD_OFF, 0)
If (Res <= 0) Then
MsgBox "ERROR : Analog out Stop"
Call sdDaqFinalize
End
End If
'Close device 0
Res = sdDaqCloseDevice(0)
If (Res <= 0) Then
MsgBox "Error : Close device"
Call sdDaqFinalize
End
Else: MsgBox "Success"
End If
End Sub
Private Sub Form_Load()
Dim Res As Long
Dim deviceNum_ As Long
Res = sdDaqInitialize(deviceNum_)
If (Res <= 0) Then
MsgBox "Error : Initialize "
End
End If
User’s Manual
142
SDU 2040
Dim G2 As Long
For G = 0 To deviceNum_ - 1
Res = sdDaqOpenDevice(G)
If (Res <= 0) Then
MsgBox "Error : Open Device "
End
End If
Next G
End Sub
Private Sub Form_Unload(Cancel As Integer)
Dim Res As Long
Res = sdDaqFinalize()
Call sdDaqFinalize
End Sub
User’s Manual
143
SDU 2040
SDU2040Test_3.ftm
Private Sub Command1_Click()
Dim Res As Long
' Setting Variables
' CHANNEL
For G = SD_CHANNEL_1 To MAX_AI_NUM - 1
Res = sdDaqAdcChannelConfig(G, SD_OFF, 1#, 0#, "V", SD_DC, SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Analog Input Channel Configuration"
End
End If
Next G
' COUNTER
' Turn Off
Res = sdDaqCounterConfig(SD_ON, 0)
If (Res <= 0) Then
MsgBox "ERROR : Counter Configuration"
Call sdDaqFinalize
End
End If
' TRIGGER
Res = sdDaqTriggerConfig(SD_ANALOG, 100, SD_RISING_EDGE, SD_CHANNEL_1,
SD_PRE_SAMPLING, 50, 0)
If (Res <= 0) Then
MsgBox "ERROR : Trigger Configuration"
Call sdDaqFinalize
End
End If
' SAMPLING
Dim ResInt As Long
User’s Manual
144
SDU 2040
ResInt = sdDaqAdcSamplingConfig(8000, 4096,
SD_SAMPLING_CONTINUOUS_MODE, SD_TRIG_CONTINUOUS_MODE, SD_OFF, 0)
If (ResInt <= 0) Then
MsgBox "Error : Sampling Configuration"
Call sdDaqFinalize
End
End If
' Save File, make head file
Dim filePath As String
filePath = "test_3.bin"
Res = sdDaqTransferPreDataFile(filePath, 0)
If (Res <= 0) Then
MsgBox "Error : Making Header File"
Call sdDaqFinalize
End
End If
' ARM
Res = sdDaqArm(SD_START, 0)
If (Res <= 0) Then
MsgBox "ERROR : DAQ Arm Start"
Call sdDaqFinalize
End
End If
' Setting Variables
' DAQ START
Res = sdDaqStart(SD_ON, 0)
If (Res <= 0) Then
MsgBox "Error : Data Acquisition Start"
Call sdDaqFinalize
End
User’s Manual
145
SDU 2040
End If
Dim dataPoint_ As Long
Res = sdDaqTransferData(dataPoint_, 0)
If (Res <= 0) Then
MsgBox "Error : Get Data"
Call sdDaqFinalize
End
End If
Res = sdDaqTransferDataFile(0)
If (Res <= 0) Then
MsgBox "Error : Data Transfer to File"
Call sdDaqFinalize
End
End If
'Stop Sampling
Res = sdDaqStart(SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Data Acquisition Stop"
Call sdDaqFinalize
End
End If
'Stop Arm
Res = sdDaqArm(SD_STOP, 0)
If (Res <= 0) Then
MsgBox "ERROR : DAQ Arm Stop"
Call sdDaqFinalize
End
End If
'Save File, Data transfer to the file
Res = sdDaqTransferEndDataFile(0)
User’s Manual
146
SDU 2040
If (Res <= 0) Then
MsgBox "Error : Close File"
Call sdDaqFinalize
End
Else: MsgBox "Success"
End If
'Close device 0
Res = sdDaqCloseDevice(0)
If (Res <= 0) Then
MsgBox "Error : Close device"
Call sdDaqFinalize
End
End If
End Sub
Private Sub Form_Load()
Dim Res As Long
Dim deviceNum_ As Long
Res = sdDaqInitialize(deviceNum_)
If (Res <= 0) Then
MsgBox "Error : Initialize "
End
End If
Dim G2 As Long
For G = 0 To deviceNum_ - 1
Res = sdDaqOpenDevice(G)
If (Res <= 0) Then
MsgBox "Error : Open Device "
End
End If
Next G
End Sub
User’s Manual
147
SDU 2040
Private Sub Form_Unload(Cancel As Integer)
Call sdDaqFinalize
End Sub
User’s Manual
148
SDU 2040
SDU2040Test_4.ftm
Private Sub Command1_Click()
Dim Res As Long
''''''''''''''''''''''''
' Setting Variables
' CHANNEL
Res = sdDaqAdcChannelConfig(SD_CHANNEL_1, SD_ON, 1#, 0#, "V", SD_DC,
SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Analog Input Channel Configuration"
Call sdDaqFinalize
End
End If
For G = SD_CHANNEL_2 To MAX_AI_NUM - 1
Res = sdDaqAdcChannelConfig(G, SD_OFF, 1#, 0#, "V", SD_DC, SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Analog Input Channel Configuration"
End
End If
Next G
' COUNTER
' Turn Off
Res = sdDaqCounterConfig(SD_OFF, 0)
If (Res <= 0) Then
MsgBox "ERROR : Counter Configuration"
Call sdDaqFinalize
End
End If
' TRIGGER
Res = sdDaqTriggerConfig(SD_ANALOG, 100, SD_RISING_EDGE, SD_CHANNEL_1,
User’s Manual
149
SDU 2040
SD_PRE_SAMPLING, 50, 0)
If (Res <= 0) Then
MsgBox "ERROR : Trigger Configuration"
Call sdDaqFinalize
End
End If
' SAMPLING
Dim ResInt As Long
ResInt = sdDaqAdcSamplingConfig(8000, 1024,
SD_SAMPLING_CONTINUOUS_MODE, SD_TRIG_CONTINUOUS_MODE, SD_OFF, 0)
If (ResInt <= 0) Then
MsgBox "Error : Sampling Configuration"
Call sdDaqFinalize
End
End If
' Save File, make head file
Dim filePath As String
filePath = "test_4.bin"
Res = sdDaqTransferPreDataFile(filePath, 0)
If (Res <= 0) Then
MsgBox "Error : Making Header File"
Call sdDaqFinalize
End
End If
' ARM
Res = sdDaqArm(SD_START, 0)
If (Res <= 0) Then
MsgBox "ERROR : DAQ Arm Start"
Call sdDaqFinalize
End
User’s Manual
150
SDU 2040
End If
'Sleep(100);
''''''''''''''''''''''''
' Setting Variables
' DAQ START
Res = sdDaqStart(SD_ON, 0)
If (Res <= 0) Then
MsgBox "Error : Data Acquisition Start"
Call sdDaqFinalize
End
End If
Dim readDataCounter As Long
readDataCounter = sdDaqTransferData(buffer, 0)
If (readDataCounter <= 0) Then
MsgBox "Error : Get Data"
Call sdDaqFinalize
End
End If
'Dim n&
'readDataCounter = sdDaqTransferData(n&, 0)
'MsgBox n
' Save File, Data transfer to the file
Res = sdDaqTransferDataFile(0)
If (Res <= 0) Then
MsgBox "Error : Data Transfer to File"
Call sdDaqFinalize
End
End If
User’s Manual
151
SDU 2040
' Save As .CSV File Format
Dim tempBuffer() As Long
ReDim tempBuffer(readDataCounter)
Dim c As Long
Dim d As Integer
Dim i As Integer
Dim fp As Long
fp = FreeFile
Open "Test_4.csv" For Output As fp
'ReDim tempDbl(readDataCounter) As Double
'Dim tempVar As Double
For i = 0 To readDataCounter - 1
CopyMemory tempBuffer(i), ByVal (VarPtr(buffer) + i), LenB(d)
Next i
ReDim tempDbl(readDataCounter) As Double
Dim tempVar As Double
For i = 0 To readDataCounter - 1
tempDbl(i) = tempBuffer(i)
tempVar = Format(10# * tempDbl(i) / LOWMAX, "00000.000")
Print #fp, tempVar
Next i
Close fp
User’s Manual
152
SDU 2040
'Stop Sampling
Res = sdDaqStart(SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Data Acquisition Stop"
Call sdDaqFinalize
End
End If
'Stop Arm
Res = sdDaqArm(SD_STOP, 0)
If (Res <= 0) Then
MsgBox "ERROR : DAQ Arm Stop"
Call sdDaqFinalize
End
End If
'Save File, Data transfer to the file
Res = sdDaqTransferEndDataFile(0)
If (Res <= 0) Then
MsgBox "Error : Close File"
Call sdDaqFinalize
End
Else: MsgBox "Success"
End If
'Close device 0
Res = sdDaqCloseDevice(0)
If (Res <= 0) Then
MsgBox "Error : Close device"
Call sdDaqFinalize
End
End If
End Sub
Private Sub Form_Load()
User’s Manual
153
SDU 2040
Dim Res As Long
Dim deviceNum_ As Long
Res = sdDaqInitialize(deviceNum_)
If (Res <= 0) Then
MsgBox "Error : Initialize "
End
End If
Dim G2 As Long
For G = 0 To deviceNum_ - 1
Res = sdDaqOpenDevice(G)
If (Res <= 0) Then
MsgBox "Error : Open Device "
End
End If
Next G
End Sub
Private Sub Form_Unload(Cancel As Integer)
Call sdDaqFinalize
End Sub
User’s Manual
154
SDU 2040
SDU2040Test_5.ftm
Private Sub Command1_Click()
Dim Res As Long
' Setting Variables
' CHANNEL
Res = sdDaqAdcChannelConfig(SD_CHANNEL_1, SD_ON, 1#, 0#, "V", SD_DC,
SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Analog Input Channel Configuration"
Call sdDaqFinalize
End
End If
For G = SD_CHANNEL_2 To MAX_AI_NUM - 1
Res = sdDaqAdcChannelConfig(G, SD_OFF, 1#, 0#, "V", SD_DC, SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Analog Input Channel Configuration"
End
End If
Next G
' COUNTER
' Turn Off
Res = sdDaqCounterConfig(SD_OFF, 0)
If (Res <= 0) Then
MsgBox "ERROR : Counter Configuration"
Call sdDaqFinalize
End
End If
' TRIGGER
Res = sdDaqTriggerConfig(SD_ANALOG, 100, SD_RISING_EDGE, SD_CHANNEL_1,
User’s Manual
155
SDU 2040
SD_PRE_SAMPLING, 50, 0)
If (Res <= 0) Then
MsgBox "ERROR : Trigger Configuration"
Call sdDaqFinalize
End
End If
' SAMPLING
Dim ResInt As Long
ResInt = sdDaqAdcSamplingConfig(8000, 1024,
SD_SAMPLING_CONTINUOUS_MODE, SD_TRIG_CONTINUOUS_MODE, SD_OFF, 0)
If (ResInt <= 0) Then
MsgBox "Error : Sampling Configuration"
Call sdDaqFinalize
End
End If
' Save File, make head file
Dim filePath As String
filePath = "test_5.bin"
Res = sdDaqTransferPreDataFile(filePath, 0)
If (Res <= 0) Then
MsgBox "Error : Making Header File"
Call sdDaqFinalize
End
End If
' ARM
Res = sdDaqArm(SD_START, 0)
If (Res <= 0) Then
MsgBox "ERROR : DAQ Arm Start"
Call sdDaqFinalize
End
User’s Manual
156
SDU 2040
End If
'Sleep(100);
' Setting Variables
' DAQ START
Res = sdDaqStart(SD_ON, 0)
If (Res <= 0) Then
MsgBox "Error : Data Acquisition Start"
Call sdDaqFinalize
End
End If
'Dim buffer As Long
Dim readDataCounter As Long
readDataCounter = sdDaqTransferData(buffer, 0)
If (readDataCounter <= 0) Then
MsgBox "Error : Get Data"
Call sdDaqFinalize
End
End If
Res = sdDaqTransferDataFile(0)
If (Res <= 0) Then
MsgBox "Error : Data Transfer to File"
Call sdDaqFinalize
End
End If
Dim tempBufferAnalogInput() As Long
ReDim tempBufferAnalogInput(readDataCounter)
Dim tempBufferCounter() As Long
ReDim tempBufferCounter(readDataCounter)
User’s Manual
157
SDU 2040
Dim c As Long
Dim I As Long
For I = 0 To readDataCounter - 1
CopyMemory tempBufferAnalogInput(I), ByVal (VarPtr(buffer) + I * 2), LenB(c)
CopyMemory tempBufferCounter(I), ByVal (VarPtr(buffer) + I * 2 + 1), LenB(c)
Next I
Dim fp As Long
fp = FreeFile
Open "Test_4.csv" For Output As fp
For I = 0 To readDataCounter - 1
Print #fp, 10# * tempBufferAnalogInput(I) / LOWMAX
Print #fp, tempBufferCounter(I)
Next I
Close fp
'Stop Sampling
Res = sdDaqStart(SD_OFF, 0)
If (Res <= 0) Then
MsgBox "Error : Data Acquisition Stop"
Call sdDaqFinalize
End
End If
'Stop Arm
Res = sdDaqArm(SD_STOP, 0)
If (Res <= 0) Then
MsgBox "ERROR : DAQ Arm Stop"
Call sdDaqFinalize
End
End If
'Save File, Data transfer to the file
Res = sdDaqTransferEndDataFile(0)
User’s Manual
158
SDU 2040
If (Res <= 0) Then
MsgBox "Error : Close File"
Call sdDaqFinalize
End
Else: MsgBox "Success"
End If
'Close device 0
Res = sdDaqCloseDevice(0)
If (Res <= 0) Then
MsgBox "Error : Close device"
Call sdDaqFinalize
End
End If
End Sub
Private Sub Form_Load()
Dim Res As Long
Dim deviceNum_ As Long
Res = sdDaqInitialize(deviceNum_)
If (Res <= 0) Then
MsgBox "Error : Initialize "
End
End If
Dim G2 As Long
For G = 0 To deviceNum_ - 1
Res = sdDaqOpenDevice(G)
If (Res <= 0) Then
MsgBox "Error : Open Device "
End
End If
Next G
End Sub
User’s Manual
159
SDU 2040
Private Sub Form_Unload(Cancel As Integer)
Call sdDaqFinalize
End Sub
User’s Manual
160
SDU 2040
15. Specification
(1) General specification
Environment :
Operating : 0℃~50℃, 10% ~ 80% RH.
Input Power : USB Powered 5V DC
Computer Communication : USB Interface
Warm-up : 20 minute
(2) Analog Specifications
Analog inputs :
Channels : 4 Channels
Input Connector : BNC Connector
Input Configuration : Unbalanced Differential
Resolution : 24Bit
Over Voltage Protection : 42Vpeak
Offset Voltage : ±3Mv
Bandwidth : 50kHz
Type of ADC : Delta Sigma
Sampling Rate : Max 216KS/sec
AC Cutoff Frequency : 3.5Hz
Input Impedance : 1MΩ
Input Coupling : AC/DC Coupling
Input Range : Max ±10V
Low-Pass Filter :
Pass Band :
10S/sec ~ 4KS/sec :
8KS/sec ~ 216KS/sec :
Stop Band :
10S/sec ~ 4KS/sec :
8KS/sec ~ 216KS/sec :
Alias Rejection :
10S/sec ~ 4KS/sec :
8KS/sec ~ 216KS/sec :
User’s Manual
161
SDU 2040
Amplitude Accuracy : (Fin < Fc/2)
Total Harmonic Distortion :
ICP Bias Current : 4mA
Analog outputs :
Channel : 2 Channels
Signal Connection : BNC Connector
Frequency Range :
Amplitude Setting : Max ±10Vpp
Output Impedance : 50Ω
Waveform Mode : SINE, SQUA, TRIA, RAMP, DC
Counter
Channels : 1 Channel
Connector : BNC Connector
Input Level : TTL Compatible
External Trigger :
Channels : 1 Channel
Connector : BNC Connector
Input Level : TTL Compatible
FCC NOTICE
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED
OPERATION.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit difference from that to which
the receiver is connected.
- Consult the dealer of an experienced radio/TV technician for help.
NOTE : The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
