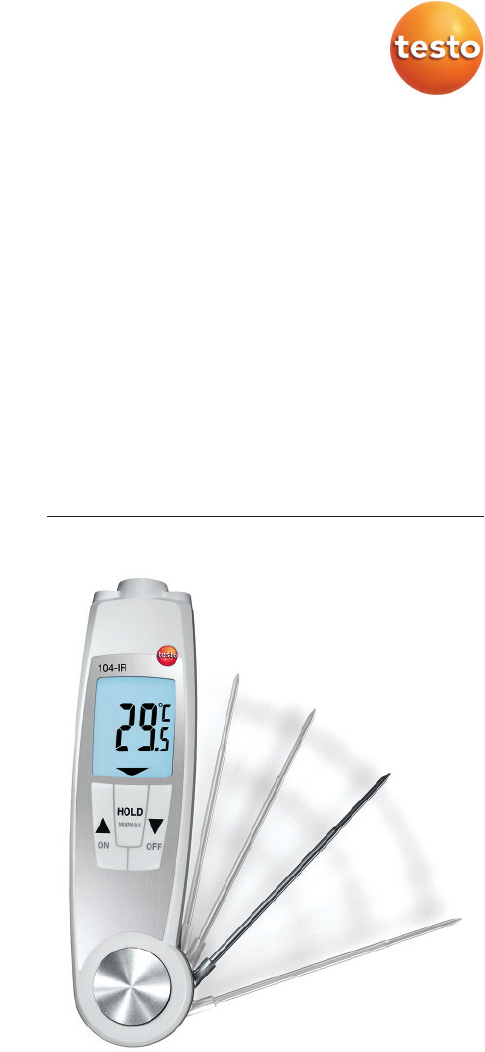

testo 104-IR BT
Combined infrared and penetration thermometer with
Bluetooth®
preliminary
2
preliminary
1. General information 3
1. General information
Please read this document through carefully and familiarize
yourself with the operation of the product before putting it to use.
Keep this document to hand so that you can refer to it when
necessary.
2. Safety information
Avoid electrical hazards:
Do not conduct measurements on or near live parts!
Adhere to the product safety/warranty requirements:
Always operate the instrument properly and according to its
intended purpose and within the parameters specified. Do not
use force.
Do not store with solvents (e.g. acetone).
Only open the instrument if this is expressly described in the
documentation for the purpose of maintenance or repair work.
Ensure correct disposal:
Dispose of defective rechargeable batteries and spent
batteries at the collection points provided.
Send the instrument directly to us at the end of its life cycle.
We will ensure that it is disposed of in an environmentally
friendly manner.
3. Intended use
The testo 104-IR BT is a robust food thermometer.
The product is designed for the following tasks/areas:
· Food sector: production, food service, spot check
measurement, incoming goods.
· Measuring liquids, pastes and semi-solid materials
The following product components are designed for continuous
contact with foodstuffs in accordance with Regulation (EC)
1935/2004:
The immersion/penetration probe from the tip up to 2 cm before the
probe handle or the plastic housing. If provided, information about
penetration depths in the instruction manual or the mark(s) on the
immersion/penetration probe should be observed.
The product should not be used in the following areas:
· Potentially explosive areas
· For diagnostic measurements in the medical sector
deenfresitptsvnl????
4. Technical data4
4. Technical data
4.1 Bluetooth Modul
The Bluetooth® option may only be operated in countries in
which it is type approved.
Feature Values
Bluetooth Range >20 m (free field)
luetooth type LSD Science & Technology Co., Ltd
L Series BLE Module (08 Mai 2013) based on TI CC254X chip
Qualified Design ID B016552
Bluetooth radio class Class 3
Bluetooth company 10274
Certification
Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE),
Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE),
Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta
(MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT),
Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain
(ES), Czech Republic (CZ), Hungary (HU), United Kingdom (GB),
Republic of Cyprus (CY).
EFTA countries
Norway and Switzerland.
Other countries
USA, Canada, Turkey, Australia, New Zealand, South Korea,
India, Russia, Japan
Information from the FCC (Federal Communications
Commission)
This device complies with part 15 of the FCC Rules.
Commissioning is subject to the two following conditions: (1) This
instrument must not cause any harmful interference and (2) this
instrument must be able to cope with interference, even if this has
undesirable effects on operation.
Changes
The FCC demands that the user be informed that any changes or
modifications to the instrument that are not explicitly approved by
Testo AG may void the user’s right to use this instrument.
preliminary
5. Product description 5
4.2 General Technical data
Feature Values
Penetration probe
Sensor type NTC
Measuring range -50 to +250 °C / -58 to +482 °F
Resolution 0.1
°C/°F/°R
Accuracy (±1 digit) ±1.0 °C / ±1.8 °F (-50,0 to-30,1°C / -58.0 to -22.1 °F)
±0.5 °C / ±0.9 °F (-30,0 to +99,9°C / -22.0 to +211.9 °F)
±1 % of the measuring range (+100.0 to +250.0 °C / +212.0
to +482.0 °F)
Response time t99 10 s (measured in moving liquid)
Measuring rate 0.5 s
Infrared measurement
Lens 10:1 + opening diameter of the sensor (12 mm / 0.47”)
Spectral range 8 to 14 μm
Laser type 2-point laser
Output / wavelength < 1 mW / 650nm
Class / standard 2 / DIN EN 60825-1:2007
Measuring range -30 - +250 °C / -22 - +482 °F
Resolution 0.1 °C/°F/°R
Accuracy (at 23°C, ±1 digit) ±2.5 °C / ±4.5 °F (-30.0 to -20.1 °C / -22.0 to -4.2 °F)
±2.0 °C / ±3.6 °F (-20.0 to -0.1 °C / -4.1 to 31.9 °F)
±1.5 °C / ±2.7 °F or ±1.5 % of the measuring value (0.0 to
+250.0 °C / +32.0 to +482.0 °F)
Measuring rate 0.5 s
General
Operating temperature -20 to +50 °C / -4 to +122 °F
Transportation/ -30...+70 °C / -22 to +158 °F (without batteries)
storage temperature
Power supply 2 x AAA batteries
Battery life 10 h (typical at 25°C / 77°F)
Housing ABS/TPE/PC and die-cast zinc/stainless steel
Protection class IP65
Dimensions 281 x 48 x 21 mm / 11.06 x 1.89 x 0.83“ (immersion/
penetration probe folded out)
178 x 48 x 21 mm / 7.01 x 1.89 x 0.83”
(immersion/penetration probe folded up)
Weight 210g / 0.433lbs (incl. batteries)
Standards EN 13485
EC Directive 2004/108/EC
Warranty 2 years, warranty terms: see www.testo.com/warranty
Information on standards
This product complies with the EN 13485 standard for
penetration measurement.
Suitability: S, T (storage, transportation)
Environment: E (transportable thermometer)
Accuracy class: 0.5
Measuring range: -50...+250 °C
According to EN 13485, the measuring instrument should
be checked and calibrated regularly under the terms of
EN 13486 (recommended frequency: yearly).
Contact us for more information.
deenfresitptsvnl????
7. Operation6

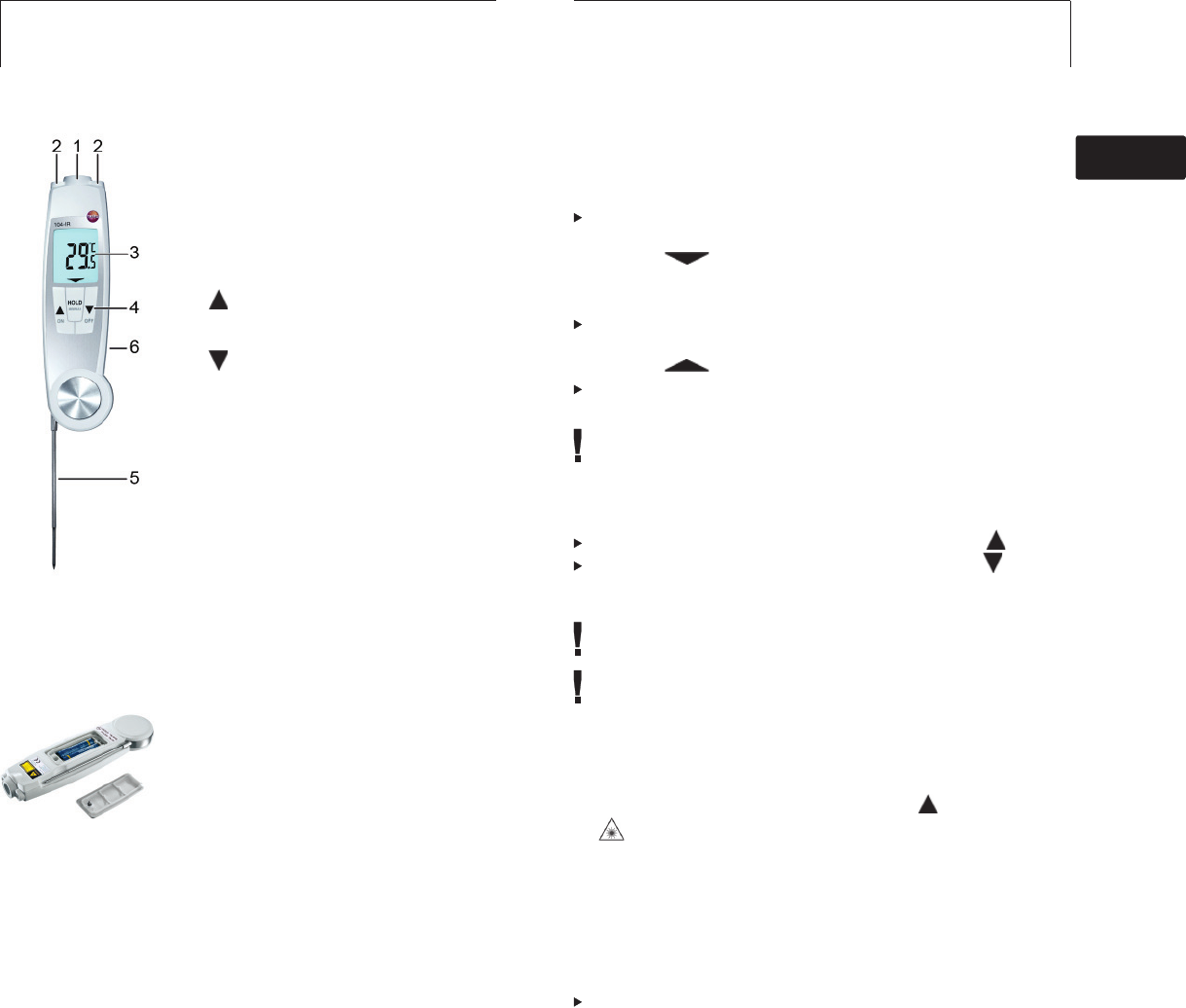

5. Product description
1 Infrared sensor
2 2-point laser
3 Display
4 Control keys:
· [ON]: switches the instrument on
· [OFF]: switches the instrument off
(hold button down)
· [ ]: switches to IR measurement,
carry out IR measurement (hold button
down)
· [ ]: switches to contact measurement
· [HOLD/MIN/MAX]: holds measuring
value, displays minimum/maximum
value, sends data to mobile device
(Bluetooth)
5 Fold-out immersion/penetration probe,
folding out the probe switches the
instrument on
6 Battery compartment (at the back)
6. Commissioning
Inserting batteries
1 Use a slotted screwdriver to undo the
screw on the battery compartment.
2 Open the battery compartment.
3 Insert batteries (2x type AAA). Observe
the polarity!
4 Close the battery compartment.
5 Tighten the screw.
preliminary
8. Settings 7
7. Operation
7.1 Switching on/off
Switching on via fold-out probe
Fold out the probe.
- All display segments light up briefly. Contact measurement is
enabled ( lights up).
Switching on/off via control keys
Switch the instrument on: press [ON].
- All display segments light up briefly. IR measurement is
enabled ( lights up).
Switch off the instrument: press and hold down [OFF] until the
display goes off.
The instrument switches off automatically if no key is pressed:
for 10 minutes when the probe is folded out, or for 1 minute
when the probe is folded up.
7.2 Changing the measuring mode
Contact measurement —> IR measurement: press [ ].
IR measurement —> contact measurement: press [ ].
7.3 Measuring
Observe the information on IR measurement/contact
measurement (see chapter below).
Bluetooth mode Cnl1 (Controlled Mode) is enabled: Display
shows bLE, all buttons are locked, instrument can be
controlled by external mobile device only.
IR measurement
- Instrument is on, IR measurement is enabled, Bluetooth mode
Cnl2 (Autonomous Mode) is enabled.
1 Start measurement: press and hold down [ ].
2 Lock in on measurement object using the laser points:
laser points mark the edges of the measuring range.
- The current measuring value is displayed.
3 End measurement: release the key.
- Hold lights up. The last measuring value and min./max. value
are saved until the next measurement, or until the instrument is
switched off.
4 Send data to mobile device: press [HOLD / MIN / MAX].
Switch between min., max. and recorded value: press [HOLD /
MIN / MAX].
deenfresitptsvnl????
9. Service and maintenance8
The min./max. values can be reset:
· press [ ] or switch the instrument off.
Restart measurement: press and hold down [ ].
Setting the emission level:
· When IR measurement is enabled, press and hold down[ ]
and [ ] at the same time ( lights up).
· Emission level is displayed.
· Use [ ] or [ ] to change the value and wait for 3 s.
Contact measurement
- Instrument is on, contact measurement is enabled ( lights
up), Bluetooth mode Cnl2 (Autonomous Mode) is enabled.
1 Position the contact thermometer in the measurement object
and initiate the measurement: press [ ].
2 End measurement: press [HOLD / MIN / MAX].
- Hold lights up. The last measuring value and min./max. value
are saved until the next measurement, or until the instrument is
switched off.
AutoHold function: if this function is enabled, the measurement
is ended automatically as soon as the measuring value is
stable, AutoHold lights up.
4 Send data to mobile device: press [HOLD / MIN / MAX].
Switch between min., max. and recorded value:
press [HOLD / MIN / MAX].
The min./max. values can be reset:
· switch the instrument off, switch to IR measurement or, while
the held measuring value is displayed (Hold lights up), press
and hold down [HOLD / MIN / MAX] until Clr lights up.
Restart measurement: press [ ].
8. Settings
- The instrument is switched off.
If no button is pressed for 3 s in settings mode, the instrument
switches to the next view.
1 Press and hold down [ ] and [ ] until AutoHold or Hold
flashes.
2 Switch the AutoHold function on (AutoHold) or off (Hold): press
[] or [ ].
- °C, °F or °R flashes.
3 Set measurement unit to degrees Celsius (°C), degrees
Fahrenheit (°F) or degrees Réaumur (°R): press [ ] or [ ].
- flashes.
4 Switch the laser on (on) or off (oFF): press [ ] or [ ].
preliminary
11. Information on infrared (IR) measurement 9
5 Select Bluetooth mode Cnl1 (Controlled Mode) oder Cnl2
(Autonomous Mode): press [ ] or [ ].
- The instrument switches to IR measurement.
9. Service and maintenance

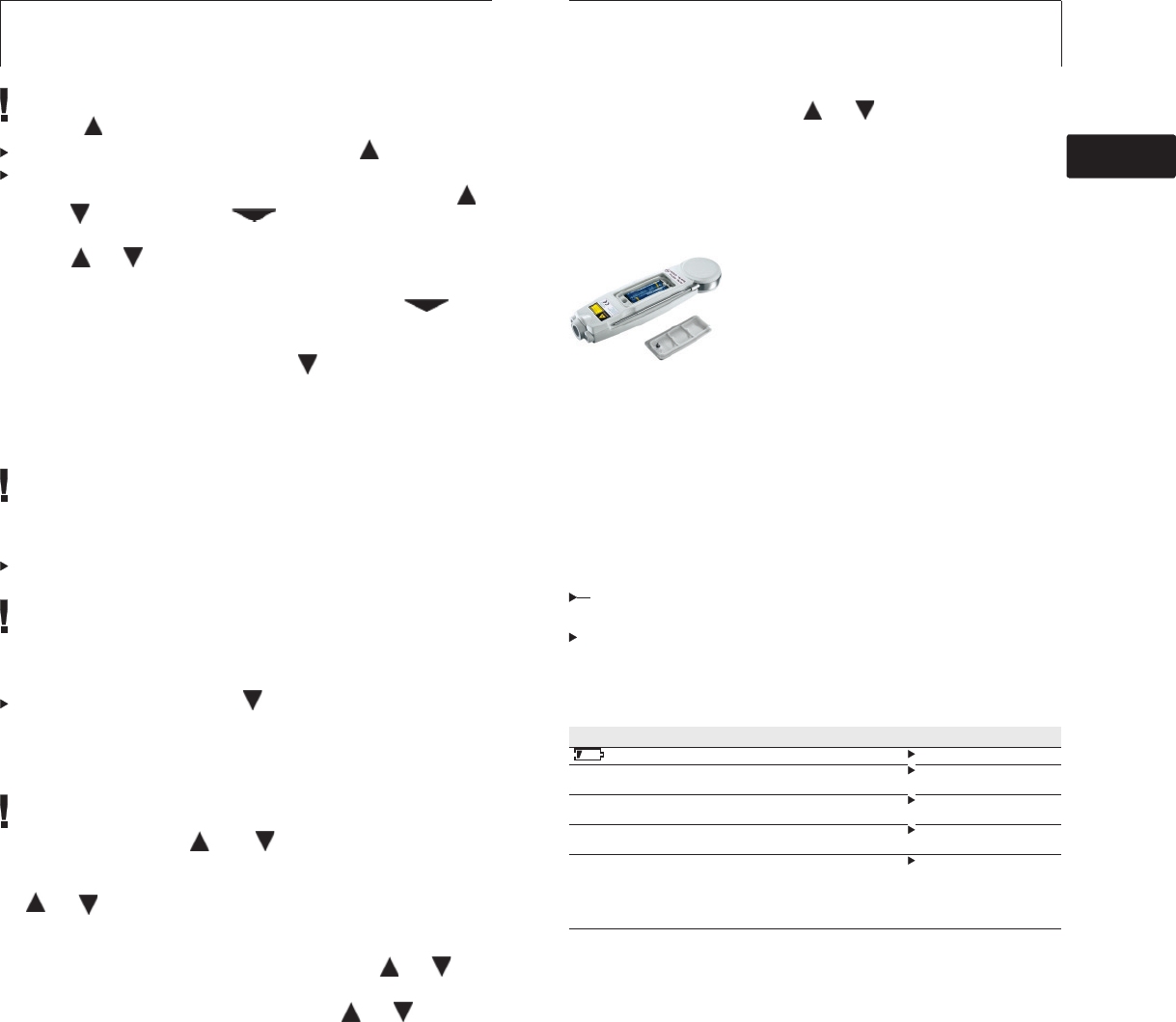

9.1 Changing the batteries
1 Use a slotted screwdriver to undo the
screw on the battery compartment.
2 Open the battery compartment.
3 Insert batteries (2x type AAA). Observe
the polarity!
4 Close the battery compartment.
5 Tighten the screw.
9.2 Cleaning the instrument
Only use weak, commercially available neutral/ household cleaning
agents (e.g. washing-up liquid) to clean the instrument. Do not
use aggressive cleaning agents or solvent!
The housing and probe can be disinfected using an alcohol-
based spray. In doing so, always follow the manufacturer’s
instructions.
Clean the housing and probe under running water and rub dry
with a towel.
Clean the lens carefully with a cotton bud dipped in water or
medical alcohol.
10. Questions and answers
Question Possible causes Possible solution
lights up Low battery Change batteries.
IR measurement: Measuring values Keep to permissible
- - - lights up. outside measuring range measuring range.
Contact measurement: Valores de medición Keep to measuring
- - - lights. outside permissible range range.
Instrument cannot Batteries dead. Change batteries.
be switched on
Instrument Instrument switches off Switch the
switches itself off. automatically after 10 min instrument on again
in contact measurement mode
and after 1 min after switching
on in IR measurement mode.
If we have not been able to answer your question, please contact
your local dealer or Testo Customer Service. For contact details,
please visit www.testo.com/service-contact.
deenfresitptsvnl????
12. Information on contact measurement10
11. Information on infrared (IR)
measurement
11.1 Measuring method
IR measurement is a visual measurement
Keep lens clean.
Do not carry out measurement with a foggy lens.
Keep the measuring range (the range between the instrument
and the measurement object) free of obstacles. There must be
no particles of dust or dirt, no humidity (rain, steam) and no
gases.
IR measurement is a surface measurement
If there is dirt, dust, frost, etc. on the surface, only the outermost
layer is measured, i.e. the dirt.
For vacuum-packed food, do not measure at air pockets.
Where the values are critical, always measure separately
with a contact thermometer. Particularly in the food sector:
measure core temperature with a penetration/immersion
thermometer.
Adjustment time
If the ambient temperature changes (change of location,
e.g. measurement indoors/outdoors), the instrument must be
allowed to equalise for 15 minutes for infrared measurement.
11.2 Emissivity
Materials have different emission levels. This means they emit
various amounts of electromagnetic radiation. The emission level
of the instrument has a default setting of 0.95. This is ideal for
the measurement of food, non-metals (paper, ceramic, gypsum,
wood, paints and varnishes) and plastics.
preliminary
11
deenfresitptsvnl????

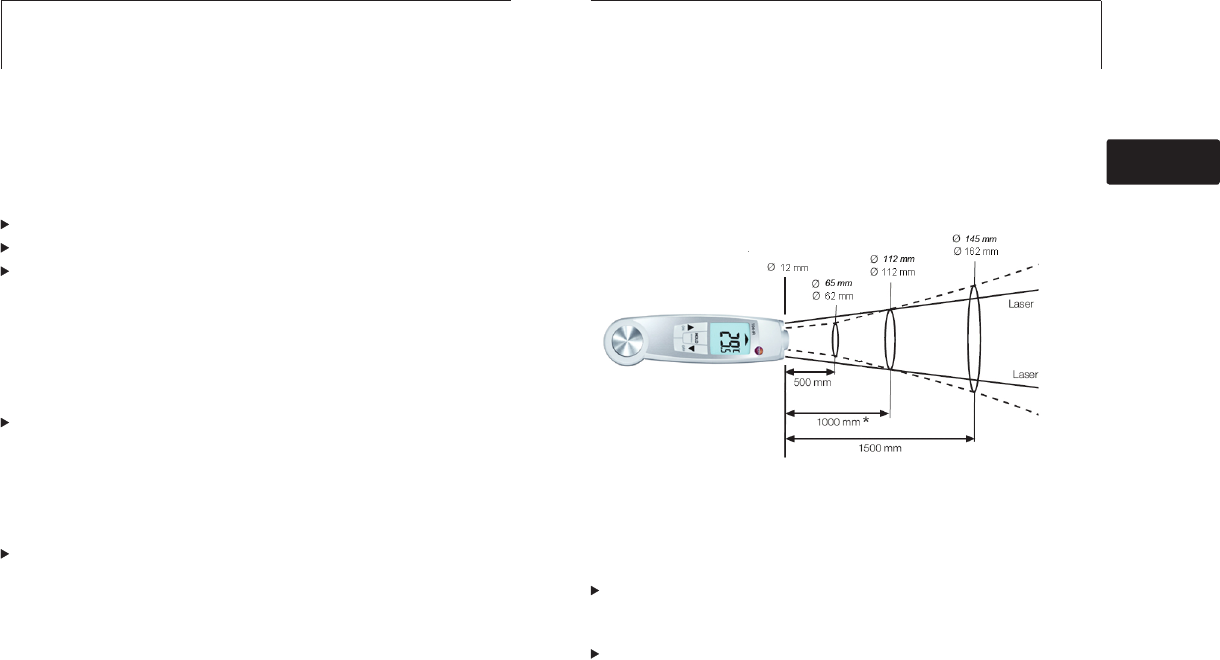

11.3 Measuring range, distance
Depending on the distance of the measuring instrument from the
measurement object, a specific measuring range is recorded.
Measuring lens (ratio of distance : measuring range)
In italics = laser
Not in italics = measuring range
* Optimised measuring distance
12. Information on contact
measurement
Observe the minimum penetration depth for immersion/
penetration probes:
10x probe diameter
Avoid using in aggressive acids or alkalis.
testo AG
Postfach 11 40, 79849 Lenzkirch
Testo-Straße 1, 79853 Lenzkirch
Telefon: (0 76 53) 6 81 - 0
Fax: (0 76 53) 6 81 - 1 00
E-Mail: info@testo.de
Internet: http://www.testo.com
0977 1042 en 01a
www.testo.com
preliminary
FCC statements:
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications or changes to this equipment. Such modifications or
changes could void the user’s authority to operate the equipment.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Power is so low that no RF exposure calculation is needed.
