System Integration Manual
Abstract
This document describes the features and integration of the
LUCY-H200 3.5G tri-band HSDPA data and voice module.
The LUCY-H200 is a 3.5G solution offering high-speed tri-band
HSDPA and quad-band GSM/GPRS data and voice transmission
technology in a compact form factor.
locate, communicate, accelerate
45.10 x 37.50 x 4.32 mm
www.u-blox.com
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Page 2
Document Information
Title
LUCY-H200
Subtitle
3.5G tri-band HSDPA
wireless module
Document type
System Integration Manual
Document number
3G.G1-HW-10002-P1
Document status
Advance Information
Document status information
Objective
Specification
This document contains target values. Revised and supplementary data will be published
later.
Advance
Information
This document contains data based on early testing. Revised and supplementary data will
be published later.
Preliminary
This document contains data from product verification. Revised and supplementary data
may be published later.
Released
This document contains the final product specification.
This document applies to the following products:
Name
Type number
Firmware version
PCN reference
LUCY-H200
LUCY-H200-00S-00
n.a.
n.a.
This document and the use of any information contained therein, is subject to the acceptance of the u-blox terms and conditions. They
can be downloaded from www.u-blox.com.
u-blox makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make
changes to specifications and product descriptions at any time without notice.
u-blox reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without
express permission is strictly prohibited. Copyright © 2010, u-blox AG.
u-blox® is a registered trademark of u-blox Holding AG in the EU and other countries.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Preface
Page 3 of 83
Preface
u-blox Technical Documentation
As part of our commitment to customer support, u-blox maintains an extensive volume of technical
documentation for our products. In addition to our product-specific technical data sheets, the following manuals
are available to assist u-blox customers in product design and development.
AT Commands Manual: This document provides the description of the supported AT commands by the
LUCY-H200 module to verify all implemented functionalities.
System Integration Manual: This Manual provides hardware design instructions and information on how to
set up production and final product tests.
Application Note: document provides general design instructions and information that applies to all u-blox
Wireless modules. See Section Related documents for a list of Application Notes related to your Wireless
Module.
How to use this Manual
The LUCY-H200 System Integration Manual provides the necessary information to successfully design in and
configure these u-blox wireless modules.
This manual has a modular structure. It is not necessary to read it from the beginning to the end.
The following symbols are used to highlight important information within the manual:
An index finger points out key information pertaining to module integration and performance.
A warning symbol indicates actions that could negatively impact or damage the module.
Questions
If you have any questions about u-blox Wireless Integration, please:
Read this manual carefully.
Contact our information service on the homepage http://www.u-blox.com
Read the questions and answers on our FAQ database on the homepage http://www.u-blox.com
Technical Support
Worldwide Web
Our website (www.u-blox.com) is a rich pool of information. Product information, technical documents and
helpful FAQ can be accessed 24h a day.
By E-mail
Contact the nearest of the Technical Support offices by email. Use our service pool email addresses rather than
any personal email address of our staff. This makes sure that your request is processed as soon as possible. You
will find the contact details at the end of the document.
Helpful Information when Contacting Technical Support
When contacting Technical Support please have the following information ready:
Module type (e.g. LUCY-H200) and firmware version
Module configuration
Clear description of your question or the problem
A short description of the application
Your complete contact details
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Contents
Page 4 of 83
Contents
Preface ................................................................................................................................ 3
Contents .............................................................................................................................. 4
1 System description ....................................................................................................... 7
1.1 Overview .............................................................................................................................................. 7
1.2 Architecture .......................................................................................................................................... 8
1.2.1 Functional blocks ........................................................................................................................... 8

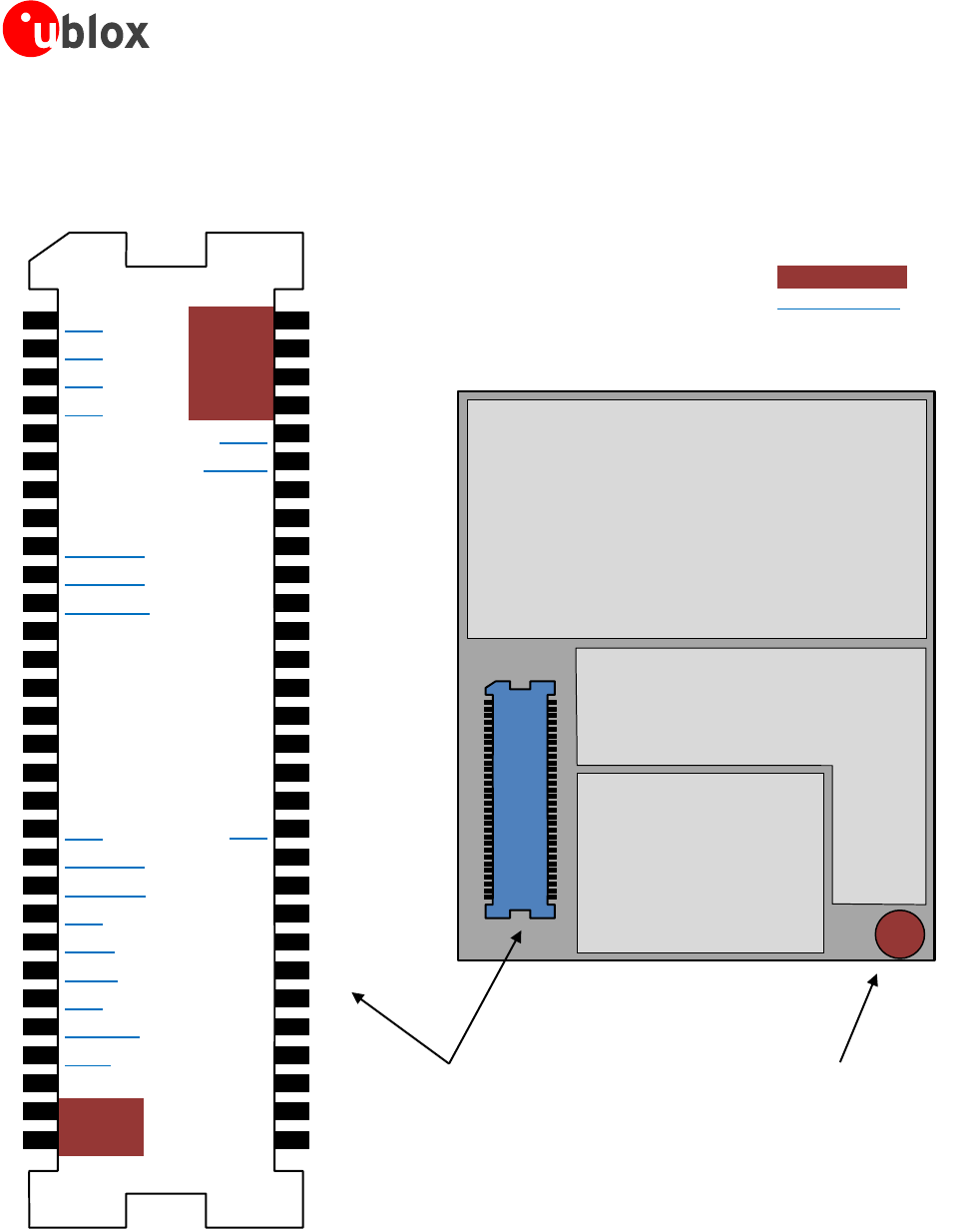

1.3 Pin-out ............................................................................................................................................... 10
1.4 Operating modes ................................................................................................................................ 12
1.5 Power management ........................................................................................................................... 14

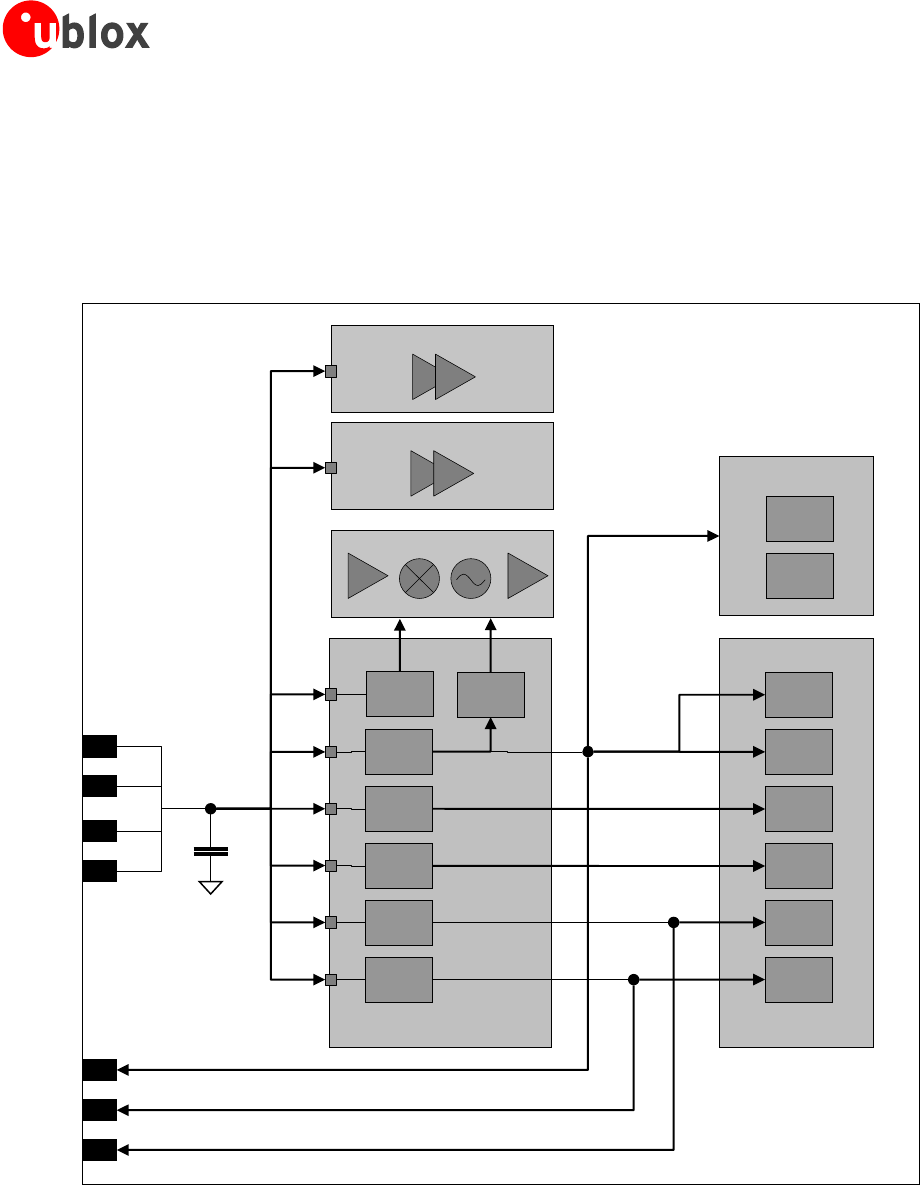

1.5.1 Power supply circuit overview ...................................................................................................... 14
1.5.2 Module supply (VCC) .................................................................................................................. 15

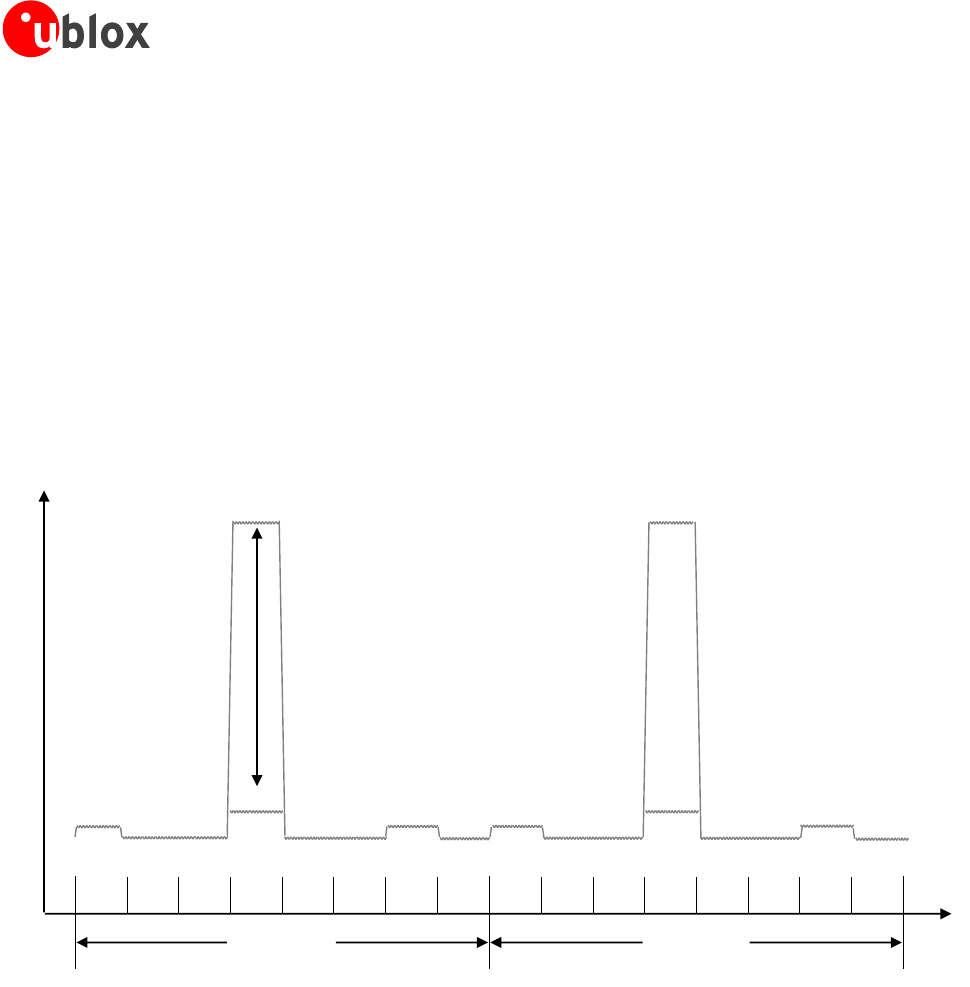

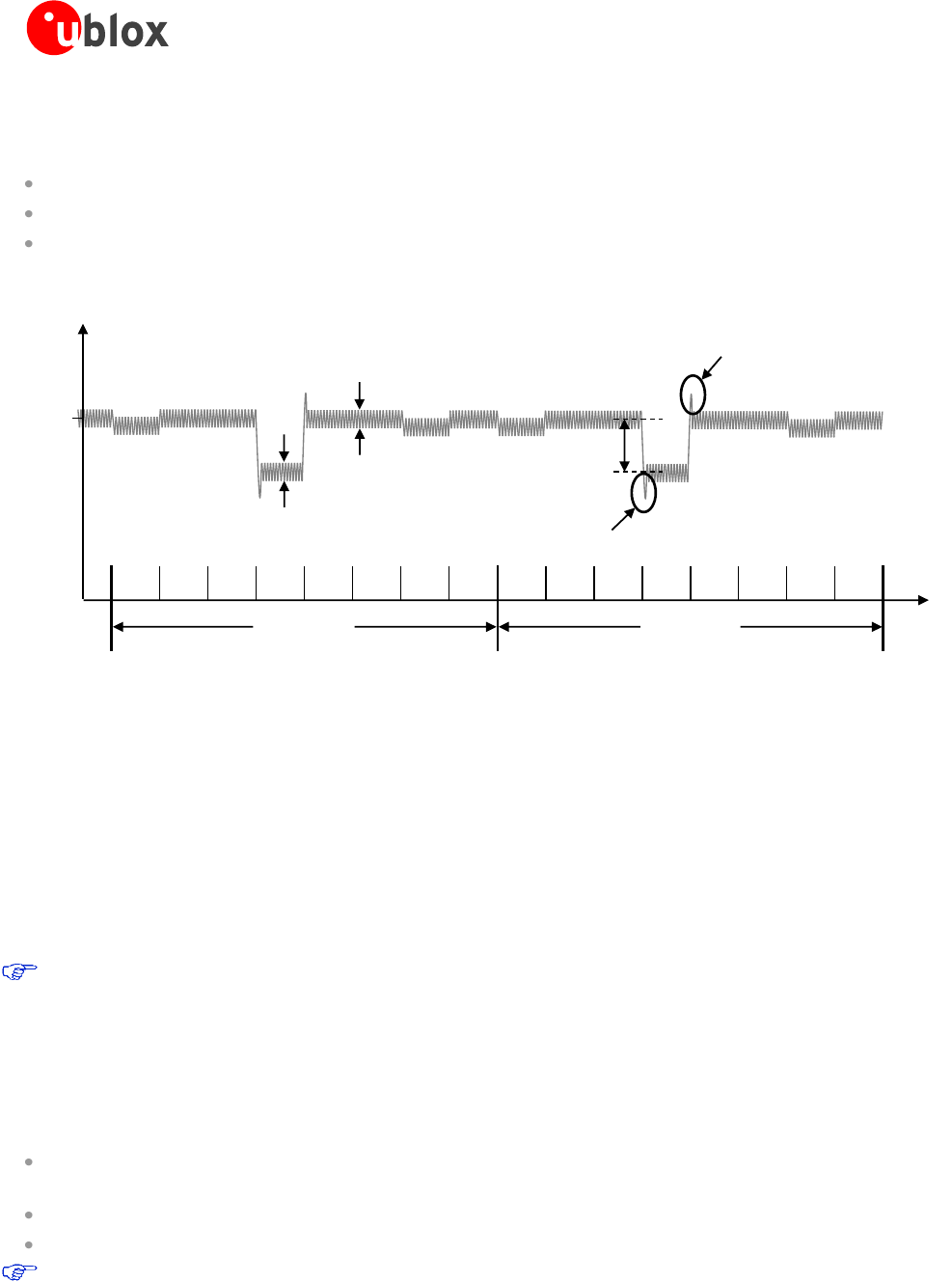

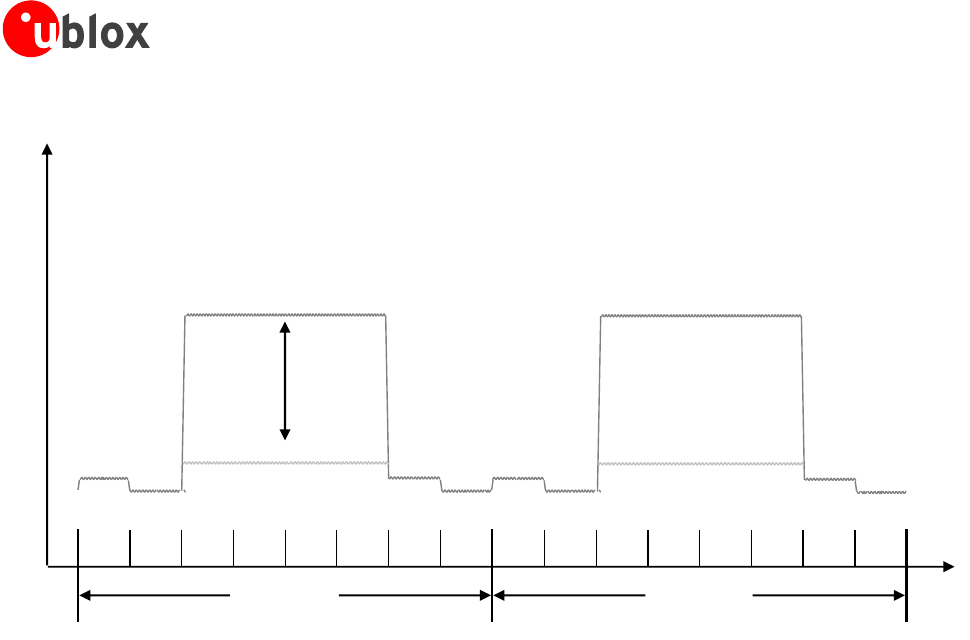

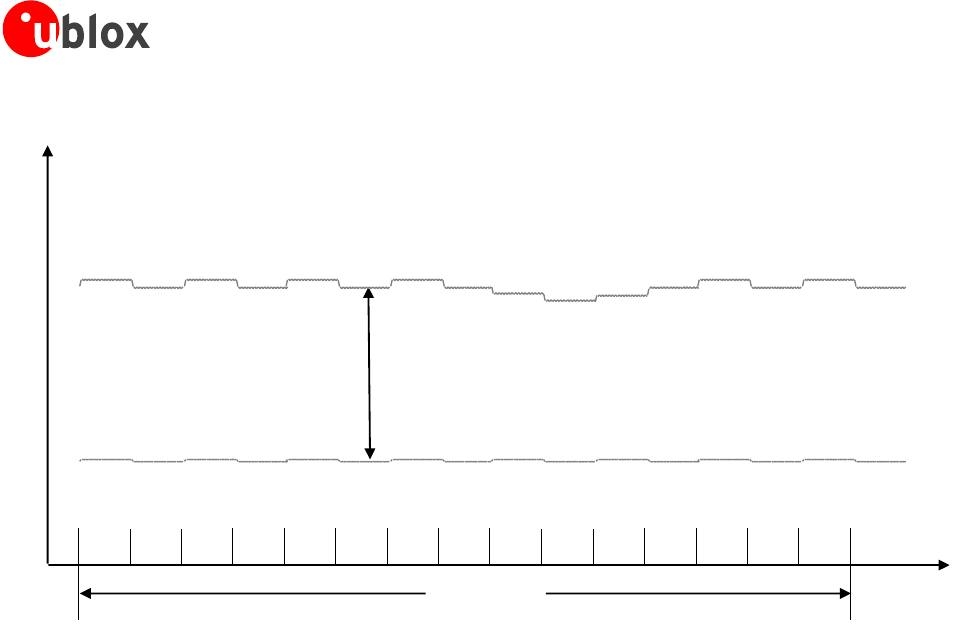

1.5.3 Current consumption profiles ...................................................................................................... 18
1.5.4 RTC Supply (V_BCKP) .................................................................................................................. 22
1.5.5 Interface supply (V_INT) ............................................................................................................... 23
1.6 System functions ................................................................................................................................ 25
1.6.1 Module power on ....................................................................................................................... 25
1.6.2 Module power off ....................................................................................................................... 27
1.6.3 Module reset ............................................................................................................................... 27

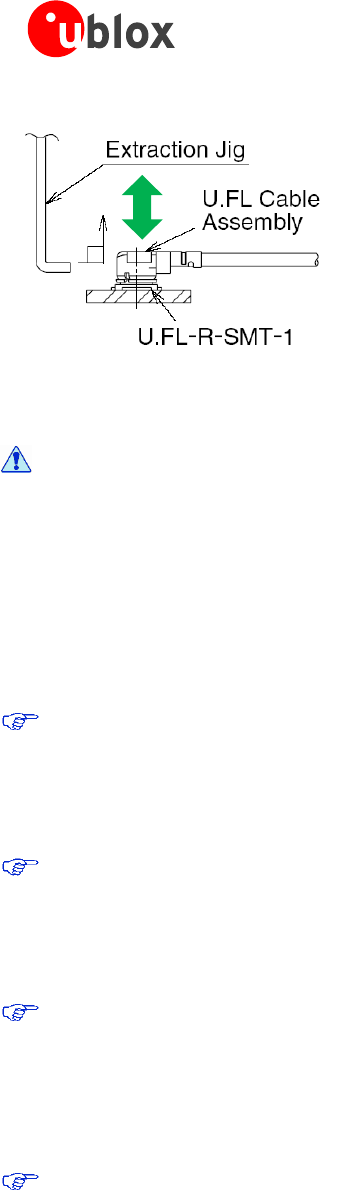

1.7 RF connection ..................................................................................................................................... 28

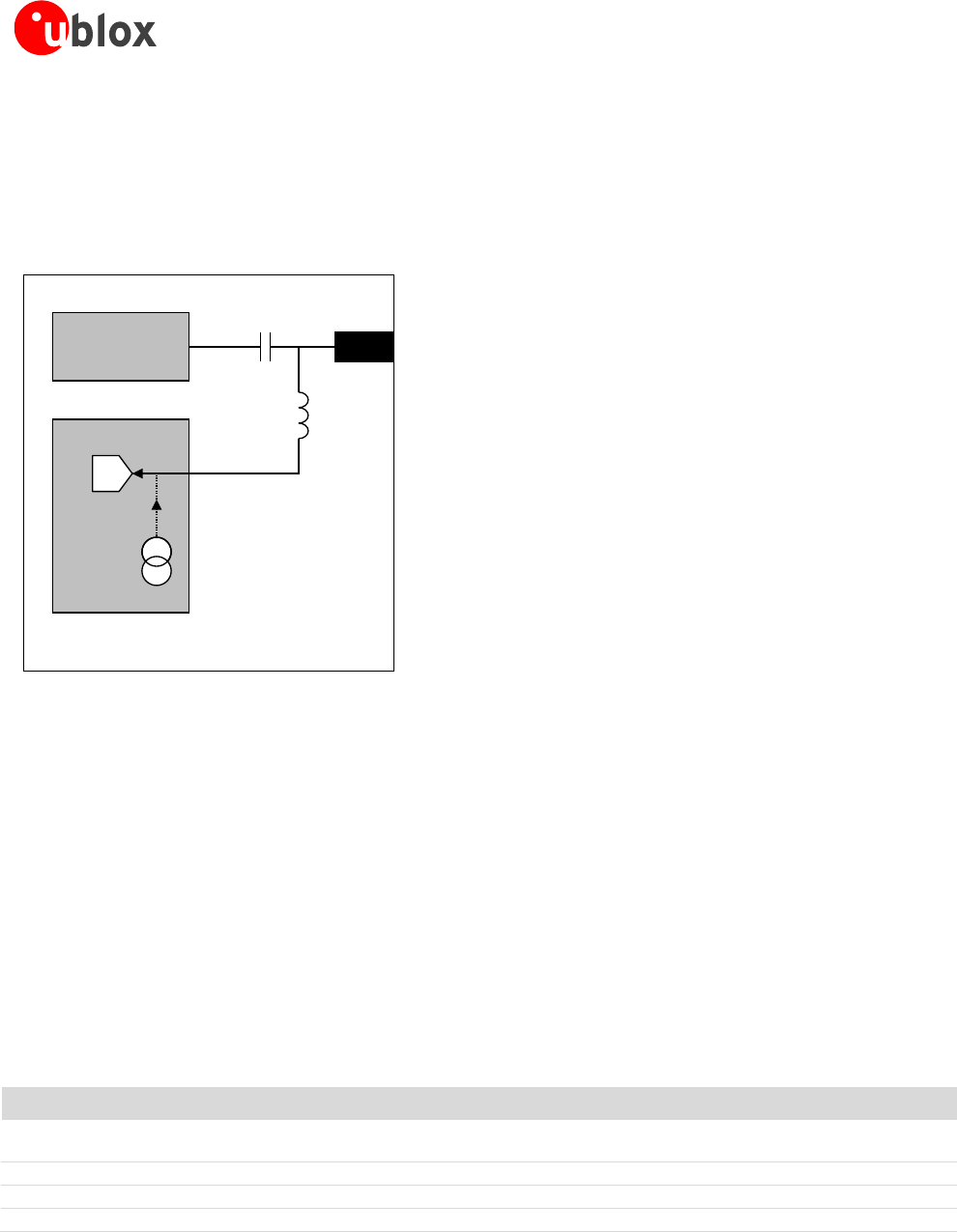

1.8 Antenna supervisor ............................................................................................................................. 30
1.9 SIM interface ...................................................................................................................................... 30
1.9.1 (U)SIM functionality ..................................................................................................................... 31

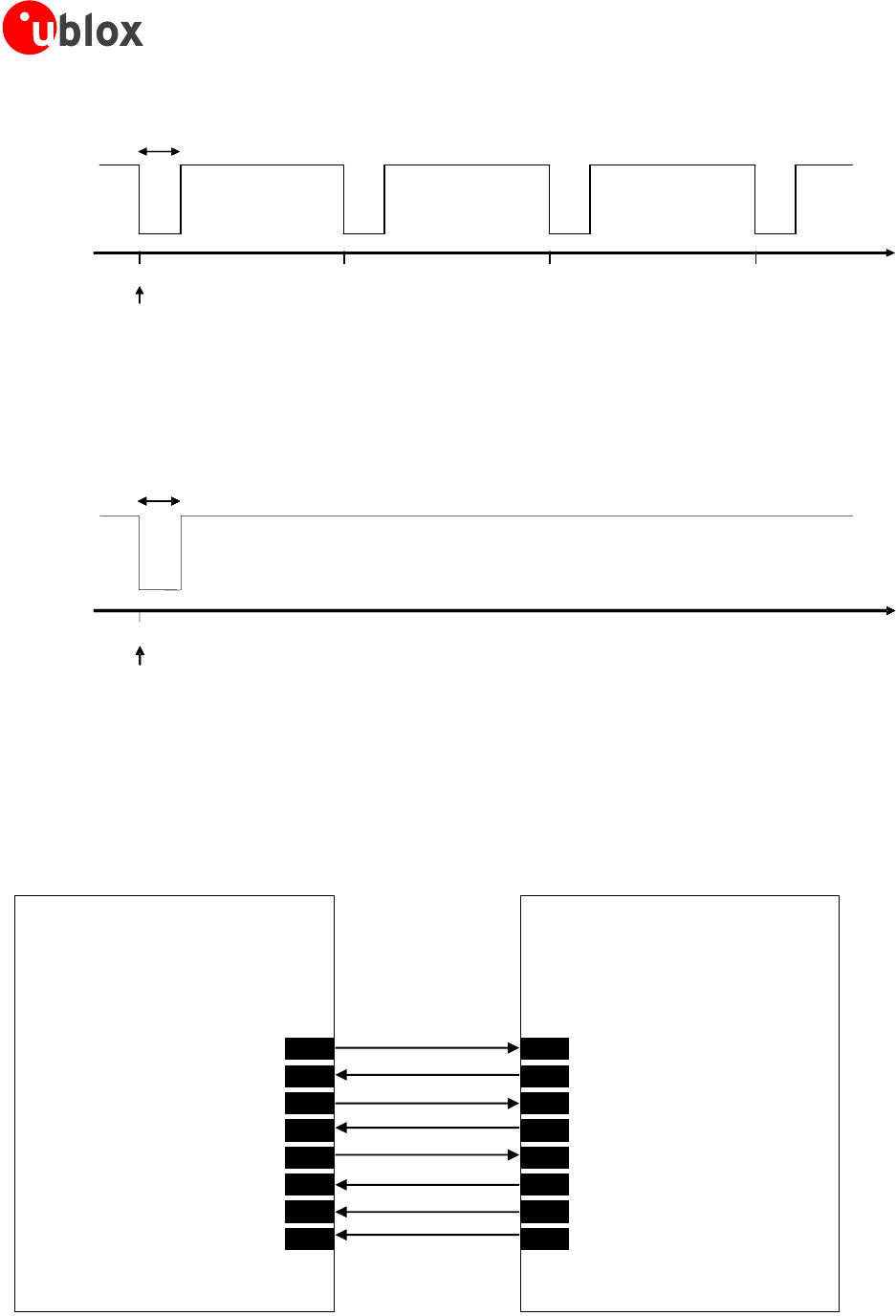

1.10 Asynchronous serial interface (UART) .............................................................................................. 31
1.10.1 UART features ............................................................................................................................. 32

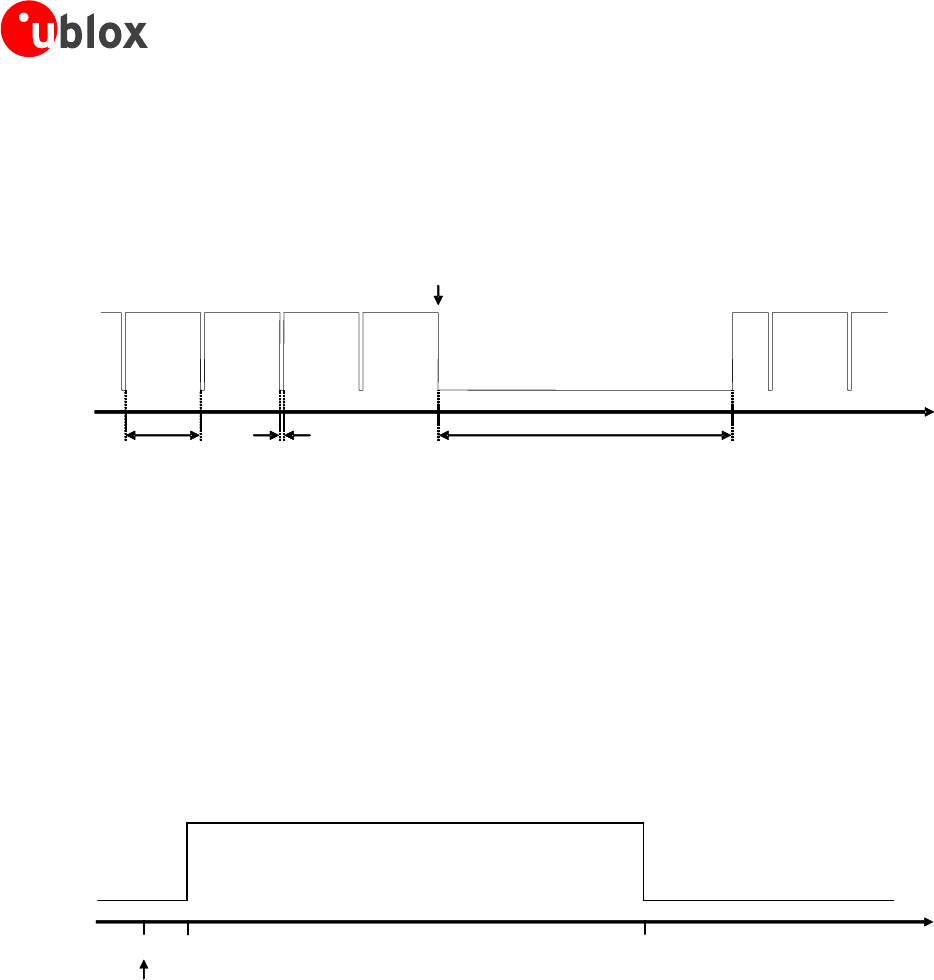

1.10.2 UART0 signal behavior ................................................................................................................ 33

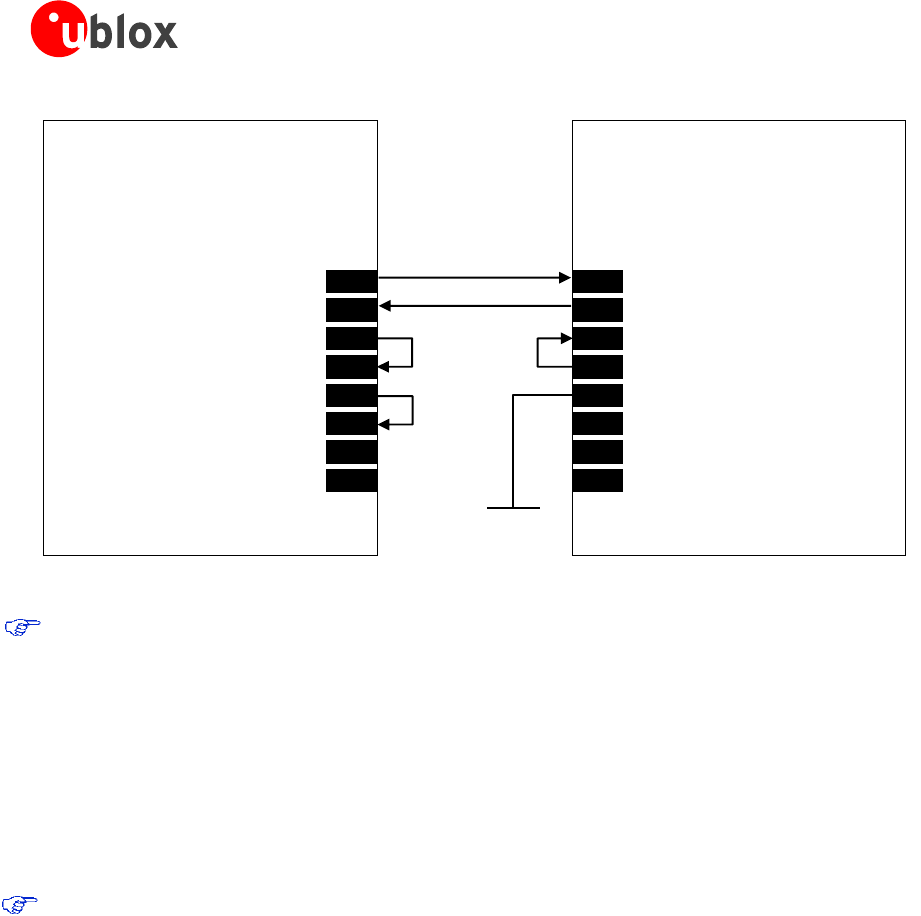

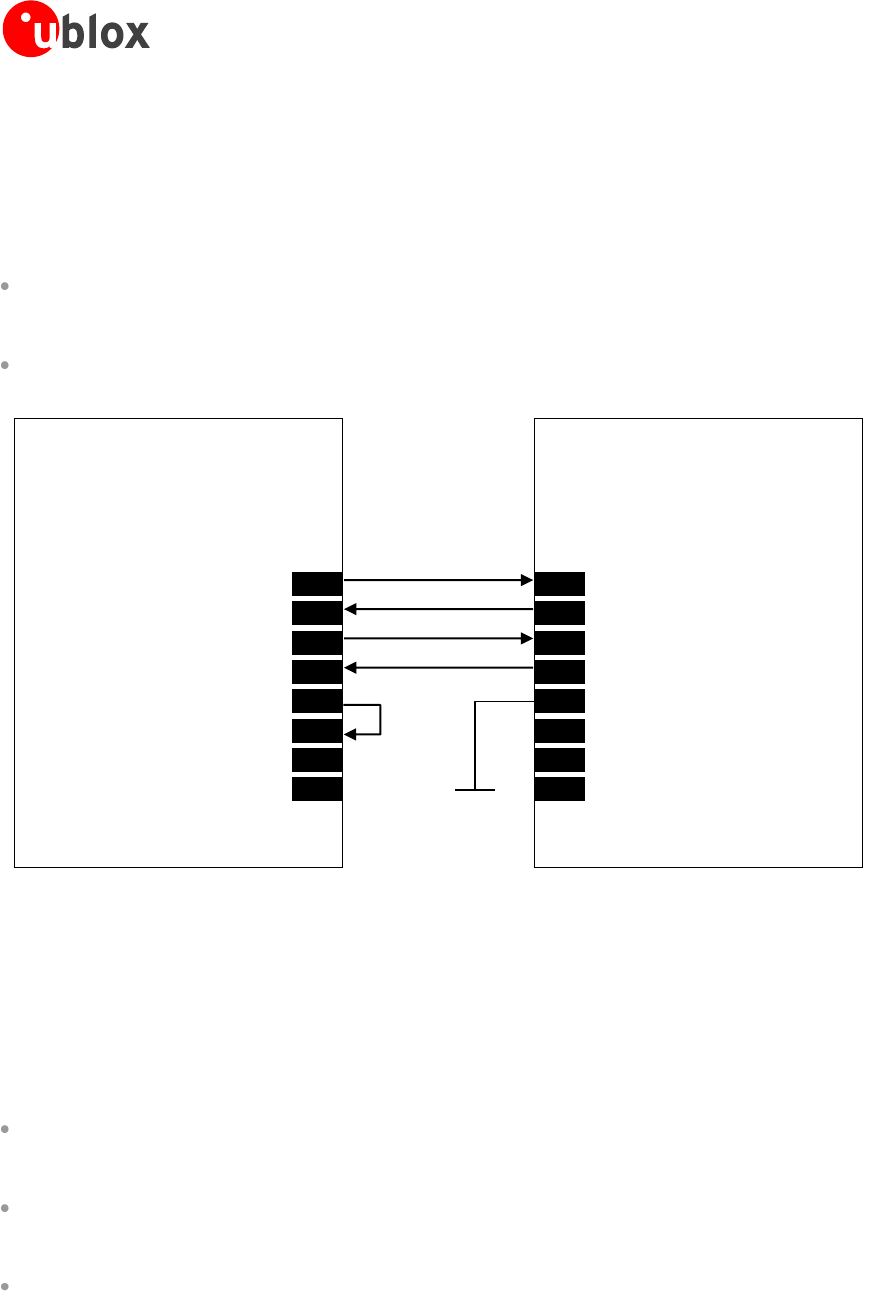

1.10.3 Connecting UART0 on application boards - Full RS-232 Functionality .......................................... 35
1.10.4 UART1 serial port ........................................................................................................................ 37
1.10.5 MUX Protocol (3GPP 27.010) ...................................................................................................... 38
1.11 DDC (I2C) interface .......................................................................................................................... 38
1.11.1 Overview ..................................................................................................................................... 38
1.11.2 DDC application circuit ................................................................................................................ 39
1.12 SPI interface .................................................................................................................................... 40
1.13 USB interface .................................................................................................................................. 41
1.14 Serial interfaces configuration ......................................................................................................... 42
1.15 ADC input ....................................................................................................................................... 42
1.16 General Purpose Input/Output (GPIO) ............................................................................................. 43
1.17 Audio Interface ............................................................................................................................... 44

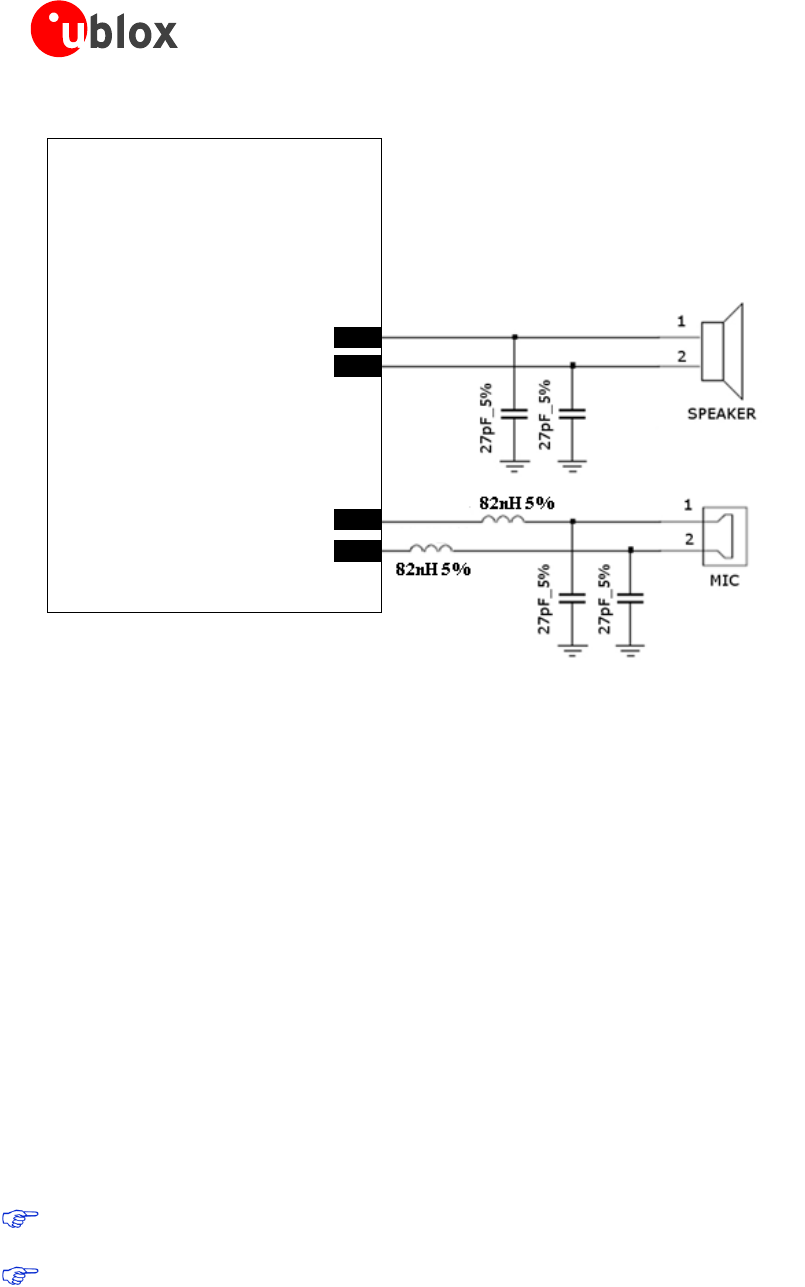

1.17.1 Analog Audio interface ............................................................................................................... 45
1.17.2 Digital mode / digital audio interface ........................................................................................... 49
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Contents
Page 5 of 83

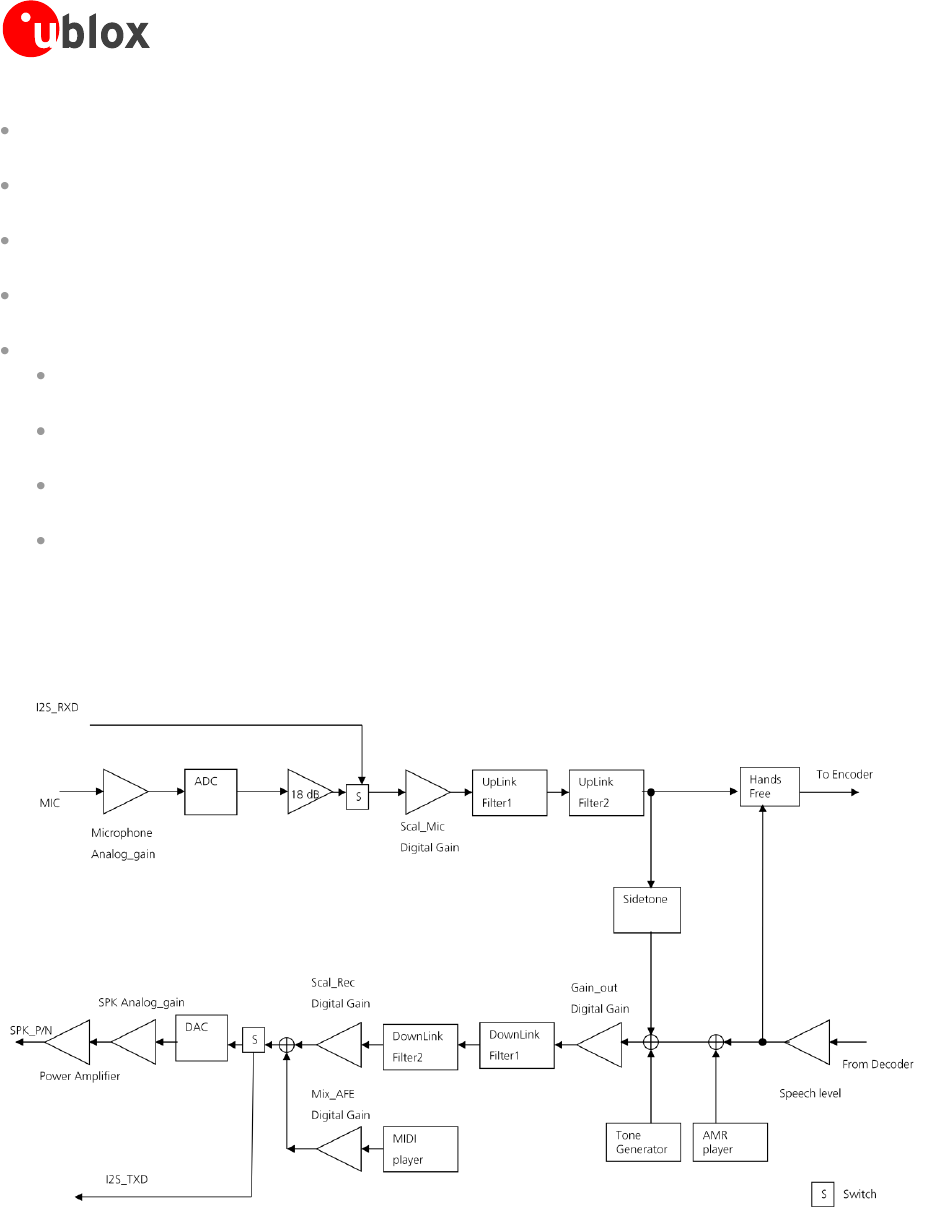

1.17.3 Voiceband processing system ...................................................................................................... 50
1.18 Approvals ........................................................................................................................................ 52
1.18.1 Federal communications commission notice ................................................................................ 52
1.18.2 European Union declaration of conformity .................................................................................. 52
1.18.3 Compliance with FCC and IC Rules and Regulations .................................................................... 53
2 Design-In ..................................................................................................................... 54
2.1 Schematic design-in checklist .............................................................................................................. 54
2.2 Design Guidelines for Layout .............................................................................................................. 54
2.2.1 Layout guidelines per pin function ............................................................................................... 55

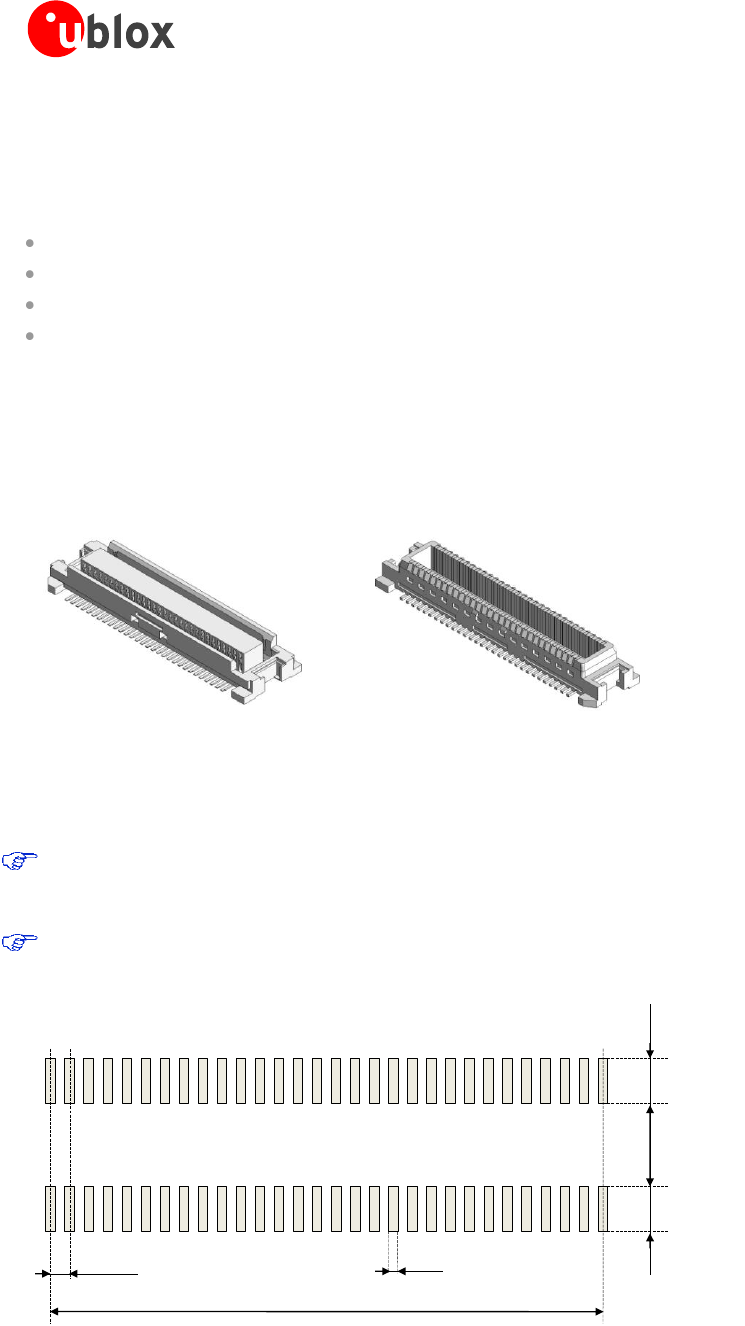

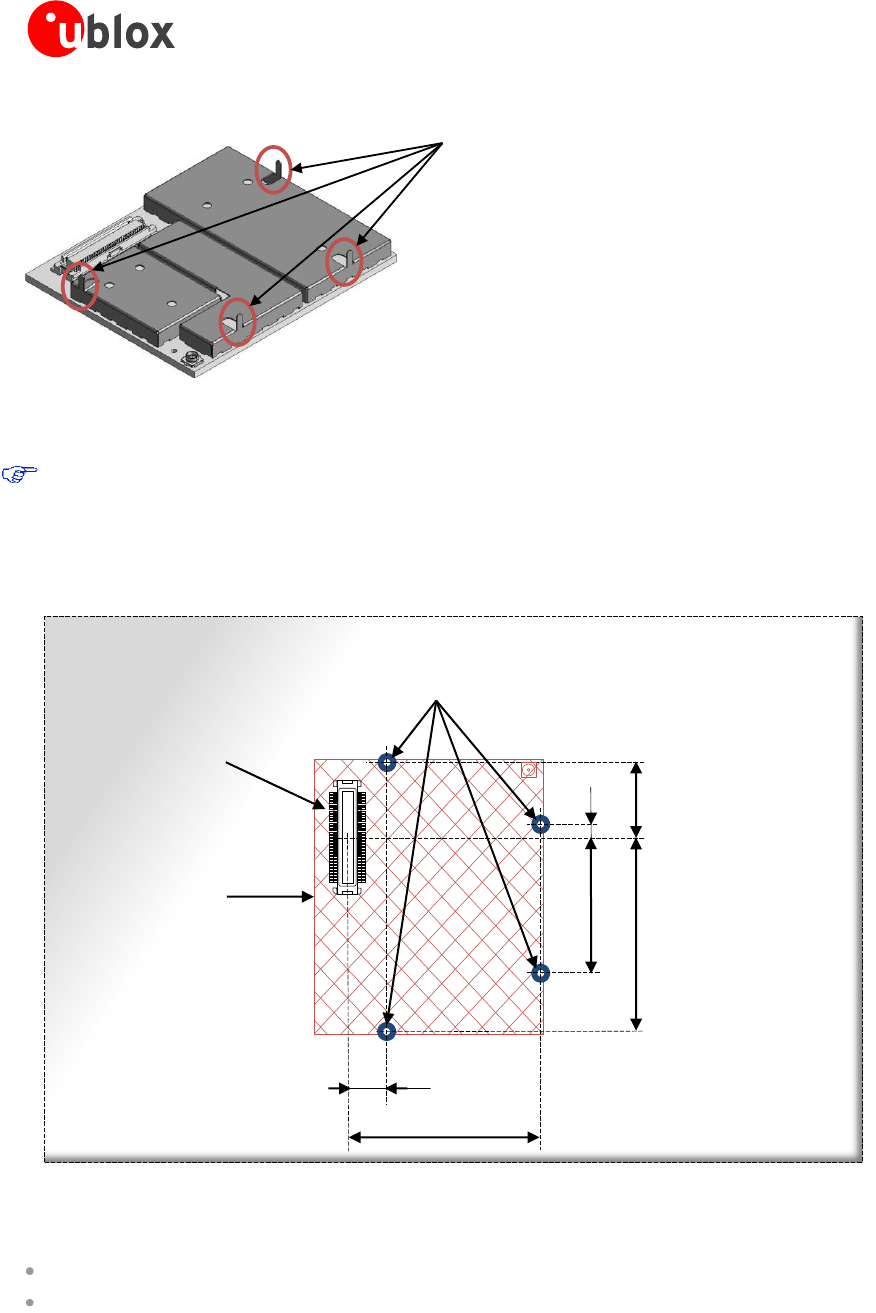

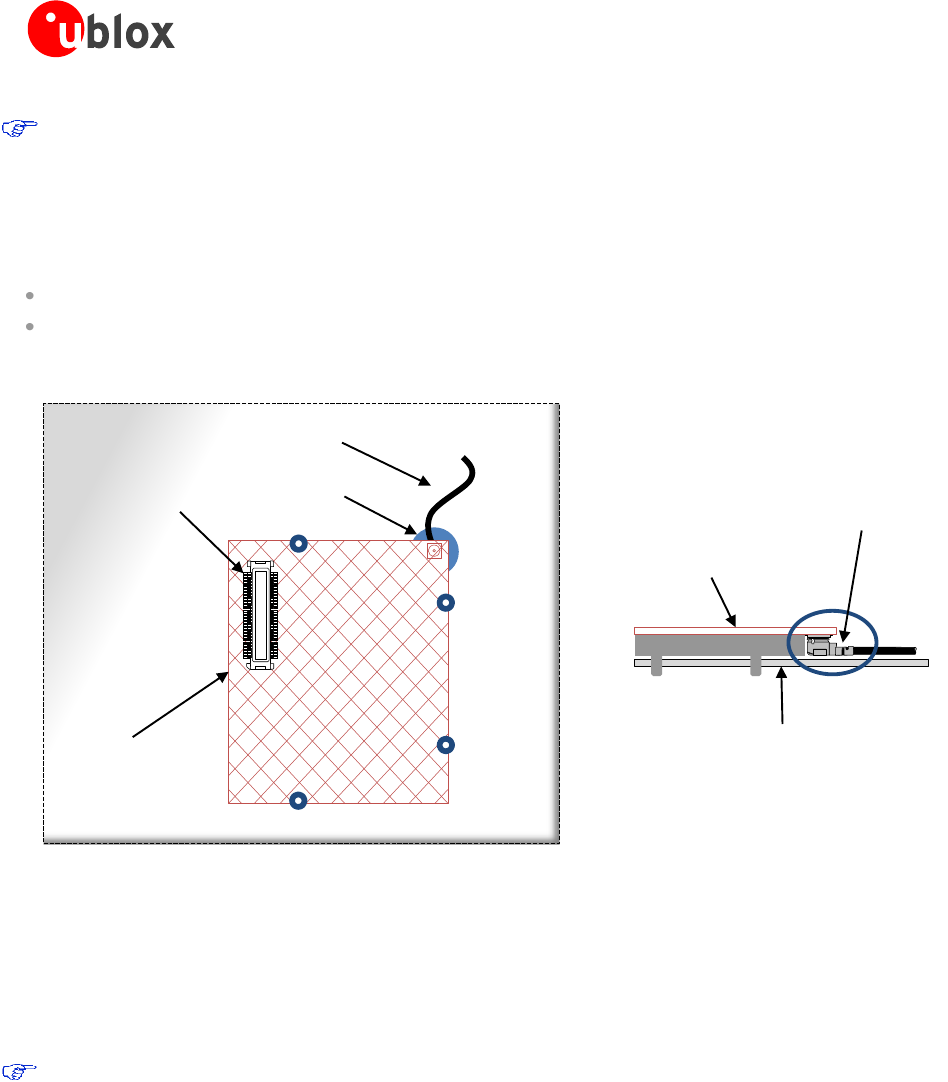

2.2.2 Mechanical mating ...................................................................................................................... 62

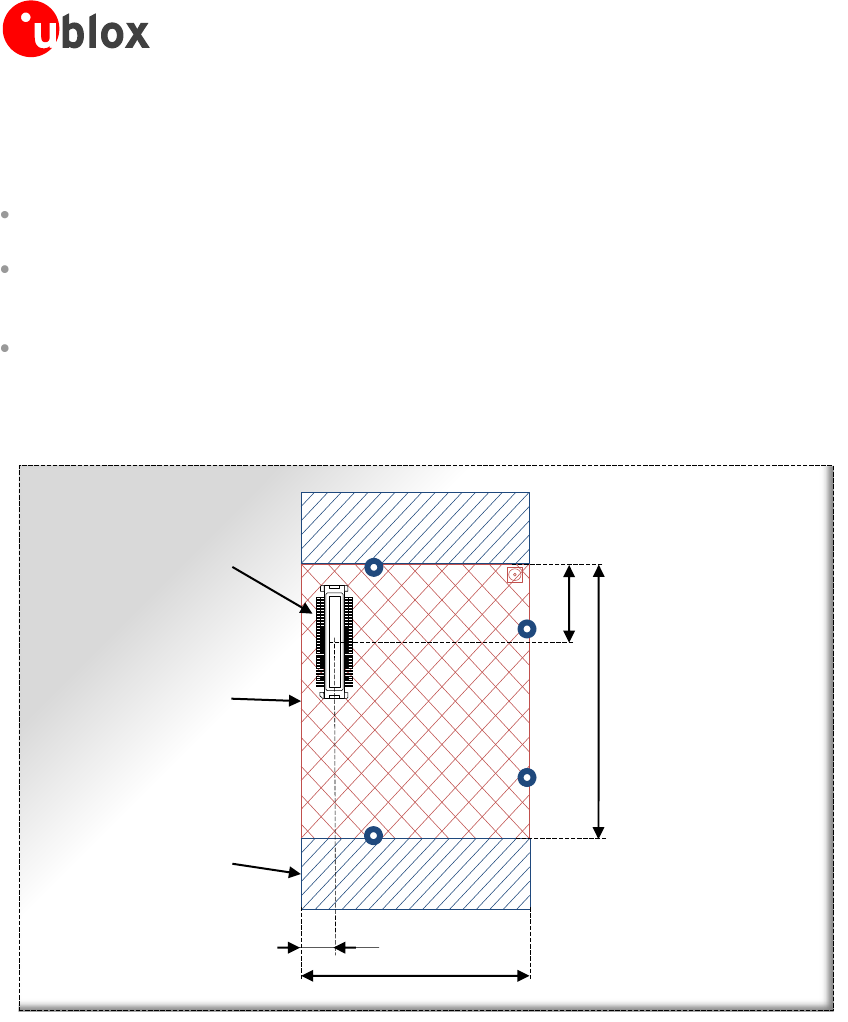

2.2.3 Placement ................................................................................................................................... 65

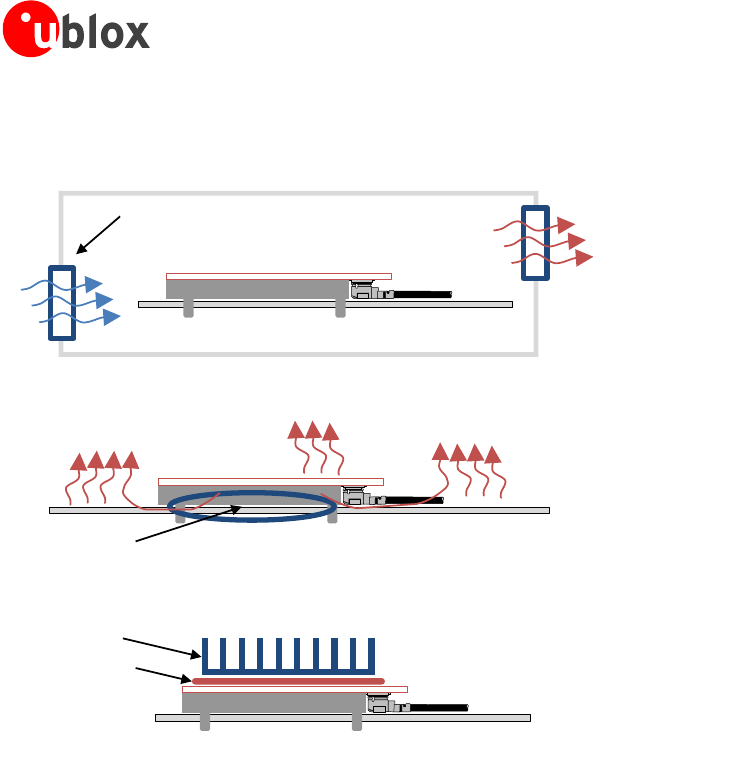

2.3 Thermal aspects .................................................................................................................................. 66
2.4 Antenna guidelines ............................................................................................................................. 68

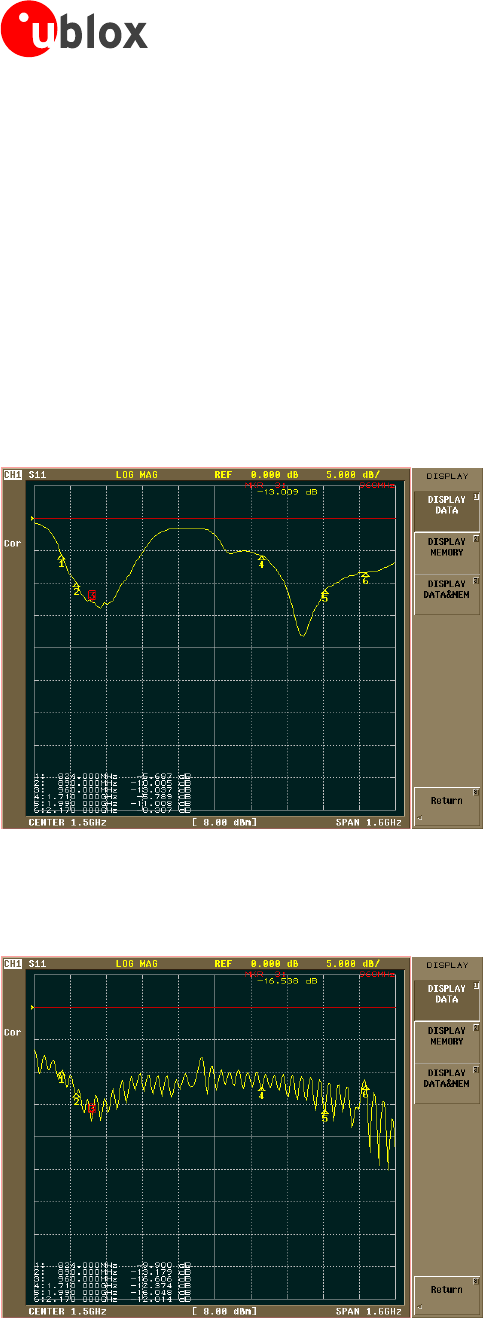

2.4.1 Antenna termination ................................................................................................................... 69
2.4.2 Antenna radiation ....................................................................................................................... 70
2.4.3 Antenna detection functionality .................................................................................................. 72
3 Handling and soldering ............................................................................................. 74
3.1 Packaging, shipping, storage and moisture preconditioning ............................................................... 74
3.2 Processing .......................................................................................................................................... 74
3.2.1 ESD Hazard ................................................................................................................................. 74
3.2.2 Hand soldering ............................................................................................................................ 74
3.2.3 Wave soldering............................................................................................................................ 75
3.2.4 Reflow soldering ......................................................................................................................... 75
3.2.5 Cleaning ...................................................................................................................................... 75
3.2.6 Rework ........................................................................................................................................ 75
3.2.7 Conformal coating ...................................................................................................................... 76
3.2.8 Casting ........................................................................................................................................ 76
3.2.9 Grounding metal covers .............................................................................................................. 76
3.2.10 Use of ultrasonic processes .......................................................................................................... 76
4 Product Testing........................................................................................................... 77
4.1 u-blox in-series production test ........................................................................................................... 77
4.2 Test parameters for OEM manufacturer .............................................................................................. 77
Appendix .......................................................................................................................... 78
A Extra Features ............................................................................................................. 78
A.1 Firmware (upgrade) Over AT (FOAT) ................................................................................................... 78
A.1.1 Overview ..................................................................................................................................... 78
A.1.2 FOAT procedure .......................................................................................................................... 78
A.2 Firewall ............................................................................................................................................... 78
A.3 TCP/IP ................................................................................................................................................. 78
A.3.1 Multiple IP addresses and sockets ................................................................................................ 78
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Contents
Page 6 of 83
A.4 FTP ..................................................................................................................................................... 79
A.5 FTPS ................................................................................................................................................... 79
A.6 HTTP ................................................................................................................................................... 79
A.7 HTTPS ................................................................................................................................................. 79
A.8 SMTP .................................................................................................................................................. 79
A.9 GPS .................................................................................................................................................... 79
B Glossary ...................................................................................................................... 80
Related documents........................................................................................................... 82
Revision history ................................................................................................................ 82
Contact .............................................................................................................................. 83
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 7 of 83
1 System description
1.1 Overview
The LUCY-H200 module from u-blox integrates a full-feature Release 5 UMTS/HSDPA GSM/GPRS/EDGE protocol
stack.
UMTS/HSDPA characteristics:
UMTS Terrestrial Radio Access (UTRA) Frequency Division Duplex (FDD) operating mode
Tri-bands: UMTS Band I (2100 MHz), Band II (1900 MHz), Band V (850 MHz)
Power class 3 (24 dBm) for WCDMA/HSDPA mode
HSDPA category 8, up to 7.2 Mb/s download, 384 kb/s upload
WCDMA PS data up to 384 kb/s UL/DL
WCDMA CS data up to 64 kb/s UL/DL
GSM/GPRS/EDGE characteristics:
Quad-band support: GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz
Power class 4 (33 dBm) for GSM/EGSM bands
Power class 1 (30 dBm) for DCS/PCS bands
EDGE Power Class ES2 (27 dBm) for GSM/EGSM bands
EDGE Power Class ES2 (26 dBm) for DCS/PCS bands
EDGE multislot class 12, coding scheme MCS1-MCS9, up to 236.8 kb/s
GPRS multislot class 12, coding scheme CS1-CS4, up to 85.6 kb/s
CSD Non-transparent / Transparent mode, up to 9.6 kb/s
DTM class 11
Mobile Station class A for UMTS mode and Class B for E-GPRS/GPRS mode
Network Operation Mode I,II,III
Modem type V.32, V.110
Fax Group 3, Class 2.0
TCP/IP stack
IPv4 support
The 3G modem is a Class A User Equipment: the device can work simultaneously on the GSM and GPRS/UMTS
networks. Basically this means that voice calls are possible while the data connection is active without any
interruption in service.
The GPRS modem is a Class B Mobile Station; this means the data module can be attached to both GPRS and
GSM services, using one service at a time. For instance, if during data transmission an incoming call occurs, the
data connection is suspended to permit the voice communication. Once the voice call has terminated, the data
service is resumed. Network operation modes I to III are supported, with user-definable preferred service
selectable from GSM to GPRS. Optionally paging messages for GSM calls can be monitored during GPRS data
transfer in not-coordinating network operation mode NOM II-III.
PBCCH/PCCCH logical channels are supported, as well as CBCH reception. CBCH reception when on PBCCH is
supported.
The LUCY-H200 module implements a GPRS/EGPRS class 12 for data transfer. GPRS class determines the number
of timeslots available for upload and download and thus the speed at which data can be transmitted and
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 8 of 83
received, with higher classes typically allowing faster data transfer rates. GPRS multislot 12 implies a maximum of
4 slots in download (reception) and 4 slots in upload (transmission) with 5 slots in total.
The network automatically configures the number of timeslots used for reception or transmission (voice calls
take precedence over GPRS traffic). The network also automatically configures channel encoding (CS1 to MCS9).
The maximum (E)GPRS bit rate of the mobile station depends on the coding scheme and number of time slots.
1.2 Architecture
Wireless
Base-band
Processor
Memory
Power
Mgmt
Unit
RF
Transceiver
26 MHz 32.768 kHz
LNA SAW
3G PA(s)
2G PA FEM
ANT
Base-BandRF TransceiverRF High-Power
(U)SIM Card
SPI
USB
GPIO(s)
ADC1
Analog Audio
DDC (for GPS)
UART0
UART1
Digital Audio (I2S)
Power ON
External Reset
Vcc (Battery)
V_BCKP (RTC)
V_INT (I/O)

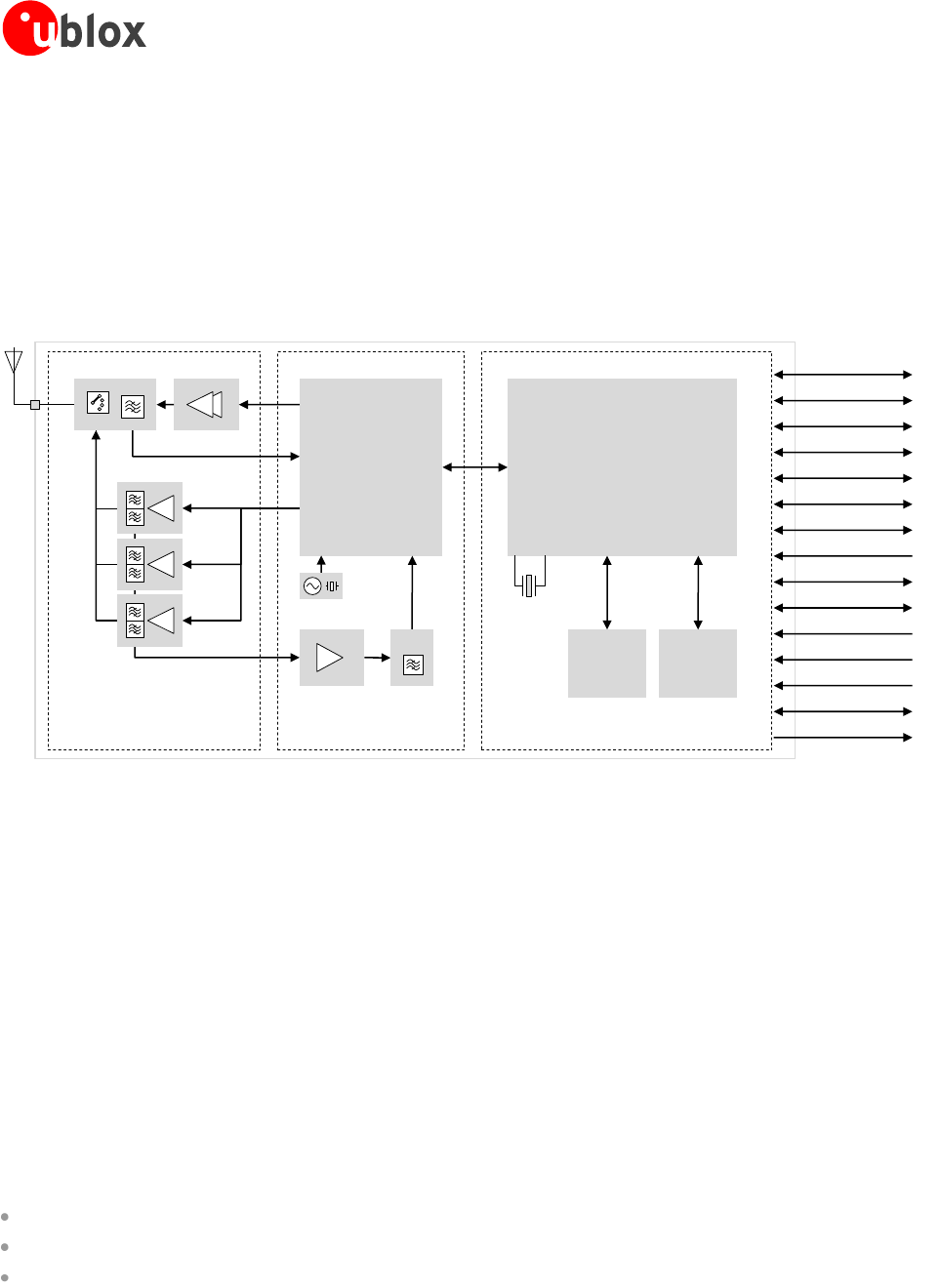

Figure 1: LUCY-H200 block diagram
1.2.1 Functional blocks
The user interfaces on the LUCY-H200 module are the RF antenna and the board-to-board connector.
The antenna is the interface for RF signals toward the wide-area network air interface. The user has freedom in
choosing the antenna. The following dedicated section provides more details.
The board-to-board connector is the main interface for the user application, where all the supplies and
input/output signals are connected. Detailed description of the board-to-board connector characteristics is one
of the main purposes of this document, please see following sections
Between the RF air-interface and the board-to-board connector the LUCY-H200 functions by means of efficient
and specialized hardware which can be grouped into the following functional blocks: RF high power front-end,
RF transceiver, Baseband section and Power Management unit.
RF high-power front-end
A separated shielding chamber includes the RF high-power signal circuitry, namely:
Quad-band 2G EDGE/GSM Power Amplifier (PA) module
Three HSDPA/UMTS Power Amplifier module with integrated duplexers
Front-End Module (FEM) with antenna switch multiplexer and integrated SAW filters for 2G receiver
The RF antenna is directly connected to the FEM, which dispatches the RF signals according to the active mode.
For time-duplex 2G operation, the incoming signal at the active RX slot is applied to integrated SAW filters for
out-of-band rejection and then sent to the appropriate receiver port of the RF transceiver. During the allocated
TX slots, the low level signal coming from the RF transceiver is enhanced by the 2G power amplifier module and
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 9 of 83
then directed to the antenna through the FEM. The 3G transmitter and receiver are instead active at the same
time due to frequency-domain duplex operation. The switch integrated in the FEM connects the antenna port to
the passive duplexer which separates the TX and RX signals path. The duplexer itself provides front-end RF
filtering for RX band selection while combining the amplified TX signal coming from the fixed gain linear power
amplifier.
RF Transceiver
A second shielding box includes all the low-level analog RF components, namely:
Tri-band HSDPA/WCDMA and quad-band EDGE/GSM transceiver
Voltage Controlled Temperature Compensated 26 MHz Crystal Oscillator (VC-TCXO)
Low Noise Amplifier (LNA) and SAW RF filters for 3G receivers
While operating in 3G mode, the RF transceiver performs direct up-conversion and down-conversion of the
baseband I/Q signals, with the RF voltage controlled gain amplifier being used to set the uplink TX power. In the
downlink path, the external LNA enhances the RX sensitivity while discrete inter-stage SAW filters additionally
improve the rejection of out-of-band blockers. An internal programmable gain amplifier is used to cope with
automatic gain control algorithm before to deliver the analog I/Q signal to baseband for further digital
processing.
For 2G operations, a constant gain direct conversion receiver with integrated LNAs and highly linear RF
quadrature demodulator are used to provide the same I/Q signals to baseband as well. In transmit mode, the up-
conversion is implemented by means of a digital sigma-delta transmitter or polar modulator depending on the
modulation to be transmitted.
In all the modes, a fractional-N sigma-delta RF synthesizer and an on-chip 3.8–4 GHz voltage controlled oscillator
are used to generate the local oscillator signal.
The frequency reference to RF oscillators is provided by the 26 MHz VC-TCXO. The same signal is buffered to the
baseband as a master reference for clock generation circuits while operating in active mode.
Baseband section and power management unit
The largest shielding box includes all the digital circuitry and the power supplies, basically the following
functional blocks:
Wireless baseband processor, a mixed signal ASIC which integrates:
ARM Microprocessor for controller functions, 2G & 3G upper layer software
DSP core for 2G Layer 1 and audio processing
3G coprocessor and HW accelerator for 3G Layer 1 control software and routines
Dedicated HW for peripherals control, as UART, USB, SPI etc
Memory system in a Multi-Chip Package (MCP) integrating two devices:
NOR flash non-volatile memory
DDR SRAM volatile memory
Power Management Unit (PMU), used to derive from Main Battery supply VCC all the supply voltages for the
system
32.768 kHz crystal, connected to the oscillator of the Real Time Clock (RTC) to perform the clock reference
in idle or power-off mode
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 10 of 83
1.3 Pin-out
Table 1 describes the pin-out of the board-to board connector for the LUCY-H200 module, with pins grouped by
function.
Function
Pin
No
I/O
Description
Remarks
Power
VCC
57, 58,
59, 60
I
Module Supply
Clean and stable supply is required: low ripple and
low voltage drop must be guaranteed.
Voltage provided must always be above the
minimum limit of the operating range.
Consider that there are large current spikes in
connected mode, when a GSM call is enabled.
See section 1.5.2
VCC pins are internally connected.
GND
1, 2, 3,
4, 19,
22, 25,
42
N/A
Ground
GND pins are internally connected but a good (low
impedance) external ground can improve RF
performances.
V_BCKP
55
I/O
Real Time Clock supply
V_BCKP = 2.0 V (typical) generated by the module
to supply Real Time Clock when VCC supply
voltage is within valid operating range.
See section 1.5.4
V_INT
56
O
Interface supply
V_INT = 1.8V (typical) generated by the module
and used as supply rail for all I/O. See section 1.5.5
VSIM
5
O
SIM supply
SIM supply automatically generated by the
module.
See section 1.9
SIM
SIM_IO
6
I/O
SIM data
SIM interface: see section 1.9. Internal 4.7 kΩ pull-
up to VSIM. Must meet SIM specifications
SIM_CLK
7
O
SIM clock
SIM interface: see section 1.9. Must meet SIM
specifications
SIM_RST
8
O
SIM reset
SIM interface: see section 1.9. Must meet SIM
specifications
SPI
SPI_MISO
9
I/O
SPI Master Input,
Slave Output
The pin by default is set to output. SPI default is
Slave mode.
Internal active pull-up to 1.8 V is enabled when
the pin is used as input.
SPI_MOSI
10
I/O
SPI Master Output,
Slave Input
The pin by default is set to input. SPI default is
Slave mode.
Internal active pull-up to 1.8 V is enabled when
the pin is used as input.
SPI_SCLK0
11
I/O
SPI Serial Clock,
output from Master
Input if Slave and Output if Master. SPI default is
Slave mode
SPI_SRDY
32
O
SPI Slave Ready
SPI_MRDY
38
I
SPI Master Ready
Internal active pull-up to 1.8 V is enabled.
DDC
SCL
12
O
I2C bus clock line
Fixed open drain. External pull-up required.
See section 1.10
SDA
13
I/O
I2C bus data line
Fixed open drain. External pull-up required.
See section 1.10
UART0
DSR_0
45
O
UART0 data set ready
See section 1.10. Control convention of the pins
RI_0
46
O
UART0 ring indicator
See section 1.10. Control convention of the pins
RxD_0
47
O
UART0 received data
See section 1.10. Control convention of the pins
TxD_0
48
I
UART0 transmitted data
Internal active pull-up to 1.8 V enabled.
See section 1.10. Control convention of the pins
CTS_0
49
O
UART0 clear to send
See section 1.10. Control convention of the pins
RTS_0
50
I
UART0 ready to send
Internal active pull-up to 1.8 V enabled.
See section 1.10. Control convention of the pins
DTR_0
51
I
UART0 data terminal
ready
Internal active pull-up to 1.8 V enabled.
See section 1.10. Control convention of the pins
DCD_0
52
O
UART0 data carrier
See section 1.10. Control convention of the pins
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 11 of 83
Function
Pin
No
I/O
Description
Remarks
detect
UART1
RxD_1
43
O
UART1 received data
See section 1.10. Control convention of the pins
TxD_1
44
I
UART1 transmitted data
Internal active pull-up to 1.8 V enabled.
See section 1.10. Control convention of the pins
CTS_1
40
O
UART1 clear to send
See section 1.10. Control convention of the pins
RTS_1
33
I
UART1 ready to send
Internal active pull-up to 1.8 V enabled.
See section 1.10. Control convention of the pins
ADC
ADC1
27
I
ADC input
Resolution: 12 bits. See section 1.10; consider that
the impedance of this input changes depending
on the operative mode
GPIO
GPIO1
54
I/O
GPIO
See section 1.16.
GPIO2
53
I/O
GPIO
See section 1.16.
GPIO3
41
I/O
GPIO
See section 1.16.
GPIO4
39
I/O
GPIO
See section 1.16.
GPIO5
31
I/O
GPIO
See section 1.16.
USB
VUSB_DET
28
I
USB detect input
USB_D+
29
I/O
USB Data Line D+
Internal pull up available so external pull-up not
needed.
USB_D-
30
I/O
USB Data Line D-
System
PWR_ON
26
I
Power-on input
Pin has internal pull-up. See section 1.6.1
RESET_N
18
I
External reset input
Pin has internal pull-up. See section 1.6.3
Audio
I2S_CLK
14
O
I2S clock
I2S Interface: see section 1.17.2.
Check device specifications to ensure compatibility
of supported modes to LUCY-H200 module.
I2S_RXD
15
I
I2S receive data
I2S Interface: see section 1.17.2. Internal active
pull-up to 1.8V enabled.
Check device specifications to ensure compatibility
of supported modes to LUCY-H200 module.
I2S_TXD
16
O
I2S transmit data
I2S Interface: see section 1.17.2.
Check device specifications to ensure compatibility
of supported modes to LUCY-H200 module.
I2S_WA
17
O
I2S word alignment
I2S Interface: see section 1.17.2.
Check device specifications to ensure compatibility
of supported modes to LUCY-H200 module.
MIC_GND
20
I
Microphone analog
reference
Local ground of microphone. Audio pin: see
section 1.17.1
MIC_BIAS
21
I
Microphone analog
signal input and bias
output
This audio input is used for audio uplink path.
Audio pin: see section 1.17.1
SPK_P
23
O
Speaker output with
high power differential
analog audio
This audio output is used when audio downlink
path is “Loudspeaker“. Audio pin: see section
1.17.1
SPK_N
24
O
Speaker output with
power differential
analog audio output
This audio output is used when audio downlink
path is “Loudspeaker“. Audio pin: see section
1.17.1
Reserved
Reserved
34
Do not connect
Reserved
35
Do not connect
Reserved
36
Do not connect
Reserved
37
Do not connect
Table 1: LUCY-H200 pin-out
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 12 of 83
1.4 Operating modes
The LUCY-H200 module includes several operating modes, each have different active features and interfaces.
Table 2 summarizes the various operating modes and provides general guidelines for operation.
General Status
Operating Mode
Description
Features / Remarks
Power-down
Not-Powered
Mode
VCC supply not present or
below normal operating range.
Microprocessor not operating.
RTC only operates if supplied
through V_BCKP pin.
Module is switched off.
Module cannot be switched on by a falling edge provided on
the PWR_ON input, neither by a preset RTC alarm, or a
rising edge to a valid range of USB voltage provided on the
VUSB_DET input.
Application interfaces not accessible.
Internal RTC timer operates only if a valid voltage is applied
to V_BCKP pin.
Power-Off Mode
VCC supply within normal
operating range.
Microprocessor not operating.
Only RTC runs.
Module is switched off: normal shutdown after sending the
AT+CPWROFF command (refer to u-blox 3.5G HSDPA AT
Commands Manual [2]).
Module can be switched on by a falling edge provided on
the PWR_ON input, by a preset RTC alarm, or a rising edge
to a valid voltage for USB VBUS detection provided on the
VUSB_DET inputs.
Application interfaces are not accessible.
Only the internal RTC timer in operation.
Normal
operation
Idle-Mode
Microprocessor runs with 32
kHz as reference oscillator.
Module does not accept data
signals from an external device.
Module is switched on and is in idle mode (i.e. power saving
/ sleep mode).
Application interfaces disabled.
Module by default does not enter automatically in idle
mode; this happens only if this mode is enabled by
appropriate AT command (refer to u-blox 3.5G HSDPA AT
Commands Manual [2]).
If module is registered with the network, and idle mode is
enabled, it automatically enters idle mode and periodically
wakes up to active mode to monitor the paging channel for
the paging block reception according to network indication.
If module is not registered with the network, and idle mode
is enabled, it automatically goes in idle mode and
periodically wakes up to monitor external activity.
Module wakes up from idle mode to active mode if an RTC
alarm occurs.
Module wakes up from idle mode to active mode when data
received on UART interface with HW flow control enabled.
Module wakes up from idle mode to active mode if a voice
or data call incoming.
Module wakes up from idle mode to active mode when the
RTS input line is set to the ON state by the DTE if the
AT+UPSV=2 command is sent to the module (feature not
enabled by default).
The hardware flow control output (CTS line) indicates when
the module is in idle (power saving mode): the line is driven
in the OFF state when the module is not prepared to accept
data signals.
Module wakes up from idle mode to active mode if a valid
VBUS voltage is detected on VUSB_DET pin: the UART0
interface is then disabled and USB becomes active. When
USB is active, the external interface connected to UART0
RTS_0 and CTS_0 should be tri-stated , see section 1.13
Active-Mode
Microprocessor runs with 26
MHz as reference oscillator.
The module is prepared to
accept data signals from an
external device.
Module is switched on and is fully active: power saving is not
enabled.
The application interfaces are enabled.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 13 of 83
General Status
Operating Mode
Description
Features / Remarks
Connected-Mode
Voice or data call enabled.
Microprocessor runs with 26
MHz as reference oscillator.
Module is prepared to accept
data signals from an external
device.
The module is switched on and a voice call or a data call
(GSM/GPRS/UMTS) is in progress.
Module is fully active.
Application interfaces are enabled.
When call terminates, module returns to the last operating
state (Idle or Active).
Table 2: Module operating modes summary

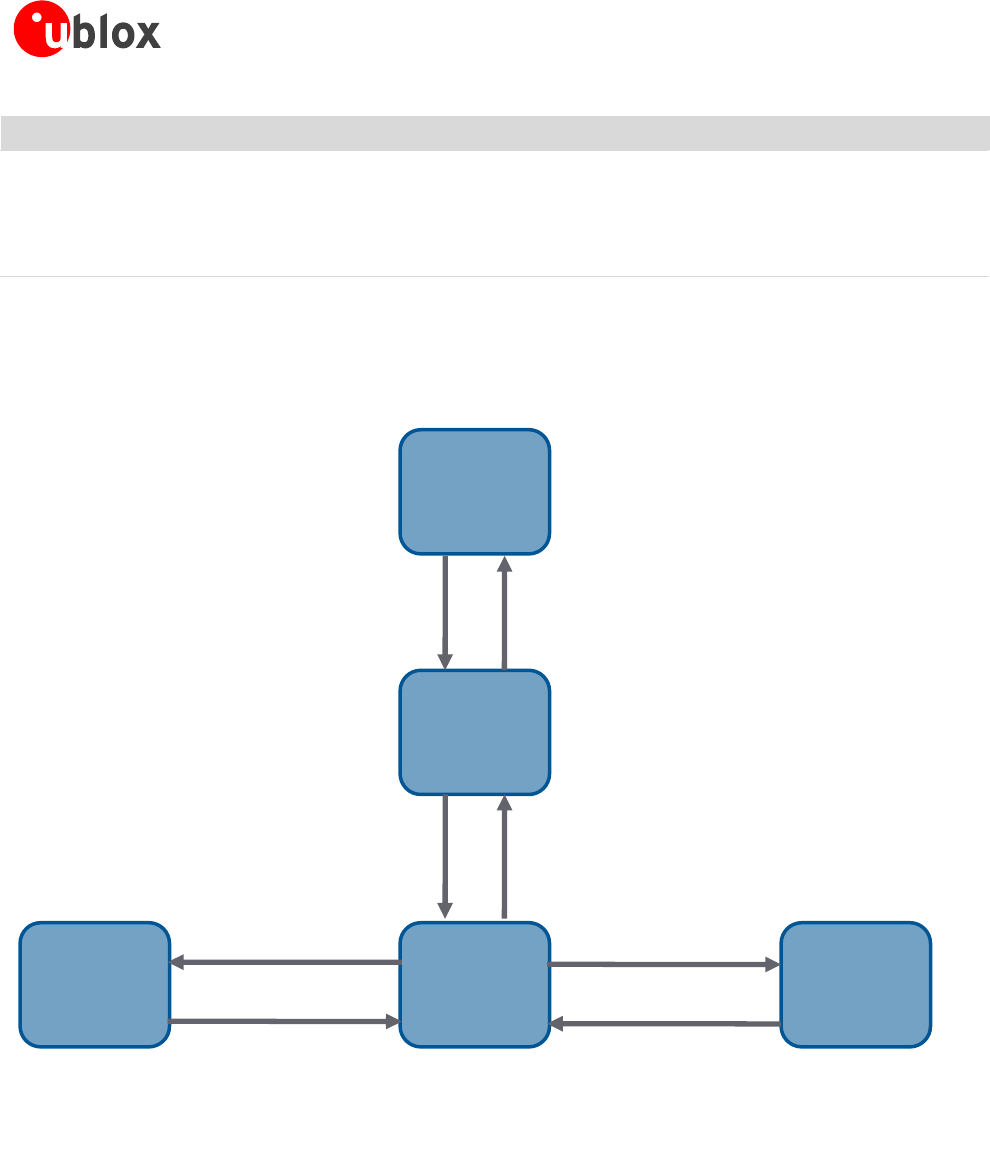

Transition between the different modes is described in Figure 2.
Not
powered
Power off
ActiveConnected Idle
Apply VCC
1. If idle is enabled and no
activity for at least 20 seconds or
2. no 5 V at VUSB_DET
User or network activity (serial
activity, USB activity, Interrupt,
Network notification of
incoming call)
AT+CPWROFF
Incoming/outgoing call or
other dedicated device
network communication
Call terminated,
communication dropped
Remove VCC
Switch ON:
•PWR_ON
•5V@USB_DET
•VRTC interrupt
Figure 2: Operating modes transition
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 14 of 83
1.5 Power management
1.5.1 Power supply circuit overview
The LUCY-H200 module features a power management concept optimized for the most efficient use of supplied
power. This is achieved by hardware design utilizing power efficient circuit topology (Figure 3), and by power
management software controlling the power saving mode of the module.
Baseband Processor
2G Power Amplifier
Switching
Step-Down
LUCY-H200
100 µF
60
VCC
59
VCC
58
VCC
57
VCC
5
VSIM
55
V_BCKP
56
V_INT
3 x 3G Power Amplifier(s)
Linear
LDO
Linear
LDO
Switching
Step-Down
Linear
LDO
Linear
LDO
Linear
LDO
I/O
EBU
CORE
Analog
SIM
RTC
NOR
Flash
DDR
SRAM
RF Transceiver
Memory
Power Management Unit
Figure 3: Power management simplified block diagram
Pins of the board-to board connector used by power supply function are reported on Table 3.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 15 of 83
Name
Description
Remarks
VCC
Module main power supply
VCC pins are internally connected, use all the available
circuits of the board-to-board connector in order to minimize
the power loss due to series resistance and not exceed the
current rating per pin.
Clean and stable supply is required: low ripple and low
voltage drop must be guaranteed.
Voltage provided must be always above the minimum limit of
the operating range.
Consider that there are large current spike in connected
mode, when a GSM call is enabled.
GND
Ground
GND pins are internally connected but a good (low
impedance) external ground can improve RF performance
and ensure that current rating per pin is not exceeded.
V_BCKP
Real Time Clock supply
V_BCKP = 2.0 V (typical) generated by the module to supply
Real Time Clock when VCC supply voltage is within valid
operating range.
V_INT
Digital Interfaces supply
V_INT = 1.8V (typical) generated by the module and
internally connected to Input / Output digital pins. The user
may draw limited current from this supply rail.
Table 3: Power supply pins
The LUCY-H200 module is supplied via the VCC pin. There is only one main power supply, available on four pins
on the board-to-board connector.
The VCC pin is directly connected to the RF power amplifiers and to the integrated power management unit
within the module: all supply voltages needed by the module are generated from the VCC supply by integrated
voltage regulators.
When the VCC voltage is within the valid operating range, the module supplies the Real Time Clock. If the VCC
voltage is under the minimum operating limit, the Real Time Clock can be externally supplied via the V_BCKP
pin.
When a 1.8 V or a 3 V SIM card type is connected, LUCY-H200 automatically supplies the SIM card via the VSIM
pin. Activation and deactivation of the SIM interface with automatic voltage switch from 1.8 to 3 V is
implemented, in accordance to the ISO-IEC 7816-3 specifications.
The same voltage domain used internally to supply the digital interfaces is also available on pin V_INT on the
board-to-board connector, in order to allow more economical and efficient integration of the LUCY-H200
module in the final application.
The integrated power management unit also provides the control state machine for system start up and system
reset control.
1.5.2 Module supply (VCC)
The LUCY-H200 module must be supplied through the VCC pin by a DC power supply. Voltages must be stable:
during operation, the current drawn from VCC can vary by some order of magnitude, especially due to surging

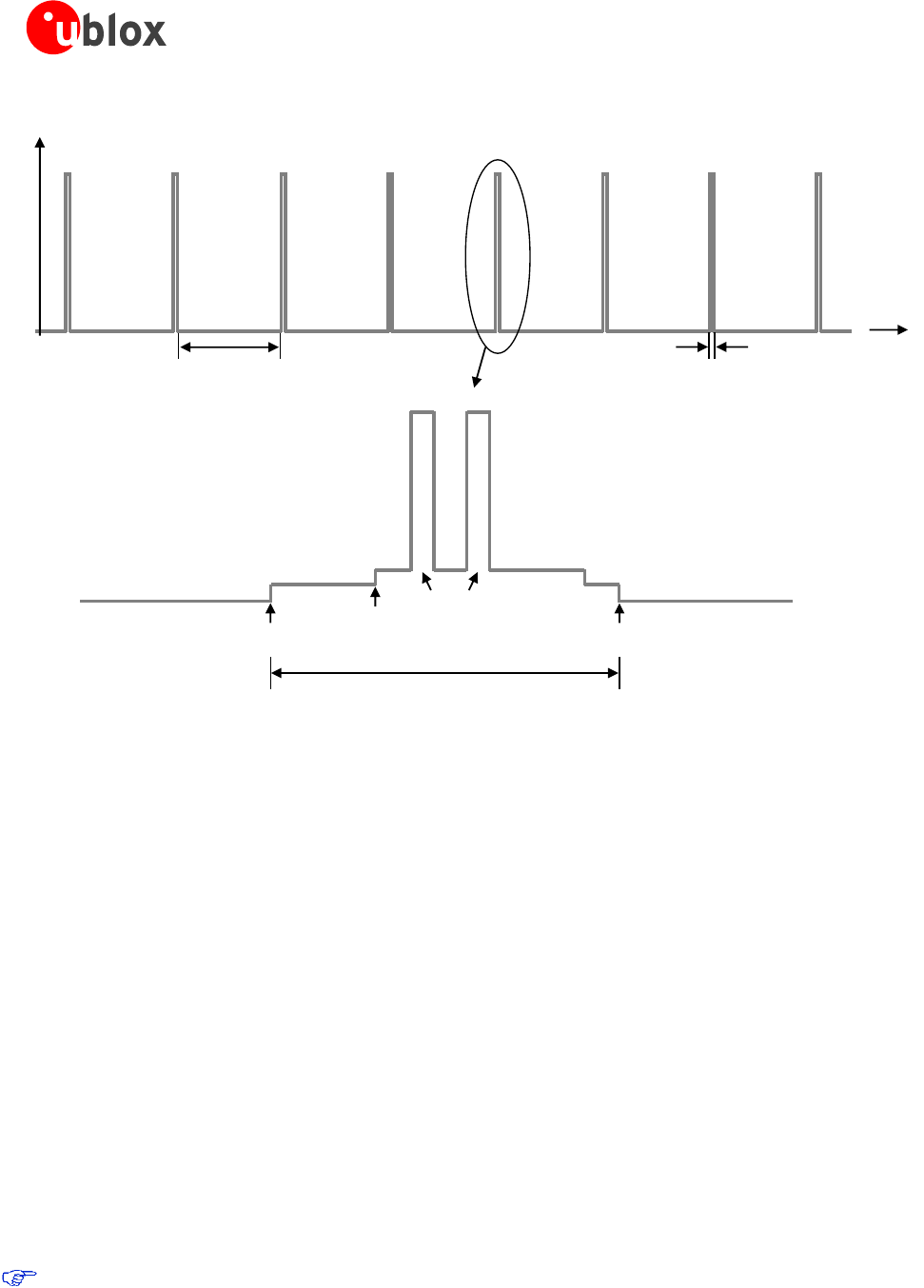

consumption profile of the GSM system (described in the section 1.5.3). It is important that the system power
supply circuit is able to support peak power (see datasheet for specification).
The DC power supply can be selected from:

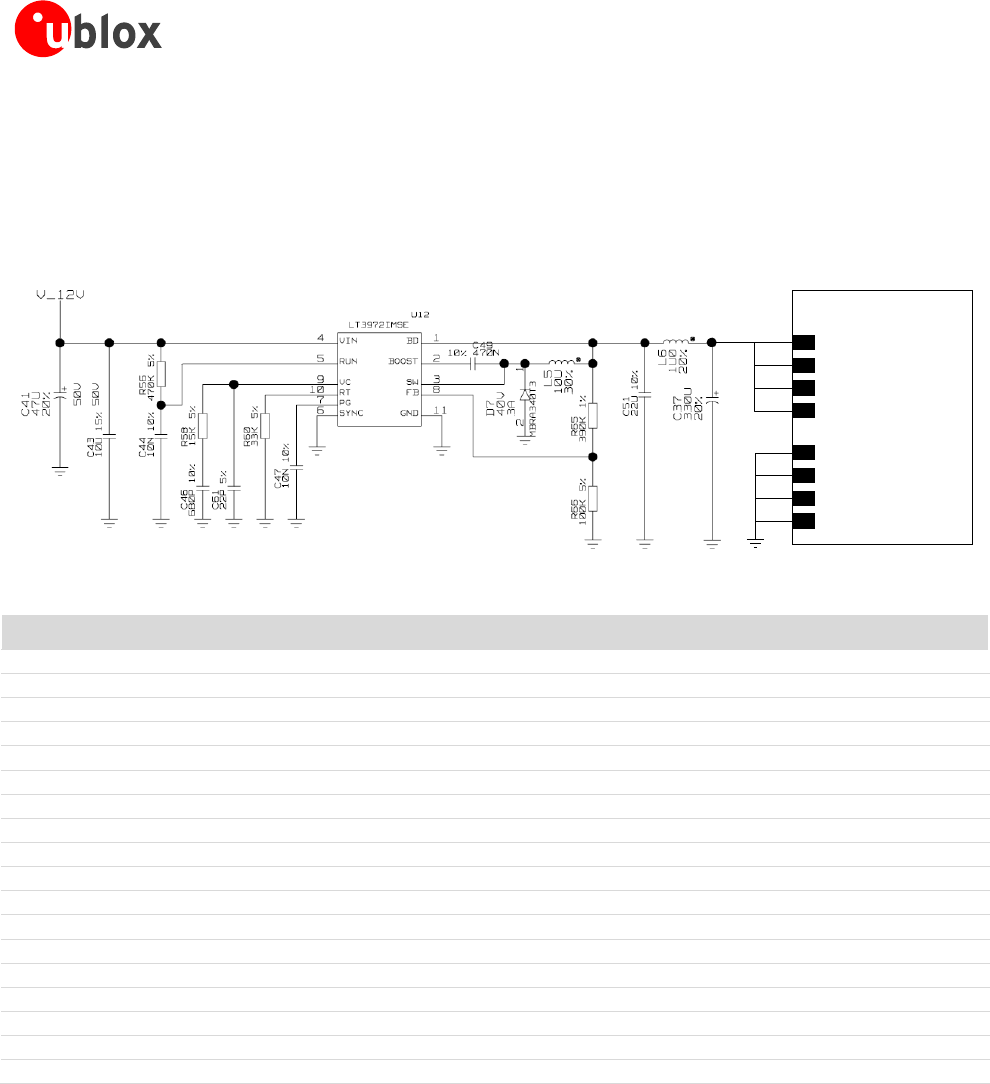

1. A switching regulator ; see the notes below about the switching regulator requirements.
2. A rechargeable Li-Ion battery; see the notes below about the Li-Ion battery requirements.
3. A primary (not rechargeable) battery; see the notes below about the primary battery requirements.
The characteristics of the switching regulator connected to the VCC pin should be meet the following
requirements:
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 16 of 83
power capabilities: the switching regulator with its output circuit must be capable of providing a valid
voltage value to the VCC pin and must be capable of delivering 2.5 A current pulses with 1/8 duty cycle to
the VCC pin
low output ripple: the switching regulator with its output circuit must be capable of providing a clean (low
noise) VCC voltage profile
fixed switching frequency greater or equal to 1 MHz: variable or lower switching frequency will produce
noise in the VCC voltage profile so that the module will not reach the GSM modulation spectrum
requirements
fixed PWM mode operation: PFM mode and PFM/PWM modes transitions must be avoided to reduce the
noise on the VCC voltage profile
The characteristics of the rechargeable Li-Ion battery connected to the VCC pin should meet the following
requirements:
maximum DC/pulse discharge current: the rechargeable Li-Ion battery with its output circuit must be capable
of delivering 2.5 A current pulses with 1/8 duty cycle to the VCC pin
DC series resistance: the rechargeable Li-Ion battery with its output circuit must be capable of avoiding a
VCC voltage drop greater than 400 mV
The characteristics of the primary (not rechargeable) battery connected to the VCC pin are compliant with the
following requirements:
maximum DC/pulse discharge current: the not-rechargeable battery with its output circuit must be capable
of delivering 2.5 A current pulses with 1/8 duty cycle to the VCC pin
DC series resistance: the rechargeable Li-Ion battery with its output circuit must be capable of avoiding a
VCC voltage drop greater than 400 mV
The voltage provided to the VCC pin must be within the normal operating range limits specified in the
LUCY-H200 Data Sheet [1]. Complete functionality of the module is only guaranteed within the specified
minimum and maximum VCC voltage range.
Ensure that the input voltage at VCC is above the normal operating range minimum limit to enable the
switch-on of the module. Note that the module cannot be switched on if the VCC voltage value is below
the minimum specified limit. See the LUCY-H200 Data Sheet [1].
When the LUCY-H200 module is in operation, the voltage provided to the VCC pin can exceed the normal
operating range limits but must be within the extended operating range limits specified in the LUCY-H200 Data
Sheet [1]. Module reliability is only guaranteed within this specified operational extended voltage range.
Ensure that the input voltage at the VCC pin never drops below the extended operating range minimum
limit when the module is switched on, not even during a GSM transmit burst, where the current
consumption can rise up to peaks of 2.5 A in case of a mismatched antenna load. The module switches off
when the VCC voltage value drops below the minimum limit.
Operation above the extended operating range maximum limit is not recommended and extended exposure
beyond it may affect device reliability.
Stress beyond the VCC absolute maximum ratings may cause permanent damage to the module: if
necessary, voltage spikes beyond VCC absolute maximum ratings must be limited to values within the
specified boundaries by using appropriate protection.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 17 of 83
When designing the power supply for the application, pay specific attention to power losses and transients:
do not exceed 200 mV voltage drops during transmit bursts
avoid undershoot and overshoot on voltage drops at the start and at the end of a transmission
minimize voltage ripple on the supply
Time
undershoot
overshoot
ripple
ripple
drop
Voltage
3.8V
(typ)
RX
slot
unused
slot
unused
slot
TX
slot
unused
slot
unused
slot
MON
slot
unused
slot
RX
slot
unused
slot
unused
slot
TX
slot
unused
slot
unused
slot
MON
slot
unused
slot
GSM frame
4.615 ms
(1 frame = 8 slots)
GSM frame
4.615 ms
(1 frame = 8 slots)
Figure 4: Description of the VCC voltage profile versus time during a GSM call
To reduce voltage drops, use a low impedance power source. The resistance of the power supply lines
(connected to VCC and GND pins of the module) on the application board and battery pack should also be
considered and minimized: cabling and routing must be as short as possible in order to minimize power losses.
Four pins on the board-to-board connector are allocated for VCC supply. Another four pins are designated for
GND connection on the corresponding contacts of the alternate row. Even if these pins are internally connected
within the module, it is recommended to connect all of them to supply the module in order to minimize the
resistance losses and not exceed the current rating of the contacts.
Provide external low resistance connection between all four contacts of VCC and connect all four GND pins
together on the adjacent row of the board-to-board connector.
To avoid undershoot and overshoot on voltage drops at the start and end of a transmit burst during a GSM call
(when current consumption on the VCC supply can rise up to 2.5 A in the worst case), place a 330 µF low ESR
capacitor (e.g. KEMET T520D337M006ATE045) located near the VCC pin.
To reduce voltage ripple and noise, place near the VCC pin the following:
100 nF capacitor (e.g Murata GRM155R61A104K) and a 10 nF capacitor (e.g. Murata GRM155R71C103K)
to filter digital logic noises from clocks and data sources
10 pF capacitor (e.g. Murata GRM1555C1E100J) to filter transmission EMI in the DCS/PCS and 3G B1 bands
39 pF capacitor (e.g. Murata GRM1555C1E390J) to filter transmission EMI in the GSM/EGSM bands
Any degradation in the power supply performance, due to losses, noise or transients, will directly affect the
RF performance of the module since the single external DC power source indirectly supplies all the digital
and analog interfaces, and also directly supplies the RF power amplifier (PA).
If the module is supplied by a battery, do not connect any other power supply at the VCC supply pin in parallel
to the battery.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 18 of 83
If the module is not supplied by a battery, Figure 5 and the components listed in Table 4 show an example of a
power supply circuit. This example is implemented on the Evaluation Board EVK-H26H. VCC supply is provided
by a step-down switching regulator with a 1 MHz switching frequency.
LUCY-H200
60 VCC
59 VCC
58 VCC
57 VCC
1GND
2GND
3GND
4GND
Figure 5: Suggested schematic design for the VCC voltage supply application circuit using a step-down regulator
Reference
Description
Part Number - Manufacturer
C37
330 µF Capacitor Tantalum D_SIZE 6.3 V 45 mΩ
T520D337M006ATE045 - KEMET
C41
47 µF Capacitor Aluminum 0810 50 V
MAL215371479E3 - Vishay
C43
10 µF Capacitor Ceramic X7R 5750 15% 50 V
C5750X7R1H106MB - TDK
C44
10 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C103KA01 - Murata
C46
680 pF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71H681KA01 - Murata
C47
10 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C103KA01 - Murata
C49
470 nF Capacitor Ceramic X7R 0603 10% 25 V
GRM188R71E474KA12 - Murata
C51
22 µF Capacitor Ceramic X5R 1210 10% 25 V
GRM32ER61E226KE15 - Murata
C61
22 pF Capacitor Ceramic COG 0402 5% 25 V
GRM1555C1H220JZ01 - Murata
D7
Schottky Diode 40V 3 A
MBRA340T3G - ON Semiconductor
L5
10 µH Inductor 744066100 30% 3.6 A
744066100 - Wurth Electronics
L6
1 µH Inductor 7445601 20% 8.6 A
7445601 - Wurth Electronics
R56
470 kΩ Resistor 0402 5% 0.1 W
2322-705-87474-L - Yageo
R58
15 kΩ Resistor 0402 5% 0.1 W
2322-705-87153-L - Yageo
R60
33 kΩ Resistor 0402 5% 0.1 W
2322-705-87333-L - Yageo
R65
390 kΩ Resistor 0402 1% 0.063 W
RC0402FR-07390KL - Yageo
R66
100 kΩ Resistor 0402 5% 0.1 W
2322-705-70104-L - Yageo
U12
Step Down Regulator MSOP10 3.5 A 2.4 MHz
LT3972IMSE#PBF - Linear Technology
Table 4: Suggested components for the VCC voltage supply application circuit using a step-down regulator
If another step-down switching regulator is used, the switching frequency must be set to 1 MHz or higher to
avoid a degradation of the RF modulation spectrum performance.
An LDO linear voltage regulator can be used to supply the module. Ensure correct power dissipation on the
regulator in order to avoid reaching LDO thermal limits during the high current peak generated by the module
during a GSM transmit burst or UMTS continuous transmission at maximum power.
1.5.3 Current consumption profiles
During operation, the current drawn by the LUCY-H200 through the VCC pin can vary by some orders of
magnitude. This ranges from the high peak of current consumption during the GSM transmitting bursts at
maximum power level in 2G connected mode, to continuous high current drawn in UMTS connected mode, to
the low current consumption during power saving in idle mode.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 19 of 83
1.5.3.1 2G Connected-mode
When a GSM call is established, the VCC consumption is determined by the current consumption profile typical
of the GSM transmitting and receiving bursts.
The current consumption peak during a transmission slot is strictly dependent on the transmitted power, which
is regulated by the network. If the module is transmitting in GSM talk mode in the GSM 850 or in the EGSM 900
band and at the maximum RF power control level 5 (that is approximately 2 W or 33 dBm), the battery discharge
current is modulated at up to 2500 mA (worst case value obtained with worst possible matching) with pulses of
576.9 µs (width of 1 slot/burst) that occur every 4.615 ms (width of 1 frame = 8 slots) according to GSM TDMA.
During a GSM call, current consumption is in the order of 100-200 mA in receiving or in monitor bursts and is
about 30-50 mA in the inactive unused bursts (low current period). The more relevant contribution to determine
the average current consumption is set by the transmitted power in the transmit slot.
An example of current consumption profile of the data module in GSM talk mode is shown in Figure 6.
Time
RX
slot
unused
slot
unused
slot
TX
slot
unused
slot
unused
slot
MON
slot
unused
slot
RX
slot
unused
slot
unused
slot
TX
slot
unused
slot
unused
slot
MON
slot
unused
slot
GSM frame
4.615 ms
(1 frame = 8 slots)
Current
~200 mA
~40 mA
~170 mA
~2500 mA
Depends on
TX power
~170 mA
GSM frame
4.615 ms
(1 frame = 8 slots)
Figure 6: VCC current consumption profile versus time during a GSM call, VCC=3.8V
When a GPRS connection is established there is a different VCC current consumption profile also determined by
the transmitting and receiving bursts. In contrast to a GSM call, during a GPRS connection more than one slot
can be used to transmit and/or more than one slot can be used to receive. The transmitted power depends on
network conditions, which set the peak current consumption, but following the GPRS specifications the
maximum transmitted RF power is reduced if more than one slot is used to transmit, so the maximum peak of
current consumption is not as high as can be in case of a GSM call. In fact it can reach up to 1400 mA at
maximum power level and highly unmatched antenna.
An example of current consumption profile of the data module in GPRS mode is shown in Figure 7.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 20 of 83
Time
RX
slot
unused
slot
TX
slot
TX
slot
TX
slot
TX
slot
MON
slot
unused
slot
RX
slot
unused
slot
TX
slot
TX
slot
TX
slot
TX
slot
MON
slot
unused
slot
GSM frame
4.615 ms
(1 frame = 8 slots)
Current
~200 mA
~40 mA
~170 mA
~1400 mA
Depends on
TX power
~170 mA
GSM frame
4.615 ms
(1 frame = 8 slots)
Figure 7: VCC current consumption profile versus time during a GPRS/EDGE connection, 4TX slots, 1 RX slot, VCC=3.8V
In case of EDGE connections the VCC current consumption profile is very similar to the GPRS current profile, so
the image shown in Figure 7 is valid for EDGE too.
1.5.3.2 3G Connected-mode
During a 3G connection, the module may transmit and receive continuously due to the Frequency Division
Duplex (FDD) mode of operation. The current consumption depends again on output RF power, which is always
regulated by network commands. These power control commands are logically divided into a slot of 666 µs, thus
the rate of power change can reach a maximum rate of 1.5 kHz. There are no high current peaks, but in the
worst scenario corresponding to a continuous transmission and reception at maximum output power
(approximately 250 mW or 24 dBm), the drawn current of the whole system is in the order of continuous
600-700 mA. Even at lowest output RF power (approximately 0.01 µW or -50 dBm), the current still remains in
the order of 200 mA due to modem baseband processing and transceiver activity.
An example of current consumption profile of the data module in UMTS continuous transmission mode is shown
in Figure 8.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 21 of 83
Time
3G frame
10 ms
(1 frame = 15 slots)
Current
170 mA
650 mA
Depends on
TX power
1 slot
666 µs
Figure 8: VCC current consumption profile versus time during a UMTS connection, VCC=3.8V
When a packet data connection is established, the actual current profile depends on the amount of transmitted
packets; there might be some periods of inactivity between allocated slots where current consumption drops
about 100 mA. Alternatively, at higher data rates the transmitted power is likely to increase due to the higher
quality signal required by the network to cope with enhanced data speed.
1.5.3.3 Idle-mode
By default the module does not automatically enter idle-mode (power-saving mode) whenever possible; idle
mode must be enabled using the appropriate AT command (refer to u-blox 3.5G HSDPA AT Commands Manual
[2]).
When the data module is registered or attached to a network and a voice or data call is not enabled, the module
must periodically monitor the paging channel of the current base station (paging block reception), in accordance
to GSM and UMTS system requirements. When the module monitors the paging channel, it wakes up to active
mode, to enable the paging block reception. In between, the module switches to idle-mode (power-saving
mode). This is known as discontinuous reception (DRX).
The module processor core is activated during the paging block reception, and automatically switches its
reference clock frequency from the 32 kHz to the 26 MHz used in active-mode.
The time period between two paging block receptions is defined by the network. For example, the time interval
between two paging block receptions for 2G operation can be from 470.76 ms (width of 2 GSM multiframes =
2 x 51 GSM frames = 2 x 51 x 4.615 ms) up to 2118.42 ms (width of 9 GSM multiframes = 9 x 51 frames = 9 x
51 x 4.615 ms): this is the paging period parameter, fixed by the base station through broadcast channel sent to
all users on the same serving cell.
An example of a data module current consumption profile is shown in Figure 9: the module is registered with a
2G network, automatically goes into idle mode and periodically wakes up to active mode to monitor the paging
channel for paging block reception
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 22 of 83
~150 mA
500-700 µA
500-700 uA
8-10 mA
20-22 mA
~150 mA
0.44-2.09 s
~30 ms
Active Mode
Enabled
Idle Mode
Enabled
PLL
Enabled
RX+DSP
Enabled
IDLE MODE ACTIVE MODE IDLE MODE
IDLE MODE
~30 ms
ACTIVE MODE
Current
Time
Figure 9: Description of the VCC current consumption profile versus time when the module is registered on the GSM network:
the module is in idle mode and periodically wakes up to active mode to monitor the paging channel for paging block reception
1.5.4 RTC Supply (V_BCKP)
The V_BCKP pin connects the supply for Real Time Clock (RTC) and Power On / Reset internal logic. This supply
domain is internally generated by a linear regulator integrated in the power management unit. The output of
this linear regulator is always enabled when the main voltage supply provided to the module through VCC is
within the valid operating range, being the module switched-off or powered-on.
The RTC provides the time reference (date and time) of the module, also in power-off mode, when the V_BCKP
voltage is within its valid range (specified in u-blox LUCY-H200 Data Sheet [1]). The RTC timing is normally used
to set the wake-up interval during idle-mode periods between network paging, but is able to provide
programmable alarm functions by means of the internal 32.768 kHz clock.
The RTC can be supplied from an external back-up battery through the V_BCKP, when the main voltage supply
is not provided to the module through VCC. This lets the time reference (date and time) run even when the main
supply is not provided to the module. Please consider that the module cannot switch on if a valid voltage is not
present on VCC even when RTC is supplied through V_BCKP (meaning that VCC is mandatory to switch-on the
module).
The RTC has very low power consumption, but is highly temperature dependent. For example at 25°C and a
V_BCKP voltage of 2.0 V the power consumption is approximately 2 µA, whereas at 70°C and an equal voltage
the power consumption increases to 5-10 µA.
The internal regulator for V_BCKP is optimized for low leakage current and very light loads. It is
recommended to not use V_BCKP to supply external loads.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 23 of 83
If V_BCKP is left unconnected and the module main voltage supply is removed from VCC, the RTC is supplied
from the 1 µF buffer capacitor mounted inside the module. However, this capacitor is not able to provide a long
buffering time: within 0.5 seconds the voltage on V_BCKP will go below the valid range (1 V min). At this time
the internal RTC will stop counting and the date and time setting will be lost. This has no impact on wireless
connectivity, as all the functionalities of the module do not rely on the date and time setting.
V_BCKP shall be left unconnected if the RTC is not required when the VCC supply is removed. The date
and time will not be updated when VCC is disconnected. If VCC is always supplied, then the internal
regulator will take input from the main supply and there is no need for an external component on V_BCKP.
If RTC is required to run for a time interval of T [seconds] at 25°C when VCC supply is removed, place a capacitor
with a nominal capacitance of C [µF] at the V_BCKP pin. Choose the capacitor using the following formula:
C [µF] = (Current_Consumption [µA] x T [seconds]) / Voltage_Drop [V] = 2 x T [seconds]
The current consumption of the RTC is approximately 2 µA at 25°C, and the voltage drop is equal to 1 V (from
the V_BCKP typical value of 2.0 V to the valid range minimum limit of 1.0 V).
For example, a 100 µF capacitor (such as the Murata GRM43SR60J107M) can be placed at V_BCKP to provide a
long buffering time. This capacitor will hold V_BCKP voltage within its valid range for around 50 seconds at
25°C, after the VCC supply is removed. If a very long buffering time is required, a 70 mF super-capacitor (e.g.
Seiko Instruments XH414H-IV01E) can be placed at V_BCKP, with a 4.7 kΩ series resistor to hold the V_BCKP
voltage within its valid range for around 10 hours at 25°C, after the VCC supply is removed. These capacitors
will allow the time reference to run during battery disconnection.
2
100 µF
GRM43SR60J107M
70 mF
XH414H-IV01E
4.7 k
LUCY-H200
55 V_BCKP
2
LUCY-H200
55 V_BCKP

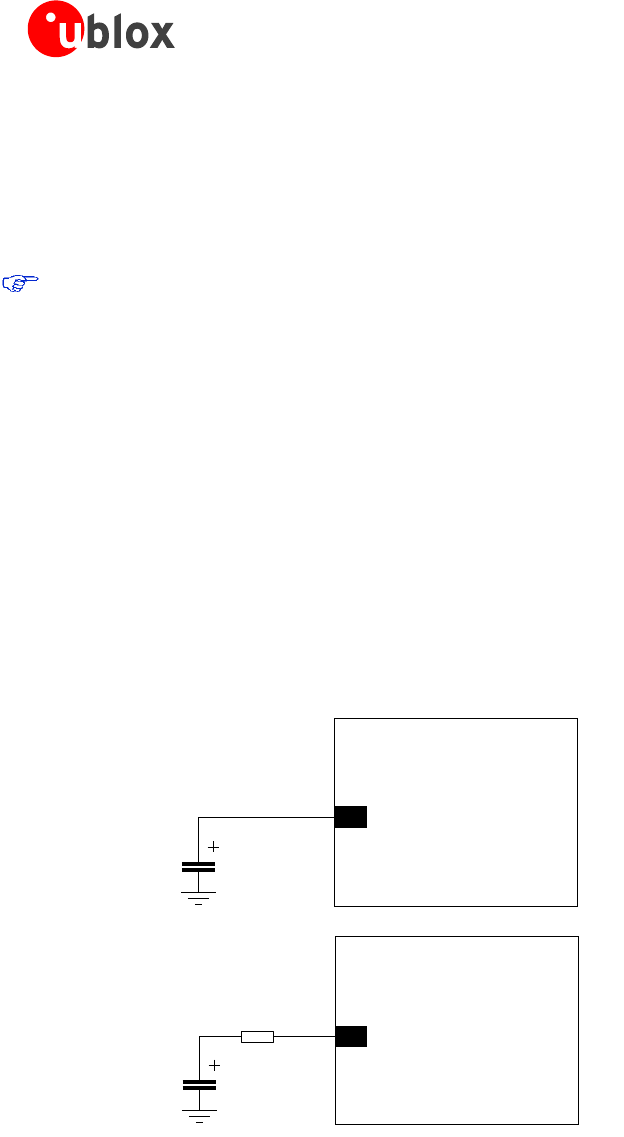

Figure 10: Real time clock supply (V_BCKP) application circuits using a 100 µF capacitor to let the RTC run for ~50 seconds at
25°C or using a 70 mF capacitor to let the RTC run for ~10 hours at 25°C when the VCC supply is removed
1.5.5 Interface supply (V_INT)
The same voltage domain used internally to supply the digital interfaces is also available at the board-to-board
connector on pin V_INT. The internal regulator is a switching step down converter: it is directly supplied from
VCC and output voltage is set to 1.8 V (typical). It operates in Pulse Width Modulation (PWM) for high output
current mode but automatically switches to Pulse Frequency Modulation (PFM) at low output loads for greater
efficiency, e.g. when the module is in idle mode between paging periods.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 24 of 83
Being the supply of internal digital circuits (see Figure 3), V_INT is not suited to directly supply any sensitive
analog circuit: the voltage ripple may range from 20 mV during active mode (PWM), to 70 mV in idle mode
(PFM), in addition to few tens of mV of short overshoot / undershot due to dynamic response of transient loads.
V_INT can be used to supply external digital circuits operating at the same voltage level as the digital
interface pins, i.e. 1.8 V (typical). It is not recommended to supply analog circuitry without adequate
filtering for digital noise.
Don’t apply loads which might exceed the limit for maximum available current from V_INT supply, as this
can cause malfunctions to internal circuitry supplies to the same domain.
V_INT can only be used as an output; don’t connect any external regulator on V_INT. If not used this pin
should be left unconnected.
Typical usage of V_INT is to connect a pull-up resistor for the DDC (I2C) interface. See section 1.11 for more
details.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 25 of 83
1.6 System functions
1.6.1 Module power on
When supply is connected to the VCC pin, the voltage supervision circuit controls the subsequent activation of
the power up state machines.
The module power-on sequence is initiated in one of 3 ways:
Falling edge on the PWR_ON signal
RTC alarm
Detection on pin VUSB_DET of a valid VUSB voltage (typical 5V) for USB detection
Name
Description
Remarks
PWR_ON
Power-on input
PWR_ON pin has an internal pull-up resistor to V_BCKP.
Nevertheless provide space for mounting an external pull up
resistor on the application board in case of noisy environment,
where an external pull-up is required
Table 5: Power-on pin
1.6.1.1 Falling edge on the PWR_ON
The module power-on sequence starts when a low level is forced on the PWR_ON signal.
The electrical characteristics of the PWR_ON input pin are different from the other digital I/O interfaces: the high
and the low logic levels have different operating ranges and the pin is tolerant of voltages only up to the
V_BCKP voltage. The nominal V_BCKP pin voltage is 2 V; the detailed electrical characteristics are described in
the LUCY-H200 Data Sheet [1].

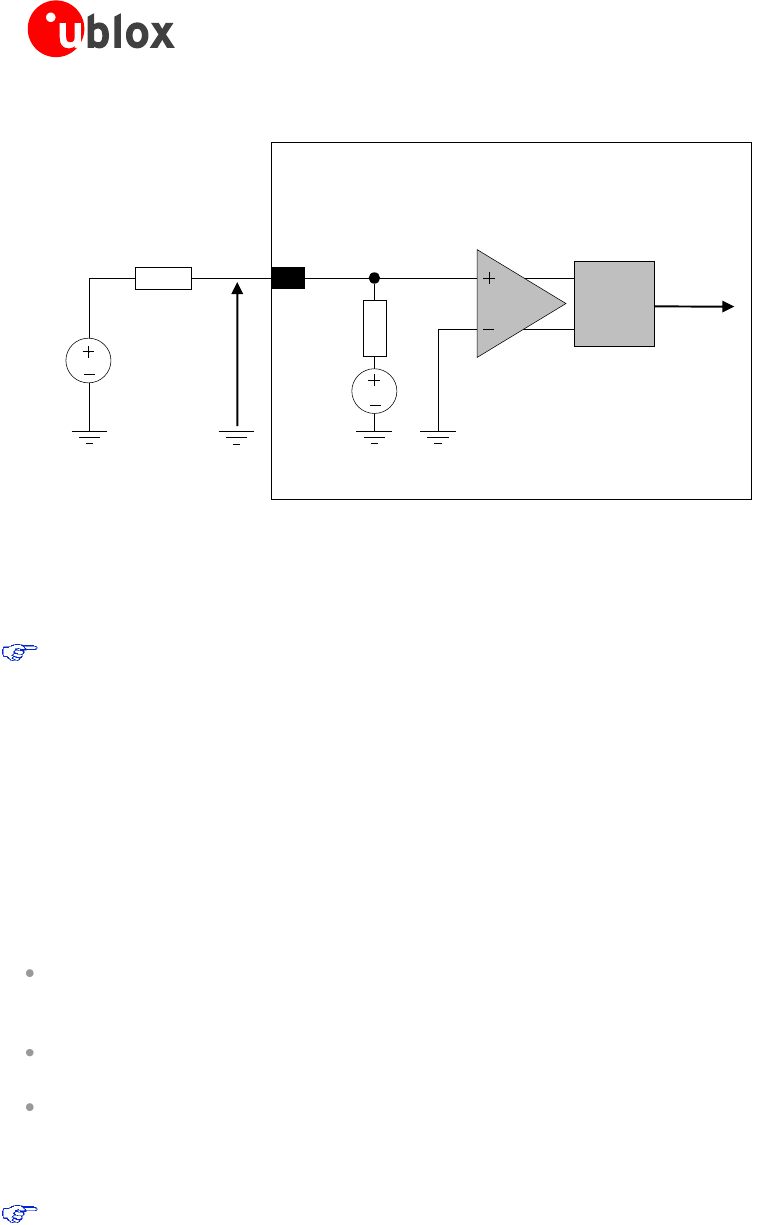

The PWR_ON pin is pulled up to V_BCKP through an internal 470 kΩ resistor. To avoid floating in a noisy
environment: a pull up resistor to V_BCKP supply can be added on the application board at least as a not
mounting option.
The boot time is around 1 second when the falling edge on the PWR_ON pin is used to power on the
module.
Note that the module can be switched-on by a falling edge on the PWR_ON pin. Once the module has turned
on moving the PWR_ON pin has no effect. On the other hand it makes no sense to keep this pin low when the
module is turned on as it would source some unnecessary µA.
Following are some typical examples of turning the module on. The simplest way to turn on the module is to use
a push button connected to ground.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 26 of 83
100 kΩ, mounting option for
noisy environment
55 V_BCKP
PWR_ON
LUCY-H200
internal 470 kΩresistor
Power on push button
26

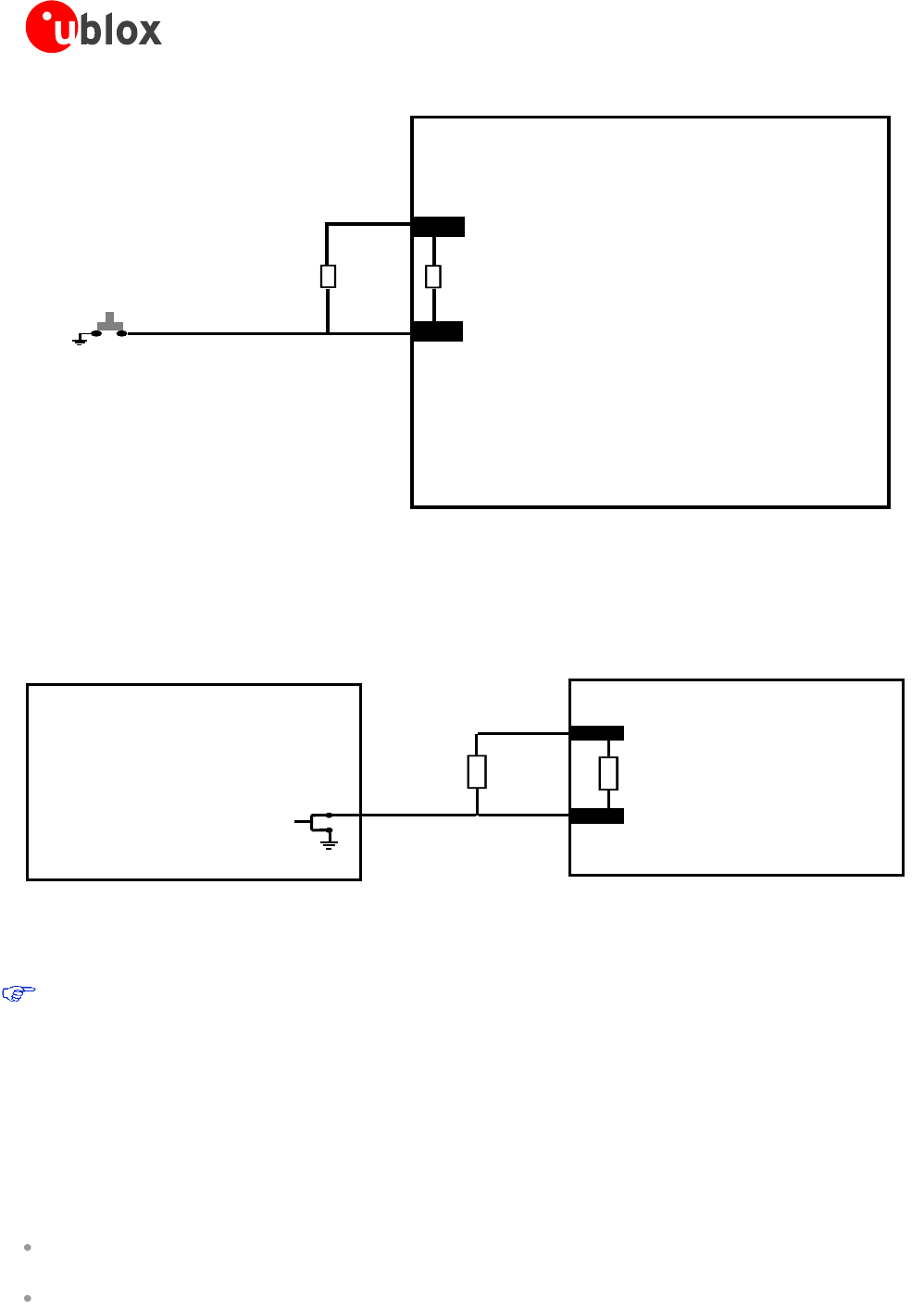

Figure 11: Power on LUCY module with push button
When power on is controlled by the GPIO of an application processor (AP) there could be different scenarios
depending on voltage and pin configurations of the AP. The simplest case is when the GPIO output stage can be
set to open drain. In that case a direct connection is possible.
100 kΩ, mounting option for noisy
environment
55
26
V_BCKP
PWR_ON
LUCY-H200
internal 470 kΩresistor
Application Processor
Figure 12: Power-on LUCY module by open drain GPIO
Even if open drain GPIO is available attention must be paid to the voltage ratings of the pins of the
Application Processor. In fact when AP GPIOs are powered at very low voltages (e.g. 1-1.3 V) they could be
damaged by the PWR_ON pin voltage. Please refer to the datasheet of the Application Processor for the
voltage rating of its GPIOs.
If no open drain but only push pull output GPIO is available, direct connection is still possible if the GPIO is in the
1.5-2 V range.
If the push-pull output GPIO is outside the 1.5-2 V range an appropriate level translator circuit must be provided.
There are several ways to provide proper level translation depending on the AP voltage:
One is using an open drain, non inverting buffer powered at the AP voltage level; NC7WZ07 can be used for
that purpose
Another means of voltage adaption is using dual voltage chips that can provide level translation; the output
side of the level translator chip (towards LUCY PWR_ON) must be powered in the 1.5-2 V range
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 27 of 83
Remember to fix the unused inputs of buffers or voltage translator chips with more ports than required to GND
or to power in order to prevent increase in power consumption due to high impedance floating inputs.
1.6.1.2 Real Time Clock (RTC) alarm Power on
If a valid voltage is maintained at the VCC pin, the module can be switched-on by the RTC alarm when the RTC
system reaches a pre-programmed scheduled time. The RTC system will then initiate the boot sequence by
indicating to the power management unit to turn on power. Also included in this setup is an interrupt signal
from the RTC block to indicate to the baseband processor, that an RTC event has occurred.
The boot time is around 1 second when the power on of the module is caused by RTC alarm.
1.6.1.3 Detection on pin VUSB_DET of a valid VUSB voltage
If a valid VUSB voltage is detected on the VUSB_DET pin, the module turns on. Please refer to the LUCY-H200
Data Sheet [1] for the VUSB range that must be applied to VUSB_DET pin. When the power on cause is a valid
VUSB voltage, USB block is turned on and UART0 is disabled. Once the module is powered, if voltage at
VUSB_DET goes outside of the VUSB range, UART0 is re-enabled. The line that triggers power on at
VUSB_DET pin must have less than 100 Ω impedance.
When voltage at VUSB_DET pin is in the VUSB range the module does not enter idle state even if has been
enabled by the appropriate AT command (for more details please refer to u-blox 3.5G HSDPA AT
commands manual [2]).
The boot time is around 3 seconds when the power on is caused by a USB range voltage (4.3 V-5.3 V,
typically 5 V) at VUSB_DET pin.
1.6.2 Module power off
The LUCY-H200 module can be switched off by one of the following switch-off events:
Via AT command AT+CPWROFF (more details in u-blox 3.5G HSDPA AT Commands Manual [2])
An under-voltage shutdown will be done if VCC falls below the valid operating limit
After a switch-off event has been triggered, the digital pins are locked in tri-state by the module. All internal
voltage regulators, except the RTC supply, are turned off in a defined power-off sequence.
1.6.3 Module reset
Reset the module using RESET_N: this performs an external or hardware reset. When the RESET_N pin is driven
low, an asynchronous reset of the entire module - except for the RTC - is triggered, and the device is initialized
into a defined reset state.
Name
Description
Remarks
RESET_N
External reset input
Internal pull-up
Table 6: Reset pin
The electrical characteristics of RESET_N are different from the other digital I/O interfaces. The detailed electrical
characteristics are described in the LUCY-H200 Data Sheet [1].
RESET_N is pulled high by an integrated pull-up resistor. Therefore an external pull-up should be not required
on the application board. An internal circuit pulls the level to 2.0 V.
Forcing RESET_N low for at least 50 ms will cause an external reset of the module. When RESET_N is released
from the low level, the module automatically starts its power-on reset sequence.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 28 of 83
If RESET_N is connected to an external device (e.g. an application processor on an application board) an open
drain output can be directly connected without any external pull-up. Otherwise, use a push-pull output. Make
sure to fix the proper level on RESET_N in all possible scenarios, to avoid unwanted reset of the module.
The reset state of all input-output pins is reported in the pin description table in the LUCY-H200 Data Sheet [1].
1.7 RF connection
The interface for RF signal (ANT) is available via the Hirose U.FL-SMT-R or equivalent sub-miniature coaxial
connector. The ANT interface has a nominal impedance of 50 Ω, and must be connected to the antenna
through a 50 Ω transmission line to allow transmission and reception of radio frequency (RF) signals in the GSM
and UMTS operating bands.
Name
Description
Remarks
ANT
RF antenna
Zo = 50 nominal characteristic impedance.
Hirose U.FL-SMT-R receptacle connector.
Table 7: Antenna pin

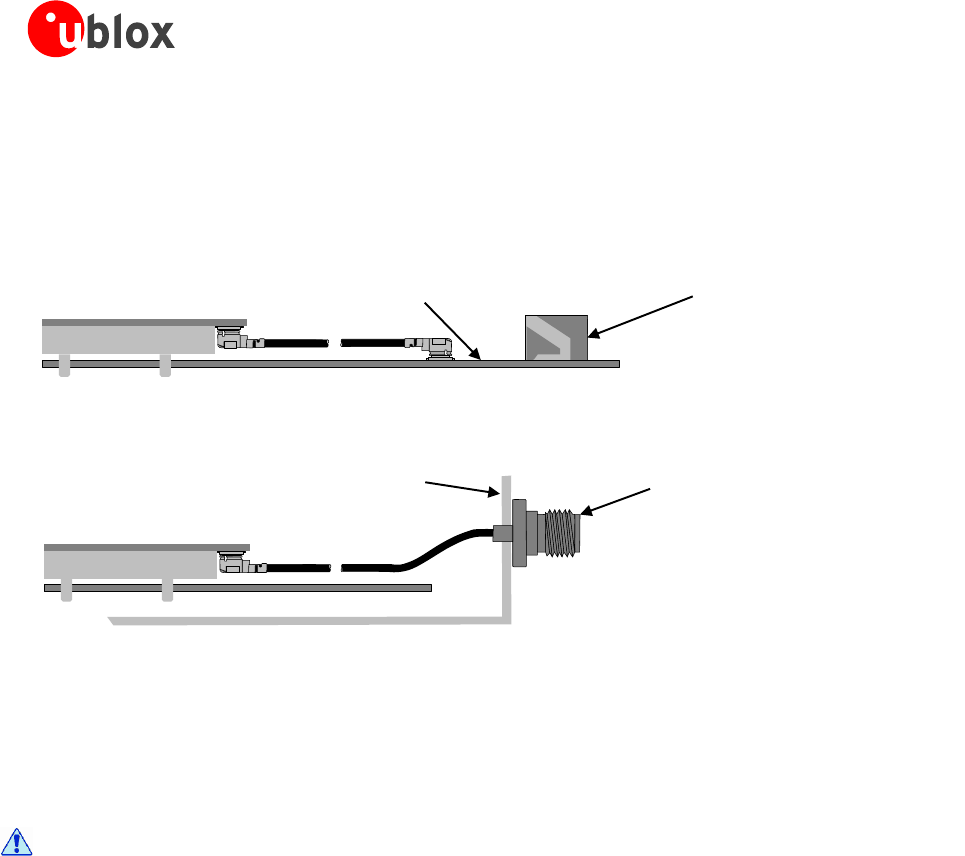

The RF receptacle implemented on the LUCY-H200 for ANT requires a suitable mated RF plug from the same
connector series. Due to its wide usage in the industry, several manufacturers offer compatible equivalents.
The board-to-board connector stacked mated height also limits the selection of the RF plug. Nevertheless the
nominal 3 mm height of the board-to-board connector effectively allows the usage of all U.FL compatible plugs
available on the market.
Table 8 lists some RF connector plugs that fit LUCY-H200, based on the declaration of the respective
manufacturers. Only the Hirose has been qualified for the LUCY-H200 module, contact other producers to verify
compatibility.
Manufacturer
Series
Remarks
Hirose
U.FL® Ultra Small Surface Mount Coaxial Connector
Recommended
I-PEX
MHF® Micro Coaxial Connector
Tyco
UMCC® Ultra-Miniature Coax Connector
Amphenol RF
AMC® Amphenol Micro Coaxial
LTI (Lighthorse
Technologies, Inc)
IPX ultra micro-miniature RF connector
Table 8: U.FL compatible plug connector
Typically the RF plug is available as a cable assembly: several kinds are available and the user should select the
cable assembly best suited to the application. The key characteristics are:
RF plug type: select U.FL or equivalent
Cable thickness: typically from 0.8 mm to 1.37 mm
Cable length: standard length is typically 100 mm or 200 mm, custom lengths may be available on request
RF connector on other cable side: for example another U.FL (for board-to-board connection) or SMA (for
panel mounting)
The LUCY-H200 module is calibrated at the on-board U.FL receptacle: select thicker and shorter cables to
minimize insertion loss.
For applications requiring an internal integrated SMT antenna, it is suggested to use a U-FL-to-U.FL cable to
provide RF path from the LUCY-H200 to PCB stripline or microstrip connected to antenna pads (see Figure 13).
Take care that the PCB-to-RF-cable transition, stripline and antenna pads must be optimized for 50 Ω
characteristic impedance.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 29 of 83
If an external antenna is required, consider that the connector is typically rated for a limited number of insertion
cycles. In addition, the RF coaxial cable may be relatively fragile compared to other types of cables. To increase
application ruggedness, connect U.FL to a more robust connector (e.g. SMA or MMCX) fixed on panel or on
flange (see Figure 13).
LUCY-H200
Baseboard
Stripline/Microstrip Internal Antenna
Baseboard
Application
Chassis Connector to
External Antenna
LUCY-H200
Figure 13: Example of RF connections, U.FL-to-U.FL cable for internal antenna and U.FL-to-SMA for external antenna
Choose an antenna with optimal radiating characteristics for the best electrical performance and overall module
functionality. An internal antenna, integrated on the application board, or an external antenna, connected to the
application board through a proper 50 Ω connector, can be used.
The recommendations of the antenna producer for correct installation and deployment (PCB
layout and matching circuitry) must be followed.
For antenna supervision functionality, the antenna should have a built-in DC resistor to ground. The module
injects a known DC current (few tenths of a µA) on ANT and measures the resulting DC voltage, thus effectively
achieving a resistance measurement for antenna detection (see section 2.4.3).
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 30 of 83

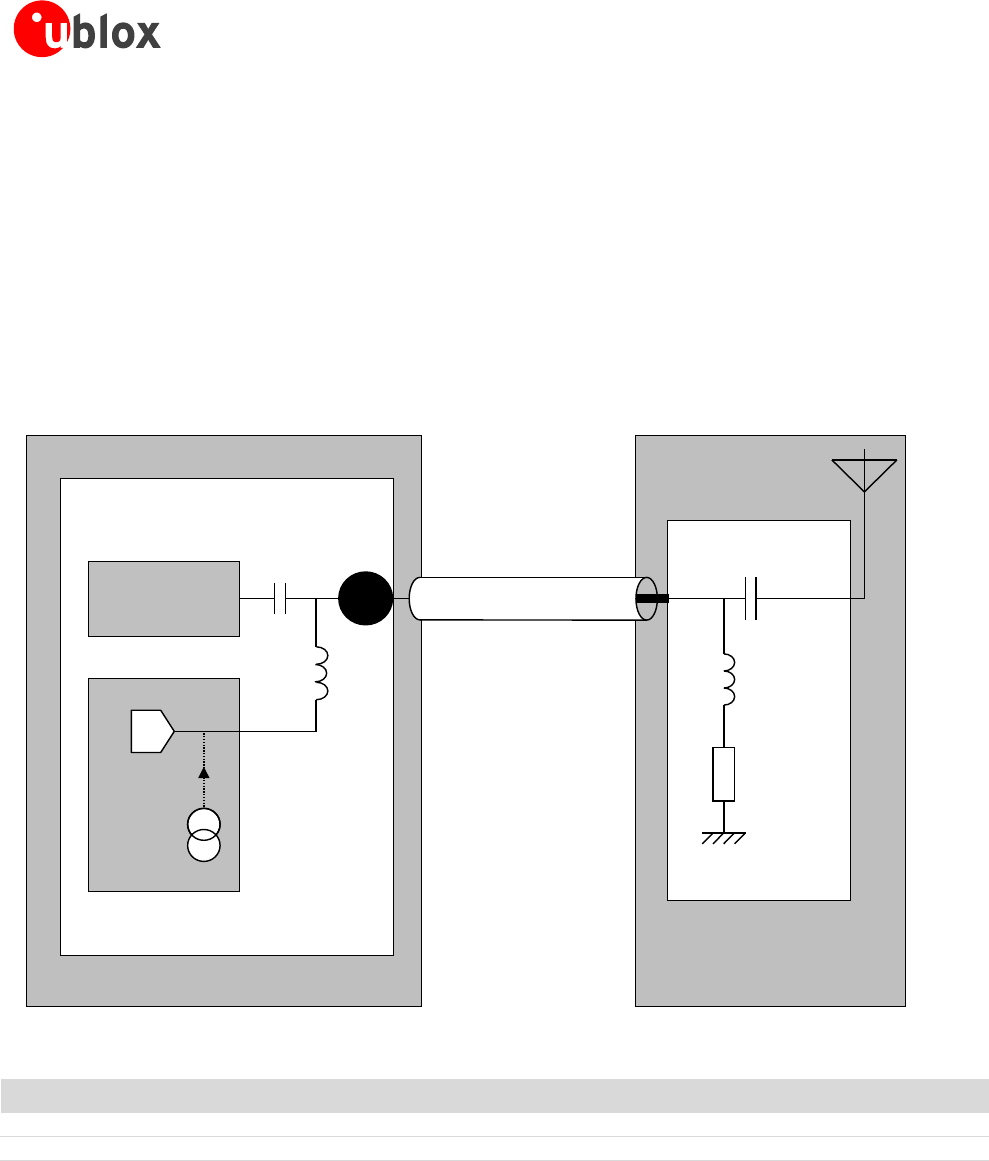

1.8 Antenna supervisor
Antenna detection is internally performed by the module via ANT. The RF port is DC coupled to the ADC unit in
the baseband chip. The module measures the DC voltage at ANT, in the range of 0 to 2 V. Additionally, the
module can inject a known DC current (~ 100 µA) on ANT and measures the resulting DC voltage.
LUCY-H200
ANT
ADC
Current
Source
RF
Choke
DC
Blocking
Front-End
RF Module
Figure 14: Antenna Supervisor internal circuit
If the DC voltage is present on ANT, or a DC connection to a known resistor at the radiating element is
implemented, the module will be able to check the connection to the Antenna element.
Refer to the u-blox 3.5G HSDPA AT Commands Manual [2] for more details on how to access this feature.
1.9 SIM interface
An SIM card interface is provided on the board-to-board pins of the module: the high-speed SIM/ME interface is
implemented as well as automatic detection of the required SIM supporting voltage.
Both 1.8 V and 3 V SIM types are supported: activation and deactivation with automatic voltage switch from
1.8V to 3 V is implemented, according to ISO-IEC 7816-3 specifications. The SIM driver supports the PPS
(Protocol and Parameter Selection) procedure for baud-rate selection, according to the values determined by the
SIM Card.
Table 9 describes the board to board pins related to the SIM interface:
Name
Description
Remarks
VSIM
SIM supply
1.80 V typical or 2.90 V typical
automatically generated by the module
SIM_CLK
SIM clock
3.25 MHz clock frequency
SIM_IO
SIM data
Open drain, internal 4.7 kΩ pull-up resistor to VSIM
SIM_RST
SIM reset
Table 9: SIM Interface pins
Figure 15 shows the minimal circuit connecting the LUCY module and the SIM card.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 31 of 83
LUCY-H200
34
33
32
35
SIM CARD
HOLDER
CCVCC (C1)
CCVPP (C6)
CCIO (C7)
CCCLK (C3)
CCRST (C2)
GND (C5)
5
VSIM
6
SIM_IO
7
SIM_CLK
8
SIM_RST

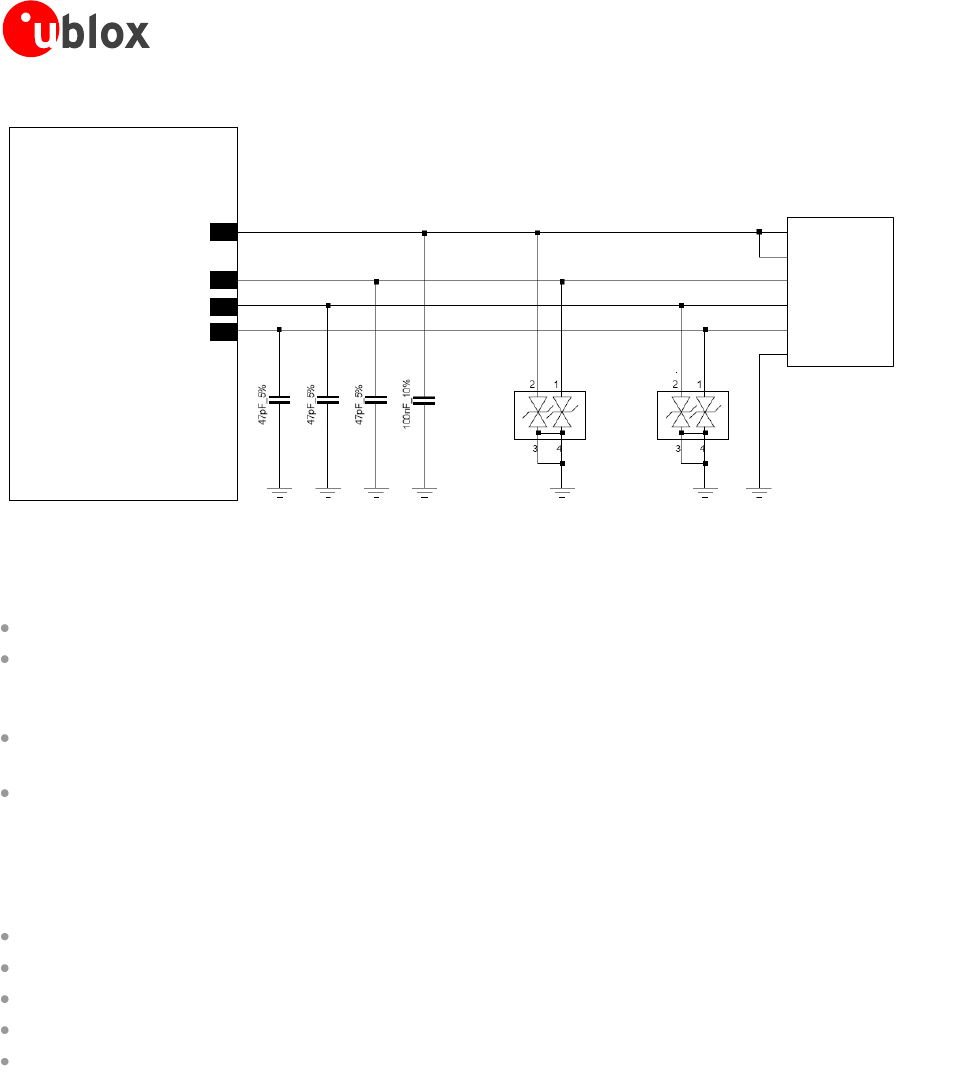

Figure 15: SIM interface application circuit
When connecting the module to SIM connector perform the following steps on the application board:
Bypass digital noise via a 100 nF capacitor (e.g. Murata GRM155R71C104K) on the SIM supply (VSIM)
To prevent RF coupling in case the module RF antenna is placed closer than 10 - 30 cm from the SIM card
holder, connect a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) at each SIM
signal (SIM_CLK, SIM_IO, SIM_RST) to ground near the SIM connector
Mount very low capacitance ESD protection (e.g. Infineon ESD8V0L2B-03L or AVX USB0002RP) near the SIM
card connector
Limit capacitance on each SIM signal to match the SIM specifications: always route the connections as short
as possible
1.9.1 (U)SIM functionality
The following SIM services are supported:
Abbreviated Dialing Numbers (ADN)
Fixed Dialing Numbers (FDN)
Last Dialed Numbers (LDN)
Service Dialing Numbers (SDN)
USIM Application Toolkit (USAT) R99 is supported.
1.10 Asynchronous serial interface (UART)
The UART interface is an 8-wire unbalanced asynchronous serial interface that provides an AT commands
interface, GPRS data and CSD data, software upgrades. The LUCY module implements two UART interfaces:
UART0 (8-wire interface) and UART1 (4-wire interface).
The UART0 interface provides RS-232 functionality conforming to the ITU-T V.24 Recommendation (more details
available in ITU Recommendation [3]), with CMOS compatible signal levels: 0 V for low data bit or ON state, and
1.8 V for high data bit or OFF state. Two different external voltage translators (Maxim MAX3237E and On
Semiconductor NLSX3018MUTAG) could be used to provide full RS-232 (8 lines) compatible signal levels. The On
Semiconductor chip provides the translation from 1.8 V to 3.3 V, while the Maxim chip provides the necessary
RS-232 compatible signal towards the external connector. If an UART interface with only 4 lines is needed, the
Maxim 13234E voltage level translator can be used. This chip translates the voltage levels from 1.8 V (modem
side) to the RS-232 standard. For detailed electrical characteristics refer to the LUCY-H200 Data Sheet [1].
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 32 of 83
The LUCY-H200 modules is designed to operate as a UMTS/HSDPA modem, which represents the data circuit-
terminating equipment (DCE) as described by the ITU-T V.24 Recommendation [3]. A customer application
processor connected to the module through the UART interface represents the data terminal equipment (DTE).
Take care to provide the needed accessibility (by means of test points, connector etc.) to UART0_TX,
UART0_RX and PWR_ON pins in order to re-flash/update the LUCY module even if it is not planned to use
UART0.
The signal names of the LUCY-H200 UART interface are conform to ITU-T V.24 Recommendation [3].
The UART interface includes the following lines:
Name
Description
Remarks
DSR
Data set ready
Module output, functionality of ITU-T V.24 Circuit 107 (Data
set ready)
RI
Ring Indicator
Module output, functionality of ITU-T V.24 Circuit 125
(Calling indicator)
DCD
Data carrier detect
Module output, functionality of ITU-T V.24 Circuit 109 (Data
channel received line signal detector)
DTR
Data terminal ready
Module input, functionality of ITU-T V.24 Circuit 108/2 (Data
terminal ready)
Internal active pull-up to 1.8 V enabled.
RTS
Ready to send
Module hardware flow control input, functionality of ITU-T
V.24 Circuit 105 (Request to send)
Internal active pull-up to 1.8 V enabled.
CTS
Clear to send
Module hardware flow control output, functionality of ITU-T
V.24 Circuit 106 (Ready for sending)
TxD
Transmitted data
Module data input, functionality of ITU-T V.24 Circuit 103
(Transmitted data)
Internal active pull-up to 1.8 V enabled.
RxD
Received data
Module data output, functionality of ITU-T V.24 Circuit 104
(Received data)
1.10.1 UART features
UART interface(s) are controlled and operated with:
AT commands according to 3GPP TS 27.007 [4]
AT commands according to 3GPP TS 27.005 [5]
AT commands according to 3GPP TS 27.010 [6]
u-blox AT commands
All flow control handshakes are supported by the UART interface and can be set by appropriate AT commands
(see u-blox 3.5G HSDPA AT Commands Manual [2]): hardware flow control (RTS/CTS), software flow control
(XON/XOFF), or none flow control.
Hardware flow control is default.
For the complete list of supported AT commands and their syntax refer to the u-blox 3.5G HSDPA AT
Commands Manual [2].
The following baud rates can be configured using AT commands:
2400 b/s
4800 b/s
9600 b/s
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 33 of 83
19200 b/s
38400 b/s
57600 b/s
115200 b/s
230400 b/s
460800 b/s
The frame format can be:
8N1 (8 data bits, No parity, 1 stop bit)
8E1 (8 data bits, even parity, 1 stop bit)
8O1 (8 data bits, odd parity, 1 stop bit)
8N2 (8 data bits, No parity, 2 stop bits)
The default frame configuration with fixed baud rate is 8N1, described in the Figure 16.
D0 D1 D2 D3 D4 D5 D6 D7
Start of 1-Byte
transfer
Start Bit
(Always 0)
Possible Start of
next transfer
Stop Bit
(Always 1)
t
bit
= 1/(Baudrate)
Normal Transfer, 8N1

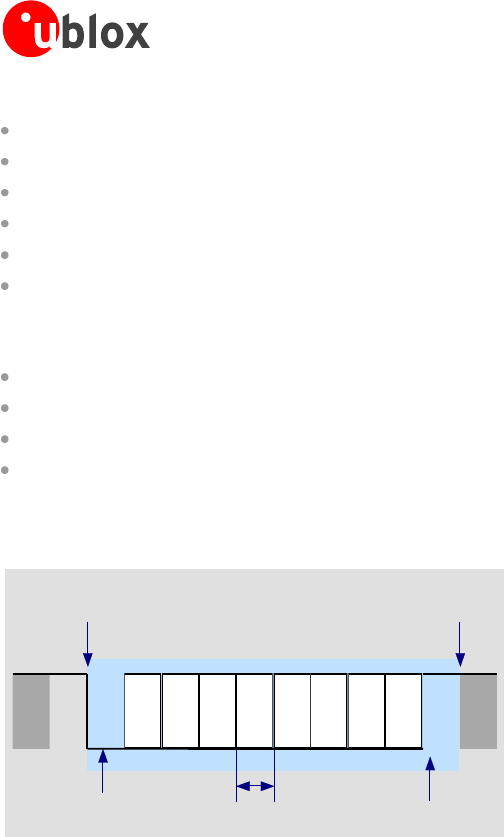

Figure 16: UART default frame format (8N1) description
1.10.2 UART0 signal behavior
See Table 2 for a description of operating modes and states referred to in this section.
By default the RxD and the TxD lines are set to OFF state at UART initialization, following the boot sequence
when the module is switched on. The module holds RxD and TxD in OFF state until data is either transmitted or
received by the module: an active pull-up is enabled inside the module on the TxD input.
The hardware flow control output (CTS line) indicates when the module is in active mode and the UART
interface is enabled: the module drives the CTS line to the ON state or to the OFF state when it is either prepared
or not prepared to accept data from the external device (DTE).
After the boot sequence the CTS line is set to ON state at UART initialization, when the module is in active-mode
and ready to operate. By default the module automatically enters idle-mode (power saving) unless this mode has
been disabled using an AT command (see u-blox 3.5G HSDPA AT Commands Manual [2]). Data sent by the DTE
can be lost if hardware flow-control is not enabled. The module periodically wakes up from idle-mode to active-
mode to be synchronized with network activity. Idle-mode time is fixed by network parameters and can be up to
~2.1 s. When the module wakes up to active-mode, the UART interface is enabled: the CTS line is switched to
ON state and is held in this state for a minimum of ~11 ms.
The behavior of hardware flow-control output (CTS line) during normal module operations (idle mode and active
mode) is illustrated in Figure 17.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 34 of 83
The time delay for the module to go from active-mode to idle-mode depends (in addition to dependency on
network parameters) on the timeout from the last data received at the serial port. This timeout is configurable by
the AT+UPSV command, between 40 GSM frames (~184 ms) and 65000 GSM frames (~300 s). Default value is
2000 GSM frames (~9.2 s).
Figure 17: CTS behavior during normal module operation: the CTS line indicates when the module is able (CTS = ON) or not able
(CTS = OFF) to accept data from the DTE and communicate through the UART interface
The hardware flow control input (RTS line) is set by default to OFF state at UART initialization at the end of the
boot sequence, after the module switches on. The RTS line is then held by the module in OFF state if hardware
flow- control is not enabled by the DTE. An active pull-up is enabled inside the module on the RTS input.
The module drives the DSR line to indicate whether it is ready to operate or not. After the module switches on,
DSR line switches from ON state to OFF state as shown in Figure 18. During the Boot process of the module,
DSR is forced to OFF, until the module is not ready to operate. It is switched to ON state when the module is
ready to operate. The time Tswitch depends on the duration of the boot process, and is in the range of ~1 s.
Figure 18: DSR behavior at power-on
The DTR line is set by default to OFF state at UART initialization, at the end of the boot sequence, after the
module switch on. The DTR line is then held by the module in the OFF state if the line is not activated by the
DTE. An active pull-up is enabled inside the module on the DTR input.
The RI and DCD lines are set by default to OFF state at UART initialization, at the end of the boot sequence. The
RI line is then held by the module in OFF state until an incoming call or SMS is received. The DCD line is held in
OFF state until a data call is accepted.
During an incoming call the RI line is switched from OFF state to ON state with a 4:1 duty cycle and a 5 s period
(ON for 1 s, OFF for 4 s, see Figure 19), until the DTE attached to the module sends the ATA string and the
module accepts the incoming data call. The RING string sent by the module (DCE) to the serial port at constant
time intervals is not correlated with the switch of the RI line to the ON state. When the data call is accepted, the
module is set to ON state and the serial line DCD sends the CONNECT<communication baudrate> to the DTE.
DTE sends data through the DCE and the GSM network to the remote DCE-DTE system and data communication
can be performed as for outgoing data calls.
Tswitch
0
DSR ON
DSR OFF
Power-on
0.024 time [s]
Tswitch
0
DSR ON
DSR OFF
Power-on
0.024 time [s]
time [s]
CTS ON
CTS OFF
max ~2.1 s
UART disabled
min ~11 ms
UART enabled
~9.2 s (default)
UART enabled
Data input
time [s]
CTS ON
CTS OFF
max ~2.1 s
UART disabled
min ~11 ms
UART enabled
~9.2 s (default)
UART enabled
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 35 of 83
Figure 19: RI behavior during incoming call
The RI line is used to notify an SMS arrival. When the SMS arrives, the RI line switches from OFF to ON for 1 s
(see Figure 20).
Figure 20: RI behavior at SMS arrival
1.10.3 Connecting UART0 on application boards - Full RS-232 Functionality
For complete RS-232 functionality conforming to ITU Recommendation [3] in DTE/DCE serial communication, the
complete UART0 interface of the module (DCE) must be connected to the DTE as described in Figure 21.
LUCY-H200
(DCE)
Application Processor
(DTE)
48
47
TxD_0
RxD_0
50
49
RTS_0
CTS_0
52
46
45
51 DTR_0
DSR_0
RI_0
DCD_0
TxD
RxD
RTS
CTS
DTR
DSR
RI
DCD
Figure 21: Interface application circuit with complete V.24 link in DTE/DCE serial communication
SMS arrives
time [s]
0
RI ON
RI OFF
1s
SMS
time [s]
0
RI ON
RI OFF
1s
1s
time [s]
151050
RI ON
RI OFF
Call incomes
1s
time [s]
151050
RI ON
RI OFF
Call incomes
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 36 of 83
1.10.3.1 Connecting UART0 on application boards - TxD, RxD, RTS and CTS lines only (not using the
complete V.24 link)
If only the TxD, RxD, RTS and CTS lines are desired, it is possible to use the UART1 serial interface, otherwise
follow the application circuit described in Figure 22. HW flow-control is used. The module wakes up from default
idle-mode to active-mode when data is received at the UART interface, since the HW flow control is enabled by
default in the module.
Connect on the application board the DSR output line to the module DTR input line, since the module
requires DTR active (low electrical level) and DSR is active (low electrical level) once the module is switched
on and the UART0 interface is enabled
Leave DCD and RI lines of the module unconnected and floating
LUCY-H200
(DCE)
Application Processor
(DTE)
48
47
TxD_0
RxD_0
50
49
RTS_0
CTS_0
52
46
45
51 DTR_0
DSR_0
RI_0
DCD_0
TxD
RxD
RTS
CTS
DTR
DSR
RI
DCD
Figure 22: UART0 interface application circuit with partial V.24 link (4-wire) in the DTE/DCE serial communication
1.10.3.2 Connecting TxD and RxD lines only (not complete V24 link)
Follow the application circuit described in Figure 23. HW flow control is not used. The module doesn’t wake up
from idle-mode to active-mode when data is received at the UART interface. Since HW flow control is by default
enabled in the module, data delivered by the DTE can be lost.
The module cannot be woken-up in this case, and for this reason this configuration is not recommended.
Connect on the application circuit the module the CTS output line to the module RTS input line, since the
module requires RTS active (low electrical level) and CTS is active (low electrical level) when the module is in
active mode and the UART interface is enabled
Connect on the application circuit the module the DSR output line to the module DTR input line, since the
module requires DTR active (low electrical level) and DSR is active (low electrical level) once the module is
switched on and the UART interface is enabled
DCD and RI lines of the module can be left unconnected and floating
Also in this configuration the UART interface can be used as AT commands interface, for GPRS data and CSD
data communication and for software upgrades, but without the HW flow control, data delivered by the DTE
can be lost.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 37 of 83
LUCY-H200
(DCE)
Application Processor
(DTE)
48
47
TxD_0
RxD_0
50
49
RTS_0
CTS_0
52
46
45
51 DTR_0
DSR_0
RI_0
DCD_0
TxD
RxD
RTS
CTS
DTR
DSR
RI
DCD
Figure 23: UART interface application circuit with partial V.24 link (2-wire) in the DTE/DCE serial communication
On an application board, it is highly recommended to provide direct access to RxD_0 and TxD_0 lines of
the module (in addition to access to these lines from an application processor). This enables a direct
connection of PC (or similar) to the module for execution of Firmware upgrade over the UART. Provide as
well access to PWR_ON line in order to flash the module.
1.10.4 UART1 serial port
UART1 also provides RTS and CTS lines for HW handshaking. For their use please refer to UART0 RTS and CTS
connection.
It is not possible to Flash the module through UART1, so provide appropriate access to UART0 RXD, UART0
TXD, and PWR_ON lines on the application board.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 38 of 83
1.10.5 MUX Protocol (3GPP 27.010)
The module has a software layer with MUX functionality complaint with 3GPP 27.010 [8].
This is a data link protocol (layer 2 of OSI model) using HDLC-like framing and operates between the module
(DCE) and the application processor (DTE). The protocol allows simultaneous sessions over the UART. Each
session consists of a stream of bytes transferring various kinds of data like SMS, CBS, GPRS, AT commands in
general. This permits, for example, SMS to be transferred to the DTE when a data connection is in progress.
The following virtual channels are defined:
Channel 0: control channel
Channel 1 – 5: AT commands /data connection
Channel 6: GPS tunnelling
1.11 DDC (I2C) interface
1.11.1 Overview
An I2C compatible Display Data Channel (DDC) interface for serial communication is implemented. This interface
is intended exclusively to access u-blox GPS receivers.
Name
Description
Remarks
SCL
I2C bus clock line
Open drain. External pull-up required.
SDA
I2C bus data line
Open drain. External pull-up required.
Table 10: DDC pins
To be compliant to the I2C bus specifications, the module bus interface pads are open drain output and pull up
resistors must be used. Since the pull-up resistors are not mounted on the module, they must be mounted
externally. Resistor values must conform to the I2C bus specifications [7]. If the LUCY-H200 module is connected
through the DDC bus to a single u-blox GPS receiver only (only one device is connected on the DDC bus), use a
pull-up resistor of 4.7 k . Pull-ups must be connected to a supply voltage of 1.8 V (typical), since this is the
voltage domain of the DDC pins. VINT voltage domain can be used to provide 1.8 V for the pull-ups (for detailed
electrical characteristics see the LUCY-H200 Data Sheet [1]).
DDC Slave-mode operation is not supported, the module can act as master only.
Two lines, serial data (SDA) and serial clock (SCL), carry information on the bus. SCL is used to synchronize data
transfers, and SDA is the data line. Since both lines are open drain outputs, the DDC devices can only drive them
low or leave them open. The pull-up resistor pulls the line up to the supply rail if no DDC device is pulling it
down to GND. If the pull-ups are missing, SCL and SDA lines are undefined and the DDC bus will not work.
The signal shape is defined by the values of the pull-up resistors and the bus capacitance. Long wires on the bus
will increase the capacitance. If the bus capacitance is increased, use pull-up resistors with nominal resistance
value lower than 4.7 k , to match the I2C bus specifications regarding rise and fall times of the signals [7].
Capacitance must be limited on the bus to match the I2C specifications: route connections as short as
possible.
If the pins are not used as DDC bus interface, they can be left unconnected.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 39 of 83
1.11.2 DDC application circuit
The SDA and SCL lines can be used only to connect the LUCY module to a u-blox GPS module: LUCY DDC (I2C)
interface is enabled by the +UGPS AT command only. GPIO2 is automatically driven as output by the +UGPS AT
command to switch-on or switch-off the u-blox GPS module, connecting GPIO2 to the active-high enable pin (or
the active-low shutdown pin) of the voltage regulator that supplies the u-blox GPS module on the application
board. The application circuit for SDA, SCL and GPIO2 is illustrated in Figure 24.
LUCY-H2001.8 V u-blox GPS receiver
SDA
SCL
13
12
SDA
SCL
R1
R1
1.8 V
VCC 53 GPIO2OUT SHDNn
LDO
1.8 V
12
53

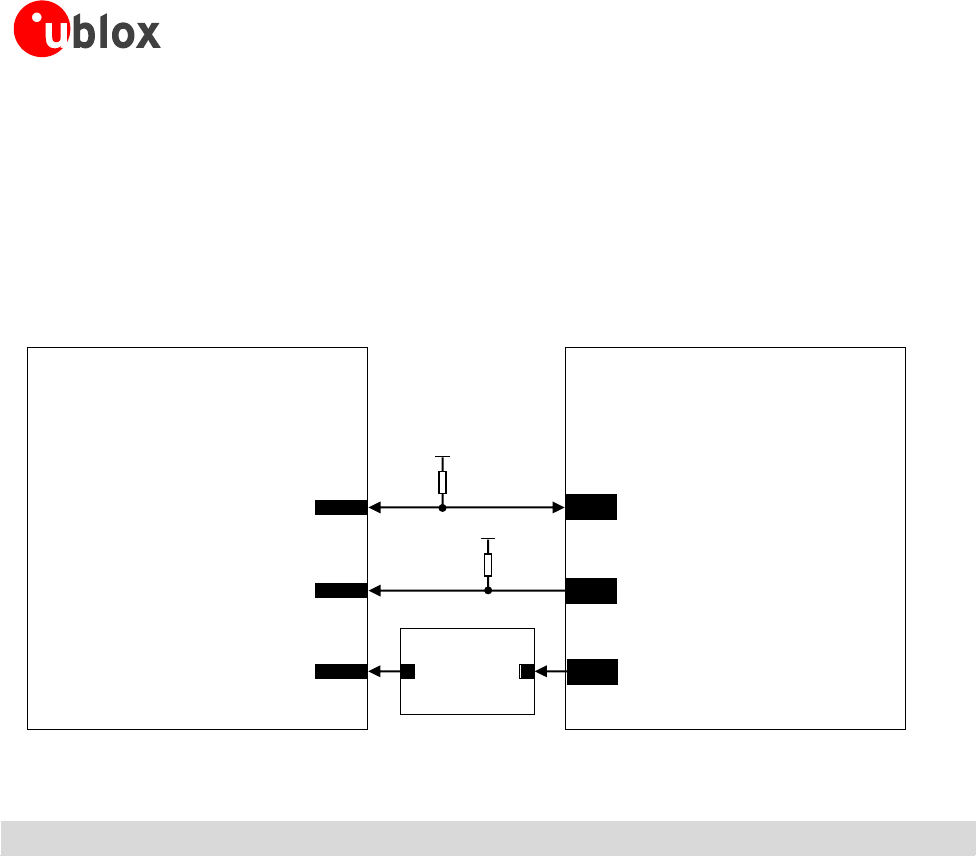

Figure 24: DDC Application circuit for 1.8V u-blox GPS receivers.
Name
Suggested Value
R1
4.7 kΩ
Table 11 - Component for DDC application circuit
The application circuit depicted in Figure 24 is valid only for the 1.8 V u-blox GPS receivers’ family. LUCY VINT
can be used for 1.8 V.
If a 3 V u-blox GPS receiver is used, SDA and SCL lines can be simply pulled up to 3 V as shown in Figure 25
since LUCY pins are 3 V tolerant. If a 3 V GPS receiver is used, for future compatibility with the next generation
of u-blox UMTS modules, a level translating solution can be placed as a non-mounting option bypassed by zero
Ω resistors. For example, Texas Instruments PCA9306 bidirectional I2C voltage level translator can be used as a
not mounting option.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 40 of 83
LUCY-H2003V u-blox GPS receiver
SDA
SCL
13
12
SDA
SCL
R1
R1
3 V
VCC 53 GPIO2OUT SHDNn
LDO
3 V
12
53

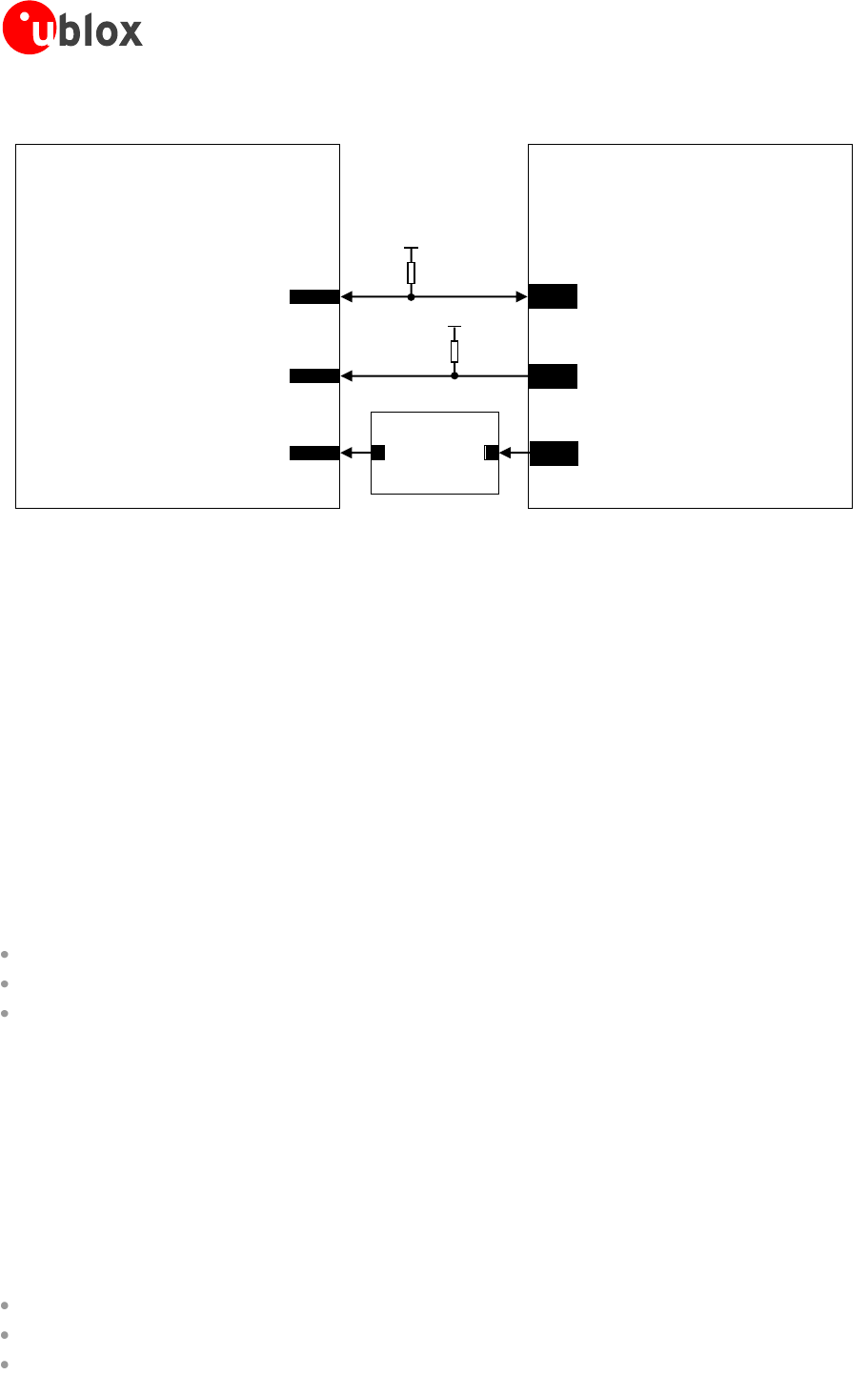

Figure 25: Application circuit for 3V u-blox GPS receivers.
1.12 SPI interface
SPI is a master-slave protocol: the LUCY module natively runs as an SPI slave, e.g. it accepts AT commands on its
SPI interface. Any LUCY module can be commanded via AT commands to become an SPI master device. Then,
always via AT commands, an embedded program can run on an LUCY module so that the data flow from the AT
port is redirected on the SPI interface and vice versa.
The SPI-compatible synchronous serial interface cannot be used for SW download.
The SPI interface includes two signals to transmit and receive data (one is the MOSI master output / slave input
data, the other is the MISO master input / slave output data) and a clock signal (SCLK0) generated by the master.
The directions of these lines are inverted if the LUCY module runs as an SPI slave or as an SPI master device:
MOSI signal is an output for the LUCY module if it runs as SPI master or is an input if it runs as SPI slave
MISO signal is an input for the LUCY module if it runs as SPI master or is an output if it runs as SPI slave
SCLK0 signal is an output for the LUCY module if it runs as SPI master or is an input if it runs as SPI slave
On the LUCY module, the standard 3-wire SPI interface implements, together with the two handshake signals
SPI_MRDY and SPI_SRDY, the 5-wire Inter Processor Communication (IPC) interface.
The purpose of the IPC interface is to achieve high speed communication (up to 12 Mb/s) between two
processors following the same IPC specifications: the LUCY baseband processor and an external processor.
This interface is suggested for high speed UMTS/HSDPA communications and could be necessary to
communicate with an Application Processor which is not equipped with a USB interface.
In the LUCY IPC interface, the SPI interface on the modem side is running in slave mode and the SPI interface on
the application processor is running in master mode, so this is the direction of the SPI signals in the IPC interface:
MOSI signal is an input for the LUCY module in the IPC interface
MISO signal is an output for the LUCY module in the IPC interface
SCLK0 signal is an input for the LUCY module in the IPC interface
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 41 of 83
The function of the SPI_MRDY and SPI_SRDY signals is twofold. For transmitting data the signal indicates to
the data receiver that data is available to be transmitted. For reception of data the signal indicates to the
transmitter that the receiver is ready to receive data. Due to this setup it is possible to use the control signals as
interrupt lines waking up the receiving part when data is available for transfer. When the handshaking has
taken place, the transfer occurs just as if it were a standard SPI interface without chip select functionality (i.e.
one master - one slave setup).
SPI_MRDY is used by the application processor (i.e. the master) to indicate to the LUCY baseband processor (i.e.
the slave) that it is ready to transmit or receive (IPC master ready signal), and can also be used by the application
processor to wake up the LUCY baseband processor if it is in the idle mode. SPI_MRDY is an input for the LUCY
module able to detect an external interrupt which comes from the application processor.
SPI_MRDY can also be configured by means of software settings for different uses as an alternative to the
default software setting which is the IPC flow control line input functionality support.
SPI_MRDY can be configured to support the external interrupt detection input functionality: in this case some
LUCY module activity can be triggered by a rising edge or by a falling edge or both rising/falling edges presence
on this line. The user can set these options by software.
SPI_SRDY line is used by the LUCY baseband processor (i.e. the slave) to indicate to the application processor
(i.e. the master) that it is ready to transmit or receive (IPC slave ready signal), and can also be used by the LUCY
baseband processor to wake up the application processor if it is in hibernation. SPI_SRDY is an output for the
LUCY module, and the application processor should be able to detect an external interrupt which comes from
the LUCY module on its connected pin.
SPI_SRDY can also be configured as GPIO by means of software settings as alternative of the default software
setting which is the IPC flow control line output functionality support.
The description of pins of the Board-to-Board connector related to IPC interface is reported in Table 12:
B2B
PIN #
LUCY Signal
Name
LUCY
I/O
Description
Remarks
9
SPI_MISO
O
SPI and IPC sync data
(Master Input, Slave Output)
Digital I/O interfaces voltage domain
10
SPI_MOSI
I
SPI and IPC sync data
(Master Output, Slave Input)
Digital I/O interfaces voltage domain
38
SPI_MRDY
I
IPC flow control line input
(Master Ready)
Digital I/O interfaces voltage domain
Default SW setting: IPC flow control line input
Alternative SW setting: External interrupt input
32
SPI_SRDY
O
IPC flow control line output
(Slave Ready)
Digital I/O interfaces voltage domain
Default SW setting: IPC flow control line output
Alternative SW setting: GPIO
Table 12: SPI signals on B2B
1.13 USB interface
LUCY data modules provide a USB interface which complies with the full-speed USB 2.0 standard at 12 Mb/s. It
acts as a USB device and can be connected to any USB host such as a PC or other Application Processor.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 42 of 83
Since the module acts as a USB device, the USB supply (5.0 V typ.) must be provided to VUSB_DET by the
connected USB host. As pointed out in chapter 1.6.1 if VUSB_DET is at VUSB range and USB is active, UART0 is
automatically disabled, so the two peripherals cannot be used simultaneously.
Take care to provide the needed accessibility (by means of test points, connector etc.) to UART0_TX,
UART0_RX, and PWR_ON pins in order to re-flash/update LUCY module.
The module does not enter idle mode when USB voltage (typically 5 V) is detected at VUSB_DET pin.
When the module is connected to another device via USB (e.g. a PC) the module does not go in idle mode.
The power consumption will be the same of the active state. This current is not taken from the PC but to
the module power supply.
1.14 Serial interfaces configuration
Not all the serial communication are allowed in the same time. Via a dedicated AT command it's possible to set
up the preferred configuration, to be chosen into the following list (for more details please refer to u-blox 3.5G
HSDPA AT Commands Manual [2]):
Variant
UART0
UART1
USB
SPI (slave)
0
AT interface (if USB is not
connected; otherwise
disabled)
RX and TX signals for debug
purposes
AT interface (if connected)
1
RX and TX signals for debug
purposes
AT interface
AT interface
2
AT interface (if USB is not
connected; otherwise
disabled)
RX and TX signals for debug
purposes
AT interface (if connected)
AT interface
Table 13 - Serial interfaces configuration
For UART0 and UART1 is intended the full signals configuration if not indicated differently.
1.15 ADC input
One Analog to Digital Converter input is available (ADC1) and is configurable using a custom AT command (see
u-blox 3.5G HSDPA AT Commands Manual [2]). The resolution of this converter is 12-bit with a single ended
input range.
Name
Description
Remarks
ADC1
ADC input
Resolution: 12 bits.
Table 14: ADC pin
The electrical behavior of the measurement circuit in voltage mode can be modeled by a circuit equivalent to
that shown in Figure 26. This includes a resistor (Req), voltage source (Ueq), analog preamplifier (with typical gain
G=0.5), and a digital amplifier (with typical gain gADC=2048 LSB/V).
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 43 of 83
LUCY-H200
ADC1
Ueq
Req
Usig
Rsig
Uadc
G
27
gADC
Figure 26: Equivalent network for ADC single-ended measurement
The ADC software driver takes care of the parameters shown in Figure 26 (Req, Ueq, G, gADC). The voltage
measured by the ADC is Uadc. If the voltage source (Usig) has a significant internal resistance (Rsig) compared to the
input resistance in measurement mode (Req) of the ADC, this should be taken into account and corrected.
If an external voltage divider is implemented to increase the voltage range, check the input resistance in
measurement mode (Req) of the ADC input and all the electrical characteristics.
The detailed electrical specifications of the Analog to Digital Converter input are reported in the LUCY-H200
Data Sheet [1].
1.16 General Purpose Input/Output (GPIO)
The LUCY-H200 module provides five General Purpose Input/Output pins (GPIO1…GPIO5) which can be
configured via u-blox AT commands (more details available in u-blox 3.5G HSDPA AT Commands Manual [2]).
Some GPIOs are used for special indications as reported below:
GPIO2 is dedicated for connection to a u-blox GPS receiver: AT commands are used to drive the GPIO as
output to wake up the u-blox GPS module. If LUCY-H200 module is not connected to a u-blox GPS module,
GPIO2 can be used for general purposes
GPIO3 by default indicates whether the module is registered on a 2G or on a 3G network. If this indication
is not needed, the GPIO can be used by means of the appropriate AT command
GPIO4 by default indicates antenna jamming activity. If this indication is not needed, the GPIO can be used
by means of the appropriate AT command

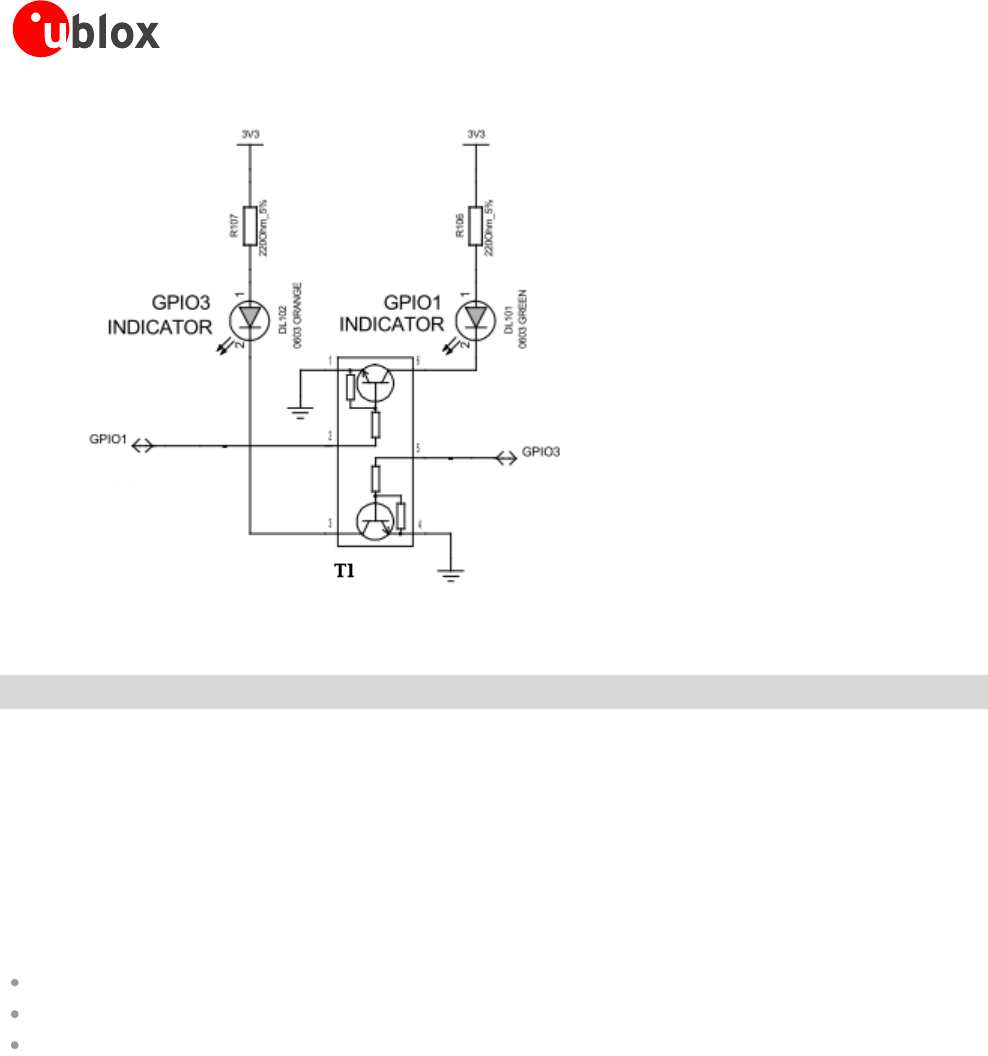

When an LED is to be driven by means of a GPIO use a transistor and an appropriate voltage source as shown in
the Figure 27 for GPIO1 and GPIO3.
Use transistors with at least an integrated resistor in the base pin or otherwise put a 10 kΩ resistor on the
board in series to the GPIO.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 44 of 83
Figure 27: LED driving with GPIO
Name
Description
Remarks
T1
BCR135S BJT by Infineon
Use transistors with at least an
integrated resistor in the base pin or
otherwise put a 10kΩ resistor on the
board in series to the GPIO.
Table 15 - Component for LED driving with GPIO
1.17 Audio Interface
The LUCY-H200 module provides one digital and two analog audio interfaces:
One microphone input
One Speaker output
I2S digital audio interface: input and output
Audio signal routing can be controlled by the dedicated AT command +USPM (refer to u-blox 3.5G HSDPA AT
Commands Manual [2]). This command allows setting the audio path mode, composed by the uplink audio path
and the downlink audio path; e.g. in headset mode the uplink audio path is “Headset microphone”, the
downlink audio path is “Mono headset”. In turns, each uplink path is composed by the audio input and by a set
of parameters to process the audio signal (uplink gains, uplink digital filters, echo canceller parameters). For
example “Headset microphone” uplink path uses the analog microphone input with a default analog gain of 27
dB.
Each downlink path is composed by the audio output and by a set of parameters to process the audio signal
(downlink gains, downlink digital filters, sidetone). These parameters can be changed with dedicated AT
commands for each uplink or downlink path and then stored in 2 profiles in the non volatile memory (refer to u-
blox 3.5G HSDPA AT Commands Manual [2] for Audio parameters tuning commands).
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 45 of 83
1.17.1 Analog Audio interface
1.17.1.1 Microphone input
The microphone input can be used for direct connection of the electret condenser microphone to a headset,
handset or hands-free device. The main required electrical specifications for the electret condenser microphone
are 2.2 k as maximum output impedance at 1 kHz and 2 V as maximum standard operating voltage.
Board-to-board pins related to the microphone input are:
MIC_BIAS: single ended supply to the microphone and represents the microphone signal input
MIC_GND: local ground for the microphone
Detailed electrical characteristics of the microphone input can be found in LUCY-H200 Data Sheet [1].
1.17.1.2 Speaker output
A differential high power audio output, can be used to directly connect a headset earpiece, handset earpiece or
a loudspeaker used for ring-tones or for speech in a hands-free device.
Board-to-board pins related to the speaker output are:
SPK_N / SPK_P: high power differential audio output. These two pins are internally connected to the
output of a high power differential audio amplifier
Detailed electrical characteristics of the high power differential audio output can be found in LUCY-H200 Data
Sheet [1].
Warning: excessive sound pressure from headphones can cause hearing loss.
All audio lines on an Application Board must be routed in pairs, be embedded in GND (have the ground
lines as close as possible to the audio lines), and maintain distance from noisy lines such as VCC and
from components as switching regulators.
1.17.1.3 Headset mode
Headset mode is the default audio operating mode of the LUCY-H200 module:
In headset mode the uplink audio path is “Headset microphone”, the downlink audio path is “Mono
headset” (refer to AT commands manual: AT+USPM command: <main_uplink>,<main_downlink>
parameters)
The audio path used in headset mode:
Headset microphone must be connected to MIC_BIAS/MIC_GND
Headset receiver must be connected to SPK_P/SPK_N

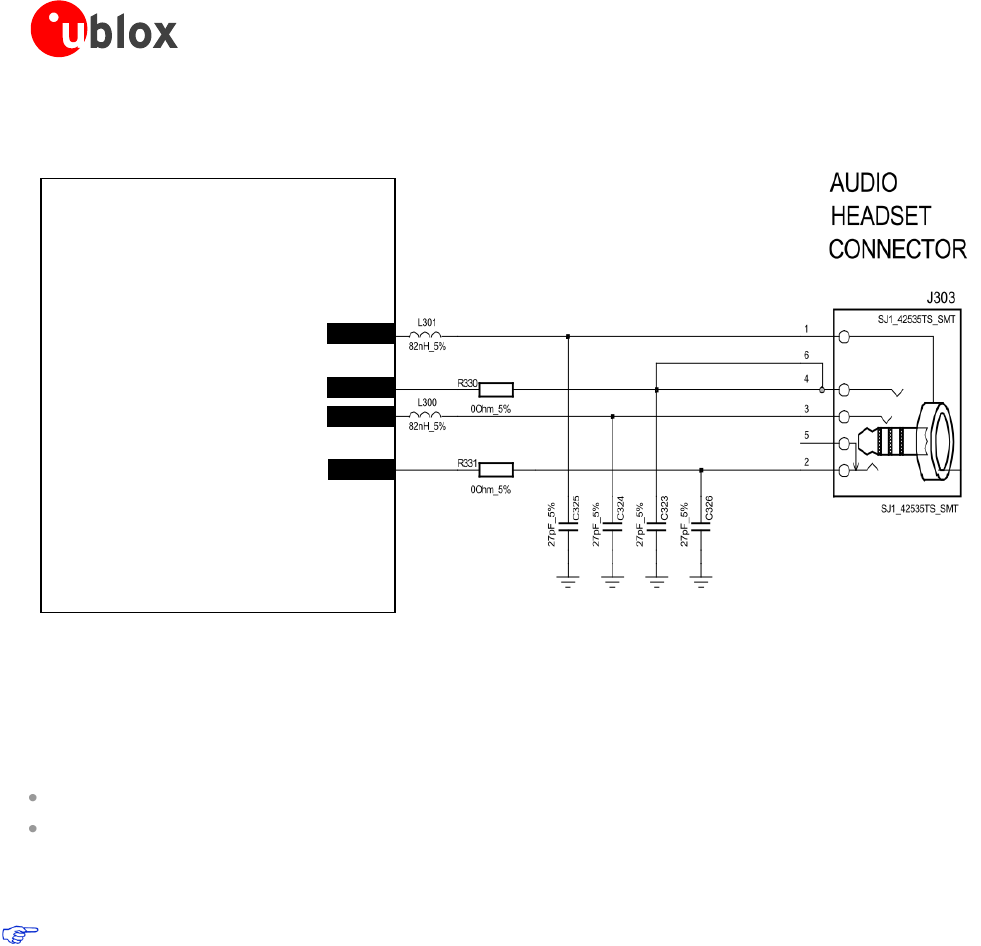

Figure 28 shows an example of an application circuit connecting a headset (with a 2.2 kΩ electret microphone
and a 32 Ω receiver) to the LUCY-H200 module (jack connector omitted). The following should be done on the
application circuit:
Mount an 82 nH series inductor (e.g. Murata LQG15HS82NJ02) on each microphone line, and a 27 pF
bypass capacitor (e.g. Murata GRM1555C1H270J) on all audio lines to minimize RF coupling and TDMA
noise.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 46 of 83
LUCY H200
21
MIC_BIAS
20
MIC_GND
23
SPK_P
24
SPK_N

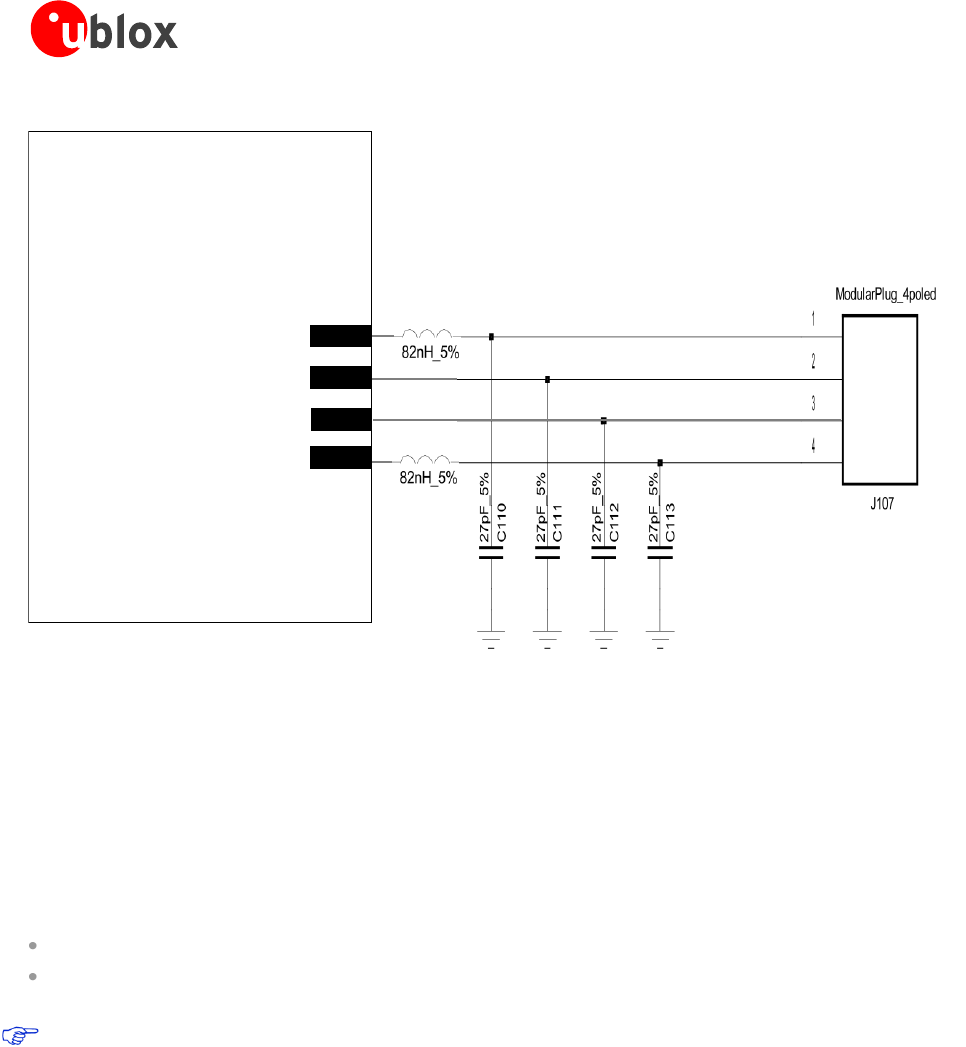

Figure 28: Headset mode application circuit
1.17.1.4 Handset mode
In handset mode, the uplink audio path is “Handset microphone”, the downlink audio path is “Normal
earpiece” (refer to AT commands manual: AT+USPM command: <main_uplink>,<main_downlink> parameters).
Handset microphone must be connected to inputs MIC_BIAS / MIC_GND
Handset receiver must be connected to outputs SPK_P / SPK_N
Figure 29 shows an example of an application circuit connecting a handset (with a 2.2 kΩ electret microphone
and a 32 Ω receiver) to the LUCY-H200 module (headset connector omitted). The following should be done on
the application circuit:
Mount an 82 nH series inductor (e.g. Murata LQG15HS82NJ02) on each microphone line and a 27 pF
bypass capacitor (e.g. Murata GRM1555C1H270J) on all audio lines to minimize RF coupling and TDMA
noise.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 47 of 83
LUCY-H200
23
20
21
MIC_BIAS
MIC_GND
SPK_P
24
SPK_N
Figure 29: Handset mode application circuit
1.17.1.5 Hands-free mode
It is possible to implement a hands-free device using a loudspeaker and a microphone.
In hands-free mode, the uplink audio path is “HF carkit microphone”, the downlink audio path is “Loudspeaker”
(refer to AT commands manual: AT+USPM command: <main_uplink>, <main_downlink> parameters) .Hands-
free functionality is implemented using appropriate DSP algorithms for voice band handling (echo canceller and
automatic gain control), managed via software. (Refer to u-blox 3.5G HSDPA AT Commands Manual [2] -
AT+UHFP command)
Microphone must be connected to the input pins MIC_BIAS / MIC_GND
High power loudspeaker must be connected to the output pins SPK_P / SPK_N
The physical width of the high-power audio outputs lines on the application board must be wide
enough to minimize series resistance.
Figure 30 shows an application circuit for hands free mode. In this example the LUCY-H200 module is connected
to an 8 Ω speaker and a 2.2 kΩ electret microphone. Insert an 82 nH series inductor (e.g. Murata
LQG15HS82NJ02) on each microphone line and a 27 pF bypass capacitor (e.g. Murata GRM1555C1H270J) on all
audio lines to minimize RF coupling and TDMA noise.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 48 of 83
LUCY-H200
20
21
23
24
MIC_BIAS
MIC_GND
SPK_N
SPK_P
Figure 30: Hands-free mode application circuit
1.17.1.6 Connection to an external analog audio device
When the LUCY-H200 module analog audio output is connected to an external audio device, SPK_P / SPK_N
analog audio outputs can be used. A 10 µF series capacitor (e.g. Murata GRM188R60J106M) must be inserted
between the SPK_P output and the single ended analog input of the external audio device (to decouple the
bias).
Audio devices with a differential analog input can be connected directly to SPK_P / SPK_N balanced output.
The signal levels can be adapted by setting gain using AT commands, but additional circuitry must be inserted if
the SPK_P / SPK_N output level of the module is too high for the input of the audio device.
If the LUCY-H200 module analog audio input is connected to an external audio device, MIC_BIAS / MIC_GND
can be used (default analog audio input of the module). Insert a 10 µF series capacitor (e.g. Murata
GRM188R60J106M) between the single ended analog output of the external audio device and MIC_BIAS.
Connect the reference of the single ended analog output of the external audio device to MIC_GND. If the
external audio device is provided with a differential analog output, insert an additional differential to single
ended circuit. The signal levels can be adapted by setting gain using AT commands, but additional circuitry must
be inserted if the output level of the audio device is too high for MIC_BIAS.
To enable the audio path corresponding to these input/output, please refer to u-blox 3.5G HSDPA AT
Commands Manual [2]: AT+USPM command.
To tune audio levels for the external device please refer to u-blox 3.5G HSDPA AT Commands Manual
[2] (AT+USGC, AT+UMGC commands).
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 49 of 83
1.17.2 Digital mode / digital audio interface
The LUCY-H200 module supports a bidirectional 4-wire I2S digital audio interface. The module acts as master
only. The applicable pins are described in Table 16:
Name
Description
Remarks
I2S_WA
I2S word alignment
Module output (master)
I2S_TXD
I2S transmit data
Module output
I2S_CLK
I2S clock
Module output (master)
I2S_RXD
I2S receive data
Module input
Table 16: I2S interface pins
The I2S interface can be can be used in two modes:
PCM mode
Normal I2S mode
The I2S interface is activated and configured using AT commands, see u-blox 3.5G HSDPA AT Commands
Manual: +USPM.
Parameters of digital path can be configured and saved as the normal analog paths, using appropriate path
index as described in the u-blox 3.5G HSDPA AT Commands Manual [2]. Analog gain parameters of microphone
and speakers are unused when digital path is selected.
I2S_TX and I2S_RX are respectively parallel to the analog front end, so resources available for analog path can
be shared:
Digital filters and digital gains are available in both uplink and downlink direction. Configure using AT
commands
Ringer tone and service tone are mixed on the TX path when active (downlink)
The HF algorithm acts on I2S path
Any external signal connected to the digital audio interface must be set low or tri-stated when the
module is in power down mode to avoid an increase of module power consumption. If the external
signals connected to the digital audio interface cannot be set low or tri-stated, insert a multi channel
digital switch (e.g. Texas Instruments SN74CB3Q16244, TS5A3159, or TS5A63157) between the
two-circuit connections and set to high impedance when the module is in power down mode.
For debug purposes, include a test point at each I2S pin also if the digital audio interface is not used.
Refer to the u-blox 3.5G HSDPA AT Commands Manual [2]: AT+UI2S command for possible
combinations of connection and settings.
1.17.2.1 I2S interface - PCM mode
Main features of the I2S interface in PCM mode:
I2S runs in PCM - short alignment mode (configurable by AT commands)
Module functions as I2S master (I2S_CLK and I2S_WA signals generated by the module)
I2S_WA signal always runs at 8 kHz
I2S_WA toggles high for 1 or 2 CLK cycles of synchronism (configurable), then toggles low for 16 CLK
cycles of sample width. Frame length can be 1 + 16 = 17 bits or 2 + 16 = 18 bits
I2S_CLK frequency depends on frame length. Can be 17 x 8 kHz = 136 kHz or 18 x 8 kHz = 144 kHz
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 50 of 83
I2S_TX, I2S_RX data are 16 bit words with 8 kHz sampling rate, mono. Data is in 2’s complement notation.
MSB is transmitted first
When I2S_WA toggles high, the first synchronization bit is always low. Second synchronization bit (present
only in case of 2 bit long I2S_WA configuration) is MSB of the transmitted word (MSB is transmitted twice
in this case)
I2S_TX changes on I2S_CLK rising edge, I2S_RX changes on I2S_CLK falling edge
1.17.2.2 I2S interface - Normal I2S mode
Normal I2S supports:
16 bits word
mono interface
8 kHz frequency
Main features of I2S interface in normal I2S mode:
I2S_WA signal always runs at 8 kHz and synchronizes 2 channels (timeslots on WA high, WA low)
I2S_TX data are composed of 16 bit words, dual mono (the words are written on both channels). Data are
in 2’s complement notation. MSB is transmitted first. The bits are written on I2S_CLK rising or falling edge
(configurable)
I2S_RX data are read as 16 bit words, mono (words are read only on the timeslot with WA high). Data is
read in 2’s complement notation. MSB is read first. The bits are read on the I2S_CLK edge opposite to
I2S_TX writing edge (configurable)
I2S_CLK frequency is 16 bits x 2 channels x 8 kHz = 256 kHz
The modes are configurable through a specific AT command (refer to the related chapter in u-blox 3.5G HSDPA
AT Commands Manual [2]) and the following parameters can be set:
MSB can be 1 bit delayed or non-delayed on I2S_WA edge
I2S_TX data can change on rising or falling edge of I2S_CLK signal (rising edge in this example)
I2S_RX data are read on the opposite front of I2S_CLK signal
1.17.3 Voiceband processing system
The voiceband processing on the LUCY-H200 is implemented in the DSP core inside the baseband chipset. The
analog audio front-end of the chipset is connected to the digital system through 16 bit ADC converters in the
uplink path, and through 16 bit DAC converters in the downlink path. External digital audio devices can be
interfaced directly to the DSP digital processing part via the I2S digital interface. The analog amplifiers are skipped
in this case.
Possible processing of audio signal are:
Speech encoding (uplink) and decoding (downlink).The following speech codecs are supported in firmware
on the DSP:
Fullrate, enhanced fullrate, and halfrate speech encoding and decoding
Adaptive multi rate (fullrate and halfrate) speech encoding and decoding
Mandatory sub-functions:
Discontinuous transmission, DTX (GSM 46.031, 46.041, 46.081 and 46.093 standards)
Voice activity detection, VAD (GSM 46.032, 46.042, 46.082 and 46.094 standards)
Background noise calculation (GSM 46.012, 46.022, 46.062 and 46.092 standards)
Signal routing: refer to the u-blox 3.5G HSDPA AT Commands Manual [2] (AT+USPM command)
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 51 of 83
Analog amplification, Digital amplification: please refer to the u-blox 3.5G HSDPA AT Commands Manual [2]
(AT+USGC,+CLVL, +CRSL, +CMUT command)
Digital filtering: please refer to the u-blox 3.5G HSDPA AT Commands Manual [2] (AT+UUBF, +UDBF
commands)
Hands-free algorithms (echo cancellation, Noise suppression, Automatic Gain control: refer to the u-blox
3.5G HSDPA AT Commands Manual [2] (AT+UHFP command)
Sidetone generation (feedback of uplink speech signal to downlink path): please refer to the u-blox 3.5G
HSDPA AT Commands Manual [2] (AT+USTN command)
Playing/mixing of alert tones:
Service tones: Tone generator with 3 sinus tones used (please refer to the u-blox 3.5G HSDPA AT
Commands Manual [2]: AT+UPAR command)
User generated tones: Tone generator with 3 sinus tones used (please refer to the u-blox 3.5G HSDPA
AT Commands Manual [2]: AT+UTGN command)
Midi melodies (for ringer): Synthesizer with up to 64 voices and a 48kHz sampling rate. (please refer to
the u-blox 3.5G HSDPA AT Commands Manual [2]: AT+UPAR command)
AMR files (for prompting): The storage format of AMR encoded audio content is defined in RFC3267
chapter 5 (please refer to the u-blox 3.5G HSDPA AT Commands Manual [2]: AT+UPLAYFILE command)
With exception of the speech encoder/decoder, these audio processing can be controlled by AT commands. The
block diagram in Figure 31 summarizes the voiceband audio processing in the DSP.
Figure 31: Voiceband processing system block diagram
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 52 of 83
1.18 Approvals
1.18.1 Federal communications commission notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio or television technician for help
1.18.1.1 Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are not
expressly approved by u-blox could void the user's authority to operate the equipment.
1.18.1.2 Cables
The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance
with FCC regulations.
(Part 15.105 only applies for digital devices in the meaning of the FCC rules)
1.18.1.3 Declaration of Conformity for products marked with the FCC logo - United States only
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
1.18.2 European Union declaration of conformity
Products bearing the CE marking comply with the R&TTE Directive (99/5/EC), EMC Directive (89/336/EEC) and
the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms (in parentheses are the
equivalent international standards and regulations):
Radio Frequency spectrum efficiency:
EN 301 511, v9.0.2
EN 301 908-1, v3.2.1
EN 301 908-2, v3.2.1
Electromagnetic Compatibility:
EN 301 489-1, v1.8.1
EN 301 489-7, v 1.3.1
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information System description
Page 53 of 83
EN 301 489-24, v1.3.1
Safety
EN 60950-1: 2001
1.18.2.1 Safety Warnings
Equipment for building-in. The requirements for fire enclosure must be evaluated in the end product
The clearance and creepage current distances required by the end product must be withheld when the
module is installed
The cooling of the end product shall not negatively be influenced by the installation of the module
1.18.3 Compliance with FCC and IC Rules and Regulations
TBD
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 54 of 83
2 Design-In
This section provides a design-in checklist.
2.1 Schematic design-in checklist
TBD
2.2 Design Guidelines for Layout
The following design guidelines must be met for optimal integration of the LUCY-H200 module on the final
application board.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 55 of 83
2.2.1 Layout guidelines per pin function
This section groups the LUCY-H200 pins by signal function and provides a ranking of importance in layout
design.
1GND
2GND
3GND
4GND
5VSIM
6SIM_IO
7SIM_CLK
8SIM_RST
9SPI_MISO
10 SPI_MOSI
11 SPI_SCLK0
12 SCL
13 SDA
14 I2S_CLK
15 I2S_RXD
16 I2S_TXD
17 I2S_WA
18 RESET_N
19 GND
20 MIC_GND
21 MIC_BIAS
22 GND
23 SPK_P
24 SPK_N
25 GND
26 PWR_ON
27 ADC1
28 VUSB_DET
29 USB_D+
30 USB_D-
60
VCC
59
VCC
58
VCC
57
VCC
56
V_INT
55
V_BCKP
54
GPIO1
53
GPIO2
52
DCD_0
51
DTR_0
50
RTS_0
49
CTS_0
48
TXD_0
47
RXD_0
46
RI_0
45
DSR_0
44
TXD_1
43
RXD_1
42
GND
41
GPIO3
40
CTS_1
39
GPIO4
38
SPI_MRDY
37
RESERVED
36
RESERVED
35
RESERVED
34
RESERVED
33
RTS_1
32
SPI_SRDY
31
GPIO5
ANT
Connector
Board-to-Board
Connector
Very Important
Careful Layout
Common Practice
Legend:
ANT
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
0
2
1
2
2
2
3
2
4
2
5
2
6
2
7
2
8
2
9
3
0
6
0
5
9
5
8
5
7
5
6
5
5
5
4
5
3
5
2
5
1
5
0
4
9
4
8
4
7
4
6
4
5
4
4
4
3
4
2
4
1
4
0
3
9
3
8
3
7
3
6
3
5
3
4
3
3
3
2
3
1
Figure 32: Module pin-out with ranked importance for layout design
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 56 of 83
Rank
Function
Pin(s)
Layout
Remarks
1st
RF Antenna In/out
Very
Important
Design for 50 characteristic impedance.
See section 2.2.1.1
2nd
Main DC Supply
Very
Important
VCC line should be wide and short. Route away
from sensitive analog signals.
See section 2.2.1.2
3rd
USB Signals
Very
Important
Route USB_D+ and USB_D- as differential lines:
design for 90 differential impedance.
See section 2.2.1.3
4th
Analog Audio
Careful Layout
Avoid coupling with noisy signals
See section 2.2.1.4
Audio Inputs
MIC_BIAS, MIC_GND
Audio Outputs
SPK_P, SPK_N
5th
Ground
GND
Careful Layout
Provide proper grounding.
See section 2.2.1.5
6th
Sensitive Pin :
Careful Layout
Avoid coupling with noisy signals.
See section 2.2.1.6
Backup Voltage
V_BCKP
A to D Converter
ADC1
Power On
PWR_ON
7th
High-speed digital pins:
Careful Layout
Avoid coupling with sensitive signals.
See section 2.2.1.7
SPI Signals
SPI_CLK, SPI_MISO,
SPI_MOSI, SPI_SRDY,
SPI_MRDY
8th
Digital pins and
supplies:
Common
Practice
Follow common practice rules for digital pin
routing
See section 2.2.1.8
SIM Card Interface
VSIM, SIM_CLK, SIM_IO,
SIM_RST
Digital Audio
(If implemented)
I2S_CLK, I2S_RXD,
I2S_TXD, I2S_WA
DDC
SCL, SDA
UART0/UART1
TXD_0, RXD_0, CTS_0,
RTS_0, DSR, RI, DCD, DTR,
TXD_1, RXD_1, CTS_1,
RTS_1
External Reset
RESET_N
General Purpose I/O
GPIO1, GPIO2, GPIO3,
GPIO4, GPIO5
USB detection
VUSB_DET
Supply for Interfaces
V_INT
Table 17: Pin list in order of decreasing importance for layout design
2.2.1.1 RF antenna connection
The RF antenna connection should pass through an U.FL terminated cable, connected to ANT connector (see
Section 1.7). The other side of RF coaxial cable may be terminated with (see Figure 13):
Connector to external antenna, mounted on application chassis
Another U.FL plug connector, for applications requiring an internal integrated SMT antenna
In the later case, a PCB stripline or microstrip with 50 Ω characteristic impedance will connect the U.FL
receptacle on baseboard to antenna pads. For this part of the layout on the baseboard, consider the following
recommendations.
Follow PCB footprint recommendations from U.FL receptacle Manufacturer. Implement cut-out prohibition
area for ground and other signals below the receptacle on top layer. Copy cut-out also on first inner copper
layer if dielectric thickness is below 200 µm. Connect the GND pads to solid Ground layer with multiple vias.
The transmission line up to antenna connector or pad may be a microstrip or a stripline. In any case it must
be designed to achieve 50 Ω characteristic impedance
USB_D-
USB_D+
VCC
ANT
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 57 of 83
Microstrip lines are usually easier to implement and the reduced number of layer transitions to the antenna
connector simplifies the design and diminishes reflection losses. However, the electromagnetic field extends
to the free air interface above the stripline and may interact with other circuitry
Buried striplines exhibit better shielding to external and internally generated interference. They are
thererefore are preferred for sensitive applications. In case a stripline is implemented, carefully check that the
via pad-stack does not couple with other signals on the crossed and adjacent layers
Minimize the transmission line length; the insertion loss should be minimized as much as possible, in the
order of a few tenths of a dB
The transmission line should not have abrupt change to thickness and spacing to GND, but must be uniform
and routed as smoothly as possible
The transmission line must be routed in a section of the PCB where minimal interference from noise sources
can be expected
Route RF transmission line far from other sensitive circuits as it is a source of electromagnetic interference
Avoid coupling with VCC routing and analog Audio lines
Ensure solid metal connection of the adjacent metal layer on the PCB stack-up to main ground layer
Add GND vias around transmission line
Ensure no other signals are routed parallel to transmission line, or that other signals cross on adjacent metal
layer
If the distance between the transmission line and the adjacent GND area (on the same layer) does not
exceed 5 times the track width of the micro strip, use the “Coplanar Waveguide” model for 50 Ω
characteristic impedance calculation
Don’t route microstrip line below discrete component or other mechanics placed on top layer
When terminating transmission line on antenna connector (or antenna pad) it is very important to strictly
follow the connector manufacturer’s recommended layout
GND layer under RF connectors and close to buried vias should be cut out in order to remove stray
capacitance and thus keep the RF line 50 Ω. In most cases the large active pad of the integrated antenna or
antenna connector needs to have a GND keep-out at least on first inner layer to reduce parasitic capacitance
to ground. Add GND keep-out on buried metal layers below antenna pad if top-layer to buried layer
dielectric thickness is below 200 µm. Note that the layout recommendation is not always available from
connector manufacturers: e.g. the classical SMA Pin-Through-Hole needs to have GND cleared on all the
layers around the central pin up to annular pads of the four GND posts. Check 50 Ω impedance of ANT line
Ensure no coupling occurs with other noisy or sensitive signals
Any RF transmission line on PCB should be designed for 50 Ω characteristic impedance.
Ensure no coupling occurs with other noisy or sensitive signals.
2.2.1.2 Main DC supply connection
The DC supply of the LUCY-H200 module is very important for the overall performance and functionality of the
integrated product. For detailed description, check the design guidelines in section 2.2. Some main
characteristics are:
VCC pins are internally connected, it is recommended to use all the available circuits of the board-to-board
connector in order to minimize the power loss due to series resistance and not exceed the current rating per
pin.
VCC connection may carry a maximum burst current in the order of 2.5 A. Therefore, it is typically
implemented as a wide PCB line with short routing from DC supply (DC-DC regulator, battery pack, etc)
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 58 of 83
The module automatically initiates an emergency shutdown if supply voltage drops below hardware
threshold. In addition, reduced supply voltage can set a worst case operation point for RF circuitry that may
behave incorrectly. It follows that each voltage drop in the DC supply track will restrict the operating margin
at the main DC source output. Therefore, the PCB connection must exhibit a minimum or zero voltage drop.
Avoid any series component with Equivalent Series Resistance (ESR) greater than a few mΩs
Given the large burst current, VCC line is a source of disturbance for other signals. Therefore route VCC
through a PCB area separated from sensitive analog signals. Typically it is good practice to interpose at least
one layer of PCB ground between VCC track and other signal routing
The VCC supply current supply flows back to main DC source through GND as ground current: provide
adequate return path with suitable uninterrupted ground plane to main DC source
A tank capacitor with low ESR is often used to smooth current spikes. This is most effective when placed as
close as possible to VCC. From main DC source, first connect the capacitor and then VCC. If the main DC
source is a switching DC-DC converter, place the large capacitor close to the DC-DC output and minimize
the VCC track length. Otherwise consider using separate capacitors for DC-DC converter and LUCY-H200
tank capacitor. Note that the capacitor voltage rating may be adequate to withstand the charger over-
voltage if battery-pack is used
VCC is directly connected to the RF power amplifiers. Add capacitor in the pF range from VCC to GND along
the supply path
Since VCC is directly connected to RF Power Amplifiers, voltage ripple at high frequency may result in
unwanted spurious modulation of transmitter RF signal. This is more likely to happen with switching DC-DC
converters, in which case it is better to select the highest operating frequency for the switcher and add a
large L-C filter before connecting to the LUCY-H200 module in the worst case
The large current generates magnetic field that is not well isolated by PCB ground layers and which may
interact with other analog modules (e.g. VCO) even if placed on opposite side of PCB. In this case route VCC
away from other sensitive functional units
The typical GSM burst has a periodic nature of approx. 217 Hz, which lies in the audible audio range. Avoid
coupling between VCC and audio lines (especially microphone inputs)
If VCC is protected by transient voltage suppressor / reverse polarity protection diode to ensure that the
voltage maximum ratings are not exceeded, place the protecting device along the path from the DC source
toward the LUCY-H200, preferably closer to the DC source (otherwise functionality may be compromised)
VCC line should be wide and short.
Route away from sensitive analog signals.
2.2.1.3 USB signal
The LUCY-H200 module includes a full-speed USB 2.0 compliant interface with maximum throughput of 12
Mb/s (see Section 1.13). Signals USB_D+ / USB_D- carry the USB serial data and signaling. The lines are used in
single ended mode for relatively low speed signaling handshake, as well as in differential mode for fast signaling
and data transfer. Characteristic impedance of USB_D+ / USB_D- lines is specified by USB standard. The most
important parameter is the differential characteristic impedance applicable for odd-mode electromagnetic field,
which should be as close as possible to 90 Ω differential: signal integrity may be degraded if PCB layout is not
optimal, especially when the USB signaling lines are very long.
Route USB_D+ / USB_D- lines as differential pair
Ensure the differential characteristic impedance is as close as possible to 90 Ω
Consider design rules for USB_D+ / USB_D- similar to RF transmission lines, being them coupled differential
micro-strip or buried stripline: avoid any stubs, abrupt change of layout, and route on clear PCB area
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 59 of 83
2.2.1.4 Analog audio
Accurate analog audio design is very important to obtain clear and high quality audio. The GSM signal burst has
a repetition rate of 217 Hz that lies in the audible range. A careful layout is required to reduce the risk of noise
pickup from audio lines due to both VCC burst noise coupling and RF detection.
Analog audio is separated in the two paths,
1. Audio Input (Uplink path): MIC_BIAS, MIC_GND
2. Audio Outputs (Downlink path): SPK_P / SPK_N
The most sensitive is the Uplink path, since the analog input signals are in the µV range.
Avoid coupling of any noisy signals to microphone input lines
It is strongly recommended to route MIC signals away from battery and RF antenna lines. Try to skip fast
switching digital lines as well
Keep ground separation from other noisy signals. Use an intermediate GND layer or vias wall for coplanar
signals
MIC_BIAS and MIC_GND also carry the bias for external electret active microphone. Verify that microphone
is connected with right polarity, i.e. MIC_BIAS to the pin marked “+” and MIC_GND (zero Volt) to the
chassis of the device
Despite different DC level, MIC_BIAS and MIC_GND are sensed differentially within the module. Therefore
they should be routed as a differential pair up to the active microphone
Route MIC_GND with dedicated line together with MIC_BIAS up to active microphone. Note that
MIC_GND is grounded internally within module and must not be connected to baseboard GND in order to
avoid noise pick-up from ground current loops.
Cross other signals lines on adjacent layers with 90° crossing
Place bypass capacitor for RF very close to active microphone. The preferred microphone should be designed
for GSM applications which typically have internal built-in bypass capacitor for RF very close to active device.
If the integrated FET detects the RF burst, the resulting DC level will be in the pass-band of the audio
circuitry and cannot be filtered by any other device
If DC decoupling is required, consider that the input impedance of microphone lines is in the kΩ range.
Therefore, series capacitors with sufficiently large value to reduce the high-pass cut-off frequency of the
equivalent high-pass RC filter
Output Audio lines have two separated configurations.
SPK_P / SPK_N are high level balanced output. They are DC coupled and must be used with a speaker
connected in bridge configuration
Route SPK_P / SPK_N as differential pair, to reduce differential noise pick-up. The balanced configuration
will help reject the common mode noise
Consider enlarging PCB lines, to reduce series resistive losses, when the audio output is directly connected to
low impedance speaker transducer
Use twisted pair cable for balanced audio usage.
If DC decoupling is required, a large capacitor needs to be used, typically in the µF range, depending on the
load impedance, in order to not increase the lower cut-off frequency of its High-Pass RC filter response
2.2.1.5 Module grounding
Good connection of the module with application board solid ground layer is required for correct RF
performance. It significantly reduces EMC issues and provides a thermal heat sink for the module.
Connect each GND pin with application board solid GND layer. It is strongly recommended that each GND
pad surrounding VCC pins have one or more dedicated via down to application board solid ground layer
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 60 of 83
The shielding cans metal tabs are connected to GND, and are fundamental part of electrical grounding and
thermal heat-sink. Connect them to board solid ground layer, by soldering them on baseboard using PCB
plated through holes connected to GND net
If application board is a multilayer PCB, then it is required to tight together each GND area with complete via
stack down to main board ground layer
It is recommended to implement one layer of the application board as ground plane
Good grounding of GND pads will also ensure thermal heat sink. This is critical during call connection, when
the real network commands the module to transmit at maximum power: proper grounding helps prevent
module overheating
2.2.1.6 Other sensitive pins
A few other pins on the LUCY-H200 requires careful layout.
Backup battery (V_BCKP): avoid injecting noise on this voltage domain as it may affect the stability of
sleep oscillator
Analog-to-Digital Converter (ADC1): is a high impedance analog input; the conversion accuracy will be
degraded if noise injected. Low-pass filter may be used to improve noise rejection; typically L-C tuned for RF
rejection gives better results
Power On (PWR_ON): is the digital input for power-on of the LUCY-H200. Ensure that the voltage level is
well defined during operation and no transient noise is coupled on this line, otherwise the module might
detect a spurious power-on request
2.2.1.7 High-speed digital pins
The Serial Peripheral Interface Bus (SPI) interface can be used for high speed data transfer (UMTS/HSDPA)
between the LUCY-H200 module and the host processor, with a data rate up to 12 Mb/s (see Section 1.12). The
high-speed data rate is carried by signals SPI_CLK, SPI_MISO and SPI_MOSI, while SPI_SRDY and SPI_MRDY
behave as handshake signals with relatively low activity.
High-speed signals become sources of digital noise, route away from RF and other sensitive analog signals
Keep routing short and minimize parasitic capacitance to preserve digital signal integrity
2.2.1.8 Digital pins and supplies
External Reset (RESET_N): input for external reset, a logic low voltage will reset the module
SIM Card Interface (VSIM, SIM_CLK, SIM_IO, SIM_RST): the SIM layout may be critical if the SIM card is
placed far away from the LUCY-H200 or in close vicinity of RF antenna. In the first case the long connection
can radiate higher harmonic of digital data. In the second case the same harmonics can be picked up and
create self-interference that can reduce the sensitivity of GSM Receiver channels whose carrier frequency is
coincidental with harmonic frequencies. In the latter case using RF bypass capacitors on the digital line will
mitigate the problem. In addition, since the SIM card typically accesses by the end use, it can be subjected to
ESD discharges: add adequate ESD protection to improve the robustness of the digital pins within the
module. Remember to add such ESD protection along the path between SIM holder toward the module
Digital Audio (I2S_CLK, I2S_RX, I2S_TX, I2S_WA): the I2S interface requires the same consideration
regarding electro-magnetic interference as the SIM card. Keep the traces short and avoid coupling with RF
line or sensitive analog inputs
DDC (SCL, SDA): the DDC interface requires the same consideration regarding electro-magnetic
interference as the SIM card. Keep the traces short and avoid coupling with RF line or sensitive analog inputs
UART0/UART1 (TXD, RXD, CTS, RTS, DSR, RI, DCD, DTR): the serial interface requires the same
consideration regarding electro-magnetic interference as the SIM card. Keep the traces short and avoid
coupling with RF line or sensitive analog inputs
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 61 of 83
General Purpose I/O (GPIOx): the general purpose input/output pins are generally not critical for layout
Reserved pins: these pins are reserved for future use. Leave them unconnected on baseboard
Supply for USB (VUSB_DET): this is supply input which level will generate interrupt to baseband processor
for USB detection. Avoid leaving it floating; if USB is unused then connect it to GND. If USB is implemented,
then ensure the 5V (typical) supply connected to VUSB_DET is capable to deliver the required current
Supply for Interfaces (V_INT): this is a supply output at the same voltage rail of digital interfaces. Because
of this, it can be a source of digital noise: avoid coupling with sensitive signals
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 62 of 83
2.2.2 Mechanical mating
This section highlights mechanical aspects concerning the LUCY-H200 implementation on application base-
board. The key factors to be considered for proper module mating is are as follows:
Choose correct board-to-board connector.
Consider module physical dimensions and implement keep-out area below module
Design base-board for shielding cans solder tabs
Leave space for RF antenna connector and coaxial cable
2.2.2.1 Board-to-board connector
The board-to-board connector on the LUCY-H200 is MolexTM 052991-0608 or equivalent.
The recommended mated connector for the customer’s application board is MolexTM 053748-0608 “0.50 mm
Pitch 60-pin board-to-board connector (3 mm stacking mated height)”.
Connector on LUCY-H200:
MolexTM 052991-0608
Connector on Application base-board:
MolexTM 053748-0608
Figure 33: Board-to-board connector
Follow the connector manufacturer’s recommendations for board-to-board foot-print: consider that
misalignments in its placement will result in global misalignment on the whole module during installation
on base-board.
The exact geometry, distances, stencil thicknesses and solder paste volumes must be adapted to the specific
production processes (e.g. soldering etc.) of the customer.
1.2 ±0.1
14.5 ±0.05
0.5 ±0.05 (pitch)
2.2 ±0.1
1.2 ±0.1
0.25 (min)
Dimensions in [mm]
Figure 34: Board-to-board connector Footprint on Application base-board (according to MolexTM 053748-0608 datasheet)
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 63 of 83
2.2.2.2 Module keep-out
Check the module dimensions on the LUCY-H200 Data Sheet [1] and leave suitable room on base-board PCB for
module installation.
Implement component “no placement” keep-out on the area below the module, the only component
allowed is the mated board-to-board connector
consider the extra clearance required for ergonomic handling of module during mating on the application
baseboard: when manual installation is concerned, define non-placement area (e.g. 15x20 mm) for
components with height greater than 2mm on two opposite sides of module PCB
Routing below the LUCY-H200 on application motherboard is generally possible but not recommended.
When installed on base-board, the LUCY-H200 shielding cans (connected to GND) may contact the top
surface of application PCB with consequent risk of short to GND for unprotected signal routing on base-
board top-layer
Connector on
Base-board
Components keep-out
below LUCY-H200
on Base-board
Application Base-board
Area for restrictions on
components height
(installation handling)
37.5
Dimensions in [mm]
45.0
4.9
12.8
Figure 35: Keep-out dimensions
2.2.2.3 Shielding cans solder tabs
There are four solder tabs for Pin-Through-Hole (PTH) soldering of the LUCY-H200 onto the application
base-board. They are designed as part of the shielding cans, and therefore are electrically connected to module
main Ground (GND).
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 64 of 83
4 x shielding cans
solder tabs

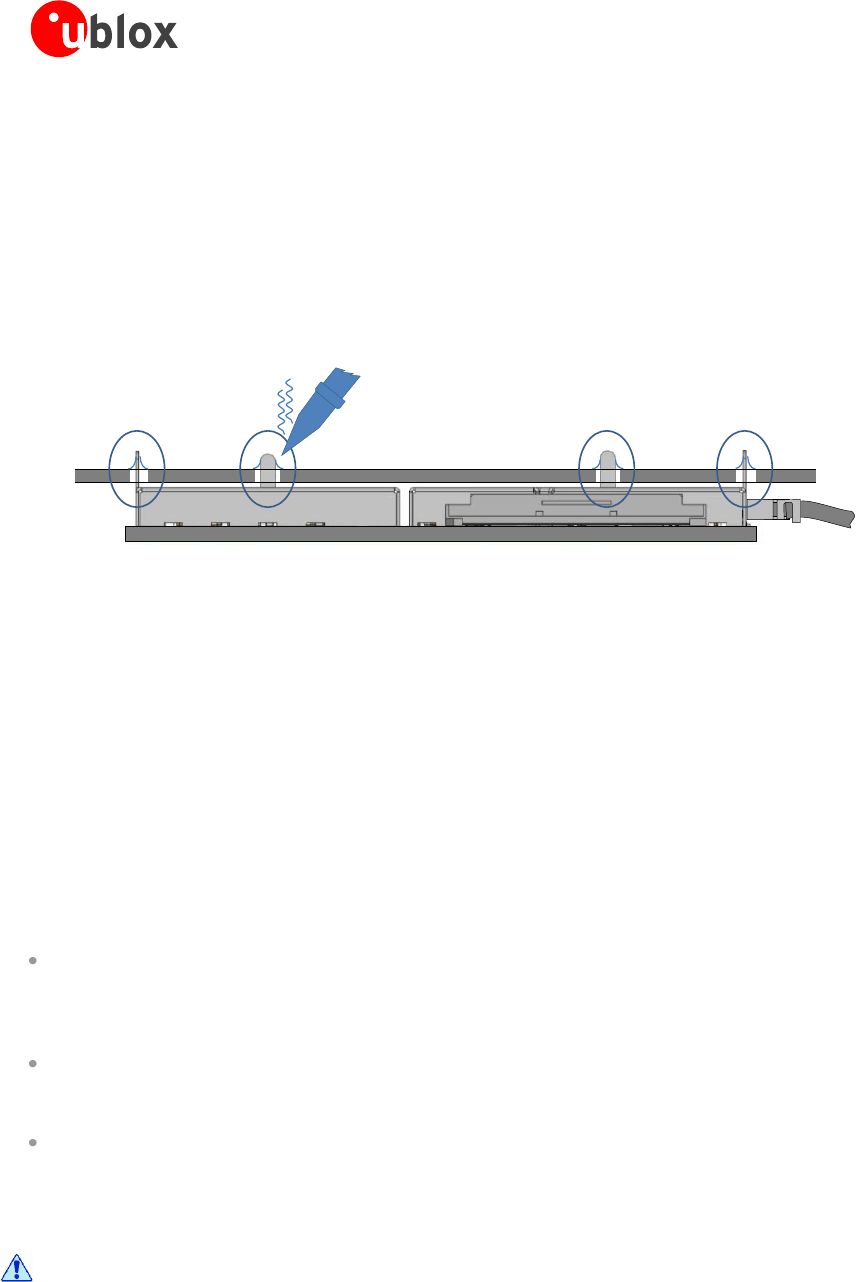

Figure 36: Tabs for Pin-through-Hole (PTH) soldering
Proper installation and soldering tabs will ensure mechanical fixing of the LUCY-H200, will improve
electromagnetic connection to GND and thermal heat-sink.
The base-board needs to be designed with physical holes on coordinates corresponding to solder tabs, see Figure
37.
Connector on
Base-board
LUCY-H200
Top view
Through module
4 x Soldering pads :
Ø 3.0 Copper pad
Ø 1.5 Plated holes
Application Base-board
31.95 Dimensions in [mm]
31.55
6.95
12.15
22.20 2.25
Figure 37: Coordinates of Plated Holes (PTH) on baseboard, for shields solder tabs
The recommended soldering pads on application base-board have
round copper pad, diameter = 3.0 mm, solder mask defined
plated through hole, drill diameter = 1.5 mm
Oblong holes are also acceptable, leading to better solder joint but more critical alignment of solder tabs to
oblong holes during installation of module onto baseboard.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 65 of 83
Plated holes should be electrically connected to board main GND, possibly by drilling holes through
uninterrupted solid copper layer.
2.2.2.4 RF connector and coaxial cable
The RF connection is generally implemented through U.FL terminated coaxial cable:
Design the base-board leaving suitable path for RF coaxial cable routing, minimizing the cable bending
Consider space for U.FL plug connector at the end of RF coaxial cable, which is designed with a tail that
extends a few mm beyond the module, at 0.5 mm typical distance from baseboard surface
Connector on
Base-board
LUCY-H200
Top view
Through module
Application Base-board
Area for
RF connector
RF coaxial cable
LUCY-H200
Side View
Application Base-board
Side view
Cable connector
Figure 38: Keep-out for RF connector
2.2.3 Placement
Optimize placement for closer path from DC source for VCC.
The heat dissipation during continuous transmission at maximum power can significantly raise the
temperature of the application base-board below the LUCY-H200: avoid placing temperature sensitive
devices (e.g. GPS receiver) below the module.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 66 of 83
LUCY-H200
Application Base-board
Temperature-sensitive device
LUCY-H200
Application Base-board
Temperature-sensitive device(s)
Wrong
Correct

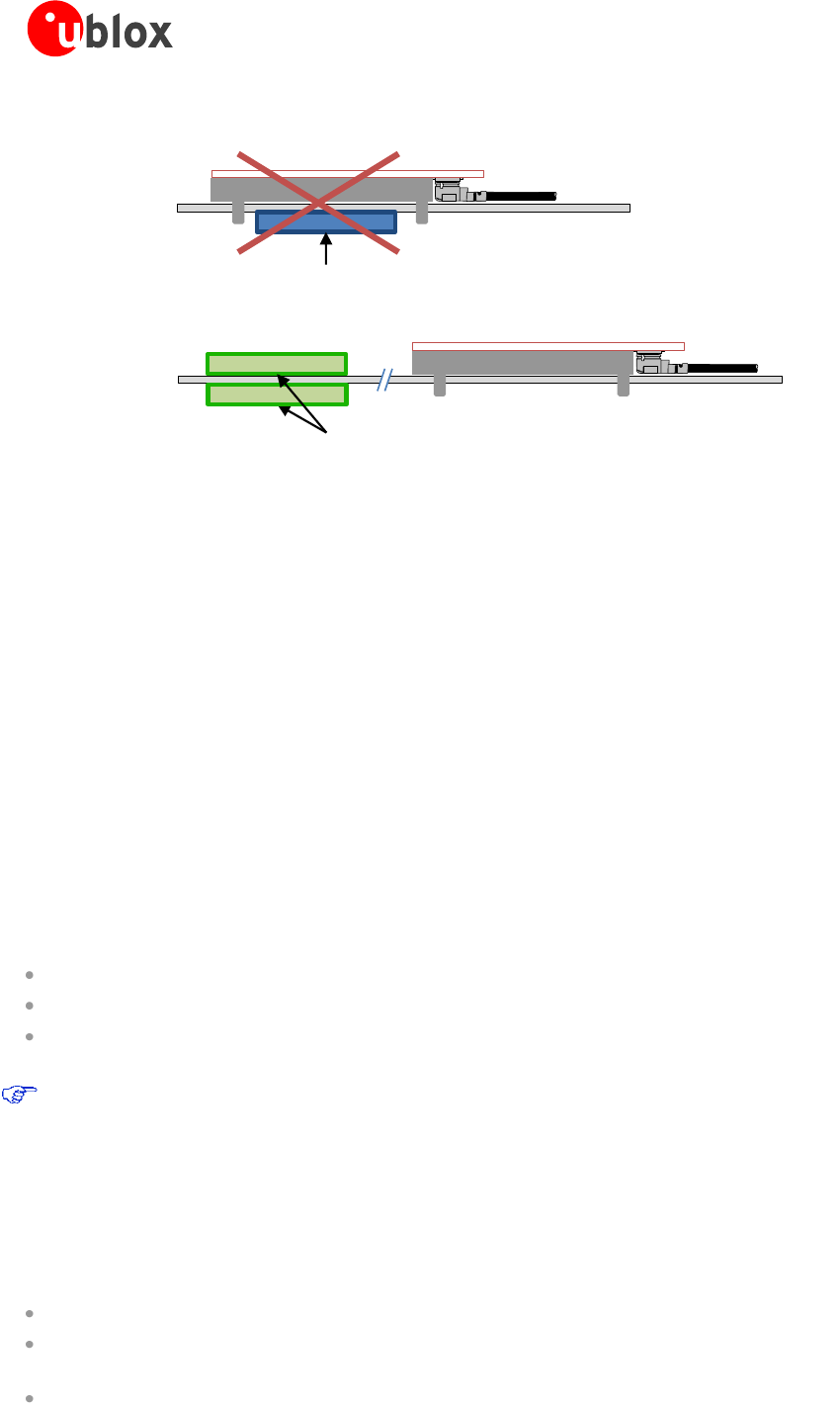

Figure 39: Avoid placement of temperature sensitive devices below module
2.3 Thermal aspects
The operating temperature range is declared on LUCY-H200 Data Sheet [1].
The most critical condition concerning thermal performances is the uplink transmission at the maximum power
(data upload or voice call in connected mode), when the baseband processor runs at full speed, radio circuits are
all active and the RF power amplifier is driven to higher output RF power. This scenario is not often encountered
in real live network; however the application should be correctly designed to cope with it.
During transmission on the maximum RF power the LUCY-H200 module generates heat power that may exceed
2 W: this is as indicative level, being the exact generated power strictly dependent of operating condition as the
number of allocated TX slot and modulation (GMSK or 8PSK) or data rate (WCDMA), transmitting frequency
band, etc. The generated thermal power must be adequately dissipated through the thermal and mechanical
design of application.
The Case-to-Ambient thermal resistance (RC-A) of the module, with the LUCY-H200 mounted on a 130 x 110 x
1.6 mm FR4 PCB with a high coverage of copper in still air conditions is approximately 15°C/W.
With this Case-to-Ambient thermal resistance, the increasing of the module temperature is:
around 10°C during a voice call at maximum power
20°C during EDGE data transfer with 4 TX slots
up to 30°C in UMTS connection at max TX power
Case-to-Ambient thermal resistance value will be different for other mechanical deployments of the
module, e.g. PCB with different size and characteristics, mechanical shells enclosure, or forced air flow.
The increasing of the thermal dissipation, i.e. reducing the thermal resistance, will reduce the operating
temperature for internal circuitry of the LUCY-H200 for the same operating ambient temperature. This will
improve the device long-term reliability for applications operating at high ambient temperature, e.g. greater than
55°C.
Few techniques may be used to reduce the thermal resistance in the application (Figure 40):
Forced ventilation air-flow within mechanical enclosure
Usage of thermal transfer material (e.g. greases and pastes) as interposer between module shielding cans
and application base-board, designed with no solder-mask on top layer for better thermal transfer
Heat sink attached on module top side, with electrically insulated / high thermal conductivity adhesive
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 67 of 83
Application Base-board
Grease / Paste
LUCY-H200
Application Base-board
Insulating Mat
Heat-Sink
LUCY-H200
Application Base-board
Mechanical enclosure
Fan
Forced air-flow
ventilation
Grease / Paste
thermal interface
material on Shield-
to-PCB interface
Electrically isolated
Heat-sink
Figure 40: Techniques for thermal dissipation improvement
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 68 of 83
2.4 Antenna guidelines
Antenna characteristics are essential for good functionality of the module. Antenna radiating performance has
direct impact on the reliability of connections over the Air Interface. A bad termination of ANT can result in poor
performance of the module.
The following parameters should be checked:
Item
Recommendations
Impedance
50 Ω
Frequency Range
Depends on the Mobile Network used.
- GSM900: 880..960 MHz
- GSM1800: 1710..1880 MHz
- GSM850: 824..894 MHz = UMTS B5: 824..894 MHz
- GSM1900: 1850..1990 MHz = UMTS B2: 1850..1990 MHz
- UMTS B1: 1920..2170 MHz
Input Power
>2 W peak
V.S.W.R
<2:1 recommended, <3:1 acceptable
Return Loss
S11<-10 dB recommended, S11<-6 dB acceptable
Gain
<3 dBic
Table 18: General recommendation for GSM antenna
Please note that some 2G and 3G bands are overlapping. This depends on worldwide band allocation for
telephony services, where different bands are deployed for different geographical regions. If the LUCY-H200 is
planned for use on all the band combinations, then a penta-band antenna should be selected. Otherwise, for
fixed applications in specific geographical region, antenna requirements can be relaxed for non-deployed
frequency bands.
GSM antennas are typically available as:
Linear monopole: typical for fixed applications. The antenna extends mostly as a linear element with a
dimension comparable to lambda/4 of the lowest frequency of the operating band. Magnetic base may be
available. Cable or direct RF connectors are common options. The integration normally requires the
fulfillment of some minimum guidelines suggested by antenna manufacturer
Patch-like antenna: better suited for integration in compact designs (e.g. mobile phone). These are mostly
custom designs where the exact definition of the PCB and product mechanical design is fundamental for
tuning of antenna characteristics
For integration observe these recommendations:
Ensure 50 Ω antenna termination, minimize the V.S.W.R. or return loss, as this will optimize the electrical
performance of the module. See section 2.4.1
Select antenna with best radiating performance. See section 2.4.2
If a cable is used to connect the antenna radiating element to application board, select a short cable with
minimum insertion loss. The higher the additional insertion loss due to low quality or long cable, the lower
the connectivity
Follow the recommendations of the antenna manufacturer for correct installation and deployment
Do not include antenna within closed metal case
Do not place antenna in close vicinity to end user since the emitted radiation in human tissue is limited by
S.A.R. regulatory requirements
Do not use directivity antenna since the electromagnetic field radiation intensity is limited in some countries
Take care of interaction between co-located RF systems since the GSM transmitted power may interact or
disturb the performance of companion systems
Place antenna far from sensitive analog systems or employ countermeasures to reduce electromagnetic
compatibility issues that may arise
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 69 of 83
2.4.1 Antenna termination
The LUCY-H200 module is designed to work on a 50 Ω load. However, real antennas have no perfect 50 Ω load
on all the supported frequency bands. Therefore, in order to as much as possible reduce performance
degradation due to antenna mismatch, the following requirements should be met:
Measure the antenna termination with a network analyzer: connect the antenna through a coaxial cable to the
measurement device, the |S11| indicates which portion of the power is delivered to antenna and which portion is
reflected by the antenna back to the modem output.
A good antenna should have an |S11| below -10 dB over the entire frequency band. Due to miniaturization,
mechanical constraints and other design issues, this value will not be achieved. An |S11| value of about -6 dB - (in
the worst case) - is acceptable.
Figure 41 shows an example of this measurement:
Figure 41: |S11| sample measurement of a penta-band antenna that covers in a small form factor the 4 GSM bands (850 MHz, 900
MHz, 1800 MHz and 1900 MHz) and the UMTS Band I
Fig 41 shows comparable measurements performed on a wideband antenna. The termination is better, but the
size of the antenna is considerably larger.
Figure 42: |S11| sample measurement of a wideband antenna
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 70 of 83
2.4.2 Antenna radiation
An indication of the antenna’s radiated power can be approximated by measuring the |S21| from a target antenna
to the measurement antenna, using a network analyzer with a wideband antenna. Measurements should be
done at a fixed distance and orientation, and results compared to measurements performed on a known good
antenna. Figure 43 through Figure 44 show measurement results. A wideband log periodic-like antenna was
used, and the comparison was done with a half lambda dipole tuned at 900 MHz frequency. The measurements
show both the |S11| and |S21| for the penta-band internal antenna and for the wideband antenna.

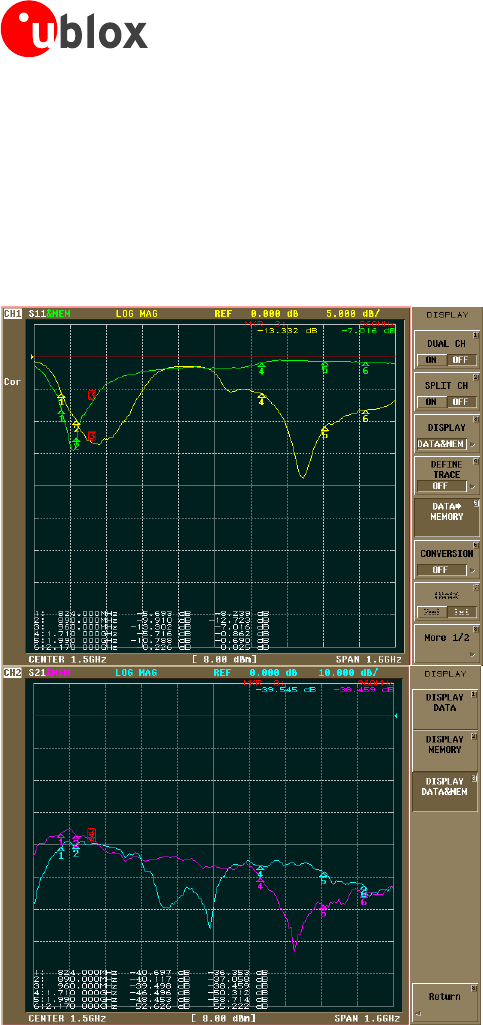

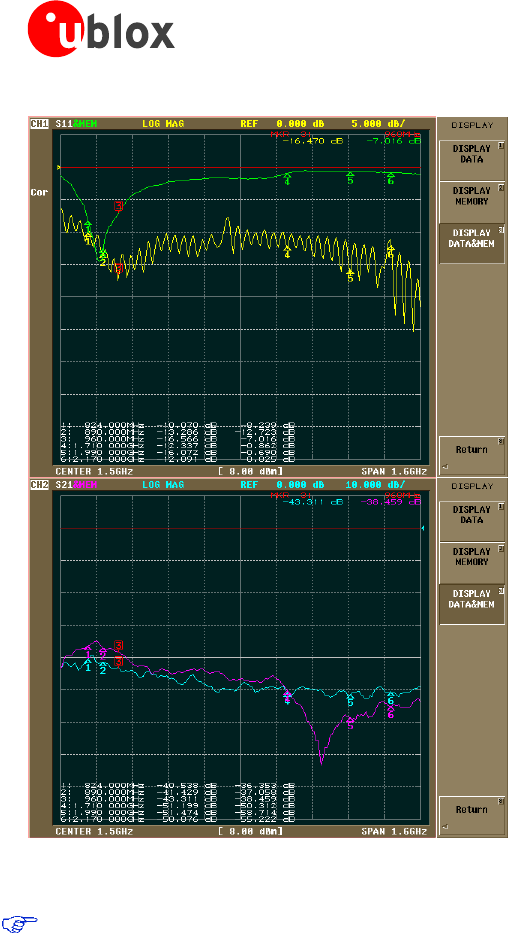

Figure 43: |S11| and |S21| comparison between a 900 MHz tuned half wavelength dipole and a penta-band internal antenna, if |S21|
like in marker 3 area are similar the target antenna performances are good
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 71 of 83
Figure 44: |S11| and |S21| comparison between a 900 MHz tuned half wavelength dipole and a wideband commercial antenna: if
|S21| values, like in marker 1/2 area, are 5 dB better in the dipole case, then the wideband antenna radiation is considerably less
For good antenna radiation performance, antenna dimensions should be comparable to a quarter of the
wavelength. Different antenna types can be used for the module, many of them (e.g. patch antennas,
monopole) are based on a resonating element that works in combination with a ground plane. The ground
plane, ideally infinite, can be reduced down to a minimum size that must be similar to one quarter of the
wavelength of the minimum frequency that has to be radiated (transmitted/received). Numerical sample:
frequency = 1 GHz wavelength = 30 cm minimum ground plane (or antenna size) = 7.5 cm. Below
this size, the antenna efficiency is reduced.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 72 of 83
2.4.3 Antenna detection functionality
The internal antenna detect circuit is based on ADC measurement at ANT: the RF port is DC coupled to the ADC
unit in the baseband chip which injects a DC current (60 µA) on ANT and measures the resulting DC voltage to
evaluate the resistance from ANT pad to GND.
The antenna detection is forced by the +UANTR AT command: refer to the u-blox 3.5G HSDPA AT Commands
Manual [2] for more details on how to access this feature.
To achieve antenna detection functionality, use an RF antenna with built-in resistor from ANT signal to GND, or
implement an equivalent solution with a circuit between the antenna cable connection and the radiating
element as shown in Figure 45.
Application Board Antenna Assembly
Diagnostic Circuit
LUCY-H200
ADC
Current
Source
RF
Choke
DC
Blocking
Front-End
RF Module
RF
Choke
DC
Blocking
Radiating
Element
Zo=50 Ω
Resistor for
Diagnostic
Coaxial Antenna Cable
ANT
Figure 45: Antenna detection circuit
Description
Part Number - Manufacturer
DC Blocking Capacitor
Murata GRM1555C1H220JA01 or equivalent
RF Choke Inductor
Murata LQG15HS68NJ02, LQG15HH68NJ02 or equivalent (Self Resonance Frequency ~1GHz)
Resistor for Diagnostic
10kΩ 5%, various Manufacturers
Table 19: Example of components for the antenna detection diagnostic circuit
Please note that the DC impedance at RF port for some antennas may be a DC open (e.g. linear monopole) or a
DC short to reference GND (e.g. PIFA antenna). For those antennas, without the diagnostic circuit of Figure 45
the measured DC resistance will always be at the limits of the measurement range (respectively open or short),
and there will be no mean to distinguish between a defect on antenna path with similar characteristics
(respectively: removal of linear antenna or RF cable shorted to GND for PIFA antenna).
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Design-In
Page 73 of 83
It is recommended to use an antenna with a built-in diagnostic resistor in the range from 5 kΩ to 30 kΩ to
assure good antenna detection functionality and to avoid a reduction of module RF performances. The
choke inductor should exhibit a parallel Self Resonance Frequency (SRF) in the range of 1 GHz to improve
the RF isolation of load resistor.
For example:
Consider a GSM antenna with built-in DC load resistor of 10 kΩ. Using the +UANTR AT command, the module
reports the resistance value evaluated from ANT connector to GND:
Reported values close to the used diagnostic resistor nominal value (i.e. values from 8 kΩ to 12 kΩ if a 10
kΩ diagnostic resistor is used) indicate that the antenna is properly connected
Values close to the measurement range maximum limit (approximately 40 kΩ) or an open-circuit
“over range” report (see u-blox 3.5G HSDPA AT Commands Manual [2]) means that that the antenna is not
connected or the RF cable is broken open
Reported values below the measurement range minimum limit (1 kΩ) will highlight a short to GND at
antenna or along the RF cable
Measurement inside the valid measurement range and outside the expected range may indicate an improper
connection, damaged antenna or wrong value of antenna load resistor for diagnostic
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Handling and soldering
Page 74 of 83
3 Handling and soldering
3.1 Packaging, shipping, storage and moisture preconditioning
For information pertaining to reels and tapes, Moisture Sensitivity levels (MSD), shipment and storage
information, as well as drying for preconditioning see the LUCY-H200 Data Sheet [1].
3.2 Processing
3.2.1 ESD Hazard
The LUCY-H200 is an Electro-Static Discharge (ESD) sensitive device.
Ensure ESD precautions are implemented during handling of the module.

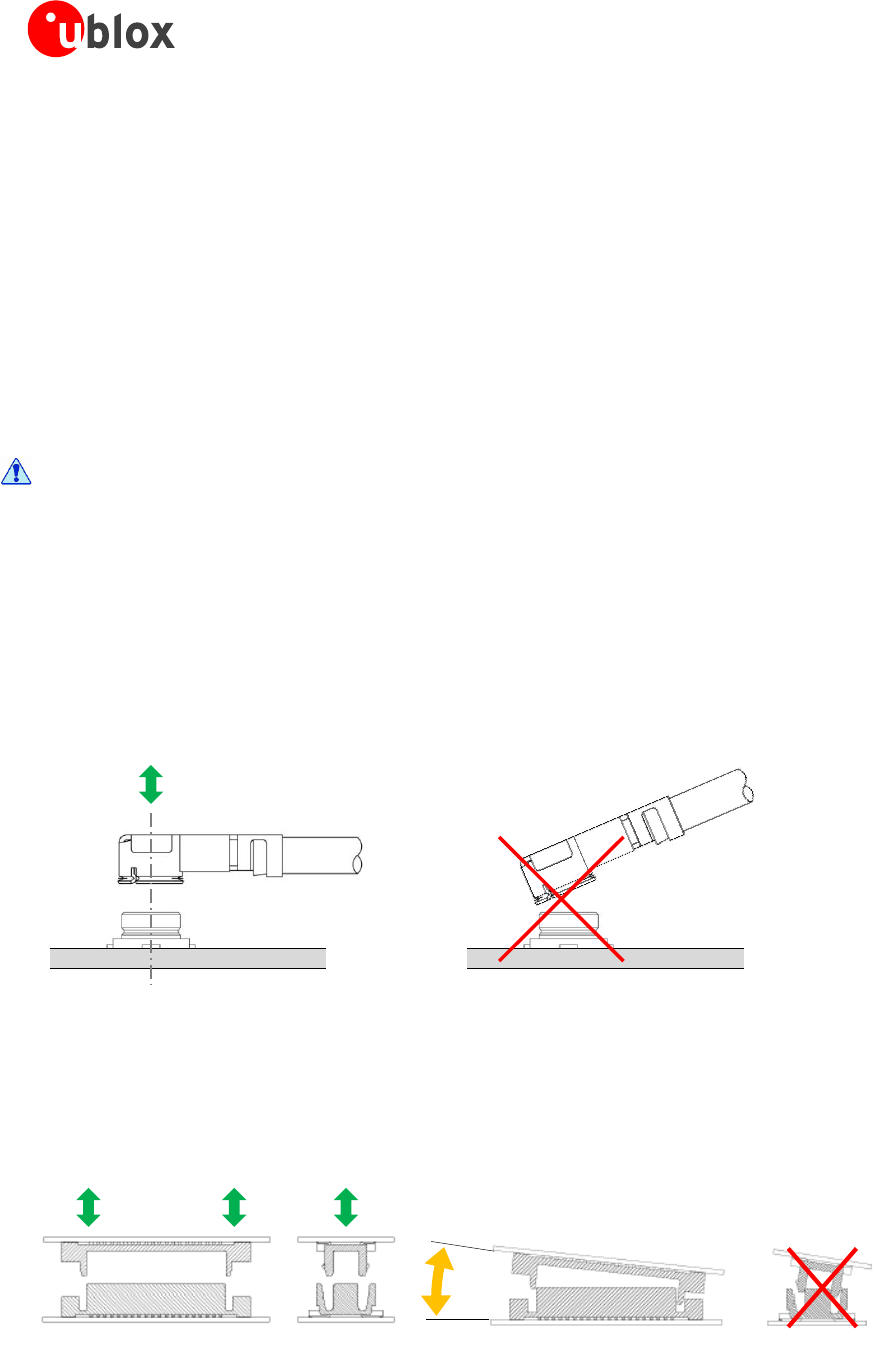

3.2.2 Hand soldering
Hand soldering is the preferred method for mounting the LUCY-H200 on the baseboard.
The procedure can be divided in following steps:
Step1: Plug the RF coaxial cable on the LUCY-H200 U.FL receptacle to provide ANT connection.
To mate the connectors, the mating axes of both connectors must be aligned and the connectors can be mated.
The "click" will confirm fully mated connection. Do not attempt to insert on an extreme angle.
Correct Wrong
Figure 46: Precautions during RF connector mating
Step 2: Mate the board-to-board connector on baseboard soldered receptacle.
Follow precautions for mating from board-to-board connector manufacturer (see Figure 47).
Correct Minimize angle Wrong
Figure 47: Precautions during board-to-board mating and extraction
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Handling and soldering
Page 75 of 83
Insert the connector with parallel manner. In the case of skewed mating, minimize the insertion angle and mate
in the pitch direction. Do not rub housing strongly as it may damage the connector’s plastic molding. After
mating, verify that the module metal shielding shows uniform minimal distance from the baseboard: uneven air
gap is symptom of improper mating.
Step 3: Solder the metal tabs of the LUCY-H200 shielding cans on the baseboard solder pads.
This ensures that the mated connectors hold to baseboard despite shock or vibration. Proper soldering of metal
tabs will also provide a thermal heat-sink for internally generated heat during operation.
Figure 48: Shielding can soldering on baseboard by metal tabs
3.2.3 Wave soldering
The metal tabs of the LUCY-H200 shielding cans may be soldered with combined through-hole technology (THT)
components by wave soldering process. Only a single wave soldering process is encouraged for boards
populated with the LUCY-H200 module.
3.2.4 Reflow soldering
Reflow soldering is not recommended. The reason for this is the risk of damaging the board-to-board connector
or the mated RF coaxial cable.
3.2.5 Cleaning
Cleaning the modules is not recommended. Residues underneath the modules cannot be easily removed with a
washing process.
Cleaning with water will lead to capillary effects where water is absorbed in the gap between the baseboard
and the module. The combination of residues of soldering flux and encapsulated water leads to short circuits
or resistor-like interconnections between neighboring pads. Water will also damage the sticker and the ink-
jet printed text
Cleaning with alcohol or other organic solvents can result in soldering flux residues flooding into the two
housings, areas that are not accessible for post-wash inspections. The solvent will also damage the sticker
and the ink-jet printed text
Ultrasonic cleaning will permanently damage the module, in particular the quartz oscillators
3.2.6 Rework
The LUCY-H200 module can be unsoldered from the baseboard using a soldering iron or hot air gun.
Avoid overheating the module.
Once shielding cans metal tab have been unsoldered, extract the module from the board-to-board connector
and finally unplug the RF cable. It is encouraged to use a suitable extraction tool for the RF connector (e.g.
Hirose U.FL-LP(V)-N).
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Handling and soldering
Page 76 of 83
Figure 49: Precautions during RF connector extraction
After the module is removed, clean the shielding cans metal tabs before placing.
Never attempt a rework on the module itself, e.g. replacing individual components. Such
actions immediately terminate the warranty.
3.2.7 Conformal coating
Certain applications employ a conformal coating of the PCB using HumiSeal® or other related coating products.
These materials affect the HF properties of the LUCY-H200 module and it is important to prevent them from
flowing into the module.
The RF shields do not provide 100% protection for the module from coating liquids with low viscosity, therefore
care is required in applying the coating.
Conformal Coating of the module will void the warranty.
3.2.8 Casting
If casting is required, use viscose or another type of silicon pottant. The OEM is strongly advised to qualify such
processes in combination with the LUCY-H200 module before implementing this in the production.
Casting will void the warranty.
3.2.9 Grounding metal covers
Attempts to improve grounding by soldering ground cables, wick or other forms of metal strips directly onto the
EMI covers is done at the customer's own risk.
u-blox makes no warranty for damages to the LUCY-H200 module caused by soldering metal cables or any
other forms of metal strips directly onto the EMI covers.
3.2.10 Use of ultrasonic processes
Some components on the LUCY-H200 module are sensitive to ultrasonic waves. Use of any ultrasonic processes
(cleaning, welding etc.) may cause damage to the module.
u-blox offers no warranty against damages to the LUCY-H200 module caused by any ultrasonic processes.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Product Testing
Page 77 of 83
4 Product Testing
4.1 u-blox in-series production test
TBD
4.2 Test parameters for OEM manufacturer
TBD
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Appendix
Page 78 of 83
Appendix
A Extra Features
A.1 Firmware (upgrade) Over AT (FOAT)
Firmware upgrade is available with LUCY modules using AT commands.
A.1.1 Overview
This feature allows upgrade the module Firmware over UART, using AT Commands.
AT Command AT+UFWUPD triggers a reboot and followed by upgrade procedure at specified baud rate
(refer to u-blox 3.5G HSDPA AT Commands Manual [2] for more details)
The Xmodem-1k protocol is used for downloading the new Firmware image via a terminal application
A special boot loader on the module performs Firmware installation, security verifications and module reboot
Firmware authenticity verification is performed via a security signature during the download. Firmware is
then installed, overwriting the current version. In case of power loss during this phase, the boot loader
detects a fault at the next wake-up, and restarts the Firmware download from the Xmodem-1k handshake.
After completing the upgrade, the module is reset again and wakes-up in normal boot
A.1.2 FOAT procedure
The application processor must proceed in the following way:
send through the UART the AT+UFWUPD command, specifying the file type and the desired baud rate
reconfigure the serial communication at the selected baud rate, without flow control with the Xmodem-1k
protocol
send the new FW image via Xmodem-1k
A.2 Firewall
The feature allows the LUCY-H200 user to reject incoming connections originated from IP addresses different
from the specified list and inserted in a black list.
A.3 TCP/IP
Via the AT commands it’s possible to access the TCP/IP functionalities over the GPRS connection. For more
details about AT commands see the u-blox 3.5G HSDPA AT Commands Manual [2].
A.3.1 Multiple IP addresses and sockets
Using LUCY’s embedded TCP/IP or UDP/IP stack, only 1 IP instance (address) is supported. The IP instance
supports up to 16 sockets. Using an external TCP/IP stack (on the application processor), it is possible to have 2 IP
instances (addresses).
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Appendix
Page 79 of 83
A.4 FTP
The LUCY-H200 module supports via AT commands the File Transfer Protocol functionalities. File are read and
stored in the local file system of the module. For more details about AT commands see the u-blox 3.5G HSDPA
AT Commands Manual [2].
A.5 FTPS
TBD
A.6 HTTP
HTTP client is implemented in LUCY. HEAD, GET, POST, DELETE and PUT operations are available. The file size to
be uploaded / downloaded depends on the free space available in the local file system (FFS) at the moment of
the operation. Up to 4 HTTP client contexts to be used simultaneously.
For more details about AT commands see the u-blox 3.5G HSDPA AT Commands Manual [2].
A.7 HTTPS
TBD.
A.8 SMTP
The LUCY-H200 module supports SMTP client functionalities. It is possible to specify the common parameters
(e.g. server data, authentication method, etc.) can be specified, to send an email to a SMTP server. E-mails can
be send with or without attachment. Attachments are store in the local file system of LUCY.
For more details about AT commands see the u-blox 3.5G HSDPA AT Commands Manual [2].
A.9 GPS
The LUCY-H200 module allows a simple and fast connection with the u-blox GPS modules (u-blox 5 family and
above). Via the DDC bus it’s possible to communicate and exchange data, while the available GPIOs can handle
the GPS device power on/off.
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Appendix
Page 80 of 83
B Glossary
ADC
Analog to Digital Converter
AP
Application Processor
AT
AT Command Interpreter Software Subsystem, or attention
CBCH
Cell Broadcast Channel
CS
Coding Scheme
CSD
Circuit Switched Data
CTS
Clear To Send
DAC
Clear To Send
DC
Direct Current
DCD
Data Carrier Detect
DCE
Data Communication Equipment
DCS
Digital Cellular System
DDC
Display Data Channel
DSP
Digital Signal Processing
DSR
Data Set Ready
DTE
Data Terminal Equipment
DTM
Dual Transfer Mode
DTR
Data Terminal Ready
EBU
External Bus Interface Unit
EDGE
Enhanced Data rates for GSM Evolution
E-GPRS
Enhanced GPRS
FDD
Frequency Division Duplex
FEM
Front End Module
FOAT
Firmware Over AT commands
FTP
File Transfer Protocol
FTPS
FTP Secure
GND
Ground
GPIO
General Purpose Input Output
GPRS
General Packet Radio Service
GPS
Global Positioning System
GSM
Global System for Mobile Communication
HF
Hands-free
HSDPA
High Speed Downlink Packet Access
HTTP
HyperText Transfer Protocol
HTTPS
Hypertext Transfer Protocol over Secure Socket Layer
HW
Hardware
I/Q
In phase and Quadrature
I2C
Inter-Integrated Circuit
I2S
Inter IC Sound
IP
Internet Protocol
IPC
Inter Processor Communication
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Appendix
Page 81 of 83
LNA
Low Noise Amplifier
MCS
Modulation Coding Scheme
NOM
Network Operating Mode
PA
Power Amplifier
PBCCH
Packet Broadcast Control Channel
PCM
Pulse Code Modulation
PCS
Personal Communications Service
PFM
Pulse Frequency Modulation
PMU
Power Management Unit
RF
Radio Frequency
RI
Ring Indicator
RTC
Real Time Clock
RTS
Request To Send
RXD
RX Data
SAW
Surface Acoustic Wave
SIM
Subscriber Identification Module
SMS
Short Message Service
SMTP
Simple Mail Transfer Protocol
SPI
Serial Peripheral Interface
SRAM
Static RAM
TCP
Transmission Control Protocol
TDMA
Time Division Multiple Access
TXD
TX Data
UART
Universal Asynchronous Receiver-Transmitter
UDP
User Datagram Protocol
UMTS
Universal Mobile Telecommunications System
USB
Universal Serial Bus
UTRA
UMTS Terrestrial Radio Access
VC-TCXO
Voltage Controlled - Temperature Compensated Crystal Oscillator
WCDMA
Wideband CODE Division Multiple Access
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Related documents
Page 82 of 83
Related documents
[1] u-blox LUCY-H200 Data Sheet, Document No 3G.G1-HW-10001
[2] u-blox 3.5G HSDPA AT Commands Manual, Docu. No 3G.G1-SW-10000
[3] ITU-T Recommendation V.24, 02-2000. List of definitions for interchange circuits between data
terminal equipment (DTE) and data circuit-terminating equipment (DCE). http://www.itu.int/rec/T-
REC-V.24-200002-I/en
[4] 3GPP TS 27.007 - AT command set for User Equipment (UE) (Release 1999)
[5] 3GPP TS 27.005 - Use of Data Terminal Equipment - Data Circuit terminating; Equipment (DTE - DCE)
interface for Short Message Service (SMS) and Cell Broadcast Service (CBS) (Release 1999)
[6] 3GPP TS 27.010 - Terminal Equipment to User Equipment (TE-UE) multiplexer protocol (Release 1999)
[7] I2C-Bus Specification Version 2.1 Philips Semiconductors (January 2000)
[8] 3GPP TS 27.010 - Terminal Equipment to User Equipment (TE-UE) multiplexer protocol (Release 1999)
Part of the documents mentioned above can be downloaded from u-blox web-site (http://www.u-blox.com).
Revision history
Revision
Date
Name
Status / Comments
-
16/04/2010
lpah
Initial Release
P1
14/05/2010
lpah
Chapter 1.18 fulfilled
LUCY-H200 - System Integration Manual
3G.G1-HW-10002-P1 Advance Information Contact
Page 83 of 83
