Users_manual
SARA-G3 series
GSM/GPRS modules
System Integration Manual
Abstract
This document describes the features and the system integration of
SARA-G3 series GSM/GPRS wireless modules.
These modules are complete and cost efficient solutions offering up
to quad-band GSM/GPRS voice and/or data transmission technology
in a compact form factor.
www.u-blox.com
26.0 x 16.0 x 3.0 mm
locate, communicate, accelerate
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information
Page 2 of 145
Document Information
Title
SARA-G3 series
Subtitle
GSM/GPRS modules
Document type
System Integration Manual
Document number
GSM.G2-HW-12003-1
Document status
Advance Information
Document status information
Objective
Specification
This document contains target values. Revised and supplementary data will be published
later.
Advance
Information
This document contains data based on early testing. Revised and supplementary data will
be published later.
Preliminary
This document contains data from product verification. Revised and supplementary data
may be published later.
Released
This document contains the final product specification.
This document applies to the following products:
Name
Type number
Firmware version
PCN / IN
SARA-G300
SARA-G300-00S-00
TBD
TBD
SARA-G310
SARA-G310-00S-00
TBD
TBD
SARA-G350
SARA-G350-00S-00
08.45
GSM.G2-TN-13001
SARA-G350 ECALL
SARA-G350-71S-00
08.45
GSM.G2-TN-13001
This document and the use of any information contained therein, is subject to the acceptance of the u-blox terms and conditions. They
can be downloaded from www.u-blox.com.
u-blox makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make
changes to specifications and product descriptions at any time without notice.
u-blox reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without
express permission is strictly prohibited. Copyright © 2013, u-blox AG.
u-blox® is a registered trademark of u-blox Holding AG in the EU and other countries.
Trademark Notice
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
All other registered trademarks or trademarks mentioned in this document are property of their respective owners.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Preface
Page 3 of 145
Preface
u-blox Technical Documentation
As part of our commitment to customer support, u-blox maintains an extensive volume of technical
documentation for our products. In addition to our product-specific technical data sheets, the following manuals
are available to assist u-blox customers in product design and development.
AT Commands Manual: This document provides the description of the supported AT commands by the
SARA-G3 series modules to verify all implemented functionalities.
System Integration Manual: This manual provides hardware design instructions and information on how to
set up production and final product tests.
Application Note: document provides general design instructions and information that applies to all u-blox
Wireless modules. See Related documents section for a list of Application Notes related to your Wireless
Module.
How to use this Manual
The SARA-G3 series System Integration Manual provides the necessary information to successfully design in and
configure these u-blox wireless modules.
This manual has a modular structure. It is not necessary to read it from the beginning to the end.
The following symbols are used to highlight important information within the manual:
An index finger points out key information pertaining to module integration and performance.
A warning symbol indicates actions that could negatively impact or damage the module.
Questions
If you have any questions about u-blox Wireless Integration:
Read this manual carefully.
Contact our information service on the homepage http://www.u-blox.com
Read the questions and answers on our FAQ database on the homepage http://www.u-blox.com
Technical Support
Worldwide Web
Our website (www.u-blox.com) is a rich pool of information. Product information, technical documents and
helpful FAQ can be accessed 24h a day.
By E-mail
Contact the nearest of the Technical Support offices by email. Use our service pool email addresses rather than
any personal email address of our staff. This makes sure that your request is processed as soon as possible. You
will find the contact details at the end of the document.
Helpful Information when Contacting Technical Support
When contacting Technical Support, have the following information ready:
Module type (e.g. SARA-G350) and firmware version
Module configuration
Clear description of your question or the problem
A short description of the application
Your complete contact details
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Contents
Page 4 of 145
Contents
Preface ................................................................................................................................ 3
Contents .............................................................................................................................. 4
1 System description ....................................................................................................... 8
1.1 Overview .............................................................................................................................................. 8
1.2 Architecture ........................................................................................................................................ 10
1.2.1 Internal blocks ............................................................................................................................. 11
1.3 Pin-out ............................................................................................................................................... 12
1.4 Operating modes ................................................................................................................................ 16
1.5 Supply interfaces ................................................................................................................................ 18

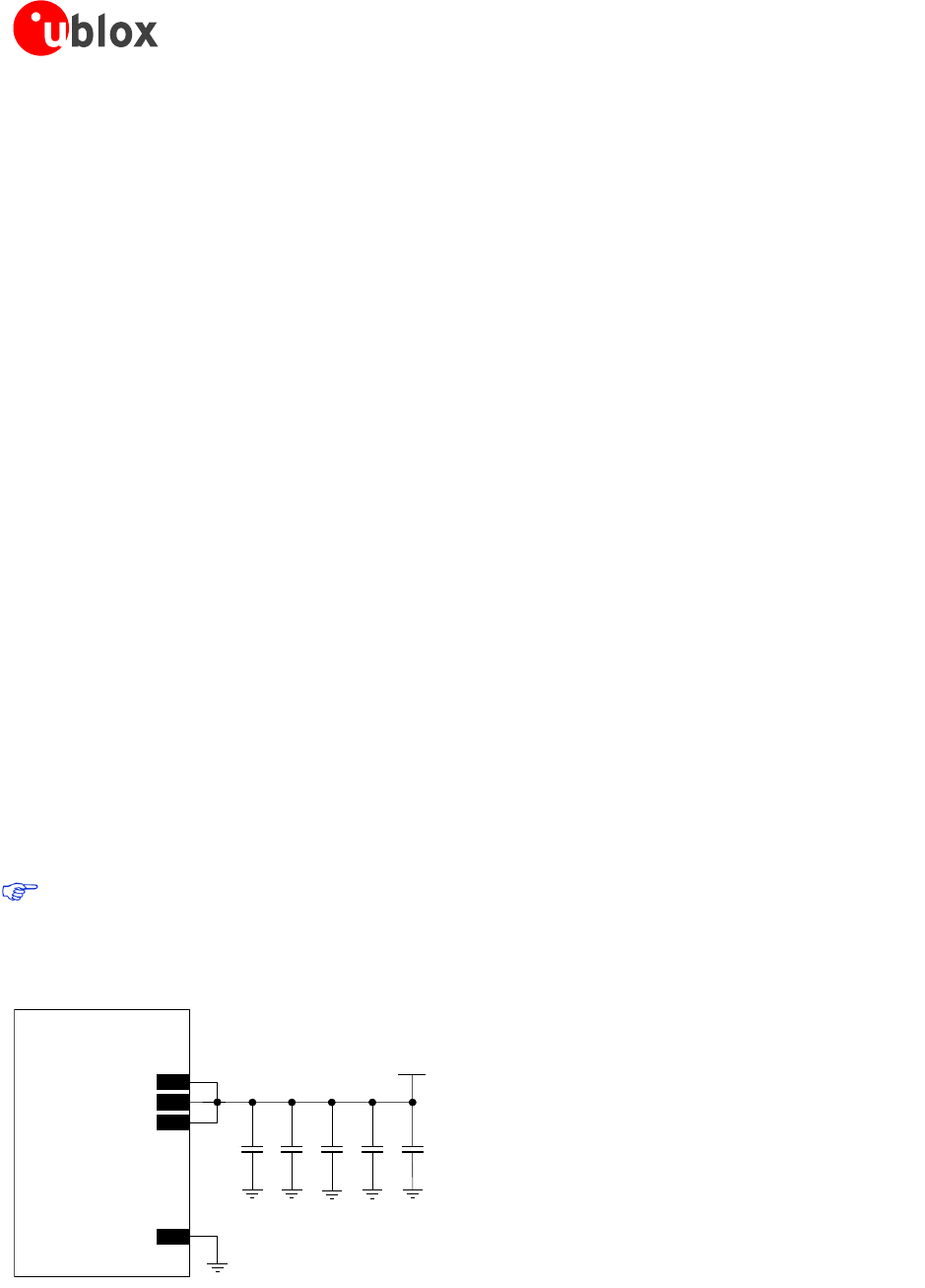

1.5.1 Module supply input (VCC) ......................................................................................................... 18

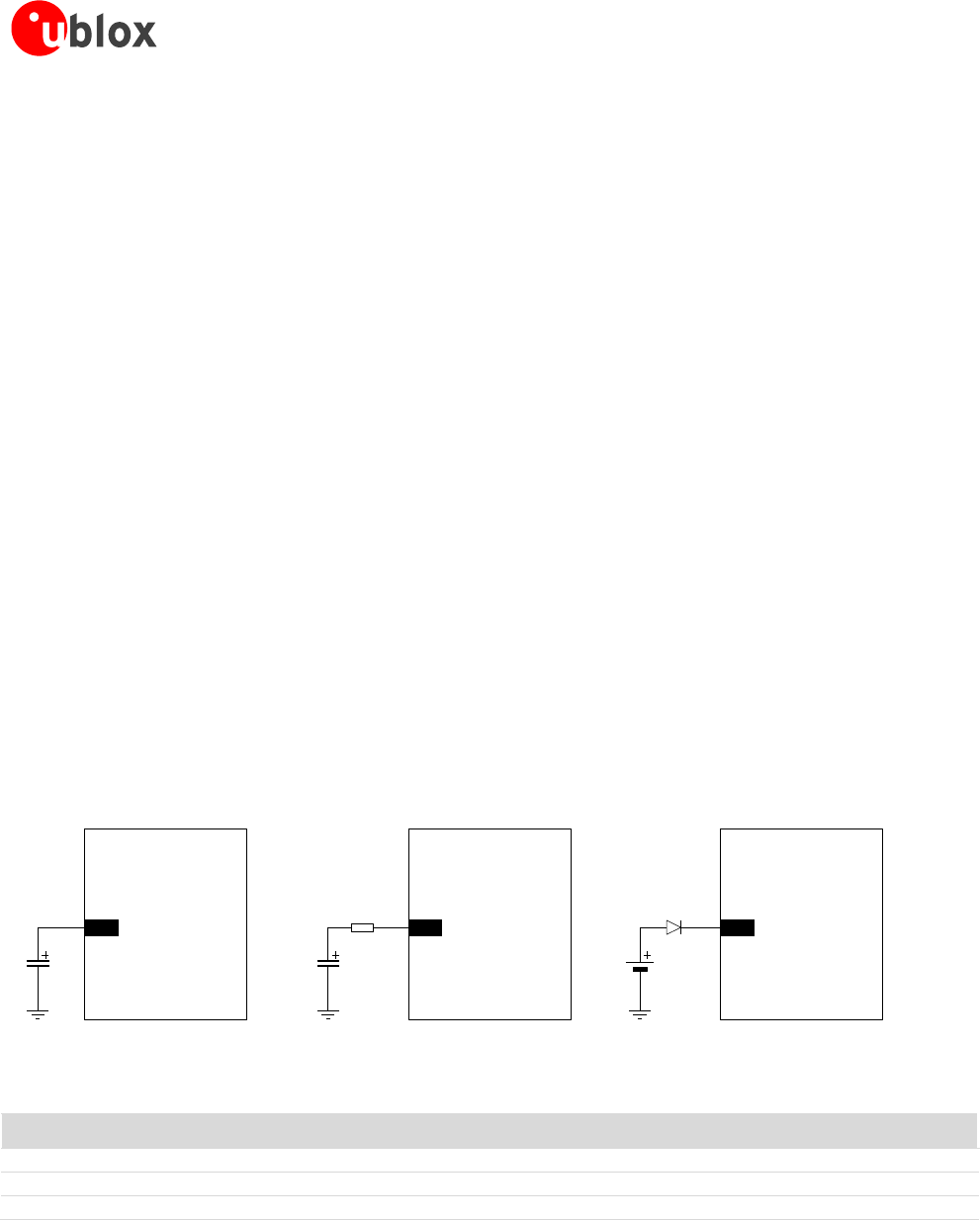

1.5.2 RTC supply input/output (V_BCKP) .............................................................................................. 23
1.5.3 Interfaces supply output (V_INT) .................................................................................................. 24
1.6 System function interfaces .................................................................................................................. 25
1.6.1 Module power-on ....................................................................................................................... 25
1.6.2 Module power-off ....................................................................................................................... 26
1.6.3 Module reset ............................................................................................................................... 27
1.6.4 External 32 kHz signal input (EXT32K) ......................................................................................... 28
1.7 Antenna interface ............................................................................................................................... 29
1.7.1 Antenna RF interface (ANT) ......................................................................................................... 29
1.7.1 Antenna detection interface (ANT_DET) ...................................................................................... 30
1.8 SIM interface ...................................................................................................................................... 30
1.8.1 SIM card interface ....................................................................................................................... 30
1.8.2 SIM card detection interface (SIM_DET) ....................................................................................... 30
1.9 Serial interfaces .................................................................................................................................. 31
1.9.1 Asynchronous serial interface (UART)........................................................................................... 31
1.9.2 Auxiliary asynchronous serial interface (UART AUX) ..................................................................... 41
1.9.3 DDC (I2C) interface ...................................................................................................................... 41
1.10 Audio interface ............................................................................................................................... 43
1.10.1 Analog audio interface ................................................................................................................ 43
1.10.2 Digital audio interface ................................................................................................................. 45

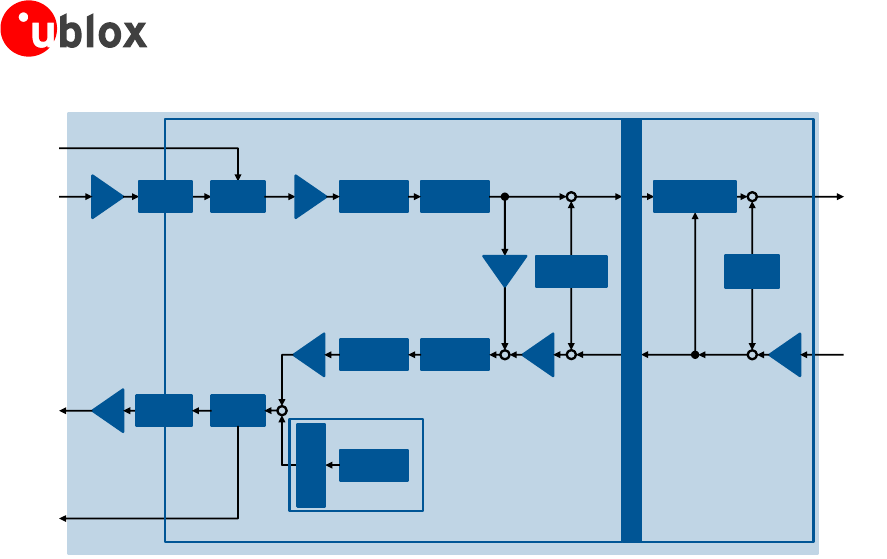

1.10.3 Voice-band processing system ..................................................................................................... 46
1.11 General Purpose Input/Output (GPIO) ............................................................................................. 48
1.12 Reserved pins (RSVD) ...................................................................................................................... 50
1.13 System features............................................................................................................................... 51
1.13.1 Network indication ...................................................................................................................... 51
1.13.2 Antenna detection ...................................................................................................................... 51
1.13.3 Jamming detection ...................................................................................................................... 51
1.13.4 TCP/IP and UDP/IP ....................................................................................................................... 52
1.13.5 FTP .............................................................................................................................................. 52
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Contents
Page 5 of 145
1.13.6 HTTP ........................................................................................................................................... 52
1.13.7 SMTP ........................................................................................................................................... 52
1.13.8 Smart temperature management ................................................................................................. 53
1.13.9 AssistNow clients and GPS/GNSS integration ............................................................................... 55
1.13.10 Hybrid positioning and CellLocateTM ......................................................................................... 56
1.13.11 Firmware upgrade Over AT (FOAT) .......................................................................................... 58
1.13.12 Firmware upgrade Over The Air (FOTA) .................................................................................... 58

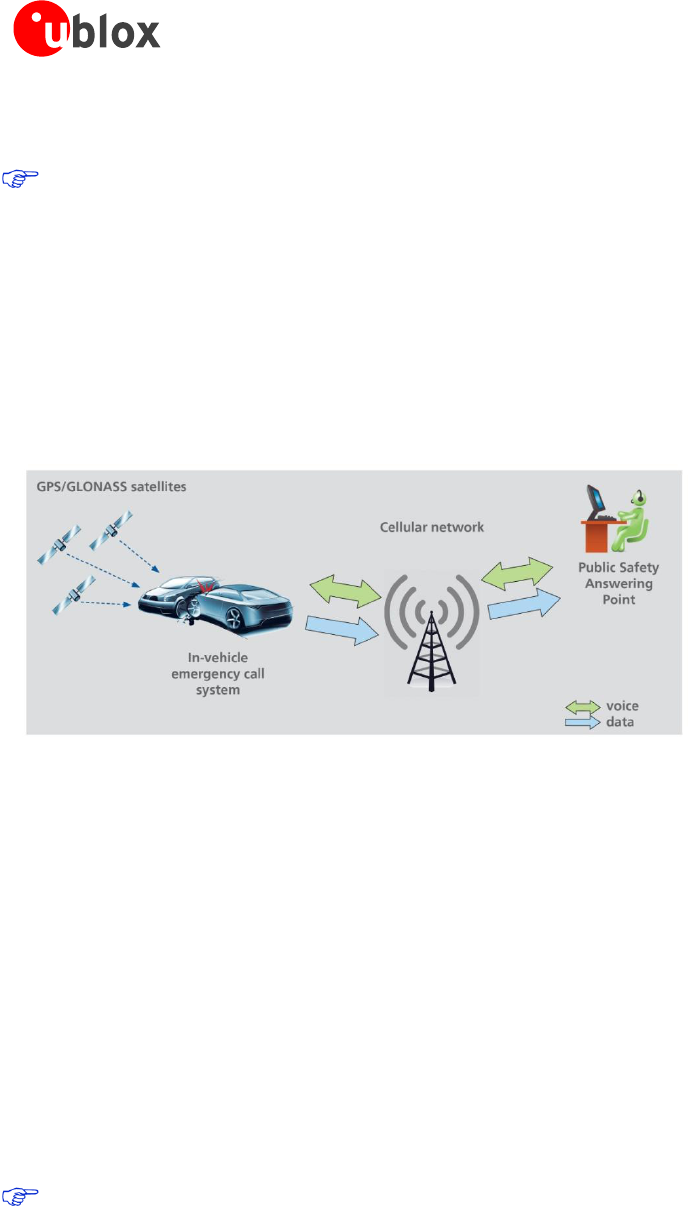

1.13.13 In-Band modem (eCall / ERA-GLONASS) .................................................................................. 59
1.13.14 Power saving ........................................................................................................................... 59
2 Design-in ..................................................................................................................... 60
2.1 Supply interfaces ................................................................................................................................ 61
2.1.1 Module supply (VCC) .................................................................................................................. 61
2.1.2 RTC supply (V_BCKP) ................................................................................................................... 69
2.1.3 Interface supply (V_INT) ............................................................................................................... 71
2.2 System functions interfaces ................................................................................................................ 72
2.2.1 Module power-on (PWR_ON) ...................................................................................................... 72
2.2.2 Module reset (RESET_N) .............................................................................................................. 73
2.2.3 External 32 kHz signal input (EXT32K) ......................................................................................... 74
2.3 Antenna interface ............................................................................................................................... 75
2.3.1 Antenna RF interface (ANT) ......................................................................................................... 75
2.3.2 Antenna detection interface (ANT_DET) ...................................................................................... 80
2.4 SIM interface ...................................................................................................................................... 83
2.5 Serial interfaces .................................................................................................................................. 90
2.5.1 Asynchronous serial interface (UART)........................................................................................... 90
2.5.2 Auxiliary asynchronous serial interface (UART AUX) ..................................................................... 93
2.5.3 DDC (I2C) interface ...................................................................................................................... 95
2.6 Audio Interface ................................................................................................................................... 98
2.6.1 Analog Audio interface ............................................................................................................... 98
2.6.2 Digital Audio interface ............................................................................................................... 104
2.7 General Purpose Input/Output (GPIO) ............................................................................................... 105
2.8 Reserved pins (RSVD) ........................................................................................................................ 107
2.9 Module placement............................................................................................................................ 107
2.10 Module footprint and paste mask ................................................................................................. 108
2.11 Thermal guidelines ........................................................................................................................ 109
2.12 ESD guidelines .............................................................................................................................. 111
2.12.1 ESD immunity test overview ...................................................................................................... 111
2.12.2 ESD immunity test of u-blox SARA-G3 series reference designs ................................................. 111
2.12.3 ESD application circuits .............................................................................................................. 112

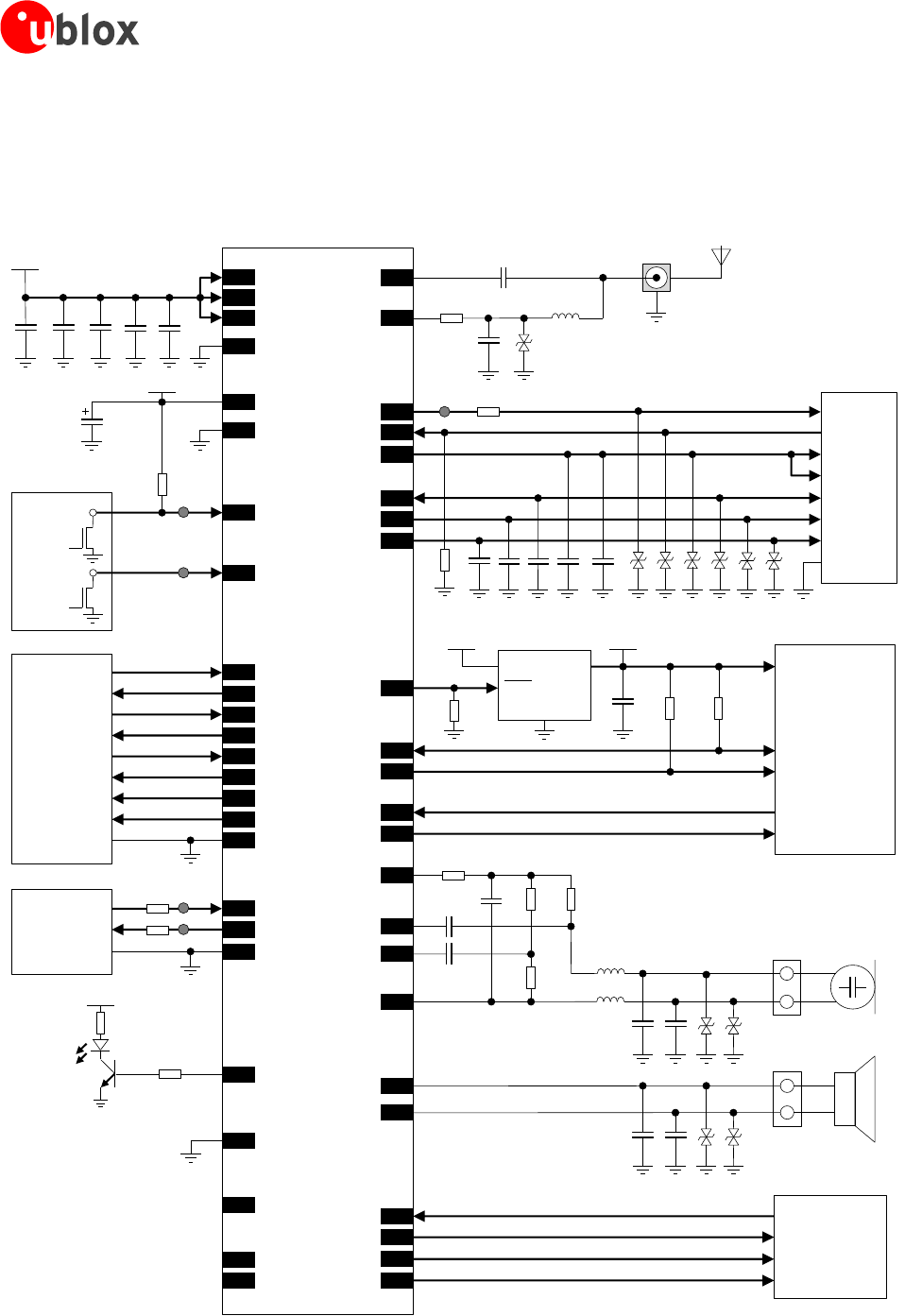

2.13 Schematic for SARA-G3 series module integration ........................................................................ 114
2.14 Design-in checklist ........................................................................................................................ 116
2.14.1 Schematic checklist ................................................................................................................... 116
2.14.2 Layout checklist ......................................................................................................................... 117
2.14.3 Antenna checklist ...................................................................................................................... 117
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Contents
Page 6 of 145
3 Handling and soldering ........................................................................................... 118
3.1 Packaging, shipping, storage and moisture preconditioning ............................................................. 118
3.2 Soldering .......................................................................................................................................... 118
3.2.1 Soldering paste.......................................................................................................................... 118

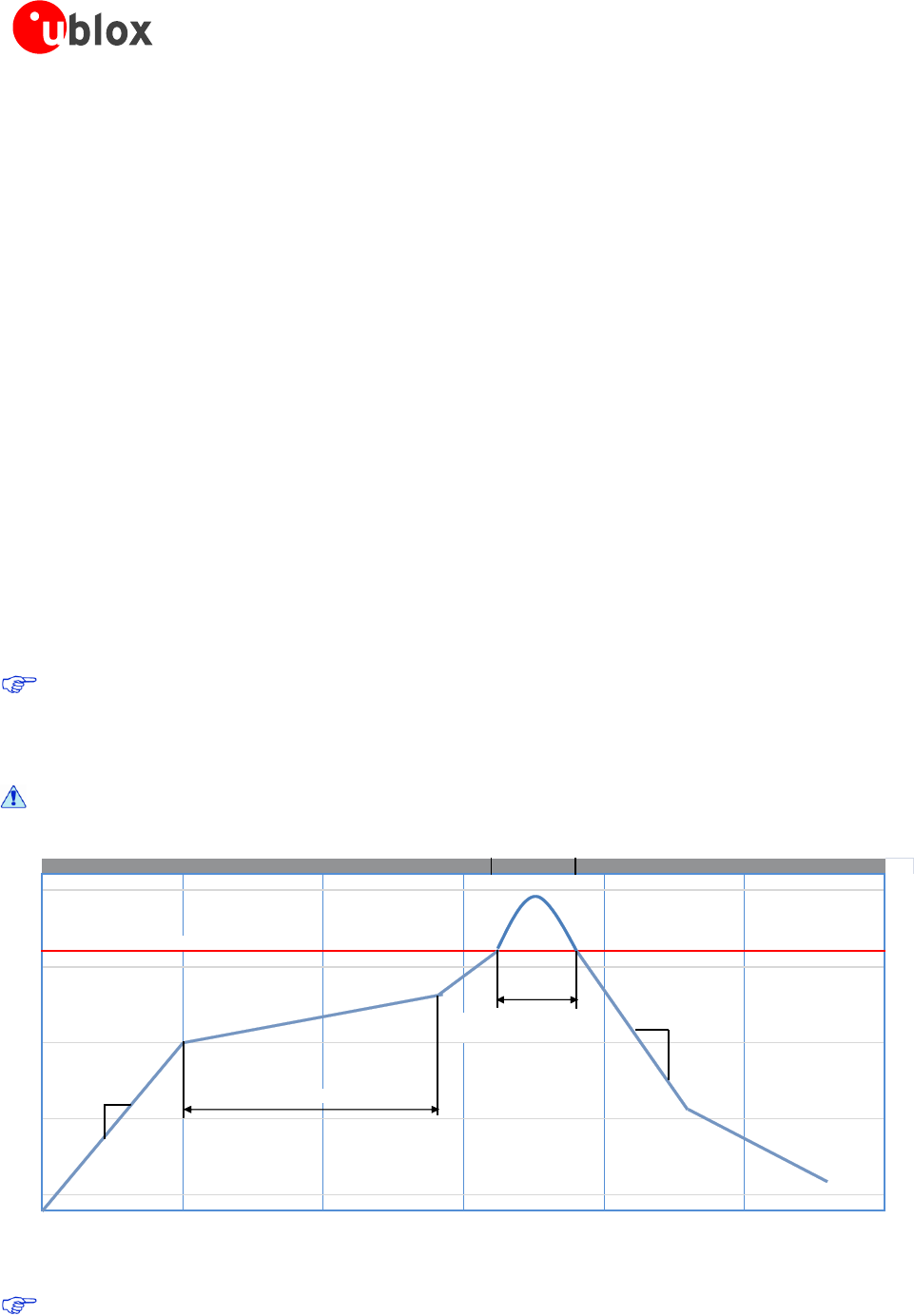

3.2.2 Reflow soldering ....................................................................................................................... 118
3.2.3 Optical inspection ...................................................................................................................... 120
3.2.4 Cleaning .................................................................................................................................... 120
3.2.5 Repeated reflow soldering ......................................................................................................... 120
3.2.6 Wave soldering.......................................................................................................................... 120
3.2.7 Hand soldering .......................................................................................................................... 120
3.2.8 Rework ...................................................................................................................................... 120
3.2.9 Conformal coating .................................................................................................................... 120
3.2.10 Casting ...................................................................................................................................... 121
3.2.11 Grounding metal covers ............................................................................................................ 121
3.2.12 Use of ultrasonic processes ........................................................................................................ 121
4 Approvals .................................................................................................................. 122
4.1 Product certification approval overview ............................................................................................. 122
4.2 Federal Communications Commission and Industry Canada notice ................................................... 123
4.2.1 Safety Warnings review the structure ........................................................................................ 123
4.2.2 Declaration of Conformity – United States only ......................................................................... 123
4.2.3 Modifications ............................................................................................................................ 123
4.3 R&TTED and European Conformance CE mark ................................................................................. 125
5 Product Testing......................................................................................................... 126
5.1 u-blox in-series production test ......................................................................................................... 126
5.2 Test parameters for OEM manufacturer ............................................................................................ 126
5.2.1 “Go/No go” tests for integrated devices .................................................................................... 127
5.2.2 Functional tests providing RF operation ..................................................................................... 127
Appendix ........................................................................................................................ 130
A Migration between LISA and SARA modules ......................................................... 130
A.1 Overview .......................................................................................................................................... 130
A.2 Checklist for migration ..................................................................................................................... 131
A.3 Software migration ........................................................................................................................... 132
A.4 Hardware migration.......................................................................................................................... 132
A.4.1 Supply interfaces ....................................................................................................................... 132
A.4.2 System functions interfaces ....................................................................................................... 133
A.4.3 Antenna interface ..................................................................................................................... 134
A.4.4 SIM interface ............................................................................................................................. 135
A.4.5 Serial interfaces ......................................................................................................................... 135
A.4.6 Audio interfaces ........................................................................................................................ 136
A.4.7 GPIO pins .................................................................................................................................. 136
A.4.8 Reserved pins ............................................................................................................................ 136
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Contents
Page 7 of 145
A.4.9 Pin-out comparison between LISA and SARA ............................................................................. 137
B Glossary .................................................................................................................... 141
Related documents......................................................................................................... 143
Revision history .............................................................................................................. 144
Contact ............................................................................................................................ 145
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 8 of 145
1 System description
1.1 Overview
SARA-G3 series are versatile 2.5G GSM/GPRS wireless modules in a miniature LGA (Land Grid Array) form factor.
SARA-G350 is a full feature quad-band GSM/GPRS wireless module with a comprehensive feature set including
an extensive set of internet protocols. SARA-G350 also provides fully integrated access to u-blox GPS/GNSS
positioning chips and modules, with embedded A-GPS (AssistNow Online and AssistNow Offline) functionality.
SARA-G310 and SARA-G300 are respectively quad-band and dual-band GSM/GPRS wireless modules targeted
for high volume cost sensitive applications, providing GSM/GPRS functionalities with a reduced set of additional
features to minimize the customer’s total cost of ownership.
SARA-G3 wireless modules are certified and approved by the main regulatory bodies and operators, and RIL
software for Android and Embedded Windows are available free of charge. SARA-G3 modules are manufactured
in ISO/TS 16949 certified sites. Each module is tested and inspected during production. The modules are
qualified according to ISO 16750 – Environmental conditions and electrical testing for electrical and electronic
equipment for road vehicles.
Table 1 describes a summary of interfaces and features provided by SARA-G3 modules.
Module
Data
Rate
Bands
Interfaces
Audio
Functions
GPRS multi-slot class 10
GPRS multi-slot class 2
GSM/GPRS quad-band
GSM/GPRS dual-band (900/1800 MHz)
UART
SPI
USB
DDC for u-blox GPS/GNSS receivers
GPIO
Analog Audio
Digital Audio
Network indication
Antenna detection
Jamming detection
Embedded TCP/UDP
FTP, HTTP, SMTP
SSL
GPS/GNSS via Modem
AssistNow software
FW update over AT (FOAT)
FW update over the air (FOTA)
In-band modem
CellLocateTM
Low power idle-mode
SARA-G300
•
•
2
•
E
SARA-G310
•
•
2
•
E
SARA-G350
•
•
2
•
4
•
•
•
•
•
•
•
•
•
•
A
•
•
SARA-G350 ECALL
•
•
2
•
4
•
•
•
•
•
•
•
•
•
•
A
•
•
•
A = available upon request
E = external 32 kHz signal required for low power idle-mode
Table 1: SARA-G3 series features summary
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 9 of 145
Table 2 reports a summary of GSM/GPRS characteristics of SARA-G3 series modules.
Item
SARA-G300
SARA-G310
SARA-G350
GSM/GPRS Protocol Stack
3GPP Release 99
3GPP Release 99
3GPP Release 99
Mobile Station Class
Class B1
Class B1
Class B1
GSM/GPRS Bands
E-GSM 900 MHz
DCS 1800 MHz
GSM 850 MHz
E-GSM 900 MHz
DCS 1800 MHz
PCS 1900 MHz
GSM 850 MHz
E-GSM 900 MHz
DCS 1800 MHz
PCS 1900 MHz
GSM/GPRS Power Class
Class 4 (33 dBm) for 900
Class 1 (30 dBm) for 1800
Class 4 (33 dBm) for 850/900
Class 1 (30 dBm) for 1800/1900
Class 4 (33 dBm) for 850/900
Class 1 (30 dBm) for 1800/1900
Packet Switched Data Rate
GPRS multi-slot class 22
Coding scheme CS1-CS4
Up to 42.8 kb/s DL3
Up to 21.4 kb/s UL3
GPRS multi-slot class 22
Coding scheme CS1-CS4
Up to 42.8 kb/s DL3
Up to 21.4 kb/s UL3
GPRS multi-slot class 104
Coding scheme CS1-CS4
Up to 85.6 kb/s DL3
Up to 42.8 kb/s UL3
Circuit Switched Data Rate
None
None
Up to 9.6 kb/s DL/UL3
Transparent mode
Non transparent mode
Network Operation Modes
I to III
I to III
I to III
Table 2: SARA-G3 series GSM/GPRS characteristics summary
1
Device can be attached to both GPRS and GSM services (i.e. Packet Switch and Circuit Switch mode) using one service at a time. If for
2
GPRS multi-slot class 2 implies a maximum of 2 slots in DL (reception) and 1 slot in UL (transmission) with 3 slots in total.
3
The maximum bit rate of the module depends on the current network settings.
4
GPRS multi-slot class 10 implies a maximum of 4 slots in DL (reception) and 2 slots in UL (transmission) with 5 slots in total.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 10 of 145
1.2 Architecture
Memory
Auxiliary UART
SIM Card Detection
SIM Card
UART
V_BCKP (RTC)
V_INT (I/O)
Power-On
Reset
26 MHz
RF
Transceiver
Power
Management
Baseband
ANT SAW
Filter
Switch
PA
VCC (Supply)
32 kHz

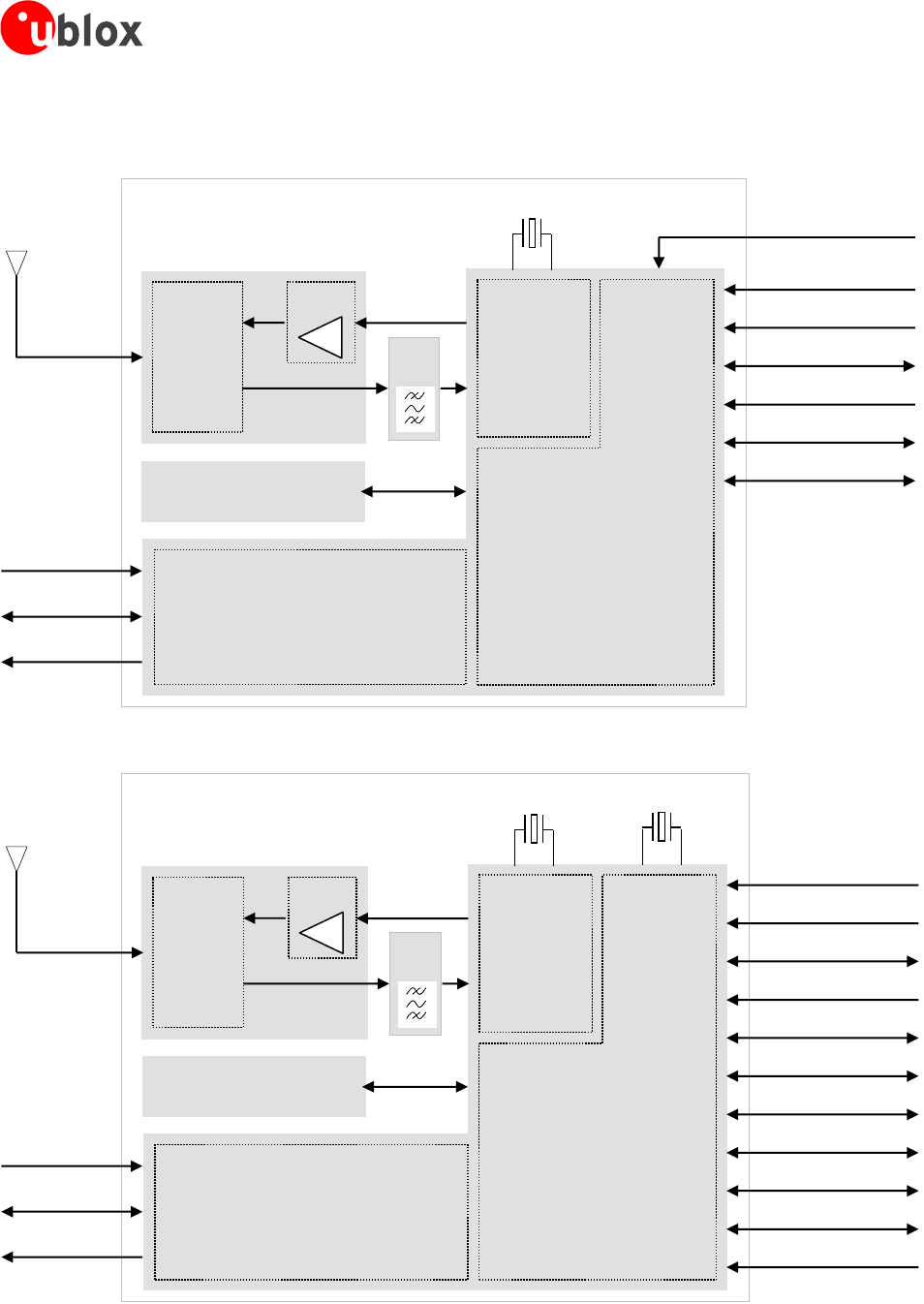

Figure 1: SARA-G300 and SARA-G310 modules block diagram
Memory
Auxiliary UART
DDC (for GPS/GNSS)
SIM Card Detection
SIM Card
UART
V_BCKP (RTC)
V_INT (I/O)
Power-On
Reset
26 MHz 32.768 kHz
RF
Transceiver
Power
Management
Baseband
ANT SAW
Filter
Switch
PA
Digital Audio
Analog Audio
VCC (Supply)
GPIO
Antenna Detection
Figure 2: SARA-G350 modules block diagram
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 11 of 145
1.2.1 Internal blocks
SARA-G3 modules consist of the following internal sections: RF, Baseband and Power Management.
RF section
The RF section is composed of the following main elements:
RF transceiver performing modulation, up-conversion of the baseband I/Q signals, down-conversion and
demodulation of the RF received signals. The RF transceiver includes:
Constant gain direct conversion receiver with integrated LNAs
Highly linear RF quadrature GMSK demodulator
Digital Sigma-Delta transmitter GMSK modulator
Fractional-N Sigma-Delta RF synthesizer
3.8 GHz VCO
Digital controlled crystal oscillator
Transmit module, which amplifies the signals modulated by the RF transceiver and connects the single
antenna input/output pin (ANT) of the module to the suitable RX/TX path, via its integrated parts:
Power amplifier
Antenna switch
RX diplexer SAW (band pass) filters
26 MHz crystal, connected to the digital controlled crystal oscillator to perform the clock reference in
active-mode or connected-mode
Baseband and Power Management section
The Baseband and Power Management section is composed of the following main elements:
Baseband processor, a mixed signal ASIC which integrates:
Microprocessor for controller functions
DSP core for GSM/GPRS Layer 1 and audio processing
Dedicated peripheral blocks for parallel control of the digital interfaces
Audio analog front-end
Memory system in a multi-chip package integrating two devices:
NOR flash non-volatile memory
PSRAM volatile memory
Voltage regulators to derive all the system supply voltages from the module supply VCC
SARA-G350 modules are provided with an internal 32.768 kHz crystal connected to the oscillator of the RTC
(Real Time Clock) block that gives the RTC clock reference needed to provide the RTC functions as well as to
reach the low power idle-mode (with power saving configuration enabled by the AT+UPSV command).
SARA-G300 and SARA-G310 modules are not provided with internal 32.768 kHz crystal: an external 32 kHz
signal must be provided at the EXT32K input pin of the modules to give the RTC clock reference and to provide
the RTC functions as well as to reach the low power idle-mode (with power saving configuration enabled by the
AT+UPSV command).
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 12 of 145
1.3 Pin-out
Table 3 lists the pin-out of the SARA-G3 modules, with pins grouped by function.
Function
Pin Name
Module
Pin No
I/O
Description
Remarks
Power
VCC
All
51, 52, 53
I
Module supply
input
VCC pins are internally connected each other.
VCC supply circuit affects the RF performance and
compliance of the device integrating the module
with applicable required certification schemes.
See section 1.5.1 for functional description and
requirements for the VCC module supply.
See section 2.1.1 for external circuit design-in.
GND
All
1, 3, 5, 14,
20-22, 30,
32, 43, 50,
54, 55,
57-61,
63-96
N/A
Ground
GND pins are internally connected each other.
External ground connection affects the RF and
thermal performance of the device.
See section 1.5.1 for functional description.
See section 2.1.1 for external circuit design-in.
V_BCKP
All
2
I/O
Real Time Clock
supply
input/output
V_BCKP = 2.3 V (typical) generated by internal
regulator when valid VCC supply is present.
See section 1.5.2 for functional description.
See section 2.1.2 for external circuit design-in.
V_INT
All
4
O
Digital Interfaces
supply output
V_INT = 1.8 V (typical) generated by internal
regulator when the module is switched on.
See section 1.5.3 for functional description.
See section 2.1.3 for external circuit design-in.
System
PWR_ON
All
15
I
Power-on input
High input impedance: input voltage level has to be
properly fixed, e.g. adding external pull-up.
See section 1.6.1 for functional description.
See section 2.2.1 for external circuit design-in.
RESET_N
All
18
I
External reset
input

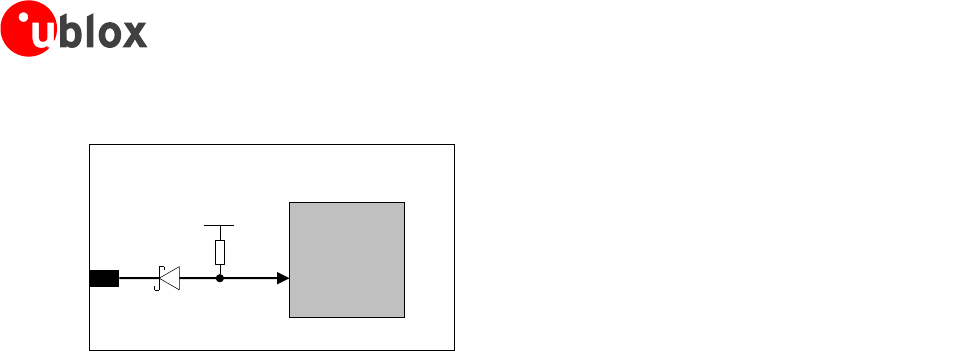

A series Schottky diode is integrated in the module
as protection, and then an internal 10 k pull-up
resistor to V_INT is provided.
See section 1.6.3 for functional description.
See section 2.2.2 for external circuit design-in.
EXT32K
SARA-G300
SARA-G310
31
I
32 kHz input
Input for RTC reference clock, needed to enter the
low power idle-mode and provide RTC functions.
See section 1.6.4 for functional description.
See section 2.2.3 for external circuit design-in.
Antenna
ANT
All
56
I/O
RF input/output
for antenna
50 nominal characteristic impedance.
Antenna circuit affects the RF performance and
compliance of the device integrating the module
with applicable required certification schemes.
See section 1.7 for functional description and
requirements for the antenna RF interface.
See section 2.3 for external circuit design-in.
ANT_DET
SARA-G350
62
I
Input for antenna
detection
ADC input for antenna detection function.
See section 1.7.1 for functional description.
See section 2.3.2 for external circuit design-in.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 13 of 145
Function
Pin Name
Module
Pin No
I/O
Description
Remarks
SIM
VSIM
All
41
O
SIM supply
output
VSIM = 1.80 V typ. or 2.85 V typ. automatically
generated according to the connected SIM type.
See section 1.8 for functional description.
See section 2.4 for external circuit design-in.
SIM_IO
All
39
I/O
SIM data
Data input/output for 1.8 V / 3 V SIM
Internal 4.7 k pull-up to VSIM.
See section 1.8 for functional description.
See section 2.4 for external circuit design-in.
SIM_CLK
All
38
O
SIM clock
3.25 MHz clock output for 1.8 V / 3 V SIM
See section 1.8 for functional description.
See section 2.4 for external circuit design-in.
SIM_RST
All
37
O
SIM reset
Reset output for 1.8 V / 3 V SIM
See section 1.8 for functional description.
See section 2.4 for external circuit design-in.
SIM_DET
All
42
I
SIM detection
1.8 V input for SIM presence detection function.
See section 1.8.2 for functional description.
See section 2.4 for external circuit design-in.
UART
RXD
All
13
O
UART data output
1.8 V output, Circuit 104 (RXD) in ITU-T V.24,
for AT command, Data communication, FOAT.
See section 1.9.1 for functional description.
See section 2.5.1 for external circuit design-in.
TXD
All
12
I
UART data input
1.8 V input, Circuit 103 (TXD) in ITU-T V.24,
for AT command, Data communication, FOAT.
Internal active pull-up to V_INT.
See section 1.9.1 for functional description.
See section 2.5.1 for external circuit design-in.
CTS
All
11
O
UART clear to
send output
1.8 V output, Circuit 106 (CTS) in ITU-T V.24,
for AT command, Data communication, FOAT.
See section 1.9.1 for functional description.
See section 2.5.1 for external circuit design-in.
RTS
All
10
I
UART ready to
send input
1.8 V input, Circuit 105 (RTS) in ITU-T V.24,
for AT command, Data communication, FOAT.
Internal active pull-up to V_INT.
See section 1.9.1 for functional description.
See section 2.5.1 for external circuit design-in.
DSR
All
6
O
UART data set
ready output
1.8 V output, Circuit 107 (DSR) in ITU-T V.24,
for AT command, Data communication, FOAT.
See section 1.9.1 for functional description.
See section 2.5.1 for external circuit design-in.
RI
All
7
O
UART ring
indicator output
1.8 V output, Circuit 125 (RI) in ITU-T V.24,
for AT command, Data communication, FOAT.
See section 1.9.1 for functional description.
See section 2.5.1 for external circuit design-in.
DTR
All
9
I
UART data
terminal ready
input
1.8 V input, Circuit 108/2 (DTR) in ITU-T V.24,
for AT command, Data communication, FOAT.
Internal active pull-up to V_INT.
See section 1.9.1 for functional description.
See section 2.5.1 for external circuit design-in.
DCD
All
8
O
UART data carrier
detect output
1.8 V input, Circuit 109 (DCD) in ITU-T V.24,
for AT command, Data communication, FOAT.
See section 1.9.1 for functional description.
See section 2.5.1 for external circuit design-in.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 14 of 145
Function
Pin Name
Module
Pin No
I/O
Description
Remarks
Auxiliary
UART
RXD_AUX
All
28
O
Auxiliary UART
data output
1.8 V output, Circuit 104 (RXD) in ITU-T V.24,
for FW upgrade and trace log capture.
Access by external test-point is recommended.
See section 1.9.2 for functional description.
See section 2.5.2 for external circuit design-in.
TXD_AUX
All
29
I
Auxiliary UART
data input
1.8 V input, Circuit 103 (TXD) in ITU-T V.24,
for FW upgrade and trace log capture.
Access by external test-point is recommended.
Internal active pull-up to V_INT.
See section 1.9.2 for functional description.
See section 2.5.2 for external circuit design-in.
DDC
SCL
SARA-G350
27
O
I2C bus clock line
1.8 V open drain, for the communication with
u-blox positioning modules and chips.
External pull-up required.
See section 1.9.3 for functional description.
See section 2.5.3 for external circuit design-in.
SDA
SARA-G350
26
I/O
I2C bus data line
1.8 V open drain, for the communication with
u-blox positioning modules and chips.
External pull-up required.
See section 1.9.3 for functional description.
See section 2.5.3 for external circuit design-in.
Analog
Audio
MIC_BIAS
SARA-G350
46
O
Microphone
supply output
Supply output (2.2 V typ) for external microphone.
See section 1.10.1 for functional description.
See section 2.6.1 for external circuit design-in.
MIC_GND
SARA-G350
47
I
Microphone
analog reference
Local ground for the external microphone (reference
for the analog audio uplink path).
See section 1.10.1 for functional description.
See section 2.6.1 for external circuit design-in.
MIC_N
SARA-G350
48
I
Differential
analog audio
input (negative)
Differential analog audio signal input (negative)
shared for all the analog uplink path modes:
handset, headset, hands-free mode.
No internal DC blocking capacitor.
See section 1.10.1 for functional description.
See section 2.6.1 for external circuit design-in.
MIC_P
SARA-G350
49
I
Differential
analog audio
input (positive)
Differential analog audio signal input (positive)
shared for all the analog uplink path modes:
handset, headset, hands-free mode.
No internal DC blocking capacitor.
See section 1.10.1 for functional description.
See section 2.6.1 for external circuit design-in.
SPK_P
SARA-G350
44
O
Differential
analog audio
output (positive)
Differential analog audio signal output (positive)
shared for all the analog downlink path modes:
earpiece, headset and loudspeaker mode.
See section 1.10.1 for functional description.
See section 2.6.1 for external circuit design-in.
SPK_N
SARA-G350
45
O
Differential
analog audio
output (negative)
Differential analog audio signal output (negative)
shared for all the analog downlink path modes:
earpiece, headset and loudspeaker mode.
See section 1.10.1 for functional description.
See section 2.6.1 for external circuit design-in.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 15 of 145
Function
Pin Name
Module
Pin No
I/O
Description
Remarks
Digital
Audio
I2S_CLK
SARA-G350
37
O
I2S clock
1.8 V clock output for PCM / normal I2S modes.
See section 1.10.2 for functional description.
See section 2.6.2 for external circuit design-in.
I2S_RXD
SARA-G350
36
I
I2S receive data
1.8 V data input for PCM / normal I2S modes.
Internal active pull-down to GND.
See section 1.10.2 for functional description.
See section 2.6.2 for external circuit design-in.
I2S_TXD
SARA-G350
35
O
I2S transmit data
1.8 V data output for PCM / normal I2S modes.
See section 1.10.2 for functional description.
See section 2.6.2 for external circuit design-in.
I2S_WA
SARA-G350
34
O
I2S word
alignment
1.8 V word al. output for PCM / normal I2S modes
See section 1.10.2 for functional description.
See section 2.6.2 for external circuit design-in.
GPIO
GPIO1
SARA-G350
16
I/O
GPIO
1.8 V GPIO by default configured as pad disabled.
See section 1.11 for functional description.
See section 2.7 for external circuit design-in.
GPIO2
SARA-G350
23
I/O
GPIO
1.8 V GPIO by default configured to provide the
custom GPS supply enable function.
See section 1.11 for functional description.
See section 2.7 for external circuit design-in.
GPIO3
SARA-G350
24
I/O
GPIO
1.8 V GPIO by default configured to provide the
custom GPS data ready function.
See section 1.11 for functional description.
See section 2.7 for external circuit design-in.
GPIO4
SARA-G350
25
I/O
GPIO
1.8 V GPIO by default configured to provide the
custom GPS RTC sharing function.
See section 1.11 for functional description.
See section 2.7 for external circuit design-in.
Reserved
RSVD
All
33
N/A
RESERVED pin
This pin must be connected to ground.
See section 2.8
RSVD
All
17, 19
N/A
RESERVED pin
Leave unconnected.
See section 2.8
RSVD
SARA-G350
31
N/A
RESERVED pin
Internally not connected. Leave unconnected.
See section 2.8
RSVD
SARA-G300
SARA-G310
16,
23-27,
34-37
N/A
RESERVED pin
Pad disabled. Leave unconnected.
See section 2.8
RSVD
SARA-G300
SARA-G310
44-49,
62
N/A
RESERVED pin
Leave unconnected.
See section 2.8
Table 3: SARA-G3 series modules pin definition, grouped by function
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 16 of 145
1.4 Operating modes
SARA-G3 modules have several operating modes. The operating modes are defined in Table 4 and described in
details in Table 5, providing general guidelines for operation.
General Status
Operating Mode
Definition
Power-down
Not-Powered Mode
VCC supply not present or below operating range: module is switched off.
Power-Off Mode
VCC supply within operating range and module is switched off.
Normal Operation
Idle-Mode
Module processor core runs with 32 kHz reference, that is generated by:
The internal 32 kHz oscillator (SARA-G350)
The 32 kHz signal provided at the EXT32K pin (SARA-G300 and SARA-G310)
Active-Mode
Module processor core runs with 26 MHz reference generated by the internal oscillator.
Connected-Mode
Voice or data call enabled and processor core runs with 26 MHz reference.
Table 4: Module operating modes definition
Operating Mode
Description
Transition between operating modes
Not-Powered Mode
Module is switched off.
Application interfaces are not accessible.
Internal RTC timer only operates if a valid voltage is
applied to V_BCKP pin (necessary for all SARA-G3
modules), and if a valid 32 kHz signal is provided to
EXT32K pin (necessary only for SARA-G300 and
SARA-G310 modules)
When VCC supply is removed, the module enters
not-powered mode.
When in not-powered mode, the module cannot be
switched on by a low level on PWR_ON input or by a
preset RTC alarm.
When in not-powered mode, the module can be
switched on applying VCC supply (refer to 2.2.1) so that
the module switches from not-powered to active-mode.
Power-Off Mode
Module is switched off: normal shutdown by an
appropriate power-off event (refer to 1.6.2).
Application interfaces are not accessible.
Only the internal RTC timer in operation.
A valid 32 kHz signal must be provided to EXT32K pin
of SARA-G300 and SARA-G310 modules to let RTC
timer running that otherwise is in operation (this is not
needed for the other SARA-G3 series modules).
When the module is switched off by an appropriate
power-off event (refer to 1.6.2), the module enters
power-off mode from active-mode.
When in power-off mode, the module can be switched
on by a low level on PWR_ON input or by a preset RTC
alarm (refer to 2.2.1): module switches from power-off
to active-mode.
When VCC supply is removed, the module switches from
power-off mode to not-powered mode.
Idle-Mode
The module is not ready to communicate with an
external device by means of the application interfaces
since configured to reduce power consumption.
The module automatically enters idle-mode whenever
possible if power saving is enabled by the AT+UPSV
command (refer to u-blox AT Commands Manual [2]),
reducing power consumption (refer to 1.5.1.3).
The CTS output line indicates when the UART interface
is disabled/enabled due to the module idle/active-mode
according to power saving and hardware flow control
settings (refer to 1.9.1.3, 1.9.1.4).
Power saving configuration is not enabled by default: it
can be enabled by the AT+UPSV command (see u-blox
AT Commands Manual [2]).
A valid 32 kHz signal must be provided to EXT32K pin
of SARA-G300 and SARA-G310 modules to let
idle-mode that otherwise cannot be reached (this is not
needed for the other SARA-G3 series modules).
The module automatically switches from active-mode to
idle-mode whenever possible if power saving is enabled
(refer to sections 1.5.1.3, 1.9.1.4 and to the u-blox AT
Commands Manual [2], AT+UPSV).
The module wakes up from idle-mode to active-mode in
the following events:
Automatic periodic monitoring of the paging
channel for the paging block reception according
to network conditions (refer to 1.5.1.3, 1.9.1.4)
Automatic periodic enable of the UART interface to
receive and send data, if the power saving AT
command is set to 1 (refer to 1.9.1.4)
RTC alarm occurs (refer to u-blox AT Commands
Manual [2], AT+CALA command)
Data received on UART interface (refer to 1.9.1.4)
RTS input line set to the ON state by the DTE if
hardware flow control has been disabled by AT&K3
and the power saving AT command is set to 2
(refer to 1.9.1.4)
GPS data ready: when the GPIO3 pin is informed
by the connected u-blox GPS/GNSS receiver that it
is ready to send data via the DDC (I2C) interface
(refer to 1.11, 1.9.3)
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 17 of 145
Operating Mode
Description
Transition between operating modes
Active-Mode
The module is ready to communicate with an external
device by means of the application interfaces unless
power saving configuration is enabled by the AT+UPSV
command (refer to sections 1.5.1.3, 1.9.1.4 and to the
u-blox AT Commands Manual [2]).
When the module is switched on by an appropriate
power-on event (refer to 2.2.1), the module enters
active-mode from not-powered or power-off mode.
If power saving configuration is enabled by the AT+UPSV
command, the module automatically switches from
active to idle-mode whenever possible and the module
wakes up from idle to active-mode in the events listed
above (refer to idle to active transition description).
When a voice call or a data call is initiated, the module
switches from active-mode to connected-mode.
Connected-Mode
A voice call or a data call is in progress.
The module is ready to communicate with an external
device by means of the application interfaces unless
power saving configuration is enabled by the AT+UPSV
command (see sections 1.5.1.3, 1.9.1.4 and the u-blox
AT Commands Manual [2]).
When a voice call or a data call is initiated, the module
enters connected-mode from active-mode.
When a voice call or a data call is terminated, the
module returns to the active-mode.
Table 5: Module operating modes description
Figure 3 describes the transition between the different operating modes.
Switch ON:
•Apply VCC
If power saving is enabled
and there is no activity for
a defined time interval
Any wake up event described
in the module operating
modes summary table above
Incoming/outgoing call or
other dedicated device
network communication
Call terminated,
communication dropped
Remove VCC
Switch ON:
•PWR_ON
•RTC Alarm
Not
powered
Power off
ActiveConnected Idle
Switch OFF:
•AT+CPWROFF
Figure 3: Operating modes transition
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 18 of 145
1.5 Supply interfaces
1.5.1 Module supply input (VCC)
SARA-G3 modules must be supplied via the three VCC pins that represent the module power supply input.
The VCC pins are internally connected to the RF power amplifier and to the integrated Power Management Unit:
all supply voltages needed by the module are generated from the VCC supply by integrated voltage regulators,
including V_BCKP Real Time Clock supply, V_INT digital interfaces supply and VSIM SIM card supply.
During operation, the current drawn by the SARA-G3 series modules through the VCC pins can vary by several
orders of magnitude. This ranges from the high peak of current consumption during GSM transmitting bursts at
maximum power level in connected-mode (as described in the chapter 1.5.1.2), to the low current consumption
during low power idle-mode with power saving enabled (as described in the chapter 1.5.1.3).
1.5.1.1 VCC supply requirements
Table 6 summarizes the requirements for the VCC module supply. Refer to chapter 2.1.1 for all the suggestions
to properly design a VCC supply circuit compliant to the requirements listed in Table 6.
The VCC supply circuit affects the RF compliance of the device integrating SARA-G3 series
module with applicable required certification schemes as well as antenna circuit design.
Compliance is guaranteed if the VCC requirements summarized in the Table 6 are fulfilled.
Item
Requirement
Remark
VCC nominal voltage
Within VCC normal operating range:
3.35 V min. / 4.50 V max.
The module cannot be switched on if VCC voltage value
is below the normal operating range minimum limit.
Ensure that the input voltage at VCC pins is above the
minimum limit of the normal operating range for at least
more than 3 s after the module switch-on.
VCC voltage during
normal operation
Within VCC extended operating range:
3.00 V min. / 4.50 V max.
The module may switch off when VCC voltage drops
below the extended operating range minimum limit.
Operation above extended operating range maximum
limit is not recommended and exposure beyond it may
affect device reliability.
VCC average current
Considerably withstand maximum average current
consumption value in connected-mode conditions
specified in SARA-G3 series Data Sheet [1].
The maximum average current consumption can be
greater than the specified value according to the actual
antenna mismatching, temperature and VCC voltage.
Chapter 1.5.1.2 describes connected-mode current.
VCC peak current
Withstand the maximum peak current consumption
specified in the SARA-G3 series Data Sheet [1].
The specified maximum peak of current consumption
occurs during GSM single transmit slot in 850/900 MHz
connected-mode, in case of mismatched antenna.
Chapter 1.5.1.2 describes connected-mode current.
VCC voltage drop
during Tx slots
Lower than 400 mV
VCC voltage drop values greater than recommended
during 2G TDMA transmission slots directly affect the RF
compliance with applicable certification schemes.
Figure 5 describes VCC voltage drop during Tx slots.
VCC voltage ripple
during Tx slots
Lower than 30 mVpp if fripple ≤ 200 kHz
Lower than 10 mVpp if 200 kHz < fripple ≤ 400 kHz
Lower than 2 mVpp if fripple > 400 kHz
VCC voltage ripple values higher than recommended
during 2G/3G transmission directly affect the RF
compliance with applicable certification schemes.
Figure 5 describes VCC voltage ripple during Tx slots.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 19 of 145
Item
Requirement
Remark
VCC under/over-shoot
at start/end of Tx slots
Absent or at least minimized
VCC under/over-shoot higher than recommended at the
start/end of 2G TDMA transmission slots directly affect
the RF compliance with applicable certification schemes
Figure 5 describes VCC voltage under/over-shoot at the
start/end of Tx slots
Table 6: Summary of VCC supply requirements
1.5.1.2 VCC current consumption in connected-mode
When a GSM call is established, the VCC consumption is determined by the current consumption profile typical
of the GSM transmitting and receiving bursts.
The current consumption peak during a transmission slot is strictly dependent on the transmitted power, which
is regulated by the network. If the module is transmitting in GSM talk mode in the 850 or 900 MHz bands, at
the maximum RF power control level (approximately 2 W or 33 dBm in the allocated transmit slot/burst) the
current consumption can reach up to 1900 mA (with a highly unmatched antenna) for 576.9 µs (width of the
transmit slot/burst) with a periodicity of 4.615 ms (width of 1 frame = 8 slots/burst), so with a 1/8 duty cycle
according to GSM TDMA (Time Division Multiple Access). If the module is in GSM connected-mode in the 1800
or 1900 MHz bands, the current consumption figures are lower than the one in the 850 or 900 MHz bands, due
to 3GPP transmitter output power specifications (refer to SARA-G3 series Data Sheet [1]).
During a GSM call, current consumption is in the order of 60-130 mA in receiving or in monitor bursts and is
about 10-40 mA in the inactive unused bursts (low current period). The more relevant contribution to determine
the average current consumption is set by the transmitted power in the transmit slot.
Figure 4 shows an example of the module current consumption profile versus time in GSM talk mode.
Time [ms]
RX
slot
unused
slot
unused
slot
TX
slot
unused
slot
unused
slot
MON
slot
unused
slot
RX
slot
unused
slot
unused
slot
TX
slot
unused
slot
unused
slot
MON
slot
unused
slot
GSM frame
4.615 ms
(1 frame = 8 slots)
Current [A]
200 mA
60-120 mA
1900 mA
Peak current
depends on
TX power
GSM frame
4.615 ms
(1 frame = 8 slots)
1.5
1.0
0.5
0.0
2.0
60-120 mA
10-40 mA
Figure 4: VCC current consumption profile versus time during a GSM call (1 TX slot, 1 RX slot)
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 20 of 145

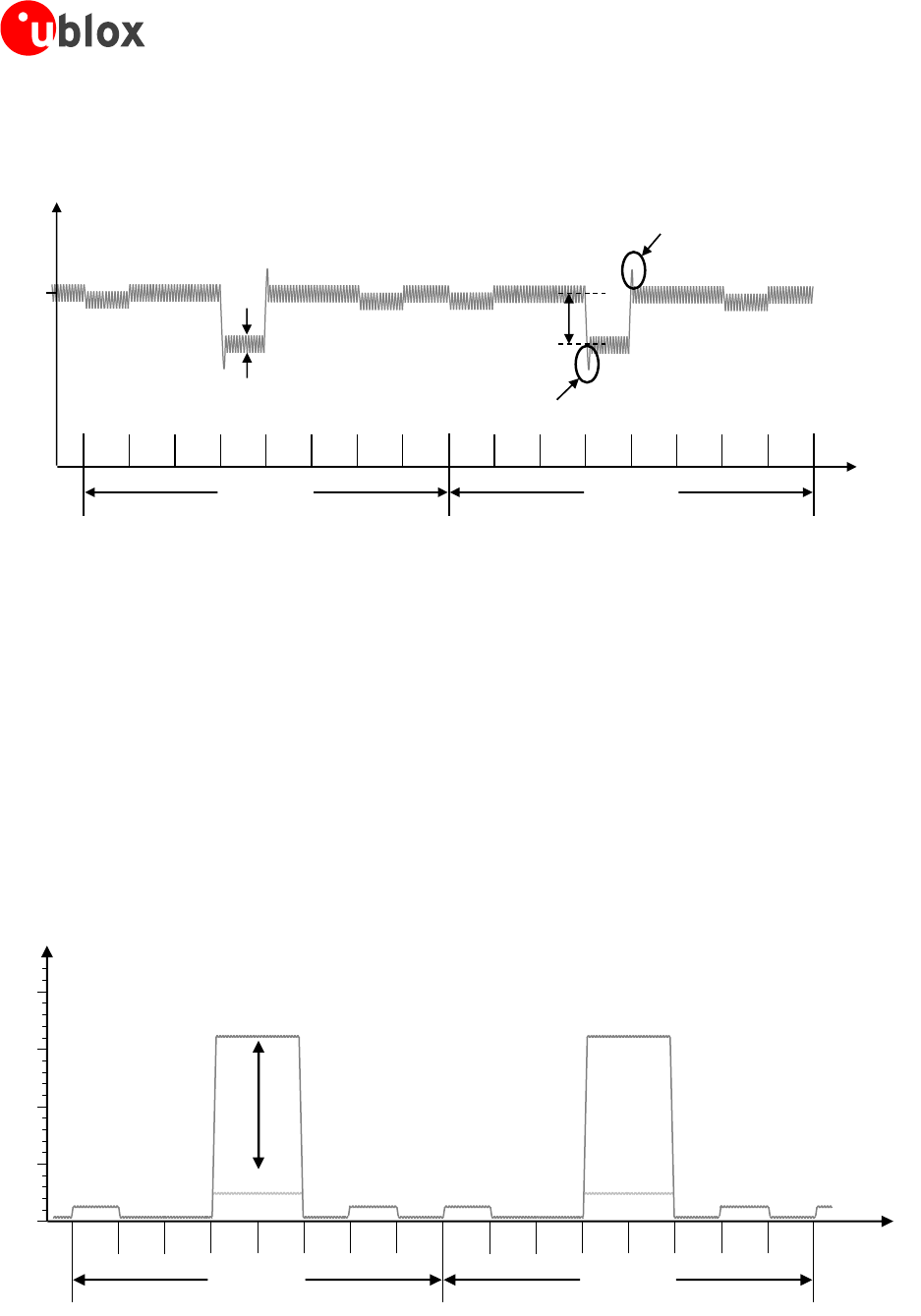

Figure 5 illustrates VCC voltage profile versus time during a GSM call, according to the relative VCC current
consumption profile described in the Figure 4.
Time
undershoot
overshoot
ripple
drop
Voltage
3.8 V
(typ)
RX
slot
unused
slot
unused
slot
TX
slot
unused
slot
unused
slot
MON
slot
unused
slot
RX
slot
unused
slot
unused
slot
TX
slot
unused
slot
unused
slot
MON
slot
unused
slot
GSM frame
4.615 ms
(1 frame = 8 slots)
GSM frame
4.615 ms
(1 frame = 8 slots)
Figure 5: Description of the VCC voltage profile versus time during a GSM call
When a GPRS connection is established, more than one slot can be used to transmit and/or more than one slot
can be used to receive. The transmitted power depends on network conditions, which set the peak current
consumption, but following the GPRS specifications the maximum transmitted RF power is reduced if more than
one slot is used to transmit, so the maximum peak of current is not as high as can be in case of a GSM call.
If the module transmits in GPRS multi-slot class 10, in the 850 or 900 MHz bands, at the maximum power
control level, the consumption can reach up to 1600 mA (with highly unmatched antenna). This happens for
1.154 ms (width of the 2 Tx slots/bursts) with a periodicity of 4.615 ms (width of 1 frame = 8 slots/bursts), so
with a 1/4 duty cycle, according to GSM TDMA. If the module is in GPRS connected-mode in 1800 or 1900 MHz
bands, consumption figures are lower than in the 850 or 900 MHz band, due to 3GPP Tx power specifications.
Figure 6 reports the current consumption profiles in GPRS connected-mode, in the 850 or 900 MHz bands, with
2 slots used to transmit and 1 slot used to receive.
Time [ms]
RX
slot
unused
slot
unused
slot
TX
slot
TX
slot
unused
slot
MON
slot
unused
slot
RX
slot
unused
slot
unused
slot
TX
slot
TX
slot
unused
slot
MON
slot
unused
slot
GSM frame
4.615 ms
(1 frame = 8 slots)
Current [A]
60-120mA
GSM frame
4.615 ms
(1 frame = 8 slots)
1.5
1.0
0.5
0.0
2.0
60-120mA 10-40mA
200mA
Peak current
depends on
TX power
1600 mA
Figure 6: VCC current consumption profile versus time during a GPRS connection (2 TX slots, 1 RX slot)
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 21 of 145
1.5.1.3 VCC current consumption in cyclic idle/active-mode (power saving enabled)
The power saving configuration is by default disabled, but it can be enabled using the appropriate AT command
(refer to u-blox AT Commands Manual [2], AT+UPSV command). When power saving is enabled, the module
automatically enters idle-mode whenever possible, reducing current consumption.
During idle-mode, the module processor runs with 32 kHz reference clock frequency. For SARA-G350 modules,
the internal oscillator automatically generates the 32 kHz clock. For SARA-G300 and SARA-G310 modules, a
valid 32 kHz signal must be provided to the EXT32K input pin of the module to let idle-mode, that otherwise
cannot be reached (this is not needed for the other SARA-G3 series modules).
When power saving is enabled, the module is registered or attached to a network and a voice or data call is not
enabled, the module automatically enters idle-mode whenever possible, but it must periodically monitor the
paging channel of the current base station (paging block reception), in accordance to GSM system requirements.
When the module monitors the paging channel, it wakes up to active-mode, to enable the reception of paging
block. In between, the module switches to idle-mode. This is known as GSM discontinuous reception (DRX).
The module processor core is activated during the paging block reception, and automatically switches its
reference clock frequency from 32 kHz to the 26 MHz used in active-mode.
The time period between two paging block receptions is defined by the network. This is the paging period
parameter, fixed by the base station through broadcast channel sent to all users on the same serving cell.
The time interval between two paging block receptions can be from 470.76 ms (DRX = 2, i.e. width of 2 GSM
multiframes = 2 x 51 GSM frames = 2 x 51 x 4.615 ms) up to 2118.42 ms (DRX = 9, i.e. width of 9 GSM
multiframes = 9 x 51 frames = 9 x 51 x 4.615 ms).
Figure 7 shows an example of a module current consumption profile: the module is registered with the network,
automatically enters idle-mode and periodically wakes up to active-mode to monitor the paging channel for
paging block reception.
~30 ms
IDLE MODE ACTIVE MODE IDLE MODE
400-700 µA
Active Mode
Enabled
Idle Mode
Enabled
400-700 µA
60-120 mA
0.44-2.09 s
IDLE MODE
~30 ms
ACTIVE MODE
Time [s]
Current [mA]
100
50
0
Time [ms]
Current [mA]
100
50
0
3-6 mA 7-18 mA
60-120 mA
PLL
Enabled
RX
Enabled
20-40 mA
DSP
Enabled
Figure 7: Description of VCC current consumption profile versus time when the module is registered the network: the module is
in idle-mode and periodically wakes up to active-mode to monitor the paging channel for paging block reception
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 22 of 145
1.5.1.4 VCC current consumption in fixed active-mode (power saving disabled)
Power saving configuration is by default disabled, or it can be disabled using the appropriate AT command (refer
to u-blox AT Commands Manual [2], AT+UPSV command). When power saving is disabled, the module does not
automatically enter idle-mode whenever possible: the module remains in active-mode.
The module processor core is activated during active-mode, and the 26 MHz reference clock frequency is used.
Figure 8 shows an example of the module current consumption profile when power saving is disabled: the
module is registered with the network, active-mode is maintained, and the receiver and the DSP are periodically
activated to monitor the paging channel for paging block reception.
ACTIVE MODE
7-18 mA
60-120 mA
0.47-2.12 s
Paging period
Time [s]
Current [mA]
100
50
0
Time [ms]
Current [mA]
100
50
0
7-18 mA
60-120 mA
RX
Enabled
20-40 mA
DSP
Enabled
7-18 mA
Figure 8: Description of the VCC current consumption profile versus time when power saving is disabled: the active-mode is
always held, and the receiver and the DSP are periodically activated to monitor the paging channel for paging block reception
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 23 of 145
1.5.2 RTC supply input/output (V_BCKP)
The V_BCKP pin of SARA-G3 modules connects the supply for the Real Time Clock (RTC) and Power-On internal
logic. This supply domain is internally generated by a linear LDO regulator integrated in the Power Management
Unit, as described in Figure 9. The output of this linear regulator is always enabled when the main voltage supply
provided to the module through the VCC pins is within the valid operating range, with the module switched off
or switched on.
Baseband
Processor
51
VCC
52
VCC
53
VCC
2
V_BCKP
Linear
LDO RTC
Power
Management
SARA-G350
32 kHz
Baseband
Processor
51
VCC
52
VCC
53
VCC
2
V_BCKP
Linear
LDO RTC
Power
Management
SARA-G300 / SARA-G310
32 kHz
31
EXT32K
Figure 9: SARA-G3 series RTC supply input/output (V_BCKP) and 32 kHz RTC timing reference clock simplified block diagram
The RTC provides the module time reference (date and time), also in power-off mode, when the V_BCKP
voltage is within its valid range (specified in the “Input characteristics of Supply/Power pins” table in SARA-G3
series Data Sheet [1]). The RTC timing is normally used to set the wake-up interval during idle-mode periods
between network paging, but is able to provide programmable alarm functions by means of the 32.768 kHz
clock provided by the internal oscillator on SARA-G350 modules or provided by a valid 32 kHz external signal
present at the EXT32K input pin of SARA-G300 and SARA-G310 modules.
The RTC can be supplied from an external back-up battery through the V_BCKP, when the main voltage supply
is not provided to the module through VCC. This lets the time reference (date and time) run until the V_BCKP
voltage is within its valid range, even when the main supply is not provided to the module.
The RTC oscillator does not necessarily stop operation (i.e. the RTC counting does not necessarily stop) when
V_BCKP voltage value drops below the specified operating range minimum limit (1.00 V): the RTC value read
after a system restart could be not reliable as explained in the following Table 7.
V_BCKP voltage value
RTC value reliability
Notes
1.00 V < V_BCKP < 2.40 V
RTC oscillator does not stop operation
RTC value read after a restart of the system is reliable
V_BCKP within operating range
0.05 V < V_BCKP < 1.00 V
RTC oscillator does not necessarily stop operation
RTC value read after a restart of the system is not reliable
V_BCKP below operating range
0.00 V < V_BCKP < 0.05 V
RTC oscillator stops operation
RTC value read after a restart of the system is reliable
V_BCKP below operating range
Table 7: RTC value reliability as function of V_BCKP voltage value
Consider that the module cannot switch on if a valid voltage is not present on VCC even when the RTC is
supplied through V_BCKP (meaning that VCC is mandatory to switch on the module).
The RTC has very low power consumption, but is highly temperature dependent. For example at 25 °C, with the
V_BCKP voltage equal to the typical output value, the power consumption is approximately 2 µA (refer to the
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 24 of 145
“Input characteristics of Supply/Power pins” table in the SARA-G3 series Data Sheet [1] for the detailed
specification), whereas at 70 °C and an equal voltage the power consumption increases to 5-10 µA.
If V_BCKP is left unconnected and the module main voltage supply is removed from VCC, the RTC is supplied
from the bypass capacitor mounted inside the module. However, this capacitor is not able to provide a long
buffering time: within few milliseconds the voltage on V_BCKP will go below the valid range (1 V min). This has
no impact on wireless connectivity, as all the module functionalities do not rely on date and time setting.
1.5.3 Interfaces supply output (V_INT)
The same 1.8 V voltage domain used internally to supply the digital interfaces of SARA-G3 modules is also
available on the V_INT supply output pin, as described in Figure 10.
Baseband
Processor
51
VCC
52
VCC
53
VCC
4
V_INT
Switching
Step-Down
Digital I/O
Interfaces
Power
Management
SARA-G3 series
Figure 10: SARA-G3 series interfaces supply output (V_INT) simplified block diagram
The internal regulator that generates the V_INT supply is a switching step-down converter that is directly
supplied from VCC. The voltage regulator output is set to 1.8 V (typical) when the module is switched on and it
is disabled when the module is switched off.
The switching regulator operates in Pulse Width Modulation (PWM) for greater efficiency at high output loads
when the module is in active-mode or in connected-mode. When the module is in low power idle-mode
between paging periods and with power saving configuration enabled by the appropriate AT command, it
automatically switches to Pulse Frequency Modulation (PFM) for greater efficiency at low output loads. Refer to
the u-blox AT Commands Manual [2], +UPSV command.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 25 of 145
1.6 System function interfaces
1.6.1 Module power-on
The power-on sequence of SARA-G3 series modules is initiated in one of these ways:
Rising edge on the VCC pin to a valid voltage as module supply (i.e. applying module supply)
Low level on the PWR_ON pin (normally high with external pull-up) for an appropriate time period
RTC alarm (i.e. pre-programmed scheduled time by AT+CALA command)
1.6.1.1 Rising edge on VCC
When a SARA-G3 module is in the not-powered mode, it can be switched on by applying the VCC supply.
The module is switched on when the voltage rises up to the VCC normal operating range minimum limit (3.35 V)
starting from a voltage value lower than 2.25 V, and with a proper voltage slope: the voltage at the VCC pins
must ramp from 2.5 V to 3.2 V within 4 ms to switch on the module. When the VCC voltage is stabilized at its
nominal value within the normal operating range, the module can be switched on by a low level on PWR_ON
pin (see section 1.6.1.2) or by RTC alarm (see section 1.6.1.3).
If the PWR_ON input pin is held low during the VCC apply phase, the SARA-G3 module switches on when
voltage rises up to the VCC normal operating range minimum limit (3.35 V).
1.6.1.2 Low level on PWR_ON
When a SARA-G3 module is in the power-off mode (i.e. switched off with valid VCC supply maintained), the
module can be switched on by forcing a low level on the PWR_ON input pin at least for 5 ms.
The electrical characteristics of the PWR_ON input pin are different from the other digital I/O interfaces. The
input voltage thresholds are slightly different since the PWR_ON input pin is tolerant of voltages up to the
module supply level. The detailed electrical characteristics are described in SARA-G3 series Data Sheet [1].
There is no internal pull-up resistor on the PWR_ON pin: the pin has high input impedance and is weakly pulled
to the high level by the internal circuit. Therefore the external circuit must be able to hold the high logic level
stable, e.g. providing an external pull-up resistor (for further design-in guidelines refer to chapter 2.2.1).
1.6.1.3 RTC alarm
When a SARA-G3 module is in the power-off mode (i.e. switched off with valid VCC supply maintained) and the
RTC timing (32 kHz reference clock) is available, the module can be switched on by an RTC alarm previously
programmed by AT command at a scheduled time (refer to the u-blox AT Commands Manual [2], AT+CALA
command). The internal RTC block system will then initiate the module boot sequence by instructing the Power
Management Unit to turn on power. Also included in this setup is an interrupt signal from the RTC block to
indicate to the baseband processor that an RTC event has occurred.
The RTC timing is generated by the 32 kHz reference clock provided by the internal oscillator on SARA-G350
modules. A valid 32 kHz external signal must be provided at the EXT32K input pin of the SARA-G300 and
SARA-G310 modules to enable RTC timing, otherwise the switch-on of SARA-G300 and SARA-G310 modules by
means of a pre-programmed RTC alarm is not possible (refer to the chapter 1.6.4).
1.6.1.4 Additional considerations
The module is switched on when the VCC voltage rises to the normal operating range (i.e. applying module
supply): the first time that the module is used, it is switched on in this way. SARA-G3 modules can be switched
off by means of the AT+CPWROFF command, entering power-off mode. In this state, the digital input-output
pads of the baseband chipset (i.e. all the digital pins of the module) are locked in tri-state (i.e. floating). The
power down tri-state function isolates the module pins from the environment, when no proper operation of the
outputs can be guaranteed.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 26 of 145
The module can be switched on from power-off mode by forcing a proper start-up event (e.g. PWR_ON low).
After the detection of a start-up event, all the module digital pins are held in tri-state until all the internal LDO
voltage regulators are turned on in a defined power-on sequence. Then, as described in Figure 11, the baseband
core is still held in reset state for a time interval: the internal reset signal (which is not available on a module pin)
is still low and all the digital pins of the module are held in reset state. The reset state of all the digital pins is
reported in the pin description table of SARA-G3 Series Data Sheet [1]. When the internal signal is released, the
configuration of the module interfaces starts: during this phase any digital pin is set in a proper sequence from
the reset state to the default operational configuration. Finally, the module is fully ready to operate when all
interfaces are configured.
VCC
V_BCKP
PWR_ON
V_INT
Internal Reset
System State
BB Pads State
Internal Reset → Operational Operational
Tristate / Floating
Internal Reset
OFF
ON
Start-up
event
PWR_ON
can be set high
Start of interface
configuration
All interfaces
are configured
0 ms
5 ms
~35 ms
~3 s
8 ms

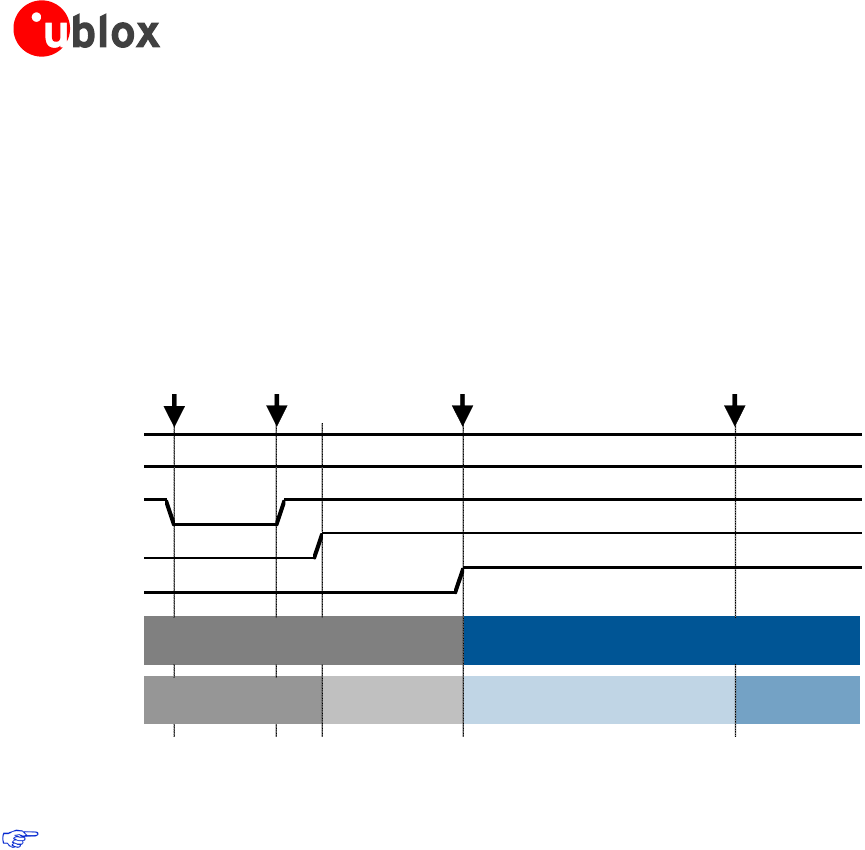

Figure 11: SARA-G3 series power-on sequence description
The Internal Reset signal is not available on a module pin, but the application can monitor the V_INT pin
to sense the start of the SARA-G3 series power-on sequence.
1.6.2 Module power-off
The correct way to switch off SARA-G3 modules is by means of +CPWROFF AT command (more details in u-blox
AT Commands Manual [2]): in this way the current parameter settings are saved in the module’s non-volatile
memory and a proper network detach is performed.
An under-voltage shutdown occurs on SARA-G3 modules when the VCC supply is removed, but in this case the
current parameter settings are not saved in the module’s non-volatile memory and a proper network detach
cannot be performed.
An over-temperature or an under-temperature shutdown occurs when the temperature measured within the
wireless module reaches the dangerous area, if the optional Smart Temperature Supervisor feature is activated
and configured by the dedicated AT+USTS command. Refer to chapter 1.13.8 and to the u-blox AT Commands
Manual [2] for more details.
Figure 12 describes the power-off sequence by means of +CPWROFF AT command. When the +CPWROFF AT
command is sent, the module starts the switch-off routine replying OK on the AT interface. At the end of the
switch-off routine, all digital pins are locked in tri-state by the module and all the internal LDO voltage regulators
except the RTC supply (V_BCKP) are turned off in a defined power-off sequence. The module remains in
power-off mode as long as a switch on event does not occur (i.e. applying a low level on the PWR_ON pin, or
by a pre-programmed RTC alarm), and enters not-powered mode if the supply is removed from the VCC pin.
Current parameter settings are stored to the module’s non-volatile memory and a network detach is performed
before the OK reply from AT+CPWROFF command.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 27 of 145
The duration of the switch-off routine phases can largely differ from the values reported in Figure 12, depending
on the network settings and the concurrent activities of the module performing a network detach.
VCC
V_BCKP
PWR_ON
V_INT
Internal Reset
System State
BB Pads State Operational
OFF
Tristate / Floating
ON
Operational → Tristate / Floating
AT+CPWROFF
sent to the module
0 s
~2.5 s
~5 s
OK
replied by the module

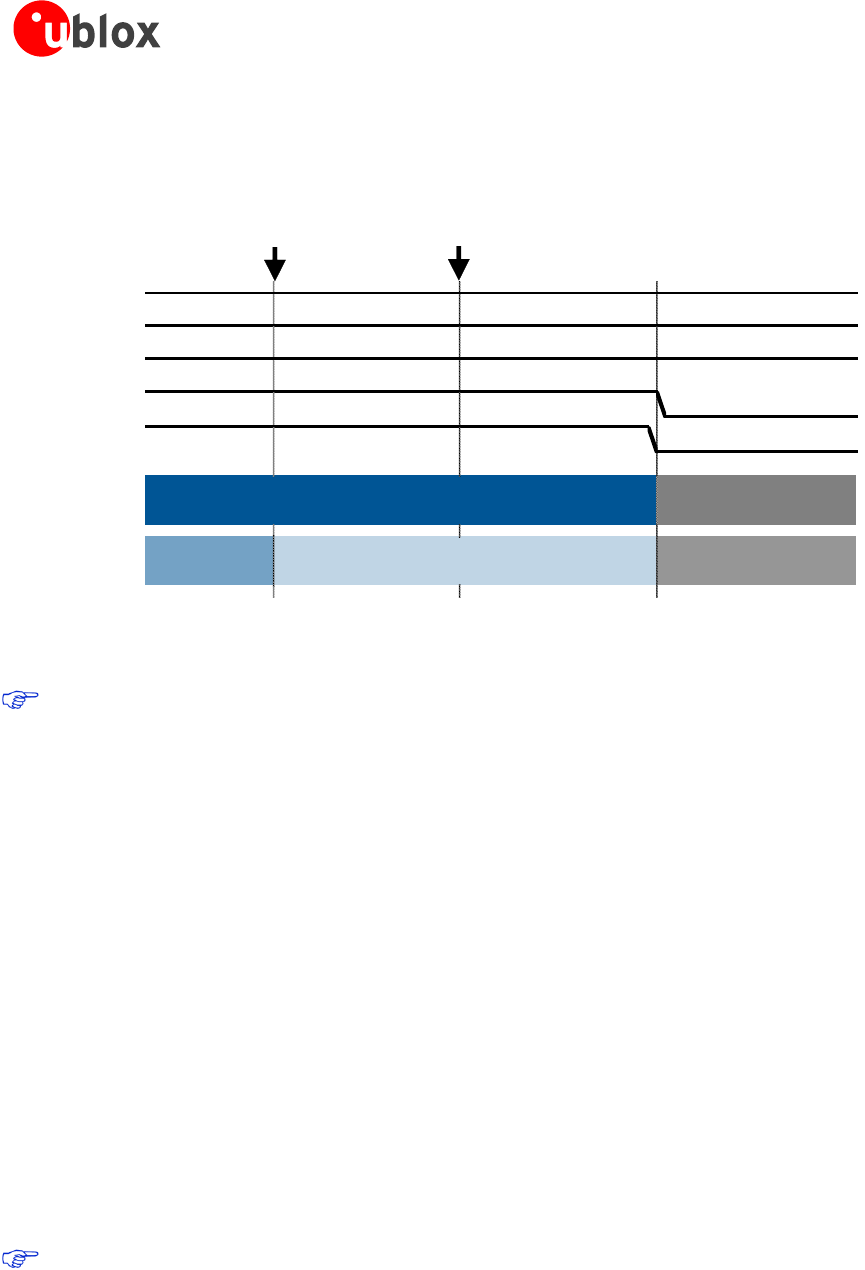

Figure 12: SARA-G3 series power-off sequence description
The Internal Reset signal is not available on a module pin, but the application can monitor the V_INT pin
to sense the end of the SARA-G3 series power-off sequence.
1.6.3 Module reset
A SARA-G3 module reset can be performed in one of two ways.
RESET_N input pin: Forces a low level on the RESET_N input pin, causing an “external” or “hardware” reset.
This must be for at least 50 ms on SARA-G350 modules or 3000 ms on SARA-G300 and SARA-G310 modules.
This causes an asynchronous reset of the module baseband processor, excluding the integrated Power
Management Unit and the RTC internal block: the V_INT interfaces supply is enabled and each digital pin is set
in its reset state, the V_BCKP supply and the RTC block are enabled. Forcing an “external” or “hardware” reset,
the current parameter settings are not saved in the module’s non-volatile memory and a proper network detach
is not performed.
AT+CFUN command (refer to the u-blox AT Commands Manual [2] for more details): This command causes an
“internal” or “software” reset, which is an asynchronous reset of the module baseband processor. The electrical
behavior is the same as that of the “external” or “hardware” reset, but in an “internal” or “software” reset the
current parameter settings are saved in the module’s non-volatile memory and a proper network detach is
performed.
After either reset, when RESET_N is released from the low level, the module automatically starts its power-on
sequence from the reset state.
The reset state of all digital pins is reported in the pin description table in SARA-G3 series Data Sheet [1].
The electrical characteristics of RESET_N are different from the other digital I/O interfaces: the RESET_N input
pin is tolerant of voltages up to the module supply level due to the series Schottky diode mounted inside the
module on the RESET_N pin. As described in Figure 13, the module has an internal pull-up resistor which pulls
the line to the high logic level when the RESET_N pin is not forced low from the external. Detailed electrical
characteristics are described in SARA-G3 series Data Sheet [1].
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 28 of 145
Baseband
Processor
18
RESET_N Reset Input
SARA-G3 series
10k
1.8 V
Figure 13: SARA-G3 series reset input (RESET_N) description
1.6.4 External 32 kHz signal input (EXT32K)
The external 32 kHz signal input pin (EXT32K) is available on SARA-G300 and SARA-G310 modules to provide
the 32 kHz reference clock for the Real Time Clock (RTC) timing, used by the module processor when in the low
power idle-mode.
Only if a valid 32 kHz external signal is provided at the EXT32K input pin, SARA-G300 and SARA-G310 modules
can enter the low power idle-mode (with power saving configuration enabled by the AT+UPSV command) and
can provide the RTC functions (as RTC timing by AT+CCLK command and RTC alarm by AT+CALA command).
The detailed electrical characteristics are described in SARA-G3 series Data Sheet [1].
The 32 kHz reference clock for the RTC timing is automatically generated by the internal oscillator provided on
the SARA-G350 modules: the same pin (31) is a reserved (RSVD) pin internally not connected, since an external
32 kHz signal is not needed to enter the low power idle-mode and to provide the RTC functions.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 29 of 145
1.7 Antenna interface
1.7.1 Antenna RF interface (ANT)
The ANT pin of SARA-G3 modules represents the RF input/output for transmission and reception of the
GSM/GPRS RF signal. The ANT pin has a nominal characteristic impedance of 50 and must be connected to
the antenna through a 50 transmission line to allow proper RF transmission and reception in operating bands.
1.7.1.1 Antenna RF interface requirements
Table 8 summarizes the requirements for the antenna RF interface (ANT). Refer to section 2.3.1 for suggestions
to properly design an antenna circuit compliant to these requirements.
The antenna circuit affects the RF compliance of the device integrating SARA-G3 series module
with applicable required certification schemes. Compliance is guaranteed if the antenna RF
interface (ANT) requirements summarized in Table 8 are fulfilled.
Item
Requirements
Remarks
Impedance
50 nominal characteristic impedance
The impedance of the antenna RF connection must match
the 50 impedance of the ANT pin.
Frequency Range
SARA-G350, SARA-G310:
824..960 MHz (GSM 850, GSM 900)
1710..1990 MHz (GSM 1800, GSM 1900)
SARA-G300:
880..960 MHz (GSM 900)
1710..1880 MHz (GSM 1800)
The required frequency range of the antenna depends on
the operating bands of the used SARA-G3 module and the
used Mobile Network.
V.S.W.R
Return Loss
< 2:1 recommended, < 3:1 acceptable
S11 < -10 dB recommended, S11 < -6 dB acceptable
The impedance of the antenna termination must match as
much as possible the 50 impedance of the ANT pin over
the operating frequency range.
Input Power
> 2 W peak
The antenna termination must withstand the maximum
peak of power transmitted by SARA-G3 modules during a
GSM single-slot call.
Gain
Below the levels reported in the chapter 4.2.2
The antenna gain must not exceed the herein specified
value to comply with FCC radiation exposure limits.
Detection
Application board with antenna detection circuit
If antenna detection is required by the custom application,
proper antenna detection circuit must be implemented on
the application board as described in section 2.3.2.
Antenna assembly with built-in diagnostic circuit
If antenna detection is required by the custom application,
the external antenna assembly must be provided with
proper diagnostic circuit as described in section 2.3.2.
Table 8: Summary of antenna RF interface (ANT) requirements
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 30 of 145
1.7.1 Antenna detection interface (ANT_DET)
SARA-G300 and SARA-G310 modules do not support antenna detection interface (ANT_DET).
The antenna detection is based on ADC measurement. The ANT_DET pin is an Analog to Digital Converter
(ADC) provided to sense the antenna presence.
The antenna detection function provided by ANT_DET pin is an optional feature that can be implemented if the
application requires it. The antenna detection is forced by the +UANTR AT command. Refer to the u-blox AT
Commands Manual [2] for more details on this feature.
The ANT_DET pin generates a DC current (20 µA for 5.4 ms) and measures the resulting DC voltage, thus
determining the resistance from the antenna connector provided on the application board to GND. So, the
requirements to achieve antenna detection functionality are the following:
an RF antenna assembly with a built-in resistor (diagnostic circuit) must be used
an antenna detection circuit must be implemented on the application board
Refer to the section 2.3.2 for antenna detection circuit on application board and diagnostic circuit on antenna
assembly design-in guidelines.
1.8 SIM interface
1.8.1 SIM card interface
SARA-G3 modules provide high-speed SIM/ME interface including automatic detection and configuration of the
voltage required by the connected SIM card or chip.
Both 1.8 V and 3 V SIM types are supported: activation and deactivation with automatic voltage switch from
1.8 V to 3 V is implemented, according to ISO-IEC 7816-3 specifications. The VSIM supply output pin provides
internal short circuit protection to limit start-up current and protect the device in short circuit situations.
The SIM driver supports the PPS (Protocol and Parameter Selection) procedure for baud-rate selection, according
to the values determined by the SIM Card.
SIM Application Toolkit (R99) is supported only by SARA-G350 modules.
1.8.2 SIM card detection interface (SIM_DET)
The SIM_DET pin is configured as an external interrupt to detect the SIM card mechanical / physical presence.
The pin is configured as input with an internal active pull-down enabled, and it can sense SIM card presence only
if properly connected to the mechanical switch of a SIM card holder as described in the chapter 2.4:
Low logic level at SIM_DET input pin is recognized as SIM card not present
High logic level at SIM_DET input pin is recognized as SIM card present
The SIM card detection function provided by SIM_DET pin is an optional feature that can be implemented / used
or not according to the application requirements.
For more details on SIM detection function refer to the u-blox AT Commands Manual [2], “simind” value of the
<descr> parameter of the +CIND and +CMER commands.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 31 of 145
1.9 Serial interfaces
SARA-G3 series modules provide the following serial communication interfaces:
UART interface: 9-wire unbalanced 1.8 V asynchronous serial interface available for AT commands interface,
Packet-Switched / Circuit-Switched Data communication, FW upgrades by means of the FOAT feature
Auxiliary UART interface: 3-wire unbalanced 1.8 V asynchronous serial interface available only for the FW
upgrade by means of the u-blox EasyFlash tool and for the Trace log capture (debug purpose)
DDC interface: I2C compatible 1.8 V interface available only for the communication with u-blox positioning
chips and modules
1.9.1 Asynchronous serial interface (UART)
1.9.1.1 UART features
The UART interface is a 9-wire 1.8 V unbalanced asynchronous serial interface, and it is the only serial interface
of the SARA-G3 modules available for an AT command interface and for Packet-Switched / Circuit-Switched
Data communication.
The module firmware can be upgraded over the UART interface by means of the Firmware upgrade over AT
(FOAT) feature only: for more details refer to section 1.13 and Firmware update application note [22].
UART interface provides RS-232 functionality conforming to the ITU-T V.24 Recommendation (more details
available in ITU Recommendation [9]), with CMOS compatible signal levels: 0 V for low data bit or ON state, and
1.8 V for high data bit or OFF state. For detailed electrical characteristics refer to SARA-G3 series Data Sheet [1].
SARA-G3 modules are designed to operate as a GSM/GPRS wireless modem, which represents the data
circuit-terminating equipment (DCE) as described by the ITU-T V.24 Recommendation [9]. A customer application
processor connected to the module through the UART interface represents the data terminal equipment (DTE).
The signal names of the UART interface of the SARA-G3 modules conform to the ITU-T V.24
Recommendation [9]: e.g. TXD line represents the data transmitted by the DTE (application processor data
output) and received by the DCE (module input).
The UART interface is controlled and operated with:
AT commands according to 3GPP TS 27.007 [10]
AT commands according to 3GPP TS 27.005 [11]
AT commands according to 3GPP TS 27.010 [12]
u-blox AT commands
For the complete list of supported AT commands and their syntax refer to the u-blox AT Commands
Manual [2].
All flow control handshakes are supported by the UART interface and can be set by appropriate AT commands
(see u-blox AT Commands Manual [2], &K, +IFC, \Q AT commands): hardware flow control (RTS/CTS), software
flow control (XON/XOFF), or none flow control.
Hardware flow control is enabled by default.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 32 of 145
The following baud rates can be configured by AT command:
2400 b/s
4800 b/s
9600 b/s
19200 b/s
38400 b/s
57600 b/s
115200 b/s, default value when the autobauding is disabled
The following baud rates are available with autobauding only:
1200 b/s
230400 b/s
Autobauding is enabled by default.
The following frame formats can be configured by AT command:
8N1 (8 data bits, No parity, 1 stop bit), default frame configuration with fixed baud rate
8E1 (8 data bits, even parity, 1 stop bit)
8O1 (8 data bits, odd parity, 1 stop bit)
8N2 (8 data bits, No parity, 2 stop bits)
7E1 (7 data bits, even parity, 1 stop bit)
7O1 (7 data bits, odd parity, 1 stop bit)
Automatic frame recognition is supported and enabled by default in conjunction with the auto-bauding.
When auto-bauding is active, the auto-framing is enabled overruling the frame format setting.

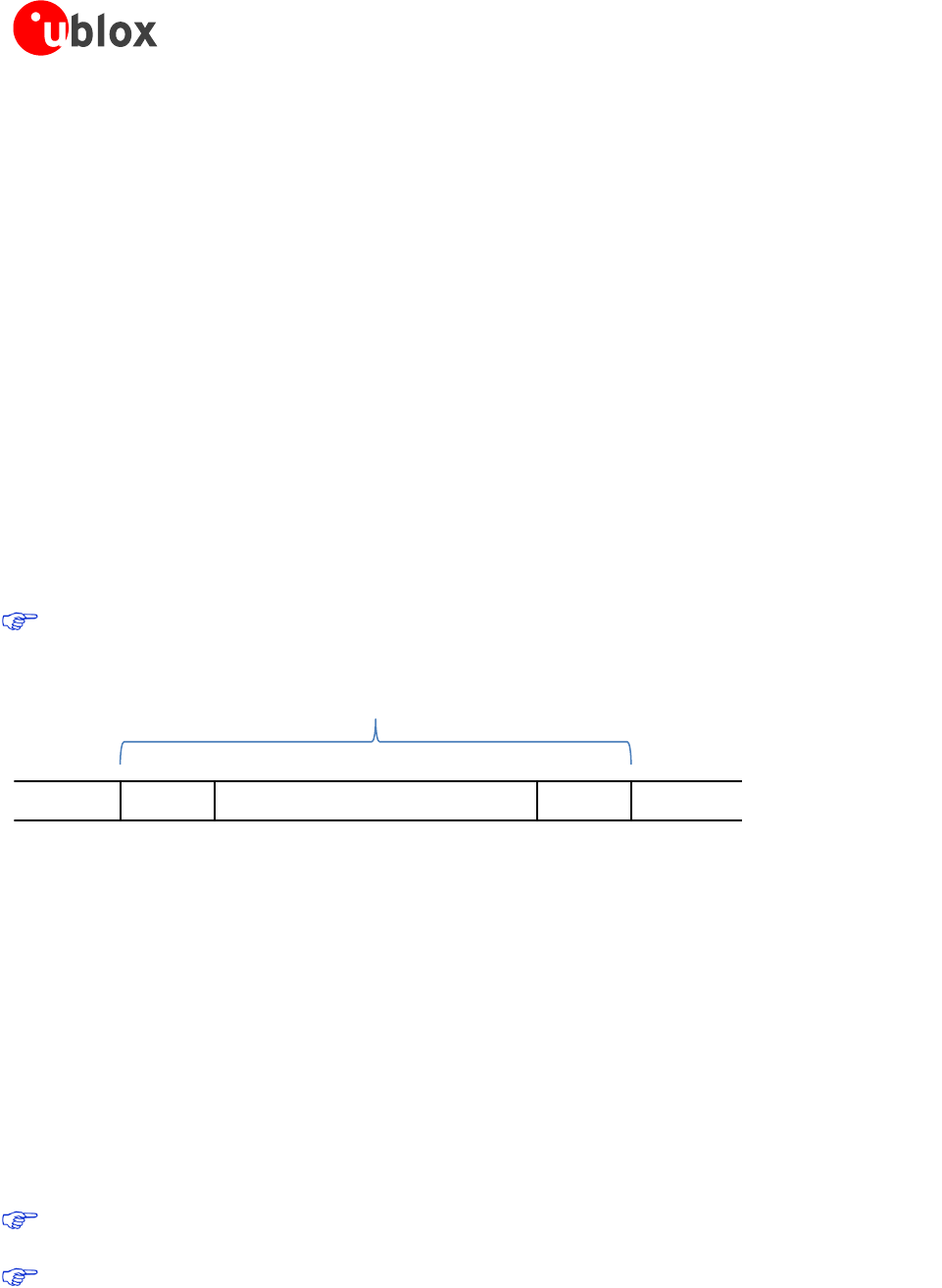

Figure 14 describes the 8N1 frame format, which is the default configuration with fixed baud rate.
D0 D1 D2 D3 D4 D5 D6 D7
Start of 1-Byte
transfer
Start Bit
(Always 0)
Possible Start of
next transfer
Stop Bit
(Always 1)
t
bit
= 1/(Baudrate)
Normal Transfer, 8N1
Figure 14: Description of UART default frame format (8N1) with fixed baud rate
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 33 of 145
1.9.1.2 UART AT interface configuration
The UART interface is the only AT command interface on SARA-G3 series modules. UART is configured as
described in Table 9 (for information about further settings, refer to the u-blox AT Commands Manual [2]).
Interface
AT Settings
Comments
UART interface
AT interface: enabled
AT command interface is enabled by default on the UART physical interface
AT+IPR=0
Automatic baud rate detection enabled by default
AT+ICF=0
Automatic frame format recognition enabled by default
AT&K3
HW flow control enabled
AT&S1
DSR line set ON in data mode5 and set OFF in command mode5
AT&D1
Upon an ON-to-OFF transition of DTR, the DCE enters online command mode5 and issues
an OK result code
AT&C1
Circuit 109 changes in accordance with the Carrier detect status; ON if the Carrier is
detected, OFF otherwise
MUX protocol: disabled
Multiplexing mode is disabled by default and it can be enabled by AT+CMUX command.
The following virtual channels are defined for SARA-G350 modules:
Channel 0: control channel
Channel 1 – 5: AT commands / data connection
Channel 6: GPS tunneling
The following virtual channels are defined for SARA-G300 and SARA-G310 modules:
Channel 0: control channel
Channel 1 – 2: AT commands / data connection
Table 9: Default UART AT interface configuration
1.9.1.3 UART signal behavior (AT commands interface case)
At the module switch-on, before the UART interface initialization (as described in the power-on sequence
reported in Figure 11), each pin is first tri-stated and then is set to its relative internal reset state.
6
At the end of
the boot sequence, the UART interface is initialized, the module is by default in active-mode, and the UART
interface is enabled.
The configuration and the behavior of the UART signals after the boot sequence are described below. See
section 1.4 for definition and description of module operating modes referred to in this section.
RXD signal behavior
The module data output line (RXD) is set by default to OFF state (high level) at UART initialization. The module
holds RXD in OFF state until the module does not transmit some data.
TXD signal behavior
The module data input line (TXD) is set by default to OFF state (high level) at UART initialization. The TXD line is
then held by the module in the OFF state if the line is not activated by the DTE: an active pull-up is enabled
inside the module on the TXD input.
5
Refer to the u-blox AT Commands Manual [2] for the definition of the interface data mode, command mode and online command mode.
6
See the pin description table in the SARA-G3 series Data Sheet [1].
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 34 of 145
CTS signal behavior
The module hardware flow control output (CTS line) is set to the ON state (low level) at UART initialization.
If the hardware flow control is enabled (for more details, refer to u-blox AT Commands Manual [2], AT&K, AT\Q,
AT+IFC AT command) the CTS line indicates when the UART interface is enabled (data can be sent and
received): the module drives the CTS line to the ON state or to the OFF state when it is either able or not able to
accept data from the DTE (refer to chapter 1.9.1.4 for the complete description).
If the hardware flow control is not enabled, the CTS line is always held in the ON state after UART initialization.
If hardware flow control is enabled, then when the CTS line is ON the UART is enabled and the module is
in active-mode. If the CTS line is OFF it does not necessarily mean that the module is in idle-mode, but
only that the UART is not enabled (the module could be forced to stay in active-mode for other activities,
e.g. network related).
When the power saving configuration is enabled and the hardware flow-control is not implemented in the
DTE/DCE connection, data sent by the DTE can be lost: the first character sent when the module is in idle-
mode will not be a valid communication character (see chapter 1.9.1.4 for complete description).
When the multiplexer protocol is active, the CTS line state is mapped to FCon / FCoff MUX command for
flow control issues outside the power saving configuration while the physical CTS line is still used as a
power state indicator. For more details, refer to Mux Implementation Application Note [20].
RTS signal behavior
The hardware flow control input (RTS line) is set by default to the OFF state (high level) at UART initialization.
The module then holds the RTS line in the OFF state if the line is not activated by the DTE: an active pull-up is
enabled inside the module on the RTS input.
If the HW flow control is enabled (for more details, refer to u-blox AT Commands Manual [2] AT&K, AT\Q,
AT+IFC command descriptions) the module monitors the RTS line to detect permission from the DTE to send
data to the DTE itself. If the RTS line is set to OFF state, any on-going data transmission from the module is
immediately interrupted or any subsequent transmission forbidden until the RTS line changes to ON state.
The DTE must still be able to accept a certain number of characters after the RTS line is set to OFF state:
the module guarantees the transmission interruption within two characters from RTS state change.
If AT+UPSV=2 is set and HW flow control is disabled, the module monitors the RTS line to manage the power
saving configuration:
When an OFF-to-ON transition occurs on the RTS input line, the UART is enabled and the module is forced
to active-mode; after ~20 ms from the transition the switch is completed and data can be received without
loss. The module cannot enter idle-mode and the UART is keep enabled as long as the RTS input line is held
in the ON state
If the RTS input line is set to OFF state by the DTE, the UART is disabled (held in low power mode) and the
module automatically enters idle-mode whenever possible
For more details, refer to chapter 1.9.1.4 and u-blox AT Commands Manual [2], AT+UPSV command.
DSR signal behavior
If AT&S0 is set, the DSR module output line is set by default to ON state (low level) at UART initialization and is
then always held in the ON state.
If AT&S1 is set, the DSR module output line is set by default to OFF state (high level) at UART initialization. The
DSR line is then set to the OFF state when the module is in command mode or in online command mode and is
set to the ON state when the module is in data mode (refer to the u-blox AT Commands Manual [2] for the
definition of the interface data mode, command mode and online command mode).
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 35 of 145
DTR signal behavior
The DTR module input line is set by default to OFF state (high level) at UART initialization. The module then
holds the DTR line in the OFF state if the line is not activated by the DTE: an active pull-up is enabled inside the
module on the DTR input. Module behavior according to DTR status depends on the AT command
configuration (see u-blox AT Commands Manual [2], &D AT command).
DCD signal behavior
If AT&C0 is set, the DCD module output line is set by default to ON state (low level) at UART initialization and is
then always held in the ON state.
If AT&C1 is set, the DCD module output line is set by default to OFF state (high level) at UART initialization. The
module then sets the DCD line in accordance with the carrier detect status: ON if the carrier is detected, OFF
otherwise. For voice calls, DCD is set to the ON state when the call is established. For a data call there are the
following scenarios (refer to the u-blox AT Commands Manual [2] for the definition of the interface data mode,
command mode and online command mode):
Packet Switched Data call: Before activating the PPP protocol (data mode) a dial-up application must
provide the ATD*99***<context_number># to the module: with this command the module switches from
command mode to data mode and can accept PPP packets. The module sets the DCD line to the ON state,
then answers with a CONNECT to confirm the ATD*99 command. The DCD ON is not related to the context
activation but with the data mode
Circuit Switched Data call: To establish a data call, the DTE can send the ATD<number> command to the
module which sets an outgoing data call to a remote modem (or another data module). Data can be
transparent (non reliable) or non transparent (with the reliable RLP protocol). When the remote DCE accepts
the data call, the module DCD line is set to ON and the CONNECT <communication baudrate> string is
returned by the module. At this stage the DTE can send characters through the serial line to the data
module which sends them through the network to the remote DCE attached to a remote DTE
DCD is set to ON during the execution of the +CMGS, +CMGW, +USOWR, +USODL AT commands
requiring input data from the DTE: the DCD line is set to ON state as soon as the switch to binary/text
input mode is completed and the prompt is issued; DCD line is set to OFF as soon as the input mode is
interrupted or completed (for more details refer to the u-blox AT Commands Manual [2]).
DCD line is kept to ON state even during the online command mode to indicate that the data call is still
established even if suspended, while if the module enters command mode DSR line is set to OFF state. For
more details refer to DSR signal behavior description.
For scenarios when the DCD line setting is requested for different reasons (e.g. SMS texting during online
command mode), the DCD line changes to guarantee the correct behavior for all the scenarios. For
instance, in case of SMS texting in online command mode, if the data call is released, the DCD line is kept
to ON till the SMS command execution is completed (even if the data call release would request the DCD
setting to OFF).
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 36 of 145
RI signal behavior
The RI module output line is set by default to the OFF state (high level) at UART initialization. Then, during an
incoming call, the RI line is switched from OFF state to ON state with a 4:1 duty cycle and a 5 s period (ON for
1 s, OFF for 4 s, see Figure 15), until the DTE attached to the module sends the ATA string and the module
accepts the incoming data call. The RING string sent by the module (DCE) to the serial port at constant time
intervals is not correlated with the switch of the RI line to the ON state.
Figure 15: RI behavior during an incoming call
The RI line can notify an SMS arrival. When the SMS arrives, the RI line switches from OFF to ON for 1 s (see
Figure 16), if the feature is enabled by the proper AT command (refer to the u-blox AT Commands Manual [2],
AT+CNMI command).
Figure 16: RI behavior at SMS arrival
This behavior allows the DTE to stay in power saving mode until the DCE related event requests service.
For SMS arrival, if several events coincidently occur or in quick succession each event independently triggers the
RI line, although the line will not be deactivated between each event. As a result, the RI line may stay to ON for
more than 1 s.
If an incoming call is answered within less than 1 s (with ATA or if auto-answering is set to ATS0=1) than the RI
line is set to OFF earlier.
As a result:
RI line monitoring cannot be used by the DTE to determine the number of received SMSes.
For multiple events (incoming call plus SMS received), the RI line cannot be used to discriminate the two
events, but the DTE must rely on the subsequent URCs and interrogate the DCE with the proper
commands.
SMS arrives
time [s]
0
RI ON
RI OFF
1s
SMS
time [s]
0
RI ON
RI OFF
1s
1s
time [s]
151050
RI ON
RI OFF
Call incomes
1s
time [s]
151050
RI ON
RI OFF
Call incomes
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 37 of 145
1.9.1.4 UART and power-saving
The power saving configuration is controlled by the AT+UPSV command (for the complete description, refer to
u-blox AT Commands Manual [2]). When power saving is enabled, the module automatically enters low power
idle-mode whenever possible, and otherwise the active-mode is maintained by the module (see section 1.4 for
definition and description of module operating modes referred to in this section).
The AT+UPSV command configures both the module power saving and also the UART behavior in relation to the
power saving. The conditions for the module entering idle-mode also depend on the UART power saving
configuration.
Three different power saving configurations can be set by the AT+UPSV command:
AT+UPSV=0, power saving disabled: module forced on active-mode and UART interface enabled (default)
AT+UPSV=1, power saving enabled: module cyclic active / idle-mode and UART enabled / disabled
AT+UPSV=2, power saving enabled and controlled by the UART RTS input line
The different power saving configurations that can be set by the +UPSV AT command are described in details in
the following subchapters. Table 10 summarizes the UART interface communication process in the different
power saving configurations, in relation with HW flow control settings and RTS input line status. For more
details on the +UPSV AT command description, refer to u-blox AT commands Manual [2].
AT+UPSV
HW flow control
RTS line
Communication during idle-mode and wake up
0
Enabled (AT&K3)
ON
Data sent by the DTE is correctly received by the module.
0
Enabled (AT&K3)
OFF
Data sent by the module is buffered by the module and will be correctly received by the DTE
when it is ready to receive data (i.e. RTS line is ON).
0
Disabled (AT&K0)
ON
Data sent by the DTE is correctly received by the module.
0
Disabled (AT&K0)
OFF
Data sent by the module is correctly received by the DTE if it is ready to receive data,
otherwise data is lost.
1
Enabled (AT&K3)
ON
Data sent by the DTE is buffered by the DTE and will be correctly received by the module
when active-mode is entered.
1
Enabled (AT&K3)
OFF
Data sent by the module is buffered by the module and will be correctly received by the DTE
when it is ready to receive data (i.e. RTS line will be ON).
1
Disabled (AT&K0)
ON
The first character sent by the DTE is lost, but it wakes up the UART (if disabled) and the
module (if in idle-mode) after ~20 ms. Recognition of subsequent characters is guaranteed
only after the complete wake-up of the UART and the module (i.e. after ~20 ms).
1
Disabled (AT&K0)
OFF
Data sent by the module is correctly received by the DTE if it is ready to receive data,
otherwise data is lost.
2
Enabled (AT&K3)
ON
Not Applicable: HW flow control cannot be enabled with AT+UPSV=2.
2
Enabled (AT&K3)
OFF
Not Applicable: HW flow control cannot be enabled with AT+UPSV=2.
2
Disabled (AT&K0)
ON
Data sent by the DTE is correctly received by the module.
2
Disabled (AT&K0)
OFF
The first character sent by the DTE is lost, but it wakes up the UART (if disabled) and the
module (if in idle-mode) after ~20 ms. Recognition of subsequent characters is guaranteed
only after the complete wake-up of the UART and the module (i.e. after ~20 ms).
Table 10: UART and power-saving summary
AT+UPSV=0: power saving disabled, fixed active-mode
The module does not enter idle-mode and the UART interface is enabled (data can be sent and received): the
CTS line is always held in the ON state after UART initialization. This is the default configuration.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 38 of 145
AT+UPSV=1: power saving enabled, cyclic idle/active-mode
The module automatically enters idle-mode whenever possible and, if the module is registered with network, it
periodically wakes up from idle-mode to active-mode for at least ~11 ms to monitor the paging channel of the
current base station (paging block reception), according to the GSM discontinuous reception (DRX) specification.
The idle-mode period depends on the time period between two paging receptions defined by the current base
station (i.e. by the network): the paging reception period can vary from ~0.47 s (DRX = 2, i.e. 2 x 51 GSM
frames) up to ~2.12 s (DRX = 9, i.e. 9 x 51 GSM frames)
When the module wakes up to active-mode for the paging block receptions, the UART interface is enabled for at
least ~11 ms concurrently to each paging reception and then, as data has not been received or sent over the
UART, the interface is disabled until the next paging reception.
During a call, the UART interface is kept enabled, regardless of the AT+UPSV setting.
If the module is not registered with a network, the cyclic idle/active-mode configuration is present as well: the
module automatically enters idle-mode whenever possible and periodically wakes up to active-mode to enable
the UART for at least ~11 ms and then, as data has not been received or sent over the UART, the interface is
disabled for a defined period (according to the latest DRX setting) and afterwards the UART is enabled again.
When UART interface is disabled, data transmitted by the DTE is lost if hardware flow control is disabled.
If hardware flow control is enabled, data is buffered by the DTE and will be correctly received by the module
when UART interface is enabled again.
When UART interface is enabled, data can be received. When a character is received, it forces the UART interface
to stay enabled for a longer time and it forces the module to stay in the active-mode for a longer time.
The module active-mode duration depends on:
The time period for the paging block reception, which is set by the current base station: ~11 ms minimum
The time period where the UART interface is enabled, when the module is not registered with a network:
~11 ms minimum of in absence of data reception by serial interface
The time period from the last data received at the serial port during the active-mode: the module does not
enter idle-mode until a timeout expires. The second parameter of the +UPSV AT command configures this
timeout, from 40 GSM TDMA frames (i.e. 40 x 4.615 ms = ~184 ms) up to 65000 GSM TDMA frames (i.e.
65000 x 4.615 ms = 300 s). Default value is 2000 GSM frames (i.e. 2000 x 4.615 ms = ~9.2 s)
The active-mode duration can be extended indefinitely since every subsequent character received during the
active-mode, resets and restarts the timer.
If HW flow control is enabled, the hardware flow-control output (CTS line) indicates when the UART interface is
enabled (data can be sent and received) as illustrated in Figure 17.
time [s]
CTS ON
CTS OFF
UART disabled
~10 ms (min)
UART enabled
~9.2 s (default)
UART enabled
Data input
0.47- 2.10 s
Figure 17: CTS behavior with power saving enabled (AT+UPSV=1) and HW flow control enabled: the CTS output line indicates
when the UART interface of the module is enabled (CTS = ON = low level) or disabled (CTS = OFF = high level)
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 39 of 145
AT+UPSV=2: power saving enabled and controlled by the RTS line
This configuration can only be enabled with the module HW flow control disabled (AT&K0).
The UART interface is immediately disabled after the DTE sets the RTS line to OFF. Then, if a voice or data call is
not enabled, the module automatically enters idle-mode whenever possible according to any other activity, and
periodically wakes up from idle-mode to active-mode to monitor the paging channel of the current base station
(paging block reception).
Instead, the UART is disabled as long as the RTS line is set to OFF, also when the module is in active-mode, to
reduce power consumption. The UART is enabled in the following cases:
During a call, the UART interface is kept enabled, regardless of the RTS line setting
If the module must transmit some data over the UART (e.g. URC), the interface is temporarily enabled even if
the RTS line is set to OFF by the DTE
If the module receives a data over the UART, it causes the system wake-up: this is the “wake up via data
reception” feature described in the following subsection
When the DTE sets the RTS line to OFF, the timeout to enter idle-mode from the last data received at the serial
port during the active-mode is the one previously set with the AT+UPSV=1 configuration or it is the default
value.
If the RTS line is set to ON by the DTE the module is not allowed to enter idle-mode and the UART is kept
enabled until the RTS line is set to OFF.
When an OFF-to-ON transition occurs on the RTS input line, the UART is re-enabled and the module, if it was in
idle-mode, switches from idle to active-mode after ~20 ms: this is the UART and module “wake up time”.
Even if HW flow control is disabled, if the DTE sets the RTS line to OFF, the module sets the CTS line
accordingly to its power saving configuration as illustrated in Figure 17, like for the AT+UPSV=1 case with
HW flow control enabled.
Wake up via data reception
If the DTE transmits data when the UART is disabled (when power saving is configured), it is lost (not correctly
received by the module) in the following cases:
+UPSV=1 with hardware flow control disabled
+UPSV=2 with hardware flow control disabled and RTS line set to OFF
When the module is in idle-mode, the TXD input line of the module is always configured to wake up the UART
and the module via data reception: when a low-to-high transition occurs on the TXD input line, it causes the
system wake-up. The UART is enabled and the module switches from idle-mode to active-mode within ~20 ms
from the first data reception: this is the system “wake up time”. As a consequence, the first character sent by
the DTE when UART is disabled (i.e. the wake up character) is not a valid communication character because it
cannot be recognized, and the recognition of the subsequent characters is guaranteed only after the complete
system wake-up (i.e. after ~20 ms).
Figure 18 and Figure 19 show an example of common scenarios and timing constraints:
AT+UPSV=2 power saving configuration is active and the timeout from last data received to idle-mode start
is set to 2000 frames due to the timeout previously set by AT+UPSV=1,2000 as the default case
Hardware flow control disabled on the DCE (as required to enable the AT+UPSV=2 configuration) and RTS
line set to OFF by the DTE: in this case the CTS line is set by the module accordingly to its power saving
configuration as illustrated in Figure 17, like for the AT+UPSV=1 case with HW flow control enabled
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 40 of 145
Figure 18 shows the case where the DCE UART is disabled and only a wake-up is forced. In this scenario the only
character sent by the DTE is the wake-up character; as a consequence, the DCE UART is disabled when the
timeout from last data received expires (2000 frames without data reception, as the default case).
CTS OFF
CTS ON
DCE UART is enabled for 2000 GSM frames (~9.2 s)
time
Wake up time: ~20 ms
time
TxD
module
input
Wake up character
Not recognized by DCE
Figure 18: Wake-up via data reception without further communication
Figure 19 shows the case where in addition to the wake-up character further (valid) characters are sent. The
wake up character wakes-up the DCE UART. The other characters must be sent after the “wake up time” of
~20 ms. If this condition is satisfied, the DCE recognizes characters. The DCE is allowed to disable the UART and
re-enters idle-mode after 2000 GSM frames from the latest data reception.
CTS OFF
CTS ON
DCE UART is enabled for 2000 GSM frames (~9.2s)
after the last data received
time
Wake up time: ~20 ms
time
TxD
module
input
Wake up character
Not recognized by DCE
Valid characters
Recognized by DCE
Figure 19: Wake-up via data reception with further communication
The “wake-up via data reception” feature cannot be disabled.
In command mode
7
, if autobauding is enabled and the DTE does not implement HW flow control, the DTE
must always send a character to the module before the “AT” prefix set at the beginning of each
command line: the first character is ignored if the module is in active-mode, or it represents the wake-up
character if the module is in idle-mode.
7
Refer to the u-blox AT Commands Manual [2] for the definition of the interface data mode, command mode and online command mode.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 41 of 145
In command mode7, if autobauding is disabled, the DTE must always send a dummy “AT” before each
command line: the first character is not ignored if the module is in active-mode (i.e. the module replies
“OK”), or it represents the wake up character if the module is in idle-mode (i.e. the module does not
reply).
No wake-up character or dummy “AT” is required from the DTE during a voice or data call since the
module UART interface continues to be enabled and does not need to be woken-up. Furthermore in data
mode7 a dummy “AT” would affect the data communication.
1.9.1.5 Multiplexer protocol (3GPP 27.010)
SARA-G3 modules have a software layer with MUX functionality, 3GPP TS 27.010 Multiplexer Protocol [12],
available on the UART physical link. The auxiliary UART and the DDC (I2C) serial interfaces do not support the
multiplexer protocol.
This is a data link protocol (layer 2 of OSI model) which uses HDLC-like framing and operates between the
module (DCE) and the application processor (DTE) and allows a number of simultaneous sessions over the used
physical link (UART or SPI): the user can concurrently use AT command interface on one MUX channel and
Packet-Switched / Circuit-Switched Data communication on another multiplexer channel. Each session consists of
a stream of bytes transferring various kinds of data such as SMS, CBS, PSD, GPS, AT commands in general. This
permits, for example, SMS to be transferred to the DTE when a data connection is in progress.
The following virtual channels are defined for SARA-G350 modules:
Channel 0: control channel
Channel 1 – 5: AT commands / data connection
Channel 6: GPS tunneling
The following virtual channels are defined for SARA-G300 and SARA-G310 modules:
Channel 0: control channel
Channel 1 – 2: AT commands / data connection
For more details, refer to Mux implementation Application Note [20].

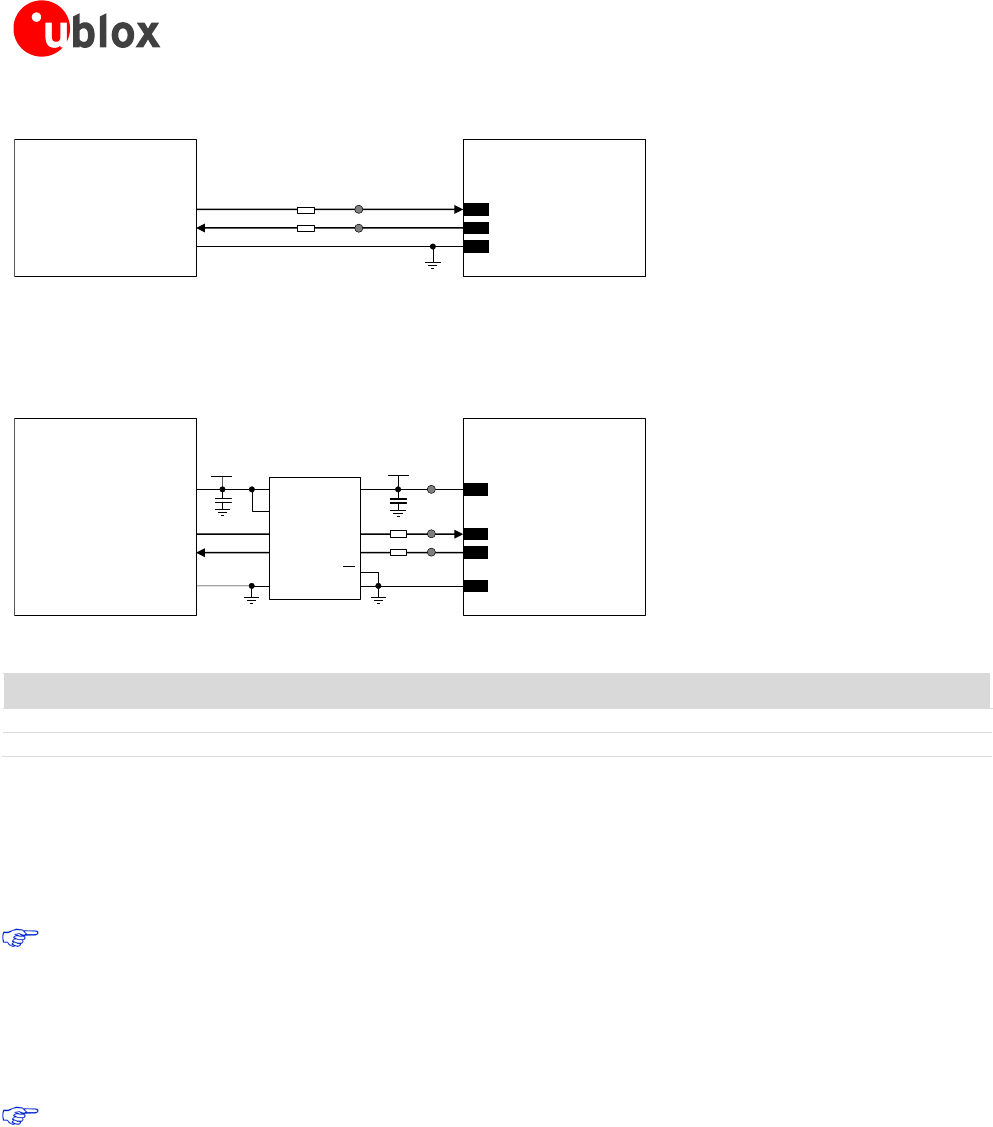

1.9.2 Auxiliary asynchronous serial interface (UART AUX)
The auxiliary UART interface is a 3-wire unbalanced 1.8 V asynchronous serial interface (only the RXD_AUX data
output and TXD_AUX data input are provided), available for SARA-G3 modules FW upgrade by means of the
u-blox EasyFlash tool and for Trace log capture (debug purpose). The AT commands interface is not available on
the auxiliary UART interface.
1.9.3 DDC (I2C) interface
SARA-G300 and SARA-G310 modules do not support DDC (I2C) interface.
An I2C bus compatible Display Data Channel (DDC) interface for communication with u-blox GPS/GNSS receivers
is available on SDA and SCL pins of SARA-G350 modules. Only this interface provides the communication
between the u-blox wireless module and u-blox positioning chips and modules. The AT commands interface is
not available on the DDC (I2C) interface.
DDC (I2C) slave-mode operation is not supported: the SARA-G350 wireless module can act as master only, and
the connected u-blox GPS/GNSS receiver automatically acts as slave in the DDC (I2C) communication.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 42 of 145
Two lines, serial data (SDA) and serial clock (SCL), carry information on the bus. SCL is used to synchronize data
transfers, and SDA is the data line. To be compliant to the I2C bus specifications, the module bus interface pads
are open drain output and pull up resistors must be used conforming to the I2C bus specifications [13].
u-blox has implemented special features in SARA-G350 wireless modules to ease the design effort required for
the integration of a u-blox wireless module with a u blox GPS/GNSS receiver.
Combining a u-blox wireless module with a u-blox GPS/GNSS receiver allows designers to have full access to the
positioning receiver directly via the wireless module: it relays control messages to the GPS/GNSS receiver via a
dedicated DDC (I2C) interface. A 2nd interface connected to the positioning receiver is not necessary: AT
commands via the UART serial interface of the wireless module allows a fully control of the GPS/GNSS receiver
from any host processor.
SARA-G350 modules feature embedded GPS aiding that is a set of specific features developed by u-blox to
enhance GPS/GNSS performance, decreasing Time To First Fix (TTFF), thus allowing to calculate the position in a
shorter time with higher accuracy.
SARA-G350 modules support these GPS aiding types:
Local aiding
AssistNow Online
AssistNow Offline
AssistNow Autonomous
The embedded GPS aiding features can be used only if the DDC (I2C) interface of the wireless module is
connected to the u-blox GPS/GNSS receivers.
SARA-G350 wireless modules provide additional custom functions over GPIO pins to improve the integration
with u-blox positioning chips and modules. GPIO pins can handle:
GPS/GNSS receiver power-on/off: “GPS supply enable” function provided by GPIO2 improves the
positioning receiver power consumption. When the GPS/GNSS functionality is not required, the positioning
receiver can be completely switched off by the wireless module that is controlled by the application
processor with AT commands
The wake up from idle-mode when the GPS/GNSS receiver is ready to send data: “GPS data ready” function
provided by GPIO3 improves the wireless module power consumption. When power saving is enabled in the
wireless module by the AT+UPSV command and the GPS/GNSS receiver does not send data by the DDC (I2C)
interface, the module automatically enters idle-mode whenever possible. With the “GPS data ready”
function the GPS/GNSS receiver can indicate to the wireless module that it is ready to send data by the DDC
(I2C) interface: the positioning receiver can wake up the wireless module if it is in idle-mode, so the wireless
module does not lose the data sent by the GPS/GNSS receiver even if power saving is enabled
The RTC synchronization signal to the GPS/GNSS receiver: “GPS RTC sharing” function provided by GPIO4
improves GPS/GNSS receiver performance, decreasing the Time To First Fix (TTFF), and thus allowing to
calculate the position in a shorter time with higher accuracy. When GPS local aiding is enabled, the wireless
module automatically uploads data such as position, time, ephemeris, almanac, health and ionospheric
parameter from the positioning receiver into its local memory, and restores this to the GPS/GNSS receiver at
the next power up of the positioning receiver
For more details regarding the handling of the DDC (I2C) interface, the GPS aiding features and the GPS
related functions over GPIOs, refer to the chapter 1.11, to the u-blox AT Commands Manual [2]
(AT+UGPS, AT+UGPRF, AT+UGPIOC AT commands) and the GPS Implementation Application Note [21].
“GPS data ready” and “GPS RTC sharing” functions are not supported by all u-blox GPS/GNSS receivers
HW or ROM/FW versions. Refer to the GPS Implementation Application Note [21] or to the Hardware
Integration Manual of the u-blox GPS/GNSS receivers for the supported features.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 43 of 145
As additional improvement for the GPS/GNSS receiver performance, the V_BCKP supply output of SARA-G350
modules can be connected to the V_BCKP backup supply input pin of u-blox positioning chips and modules to
provide the supply for the GPS/GNSS real time clock and backup RAM when the VCC supply of the wireless
module is within its operating range and the VCC supply of the GPS/GNSS receiver is disabled.
This enables the u-blox positioning receiver to recover from a power breakdown with either a hot start or a
warm start (depending on the duration of the GPS/GNSS receiver VCC outage) and to maintain the configuration
settings saved in the backup RAM.
1.10 Audio interface
SARA-G300 and SARA-G310 modules do not support audio interface.
SARA-G350 modules provide one analog audio interface and one digital audio interface that can be selected
and set by the dedicated AT command +USPM (refer to u-blox AT Commands Manual [2]): this command allows
setting the audio path mode, composed by the uplink audio path and the downlink audio path.
Each uplink path mode defines the physical input (i.e. the analog or the digital audio input) and the set of
parameters to process the uplink audio signal (uplink gains, uplink digital filters, echo canceller parameters). For
example the “Headset microphone” uplink path uses the differential analog audio input with the default
parameters for the headset profile.
Each downlink path mode defines the physical output (i.e. the analog or the digital audio output) and the set of
parameters to process the downlink audio signal (downlink gains, downlink digital filters and sidetone). For
example the “Mono headset” downlink path uses the differential analog audio output with the default
parameters for the headset profile.
The set of parameters to process the uplink or the downlink audio signal can be changed with dedicated AT
commands for each uplink or downlink path and then stored in two profiles in the non volatile memory (refer to
u-blox AT Commands Manual [2] for Audio parameters tuning commands).
1.10.1 Analog audio interface
1.10.1.1 Uplink path
SARA-G350 pins related to the analog audio uplink path are:
MIC_P / MIC_N: Differential analog audio signal inputs (positive/negative). These two pins are internally
directly connected to the differential input of an integrated Low Noise Amplifier, without any internal series
capacitor for DC blocking. The LNA output is internally connected to the digital processing system by an
integrated sigma-delta analog-to-digital converter
MIC_BIAS: Supply output for an external microphone. The pin is internally connected to the output of a low
noise LDO linear regulator provided with proper internal bypass capacitor to guarantee stable operation of
the linear regulator
MIC_GND: Local ground for the external microphone. The pin is internally connected to ground as a sense
line as the reference for the analog audio input
The analog audio input is selected when the parameter <main_uplink> in AT+USPM command is set to
“Headset microphone”, “Handset microphone” or “Hands-free microphone”: the uplink analog path profiles
use the same physical input but have different sets of audio parameters (for more details, refer to u-blox AT
Commands Manual [2], AT+USPM, AT+UMGC, AT+UUBF, AT+UHFP commands).
SARA-G3 series Data Sheet [1] provides the detailed electrical characteristics of the analog audio uplink path.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 44 of 145
1.10.1.2 Downlink path
SARA-G350 pins related to the analog audio downlink path are:
SPK_P / SPK_N: Differential analog audio signal output (positive/negative). These two pins are directly
connected internally to the differential output of a low power audio amplifier, for which the input is
connected internally to the digital processing system by to an integrated digital-to-analog converter.
The analog audio output is selected when the parameter <main_downlink> in AT+USPM command is set to
“Normal earpiece”, “Mono headset” or “Loudspeaker”: the downlink analog path profiles use the same
physical output but have different sets of audio parameters (for more details, refer to the u-blox AT Commands
Manual [2], AT+USPM, AT+USGC, AT+UDBF, AT+USTN commands).
The differential analog audio output of SARA-G350 modules (SPK_P / SPK_N) is able to directly drive loads with
resistance rating greater than 14 : it can be directly connected to a headset earpiece or handset earpiece but
cannot directly drive a 8 or 4 loudspeaker for the hands-free mode.
SARA-G3 series Data Sheet [1] provides the detailed electrical characteristics of the analog audio downlink path.
Warning: excessive sound pressure from headphones can cause hearing loss.
1.10.1.3 Headset mode
Headset mode is the default audio operating mode of the modules. The headset profile is configured when the
uplink audio path is set to “Headset microphone” and the downlink audio path is set to “Mono headset” (refer
to u-blox AT Commands Manual [2]: AT+USPM command: <main_uplink>, <main_downlink> parameters).
1.10.1.4 Handset mode
The handset profile is configured when the uplink audio path is set to “Handset microphone” and the downlink
audio path is set to “Normal earpiece” (refer to u-blox AT commands manual [2]: AT+USPM command:
<main_uplink>, <main_downlink> parameters).
1.10.1.5 Hands-free mode
The hands-free profile is configured when the uplink audio path is set to “Hands-free microphone” and the
downlink audio path is set to “Loudspeaker” (refer to u-blox AT commands manual [2]: AT+USPM command:
<main_uplink>, <main_downlink> parameters).
Hands-free functionality is implemented using appropriate digital signal processing algorithms for voice-band
handling (echo canceller and automatic gain control), managed via software (refer to u-blox AT commands
manual [2], AT+UHFP command).
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 45 of 145
1.10.2 Digital audio interface
SARA-G350 modules provide one 4-wire I2S digital audio interface (1.8 V) that acts as an I2S master and can be
used for digital audio communication with external digital audio devices that acts as I2S slave. Related pins are:
I2S_TXD data output
I2S_RXD data input
I2S_CLK clock output
I2S_WA world alignment output
The I2S interface can be set to two modes, by the <I2S_mode> parameter of the AT+UI2S command:
PCM mode
Normal I2S mode
SARA-G350 modules do not support I2S slave mode: module acts as master only.
The sample rate is fixed at 8 kHz only: it is not possible to configure the sample rate of transmitted and
received words of SARA-G350 modules.
The <main_uplink> and <main_downlink> parameters of the AT+USPM command must be properly configured
to select the I2S digital audio interfaces paths (for more details, refer to u-blox AT Commands Manual [2]):
<main_uplink> must be properly set to select:
o the I2S interface (using I2S_RXD module input)
<main_downlink> must be properly set to select:
o the I2S interface (using I2S_TXD module output)
Parameters of digital path can be configured and saved as the normal analog paths, using appropriate path
parameter as described in the u-blox AT Commands Manual [2], +USGC, +UMGC, +USTN AT command. Analog
gain parameters of microphone and speakers are not used when digital path is selected.
The I2S receive data input and the I2S transmit data output signals are respectively connected in parallel to the
analog microphone input and speaker output signals, so resources available for analog path can be shared:
Digital filters and digital gains are available in both uplink and downlink direction. The AT commands allow
to properly configure them
Ringer tone and service tone are mixed on the TX path when active (downlink)
The HF algorithm acts on I2S path
Refer to the u-blox AT Commands Manual [2]: AT+UI2S command for possible settings of I2S interface.
1.10.2.1 I2S interface – PCM mode
Main features of the I2S interface in PCM mode:
I2S runs in PCM – short alignment mode (configurable by AT commands)
I2S word alignment signal is configured to 8 kHz: this is the <sample_rate> parameter
I2S word alignment toggles high for 1 or 2 CLK cycles of synchronization (configurable), then toggles low for
16 CLK cycles of sample width. Frame length can be 1 + 16 = 17 bits or 2 + 16 = 18 bits
I2S clock frequency depends on frame length and the 8 kHz sample rate. Can be 17 x 8 kHz or 18 x 8 kHz
I2S transmit and I2S receive data are 16 bit words long with the same sampling rate as I2S word alignment,
mono. Data is in 2’s complement notation. MSB is transmitted first
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 46 of 145
When I2S word alignment toggles high, the first synchronization bit is always low. Second synchronization
bit (present only in case of 2 bit long I2S word alignment configuration) is MSB of the transmitted word (MSB
is transmitted twice in this case)
I2S transmit data changes on I2S clock rising edge, I2S receive data changes on I2S clock falling edge
1.10.2.2 I2S interface – Normal I2S mode
Normal I2S supports:
16 bits word
Mono interface
Sample rate: 8 kHz
Main features of I2S interface in normal I2S mode:
I2S runs in normal I2S – long alignment mode (configurable by AT commands)
I2S word alignment signal always runs at 8 kHz sample rate and synchronizes 2 channels (timeslots on word
alignment high, word alignment low)
I2S transmit data is composed of 16 bit words, dual mono (the words are written on both channels). Data
are in 2’s complement notation. MSB is transmitted first. The bits are written on I2S clock rising or falling
edge (configurable)
I2S receive data is read as 16 bit words, mono (words are read only on the timeslot with WA high). Data is
read in 2’s complement notation. MSB is read first. The bits are read on the I2S clock edge opposite to I2S
transmit data writing edge (configurable)
I2S clock frequency is 16 bits x 2 channels x 8 kHz
The modes are configurable through a specific AT command (refer to the related chapter in the u-blox AT
Commands Manual [2], +UI2S AT command) and the following parameters can be set:
MSB can be 1 bit delayed or non-delayed on I2S word alignment edge
I2S transmit data can change on rising or falling edge of I2S clock signal
I2S receive data are read on the opposite front of I2S clock signal
1.10.3 Voice-band processing system
1.10.3.1 Audio processing system overview
The voice-band processing on the SARA-G350 modules is implemented in the DSP core inside the baseband
chipset. The analog audio front-end of the chipset is connected to the digital system through 16 bit ADC
converters in the uplink path, and through 16 bit DAC converters in the downlink path. External digital audio
devices can directly be interfaced to the DSP digital processing part via the I2S digital interface. The analog
amplifiers are skipped in this case.
The voice-band processing system can be split up into three different blocks:
Sample-based Voice-band Processing (single sample processed at 8 kHz, every 125 µs)
Frame-based Voice-band Processing (frames of 160 samples are processed every 20 ms)
MIDI synthesizer running at 47.6 kHz
These three blocks are connected by buffers and sample rate converters (for 8 to 47.6 kHz conversion)
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 47 of 145
I2S_RXD
Switch
MIC
Uplink
Analog Gain
Uplink
Filter 2
Uplink
Filter 1
To
Radio TX
Uplink
Digital Gain
Downlink
Filter 1
Downlink
Filter 2
MIDI
Player
SPK Switch
I2Sx TX
I2S_TXD
Scal_Rec
Digital Gain
SPK
Analog Gain
Gain_Out
Digital Gain
From
Radio RX
Speech
Level
I2Sx RX
Sample Based Processing Frame Based Processing
Circular
Buffer
Sidetone
Digital Gain
DAC
ADC
Tone
Generator
AMR
Player
Hands-Free
Voiceband Sample Buffer
Figure 20: SARA-G350 modules voice-band processing system block diagram
The sample-based voice-band processing main task is to transfer the voice-band samples from either analog
audio front-end uplink path or I2Sx RX path to the Voice-band Sample Buffer and from the Voice-band Sample
Buffer to the analog audio front-end downlink path and/or I2Sx TX path. While doing this the samples are scaled
by digital gains and processed by digital filters both in the uplink and downlink direction and the sidetone is
generated mixing scaled uplink samples to the downlink samples (refer to the u-blox AT Commands Manual [2],
+UUBF, +UDBF, +UMGC, +USGC, +USTN commands).
The frame-based voice-band processing implements the Hands-Free algorithm. This consists of the Echo
Canceller, the Automatic Gain Control and the Noise Suppressor. Hands-Free algorithm acts on the uplink signal
only. Algorithms are configurable with AT commands (refer to the u-blox AT Commands Manual [2], +UHFP
command). The frame-based voice-band processing also implements an AMR player. The speech uplink path
final block before radio transmission is the speech encoder. Symmetrically, on downlink path, the starting block
is the speech decoder which extracts speech signal from the radio receiver.
The circular buffer is a 3000 word buffer to store and mix the voice-band samples from Midi synthesizer. The
buffer has a circular structure, so that when the write pointer reaches the end of the buffer, it is wrapped to the
begin address of the buffer.
Two different sample-based sample rate converters are used: an interpolator, required to convert the
sample-based voice-band processing sampling rate of 8 kHz to the analog audio front-end output rate of
47.6 kHz; a decimator, required to convert the circular buffer sampling rate of 47.6 kHz to the I2Sx TX or the
uplink path sample rate of 8 kHz.
1.10.3.2 Audio codecs
The following speech codecs are supported by firmware on the DSP :
GSM Half Rate (TCH/HS)
GSM Full Rate (TCH/FS)
GSM Enhanced Full Rate (TCH/EFR)
3GPP Adaptive Multi Rate (AMR) (TCH/AFS+TCH/AHS)
o In AMR Full Rate (AFS) the Active CODEC Set is selected from an overall set of 8 data rates:
12.2 – 10.2 – 7.95 – 7.40 – 6.70 – 5.90 – 5.15 – 4.75 kb/s
o In AMR Half Rate (AHS) the overall set comprises 6 different data rates:
7.95 – 7.40 – 6.70 – 5.90 – 5.15 – 4.75 kb/s
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 48 of 145
1.11 General Purpose Input/Output (GPIO)
SARA-G300 and SARA-G310 modules do not support GPIOs.
SARA-G350 modules provide 4 pins (GPIO1-GPIO4) which can be configured as general purpose input or
output, or can be configured to provide special functions via u-blox AT commands (for further details refer to the
u-blox AT Commands Manual [2], +UGPIOC, +UGPIOR, +UGPIOW, +UGPS, +UGPRF).
The following functions are available in the SARA-G350 modules:
Network status indication:
The GPIO1, or the GPIO2, GPIO3 and GPIO4 alternatively from their default settings, can be configured to
indicate network status (i.e. no service, registered home network, registered visitor network, voice or data
call enabled), setting the parameter <gpio_mode> of AT+UGPIOC command to 2.
No GPIO pin is by default configured to provide the “Network status indication” function.
The “Network status indication” mode can be provided only on one pin per time: it is not possible to
simultaneously set the same mode on another pin.
The pin configured to provide the “Network status indication” function is set as
o Continuous Output / Low, if no service (no network coverage or not registered)
o Cyclic Output / High for 100 ms, Output / Low for 2 s, if registered with the home network
o Cyclic Output / High for 100 ms, Output / Low for 100 ms, Output / High for 100 ms, Output / Low
for 2 s, if registered with the visitor network (roaming)
o Continuous Output / High, if voice or data call enabled
GSM Tx burst indication:
GPIO1 pin can be configured by AT+UGPIOC to indicate when a GSM Tx burst/slot occurs, setting the
parameter <gpio_mode> of AT+UGPIOC command to 9.
No GPIO pin is by default configured to provide the “GSM Tx burst indication” function.
The pin configured to provide the “GSM Tx burst indication” function is set as
o Output / High, since ~10 µs before the start of first Tx slot, until ~5 µs after the end of last Tx slot
o Output / Low, otherwise
GPS supply enable:
The GPIO2 is by default configured by AT+UGPIOC command to enable or disable the supply of the u-blox
GPS/GNSS receiver connected to the wireless module.
The GPIO1, GPIO3 or GPIO4 pins can be configured to provide the “GPS supply enable” function,
alternatively to the default GPIO2 pin, setting the parameter <gpio_mode> of AT+UGPIOC command to 3.
The “GPS supply enable” mode can be provided only on one pin per time: it is not possible to
simultaneously set the same mode on another pin.
The pin configured to provide the “GPS supply enable” function is set as
o Output / High, to switch on the u-blox GPS/GNSS receiver, if the parameter <mode> of AT+UGPS
command is set to 1
o Output / Low, to switch off the u-blox GPS/GNSS receiver, if the parameter <mode> of AT+UGPS
command is set to 0 (default setting)
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 49 of 145
GPS data ready:
Only the GPIO3 pin provides the “GPS data ready” function, to sense when a u-blox GPS/GNSS receiver
connected to the wireless module is ready to send data via the DDC (I2C) interface, setting the parameter
<gpio_mode> of AT+UGPIOC command to 4.
The pin configured to provide the “GPS data ready” function is set as
o Input, to sense the line status, waking up the wireless module from idle-mode when the u-blox
GPS/GNSS receiver is ready to send data via the DDC (I2C) interface; the parameter <mode> of
AT+UGPS command must be set to 1 and the parameter <GPS_IO_configuration> of AT+UGPRF
command to 16
o Tri-state with an internal active pull-down enabled, otherwise (default setting)
GPS RTC sharing:
Only the GPIO4 pin provides the “GPS RTC sharing” function, to provide an RTC (Real Time Clock)
synchronization signal to the u-blox GPS/GNSS receiver connected to the wireless module, setting the
parameter <gpio_mode> of AT+UGPIOC command to 5.
The pin configured to provide the “GPS RTC sharing” function is set as
o Output, to provide an RTC (Real Time Clock) synchronization signal to the u-blox GPS/GNSS
receiver if the parameter <mode> of AT+UGPS command is set to 1 and parameter
<GPS_IO_configuration> of AT+UGPRF command is set to 32
o Output / Low, otherwise (default setting)
General purpose input:
All the GPIOs can be configured as input to sense high or low digital level through AT+UGPIOR command,
setting the parameter <gpio_mode> of AT+UGPIOC command to 1.
The “General purpose input” mode can be provided on more than one pin at a time: it is possible to
simultaneously set the same mode on another pin (also on all the GPIOs).
No GPIO pin is by default configured as “General purpose input”.
The pin configured to provide the “General purpose input” function is set as
o Input, to sense high or low digital level by AT+UGPIOR command.
General purpose output:
All the GPIOs can be configured as output to set the high or the low digital level through AT+UGPIOW
command, setting the parameter <gpio_mode> of +UGPIOC AT command to 0.
The “General purpose output” mode can be provided on more than one pin per time: it is possible to
simultaneously set the same mode on another pin (also on all the GPIOs).
No GPIO pin is by default configured as “General purpose output”.
The pin configured to provide the “General purpose output” function is set as
o Output / Low, if the parameter <gpio_out_val> of AT+UGPIOW command is set to 0
o Output / High, if the parameter <gpio_out_val> of AT+UGPIOW command is set to 1
Pad disabled:
All the GPIOs can be configured in tri-state with an internal active pull-down enabled, as a not used pin,
setting the parameter <gpio_mode> of +UGPIOC AT command to 255.
The “Pad disabled” mode can be provided on more than one pin per time: it is possible to simultaneously
set the same mode on another pin (also on all the GPIOs).
The pin configured to provide the “Pad disabled” function is set as
o Tri-state with an internal active pull-down enabled
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 50 of 145
Table 11 describes the configurations of all SARA-G350 GPIO pins.
Pin
Module
Name
Description
Remarks
16
SARA-G350
GPIO1
GPIO
By default, the pin is configured as Pad disabled.
Can be alternatively configured by the AT+UGPIOC command as
Output
Input
Network Status Indication
GPS Supply Enable
GSM Tx Burst Indication
23
SARA-G350
GPIO2
GPIO
By default, the pin is configured to provide GPS Supply Enable function.
Can be alternatively configured by the +UGPIOC command as
Output
Input
Network Status Indication
Pad disabled
24
SARA-G350
GPIO3
GPIO
By default, the pin is configured to provide GPS Data Ready function.
Can be alternatively configured by the +UGPIOC command as
Output
Input
Network Status Indication
GPS Supply Enable
Pad disabled
25
SARA-G350
GPIO4
GPIO
By default, the pin is configured to provide GPS RTC sharing function.
Can be alternatively configured by the +UGPIOC command as
Output
Input
Network Status Indication
GPS Supply Enable
Pad disabled
Table 11: GPIO pins configurations
1.12 Reserved pins (RSVD)

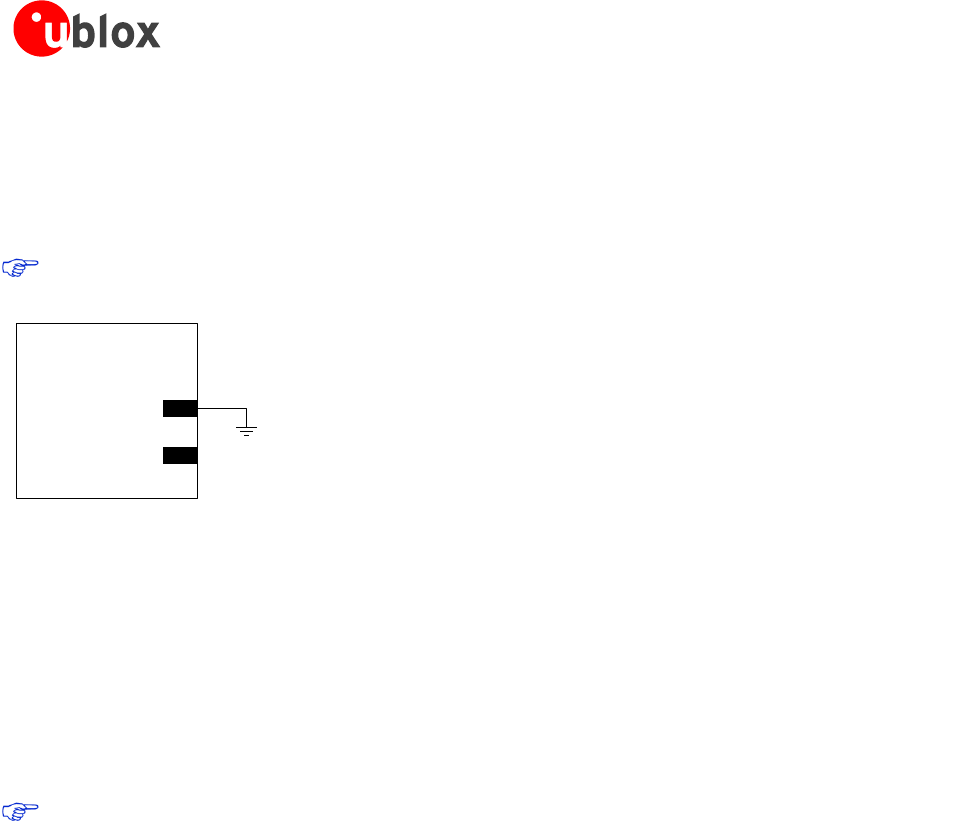

SARA-G3 modules have pins reserved for future use: they can all be left unconnected on the application board,
except the RSVD pin number 33 that must be externally connected to ground.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 51 of 145
1.13 System features
1.13.1 Network indication
Not supported by SARA-G300 and SARA-G310 modules.
The GPIO1, or the GPIO2, GPIO3 and GPIO4 alternatively from their default settings, can be configured to
indicate network status (i.e. no service, registered home network, registered visitor network, voice or data call
enabled), by means of the AT+UGPIOC command.
For the detailed description, refer to chapter 1.11 and to u-blox AT Commands Manual [2], GPIO commands.
1.13.2 Antenna detection
Not supported by SARA-G300 and SARA-G310 modules.
ANT_DET pin of SARA-G350 modules is an Analog to Digital Converter (ADC) provided to sense the presence of
an external antenna when optionally set by the +UANTR AT command.
The external antenna assembly must be provided with a built-in resistor (diagnostic circuit) to be detected, and
an antenna detection circuit must be implemented on the application board properly connecting the antenna
detection input (ANT_DET) to the antenna RF interface (ANT).
For more details regarding feature description and detection / diagnostic circuit design-in refer to chapters 1.7.1
and 2.3.2, and to the u-blox AT Commands Manual [2].
1.13.3 Jamming detection
Not supported by SARA-G300 and SARA-G310 modules.
In real network situations modules can experience various kind of out-of-coverage conditions: limited service
conditions when roaming to networks not supporting the specific SIM, limited service in cells which are not
suitable or barred due to operators’ choices, no cell condition when moving to poorly served or highly interfered
areas. In the latter case, interference can be artificially injected in the environment by a noise generator covering
a given spectrum, thus obscuring the operator’s carriers entitled to give access to the GSM service.
The Jamming Detection Feature detects such “artificial” interference and reports the start and stop of such
conditions to the client, which can react appropriately by e.g. switching off the radio transceiver to reduce
power consumption and monitoring the environment at constant periods.
The feature detects, at radio resource level, an anomalous source of interference and signals it to the client with
an unsolicited indication when the detection is entered or released. The jamming condition occurs when:
The module has lost synchronization with the serving cell and cannot select any other cell
The band scan reveals at least n carriers with power level equal or higher than threshold
On all such carriers, no synchronization is possible
The number of minimum disturbing carriers and the power level threshold can be configured by the client by
using the AT+UCD command [2].
The client can configure the number of minimum disturbing carriers and the power level threshold by using the
AT+UCD command [2].
The jamming condition is cleared when any of the above mentioned statements does not hold.
The congestion (i.e. jamming) detection feature can be enabled and configured by the +UCD AT command (for
more details refer to the u-blox AT Commands Manual [2]).
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 52 of 145
1.13.4 TCP/IP and UDP/IP
Not supported by SARA-G300 and SARA-G310 modules.
Via the AT commands it is possible to access the TCP/IP and UDP/IP functionalities over the Packet Switched data
connection. For more details about AT commands see the u-blox AT Commands Manual [2].
Using the embedded TCP/IP or UDP/IP stack, only 1 IP instance (address) is supported. The IP instance supports
up to 7 sockets. Using an external TCP/IP stack (on the application processor), it is possible to have 3 IP instances
(addresses).
Direct Link mode for TCP and UDP sockets is supported. Sockets can be set in Direct Link mode to establish a
transparent end-to-end communication with an already connected TCP or UDP socket via serial interface. In
Direct Link mode, data sent to the serial interface from an external application processor is forwarded to the
network and vice-versa.
To avoid data loss while using Direct Link, enable HW flow control on the serial interface.
1.13.5 FTP
Not supported by SARA-G300 and SARA-G310 modules.
SARA-G350 modules support the File Transfer Protocol functionalities via AT commands. Files are read and
stored in the local file system of the module. For more details about AT commands see the u-blox AT Commands
Manual [2].
1.13.6 HTTP
Not supported by SARA-G300 and SARA-G310 modules.
HTTP client is implemented in SARA-G350 modules: HEAD, GET, POST, DELETE and PUT operations are available.
The file size to be uploaded / downloaded depends on the free space available in the local file system (FFS) at the
moment of the operation. Up to 4 HTTP client contexts can simultaneously be used.
For more details about AT commands see the u-blox AT Commands Manual [2].
1.13.7 SMTP
Not supported by SARA-G300 and SARA-G310 modules.
SARA-G350 modules support SMTP client functionalities. It is possible to specify the common parameters (e.g.
server data, authentication method, etc. can be specified), to send an email to a SMTP server. Emails can be sent
with or without attachment. Attachments are store in the local file system of SARA-G350 modules.
For more details about AT commands see the u-blox AT Commands Manual [2].
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 53 of 145
1.13.8 Smart temperature management
Wireless modules – independent of the specific model – always have a well-defined operating temperature
range. This range should be respected to guarantee full device functionality and long life span.
Nevertheless there are environmental conditions that can affect operating temperature, e.g. if the device is
located near a heating/cooling source, if there is/is not air circulating, etc.
The module itself can also influence the environmental conditions; such as when it is transmitting at full power.
In this case its temperature increases very quickly and can raise the temperature nearby.
The best solution is always to properly design the system where the module is integrated. Nevertheless an extra
check/security mechanism embedded into the module is a good solution to prevent operation of the device
outside of the specified range.
1.13.8.1 Smart Temperature Supervisor (STS)
The Smart Temperature Supervisor is activated and configured by a dedicated AT+USTS command. Refer to
u-blox AT Commands Manual [2] for more details.
The wireless module measures the internal temperature (Ti) and its value is compared with predefined thresholds
to identify the actual working temperature range.
Temperature measurement is done inside the module: the measured value could be different from the
environmental temperature (Ta).
Warning
area
t-1 t+1 t+2
t-2
Valid temperature range
Safe
area
Dangerous
area
Dangerous
area
Warning
area
Figure 21: Temperature range and limits
The entire temperature range is divided into sub-regions by limits (see Figure 21) named t-2, t-1, t+1 and t+2.
Within the first limit, (t-1 < Ti < t+1), the wireless module is in the normal working range, the Safe Area
In the Warning Area, (t-2 < Ti < t.1) or (t+1 < Ti < t+2), the wireless module is still inside the valid temperature
range, but the measured temperature approaches the limit (upper or lower). The module sends a warning to
the user (through the active AT communication interface), which can take, if possible, the necessary actions
to return to a safer temperature range or simply ignore the indication. The module is still in a valid and good
working condition
Outside the valid temperature range, (Ti < t-2) or (Ti > t+2), the device is working outside the specified range
and represents a dangerous working condition. This condition is indicated and the device shuts down to
avoid damage
For security reasons the shutdown is suspended in case an emergency call in progress. In this case the
device switches off at call termination.
The user can decide at anytime to enable/disable the Smart Temperature Supervisor feature. If the feature
is disabled there is no embedded protection against disallowed temperature conditions.
Figure 22 shows the flow diagram implemented in SARA-G3 series modules for the Smart Temperature
Supervisor.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 54 of 145
IF STS
enabled
Read
temperature
IF
(t-1<Ti<t+1)
IF
(t-2<Ti<t+2)
Send
notification
(warning)
Send
notification
(dangerous)
Wait emergency
call termination
IF
emerg.
call in
progress
Shut the device
down
Yes
No
Yes
Yes
No
No
No
Yes
Send
shutdown
notification
Feature enabled
(full logic or
indication only)
IF
Full Logic
Enabled
Feature disabled:
no action
Temperature is
within normal
operating range
Yes
Tempetature
is within
warning area
Tempetature is
outside valid
temperature range
No
Featuere enabled
in full logic mode
Feature enabled in
indication only mode:
no further actions
Send
notification
(safe)
Previously
outside of
Safe Area
Tempetature
is back to
safe area
No
No
further
actions
Yes
Figure 22: Smart Temperature Supervisor (STS) flow diagram
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 55 of 145
1.13.8.2 Threshold definitions
When the module application operates at extreme temperatures with Smart Temperature Supervisor enabled,
the user should note that outside the valid temperature range the device automatically shuts down as described
above.
The input for the algorithm is always the temperature measured within the wireless module (Ti, internal). This
value can be higher than the working ambient temperature (Ta, ambient), since (for example) during
transmission at maximum power a significant fraction of DC input power is dissipated as heat. This behavior is
partially compensated by the definition of the upper shutdown threshold (t+2) that is slightly higher than the
declared environmental temperature limit.
Table 12 defines the temperature thresholds.
Symbol
Parameter
Temperature
Remarks
t-2
Low temperature shutdown
–40 °C
Equal to the absolute minimum temperature rating for the wireless
module (the lower limit of the extended temperature range)
t-1
Low temperature warning
–30 °C
10 °C above t-2
t+1
High temperature warning
+85 °C
10 °C below t+2. The higher warning area for upper range ensures
that any countermeasures used to limit the thermal heating will
become effective, even considering some thermal inertia of the
complete assembly.
t+2
High temperature shutdown
+95 °C
Equal to the internal temperature Ti measured in the worst case
operating condition at typical supply voltage when the ambient
temperature Ta in the reference setup (*) equals the absolute
maximum temperature rating (upper limit of the extended
temperature range)

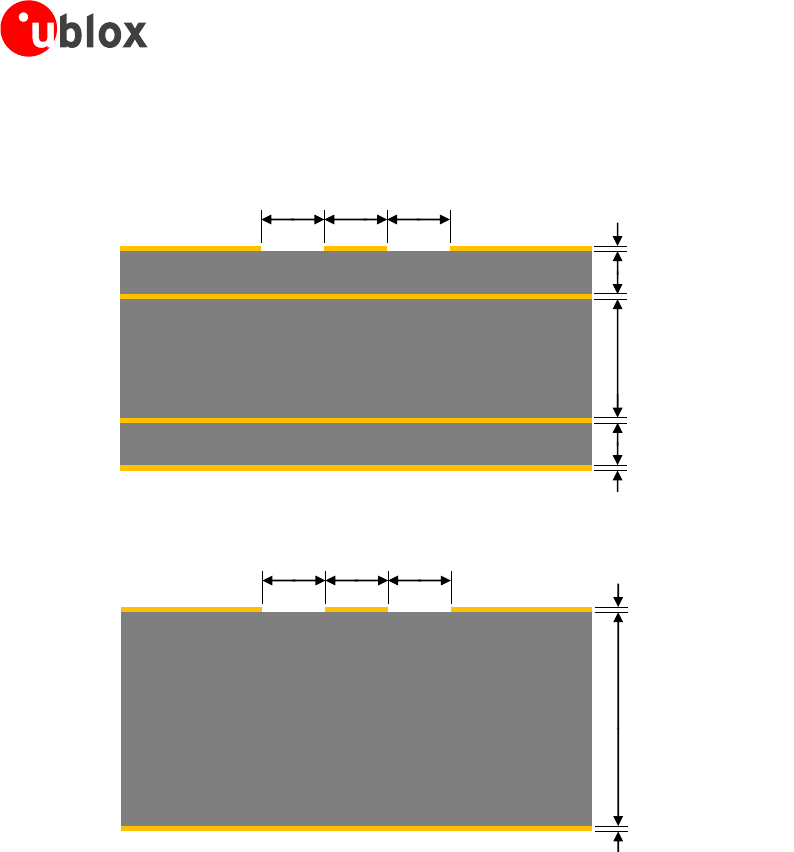

(*) SARA-G3 series module mounted on a 79 mm x 62 mm x 1.41 mm 4-Layers PCB with a high coverage of copper in still air conditions
Table 12: Thresholds definition for Smart Temperature Supervisor on the SARA-G3 series modules
The sensor measures board temperature inside the shields, which can differ from ambient temperature.
1.13.9 AssistNow clients and GPS/GNSS integration
Not supported by SARA-G300 and SARA-G310 modules.
For customers using u-blox GPS/GNSS receivers, SARA-G350 modules feature embedded AssistNow clients.
AssistNow A-GPS provides better GPS/GNSS performance and faster Time-To-First-Fix. The clients can be enabled
and disabled with an AT command (see the u-blox AT Commands Manual [2]).
SARA-G350 modules act as a stand-alone AssistNow client, making AssistNow available with no additional
requirements for resources or software integration on an external host micro controller. Full access to u-blox
positioning receivers is available via the SARA-G350 modules, through a dedicated DDC (I2C) interface, while the
available GPIOs can handle the positioning chipset / module power-on/off. This means that the wireless module
and the positioning chips and modules can be controlled through a single serial port from any host processor.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 56 of 145
1.13.10 Hybrid positioning and CellLocateTM
Not supported by SARA-G300 and SARA-G310 versions.
Although GPS/GNSS is a widespread technology, reliance on the visibility of extremely weak GPS/GNSS satellite
signals means that positioning is not always possible, particularly in shielded environments such as indoors and
enclosed park houses, or when a GPS/GNSS jamming signal is present. The situation can be improved by
augmenting GPS/GNSS receiver data with network cell information to provide a level of redundancy that can
benefit numerous applications.
1.13.10.1 Positioning through cellular information: CellLocateTM
u-blox CellLocateTM enables the device position estimation based on the parameters of the mobile network cells
visible to the specific device. To estimate its position the module sends the CellLocateTM server the parameters of
network cells visible to it using a UDP connection. In return the server provides the estimated position based on
the CellLocateTM database. The SARA-G350 module can either send the parameters of the visible home network
cells only (normal scan) or the parameters of all surrounding cells of all mobile operators (deep scan).
The CellLocateTM database is compiled from the position of devices which observed, in the past, a specific cell or
set of cells (historical observations) as follows:
1. Several devices reported their position to the CellLocate server when observing a specific cell (the As in the
picture represent the position of the devices which observed the same cell A)
2. CellLocateTM server defines the area of Cell A visibility
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 57 of 145
3. If a new device reports the observation of Cell A CellLocateTM is able to provide the estimated position from
the area of visibility
4. The visibility of multiple cells provides increased accuracy based on the intersection of areas of visibility.
CellLocateTM is implemented using a set of two AT commands that allow configuration of the CellLocateTM service
(AT+ULOCCELL) and requesting position according to the user configuration (AT+ULOC). The answer is provided
in the form of an unsolicited AT command including latitude, longitude and estimated accuracy.
The accuracy of the position estimated by CellLocateTM depends on the availability of historical
observations in the specific area.
1.13.10.2 Hybrid positioning
With u-blox hybrid positioning technology, u-blox wireless modules can be triggered to provide their current
position using either a u-blox GPS/GNSS receiver or the position estimated from CellLocate. The choice depends
on which positioning method provides the best and fastest solution according to the user configuration,
exploiting the benefit of having multiple and complementary positioning methods.
Hybrid positioning is implemented through a set of three AT commands that allow GPS/GNSS receiver
configuration (AT+ULOCGNSS), CellLocateTM service configuration (AT+ULOCCELL), and requesting the position
according to the user configuration (AT+ULOC). The answer is provided in the form of an unsolicited AT
command including latitude, longitude and estimated accuracy (if the position has been estimated by
CellLocateTM), and additional parameters if the position has been computed by the GPS/GNSS receiver.
The configuration of mobile network cells does not remain static (e.g. new cells are continuously added or
existing cells are reconfigured by the network operators). For this reason, when a hybrid positioning method has
been triggered and the GPS/GNSS receiver calculates the position, a database self-learning mechanism has been
implemented so that these positions are sent to the server to update the database and maintain its accuracy.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 58 of 145
The use of hybrid positioning requires a connection via the DDC (I2C) bus between the SARA-G350 wireless
module and the u-blox GPS/GNSS receiver (Refer to chapter 2.5.3).
Refer to GPS Implementation Application Note [21] for the complete description of the feature.
u-blox is extremely mindful of user privacy. When a position is sent to the CellLocate server u-blox is
unable to track the SIM used or the specific device.
1.13.11 Firmware upgrade Over AT (FOAT)
1.13.11.1 Overview
This feature allows upgrading the module Firmware over the UART interface, using AT Commands.
AT Command AT+UFWUPD triggers a reboot followed by the upgrade procedure at specified a baud rate
(refer to u-blox AT Commands Manual [2] for more details)
Both Xmodem-1k protocol (1024 bytes packets) and Xmodem protocol (128 bytes packets) can be used for
downloading the new firmware image via a terminal application
A special boot loader on the module performs firmware installation, security verifications and module reboot
Firmware authenticity verification is performed via a security signature during the download. The firmware is
then installed, overwriting the current version. In case of power loss during this phase, the boot loader
detects a fault at the next wake-up, and restarts the firmware download from the Xmodem-1k handshake.
After completing the upgrade, the module is reset again and wakes-up in normal boot
1.13.11.2 FOAT procedure
The application processor must proceed in the following way:
Send the AT+UFWUPD command through UART interface, specifying the file type and the desired baud rate
Reconfigure serial communication at selected baud rate, without flow control with the used protocol
Send the new FW image via the used protocol
For more details, refer to the Firmware Update Application Note [22].
1.13.12 Firmware upgrade Over The Air (FOTA)
Not supported by SARA-G300 and SARA-G310 modules.
Supported upon request on SARA-G350 modules.
This feature allows upgrading the module Firmware over the air, i.e. over the GSM network. The main idea with
updating Firmware over the air is to reduce the amount of data required for transmission to the module. This is
achieved by downloading only a “delta file” instead of the full firmware. The delta contains only the differences
between the two firmware versions (old and new), and is compressed.
For more details, refer to the Firmware Update Application Note [22].
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information System description
Page 59 of 145
1.13.13 In-Band modem (eCall / ERA-GLONASS)
Supported only by SARA-G350 ECALL module version.
SARA-G350 ECALL module version supports an In-Band modem solution for eCall and ERA-GLONASS
emergency call applications over cellular networks, implemented according to 3GPP TS 26.267 [19], BS EN
16062:2011 [26] and ETSI TS 122 101 [27] specifications.
eCall and ERA-GLONASS are respectively a European and Russian initiatives to combine mobile communications
and satellite positioning to provide rapid assistance to motorists in the event of a collision, implementing
automated emergency response system based the first on GPS the latter on GLONASS positioning system.
When activated, the in-vehicle systems (IVS) automatically initiate an emergency call carrying both voice and data
(including location data) directly to the nearest Public Safety Answering Point (PSAP) to determine whether
rescue services should be dispatched to the known position.
Figure 23: eCall and ERA-GLONASS automated emergency response systems diagram flow
1.13.14 Power saving
The power saving configuration is by default disabled, but it can be enabled using the AT+UPSV command.
When power saving is enabled, the module automatically enters the low power idle-mode whenever possible,
reducing current consumption.
During low power idle-mode, the module is not ready to communicate with an external device by means of the
application interfaces, since it is configured to reduce power consumption. It can be woken up from idle-mode
to active-mode by the connected application processor, by the connected u-blox positioning receiver or by
network activities, as described in the Table 5.
During idle-mode, the module processor core runs with the RTC 32 kHz reference clock, which is generated by:
The internal 32 kHz oscillator, in case of SARA-G350 modules
The 32 kHz signal provided at the EXT32K input pin, in case of SARA-G300 and SARA-G310 modules
SARA-G300 and SARA-G310 need a 32 kHz signal at EXT32K input to reach the low power idle-mode.
For the complete description of the AT+UPSV command, refer to the u-blox AT Commands Manual [2].
For the definition and the description of SARA-G3 series modules operating modes, including the events forcing
transitions between the different operating modes, refer to the chapter 1.4.
For the description of current consumption in idle and active operating modes, refer to chapters 1.5.1.2, 1.5.1.4.
For the description of the UART settings related to module power saving configuration, refer to chapter 1.9.1.4.
For the description of the EXT32K input and relative application circuit design-in, refer to chapters 1.6.4, 2.2.3.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 60 of 145
2 Design-in
For an optimal integration of SARA-G3 modules in the final application board follow the design guidelines stated
in this chapter.
Every application circuit must be properly designed to guarantee the correct functionality of the relative
interface, however a number of points require high attention during the design of the application device.
The following list provides a ranking of importance in the application design, starting from the highest relevance:
1. Module antenna connection: ANT and ANT_DET pins. Antenna circuit directly affects the RF compliance of
the device integrating SARA-G3 module with applicable certification schemes. Very carefully follow the
suggestions provided in the relative chapter 2.3 for schematic and layout design.
2. Module supply: VCC and GND pins. The supply circuit affects the RF compliance of the device integrating
SARA-G3 module with applicable required certification schemes as well as antenna circuit design. Very
carefully follow the suggestions provided in the relative chapter 2.1.1 for schematic and layout design.
3. SIM card interface: VSIM, SIM_CLK, SIM_IO, SIM_RST, SIM_DET pins. Accurate design is required to
guarantee SIM card functionality reducing the risk of RF coupling. Carefully follow the suggestions provided
in the relative chapter 2.4 for schematic and layout design.
4. System functions: RESET_N, PWR_ON pins. Accurate design is required to guarantee that the voltage level
is well defined during operation. Carefully follow the suggestions provided in the relative chapter 2.2 for
schematic and layout design.
5. Analog audio interface: MIC_BIAS, MIC_GND, MIC_P, MIC_N uplink and SPK_P, SPK_N downlink pins.
Accurate design is required to obtain clear and high quality audio reducing the risk of noise from audio lines
due to both supply burst noise coupling and RF detection. Carefully follow the suggestions provided in the
relative chapter 2.6.1 for schematic and layout design.
6. External 32 kHz input: the EXT32K input pin of SARA-G300 and SARA-G310 modules requires accurate
layout design as it may affect the stability of the RTC timing reference. Carefully follow the suggestions
provided in the relative chapter 2.2.3 for schematic and layout design.
7. Other digital interfaces: UART and auxiliary UART interfaces, DDC I2C-compatible interface, digital audio
interface and GPIOs. Accurate design is required to guarantee proper functionality. Follow the suggestions
provided in the relative chapters 2.5.1, 2.5.2, 2.5.3, 2.6.2 and 2.7 for schematic and layout design.
8. Other supplies: the V_BCKP RTC supply input/output and the V_INT digital interfaces supply output.
Accurate design is required to guarantee proper functionality. Follow the suggestions provided in the relative
chapters 2.1.2 and 2.1.3 for schematic and layout design.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 61 of 145
2.1 Supply interfaces
2.1.1 Module supply (VCC)
2.1.1.1 General guidelines for VCC supply circuit selection and design
VCC pins are internally connected, but connect all the available pads to the external supply to minimize the
power loss due to series resistance.
GND pins are internally connected but connect all the available pads to solid ground on the application board,
since a good (low impedance) connection to external ground can minimize power loss and improve RF and
thermal performance.
SARA-G3 modules must be supplied through the VCC pins by a proper DC power supply that should meet the
following prerequisites to comply with the module VCC requirements summarized in Table 6.
The proper DC power supply can be selected according to the application requirements (see Figure 24) between
the different possible supply sources types, which most common ones are the following:
Switching regulator
Low Drop-Out (LDO) linear regulator
Rechargeable Lithium-ion (Li-Ion) or Lithium-ion polymer (Li-Pol) battery
Primary (disposable) battery
Main Supply
Available?
Battery
Li-Ion 3.7 V
Linear LDO
Regulator
Main Supply
Voltage
>5 V?
Switching
Step-Down
Regulator
No, portable device
No, less than 5 V
Yes, greater than 5 V
Yes, always available

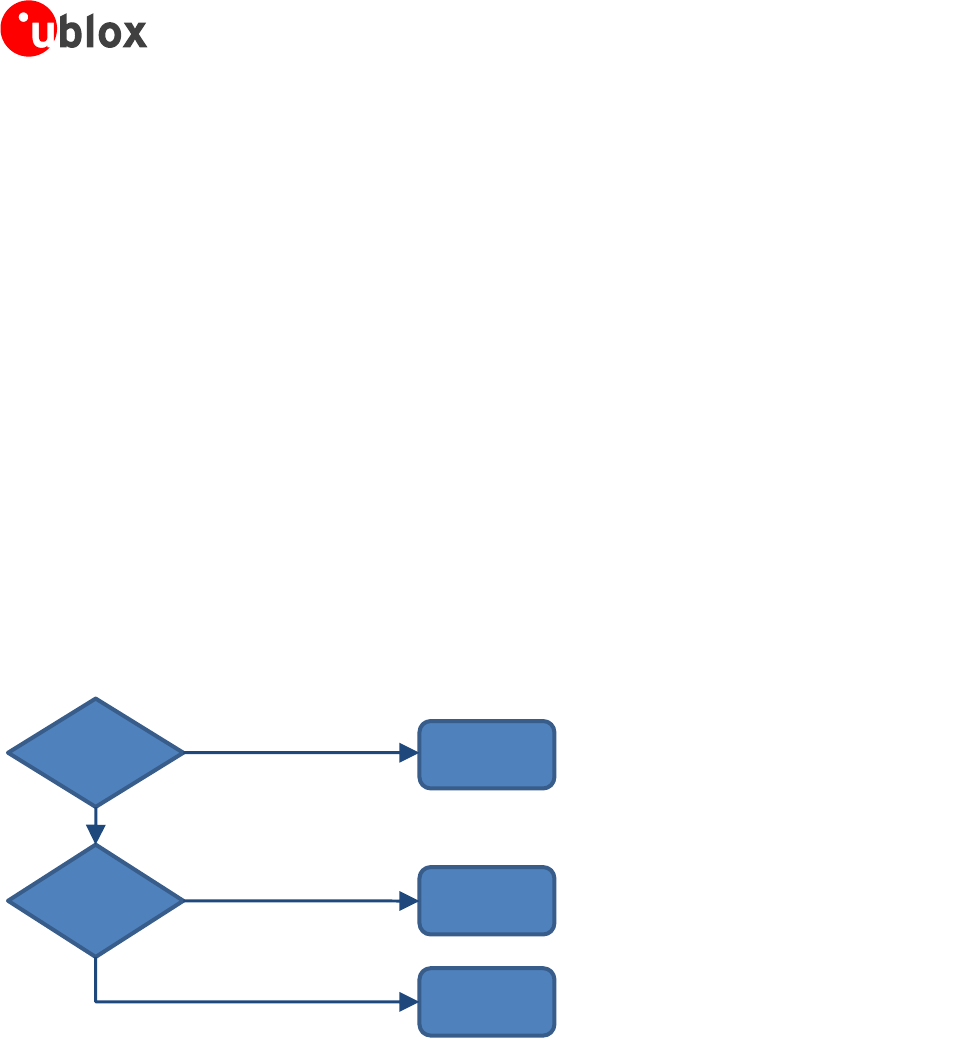

Figure 24: VCC supply concept selection

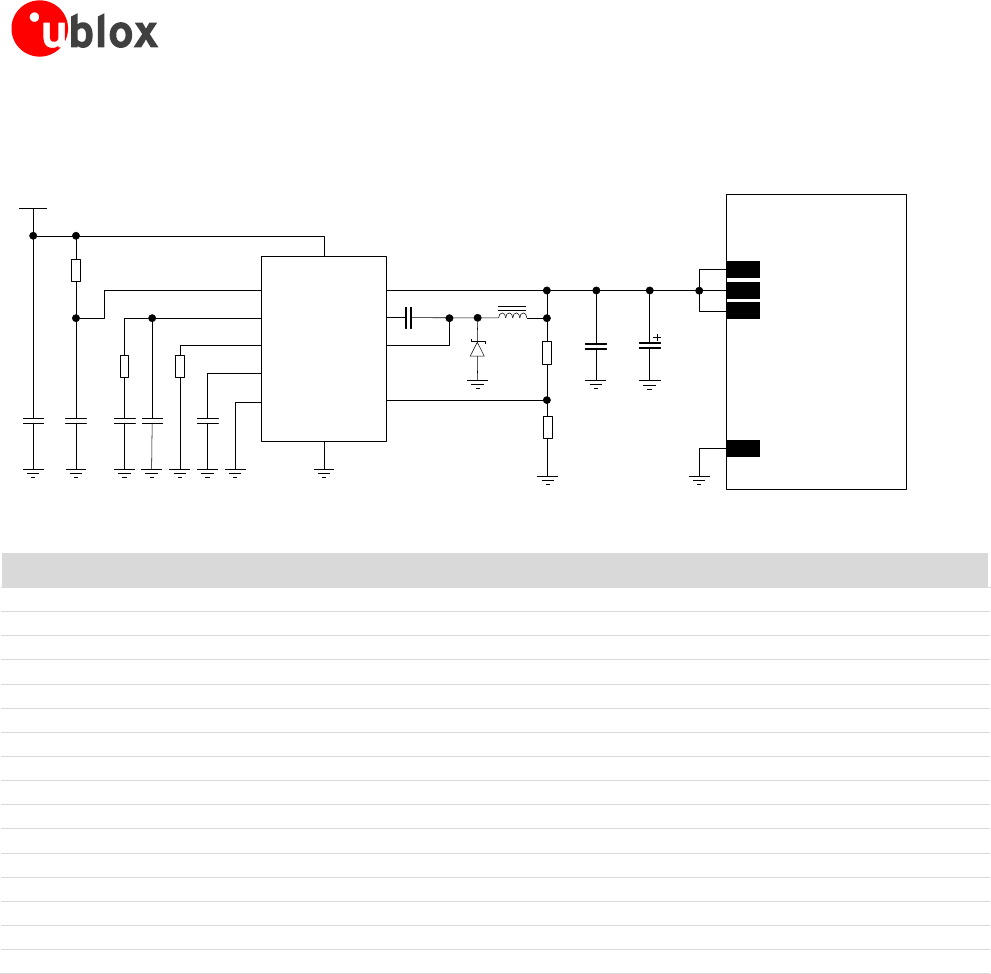

The switching step-down regulator is the typical choice when the available primary supply source has a nominal
voltage much higher (e.g. greater than 5 V) than the SARA-G3 modules operating supply voltage. The use of
switching step-down provides the best power efficiency for the overall application and minimizes current drawn
from the main supply source.
The use of an LDO linear regulator becomes convenient for a primary supply with a relatively low voltage (e.g.
less than 5 V). In this case the typical 90% efficiency of the switching regulator diminishes the benefit of voltage
step-down and no true advantage is gained in input current savings. On the opposite side, linear regulators are
not recommended for high voltage step-down as they dissipate a considerable amount of energy in thermal
power.
If SARA-G3 modules are deployed in a mobile unit where no permanent primary supply source is available, then
a battery will be required to provide VCC. A standard 3-cell Li-Ion or Li-Pol battery pack directly connected to
VCC is the usual choice for battery-powered devices. During charging, batteries with Ni-MH chemistry typically
reach a maximum voltage that is above the maximum rating for VCC, and should therefore be avoided.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 62 of 145
The use of primary (not rechargeable) battery is uncommon, since the most cells available are seldom capable of
delivering the burst peak current for a GSM call due to high internal resistance.
Keep in mind that the use of batteries requires the implementation of a suitable charger circuit (not included in
SARA-G3 modules). The charger circuit should be designed in order to prevent over-voltage on VCC beyond the
upper limit of the absolute maximum rating.
The usage of more than one DC supply at the same time should be carefully evaluated: depending on the supply
source characteristics, different DC supply systems can result as mutually exclusive.
The usage of a regulator or a battery not able to withstand the maximum peak current consumption specified in
the SARA-G3 series Data Sheet [1] is generally not recommended. However, if the selected regulator or battery is
not able to withstand the maximum peak current of the module, it must be able to considerably withstand at
least the maximum average current consumption value specified in the SARA-G3 series Data Sheet [1], and the
additional energy required by the module during a GSM/GPRS Tx slot (when the current consumption can rise up
to 1.9 A in the worst case, as described in section 1.5.1.2) could be provided by a proper bypass tank capacitor
with very large capacitance and very low ESR (depending on the actual capability of the selected regulator or
battery, the required capacitance can be considerably larger than 1 mF) placed close to the module VCC pins.
Carefully evaluate the implementation of this solution since the aging and temperature conditions highly affects
the actual capacitors characteristics.
The following sections highlight some design aspects for each of the supplies listed above providing application
circuit design-in compliant with the module VCC requirements summarized in Table 6.
2.1.1.2 Guidelines for VCC supply circuit design using a switching regulator
The use of a switching regulator is suggested when the difference from the available supply rail to the VCC value
is high: switching regulators provide good efficiency transforming a 12 V or greater voltage supply to the typical
3.8 V value of the VCC supply.
The characteristics of the switching regulator connected to VCC pins should meet the following prerequisites to
comply with the module VCC requirements summarized in Table 6:
Power capability: the switching regulator with its output circuit must be capable of providing a voltage
value to the VCC pins within the specified operating range and must be capable of delivering 1.9 A current
pulses with 1/8 duty cycle to the VCC pins
Low output ripple: the switching regulator together with its output circuit must be capable of providing a
clean (low noise) VCC voltage profile
High switching frequency: for best performance and for smaller applications select a switching frequency
≥ 600 kHz (since L-C output filter is typically smaller for high switching frequency). The use of a switching
regulator with a variable switching frequency or with a switching frequency lower than 600 kHz must be
carefully evaluated since this can produce noise in the VCC voltage profile and therefore negatively impact
GSM modulation spectrum performance. An additional L-C low-pass filter between the switching regulator
output to VCC supply pins can mitigate the ripple on VCC, but adds extra voltage drop due to resistive
losses on series inductors
PWM mode operation: it is preferable to select regulators with Pulse Width Modulation (PWM) mode.
While in connected-mode Pulse Frequency Modulation (PFM) mode and PFM/PWM mode, transitions must
be avoided to reduce the noise on the VCC voltage profile. Switching regulators that are able to switch
between low ripple PWM mode and high efficiency burst or PFM mode can be used, provided the mode
transition occurs when the module changes status from idle/active-mode to connected-mode (where current
consumption increases to a value greater than 100 mA): it is permissible to use a regulator that switches
from the PWM mode to the burst or PFM mode at an appropriate current threshold (e.g. 60 mA)
Output voltage slope: the use of the soft start function provided by some voltage regulators should be
carefully evaluated, since the VCC pins voltage must ramp from 2.5 V to 3.2 V within 4 ms to switch on the
module that otherwise can be switched on by a low level on PWR_ON pin
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 63 of 145
Figure 25 and the components listed in Table 13 show an example of a high reliability power supply circuit,
where the module VCC is supplied by a step-down switching regulator capable of delivering 1.9 A current pulses
with low output ripple and with fixed switching frequency in PWM mode operation greater than 1 MHz.
SARA-G3 series
12V
C5
R3
C4
R2
C2C1
R1
VIN
RUN
VC
RT
PG
SYNC
BD
BOOST
SW
FB
GND
6
7
10
9
5
C6
1
2
3
8
11
4
C7 C8
D1 R4
R5
L1
C3
U1
52 VCC
53 VCC
51 VCC
GND
Figure 25: Suggested schematic design for the VCC voltage supply application circuit using a step-down regulator
Reference
Description
Part Number - Manufacturer
C1
10 µF Capacitor Ceramic X7R 5750 15% 50 V
C5750X7R1H106MB - TDK
C2
10 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C103KA01 - Murata
C3
680 pF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71H681KA01 - Murata
C4
22 pF Capacitor Ceramic C0G 0402 5% 25 V
GRM1555C1H220JZ01 - Murata
C5
10 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C103KA01 - Murata
C6
470 nF Capacitor Ceramic X7R 0603 10% 25 V
GRM188R71E474KA12 - Murata
C7
22 µF Capacitor Ceramic X5R 1210 10% 25 V
GRM32ER61E226KE15 - Murata
C8
330 µF Capacitor Tantalum D_SIZE 6.3 V 45 mΩ
T520D337M006ATE045 - KEMET
D1
Schottky Diode 40 V 3 A
MBRA340T3G - ON Semiconductor
L1
10 µH Inductor 744066100 30% 3.6 A
744066100 - Wurth Electronics
R1
470 kΩ Resistor 0402 5% 0.1 W
2322-705-87474-L - Yageo
R2
15 kΩ Resistor 0402 5% 0.1 W
2322-705-87153-L - Yageo
R3
22 kΩ Resistor 0402 5% 0.1 W
2322-705-87223-L - Yageo
R4
390 kΩ Resistor 0402 1% 0.063 W
RC0402FR-07390KL - Yageo
R5
100 kΩ Resistor 0402 5% 0.1 W
2322-705-70104-L - Yageo
U1
Step-Down Regulator MSOP10 3.5 A 2.4 MHz
LT3972IMSE#PBF - Linear Technology
Table 13: Suggested components for the VCC voltage supply application circuit using a step-down regulator
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 64 of 145
Figure 26 and the components listed in Table 14 show an example of a low cost power supply circuit, where the
VCC module supply is provided by a step-down switching regulator capable of delivering 1.9 A current pulses,
transforming a 12 V supply input.
SARA-G3 series
12V
R5
C6C1
VCC
INH
FSW
SYNC
OUT
GND
2
6
31
7
8
C3
C2
D1 R1
R2
L1
U1
GND
FB
COMP
5
4
R3
C4
R4
C5
52 VCC
53 VCC
51 VCC
Figure 26: Suggested low cost solution for the VCC voltage supply application circuit using step-down regulator
Reference
Description
Part Number - Manufacturer
C1
22 µF Capacitor Ceramic X5R 1210 10% 25 V
GRM32ER61E226KE15 – Murata
C2
100 µF Capacitor Tantalum B_SIZE 20% 6.3V 15m
T520B107M006ATE015 – Kemet
C3
5.6 nF Capacitor Ceramic X7R 0402 10% 50 V
GRM155R71H562KA88 – Murata
C4
6.8 nF Capacitor Ceramic X7R 0402 10% 50 V
GRM155R71H682KA88 – Murata
C5
56 pF Capacitor Ceramic C0G 0402 5% 50 V
GRM1555C1H560JA01 – Murata
C6
220 nF Capacitor Ceramic X7R 0603 10% 25 V
GRM188R71E224KA88 – Murata
D1
Schottky Diode 25V 2 A
STPS2L25 – STMicroelectronics
L1
5.2 µH Inductor 30% 5.28A 22 m
MSS1038-522NL – Coilcraft
R1
4.7 k Resistor 0402 1% 0.063 W
RC0402FR-074K7L – Yageo
R2
910 Resistor 0402 1% 0.063 W
RC0402FR-07910RL – Yageo
R3
82 Resistor 0402 5% 0.063 W
RC0402JR-0782RL – Yageo
R4
8.2 k Resistor 0402 5% 0.063 W
RC0402JR-078K2L – Yageo
R5
39 k Resistor 0402 5% 0.063 W
RC0402JR-0739KL – Yageo
U1
Step-Down Regulator 8-VFQFPN 3 A 1 MHz
L5987TR – ST Microelectronics
Table 14: Suggested components for low cost solution VCC voltage supply application circuit using a step-down regulator
2.1.1.3 Guidelines for VCC supply circuit design using a Low Drop-Out (LDO) linear regulator
The use of a linear regulator is suggested when the difference from the available supply rail and the VCC value is
low: linear regulators provide high efficiency when transforming a 5 V supply to a voltage value within the
module VCC normal operating range.
The characteristics of the LDO linear regulator connected to the VCC pins should meet the following
prerequisites to comply with the module VCC requirements summarized in Table 6:
Power capabilities: the LDO linear regulator with its output circuit must be capable of providing a proper
voltage value to the VCC pins and of delivering 1.9 A current pulses with 1/8 duty cycle
Power dissipation: the power handling capability of the LDO linear regulator must be checked to limit its
junction temperature to the maximum rated operating range (i.e. check the voltage drop from the max input
voltage to the min output voltage to evaluate the power dissipation of the regulator)
Output voltage slope: the use of the soft start function provided by some voltage regulator should be
carefully evaluated, since the VCC pins voltage must ramp from 2.5 V to 3.2 V within 4 ms to switch-on the
module that otherwise can be switched on by a low level on PWR_ON pin
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 65 of 145
Figure 27 and the components listed in Table 15 show an example of a power supply circuit, where the VCC
module supply is provided by an LDO linear regulator capable of delivering 1.9 A current pulses, with proper
power handling capability.
It is recommended to configure the LDO linear regulator to generate a voltage supply value slightly below the
maximum limit of the module VCC normal operating range (e.g. ~4.1 V as in the circuit described in Figure 27
and Table 15). This reduces the power on the linear regulator and improves the thermal design of the supply
circuit.
5V
C1 R1
IN OUT
ADJ
GND
1
24
5
3
C2R2
R3
U1
SHDN
SARA-G3 series
52 VCC
53 VCC
51 VCC
GND
C3
Figure 27: Suggested schematic design for the VCC voltage supply application circuit using an LDO linear regulator
Reference
Description
Part Number - Manufacturer
C1, C2
10 µF Capacitor Ceramic X5R 0603 20% 6.3 V
GRM188R60J106ME47 - Murata
C3
330 µF Capacitor Tantalum D_SIZE 6.3 V 45 mΩ
T520D337M006ATE045 - KEMET
R1
47 kΩ Resistor 0402 5% 0.1 W
RC0402JR-0747KL - Yageo Phycomp
R2
9.1 kΩ Resistor 0402 5% 0.1 W
RC0402JR-079K1L - Yageo Phycomp
R3
3.9 kΩ Resistor 0402 5% 0.1 W
RC0402JR-073K9L - Yageo Phycomp
U1
LDO Linear Regulator ADJ 3.0 A
LT1764AEQ#PBF - Linear Technology
Table 15: Suggested components for VCC voltage supply application circuit using an LDO linear regulator
2.1.1.4 Guidelines for VCC supply circuit design using a rechargeable Li-Ion or Li-Pol battery
Rechargeable Li-Ion or Li-Pol batteries connected to the VCC pins should meet the following prerequisites to
comply with the module VCC requirements summarized in Table 6:
Maximum pulse and DC discharge current: the rechargeable Li-Ion battery with its output circuit must be
capable of delivering 1.9 A current pulses with 1/8 duty-cycle to the VCC pins and must be capable of
delivering a DC current greater than the module maximum average current consumption to VCC pins. The
maximum pulse discharge current and the maximum DC discharge current are not always reported in
battery data sheets, but the maximum DC discharge current is typically almost equal to the battery capacity
in Amp-hours divided by 1 hour
DC series resistance: the rechargeable Li-Ion battery with its output circuit must be capable of avoiding a
VCC voltage drop greater than 400 mV during transmit bursts
2.1.1.5 Guidelines for VCC supply circuit design using a primary (disposable) battery
The characteristics of a primary (non-rechargeable) battery connected to VCC pins should meet the following
prerequisites to comply with the module VCC requirements summarized in Table 6:
Maximum pulse and DC discharge current: the non-rechargeable battery with its output circuit must be
capable of delivering 1.9 A current pulses with 1/8 duty-cycle to the VCC pins and must be capable of
delivering a DC current greater than the module maximum average current consumption at the VCC pins.
The maximum pulse and the maximum DC discharge current is not always reported in battery data sheets,
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 66 of 145
but the maximum DC discharge current is typically almost equal to the battery capacity in Amp-hours
divided by 1 hour
DC series resistance: the non-rechargeable battery with its output circuit must be capable of avoiding a
VCC voltage drop greater than 400 mV during transmit bursts
2.1.1.6 Additional guidelines for VCC supply circuit design
To reduce voltage drops, use a low impedance power source. The resistance of the power supply lines
(connected to the VCC and GND pins of the module) on the application board and battery pack should also be
considered and minimized: cabling and routing must be as short as possible to minimize power losses.
Three pins are allocated for VCC supply. Another twenty pins are designated for GND connection. Even if all the
VCC pins and all the GND pins are internally connected within the module, it is recommended to properly
connect all of them to supply the module to minimize series resistance losses.
To avoid voltage drop undershoot and overshoot at the start and end of a transmit burst during a GSM call
(when current consumption on the VCC supply can rise up to as much as 1.9 A in the worst case), place a bypass
capacitor with large capacitance (more than 100 µF) and low ESR near the VCC pins, for example:
330 µF capacitance, 45 m ESR (e.g. KEMET T520D337M006ATE045, Tantalum Capacitor)
The use of very large capacitors (i.e. greater then 1000 µF) on the VCC line should be carefully evaluated, since
the voltage at the VCC pins must ramp from 2.5 V to 3.2 V within 4 ms to switch on the module that otherwise
can be switched on by a low level on PWR_ON pin.
To reduce voltage ripple and noise, especially if the application device integrates an internal antenna, place the
following bypass capacitors near the VCC pins:
100 nF capacitor (e.g Murata GRM155R61C104K) to filter digital logic noise from clocks and data sources
10 nF capacitor (e.g. Murata GRM155R71C103K) to filter digital logic noise from clocks and data sources
56 pF capacitor with Self-Resonant Frequency in 800/900 MHz range (e.g. Murata GRM1555C1E560J) to
filter transmission EMI in the GSM/EGSM bands
15 pF capacitor with Self-Resonant Frequency in 1800/1900 MHz range (e.g. Murata GRM1555C1E150J) to
filter transmission EMI in the DCS/PCS bands
Figure 28 shows the complete configuration but the mounting of each single component depends on the
application design: it is recommended to provide all the VCC bypass capacitors as described in Figure 28
and Table 16 if the application device integrates an internal antenna.
C4
GND
C3 C2
SARA-G3 series
52
VCC
53
VCC
51
VCC
3V8
C1
+
C5
Figure 28: Suggested schematic and layout design for the VCC bypass capacitors to reduce ripple / noise on VCC voltage profile
and to avoid undershoot / overshoot on VCC voltage drops
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 67 of 145
Reference
Description
Part Number - Manufacturer
C1
330 µF Capacitor Tantalum D_SIZE 6.3 V 45 mΩ
T520D337M006ATE045 - KEMET
C2
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C104KA01 - Murata
C3
10 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C103KA01 - Murata
C4
56 pF Capacitor Ceramic C0G 0402 5% 25 V
GRM1555C1E560JA01 - Murata
C5
15 pF Capacitor Ceramic C0G 0402 5% 25 V
GRM1555C1E150JA01 - Murata
Table 16: Suggested components to reduce ripple / noise on VCC and to avoid undershoot/ overshoot on VCC voltage drops
ESD sensitivity rating of the VCC supply pins is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level can be required if the line is externally accessible on the application board, e.g. if
accessible battery connector is directly connected to VCC pins. Higher protection level can be achieved by
mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.
2.1.1.7 Guidelines for external battery charging circuit
SARA-G3 modules do not have an on-board charging circuit. Figure 29 provides an example of a battery charger
design, suitable for applications that are battery powered with a Li-Ion (or Li-Polymer) cell.
In the application circuit, a rechargeable Li-Ion (or Li-Polymer) battery cell, that features proper pulse and DC
discharge current capabilities and proper DC series resistance, is directly connected to the VCC supply input of
SARA-G3 module. Battery charging is completely managed by the STMicroelectronics L6924U Battery Charger IC
that, from a USB power source (5.0 V typ.), charges as a linear charger the battery, in three phases:
Pre-charge constant current (active when the battery is deeply discharged): the battery is charged with a
low current, set to 10% of the fast-charge current
Fast-charge constant current: the battery is charged with the maximum current, configured by the value
of an external resistor to a value suitable for USB power source (~500 mA)
Constant voltage: when the battery voltage reaches the regulated output voltage (4.2 V), the L6924U
starts to reduce the current until the charge termination is done. The charging process ends when the
charging current reaches the value configured by an external resistor to ~15 mA or when the charging timer
reaches the value configured by an external capacitor to ~9800 s
Using a battery pack with an internal NTC resistor, the L6924U can monitor the battery temperature to protect
the battery from operating under unsafe thermal conditions.
Alternatively the L6924U, providing input voltage range up to 12 V, can charge from an AC wall adapter. When
a current-limited adapter is used, it can operate in quasi-pulse mode, reducing power dissipation.
C5 C8
GND
C7C6 C9
SARA-G3 series
52 VCC
53 VCC
51 VCC
+
USB
Supply
C3 R4
θ
U1
IUSB
IAC
IEND
TPRG
SD
VIN
VINSNS
MODE
ISEL
C2C1
5V0
TH
GND
VOUT
VOSNS
VREF
R1
R2
R3
Li-Ion/Li-Pol
Battery Pack
D1
B1
C4
Li-Ion/Li-Polymer
Battery Charger IC

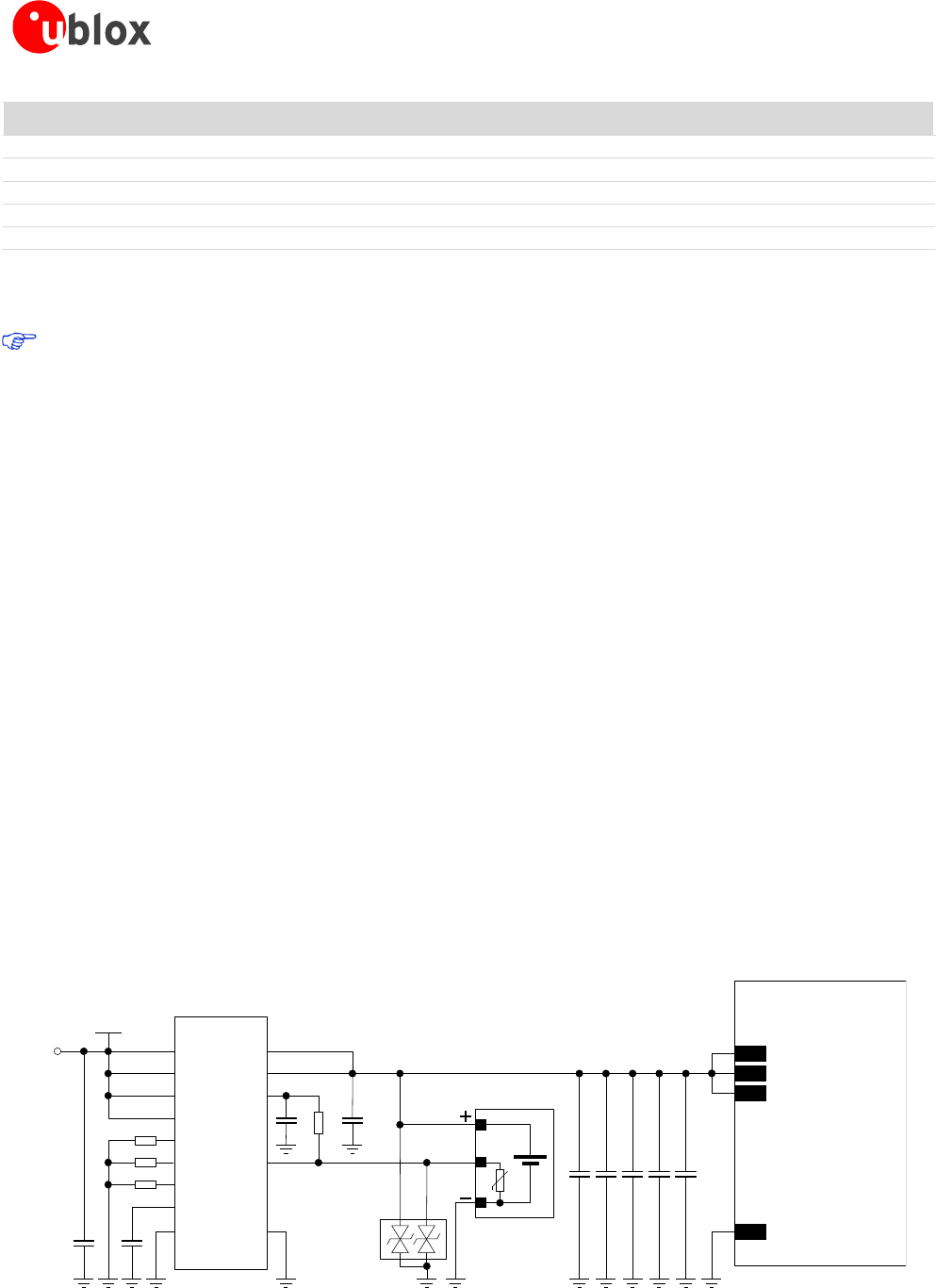

Figure 29: Li-Ion (or Li-Polymer) battery charging application circuit
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 68 of 145
Reference
Description
Part Number - Manufacturer
B1
Li-Ion (or Li-Polymer) battery pack with 470 NTC
Various manufacturer
C1, C4
1 µF Capacitor Ceramic X7R 0603 10% 16 V
GRM188R71C105KA12 - Murata
C2, C6
10 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C103KA01 - Murata
C3
1 nF Capacitor Ceramic X7R 0402 10% 50 V
GRM155R71H102KA01 - Murata
C5
330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m
T520D337M006ATE045 - KEMET
C7
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R61A104KA01 - Murata
C8
56 pF Capacitor Ceramic C0G 0402 5% 25 V
GRM1555C1E560JA01 - Murata
C9
15 pF Capacitor Ceramic C0G 0402 5% 25 V
GRM1555C1E150JA01 - Murata
D1
Low Capacitance ESD Protection
USB0002RP or USB0002DP - AVX
R1, R2
24 k Resistor 0402 5% 0.1 W
RC0402JR-0724KL - Yageo Phycomp
R3
3.3 k Resistor 0402 5% 0.1 W
RC0402JR-073K3L - Yageo Phycomp
R4
1.0 k Resistor 0402 5% 0.1 W
RC0402JR-071K0L - Yageo Phycomp
U1
Single Cell Li-Ion (or Li-Polymer) Battery Charger IC
for USB port and AC Adapter
L6924U - STMicroelectronics
Table 17: Suggested components for Li-Ion (or Li-Polymer) battery charging application circuit
2.1.1.8 Guidelines for VCC supply layout design
Good connection of the module VCC pins with DC supply source is required for correct RF performance.
Guidelines are summarized in the following list:
All the available VCC pins must be connected to the DC source
VCC connection must be as wide as possible and as short as possible
Any series component with Equivalent Series Resistance (ESR) greater than few milliohms must be avoided
VCC connection must be routed through a PCB area separated from sensitive analog signals and sensitive
functional units: it is good practice to interpose at least one layer of PCB ground between VCC track and
other signal routing
Coupling between VCC and audio lines (especially microphone inputs) must be avoided, because the typical
GSM burst has a periodic nature of approx. 217 Hz, which lies in the audible audio range
The tank bypass capacitor with low ESR for current spikes smoothing described in Figure 28 and Table 16
should be placed close to the VCC pins. If the main DC source is a switching DC-DC converter, place the
large capacitor close to the DC-DC output and minimize the VCC track length. Otherwise consider using
separate capacitors for DC-DC converter and SARA-G3 module tank capacitor
The bypass capacitors in the pF range described in Figure 28 and Table 16 should be placed as close as
possible to the VCC pins. This is highly recommended if the application device integrates an internal antenna
Since VCC is directly connected to RF Power Amplifiers, voltage ripple at high frequency may result in
unwanted spurious modulation of transmitter RF signal. This is more likely to happen with switching DC-DC
converters, in which case it is better to select the highest operating frequency for the switcher and add a
large L-C filter before connecting to the SARA-G3 series modules in the worst case
If VCC is protected by transient voltage suppressor to ensure that the voltage maximum ratings are not
exceeded, place the protecting device along the path from the DC source toward the SARA-G3 module,
preferably closer to the DC source (otherwise protection functionality may be compromised)
2.1.1.9 Guidelines for grounding layout design
Good connection of the module GND pins with application board solid ground layer is required for correct RF
performance. It significantly reduces EMC issues and provides a thermal heat sink for the module.
Connect each GND pin with application board solid GND layer. It is strongly recommended that each GND
pad surrounding VCC pins have one or more dedicated via down to the application board solid ground layer
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 69 of 145
The VCC supply current flows back to main DC source through GND as ground current: provide adequate
return path with suitable uninterrupted ground plane to main DC source
If the application board is a multilayer PCB, then it is required to connect together each GND area with
complete via stack down to main board ground layer
It is recommended to implement one layer of the application board as ground plane as wide as possible
Good grounding of GND pads also ensures thermal heat sink. This is critical during call connection, when
the real network commands the module to transmit at maximum power: proper grounding helps prevent
module overheating
2.1.2 RTC supply (V_BCKP)
2.1.2.1 Guidelines for V_BCKP circuit design
If RTC timing is required to run for a time interval of T [s] at 25 °C when VCC supply is removed, place a
capacitor with a nominal capacitance of C [µF] at the V_BCKP pin. Choose the capacitor using the following
formula:
C [µF] = (Current_Consumption [µA] x T [s]) / Voltage_Drop [V]
= 1.5 x T [s]
For example, a 100 µF capacitor (such as the Murata GRM43SR60J107M) can be placed at V_BCKP to provide a
long buffering time. This capacitor holds V_BCKP voltage within its valid range for around 50 s at 25 °C, after
the VCC supply is removed. If a very long buffering time is required, a 70 mF super-capacitor (e.g. Seiko
Instruments XH414H-IV01E) can be placed at V_BCKP, with a 4.7 k series resistor to hold the V_BCKP voltage
within its valid range for approximately 10 hours at 25 °C, after the VCC supply is removed. The purpose of the
series resistor is to limit the capacitor charging current due to the large capacitor specifications, and also to let a
fast rise time of the voltage value at the V_BCKP pin after VCC supply has been provided. These capacitors allow
the time reference to run during battery disconnection.
SARA-G3 series
C1
(a)
2V_BCKP
R2
SARA-G3 series
C2
(superCap)
(b)
2V_BCKP
D3
SARA-G3 series
B3
(c)
2V_BCKP
Figure 30: Real time clock supply (V_BCKP) application circuits: (a) using a 100 µF capacitor to let the RTC run for ~50 s after VCC
removal; (b) using a 70 mF capacitor to let RTC run for ~10 hours after VCC removal; (c) using a non-rechargeable battery
Reference
Description
Part Number - Manufacturer
C1
100 µF Tantalum Capacitor
GRM43SR60J107M - Murata
R2
4.7 kΩ Resistor 0402 5% 0.1 W
RC0402JR-074K7L - Yageo Phycomp
C2
70 mF Capacitor
XH414H-IV01E - Seiko Instruments
Table 18: Example of components for V_BCKP buffering
If longer buffering time is required to allow the RTC time reference to run during a disconnection of the VCC
supply, then an external battery can be connected to V_BCKP pin. The battery should be able to provide a
proper nominal voltage and must never exceed the maximum operating voltage for V_BCKP (specified in the
Input characteristics of Supply/Power pins table in SARA-G3 series Data Sheet [1]). The connection of the battery
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 70 of 145
to V_BCKP should be done with a suitable series resistor for a rechargeable battery, or with an appropriate
series diode for a non-rechargeable battery. The purpose of the series resistor is to limit the battery charging
current due to the battery specifications, and also to allow a fast rise time of the voltage value at the V_BCKP
pin after the VCC supply has been provided. The purpose of the series diode is to avoid a current flow from the
module V_BCKP pin to the non-rechargeable battery.
If the RTC timing is not required when the VCC supply is removed, it is not needed to connect the
V_BCKP pin to an external capacitor or battery. In this case the date and time are not updated when VCC
is disconnected. If VCC is always supplied, then the internal regulator is supplied from the main supply
and there is no need for an external component on V_BCKP.
Combining a SARA-G3 wireless module with a u-blox GPS/GNSS positioning receiver, the positioning receiver
VCC supply is controlled by the wireless module by means of the “GPS supply enable” function provided by the
GPIO2 of the wireless module. In this case the V_BCKP supply output of the SARA-G3 wireless module can be
connected to the V_BCKP backup supply input pin of the GPS/GNSS receiver to provide the supply for the
positioning real time clock and backup RAM when the VCC supply of the wireless module is within its operating
range and the VCC supply of the GPS/GNSS receiver is disabled. This enables the u-blox GPS/GNSS receiver to
recover from a power breakdown with either a hot start or a warm start (depending on the duration of the
positioning VCC outage) and to maintain the configuration settings saved in the backup RAM. Refer to section
2.5.3 for more details regarding the application circuit with a u-blox GPS/GNSS receiver.
On SARA-G300 and SARA-G310 modules, the V_BCKP supply output can be used to supply an external 32 kHz
oscillator which provides a 32 kHz signal to the EXT32K input pin as reference clock for the RTC timing, so that
the modules can enter the low power idle-mode and can make available the RTC functions.
The internal regulator for V_BCKP is optimized for low leakage current and very light loads. Do not apply
loads which might exceed the limit for maximum available current from V_BCKP supply, as this can cause
malfunctions in the module. SARA-G3 series Data Sheet [1] describes the detailed electrical characteristics.
V_BCKP supply output pin provides internal short circuit protection to limit start-up current and protect the
device in short circuit situations. No additional external short circuit protection is required.
ESD sensitivity rating of the V_BCKP supply pin is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level can be required if the line is externally accessible on the application board, e.g. if
an accessible back-up battery connector is directly connected to V_BCKP pin. Higher protection level can
be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to the
accessible point.
2.1.2.2 Guidelines for V_BCKP layout design
RTC supply (V_BCKP) requires careful layout: avoid injecting noise on this voltage domain as it may affect the
stability of the 32 kHz oscillator.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 71 of 145
2.1.3 Interface supply (V_INT)
2.1.3.1 Guidelines for V_INT circuit design
The V_INT digital interfaces 1.8 V supply output can be mainly used to:
Pull-up DDC (I2C) interface signals (see section 2.5.3 for more details)
Pull-up SIM detection signal (see section 2.4 for more details)
Supply voltage translators to connect digital interfaces of the module to a 3.0 V device (see section 2.5.1)
Supply a 1.8 V u-blox 6 or subsequent GPS/GNSS receiver (see section 2.5.3 for more details)
Indicate when the module is switched on
Do not apply loads which might exceed the limit for maximum available current from V_INT supply, as
this can cause malfunctions in internal circuitry supplies to the same domain. SARA-G3 series Data
Sheet [1] describes the detailed electrical characteristics.
V_INT can only be used as an output; do not connect any external regulator on V_INT.
Since the V_INT supply is generated by an internal switching step-down regulator, the V_INT voltage ripple can
range from 15 mVpp during active-mode or connected-mode (when the switching regulator operates in PWM
mode), to 90 mVpp in idle-mode (when the switching regulator operates in PFM mode).
It is not recommended to supply sensitive analog circuitry without adequate filtering for digital noise.
V_INT supply output pin provides internal short circuit protection to limit start-up current and protect the device
in short circuit situations. No additional external short circuit protection is required.
ESD sensitivity rating of the V_INT supply pin is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level could be required if the line is externally accessible on the application board.
Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG
varistor array) close to accessible point.
If the V_INT supply output is not required by the customer application, since DDC (I2C) interface and SIM
detection functions are not used and voltage translation of digital interfaces are not needed, the V_INT
pin can be left unconnected to external components, but it is recommended providing direct access on
the application board by means of accessible testpoint directly connected to the V_INT pin.
2.1.3.2 Guidelines for V_INT layout design
V_INT digital interfaces supply output is generated by an integrated switching step-down converter, used
internally to supply the digital interfaces. Because of this, it can be a source of noise: avoid coupling with
sensitive signals.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 72 of 145
2.2 System functions interfaces
2.2.1 Module power-on (PWR_ON)
2.2.1.1 Guidelines for PWR_ON circuit design
Connecting the PWR_ON input to a push button that shorts the PWR_ON pin to ground, provide an external
pull-up resistor (e.g. 100 kΩ) biased by the V_BCKP supply pin of the module, as described in Figure 31 and
Table 19. Connecting the PWR_ON input to a push button, the pin will be externally accessible on the
application device: according to EMC/ESD requirements of the application, provide an additional ESD protection
(e.g. EPCOS CA05P4S14THSG varistor array) on the line connected to this pin, close to accessible point.
The PWR_ON pin has high input impedance and is weakly pulled to the high level on the module. Avoid
keeping it floating in a noisy environment. To hold the high logic level stable, the PWR_ON pin must be
connected to a pull-up resistor (e.g. 100 kΩ) biased by the V_BCKP supply pin of the module.
ESD sensitivity rating of the PWR_ON pin is 1 kV (Human Body Model according to JESD22-A114). Higher
protection level can be required if the line is externally accessible on the application board, e.g. if an
accessible push button is directly connected to PWR_ON pin. Higher protection level can be achieved by
mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.
Connecting the PWR_ON input to an external device (e.g. application processor), use an open drain output on
the external device with an external pull-up resistor (e.g. 100 kΩ) biased by the V_BCKP supply pin of the
module, as described in Figure 31 and Table 19.
A compatible push-pull output of an application processor can also be used: in this case the pull-up can be
provided to pull the PWR_ON level high when the application processor is switched off. If the high-level voltage
of the push-pull output pin of the application processor is greater than the maximum input voltage operating
range of the V_BCKP pin (refer to SARA-G3 series Data Sheet [1]), the V_BCKP supply cannot be used to bias
the pull-up resistor: the supply rail of the application processor or the module VCC supply could be used, but this
increases the V_BCKP (RTC supply) current consumption when the module is in not-powered mode (VCC supply
not present). Using a push-pull output of the external device, take care to fix the proper level in all the possible
scenarios to avoid an inappropriate module switch-on.
SARA-G3 series
Rext
2V_BCKP
15 PWR_ON
Power-on
push button
ESD
Open
Drain
Output
Application
Processor
SARA-G3 series
Rext
2V_BCKP
15 PWR_ON
TP TP
Figure 31: PWR_ON application circuits using a push button and an open drain output of an application processor
Reference
Description
Remarks
Rext
100 kΩ Resistor 0402 5% 0.1 W
External pull-up resistor
ESD
CT0402S14AHSG - EPCOS
Varistor array for ESD protection
Table 19: Example of pull-up resistor and ESD protection for the PWR_ON application circuit
It is recommended to provide direct access to the PWR_ON pin on the application board by means of
accessible testpoint directly connected to the PWR_ON pin.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 73 of 145
2.2.1.2 Guidelines for PWR_ON layout design
The power-on circuit (PWR_ON) requires careful layout since it is the sensitive input available to switch on the
SARA-G3 modules until a valid VCC supply is provided after that the module has been switched off by means of
the AT+CPWROFF command: ensure that the voltage level is well defined during operation and no transient
noise is coupled on this line, otherwise the module might detect a spurious power-on request.
2.2.2 Module reset (RESET_N)
2.2.2.1 Guidelines for RESET_N circuit design
As described in Figure 13, the module has an internal pull-up resistor on the reset input line: an external pull-up
is not required on the application board.
Connecting the RESET_N input to a push button that shorts the RESET_N pin to ground, the pin will be
externally accessible on the application device: according to EMC/ESD requirements of the application, provide
an additional ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) on the line connected to this pin, close
to accessible point, as described in Figure 32 and Table 20.
ESD sensitivity rating of the RESET_N pin is 1 kV (Human Body Model according to JESD22-A114). Higher
protection level can be required if the line is externally accessible on the application board, e.g. if an
accessible push button is directly connected to RESET_N pin. Higher protection level can be achieved by
mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.
Connecting the RESET_N input to an external device (e.g. application processor), an open drain output can be
directly connected without any external pull-up, as described in Figure 32 and Table 20: the internal pull-up
resistor provided by the module pulls the line to the high logic level when the RESET_N pin is not forced low by
the application processor. A compatible push-pull output of an application processor can be used too.
SARA-G3 series
18 RESET_N
Reset
push button
ESD
Open
Drain
Output
Application
Processor
SARA-G3 series
18 RESET_N
TP TP
Figure 32: RESET_N application circuits using a push button and an open drain output of an application processor
Reference
Description
Remarks
ESD
Varistor for ESD protection
CT0402S14AHSG - EPCOS
Table 20: Example of ESD protection component for the RESET_N application circuit
If the external reset function is not required by the customer application, the RESET_N input pin can be
left unconnected to external components, but it is recommended providing direct access on the
application board by means of accessible testpoint directly connected to the RESET_N pin.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 74 of 145
2.2.2.2 Guidelines for RESET_N layout design
The reset circuit (RESET_N) requires careful layout due to the pin function: ensure that the voltage level is well
defined during operation and no transient noise is coupled on this line, otherwise the module might detect a
spurious reset request. It is recommended to keep the connection line to RESET_N as short as possible.
2.2.3 External 32 kHz signal input (EXT32K)
2.2.3.1 Guidelines for EXT32K circuit design
The application circuit of Figure 33 and Table 21 describe how to provide a 32.768 kHz square wave from an
external oscillator to the EXT32K input pin of SARA-G300 and SARA-G310 modules, as reference clock for the
Real Time Clock timing, so that the modules can enter the low power idle-mode and can provide RTC functions.
As alternative solution, a reference signal with proper frequency and voltage levels can be provided by the used
application processor, if capable, instead of using a dedicated stand-alone oscillator.
SARA-G350 modules do not provide EXT32K input pin since the 32 kHz reference clock for the Real Time Clock
(RTC) timing is generated by the available internal oscillator.
2V_BCKP
GND
SARA-G300
SARA-G310
31 EXT32K
32 kHz Oscillator
GND
CLKOUT
OE
VCC
C1
U1

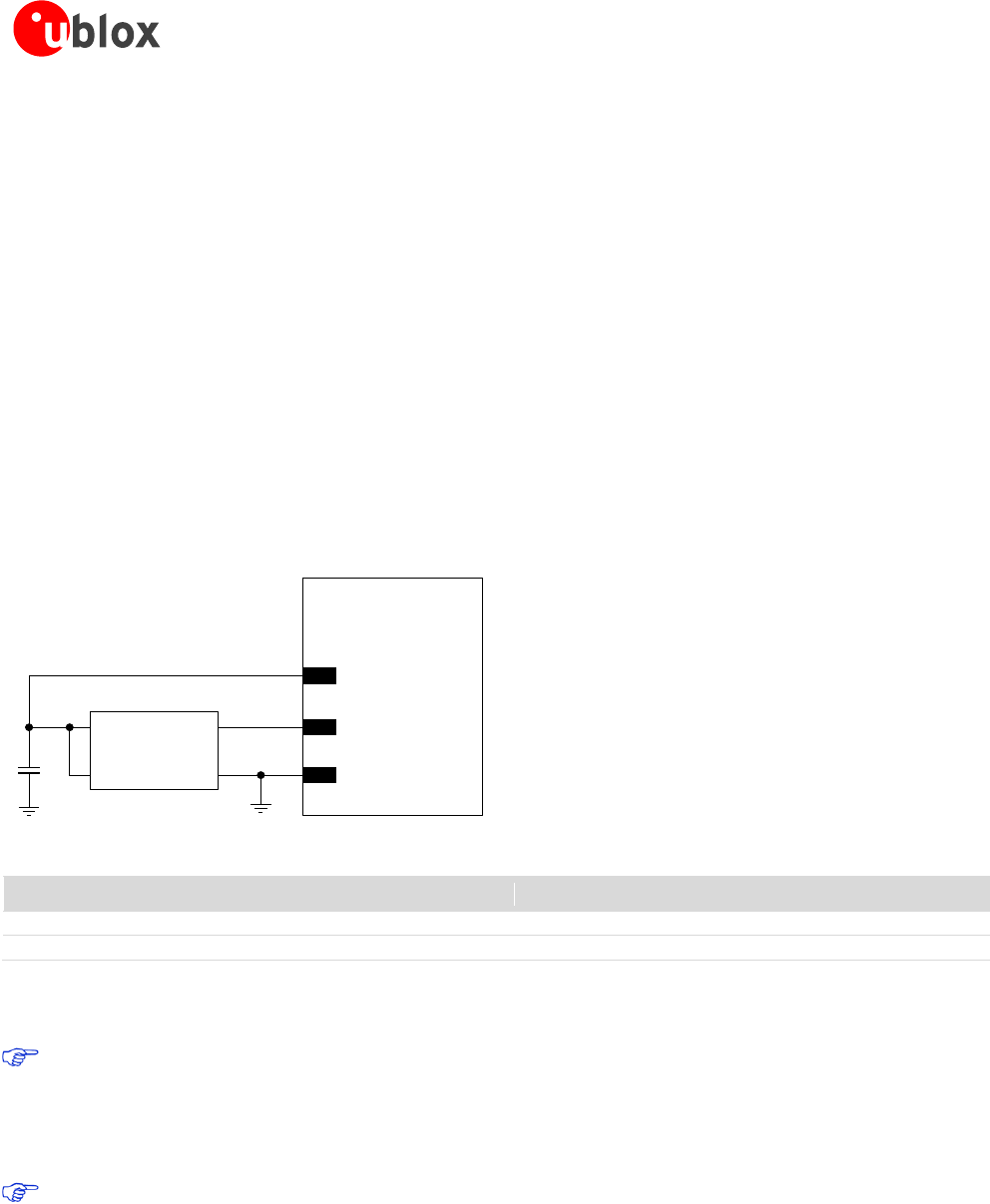

Figure 33: EXT32K application circuit using an external 32 kHz oscillator
Reference
Description
Remarks
C1
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R61A104KA01 - Murata
U1
Low Power Clock Oscillator 32.768 kHz
OV-7604-C7 - Micro Crystal or SG-3040LC - EPSON TOYOCOM
Table 21: Example of components for the EXT32K application circuit
ESD sensitivity rating of the EXT32K input pin is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level can be required if the line is externally accessible on the application board. Higher
protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor
array) close to accessible point.
If the low power idle-mode and the RTC functions are not required by the customer application, the
EXT32K input pin can be left not connected.
2.2.3.2 Guidelines for EXT32K layout design
The external 32 kHz (EXT32K) input pin requires accurate layout design: avoid injecting noise on this pin as it
may affect the stability of the RTC timing reference.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 75 of 145
2.3 Antenna interface
The ANT pin, provided by all SARA-G3 modules, represents the main RF input/output used to transmit and
receive the GSM/GPRS RF signal: the main antenna must be connected to this pad. The ANT pin has a nominal
characteristic impedance of 50 and must be connected to the antenna through a 50 transmission line to
allow transmission and reception of radio frequency (RF) signals in the 2G and 3G operating bands.
2.3.1 Antenna RF interface (ANT)
2.3.1.1 General guidelines for antenna selection and design
The GSM antenna is the most critical component to be evaluated: care must be taken about it at the start of the
design development, when the physical dimensions of the application board are under analysis/decision, since
the RF compliance of the device integrating SARA-G3 module with all the applicable required certification
schemes depends from antenna radiating performance.
GSM antennas are typically available as:
Linear monopole / External antenna:
o External antenna usage basically does not imply physical restriction to the design of the PCB where
the SARA-G3 series module is mounted
o The radiation performance mainly depends on the antenna: select the antenna with optimal
radiating performance in the operating bands
o If antenna detection functionality is required, select an antenna assembly provided with a proper
built-in diagnostic circuit with a resistor connected to ground: refer to guidelines in section 2.3.2
o Select an RF cable with minimum insertion loss: additional insertion loss due to low quality or long
cable reduces radiation performance
o Select a suitable 50 connector providing proper PCB-to-RF-cable transition: it is recommended to
strictly follow the layout guidelines provided by the connector manufacturer
Patch-like antenna / Integrated antenna:
o Internal integrated antenna implies physical restriction to the design of the PCB: the ground plane
can be reduced down to a minimum size that must be similar to the quarter of the wavelength of
the minimum frequency that has to be radiated. As numerical example:
Frequency = 1 GHz Wavelength = 30 cm Minimum GND plane size = 7.5 cm
o The radiation performance depends on the whole PCB and antenna system design, including
product mechanical design and usage: select the antenna with optimal radiating performance in
the operating bands according to the mechanical specifications of the PCB and the whole product
o Select a complete custom antenna designed by an antenna manufacturer if the required ground
plane dimensions are very small (e.g. less than 6.5 cm long and 4 cm wide): the antenna design
process should begin at the start of the whole product design process
o Select an integrated antenna solution provided by an antenna manufacturer if the required ground
plane dimensions are enough large according to the relative integrated antenna solution
specifications: the antenna selection and the definition of its placement in the product layout
should begin at the start of the product design process
o It is highly recommended to strictly follow the detailed and specific guidelines provided by the
antenna manufacturer regarding correct installation and deployment of the antenna system,
including PCB layout and matching circuitry
o Further to the custom PCB and product restrictions, the antenna may require a tuning to comply
with all the applicable required certification schemes: it is recommended to consult the antenna
manufacturer for the design-in guidelines for antenna matching relative to the custom application
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 76 of 145
In both cases, selecting an external or an internal antenna, observe these recommendations:
Select an antenna providing optimal return loss (or V.S.W.R.) figure over all the operating frequencies
Select an antenna providing optimal efficiency figure over all the operating frequencies
Select an antenna providing appropriate gain figure (i.e. combined antenna directivity and efficiency figure)
so that the electromagnetic field radiation intensity do not exceed the regulatory limits specified in some
countries (e.g. by FCC in the United States, as reported in the chapter 4.2.2)
2.3.1.2 Guidelines for antenna RF interface design
Guidelines for ANT pin RF connection design
Proper transition between the ANT pad and the application board PCB must be provided, implementing the
following design-in guidelines for the layout of the application PCB close to the ANT pad:
On a multi layer board, the whole layer stack below the RF connection should be free of digital lines
Increase GND keep-out (i.e. clearance, a void area) around the ANT pad, on the top layer of the application
PCB, to at least 250 µm up to adjacent pads metal definition and up to 400 µm on the area below the
module, to reduce parasitic capacitance to ground, as described in the left picture in Figure 34
Add GND keep-out (i.e. clearance, a void area) on the buried metal layer below the ANT pad if the top-layer
to buried layer dielectric thickness is below 200 µm, to reduce parasitic capacitance to ground, as described
in the right picture in Figure 34
GND clearance on buried layer
below ANT pad
GND
Min.
250 µm
Min. 400 µm
GND clearance on top layer
around ANT pad

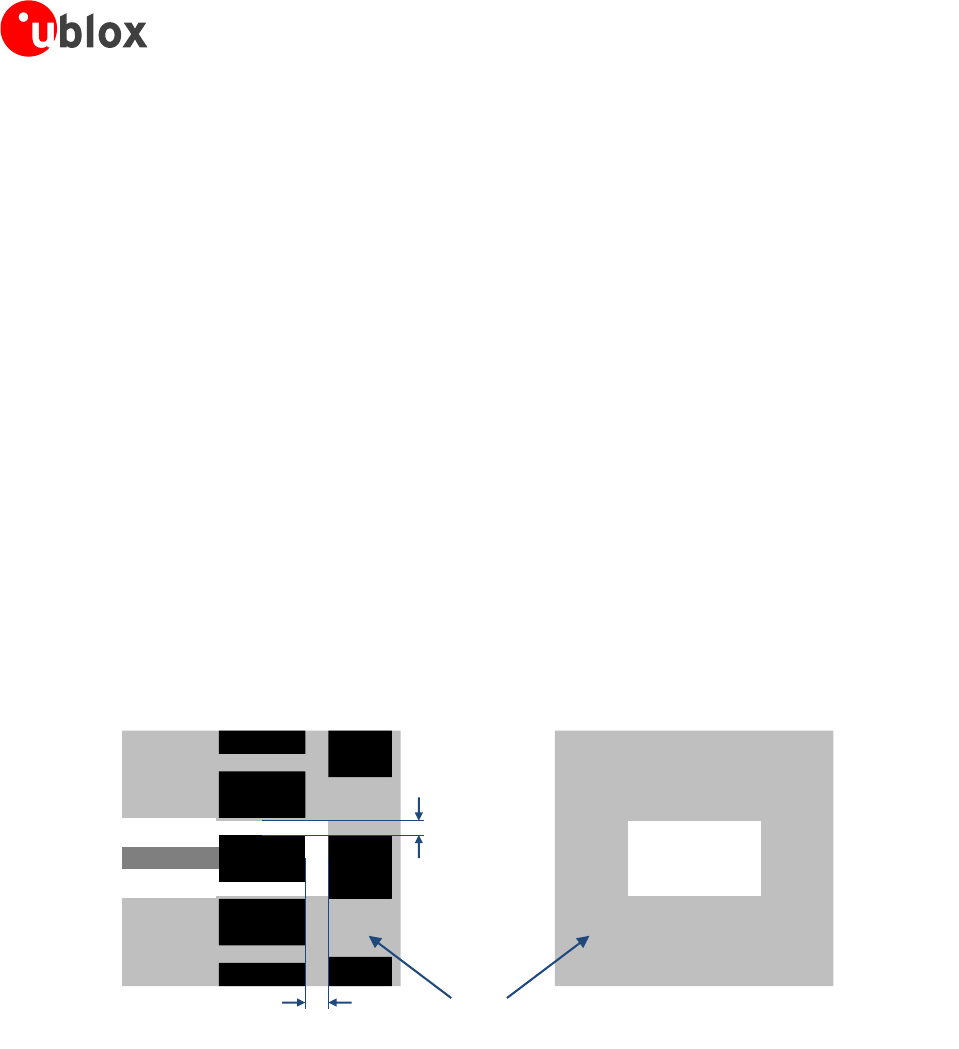

Figure 34: GND keep-out area on the top layer around ANT pad and on the very close buried layer below ANT pad
Guidelines for RF transmission line design
The transmission line from the ANT pad up to antenna connector or up to the internal antenna pad must be
designed so that the characteristic impedance is as close as possible to 50 .
The transmission line can be designed as a micro strip (consists of a conducting strip separated from a ground
plane by a dielectric material) or a strip line (consists of a flat strip of metal which is sandwiched between two
parallel ground planes within a dielectric material). The micro strip, implemented as a coplanar waveguide, is the
most common configuration for printed circuit board.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 77 of 145
Figure 35 and Figure 36 provide two examples of proper 50 coplanar waveguide designs: the first transmission
line can be implemented in case of 4-layer PCB stack-up herein described, the second transmission line can be
implemented in case of 2-layer PCB stack-up herein described.
35 um
35 um
35 um
35 um
270 um
270 um
760 um
L1 Copper
L3 Copper
L2 Copper
L4 Copper
FR-4 dielectric
FR-4 dielectric
FR-4 dielectric
380 um 500 um500 um
Figure 35: Example of 50 coplanar waveguide transmission line design for the described 4-layer board layup
35 um
35 um
1510 um
L2 Copper
L1 Copper
FR-4 dielectric
1200 um 400 um400 um
Figure 36: Example of 50 coplanar waveguide transmission line design for the described 2-layer board layup
If the two examples do not match the application PCB layup, the 50 characteristic impedance calculation can
be made using the HFSS commercial finite element method solver for electromagnetic structures from Ansys
Corporation, or using freeware tools like AppCAD from Agilent or TXLine from Applied Wave Research, taking
care of the approximation formulas used by the tools for the impedance computation.
To achieve a 50 characteristic impedance, the width of the transmission line must be chosen depending on:
the thickness of the transmission line itself (e.g. 35 µm in the example of Figure 35 and Figure 36)
the thickness of the dielectric material between the top layer (where the transmission line is routed) and the
inner closer layer implementing the ground plane (e.g. 270 µm in Figure 35, 1510 µm in Figure 36)
the dielectric constant of the dielectric material (e.g. dielectric constant of the FR-4 dielectric material in
Figure 35 and Figure 36)
the gap from the transmission line to the adjacent ground plane on the same layer of the transmission line
(e.g. 500 µm in Figure 35, 400 µm in Figure 36)
If the distance between the transmission line and the adjacent GND area (on the same layer) does not exceed 5
times the track width of the micro strip, use the “Coplanar Waveguide” model for the 50 calculation.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 78 of 145
Additionally to the 50 impedance, the following guidelines are recommended for the transmission line design:
Minimize the transmission line length: the insertion loss should be minimized as much as possible, in the
order of a few tenths of a dB
Add GND keep-out (i.e. clearance, a void area) on buried metal layers below any pad of component present
on the RF transmission line, if top-layer to buried layer dielectric thickness is below 200 µm, to reduce
parasitic capacitance to ground
The transmission line width and spacing to GND must be uniform and routed as smoothly as possible: avoid
abrupt changes of width and spacing to GND
Add GND vias around transmission line, as described in Figure 37
Ensure solid metal connection of the adjacent metal layer on the PCB stack-up to main ground layer,
providing enough on the adjacent metal layer, as described in Figure 37
Route RF transmission line far from any noise source (as switching supplies and digital lines) and from any
sensitive circuit (as analog audio lines)
Avoid stubs on the transmission line
Avoid signal routing in parallel to transmission line or crossing the transmission line on buried metal layer
Do not route microstrip line below discrete component or other mechanics placed on top layer
An example of proper RF circuit design is reported in the Figure 37. In this case, the antenna detection circuit is
not implemented: the ANT pin is directly connected to an SMA connector by means of a proper 50
transmission line, designed with proper layout.
If the antenna detection function is required by the application, follow the guidelines for circuit and layout
implementation reported in section 2.3.2.
SARA-G3 series
SMA
connector

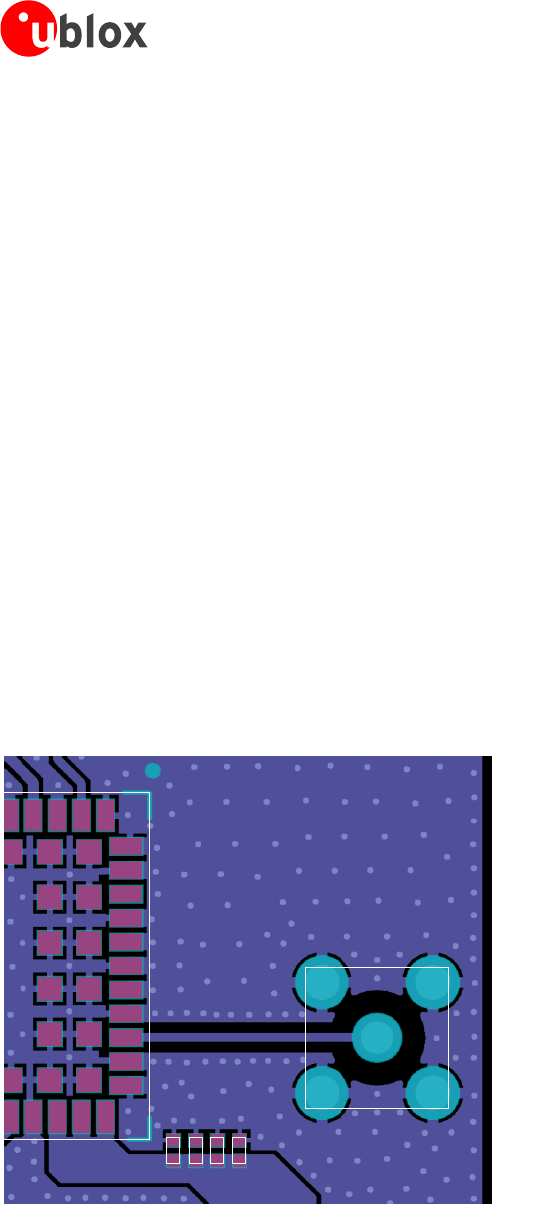

Figure 37: Suggested circuit and layout for antenna RF circuit on application board, if antenna detection is not required
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 79 of 145
Guidelines for RF termination design
The RF termination must provide a characteristic impedance of 50 as well as the RF transmission line up to the
RF termination itself, to match the characteristic impedance of the ANT pin of SARA-G3 modules.
However, real antennas have no perfect 50 load on all the supported frequency bands. Therefore, to reduce
as much as possible performance degradation due to antenna mismatch, the RF termination must provide
optimal return loss (or V.S.W.R.) figure over all the operating frequency bands, as summarized in Table 8.
If an external antenna is used, the antenna connector represents the RF termination on the PCB:
Use a suitable 50 connector providing proper PCB-to-RF-cable transition
Strictly follow the connector manufacturer’s recommended layout, for example:
o SMA Pin-Through-Hole connectors require GND keep-out (i.e. clearance, a void area) on all the
layers around the central pin up to annular pads of the four GND posts, as shown in Figure 37
o U.FL surface mounted connectors require no conductive traces (i.e. clearance, a void area) in the
area below the connector between the GND land pads
Cut out the GND layer under RF connectors and close to buried vias, to remove stray capacitance and thus
keep the RF line 50 : e.g. the active pad of U.FL connectors needs to have a GND keep-out (i.e. clearance,
a void area) at least on first inner layer to reduce parasitic capacitance to ground
If an integrated antenna is used, the RF termination is represented by the integrated antenna itself:
Use an antenna designed by an antenna manufacturer, providing the best possible return loss (or V.S.W.R.)
Provide a ground plane enough large according to the relative integrated antenna requirements: the ground
plane of the application PCB can be reduced down to a minimum size that must be similar to one quarter of
wavelength of the minimum frequency that has to be radiated. As numerical example
Frequency = 1 GHz Wavelength = 30 cm Minimum GND plane size = 7.5 cm
It is highly recommended to strictly follow the detailed and specific guidelines provided by the antenna
manufacturer regarding correct installation and deployment of the antenna system, including PCB layout
and matching circuitry
Further to the custom PCB and product restrictions, the antenna may require a tuning to comply with all the
applicable required certification schemes: it is recommended to consult the antenna manufacturer for the
design-in guidelines for the antenna matching relative to the custom application
Additionally, these recommendations regarding the antenna system placement must be followed:
Do not include antenna within closed metal case
Do not place the antenna in close vicinity to end user since the emitted radiation in human tissue is limited
by regulatory requirements
Place the antenna far from sensitive analog systems or employ countermeasures to reduce electromagnetic
compatibility issues
Take care of interaction between co-located RF systems since the GSM transmitted power may interact or
disturb the performance of companion systems
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 80 of 145
2.3.2 Antenna detection interface (ANT_DET)
2.3.2.1 Guidelines for ANT_DET circuit design
Figure 38 and Table 22 describe the recommended schematic and components for the antenna detection circuit
to be provided on the application board for the diagnostic circuit that must be provided on the antenna
assembly to achieve antenna detection functionality.
Application Board
Antenna Cable
SARA-G350
56
ANT
62
ANT_DET R1
C1 D1
L1
C2 J1
Z0= 50 ohm Z0= 50 ohm Z0= 50 ohm
Antenna Assembly
R2
C3
L2
Radiating
Element
Diagnostic
Circuit
Figure 38: Suggested schematic for antenna detection circuit on application board and diagnostic circuit on antenna assembly
Reference
Description
Part Number - Manufacturer
C1
27 pF Capacitor Ceramic C0G 0402 5% 50 V
GRM1555C1H270J - Murata
C2
33 pF Capacitor Ceramic C0G 0402 5% 50 V
GRM1555C1H330J - Murata
D1
Very Low Capacitance ESD Protection
PESD0402-140 - Tyco Electronics
L1
68 nH Multilayer Inductor 0402 (SRF ~1 GHz)
LQG15HS68NJ02 - Murata
R1
10 k Resistor 0402 1% 0.063 W
RK73H1ETTP1002F - KOA Speer
J1
SMA Connector 50 Through Hole Jack
SMA6251A1-3GT50G-50 - Amphenol
C3
22 pF Capacitor Ceramic C0G 0402 5% 25 V
GRM1555C1H220J - Murata
L2
68 nH Multilayer Inductor 0402 (SRF ~1 GHz)
LQG15HS68NJ02 - Murata
R2
15 k Resistor for Diagnostic
Various Manufacturers
Table 22: Suggested components for antenna detection circuit on application board and diagnostic circuit on antenna assembly
The antenna detection circuit and diagnostic circuit suggested in Figure 38 and Table 22 are here explained:
When antenna detection is forced by the +UANTR AT command, the ANT_DET pin generates a DC current
measuring the resistance (R2) from the antenna connector (J1) provided on the application board to GND
DC blocking capacitors are needed at the ANT pin (C2) and at the antenna radiating element (C3) to
decouple the DC current generated by the ANT_DET pin
Choke inductors with a Self Resonance Frequency (SRF) in the range of 1 GHz are needed in series at the
ANT_DET pin (L1) and in series at the diagnostic resistor (L2), to avoid a reduction of the RF performance of
the system, improving the RF isolation of the load resistor.
Additional components (R1, C1 and D1 in Figure 38) are needed at the ANT_DET pin as ESD protection
The ANT pin must be connected to the antenna connector by means of a transmission line with nominal
characteristics impedance as close as possible to 50
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 81 of 145
The DC impedance at RF port for some antennas may be a DC open (e.g. linear monopole) or a DC short to
reference GND (e.g. PIFA antenna). For those antennas, without the diagnostic circuit of Figure 38, the measured
DC resistance is always at the limits of the measurement range (respectively open or short), and there is no mean
to distinguish between a defect on antenna path with similar characteristics (respectively: removal of linear
antenna or RF cable shorted to GND for PIFA antenna).
Furthermore, any other DC signal injected to the RF connection from ANT connector to radiating element will
alter the measurement and produce invalid results for antenna detection.
It is recommended to use an antenna with a built-in diagnostic resistor in the range from 5 k to 30 k
to assure good antenna detection functionality and avoid a reduction of module RF performance. The
choke inductor should exhibit a parallel Self Resonance Frequency (SRF) in the range of 1 GHz to improve
the RF isolation of load resistor.
For example:
Consider a GSM antenna with built-in DC load resistor of 15 k. Using the +UANTR AT command, the module
reports the resistance value evaluated from the antenna connector provided on the application board to GND:
Reported values close to the used diagnostic resistor nominal value (i.e. values from 13 k to 17 k if a
15 k diagnostic resistor is used) indicate that the antenna is properly connected
Values close to the measurement range maximum limit (approximately 50 k) or an open-circuit
“over range” report (see u-blox AT Commands Manual [2]) means that that the antenna is not connected or
the RF cable is broken
Reported values below the measurement range minimum limit (1 k) highlights a short to GND at antenna
or along the RF cable
Measurement inside the valid measurement range and outside the expected range may indicate an improper
connection, damaged antenna or wrong value of antenna load resistor for diagnostic
Reported value could differ from the real resistance value of the diagnostic resistor mounted inside the
antenna assembly due to antenna cable length, antenna cable capacity and the used measurement method
If the antenna detection function is not required by the customer application, the ANT_DET pin can be
left not connected and the ANT pin can be directly connected to the antenna connector by means of a
50 transmission line as described in Figure 37.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 82 of 145
2.3.2.1 Guidelines for ANT_DET layout design
Figure 39 describes the recommended layout for the antenna detection circuit to be provided on the application
board to achieve antenna detection functionality, implementing the recommended schematic described in Figure
38 and Table 22.
SARA-G350
C2
R1
D1
C1
L1
J1
Figure 39: Suggested layout for antenna detection circuit on application board
The antenna detection circuit layout suggested in Figure 39 is here explained:
The ANT pin is connected to the antenna connector by means of a 50 transmission line, implementing the
design guidelines described in section 2.3.1 and the recommendations of the SMA connector manufacturer
DC blocking capacitor at the ANT pin (C2) is placed in series to the 50 transmission line
The ANT_DET pin is connected to the 50 transmission line by means of a sense line
Choke inductor in series at the ANT_DET pin (L1) is placed so that one pad is on the 50 transmission line
and the other pad represents the start of the sense line to the ANT_DET pin
The additional components (R1, C1 and D1) on the ANT_DET line are placed as ESD protection
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 83 of 145
2.4 SIM interface
2.4.1.1 Guidelines for SIM circuit design
Guidelines for SIM cards, SIM connectors and SIM chips selection
The ISO/IEC 7816, the ETSI TS 102 221 and the ETSI TS 102 671 specifications define the physical, electrical and
functional characteristics of Universal Integrated Circuit Cards (UICC) which contains the Subscriber Identification
Module (SIM) integrated circuit that securely stores all the information needed to identify and authenticate
subscribers over the GSM network.
Removable UICC / SIM card contacts mapping is defined by ISO/IEC 7816 and ETSI TS 102 221as follows:
Contact C1 = VCC (Supply) It must be connected to VSIM
Contact C2 = RST (Reset) It must be connected to SIM_RST
Contact C3 = CLK (Clock) It must be connected to SIM_CLK
Contact C4 = AUX1 (Auxiliary contact) It must be left not connected
Contact C5 = GND (Ground) It must be connected to GND
Contact C6 = VPP (Programming supply) It must be connected to VSIM
Contact C7 = I/O (Data input/output) It must be connected to SIM_IO
Contact C8 = AUX2 (Auxiliary contact) It must be left not connected
A removable SIM card can have 6 contacts (C1 = VCC, C2 = RST, C3 = CLK, C5 = GND, C6 = VPP, C7 = I/O) or
8 contacts, providing also the auxiliary contacts C4 = AUX1 and C8 = AUX2 for USB interfaces and other uses.
Only 6 contacts are required and must be connected to the module SIM card interface as described above, since
SARA-G3 modules do not support the additional auxiliary features (contacts C4 = AUX1 and C8 = AUX2).
Removable SIM card are suitable for applications where the SIM changing is required during the product lifetime.
A SIM card holder can have 6 or 8 positions if a mechanical card presence detector is not provided, or it can
have 6+2 or 8+2 positions if two additional pins relative to the normally-open mechanical switch integrated in
the SIM connector for the mechanical card presence detection are provided: select a SIM connector providing
6+2 or 8+2 positions if the optional SIM detection feature is required by the custom application, otherwise a
connector without integrated mechanical presence switch can be selected.
Solderable UICC / SIM chip contacts mapping (M2M UICC Form Factor) is defined by ETSI TS 102 671 as follows:
Package Pin 8 = UICC Contact C1 = VCC (Supply) It must be connected to VSIM
Package Pin 7 = UICC Contact C2 = RST (Reset) It must be connected to SIM_RST
Package Pin 6 = UICC Contact C3 = CLK (Clock) It must be connected to SIM_CLK
Package Pin 5 = UICC Contact C4 = AUX1 (Auxiliary contact) It must be left not connected
Package Pin 1 = UICC Contact C5 = GND (Ground) It must be connected to GND
Package Pin 2 = UICC Contact C6 = VPP (Programming supply) It must be connected to VSIM
Package Pin 3 = UICC Contact C7 = I/O (Data input/output) It must be connected to SIM_IO
Package Pin 4 = UICC Contact C8 = AUX2 (Auxiliary contact) It must be left not connected
A solderable SIM chip has 8 contacts and can provide also the auxiliary contacts C4 = AUX1 and C8 = AUX2 for
USB interfaces and other uses, but only 6 contacts are required and must be connected to the module SIM card
interface as described above, since SARA-G3 modules do not support the additional auxiliary features (contacts
C4 = AUX1 and C8 = AUX2).
Solderable SIM chips are suitable for M2M applications where it is not required to change the SIM once installed.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 84 of 145
Guidelines for single SIM card connection without detection
A removable SIM card placed in a SIM card holder must be connected the SIM card interface of SARA-G3
modules as described in Figure 40, where the optional SIM detection feature is not implemented (refer to the
circuit described in Figure 42 if the SIM detection feature is not required).
Follow these guidelines connecting the module to a SIM connector without SIM presence detection:
Connect the UICC / SIM contacts C1 (VCC) and C6 (VPP) to the VSIM pin of the module
Connect the UICC / SIM contact C7 (I/O) to the SIM_IO pin of the module
Connect the UICC / SIM contact C3 (CLK) to the SIM_CLK pin of the module
Connect the UICC / SIM contact C2 (RST) to the SIM_RST pin of the module
Connect the UICC / SIM contact C5 (GND) to ground
Provide a 100 nF bypass capacitor (e.g. Murata GRM155R71C104K) at the SIM supply line (VSIM), close to
the relative pad of the SIM connector, to prevent digital noise
Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line
(VSIM, SIM_CLK, SIM_IO, SIM_RST), very close to each relative pad of the SIM connector, to prevent RF
coupling especially in case the RF antenna is placed closer than 10 - 30 cm from the SIM card holder
Provide a very low capacitance (i.e. less than 10 pF) ESD protection (e.g. Tyco Electronics PESD0402-140) on
each externally accessible SIM line, close to each relative pad of the SIM connector: ESD sensitivity rating of
the SIM interface pins is 1 kV (Human Body Model according to JESD22-A114), so that, according to the
EMC/ESD requirements of the custom application, higher protection level can be required if the lines are
externally accessible on the application device
Limit capacitance and series resistance on each SIM signal (SIM_CLK, SIM_IO, SIM_RST) to match the
requirements for the SIM interface (27.7 ns is the maximum allowed rise time on the SIM_CLK line, 1.0 µs is
the maximum allowed rise time on the SIM_IO and SIM_RST lines)
SARA-G3 series
41
VSIM
39
SIM_IO
38
SIM_CLK
40
SIM_RST
4
V_INT
42
SIM_DET
SIM CARD
HOLDER
C
5
C
6
C
7
C
1
C
2
C
3
SIM Card
Bottom View
(contacts side)
C1
VPP (C6)
VCC (C1)
IO (C7)
CLK (C3)
RST (C2)
GND (C5)
C2 C3 C5
J1
C4 D1 D2 D3 D4
C
8
C
4
TP
Figure 40: Application circuit for the connection to a single removable SIM card, with SIM detection not implemented
Reference
Description
Part Number - Manufacturer
C1, C2, C3, C4
47 pF Capacitor Ceramic C0G 0402 5% 50 V
GRM1555C1H470JA01 - Murata
C5
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C104KA01 - Murata
D1, D2, D3, D4
Very Low Capacitance ESD Protection
PESD0402-140 - Tyco Electronics
J1
SIM Card Holder
6 positions, without card presence switch
Various Manufacturers,
C707 10M006 136 2 - Amphenol
Table 23: Example of components for the connection to a single removable SIM card, with SIM detection not implemented
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 85 of 145
Guidelines for single SIM chip connection
A solderable SIM chip (M2M UICC Form Factor) must be connected the SIM card interface of SARA-G3 modules
as described in Figure 41, where the optional SIM detection feature is not implemented (refer to the circuit
described in Figure 42 if the SIM detection feature is not required).
Follow these guidelines connecting the module to a solderable SIM chip without SIM presence detection:
Connect the UICC / SIM contacts C1 (VCC) and C6 (VPP) to the VSIM pin of the module
Connect the UICC / SIM contact C7 (I/O) to the SIM_IO pin of the module
Connect the UICC / SIM contact C3 (CLK) to the SIM_CLK pin of the module
Connect the UICC / SIM contact C2 (RST) to the SIM_RST pin of the module
Connect the UICC / SIM contact C5 (GND) to ground
Provide a 100 nF bypass capacitor (e.g. Murata GRM155R71C104K) at the SIM supply line (VSIM) close to
the relative pad of the SIM chip, to prevent digital noise
Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line
(VSIM, SIM_CLK, SIM_IO, SIM_RST), to prevent RF coupling especially in case the RF antenna is placed
closer than 10 - 30 cm from the SIM card holder
Limit capacitance and series resistance on each SIM signal (SIM_CLK, SIM_IO, SIM_RST) to match the
requirements for the SIM interface (27.7 ns is the maximum allowed rise time on the SIM_CLK line, 1.0 µs is
the maximum allowed rise time on the SIM_IO and SIM_RST lines)
SARA-G3 series
41
VSIM
39
SIM_IO
38
SIM_CLK
40
SIM_RST
4
V_INT
42
SIM_DET SIM CHIP
SIM Chip
Bottom View
(contacts side)
C1
VPP (C6)
VCC (C1)
IO (C7)
CLK (C3)
RST (C2)
GND (C5)
C2 C3 C5
U1
C4
2
8
3
6
7
1
C1 C5
C2 C6
C3 C7
C4 C8
8
7
6
5
1
2
3
4
TP
Figure 41: Application circuit for the connection to a single solderable SIM chip, with SIM detection not implemented
Reference
Description
Part Number - Manufacturer
C1, C2, C3, C4
47 pF Capacitor Ceramic C0G 0402 5% 50 V
GRM1555C1H470JA01 - Murata
C5
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C104KA01 - Murata
U1
SIM chip (M2M UICC Form Factor)
Various Manufacturers
Table 24: Example of components for the connection to a single solderable SIM chip, with SIM detection not implemented
Guidelines for single SIM card connection with detection
A removable SIM card placed in a SIM card holder must be connected to the SIM card interface of SARA-G3
modules as described in Figure 42, where the optional SIM card detection feature is implemented.
Follow these guidelines connecting the module to a SIM connector implementing SIM presence detection:
Connect the UICC / SIM contacts C1 (VCC) and C6 (VPP) to the VSIM pin of the module
Connect the UICC / SIM contact C7 (I/O) to the SIM_IO pin of the module
Connect the UICC / SIM contact C3 (CLK) to the SIM_CLK pin of the module
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 86 of 145
Connect the UICC / SIM contact C2 (RST) to the SIM_RST pin of the module
Connect the UICC / SIM contact C5 (GND) to ground
Connect one pin of the mechanical switch integrated in the SIM connector (e.g. the SW2 pin as described in
Figure 42) to the SIM_DET input pin of the module
Connect the other pin of the mechanical switch integrated in the SIM connector (e.g. the SW1 pin as
described in Figure 42) to the V_INT 1.8 V supply output of the module by means of a strong (e.g. 1 k)
pull-up resistor, as the R1 resistor in Figure 42
Provide a weak (e.g. 470 k) pull-down resistor at the SIM detection line, as the R2 resistor in Figure 42
Provide a 100 nF bypass capacitor (e.g. Murata GRM155R71C104K) at the SIM supply line (VSIM), close to
the relative pad of the SIM connector, to prevent digital noise
Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line
(VSIM, SIM_CLK, SIM_IO, SIM_RST), very close to each relative pad of the SIM connector, to prevent RF
coupling especially in case the RF antenna is placed closer than 10 - 30 cm from the SIM card holder
Provide a very low capacitance (i.e. less than 10 pF) ESD protection (e.g. Tyco Electronics PESD0402-140) on
each externally accessible SIM line, close to each relative pad of the SIM connector: ESD sensitivity rating of
the SIM interface pins is 1 kV (Human Body Model according to JESD22-A114), so that, according to the
EMC/ESD requirements of the custom application, higher protection level can be required if the lines are
externally accessible on the application device
Limit capacitance and series resistance on each SIM signal (SIM_CLK, SIM_IO, SIM_RST) to match the
requirements for the SIM interface (27.7 ns is the maximum allowed rise time on the SIM_CLK line, 1.0 µs is
the maximum allowed rise time on the SIM_IO and SIM_RST lines)
SARA-G3 series
41
VSIM
39
SIM_IO
38
SIM_CLK
40
SIM_RST
4
V_INT
42
SIM_DET
SIM CARD
HOLDER
C
5
C
6
C
7
C
1
C
2
C
3
SIM Card
Bottom View
(contacts side)
C1
VPP (C6)
VCC (C1)
IO (C7)
CLK (C3)
RST (C2)
GND (C5)
C2 C3 C5
J1
C4
SW1
SW2
D1 D2 D3 D4 D5 D6
R2
R1
C
8
C
4
TP
Figure 42: Application circuit for the connection to a single removable SIM card, with SIM detection implemented
Reference
Description
Part Number - Manufacturer
C1, C2, C3, C4
47 pF Capacitor Ceramic C0G 0402 5% 50 V
GRM1555C1H470JA01 - Murata
C5
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C104KA01 - Murata
D1, D2, D3,
D4, D5, D6
Very Low Capacitance ESD Protection
PESD0402-140 - Tyco Electronics
R1
1 k Resistor 0402 5% 0.1 W
RC0402JR-071KL - Yageo Phycomp
R2
470 k Resistor 0402 5% 0.1 W
RC0402JR-07470KL- Yageo Phycomp
J1
SIM Card Holder
6 + 2 positions, with card presence switch
Various Manufacturers,
CCM03-3013LFT R102 - C&K Components
Table 25: Example of components for the connection to a single removable SIM card, with SIM detection implemented
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 87 of 145
Guidelines for dual SIM card connection with detection
Two removable SIM card placed in two different SIM card holders must be connected to the SIM card interface
of SARA-G3 modules as described in Figure 43, providing also the SIM card detection feature.
SARA-G3 modules do not support the usage of two SIM at the same time, but two SIM can be populated on the
application board providing a proper switch to connect only the first or only the second SIM per time to the SIM
card interface of the SARA-G3 modules as described in Figure 43.
SARA-G3 modules do not support SIM hot insertion / removal: the module is able to properly use a SIM only if
the SIM / module physical connection is provided before the module boot and then held for normal operation.
Switching from one SIM to another one can only be properly done within one of these two time periods:
after module switch-off by the AT+CPWROFF and before module switch-on by PWR_ON
after network deregistration by AT+COPS=2 and before module reset by AT+CFUN=16 or RESET_N
In the application circuit represented in Figure 43, the application processor must drive the SIM switch using its
own GPIO before the module boot, to properly select the SIM that is used after the module boot.
If the SIM detection feature is not required by the custom application, the relative detection circuit described in
Figure 43 can be not implemented in the dual SIM connection circuit, leaving SIM_DET pin not connected.
The dual SIM connection circuit described in Figure 43 can be implemented for SIM chips as well, providing
proper connection between SIM switch and SIM chip as described in Figure 41.
If it is required to switch between more than two SIM, a circuit similar to the one described in Figure 43 can be
implemented: for example, in case of four SIM circuit, using proper four-throw switches instead of the suggested
double-throw switches.
Follow these guidelines connecting the module to two SIM connectors implementing SIM presence detection:
Connect the contacts C1 (VCC) and C6 (VPP) of the two UICC / SIM to the VSIM pin of the module by
means of a proper low on resistance (i.e. few ohms) and low on capacitance (i.e. few pF) double-throw
analog switch (e.g. Fairchild FSA2567) to ensure high-speed data transfer according to SIM requirements
Connect the contact C7 (I/O) of the two UICC / SIM to the SIM_IO pin of the module by means of a proper
low on resistance (i.e. few ohms) and low on capacitance (i.e. few pF) double-throw analog switch (e.g.
Fairchild FSA2567) to ensure high-speed data transfer according to SIM requirements
Connect the contact C3 (CLK) of the two UICC / SIM to the SIM_CLK pin of the module by means of a
proper low on resistance (i.e. few ohms) and low on capacitance (i.e. few pF) double-throw analog switch
(e.g. Fairchild FSA2567) to ensure high-speed data transfer according to SIM requirements
Connect the contact C2 (RST) of the two UICC / SIM to the SIM_RST pin of the module by means of a
proper low on resistance (i.e. few ohms) and low on capacitance (i.e. few pF) double-throw analog switch
(e.g. Fairchild FSA2567) to ensure high-speed data transfer according to SIM requirements
Connect the contact C5 (GND) of the two UICC / SIM to ground
Connect one pin of the mechanical switch integrated in the two SIM connectors (e.g. the SW2 pins as
described in Figure 43) to the SIM_DET input pin of the module by means of a proper double-throw digital
switch (e.g. NXP 74LVC1G157)
Connect the other pin of the mechanical switch integrated in the two SIM connectors (e.g. the SW1 pins as
described in Figure 43) to the V_INT 1.8 V supply output of the module by means of a strong (e.g. 1 k)
pull-up resistor, as the R1 and R3 resistors in Figure 43
Provide a weak (e.g. 470 k) pull-down resistor at the SIM detection line, between the double-throw digital
switch and the relative SIM connector as the R2 and R4 resistors in Figure 43
Provide a 100 nF bypass capacitor (e.g. Murata GRM155R71C104K) at the SIM supply line (VSIM), close to
the relative pad of the two SIM connectors, to prevent digital noise
Provide a bypass capacitor of about 22 pF to 47 pF (e.g. Murata GRM1555C1H470J) on each SIM line
(VSIM, SIM_CLK, SIM_IO, SIM_RST), very close to each relative pad of the two SIM connectors, to prevent
RF coupling especially in case the RF antenna is placed closer than 10 - 30 cm from the SIM card holders
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 88 of 145
Provide a very low capacitance (i.e. less than 10 pF) ESD protection (e.g. Tyco Electronics PESD0402-140) on
each externally accessible SIM line, close to each relative pad of the two SIM connectors, according to the
EMC/ESD requirements of the custom application
Limit capacitance and series resistance on each SIM signal (SIM_CLK, SIM_IO, SIM_RST) to match the
requirements for the SIM interface (27.7 ns is the maximum allowed rise time on the SIM_CLK line, 1.0 µs is
the maximum allowed rise time on the SIM_IO and SIM_RST lines)
SARA-G3 series
C1
FIRST
SIM CARD
HOLDER
VPP (C6)
VCC (C1)
IO (C7)
CLK (C3)
RST (C2)
GND (C5)
C2 C3 C5
J1
C4
SW1
SW2
D1 D2 D3 D4 D5 D6
GND
U1
41
VSIM VSIM 1VSIM
2VSIM
VCC
C11
4PDT
Analog
Switch
3V8
39
SIM_IO DAT 1DAT
2DAT
38
SIM_CLK CLK 1CLK
2CLK
40
SIM_RST RST 1RST
2RST
SEL
Y
GND
U2
I0
I1
VCC
SPDT
Digital
Switch
S
42
SIM_DET
4
V_INT
C12
R4
R3
SECOND
SIM CARD
HOLDER
VPP (C6)
VCC (C1)
IO (C7)
CLK (C3)
RST (C2)
GND (C5)
J2
SW1
SW2
C6 C7 C8 C10
C9 D7 D8 D9 D10 D11 D12
R2
R1
Application
Processor
GPIO
R5
TP
Figure 43: Application circuit for the connection to two removable SIM cards, with SIM detection implemented
Reference
Description
Part Number - Manufacturer
C1 – C4, C6 – C9
33 pF Capacitor Ceramic C0G 0402 5% 25 V
GRM1555C1H330JZ01 - Murata
C5, C10 – C12
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C104KA01 - Murata
D1 – D12
Very Low Capacitance ESD Protection
PESD0402-140 - Tyco Electronics
R1, R3
1 kΩ Resistor 0402 5% 0.1 W
RC0402JR-071KL - Yageo Phycomp
R2, R4
470 kΩ Resistor 0402 5% 0.1 W
RC0402JR-07470KL- Yageo Phycomp
R5
47 kΩ Resistor 0402 5% 0.1 W
RC0402JR-0747KL- Yageo Phycomp
J1, J2
SIM Card Holder, 6 + 2 p., with card presence switch
CCM03-3013LFT R102 - C&K Components
U1
4PDT Analog Switch,
with Low On-Capacitance and Low On-Resistance
FSA2567 - Fairchild Semiconductor
U2
Single 2-Input Digital Multiplexer
74LVC1G157 - NXP Semiconductors
Table 26: Example of components for the connection to two removable SIM cards, with SIM detection implemented
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 89 of 145
2.4.1.2 Guidelines for SIM layout design
The layout of the SIM card interface lines (VSIM, SIM_CLK, SIM_IO, SIM_RST) may be critical if the SIM card is
placed far away from the SARA-G3 series modules or in close proximity to the RF antenna: these two cases
should be avoided or at least mitigated as described below.
In the first case, the long connection can cause the radiation of some harmonics of the digital data frequency as
any other digital interface: keep the traces short and avoid coupling with RF line or sensitive analog inputs.
In the second case, the same harmonics can be picked up and create self-interference that can reduce the
sensitivity of GSM receiver channels whose carrier frequency is coincidental with harmonic frequencies: placing
the RF bypass capacitors suggested in Figure 42 near the SIM connector will mitigate the problem.
In addition, since the SIM card is typically accessed by the end user, it can be subjected to ESD discharges: add
adequate ESD protection as suggested in Figure 42 to protect module SIM pins near the SIM connector.
Limit capacitance and series resistance on each SIM signal to match the SIM specifications: the connections
should always be kept as short as possible.
Avoid coupling with any sensitive analog circuit, since the SIM signals can cause the radiation of some harmonics
of the digital data frequency
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 90 of 145
2.5 Serial interfaces
2.5.1 Asynchronous serial interface (UART)
2.5.1.1 Guidelines for UART circuit design
Providing the full RS-232 functionality (using the complete V.24 link)
If RS-232 compatible signal levels are needed, two different external voltage translators (e.g. Maxim MAX3237E
and Texas Instruments SN74AVC8T245PW) can be used to provide full RS-232 (9 lines) functionality. The Texas
Instruments chip provides the translation from 1.8 V to 3.3 V, while the Maxim chip provides the translation
from 3.3 V to RS-232 compatible signal level.
If a 1.8V application processor is used, for complete RS-232 functionality conforming to ITU Recommendation [9]
in DTE/DCE serial communication, the complete UART interface of the module (DCE) must be connected to a
1.8 V application processor (DTE) as described in Figure 44.
TxD
Application Processor
(1.8V DTE)
RxD
RTS
CTS
DTR
DSR
RI
DCD
GND
SARA-G3 series
(1.8V DCE)
12 TXD
9DTR
13 RXD
10 RTS
11 CTS
6DSR
7RI
8DCD
GND

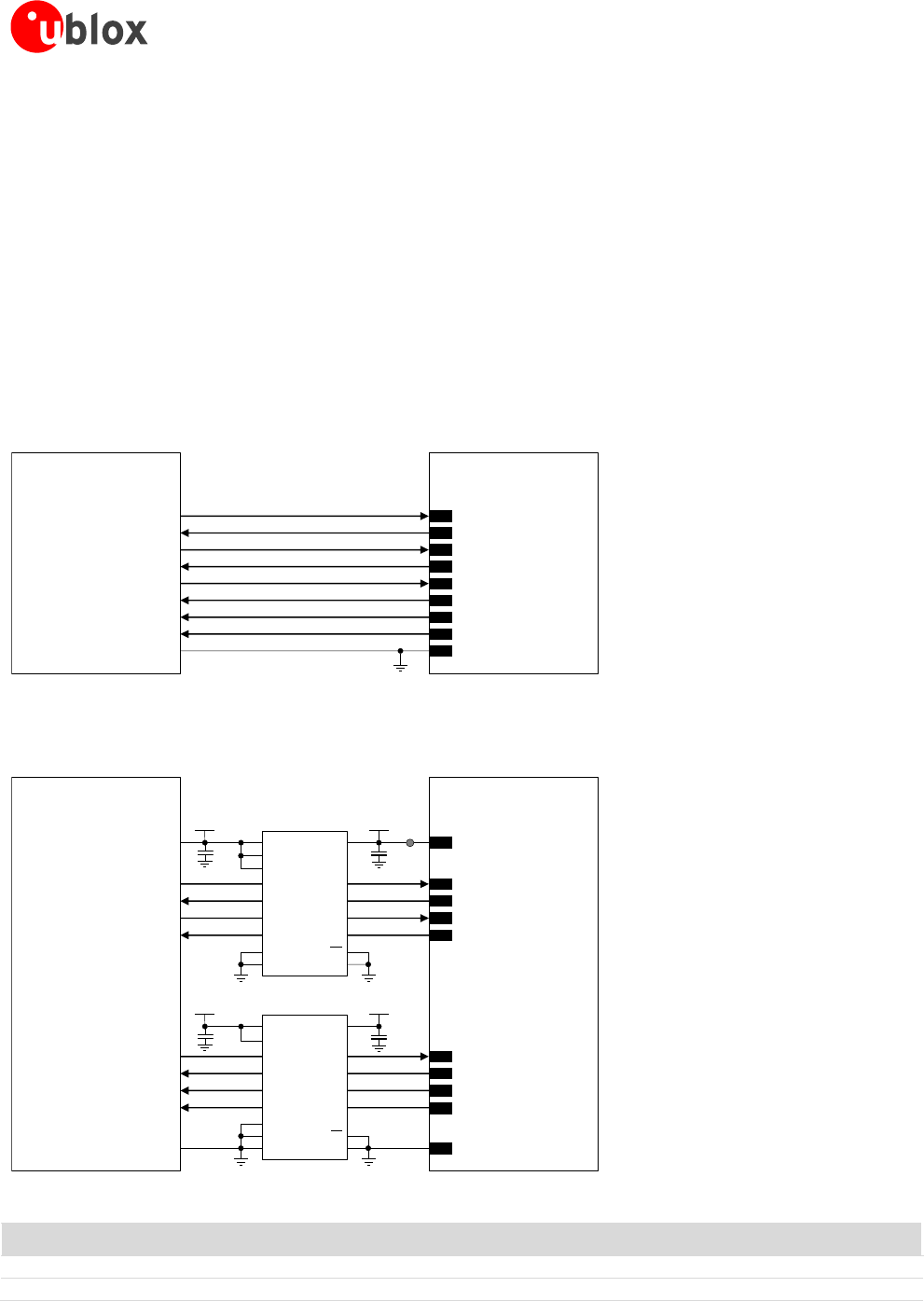

Figure 44: UART interface application circuit with complete V.24 link in DTE/DCE serial communication (1.8V DTE)
If a 3.0 V Application Processor is used, appropriate unidirectional voltage translators must be provided using the
module V_INT output as 1.8 V supply, as described in Figure 45.
4V_INT
TxD
Application Processor
(3.0V DTE)
RxD
RTS
CTS
DTR
DSR
RI
DCD
GND
SARA-G3 series
(1.8V DCE)
12 TXD
9DTR
13 RXD
10 RTS
11 CTS
6DSR
7RI
8DCD
GND
1V8
B1 A1
GND
U1
B3A3
VCCBVCCA
Unidirectional
Voltage Translator
C1 C2
3V0
DIR3
DIR2 OE
DIR1
VCC
B2 A2
B4A4
DIR4
1V8
B1 A1
GND
U2
B3A3
VCCBVCCA
Unidirectional
Voltage Translator
C3 C4
3V0
DIR1
DIR3 OE
B2 A2
B4A4
DIR4
DIR2
TP
Figure 45: UART interface application circuit with complete V.24 link in DTE/DCE serial communication (3.0 V DTE)
Reference
Description
Part Number - Manufacturer
C1, C2, C3, C4
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R61A104KA01 - Murata
U1, U2
Unidirectional Voltage Translator
SN74AVC4T774 - Texas Instruments
Table 27: Component for UART application circuit with complete V.24 link in DTE/DCE serial communication (3.0 V DTE)
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 91 of 145
Providing the TXD, RXD, RTS and CTS lines only (not using the complete V.24 link)
If the functionality of the DSR, DCD, RI and DTR lines is not required in, or the lines are not available:
Connect the module DTR input line to GND, since the module requires DTR active (low electrical level)
Leave DSR, DCD and RI lines of the module unconnected and floating
If RS-232 compatible signal levels are needed, the Maxim 13234E voltage level translator can be used. This chip
translates voltage levels from 1.8 V (module side) to the RS-232 standard.
If a 1.8 V Application Processor is used, the circuit should be implemented as described in Figure 46.
TxD
Application Processor
(1.8V DTE)
RxD
RTS
CTS
DTR
DSR
RI
DCD
GND
SARA-G3 series
(1.8V DCE)
12 TXD
9DTR
13 RXD
10 RTS
11 CTS
6DSR
7RI
8DCD
GND
Figure 46: UART interface application circuit with partial V.24 link (5-wire) in the DTE/DCE serial communication (1.8V DTE)
If a 3.0 V Application Processor is used, appropriate unidirectional voltage translators must be provided using the
module V_INT output as 1.8 V supply, as described in Figure 47.
4V_INT
TxD
Application Processor
(3.0V DTE)
RxD
RTS
CTS
DTR
DSR
RI
DCD
GND
SARA-G3 series
(1.8V DCE)
12 TXD
9DTR
13 RXD
10 RTS
11 CTS
6DSR
7RI
8DCD
GND
1V8
B1 A1
GND
U1
B3A3
VCCBVCCA
Unidirectional
Voltage Translator
C1 C2
3V0
DIR3
DIR2 OE
DIR1
VCC
B2 A2
B4A4
DIR4
TP
Figure 47: UART interface application circuit with partial V.24 link (5-wire) in DTE/DCE serial communication (3.0 V DTE)
Reference
Description
Part Number - Manufacturer
C1, C2
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R61A104KA01 - Murata
U1
Unidirectional Voltage Translator
SN74AVC4T774 - Texas Instruments
Table 28: Component for UART application circuit with partial V.24 link (5-wire) in DTE/DCE serial communication (3.0 V DTE)
If only TXD, RXD, RTS and CTS lines are provided, as implemented in Figure 46 and in Figure 47, the procedure
to enable power saving depends on the HW flow-control status. If HW flow-control is enabled (AT&K3, that is
the default setting) power saving will be activated by AT+UPSV=1. Through this configuration, when the module
is in idle-mode, data transmitted by the DTE is buffered by the DTE and is correctly received by the module when
active-mode is entered.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 92 of 145
If the HW flow-control is disabled (AT&K0), AT+UPSV=2 can enable the power saving. The module is in idle-
mode until a high-to-low (i.e. OFF-to-ON) transition on the RTS input line switches the module from idle-mode
to active-mode in 20 ms. The module is forced into active-mode if the RTS input line is held in the ON state.
Providing the TXD and RXD lines only (not using the complete V24 link)
If the functionality of the CTS, RTS, DSR, DCD, RI and DTR lines is not required in the application, or the lines
are not available, the circuit with a 1.8 V Application Processor should be implemented as described in Figure 48:
Connect the module RTS input line to GND or to the CTS output line of the module: since the module
requires RTS active (low electrical level) if HW flow-control is enabled (AT&K3, that is the default setting),
the pin can be connected using a 0 series resistor to GND or to the active-module CTS (low electrical level)
when the module is in active-mode, the UART interface is enabled and the HW flow-control is enabled
Connect the module DTR input line to GND, since the module requires DTR active (low electrical level)
Leave DSR, DCD and RI lines of the module unconnected and floating
TxD
Application Processor
(1.8V DTE)
RxD
RTS
CTS
DTR
DSR
RI
DCD
GND
SARA-G3 series
(1.8V DCE)
12 TXD
9DTR
13 RXD
10 RTS
11 CTS
6DSR
7RI
8DCD
GND
Figure 48: UART interface application circuit with partial V.24 link (3-wire) in the DTE/DCE serial communication (1.8V DTE)
If a 3.0 V Application Processor is used, appropriate unidirectional voltage translators must be provided using the
module V_INT output as 1.8 V supply, as described in Figure 49.
4V_INT
TxD
Application Processor
(3.0V DTE)
RxD
DTR
DSR
RI
DCD
GND
SARA-G3 series
(1.8V DCE)
12 TXD
9DTR
13 RXD
6DSR
7RI
8DCD
GND
1V8
B1 A1
GND
U1
VCCBVCCA
Unidirectional
Voltage Translator
C1 C2
3V0
DIR1
DIR2 OE
VCC
B2 A2
RTS
CTS
11 RTS
12 CTS
TP
Figure 49: UART interface application circuit with partial V.24 link (3-wire) in DTE/DCE serial communication (3.0 V DTE)
Reference
Description
Part Number - Manufacturer
C1, C2
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R61A104KA01 - Murata
U1
Unidirectional Voltage Translator
SN74AVC2T245 - Texas Instruments
Table 29: Component for UART application circuit with partial V.24 link (3-wire) in DTE/DCE serial communication (3.0 V DTE)
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 93 of 145
If only TXD and RXD lines are provided, as described in Figure 48 or in Figure 49, and HW flow-control is
disabled (AT&K0), the power saving must be enabled by AT+UPSV=1. In this way, the UART of the module is re-
enabled 20 ms after a low-to-high transition on the TXD input line, and the recognition of the subsequent
characters is guaranteed until the module is in active-mode.
Data delivered by the DTE can be lost using this configuration and the following settings:
o HW flow-control enabled in the module (AT&K3, that is the default setting)
o Module power saving enabled by AT+UPSV=1
o HW flow-control disabled in the DTE
In this case the first character sent when the module is in idle-mode will be a wake-up character and will
not be a valid communication character (refer to chapter 1.9.1.4 for the complete description).
If power saving is enabled the application circuit with the TXD and RXD lines only is not recommended.
During command mode the DTE must send to the module a wake-up character or a dummy “AT” before
each command line (refer to chapter 1.9.1.4 for the complete description), but during data mode the
wake-up character or the dummy “AT” would affect the data communication.
Additional considerations
Any external signal connected to the UART interface must be tri-stated or set low when the module is in
power-down mode and during the module power-on sequence (at least until the activation of the V_INT
supply output of the module), to avoid latch-up of circuits and allow a proper boot of the module. If the
external signals connected to the wireless module cannot be tri-stated or set low, insert a multi channel
digital switch (e.g. Texas Instruments SN74CB3Q16244, TS5A3159, or TS5A63157) between the two-
circuit connections and set to high impedance during module power down mode and during the module
power-on sequence.
ESD sensitivity rating of UART interface pins is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level could be required if the lines are externally accessible on the application board.
Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG
varistor array) close to accessible points.
2.5.1.2 Guidelines for UART layout design
The UART serial interface requires the same consideration regarding electro-magnetic interference as any other
digital interface. Keep the traces short and avoid coupling with RF line or sensitive analog inputs, since the
signals can cause the radiation of some harmonics of the digital data frequency.
2.5.2 Auxiliary asynchronous serial interface (UART AUX)
2.5.2.1 Guidelines for UART AUX circuit design
The auxiliary UART interface can be connected to an application processor if it can be set in pass-through mode
so that the auxiliary UART interface can be accessed for SARA-G3 modules’ firmware upgrade by means of the
u-blox EasyFlash tool and for Trace log capture (debug purpose).
To directly enable PC (or similar) connection to the module for firmware upgrade using the u-blox
EasyFlash tool and for debugging purposes, it is highly recommended to provide direct access on the
application board to the TXD_AUX and RXD_AUX pins, by means of accessible testpoints directly
connected to the pins of the module. Also provide access to the V_INT pin to make possible the voltage
translation to the auxiliary UART interface voltage level, and to the PWR_ON or RESET_N pins, or enable
the DC supply connected to the VCC pin to start the firmware upgrade using the u-blox EasyFlash tool.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 94 of 145
The circuit with a 1.8 V Application Processor should be implemented as described in Figure 48.
TxD
Application Processor
(1.8V DTE)
RxD
SARA-G3 series
(1.8V DCE)
29 TXD_AUX
28 RXD_AUX
GND GND
0 ohm
0 ohm
TestPoint
TestPoint
Figure 50: UART AUX interface application circuit connecting a 1.8 V application processor
If a 3.0 V Application Processor is used, appropriate unidirectional voltage translators must be provided using the
module V_INT output as 1.8 V supply, as described in Figure 49.
4V_INT
TxD
Application Processor
(3.0V DTE)
RxD
GND
SARA-G3 series
(1.8V DCE)
29 TXD_AUX
28 RXD_AUX
GND
1V8
B1 A1
GND
U1
VCCBVCCA
Unidirectional
Voltage Translator
C1 C2
3V0
DIR1
DIR2
OE
VCC
B2 A2
0 ohm
0 ohm
TP
TP
TP
Figure 51: UART AUX interface application circuit connecting a 3.0 V application processor
Reference
Description
Part Number - Manufacturer
C1, C2
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R61A104KA01 - Murata
U1
Unidirectional Voltage Translator
SN74AVC2T245 - Texas Instruments
Table 30: Component for UART AUX interface application circuit connecting a 3.0 V application processor
Refer to Firmware Update Application Note [22] for additional guidelines regarding the procedure for SARA-G3
modules’ firmware upgrade over the auxiliary UART interface using the u-blox EasyFlash tool.
Any external signal connected to the auxiliary UART interface must be tri-stated or set low when the
module is in power-down mode and during the module power-on sequence (at least until the activation
of the V_INT supply output of the module), to avoid latch-up of circuits and allow a proper boot of the
module. If the external signals connected to the wireless module cannot be tri-stated or set low, insert a
multi channel digital switch (e.g. Texas Instruments SN74CB3Q16244, TS5A3159, or TS5A63157)
between the two-circuit connections and set to high impedance during module power down mode and
during the module power-on sequence.
ESD sensitivity rating of auxiliary UART pins is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level could be required if the lines are externally accessible on the application board.
Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG
varistor array) close to accessible points.
2.5.2.2 Guidelines for UART AUX layout design
The auxiliary UART serial interface is not critical for the layout design since it is not used during normal operation
of SARA-G3 modules. Ensure accessibility to the TXD_AUX and RXD_AUX pins providing test points on the
application board.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 95 of 145
2.5.3 DDC (I2C) interface
2.5.3.1 Guidelines for DDC (I2C) circuit design
The SDA and SCL lines must be connected to the DDC (I2C) interface pins of the u-blox GPS/GNSS receiver (i.e.
the SDA2 and SCL2 pins of the u-blox positioning receiver) on the application board to allow the communication
between the wireless module and the u-blox GPS/GNSS receiver, enabled by the AT+UGPS command (for more
details refer to u-blox AT Commands Manual [2]).
To be compliant to the I2C bus specifications, the module bus interface pads are open drain output and pull up
resistors must be used conforming to the I2C bus specifications [13]. Since the pull-up resistors are not mounted
on the module, they must be mounted externally.
Provide external pull-ups resistors (e.g. 4.7 k) on SDA and SCL lines and connect them to the V_INT 1.8
V supply source, or another 1.8 V supply source enabled after V_INT (e.g., as the 1.8 V supply present in
the application circuit of Figure 52, controlled by the wireless module).
The signal shape is defined by the values of the pull-up resistors and the bus capacitance. Long wires on the bus
increase the capacitance. If the bus capacitance is increased, use pull-up resistors with nominal resistance value
lower than 4.7 k, to match the I2C bus specifications [13] regarding rise and fall times of the signals.
Capacitance and series resistance must be limited on the bus to match the I2C specifications (1.0 µs is the
maximum allowed rise time on the SCL and SDA lines): route connections as short as possible.
If the pins are not used as DDC bus interface, they can be left unconnected.
The following special features over GPIOs can be optionally implemented on the application board to improve
the integration of SARA-G350 wireless modules with a u blox GPS/GNSS receiver:
The GPIO2, by default configured to provide the “GPS supply enable” function, must be connected to the
active-high enable pin (or the active-low shutdown pin) of the voltage regulator that supplies the u-blox
positioning receiver on the application board to enable or disable the supply of the u-blox GPS/GNSS receiver
connected to the wireless module by the AT+UGPS command
The GPIO3, by default configured to provide the “GPS data ready” function, must be connected to the data
ready output of the u-blox positioning receiver (i.e. the pin TXD1 of the u-blox GPS/GNSS receiver) on the
application board, to sense when the u-blox positioning receiver connected to the wireless module is ready
to send data by the DDC (I2C) interface
The GPIO4, by default configured to provide the “GPS RTC sharing” function, must be connected to the
RTC synchronization signal of the u-blox positioning receiver (i.e. the pin EXTINT0 of the u-blox GPS/GNSS
receiver) on the application board, to provide an RTC (Real Time Clock) synchronization signal at the power
up of the u-blox positioning receiver connected to the wireless module
“GPS data ready” and “GPS RTC sharing” functions are not supported by all u-blox GPS/GNSS receivers
HW or ROM/FW versions. Refer to the GPS Implementation Application Note [21] or to the Hardware
Integration Manual of the u-blox GPS/GNSS receivers for the supported features.
Figure 52 illustrates an application circuit for SARA-G350 connection to a u-blox 1.8 V GPS/GNSS receiver:
The SDA and SCL pins of the SARA-G350 module are directly connected to the relative pins of the u-blox
1.8 V GPS/GNSS receiver, with appropriate pull-up resistors.
The GPIO3 and GPIO4 pins are directly connected respectively to TXD1 and EXTINT0 pins of the u-blox
1.8 V GPS/GNSS receiver providing “GPS data ready” and “GPS RTC sharing” functions.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 96 of 145
The GPIO2 pin is connected to the active-high enable pin of the voltage regulator that supplies the u-blox
1.8 V GPS/GNSS receiver providing the “GPS supply enable” function. A pull-down resistor is provided to
avoid a switch on of the positioning receiver when the SARA-G350 module is switched off or in the reset
state.
The V_BCKP supply output of the SARA-G350 wireless module is connected to the V_BCKP backup supply
input pin of the GPS/GNSS receiver to provide the supply for the GPS/GNSS real time clock and backup RAM
when the VCC supply of the wireless module is within its operating range and the VCC supply of the
GPS/GNSS receiver is disabled. This enables the u-blox GPS/GNSS receiver to recover from a power
breakdown with either a Hot-start or a Warm-start (depending on the actual duration of the GPS/GNSS VCC
outage) and to maintain the configuration settings saved in the backup RAM.
SARA-G350
R1
INOUT
GND
GPS LDO
Regulator
SHDN
u-blox GPS/GNSS
1.8 V receiver
SDA2
SCL2
R2
1V8 1V8
VMAIN1V8
U1
23 GPIO2
SDA
SCL
C1
TxD1
EXTINT0
GPIO3
GPIO4
26
27
24
25
VCC
R3
V_BCKP V_BCKP
2
Figure 52: DDC (I2C) application circuit for u-blox 1.8 V GPS/GNSS receiver
Reference
Description
Part Number - Manufacturer
R1, R2
4.7 kΩ Resistor 0402 5% 0.1 W
RC0402JR-074K7L - Yageo Phycomp
R3
47 kΩ Resistor 0402 5% 0.1 W
RC0402JR-0747KL - Yageo Phycomp
U1
Voltage Regulator for GPS/GNSS Receiver
See GPS/GNSS Receiver Hardware Integration Manual
Table 31: Components for DDC (I2C) application circuit for u-blox 1.8 V GPS/GNSS receiver
As an alternative to using an external voltage regulator, the V_INT supply output of SARA-G350 wireless
modules can be used to supply a u-blox 1.8 V GPS/GNSS receiver of the u-blox 6 family (or later u-blox family).
The V_INT supply is able to withstand the maximum current consumption of these positioning receivers.
The V_INT supply output provides low voltage ripple (up to 15 mVpp) when the module is in active-mode or in
connected-mode, but it provides higher voltage ripple (up to 90 mVpp) when the module is in the low power
idle-mode with power saving configuration enabled by AT+UPSV (refer to u-blox AT Commands Manual [2]).
According to the voltage ripple characteristic of the V_INT supply output:
The power saving configuration cannot be enabled to properly supply by V_INT output any 1.8 V GPS/GNSS
receiver of the u-blox 6 family and any 1.8 V GPS/GNSS receiver of the u-blox 7 family with TCXO
The power saving configuration can be enabled to properly supply by V_INT output any 1.8 V GPS/GNSS
receiver of the u-blox 7 family without TCXO
Additional filtering may be needed to properly supply an external LNA, depending on the characteristics of
the used LNA, adding a series ferrite bead and a bypass capacitor (e.g. the Murata BLM15HD182SN1 ferrite
bead and the Murata GRM1555C1H220J 22 pF capacitor) at the input of the external LNA supply line.
Refer to the GPS Implementation Application Note [21] for additional guidelines using the V_INT supply output
of SARA-G350 wireless modules to supply a u-blox 1.8 V GPS/GNSS receiver.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 97 of 145
Figure 53 illustrates the application circuit for SARA-G350 connection to a u-blox 3.0 V GPS/GNSS receiver:
SDA and SCL pins of SARA-G350 are directly connected to the relative pins of the u-blox 3.0 V GPS/GNSS
receiver, with appropriate pull-up resistors: an I2C-bus Voltage Translator is not needed because SARA-G350
DDC (I2C) pins are capable up to 3.3 V.
GPIO3 and GPIO4 pins of SARA-G350 are connected to the u-blox 3.0 V GPS/GNSS receiver by means of a
general purpose Voltage Translator, needed for SARA-G350 generic digital pins because only 1.8 V capable.
GPIO2 is connected to the active-high enable pin of the external voltage regulator that supplies the u-blox
3.0 V GPS/GNSS receiver to enable or disable the 3.0 V GPS/GNSS supply.
The V_BCKP supply output of SARA-G350 is directly connected to the V_BCKP backup supply input pin of
the u-blox 3.0 V GPS/GNSS receiver as in the application circuit for a u-blox 1.8 V GPS/GNSS receiver.
SARA-G350
R1
INOUT
GND
GPS LDO
Regulator
SHDN
u-blox GPS/GNSS
3.0 V receiver
SDA2
SCL2
R2
3V0 3V0
VMAIN3V0
U1
23 GPIO2
SDA
SCL
C1
26
27
VCC
R3
V_BCKP V_BCKP
2
24 GPIO3
25 GPIO4
1V8
B1 A1
GND
U2
B2A2
VCCBVCCA
Unidirectional
Voltage Translator
C2 C3
3V0
TxD1
EXTINT0
4V_INT
DIR1
DIR2 OE
GPS data ready
GPS RTC sharing
TP
Figure 53: DDC (I2C) application circuit for u-blox 3.0 V GPS/GNSS receiver
Reference
Description
Part Number – Manufacturer
R1, R2
4.7 kΩ Resistor 0402 5% 0.1 W
RC0402JR-074K7L - Yageo Phycomp
R3
47 kΩ Resistor 0402 5% 0.1 W
RC0402JR-0747KL - Yageo Phycomp
C2, C3
100 nF Capacitor Ceramic X5R 0402 10% 10V
GRM155R71C104KA01 - Murata
U1
Voltage Regulator for GPS/GNSS Receiver
See GPS/GNSS Receiver Hardware Integration Manual
U2
Generic Unidirectional Voltage Translator
SN74AVC2T245 - Texas Instruments
Table 32: Components for DDC (I2C) application circuit for u-blox 3.0 V GPS/GNSS receiver
ESD sensitivity rating of the DDC (I2C) pins is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level could be required if the lines are externally accessible on the application board.
Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG
varistor array) close to accessible points.
2.5.3.2 Guidelines for DDC (I2C) layout design
The DDC (I2C) serial interface requires the same consideration regarding electro-magnetic interference as any
other digital interface. Keep the traces short and avoid coupling with RF line or sensitive analog inputs, since the
signals can cause the radiation of some harmonics of the digital data frequency.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 98 of 145
2.6 Audio Interface
2.6.1 Analog Audio interface
2.6.1.1 Guidelines for microphone and speaker connection circuit design (headset / handset modes)
SARA-G350 modules provide one analog audio input path and one analog audio output path: the same paths
are used for both headset and handset modes, so that basically the same application circuit can be implemented
for both headset and handset modes.
Figure 54 shows an application circuit for the analog audio interface in headset and handset modes, connecting
a 2.2 k electret microphone and a 16 receiver / speaker:
External microphone can be connected to the uplink path of the module as described in Figure 54, since the
module provides supply and reference as well as differential signal input for the external microphone
16 receiver / speaker can be directly connected to the balanced output of the module as described in
Figure 54, since the differential analog audio output of the module is able to directly drive loads with
resistance rating greater than 14
The general guidelines for the design of the analog audio circuit for both headset and handset modes, fulfilled
implementing the circuit of Figure 54, are the following:
Provide proper supply to the used electret microphone, providing a proper connection from the MIC_BIAS
supply output to the microphone. It’s suggested to implement a bridge structure as described in Figure 54:
o the electret microphone, with its nominal intrinsic resistance value, represents one resistor of the
bridge
o to achieve good supply noise rejection, the ratio of the two resistance in one leg (R2/R3) should be
equal to the ratio of the two resistance in the other leg (R4/MIC), i.e. R2 has to be equal to R4 (e.g.
2.2 k) and R3 has to be equal to the microphone nominal intrinsic resistance value (e.g. 2.2 k)
Provide a proper series resistor at the MIC_BIAS supply output and then mount a proper large bypass
capacitor to provide additional supply noise filtering, as the R1 series resistor (2.2 k) and the C1 bypass
capacitor (10 µF) in the circuit implemented in Figure 54
Do not place a bypass capacitor directly at the MIC_BIAS supply output, since proper internal bypass
capacitor is already provided to guarantee stable operation of the internal regulator
Connect the reference of the microphone circuit to the MIC_GND pin of the module as a sense line:
implement the connection described in Figure 54
Provide a proper series capacitor at both MIC_P and MIC_N analog uplink inputs for DC blocking (as the C2
an C3 100 nF Murata GRM155R71C104K capacitors in Figure 54) to provide an high-pass filter for the
microphone DC bias with proper cut-off frequency according to the value of the resistors of the microphone
supply circuit, and then connect the signal lines to the microphone as described in Figure 54
Provide proper parts on each line connected to the external microphone as noise and EMI improvements, to
minimize RF coupling and TDMA noise, according to the custom application requirements. Following the
circuit described in Figure 54:
o mount an 82 nH series inductor with self resonance frequency ~1 GHz (e.g. Murata
LQG15HS82NJ02) on each microphone line, as L1 and L2 inductors in Figure 54
o mount and a 27 pF bypass capacitor (e.g. Murata GRM1555C1H270J) from each microphone line
to solid ground plane, as C4 and C5 capacitors in Figure 54
Use a micropone designed for GSM applications which typically have internal built-in bypass capacitor
Connect the SPK_P and SPK_N analog downlink outputs directly to the receiver / speaker (which resistance
rating has to be greater than 14 ) as in the circuit described in Figure 54
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 99 of 145
Provide proper parts on each line connected to the receiver / speaker as noise and EMI improvments, to
minimize RF coupling, according to EMC requirements of the custom application. Following the circuit
described in Figure 54:
o mount and a 27 pF bypass capacitor (e.g. Murata GRM1555C1H270J) from each speaker line to
solid ground plane, as C6 and C7 capacitors in Figure 54
Provide an additional ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) if the analog audio lines
will be externally accessible on the application device, according to EMC/ESD requirements of the custom
application. The protection should be mounted close to accessible point of the line, as the D1 and D2 parts
in the circuit described in Figure 54
SARA-G350
49
MIC_P
R1
R2 R4
44
SPK_P
48
MIC_N
45
SPK_N
R3
C1
46
MIC_BIAS
47
MIC_GND
C2
C3
D2
D1
C6 C7
L2
L1
C5C4
SPK
Speaker
Connector
J2
Microphone
Connector MIC
J1
Figure 54: Analog audio interface headset and handset mode application circuit
Reference
Description
Part Number – Manufacturer
C1
10 µF Capacitor Ceramic X5R 0603 20% 6.3 V
GRM188R60J106ME47 – Murata
C2, C3
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C104KA88 – Murata
C4, C5, C6, C7
27 pF Capacitor Ceramic C0G 0402 5% 25 V
GRM1555C1H270JA01 – Murata
D1, D2
Low Capacitance ESD Protection
USB0002RP or USB0002DP – AVX
J1
Microphone Connector
Various Manufacturers
J2
Speaker Connector
Various Manufacturers
L1, L2
82 nH Multilayer inductor 0402
(self resonance frequency ~1 GHz)
LQG15HS82NJ02 – Murata
MIC
2.2 kΩ Electret Microphone
Various Manufacturers
R1, R2, R3, R4
2.2 kΩ Resistor 0402 5% 0.1 W
RC0402JR-072K2L – Yageo Phycomp
SPK
16 Ω Speaker
Various Manufacturers
Table 33: Example of components for analog audio interface headset and handset mode application circuit
If the analog audio interface is not used, the analog audio pins (MIC_BIAS, MIC_GND, MIC_P, MIC_N,
SPK_P, SPK_N) can be left unconnected on the application board.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 100 of 145
2.6.1.2 Guidelines for microphone and loudspeaker connection circuit design (hands-free mode)
Figure 55 shows an application circuit for the analog audio interface in hands-free mode, connecting a 2.2 k
electret microphone and an 8 or 4 loudspeaker:
External microphone can be connected to the uplink path of the module as described in Figure 55, since the
module provides supply and reference as well as differential signal input for the external microphone
Using a 8 or 4 loudspeaker for the hands-free mode, an external audio amplifier must be provided on
the application board to amplify the low power audio signal provided by the downlink path of the module,
so that the external audio amplifier will drive the 8 or 4 loudspeaker, since differential analog audio
output of the module is able to directly drive loads with resistance rating greater than 14
The general guidelines for the design of the analog audio circuit for hands-free mode, fulfilled implementing the
circuit of Figure 55, are the following:
Provide proper supply to the used electret microphone, providing a proper connection from the MIC_BIAS
supply output to the microphone. It’s suggested to implement a bridge structure as described in Figure 55:
o the electret microphone, with its nominal intrinsic resistance value, represents one resistor of the
bridge
o to achieve good supply noise rejection, the ratio of the two resistance in one leg (R2/R3) should be
equal to the ratio of the two resistance in the other leg (R4/MIC), i.e. R2 has to be equal to R4 (e.g.
2.2 k) and R3 must be equal to the microphone nominal intrinsic resistance value (e.g. 2.2 k)
Provide a series resistor at the MIC_BIAS supply output and then mount a good bypass capacitor to provide
additional supply noise filtering, as the R1 series resistor (2.2 k) and the C1 bypass capacitor (10 µF) in the
circuit implemented in Figure 55
Do not place a bypass capacitor directly at the MIC_BIAS supply output, since proper internal bypass
capacitor is already provided to guarantee stable operation of the internal regulator
Connect the reference of the microphone circuit to the MIC_GND pin of the module as a sense line:
implement the connection described in Figure 55
Provide a proper series capacitor at both MIC_P and MIC_N analog uplink inputs for DC blocking (as the C2
an C3 100 nF Murata GRM155R71C104K capacitors in Figure 55) to provide an high-pass filter for the
microphone DC bias with proper cut-off frequency according to the value of the resistors of the microphone
supply circuit, and then connect the signal lines to the microphone as described in Figure 55
Provide proper parts on each line connected to the external microphone as noise and EMI improvements, to
minimize RF coupling and TDMA noise, according to the custom application requirements. Following the
circuit described in Figure 55:
o mount an 82 nH series inductor with self resonance frequency ~1 GHz (e.g. Murata
LQG15HS82NJ02) on each microphone line, as L1 and L2 inductors in Figure 55
o mount and a 27 pF bypass capacitor (e.g. Murata GRM1555C1H270J) from each microphone line
to solid ground plane, as C4 and C5 capacitors in Figure 55
Use a microphone designed for GSM applications which typically have internal built-in bypass capacitor
Provide a 47 nF series capacitor at both SPK_P and SPK_N analog downlink outputs for DC blocking (as the
C8 an C9 Murata GRM155R71C473K capacitors in Figure 55) and then connect the lines to the differential
input of a proper external audio amplifier which differential output has to be connected the 8 or 4
loudspeaker as for the Analog Devices SSM2305CPZ filter-less mono 2.8 W class-D Audio Amplifier in the
circuit described in Figure 55
Provide proper parts on each line connected to the external loudspeaker as noise and EMI improvments, to
minimize RF coupling, according to EMC requirements of the custom application. Following the circuit
described in Figure 55:
o mount and a 27 pF bypass capacitor (e.g. Murata GRM1555C1H270J) from each loudspeaker line
to solid ground plane, as C6 and C7 capacitors in Figure 55
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 101 of 145
Provide an additional ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) if the analog audio lines
will be externally accessible on the application device, according to EMC/ESD requirements of the custom
application. The protection should be mounted close to accessible point of the line, as the D1 and D2 parts
in the circuit described in Figure 55
SARA-G350
49
MIC_P
R1
R2 R4
44
SPK_P
48
MIC_N
45
SPK_N
R3
C1
46
MIC_BIAS
47
MIC_GND
C2
C3
D2
D1
C6 C7
L2
L1
C5C4
LSPK
Loud-Speaker
Connector
J2
Microphone
Connector MIC
J1
OUT+
IN+
GND
U1
OUT-
IN-
C8
C9
R5
R6
VDD
C11C10
Audio
Amplifier
VCC
Figure 55: Analog audio interface hands-free mode application circuit
Reference
Description
Part Number – Manufacturer
C1, C10
10 µF Capacitor Ceramic X5R 0603 20% 6.3 V
GRM188R60J106ME47 – Murata
C2, C3, C11
100 nF Capacitor Ceramic X7R 0402 10% 16 V
GRM155R71C104KA88 – Murata
C4, C5, C6, C7
27 pF Capacitor Ceramic C0G 0402 5% 25 V
GRM1555C1H270JA01 – Murata
C8, C9
47 nF Capacitor Ceramic X7R 0402 10% 16V
GRM155R71C473KA01 – Murata
D1, D2
Low Capacitance ESD Protection
USB0002RP or USB0002DP – AVX
J1
Microphone Connector
Various Manufacturers
J2
Speaker Connector
Various Manufacturers
L1, L2
82 nH Multilayer inductor 0402
(self resonance frequency ~1 GHz)
LQG15HS82NJ02 – Murata
LSPK
8 Loud-Speaker
Various Manufacturers
MIC
2.2 kΩ Electret Microphone
Various Manufacturers
R1, R2, R3, R4
2.2 kΩ Resistor 0402 5% 0.1 W
RC0402JR-072K2L – Yageo Phycomp
R5, R6
0 Ω Resistor 0402 5% 0.1 W
RC0402JR-070RL – Yageo Phycomp
U1
Filter-less Mono 2.8 W Class-D Audio Amplifier
SSM2305CPZ – Analog Devices
Table 34: Example of components for analog audio interface hands-free mode application circuit
If the analog audio interface is not used, the analog audio pins (MIC_BIAS, MIC_GND, MIC_P, MIC_N,
SPK_P, SPK_N) can be left unconnected on the application board.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 102 of 145
2.6.1.3 Guidelines for external analog audio device connection circuit design
The differential analog audio input / output can be used to connect the module to an external analog audio
device. Audio devices with a differential analog input / output are preferable, as they are more immune to
external disturbances.
Figure 56 and Table 35 describe the application circuits, following the suggested circuit design-in.
Guidelines for the connection to a differential analog audio input:
The SPK_P / SPK_N balanced output of the module must be connected to the differential input of the
external audio device by means of series capacitors for DC blocking (e.g. 10 µF Murata GRM188R60J106M)
to decouple the bias present at the module output, as described in the left side of Figure 56
Guidelines for the connection to a single ended analog audio input:
A proper differential to single ended circuit must be inserted from the SPK_P / SPK_N balanced output of
the module to the single ended input of the external audio device, as described in the right side of Figure
56: 10 µF series capacitors (e.g. Murata GRM188R60J106M) are provided to decouple the bias present at
the module output, and a voltage divider is provided to properly adapt the signal level from the module
output to the external audio device input
Guidelines for the connection to a differential analog audio output:
The MIC_P / MIC_N balanced input of the module must be connected to the differential output of the
external audio device by means of series capacitors for DC blocking (e.g. 10 µF Murata GRM188R60J106M)
to decouple the bias present at the module input, as described in the left side of Figure 56
Guidelines for the connection to a single ended analog audio output:
A proper single ended to differential circuit has to be inserted from the single ended output of the external
audio device to the MIC_P / MIC_N balanced input of the module, as described in the right side of Figure
56: 10 µF series capacitors (e.g. Murata GRM188R60J106M) are provided to decouple the bias present at
the module input, and a voltage divider is provided to properly adapt the signal level from the external audio
device output to the module input
Additional guidelines for any connection:
The DC-block series capacitor acts as high-pass filter for audio signals, with cut-off frequency depending on
both the values of capacitor and on the input impedance of the device. For example: in case of differential
input impedance of 600 , the two 10 µF capacitors will set the -3 dB cut-off frequency to 53 Hz, while for
single ended connection to 600 external device, the cut-off frequency with just the single 10 µF capacitor
will be 103 Hz. In both cases the high-pass filter has a low enough cut-off to not impact the audio signal
frequency response
Use a suitable power-on sequence to avoid audio bump due to charging of the capacitor: the final audio
stage should be always enabled as last one
The signal levels can be adapted by setting gain using AT commands (refer to the u-blox AT Commands
Manual [2], +USGC, +UMGC), but additional circuitry must be inserted if the SPK_P / SPK_N output level of
the module is too high for the input of the audio device or if the output level of the audio device is too high
for MIC_P / MIC_N, as the voltage dividers present in the circuits described in the right side of Figure 56 to
properly adapt the signal level
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 103 of 145
SARA-G350
C1
C2
45
SPK_N
44
SPK_P
GND
49
MIC_P
GND
Analog IN (-)
Analog IN (+)
Analog OUT (-)
Analog OUT (+)
Audio Device
GND
GND
48
MIC_N
C3
C4
SARA-G350
45
SPK_N
44
SPK_P
GND
49
MIC_P
GND
Analog IN
Audio Device
GND
Reference
48
MIC_N
Analog OUT
C5
C6 R2
R1
R4
R3
C7
C8
46
MIC_BIAS
47
MIC_GND
46
MIC_BIAS
47
MIC_GND
Figure 56: Application circuits to connect the module to audio devices with proper differential or single-ended input/output
Reference
Description
Part Number – Manufacturer
C1, C2, C3, C4,
C5, C6, C7, C8
10 µF Capacitor X5R 0603 5% 6.3 V
GRM188R60J106M – Murata
R1, R3
0 Ω Resistor 0402 5% 0.1 W
RC0402JR-070RL – Yageo Phycomp
R2, R4
Not populated
Table 35: Connection to an analog audio device
2.6.1.4 Guidelines for analog audio layout design
Accurate analog audio design is very important to obtain clear and high quality audio. The GSM signal burst has
a repetition rate of 217 Hz that lies in the audible range. A careful layout is required to reduce the risk of noise
from audio lines due to both VCC burst noise coupling and RF detection.
Guidelines for the uplink path, which is the most sensitive since the analog input signals are in the microVolts
range, are the following:
Avoid coupling of any noisy signal to microphone lines: it’s strongly recommended to route microphone
lines away from module VCC supply line, any switching regulator line, RF antenna lines, digital lines and any
other possible noise source
Keep ground separation from microphone lines to other noisy signals. Use an intermediate ground layer or
vias wall for coplanar signals
Route microphone signal lines as a differential pair embedded in ground to reduce differential noise pick-up.
The balanced configuration will help reject the common mode noise
Route microphone reference as a signal line since the MIC_GND pin is internally connected to ground as a
sense line as the reference for the analog audio input
Cross other signals lines on adjacent layers with 90° crossing
Place bypass capacitor for RF very close to active microphone. The preferred microphone should be designed
for GSM applications which typically have internal built-in bypass capacitor for RF very close to active device.
If the integrated FET detects the RF burst, the resulting DC level will be in the pass-band of the audio
circuitry and cannot be filtered by any other device
Guidelines for the downlink path are the following:
The physical width of the audio output lines on the application board must be wide enough to minimize
series resistance since the lines are connected to low impedance speaker transducer
Avoid coupling of any noisy signal to speaker lines: it’s recommended to route speaker lines away from
module VCC supply line, any switching regulator line, RF antenna lines, digital lines and any other possible
noise source
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 104 of 145
Route speaker signal lines as a differential pair embedded in ground up to reduce differential noise pick-up.
The balanced configuration will help reject the common mode noise
Cross other signals lines on adjacent layers with 90° crossing
Place bypass capacitor for RF close to the speaker
2.6.2 Digital Audio interface
2.6.2.1 Guidelines for digital audio circuit design
SARA-G3 series I2S digital audio interface can be connected to an external digital audio device for voice
applications. The external digital audio device must act as an I2S slave (since the SARA-G3 modules act as an I2S
master only), with compatible I2S mode (i.e. PCM mode or Normal I2S mode), I2S sample rate and I2S clock
frequency. The external device must provide compatible voltage levels (1.80 V typ.), otherwise the lines must be
connected by means of a proper unidirectional voltage translator (e.g. Texas Instruments SN74AVC4T774 or
SN74AVC2T245).
Figure 57 shows an application circuit with a generic digital audio device.
36
I2S_CLK
34
I2S_WA
I2S Clock
I2S Word Alignment
SARA-G350
35
I2S_TXD
37
I2S_RXD
I2S Data Input
I2S Data Output
GND GND
1.8 V Digital
Audio Device
Figure 57: I2S interface application circuit with a generic digital audio device
Any external signal connected to the digital audio interface must be tri-stated or set low when the module
is in power-down mode and during the module power-on sequence (at least until the activation of the
V_INT supply output of the module), to avoid latch-up of circuits and allow a proper boot of the module.
If the external signals connected to the wireless module cannot be tri-stated or set low, insert a multi
channel digital switch (e.g. Texas Instruments SN74CB3Q16244, TS5A3159, or TS5A63157) between the
two-circuit connections and set to high impedance during module power down mode and during the
module power-on sequence.
ESD sensitivity rating of I2S interface pins is 1 kV (Human Body Model according to JESD22-A114). Higher
protection level could be required if the lines are externally accessible on the application board. Higher
protection level can be achieved by mounting a general purpose ESD protection (e.g. EPCOS
CA05P4S14THSG varistor array) close to accessible points.
If the I2S digital audio pins are not used, they can be left unconnected on the application board.
2.6.2.2 Guidelines for digital audio layout design
The I2S interfaces lines (I2S_CLK, I2S_RX, I2S_TX, I2S_WA) require the same consideration regarding
electro-magnetic interference as the SIM card. Keep the traces short and avoid coupling with RF line or sensitive
analog inputs.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 105 of 145
2.7 General Purpose Input/Output (GPIO)
2.7.1.1 Guidelines for GPIO circuit design
The following application circuits are suggested as general guideline for the usage of the GPIO pins available
with the SARA-G350 modules, according to the relative custom function.
Network status indication:
The pin configured to provide the “Network status indication” function, e.g. the GPIO1, can be connected
on the application board to an input pin of an application processor or can drive a LED by a transistor with
integrated resistors to indicate network status.
GSM Tx burst indication:
The GPIO1 pin, as configured to provide the “GSM Tx burst indication” function, can be connected on the
application board to an input pin of an application processor to indicate when a GSM Tx burst/slot occurs.
GPS supply enable:
The pin configured to provide the “GPS supply enable” function (GPIO2 by default) has to be connected to
the active-high enable pin (or the active-low shutdown pin) of the voltage regulator that supplies the u-blox
GPS/GNSS receiver.
GPS data ready:
The GPIO3 pin, by default configured to provide the “GPS data ready” function, has to be connected to the
data ready output of the u-blox GPS/GNSS receiver (i.e. the pin TXD1).
GPS RTC sharing:
The GPIO4 pin, by default configured to provide the “GPS RTC sharing” function, has to be connected to
the RTC synchronization input of the u-blox GPS/GNSS receiver (i.e. the pin EXTINT0).
Figure 58 describes an application circuit for a typical usage of the GPIOs of SARA-G350 modules:
Network indication function provided by the GPIO1 pin
GPS supply enable function provided by the GPIO2 pin
GPS data ready function provided by the GPIO3 pin
GPS RTC sharing function provided by the GPIO4 pin
Use transistors with at least an integrated resistor in the base pin or otherwise put a 10 kΩ resistor on the
board in series to the GPIO.
ESD sensitivity rating of the GPIO pins is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level could be required if the lines are externally accessible on the application board.
Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG
varistor array) close to accessible points.
Any external signal connected to the GPIOs must be tri-stated or set low when the module is in power-
down mode and during the module power-on sequence (at least until the activation of the V_INT supply
output of the module), to avoid latch-up of circuits and allow a proper boot of the module. If the external
signals connected to the wireless module cannot be tri-stated or set low, insert a multi channel digital
switch (e.g. Texas Instruments SN74CB3Q16244, TS5A3159, or TS5A63157) between the two-circuit
connections and set to high impedance during module power down mode and during the module power-
on sequence.
If the GPIO pins are not used, they can be left unconnected on the application board.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 106 of 145
OUTIN
GND
LDO Regulator
SHDN
3V8 1V8
GPIO3
GPIO4
TxD1
EXTINT0
24
25
R1
VCC
GPIO2 23
SARA-G350 u-blox GPS/GNSS
1.8 V receiver
U1
C1
R2
R4
3V8
Network Indicator
R3
GPS Supply Enable
GPS Data Ready
GPS RTC Sharing
16
GPIO1
DL1
T1
Figure 58: GPIO application circuit
Reference
Description
Part Number - Manufacturer
R1
47 kΩ Resistor 0402 5% 0.1 W
Various manufacturers
U1
Voltage Regulator for GPS/GNSS Receiver
See GPS/GNSS Module Hardware Integration Manual
R2
10 kΩ Resistor 0402 5% 0.1 W
Various manufacturers
R3
47 kΩ Resistor 0402 5% 0.1 W
Various manufacturers
R4
820 Ω Resistor 0402 5% 0.1 W
Various manufacturers
DL1
LED Red SMT 0603
LTST-C190KRKT - Lite-on Technology Corporation
T1
NPN BJT Transistor
BC847 - Infineon
Table 36: Components for GPIO application circuit
2.7.1.1 Guidelines for GPIO layout design
The general purpose input/output pins are generally not critical for layout.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 107 of 145
2.8 Reserved pins (RSVD)
SARA-G3 series modules have pins reserved for future use. All the RSVD pins, except pin number 33, can be left
unconnected on the application board. Figure 59 illustrates the application circuit.
Pin 33 (RSVD) must be connected to GND.
SARA-G3 series
33
RSVD
RSVD
Figure 59: Application circuit for the reserved pins (RSVD)
2.9 Module placement
Optimize placement for minimum length of RF line and closer path from DC source for VCC.
Make sure that RF and analog circuits are clearly separated from any other digital circuits on the system board.
Provide enough clearance between the module and any external part.
The heat dissipation during continuous transmission at maximum power can significantly raise the
temperature of the application base-board below the SARA-G3 modules: avoid placing temperature
sensitive devices close to the module.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 108 of 145
2.10 Module footprint and paste mask
Figure 60 and Table 37 describe the suggested footprint (i.e. copper mask) and paste mask layout for SARA-G3
modules: the proposed land pattern layout reflects the modules’ pads layout, while the proposed stencil
apertures layout is slightly different (see the F’’, H’’, I’’, J’’, O’’ parameters compared to the F’, H’, I’, J’, O’ ones).
The Non Solder Mask Defined (NSMD) pad type is recommended over the Solder Mask Defined (SMD) pad type,
implementing the solder mask opening 50 µm larger per side than the corresponding copper pad.
The recommended solder paste thickness is 150 µm, according to application production process requirements.
K
M1
M1
M2
E G H’ J’ E
ANT pin
B
Pin 1
K
G
H’
J’
A
D
D
O’
O’
L N L
I’
F’
F’
K
M1
M1
M2
E G H’’ J’’ E
ANT pin
B
Pin 1
K
G
H’’
J’’
A
D
D
O’’
O’’
L N L
I’’
F’’
F’’
Stencil: 150
µm
Figure 60: SARA-G3 series modules suggested footprint and paste mask (application board top view)
Parameter
Value
Parameter
Value
Parameter
Value
A
26.0 mm
G
1.10 mm
K
2.75 mm
B
16.0 mm
H’
0.80 mm
L
2.75 mm
C
3.00 mm
H’’
0.75 mm
M1
1.80 mm
D
2.00 mm
I’
1.50 mm
M2
3.60 mm
E
2.50 mm
I’’
1.55 mm
N
2.10 mm
F’
1.05 mm
J’
0.30 mm
O’
1.10 mm
F’’
1.00 mm
J’’
0.35 mm
O’’
1.05 mm
Table 37: SARA-G3 series modules suggested footprint and paste mask dimensions
These are recommendations only and not specifications. The exact copper, solder and paste mask
geometries, distances, stencil thicknesses and solder paste volumes must be adapted to the specific
production processes (e.g. soldering etc.) of the customer.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 109 of 145
2.11 Thermal guidelines
SARA-G3 series module operating temperature range and module thermal resistance are specified in the
SARA-G3 series Data Sheet [1].
The most critical condition concerning module thermal performance is the uplink transmission at maximum
power (data upload or voice call in connected-mode), when the baseband processor runs at full speed, radio
circuits are all active and the RF power amplifier is driven to higher output RF power. This scenario is not often
encountered in real networks; however the application should be correctly designed to cope with it.
During transmission at maximum RF power the SARA-G3 series modules generate thermal power that can
exceed 1 W: this is an indicative value since the exact generated power strictly depends on operating condition
such as the number of allocated TX slot, transmitting frequency band, etc. The generated thermal power must
be adequately dissipated through the thermal and mechanical design of the application.
The spreading of the Module-to-Ambient thermal resistance (Rth,M-A) depends on the module operating
condition (e.g. GSM or GPRS mode, transmit band): the overall temperature distribution is influenced by the
configuration of the active components during the specific mode of operation and their different thermal
resistance toward the case interface.
Mounting a SARA-G3 series module on a 79 mm x 62 mm x 1.41 mm 4-Layers PCB with a high coverage of
copper in still air conditions
8
, the increase of the module temperature
9
in different modes of operation, referred
to idle state initial condition
10
, can be summarized as following:
~8 °C during a GSM voice call (1 TX slot, 1 RX slot) at max TX power
~12 °C during a GPRS data transfer (2 TX slots, 3 RX slots) at max TX power
The Module-to-Ambient thermal resistance value and the relative increase of module temperature will be
different for other mechanical deployments of the module, e.g. PCB with different dimensions and
characteristics, mechanical shells enclosure, or forced air flow.
The increase of thermal dissipation, i.e. the Module-to-Ambient thermal resistance reduction, will decrease the
temperature for internal circuitry of SARA-G3 series modules for a given operating ambient temperature. This
improves the device long-term reliability for applications operating at high ambient temperature.
A few hardware techniques may be used to reduce the Module-to-Ambient thermal resistance in the application:
Connect each GND pin with solid ground layer of the application board and connect each ground area of
the multilayer application board with complete via stack down to main ground layer
Provide a ground plane as wide as possible on the application board
Optimize antenna return loss, to optimize overall electrical performance of the module including a decrease
of module thermal power
Optimize the thermal design of any high-power component included in the application, as linear regulators
and amplifiers, to optimize overall temperature distribution in the application device
Select the material, the thickness and the surface of the box (i.e. the mechanical enclosure of the application
device that integrates the module) so that it provides good thermal dissipation
Force ventilation air-flow within mechanical enclosure
8
Refer to SARA-G3 series Data Sheet [1] for the Rth,M-A value in this application condition
9
Temperature is measured by internal sensor of wireless module
10
Steady state thermal equilibrium is assumed. The module’s temperature in idle state can be considered equal to ambient temperature
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 110 of 145
Provide a heat sink component attached to the module top side, with electrically insulated / high thermal
conductivity adhesive, or on the backside of the application board, below the wireless module
For example, after the installation of a robust aluminum heat-sink with forced air ventilation on the back of the
same application board described above, the Module-to-Ambient thermal resistance (Rth,M-A) is reduced up to
the Module-to-Case thermal resistance (Rth,M-C) defined in the SARA-G3 series Data Sheet [1]. The effect of
lower Rth,M-A can be seen from the module temperature increase, which now can be summarized as following:
~1 °C during a GSM voice call (1 TX slot, 1 RX slot) at the maximum TX power
~2 °C during a GPRS data transfer (2 TX slots, 3 RX slots) at the maximum TX power
Beside the reduction of the Module-to-Ambient thermal resistance implemented by the hardware design of the
application device integrating a SARA-G3 series module, the increase of module temperature can be moderated
by the software implementation of the application.
Since the most critical condition concerning module thermal power occurs when module connected-mode is
enabled, the actual module thermal power depends, as module current consumption, on the radio access mode
(GSM / GPRS), the operating band and the average TX power.
A few software techniques may be implemented to reduce the module temperature increase in the application:
Select by means of AT command (refer to the u-blox AT Commands Manual [2], +UCLASS command) the
module’s GPRS multi-slot class which provides lower current consumption (refer to current consumption
values reported in the SARA-G3 series Data Sheet [1])
Select by means of AT command (refer to the u-blox AT Commands Manual [2], +UBANDSEL command) the
operating band which provides lower current consumption (refer to current consumption values reported in
the SARA-G3 series Data Sheet [1])
Enable module connected-mode for a given time period and then disable it for a time period enough long to
properly mitigate temperature increase
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 111 of 145
2.12 ESD guidelines
2.12.1 ESD immunity test overview
The immunity of devices integrating SARA-G3 series modules to Electro-Static Discharge (ESD) is part of the
Electro-Magnetic Compatibility (EMC) conformity which is required for products bearing the CE marking,
compliant with the R&TTE Directive (99/5/EC), the EMC Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms for device ESD immunity:
ESD testing standard CENELEC EN 61000-4-2 [15] and the radio equipment standards ETSI EN 301 489-1 [16],
ETSI EN 301 489-7 [17], ETSI EN 301 489-24 [18], which requirements are summarized in Table 38.
The ESD immunity test is performed at the enclosure port, defined by ETSI EN 301 489-1 [16] as the physical
boundary through which the electromagnetic field radiates. If the device implements an integral antenna, the
enclosure port is seen as all insulating and conductive surfaces housing the device. If the device implements a
removable antenna, the antenna port can be separated from the enclosure port. The antenna port includes the
antenna element and its interconnecting cable surfaces.
The applicability of ESD immunity test to the whole device depends on the device classification as defined by ETSI
EN 301 489-1 [16]. Applicability of ESD immunity test to the relative device ports or the relative interconnecting
cables to auxiliary equipments, depends on device accessible interfaces and manufacturer requirements, as
defined by ETSI EN 301 489-1 [16].
Contact discharges are performed at conductive surfaces, while air discharges are performed at insulating
surfaces. Indirect contact discharges are performed on the measurement setup horizontal and vertical coupling
planes as defined in CENELEC EN 61000-4-2 [15].
For the definition of integral antenna, removable antenna, antenna port, device classification refer to ETSI
EN 301 489-1 [16].
CENELEC EN 61000-4-2 [15] defines the contact and air discharges.
Application
Category
Immunity Level
All exposed surfaces of the radio equipment and ancillary equipment in a
representative configuration
Contact Discharge
4 kV
Air Discharge
8 kV
Table 38: Electro-Magnetic Compatibility ESD immunity requirements as defined by CENELEC EN 61000-4-2, ETSI EN 301 489-1,
ETSI EN 301 489-7, ETSI EN 301 489-24
2.12.2 ESD immunity test of u-blox SARA-G3 series reference designs
Although Electro-Magnetic Compatibility (EMC) certification is required for customized devices integrating
SARA-G3 series modules for R&TTED and European Conformance CE mark, EMC certification (including ESD
immunity) has been successfully performed on SARA-G3 series modules reference design according to CENELEC
EN 61000-4-2 [15], ETSI EN 301 489-1 [16], ETSI EN 301 489-7 [17], ETSI EN 301 489-24 [18] European Norms.
The EMC / ESD approved u-blox reference designs consist of a SARA-G3 series module soldered onto a
motherboard which provides supply interface, SIM card, headset and communication port. An external antenna
is connected to an SMA connector provided on the motherboard for the GSM antenna.
Since an external antenna is used, the antenna port can be separated from the enclosure port. The reference
design is not enclosed in a box so that the enclosure port is not indentified with physical surfaces. Therefore,
some test cases cannot be applied. Only the antenna port is identified as accessible for direct ESD exposure.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 112 of 145
u-blox SARA-G3 series reference design implement all the ESD precautions described in section 2.12.3.
Table 39 reports the u-blox SARA-G3 series reference designs ESD immunity test results, according to test
requirements stated in the CENELEC EN 61000-4-2 [15], ETSI EN 301 489-1 [16], ETSI EN 301 489-7 [17] and
ETSI EN 301 489-24 [18].
Category
Application
Immunity Level
Remarks
Contact Discharge
to coupling planes
(indirect contact discharge)
Enclosure
+4 kV / -4 kV
Contact Discharges
to conducted surfaces
(direct contact discharge)
Enclosure port
Not Applicable
Test not applicable to u-blox reference design because it
does not provide enclosure surface.
The test is applicable only to equipments providing
conductive enclosure surface.
Antenna port
+4 kV / -4 kV
Test applicable to u-blox reference design because it
provides antenna with conductive & insulating surfaces.
The test is applicable only to equipments providing
antenna with conductive surface.
Air Discharge
at insulating surfaces
Enclosure port
Not Applicable
Test not applicable to the u-blox reference design
because it does not provide an enclosure surface.
The test is applicable only to equipments providing
insulating enclosure surface.
Antenna port
+8 kV / -8 kV
Test applicable to u-blox reference design because it
provides antenna with conductive & insulating surfaces.
The test is applicable only to equipments providing
antenna with insulating surface.
Table 39: Enclosure ESD immunity level of u-blox SARA-G3 series modules reference designs
2.12.3 ESD application circuits
The application circuits described in this section are recommended and should be implemented in the device
integrating SARA-G3 series modules, according to the application board classification (see
ETSI EN 301 489-1 [16]), to satisfy the requirements for ESD immunity test summarized in Table 38.
Antenna interface
The ANT pin of SARA-G3 series modules provides ESD immunity up to ±4 kV for direct Contact Discharge and
up to ±8 kV for Air Discharge: no further precaution to ESD immunity test is needed, as implemented in the
EMC / ESD approved reference design of SARA-G3 series modules.
The antenna interface application circuit implemented in the EMC / ESD approved reference designs of SARA-G3
series modules is described in Figure 37 in case of antenna detection circuit not implemented, and is described in
Figure 38 and Table 22 in case of antenna detection circuit implemented (section 2.3).
RESET_N pin
The following precautions are suggested for the RESET_N line of SARA-G3 series modules, depending on the
application board handling, to satisfy ESD immunity test requirements:
It is recommended to keep the connection line to RESET_N as short as possible
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 113 of 145
Maximum ESD sensitivity rating of the RESET_N pin is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level could be required if the RESET_N pin is externally accessible on the application board.
The following precautions are suggested to achieve higher protection level:
A general purpose ESD protection device (e.g. EPCOS CA05P4S14THSG varistor array or EPCOS
CT0402S14AHSG varistor) should be mounted on the RESET_N line, close to accessible point
The RESET_N application circuit implemented in the EMC / ESD approved reference designs of SARA-G3 series
modules is described in Figure 32 and Table 20 (section 2.2.2).
SIM interface
The following precautions are suggested for SARA-G3 series modules SIM interface (VSIM, SIM_RST, SIM_IO,
SIM_CLK pins), depending on the application board handling, to satisfy ESD immunity test requirements:
A 47 pF bypass capacitor (e.g. Murata GRM1555C1H470J) must be mounted on the lines connected to
VSIM, SIM_RST, SIM_IO and SIM_CLK pins to assure SIM interface functionality when an electrostatic
discharge is applied to the application board enclosure
It is suggested to use as short as possible connection lines at SIM pins
Maximum ESD sensitivity rating of SIM interface pins is 1 kV (Human Body Model according to JESD22-A114).
Higher protection level could be required if SIM interface pins are externally accessible on the application board.
The following precautions are suggested to achieve higher protection level:
A low capacitance (i.e. less than 10 pF) ESD protection device (e.g. Tyco Electronics PESD0402-140) should
be mounted on each SIM interface line, close to accessible points (i.e. close to the SIM card holder)
The SIM interface application circuit implemented in the EMC / ESD approved reference designs of SARA-G3
series modules is described in Figure 42 and Table 25 (section 2.4).
Other pins and interfaces
All the module pins that are externally accessible on the device integrating SARA-G3 series module should be
included in the ESD immunity test since they are considered to be a port as defined in ETSI EN 301 489-1 [16].
Depending on applicability, to satisfy ESD immunity test requirements according to ESD category level, all the
module pins that are externally accessible should be protected up to ±4 kV for direct Contact Discharge and up
to ±8 kV for Air Discharge applied to the enclosure surface.
The maximum ESD sensitivity rating of all the other pins of the module is 1 kV (Human Body Model according to
JESD22-A114). Higher protection level could be required if the relative pin is externally accessible on the
application board. The following precautions are suggested to achieve higher protection level:
A general purpose ESD protection device (e.g. EPCOS CA05P4S14THSG or EPCOS CT0402S14AHSG varistor)
should be mounted on the relative line, close to accessible point
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 114 of 145
2.13 Schematic for SARA-G3 series module integration
Figure 61 is an example of a schematic diagram where a SARA-G350 module is integrated into an application
board, using all the available interfaces and functions of the module.
TXD
RXD
RTS
CTS
DTR
DSR
RI
DCD
GND
12 TXD
9DTR
13 RXD
10 RTS
11 CTS
6DSR
7RI
8DCD
GND
3V8
GND
330µF 10nF100nF 56pF
SARA-G350
52 VCC
53 VCC
51 VCC
+
100µF
2V_BCKP
GND GND
GND
RTC
back-up
1.8V DTE
1.8V DTE
16 GPIO1
3V8
Network
Indicator
18 RESET_N
Application
Processor
Open
Drain
Output
15 PWR_ON
100kΩ
Open
Drain
Output
TXD
RXD
29 TXD_AUX
28 RXD_AUX
0Ω
0Ω
TP
TP
u-blox 1.8 V
GPS/GNSS Receiver
4.7k
OUTIN
GND
LDO Regulator
SHDN
SDA
SCL
4.7k
3V8 1V8_GPS
SDA2
SCL2
GPIO3
GPIO4
TxD1
EXTINT0
26
27
24
25
47k
VCC
GPIO2 23
1.8V Digital
Audio Device
I2S_RXD
I2S_CLK
I2S Data Output
I2S Clock
I2S_TXD
I2S_WA
I2S Data Input
I2S Word Alligment
37
36
35
34
49MIC_P
2.2k
2.2k 2.2k
48MIC_N
2.2k
10uF
46MIC_BIAS
47MIC_GND
100nF
100nF
44SPK_P
45SPK_N
82nH
82nH
27pF27pF
Connector
Microphone
ESDESD
27pF 27pF
Speaker
Connector
ESD ESD
15pF
33 RSVD
31 RSVD
17 RSVD
19 RSVD
47pF
SIM Card Holder
CCVCC (C1)
CCVPP (C6)
CCIO (C7)
CCCLK (C3)
CCRST (C2)
GND (C5)
47pF 47pF 100nF
41VSIM
39SIM_IO
38SIM_CLK
40SIM_RST
47pF
SW1
SW2
4V_INT
42SIM_DET
470k ESD ESD ESD ESD ESD ESD
56ANT
62ANT_DET
10k 82nH
33pF Connector
27pF ESD
External
Antenna
V_BCKP
1k
TP
TP
TP
Figure 61: Example of schematic diagram to integrate SARA-G350 module in an application board, using all the interfaces
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 115 of 145
Figure 62 is an example of a schematic diagram where a SARA-G300 / SARA-G310 module is integrated into an
application board, using all the available interfaces and functions of the module.
TXD
RXD
RTS
CTS
DTR
DSR
RI
DCD
GND
12 TXD
9DTR
13 RXD
10 RTS
11 CTS
6DSR
7RI
8DCD
GND
3V8
GND
330µF 10nF100nF 56pF
SARA-G300/G310
52 VCC
53 VCC
51 VCC
+
GND GND
1.8V DTE
1.8V DTE
16 RSVD
18 RESET_N
Application
Processor
Open
Drain
Output
15 PWR_ON
100kΩ
Open
Drain
Output
TXD
RXD
29 TXD_AUX
28 RXD_AUX
0Ω
0Ω
TP
TP
RSVD
RSVD
RSVD
RSVD
26
27
24
25
RSVD 23
RSVD
RSVD
RSVD
RSVD
37
36
35
34
49RSVD
48RSVD
46RSVD
47RSVD
44RSVD
45RSVD
15pF
33 RSVD
31 EXT32K
17 RSVD
19 RSVD
47pF
SIM Card Holder
CCVCC (C1)
CCVPP (C6)
CCIO (C7)
CCCLK (C3)
CCRST (C2)
GND (C5)
47pF 47pF 100nF
41VSIM
39SIM_IO
38SIM_CLK
40SIM_RST
47pF
SW1
SW2
4V_INT
42SIM_DET
470k
1k
ESD ESD ESD ESD ESD ESD
56ANT
62RSVD
Connector External
Antenna
100µF
2V_BCKP
GND
RTC
back-up
V_BCKP
32kHz Oscillator
GND
CLKOUT
OE
VCC
V_BCKP
100nF
TP
TP
TP
Figure 62: Example of schematic diagram to integrate SARA-G300/G310 modules in an application board, using all the interfaces
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 116 of 145
2.14 Design-in checklist
This section provides a design-in checklist.
2.14.1 Schematic checklist
The following are the most important points for a simple schematic check:
DC supply must provide a nominal voltage at VCC pin above the minimum operating range limit.
DC supply must be capable of providing 1.9 A current pulses, providing a voltage at VCC pin above the
minimum operating range limit and with a maximum 400 mV voltage drop from the nominal value.
VCC supply should be clean, with very low ripple/noise: provide the suggested bypass capacitors, in
particular if the application device integrates an internal antenna.
VCC voltage must ramp from 2.5 V to 3.2 V within 4 ms to allow a proper switch-on of the module.
Do not leave PWR_ON floating: fix properly the level, e.g. adding a proper pull-up resistor to V_BCKP.
Do not apply loads which might exceed the limit for maximum available current from V_INT supply.
Check that voltage level of any connected pin does not exceed the relative operating range.
Capacitance and series resistance must be limited on each SIM signal to match the SIM specifications.
Insert the suggested capacitors on each SIM signal and low capacitance ESD protections if accessible.
Check UART signals direction, since the signal names follow the ITU-T V.24 Recommendation [9].
Provide accessible testpoints directly connected to the following pins: TXD_AUX and RXD_AUX pins,
V_INT pin, PWR_ON and/or RESET_N pins, to allow the module firmware upgrade using the u-blox
EasyFlash tool and to allow the trace log capture (debug purpose).
Add a proper pull-up resistor (e.g. 4.7 k) to V_INT or another proper 1.8 V supply on each DDC (I2C)
interface line, if the interface is used.
Capacitance and series resistance must be limited on each line of the DDC (I2C) interface.
Use transistors with at least an integrated resistor in the base pin or otherwise put a 10 k resistor on
the board in series to the GPIO when those are used to drive LEDs.
Connect the pin number 33 (RSVD) to ground.
Insert the suggested passive filtering parts on each used analog audio line.
Check the digital audio interface specifications to connect a proper device.
Provide proper precautions for ESD immunity as required on the application board.
Any external signal connected to the UART interface, auxiliary UART interface, I2S interfaces and GPIOs
must be tri-stated or set low when the module is in power-down mode and during the module power-
on sequence (at least until the activation of the V_INT supply output of the module), to avoid latch-up
of circuits and let a proper boot of the module.
All unused pins can be left unconnected except the PWR_ON pin (its level must be properly fixed, e.g.
adding a 100 k pull-up to V_BCKP) and the RSVD pin number 33 (it must be connected to GND).
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Design-in
Page 117 of 145
2.14.2 Layout checklist
The following are the most important points for a simple layout check:
Check 50 nominal characteristic impedance of the RF transmission line connected to the ANT pad
(antenna RF input/output interface).
Follow the recommendations of the antenna producer for correct antenna installation and deployment
(PCB layout and matching circuitry).
Ensure no coupling occurs between the RF interface and noisy or sensitive signals (primarily analog audio
input/output signals, SIM signals, high-speed digital lines).
VCC line should be wide and short.
Route VCC supply line away from sensitive analog signals.
Ensure proper grounding.
Optimize placement for minimum length of RF line and closer path from DC source for VCC.
Route analog audio signals away from noisy sources (primarily RF interface, VCC, switching supplies).
The audio outputs lines on the application board must be wide enough to minimize series resistance.
Keep routing short and minimize parasitic capacitance on the SIM lines to preserve signal integrity.
2.14.3 Antenna checklist
Antenna termination should provide 50 characteristic impedance with V.S.W.R at least less than 3:1
(recommended 2:1) on operating bands in deployment geographical area.
Follow the recommendations of the antenna producer for correct antenna installation and deployment
(PCB layout and matching circuitry).
Follow the additional guidelines for products marked with the FCC logo (United States only) reported in
chapter 2.3.1.2 and 4.2.2
Follow the guidelines in chapter 2.3.2 to get proper antenna detection functionality, if required.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Handling and soldering
Page 118 of 145
3 Handling and soldering
No natural rubbers, no hygroscopic materials or materials containing asbestos are employed.
3.1 Packaging, shipping, storage and moisture preconditioning
For information pertaining to reels and tapes, Moisture Sensitivity levels (MSD), shipment and storage
information, as well as drying for preconditioning see the SARA-G3 series Data Sheet [1] and the u-blox Package
Information Guide [25].
The SARA-G3 series modules are Electro-Static Discharge (ESD) sensitive devices.
Ensure ESD precautions are implemented during handling of the module.
3.2 Soldering
3.2.1 Soldering paste
Use of "No Clean" soldering paste is strongly recommended, as it does not require cleaning after the soldering
process has taken place. The paste listed in the example below meets these criteria.
Soldering Paste: OM338 SAC405 / Nr.143714 (Cookson Electronics)
Alloy specification: 95.5% Sn / 3.9% Ag / 0.6% Cu (95.5% Tin / 3.9% Silver / 0.6% Copper)
95.5% Sn / 4.0% Ag / 0.5% Cu (95.5% Tin / 4.0% Silver / 0.5% Copper)
Melting Temperature: 217 °C
Stencil Thickness: 150 µm for base boards
The final choice of the soldering paste depends on the approved manufacturing procedures.
The paste-mask geometry for applying soldering paste should meet the recommendations in section 2.10
The quality of the solder joints on the connectors (’half vias’) should meet the appropriate IPC
specification.
3.2.2 Reflow soldering
A convection type-soldering oven is strongly recommended over the infrared type radiation oven.
Convection heated ovens allow precise control of the temperature and all parts will be heated up evenly,
regardless of material properties, thickness of components and surface color.
Consider the "IPC-7530 Guidelines for temperature profiling for mass soldering (reflow and wave) processes,
published 2001".
Reflow profiles are to be selected according to the following recommendations.
Failure to observe these recommendations can result in severe damage to the device!
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Handling and soldering
Page 119 of 145
Preheat phase
Initial heating of component leads and balls. Residual humidity will be dried out. Note that this preheat phase
will not replace prior baking procedures.
Temperature rise rate: max 3 °C/s If the temperature rise is too rapid in the preheat phase it may cause
excessive slumping.
Time: 60 – 120 s If the preheat is insufficient, rather large solder balls tend to be
generated. Conversely, if performed excessively, fine balls and large
balls will be generated in clusters.
End Temperature: 150 - 200 °C If the temperature is too low, non-melting tends to be caused in
areas containing large heat capacity.
Heating/ reflow phase
The temperature rises above the liquidus temperature of 217 °C. Avoid a sudden rise in temperature as the
slump of the paste could become worse.
Limit time above 217 °C liquidus temperature: 40 - 60 s
Peak reflow temperature: 245 °C
Cooling phase
A controlled cooling avoids negative metallurgical effects (solder becomes more brittle) of the solder and
possible mechanical tensions in the products. Controlled cooling helps to achieve bright solder fillets with a good
shape and low contact angle.
Temperature fall rate: max 4 °C/s
To avoid falling off, modules should be placed on the topside of the motherboard during soldering.
The soldering temperature profile chosen at the factory depends on additional external factors like choice of
soldering paste, size, thickness and properties of the base board, etc.
Exceeding the maximum soldering temperature and the maximum liquidus time limit in the
recommended soldering profile may permanently damage the module.
Preheat Heating Cooling
[°C] Peak Temp. 245°C [°C]
250 250
Liquidus Temperature
217 217
200 200
40 - 60 s
End Temp.
max 4°C/s
150 - 200°C
150 150
max 3°C/s
60 - 120 s
100 Typical Leadfree 100
Soldering Profile
50 50
Elapsed time [s]
Figure 63: Recommended soldering profile
SARA-G3 series modules must not be soldered with a damp heat process.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Handling and soldering
Page 120 of 145
3.2.3 Optical inspection
After soldering the SARA-G3 series modules, inspect the modules optically to verify that the module is properly
aligned and centered.
3.2.4 Cleaning
Cleaning the soldered modules is not recommended. Residues underneath the modules cannot be easily
removed with a washing process.
Cleaning with water will lead to capillary effects where water is absorbed in the gap between the baseboard
and the module. The combination of residues of soldering flux and encapsulated water leads to short circuits
or resistor-like interconnections between neighboring pads. Water will also damage the sticker and the ink-
jet printed text.
Cleaning with alcohol or other organic solvents can result in soldering flux residues flooding into the two
housings, areas that are not accessible for post-wash inspections. The solvent will also damage the sticker
and the ink-jet printed text.
Ultrasonic cleaning will permanently damage the module, in particular the quartz oscillators.
For best results use a "no clean" soldering paste and eliminate the cleaning step after the soldering.
3.2.5 Repeated reflow soldering
Only a single reflow soldering process is encouraged for boards with a SARA-G3 series module populated on it.
The reason for this is the risk of the module falling off due to high weight in relation to the adhesive properties
of the solder.
3.2.6 Wave soldering
Boards with combined through-hole technology (THT) components and surface-mount technology (SMT) devices
require wave soldering to solder the THT components. Only a single wave soldering process is encouraged for
boards populated with SARA-G3 series modules.
3.2.7 Hand soldering
Hand soldering is not recommended.
3.2.8 Rework
Rework is not recommended.
Never attempt a rework on the module itself, e.g. replacing individual components. Such actions
immediately terminate the warranty.
3.2.9 Conformal coating
Certain applications employ a conformal coating of the PCB using HumiSeal® or other related coating products.
These materials affect the HF properties of the SARA-G3 series modules and it is important to prevent them from
flowing into the module.
The RF shields do not provide 100% protection for the module from coating liquids with low viscosity, therefore
care is required in applying the coating.
Conformal Coating of the module will void the warranty.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Handling and soldering
Page 121 of 145
3.2.10 Casting
If casting is required, use viscose or another type of silicon pottant. The OEM is strongly advised to qualify such
processes in combination with the SARA-G3 series modules before implementing this in the production.
Casting will void the warranty.
3.2.11 Grounding metal covers
Attempts to improve grounding by soldering ground cables, wick or other forms of metal strips directly onto the
EMI covers is done at the customer's own risk. The numerous ground pins should be sufficient to provide
optimum immunity to interferences and noise.
u-blox gives no warranty for damages to the SARA-G3 series modules caused by soldering metal cables or
any other forms of metal strips directly onto the EMI covers.
3.2.12 Use of ultrasonic processes
SARA-G3 series modules contain components which are sensitive to Ultrasonic Waves. Use of any Ultrasonic
Processes (cleaning, welding etc.) may cause damage to the module.
u-blox gives no warranty against damages to the SARA-G3 series modules caused by any Ultrasonic
Processes.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Approvals
Page 122 of 145
4 Approvals
For the complete list of all the certification schemes approvals of SARA-G3 series modules and the
corresponding declarations of conformity, refer to the u-blox web-site (http://www.u-blox.com).
4.1 Product certification approval overview
Product certification approval is the process of certifying that a product has passed all tests and criteria required
by specifications, typically called “certification schemes” that can be divided into three distinct categories:
Regulatory certification
o Country specific approval required by local government in most regions and countries, as:
CE (Conformité Européenne) marking for European Union
FCC (Federal Communications Commission) approval for United States
Industry certification
o Telecom industry specific approval verifying the interoperability between devices and networks:
GCF (Global Certification Forum), partnership between European device manufacturers and
network operators to ensure and verify global interoperability between devices and networks
PTCRB (PCS Type Certification Review Board), created by United States network operators to
ensure and verify interoperability between devices and North America networks
Operator certification
o Operator specific approval required by some mobile network operator, as:
AT&T network operator in United States
Even if SARA-G3 modules are approved under all major certification schemes, the application device that
integrates SARA-G3 modules must be approved under all the certification schemes required by the specific
application device to be deployed in the market.
The required certification scheme approvals and relative testing specifications differ depending on the country or
the region where the device that integrates SARA-G3 series modules must be deployed, on the relative vertical
market of the device, on type, features and functionalities of the whole application device, and on the network
operators where the device must operate.
The certification of the application device that integrates a SARA-G3 module and the compliance of the
application device with all the applicable certification schemes, directives and standards are the sole
responsibility of the application device manufacturer.
SARA-G3 modules are certified according to all capabilities and options stated in the Protocol Implementation
Conformance Statement document (PICS) of the module. The PICS, according to 3GPP TS 51.010-2 [14], is a
statement of the implemented and supported capabilities and options of a device.
The PICS document of the application device integrating a SARA-G3 module must be updated from the
module PICS statement if any feature stated as supported by the module in its PICS document is not
implemented or disabled in the application device, as for the following cases:
o if any RF band is disabled by AT+UBANDSEL command
o if the automatic network attach is disabled by AT+COPS command
o if the module’s GPRS multi-slot class is changed by AT+UCLASS command
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Approvals
Page 123 of 145
4.2 Federal Communications Commission and Industry Canada notice
Federal Communications Commission (FCC) ID:
XPYSARAG350
Industry Canada (IC) Certification Number:
8595A-SARAG350
4.2.1 Safety Warnings review the structure
Equipment for building-in. The requirements for fire enclosure must be evaluated in the end product
The clearance and creepage current distances required by the end product must be withheld when the
module is installed
The cooling of the end product shall not negatively be influenced by the installation of the module
Excessive sound pressure from earphones and headphones can cause hearing loss
No natural rubbers, no hygroscopic materials nor materials containing asbestos are employed
4.2.2 Declaration of Conformity – United States only
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
this device may not cause harmful interference
this device must accept any interference received, including interference that may cause undesired operation
Radiofrequency radiation exposure Information: this equipment complies with FCC radiation
exposure limits prescribed for an uncontrolled environment for fixed and mobile use conditions.
This equipment should be installed and operated with a minimum distance of 20 cm between
the radiator and the body of the user or nearby persons. This transmitter must not be co-
located or operating in conjunction with any other antenna or transmitter except as authorized
in the certification of the product.
The gain of the system antenna(s) used for the SARA-G3 series modules (i.e. the combined
transmission line, connector, cable losses and radiating element gain) must not exceed 8.39 dBi
(850 MHz) and 3.11 dBi (1900 MHz) for mobile and fixed or mobile operating configurations.
4.2.3 Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are not
expressly approved by u-blox could void the user's authority to operate the equipment.
Manufacturers of mobile or fixed devices incorporating the SARA-G3 series modules are
authorized to use the FCC Grants and Industry Canada Certificates of the SARA-G3 series
modules for their own final products according to the conditions referenced in the certificates.
The FCC Label shall in the above case be visible from the outside, or the host device shall bear a
second label stating:
"Contains FCC ID: XPYSARAG350" resp.
The IC Label shall in the above case be visible from the outside, or the host device shall bear a
second label stating:
"Contains IC: 8595A-SARAG350" resp.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions:
o this device may not cause interference
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Approvals
Page 124 of 145
o this device must accept any interference, including interference that may cause undesired
operation of the device
Radio Frequency (RF) Exposure Information
The radiated output power of the u-blox Wireless Module is below the Industry Canada (IC)
radio frequency exposure limits. The u-blox Wireless Module should be used in such a manner
such that the potential for human contact during normal operation is minimized.
This device has been evaluated and shown compliant with the IC RF Exposure limits under
mobile exposure conditions (antennas are greater than 20cm from a person's body).
This device has been certified for use in Canada. Status of the listing in the Industry Canada’s
REL (Radio Equipment List) can be found at the following web address:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web
address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
IMPORTANT: Manufacturers of portable applications incorporating the SARA-G3 series modules
are required to have their final product certified and apply for their own FCC Grant and Industry
Canada Certificate related to the specific portable device. This is mandatory to meet the SAR
requirements for portable devices.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Canada, avis d'Industrie Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes:
o cet appareil ne doit pas causer d'interférence
o cet appareil doit accepter toute interférence, notamment les interférences qui peuvent
affecter son fonctionnement
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil u-blox Wireless Module est inférieure à
la limite d'exposition aux fréquences radio d'Industrie Canada (IC). Utilisez l’appareil de sans
fil u-blox Wireless Module de façon à minimiser les contacts humains lors du fonctionnement
normal.
Ce périphérique a été évalué et démontré conforme aux limites d'exposition aux fréquences
radio (RF) d'IC lorsqu'il est installé dans des produits hôtes particuliers qui fonctionnent dans
des conditions d'exposition à des appareils mobiles (les antennes se situent à plus de 20
centimètres du corps d'une personne).
Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée
correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment List)
d'Industrie Canada rendez-vous sur:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=fra
Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-vous
sur: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
IMPORTANT: les fabricants d'applications portables contenant les modules SARA-G3 series
doivent faire certifier leur produit final et déposer directement leur candidature pour une
certification FCC ainsi que pour un certificat Industrie Canada délivré par l'organisme chargé de
ce type d'appareil portable. Ceci est obligatoire afin d'être en accord avec les exigences SAR
pour les appareils portables.
Tout changement ou modification non expressément approuvé par la partie responsable de la
certification peut annuler le droit d'utiliser l'équipement.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Approvals
Page 125 of 145
4.3 R&TTED and European Conformance CE mark
This device has been evaluated against the essential requirements of the 1999/5/EC Directive.
In order to satisfy the essential requirements of 1999/5/EC Directive, the module is compliant with the following
standards:
Radio Frequency spectrum use (R&TTE art. 3.2):
o EN 301 511 V9.0.2
Electromagnetic Compatibility (R&TTE art. 3.1b):
o EN 301 489-1 V1.9.2
o EN 301 489-7 V1.4.1
Health and Safety (R&TTE art. 3.1a)
o EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011
o EN 62311:2008
The conformity assessment procedure referred to in Article 10 and detailed in Annex IV of Directive 1999/5/EC
has been followed with the involvement of the following Notified Body No: 1909
Thus, the following marking is included in the product:
There is no restriction for the commercialisation of this device in all the countries of the European Union.
1909
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Product Testing
Page 126 of 145
5 Product Testing
5.1 u-blox in-series production test
u-blox focuses on high quality for its products. All units produced are fully tested. Defective units are analyzed in
detail to improve the production quality.
This is achieved with automatic test equipment, which delivers a detailed test report for each unit. The following
measurements are done:
Digital self-test (firmware download, Flash firmware verification, IMEI programming)
Measurement of voltages and currents
Adjustment of ADC measurement interfaces
Functional tests (Serial interface communication, analog audio interface, real time clock, temperature sensor,
antenna detection, SIM card communication)
Digital tests (GPIOs, digital interfaces)
Measurement and calibration of RF characteristics in all supported bands (Receiver S/N verification, frequency
tuning of reference clock, calibration of transmitter and receiver power levels)
Verification of RF characteristics after calibration (modulation accuracy, power levels and spectrum
performance are checked to be within tolerances when calibration parameters are applied)
Figure 64: Automatic test equipment for module tests
5.2 Test parameters for OEM manufacturer
Because of the testing done by u-blox (with 100% coverage), an OEM manufacturer does not need to repeat
firmware tests or measurements of the module RF performance or tests over analog and digital interfaces in their
production test.
An OEM manufacturer should focus on:
Module assembly on the device; it should be verified that:
o Soldering and handling process did not damaged the module components
o All module pins are well soldered on device board
o There are no short circuits between pins
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Product Testing
Page 127 of 145
Component assembly on the device; it should be verified that:
o Communication with host controller can be established
o The interfaces between module and device are working
o Overall RF performance test of the device including antenna
Dedicated tests can be implemented to check the device. For example, the measurement of module current
consumption when set in a specified status can detect a short circuit if compared with a “Golden Device” result.
Module AT commands are used to perform functional tests (communication with host controller, check SIM card
interface, check communication between module and GPS/GNSS, GPIOs, etc.) and to perform RF performance
tests.
5.2.1 “Go/No go” tests for integrated devices
A ‘Go/No go’ test is to compare the signal quality with a “Golden Device” in a position with excellent network
coverage and after having dialed a call (refer to u-blox AT Commands Manual [2], AT+CSQ command: <rssi>,
<ber> parameters).
These kinds of test may be useful as a ‘go/no go’ test but not for RF performance measurements.
This test is suitable to check the communication with host controller and SIM card, the audio and power supply
functionality and verify if components at antenna interface are well soldered.
5.2.2 Functional tests providing RF operation
Overall RF performance test of the device including antenna can be performed with basic instruments such as a
spectrum analyzer (or an RF power meter) and a signal generator using AT+UTEST command over AT interface.
The AT+UTEST command gives a simple interface to set the module to Rx and Tx test modes ignoring GSM/GPRS
signaling protocol. The command can set the module:
In transmitting mode in a specified channel and power level in all supported modulation schemes (single slot
GMSK) and bands
In receiving mode in a specified channel to returns the measured power level in all supported bands
Refer to the u-blox AT Commands Manual [2], for AT+UTEST command syntax description.
Refer to the End user test Application Note [24], for AT+UTEST command user guide, limitations and
examples of use.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Product Testing
Page 128 of 145
Application Board
SARA-G3
series
ANT
Application
Processor AT
Commands
Wireless
Antenna
Spectrum
Analyzer
IN
Wideband
Antenna
TX
Application Board
SARA-G3
series
ANT
Application
Processor AT
Commands
Wireless
Antenna
Signal
Generetor
OUT
Wideband
Antenna
RX
Figure 65: Setup with spectrum analyzer and signal generator for radiated measurement
This feature allows the measurement of the transmitter and receiver power levels to check component assembly
related to the module antenna interface and to check other device interfaces from which depends the RF
performance.
To avoid module damage during transmitter test, a proper antenna according to module
specifications or a 50 termination must be connected to ANT pin.
To avoid module damage during receiver test the maximum power level received at ANT pin
must meet module specifications.
The AT+UTEST command sets the module to emit RF power ignoring GSM/GPRS signalling protocol. This
emission can generate interference that can be prohibited by law in some countries. The use of this
feature is intended for testing purpose in controlled environments by qualified user and must not be used
during the normal module operation. Follow instructions suggested in u-blox documentation. u-blox
assumes no responsibilities for the inappropriate use of this feature.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Product Testing
Page 129 of 145
Example of production tests for OEM manufacturer:
1. Trigger TX GMSK burst at low Power Control Level (lower than 15) or a RX measure reporting to check:
o If ANT pin is soldered
o If ANT pin is in short circuit
o If the module was damaged during soldering process or during handling (ESD, mechanical shock…)
o If antenna matching components on application board are soldered
o If integrated antenna is correctly connected
To avoid module damage during transmitter test when good antenna termination is not
guaranteed, use a low Power Control Level (i.e. PCL lower or equal to 15). u-blox assumes no
responsibilities for module damaging caused by an inappropriate use of this feature.
2. Trigger TX GMSK burst at maximum PCL:
o To check if the power supply is correctly assembled and is able to deliver the required current
3. Trigger TX GMSK burst:
o To measure current consumption
o To check if module components were damaged during soldering process or during handling (ESD,
mechanical shock…)
4. Trigger RX measurement:
o To test receiver signal level. Assuming that there are no losses between ANT pin and input power
source, be aware that the power level estimated by the module can vary approximately within
3GPP tolerances for the average value
o To check if module was damaged during soldering process or during handling (ESD, mechanical
shock…)
5. Trigger TX GMSK burst and RX measurement to check:
o Overall RF performance of the device including antenna measuring TX and RX power levels
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 130 of 145
Appendix
A Migration between LISA and SARA modules
A.1 Overview
Migrating between LISA-U1, LISA-U2, LISA-C2 series and SARA-G3 series wireless modules designs is a fairly
procedure that allows customers to take maximum advantage of their hardware and software investments.
SARA-G3 wireless modules (26.0 x 16.0 mm LGA) have a different form factor than LISA wireless modules
(33.2 x 22.4 mm LCC), but the footprint for each SARA and LISA module has been developed so that all the
pads on the same lateral edge of the antenna pin can be shared on the application board, due to the same pitch
and nearly the same functions provided, as described in Figure 66.
64 63 61 60 58 57 55 54
22 23 25 26 28 29 31 32
11
10
8
7
5
4
2
1
21
19
18
16
15
13
12
43
44
46
47
49
50
52
53
33
35
36
38
39
41
42
65 66 67 68 69 70
71 72 73 74 75 76
77 78
79 80
81 82
83 84
85 86 87 88 89 90
91 92 93 94 95 96
CTS
RTS
DCD
RI
V_INT
V_BCKP
GND
RSVD
RESET_N
RSVD/ GPIO1
PWR_ON
RXD
TXD
3
20
17
14
9
6
24 27 30
51
48
45
40
37
34
5962 56
GND
GND
DSR
DTR
GND
RSVD
GND
GND
RXD_AUX
TXD_AUX
EXT32 / RSVD
GND
RSVD/ GPIO2
RSVD/ GPIO3
RSVD/ SDA
RSVD/SCL
RSVD/ GPIO4
GND
GND
GND
RSVD/ SPK_P
RSVD/ MIC_BIAS
RSVD/ MIC_GND
RSVD/ MIC_P
GND
VCC
VCC
RSVD
RSVD/ I2S_TXD
RSVD/ I2S_CLK
SIM_CLK
SIM_IO
VSIM
SIM_DET
VCC
RSVD/ MIC_N
RSVD/ SPK_N
SIM_RST
RSVD/ I2S_RXD
RSVD/ I2S_WA
GND
GND
GND
GND
GND
GND
GND
GND
GND
RSVD/ ANT_DET
ANT
SARA-G3 series
Top View
Pin 65-96: GND
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
GND
VCC
VCC
VCC
GND
SPI_MRDY
SPI_SRDY
SPI_MISO
SPI_MOSI
SPI_SCLK
RSVD / SPK_N
GND
RSVD / SPK_P
RSVD
GPIO5
VSIM
SIM_RST
SIM_IO
SIM_CLK
SDA
SCL
RSVD / I2S_RXD
RSVD / I2S_CLK
RSVD / I2S_TXD
RSVD / I2S_WA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
V_BCKP
GND
V_INT
RSVD
GND
GND
GND
DSR
RI
DCD
DTR
GND
RTS
CTS
TXD
RXD
GND
VUSB_DET
PWR_ON
GPIO1
GPIO2
RESET_N
GPIO3
GPIO4
GND
26
27
USB_D-
USB_D+
40
39
RSVD / MIC_P
RSVD / MIC_N
28 29 30 31 32 33 34 35 36 37 38
76 75 74 73 72 71 70 69 68 67 66
LISA-U1 series
Top View
GND
RSVD
GND
GND
GND
GND
GND
ANT
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
GND
VCC
VCC
VCC
GND
SPI_MRDY / GPIO14
SPI_SRDY / GPIO13
SPI_MISO / GPIO12
SPI_MOSI / GPIO11
SPI_SCLK / GPIO10
GPIO9 / I2S1_WA
GND
GPIO8 / I2S1_CLK
RSVD / CODEC_CLK
GPIO5
VSIM
SIM_RST
SIM_IO
SIM_CLK
SDA
SCL
RSVD / I2S_RXD
RSVD / I2S_CLK
RSVD / I2S_TXD
RSVD / I2S_WA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
V_BCKP
GND
V_INT
RSVD
GND
GND
GND
DSR
RI
DCD
DTR
GND
RTS
CTS
TXD
RXD
GND
VUSB_DET
PWR_ON
GPIO1
GPIO2
RESET_N
GPIO3
GPIO4
GND
26
27
USB_D-
USB_D+
40
39
GPIO7 / I2S1_TXD
GPIO6 / I2S1_RXD
28 29 30 31 32 33 34 35 36 37 38
76 75 74 73 72 71 70 69 68 67 66
LISA-U2 series
Top View
GND
RSVD/ ANT_DIV
GND
GND
GND
GND
GND
ANT
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
GND
VCC
VCC
VCC
GND
RSVD
RSVD
RSVD
RSVD
RSVD
SPK_N
GND
SPK_P
RSVD
GPIO5
VSIM
SIM_RST
SIM_IO
SIM_CLK
RSVD
RSVD
PCM_DI
PCM_CLK
PCM_DO
PCM_SYNC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
RSVD
GND
V_INT
RSVD
GND
GND
GND
RSVD
RI
RSVD
RSVD
GND
RTS
CTS
TXD
RXD
GND
VUSB_DET
PWR_ON
GPIO1
GPIO2
RESET_N
GPIO3
GPIO4
GND
26
27
USB_D-
USB_D+
40
39
MIC_P
MIC_N
28 29 30 31 32 33 34 35 36 37 38
76 75 74 73 72 71 70 69 68 67 66
LISA-C2 series
Top View
GND
RSVD
GND
GND
GND
GND
GND
ANT
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Figure 66: LISA series vs. SARA-G3 series modules pin assignment: highlighted pads that can be shared on the application board
This is the basis of the Nested Design concept: any SARA-G3, any LISA-U1, any LISA-U2, any LISA-C2 module
can be alternatively mounted on the same nested board as shown in Figure 67, enabling straightforward
development of products supporting either GSM/GPRS, W-CDMA or CDMA wireless technology with the same
application board.
LISA
NESTED APPLICATION BOARD
Top Layer and Solder Mask
LISA mounting option
with LISA Paste Mask
SARA
SARA mounting option
with SARA Paste Mask
ANT pad
Figure 67: Nested Design concept description: LISA and SARA modules alternatively mounted on the same application board
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 131 of 145
The voltage level of all the digital interfaces of SARA-G3 and LISA modules is 1.8 V: this allows the direct
connection from a 1.8 V external device (e.g. application processor) to all the modules.
The following chapters explains in details all the points to consider during the migration between LISA and SARA
designs, implementing or not a nested design
For further details regarding SARA-G3 and LISA modules characteristics, usage, settings refer to the relative
module datasheet [1], [3], [4], [5], System Integration Manual [6], [7], and AT commands manual [2], [8].
A.2 Checklist for migration
Have you chosen the optimal SARA-G3 series module?
For quad-band GSM/GPRS class 12, full feature set, select the SARA-G350 module.
For quad-band GSM/GPRS class 2, reduced feature set, select the SARA-G310 module.
For dual-band GSM/GPRS class 2, reduced feature set, select the SARA-G300 module.
Check SARA-G3 series modules hardware requirements
Check power capabilities of the external supply circuit: SARA-G3 modules require large current pulses in
connected-mode as well as LISA-U series modules when a 2G call is enabled. LISA-C2 series modules do
not require large current pulses due to the CDMA channel access technology.
Check supported bands for proper antenna circuit development: SARA-G3 modules frequency ranges
are within LISA-U modules ranges, but LISA-C2 modules range is quite different.
Check antenna detection requirements: SARA-G350 modules provide the antenna detection function
implementing an external application circuit between ANT_DET and ANT pins.
Check the module power-on requirements: Table 40 and relative section summarize differences
between SARA-G3 series and LISA modules.
Check the module requirements to enter low power idle-mode: SARA-G300 and SARA-G310 modules
require an external 32 kHz signal at EXT32K input pin.
Check serial interfaces requirements: SARA-G3 modules provide UART interface for AT command, data
communication, multiplexer functionality, FW upgrade over AT and provide auxiliary UART interface for
FW upgrade using the u-blox EasyFlash tool and for Trace log capture (debug purpose).
Check analog audio requirements: SARA-G350 modules do not provide DC blocking capacitors at the
MIC_P / MIC_N input pins and provide supply output and local ground for an external microphone at
the MIC_BIAS / MIC_GND pins.
Check digital audio requirements: SARA-G350 modules provide a 4-wire 1.8 V interface supporting
PCM and Normal I2S modes, master role and fixed sample rate.
Check internal active pull-up / down values at digital interface input pins and the current capability of
digital interface output pins, since they are slightly different between SARA-G3 and LISA modules.
Check SARA-G3 series modules software requirements
Not all of the functionalities available with LISA modules are supported by all the SARA-G3 modules
versions. SARA-G300 and SARA-G310 modules do not support:
o Audio interfaces, DDC (I2C) interface, Antenna detection interface, GPIOs
o Low power idle-mode, if an external 32 kHz signal at EXT32K input pin is not provided
o TCP/IP, UDP/IP, FTP, HTTP
o GPS/GNSS via Modem, AssistNow clients, Hybrid positioning and CellLocateTM functionalities
o Jamming detection
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 132 of 145
A.3 Software migration
Software migration between SARA-G3 and LISA wireless modules is a straightforward procedure. Nevertheless
there are some differences to be considered with firmware version. Each wireless module supports AT
commands according to 3GPP standards: TS 27.007 [10], TS 27.005 [11], TS 27.010 [12] and the u-blox AT
command extension. Backward compatibility has been maintained as far as possible.
For the complete list of supported AT commands and their syntax refer to the relative AT commands
manual of the module [2], [8].
A.4 Hardware migration
SARA-G3 series modules have been designed with backward compatibility to LISA series modules in mind but
some minor differences were unavoidable. These minor differences are however not relevant for the majority of
the designs.
The following subchapters describe the hardware differences between the interfaces of SARA-G3 series modules
and LISA series modules while Table 41 summarizes the detailed differences between the pins.
A.4.1 Supply interfaces
Module supply input (VCC)
The same compatible external circuit can be implemented for SARA-G3 and LISA even if there are minor
differences in the VCC input voltage ranges and some differences in the current consumption figures.
The voltage provided must be within the normal operating range limits to allow module switch-on and must be
above the minimum limit of the extended operating range to avoid module switch-off. For the detailed VCC
input voltage ranges values refer to Table 41 or to the relative datasheet of the module [1], [3], [4], [5].
The SARA-G3 maximum average current consumption is lower than the LISA one due to the lower data rate or
the different channel access technology. SARA-G3 modules require large current pulses in connected-mode as
well as LISA-U series when a 2G call is enabled. LISA-C2 series do not require large current pulses due to the
CDMA channel access technology. For the detailed current consumption values refer to the relative datasheet of
the module [1], [3], [4], [5].
Detailed supply circuit design-in guidelines are reported in section 2.1.1 and in the relative System Integration
Manual of the module [6], [7].
RTC supply input/output (V_BCKP)
The same compatible external circuit can be implemented for SARA-G3 series and LISA-U series even if there are
minor differences in the V_BCKP typical output voltage and input voltage range as reported in Table 41 or in the
relative datasheet of the module [1], [3], [4], [5]. LISA-C2 series do not provide V_BCKP RTC supply input/output
as well as the whole RTC functionality.
Interfaces supply output (V_INT)
The same compatible external circuit can be implemented for SARA-G3 series and LISA series: there are no
differences in the V_INT output characteristics.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 133 of 145
A.4.2 System functions interfaces
Module power-on
SARA-G3 and LISA series power-on sequence is initiated in one of the ways summarized in Table 40. For more
details refer to section 1.6.1 or to the relative System Integration Manual of the module [6], [7].
SARA-G3 series
LISA-C2 series
LISA-U1 series
LISA-U2 series
Rising edge on the VCC pins to a
valid voltage as module supply
Rising edge on the VCC pins to a
valid voltage as module supply
with PWR_ON pin permanently
low when VCC is applied
Rising edge on the VCC pins to a
valid voltage as module supply
Rising edge on the VCC pins to a
valid voltage as module supply
Low level on the PWR_ON pin
for appropriate time period
Low pulse on the PWR_ON pin
for appropriate time period
Low pulse on the PWR_ON pin
for appropriate time period
Low pulse on the PWR_ON pin
for appropriate time period
Pre-programmed RTC alarm
(32 kHz signal at EXT32K input
needed for SARA-G300/G310)
Pre-programmed RTC alarm
Pre-programmed RTC alarm
RESET_N input pin released
from the low level
RESET_N input pin released
from the low level
Table 40: Summary of power on events among modules
The same compatible external power-on circuit can be implemented for SARA-G3 series and LISA series even if
there are minor differences in the PWR_ON input voltage levels ranges and in the low level time or low pulse
time to switch-on the module, as reported in Table 41 or in the relative datasheet of the module [1], [3], [4], [5].
PWR_ON falling edge (i.e. low pulse) is required for LISA series, but it is not required for SARA-G3 series.
External pull-up is not needed for LISA-C2 series since internal pull-up is provided.
Module power-off
SARA-G3 and LISA modules can be all properly switched off by means of the AT+CPWROFF command.
All LISA-U2 modules except LISA-U200-00S modules can be additionally properly switched off by low pulse on
PWR_ON pin, as reported in Table 41 or in the relative datasheet of the module [5].
Module reset
SARA-G3 series and LISA series modules reset can be performed in one of the following ways:
Forcing a low level on the RESET_N pin, causing an “external” or “hardware” reset
By means of the AT+CFUN command, causing an “internal” or “software” reset
The same compatible external reset circuit can be implemented for SARA-G3 series and LISA series even if there
are minor differences in the RESET_N input voltage levels ranges and in the low level time, as reported in Table
41 or in the relative datasheet of the module [1], [3], [4], [5].
Additional precautions are suggested for the RESET_N line of LISA-U series modules, depending on the
application board handling, to satisfy ESD immunity test requirements as described in the LISA-U Series System
Integration Manual [7].
External 32 kHz input
The external 32 kHz signal input pin (EXT32K) is available only on the SARA-G300 and SARA-G310 modules to
provide the 32 kHz reference clock for the Real Time Clock (RTC) timing, used by the module processor to reach
the low power idle-mode and provide the RTC functions.
SARA-G350 and LISA-U modules are equipped with internal 32 kHz oscillator to provide the same functions.
LISA-C2 series do not provide RTC and the relative functions.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 134 of 145
A.4.3 Antenna interface
RF interface for Tx/Rx antenna
The same compatible external circuit can be implemented for SARA-G3 series and LISA series ANT pin even if
there are some differences in the operating bands frequency ranges as summarized in Figure 68.
VV II II
850
900
850
800 850 900 950
900 1800
1900 1900
1800
1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
824 960 1710 1990
LISA-U100
LISA-U120
LISA-U260
LISA-U200
LISA-U230
VV II II
850
900
850
800 850 900 950
900 1800
1900 1900
1800
1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
IIVIVI
VIIIVIII IV IV
824 960 1710 2170
850
900
850
800 850 900 950
900 1800
1900 1900
1800
1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
IIVIIIVIII
824 960 1710 2170
LISA-U110
LISA-U130
LISA-U270
850
900
850
800 850 900 950
900 1800
1900 1900
1800
1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
824 960 1710 1990
SARA-G310
SARA-G350
900
800 850 900 950
900 1800 1800
1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
880 960 1710 1880
SARA-G300
800800
800 850 900 950
1900 1900
1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
824 894 1850 1990
LISA-C200
Figure 68: Summary of operating bands frequency ranges among modules
An external application circuit can be implemented on the application device integrating LISA-U2 series modules
to satisfy ESD immunity test requirements at the antenna port, as described in the LISA-U Series System
Integration Manual [7]. The same application circuit is not applicable for SARA-G3 series, LISA-U1 series and
LISA-C2 series.
RF interface for Rx diversity antenna
Only the LISA-U230 modules provide the RF input for Rx diversity antenna (ANT_DIV).
SARA-G3, LISA-C2, LISA-U1 and the other LISA-U2 series modules do not support Rx diversity.
Antenna detection interface
An external application circuit can be implemented on the application device integrating SARA-G350 modules to
provide antenna detection functionality, with a proper connection between the ANT_DET pin and the ANT pin,
as described in section 2.3.2.
LISA-U modules are equipped with internal circuit for antenna detection support.
SARA-G300, SARA-G310 and LISA-C2 series modules do not support antenna detection.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 135 of 145
A.4.4 SIM interface
SIM interface
The same compatible external circuit can be implemented for SARA-G3 and LISA modules: 1.8 V and 3.0 V SIM
card / IC are supported. LISA-C2 modules do not need an external SIM for Sprint and Verizon mobile operators.
LISA-C2 series SIM interface is hardware ready but the support of external SIM card / IC will be provided by the
upcoming firmware releases.
SIM detection interface
The same compatible external circuit can be implemented for SARA-G3 and LISA modules: SIM detection
function is provided by the SIM_DET pin on SARA-G3 modules and by the GPIO5 pin on LISA-U modules. SIM
card hot insertion/removal is additionally supported by all LISA-U2 series except LISA-U200-00S.
LISA-C2 modules do not support SIM detection.
A.4.5 Serial interfaces
UART interface
The same compatible external circuit can be implemented for SARA-G3 and LISA modules: 1.8 V unbalanced
asynchronous serial port with RS-232 functionality is provided on SARA-G3 modules (for AT command, data
communication, MUX functionality, FW upgrade over AT), LISA-C2 modules (for AT command, data
communication, MUX functionality), LISA-U modules (for AT command, data communication, MUX functionality,
FW upgrade over AT or using the u-blox EasyFlash tool).
LISA-C2 modules do not support DSR, DCD and DTR functions.
Table 41 and in relative datasheet of the module [1], [3], [4], [5] report minor differences in the internal pull-ups
and drivers strengths.
These are the default settings of the UART interfaces:
SARA-G3 modules: automatic baud rate and frame format detection
LISA-U2 except LISA-U200-00S modules: one-shot automatic baud rate and frame format detection
LISA-C2, LISA-U1 and LISA-U200-00S modules: 115200 b/s baud rate and 8N1 frame format
For further details regarding UART interface settings refer to the relative datasheet of the module [1], [3], [4], [5]
and to the relative AT commands manual of the module [2], [8].
UART AUX interface
Only the SARA-G3 modules provide auxiliary UART interface for FW upgrade using the u-blox EasyFlash tool and
for Trace log capture (debug purpose).
LISA modules do not provide auxiliary UART interface.
USB interface
SARA-G3 modules do not provide USB interface that is available on LISA-U modules (High-Speed USB 2.0 for AT
command, data communication, FW upgrade over AT or using the u-blox EasyFlash tool, and for Trace log
capture) and on LISA-C2 modules (Full-Speed USB 2.0 for AT command, Data communication, FW upgrade).
SPI interface
SARA-G3 and LISA-C2 modules do not provide SPI interface that is available on LISA-U modules (5-wire IPC
interface for AT command, data communication, MUX functionality, FW upgrade over AT).
DDC (I2C) interface
The same compatible external circuit can be implemented for SARA-G350 and LISA series: 1.8 V DDC (I2C bus
compatible) interface is provided to communicate with u-blox GPS/GNSS receivers.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 136 of 145
SARA-G300, SARA-G310 and LISA-U200-00S modules do not support DDC (I2C) interface.
LISA-C2 modules will support DDC (I2C) interface by the upcoming firmware releases.
All LISA-U2 except LISA-U200-00S modules additionally support the communication with I2C slaves other then
u-blox positioning receivers over the same DDC (I2C) interface, by means of dedicated AT commands.
A.4.6 Audio interfaces
Analog audio interfaces
Differential analog audio input is provided on the MIC_P / MIC_N pins of SARA-G350 modules (without internal
DC blocking capacitor) and LISA-C2 series, LISA-U120, LISA-U130 modules (with internal DC blocking capacitor).
Supply output and local ground for an external microphone is provided on the MIC_BIAS / MIC_GND pins of
SARA-G350 modules only: the supply for an external microphone has to be provided by an external LDO linear
regulator with the other modules.
Differential analog audio output is provided on the SPK_P / SPK_N pins of SARA-G350, LISA-U120, LISA-U130
modules (16 ohm load capable) and LISA-C2 series modules (32 ohm load capable).
SARA-G300/G310, LISA-U100/U110, LISA-U200-00S modules do not provide analog audio interfaces.
LISA-U2 series modules do not provide analog audio interfaces but analog audio can be provided with external
audio codec connected to a digital audio interface of all LISA-U2 series except LISA-U200-00S modules (e.g. the
4-wire I2S digital audio interface provided instead of the 4 analog audio pins). The modules provide control of
the external codec by means of the I2C interface and clock reference by means of the CODEC_CLK pin.
For further details regarding analog audio interfaces characteristics, usage, settings refer to the relative module
datasheet [1], [3], [4], [5], System Integration Manual 1.10.1, 2.6.1, [6], [7], and AT commands manual [2], [8].
Digital audio interfaces
Digital audio interface is provided on the I2S_TXD, I2S_RXD, I2S_CLK, I2S_WA pins of SARA-G350 modules
(1.8 V, PCM & Normal I2S modes, master, fixed sample rate) and LISA-U120/U130 and all LISA-U2 series except
LISA-U200-00S modules (1.8 V, PCM & Normal I2S modes, master & slave, configurable sample rate), and it is
provided on the PCM_DO, PCM_DI, PCM_CLK, PCM_SYNC pins of LISA-C2 series modules (1.8 V, PCM): the
same compatible external circuit can be implemented according to external digital audio device capabilities.
Additional digital audio interface is provided on I2S1_TXD, I2S1_RXD, I2S1_CLK, I2S1_WA pins of all LISA-U2
series except LISA-U200-00S (1.8 V, PCM & Normal I2S modes, master & slave, configurable sample rate).
SARA-G300/G310, LISA-U100/U110, LISA-U200-00S modules do not provide digital audio interfaces.
For further details regarding digital audio interfaces characteristics, usage, settings refer to the relative module
datasheet [1], [3], [4], [5], System Integration Manual 1.10.2, 2.6.2, [6], [7], and AT commands manual [2], [8].
A.4.7 GPIO pins
The same compatible external circuit can be implemented for SARA-G350 and LISA series: four 1.8 V GPIOs are
provided by SARA-G350 modules, providing the same functionalities as LISA series modules except Module
Status and Operating Mode Indications. SIM detection function is provided by the SIM_DET pin on SARA-G3
series modules instead of the GPIO5 pin on LISA-U series modules.
SARA-G300 and SARA-G310 modules do not provide GPIOs.
A.4.8 Reserved pins
SARA-G3 series modules RSVD pin 33 must be connected to ground as LISA series modules RSVD pin 5.
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 137 of 145
A.4.9 Pin-out comparison between LISA and SARA
Table 41 summarizes the pin electrical differences between LISA and SARA wireless modules.
Pin Name
N°
SARA-G3 series
N°
LISA-C2 series
LISA-U1 series
LISA-U2 series
Power
VCC
51-53
Normal op. range:
3.35 V – 4.5 V
Extended op. range:
3.00 V – 4.5 V
High pulse current
due to GSM TDMA
61-63
Normal op. range:
3.3 V – 4.4 V
Extended op. range:
Not applicable
No high pulse current
due to CDMA
Normal op. range:
3.4 V – 4.2 V
Extended op. range:
3.1 V – 4.2 V
High pulse current
due to GSM TDMA
Normal op. range:
3.3 V – 4.4 V
Extended op. range:
3.1 V – 4.5 V
High pulse current
due to GSM TDMA
V_BCKP
2
Output characteristics:
2.3 V typ, 2 mA max
Input op. range:
1.0 V – 2.4 V
2
Not Available
Output characteristics:
2.3 V typ, 3 mA max
Input op. range:
1.0 V – 2.5 V
Output characteristics:
1.8 V typ, 3 mA max
Input op. range:
1.0 V – 1.9 V
V_INT
4
Output characteristics:
1.8 V typ, 50 mA max
4
Output characteristics:
1.8 V typ, 50 mA max
Output characteristics:
1.8 V typ, 50 mA max
Output characteristics:
1.8 V typ, 50 mA max
Antenna
ANT
56
RF input/output for Tx/Rx
antenna
68
RF input/output for
Tx/Rx antenna
RF input/output for
Tx/Rx antenna
RF input/output for
main Tx/Rx antenna
ANT_DIV
Not Available
74
Not Available
Not Available
LISA-U230 only:
RF input for
Rx diversity antenna
ANT_DET
62
SARA-G350 only:
Input for antenna
detection circuit
Not Available
Internal antenna
detection circuit
Internal antenna
detection circuit
System
PWR_ON
15
No internal pull-up
L-level: -0.10 V – 0.65 V
H-level: 2.00 V – 4.50 V
ON L-level time:
5 ms min
OFF L-level pulse time:
Not Available
19
180 k internal pull-up
L-level: -0.30 V – 0.30 V
H-level: 2.00 V – 4.70 V
ON L-level pulse time:
150 ms min
OFF L-level pulse time:
Not Available
No internal pull-up
L-level: -0.30 V –0.65 V
H-level: 2.00 V – 4.50 V
ON L-level pulse time:
5 ms min
OFF L-level pulse time:
Not Available
No internal pull-up
L-level: -0.30 V – 0.65 V
H-level: 1.50 V – 4.40 V
ON L-level pulse time:
50 µs min / 80 µs max
OFF L-level pulse time:
Not Available
RESET_N
18
Internal diode & pull-up
L-level: -0.30 V – 0.30 V
H-level: 2.00 V – 4.70 V
Reset L-level pulse time:
50 ms min (SARA-G350)
3 s min (SARA-G300/G310)
22
550 internal pull-up
L-level: -0.30 V – 0.63 V
H-level: 1.32 V – 2.10 V
Reset L-level pulse time:
300 ms min
10 k internal pull-up
L-level: -0.30 V – 0.65 V
H-level: 1.69 V – 2.48 V
Reset L-level pulse time:
50 ms min
10 k internal pull-up
L-level: -0.30 V – 0.51 V
H-level: 1.32 V – 2.01 V
Reset L-level pulse time:
50 ms min
EXT32K
31
SARA-G300/G310:
32 kHz input for RTC
& low power idle mode
SARA-G350:
Internal 32 kHz for RTC
& low power idle mode
Not Available
Internal 32 kHz for RTC
& low power idle mode
Internal 32 kHz for RTC
& low power idle mode
SIM
SIM_CLK
38
1.8V / 3V SIM clock
47
1.8V / 3V SIM clock
(upcoming FW releases)
1.8V / 3V SIM clock
1.8V / 3V SIM clock
SIM_IO
39
1.8V / 3V SIM data
Internal 4.7k pull-up
48
1.8V / 3V SIM data
(upcoming FW releases)
Internal 10k pull-up
1.8V / 3V SIM data
Internal 4.7k pull-up
1.8V / 3V SIM data
Internal 4.7k pull-up
SIM_RST
40
1.8V / 3V SIM reset
49
1.8V / 3V SIM reset
(upcoming FW releases)
1.8V / 3V SIM reset
1.8V / 3V SIM reset
VSIM
41
1.8V / 3V SIM supply
50
1.8V / 3V SIM supply
(upcoming FW releases)
1.8V / 3V SIM supply
1.8V / 3V SIM supply
SIM_DET
42
1.8 V, SIM detect input
Inner pull-down: 103 µA
Not Available
Provided by GPIO5:
1.8 V, SIM detect input
Inner pull-down: 55 µA
Provided by GPIO5:
1.8 V, SIM detect input
Inner pull-down: 200 µA
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 138 of 145
Pin Name
N°
SARA-G3 series
N°
LISA-C2 series
LISA-U1 series
LISA-U2 series
UART
DSR
6
1.8 V, DSR output
Driver strength: 6 mA
9
Not Available
1.8 V, DSR output
Driver strength: 4 mA
1.8 V, DSR output
Driver strength: 1 mA
RI
7
1.8 V, RI output
Driver strength: 6 mA
10
1.8 V, RI output
Driver strength: 6 mA
1.8 V, RI output
Driver strength: 4 mA
1.8 V, RI output
Driver strength: 2 mA
DCD
8
1.8 V, DCD output
Driver strength: 6 mA
11
Not Available
1.8 V, DCD output
Driver strength: 4 mA
1.8 V, DCD output
Driver strength: 2 mA
DTR
9
1.8 V, DTR input
Internal pull-up: -55 µA
12
Not Available
1.8 V, DTR input
Internal pull-up: -110 µA
1.8 V, DTR input
Internal pull-up: -125 µA
RTS
10
1.8 V, Flow ctrl input
Internal pull-up: -31 µA
13
1.8 V, Flow ctrl input
Internal pull-up: -30 µA
1.8 V, Flow ctrl input
Internal pull-up: -60 µA
1.8 V, Flow ctrl input
Internal pull-up: -240 µA
CTS
11
1.8 V, Flow ctrl output
Driver strength: 6 mA
14
1.8 V, Flow ctrl output
Driver strength: 4 mA
1.8 V, Flow ctrl output
Driver strength: 4 mA
1.8 V, Flow ctrl output
Driver strength: 6 mA
TXD
12
1.8 V, Data input
Internal pull-up: -102 µA
15
1.8 V, Data input
Internal pull-up: -30 µA
1.8 V, Data input
Internal pull-up: -60 µA
1.8 V, Data input
Internal pull-up: -240 µA
RXD
13
1.8 V, Data output
Driver strength: 5 mA
16
1.8 V, Data output
Driver strength: 4 mA
1.8 V, Data output
Driver strength: 4 mA
1.8 V, Data output
Driver strength: 6 mA
UART AUX
TXD_AUX
29
1.8 V, Data input
Internal pull-up: -102 µA
Not Available
Not Available
Not Available
RXD_AUX
28
1.8 V, Data output
Driver strength: 5 mA
Not Available
Not Available
Not Available
USB
VUSB_DET
Not Available
18
5 V, Supply detection
5 V, Supply detection
5 V, Supply detection
USB_D-
Not Available
26
Full-Speed USB 2.0
High-Speed USB 2.0
High-Speed USB 2.0
USB_D+
Not Available
27
Full-Speed USB 2.0
High-Speed USB 2.0
High-Speed USB 2.0
SPI
SPI_SCLK
Not Available
55
Not Available
1.8 V, Clock input
Inner pull-down: 100 µA
1.8 V, Clock input
Inner pull-down: 200 µA
SPI_MOSI
Not Available
56
Not Available
1.8 V, Data input
Internal pull-up: -220 µA
1.8 V, Data input
Internal pull-up: -240 µA
SPI_MISO
Not Available
57
Not Available
1.8 V, Data output
Driver strength: 2.5 mA
1.8 V, Data output
Driver strength: 6 mA
SPI_SRDY
Not Available
58
Not Available
1.8 V, Flow ctrl output
Driver strength: 4 mA
1.8 V, Flow ctrl output
Driver strength: 6 mA
SPI_MRDY
Not Available
59
Not Available
1.8 V, Flow ctrl input
Inner pull-down: 55 µA
1.8 V, Flow ctrl input
Inner pull-down: 200 µA
DDC (I2C)
SCL
27
SARA-G350 only:
1.8 V, open drain
Driver strength: 3 mA
45
1.8 V, open drain
(upcoming FW releases)
1.8 V, open drain
Driver strength: 1 mA
1.8 V, open drain
Driver strength: 1 mA
LISA-U200-00S: N.A.
SDA
26
SARA-G350 only:
1.8 V, open drain
Driver strength: 3 mA
46
1.8 V, open drain
(upcoming FW releases)
1.8 V, open drain
Driver strength: 1 mA
1.8 V, open drain
Driver strength: 1 mA
LISA-U200-00S: N.A.
Audio
Analog
MIC_BIAS
46
SARA-G350 only:
2.2 V supply output for
external microphone
Not Available
Not Available
Not Available
MIC_GND
47
SARA-G350 only:
Local ground sense for
external microphone
Not Available
Not Available
Not Available
MIC_P
49
SARA-G350 only:
Differential input (+)
No internal capacitor
for DC blocking
40
Differential input (+)
100 nF internal capacitor
for DC blocking
LISA-U120/U130 only:
Differential input (+)
100 nF internal capacitor
for DC blocking
Not Available
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 139 of 145
Pin Name
N°
SARA-G3 series
N°
LISA-C2 series
LISA-U1 series
LISA-U2 series
MIC_N
48
SARA-G350 only:
Differential input (-)
No internal capacitor
for DC blocking
39
Differential input (-)
100 nF internal capacitor
for DC blocking
LISA-U120/U130 only:
Differential input (-)
100 nF internal capacitor
for DC blocking
Not Available
SPK_P
44
SARA-G350 only:
Differential output (+)
16 ohm load capable
53
Differential output (+)
32 ohm load capable
LISA-U120/U130 only:
Differential output (+)
16 ohm load capable
Not Available
SPK_N
45
SARA-G350 only:
Differential output (-)
16 ohm load capable
54
Differential output (-)
32 ohm load capable
LISA-U120/U130 only:
Differential output (-)
16 ohm load capable
Not Available
Digital
I2S_TXD
35
SARA-G350 only:
1.8 V, Data Out
PCM / Normal I2S mode
Driver strength: 5 mA
42
PCM_DO:
1.8 V, PCM Data Out
LISA-U120/U130 only:
1.8 V, Data Out
PCM / Normal I2S mode
Driver strength: 2.5 mA
1.8 V, Data Out
PCM / Normal I2S mode
Driver strength: 2 mA
LISA-U200-00S: N.A.
I2S_RXD
37
SARA-G350 only:
1.8 V, Data In
PCM / Normal I2S mode
Inner pull-down: 103 µA
44
PCM_DI:
1.8 V, PCM Data In
LISA-U120/U130 only:
1.8 V, Data In
PCM / Normal I2S mode
Inner pull-down: 100 µA
1.8 V, Data In
PCM / Normal I2S mode
Inner pull-down: 200 µA
LISA-U200-00S: N.A.
I2S_WA
34
SARA-G350 only:
1.8 V, Word align. Out
Fixed frequency
Driver strength: 6 mA
41
PCM_SYNC:
1.8 V, PCM Sync Out
LISA-U120/U130 only:
1.8 V, Word align. In/Out
Configurable frequency
Inner pull-down: 100 µA
Driver strength: 2.5 mA
1.8 V, Word align. In/Out
Configurable frequency
Inner pull-down: 200 µA
Driver strength: 2 mA
LISA-U200-00S: N.A.
I2S_CLK
36
SARA-G350 only:
1.8 V, Clock Out
Fixed frequency
Driver strength: 5 mA
43
PCM_CLK:
1.8 V, PCM Clock Out
LISA-U120/U130 only:
1.8 V, Clock In/Out
Configurable frequency
Inner pull-down: 100 µA
Driver strength: 2.5 mA
1.8 V, Clock In/Out
Configurable frequency
Inner pull-down: 200 µA
Driver strength: 2 mA
LISA-U200-00S: N.A.
I2S1_WA
Not Available
54
Not Available
Not Available
1.8 V, Data Out
PCM / Normal I2S mode
Driver strength: 1 mA
LISA-U200-00S: N.A.
I2S1_TXD
Not Available
40
Not Available
Not Available
1.8 V, Data In
PCM / Normal I2S mode
Inner pull-down: 150 µA
LISA-U200-00S: N.A.
I2S1_CLK
Not Available
53
Not Available
Not Available
1.8 V, Word align. In/Out
Configurable frequency
Inner pull-down: 150 µA
Driver strength: 1 mA
LISA-U200-00S: N.A.
I2S1_RXD
Not Available
39
Not Available
Not Available
1.8 V, Clock In/Out
Configurable frequency
Inner pull-down: 150 µA
Driver strength: 1 mA
LISA-U200-00S: N.A.
Other
CODEC_CLK
Not Available
52
Not Available
Not Available
1.8 V, 13/26 MHz Out
Driver strength: 4 mA
LISA-U200-00S: N.A.
GPIO
GPIO1
16
SARA-G350 only:
1.8 V, configurable GPIO
Default: Pad disabled
Driver strength: 6 mA
Inner pull-down: 51 µA
20
1.8 V, configurable GPIO
Default: Pad disabled
Driver strength: 4 mA
Inner pull-down: 30 µA
1.8 V, configurable GPIO
Default: Pad disabled
Driver strength: 1 mA
Inner pull-down: 100 µA
1.8 V, configurable GPIO
Default: Pad disabled
Driver strength: 6 mA
Inner pull-down: 200 µA
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 140 of 145
Pin Name
N°
SARA-G3 series
N°
LISA-C2 series
LISA-U1 series
LISA-U2 series
GPIO2
23
SARA-G350 only:
1.8 V, configurable GPIO
Default: GPS supply ena.
Driver strength: 6 mA
Inner pull-down: 51 µA
21
1.8 V, configurable GPIO
Default: Pad disabled
Driver strength: 4 mA
Inner pull-down: 30 µA
1.8 V, configurable GPIO
Default: GPS supply en.
Driver strength: 1 mA
Inner pull-down: 85 µA
1.8 V, configurable GPIO
Default: GPS supply en.
Driver strength: 1 mA
Inner pull-down: 150 µA
GPIO3
24
SARA-G350 only:
1.8 V, configurable GPIO
Default: GPS data ready
Driver strength: 5 mA
Inner pull-down: 27 µA
23
1.8 V, configurable GPIO
Default: Pad disabled
Driver strength: 4 mA
Inner pull-down: 30 µA
1.8 V, configurable GPIO
Default: GPS data ready
Driver strength: 4 mA
Inner pull-down: 55 µA
1.8 V, configurable GPIO
Default: GPS data ready
Driver strength: 6 mA
Inner pull-down: 200 µA
GPIO4
25
SARA-G350 only:
1.8 V, configurable GPIO
Default: GPS RTC shar.
Driver strength: 6 mA
Inner pull-down: 51 µA
24
1.8 V, configurable GPIO
Default: Pad disabled
Driver strength: 4 mA
Inner pull-down: 30 µA
1.8 V, configurable GPIO
Default: GPS RTC sharing
(4.7 k external pull-down
required for RTC sharing)
Driver strength: 4 mA
Inner pull-down: 55 µA
1.8 V, configurable GPIO
Default: GPS RTC sharing
Driver strength: 6 mA
Inner pull-down: 200 µA
GPIO5
Not Available
51
1.8 V, configurable GPIO
Default: Pad disabled
Driver strength: 4 mA
Inner pull-down: 30 µA
1.8 V, configurable GPIO
Default: SIM detection
Driver strength: 2.5 mA
Inner pull-down: 55 µA
1.8 V, configurable GPIO
Default: SIM detection
Driver strength: 6 mA
Inner pull-down: 200 µA
GPIO6
Not Available
39
Not Available
Not Available
1.8 V, configurable GPIO
Default: I2S1_RXD
Driver strength: 1 mA
Inner pull-down: 150 µA
GPIO7
Not Available
40
Not Available
Not Available
1.8 V, configurable GPIO
Default: I2S1_TXD
Driver strength: 1 mA
Inner pull-down: 150 µA
GPIO8
Not Available
53
Not Available
Not Available
1.8 V, configurable GPIO
Default: I2S1_CLK
Driver strength: 1 mA
Inner pull-down: 150 µA
GPIO9
Not Available
54
Not Available
Not Available
1.8 V, configurable GPIO
Default: I2S1_WA
Driver strength: 1 mA
Inner pull-down: 150 µA
GPIO10
Not Available
55
Not Available
Not Available
1.8 V, configurable GPIO
Default: SPI_SCLK
Driver strength: 6 mA
Inner pull-down: 200 µA
GPIO11
Not Available
56
Not Available
Not Available
1.8 V, configurable GPIO
Default: SPI_MOSI
Driver strength: 6 mA
Inner pull-down: 200 µA
GPIO12
Not Available
57
Not Available
Not Available
1.8 V, configurable GPIO
Default: SPI_MISO
Driver strength: 6 mA
Inner pull-down: 200 µA
GPIO13
Not Available
58
Not Available
Not Available
1.8 V, configurable GPIO
Default: SPI_SRDY
Driver strength: 6 mA
Inner pull-down: 200 µA
GPIO14
Not Available
59
Not Available
Not Available
1.8 V, configurable GPIO
Default: SPI_MRDY
Driver strength: 6 mA
Inner pull-down: 200 µA
Table 41: Summary of pin differences and compatibility level among modules
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 141 of 145
B Glossary
3GPP
3rd Generation Partnership Project
ADC
Analog to Digital Converter
AP
Application Processor
AT
AT Command Interpreter Software Subsystem, or attention
CS
Coding Scheme
CSD
Circuit Switched Data
CTS
Clear To Send
DC
Direct Current
DCD
Data Carrier Detect
DCE
Data Communication Equipment
DCS
Digital Cellular System
DDC
Display Data Channel interface
DL
Down-link (Reception)
DRX
Discontinuous Reception
DSP
Digital Signal Processing
DSR
Data Set Ready
DTE
Data Terminal Equipment
DTM
Dual Transfer Mode
DTR
Data Terminal Ready
EMC
Electro-magnetic Compatibility
EMI
Electro-magnetic Interference
ESD
Electro-static Discharge
ESR
Equivalent Series Resistance
FEM
Front End Module
FOAT
Firmware Over AT commands
FTP
File Transfer Protocol
FTPS
FTP Secure
FW
Firmware
GMSK
Gaussian Minimum Shift Keying modulation
GND
Ground
GNSS
Global Navigation Satellite System
GPIO
General Purpose Input Output
GPRS
General Packet Radio Service
GPS
Global Positioning System
GSM
Global System for Mobile Communication
HF
Hands-free
HTTP
HyperText Transfer Protocol
HTTPS
Hypertext Transfer Protocol over Secure Socket Layer
HW
Hardware
I/Q
In phase and Quadrature
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Appendix
Page 142 of 145
I2C
Inter-Integrated Circuit interface
I2S
Inter IC Sound interface
IP
Internet Protocol
LCC
Leadless Chip Carrier
LDO
Low-Dropout
LGA
Land Grid Array
LNA
Low Noise Amplifier
M2M
Machine-to-Machine
MCS
Modulation Coding Scheme
N/A
Not Applicable
N.A.
Not Available
PA
Power Amplifier
PCM
Pulse Code Modulation
PCN / IN
Product Change Notification / Information Note
PCS
Personal Communications Service
PFM
Pulse Frequency Modulation
PMU
Power Management Unit
PSRAM
Pseudo-Static RAM
PWM
Pulse Width Modulation
RF
Radio Frequency
RI
Ring Indicator
RTC
Real Time Clock
RTS
Request To Send
SAW
Surface Acoustic Wave
SIM
Subscriber Identification Module
SMS
Short Message Service
SMTP
Simple Mail Transfer Protocol
SPI
Serial Peripheral Interface
SRF
Self Resonant Frequency
TBD
To Be Defined
TCP
Transmission Control Protocol
TDMA
Time Division Multiple Access
TP
Test-Point
UART
Universal Asynchronous Receiver-Transmitter
UDP
User Datagram Protocol
UICC
Universal Integrated Circuit Card
UL
Up-link (Transmission)
UMTS
Universal Mobile Telecommunications System
USB
Universal Serial Bus
UTRA
UMTS Terrestrial Radio Access
VCO
Voltage Controlled Oscillator
VSWR
Voltage Standing Wave Ratio
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Related documents
Page 143 of 145
Related documents
[1] u-blox SARA-G3 series Data Sheet, Docu No GSM.G2-HW-12001
[2] u-blox AT Commands Manual, Docu No WLS-SW-11000
[3] u-blox LISA-C200 series Data Sheet, Docu No CDMA-2X-11001
[4] u-blox LISA-U1 series Data Sheet, Docu No 3G.G2-HW-10001
[5] u-blox LISA-U2 series Data Sheet, Docu No 3G.G3-HW-11004
[6] u-blox LISA-C200 & FW75-C200 System Integration Manual, Docu No CDMA-2X-11004
[7] u-blox LISA-U series System Integration Manual, Docu No 3G.G2-HW-10002
[8] u-blox C200 AT Commands Manual, Docu No CDMA-2X-11002
[9] ITU-T Recommendation V.24, 02-2000. List of definitions for interchange circuits between data
terminal equipment (DTE) and data circuit-terminating equipment (DCE).
http://www.itu.int/rec/T-REC-V.24-200002-I/en
[10] 3GPP TS 27.007 – AT command set for User Equipment (UE) (Release 1999)
[11] 3GPP TS 27.005 – Use of Data Terminal Equipment – Data Circuit terminating; Equipment (DTE – DCE)
interface for Short Message Service (SMS) and Cell Broadcast Service (CBS) (Release 1999)
[12] 3GPP TS 27.010 – Terminal Equipment to User Equipment (TE-UE) multiplexer protocol (Release 1999)
[13] I2C-Bus Specification Version 2.1 Philips Semiconductors (January 2000),
http://www.nxp.com/acrobat_download/literature/9398/39340011_21.pdf
[14] 3GPP TS 51.010-2 – Technical Specification Group GSM/EDGE Radio Access Network; Mobile Station
(MS) conformance specification; Part 2: Protocol Implementation Conformance Statement (PICS)
[15] CENELEC EN 61000-4-2 (2001): "Electromagnetic compatibility (EMC) – Part 4-2: Testing and
measurement techniques – Electrostatic discharge immunity test".
[16] ETSI EN 301 489-1 V1.8.1: “Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common
technical requirements”
[17] ETSI EN 301 489-7 V1.3.1 “Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 7: Specific
conditions for mobile and portable radio and ancillary equipment of digital cellular radio
telecommunications systems (GSM and DCS)“
[18] ETSI EN 301 489-24 V1.4.1 "Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 24: Specific
conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary
equipment"
[19] 3GPP TS 26.267 V10.0.0 – eCall Data Transfer; In-band modem solution; General description (Rel. 10)
[20] Multiplexer Implementation Application Note, Docu No WLS-CS-11002
[21] GPS Implementation Application Note, Docu No GSM.G1-CS-09007
[22] Firmware Update Application Note, Docu No WLS-CS-11001
[23] 3GPP TS 23.060 – Technical Specification Group Services and System Aspects; General Packet Radio
Service (GPRS); Service description
[24] End user test Application Note, Docu No WLS-CS-12002
[25] u-blox Package Information Guide, Docu No GPS-X-11004
[26] BS EN 16062:2011 – Intelligent transport systems – eSafety – eCall high level application requirements
[27] ETSI TS 122 101 V8.7.0 – Service aspects; Service principles (3GPP TS 22.101 v.8.7.0 Rel. 8)
Some of the above documents can be downloaded from u-blox web-site (http://www.u-blox.com).
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Revision history
Page 144 of 145
Revision history
Revision
Date
Name
Status / Comments
-
Oct. 30, 2012
sses
Initial Release
1
Mar. 28, 2013
sses
Updated suggested paste mask
Updated current consumption description
Updated voice-band processing system block diagram
Updated DDC (I2C) application circuit for 3V u-blox GPS/GNSS receivers
SARA-G3 series - System Integration Manual
GSM.G2-HW-12003-1 Advance Information Contact
Page 145 of 145
