Contents
Datasheet
TOBY-L2 series
LTE/DC-HSPA+/EGPRS modules
Data Sheet
Abstract
Technical data sheet describing TOBY-L2 series multi-mode cellular
modules. The modules are a complete and cost efficient LTE/3G/2G
multi-mode solution offering up to 150 Mb/s download data rate and
up to 50 Mb/s upload data rate, covering up to six LTE bands, up to
five WCDMA/DC-HSPA+ bands and four GSM/EGPRS bands in the
compact TOBY form factor.
www.u-blox.com
UBX-13004573 - R07
TOBY-L2 series - Data Sheet
UBX-13004573 - R07
Page 2 of 47
Document Information
Title
TOBY-L2 series
Subtitle
LTE/DC-HSPA+/EGPRS modules
Document type
Data Sheet
Document number
UBX-13004573
Revision and date
R07
08-Apr-2015
Document status
Objective Specification
Document status explanation
Objective Specification
Document contains target values. Revised and supplementary data will be published later.
Advance Information
Document contains data based on early testing. Revised and supplementary data will be published later.
Early Production Information
Document contains data from product verification. Revised and supplementary data may be published later.
Production Information
Document contains the final product specification.
This document applies to the following products:
Name
Type number
Modem version
Application version
PCN / IN
TOBY-L200
TOBY-L200-00S-00
09.71
A01.15
UBX-14044437
TOBY-L200-50S-00
09.71
A01.57
UBX-15004131
TOBY-L201
TOBY-L201-01S-00
09.78
A01.00
TBD
TOBY-L210
TOBY-L210-00S-00
09.71
A01.15
UBX-14044437
TOBY-L210-50S-00
09.71
A01.57
UBX-15004131
TOBY-L280
TOBY-L280-00S-00
TBD
TBD
TBD
u-blox reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein
may in whole or in part be subject to intellectual property rights. Reproduction, use, modification or disclosure to third parties of this
document or any part thereof without the express permission of u-blox is strictly prohibited.
The information contained herein is provided “as is” and u-blox assumes no liability for the use of the information. No warranty, either
express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular
purpose of the information. This document may be revised by u-blox at any time. For most recent documents, please visit
www.u-blox.com. Copyright © 2015, u-blox AG.
u-blox® is a registered trademark of u-blox Holding AG in the EU and other countries.
Trademark Notice
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
All other registered trademarks or trademarks mentioned in this document are property of their respective owners.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Contents
Page 3 of 47
Contents
Contents .............................................................................................................................. 3
1 Functional description .................................................................................................. 5
1.1 Overview .............................................................................................................................................. 5
1.2 Product features ................................................................................................................................... 5
1.3 Block diagram ....................................................................................................................................... 6
1.4 Product description ............................................................................................................................... 7
1.5 AT command support ........................................................................................................................... 8
1.6 Supported features ............................................................................................................................... 9
2 Interfaces .................................................................................................................... 11
2.1 Power management ........................................................................................................................... 11
2.1.1 Module supply input (VCC) ......................................................................................................... 11
2.1.2 RTC supply input / output (V_BCKP) ............................................................................................ 11
2.1.3 Generic digital interfaces supply output (V_INT) ........................................................................... 11
2.2 Antenna interfaces ............................................................................................................................. 11
2.2.1 Antenna RF interfaces ................................................................................................................. 11
2.2.2 Antenna detection ...................................................................................................................... 11
2.3 System functions ................................................................................................................................ 11
2.3.1 Module power-on ....................................................................................................................... 11
2.3.2 Module power-off ....................................................................................................................... 12
2.3.3 Module reset ............................................................................................................................... 12
2.3.4 Module configuration selection by host processor ....................................................................... 12
2.4 SIM ..................................................................................................................................................... 13
2.4.1 SIM interface ............................................................................................................................... 13
2.4.2 SIM detection .............................................................................................................................. 13
2.5 Serial communication ......................................................................................................................... 13
2.5.1 UART interface ............................................................................................................................ 13
2.5.2 USB interface............................................................................................................................... 15
2.5.3 DDC (I2C) interface ...................................................................................................................... 16
2.5.4 SDIO interface ............................................................................................................................. 16
2.6 Audio ................................................................................................................................................. 16
2.7 GPIO ................................................................................................................................................... 17
3 Pin definition .............................................................................................................. 18
3.1 Pin assignment ................................................................................................................................... 18
4 Electrical specifications .............................................................................................. 23
4.1 Absolute maximum rating .................................................................................................................. 23
4.1.1 Maximum ESD ............................................................................................................................. 23
4.2 Operating conditions .......................................................................................................................... 24
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Contents
Page 4 of 47
4.2.1 Operating temperature range ...................................................................................................... 24
4.2.2 Supply/power pins ....................................................................................................................... 24
4.2.3 Current consumption .................................................................................................................. 25
4.2.4 LTE RF characteristics ................................................................................................................... 27
4.2.5 3G RF characteristics ................................................................................................................... 29
4.2.6 2G RF characteristics ................................................................................................................... 30
4.2.7 ANT_DET pin ............................................................................................................................... 30
4.2.8 PWR_ON pin ............................................................................................................................... 31
4.2.9 RESET_N pin ................................................................................................................................ 31
4.2.10 SIM pins ...................................................................................................................................... 32
4.2.11 USB pins ...................................................................................................................................... 32
4.2.12 Generic Digital Interfaces pins ..................................................................................................... 33
4.2.13 DDC (I2C) pins.............................................................................................................................. 33
4.3 Parameters for ATEX applications ....................................................................................................... 34
5 Mechanical specifications .......................................................................................... 35
6 Qualification and approvals ...................................................................................... 36
6.1 Reliability tests .................................................................................................................................... 36
6.2 Approvals ........................................................................................................................................... 36
7 Product handling & soldering .................................................................................... 37
7.1 Packaging ........................................................................................................................................... 37
7.1.1 Reels ........................................................................................................................................... 37
7.1.2 Tapes .......................................................................................................................................... 38
7.2 Moisture Sensitivity Levels ................................................................................................................... 39
7.3 Reflow soldering ................................................................................................................................. 39
7.4 ESD precautions .................................................................................................................................. 39
8 Default settings .......................................................................................................... 40
9 Labeling and ordering information ........................................................................... 41
9.1 Product labeling .................................................................................................................................. 41
9.2 Explanation of codes........................................................................................................................... 41
9.3 Ordering information .......................................................................................................................... 42
Appendix .......................................................................................................................... 43
A Glossary ...................................................................................................................... 43
Related documents........................................................................................................... 45
Revision history ................................................................................................................ 46
Contact .............................................................................................................................. 47
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Functional description
Page 5 of 47
1 Functional description
1.1 Overview
The TOBY-L2 series comprises LTE/3G/2G multi-mode modules in the very small LGA form-factor (35.6 x
24.8 mm) that are easy to integrate in compact designs.
TOBY-L2 series modules support up to six LTE bands, five UMTS/DC-HSPA+ bands and four GSM/(E)GPRS bands
for voice and/or data transmission.
TOBY-L2 series modules are form-factor compatible with the other popular u-blox cellular module families: this
allows customers to take the maximum advantage of their hardware and software investments, and provides
very short time-to-market.
With LTE category 4 data rates at up to 150 Mb/s (downlink) and 50 Mb/s (uplink), the modules are ideal for
applications requiring the highest data-rates and high-speed internet access. TOBY-L2 series modules are the
perfect choice for consumer fixed-wireless terminals, mobile routers and gateways, and applications requiring
video streaming. They are also optimally suited for industrial (M2M) applications, such as remote access to video
cameras, digital signage, telehealth, and security and surveillance systems.
1.2 Product features
Module
LTE
UMTS
GSM
Positioning
Interfaces
Audio
Features
Grade
LTE FDD category
Bands
HSDPA category
HSUPA category
Bands
GPRS/EDGE multi-slot class
Bands
GNSS receiver
GNSS via modem
Assist Now Software
CellLocate®
UART
USB 2.0
SDIO (Master)
DCC (I2C)
GPIOs
Analog audio
Digital audio
Network indication
Antenna supervisor
MIMO 2x2 / Rx Diversity
Jamming detection
Embedded TCP/UDP stack
Embedded HTTP,FTP
FOTA
eCall / ERA GLONASS
Dual stack IPv4/IPv6
Standard
Professional
Automotive
TOBY-L200
4
2,4,5
7,17
24
6
850/900
AWS
1900/2100
12
Quad
F
F
F
○
●
○
F
F
F
□
F
●
F
F
F
F
F
●
TOBY-L201
4
2,4,5
13,17
24
6
850/1900
F
F
F
●
●
F
F
F
F
●
F
●
F
●
●
●
F
●
TOBY-L210
4
1,3,5
7,8,20
24
6
850/900
1900/2100
12
Quad
F
F
F
○
●
○
F
F
F
□
F
●
F
F
F
F
F
●
TOBY-L280
4
1,3,5,
7,8,28
24
6
850/900
1900/2100
12
Quad
F
F
F
●
●
F
F
F
F
●
F
●
F
F
F
F
F
●
● = supported by all product versions
○ = supported by product version “50” and future product versions
□ = supported by all product versions except product version “50”
F = supported by future product versions
Table 1: TOBY-L2 series main features summary
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Functional description
Page 6 of 47

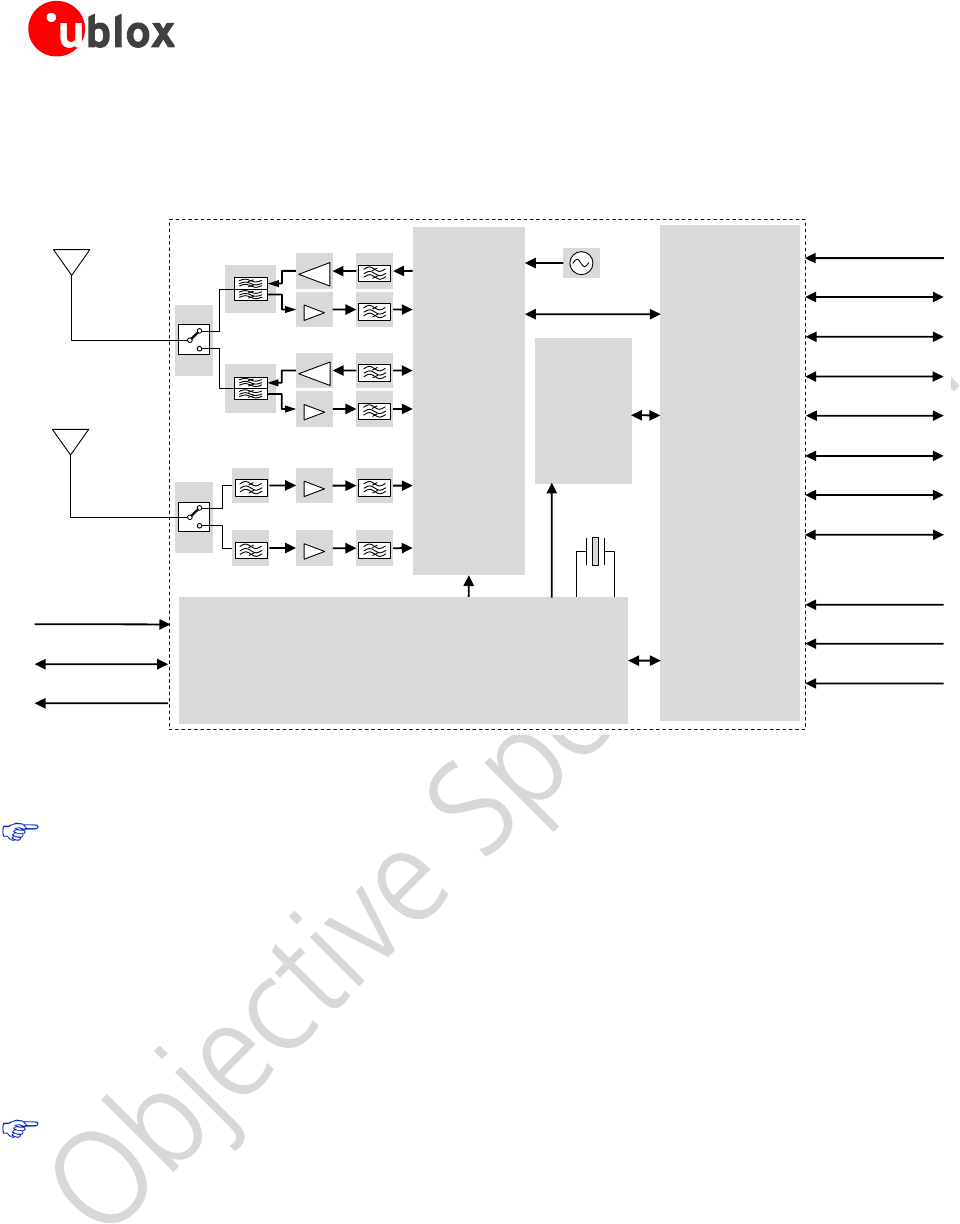

1.3 Block diagram
Cellular
Base-band
Processor
Memory
Power Management Unit
26 MHz
32.768 kHz
ANT1
RF
Transceiver
ANT2
V_INT (I/O)
V_BCKP (RTC)
VCC (Supply)
SIM
USB
GPIO
Power On
External Reset
PAs
LNAs Filters
Filters
Duplexer
Filters
PAs
LNAs Filters
Filters
Duplexer
Filters
LNAs FiltersFilters
LNAs FiltersFilters
Switch
Switch
DDC(I2C)
SDIO
UART
Digital audio (I2S)
ANT_DET
Host Select
Figure 1: TOBY-L2 series block diagram
The TOBY-L200-00S and TOBY-L210-00S modules do not support the following interfaces, which should
be left unconnected and should not be driven by external devices:
o VBUS USB detect (VUSB_DET)
o UART interface
o SDIO interface
o DCC (I2C) interface
o I2S digital audio interface
o Antenna detection (ANT_DET)
o Host Select functions
o General Purpose Inputs / Outputs (GPIO)
The TOBY-L201-01S and TOBY-L280-00S modules do not support the following interfaces, which should
be left unconnected and should not be driven by external devices:
o VBUS USB detect (VUSB_DET)
o SDIO interface
o DCC (I2C) interface
o I2S digital audio interface
o Antenna detection (ANT_DET)
o Host Select functions
o General Purpose Inputs / Outputs (GPIO)
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Functional description
Page 7 of 47
The TOBY-L200-50S and TOBY-L210-50S modules, i.e. the “50” product versions, do not support the
following interfaces, which should be left unconnected and should not be driven by external devices:
o VBUS USB detect (VUSB_DET)
o DCC (I2C) interface
o I2S digital audio interface
o Antenna detection (ANT_DET)
o Host Select functions
o General Purpose Inputs / Outputs (GPIO)
1.4 Product description
TOBY-L2 series modules provide 4G LTE, 3G WCDMA/DC-HSPA+, 2G GSM/(E)GPRS multi-mode technology:
TOBY-L200 and TOBY-L201 are mainly designed for operation in America
TOBY-L210 is mainly designed for operation in Europe, Asia and other countries
TOBY-L280 is mainly designed for operation in south-east Asia and Oceania
4G LTE
3G UMTS/HSDPA/HSUPA
2G GSM/GPRS/EDGE
3GPP Release 9
Long Term Evolution (LTE)
Evolved Uni.Terrestrial Radio Access (E-UTRA)
Frequency Division Duplex (FDD)
DL Multi-Input Multi-Output (MIMO) 2 x 2
3GPP Release 8
Dual-Cell HS Packet Access (DC-HSPA+)
UMTS Terrestrial Radio Access (UTRA)
Frequency Division Duplex (FDD)
DL Rx diversity
3GPP Release 8
Enhanced Data rate GSM Evolution (EDGE)
GSM EGPRS Radio Access (GERA)
Time Division Multiple Access (TDMA)
DL Advanced Rx Performance Phase 1
Band support:
TOBY-L200:
Band 17 (700 MHz)
Band 5 (850 MHz)
Band 4 (1700 MHz)
Band 2 (1900 MHz)
Band 7 (2600 MHz)
TOBY-L201:
Band 17 (700 MHz)
Band 13 (750 MHz)
Band 5 (850 MHz)
Band 4 (1700 MHz)
Band 2 (1900 MHz)
TOBY-L210:
Band 20 (800 MHz)
Band 5 (850 MHz)
Band 8 (900 MHz)
Band 3 (1800 MHz)
Band 1 (2100 MHz)
Band 7 (2600 MHz)
TOBY-L280:
Band 28 (750 MHz)
Band 5 (850 MHz)
Band 8 (900 MHz)
Band 3 (1800 MHz)
Band 1 (2100 MHz)
Band 7 (2600 MHz)
Band support:
TOBY-L200:
Band 5 (850 MHz)
Band 8 (900 MHz)
Band 4 (AWS, i.e. 1700 MHz)
Band 2 (1900 MHz)
Band 1 (2100 MHz)
TOBY-L201:
Band 5 (850 MHz)
Band 2 (1900 MHz)
TOBY-L210:
Band 5 (850 MHz)
Band 8 (900 MHz)
Band 2 (1900 MHz)
Band 1 (2100 MHz)
TOBY-L280:
Band 5 (850 MHz)
Band 8 (900 MHz)
Band 2 (1900 MHz)
Band 1 (2100 MHz)
Band support
TOBY-L200:
GSM 850 MHz
E-GSM 900 MHz
DCS 1800 MHz
PCS 1900 MHz
TOBY-L210:
GSM 850 MHz
E-GSM 900 MHz
DCS 1800 MHz
PCS 1900 MHz
TOBY-L280:
GSM 850 MHz
E-GSM 900 MHz
DCS 1800 MHz
PCS 1900 MHz
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Functional description
Page 8 of 47
4G LTE
3G UMTS/HSDPA/HSUPA
2G GSM/GPRS/EDGE
LTE Power Class
Power Class 3 (23 dBm)
for LTE mode
WCDMA/HSDPA/HSUPA Power Class
Power Class 3 (24 dBm)
for UMTS/HSDPA/HSUPA mode
GSM/GPRS (GMSK) Power Class
Power Class 4 (33 dBm)
for GSM/E-GSM bands
Power Class 1 (30 dBm)
for DCS/PCS bands
EDGE (8-PSK) Power Class
Power Class E2 (27 dBm)
for GSM/E-GSM bands
Power Class E2 (26 dBm)
for DCS/PCS bands
Data rate
LTE category 4:
up to 150 Mb/s DL, 50 Mb/s UL
Data Rate
TOBY-L200 and TOBY-L201:
HSDPA cat.14, up to 21 Mb/s DL1
HSUPA cat.6, up to 5.6 Mb/s UL
TOBY-L210 and TOBY-L280:
HSDPA cat.24, up to 42 Mb/s DL
HSUPA cat.6, up to 5.6 Mb/s UL
Data Rate2
GPRS multi-slot class 123, CS1-CS4,
up to 85.6 kb/s DL/UL
EDGE multi-slot class 123, MCS1-MCS9,
up to 236.8 kb/s DL/UL
Table 2: TOBY-L2 series LTE, 3G and 2G characteristics
1.5 AT command support
The TOBY-L2 series modules support AT commands according to 3GPP standards TS 27.007 [10], TS 27.005 [11]
and the u-blox AT command extension.
For the complete list of all supported AT commands and their syntax, see the u-blox AT Commands
Manual [1].
RIL (Radio Interface Layer) software for Android and Embedded Windows is available for TOBY-L2 series modules
free of charge; see the Android RIL Production delivery [3] and Windows Embedded RIL Production delivery [4]
application notes for the supported software deliveries and more information.
1 HSDPA category 24 capable
2 GPRS/EDGE multi-slot class determines the number of timeslots available for upload and download and thus the speed at which data can
be transmitted and received, with higher classes typically allowing faster data transfer rates.
3 GPRS/EDGE multi-slot class 12 implies a maximum of 4 slots in DL (reception) and 4 slots in UL (transmission) with 5 slots in total.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Functional description
Page 9 of 47
1.6 Supported features
Table 3 lists the main features supported by TOBY-L2 modules. For more details see TOBY-L2 / MPCI-L2 series
System Integration Manual [2] and u-blox AT Commands Manual [1].
Feature
Description
Network Indication4
GPIO configured to indicate the network status: registered home network, registered roaming, voice or data call
enabled, no service. The feature can be enabled through the +UGPIOC AT command.
Antenna Detection5
The ANT_DET pin provides antenna presence detection capability, evaluating the resistance from ANT1 and ANT2
pins to GND by means of an external antenna detection circuit implemented on the application board.
The antenna detection feature can be enabled through the +UANTR AT command.
Jamming detection5
Detects “artificial” interference that obscures the operator’s carriers entitled to give access to the radio service and
reports the start and stop of such conditions to the application processor (AP). The AP can react appropriately by
e.g. switching off the radio transceiver to reduce power consumption and monitoring the environment at regular
intervals.
The feature can be enabled and configured through the +UCD AT command.
Embedded TCP and UDP
stack6
Embedded TCP/IP and UDP/IP stack including direct link mode for TCP and UDP sockets.
Sockets can be set in Direct Link mode to establish a transparent end to end communication with an already
connected TCP or UDP socket via serial interface.
FTP6, FTPS5
File Transfer Protocol as well as Secure File Transfer Protocol (SSL encryption of FTP control channel) functionalities
are supported via AT commands.
HTTP6, HTTPS5
Hyper-Text Transfer Protocol as well as Secure Hyper-Text Transfer Protocol (SSL encryption) functionalities are
supported via AT commands. HEAD, GET, POST, DELETE and PUT operations are available.
GNSS via modem5
Full access to u-blox positioning chips and modules is available through a dedicated DDC (I2C) interface. This means
that from any host processor a single serial port can control the cellular module and the positioning chip or module.
For more details see the GNSS Implementation Application Note [5].
Embedded AssistNow
Software5
Embedded AssistNow Online and AssistNow Offline clients are available to provide better GNSS performance and
faster Time-to-First-Fix. An AT command can enable / disable the clients.
CellLocate®5
Enables the estimation of device position based on the parameters of the mobile network cells visible to the specific
device based on the CellLocate® database:
Normal scan: only the parameters of the visible home network cells are sent
Deep scan: the parameters of all surrounding cells of all mobile operators are sent
CellLocate® is available via a set of AT commands for CellLocate® service configuration and position request.
Hybrid Positioning5
The current module position is provided by a u-blox positioning chip or module or the estimated position from
CellLocate® depending on which method provides the best and fastest solution according to the user configuration.
Hybrid positioning is available via a set of AT commands that allow the configuration and the position request.
Wi-Fi via modem7
Full access to u-blox short range communication Wi-Fi modules is available through a dedicated SDIO interface.
This means that from any host processor a single serial port can control the cellular module and the short range
communication module.
All the management software for the Wi-Fi module operations runs inside the cellular module in addition to those
required for cellular-only operation: Wi-Fi driver, Web User Interface (WebUI), Connection Config Manager.
For more details see the Wi-Fi / Cellular Integration Application Note [8].
Firmware update Over
AT commands (FOAT)
Firmware module update over AT command interfaces (UART, USB).
The feature can be enabled and configured through the +UFWUPD AT command.
Firmware update Over
The Air (FOTA)6
Firmware module update over the LTE/3G/2G air interface.
The feature can be enabled and configured through the +UFWINSTALL AT command.
LTE DL MIMO 2x2 and
3G DL Rx Diversity
Improved cellular link quality and reliability on all operating bands.
4 Not supported by “50” product versions
5 Not supported by “00”, “01” and “50” product versions.
6 Not supported by “00” and “50” product versions.
7 Not supported by “00” and “01” product versions.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Functional description
Page 10 of 47
Feature
Description
Smart Temperature
Supervisor8
Constant monitoring of the module board temperature:
Warning notification when the temperature approaches an upper or lower predefined threshold
Shutdown notified and forced when the temperature value is outside the specified range (shutdown
suspended in case of an emergency call in progress)
The Smart Temperature Supervisor feature can be enabled and configured through the +USTS AT command.
The sensor measures board temperature, which can differ from ambient temperature.
SIM Access Profile (SAP)8
Allows access and use of a remote SIM card/chip instead of the local SIM card/chip directly connected to the
module SIM interface. The module acts as an SAP client establishing a connection and performing data exchange to
an SAP server directly connected to the remote SIM.
The modules provide a dedicated USB SAP channel and dedicated multiplexer SAP channel over UART for
communication with the remote SIM card.
In-Band Modem8
In-Band modem solution for eCall and ERA-GLONASS emergency call applications over cellular networks
implemented according to the 3GPP TS 26.267 specification [13]
When activated, the in-vehicle eCall / ERA-GLONASS system (IVS) creates an emergency call carrying both voice and
data (including vehicle position data) directly to the nearest Public Safety Answering Point (PSAP) to determine
whether rescue services should be dispatched to the known position.
Power saving
The power saving configuration is by default disabled, but it can be enabled and configured using the +UPSV AT
command. When the power saving is enabled, the module automatically enters the low power idle-mode whenever
possible, reducing current consumption.
During idle-mode, the module processor core runs with the RTC 32 kHz reference clock, which is generated by the
internal 32 kHz oscillator.
SMS via IMS9
Allows SMS via embedded IP Multimedia Subsystem
Table 3: TOBY-L2 series main supported features
u-blox is extremely mindful of user privacy. When a position is sent to the CellLocate® server u-blox is
unable to track the SIM used or the specific device.
8 Not supported by “00”, “01” and “50” product versions.
9 Not supported by “00” and “50” product versions.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Interfaces
Page 11 of 47
2 Interfaces
2.1 Power management
2.1.1 Module supply input (VCC)
TOBY-L2 series modules must be supplied through the VCC pins by a DC power supply. Voltage must be stable,
because during operation the current drawn from VCC can vary significantly, based on the power consumption
profile of the LTE/3G/2G technologies (described in the TOBY-L2 / MPCI-L2 series System Integration Manual [2]).
2.1.2 RTC supply input / output (V_BCKP)
When VCC voltage is within the valid operating range, the internal Power Management Unit (PMU) supplies the
Real Time Clock (RTC) and the same supply voltage is available on the V_BCKP pin. If the VCC voltage is under
the minimum operating limit (e.g. during not powered mode), the V_BCKP pin can externally supply the RTC.
2.1.3 Generic digital interfaces supply output (V_INT)
TOBY-L2 series modules provide a 1.8 V supply rail output on the V_INT pin, which is internally generated when
the module is switched on. The same voltage domain is used internally to supply the generic digital interfaces of
the modules. The V_INT supply output can be used in place of an external discrete regulator.
2.2 Antenna interfaces
2.2.1 Antenna RF interfaces
The modules have two RF pins with a characteristic impedance of 50 . The primary antenna pin (ANT1)
supports both Tx and Rx, providing the main antenna interface, while the secondary antenna pin (ANT2)
supports Rx only for the LTE MIMO 2x2 and 3G Rx diversity configurations.
2.2.2 Antenna detection
The antenna detection is not supported by “00”, “01” and “50” product versions.
The ANT_DET pin is an Analog to Digital Converter (ADC) input with a current source provided by TOBY-L2
modules to sense the antenna presence (as an optional feature). It evaluates the resistance from ANT1 and
ANT2 pins to GND by means of an external antenna detection circuit implemented on the application board.
(For more details, see the TOBY-L2 / MPCI-L2 series System Integration Manual [2] and the u-blox AT Commands
Manual [1].)
2.3 System functions
2.3.1 Module power-on
TOBY-L2 series can be switched on in one of the following ways:
Rising edge on the VCC pin to a valid voltage for module supply, i.e. applying module supply
Low level on the PWR_ON pin, which is normally set high by an internal pull-up, for a valid time period
when the applied VCC voltage is within the valid operating range (see section 4.2.8). The PWR_ON line
should be driven by open drain, open collector or contact switch.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Interfaces
Page 12 of 47
Low level on the RESET_N pin, which is normally set high by an internal pull-up, for a valid time period
when the applied VCC voltage is within the valid operating range (see section 4.2.9). The RESET_N line
should be driven by open drain, open collector or contact switch.
RTC alarm, i.e. pre-programmed scheduled time by AT+CALA command
2.3.2 Module power-off
TOBY-L2 series can be properly switched off by:
AT+CPWROFF command (see the u-blox AT Commands Manual [1]). The current parameter settings are
saved in the module’s non-volatile memory and a proper network detach is performed.
An abrupt under-voltage shutdown occurs on TOBY-L2 series modules when the VCC supply is removed. If this
occurs, it is not possible to store the current parameter settings in the module’s non-volatile memory or to
perform the proper network detach.
An abrupt shutdown occurs on TOBY-L2 series modules when a low level is applied on the RESET_N pin, which
is normally set high by an internal pull-up, for a valid time period (see the section 4.2.9). This causes an abrupt
shutdown of the module: the current parameter settings are not saved in the module’s non-volatile memory and
a proper network detach is not performed.
An over-temperature or an under-temperature shutdown occurs on TOBY-L2 modules when the temperature
measured within the cellular module reaches the dangerous area, if the optional Smart Temperature Supervisor
feature is enabled and configured by the dedicated AT command. For more details see the TOBY-L2 / MPCI-L2
series System Integration Manual [2] and the u-blox AT Commands Manual [1], +USTS AT command.
Smart Temperature Supervisor is not supported by “00”, “01” and “50” product versions.
2.3.3 Module reset
TOBY-L2 series modules can be reset (rebooted) by:
AT+CFUN command (see the u-blox AT Commands Manual [1]). This causes an “internal” or “software”
reset of the module. The current parameter settings are saved in the module’s non-volatile memory and a
proper network detach is performed.
An abrupt “external” or “hardware” reset occurs when a low level is applied to the RESET_N pin, which is
normally set high by an internal pull-up, for a valid time period (see the section 4.2.9). This causes an “external”
or “hardware” reset of the module. The current parameter settings are not saved in the module’s non-volatile
memory and a proper network detach is not performed. The RESET_N line should be driven by open drain, open
collector or contact switch.
2.3.4 Module configuration selection by host processor
The selection of the module configuration by the host application processor over HOST_SELECT0 and
HOST_SELECT1 pins is not supported by “00”, “01” and “50” product versions.
TOBY-L2 series modules include two input pins (HOST_SELECT0, HOST_SELECT1) for the selection of the
module configuration by the host application processor.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Interfaces
Page 13 of 47
2.4 SIM
2.4.1 SIM interface
A SIM card interface is provided on the VSIM, SIM_IO, SIM_CLK, SIM_RST pins: the high-speed SIM/ME
interface is implemented as well as the automatic detection of the required SIM supporting voltage.
Both 1.8 V and 3 V SIM types are supported (1.8 V and 3 V ME). Activation and deactivation with automatic
voltage switch from 1.8 V to 3 V is implemented, according to ISO-IEC 7816-3 specifications. The SIM driver
supports the PPS procedure for baud-rate selection, according to the values proposed by the SIM card/chip.
2.4.2 SIM detection
The SIM detection is not supported by “00”, “01” and “50” product versions.
TOBY-L2 series modules provide the SIM detection function over GPIO to sense the SIM card physical presence
(as an optional feature) when the specific GPIO pin of the module is properly connected to the mechanical
switch of the SIM car holder (for more details see the TOBY-L2 / MPCI-L2 series System Integration Manual [2]).
2.5 Serial communication
TOBY-L2 series provides the following serial communication interfaces:
UART interface: asynchronous serial interface available for the communication with a DTE host application
processor (AT commands, data communication, FW update by means of FOAT) and for diagnostic
USB interface: High-Speed USB 2.0 compliant interface available for the communication with a USB host
application processor (AT commands, data communication, FW update by means of the FOAT feature), for
FW update by means of the u-blox EasyFlash tool and for diagnostic
DDC interface: I2C bus compatible interface available for the communication with u-blox GNSS positioning
chips/modules and with external I2C devices as an audio codec
SDIO interface: Secure Digital Input Output interface available for the communication with an external Wi-Fi
chip or module
2.5.1 UART interface
The UART interface is not supported by TOBY-L200-00S and TOBY-L210-00S modules versions.
The DTR, DSR and DCD signals are not supported by TOBY-L200-50S, TOBY-L210-50S modules versions.
TOBY-L2 series modules include a 9-wire unbalanced asynchronous serial interface (UART) for communication
with an application host processor (AT commands, data communication, FW update by means of the FOAT
feature) and for diagnostic purpose.
UART features are:
Complete serial port with RS-232 functionality conforming to the ITU-T V.24 Recommendation [17], with
CMOS compatible signal levels (0 V for low data bit or ON state and 1.8 V for high data bit or OFF state)
Data lines (RXD as output, TXD as input), hardware flow control lines (CTS as output, RTS as input), modem
status and control lines (DTR as input, DSR as output, DCD as output, RI as output) are provided
Hardware flow control (default value), software flow control, or none flow control are supported
Software flow control is not supported by “00”, “01” and “50” module product versions.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Interfaces
Page 14 of 47
Power saving indication available on the hardware flow control output (CTS line): the line is driven to the
OFF state when the module is not prepared to accept data by the UART interface
Power saving control over the RTS input or the DSR input can be enabled via AT+UPSV command (for more
details see u-blox AT Commands Manual [1] and TOBY-L2 / MPCI-L2 series System Integration Manual [2])
The following baud rates are supported: 9600, 19200, 38400, 57600, 115200 (default baud rate when
autobauding is disabled or not supported), 230400, 460800 and 921600 b/s
One-shot autobauding is supported and it is by default enabled: automatic baud rate detection is performed
only once, at module start up. After the detection, the module works at the fixed baud rate (the detected
one) and the baud rate can only be changed via AT command (see u-blox AT Commands Manual [1], +IPR).
The automatic baud rate recognition (autobauding) is not supported by “50” module product version.
Frame format can be:
o 8N2 (8 data bits, no parity, 2 stop bits)
o 8N1 (8 data bits, no parity, 1 stop bit), default frame configuration
o 8E1 (8 data bits, even parity, 1 stop bit)
o 8O1 (8 data bits, odd parity, 1 stop bit)
o 7N2 (7 data bits, no parity, 2 stop bits)
o 7N1 (7 data bits, no parity, 1 stop bit)
o 7E1 (7 data bits, even parity, 1 stop bit)
o 7O1 (7 data bits, odd parity, 1 stop bit)
Automatic frame format recognition is not supported by “00”, “01” and “50” module product versions.
UART serial interface can be conveniently configured through AT commands. For more details see the u-blox AT
Commands Manual [1] (+IPR, +ICF, +IFC, &K, \Q, +UPSV AT command) and TOBY-L2 / MPCI-L2 series System
Integration Manual [2].
2.5.1.1 Multiplexer protocol
The GNSS tunneling and the SIM Access Profile (SAP) multiplexer virtual channels are not supported by
“00”, “01” and “50” modules product version.
TOBY-L2 series modules include multiplexer functionality as per 3GPP TS 27.010 [12] on the UART physical link.
This is a data link protocol which uses HDLC-like framing and operates between the module (DCE) and the
application processor (DTE), allowing a number of simultaneous sessions over the physical link (UART): the user
can concurrently use AT interface on one MUX channel and data communication on another MUX channel.
The following virtual channels are defined (for more details, see the Mux Implementation Application Note [6]):
Channel 0: control
Channel 1 – 5: AT commands / data connection
Channel 6: GNSS tunneling
Channel 7: SIM Access Profile (SAP)
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Interfaces
Page 15 of 47
2.5.2 USB interface
TOBY-L2 series modules include a high-speed USB 2.0 compliant interface with maximum 480 Mb/s data rate,
representing the main interface for transferring high speed data with a host application processor. The module
itself acts as a USB device and can be connected to any USB host equipped with compatible drivers.
The USB_D+ / USB_D- lines carry the USB data and signaling, providing all the functionalities for the bus
attachment, configuration, enumeration, suspension or remote wakeup according to USB 2.0 specification [18].
The additional VUSB_DET input is available as an optional feature to sense the host VBUS voltage (5.0 V typical).
The VUSB_DET functionality is not supported by “00”, “01” and “50” product versions: the pin should
be left unconnected or it should not be driven high by any external device, because a high logic level
applied to the pin will represent a module switch-on event (additional to the ones listed in section 2.3.1)
and will prevent reaching the minimum possible consumption with power saving enabled.
TOBY-L2 series modules provide by default the following set of USB functions:
CDC-ACM modem: AT commands interface is available over this modem COM port
RNDIS network adapter: Ethernet-over-USB connection is available over this network adapter
The USB of TOBY-L2 series modules can be configured by the AT+UUSBCONF command to select different sets
of USB functions available in a mutually exclusive way. The configured USB profile can thus consist of a specific
set of functions with various capabilities and purposes, such as:
CDC-ACM for AT commands and data
CDC-ACM for GNSS tunneling
CDC-ACM for SIM Access Profile (SAP)
CDC-ACM for diagnostic
RNDIS for Ethernet-over-USB
CDC-ECM for Ethernet-over-USB
CDC-NCM for Ethernet-over-USB
MBIM for Ethernet-over-USB
CDC-ACM for GNSS tunneling, CDC-ACM for SIM Access Profile (SAP), CDC-NCM and MBIM are not
supported by “00”, “01” and “50” product versions.
For more details regarding the USB configurations and capabilities, see the TOBY-L2 / MPCI-L2 series System
Integration Manual [2] and the u-blox AT Commands Manual [1], +UUSBCONF AT command.
USB drivers are available for the following operating system platforms:
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows Embedded Compact 7
TOBY-L2 series modules are compatible with standard Linux/Android USB kernel drivers.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Interfaces
Page 16 of 47
2.5.3 DDC (I2C) interface
The DDC (I2C) interface is not supported by “00”, “01” and “50” product versions.
TOBY-L2 series modules include an I2C-bus compatible DDC interface (SDA, SCL) available to communicate with
a u-blox GNSS receiver and with external I2C devices as an audio codec: the TOBY-L2 module acts as an I2C
master which can communicate with I2C slaves in accordance with the I2C bus specifications [19].
For more details regarding the DDC (I2C) interface usage and the integration with a u-blox GNSS receiver see the
TOBY-L2 / MPCI-L2 series System Integration Manual [2], the GNSS Implementation Application Note [7], and the
I2C and GNSS AT commands description in the u-blox AT Commands Manual [1].
2.5.4 SDIO interface
The SDIO interface is not supported by “00”, “01” modules product versions.
TOBY-L2 series modules include a 4-bit Secure Digital Input Output interface (SDIO_D0, SDIO_D1, SDIO_D2,
SDIO_D3, SDIO_CLK, SDIO_CMD) designed to communicate with an external u-blox short range Wi-Fi module:
the TOBY-L2 cellular module acts as an SDIO host controller which can communicate over the SDIO bus with a
compatible u-blox short range Wi-Fi module acting as SDIO device.
The SDIO interface is the only one interface of TOBY-L2 cellular modules available for communication between
the u-blox cellular module and the u-blox short range Wi-Fi module. The AT commands interface is not available
on the SDIO interface of TOBY-L2 series modules.
The SDIO interface supports 50 MHz bus clock frequency, which allows a data throughput of 200 Mb/s.
For more details regarding the SDIO interface usage and the integration with a u-blox Wi-Fi module see the
TOBY-L2 / MPCI-L2 series System Integration Manual [2], the Wi-Fi / Cellular Integration Application Note [8],
and the Wi-Fi AT commands description in the u-blox AT Commands Manual [1].
2.6 Audio
Audio is not supported by “00”, “01” and “50” product versions.
TOBY-L2 series modules include a 4-wire I2S digital audio interface (I2S_TXD, I2S_RXD, I2S_CLK, I2S_WA) that
can be configured by AT command to transfer digital audio data with an external device as an audio codec.
For more details regarding the I2S digital audio interface usage and the integration with an external digital audio
device as an audio codec see the TOBY-L2 / MPCI-L2 series System Integration Manual [2] and the audio AT
commands description in the u-blox AT Commands Manual [1].
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Interfaces
Page 17 of 47
2.7 GPIO
GPIOs are not supported by “00”, “01” and “50” modules product version except for:
o Wireless Wide Area Network status indication configured on GPIO1 of “00” and “01” product versions
o Wi-Fi enable function configured on the GPIO1 of “50” product version
TOBY-L2 series modules include 14 pins (GPIO1-GPIO6, I2S_TXD, I2S_RXD, I2S_CLK, I2S_WA, DTR, DSR,
DCD, RI) that can be configured as general purpose input/output or to provide custom functions as summarized
in Table 4 (for further details see the TOBY-L2 / MPCI-L2 series System Integration Manual [2] and the u-blox AT
Commands Manual [1]).
Function
Description
Default GPIO
Configurable GPIOs
Network status
indication
Network status: registered home network, registered
roaming, data transmission, no service
GPIO1
GPIO1
GNSS supply enable
Enable/disable the supply of u-blox GNSS receiver
connected to the cellular module
GPIO2
GPIO2
GNSS data ready
Sense when u-blox GNSS receiver connected to the
module is ready for sending data by the DDC (I2C)
GPIO3
GPIO3
GNSS RTC sharing
Real Time Clock synchronization signal to u-blox GNSS
receiver connected to the cellular module
GPIO4
GPIO4
SIM card detection
SIM card physical presence detection
GPIO5
GPIO5
SIM card hot
insertion/removal
SIM card hot insertion/removal
--
GPIO5
I2S digital audio
interface
I2S digital audio interface
I2S_RXD, I2S_TXD,
I2S_CLK, I2S_WA
I2S_RXD, I2S_TXD,
I2S_CLK, I2S_WA
26 MHz clock output
26 MHz clock output for an external audio codec or an
external Wi-Fi chip/module
GPIO6
GPIO6
Wi-Fi enable
Enable/disable the supply of the external Wi-Fi chip or
module connected to the cellular module
--
GPIO1, GPIO4, DSR
Wi-Fi data ready
Sense when the external Wi-Fi chip/module connected to
the cellular module is ready for sending data by the SDIO,
waking up the cellular module from low power idle mode
--
GPIO3, DTR
Wi-Fi reset
Reset the external Wi-Fi chip or module connected to the
cellular module
--
GPIO3, DCD
Wi-Fi power saving
Enable/disable the low power mode of the external Wi-Fi
chip/module connected to the cellular module
--
GPIO2, RI
32 kHz clock output
32 kHz clock output for an external Wi-Fi chip or module
--
GPIO6
Antenna tuning
4-bit tunable antenna control signals mapping the actual
operating RF band over a 4-pin interface provided for the
implementation of external antenna tuning solutions
--
I2S_RXD, I2S_TXD,
I2S_CLK, I2S_WA
DSR, DTR, DCD, RI
DSR
UART data set ready output
DSR
DSR
DTR
UART data terminal ready input
DTR
DTR
DCD
UART data carrier detect output
DCD
DCD
RI
UART ring indicator output
RI
RI
General purpose input
Input to sense high or low digital level
--
All
General purpose output
Output to set the high or the low digital level
--
All
Pin disabled
Tri-state with an internal active pull-down enabled
--
All
Table 4: GPIO custom functions configuration
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Pin definition
Page 18 of 47
3 Pin definition
3.1 Pin assignment
11
10
7
5
4
2
1
21
19
18
16
15
13
12
29
27
26
24
23
8
6
3
22
20
17
14
28
25
9
65
66
69
71
72
74
75
55
57
58
60
61
63
64
47
49
50
52
53
68
70
73
54
56
59
62
48
51
67
SDIO_CMD
SDIO_D0
GND
VCC
VCC
GND
ANT_DET
SDA
SIM_IO
SIM_RST
GPIO5
GPIO6
SDIO_D2
SDIO_CLK
RSVD
RSVD
I2S_WA
I2S_CLK
I2S_RXD
SDIO_D1
VCC
GND
SCL
SIM_CLK
VSIM
HOST_SELECT1
RSVD
I2S_TXD
SDIO_D3
V_INT
VUSB_DET
GND
RSVD
GPIO1
RSVD
RSVD
TXD
RSVD
USB_D-
HOST_SELECT0
GPIO3
RESET_N
V_BCKP
GPIO2
PWR_ON
RXD
USB_D+
GPIO4
90 91 9278
77
76
93100
79 80 83 85 86 88 8982 84 8781
GND
RSVD
GND
GND
RSVD
GND
GND
GND
GND
GND
GND
GND
GND
GND
RSVD
ANT2
ANT1
32 31 30
44
45
46
145152
43 42 39 37 36 34 3340 38 3541
GND
RSVD
GND
GND
RSVD
GND
99 98 97 96 95 94
106 105 104 103 102 101
108 107
124 123
130 129 128 127 126 125
136 135 134 133 132 131
138 137
144 143 142 141 140 139
151 150 149 148 147 146
114 113 112 111 110 109
120 119 118 117 116 115
122 121
Pin 93-152: GND
TOBY-L2
Top view
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RI
DSR
RSVD
CTS
DTR
DCD
RSVD
RSVD
RTS
RSVD
Figure 2: TOBY-L2 series pin assignment (top view)
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Pin definition
Page 19 of 47
No
Name
Power
domain
I/O
Description
Remarks
1
RSVD
-
N/A
RESERVED pin
Leave unconnected.
2
GND
GND
N/A
Ground
All GND pins must be connected to ground.
3
V_BCKP
-
I/O
RTC supply Input/ Output
3.0 V (typical) generated by the module when VCC
supply voltage is within valid operating range.
See section 4.2.2 for detailed electrical specs.
4
VUSB_DET
VBUS
I
VBUS USB detect input
Note: leave unconnected as VUSB_DET functionality is
not supported by ‘00’, ‘01’ and ‘50’ product versions.
Input for VBUS (5 V typical) USB supply sense.
See section 4.2.11 for detailed electrical specs.
5
V_INT
GDI
O
Generic Digital Interfaces
supply output
1.8 V (typical) generated by the module when it is
switched-on.
See section 4.2.2 for detailed electrical specs.
6
RSVD
-
N/A
RESERVED pin
This pin has special function: it must be connected to
GND to allow module to work properly.
7
RSVD
-
N/A
RESERVED pin
Leave unconnected.
8
RSVD
-
N/A
RESERVED pin
Leave unconnected.
9
RSVD
-
N/A
RESERVED pin
Leave unconnected.
10
DSR
GDI
O /
I/O
UART data set ready /
GPIO
Note: UART DSR not supported by TOBY-L200-00S,
TOBY-L210-00S, TOBY-L200-50S, TOBY-L210-50S;
GPIO not supported by ‘00’, ‘01’, ‘50’ product versions.
Circuit 107 (DSR) in ITU-T V.24, configurable as GPIO.
PU/PD class H. Value at internal reset: T/PU.
See section 4.2.12 for detailed electrical specs.
11
RI
GDI
O /
I/O
UART ring indicator /
GPIO
Note: UART RI not supported by TOBY-L200-00S and
TOBY-L210-00S module product versions;
GPIO not supported by ‘00’, ‘01’, ‘50’ product versions.
Circuit 125 (RI) in ITU-T V.24, configurable as GPIO.
PU/PD class H. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
12
DCD
GDI
O /
I/O
UART data carrier detect /
GPIO
Note: UART DCD not supported by TOBY-L200-00S,
TOBY-L210-00S, TOBY-L200-50S, TOBY-L210-50S;
GPIO not supported by ‘00’, ‘01’, ‘50’ product versions.
Circuit 109 (DCD) in ITU-T V.24, configurable as GPIO.
PU/PD class H. Value at internal reset: T/PU.
See section 4.2.12 for detailed electrical specs.
13
DTR
GDI
I /
I/O
UART data terminal ready
/ GPIO
Note: UART DTR not supported by TOBY-L200-00S,
TOBY-L210-00S, TOBY-L200-50S, TOBY-L210-50S;
GPIO not supported by ‘00’, ‘01’, ‘50’ product versions.
Circuit 108/2 (DTR) in ITU-T V.24, configurable as GPIO.
Internal active pull-up to V_INT when set as DTR.
PU/PD class H. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
14
RTS
GDI
I
UART ready to send
Note: UART RTS not supported by TOBY-L200-00S and
TOBY-L210-00S module product versions.
Circuit 105 (RTS) in ITU-T V.24.
Internal active pull-up to V_INT.
PU/PD class H. Value at internal reset: T/PU.
See section 4.2.12 for detailed electrical specs.
15
CTS
GDI
O
UART clear to send
Note: UART CTS not supported by TOBY-L200-00S and
TOBY-L210-00S module product versions.
Circuit 106 (CTS) in ITU-T V.24.
PU/PD class H. Value at internal reset: T/PU.
See section 4.2.12 for detailed electrical specs.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Pin definition
Page 20 of 47
No
Name
Power
domain
I/O
Description
Remarks
16
TXD
GDI
I
UART data input
Note: UART TXD not supported by TOBY-L200-00S and
TOBY-L210-00S module product versions.
Circuit 103 (TxD) in ITU-T V.24.
Internal active pull-up to V_INT.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
17
RXD
GDI
O
UART data output
Note: UART RXD not supported by TOBY-L200-00S and
TOBY-L210-00S module product versions.
Circuit 104 (RxD) in ITU-T V.24.
PU/PD class M. Value at internal reset: T/PU.
See section 4.2.12 for detailed electrical specs.
18
RSVD
-
N/A
RESERVED pin
Leave unconnected.
19
RSVD
-
N/A
RESERVED pin
Leave unconnected.
20
PWR_ON
POS
I
Power-on input
Internal active pull-up to VCC enabled.
See section 4.2.8 for detailed electrical specs.
21
GPIO1
GDI
I/O
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
22
GPIO2
GDI
I/O
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
23
RESET_N
ERS
I
External reset input
Internal active pull-up to VCC enabled.
See section 4.2.9 for detailed electrical specs.
24
GPIO3
GDI
I/O
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
25
GPIO4
GDI
I/O
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
26
HOST_SELECT0
GDI
I
Input for the selection of
module configuration by
the host processor
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
27
USB_D-
USB
I/O
USB Data Line D-
90 nominal differential impedance
Pull-up, pull-down and series resistors as required by
the USB Revision 2.0 specification [18] are part of the
USB pin driver and need not be provided externally.
See section 4.2.11 for detailed electrical specs.
28
USB_D+
USB
I/O
USB Data Line D+
90 nominal differential impedance
Pull-up, pull-down and series resistors as required by
the USB Revision 2.0 specification [18] are part of the
USB pin driver and need not be provided externally.
See section 4.2.11 for detailed electrical specs.
29
RSVD
-
N/A
RESERVED pin
Leave unconnected.
30
GND
GND
N/A
Ground
All GND pins must be connected to ground.
31
RSVD
-
N/A
RESERVED pin
Leave unconnected.
32
GND
GND
N/A
Ground
All GND pins must be connected to ground.
33
RSVD
-
N/A
RESERVED pin
Leave unconnected.
34
RSVD
-
N/A
RESERVED pin
Leave unconnected.
35
RSVD
-
N/A
RESERVED pin
Leave unconnected.
36
RSVD
-
N/A
RESERVED pin
Leave unconnected.
37
RSVD
-
N/A
RESERVED pin
Leave unconnected.
38
RSVD
-
N/A
RESERVED pin
Leave unconnected.
39
RSVD
-
N/A
RESERVED pin
Leave unconnected.
40
RSVD
-
N/A
RESERVED pin
Leave unconnected.
41
RSVD
-
N/A
RESERVED pin
Leave unconnected.
42
RSVD
-
N/A
RESERVED pin
Leave unconnected.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Pin definition
Page 21 of 47
No
Name
Power
domain
I/O
Description
Remarks
43
RSVD
-
N/A
RESERVED pin
Leave unconnected.
44
GND
GND
N/A
Ground
All GND pins must be connected to ground.
45
RSVD
-
N/A
RESERVED pin
Leave unconnected.
46
GND
GND
N/A
Ground
All GND pins must be connected to ground.
47
RSVD
-
N/A
RESERVED pin
Leave unconnected.
48
RSVD
-
N/A
RESERVED pin
Leave unconnected.
49
RSVD
-
N/A
RESERVED pin
Leave unconnected.
50
I2S_WA
GDI
I/O /
I/O
I2S word alignment /
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
I2S word alignment, otherwise configurable as GPIO.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
51
I2S_TXD
GDI
O /
I/O
I2S transmit data /
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
I2S transmit data out, otherwise configurable as GPIO.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
52
I2S_CLK
GDI
I/O /
I/O
I2S clock /
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
I2S serial clock, otherwise configurable as GPIO.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
53
I2S_RXD
GDI
I /
I/O
I2S receive data /
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
I2S receive data in, otherwise configurable as GPIO.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs
54
SCL
DDC
O
I2C bus clock line
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
Fixed open drain. No internal pull-up.
Value at internal reset: T.
See section 4.2.13 for detailed electrical specs.
55
SDA
DDC
I/O
I2C bus data line
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
Fixed open drain. No internal pull-up.
Value at internal reset: T.
See section 4.2.13 for detailed electrical specs.
56
SIM_CLK
SIM
O
SIM clock
See section 4.2.10 for detailed electrical specs.
57
SIM_IO
SIM
I/O
SIM data
Internal 4.7 k pull-up resistor to VSIM.
See section 4.2.10 for detailed electrical specs.
58
SIM_RST
SIM
O
SIM reset
See section 4.2.10 for detailed electrical specs.
59
VSIM
-
O
SIM supply output
VSIM = 1.8 V typical or 3.0 V typical generated by the
module according to the SIM card/chip voltage type.
See section 4.2.2 for detailed electrical specs.
60
GPIO5
GDI
I/O
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
61
GPIO6
GDI
I/O
GPIO
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
62
HOST_SELECT1
GDI
I
Input for the selection of
module configuration by
the host processor
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
63
SDIO_D2
GDI
I/O
SDIO serial data [2]
Note: not supported by ‘00’, ‘01’ product versions.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
64
SDIO_CLK
GDI
O
SDIO serial clock
Note: not supported by ‘00’, ‘01’ product versions.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
65
SDIO_CMD
GDI
I/O
SDIO command
Note: not supported by ‘00’, ‘01’ product versions.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Pin definition
Page 22 of 47
No
Name
Power
domain
I/O
Description
Remarks
66
SDIO_D0
GDI
I/O
SDIO serial data [0]
Note: not supported by ‘00’, ‘01’ product versions.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
67
SDIO_D3
GDI
I/O
SDIO serial data [3]
Note: not supported by ‘00’, ‘01’ product versions.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
68
SDIO_D1
GDI
I/O
SDIO serial data [1]
Note: not supported by ‘00’, ‘01’ product versions.
PU/PD class M. Value at internal reset: T/PD.
See section 4.2.12 for detailed electrical specs.
69
GND
GND
N/A
Ground
All GND pins must be connected to ground.
70
VCC
VCC
I
Module supply input
All VCC pins must be connected to external supply.
See sections 4.2.2 / 4.2.3 for detailed electrical specs.
71
VCC
VCC
I
Module supply input
All VCC pins must be connected to external supply.
See sections 4.2.2 / 4.2.3 for detailed electrical specs.
72
VCC
VCC
I
Module supply input
All VCC pins must be connected to external supply.
See sections 4.2.2 / 4.2.3 for detailed electrical specs.
73
GND
GND
N/A
Ground
All GND pins must be connected to ground.
74
GND
GND
N/A
Ground
All GND pins must be connected to ground.
75
ANT_DET
ADC
I
Antenna detection
Note: not supported by ‘00’, ‘01’, ‘50’ product versions
76
GND
GND
N/A
Ground
All GND pins must be connected to ground.
77
RSVD
-
N/A
RESERVED pin
Leave unconnected.
78
GND
GND
N/A
Ground
All GND pins must be connected to ground.
79
GND
GND
N/A
Ground
All GND pins must be connected to ground.
80
GND
GND
N/A
Ground
All GND pins must be connected to ground.
81
ANT1
ANT
I/O
Primary antenna
50 nominal characteristic impedance.
Main Tx / Rx antenna interface.
See section 4.2.4 / 4.2.5 / 4.2.6 for details.
82
GND
GND
N/A
Ground
All GND pins must be connected to ground.
83
GND
GND
N/A
Ground
All GND pins must be connected to ground.
84
RSVD
-
N/A
RESERVED pin
Leave unconnected.
85
GND
GND
N/A
Ground
All GND pins must be connected to ground.
86
GND
GND
N/A
Ground
All GND pins must be connected to ground.
87
ANT2
ANT
I
Secondary antenna
50 nominal characteristic impedance
Rx only for Down-Link MIMO 2x2 and Rx diversity.
See section 4.2.4 / 4.2.5 / 4.2.6 for details.
88
GND
GND
N/A
Ground
All GND pins must be connected to ground.
89
GND
GND
N/A
Ground
All GND pins must be connected to ground.
90
GND
GND
N/A
Ground
All GND pins must be connected to ground.
91
RSVD
-
N/A
RESERVED pin
Leave unconnected.
92
GND
GND
N/A
Ground
All GND pins must be connected to ground.
93-152
GND
GND
N/A
Ground
All GND pins must be connected to ground.
Table 5: TOBY-L2 series pin-out
For more information about the pin-out, see the TOBY-L2 / MPCI-L2 series System Integration Manual [2].
See Appendix A for an explanation of abbreviations and terms used.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 23 of 47
4 Electrical specifications
Stressing the device above one or more of the ratings listed in the Absolute Maximum Rating
section may cause permanent damage. These are stress ratings only. Operating the module at
these or at any conditions other than those specified in the Operating Conditions sections
(section 4.2) of the specification should be avoided. Exposure to Absolute Maximum Rating
conditions for extended periods may affect device reliability.
Operating condition ranges define those limits within which the functionality of the device is guaranteed.
Where application information is given, it is advisory only and does not form part of the specification.
4.1 Absolute maximum rating
Limiting values given below are in accordance with the Absolute Maximum Rating System (IEC 134).
Symbol
Description
Condition
Min.
Max.
Unit
VCC
Module supply voltage
Input DC voltage at VCC pin
–0.3
6.0
V
V_BCKP
RTC supply voltage
Input DC voltage at V_BCKP pin
–0.3
6.0
V
USB
USB D+/D- pins
Input DC voltage at USB interface pins
3.6
V
GDI
Generic digital interfaces
Input DC voltage at Generic digital interfaces pins
2.2
V
DDC
DDC interface
Input DC voltage at DDC interface pins
2.2
V
SIM
SIM interface
Input DC voltage at SIM interface pins
–0.3
3.6
V
ERS
External reset signal
Input DC voltage at RESET_N pin
–0.3
6.0
V
POS
Power-on input
Input DC voltage at PWR_ON pin
–0.3
6.0
V
Rho_ANT
Antenna ruggedness
Output RF load mismatch ruggedness at ANT pins
10:1
VSWR
Tstg
Storage Temperature
–40
85
°C
Table 6: Absolute maximum ratings
The product is not protected against overvoltage or reversed voltages. If necessary, voltage
spikes exceeding the power supply voltage specification, given in table above, must be limited
to values within the specified boundaries by using appropriate protection devices.
4.1.1 Maximum ESD
Parameter
Min
Typical
Max
Unit
Remarks
ESD sensitivity for all pins
except ANT1 / ANT2 pins
1000
V
Human Body Model according to JESD22-A114
ESD sensitivity for ANT1 / ANT2 pins
1000
V
Human Body Model according to JESD22-A114
ESD immunity for ANT1 / ANT2 pins
4000
V
Contact Discharge according to IEC 61000-4-2
8000
V
Air Discharge according to IEC 61000-4-2
Table 7: Maximum ESD ratings
u-blox cellular modules are Electrostatic Sensitive Devices and require special precautions when
handling. See section 7.4 for ESD handling instructions.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 24 of 47
4.2 Operating conditions
Unless otherwise indicated, all operating condition specifications are at an ambient temperature of 25°C.
Operation beyond the operating conditions is not recommended and extended exposure
beyond them may affect device reliability.
4.2.1 Operating temperature range
Parameter
Min.
Typical
Max.
Unit
Remarks
Normal operating temperature
–20
+25
+65
°C
Normal operating temperature range
(fully functional and meet 3GPP specifications)
Extended operating temperature
–40
+85
°C
Extended operating temperature range
(Occasional deviations from 3GPP specifications
may occur, though the module is functional)
Table 8: Environmental conditions
4.2.2 Supply/power pins
Symbol
Parameter
Min.
Typical
Max.
Unit
VCC
Module supply normal operating input voltage10
3.40
3.80
4.35
V
Module supply extended operating input voltage11
3.20
3.80
4.35
V
V_BCKP
Real Time Clock supply input voltage
1.4
4.2
V
I_BCKP
Real Time Clock supply average current consumption,
at V_BCKP = 1.8 V
2
5
µA
Table 9: Input characteristics of Supply/Power pins
Symbol
Parameter
Min.
Typical
Max.
Unit
VSIM
SIM supply output voltage
1.76
1.80
1.85
V
2.84
2.90
2.94
V
V_BCKP
Real Time Clock supply output voltage
3.00
V
I_BCKP
Real Time Clock supply output current capability
3
mA
V_INT
Generic Digital Interfaces supply output voltage
1.76
1.80
1.85
V
V_INT_RIPPLE
Generic Digital Interfaces supply output voltage ripple
45
mVpp
I_INT
Generic Digital Interfaces supply output current capability
70
mA
Table 10: Output characteristics of Supply/Power pins
10 Input voltage at VCC must be above the normal operating range minimum limit to switch-on the module.
11 Occasional deviations from the 3GPP specifications may occur. Ensure that input voltage at VCC never drops below the extended operating
range minimum limit during module operation: the cellular module may switch-off when the VCC voltage value drops below the extended
operating range minimum limit.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 25 of 47
4.2.3 Current consumption
Mode
Condition
Tx power
Min
Typ12
Max13
Unit
Power Off Mode
Averaged current value over a any period,
Module switched off
15
µA
12 Typical values with a matched antenna.
13 Maximum values with a mismatched antenna.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 26 of 47
Mode
Condition
Tx power
Min
Typ12
Max13
Unit
Idle-Mode
(Power Saving enabled by AT+UPSV,
module in low power idle-mode,
equivalent to +CFUN=4 or +COPS=2)
Averaged current value over a 100-ms period,
USB not connected
1.1
mA
Averaged current value over a 100-ms period,
USB connected and suspended
1.3
mA
Cyclic Idle/Active-Mode
(Power Saving enabled by AT+UPSV,
Module registered with network)
Averaged current value over a 10-minute period,
USB not connected
2.7
mA
Averaged current value over a 10-minute period,
USB connected and suspended
2.9
mA
Active-Mode
(Power Saving disabled by AT+UPSV,
Module registered with network)
Averaged current value over a 10-minute period,
USB not connected
35
mA
Averaged current value over a 10-minute period,
USB connected and not suspended
44
mA
2G Connected Mode
(Tx / Rx call enabled)
Pulse current14 during a 1-slot GMSK Tx burst,
850/900 MHz bands
Maximum
1.9
2.5
A
Averaged current value over a 10-second period,
2G GMSK call, 1 Tx + 1 Rx slot, 850/900 MHz
Maximum
340
mA
Averaged current value over a 10-second period,
2G GMSK call, 1 Tx + 1 Rx slot, 1800/1900 MHz
Maximum
280
mA
3G Connected Mode
(Tx / Rx call enabled)
Averaged current value over a 10-second period,
3G call with Low data rate
–55 dBm
250
mA
0 dBm
265
mA
12 dBm
350
mA
18 dBm
460
mA
Maximum
600
mA
Averaged current value over a 10-second period,
3G call with Maximum data rate
Maximum
640
mA
LTE Connected Mode
(Tx / Rx call enabled)
Averaged current value over a 10-second period,
LTE call with Low data rate
–55 dBm
295
mA
0 dBm
310
mA
12 dBm
390
mA
18 dBm
490
mA
Maximum
610
mA
Averaged current value over a 10-second period,
LTE call with Maximum data rate
Maximum
660
mA
Table 11: Module VCC current consumption
14 It is recommended to use this figure to dimension maximum current capability of power supply.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 27 of 47
4.2.4 LTE RF characteristics
The LTE bands supported by each TOBY-L2 series module are defined in Table 2, while the following Table 12
describes the Transmitting and Receiving frequencies for each LTE band according to 3GPP TS 36.521-1 [14].
Parameter
Min.
Max.
Unit
Remarks
Frequency range
Band 17 (700 MHz)
Uplink
704
716
MHz
Module transmit
Downlink
734
746
MHz
Module receive
Frequency range
Band 13 (750 MHz)
Uplink
777
787
MHz
Module transmit
Downlink
746
756
MHz
Module receive
Frequency range
Band 28 (750 MHz)
Uplink
703
748
MHz
Module transmit
Downlink
758
803
MHz
Module receive
Frequency range
Band 20 (800 MHz)
Uplink
832
862
MHz
Module transmit
Downlink
791
821
MHz
Module receive
Frequency range
Band 5 (850 MHz)
Uplink
824
849
MHz
Module transmit
Downlink
869
894
MHz
Module receive
Frequency range
Band 8 (900 MHz)
Uplink
880
915
MHz
Module transmit
Downlink
925
960
MHz
Module receive
Frequency range
Band 4 (1700 MHz)
Uplink
1710
1755
MHz
Module transmit
Downlink
2110
2155
MHz
Module receive
Frequency range
Band 3 (1800 MHz)
Uplink
1710
1785
MHz
Module transmit
Downlink
1805
1880
MHz
Module receive
Frequency range
Band 2 (1900 MHz)
Uplink
1850
1910
MHz
Module transmit
Downlink
1930
1990
MHz
Module receive
Frequency range
Band 1 (2100 MHz)
Uplink
1920
1980
MHz
Module transmit
Downlink
2110
2170
MHz
Module receive
Frequency range
Band 7 (2600 MHz)
Uplink
2500
2570
MHz
Module transmit
Downlink
2620
2690
MHz
Module receive
Table 12: LTE operating RF frequency bands
TOBY-L2 series modules include a UE Power Class 3 LTE transmitter (see Table 2), with output power and
characteristics according to 3GPP TS 36.521-1 [14].
TOBY-L2 series modules LTE receiver characteristics are compliant to 3GPP TS 36.521-1 [14], with LTE conducted
receiver sensitivity performance described in Table 13.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 28 of 47
Parameter
Min.
Typical
Max.
Unit
Remarks
Receiver input sensitivity
Band 17 (700 MHz)
–103.5
dBm
Channel bandwidth = 5 MHz
–100.5
dBm
Channel bandwidth = 10 MHz
Receiver input sensitivity
Band 20 (800 MHz)
–103.0
dBm
Channel bandwidth = 5 MHz
–97.0
dBm
Channel bandwidth = 20 MHz
Receiver input sensitivity
Band 5 (850 MHz)
–109.0
dBm
Channel bandwidth = 1.4 MHz
–103.0
dBm
Channel bandwidth = 5 MHz
–100.5
dBm
Channel bandwidth = 10 MHz
Receiver input sensitivity
Band 8 (900 MHz)
–110.0
dBm
Channel bandwidth = 1.4 MHz
–104.5
dBm
Channel bandwidth = 5 MHz
–101.5
dBm
Channel bandwidth = 10 MHz
Receiver input sensitivity
Band 4 (1700 MHz)
–109.5
dBm
Channel bandwidth = 1.4 MHz
–103.5
dBm
Channel bandwidth = 5 MHz
–98.0
dBm
Channel bandwidth = 20 MHz
Receiver input sensitivity
Band 3 (1800 MHz)
–110.0
dBm
Channel bandwidth = 1.4 MHz
–104.5
dBm
Channel bandwidth = 5 MHz
–98.5
dBm
Channel bandwidth = 20 MHz
Receiver input sensitivity
Band 2 (1900 MHz)
–110.0
dBm
Channel bandwidth = 1.4 MHz
–104.0
dBm
Channel bandwidth = 5 MHz
–98.0
dBm
Channel bandwidth = 20 MHz
Receiver input sensitivity
Band 1 (2100 MHz)
–104.5
dBm
Channel bandwidth = 5 MHz
–98.5
dBm
Channel bandwidth = 20 MHz
Receiver input sensitivity
Band 7 (2600 MHz)
–102.5
dBm
Channel bandwidth = 5 MHz
–97.0
dBm
Channel bandwidth = 20 MHz
Condition: 50 source, Throughput > 95%, dual receiver, QPSK modulation, Other settings as per 3GPP TS 36.521-1 [14]
Table 13: LTE receiver sensitivity performance
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 29 of 47
4.2.5 3G RF characteristics
The 3G bands supported by each TOBY-L2 series module are defined in Table 2, while the following Table 14
describes the Transmitting and Receiving frequencies for each 3G band according to 3GPP TS 34.121-1 [15].
Parameter
Min.
Max.
Unit
Remarks
Frequency range
Band 5 (850 MHz)
Uplink
824
849
MHz
Module transmit
Downlink
869
894
MHz
Module receive
Frequency range
Band 8 (900 MHz)
Uplink
880
915
MHz
Module transmit
Downlink
925
960
MHz
Module receive
Frequency range
Band 4 (AWS, 1700 MHz)
Uplink
1710
1755
MHz
Module transmit
Downlink
2110
2155
MHz
Module receive
Frequency range
Band 2 (1900 MHz)
Uplink
1850
1910
MHz
Module transmit
Downlink
1930
1990
MHz
Module receive
Frequency range
Band 1 (2100 MHz)
Uplink
1920
1980
MHz
Module transmit
Downlink
2110
2170
MHz
Module receive
Table 14: 3G operating RF frequency bands
TOBY-L2 series modules include a UE Power Class 3 3G transmitter (see Table 2), with output power and
characteristics according to 3GPP TS 34.121-1 [15].
TOBY-L2 series modules 3G receiver characteristics are compliant to 3GPP TS 34.121-1 [15], with 3G conducted
receiver sensitivity performance described in Table 15.
Parameter
Min.
Typical
Max.
Unit
Remarks
Receiver input sensitivity
Band 5 (850 MHz)
–112.0
dBm
Downlink RF level for RMC @ BER < 0.1 %
Receiver input sensitivity
Band 8 (900 MHz)
–112.0
dBm
Downlink RF level for RMC @ BER < 0.1 %
Receiver input sensitivity
Band 4 (AWS, 1700 MHz)
–111.0
dBm
Downlink RF level for RMC @ BER < 0.1 %
Receiver input sensitivity
Band 2 (1900 MHz)
–111.0
dBm
Downlink RF level for RMC @ BER < 0.1 %
Receiver input sensitivity
Band 1 (2100 MHz)
–111.0
dBm
Downlink RF level for RMC @ BER < 0.1 %
Condition: 50 source, other settings as per 3GPP TS 34.121-1 [15]
Table 15: 3G receiver sensitivity performance
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 30 of 47
4.2.6 2G RF characteristics
The 2G bands supported by each TOBY-L2 series module are defined in Table 2, while the following Table 16
describes the Transmitting and Receiving frequencies for each 2G band according to 3GPP TS 51.010-1 [16].
Parameter
Min.
Max.
Unit
Remarks
Frequency range
GSM 850
Uplink
824
849
MHz
Module transmit
Downlink
869
894
MHz
Module receive
Frequency range
E-GSM 900
Uplink
880
915
MHz
Module transmit
Downlink
925
960
MHz
Module receive
Frequency range
DCS 1800
Uplink
1710
1785
MHz
Module transmit
Downlink
1805
1880
MHz
Module receive
Frequency range
PCS 1900
Uplink
1850
1910
MHz
Module transmit
Downlink
1930
1990
MHz
Module receive
Table 16: 2G operating RF frequency bands
TOBY-L2 series modules include a GMSK Power Class 4 transmitter for GSM/E-GSM bands, GMSK Power Class 1
transmitter for DCS/PCS bands, 8-PSK Power Class E2 transmitter for all 2G bands (see Table 2), with output
power and characteristics according to 3GPP TS 51.010-1 [16].
TOBY-L2 series modules 2G receiver characteristics are compliant to 3GPP TS 51.010-1 [16], with conducted
receiver sensitivity performance described in Table 17.
Parameter
Min.
Typical
Max.
Unit
Remarks
Receiver input sensitivity
GSM 850 / E-GSM 900
–110.0
dBm
Downlink RF level @ BER Class II < 2.4 %
Receiver input sensitivity
DCS 1800 / PCS 1900
–109.0
dBm
Downlink RF level @ BER Class II < 2.4 %
Condition: 50 source, other settings as per 3GPP TS 51.010-1 [16]
Table 17: 2G receiver sensitivity performance
4.2.7 ANT_DET pin
Antenna detection (ANT_DET) is not supported by “00”, “01” and “50” product versions.
Pin Name
Parameter
Min.
Typical
Max.
Unit
Remarks
ANT_DET
Output DC current
pulse value
26
µA
Generated by means of the AT+UANTR
command
Output DC current
pulse time length
3.6
ms
Generated by means of the AT+UANTR
command
Table 18: ANT_DET pin characteristics
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 31 of 47
4.2.8 PWR_ON pin
Pin Name
Parameter
Min.
Typical
Max.
Unit
Remarks
PWR_ON
Internal supply for
Power-On Input Signal
3.8
V
Module supply input (VCC)
Low-level input
0
0.3*VCC
V
High-level input
0.7*VCC
VCC
V
Pull-up resistance
35
50
k
Internal active pull-up to VCC
Low-level input current
–76
µA
PWR_ON low time
5
ms
Low time to switch-on the module
Table 19: PWR_ON pin characteristics
4.2.9 RESET_N pin
Pin Name
Parameter
Min.
Typical
Max.
Unit
Remarks
RESET_N
Internal supply for
External Reset Input Signal
3.8
V
Module supply input (VCC)
Low-level input
0
0.3*VCC
V
High-level input
0.7*VCC
VCC
V
Pull-up resistance
35
50
k
Internal active pull-up to VCC
Low-level input current
–76
µA
RESET_N low time
18
800
ms
Low time to switch-on the module
2.1
15
s
Low time to reset the module
16
s
Low time to switch-off the module
Table 20: RESET_N pin characteristics
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 32 of 47
4.2.10 SIM pins
The SIM pins are a dedicated interface to the external SIM card/chip. The electrical characteristics fulfill regulatory
specification requirements. The values in Table 21 are for information only.
Parameter
Min.
Typical
Max.
Unit
Remarks
Low-level input
–0.30
0.63
V
VSIM = 1.8 V
–0.30
0.80
V
VSIM = 3.0 V
High-level input
1.17
2.10
V
VSIM = 1.8 V
2.00
3.30
V
VSIM = 3.0 V
Low-level output
0.00
0.45
V
VSIM = 1.8 V, Max value at IOL = +2.0 mA
0.00
0.40
V
VSIM = 3.0 V, Max value at IOL = +2.0 mA
High-level output
1.35
1.80
V
VSIM = 1.8 V, Min value at IOH = –2.0 mA
2.60
2.90
V
VSIM = 3.0 V, Min value at IOH = –2.0 mA
Input / Output leakage current
–500
500
nA
0 V < VIN < 0.63 V or 1.17 V < VIN < 2.10 V
0 V < VIN < 0.80 V or 2.00 V < VIN < 3.30 V
Clock frequency on SIM_CLK
3.25
MHz
Internal pull-up resistor on SIM_IO
4.7
k
Internal pull-up to VSIM supply
Table 21: SIM pins characteristics
4.2.11 USB pins
USB data lines (USB_D+ / USB_D–) are compliant to the USB 2.0 high-speed specification. See the Universal
Serial Bus Revision 2.0 specification [18] for detailed electrical characteristics.
Parameter
Min.
Typical
Max.
Unit
Remarks
VUSB_DET pin, High-level input
4.40
5.00
5.25
V
VUSB_DET pin, Low-level input
0.00
1.30
V
VUSB_DET pin, Current sink
100
µA
High-speed squelch detection threshold
(input differential signal amplitude)
100
150
mV
High speed disconnect detection threshold
(input differential signal amplitude)
525
625
mV
High-speed data signaling input
common mode voltage range
–50
500
mV
High-speed idle output level
–10
10
mV
High-speed data signaling output high level
360
440
mV
High-speed data signaling output low level
–10
10
mV
Chirp J level (output differential voltage)
700
1100
mV
Chirp K level (output differential voltage)
–900
–500
mV
Table 22: USB pins characteristics
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 33 of 47
4.2.12 Generic Digital Interfaces pins
Parameter
Min
Typical
Max
Unit
Remarks
Internal supply for GDI domain
1.80
V
Digital I/O Interfaces supply (V_INT)
Low-level input
–0.30
0.63
V
High-level input
1.17
2.10
V
Low-level output
0.00
0.45
V
Max value at IOL = +2.0 mA
High-level output
1.35
1.80
V
Min value at IOH = –2.0 mA
Input/output leakage current
–500
500
nA
0 V < VIN < 0.63 V or 1.17 V < VIN < 2.10 V
Internal active pull-up resistance
30
130
k
Pull-Up class H
30
180
k
Pull-Up class M
Internal active pull-down resistance
30
150
k
Pull-Down class H
30
180
k
Pull-Down class M
Table 23: GDI pin characteristics
4.2.13 DDC (I2C) pins
The DDC (I2C) interface is not supported by “00”, “01” and “50” product versions.
DDC (I2C) lines (SCL and SDA) are compliant to the I2C-bus standard mode specification. See the I2C-Bus
Specification [19] for detailed electrical characteristics.
Parameter
Min
Typical
Max
Unit
Remarks
Internal supply for GDI domain
1.80
V
Digital I/O Interfaces supply (V_INT)
Low-level input
–0.30
0.63
V
High-level input
1.17
2.10
V
Low-level output
0.00
0.45
V
Max value at IOL = +2.0 mA
Input/output leakage current
–500
500
nA
0 V < VIN < 0.63 V or 1.17 V < VIN < 2.10 V
Clock frequency on SCL
100
kHz
Table 24: DDC (I2C) pins characteristics
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Electrical specifications
Page 34 of 47
4.3 Parameters for ATEX applications
This section provides useful parameters and information to integrate TOBY-L2 series modules in applications
intended for use in areas with potentially explosive atmospheres (ATEX), describing:
Total internal capacitance and inductance of TOBY-L2 series modules (see Table 25)
Maximum RF output power and voltage at the antenna pin of TOBY-L2 series modules (see Table 26)
Any specific applicable requirement for the implementation of the apparatus integrating TOBY-L2 series
modules, intended for use in potentially explosive atmospheres, must be fulfilled according to the exact
applicable standards: check the detailed requisites on the pertinent normative for the application, as for
example the IEC 60079-0 [20], IEC 60079-11 [21], IEC 60079-26 [22] standards.
The certification of the application device that integrates a TOBY-L2 series module and the compliance of
the application device with all the applicable certification schemes, directives and standards required for
use in potentially explosive atmospheres are the sole responsibility of the application device manufacturer.
Table 25 describes the maximum total internal capacitance and the maximum total internal inductance,
considering internal parts tolerance, provided by TOBY-L2 series modules.
Module
Parameter
Description
Value
Unit
TOBY-L200,
TOBY-L201
Ci
Maximum total internal capacitance
267
µF
Li
Maximum total internal inductance
12.8
µH
TOBY-L210,
TOBY-L280
Ci
Maximum total internal capacitance
267
µF
Li
Maximum total internal inductance
12.9
µH
Table 25: TOBY-L2 series maximum total internal capacitance and maximum total internal inductance
Table 26 describes the maximum RF output power transmitted by TOBY-L2 series modules from the primary
antenna (ANT1) pin as Power Class 4 Mobile Stations for GSM 850 / E-GSM 900 bands, and the corresponding
maximum voltage into a 50 system load.
Module
Parameter
Description
Value
Unit
All
ANT1 Pout
Maximum RF output power from ANT1 pin
35.0
dBm
ANT1 Vout on 50
Maximum voltage from ANT1 pin into a 50 system load
12.6
Vrms
Table 26: TOBY-L2 series maximum RF output power and corresponding maximum voltage into a 50 load
The TOBY-L2 series modules do not contain internal blocks which increase the input voltage (e.g. like
step-up, duplicators, boosters, etc.) except for the primary antenna (ANT1) pin which maximum RF output
power and corresponding maximum voltage into a 50 system is illustrated in Table 26.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Mechanical specifications
Page 35 of 47
5 Mechanical specifications
C
I
A
GH1 J1D F
KM1 M1 M2 P2
BG
H1
J1
H2
J2
J2 H2
ANT1 pin
O
O
L
N
H2
J2
J2 H2
ANT2 pin
M1 M1 M3
I
I
I
OH1
J1
J1
J1
E
P3
F
P1
H1
I
O
Pin 1
Indicator
Figure 3: TOBY-L2 series dimensions (Bottom and Sides views)
Parameter
Description
Typical
Tolerance
A
Module Height [mm]
35.6
(1401.6 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
B
Module Width [mm]
24.8
(976.4 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
C
Module Thickness [mm]
2.6
(102.4 mil)
+0.27/–0.17
(+10.6/–6.7 mil)
D
Horizontal Edge to Lateral Pin Pitch [mm]
2.4
(94.5 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
E
Vertical Edge to Lateral Pin Pitch [mm]
2.25
(88.6 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
F
Edge to Lateral Pin Pitch [mm]
1.45
(57.1 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
G
Lateral Pin to Pin Pitch [mm]
1.1
(43.3 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
H1
Lateral Pin Height [mm]
0.8
(31.5 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
H2
Lateral Pin close to ANT1 and ANT2 Height [mm]
0.9
(35.4 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
I
Lateral Pin Width [mm]
1.5
(59.1 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
J1
Lateral Pin to Pin Distance [mm]
0.3
(11.8 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
J2
Lateral Pin to Pin close to ANT Distance [mm]
0.2
(7.9 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
K
Horizontal Edge to Central Pin Pitch [mm]
3.15
(124.0 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
L
Vertical Edge to Central Pin Pitch [mm]
7.15
(281.5 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
M1
Central Pin to Pin Horizontal Pitch [mm]
1.8
(70.9 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
M2
Central Pin to Pin Horizontal Pitch [mm]
5.2
(204.7 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
M3
Central Pin to Pin Horizontal Pitch [mm]
4.5
(177.2 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
N
Central Pin to Pin Vertical Pitch [mm]
2.1
(82.7 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
O
Central Pin Height and Width [mm]
1.1
(43.3 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
P1
Horizontal Edge to Corner Pin Pitch [mm]
1.1
(43.3 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
P2
Horizontal Edge to Corner Pin Pitch [mm]
1.25
(49.2 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
P3
Horizontal Edge to Corner Pin Pitch [mm]
2.85
(112.2 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
Weight
Module Weight [g]
< 7
Table 27: TOBY-L2 series dimensions
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Qualification and approvals
Page 36 of 47
6 Qualification and approvals
6.1 Reliability tests
Tests for product family qualifications according to ISO 16750 “Road vehicles - Environmental conditions and
testing for electrical and electronic equipment“, and appropriate standards.
6.2 Approvals
Products marked with this lead-free symbol on the product label comply with the
"Directive 2002/95/EC of the European Parliament and the Council on the Restriction of
Use of certain Hazardous Substances in Electrical and Electronic Equipment" (RoHS).
TOBY-L2 series modules are RoHS compliant.
No natural rubbers, hygroscopic materials, or materials containing asbestos are employed.
Table 28 summarizes the main approvals for TOBY-L2 series modules.
Directive / Standard / Regulatory / Operator
TOBY-L200
TOBY-L201
TOBY-L210
TOBY-L280
GCF (Global Certification Forum)
YES
YES
YES
YES
PTCRB (PCS Type Certification Review Board)
YES
YES
YES
YES
R&TTE (Radio and Telecommunications Terminal
Equipment EU Directive)
Notified Body number
YES
1588
YES
1588
YES
1588
YES
1588
CE (Conformité Européenne)
Notified Body number
YES
1588
YES
1588
YES
1588
YES
1588
FCC (US Federal Communications Commission)
FCC identification number
YES
XPYTOBYL200
YES
XPYTOBYL201
YES
XPYTOBYL210
YES
XPYTOBYL280
IC (Industry Canada)
IC certification number
YES
8595A-TOBYL200
YES
8595A-TOBYL201
YES
8595A-TOBYL210
YES
8595A-TOBYL280
Anatel (Brazilian Certification)
YES
RCM (Regulatory Compliance Mark Australia)
YES
YES
NCC (National Communications Commission Taiwan)
YES
YES
KC (Korea Certification)
YES
Giteki Mark (Japanese Certification)
YES
AT&T (Mobile Network Operator)
YES
YES
Verizon (Mobile Network Operator)
YES
Table 28: TOBY-L2 series main certification approvals summary
For the complete list of approvals and for specific details on all country and network operators’ certifications, see
our website www.u-blox.com or please contact the u-blox office or sales representative nearest you.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Product handling & soldering
Page 37 of 47
7 Product handling & soldering
7.1 Packaging
TOBY-L2 series modules are delivered as hermetically sealed, reeled tapes to enable efficient production,
production lot set-up and tear-down. For more information about packaging, see the u-blox Package
Information User Guide [9].
7.1.1 Reels
TOBY-L2 series modules are deliverable in quantities of 150 pieces on a reel. The modules are delivered using the
reel Type B described in the Figure 4 and in the u-blox Package Information Guide [9].
Figure 4: TOBY-L2 series modules reel
Parameter
Specification
Reel Type
B
Delivery Quantity
150
Table 29: Reel information for TOBY-L2 series modules
Quantities of less than 150 pieces are also available. Contact u-blox for more information.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Product handling & soldering
Page 38 of 47
7.1.2 Tapes
Figure 5 shows the position and the orientation of TOBY-L2 modules as they are delivered on the tape, while the
Table 30 specifies the tape dimensions.
Feed direction
Pin 1 Sprocket hole
Figure 5: Orientation for TOBY-L2 modules on tape
Table 30: TOBY-L2 series modules tape
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Product handling & soldering
Page 39 of 47
7.2 Moisture Sensitivity Levels
TOBY-L2 series modules are Moisture Sensitive Devices (MSD) in accordance to the IPC/JEDEC
specification.
The Moisture Sensitivity Level (MSL) relates to the packaging and handling precautions required. TOBY-L2 series
modules are rated at MSL level 4. For more information regarding moisture sensitivity levels, labeling, storage
and drying see the u-blox Package Information Guide [9].
For MSL standard see IPC/JEDEC J-STD-020 (can be downloaded from www.jedec.org).
7.3 Reflow soldering
Reflow profiles are to be selected according to u-blox recommendations (see TOBY-L2 / MPCI-L2 series System
Integration Manual [2]).
Failure to observe these recommendations can result in severe damage to the device!
7.4 ESD precautions
TOBY-L2 series modules contain highly sensitive electronic circuitry and are Electrostatic
Sensitive Devices (ESD). Handling TOBY-L2 series modules without proper ESD protection may
destroy or damage them permanently.
TOBY-L2 series modules are Electrostatic Sensitive Devices (ESD) and require special ESD precautions typically
applied to ESD sensitive components.
Table 7 reports the maximum ESD ratings of the TOBY-L2 series modules.
Proper ESD handling and packaging procedures must be applied throughout the processing, handling and
operation of any application that incorporates TOBY-L2 series module.
ESD precautions should be implemented on the application board where the module is mounted, as described in
the TOBY-L2 / MPCI-L2 series System Integration Manual [2].
Failure to observe these recommendations can result in severe damage to the device!
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Default settings
Page 40 of 47
8 Default settings
Item
AT Settings
Comments
USB interface
Enabled
TOBY-L2 series modules provide by default the following set of USB functions:
CDC-ACM for AT command and data
RNDIS for Ethernet-over-USB connection
The USB can be configured by the AT+UUSBCONF command to select different sets of
USB functions available in mutually exclusive way, configuring the active USB profile
consisting of a specific set of functions with various capabilities and purposes (for more
details, see the TOBY-L2 / MPCI-L2 series System Integration Manual [2] and the u-blox
AT Commands Manual [1], +UUSBCONF AT command).
Power Saving
AT+UPSV=0
Disabled
Network registration
AT+COPS=0
Self network registration
Table 31: Default settings
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Labeling and ordering information
Page 41 of 47
9 Labeling and ordering information
9.1 Product labeling
The labels of TOBY-L2 series series modules include important product information as described in this section.
Figure 6 illustrates the label of all the TOBY-L2 series modules, and includes: u-blox logo, production lot, Pb-free
marking, product type number, IMEI number, certification numbers, CE marking with the Notified Body number,
and production country.
1588

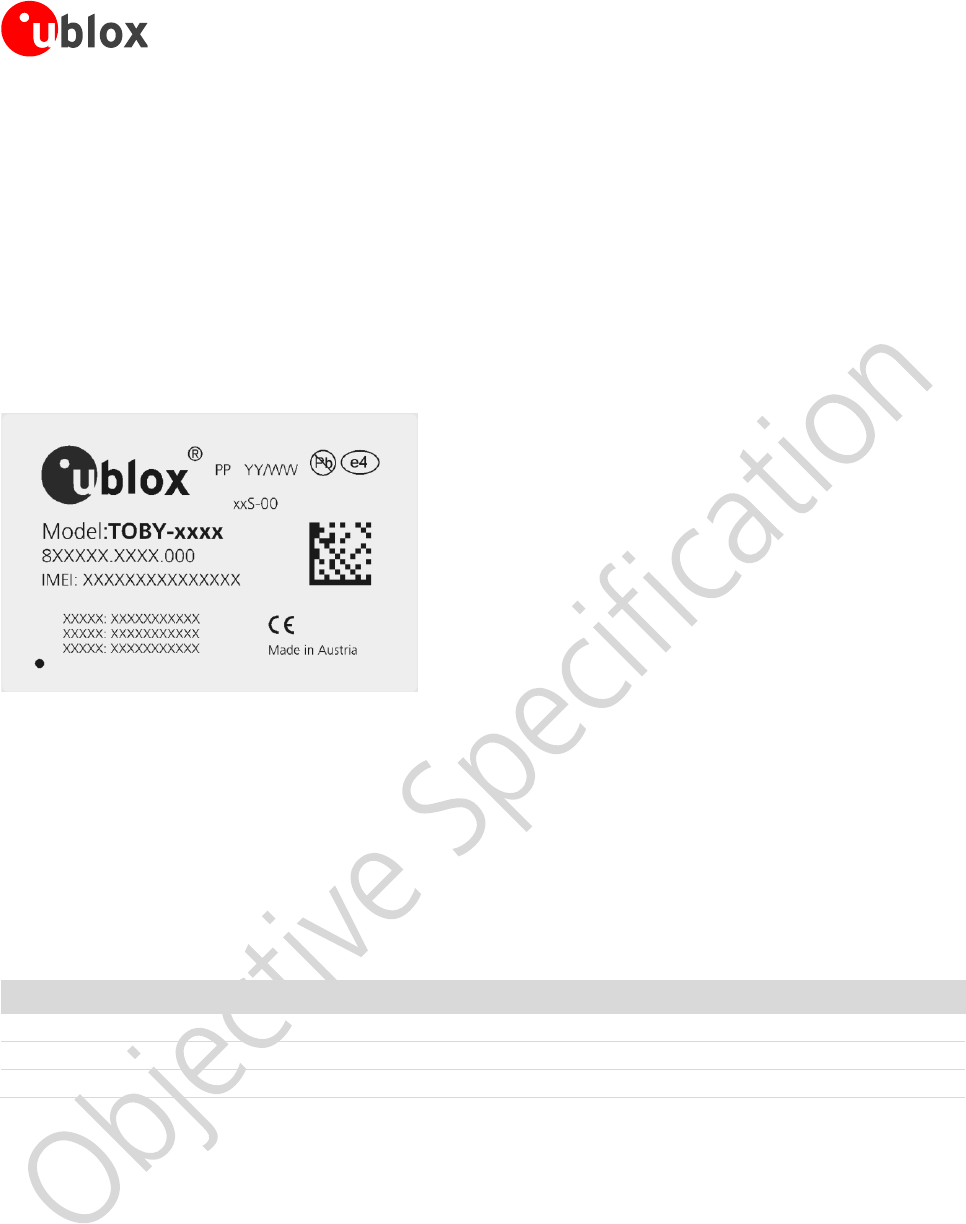

Figure 6: TOBY-L2 series module label
9.2 Explanation of codes
Three different product code formats are used. The Product Name is used in documentation such as this data
sheet and identifies all the u-blox products, independent of packaging and quality grade. The Ordering Code
includes options and quality, while the Type Number includes the hardware and firmware versions. Table 32
details these 3 different formats:
Format
Structure
Product Name
TOBY-TGVV
Ordering Code
TOBY-TGVV-TTQ
Type Number
TOBY-TGVV-TTQ-XX
Table 32: Product Code Formats
Table 33 explains the parts of the product code.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Labeling and ordering information
Page 42 of 47
Code
Meaning
Example
TOBY
Form factor
TOBY
TG
Platform (Technology and Generation)
Technology: G:GSM; U: HSUPA; L:LTE, C:CDMA 1xRTT; D:EV-DO
Generation: 1…9
L2
VV
Variant function set based on the same platform [00…99]
00
TT
Major product version [00…99]
00
Q
Quality grade
S = professional
A = automotive
S
XX
Minor product version (not relevant for certification)
Default value is 00
Table 33: Part identification code
9.3 Ordering information
Ordering No.
Product
TOBY-L200-00S
LTE bands 2 / 4 / 5 / 7 / 17, DC-HSPA+ bands 1 / 2 / 4 / 5 / 8, (E)GPRS bands 850 / 900 / 1800 / 1900 module,
mainly designed for operation in America,
35.6 x 24.8 x 2.6 mm, 150 pcs/reel
TOBY-L200-50S
LTE bands 2 / 4 / 5 / 7 / 17, DC-HSPA+ bands 1 / 2 / 4 / 5 / 8, (E)GPRS bands 850 / 900 / 1800 / 1900 module,
mainly designed for operation in America, supporting UART and SDIO interfaces,
35.6 x 24.8 x 2.6 mm, 150 pcs/reel
TOBY-L201-01S
LTE bands 2 / 4 / 5 / 13 / 17, DC-HSPA+ bands 2 / 5 module,
mainly designed for operation in America, supporting UART and embedded TCP/UDP, HTTP/FTP,
35.6 x 24.8 x 2.6 mm, 150 pcs/reel
TOBY-L210-00S
LTE bands 1 / 3 / 5 / 7 / 8 / 20, DC-HSPA+ bands 1 / 2 / 5 / 8, (E)GPRS bands 850 / 900 / 1800 / 1900 module,
mainly designed for operation in Europe, Asia and other countries,
35.6 x 24.8 x 2.6 mm, 150 pcs/reel
TOBY-L210-50S
LTE bands 1 / 3 / 5 / 7 / 8 / 20, DC-HSPA+ bands 1 / 2 / 5 / 8, (E)GPRS bands 850 / 900 / 1800 / 1900 module,
mainly designed for operation in Europe, Asia and other countries, supporting UART and SDIO interfaces,
35.6 x 24.8 x 2.6 mm, 150 pcs/reel
TOBY-L280-00S
LTE bands 1 / 3 / 5 / 7 / 8 / 28, DC-HSPA+ bands 1 / 2 / 5 / 8, (E)GPRS bands 850 / 900 / 1800 / 1900 module,
mainly designed for operation in South East-Asia and Oceania, supporting UART,
35.6 x 24.8 x 2.6 mm, 150 pcs/reel
Table 34: Product ordering codes
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Appendix
Page 43 of 47
Appendix
A Glossary
Name
Definition
16QAM
16 Quadrature Amplitude Modulation
8-PSK
8 Phase-Shift Keying modulation
ACM
Abstract Control Model
ADC
Analog to Digital Converter
BER
Bit Error Rate
CDC
Communications Device Class
CSFB
Circuit Switched Fall-Back
DDC
Display Data Channel (I2C compatible) Interface
DL
Down-link (Reception)
DRX
Discontinuous Reception
ECM
Ethernet networking Control Model
EDGE
Enhanced Data rates for GSM Evolution
ERS
External Reset Input Signal
ESD
Electrostatic Discharge
FOAT
Firmware update Over AT commands
FOTA
Firmware update Over The Air
FW
Firmware
GDI
Generic Digital Interfaces (power domain)
GMSK
Gaussian Minimum-Shift Keying modulation
GND
Ground
GNSS
Global Navigation Satellite System
GPIO
General Purpose Input Output
GPS
Global Positioning System
GSM
Global System for Mobile Communication
H
High
HSDPA
High Speed Downlink Packet Access
HSIC
High Speed Inter Chip
HSUPA
High Speed Uplink Packet Access
I
Input (means that this is an input port of the module)
I2C
Inter-Integrated Circuit Interface
I2S
Inter-IC Sound Interface
IMEI
International Mobile Equipment Identity
IMS
IP Multimedia Subsystem
L
Low
LGA
Land Grid Array
LTE
Long Term Evolution
MBIM
Mobile Broadband Interface Model
MIMO
Multi-Input Multi-Output
N/A
Not Applicable
NCM
Network Control Model
O
Output (means that this is an output port of the module)
OD
Open Drain
PCN / IN
Product Change Notification / Information Note
PD
Pull-Down
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Appendix
Page 44 of 47
Name
Definition
POS
Power-On Input Signal
PU
Pull-Up
QPSK
Quadrature Phase-Shift Keying modulation
RMC
Reference Measurement Channel
RMII
Reduced Media Independent Interface
RNDIS
Remote Network Driver Interface Specification
SDIO
Secure Digital Input Output
SIM
Subscriber Identity Module
T
Tristate
TBD
To Be Defined
UART
Universal Asynchronous Receiver-Transmitter serial interface
UL
Up-link (Transmission)
UMTS
Universal Mobile Telecommunications System
USB
Universal Serial Bus
VoLTE
Voice over LTE
Table 35: Explanation of abbreviations and terms used
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Related documents
Page 45 of 47
Related documents
[1] u-blox AT Commands Manual, Docu No UBX-13002752
[2] u-blox TOBY-L2 / MPCI-L2 series System Integration Manual, Docu No UBX-13004618
[3] u-blox Android RIL Production delivery Application note, Docu No UBX-13002041
[4] u-blox Windows Embedded RIL Production delivery Application note, Docu No UBX-13002043
[5] u-blox GNSS Implementation Application Note, Docu No UBX-13001849
[6] u-blox Mux Implementation Application Note, Docu No UBX-13001887
[7] u-blox GNSS Implementation Application Note, Docu No UBX-13001849
[8] u-blox Wi-Fi / Cellular Integration Application Note, Docu No UBX-14003264
[9] u-blox Package Information User Guide, Docu No UBX-14001652
[10] 3GPP TS 27.007 - AT command set for User Equipment (UE)
[11] 3GPP TS 27.005 - Use of Data Terminal Equipment - Data Circuit terminating Equipment (DTE - DCE)
interface for Short Message Service (SMS) and Cell Broadcast Service (CBS)
[12] 3GPP TS 27.010 - Terminal Equipment to User Equipment (TE-UE) multiplexer protocol
[13] 3GPP TS 26.267 - Technical Specification Group Services and System Aspects; eCall Data Transfer; In-band
modem solution; General description
[14] 3GPP TS 36.521-1 - Evolved Universal Terrestrial Radio Access; User Equipment conformance specification;
Radio transmission and reception; Part 1: Conformance Testing
[15] 3GPP TS 34.121-1 - User Equipment conformance specification; Radio transmission and reception (FDD);
Part 1: Conformance specification
[16] 3GPP TS 51.010-1 - Mobile Station conformance specification; Part 1: Conformance specification
[17] ITU-T Recommendation V24, 02-2000. List of definitions for interchange circuits between Data Terminal
Equipment (DTE) and Data Connection Equipment (DCE)
[18] Universal Serial Bus Revision 2.0 specification, http://www.usb.org/developers/docs/usb20_docs/
[19] I2C-bus specification and user manual - Rev. 5 - 9 October 2012 - NXP Semiconductors,
http://www.nxp.com/documents/user_manual/UM10204.pdf
[20] IEC 60079-0 - Explosive atmospheres, Part 0: Equipment general requirements
[21] IEC 60079-11 - Explosive atmospheres, Part 11: Equipment protection by intrinsic safety 'i'
[22] IEC 60079-26 - Explosive atmospheres, Part 26: Equipment with EPL Ga
For regular updates to u-blox documentation and to receive product change notifications please register
on our homepage (www.u-blox.com).
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Revision history
Page 46 of 47
Revision history
Revision
Date
Name
Status / Comments
R01
02-Dec-2013
jpod / sses
Initial release
R02
23-Jul-2014
sses
Advance Information document status
Updated module pin 4 definition: VUSB_DET instead of RSVD; Updated UART, GPIOs
and SIM detection support; Updated receiver sensitivity performance; Updated VCC
current consumption; Updated PWR_ON and RESET_N timings characteristics
R03
30-Sep-2014
sses
Added and updated minor electrical characteristics
R04
28-Nov-2014
sses
Early Production Information document status
Updated VUSB_DET description: the VUSB_DET functionality is not supported, and the
pin should be left unconnected or it should not be driven high
Added and updated minor electrical characteristics
R05
30-Jan-2015
sses
Added description of TOBY-L2xx-50S modules – the “50” product version. Updated
UART, SDIO, GPIO sections and added consumption figures with USB not connected.
R06
04-Mar-2015
sfal
Extended the document applicability to TOBY-L201-01S and TOBY-L280-00S
R07
08-Apr-2015
sses
Corrected UART supported functionalities description.
Added current consumption figures with module in low power idle-mode.
TOBY-L2 series - Data Sheet
UBX-13004573 - R07 Objective Specification Contact
Page 47 of 47
Contact
For complete contact information visit us at www.u-blox.com
u-blox Offices
North, Central and South America
u-blox America, Inc.
Phone: +1 703 483 3180
E-mail: info_us@u-blox.com
Regional Office West Coast:
Phone: +1 408 573 3640
E-mail: info_us@u-blox.com
Technical Support:
Phone: +1 703 483 3185
E-mail: support_us@u-blox.com
Headquarters
Europe, Middle East, Africa
u-blox AG
Phone: +41 44 722 74 44
E-mail: info@u-blox.com
Support: support@u-blox.com
Asia, Australia, Pacific
u-blox Singapore Pte. Ltd.
Phone: +65 6734 3811
E-mail: info_ap@u-blox.com
Support: support_ap@u-blox.com
Regional Office Australia:
Phone: +61 2 8448 2016
E-mail: info_anz@u-blox.com
Support: support_ap@u-blox.com
Regional Office China (Beijing):
Phone: +86 10 68 133 545
E-mail: info_cn@u-blox.com
Support: support_cn@u-blox.com
Regional Office China (Shenzhen):
Phone: +86 755 8627 1083
E-mail: info_cn@u-blox.com
Support: support_cn@u-blox.com
Regional Office India:
Phone: +91 959 1302 450
E-mail: info_in@u-blox.com
Support: support_in@u-blox.com
Regional Office Japan:
Phone: +81 3 5775 3850
E-mail: info_jp@u-blox.com
Support: support_jp@u-blox.com
Regional Office Korea:
Phone: +82 2 542 0861
E-mail: info_kr@u-blox.com
Support: support_kr@u-blox.com
Regional Office Taiwan:
Phone: +886 2 2657 1090
E-mail: info_tw@u-blox.com
Support: support_tw@u-blox.com
