Bluetooth Barcode Reader HID Mode for IOS
1
FS02 user manual
HID mode for IOS
1. Turn on the barcode reader, and read below barcodes sequence, the blue LED will
flash rapidly.
2. Enable the bluetooth of IOS to pair with the barcode reader. After the pairing is
successful, you can use it with Notes/office files or other cursor blinking position.
(Please follow the steps below)
![](/img.php?id=3991285&img=bg2.png)
Bluetooth Barcode Reader HID Mode for IOS
2

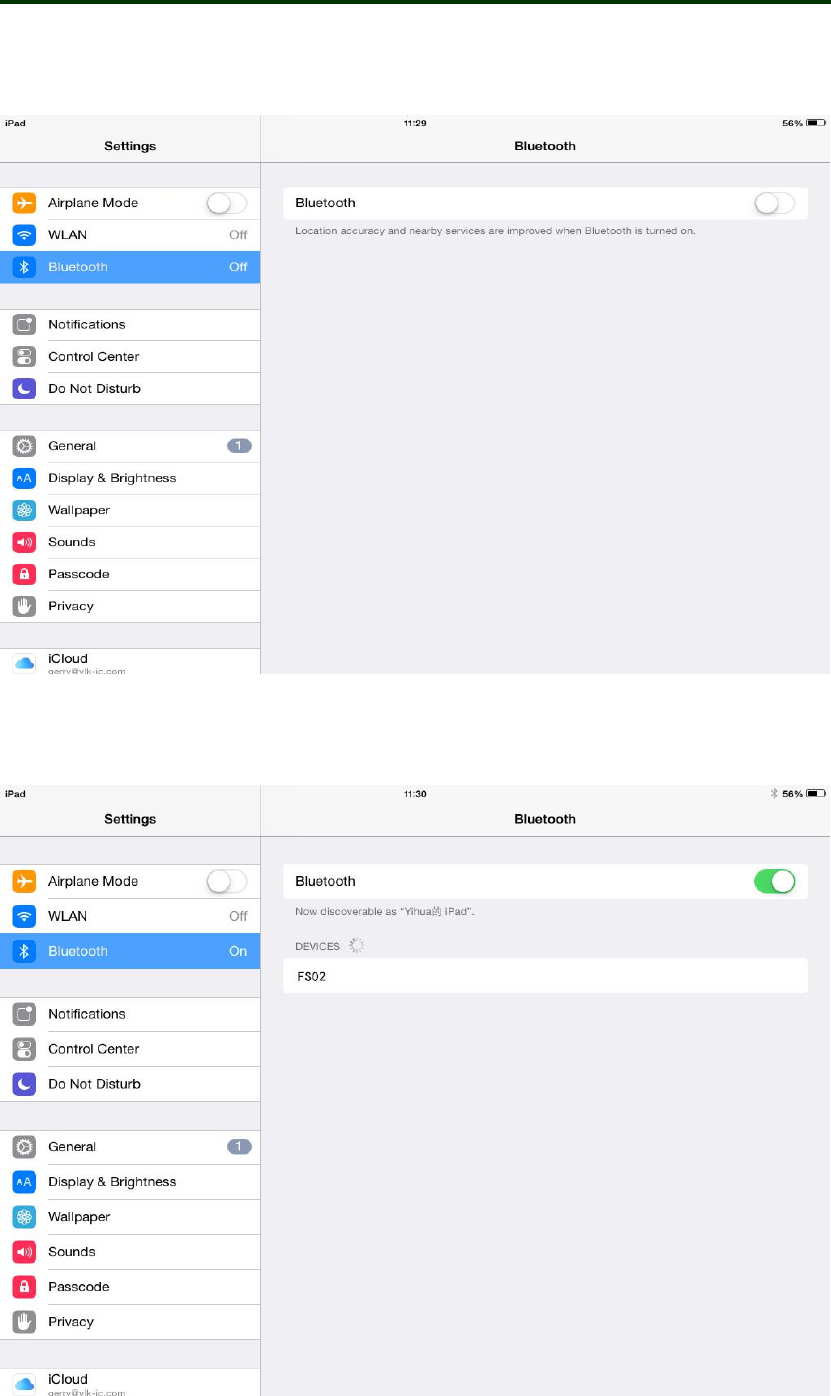

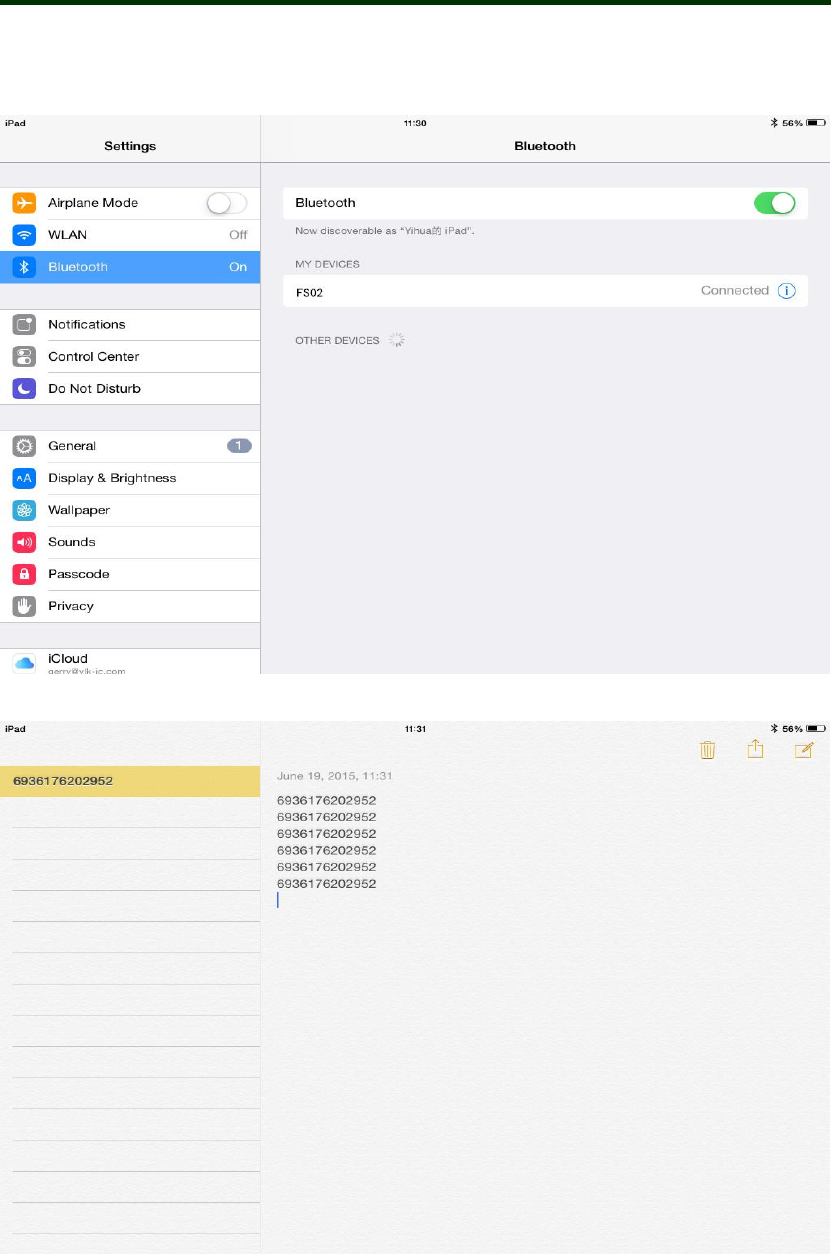

(1)Turn on the ipad, and find the bluetooth option.
(2)Enable bluetooth, and the ipad will search automatically. After the searching is
finished, click the scanner’s name to connect.
![](/img.php?id=3991285&img=bg3.png)
Bluetooth Barcode Reader HID Mode for IOS
3
(3)
After the connection is successful, the blue LED on the scanner will be off. Then
you can use it with Notes/office files or other cursor blinking position.
Note: In android system, If the soft keyboard can not display, you need to switch the
hardware physical keyboard to OFF status. In IOS system, you can also click trigger
button for four times to hide and display soft keyboard for IOS.
![](/img.php?id=3991285&img=bg4.png)
Bluetooth Barcode Reader HID Mode for Windows
4
HID mode for Windows
1. Turn on the barcode reader, and read below barcodes sequence, the blue LED will
flash rapidly.
2. Enable the bluetooth of Windows device to pair with the barcode reader. After the
pairing is successful, the blue LED on the scanner will be off. Please follow the steps
below.
![](/img.php?id=3991285&img=bg5.png)
Bluetooth Barcode Reader HID Mode for Windows
5

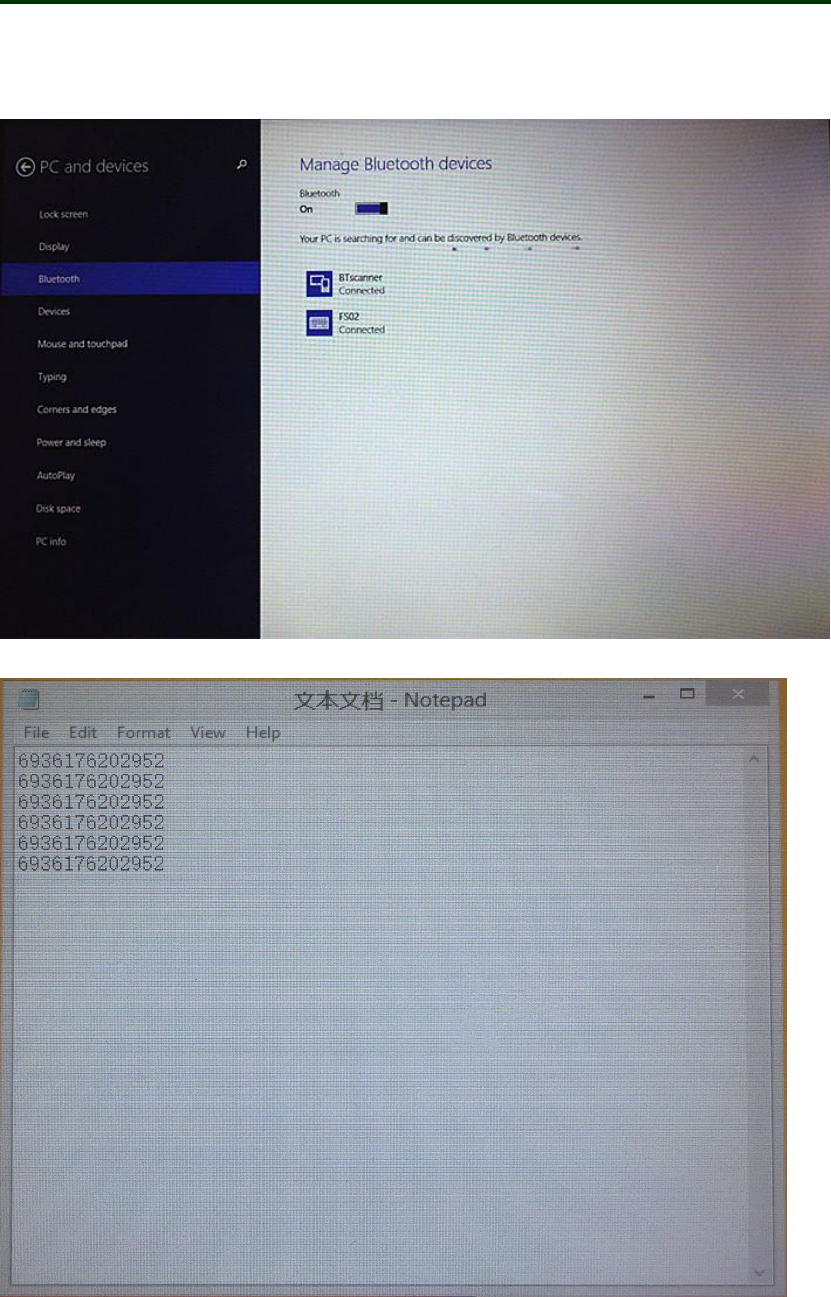

(1)Find out the bluetooth option on the computer.

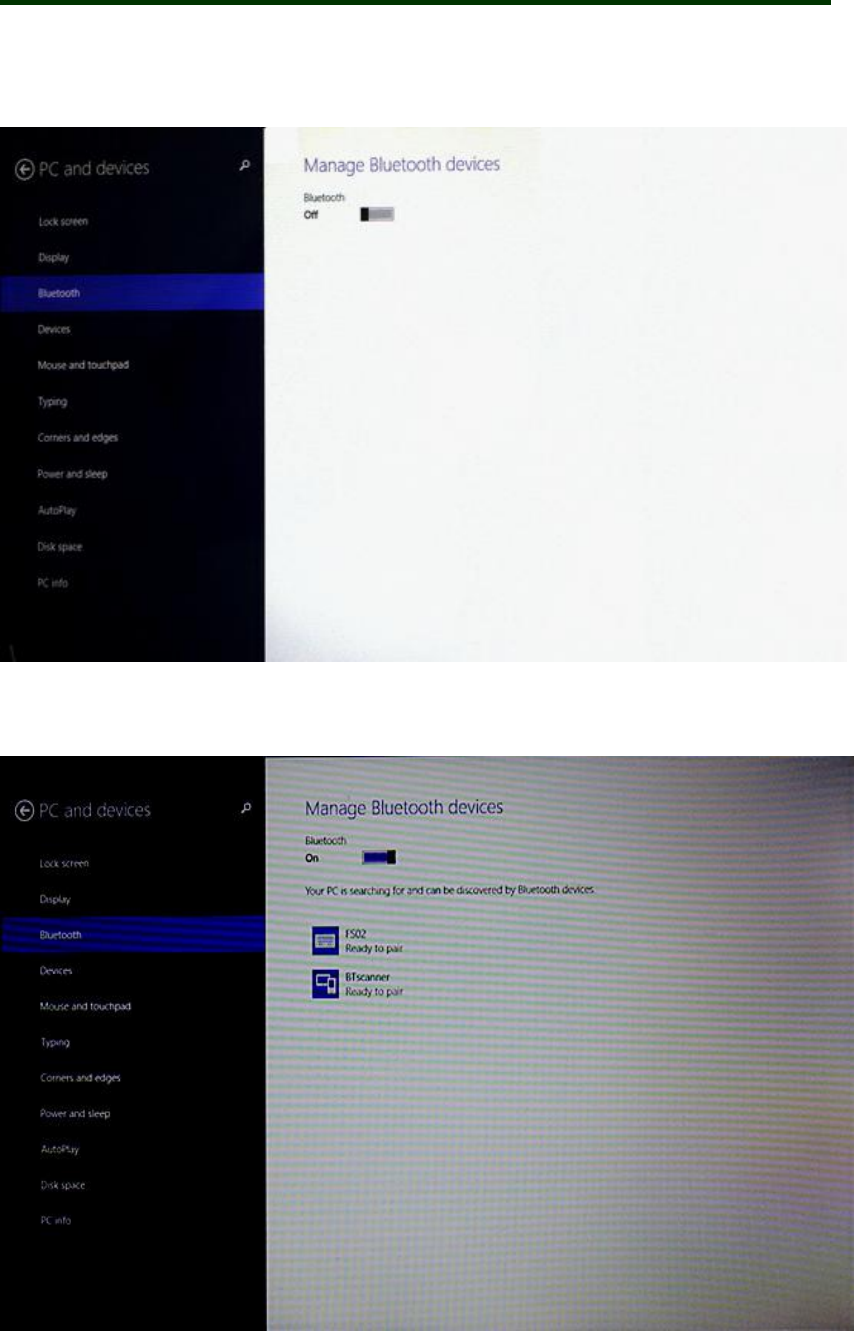

(2) Enable the bluetooth, and the Windows device will search automatically. After the
searching is finished, click the scanner’s name to connect.
![](/img.php?id=3991285&img=bg6.png)
Bluetooth Barcode Reader HID Mode for Windows
6
(3)
After the connection is successful, the blue LED on the scanner will be off. Then
you can use it with Notes/office files or other cursor blinking position.
![](/img.php?id=3991285&img=bg7.png)
Bluetooth Barcode Reader SPP Mode for Windows
7
SPP mode for Windows
1. Turn on the barcode reader, and read below barcodes sequence, the blue LED will
flash slowly.
2. Enable the bluetooth of Windows, and pair the barcode reader. The PIN number of
SPP mode is 1234.
And now you need a software to help connection. Please download the test software
for Serial port from internet, then install the test software to your computer and run it.
Please follow the steps below:
![](/img.php?id=3991285&img=bg8.png)
Bluetooth Barcode Reader SPP Mode for Windows
8

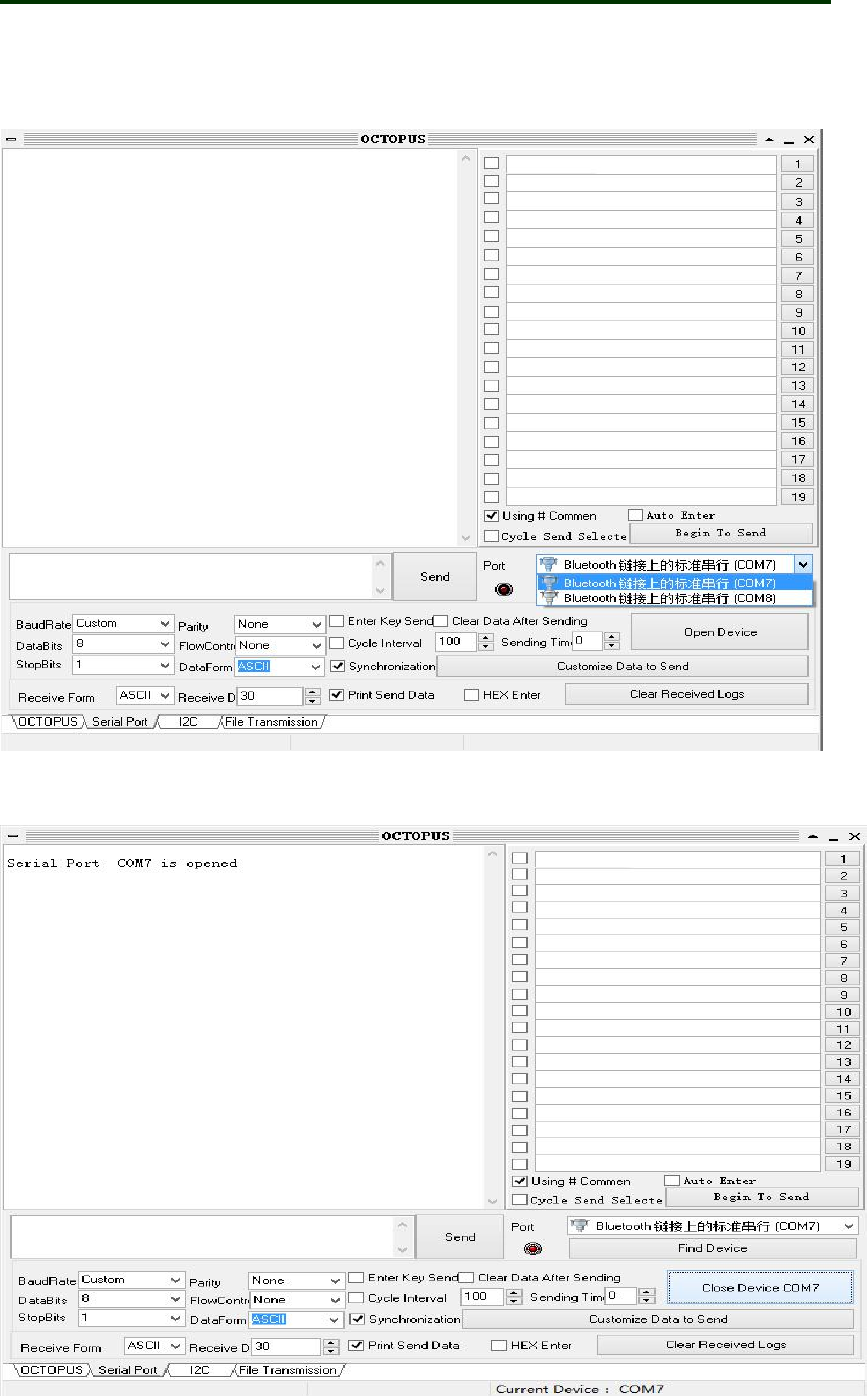

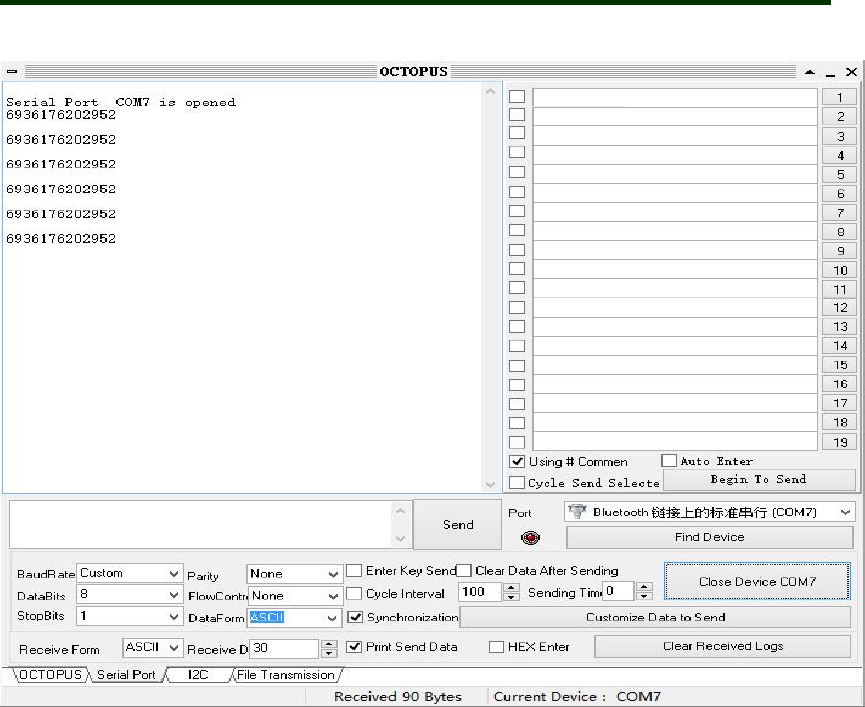

(1) Please double click to open the software, choose “Serial Port”, you need to find
out the COM port first in the Device manager of computer, then select the COM port
in the software, click “Open Device”.
(2) Now the blue LED on the scanner will be off.
![](/img.php?id=3991285&img=bg9.png)
Bluetooth Barcode Reader SPP Mode for Windows
9
(3) After the connection is successful, you can scan barcode data into the dialog box .
![](/img.php?id=3991285&img=bga.png)
Bluetooth Barcode Reader HID Mode for Android
10
HID mode for Android
1.Turn on the barcode reader, and read below barcodes sequence, the blue LED will
flash rapidly.
Enable the bluetooth of Android device to pair with the barcode reader. After
the pairing is successful, the blue LED on the scanner will be off. Please follow the
steps below.
![](/img.php?id=3991285&img=bgb.png)
Bluetooth Barcode Reader HID Mode for Android
11

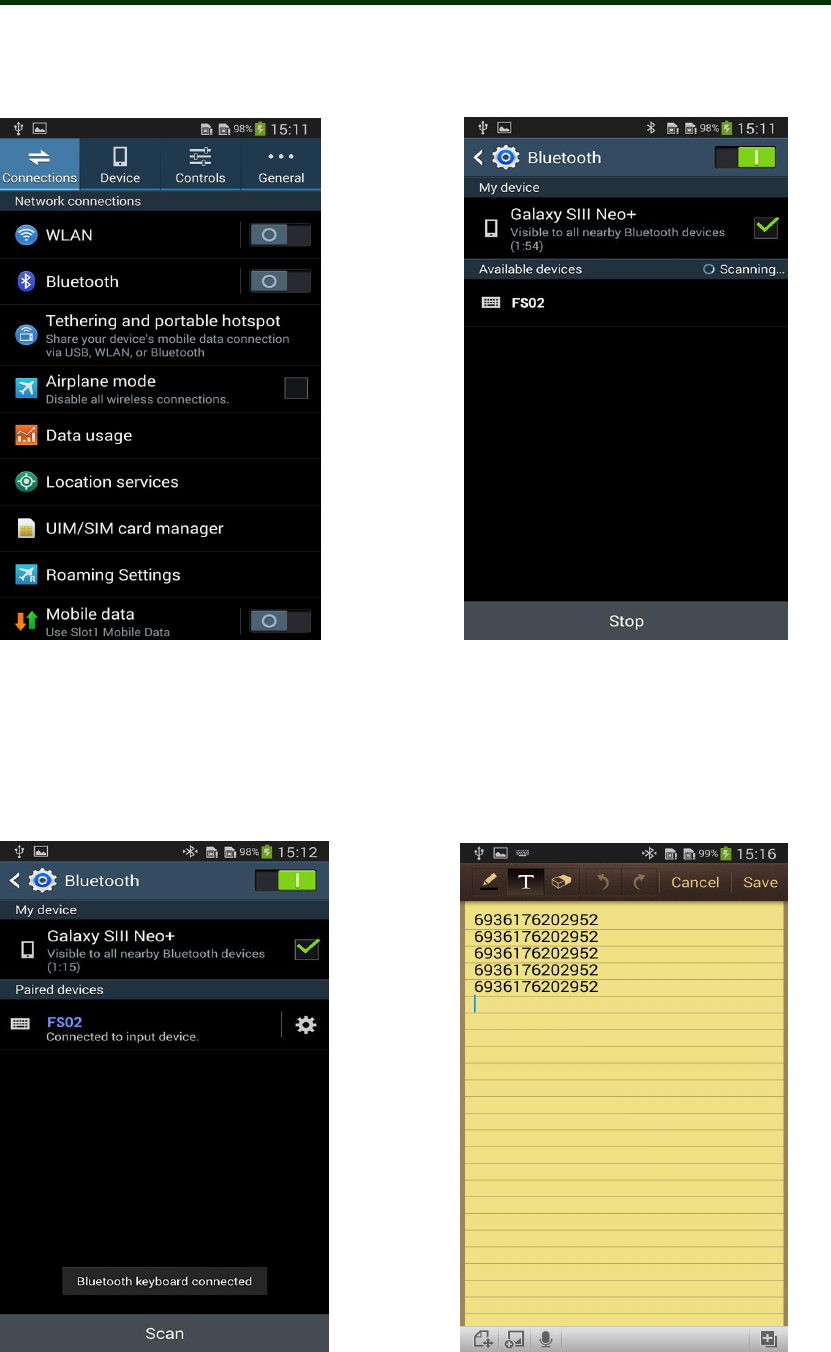

(1)Find the bluetooth icon in setting, shown in “The 1st” picture. Click to enter and
enable bluetooth, and then the Android device will automatically search, shown in
“The 2nd” picture.
The 1st The 2nd
(2)After the search is completed, click scanner’s name to connect, then “Bluetooth
keyboard connected” will display on the soft keyboard, and the blue LED on the
scanner will be off, the connection is successful, shown in “The 3rd” picture. Now,
you can use it with Notes/office files or other cursor blinking position, shown in “The
4th” picture.
The 3rd The 4th
![](/img.php?id=3991285&img=bgc.png)
Bluetooth Barcode Reader SPP Mode for Android
12
SPP mode for Android
Due to some Android device can’t support Bluetooth HID protocol very well. It can
not connect bluetooth scanner with HID mode. In general, Android support SPP
protocol very well.
1. Turn on the barcode reader, and read below barcodes sequence, the blue LED will
flash slowly.
2. Please download our BIM(Bluetooth Input Method) for android from our website,
or get it from our sales, then install BIM to your smartphone and run it. And then
please follow the wizard to connect barcode scanner to finish the connection. The PIN
number of SPP mode is 1234.
After the connection is successful, the blue LED on the scanner will be off.
![](/img.php?id=3991285&img=bgd.png)
Bluetooth Barcode Reader Instuction for BIM
13
User manual for Bluetooth Input Method in Android device

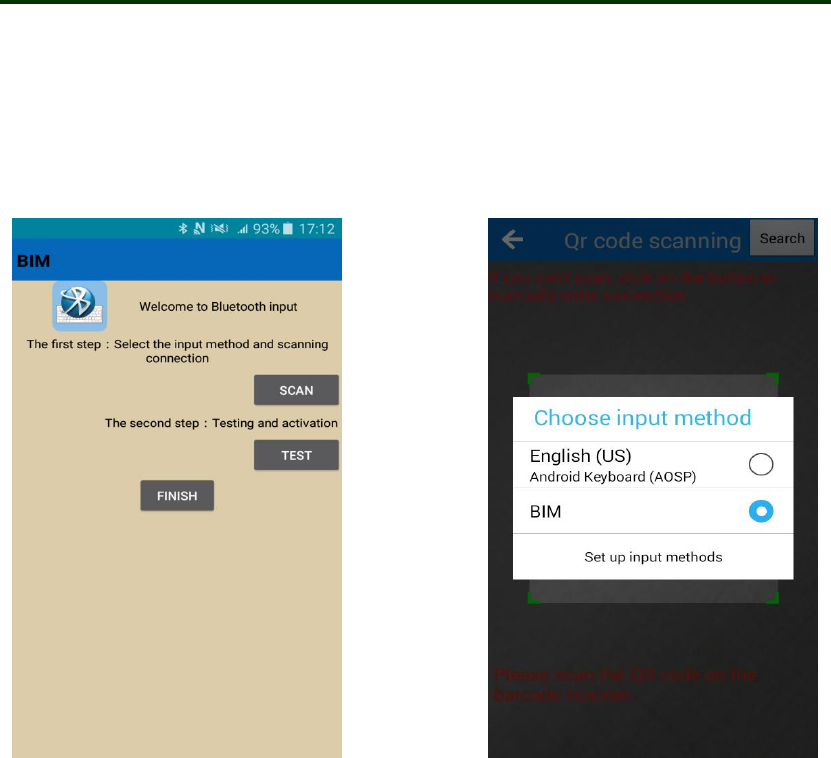

(1) Install BIM .apk into Android device, run and use it as below steps one by one,
shown in “The 5th” picture.
(2) Click “SCAN”, select “BIM” in the pop-up window, shown in “The 6th” picture.
The 5th The 6th
(3) Now you have two methods to connect scanner, please follow the steps below:

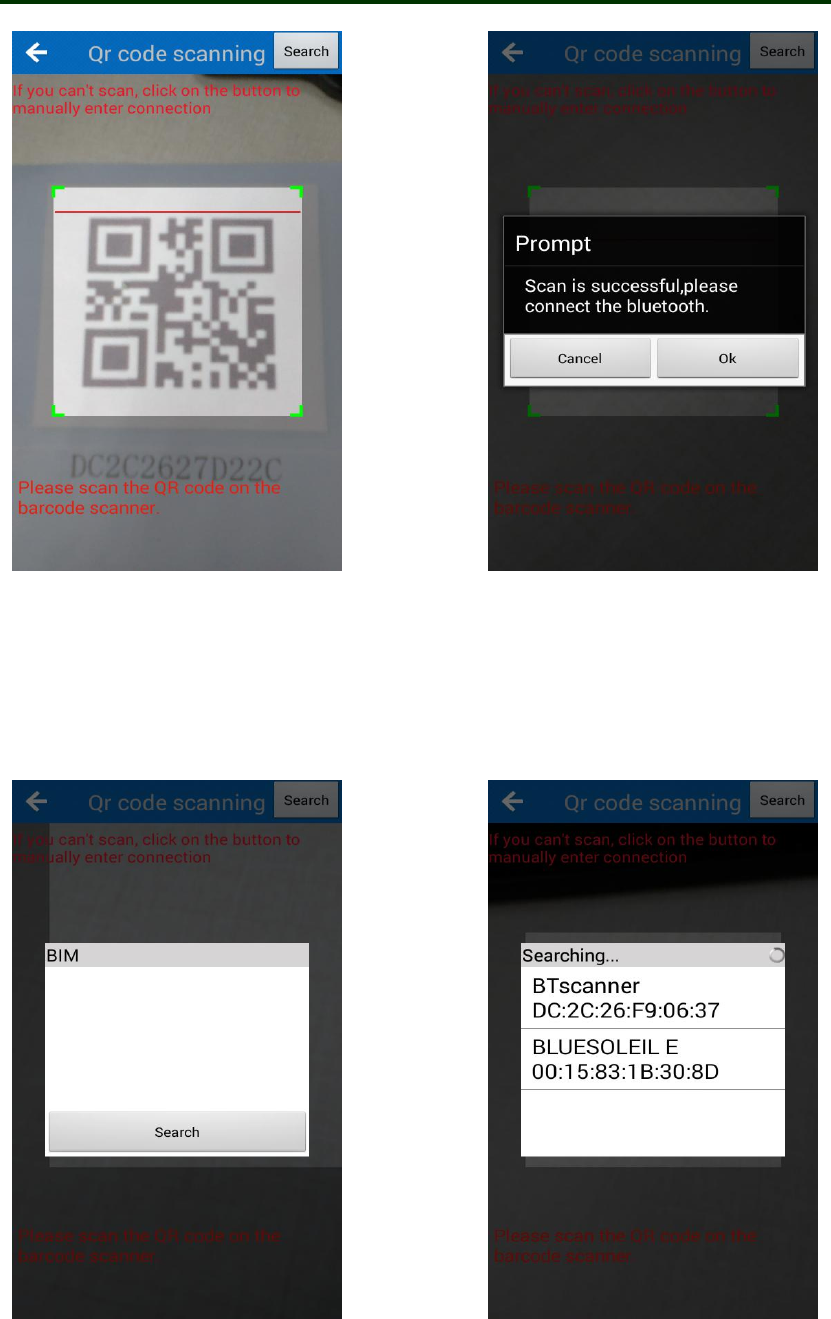

Way 1: Scan the Mac address(QR code) on the scanner, shown in “The 7th”
picture, after, you will see “Scan is successful, please connect the bluetooth”, click
“Ok”, shown in “The 8th” picture.
![](/img.php?id=3991285&img=bge.png)
Bluetooth Barcode Reader Instuction for BIM
14
The 7th The 8th
Way 2: Click “Search” on the top right corner in “The 7th” picture, and click
search in pop-up window, shown in “The 9th” picture, choose the scanner’s name to
connect, shown as “The 10th” picture.
The 9th The 10th
![](/img.php?id=3991285&img=bgf.png)
Bluetooth Barcode Reader Instuction for BIM
15

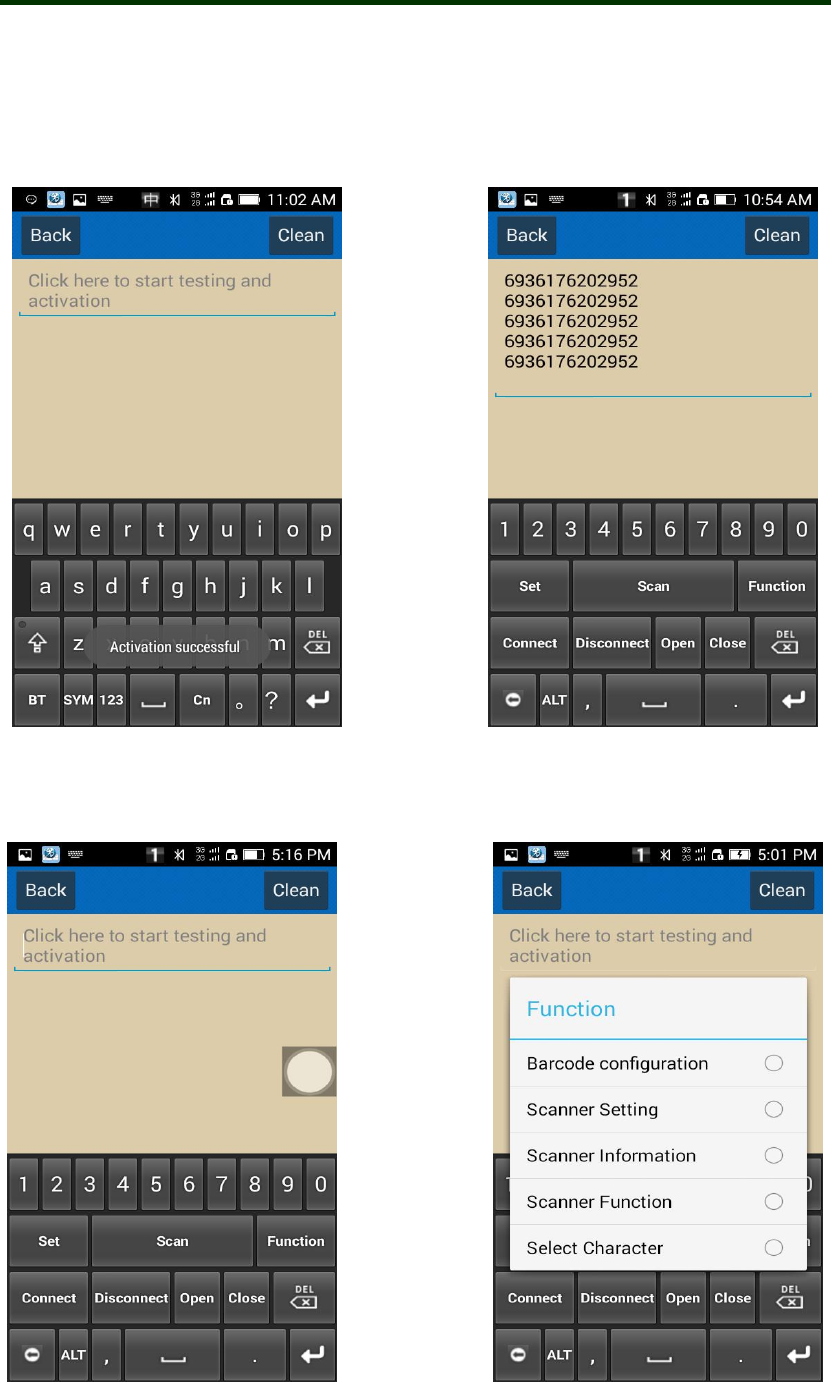

(4) Connection is successful, it will shown: “Activation successful”. shown in “The
11th” picture, now you can scan the barcode to the text box or notepad, word...,
shown in “The 12th” picture.
Note: If it doesn’t connect automatically, click “BT” in “The 11th” picture, and
click “Connect”.
The 11th The 12th
(5) Shown as “The 13th” picture, click “Open”/ “Close” to turn on / off the virtual
keys, you can click on the white circle to scan barcode.
![](/img.php?id=3991285&img=bg10.png)
Bluetooth Barcode Reader Instuction for BIM
16
The 13th The 14th
(6) You can configure the barcode reader via the “Function” in the picture “The 13th”,
shown as “The 14th” picture.

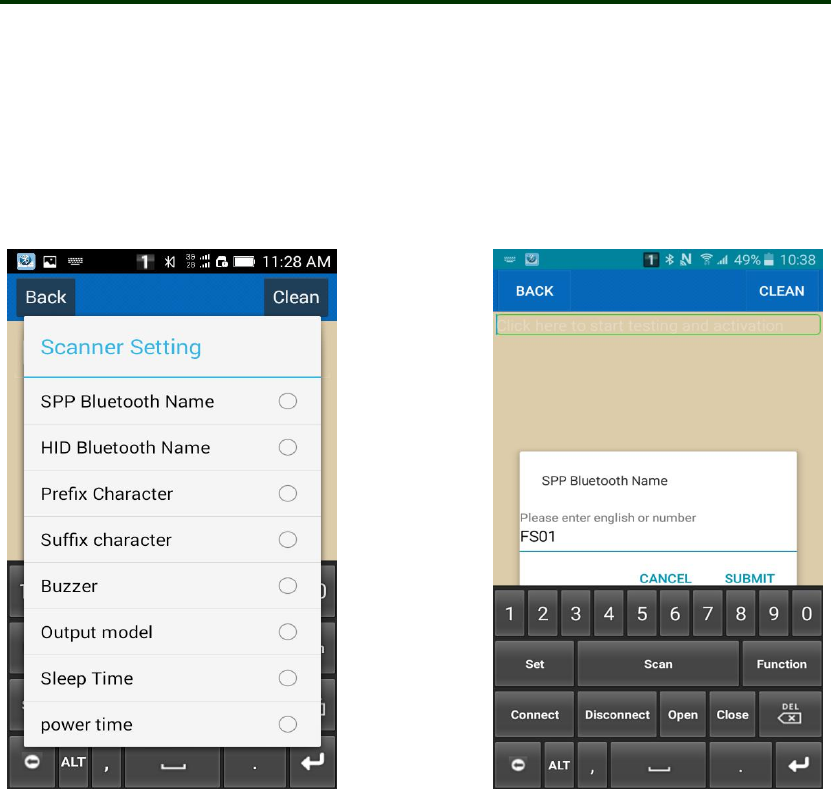

Click “Scanner Setting”, you can set bluetooth name/prefix Character/suffix
character/buzzer/output model and sleep time of the barcode reader, please check
“The 15th” picture.
The 15th The 16th
(7) SPP Bluetooth Name: Please click “SPP Bluetooth Name”, and enter the required
set of Bluetooth name in the pop-up window, then click “SUBMIT”, shown in “The
16th” picture.
(8) HID Bluetooth Name: The method is same as SPP Bluetooth Name.
![](/img.php?id=3991285&img=bg11.png)
Bluetooth Barcode Reader Instuction for BIM
17
The 17th The 18th

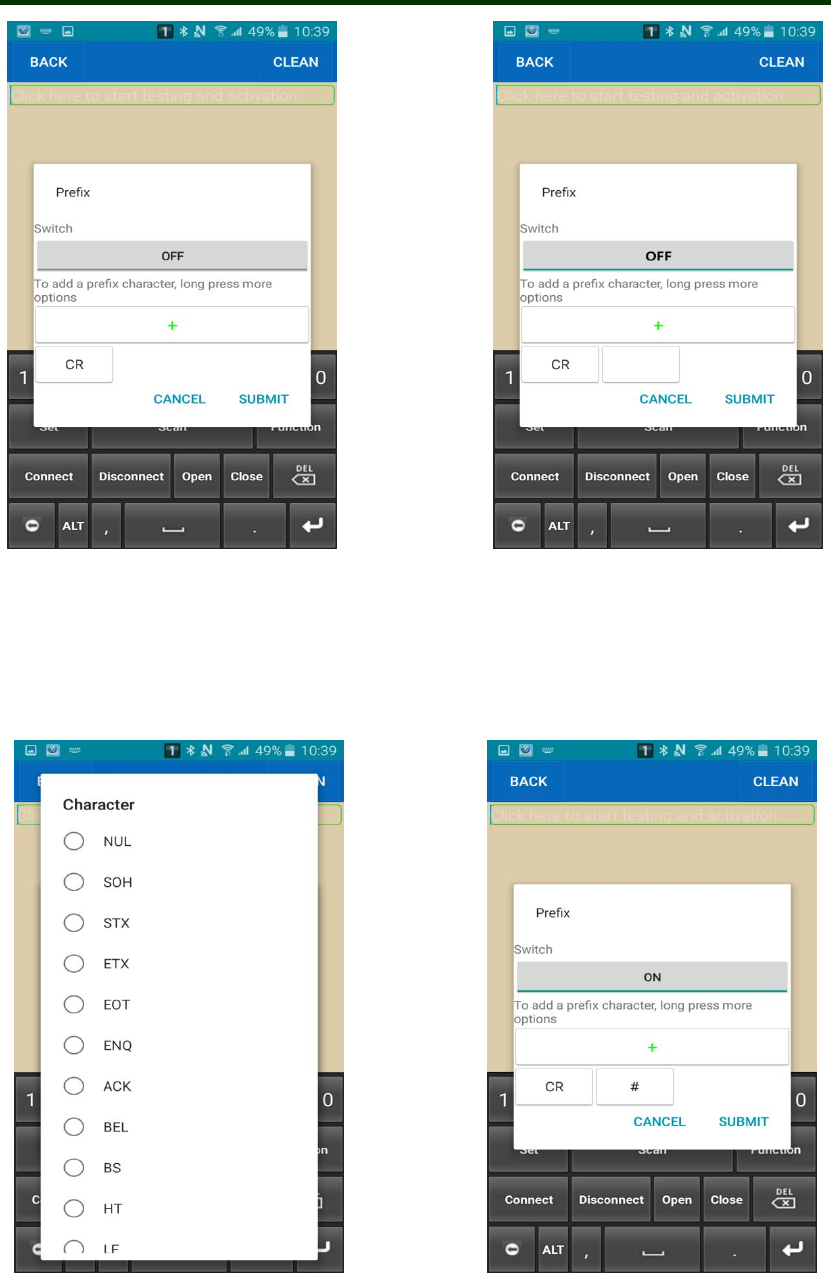

(9) Prefix character: Please click “Prefix Character” option in “The 15th” picture, and
click”+” in the pop-up window, shown in “The 17th” and “The 18th” picture. Now
click the text-box behind “CR”(CR is default setting of the product, please refer to the
ASCII). Shown in “The 19th” picture.
The 19th The 20th
(10) Choose the symbol required, and enable Prefix, shown in “The 20th” picture,
then click “SUBMIT”, the setting is finished( the same method to set Suffix).
(11) Now you can scan barcode, shown in “The 21th” picture.
![](/img.php?id=3991285&img=bg12.png)
Bluetooth Barcode Reader USB mode
18
The 21h The 22th
Note: The default suffixes are CR and LF, please put your suffix in front of the
default suffix.

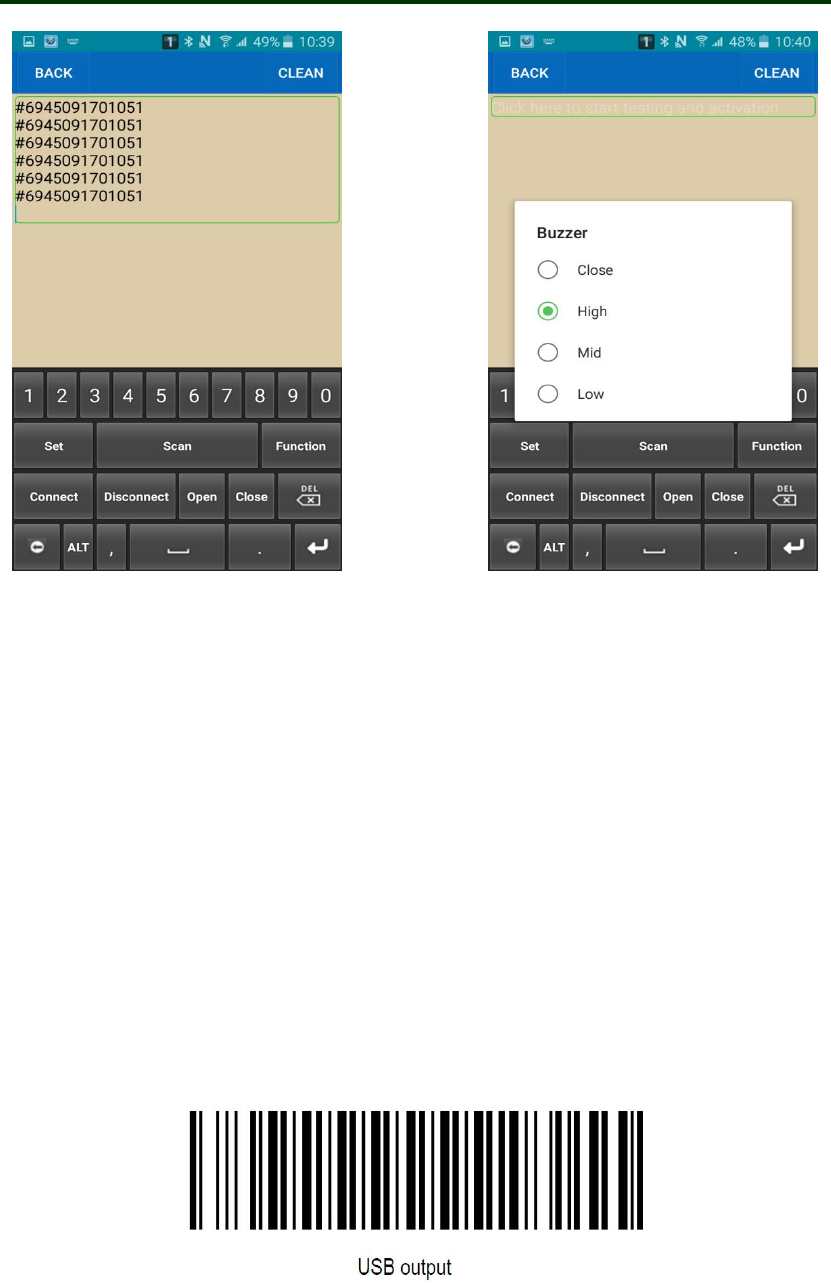

(12) Buzzer: Click “ Buzzer”, and choose the Volume required, shown in “The 22th”
picture.
Note: When you configure the barcode reader, please keep the scanner is active mode,
the method is: click the scan button on the barcode reader every 2-3 seconds, but
don’t read any barcodes.
USB mode:
If you need to use a USB cable to connect the scanner, you need to set the output
mode to USB mode. Please scan the following two barcodes:
![](/img.php?id=3991285&img=bg13.png)
Bluetooth Barcode Reader USB mode
19
0 0 0 0 1 1 1 5
USB mode
This barcode scanner has five languages for your selection, and used in USB output
mode. You need to switch the computer input method to the same, please scan the
barcodes below.
![](/img.php?id=3991285&img=bg14.png)
Bluetooth Barcode Reader Offline mode
20
Offline mode:
You can use offline upload functionality, barcode data stored in the scanner can be
uploaded to your smartphone or computer via Bluetooth or USB.
Concrete implementation steps:
1. Scan “start offline state” and “Offline mode” barcodes as shown below to enter the
offline scanning. The data you scanned will be stored in the scanning device.
10670111
Offline mode
2. The customer can connect to the computer through USB or Bluetooth interface or
data terminal to upload the data. If customers need to save the data stored in the file,
open Note pad or similar software to enter the data. If the customer wants to store data
in a custom application (such as submitted the barcode data into a application), refer
the customer to the insertion point where you want to enter the data in the dialog box.
Then barcode data entry and online scanning are in the same way. Customers can
choose different speed to upload the data according to your application. There are
three different speeds for you: fast speed, middle speed and slow speed upload.
(1) Fast upload means upload data without time interval;
(2) Middle speed is to upload data the interval of 1 second;
(3) Slow upload refers to each interval of 3 seconds to upload the data.
![](/img.php?id=3991285&img=bg15.png)
Bluetooth Barcode Reader Offline mode
21
3. The customer can also scan the “Statistical number of stores” barcode to view the
number of stored barcode.
4. After the upload data, related applications will store the uploaded data. If the data
stored in scanner needs to clear, please scan the barcode below to clear the data.
![](/img.php?id=3991285&img=bg16.png)
Bluetooth Barcode Reader Offline mode
22
5. After the above steps, scan “Stop offline state” barcode, ending the offline scanning
stored procedure.
![](/img.php?id=3991285&img=bg17.png)
Bluetooth Barcode Reader Barcode setting
23
Barcode setting
The barcode scanner can read different type of barcode, please scan the corresponding barcode to
set.
Global Settings
Enable all
symbologies
Disable all
symbologies
Enable 1D
symbologies
Disable 1D
symbologies
Enable 2D
symbologies
Disable 2D
symbologies
1D Symbologies
Code 128
*Enable
Disable
Restore the factory defaults
UCC/EAN-128(GS1-128)
*Enable
Disable
Restore the factory defaults
AIM128
*Enable
Disable
Restore the factory defaults
EAN-8
*Enable
Disable
Restore the factory defaults
![](/img.php?id=3991285&img=bg18.png)
Bluetooth Barcode Reader Barcode setting
24
EAN-13
*Enable
Disable
Restore the factory defaults
ISSN
Enable
*Disable
Restore the factory defaults
ISBN
*Enable
Disable
Restore the factory defaults
UPC-E
*Enable
Disable
Restore the factory defaults
UPC-A
*Enable
Disable
Restore the factory defaults
Interleaved 2 of 5
*Enable
Disable
Restore the factory defaults
ITF-6
Enable
*Disable
Restore the factory defaults
![](/img.php?id=3991285&img=bg19.png)
Bluetooth Barcode Reader Barcode setting
25
Enable ITF-6 but do not transmit
check digit
Enable ITF-6 and transmit check
digit
ITF-14
Enable
Disbale
Restore the factory defaults
Enable ITF-14 but do not transmit
check digit
*Enable ITF-14 and transmit check
digit
Matrix 2 of 5
*Enable
Disable
Restore the factory defaults
Industrial 25
*Enable
Disable
Restore the factory defaults
Standard 25
*Enable
Disable
Restore the factory defaults
Code 39
![](/img.php?id=3991285&img=bg1a.png)
Bluetooth Barcode Reader Barcode setting
26
*Enable
Disable
Restore the factory defaults
Codebar
*Enable
Disable
Restore the factory defaults
Code 93
*Enable
Disable
Restore the factory defaults
Code 11
*Enable
Disable
Restore the factory defaults
Plessey
*Enable
Disable
Restore the factory defaults
MSI-Plessey
*Enable
Disable
Restore the factory defaults
RSS-14
*Enable
Disable
Restore the factory defaults
RSS-Limited
![](/img.php?id=3991285&img=bg1b.png)
Bluetooth Barcode Reader Barcode setting
27
*Enable
Disable
Restore the factory defaults
RSS-Expand
*Enable
Disable
Restore the factory defaults
2D Symbologies
PDF417
*Enable
Disable
Restore the factory defaults
Data Matrix
*Enable
Disable
Restore the factory defaults
QR Code
*Enable
Disable
Restore the factory defaults
Micro QR
*Enable
Disable
_
_
![](/img.php?id=3991285&img=bg1c.png)
Bluetooth Barcode Reader Led/Buzzer description
28
LED and buzzer descriptions:
LED and buzzer descriptions
Meaning of representative
Green light flashing(w/buzzer ringing)
Decode success
Green light flash continuously (scan standby)
Low battery alarm
Red light solid
In charge
Red light goes out (When charging)
Charging is complete
Green light flashes continuously
Scanning built-in battery anomaly
Blue light flashing
Enter the Bluetooth pairing mode
Blue light goes out (In bluetooth pairing mode)
Bluetooth link successful
FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
