zBoost YX110 DUAL BAND BI-DIRECTIONAL SIGNAL BOOSTER User Manual USERS MANUAL

zBoost, LLC DUAL BAND BI-DIRECTIONAL SIGNAL BOOSTER USERS MANUAL

USERS MANUAL

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598
Certification Exhibit
FCC ID: S04YX110
IC ID: 5544A-YX110
FCC Rule Part: CFR 47 Part 22 Subpart H, Part 24 Subpart E
IC Radio Standard Specification: RSS-131
ACS Report Number: 07-0255-LD
Applicant: Wireless Extenders Inc.
Model(s): YX110
Installation Guide
v0208
ABOUT ZBOOST® FROM WI-EX®
Wi-Ex® is the leader in cell phone
signal boosters. zBoost® enhances the
performance of your cell phone, smart-
phone, PDA and wireless data card.
Compatibility - Dual Band zBoosts®
are compatible with all U.S. carriers
regardless of technology
(except iDEN, Nextel).
Patent-pending technologies protect
the Carrier Network.
1-year manufacturer warranty -
register at www.Wi-Ex.com
zBoost® products have more awards,
more sales and more locations than
all other signal boosters ... COMBINED.
Technical Specications
zBoost zPocket YX110
Frequency 1850 - 1990 MHz (1900 MHz) 824 - 894 MHz (800 MHz)
Gain 26dB (1900 MHz) 31dB (800 MHz)
Network Format CDMA, GSM, TDMA, GPRS, EDGE, 1xRTT, EVDO, HSDPA
Coverage distance from zBoost pocket is dependent upon headset or speaker range
Wall Supply Input 100-240VAC; 60Hz
Power Consumption 1W standby, 3W max signal
Imput/Output Impedance 50 Ω
Base Unit size/weight 4” x 5” x 1.3”/10 oz.
Operating Conditions Indoors Use Only 5O to 40OC (40O to 105OF)
FCC Certicated. Industry Canada Certied.
Patents pending (including Network protection)
Handles all protocols and includes multiple patent pending technologies to provide low-cost coverage
while continually adapting to signals to prevent interference and remain transparent to the wireless
network. Provides an indicator if the antennas are positioned improperly, but will NOT suer damage or
interfere with the Carrier Network.
zBoost zPocket YX110

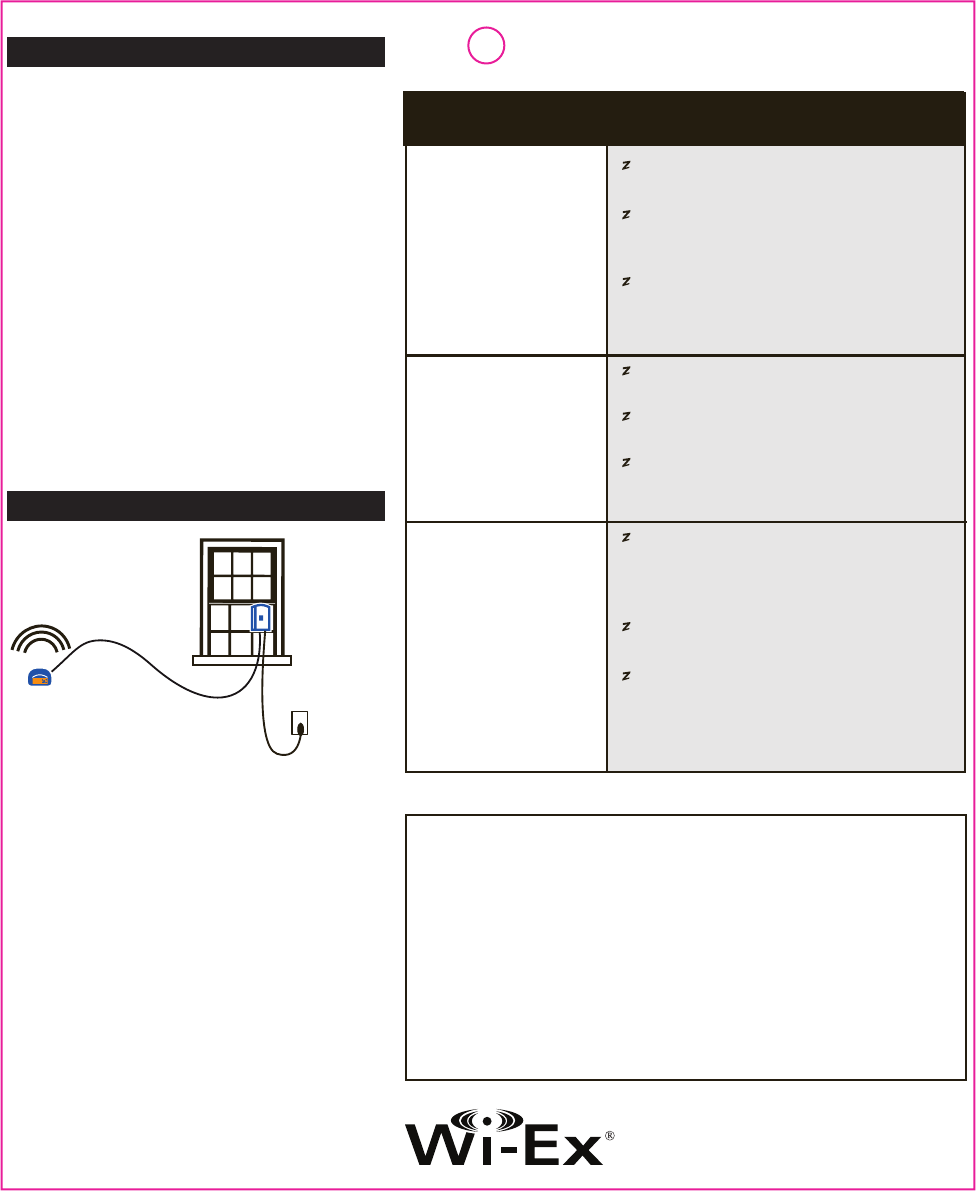

1. Place the zBoost® base unit in a
window or where you receive at least
one bar. You must have some signal
where you place the zBoost® base
unit. It does not create signal.
2. Plug the power supply into an outlet
and connect the other end of the
power supply to the zBoost® base unit.
3. Place mobile device into the assembled
pocket. Use your speaker, headset or
Bluetooth device for mobility.
Note: If red light appears during set up or
any time during use, simply move the pocket
further away from the base unit.
* For questions, call 1-800-871-1612
or visit www.Wi-Ex.com
.com
More zBoost products at www.Wi-Ex.com
T
HE
Z
B
OOST
®
P
RODUCT
L
INE
-
W
HICH
Z
B
OOST
®
IS
R
IGHT
FOR
Y
OU
?
For Your Home or
Oce
zBoost for the Home and Oce
boosts indoor cell coverage up to
2500 sq ft or up to 10,000 sq ft
with optional accessories
Supports multiple users
simultaneously
Three versions:
YX500-CEL boosts 800 MHz*
YX500-PCS boosts 1900 MHz or
YX510 Dual Band boosts both
800 and 1900 MHz*
For Your Personal
Workspace
Creates a “Personal Cell Zone” for a
single user - covers your workspace
Great for Travel - Compact size,
zero installation - take your Cell
ZoneTM with you!
Dual Band - (YX300) Works with
all phones* and U.S. carriers, in-
creasing signal strength for voice
and data
Create an in-vehicle Cell ZoneTM for
a multiple users simultaneously
Experience more miles of uninter-
rupted service
Dual Band - (YX230) Works with
all phones* and carriers, increasing
signal strength for voice and data
For Your Car
*except iDEN, Nextel
© 2008, Wi-Ex. All rights reserved.
EASY TO SET UP:
Pocket
P
Pocket
Power
Supply
zBoost
Base Unit
RF Exposure
This equipment complies with FCC radiaon exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 8” (20cm) between the pocket
and your body. This transmier must not be co-located or operang in conjuncon with any other
antenna or transmier.
FCC Informaon
FCC ID: SO4YX110
Warning: Changes or modificaons to this device not expressly approved by Wi-Ex could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against
harmful interference in a residenal installaon. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful
interference to radio communicaons. However, there is no guarantee that interference will not occur in
a parcular installaon. If the equipment does cause harmful interference to radio or television recepon,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF Exposure:
The Manufacturer's rated output power of this equipment is for single carrier operaon. For situaons
when mulple carrier signals are present, the rang would have to be reduced by 3.5 dB, especially
where the output signal is re-radiated and can cause interference to adjacent band users. This power
reducon is to be by means of input power or gain reducon and not by an aenuator at the output of
the device.
Industry Canada Regulaons
IC: 5544A-YX110
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment
Regulaons. Operaon is subject to the following two condions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may
cause undesired operaon.
The term “IC:” before the radio cerficaon number only signifies that Industry Canada technical
specificaons were met.
Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne
causant des règlements d’équipement. L’opéraon est sujee aux deux condions suivantes: (1) ce
disposif peut ne pas causer l’interférence nocive, et (2) ce disposif doit accepter n’importe quelle
interférence reçue, y compris l’interférence qui peut causer l’opéraon peu désirée.
Le terme "IC" avant que le nombre par radio de cerficaon signifie seulement que des caractérisques
techniques du Canada d'industrie ont été rencontrées
