Updated User Manual

zBoost YX741
User Manual
30 day money back guarantee when purchased directly from zBoost®. If product is purchased
from a reseller or third party, you are subject to the policies of the third party.
1 Year Manufacturer Warranty. Register your zBoost product at www.zBoost.com
zBoost® YX741 User Manual
i
zBoost® YX741 User Manual
FCC ID: SO4YX741-PCS-CEL
WARNING.  is is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and
QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee
to operate this device. Unauthorized use may result in signi cant forfeiture penalties, including penalties in
excess of $100,000 for each continuing violation.
Warning: Changes or modi cations to this device not expressly approved by zBoost could void the user’s
authority to operate the equipment.
You MUST operate this device with approved antennas and cables as speci ed by the manufacturer.
Antennas MUST be installed at least 20 cm (8 inches) from any person.
FCC Information
Industry Canada Regulations
IC ID: 5544A-YX741PCSCEL
is Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment
Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
e term “IC:” before the radio certi cation number only signi es that Industry Canada technical
speci cations were met.
RF Exposure:  e manufacturer’s rated output power of this equipment is for single carrier operation.
For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB,
especially where the output is re-radiated and can cause interference to adjacent band users.  is power
reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the
device.
Cet appareillage numérique de la classe [B] répond à toutes les exigences de l’interférence canadienne
causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif
peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue,
y compris l’interférence qui peut causer l’opération peu désirée.
Le fabricant nominale de la puissance de sortie de ce matériel est simple transporteur. Pour les situations
lorsque plusieurs signauxporteurs sont présents, l’évaluation devrait être réduite de 3.5 dB, en particulier
lorsque le signal de sortie est ré-émise et peut provoquer des interférences adjacentes à la bande utilisateurs.
Ce pouvoir est de la réduction par le biais de la sortie d’alimentation ou la réduction de gain et non par un
atténuateur à la sortie du dispositif.
Please note:  is unit has been approved for use in Canada under RSS 131, however, consent for the use of
this device to improve cellular or PCS coverage, must be obtained through your cellular or PCS provider,
prior to placing the unit in operation. Please refer to the Industry Canada document CPC 2-1-05, Section
6.1 available or viewable at:
http://www.ic.gc.ca/epic/site/smt-gst.nsf/en/sf08942e.html
zBoost® YX741 User Manual zBoost® YX741 User Manual
ii iii
Copyright Notice
is manual is copyrighted. All rights reserved.  is manual, whole or in part, may not be copied,
photocopied, reproduced, translated or reduced to any electronic medium or machine readable form for
distribution.  is manual whole or in part, may not be modi ed without prior consent, in writing, from
zBoost.
Copyright © 2014 by zBoost.
Trademarks
Wireless Extenders, Wi-Ex, the Wi-Ex logo, zBoost, the zBoost logo and Extending Cell Zones are registered
trademarks of zBoost.
Safety Guidelines
In accordance with FCC requirements of human exposure to radiofrequency  elds, the radiating element
(antenna) shall be positioned such that a minimum separation distance of 8 inches (20cm) is maintained
between the radiating element and the user and/or general population.
Limited Liability
In no event shall zBoost be liable for any direct, indirect, special, punitive, incidental, exemplary or
consequential damages, or any damages, whether in an action under contract, negligence, or any other
theory, arising out of or in connection with the set up of, use of, inability to use, or performance of the
information, services, products, and materials available from this manual.  ese limitations shall apply
notwithstanding any failure of essential purpose of any limited remedy. Because some jurisdictions do
not allow limitations on how long an implied warranty last, or the exclusion or limitation of liability for
consequential or incidental damages, the above limitations may not apply to you.
For full warranty guidelines, see page 14.
Safety and Product Warranty Information
Changes or modi cations not expressly approved by zBoost
could void the user’s authority to operate this equipment
and/or void the product warranty.
Package Contents: zBoost YX741
Before you begin, make sure all of the following parts came with your zBoost YX741.
Item Quantity Part # Description
1 1 DMAN-0042 YX741 Manual
2 1 APCA-0031 YX741 Base Unit
3 1 CPSP-0010 Base Unit Power Supply, Black
Note
zBoost® YX741 User Manual zBoost® YX741 User Manual
iv 1
Optional zBoost Accessories Table of Contents
FCC Information................................................................................................................................i
Industry Canada Regulations ..............................................................................................................i
Safety and Product Warranty Information ........................................................................................ii
Copyright Notice ...............................................................................................................................ii
Trademarks ........................................................................................................................................ii
Safety Guidelines ...............................................................................................................................ii
Limited Liability ................................................................................................................................ii
Package Contents: zBoost YX741 ....................................................................................................iii
Optional zBoost Accessories............................................................................................................ iv
Overview ...........................................................................................................................................2
Why Indoor Signals Can Be Weak ......................................................................................................2
Preparing to Install zBoost ...............................................................................................................2
Warning.  is is NOT a CONSUMER device ....................................................................................2
You MUST Obtain Express Licensee Consent .....................................................................................2
Site Survey .........................................................................................................................................2
Select External and Indoor Antennas and Determine their location .....................................................3
Cable Requirements ...........................................................................................................................4
Power Requirements ..........................................................................................................................4
Grounding the Directional External Antennas ....................................................................................4
Securing Cable with a Drip Loop .......................................................................................................5
Pre-Installation Guidelines .................................................................................................................5
Installing Your zBoost Signal Booster ............................................................................................... 5
First, You MUST Obtain Express Licensee Consent ............................................................................5
Placement of the External Antennas ...................................................................................................5
Mounting of External Antenna(s) .......................................................................................................6
Antenna Aiming ................................................................................................................................6
Installing the Indoor Antenna ............................................................................................................7
Mounting the Base Unit ....................................................................................................................8
Running the Coaxial Cable to the Base Unit .......................................................................................8
Connect the YX741 Base Unit to Power Con rm  at it is Working Properly......................................9
Improving  e Coverage Area ............................................................................................................9
Base Unit Light Indicators ............................................................................................................. 10
Technical Specifications ................................................................................................................. 11
Frequently Asked Questions ........................................................................................................... 12
Frequently Asked Questions ........................................................................................................... 13
Warranty Information .................................................................................................................... 14
Sample Consent Form .................................................................................................................... 16
Licensee Contact Information ........................................................................................................ 17
e following accessories are authorized for this zBoost product. Please see our website for complete
selection.
To order, call 1-800-871-1612 or visit, www.zboost.com
Part # Description
Popular Accessories for the YX741
YX052 Omni-directional internal ceiling mount antenna
YX027-F Directional internal wall mount
Other Accessories:
YX015 Signal Combiner
YX014 Outdoor J-pole Antenna Mounting Bracket
YX021-CEL External CEL panel antenna
YX023-PCS External PCS panel antenna
CANT-0042 External wide-band log antenna
YX044-F30 External lighting arrester
YX043-TNC TNC-F connector
CCBL-0017 RG-6 coax cable (3 in length)
CCBL-0006 RG-6 coax cable (18 in length)
YX030-15W 15 ft. External Antenna coax extension, low-loss RG-6
YX042-F3P Coax attenuator - 3dB
YX042-F6P Coax attenuator - 6dB
YX042-F10P Coax attenuator - 10dB
YX041-F4P 4-way coax splitter
YX041-F2P 2-way coax splitter
YX030-50W 50 Foot RG-6 Coaxial Cable with F-Male Connectors
YX031-100W 100 Foot Low Loss RG-11 Coaxial Cable with F-Male Connectors
YX012 Outdoor External Antenna Grounding Kit
zBoost® YX741 User Manual zBoost® YX741 User Manual
2 3
Preparing to Install zBoost
Overview
ank you for choosing zBoost. zBoost allows cell phone users to use their cell phones INSIDE. Like a
skylight that brings sunlight indoors, zBoost transports and ampli es the outdoor cellular signals inside.
By following the instructions in this user manual, you will be Extending Cell Zones™.

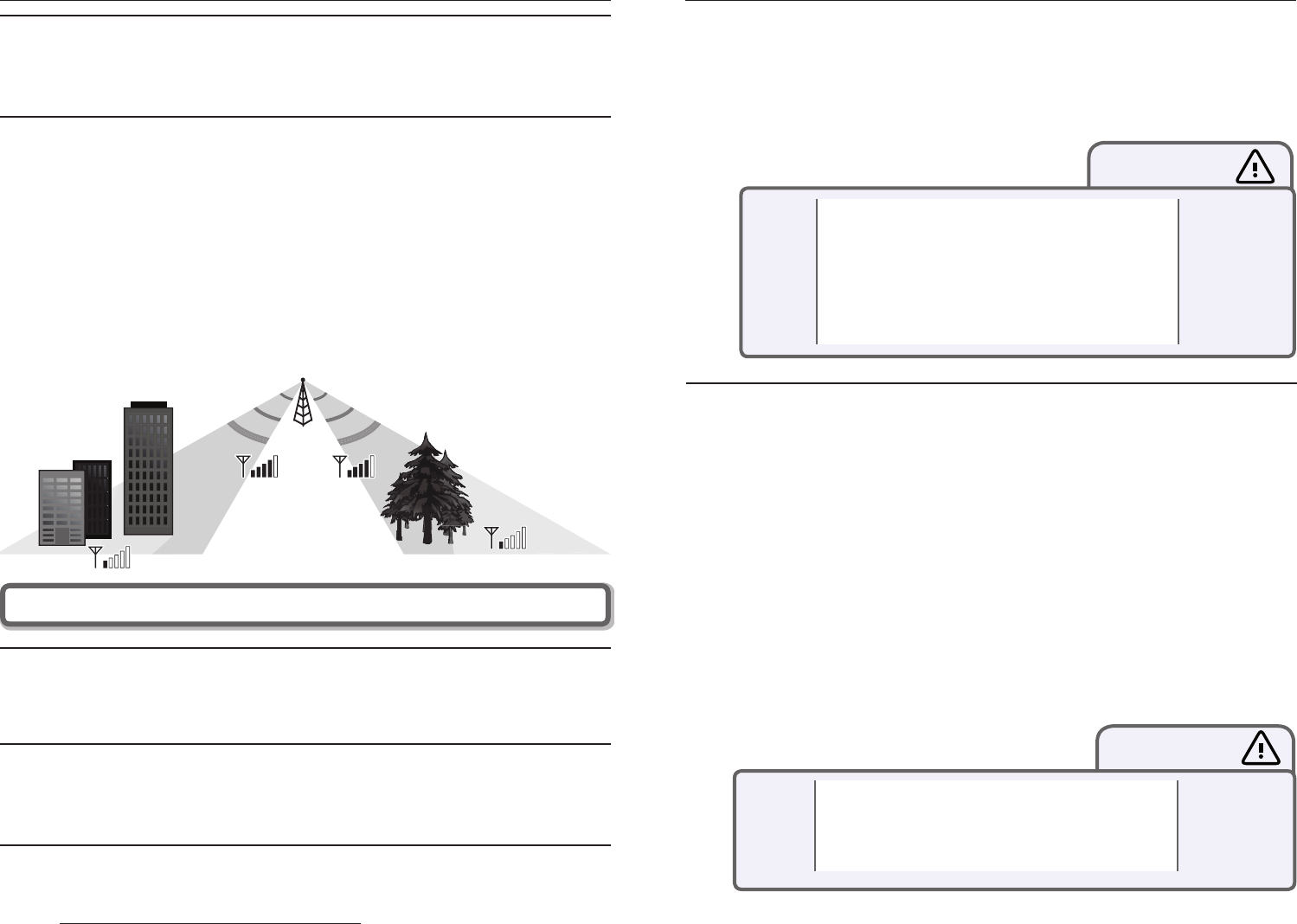

Why Indoor Signals Can Be Weak
ere are several obstacles that can contribute to the poor reception you receive in a building:
1. Location of the Cell Phone Tower in Relation to the building
While cell phone carriers have tried to place cell phone towers to provide the best overall coverage,
local ordinances and terrain features can impose restrictions on where these towers can be placed,
thus, limiting the signal strength available at your location.
2. Obstructions Caused by Buildings, Terrain and Trees
Cell phone signals can be completely blocked or re ected by buildings, walls, trees, hills and other
terrain features resulting in low signal strength.
3. Energy Efficient Windows
ese windows can a ect signal penetration into the building.
Using a cell phone operating on the same carrier network(s) of the install location’s occupants, check the
signal strength at roof level (where the External Antenna will be placed) in varying locations by placing your
phone in test mode to read dB signal strength.
e YX699 Signal Meter (available separately) provides signal strength information. It can be used with its
supplied whip antenna to  nd the best location for placement of the External Antennas by identifying the
area of strongest signal. It can also be used to identify peak antenna alignment when connected directly via
provided cable.

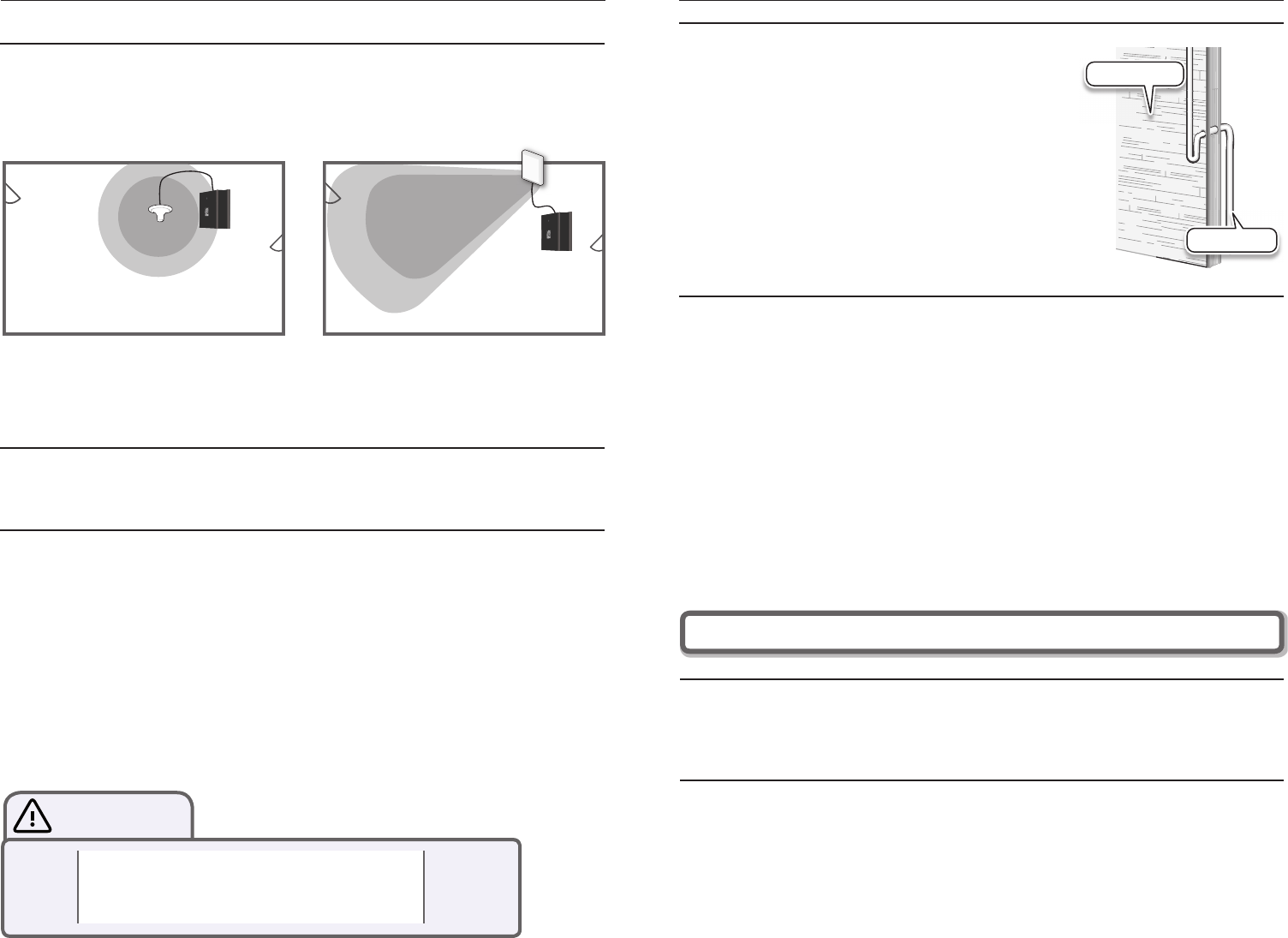

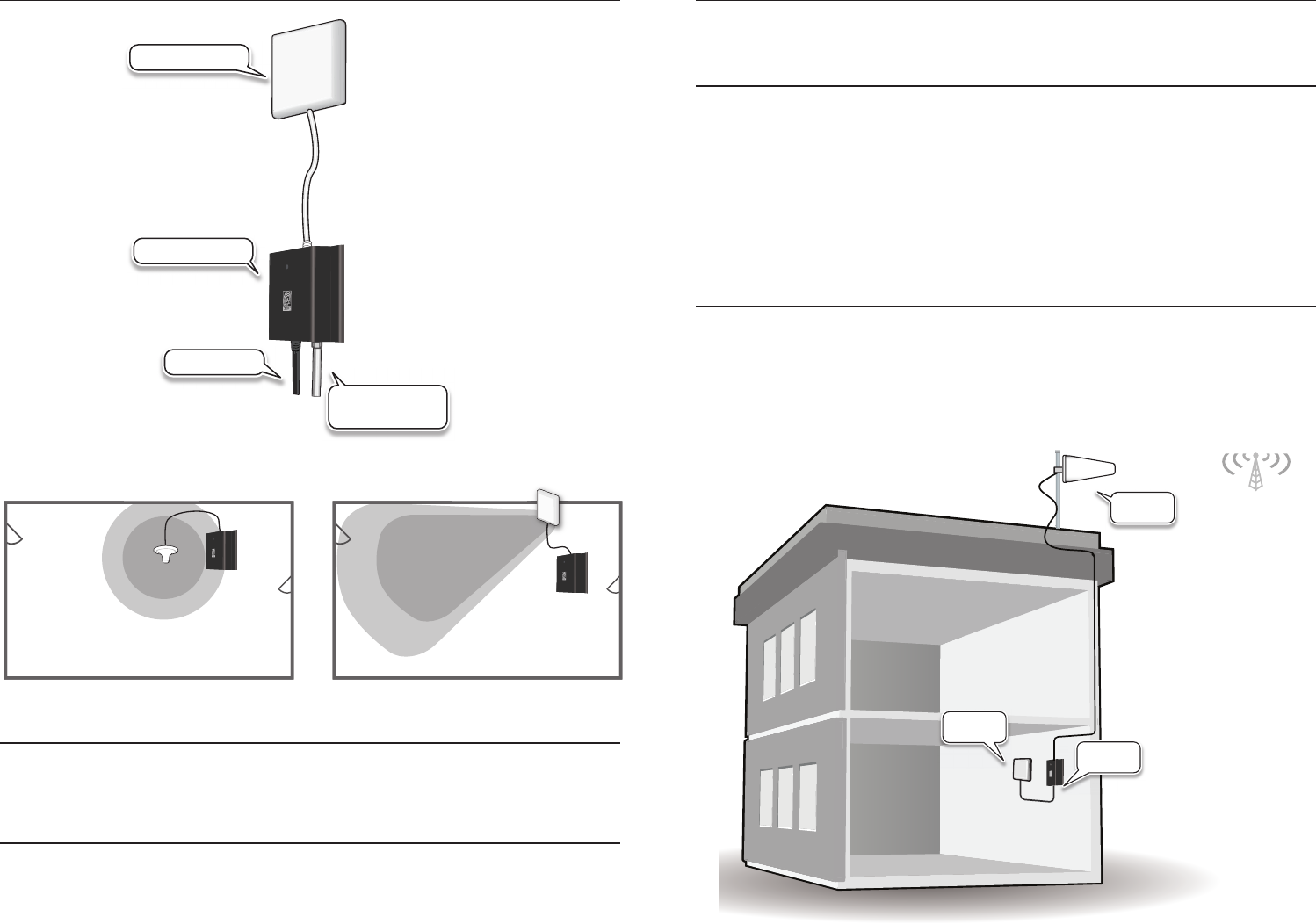

Select External and Indoor Antennas and Determine their location
It is recommended that the External Antennas and Indoor Antenna have over 15 feet of
vertical and 20 feet of horizontal separation.
Use the information from your site survey (page 3) to choose an appropriate External Antenna (available
at www.zBoost.com) for your application. For example, a high-gain directional antenna is needed if the
outdoor signal level is low and also for larger indoor coverage needs. Mount the External Antenna as high as
possible, keeping it at it at least 2 feet away from any metal.
zBoost has several indoor antenna options (also available at www.zBoost.com).  e dome and directional
panel antennas are the most popular for in-building applications. For larger coverage areas, a high-gain
directional antenna is needed (see illustration below).
e indoor antenna is connected to the base unit using coax cable. A directional antenna should be mounted
on a wall facing the direction where increased coverage is desired. A ceiling mounted antenna should be
placed in the center of the desired coverage area.
Note: Follow the speci c antenna installation instructions included with the external and indoor antennas.
If the antennas are too close together, the light on the Base Unit will  ash red, indicating a problem see the
Light Indicators section (Page 10). Always orient the Indoor and External Antennas pointing AWAY from
Cell phone signal bars are approximate and vary from
phone to phone.  e number of bars can  uctuate widely,
depending on the location of the phone, the position or angle
of the phone, weather, etc. Most cell phone signal meters
update every 6 to 10 seconds. An increase of only one bar
typically indicates a 4x to 10x signal increase.
Note
Warning.  is is NOT a CONSUMER device
It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an
FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result
in signi cant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation.
You MUST Obtain Express Consent of an FCC Licensee
Prior to the installation of an industrial signal booster it is imperative that you either be an FCC Licensee or
have express consent from all of the FCC Licensees for which signals you wish to rebroadcast.
See page 16 for a sample consent form and page 17 for licensee contact information.
Site Survey
Before installing zBoost, assess the signal outside of the building, at roof level or wherever you plan to place
the External Antennas. zBoost can only bring signal into the building when signal reaches the External
Antennas. If there is no signal, the zBoost will not work for you.
Avoid placing the External Antenna near metal such as
wiring, A/C ducts, metal siding, truss plates, etc.
When connecting the cable to the antenna, run the cable
straight down from the antenna. Avoid draping the coax near
the antenna.
Note
zBoost® YX741 User Manual zBoost® YX741 User Manual
4 5
each other. See page 5, Installing Your zBoost Product, for additional information.
Cable Requirements
Low-loss satellite cable (either RG-6 or RG-11 available at www.zBoost.com) is required. After installing the
External Antennas, run coaxial cable between External Antenna and Base Unit.  e recommended maximum
cable length run for RG-6 is 65 ft. and 120 ft. for RG-11. It is highly recommended that you refrain from
securing your cable, drilling any holes, etc. until you complete and test the installation of the Base Unit.
Caution: Before drilling any holes, run cable to make sure you know where existing electrical wiring is
located. Drilling into live electrical wiring could cause and electrical shock and sever the wire.
Power Requirements
e Base Unit can be plugged into a standard 2-prong 110 VAC receptacle using the included power supply.
e power supply consumes less than 10W (less than 0.2A).
Grounding the Directional External Antennas
e Directional External Antenna assembly must be properly grounded when it is installed outdoors.  is
will help protect the property and the Base Unit against lightning strikes during a lightning storm.
e installation must be in accordance with Article 810 of the National Electric Code (NEC). A listed
antenna discharge unit must be provided for the lead-in coaxial cable per NEC article 8.10.20 or the shield
of the coaxial cable must be permanently and e ectively grounded in accordance with NEC article 8.10.21.
Securing Cable with a Drip Loop
When you install the Directional External Antennas, create a drip loop
with the coaxial cable at the point where the cable enters the building
through an outside wall.  is can be done by twisting and securing the
cable into a loop (no less than 4” across) near the entry point.  is will
help prevent moisture from gathering at entry point and leaking into
the building.
Pre-Installation Guidelines
• Always orient the External Antenna and Indoor Antenna away from each other.  is helps maintain
isolation between the antennas. Additional isolating materials may be necessary.
• Vertical separation helps increase isolation.
• Directional antennas provide better isolation than omni-directional antennas.
• Keep cable runs as short as possible to minimize loss.
• Nearby towers can cause overload.
• Avoid any drilling or nailing directly into the roof.  is could allow water to leak into the building and
cause damage.
• Choosing to mount the antenna into fascia will not compromise the roof and places the antenna up
high.
• If practical, do a soft installation of the equipment  rst.
Coax Cable
Exterior Wall
e zBoost YX741 base unit MUST only be used with the
provided power adaptor. Use of other power adaptors will
void the warranty and may damage the unit. Use of other
equipment is not FCC approved.
Note
YX741 using an omni-directional indoor antenna YX741 using a high-gain directional indoor
antenna
Installing Your zBoost Signal Booster
You MUST Obtain Express Consent of an FCC Licensee
Prior to the installation of an industrial signal booster it is imperative that you either be an FCC Licensee or
have express consent from all of the FCC Licensees for which signals you wish to rebroadcast.
See page 16 for a sample consent form and page 17 for licensee contact information.
Placement of the External Antennas
Choosing the best location for installation of the External Antenna provides the best performance and
the largest area of improved signal. Determine the location which provides the strongest signal using the
instructions found in the Site Survey section on page 3. Find the location which provides the strongest
signal strength and install the External Antennas at that location.
e YX699 Signal Meter (available separately) provides signal strength information. It can be used with its
supplied whip antenna to  nd the best location for antenna mounting with the strongest received signal. It
can also be connected to the directional antennas to aim the antennas for maximum received signal.
zBoost® YX741 User Manual zBoost® YX741 User Manual
6 7
Mounting of External Antenna(s)
When you have determined the location of the strongest signal, install the antennas to a mast or j-pole
(Outdoor J-pole Antenna Mounting Bracket, YX014 available at www.zBoost.com). Loosely connect the
antenna(s) to the mast to allow the antennas to be reoriented for strongest signal.
Follow the speci c antenna installation instructions included with the External Antenna.
Omni-directional External Antennas should be placed as high as possible in the area of strongest signal.
Directional External Antennas should be aimed at the cellular tower of the appropriate carrier.
e location of the tower can be determined by using any of the following methods:
1. Using a YX699 Signal Meter (available at www.zBoost.com), connect the signal meter to the antenna
using the cable provided with the signal meter. Rotate the antenna until the optimum signal reading is
determined and secure the antenna at that position.
2. Download the zBoost Signal Finder Android app on a phone using a cell phone operating on the
primary carrier network of the location’s occupants.
3. Go to www.OpenSignal.com. Enter the zip code of the installation site. Note the location of the
appropriate tower.
4. See the Antenna Aiming section of this manual. Once a soft system install is complete, follow the
instructions for aiming the antenna(s)
NOTE: e zBoost YX741 requires at least 15 feet of vertical separation between the Indoor Antenna and
the External Antennas. Generally, increasing this distance (up to 40 feet) will increase the performance and
decreasing the distance will limit zBoost performance.

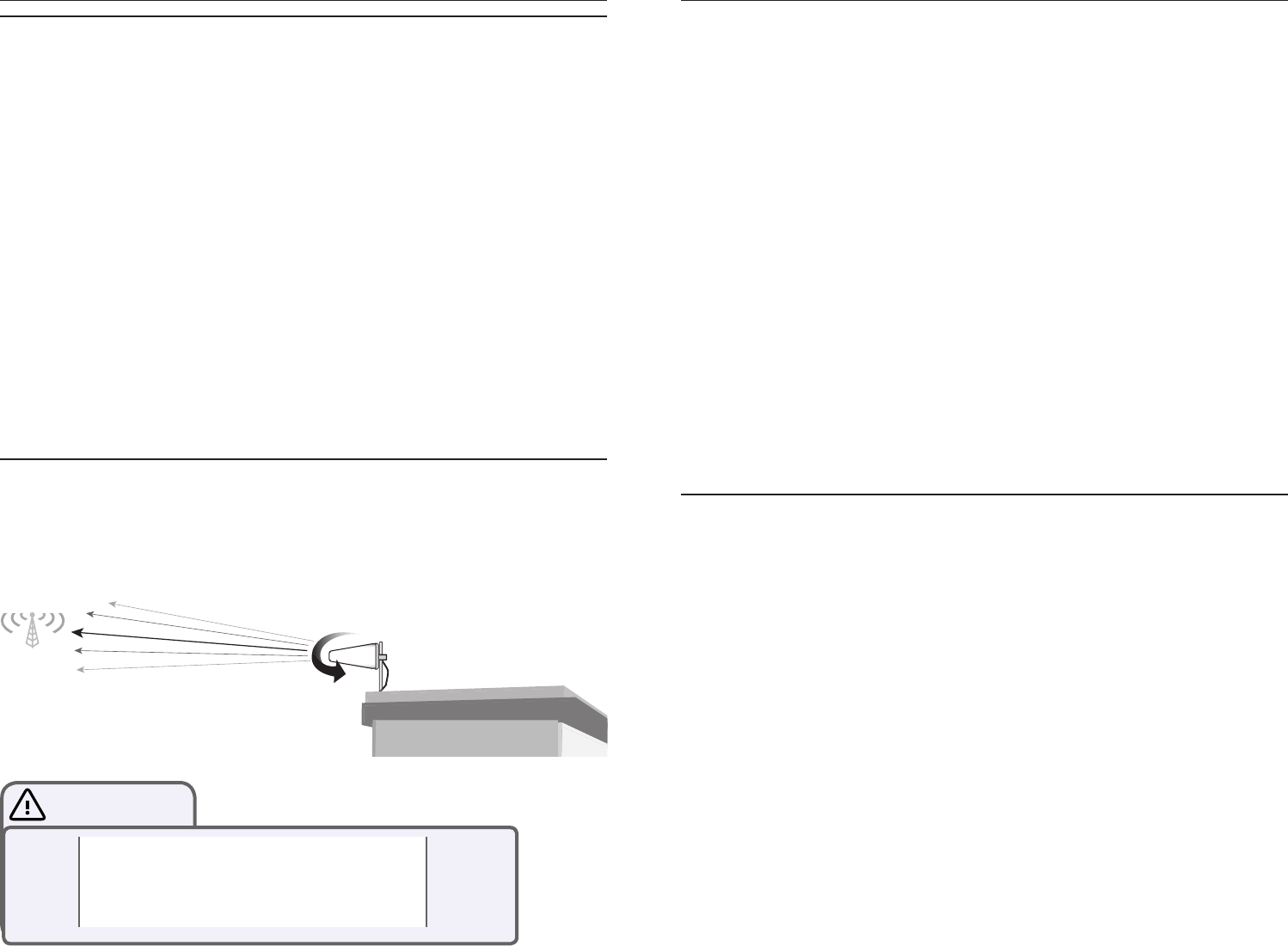

Antenna Aiming
To get the maximum bene t, you will want to take special care to make sure you point the antenna in the
direction of the best signal for your carrier
To aim the antenna for maximum signal, you will need a phone operating on the same wireless network(s) in
used at the install location.
Note: A 1 dBm increase is 25% gain in signal strength.
If you do not know which direction the best signal is coming from, once the unit is installed, rotate the
External Antenna in 90 degree increments while measuring the results inside the desired coverage area.
e majority of the time, a cell tower will hold more than 1 frequency band and/or carrier. If you are using
two external antennas - one operating on PCS band and one operating on the cellular band, both antennas
will generally point in the same direction.
1. Place the cell phone(s) (in  eld test mode) on a non-metal surface about 6-8 feet from the Base Unit.
2. Turn the signal booster on and wait 30 seconds. Note the signal reading displayed on the cell phone.
________dBm (A)
3. Leave the phone in exactly the same place and pointing in the same direction for the following steps.
Note the direction External Antenna starting position ________________.
4. Rotate the External Antenna 90 degrees and then record the signal strength. ______dBm (B)
5. Continue to rotate the antenna another 90 degrees in the same direction and record the phone signal
strength. _______dBm (C)
6. Again, rotate the antenna another 90 degrees in the same direction and again record the phone signal
strength. ________dBm (D)
7. If you desire to optimize further, then look for the two highest signal readings above and move the
antenna between these two points to  nd the highest signal reading.
8. Look for the highest reading above. Set the antenna to that position and tighten the antenna to
the mast of your choosing. We suggest PVC pipe that is at least 1.5” or J-Pole (part # YX014, not
included).
Installing the Indoor Antenna
zBoost has several indoor antenna options.  e dome and panel antennas are the most popular for in-
building applications.
Follow the speci c antenna installation instructions included with the indoor antenna.
e indoor antenna is connected to the base unit using coax cable (see illustration on page 8). A directional
antenna should be mounted on a wall facing the direction where increased coverage is desired. A ceiling
mounted antenna should be placed in the center of the desired coverage area.
Note
Avoid placing the External Antennas near metal such as
wiring, A/C ducts, metal siding, truss plates, etc.
When connecting the cable to the antenna, run the cable
straight down from the antenna. Avoid draping the coax
near the antenna.
zBoost® YX741 User Manual zBoost® YX741 User Manual
8 9
Mounting the Base Unit
e Base Unit can also be easily mounted on a wall. Attach the Base Unit to a suitable wall surface using the
provided hardware kit.  e Base Unit should be oriented with the indicator light near the top of the unit.
Connect the RG-6 coaxial cable from the Indoor Antenna to the Base Unit.
Running the Coaxial Cable to the Base Unit
Coaxial cable is not provided with the YX741. After installing the External Antenna, you will need to run
coaxial cable to the Base Unit.  e recommended maximum cable length run for RG-6 is 65 ft. and 120 ft.
for RG-11. It is highly recommended that you refrain from securing your cable, drilling any holes, etc. until
you complete and test the installation of the Base Unit.
For example, if you plan to use the Base Unit in meeting room of a two-story o ce,  rst run the cable from
the roof down the stairs to the meeting room. After the Base Unit is installed and successfully working,  nd
a more direct and permanent route for the cable (e.g., dropping it through the ceiling of a nearby closet).
Connect the YX741 Base Unit to Power Con rm at it is Working Properly
With everything connected and the Base Unit plugged in, you should walk throughout the area and see that
you are able to reliably place calls.
Upon initial power up, a solid GREEN LED should appear indicating normal conditions. If a RED light
appears, adjustments may be needed to optimize performance. If you  nd the increased signal coverage is
acceptable, however, no additional adjustments are needed. See Light Indicator section (page 10) for more
information.
Remember, coverage varies based on outdoor signal level, building construction, and general installation
care. Coverage in adjoining rooms (next to, above, or below) will be reduced due to the walls or the ceiling/
oor.
Improving  e Coverage Area
Should you desire to improve coverage, you may:
1. Move the Base Unit and/or adjust the angle of the Indoor Antenna.
2. Move the External Antenna to a higher location outside.
3. Purchase an External Antenna upgrade at www.zBoost.com.
Shown: YX741 Base Unit with Indoor Directional Antenna
zBoost Base Unit
Power Supply
Indoor Antenna
Coaxial Cable to
External Antenna
Base
Unit
Indoor
Antenna
External
Antenna
YX741 using an omni-directional indoor antenna YX741 using a high-gain directional indoor
antenna
zBoost® YX741 User Manual zBoost® YX741 User Manual
10 11
Technical Speci cations
PCS Frequency CEL Frequency
Frequency 1850 - 1990 MHz 824 - 894 MHz
System Gain 62 dB 65 dB
Band Supported ALL: A,D,B,E,F & C ALL: A,B, A’ & B’
Output power UL: +20 dBm; DL: +10 dBm UL: +20 dBm; DL: +10 dBm
Cable Loss 3000 MHz RG-6, approx. 1dB/10 ft. 3000 MHz RG-6, approx. 0.6 dB/10 ft.
Network Format CDMA, GSM, TDMA, GPRS, EDGE, EVDO, HSPA, 3G
Base Unit RF Connectors F-type female and TNC female
Wall Supply Unit 100-240 VAC 50 Hz - 60 Hz
Input and Output Impedance TNC Connector: 50 Ohm; F Connector: 75 Ohm
Power Consumption 3W standby; 7W max signal - 2.0A Max
System Certifi cations UL, FCC Parts 15 & 24 (PCS), FCC Parts 15 & 22 (CEL), Industry Canada
Base Unit Size and Weight 5” x 7” x 1.25” - 12 oz.
Base Unit and Power Supply Indoor Use Only, 0° to 45° C (32° to 113° F)
The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple
carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-
radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power
or gain reduction and not by an attenuator at the output of the device.
Solid GREEN Normal condition at power up.
Slowly Alternating RED and GREEN zBoost is working, but at reduced
performance and coverage due to “non-
ideal” setup.
Solution: Increase the distance
between External Antenna and
Indoor Antenna to achieve maximum
performance and coverage.
Fast Flashing RED Indicates insu cient distance between
the External Antenna and the Indoor
Antenna.  e ampli er is operating at
signi cantly reduced coverage.
Solution: Increase space between
Indoor and External antennas.
Solid RED System is receiving signals from either
the mobile device or the base station
transceiver which are too strong for
proper operation.
Solutions: Move away from
receiving antenna with your cell phone.
Move antenna away from other
devices..
Fast Alternating RED and GREEN
followed by no light
e ampli er is disabled.
Solution: Unplug and start over.
At Initial Power Up Only
Solid GREEN Normal condition.
Solid RED System is receiving signals from either
the mobile device or the base station
transceiver which are too strong for
proper operation.
Solution: Please unplug your system.
Re-orient your External Antenna and/
or Base Unit to reduce the excessive
signal source. Plug your system back in.
If still solid red, call customer support
1-800-871-1612.
After Initial Power Up
Base Unit Light Indicators
zBoost® YX741 User Manual zBoost® YX741 User Manual
12 13
Frequently Asked Questions
What can I expect the cell phone signal range and strength to be inside the building?
e closer you are to the base, the stronger the signal.  is will vary with di erent conditions. Some of the
conditions that will a ect the improved coverage area are signal strength outdoors, the type of building
materials, the placement of the unit and the antenna’s proximity to cellular towers.
You can expect that indoor coverage will be improved. People will be able to make calls where they couldn’t
before.  e degree of improvement will depend upon many factors.  e intent of zBoost products are to
bring outside coverage inside. Just as the signal bars move up and down when outside, the boosted signal
will  uctuate in a similar fashion.
Is a cellular phone signal booster the same as a wireless router; will it help Wi-Fi signal?
e zBoost unit will not help WiFi service.  is unit is designed to work with wireless PCS and Cellular
phones and devices. WIFI operates on a di erent frequency.
Why isn’t my cell phone indicating more signal with more bars?
You may not always observe more bars that gain on your signal meter because of the signal spreading out
from the antenna. If your phone has a dB meter, 3 dB is a signi cant increase of 2x, 6 dB is 4x, and 10 dB is
10x. On a four bar phone, one "bar" equals about 10 dB.
e increase in signal you will see depends upon:
•  e level of signal at the External Antenna (outdoor)
•  e care of the antenna placement (two feet away from metal, adequate antenna separation [15 feet
recommended])
•  e signal already present inside (related to building losses)
•  e distance of mobile devices from the Base Unit (signal spreads or diminishes rapidly with distance.)
There are usually several cell phones in use at one time in this office, will your product boost all signals
simultaneously?
e zBoost YX741 is designed to cover multiple signals simultaneously and will allow multiple users to
operate at the same time.
Does the zBoost work if you have no bars?
No, if no signal is present outdoors zBoost products will not work for you. Also, keep in mind if your best
signal is 1 bar at the External Antenna, your coverage will be limited.
Frequently Asked Questions
Where should I put the Indoor Antenna to get the best coverage?
You should install the Indoor Antenna where coverage is needed the most.  e Indoor Antenna is the
component that ampli es the signal inside.  e coverage area and direction is dependant on the type of
antenna used (directional or omnidirectional).  e further away the phone is from the antenna, the weaker
the signal.  e antenna be placed in a central meeting room, lobby, or other central location.
Note: if you install the External Antenna too close to the Indoor Antenna, the system will shut down (red
light will blink).  is is a normal condition for this scenario. It means that you must ensure a su cient
distance between the 2 antennas; otherwise, it will detect feedback or noise and will automatically shut
down.
Where is the best place to put the zBoost External Antenna?
e zBoost External Antenna should be placed at the highest point in order to “catch” the strongest signal.
is location will likely be on the roof.  e placement of the External Antenna is very important. It is best
to place this in an unobstructed area, preferably above the roof line.
Note: if you install the External Antenna too close to the Indoor Antenna, the system will shut down (red
light will appear).  is is a normal condition for this scenario. It means that you must ensure a su cient
distance between the 2 antennas; otherwise, it will detect feedback or noise and will automatically shut
down.
The light is continually blinking
ere are several reason that the zBoost light could be blinking. Please see the Light Indicator section on
Page 10 for speci c answers.
zBoost® YX741 User Manual zBoost® YX741 User Manual
14 15
Limited 1 Year Warranty
Warranty registration at www.zBoost.com
zBoost warrants every product to be free from defects in material and workmanship under normal use for the
warranty period of one year.
Who Is Covered?
You must have proof of purchase to receive warranty service. A sales receipt or other documentation showing the
product purchased and the purchase date is considered proof of purchase.  is limited warranty extends only to
the original purchaser and to no other purchaser or transferee.
What is Covered?
Warranty coverage begins the day you purchase the product. For one year from the original date, the zBoost
Cell Phone Signal Booster will be repaired or replaced with a new, repaired, refurbished or comparable product
(whichever is deemed necessary by zBoost) if it becomes defective or inoperative.  e exchange will be made
without charge to you for parts and labor. You will be responsible for the cost of shipping to the location
designated by zBoost.
All products, including replacement products, are covered only for the original warranty period. When the
warranty on the original product expires, the warranty on the replacement product also expires.
What is Excluded?
Your warranty does NOT cover:
• Labor charges for set up of the unit.
• Product replacement because of misuse, accident, lightning damage, unauthorized repair or other cause
not within the control of zBoost.
• Incidental or consequential damages resulting from the product. Some states do not allow the exclusion
of incidental or consequential damages, so the above exclusion may not apply to you.
• Any modi cations or other changes to the product, including but not limited to software or hardware
modi cations in any way other than as expressly authorized by zBoost will void this limited warranty.
• Product that has been modi ed or adapted to enable it to operate in any country other than the country
for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by
these modi cations.
Warranty Information Make sure you keep…
Please keep your sales receipt or other document showing proof of purchase. Attach it to this User Manual and
keep both nearby. Also, keep the original box and packing material in case you need to return your product.
Before requesting repair service…
If red light is on, system is receiving signals from either the mobile device or the base station transceiver which are
too strong for proper operation. Please unplug your system. Re-orient your External Antenna and/or Base Unit to
reduce the excessive signal source. Plug your system back in. If still solid red, call customer support at
1-800-871-1612.
To get warranty service…
Warranty service will be provided by zBoost. If you believe you need service for your unit, contact zBoost at
1-800-871-1612 or support@zBoost.com. A representative will go through a diagnostic checklist with you. If it is
determined that the product needs to be returned for service or exchanged, you will receive a return merchandise
authorization (RMA) number.  e representative will give you complete shipping details. Do not return products
to zBoost without a Return Authorization Number (RMA).
To get out of warranty service…
To obtain out of warranty service, contact zBoost at 1-800-871-1612 or support@zBoost.com for information on
the possibility of any costs for repair or replacement of out-of-warranty products.
Reminder
Record the model and serial number found on the product below:
Model #: __________________________________
Serial #: ___________________________________
Purchase Date: ____________________________
zBoost® YX741 User Manual zBoost® YX741 User Manual
16 17
Wireless Extenders (“zBoost”) Industrial Signal Booster Consent Form
Prior to the installation of an industrial signal booster it is imperative that you either be an FCC Licensee or have express consent
from all of the FCC Licensees for which signals you wish to rebroadcast. O cial Industrial Warning Label below.
Please complete the information below and keep on record before the installation of ANY industrial signal boosters.
Installer Information
Name
_______________________________________________________________________________________
Address
_______________________________________________________________________________________
Contact Info
_______________________________________________________________________________________
Installation Site Information
Name
_______________________________________________________________________________________
Address
_______________________________________________________________________________________
Contact Info
_______________________________________________________________________________________
FCC Licensee express consent has been given by the following:
FCC Licensee Name
_______________________________________________________________________________________
Contact Person Name
_______________________________________________________________________________________
Contact Information
_______________________________________________________________________________________
Date Consent Granted
_______________________________________________________________________________________
FCC Licensee Name
_______________________________________________________________________________________
Contact Person Name
_______________________________________________________________________________________
Contact Information
_______________________________________________________________________________________
Date Consent Granted
_______________________________________________________________________________________
FCC Licensee Name
_______________________________________________________________________________________
Contact Person Name
_______________________________________________________________________________________
Contact Information
_______________________________________________________________________________________
Date Consent Granted
_______________________________________________________________________________________
FCC Licensee Name
_______________________________________________________________________________________
Contact Person Name
_______________________________________________________________________________________
Contact Information
_______________________________________________________________________________________
Date Consent Granted
_______________________________________________________________________________________
WARNING.  is is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and
QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee
to operate this device. Unauthorized use may result in signi cant forfeiture penalties, including penalties in excess
of $100,000 for each continuing violation.
For further information, visit
http://wireless2.fcc.gov/UlsApp/UlsSearch/searchLicense.jsp
Verizon
Verizon Wireless (VAW) LLC
Attn: Regulatory
1120 Sanctuary Pkwy, #150
Alpharetta, GA 30009-7630
(770) 797-1070
LicensingCompliance@VerizonWireless.com
AT&T
AT&T Mobility Wireless
3300 E. Renner Road, # B3132
Richardson, TX 75082
FCCMW@att.com
T-Mobile
T-Mobile License LLC
12920 SE 38th St
Bellevue, WA 98006
(425) 383-4000
FCCregulatorycompliancecontact@t-mobile.com
Sprint
SPRINTCOM, INC.
12502 Sunrise Valley Drive
Reston, VA 20196
MetroPCS
MetroPCS Communications, Inc.
2250 Lakeside Boulevard
Richardson, TX 75082
(214) 570-5800
Sample Consent Form Licensee Contact Information

Navigation menu
